Bresciani Valdés Castillo Huidobro's 1950s Santiago Housing Complex Still Holds Lessons

Social housing, when it works, does more than shelter people. It constructs a neighborhood. The Matta Viel Housing Complex, completed in the mid-1950s by Bresciani Valdés Castillo Huidobro (BVCH) with collaborator Julio Bravo, is one of those rare mid-century Latin American projects that managed exactly that. Commissioned by the Caja de Previsión y Estímulo de la Caja Nacional de Ahorros (later Banco del Estado de Chile) for its employees, the complex sits across from what is now Parque O'Higgins in Santiago, Chile. Its four blocks, arranged in a comb formation, generate three courtyards that open toward the park, stitching domestic life into a broader urban landscape.

What makes Matta Viel worth studying today is not simply its modernist pedigree but its calibrated response to three simultaneous scales: the apartment, the block, and the neighborhood. BVCH did not default to a single repeatable slab. Instead, they varied apartment typologies across the blocks, mixed duplex and single-level units, and layered communal infrastructure (pools, gardens, covered walkways) into the ground plane. The result is a project that feels both disciplined and generous, a piece of collective architecture now protected as a Monumento Nacional within the Zona Típica y Pintoresca Barrio Viel.

Four Blocks, Three Courtyards

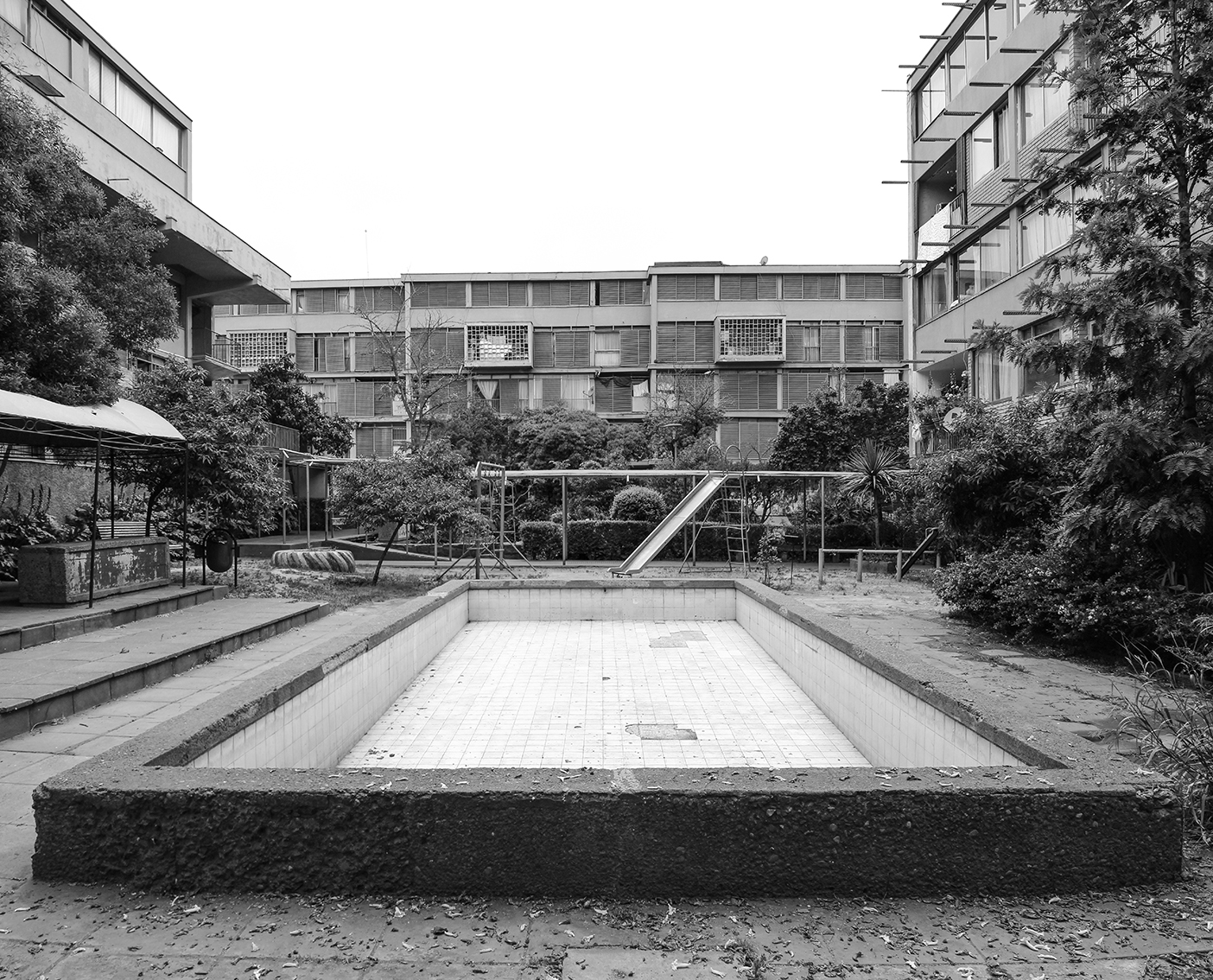

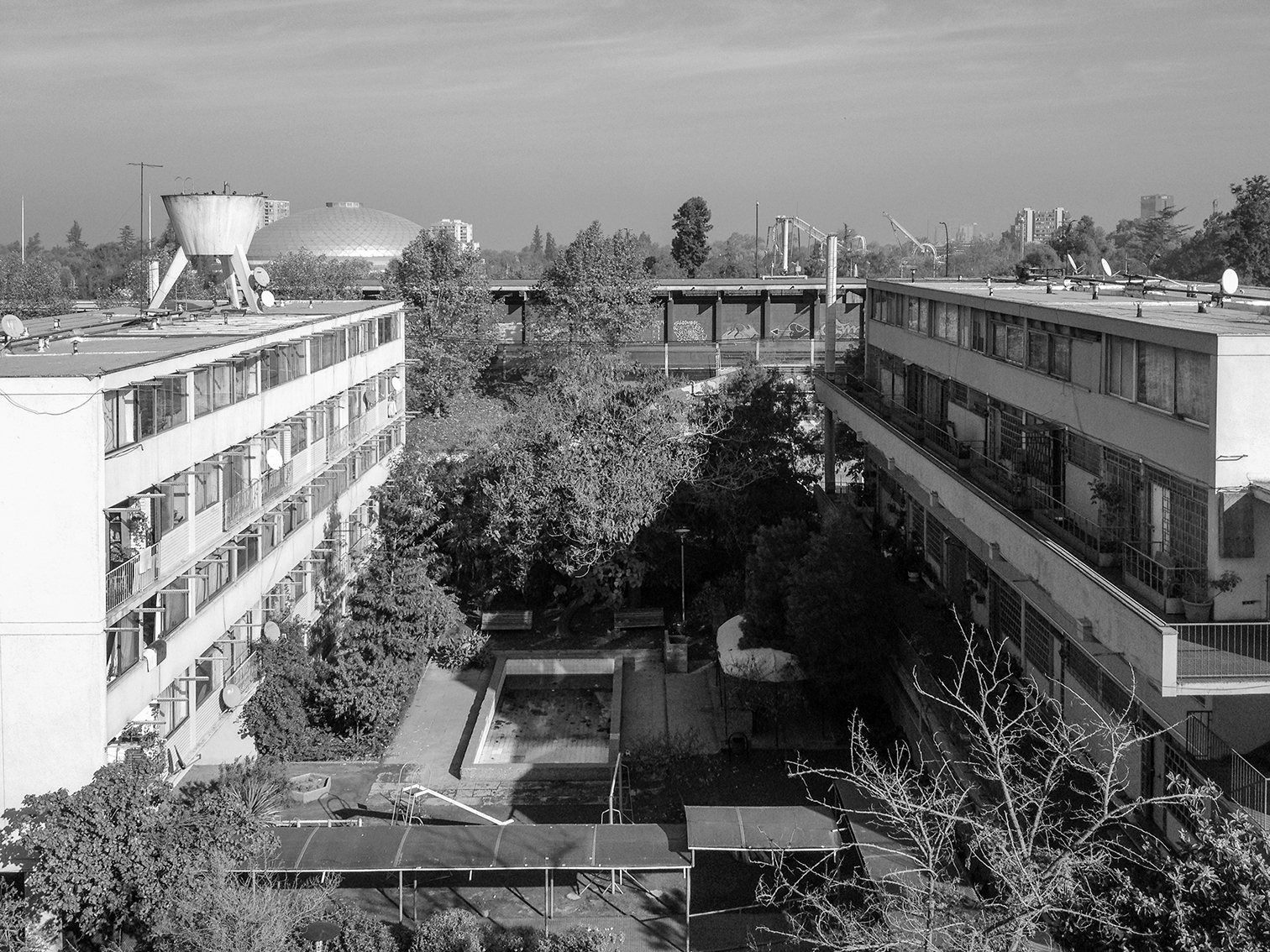

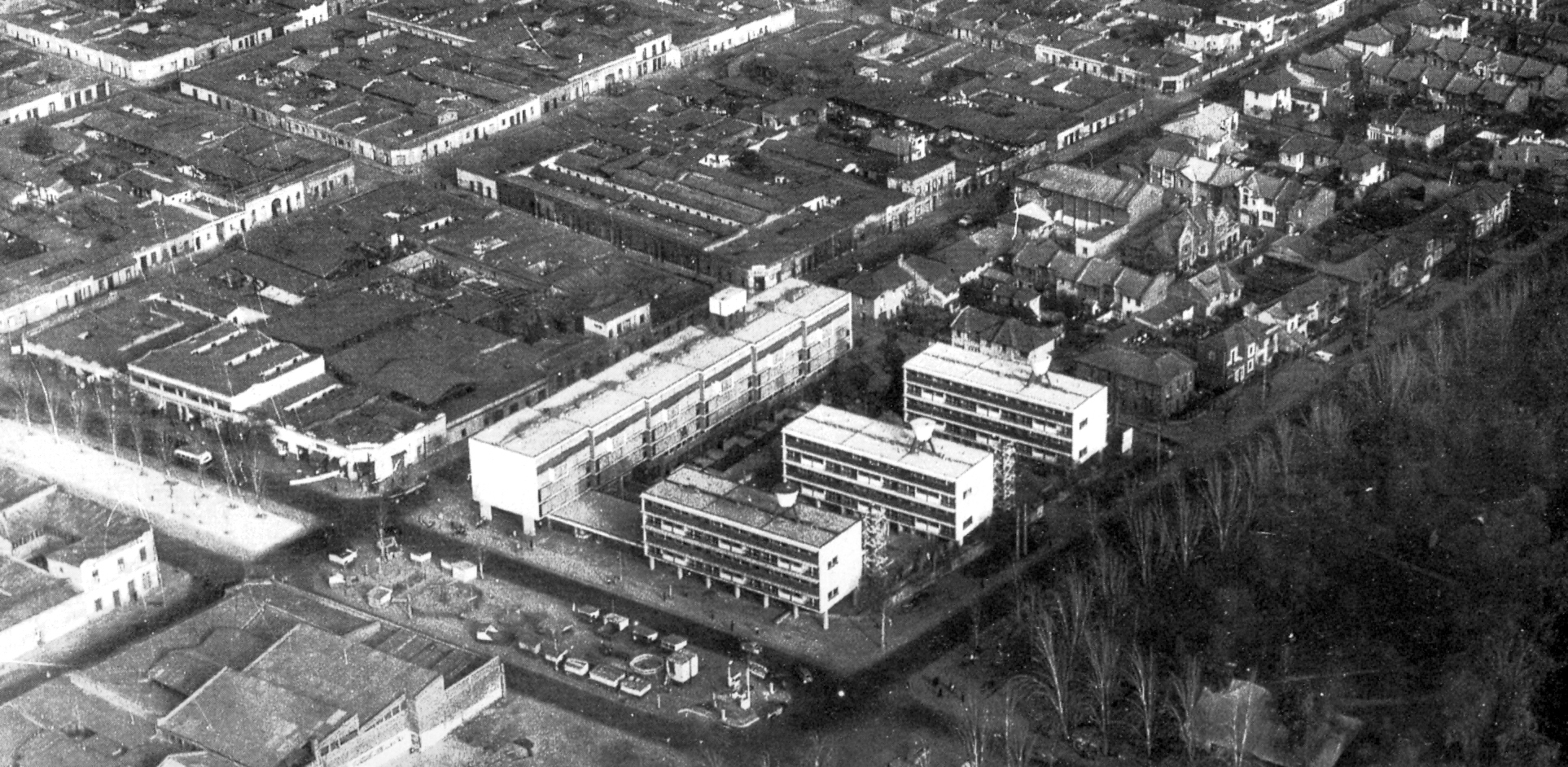

The aerial view reveals the core organizational logic: four parallel residential slabs set perpendicular to the street, creating three elongated courtyards between them. The comb arrangement is not arbitrary. Each courtyard is oriented to capture visual and physical connection to Parque O'Higgins to the west, pulling the park's green presence deep into the residential fabric. Mature trees now fill these voids, and what was once a swimming pool in one courtyard speaks to the ambition of the communal program.

The courtyards operate as decompression zones between blocks, providing light, air, and social space. They are scaled to feel intimate rather than monumental, closer to a garden than a plaza. Over decades of inhabitation, residents have claimed these spaces with planting and informal use, which is exactly the kind of appropriation good housing design should invite.

Material Honesty and Hybrid Construction

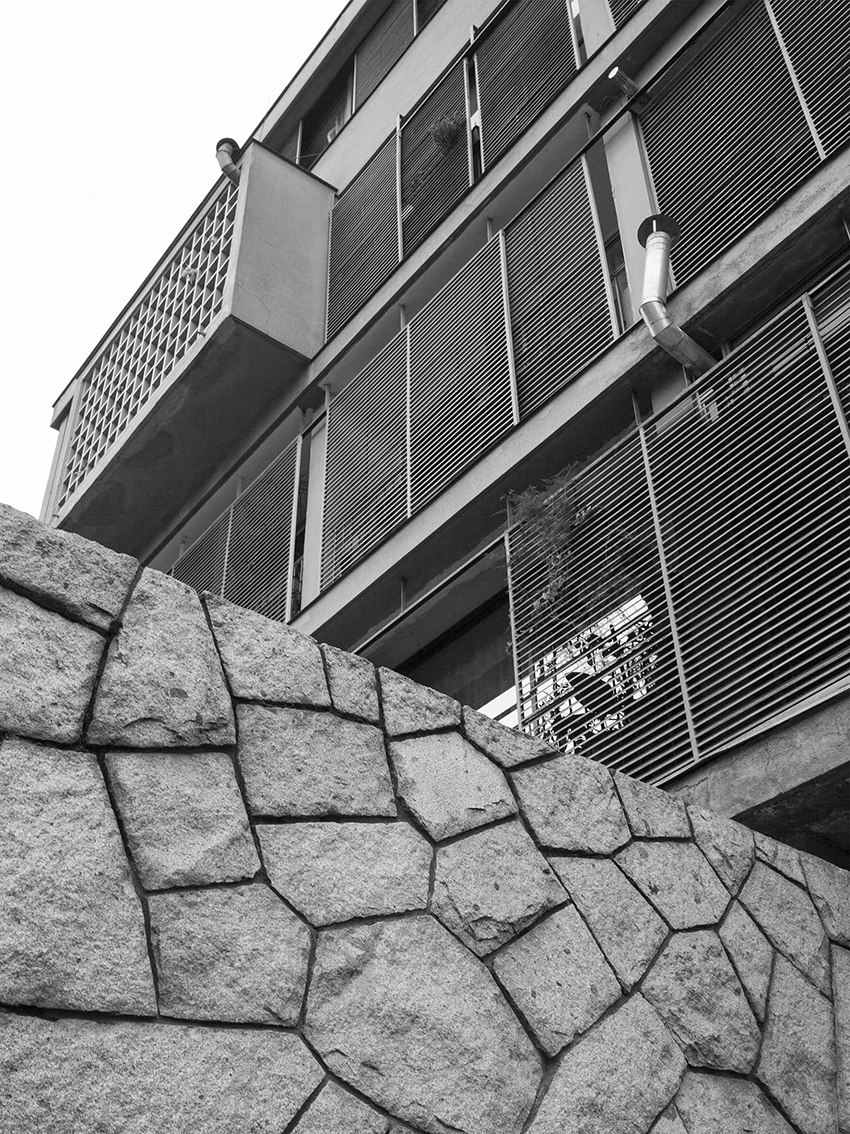

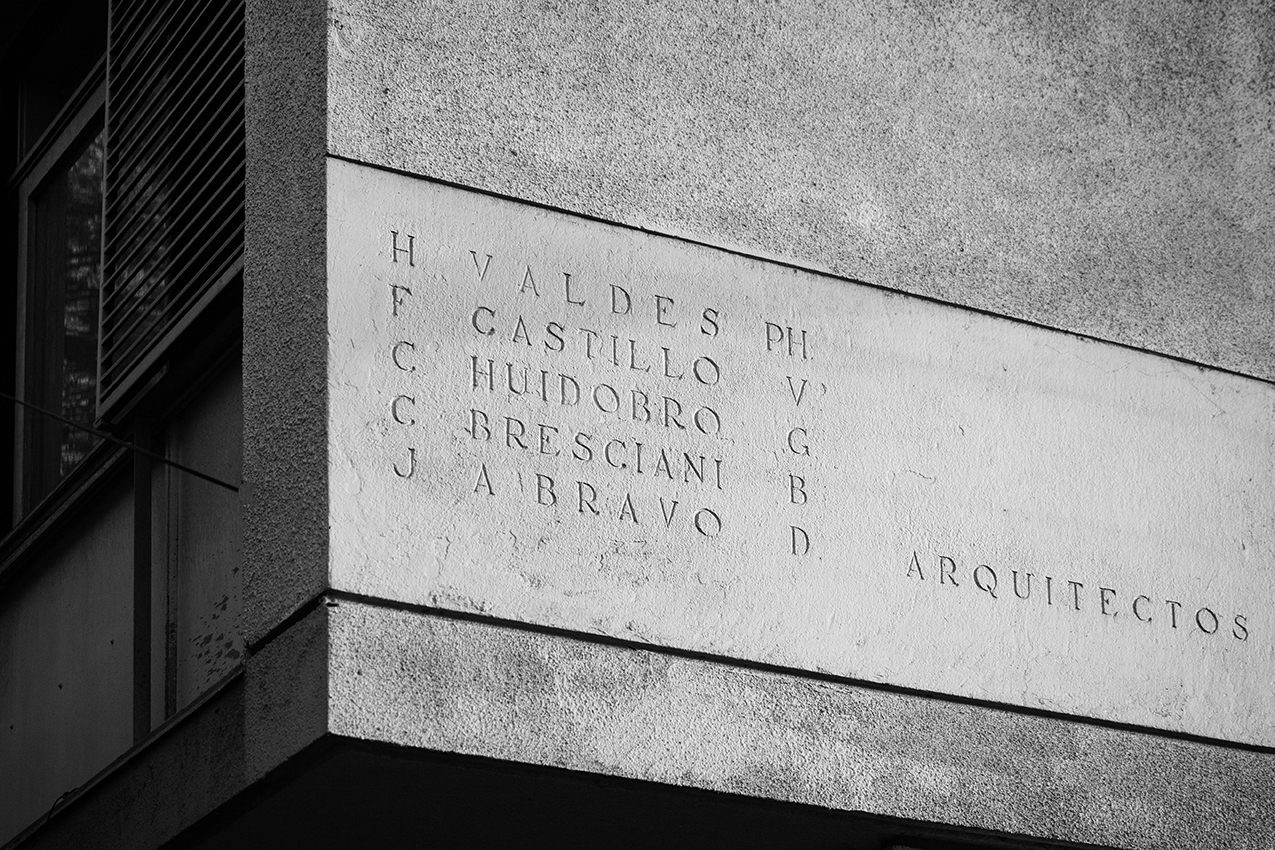

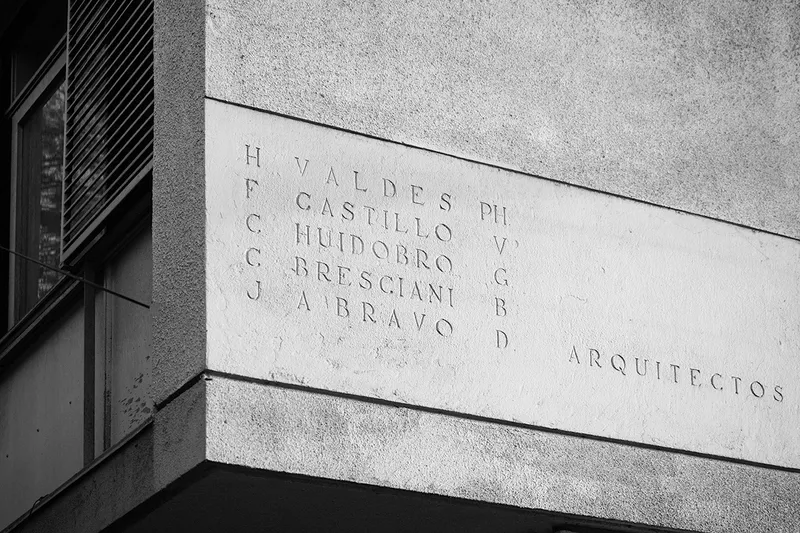

BVCH combined reinforced concrete with wood, brick masonry, stone, and prefabricated elements. The base of one block sits on a rough-cut stone retaining wall, grounding the otherwise crisp modernist volume in something heavier and more tactile. The incised lettering on a textured concrete corner panel listing the architects' names is a small but telling detail: the firm treated even the signage as a material event, not an afterthought.

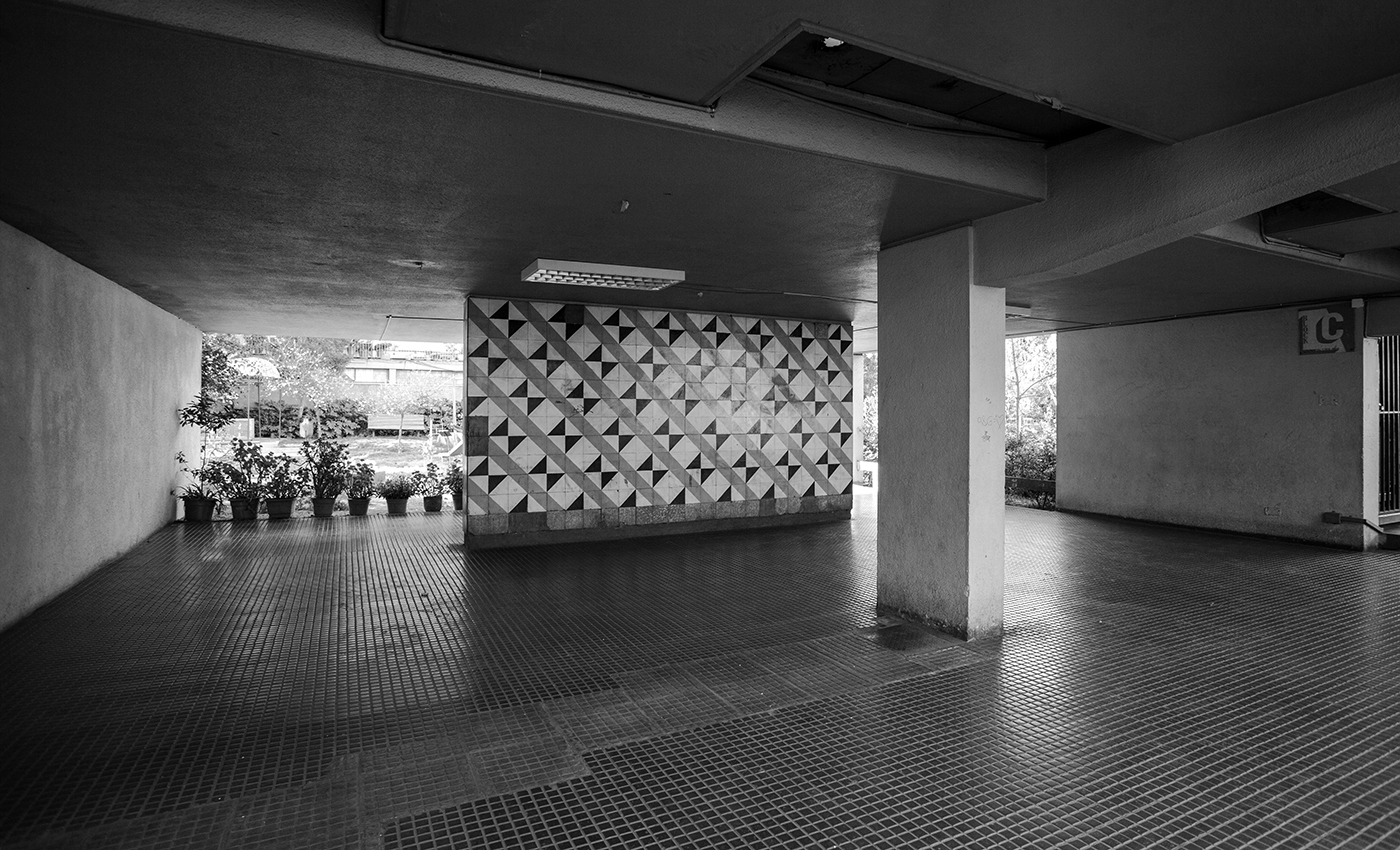

The parking screen wall with its geometric concrete pattern shows the same care applied to utilitarian program. Instead of hiding the cars behind a blank wall, the architects turned infrastructure into pattern, letting light through while maintaining enclosure. It is a minor move, but it signals a design team that refused to switch off its attention when the program became mundane.

Facade as Composition

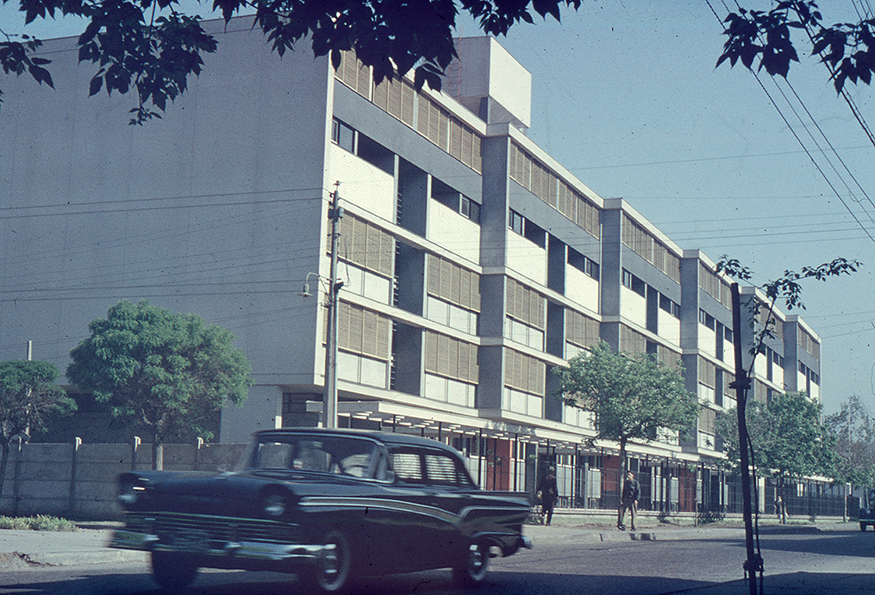

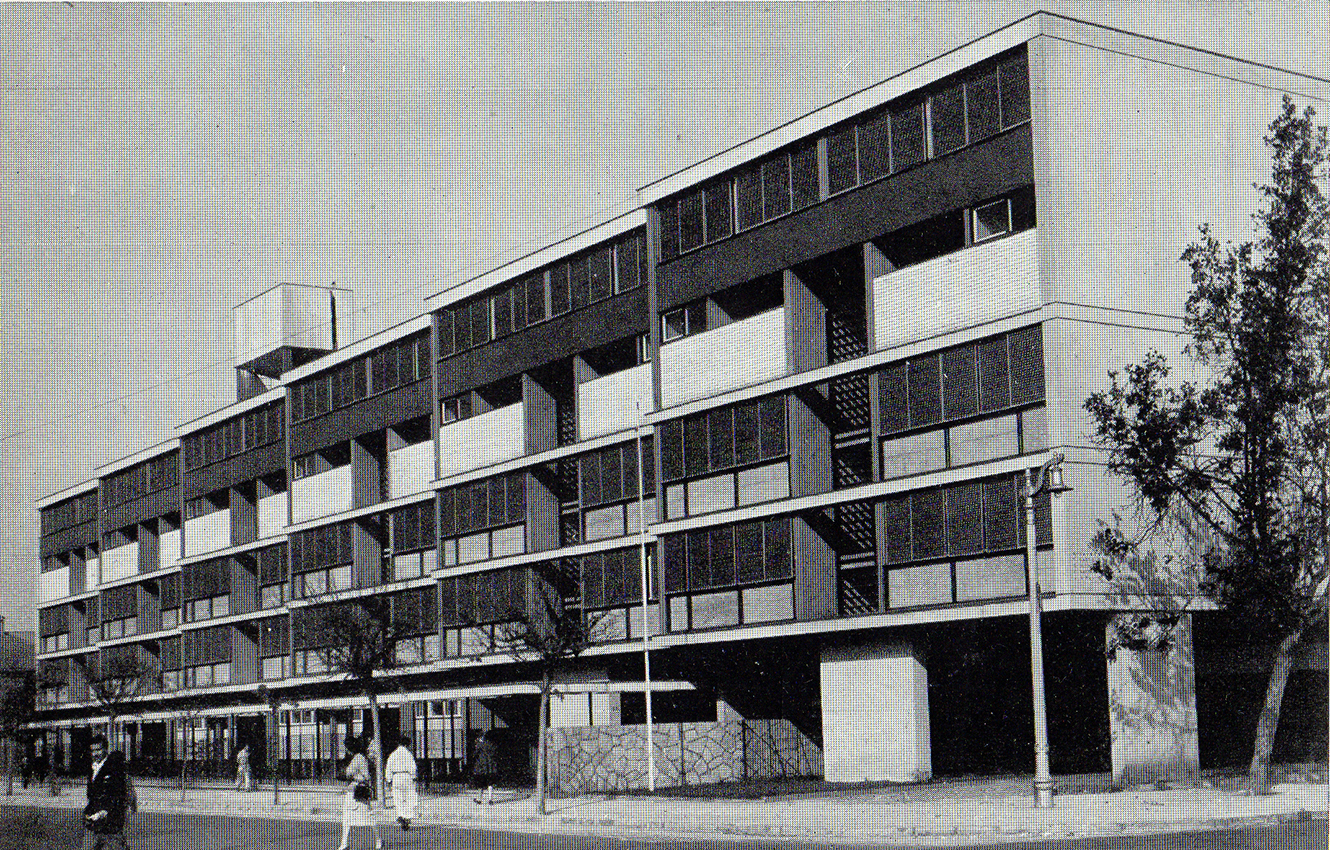

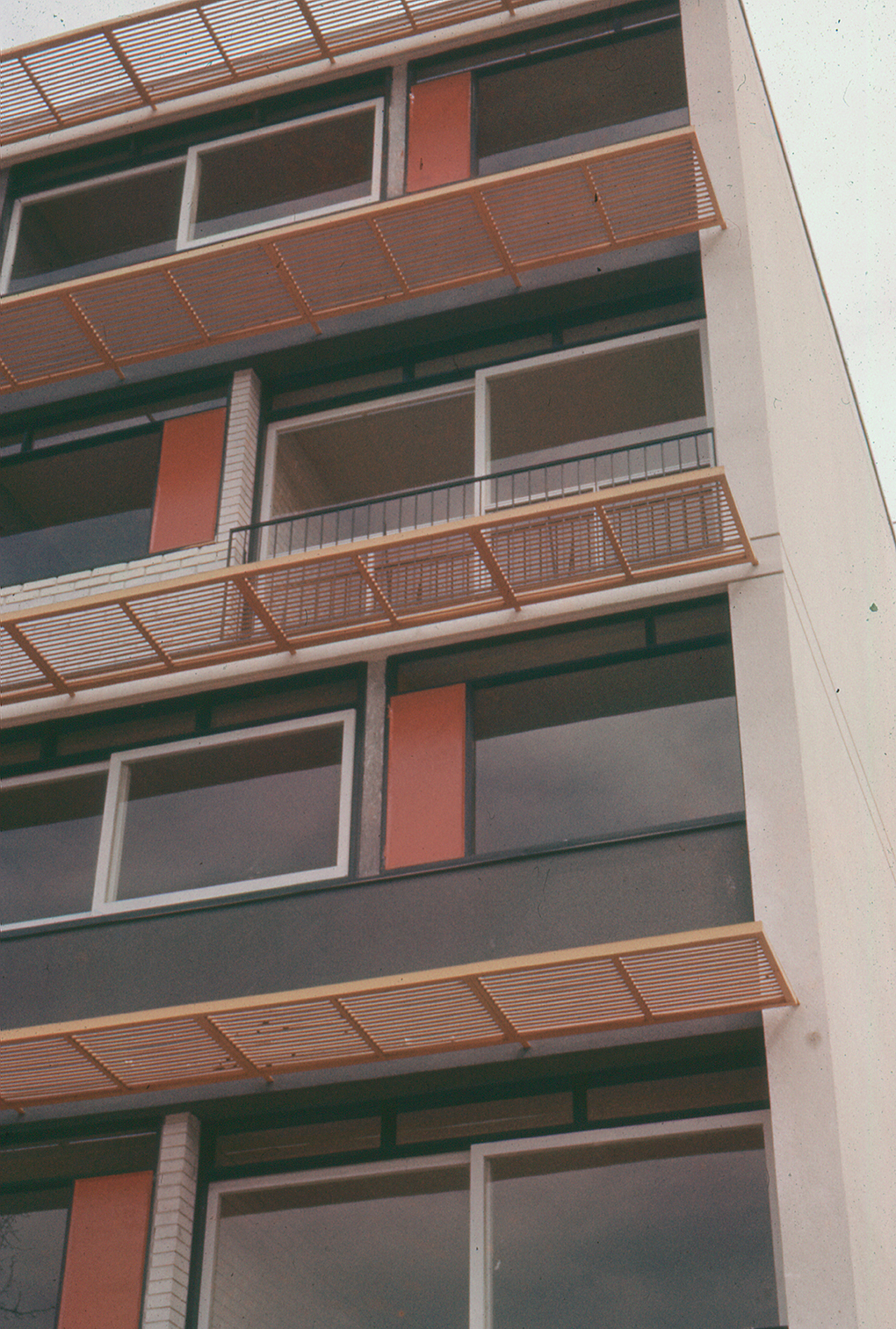

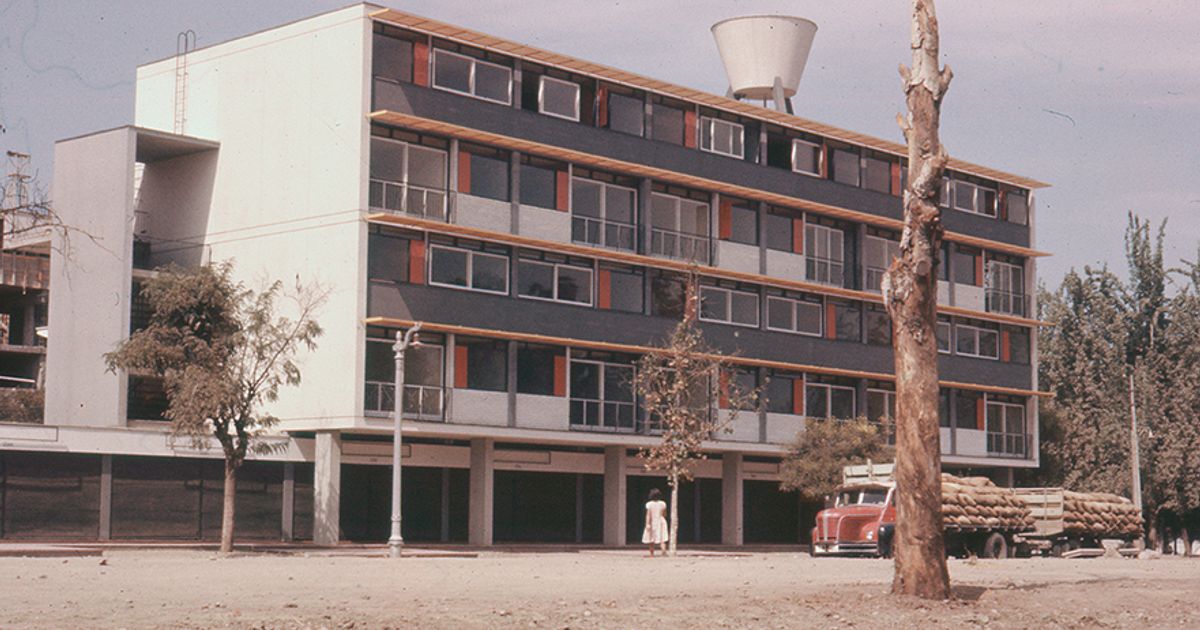

The facades reward close reading. From the street, the gridded elevation reads as an alternating pattern of dark and light panels, a checkerboard logic that breaks the potential monotony of a long slab. At pilotis level, the building lifts off the ground, freeing the landscape to flow beneath the volume. The stacked balconies on the courtyard side introduce a different register: horizontal timber slat screens, orange accent panels, and exposed ventilation ducts create a layered, almost collage-like effect.

The contrast between the street-facing composure and the courtyard-facing informality is deliberate. The public facade is restrained, civic. The courtyard facade is domestic, populated with the evidence of daily life. BVCH understood that a housing block has at least two faces, and they designed both.

The Ground Plane: Walkways, Gardens, Thresholds

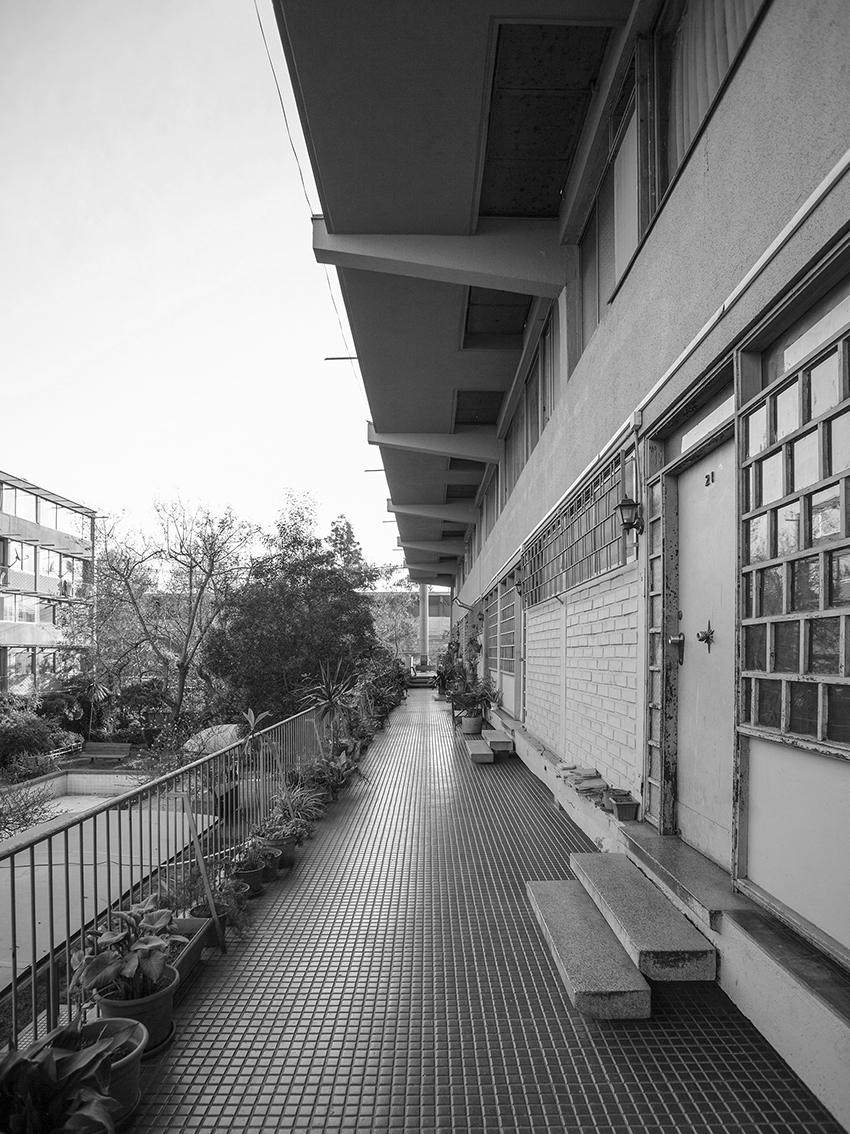

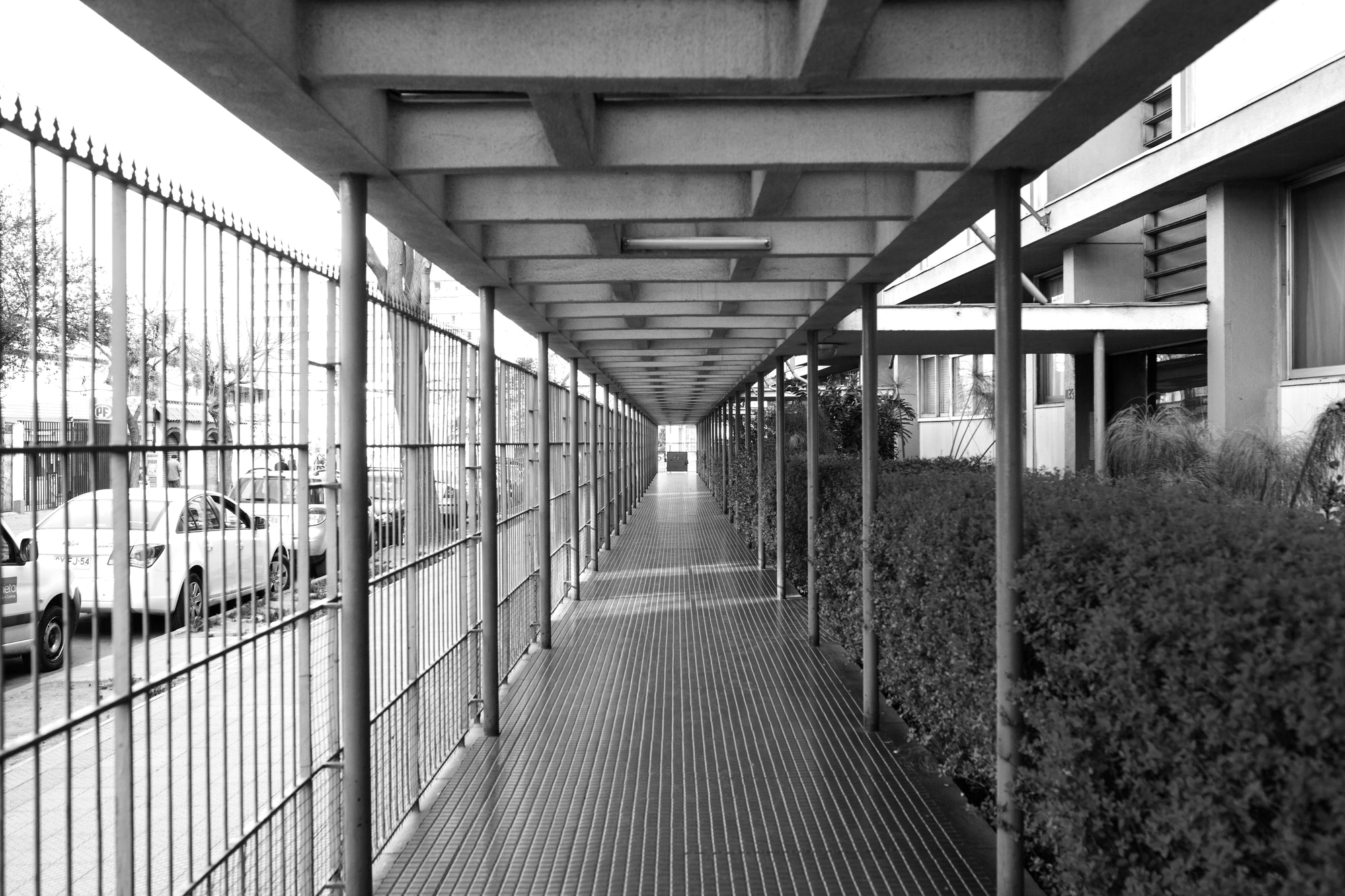

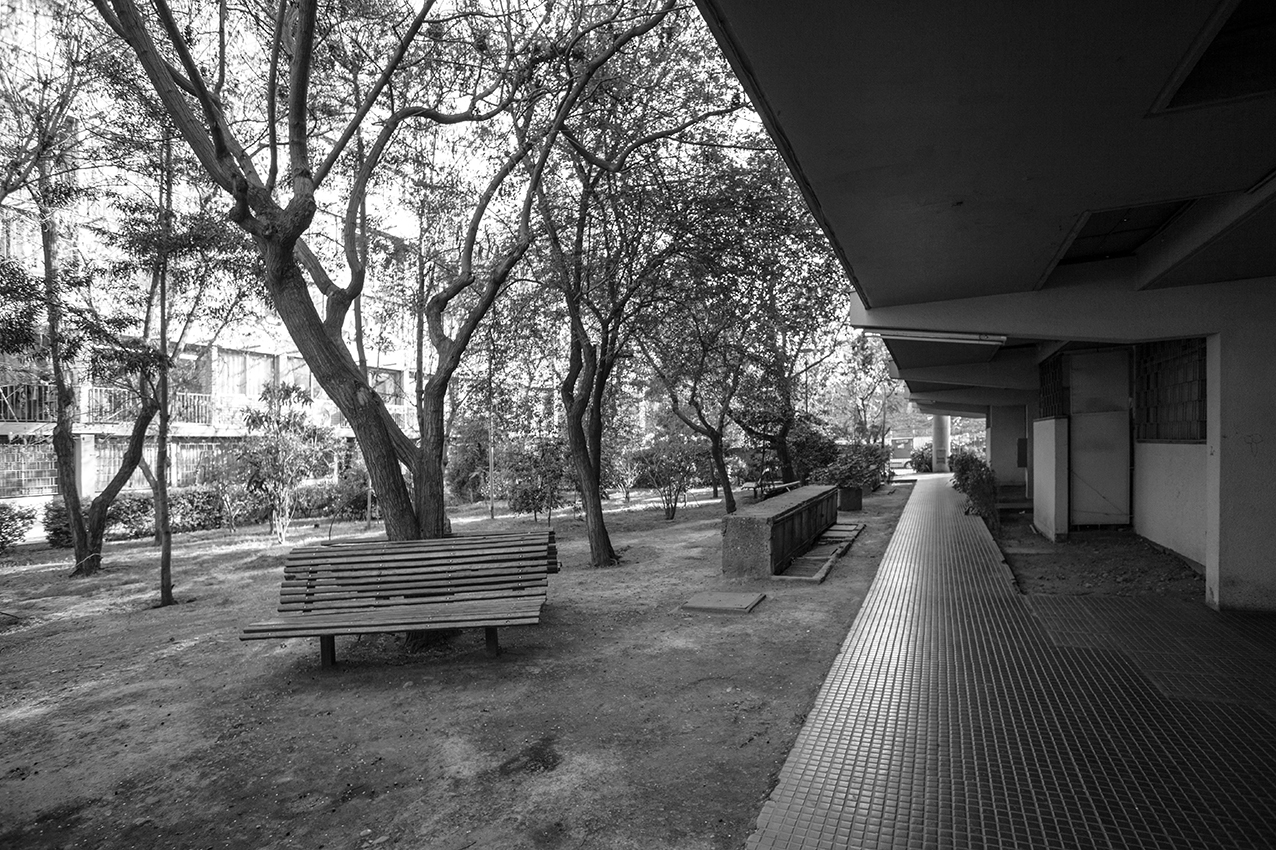

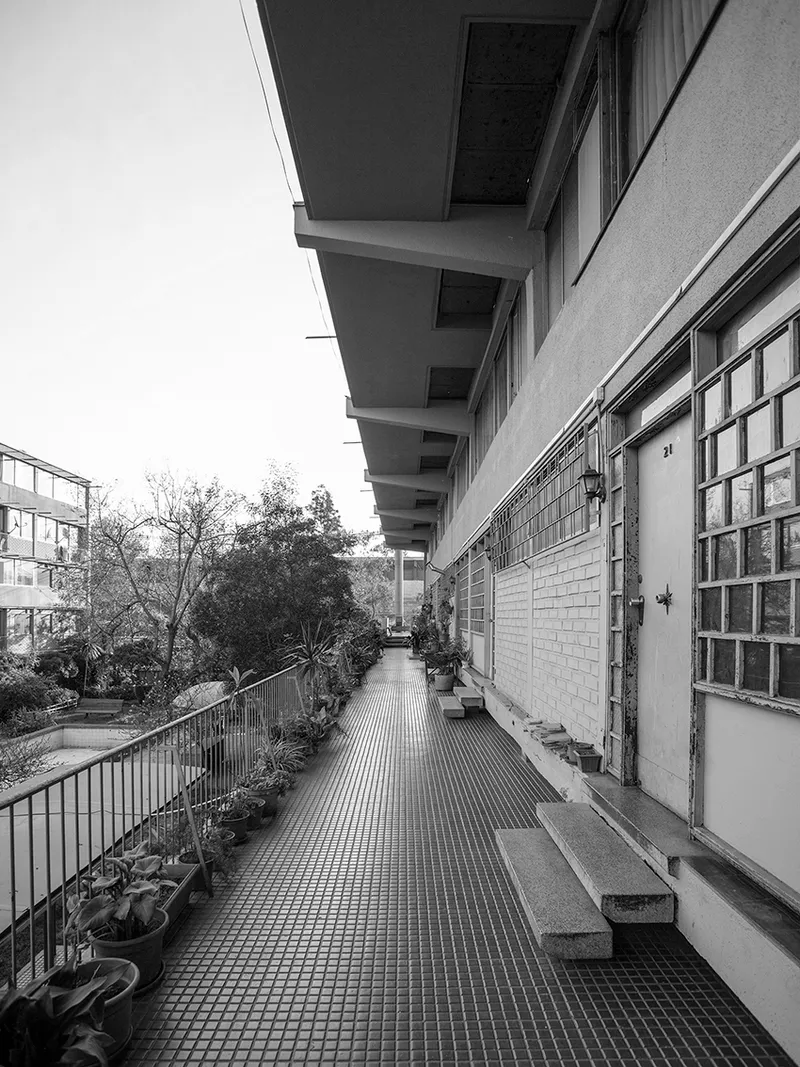

The ground level at Matta Viel is where the project's urban intelligence is most legible. Covered walkways run beneath the raised building volumes, framing views of tree-lined gardens while providing shelter from rain and sun. A long coffered concrete ceiling stretches over one passage, turning circulation into a civic moment. Elsewhere, elevated metal grating walkways run alongside planted beds, separating pedestrian movement from ground-level greenery.

These are not leftover spaces. They are designed thresholds, each one carefully mediating between the private apartment above and the shared courtyard beyond. The benches placed under the pilotis suggest a deliberate invitation to linger, to occupy the ground plane as a social space rather than simply pass through it.

Interior Details and Vertical Circulation

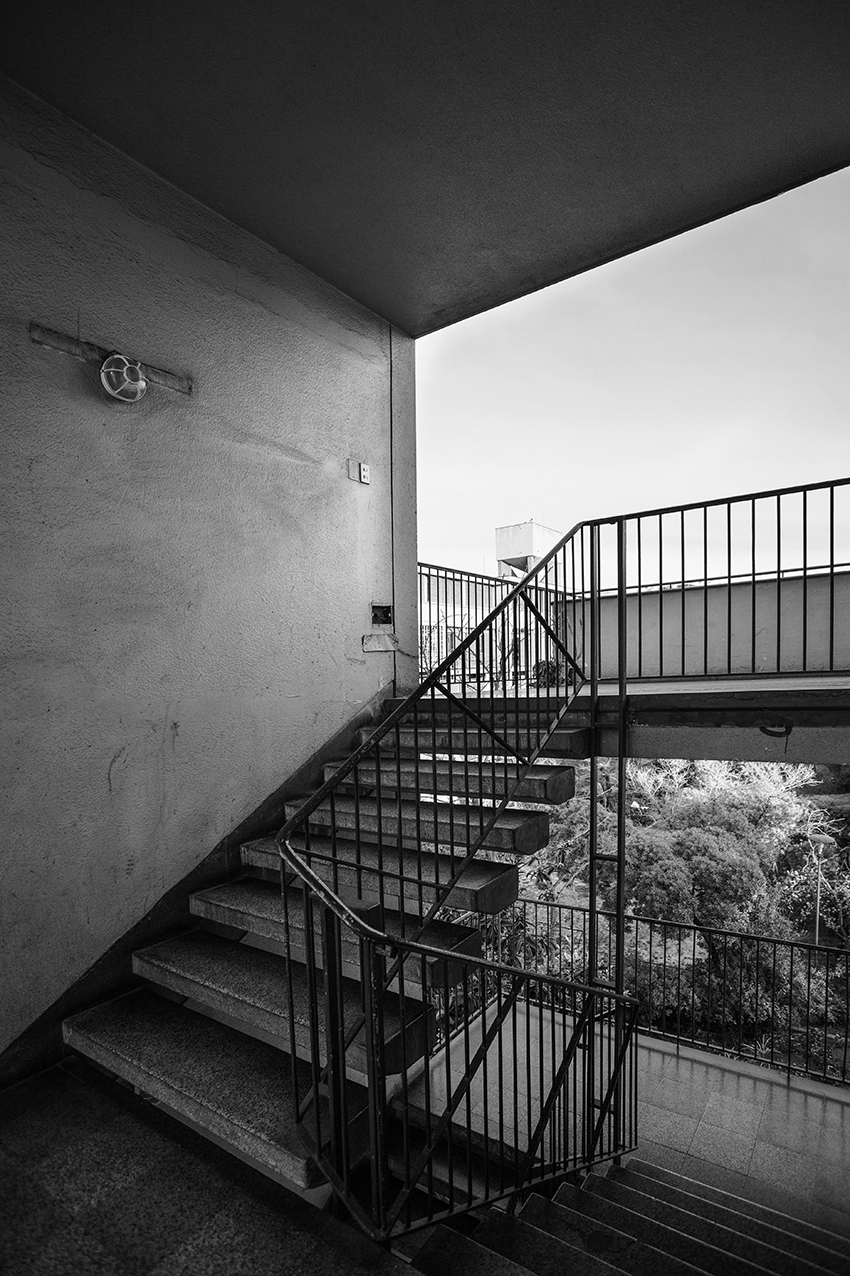

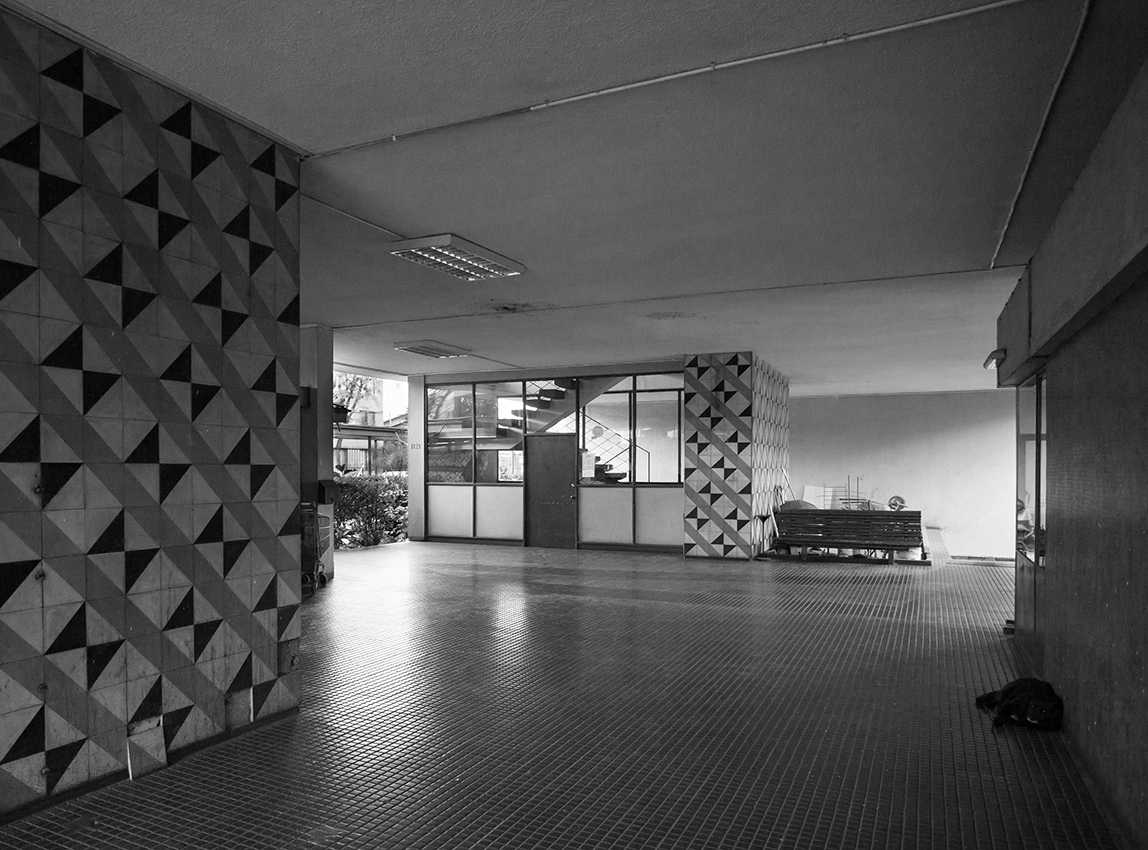

The entry lobby features a pyramidal relief wall panel, a piece of architectural craft that signals arrival. It is a small gesture, but it gives residents something to identify with, a marker of home. The concrete stairwells are open to the exterior, admitting natural light and views of trees at every landing. The metal railings are simple and honest, products of a budget-conscious era that still managed to be elegant.

Inside the apartments, a white-painted timber shelving grid with diagonal bracing hints at the kind of functional furniture design that mid-century Chilean modernism embraced. The architects were thinking at every scale, from the urban plan down to the bookshelf.

Landscape and Infrastructure Over Time

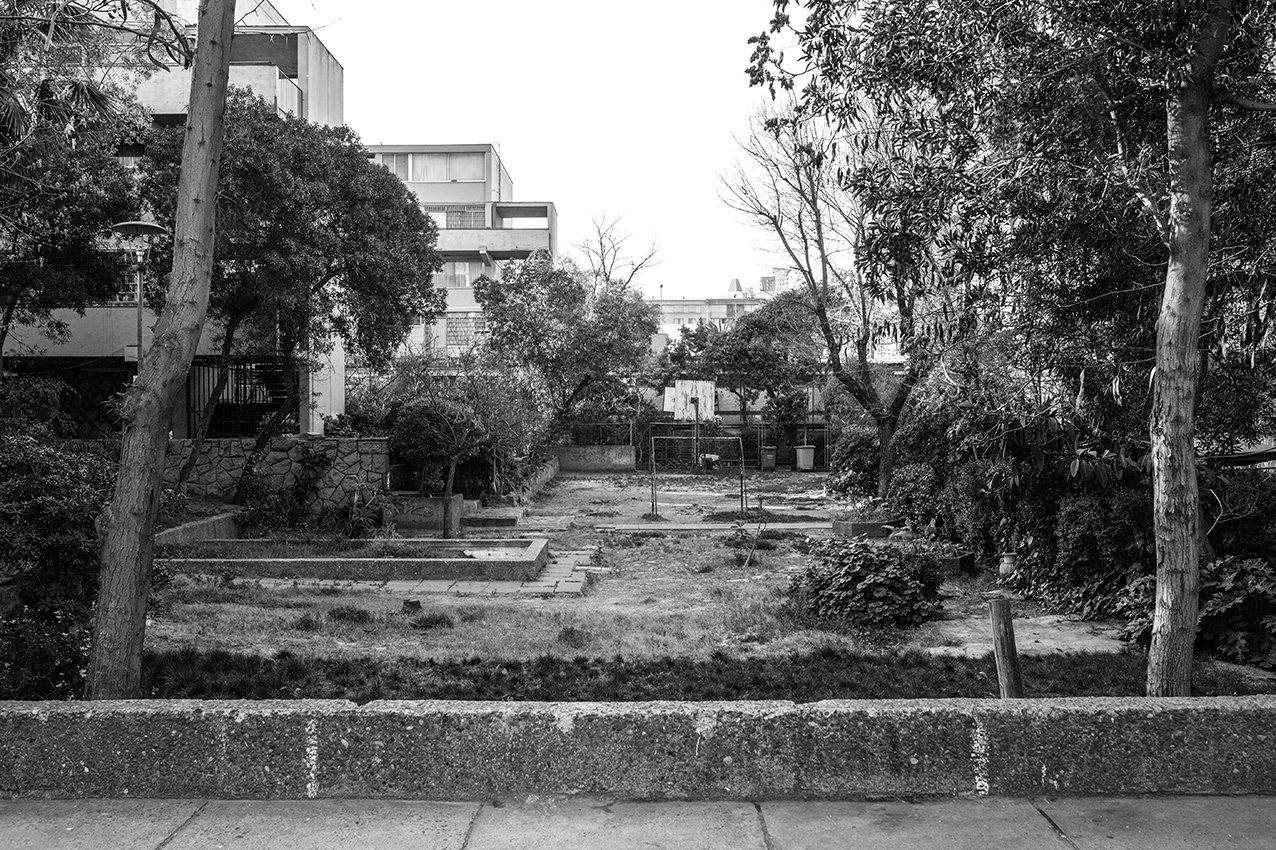

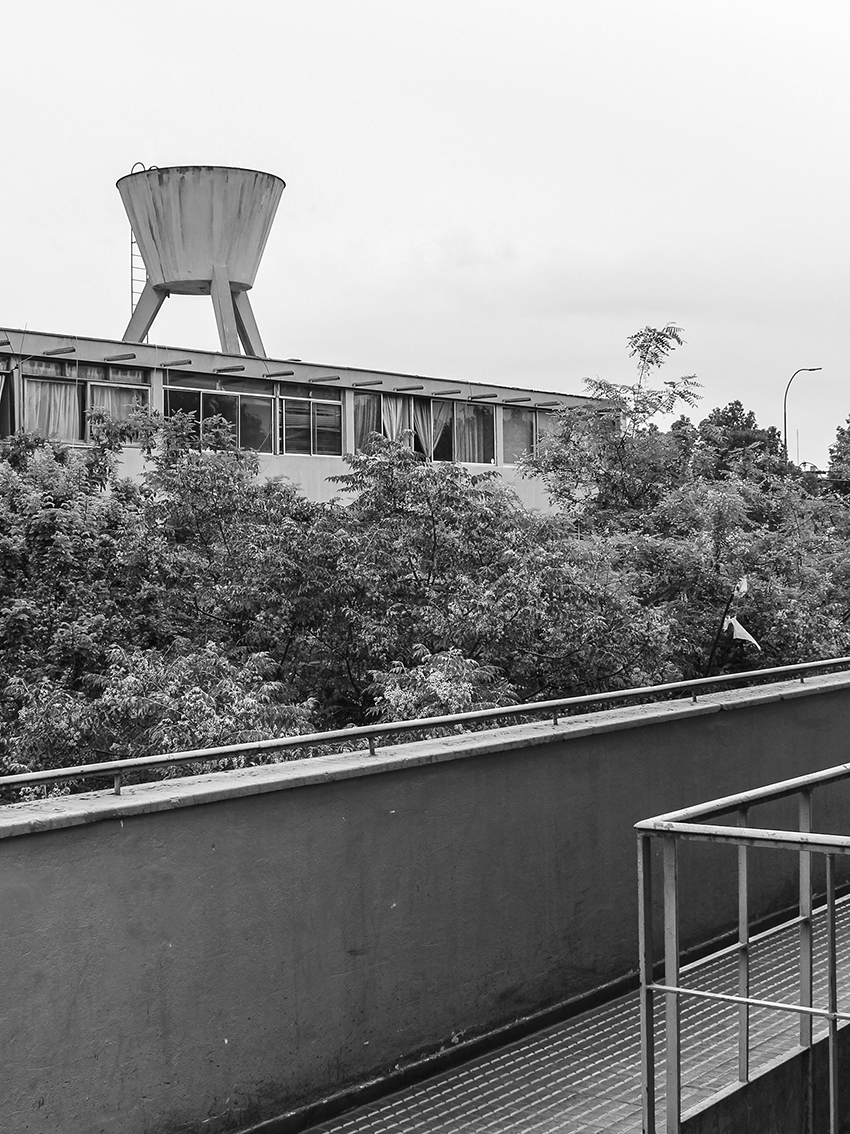

Seven decades of growth have transformed the courtyards. Overgrown terraced planting beds, dense vegetation climbing hillside retaining walls, and mature trees that now tower above the four-storey blocks give the complex a character its architects could only have anticipated in section. The concrete water tower, rising above the horizontal volumes with its continuous glazing, remains a landmark visible from the street, anchoring the complex against the city skyline.

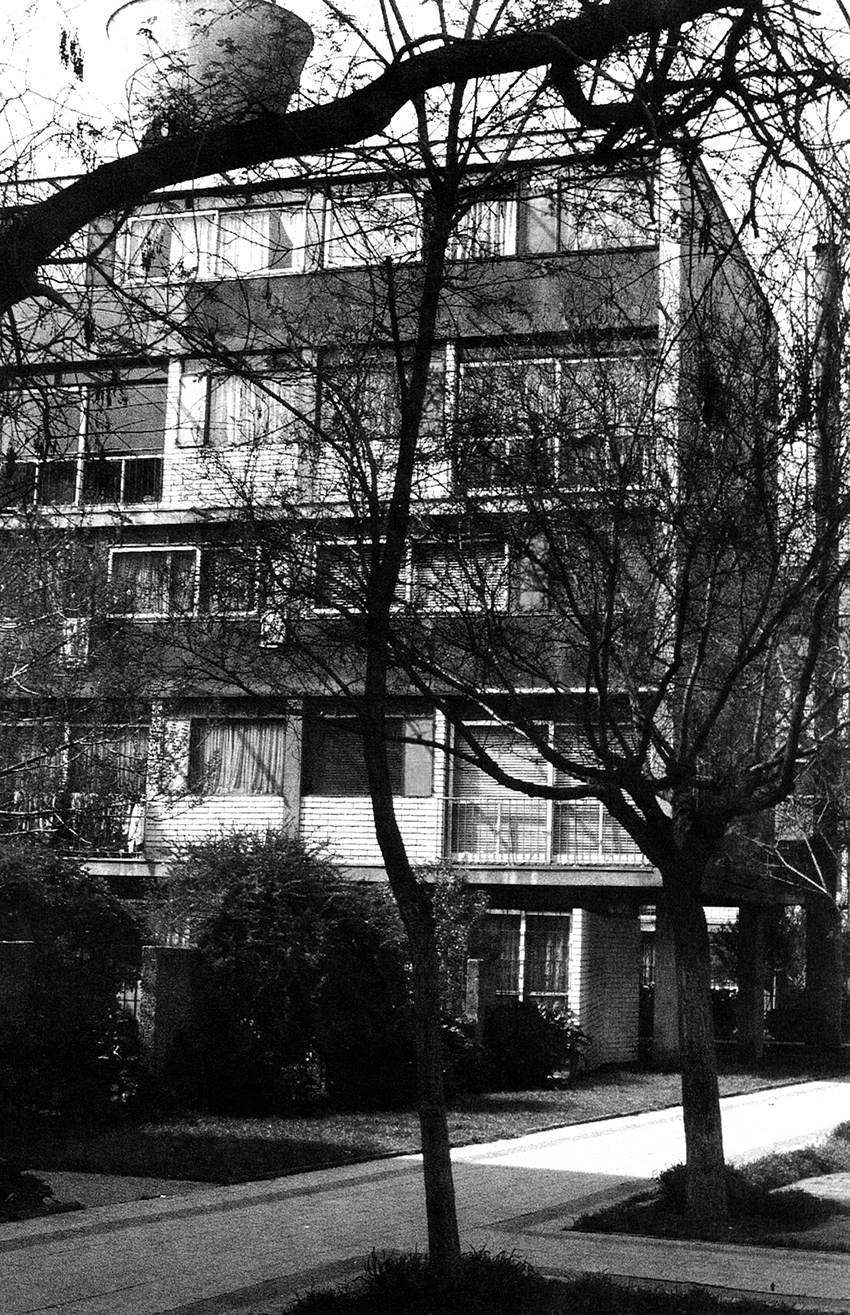

The winter street view, with a bare tree silhouetted against the white facade and the water tower beyond, could be a photograph from 1955 or from yesterday. The architecture has aged with the quiet confidence of a project built on structural and spatial principles rather than stylistic gestures.

Plans and Drawings

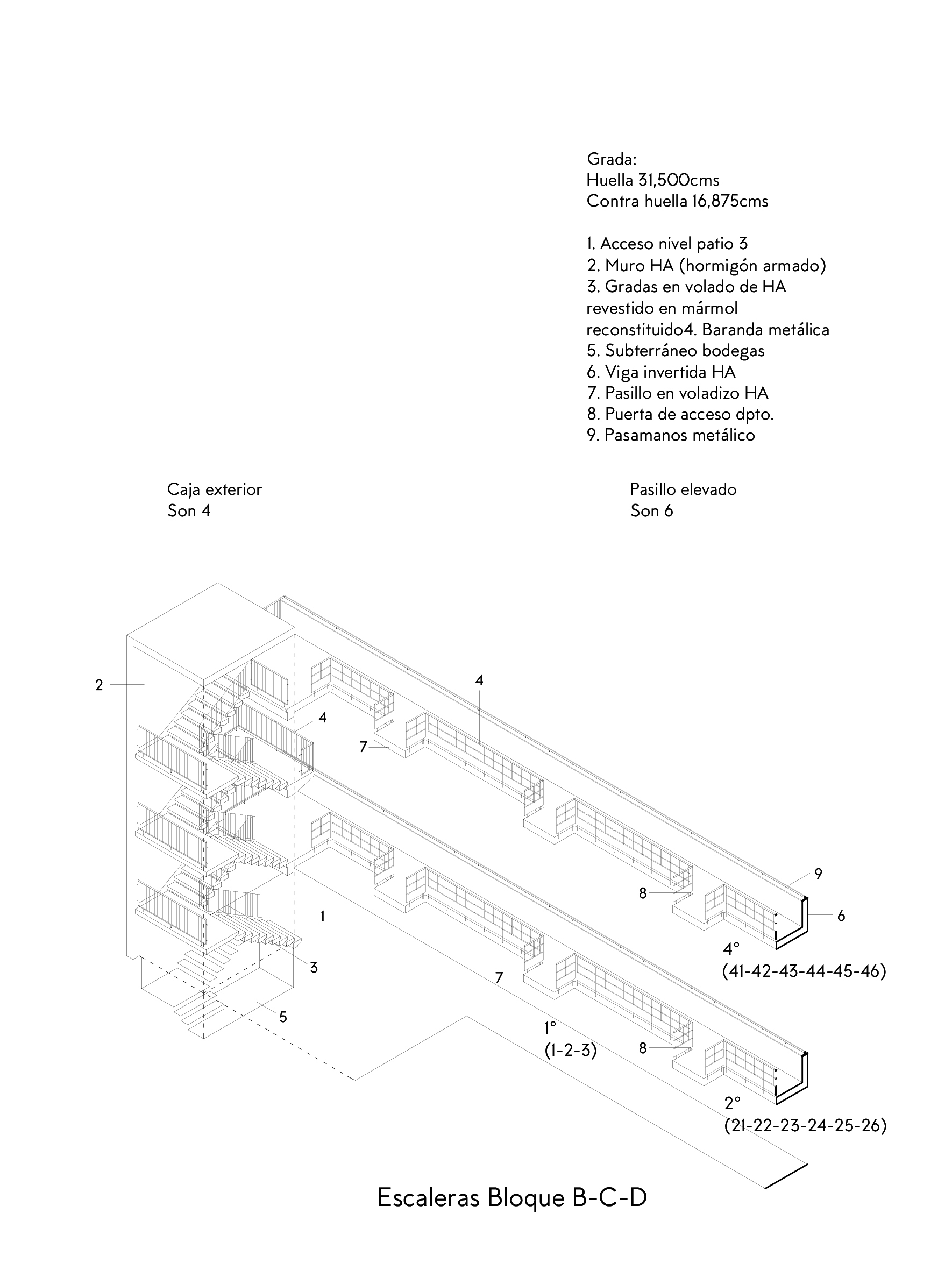

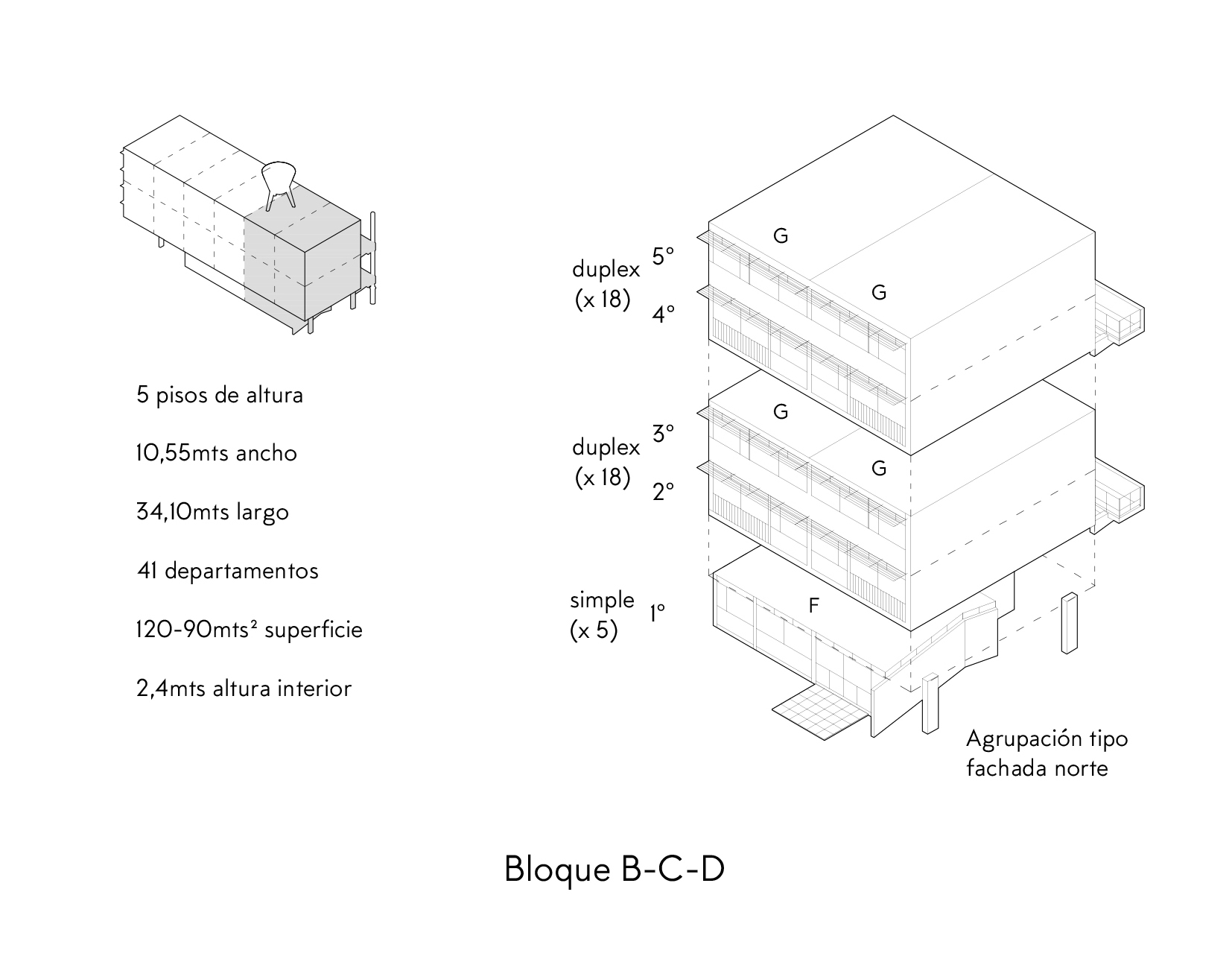

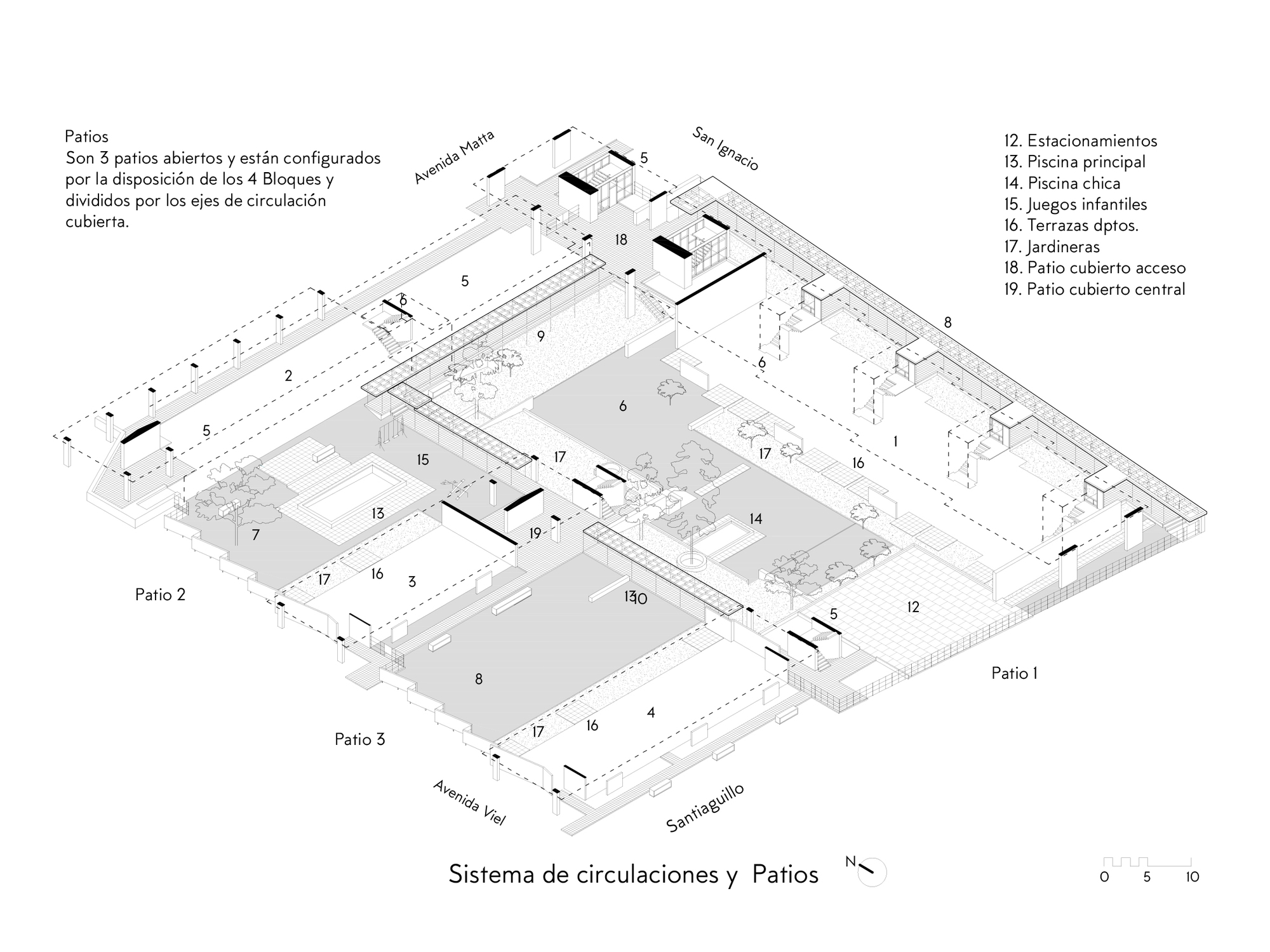

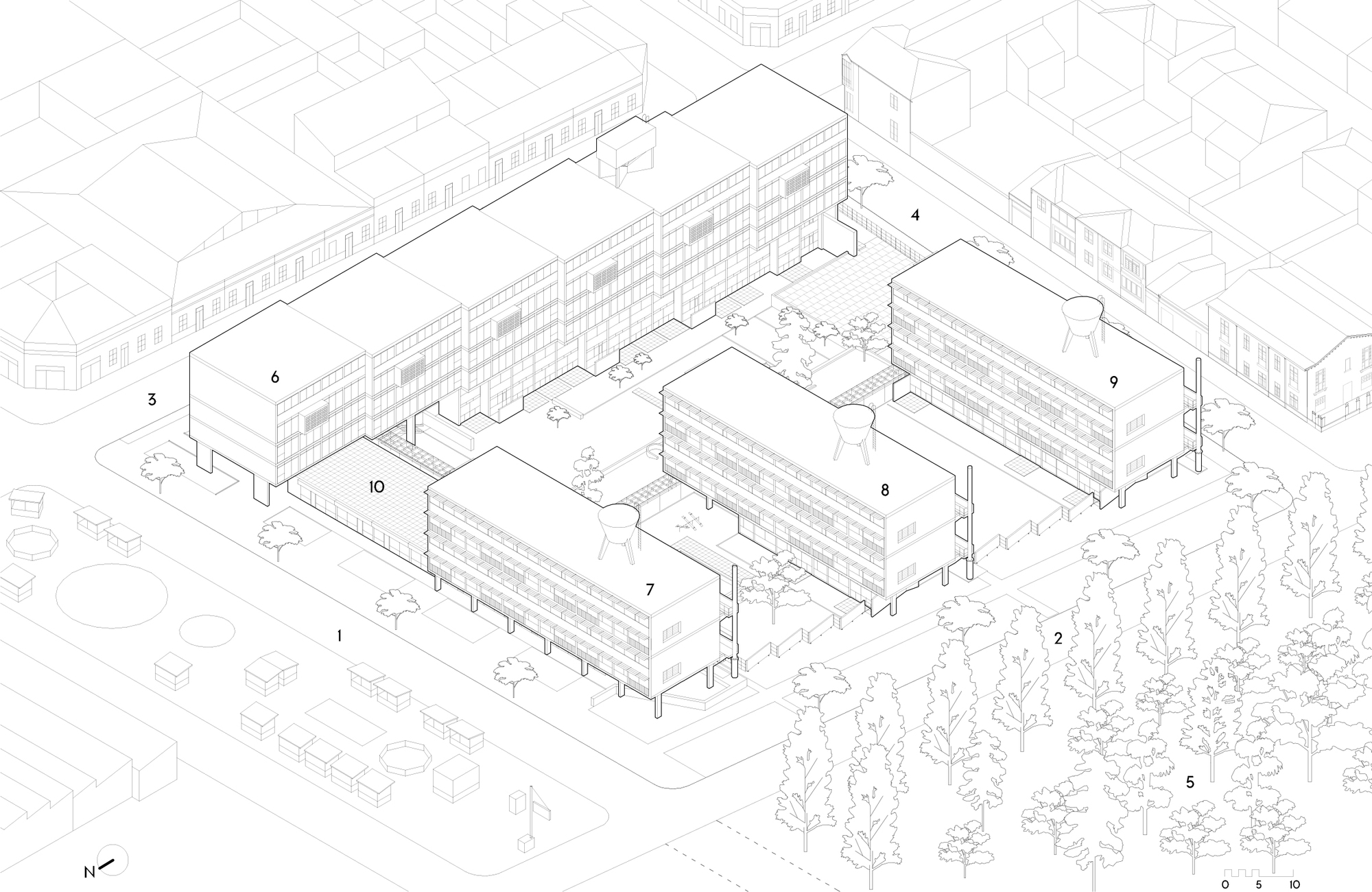

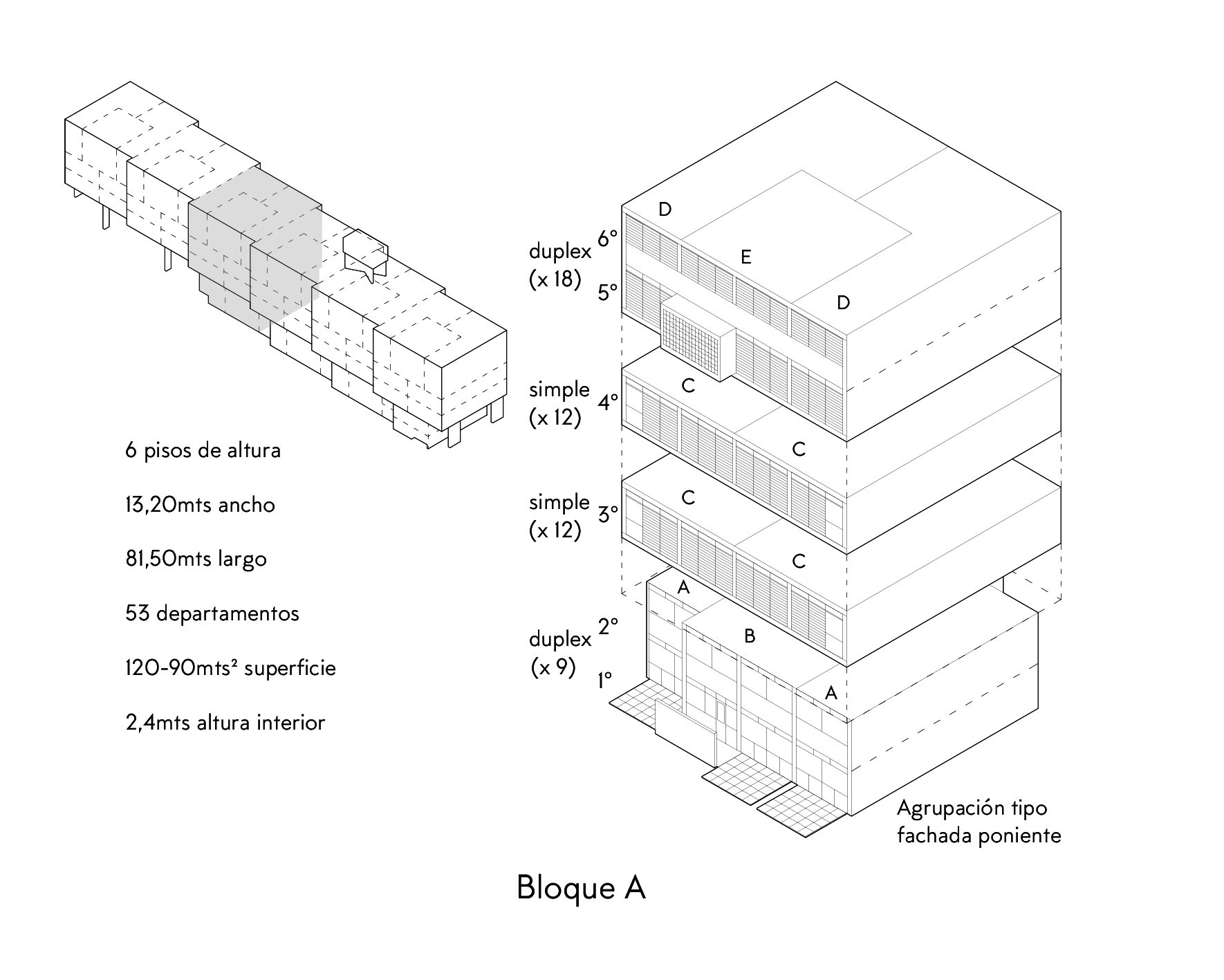

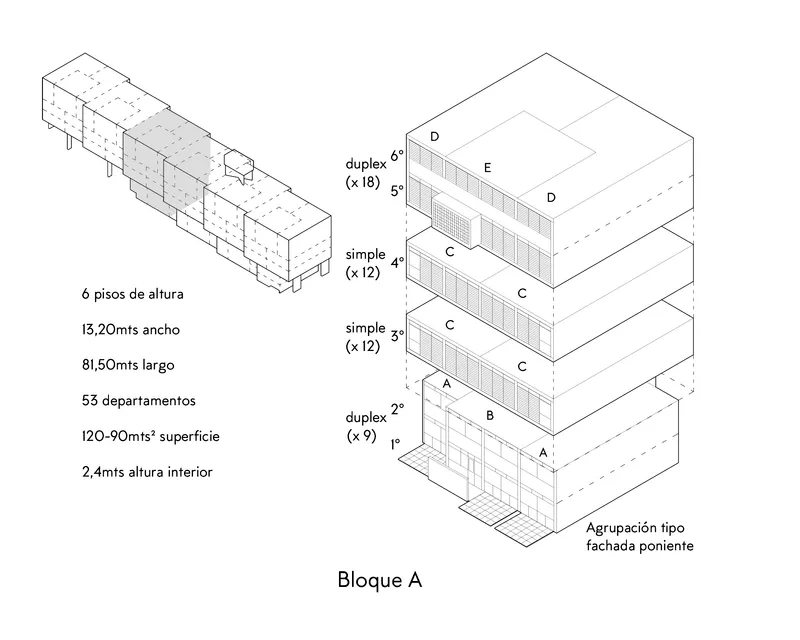

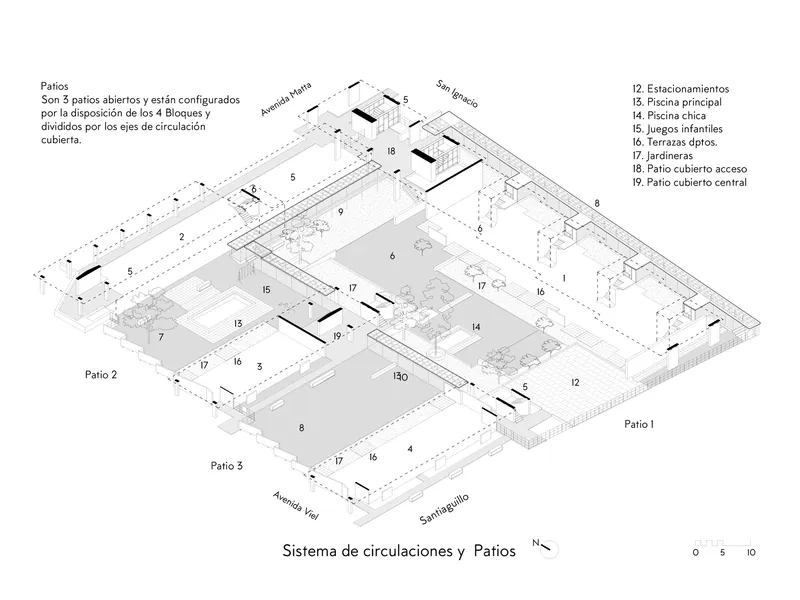

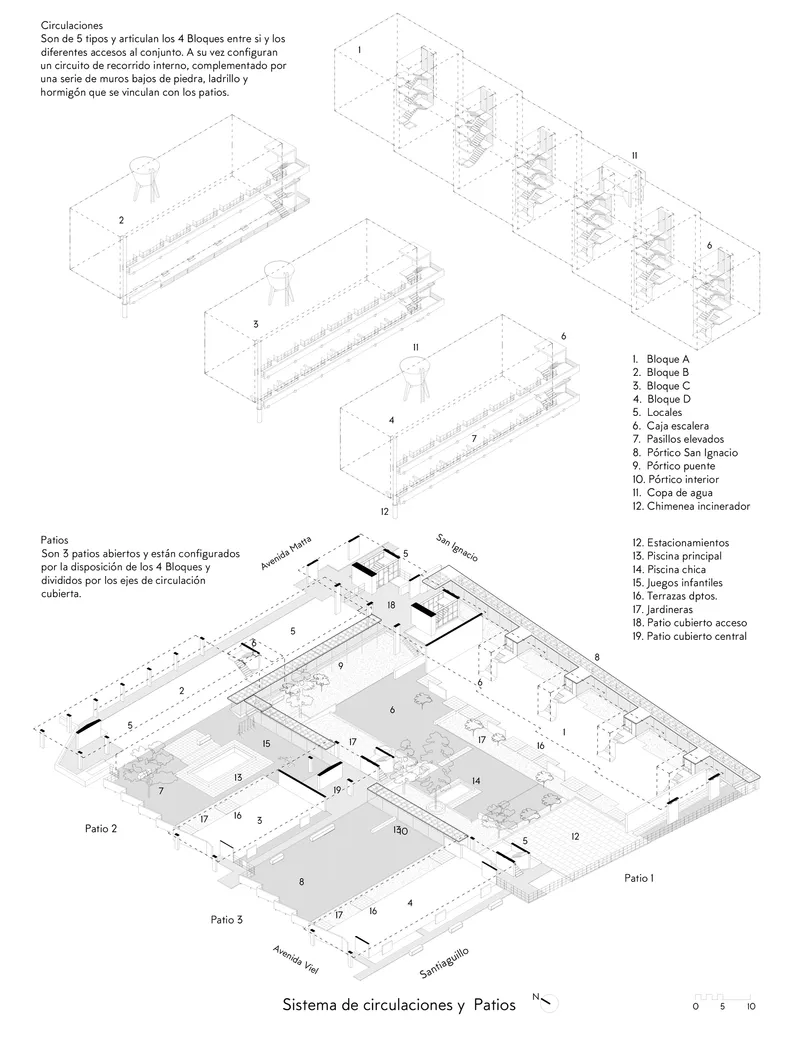

The drawings reveal the organizational rigor beneath the project's apparent ease. The isometric of the full complex shows the comb formation clearly, with numbered blocks arranged around courtyards, pools, and planted areas with circulation paths mapped in red. Individual block axonometrics detail the duplex organization: in Blocks B, C, and D, Type G duplex units interlock vertically, while Block A contains single-level apartments. The dimensional annotations confirm a modular discipline that allowed prefabrication of certain elements.

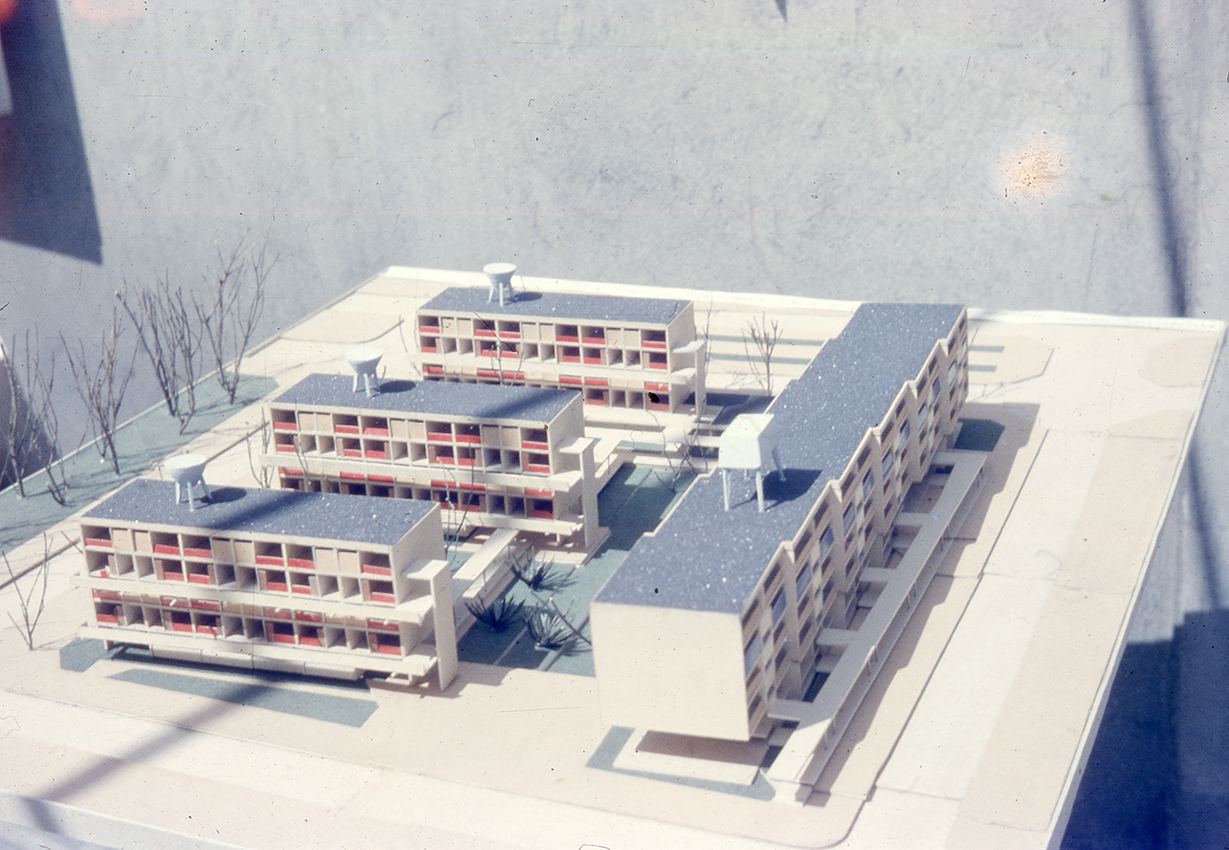

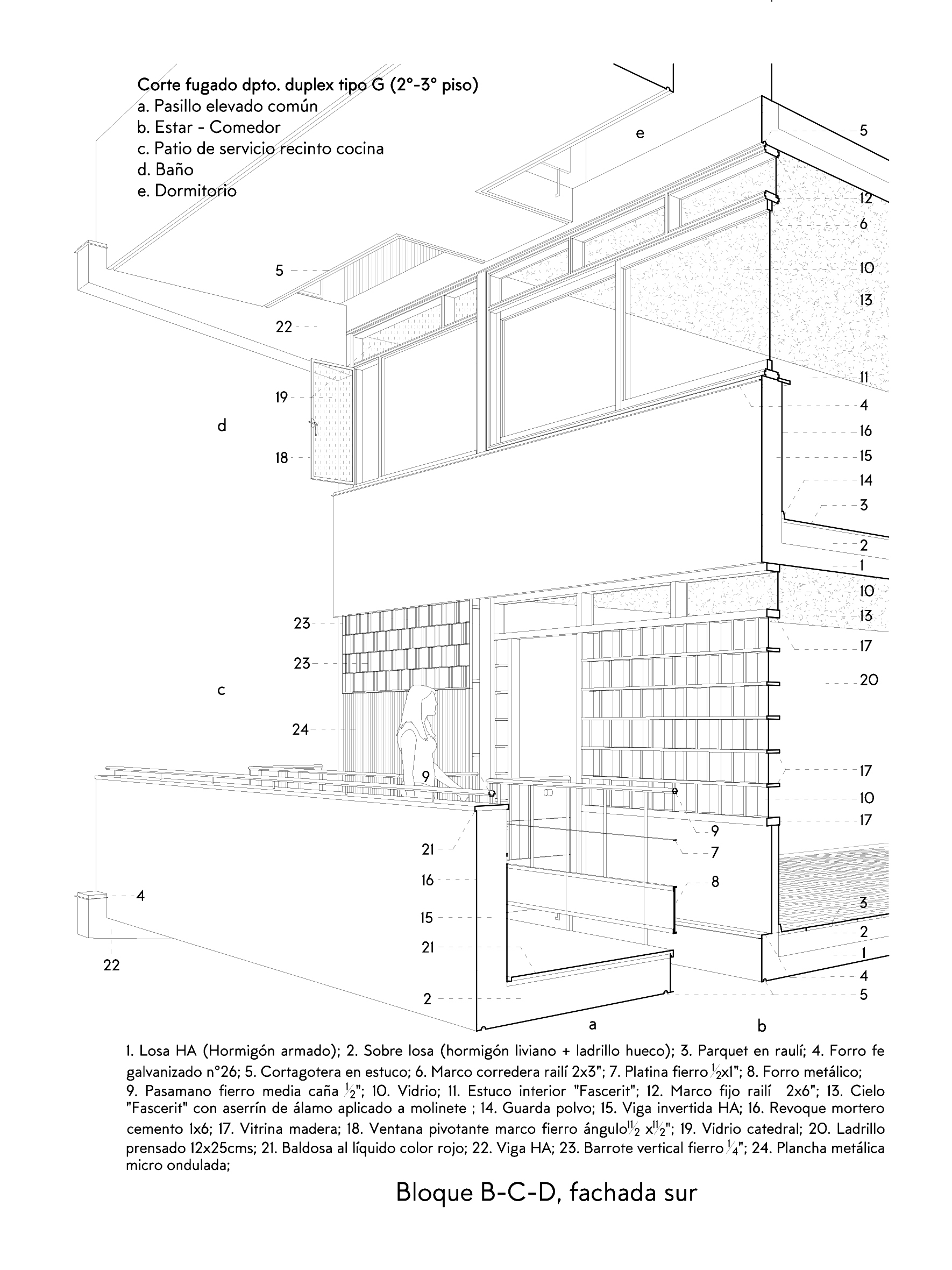

The section drawing is particularly instructive. It shows how the facade is composed from window frames, balconies, and interior spatial relationships, each unit enjoying double-height living spaces within a compact overall envelope. The physical model, with three stepped blocks and a linear slab arranged around the central courtyard, confirms that BVCH conceived the project as an ensemble rather than a repetition of identical slabs. Variation between blocks was a design decision, not an accident.

Why This Project Matters

The Matta Viel Housing Complex matters because it demonstrates that social housing can be architecturally serious without being extravagant. BVCH designed at every scale simultaneously: the urban relationship to Parque O'Higgins, the courtyard typology that structures communal life, the duplex section that gives each family spatial generosity within a compact footprint, and the material palette that mixes concrete, stone, wood, and brick with economy and care. Its designation as a Monumento Nacional is earned.

For contemporary architects working on collective housing, Matta Viel offers a model that predates the current discourse on courtyard housing, mixed typologies, and ground-plane activation by half a century. The lessons are not nostalgic. They are operational. The comb plan, the varied unit types, the designed thresholds between public and private, the refusal to treat landscape as leftover: these are strategies that remain urgent. Chilean modernism at its best was never about importing European ideas wholesale. It was about adapting them to local conditions, local budgets, and local ways of living together. Matta Viel is proof.

Matta Viel Housing Complex, designed by Bresciani Valdés Castillo Huidobro with collaborator Julio Bravo. Santiago, Chile. Completed 1954–1955.
