Ghiya: Reinterpreting Cairo's Informal Skyline Through Brick, Recycled Wood, and Local Identity

What if the most radical act of sustainable design was not importing new materials but looking harder at what is already there? Ghiya, the winning entry in the Tinker Project competition, starts from a deceptively simple premise: the dense, unfinished, perpetually evolving skyline of Cairo's Manshiyat Naser neighborhood is not a condition to overcome. It is a vocabulary to build from. Red brick, recycled wood, and steel, the same materials that define the surrounding fabric, become the foundation for an architecture that reads as both familiar and newly intentional.

Designed by Karim El Kafrawi, the project draws directly from the layered construction logic of Cairo's informal settlements: exposed structural systems, incremental rooftop additions, and brick walls that register time and change on their surfaces. Rather than arriving as a foreign object, Ghiya grows from within these textures, seeking to discover architectural expression in materials typically regarded as economical necessities. The result sits on a productive line between continuity and transformation, grounded enough to belong and deliberate enough to signal something new.

A Facade Assembled from the Neighborhood's Own Material Logic

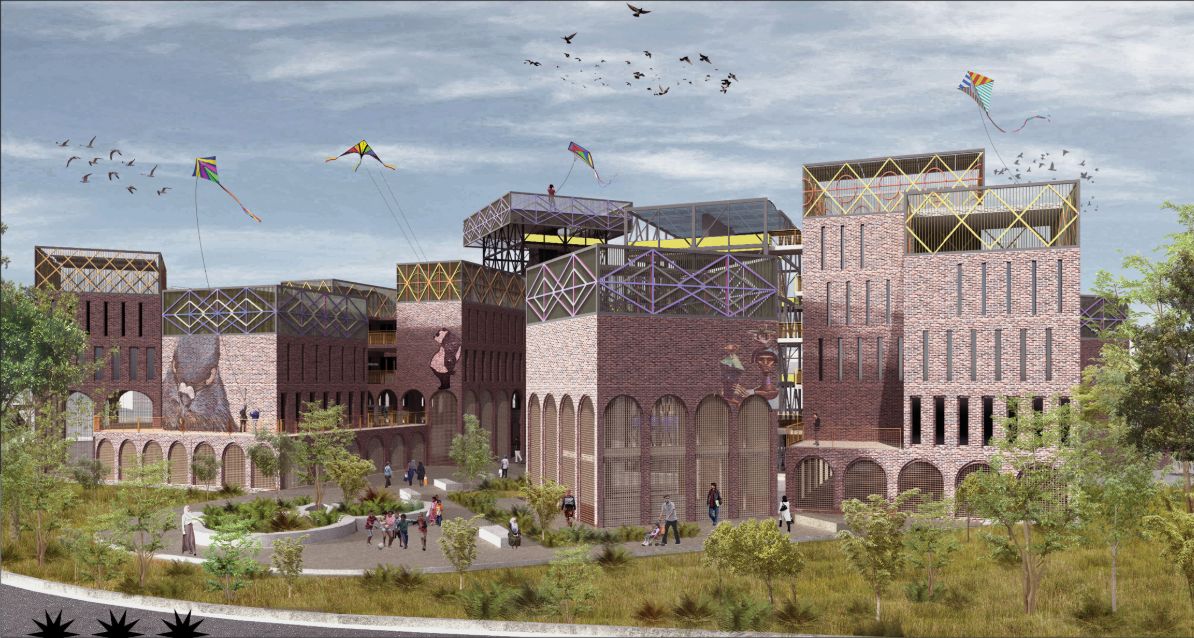

The rendered street-level view captures the project's central proposition in a single frame. Brick volumes of varying heights cluster together, punctuated by timber screens and cantilevered platforms that recall the rooftop additions visible across Manshiyat Naser. Kites float overhead, a detail that does real work: it signals everyday life, play, and occupation rather than the sterile stillness of most architectural renderings. The facade reads as a deliberate composition assembled from components that any resident of the surrounding blocks would immediately recognize.

What elevates the design beyond imitation is the precision of its arrangement. The red brick is not simply exposed; it is deployed with modularity and rhythm, creating shadow lines and depth where the surrounding skyline tends toward flat, unfinished surfaces. Recycled wood and steel framing introduce a secondary scale of detail, breaking the mass into legible zones without abandoning the material continuity that ties the project to its context.

A Courtyard That Turns Circulation into Community Space

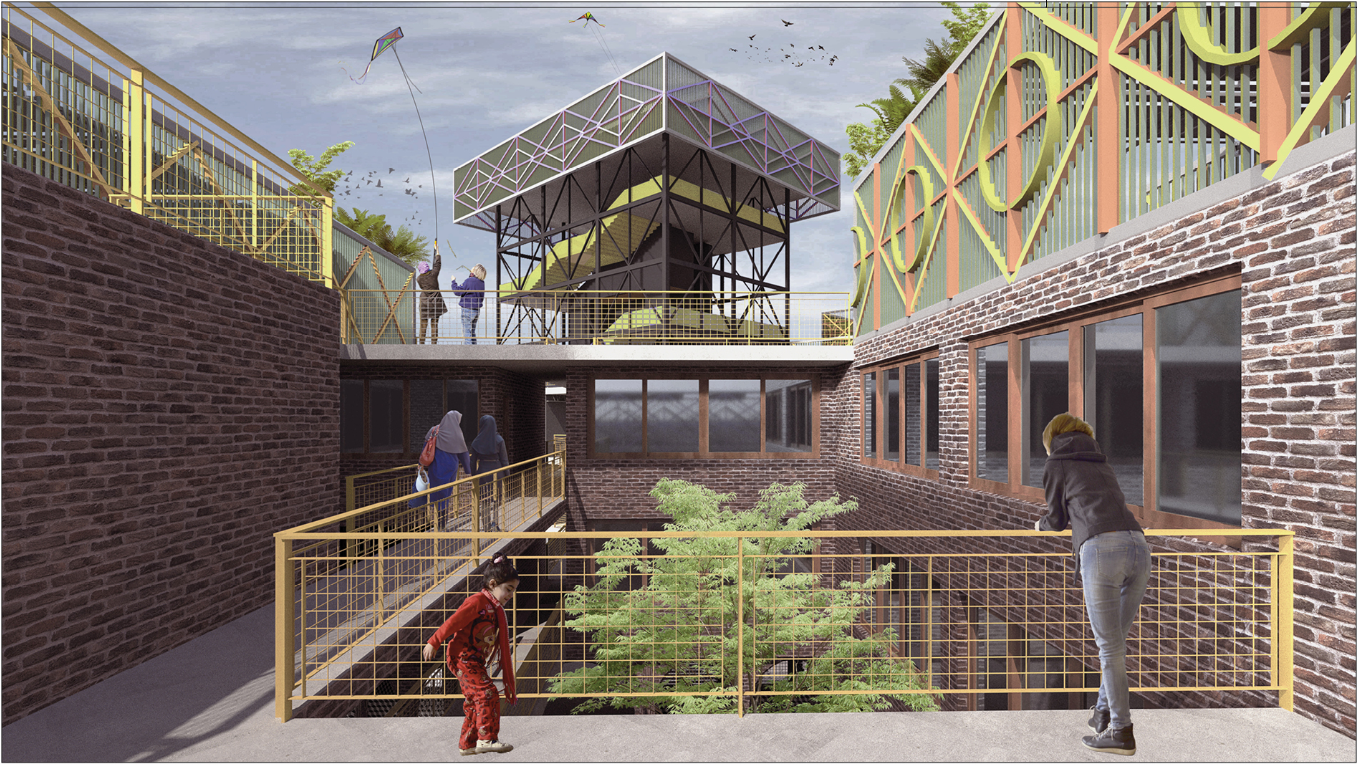

Inside the complex, an interior courtyard functions as the social heart of the project. Yellow-painted steel railings ring the upper levels, framing views down toward a planted tree and a gathering of residents below. The courtyard injects daylight and ventilation into what would otherwise be the deepest, most congested part of the plan, a direct response to the tight conditions of the surrounding urban fabric. In Manshiyat Naser, where buildings frequently press against one another with minimal setbacks, this carved-out void is both generous and strategic.

The color choice matters. Against the warm tones of exposed brick, the yellow railings introduce an element of optimism and individuality without resorting to a completely foreign material palette. It is a move that operates within the existing construction language: steel railings are ubiquitous in Cairo's informal architecture, but here they are treated as a design element rather than a purely functional afterthought. The courtyard becomes a vertical neighborhood, with residents visible to one another across levels, reinforcing a sense of collective occupation.

Clustered Brick Volumes and an Evolving Roofscape

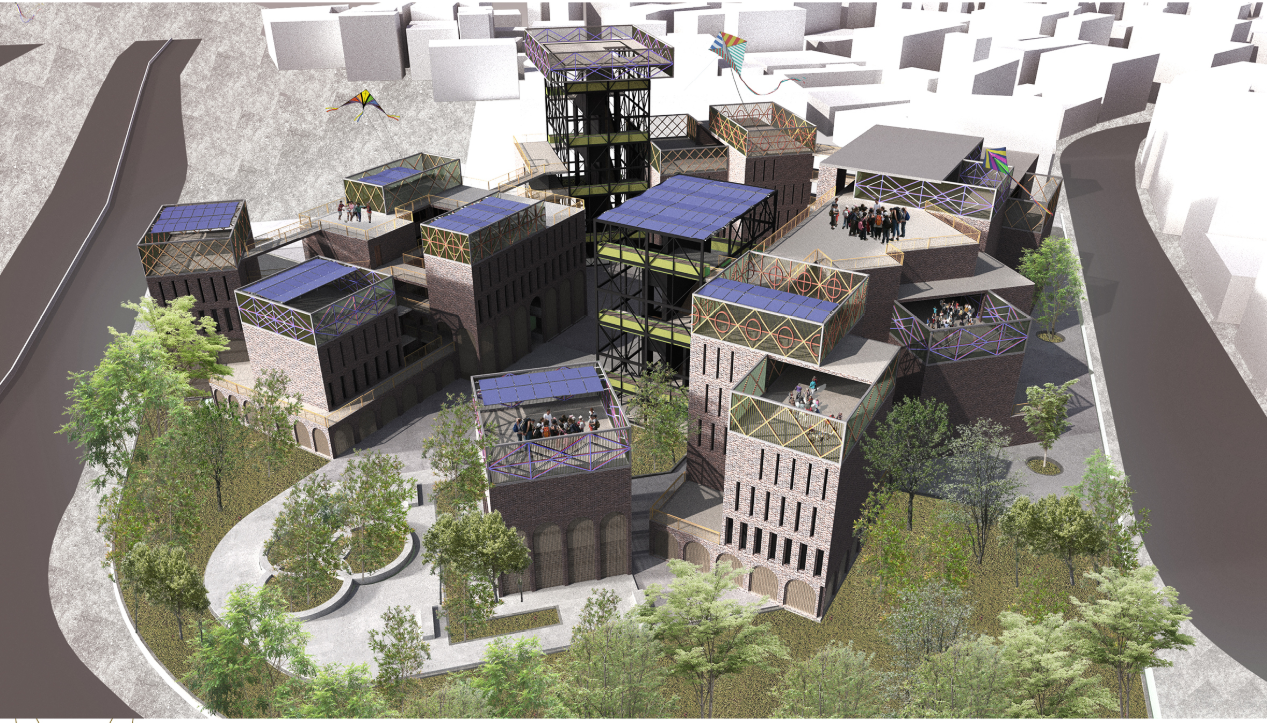

From above, Ghiya's relationship to its context becomes even clearer. The aerial rendering shows how the project's clustered brick volumes and rooftop structures mirror the additive, incremental quality of Manshiyat Naser's existing buildings. Surrounding trees soften the edges where the complex meets the ground plane, but the roof level remains active: smaller structures, open platforms, and inhabited surfaces continue the logic of a skyline that is never quite finished.

This roofscape strategy is more than aesthetic. It acknowledges that in Cairo's informal settlements, rooftops are productive territory. Families expand upward as needs change; structures appear and disappear over time. Ghiya builds that possibility into its design from the start, anticipating growth and adaptation rather than resisting it. The architecture frames a process rather than a fixed outcome.

Sectional Complexity Across Multiple Volumes

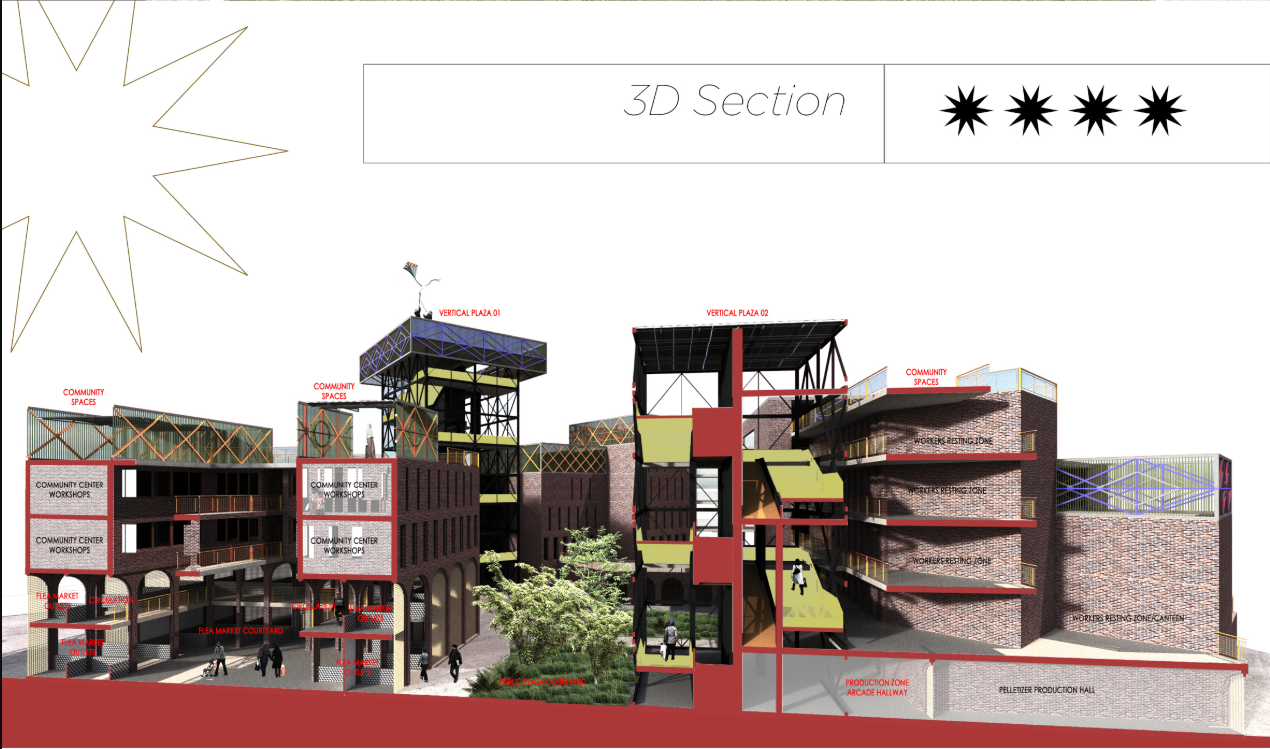

The three-dimensional section drawing reveals the internal organization that the exterior views only hint at. Multiple volumes of different heights and depths contain a range of interior spaces, connected by walkways, stairs, and shared voids. Structural systems are deliberately exposed, echoing the construction honesty of the surrounding neighborhood while achieving a more controlled spatial variety. The section makes visible how daylight penetrates through courtyards and setbacks, reaching interior zones that would otherwise be entirely reliant on artificial light.

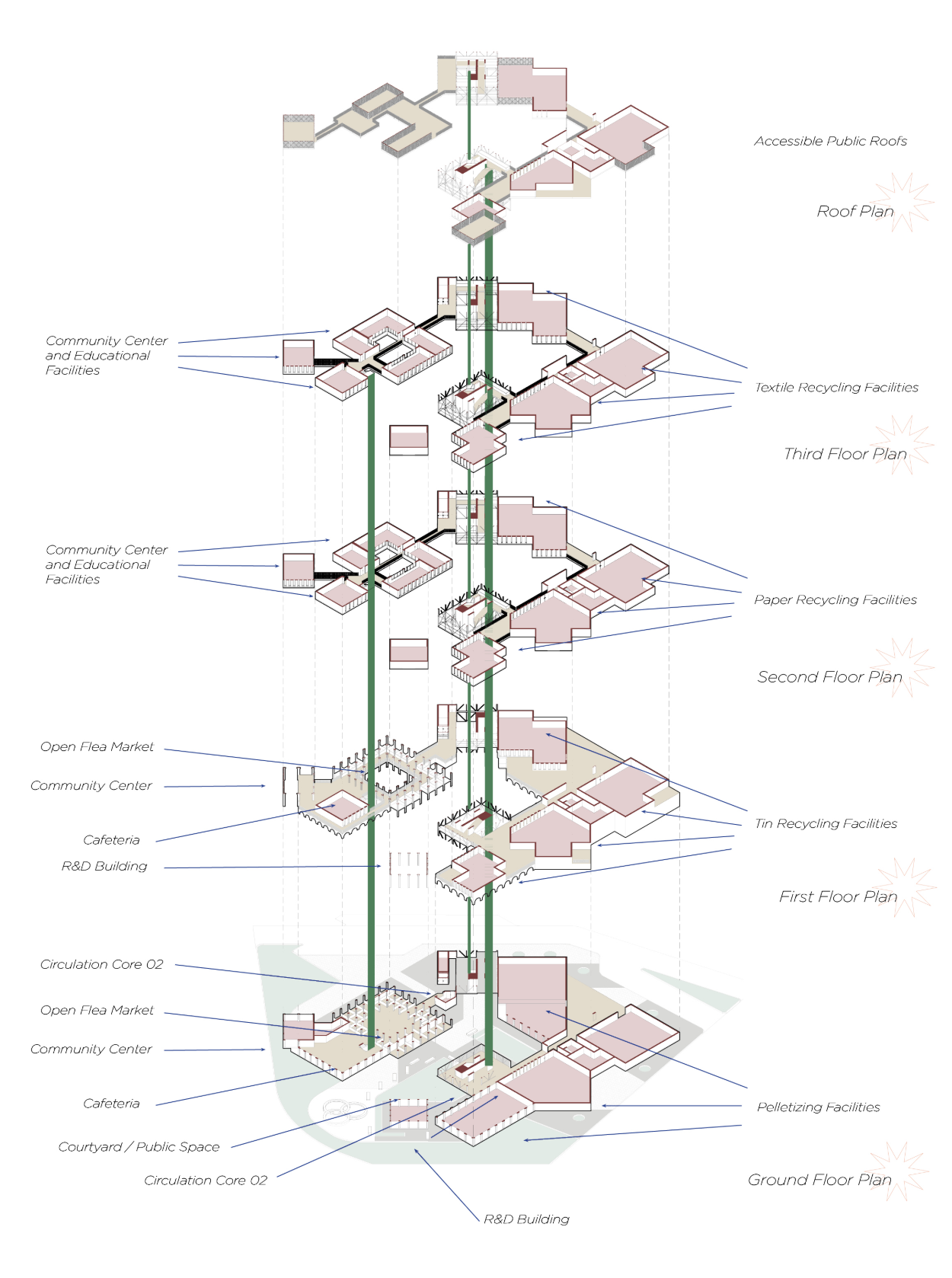

The exploded axonometric completes the picture. Stacked floor plans radiate outward from a central vertical circulation core, showing how the project organizes movement and program around a single legible spine. Each floor plate shifts slightly in plan, generating the stepped, additive massing visible from the exterior. It is a clear structural diagram that explains the project's apparent complexity as the product of a few repeating decisions applied with variation, much like the construction logic of the informal city itself.

Why This Project Matters

Ghiya resists the temptation that derails many competition entries addressing informal settlements: the impulse to replace rather than engage. By building from within Manshiyat Naser's material reality, it reframes sustainability not as a question of importing green technologies but as a commitment to working with what is already available. Red brick, recycled wood, and steel are not fallback choices here; they are the project's primary architectural instruments, handled with enough care to generate real spatial quality.

The deeper lesson is about authorship and context. Karim El Kafrawi demonstrates that respecting an existing urban fabric does not require architectural passivity. The courtyard, the yellow railings, the carefully composed roofscape: these are design decisions that assert identity while maintaining continuity. In a discipline still drawn to the spectacle of contrast, Ghiya offers a quieter, more grounded alternative, one that treats familiarity not as a limitation but as the starting point for genuine architectural transformation.

View the Full Project

About the Designers

Designer: Karim El Kafrawi
