Urban mAtrA: Modular Street Furniture That Grows Its Own Shade

The oldest piece of urban furniture is the shadow of a tree. Before benches, bollards, or bus shelters, people sat under canopies of leaves to escape the sun. Urban mAtrA takes that primal act and rebuilds it as a portable, plantable, solar-lit module made from glue-laminated timber. Compact enough to fold into a 4' × 4' × 8' package for transport, each unit unfolds into a curved vertical structure that supports both seating and climbing plants, generating its own microclimate on pavements where no tree could survive.

The project was designed by Raymond C, Muzamil, and Ginu Shajan. Its name derives from the Sanskrit word mAtrA, meaning furniture, and the design is sited in Doha, Qatar, where temperatures regularly exceed 40°C and annual rainfall averages just 82 mm. In a city where extreme heat and near-zero natural shade define the pedestrian experience, the module proposes a repeatable intervention: a street-level unit that cools, seats, and greens its surroundings simultaneously.

Designing for 40°C: Why Doha Needs a New Kind of Bench

The presentation board maps Qatar's climatic severity: high evaporation rates, negligible rainfall, and limited urban vegetation that together make conventional outdoor seating nearly unusable for much of the year. Reference images of timber pavilions on Banana Island in Doha establish a local precedent for glulam construction, proving that engineered wood can withstand the region's harsh conditions with minimal special treatment and routine protective coatings. The research sets up a clear design brief: any new piece of public furniture here must actively address thermal comfort, not just offer a place to sit.

From Pearl Shell to Folding Canopy: The Formal Logic

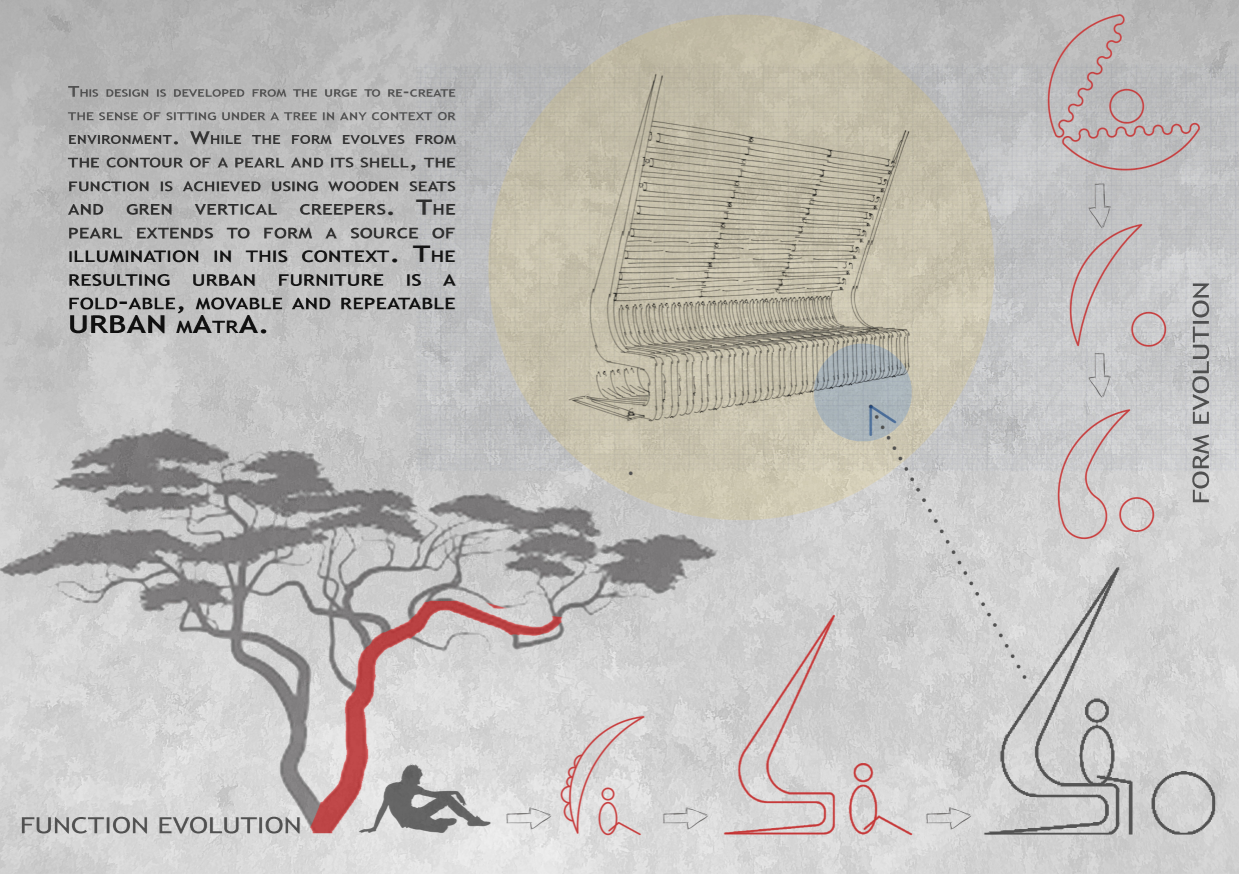

The conceptual diagram traces a deliberate formal evolution. It begins with the silhouette of a tree, abstracts the canopy into a curved enclosure reminiscent of a pearl within its shell, then translates that geometry into a folding bench with an integrated vertical green wall. The sequence is not merely illustrative; it explains the structural rationale. The curved profile channels loads downward while creating a concave surface for climbing plants to colonize, so that form and function arrive at the same shape.

What makes the diagram convincing is its economy. Each morphological step adds a specific performance: the tree gives shade, the shell gives enclosure, the fold gives portability, and the trellis gives a substrate for greenery. Rather than decorating a bench to look organic, the designers extracted the operative logic of a tree canopy and rebuilt it in glulam.

Collapsible Assembly: Nuts, Side Plates, and Tube Extensions

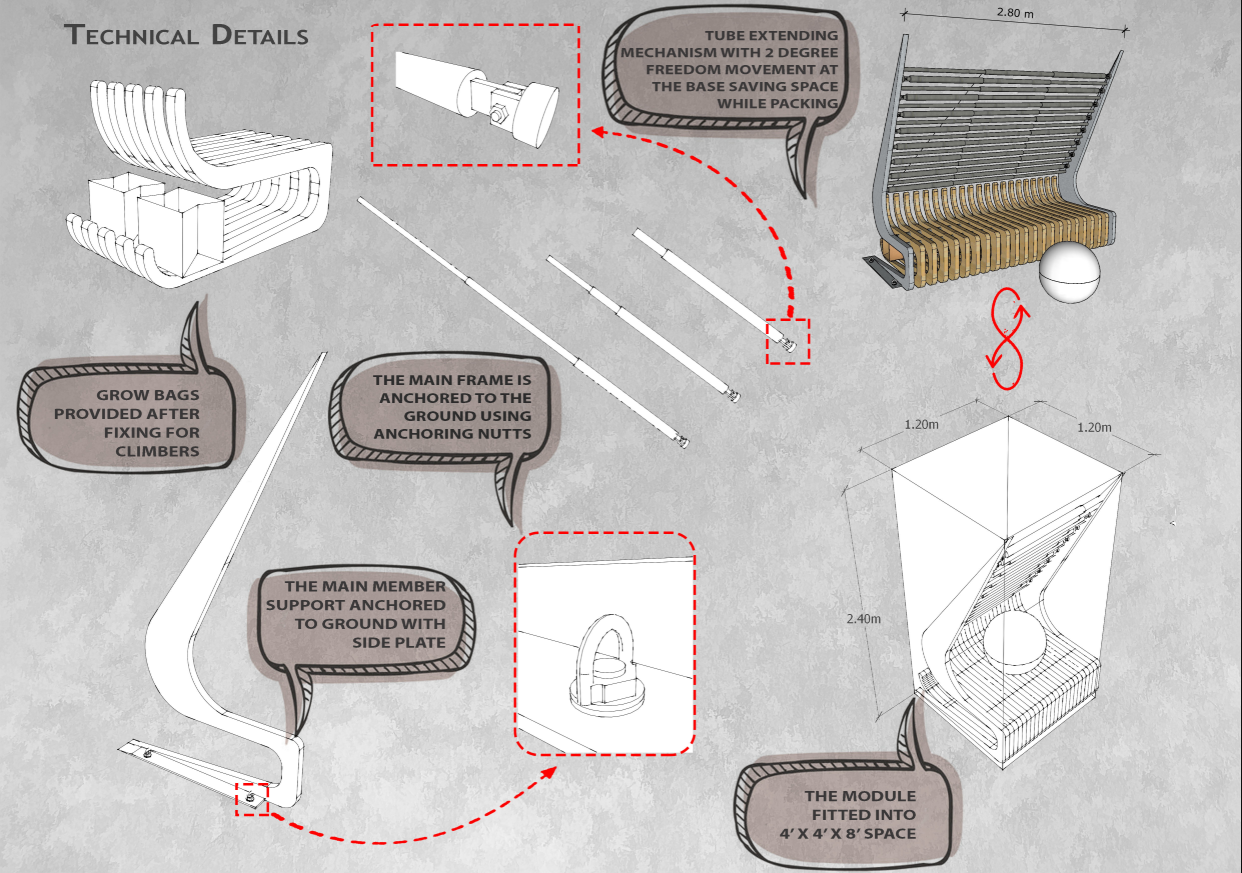

The exploded axonometric drawing reveals the engineering ambition beneath the organic form. Each module anchors to the pavement with durable nuts and side plates for stability, while a tube-extending mechanism with freedom of movement allows the unit to collapse into its compact 4' × 4' × 8' shipping envelope. Grow bags are incorporated at the base to encourage climber growth where soil is unavailable, turning even fully paved surfaces into viable sites for vertical planting. Built-in solar-powered lighting extends the module's usability after dark.

The choice of glue-laminated timber is central. Lighter than concrete and capable of fluid, organic curves, glulam offers strong thermal insulation, meaning the seating surface itself stays cooler to the touch in direct sun. Its renewable sourcing aligns with the project's sustainability aims, and its laminated cross-sections provide the structural depth needed for cantilevered seating without bulky hardware.

Repeated Along the Street: Configurations and Scale

The rendering series shows how the module multiplies. Individual units cluster, rotate, and line up along a paved walkway, each at a slightly different angle so that the planted trellises overlap to create a continuous green screen. Scale figures walk among the units, confirming that the proportions work: the canopy rises high enough to shelter a standing adult while the seating height accommodates casual use. The various configurations demonstrate the design's claim to modularity; the same component serves a quiet corner, a busy promenade, or a transit stop.

In the perspective view, the angled seating units and their vertical planting screens generate a rhythm along the streetscape that reads as landscape rather than furniture. Creepers and climbing plants soften the timber frames, absorb radiant heat, and improve local air quality. The effect is closer to a shaded colonnade than to a row of benches, which is precisely the point: in an environment where 40°C heat makes an unshaded sidewalk hostile, passive cooling strategies have to be embedded in every element of the public realm.

Why This Project Matters

Urban mAtrA reframes a familiar problem. Cities in arid climates have long struggled with pedestrian comfort, often defaulting to air-conditioned interiors as the only viable response. By engineering shade, greenery, and seating into a single foldable unit, the designers offer an alternative that works at the scale of a sidewalk rather than a building. The integration of grow bags and climbing plants means each module becomes a small act of urban reforestation, gradually improving the microclimate around it.

The real ambition here is replicability. A 4' × 4' × 8' module that can be flat-packed, trucked to site, and bolted to pavement removes most of the logistical barriers that prevent cities from deploying green infrastructure at scale. If the climbers establish and the glulam weathers as the Banana Island precedent suggests it will, Urban mAtrA could become less a piece of furniture and more a distributed micro-landscape, returning the shadow of a tree to streets that lost it long ago.
