PHTAA Living Design Converts a Bangkok Auto Shop into a Luminous Industrial Workspace

Adaptive reuse in Bangkok rarely gets the attention it deserves. The city's commercial fabric is dominated by fast turnover: tear down, rebuild, repeat. So when PHTAA Living Design took on a former auto service facility and chose to keep its bones intact, the decision was both economically pragmatic and architecturally pointed. The result, Archive Auto Service Facility, is a building that wears its previous life openly while operating as something entirely new: a flexible workspace wrapped in layers of translucent and perforated skins.

What makes this project worth studying is not the fact that it reuses an old structure. It's how the architects treat the enclosure. Rather than concealing the industrial skeleton behind polished finishes, PHTAA stacks a series of environmental filters (wire mesh, aluminum louvers, polycarbonate panels) that regulate light, heat, and privacy without sealing the building off from the street. The building breathes. It glows at night. And it does all of this on a tight budget with materials you could source from any hardware store in the neighborhood.

A Layered Facade That Works for Its Living

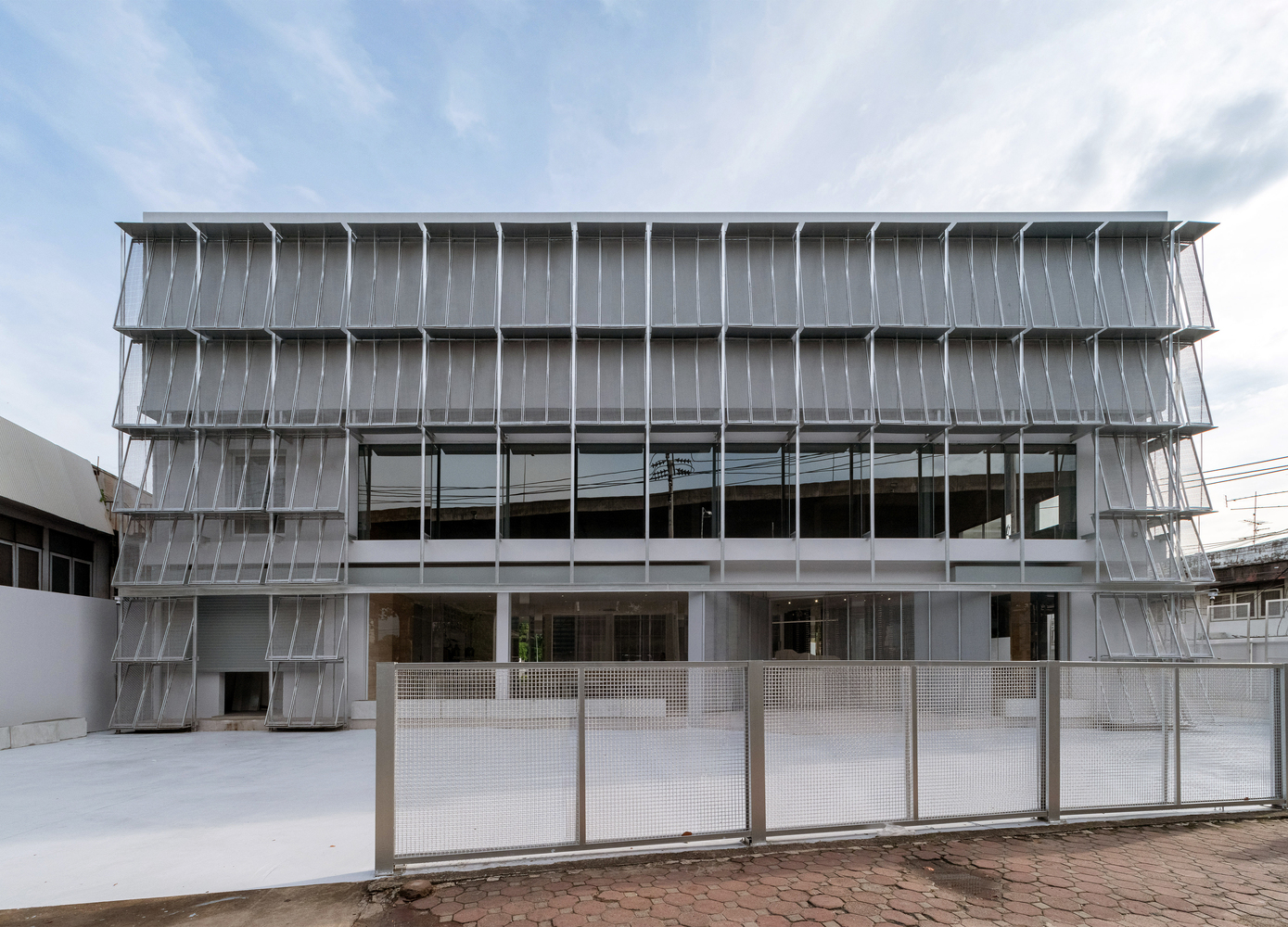

The street elevation is the project's thesis statement. From the sidewalk, you read multiple planes: a white expandable security gate at ground level, a perforated metal sliding gate, and then the main event, an operable system of horizontal aluminum fins and wire mesh panels stretched across the upper floors. None of these layers is decorative. Each one addresses a specific performance requirement: security, solar shading, and ventilation, respectively.

The genius is in the redundancy. Because no single layer tries to do everything, each can be lightweight and inexpensive. The cumulative effect, however, is architecturally rich. From oblique angles the facade appears almost solid; head-on it dissolves into moiré patterns that shift as you walk past. This is low-tech parametricism, achieved with off-the-shelf components and good spatial logic.

Operable Screens and Solar Control

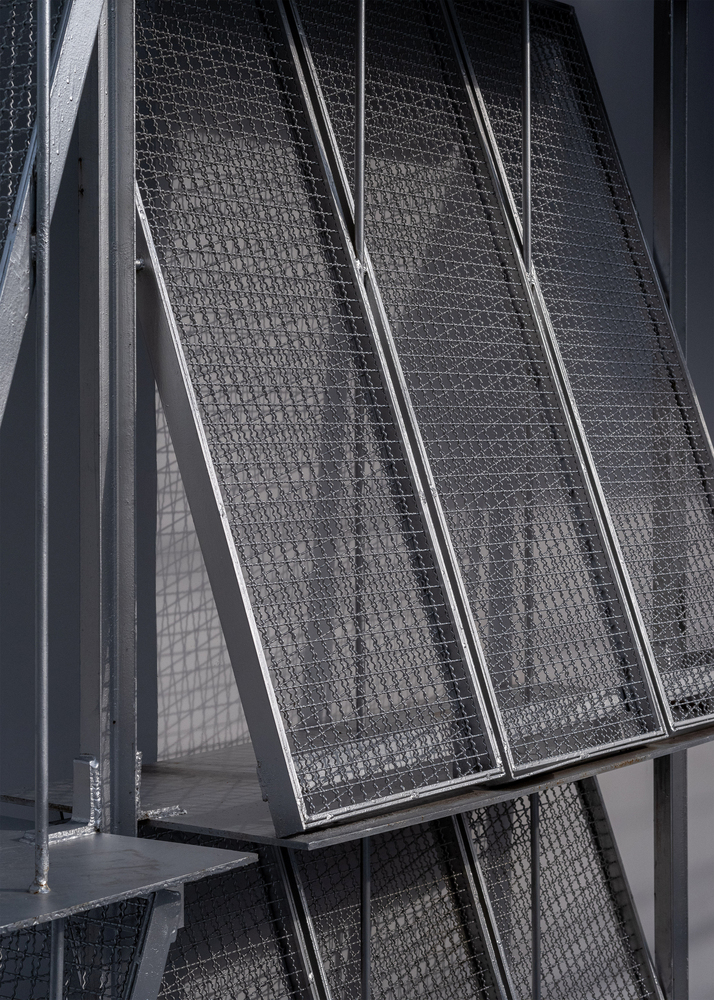

Up close, the screen system reveals itself as a series of hinged panels framed in steel with diagonal bracing. These can swing open to admit air and views or close to block the worst of the afternoon sun. The projecting floor slabs create additional shade, casting sharp horizontal shadows across the mesh. It's an honest expression of structure and environmental response working in tandem.

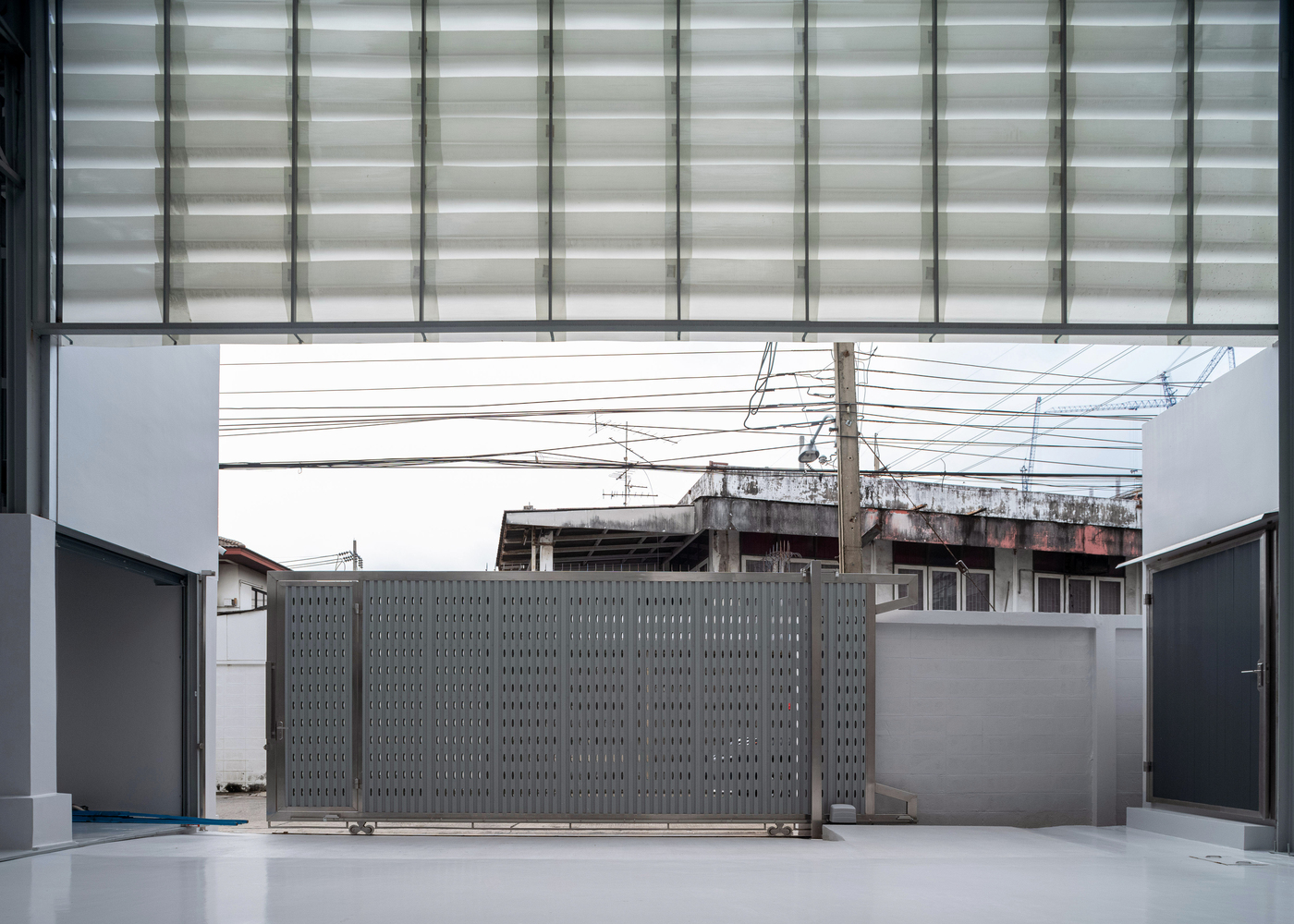

The perforated sliding gate at ground level performs double duty as a security barrier and a visual frame. When partially drawn, it crops a view of the weathered concrete structure and tangled utility wires beyond. There's no attempt to hide the urban context. Instead, the gate mediates between the clean interior world and the messy, charged street life of Bangkok.

Translucent Enclosure and Diffused Light

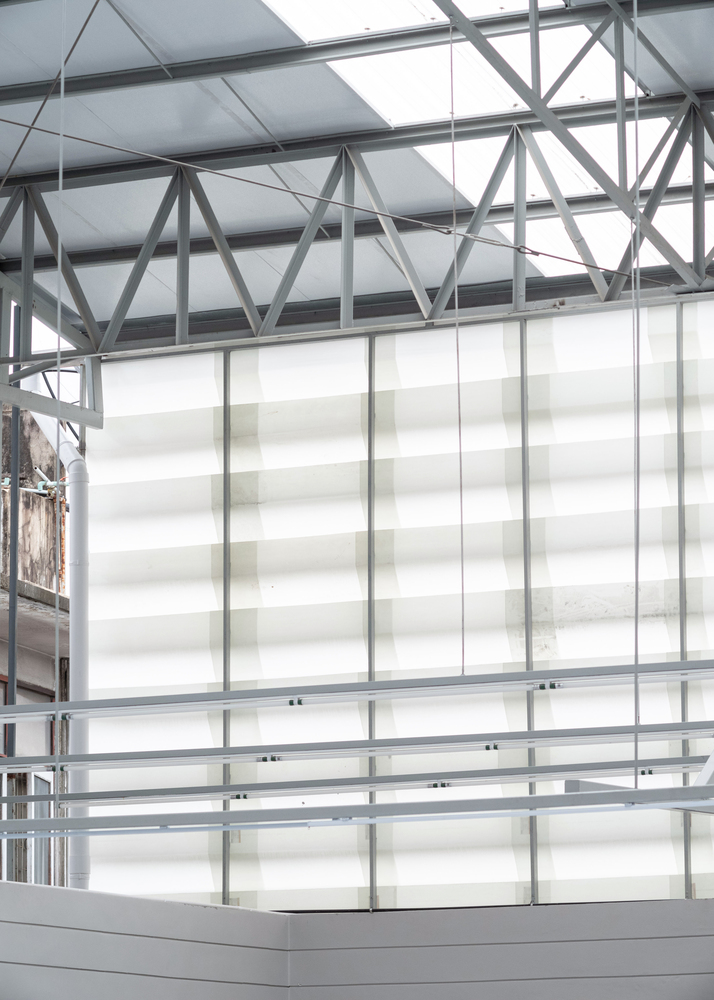

Step inside and the quality of light changes immediately. Polycarbonate panels replace solid walls along much of the building's perimeter and roof, turning the interior into a lantern of diffused, even illumination. Steel frame mullions and diagonal cross bracing are visible through the translucent skin, lending the space a graphic quality that reads like a stripped-down Mies sketch.

The curved translucent wall on the building's flank is particularly effective. It softens the boundary between inside and out without eliminating it. Natural light floods deep into the floor plate, reducing dependence on electric lighting during daytime hours. At night the equation reverses: interior light bleeds outward, turning the facade into a glowing signal on the street.

The Hangar: Open Volume Under Exposed Trusses

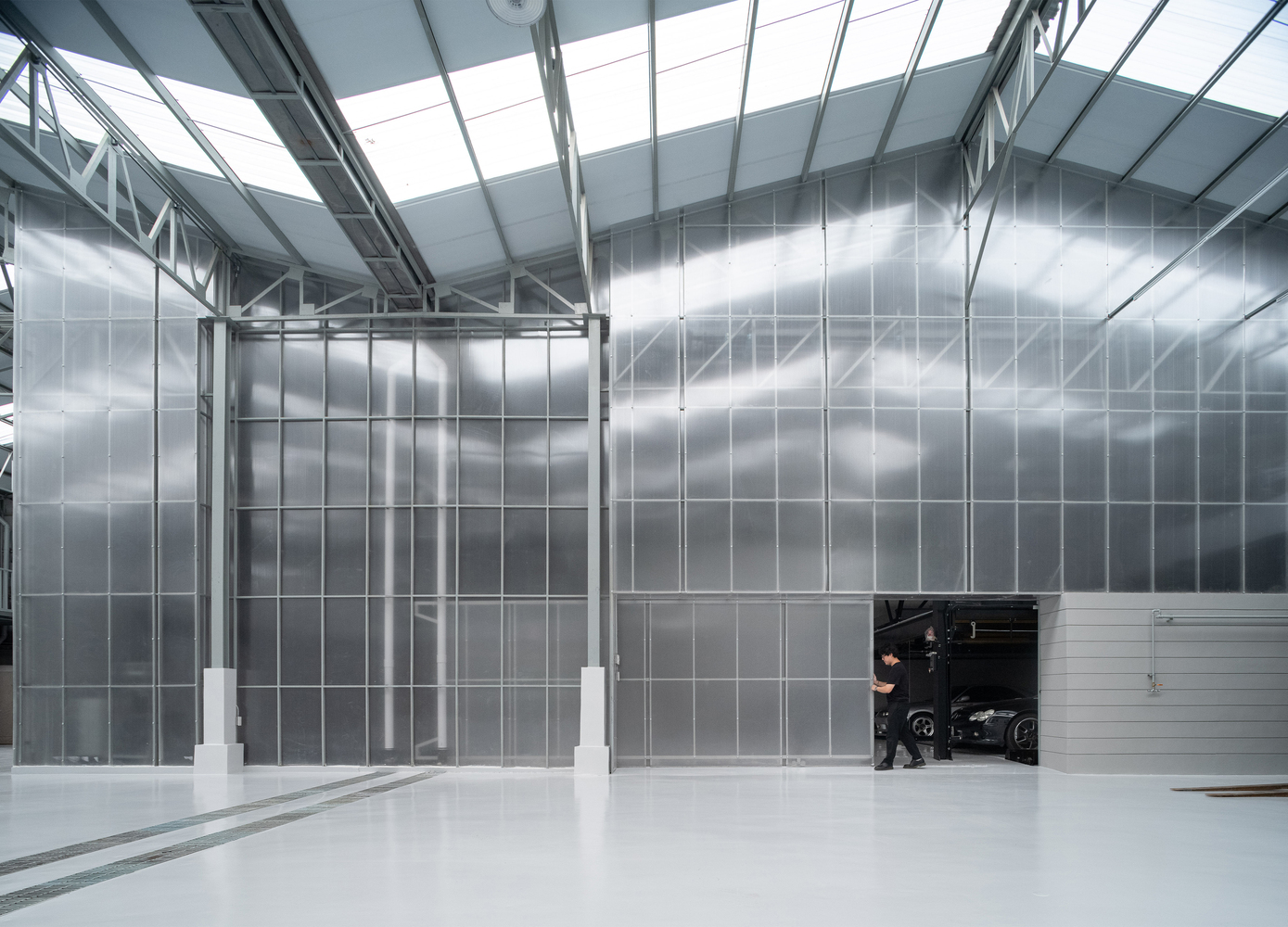

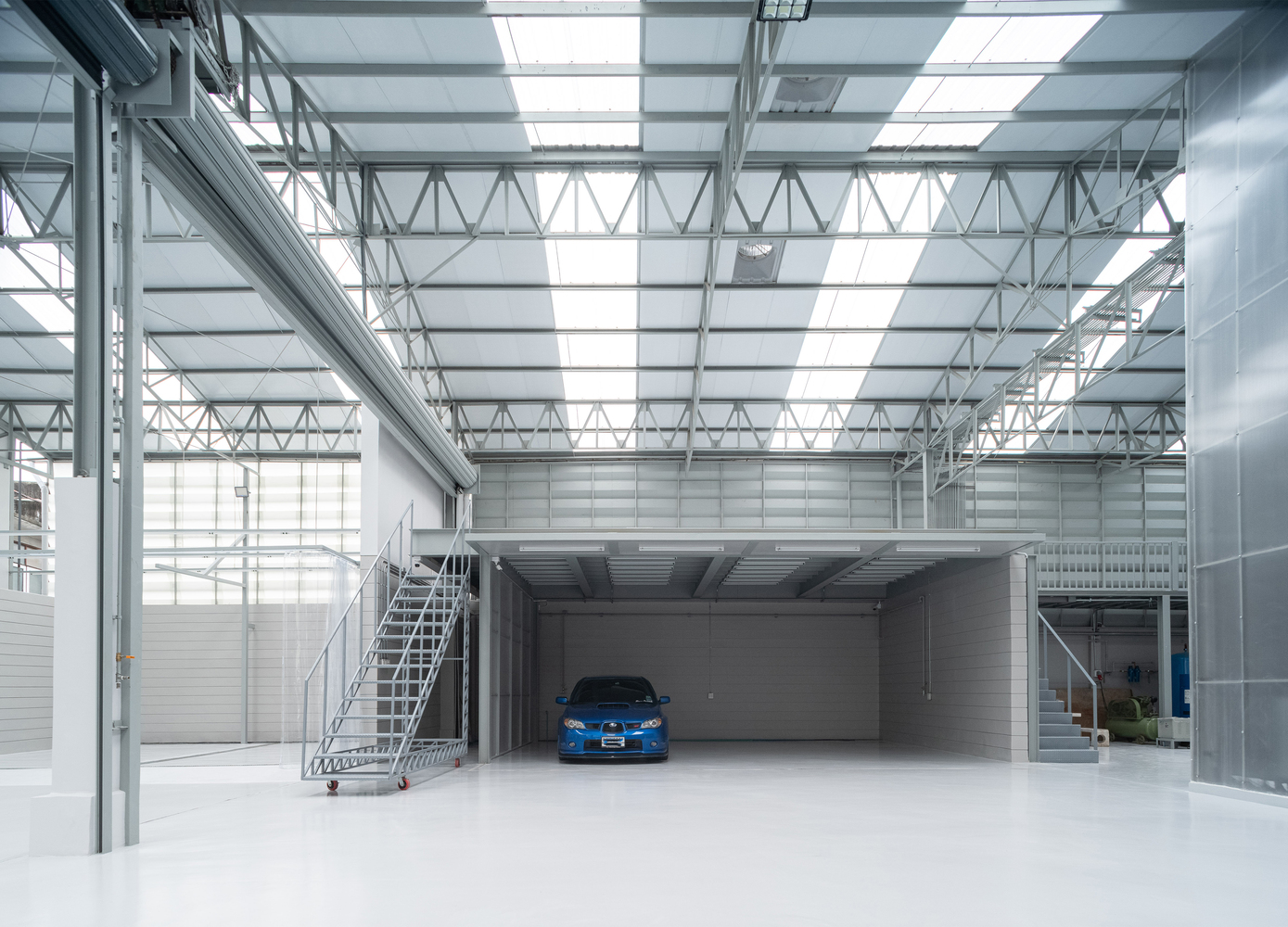

The main interior volume reads like a hangar, which, given the building's automotive past, feels appropriate. Long-span steel trusses are left exposed overhead, their geometry reinforcing the industrial identity. A mezzanine level hovers above the ground floor, and in one memorable photograph a blue car sits on the white floor below, a residual trace of the building's former purpose that doubles as spatial furniture.

A white box enclosure inserted beneath a gridded skylight roof houses more controlled program. This room-within-a-room strategy keeps the overall volume open and flexible while providing acoustic and thermal isolation where needed. The contrast between the raw warehouse shell and the precise white box is deliberately theatrical, and it works.

Workspaces and Interior Details

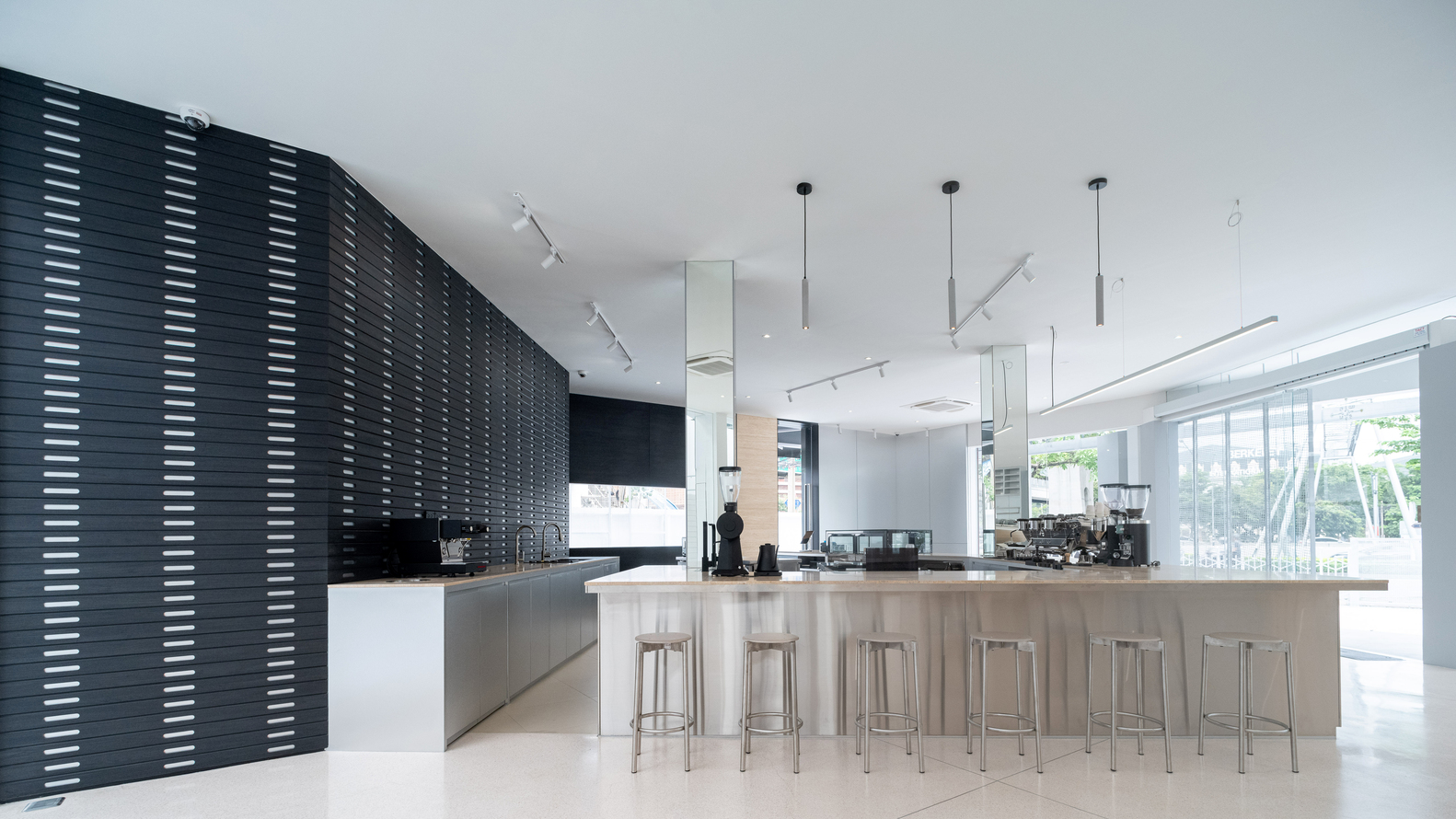

The open workspace under translucent ceiling panels is furnished simply: timber tables, slender steel columns, and very little else. The restraint allows the architecture to register. Track lighting and a long timber counter with bar stools suggest the building accommodates casual gathering as well as focused work, blurring the line between café and studio.

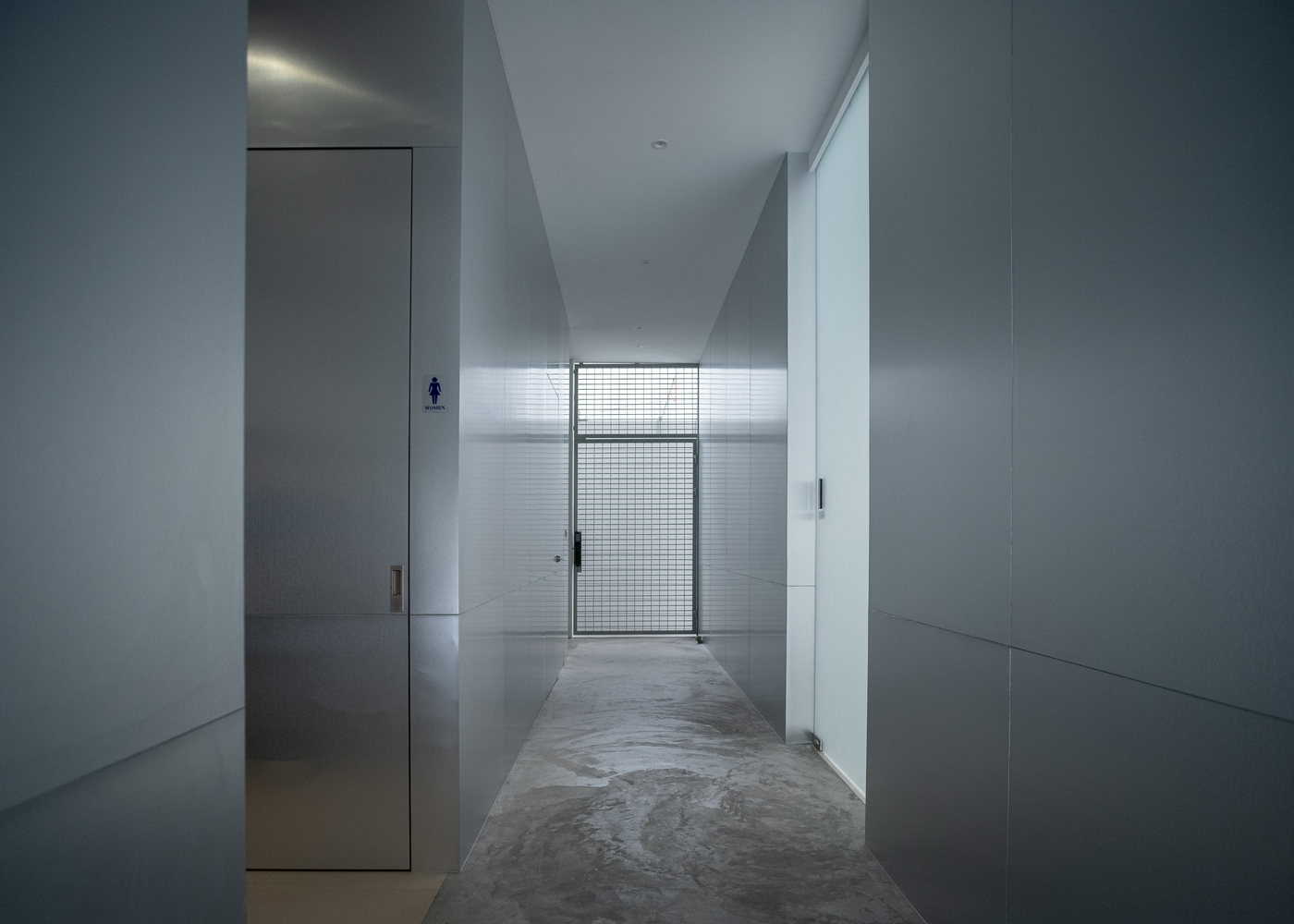

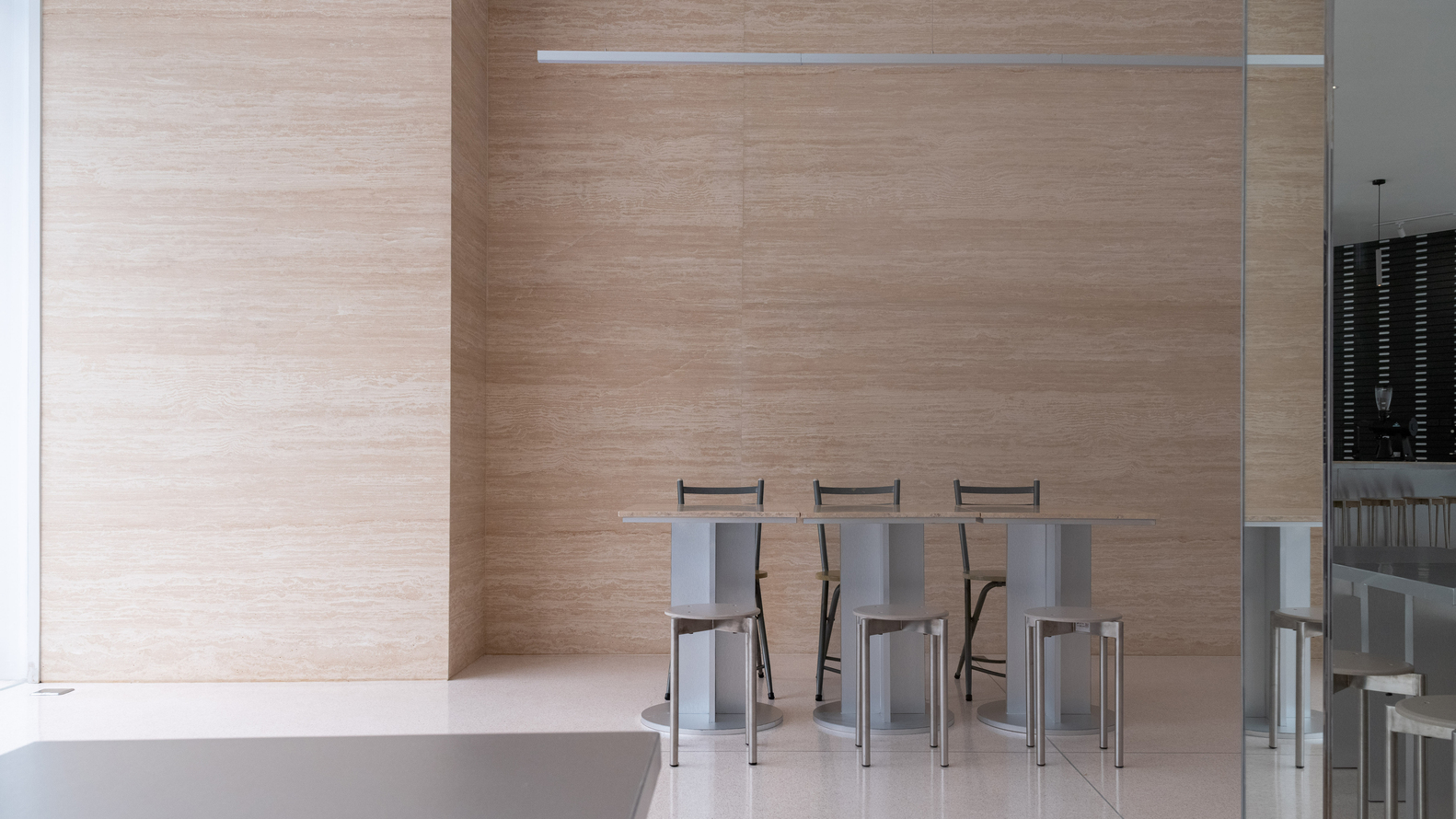

Material choices in the detailed zones are deliberate and consistent. A black perforated tile wall with horizontal white slot details backs the espresso counter. Pale wood grain panels line a secondary seating area. A white tiled corridor terminates at a wire mesh door, repeating the screening motif at a domestic scale. Everything speaks the same material language without repeating itself.

Circulation and Mobile Infrastructure

One detail captures the project's ethos perfectly: a freestanding steel staircase on casters. It can be wheeled into position as the program demands, then rolled away when the floor needs to be cleared. This isn't flexibility as a buzzword. It's flexibility as a physical mechanism, designed, fabricated, and ready to move.

The secondary circulation spaces, corridors and stairwells, are treated with the same material honesty as the main volumes. Concealed linear ceiling lights provide clean illumination, and wire mesh doors maintain visual continuity with the exterior screens. Nothing is precious, but everything is considered.

Night Presence

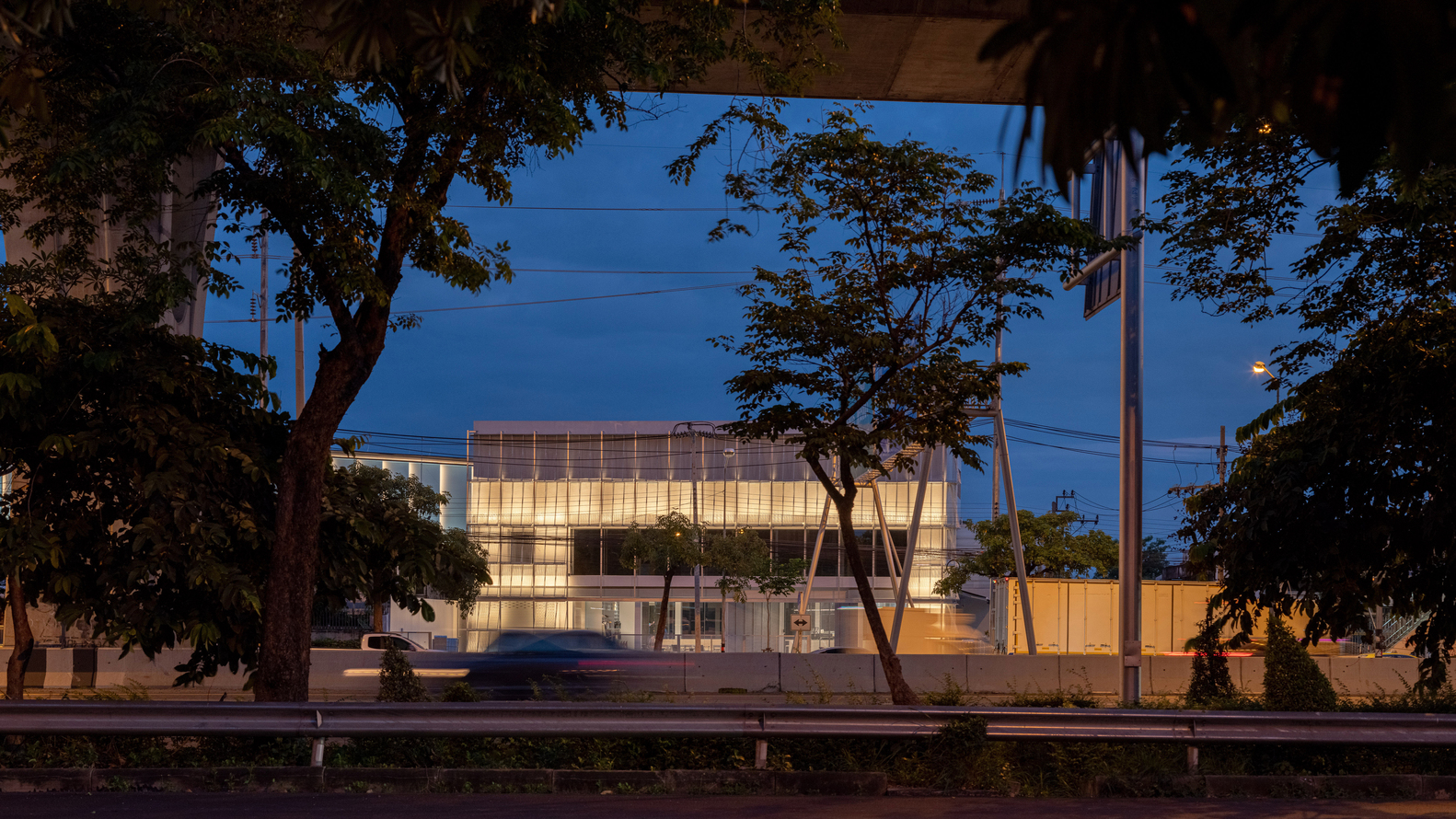

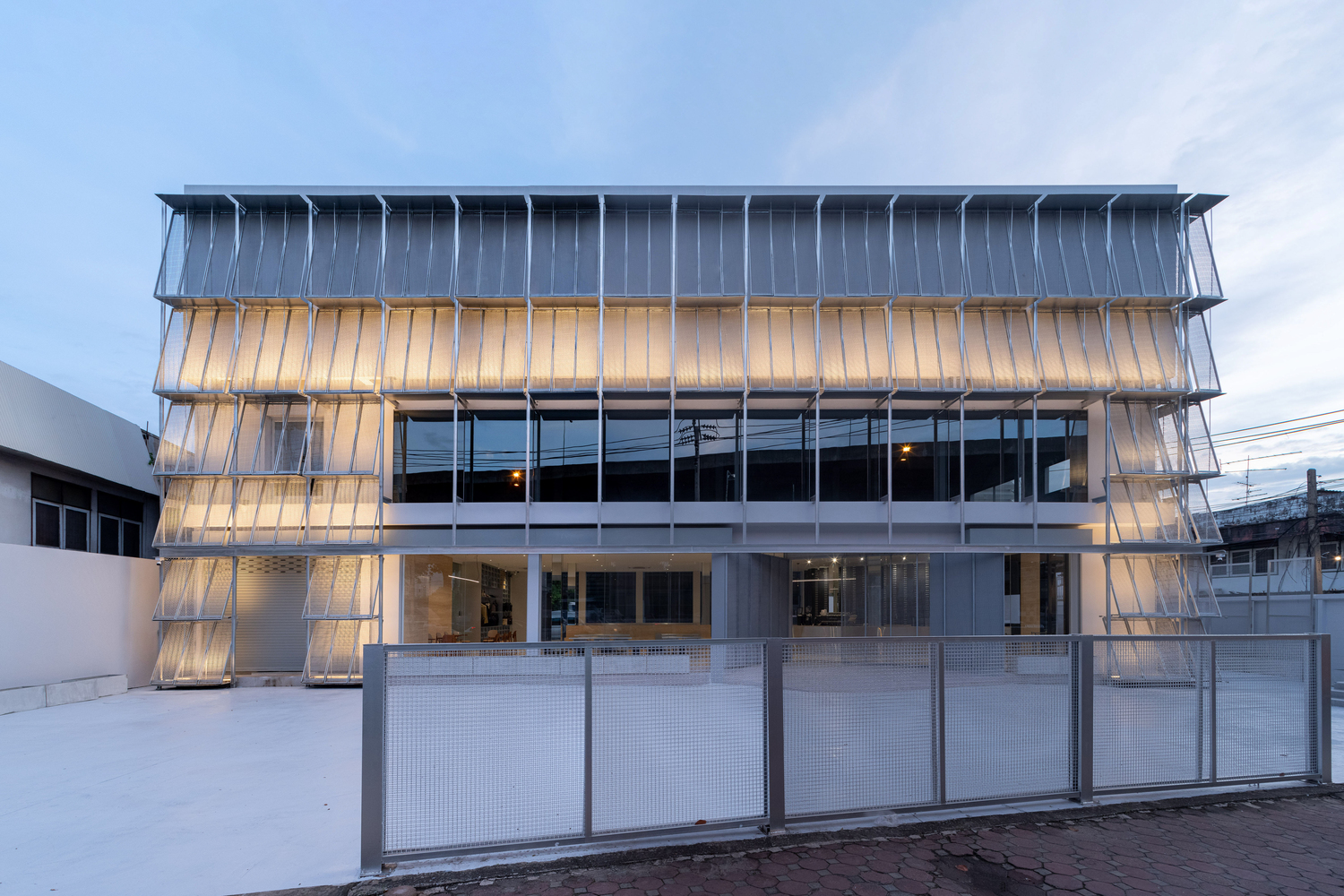

At dusk, the building transforms. The translucent facade, framed by mature street trees, becomes a soft rectangular glow on the block. The layered screens, which during the day read as opaque shading devices, turn into veils that reveal the building's inner structure in silhouette. It is a convincing argument for polycarbonate as a primary cladding material in tropical urban contexts: cheap, effective for daylighting, and photogenic after hours.

Plans and Drawings

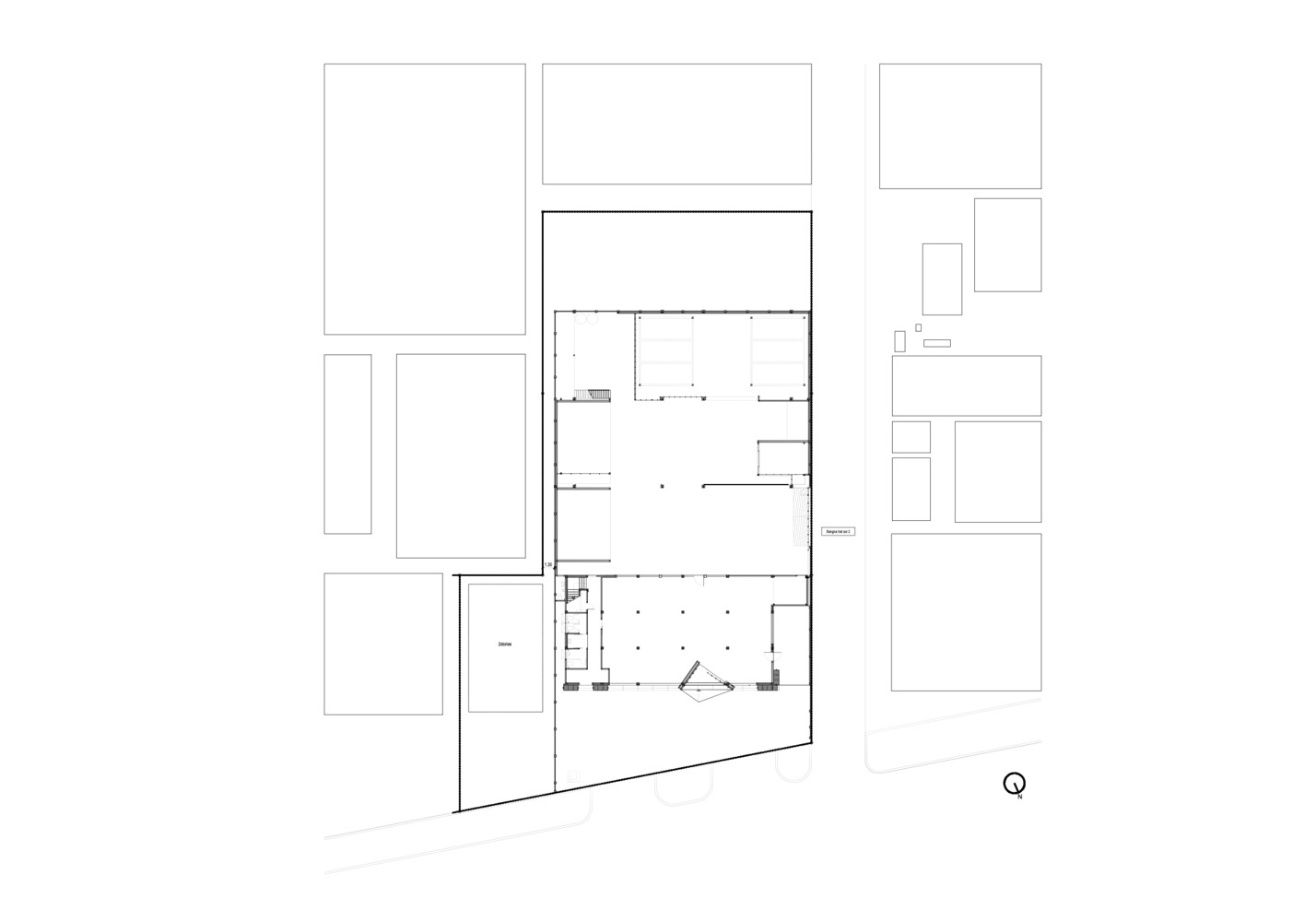

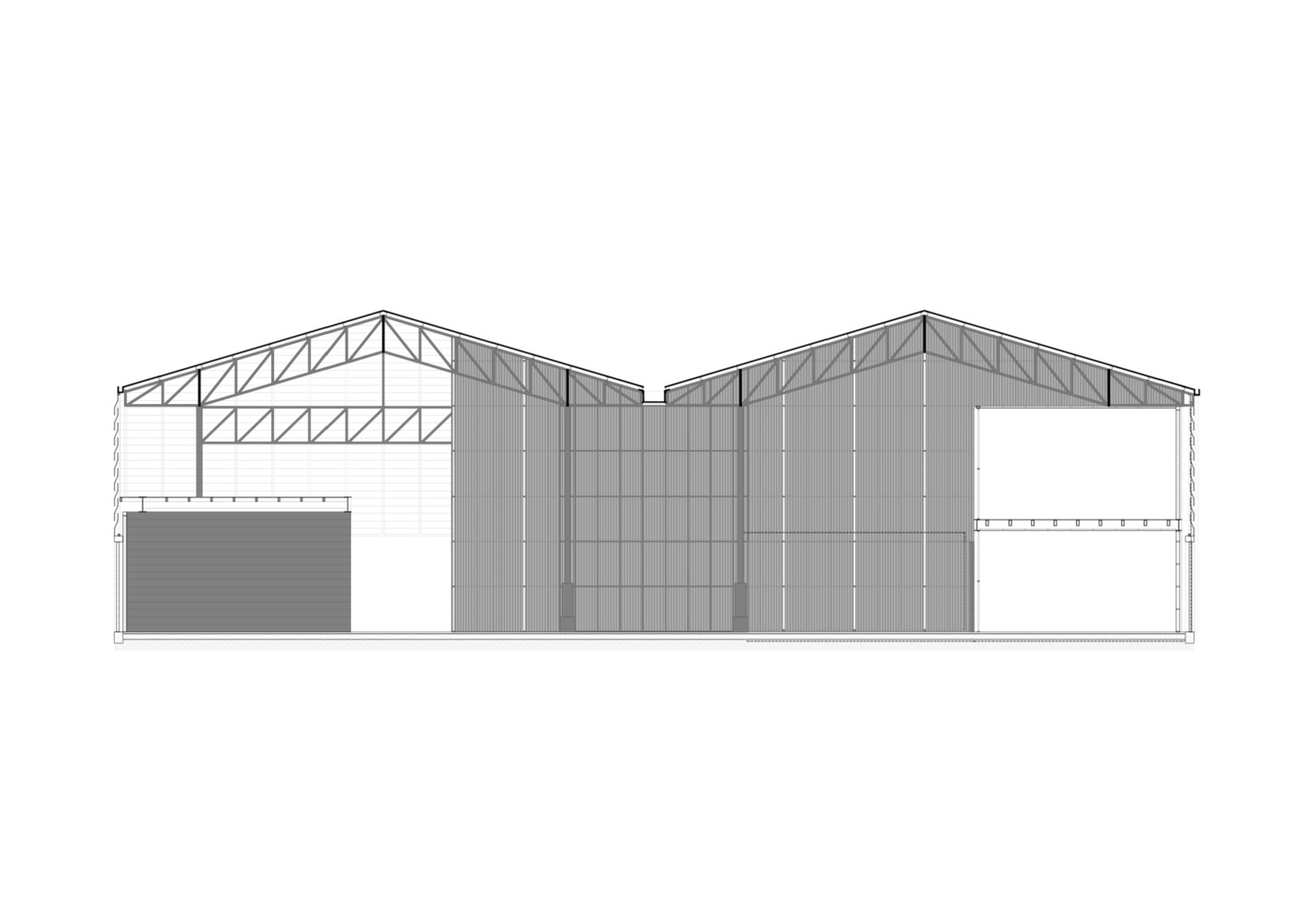

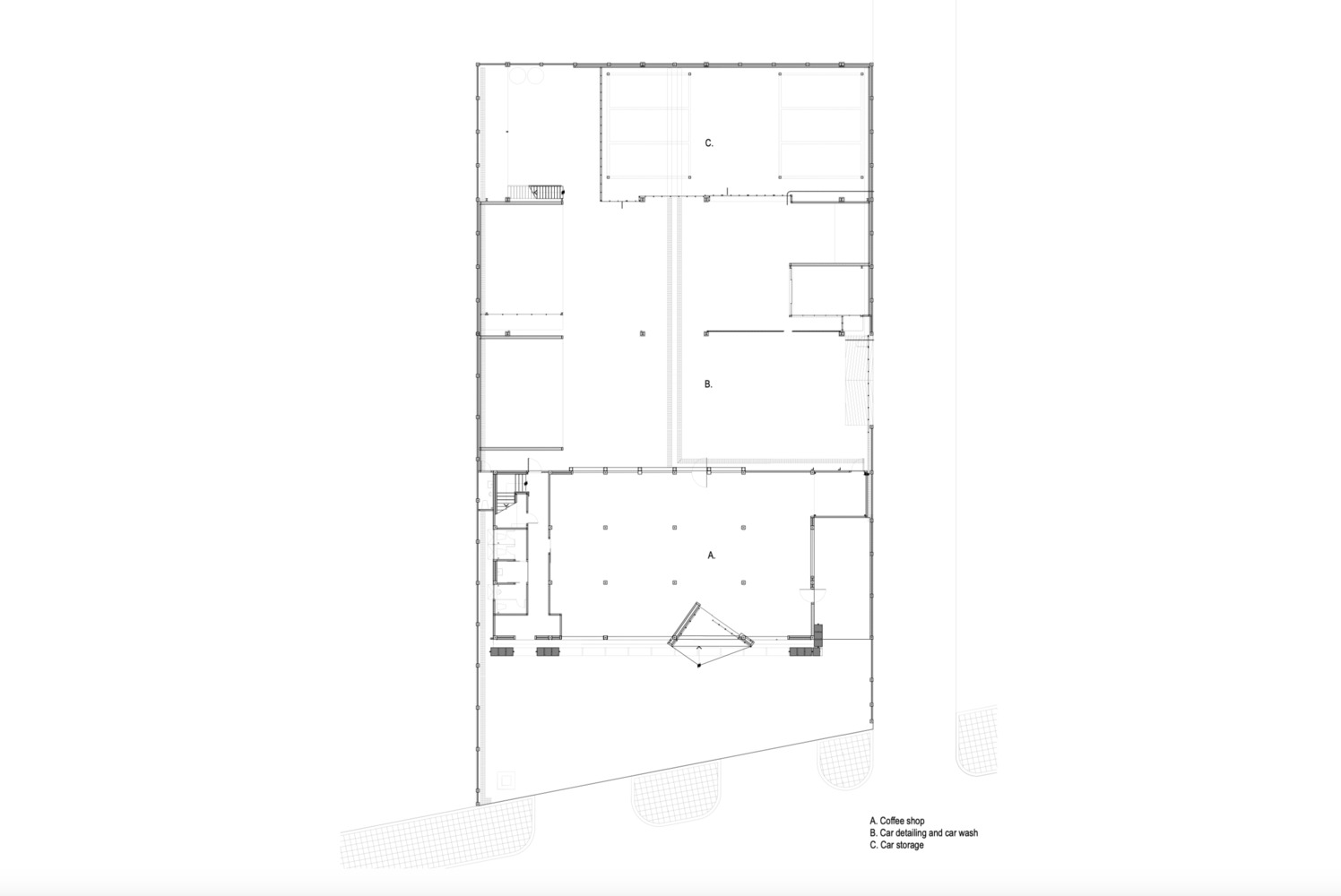

The site plan reveals the building's angled footprint within a dense urban block, a geometry inherited from the original structure that PHTAA chose to preserve rather than regularize. Ground and upper floor plans show how the architects kept the interior maximally open, with a diagonal circulation element (the stairwell) tucked into one corner. The section drawings are the most instructive: they expose the long-span truss roof structure and the relationship between the mezzanine, the ground floor, and the layered facade system. An axonometric detail of the staircase confirms the level of care applied even to nominally utilitarian components.

Why This Project Matters

Archive Auto Service Facility matters because it demonstrates that adaptive reuse in Southeast Asia does not need to be a heritage exercise or a luxury branding play. PHTAA took a generic commercial building, the kind of structure that exists by the thousands across Bangkok, and proved it could be reinvented with inexpensive, widely available materials. The strategy is transferable: polycarbonate, wire mesh, aluminum louvers, and exposed steel can be sourced almost anywhere in the region.

More importantly, the project takes a clear position on environmental performance. Every layer of the facade is a climate response, not an aesthetic gesture. In a city where air conditioning is the default answer to heat gain, that matters. PHTAA has built a persuasive case that the unglamorous work of shading, ventilating, and diffusing light can produce architecture that is visually compelling, ecologically responsible, and economically viable all at once.

Archive Auto Service Facility by PHTAA Living Design, Bangkok, Thailand. Photography by Kukkong Thirathomrongkiat.
