Alvarez Railton Arquitectura Folds a Timber Wall into a Roof for a Riverside Quincho in Concepción

A quincho is one of the most familiar building types in Chile: a covered room for grilling, eating and staying late, usually tacked onto a house as an afterthought. With the Agua de la Culebra Quincho in Concepción, Alvarez Railton Arquitectura, led by Ignacio Alvarez, treats that humble program as a proper piece of architecture. The pavilion covers just 72 m², sits on a sloping site facing the Bío-Bío River, and was completed in 2026.

What makes it worth your attention is a single move. The timber wall that announces the entrance does not stop being a wall; it folds and unfolds to become the roof, which then projects out toward the river landscape. Arrival and view are stitched together by one continuous surface. Most small pavilions resolve entry, enclosure and outlook as three separate problems. Here they are one gesture, and the whole building is organized around getting that gesture right.

A Hard Edge to the Street

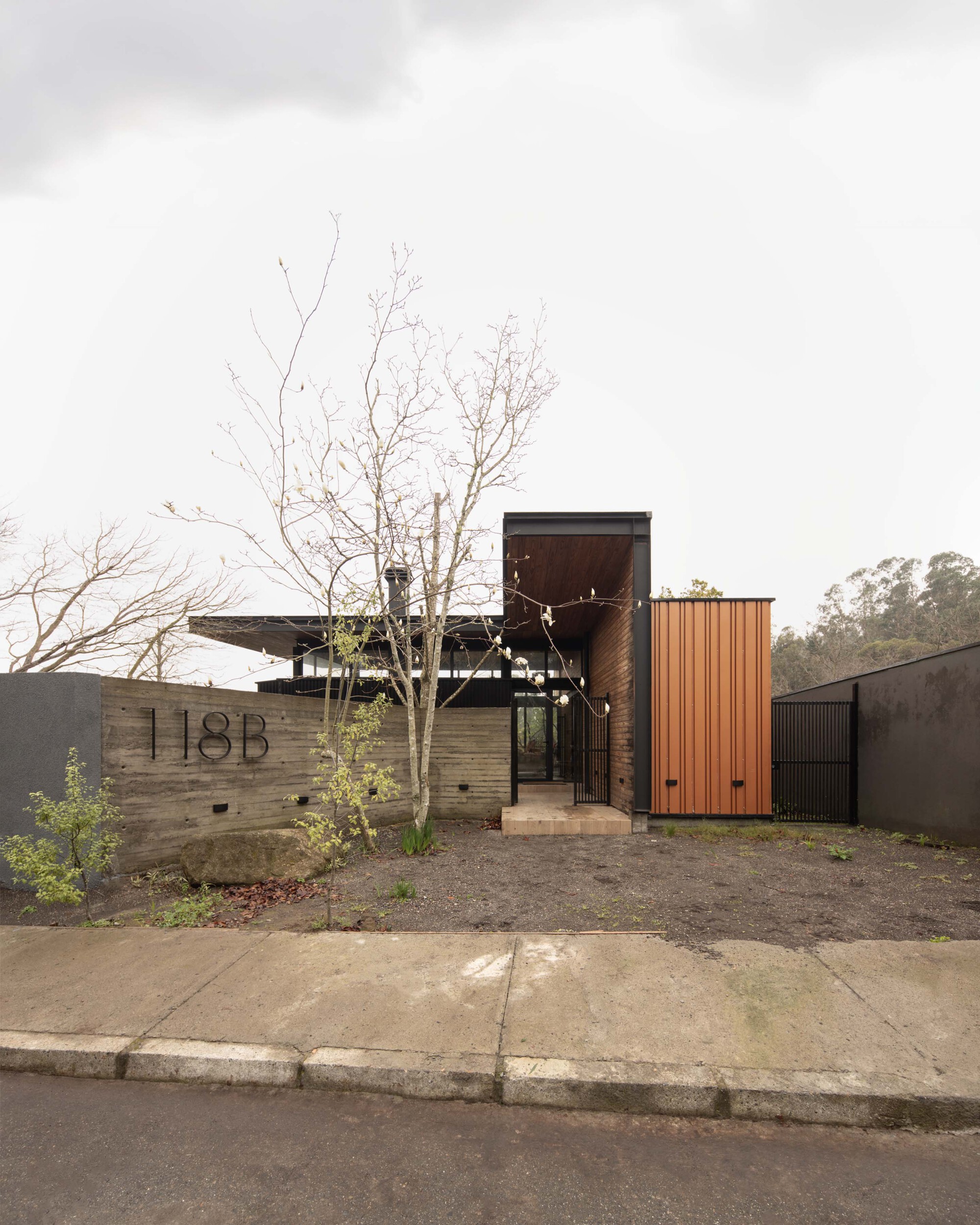

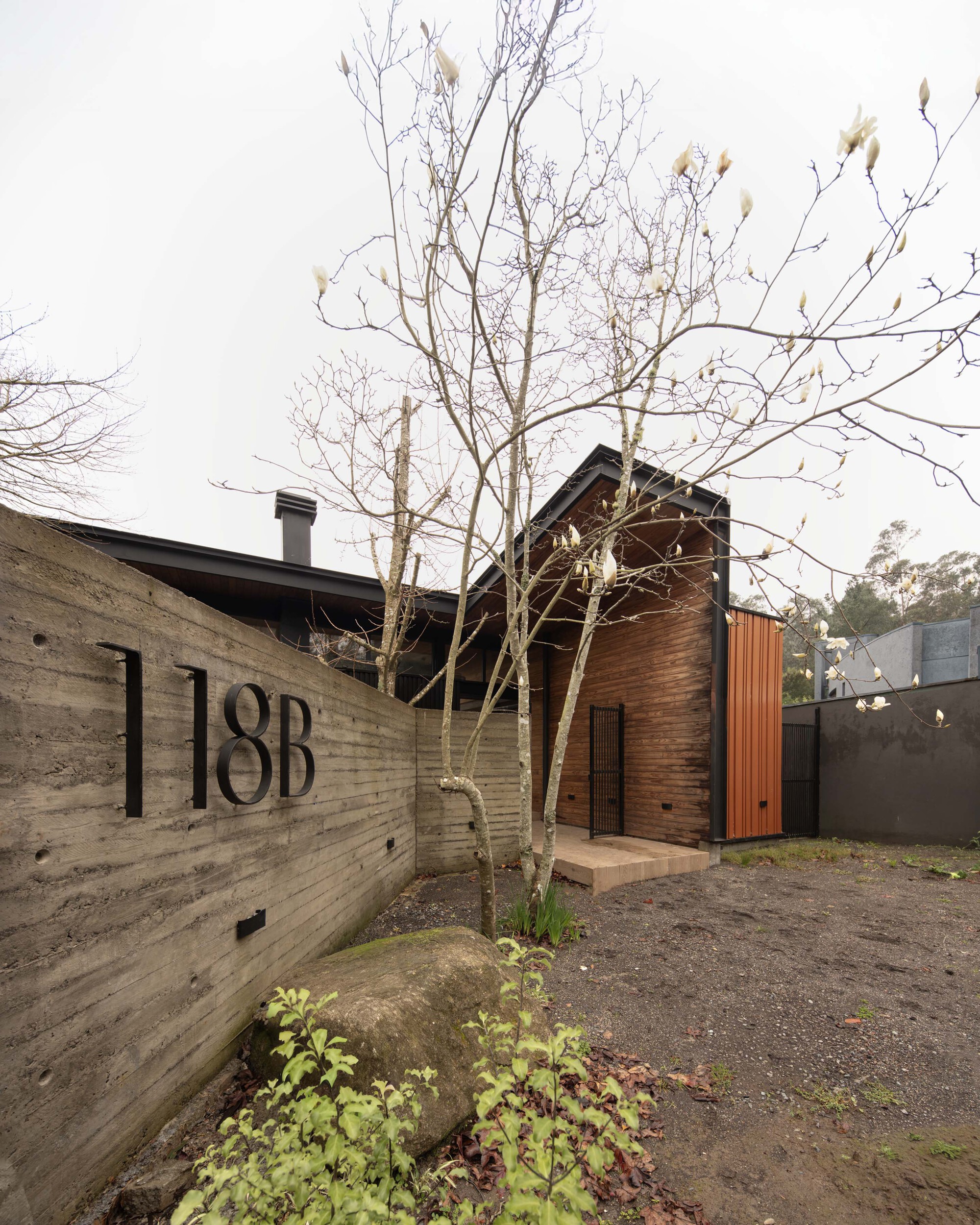

From the street, the quincho barely reveals itself. A board-formed concrete wall carries the house number and screens the plot, while a metal-clad volume in orange and copper tones sits just behind it. It is a guarded, almost urban front, and that restraint is deliberate. You are given texture and a hint of warmth rather than a view.

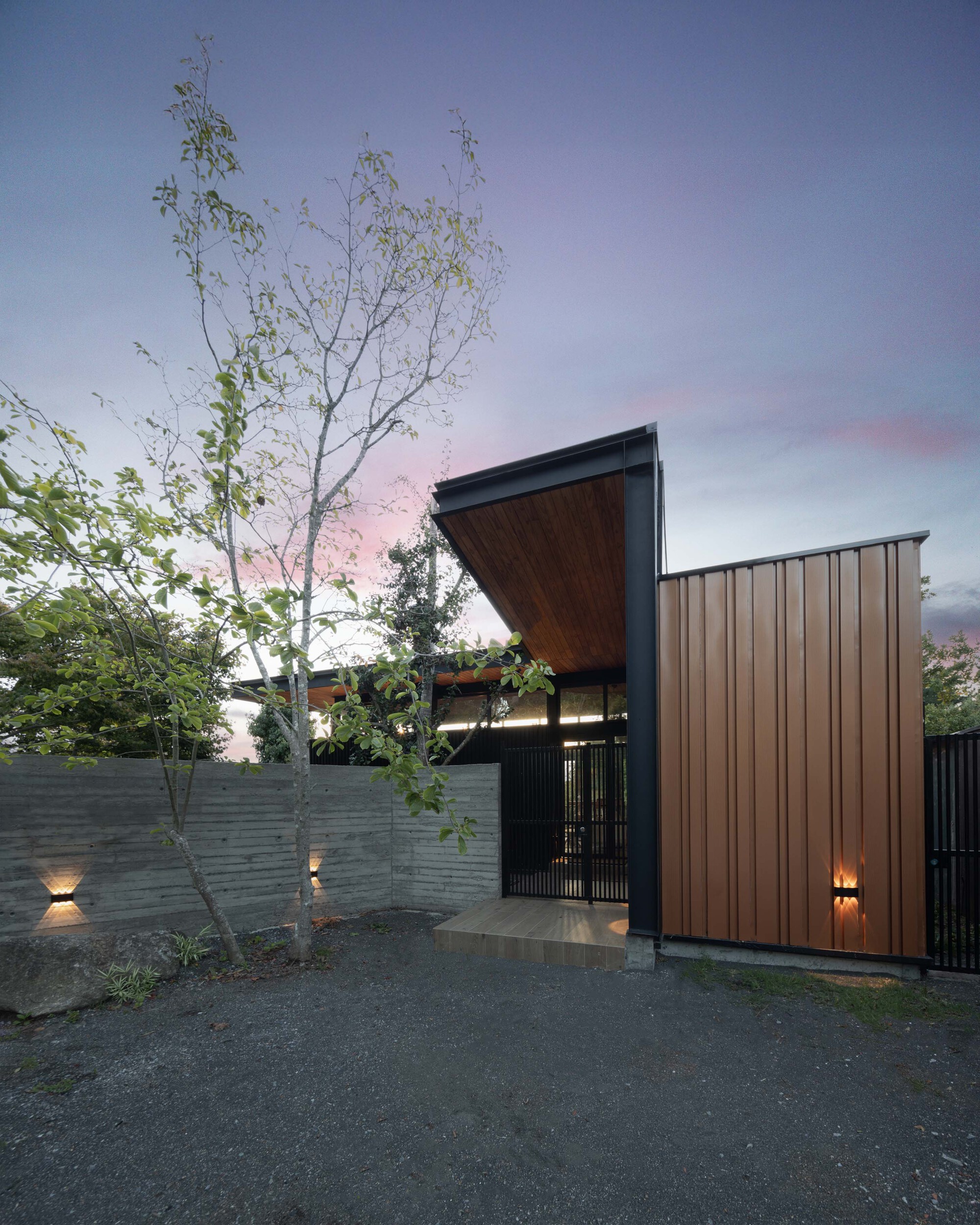

The gate is where the timber begins. A cantilevered, wood-lined soffit hovers above the entry, and at dusk the wall lights pick out the grain of the concrete beside it. This is the first appearance of the surface that will later become the roof, so the entrance reads less like a door and more like the start of a route.

One Wall, Folded into a Roof

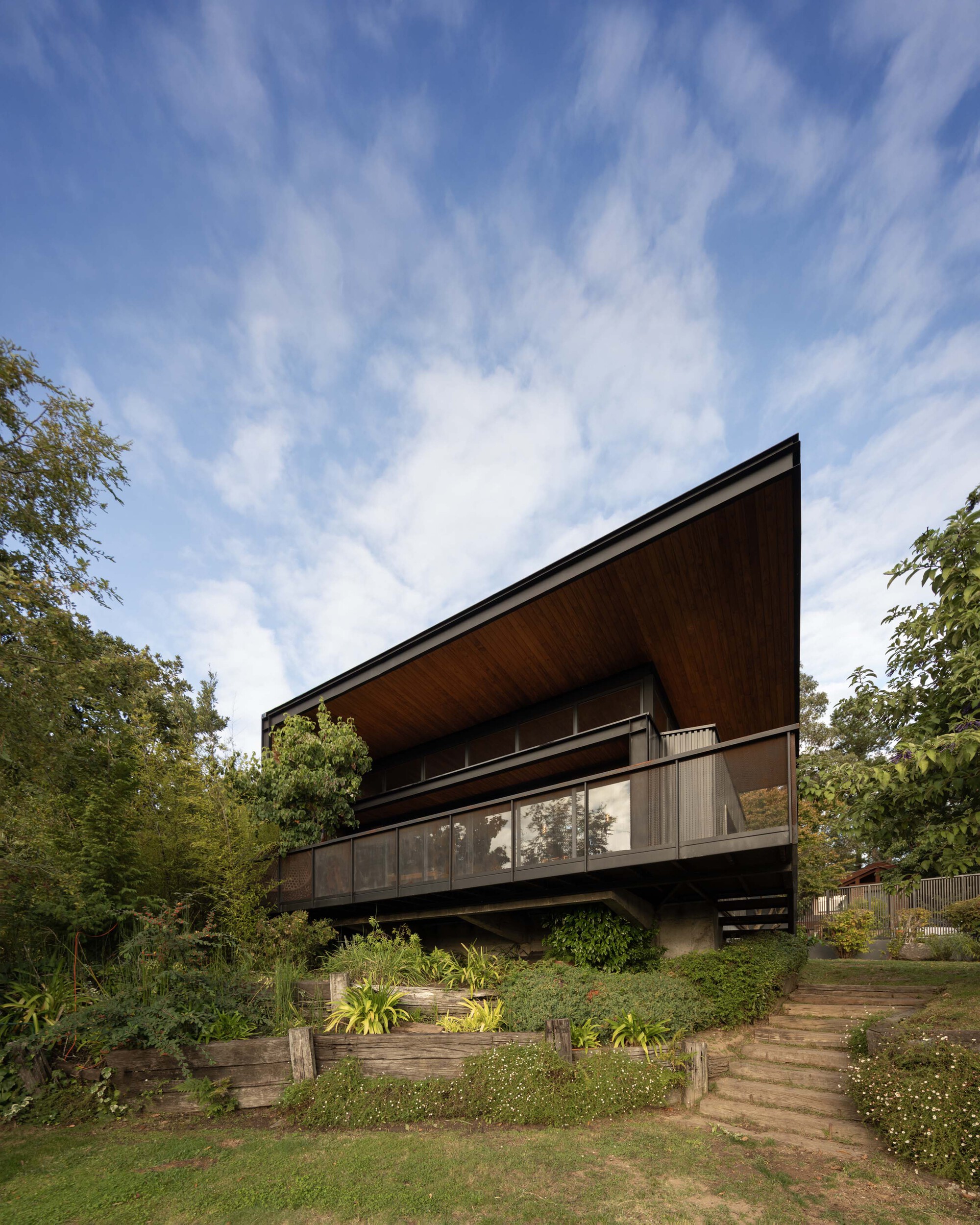

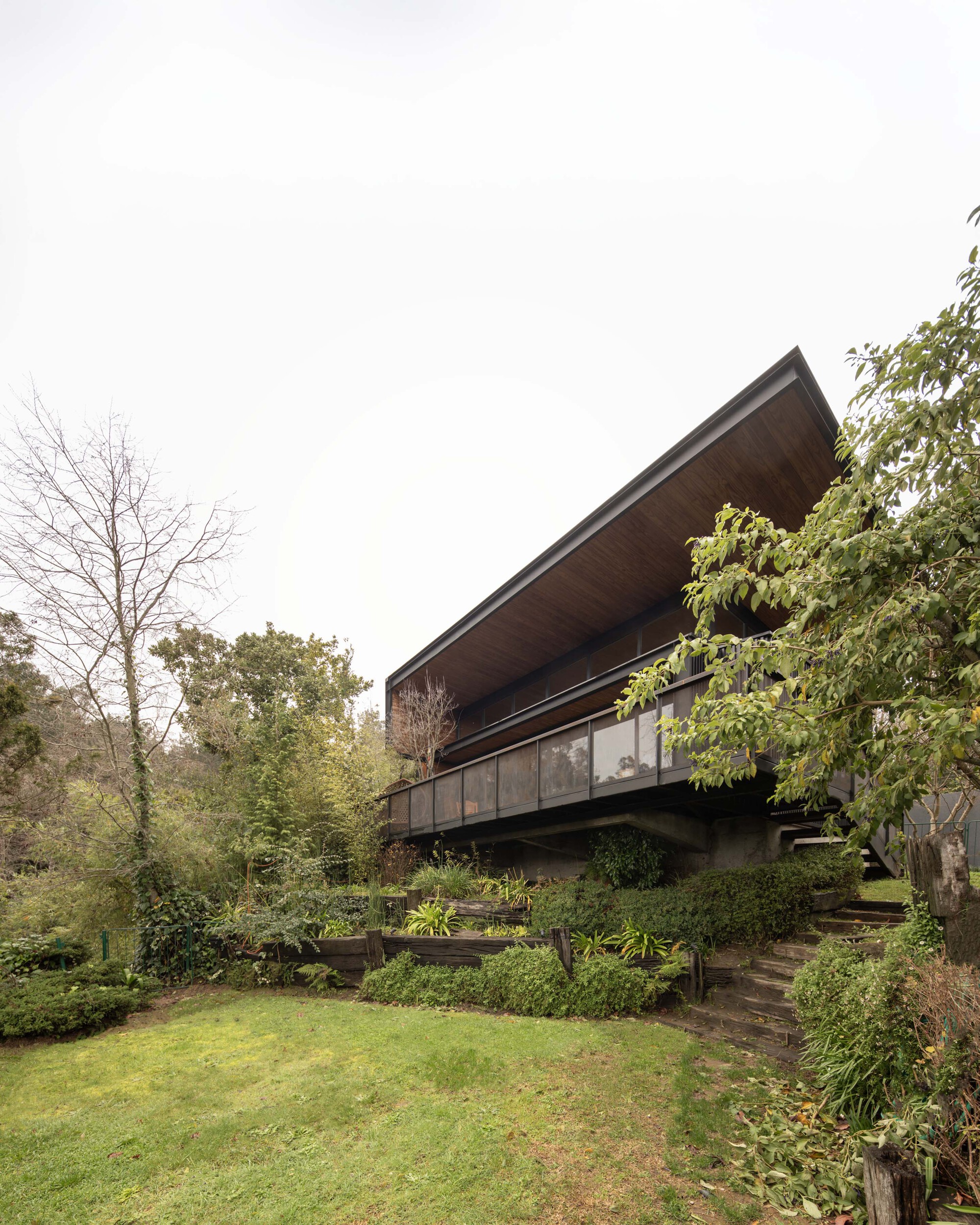

Seen from the garden below, the logic becomes clear. The roof slopes upward and outward, its timber underside exposed, and lifts the glazed edge of the pavilion above terraced planting beds and stone steps. The building shows its most generous face to the river side, not the street side, which is exactly the right priority for a room whose whole purpose is long afternoons outdoors.

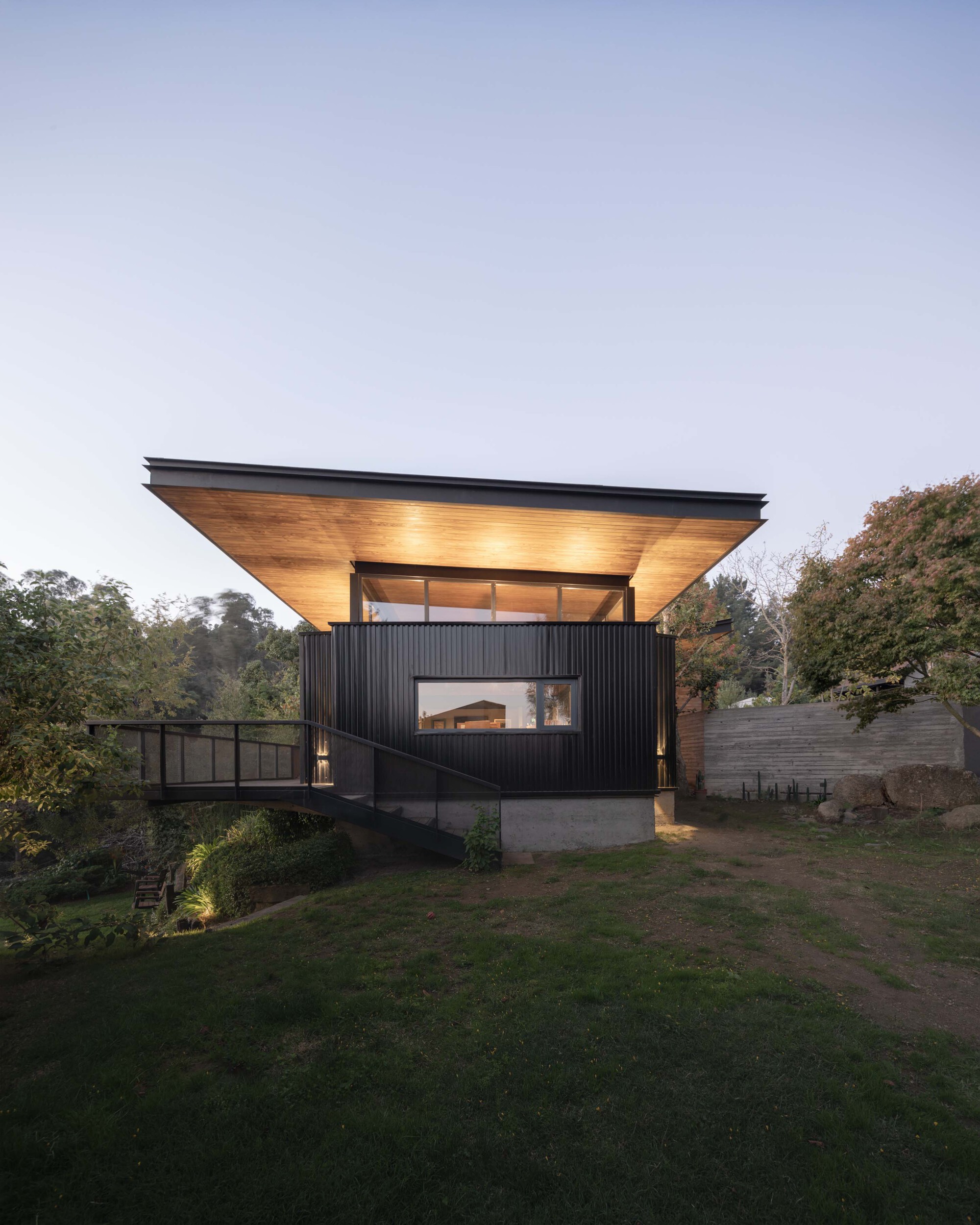

The dusk view is the strongest image of the project. A dark corrugated volume sits beneath a wide, floating timber soffit, and the contrast does the work: the enclosure recedes while the folded wood plane becomes the main event. We read the black box as the service and the timber as the gesture, a clear hierarchy that keeps a small building from feeling cluttered.

A Footbridge and a Dark Skin

Instead of grading the slope to meet the floor, the architects reach the pavilion with a steel footbridge and glass railing that crosses the grass. It is a light-touch way to deal with topography, and it turns the approach into a small event: you step off solid ground and onto a platform suspended in the garden.

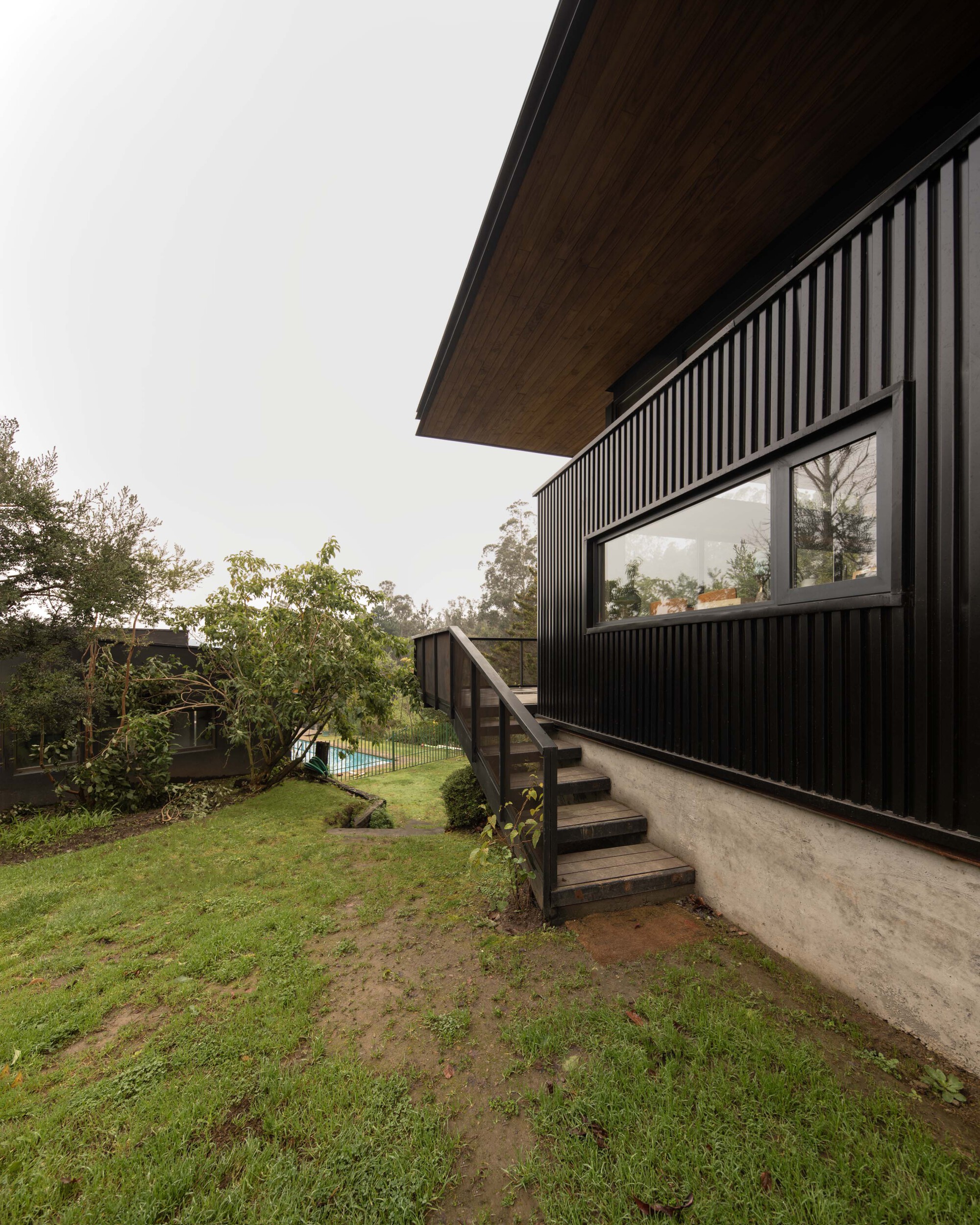

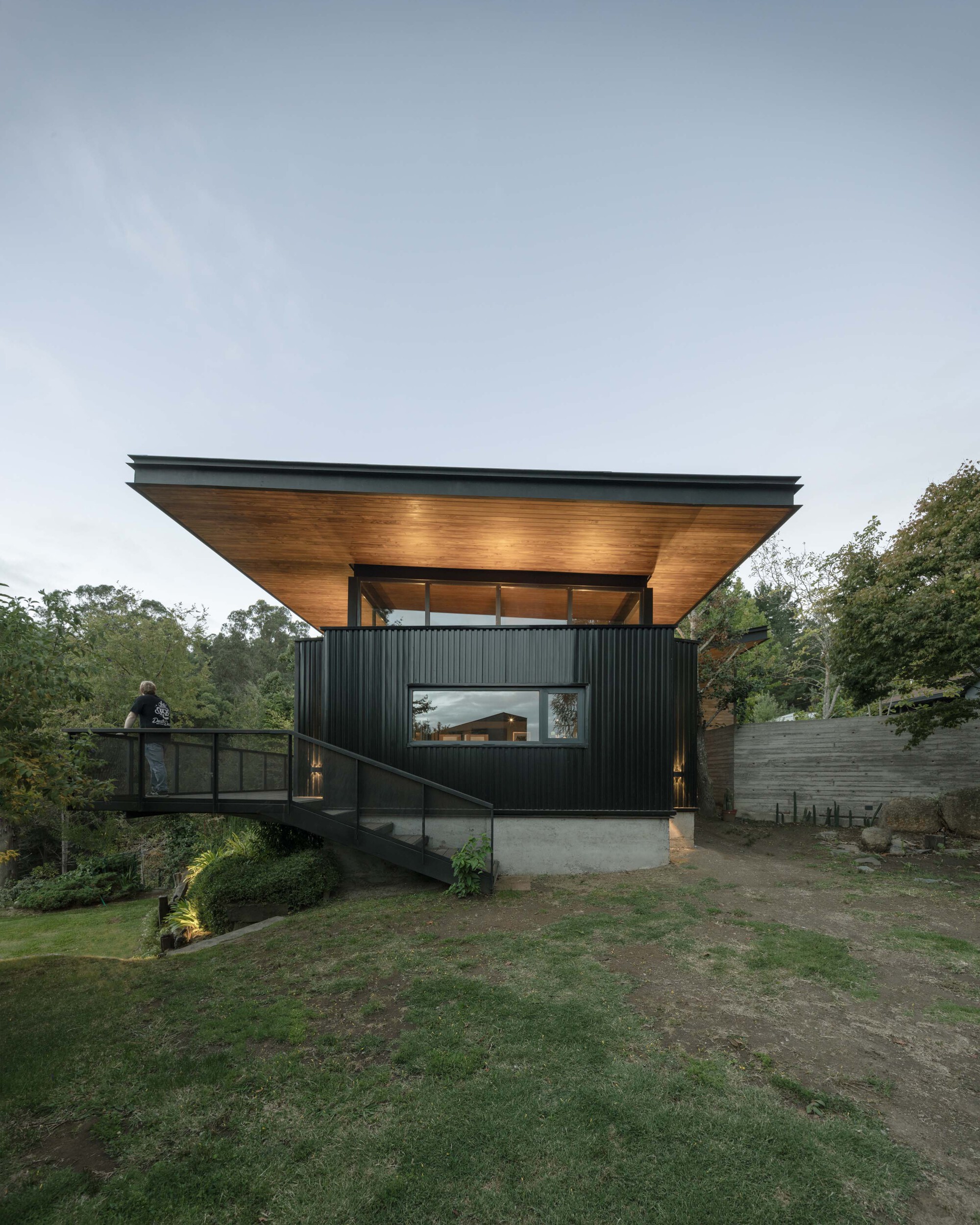

The cladding is plainly industrial. Archello lists Cintac Crown Panel and City Panel for the exterior wall, with ArchDaily crediting Topwood and Medestuk among the suppliers and listing wood and steel as the main materials. On the side wall, black vertical panels are cut by a single ribbon window, and timber steps lead down to the lawn. Pairing off-the-shelf metal panels with a carefully detailed timber plane is a sensible budget strategy: spend the craft where the body and eye actually meet the building.

Under the Overhang

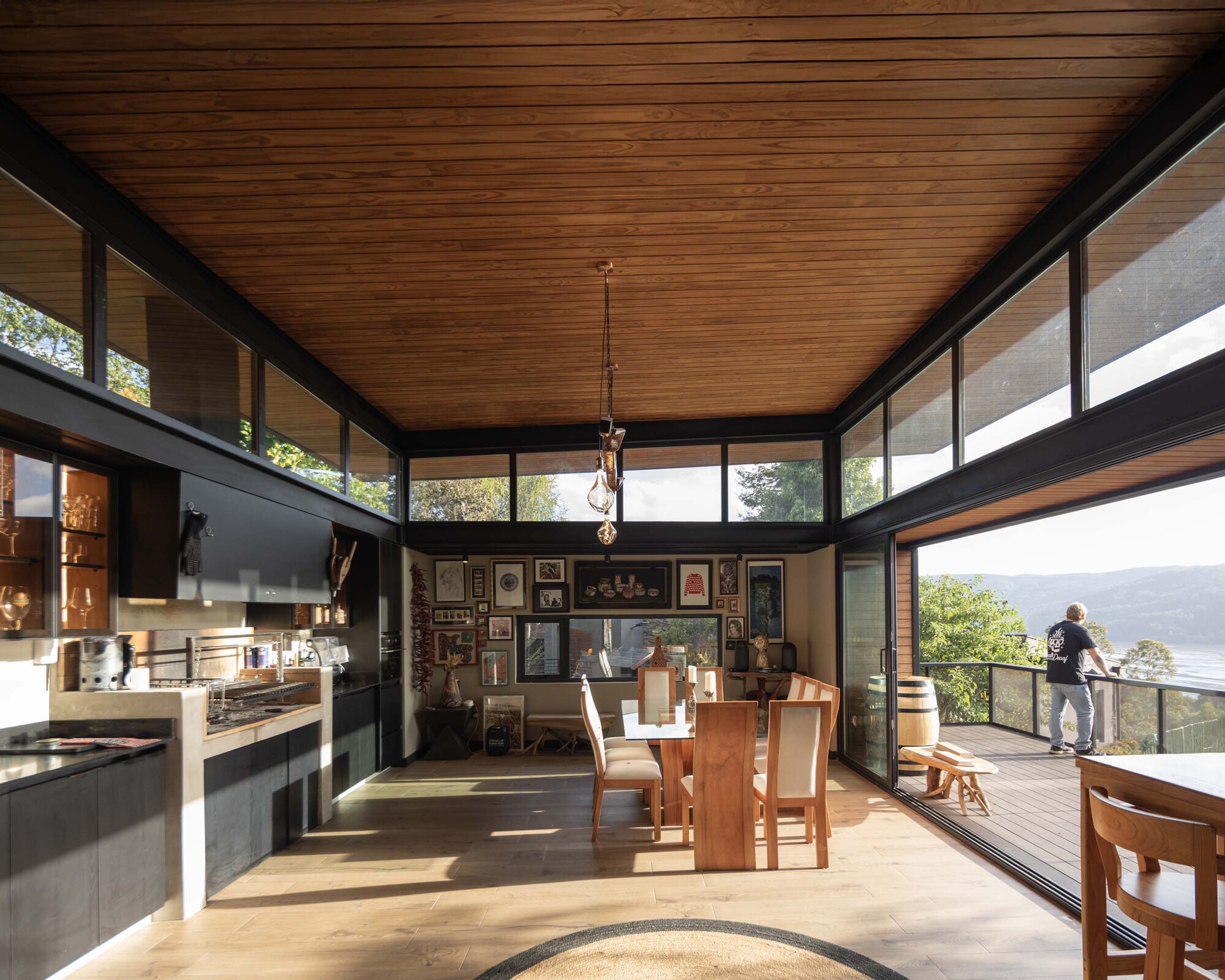

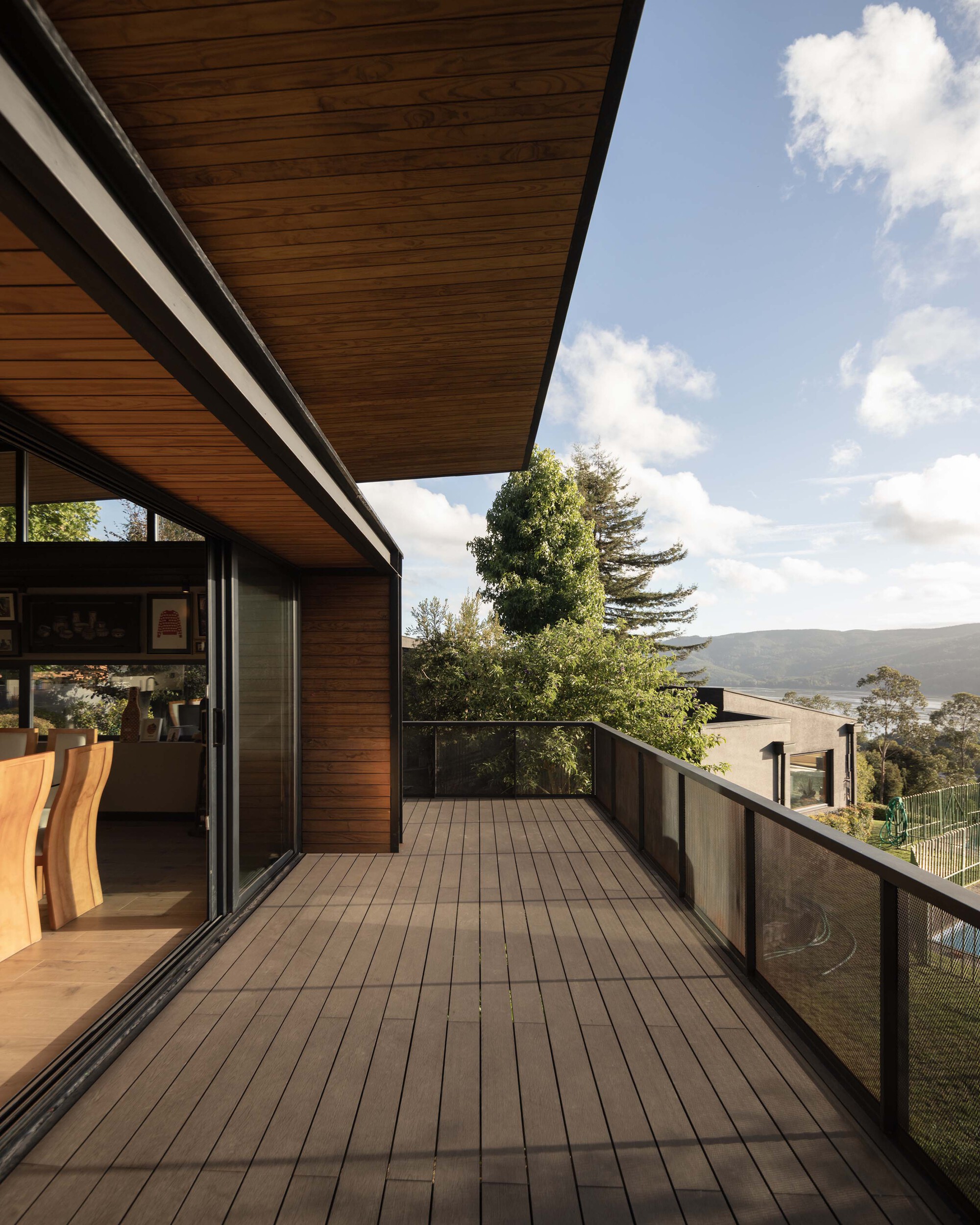

Inside, the program is a single open room for cooking and dining beneath a timber plank ceiling, which is the underside of the folded roof made legible. Sliding glass doors open the full length of the room onto a deck, so in good weather the quincho stops being an interior at all and becomes a sheltered platform among the trees.

The deep overhang is the hinge of the whole scheme. It shades the glass, protects the deck from Concepción's frequent rain, and frames the hills in the distance. A quincho lives or dies on whether people want to linger there, and the overhang is what makes lingering possible in more than one season.

Plans and Drawings

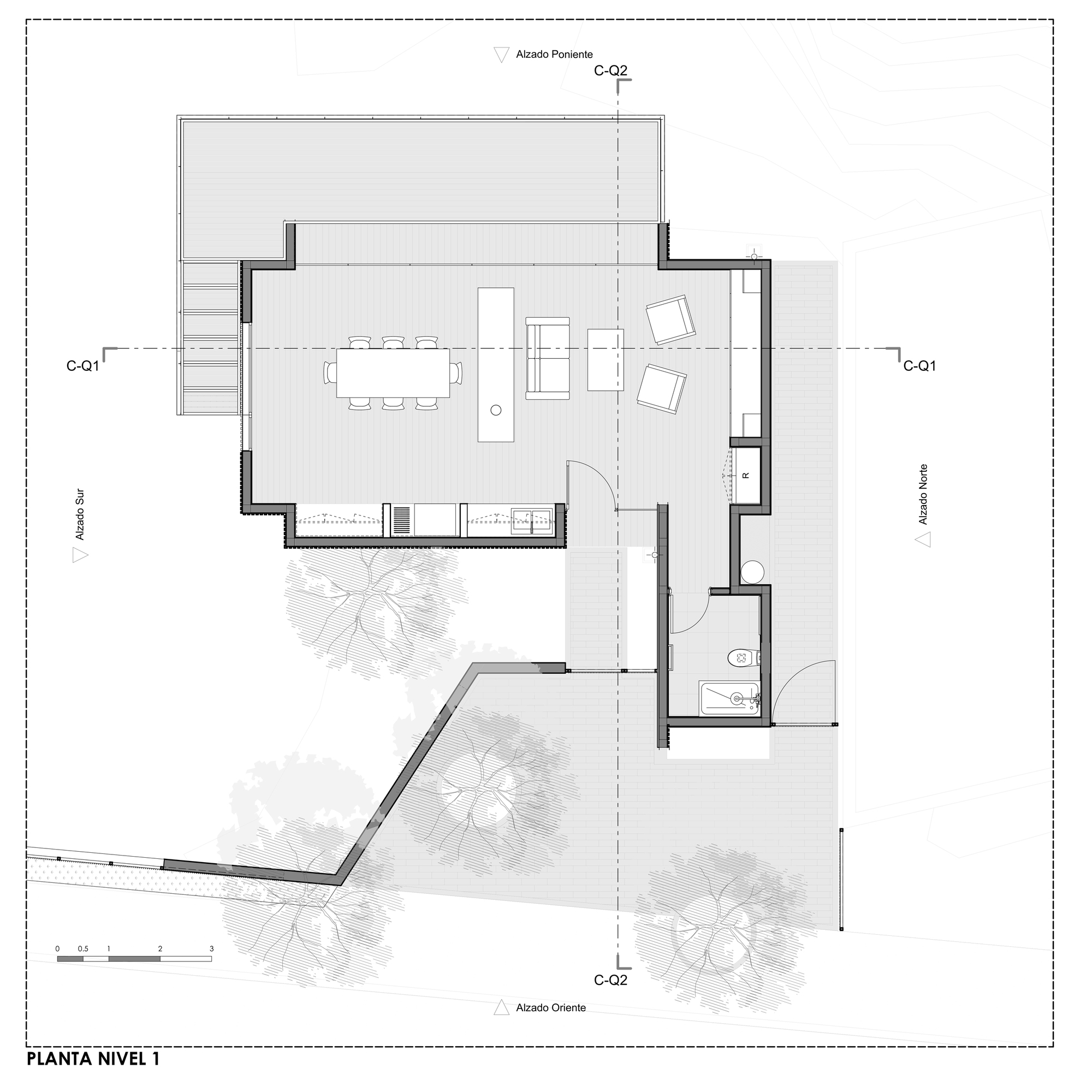

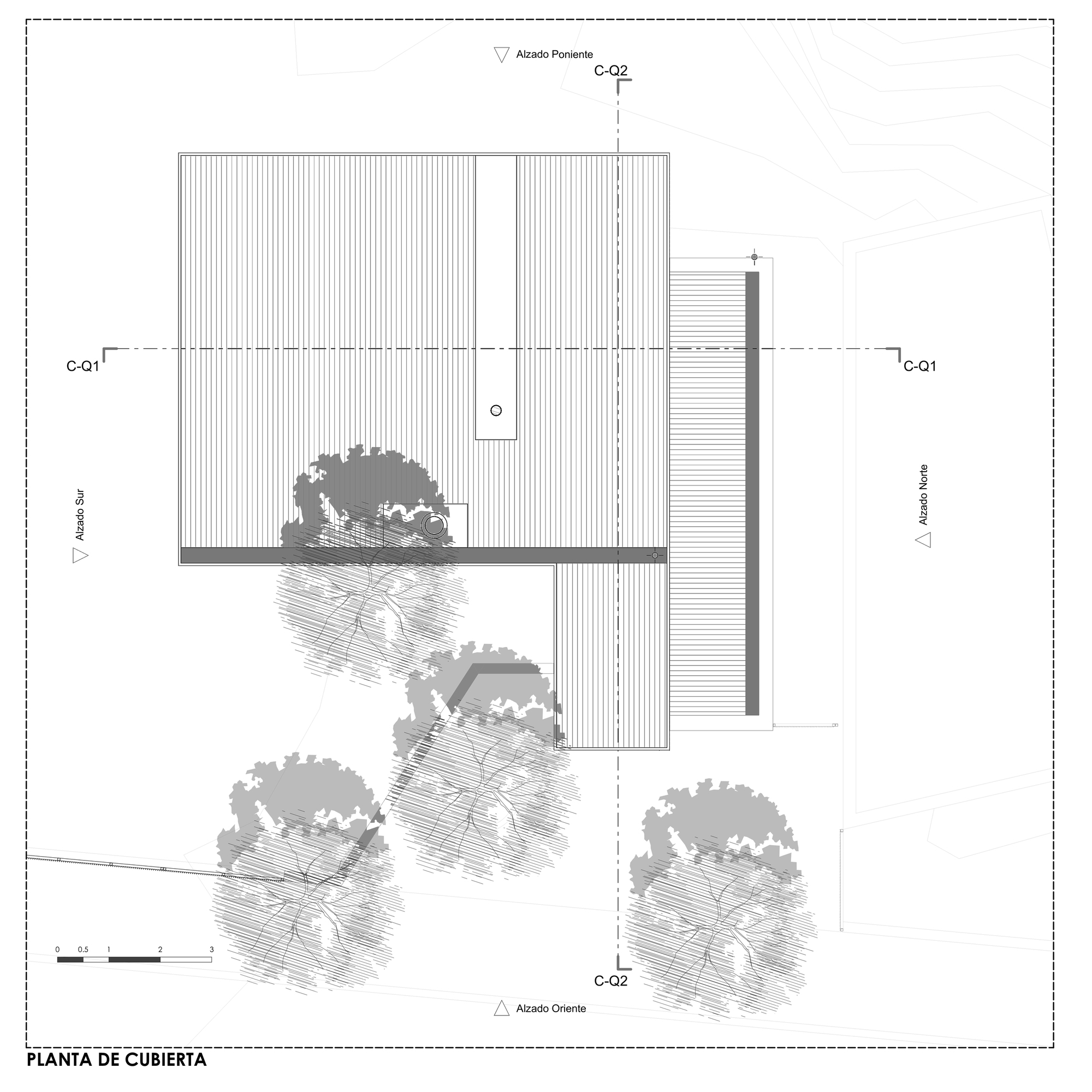

The floor plan confirms the economy of the brief: one open living, dining and kitchen room, a bathroom and a deck, set among existing trees. The roof plan is more revealing, showing ribbed roof planes and a long skylight strip, which suggests the folded surface is also used to pull daylight into the back of the room.

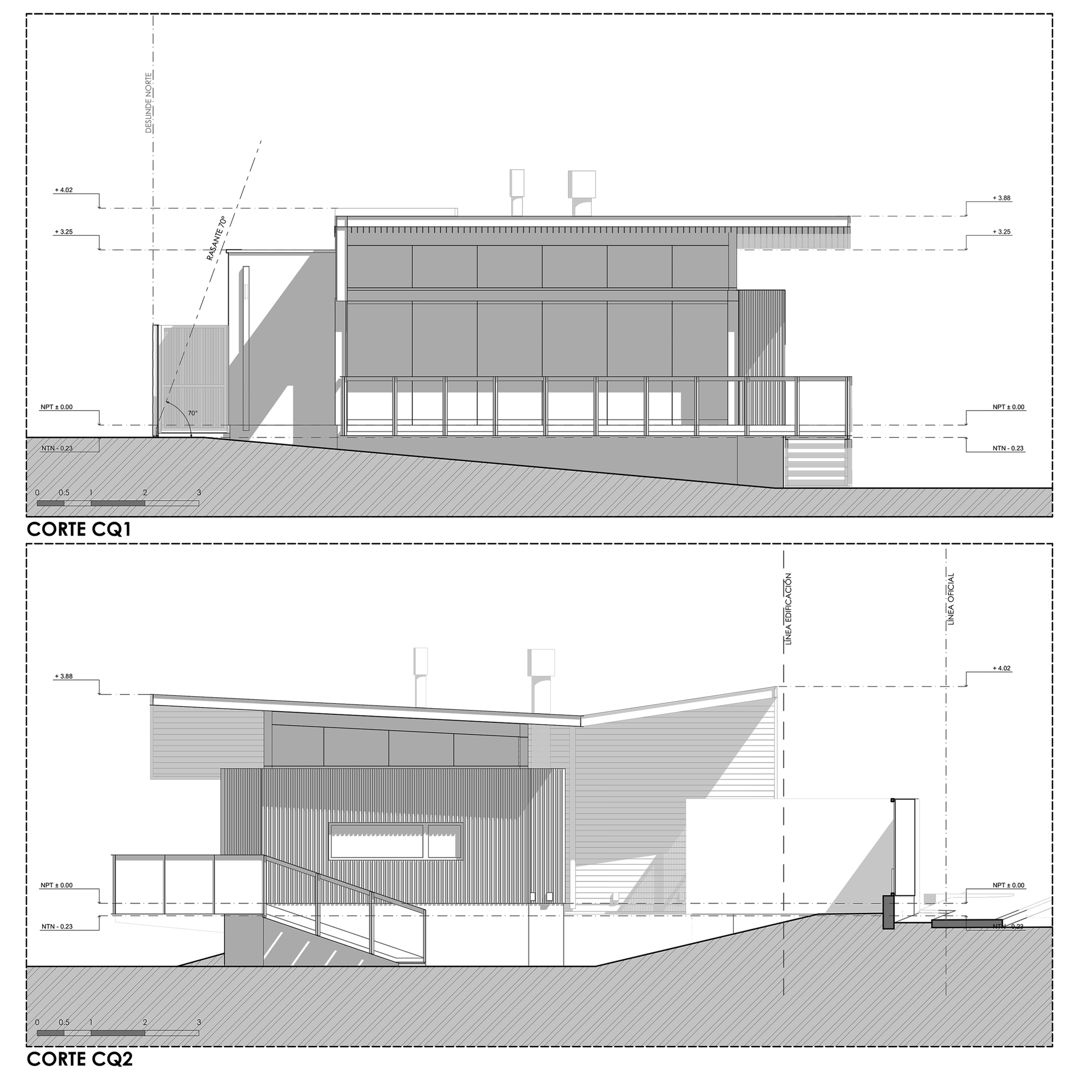

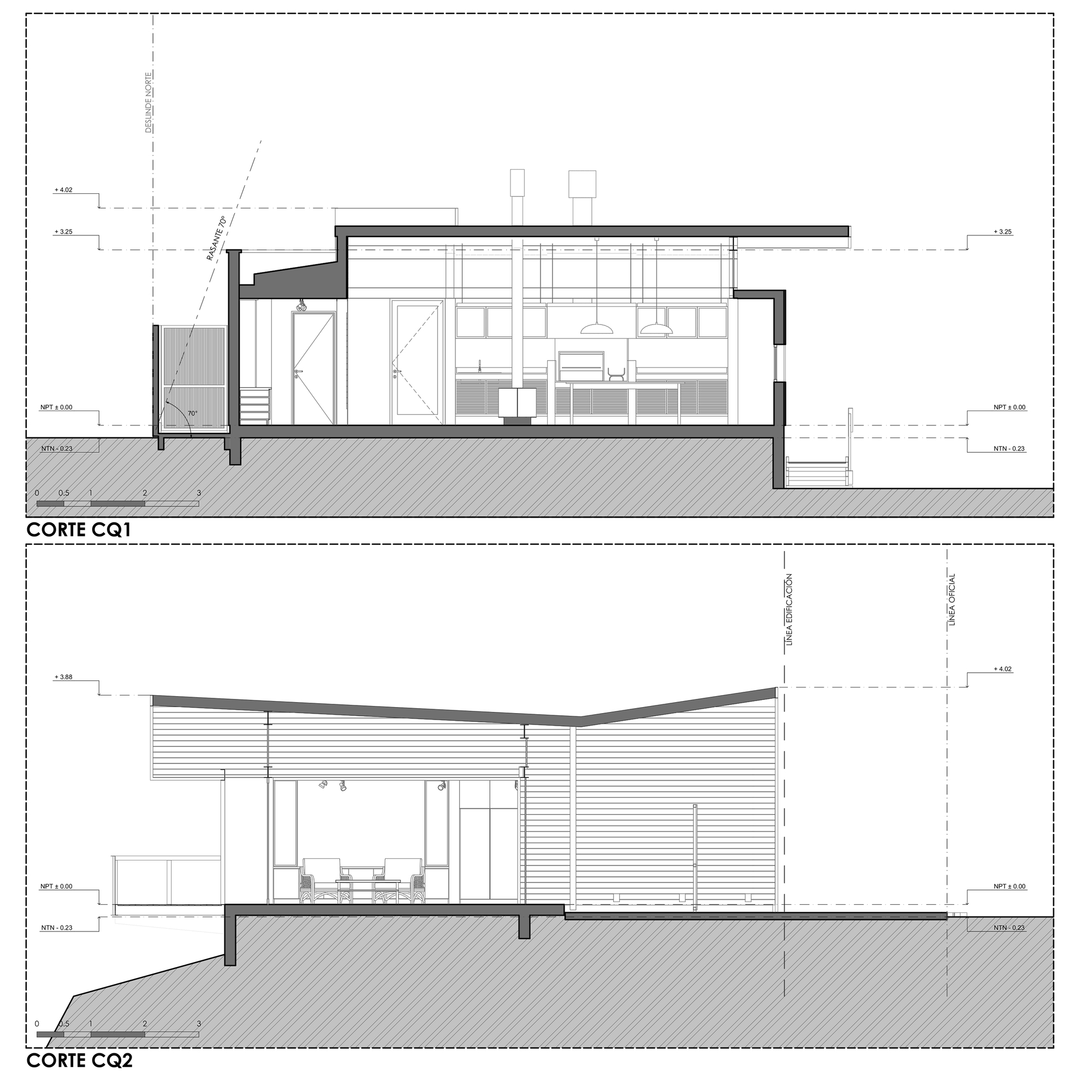

The elevations and sections show how the single-storey pavilion negotiates its slope, with a railed deck, stair and shed roof, and chimney flues rising from the roofline. In section, the sloped roof opens the volume toward the view, so the ceiling climbs as you move from the kitchen toward the seating area and the river beyond.

Why This Project Matters

Small secondary buildings are where many architects play it safe, but they are also where a single idea can be tested cleanly. The Agua de la Culebra Quincho proves that a vernacular program can carry a clear architectural argument: one surface that guides you in, wraps over you and hands you a view. Nothing in the project competes with that idea, and its clarity is its strength.

There is also a practical lesson here for anyone building on a tight budget. Industrial metal panels handle the enclosure, a steel bridge handles the slope, and the timber is concentrated where it matters most. The result is a 72 m² building that feels considered rather than cheap, and a reminder that the quincho, a staple of Chilean domestic life, deserves more design attention than it usually gets.

Agua de la Culebra Quincho by Alvarez Railton Arquitectura (lead architect Ignacio Alvarez; civil engineering by Paulina Guerrero), Concepción, Chile. Area: 72 m². Completed: 2026. Photography by Gustavo Burgos.
