Felipe Hess Arquitetos Turns a Blind Stone Wall to the Street and Opens a Brazilian House onto a Courtyard and Canal
A canal-front house in Brazil hides behind painted stone and planting, then opens to an olive-tree courtyard, a reed-ceilinged porch and a curving pool.
Most houses on a standard suburban lot face the street and hope for the best. Felipe Hess Arquitetos does the opposite at Laranjeiras House. The front of this 450 m² family home, completed in 2025, is close to a blank wall of white-painted stone masonry. It has one office window and a timber door that you only find once you push past the planting. Everything the house wants to say, it says to its own courtyard and to the canal at the back of the lot.
The project is listed in São Paulo, though other published accounts place it in a condominium in Paraty, on the Rio de Janeiro coast. That fits the lagoon views and the beach-house mood. What interests us is not the address but the brief the architects set themselves: fit four suites and generous living space onto an ordinary plot without the house feeling packed. Their answer is volumetric restraint on the outside and lightness within. It works because the house refuses to perform for passers-by.
A Street Wall That Gives Almost Nothing Away

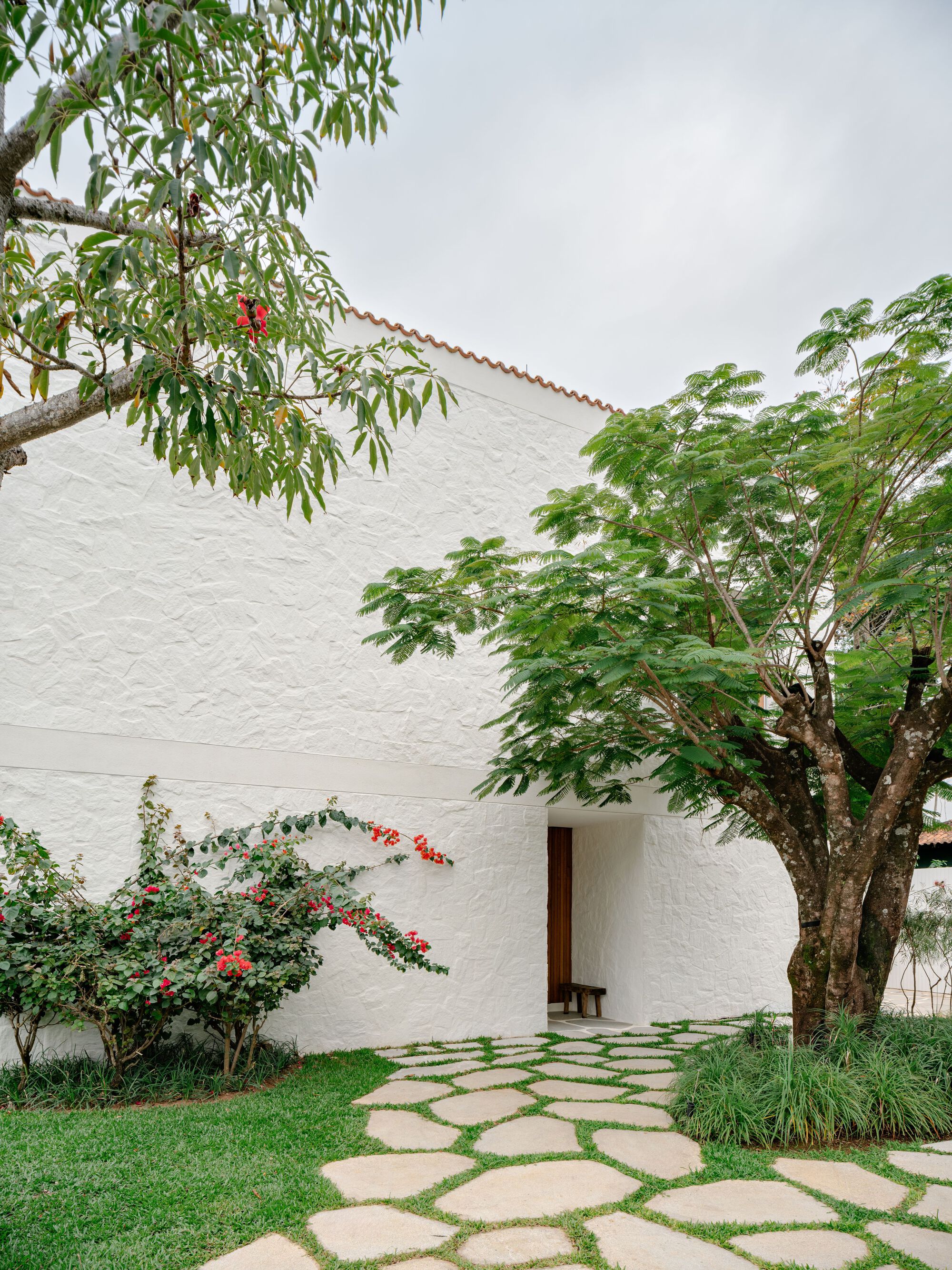

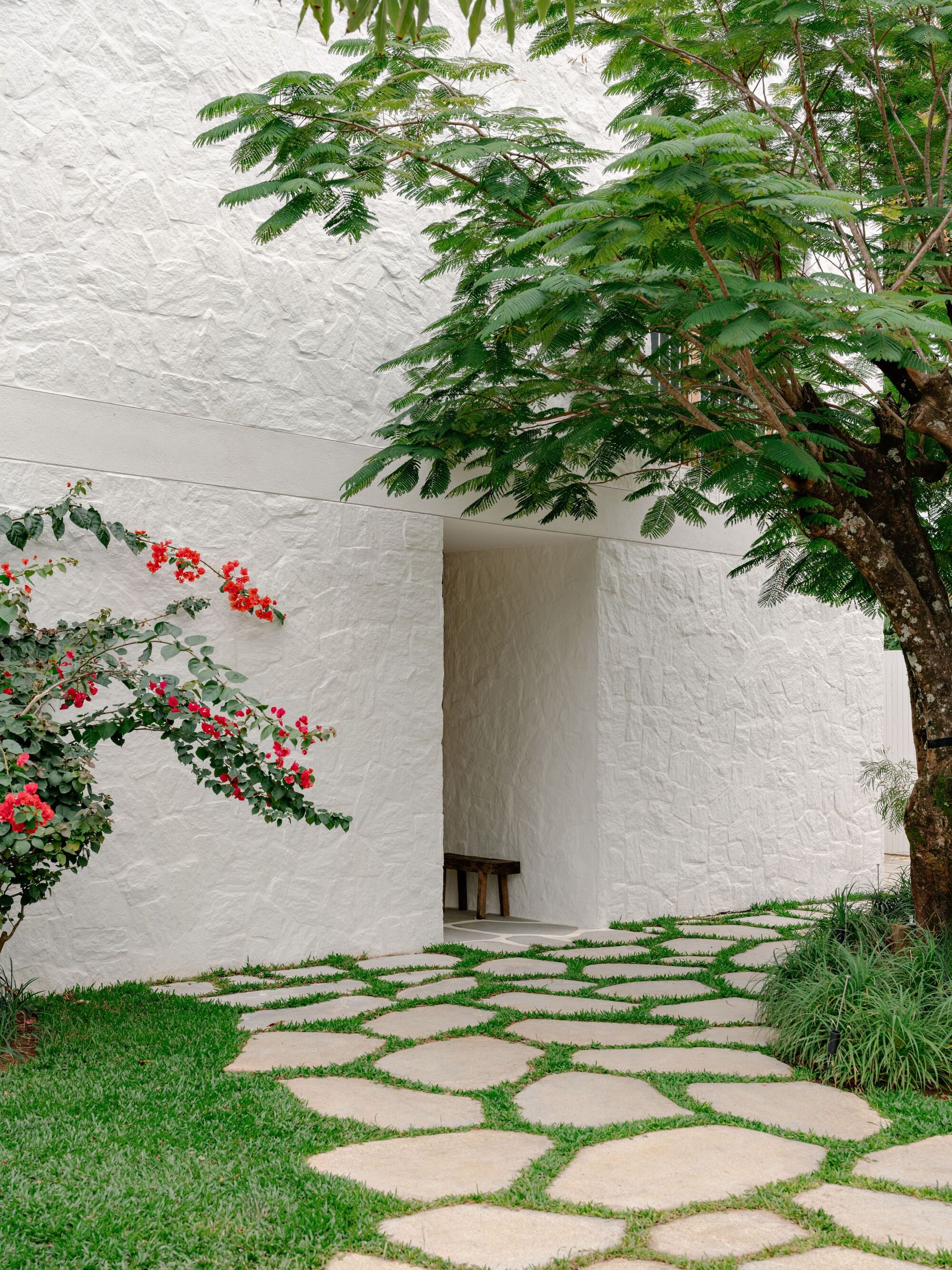

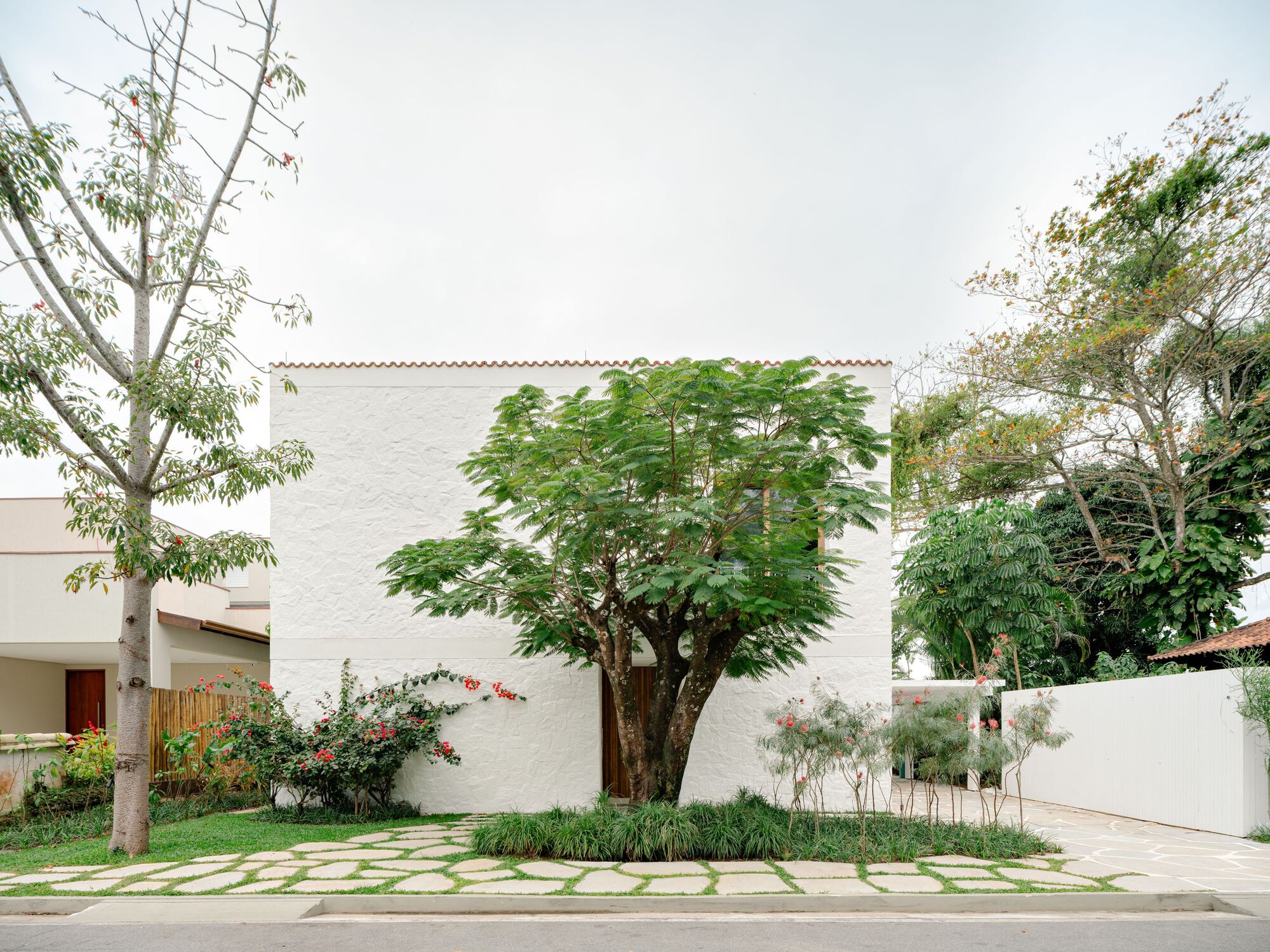

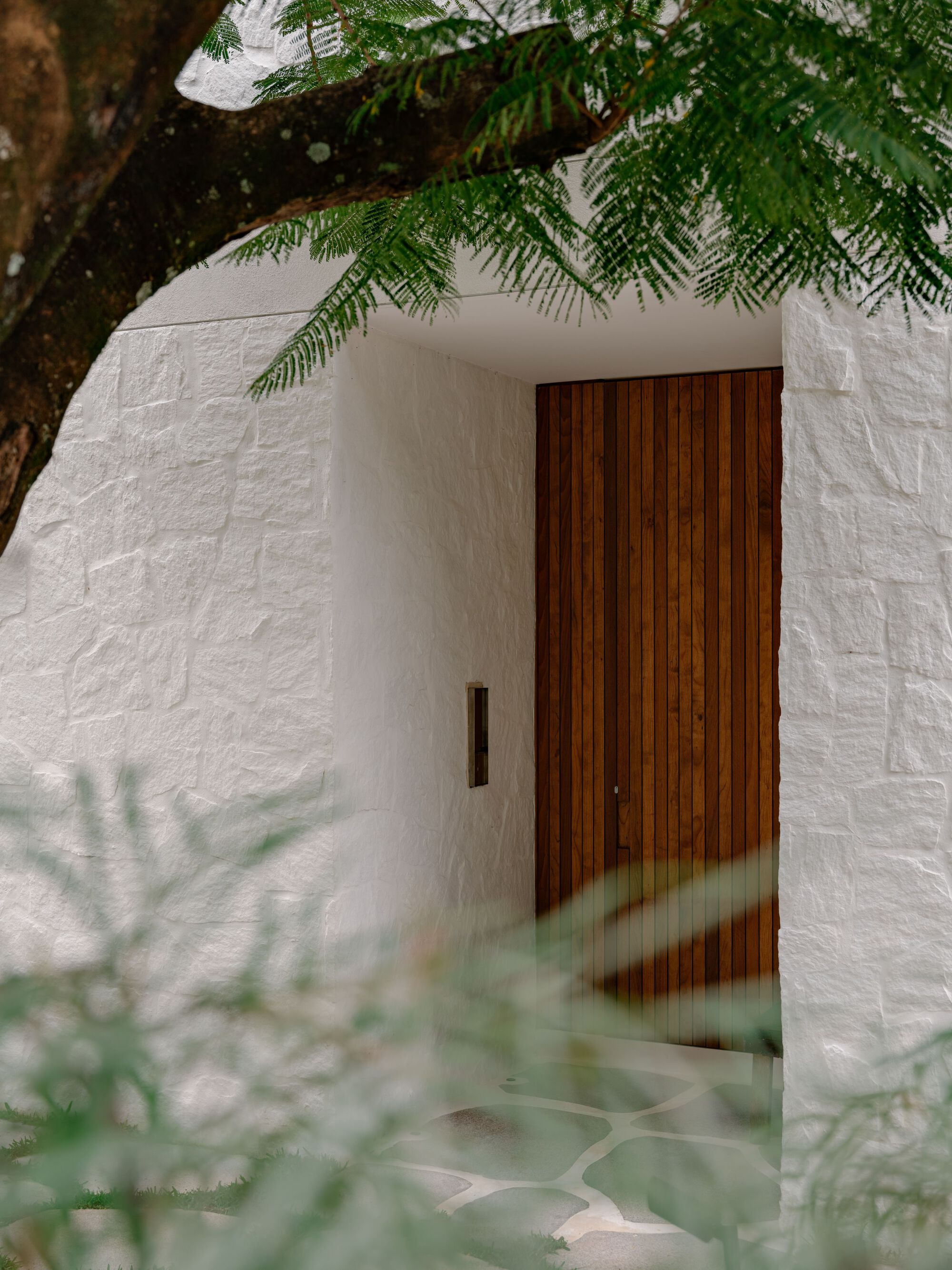

The street elevation reads as a single mass of rough, whitewashed stone, and a large tree and flowering shrubs soften it further. The entrance sits in a recess. Its vertical timber slats are half screened by feathery leaves, so arriving feels like slipping through a garden gate rather than walking up to a front door. A built-in bench beside the entry, with stepping stones set in grass, suggests the threshold is a place to linger as well as to pass through.

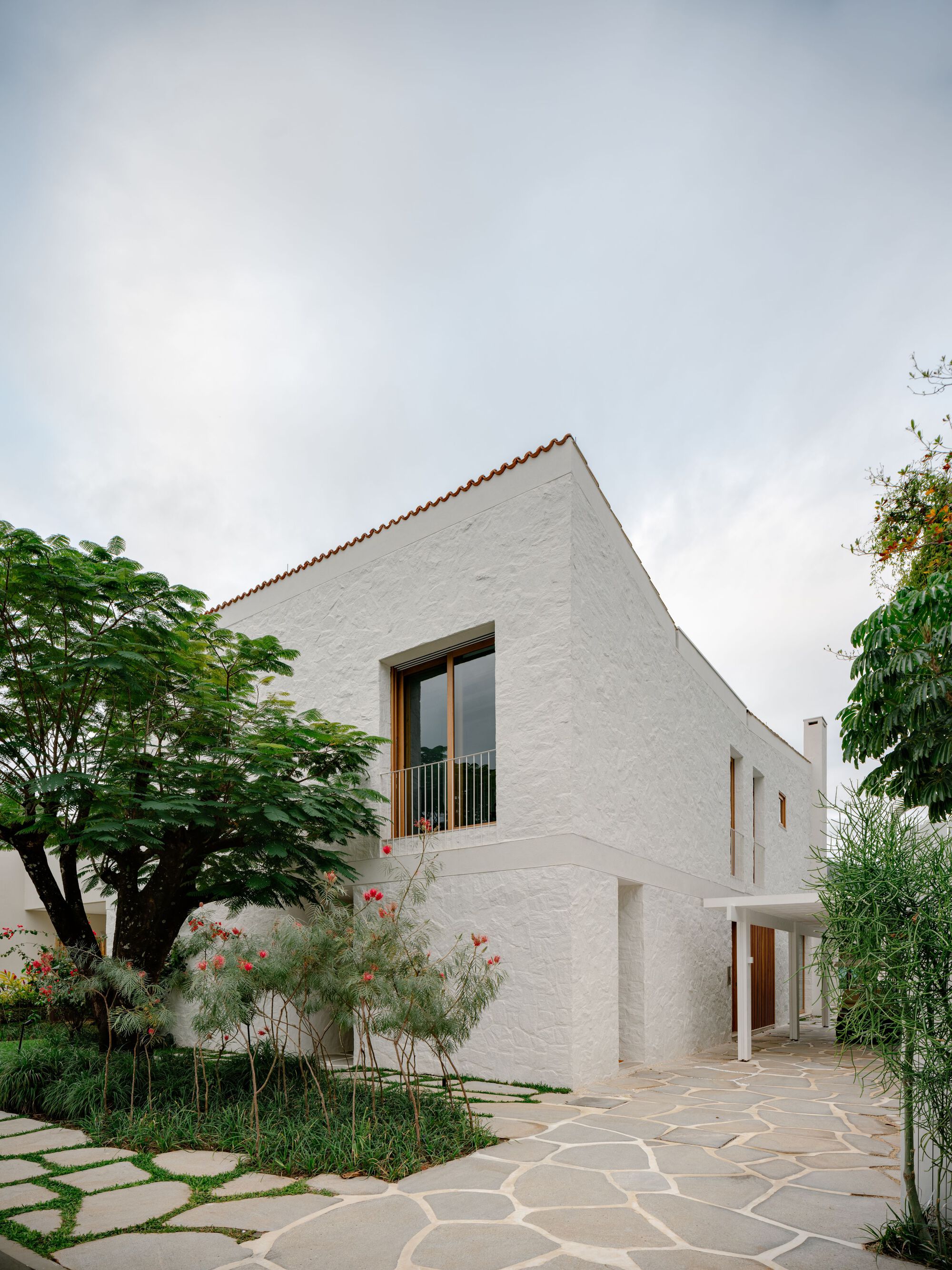

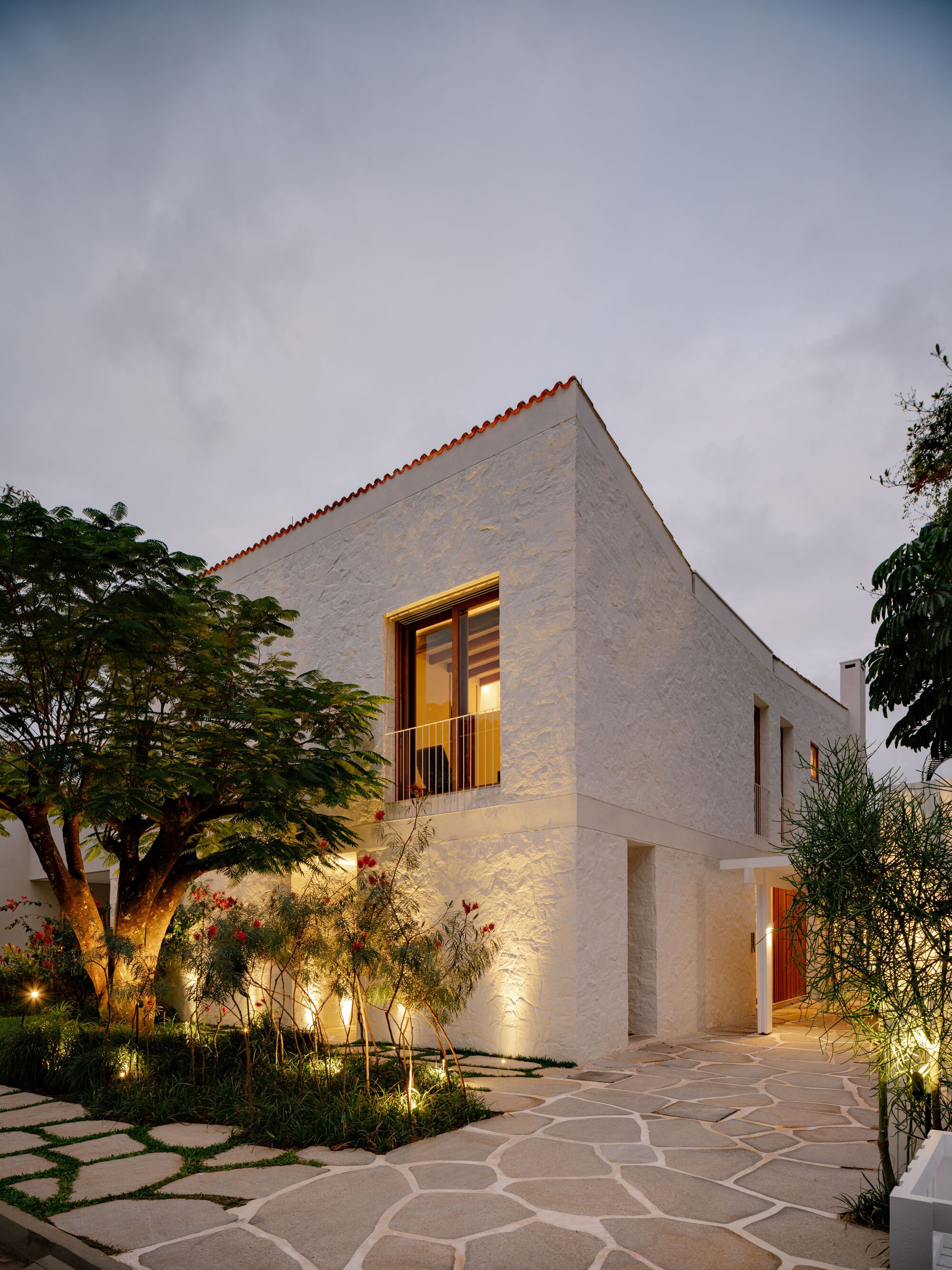

The material choice matters. Painted masonry has a hand-worked texture that catches the overcast light, and it carries the Mediterranean references the clients brought to the project without slipping into pastiche. Clay tile edges and timber window frames are the only accents. At dusk a single lit window and some uplit planting are enough to show the house is occupied, and it still keeps its privacy.
The Olive Tree at the Center

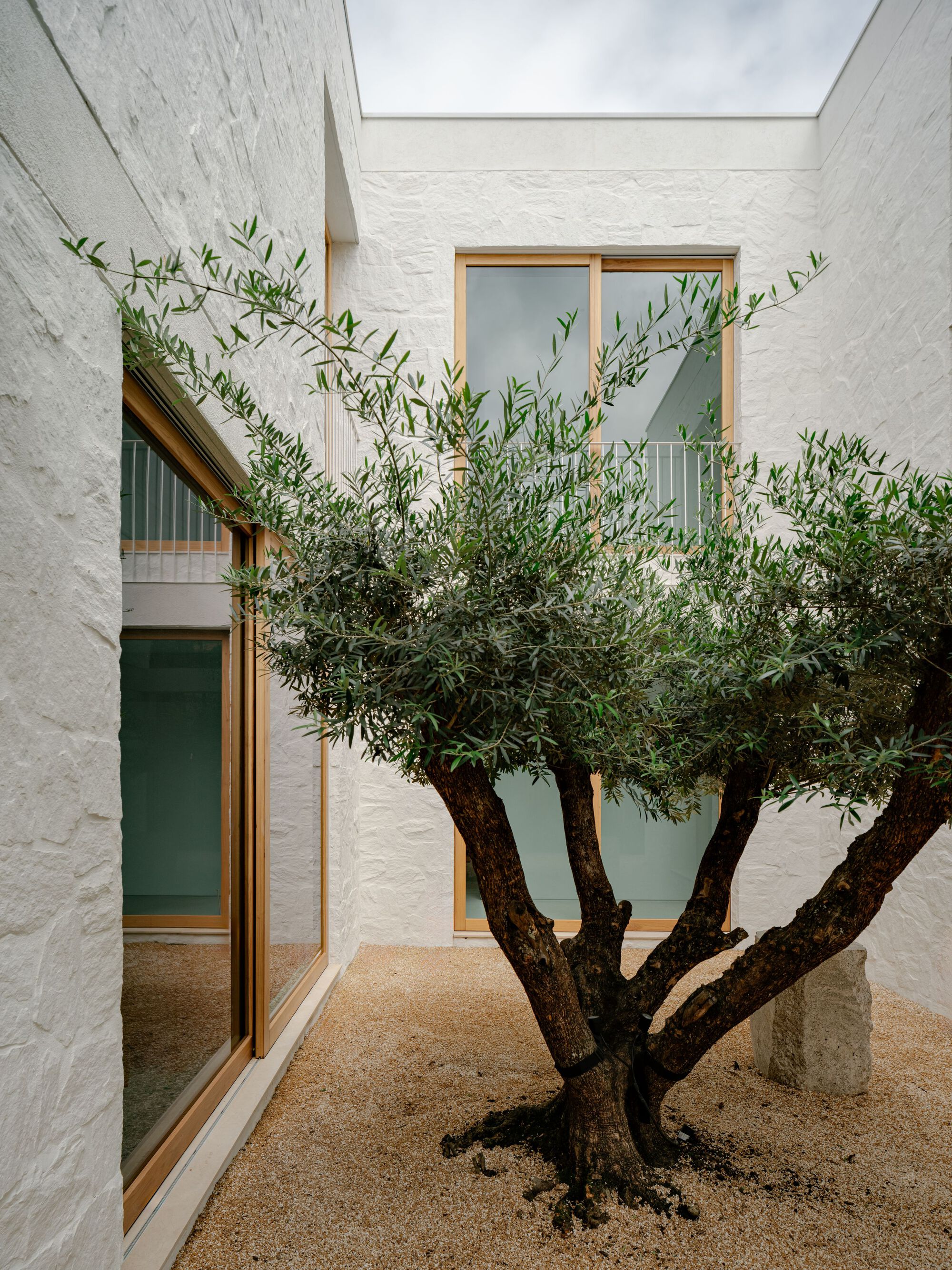

The courtyard is the plan's real engine. A multi-trunked olive tree stands in gravel, ringed by white walls and timber-framed glazing. Rooms take their light from it, and it shields them from the neighbouring lots. On a tight plot, this is a more honest way to gain privacy than tall fences, because the house encloses its own outdoor room instead of fortifying the boundary.

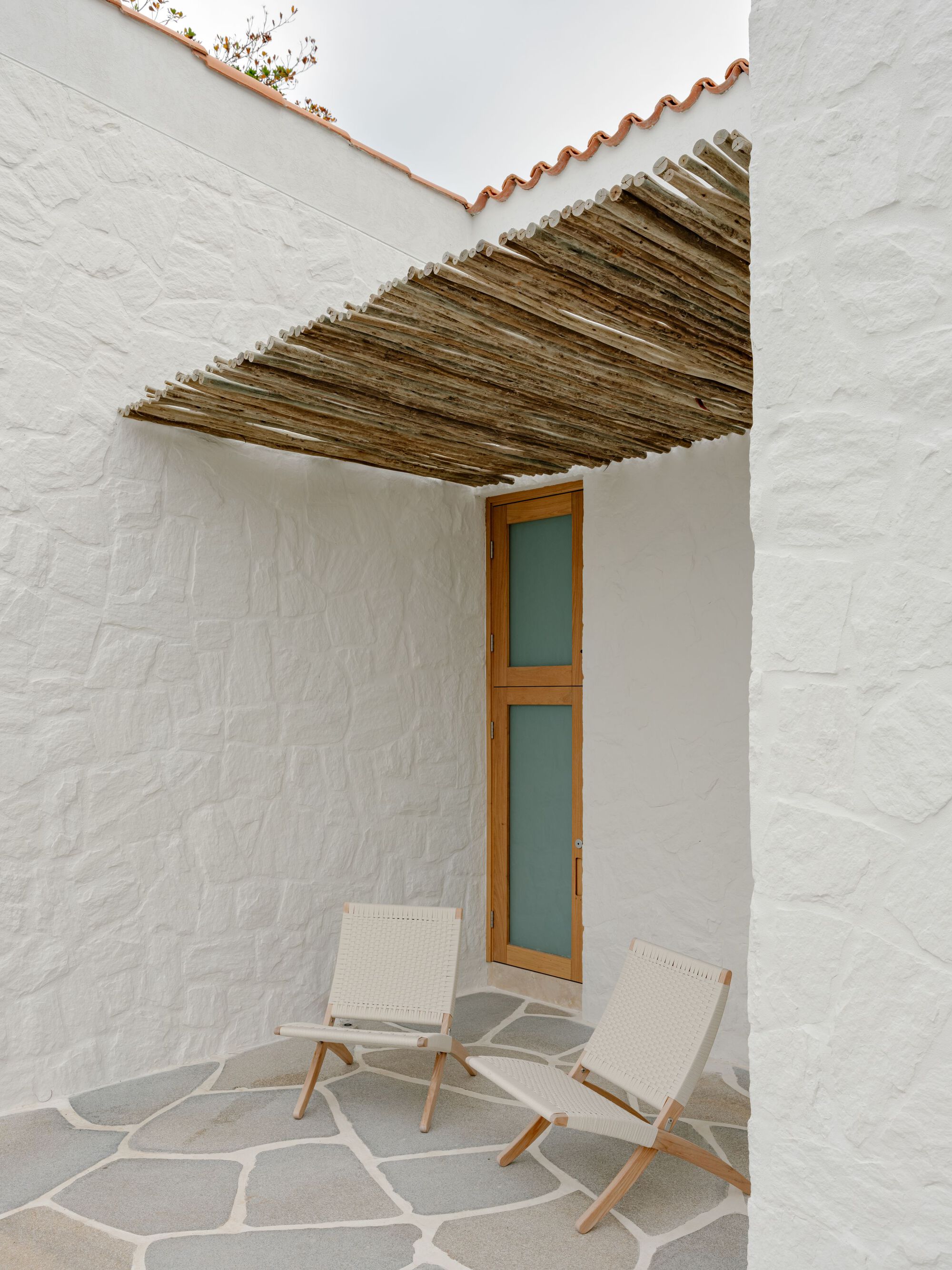

The corner treatment shows how carefully the edges were handled. A reed lattice throws dappled shade over irregular flagstones. A tall door glazed in teal adds the only saturated colour in an otherwise chalky palette. Two woven chairs turn a leftover corner into a reading spot.
The Porch Does the Living

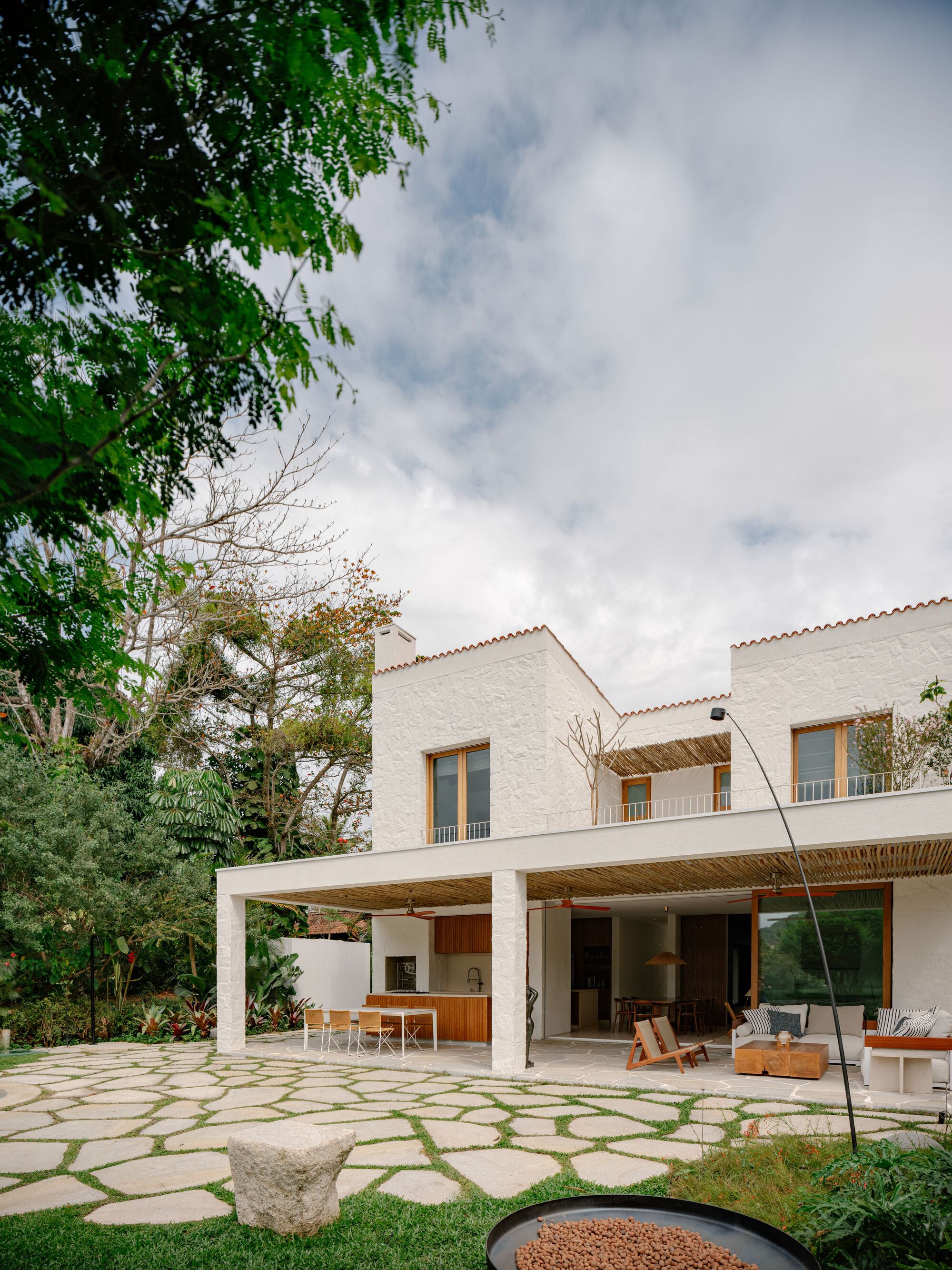

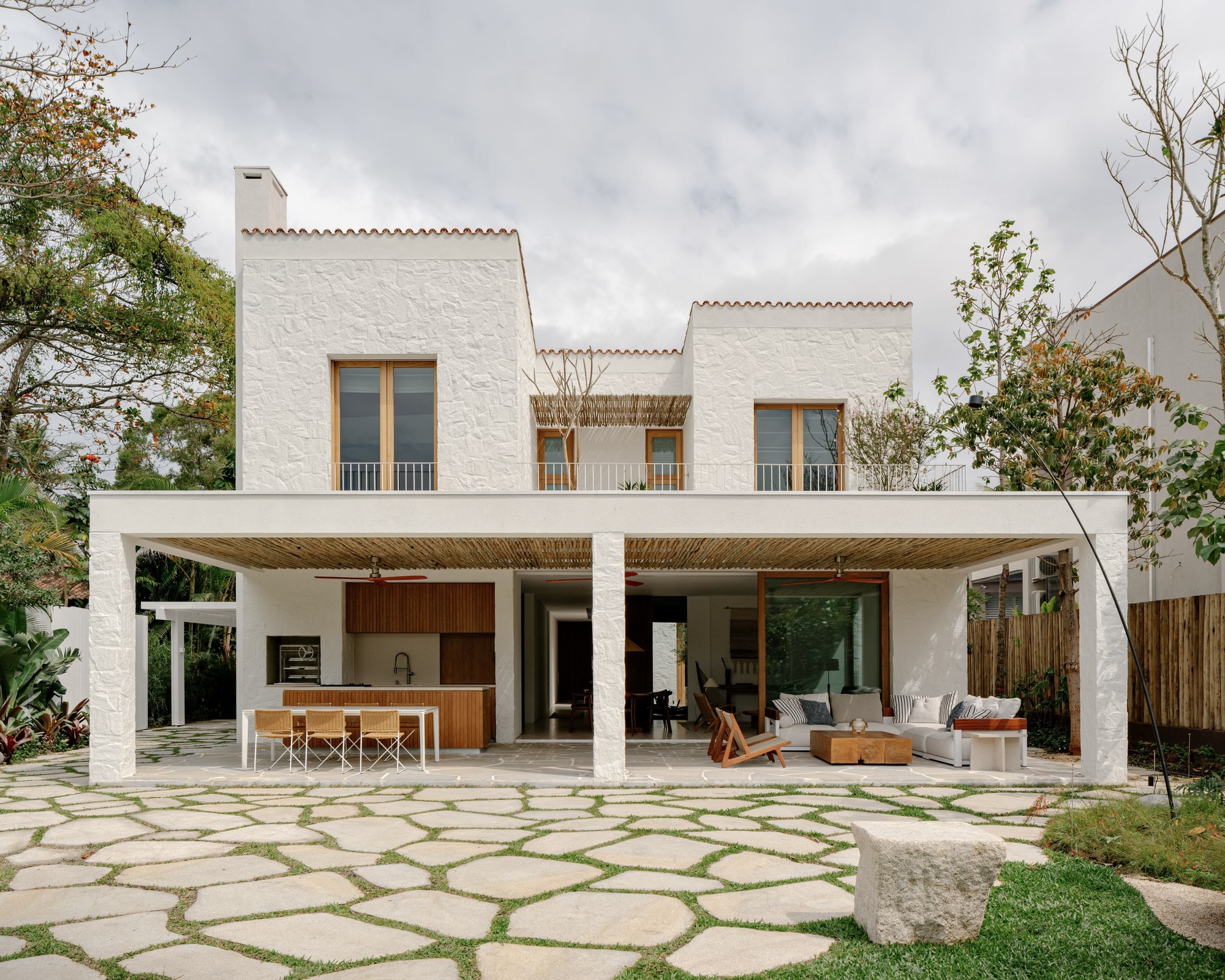

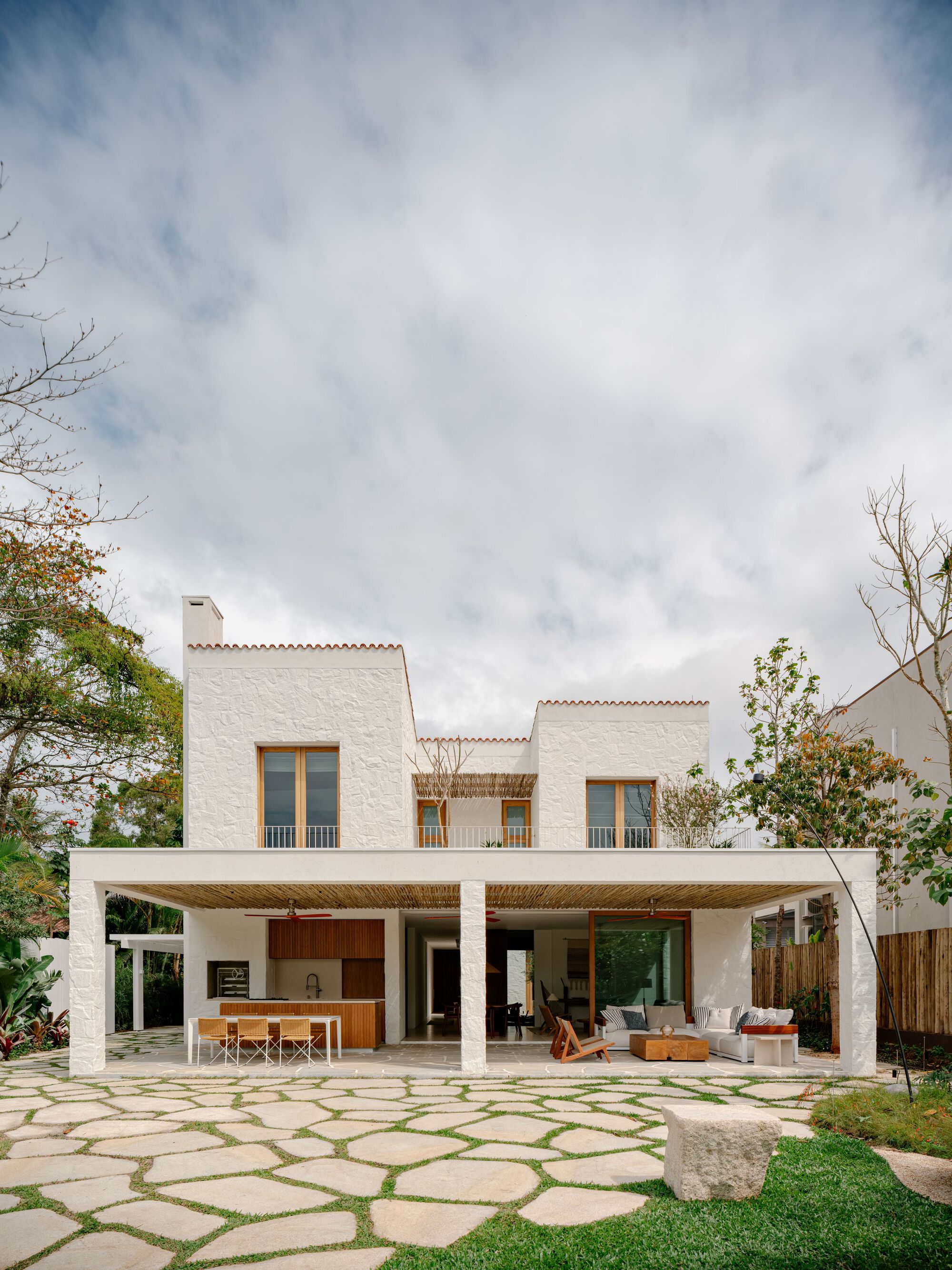

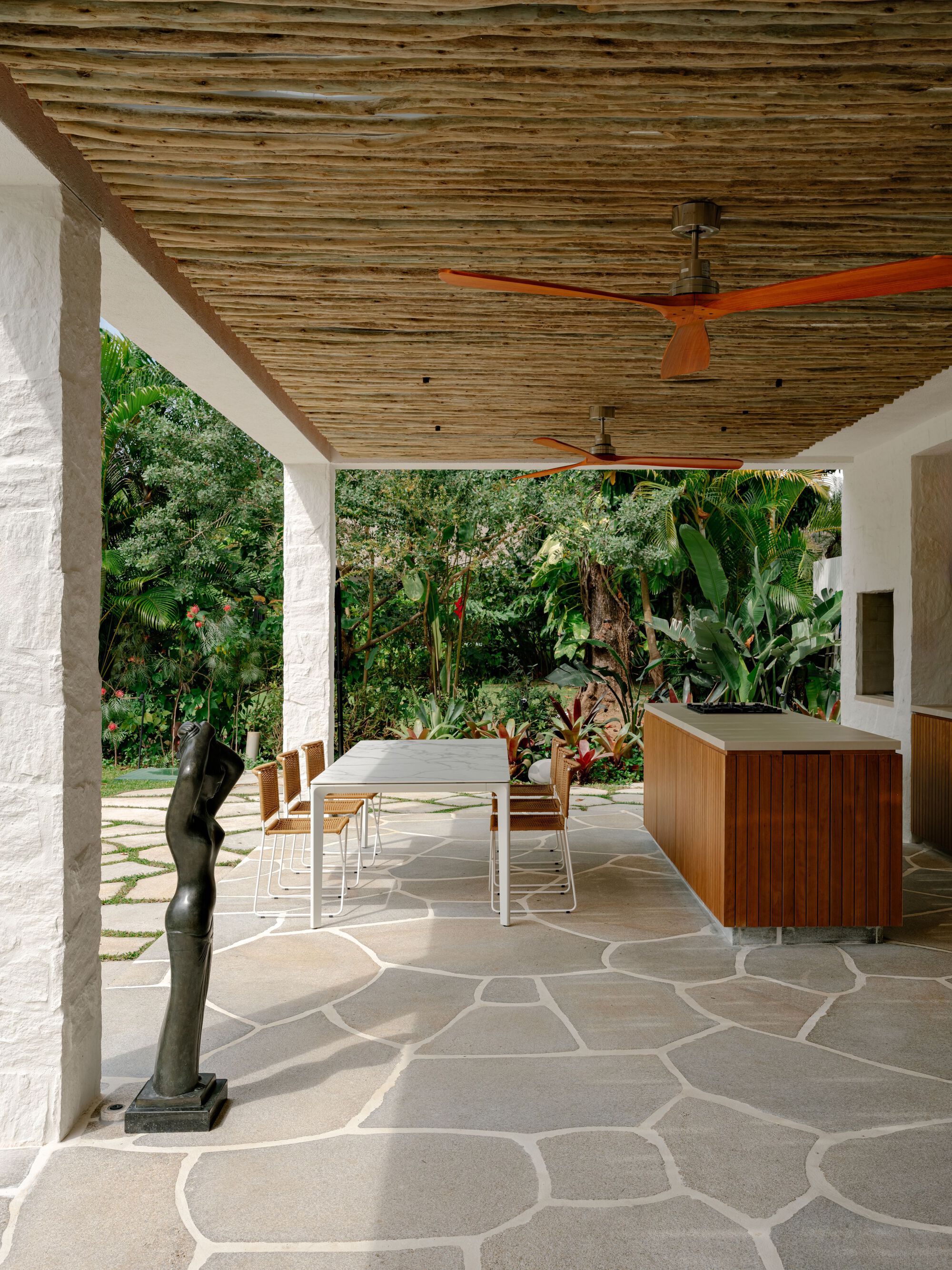

The rear facade inverts the street front. The ground floor dissolves into a deep covered porch with a bamboo ceiling, and kitchen, dining and lounging all happen under the same shade. A timber island with stools faces the garden, and ceiling fans with orange blades hint that this is where the household spends its days. The porch is not tacked on as a veranda. It is the main living room with one wall missing.

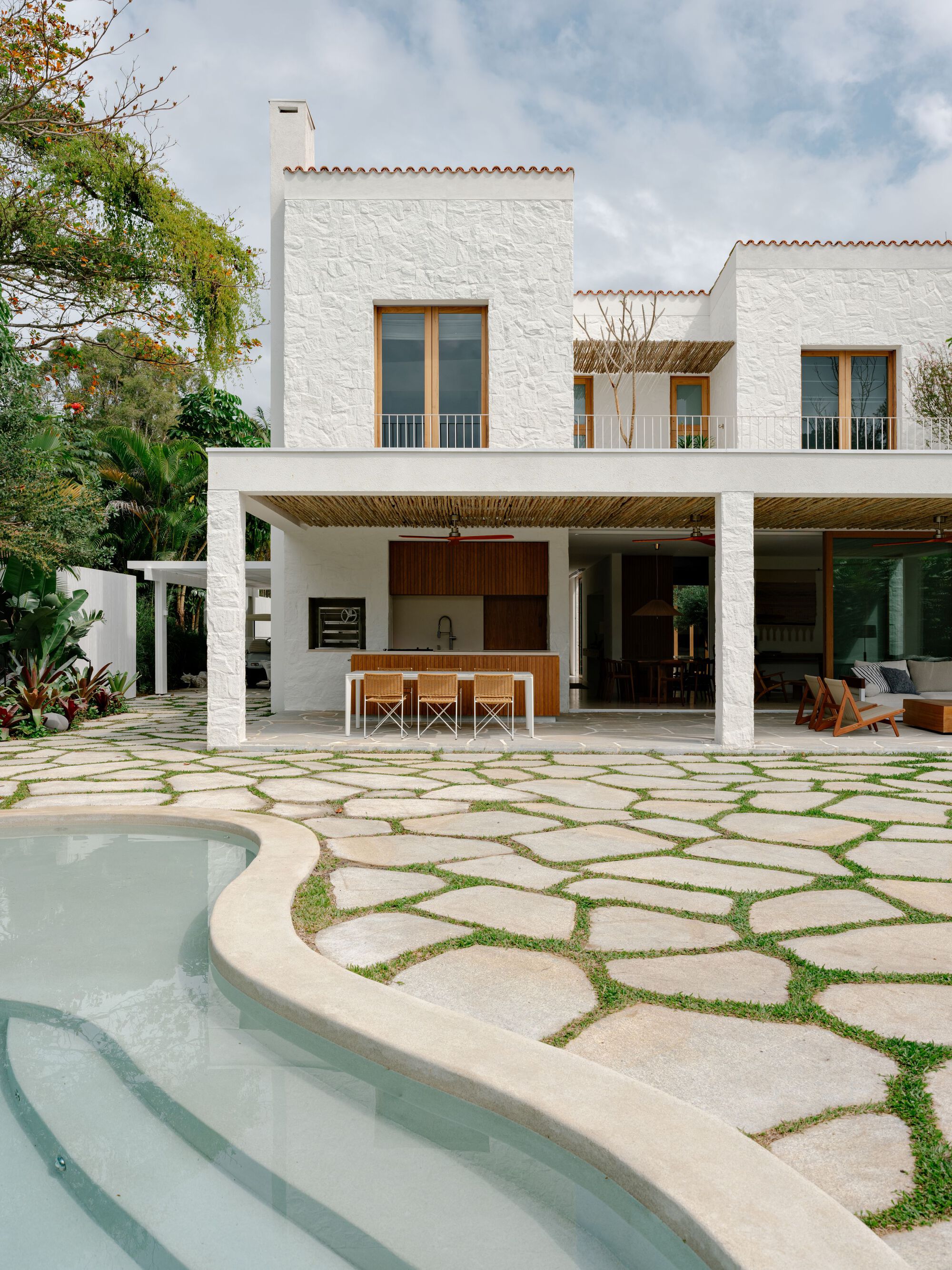

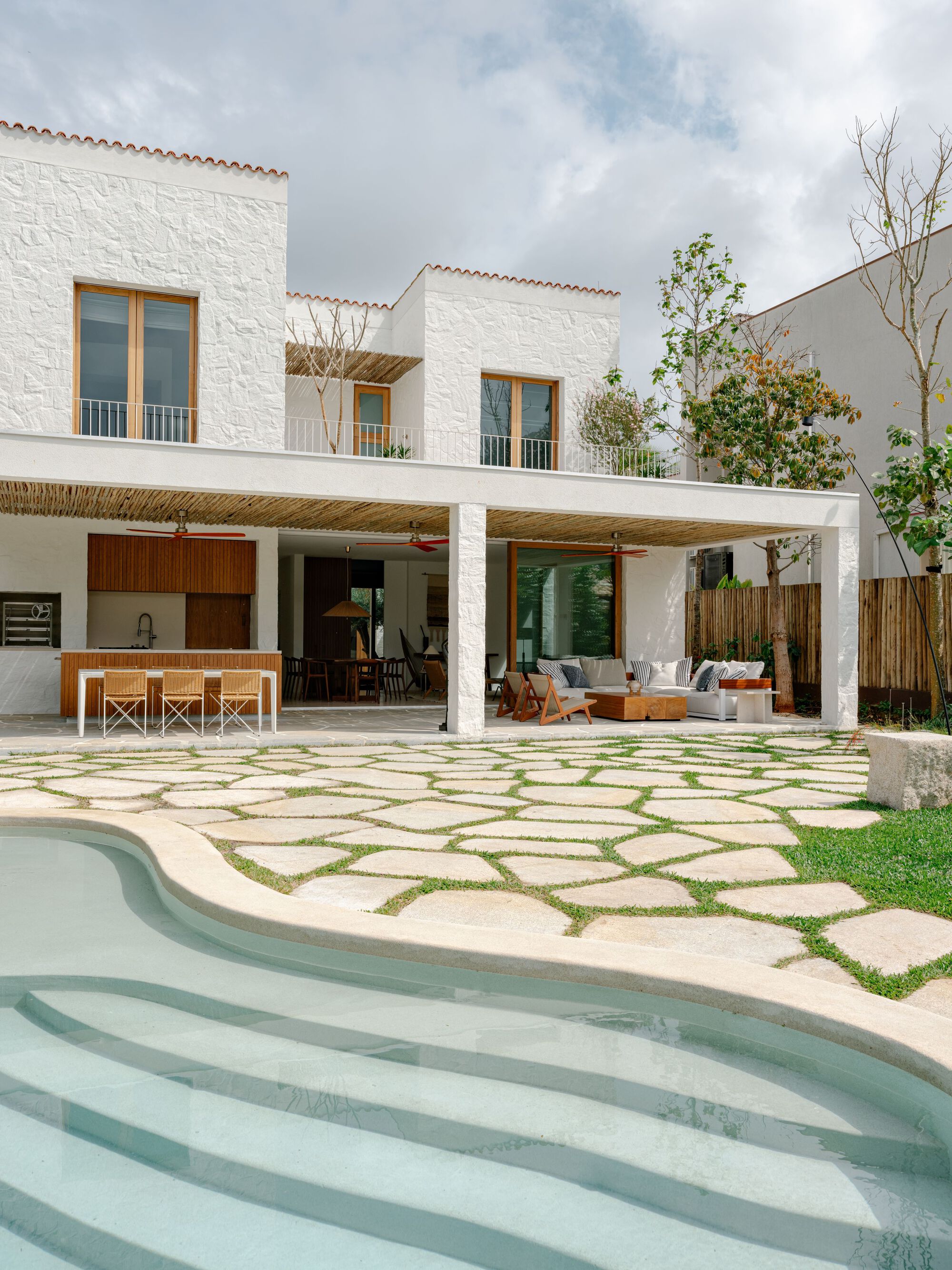

The pool's curved coping runs right up to the porch columns, so the step from kitchen to water is a matter of metres. That adjacency is the payoff of the introverted street front. Because the house turns its back to the road, the most public activities can sit openly at the rear without anyone overlooking them.
Lawn, Pool and Lagoon

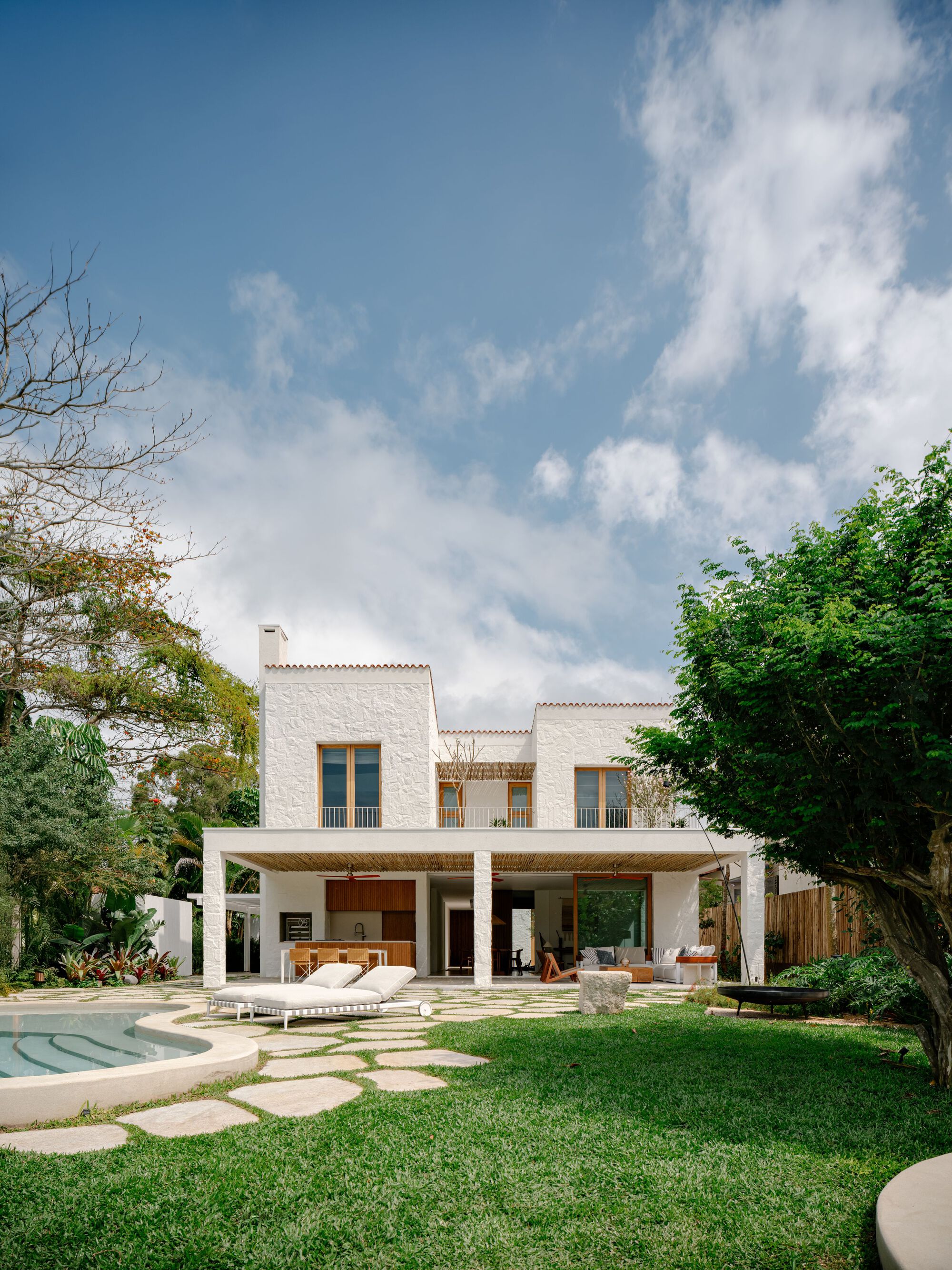

Seen from across the lawn, the two-storey volume sits plainly. Two levels are stacked under a pitched roof, and white concrete bands mark the floor slab and the roof crown. The landscape by Flavia Tiraboschi Paisagismo does much of the compositional work. A leafy tree frames one side, the kidney-shaped pool loosens the rectilinear block, and the stone paving fades into grass.

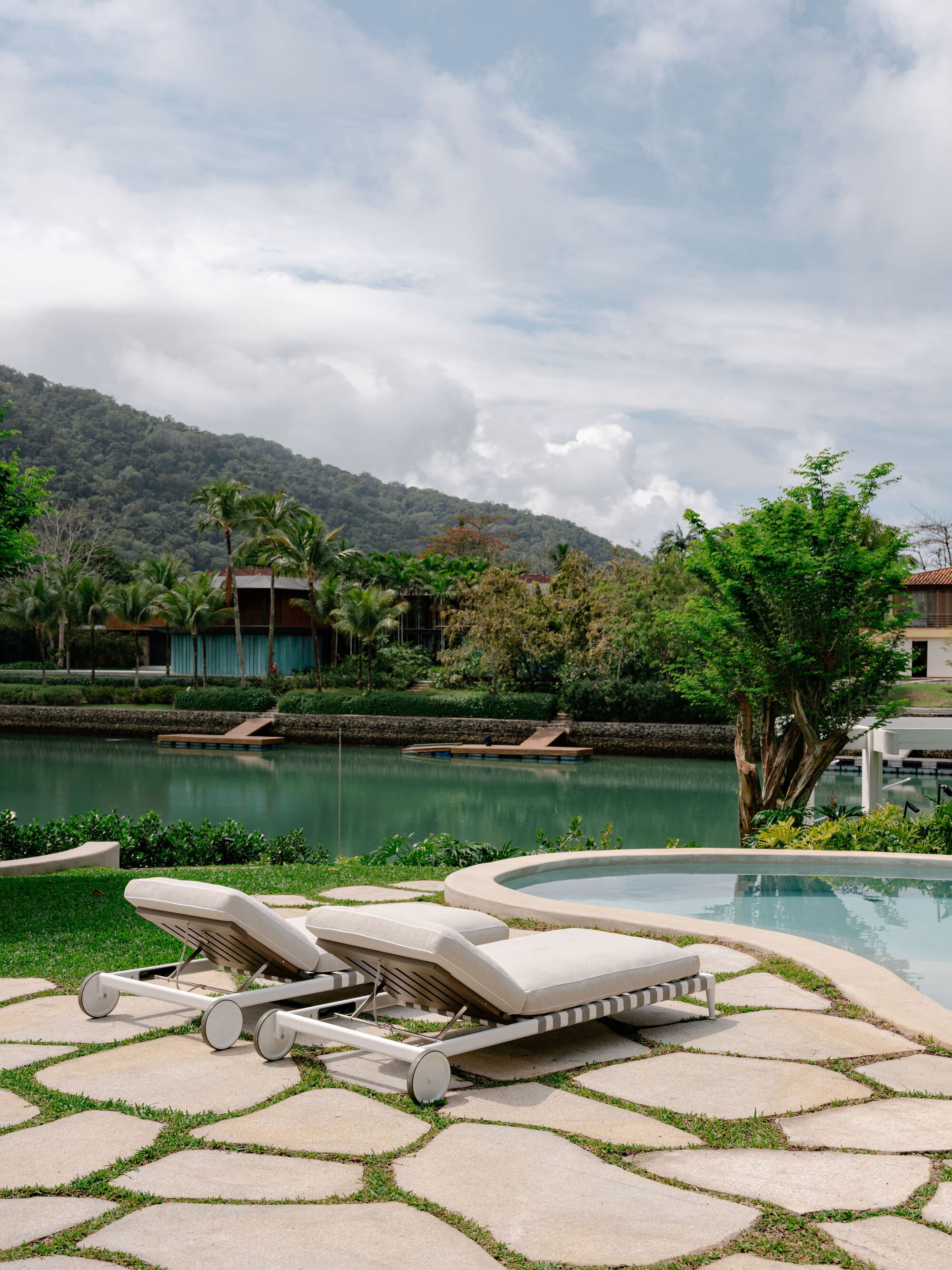

From the loungers the view runs over the pool edge to a green lagoon and a forested hill. The upstairs bedrooms face this way too, so the best outlook in the house goes to the rooms where people wake up.
Interiors Tuned to Texture

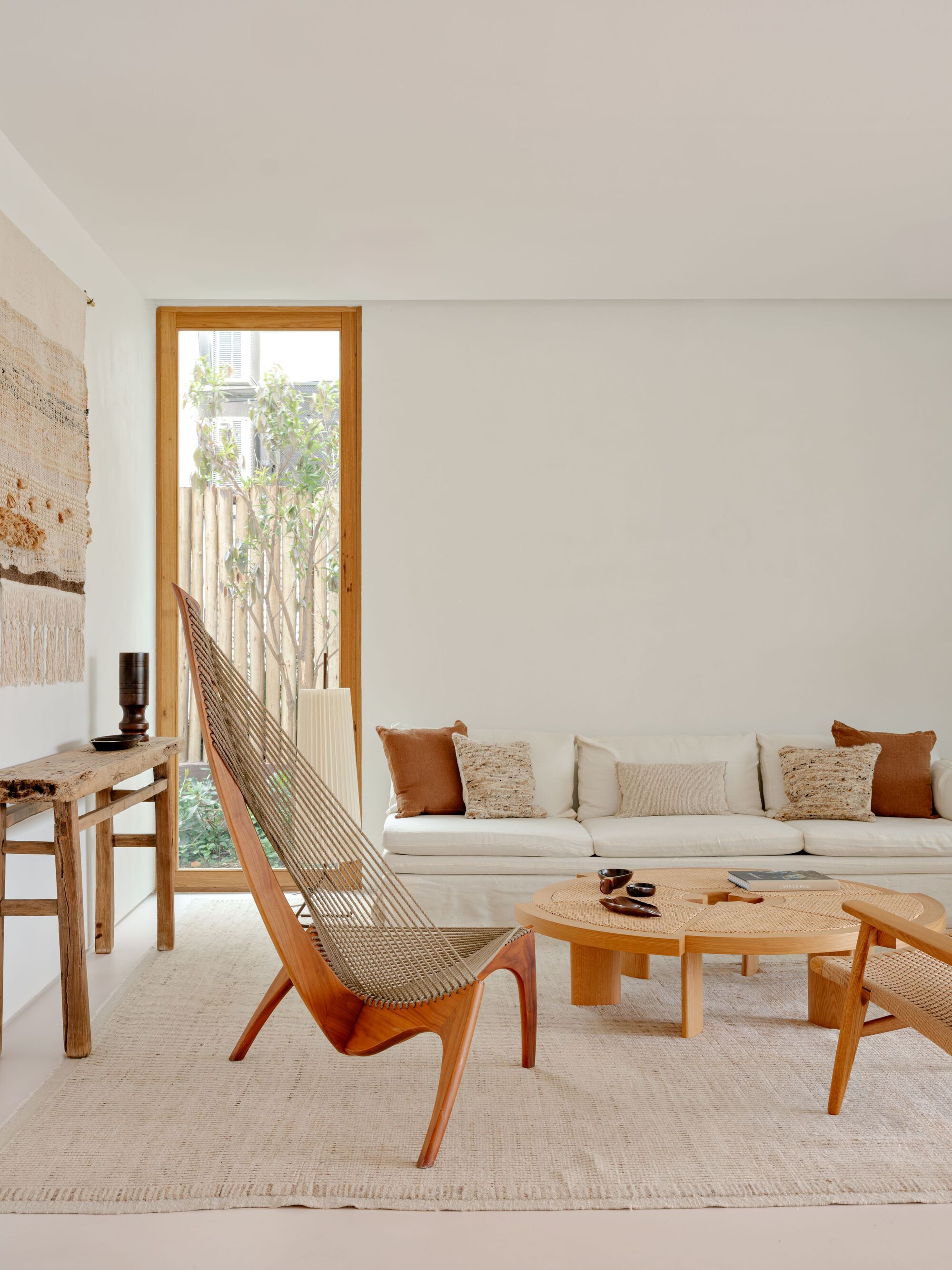

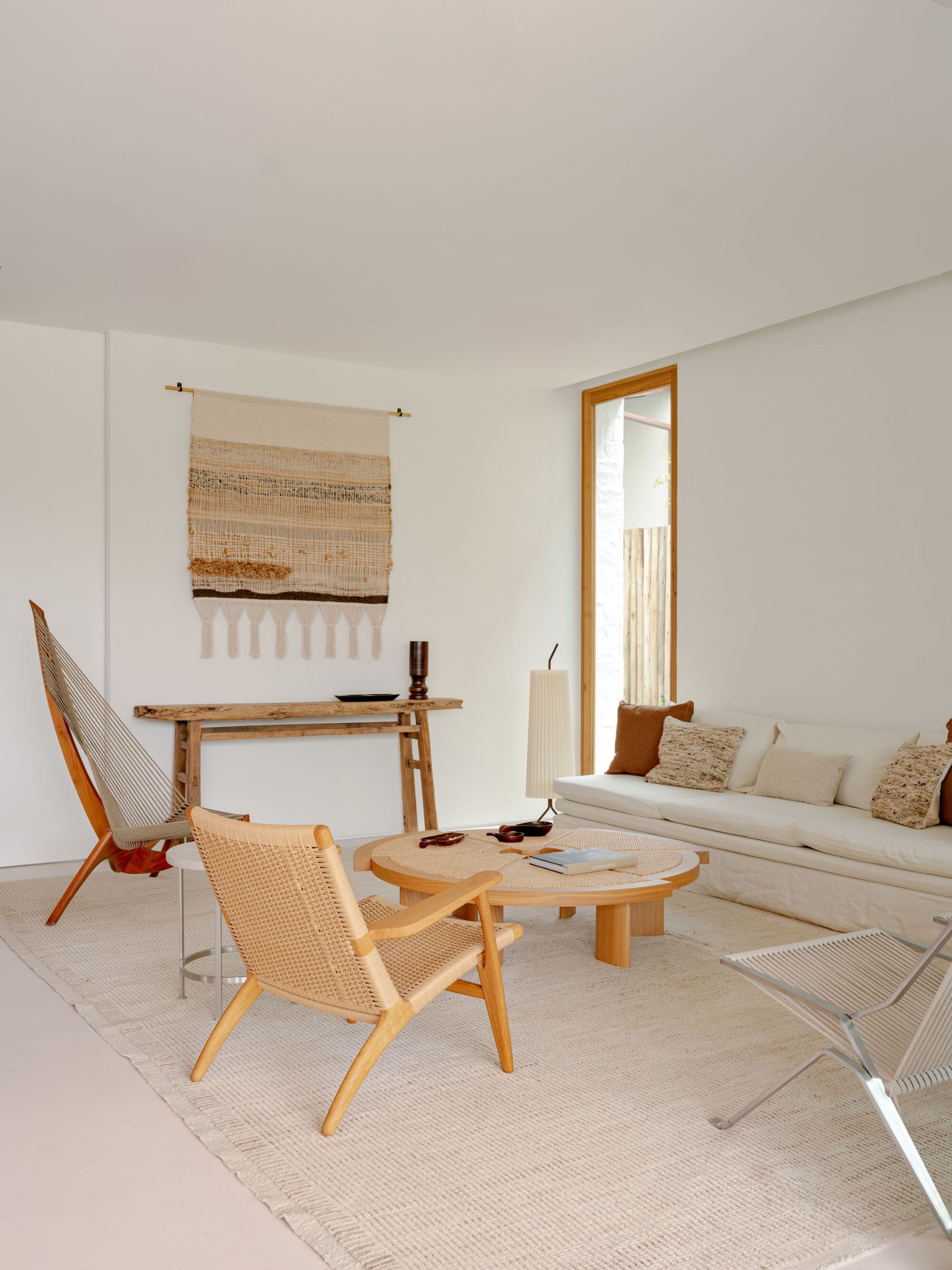

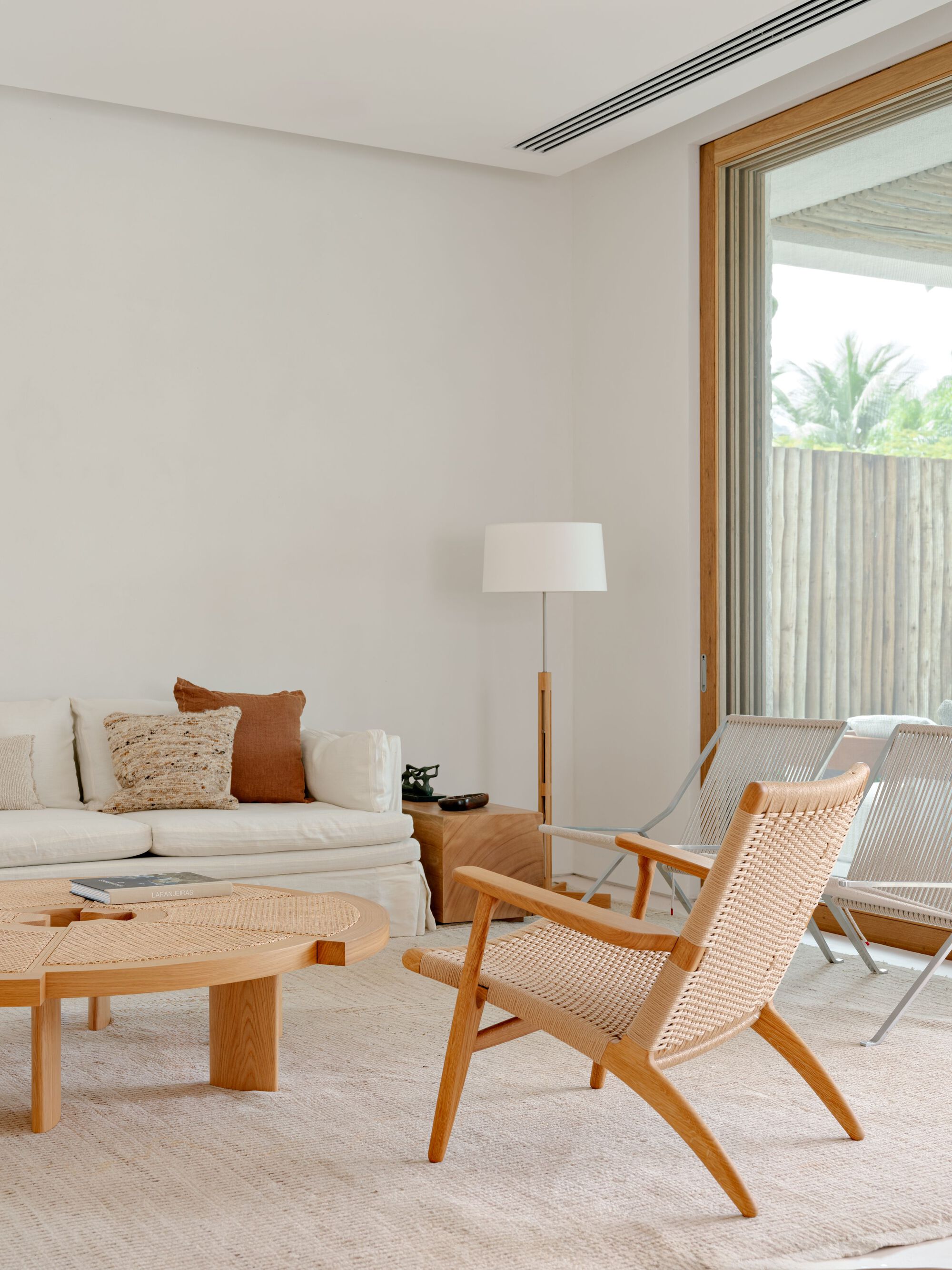

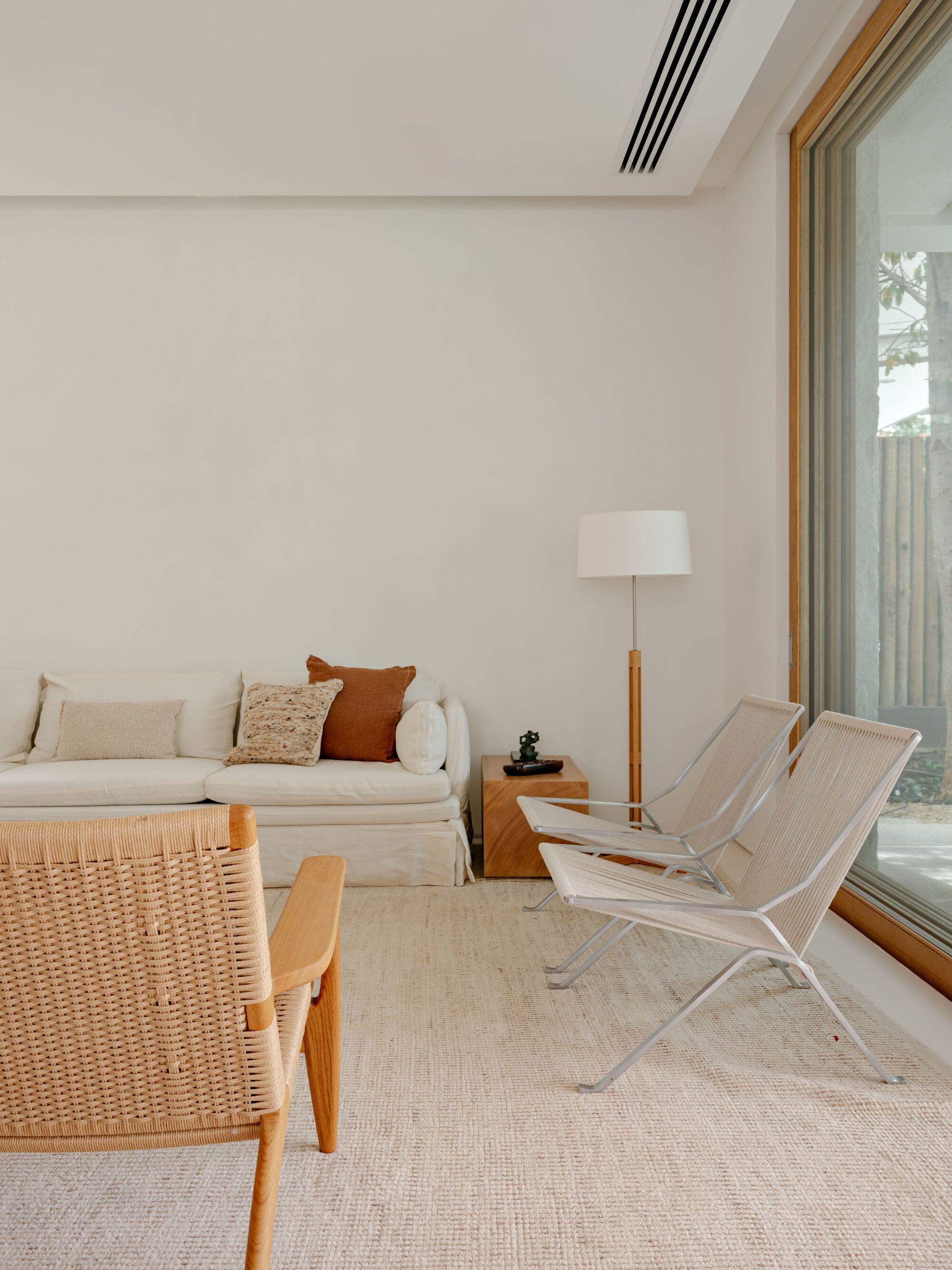

Patrícia Sturm's interiors stay close to the architecture's palette: linen upholstery, rope and rush seating, woven cord loungers and round wooden tables. Tall timber-framed windows pull in garden views and palms, so the rooms read as extensions of the planting rather than sealed boxes. A woven hanging over a rustic console gives one corner a focal point without adding colour or clutter.
The restraint is deliberate. In a house this dense, a busy interior would make the rooms feel smaller. Keeping finishes tactile and pale lets daylight and texture do the work, and that is how the architects deliver the fluidity their brief called for.
Plans and Drawings

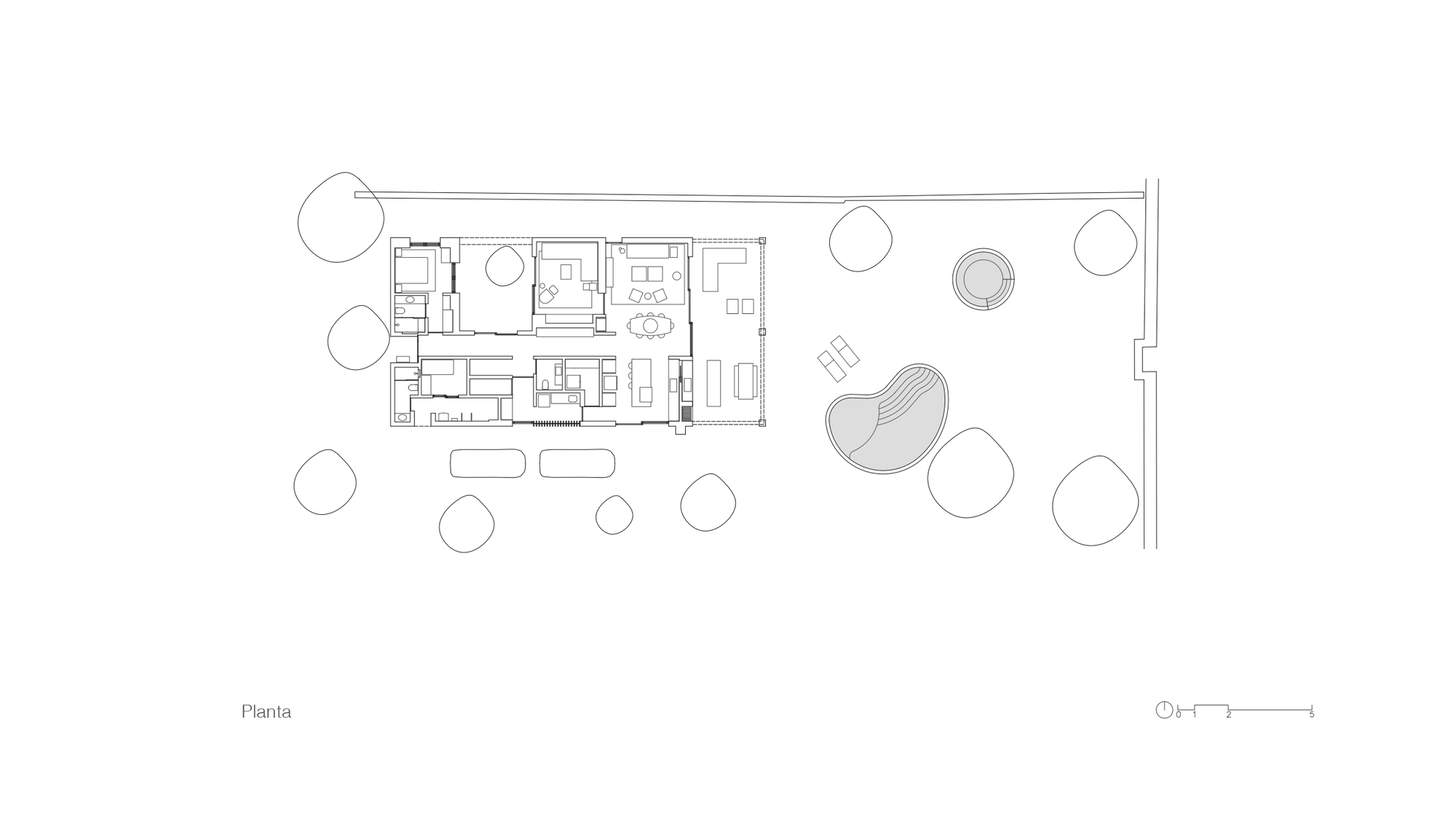

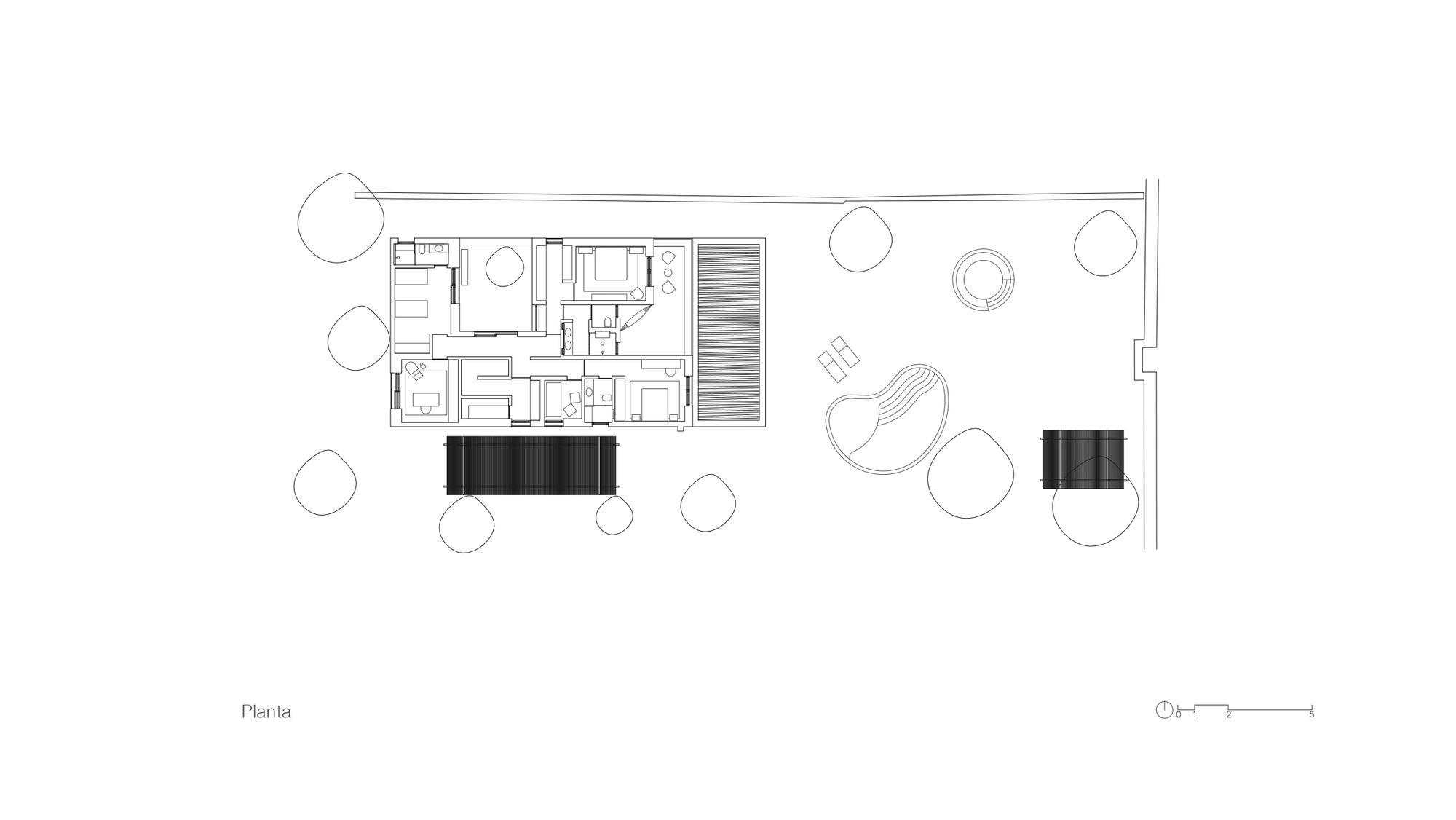

The plans show how much program sits inside a compact rectangle. Living spaces and the kitchen take the ground floor; bedrooms and bathrooms sit above, next to a slatted terrace. The kidney-shaped pool and scattered trees are drawn as part of the composition, not as afterthoughts in the garden.

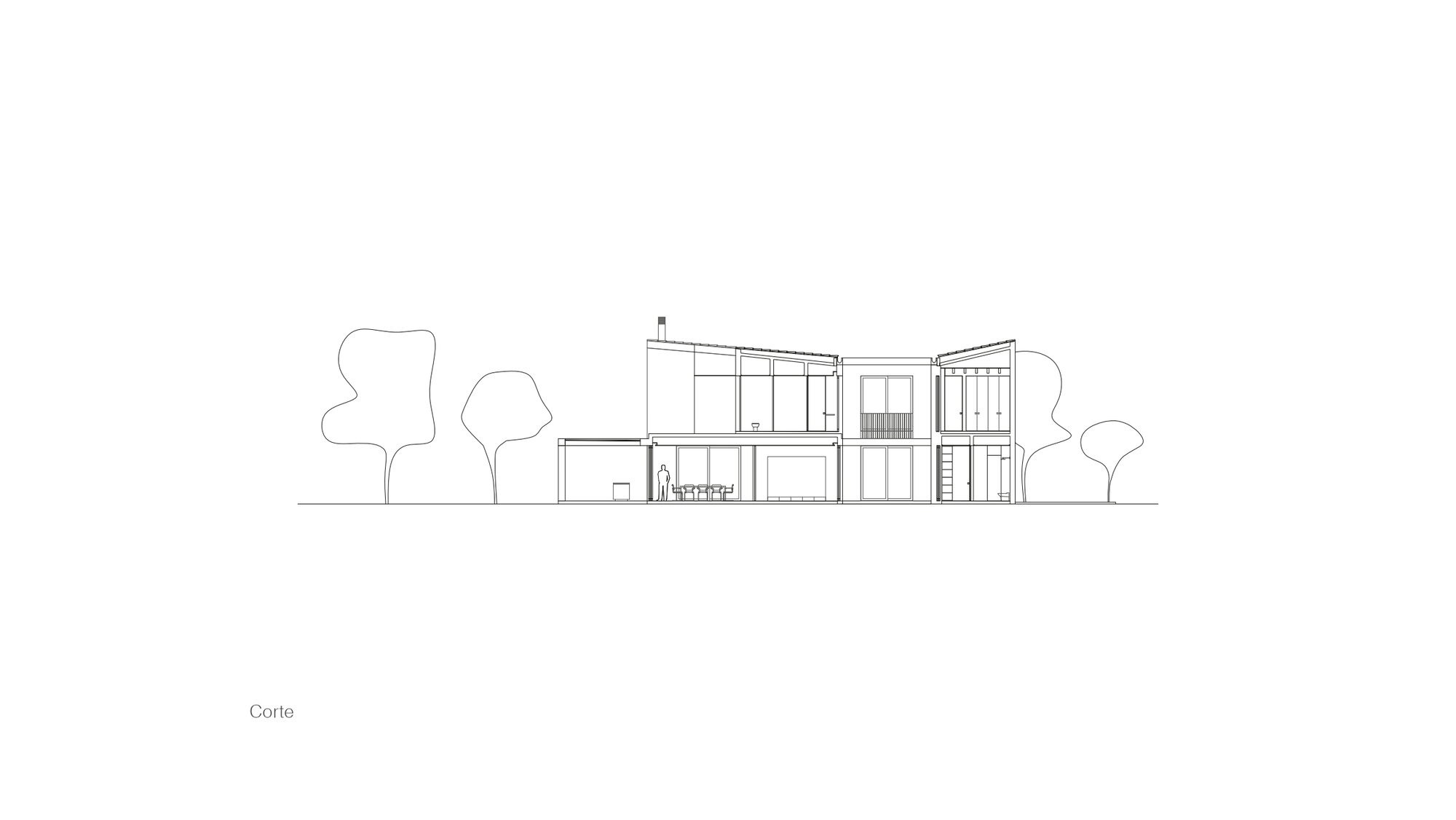

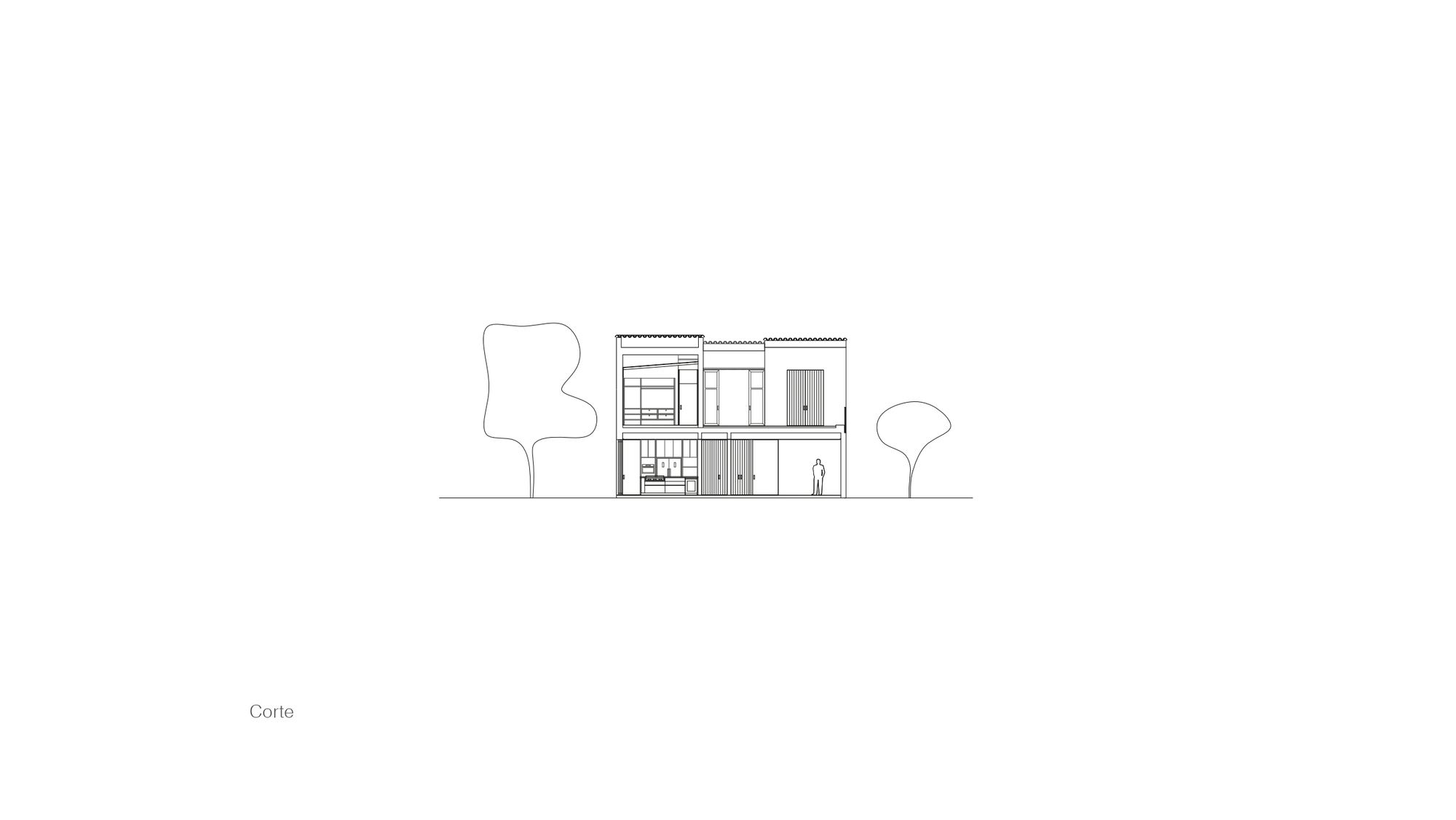

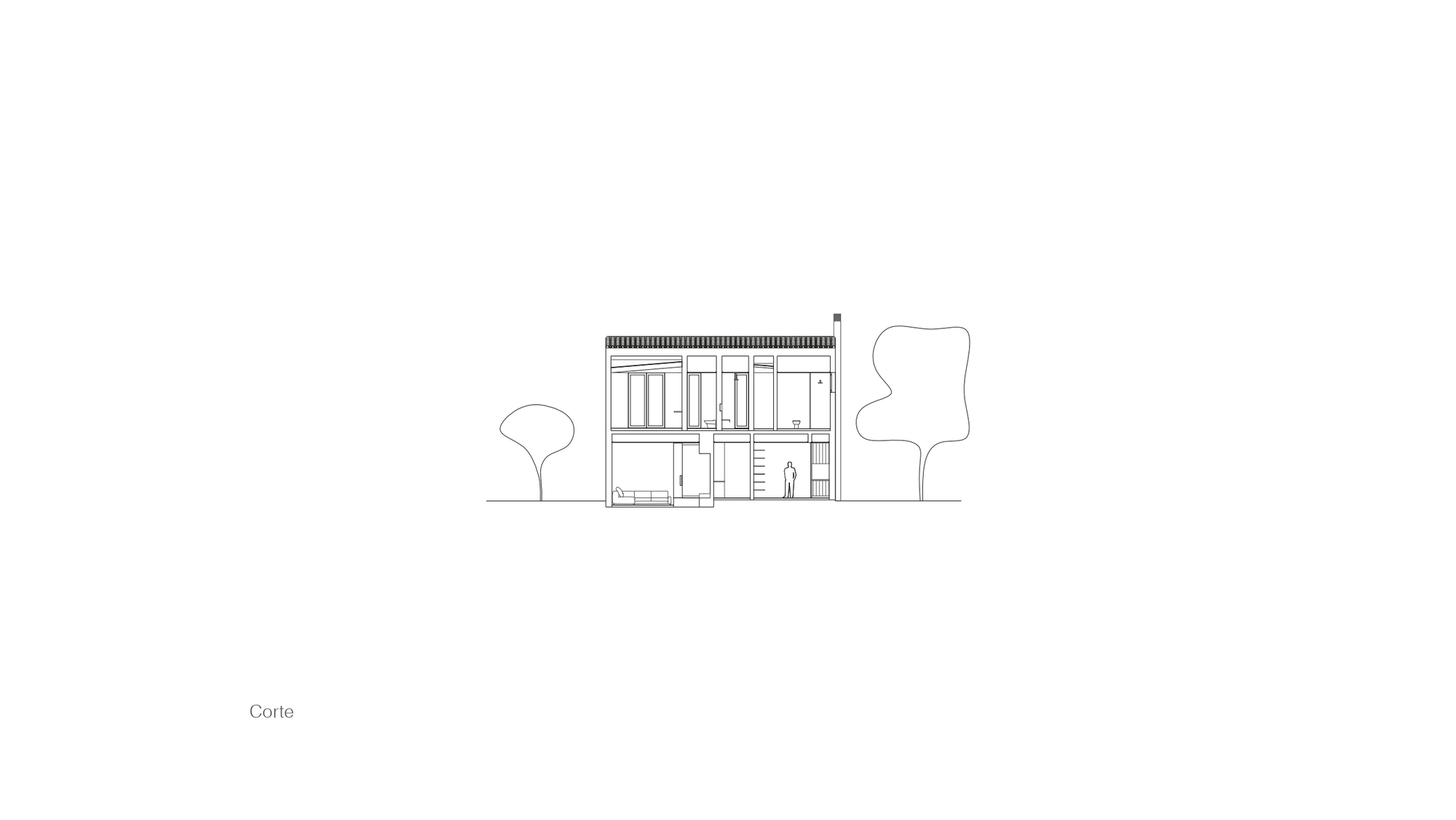

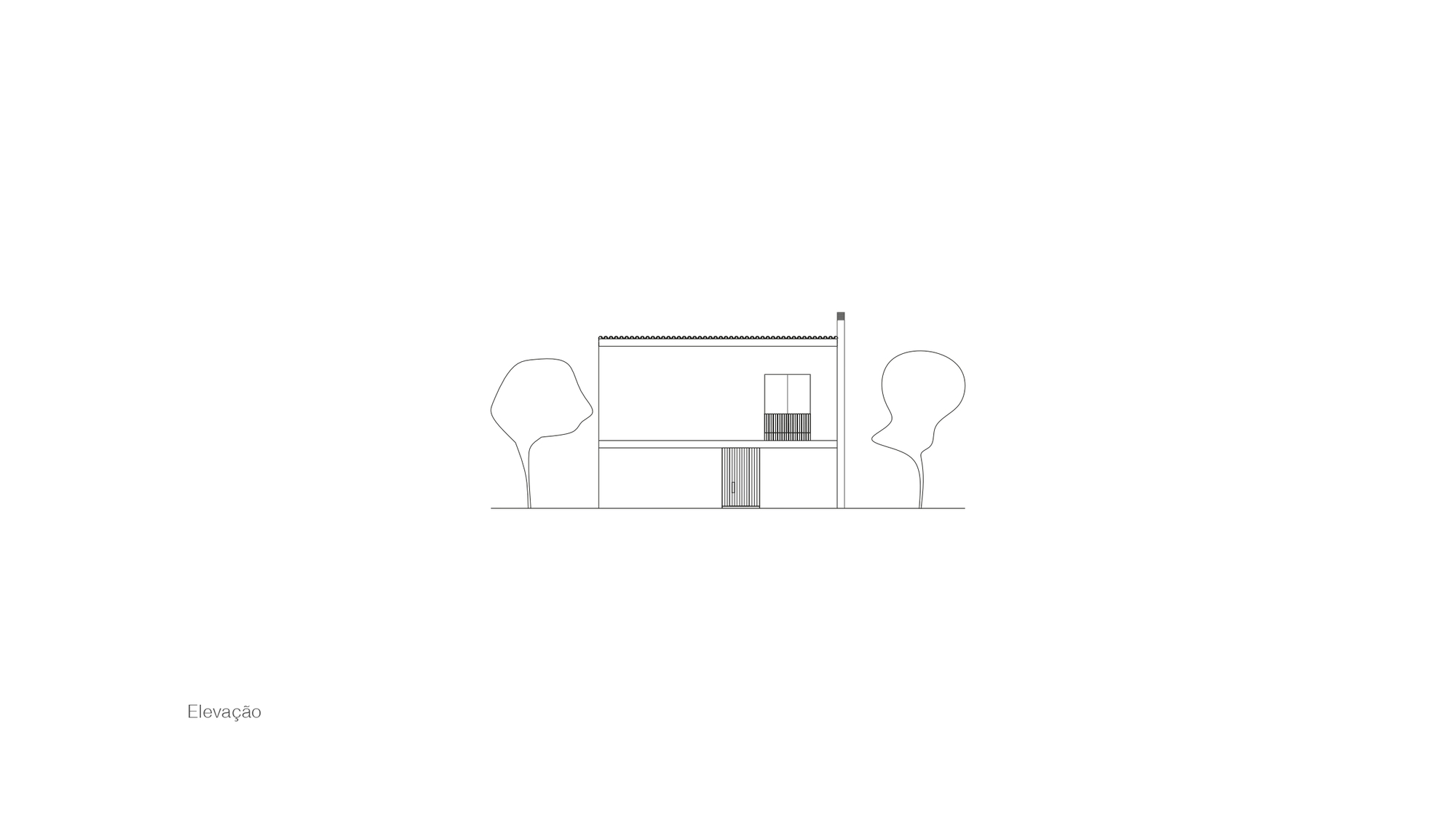

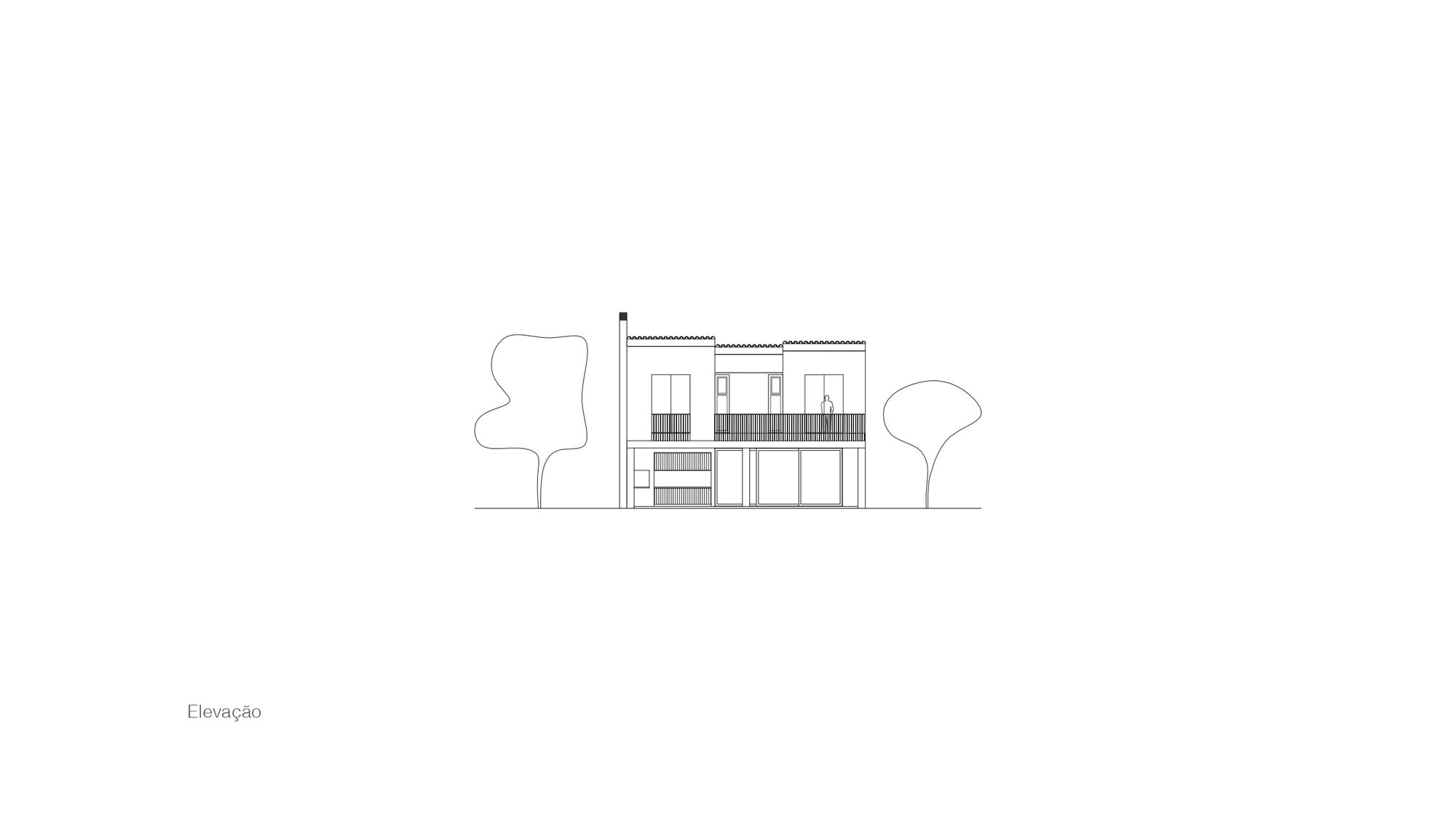

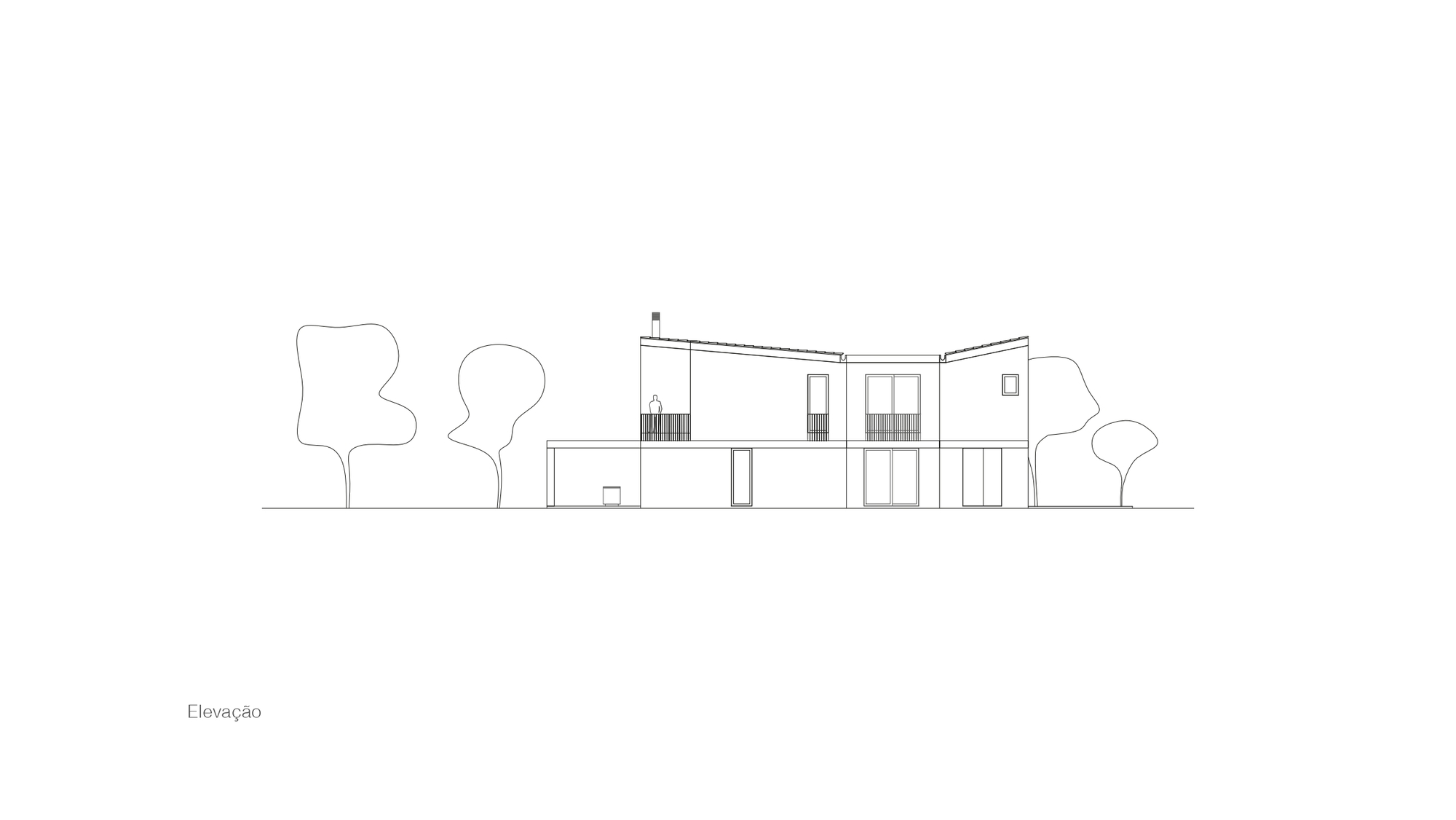

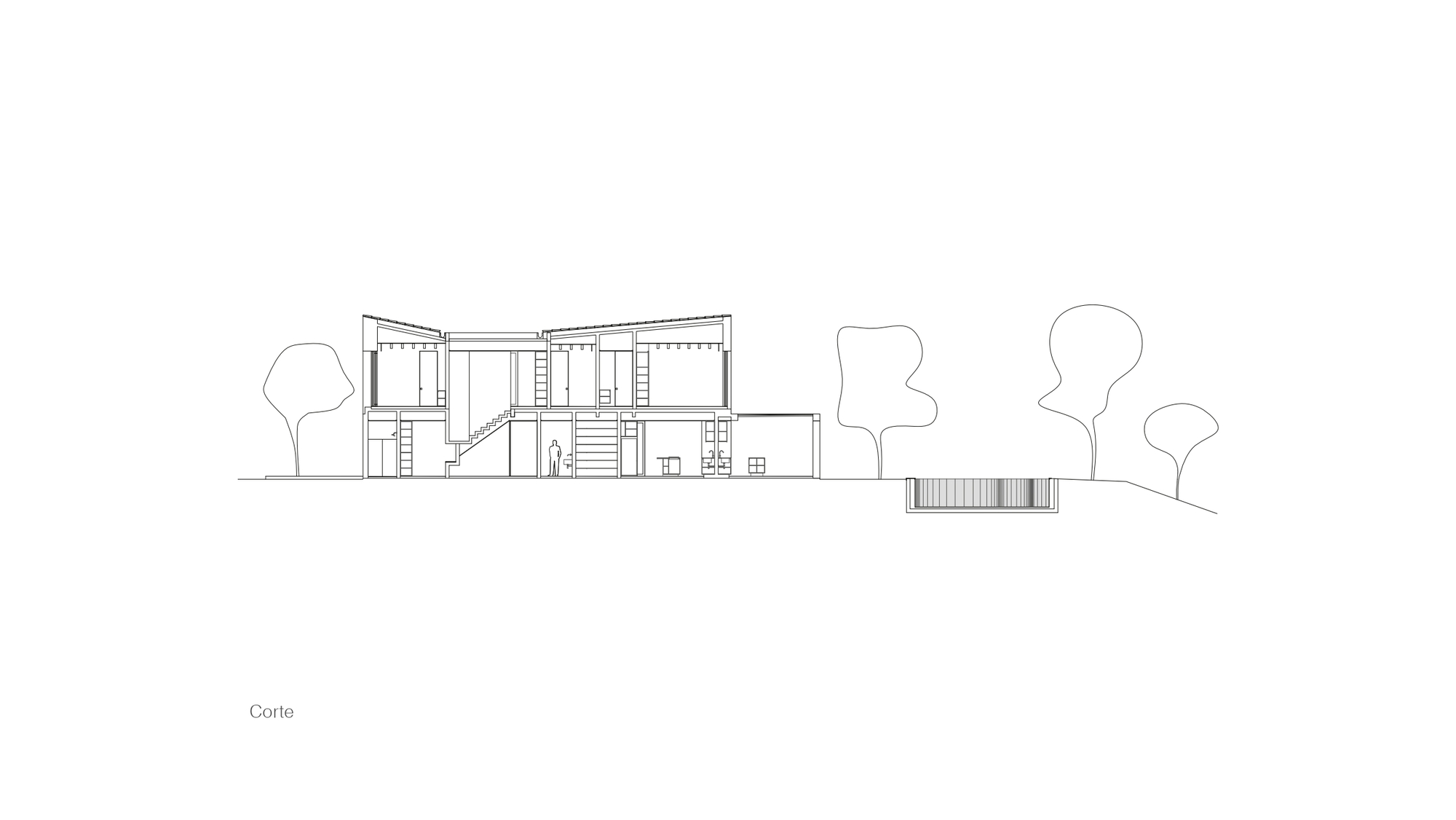

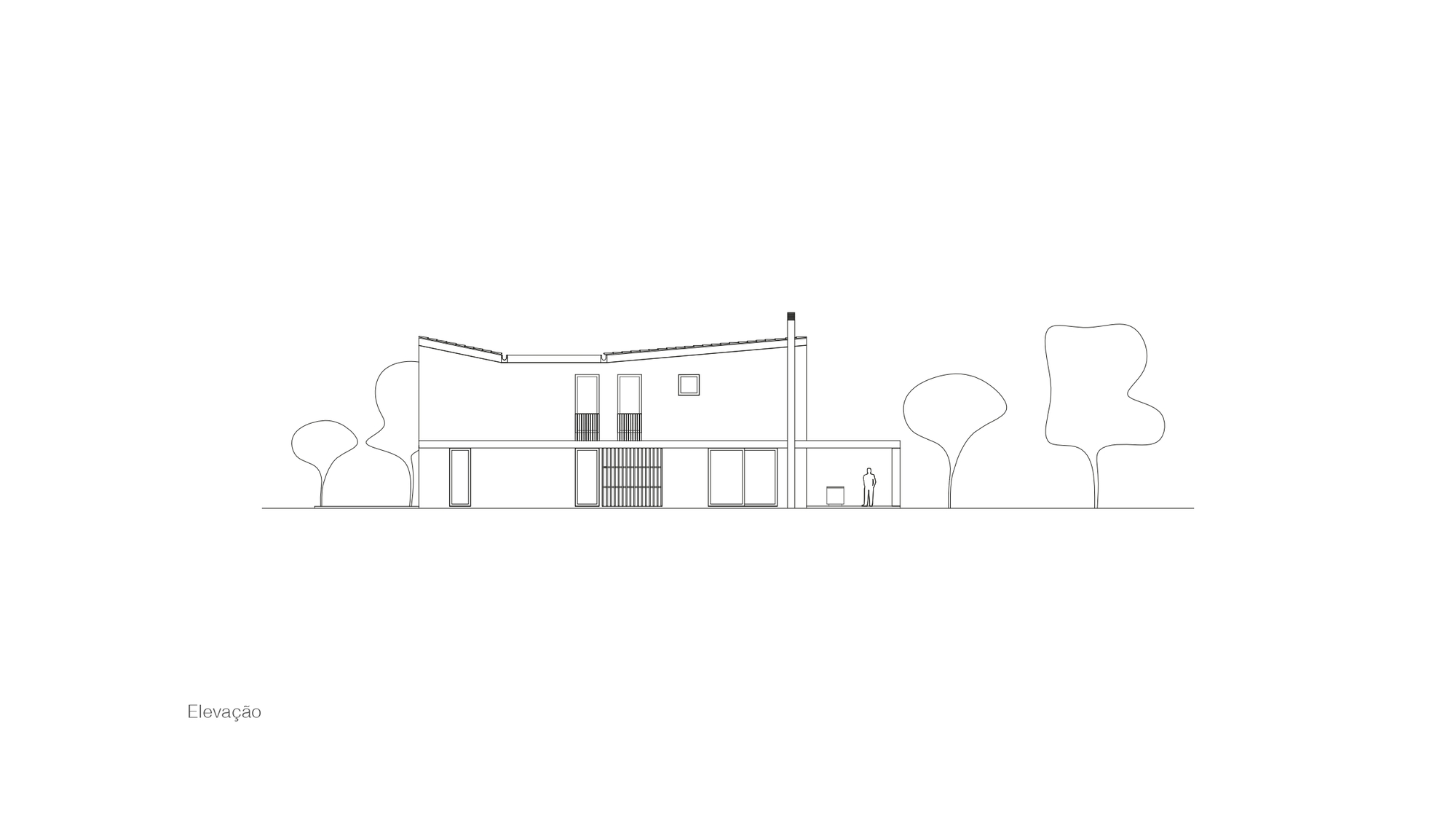

The sections and elevations show the roofs in more detail than the photographs do. V-shaped and stepped roof profiles break the mass into parts, and a tall chimney flue anchors the composition. The end elevation is almost as blank as the street facade, with one railed window and a slatted door, which confirms that the closed street front is a consistent strategy rather than a one-off gesture.
Why This Project Matters
Laranjeiras House is a useful counterargument to the glass-box reflex in contemporary residential design. On an ordinary lot with neighbours close on every side, the architects get openness by building enclosure first. The blind street wall, the courtyard and the porch work as one system. Privacy at the edge buys transparency at the core.
It also shows that regional and imported references can coexist without kitsch. Painted stone, an olive tree, bamboo and reed ceilings and clay tile come together into a house that feels coastal Brazilian and loosely Mediterranean at once. If you are designing a dense family home on a tight plot, the lesson is clear: decide early which way the house faces, then commit to it.
Laranjeiras House by Felipe Hess Arquitetos (lead architects Felipe Hess, João Paulo Carrascoza and Ana Falcão), with interior design by Patrícia Sturm and landscape by Flavia Tiraboschi Paisagismo. Listed in São Paulo, Brazil; other sources place it in Paraty, Rio de Janeiro. 450 m², completed 2025. Photography by Fran Parente.
