graciastudio Hides a Tijuana Culinary School Behind Two Timber Boxes and a Courtyard of Trees
In Tijuana, Baja California, an 894 m² cooking school keeps a mute street face and turns inward to kitchens wrapped around a planted courtyard.
Most buildings that house a cooking school want you to know it. They borrow the language of the restaurant: big windows onto the line, signage, a little theatre for passersby. graciastudio's Culinary Art School in Tijuana, completed in 2010, does the opposite. From the street it reads as two rectangular volumes, clad in timber and set on board-formed concrete. Nothing about it says kitchen. The studio's stated brief was cleanliness and order, and the exterior delivers exactly that and nothing more.
What makes the project worth a second look is where the restraint goes once you step inside. In 894 m², Jorge Gracia and his team organise the school around a planted courtyard and let the teaching kitchens face it. The building's character comes from three things: a steel skeleton, a palette limited to exposed concrete, garapa wood and glass, and the tree-filled void between the two boxes. It is a quiet building with a clear spatial idea. We think it holds up well more than a decade on.
A Street Face That Refuses to Advertise

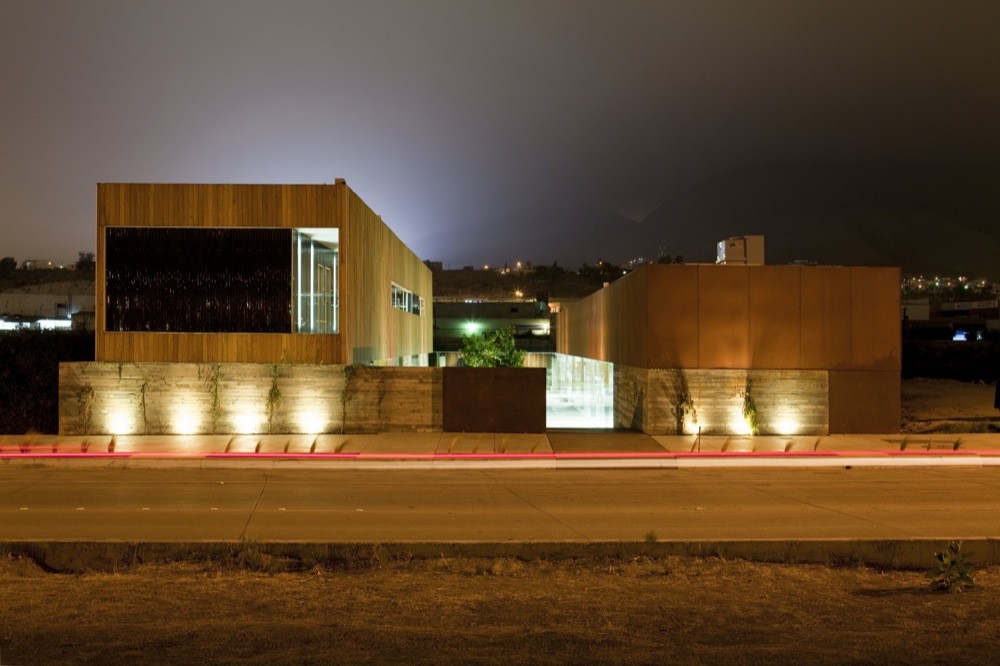

At night the school is a pair of lit boxes floating over a heavy concrete plinth. The timber upper floor sits on the board-formed base, and the grain of the formwork echoes the vertical boards above, so the two materials read as a pair. They do not compete. There is no glazed shopfront and no gesture toward the road. On a fast urban edge, that reticence feels deliberate rather than defensive.

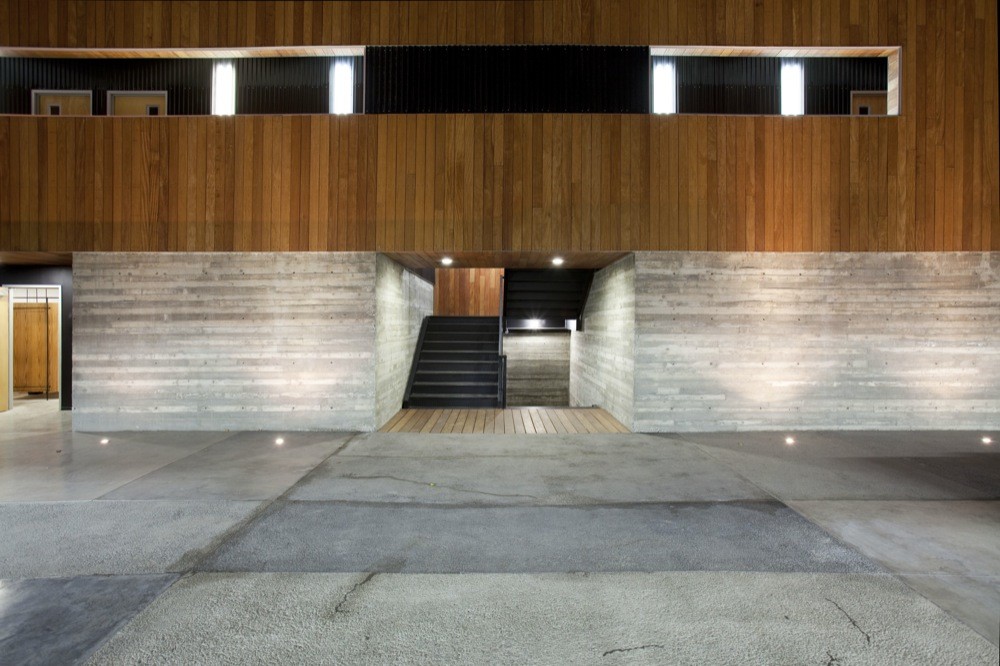

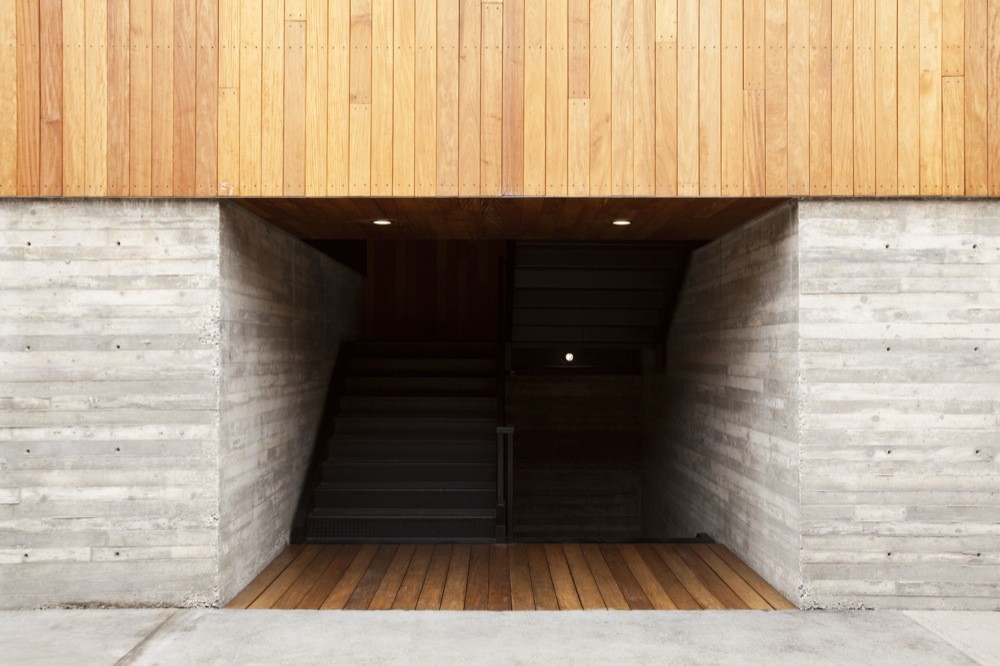

The entry continues the argument. A recessed opening with a timber soffit pulls you off the pavement, and a dark stair drops away from the threshold. Arrival becomes a short compression before the building opens up, a sequence more familiar from houses than from schools.
Arrival, Reception and the Working Edge

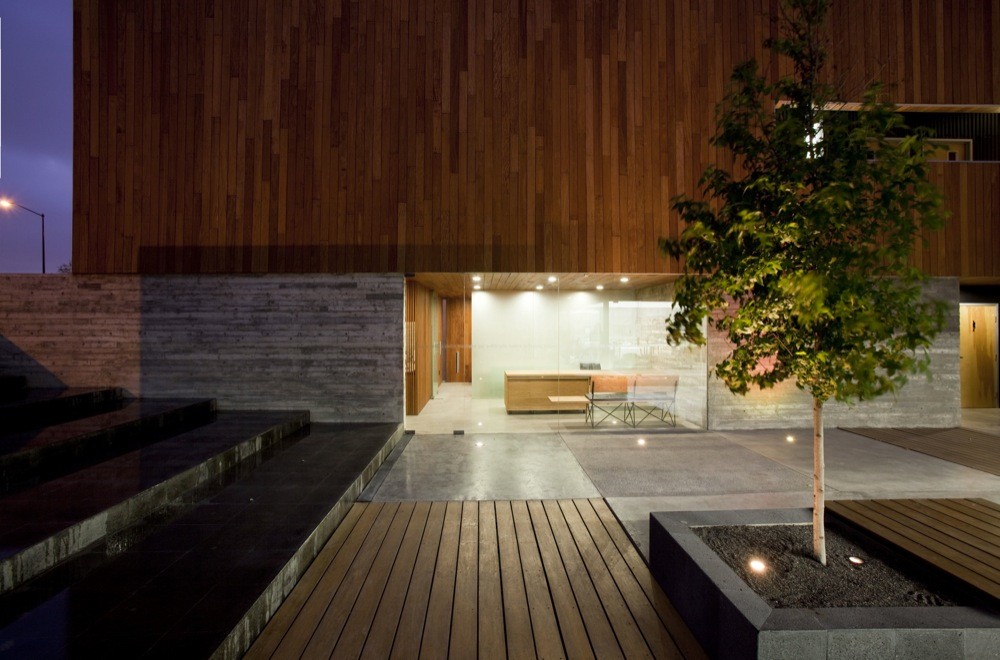

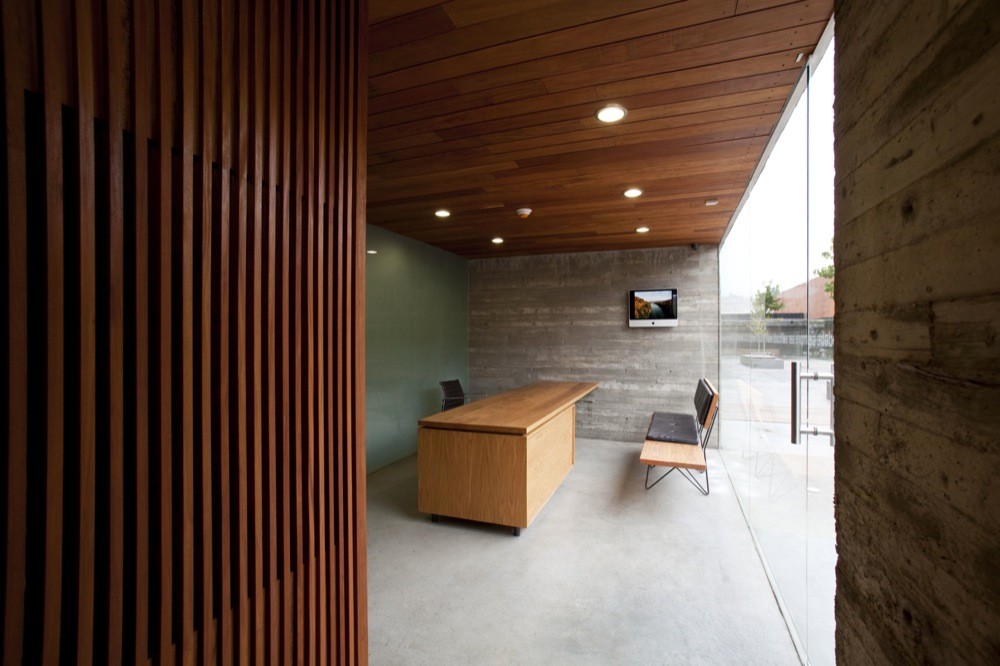

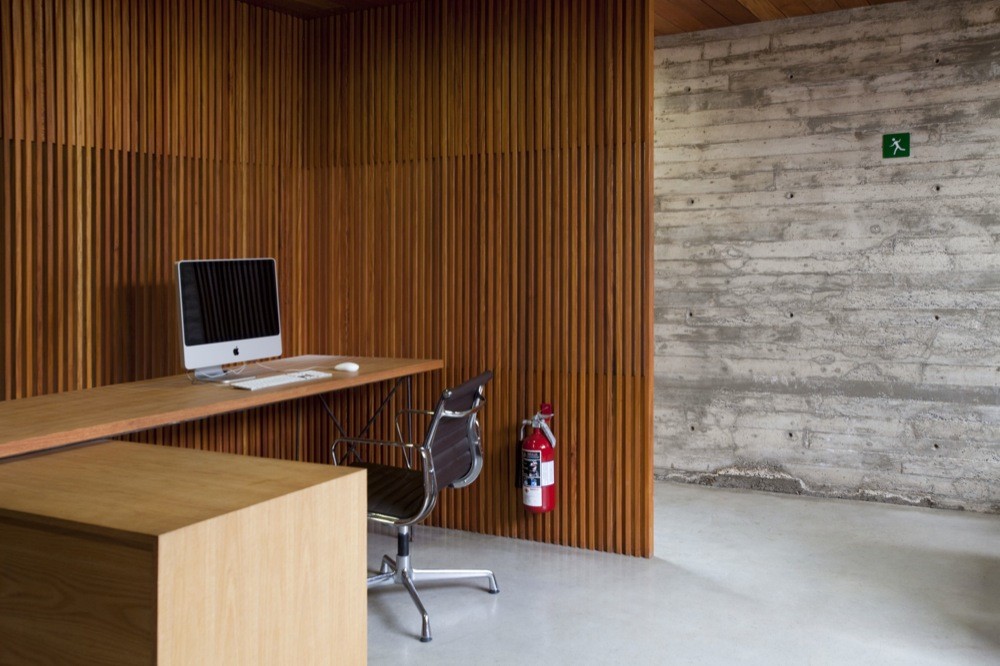

The entry court is a small, composed room open to the sky: a single young tree in a stone planter, timber decking, black stone steps and a glazed lobby behind. The reception space inside treats wood as a filter. A slatted timber screen and a slatted ceiling soften the daylight coming through the glass wall, and those same slats reappear along the administrative workstations, where they meet board-formed concrete.
This repetition is the discipline we notice most. graciastudio uses so few materials that every junction is visible, and the building depends on those junctions being tidy. Where it works, the offices and front desk feel continuous with the architecture. They do not look like fit-out added afterwards.
The Courtyard as the Real Facade

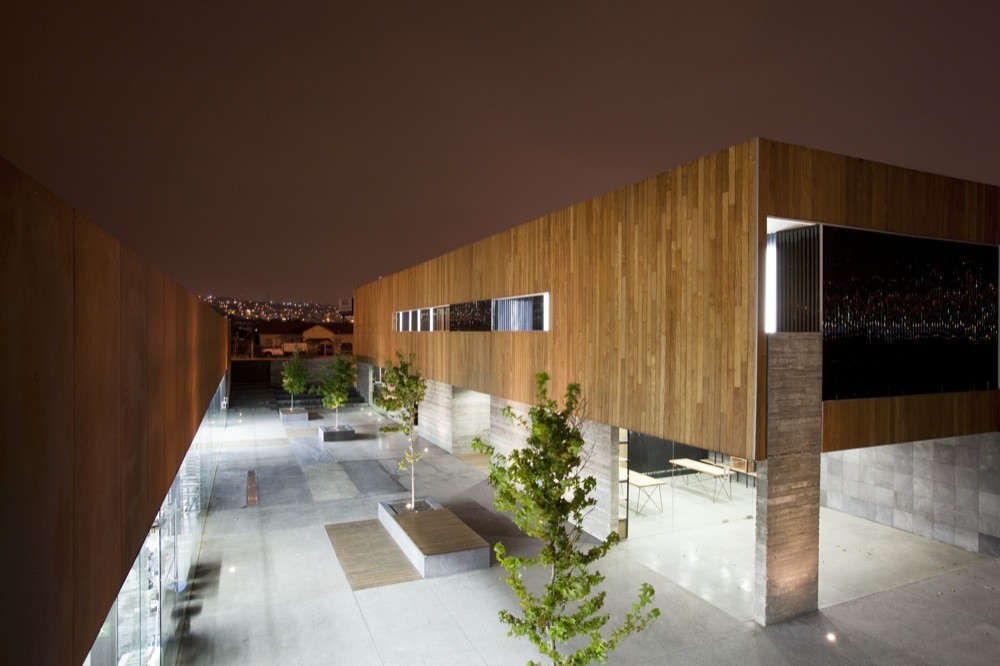

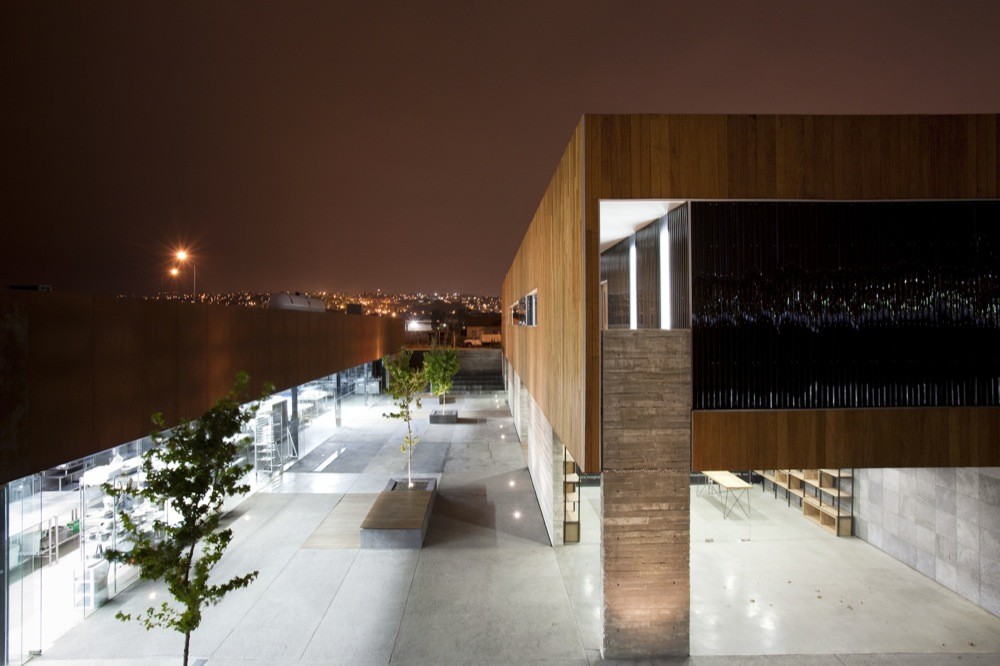

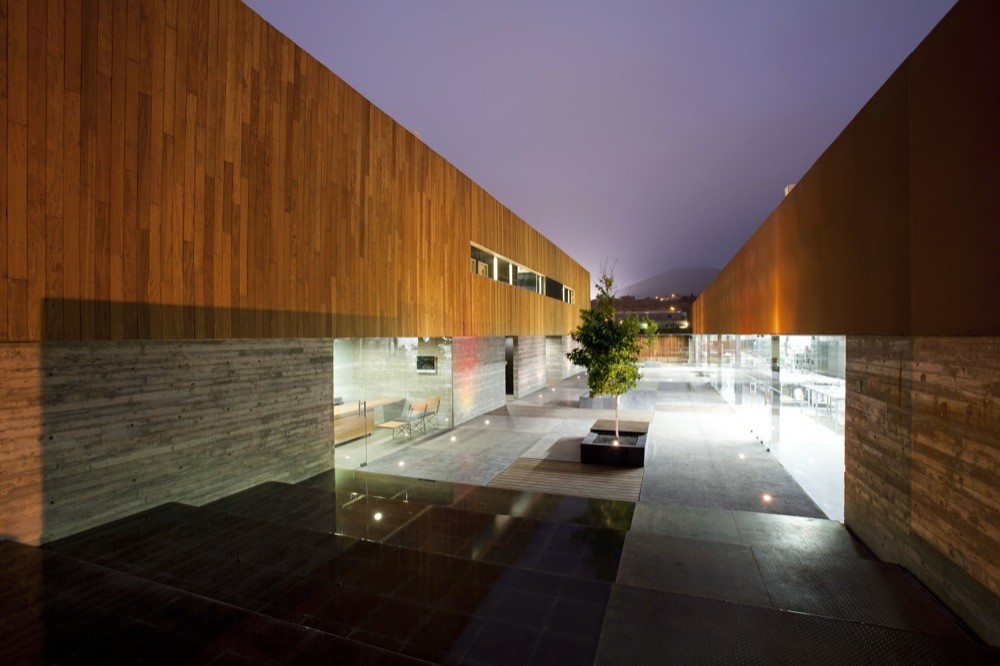

The two rectangular volumes are pulled apart to leave a paved void, and that void is the building's true elevation. Trees grow in planters between the concrete bases. A board-formed column stands in the open like a fragment of the plinth, and the timber boxes hover above. From the upper level at night, the courtyard reads as a lit room with no roof, and the city's lights sit on the horizon beyond.
The courtyard also explains the blank street face. The school has its own landscape to look at, so it has no need to perform for the road. For a teaching building in a dense part of Tijuana, turning inward is a reasonable trade.
Kitchens That Look onto Trees

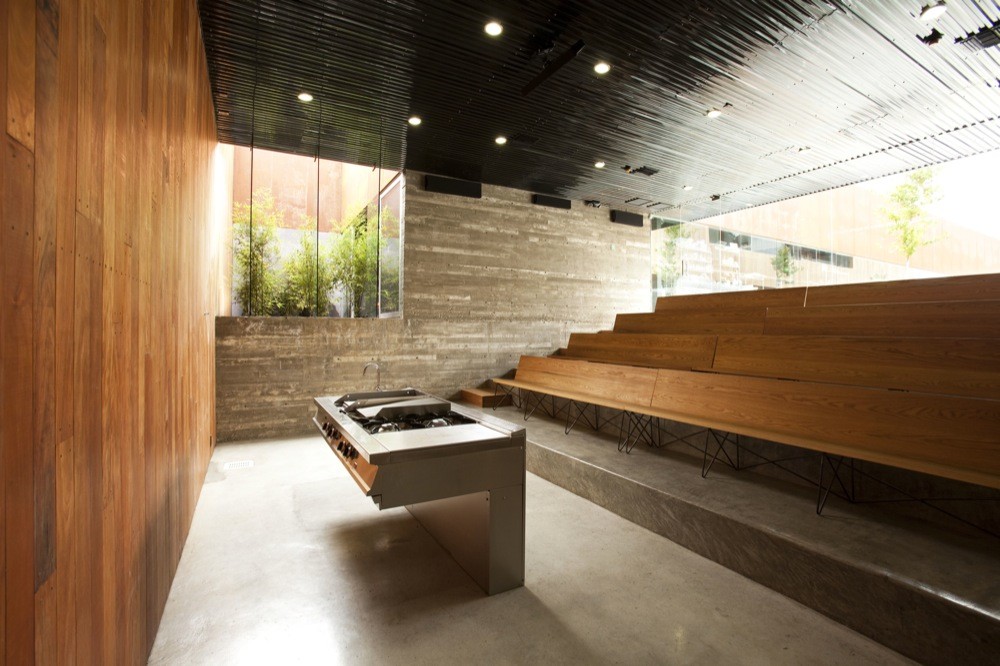

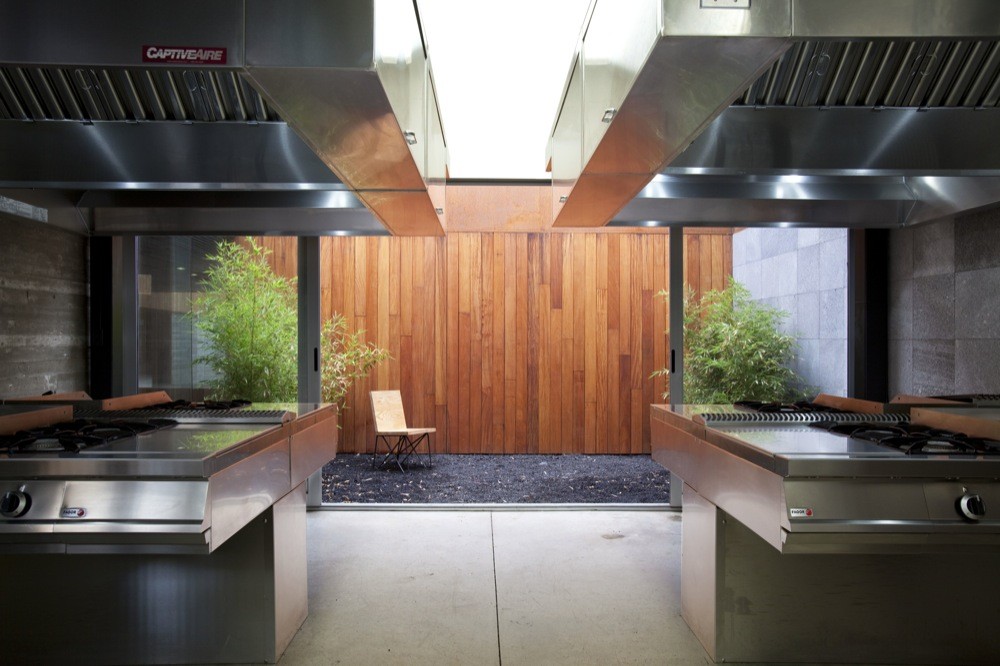

The teaching kitchens are where the plan pays off. Steel cooking islands sit under extraction hoods, and behind them a timber-clad courtyard with bamboo and black gravel brings daylight and green into a room that could easily have been a sealed, tiled box. In the demonstration kitchen, a steel cooktop island faces tiered timber benches set between board-formed concrete walls. The arrangement is a small amphitheatre built around a single stove.
This is the most persuasive move in the project. Professional kitchens are usually designed only for hygiene and airflow. Here they get the same quality of light and view as the reception rooms. The stainless steel and the dark slatted ceiling keep the rooms serious, and the courtyard keeps them pleasant to spend a long shift in.
Lockers Named After Herbs

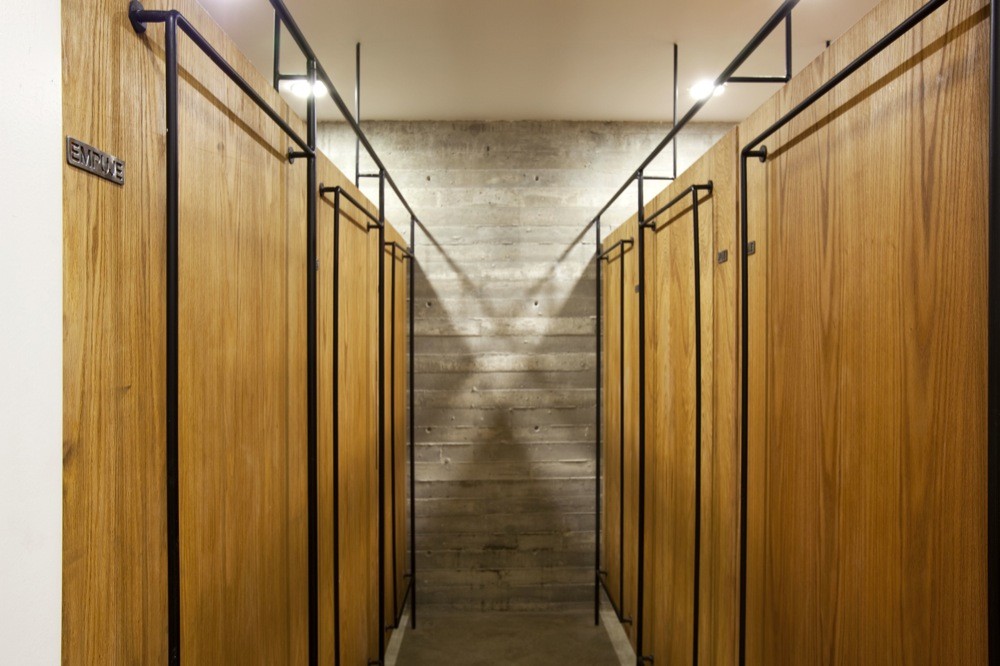

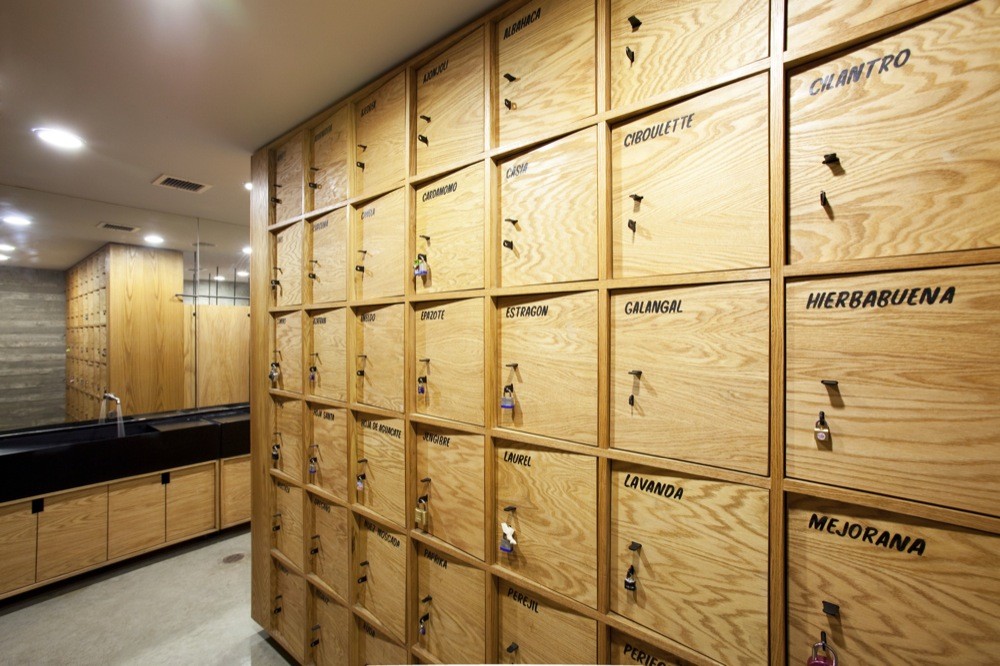

The service spaces get unusual care. A narrow corridor of oak changing-room doors and black steel rails ends on a board-formed concrete wall, so even a back-of-house passage has a focal point. The locker wall beside a black basin counter goes a step further: each oak door is hand-labelled with a herb, such as cilantro, laurel or lavanda.
It is a modest detail, and it is the one place where the building openly admits what it teaches. The exterior stays silent and the joke is kept for the students.
Dining Rooms Under Timber Ceilings

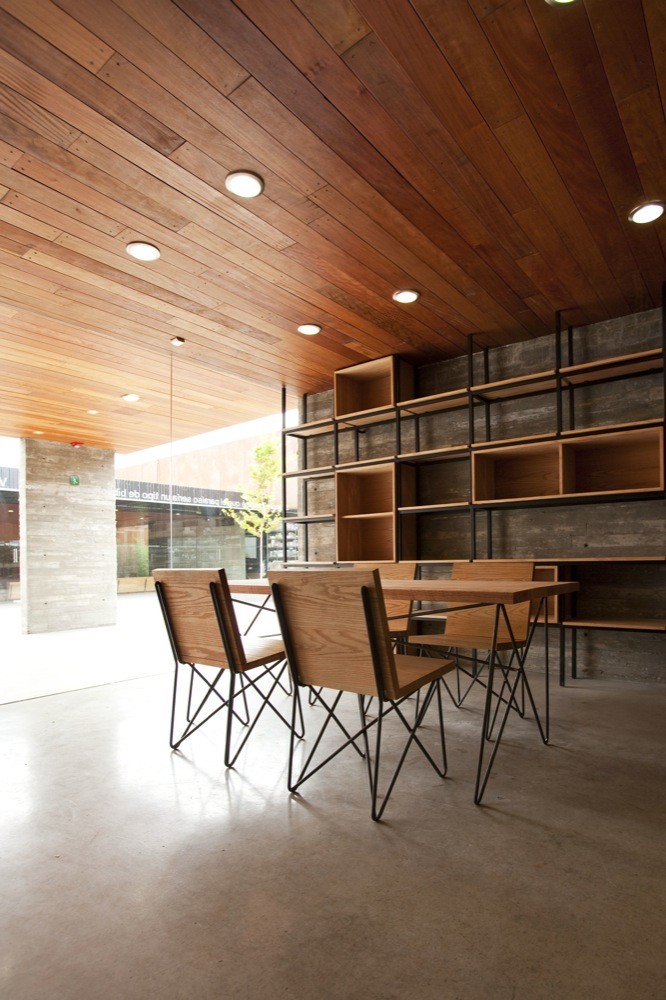

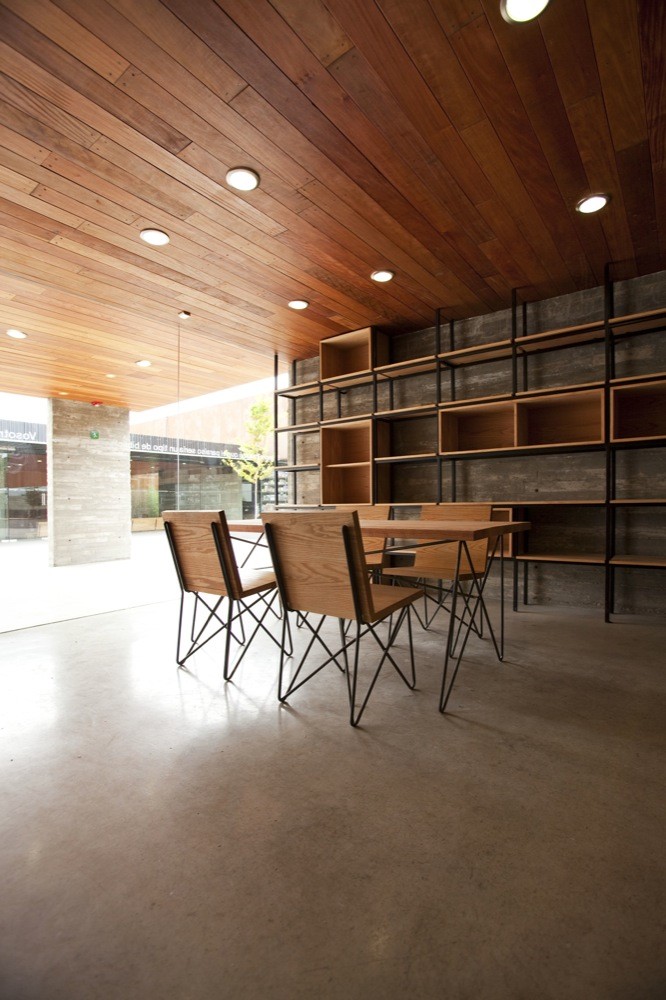

Cooking schools need somewhere for the food to go, and here the dining space is treated as a calm, domestic room. Wire-legged wooden chairs surround a table set in front of a steel and timber shelving wall, and round downlights are recessed into a plank ceiling. The shelving does real work, giving the room storage and display, and it keeps to the building's limited vocabulary of steel and wood.
A Wine Room Lit from One End

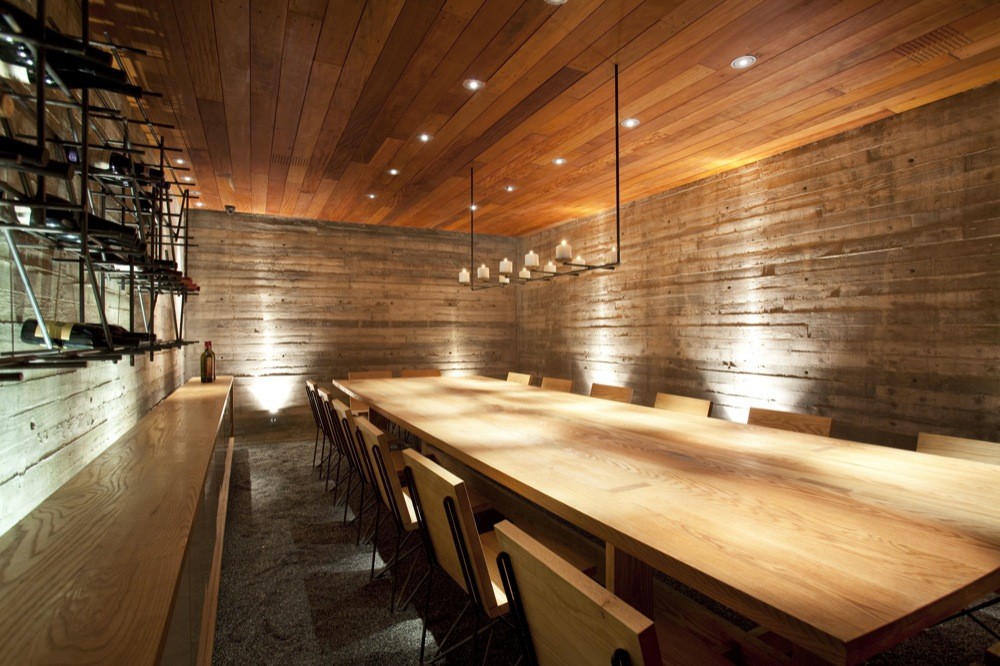

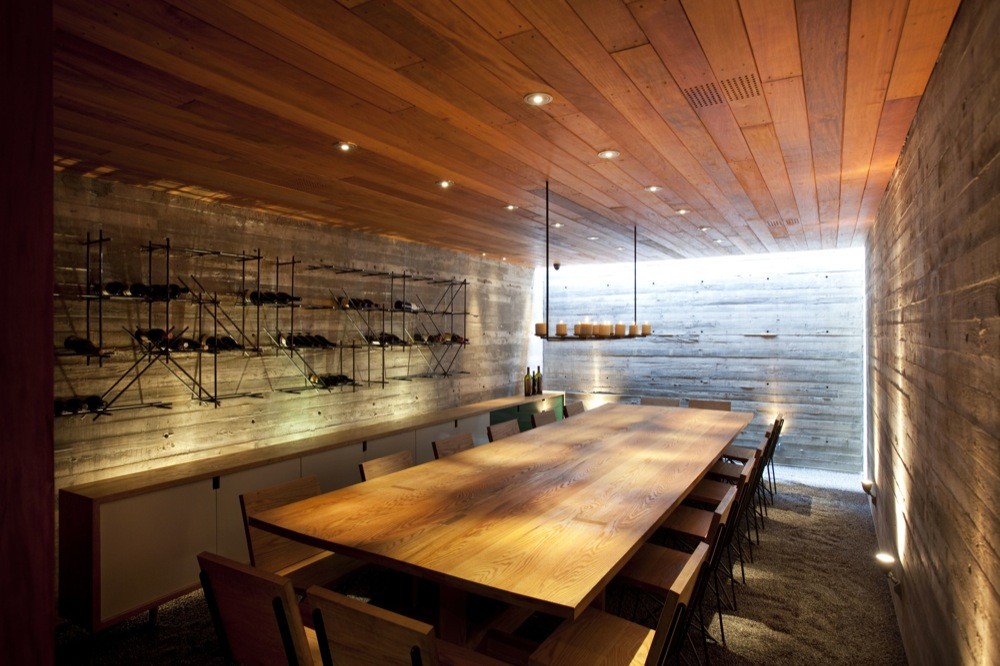

The wine room is the most atmospheric space in the school. A long timber table runs the length of a concrete-walled room, bottle racks line one side, and a candle chandelier hangs overhead. The far end is bright with light from above, so the room draws you along its length toward it.
Here the concrete becomes more than a backdrop. Its board-marked surface gives the room the weight and coolness of a cellar without any pastiche. It is the strongest evidence that the restrained palette can carry mood, not only order.
Plans and Drawings

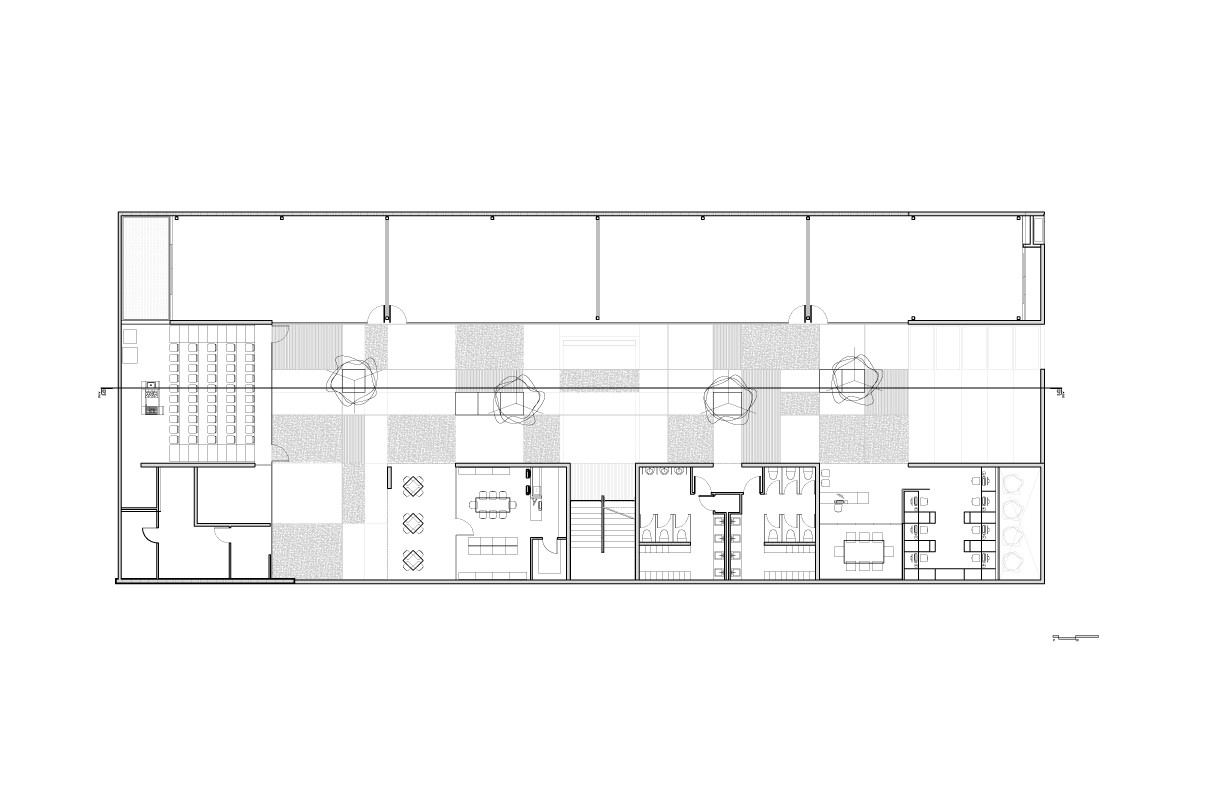

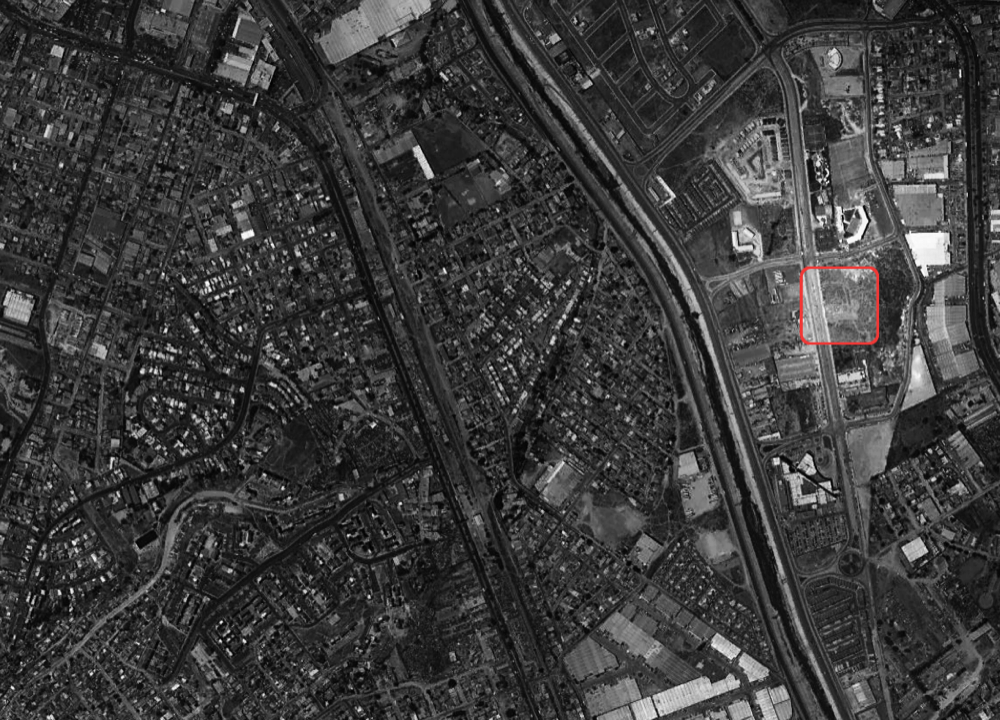

The site photograph shows an empty lot beside a highway, hemmed in by dense neighbourhood blocks, and that context clarifies why the building turns its back on the street. The floor plan lays out a central hall marked with four tree canopies, with a lecture room, meeting rooms and restrooms strung along a long rectangular block. The section and elevation show how low and linear the volume is: a ribbon of small windows above a solid base, a sunken stair, and stepped ground.

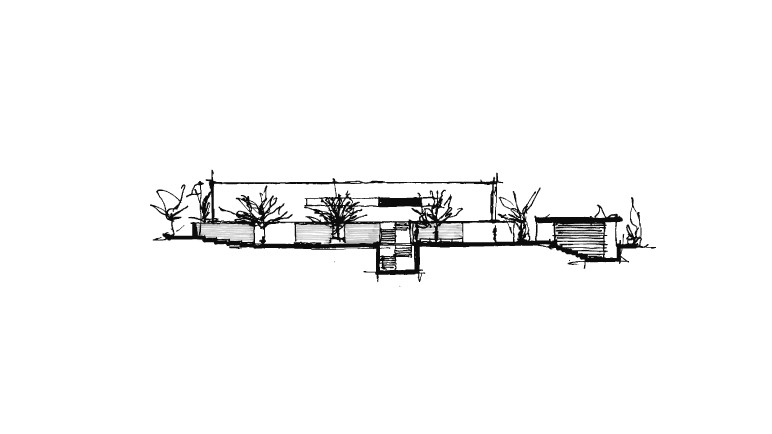

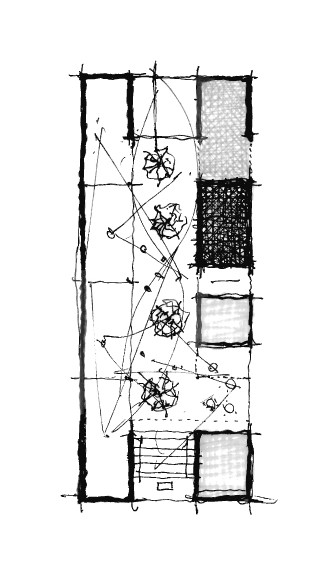

The hand sketches are worth studying. They show the same four trees, the same sunken stair and the narrow courtyard drawn loosely before any detail existed. The built project stays very close to that first idea, which says something about how clearly the scheme was conceived.
Why This Project Matters
The Culinary Art School shows that a specialised educational building does not need a themed exterior. graciastudio put its effort into the sequence inside: compression at the entry, a courtyard at the centre, and kitchens that share that courtyard's light. The plainness of the street face is what makes the interior feel generous. For anyone designing vocational schools on tight urban lots, that is a useful lesson.
It also shows what a strict material palette can achieve when it is held to consistently. Concrete, steel, garapa and glass appear in every room, from the wine cellar to the herb-named lockers, and the building never reaches for a fifth material to solve a problem. There are limits: the street gets little from the school, and the minimalism leaves no room for error at the joints. Still, in 894 m², graciastudio built a school that works like a well-run kitchen, clean, ordered and focused on the job.
Culinary Art School by graciastudio (architect in charge: Jorge Gracia), Tijuana, Baja California, Mexico. Area: 894 m². Completed: 2010.
