graciastudio Turns a Viewless Tijuana Lot Inward Around a Courtyard of Concrete, Timber and Trees

Most houses are designed toward something: a coastline, a ridge, a city skyline. GA2 House, by graciastudio under Jorge Gracia, was designed on a Tijuana site with nothing to look at. The 378 m² residence, completed in 2015, spreads across two levels and a basement. Its response to that blank context is the most useful thing about it: if the site will not supply a view, the architecture has to make one.

The tools are few. An exposed reinforced concrete ground floor gives the house its rigidity. A timber-lined upper level holds the private rooms. An interior patio sits between them and organizes almost everything else. We think the house is worth studying because it relies on so little. It works through a strict material contrast and a single courtyard, with no formal tricks on top.

A Closed Face to the Street

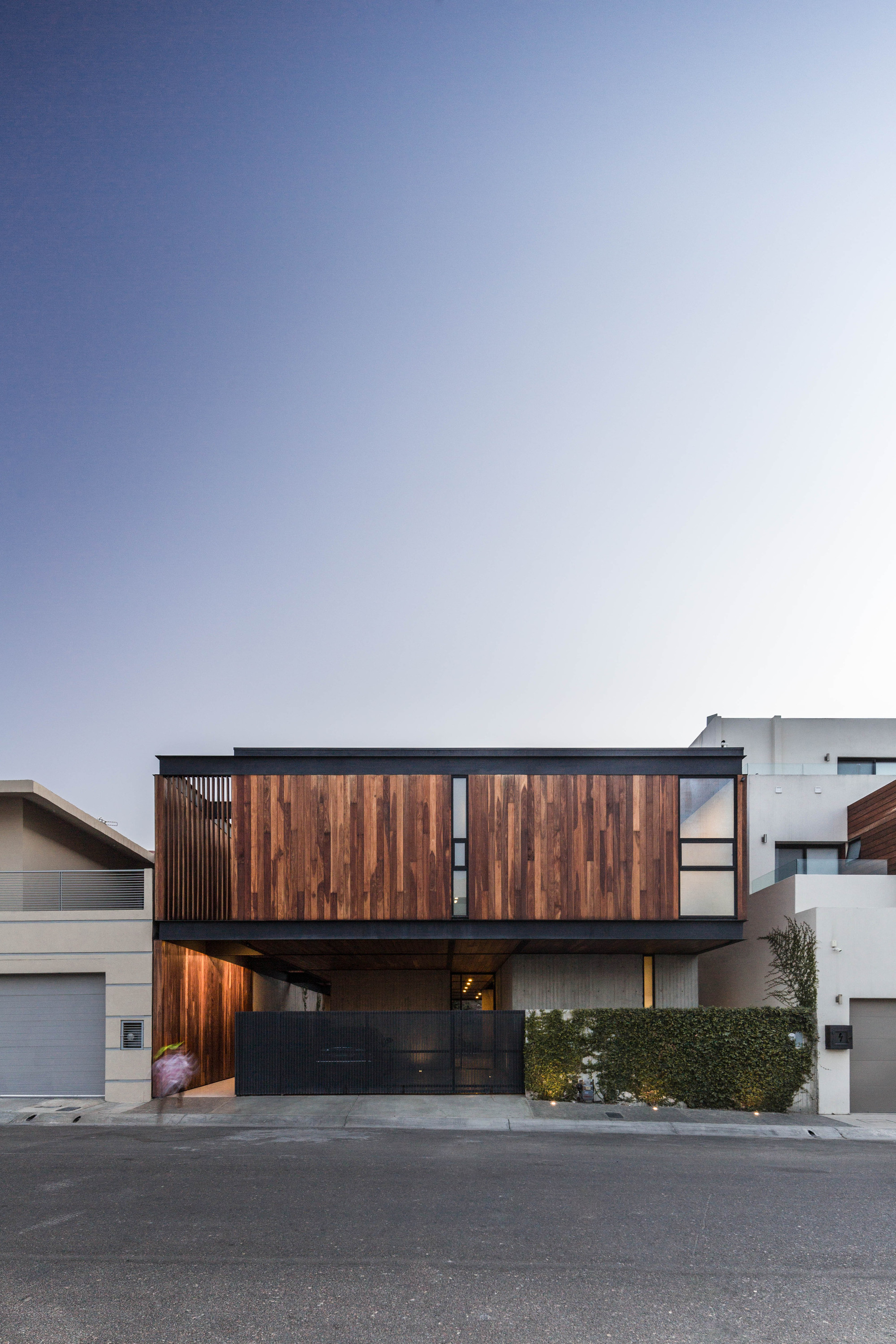

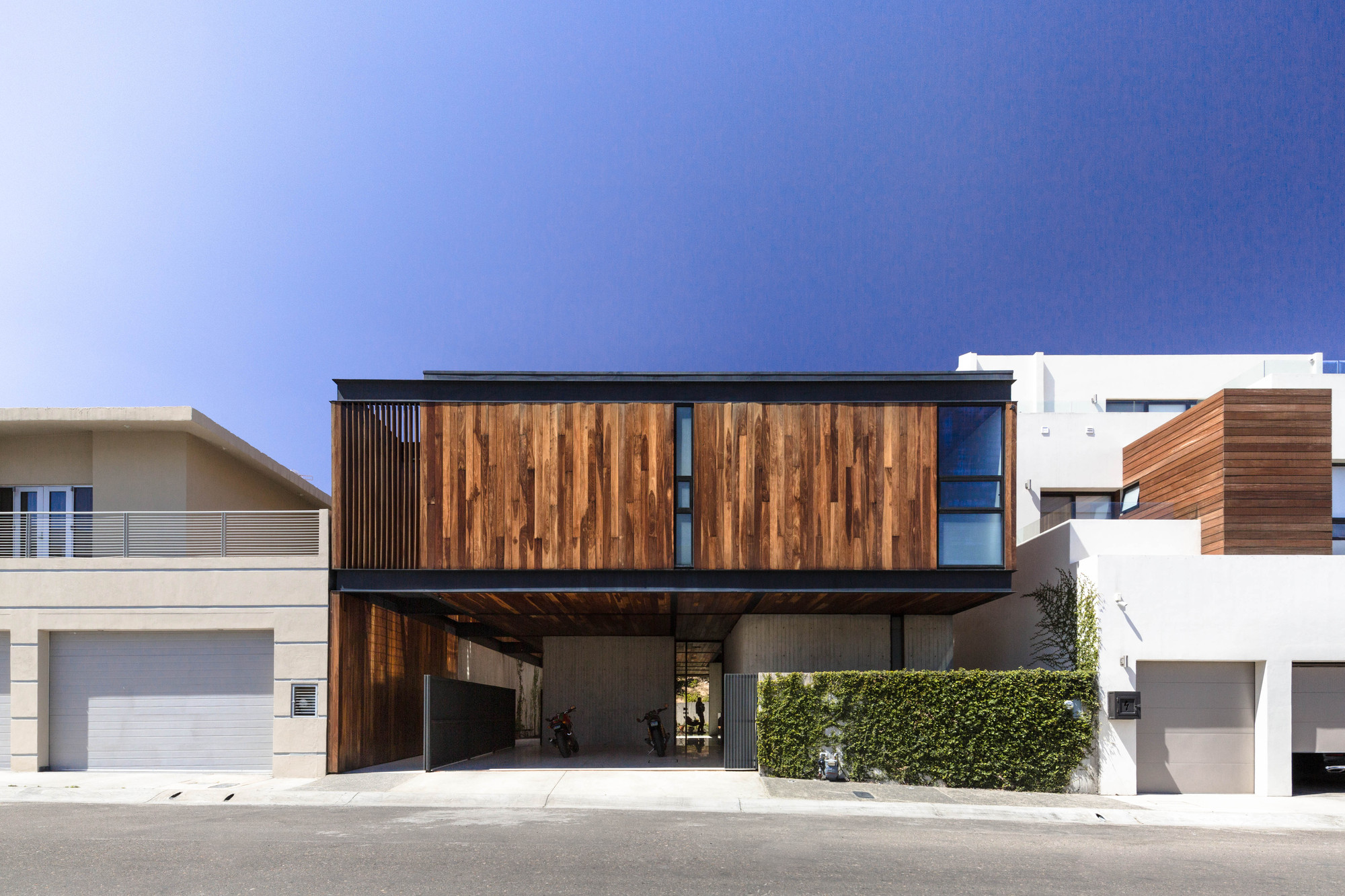

The street elevation reads as two clear statements. The timber-clad upper volume floats over an open carport. Below it, a black steel gate and a hedge hold the property line. The house gives the street very little: no large openings, no display of domestic life. Given the urban setting, that reticence feels considered rather than defensive.

The hovering wood box also signals the logic inside. The private floor is lifted and wrapped in a warmer material, while the heavier, more public base stays low and partly withdrawn. You understand the section of the house before you walk through the gate.

The Courtyard as Manufactured View

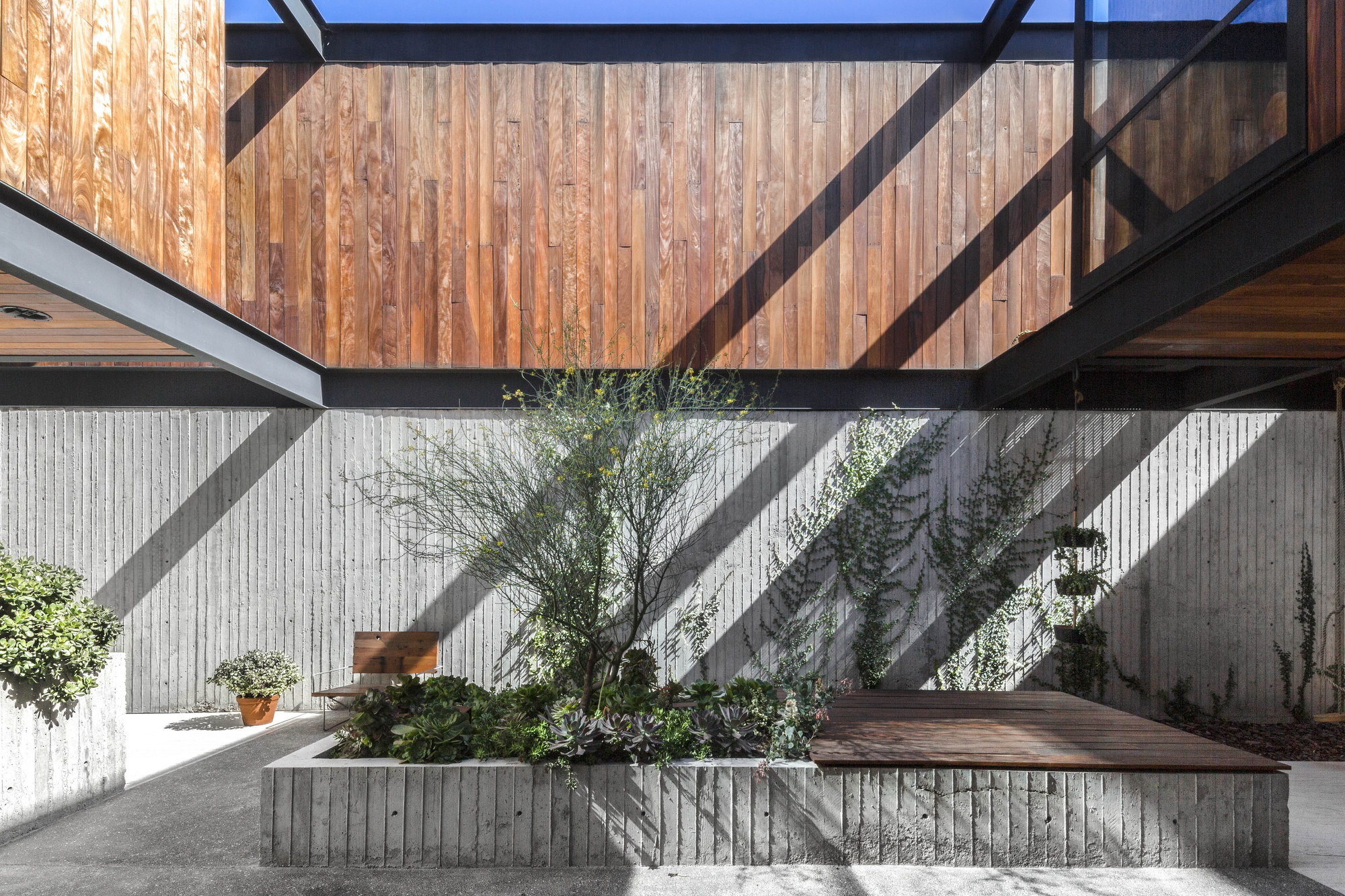

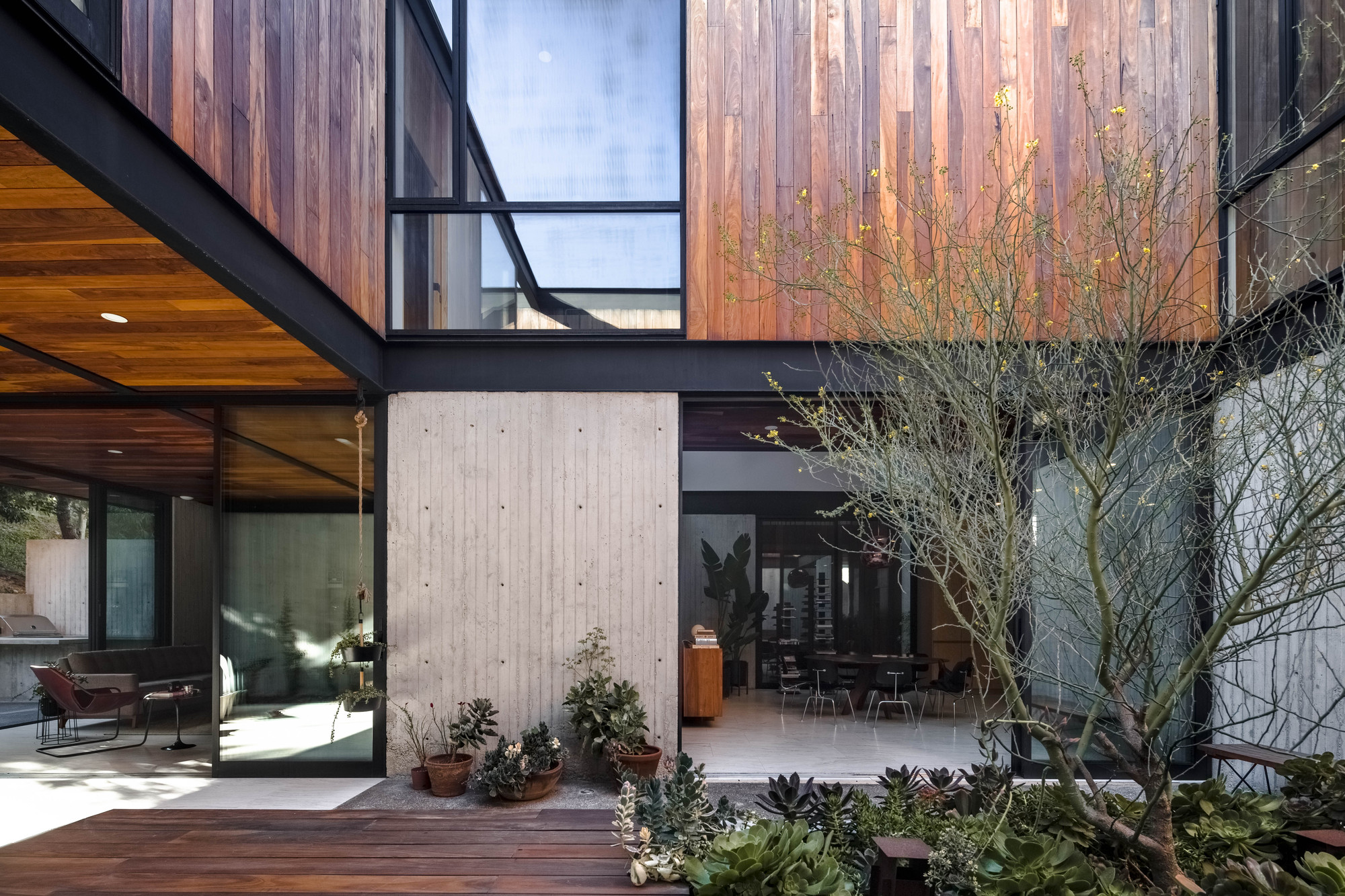

The patio is where the brief is resolved. Board-formed concrete walls meet the timber cladding at a corner. A single tree rises over potted succulents, and a planted concrete bed doubles as a timber bench. The space is small, but it gives every adjoining room a foreground, a sky and shifting light.

The diagonal shadows across the formwork texture and the wood boards show how much work the sun does here. On a site with no horizon, the daily movement of light across two materials becomes the landscape. It is a modest idea, carried through with discipline.

Living at the Threshold

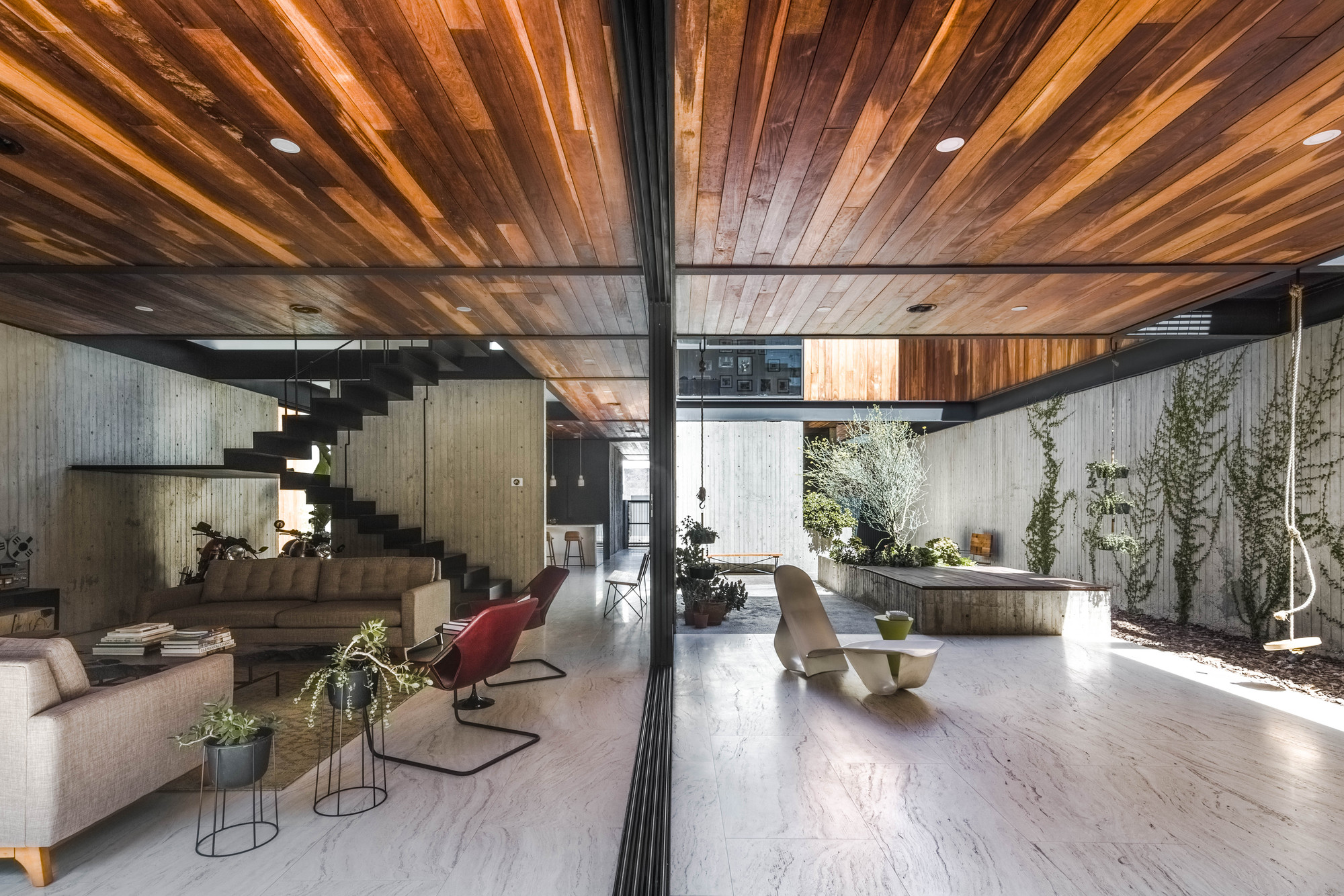

Sliding glass dissolves the line between the living space and the courtyard. Climbing plants, a rope swing and a floating steel stair share the same frame, so the patio reads as an outdoor room rather than a light well. The stair matters too. Because it hangs lightly in view, the vertical route to the private floor becomes part of the scene.

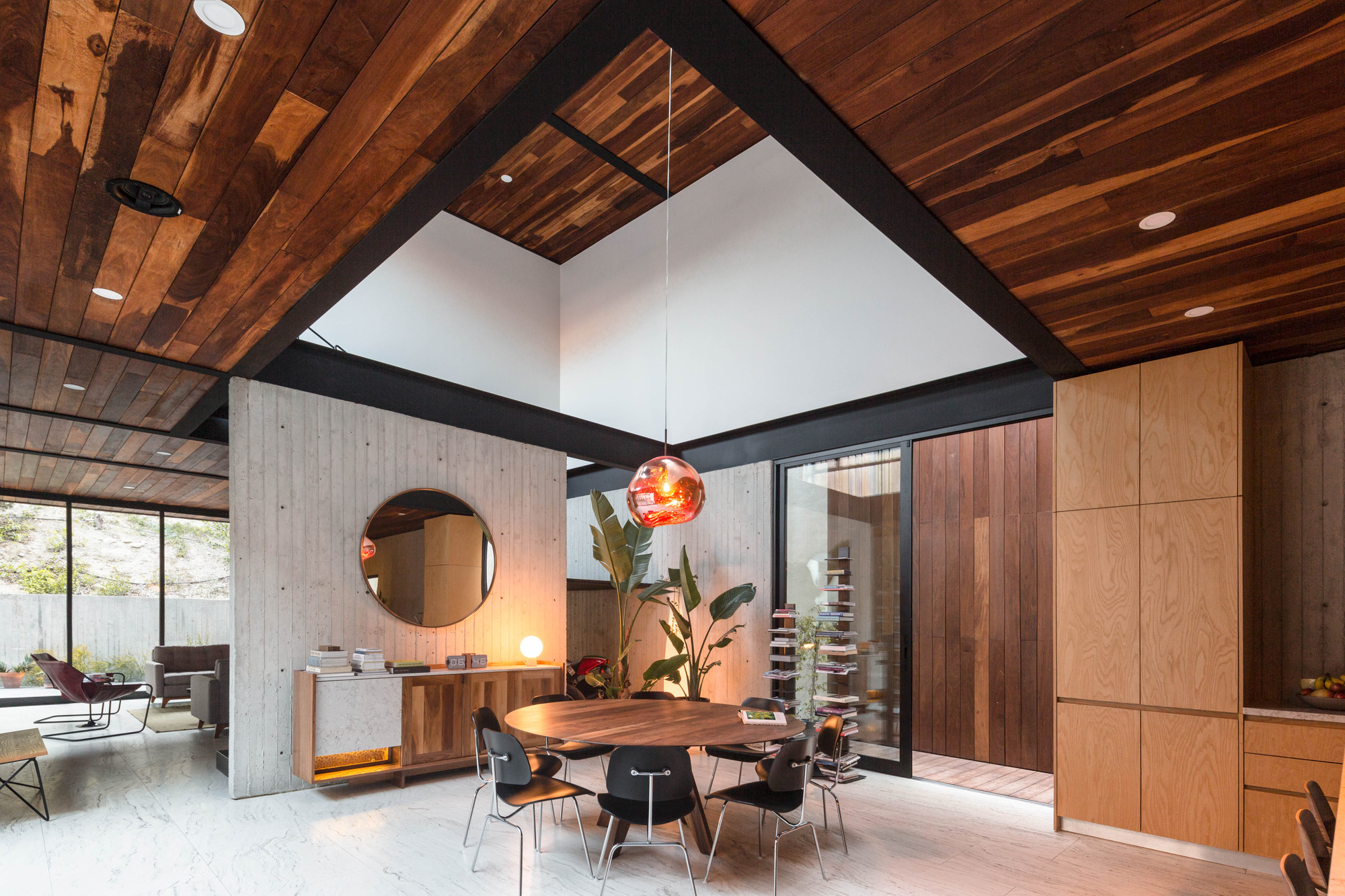

In the dining area, the timber ceiling runs between exposed steel beams. This is the material argument in miniature: wood is used, in the architect's words, to balance the rigidity of the concrete. The ceiling softens the room acoustically and visually, while the beams stay honest about how it is held up.

Double Height, Single Table

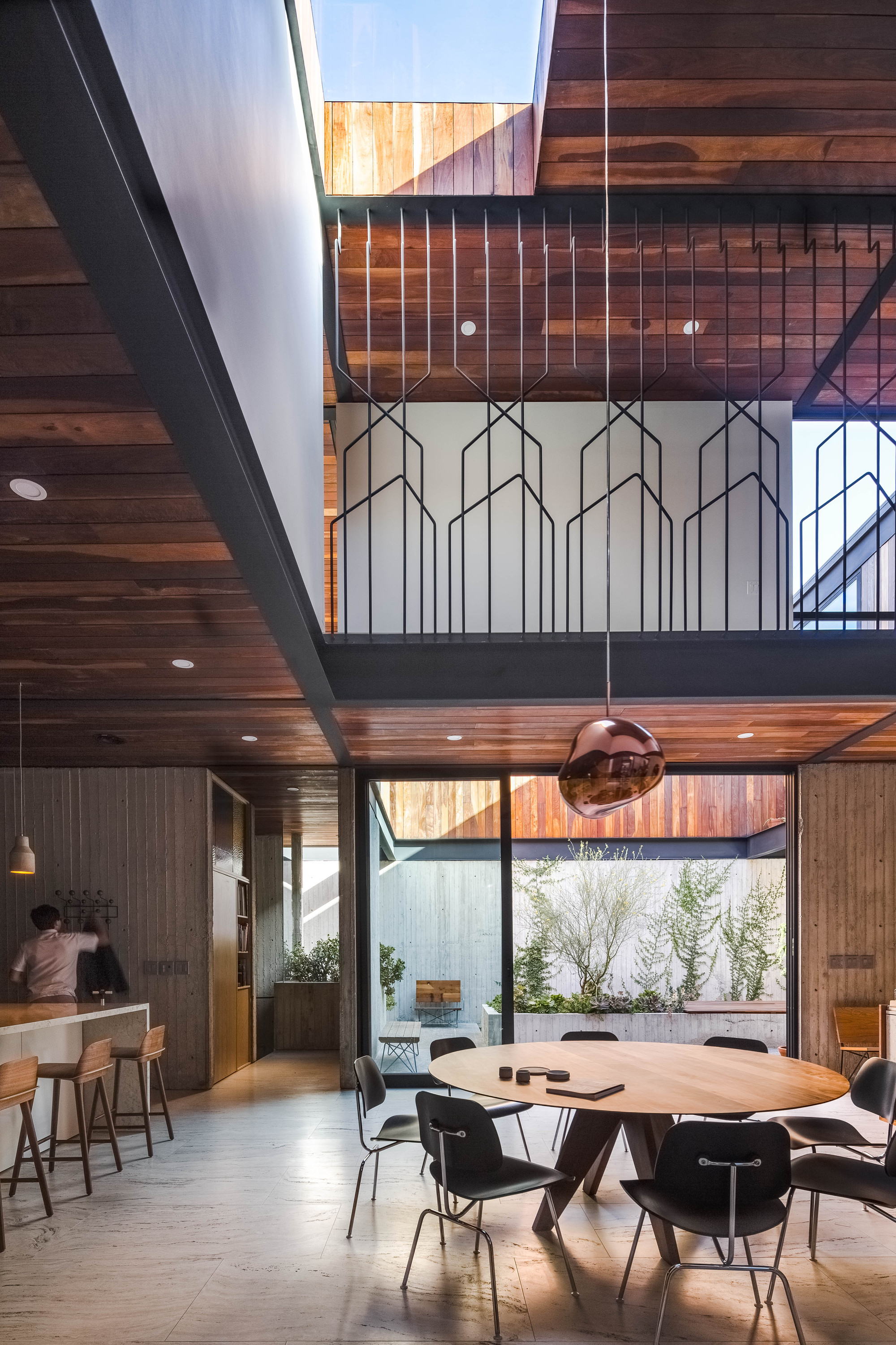

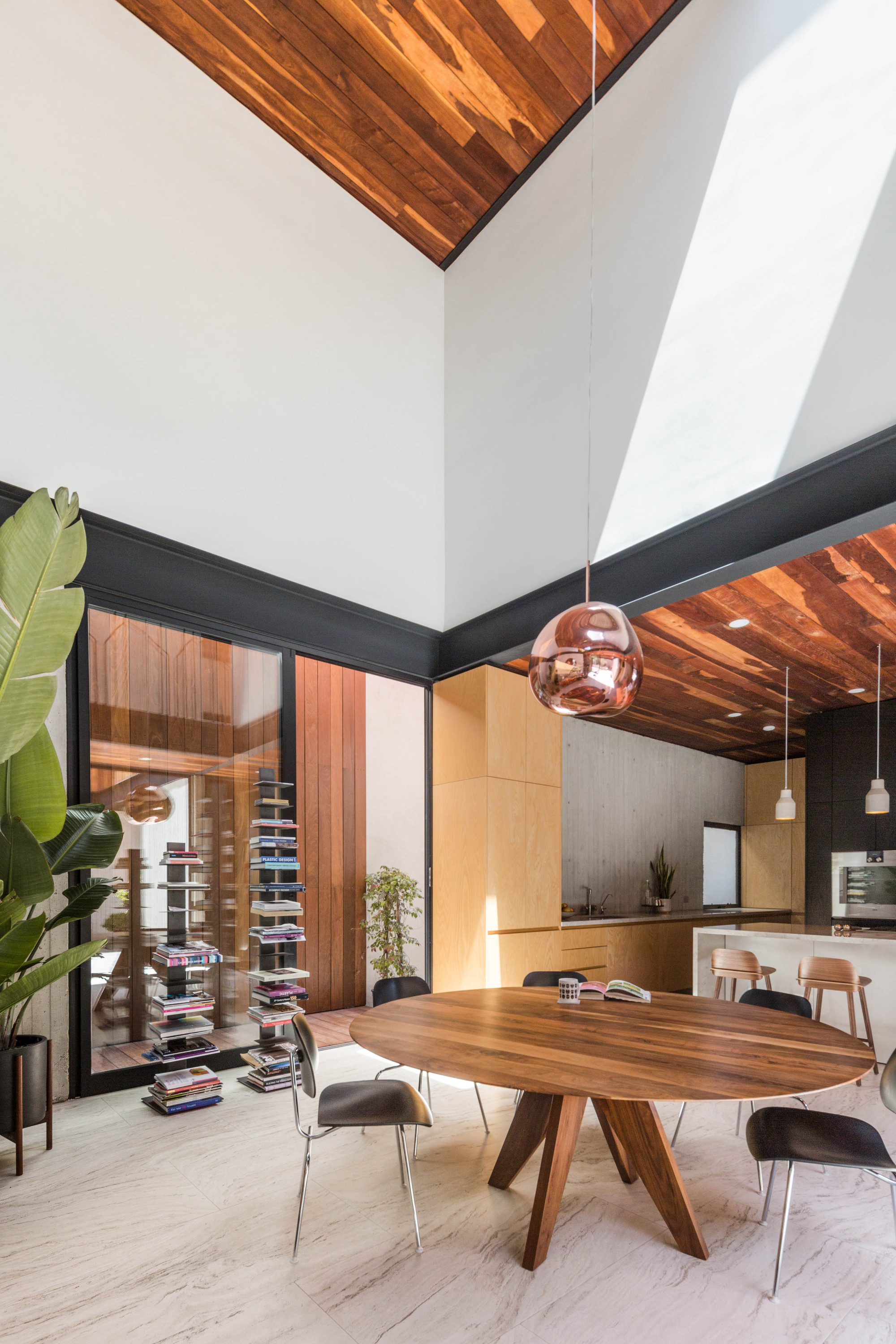

The double-height dining and kitchen space is the social center of the house. A round wood table and a copper pendant anchor a volume that could easily have felt cavernous. White walls catch daylight drawn in from the courtyard, and a patterned steel balustrade above hints at the bridge that links the bedrooms overhead.

Here the vertical void works as a second courtyard, an interior one. It lets the private floor overlook the shared room and pulls light deep into the plan. In a house with no external outlook, these internal sightlines replace the views a different site would have offered.

Plans and Drawings

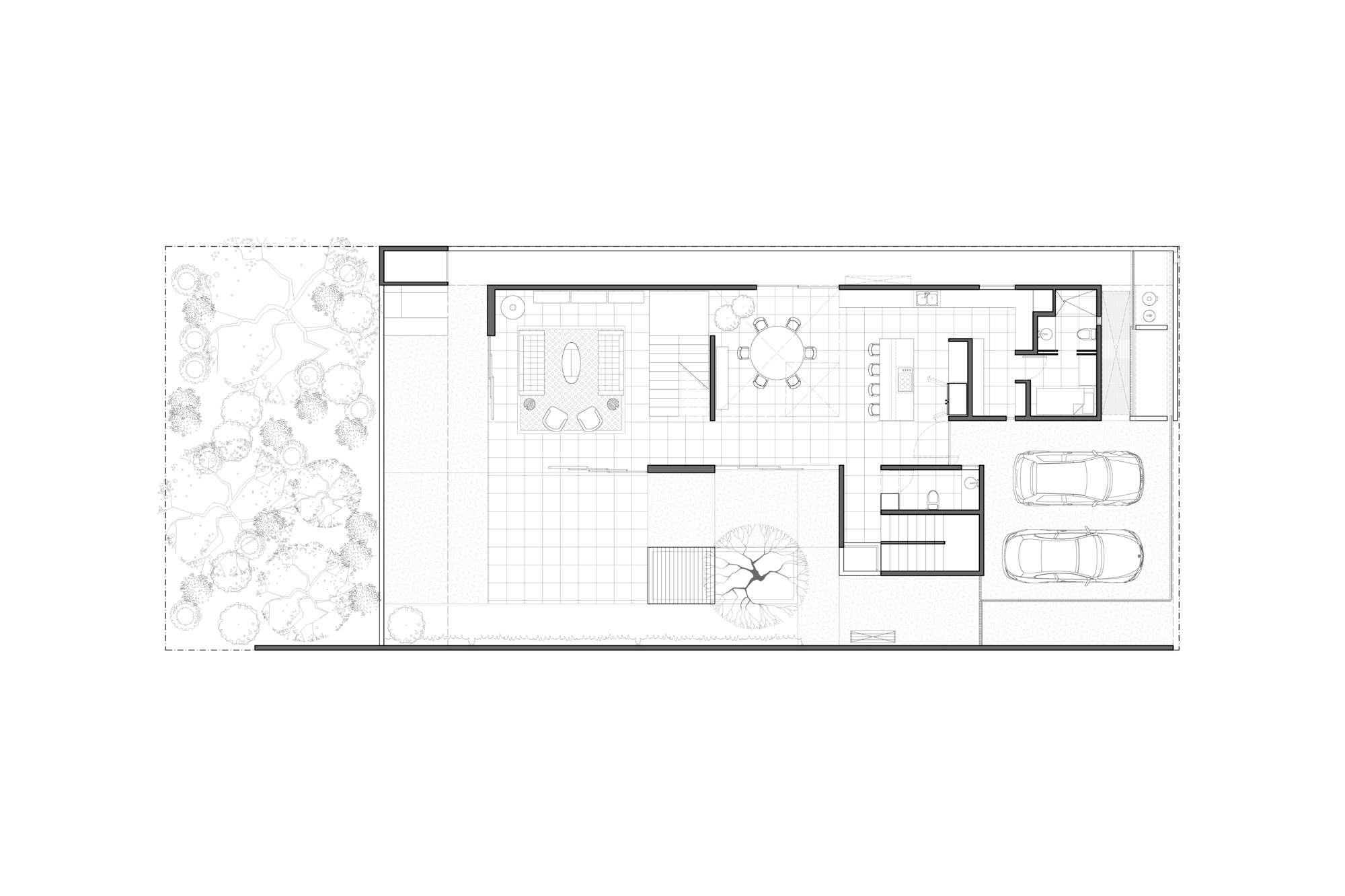

The ground floor plan makes the strategy plain. Living, dining and kitchen zones wrap around a central tree courtyard. Parking for two cars and a planted garden take up the street side. The courtyard sits in the middle of the plan and acts as the point every room refers back to.

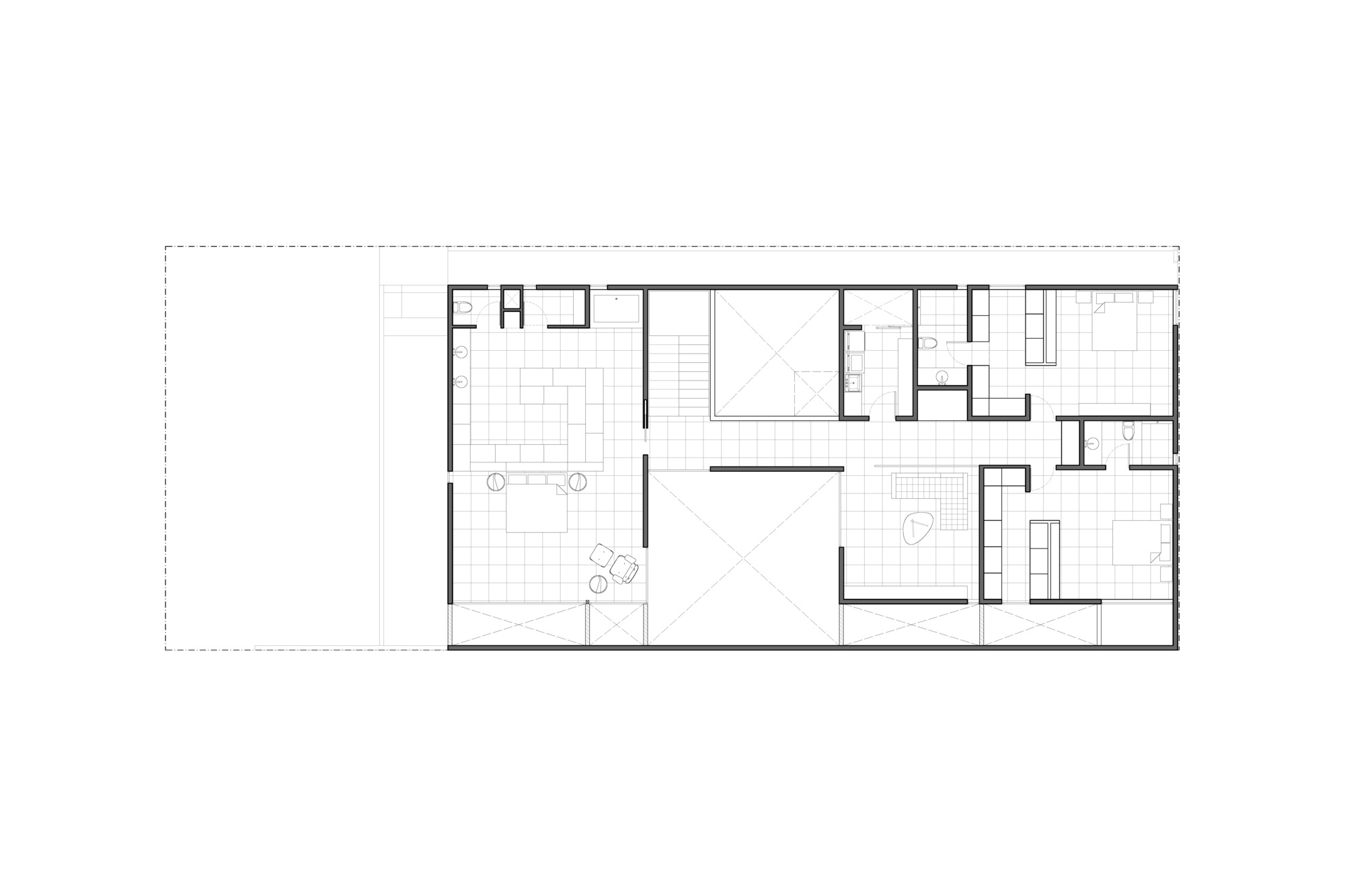

Upstairs, bedrooms and bathrooms sit around two open voids and a terrace edge. A bridge connects the master bedroom to the other two bedrooms. The voids keep the private level tied to the life below, so the house does not split into separate floors.

Why This Project Matters

Many urban lots in Mexico and elsewhere have no view worth framing, yet houses keep being designed as if they did. GA2 House starts from the opposite assumption. It accepts the limits of its context and puts its effort into the interior: a courtyard, two voids, and a careful pairing of concrete and wood. That is a lesson you can carry to almost any infill site.

It also shows how much a restrained material palette can do. Concrete, timber and steel are each given a clear role and left largely exposed. The resulting house feels calm without being bland, and it shows that interiority can produce generous architecture.

GA2 House by graciastudio (Jorge Gracia), Tijuana, Baja California, Mexico. Area: 378 m². Year: 2015. Structural calculation: Luis García. Photography: Onnis Luque.
