Patara Architects Reimagines the Thai Cluster House as a Multi-Generational Home in Bangkok

The multi-generational house is one of those program types that sounds straightforward but almost always produces awkward architecture. Give three generations their own bedrooms and bathrooms, throw in a shared kitchen, and you end up with a bloated villa that satisfies nobody. Patara Architects, led by Patara Warathanasin, took a different approach in Bangkok's Bang Sue district. Instead of designing one large house, they designed a cluster of volumes, each one semi-autonomous, arranged around a central courtyard with a swimming pool. The model is the traditional Thai Ruen Moo, a compound of smaller pavilions gathered under a shared estate, where togetherness is spatial proximity rather than forced cohabitation.

What makes Bangsue Residence genuinely interesting is how it translates vernacular ideas into working climate strategy. The gaps between volumes are not just compositional gestures; they are wind corridors. The elevated living zones on the second floor catch cross-breezes through expansive sliding doors. The curved terracotta roof, which reads as a sculptural crown from the street, actually descends from the traditional gable, reinterpreted as a sweeping shell that shades upper terraces and deflects monsoon rains. The result is a 1,333 m² house completed in 2024 that feels far more porous and lightweight than its concrete-and-steel structure would suggest.

Street Presence and the Curved Roof

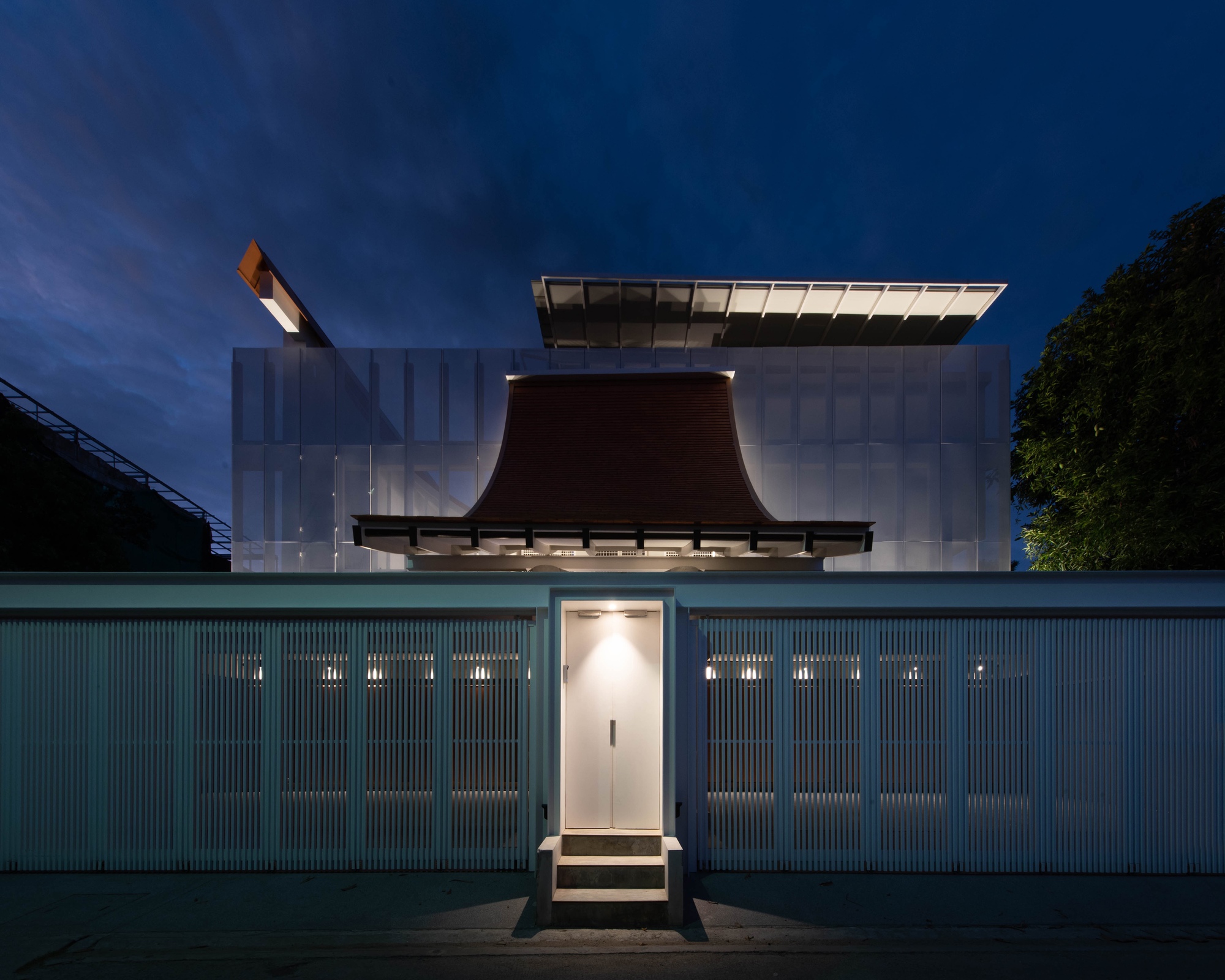

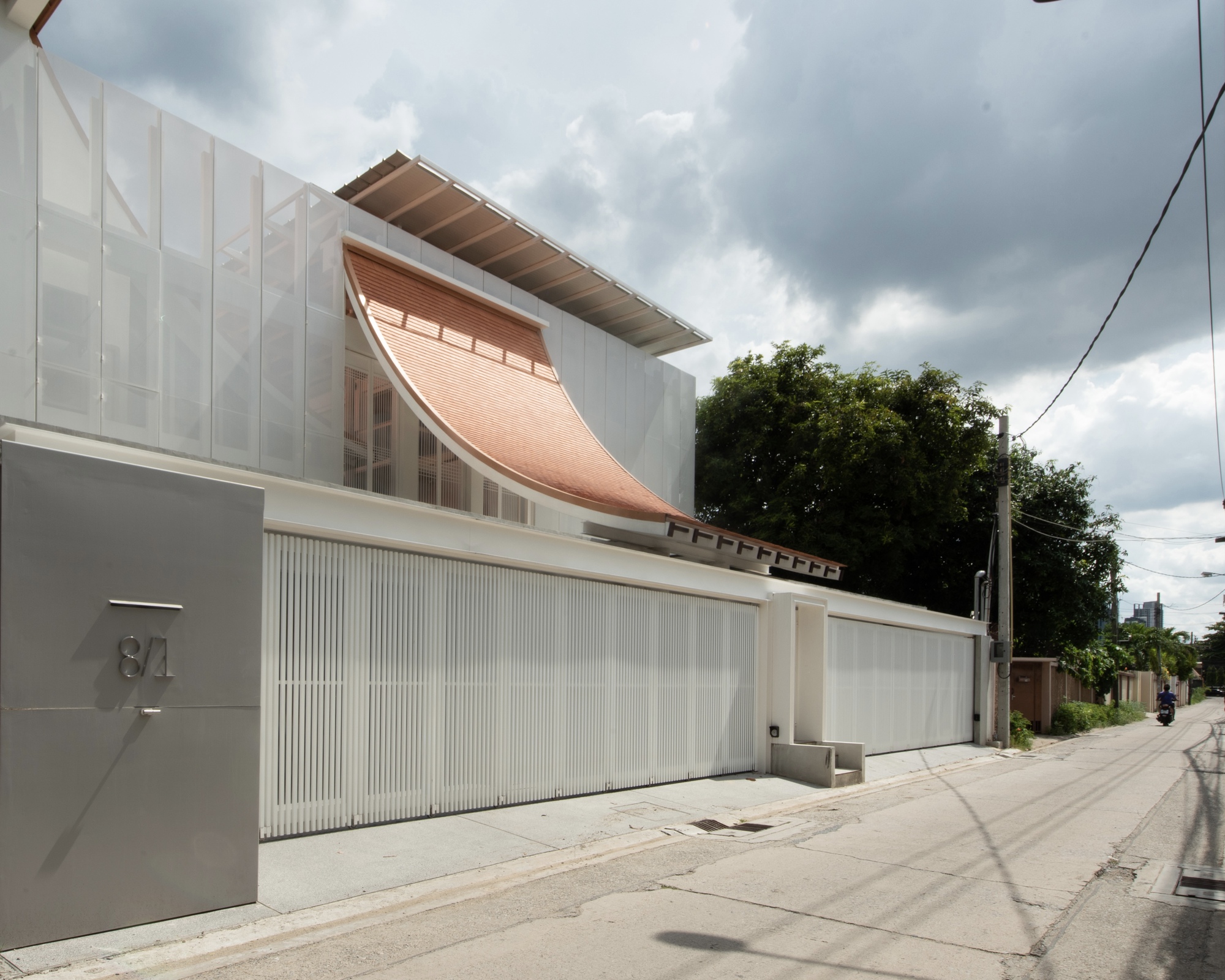

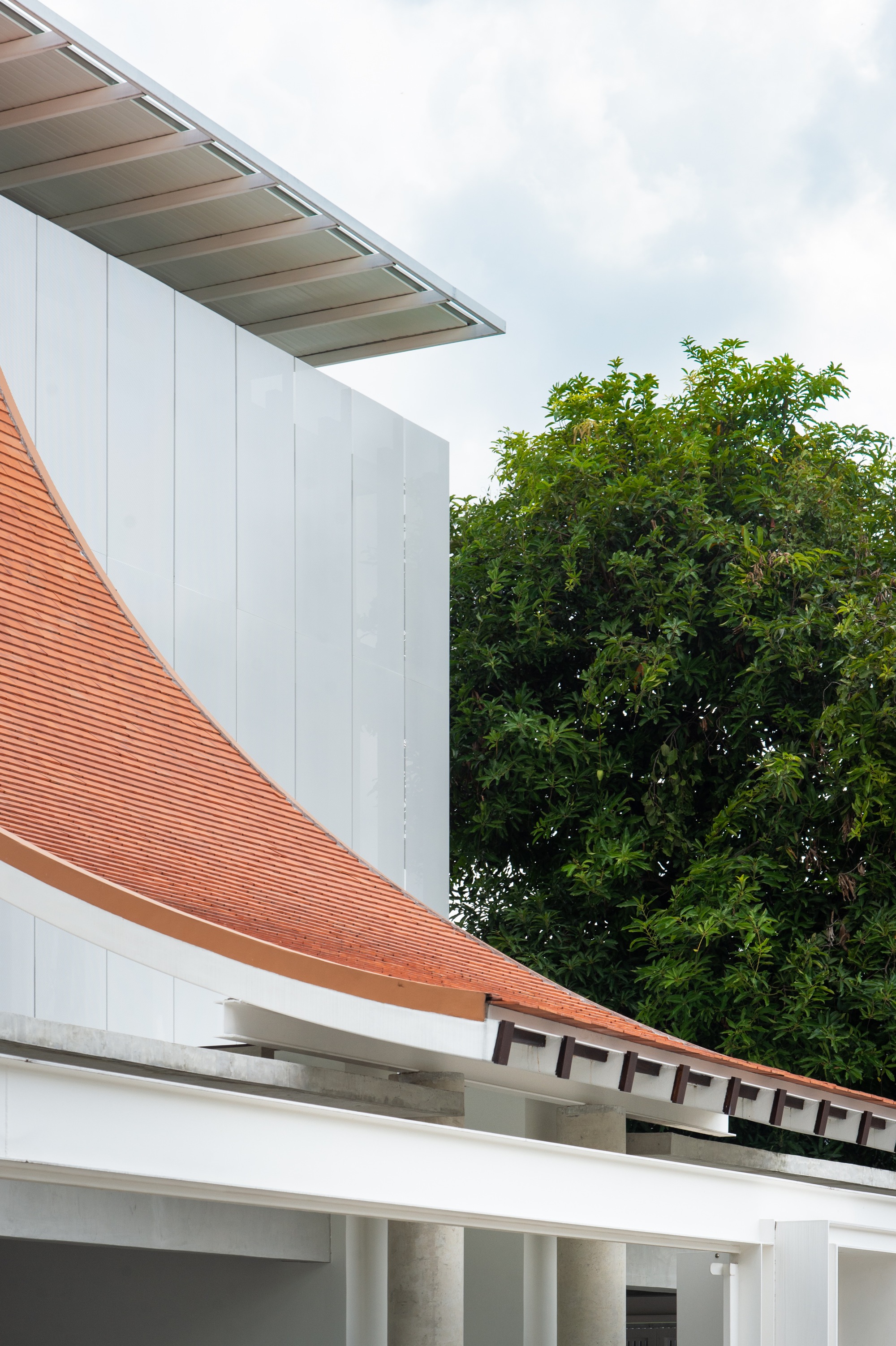

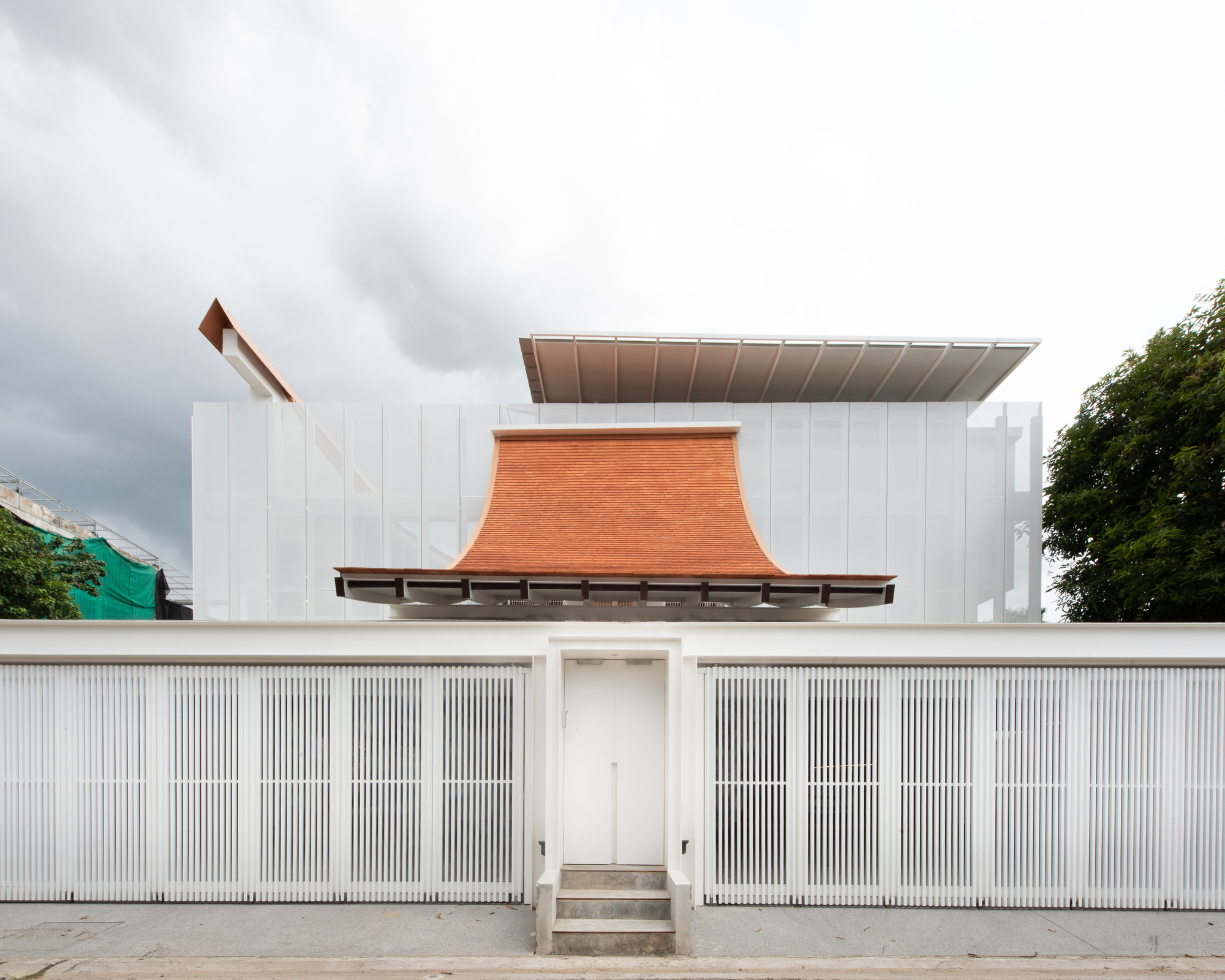

From the street, Bangsue Residence presents a deliberately restrained face. White corrugated panels and vertical slat fencing create a clean perimeter that could belong to any number of contemporary Bangkok houses. The exception is the roof: a sweeping, curved form clad in terracotta tiles that rises above the parapet like a slow wave. It is clearly the building's signature move, legible from a distance, and it signals something more complex happening behind the fence than the flat planes suggest.

The entry sequence reinforces this. You approach through a central gap in the white fence, climb a set of steps, and pass under the deepest point of the roof's overhang before entering the compound. It is a compression-and-release move borrowed directly from traditional Thai residential architecture, where the threshold between public road and private compound was always dramatized. Here, the drama is quiet: the roof curves overhead, the corridor narrows, and then the courtyard opens.

The Central Courtyard as Social Core

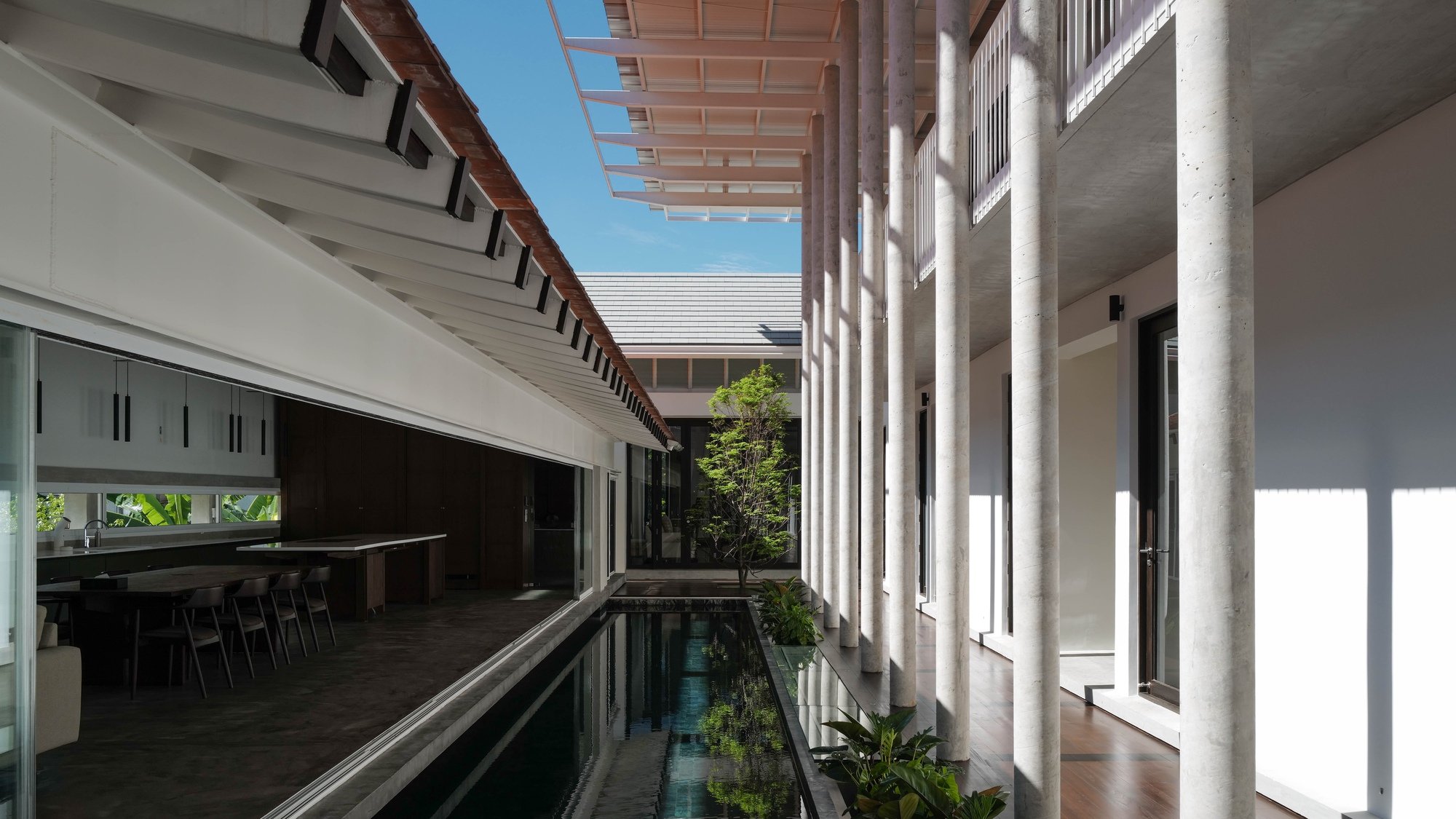

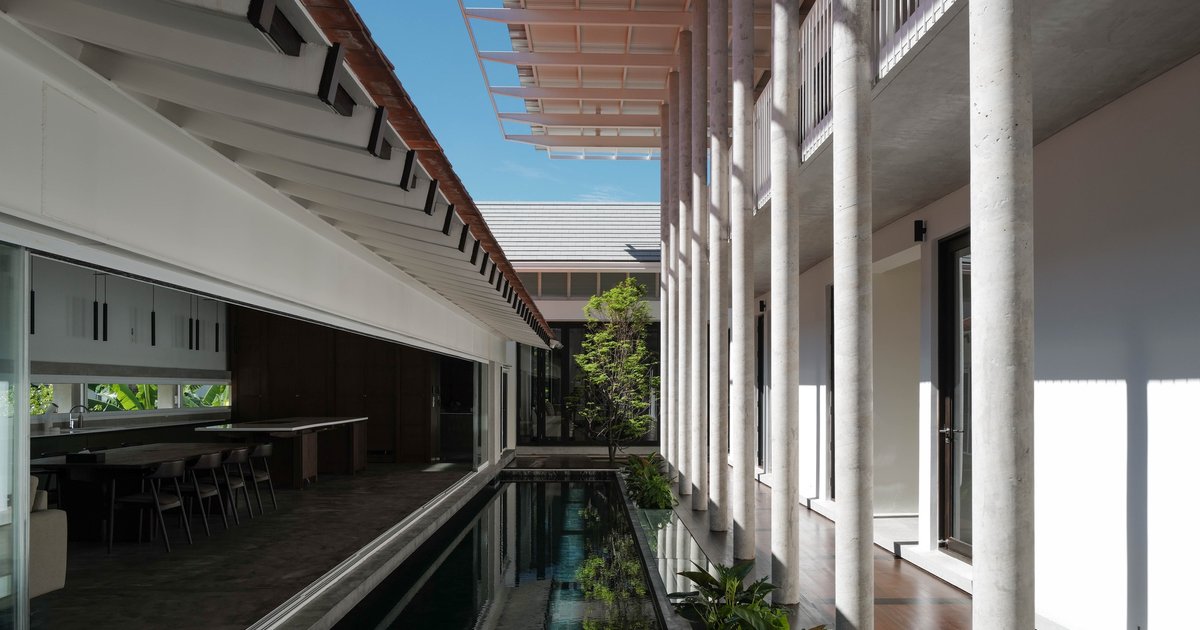

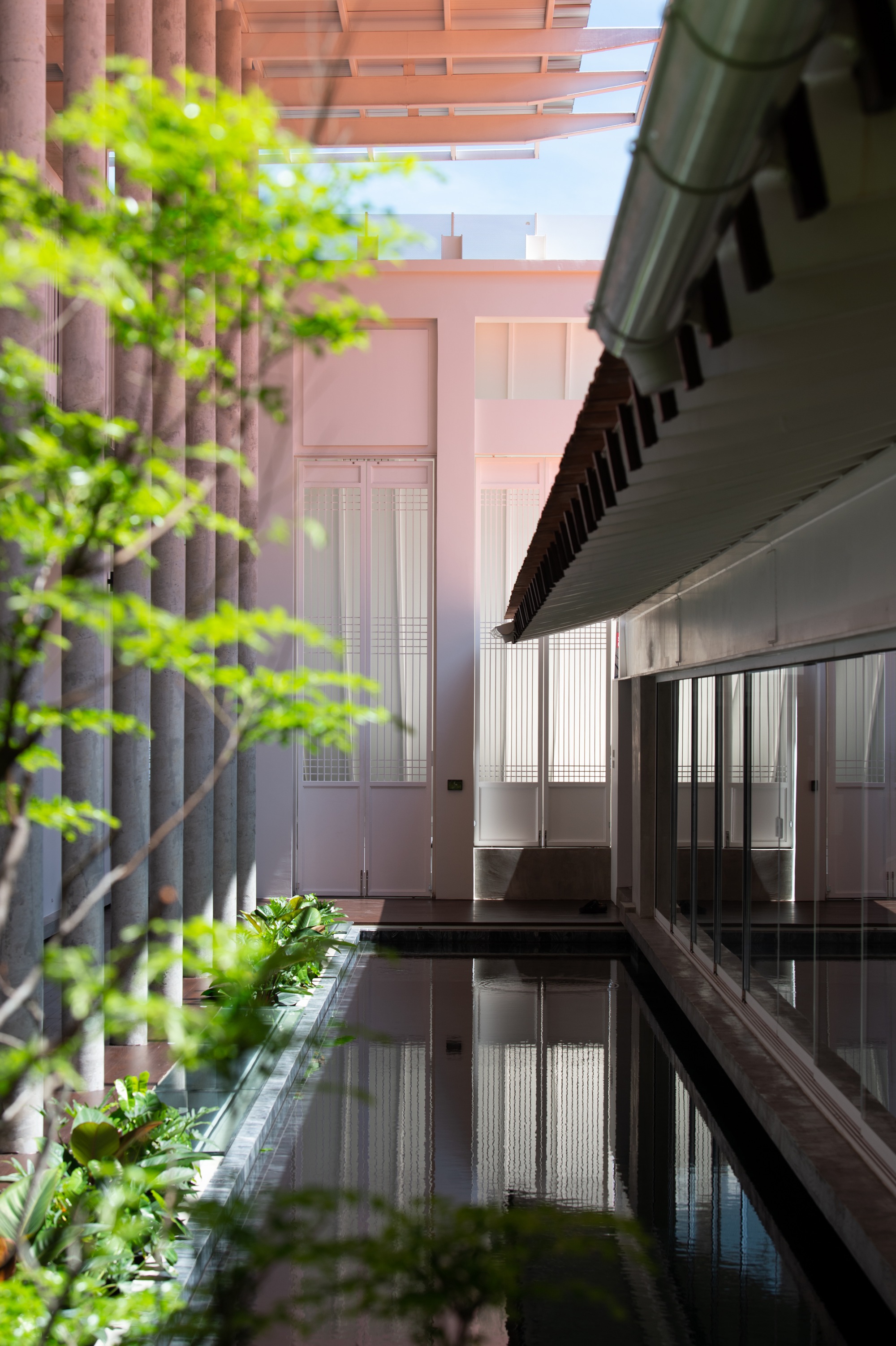

The swimming pool sits at the geographic and emotional center of the house. Flanked by white columns and bordered by glazed corridors, it functions less as an amenity and more as a courtyard in the truest sense: an open-air room that every other space addresses. Trees planted within the pool's perimeter soften the geometry and provide shade, while a timber slatted pergola overhead filters Bangkok's harsh equatorial light into shifting patterns on the water and deck.

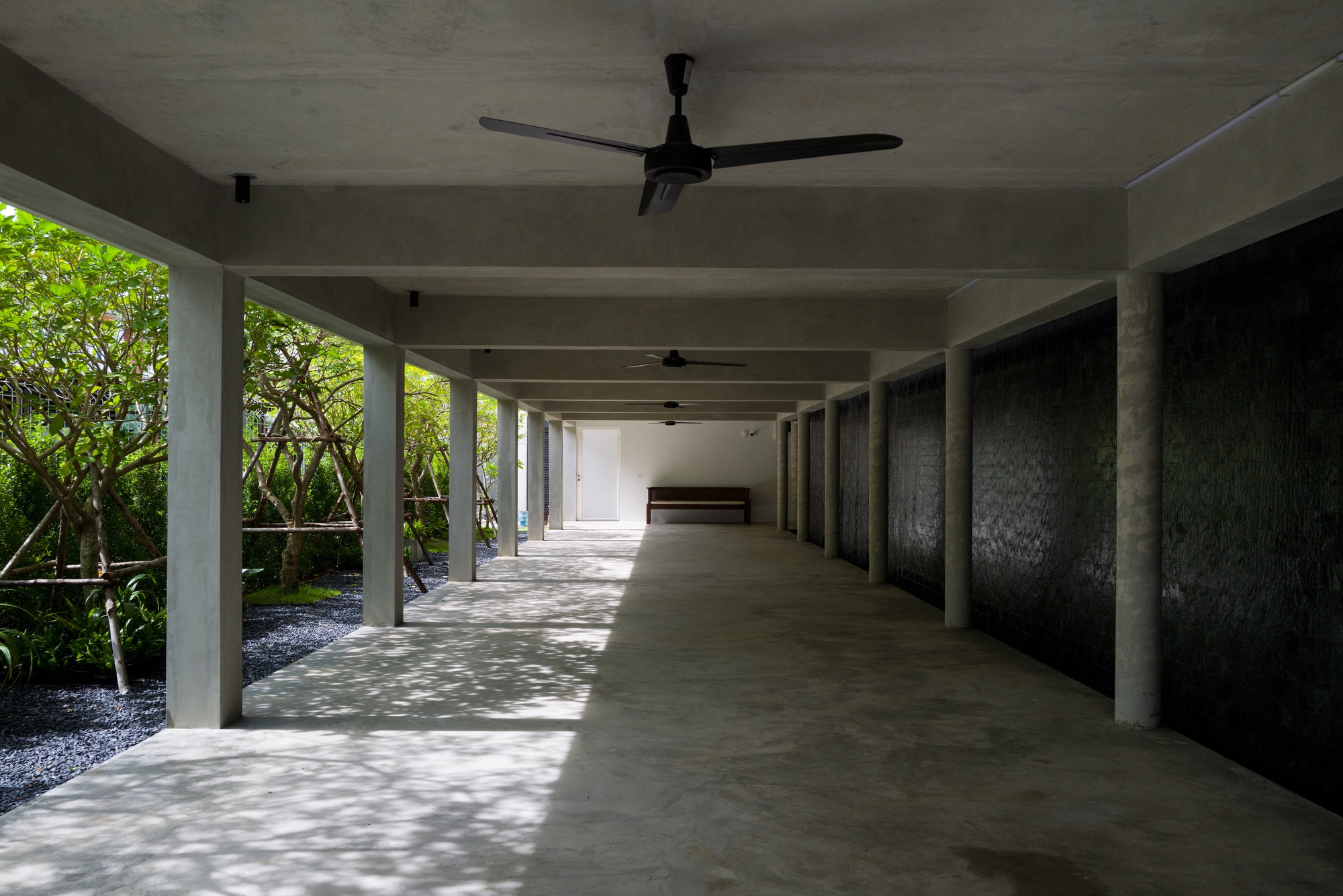

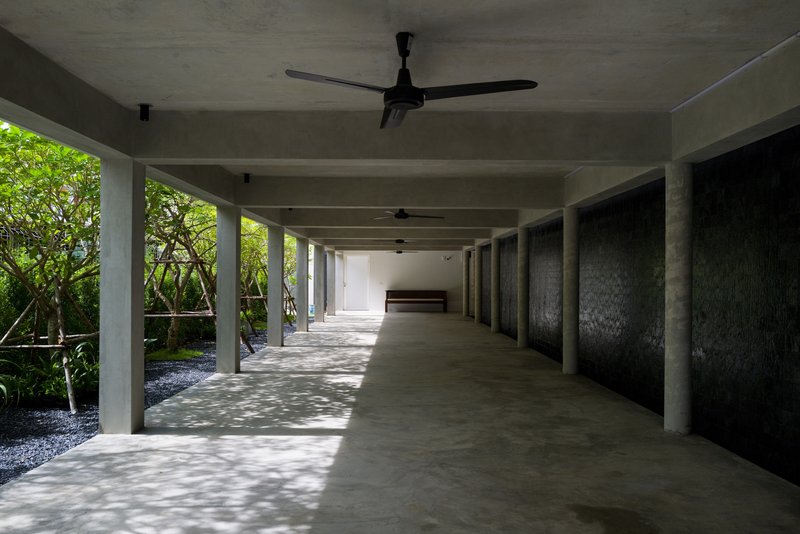

The corridors lining the courtyard are generous enough to serve as outdoor living rooms. Concrete columns, ceiling fans, and planted beds with dense tropical foliage make these covered walkways genuinely habitable rather than merely circulatory. For a multi-generational household, this is critical. The courtyard is the space where paths cross casually, where grandparents can watch grandchildren swim, where the family coexists without requiring anyone to share a living room.

Living Spaces Under the Ribbed Ceiling

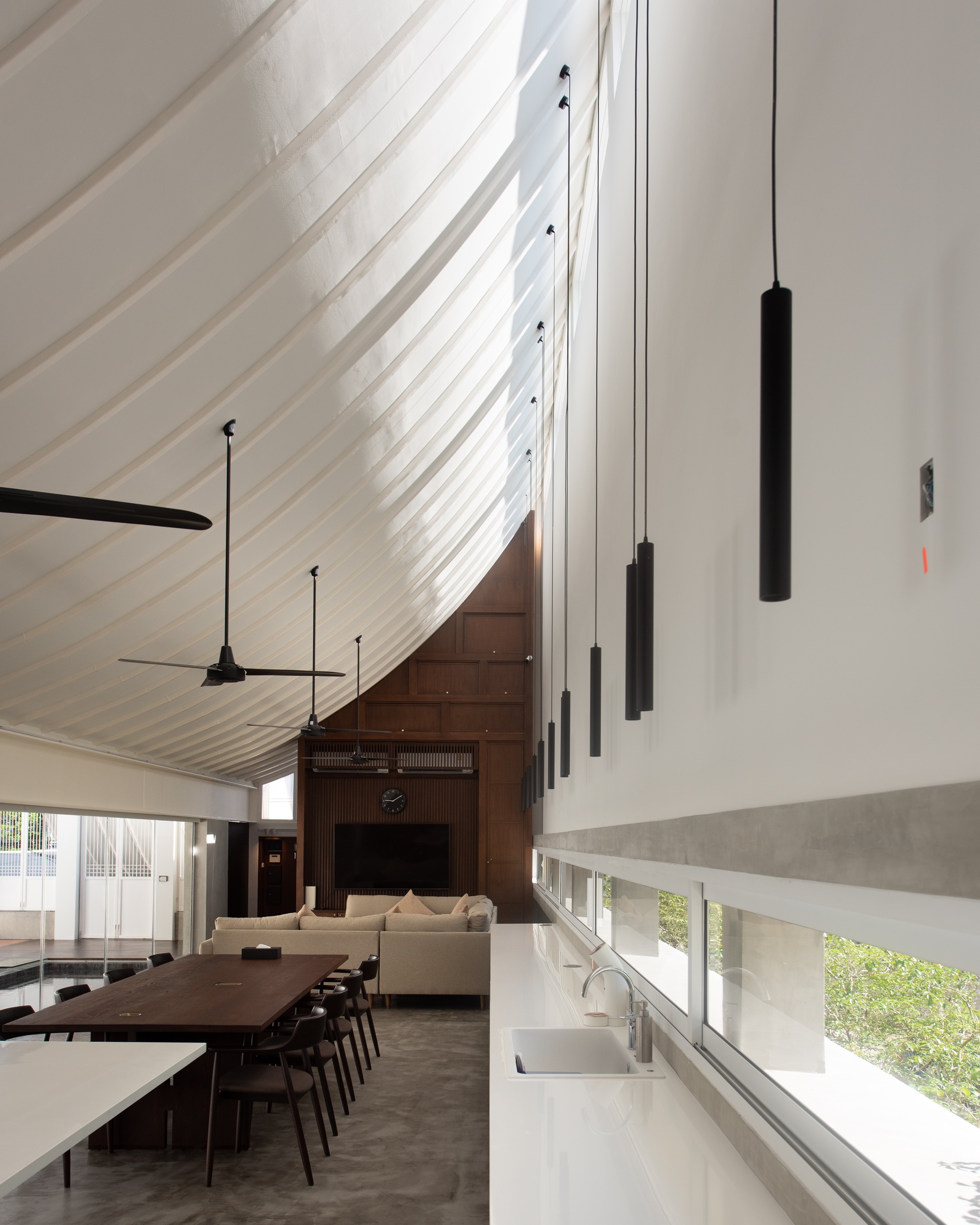

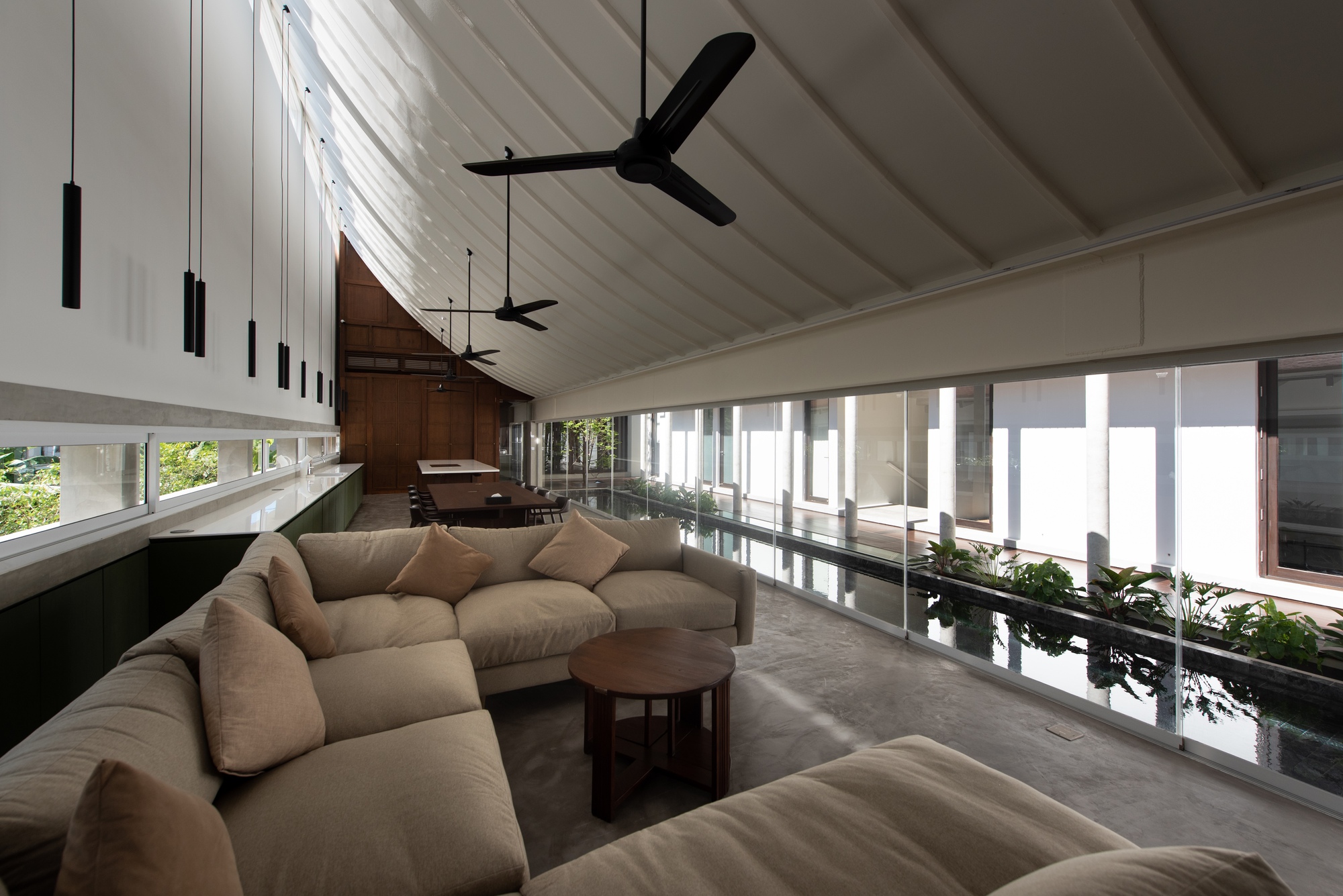

The main communal living areas occupy the second floor, placed high to capture breezes and physically separated from the ground-level service zone that houses mechanical systems. Patara Architects made a smart decision here: the living room, dining area, and kitchen are integrated into a single open volume, but the ceiling treatment differentiates zones without walls. Ribbed white panels and exposed timber beams create a vaulted canopy that gives the space vertical ambition, while black pendant lights and a horizontal window band anchor the dining zone with a more compressed, intimate scale.

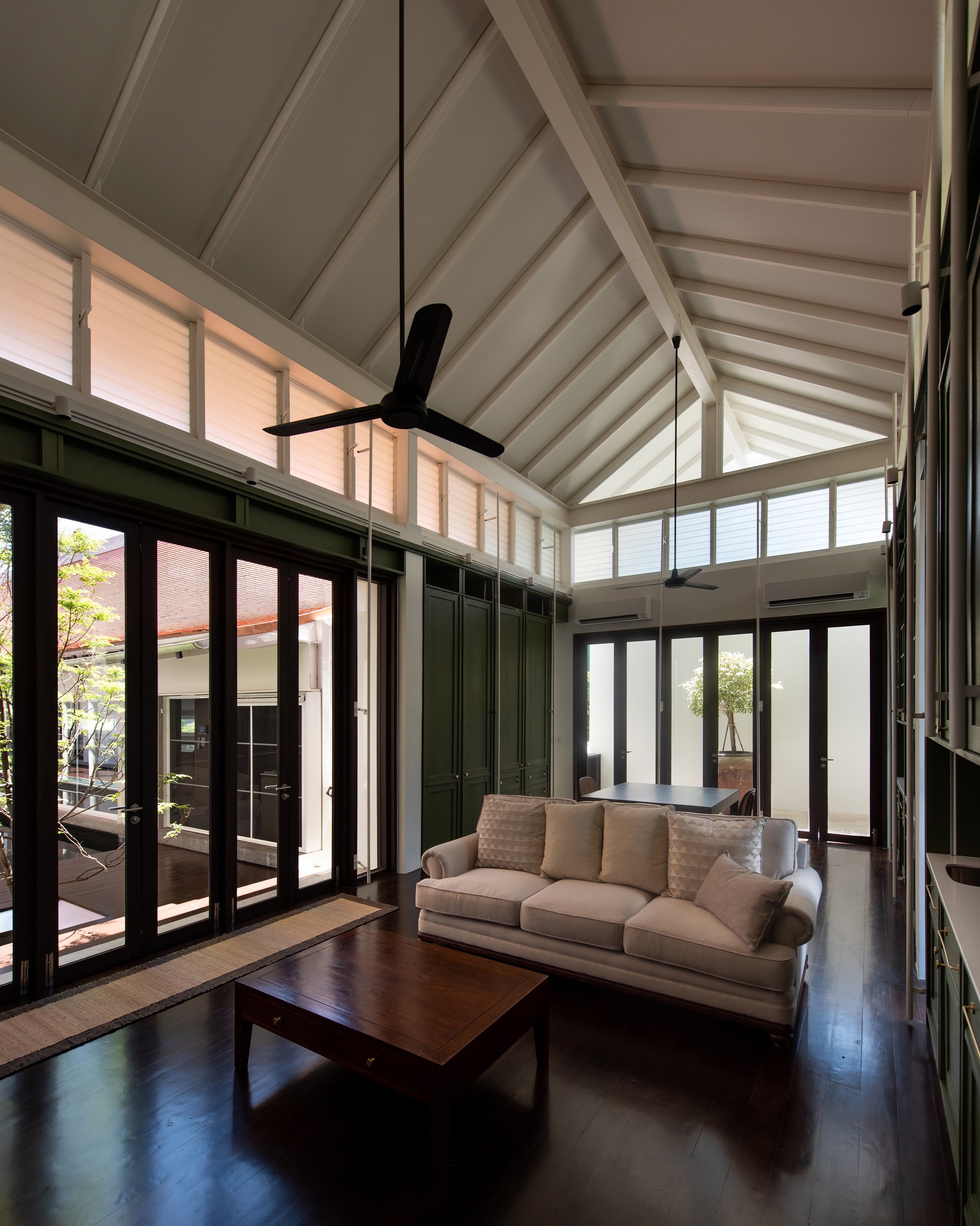

The vaulted ceiling in the living room is the interior highlight. It arcs gently upward, echoing the exterior roof curve, and terminates at a wall of black-framed glazed doors that open directly onto the courtyard. With the doors retracted, the living room effectively becomes a covered terrace. A large ceiling fan supplements natural ventilation. The intent is clear: minimize reliance on air conditioning by making the building breathe.

Materiality: Terracotta, Concrete, and Copper

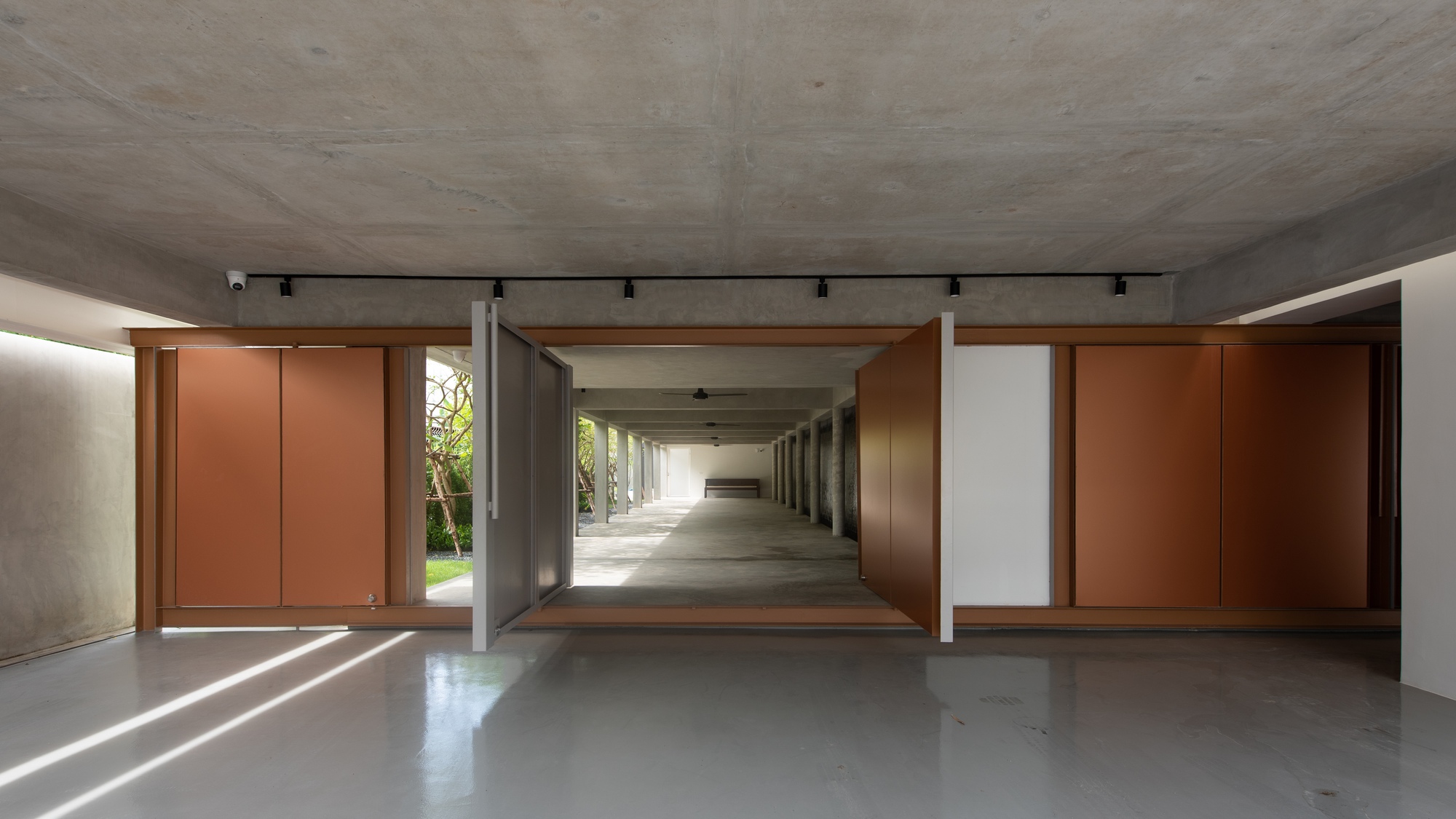

The material palette is disciplined but rich. Terracotta appears as roof cladding, as interior accent walls in bathrooms, and as perforated screens that filter warm afternoon light into stairwells. Concrete is structural and unapologetic, left exposed on stairs, columns, and ceilings where the budget allows the material to speak without finish. Copper shows up at pivoting doors and folding facade panels, aging into the green patina that tropical humidity guarantees.

The combination reads as distinctly Southeast Asian without resorting to pastiche. Terracotta and copper are warm materials that counterbalance the coolness of polished concrete and white plaster. The terracotta screens, in particular, do double duty: they reference traditional lattice screens used across Thai domestic architecture while providing solar shading that meaningfully reduces heat gain on west-facing walls. It is ornamentation that performs.

Circulation and Structural Rhythm

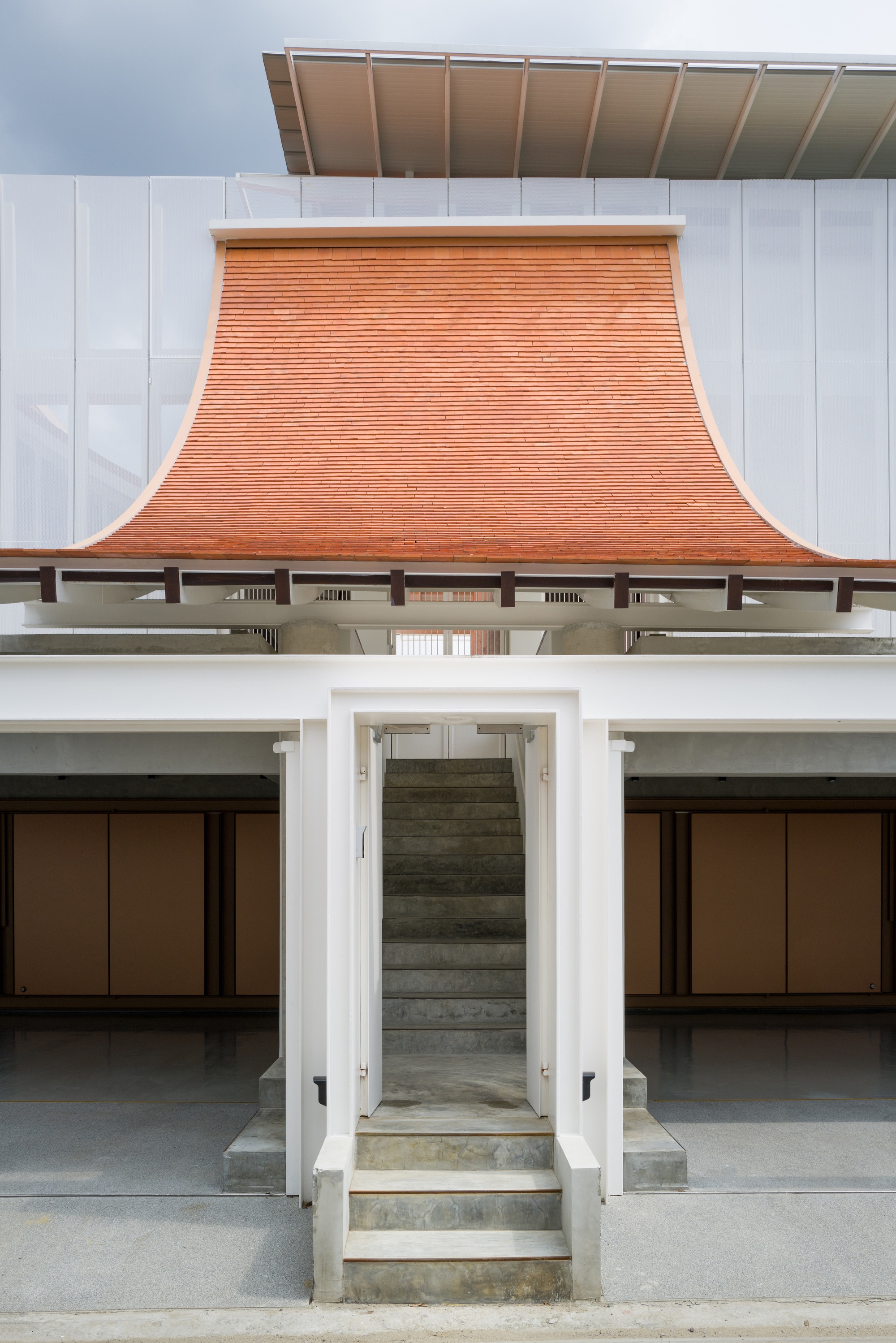

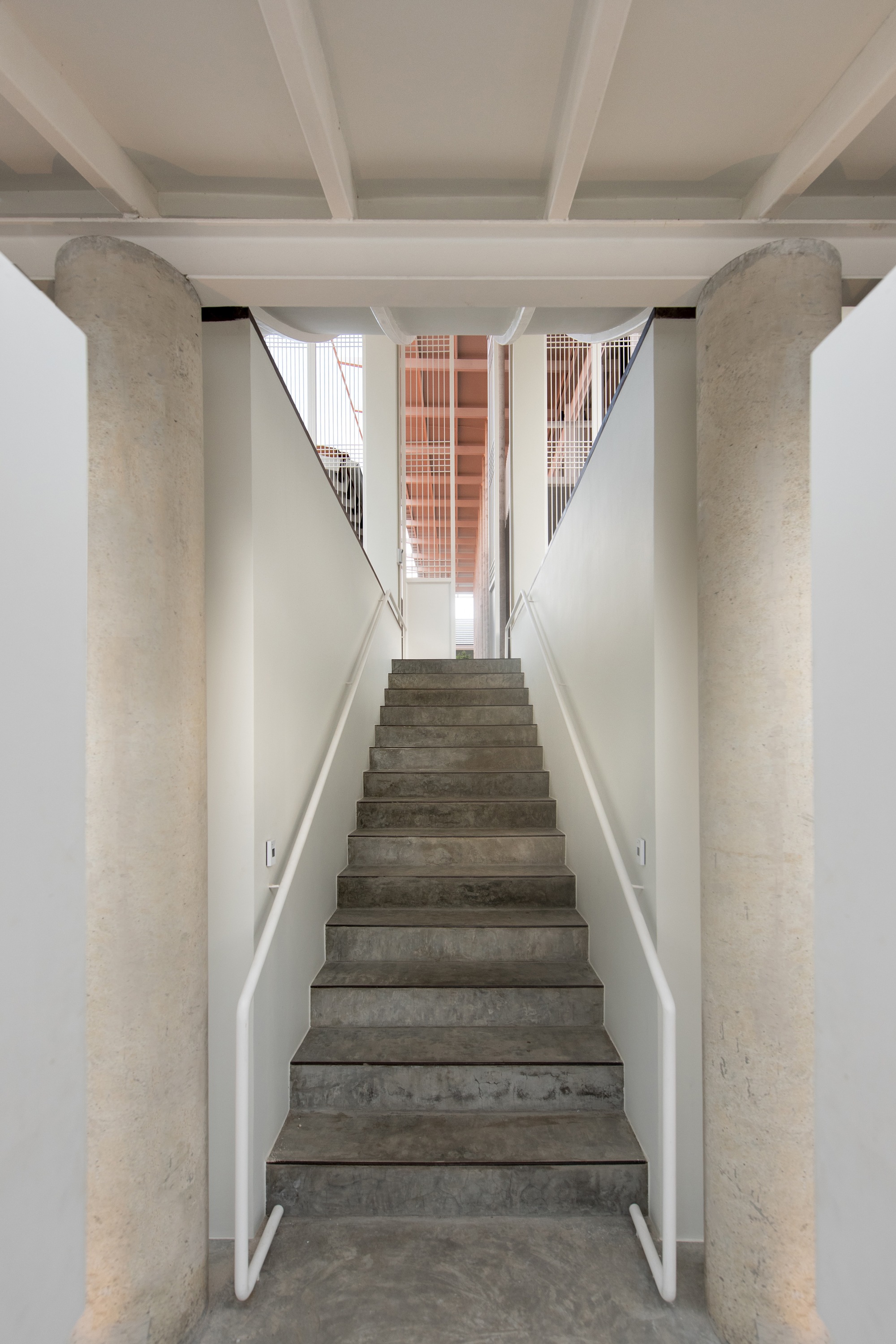

Patara Architects clearly invested serious attention in the staircases. The central concrete stair, framed by the curved terracotta roof above and white walls to either side, is the building's primary vertical connector and one of its strongest spatial moments. Cylindrical concrete columns, used throughout the ground and upper levels, establish a structural grid that the architects coordinated precisely with furniture placement. This is the kind of detail that separates considered design from arbitrary column placement.

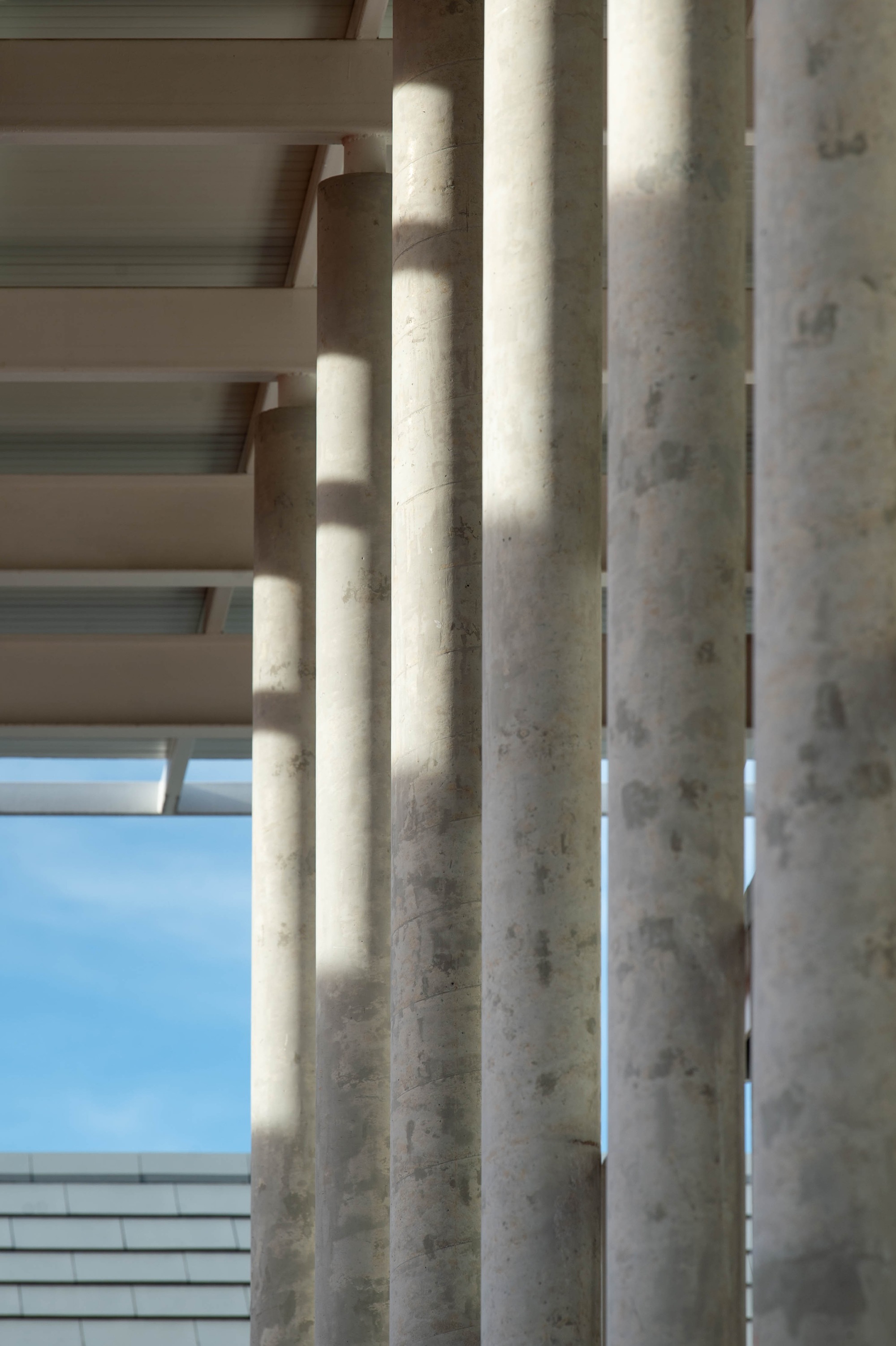

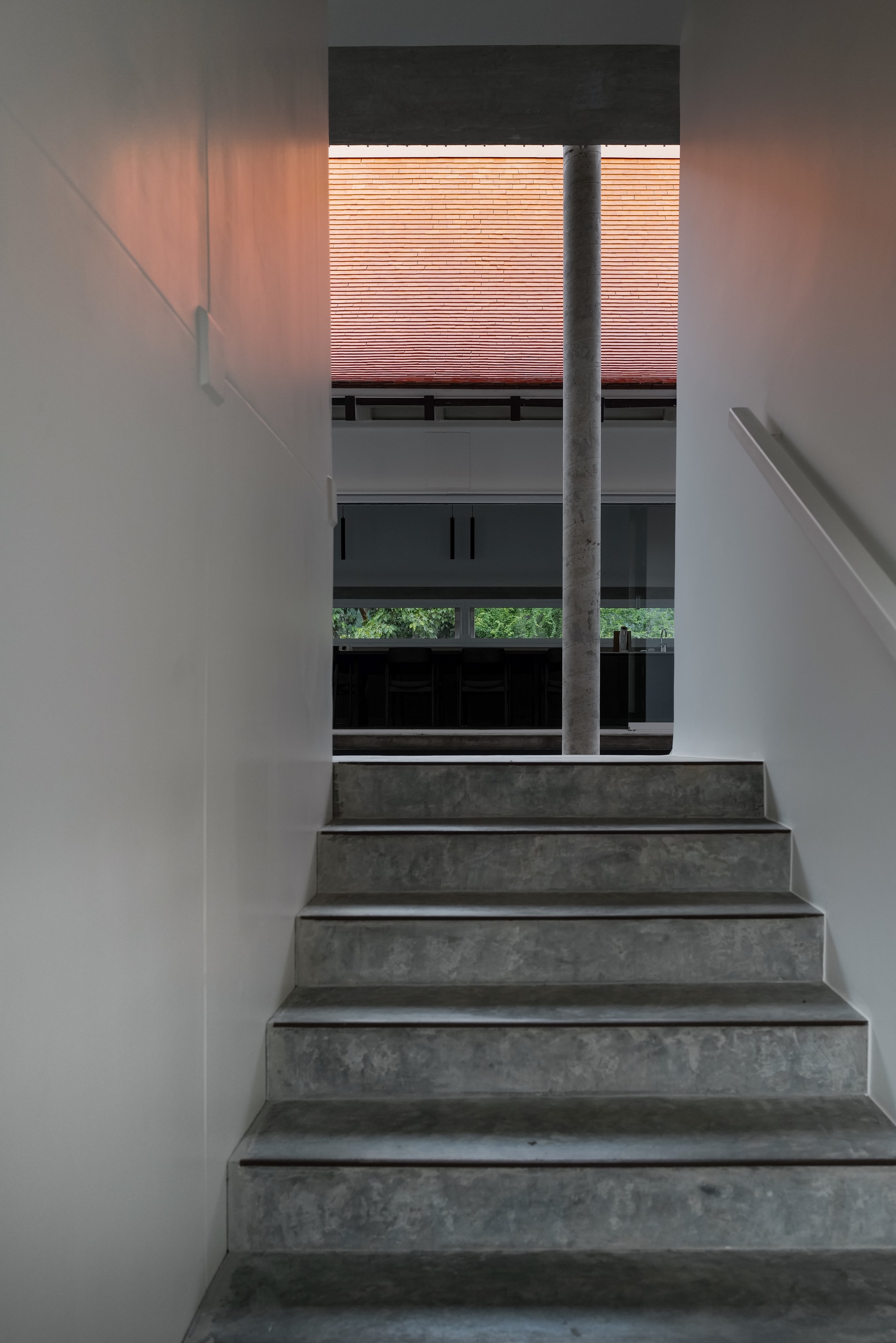

The stairwells are also where light is most actively choreographed. Horizontal louvers cast dappled shadows across the cylindrical columns. At one landing, a perforated terracotta screen glows pink with filtered afternoon sun, transforming a utilitarian transition zone into an atmospheric event. These moments accumulate as you move through the house, reinforcing the sense that circulation is not a problem to be solved but a sequence to be experienced.

Private Quarters and Flexible Interiors

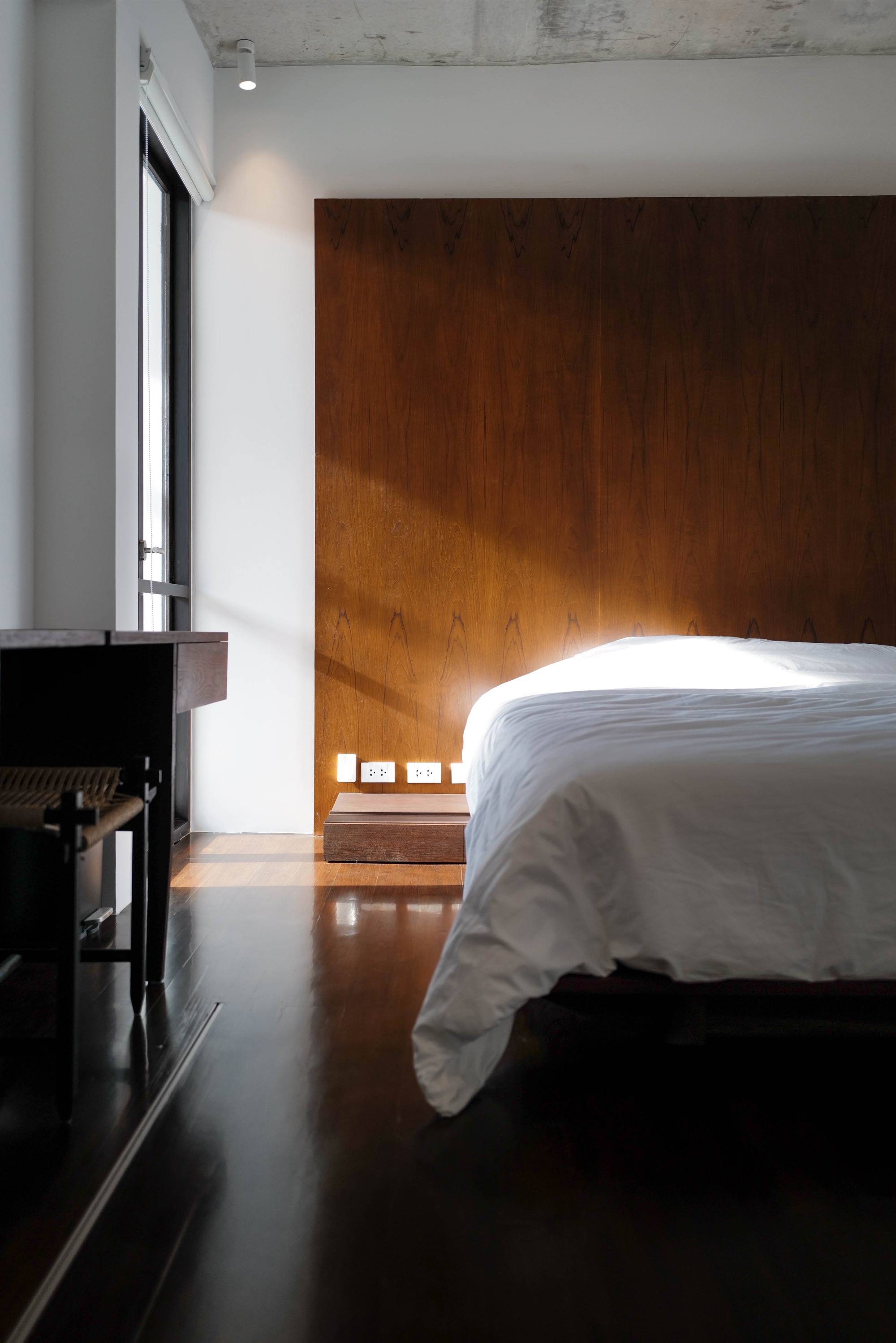

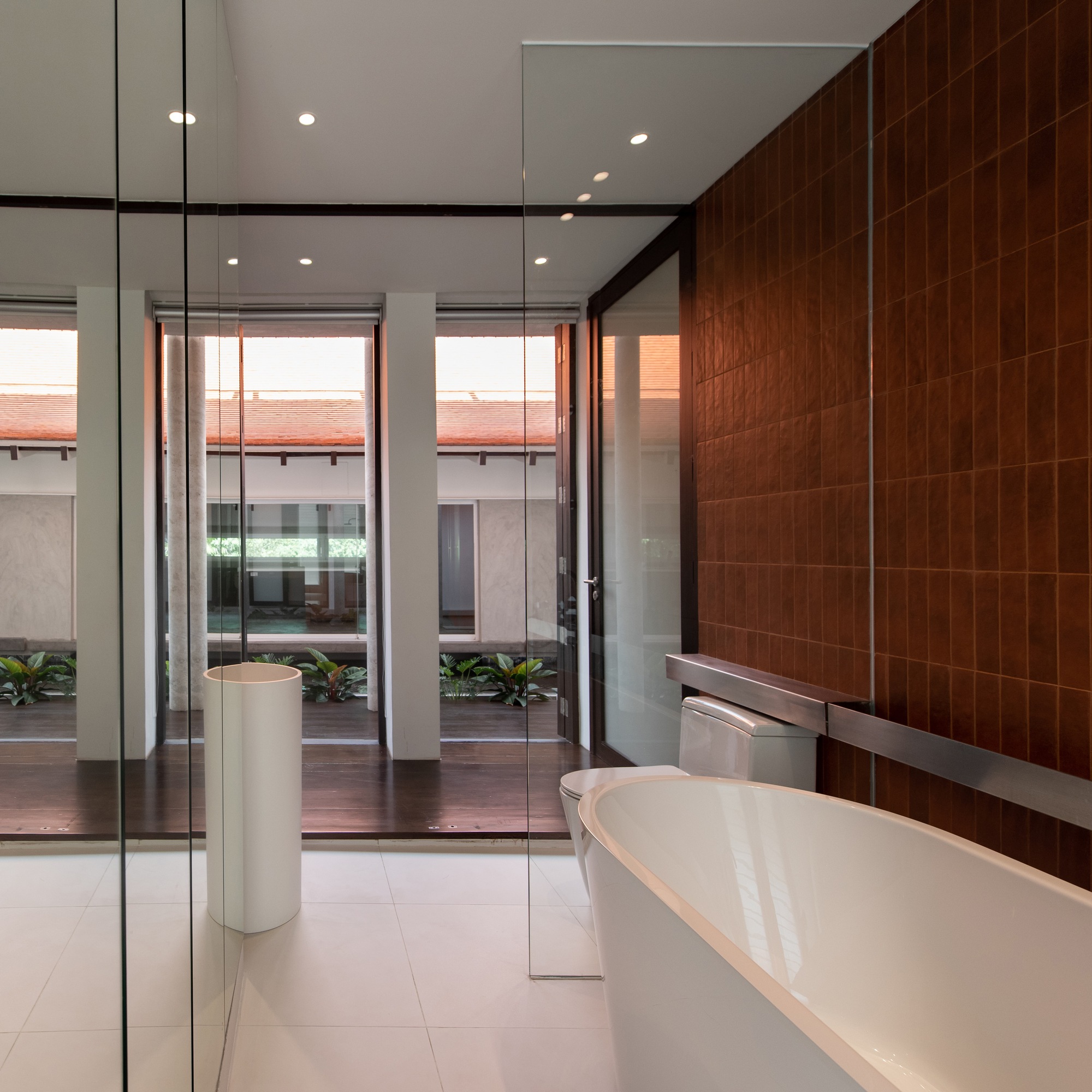

Each generation's private unit is designed to be self-sufficient, with its own en-suite bathrooms, personalized finishes, and direct access to shared outdoor spaces. A bedroom with a timber-paneled wall catches narrow slices of morning sunlight; a bathroom frames a freestanding tub against a view of a planted courtyard. These are not afterthought bedrooms shoved into a plan dominated by public spaces. They are considered retreats with their own material identities.

The flexibility built into the plan is worth noting. Connecting rooms can shift functions. Double-height areas are designed to be convertible into two floors if a family's needs change. Living spaces can become workshops or studios. This adaptability is essential for any multi-generational house because the family that moves in is never the family that lives there ten years later. Patara Architects designed for that reality.

Details: Screens, Slatted Walls, and Thresholds

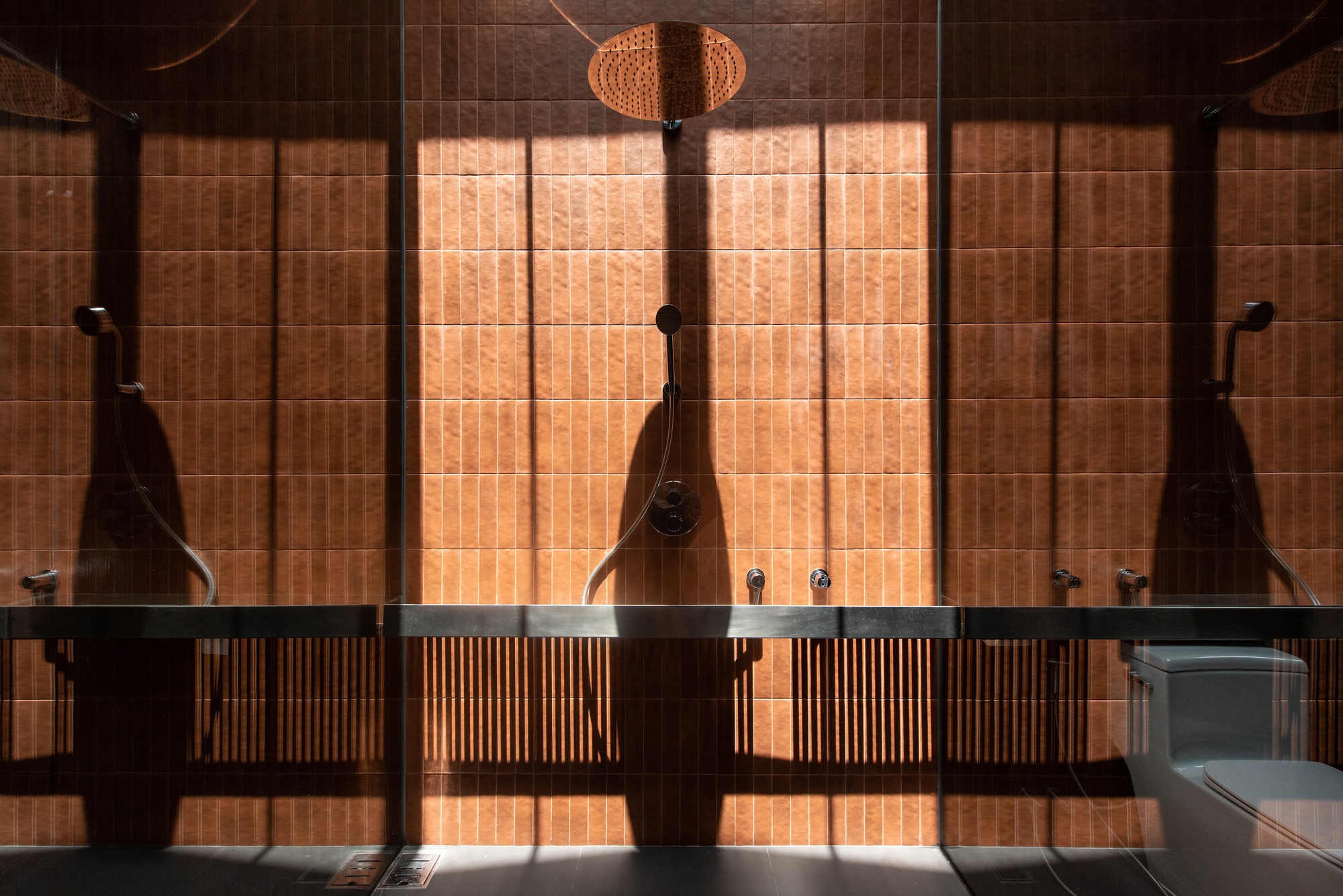

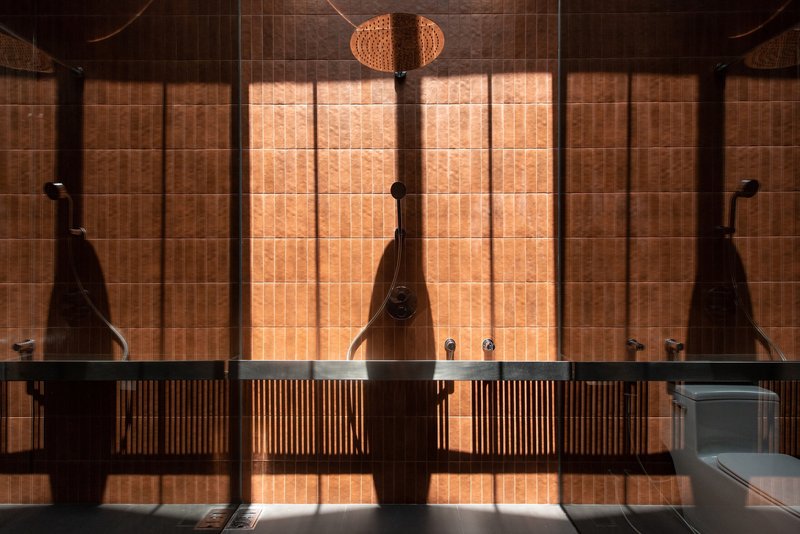

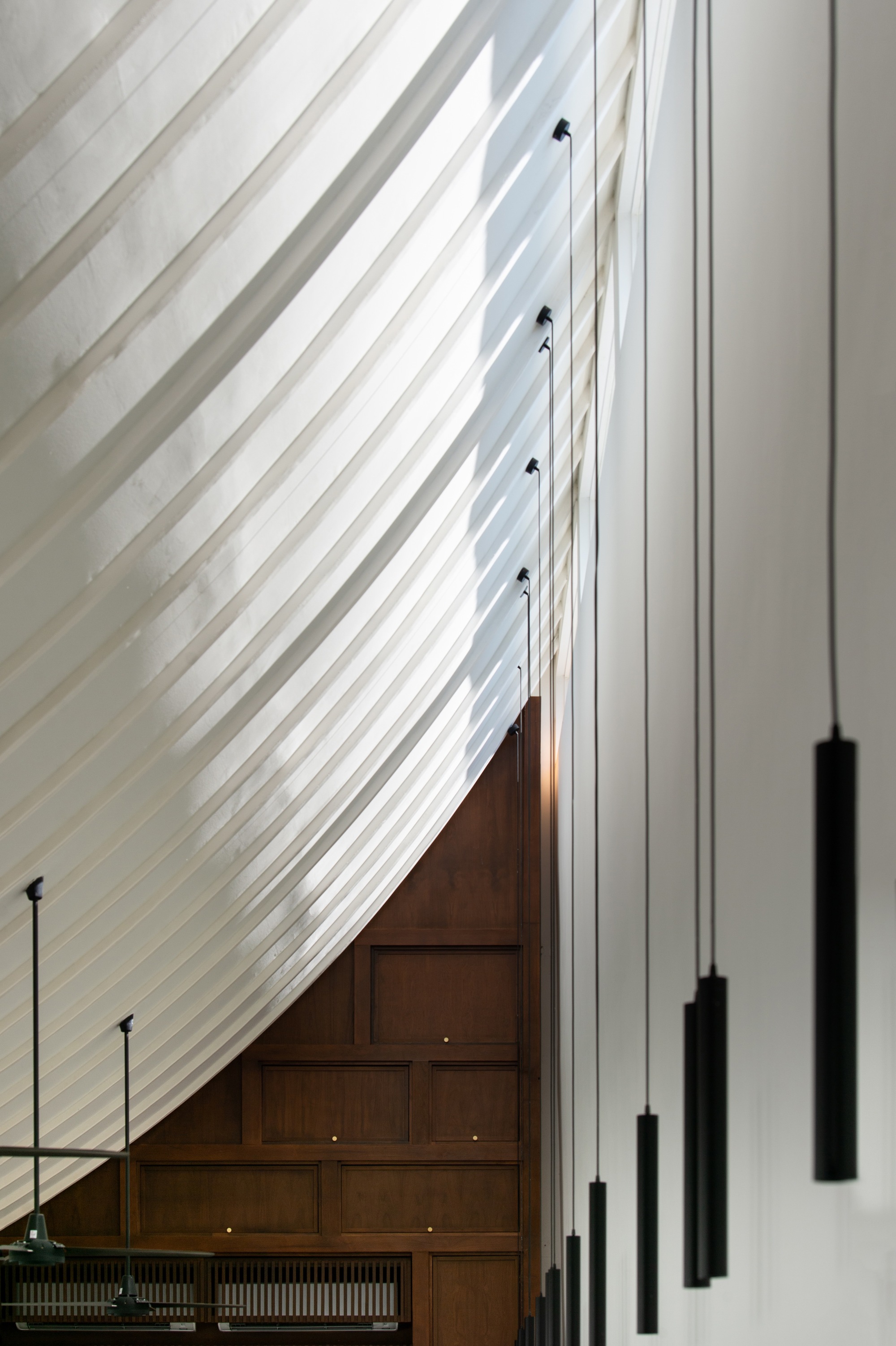

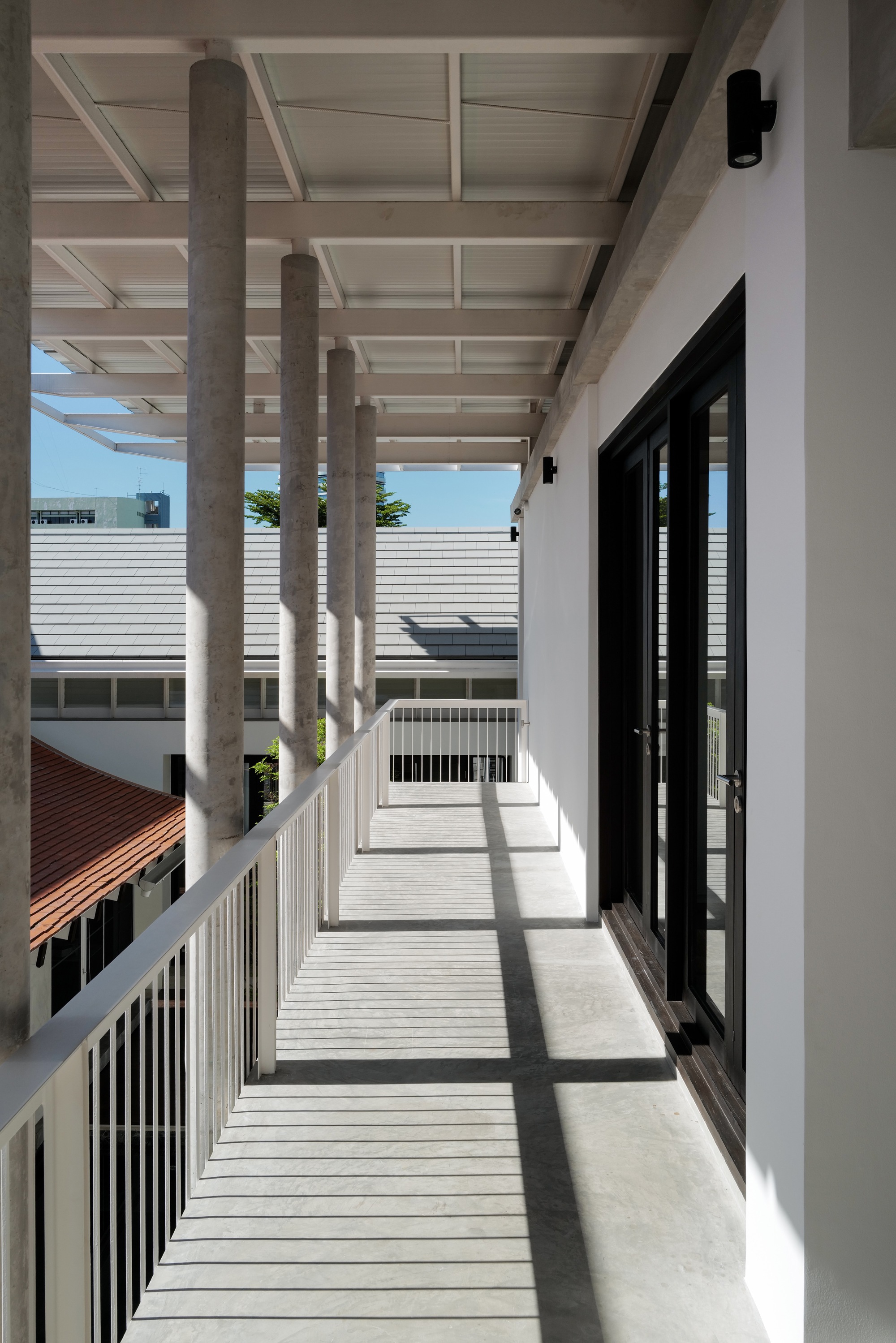

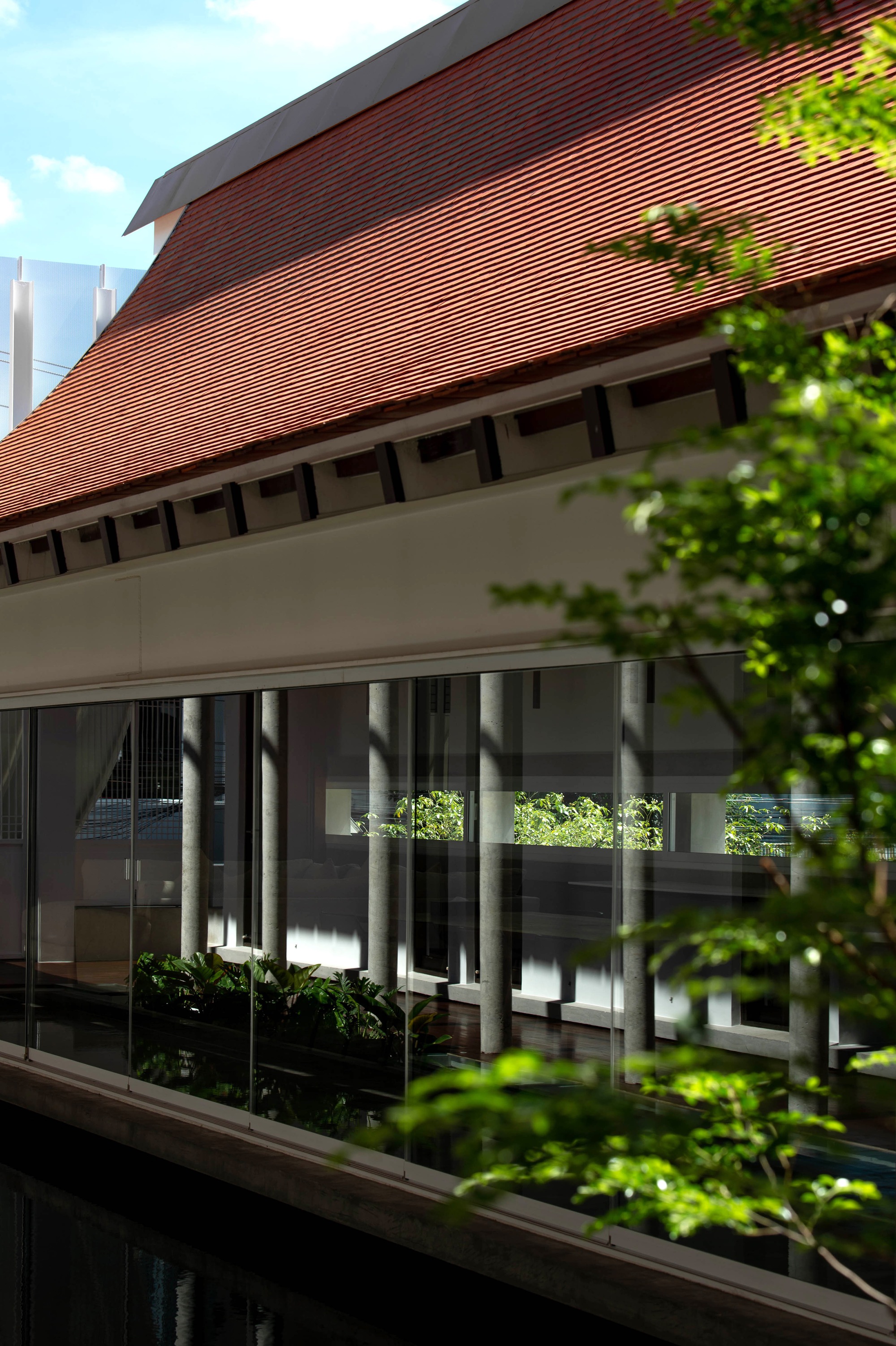

The house is populated with carefully tuned screening devices. Diagonal white slat walls in the double-height space filter views without blocking them. Upper-level walkways with slatted timber decking cast linear shadow patterns that shift through the day. The covered walkway with exposed timber brackets beneath the ribbed roof creates an outdoor room where structure and ornament are indistinguishable. A bathroom features an illuminated terracotta wall reflected in a full-height mirror, with a slatted wooden screen below, layering transparency, reflection, and enclosure in a compact space.

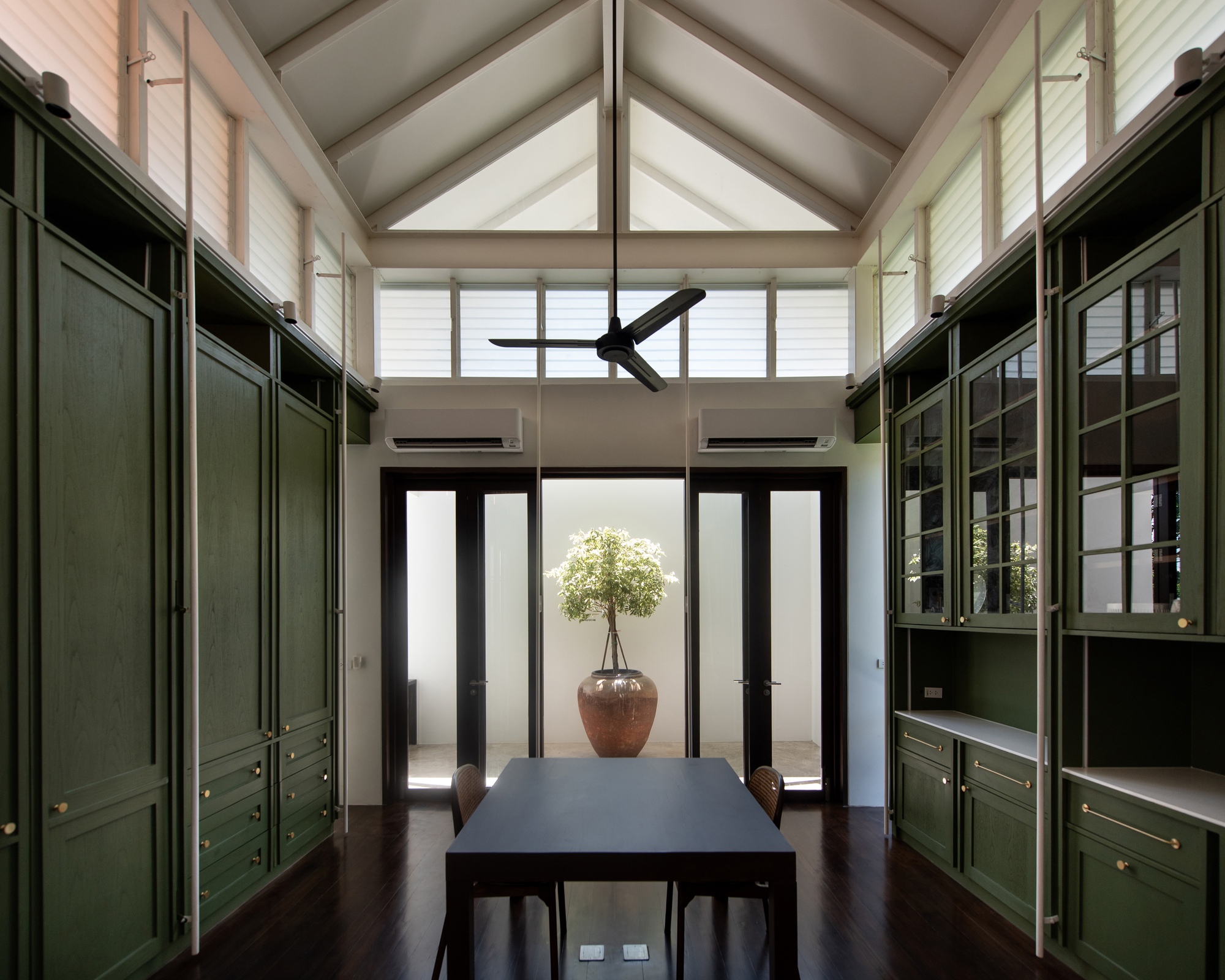

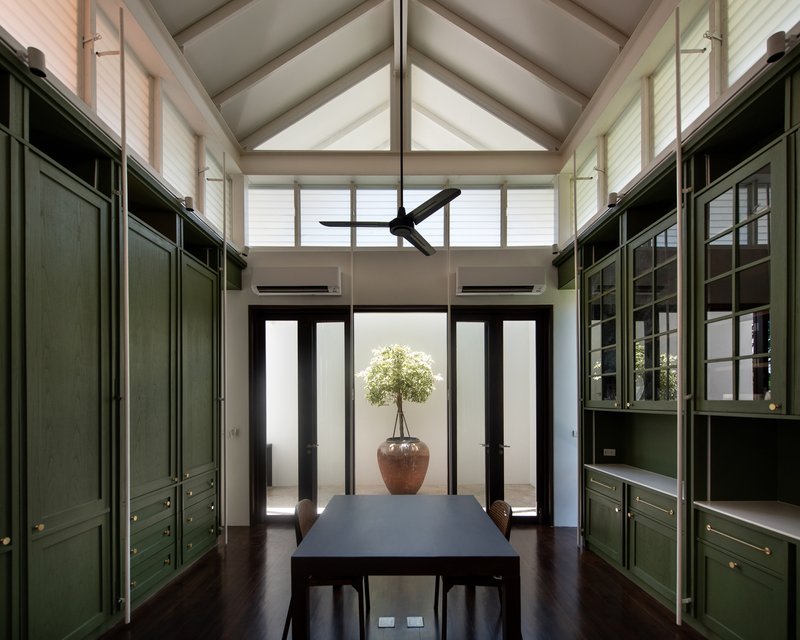

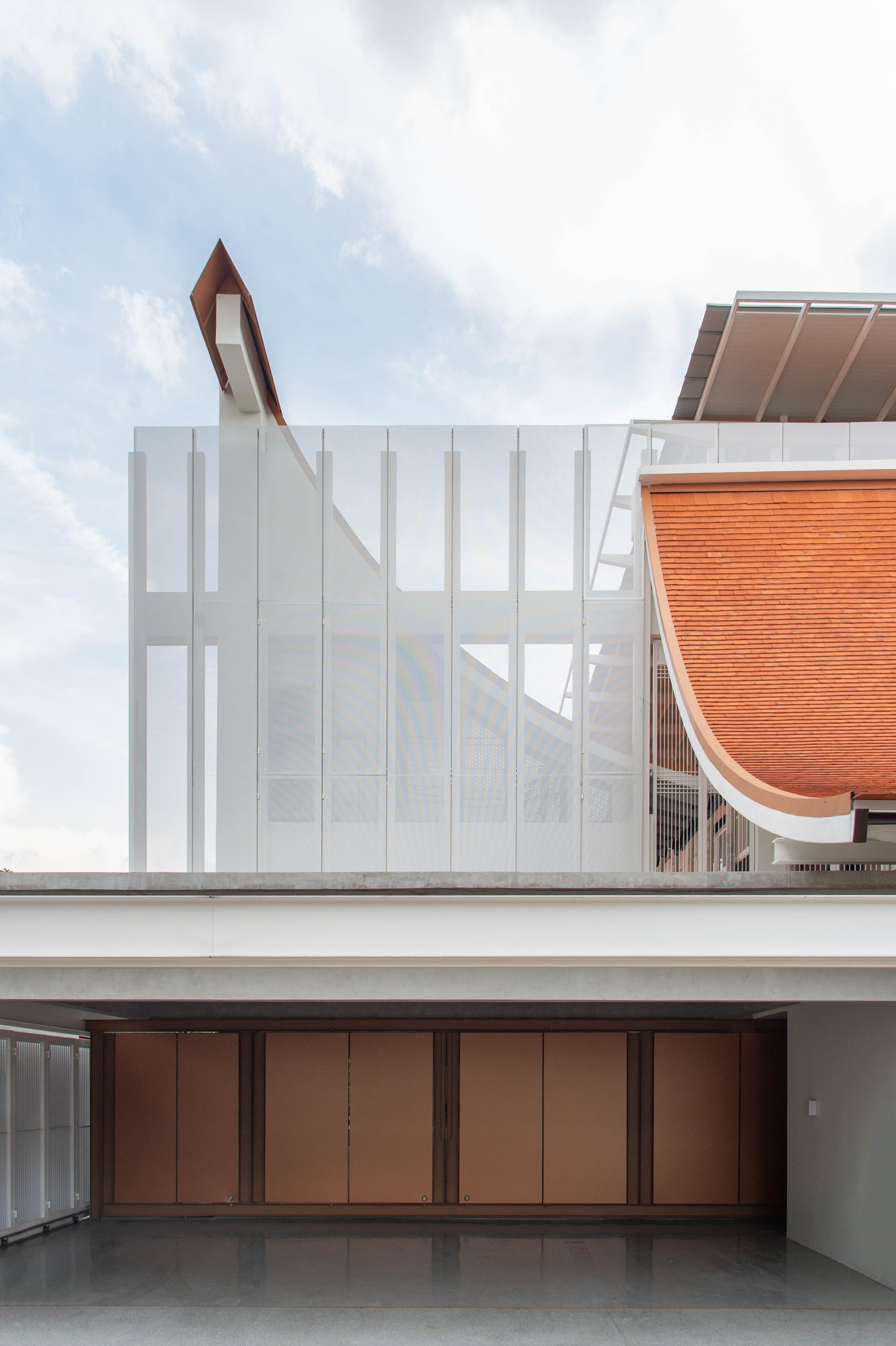

The green built-in cabinetry in the dining room, the copper folding doors on the upper terrace, and the backlit timber media panel in a secondary dining area all suggest an interior design sensibility that is integrated with the architecture rather than applied to it. Patara Warathanasin handled both architecture and interiors, which explains the coherence.

Plans and Drawings

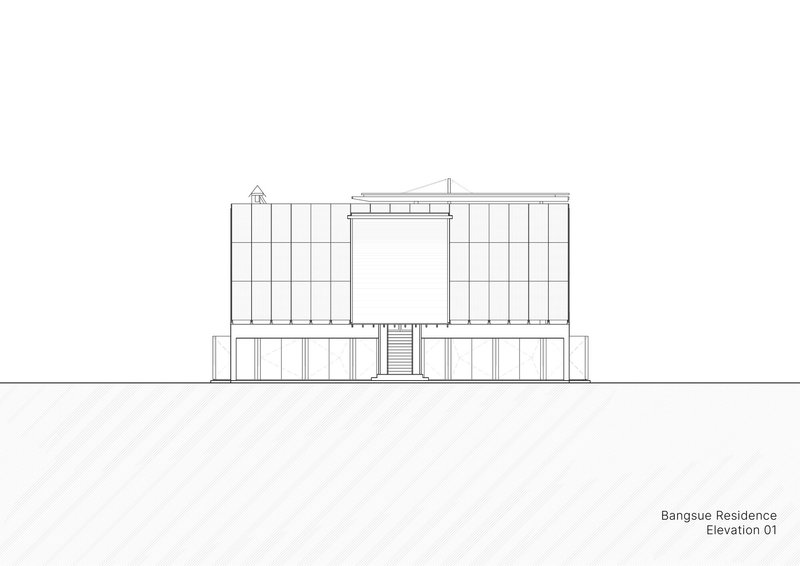

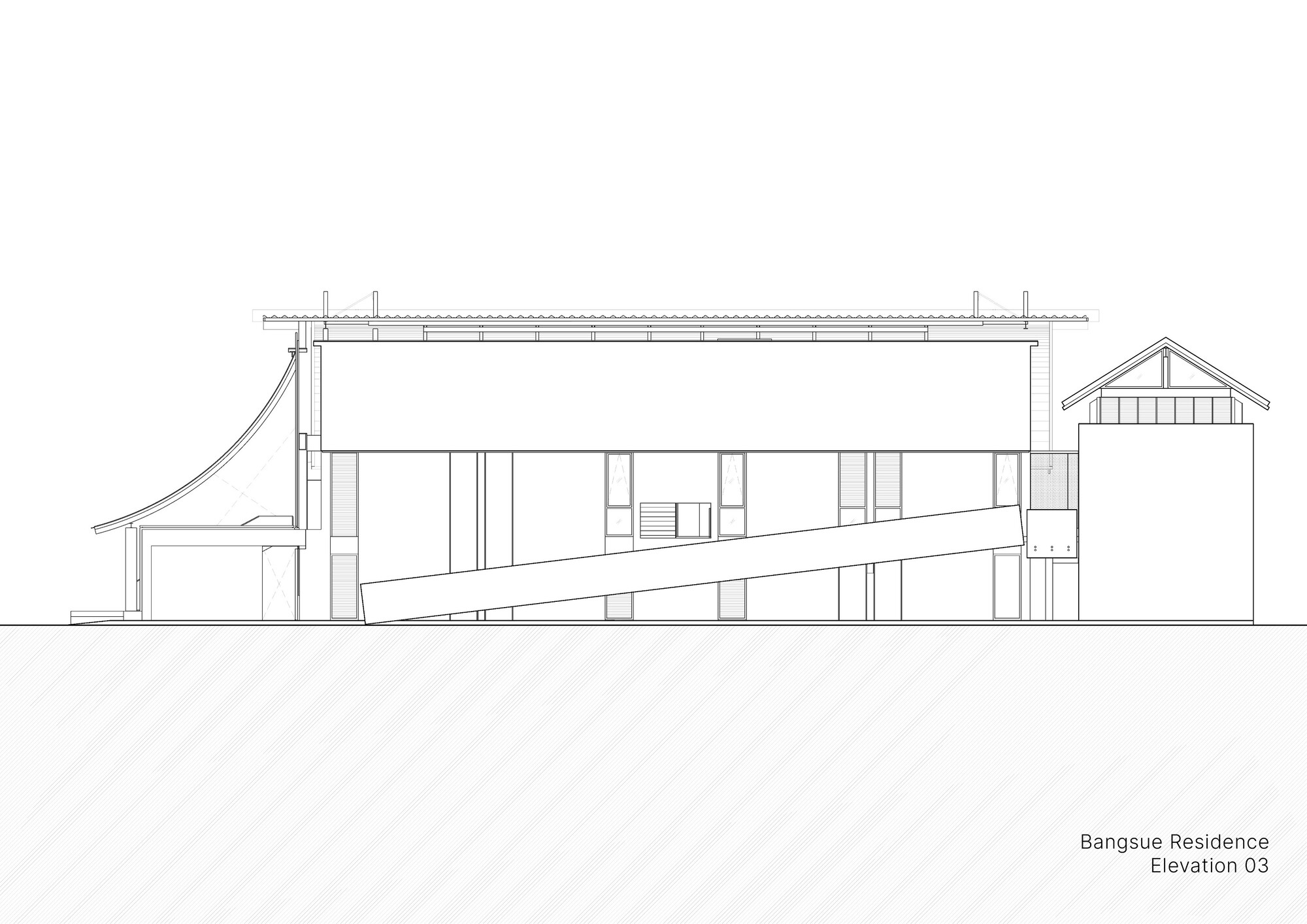

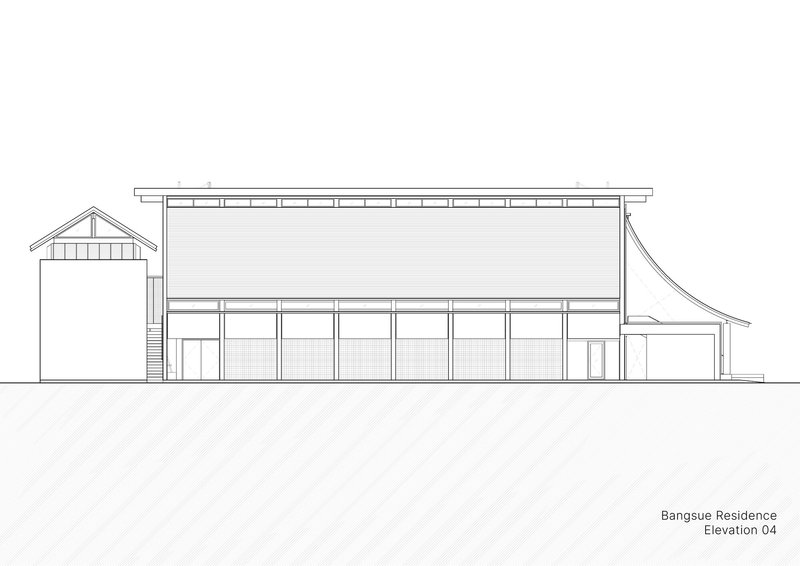

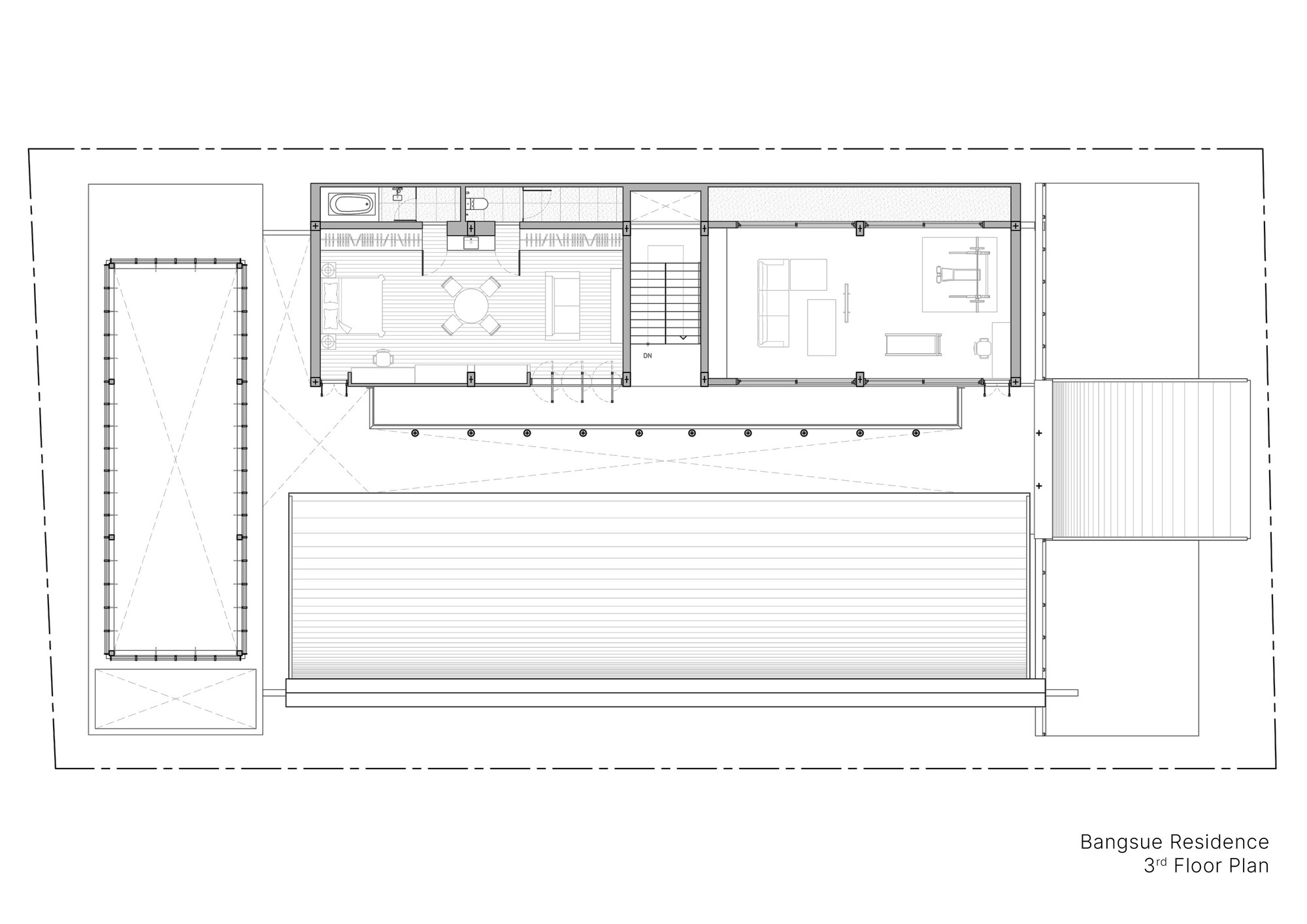

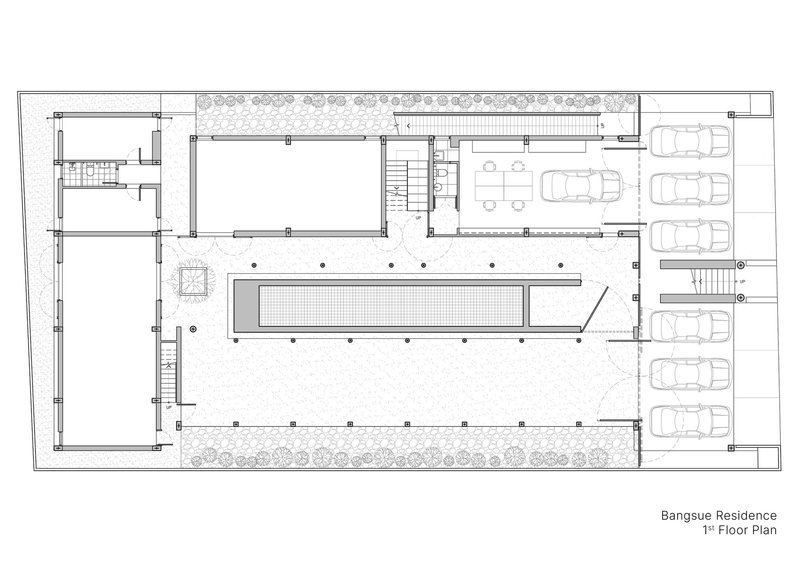

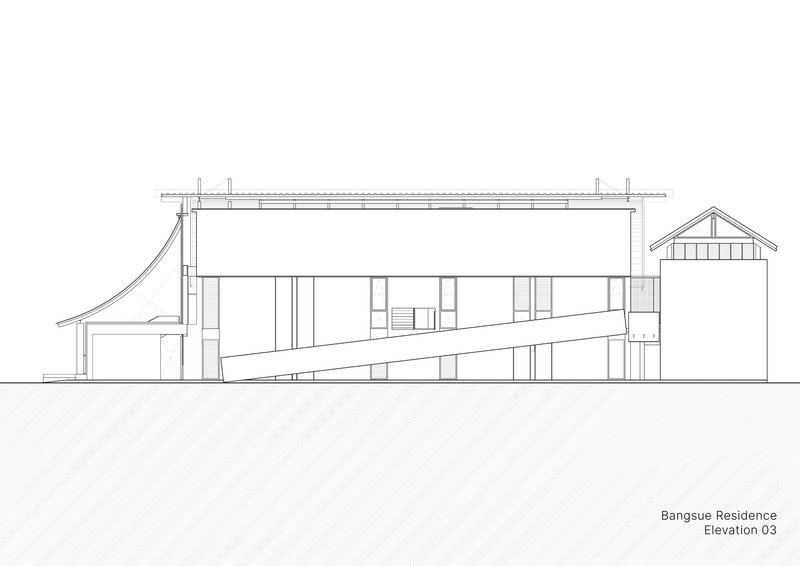

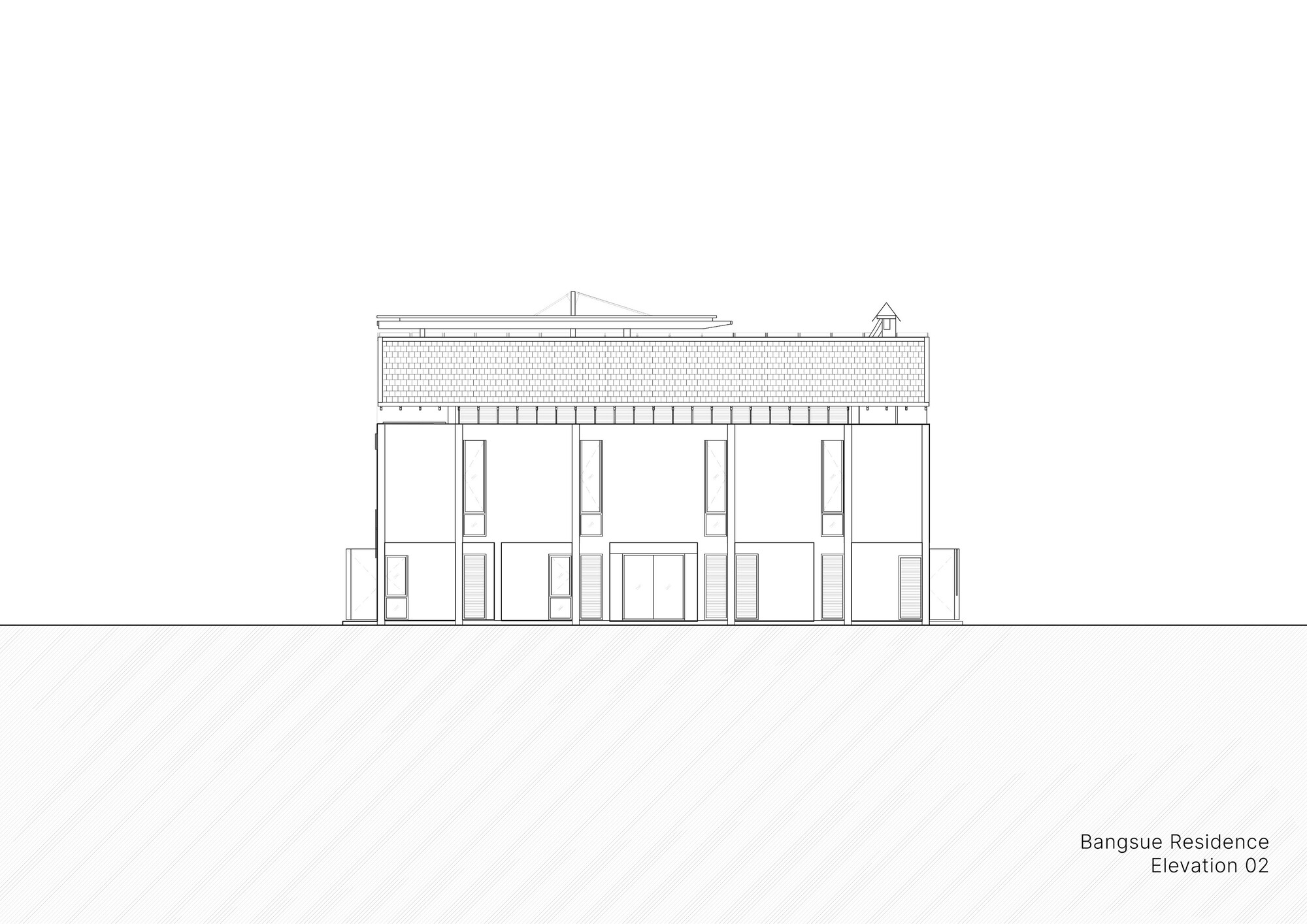

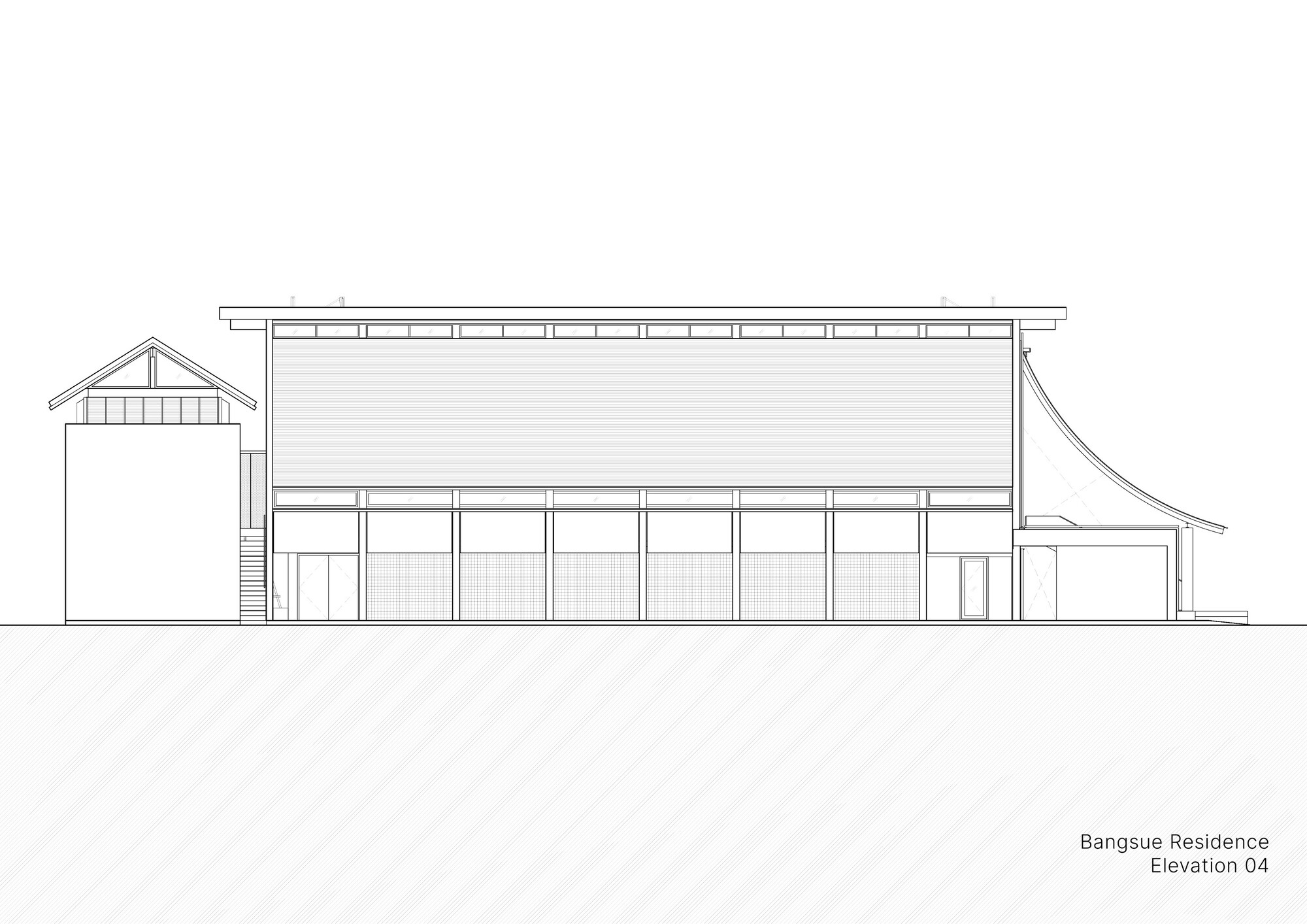

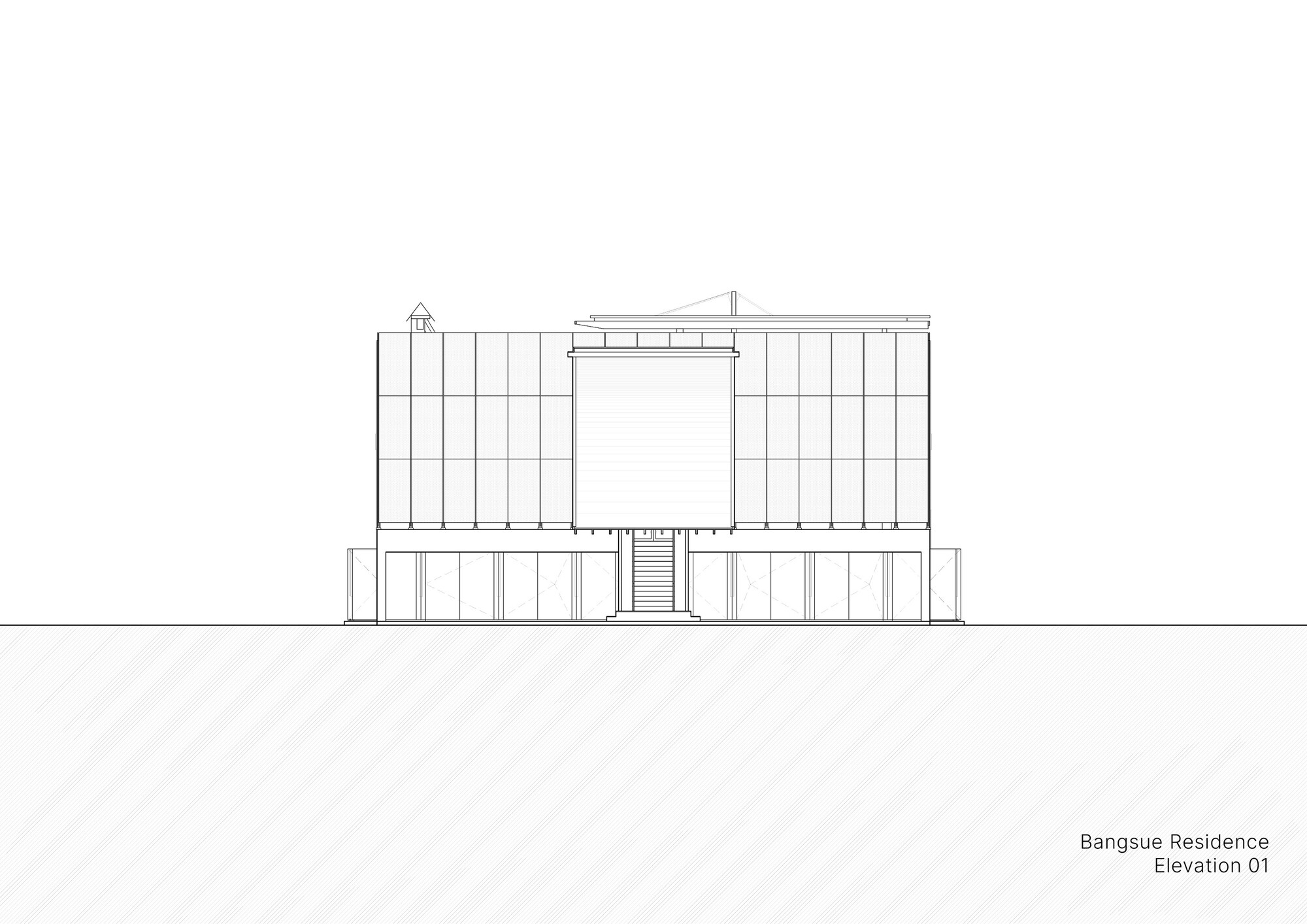

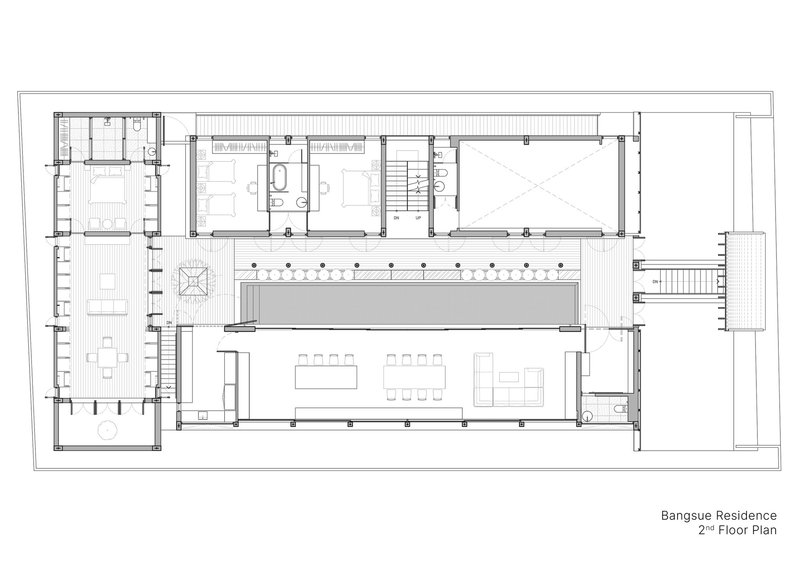

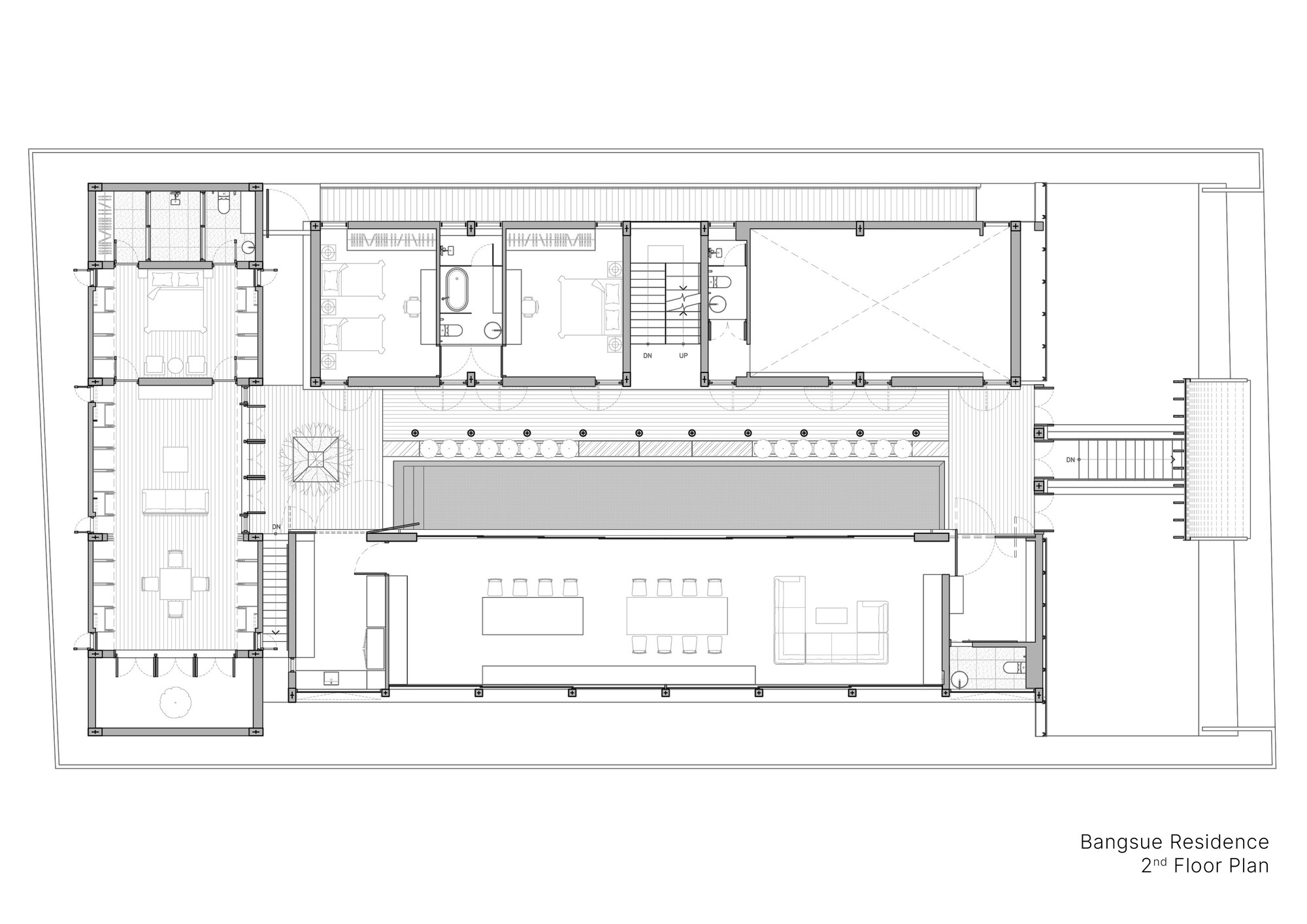

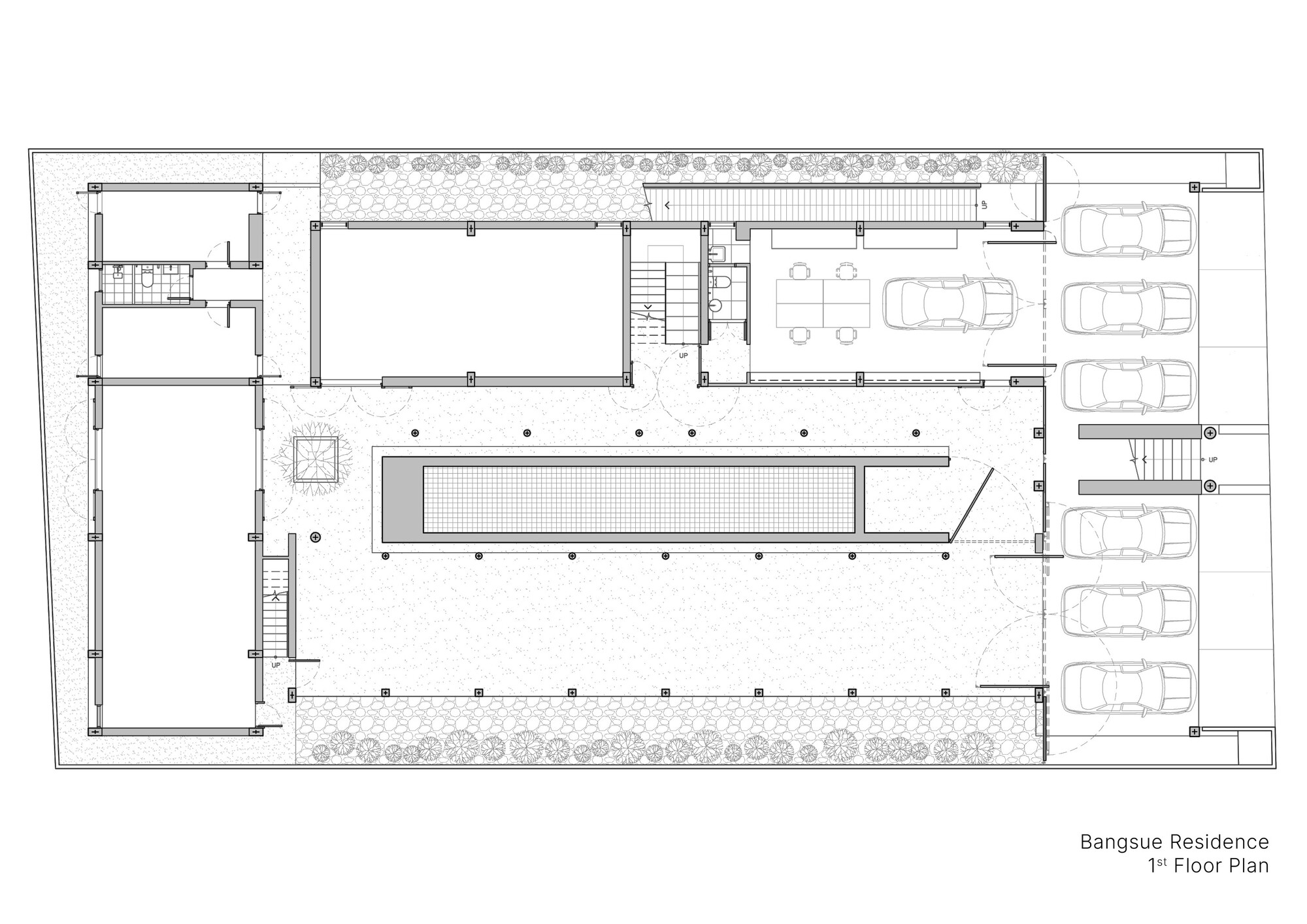

The floor plans confirm the cluster logic. At ground level, the swimming pool occupies the center, with parking and service spaces pushed to the perimeter. The second floor places bedrooms along one side and open living spaces overlooking the pool below, creating a section that steps and shifts rather than stacking uniformly. The third floor adds a terrace and secondary living areas. The elevations reveal how the curved roof connects to a more traditional gabled pavilion form, bridging the contemporary and vernacular identities the project holds in tension.

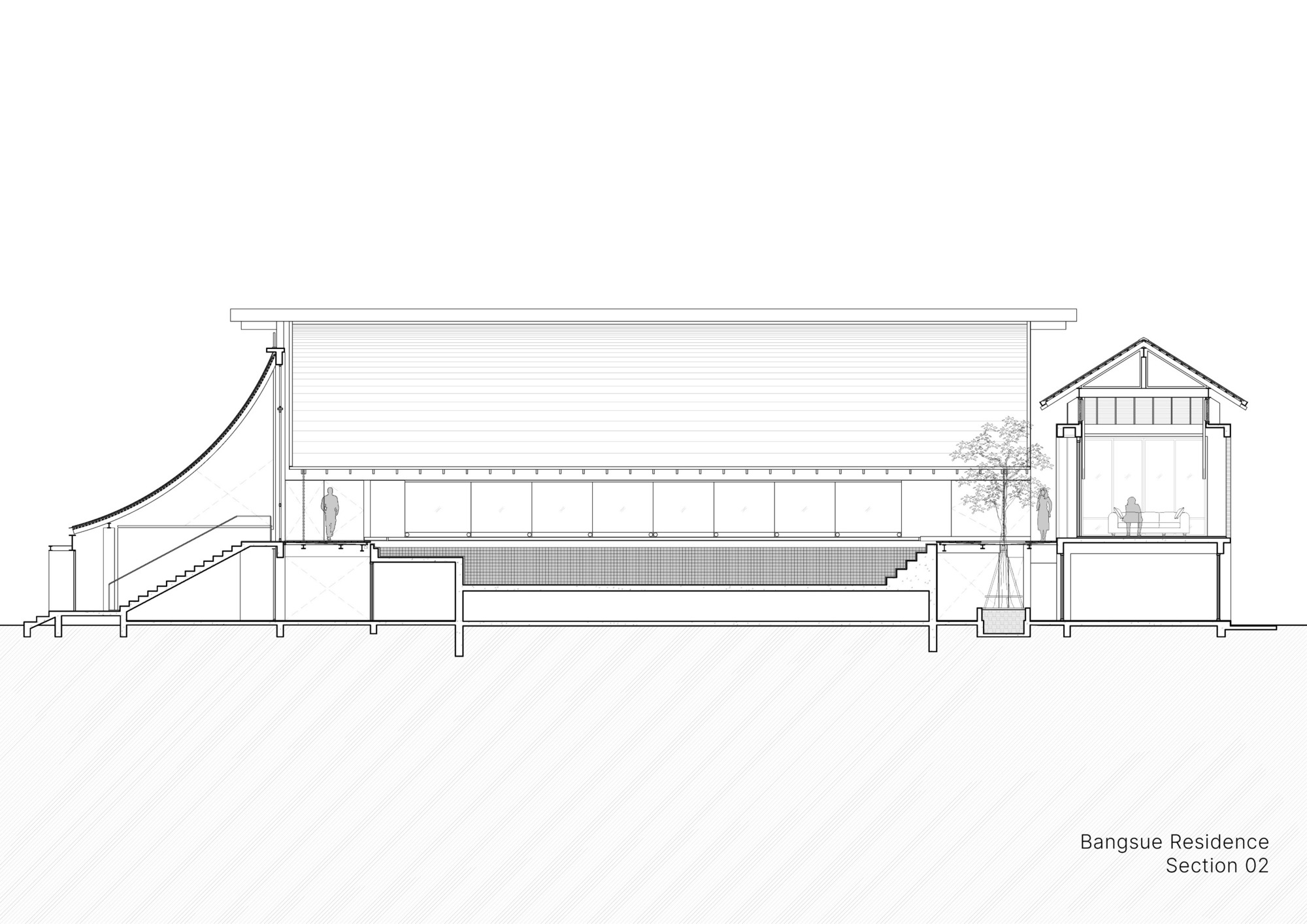

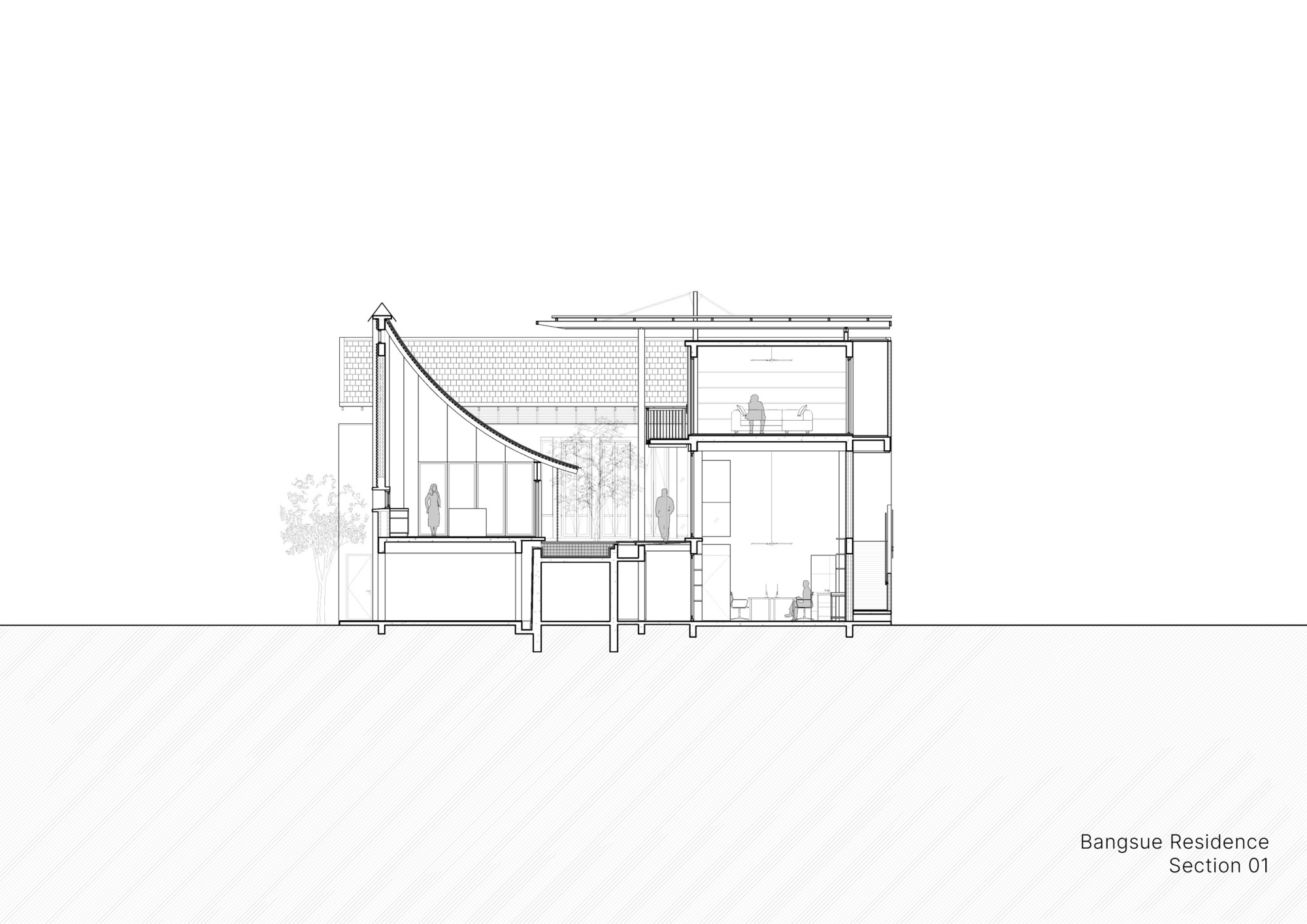

The sections are particularly instructive. They show the split-level strategy that allows the house to feel tall and open in communal zones while remaining intimate in private quarters. The curved roof's profile, seen in section, clearly descends from the Thai gable but has been stretched and smoothed into something more fluid. Planted trees punctuate the section drawings, reinforcing that landscape is integral to the spatial organization, not decoration applied after the walls went up.

Why This Project Matters

Multi-generational housing is surging globally, driven by economics, culture, and aging populations. But most architects treat it as a planning problem: how many bedrooms, how many bathrooms, how to separate generations without making them feel isolated. Patara Architects treated it as a typological question, reaching back to the Thai Ruen Moo and asking what a cluster compound means when built with steel and concrete in 2024. The answer, at Bangsue Residence, is a house that gives each family unit genuine autonomy while making shared life irresistible through courtyard proximity, cross-ventilation, and generous outdoor rooms.

The project also demonstrates that passive climate strategies and vernacular references can coexist with contemporary aesthetics without nostalgia or performative sustainability. The gaps between volumes are simultaneously cultural (the cluster), climatic (the wind corridors), and spatial (the courtyards). Nothing here is doing only one job. That kind of integration is what separates a well-designed house from a well-decorated one, and it is what makes Bangsue Residence a compelling model for tropical domestic architecture.

Bangsue Residence by Patara Architects (lead architect: Patara Warathanasin). Bangkok, Thailand. 1,333 m². Completed 2024. Photography by tacophoto.bkk.
