REAL Architects and Challenge Design Plant a Timber Gridshell Seed at the Heart of Shanghai's West Bund

Most pavilions in commercial districts behave like billboards: loud, temporary, and forgettable once the launch event ends. THE SEED, a 230 m² timber and glass dome at West Bund Central Phase II in Shanghai, takes a quieter route. Designed by REAL Architects with Challenge Design for Hongkong Land, it sits at the geometric center of a terraced landscape and acts as a fixed point along the Xuhui Waterfront cultural corridor. A decade ago this shoreline was industrial. Today it is a continuous pedestrian spine, and the pavilion stakes a claim as one of its landmarks.

What makes the project worth your attention is not its size, which is modest, but its discipline. The dome is a gridshell of curved laminated timber ribs wrapped in diamond-patterned glazing, and the architects let that single structural idea carry the whole building. There is no cladding to hide behind and no applied decoration. The lattice is the wall, the roof, the shading device, and the ornament all at once. Led by David He and Naiji Jiao, the team has produced an object that reads as precise by day and as a lantern by night. It also answers the West Bund Orbit to its south, giving the waterfront a second round figure to measure itself against.

A Seed Set into Stepped Ground

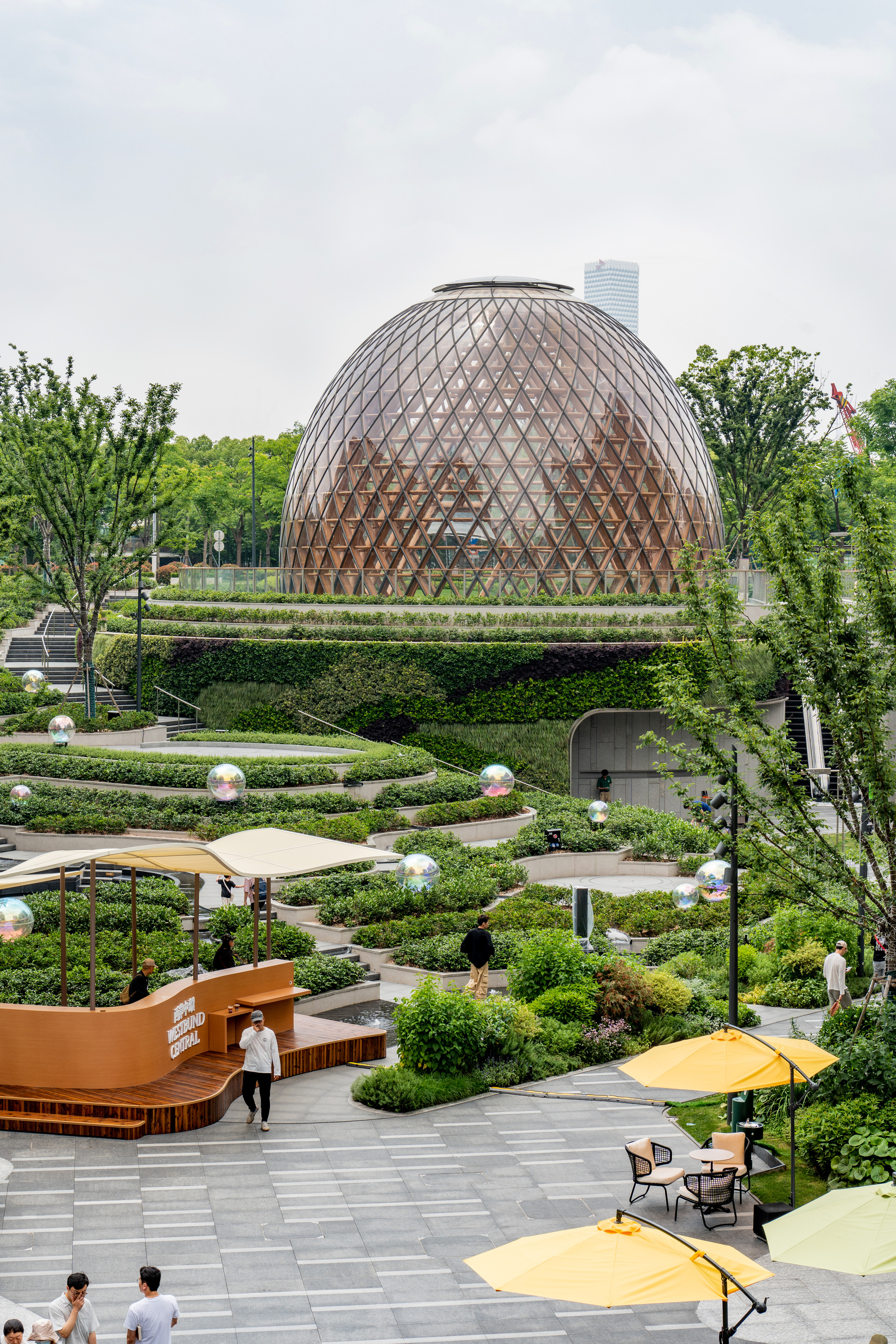

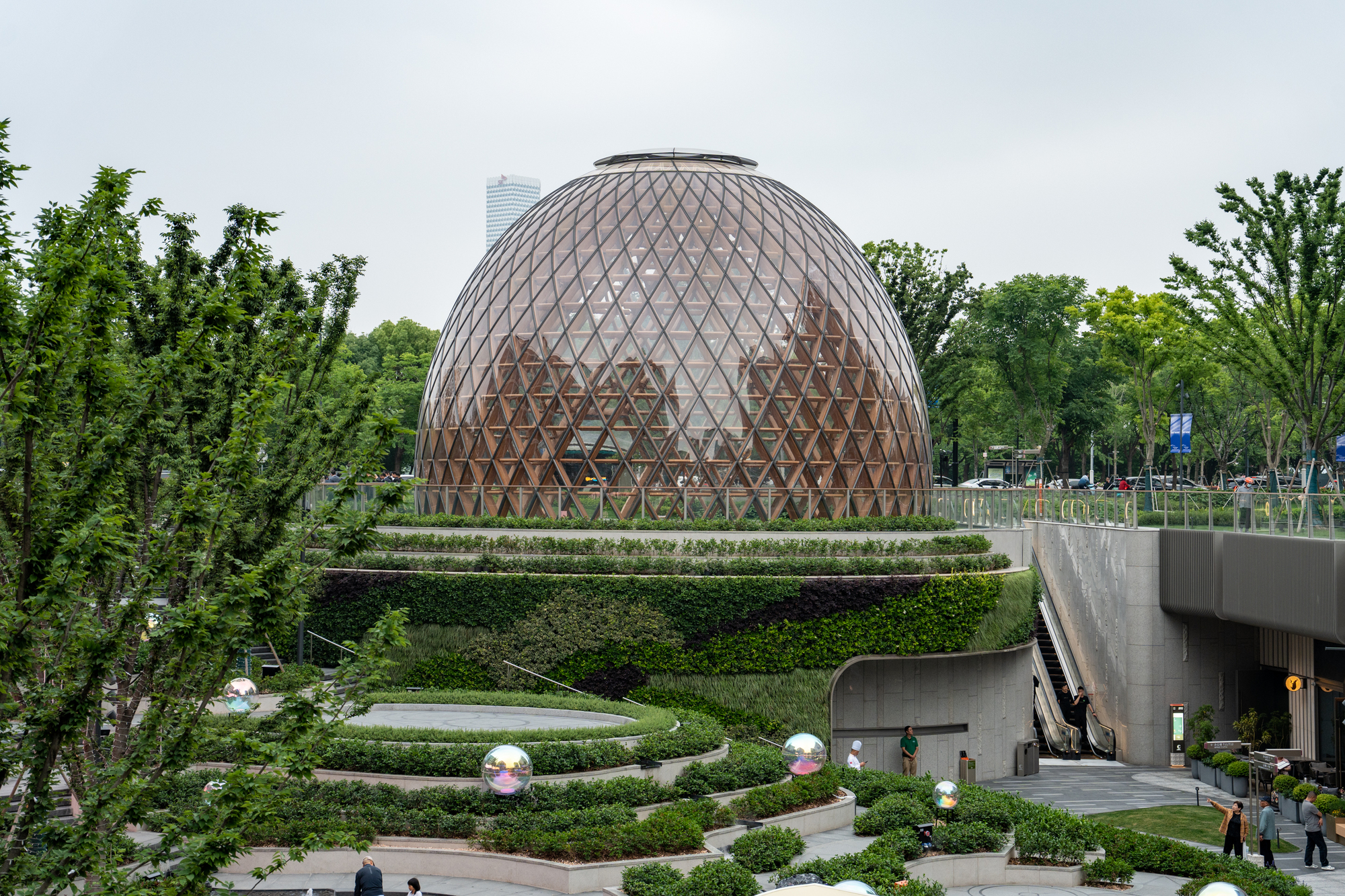

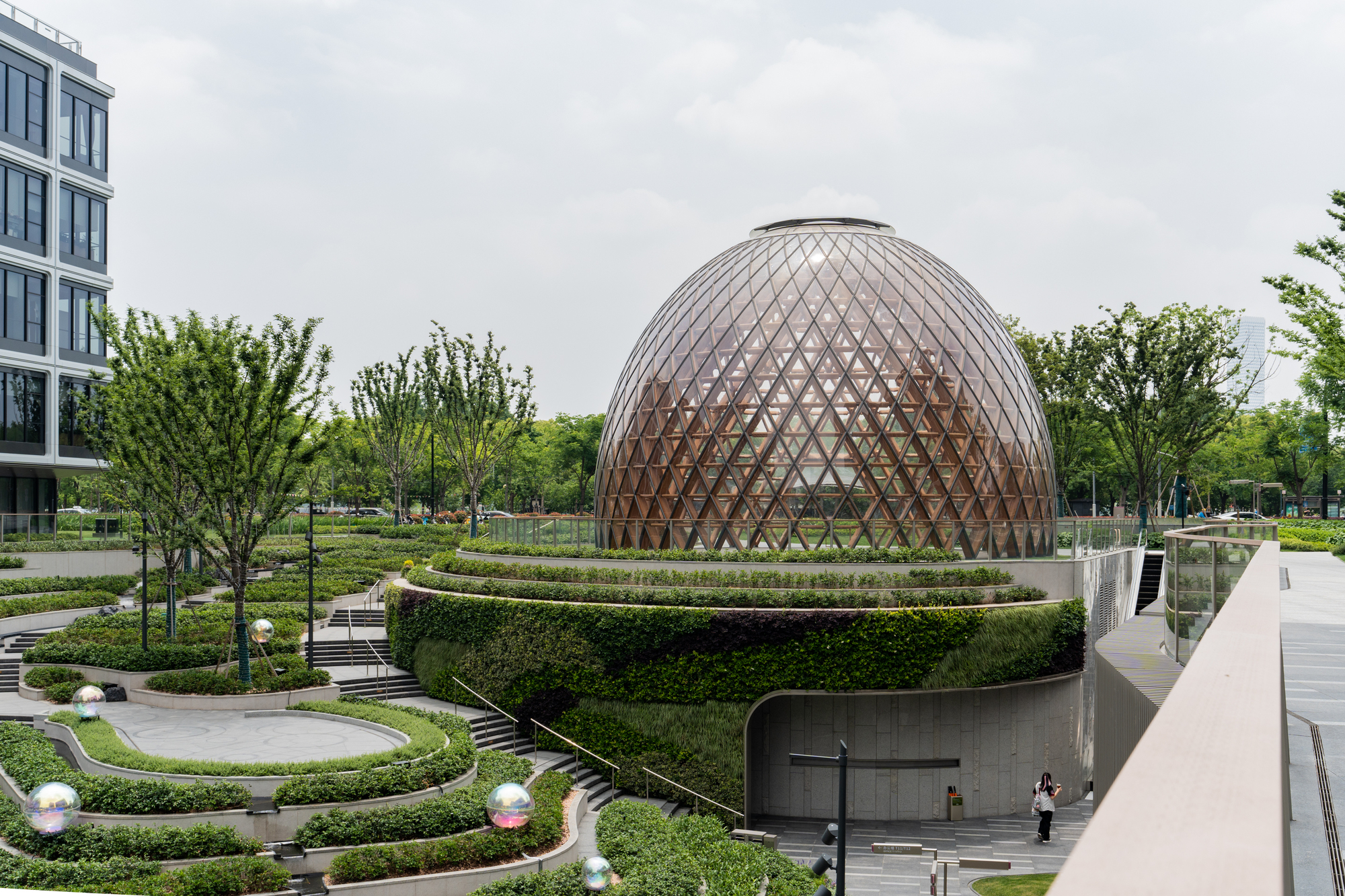

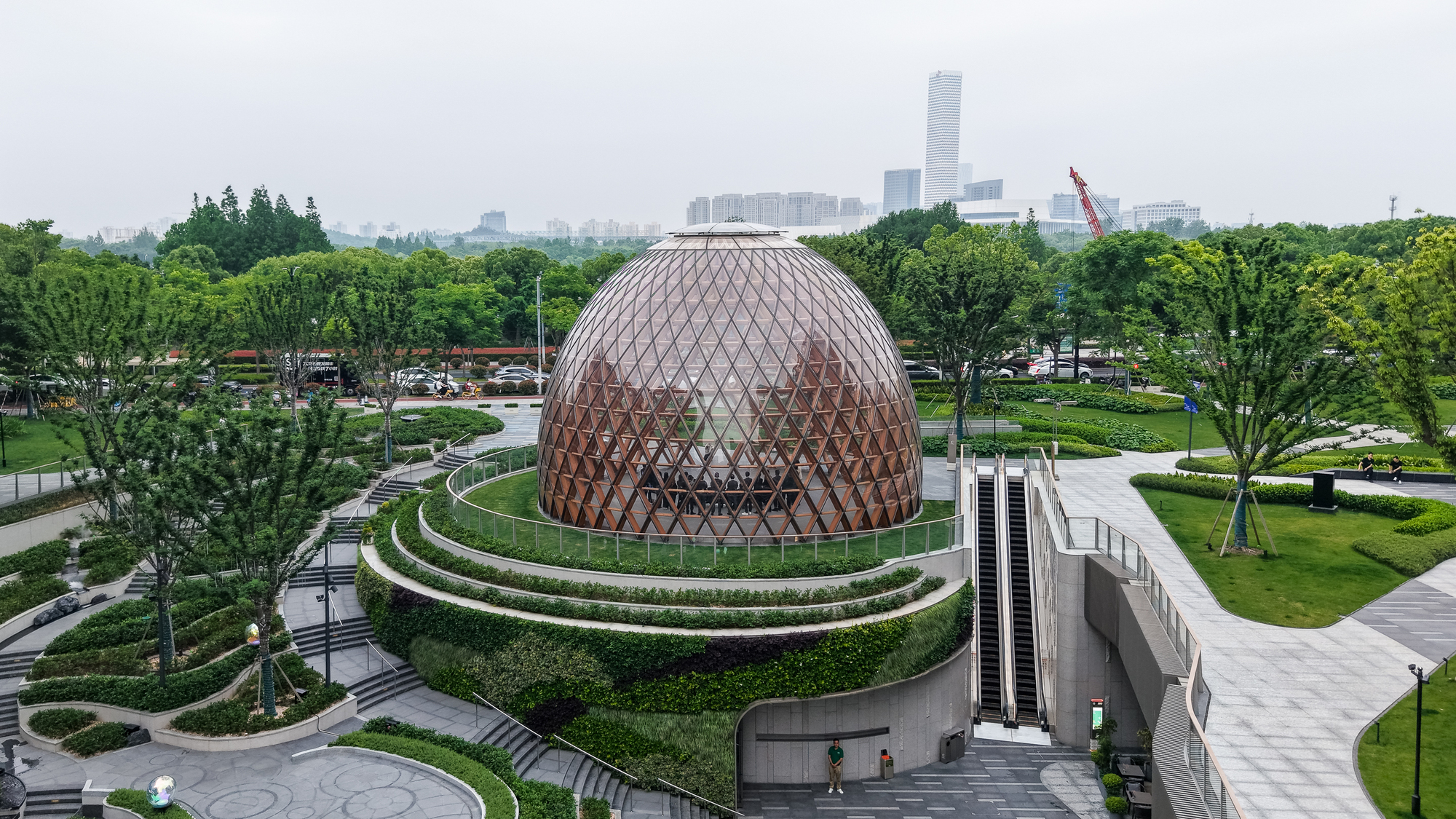

The name is literal in the best sense. The dome emerges from the middle of stepped planted terraces as if it had been sown there, with hedges, beds, and stairs rising around it in concentric bands. An escalator and paved plaza tie it to the surrounding retail flow, so shoppers pass the pavilion constantly rather than having to seek it out.

This is a smart reading of a commercial site. Instead of fighting for visibility against office towers, the pavilion borrows height from the landscape. The terraces frame it like a setting holds a stone, and the curved wooden kiosk and umbrellas nearby keep the plaza at a human scale.

Reading the Pavilion from Above

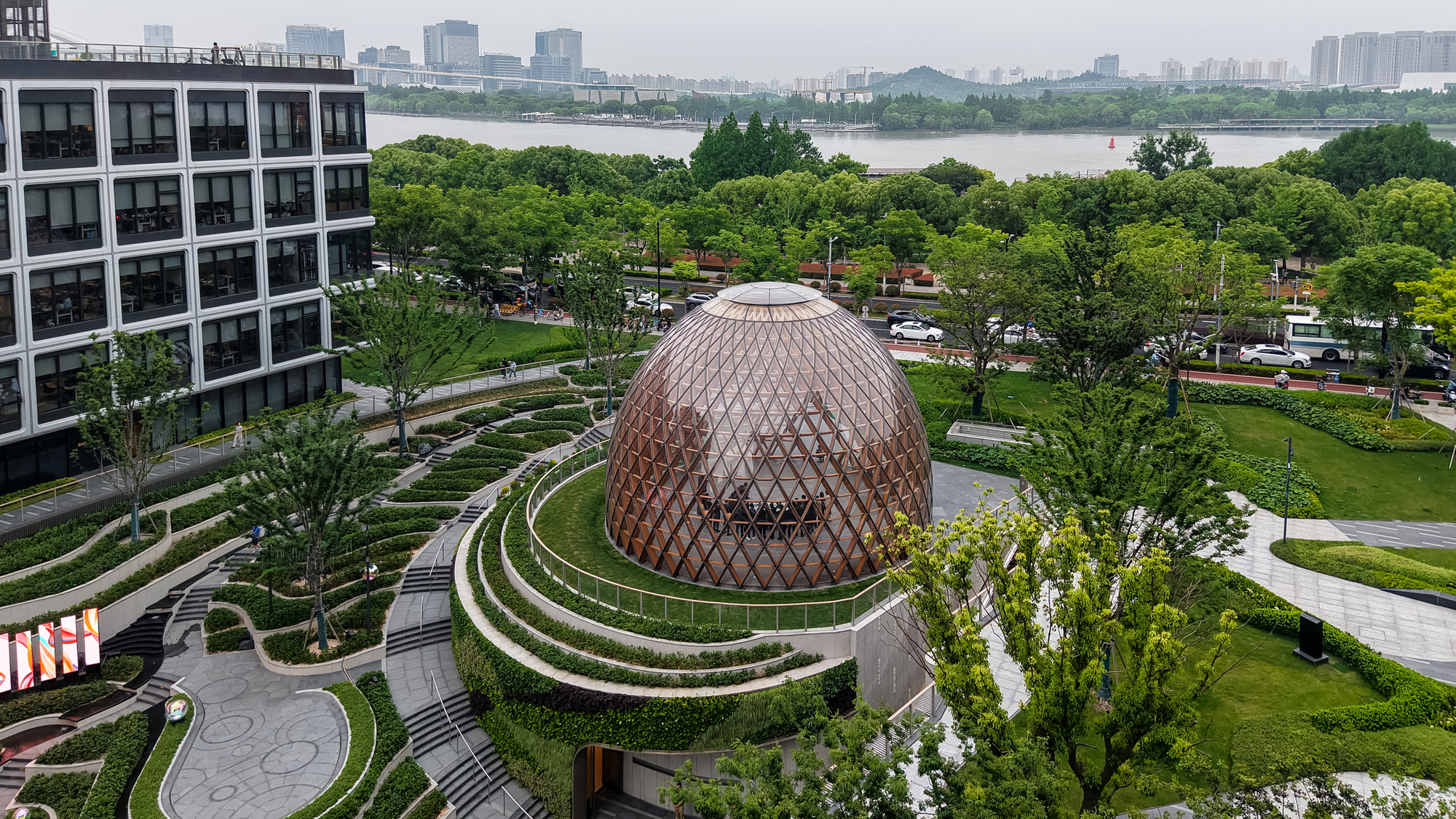

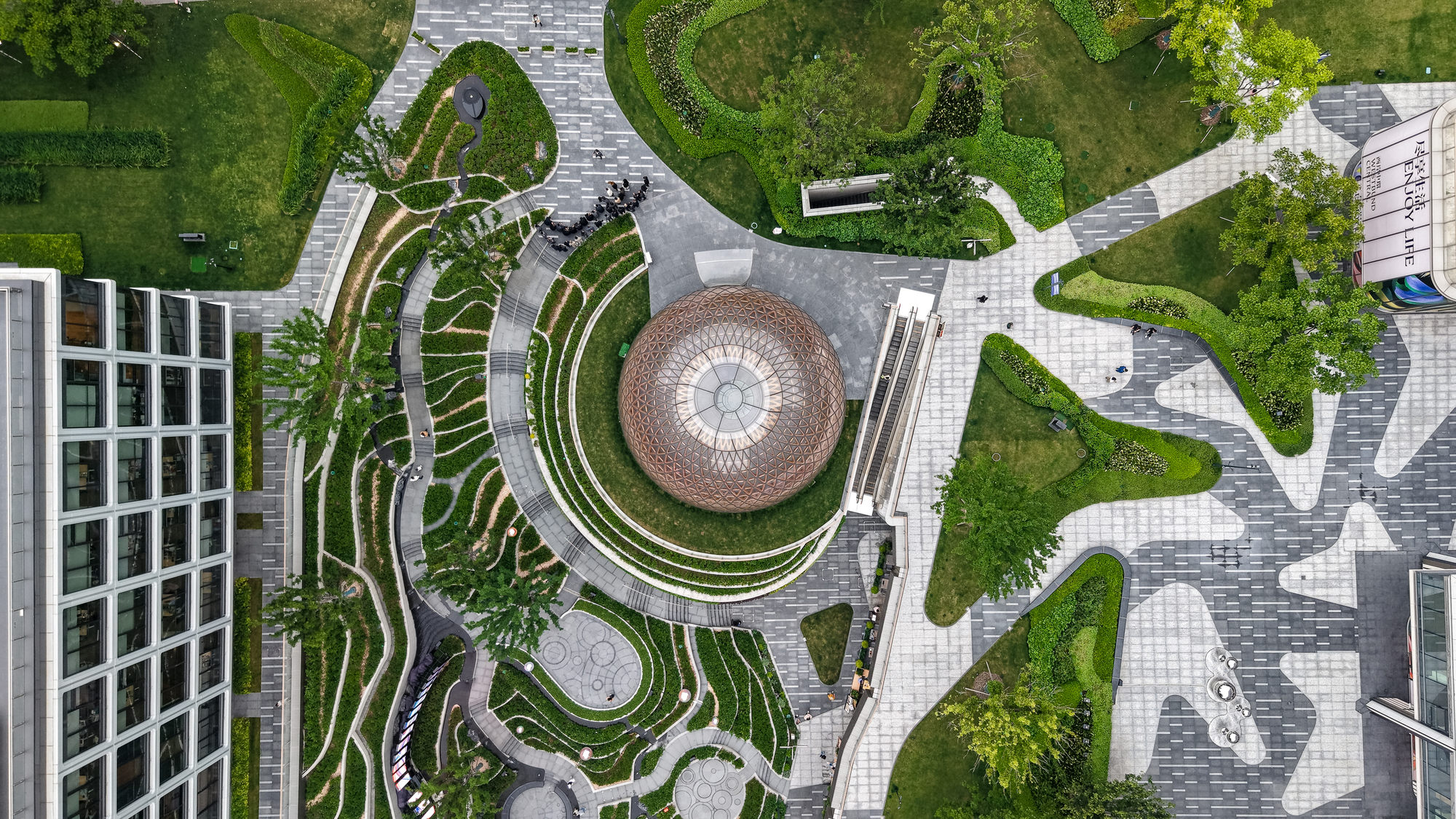

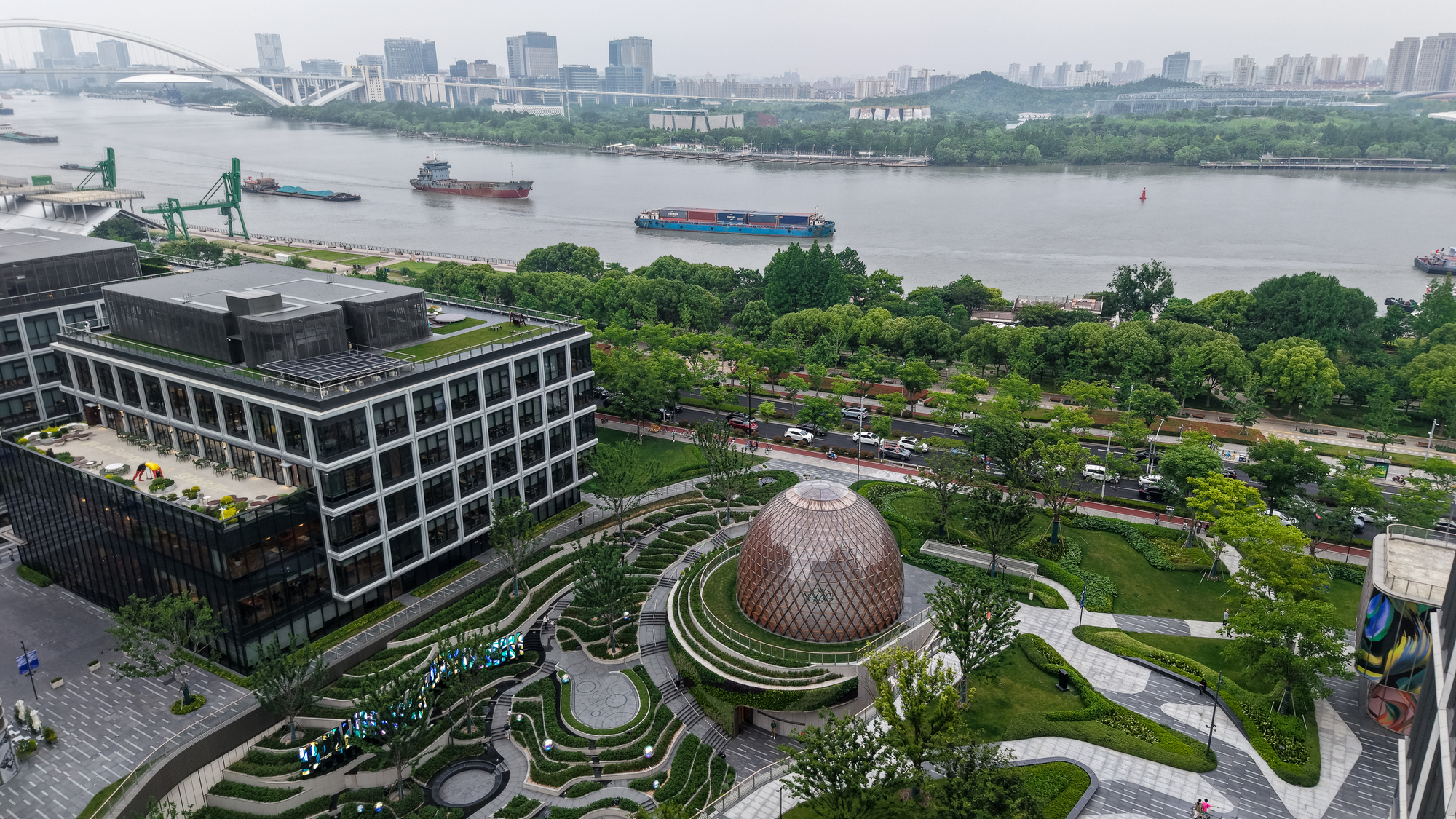

From the air, the plan logic becomes clear. The egg-shaped dome is the hub of a series of curving terraces, and the irregular paving patterns radiate outward from it. With the river and its cargo barges just beyond, the composition reads as a deliberate center point in a district that otherwise grows in blocks and grids.

We think this aerial legibility matters on a waterfront that is now experienced as a sequence of cultural stops. A round figure in a field of rectilinear towers is easy to remember. It works as a wayfinding device as much as a building.

Skin and Bones: Glass over Timber

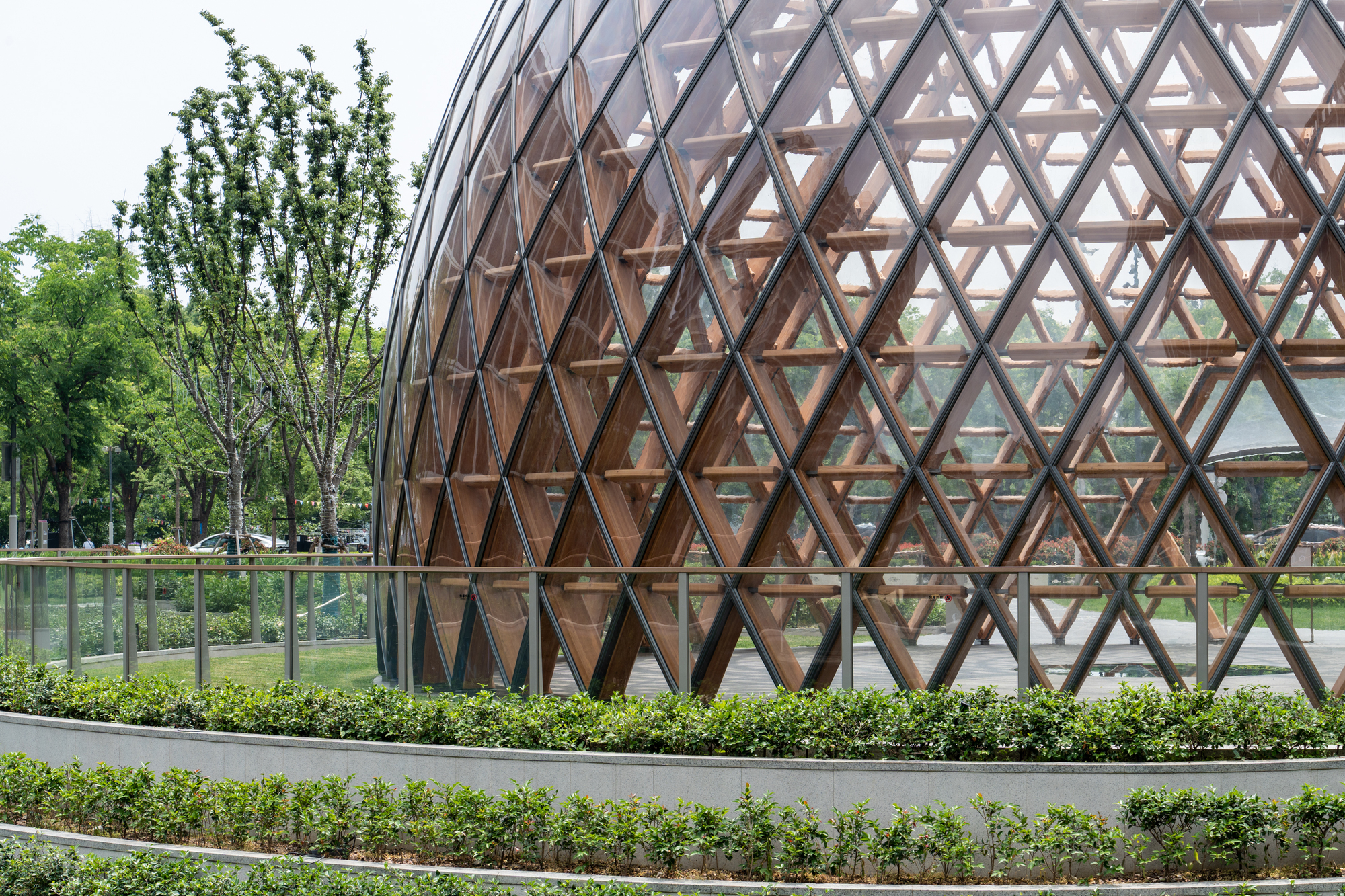

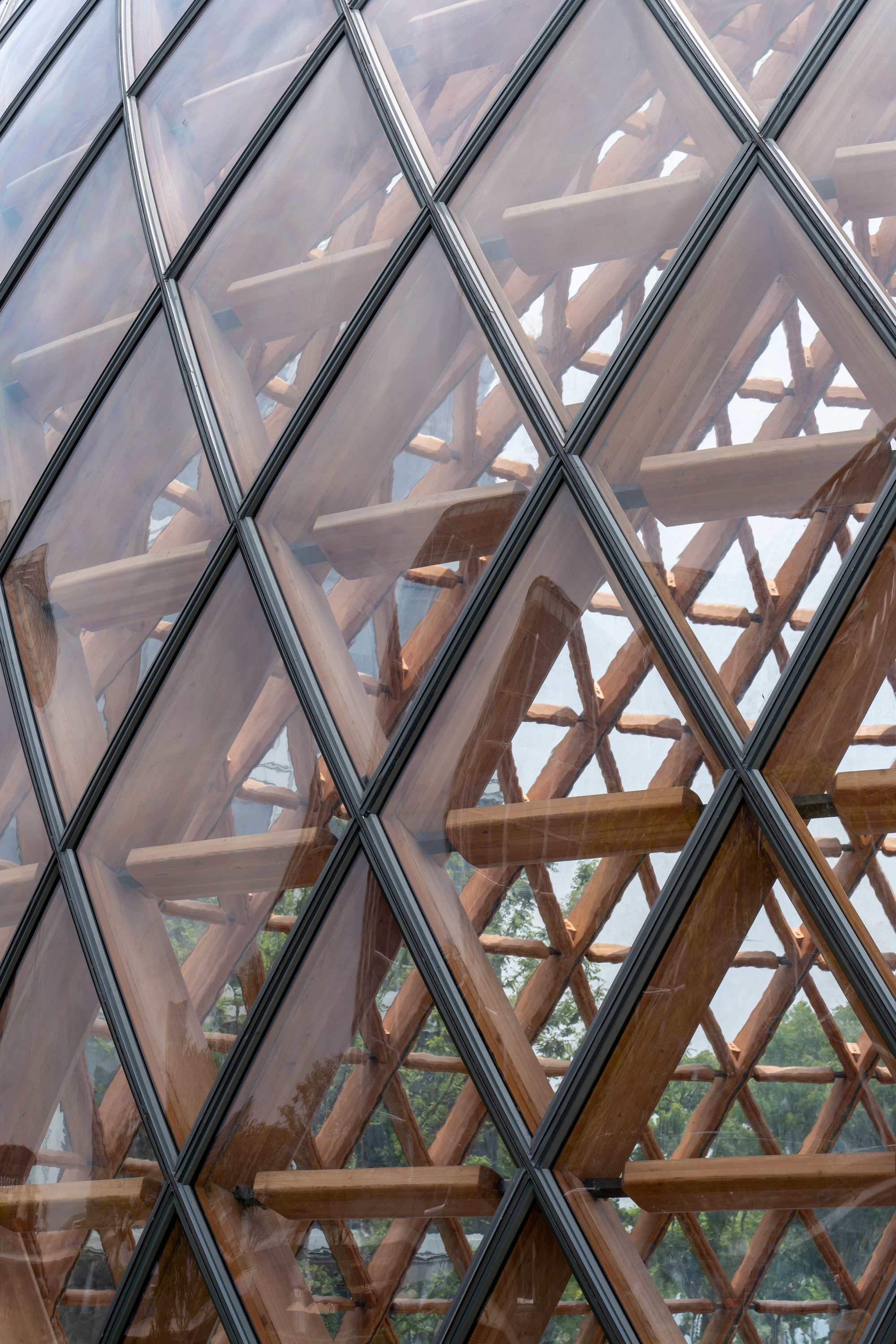

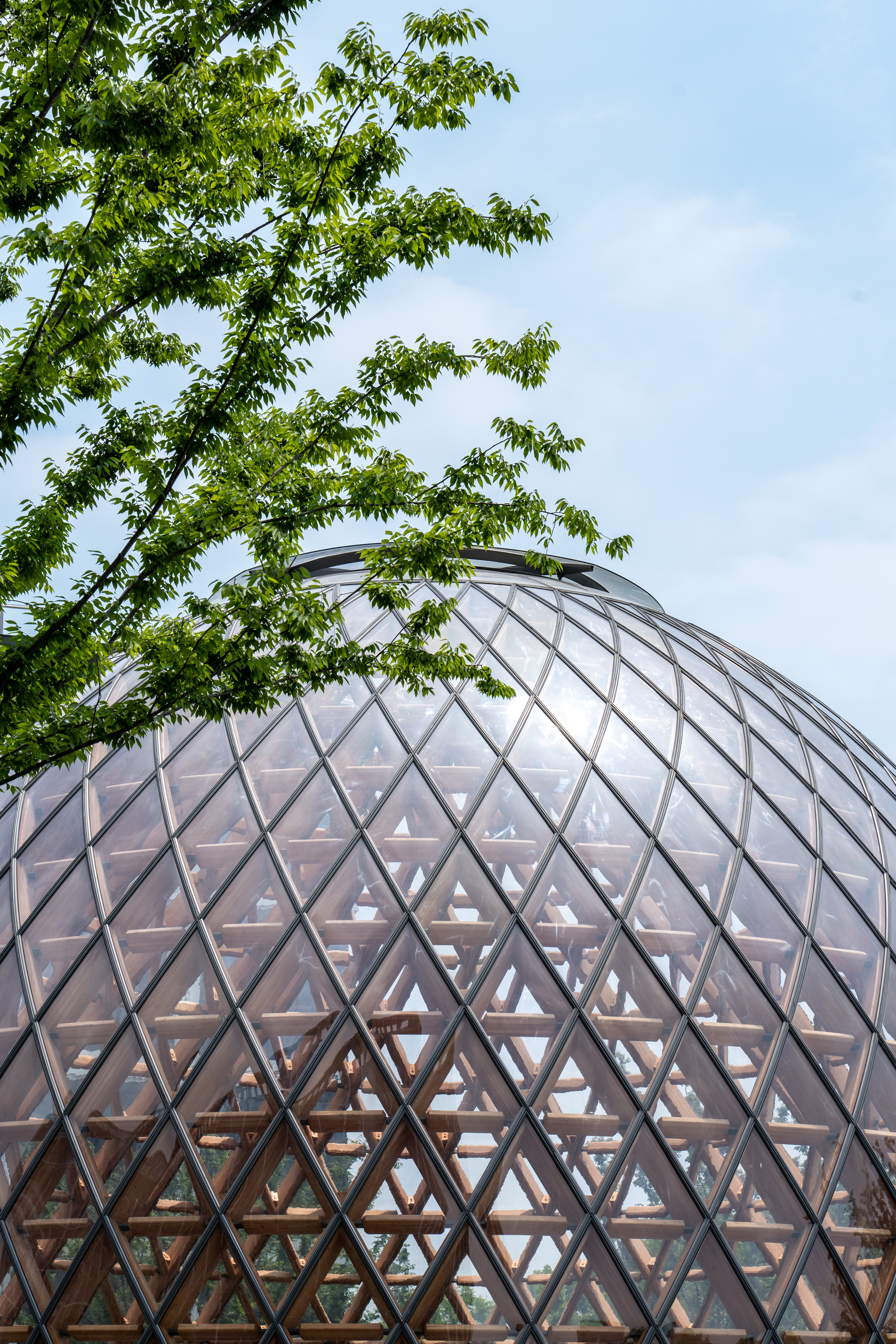

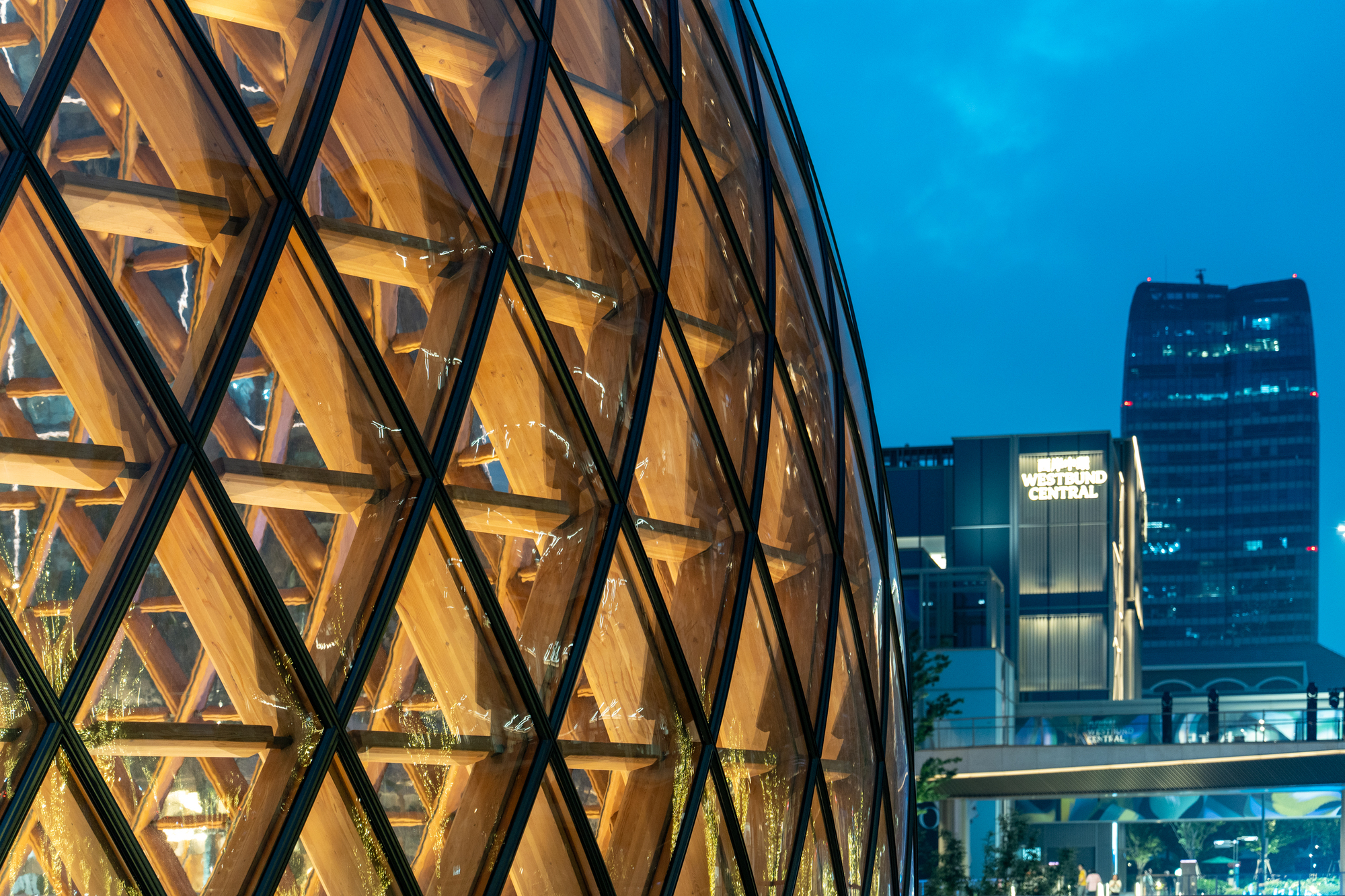

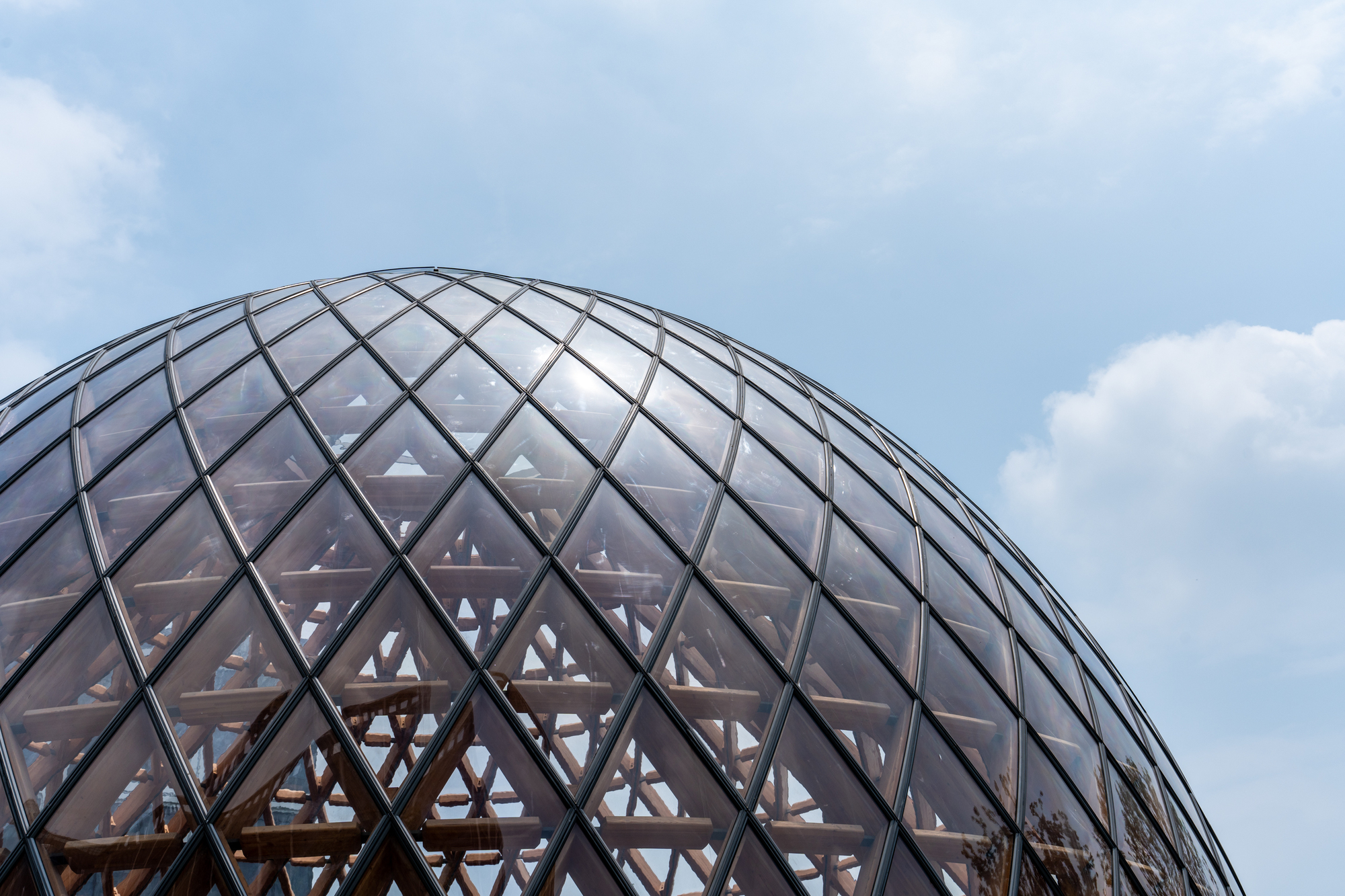

The envelope pairs a diagonal steel and glass grid with timber ribs that sit just inside it. Up close, you see two layers of structure reading through each other: the crisp lines of the glazing frame and the warmer, thicker timber members behind. Horizontal wooden bars cross some panels and add a third rhythm.

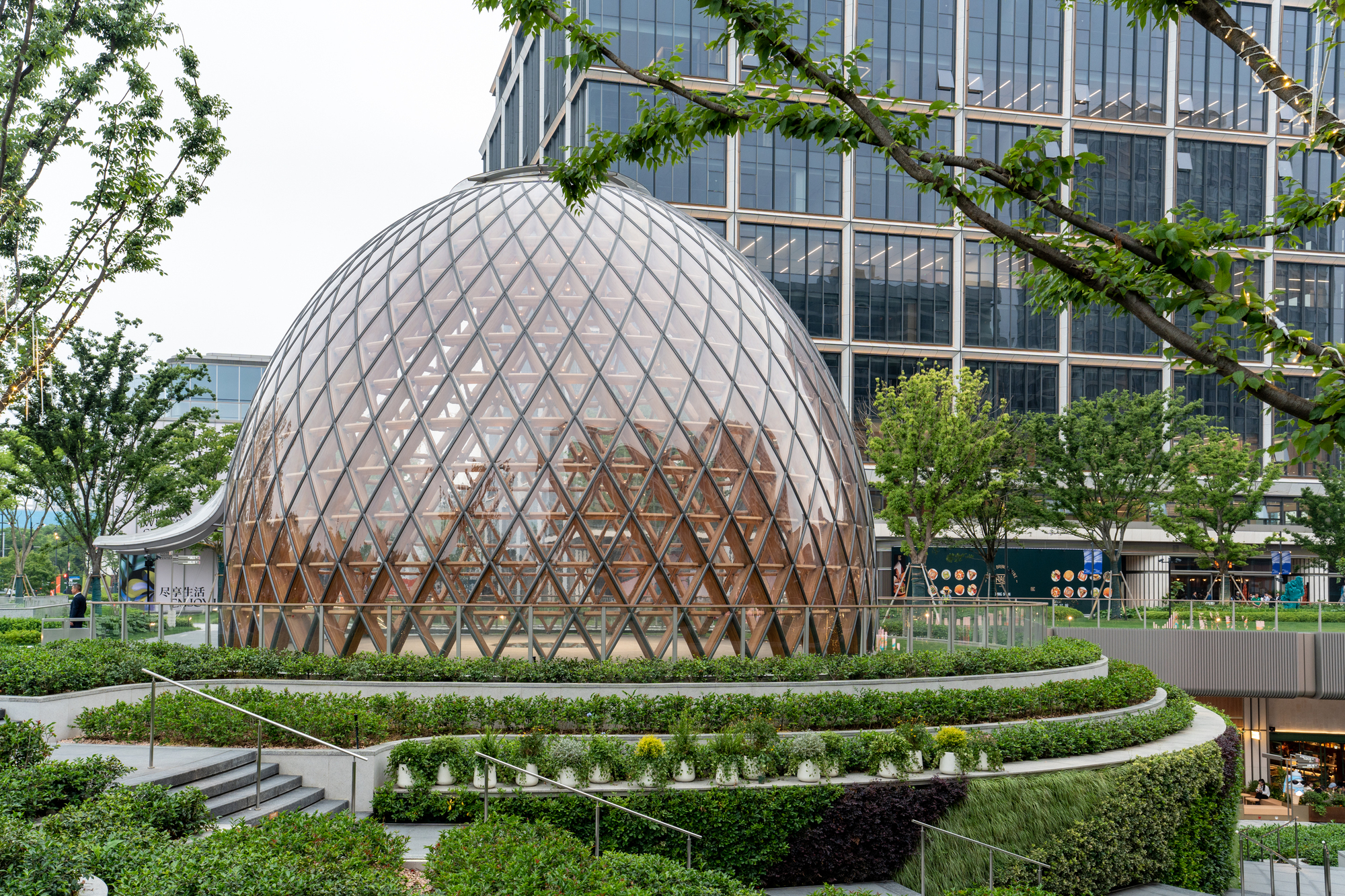

The result is a skin that changes with distance. From the plaza it reads as a single diamond pattern; from the balustrade beside the hedges you start to count members and notice how the timber softens the glass. Against the glazed office tower next door, the contrast is pointed. Both buildings are mostly glass, but only one shows you how it stands up.

The Oculus and the Interior Sky

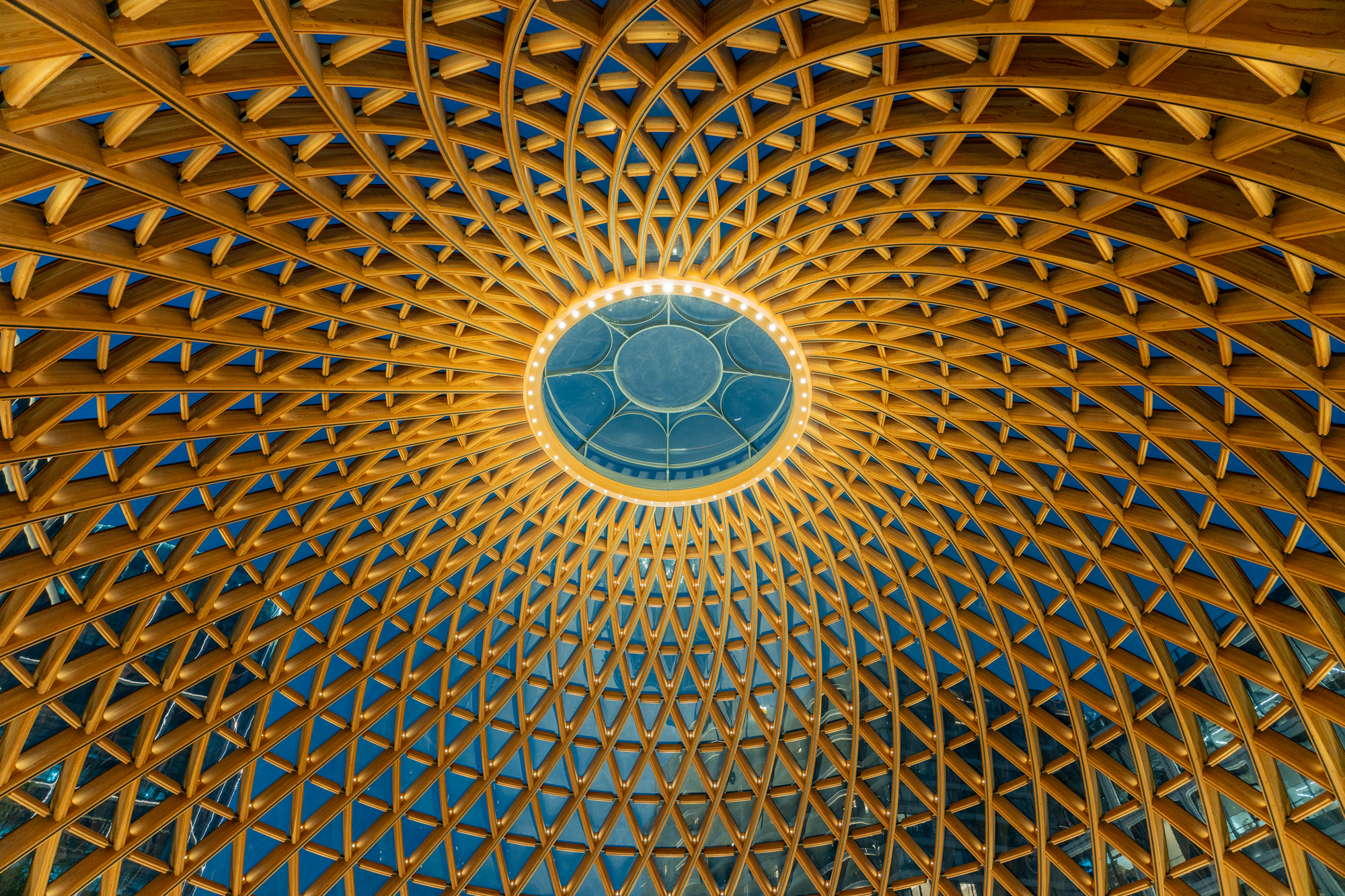

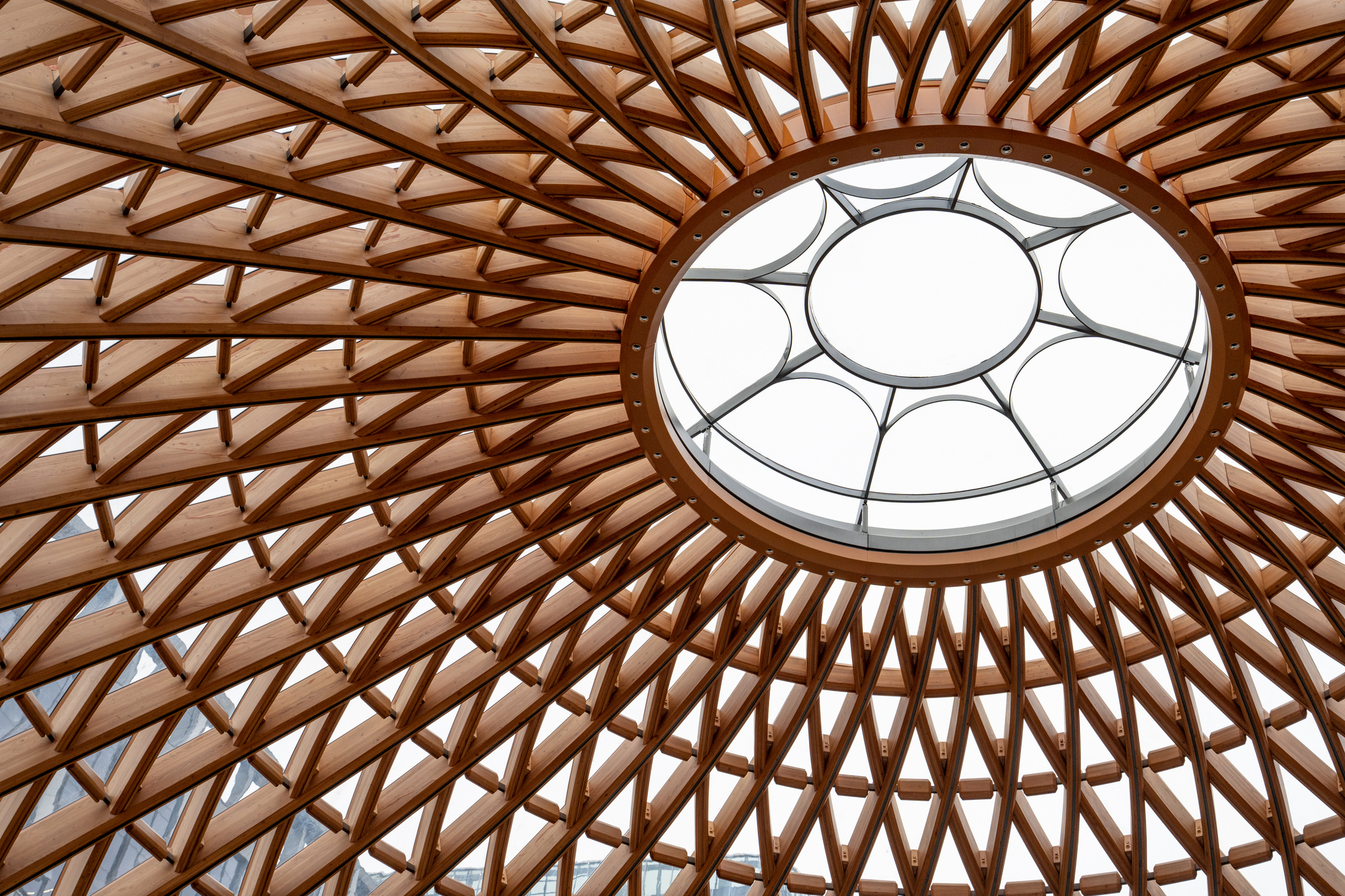

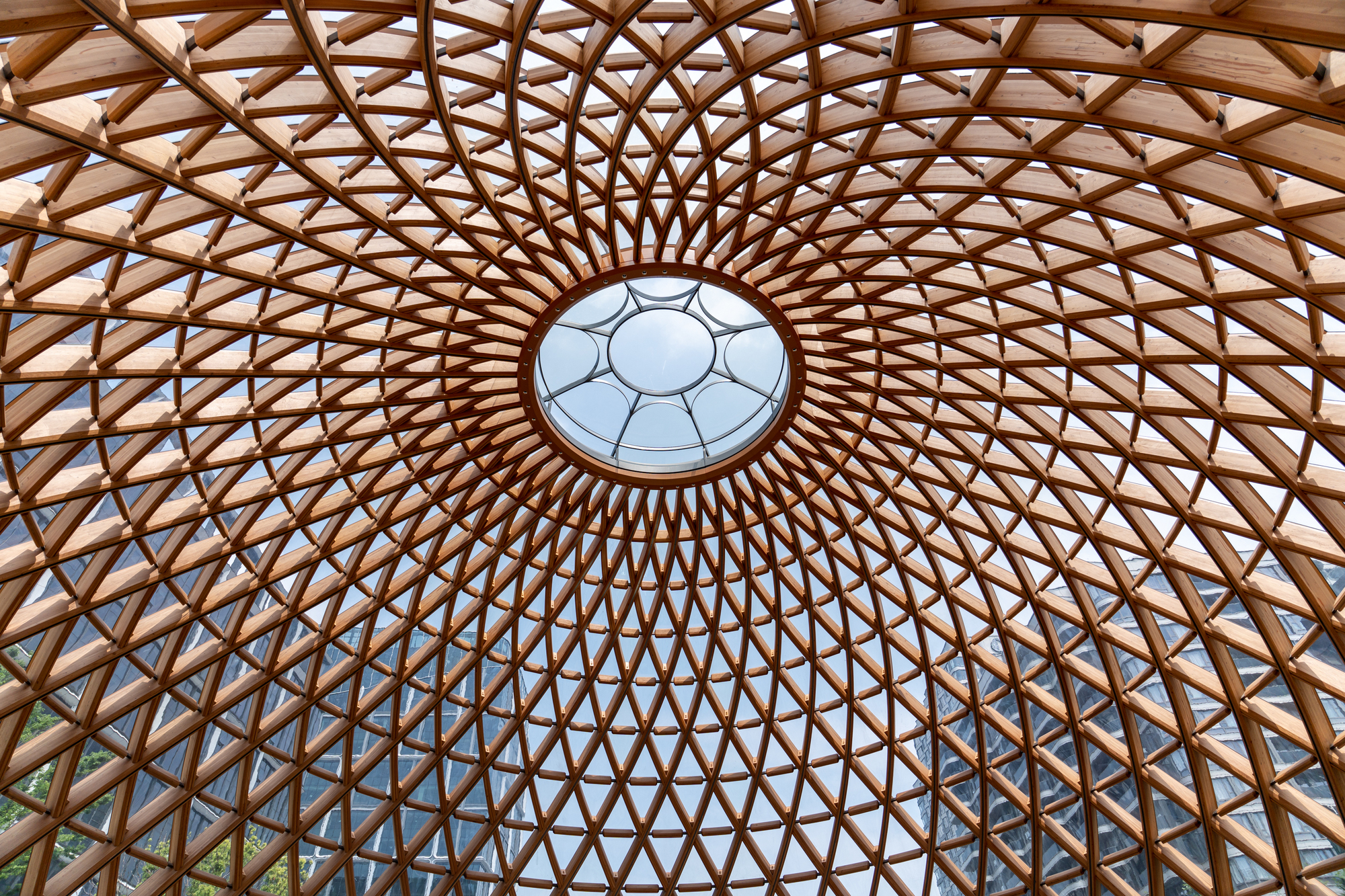

Inside, the intersecting ribs radiate toward a circular glazed oculus at the crown. Looking up is the main event. The lattice frames the sky in shrinking diamonds that converge on that ring of light, and the surrounding buildings appear through the glass as faint outlines.

The oculus is an old device, but here it does real work. It resolves the geometry of the gridshell at its most complex point and gives the interior a clear orientation. At dusk, the same ring glows from within and becomes the pavilion's signature from the street.

Joinery as Ornament

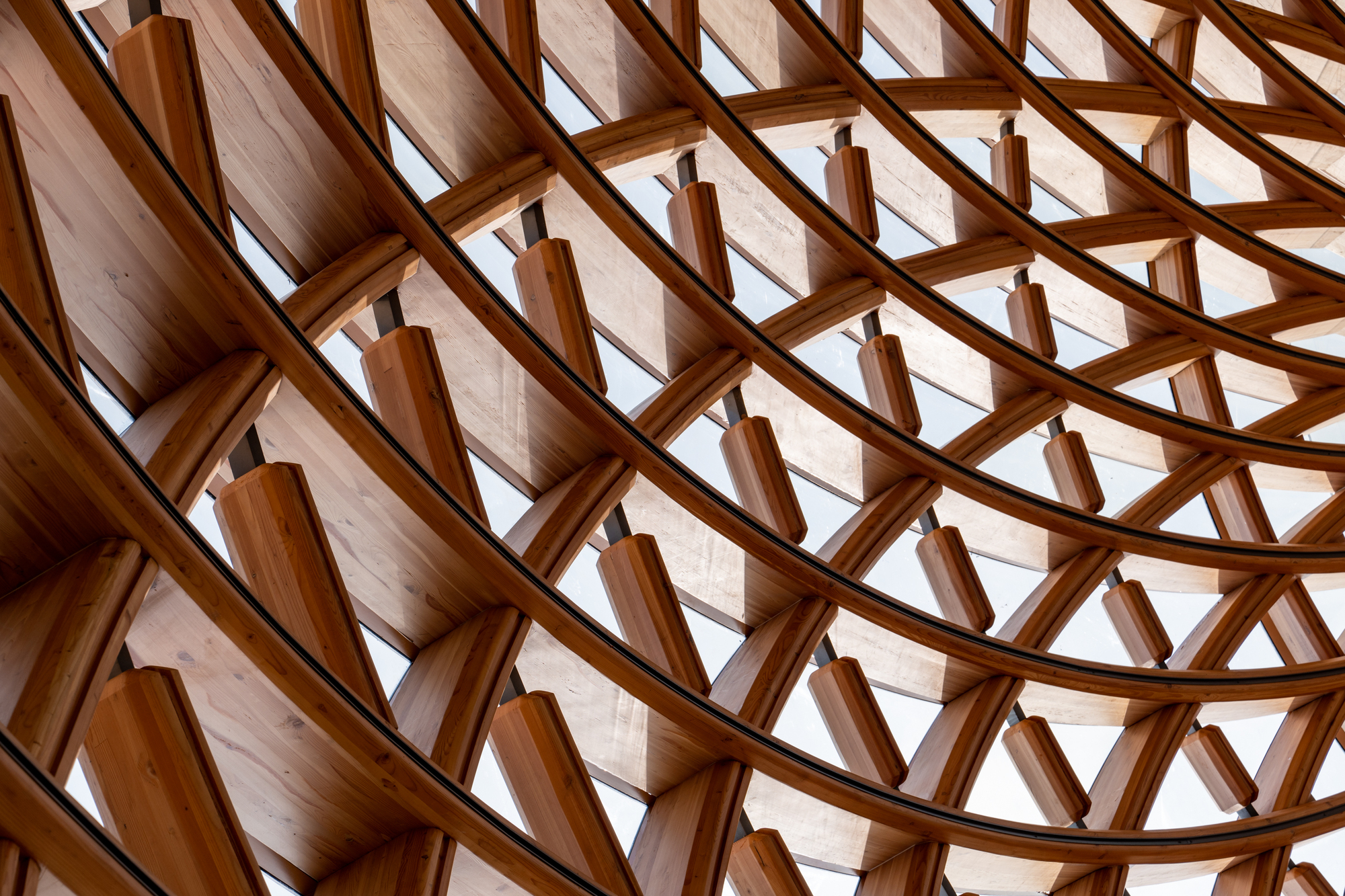

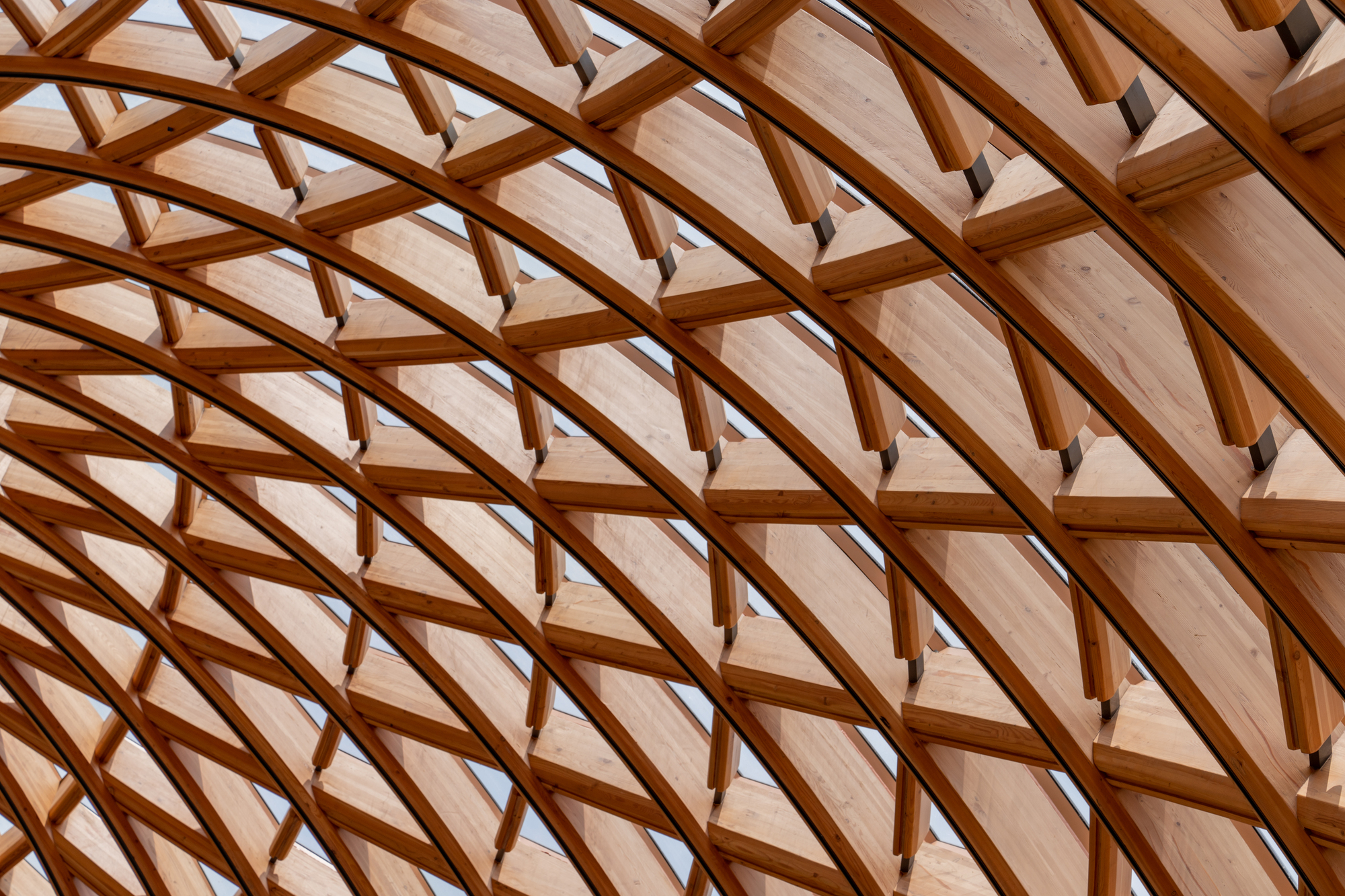

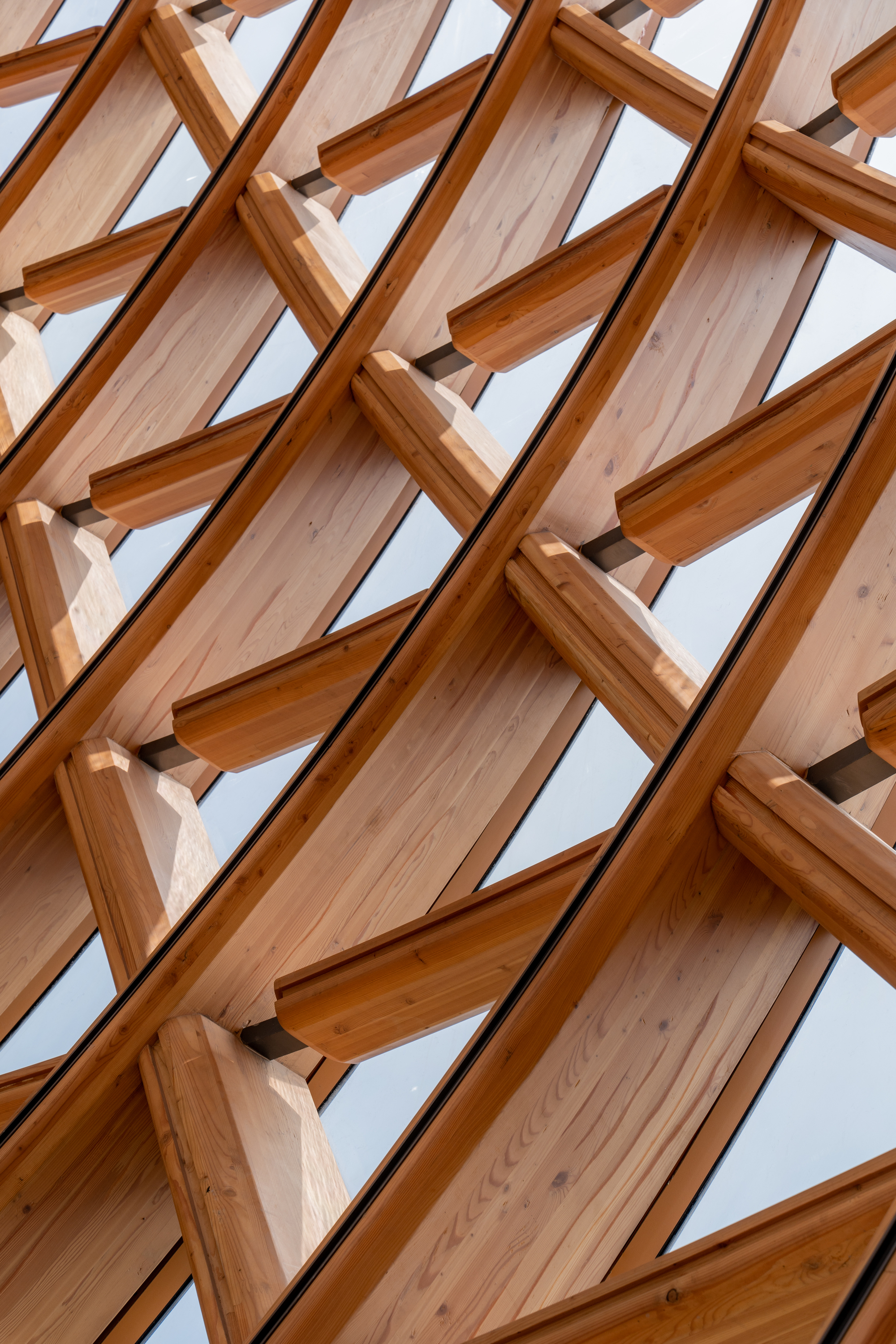

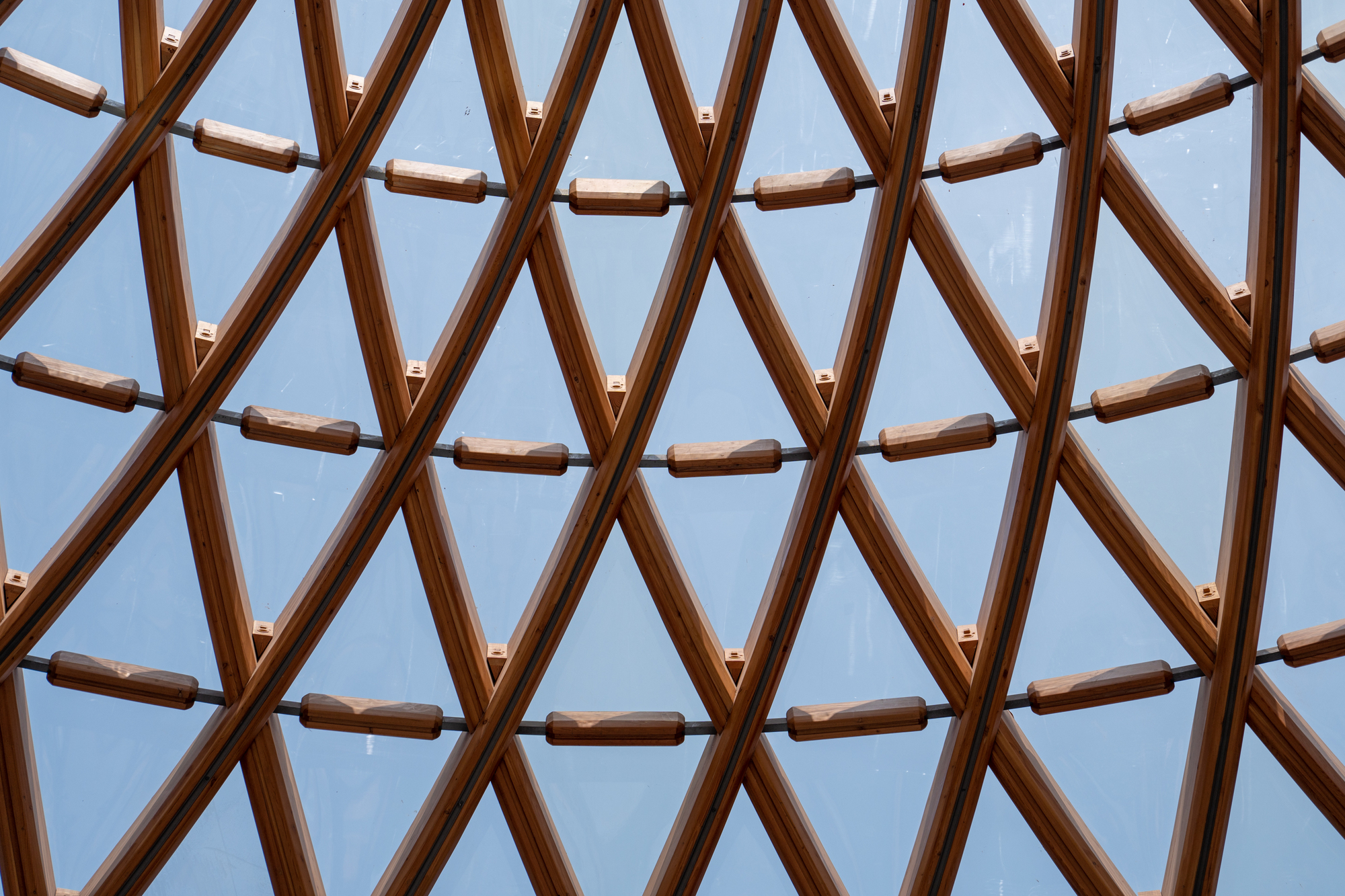

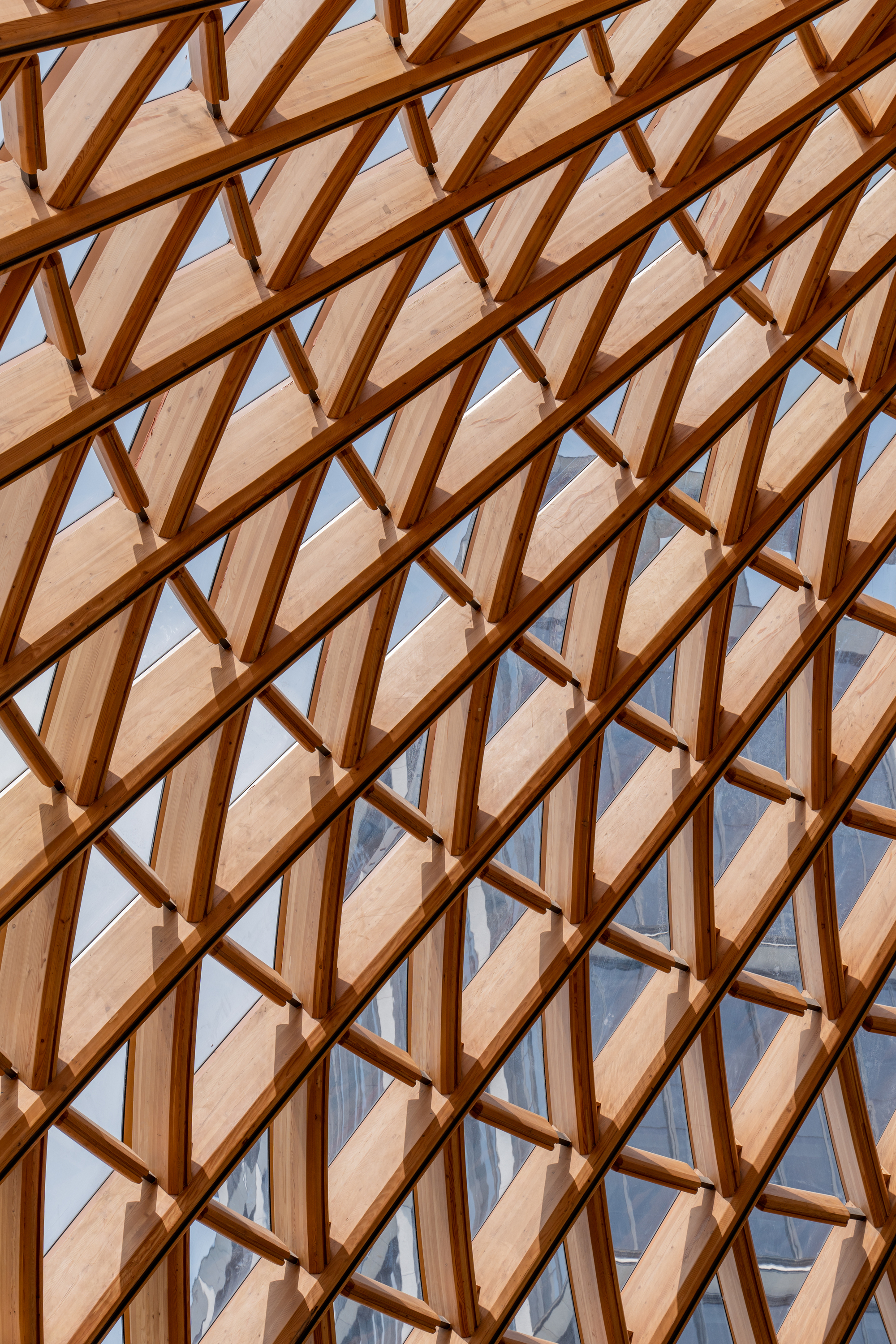

The close-up views reward patience. Curved laminated ribs are spaced by short timber cross-blocks, and steel connectors appear only where they are needed. The rhythm of those small blocks along the glazing reads almost like stitching, and it is the closest thing the building has to decoration.

This is where the project earns its credibility. A gridshell this size could easily have relied on oversized steel nodes and hidden fixings. Instead, the joinery is legible and proportioned to the members it connects. You can understand how the shell is assembled simply by standing under it.

Where Shell Meets Ground

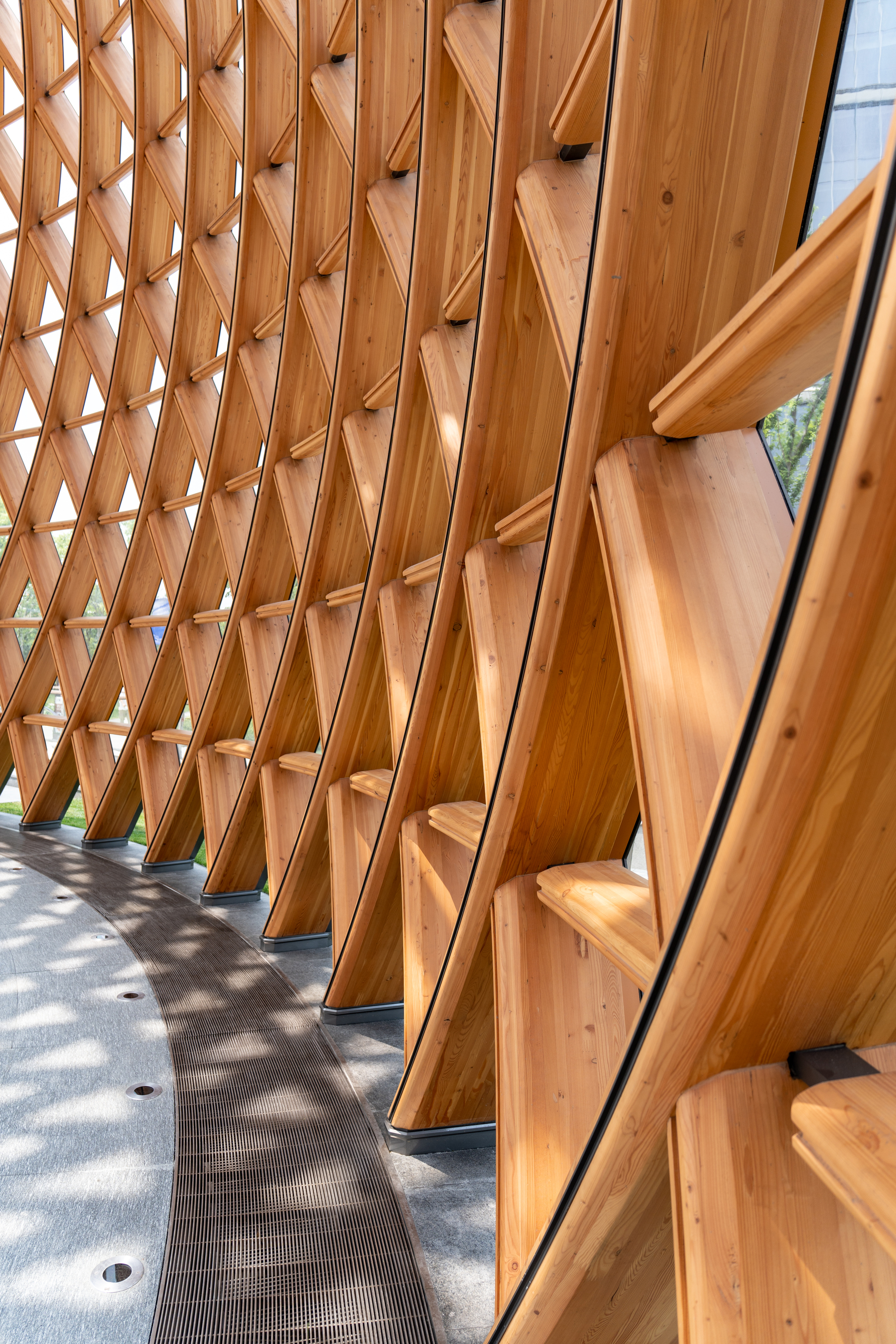

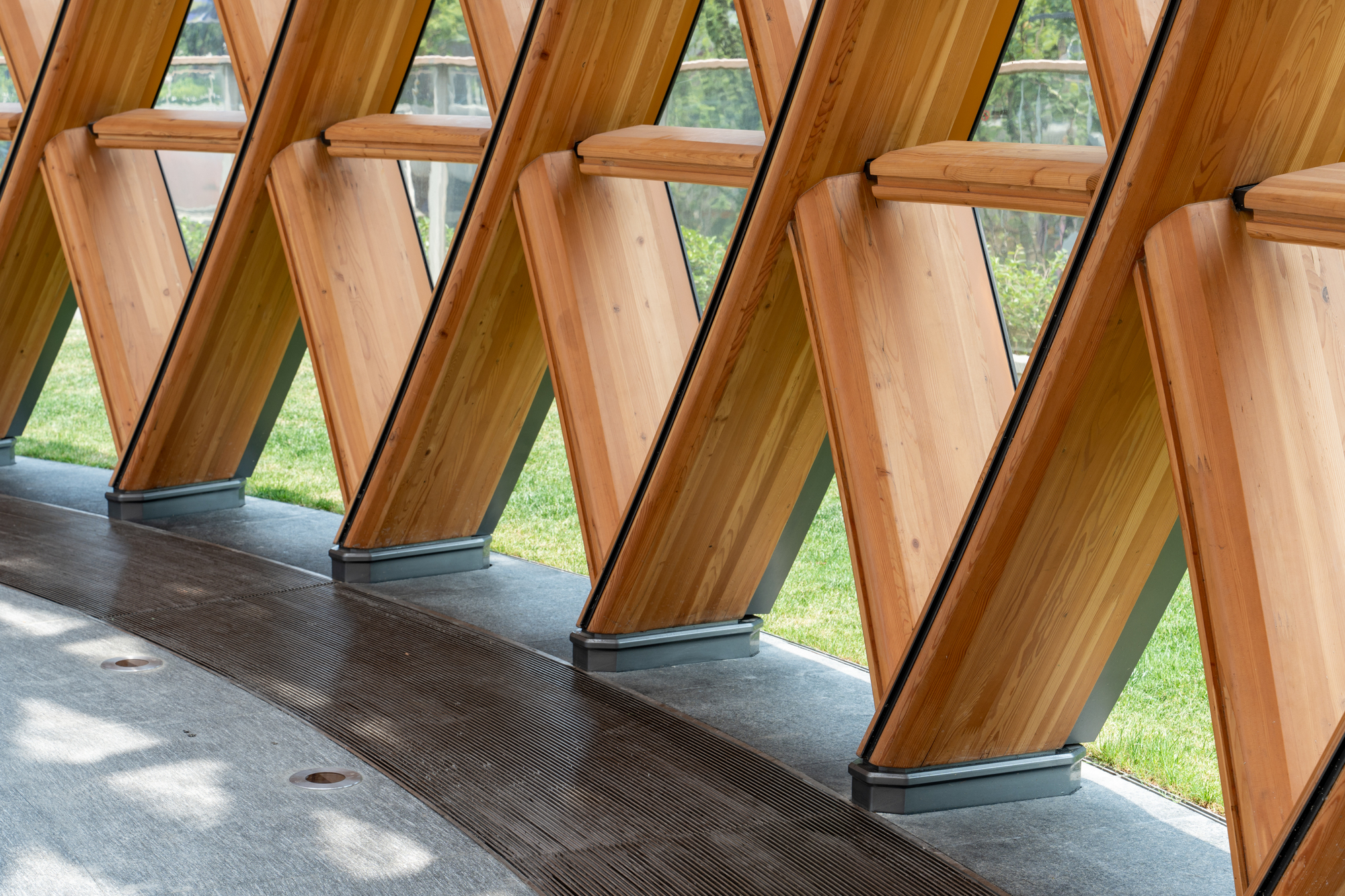

The base is handled with equal care. Angled timber posts land on gray steel shoes along a curved stone floor, which keeps the timber off the ground and away from moisture. A grated drain traces the perimeter where the lattice meets the paved path, a practical detail that also draws a clean line around the building.

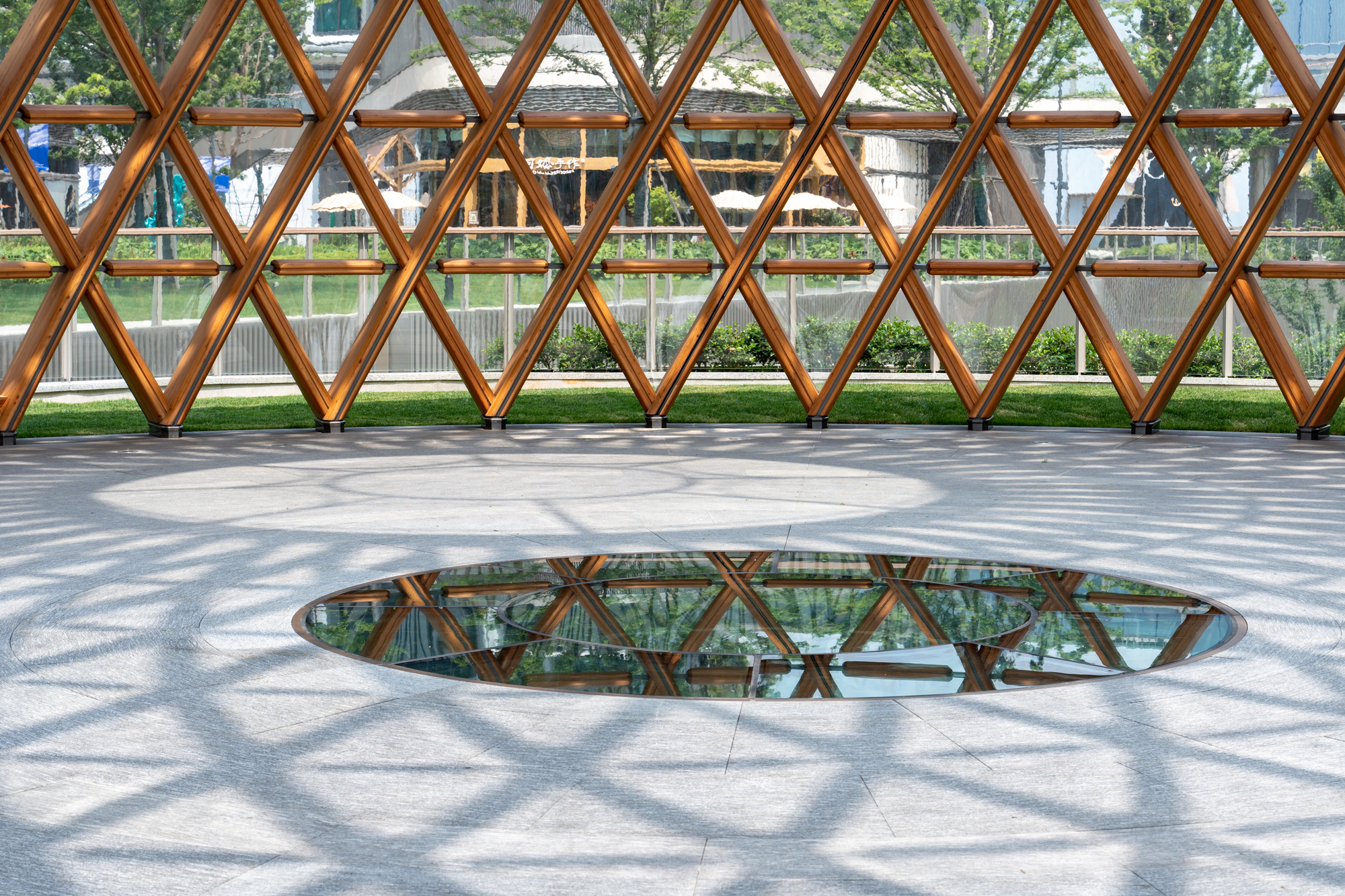

In bright sun, the lattice throws diamond shadows across the floor and a round glass inset in the paving. The ground plane becomes a second, projected version of the structure overhead, and it shifts through the day. It is a reminder that a glazed pavilion is always partly a sundial.

A Lantern After Dark

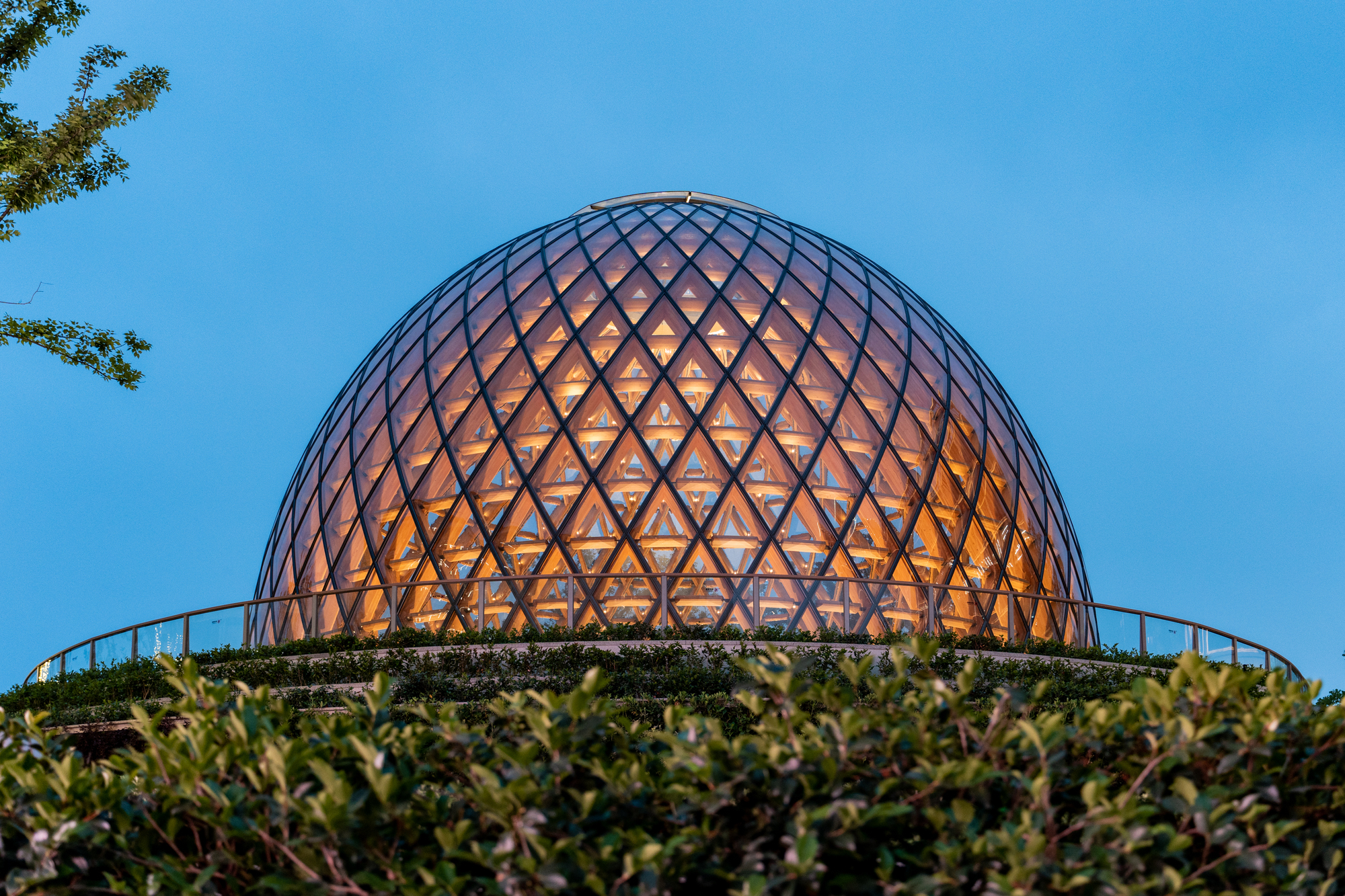

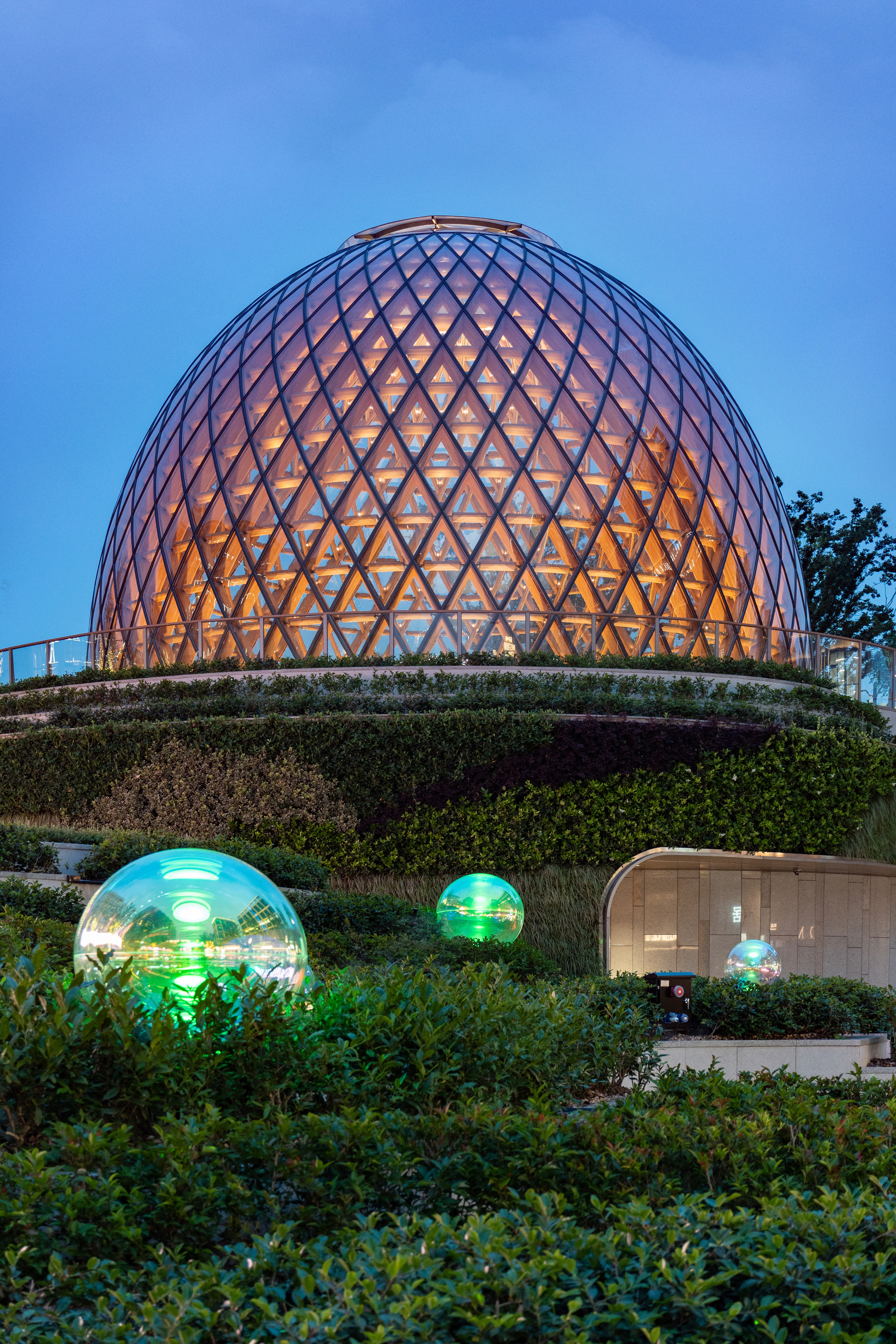

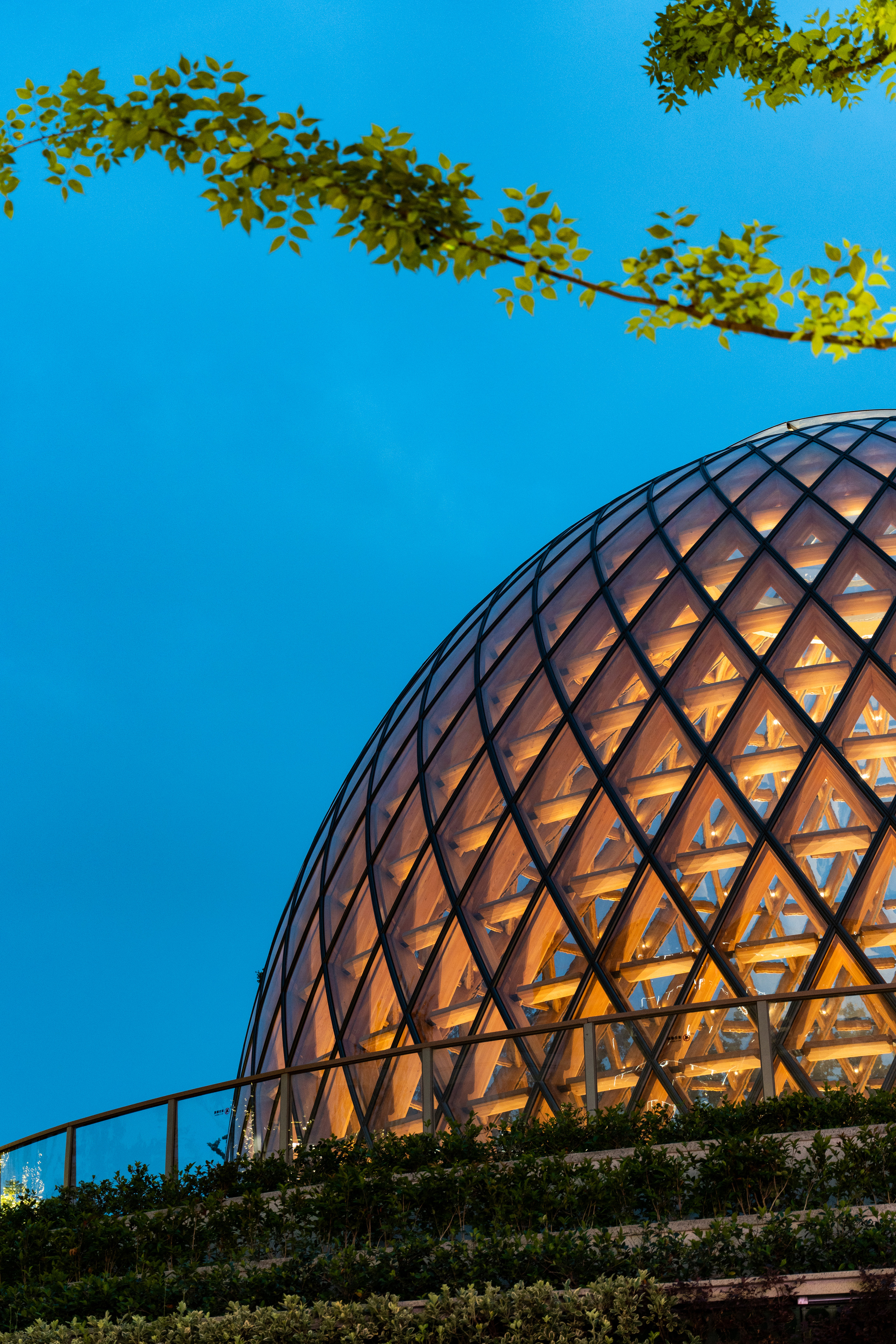

Lighting by Brandston Partnership Inc. turns the dome into a warm object at twilight. The timber glows amber behind the glass, the diamond grid sharpens against the deep blue sky, and lit glass spheres in the terraces extend the effect into the landscape.

This night presence is arguably where the pavilion contributes most to the waterfront. Against the cool, uniform light of the surrounding towers, a single warm volume reads as a gathering point. It gives the corridor a hearth.

Plans and Drawings

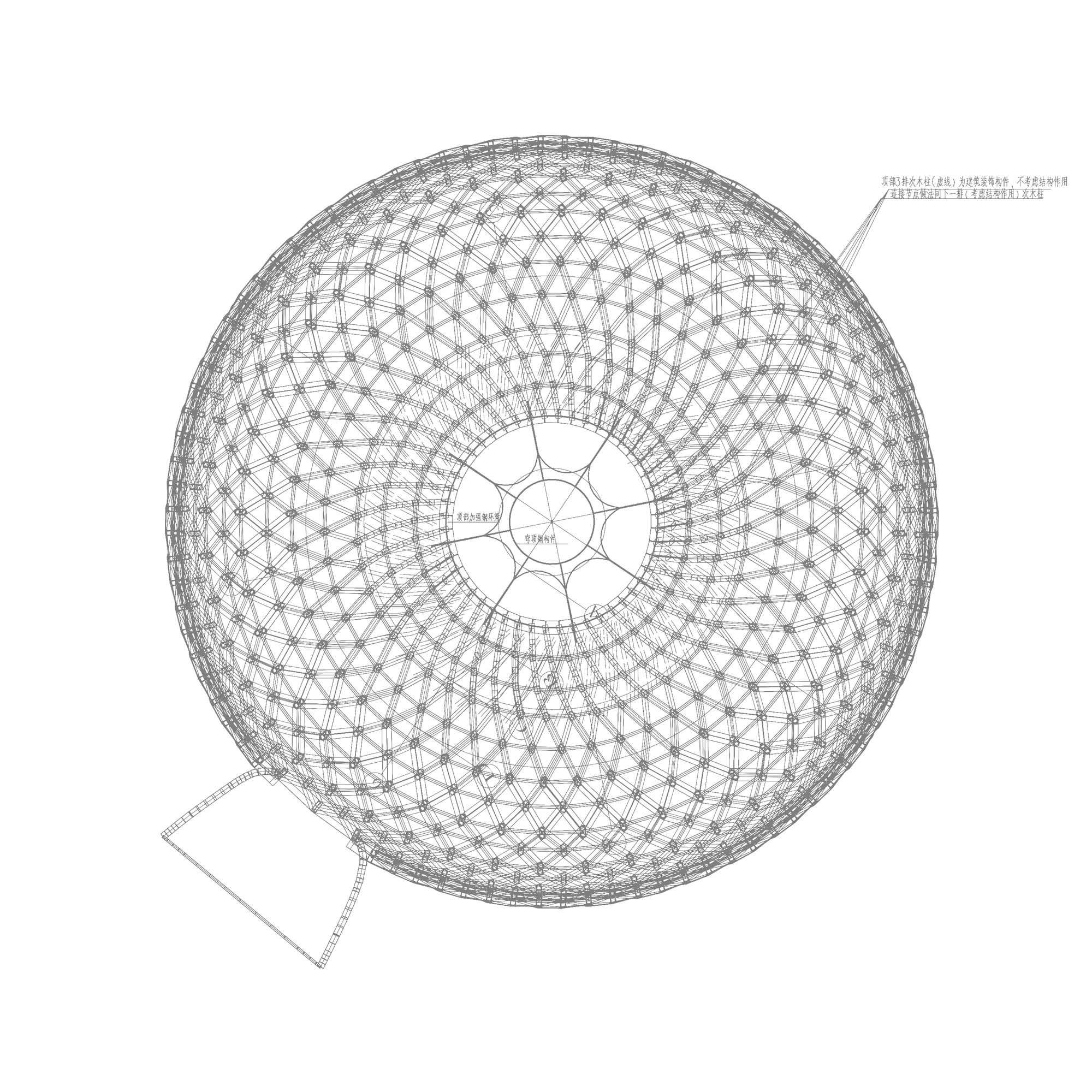

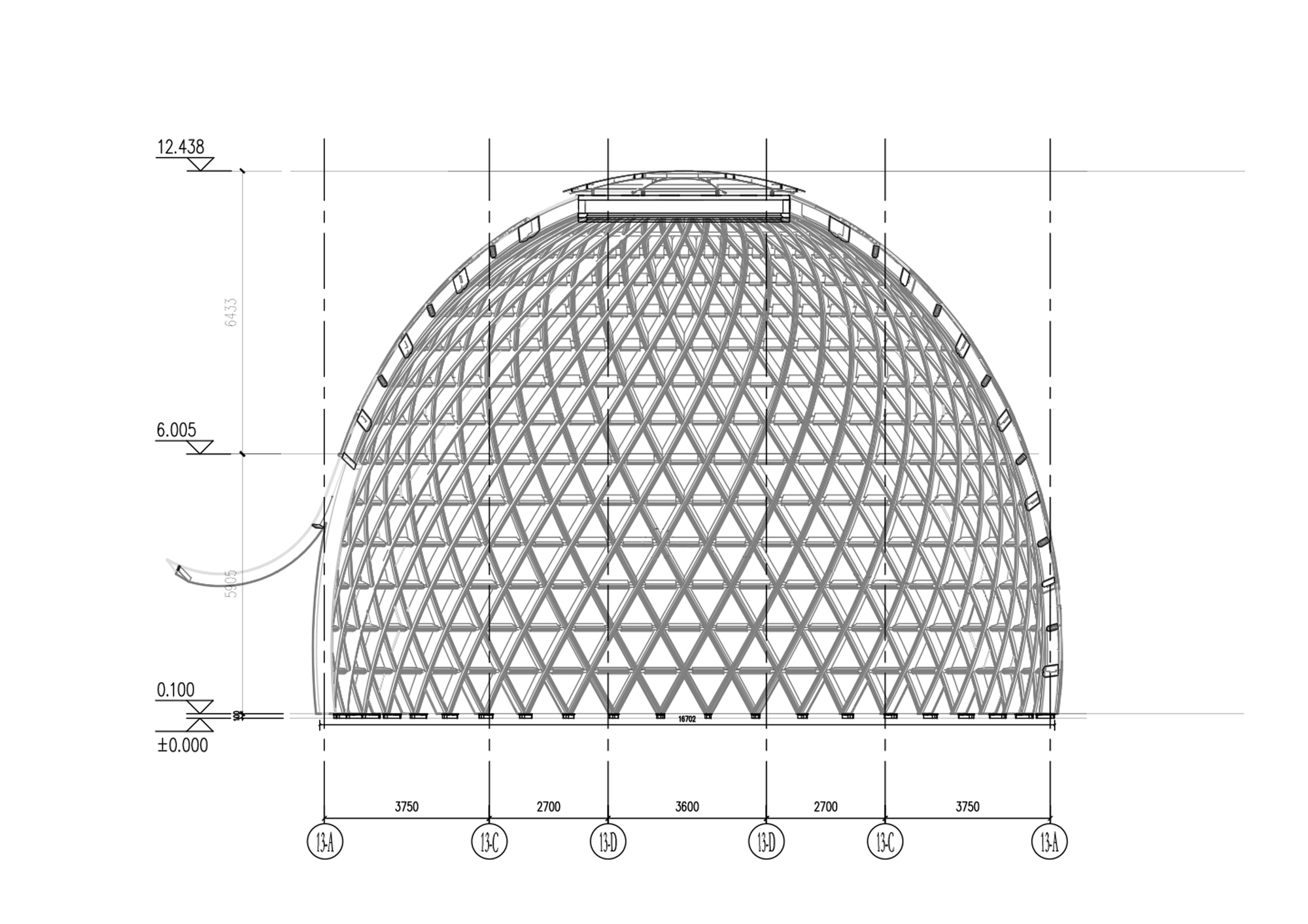

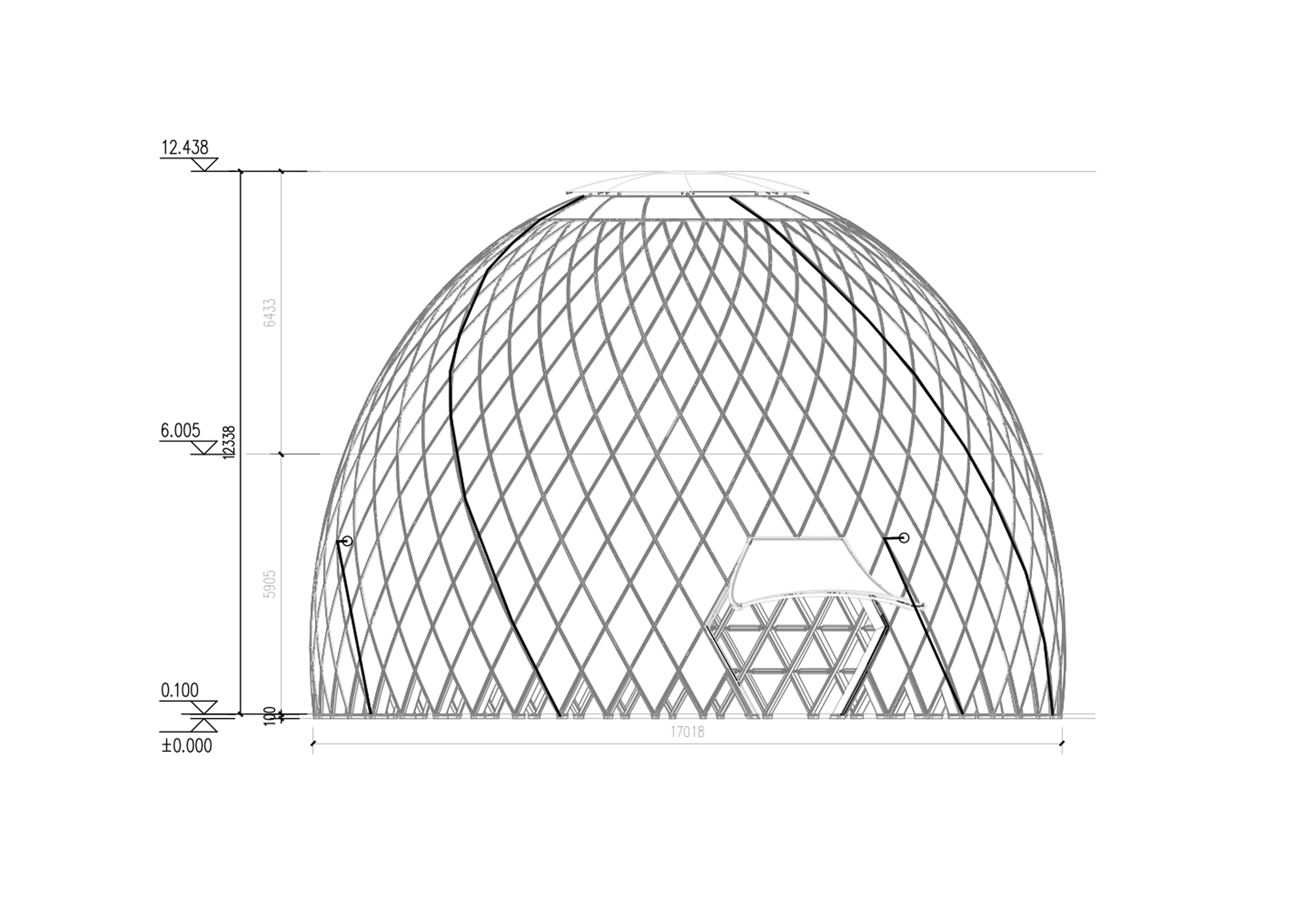

The plan confirms the simplicity of the organization: a circular lattice with a central oculus ring and a single small projecting entrance. The elevations show how the crossing ribs are set out against level marks and a regular base grid, with a modest canopy marking the opening.

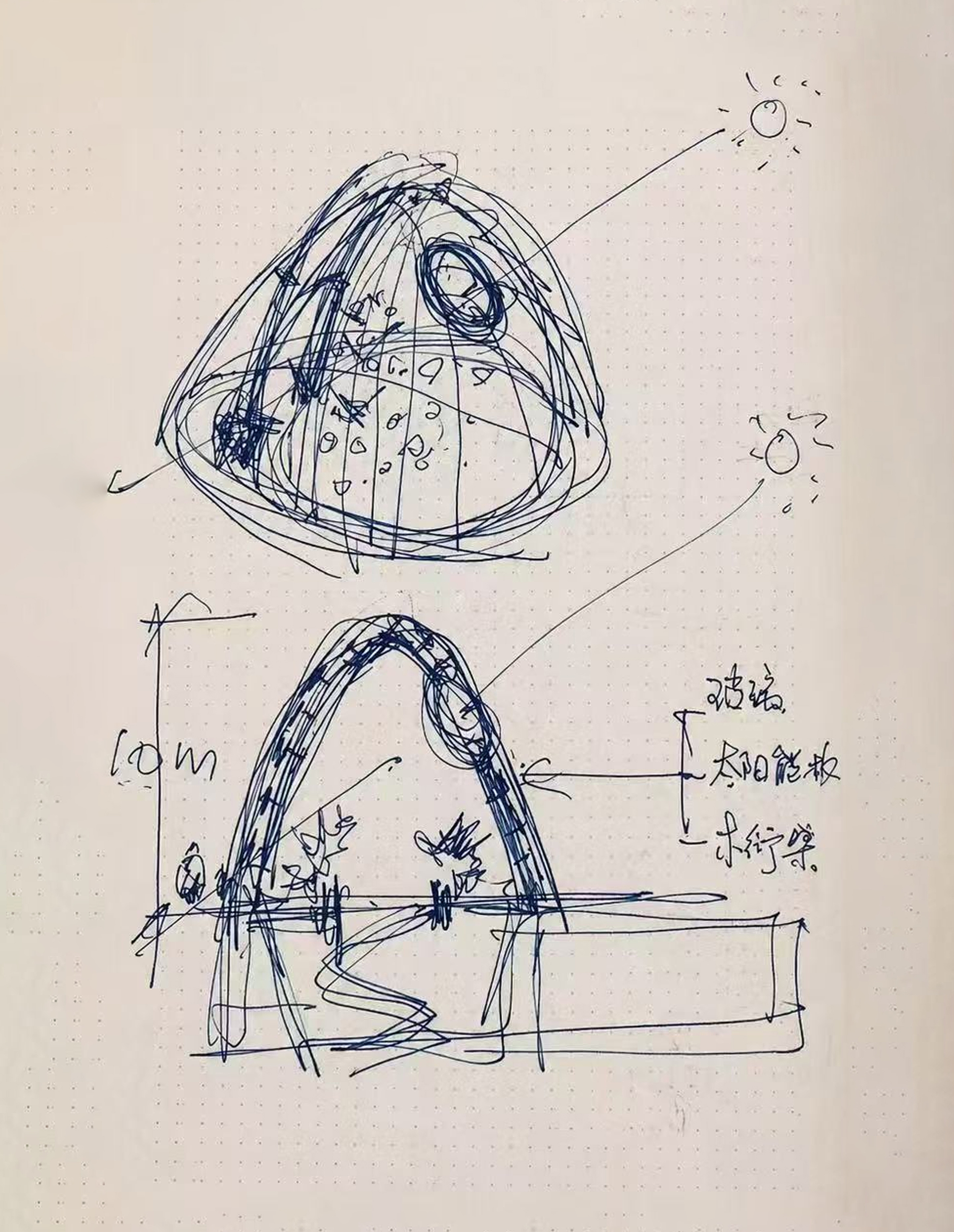

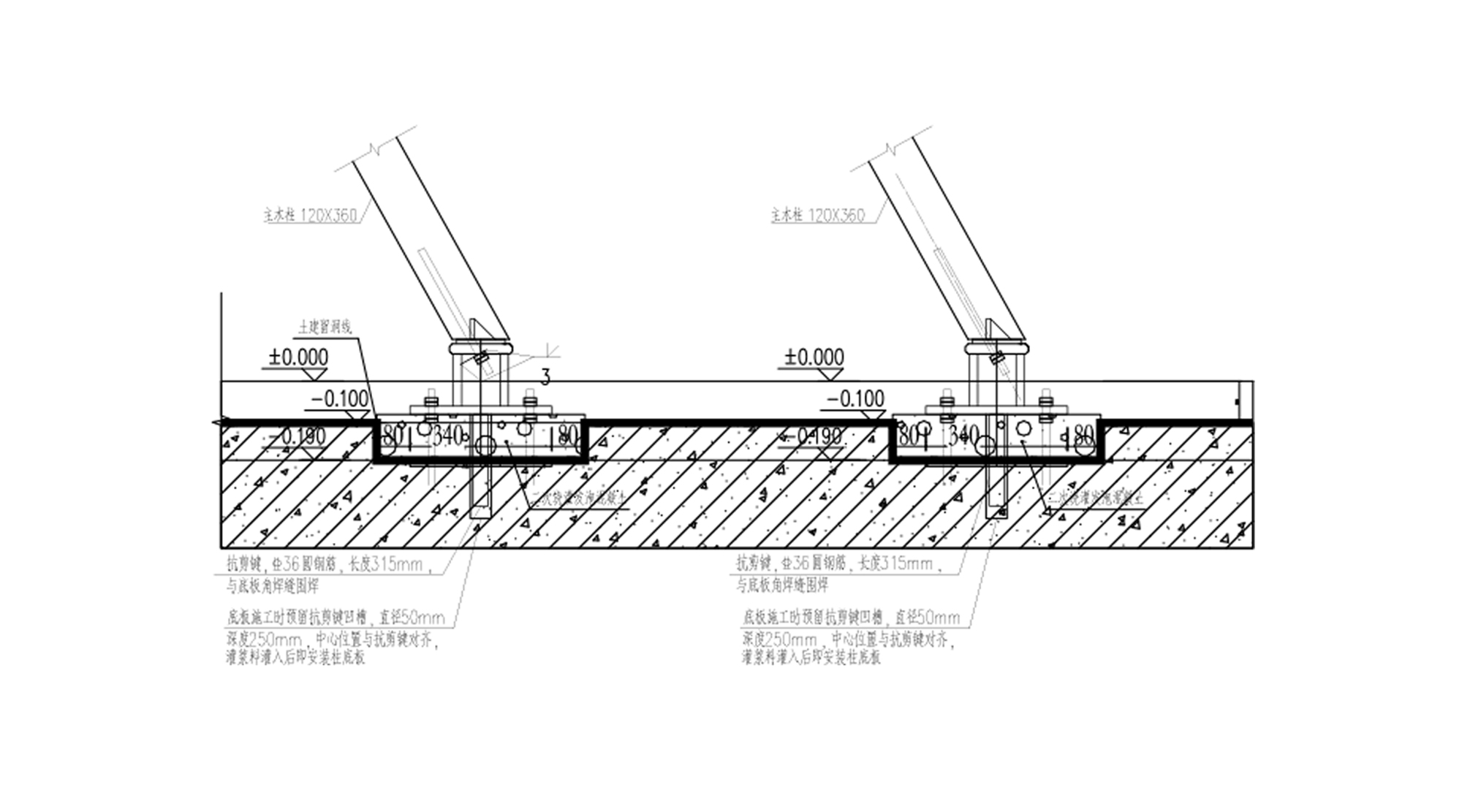

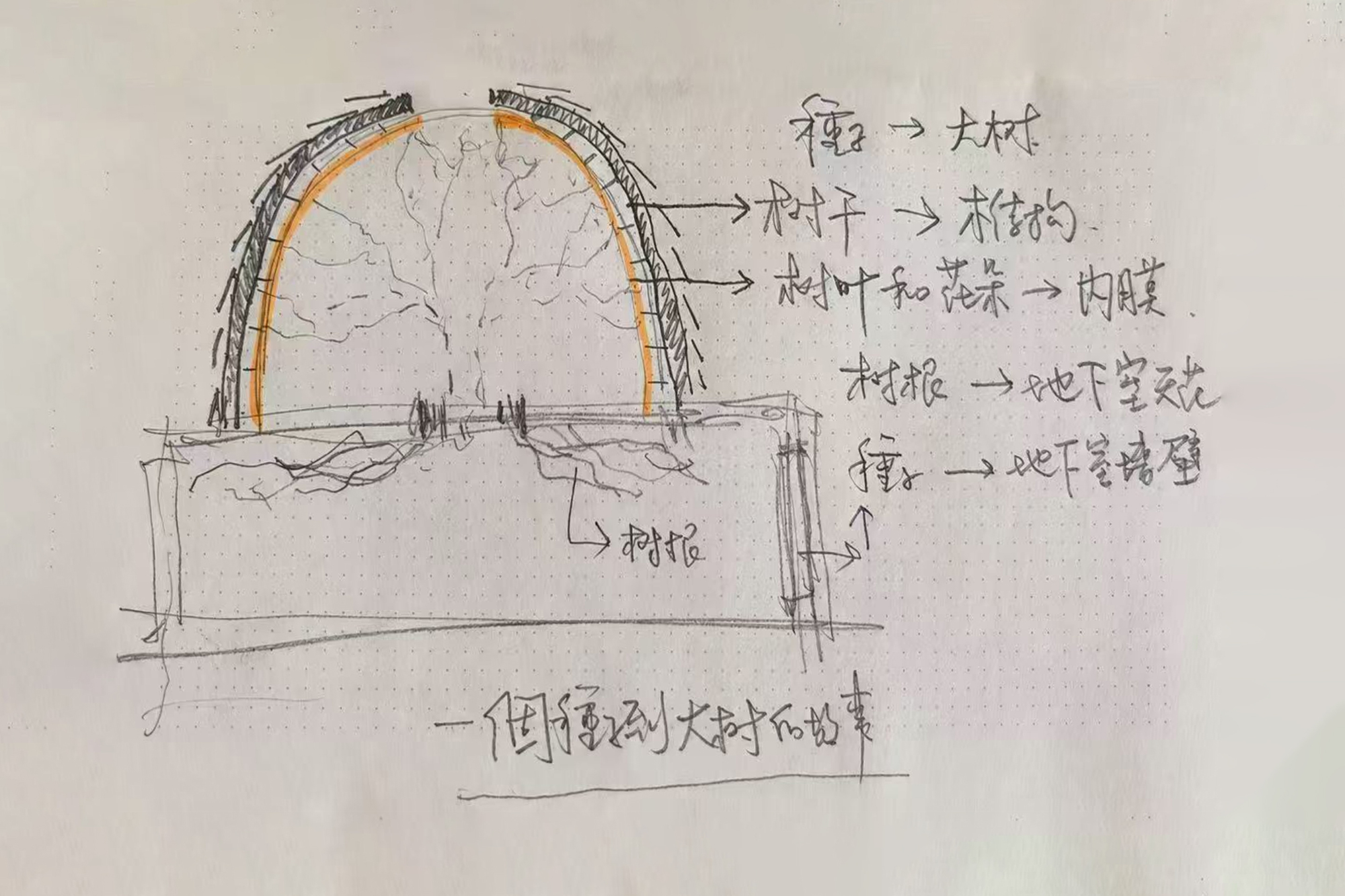

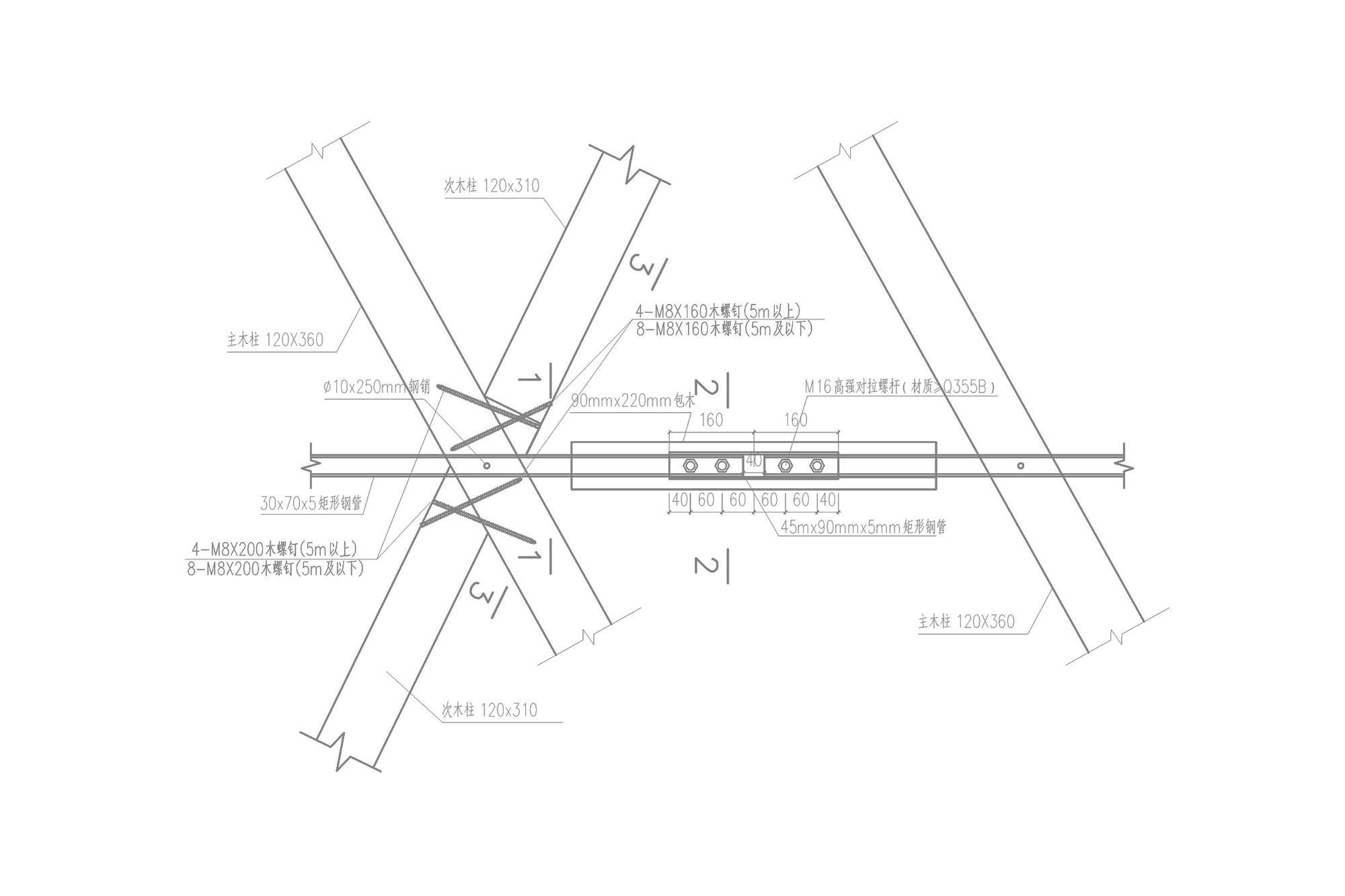

The construction details are the most revealing drawings in the set. One shows a steel base anchoring inclined timber members into a recessed concrete slab; another shows a node where diagonal timber members cross a steel flat bar with a bolted plate. The early hand sketches are telling too. One pencil section imagines the dome sheltering a large tree, with notes linking roots to basement walls, which suggests the "seed" idea was rooted in landscape thinking from the very first lines.

Why This Project Matters

Shanghai's waterfront has spent a decade converting industrial edges into cultural ground, and much of that work has come in the form of large institutions. THE SEED shows that a small, permanent structure can hold its own in that sequence if it commits to a clear idea. Its value lies in coherence: one structural system, carried from base shoe to oculus, explained in its own details.

For developers and designers working on commercial landscapes, the lesson is useful. You do not need spectacle to create a landmark; you need legibility, a strong relationship with the ground, and a presence that holds up after dark. REAL Architects and Challenge Design have delivered all three in 230 m², and the West Bund is better anchored for it.

THE SEED Pavilion by REAL Architects and Challenge Design, West Bund Central Phase II, Shanghai, China. Area: 230 m². Completed: 2026. Photography: XIRU IMAGERY.
