VYN Studio Wraps a Concrete L-Plan Around a Private Courtyard in Kanchanaburi

Most houses in tropical climates announce their strategy with a single move: deep overhangs, raised floors, perforated screens. Baan Meesook, completed in 2024 by VYN Studio in the quiet Tamaka district of Kanchanaburi, Thailand, does something more layered. It turns its back to the punishing western sun with a near-solid concrete facade, then folds open into an L-shaped courtyard that catches morning light and channels prevailing breezes through double-height voids. The result is a house that feels simultaneously fortified and transparent, depending on where you stand.

At 296 square meters, the residence is not enormous, but it reads as generous because of how carefully VYN Studio orchestrated the relationship between enclosed rooms and open thresholds. The courtyard is not a decorative addition; it is the organizing principle of the entire plan. Every major living space orients toward it, and a triangular steel-framed roof structure hovers above the transitional zones, filtering light through translucent panels rather than blocking it outright. The project is a case study in how passive design, when executed with spatial ambition, can produce architecture that is both rigorous and genuinely pleasant to inhabit.

A Solid Face to the West

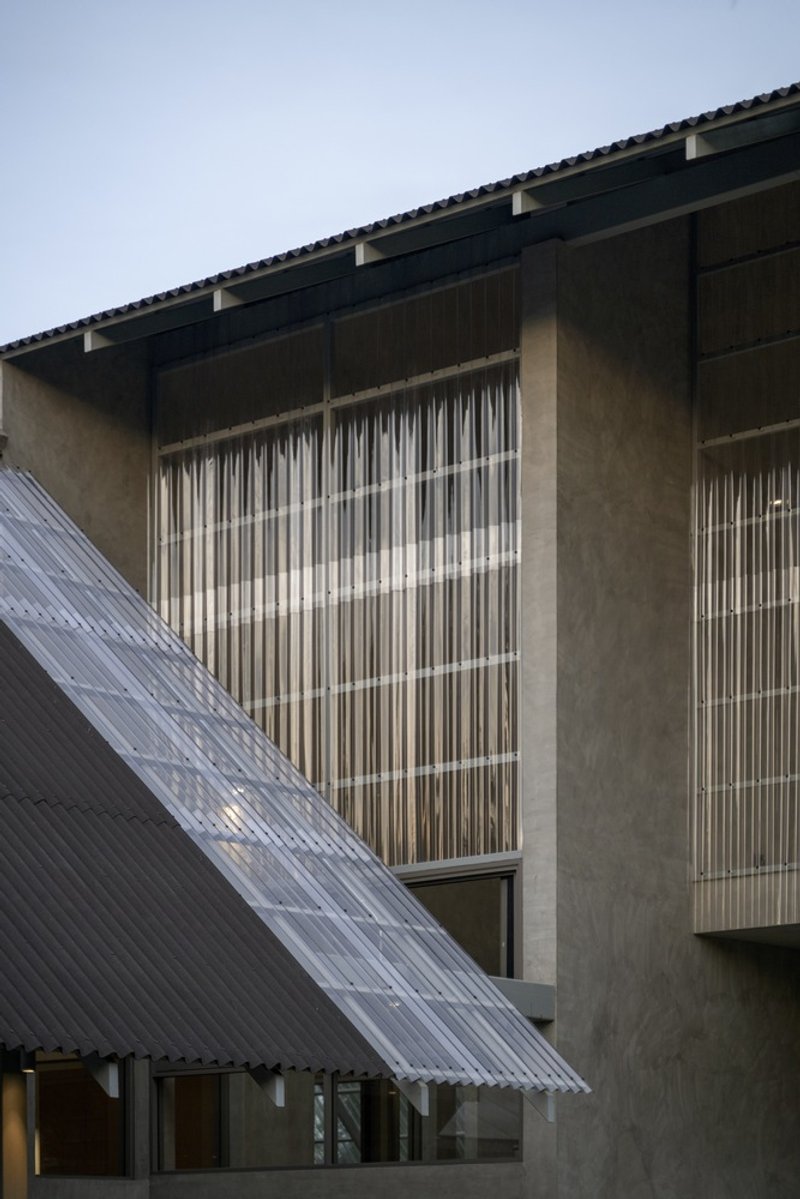

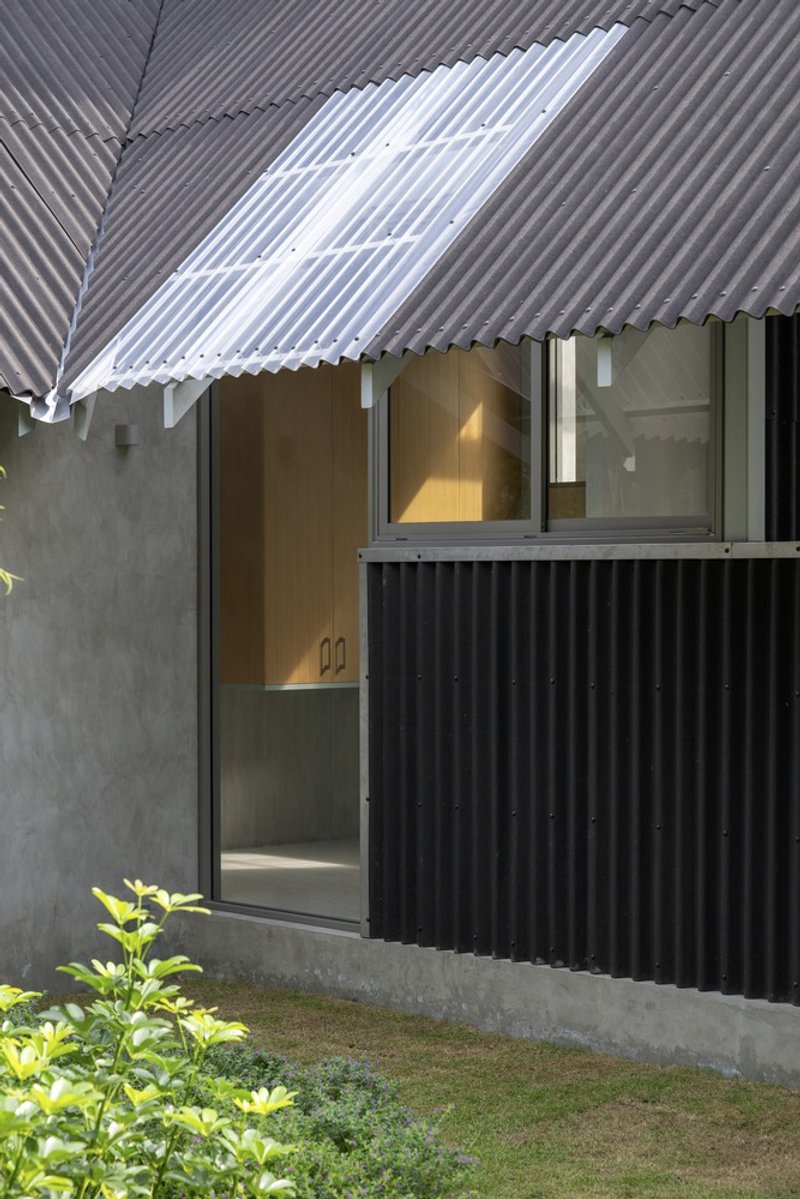

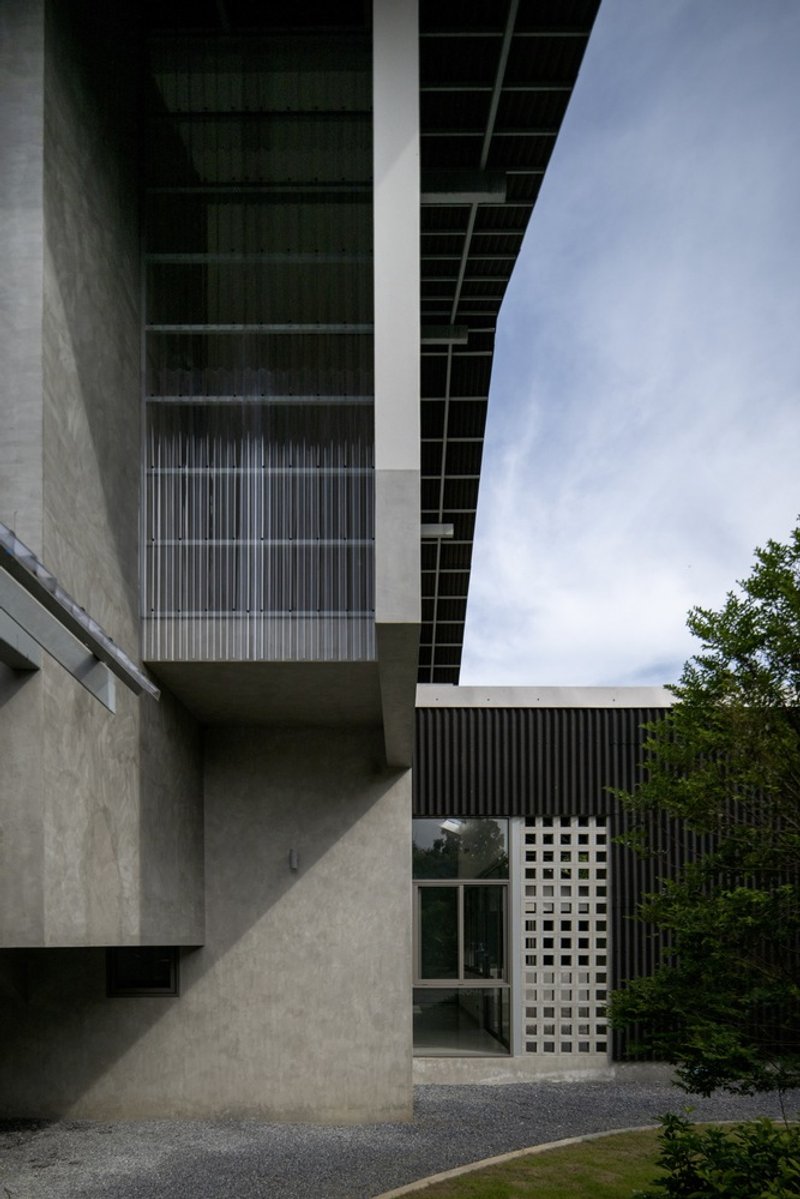

The west-facing facade is the house's primary act of self-defense. Concrete volumes stack and cantilever, punctuated only by vertical metal slat screens that admit slivers of light without inviting the full force of the afternoon sun. Corrugated metal cladding wraps portions of the upper mass, adding texture and a sense of industrial honesty that prevents the solid wall from feeling monolithic. The composition reads as a series of stacked boxes rather than a single barrier, which gives the elevation visual weight without heaviness.

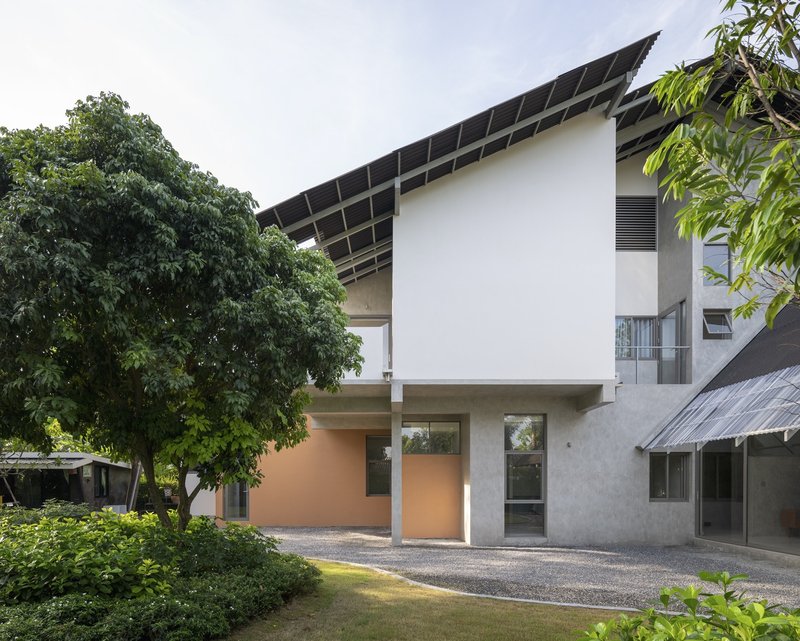

This deliberate opacity also serves privacy. Set within the quiet landscape of Kanchanaburi, the house does not need to shout its presence. The asymmetrical window openings visible through mature trees suggest habitation without exposing interior life, a restrained approach that lets the architecture participate in the calm of its surroundings rather than compete with it.

The Courtyard as Climate Machine

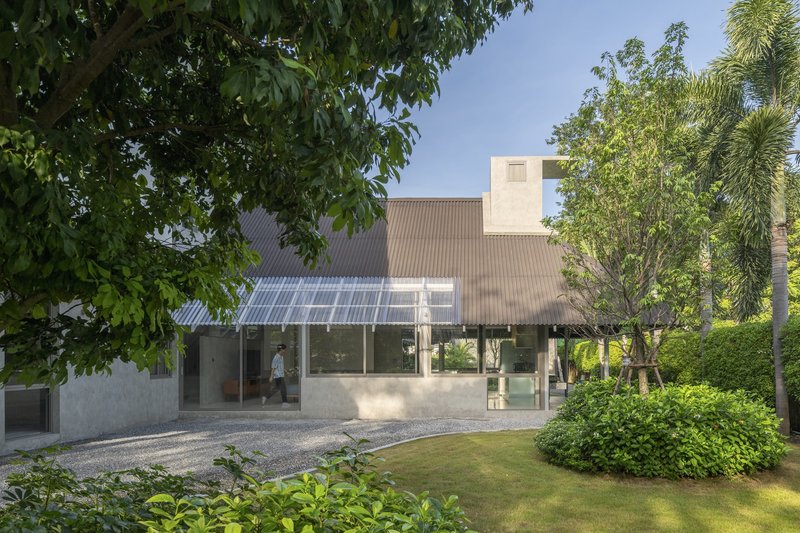

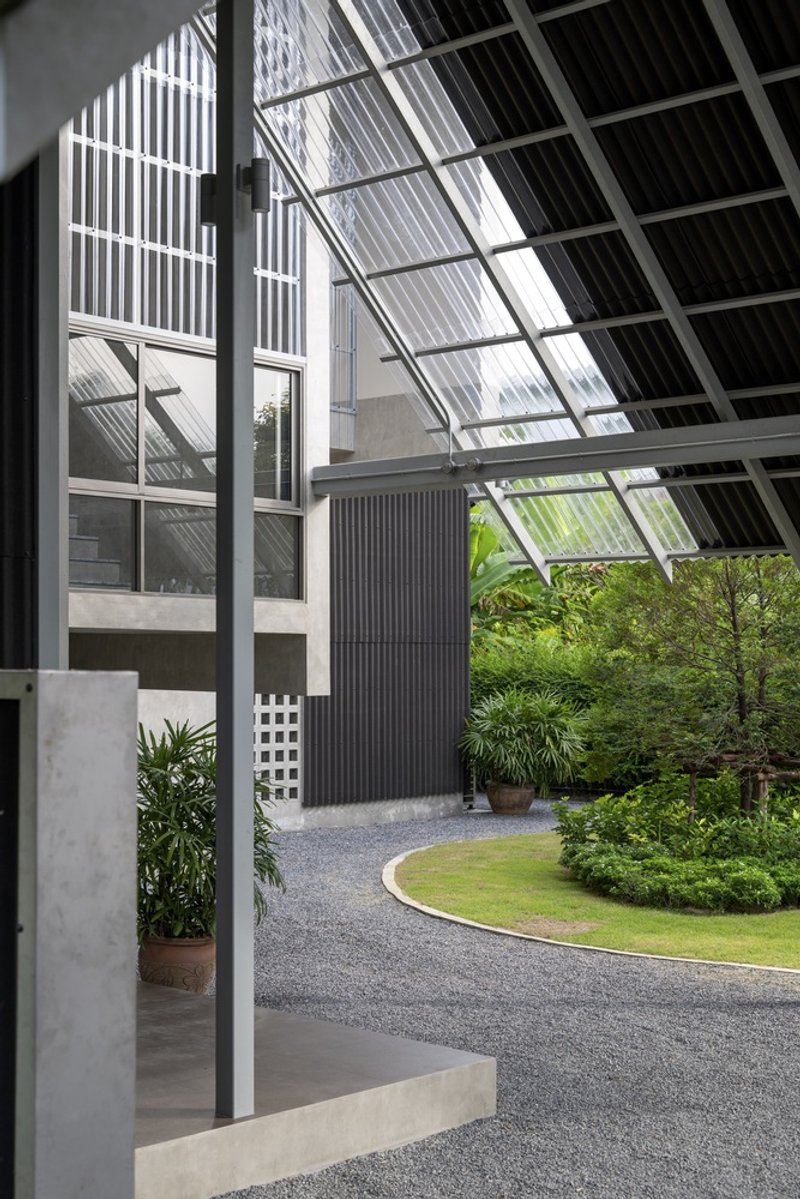

Walk past the solid exterior and the house inverts. Gravel paths wind through planted beds beneath a sloped glazed roof, and the courtyard unfolds as a shaded, breathing core. Oriented to receive eastern morning sun, the courtyard stays cool through the heat of the day while drawing air through the house by convection. Palm trees planted within the gravel surface act as vertical punctuation, their canopies adding another layer of shade below the translucent corrugated canopy overhead.

The use of gravel instead of poured concrete for ground surfaces is a practical choice that pays off in two ways: it reduces construction cost and dramatically improves water drainage during Kanchanaburi's monsoon season. The planted edges soften the boundary between built and unbuilt ground, making the courtyard feel less like an outdoor room and more like a garden that happens to be sheltered by architecture.

Double-Height Voids and the Gabled Section

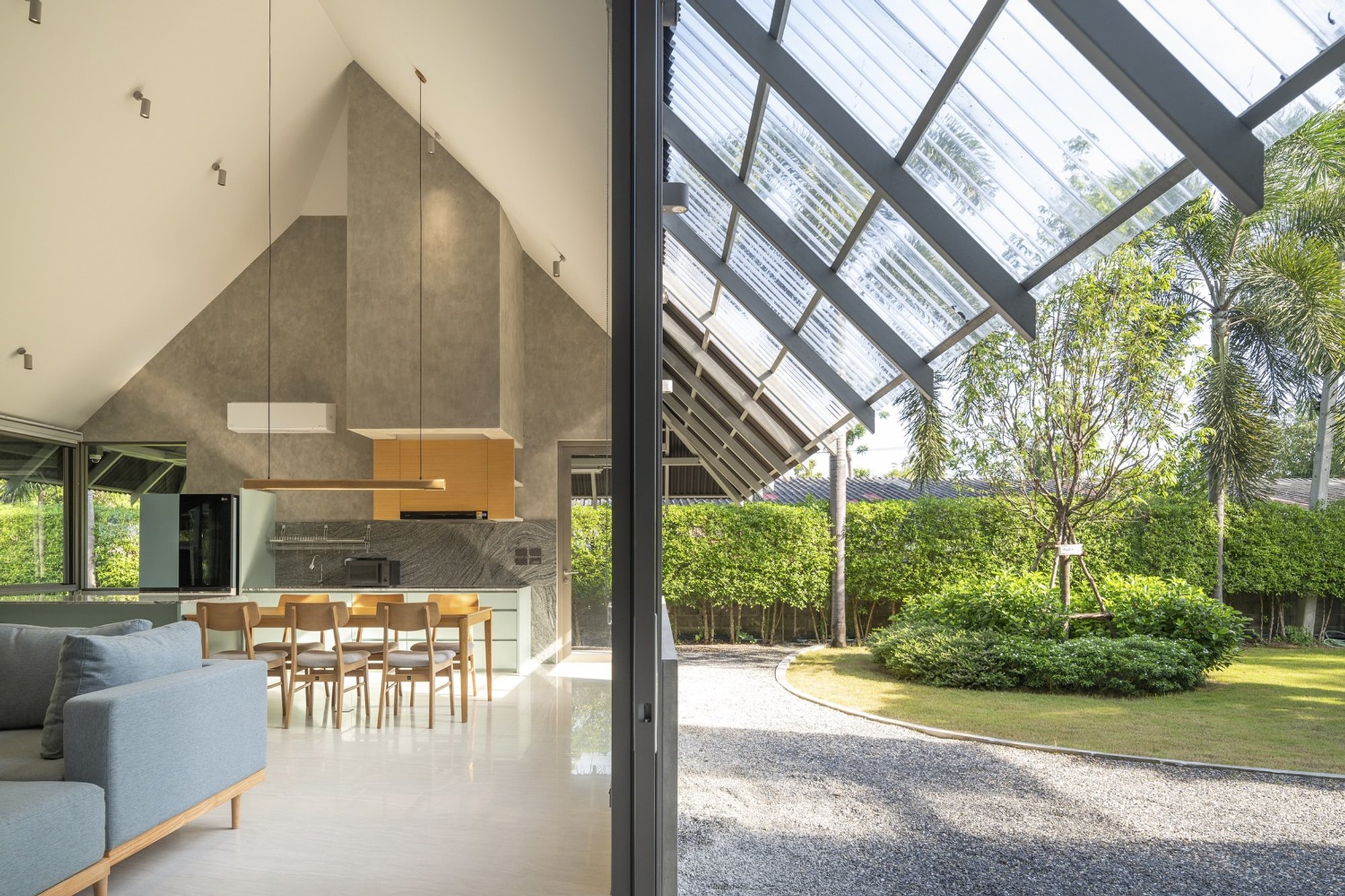

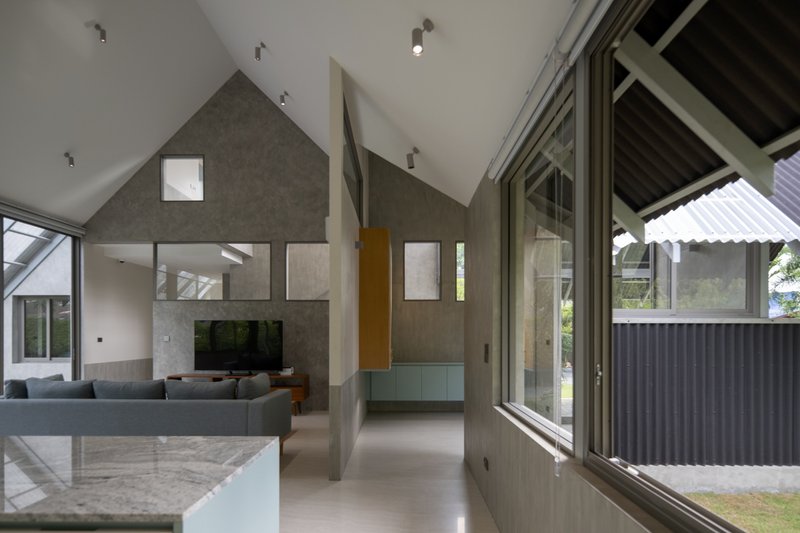

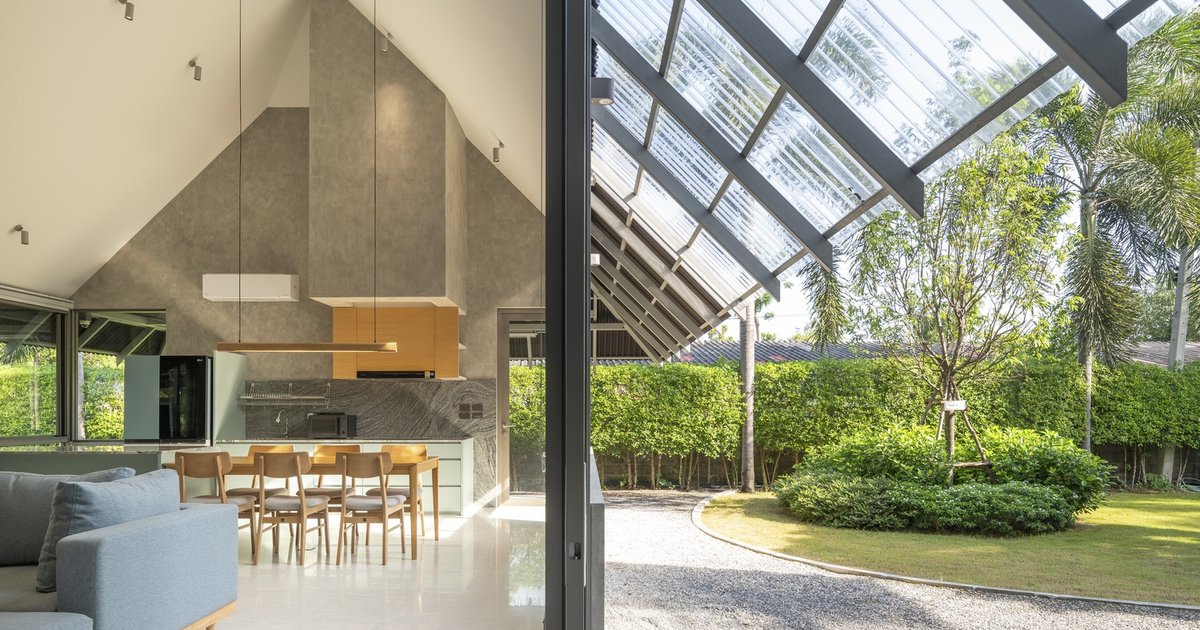

The most spatially ambitious move in Baan Meesook is the double-height living space beneath the angled roof. A triangular steel framework supports translucent panels that flood the room with diffused light, while full-height glazing on the courtyard side dissolves the wall entirely. The gabled concrete walls rise to meet this roof structure, creating a section that recalls the profile of vernacular Thai houses without literally quoting them. It is an abstraction of pitch, not a replica.

Heat insulation installed beneath the roof works in concert with the sloping ceiling to promote stack-effect ventilation: warm air rises to the peak and exits, pulling cooler air through the lower openings. The strategy is straightforward thermodynamics, but VYN Studio turns it into architecture by letting you see the mechanism. The exposed corrugated roof structure and the visible steel framing make the cooling strategy legible rather than hidden behind drywall.

Living Spaces That Open Outward

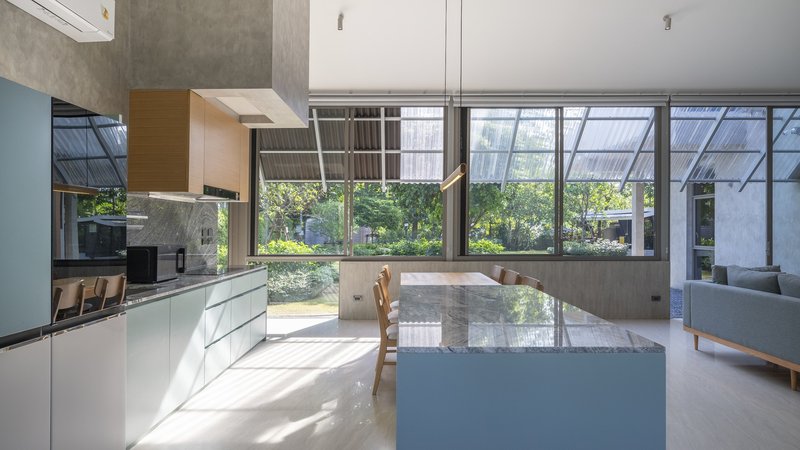

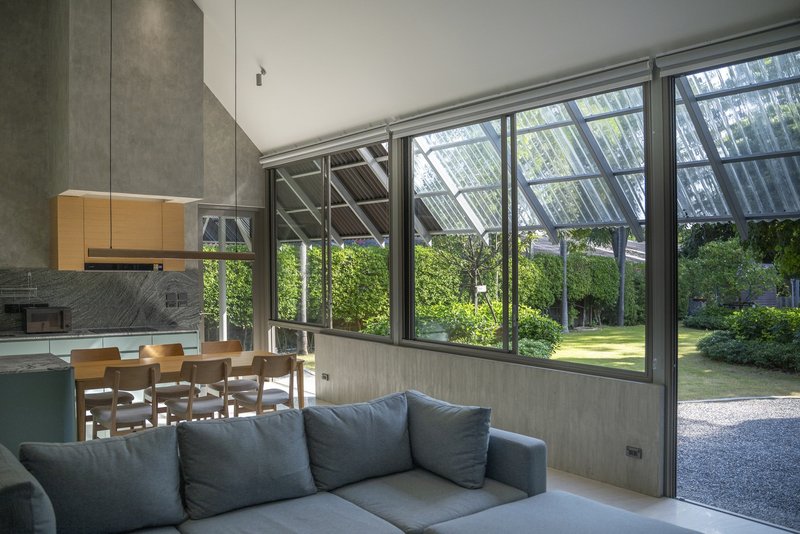

The open-plan living and dining area occupies the ground floor of the L, with floor-to-ceiling glazing framing the garden on one side and the courtyard on the other. A marble-topped kitchen island sits beneath exposed concrete beams, anchoring the cooking zone within the larger flow of the space. The material palette is restrained: cement-colored walls, timber cabinetry, and concrete ceilings with a pitched profile that adds volume without decoration.

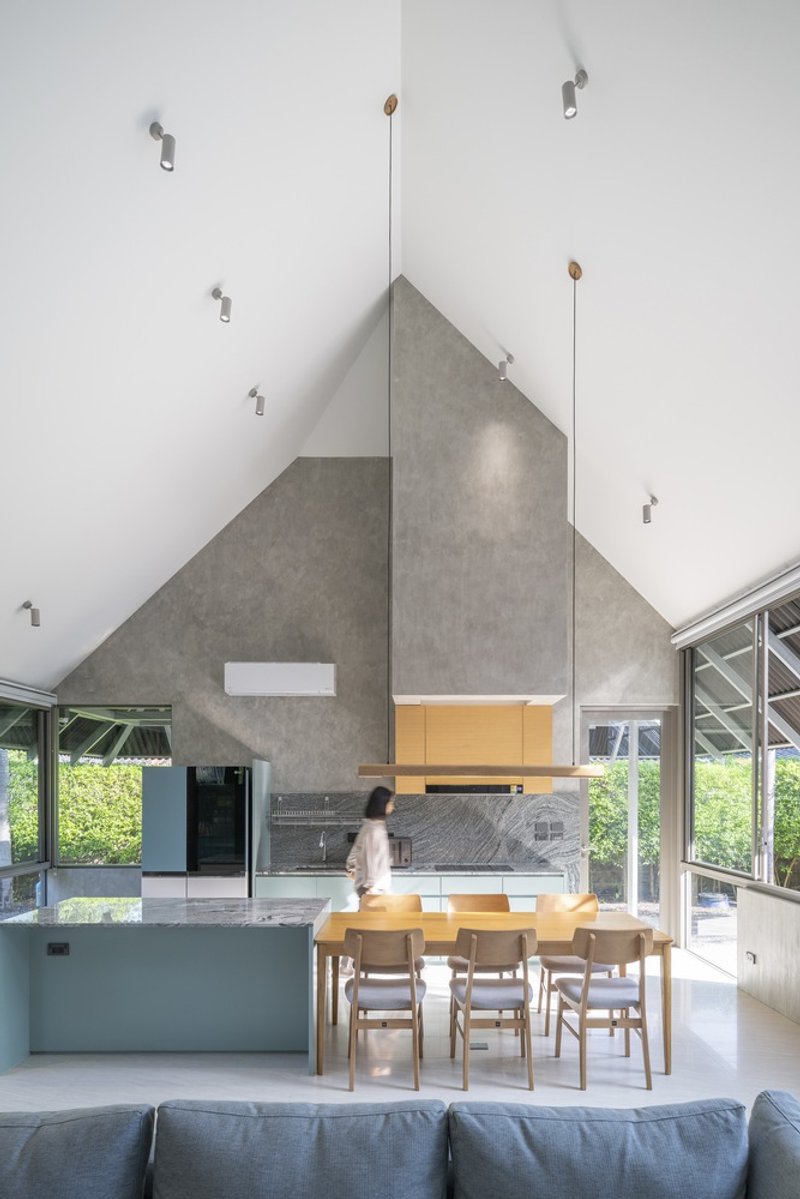

What keeps these interiors from feeling austere is the constant presence of green. Every window frames vegetation, and the pitched concrete ceiling in the dining area catches light from a clerestory that washes the upper wall. The furniture is minimal and functional, which is the correct call here. In a house where the architecture already creates drama through section and light, the furnishings need only to stay out of the way.

Thresholds and In-Between Spaces

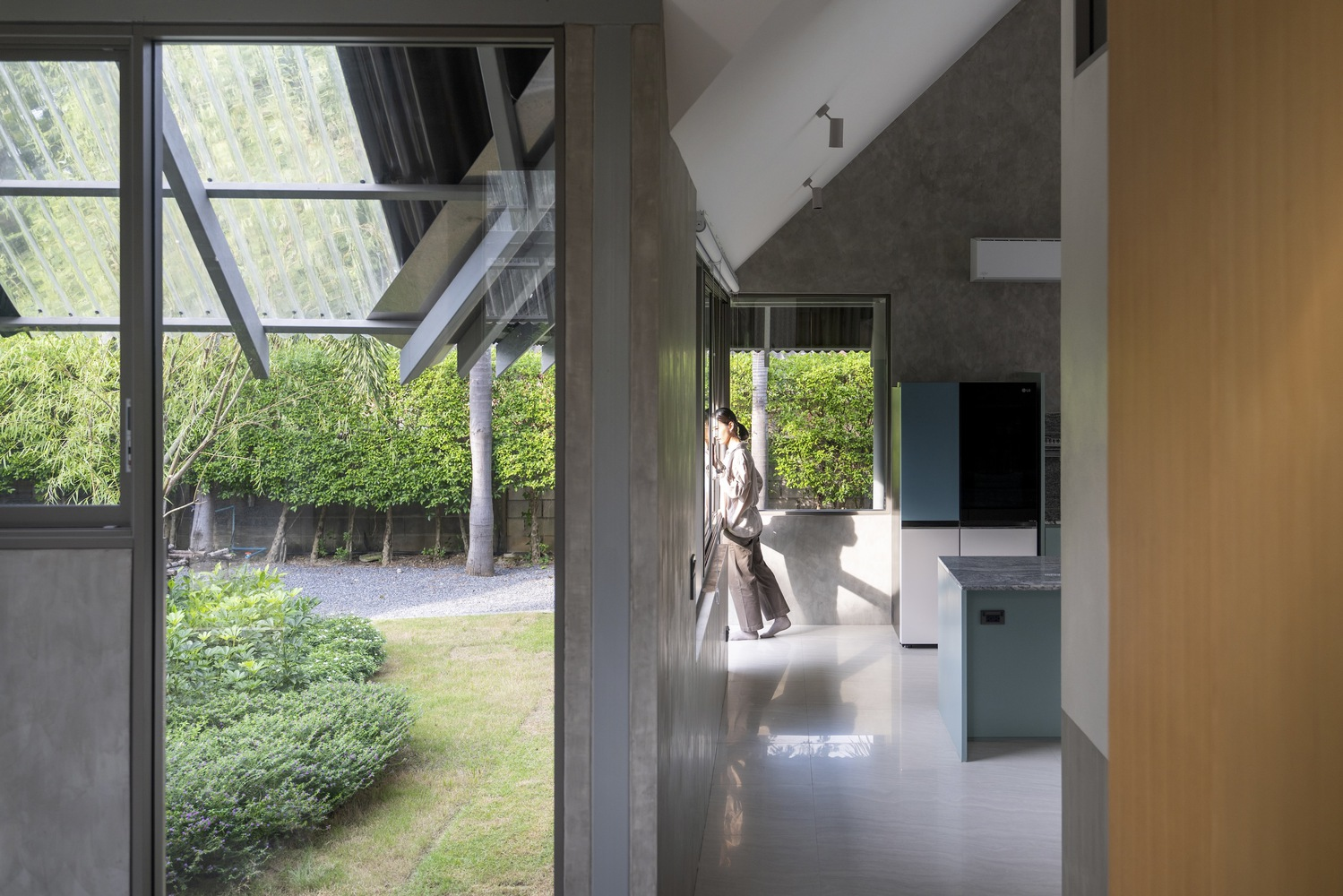

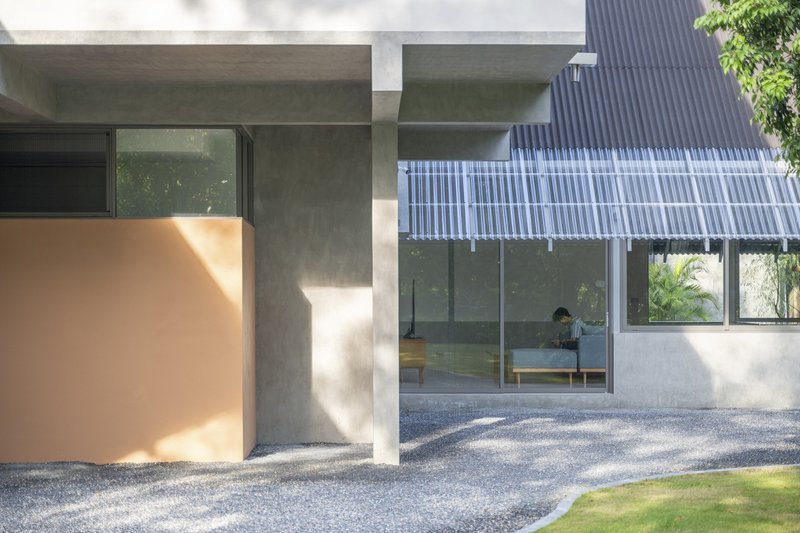

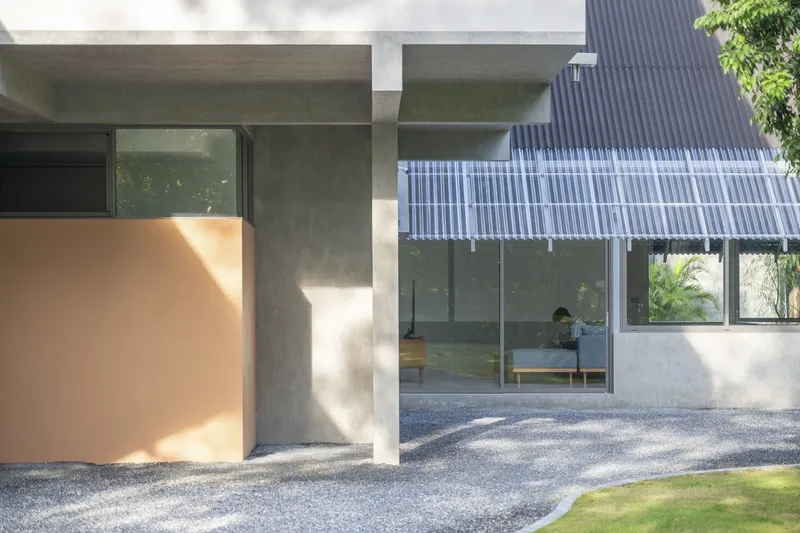

Baan Meesook is rich in transitional zones: covered porches, glazed hallways, and entry plazas that belong neither fully inside nor fully outside. A covered concrete porch with a peach-colored wall element introduces color sparingly, a warm accent against the prevailing grey. Bamboo screening along one corridor filters views to the lawn courtyard beyond, creating a sense of depth and layering that makes the 296 square meters feel considerably larger.

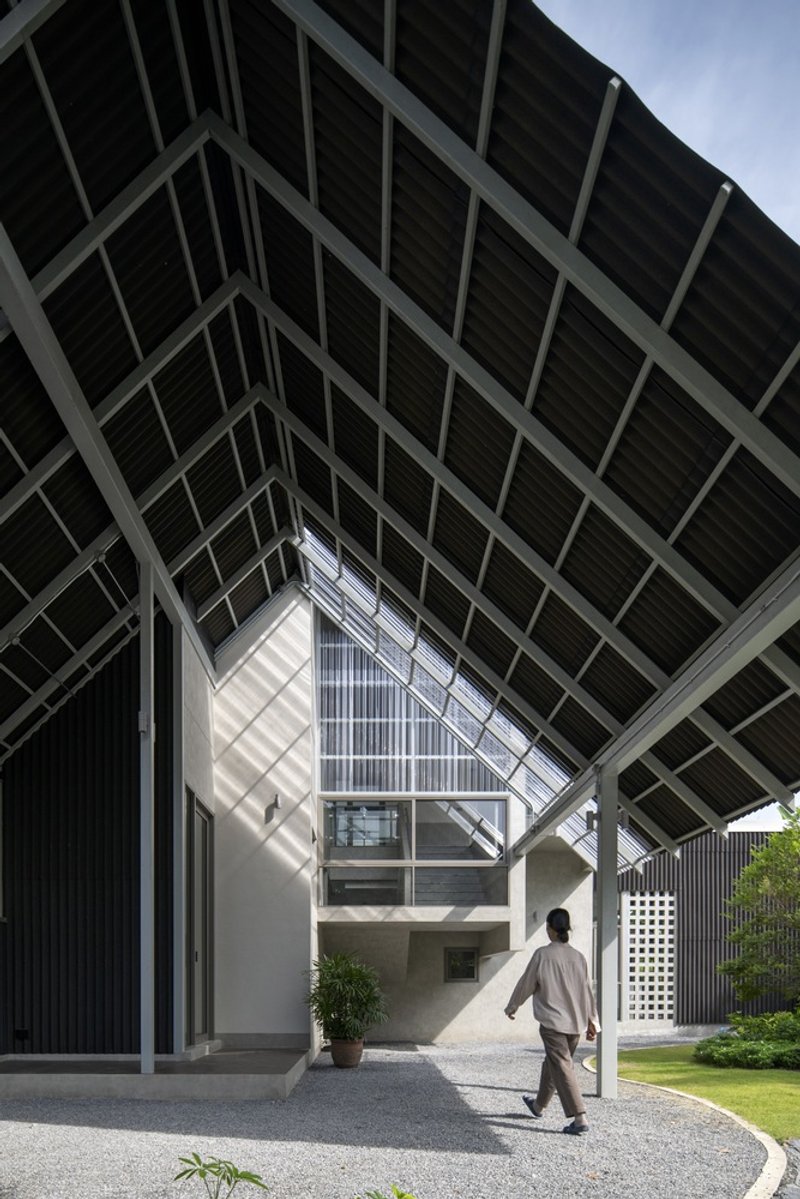

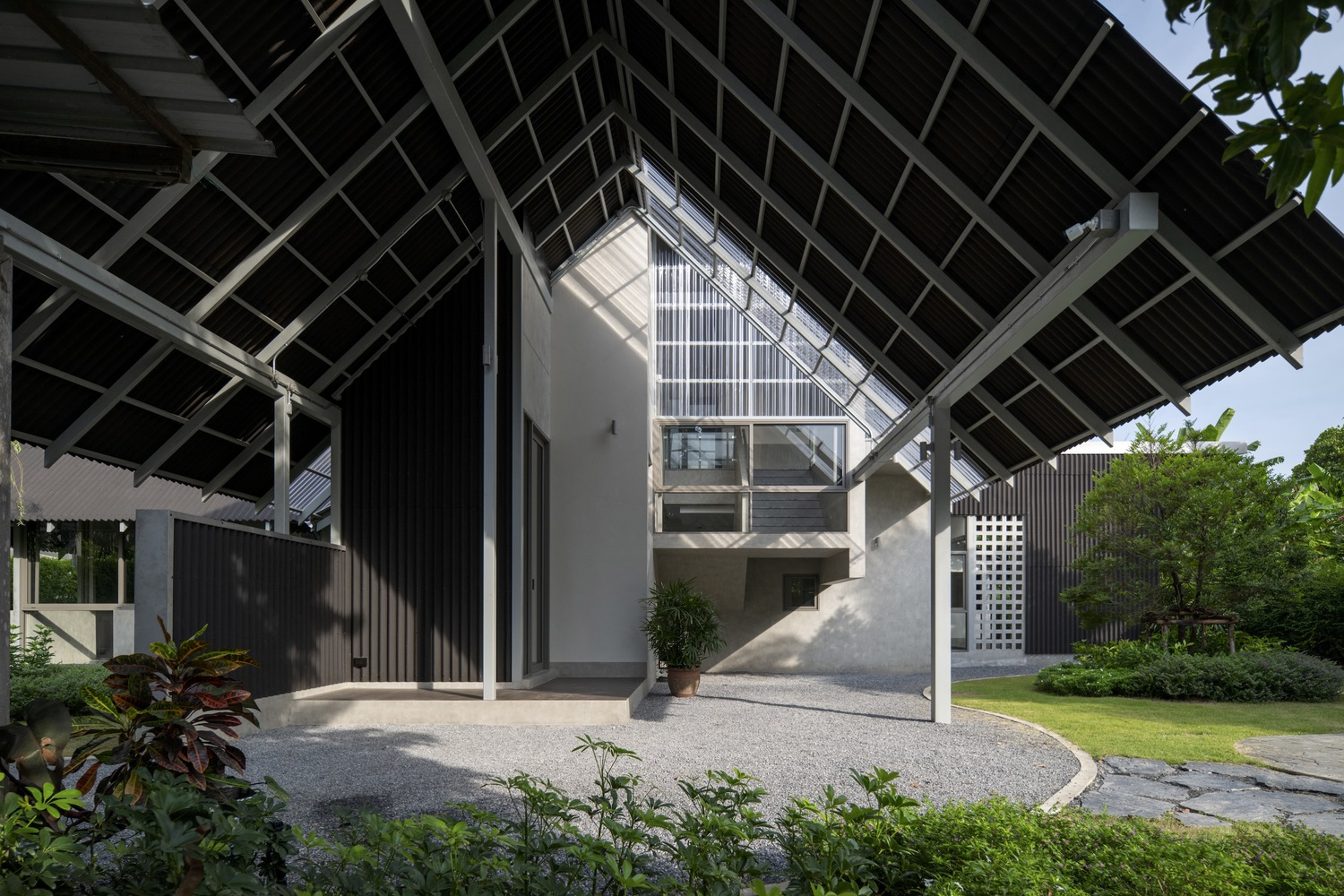

The entry plaza, surfaced in gravel and sheltered by the triangular pitched roof, sets the tone before you step inside. Potted plants cluster around the path, and the overhead structure casts geometric shadows that shift through the day. These in-between spaces are where the house is most itself: neither sealed nor exposed, but calibrated to the specific conditions of light, heat, and humidity that define life in western Thailand.

Vertical Circulation and the Glazed Stair

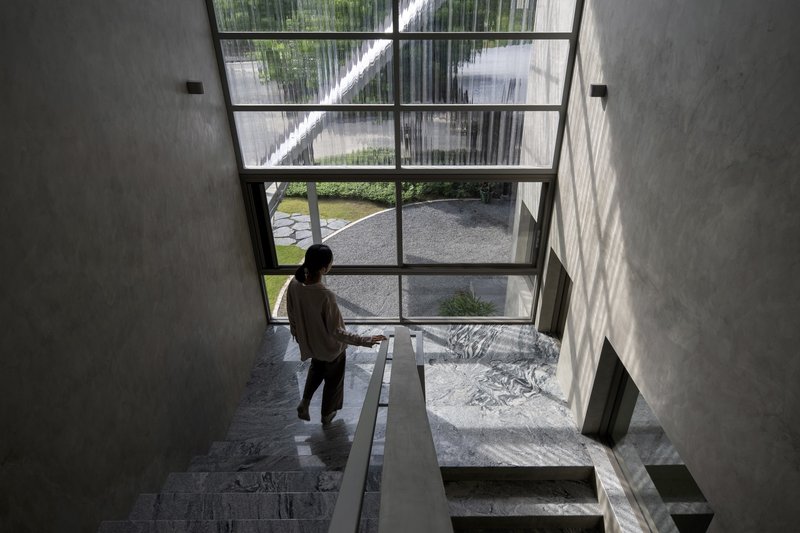

The staircase, positioned beside a full-height glazed wall overlooking the courtyard, turns vertical circulation into a moment of connection with the landscape. From above, a person descending the stairs is framed against greenery, a cinematic quality that feels intentional rather than incidental. The concrete stair volume reads as a solid element punched through the lighter, glazed envelope, reinforcing the contrast between mass and transparency that defines the whole project.

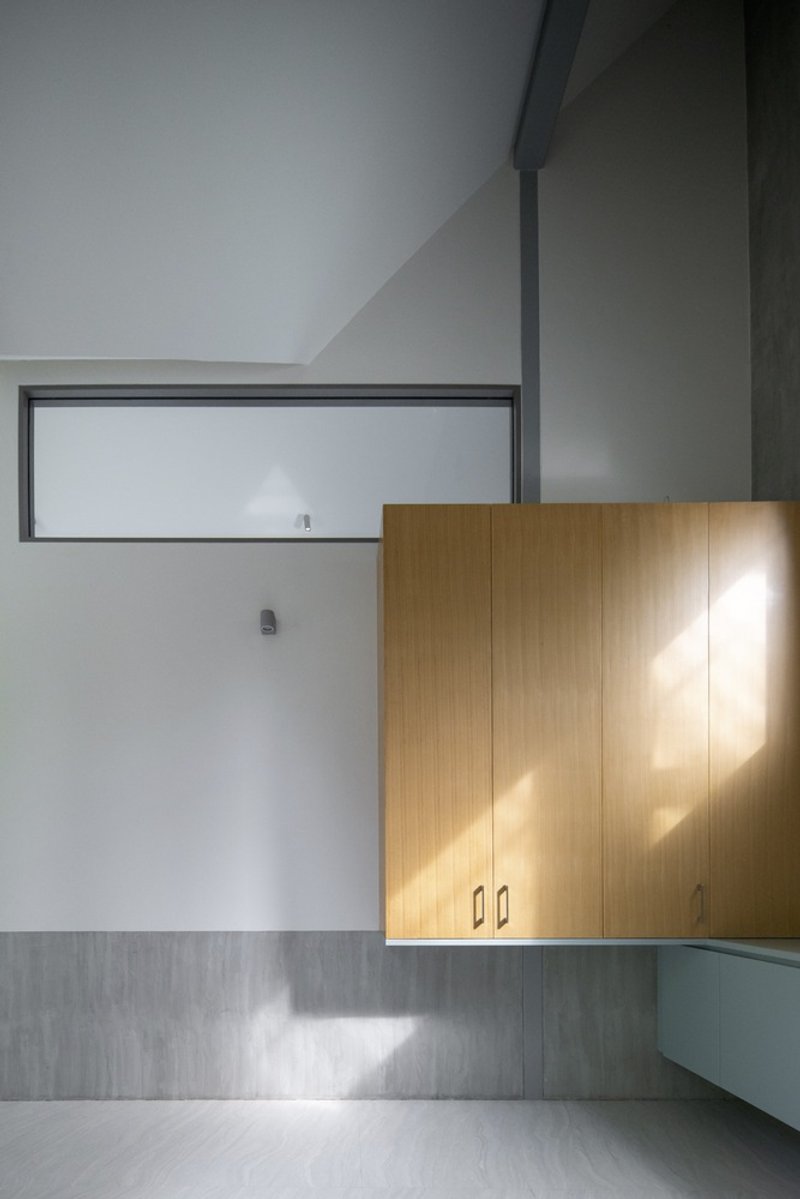

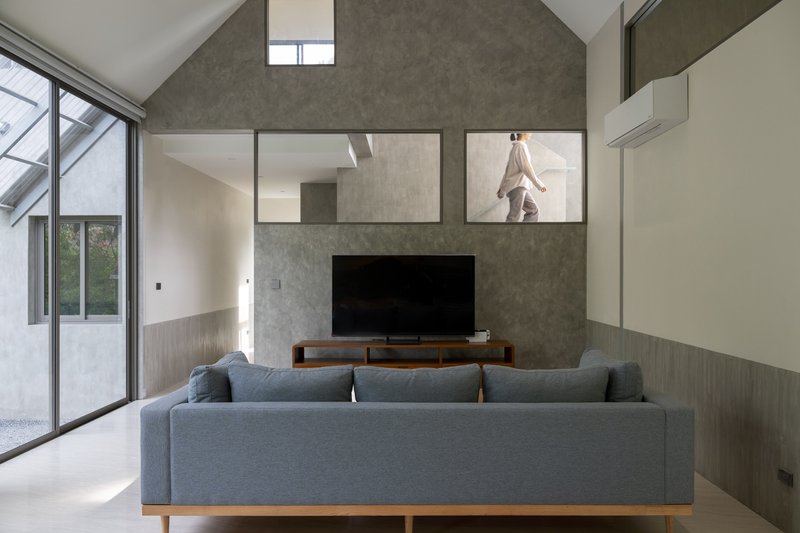

On the upper level, clerestory openings above the living room wall bring light into secondary spaces while maintaining visual separation between floors. Timber cabinetry beneath a horizontal clerestory window catches afternoon sunlight, proving that even service zones deserve considered daylighting. These small moves, individually unremarkable, accumulate into a house where every room has a relationship with the sky.

Plans and Drawings

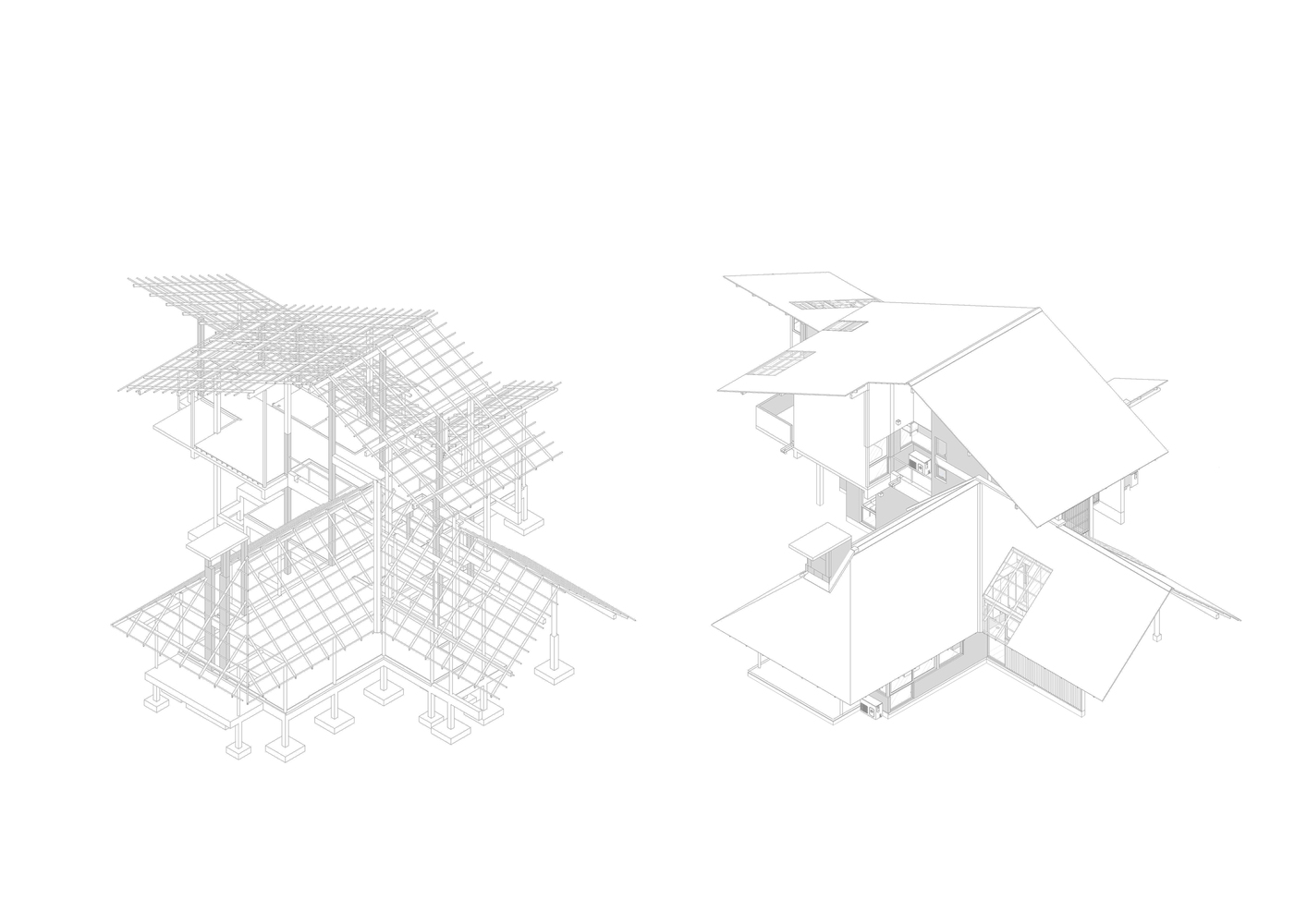

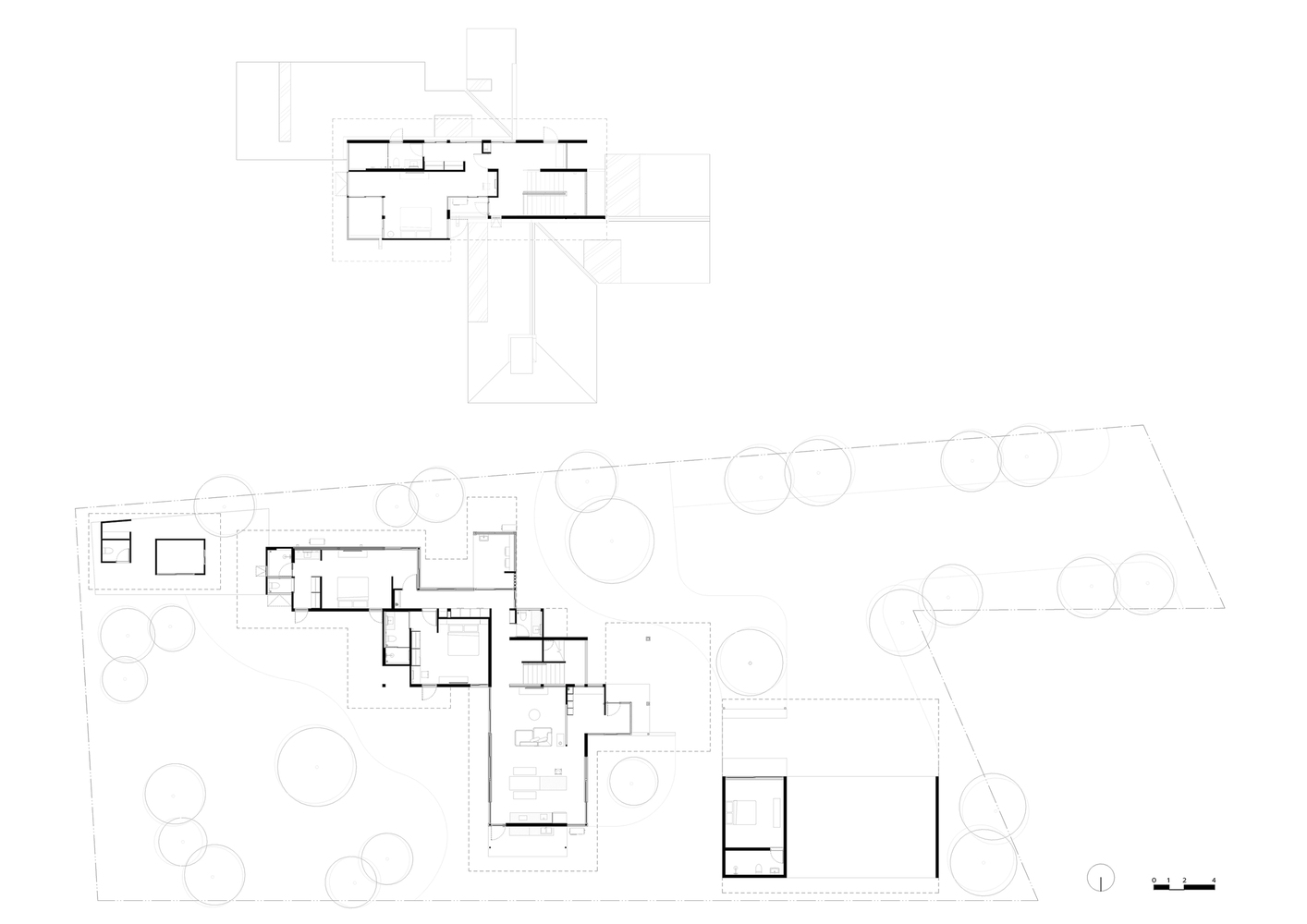

The site plan confirms what the photographs suggest: multiple building volumes arranged around landscaped grounds, with circular tree canopies punctuating the composition. The L-shaped footprint is clearly legible, wrapping two sides of the courtyard while leaving the remaining edges open to the garden. The axonometric drawings reveal the structural framework in exploded view, showing how the angled roof planes sit atop the concrete masses on a steel grid. The separation between structure and enclosure is deliberate, allowing the translucent panels and corrugated cladding to be treated as lightweight skins rather than load-bearing walls.

Why This Project Matters

Baan Meesook matters because it demonstrates that passive climate strategies and spatial generosity are not competing goals. The solid western wall, the courtyard orientation, the stack-effect roof section, and the gravel drainage surfaces are all pragmatic responses to Kanchanaburi's hot climate and seasonal rains. But VYN Studio treats each of these moves as an architectural opportunity rather than a technical obligation, turning the gabled roof into a dramatic interior volume and the courtyard into the social center of the house.

In a residential market where sustainability often means adding technology on top of conventional plans, this house takes the opposite approach. It starts with orientation, section, and material mass, the oldest tools in the architectural kit, and builds outward from there. The 296 square meters feel twice their size because the boundaries between inside and outside are deliberately blurred. For a studio working at a domestic scale in rural Thailand, that is a significant achievement: proof that a house can be simple, sustainable, and spatially ambitious all at once.

Baan Meesook by VYN Studio. Tamaka, Kanchanaburi, Thailand. 296 sq.m. Completed 2024. Structure Engineer: Phaitoon Guakool. Electrical Engineer: Pakin Jermjarung. Photography by Weerapon Singnoi.
