Tadu Arquitetura Turns a São Paulo Street Corner into a Red-Awninged Pasta Bar Built for Shared Tables

Marmotta Pasta Bar occupies a corner of Rua Manoel Guedes in Itaim Bibi, one of São Paulo's busiest dining districts. Tadu Arquitetura fitted it into 140 m². Restaurateur Pedro Siqueira found the existing building and proposed bringing the restaurant to the city. He runs it with chefs and partners Oscar Bosch and Pedro Oliveira. The name comes from the marmot, an Alpine animal that lives in groups. That one idea sets the brief: an informal restaurant where strangers share tables and the room feels communal before anyone orders.

What interests us is how little separation the architects allow between disciplines. Brand identity, facade, dining room and kitchen are handled as a single design problem rather than handed off to separate consultants. The palette makes that obvious. The red of the awnings returns in the banquettes, the door, the shelving and even small line drawings on the tiles. On a small corner plot in a district crowded with restaurants, that consistency does the work most restaurants assign to a sign.

The Corner as a Signboard

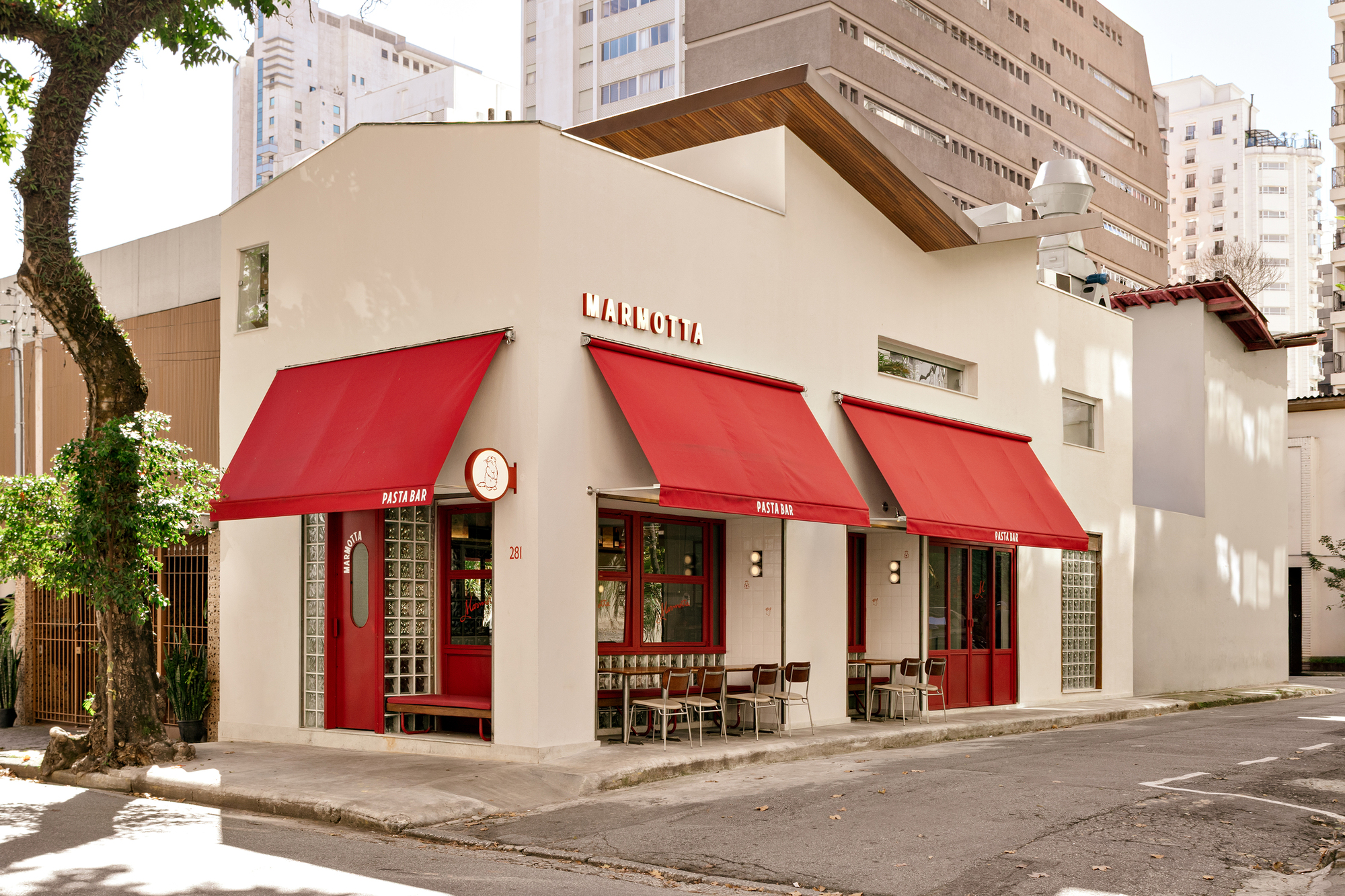

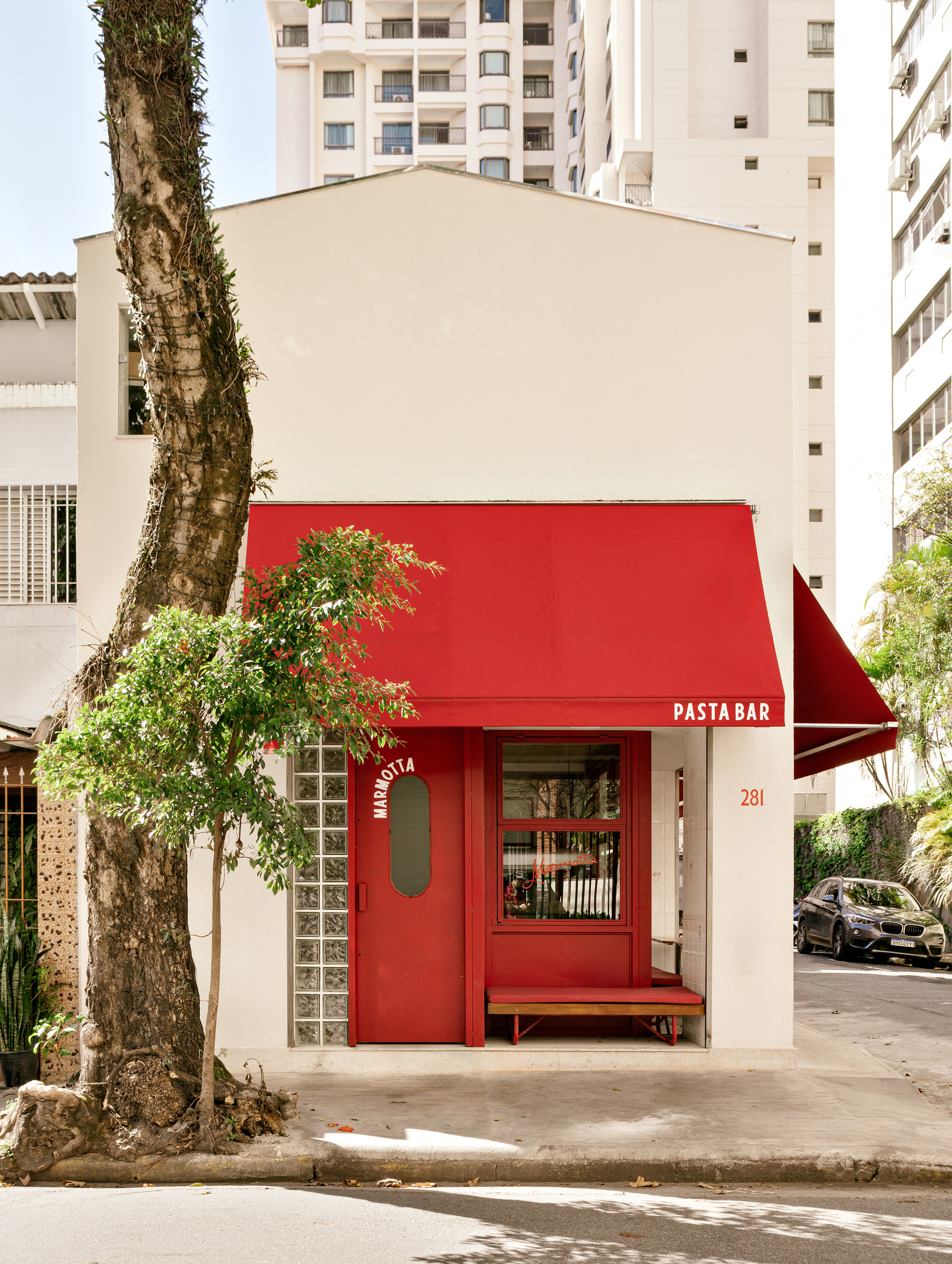

The building is modest: a narrow white volume with a gabled frontage, set against the apartment towers that now define Itaim. Tadu does not try to compete with that scale. Instead, the corner becomes the focal point. Three red canvas awnings wrap the edges, and sidewalk tables push the dining room out onto the pavement. Seen from across the street, the restaurant reads as a single graphic object.

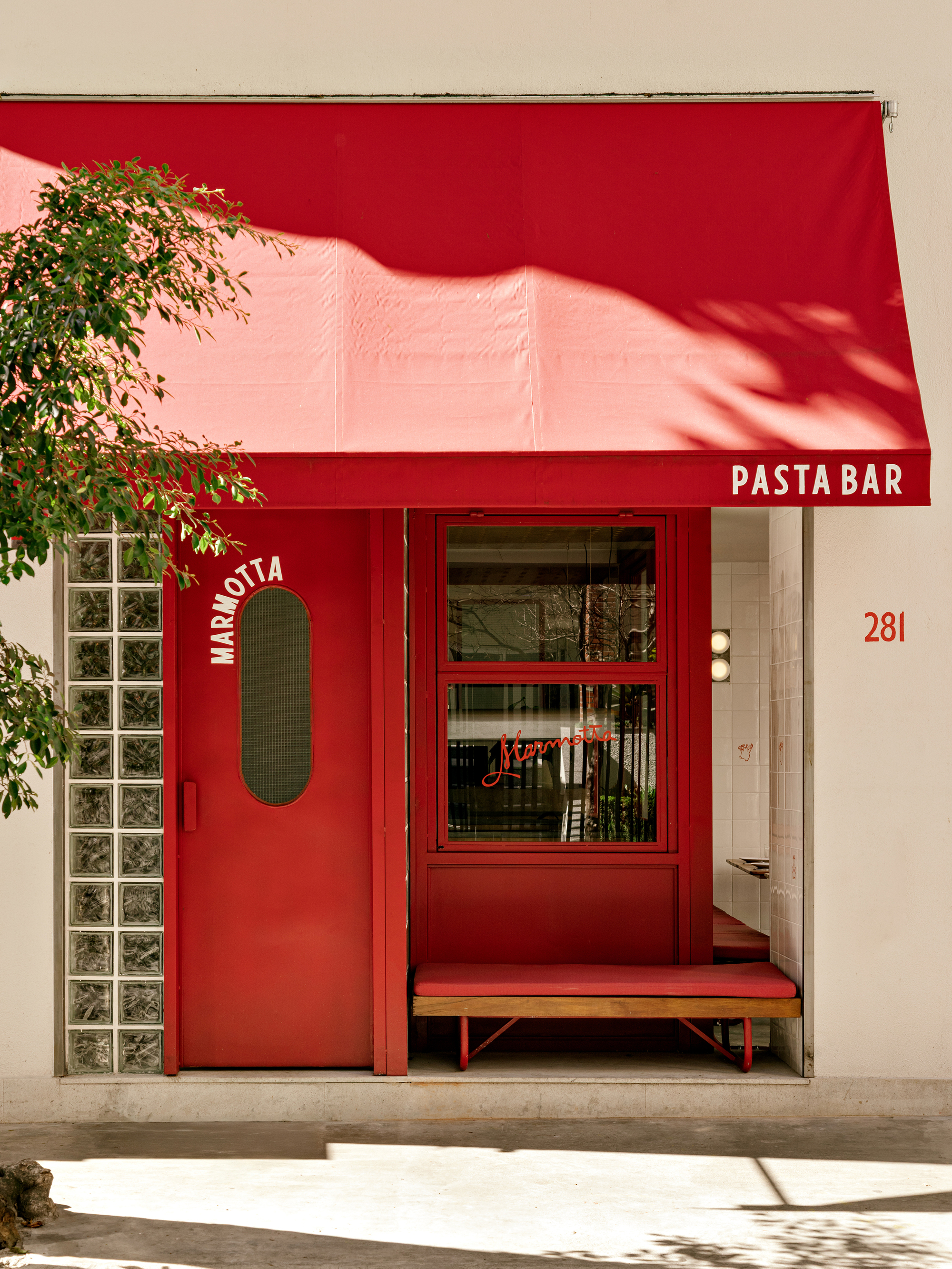

The close view shows the restraint behind this. The palette is limited to a white wall, red canvas and a strip of glass block, and the street tree adds the rest by casting moving leaf shadows across the awning. The facade is less about ornament than about framing: what passersby see, and what diners see looking back out.

Thresholds of Glass Block and Red

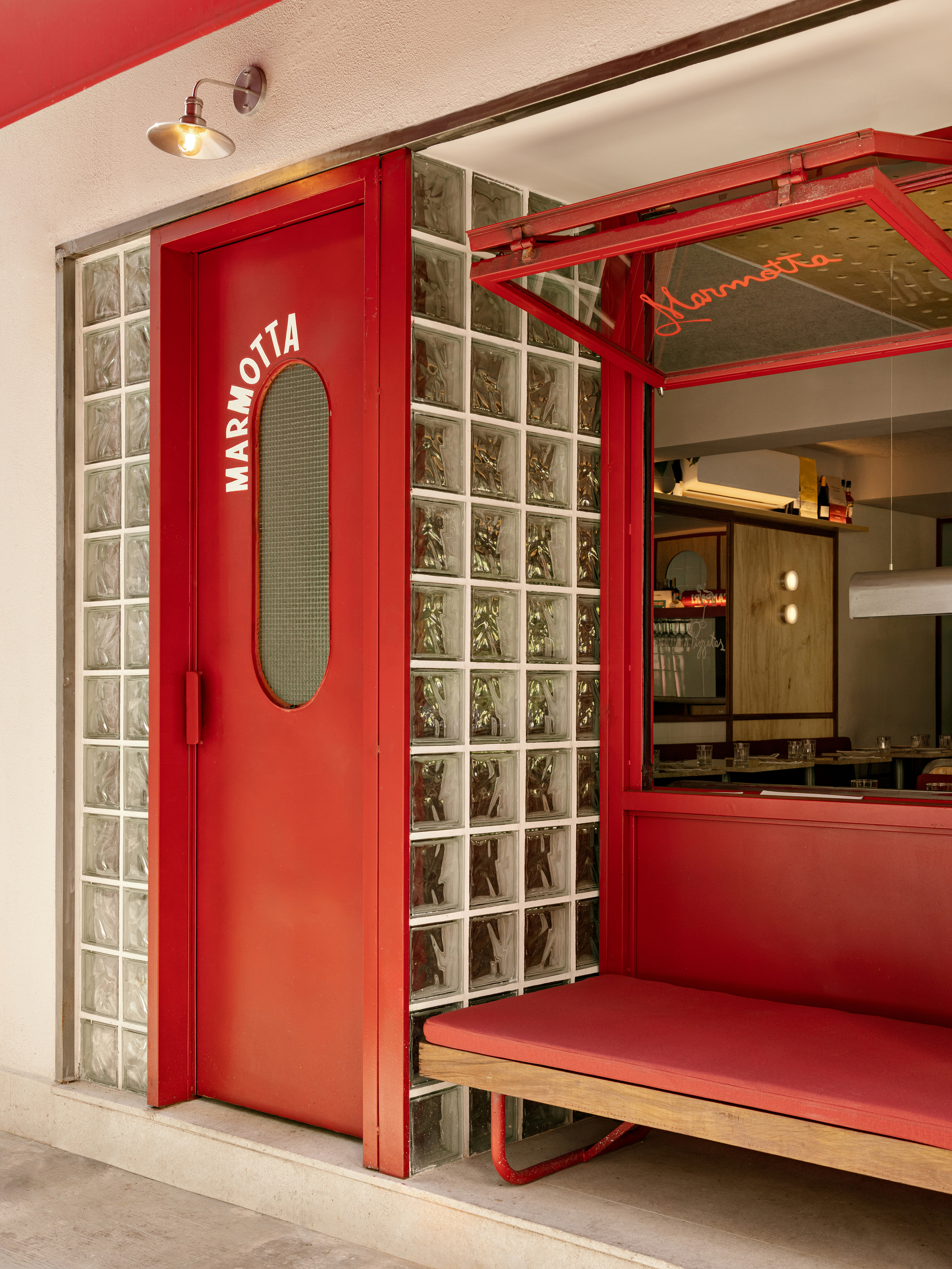

Glass block is a deliberate choice. It admits daylight and glow while blurring the view, so the interior is suggested rather than displayed. The red entry door has an oval window of mesh glass, which works as a peephole at human scale and gives a small, friendly signal that the room is open.

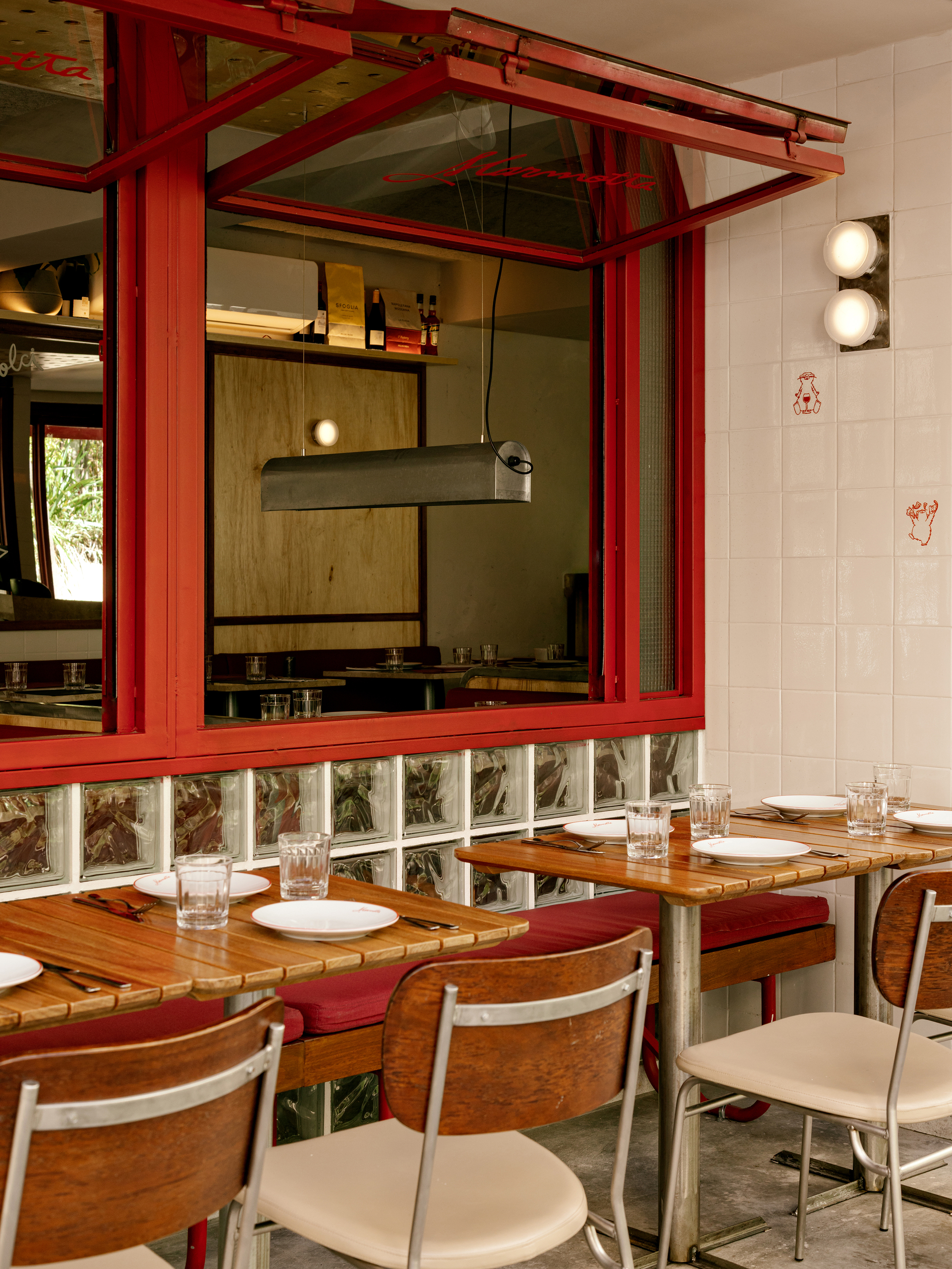

Above the glass block base, red-framed pivot windows swing open to connect the tables directly with the street. This is where the stated aim of linking sidewalk and dining room becomes literal. At lunch the wall partly disappears, and wood-top tables with chrome chairs sit almost at pavement level.

A Long Room Built for Company

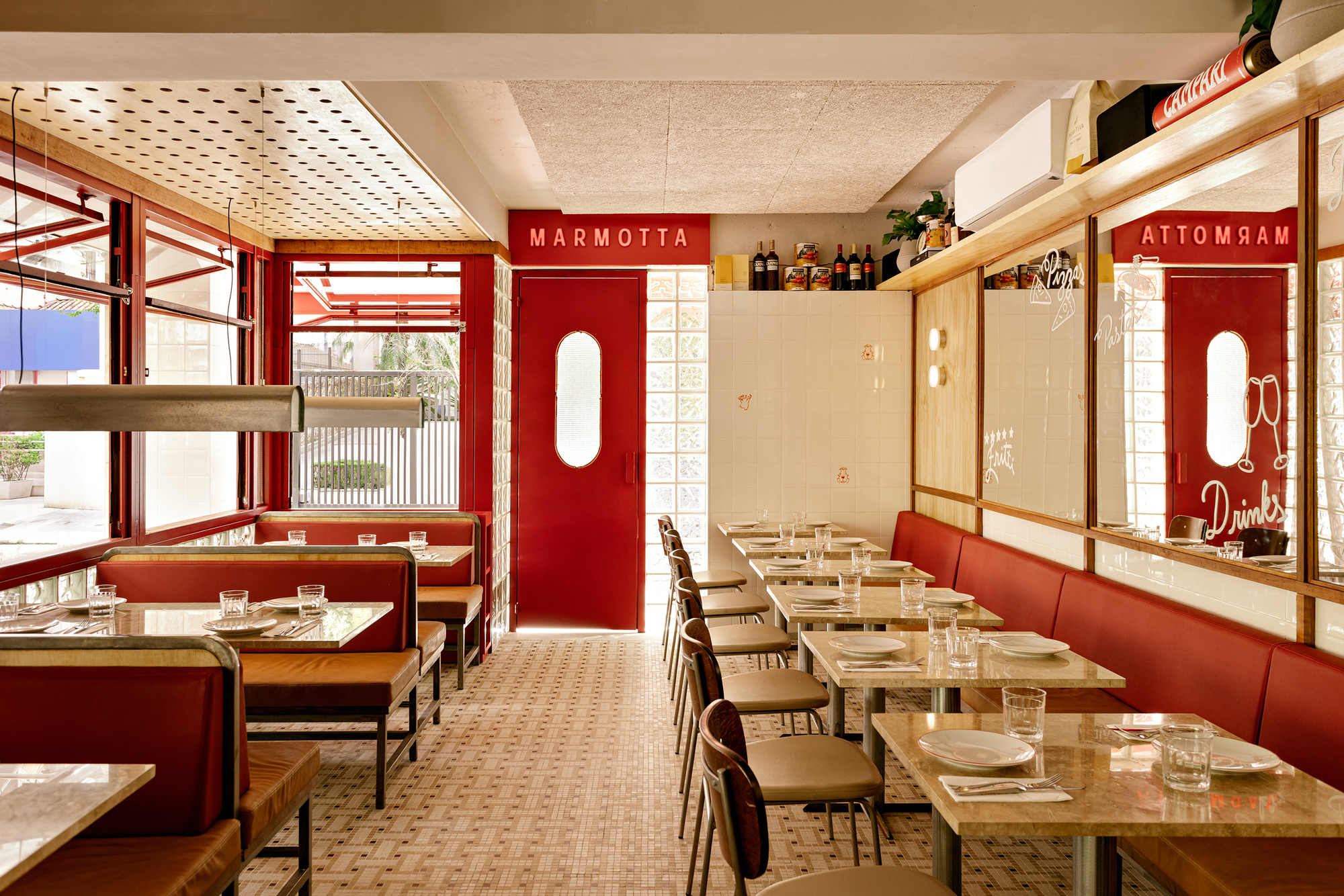

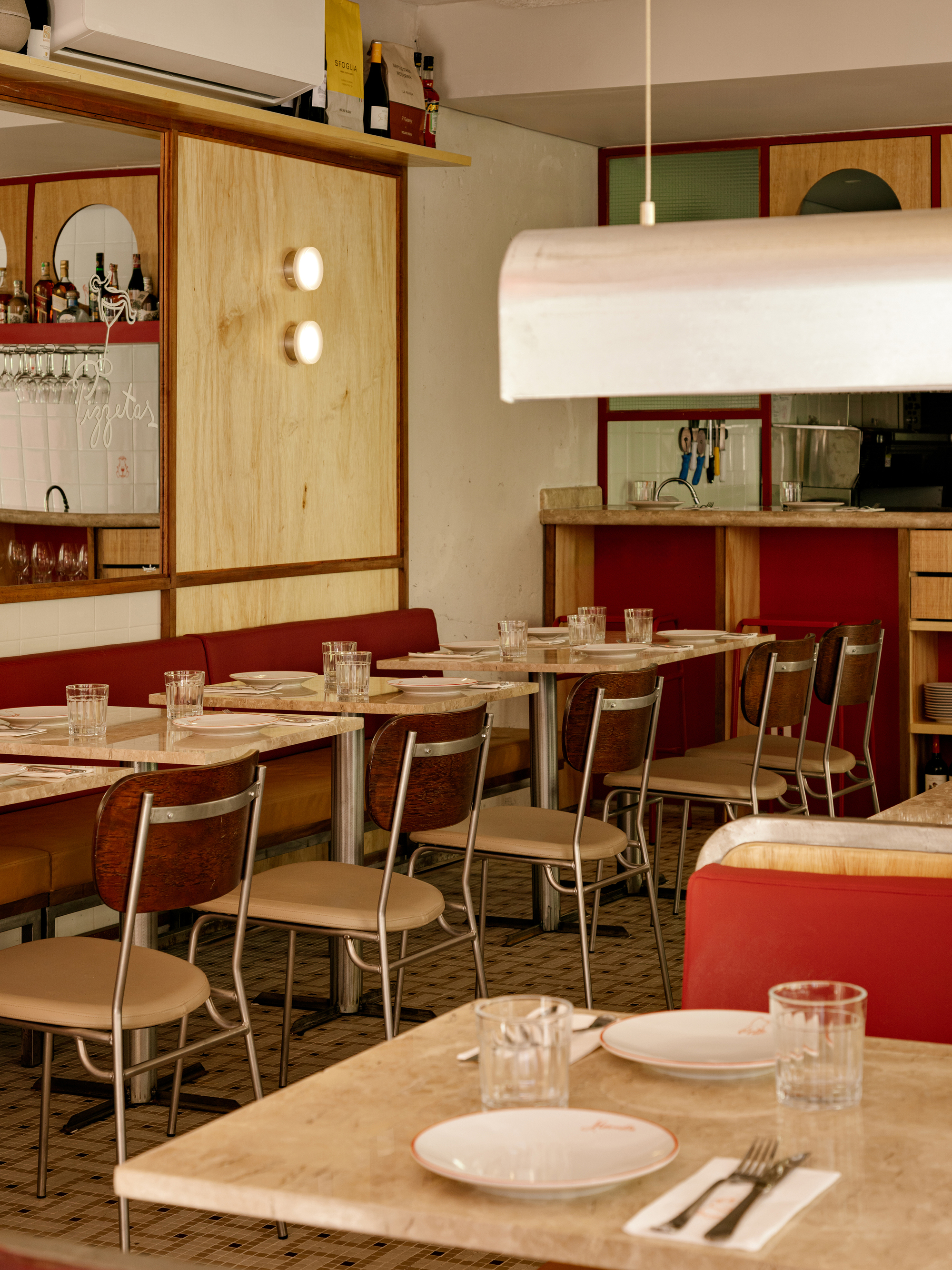

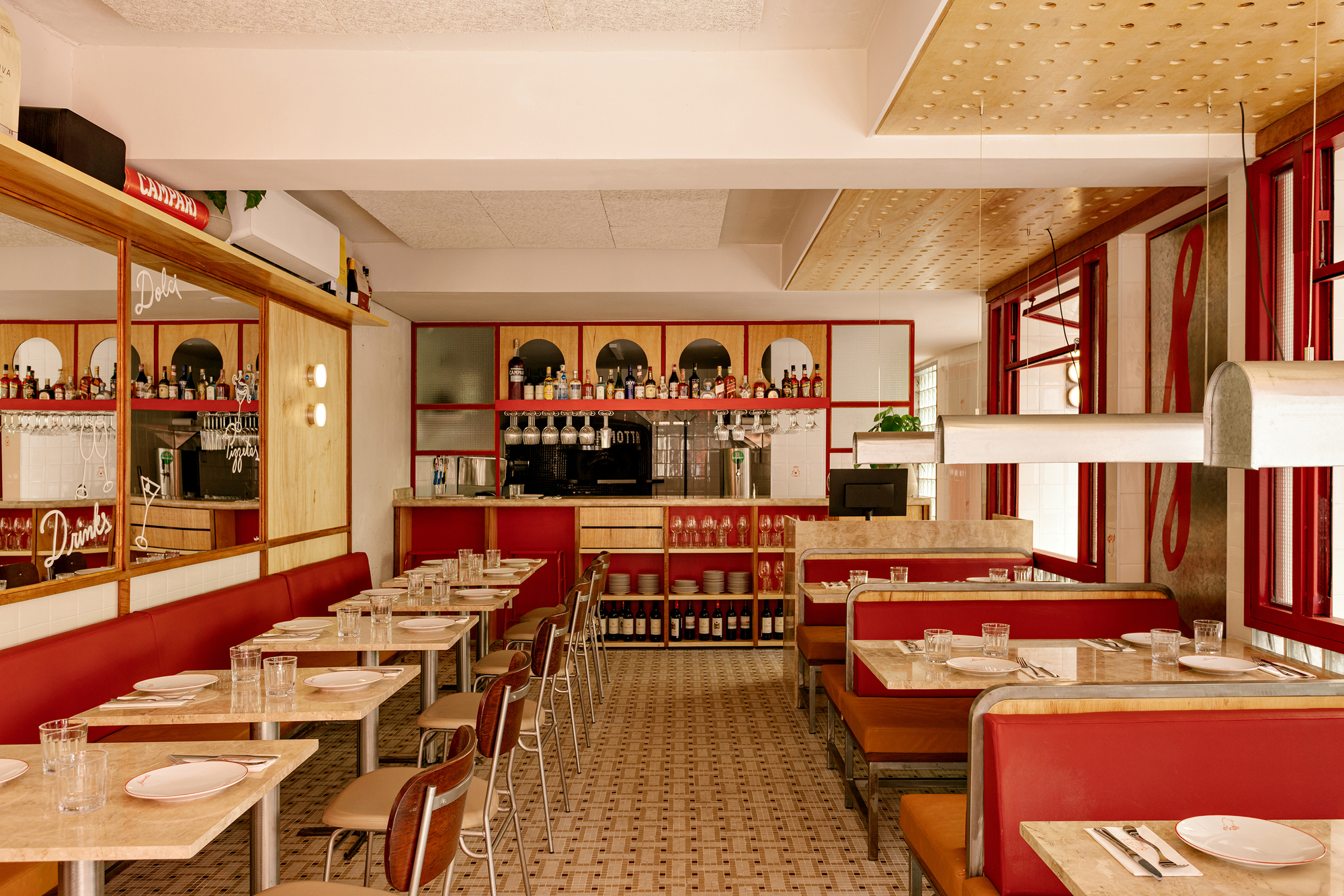

Inside, the plan is a long, narrow room. Tadu treats that constraint as an advantage. Continuous red banquettes run along the length, stone-topped tables line up in front of them, and a patterned tile floor carries the eye toward the red door at the far end. The arrangement encourages people to sit close together, which is exactly the social behavior the marmot name points to.

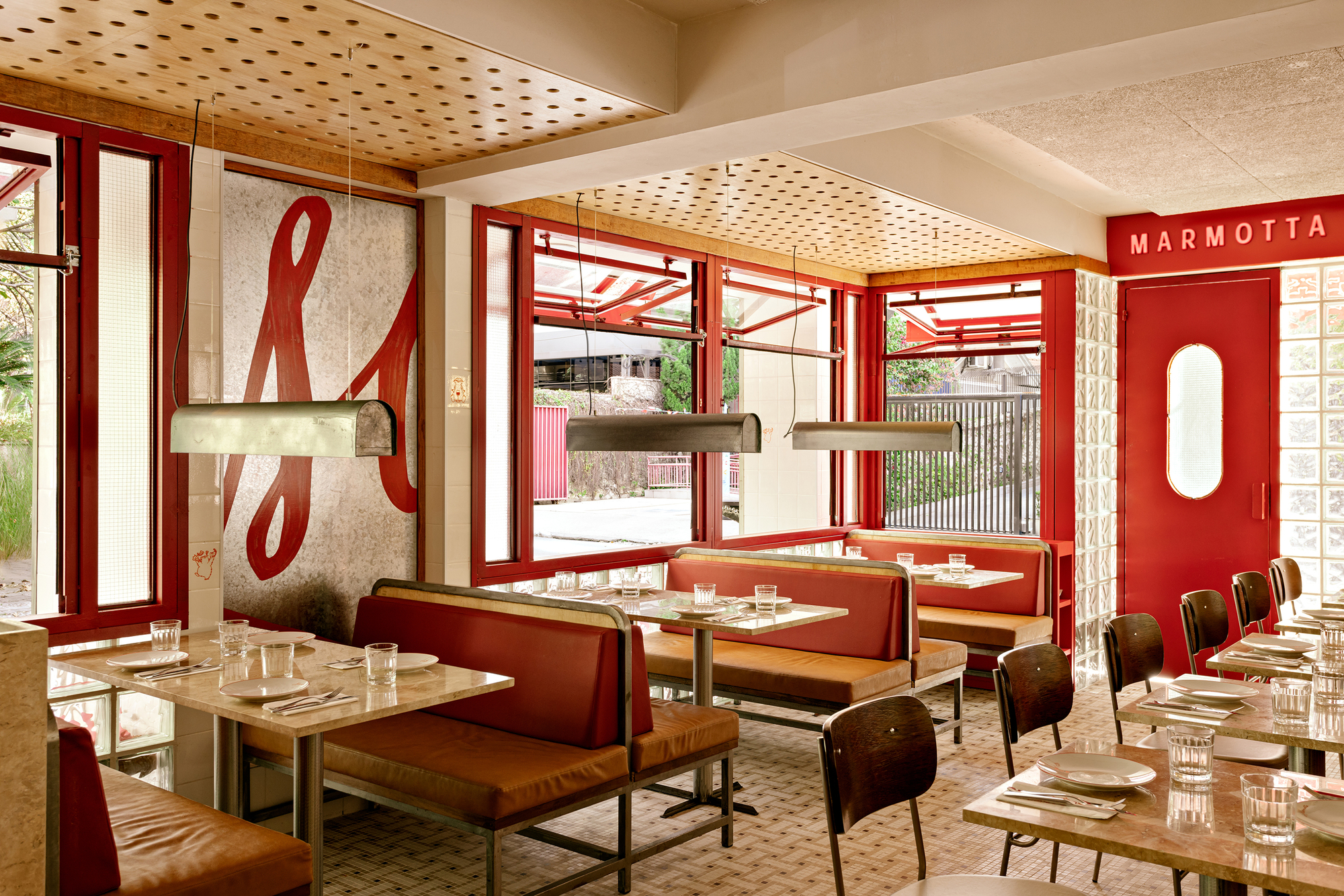

Overhead, perforated timber ceiling panels soften the acoustics and the light, which matters in a room designed to fill up and get loud. Steel pendants and steel-framed chairs keep the timber and red from becoming too nostalgic. A large painted script letter on the wall is the most direct moment of branding, and it sits comfortably because the rest of the room already speaks the same visual language.

The Back Bar as Brand

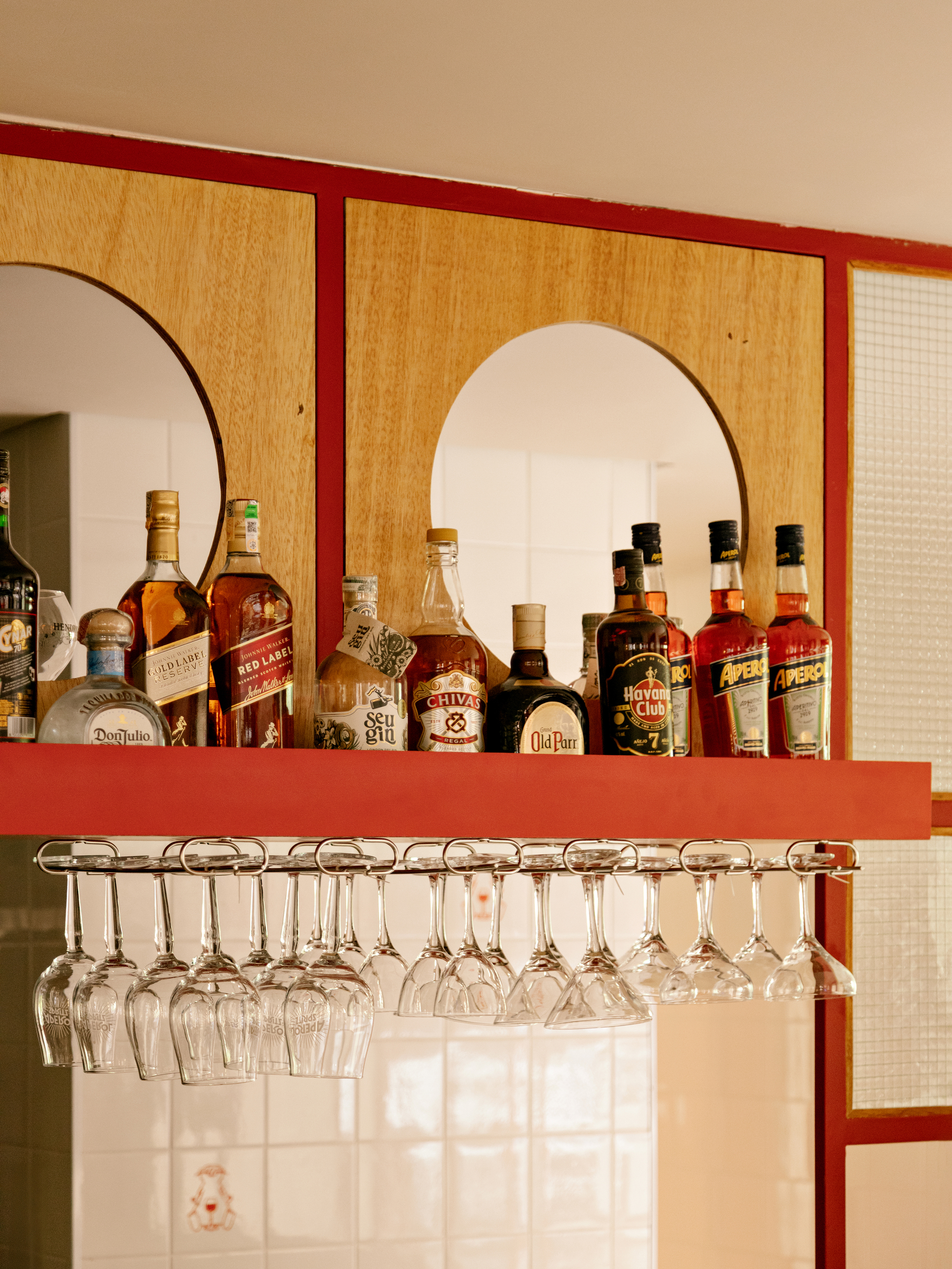

The back bar is the room's strongest single element. Arched mirror cutouts are set into a plywood panel wall, a red shelf holds the liquor bottles, and hanging wine glasses catch the warm light against white tile and reeded glass. The arches repeat the gabled softness of the facade, so the street elevation and the bar wall read as related.

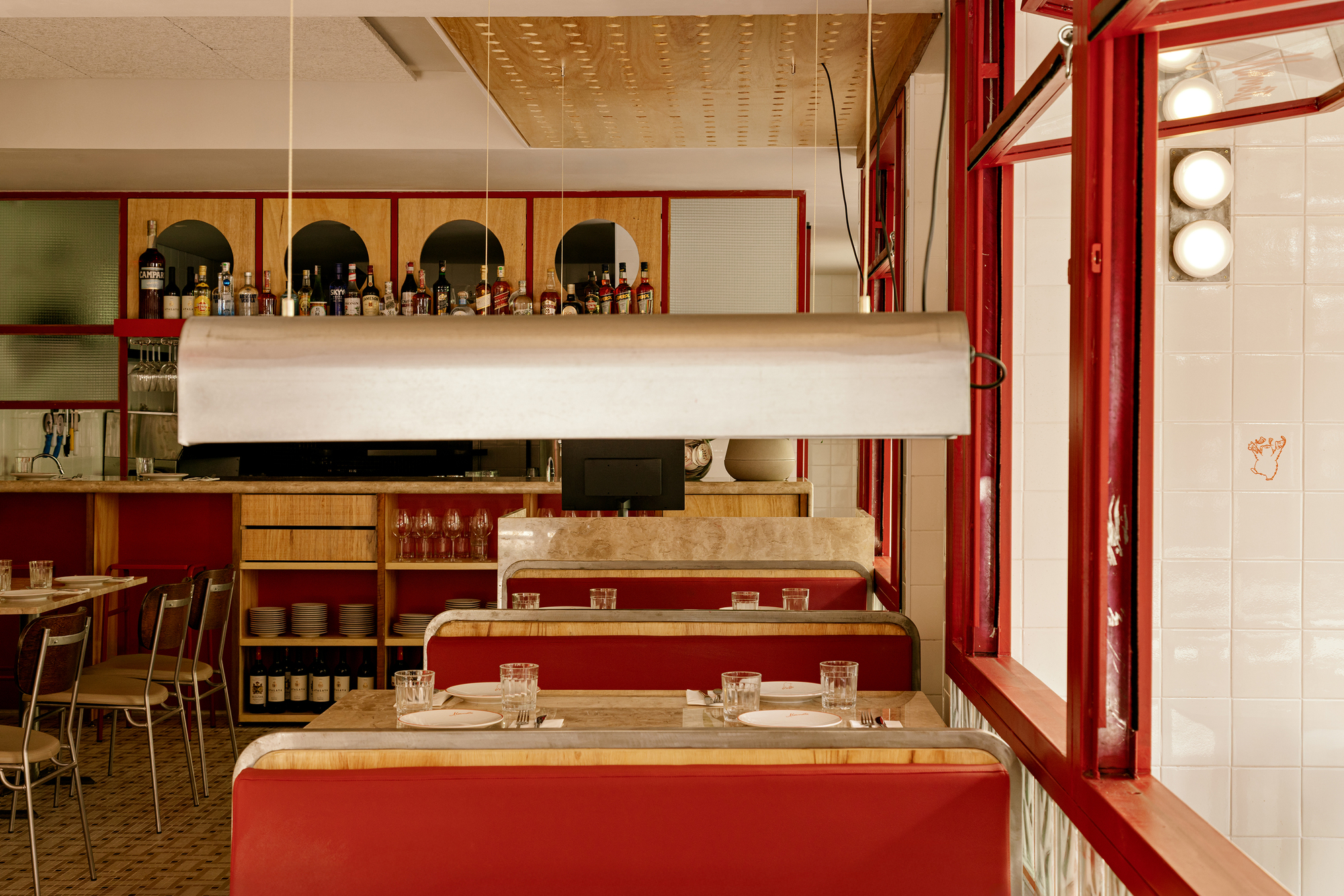

The mirrors also do practical work. They double the depth of a tight room and return diners' reflections to them, a familiar trick in bistros that suits a place built around being seen together. Next to the tiled window wall, the red booths and a single steel pendant give the bar a stage-like frame without any added decoration.

Details at Table Height

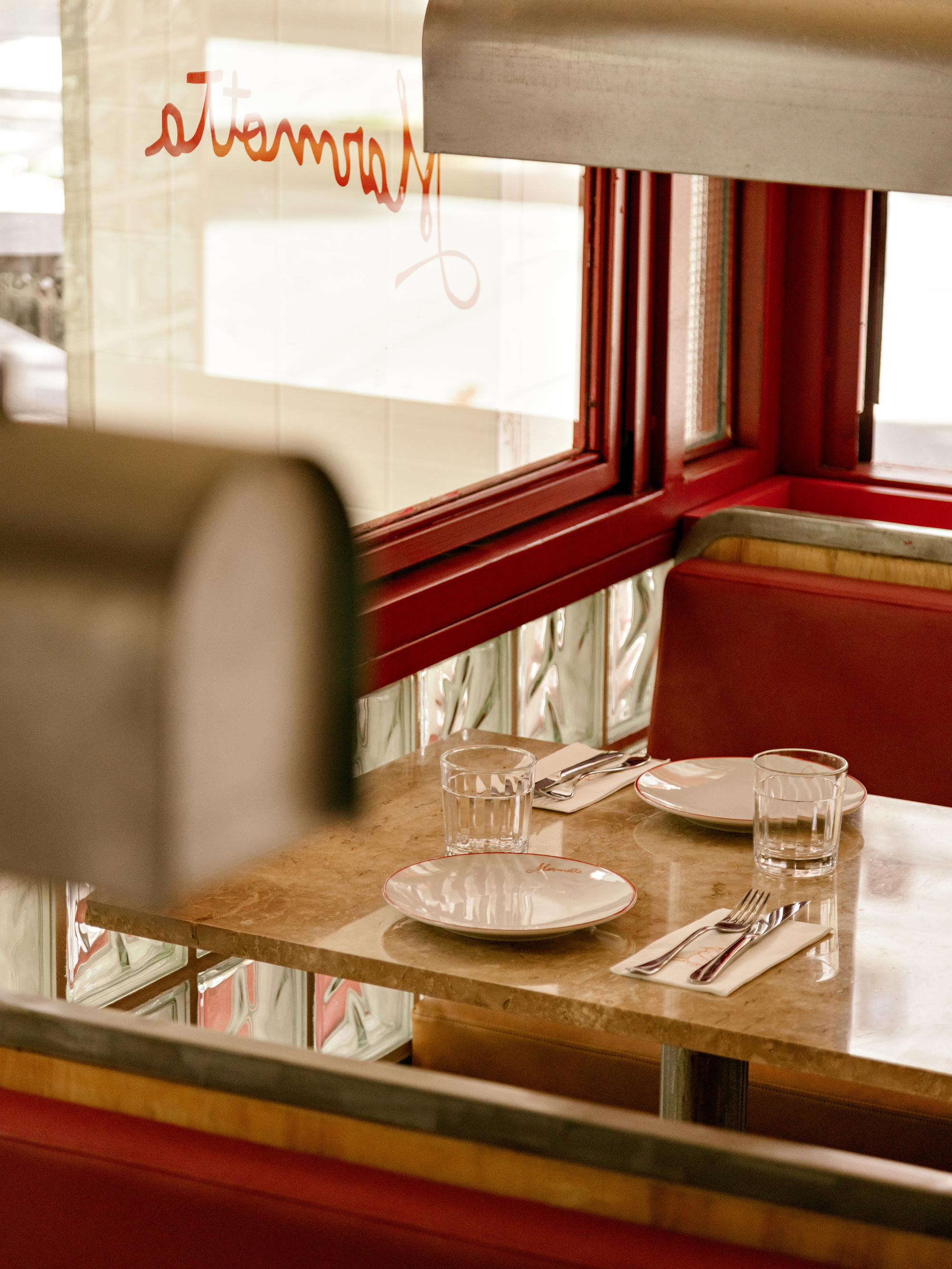

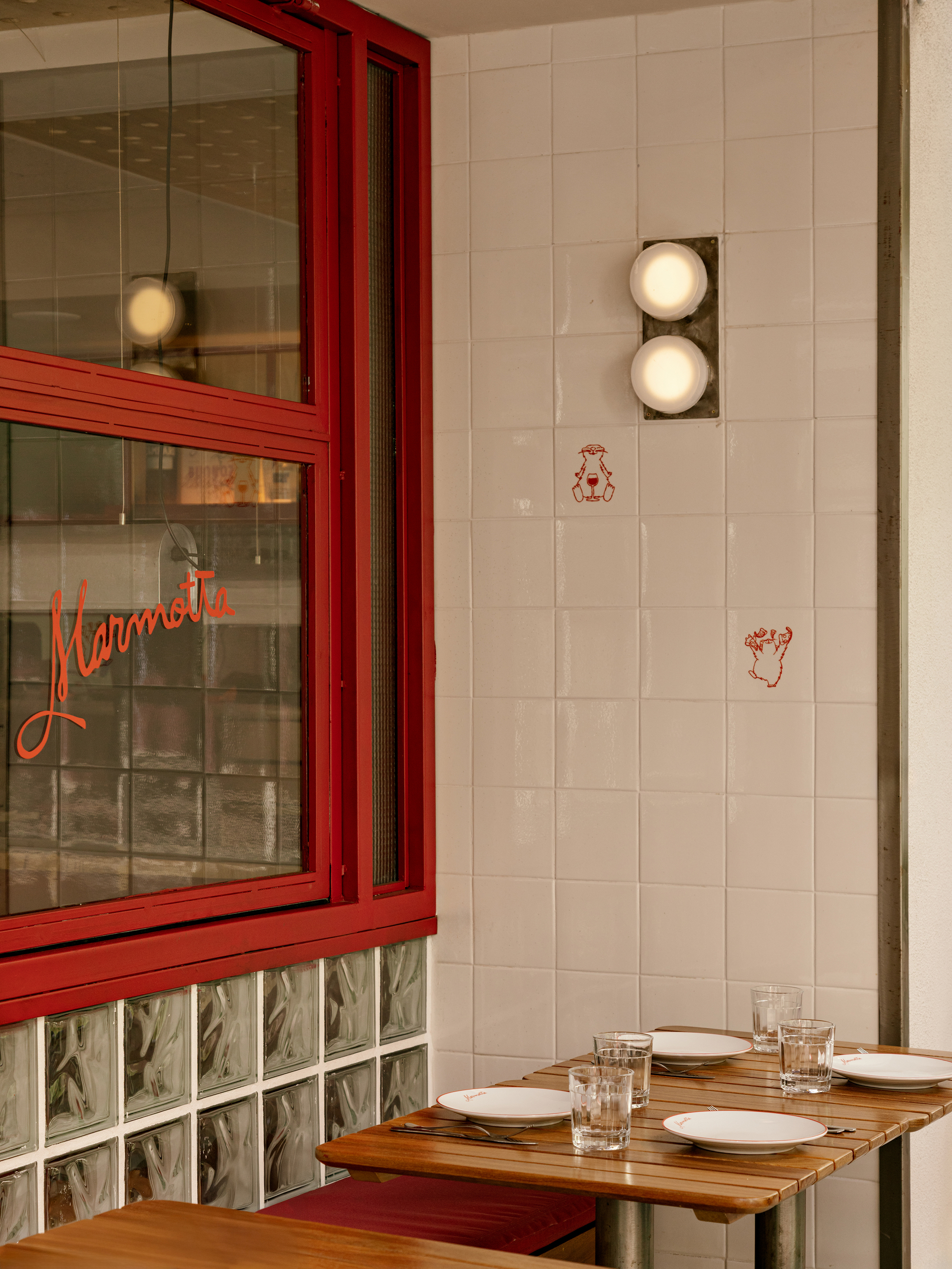

At close range the design gets lighter in tone. In one corner, white tiles carry small red line drawings beside twin globe sconces, a quiet gesture that a careful diner will notice on a second or third visit. Marble-topped tables between red booth seats keep the setting clean and practical, which suits a pasta bar more than a fine-dining room.

Plans and Drawings

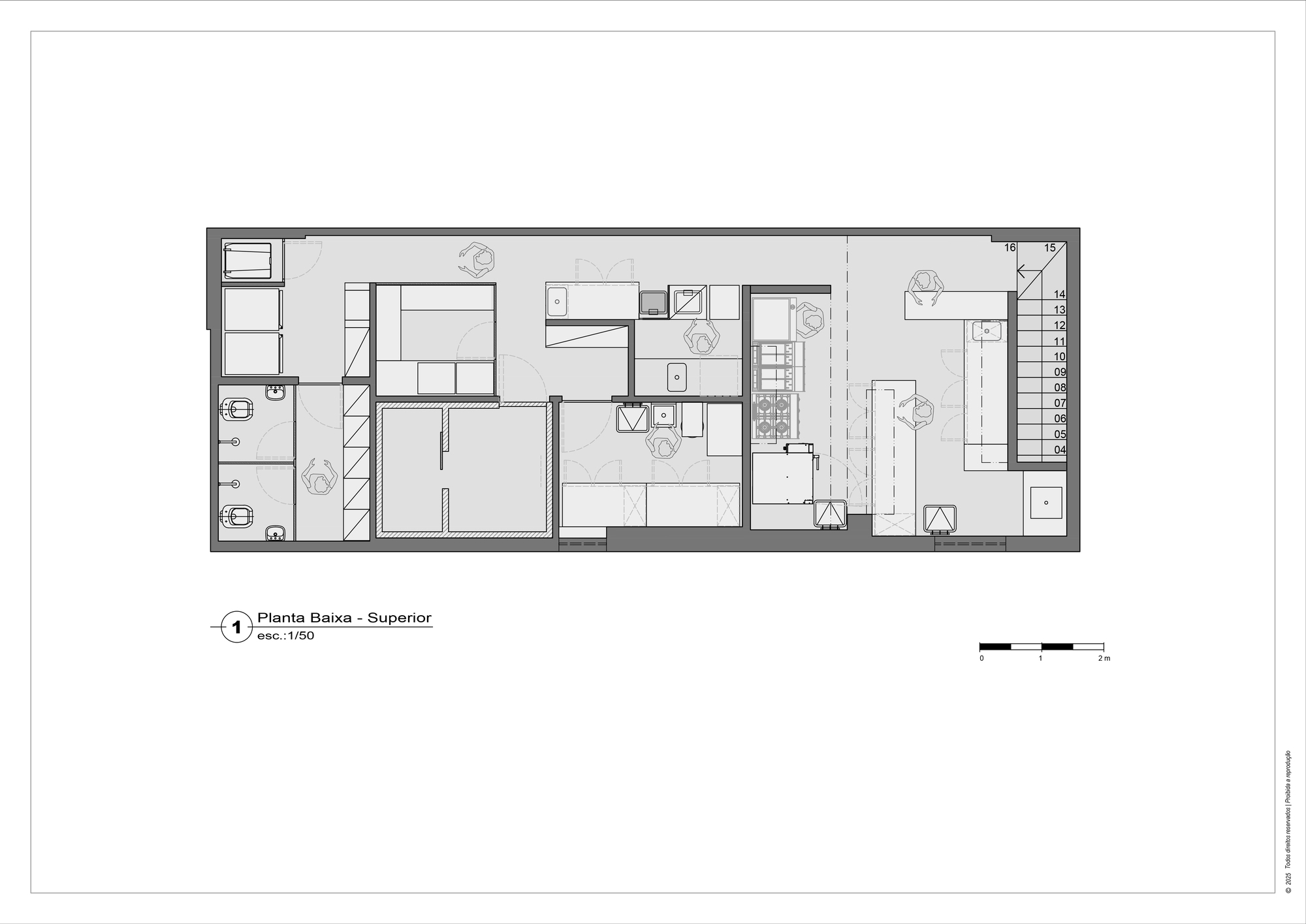

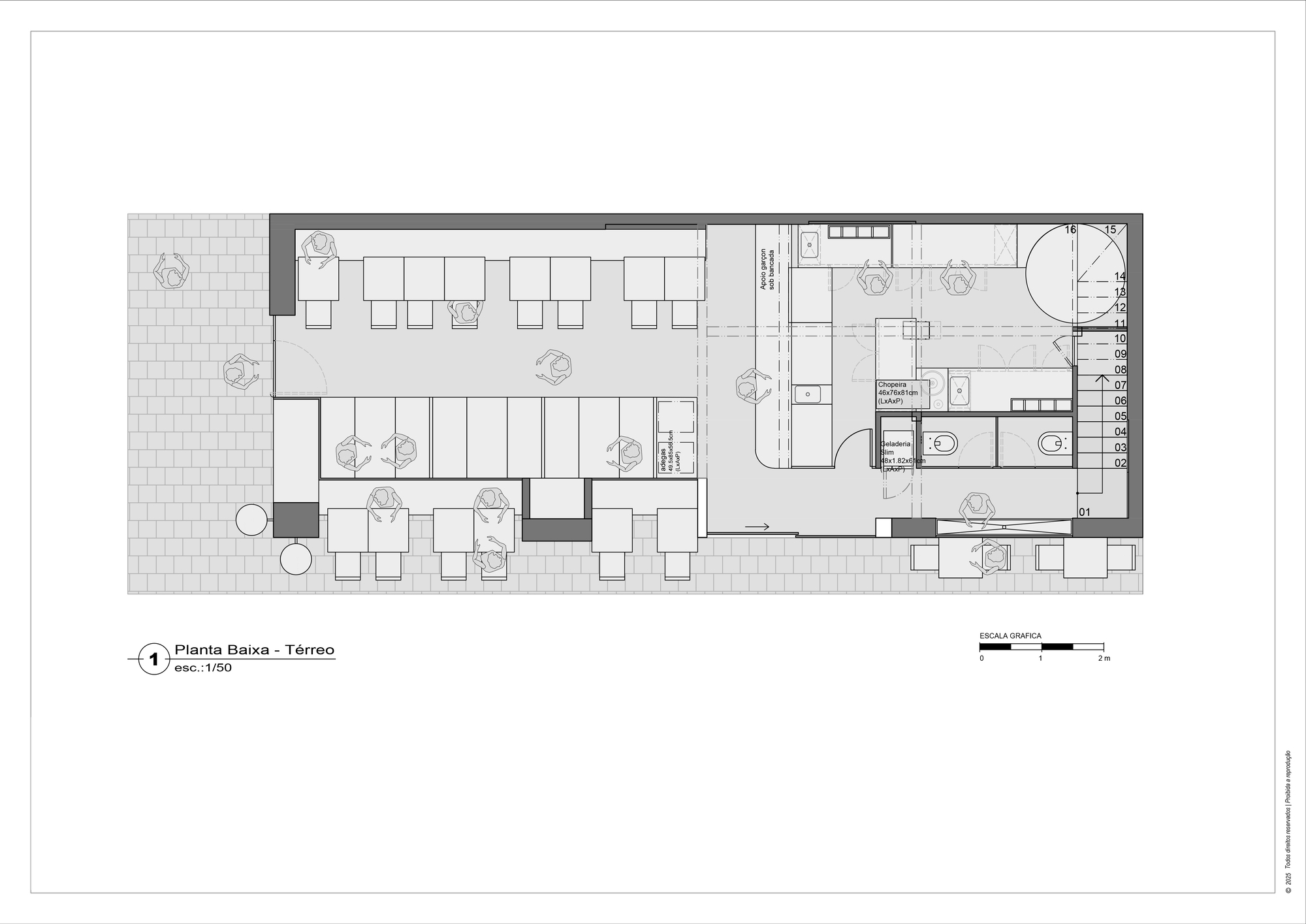

The drawings explain how 140 m² serves a full restaurant. On the ground floor, almost everything is given to guests: dining tables, a service counter, restrooms, a staircase and a paved terrace at the corner. The upper floor holds the working parts, with kitchen equipment, storage rooms and further restrooms gathered at one end of the long rectangular volume.

Stacking the program this way is a sharp decision on a narrow plot. Moving back-of-house upstairs lets the street level stay open and continuous, which supports the corner strategy. It also means the staircase and service counter carry the restaurant's daily logistics, a demanding choreography for an operation whose oven is described as its center.

Why This Project Matters

Small restaurant interiors usually split into two jobs: an architect fitting out a space, and a branding agency applying an identity to it. Marmotta shows what happens when one team holds both. The color, the arches, the glass block and the corner awnings all serve one idea of conviviality. The result is legible from across the street and still coherent at the table.

It is also a useful lesson in working with an ordinary existing building in a high-rise district. Tadu Arquitetura does not add height or spectacle. It uses the corner, the street tree and the public sidewalk as assets. At a time when much of São Paulo's dining scene retreats behind closed facades, a restaurant that opens its windows to the pavement makes a small but real case for the street.

Marmotta Pasta Bar by Tadu Arquitetura (João Duayer, Patricia Fontaine, Thiago Tavares, Isabela Moraes), Itaim Bibi, São Paulo, Brazil. Area: 140 m². Year: 2026. Photography: Arthur Duarte.
