Vari Architects Turns an Abandoned Show-Villa Island in Chengdu into a Lakeside Retail Village

Show villas are usually built to be forgotten. They sell a lifestyle, the units move, and the models are left to decay on prime land. On an island in Chengdu's Luxe Lakes development, more than twenty of these display houses had been abandoned. Vari Architects, led by Fan Qi and Dingliang Yang, has turned the site into a 7,000 m² commercial cluster. The team renovated and expanded ten existing buildings, added ten new ones, and removed what no longer served the plan.

What interests us is the restraint. The team avoids the usual retail playbook of signature facades and branded spectacle. It works with a quiet gray-and-white palette, simple volumes and a lot of carefully shaped outdoor space. The design draws on two ideas from the Japanese philosopher Washida Kiyokazu, "Average Temperature" and "Subtle Scenery." These are unusual starting points for a shopping destination, and you can see them in the finished work. The architecture keeps its voice low so the lake, the trees and the people do the talking.

An Island Between the Towers

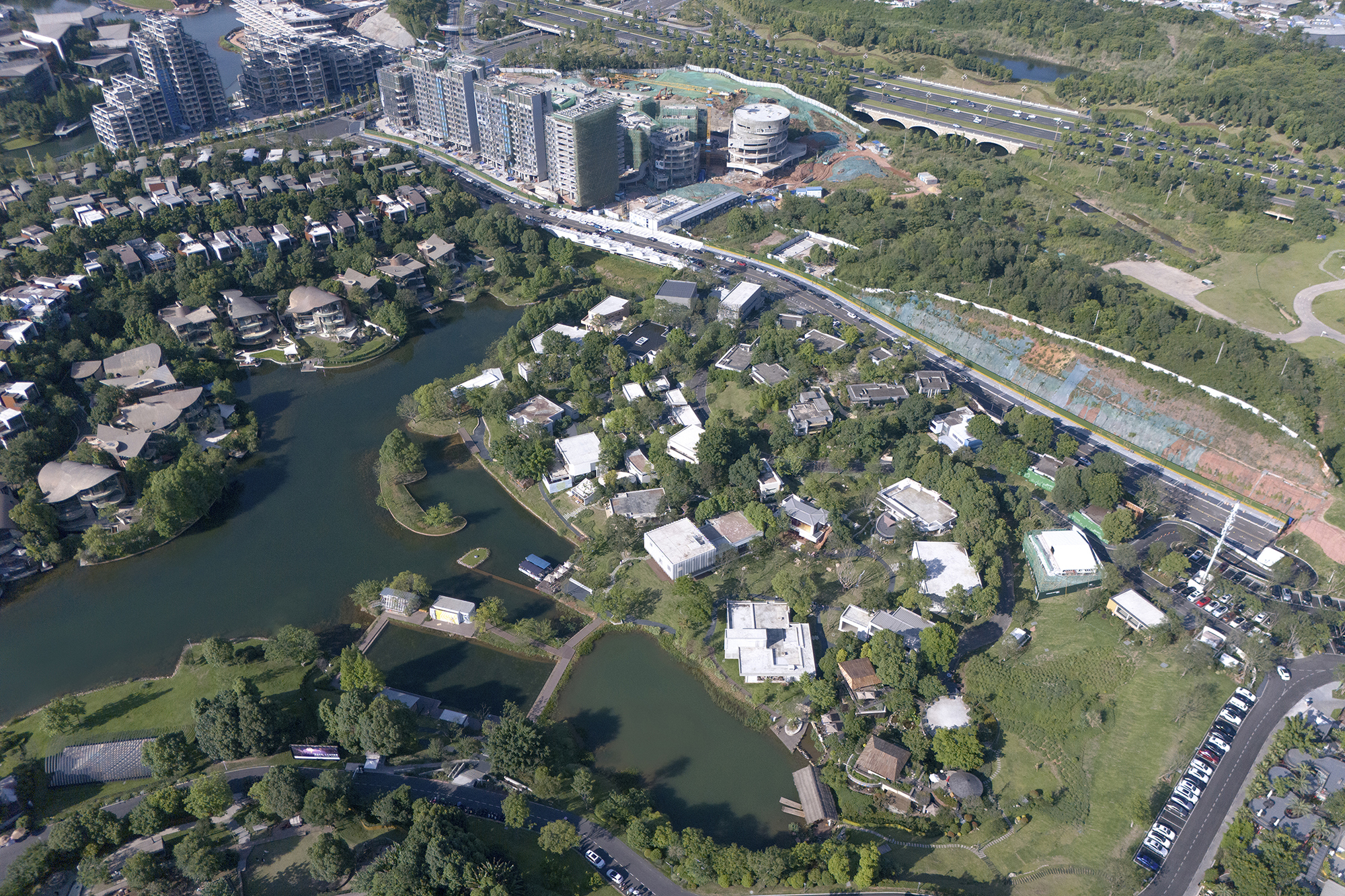

The aerials make the stakes clear. Apartment towers rise behind a strip of woodland and water, and a highway runs along the eastern edge. The island sits in between: low buildings scattered among lakes, a curving road and mature trees. Any heavy intervention here would have read as one more piece of the surrounding density pushing toward the shore.

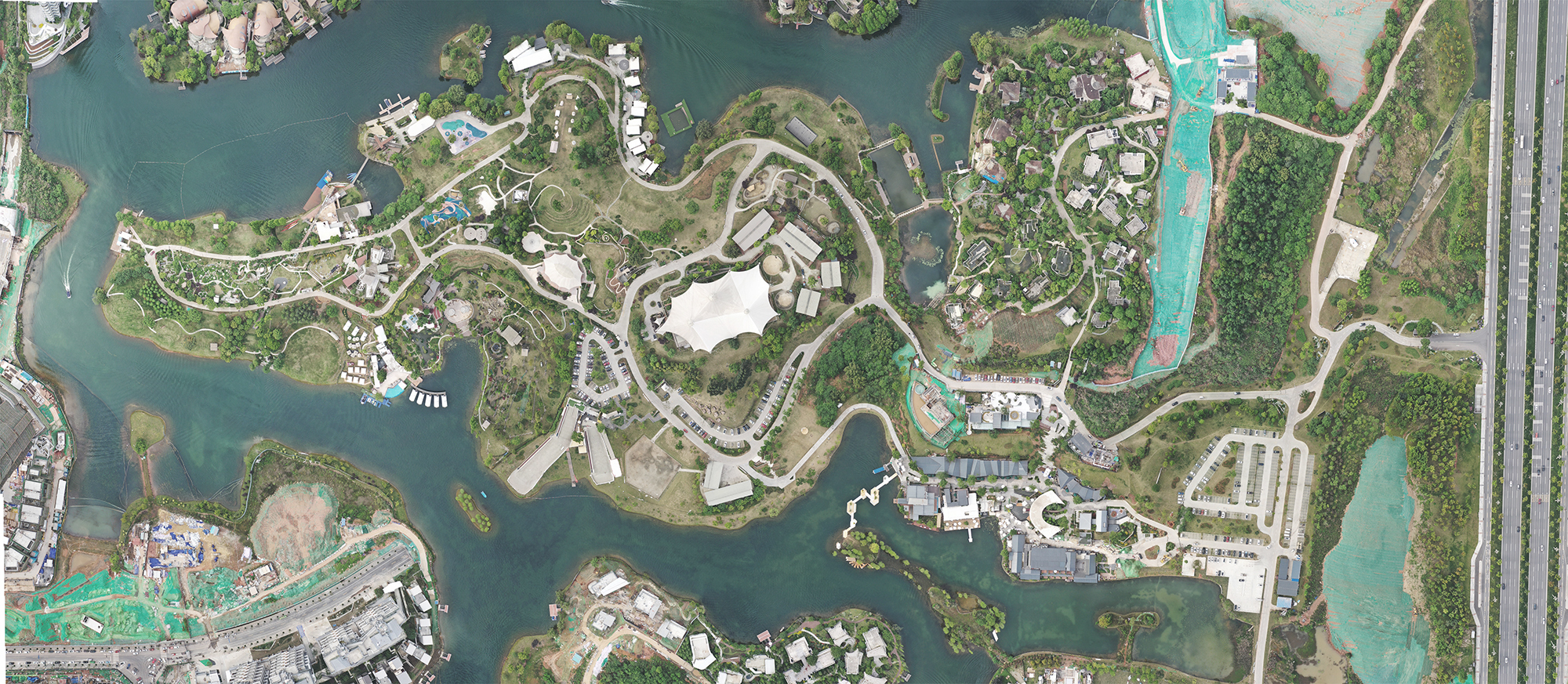

Instead, the plan restores the site's original axes and spatial relationships and reconnects the buildings to the waterfront. The top-down view shows paths winding between the volumes rather than cutting straight through them. It reads more like a village that grew over time than a mall laid out in one go.

The Lifted White Box

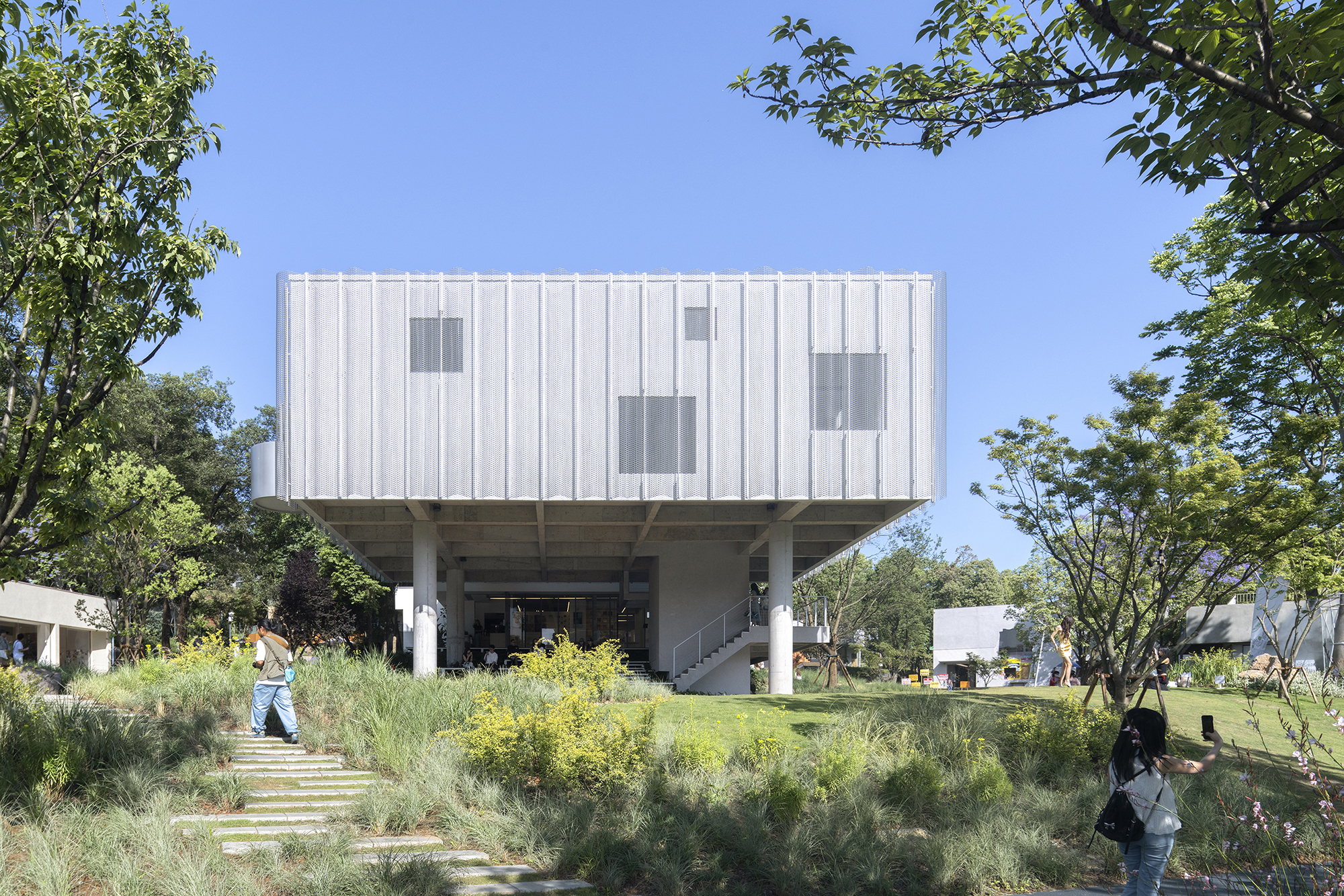

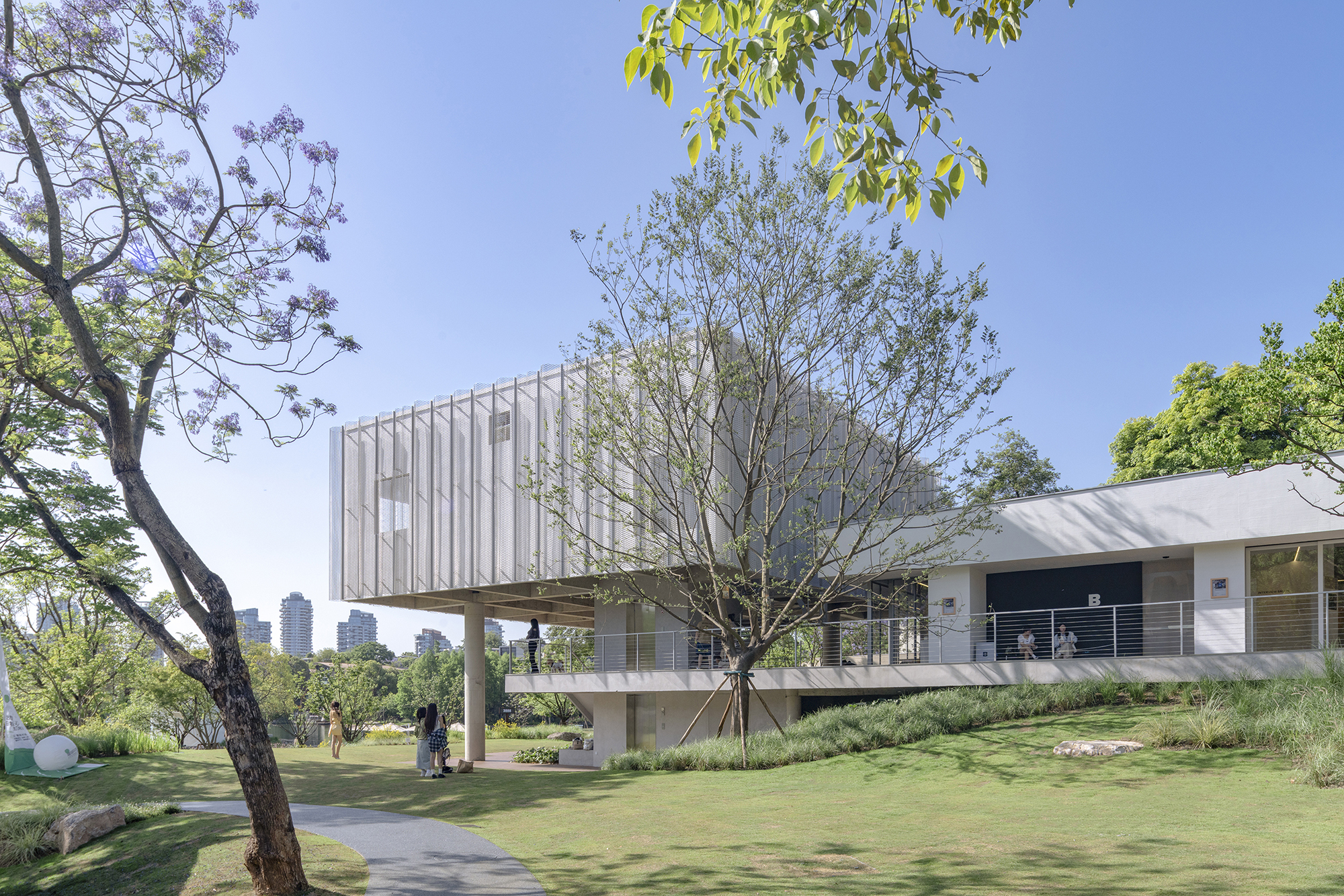

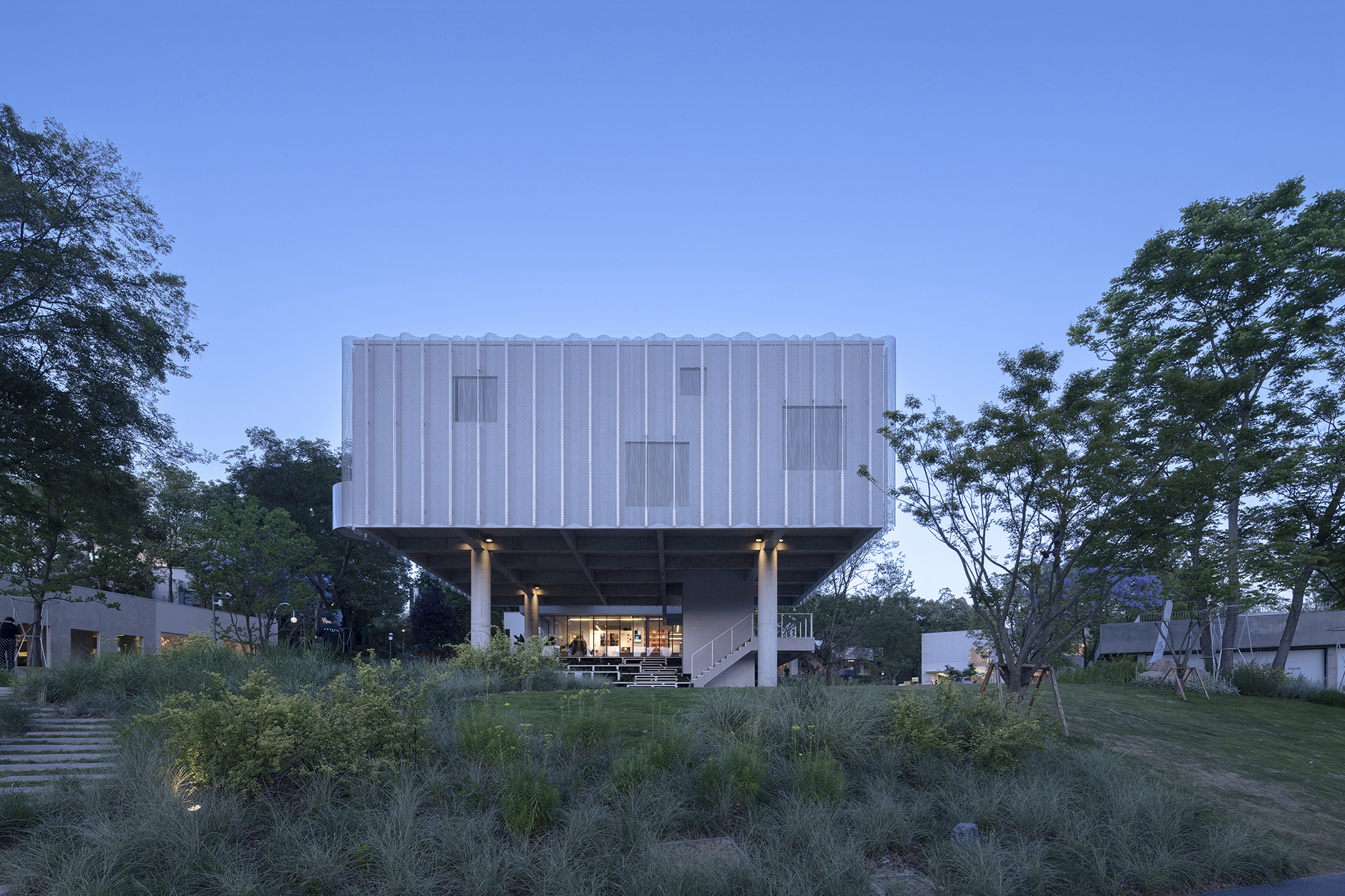

The most recognizable move is a white volume clad in corrugated panels and raised on slender columns above a planted slope. At dusk, light from below makes it float. By day, a flowering jacaranda frames it and a stone stepping path runs underneath. Lifting the building keeps the ground continuous, so the landscape slides beneath the program instead of stopping at a wall.

The panel cladding matters too. Corrugated metal is an ordinary, almost industrial material, and here it gives the box a light texture that changes with the sun. That fits the idea of "Subtle Scenery": the building becomes something you notice slowly rather than something that announces itself.

Cantilevers and Gray Space

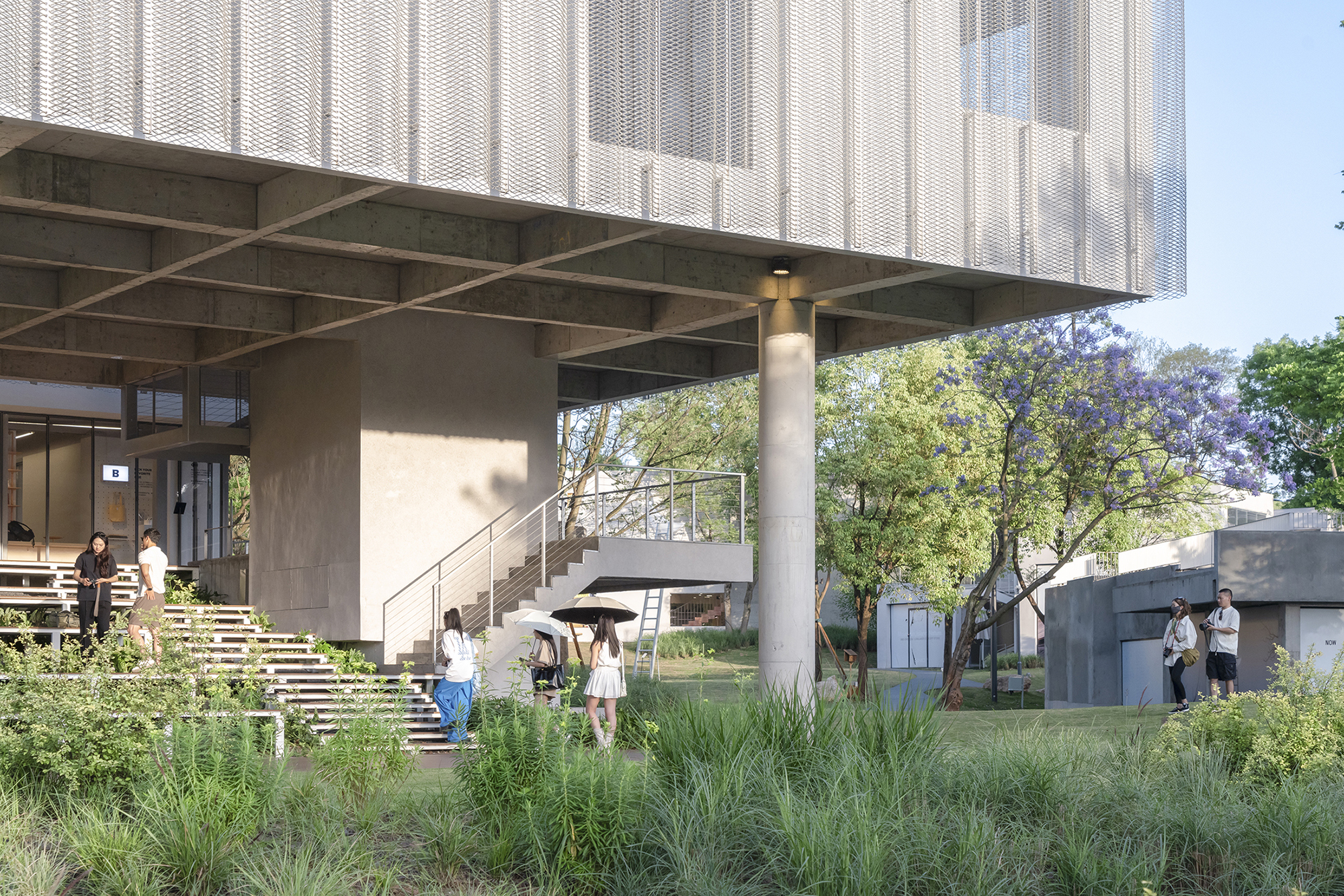

Below the cantilevered mesh-clad volume, concrete beams and a round column carry the load. A stair rises beside a flowering tree, and the space underneath becomes a shaded room with no walls. Vari calls these zones "gray spaces": semi-open areas that sit between inside and outside. They are probably the project's most useful idea for a hot, humid Sichuan climate, giving shoppers cover without sealing them indoors.

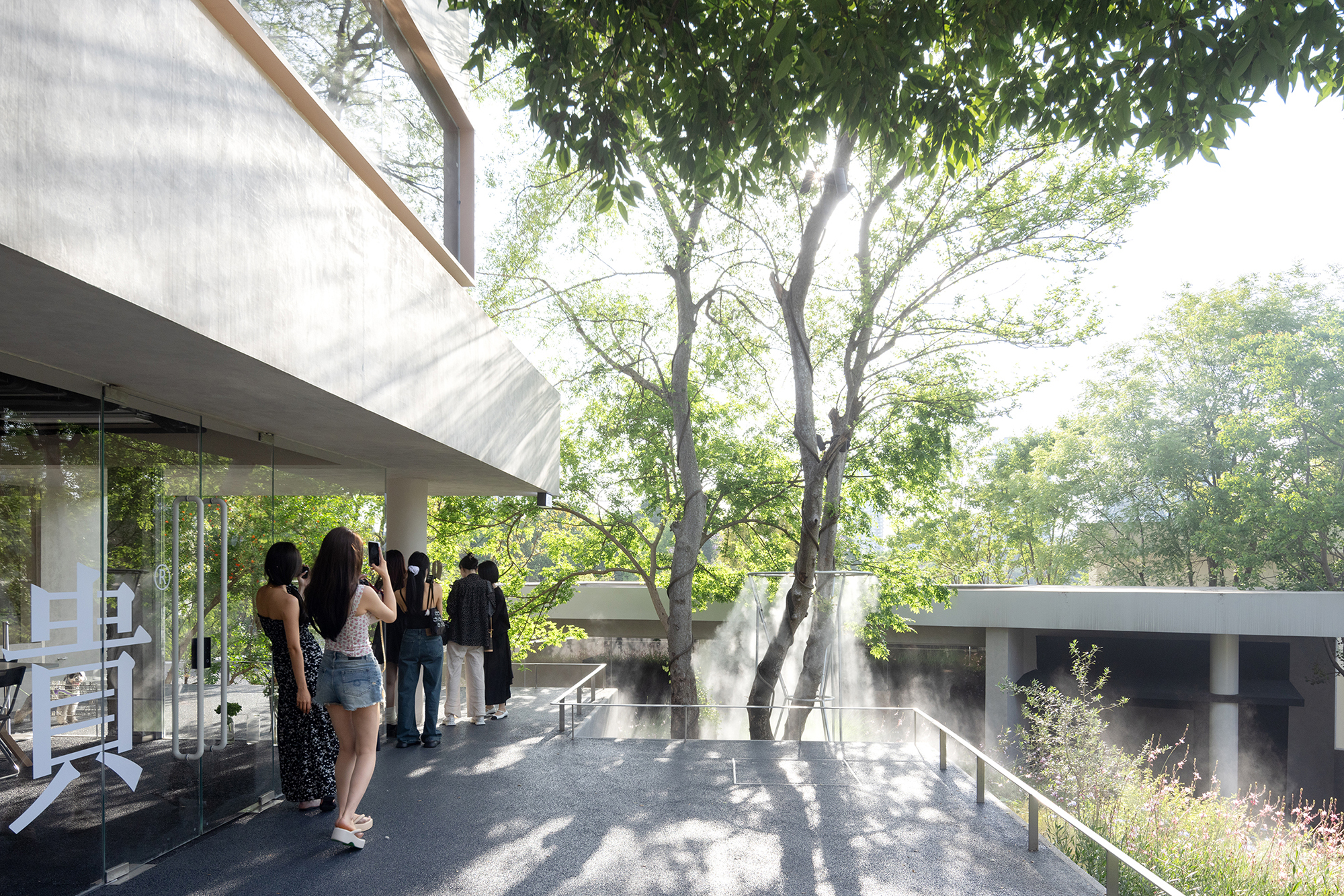

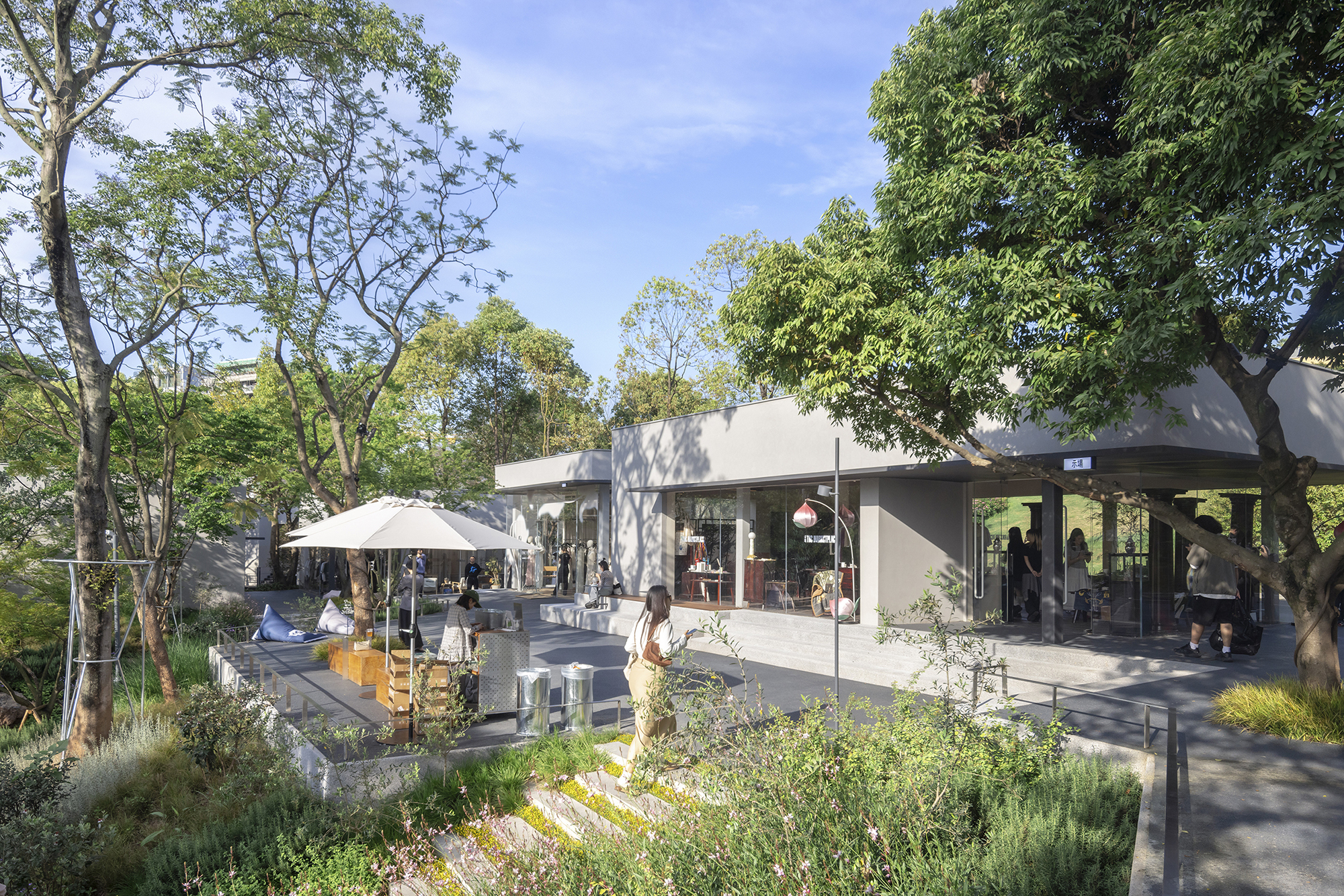

The same logic runs through the pavilions. A glazed ground floor sits under a deep concrete overhang, and visitors gather on a paved terrace beneath tall trees while mist rises off the water. Another low glass pavilion with a flat concrete roof sits behind a planted slope. The roofs extend, the glass recedes, and the terraces step down. Commerce here happens at the edges as much as behind the shopfronts.

Lanes, Kiosks and Small Things

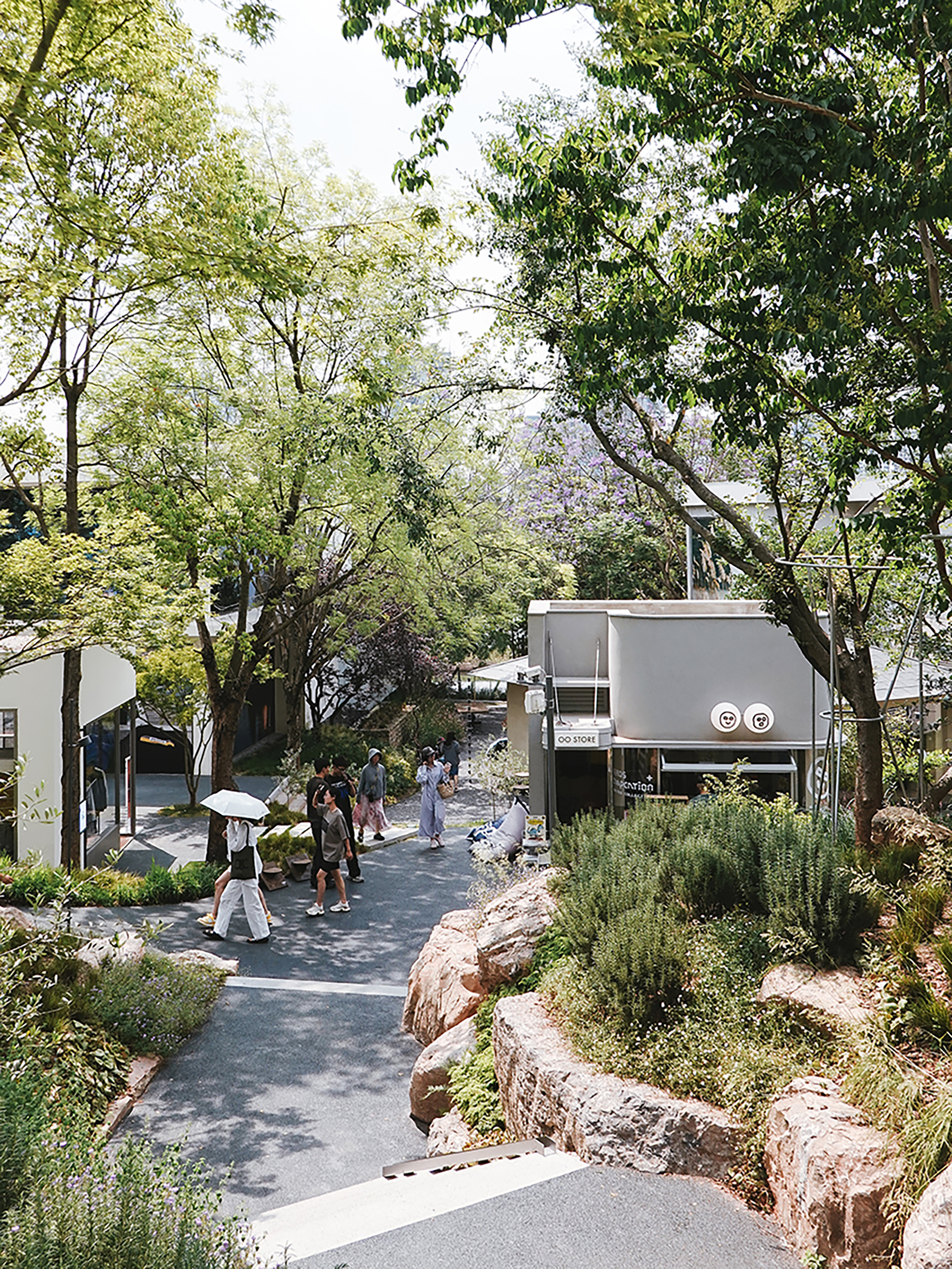

Retail places depend on the scale of their walkways, and this is where the project feels most convincing. A pedestrian lane is lined with rough boulders and rosemary and leads to a small kiosk under leafy trees. It feels closer to a garden path than a mall corridor. Yudao Landscape, the landscape consultant, deserves credit for planting that softens hard edges without fussiness.

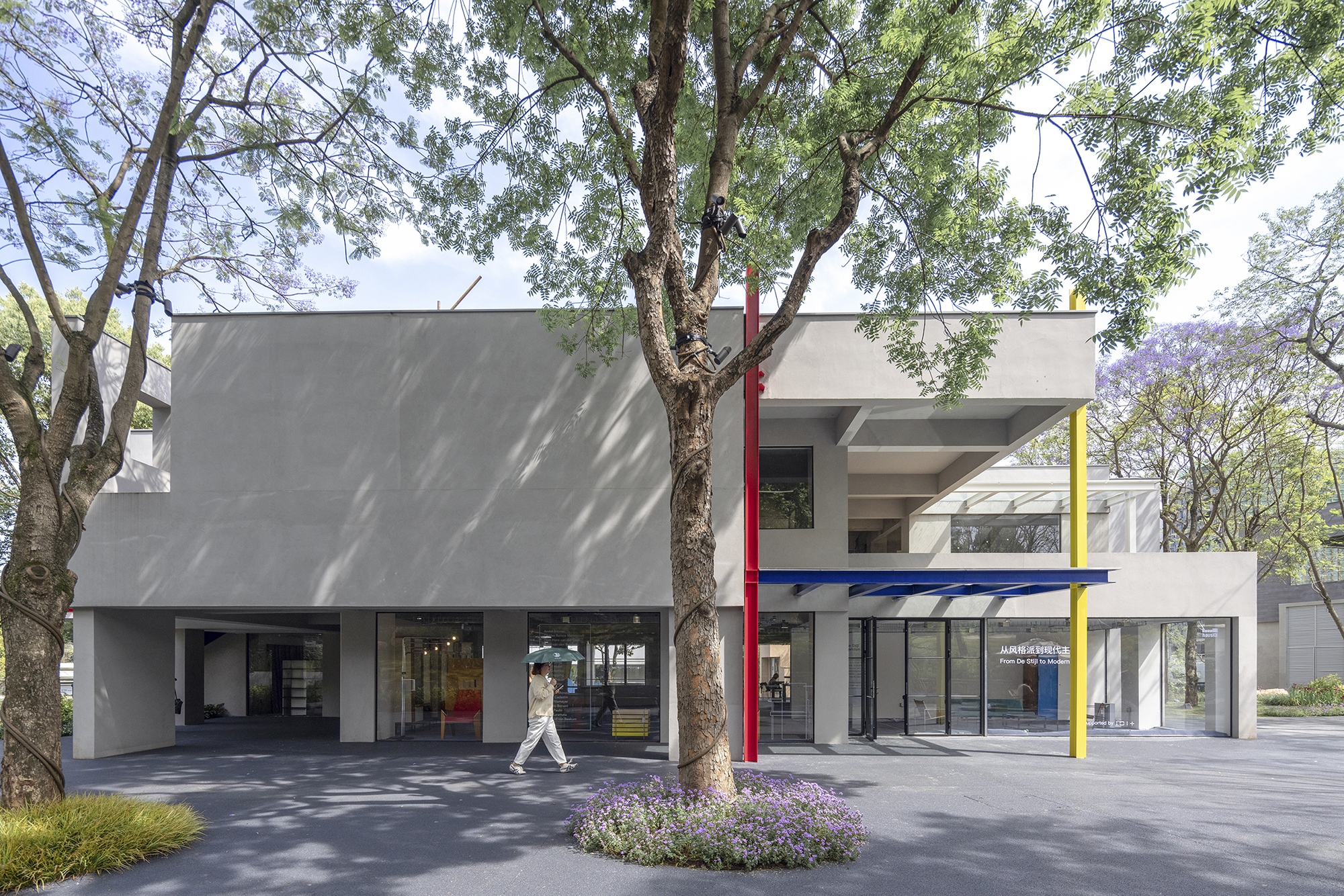

The palette does loosen occasionally. One gray concrete pavilion carries red and yellow posts and a blue canopy. These moments of color are rare enough to work as markers within the calm field, and they help you find your way across a site organized as a cluster rather than a grid.

Plans and Drawings

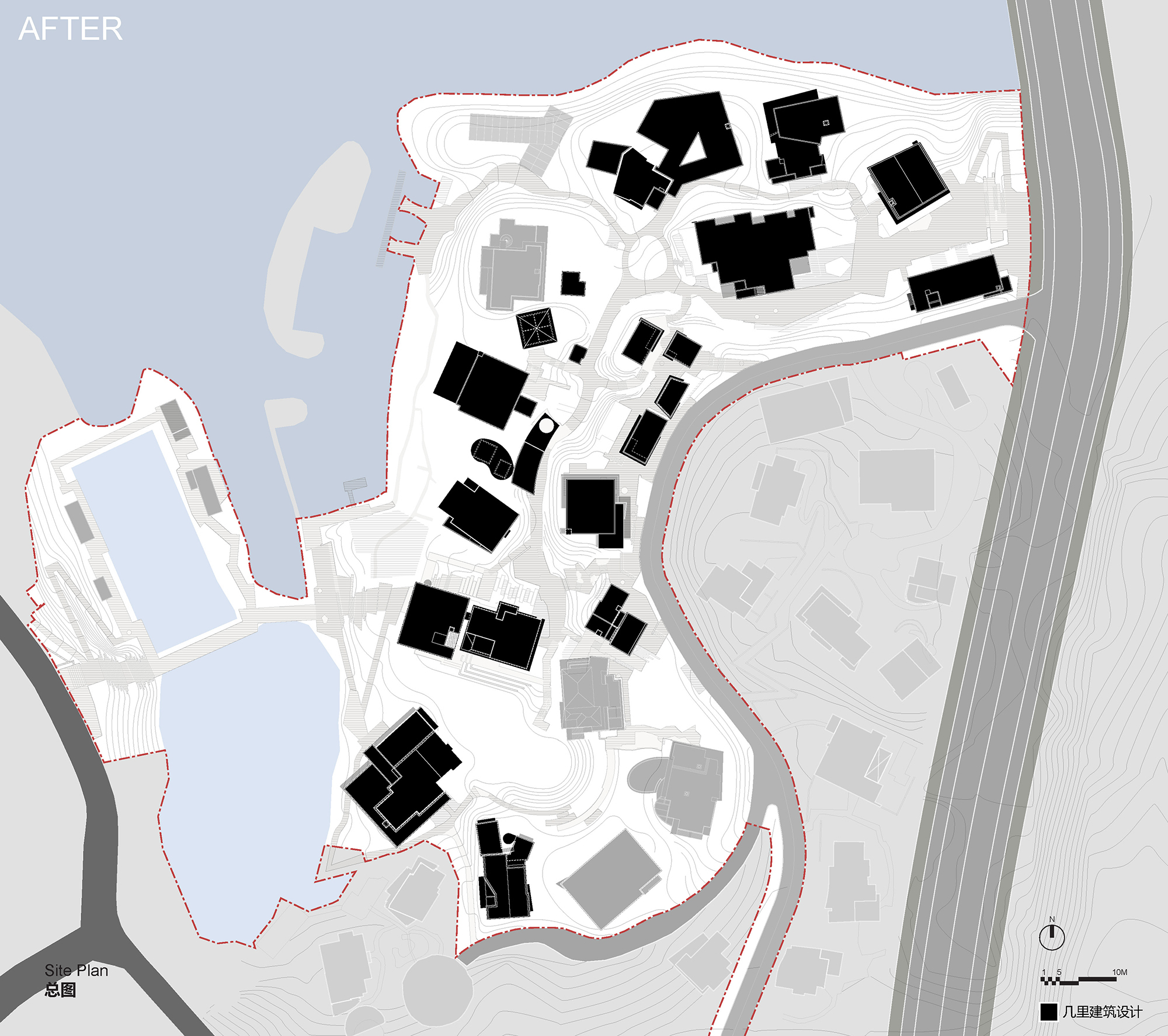

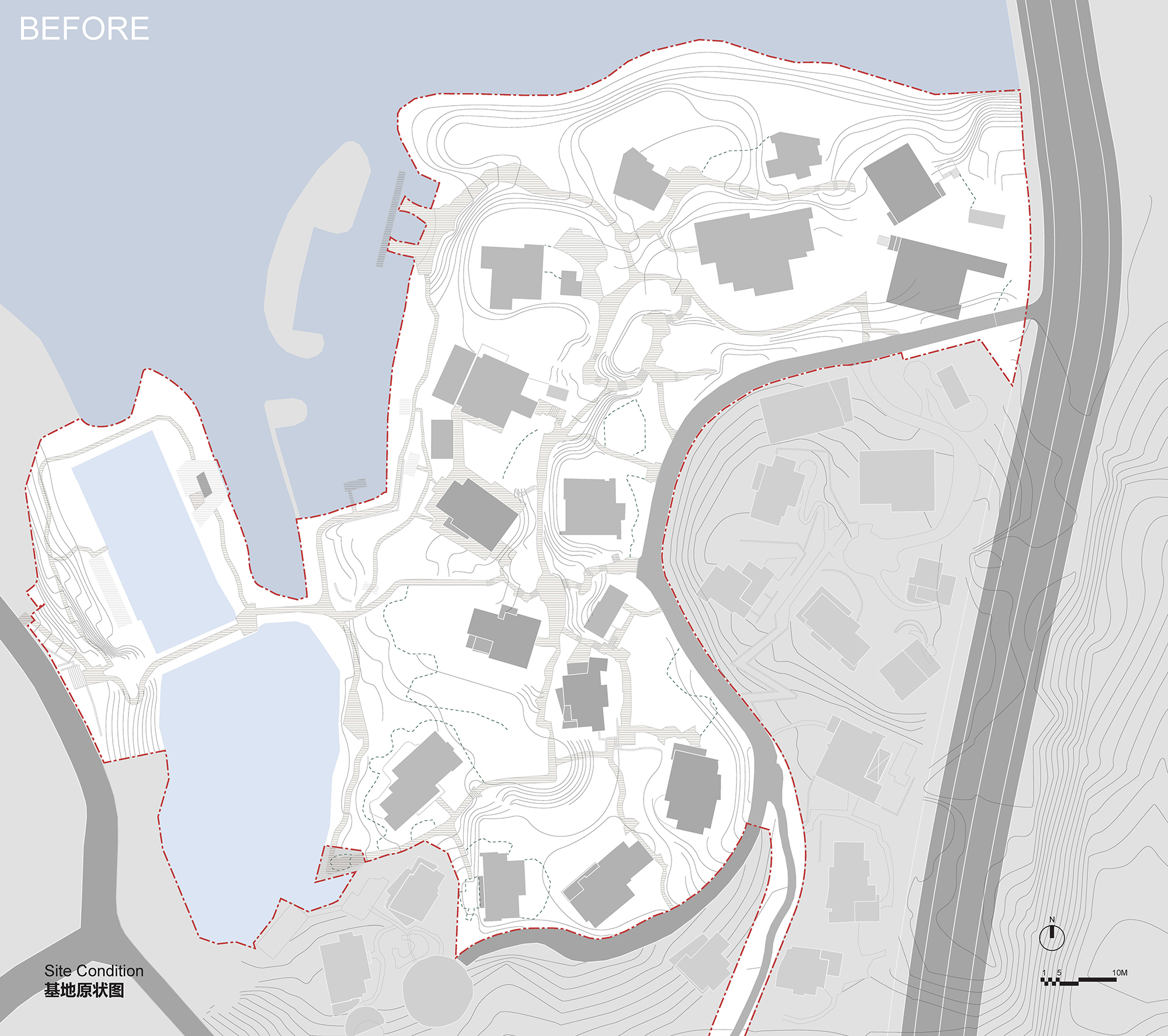

The before-and-after site plans are the clearest record of the intervention. In the earlier drawing, gray footprints of the old show villas sit along the contour lines and lake edges. In the later one, new buildings in black appear among the retained gray ones, placed to complete the open spaces between them rather than to fill every gap.

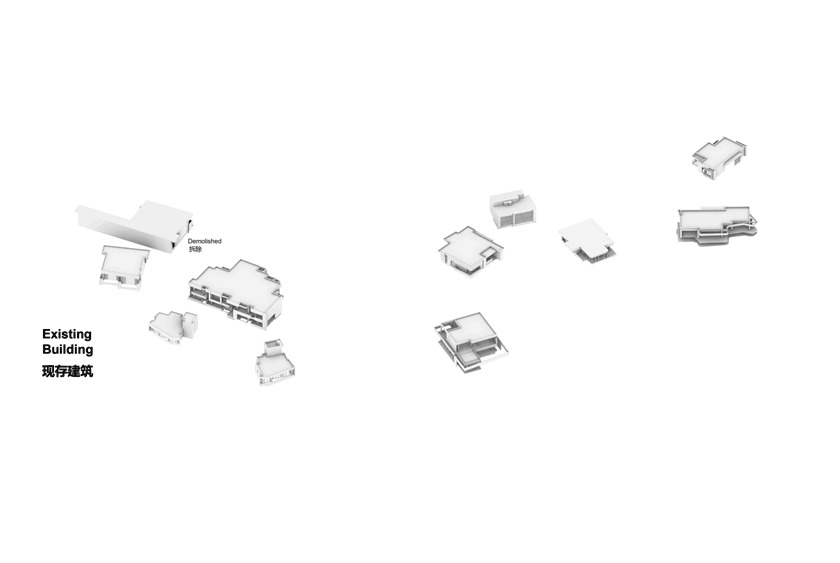

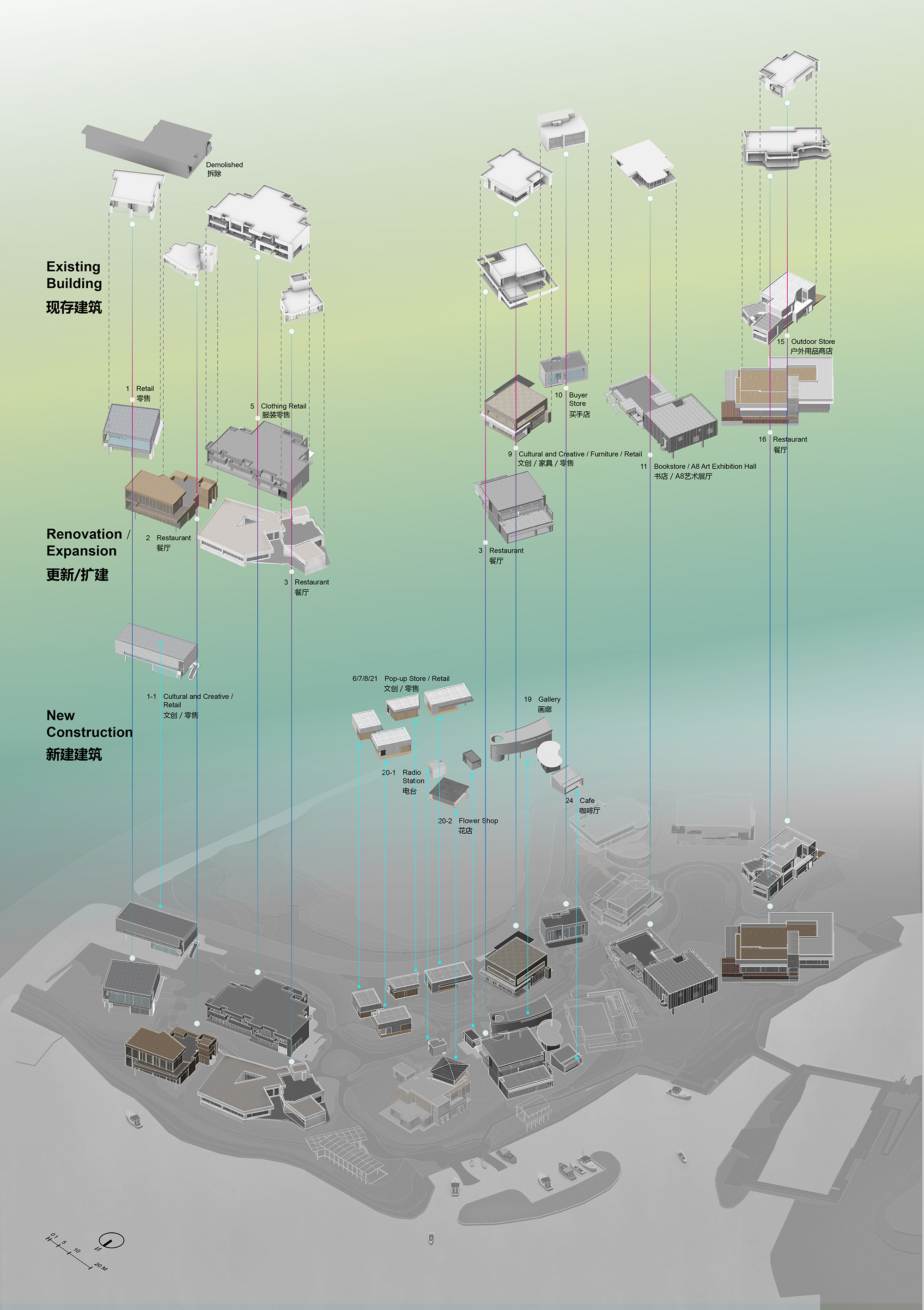

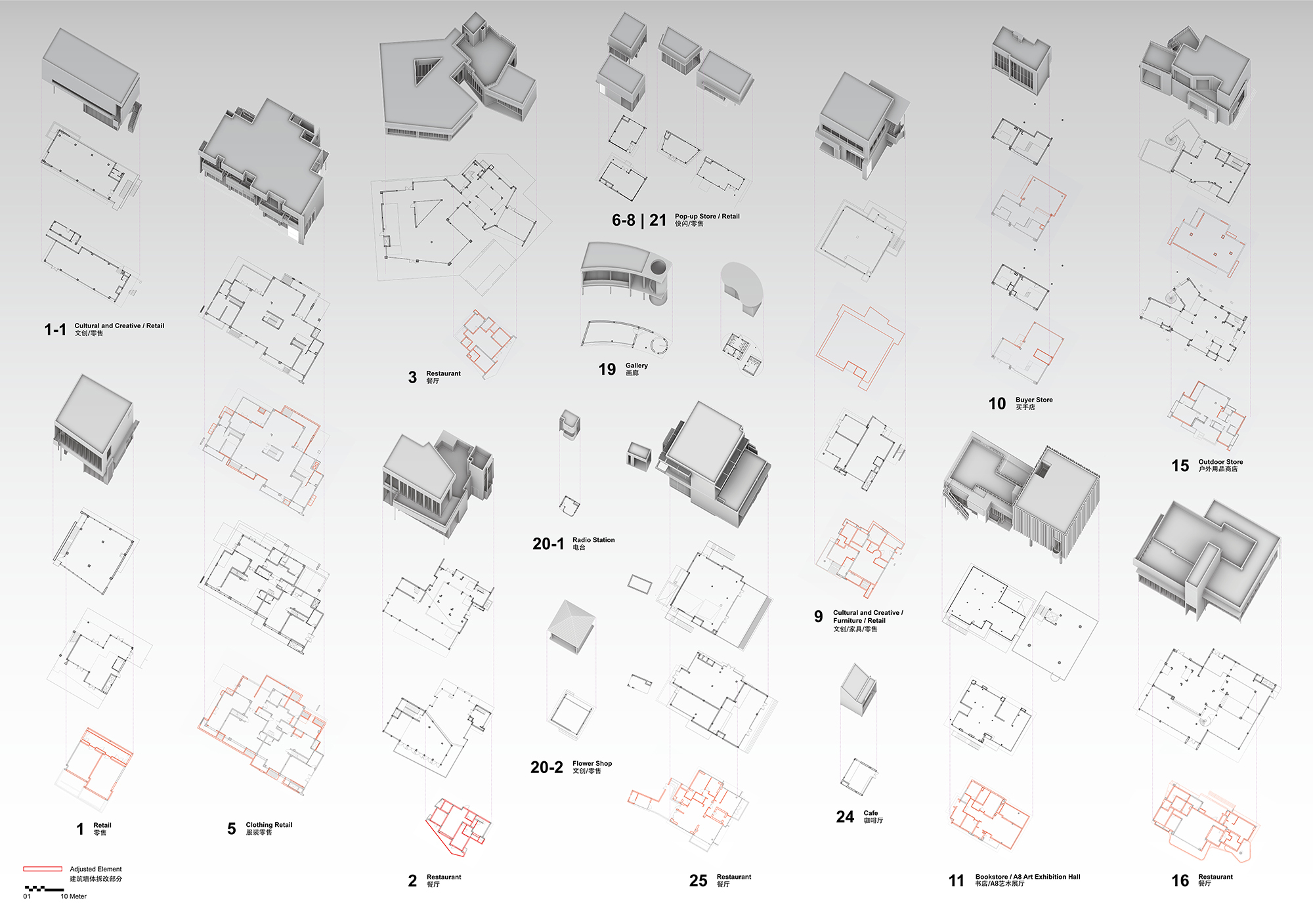

The axonometrics sort the building stock into existing, renovated and new tiers, and one long block is marked for demolition. The exploded building studies split individual volumes into roof, floors and adjusted elements, with alterations shown in red. Together they show selective surgery, not a clean slate.

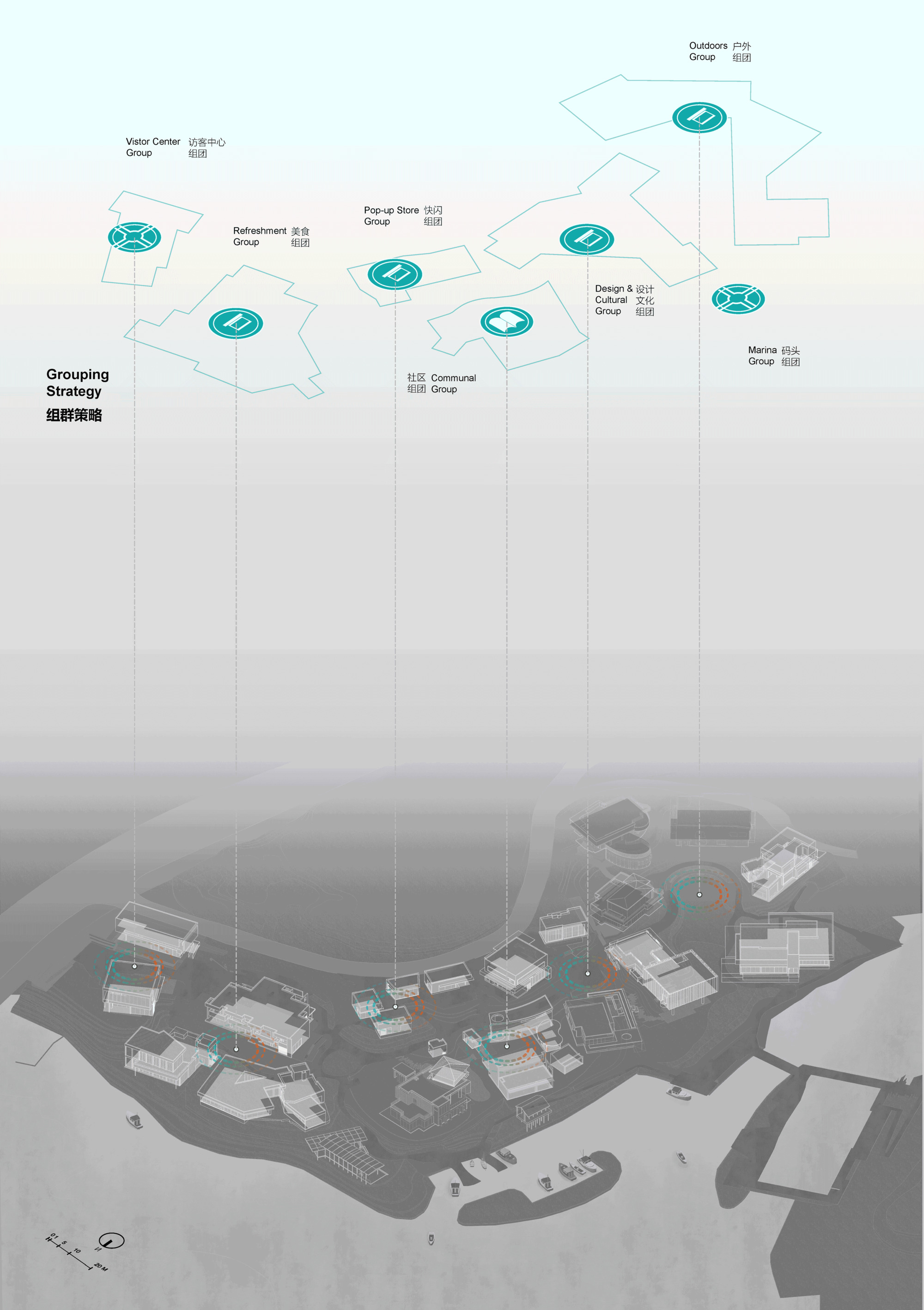

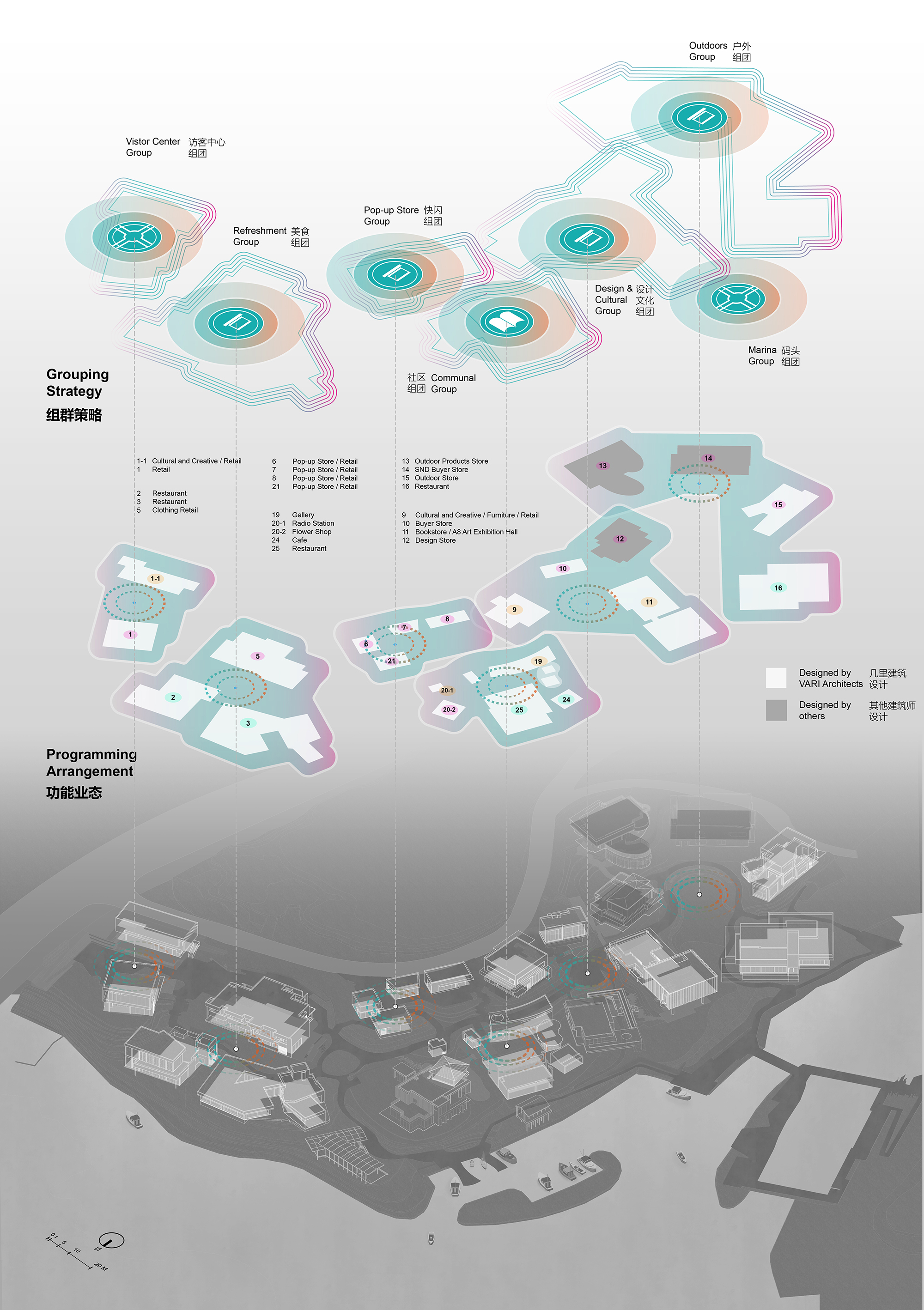

The grouping diagrams explain the social structure. Six small squares act as core gathering spaces, and six building clusters form around them, with programs such as a visitor center, a marina and outdoor activities. Some clusters face a central point; others stay half open to the landscape. The project calls this a "collective form."

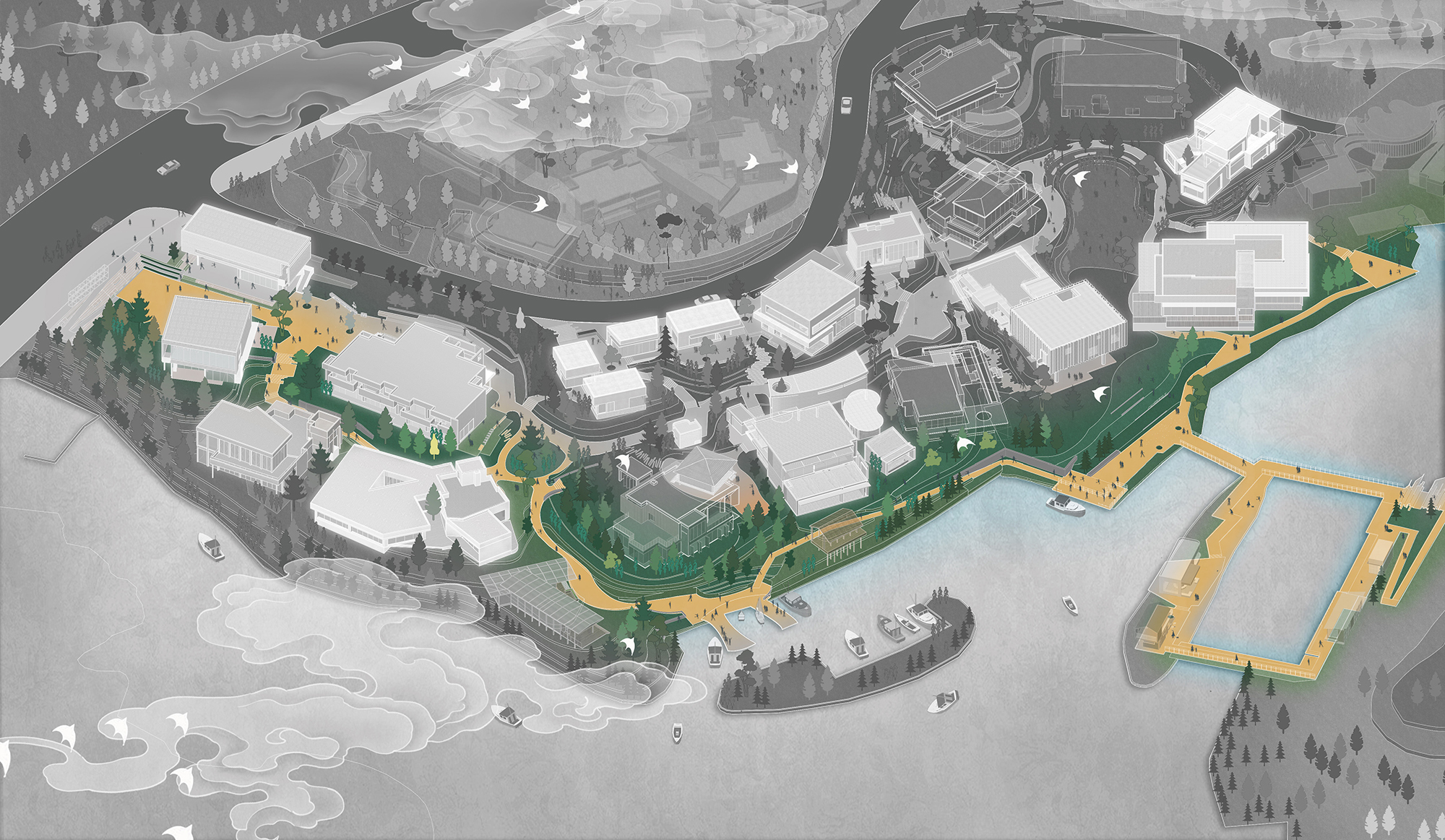

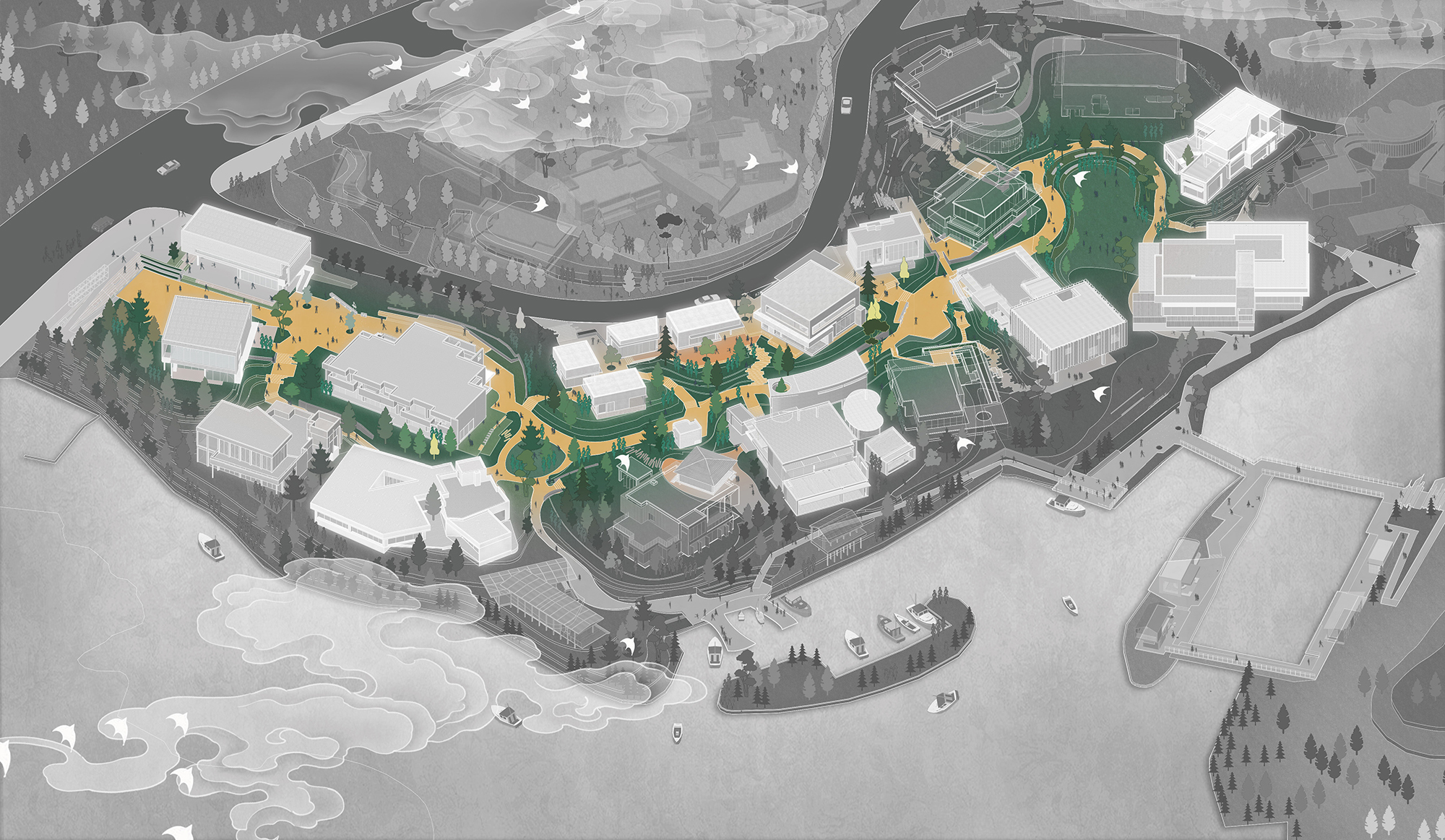

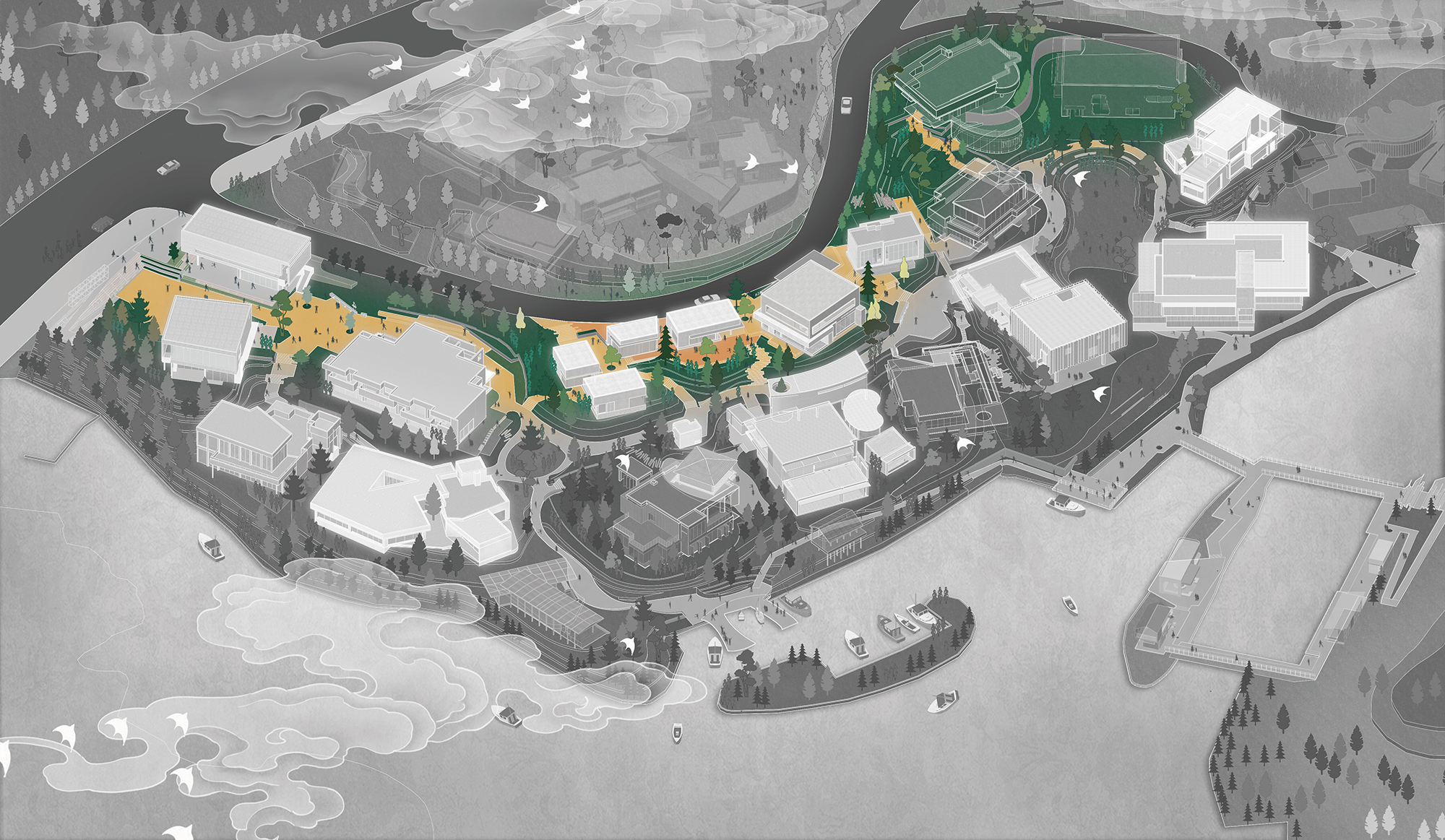

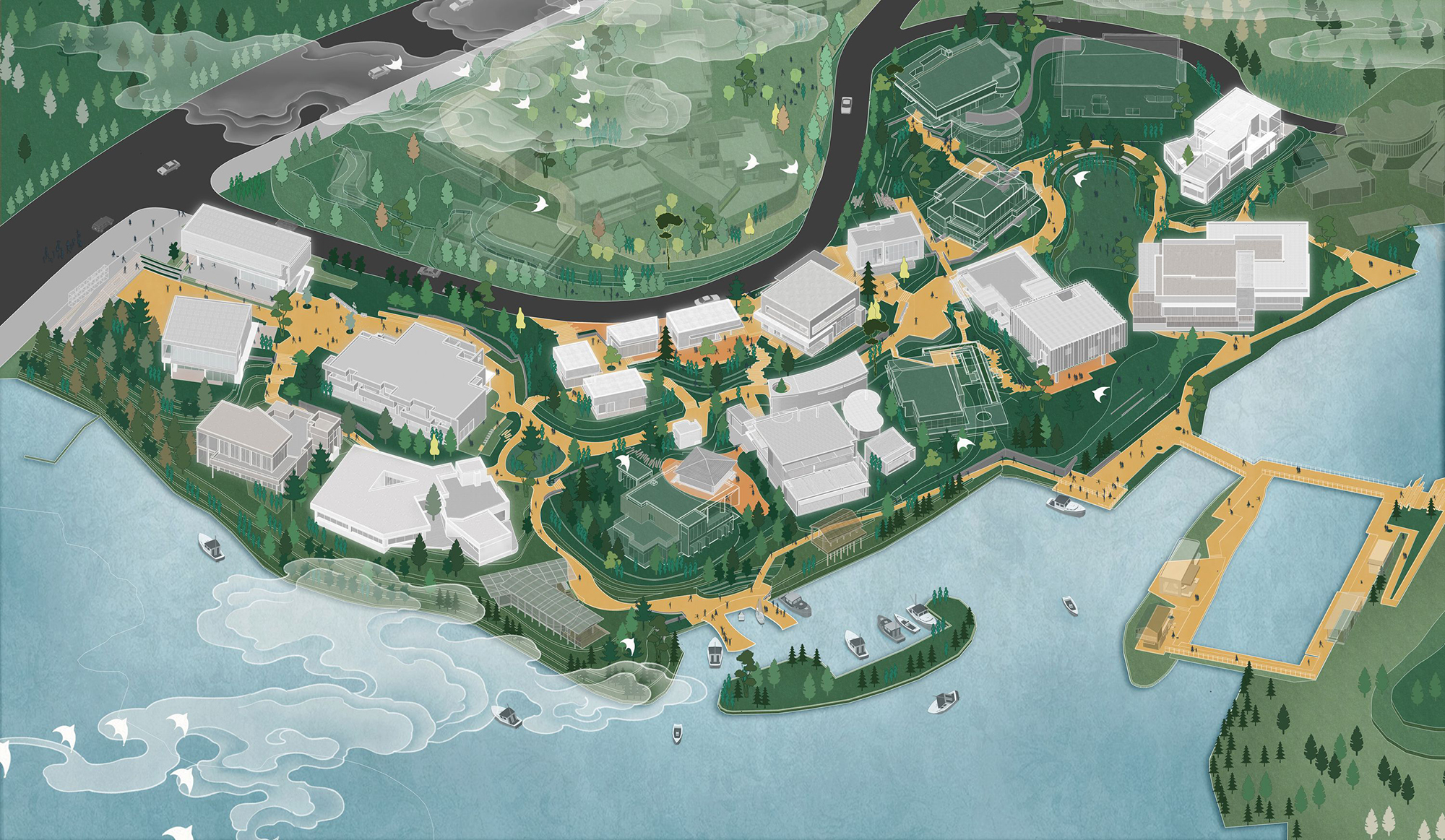

The circulation diagrams separate three path systems: a waterfront boardwalk loop along the shoreline, a central network winding between buildings, and hillside paths with planted terraces along the road edge. Each layer serves a different pace, from an evening walk by the water to a quick trip to a single shop.

Why This Project Matters

China is full of speculative leftovers: show flats, sales centers and model villas built for a market moment that has passed. Luxe Lakes CPI Island offers a practical model for reusing them. Vari Architects keeps what works, removes what doesn't, and adds new volumes to repair the site's structure instead of erasing it. That is more sustainable and more interesting than demolition, and it gives the new commercial life a sense of history.

The larger lesson concerns tone. Retail architecture often equates visibility with success. Here the team lowers the volume: plain materials, lifted boxes, generous gray spaces and paths that follow the lake. Whether the commercial program survives over time remains to be seen, but the public realm it creates, shaded and walkable, is the right thing to invest in.

Luxe Lakes CPI Island Commercial Renewal by Vari Architects (lead architects Fan Qi and Dingliang Yang), Chengdu, China. Area: 7,000 m². Completed 2024. Photography by Arch-Exist and Blue Orange Photography.
