THE BREWED WAVE
THE BREWED WAVE IS A CAFE WHICH ACTS AS A HUB OF THE MODERN WORLD. THIS IS AN ICONIC BUILDING BECAUSE OF ITS UNIQUE FACADE WAVE FORM.
Project Media

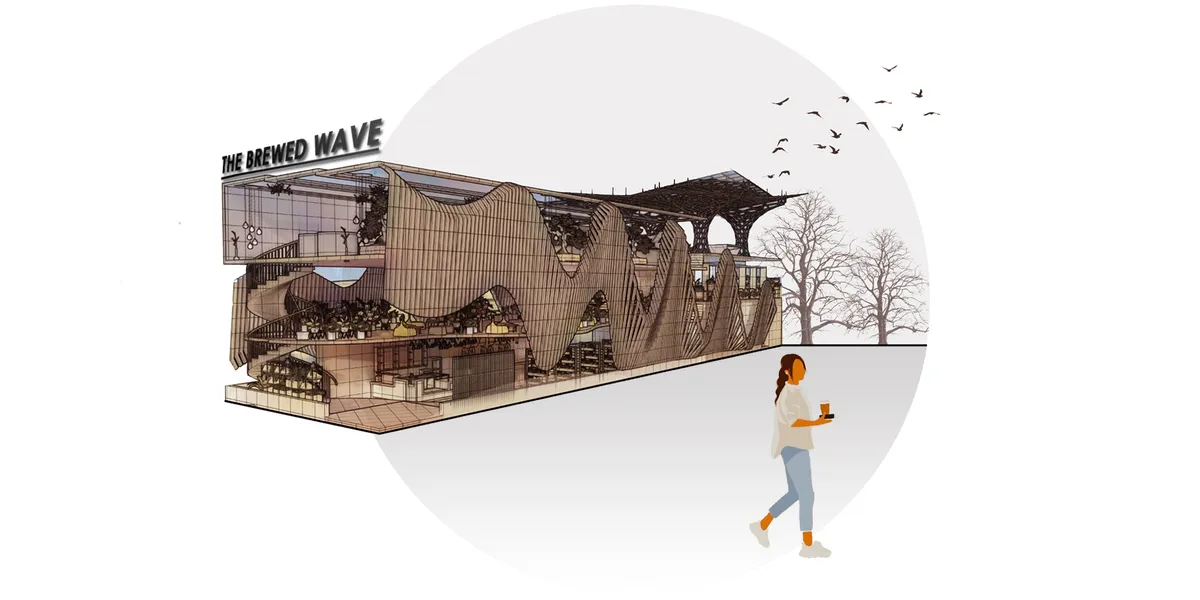

COVER IMAGE
HUMAN EYE VIEW EMPHASIZING ON THE FORM OF THE BREWED WAVE.
CASE STUDY
THIS CASE STUDY OF METAL HANDS COFFEE CAFE SHOWS THE MAJOR PLAY OF LIGHTS AND COLOR IN ITS INTERIOR AND THE USE OF RAW MATERIAL.
SITE ANALYSIS
A THOROUGH STUDY OF ALL ASPECTS OF SITE AND ITS SURROUNDINGS WHICH GOVERN AND CONTROLS THE DESIGN.
CONCEPT
THE DEVELOPMENT OF DESIGN THROUGH FORM ,FUNCTIONS, AESTHETICS AND INTERIORS. ALSO INCLUDES THE CONCEPTUAL SKETCH OF THE DESIGN WHICH WE CONCEIVED FROM THE WHOLE DESIGN DEVELOPMENT PROCESS.
CONCEPTUAL SITE VIEW, SECTION AND VIEWS
THE CONCEPTUAL SITE VIEW COVERS ALL THE SURROUNDINGS AND HIGHLIGHTS THE GIVEN SITE AND PROPOSED DESIGN. THE CONCEPTUAL SECTION SHOW THE RELATION BETWEEN THE CAFE SPACES. SOME VIEWS SHOWING THE INTERIOR OF CAFE AND THE LIGHTING EFFECT IN THE EVENING.
EXPLODED VIEWS
FOR THE BETTER UNDERSTANDING OF THE SPACES WITH IN THE CAFE AN EXPLODED AXONOMETRIC VIEW IS GIVEN ALONG WITH THE POPPED UP SPACES FOR HIGHLIGHTING THE SPACES. A NIGHT SECTIONAL VIEW IS GIVING TO UNDERSTAND THE NIGHT FUNCTIONING OF THE CAFE.
INTERIOR VIEWS
ALL THE VIEWS EXPLAINING THE SPACES AND THE AESTHETIC ASPECTS OF THE CAFE.
