Sustainable Garbage Station Architecture: Langfang Beifengdao Garbage Transfer Station by Atelier Ingarden

The Langfang Beifengdao Garbage Transfer Station, designed by Atelier Ingarden, represents a shift in the approach to urban micro-infrastructure. This innovative design seeks to address two major urban challenges: the integration of functional urban spaces and the enhancement of the efficiency and external image of essential services. Located in Langfang, Hebei, China, the project tackles these challenges by transforming a basic garbage station into a model of sustainability and architectural efficiency.

Redesigning Urban Infrastructure with Sustainable Architecture

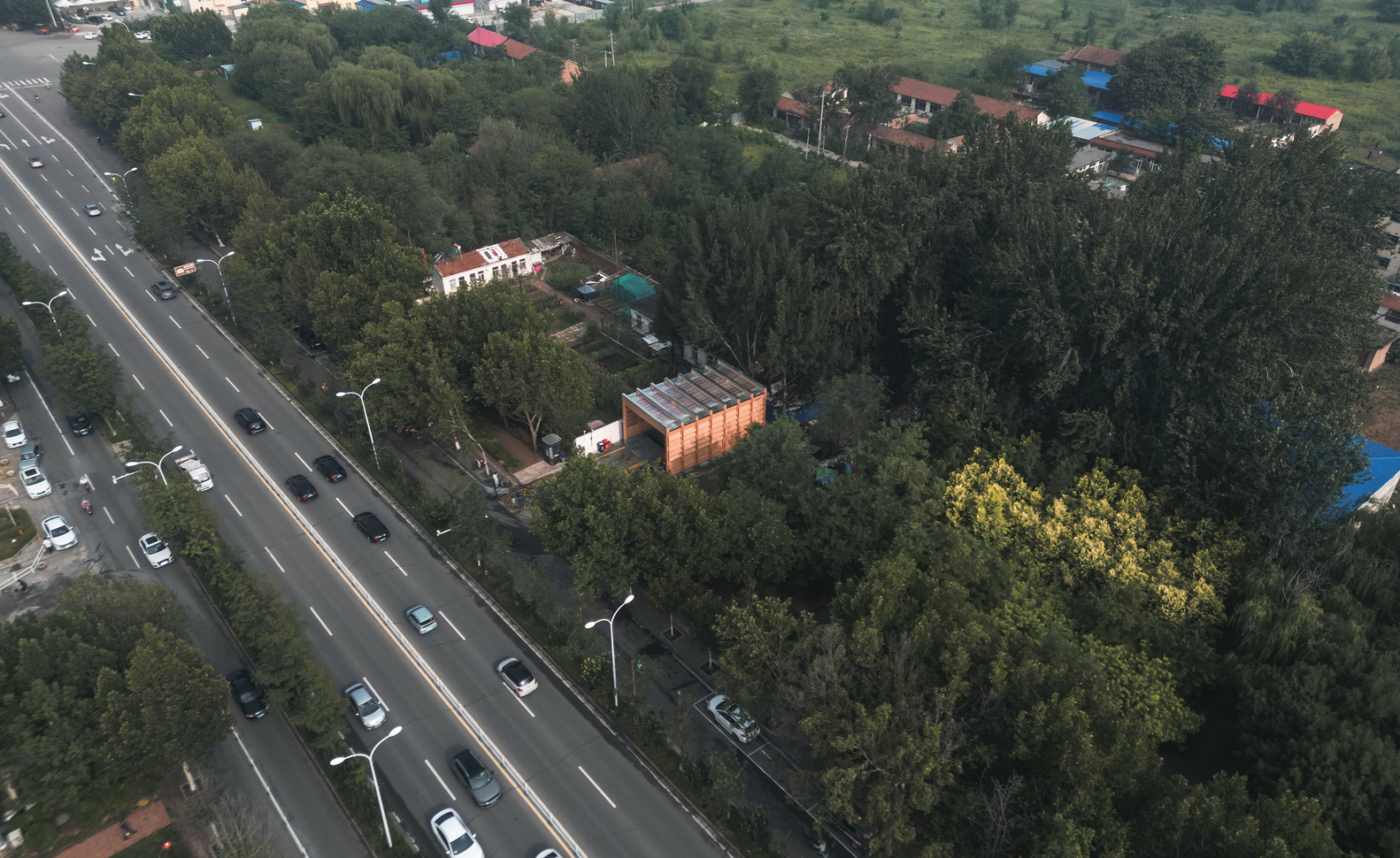

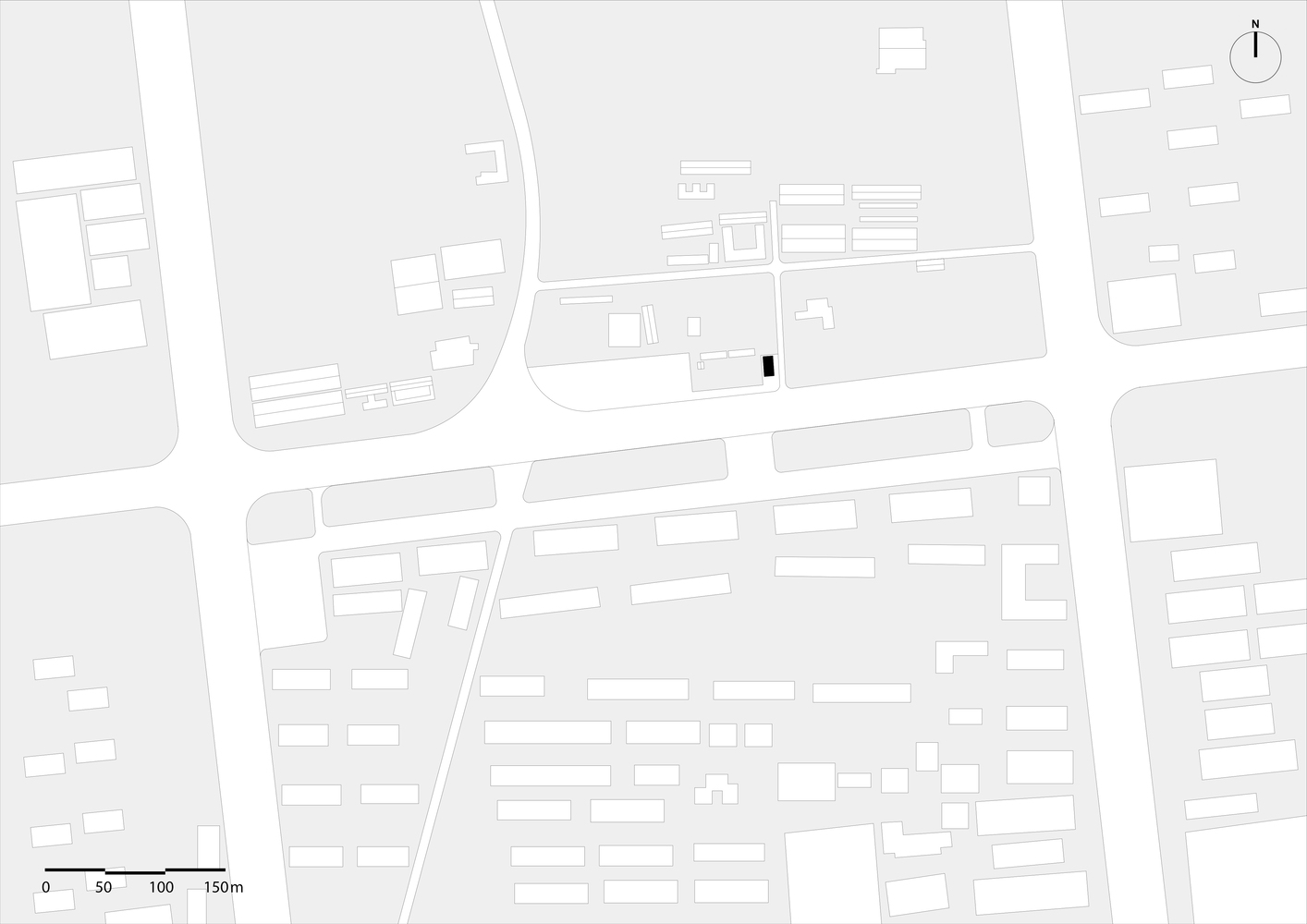

One of the core goals of the Langfang Beifengdao project was to reintegrate the urban corner space into the daily life of the city. By approaching the site with a fresh architectural perspective, the building aims to change the perception of what a garbage station can be. Rather than an eyesore, the station becomes a functional and environmentally conscious part of the city's landscape.

The design team also sought to explore how to improve the operational efficiency of urban infrastructure using minimal resources and investment. The solution lay in applying basic architectural methods that are both cost-effective and environmentally sustainable, proving that impactful design can be achieved within limited means.

Glulam as a Sustainable Material Choice

One of the most notable aspects of the design is the use of glulam (glued laminated timber) as the primary building material. This choice was driven by both aesthetic and functional considerations. Glulam offers environmental benefits, such as reduced carbon footprint, and its natural appearance helps to counter the traditionally negative image associated with waste facilities.

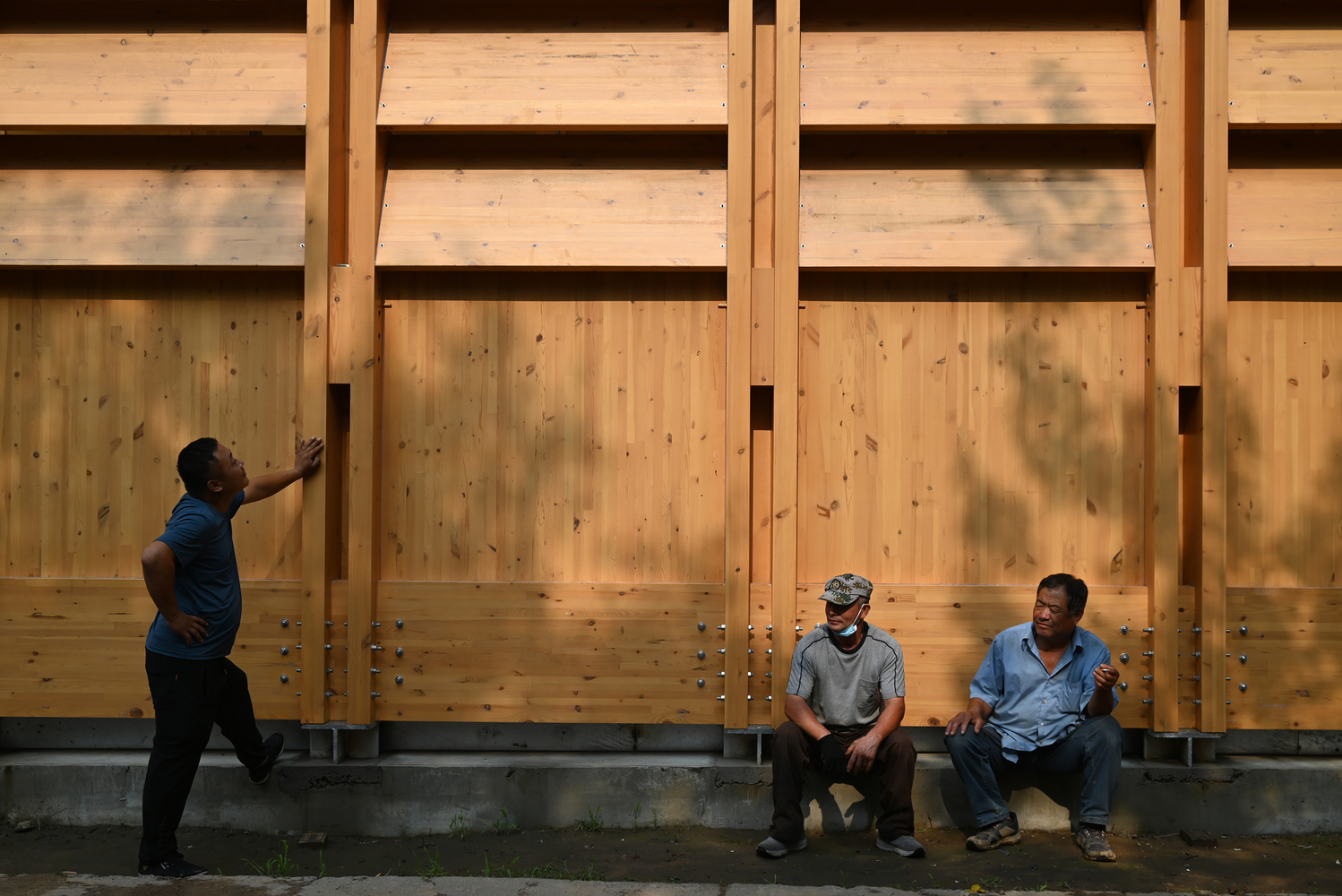

The use of glulam also provided structural advantages. Its beam and column logic creates a unified architectural space that harmonizes with the building's purpose and enhances its functionality. The wood structure seamlessly integrates architecture, structure, and space, avoiding the need for subsequent decorative layers.

Efficient Design for Maximum Functionality

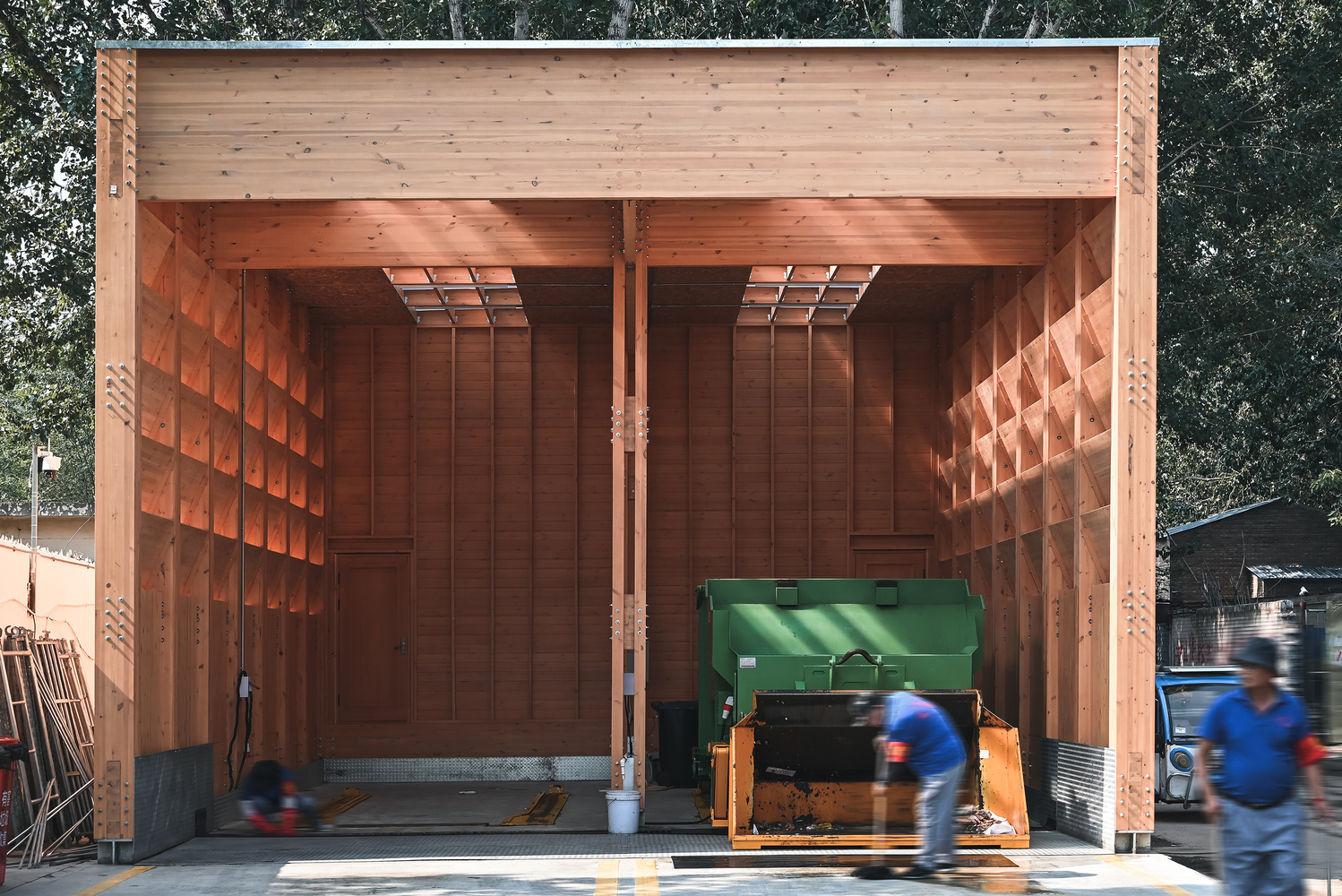

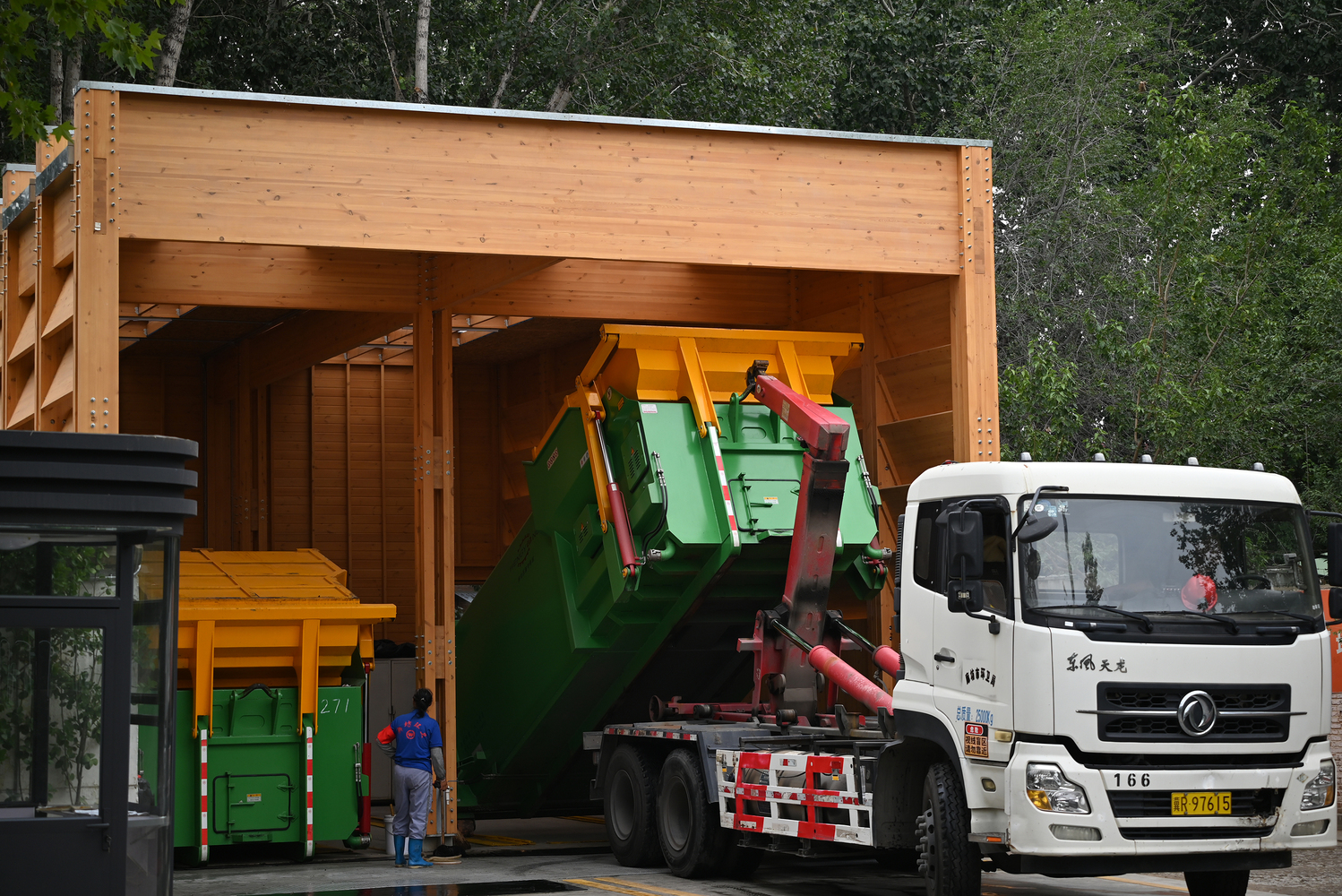

The design of the Langfang Beifengdao Garbage Transfer Station focuses on maximizing operational efficiency within a limited space. The building measures 7800mm in width and 1800mm in depth, providing enough room for two garbage trucks to park simultaneously. The interior is organized into specific zones: a garbage collection and transfer space, a parking area for the garbage trucks, and a tool storage section.

The building’s internal height is designed to accommodate the highest points of the loading and unloading process, ensuring smooth operations. This thoughtful attention to space optimization enhances the station’s ability to serve its function while maintaining an organized, efficient flow.

Aesthetic and Functional Facades

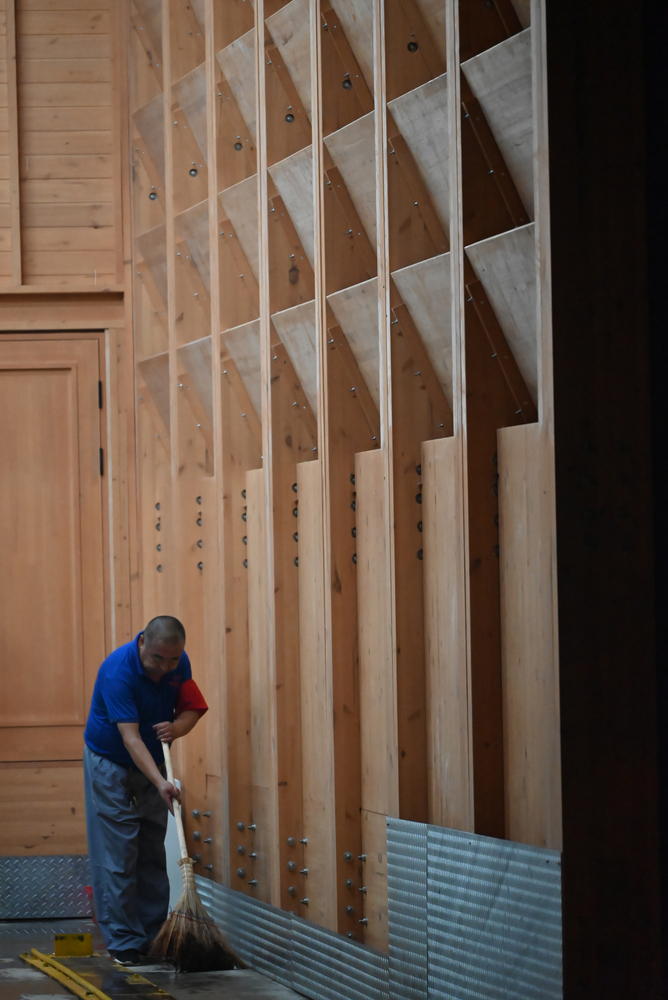

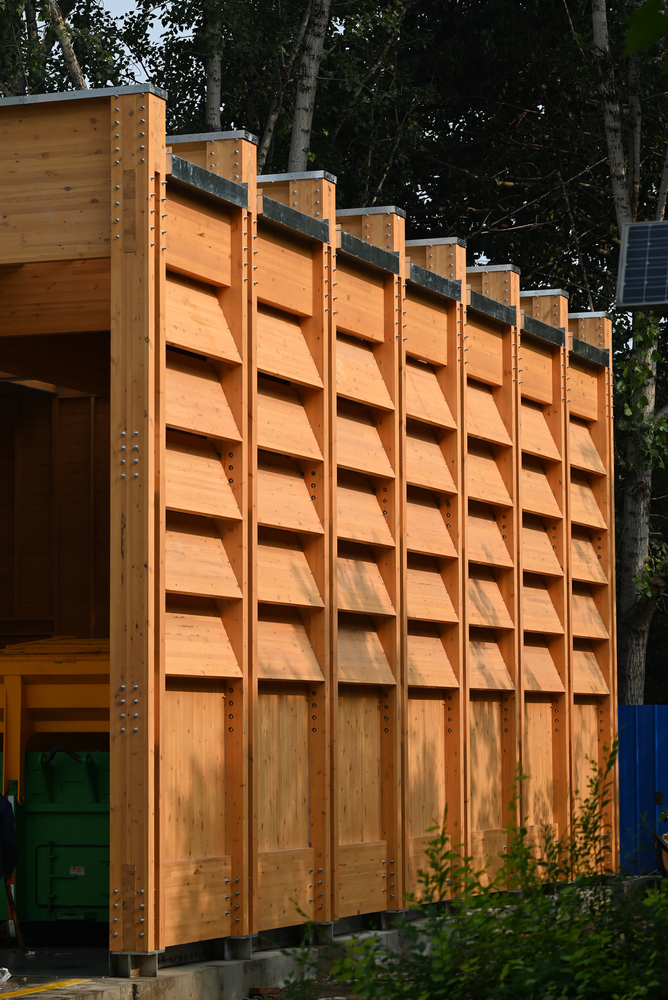

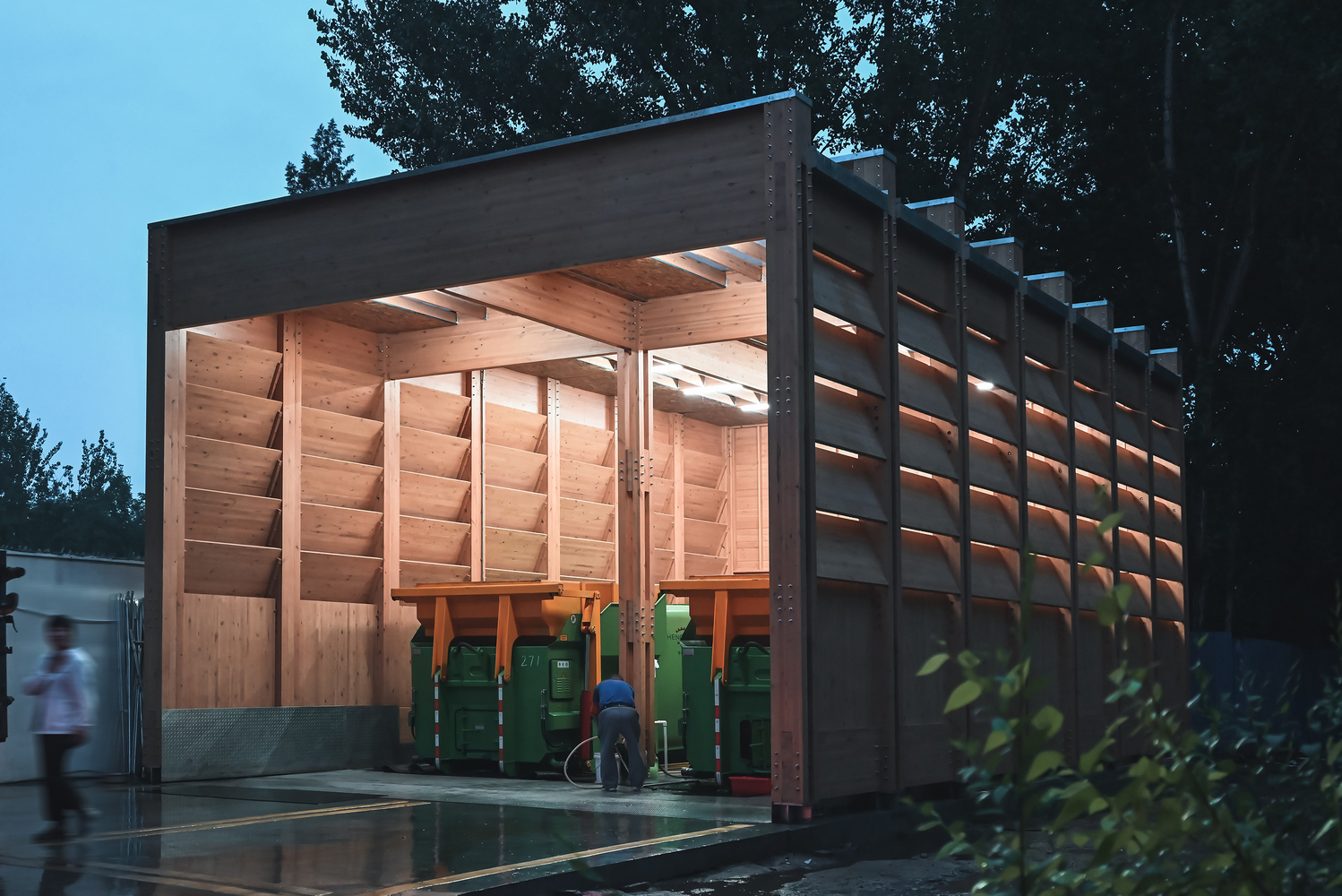

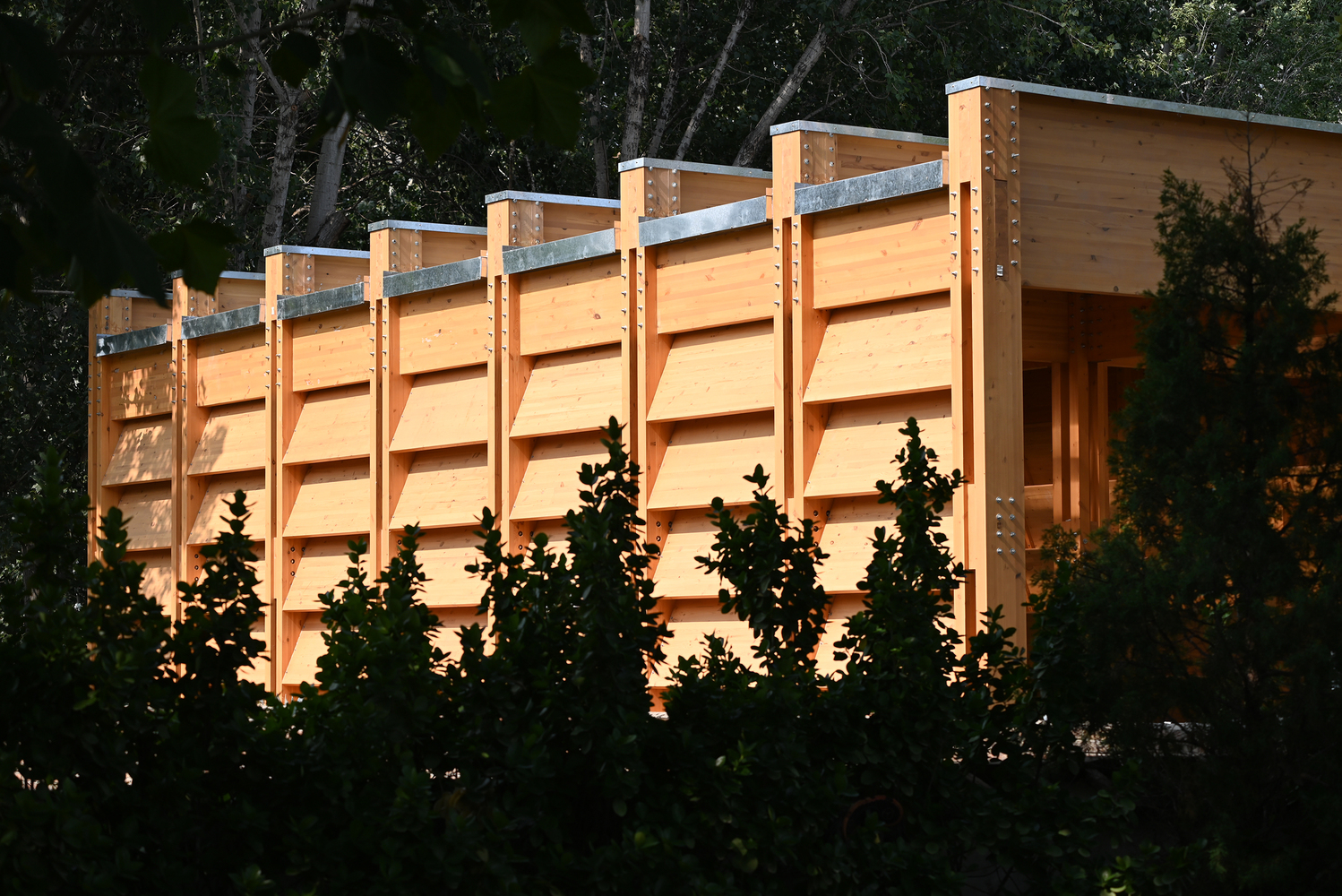

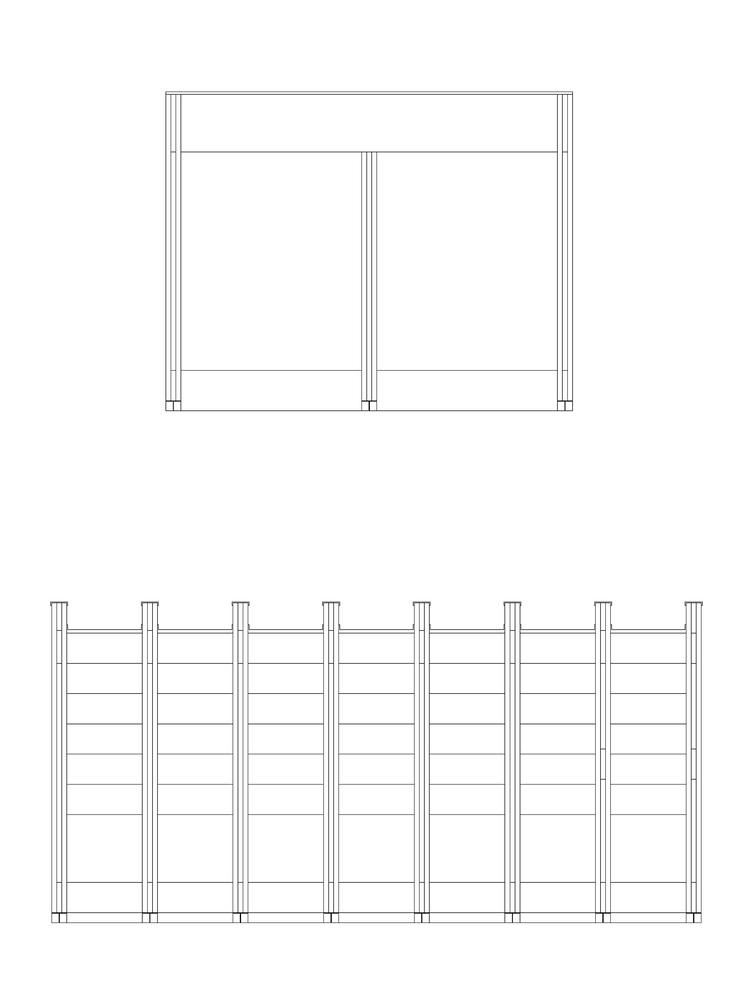

The facades of the Langfang Beifengdao station are also carefully designed for both functionality and aesthetics. The east and west facades are constructed using plywood, with two distinct sections that address the building’s internal needs. The lower section of the building has no windows and is designed to meet the height of parked trucks, while the upper section includes angled plywood to facilitate airflow and provide indirect lighting to the interior.

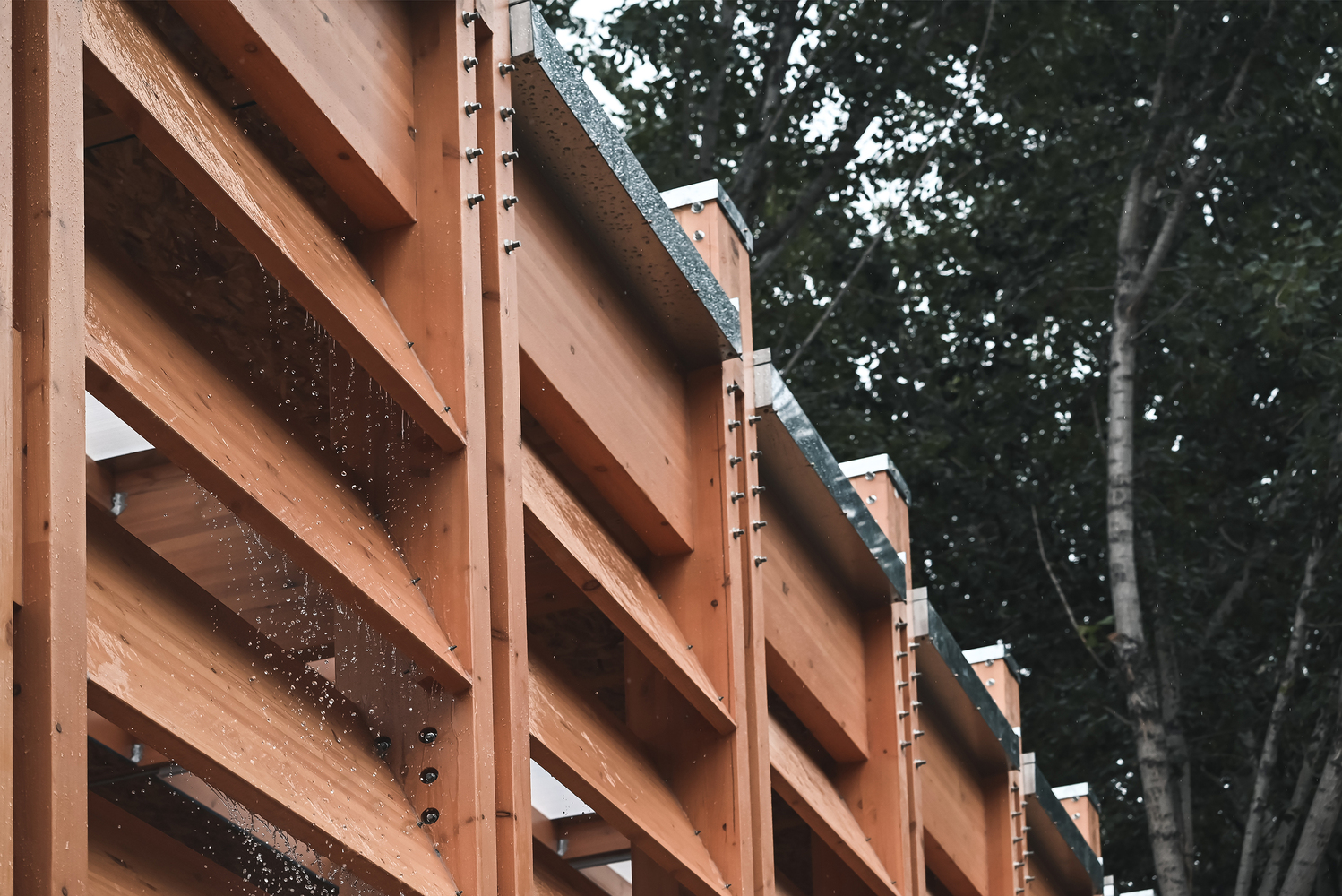

The roof of the building is made from European pine board and galvanized sheet, with a sun panel lighting window positioned above the garbage truck parking area. The roof beams are higher than the structure, dividing the roof into seven independent zones that allow for natural drainage.

Achieving the Design Goals

Upon completion, the Langfang Beifengdao Garbage Transfer Station successfully met the project’s initial goals. The urban corner space was reintegrated, returning it to the city in an orderly manner. The building’s design also improved the operational efficiency and external image of the garbage station, demonstrating how basic architectural principles can significantly impact urban infrastructure.

Through sustainable and thoughtful design, this project exemplifies how even utilitarian spaces like garbage stations can become key players in enhancing urban environments, both in terms of functionality and aesthetic appeal.

All Photographs are works of Yangyue Lin
