Ark Architecture Studio Distills Kerala's Vernacular into a Narrow Courtyard House in Thiruvananthapuram

Antara Residence is a 1,640 square foot family house in Thiruvananthapuram by Ark Architecture Studio, led by Rahul Kumar S and Malavika Mahesh. It sits on a narrow, tapering plot, and from the street it looks familiar: a steep clay-tiled roof, a shaded sitout and a cobbled forecourt. Look again and a grey plastered bay folds out of the front wall at an angle no traditional Kerala house would allow.

That tension is the interesting part. The architects did not copy the Kerala vernacular wholesale. They pulled four ideas out of it: light, ventilation, hierarchy and transition. They then rebuilt those ideas with concrete, brick, terracotta and timber. Plenty of houses in the state claim to reinterpret tradition and stop at the roof. This one carries the idea into the plan, the section and the way you move through the rooms, which is where the claim either holds up or falls apart.

A Tiled Roof and a Folded Wall

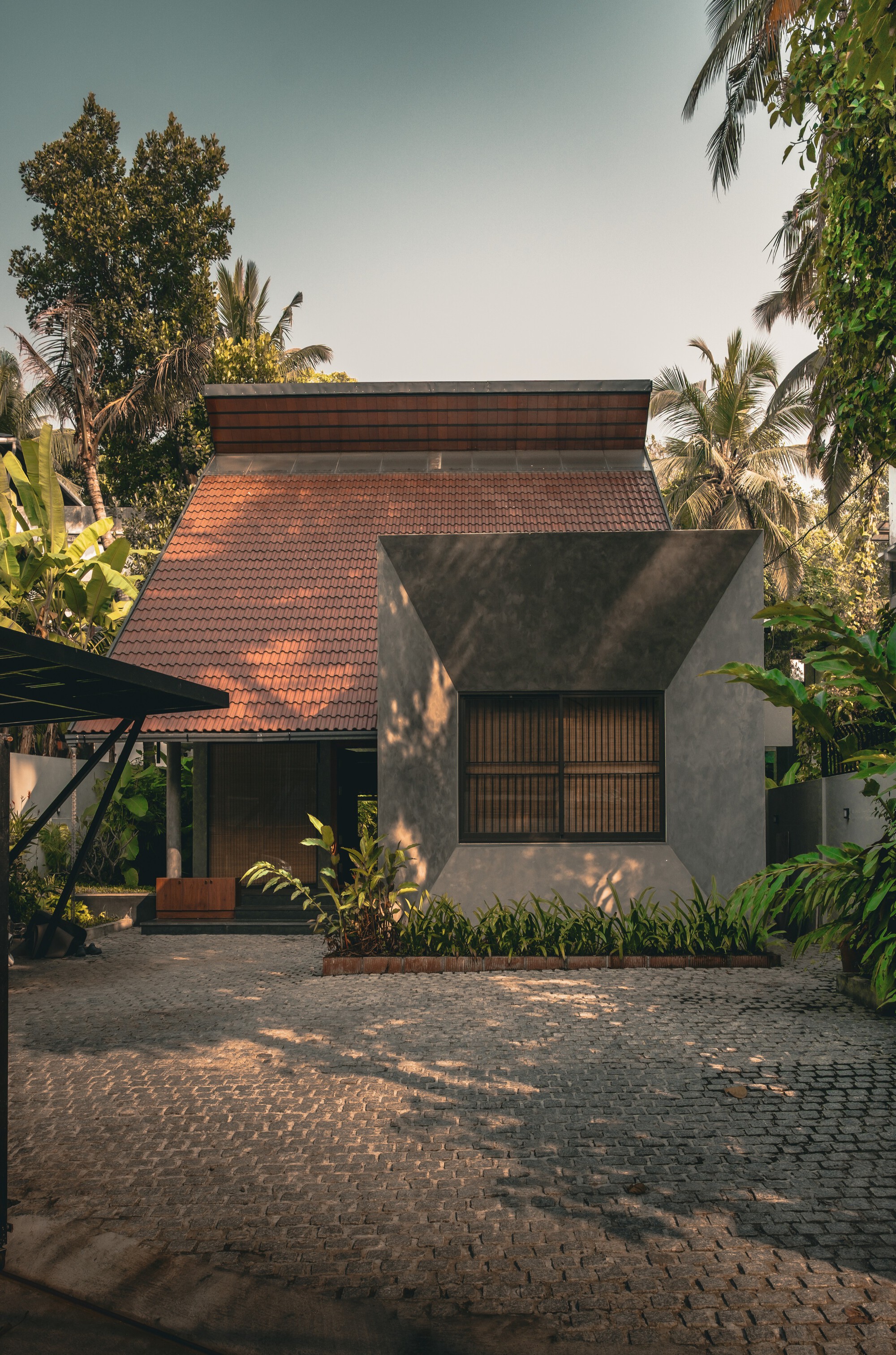

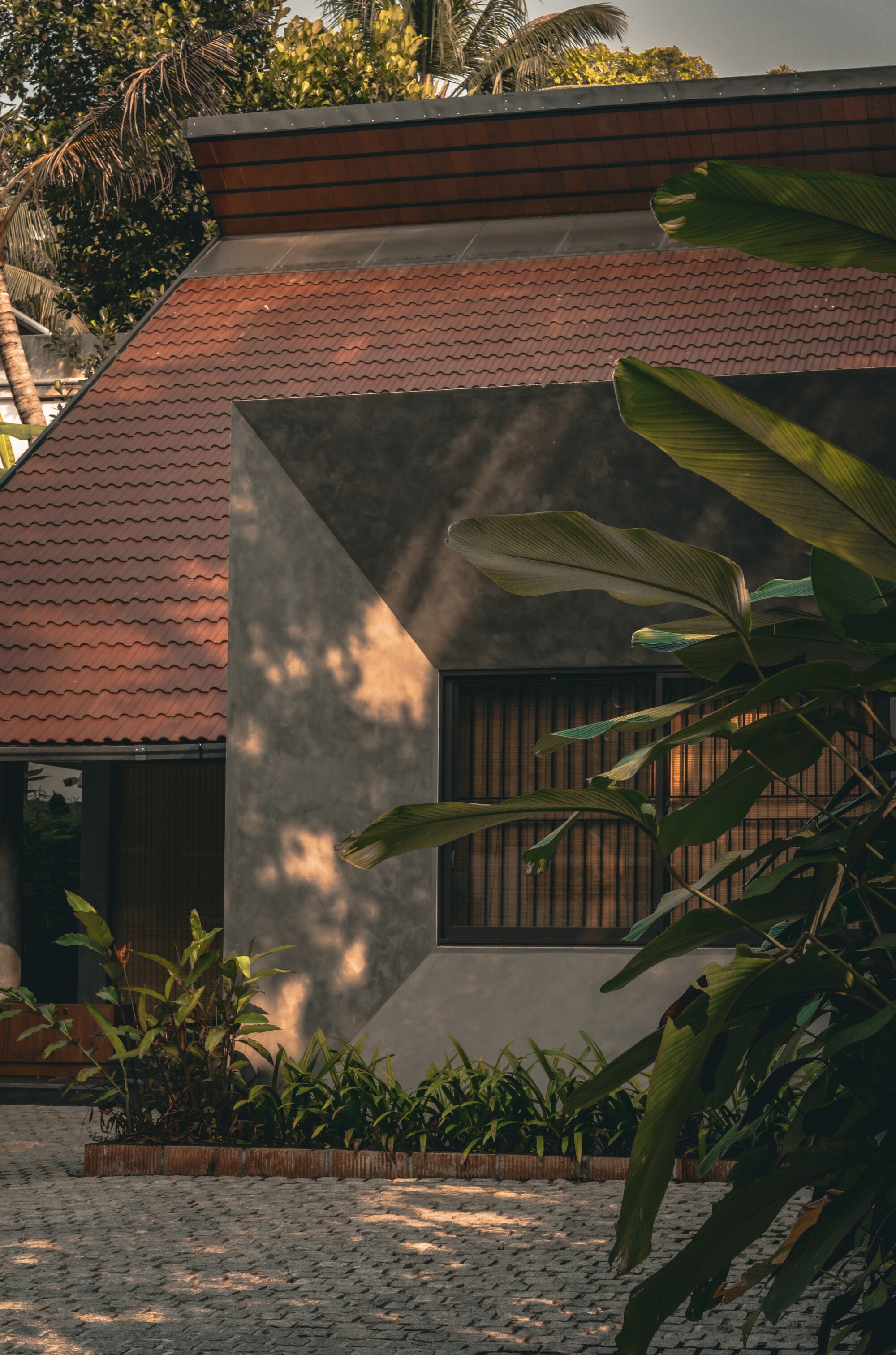

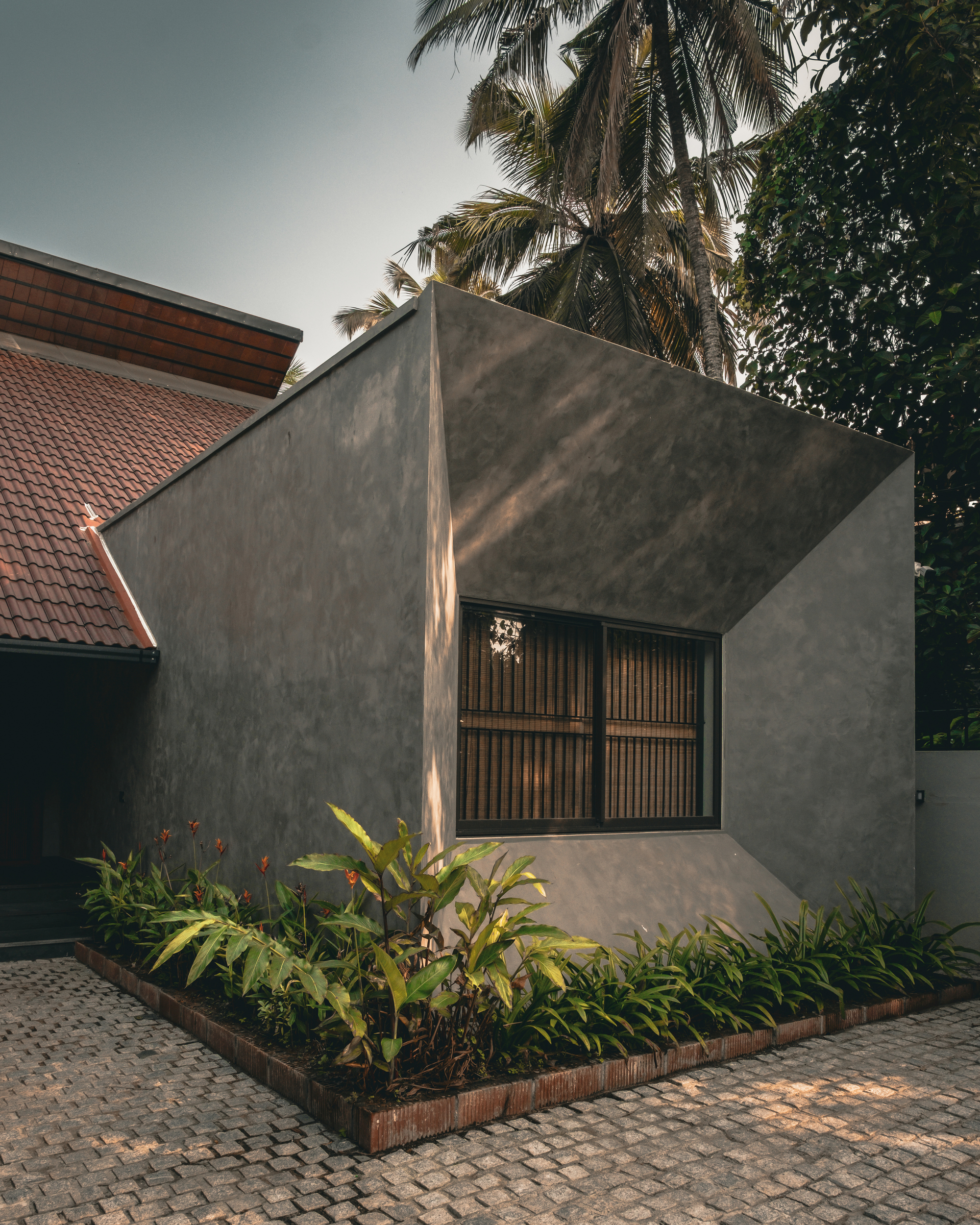

The street elevation runs two languages side by side, and does it with confidence. The pitched clay roof is the oldest climatic device in the region: it sheds monsoon rain fast and holds a deep shadow line. Below it, the angular grey bay works like a contemporary signature. It is plastered, faceted and a little defensive, with a timber-screened window that filters the view rather than framing it.

We like that the bay is not apologetic. It sits above a brick-edged planting bed, and banana leaves and palms crowd in close, so the dappled light on the plaster does the softening. The mass is modern, the shadow is tropical, and the house reads as rooted without dressing up as a period piece.

Thresholds That Take Their Time

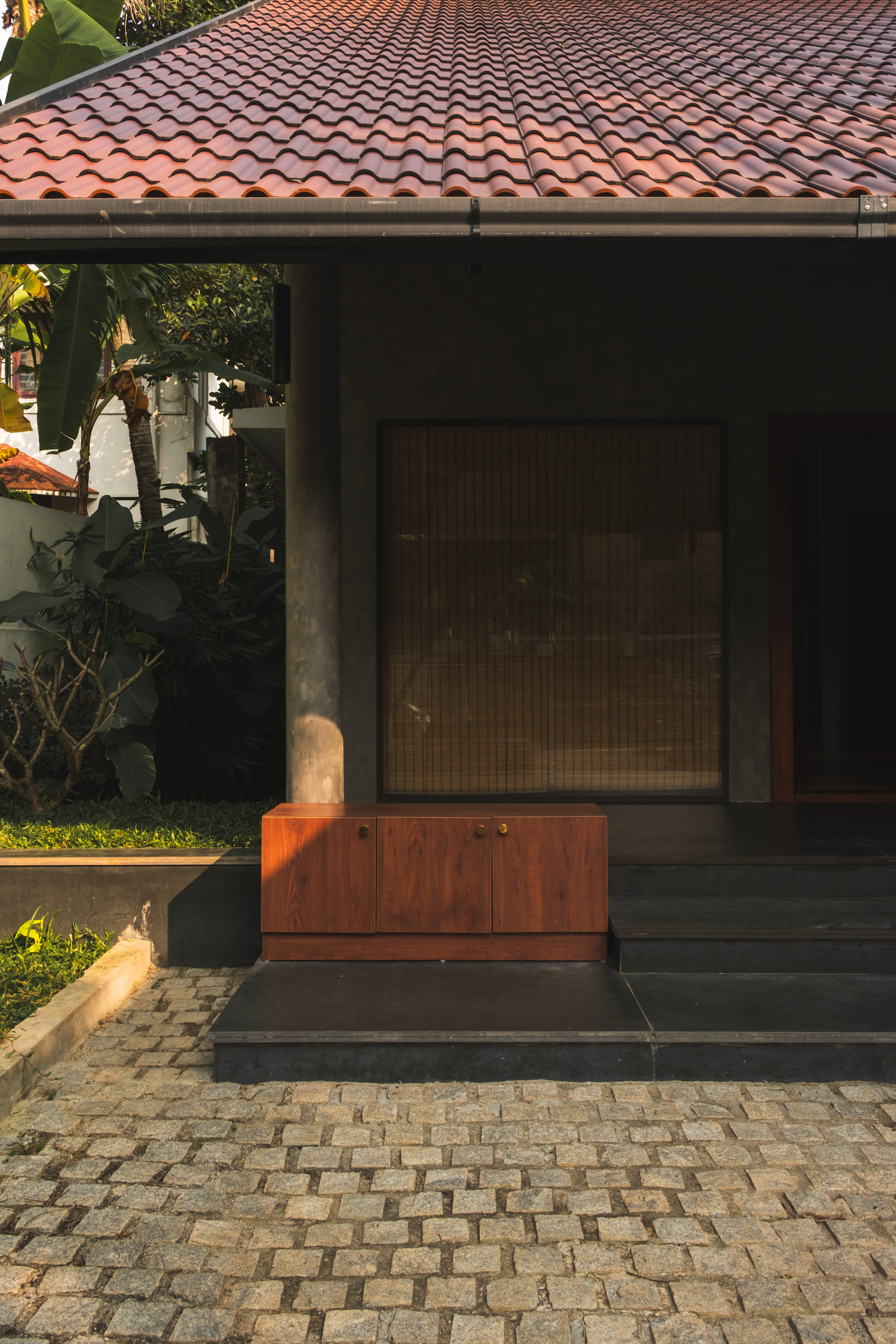

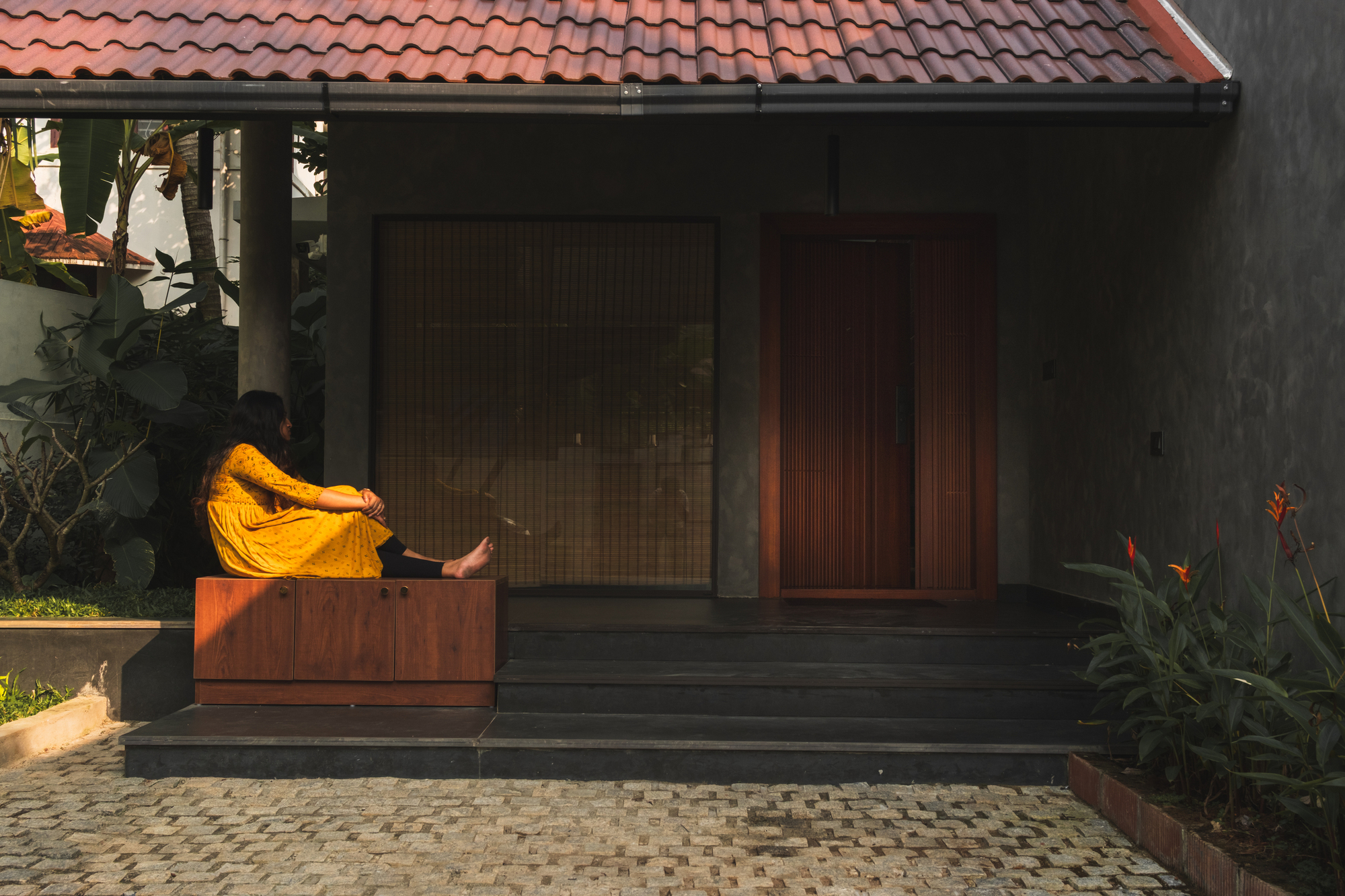

Transition is the principle that is easiest to name and hardest to build, and here it is built. You do not step straight from the forecourt into a living room. You pass a dark stone step, a timber storage bench under the eave, a bamboo screen and a covered porch with a concrete column, and only then reach the red wooden door.

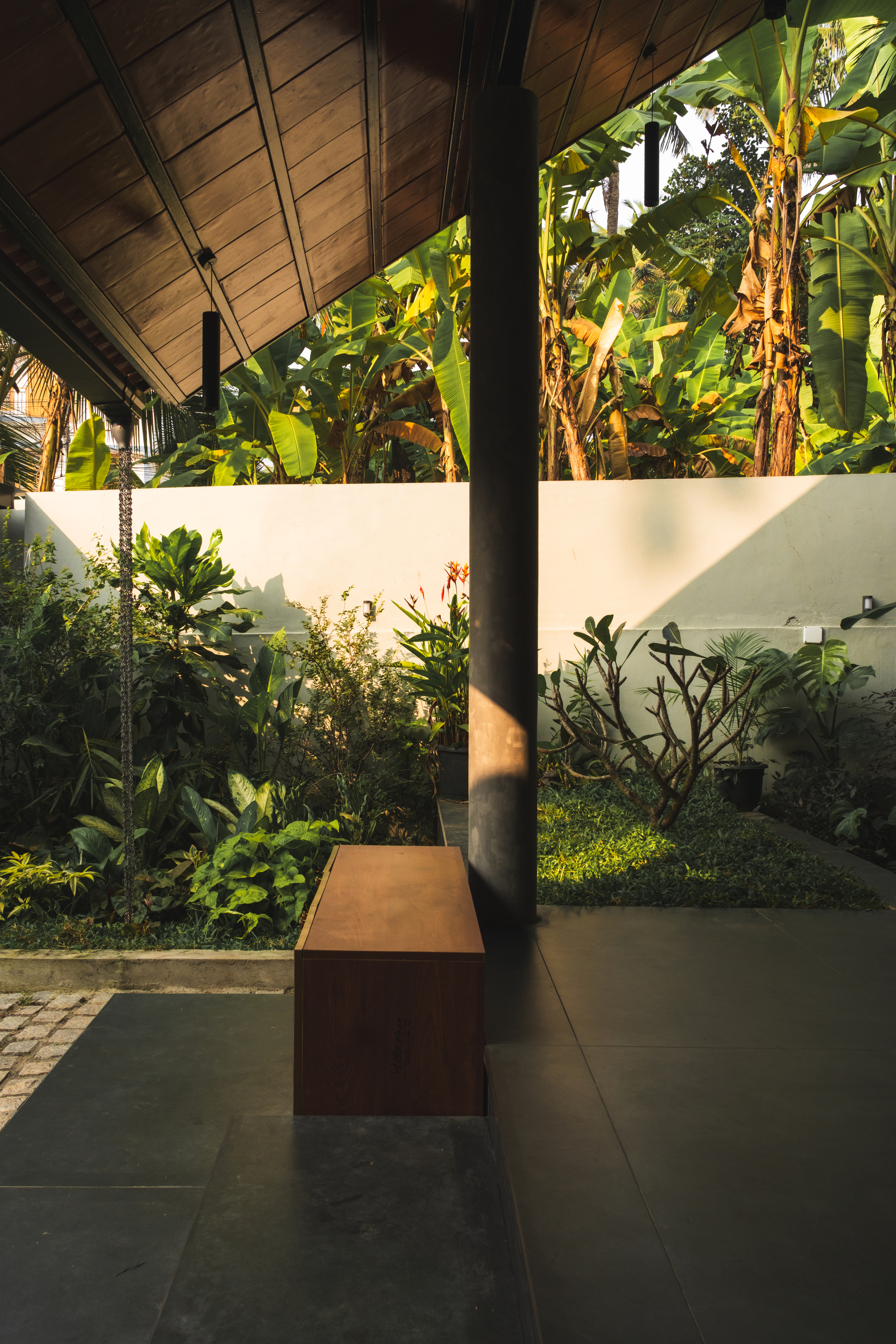

This is the logic of the traditional sitout, the semi-public verandah where Kerala households receive visitors and watch the weather. The porch faces a garden of banana plants and frangipani, and the bench gives it a job. It is a room in its own right, not a corridor with a roof.

The Double-Height Hall and Its Brick Screen

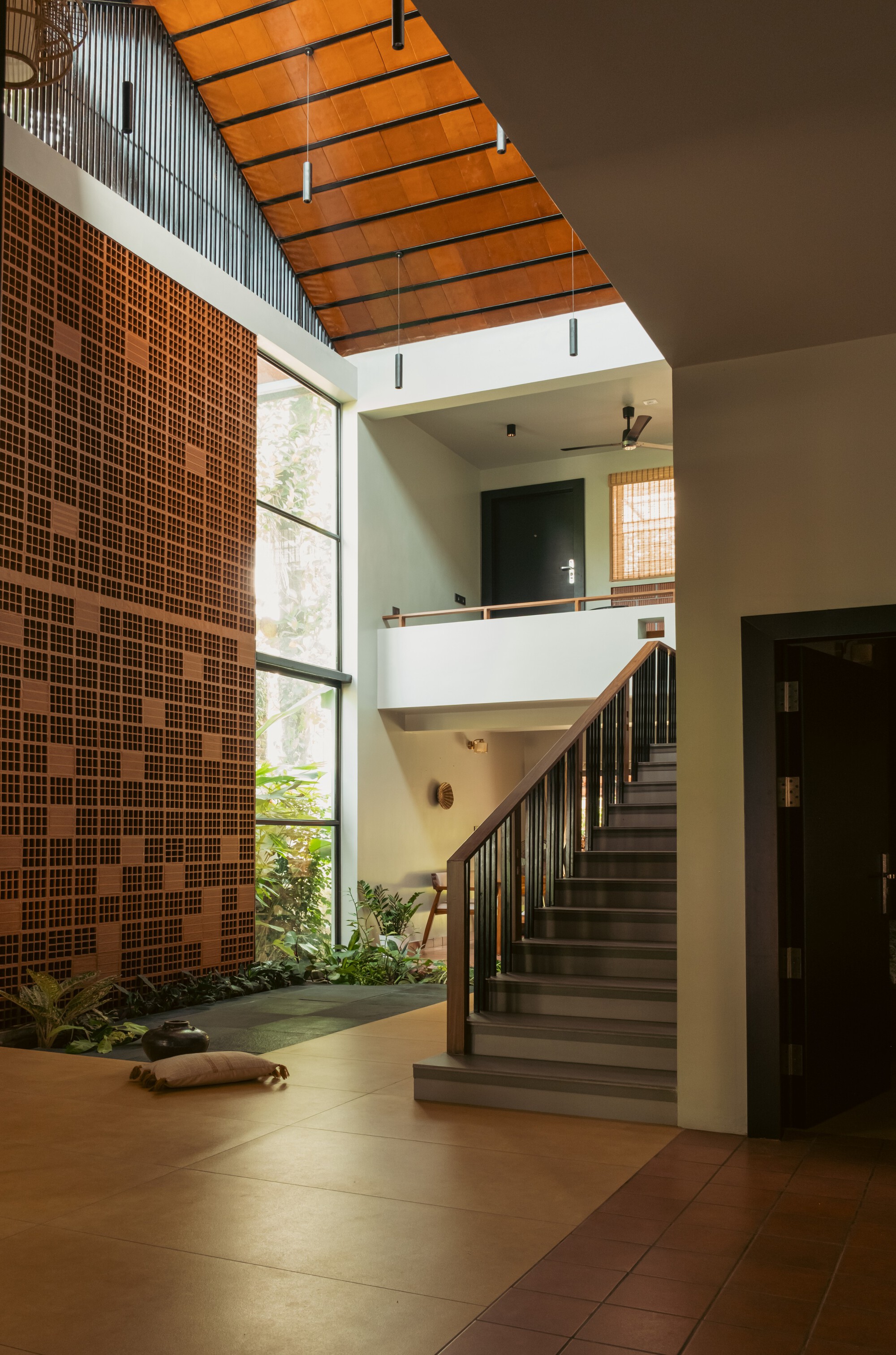

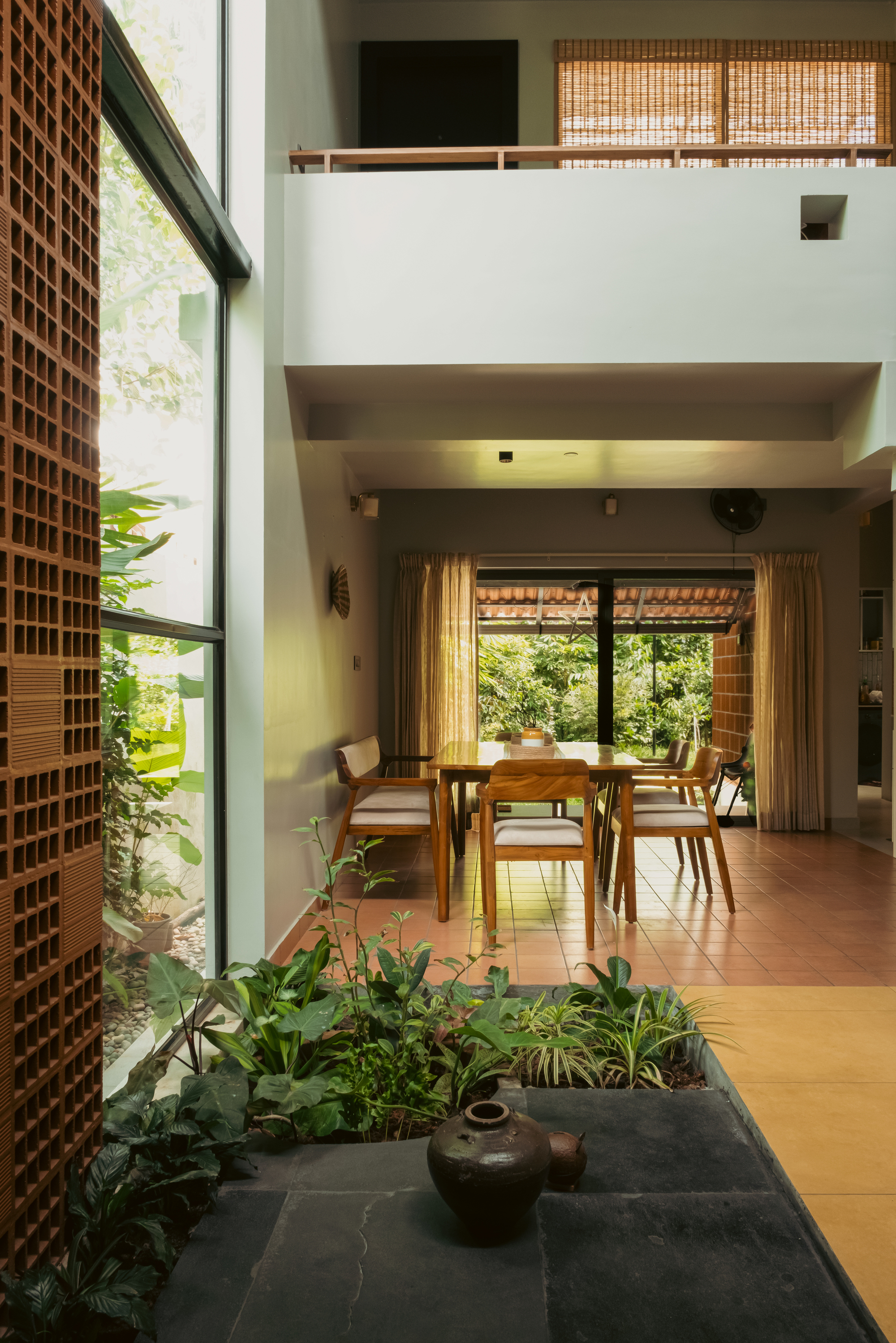

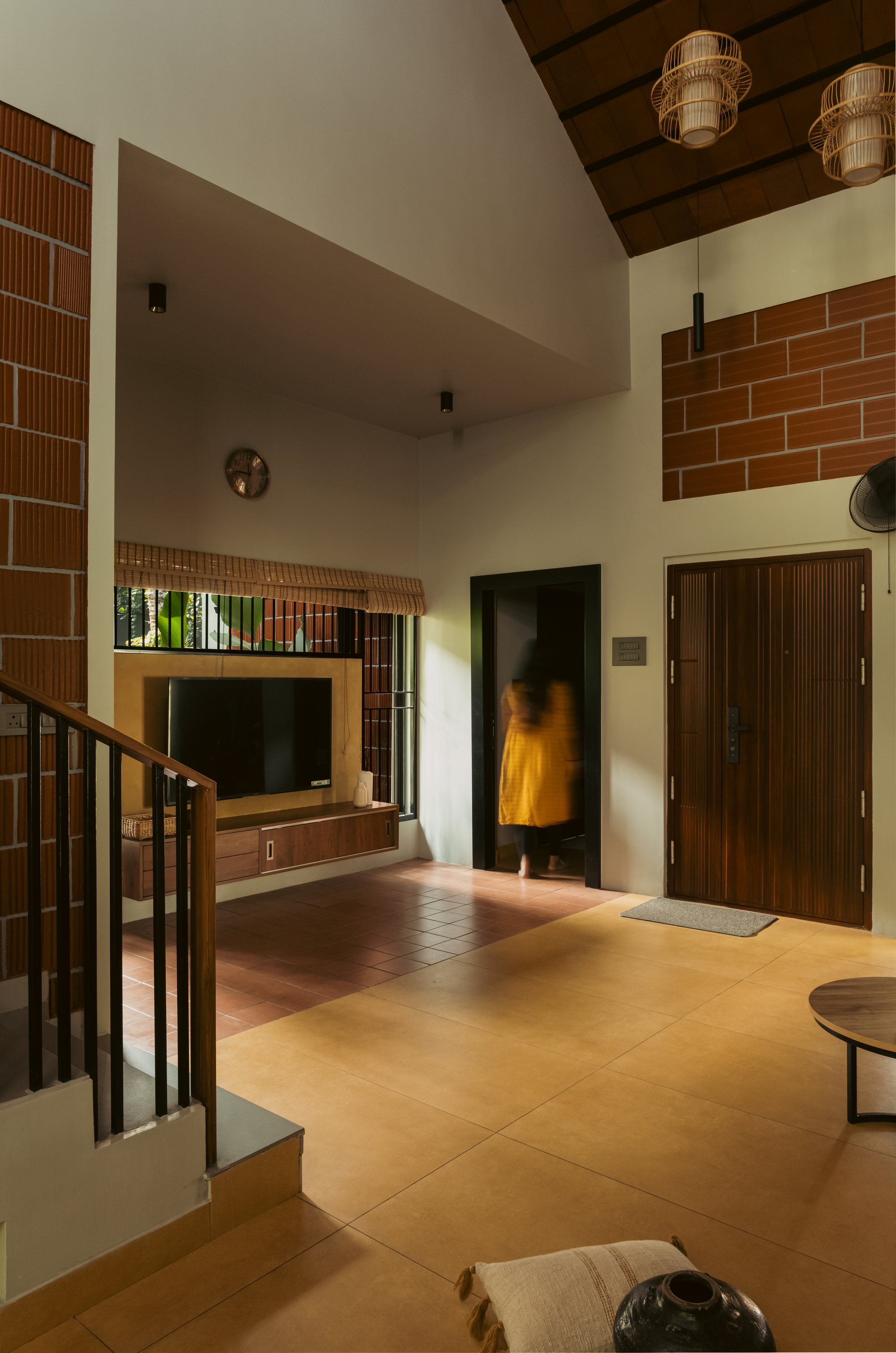

Inside, the section opens up. The living area rises to a pitched timber ceiling, and one side is a perforated brick wall that filters daylight and air. That one surface carries two of the four principles, light and ventilation. Its pattern of solids and voids reads like a contemporary jaali, and it keeps the hall bright without glare.

The materials stay restrained: exposed brick panels, terracotta, timber, a slate planter holding a single clay pot. Nothing is there just to decorate. The height lets warm air rise and leave, and the screen lets the cross breeze in. The comfort here comes from the section and the materials, not from equipment.

Climbing Toward the Skylight

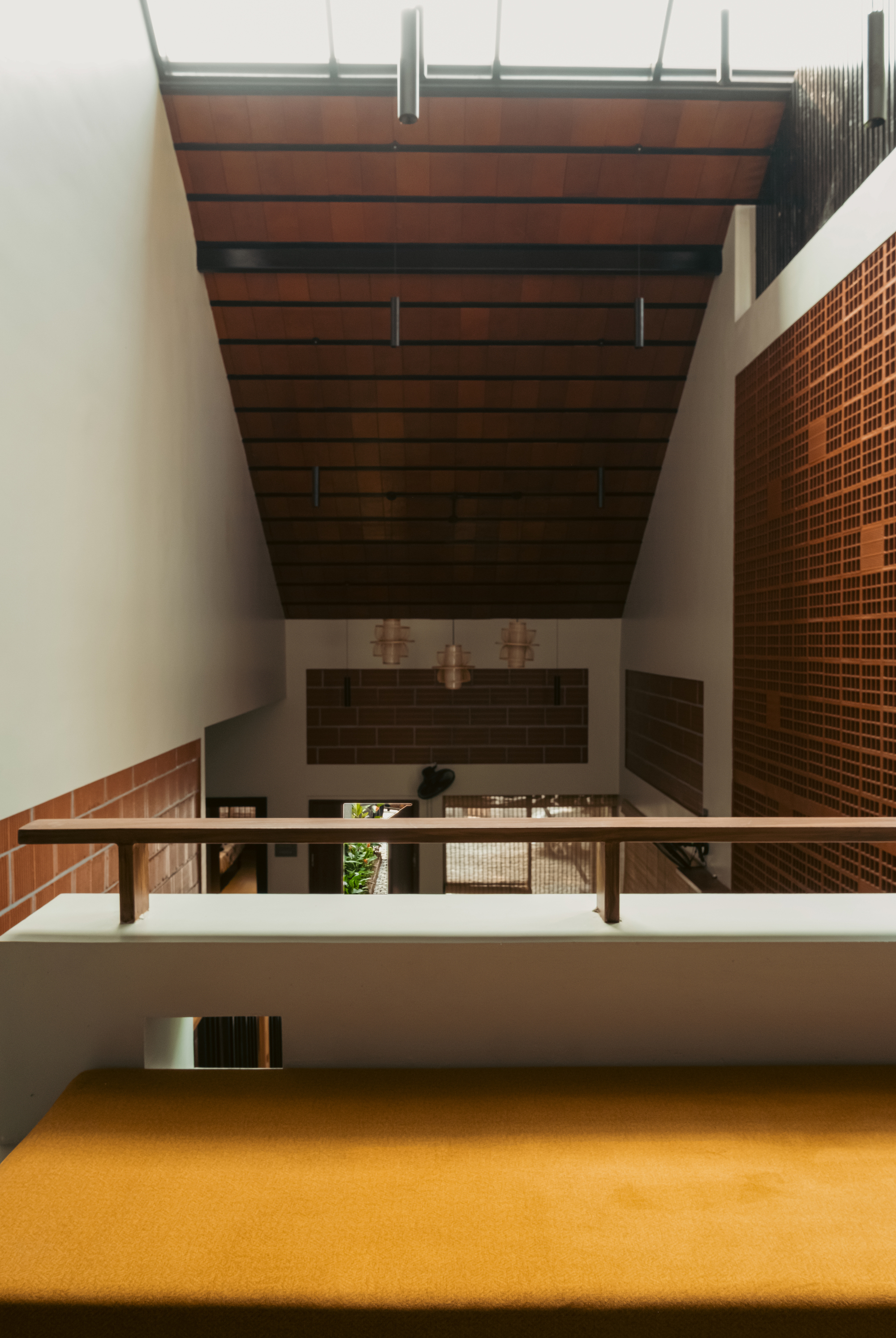

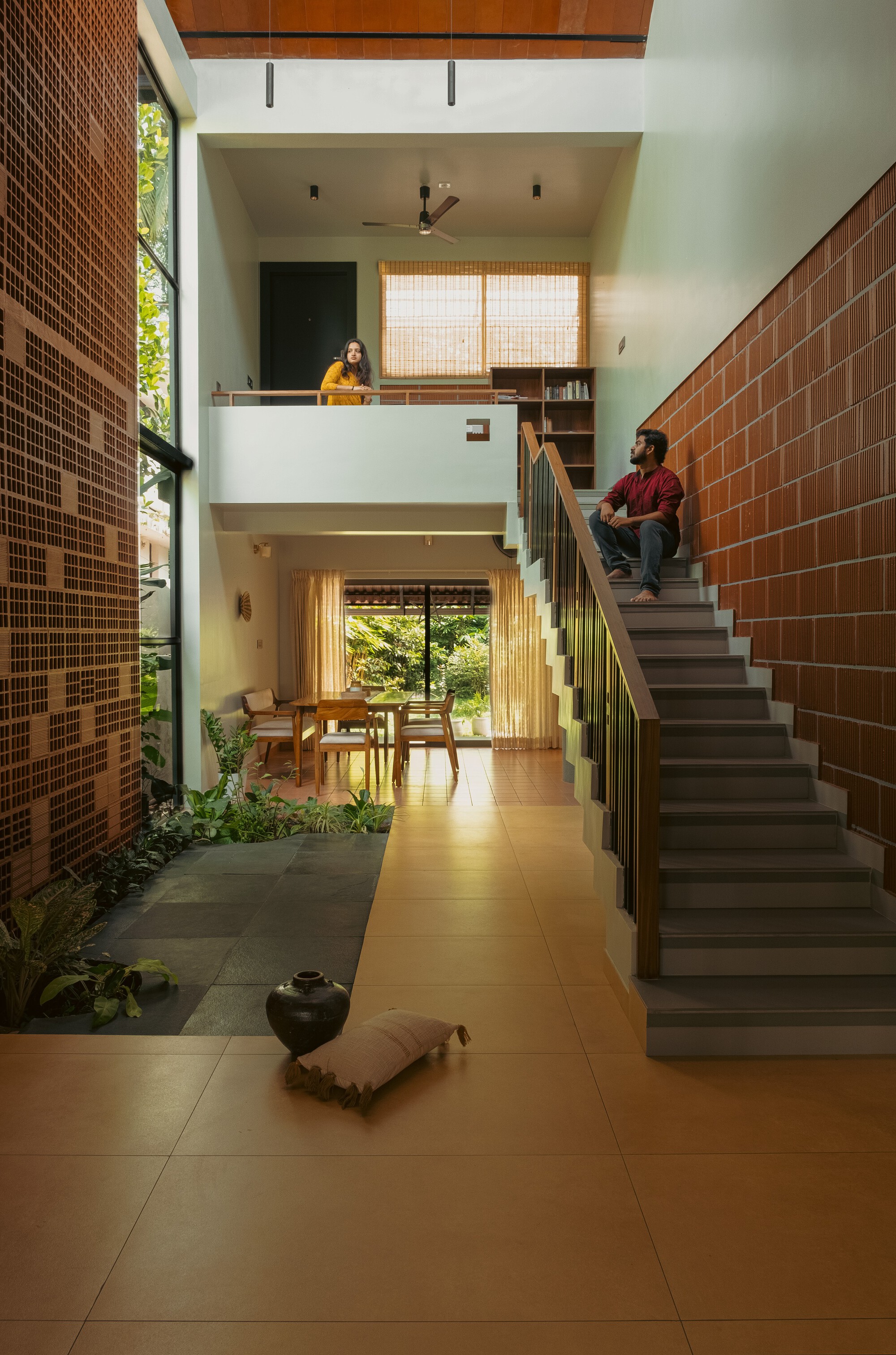

The staircase is the spine of the house's hierarchy. It rises from the dining zone, past a planted slate strip, toward a terracotta-lined sloped ceiling with a skylight at the top. Looking up the stairwell void, you see the clearest proof that light here comes from above as well as from the side. That vertical draw is also how hot air would escape.

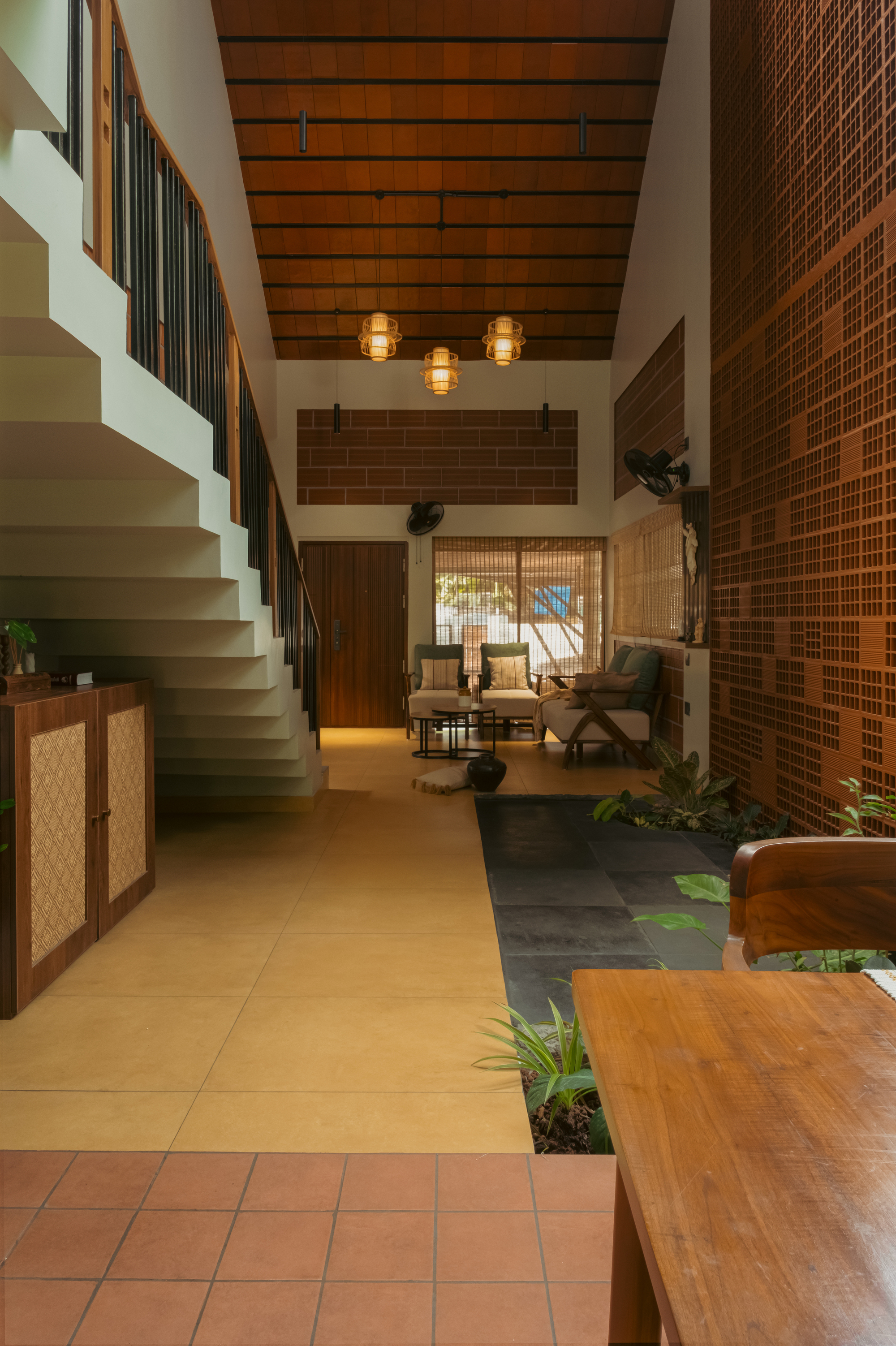

The long view down the hall shows how the narrow plot gets used. Rooms line up one after another: staircase, cabinet, seating area, with pendant lamps strung under the pitched ceiling. On a tight, tapering site, a linear sequence is the honest answer. The changing ceiling heights keep it from feeling like a corridor.

Everyday Rooms in Filtered Light

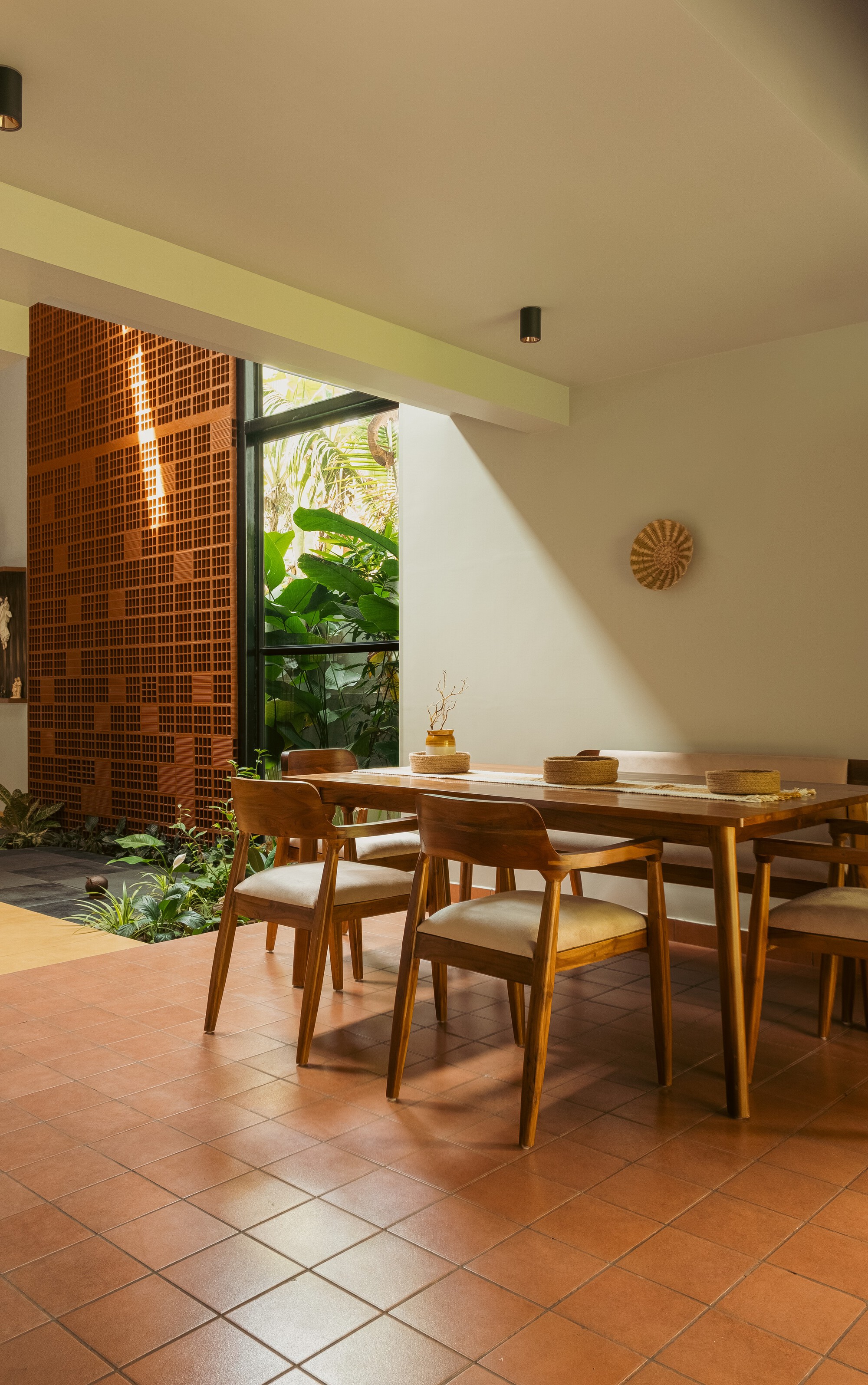

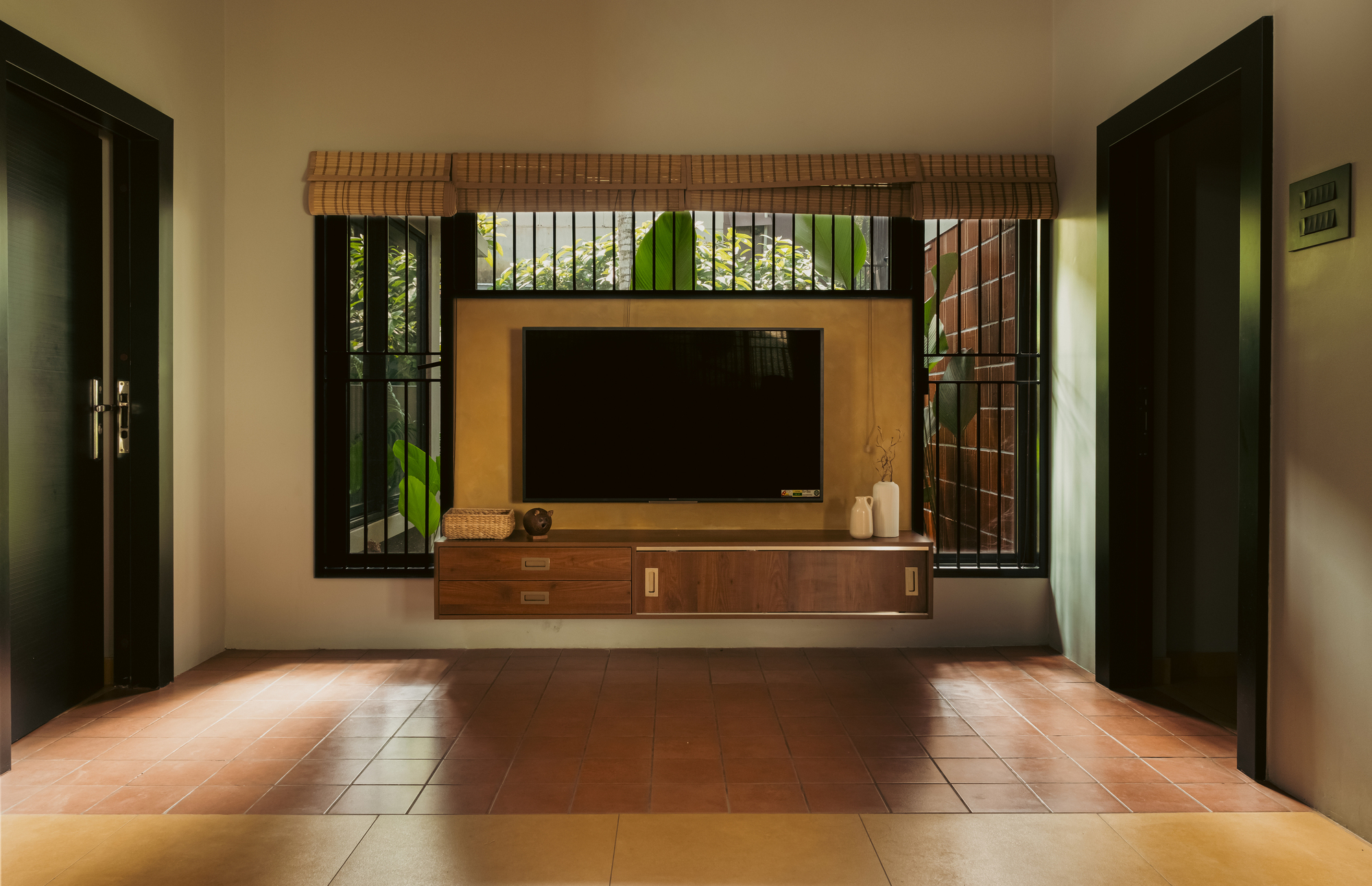

The smaller rooms show whether a house like this is pleasant to live in or just good in photographs. A timber dining table on terracotta tiles sits beside the brick screen, with banana leaves pressing against the window. A wall-hung media console floats between barred windows and a bamboo blind. Sunlight lands in patches on the floor and moves across it through the day.

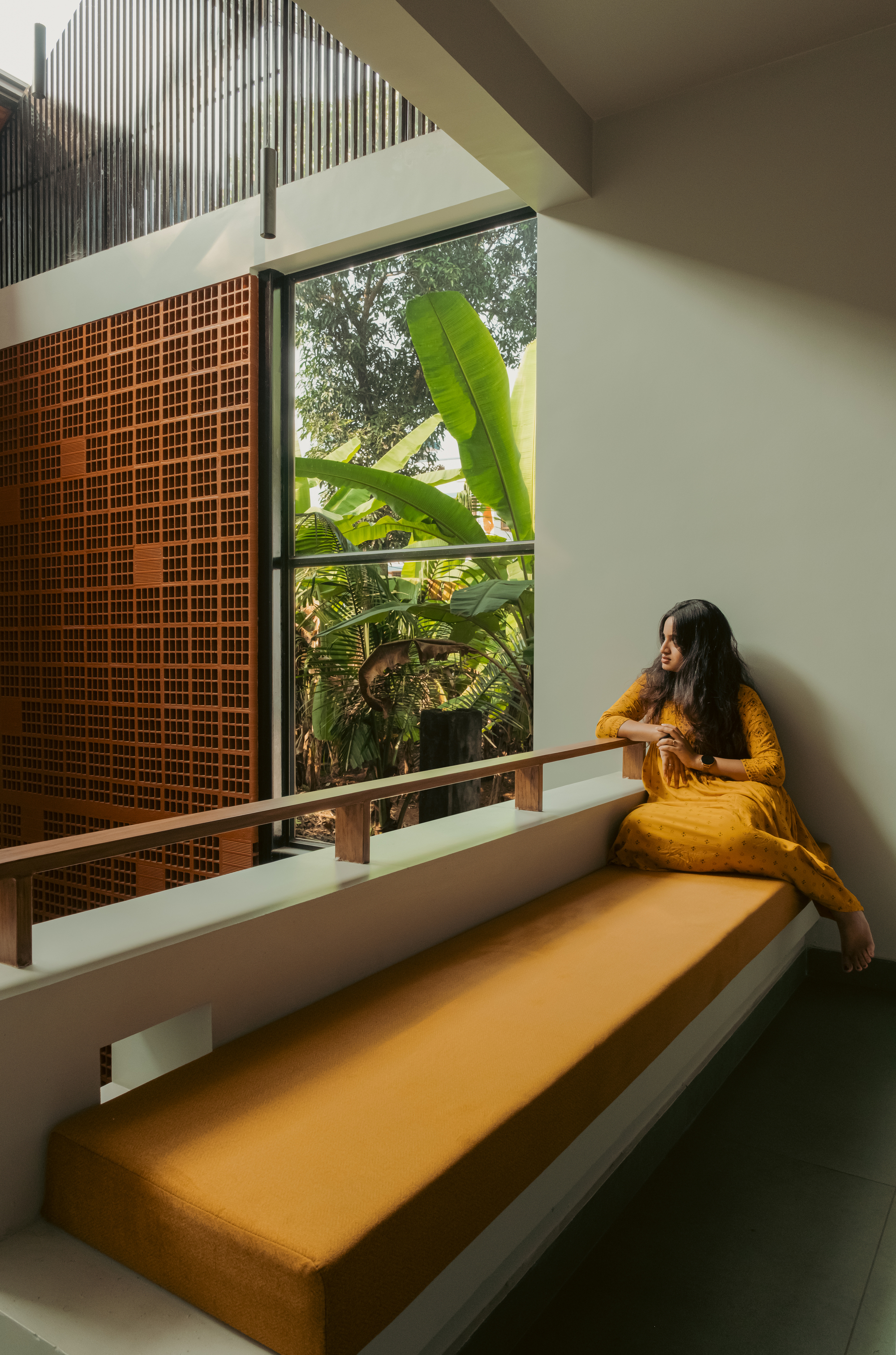

The built-in ochre window seat is our favourite detail. It turns the edge between inside and garden into a place to sit, which is the verandah idea pulled indoors. Small moves like this make the four principles something you can actually inhabit.

Bedrooms Pitched Low and Quiet

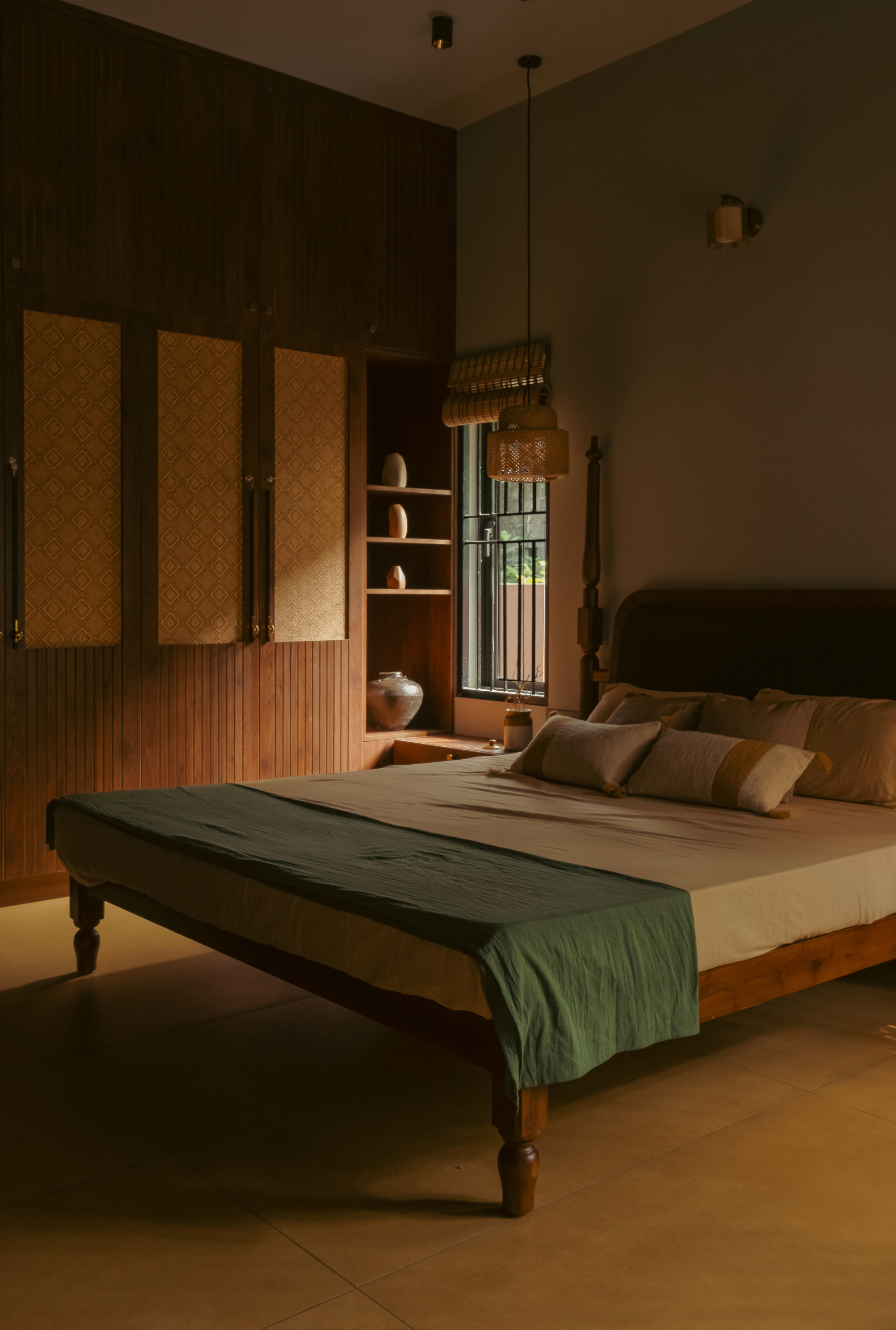

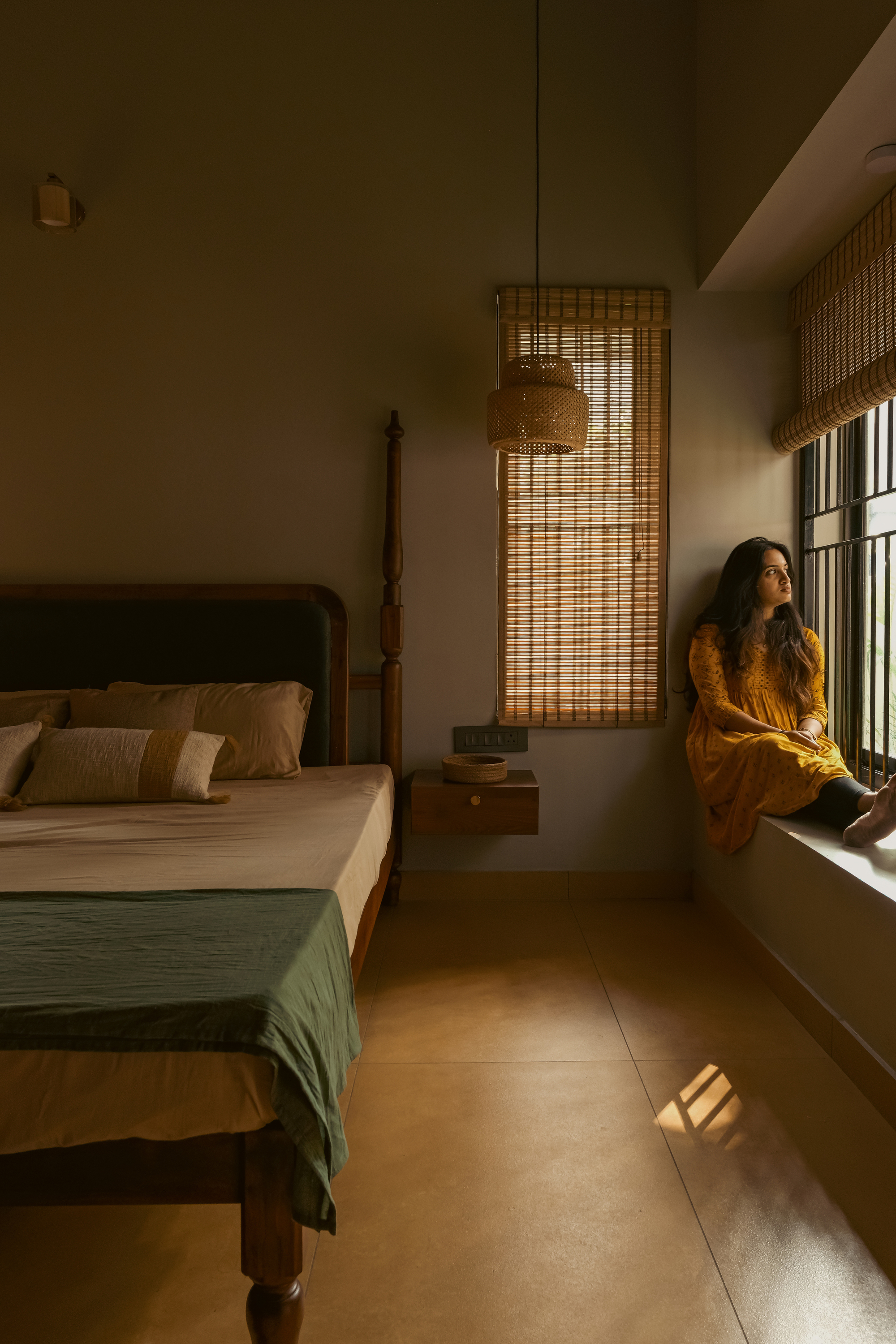

The bedrooms lower the volume, both spatially and in tone. One has a low timber bed, patterned wardrobe panels and a woven pendant. Another has a four-poster timber frame, a bamboo lamp and woven blinds, with a window ledge deep enough to sit on. Here hierarchy means privacy: these rooms come after the public hall, and they feel like it.

Natural fibres, warm wood and dim light give the rooms a calm that the brighter hall deliberately avoids. The contrast is the point. A house organised by hierarchy needs rooms that clearly sit at the quiet end.

Plans and Drawings

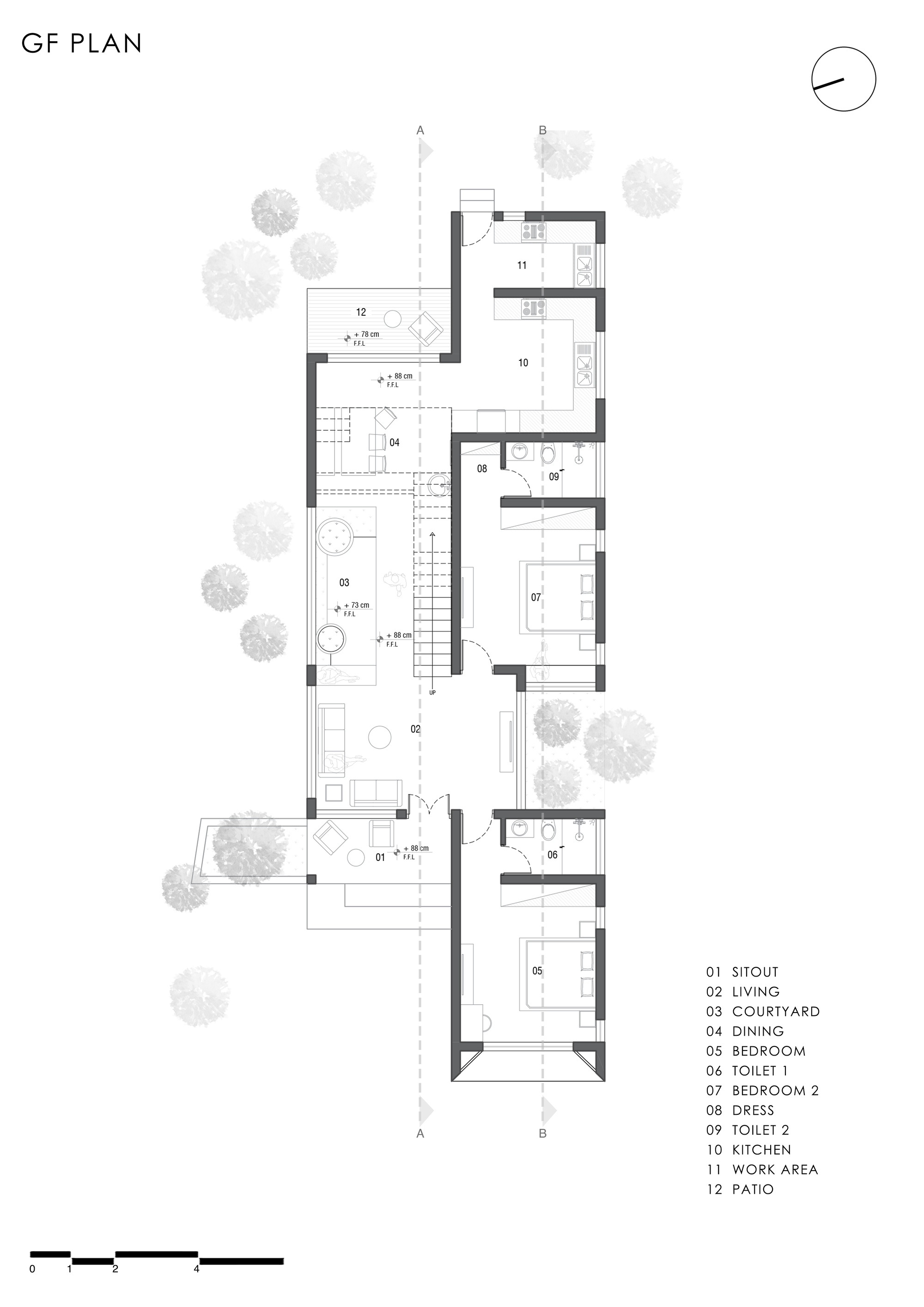

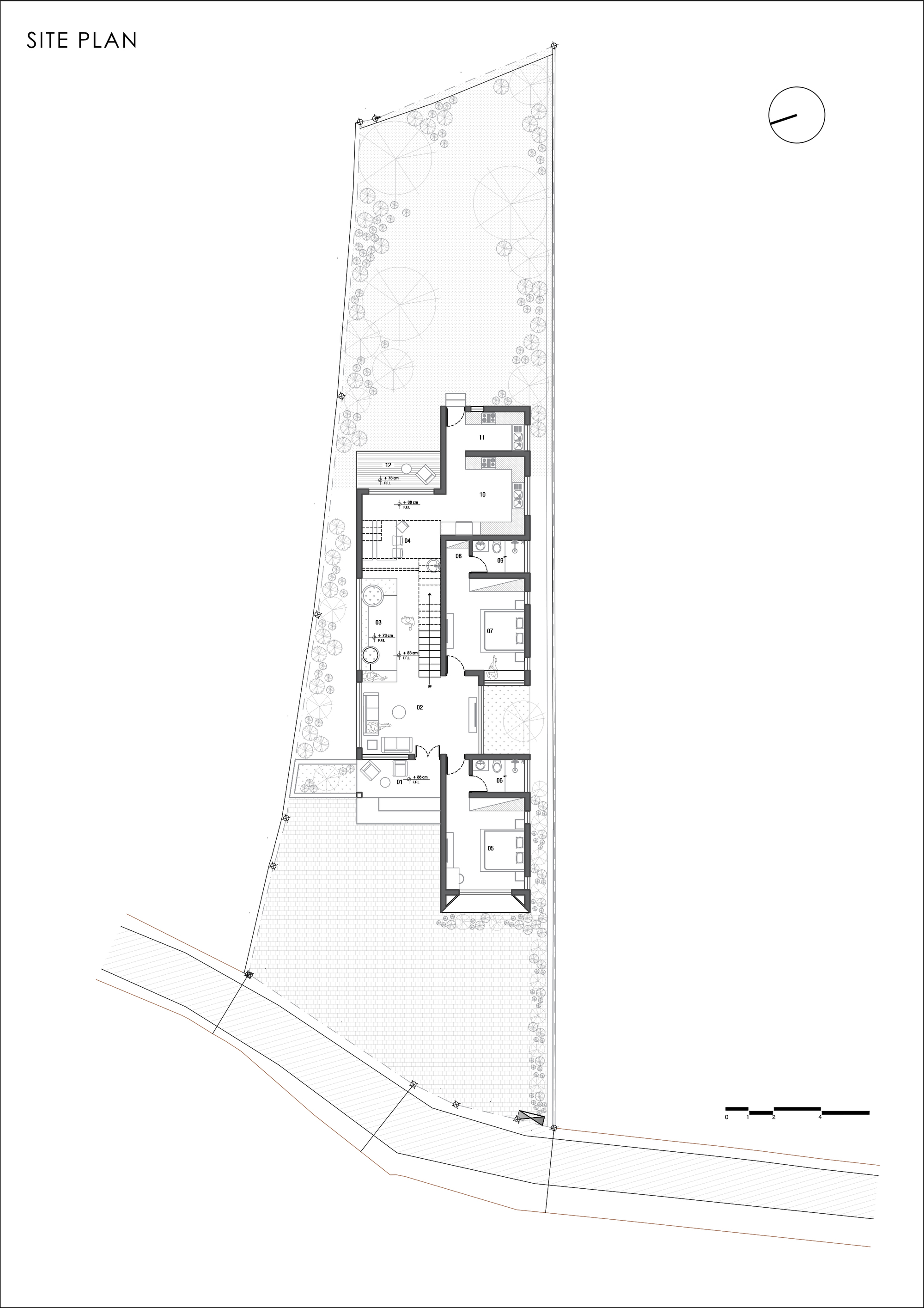

The site plan explains a lot: a narrow plot tapering away from a curving road, with trees all around. The ground floor runs in one line from sitout to living room, then a central courtyard, then dining, two bedrooms, kitchen and a rear patio. The courtyard is the hinge of the whole plan. It brings light and air into the middle of a deep, thin footprint where side windows alone would never be enough.

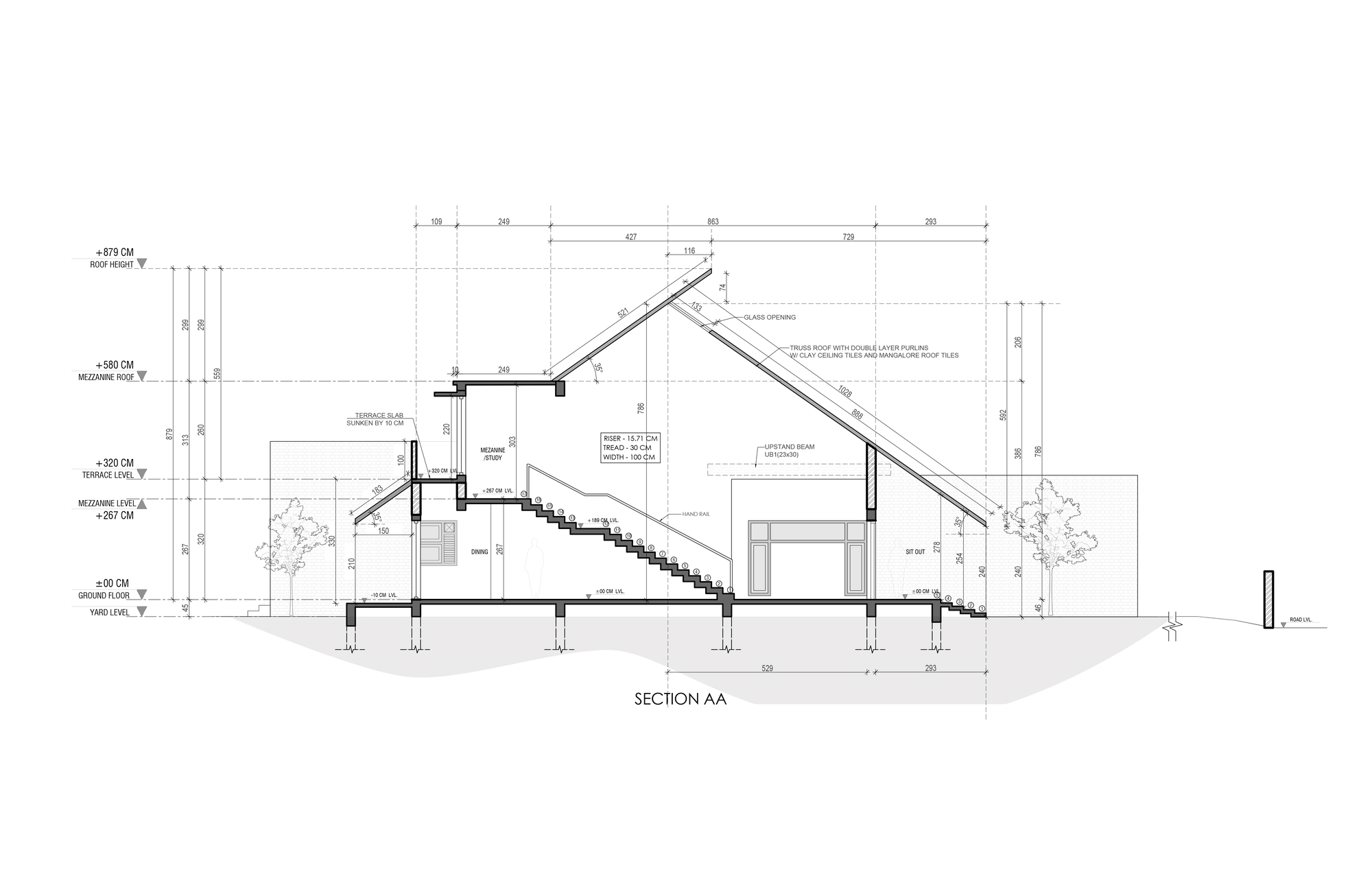

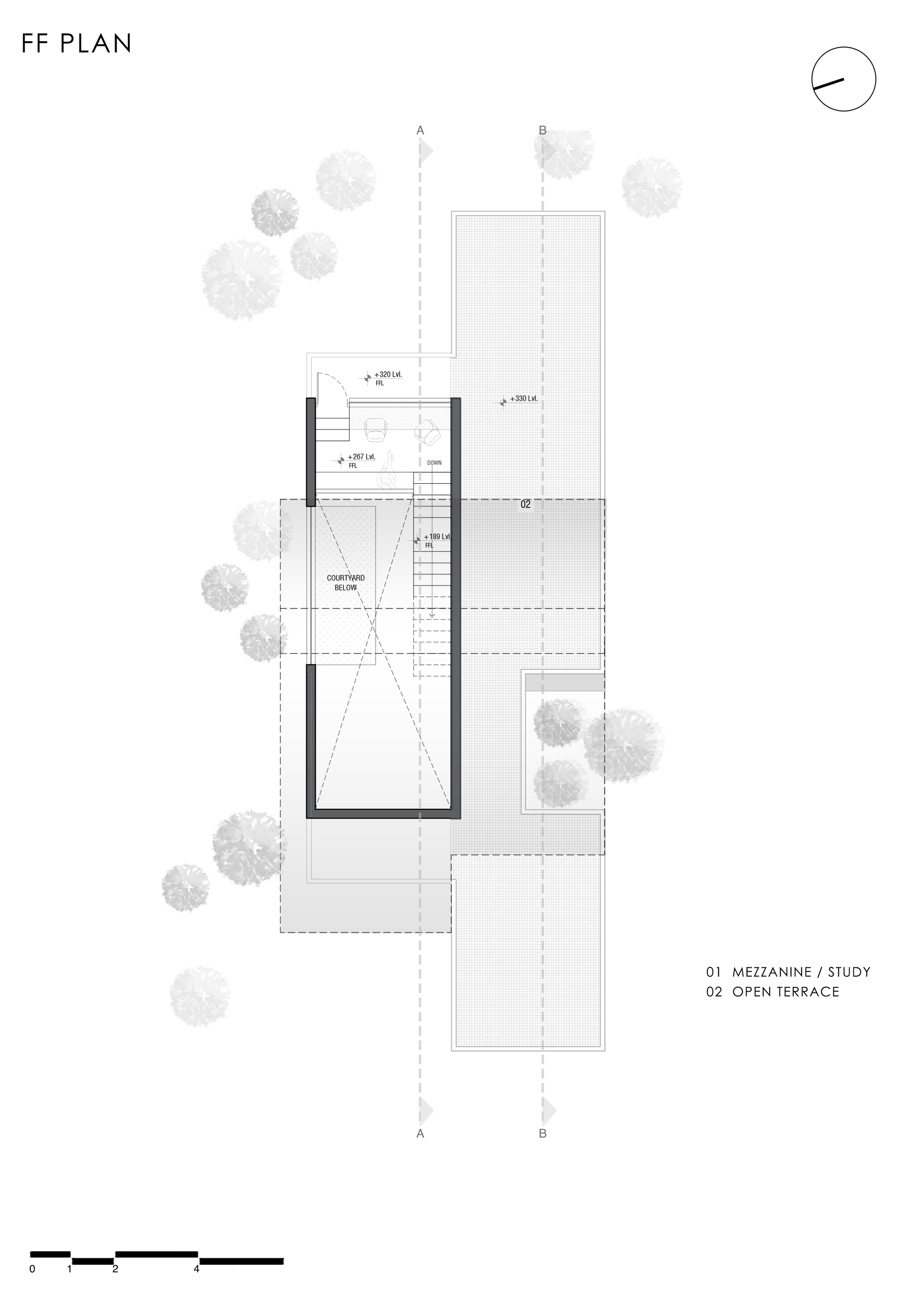

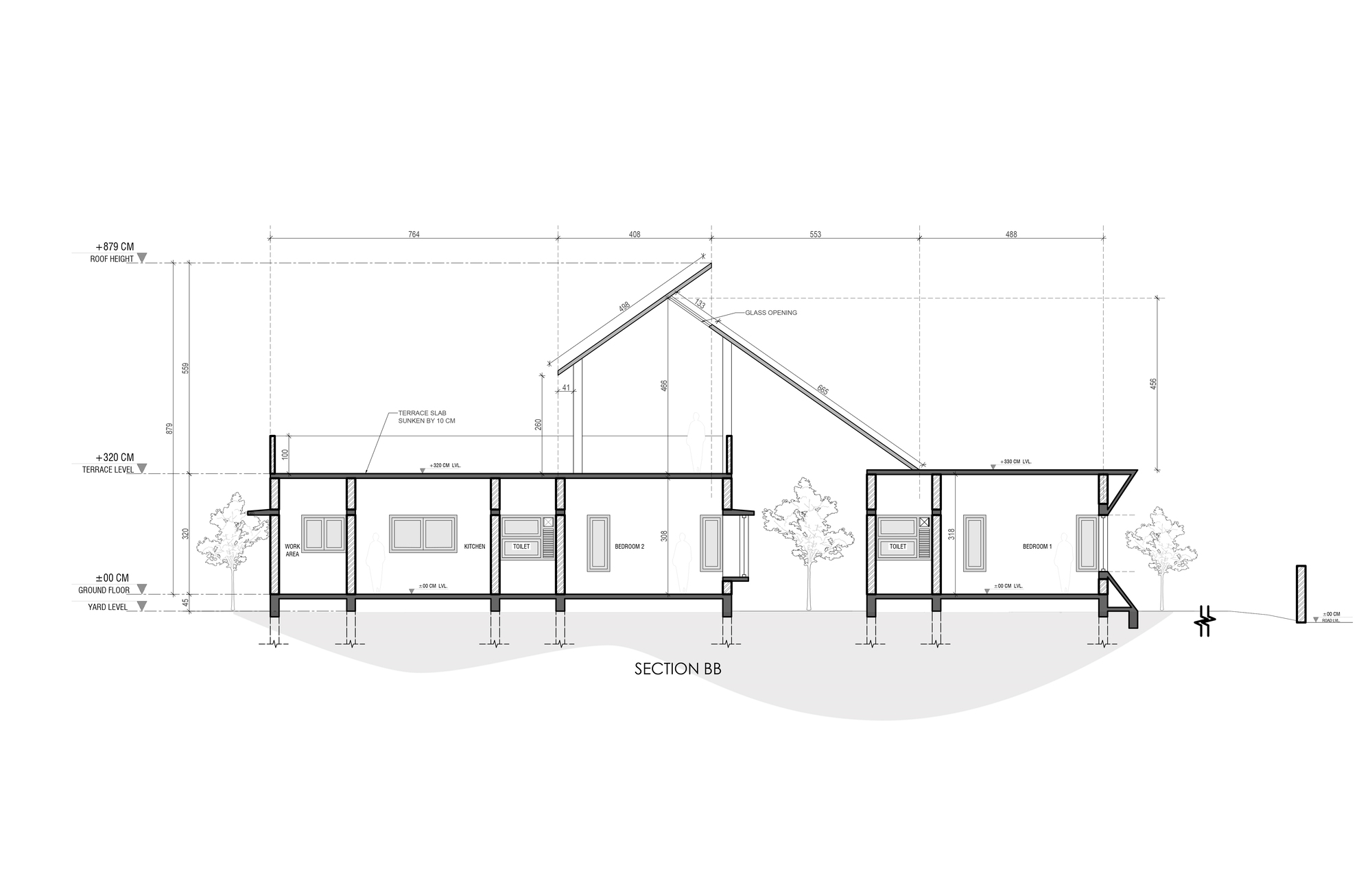

Upstairs, a mezzanine study looks over the courtyard void, next to a large open terrace among the trees. The sections confirm the strategy. Section AA shows the steep tiled pitch with the staircase rising from dining to mezzanine. Section BB shows a glazed opening lifting the roof above the flat terrace slab, so light and exhaust air both move upward. The drawings make clear that the reinterpretation lives in the section, not only on the facade.

Why This Project Matters

Kerala is full of new houses that wear a tiled roof as a badge and then seal themselves up behind glass and air conditioning. Antara Residence makes a more useful argument. Treat the vernacular as a set of operating principles, not a style, and you can build something that looks of its time and still works with heat, rain and daylight the way older houses did.

It also shows what a small budget of space can do. At 1,640 square feet on an awkward tapering plot, the house relies on a courtyard, a double-height void, a perforated brick wall and a carefully staged entry, not extra floor area. For architects working on tight urban sites across South India, that combination of linear plan, vertical draw and filtered edge is a model worth borrowing.

Antara Residence by Ark Architecture Studio (lead architects Rahul Kumar S and Malavika Mahesh), Thiruvananthapuram, Kerala, India. Area: 1,640 ft². Completed 2025. Photography by Rahul Kumar.
