BZP Arquitetura Sinks a Private Art Gallery Halfway into a São Paulo Garden

Private galleries tend to fail in one of two ways. Some turn into miniature museums that ignore the house beside them. Others become living rooms with paintings in them. In the garden of a São Paulo residence, BZP Arquitetura, led by architect Bia Prado, avoided both. The building is a 105 m² gallery completed in 2015, made to hold one client's collection, which includes work by Vik Muniz, Ernesto Neto, Regina Silveira and the Campana brothers. From the lawn it looks like a modest single-storey glass pavilion. Most of the building is out of sight.

The interesting move is in section. Prado pushes the main room partly below grade, so the visible volume stays small while the interior opens into a double-height hall. That hall is lined on one side by a living wall of ferns and on the other by salon-style hangs. The stated concept is introspection, and the plan follows it: you come across the garden, step through glass, and go down a wide timber stair into a room that faces inward. It is a small project, but the sectional idea is clear and worth studying.

A Glass Box That Understates Itself

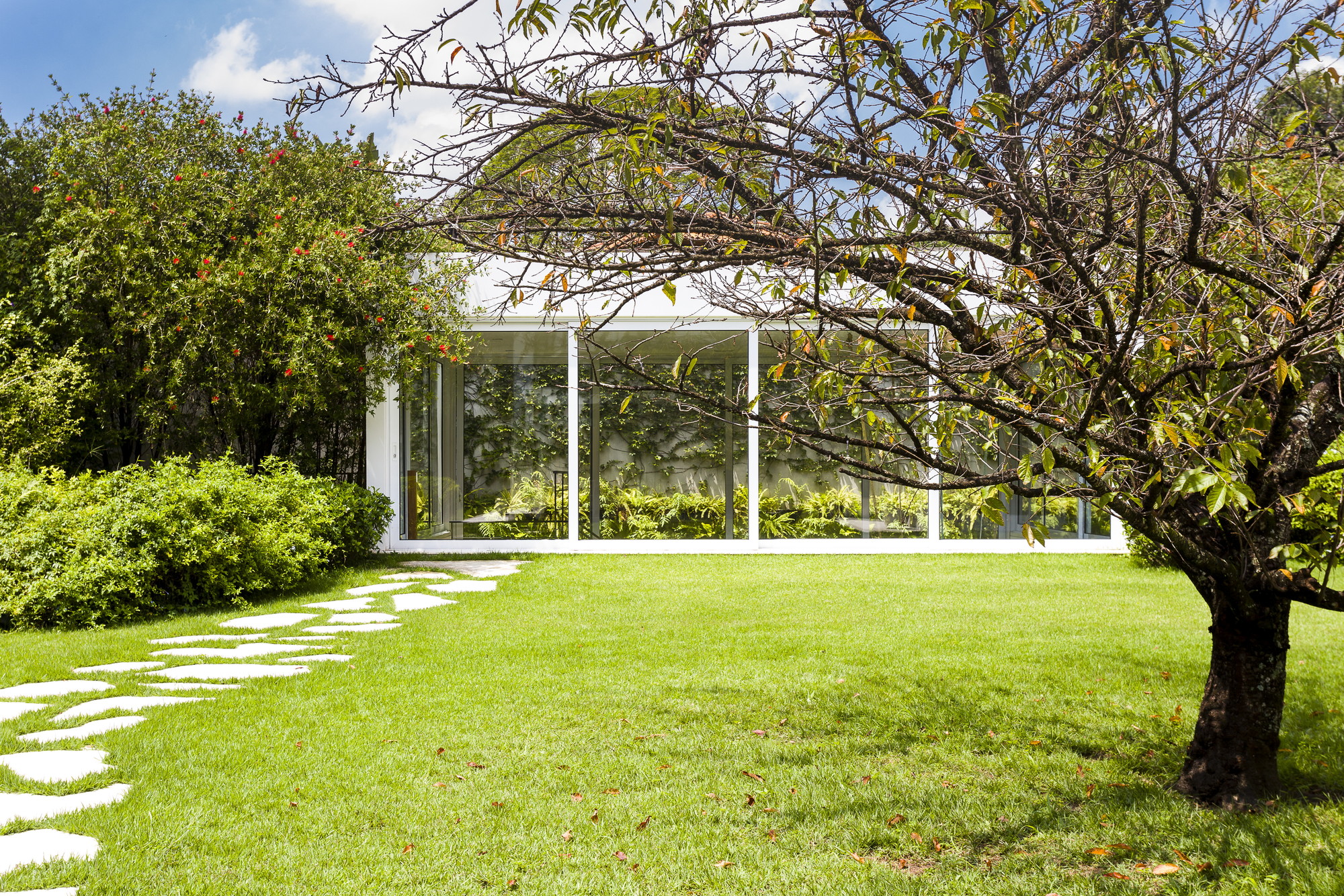

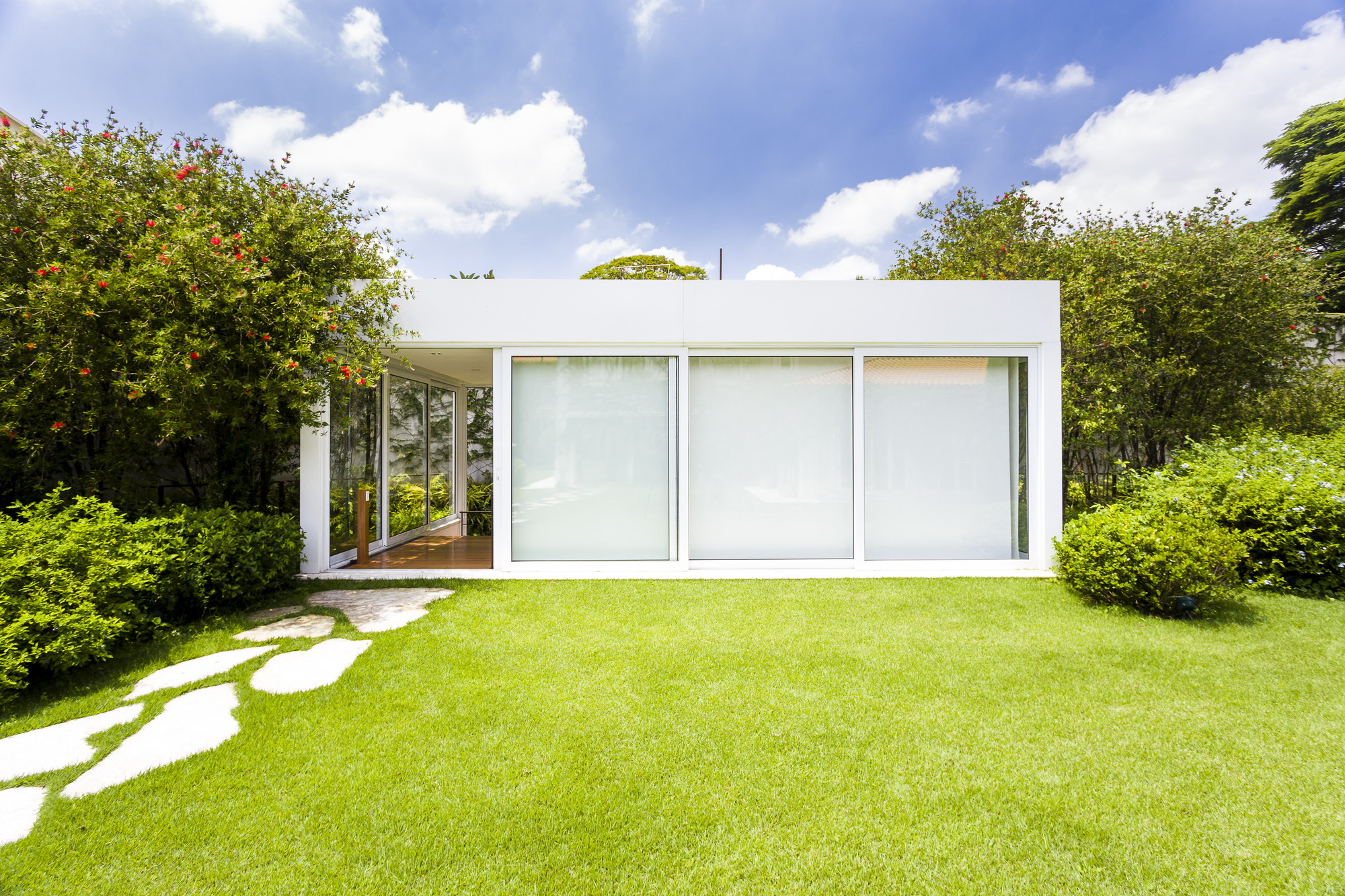

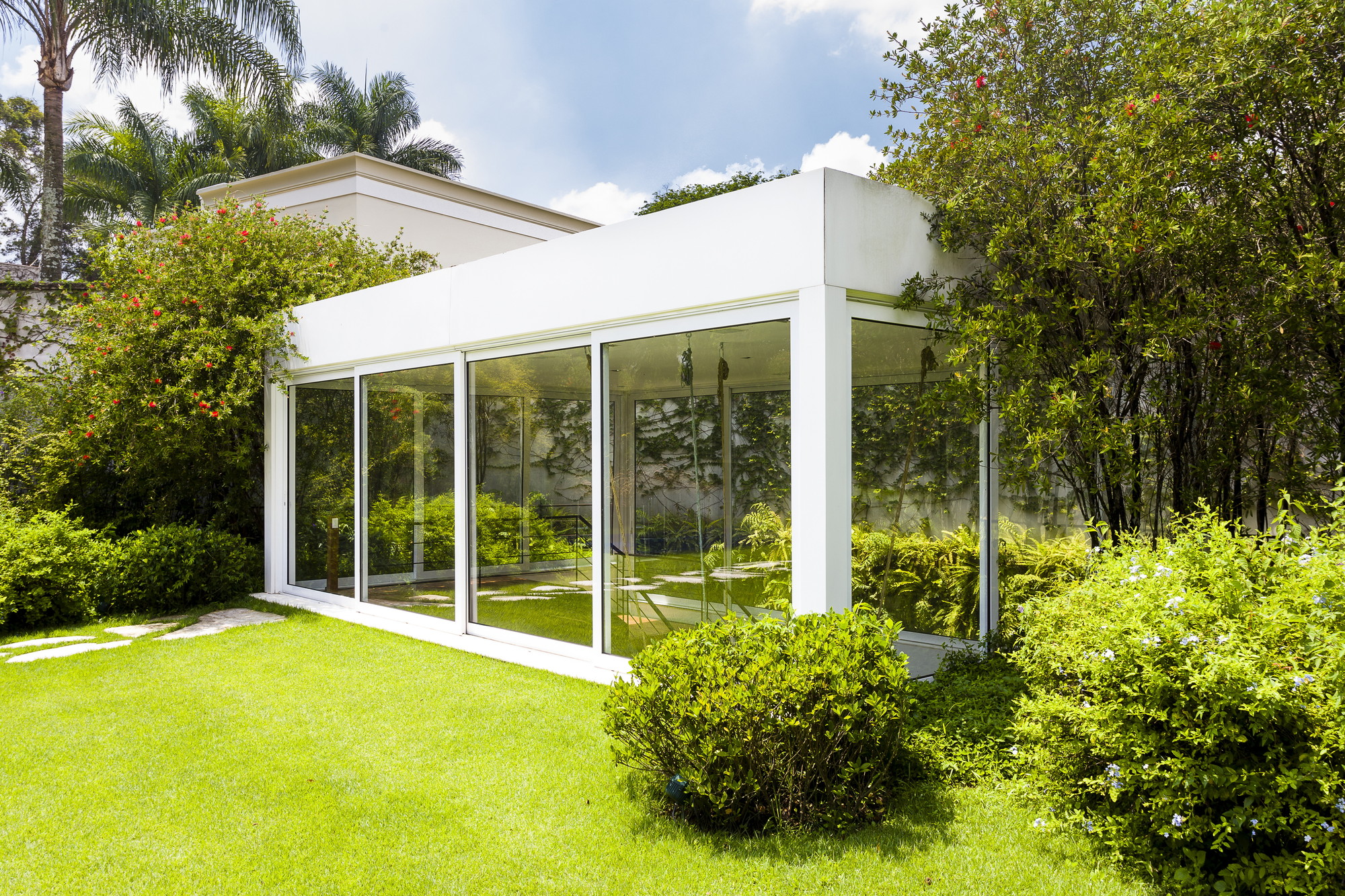

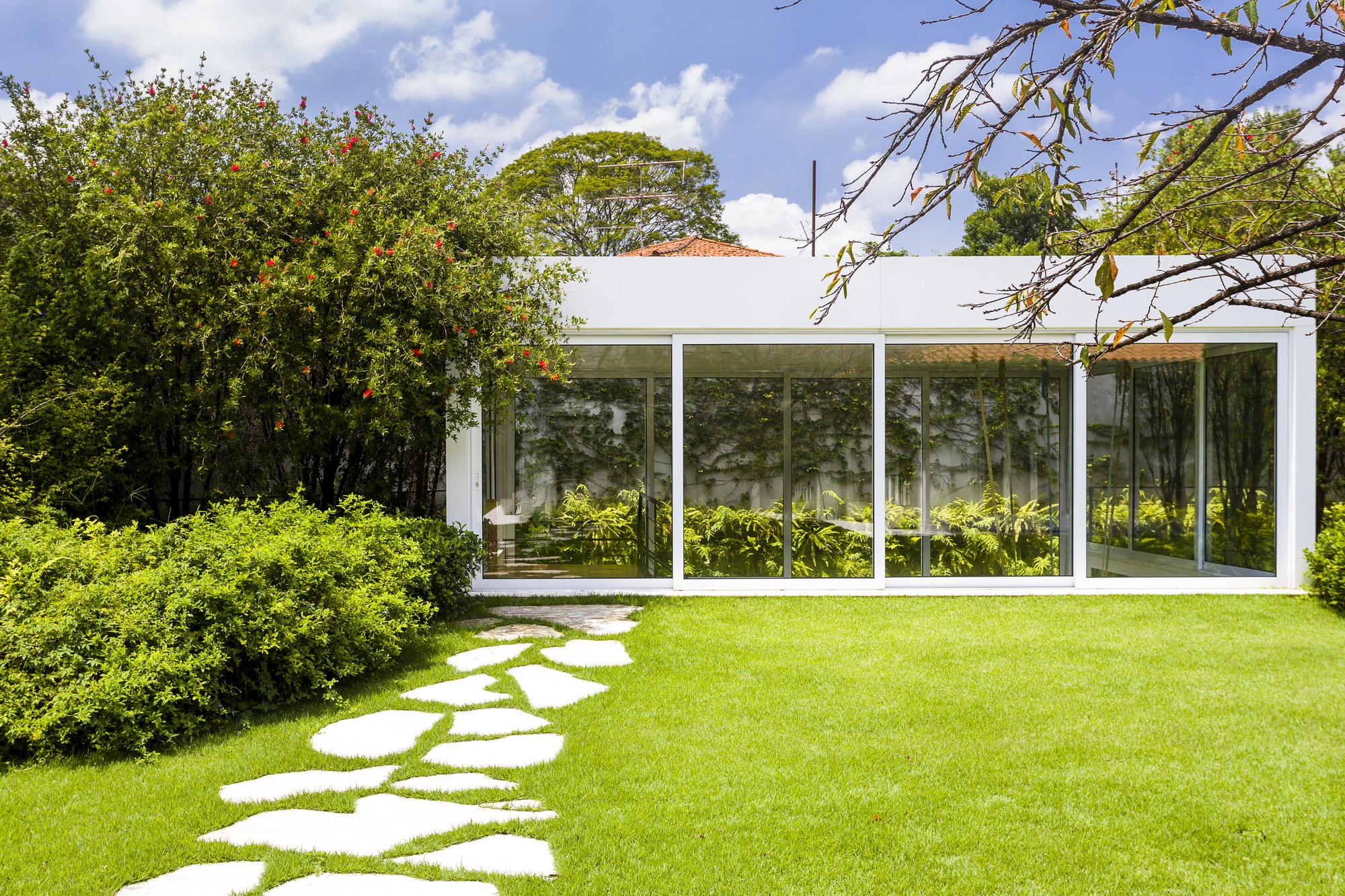

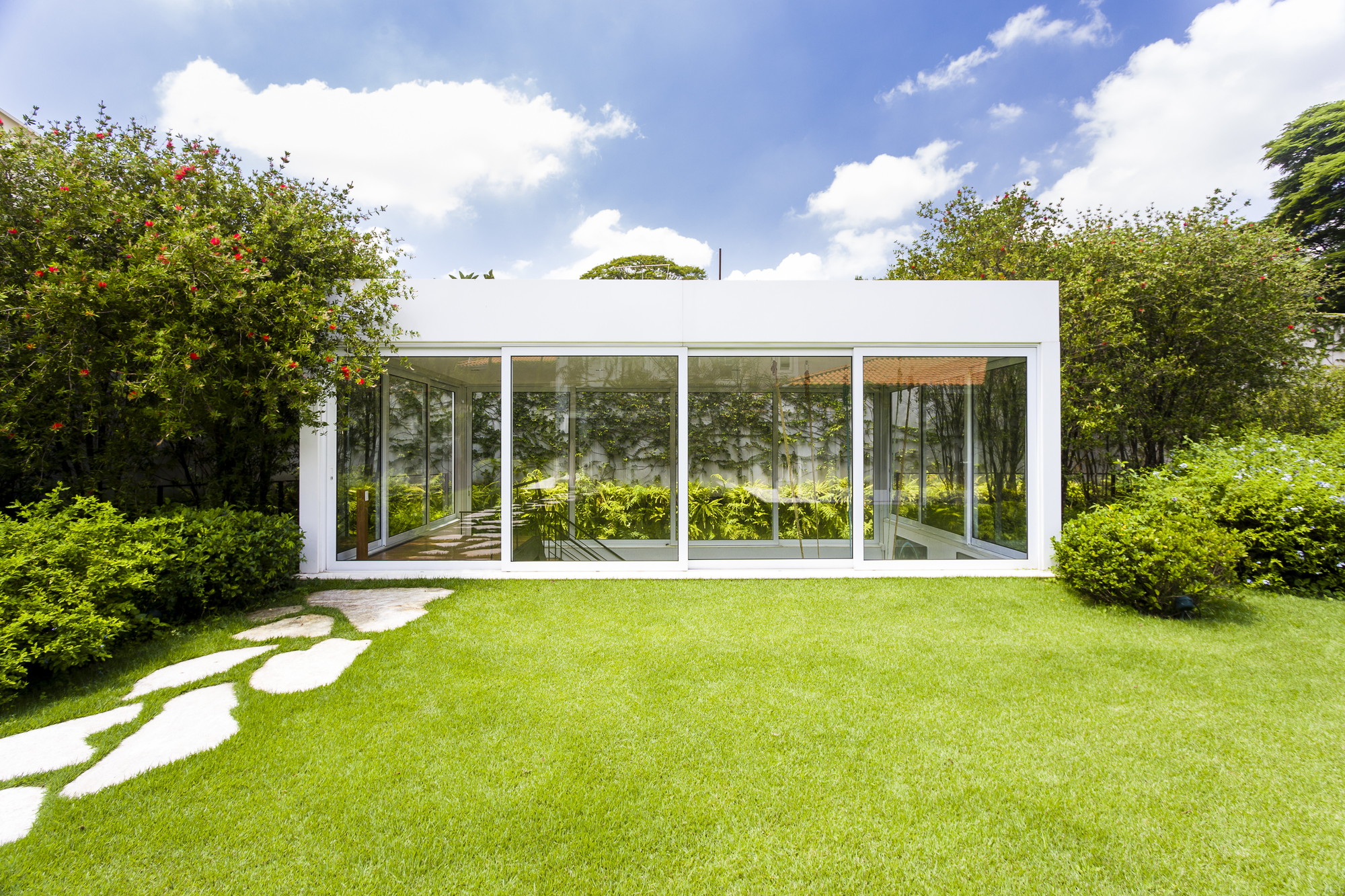

Seen from the garden, the gallery is a white flat roof over sliding glass panels, and that is about all. Stepping stones cross the lawn to the door, and a winding stone path ties the pavilion back to the main house. The pavilion sits among clipped shrubs and flowering trees and does not compete with the residence for attention. We think that restraint is the right call on a domestic plot, where a full-height gallery block would have overwhelmed the garden.

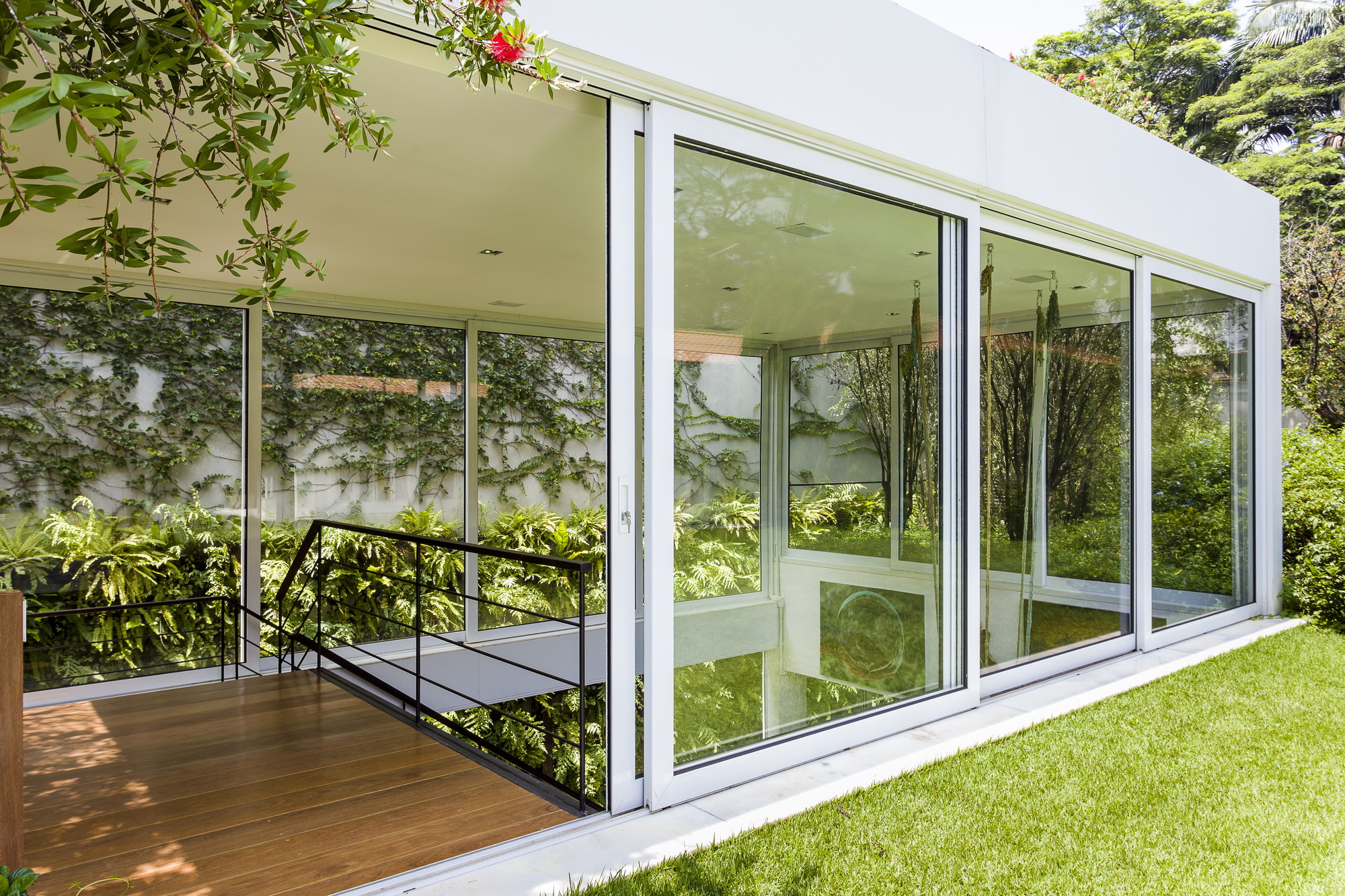

The glazing works in two directions. Frosted sliding panels can close the box off, and when open, the clear glass reflects the vine-covered boundary wall and the lawn. Because only one storey shows above ground, the box reads as a garden pavilion and not as an institution.

The Planted Edge

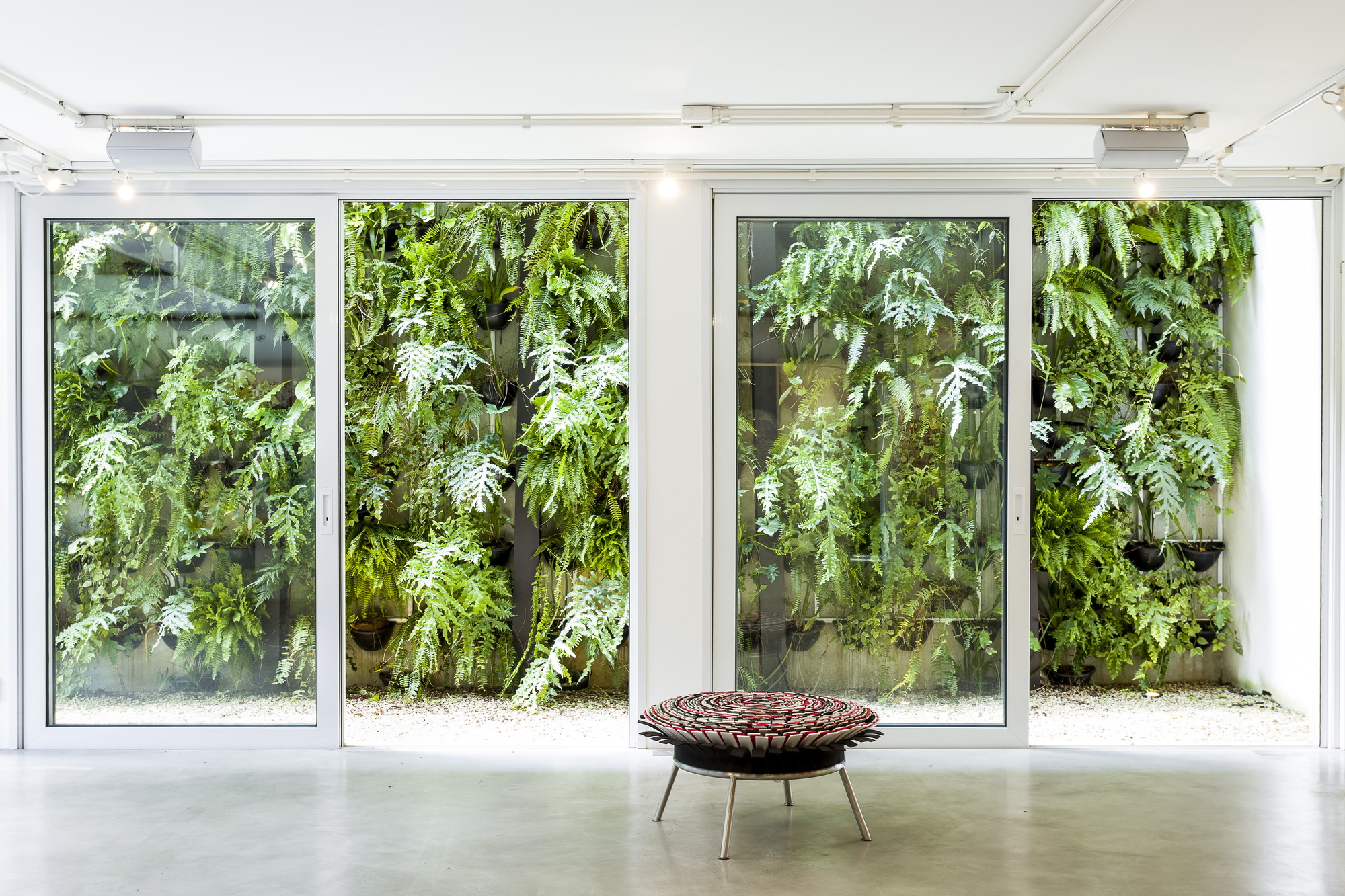

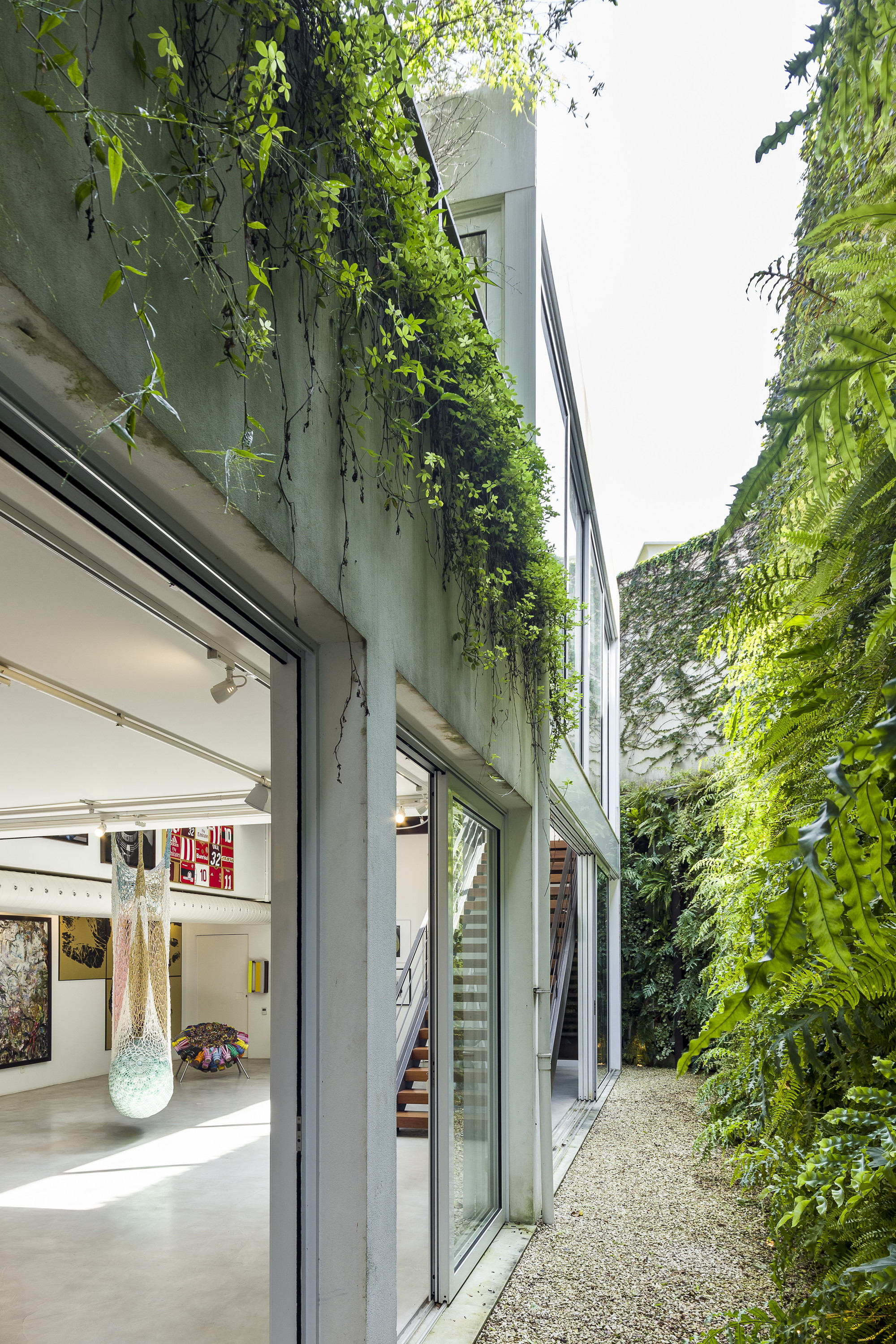

The best spatial decision here happens along the property's angled boundary. Prado leaves a strip between the gallery glass and the wall, lays it with gravel, and plants it as a vertical garden of ferns. That strip carries greenery down to the lower level, so the semi-buried room looks out onto foliage and not onto a retaining wall.

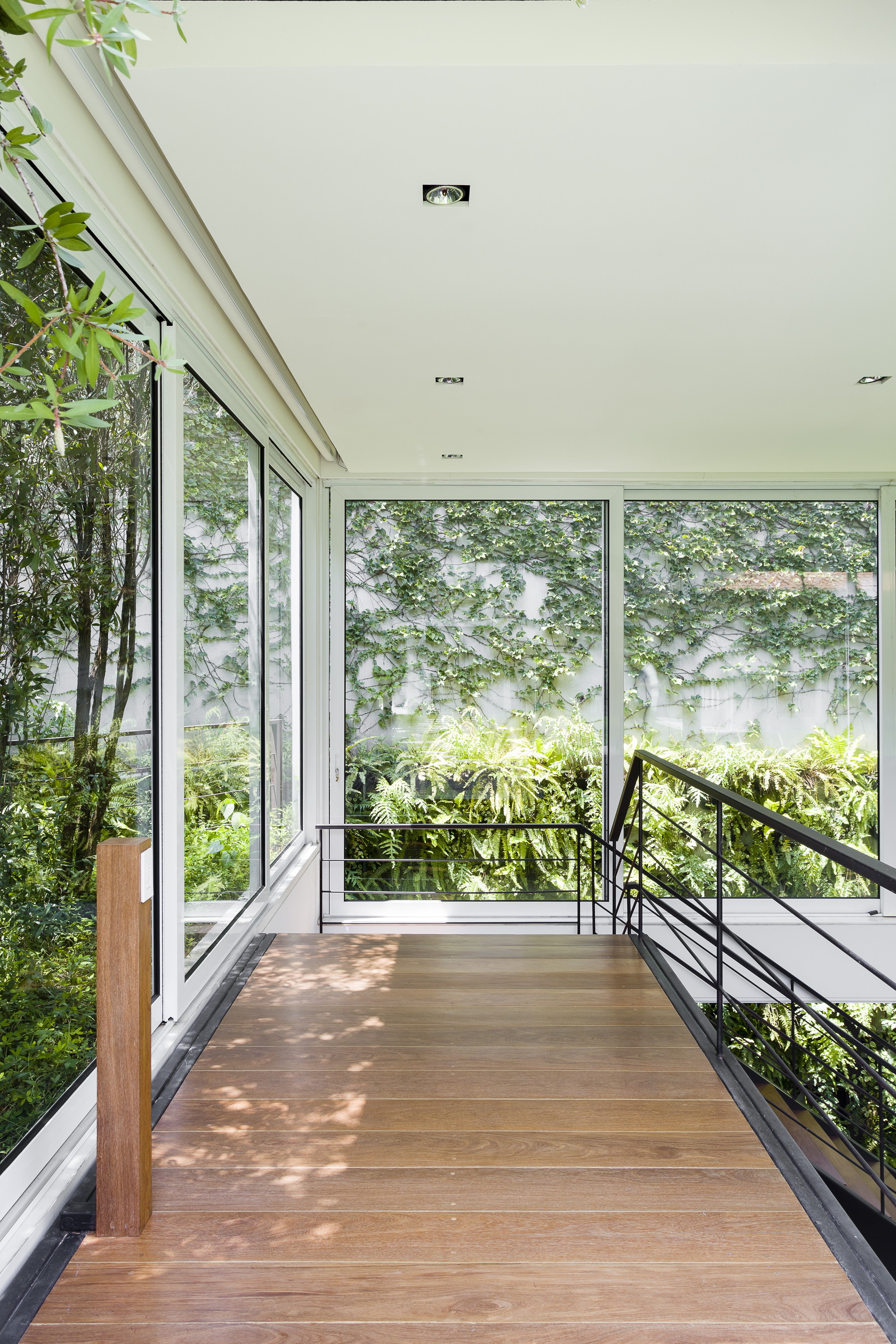

A timber-floored walkway with a black railing runs along this edge above, between glass walls, in dappled light. The effect resembles a light well more than a corridor. For a building that keeps its art away from direct sun, this planted gap is the device that stops the lower floor from feeling like a basement.

A Stair Built for Lingering

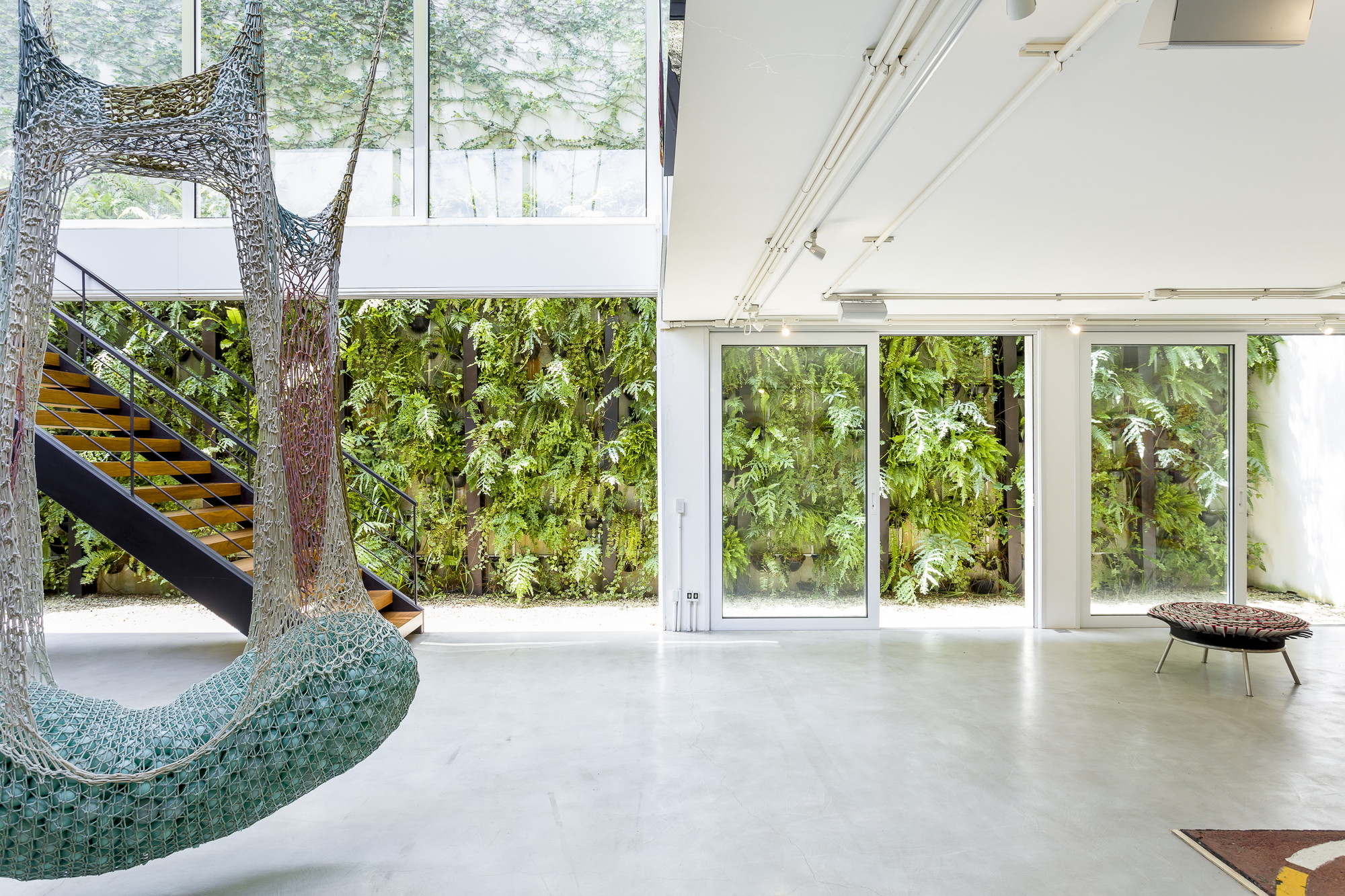

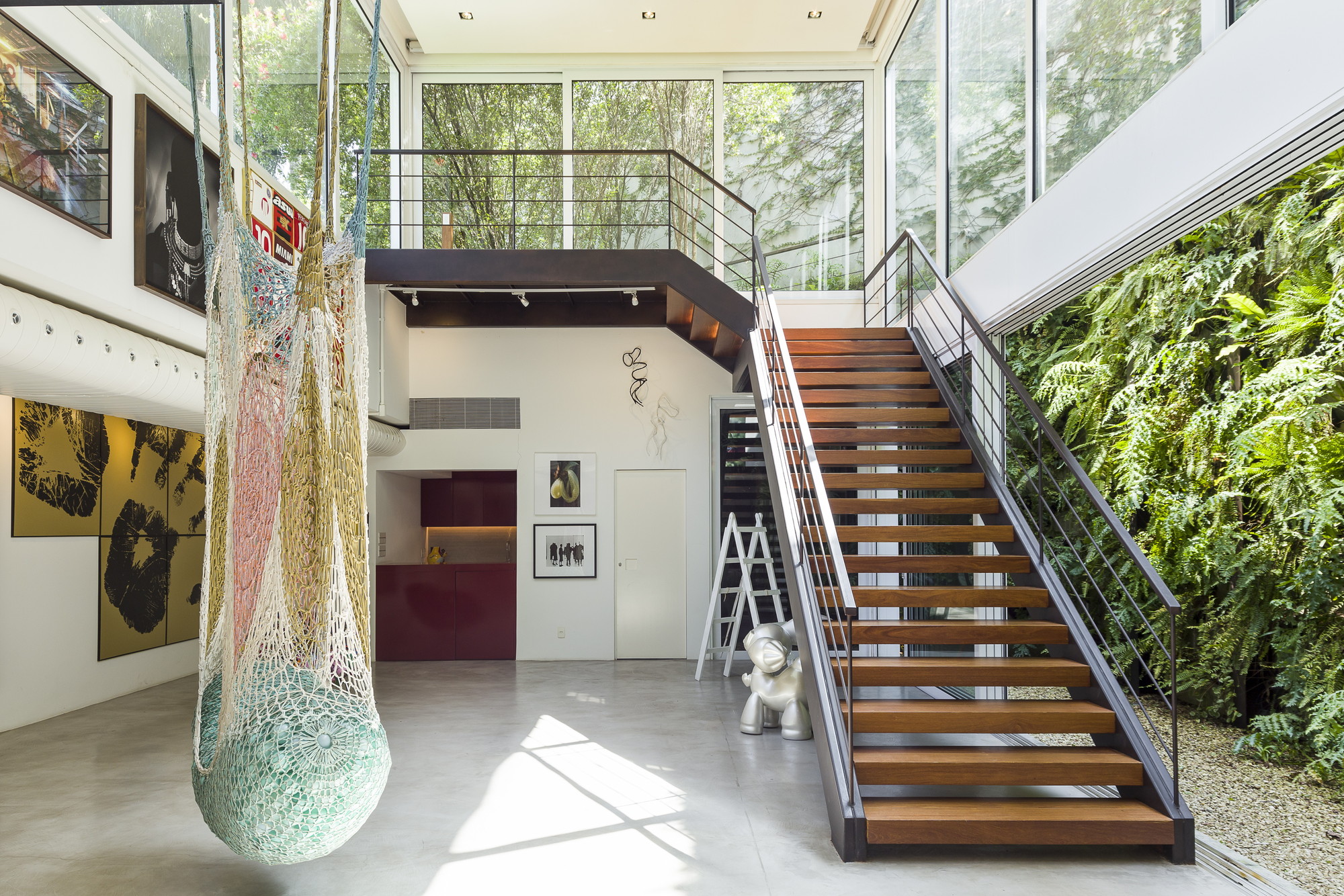

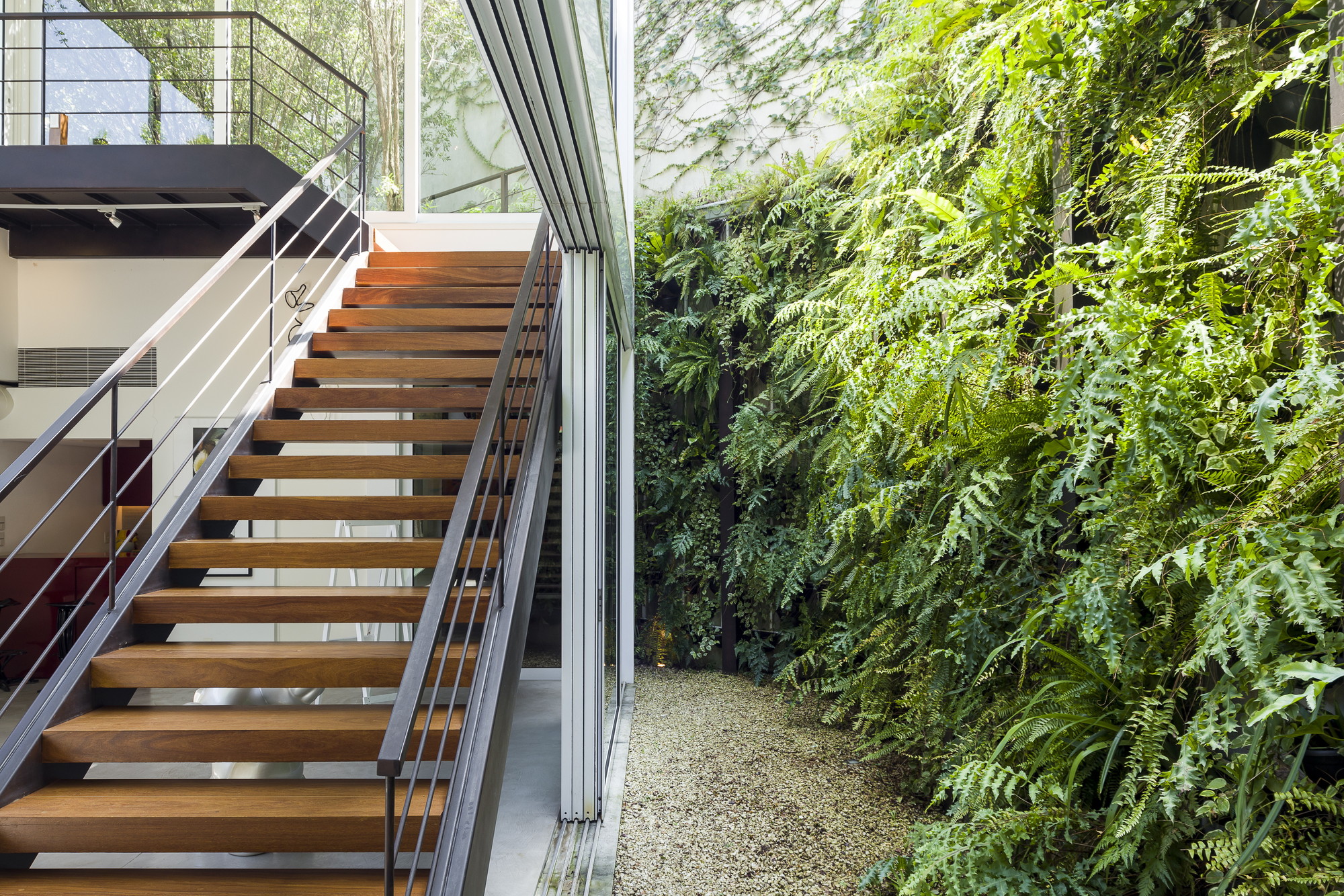

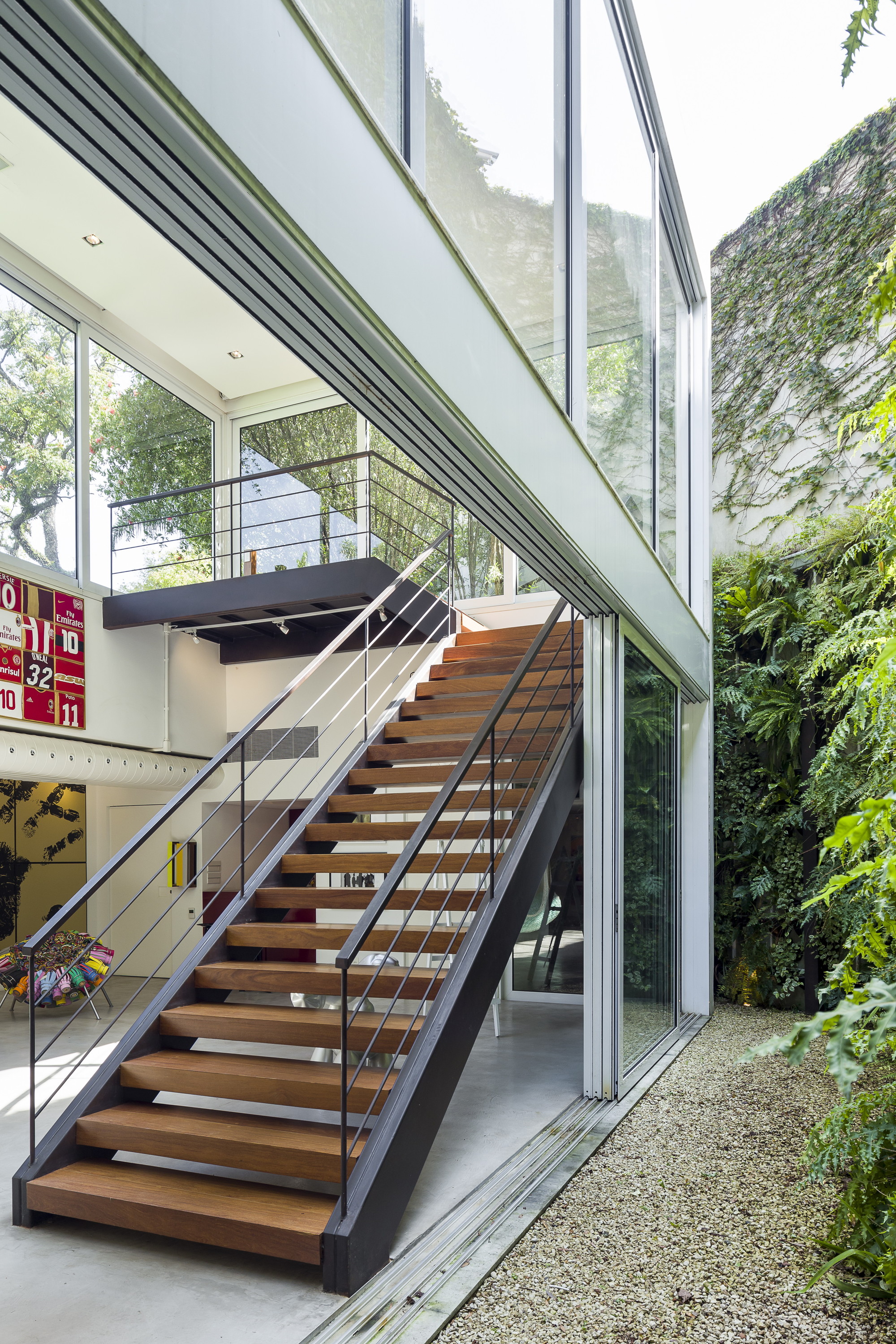

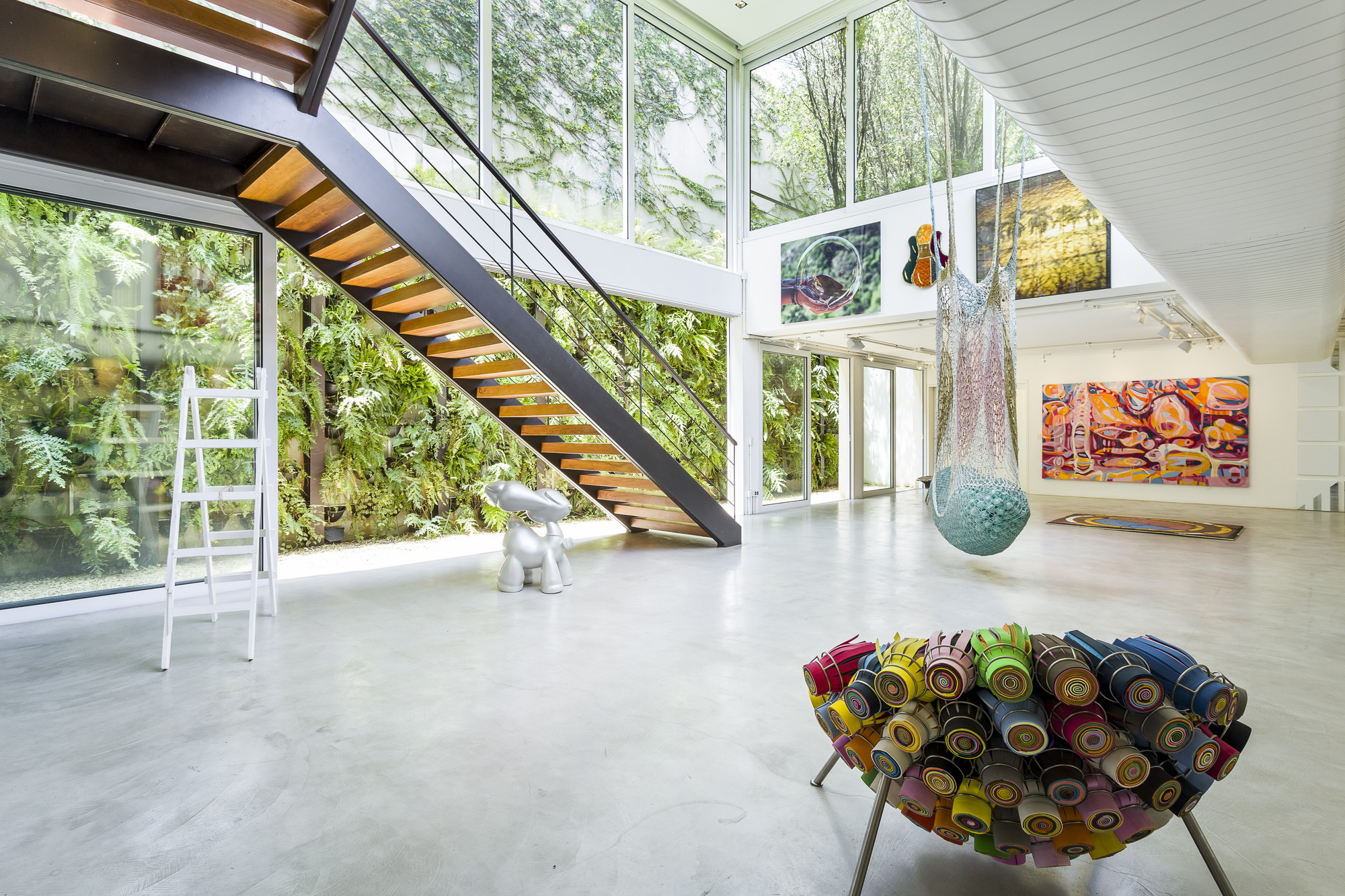

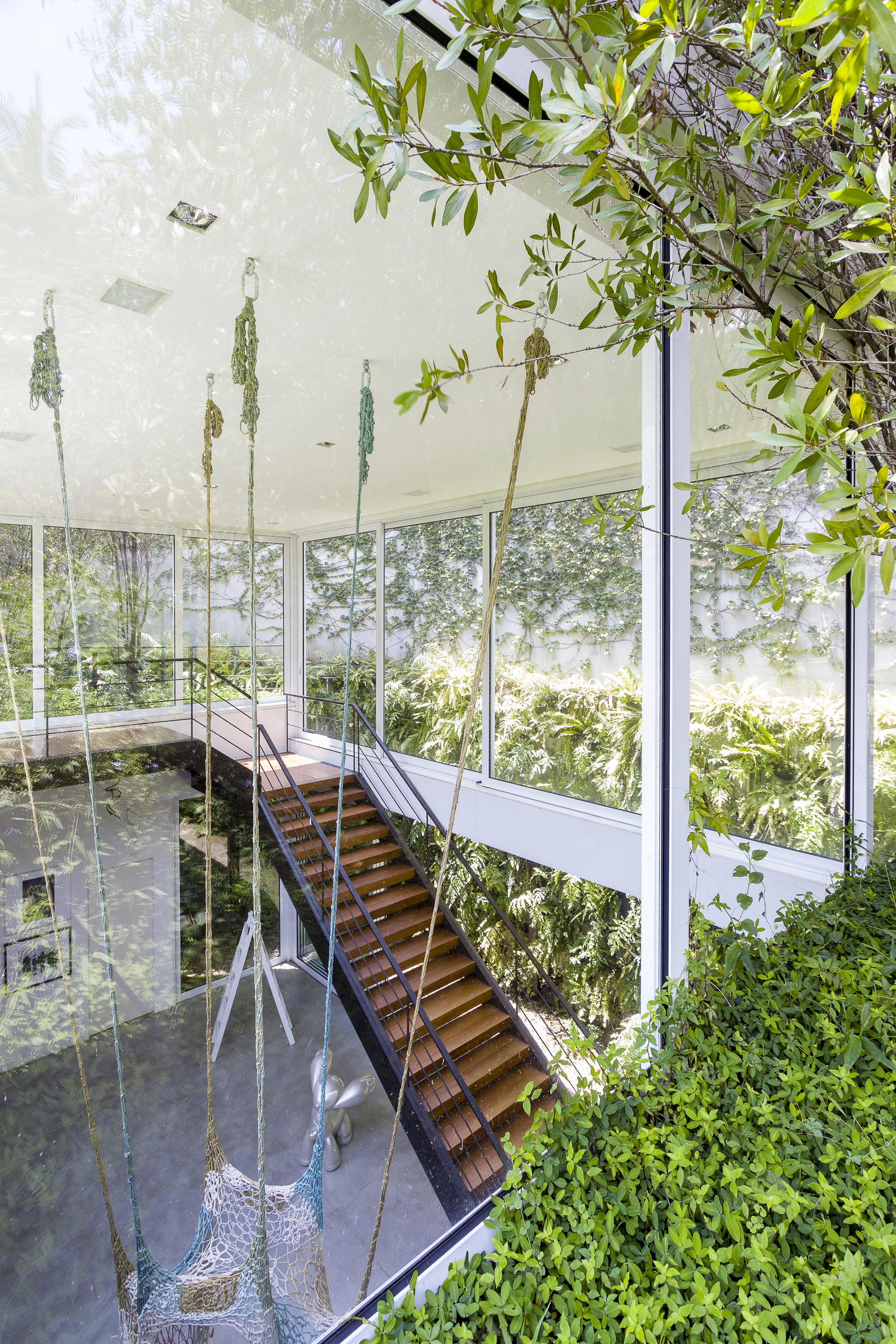

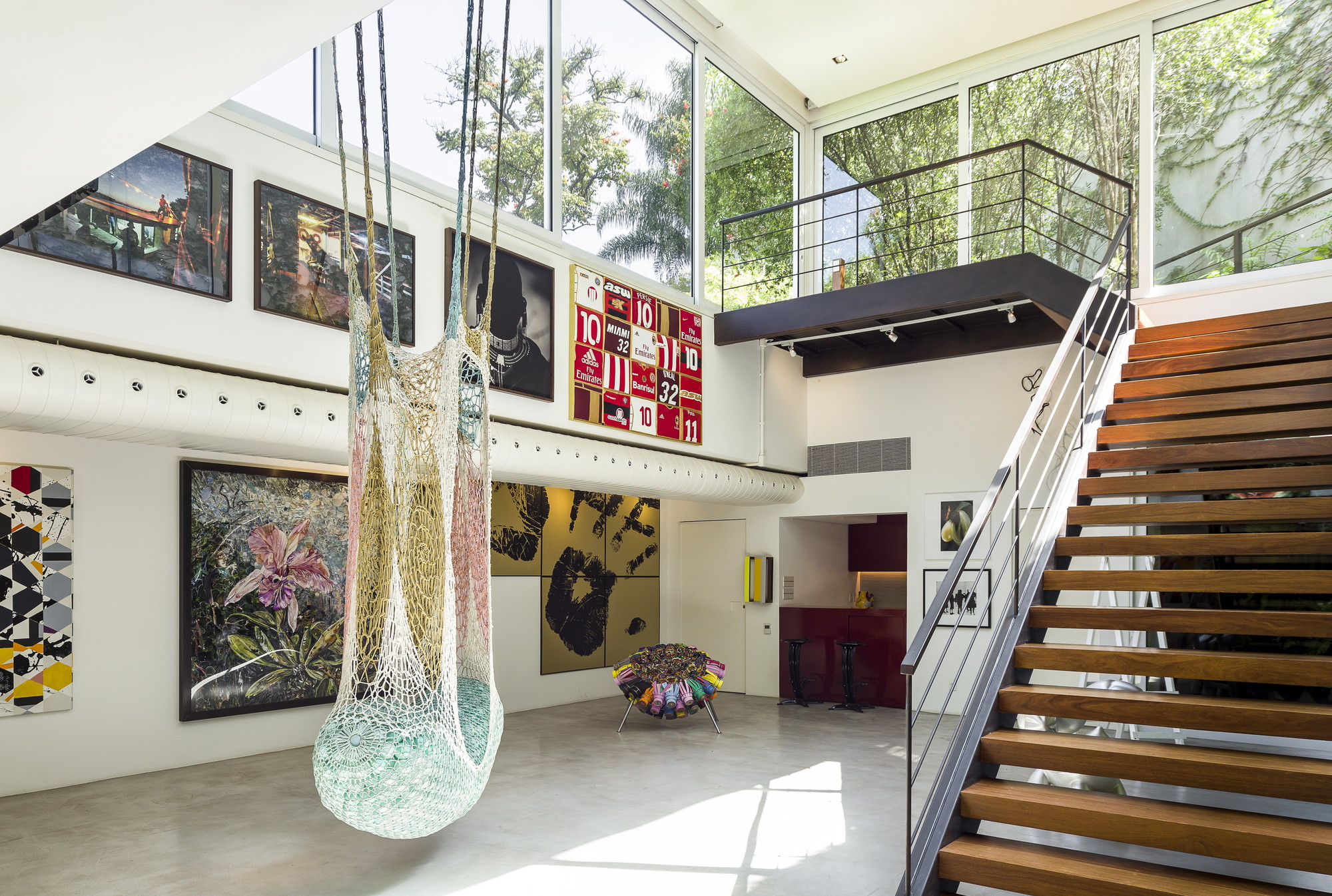

The stair is the hinge of the project. Thin black steel stringers and railings carry broad open timber treads, and the flight runs parallel to the fern wall instead of being tucked into a core. Because it is wide and generous, it works as a viewing platform as well as a way down: as you descend, the hang on the opposite wall comes into view gradually.

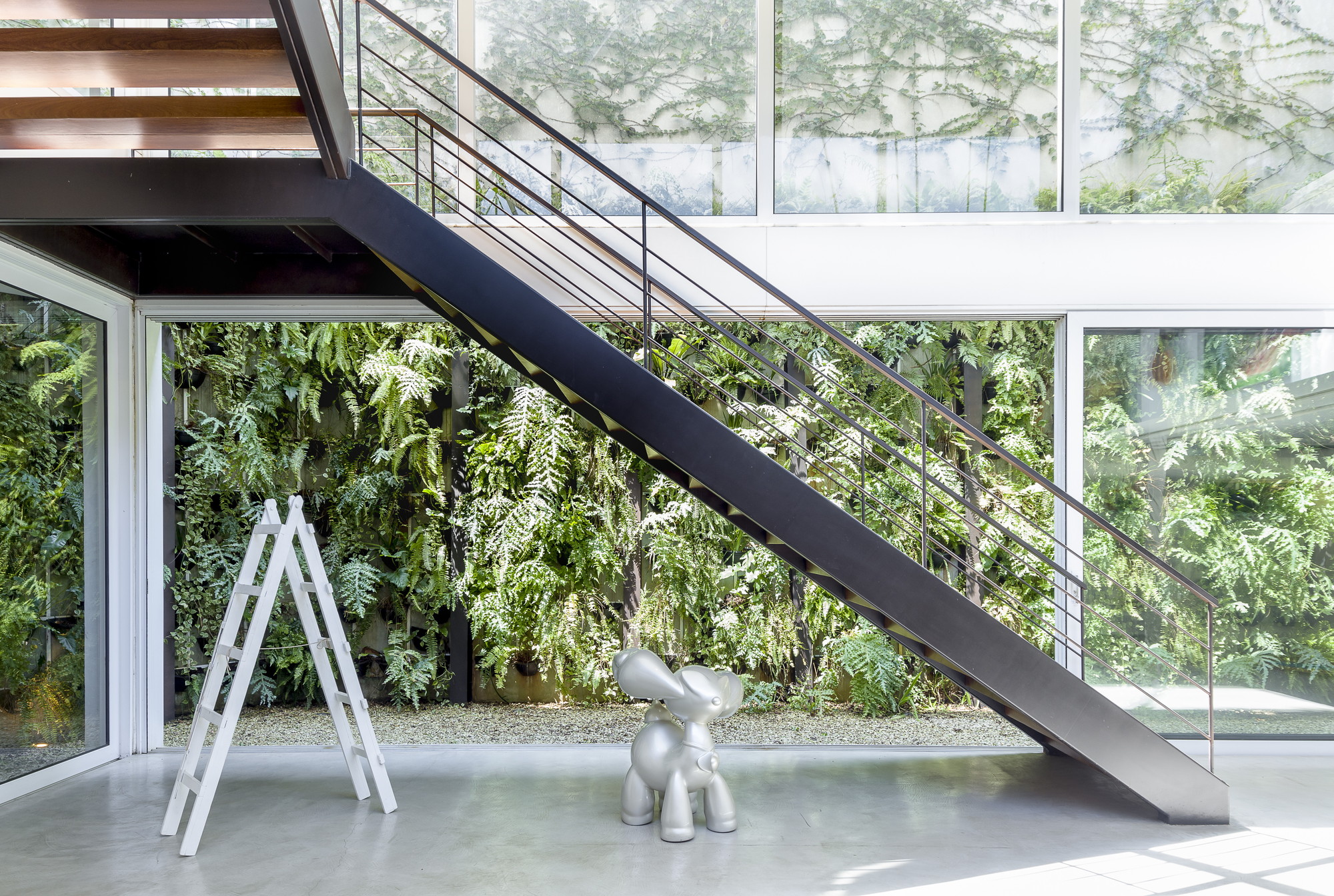

Prado keeps the materials limited. She uses polished concrete underfoot, steel for structure and rail, timber where the hand and foot touch, and glass everywhere else. Against that neutral base, a small silver elephant sculpture on the landing and the hanging ropes overhead stand out clearly.

The Double-Height Hall

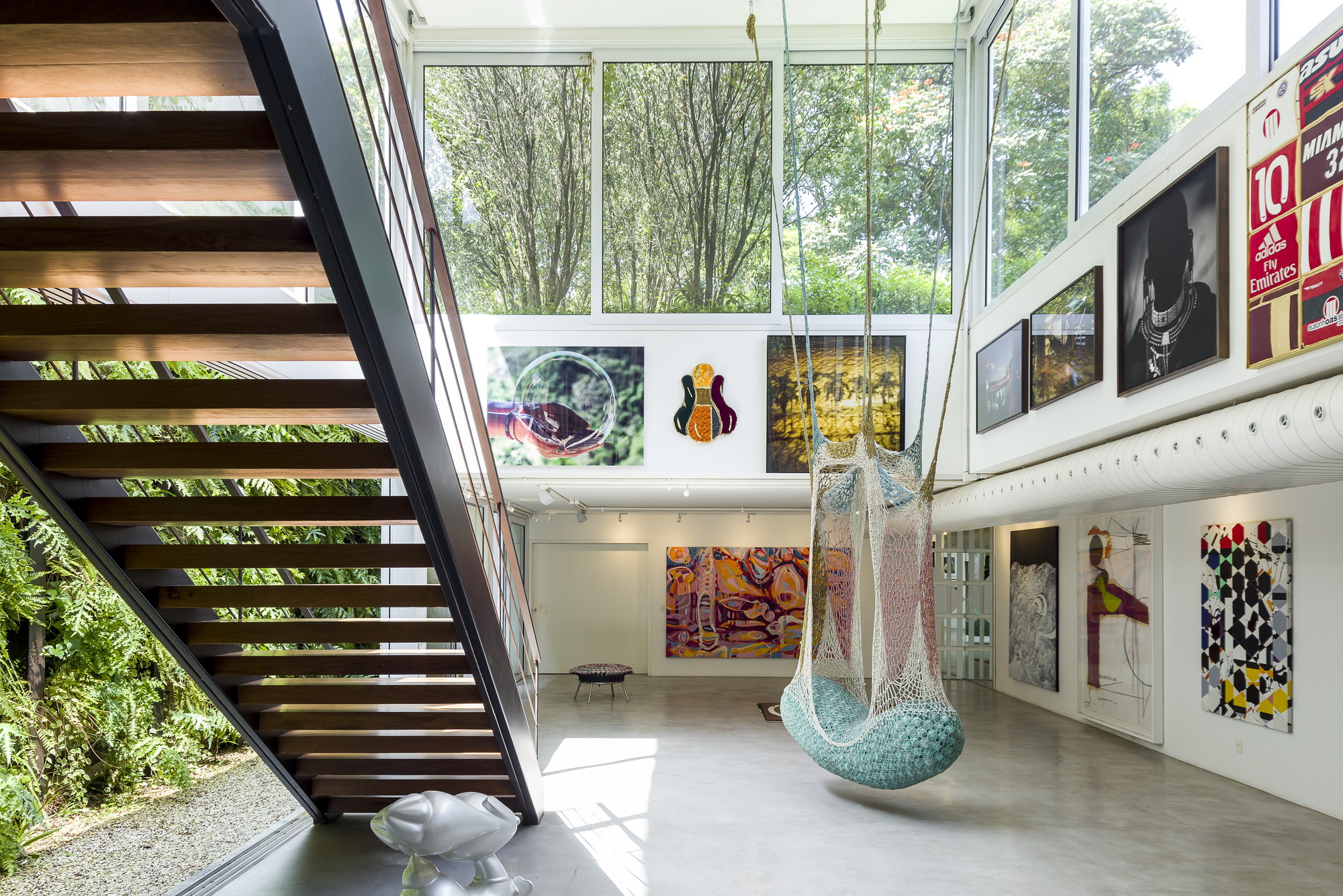

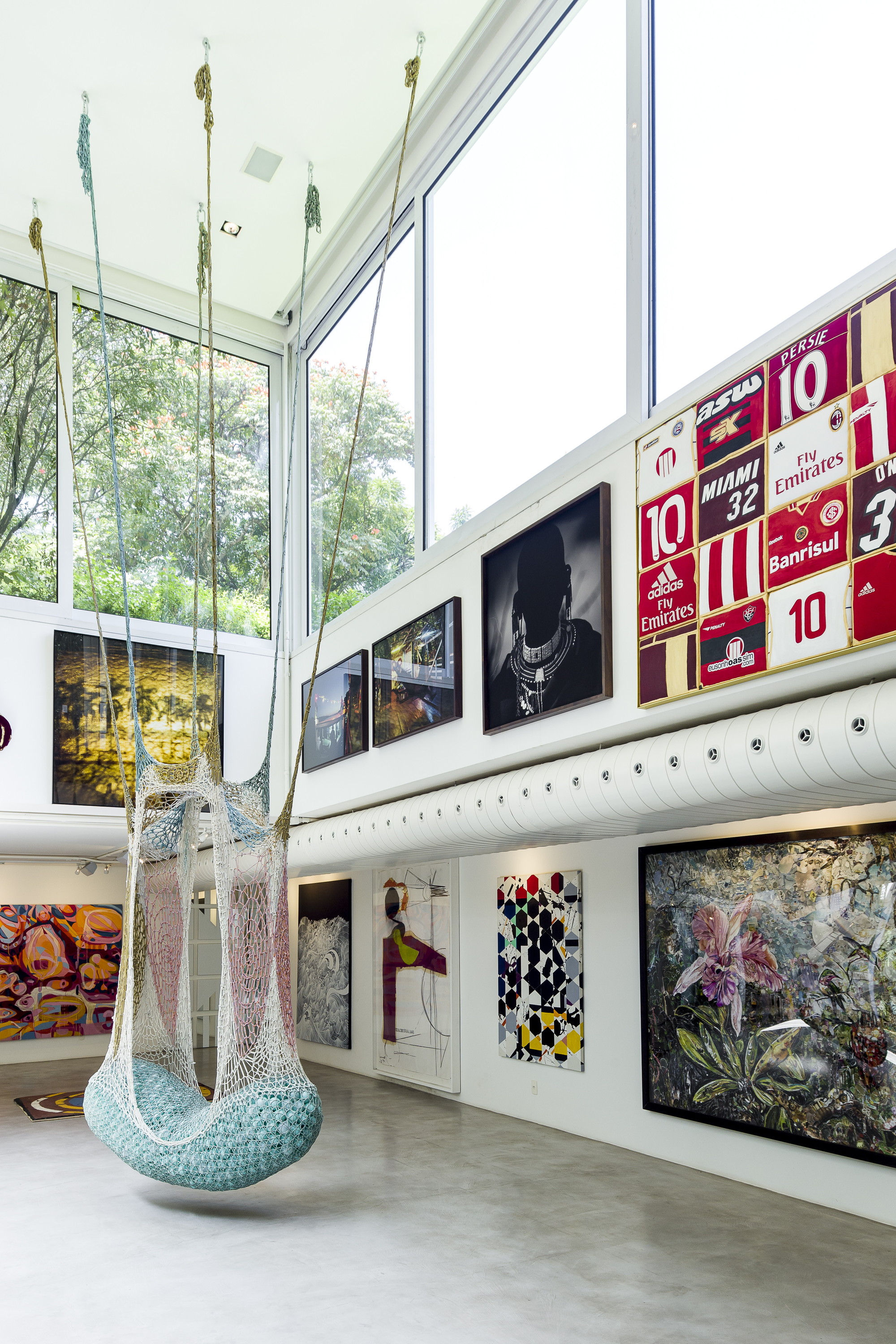

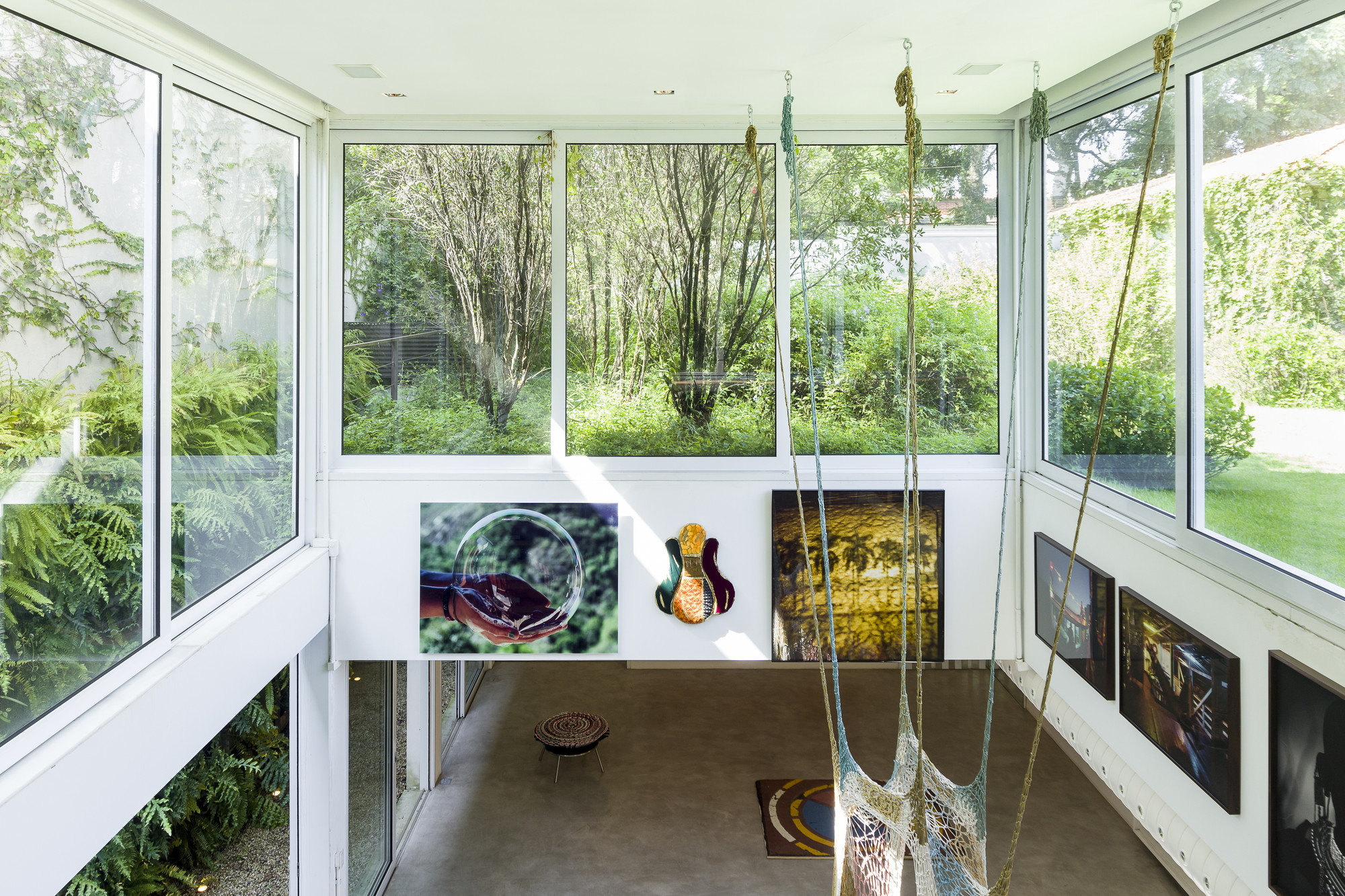

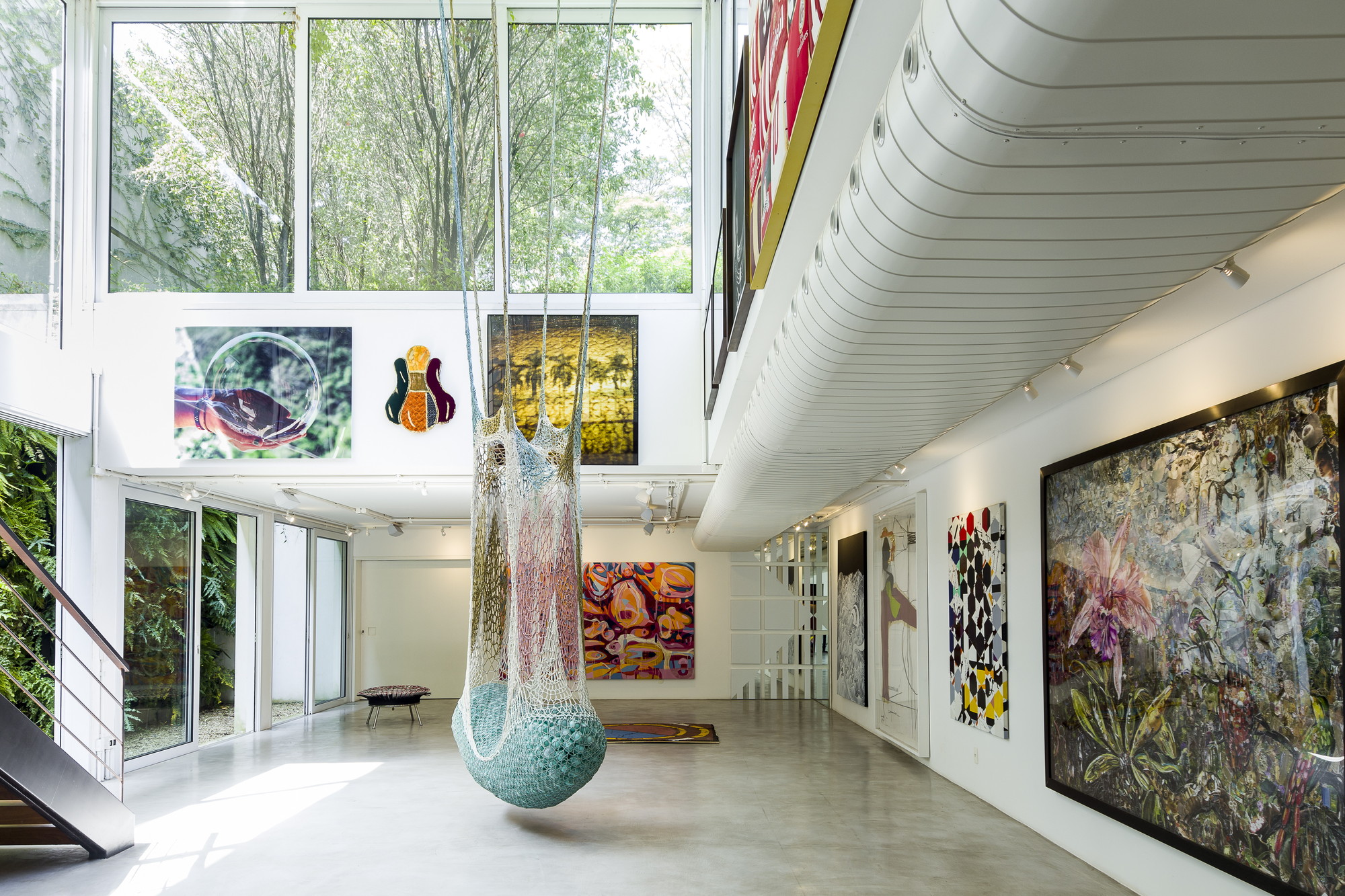

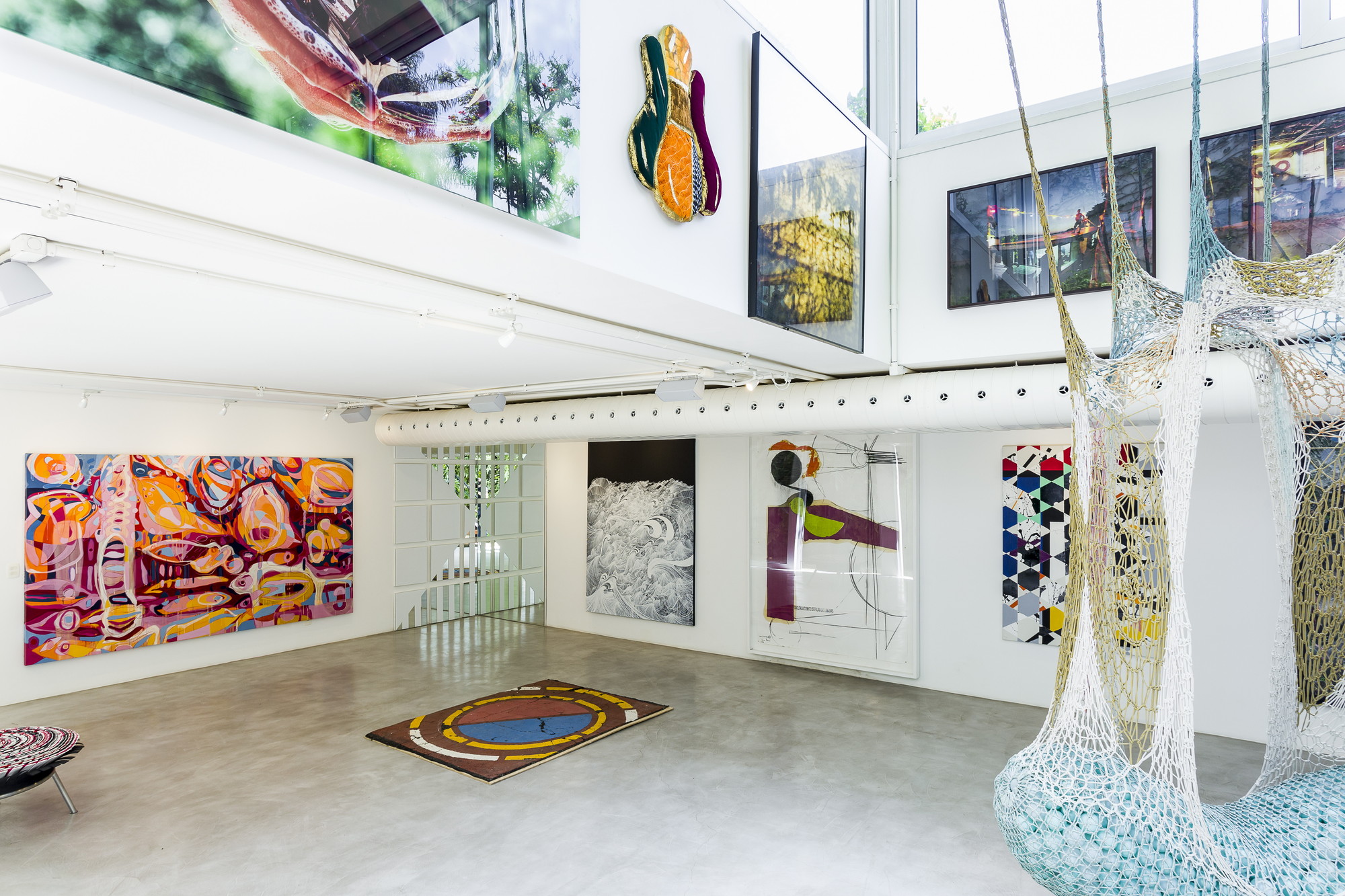

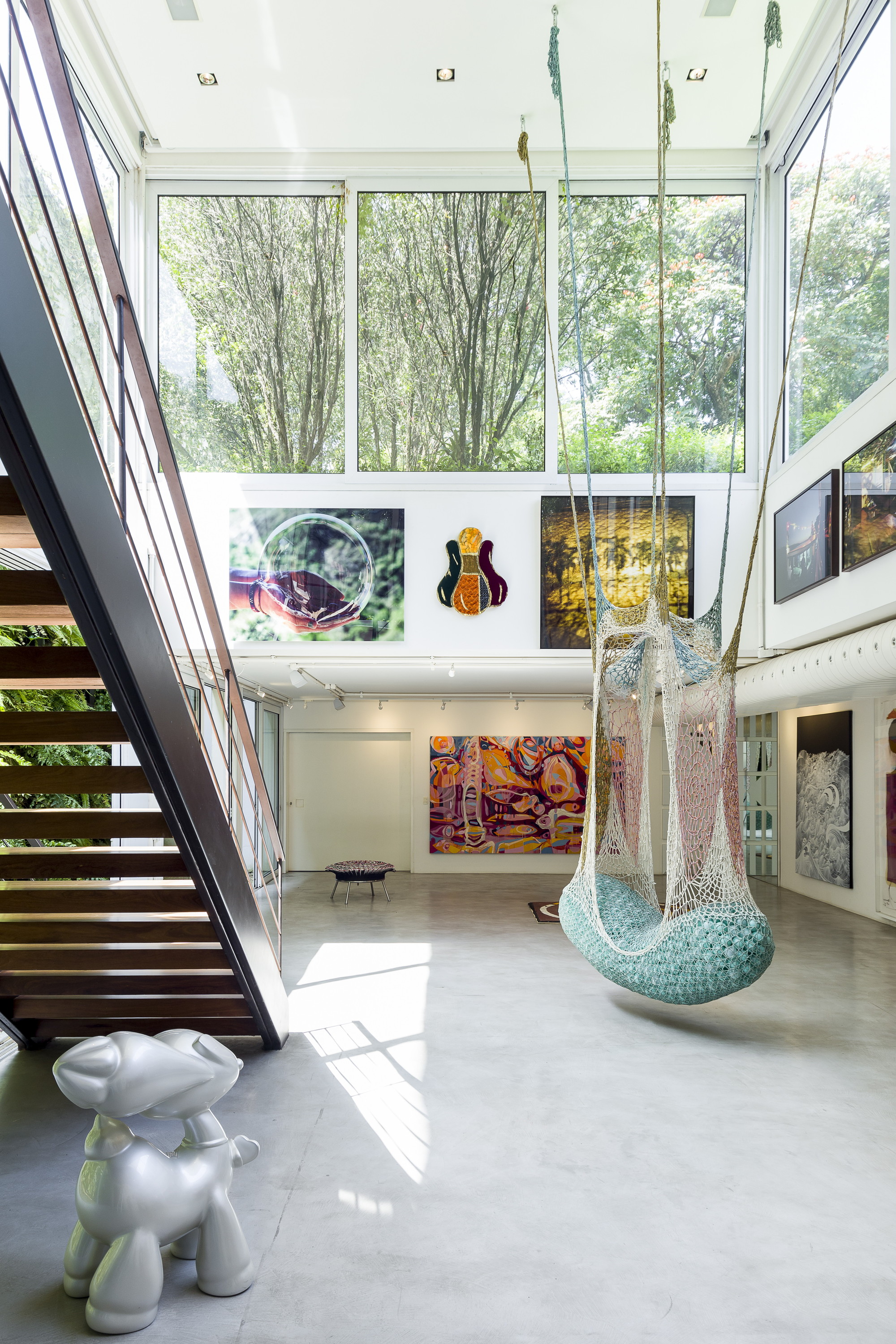

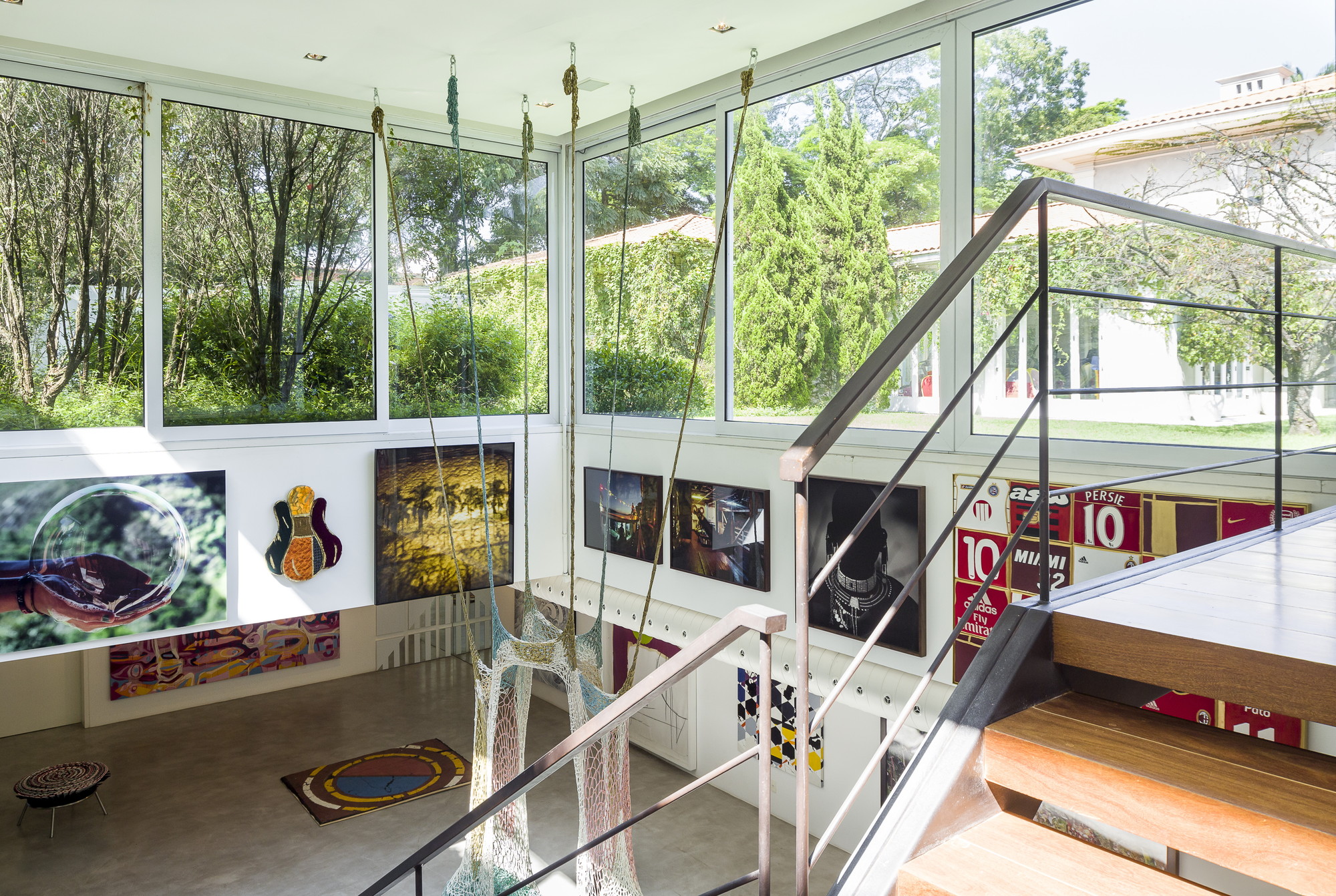

Below grade, the room opens up vertically. Tall windows at the upper level frame treetops and part of a neighbouring house, and a curved white soffit softens the meeting of wall and ceiling. Framed photographs climb the wall in a dense salon hang, which suits a collector's room better than the evenly spaced single works of a white-cube museum.

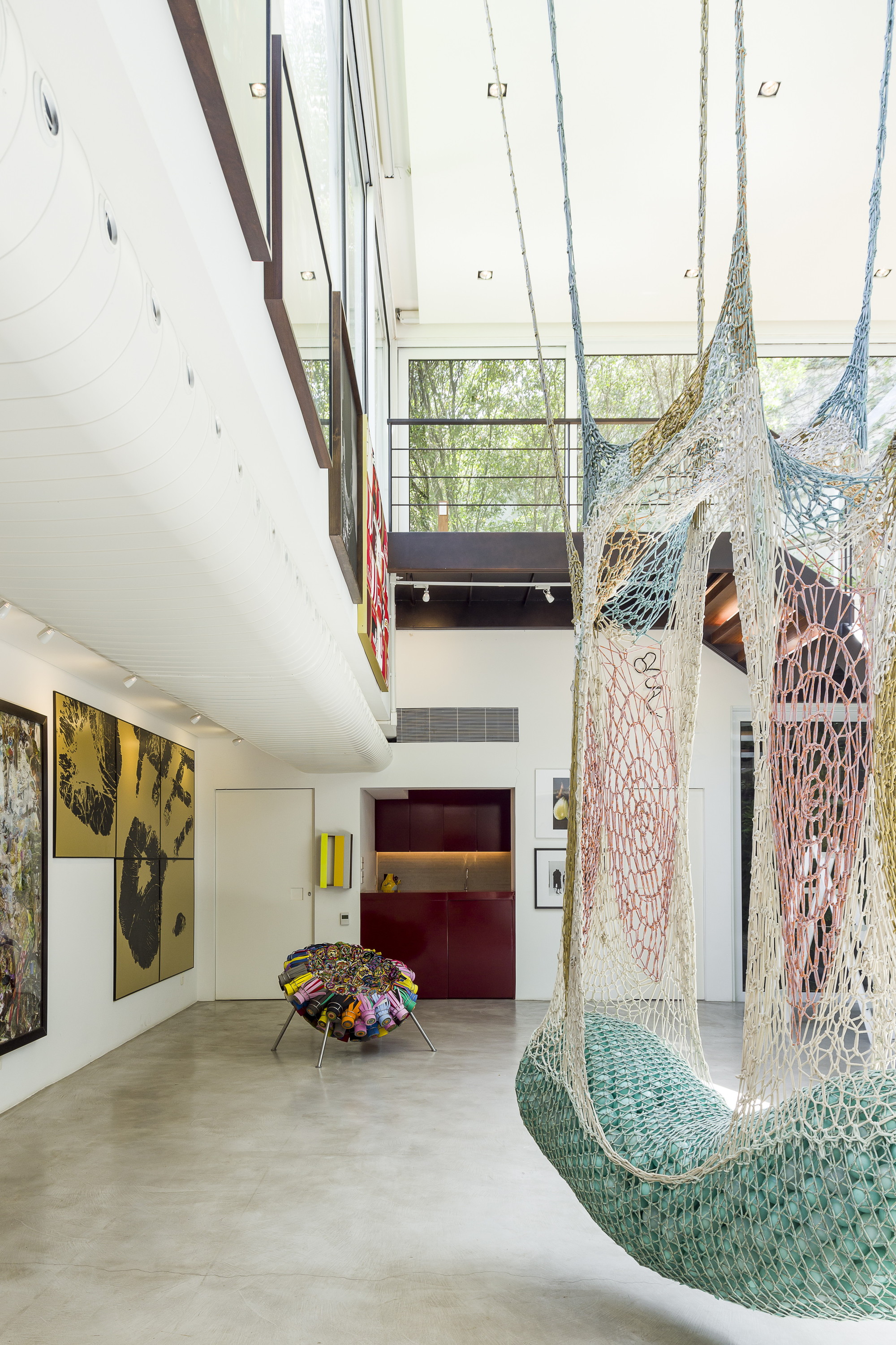

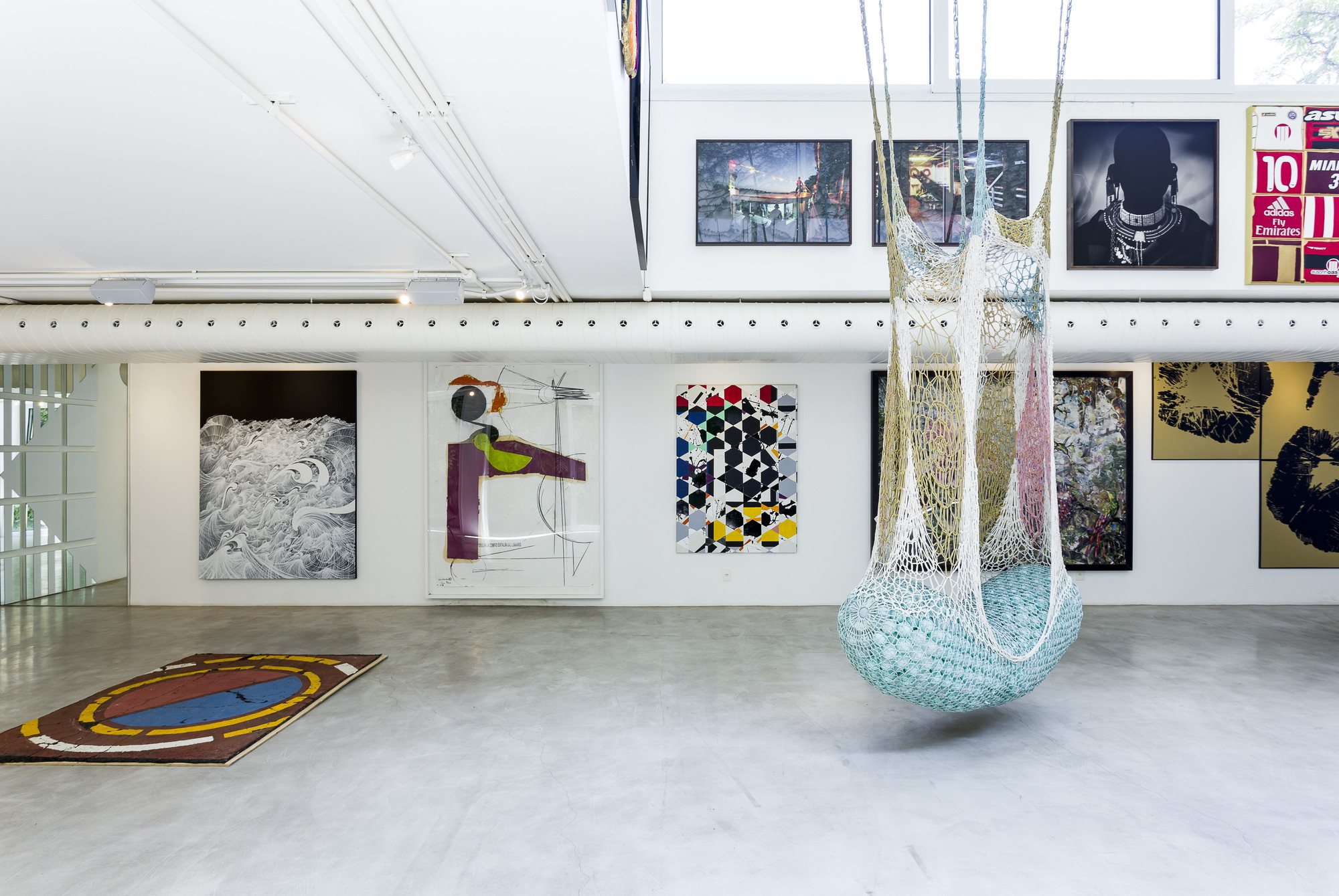

The height also gives suspended work room to hang. Crocheted nets and knotted ropes fall through the void, and the mezzanine walkway lets you look down on them from above. That is the payoff of sinking the volume: a 105 m² footprint holds a room with real vertical presence, and the garden above barely registers it.

Furniture as Collection

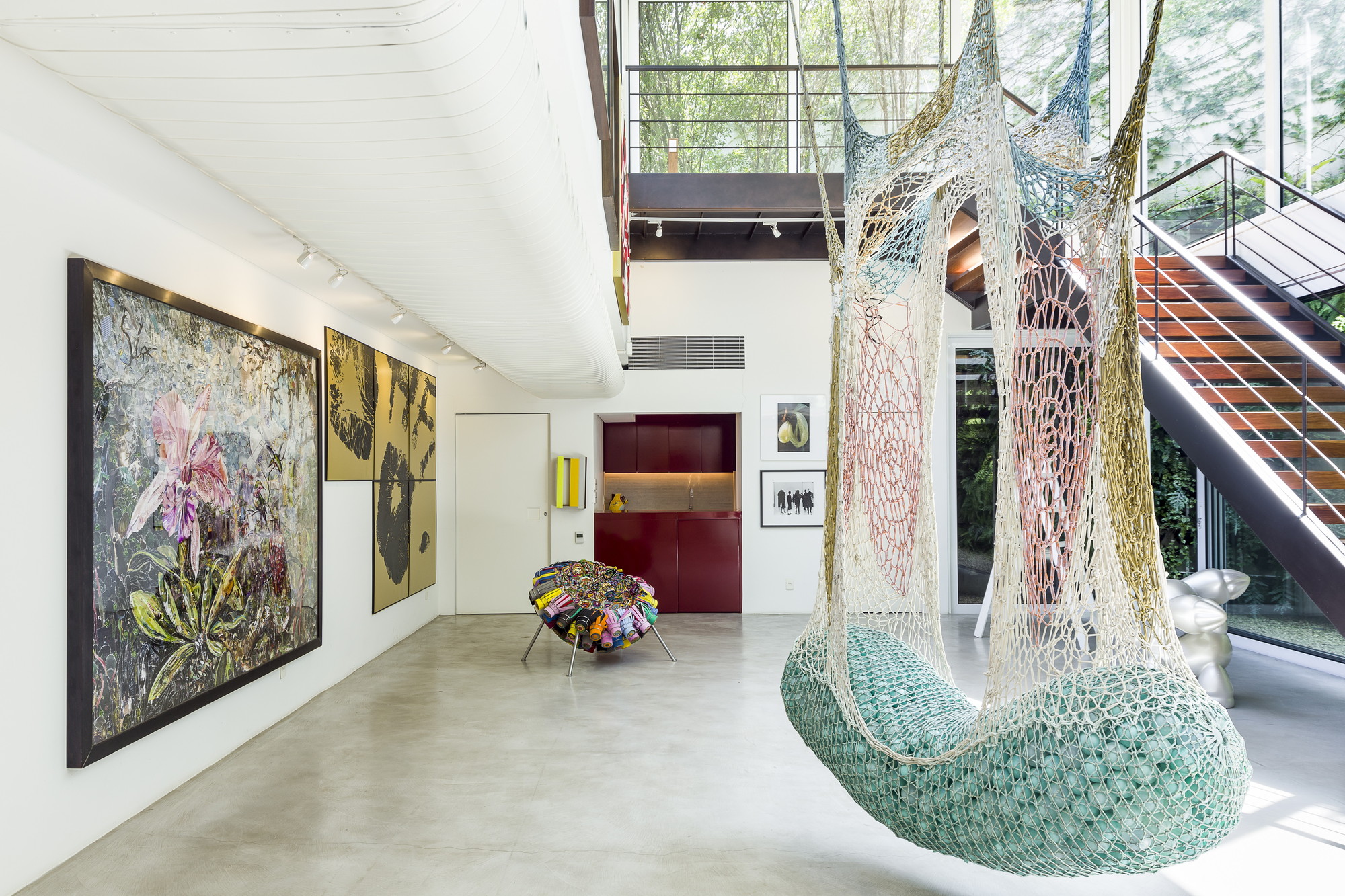

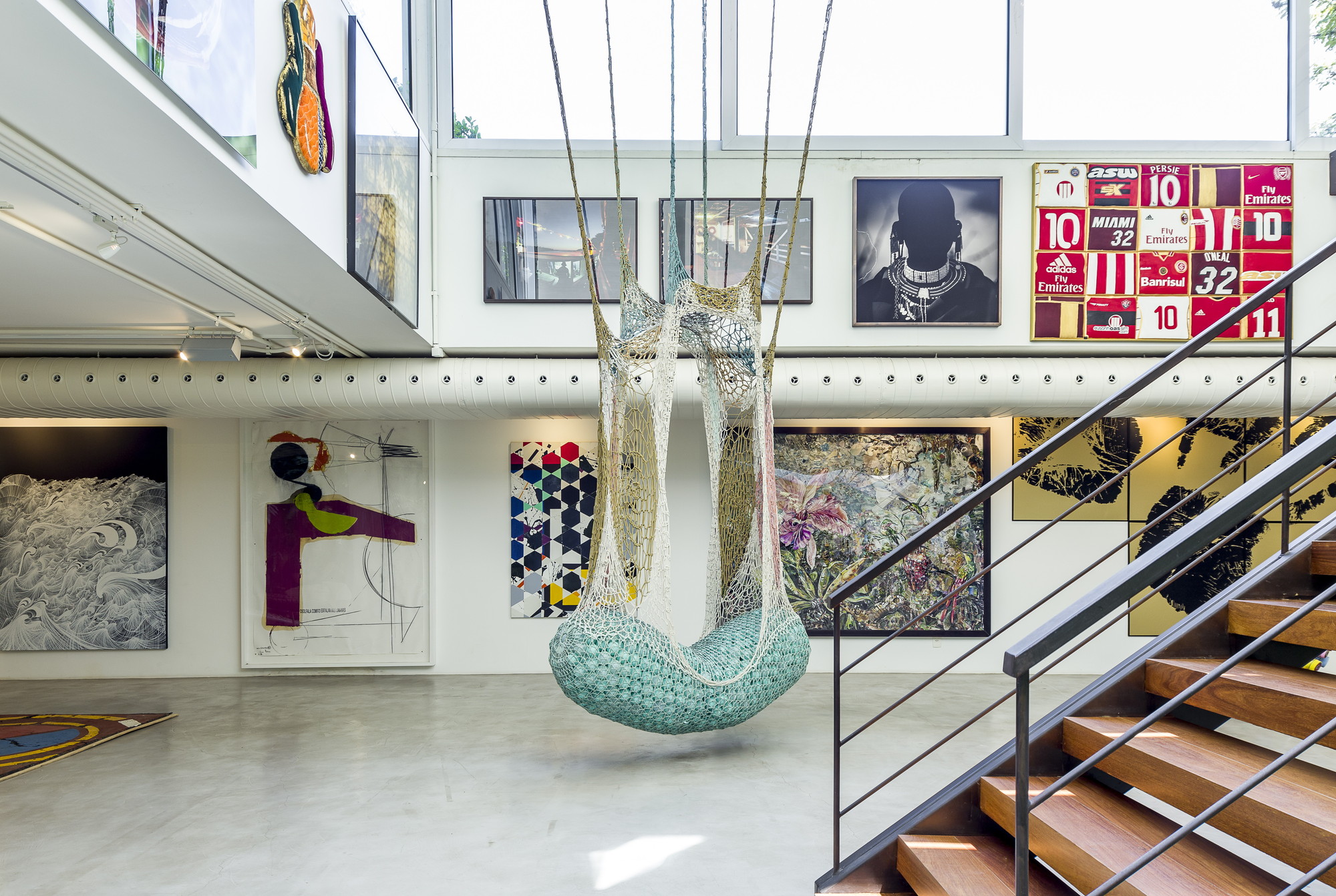

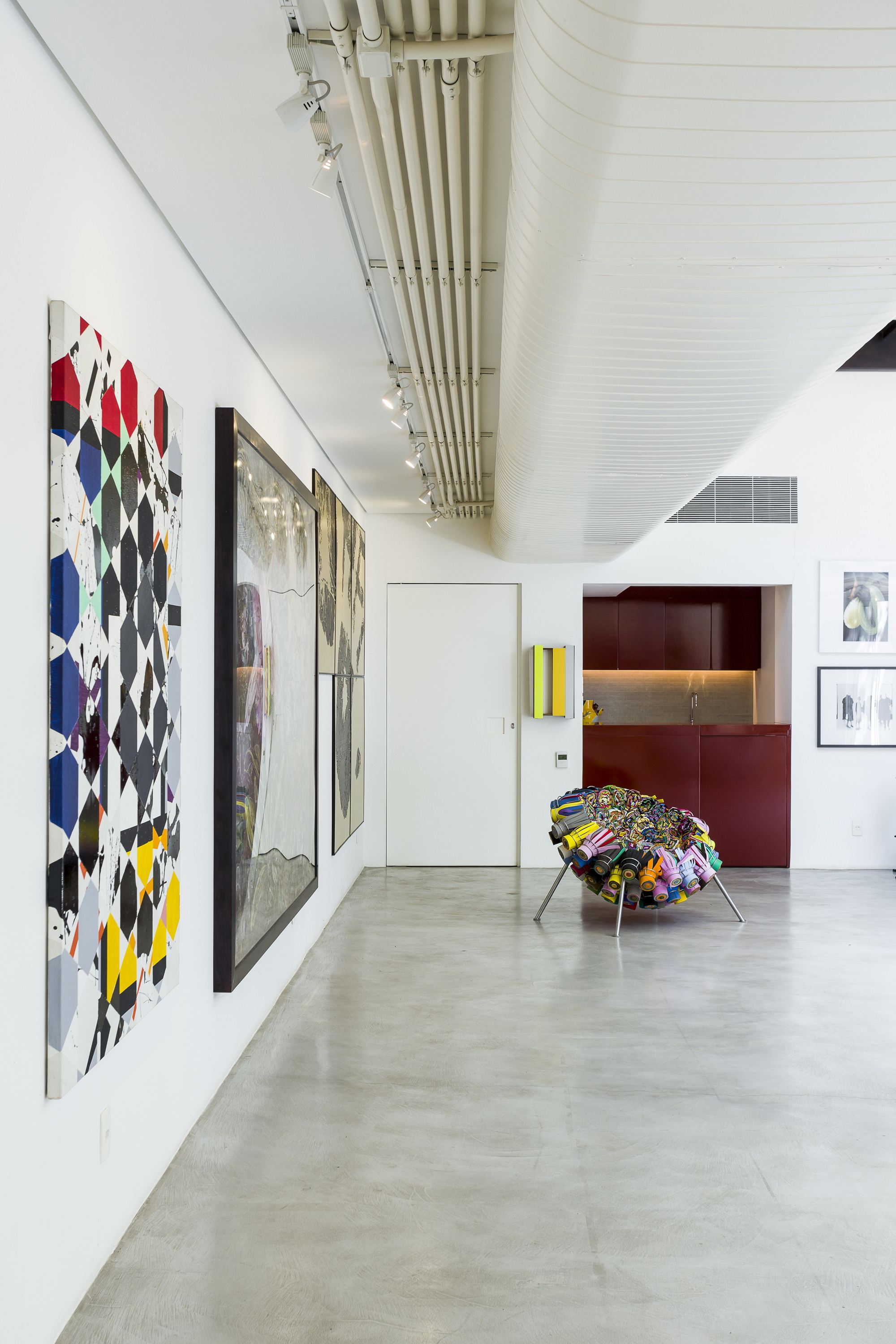

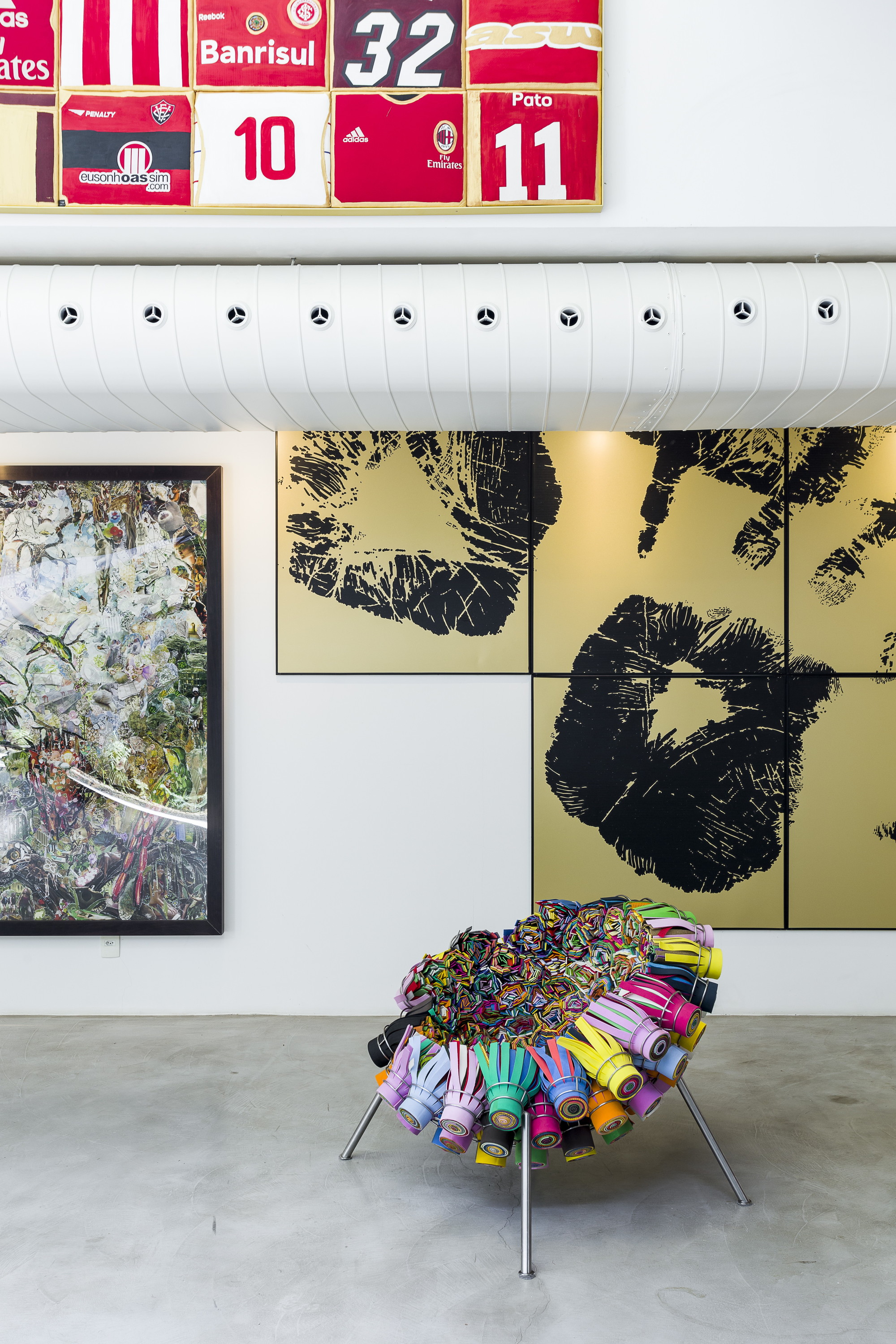

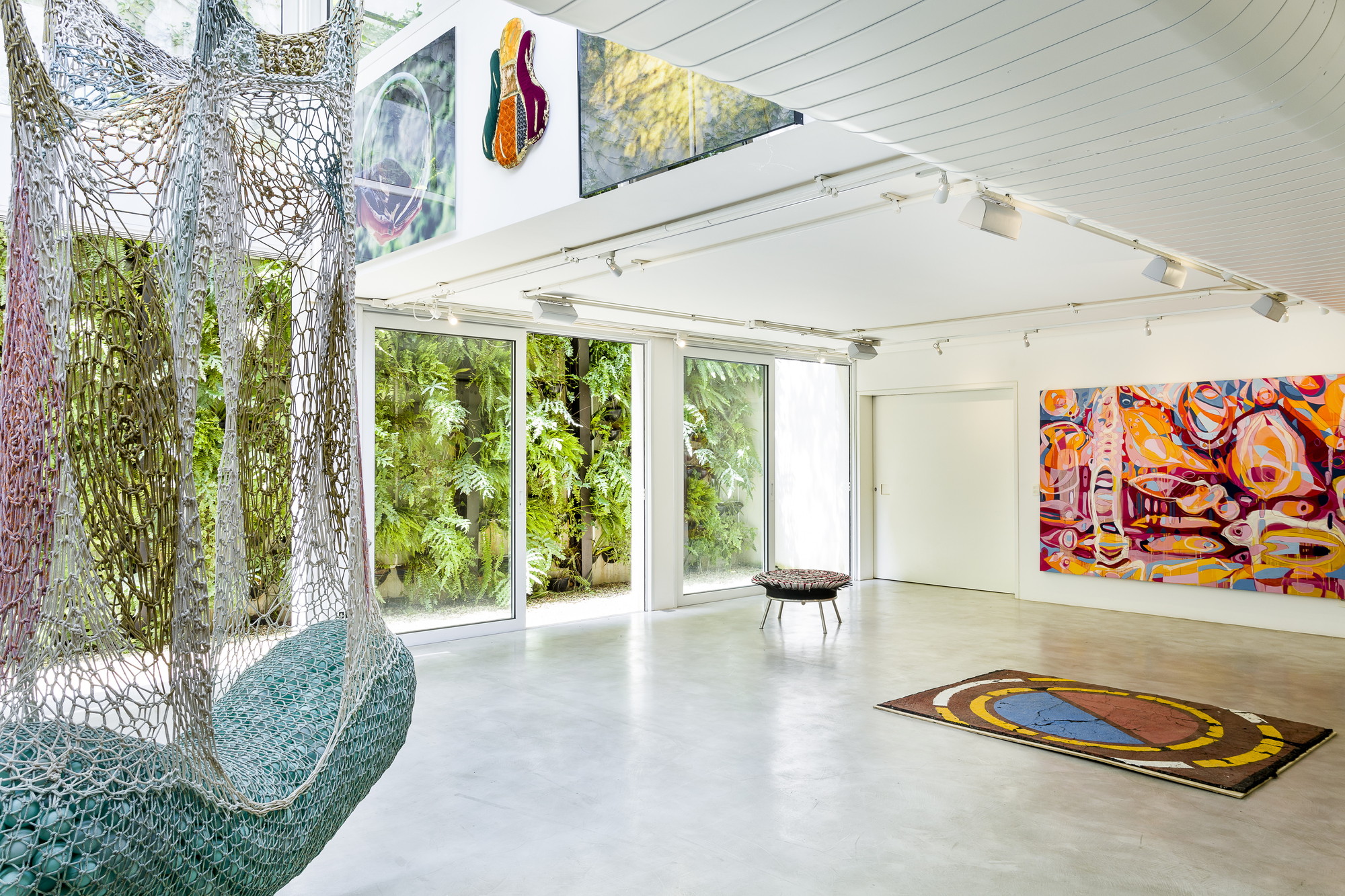

The gallery does not separate art from objects you can use. A crocheted net seat with a teal base hangs in the middle of the room. A chair made of rolled colourful tubes sits under a row of framed football jerseys. A patchwork chair stands next to a burgundy cabinet niche. The Campana pieces in the collection, the Sushi armchair and the Vitória Régia pouf, belong in this kind of room, since the brothers' work always blurs the line between craft object and sculpture.

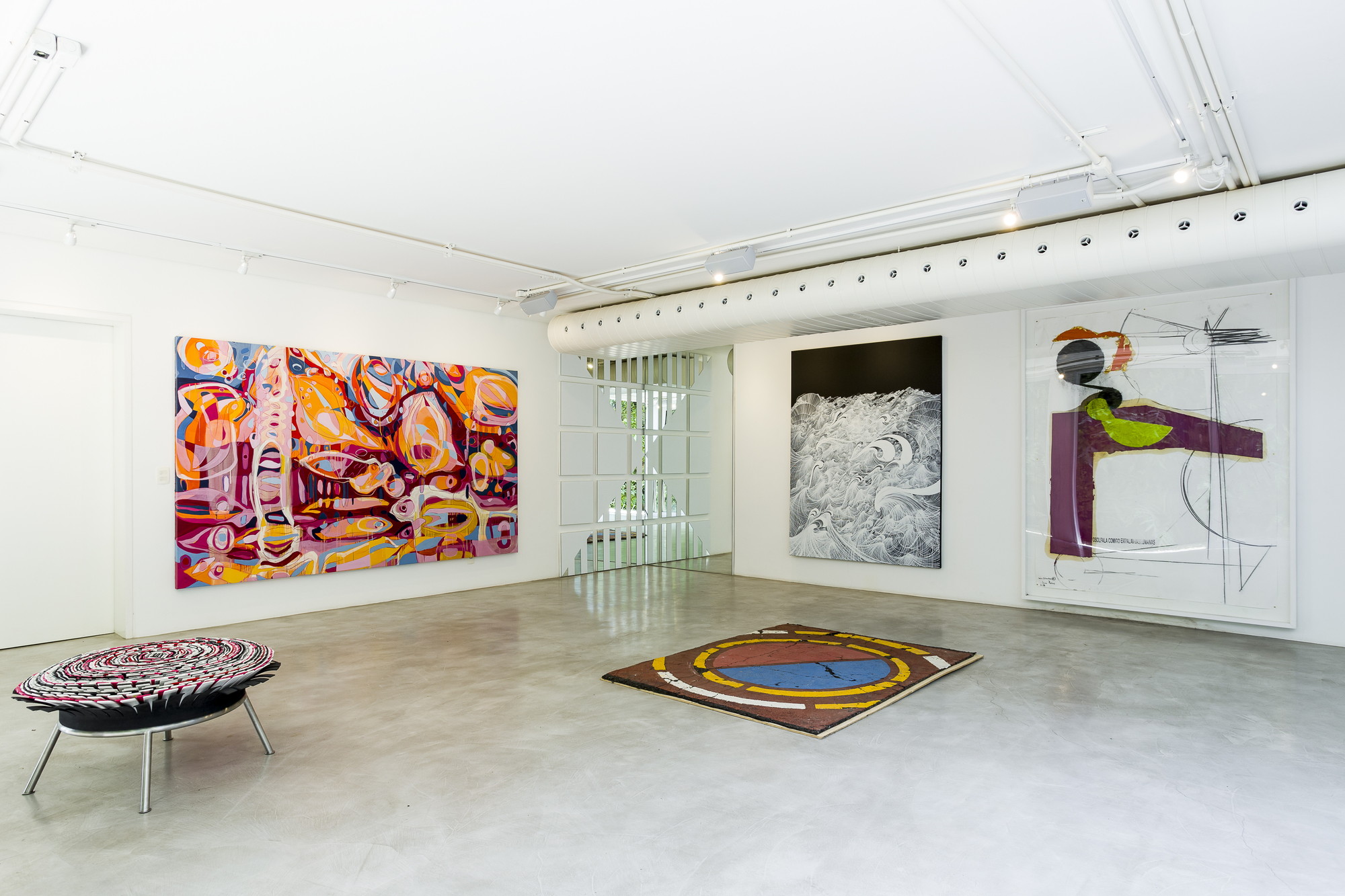

The architecture helps by staying out of the way. The surfaces are plain, the ceiling is white and the floor is concrete, so the colour comes from the collection. A gold lip-print panel and a wall of geometric paintings carry the room without the building trying to match them.

Controlled Light, Exposed Services and Hidden Storage

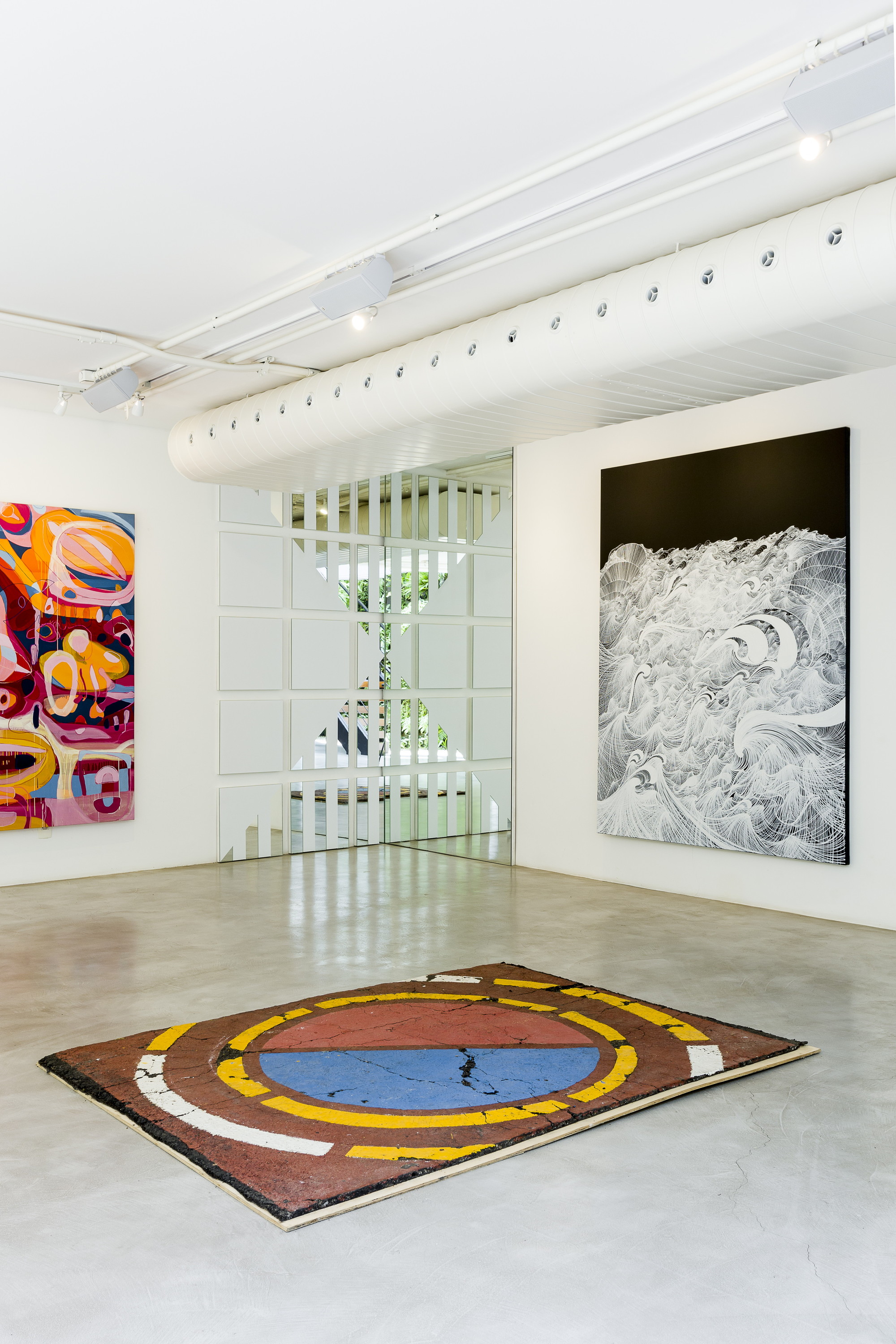

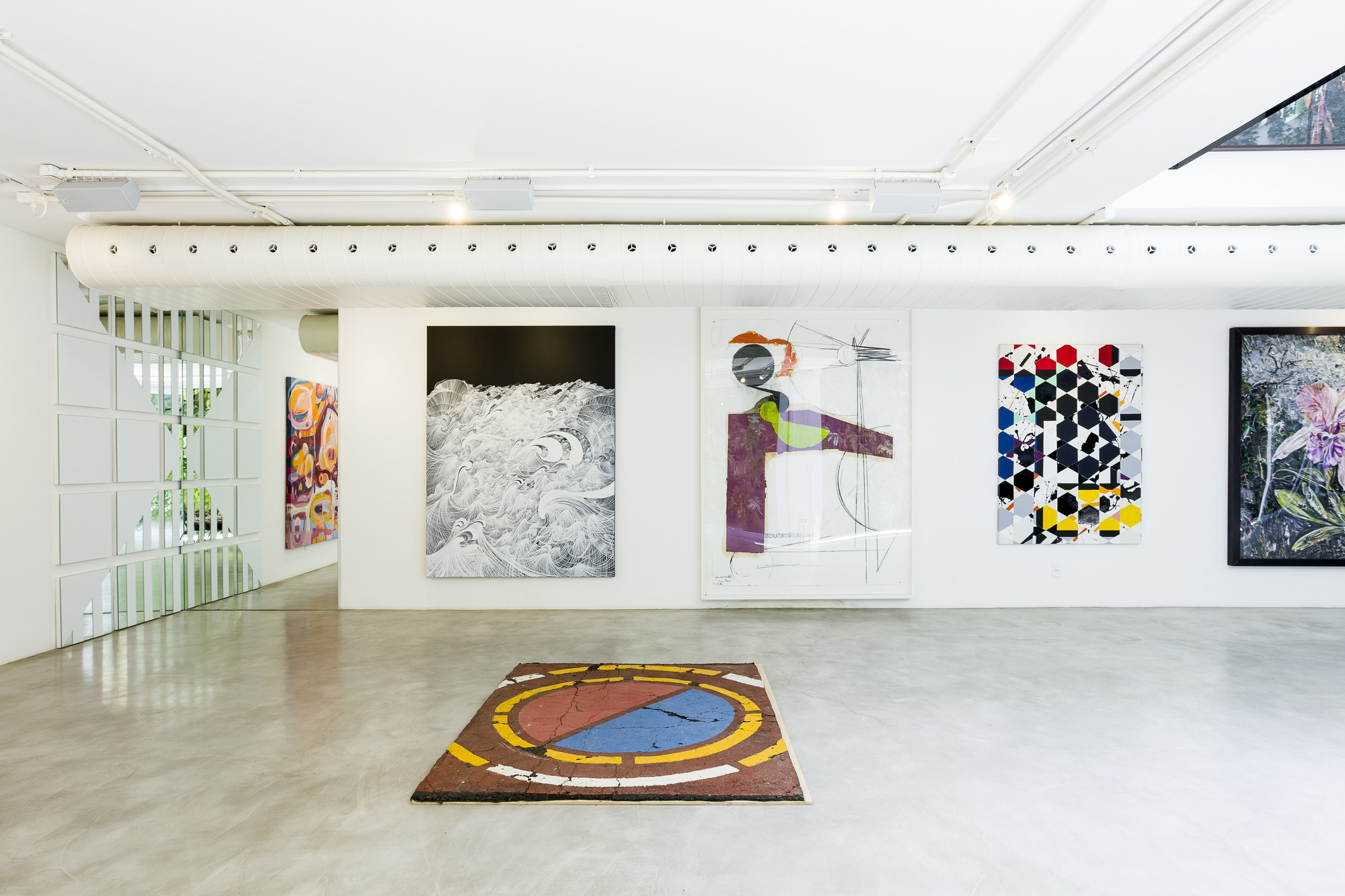

Daylight is welcome here, but in managed amounts. Windows are fitted with roller blinds and solar-protection screens, and the rooms are air conditioned to museum standards. Prado leaves a white perforated duct exposed across the ceiling instead of hiding it in a dropped soffit. We think this is honest and practical: in a semi-buried room, every centimetre of height counts, and an exposed duct shows plainly that the space is climate controlled.

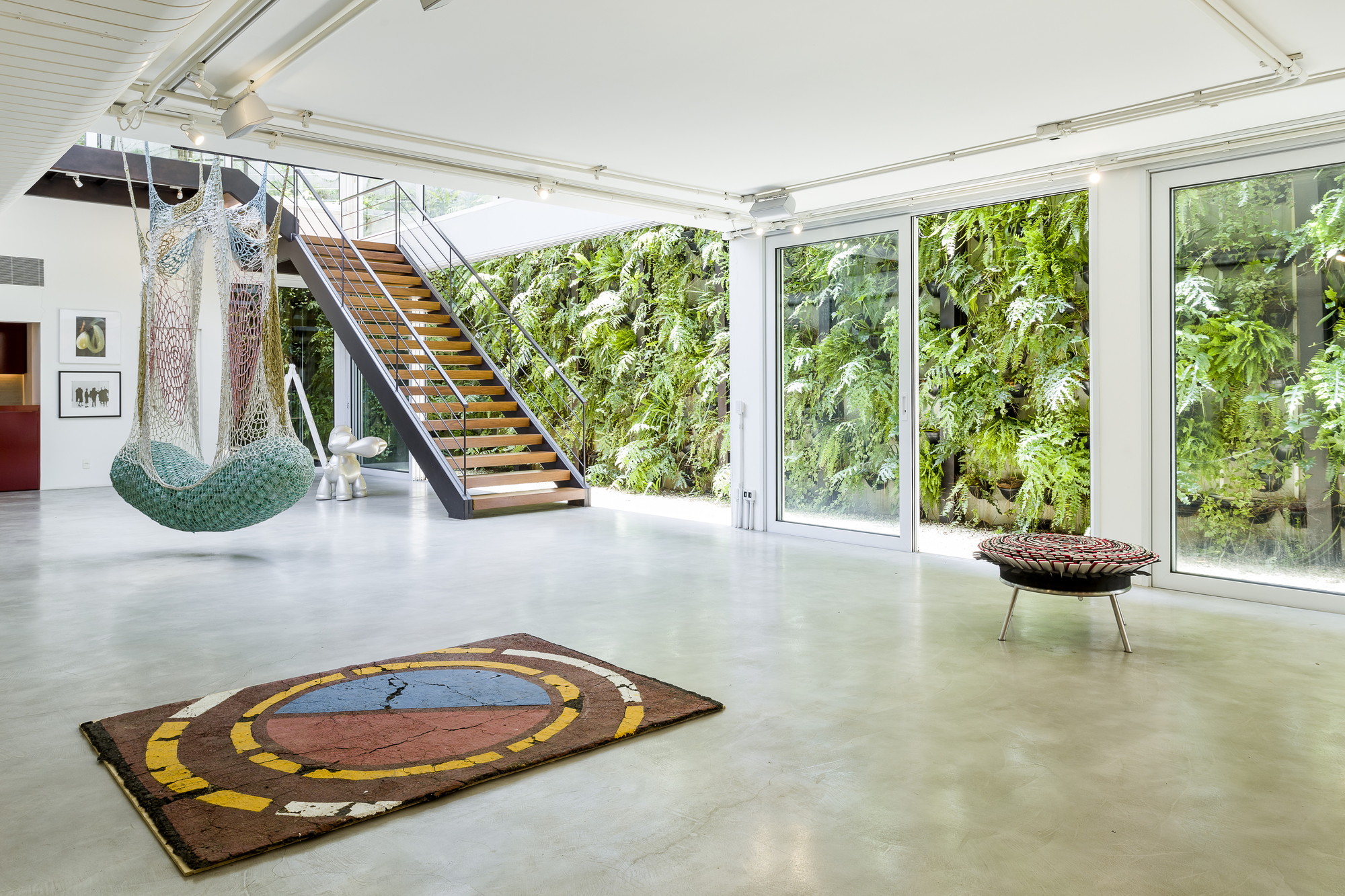

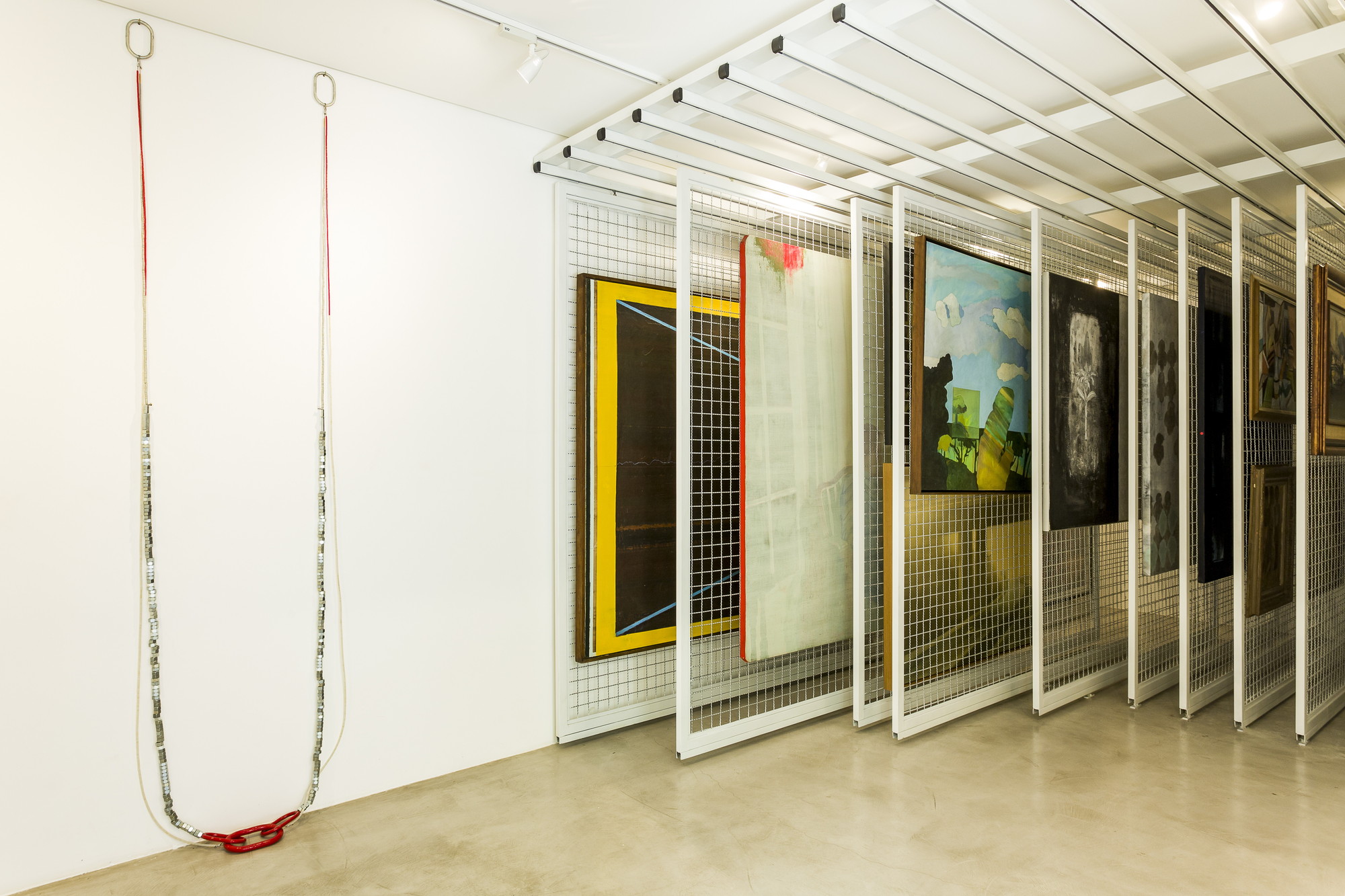

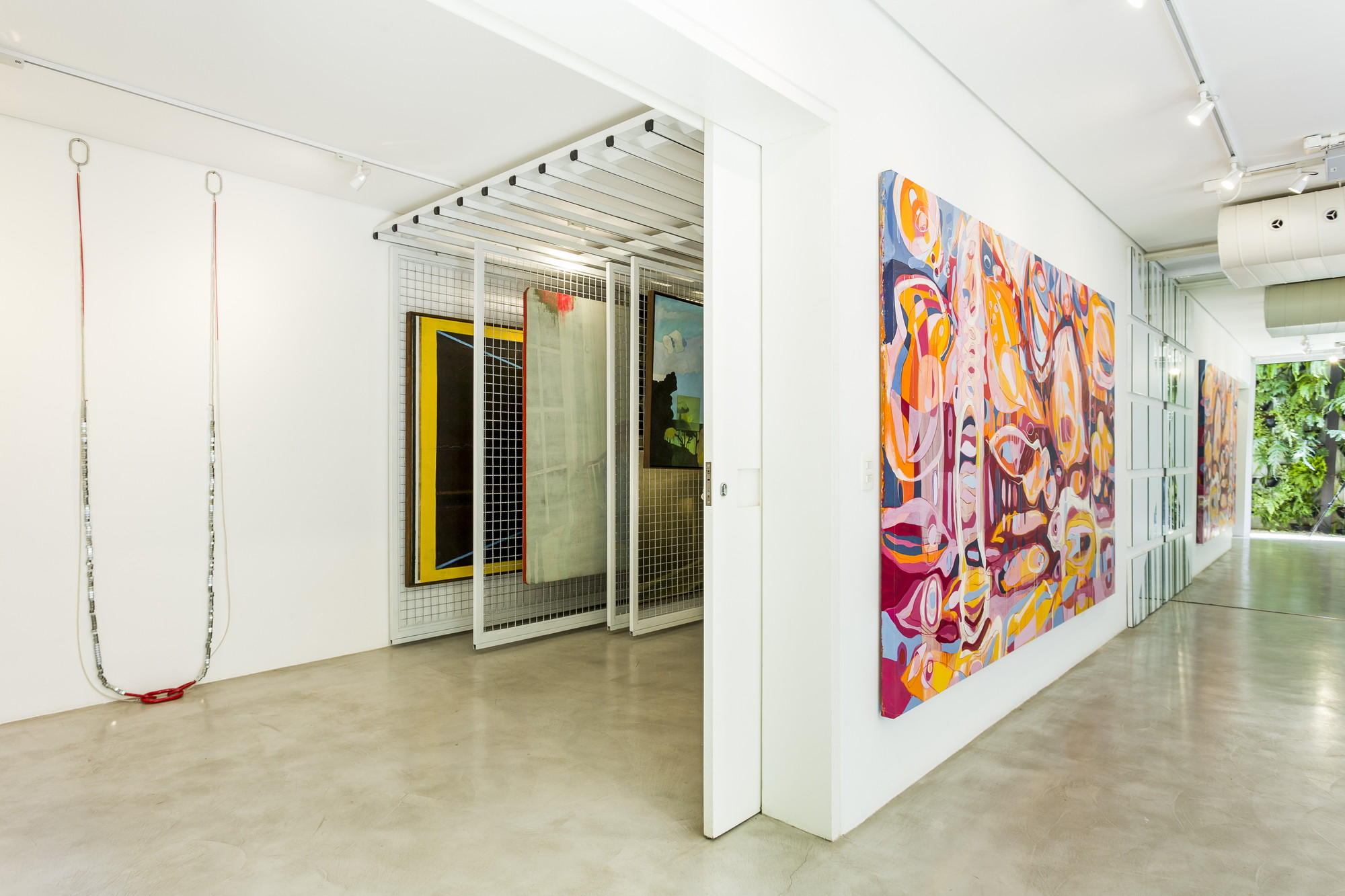

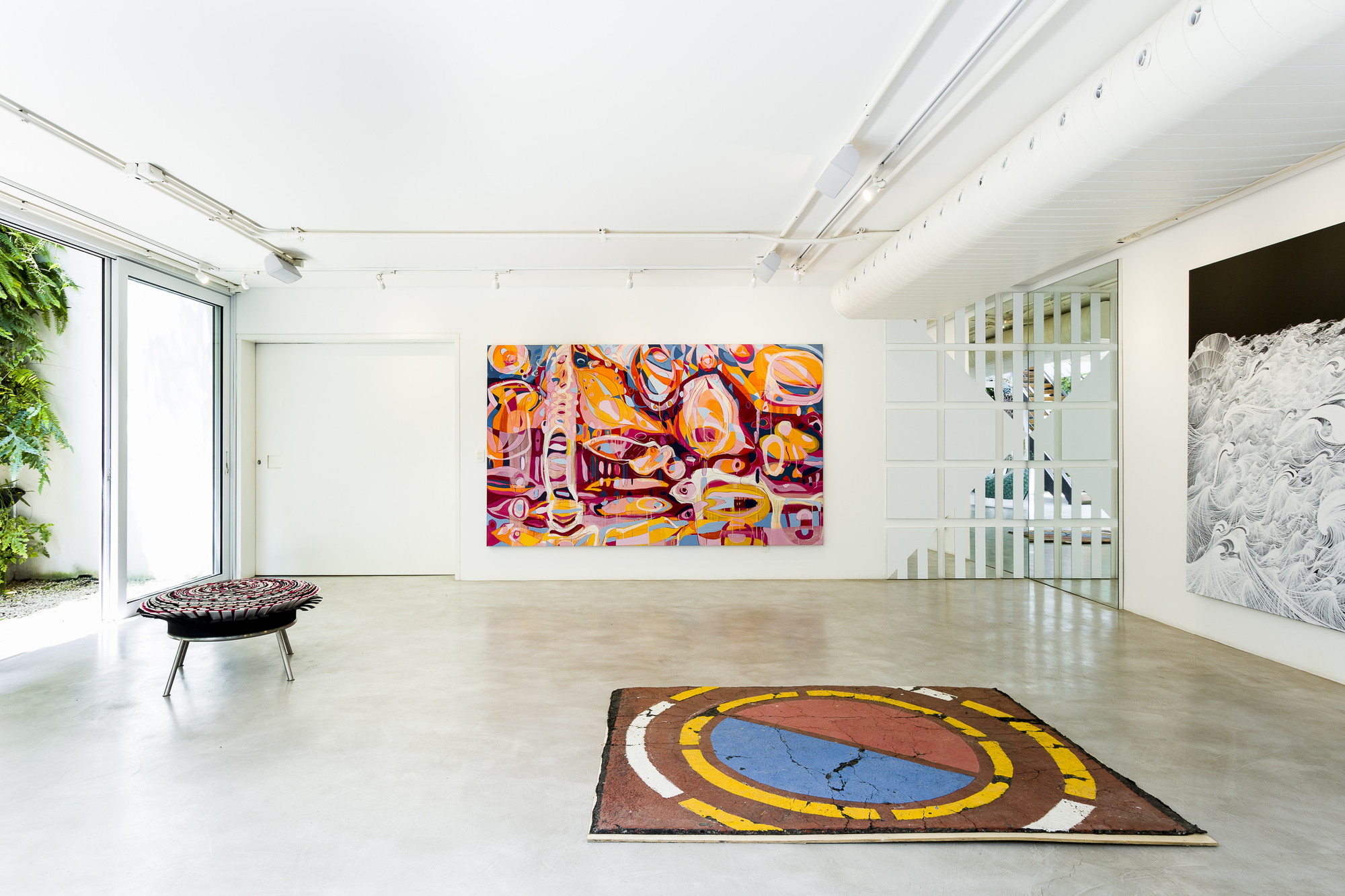

Painted rugs, including one that reproduces road markings, sit on the concrete floor and work as artworks underfoot. The quiet asset is the storage. Sliding mesh racks pull out of the wall to reveal framed paintings, which lets the client rotate the display. A corridor of racks ends with a view of the planted courtyard, so even the back-of-house space has a green view at its end.

Plans and Drawings

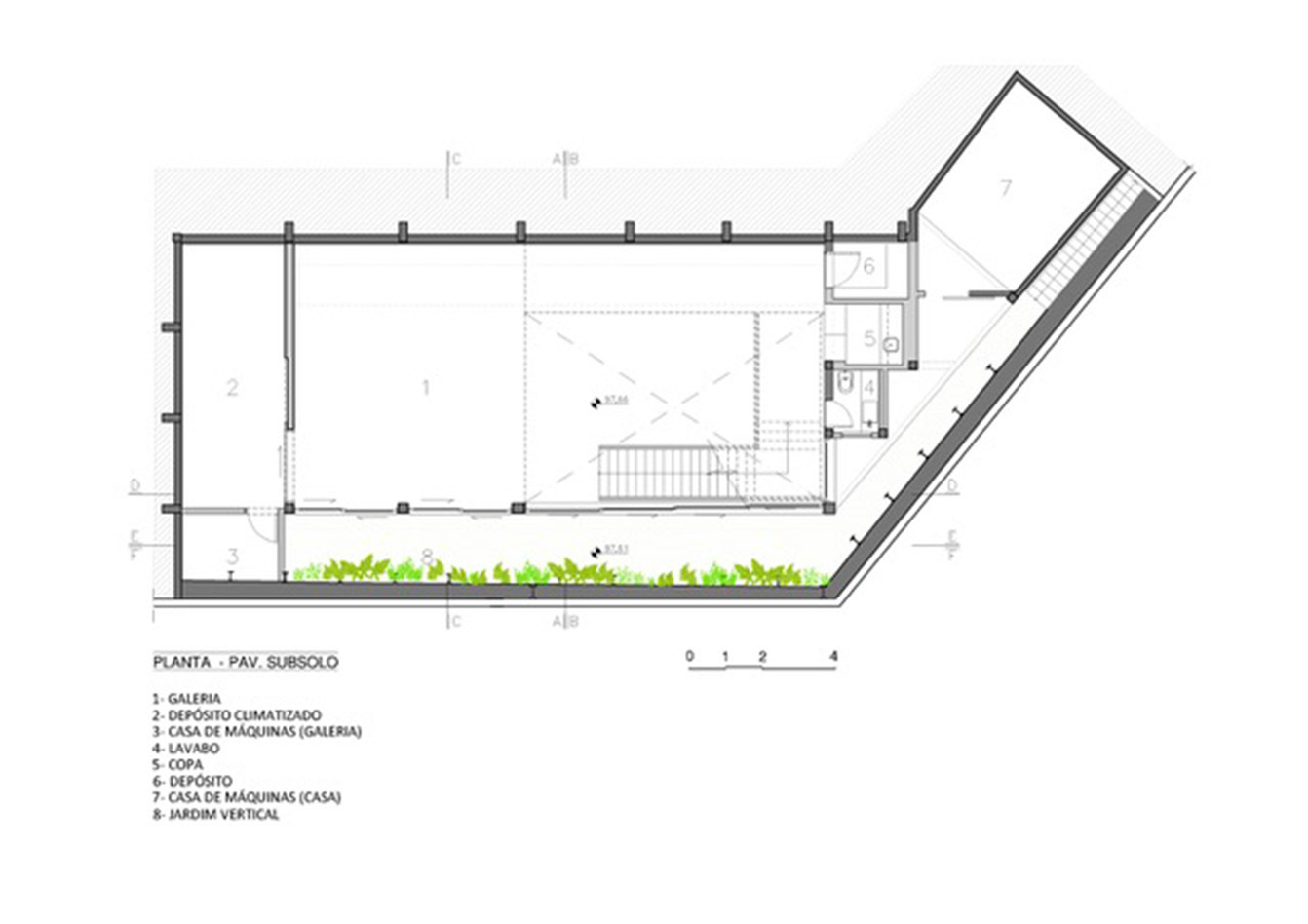

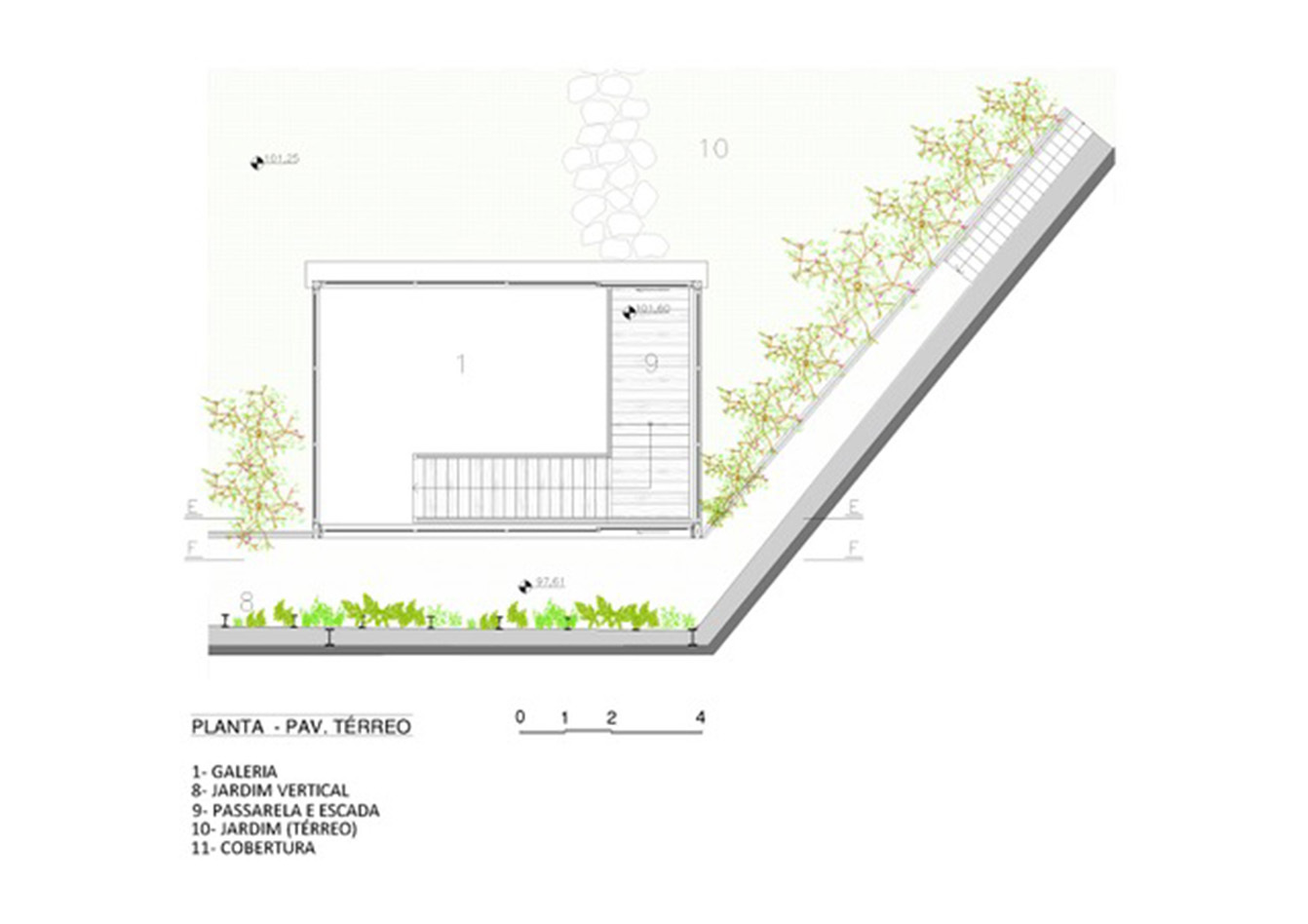

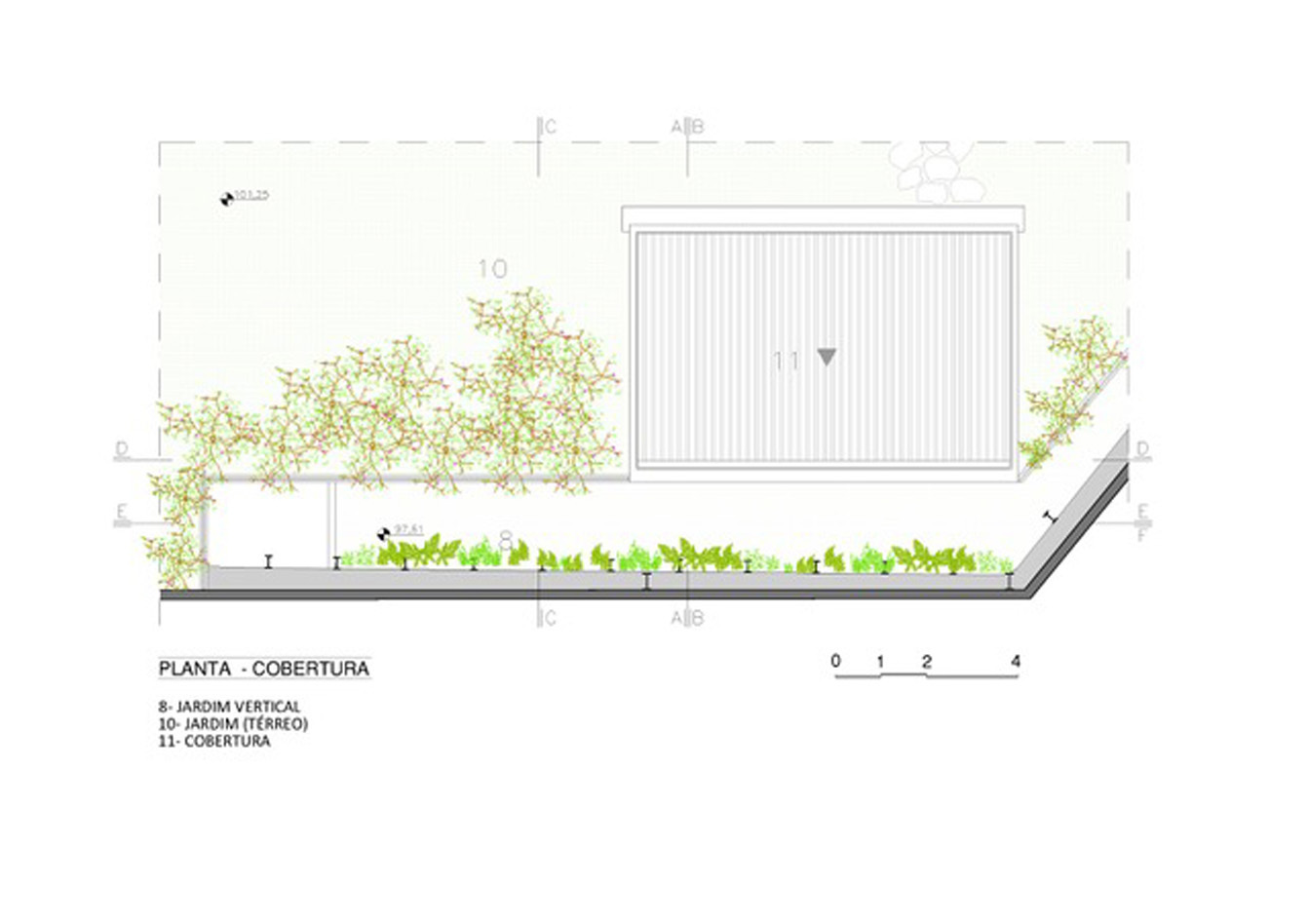

The drawings make the strategy clear. The basement plan shows the gallery, the storage rooms and the stair arranged against the vertical garden strip that follows the angled wall. The ground floor plan reduces the visible building to a glazed box, a stair and a walkway. A ribbed roof slab covers the whole volume.

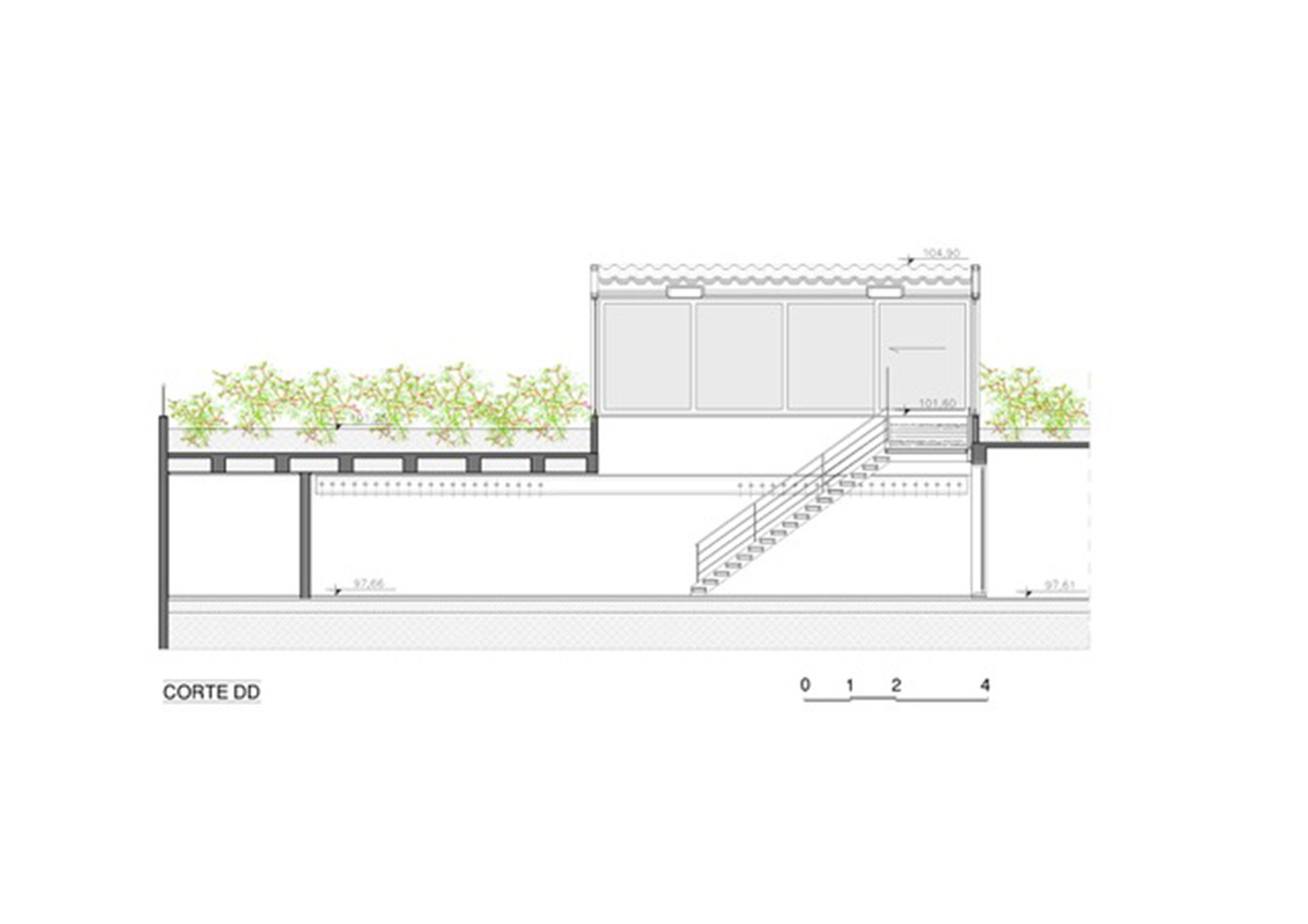

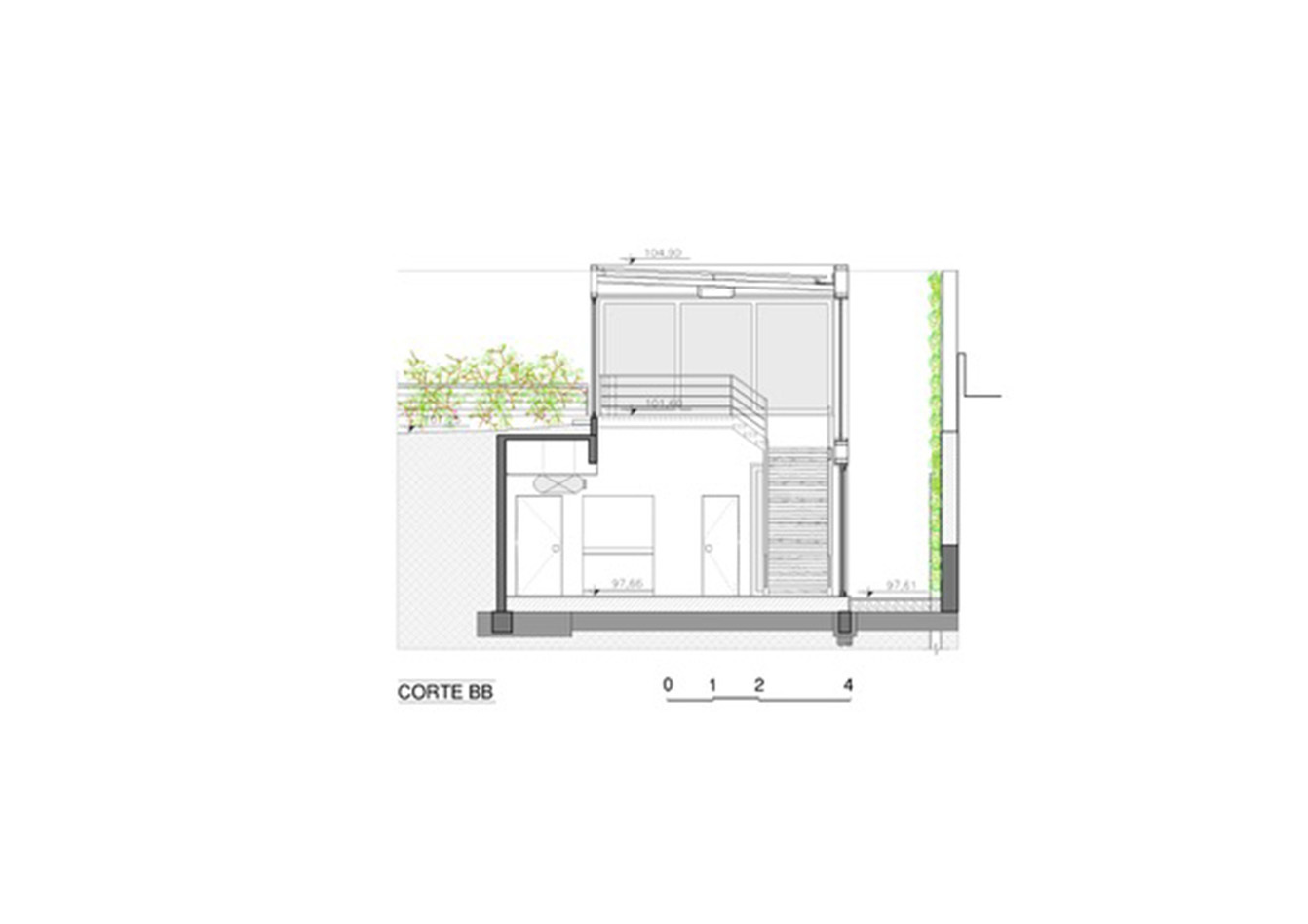

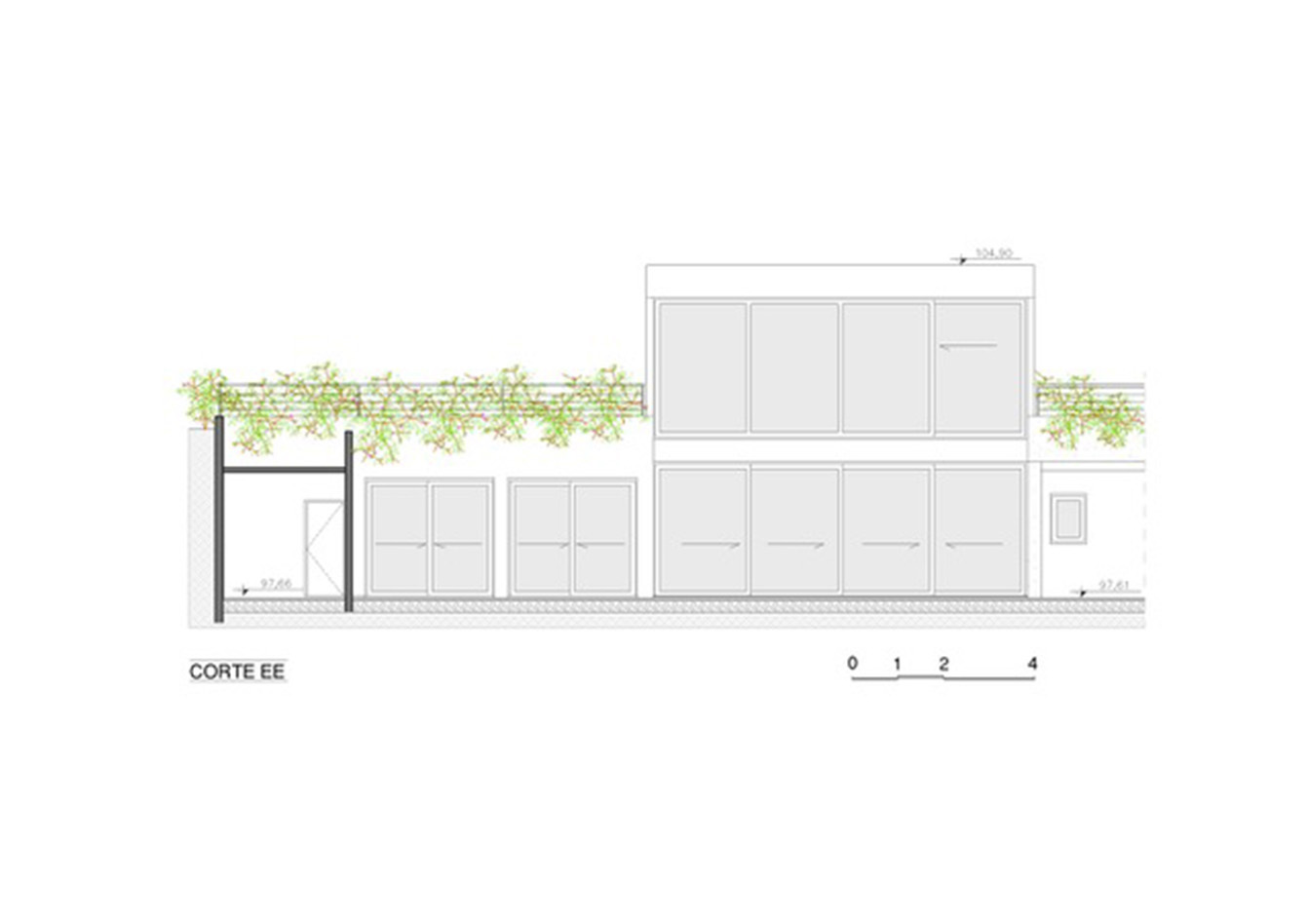

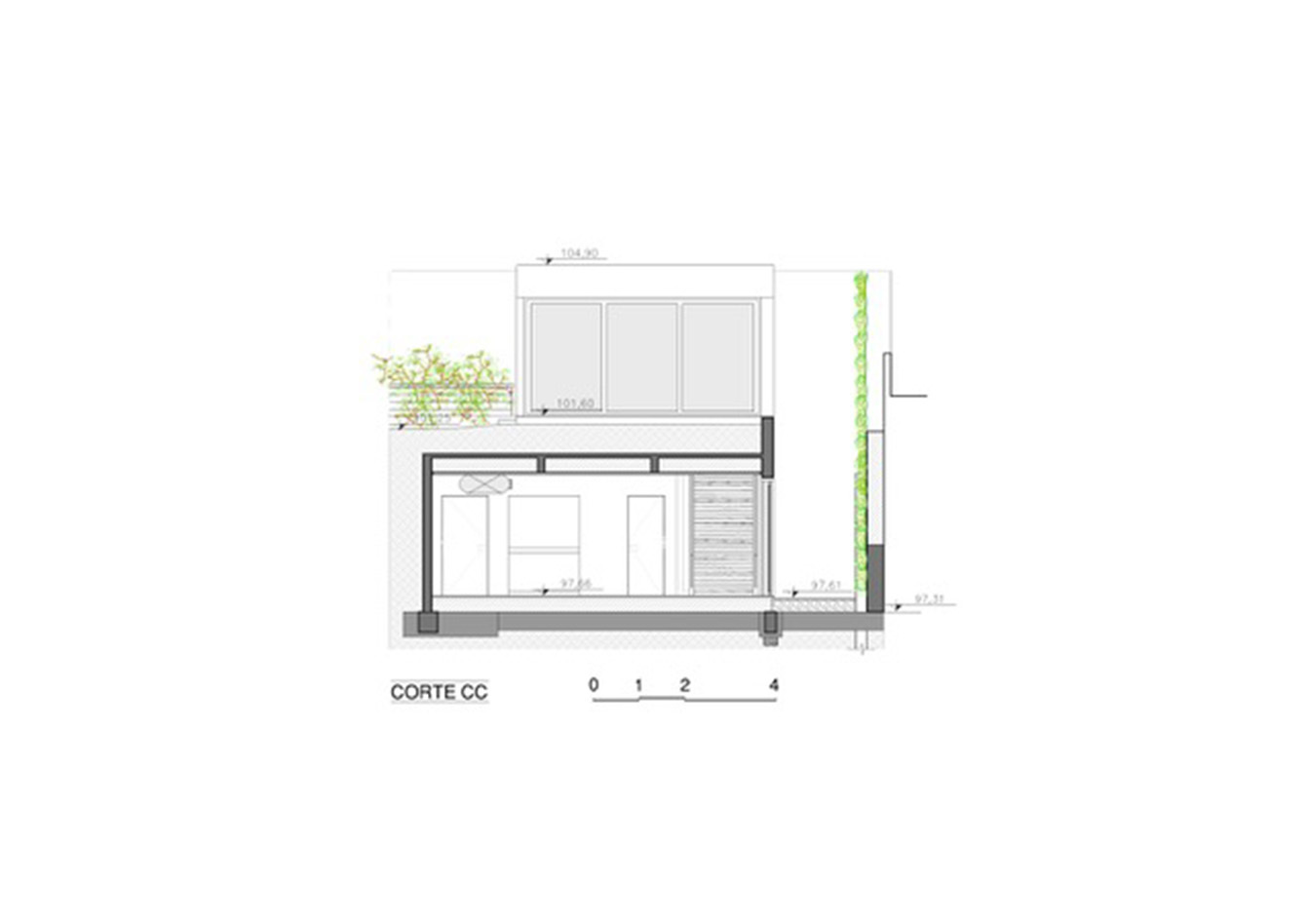

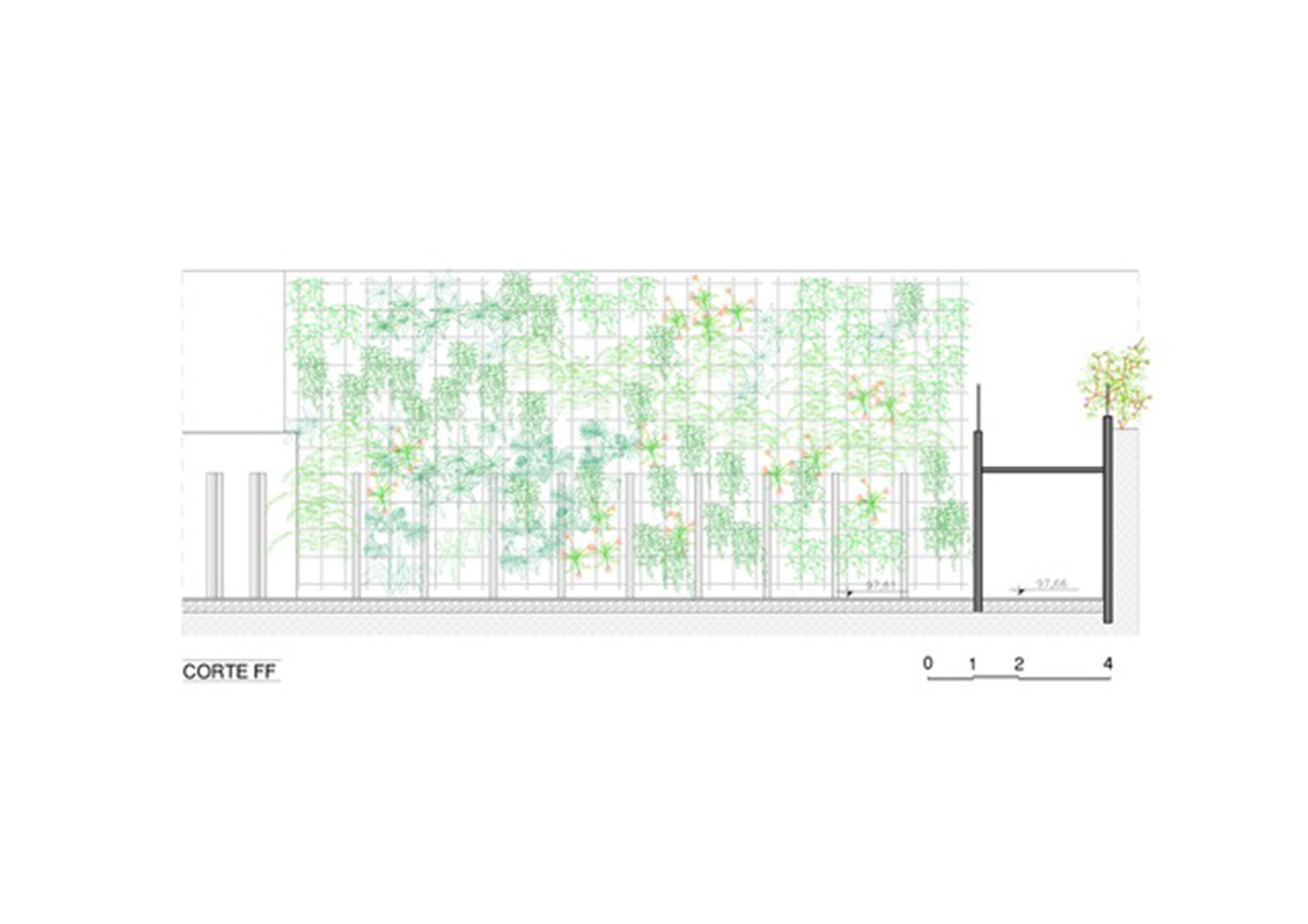

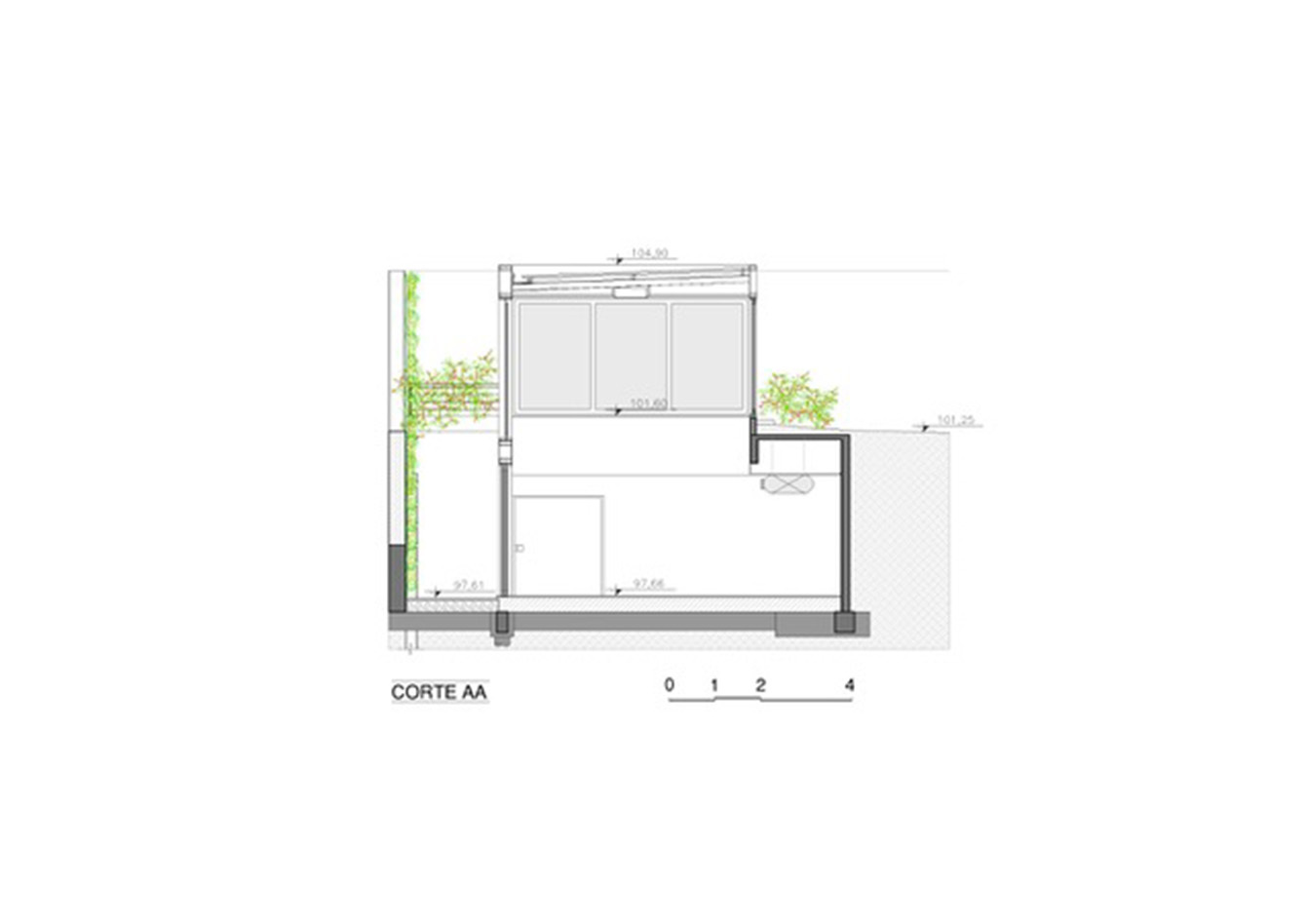

The sections are the most useful sheets. They show the retaining wall on one side, climbing plants on the other, and the stair rising from the lower room to the glazed upper volume. The trellis detail shows how much of the project relies on planting and not on cladding: slender posts and a steel frame carry a wall that is, in practice, made of leaves.

Why This Project Matters

Small private galleries rarely get serious architectural thought, and they are more common than the discipline admits. This project shows a repeatable method. Push the volume into the ground to protect the garden and gain height. Pair the sunken room with a planted light well so it never feels buried. Treat the stair as a viewing device. None of this depends on a large budget or footprint, and all of it works at 105 m².

The project also shows a relaxed attitude to display that more institutions could adopt. Hanging seats, painted rugs and pull-out racks make the collection something you live with instead of something you only look at. BZP Arquitetura took the premise of introspection seriously and still produced a room full of daylight and green views. That balance between protecting the work and opening the room is the lesson we would take from it.

Art Gallery (Galeria Oboé) by BZP Arquitetura, architect in charge Bia Prado, São Paulo, Brazil. Area: 105 m². Completed: 2015. Photography: Ricardo Bassetti.
