Cosín Estudio Turns a 45-Metre-Deep Ruzafa Shop Unit into a Furniture Showroom of Three Distinct Zones
In Valencia's Ruzafa district, a deep ground-floor unit moves from a mirrored, controlled entrance to a stripped, almost outdoor core lit from above.
Deep commercial units are some of the hardest spaces to make good. At Calle Sevilla 8, in Valencia's Ruzafa district, Cosín Estudio took on a ground floor 45 metres deep and only 10.50 metres wide. The unit fills the entire footprint of its lot and also takes in the space beneath a large terrace in the block interior, a typical arrangement in Ruzafa buildings. The result is the studio's own furniture and lighting showroom for contemporary brands. Cosín Estudio had worked in central Valencia for more than 30 years before opening it, and Pepe Cosín led the design.
What interests us is how the project treats its depth. A plan like this usually becomes a corridor with merchandise along both walls. Cosín instead reads the length as a sequence and gives each part a different character. The front is closed, symmetrical and finished. The middle is stripped back to the existing fabric and treated almost as an exterior. Two small skylights provide the only natural light. That limitation could have been a weakness, and the project builds its atmosphere around it.
A Controlled Threshold


The first zone works as a filter. Cosín wraps the building's stair core in a regularising skin and sets that volume back from the façade. This creates two separate entrances, one on each side of the stair-core patio, plus a hall and a display window. The effect is symmetrical and homogeneous, a calm opening that tells you very little about what lies further in.

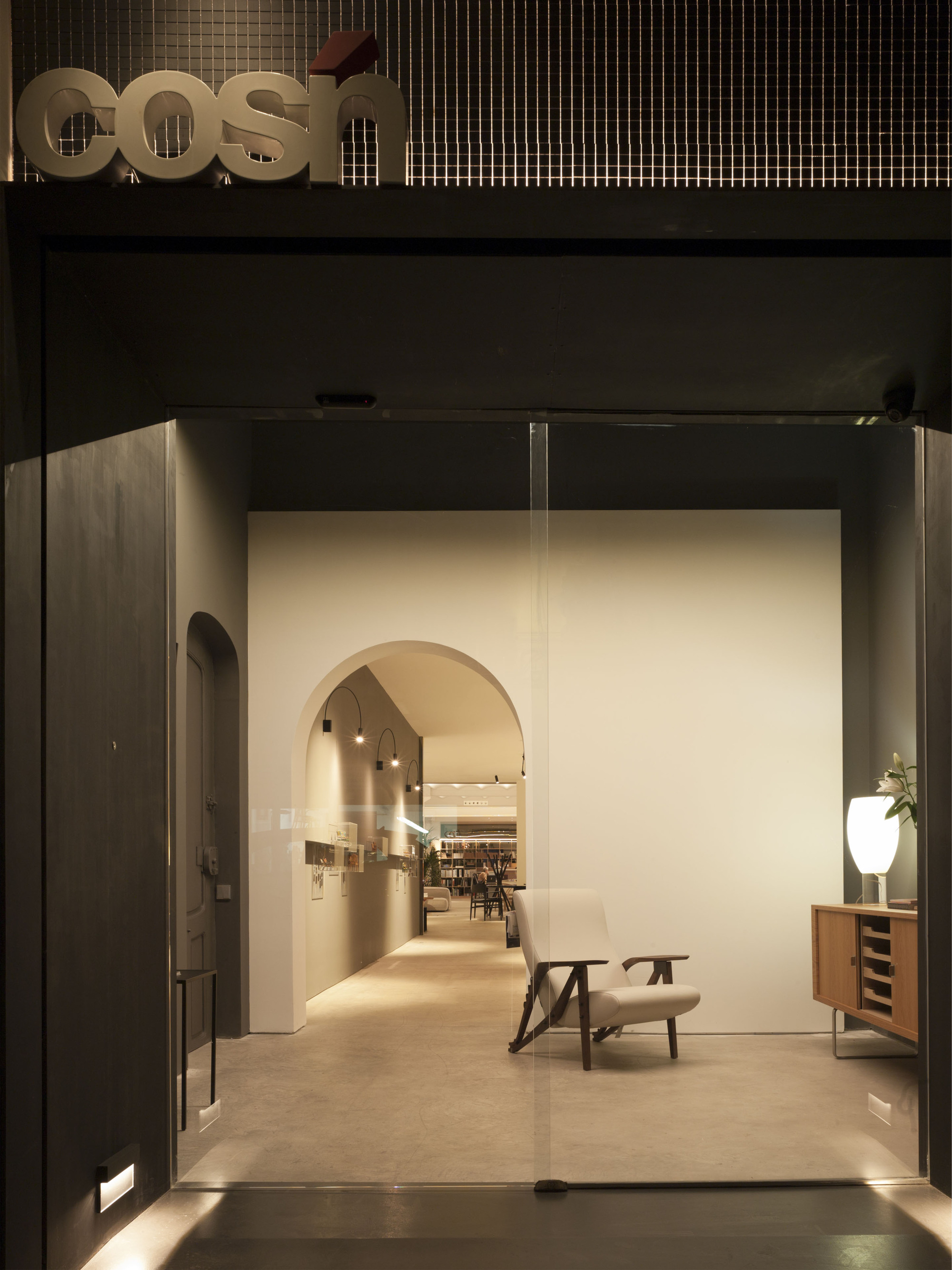

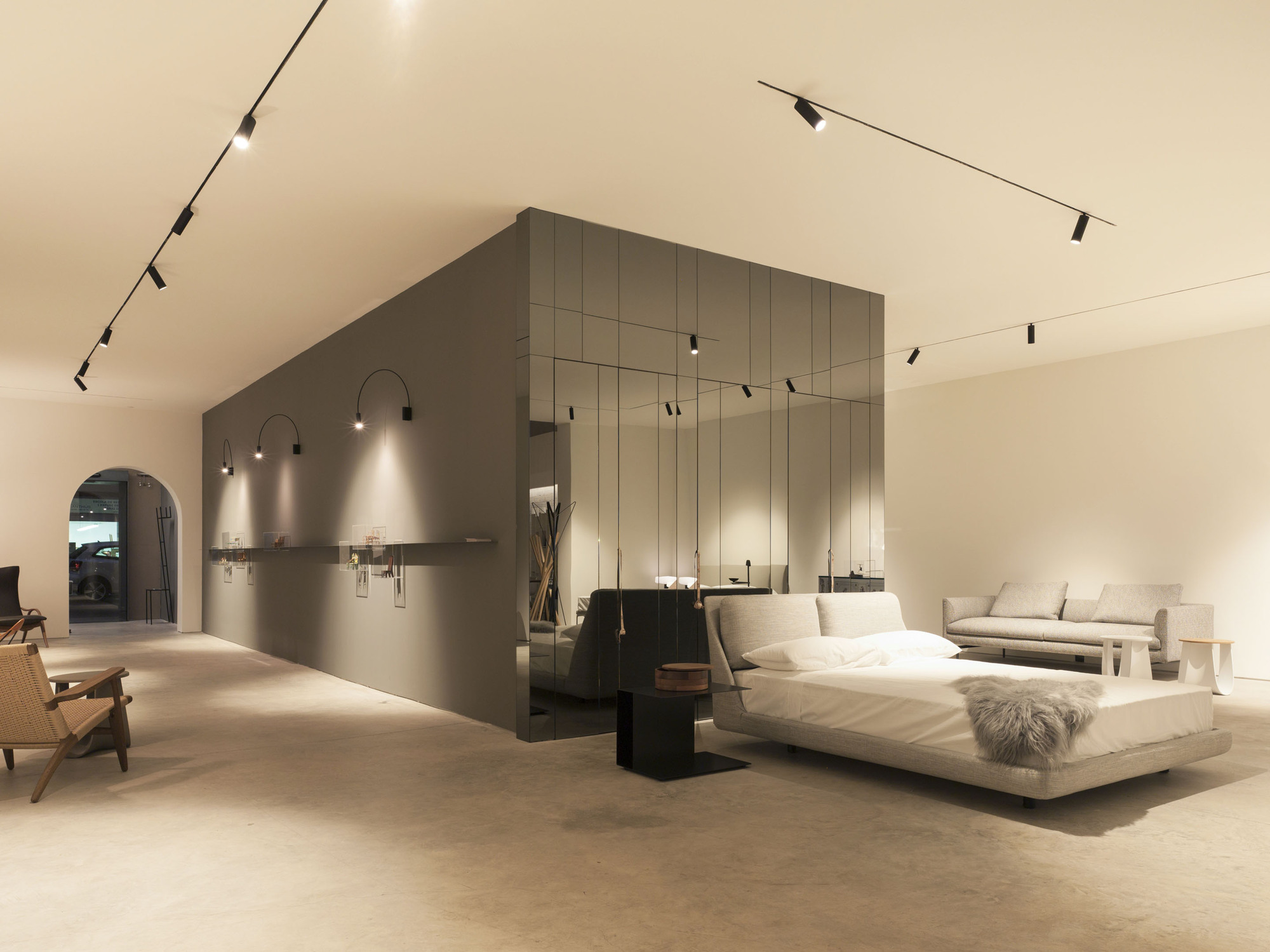

Vertical grey mirror panels line the end wall of the stair core, so the most awkward element in the plan becomes the most reflective. The mirror does not hide the core. It turns the core into a surface that doubles the furniture and lighting placed in front of it. At night, seen through the glass entrance, the arched passage and lounge chair read like a stage set framed by the street.
The Stripped Middle

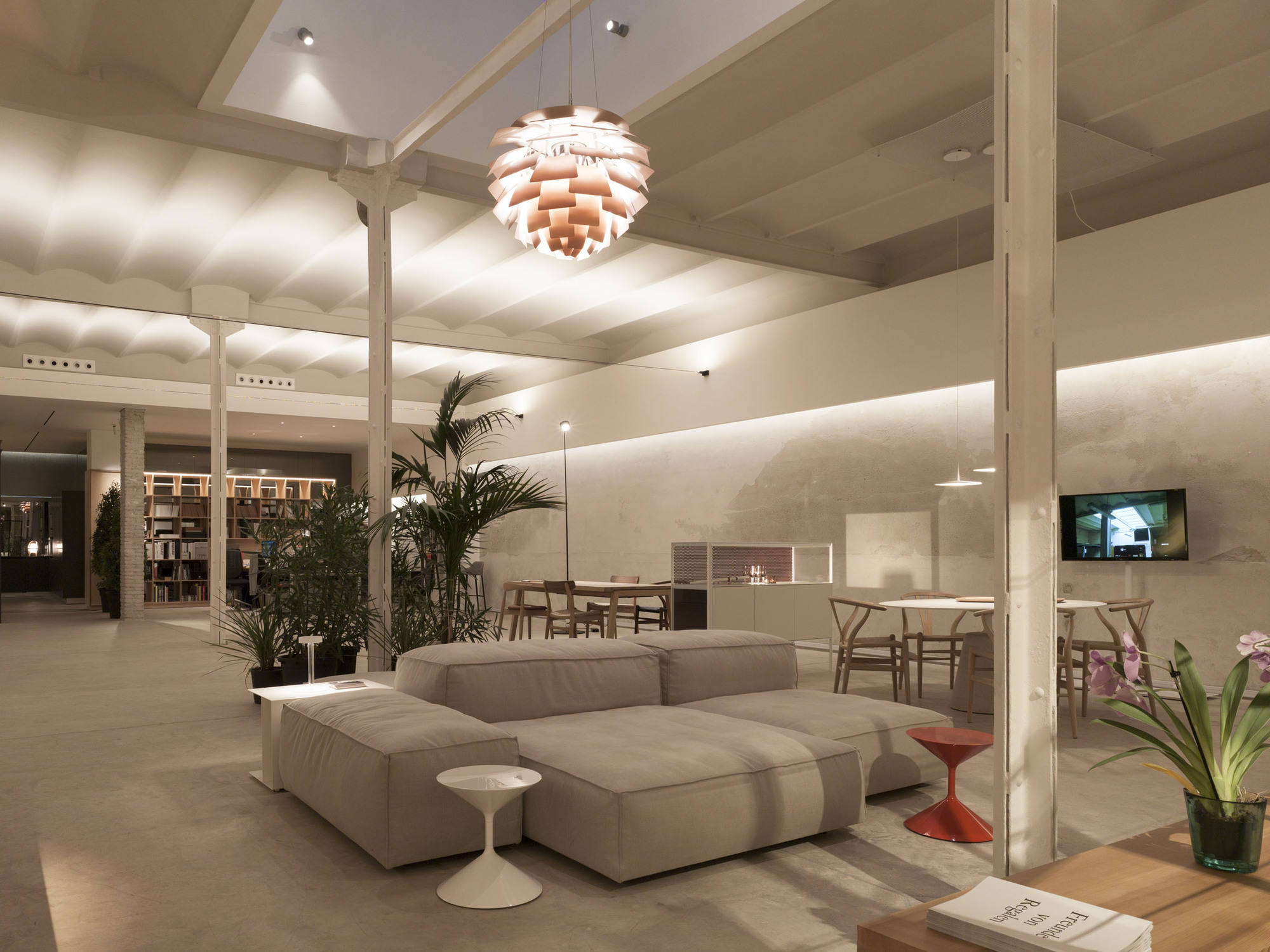

Past the threshold, the finishes disappear. The middle zone is stripped to the existing building and handled as if it were open to the sky. It even keeps the remains of an old graffiti, which most fit-outs would have painted over in the first week. Slim white columns, a scalloped vaulted ceiling and potted palms give the space the feel of a covered courtyard rather than a sales floor.

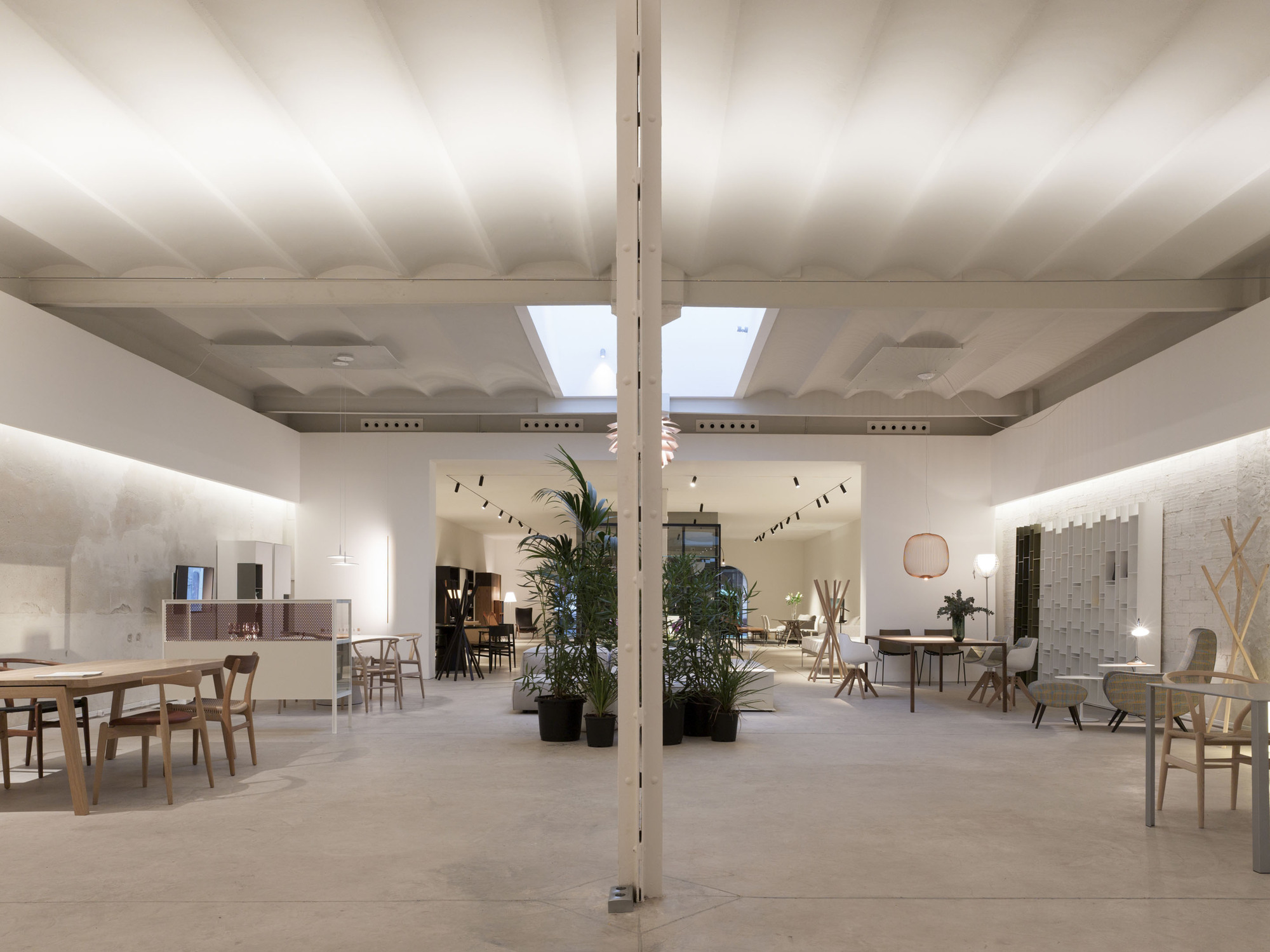

This is the project's boldest decision, and it pays off commercially. Contemporary furniture shown against raw concrete and brick looks less like stock and more like something already in use. A low modular sofa under a copper pendant, or dining tables lined up along lit concrete walls, reads as a room someone lives in. That is a more convincing sales pitch than a white box.
Display as Architecture

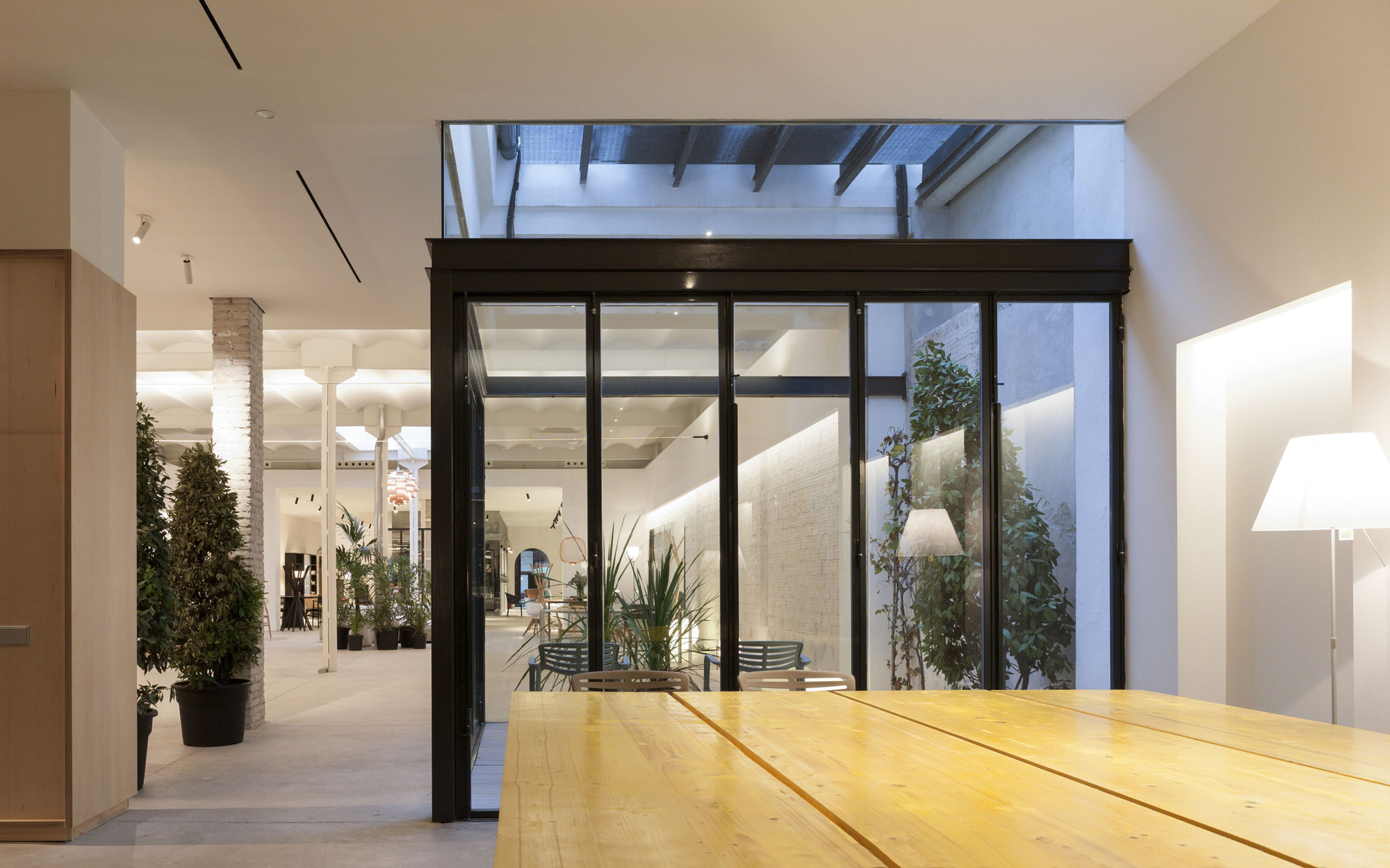

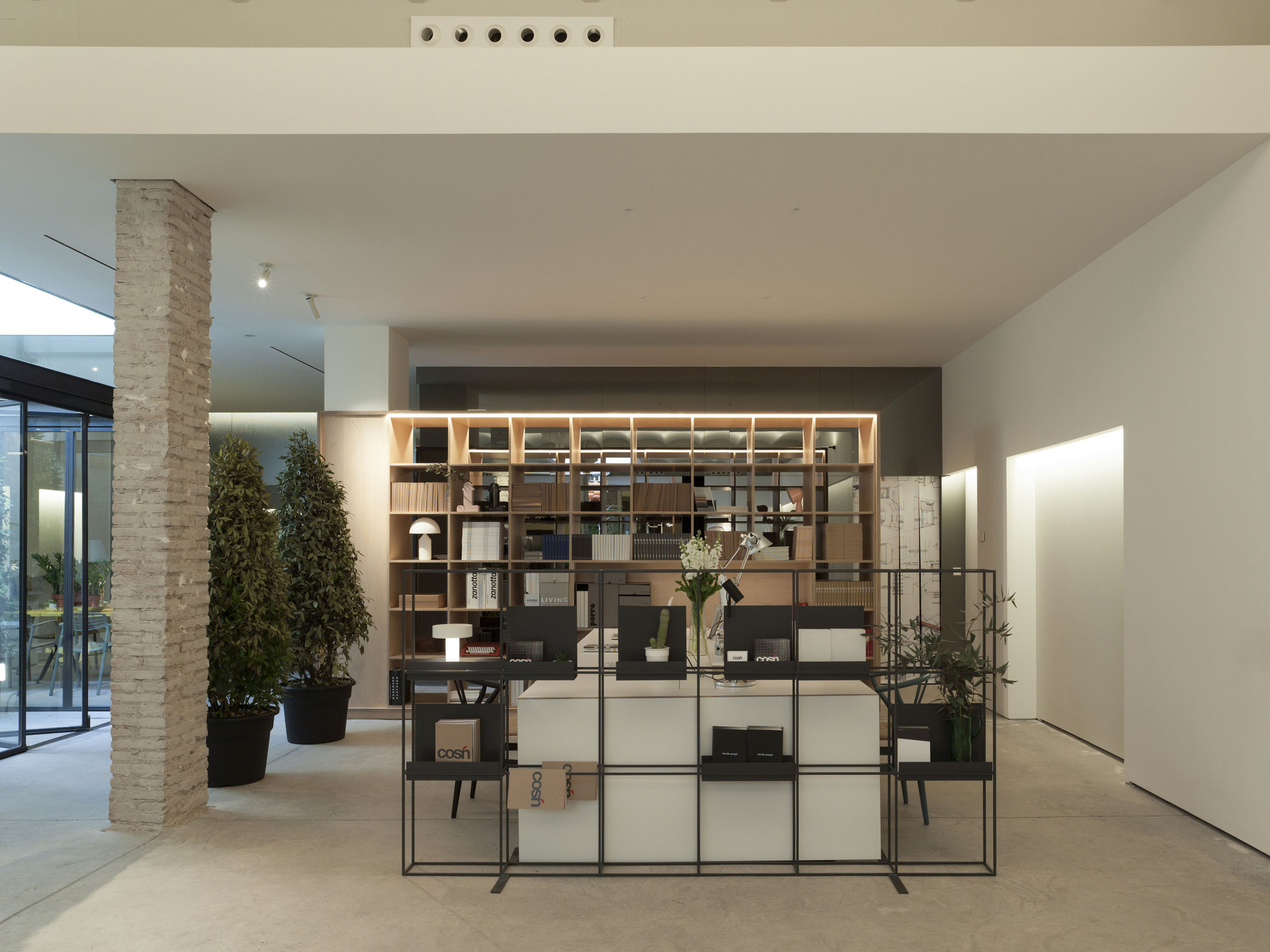

The display elements carry real architectural weight. A black steel grid frame stands in front of timber shelving, and a steel-framed glass enclosure holds plants beside a long pine table. Both act as partitions as much as fixtures. They break up the long plan into smaller rooms without building walls, which keeps sightlines open down the length of the unit.
The stacked brick columns matter here too. Left exposed next to the new steel and glass, they set the scale and the material register of the space. The new pieces read as furniture placed inside an existing shell, which is exactly the relationship a showroom wants you to picture in your own home.
Working with Scarce Light


With no side windows past the façade, daylight comes from only two small skylights, one at mid-depth and one near the far end. The middle skylight is translucent and spreads soft overhead light through the day, which strengthens the sense of an exterior courtyard at the centre of the plan. Natural light here is a rare event, and the design places the important moments under it.

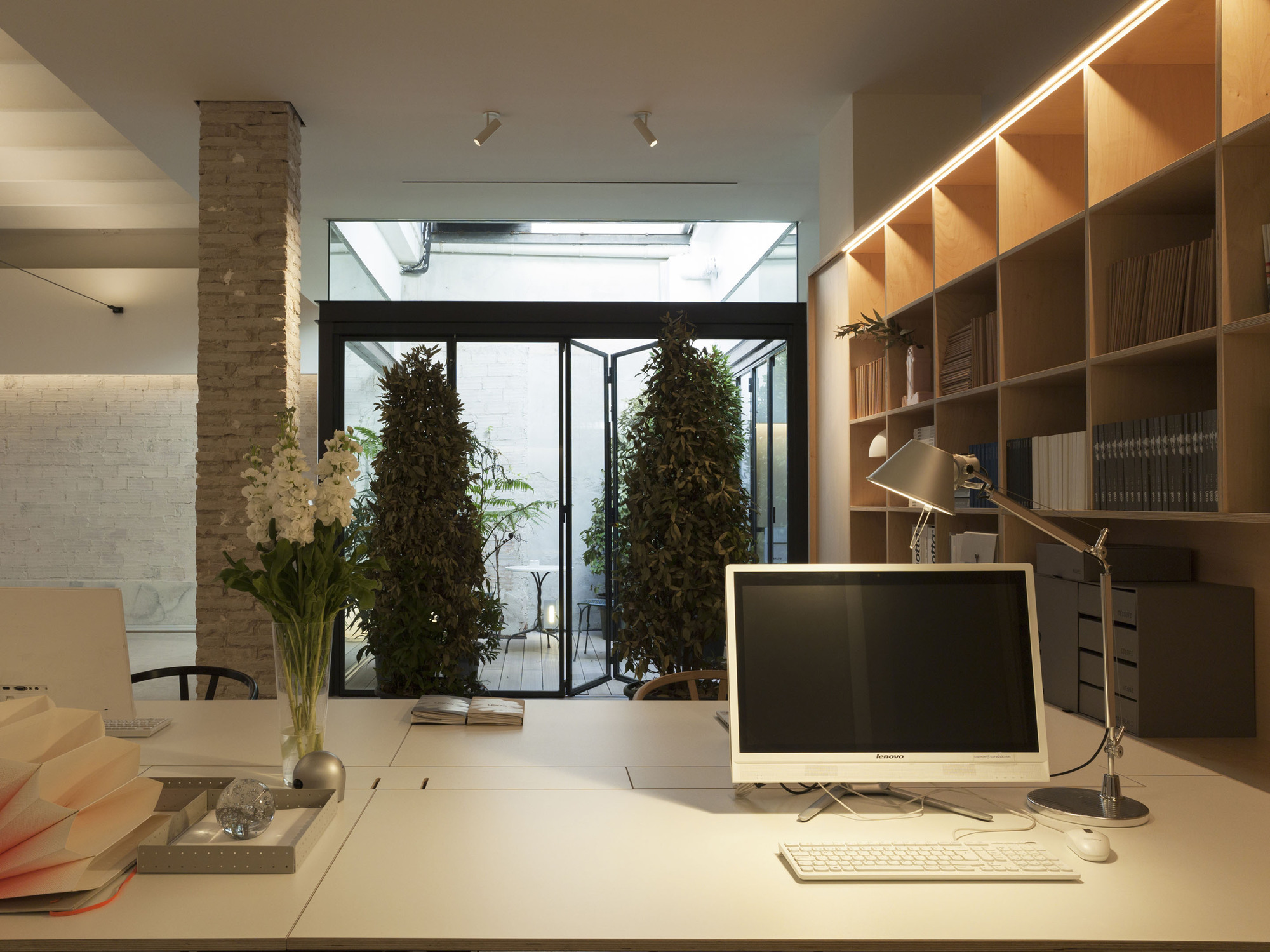

The work area is the clearest example. A desk with a monitor and task lamp faces a glazed folding door that opens onto a daylit light well with two conical shrubs. Staff who spend all day inside a 45-metre-deep unit get a view of sky and planting. The brief lists exhibition, customer service, work space and a warehouse for catalogues and samples, and the light well makes the working part of that programme feel cared for rather than hidden away.
Plans and Drawings

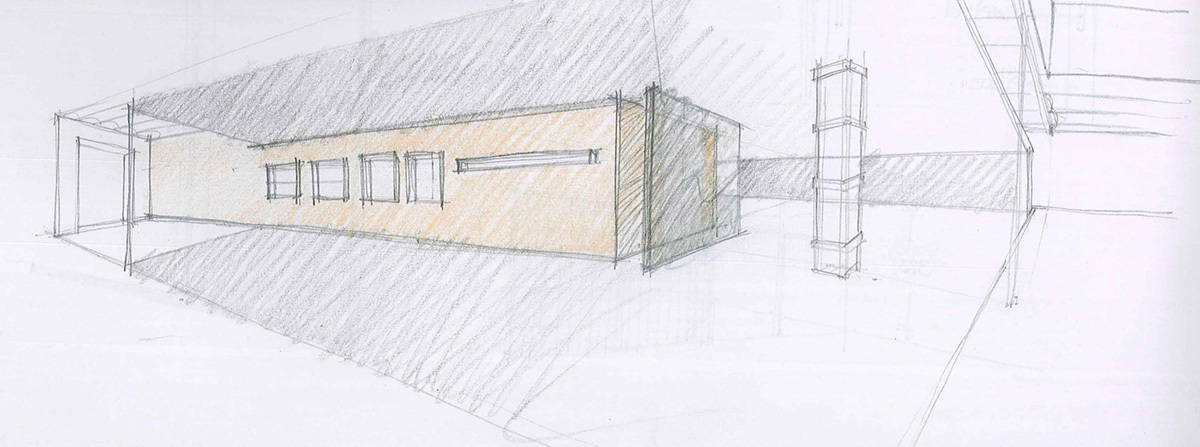

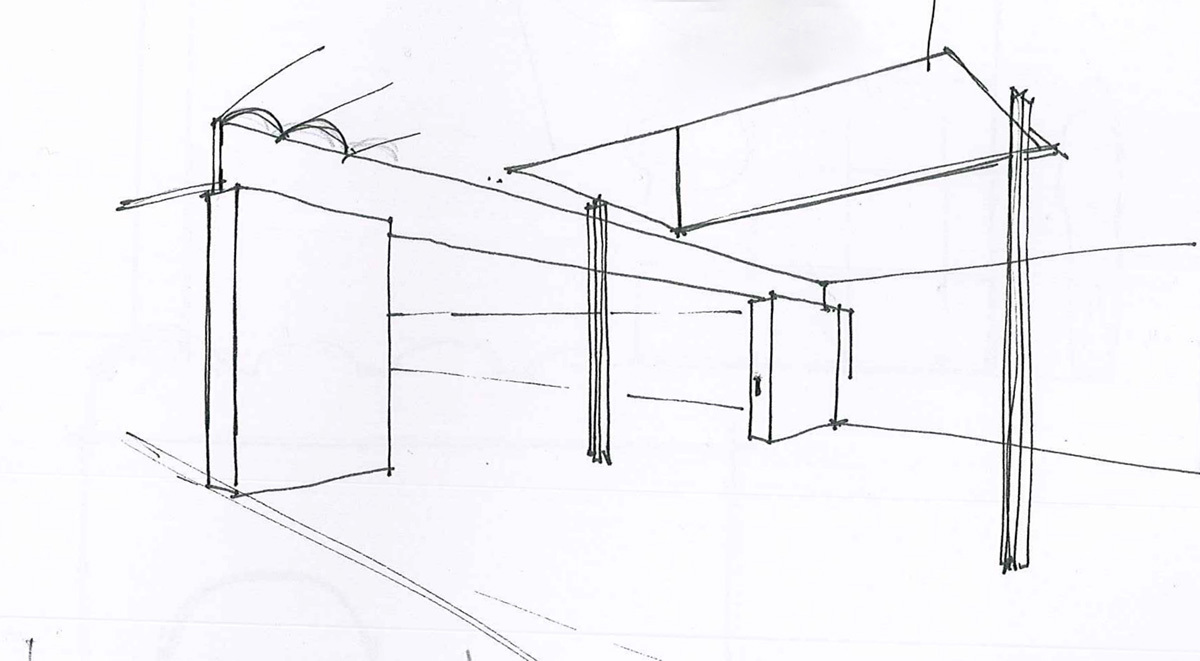

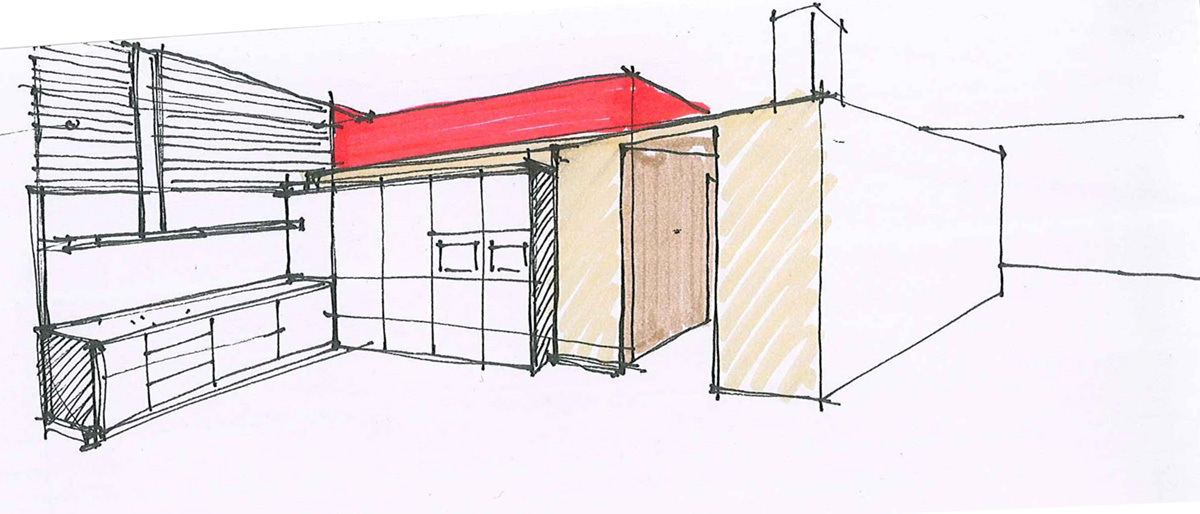

The hand drawings show the project being worked out as a set of objects placed in a long room: a timber-clad volume with shelving and a red roof band, an ochre-tinted box with small square windows under a sloping roof, and freestanding wall planes beneath a floating canopy with small vaults. Each is a small building inside a larger one, a sensible way to give a long shell some rhythm.

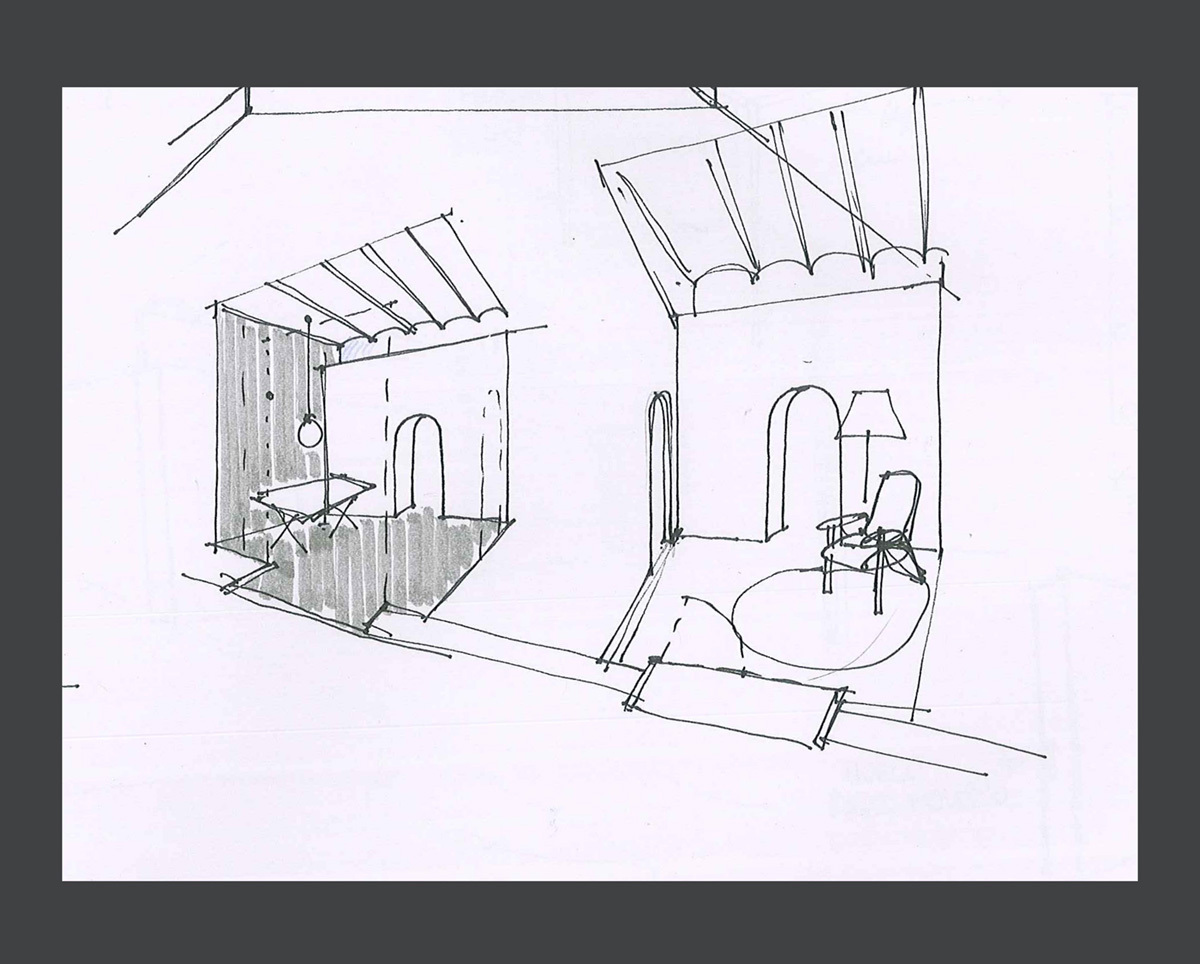

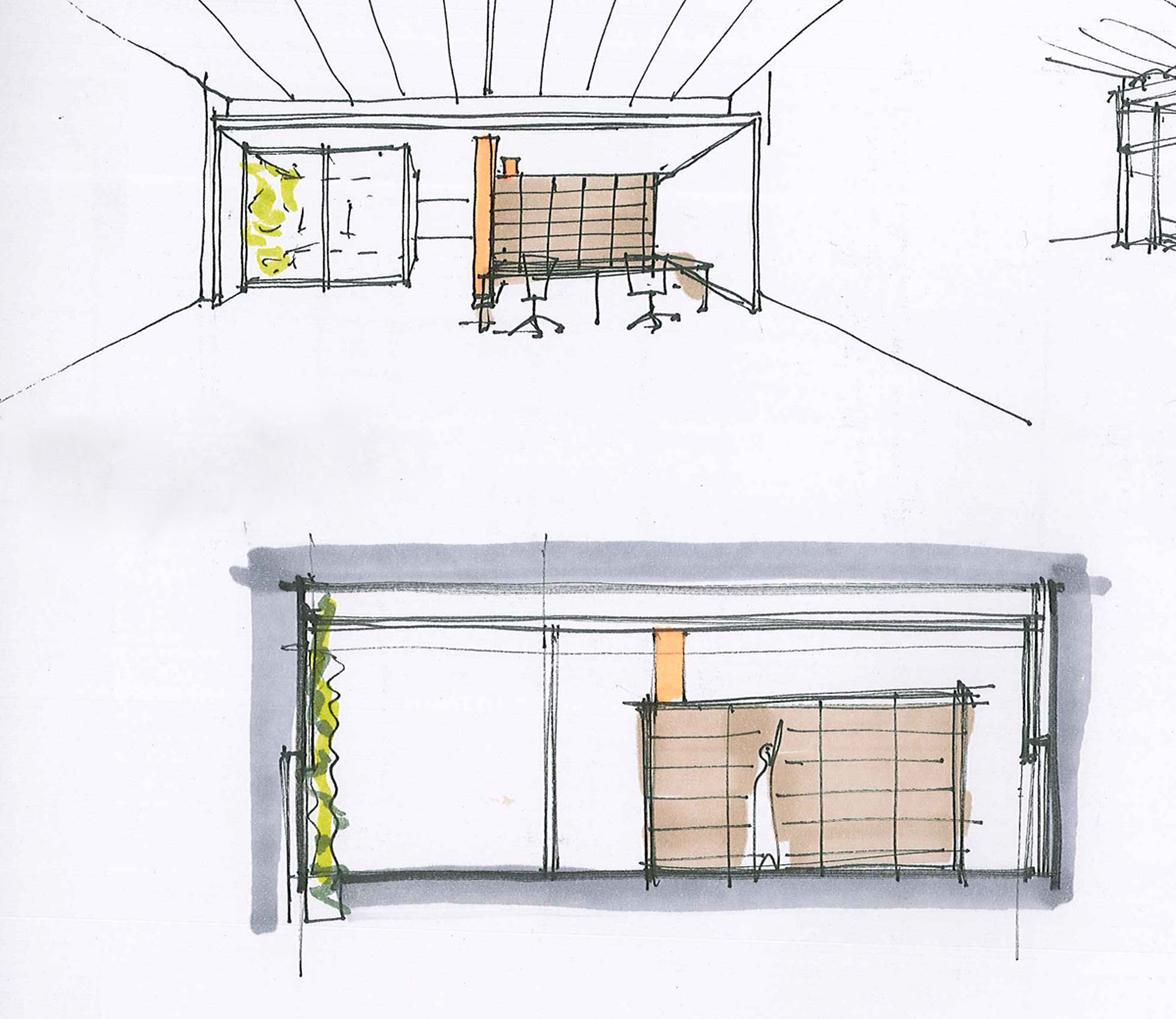

The paired interior perspective and section of the timber desk enclosure beside a planted wall connects to the work area in the photographs, while the ink sketch of alcoves with arched niches anticipates the arched forms that appear near the entrance. The drawings are loose and fast. They read as design tools, not presentation boards, and we find them more revealing for it.
Why This Project Matters
Ruzafa is full of deep ground-floor units that extend under block-interior terraces, and most end up as dim, featureless retail. The Sevilla Street showroom offers a repeatable answer: do not fight the depth, divide it into zones with distinct characters, and save the scarce daylight for the places where it counts. The move from a mirrored, controlled entrance to a raw, courtyard-like centre gives the visitor a reason to keep walking.
The project also makes a case for restraint in renovation. Keeping the graffiti, the brick columns and the bare concrete was cheaper than covering them, and it gives the space a history no fit-out could fake. For a studio selling contemporary design, setting that furniture against an honest existing building is both an aesthetic position and a smart commercial one.
Showroom on Sevilla Street by Cosín Estudio (Pepe Cosín), Calle Sevilla 8, Ruzafa, Valencia, Spain. Area: 500 m². Completed: 2017. Photography: Mayte Piera.
