efcarquitetura Bends a Single Line of Fins into Structure and Sun Shade for a House in Rural São Paulo

Taquaritinga sits in the interior of São Paulo state, where summers are hot and getting hotter. For the Curved House, efcarquitetura, led by Eduardo Franco Correia with Mariana Carleto on the team, set itself a two-part brief: build as little as possible to meet the program, and make the structure do the work of shading. The result is a 214 m² house organised around one gesture, a long curving line of vertical fins that carries the roof and filters the sun at the same time.

What interests us is less the curve itself than the economy behind it. Many tropical houses add brise-soleil as a second layer bolted onto a conventional frame. Here the shading device and the supporting element appear to be the same thing, so every fin earns its place twice. The house is kept compact so that most of the lot stays green, and the curve stops the plan from reading as a box set down on a lawn.

Fins That Hold Up the Roof

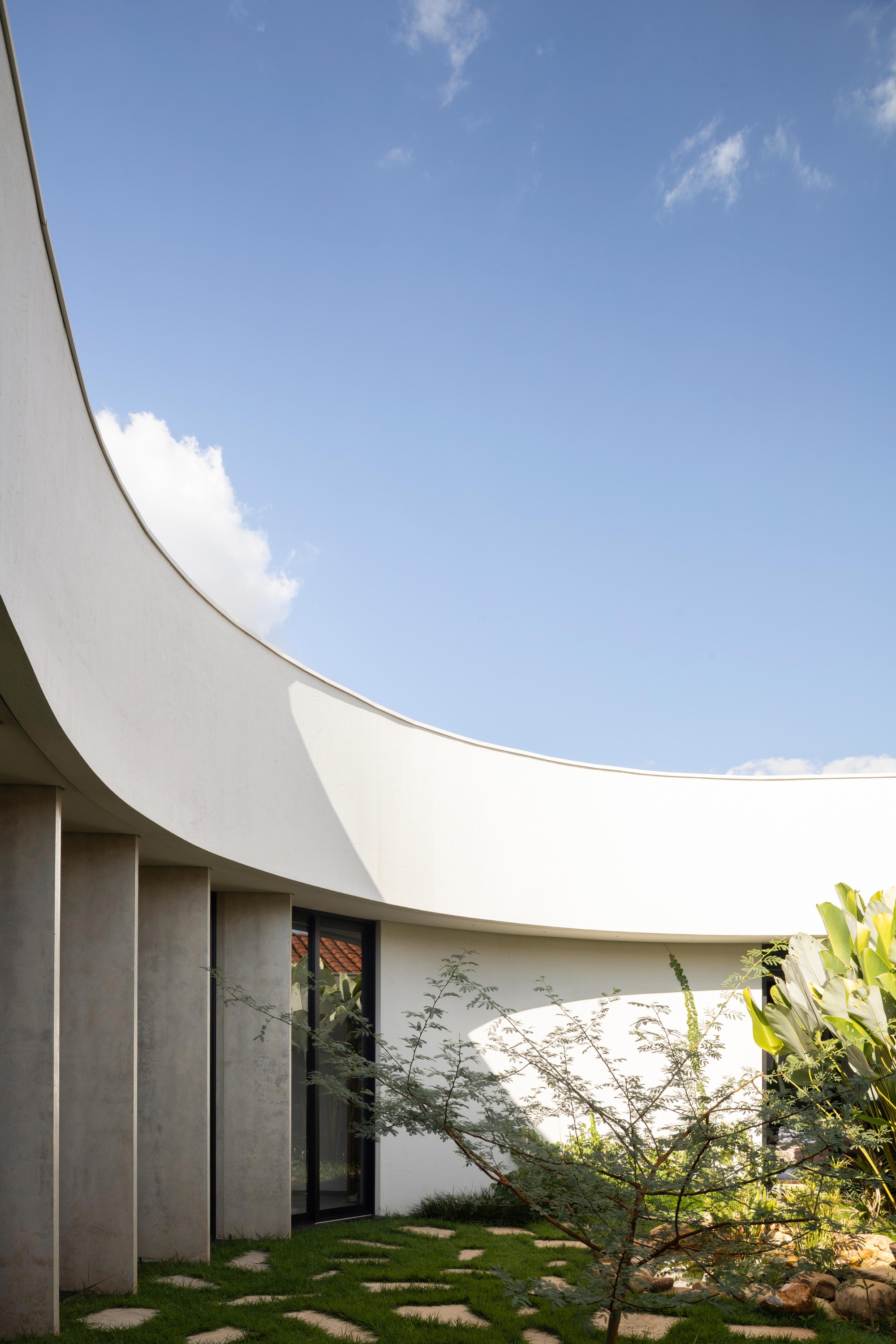

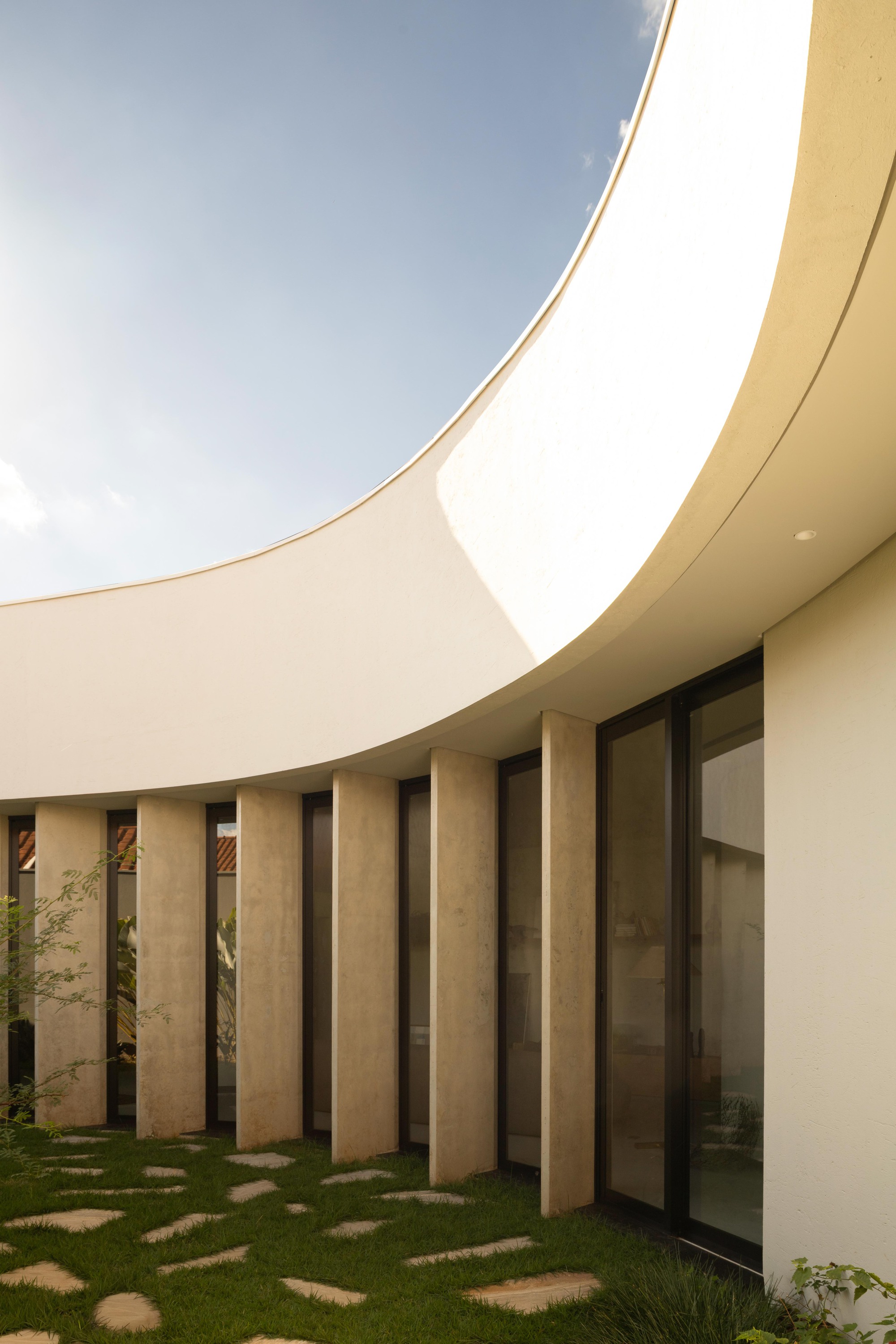

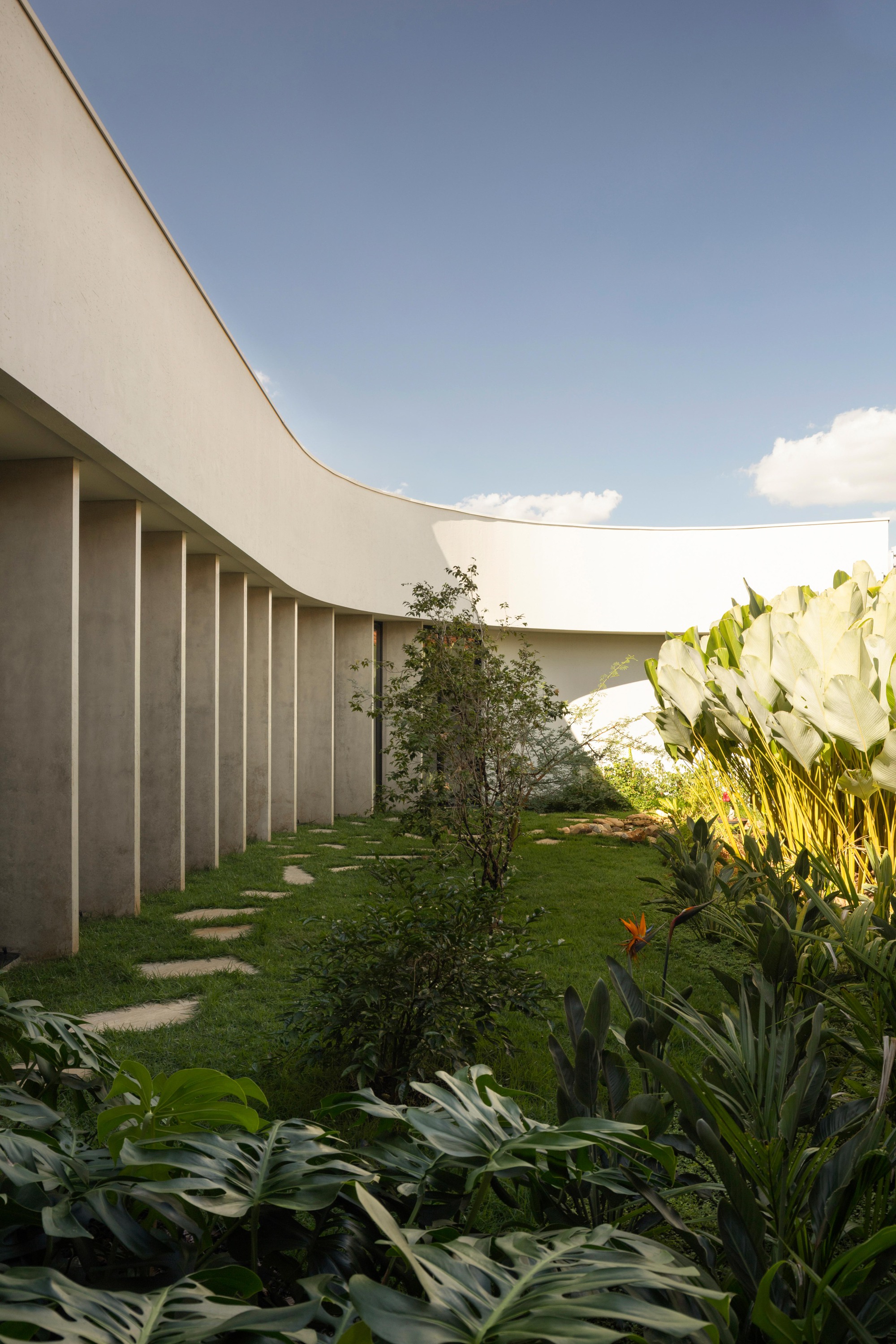

From the garden, the house is mostly roof edge and fin. A thin white overhang sweeps along the top, and beneath it the fins stand close together, solid and heavy compared with the slim fascia above. The spacing matters: it is tight enough to break low-angle sun and open enough that the glazing behind still reads from the lawn.

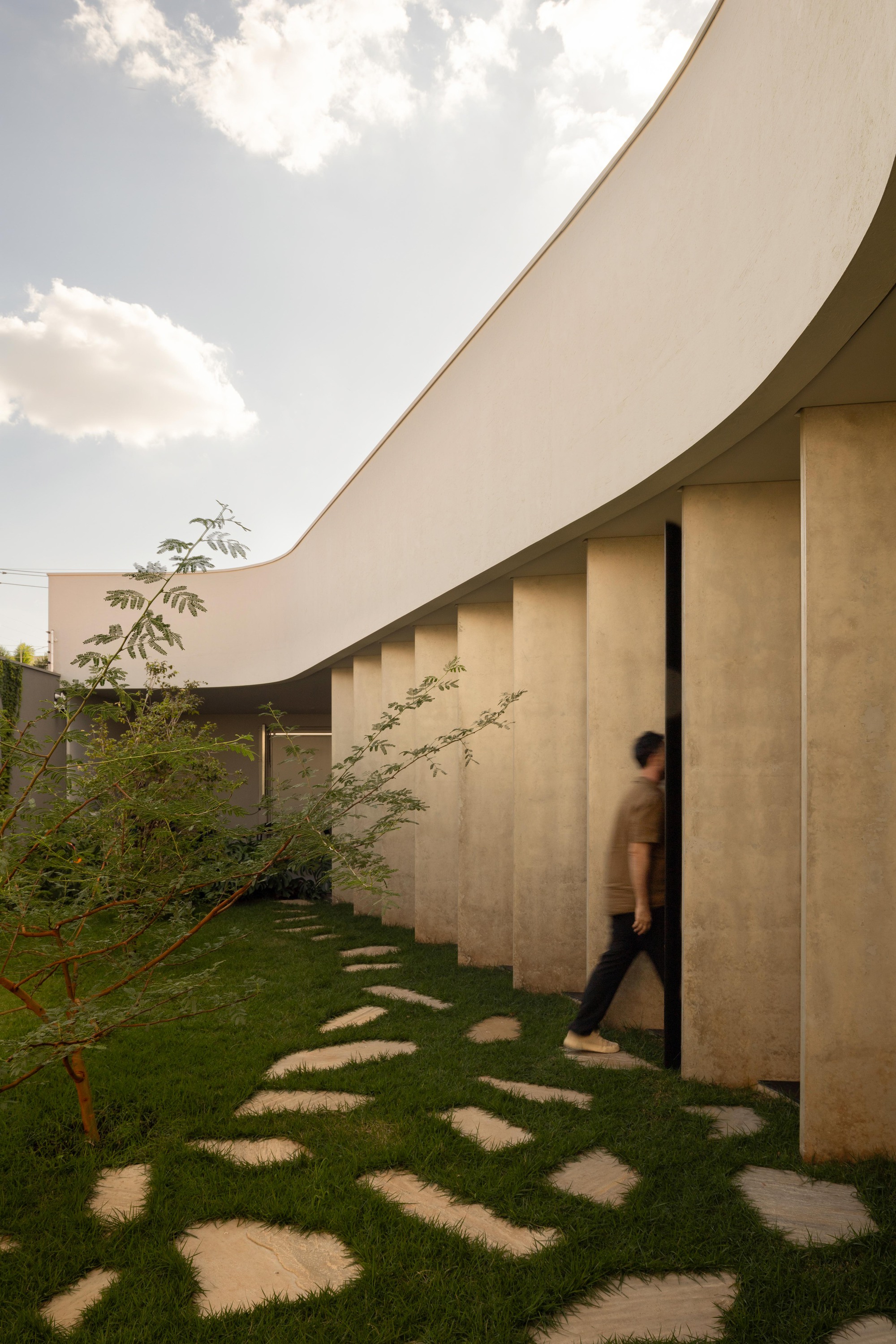

The repetition gives the elevation a rhythm that changes as you move. Seen head-on, the fins are open slots. Seen obliquely along the curve, they close into a near-solid wall. That shift does more for privacy and shade than any operable screen would, and it needs no maintenance.

Walking the Curve

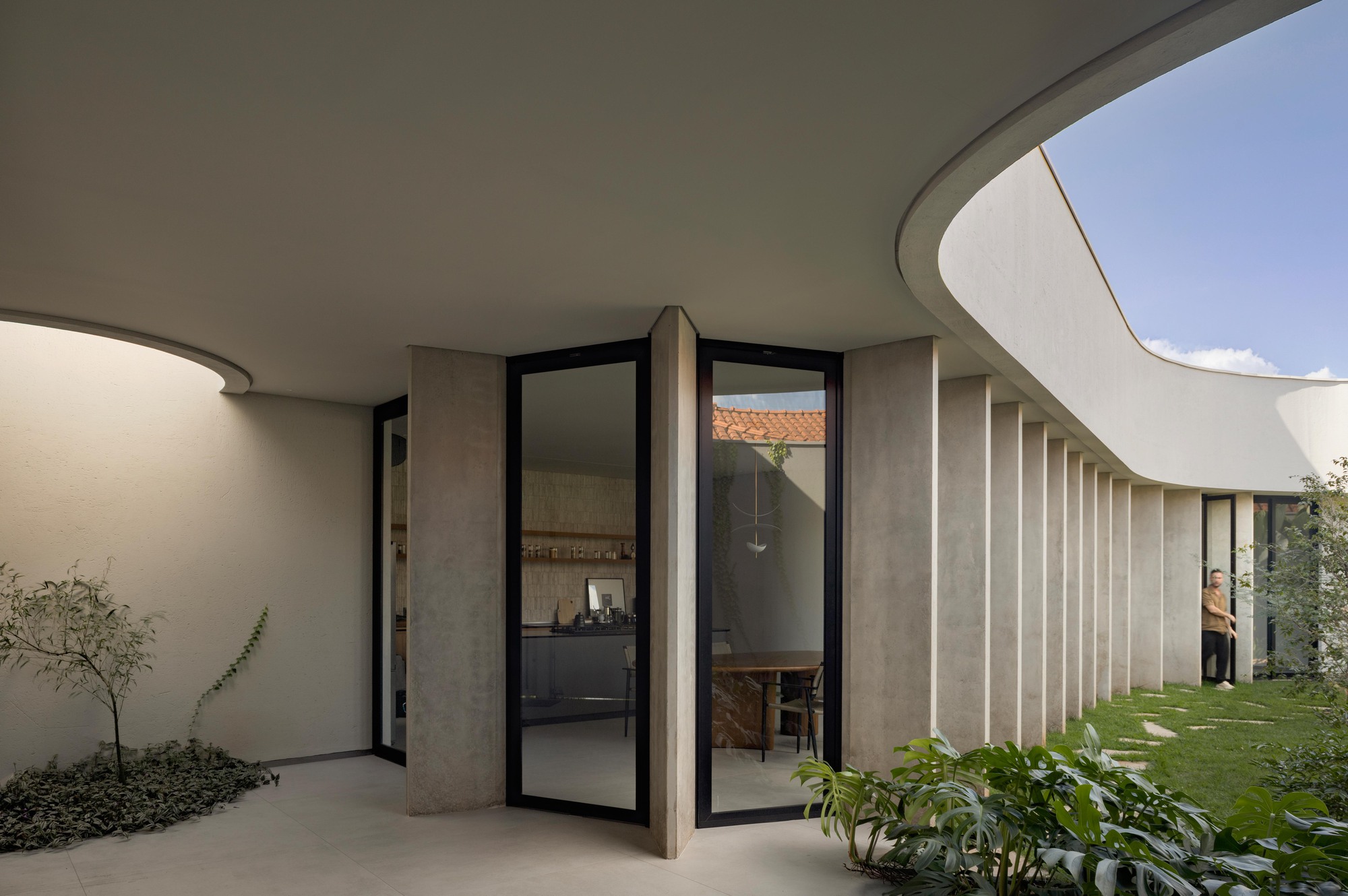

The covered edge between fins and glass works as a veranda, a corridor and a climate buffer all at once. Because the line bends, you never see the full length of it, and the end of the walk keeps slipping out of view. That is the fluidity the architects describe, and it comes from the plan geometry rather than from decoration.

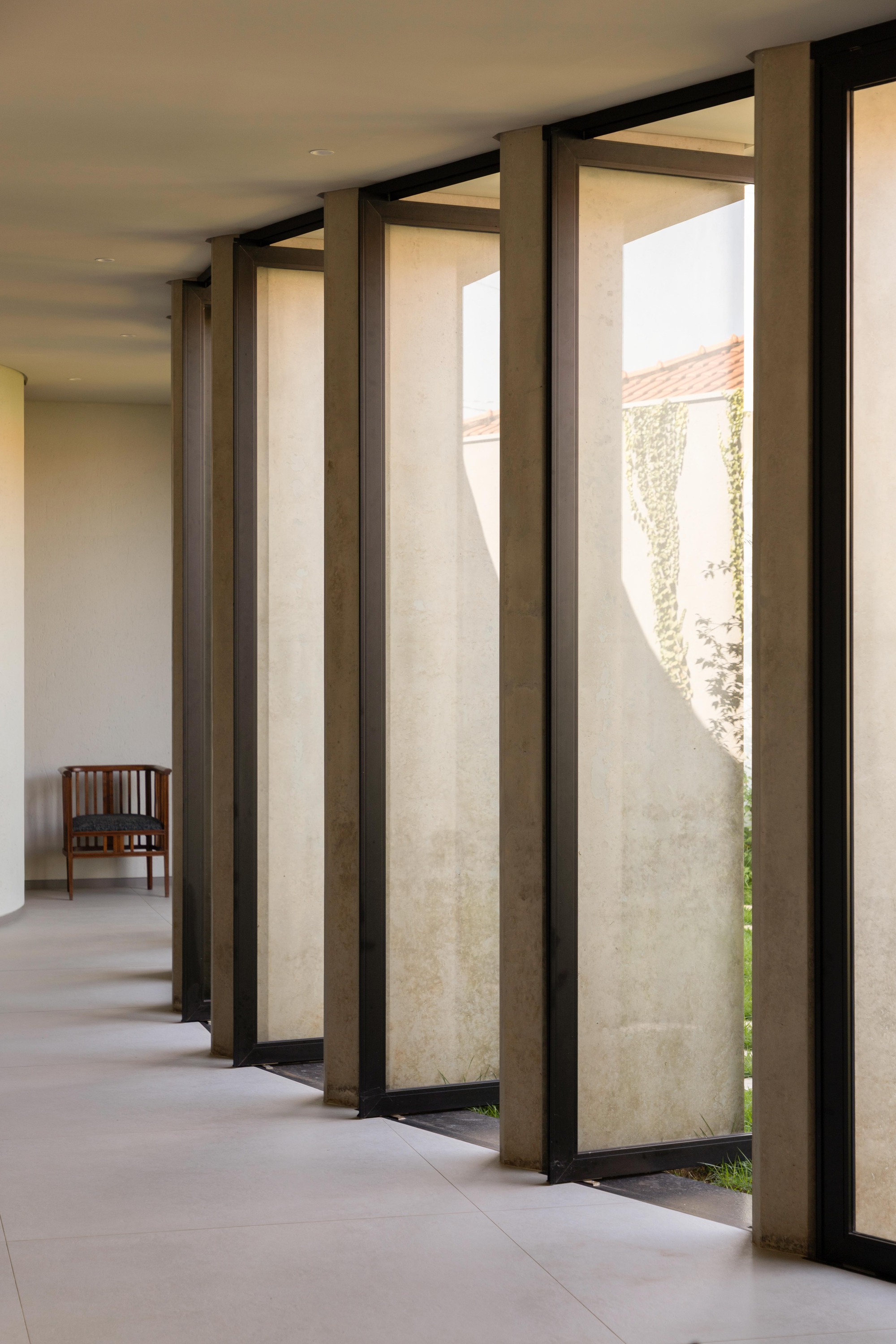

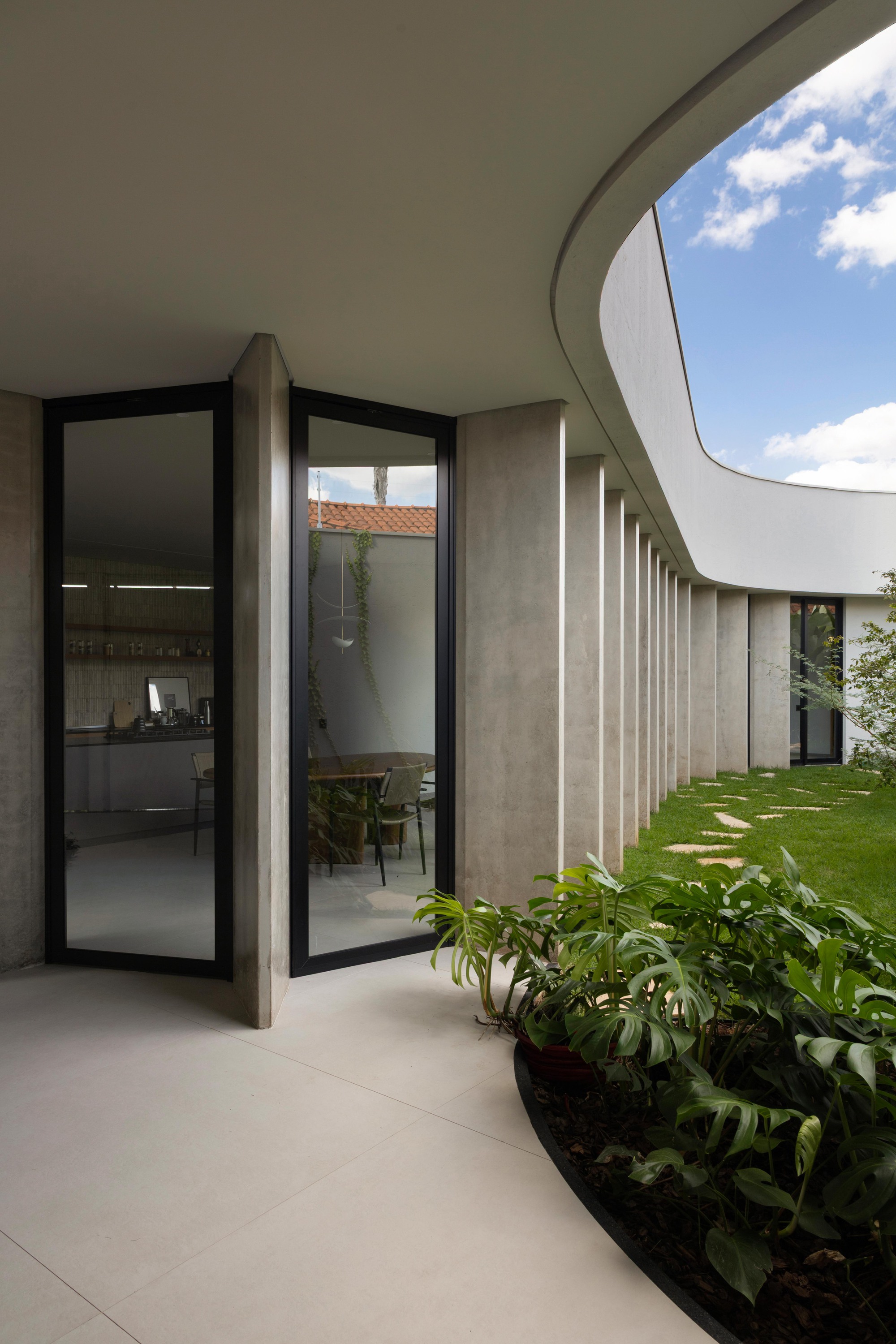

Inside the line, tall pivoting panels framed in black steel sit between the fins. The steel is kept thin, and the depth of the fins does the visual work. Standing in that corridor, you are shaded and enclosed but still outdoors in every sense that counts.

A Garden Left Mostly Unbuilt

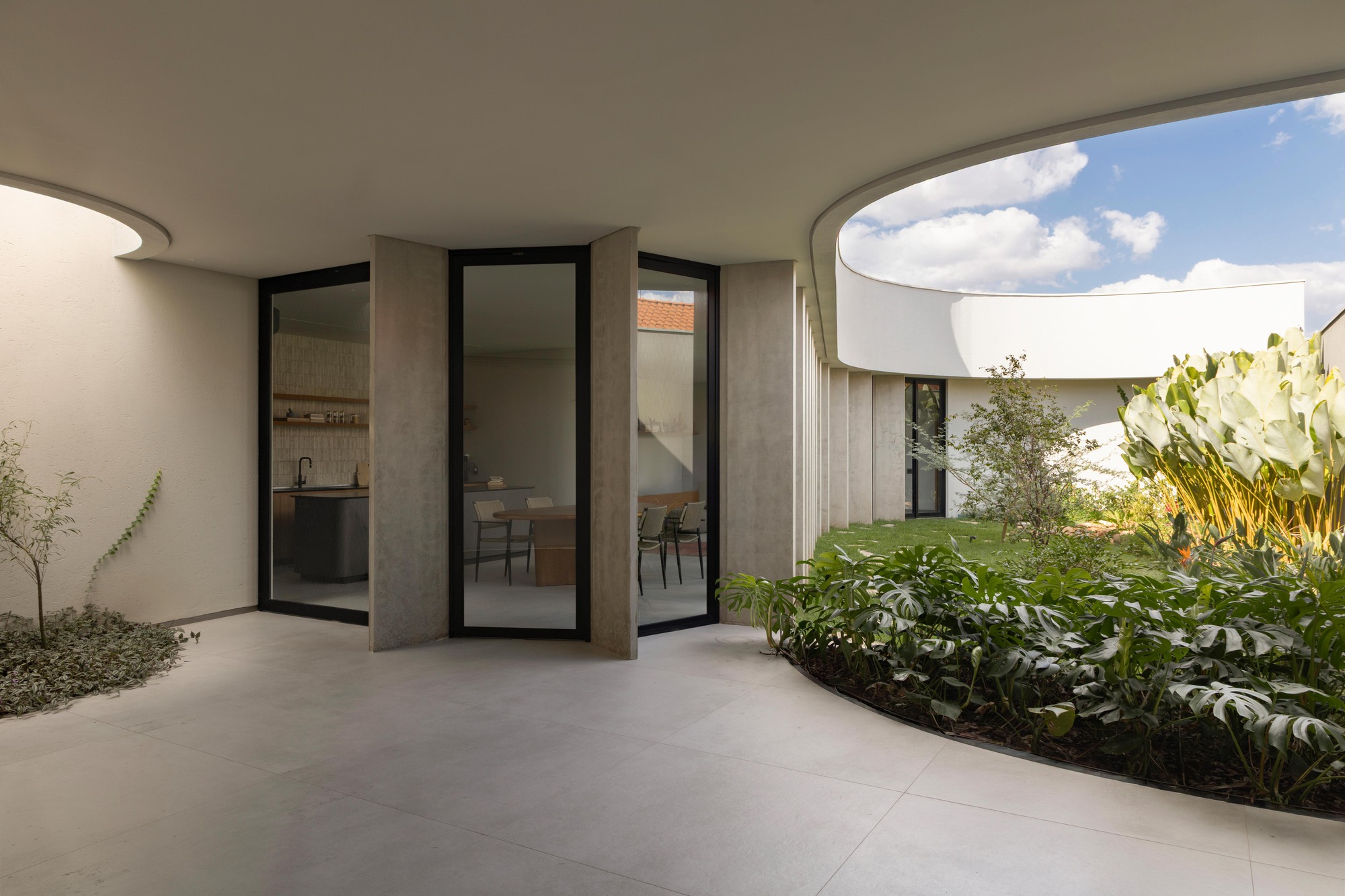

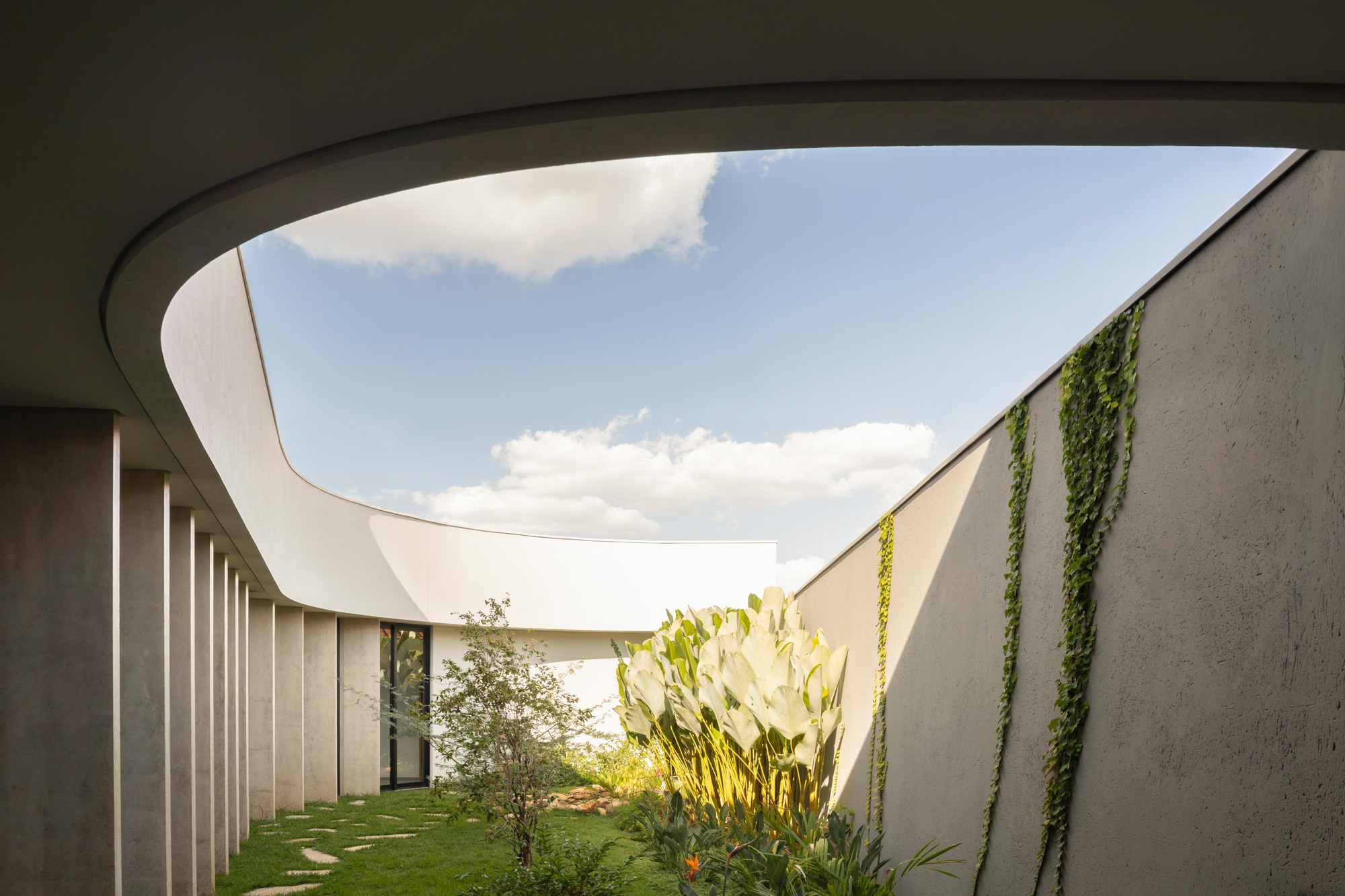

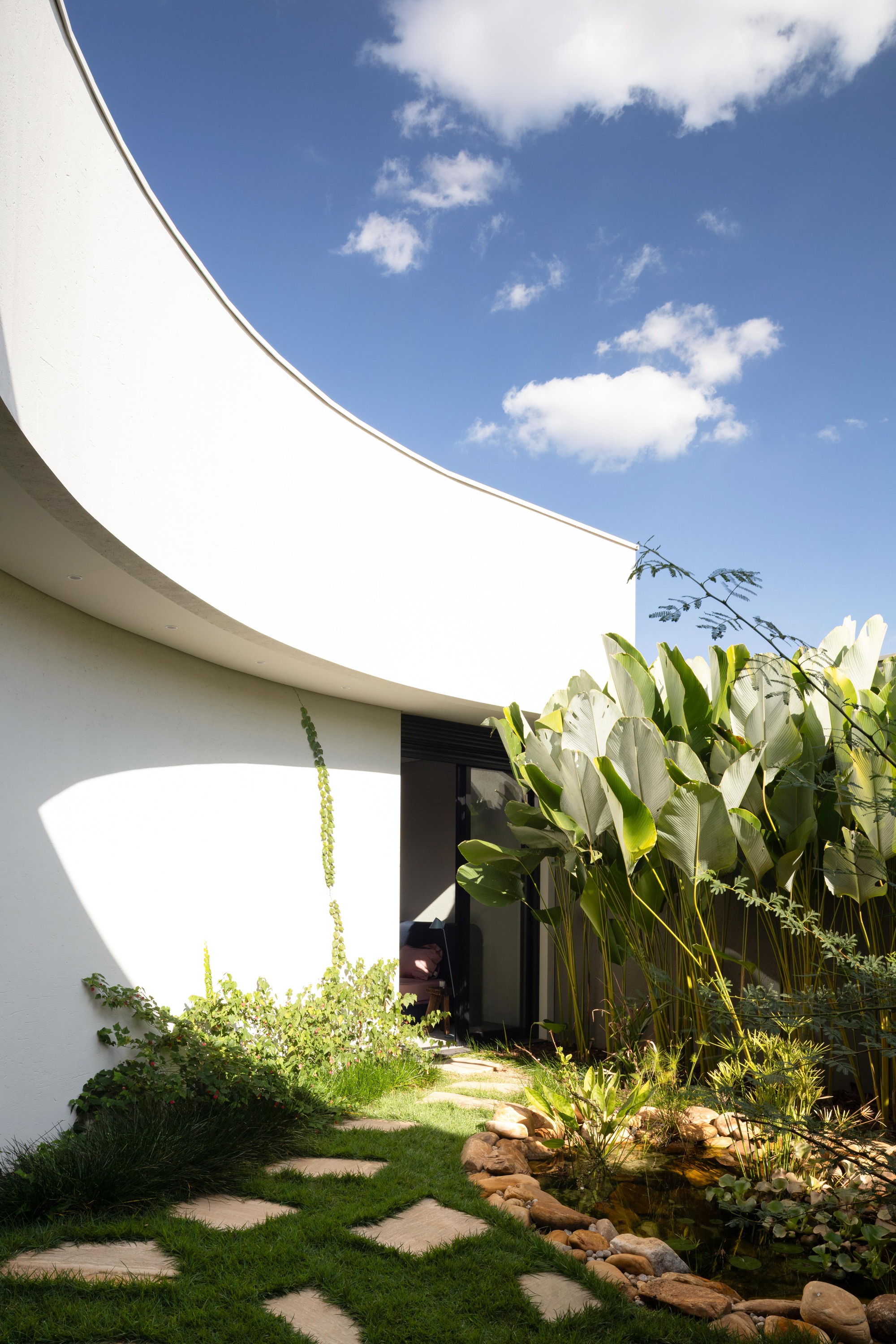

Keeping the footprint small is the quietest decision here and probably the most important one. The lawn, stepping stones, rock-edged pond and dense planting take up the ground the house chose not to cover. An oval opening in the roof frames sky over a planted courtyard, so even the roofed areas let in rain, light and vegetation.

The planting is not an afterthought. Curved beds of monstera follow the line of the building, and climbing vines are already working on the textured walls. In a few years the garden should soften the fins considerably, and the house seems designed to accept that.

Thresholds That Pivot

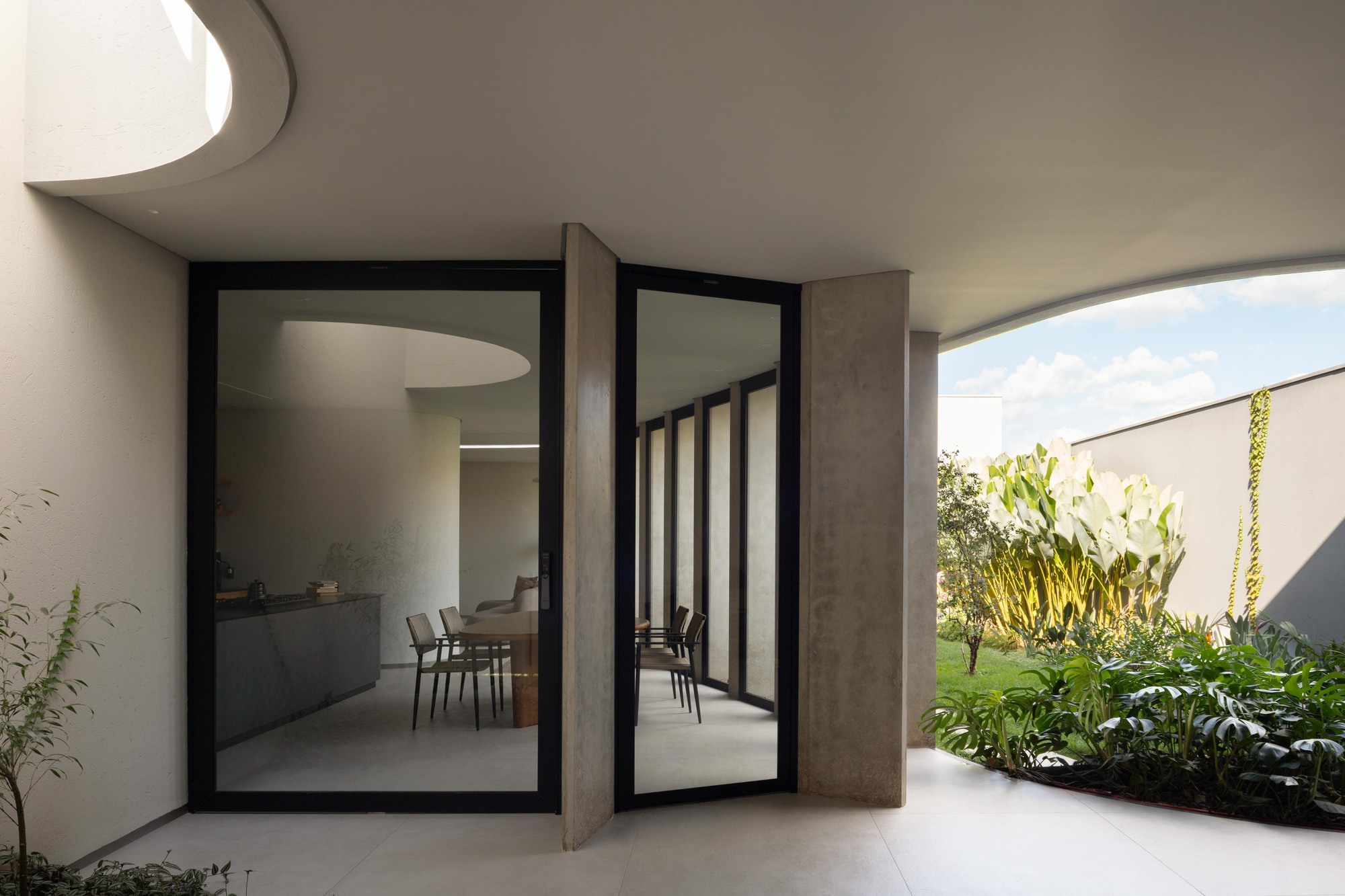

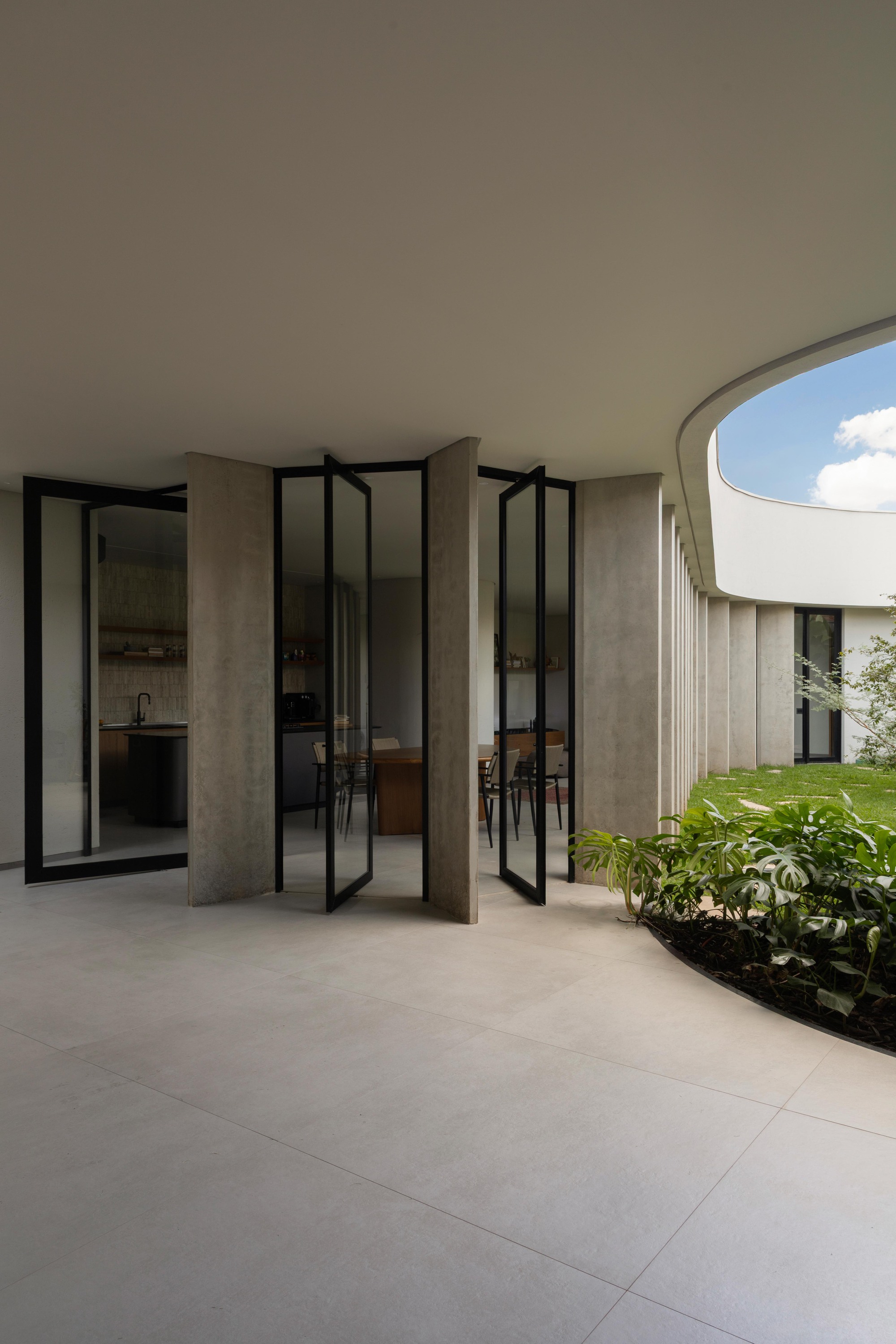

The pivoting doors are what turn a shaded facade into a living one. When open, kitchen and dining spill onto the paved terrace, and the fins become the outer edge of the room. When closed, the glass reflects the table and garden back at you, and the line of piers keeps the elevation from going flat.

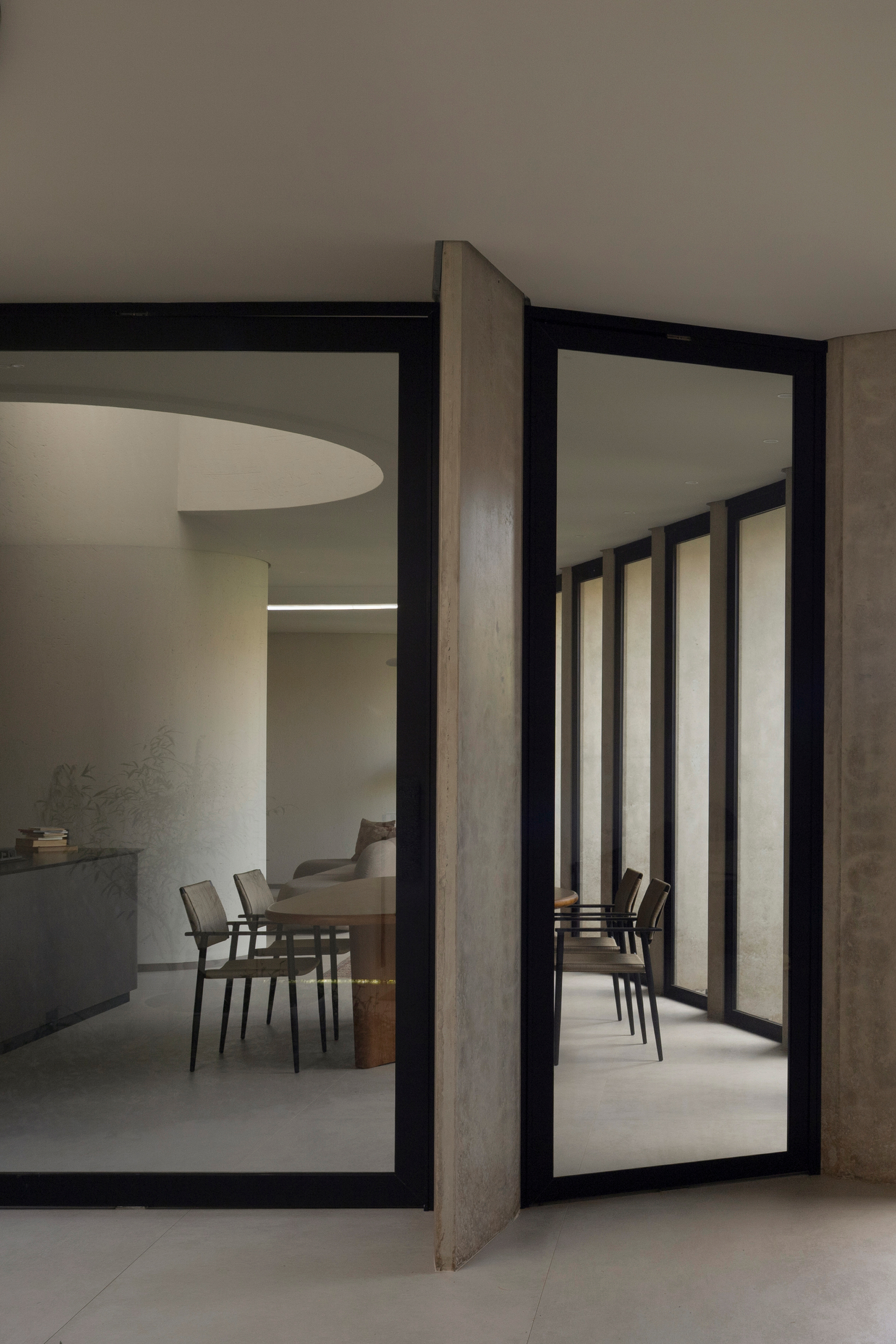

One heavier panel set among the glass doors hints at a material shift at key moments: a solid leaf that swings to reveal the curved dining space behind. It is a small piece of theatre, and we think it is well judged, because it comes up only once in a sequence that is otherwise very disciplined.

Plaster Curves Indoors

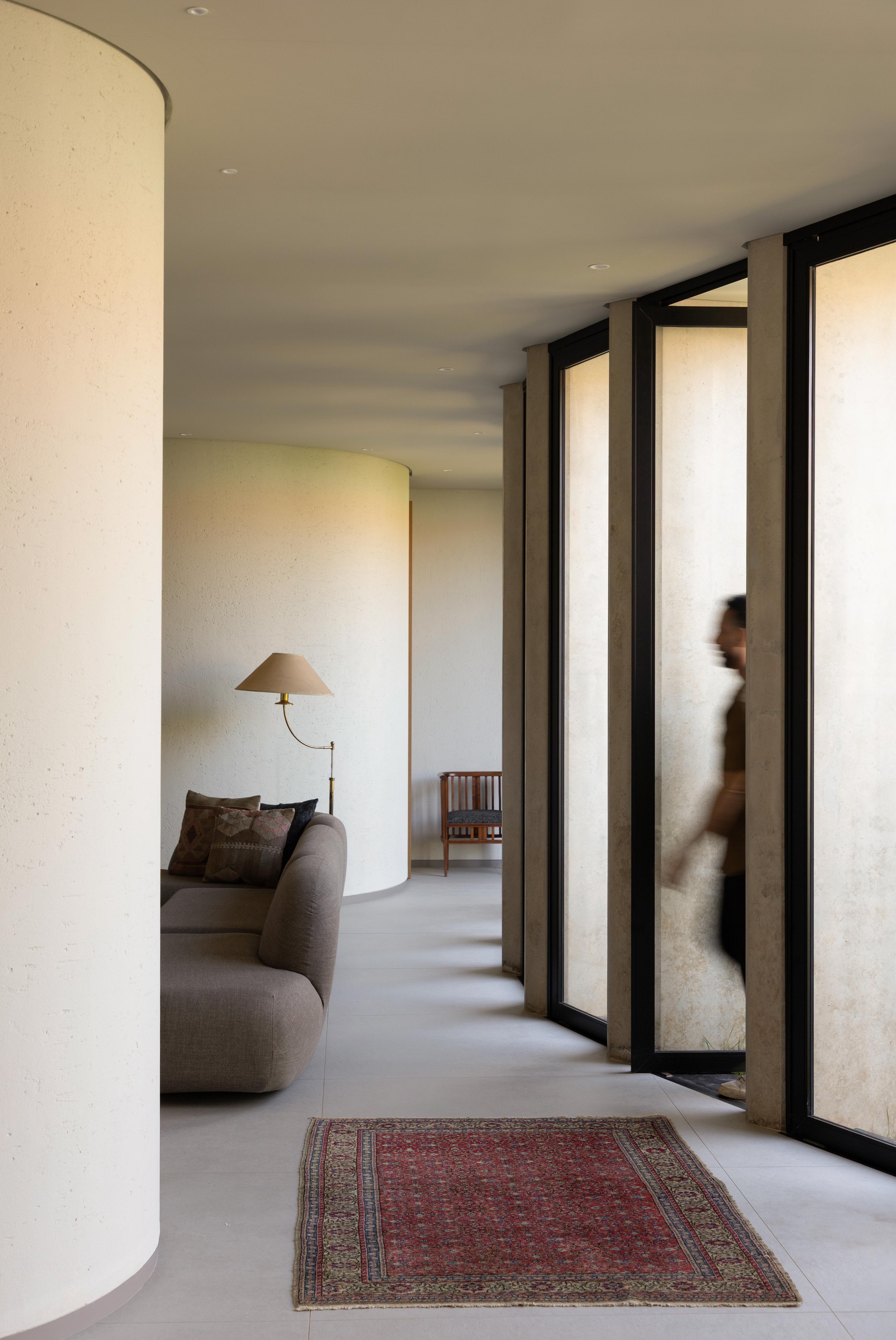

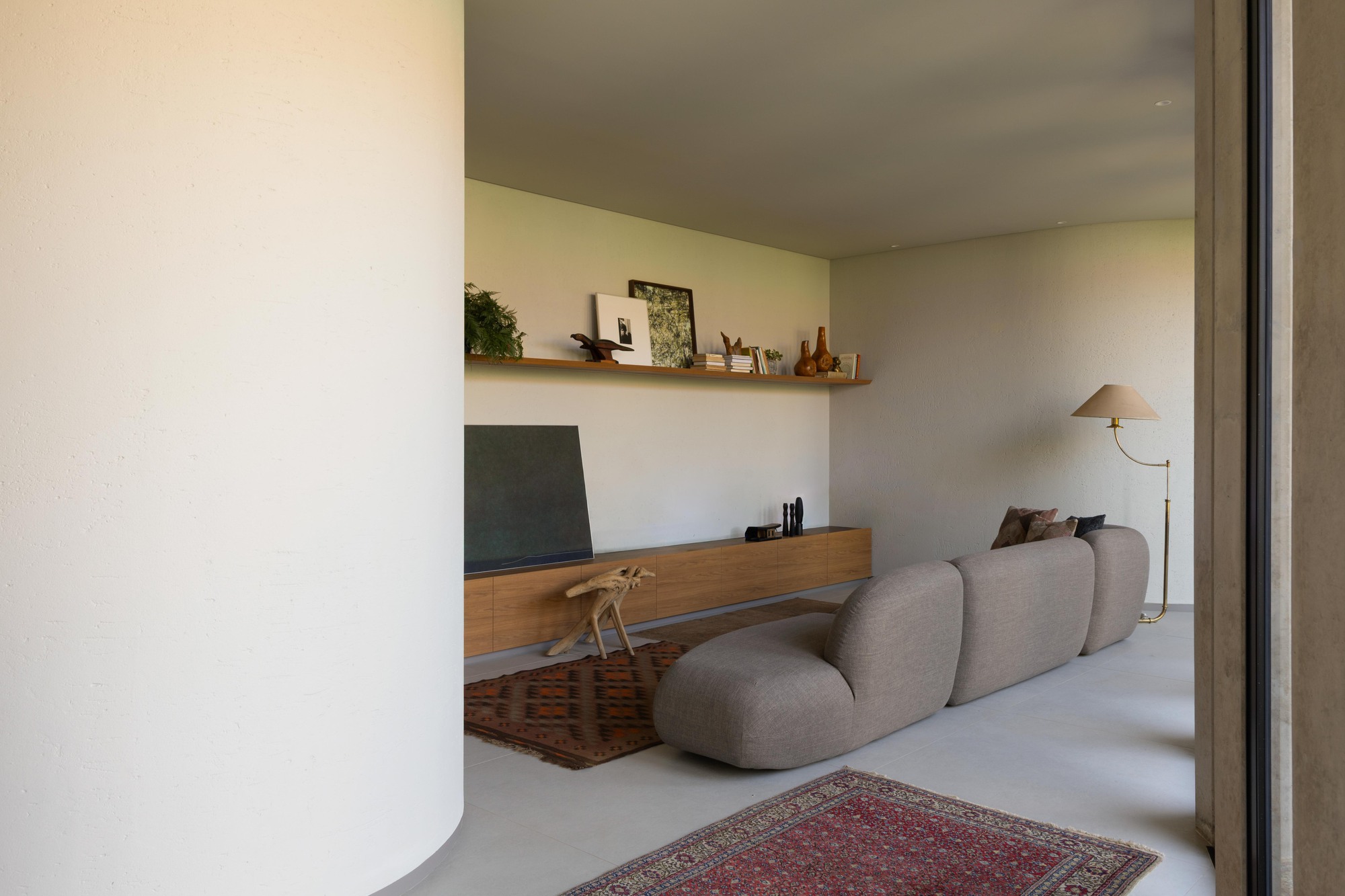

The curve carries through to the interior in rounded plaster walls and a sculpted column along the living corridor. These surfaces catch light filtered through the fins and turn it into soft gradients, which suits a house that tries to keep direct sun out.

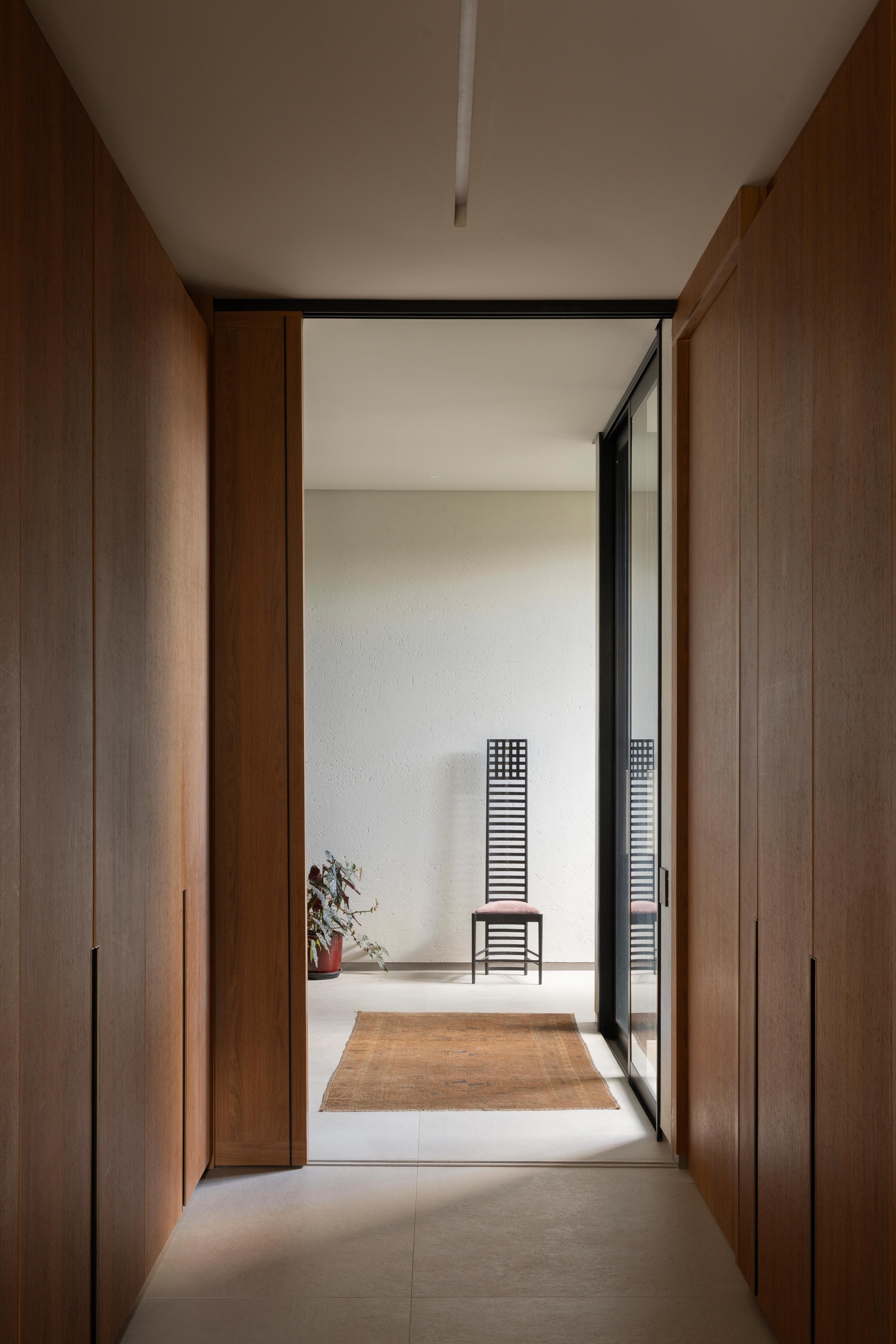

The furnishing is relaxed: a rounded sofa, a long oak console, layered rugs, timber panel doors along the private corridor. Nothing competes with the architecture, and the rooms feel lived in rather than staged.

Dining and Kitchen

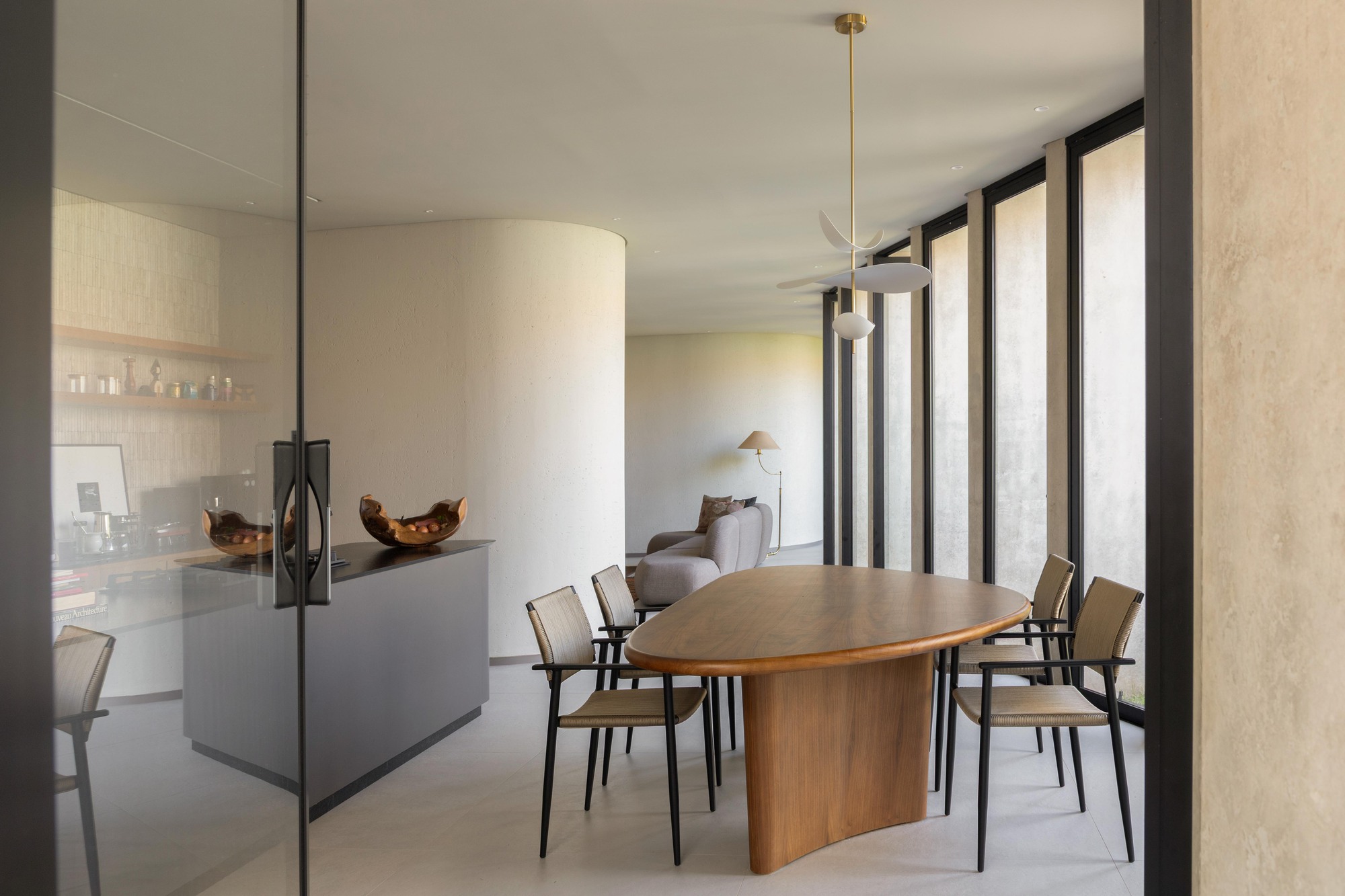

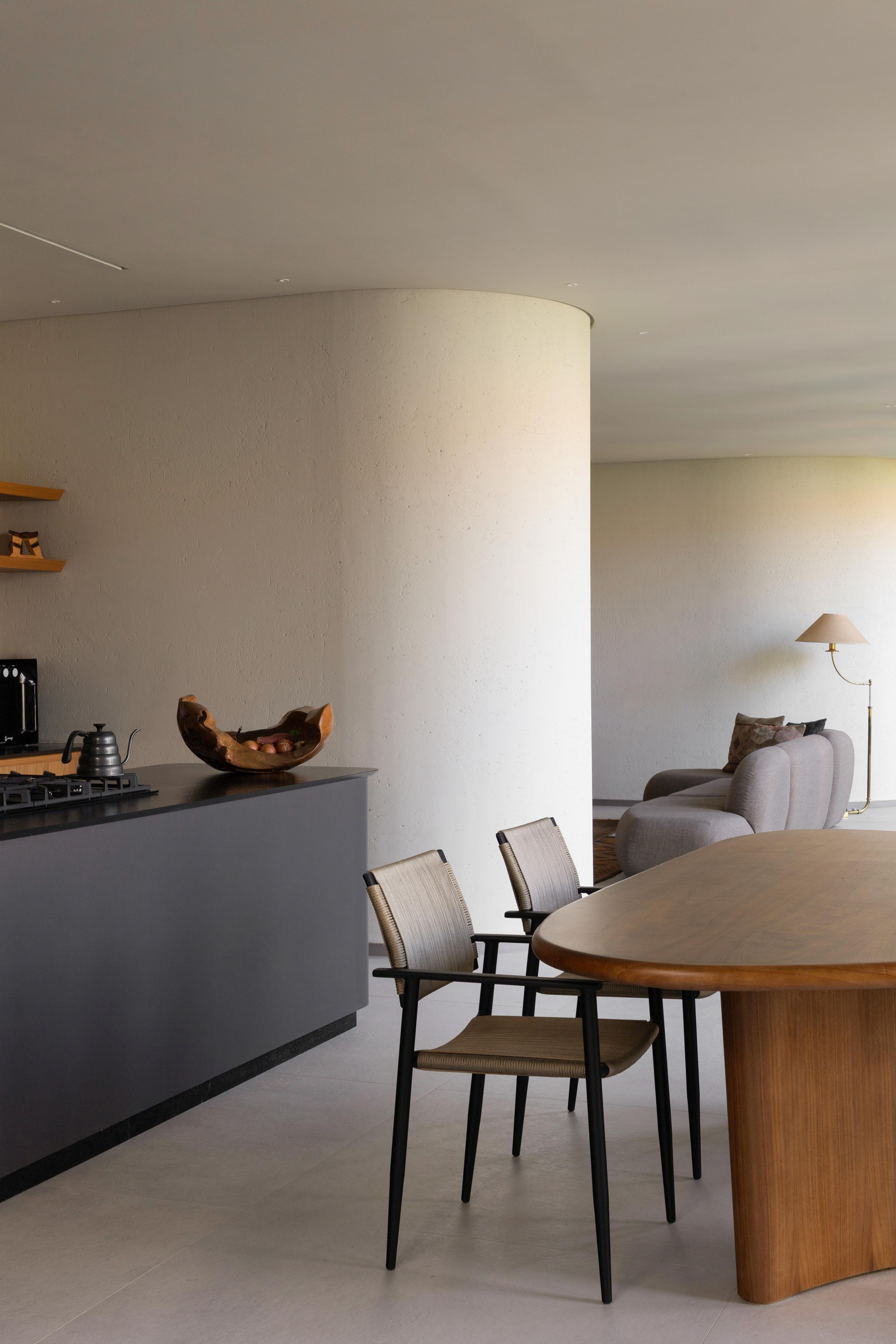

The oval dining table repeats the plan geometry at furniture scale, which could read as too literal, but it works because the curved wall behind is strong enough to anchor it. Tall slotted openings bring afternoon light in as vertical bars, a direct echo of the fins outside.

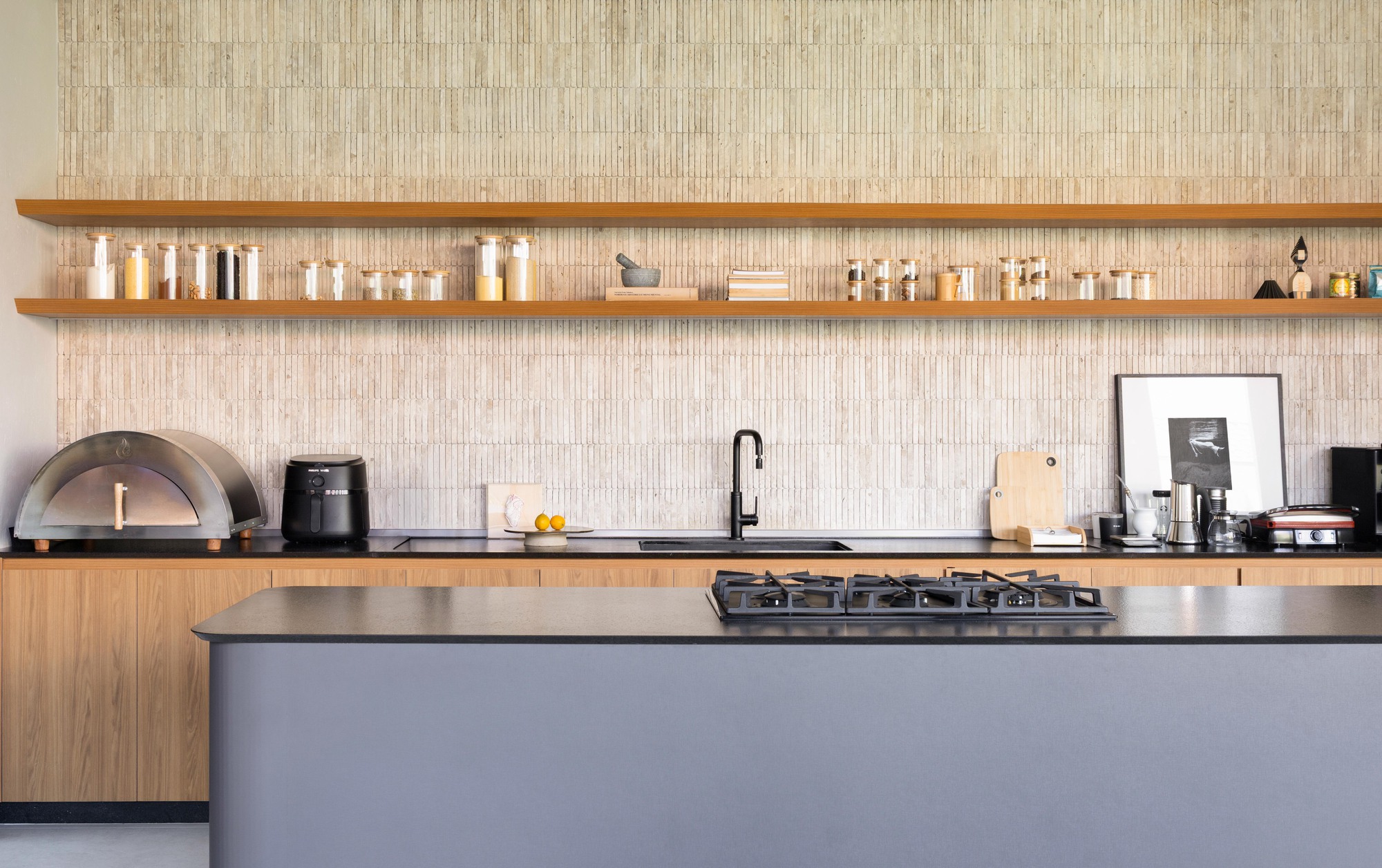

The kitchen stays plain: a dark island, a black sink, open timber shelves of glass jars. It is a working room. With concrete, wood and glass as the main palette, the materials do not try to dress up the curve.

Rooms Opening to Courtyards

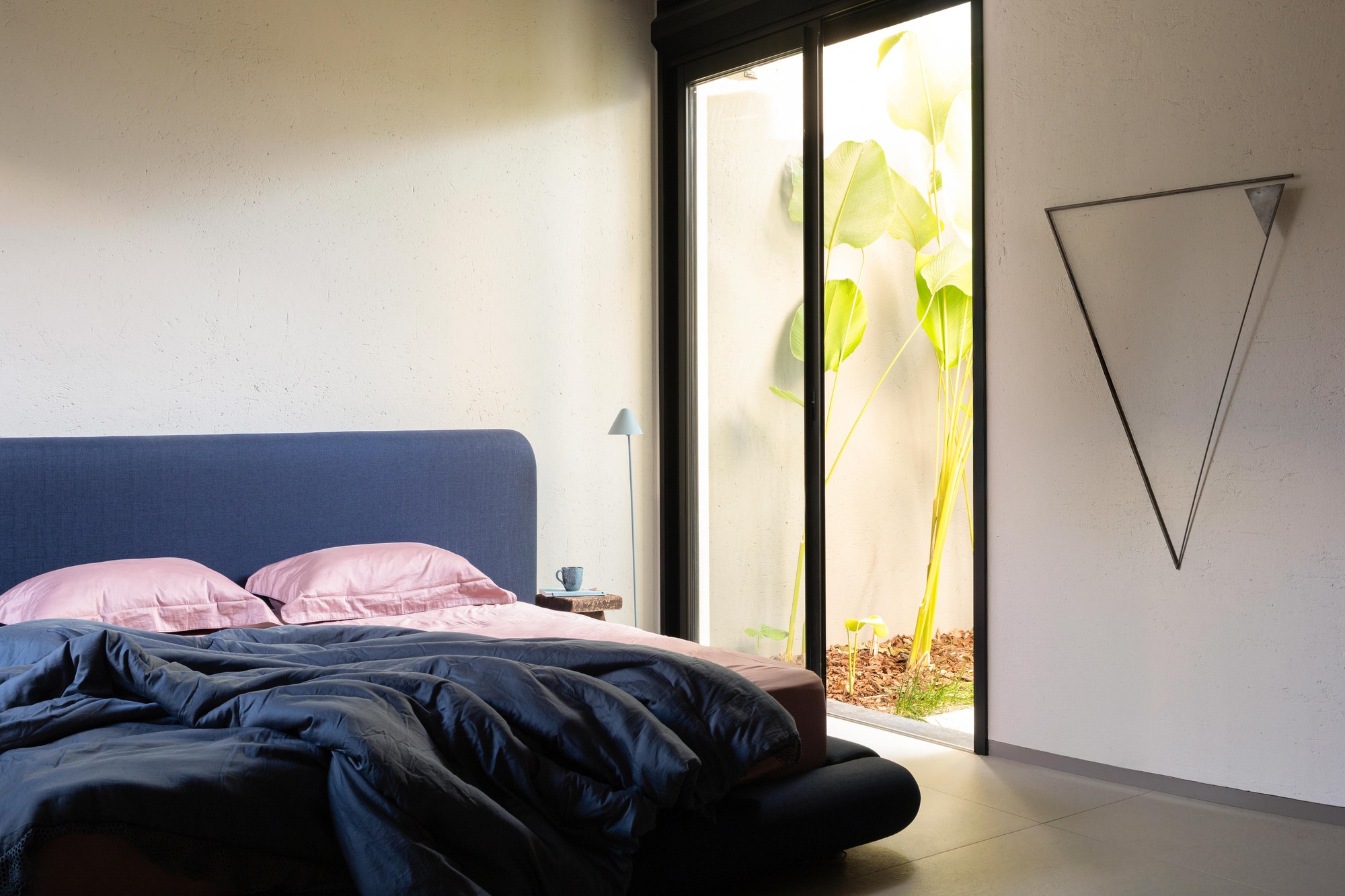

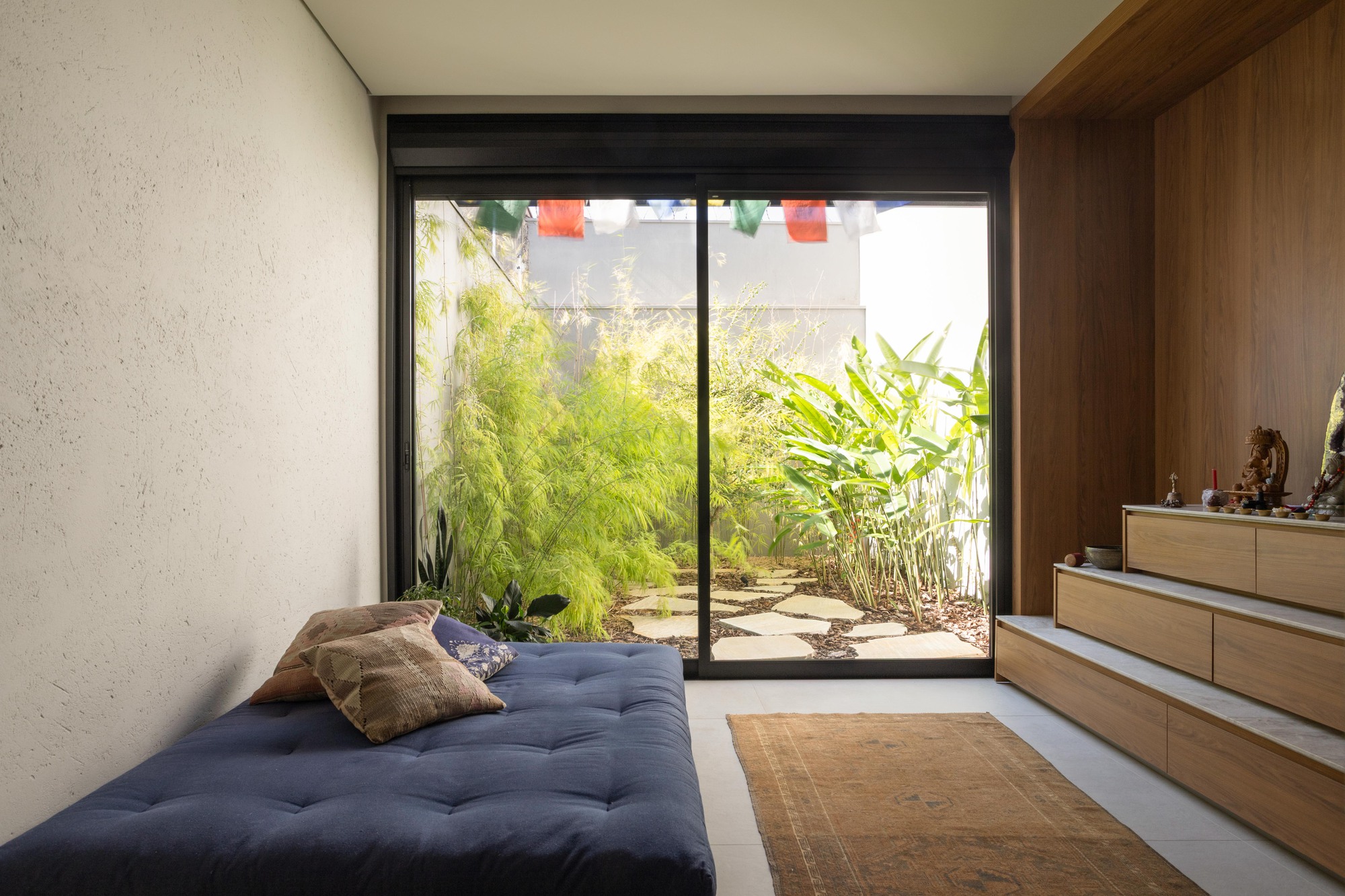

The private rooms each look onto their own planted pocket. A daybed faces a bamboo courtyard, and a bedroom opens to banana leaves through a full-height glass door. These small gardens give the bedrooms outlook and cross-ventilation without exposing them to the main lawn, which is a sensible way to get privacy on a narrow lot.

Bathrooms as Light Wells

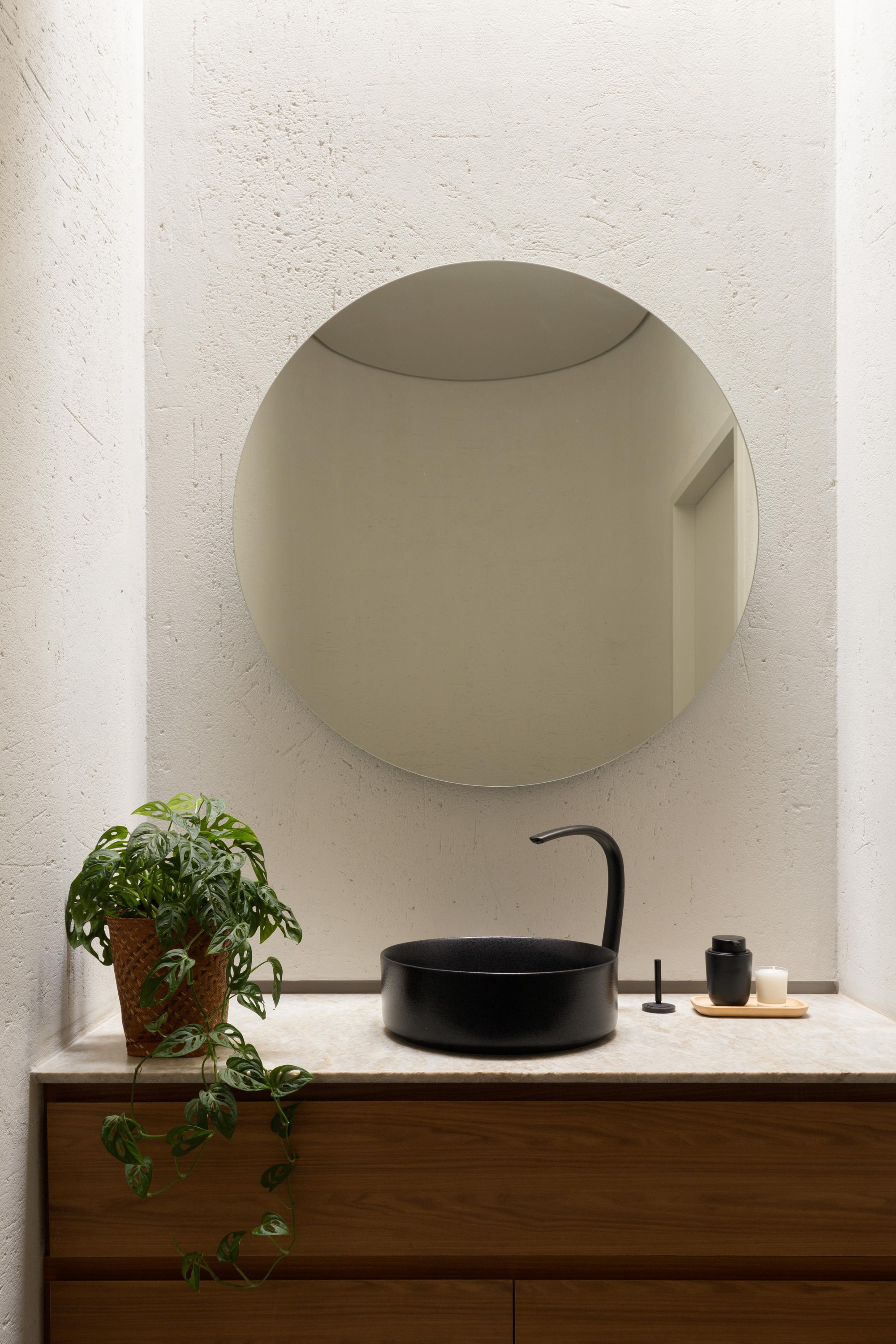

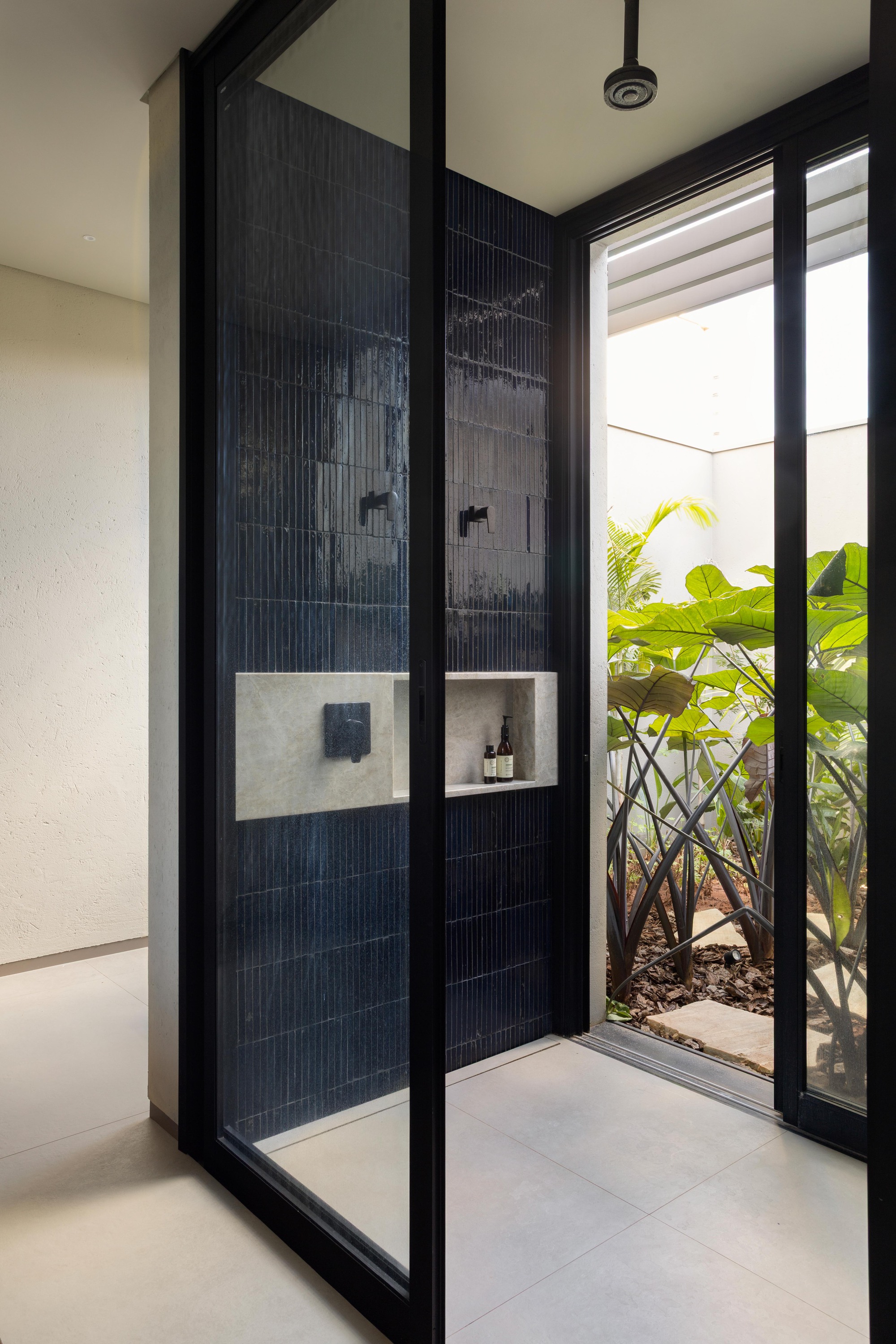

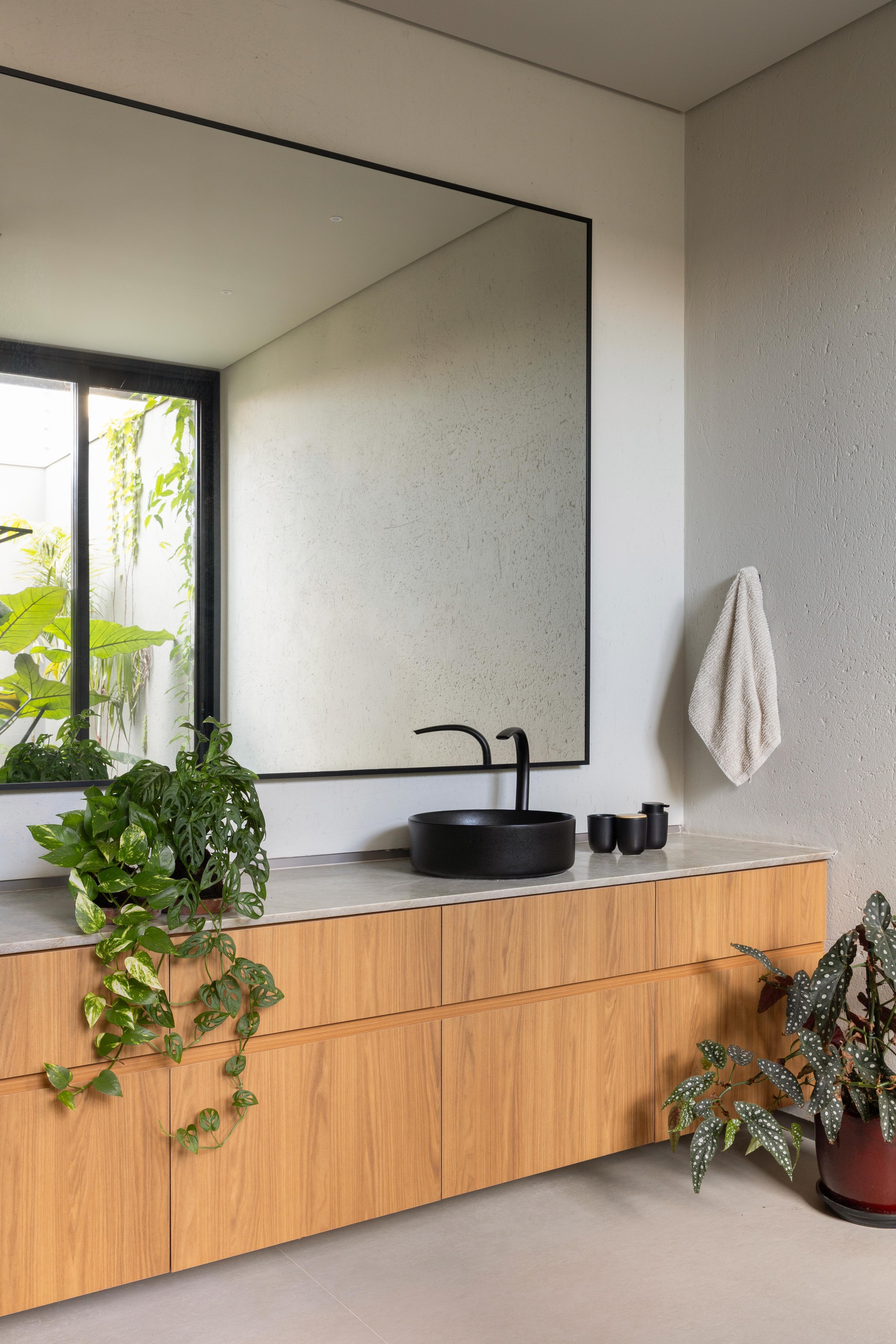

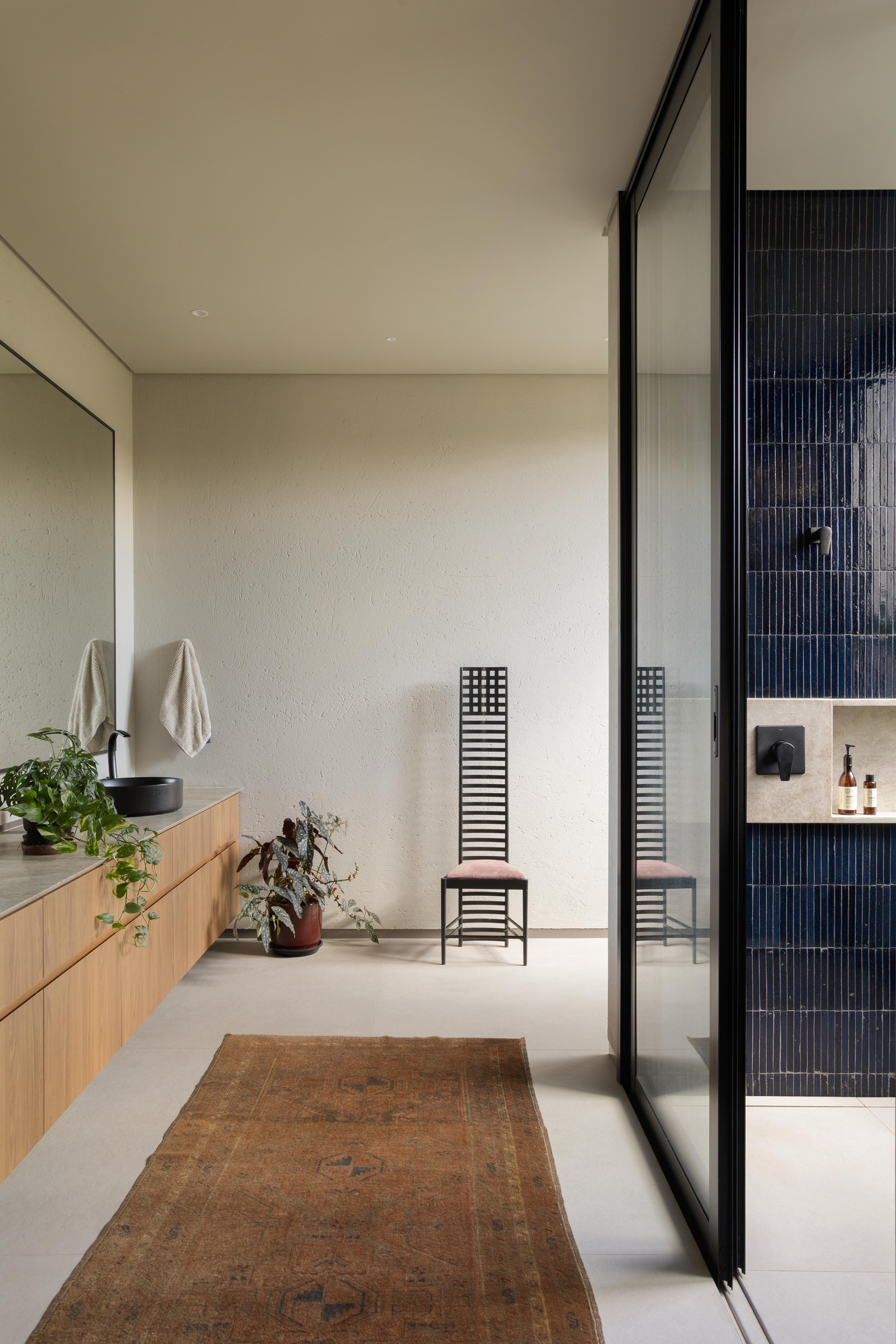

The bathrooms follow the same logic. A shower lined in deep blue vertical tiles opens onto a planted light well, so washing happens in front of broad leaves rather than a blank wall. Oak vanities, black basins and trailing plants keep the palette consistent with the rest of the house.

The vertical tile is a detail we like: it picks up the rhythm of the fins at the scale of the hand. It suggests the architects were thinking about the whole house as one system and not treating the facade as a separate project.

Plans and Drawings

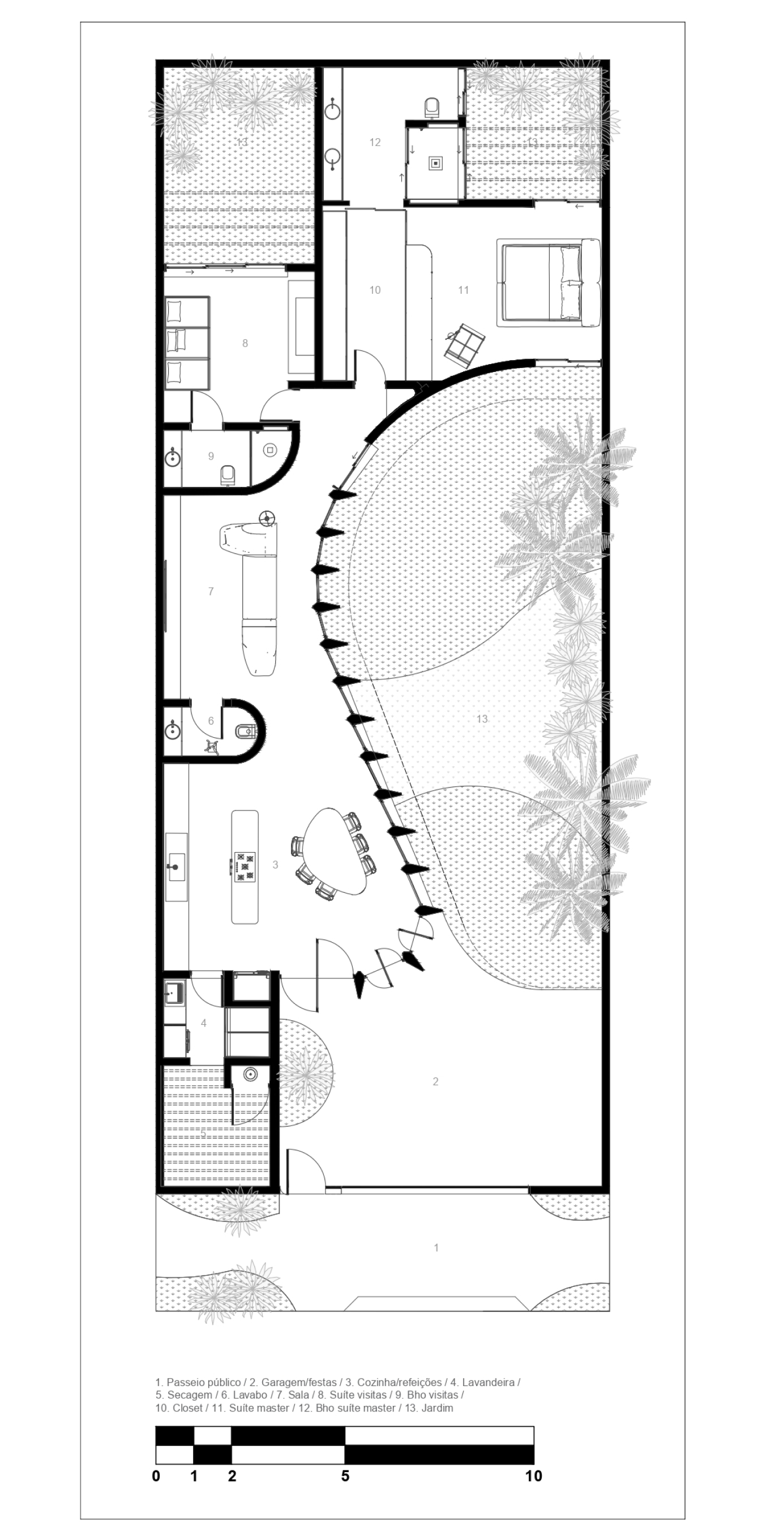

The floor plan explains everything the photographs hint at. On a narrow lot, the curved fin wall acts as a spine that divides enclosed living space from an open planted garden. The building hugs one side, and the garden claims the rest. The round roof opening over the covered terrace shows up clearly as a moment where the boundary between inside and outside dissolves.

Why This Project Matters

Climate-responsive design is often discussed in terms of added systems: more insulation, more equipment, more layers. The Curved House argues for subtraction. It builds less, leaves more ground planted, and asks one structural element to handle both load and shade. For the hot interior of Brazil, and for warming regions elsewhere, that is a more transferable lesson than any single material or technology.

It also shows that formal ambition and restraint can coexist. The curve is not a gesture for the camera; it creates the shifting opacity, the sense of a corridor that never ends, and the generous garden edge. efcarquitetura has made a modest house in which form, structure and climate strategy are the same decision, and that clarity is worth studying.

Curved House by efcarquitetura (lead architect Eduardo Franco Correia, team Mariana Carleto), Taquaritinga, Brazil. Area: 214 m². Completed 2025. Photography by Carolina Mossin.
