FCC Arquitectura Splits a Steep Portuguese Plot into a Two-Unit House of Green Roofs and Weathering Steel

Subdivision plots rarely give architects much to work with: a fixed footprint, a setback line, and neighbors on every side. BC House, completed in 2016 by FCC Arquitectura in Portugal, starts from that familiar brief and adds a difficult variable. The site drops roughly six meters between opposite boundaries, and the program asks for two dwellings rather than one, all within 557 m².

What interests us is how little of that difficulty shows from the street. The house presents a low, almost reticent front of render and weathering steel, then opens up on the far side into a stack of terraces, lawns and planted roofs that step down toward the valley. The slope is not hidden or leveled away. It becomes the organizing logic of the whole building, and it lets two households share one plot without sharing much of a view of each other.

A Guarded Street Edge

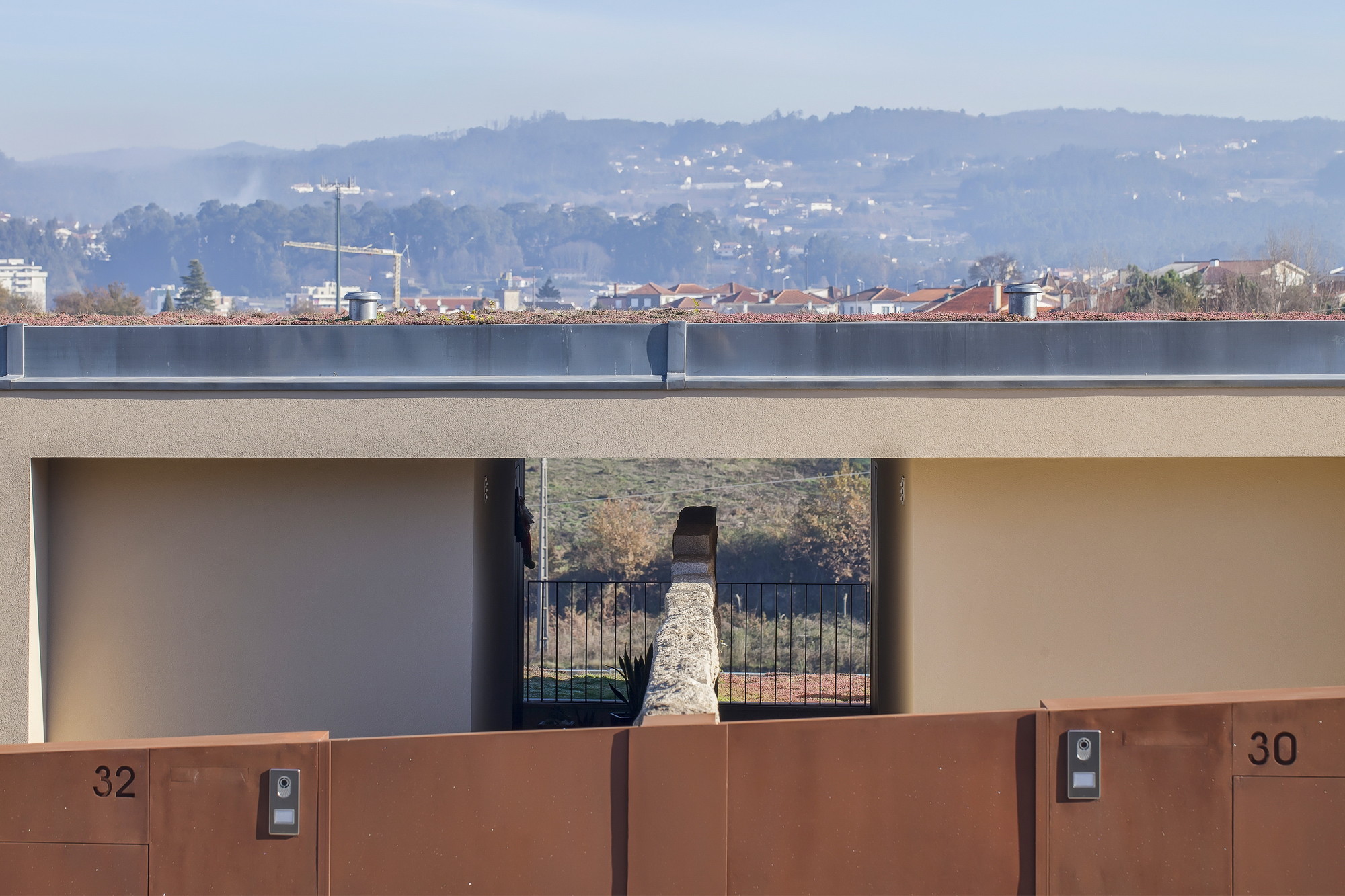

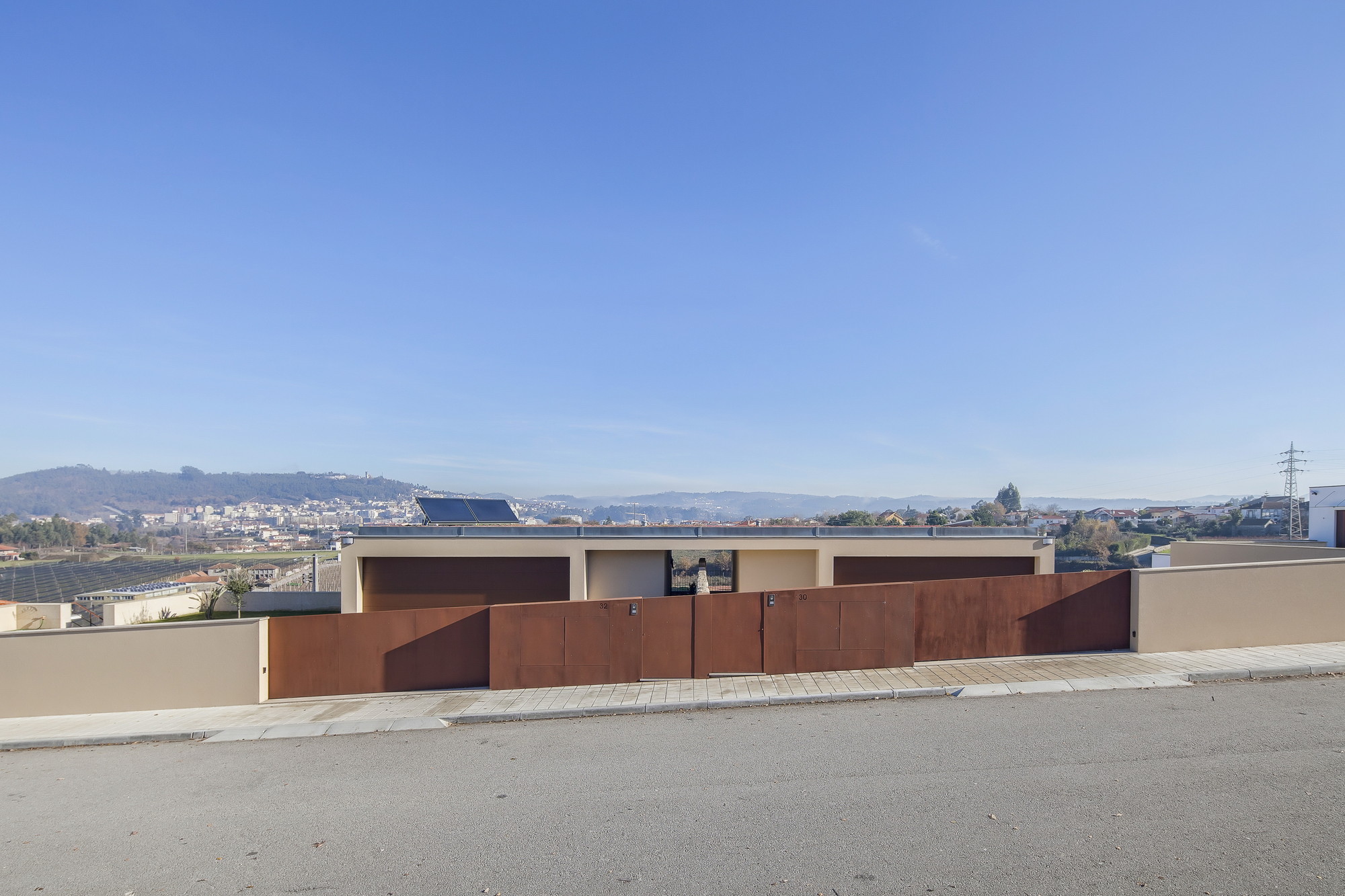

The street side reads as a boundary wall first and a house second. A rendered wall runs along the plot edge, punctuated by weathering steel panels that carry the gate and the house numbers. Behind it, the building sits low enough that the town and the valley remain visible over the roofline. On a sloping subdivision, that is a considerate move: the house keeps the views open for everyone uphill instead of claiming the skyline for itself.

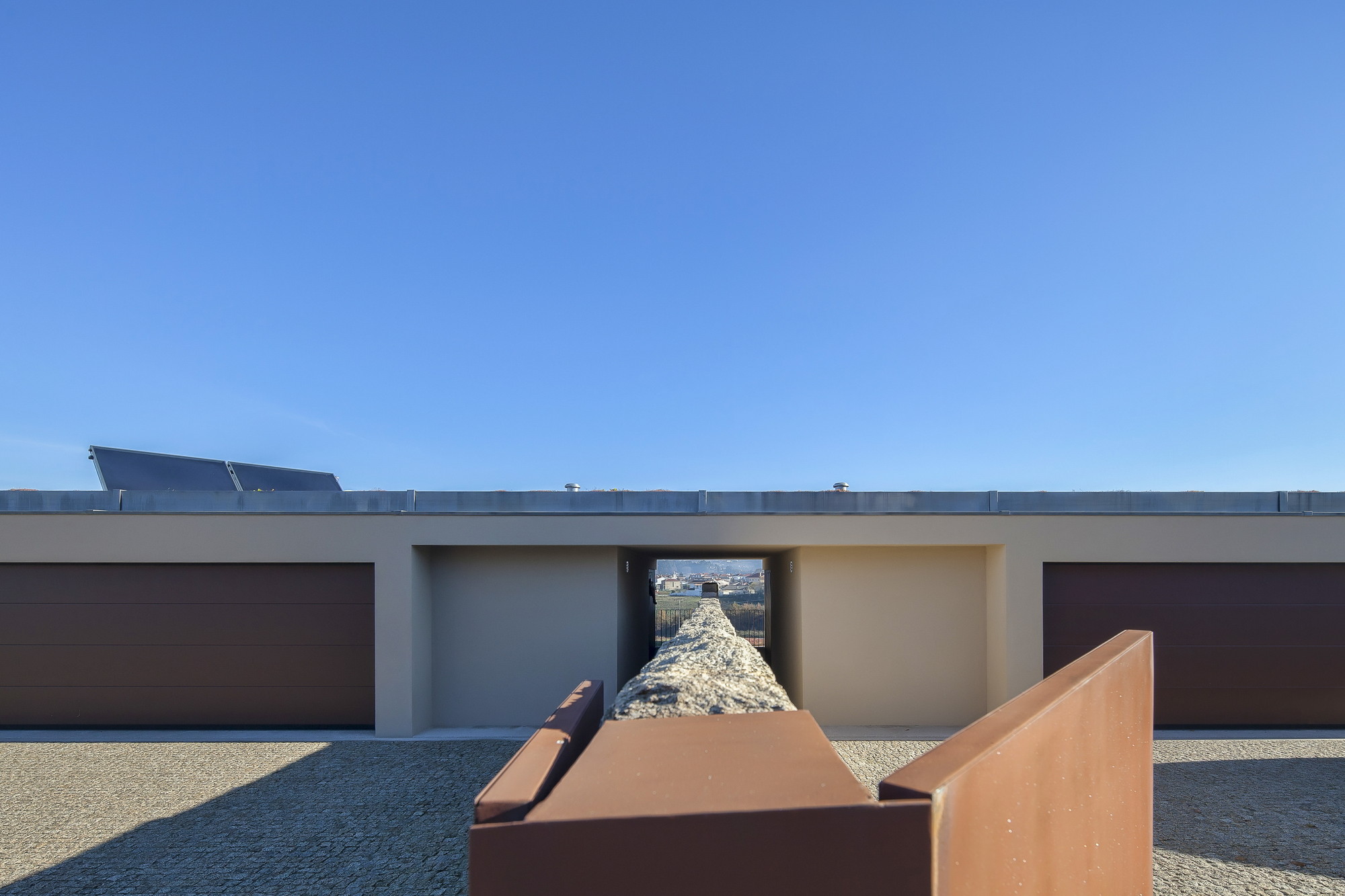

Pass through the gate and the entrance court tightens the composition. Steel planters frame the approach, a rough stone channel draws the eye toward a central opening, and two brown garage doors flank it on either side. The symmetry quietly announces the two-unit program. Each household gets its own door and its own parking, while the shared threshold in the middle frames the landscape beyond. Rust-toned steel, coarse stone and plain render make a limited palette, and it looks like one chosen to age in place rather than to stay new.

The Garden Facade and Its Stairs

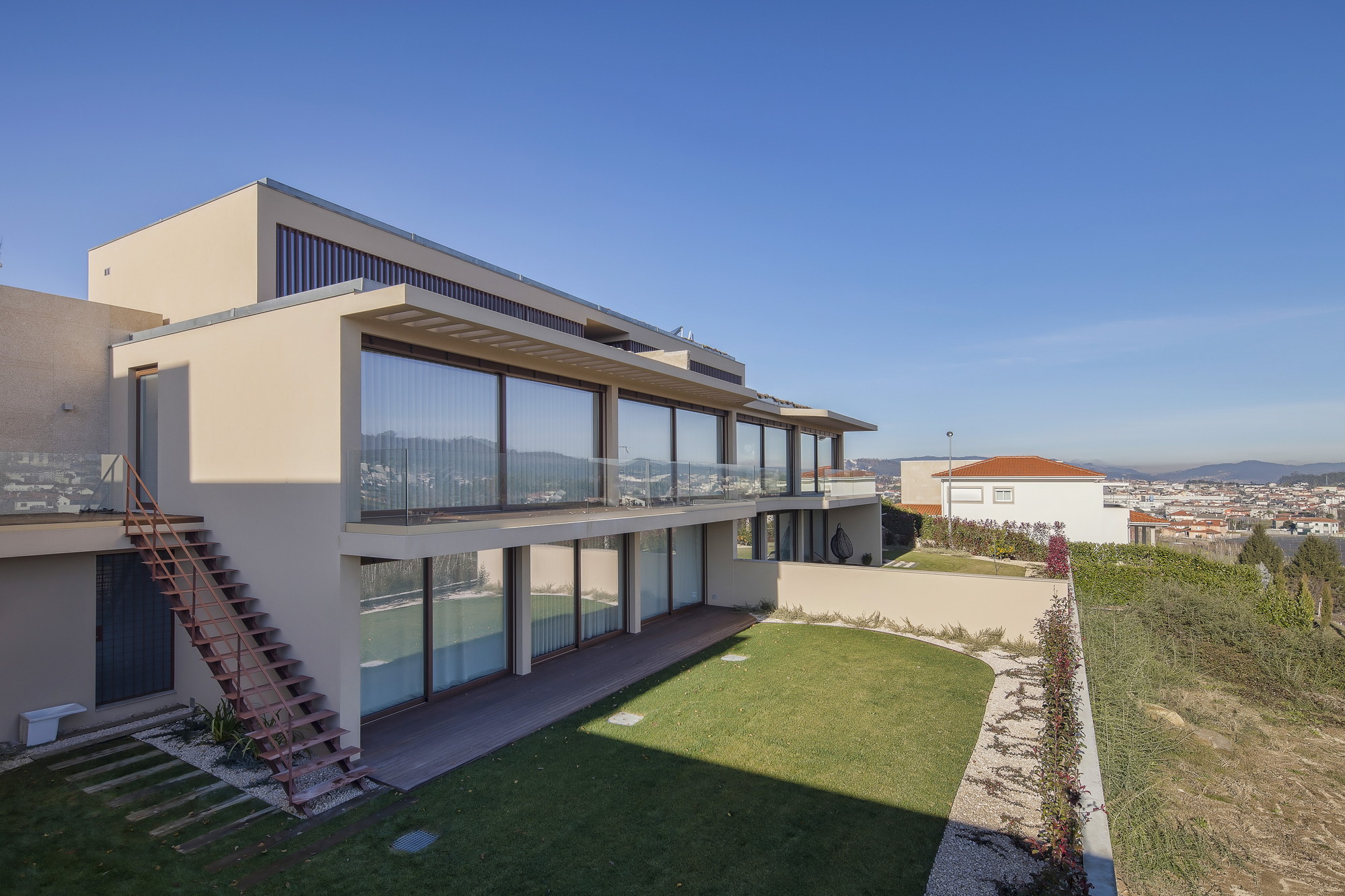

The downhill elevation is where the house finally shows its size. Floor-to-ceiling glazing runs along stepped levels that open onto a lawn, and the six-meter drop turns into a sequence of outdoor rooms rather than one tall, exposed wall. Here the slope works in the project's favor: every level gets its own ground plane and its own direct access to the garden.

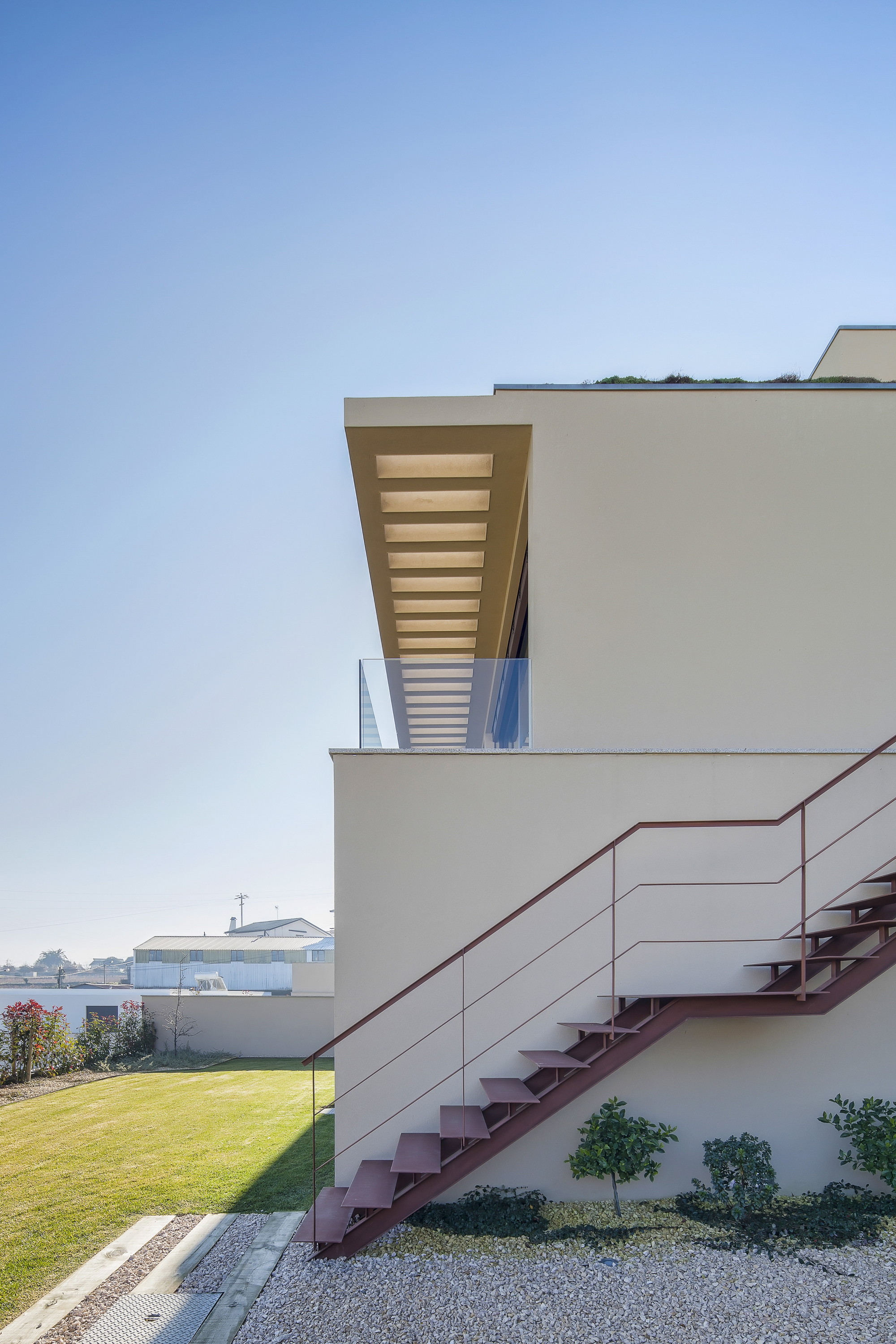

The external staircases do much of the connecting. Rendered in the same rust tone as the street gate, with thin rails and a light profile, they rise past rendered walls to glass-edged terraces beneath timber-lined overhangs. They tie the front and back of the house together through material, and they keep vertical circulation outdoors, where in a mild Portuguese climate it costs nothing in floor area and adds a great deal in daily experience.

Roofs That Behave Like Gardens

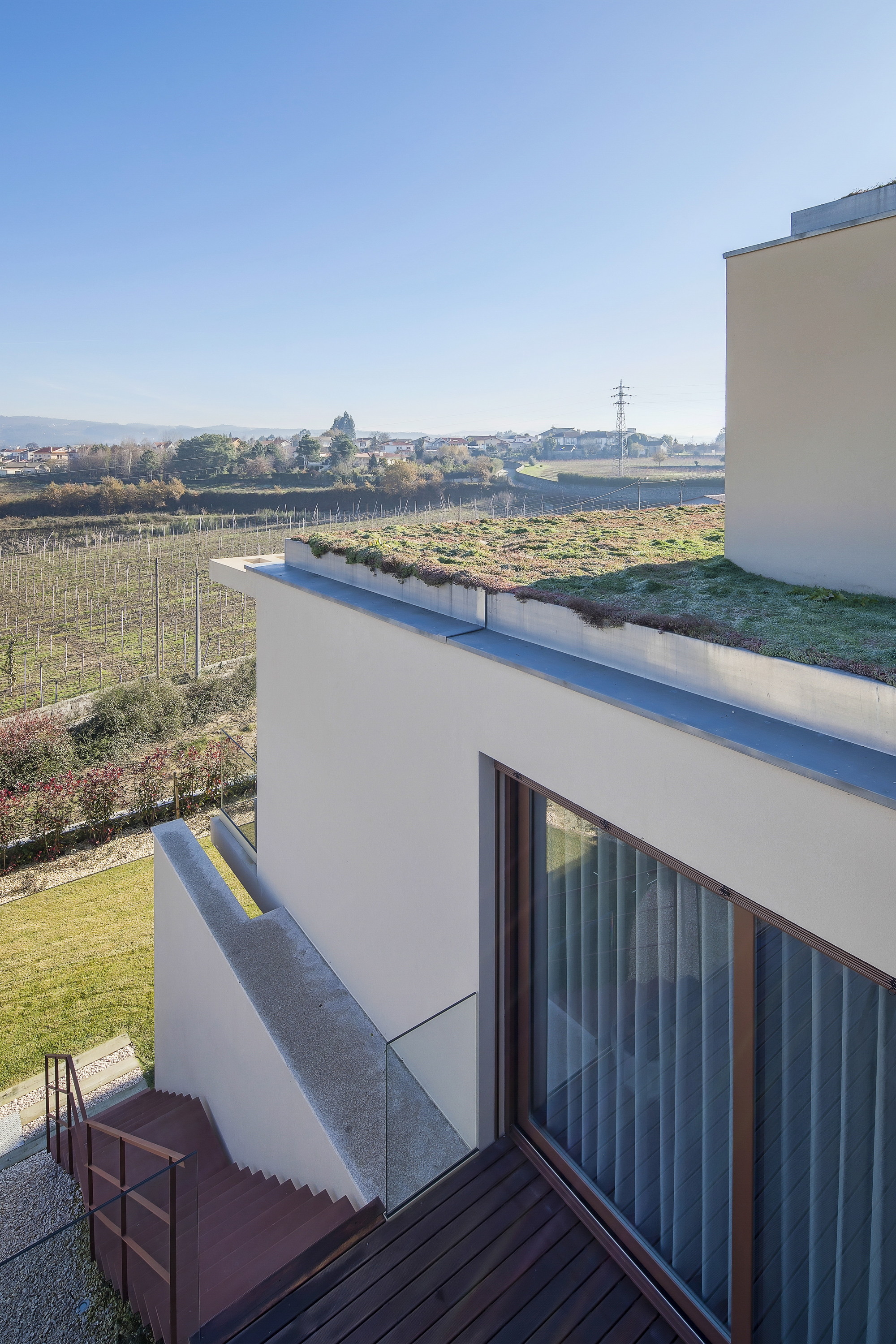

Seen from above, the building almost disappears into its terraces. A green roof covers the lower volume, a timber deck and glass balustrade edge the level above, and vineyard rows continue the pattern of horizontal bands out into the landscape. Because the house steps with the slope, each roof becomes a terrace or a planted surface for the level above it. The fifth elevation, which is usually an afterthought on suburban plots, becomes the main view for the occupants.

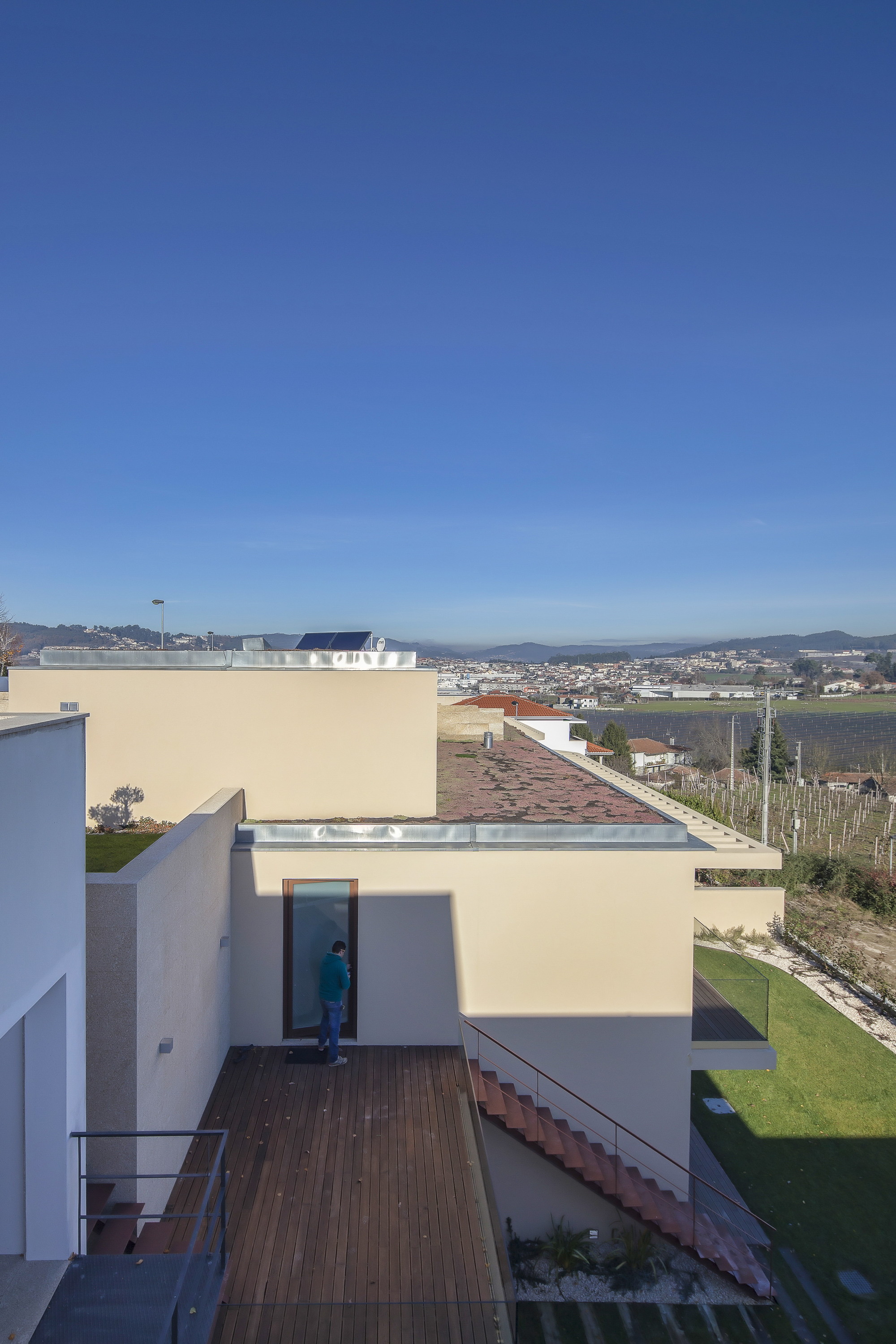

Terracotta steps and the deck level add warmth to a scheme that could otherwise feel austere. The image of a resident at a glazed door, vineyards spread below, captures the project's real ambition: to make a two-family building on a standard lot feel like a hillside retreat. The green roofs soften the neighbors' view down onto the house as well, which matters on a slope where everyone sees everyone else's rooftops.

Plans and Drawings

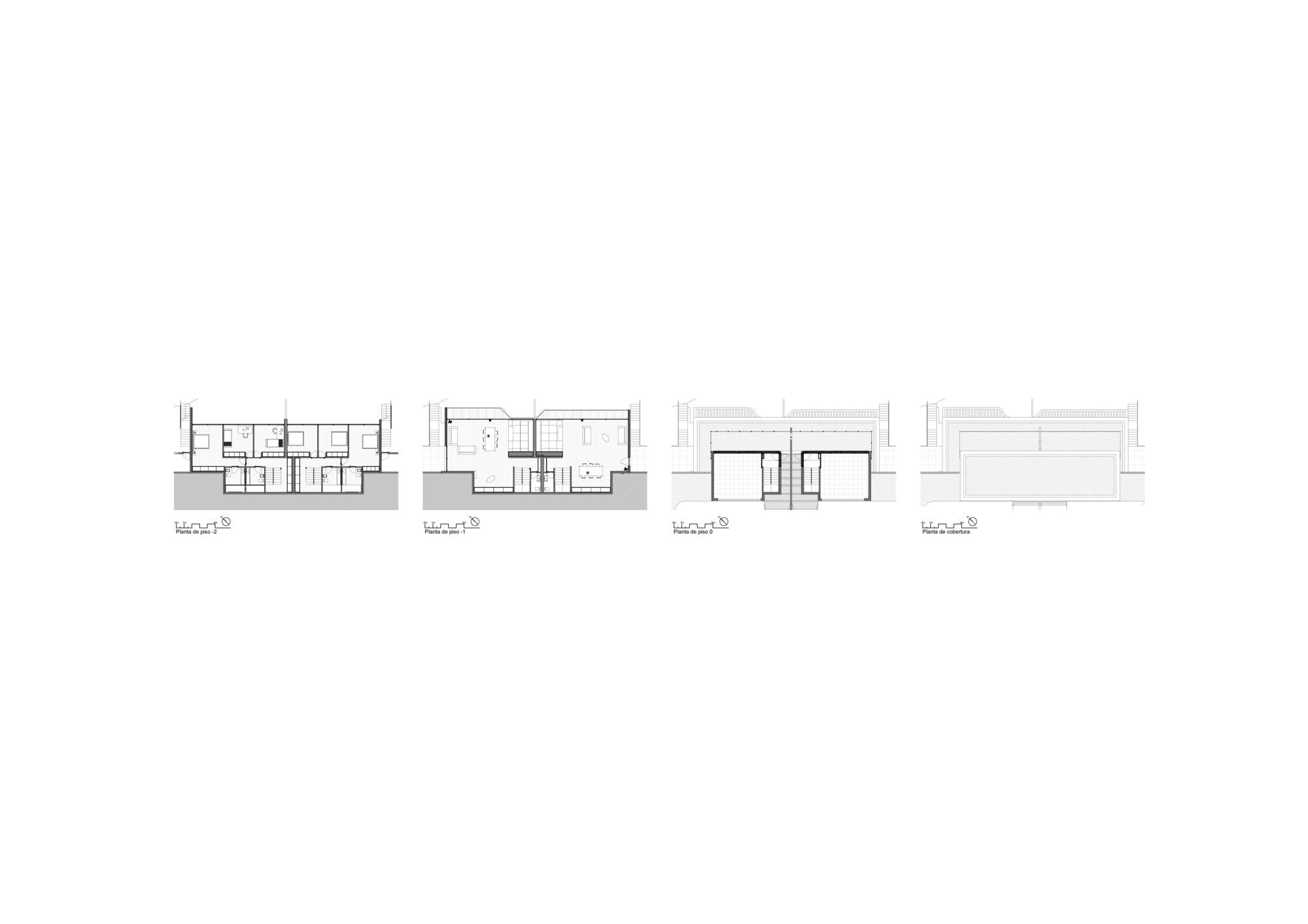

The four floor plans make the split legible: a bedroom level, a living level, upper volumes, and the roof plan, arranged so that the two units interlock with the terrain instead of simply sitting side by side. Reading them in sequence, you can see how each level shifts to follow the contours, with roofs below feeding terraces above.

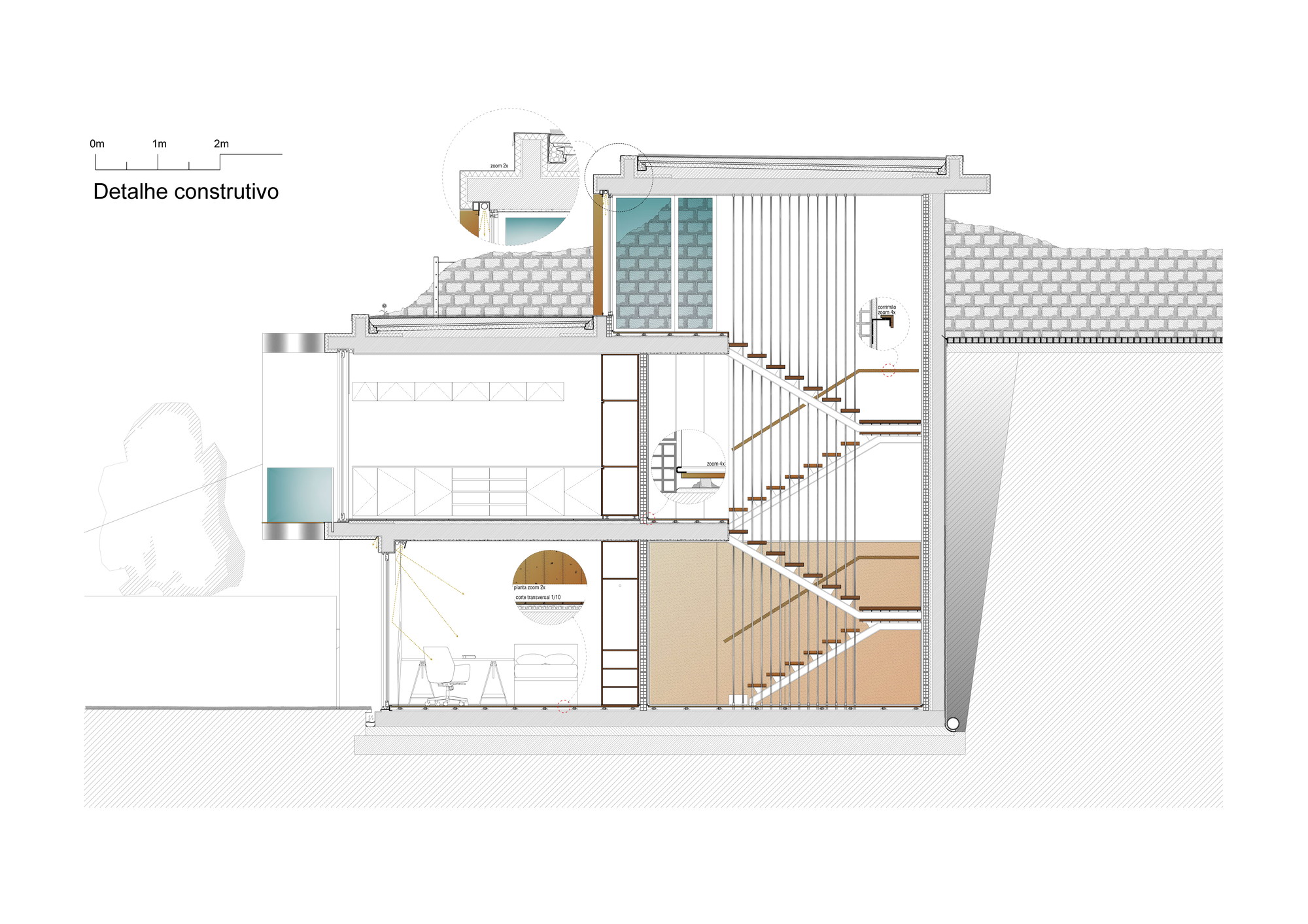

The construction section is worth studying closely. It shows a suspended timber stair with a cable balustrade threading through stacked floors, alongside a stone retaining wall that holds back the hillside. That pairing sums up the building: heavy masonry where the ground pushes, light timber and steel wherever people move.

Why This Project Matters

Most houses on sloping subdivision plots handle the gradient through retaining walls, fill and a flat platform, which erases the very thing that makes the site distinctive. BC House takes the opposite approach. FCC Arquitectura uses the six-meter drop to separate two dwellings, multiply outdoor space, and turn roofs into gardens, all while keeping a modest profile at the street. It is a sensible lesson in letting topography write the section.

The project also shows how far a restrained material palette can go. Weathering steel, render, stone, timber and planting do the expressive work that elsewhere would fall to formal gestures. For architects facing the ordinary constraints of suburban lots, two units, tight footprints and difficult ground, this is a useful precedent: density and generosity do not have to work against each other when the section is doing the thinking.

BC House by FCC Arquitectura, Portugal. Area: 557 m². Completed: 2016. Photography by Bruno Barbosa.
