González Olsina & Vega Arquitectos Build a Black Concrete Temple to Wine Among the Vineyards of Los Chacayes

Wineries in Mendoza's Uco Valley tend to fall into one of two camps. There is the tin-roofed production shed that nobody photographs, and there is the hospitality showpiece that treats the tanks as an afterthought. With La Vigilia Winery, completed in 2022 inside The Vines of Mendoza estate in Los Chacayes, González Olsina & Vega Arquitectos refuse that split. Their 1,700 m² building is designed to be an industrial facility and a "temple to wine" at the same time. The firm reaches that double identity through restraint: black-pigmented concrete, oxidized metal and a disciplined handling of light.

What interests us most is how the project handles time. The architects built the scheme around the temporality of wine, meaning production, rest, maturation and waiting. They then translated those phases into how fast you move and what you are allowed to see. Staff and visitors run on separate circulation systems. The working routes are direct, while the visitor route slows down on purpose. That decision about choreography does more for the building than any single formal gesture.

A Low Line in the Uco Valley

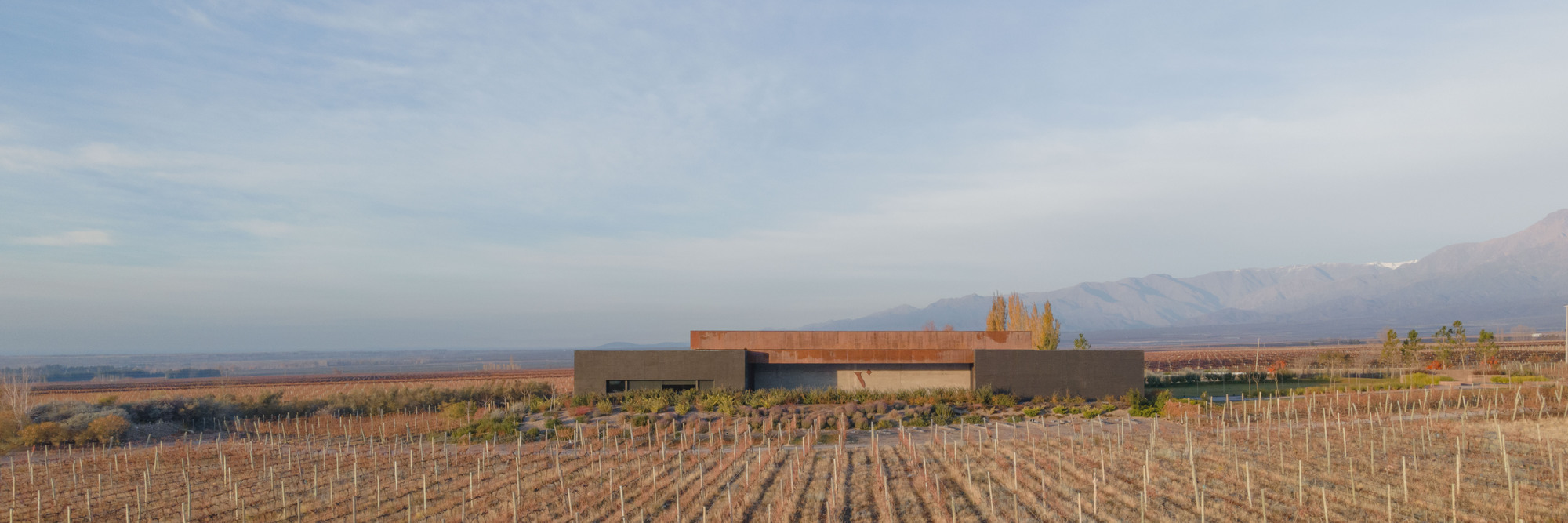

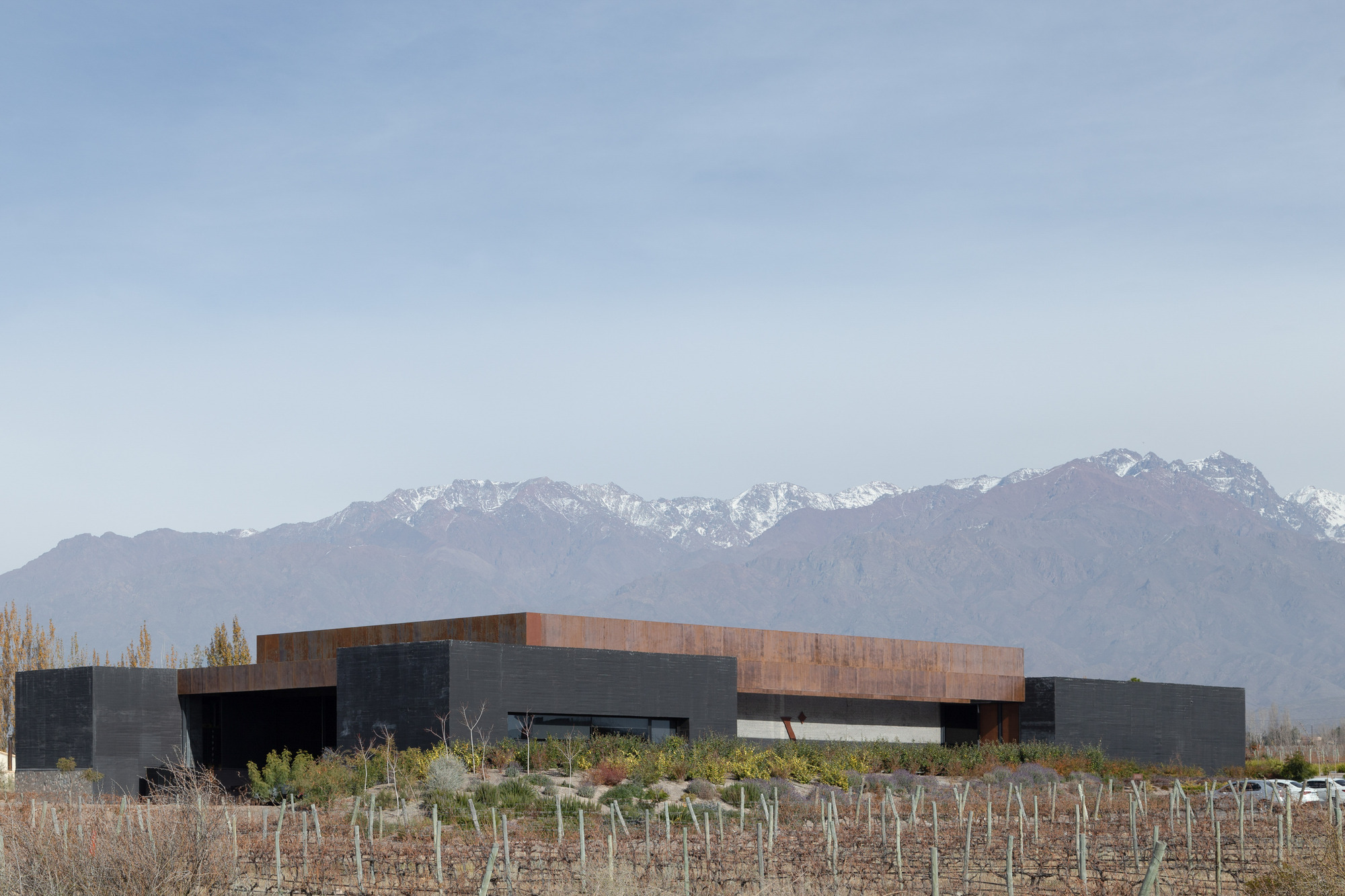

About 85 km southwest of the city of Mendoza, the site is open vineyard with the Andes filling the western horizon. A tall building would have been an easy error here, competing with the mountains for attention. Instead, the winery stays low and horizontal. Its dark concrete base reads almost as a shadow under the rust-colored band that caps it.

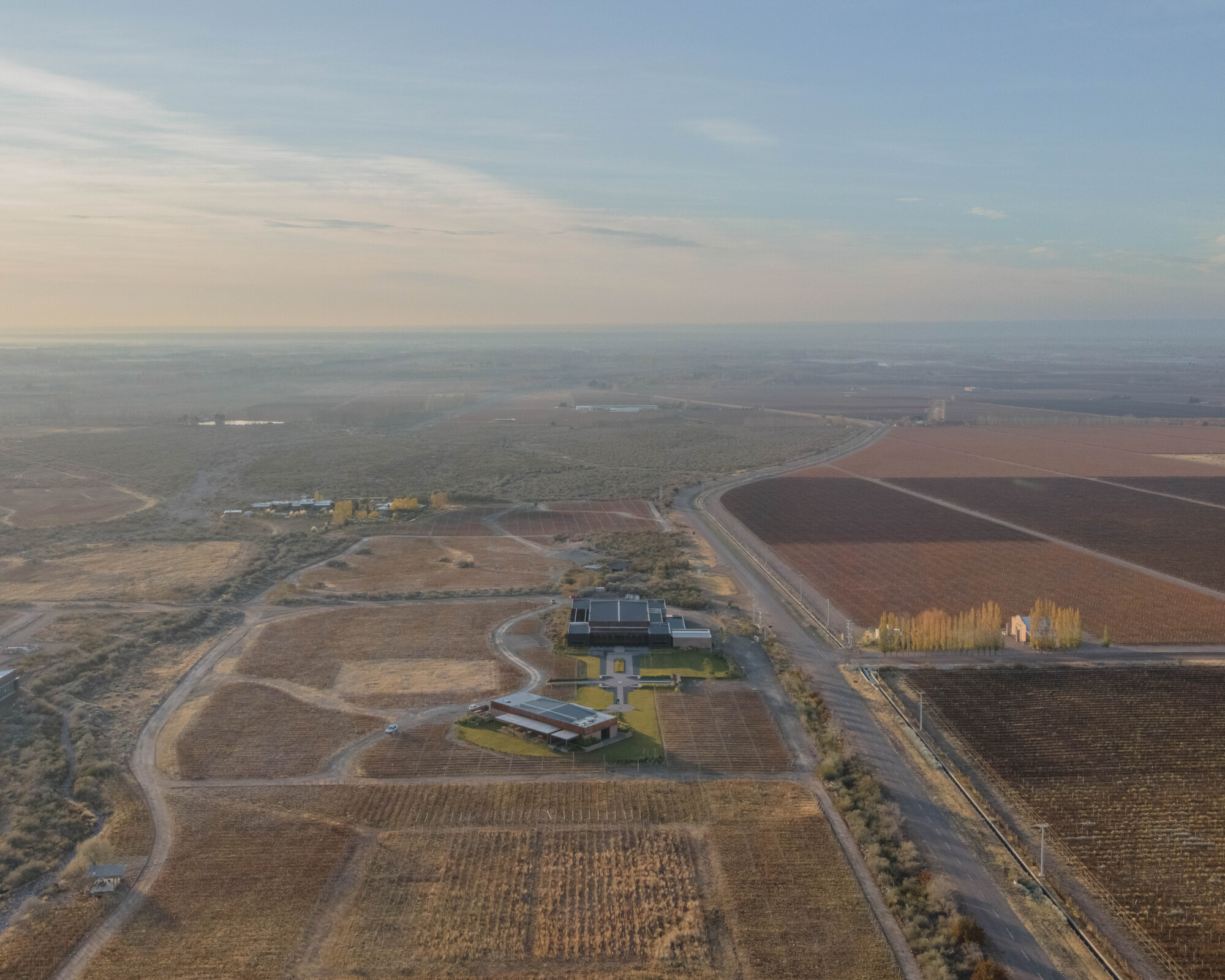

The aerial view clarifies the estate logic. The winery pairs with a second building and a green courtyard, set into the grid of vineyard plots and dirt roads. Together with the nearby ROPE Restaurant, it forms a wine and gastronomic destination. In that setting, the winery acts as one stop in a landscape circuit, so it does not need to be a lone icon.

Scrub, Stone and Snow

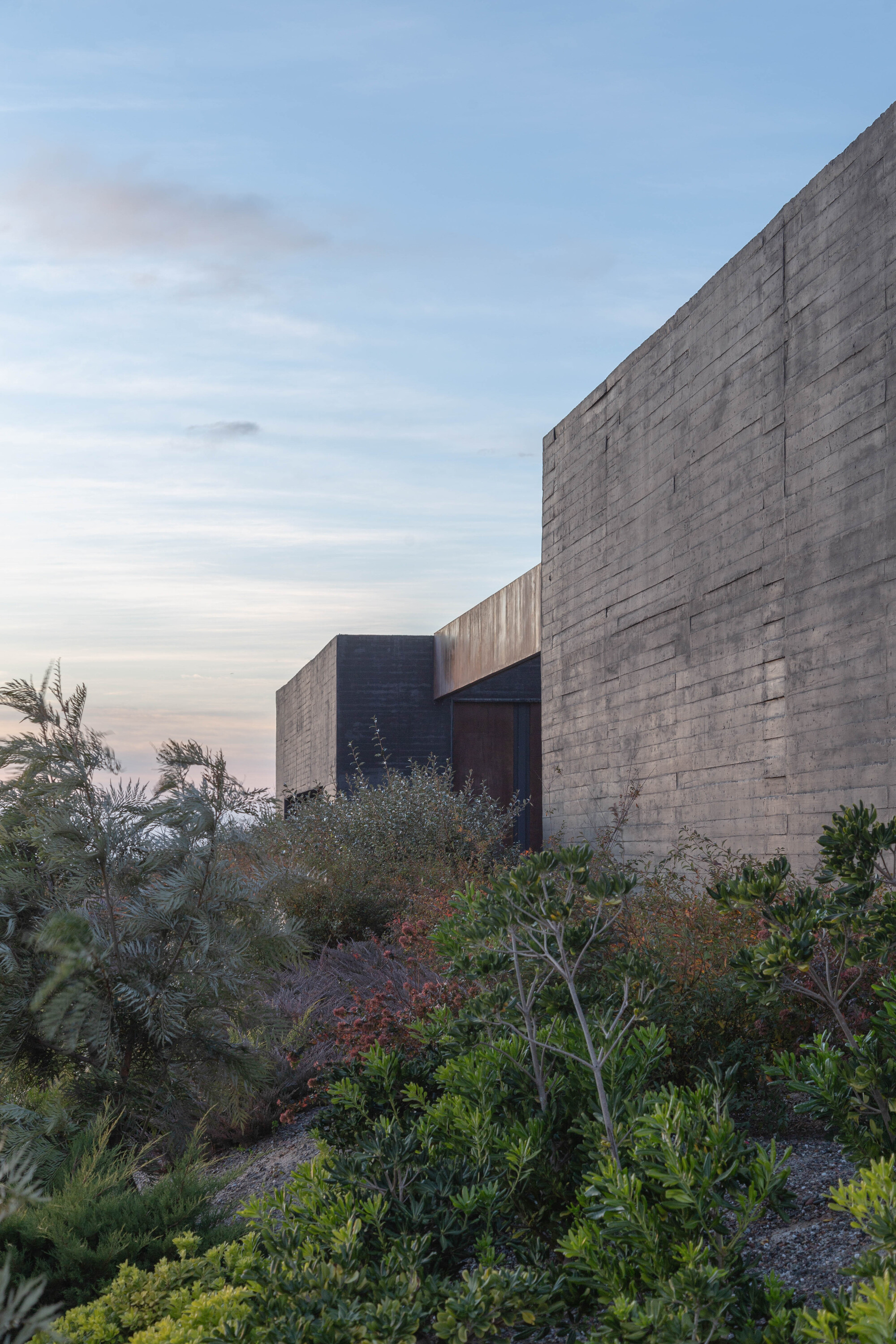

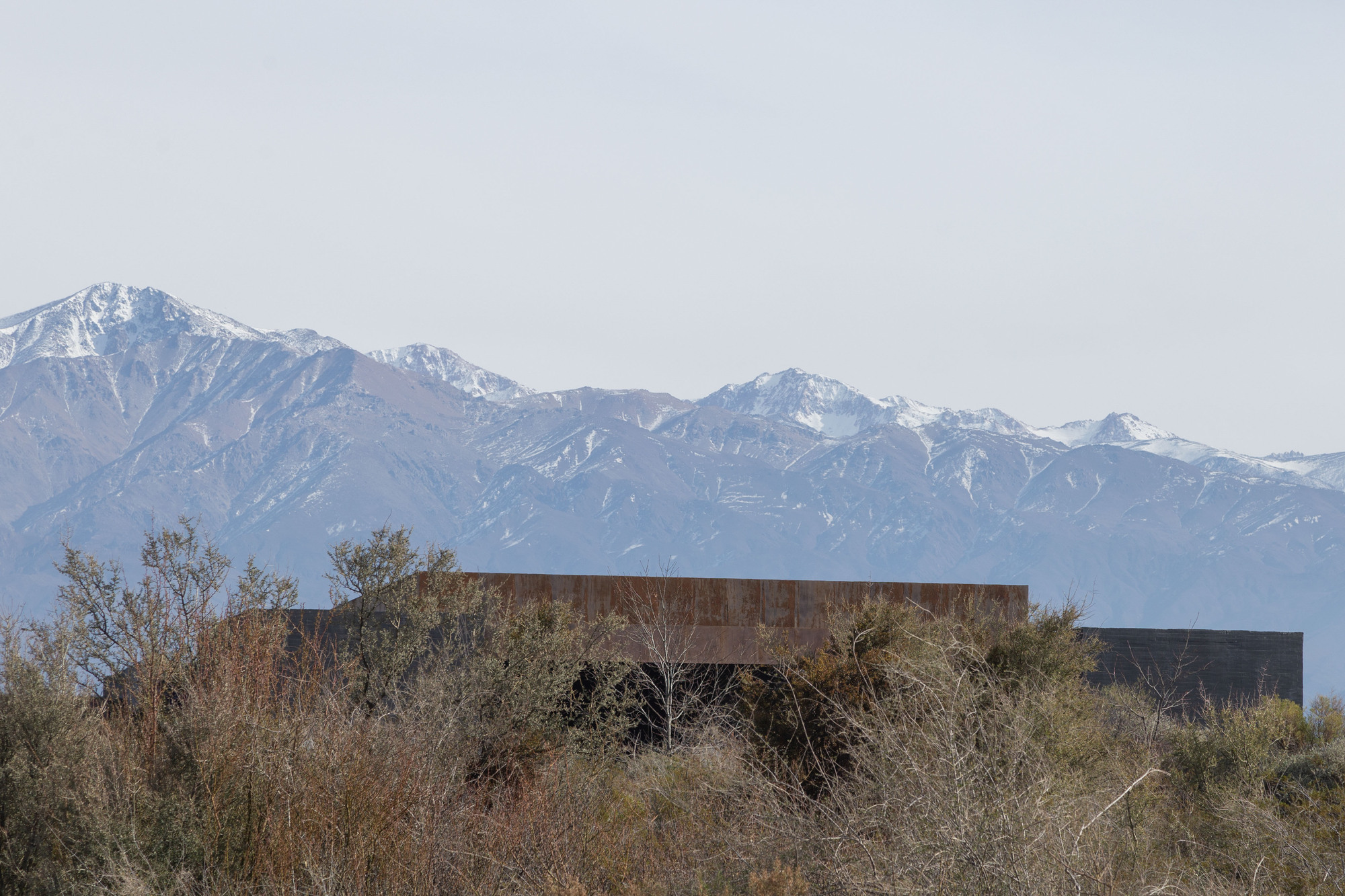

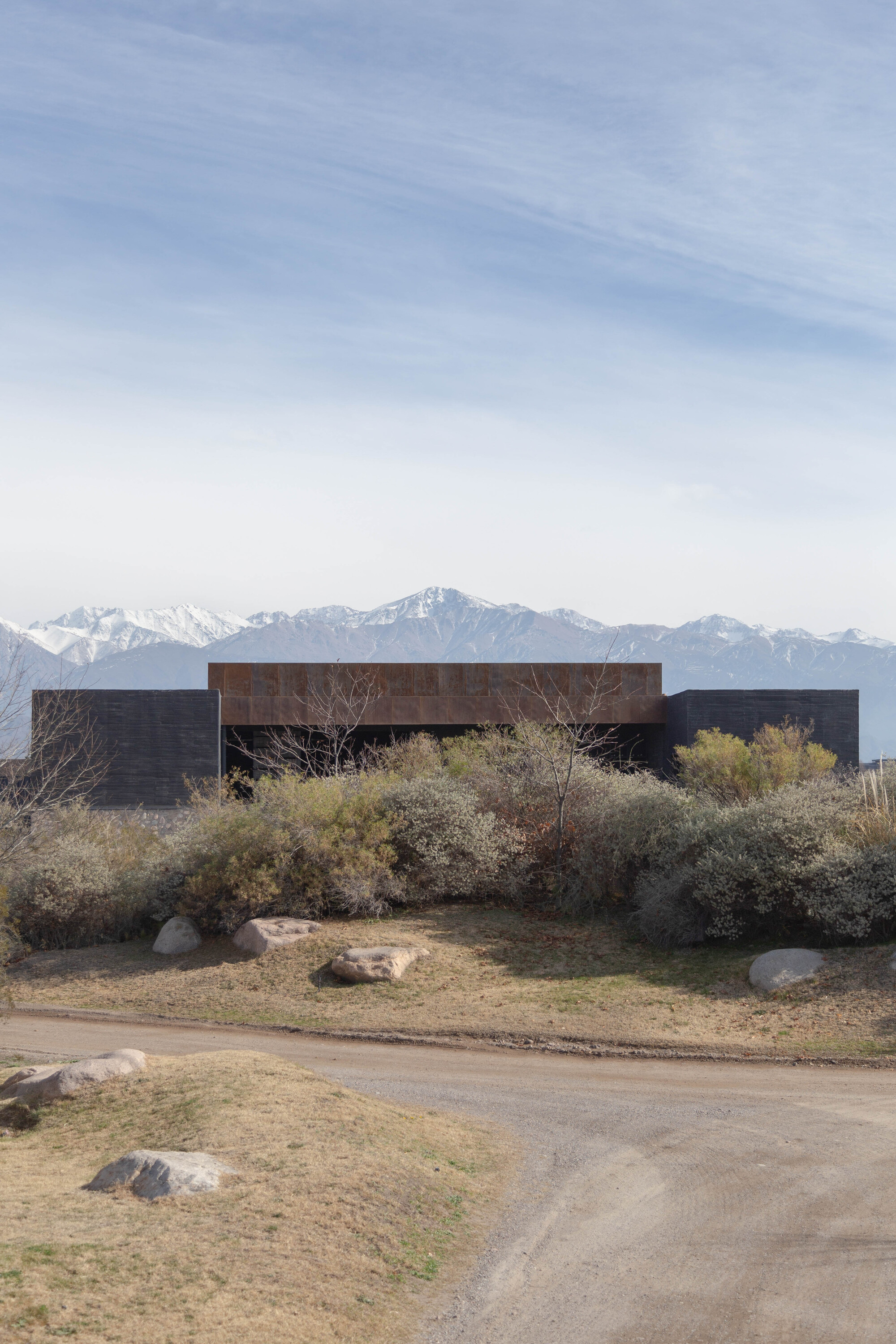

Landscape architect Eduardo Vera plays the planting close to the native palette. Dry scrub, boulders and low shrubs grow right up to the walls. As a result, from certain angles the weathering steel volume half disappears into the brush. The steel's oxidized surface helps that blending, because its color sits close to the dry earth tones of the valley floor in the hazy light.

We think this is the right call. A manicured lawn would have turned the building into a resort. The scrub keeps it anchored to the semi-arid ground it actually occupies, and the snowcapped range behind becomes the only element of drama.

The Ceremonial Front

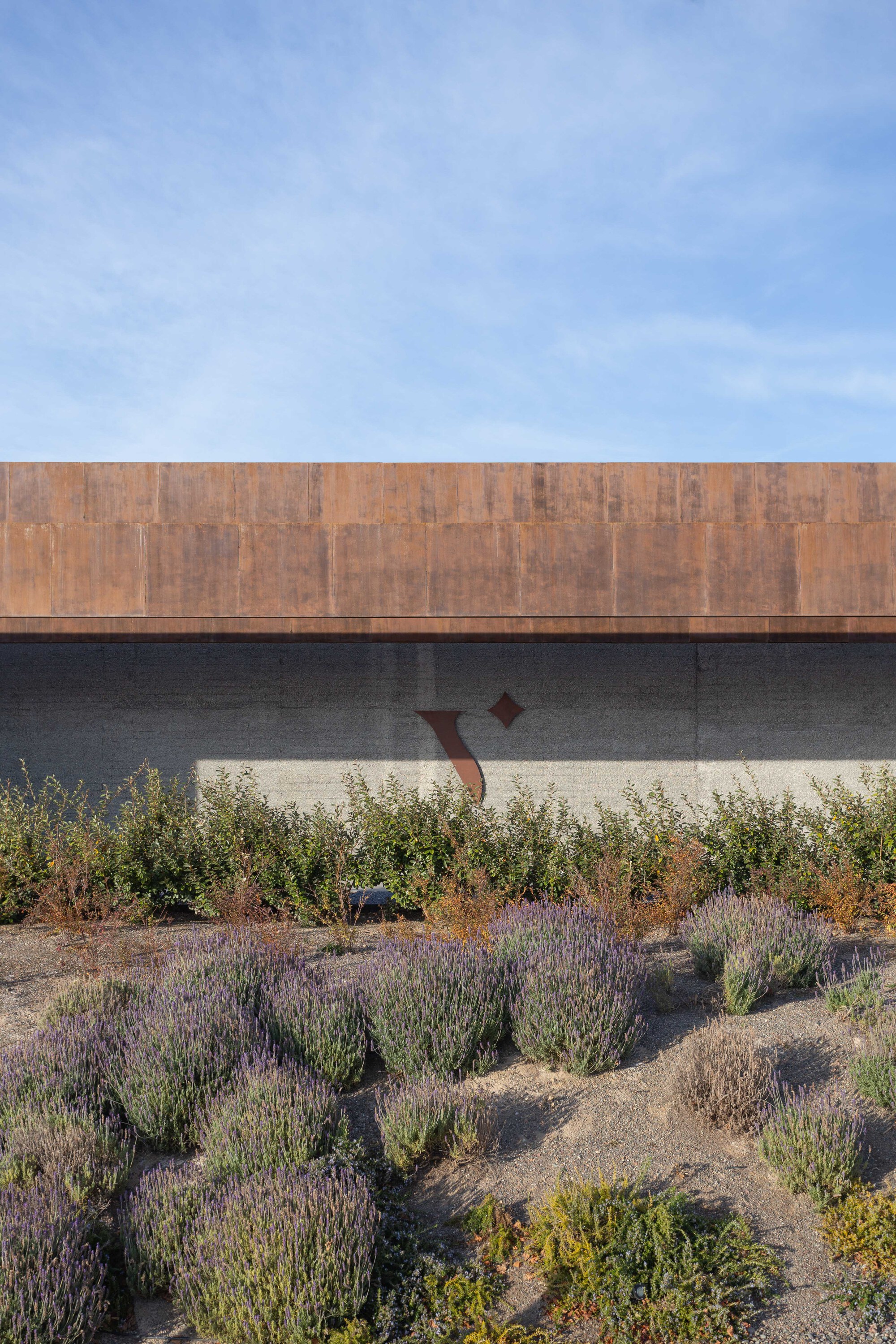

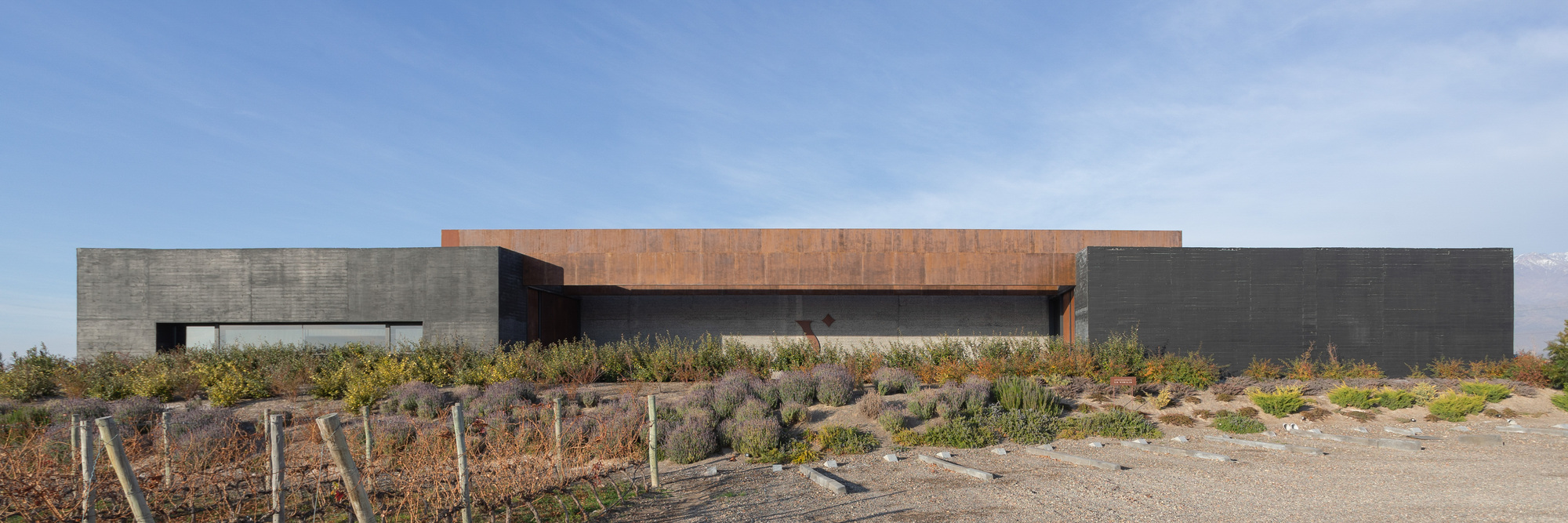

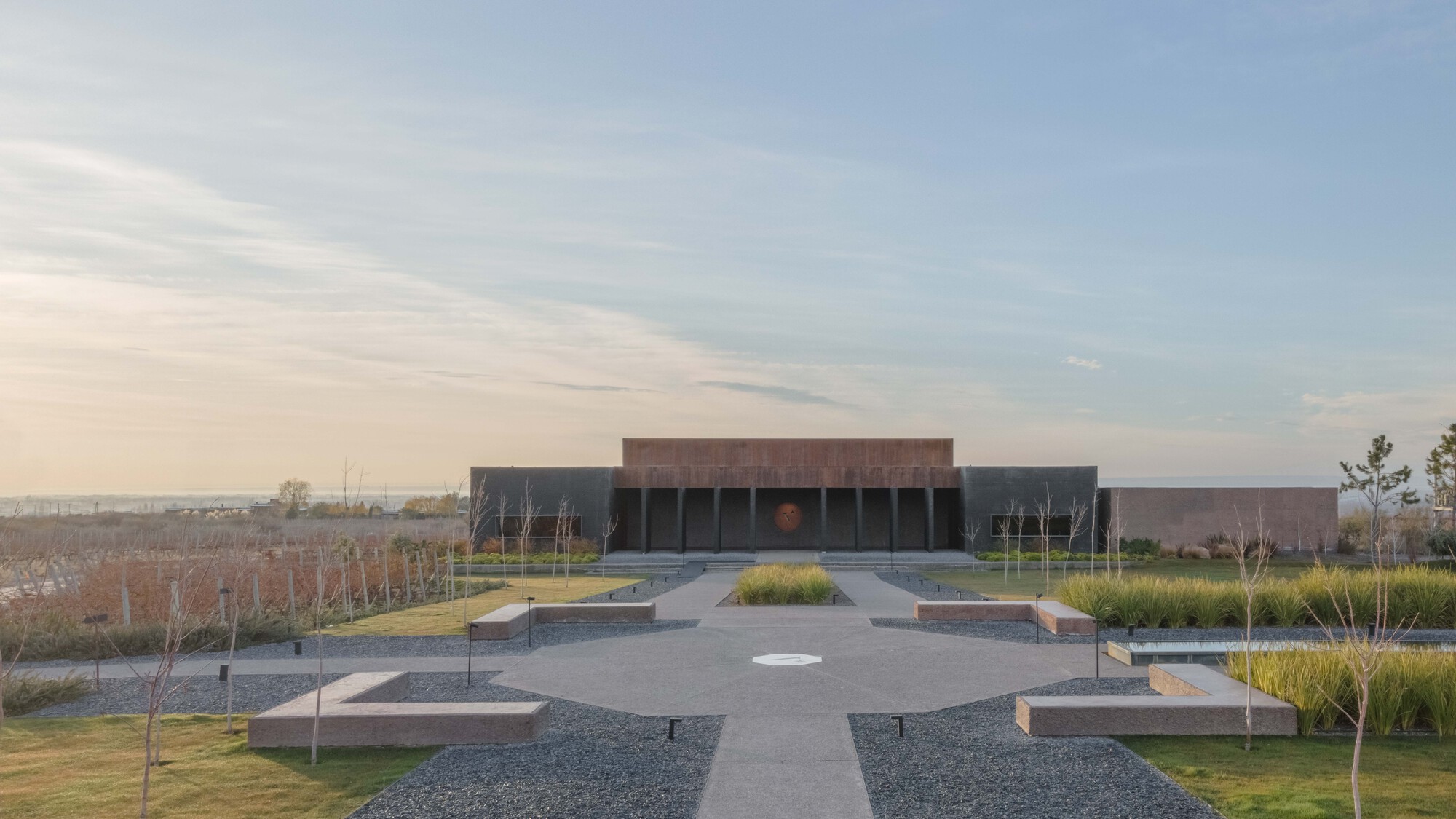

The main approach is the one place where the architects allow strict symmetry. A gravel court with stone benches and grasses leads straight to the pavilion, which sits low and centered. The front elevation stacks dark concrete walls beneath the weathering steel band. Lavender and grasses soften the base without hiding it.

This axial setup is a borrowed device, and the firm uses it knowingly. Arriving head-on at a symmetrical facade is the oldest way architecture signals that you are entering somewhere that matters. Here, the procession tells you the visitor route is a ritual before you reach the door.

Fins, Columns and the Emblem

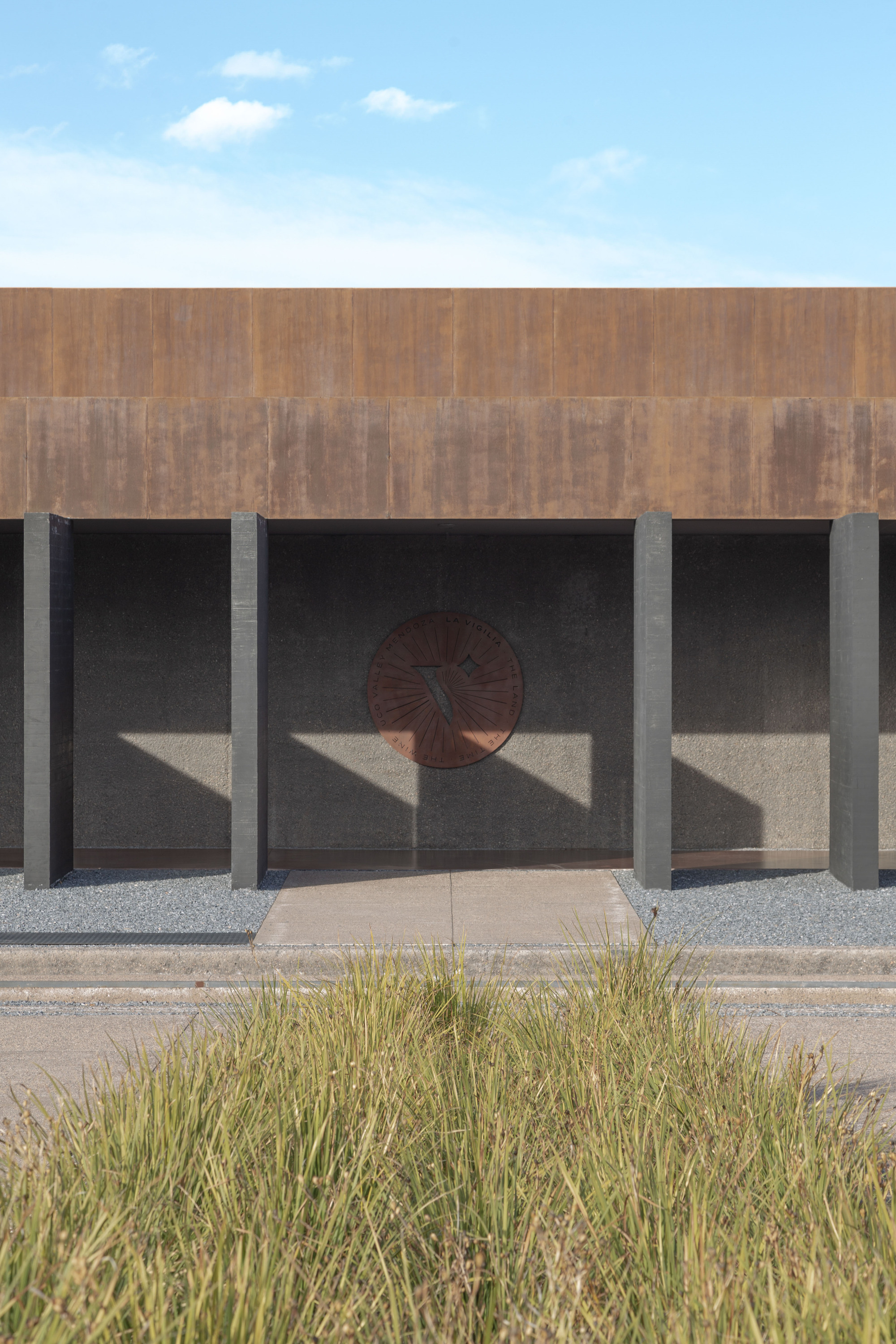

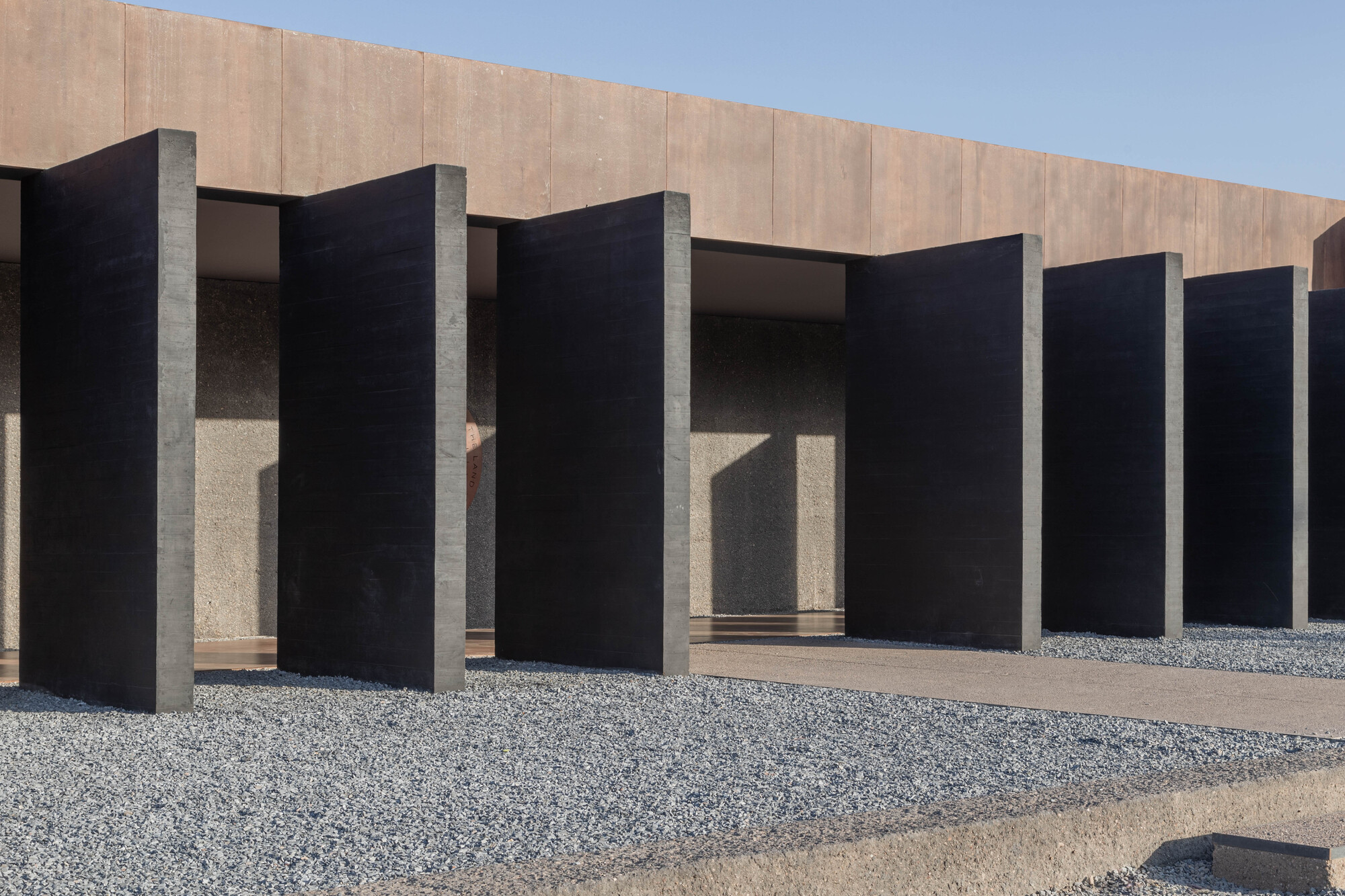

Up close, the front breaks into a rhythm of tall black concrete fins and slim dark columns standing over gravel. Behind them, the steel facade recedes. The circular rusted emblem, repeated on the rear wall of the entrance, works as a focal point at the end of the axis. In practice, it serves as the building's secular altarpiece.

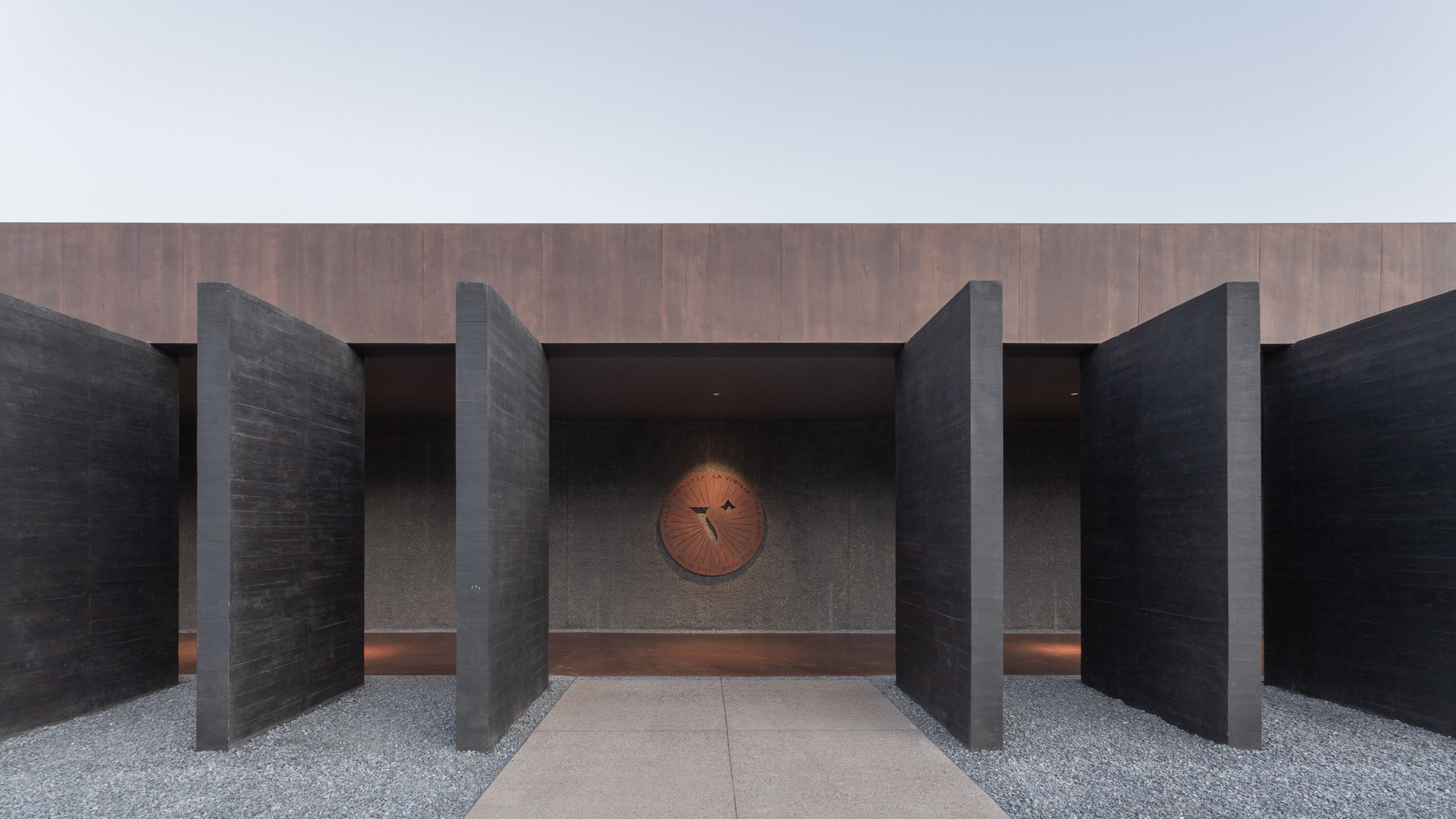

The board-formed slabs that frame the entrance keep the timber grain of their formwork, which gives the dark concrete a fine surface texture. Because of that texture, the fins never read as cold or extruded. They catch raking light like the bark of a tree, which matters on a facade built almost entirely from two materials.

Black Concrete and Hard Shadow

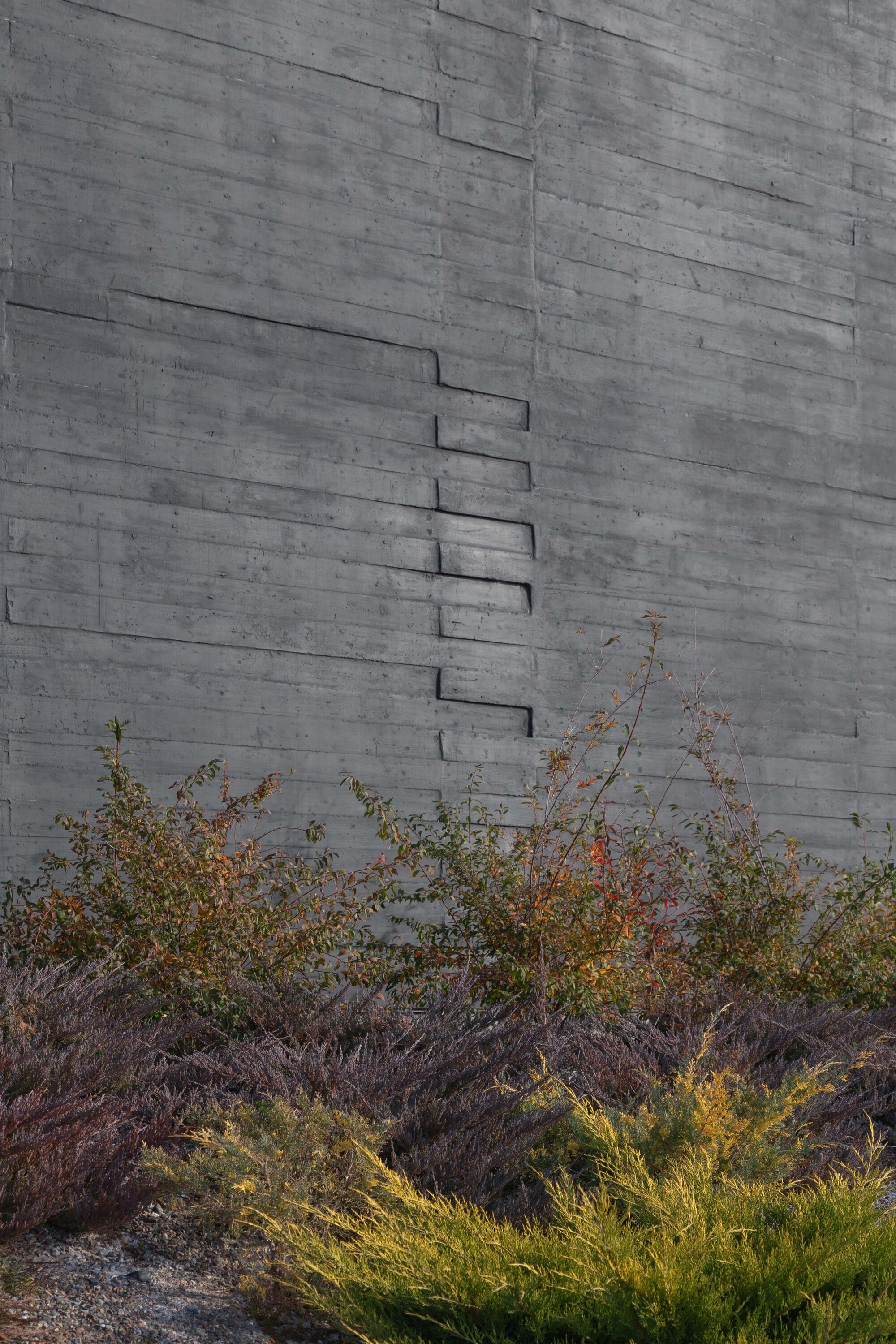

Pigmenting the concrete black is a bigger decision than it might look. Grey concrete in strong Andean sun can flatten into glare. Dark concrete absorbs light and makes every shadow edge sharper. The board-formed walls with stepped, offset joints show this clearly in late light, as the relief of each pour becomes a line of shadow.

The close-up of rough plaster split by a diagonal shadow sums up the project's method. Here, light is treated as a material in its own right, controlled and cut by the building instead of simply let in. The narrow horizontal window rising above the lavender slope follows the same restraint: one carefully placed opening, with no glazed wall.

The Walkway as a Clock

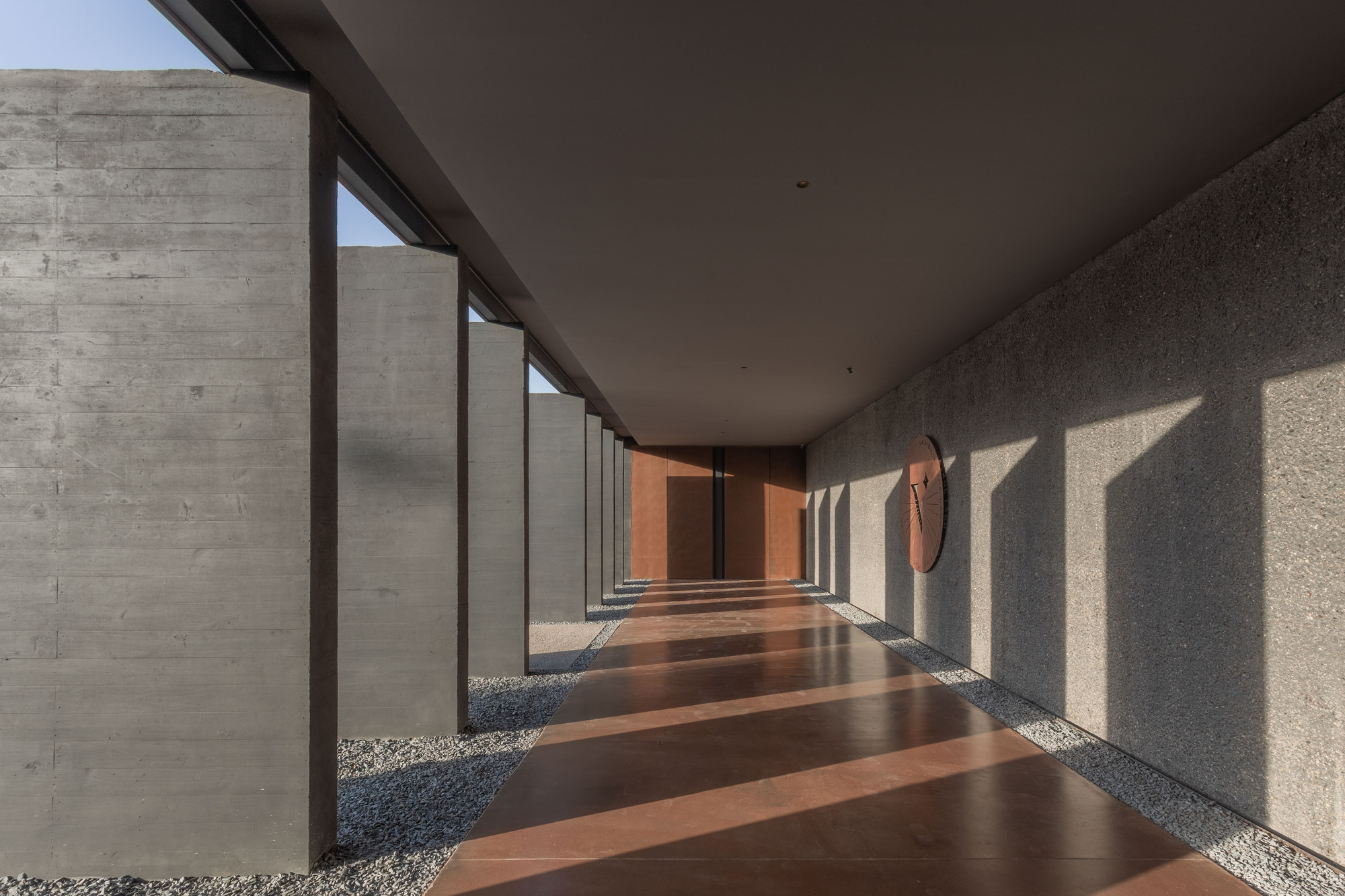

The covered walkway may be the most successful space on the project, and it contains almost nothing. Concrete piers line a red-brown floor. The sun throws alternating bands of light and shadow along the textured wall, and those bands shift through the day. You read the passing hours as you walk, which is exactly the theme of waiting and maturation the architects set out to express.

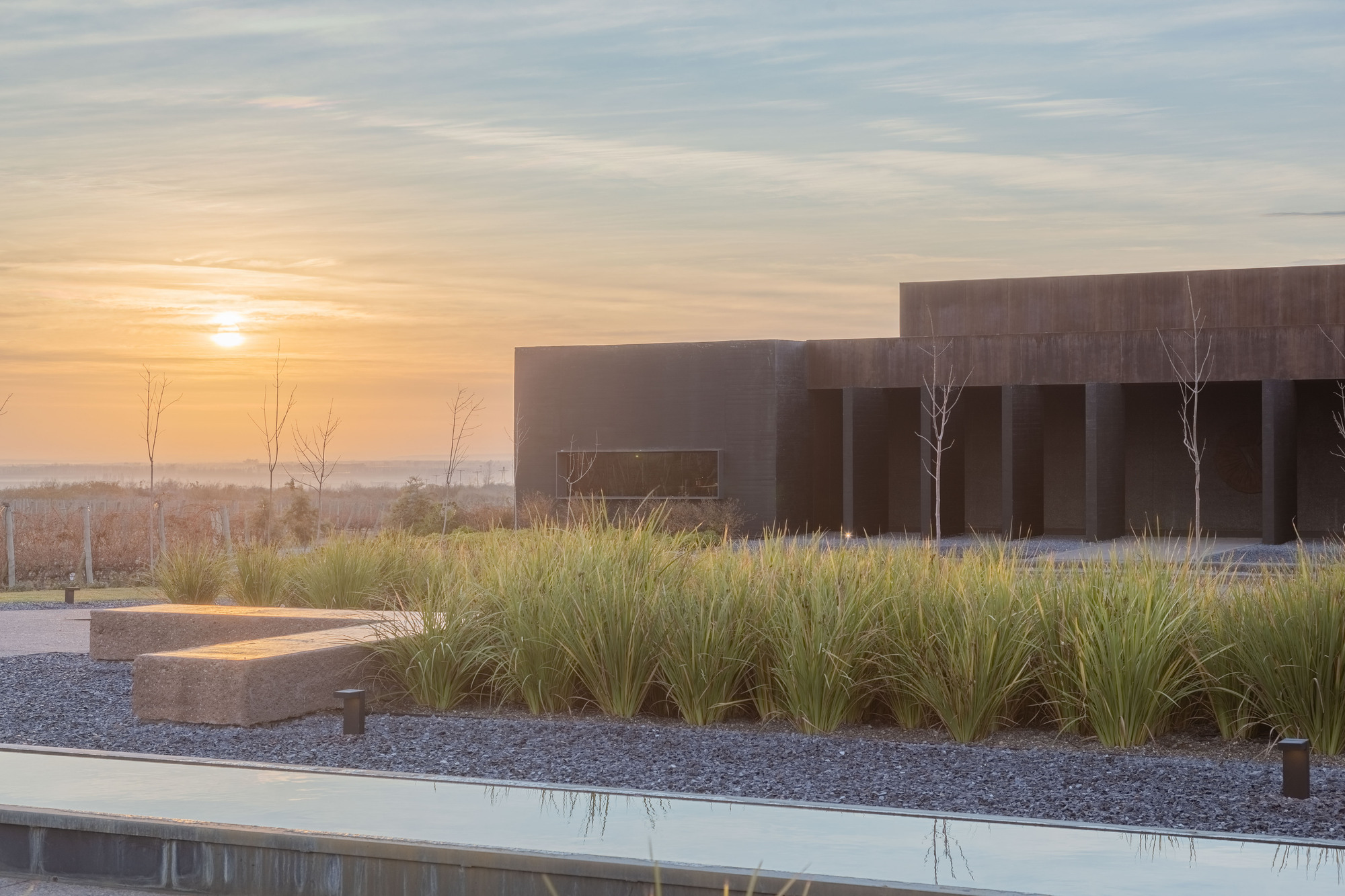

At sunrise, the colonnaded porch sits behind a gravel bed of tall grasses and a still water channel. The water doubles the colonnade and slows the eye before the building even begins. It is a modest landscape gesture that sets the tempo for the visitor route.

Inside the Production Hall

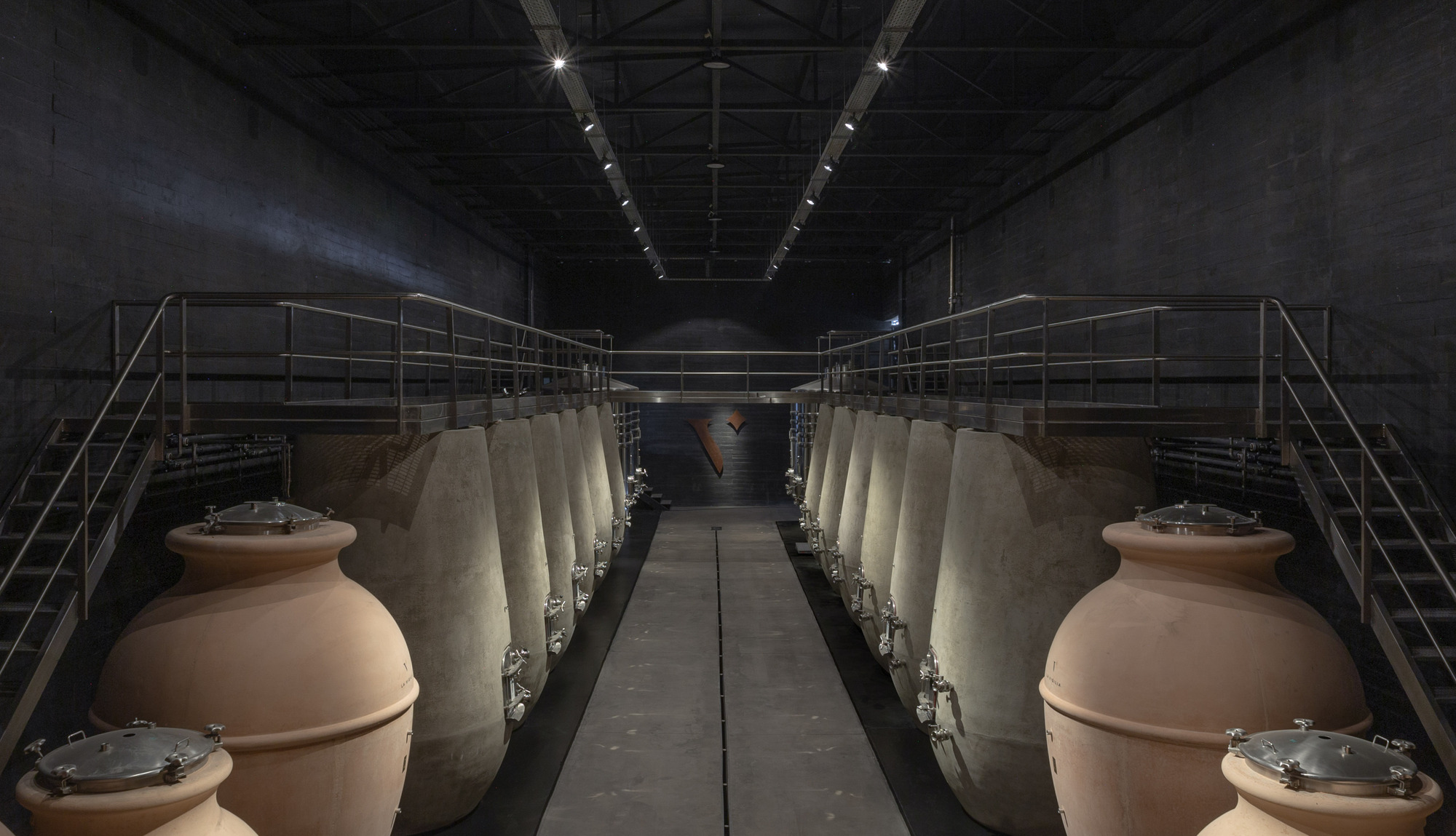

The technical areas follow the precision that winemaking demands. In the dark concrete hall, a row of large clay fermentation vessels sits beside steel catwalks and stairs, picked out by track spotlights. The lighting is theatrical, but the layout is practical: the catwalks are there for access to the vessels, not for display.

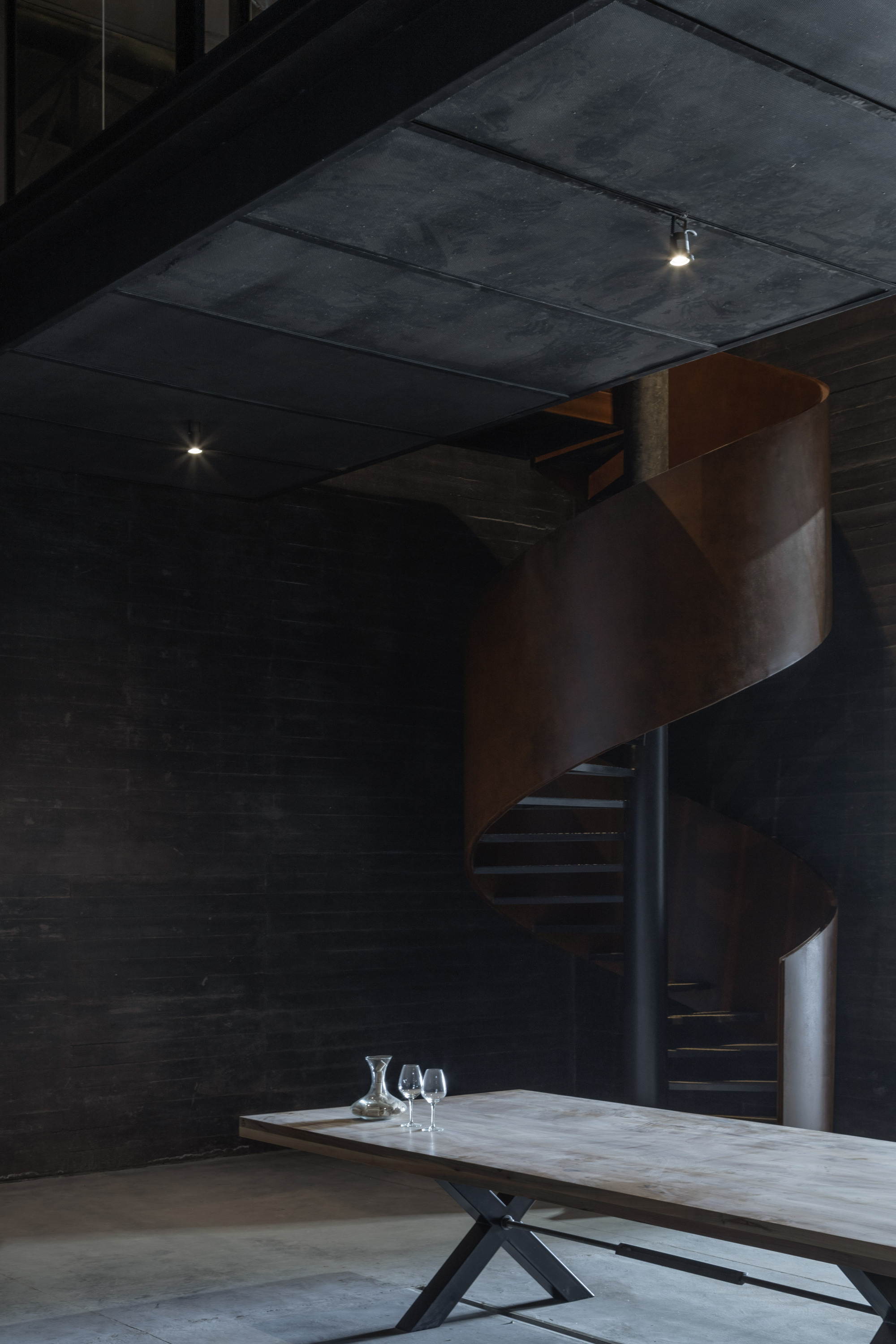

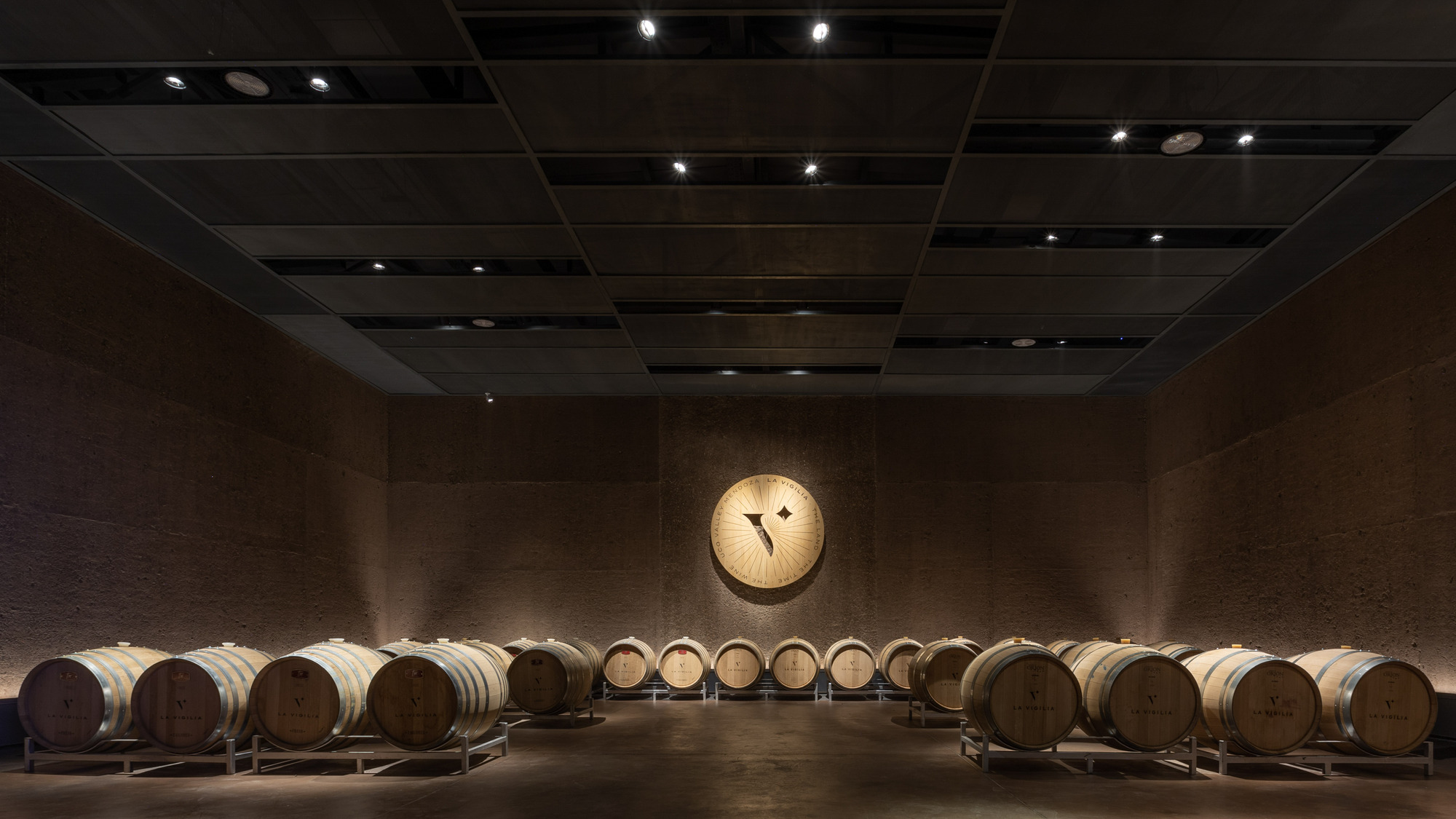

In the barrel room, oak casks line up facing the circular emblem again, this time set on an earthen wall under a dark coffered ceiling. A rusted steel spiral stair rises beside a dark masonry wall. The palette of rust, timber, clay and dark mass stays consistent from the facade to the barrel rack. That consistency is why the building's claim to be both factory and temple feels earned and not decorative.

Rooms for Tasting and Waiting

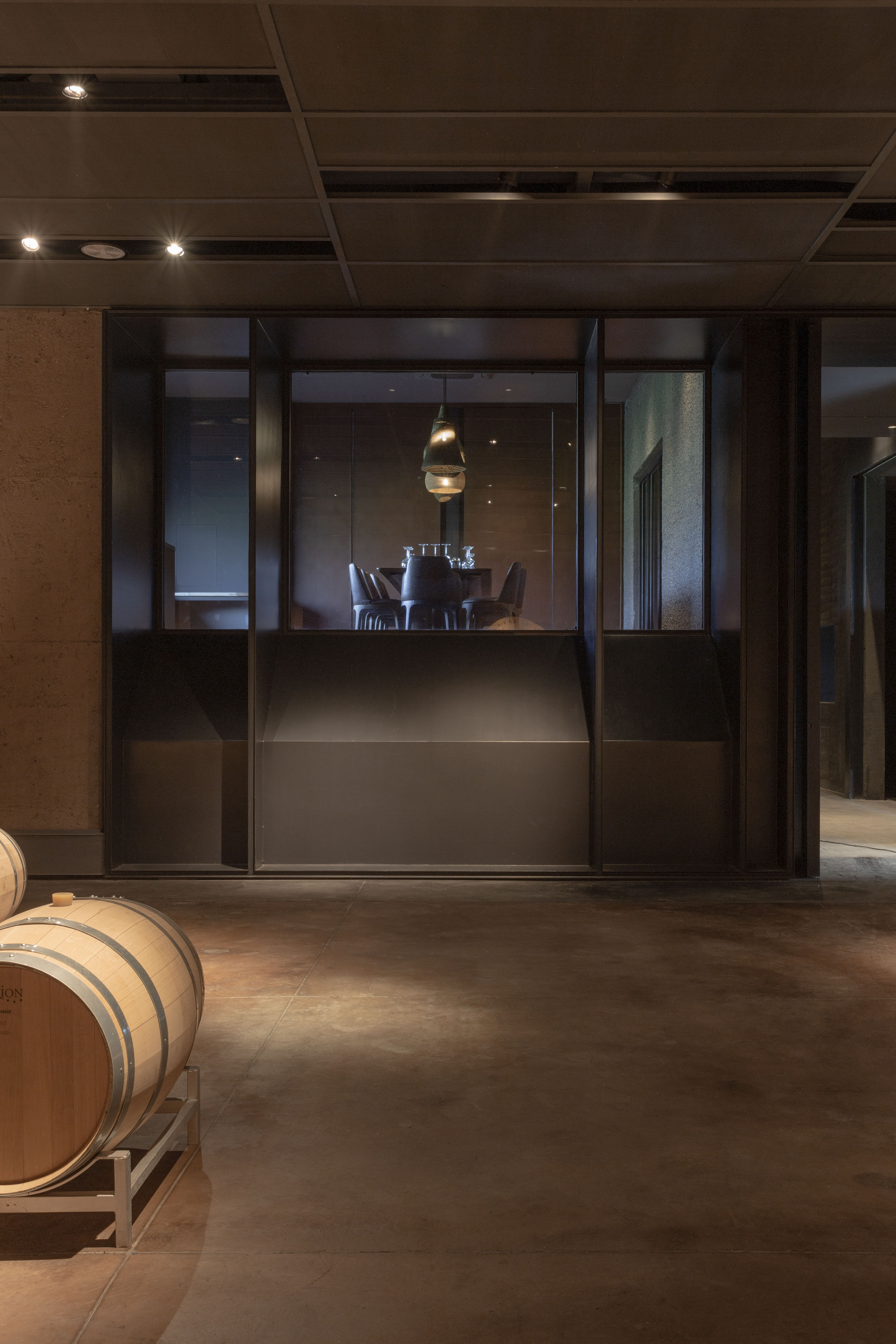

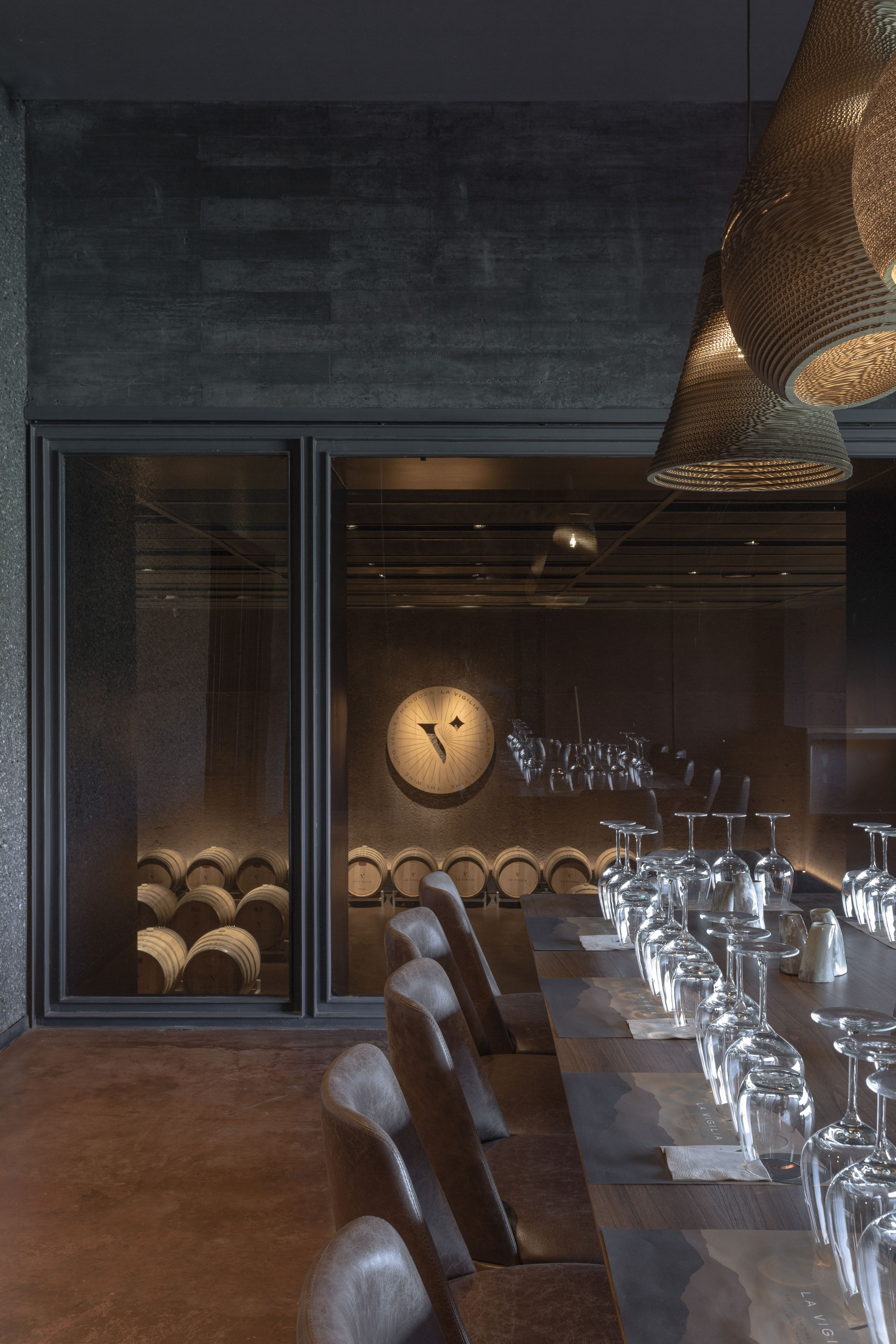

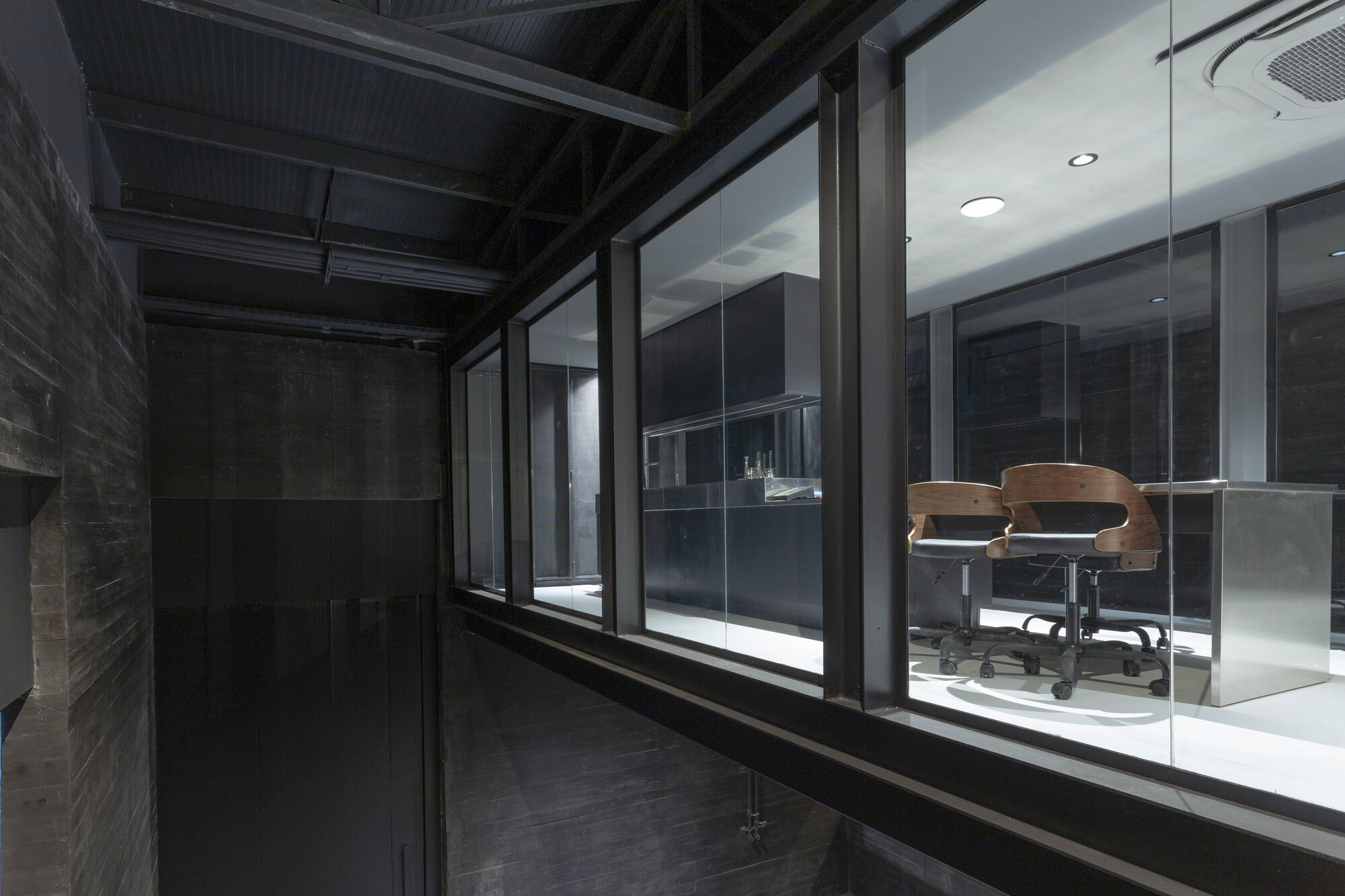

The four equidistant volumes house the entrance hall, the tasting room, the meeting room and the production offices. The visitor spaces are tuned to look back into production. A long communal table faces a glazed wall onto stacked barrels. A single barrel on a steel rack sits in front of a metal-framed partition, with a dining table glowing beyond. At night, the tasting room appears through steel-framed glazing from a dark board-formed corridor.

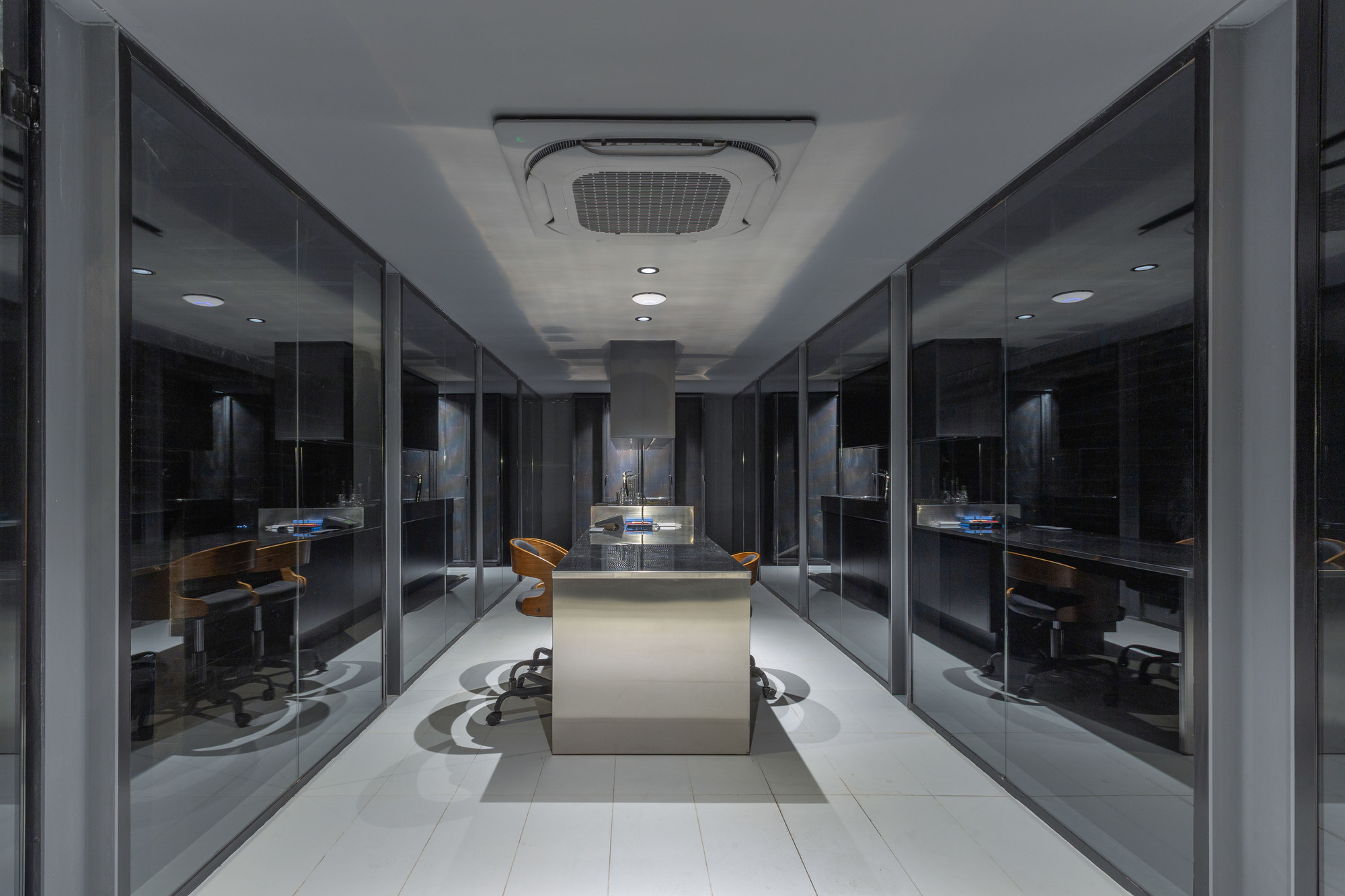

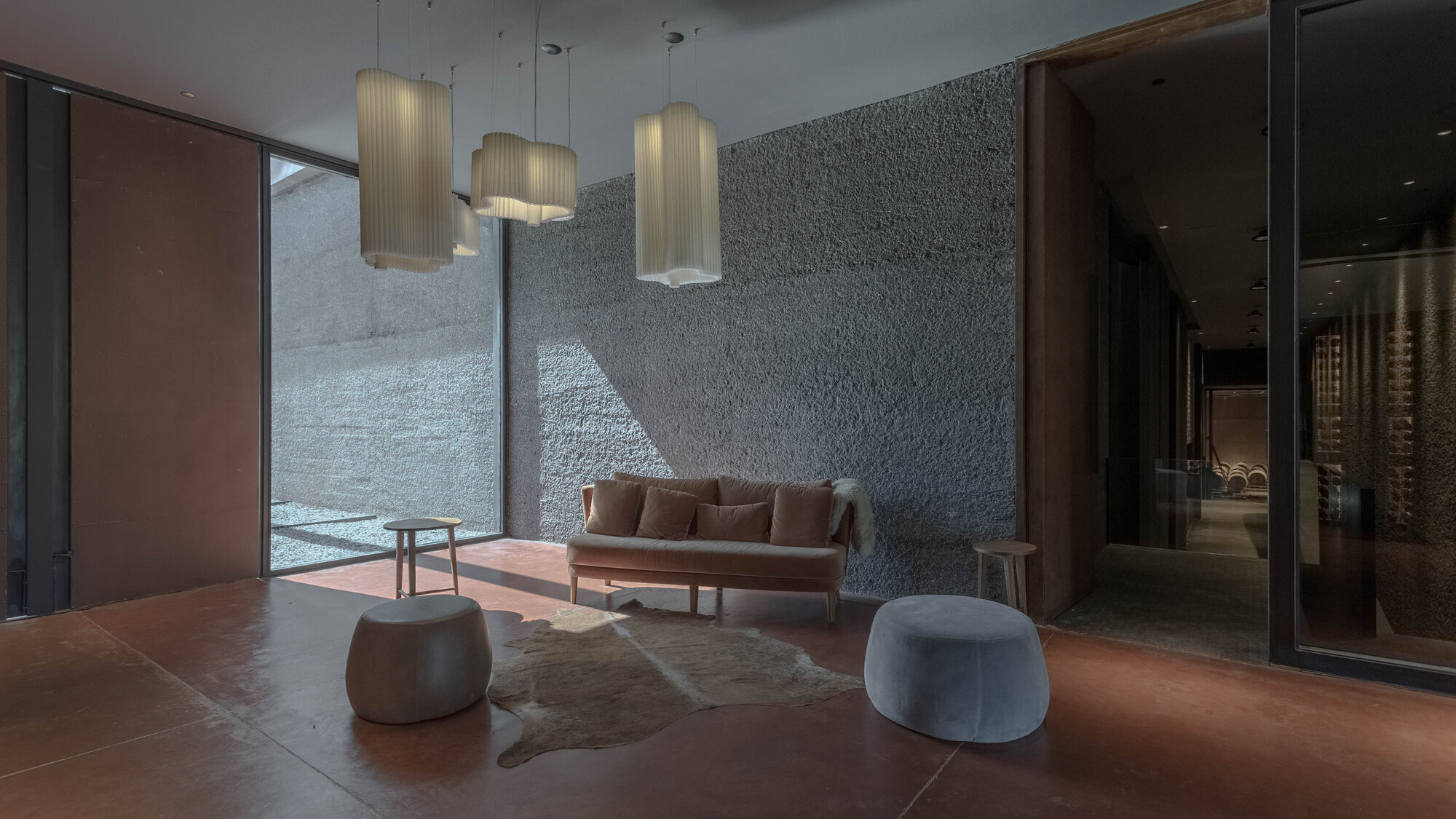

These sightlines let visitors watch the work without crossing the staff routes, which is the practical payoff of keeping the two circulation systems separate. The spaces vary in how enclosed they are, which way they face and what they see. A glass-walled office cluster around a stainless steel island sits close to a softer lounge lit from a side courtyard. Rather than one open hall, the building offers a sequence of moods, each tied to a different phase of the wine's life.

Plans and Drawings

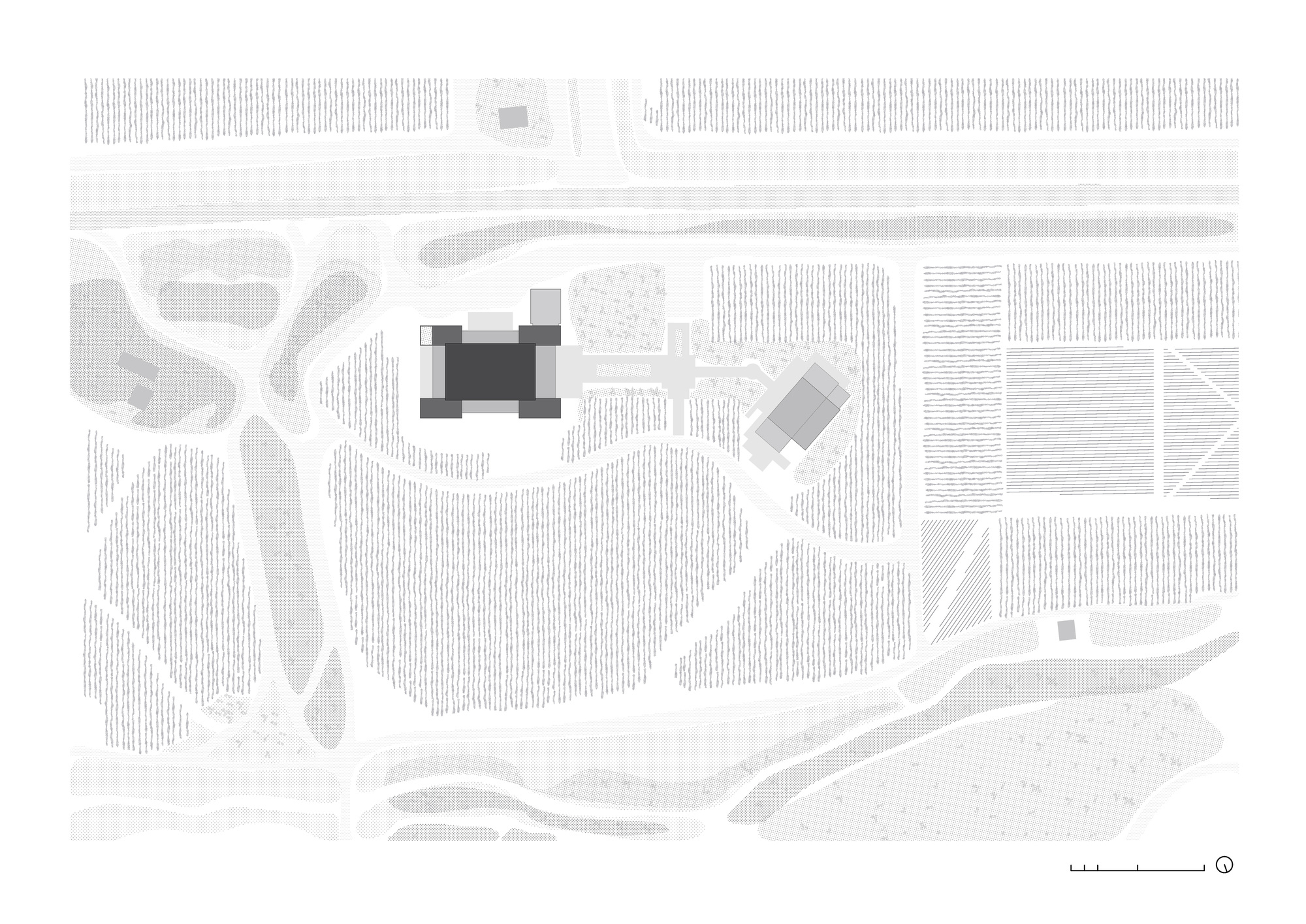

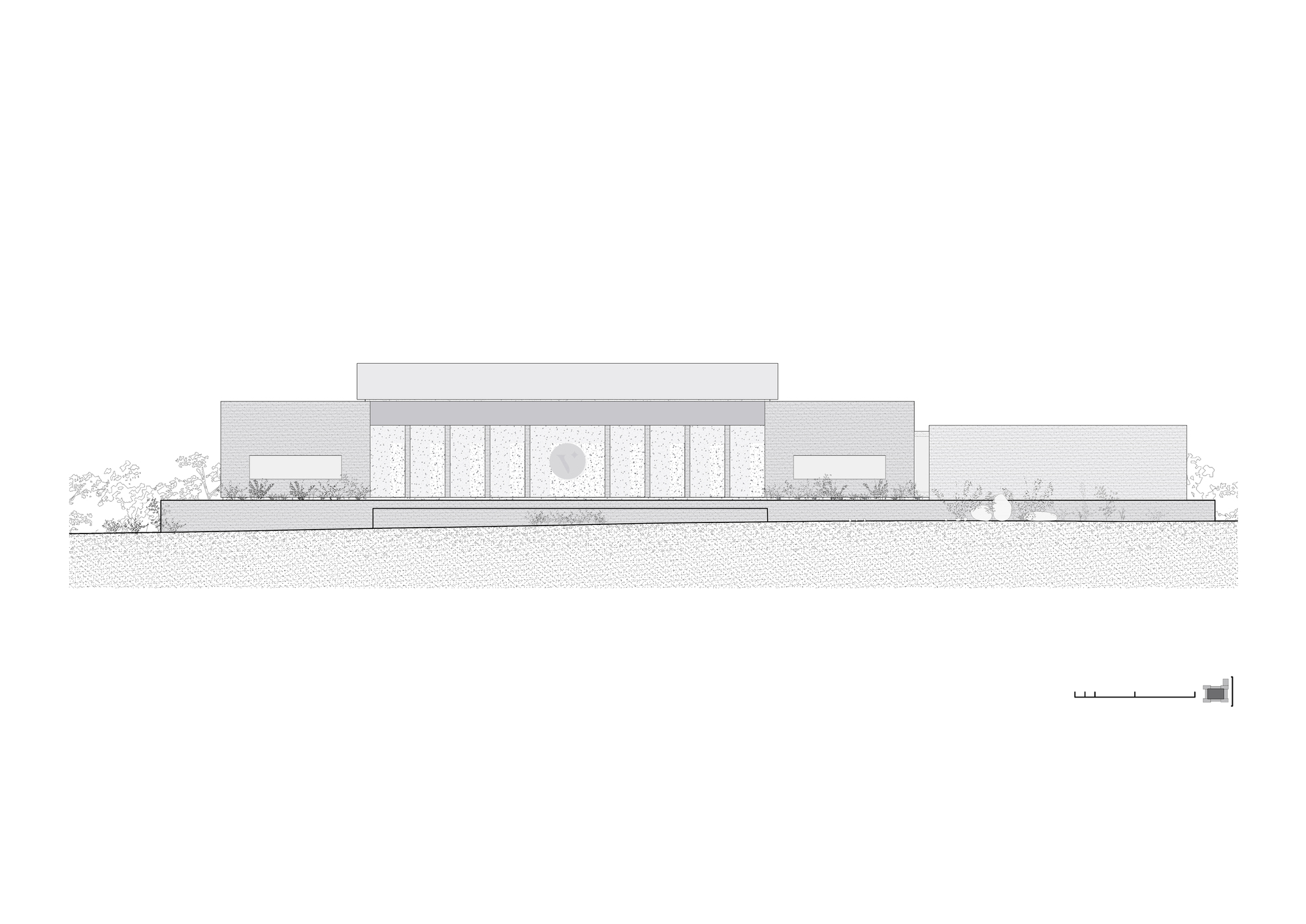

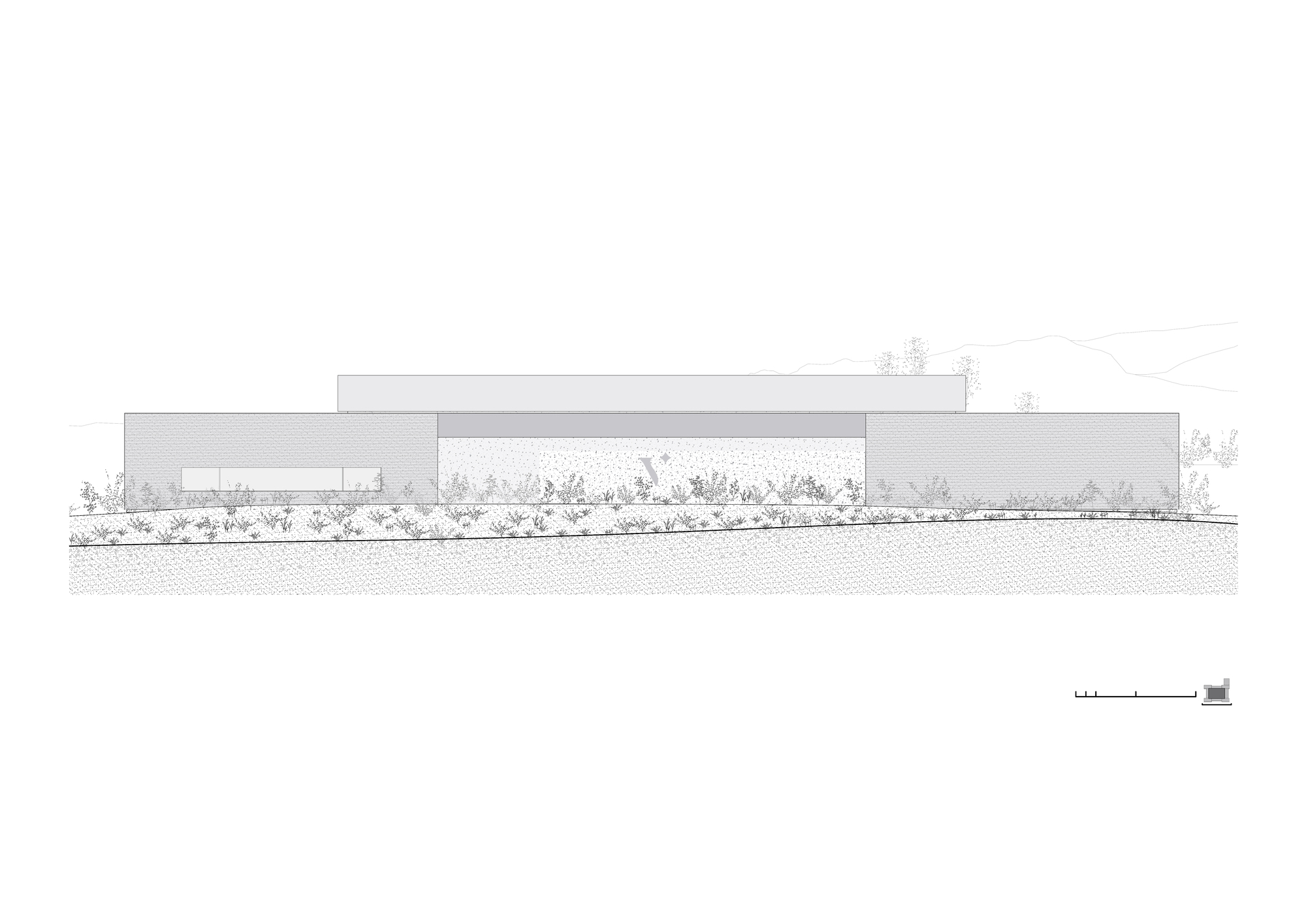

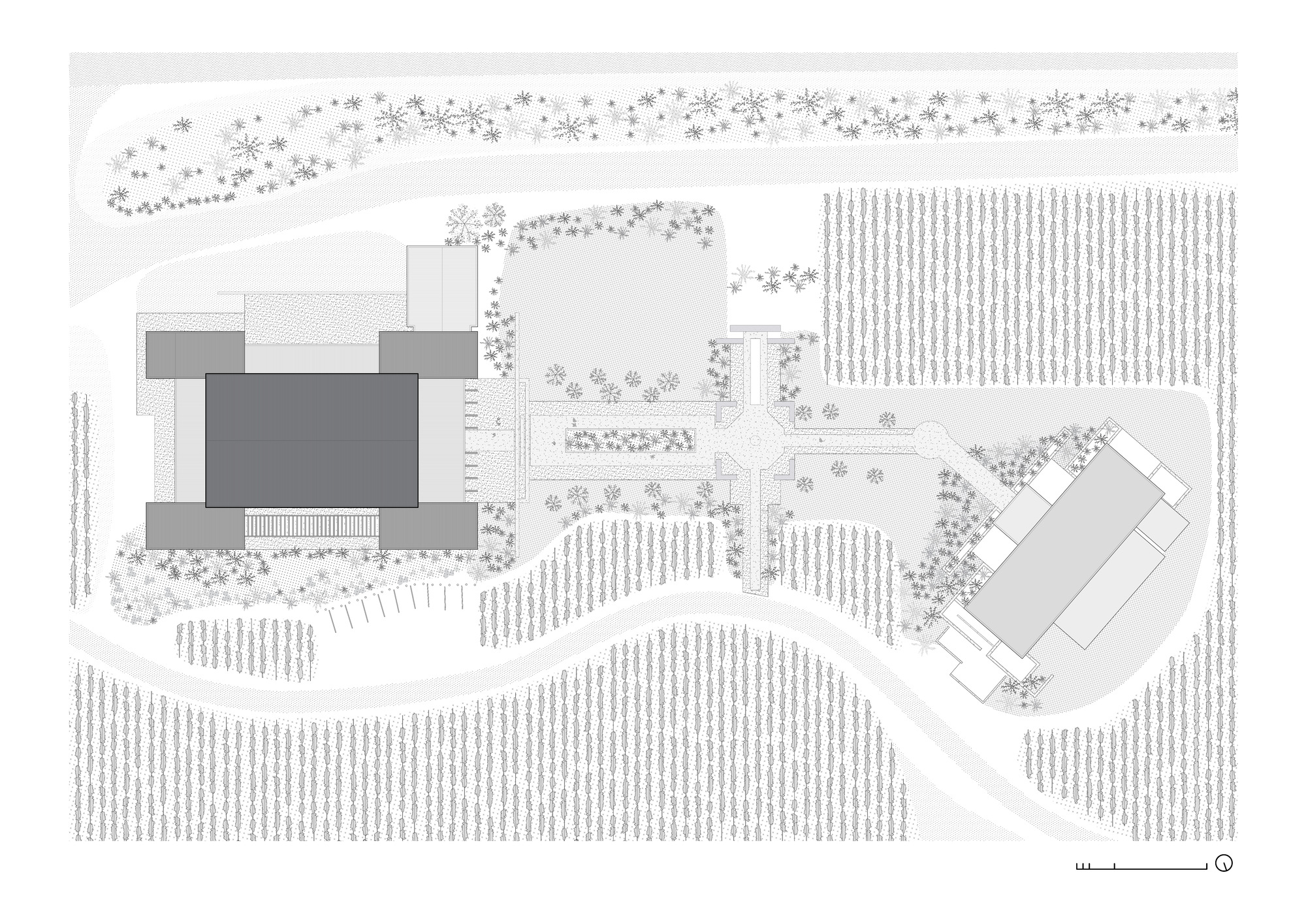

The site plans show the main rectangular building linked by a tree-lined axial path to a second, angled building, with both set inside the vineyard rows. The elevations confirm the strategy we see in the photographs: a long, low mass, a raised upper volume and a central colonnade of tall glazed bays marked by the round emblem.

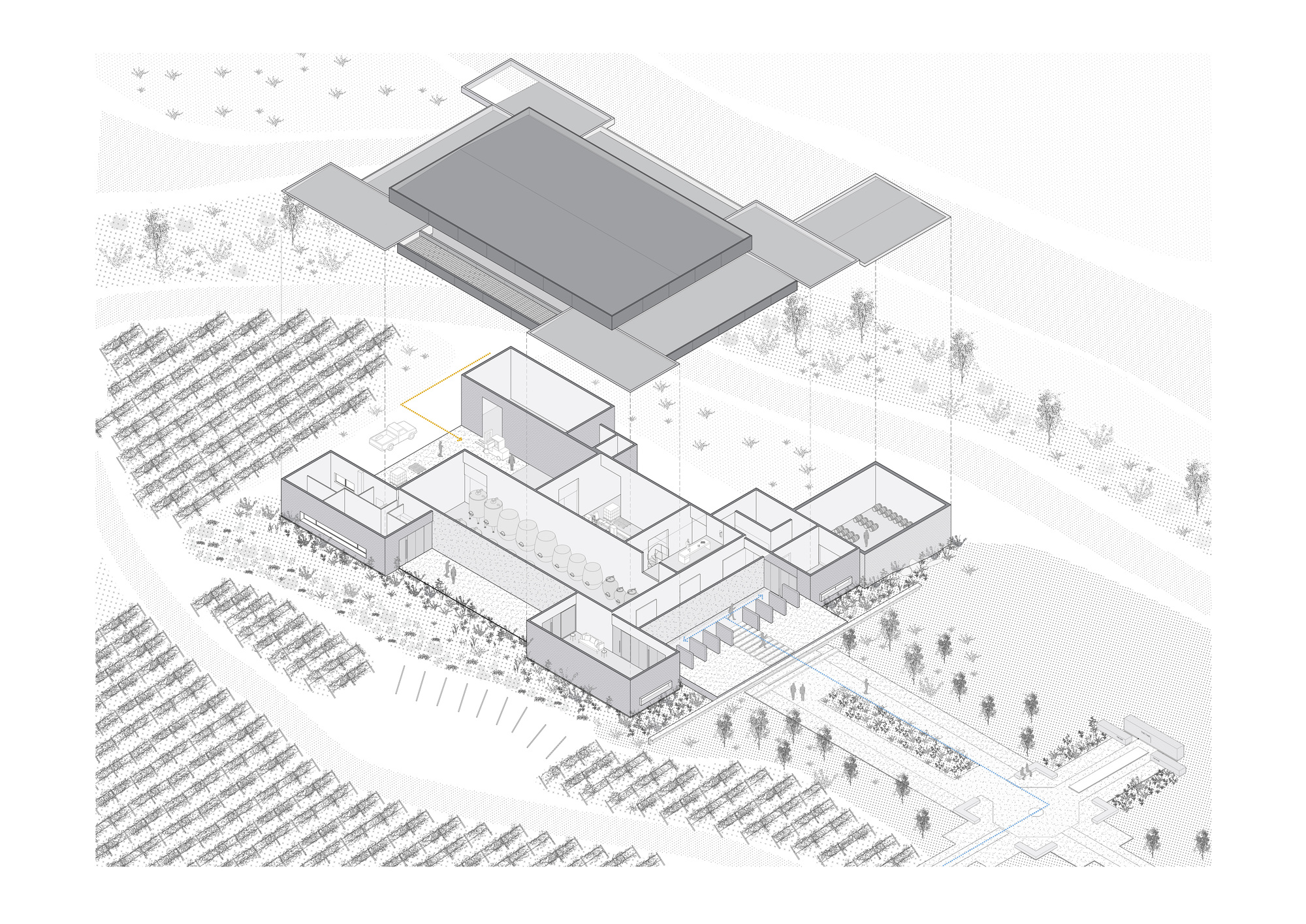

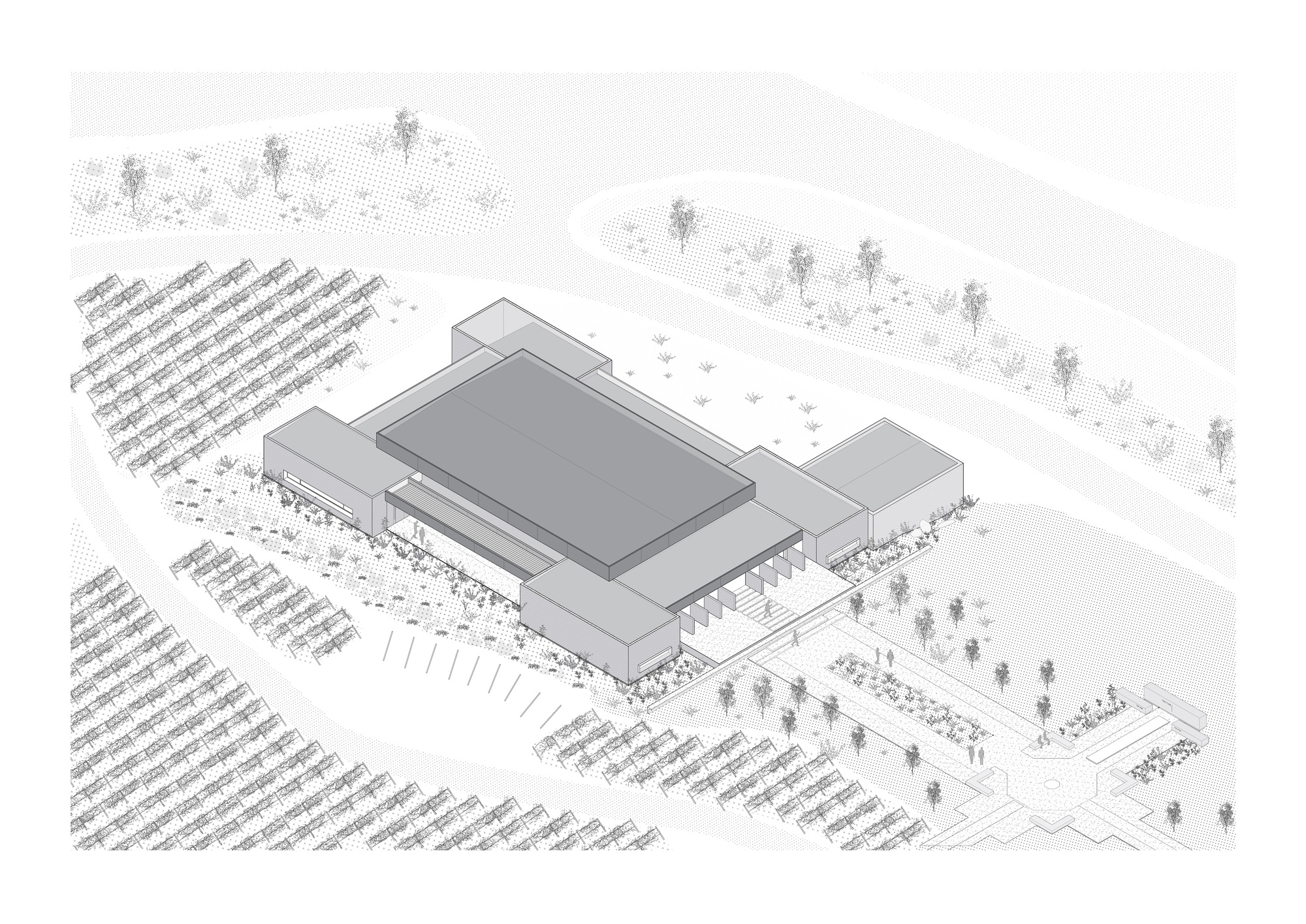

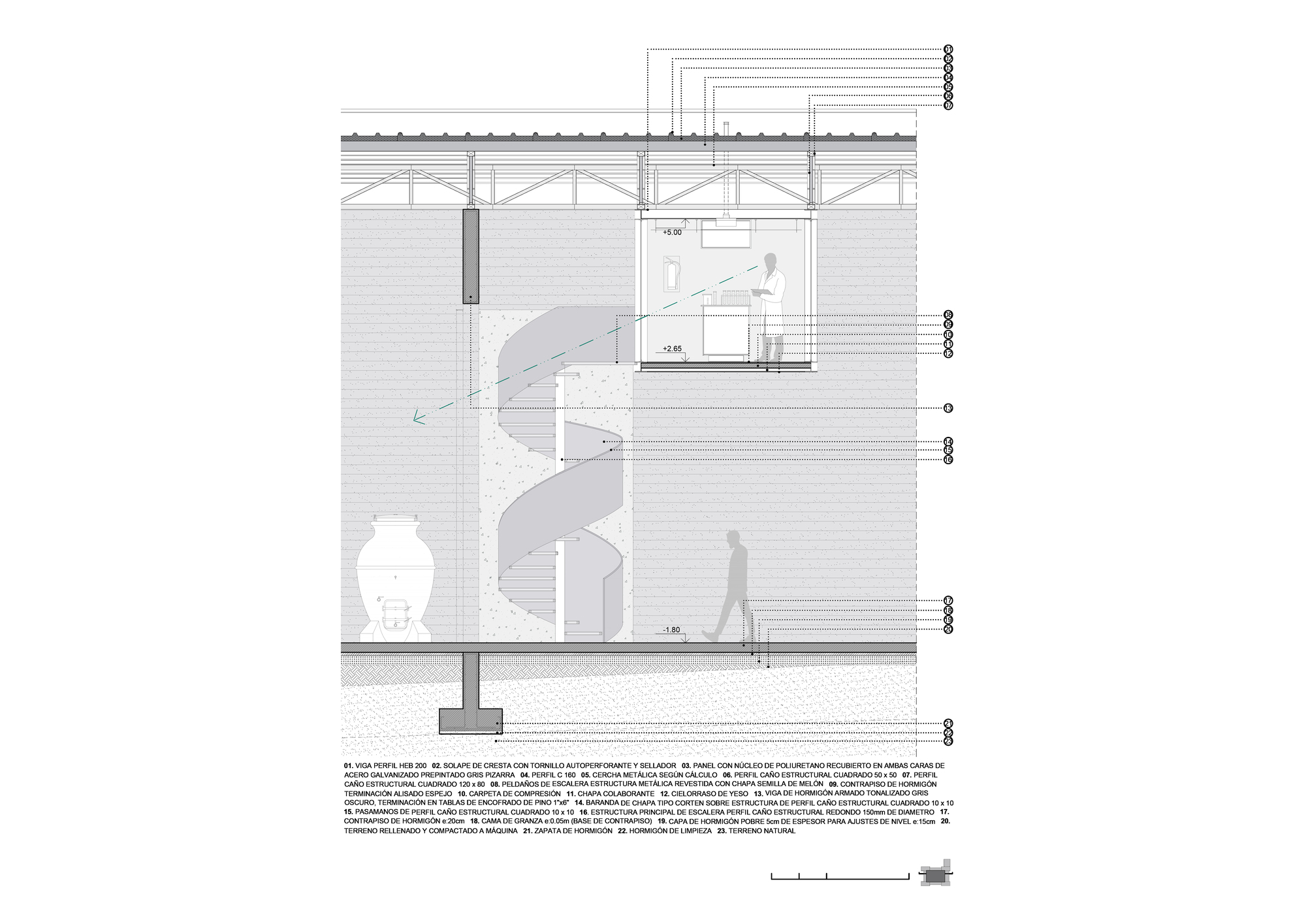

The exploded axonometric is the most revealing drawing. It lifts the large flat roof off to expose a cutaway plan of rooms, tanks and courtyard, showing how one roof unifies the separate volumes beneath. A second axonometric places rows of solar panels around the building. The section pairs a spiral stair with a clay amphora, while a raised lab room sits above the visitor path. It captures the separation of watching and working in a single cut.

Why This Project Matters

Wine tourism has pushed many Latin American wineries toward spectacle, with oversized forms built to be seen from the road. La Vigilia goes the other way. It uses a tight material palette and a programmatic idea to build atmosphere. Here, the ritual comes from controlled light, a slowed visitor route and constant sightlines into real production.

The broader lesson applies well beyond wine: you can design a working building and a ceremonial one from the same plan if you separate how people move instead of separating the spaces themselves. González Olsina & Vega Arquitectos show that a factory can be dignified without hiding what it is. In this case, the architecture's real subject is the slow time that wine needs.

La Vigilia Winery by González Olsina & Vega Arquitectos (lead architects Charly González Olsina and Eduardo Vega; collaborating architects Cecilia Blanco, Nicolás Telechea and Bianca Brescia; landscape by Eduardo Vera). Los Chacayes, Tunuyán, Mendoza, Argentina. Area: 1,700 m². Completed: 2022. Photography: Luis Abba.
