Iragüen Viñuela Arquitectos Builds a Prefabricated Timber Pavilion That Floats Above the Chilean Coast

Most houses on Chile's central coast orient themselves like sunbathers, stretching toward the Pacific in a single linear gesture. Iragüen Viñuela Arquitectos rejected that instinct. For House SI, a 187 m² residence on the outskirts of Algarrobo, the firm designed a nearly square plan, 13 by 13 meters, that radiates outward toward every compass point. The logic is pragmatic: the lot sits behind the first row of coastal development, meaning ocean views to the west could eventually be blocked by future construction. Rather than gambling on a single sightline, the architects anchored the house to the surrounding landscape of ravines, scrubland, and mature pine trees, views that are far less likely to disappear.

What makes the project genuinely instructive is the way it marries that spatial ambition with a rigorous prefabrication strategy. Every primary structural element, glued-laminated columns, beams, and diagonal bracing, was manufactured off-site from radiata pine by Timber Ingeniería, then shipped and assembled like a kit. The result is a house that reads as a glass pavilion lifted above a sloping site on an exposed timber skeleton, rational in its construction yet warm in its materiality. It is a compelling case study for architects thinking about how industrialized wood framing can produce architecture that is both efficient and atmospheric.

Lifted Off the Ground

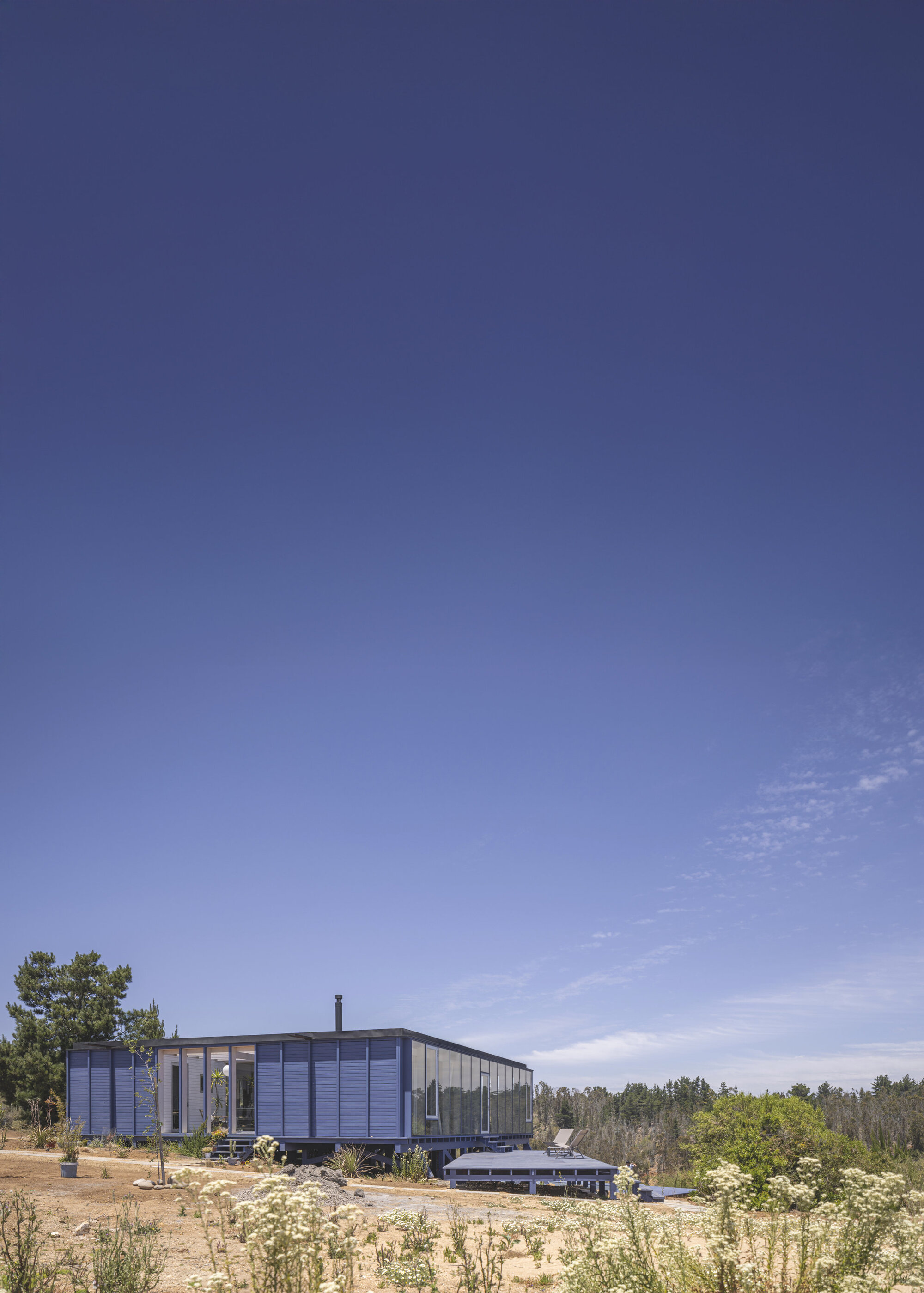

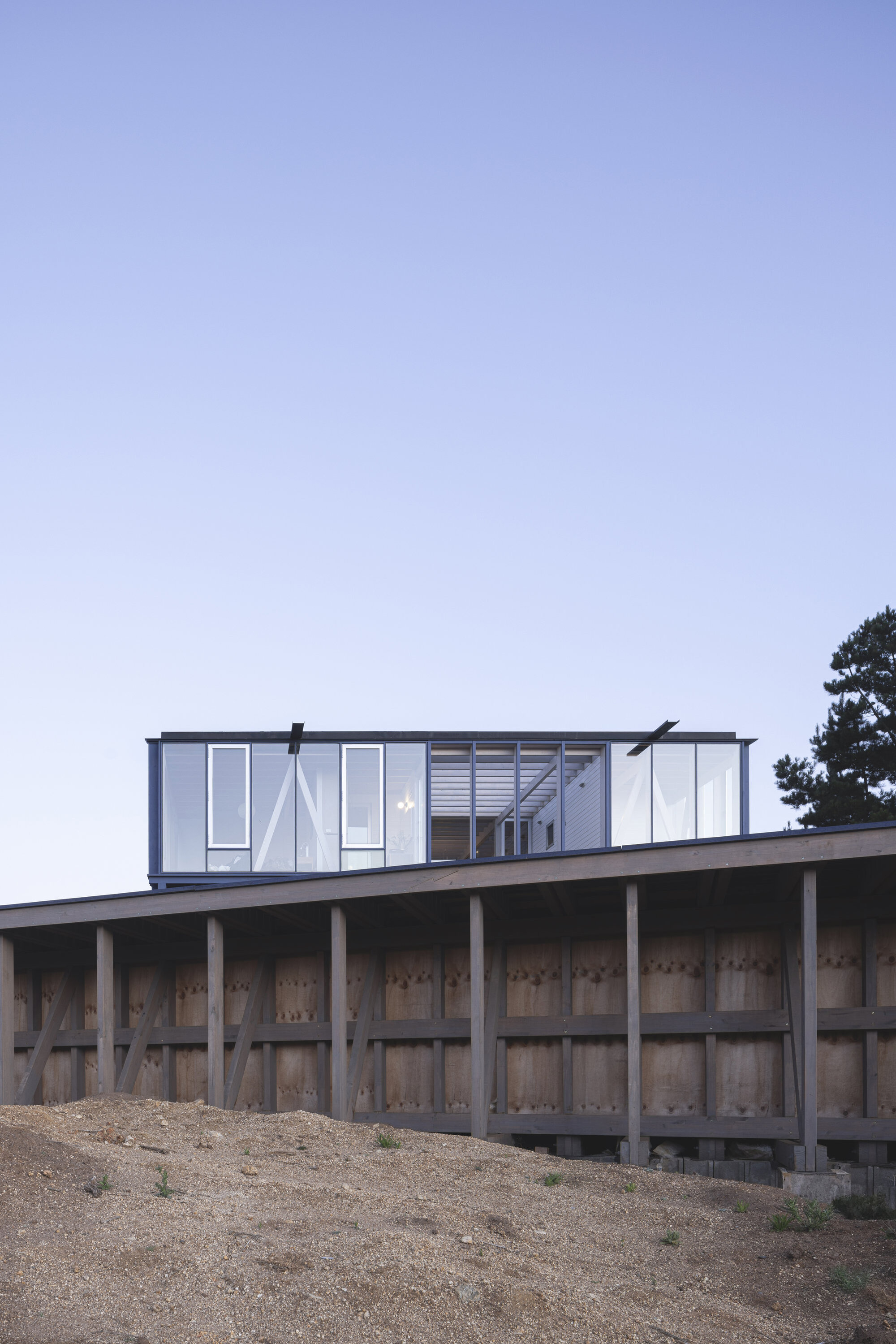

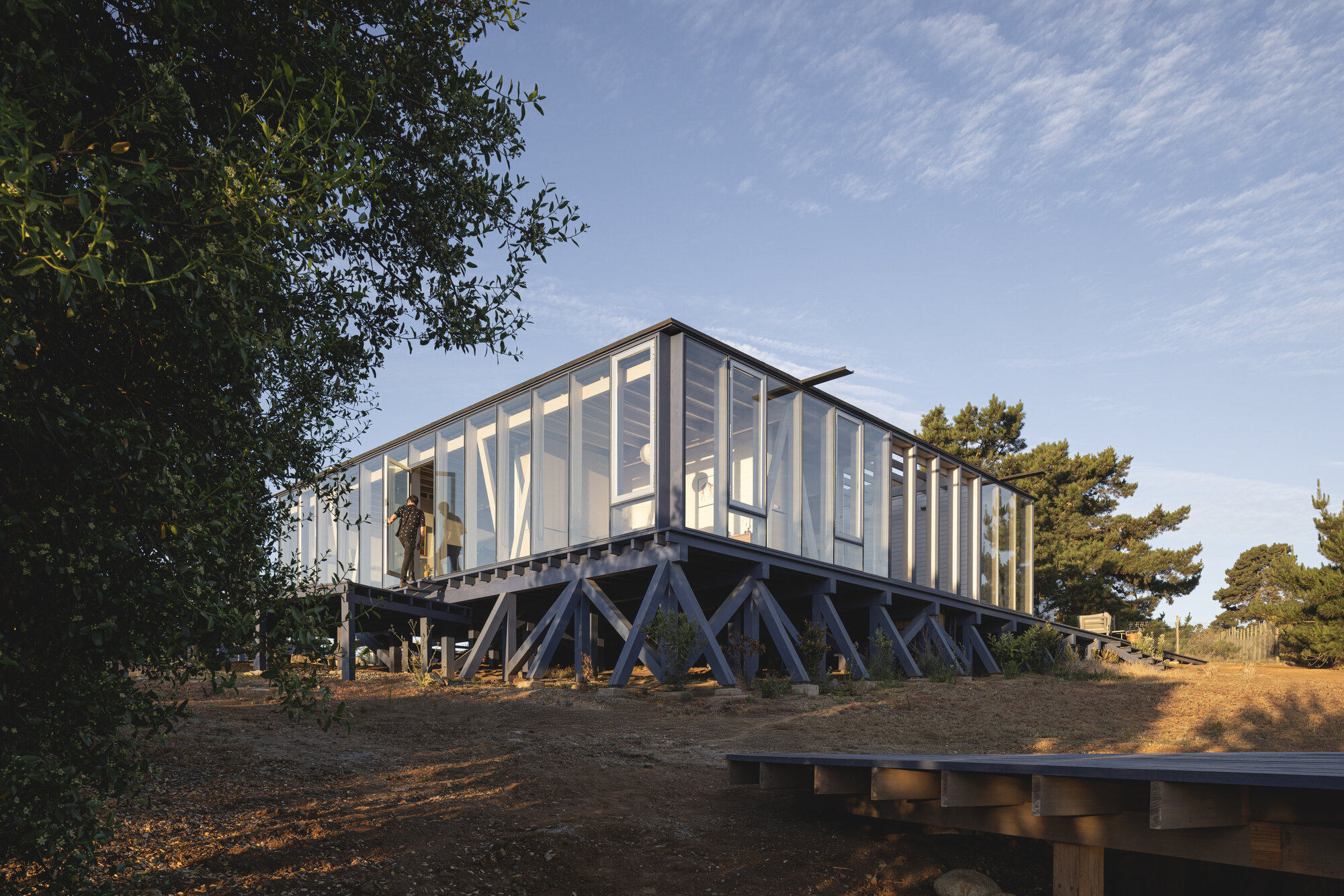

The house makes its most dramatic impression from below. Angled timber columns lift the principal volume clear of the sloping terrain, exposing the structural logic that holds the whole composition together. Diagonal bracing is left visible, not concealed, turning what is typically an engineering necessity into the primary architectural motif. The effect is of a lantern perched on stilts, light enough to feel temporary yet anchored firmly to its site.

Elevating the structure does more than create a visual effect. It minimizes ground disturbance on a sandy, scrubby lot, allows coastal breezes to circulate beneath the floor plane, and positions the living spaces at a height where the canopy of existing pine trees becomes an intimate neighbor rather than an obstruction. The bare gravel beneath the house reads almost as untouched landscape.

Glass Walls and the Question of Exposure

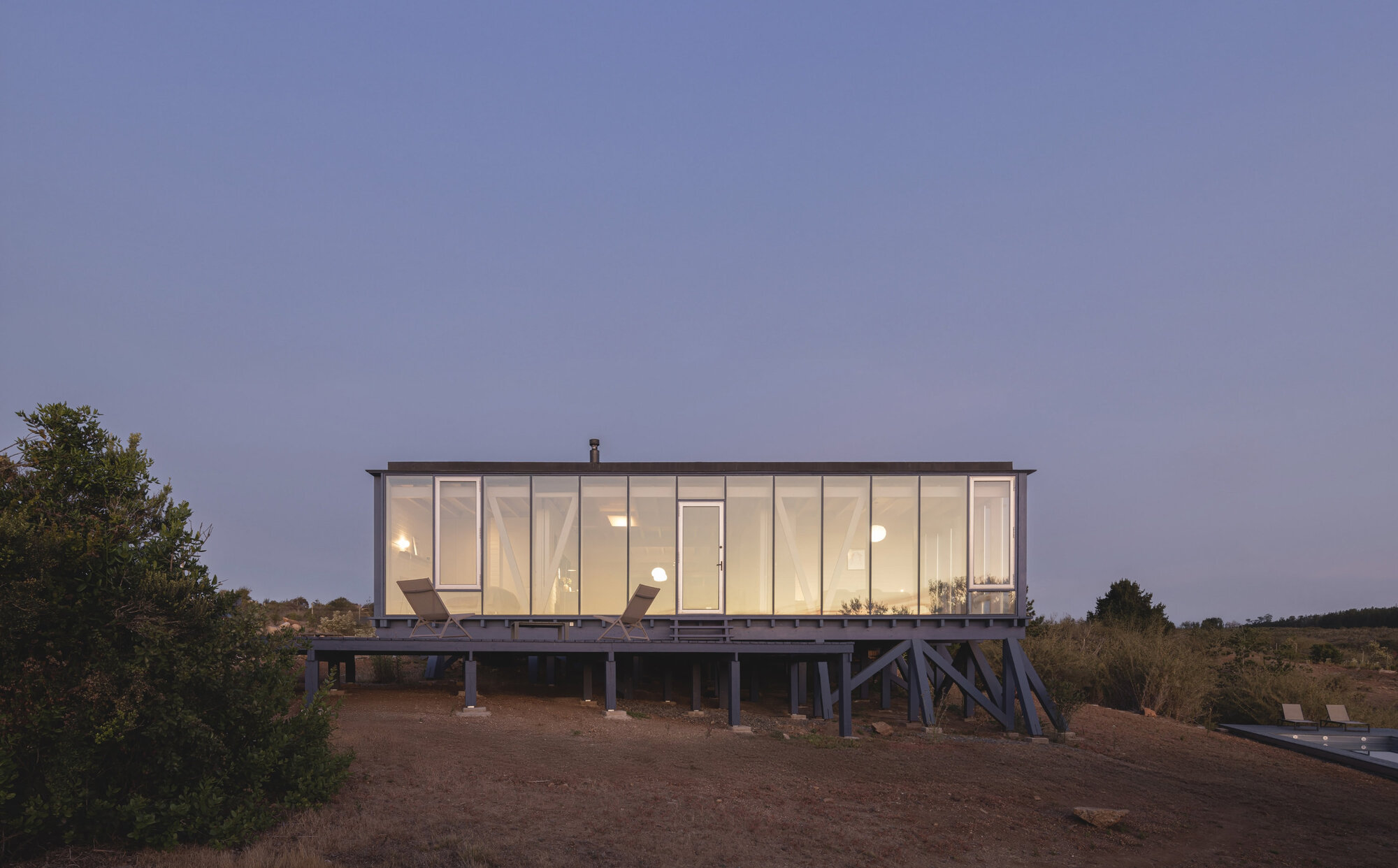

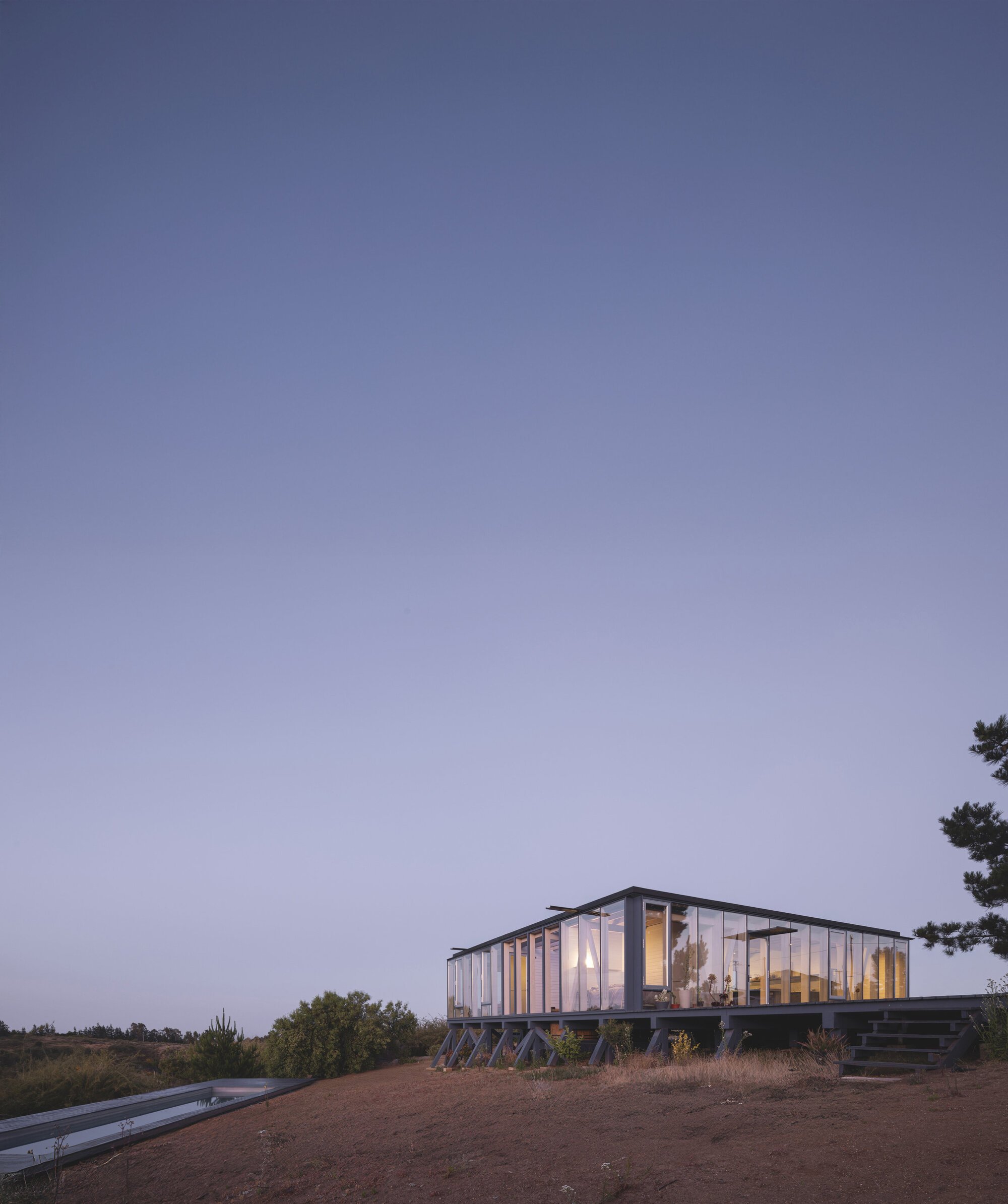

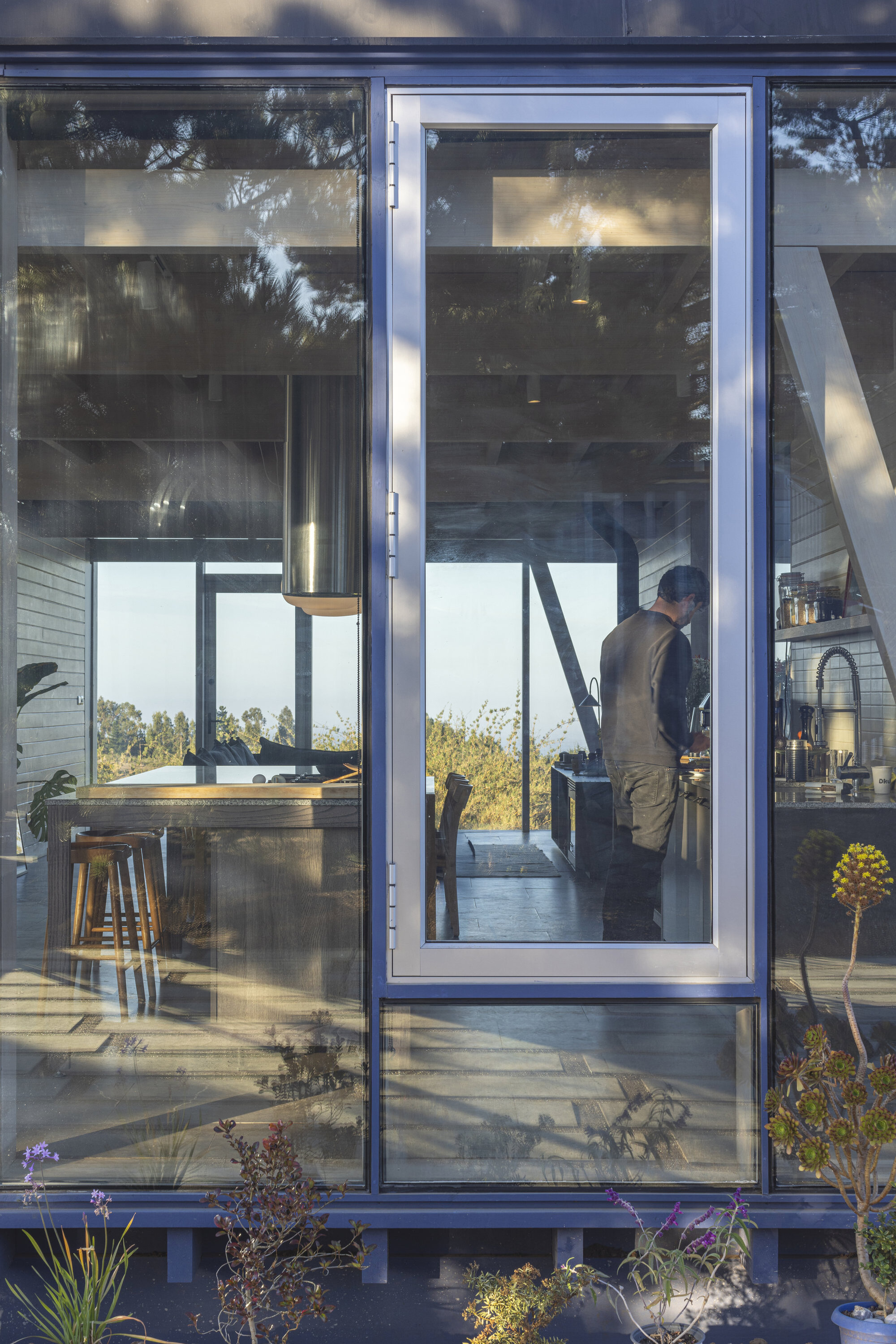

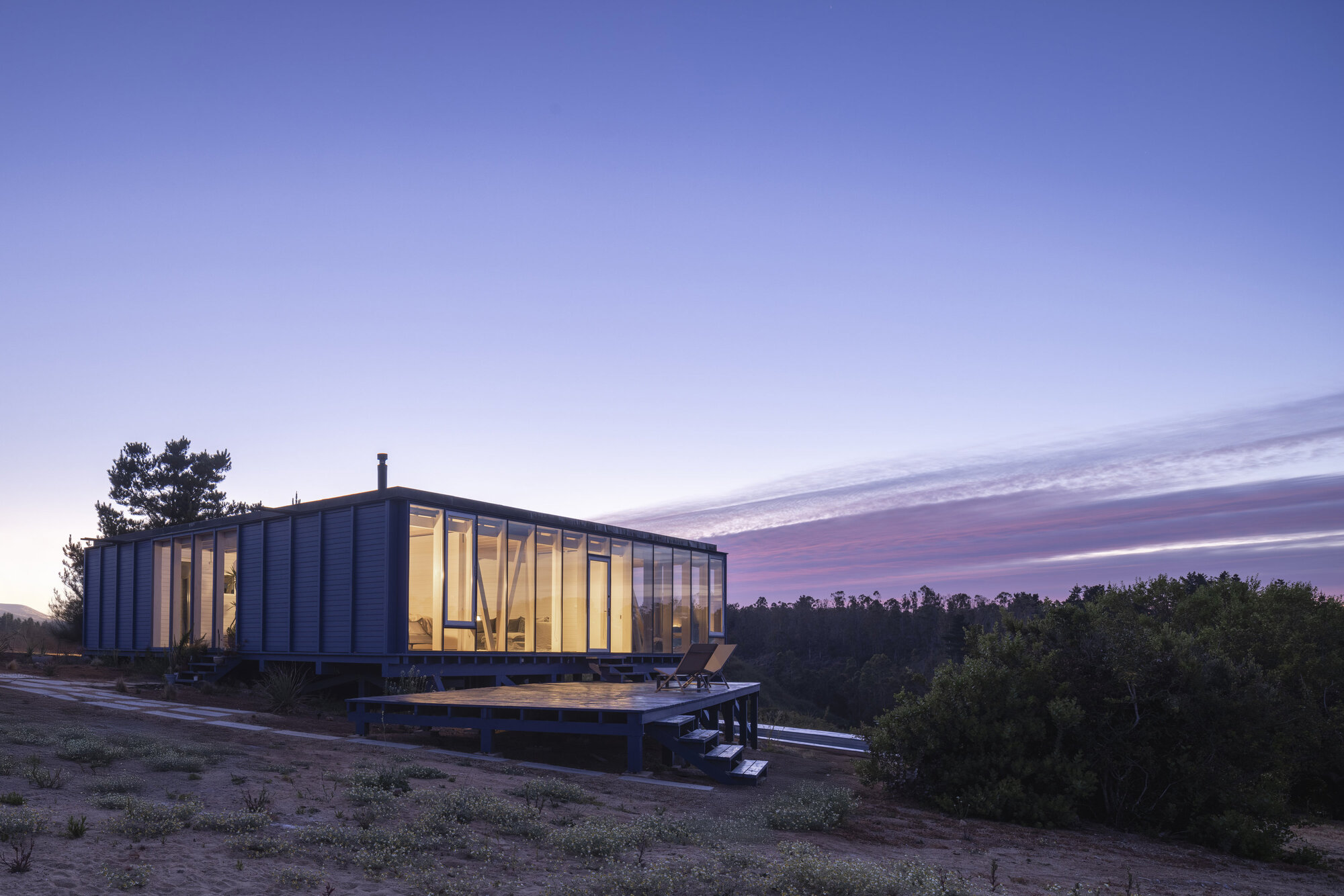

At dusk, House SI becomes fully legible. The extensive glazing transforms the entire volume into a lantern, revealing the timber ceiling grid and interior life in a way that blurs the boundary between inside and out. Full-height sliding panels on multiple facades allow the house to open completely, collapsing the wall between living room and deck into a single continuous surface. The architects clearly trust their siting: because the lot is surrounded by vegetation rather than neighboring houses, this degree of transparency is generous rather than exhibitionist.

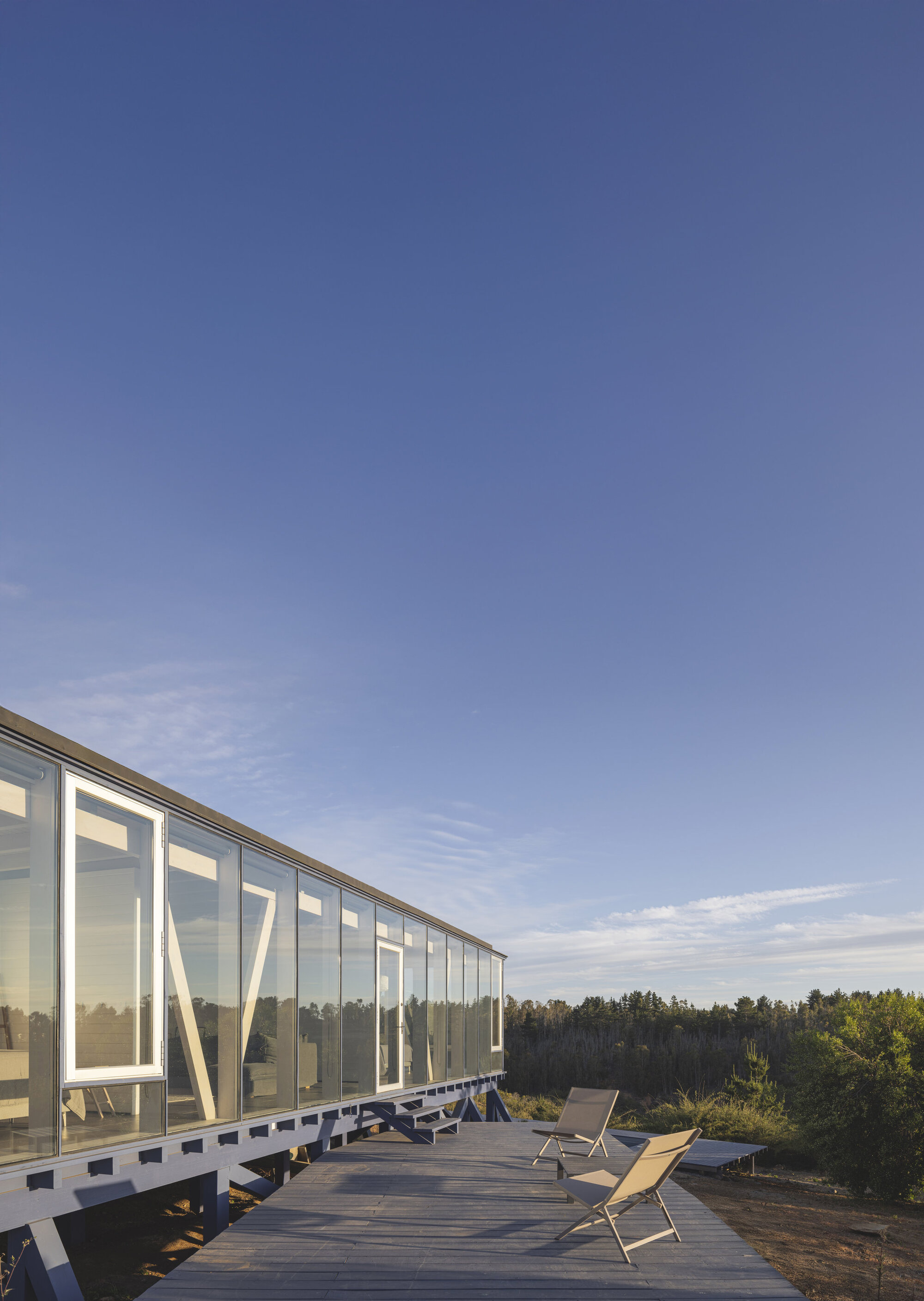

The white-painted diagonal bracing on the exterior adds rhythm to the glass surfaces, breaking what could be an anonymous curtain wall into a composed pattern of triangular frames. It is a small detail that has an outsized effect, giving the elevation a graphic quality that reads well at a distance.

A Central Core That Sees in Every Direction

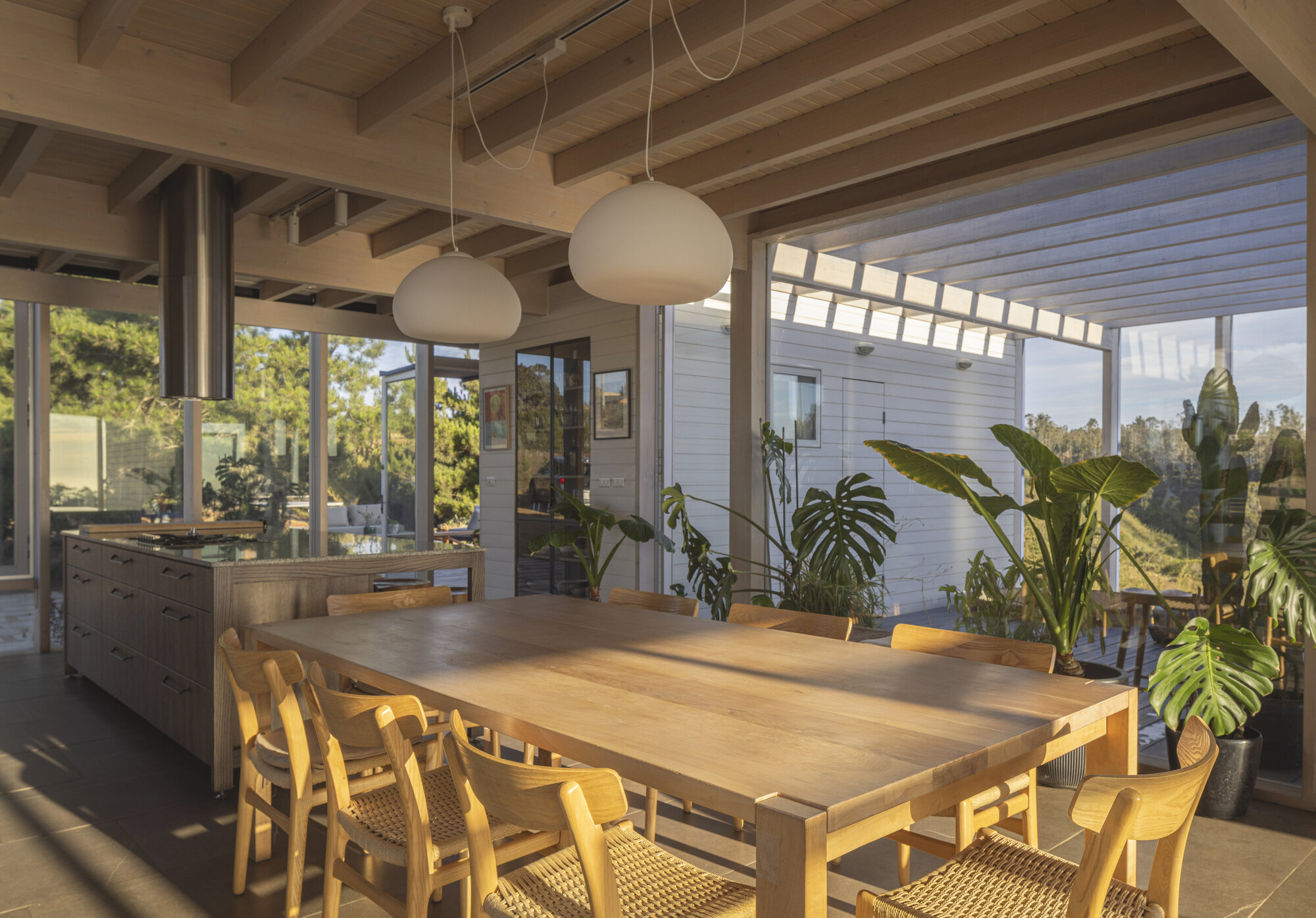

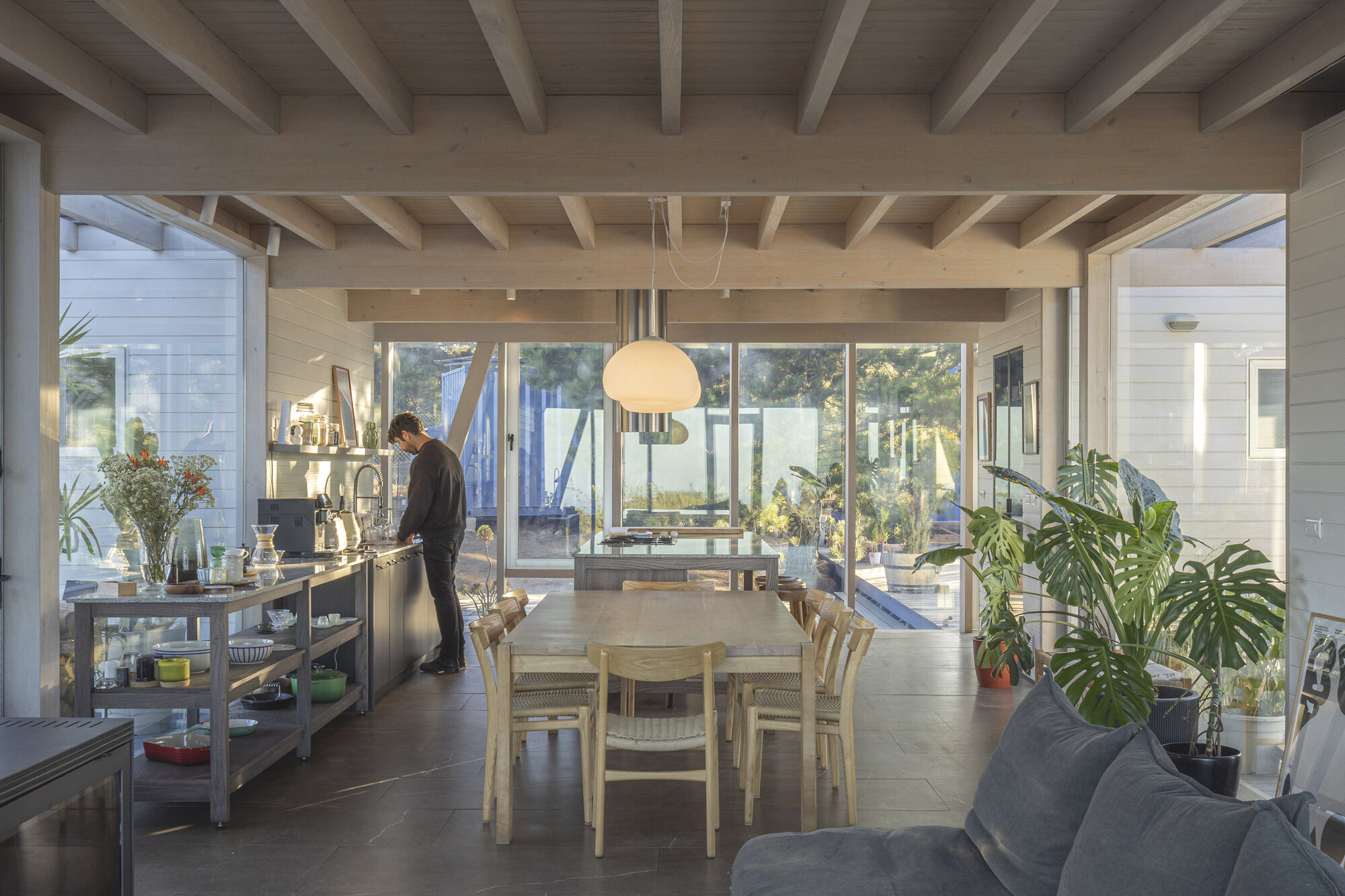

Inside, the square plan organizes rooms around a central corridor, creating a spatial sequence where you can stand at the heart of the house and visually grasp all four cardinal directions. The open-plan living and dining area occupies the most generous portion of this layout, with exposed timber ceiling beams running in a single direction to give the space its primary axis. Potted tropical plants appear throughout, softening the industrial precision of the timber grid and adding a layer of informality.

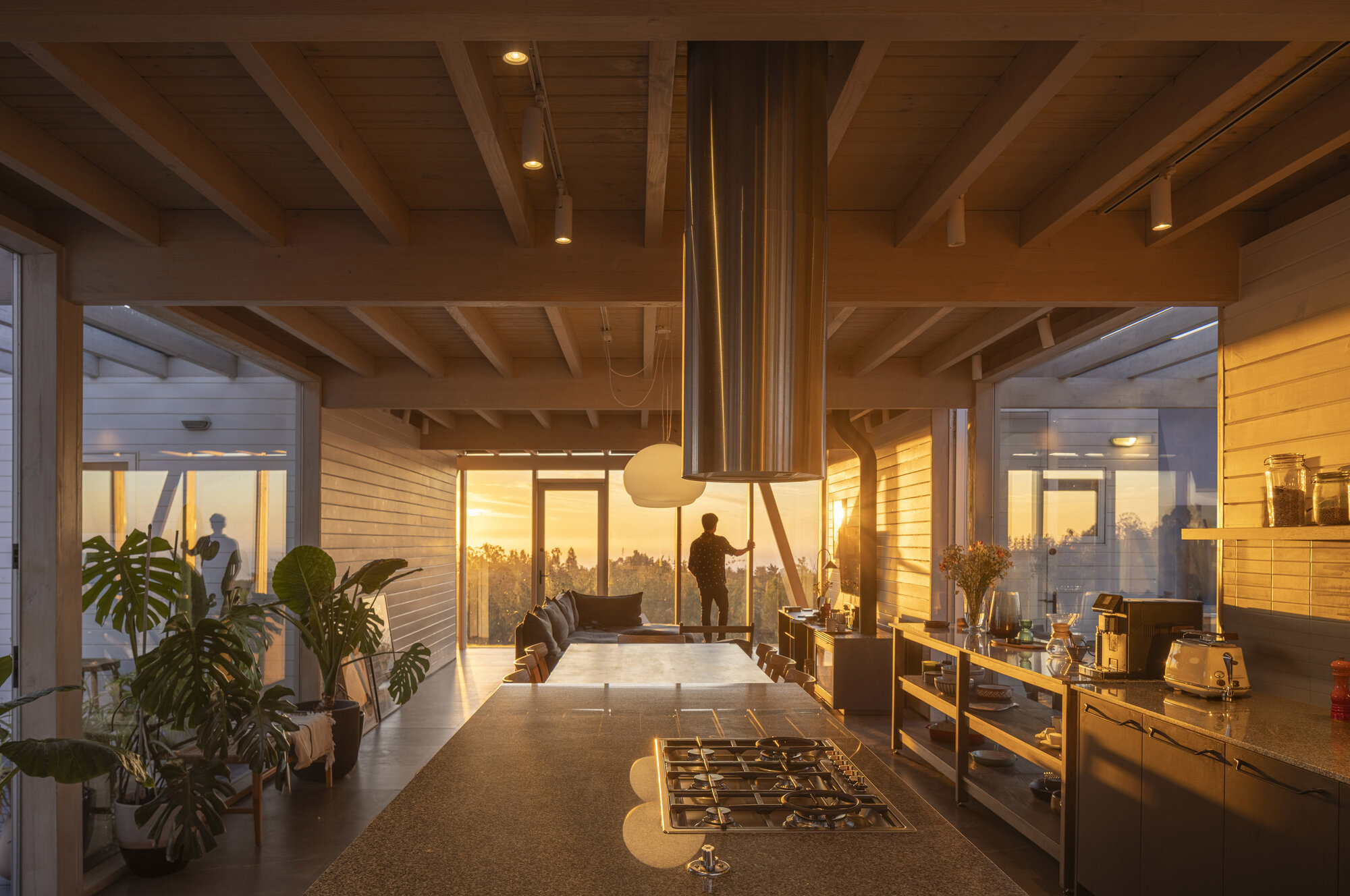

The kitchen anchors one end of the communal zone with a central island and a cylindrical steel range hood that reads as the only non-timber element in the ceiling plane. The material palette is deliberately restrained: pale walls, light-toned wood, concrete flooring. Nothing competes with the landscape visible through the glass on every side. It is a disciplined interior that draws its richness from the changing quality of light rather than from applied finishes.

Bedrooms as Framed Landscapes

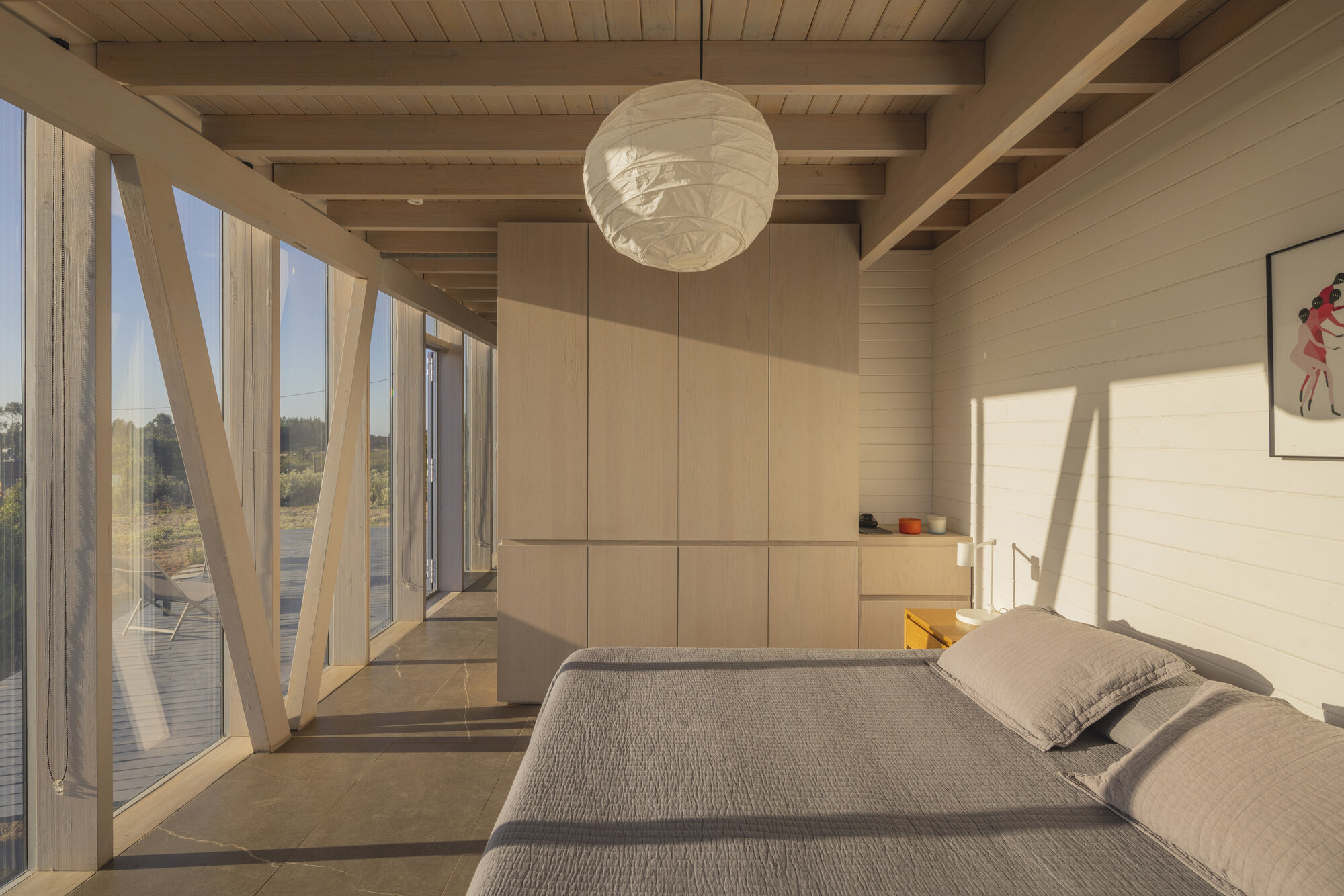

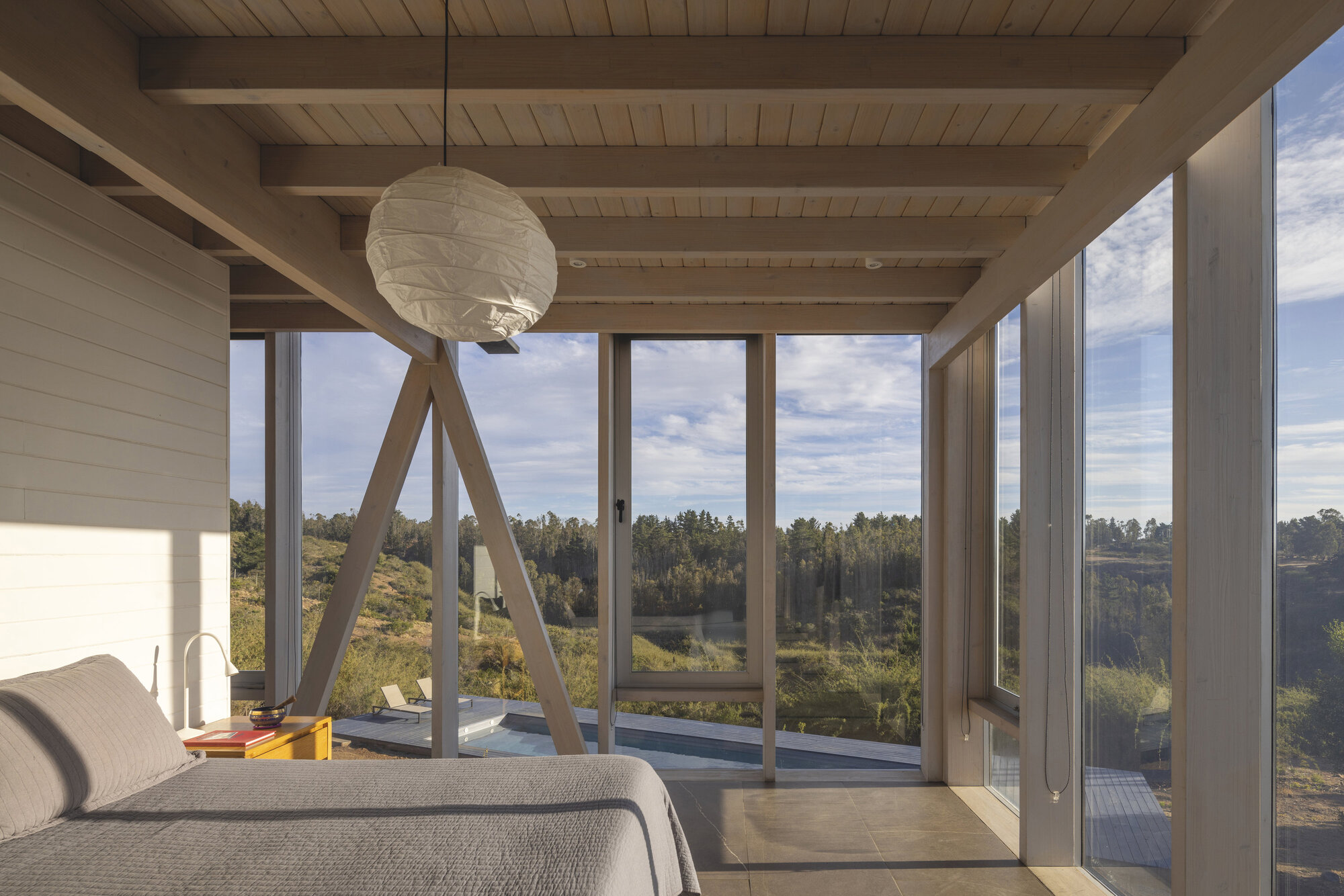

The bedrooms reveal the structural system most directly. Diagonal timber bracing crosses the walls at eye level, framing views of the wooded hillside like oversized picture frames. In the afternoon, sunlight passes through the glass and casts sharp shadows of the bracing onto the pale interior walls, creating a slow-moving pattern that changes hour by hour. It is a simple effect, but it means these rooms are never static.

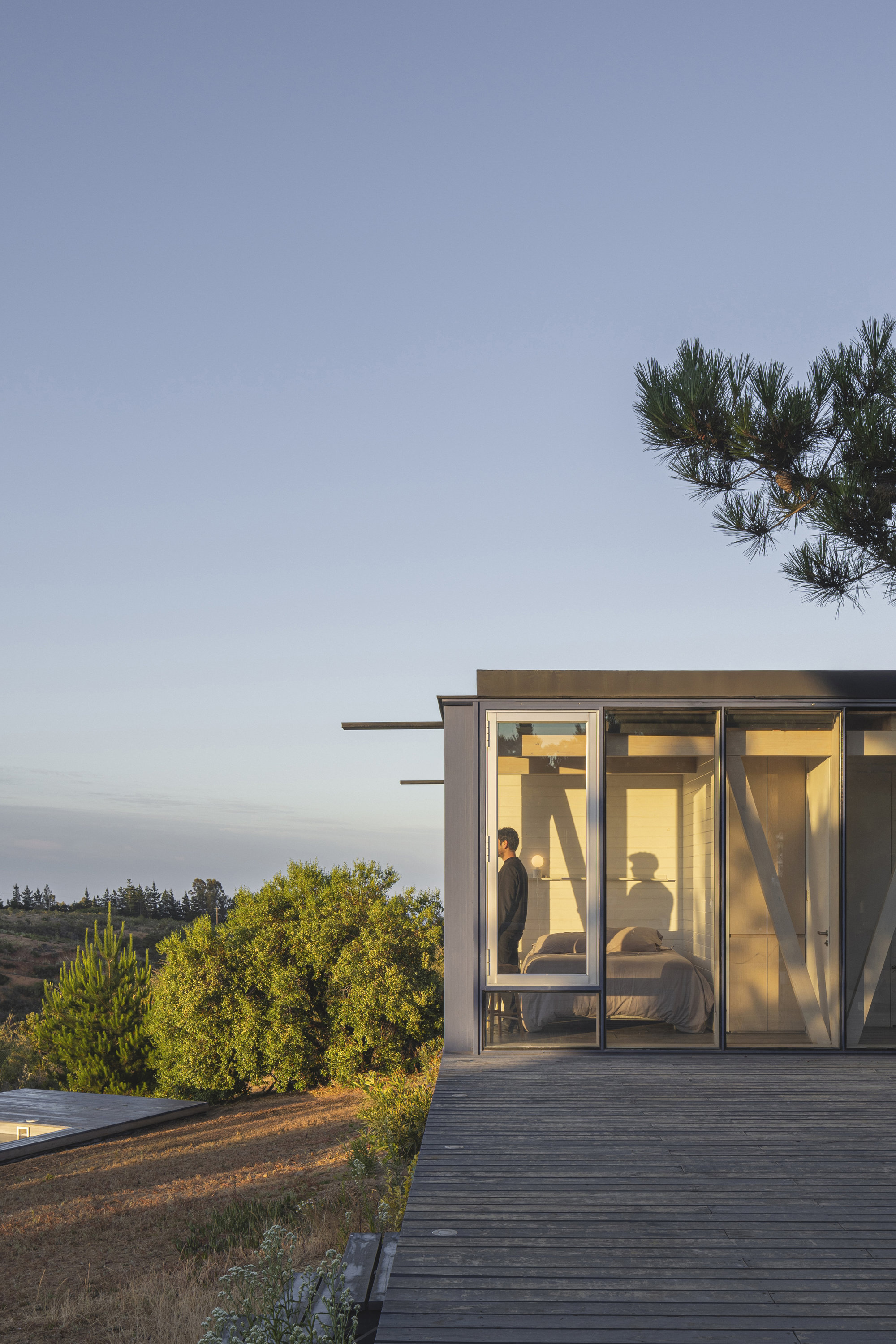

Seen from the exterior deck at dusk, the bedroom volume glows beneath overhanging pine branches, its glass walls making the space feel continuous with the surrounding canopy. The architects have calibrated the relationship between exposure and intimacy carefully: the vegetation provides just enough screening to keep the rooms habitable without sacrificing the transparency that defines the whole project.

Decks, Pool, and a Landscape Circuit

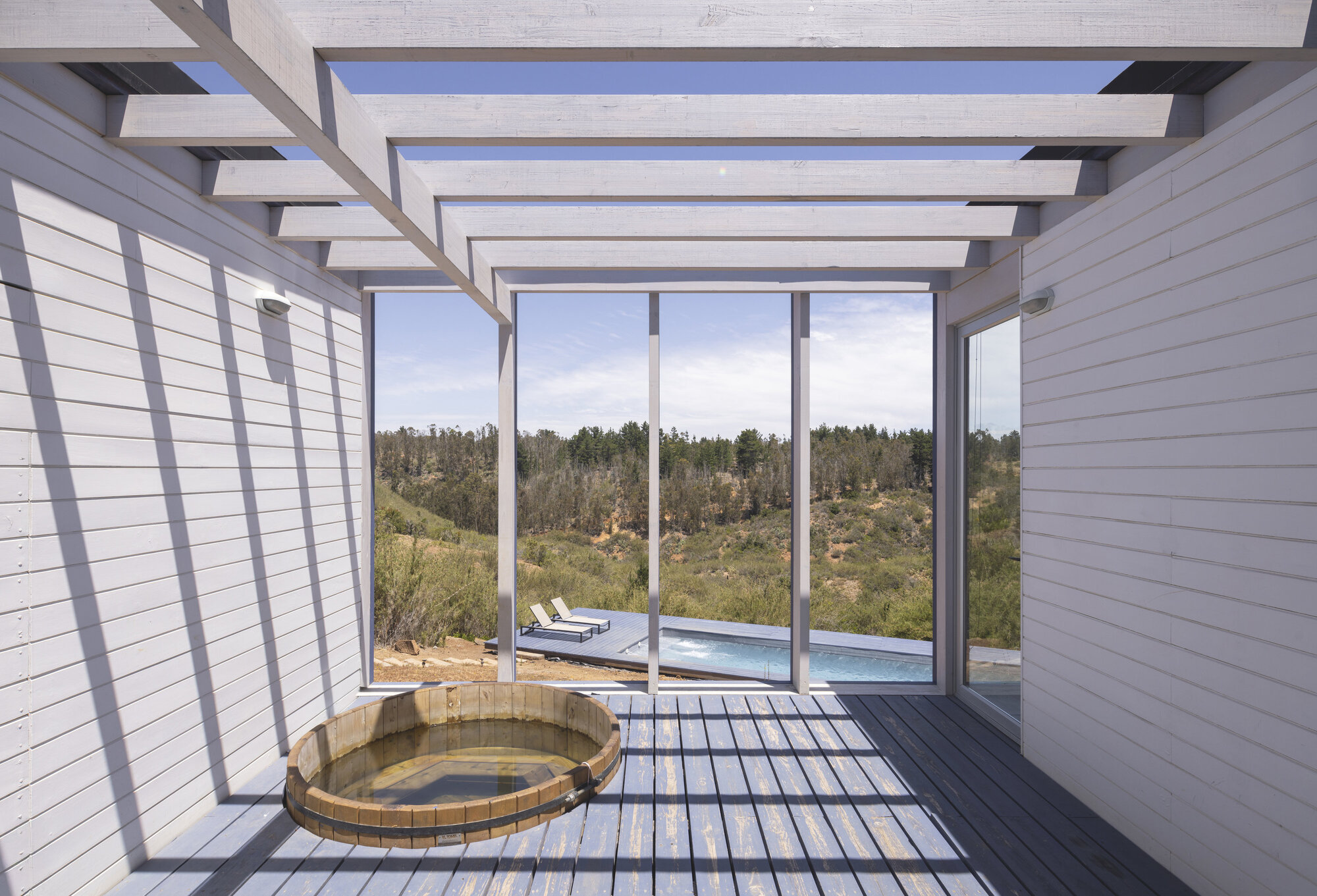

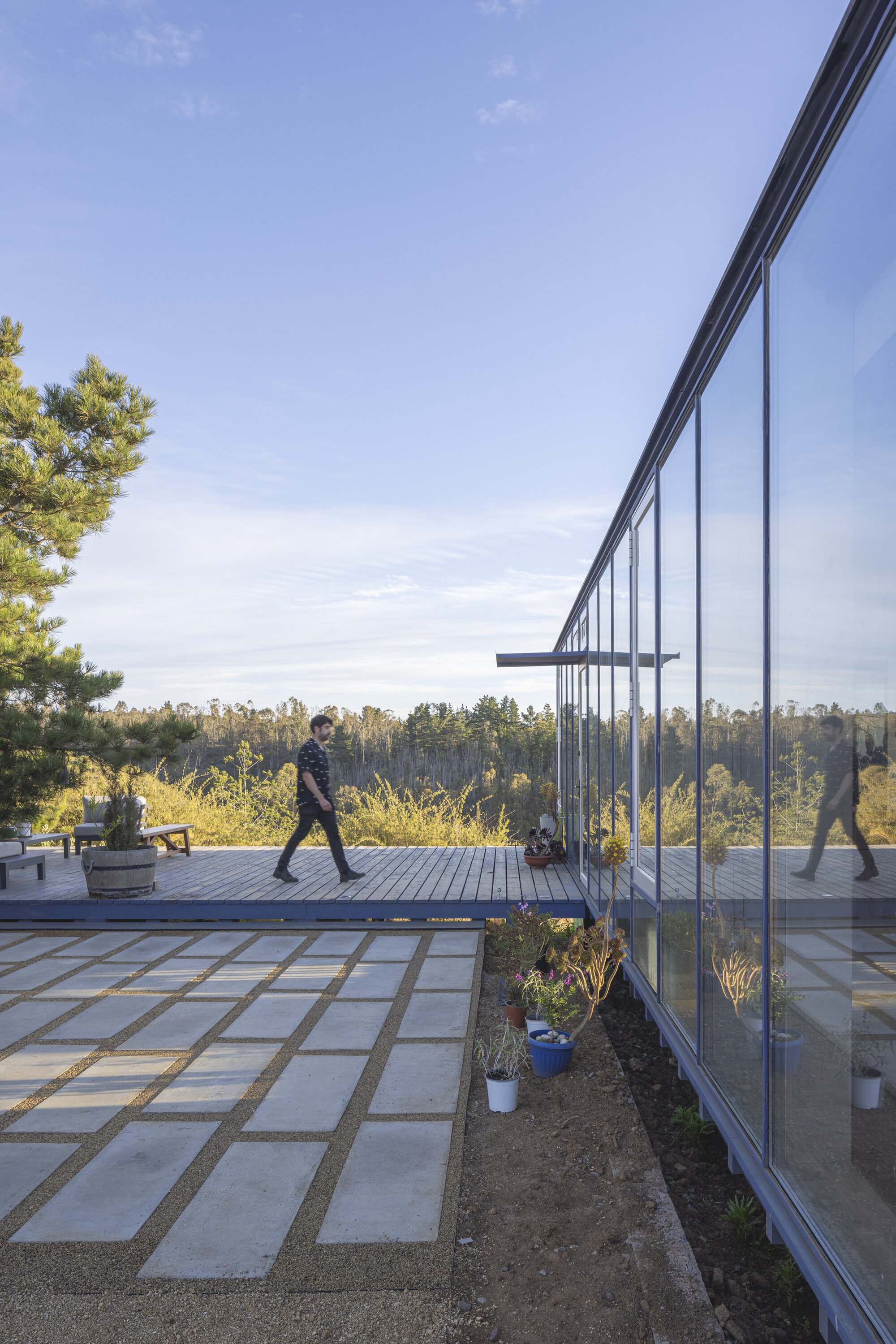

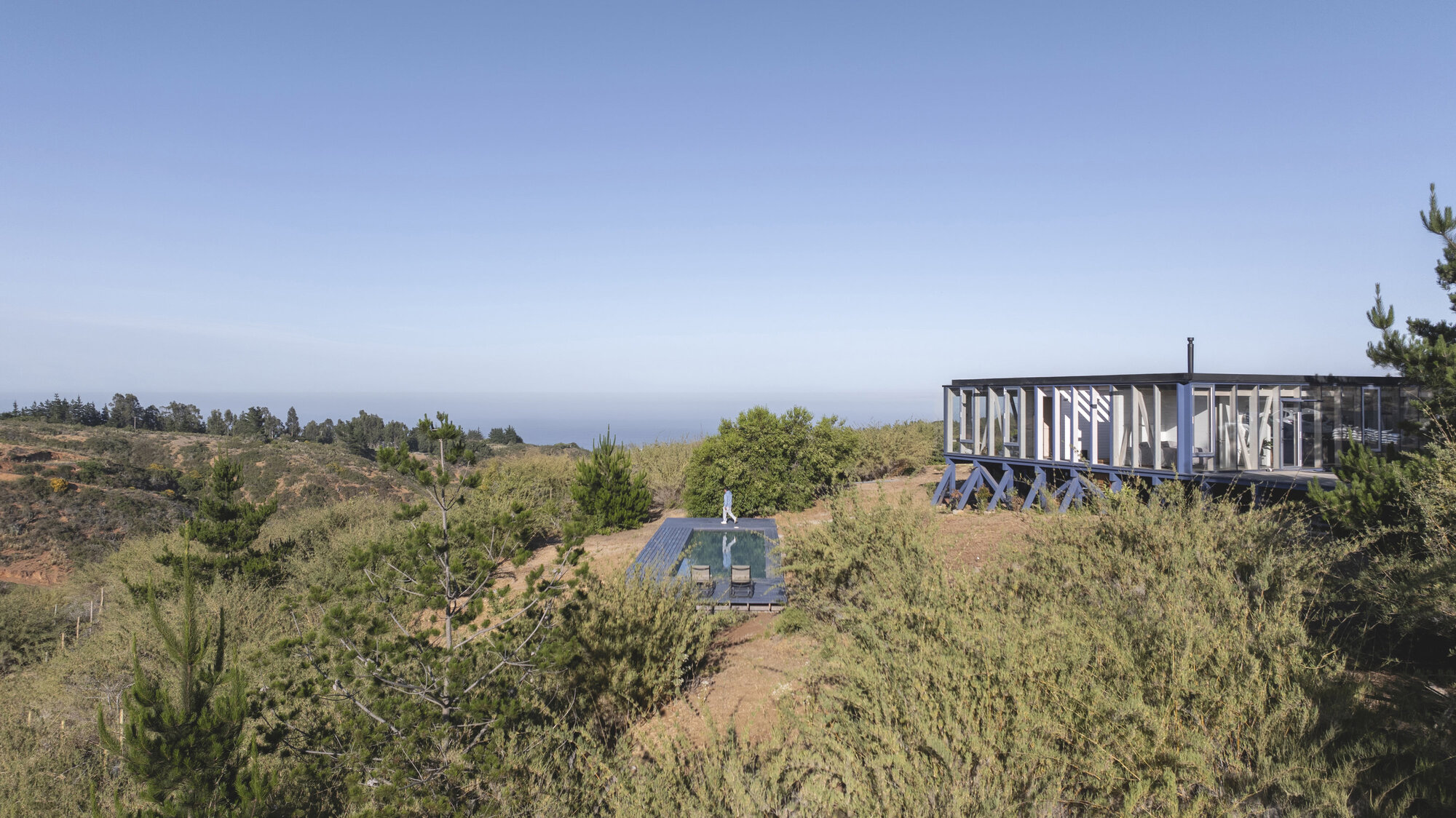

The house is not a single object but a network of connected outdoor spaces. A timber deck to the east serves as both entrance and scenic overlook. A covered deck on another side opens toward a swimming pool tucked into the slope, with views cascading down toward the ravine and the ocean beyond. Concrete pavers, stepping stones through native plantings, and outdoor staircases link these elements into a circuit that encourages movement around and through the site rather than simply arriving and stopping.

A xerophytic garden with drought-resistant plants and at least three mature pines establishes the landscape strategy. The architects have not imposed a manicured garden on this semi-arid terrain; instead, the planting reinforces what already grows here, keeping water use low and maintaining the scrubby character of the hillside. The pool is the one concession to domestic luxury, and even that is positioned to feel embedded in the topography rather than set against it.

The Facade as Cladding System

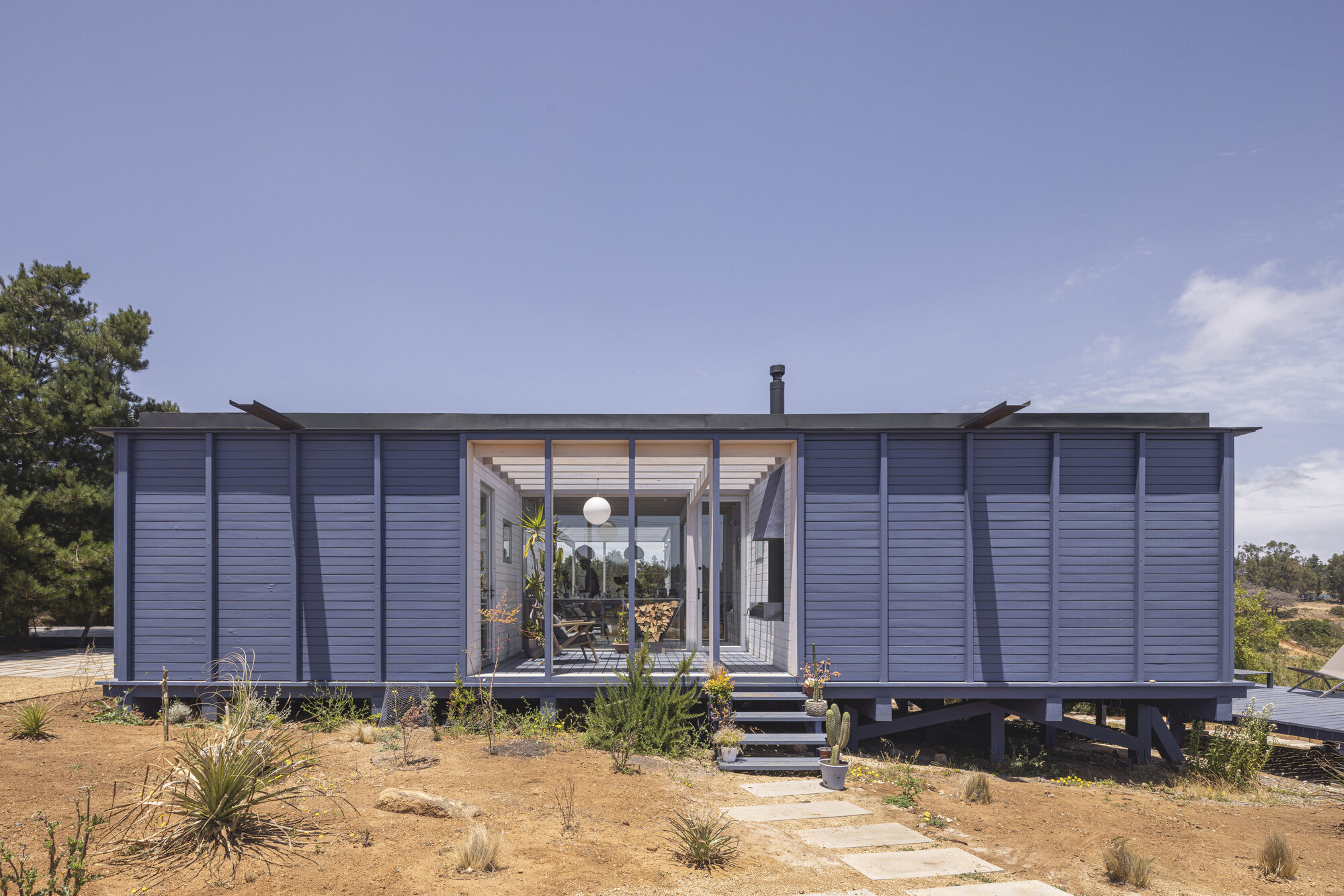

Where the house is not glass, it is clad in horizontal painted pine siding, a straightforward material that gives the closed facades a clean, slightly industrial character. The grey tone is a smart choice against the browns and greens of the landscape, providing enough contrast to make the house legible as a man-made object without shouting. A central glazed entry punched through the cladding and a path of stepping stones through native plantings compose the arrival sequence with quiet precision.

The interplay between the opaque and transparent facades is the real compositional game here. From certain angles the house reads as a solid timber box; from others it dissolves entirely into glass and reflected canopy. That ambiguity keeps the architecture interesting as you move around the site, rewarding the circuitous path the landscape design encourages.

Plans and Drawings

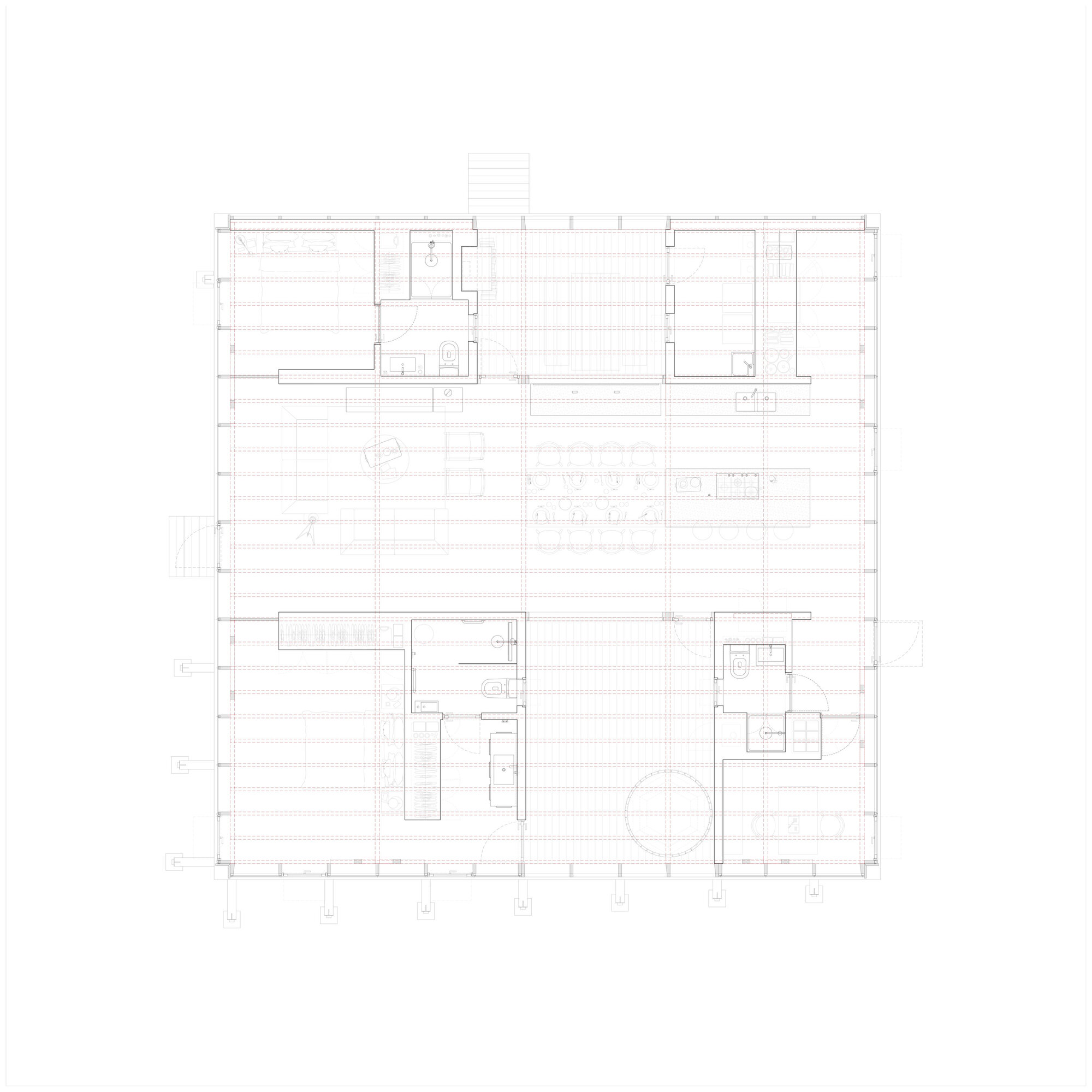

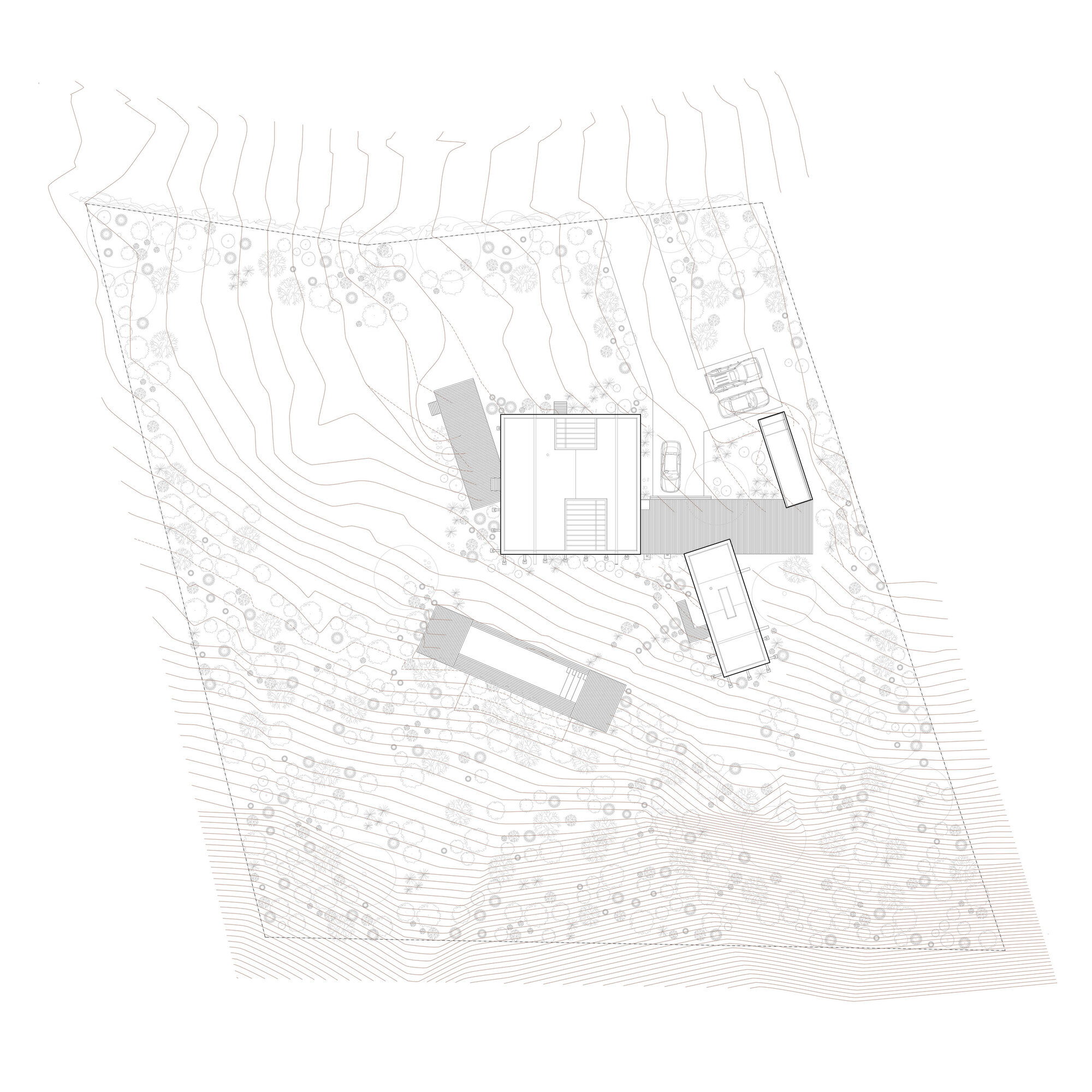

The site plan confirms the two-volume strategy: a completed main residence and a future two-storey guest house positioned to work with the contour lines of the slope. The floor plan reveals the square geometry at work, with rooms arranged around the perimeter of the 13-by-13-meter footprint and a central corridor that organizes circulation. There is nothing arbitrary about the layout; every room touches an exterior wall, guaranteeing natural light and ventilation from multiple directions.

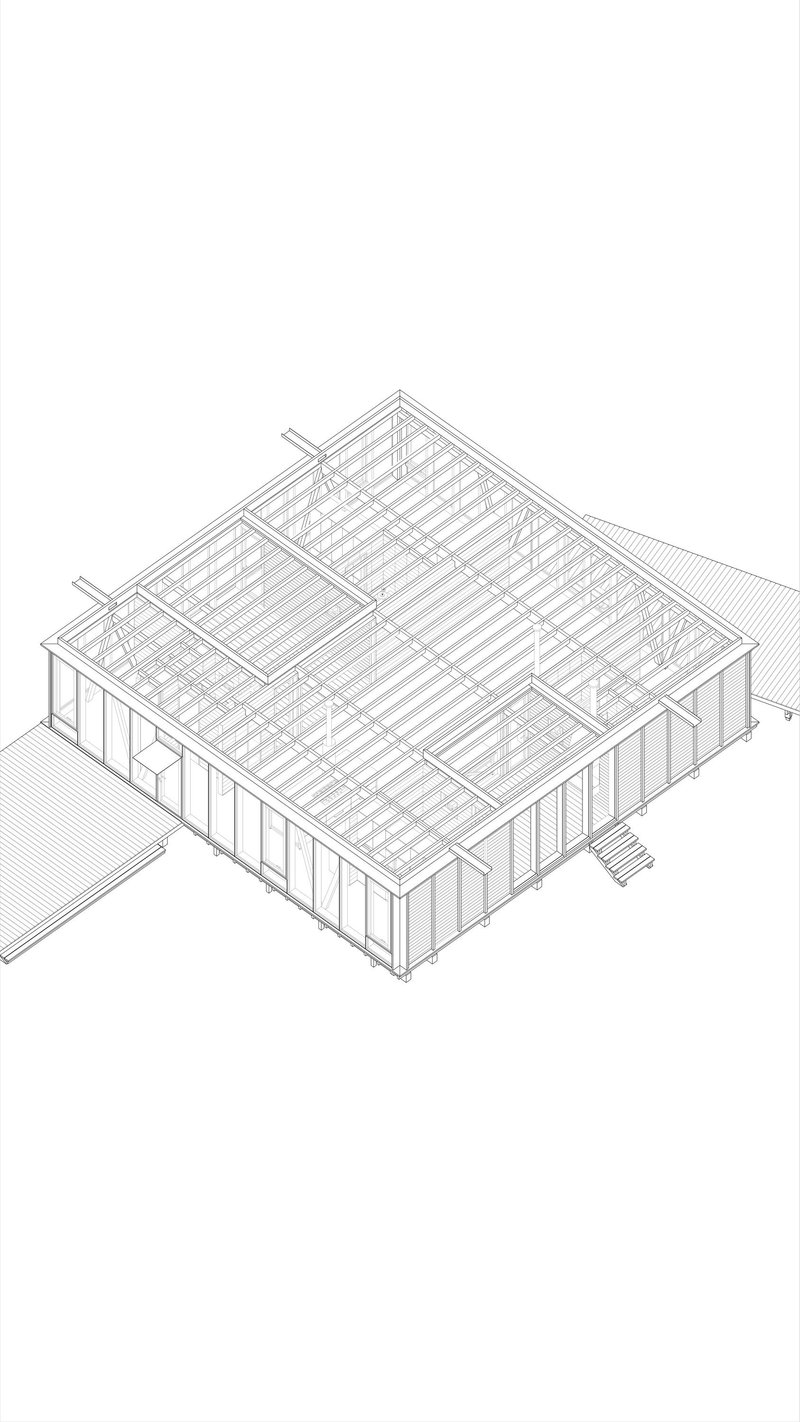

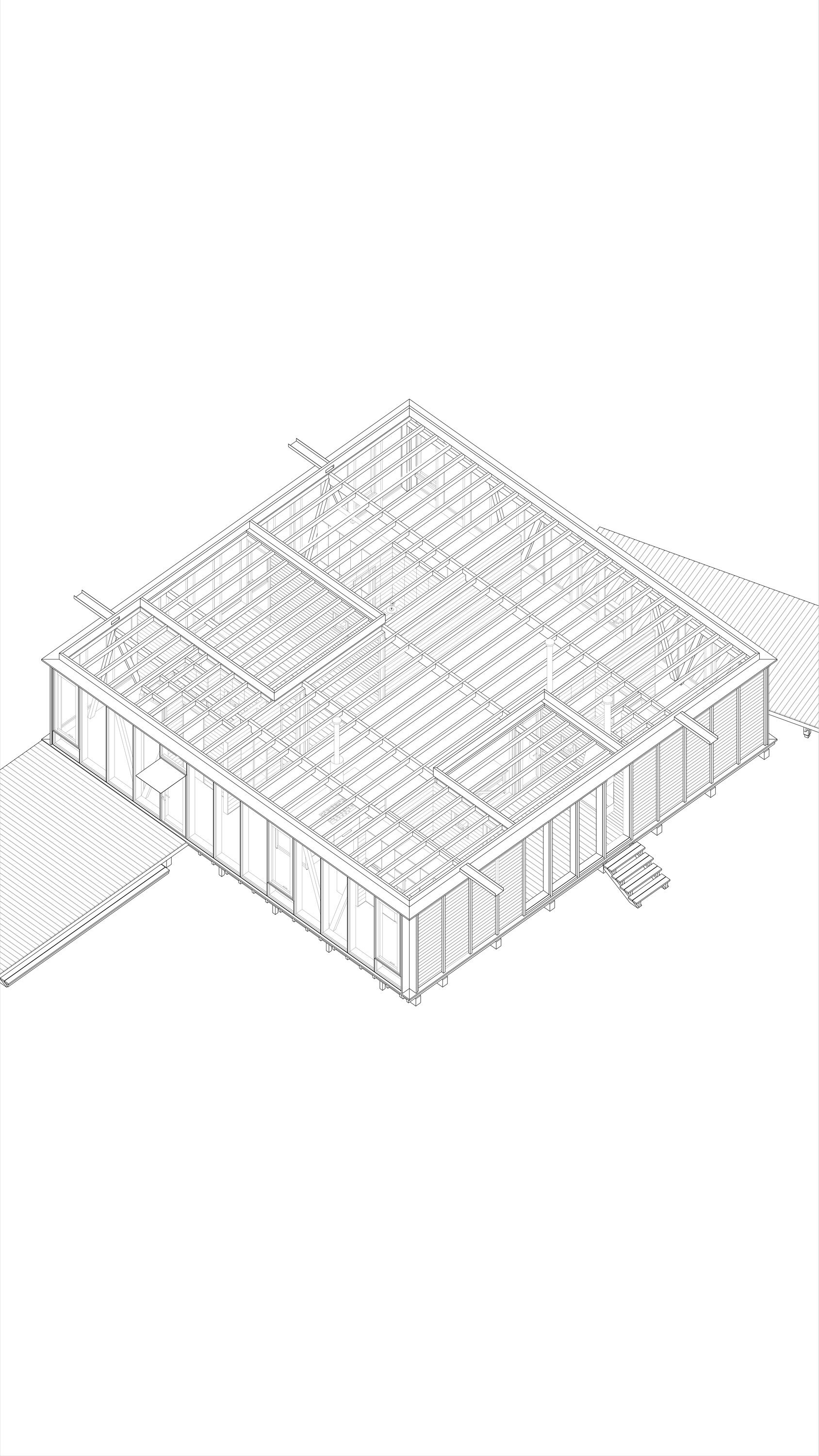

The axonometric drawing is perhaps the most revealing. It exposes the roof structure as a regular grid of timber rafters supported by the perimeter columns, making visible the kit-of-parts logic that drove the prefabrication process. You can see how the structural frame and the spatial envelope are essentially the same thing: the house is its structure, without concealed framing or false ceilings to interrupt the legibility of the system.

Why This Project Matters

House SI matters because it challenges two lazy defaults in coastal residential architecture. The first is the tyranny of the ocean view, the assumption that a beach house must orient itself toward the water at all costs. By centering the plan and distributing attention across the full site, Iragüen Viñuela Arquitectos produced a house that is more resilient to the inevitable changes that come with coastal development. The second default is the assumption that prefabricated construction trades character for speed. Here, the exposed timber frame is the character, its rhythm and warmth inseparable from the spatial experience.

The project also demonstrates that a relatively modest budget and footprint can generate real architectural ambition when the structural and spatial ideas are aligned. At 187 square meters, this is not a large house, but it feels expansive because every decision, the elevation off the ground, the square plan, the glass perimeter, serves the same goal of maximum connection to the landscape. That coherence is what separates a thoughtful house from a decorated one.

House SI by Iragüen Viñuela Arquitectos. Algarrobo, Chile. 187 m², completed 2023. Design team: Daniel Iragüen, Claudio Viñuela, Gustavo Schweitzer, Vicente de la Maza, María José Çaldumbide, Alexa Napp, Víctor Cárcamo. Structural prefabrication by Timber Ingeniería. Photography by Pablo Casals Aguirre.
