KEY OPERATION Threads Planted Clerestories Through an Eight-Storey Tower Facing Tokyo's Naka-Ikebukuro Park

Most small towers in central Tokyo treat the street as something to endure. They stack floor plates as efficiently as the zoning envelope allows, wrap them in glass or tile, and leave the public realm to fend for itself. Clerestory Garden at Naka-Ikebukuro Park, also known as Luce Jardin, by KEY OPERATION INC. / ARCHITECTS under Akira Koyama, starts from the opposite premise. It is an eight-storey mixed-use building of 469 m² on a small corner plot in Toshima-ku, two minutes from the Ikebukuro Station East Exit, with commercial tenants on the lower floors and the owner's residence above. Its neighbour is not another building but a civic plaza, renovated in 2019 alongside the Hareza Ikebukuro cultural complex.

What makes the project worth your attention is how narrow the move is, and how far it travels. The architects rejected the obvious answer, a green wall, because it would have hidden the shopfronts that make a ground-floor lease viable. Instead they pushed the planting into the transom bands at each floor edge, a sectional decision rather than a cosmetic one. That single gesture unifies the commercial and residential programs, softens a hard-edged block, and turns each slab edge into a strip of borrowed park. We think it is a sharp lesson in how much a building's section can do for a city it barely touches.

A Corner That Faces the Plaza

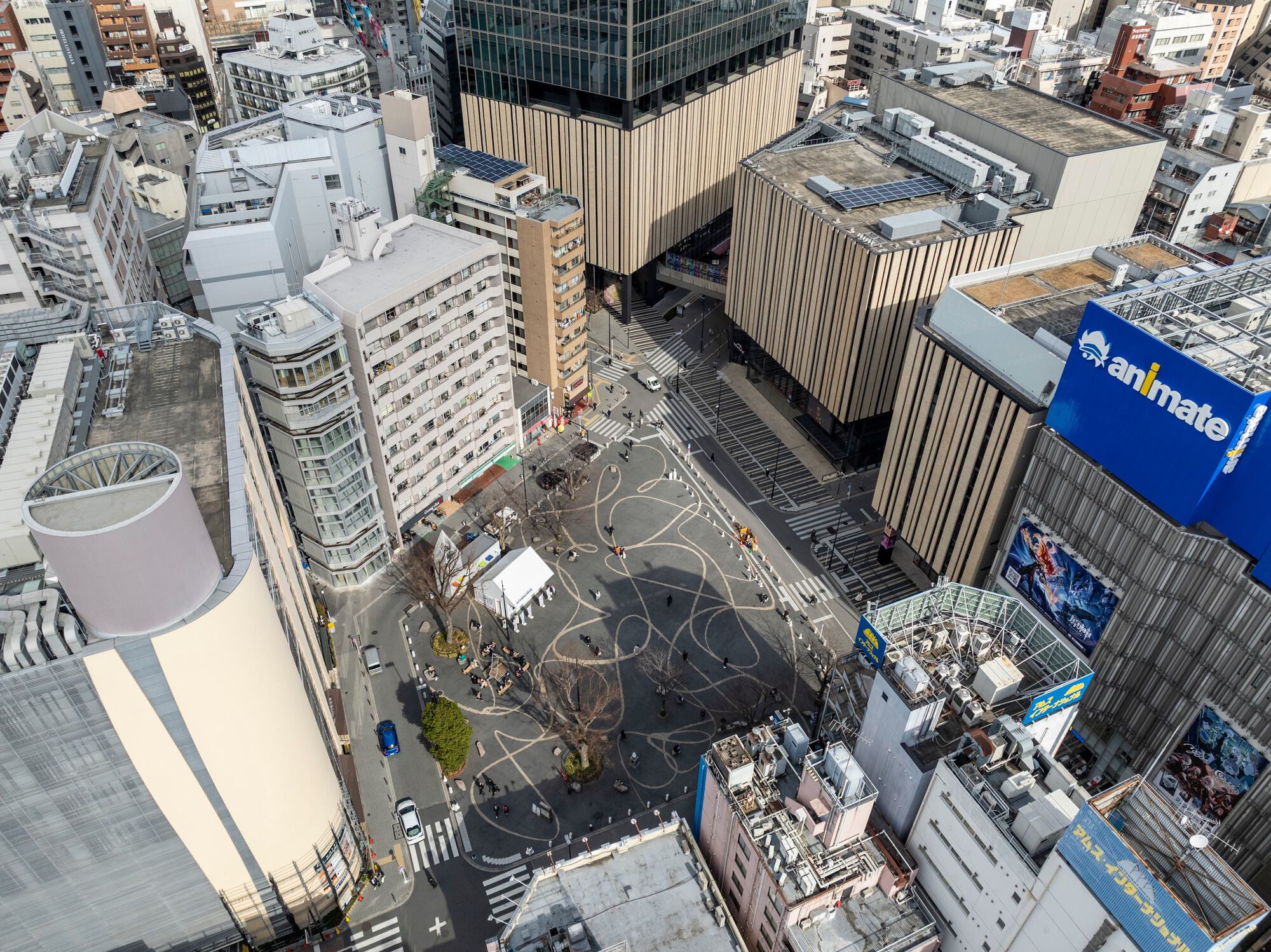

Seen from above, the plaza is a field of painted curves ringed by towers, signage and the vertical fins of larger developments. Koyama's building is one of the smallest players on that edge, and it knows it. Rather than competing in scale, it competes in posture: the stepped profile and glazed corners address the open ground directly, so the building reads as a participant in the plaza rather than a backdrop to it.

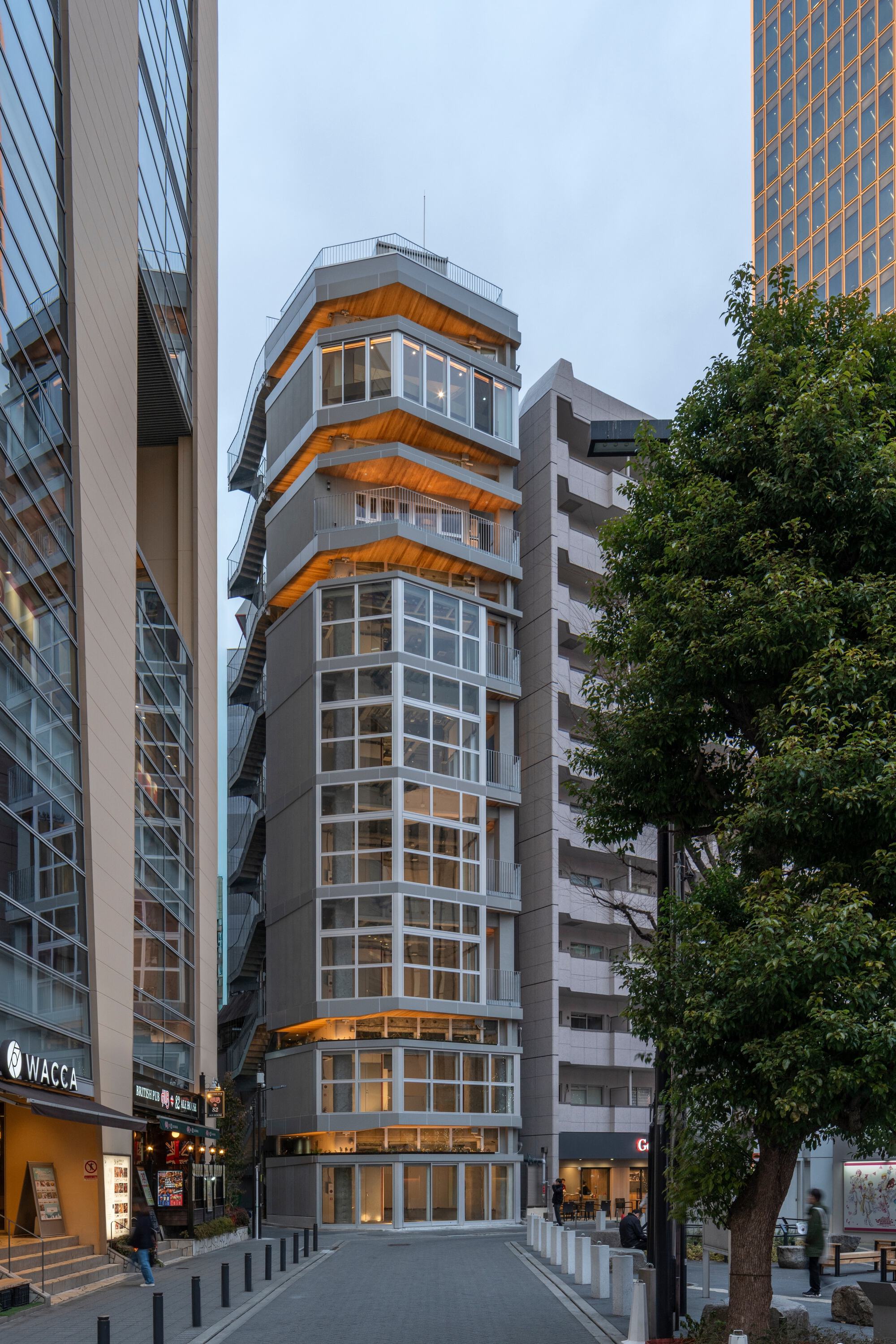

The corner condition matters here. Two street faces give the tower double exposure, and the street-level café shot shows how the ground floor simply opens to the pavement. The stepping above means each floor offers a slightly different relationship to the trees and the open space below, which is a richer arrangement than a sheer extrusion would allow on a plot this tight.

Greenery as a Sectional Strategy

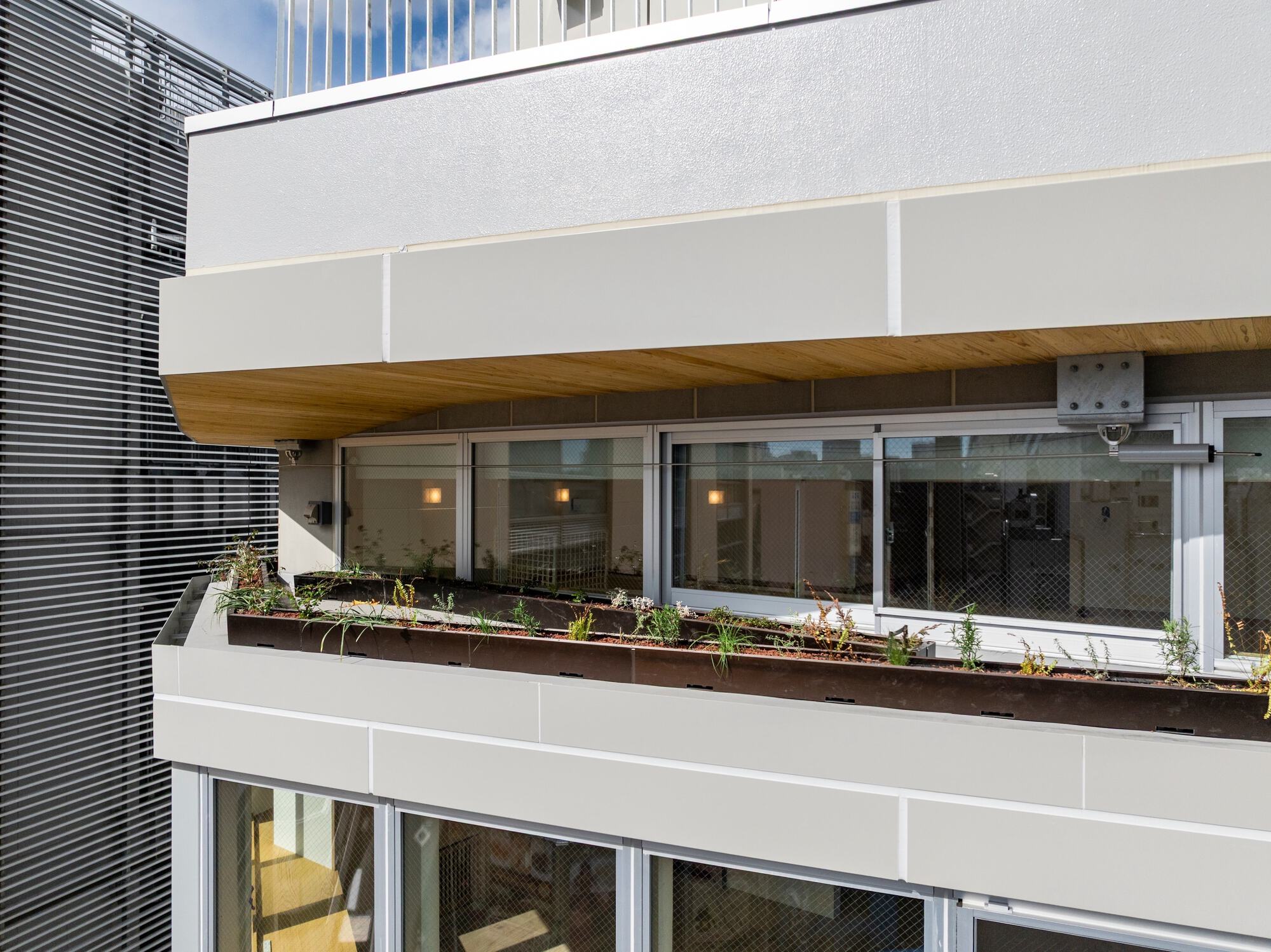

Up close, the clerestory garden is modest: grasses and small flowers in a planter tucked beneath a cantilevered soffit. That modesty is the point. Placed at the top of each floor, the planting sits above sightlines into the shops, so tenants keep their visibility while the facade still reads green from the plaza. It is a compromise that gives up nothing, and you rarely see that so cleanly resolved.

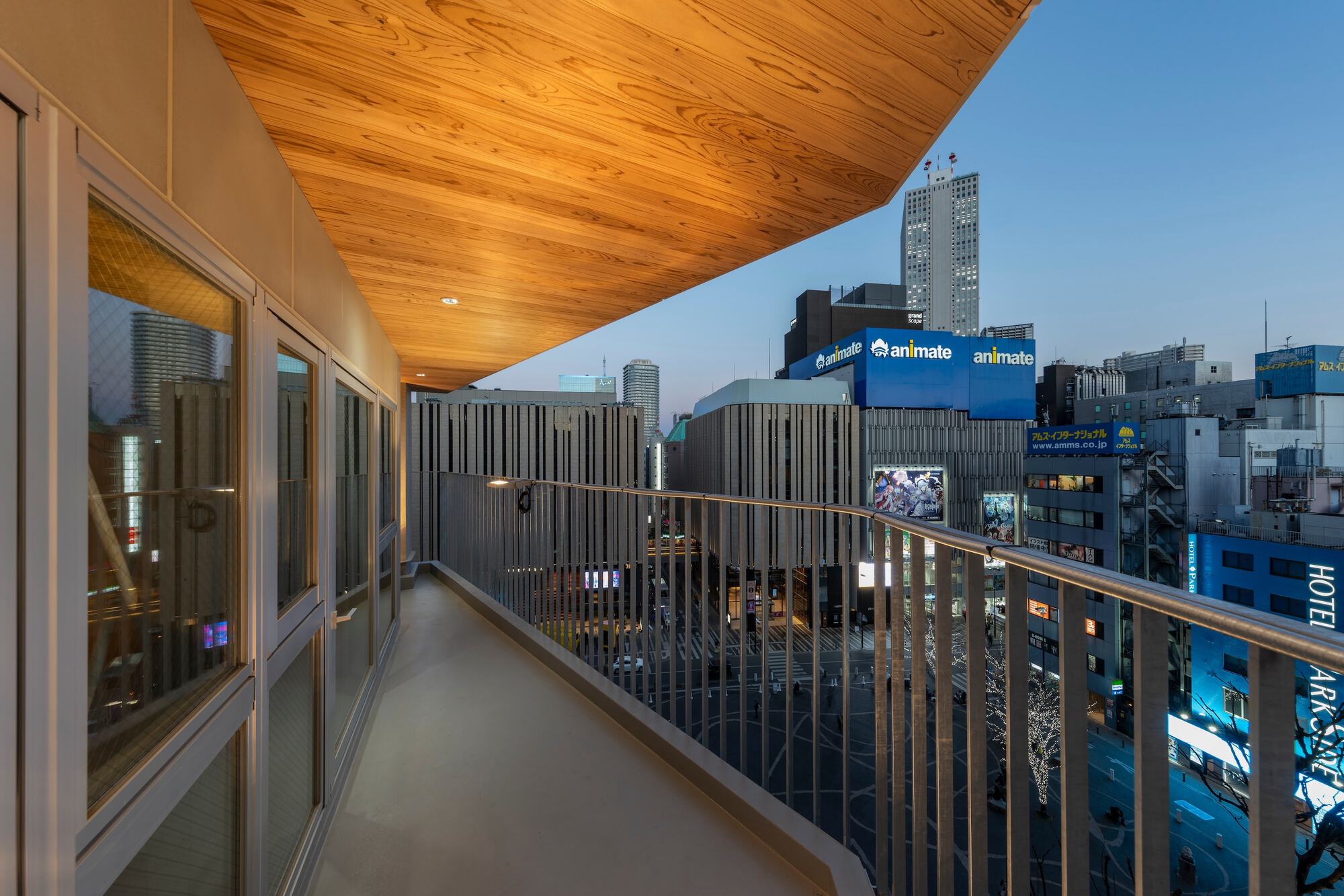

The balcony view toward the lit intersection shows the other side of the bargain. From inside, the planted band frames the city rather than screening it. Occupants look out across a fringe of plants to the signs and traffic of Ikebukuro, which makes the transom a threshold in both directions.

A Lantern on the Plaza at Night

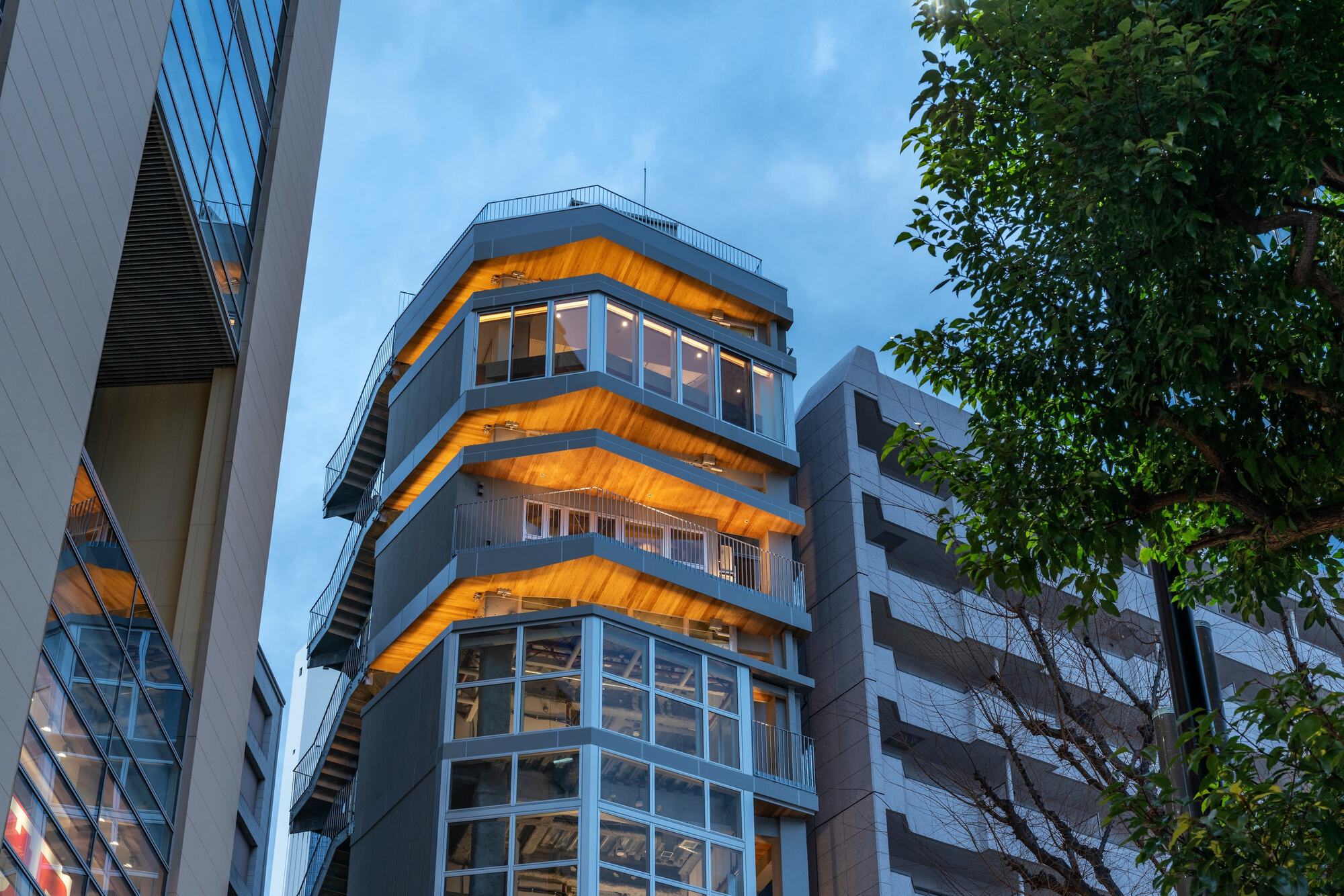

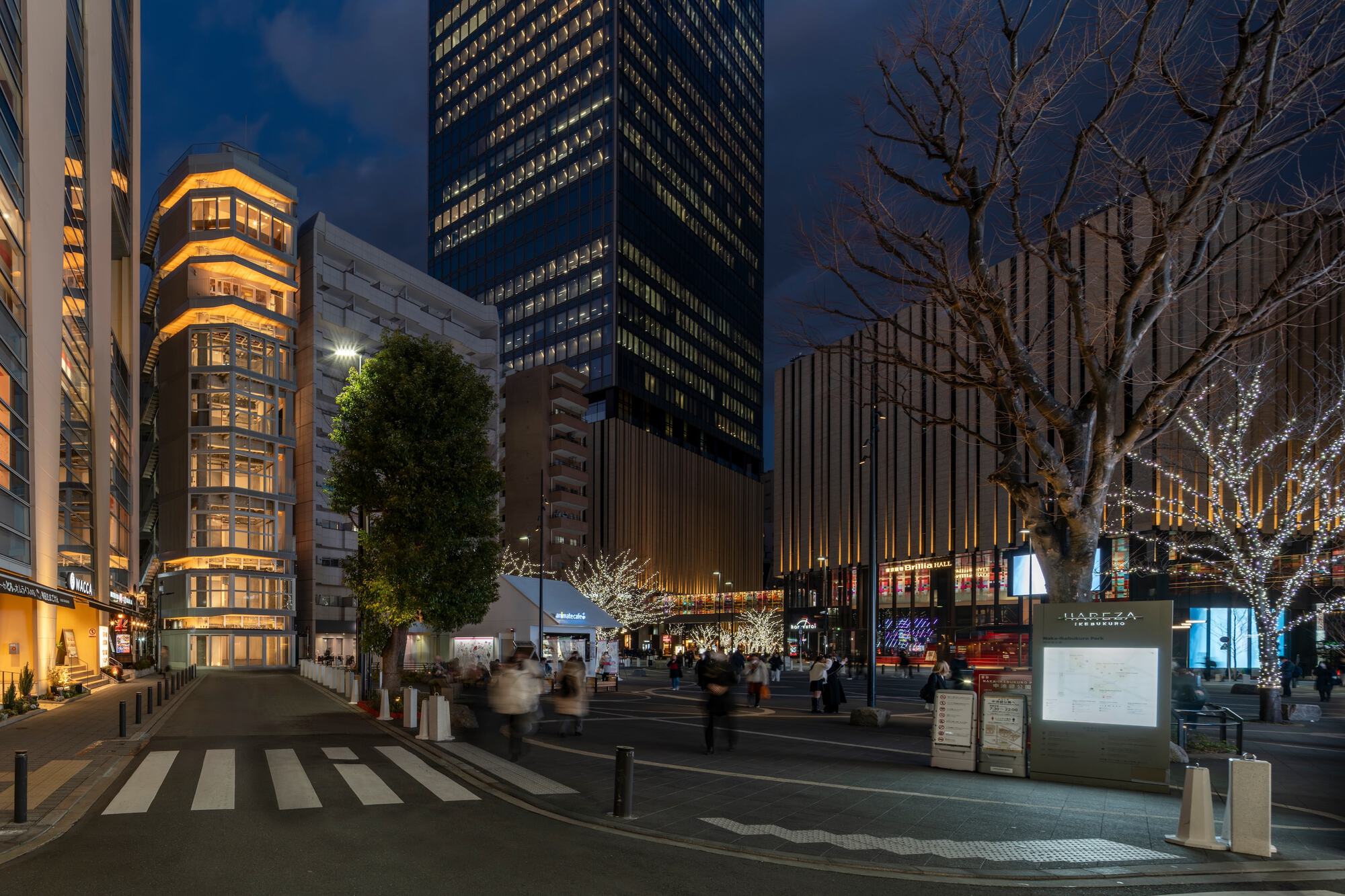

The building earns its alternative name after dark. Light from each floor washes the timber-toned soffits and passes through the planters before reaching the plaza, so the tower glows in horizontal bands filtered by foliage. The effect is warmer and more porous than the flat illumination of a curtain-wall office, and it extends the park's atmosphere upward rather than flooding it.

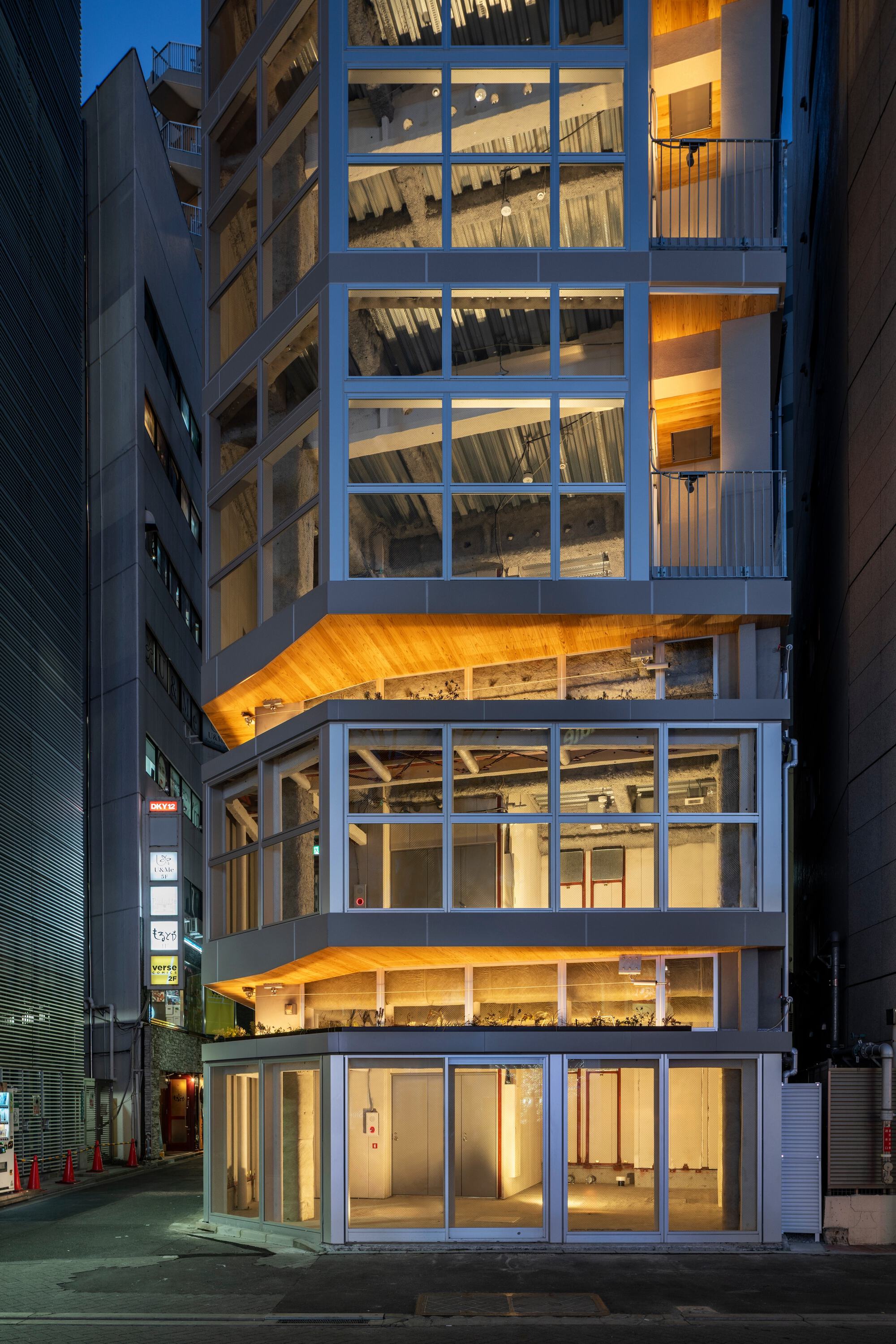

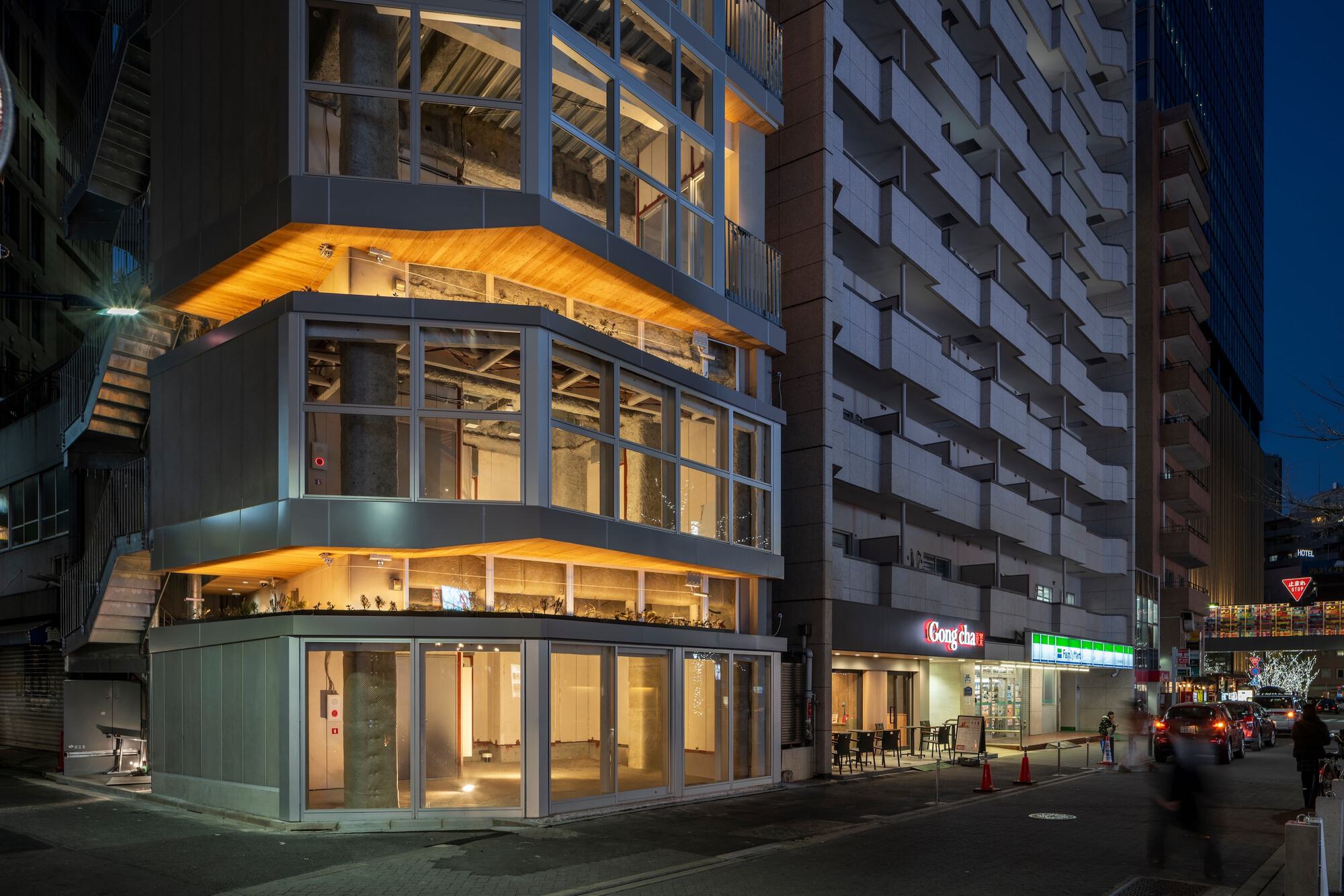

The night views also expose the frame: glazed floors reveal structure and interior life stacked over a lit shopfront. That transparency is a choice with consequences for the residents, but the stepped soffits and planted edges do some of the work of privacy, giving each floor a lid that reads from below as a deep eave.

Arches and Oak in the Owner's Residence

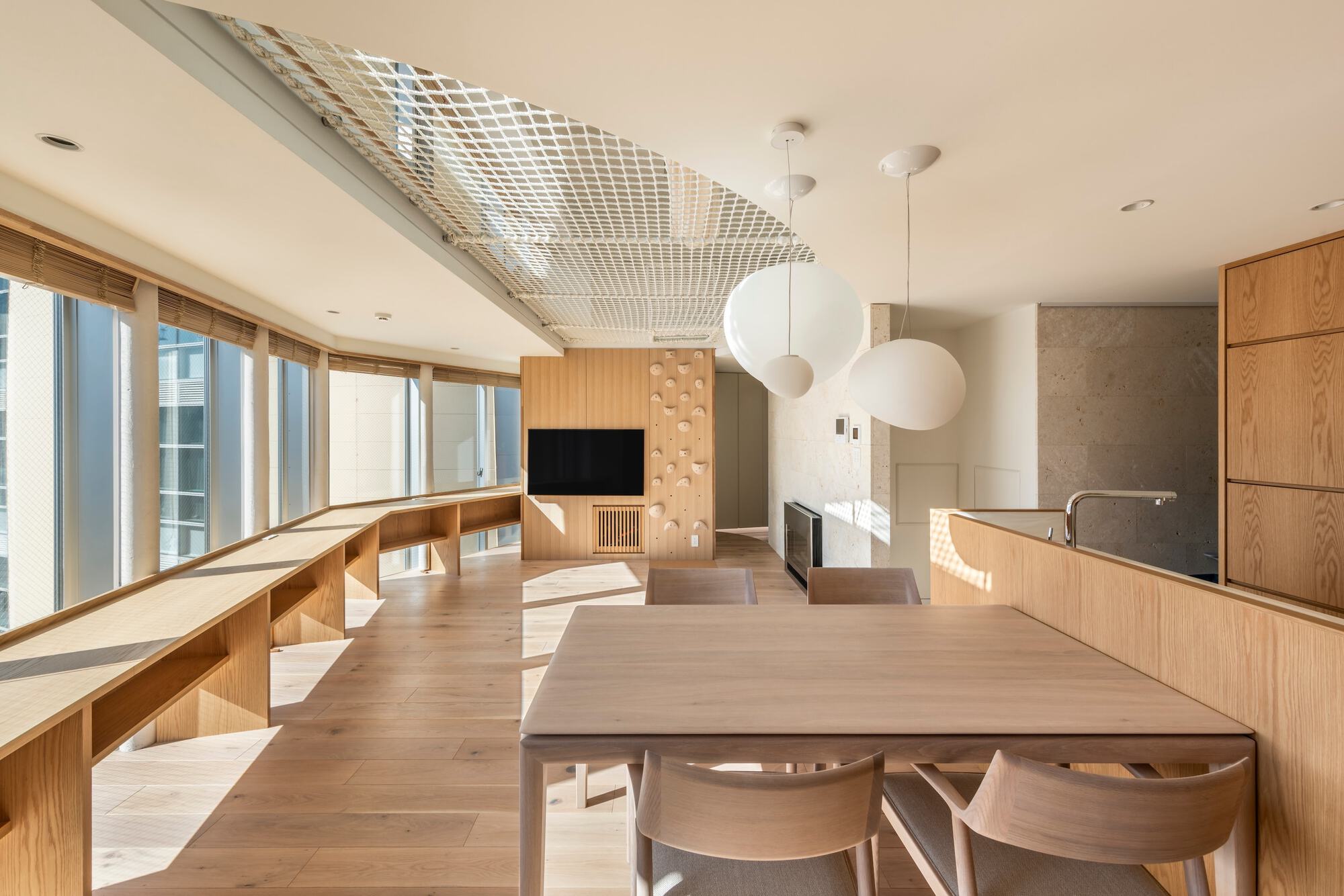

The residence upstairs abandons the cool restraint you might expect from a downtown penthouse. The living and dining room is built around oak joinery and a long window bench that catches the afternoon sun, an invitation to sit at the glass rather than simply look through it.

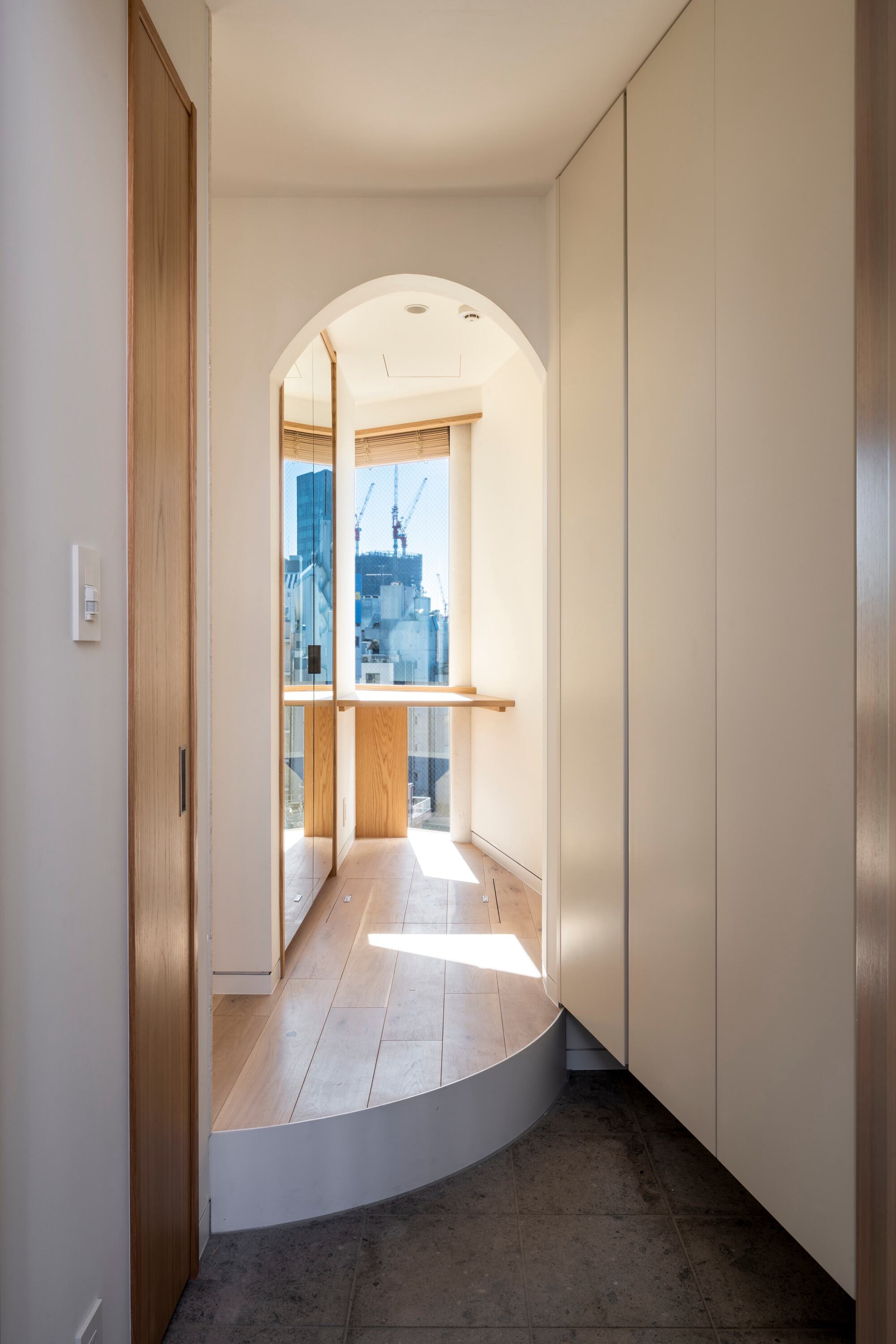

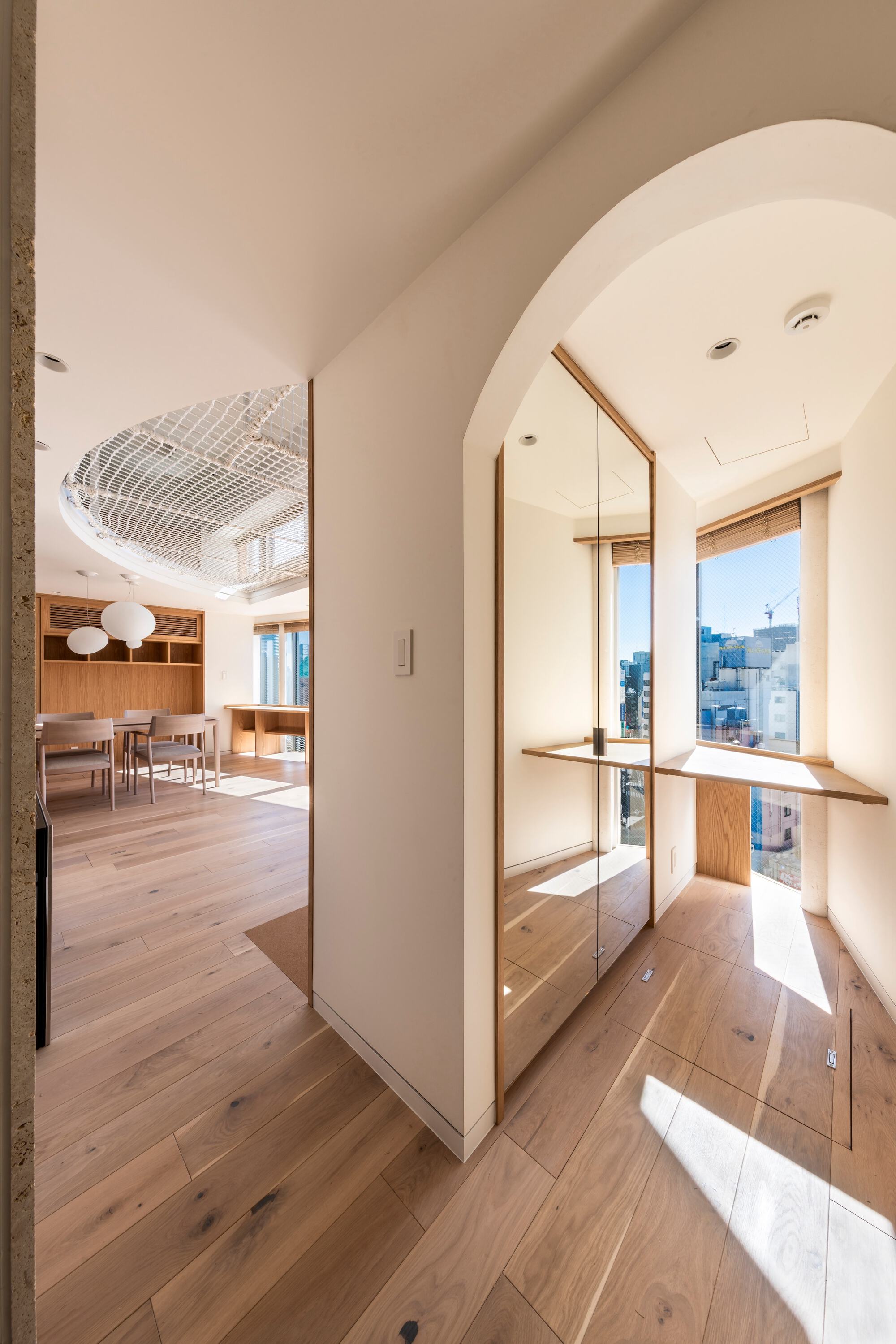

Arched alcoves and a curved step at the end of the entry hall soften the circulation, and an arched window nook with a mirrored panel stretches a compact plan visually. These are small moves, but in a plot this size the residence depends on them to feel generous rather than merely efficient.

A Home Built for Climbing and Lounging

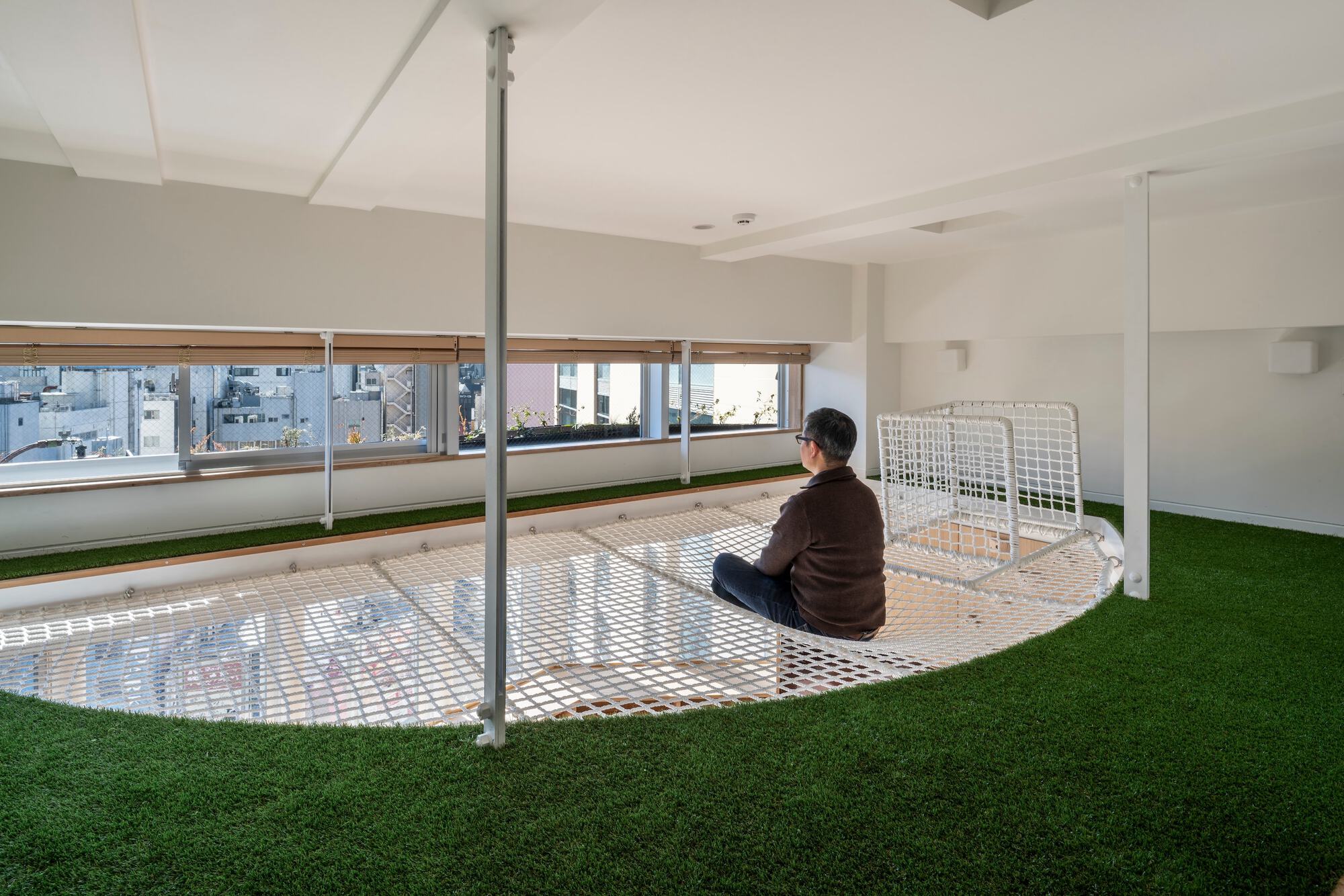

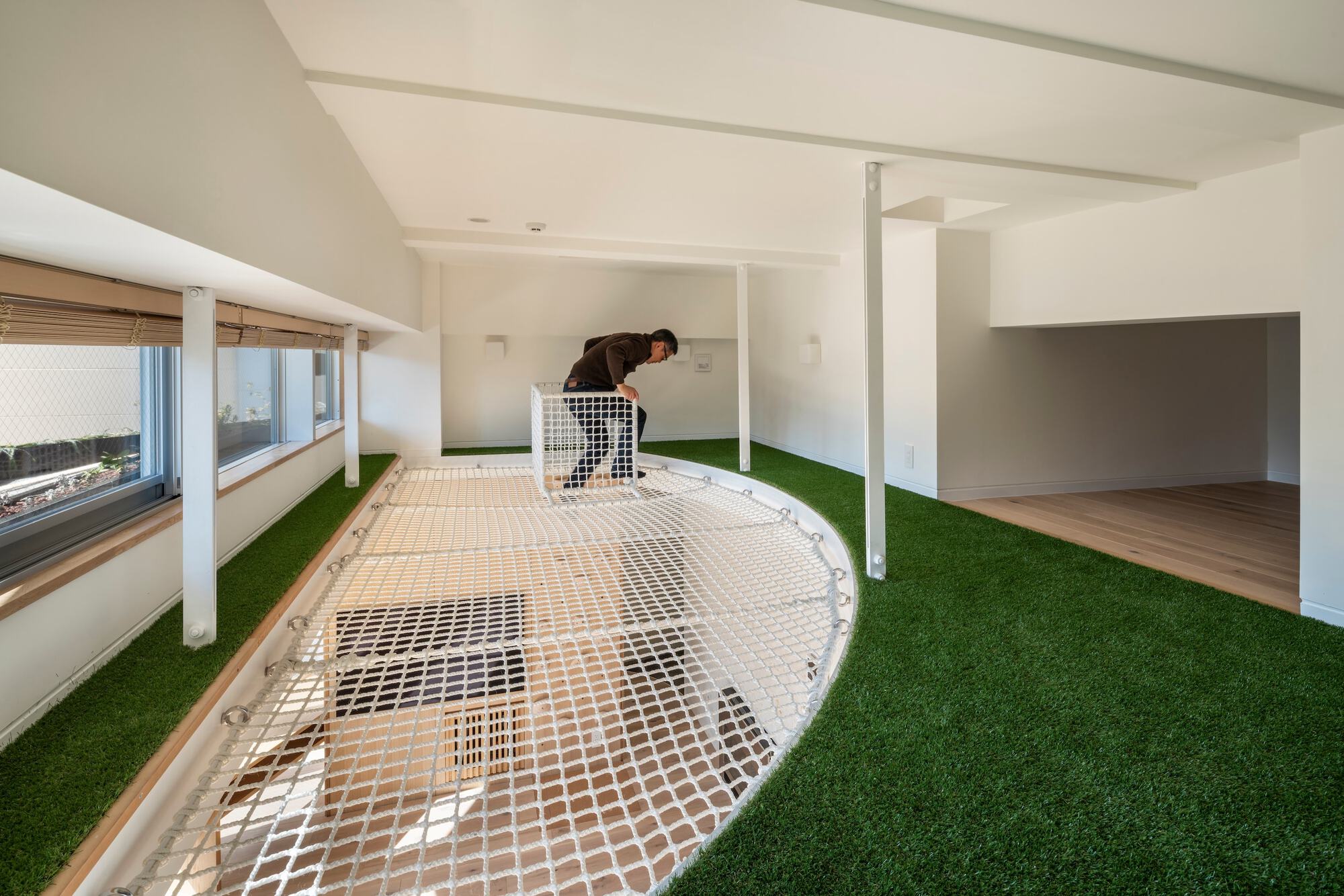

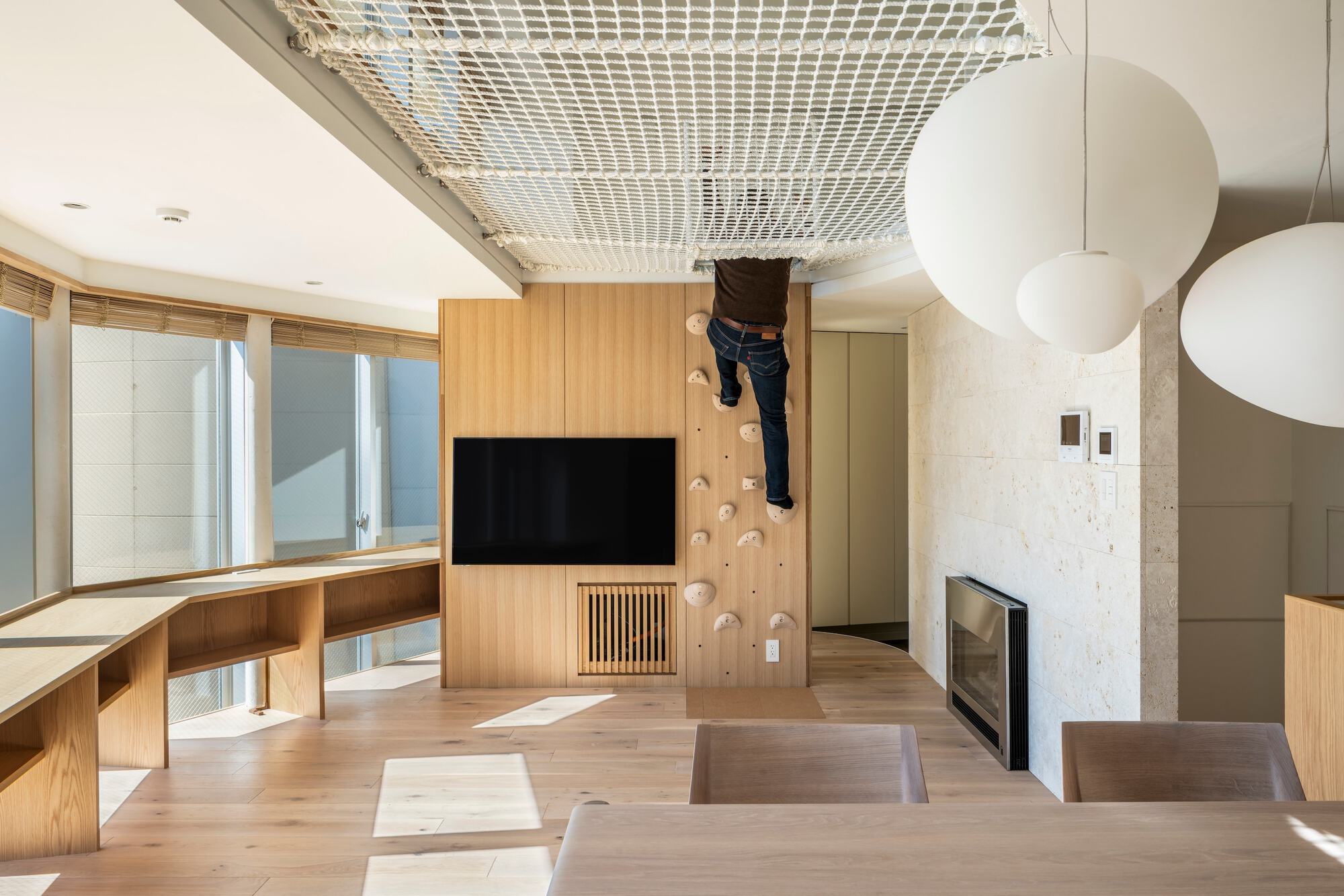

The most surprising interiors belong to the loft. A rope net ceiling over the living space becomes, one level up, a net floor set into artificial turf. A climbing wall rises beside the television. The household has clearly asked for a home that is played in as much as lived in, and the architects have answered with vertical connections that double as furniture.

There is a quiet rhyme with the facade. The turf and net floor bring a planted, open-air feeling indoors, the same idea the clerestory garden applies to the exterior. Whether or not you would want to live with a net over your dining table, it is a coherent extension of the project's central theme: thresholds you can occupy.

Plans and Drawings

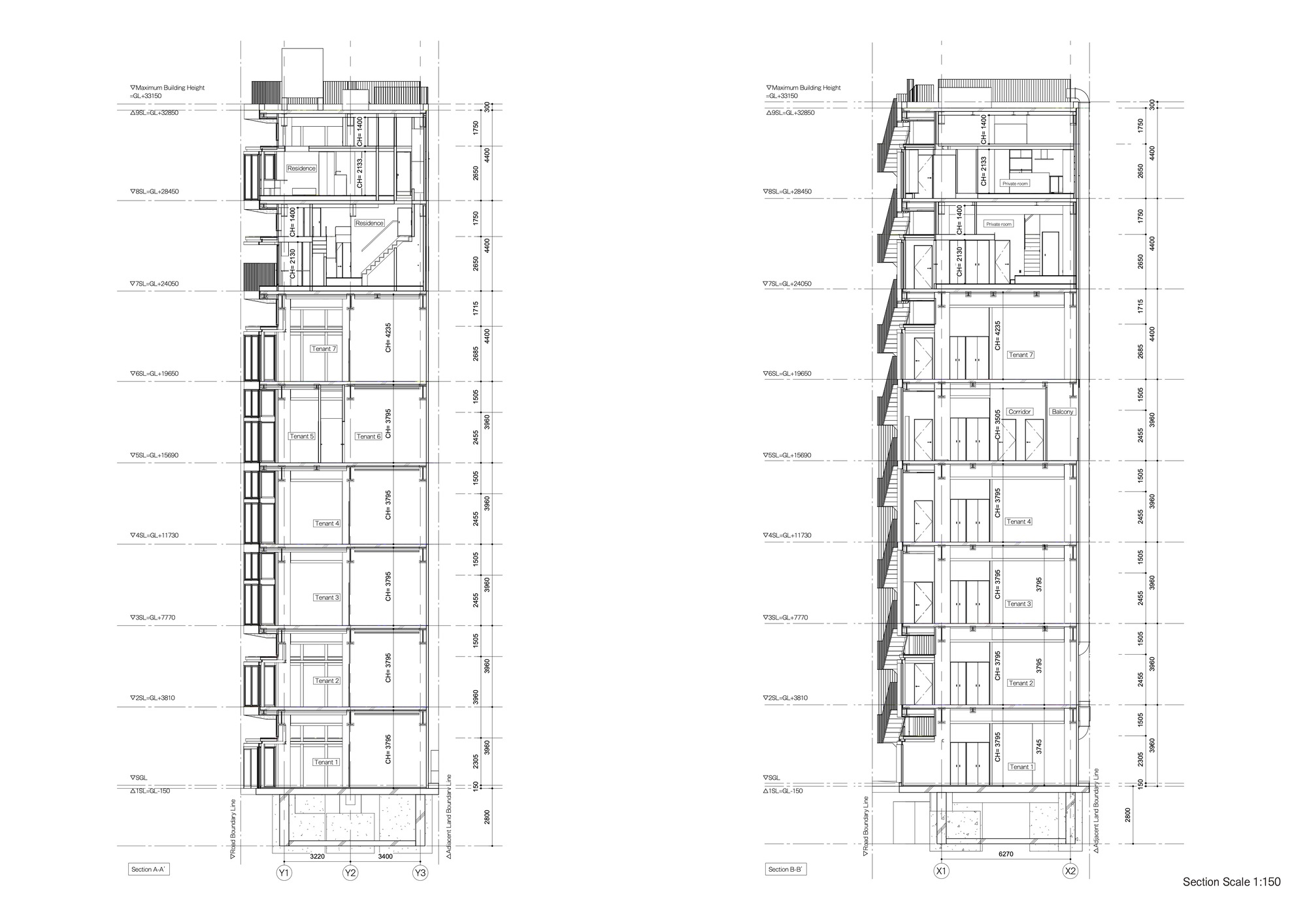

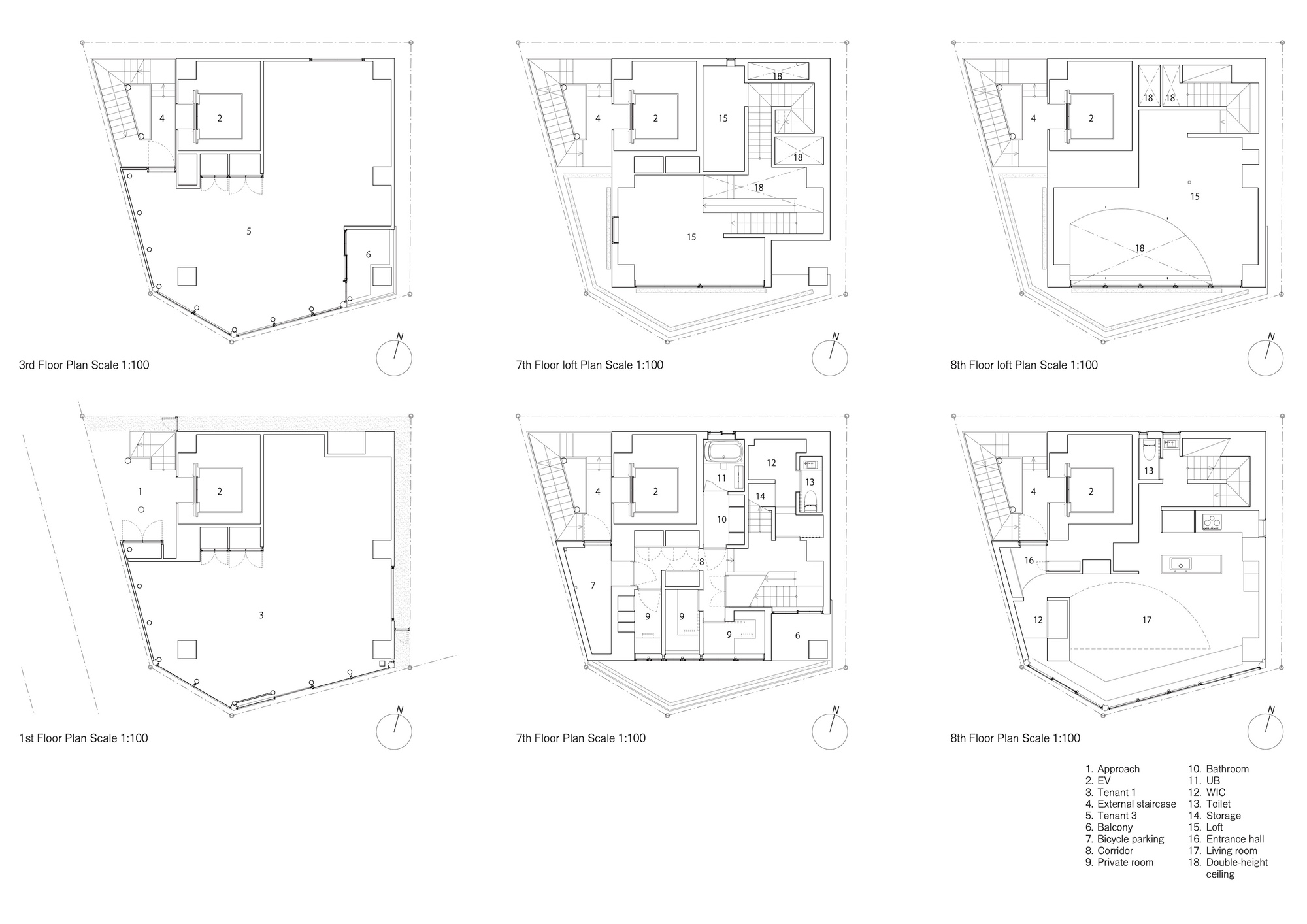

The plan sheet traces the stack from the ground tenant space up to the residence and loft, each level organised around a stair and core that leave the rest of the floor plate open toward the corner. The sections make the logic explicit: tenant floors stacked below, residential floors above, with an external staircase running along the side elevation.

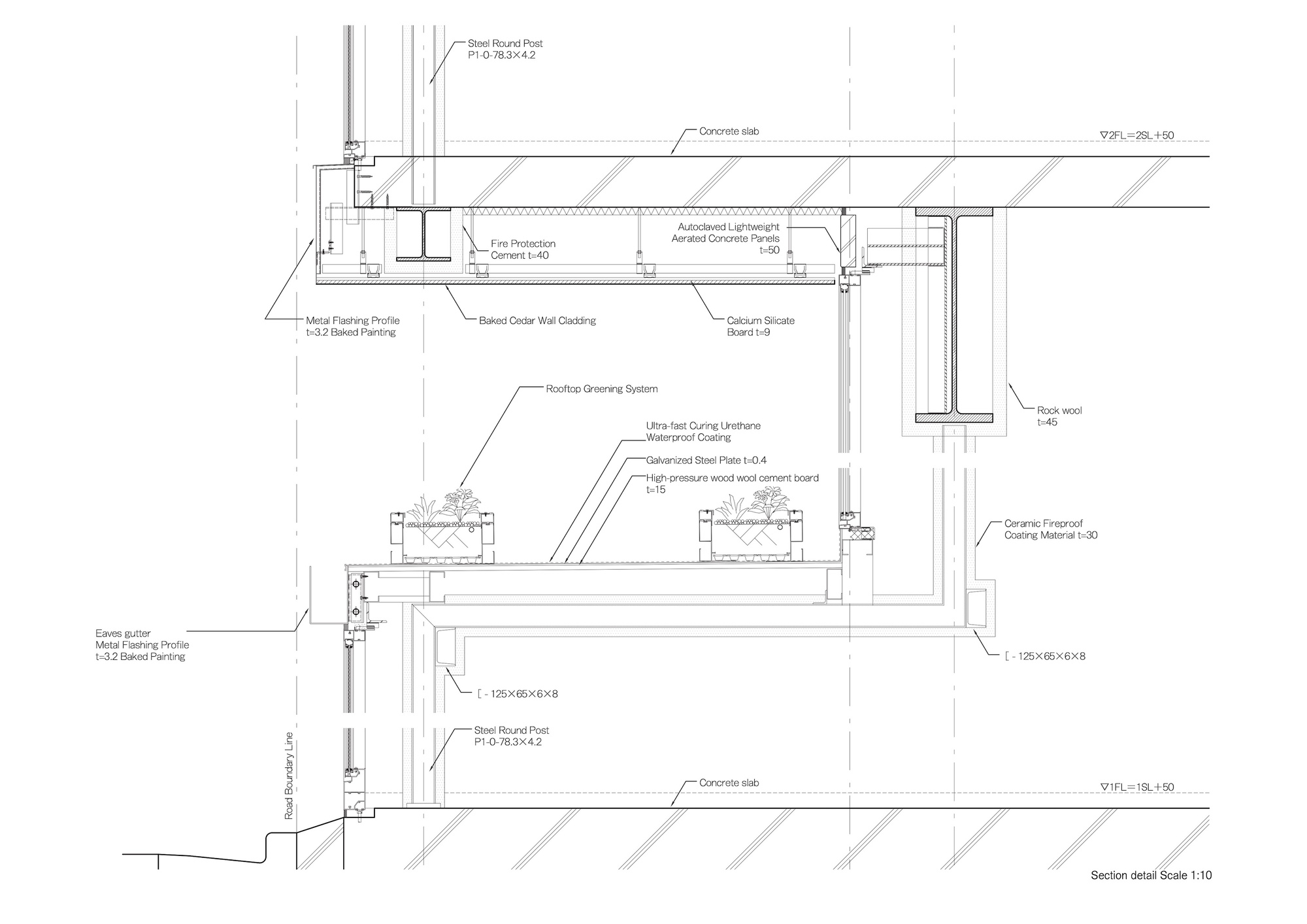

The 1:10 detail is where the concept becomes buildable. It shows the floor edge resolved as a layered assembly of planter-topped greening, cedar cladding, a steel beam and fireproofing. Integrating soil, water and fire protection into a slab edge on a tall urban building is not trivial, and this drawing is the clearest evidence that the green bands were engineered from the start rather than added late.

Why This Project Matters

Tokyo is full of small, tall buildings on awkward plots, and most of them ignore whatever open space happens to sit beside them. Clerestory Garden shows that a building of under 500 m² can meaningfully extend a public plaza without giving up commercial frontage or residential privacy. The move is precise: plant the transom, not the wall, and let the section carry the relationship to the city.

For architects working on infill sites, the takeaway is to treat greenery as structure for urban relationships, not as skin. Here a single repeated floor-edge detail does daytime work as landscape, night-time work as lighting, and programmatic work as the thread binding shops and home into one building. That is a far better return on a planter than most green facades manage.

Clerestory Garden at Naka-Ikebukuro Park (Luce Jardin) by KEY OPERATION INC. / ARCHITECTS, Tokyo, Japan. Area: 469 m². Completed: 2025. Photography: ToLoLo studio, Mayu Nakamura.
