Gabriel Verd and Buró4 Build a Concrete Bastion on the Edge of Ayamonte's Marina

Port buildings tend to be functional afterthoughts, utilitarian boxes dropped along waterfronts with little regard for how they shape the public experience of a harbor. The new Port Authority and Harbormaster's Building in Ayamonte, designed by Gabriel Verd and Buró4, is the opposite of that. Completed in 2024 on a compact but strategically placed plot at the edge of the marina basin, the 700 square meter building replaces a set of obsolete, temporary facilities with something deliberately permanent: a heavy, angular concrete volume that reads like a fragment of a coastal fortification, scaled down and repurposed for the 21st century.

What makes the project genuinely interesting is the way it resolves a set of contradictions. It is simultaneously massive and porous, closed off for storage on one side and open to the public on the other. Its triangulated concrete geometry is structurally assertive yet surprisingly light in composition, with voids cut through walls and columns that frame views of Portugal, the historic town center, and the tipu tree promenade lining the dock. It manages to be civic infrastructure and public amenity at once, and it does so with a material palette that should age well against the salt air and Atlantic weather.

A Geometry Borrowed from Defense

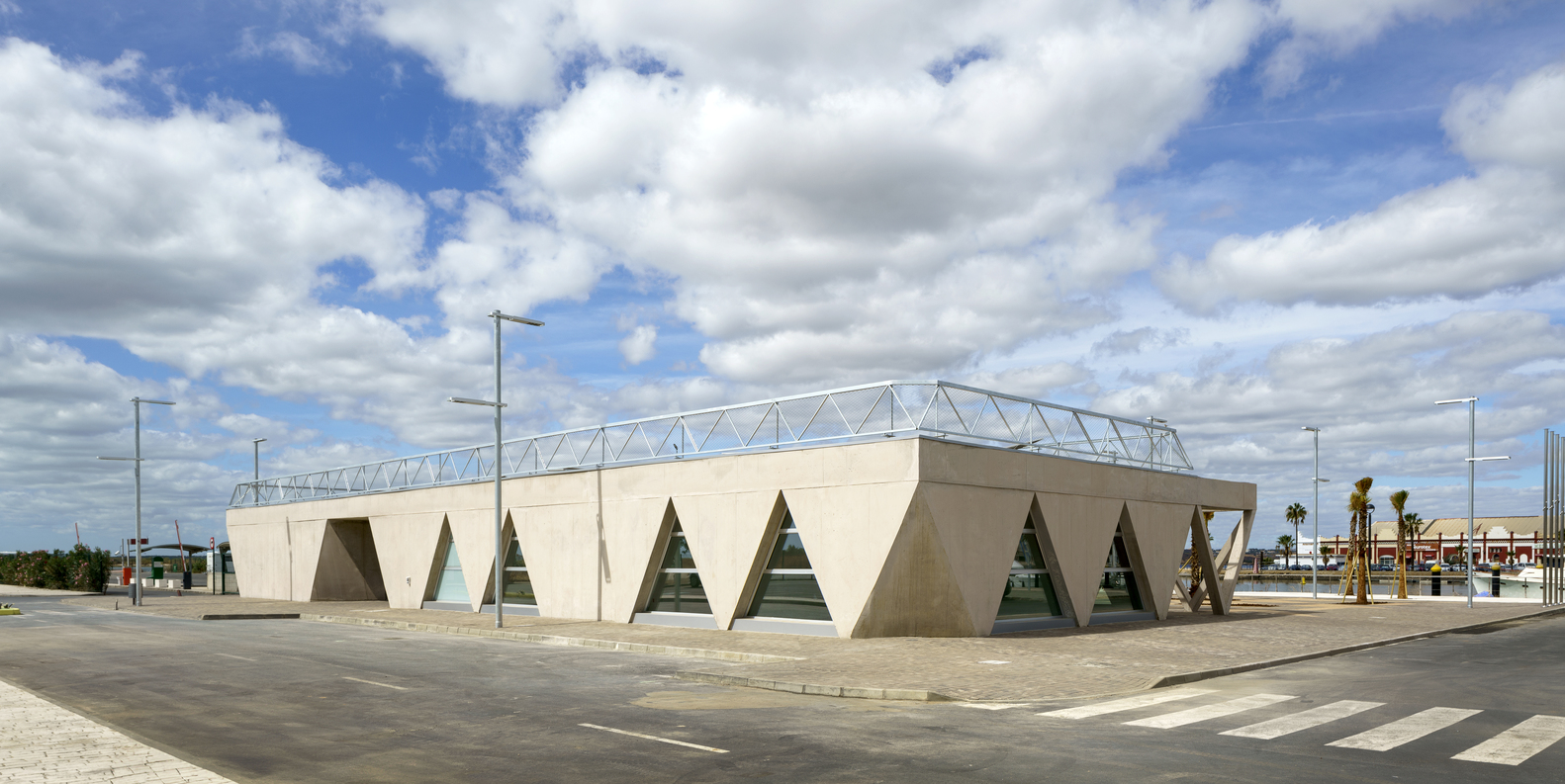

The building's most distinctive feature is its triangulated structural language. Massive concrete members angle and intersect to form diamond and triangular voids across the facades, creating a pattern that owes more to military bastions and breakwaters than to the typical vocabulary of administrative architecture. The steel truss that crowns the roofline reinforces this reading: it is open, skeletal, and slightly industrial, as though the building were still under construction or deliberately unfinished at its upper edge.

This is not decoration. The angled members work as both structure and shading device, filtering light into the interior spaces while providing the kind of visual depth that keeps a concrete facade from becoming a blank wall. Seen from the dock or from the water, the long elevation reads as a continuous rhythm of triangles, a pattern legible at the scale of the entire marina.

The L-Shape and the Plaza

The building's L-shaped plan is the key organizational move. One arm runs parallel to the waterfront, housing public-facing functions: administrative offices, maritime services, and security, all sheltered beneath an access portico. The other arm turns inland to contain a closed storage volume for supplies and maintenance equipment. The space framed by the two arms becomes a porticoed plaza that faces the cliff edge and the tipu tree promenade along the dock.

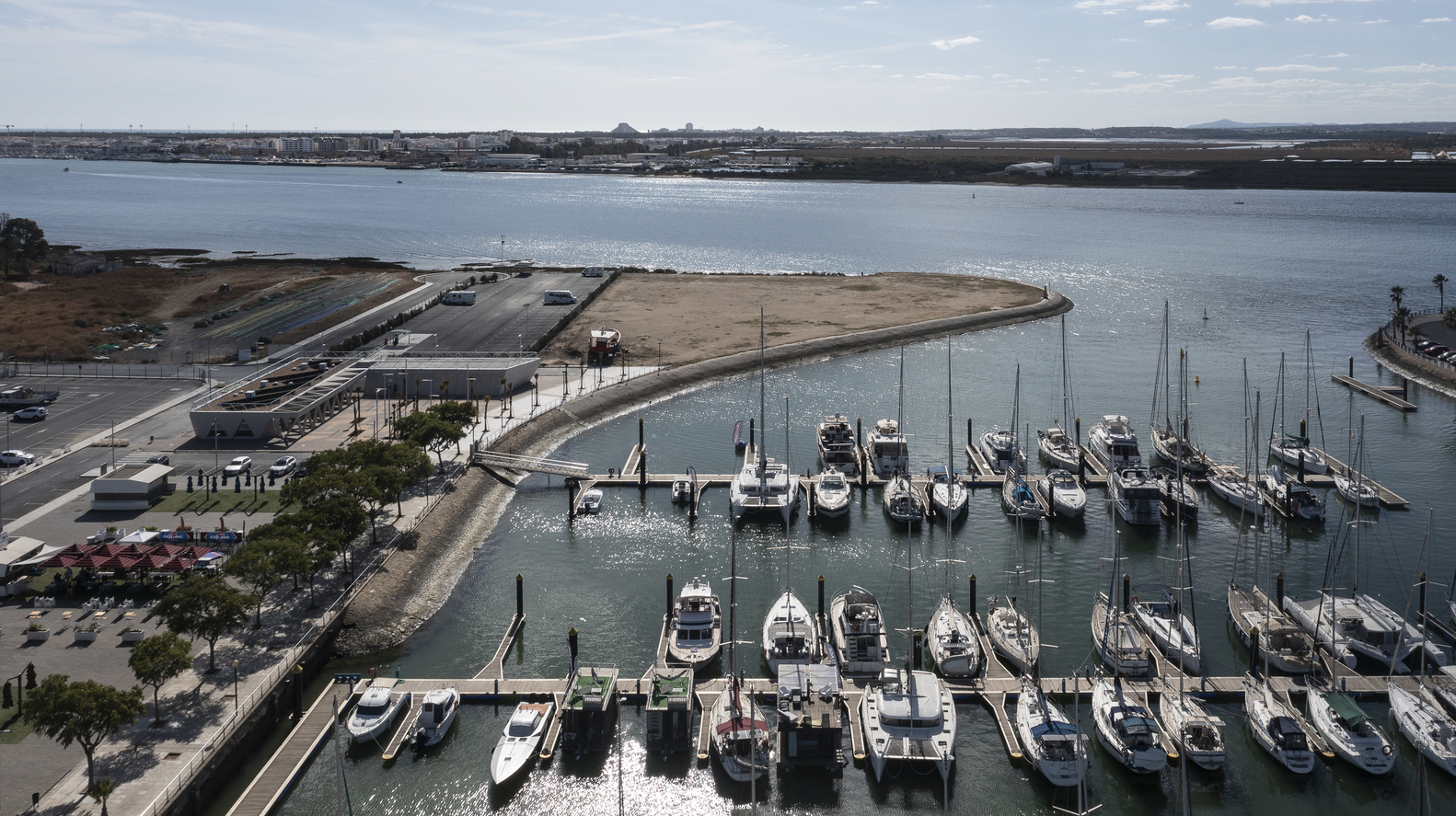

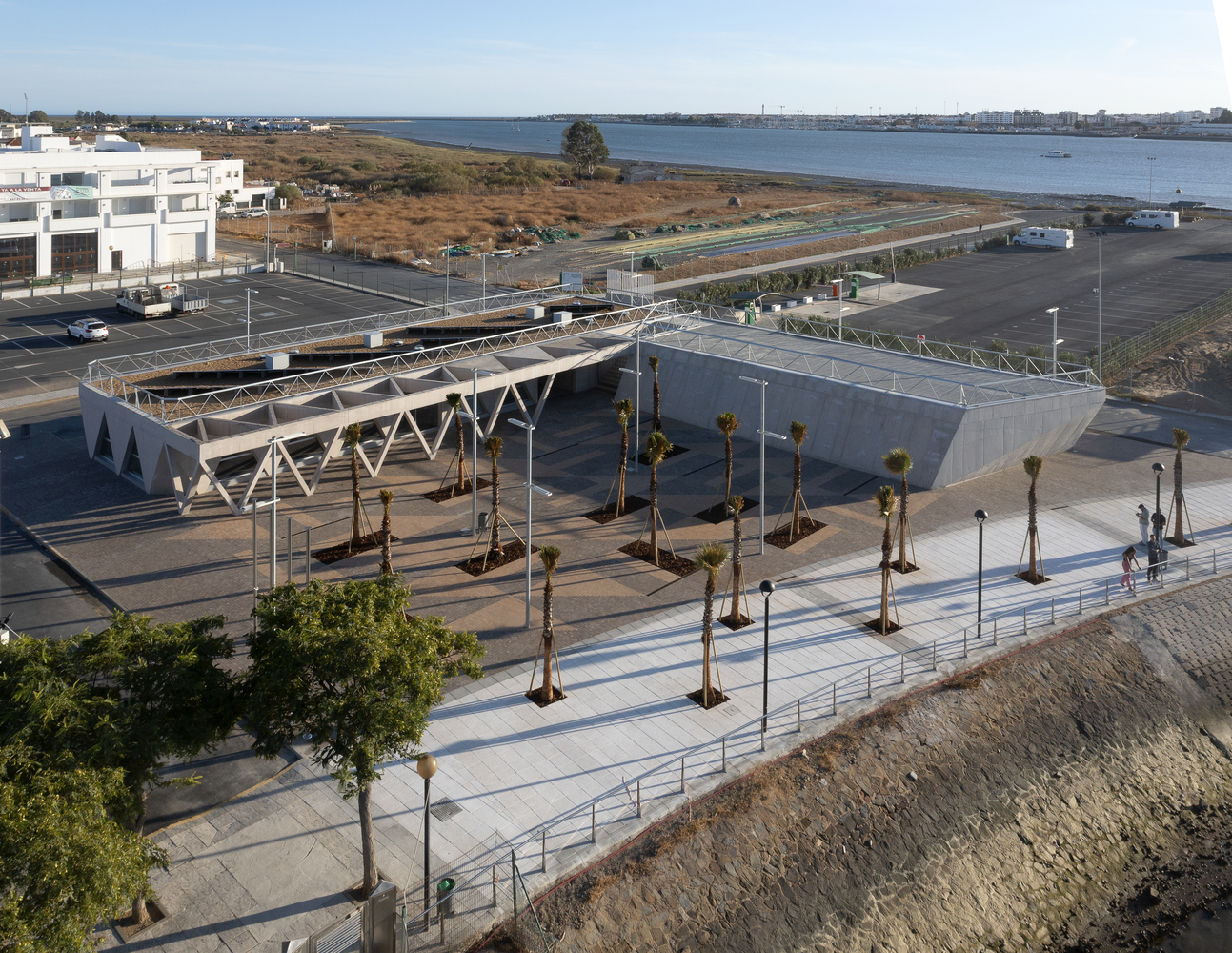

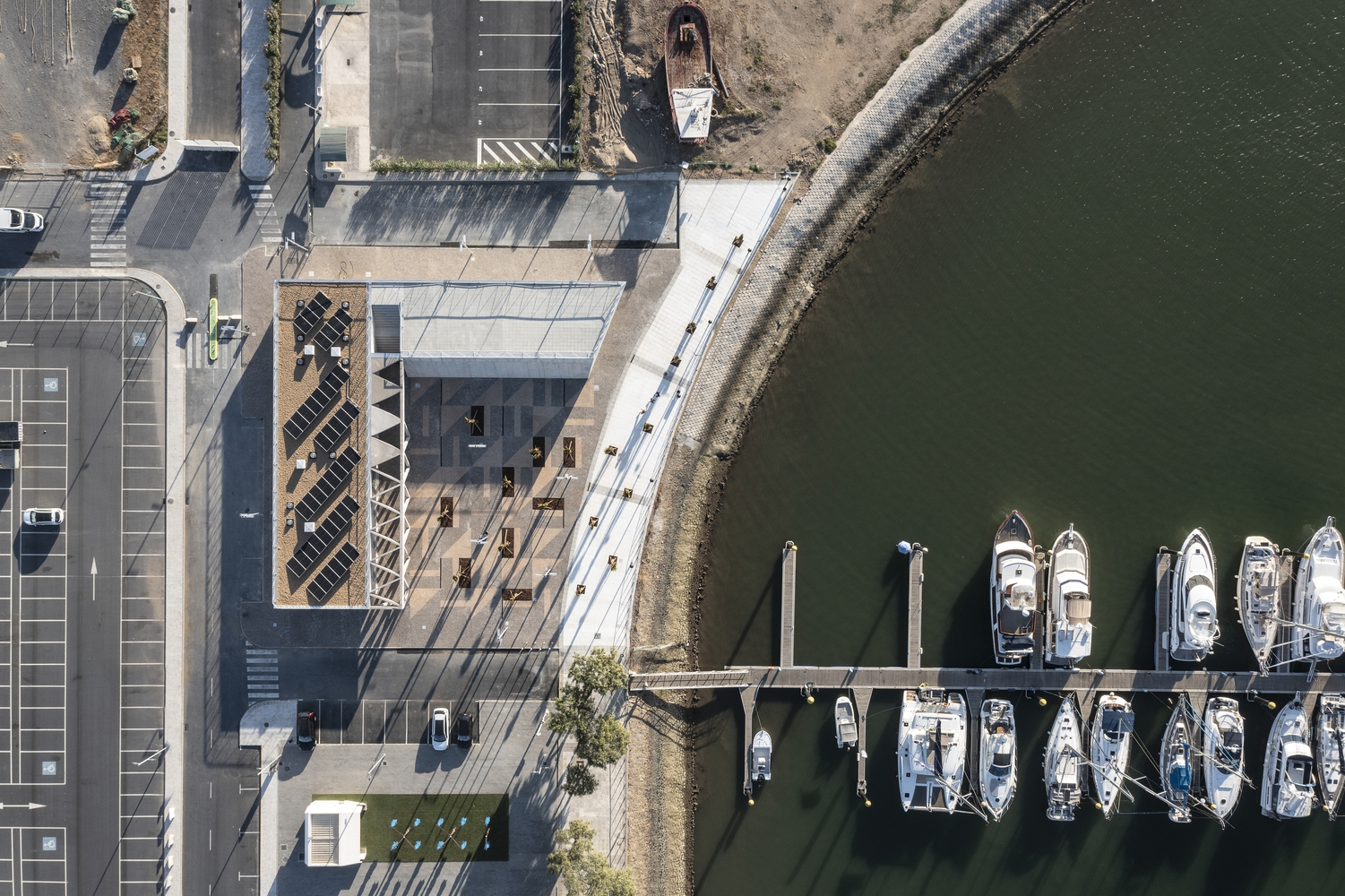

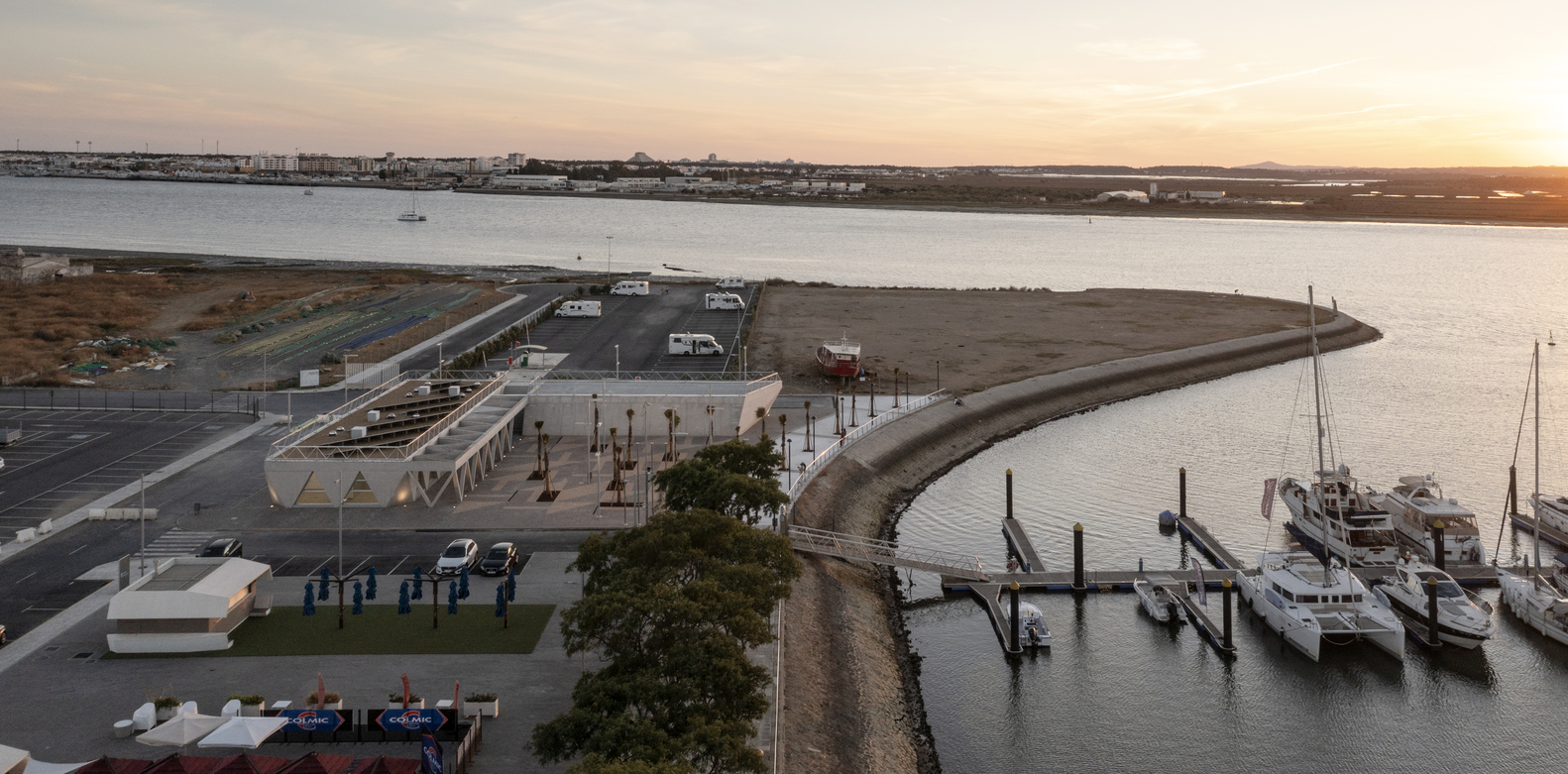

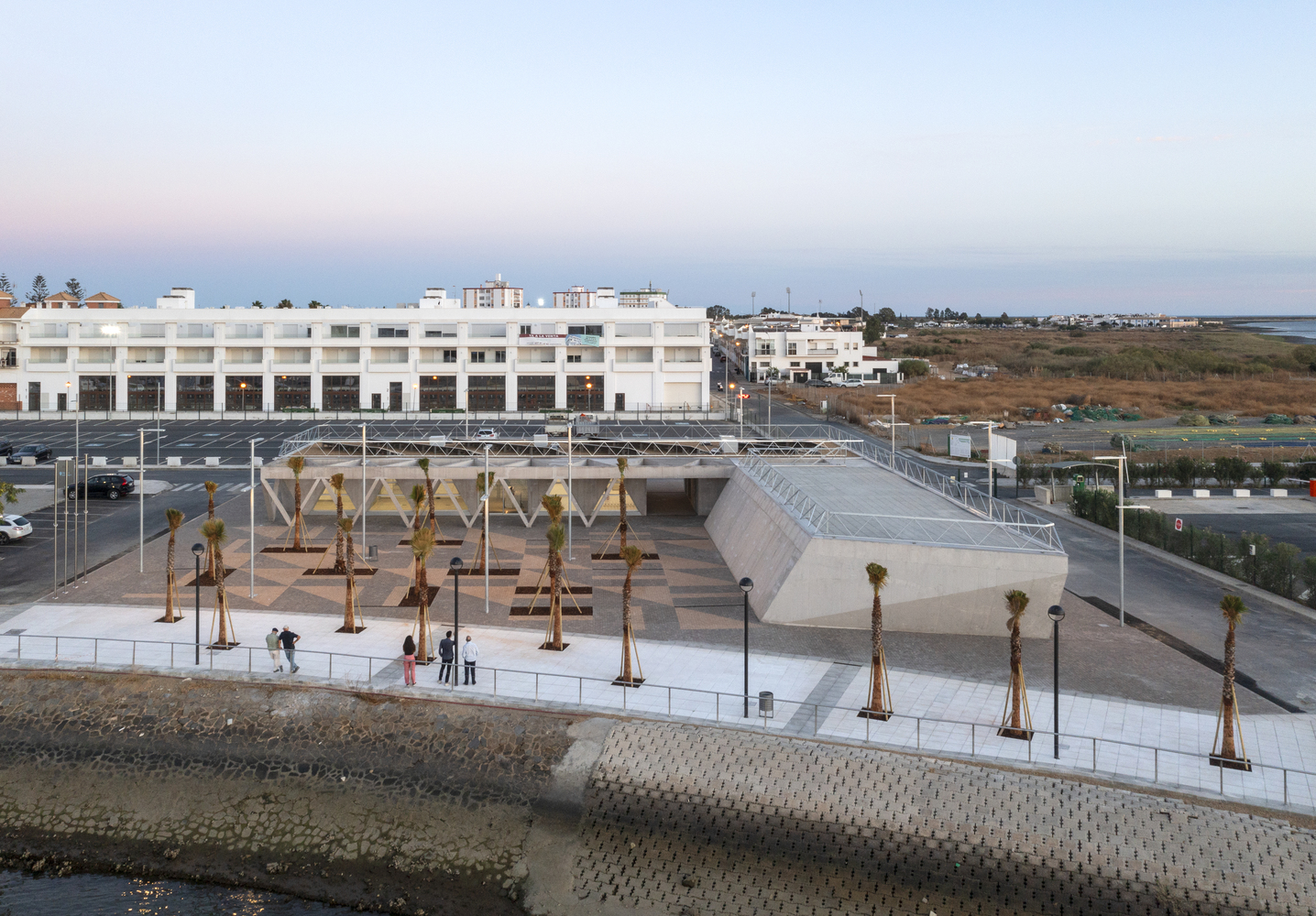

Aerial views reveal how effectively this simple plan works at an urban scale. The building stitches together the marina, the parking area, and the existing promenade into a coherent sequence of public spaces. The plaza is not leftover space; it is the project's primary civic gesture, a sheltered outdoor room where the daily rhythms of port life play out under the triangulated canopy.

The Portico as Threshold

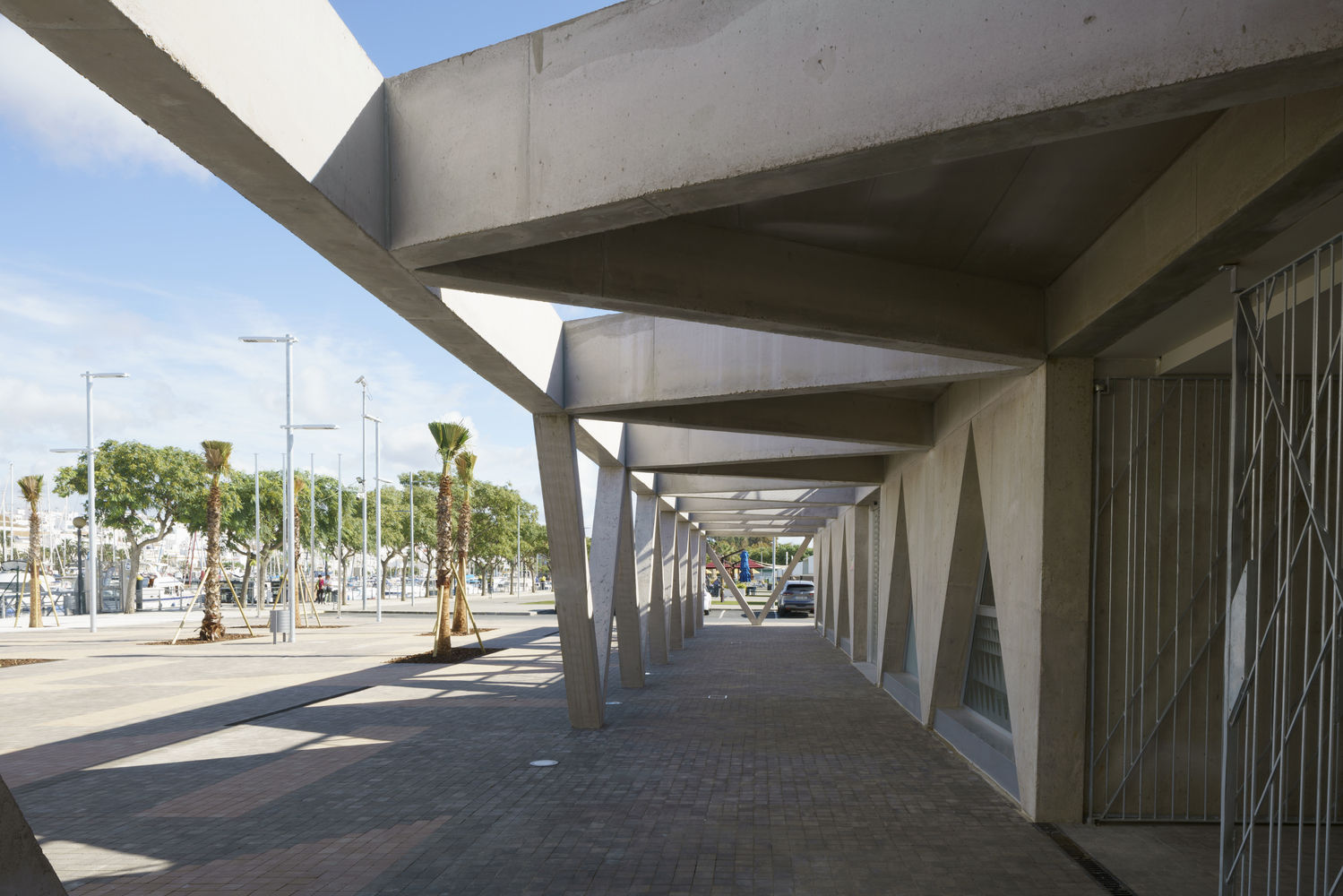

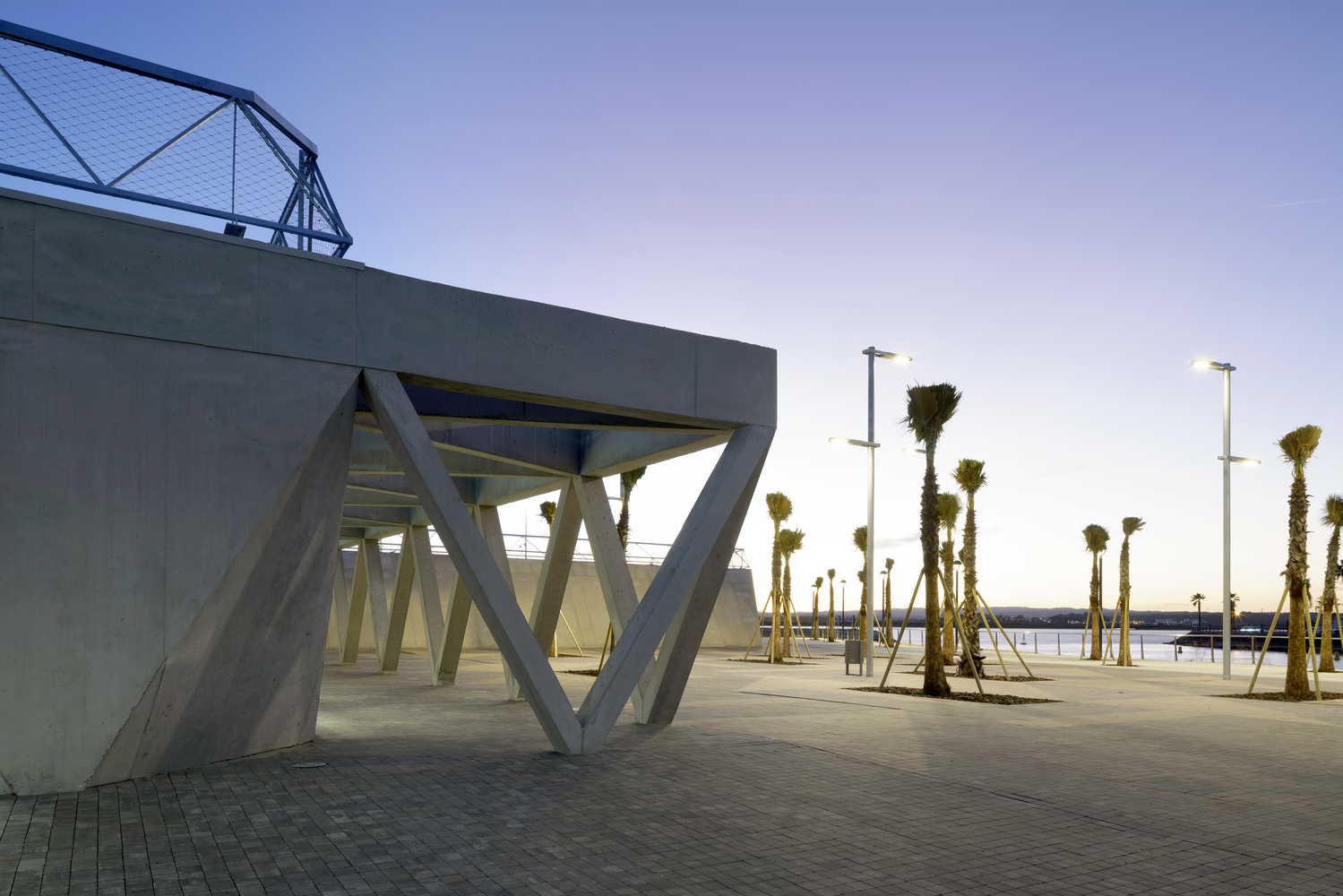

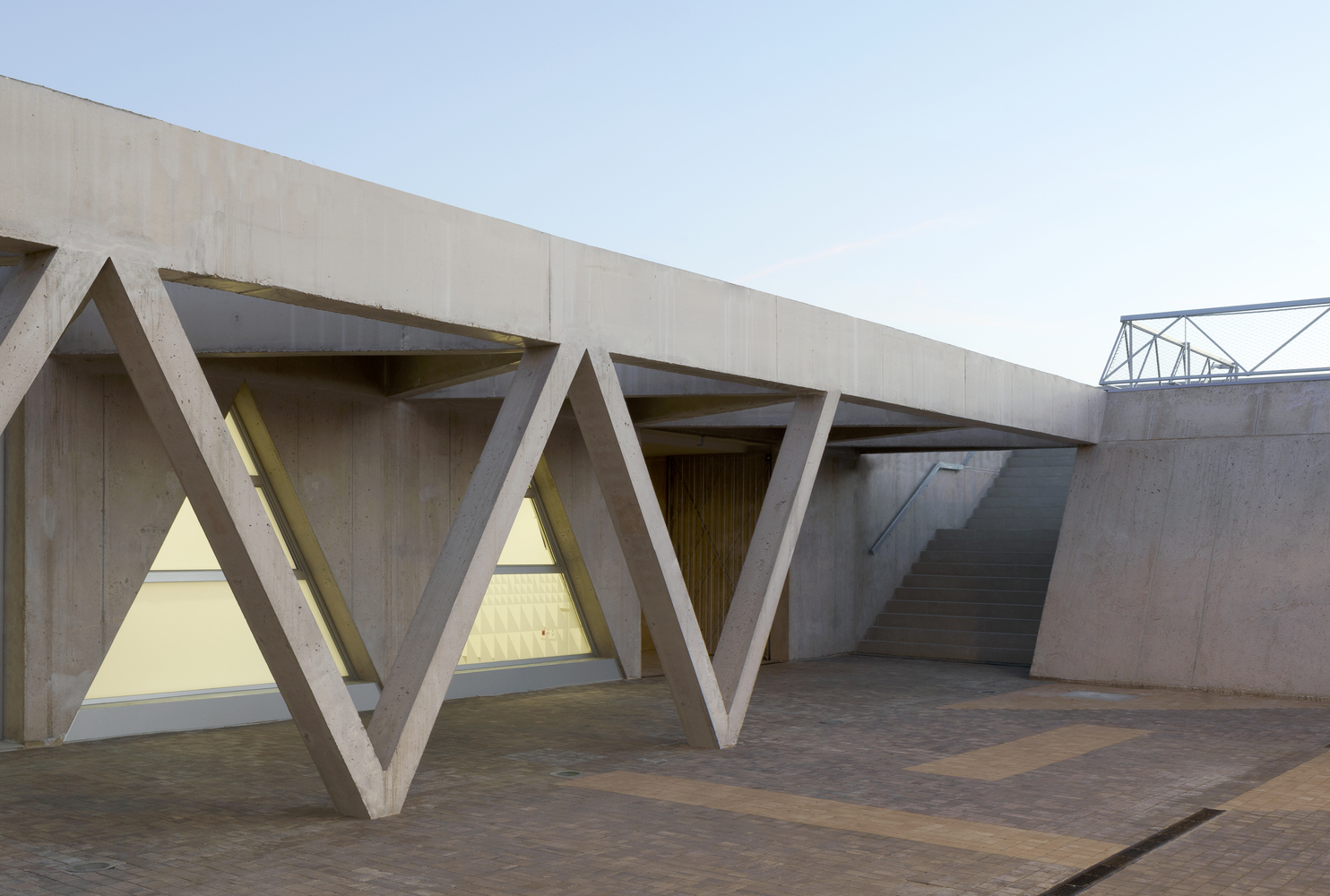

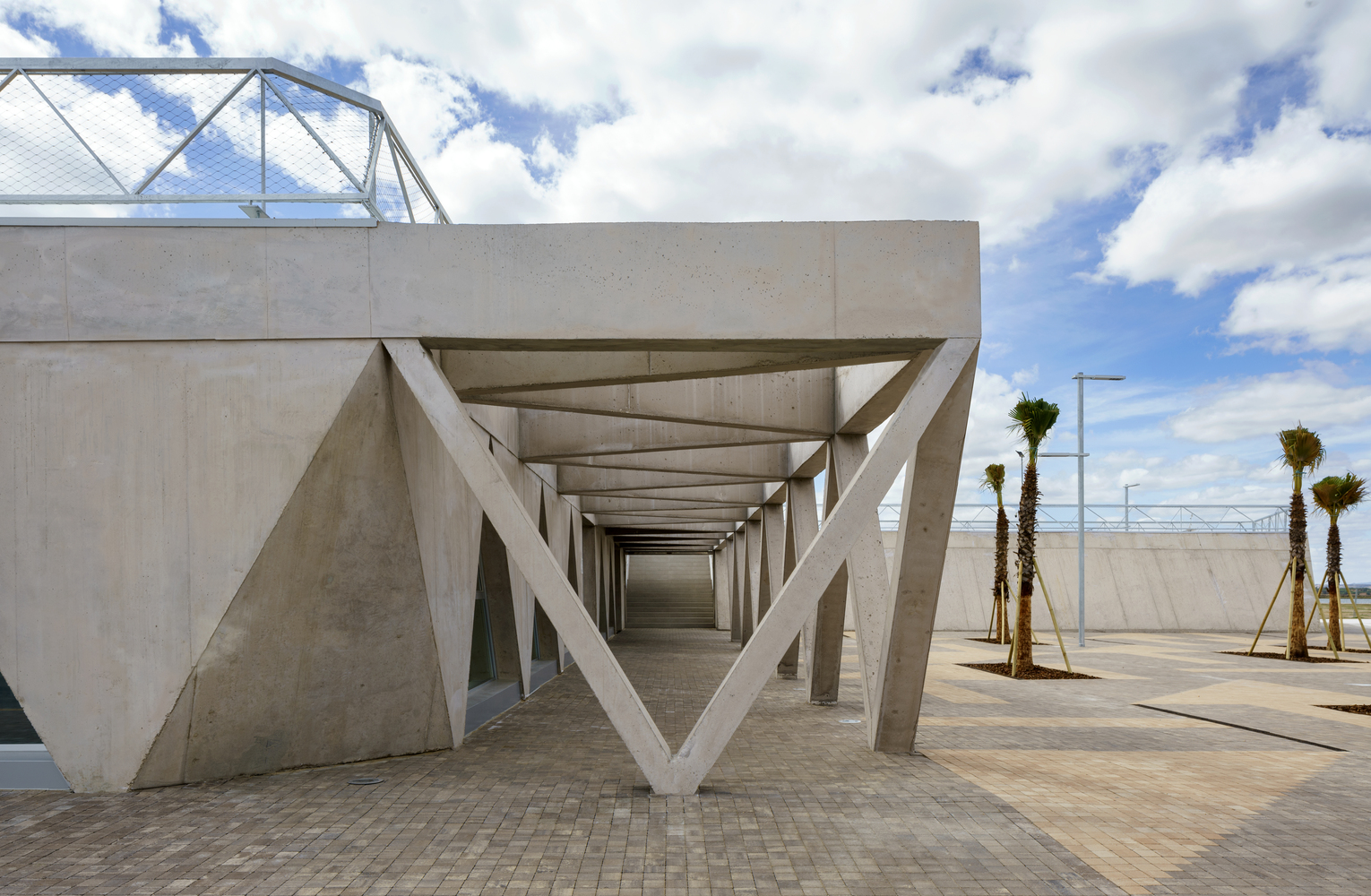

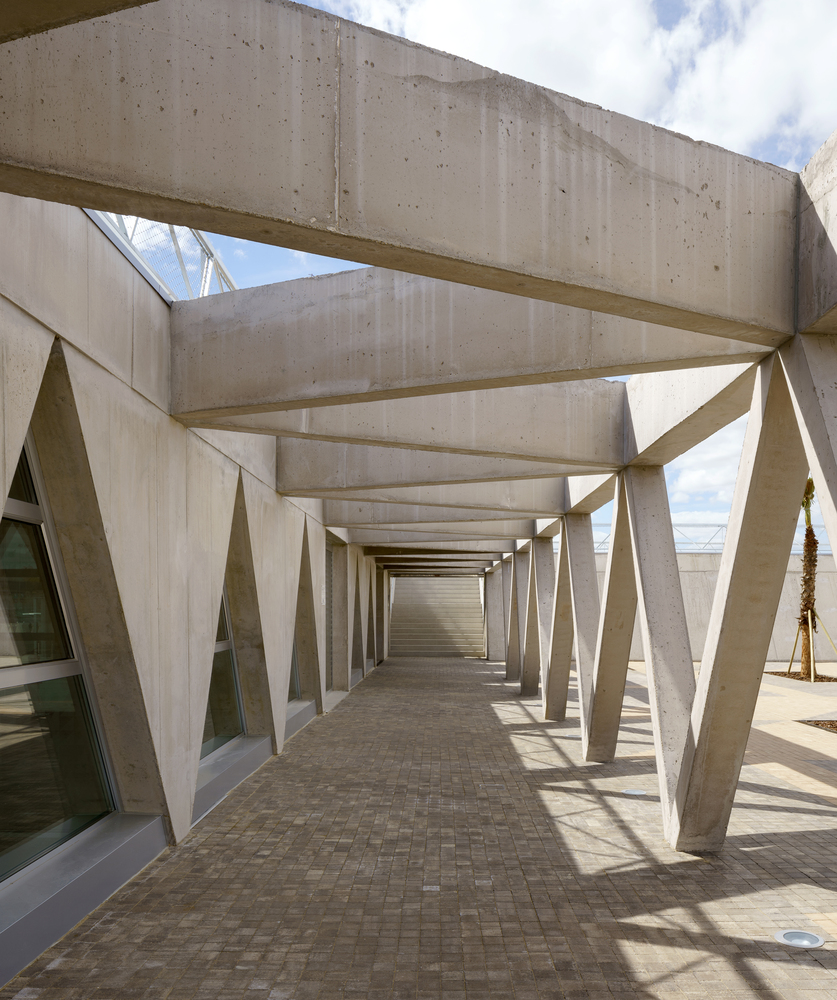

Walk through the covered walkway and you begin to appreciate how the triangulated concrete columns create a spatial experience that shifts with every step. The diagonal members frame different views at different angles: one moment you see through to the palm trees and paved plaza, the next you are enclosed by the latticed timber screens that line sections of the passage. It is a controlled sequence of compression and release, shadow and light.

The portico functions as a genuine threshold between the town and the water. It is not merely a circulation corridor but an inhabitable edge, the kind of space where you might pause rather than just pass through. The latticed timber elements along certain stretches soften the concrete's severity and provide a finer grain of texture and warmth at the pedestrian scale.

Interior Light and Framed Views

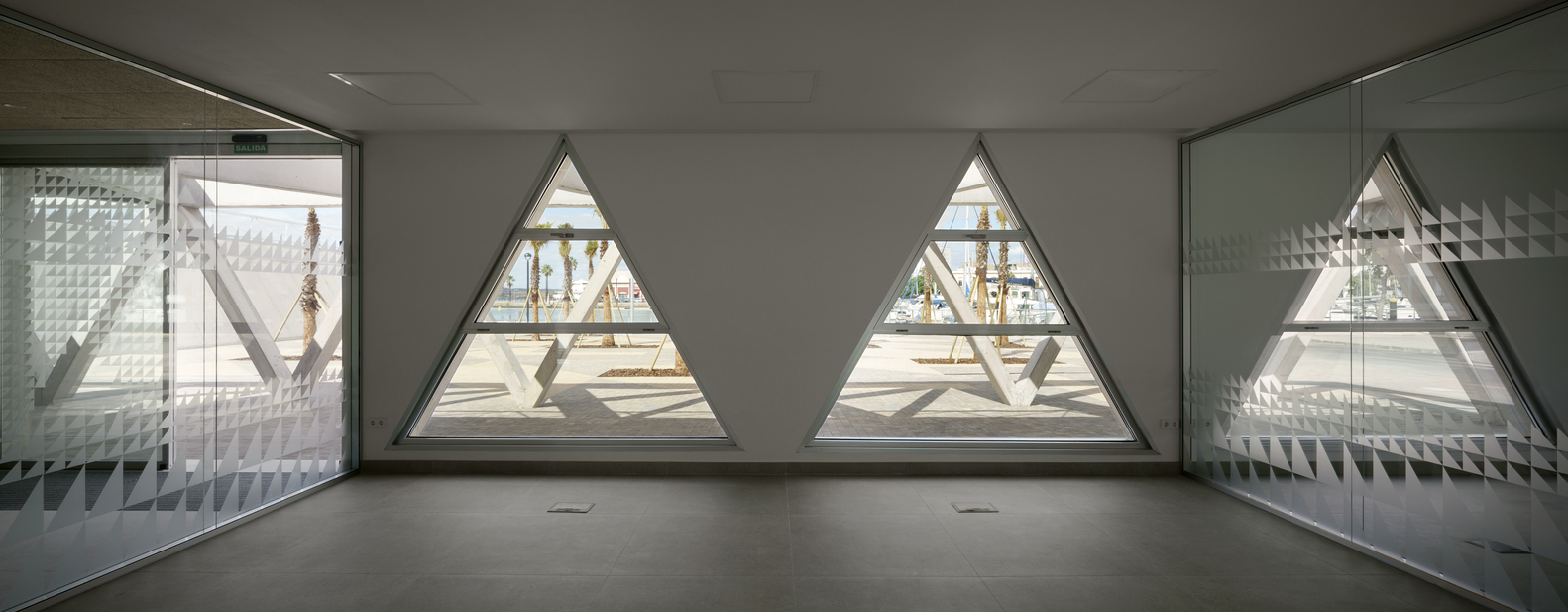

Inside, the triangular openings that define the exterior become precisely calibrated windows. From the administrative spaces, each void frames a specific view: a palm tree, the walkway, a slice of sky. The effect is deliberate and architectural rather than pictorial. These are not panoramic windows designed to flatten the landscape into a backdrop. They crop and direct attention, turning the act of looking outward into something more considered.

The diamond-patterned facade, visible from outside at dusk as a grid of illuminated voids, reverses the relationship at night. The building becomes a lantern on the waterfront, its interior life projected outward through the same geometric cuts that admit daylight during the day. It is a straightforward tactic, but executed with enough precision that it transforms the building's identity between day and evening.

The Viewing Terrace as Ship's Deck

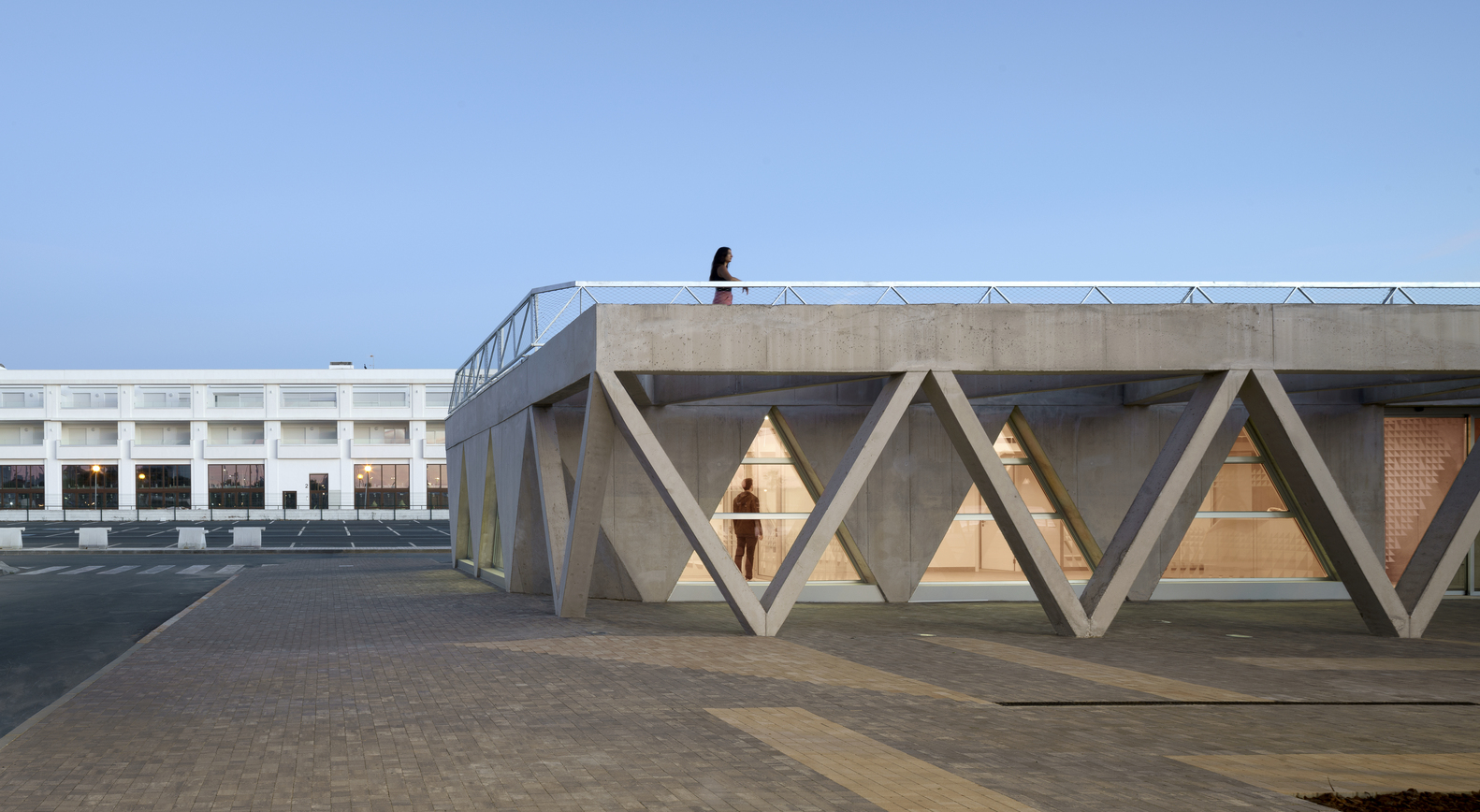

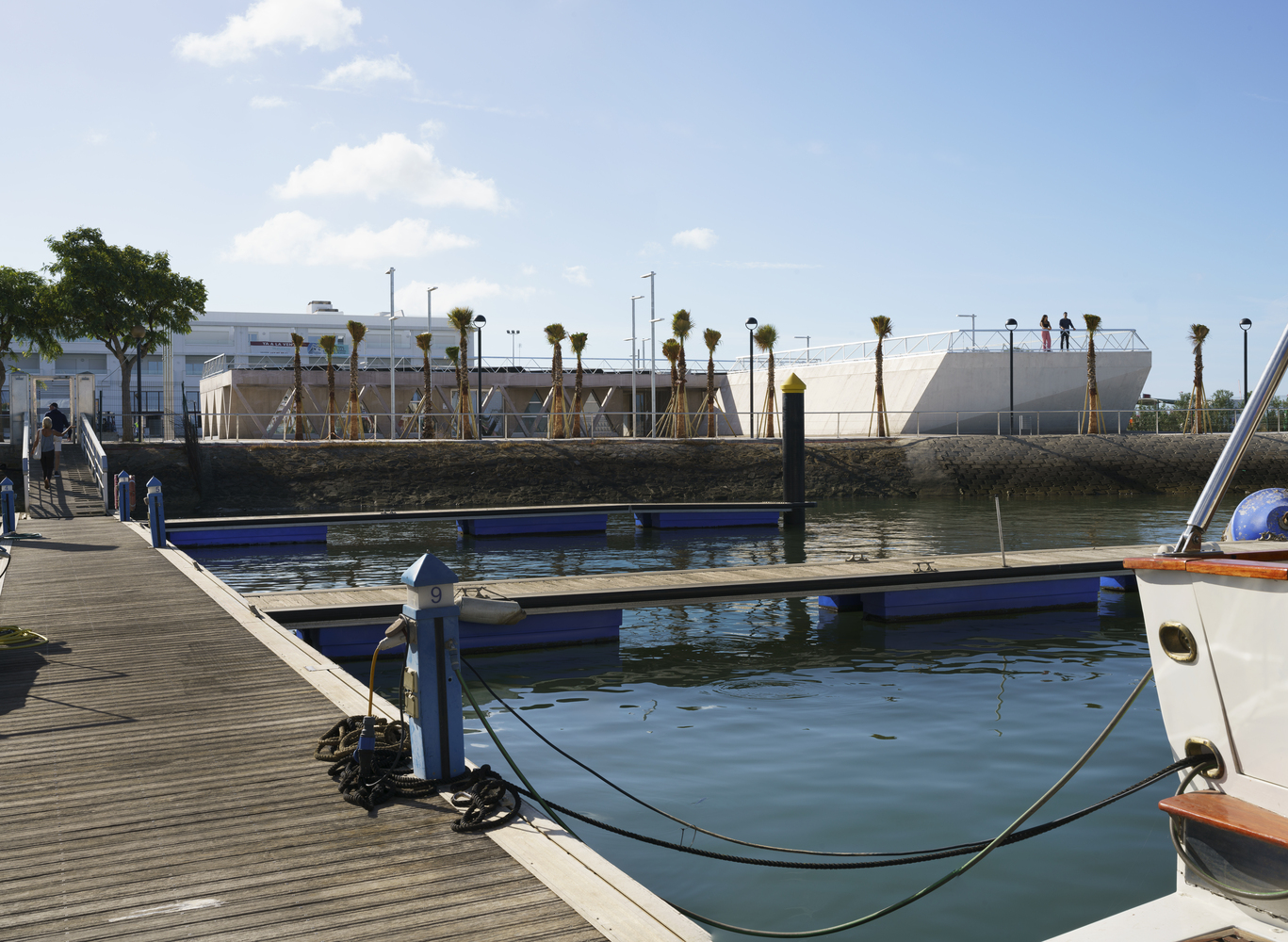

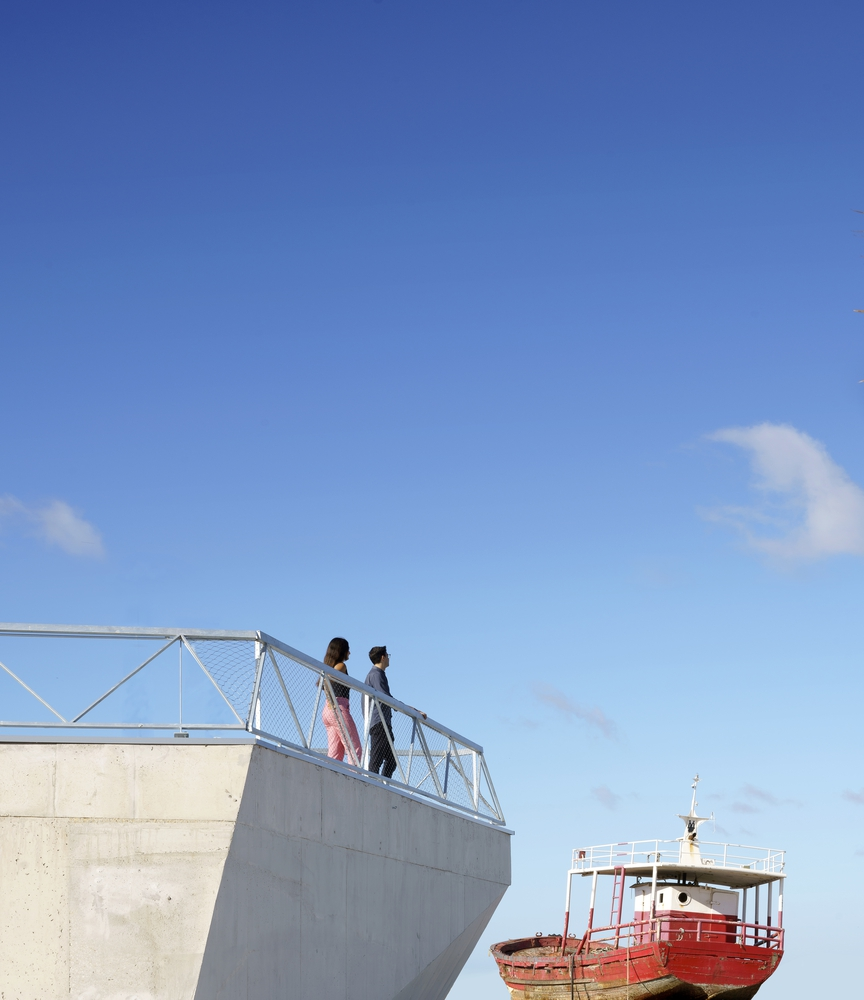

Perched above the closed storage volume, the viewing terrace is the building's most extroverted element. A cantilevered concrete platform with a white steel truss railing, it extends outward like the bow of a ship, offering 360-degree views over the marina, the marshland, and the white buildings of Ayamonte's historic center. It is a lookout point in the most literal sense, an elevated platform from which the harbor's operations can be surveyed.

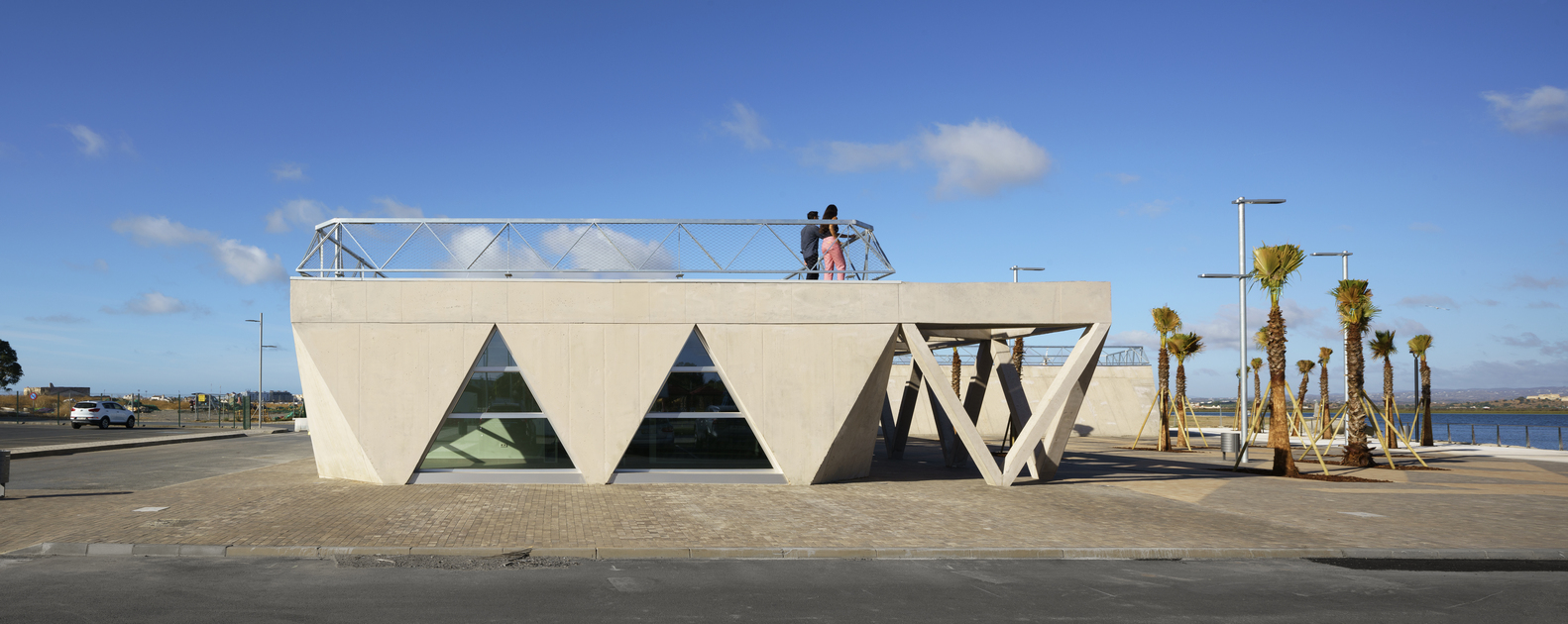

The truss railing reinforces the nautical association without being kitschy about it. It is industrial in character, consistent with the roof structure, and reads as a continuation of the building's structural logic rather than an applied motif. Two visitors standing at the edge of this deck, photographed against a blue sky, give scale to the gesture. It is generous without being oversized.

Dusk on the Waterfront

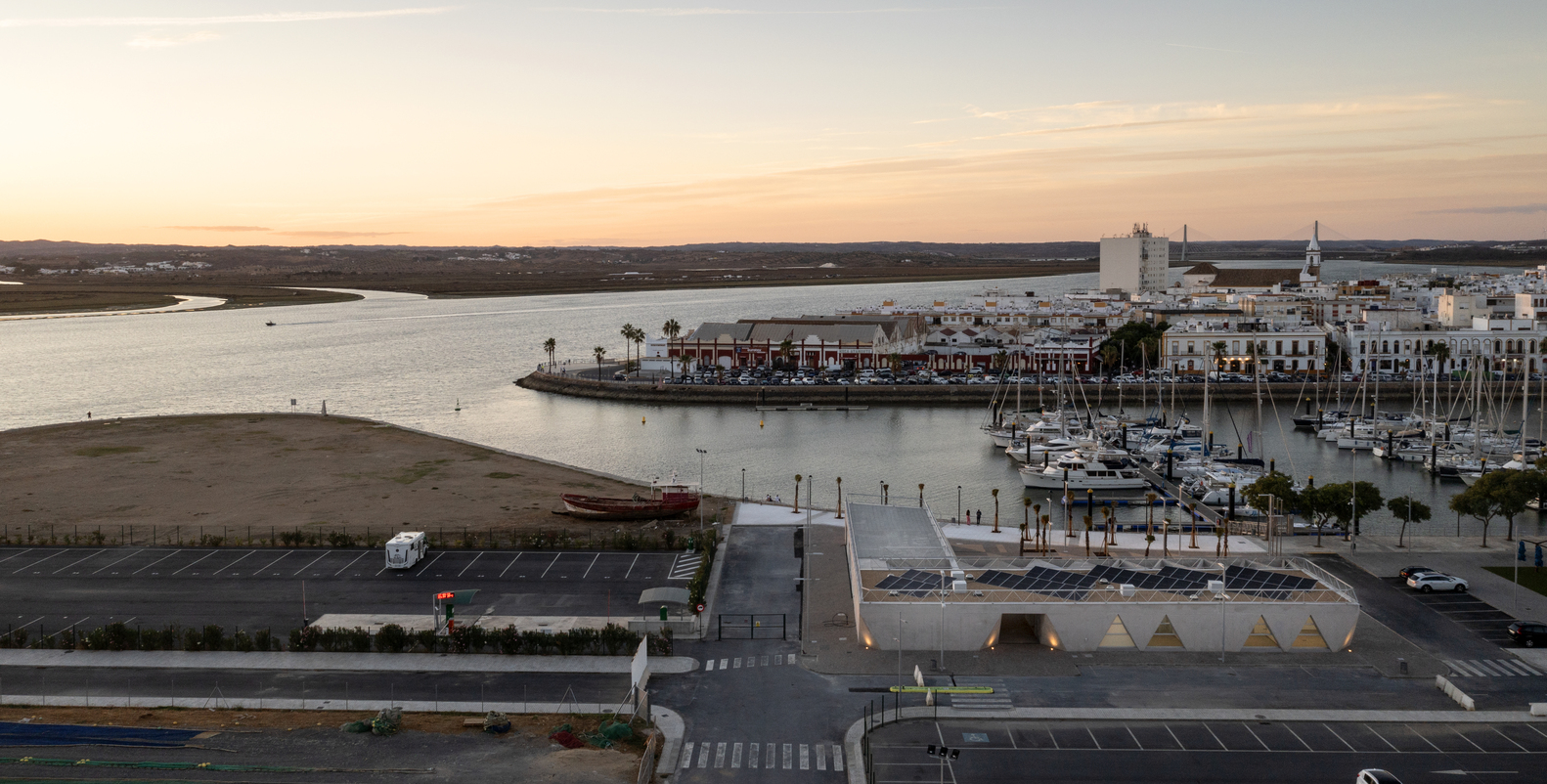

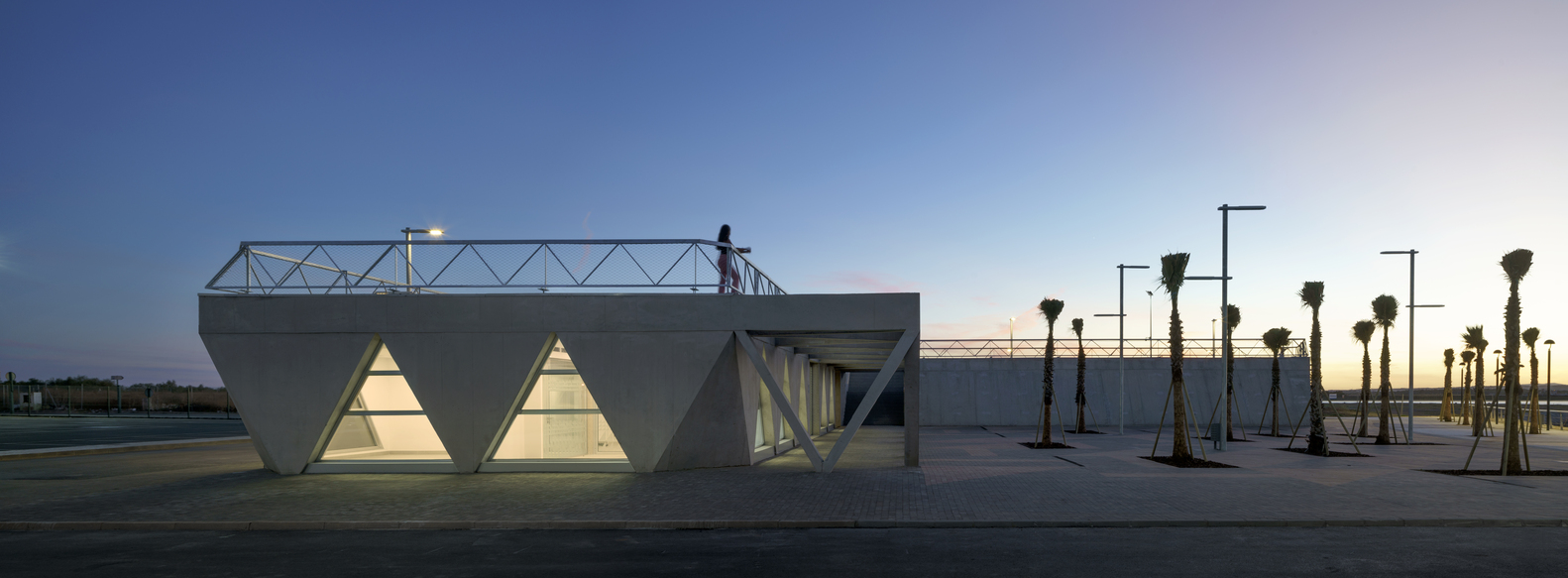

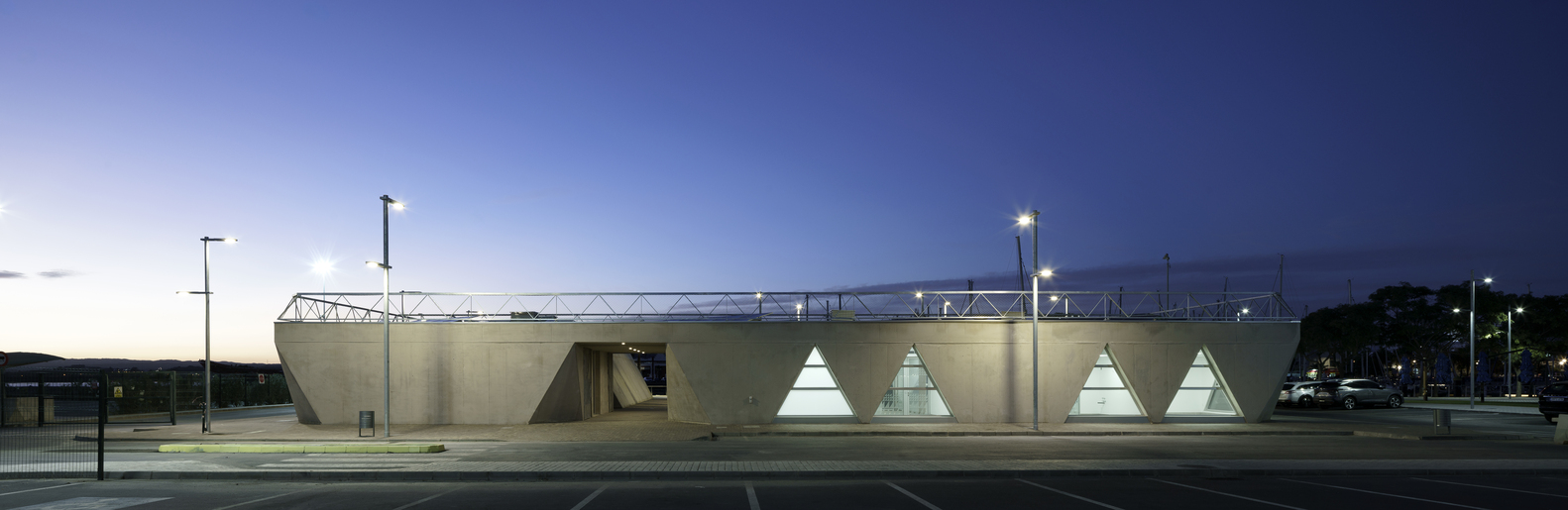

At dusk the building comes into its own. The heavy concrete volumes, which during the day assert themselves through weight and shadow, recede into silhouette while the triangular openings glow from within. The canopy structure, backlit against the fading sky, becomes a fine linear element traced against the horizon. The marina, the sailboats, and the low light of sunset provide a context that the architects clearly anticipated.

A photovoltaic roof, part of the building's near-zero energy consumption strategy, sits unobtrusively atop the structure. It is worth noting that sustainability here is not performed through visible green gestures but embedded in the building's systems and orientation. High-performance insulation and climate control keep energy demand minimal, and the robust concrete structure is designed to weather decades of coastal exposure with minimal maintenance. The building's durability is itself a sustainability argument.

Contextual Anchoring

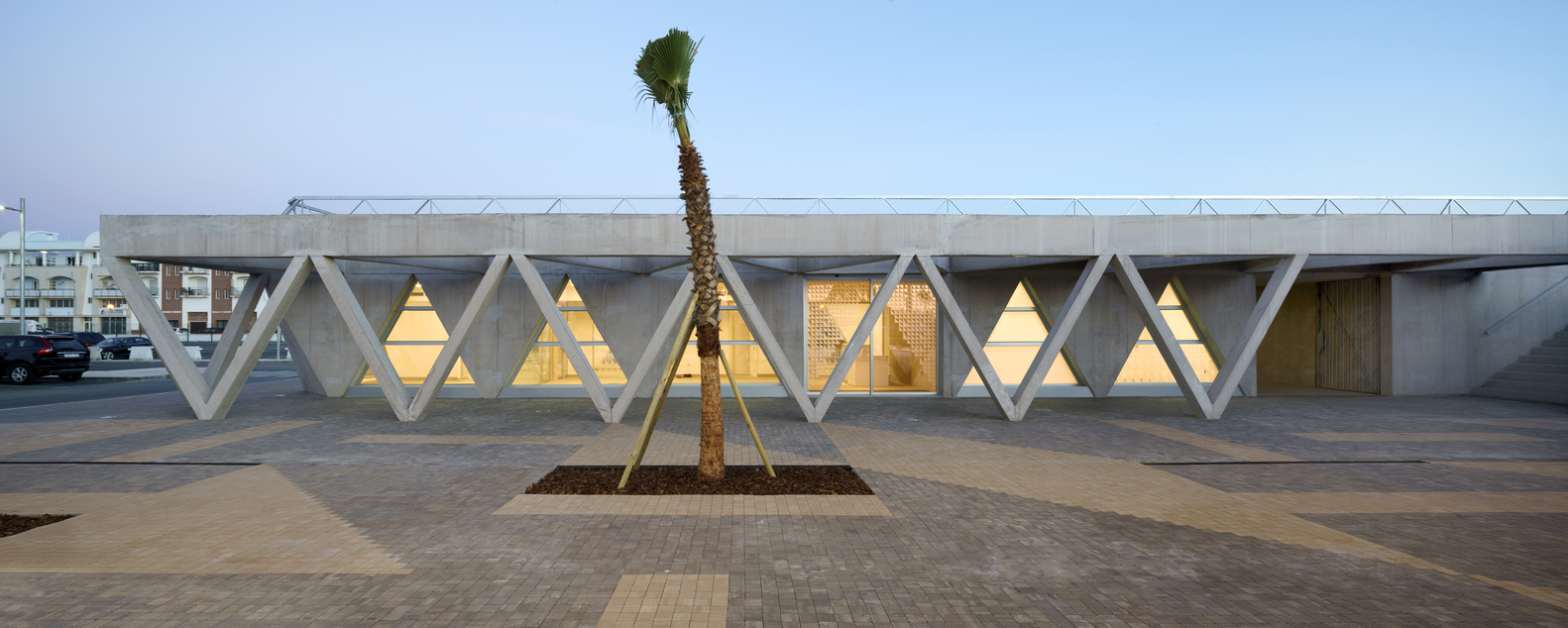

The young palm trees planted in the plaza will eventually grow to complement the existing tipu tree promenade along the dock, softening the building's hard edges and integrating it more fully into the waterfront landscape. Right now, photographed freshly planted and spindly against the massive concrete, they underscore just how new the building is. Give it five years and the proportional relationship will shift considerably.

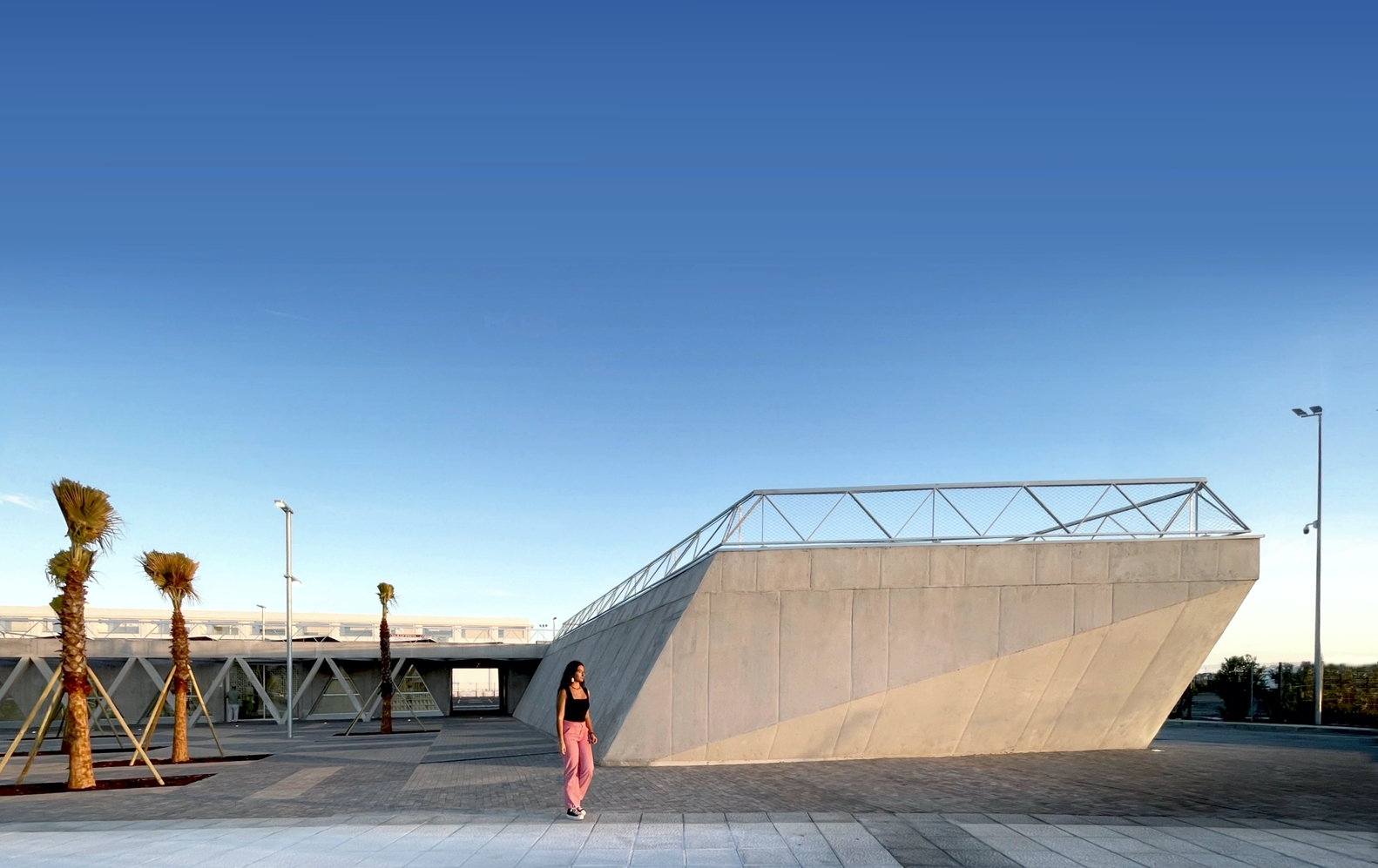

Seen at ground level, with a pedestrian walking alongside the angled facade, the building's scale becomes legible. It is not tall. It is emphatically horizontal, stretched along the waterfront in a way that mirrors the linearity of the dock itself. The triangulated canopy frames extend beyond the enclosed volume to create sheltered outdoor zones, blurring the boundary between building and landscape. This is infrastructure that wants to be occupied, not just maintained.

Plans and Drawings

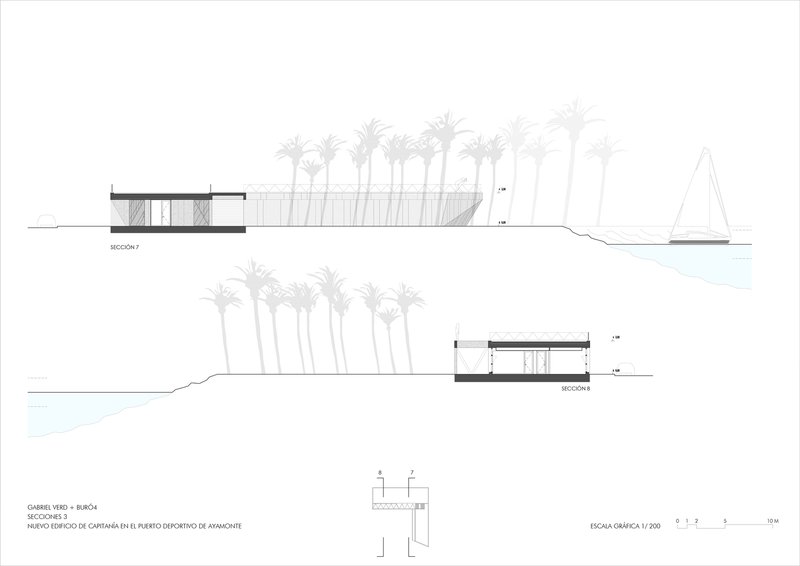

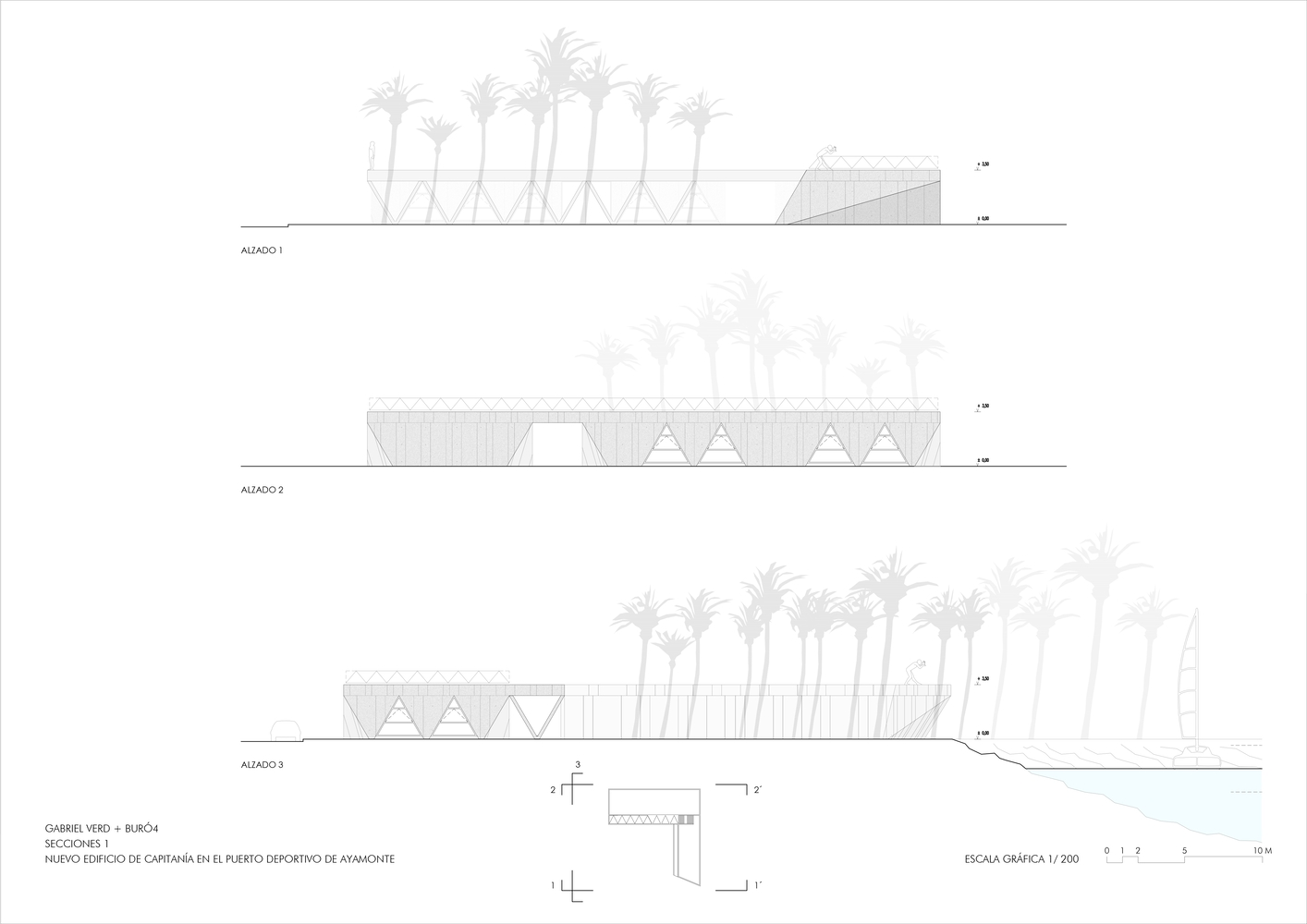

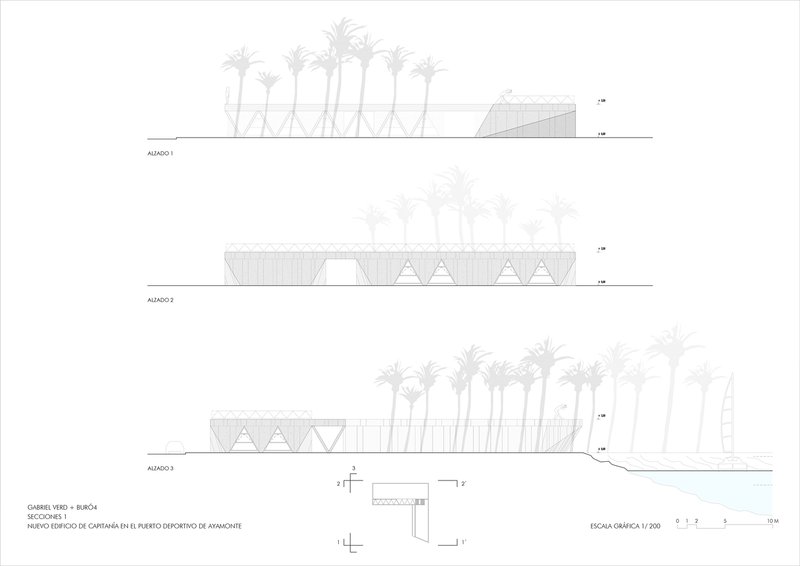

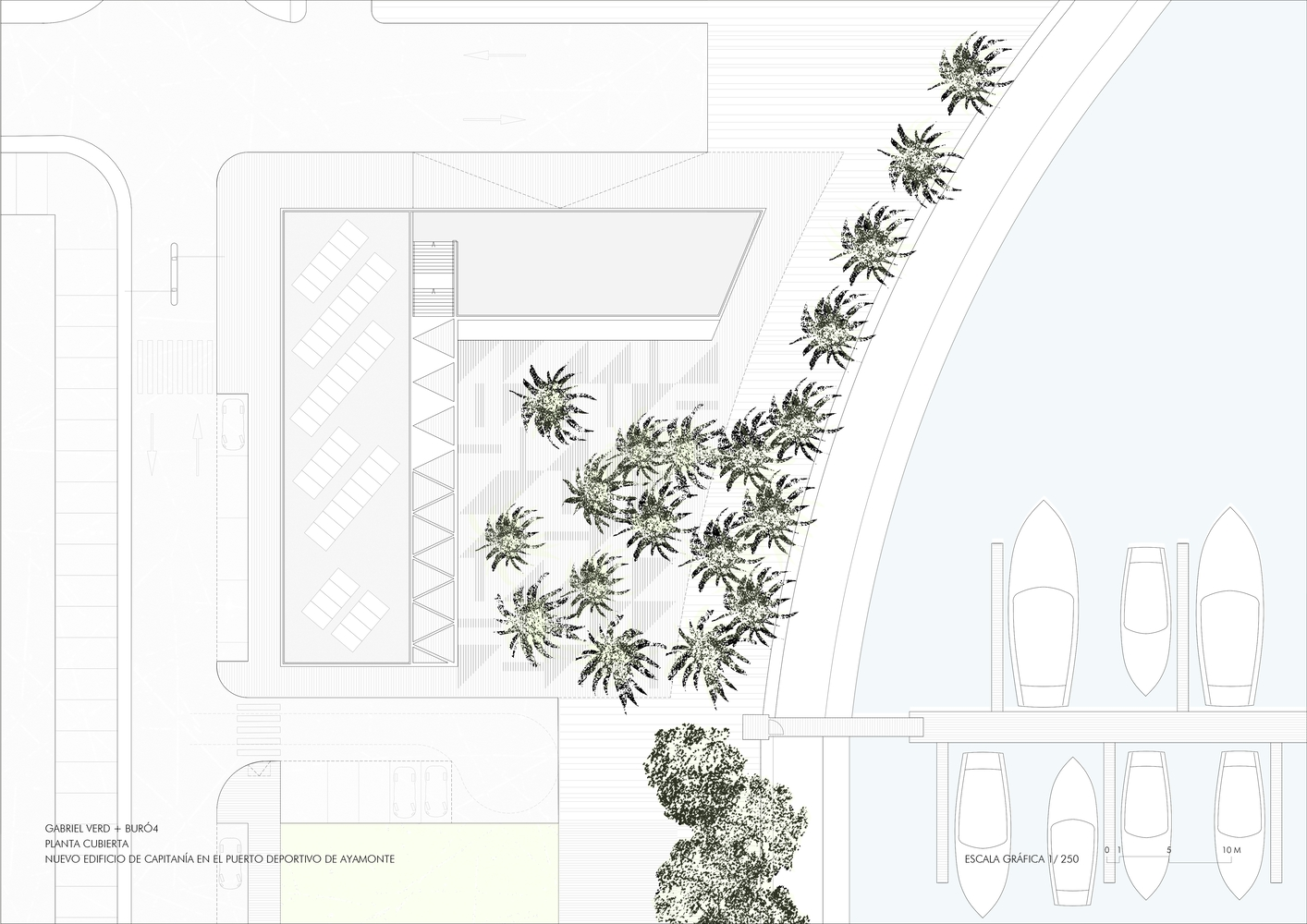

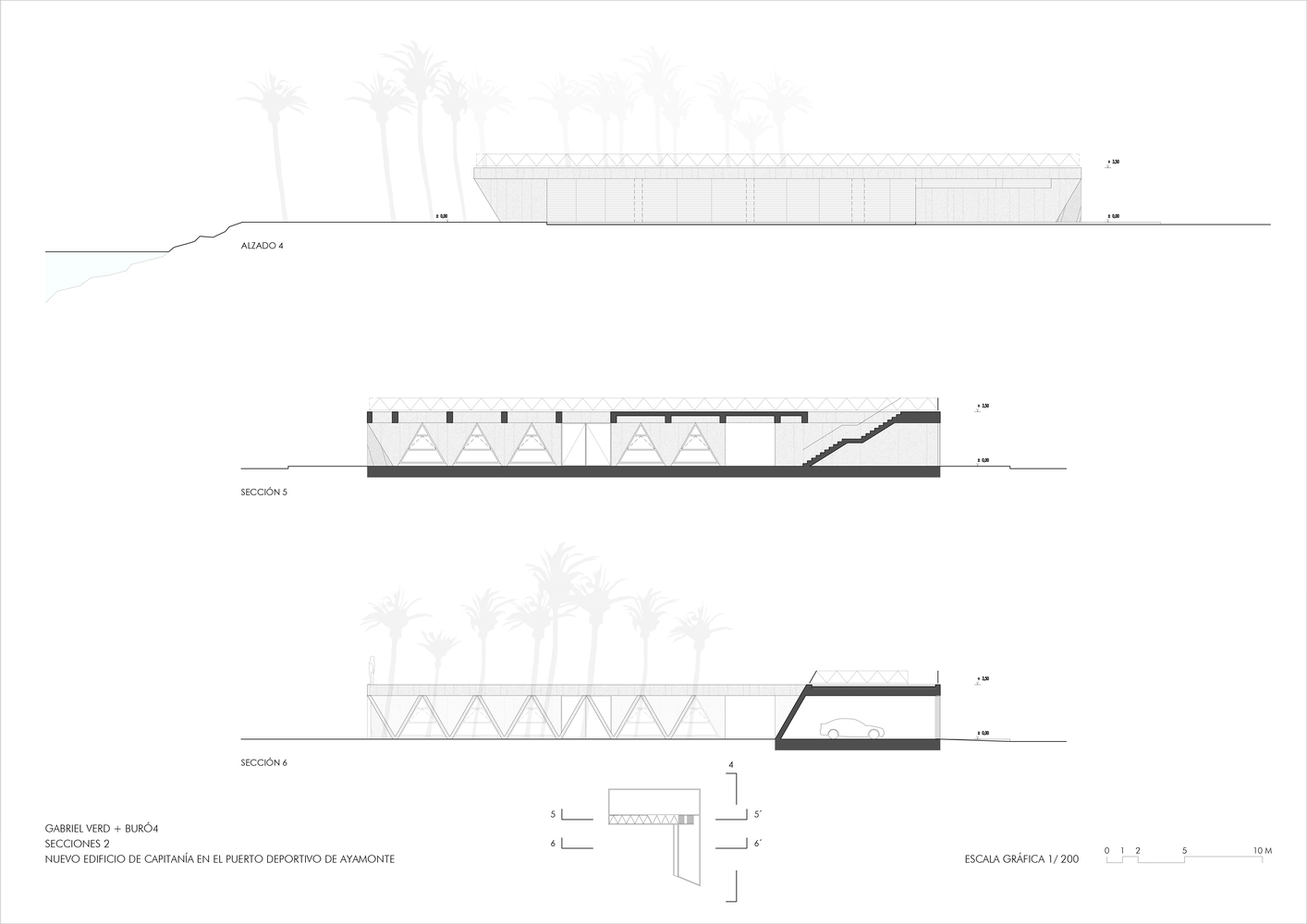

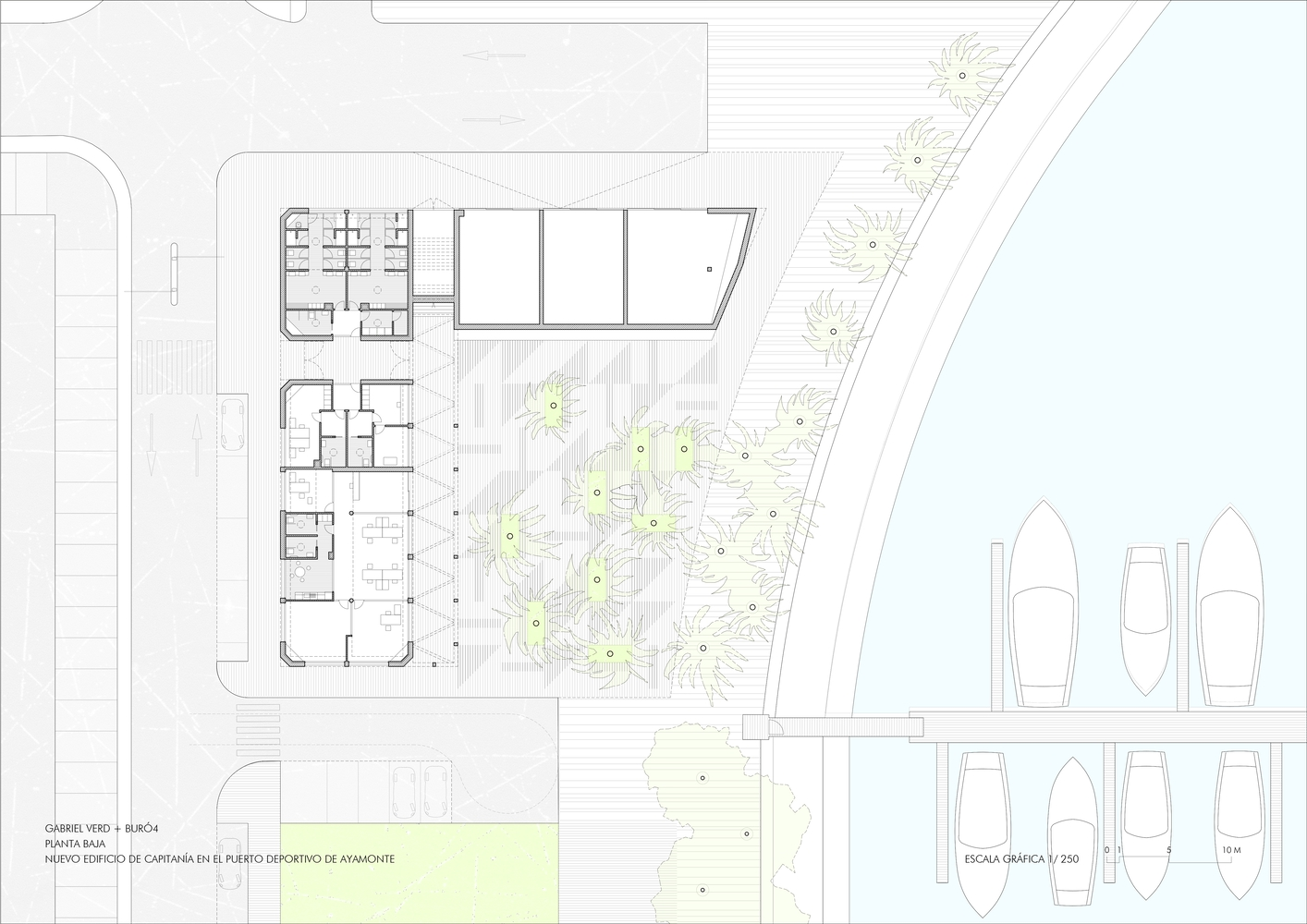

The site plan confirms the strategic positioning: the building sits at the hinge between the boat slips and the tree-lined promenade, its L-shaped footprint wrapping to create the plaza. The floor plan reveals a clear separation between public and operational zones, with the landscaped courtyard bridging the two. Section drawings expose the internal logic of the triangulated structural system and a ramped circulation element that connects ground level to the viewing terrace. The elevations, drawn with palm trees at mature height, give a convincing preview of how the building will settle into its landscape over time.

Why This Project Matters

Port authority buildings rarely receive this level of architectural attention, and when they do, the results often lean toward spectacle at the expense of function. What Gabriel Verd and Buró4 have done in Ayamonte is more restrained and more interesting. They have taken a modest program on a modest site and delivered a building that is structurally expressive, materially honest, and operationally efficient without ever losing sight of its public responsibility. The porticoed plaza, the viewing terrace, and the covered walkways are not extras. They are the project's core argument: that maritime infrastructure can and should contribute to the quality of public space along our waterfronts.

The triangulated concrete language could have been a one-liner, a formal gesture applied to an otherwise conventional box. Instead, it runs through every scale of the project, from the structural system to the fenestration to the roof truss, with a consistency that earns the building its monolithic character. In a region rich with coastal fortifications and port traditions, this harbormaster's building feels genuinely rooted in its place while being unambiguously contemporary. That is a difficult balance, and it is achieved here with confidence.

Port Authority and Harbormaster's Building by Gabriel Verd and Buró4. Ayamonte, Huelva, Spain. 700 m². Completed 2024. Structural engineering by Roberto Sepúlveda Trueba. MEP engineering by i-integra and Suringeniería. Client: Agencia Pública de Puertos de Andalucía, Junta de Andalucía.
