MSA Wraps a Metepec Amenities Club in Brick, Closing It to the Street and Opening It to the Courts

Amenity buildings in residential developments are usually an afterthought: a gym box, a pool hall, a clubhouse dressed to match the sales brochure. Los Castaños Amenities, completed in 2015 by MSA in Metepec, State of Mexico, takes the brief more seriously. It serves a complex of houses and apartments. The 491 m² of built space sits on a 2,800 m² site and holds a gym, swimming pool, multipurpose room, games room, café and children's playroom. Outside are play areas, sports courts, green space, fire pits and pergolas.

What interests us is how plainly the project reads its site. A street wraps most of the perimeter and carries cars to the homes. MSA responds by splitting the program into narrow brick volumes that turn solid faces toward two sides of the site and translucent faces toward the courts and gardens. The result is a small campus with a clear front and back. Its main facade faces north, and it is shaped more by orientation and movement than by image.

Solid Walls Toward the Street

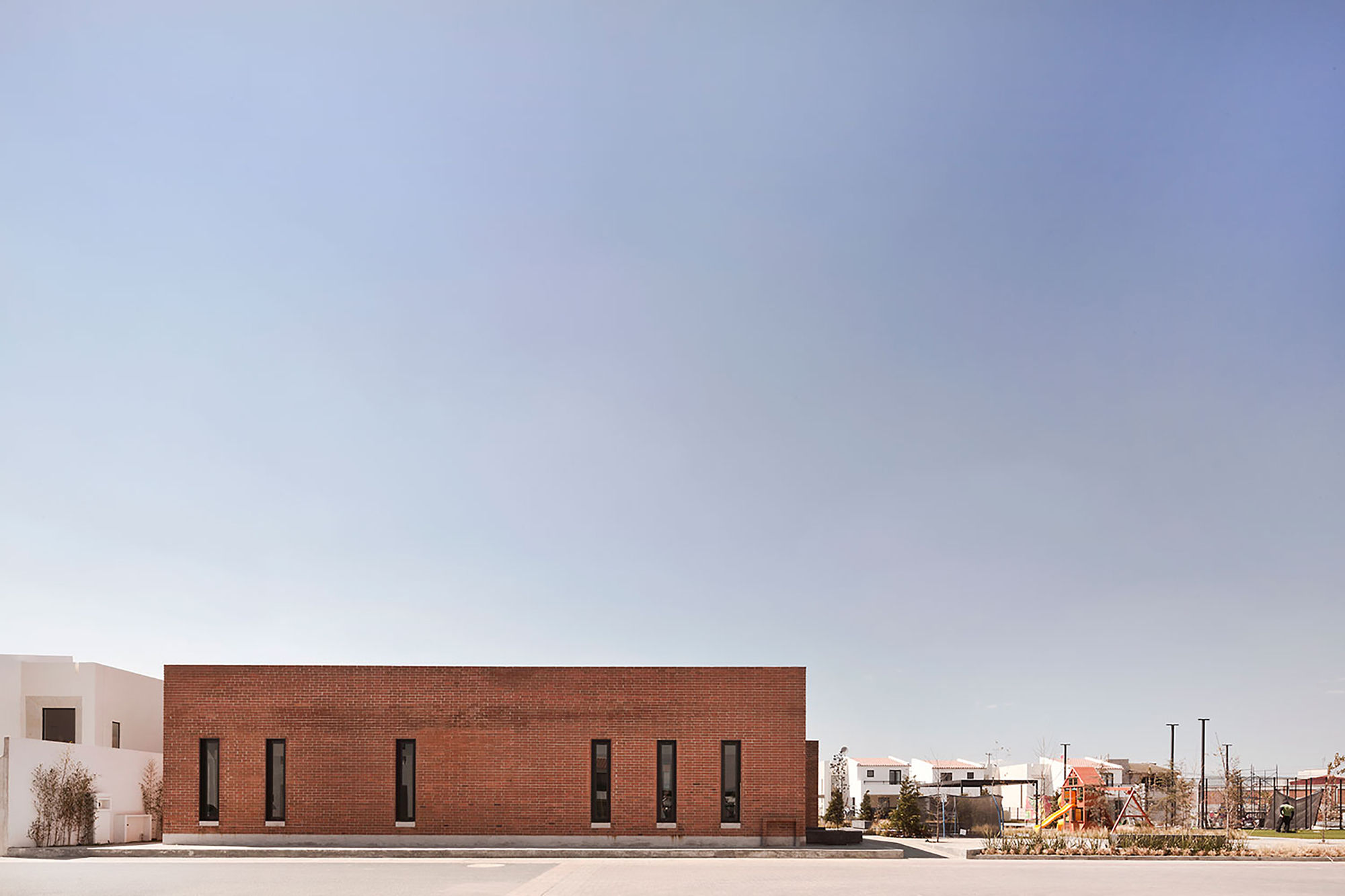

From the outside edge, the buildings look reticent. Long brick walls run with only a rhythm of tall, narrow slots, six of them on one single-storey volume. That is a sensible answer to a site ringed by traffic. You get privacy for the pool and gym without a fence line or a blank concrete wall, and the brick sits comfortably next to the white houses beyond.

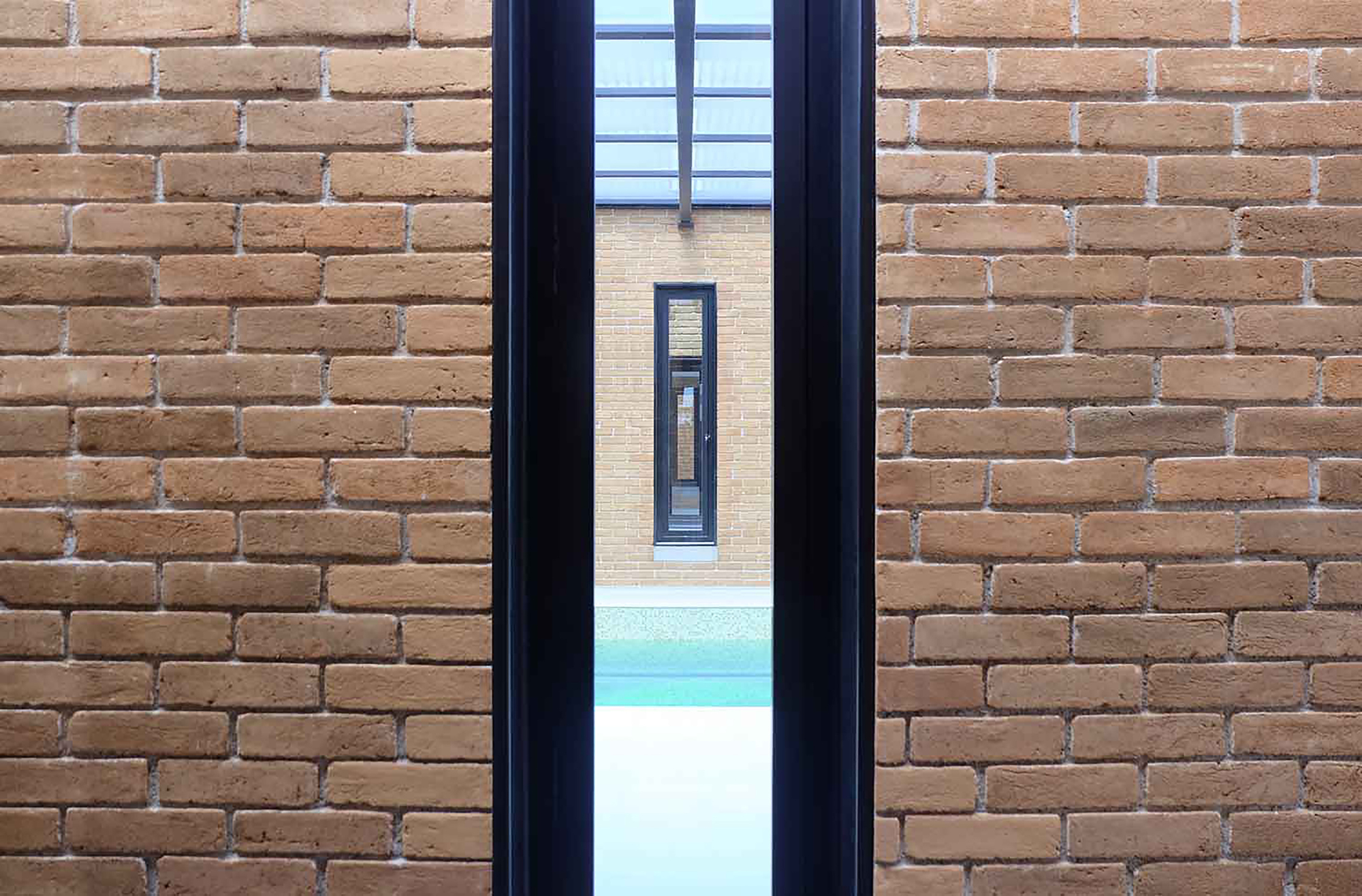

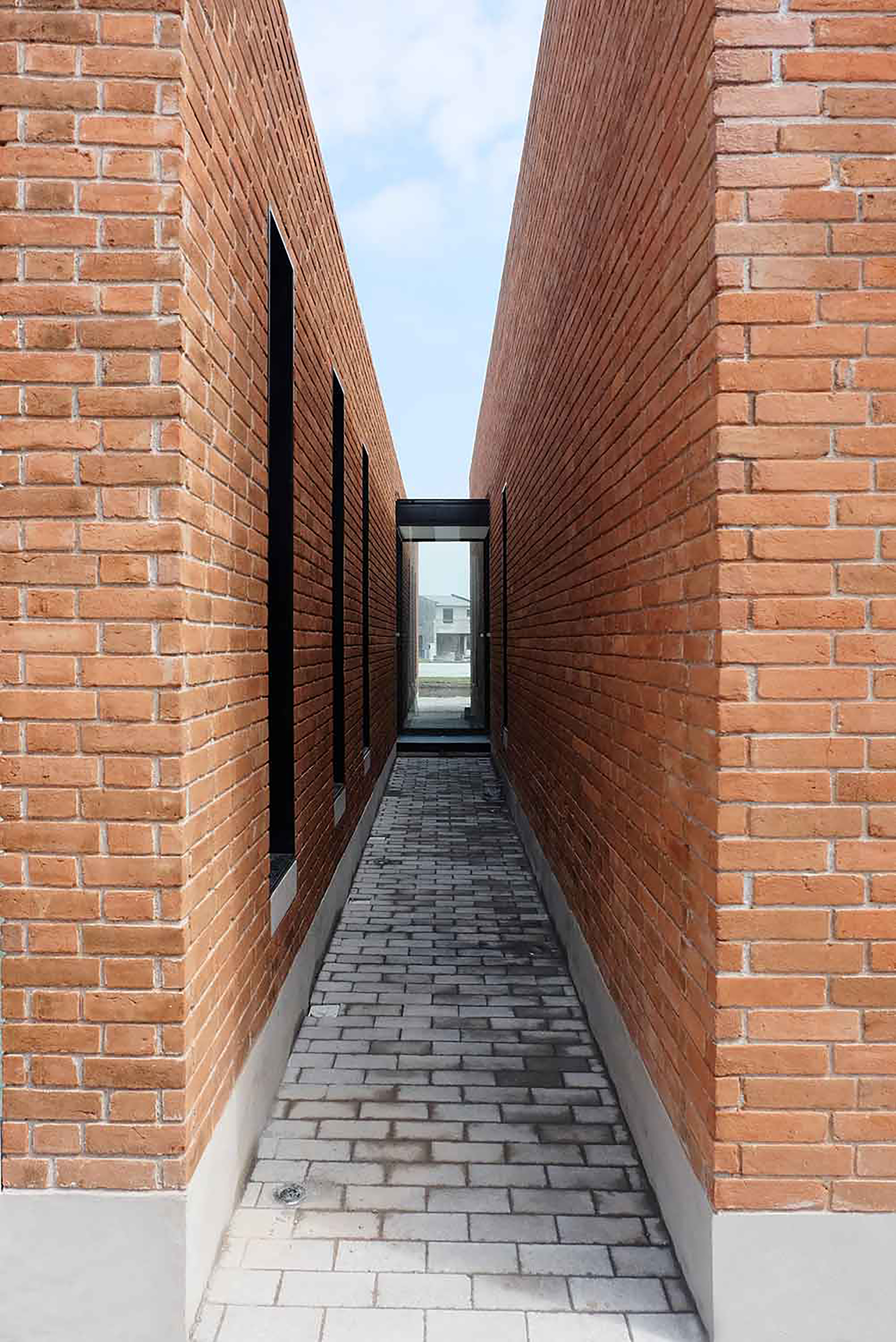

The slots are not just ventilation or token daylight. One black-framed opening cuts through the masonry and frames the pool and a second window deeper in the plan, so the thickness of the wall becomes a viewing device. Between two volumes, a paved passage squeezed by tall brick walls ends in a glazed opening. It is a compressed threshold that makes arrival into the open interior of the site feel earned.

Glass Toward the Courts and Gardens

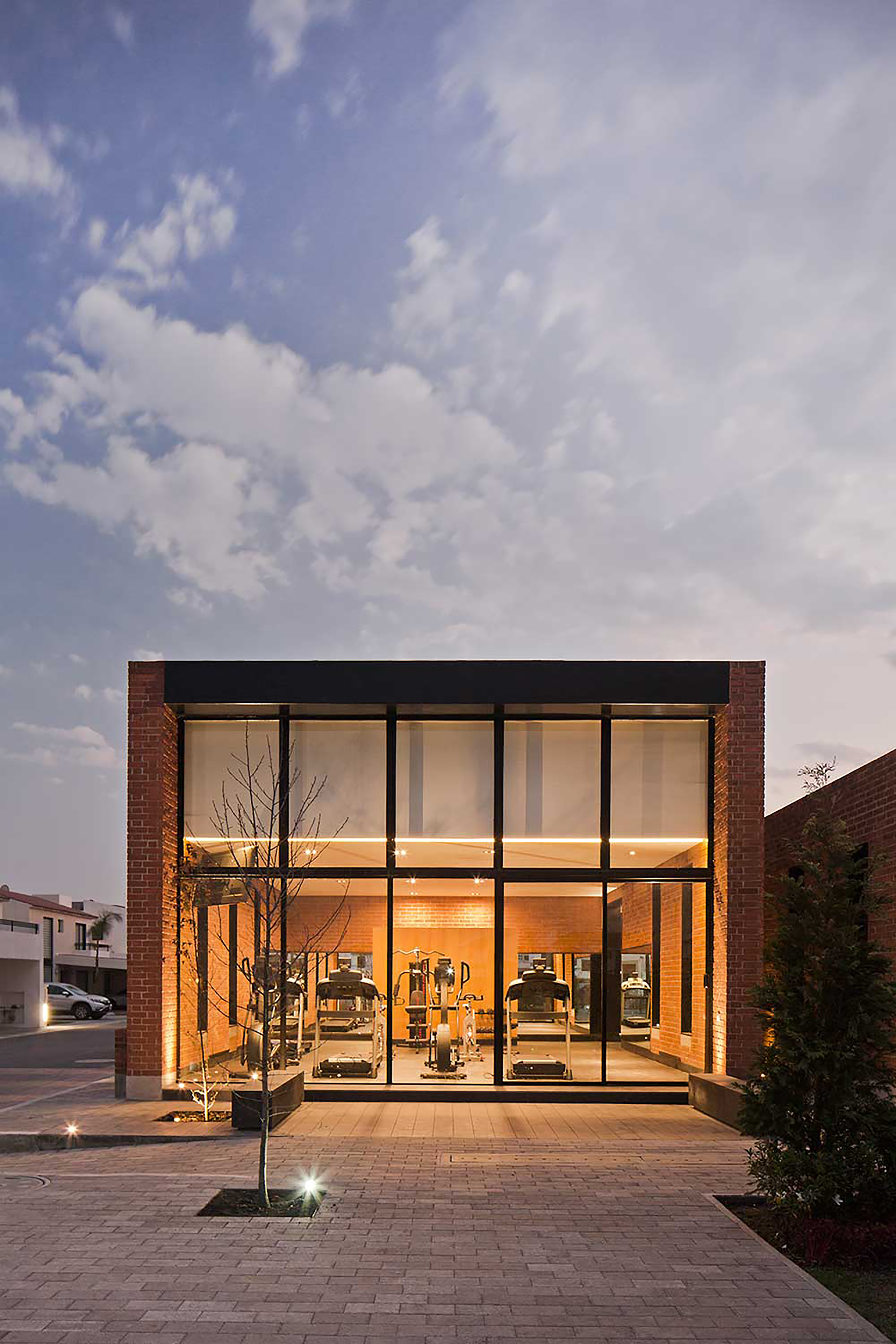

Turn around and the buildings change character. The faces toward the sports and green areas open up with floor-to-ceiling glazing set between brick piers. The gym becomes a lit vitrine at dusk, with treadmills visible from the courts. This is the argument of the whole scheme in one image: activity is put on display toward the shared landscape and kept away from the road.

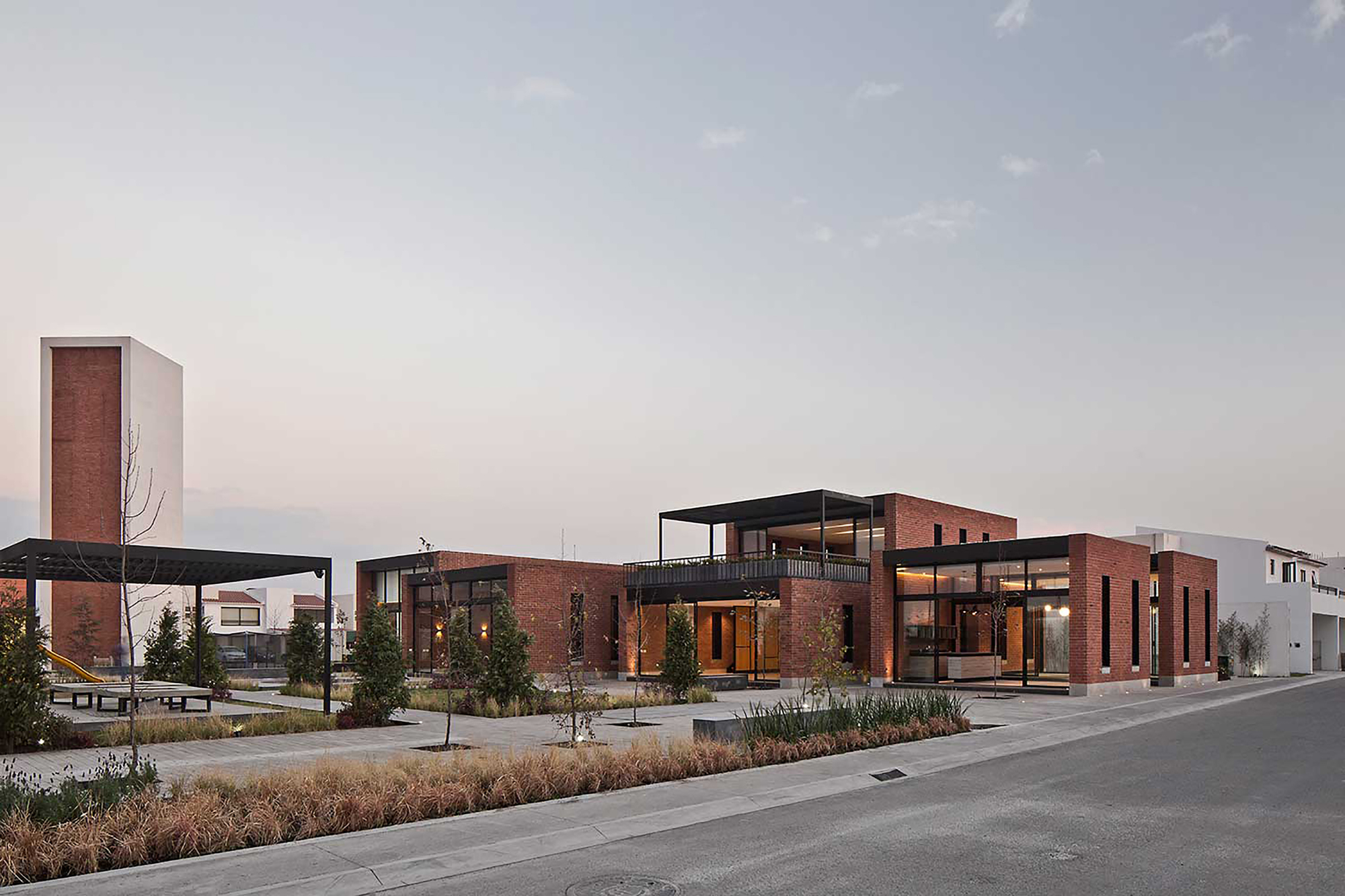

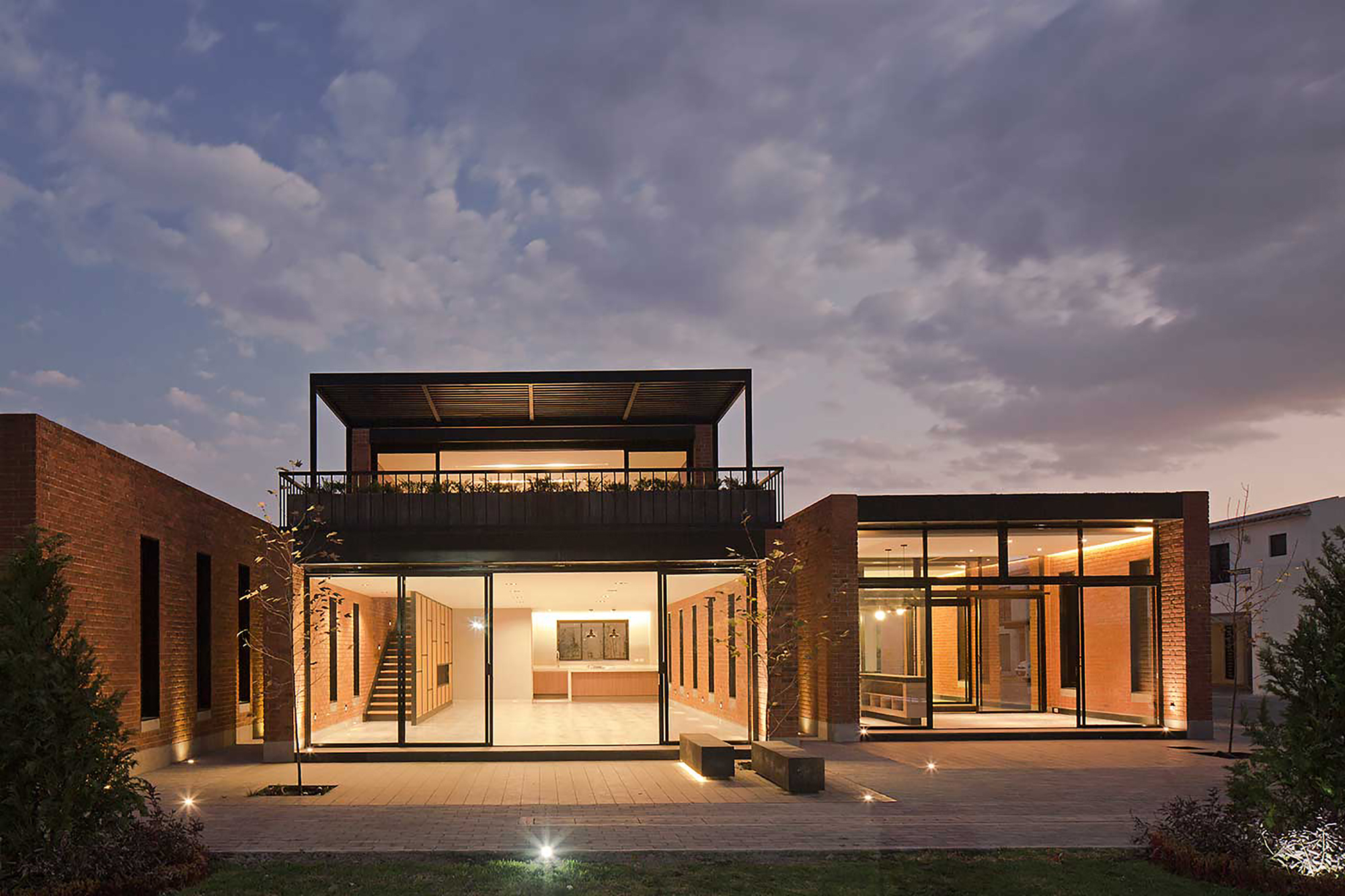

Glazed corners and a roof terrace soften the volumes further. At night the pavilions read as lanterns around the outdoor space, which helps a community facility feel occupied and safe after dark. The two-storey volume, with its glazed ground floor and terrace above, gives the composition vertical punctuation without breaking the low, domestic scale of the neighborhood.

Pergolas, Terraces and the Spaces In Between

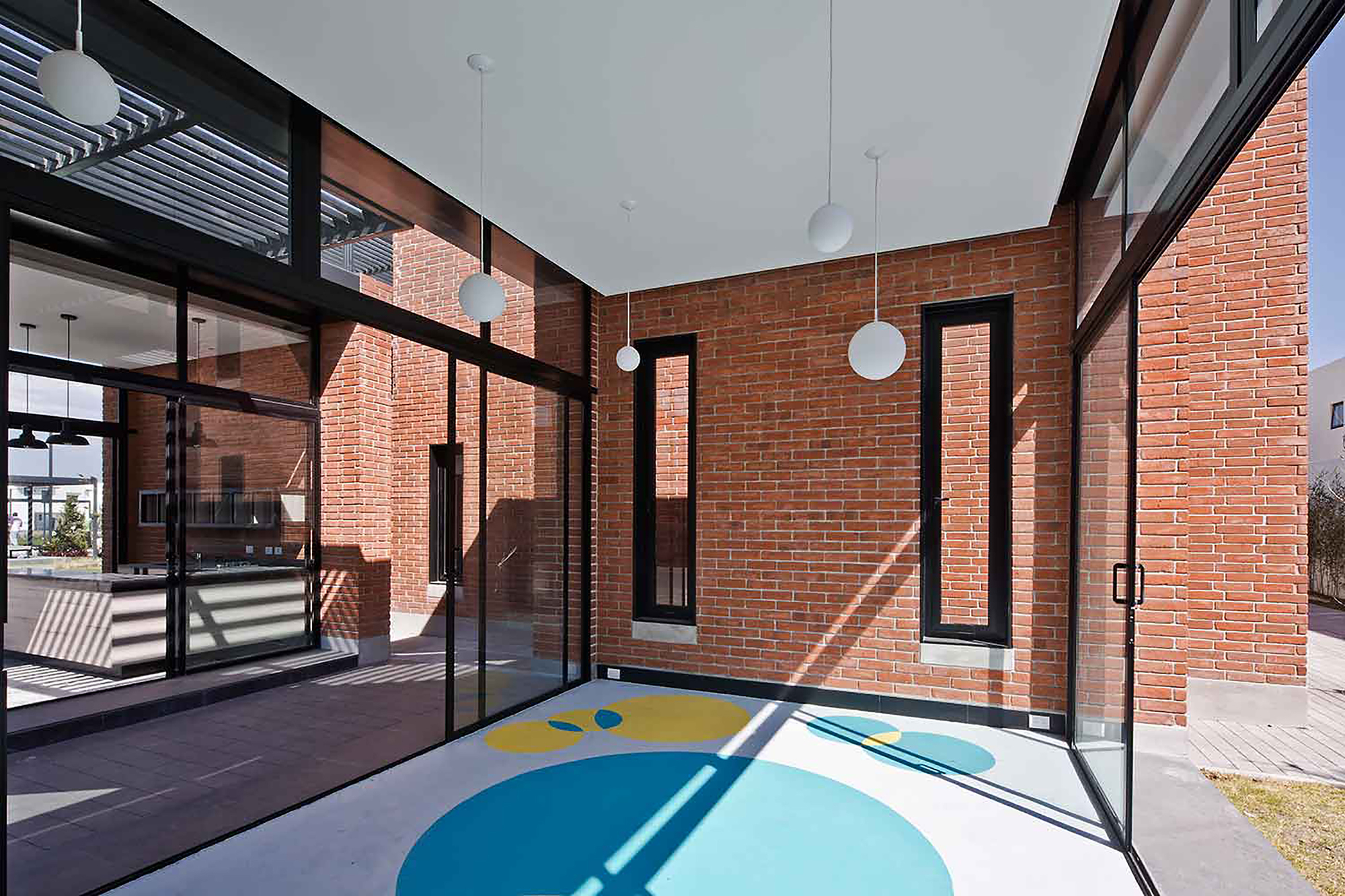

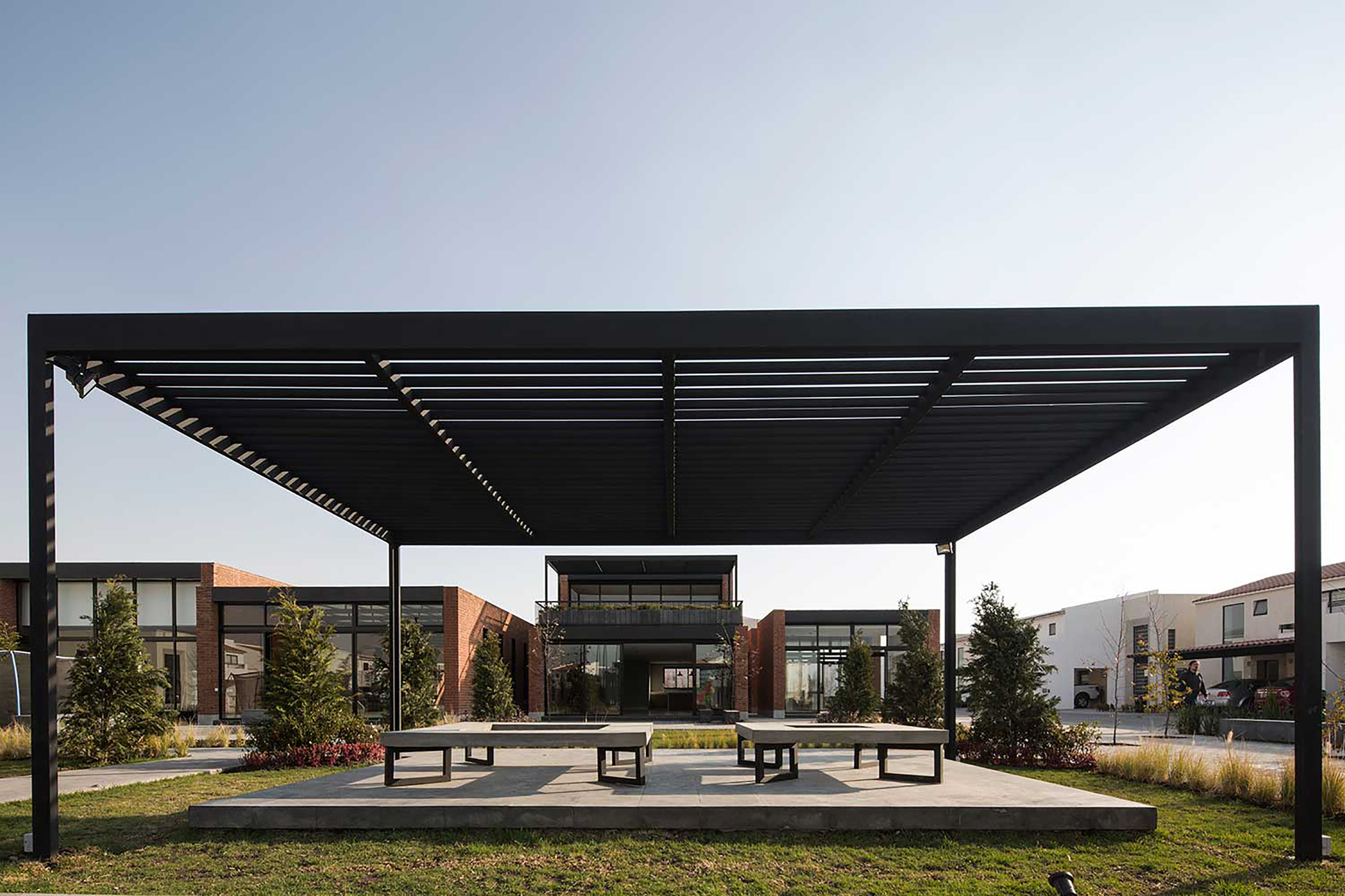

The outdoor rooms carry as much weight as the enclosed ones. A black steel pergola with a slatted roof shelters a concrete platform and benches, and young trees promise more shade as they grow. A covered brick terrace with glass walls and a circular painted floor pattern acts as a hinge between inside and out, the kind of semi-open room that suits a highland climate where you want sun without full exposure.

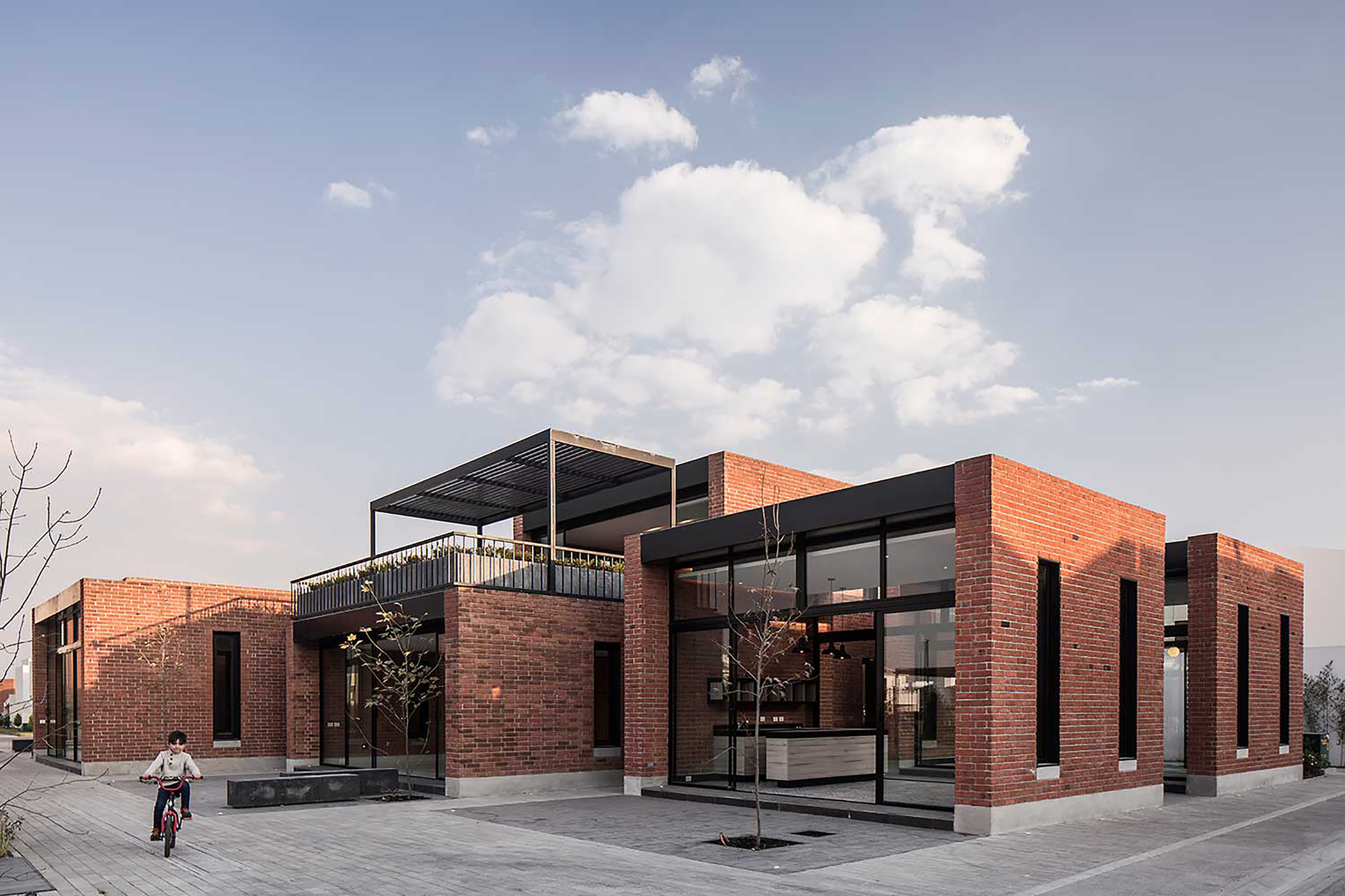

We like that the spaces between buildings are treated as courtyards rather than leftovers. A child cycling past black window frames, with a rooftop pergola above, sums up the intended use. The amenities are not a destination you drive to; they are a series of linked yards where residents drift between pool, café, play area and fire pit.

Timber Inside the Brick

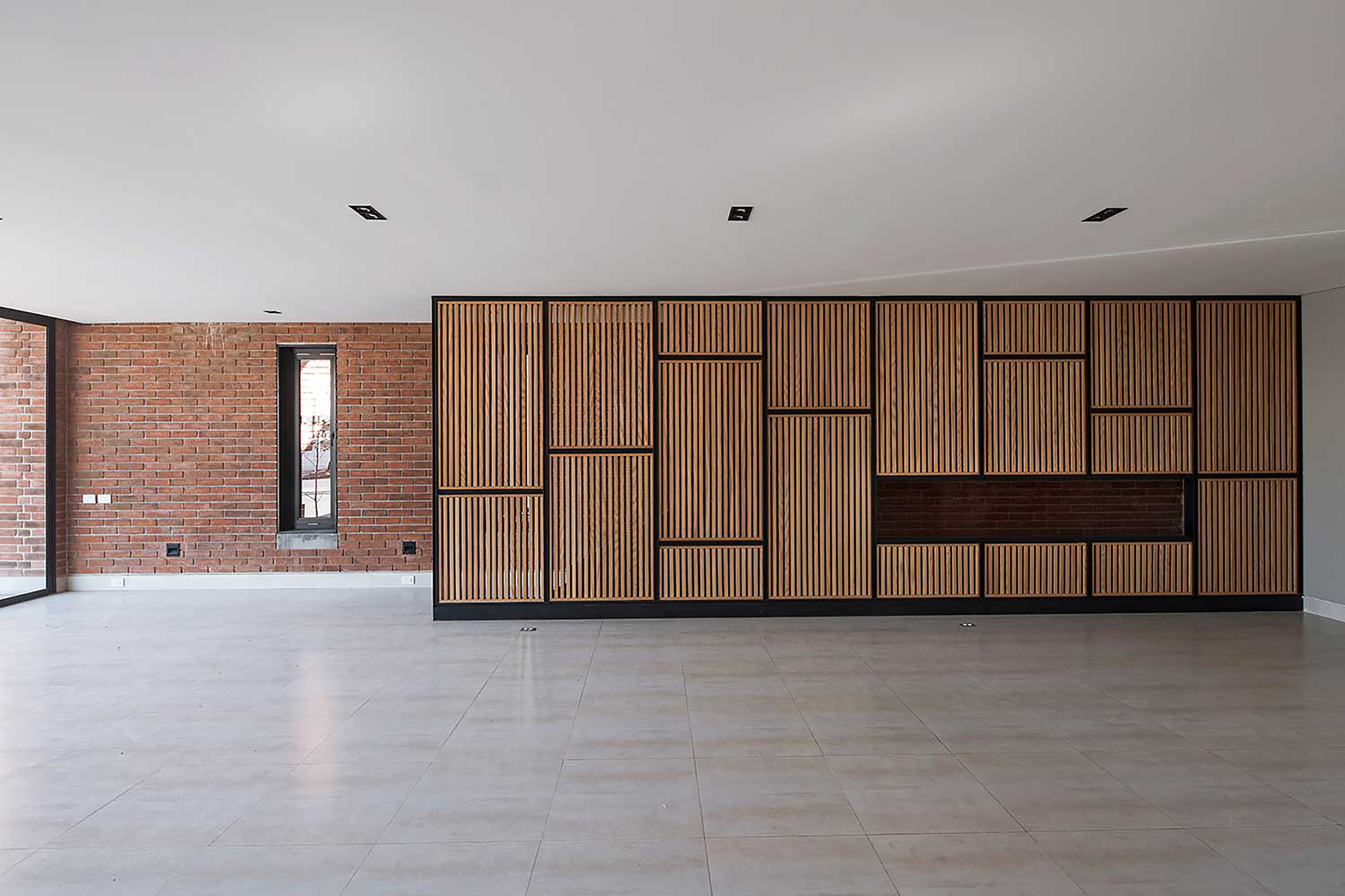

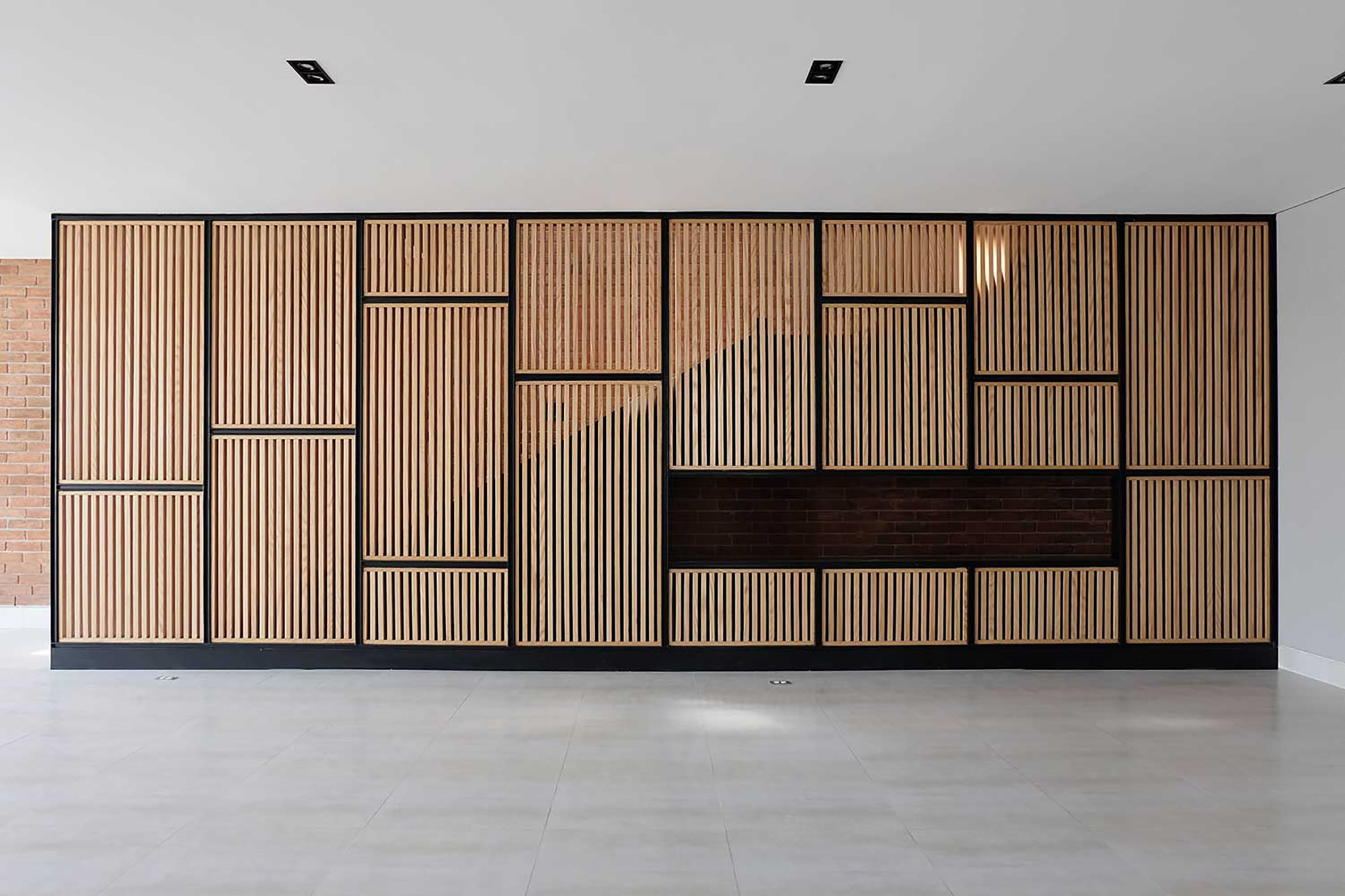

Inside, MSA keeps to the same small palette of brick, steel and wood, but the balance shifts toward warmth. Timber slat panels set in a black steel grid line the walls, with recessed brick niches breaking the pattern. Sunlight raking across the slats turns a utilitarian storage wall into the main surface of the room.

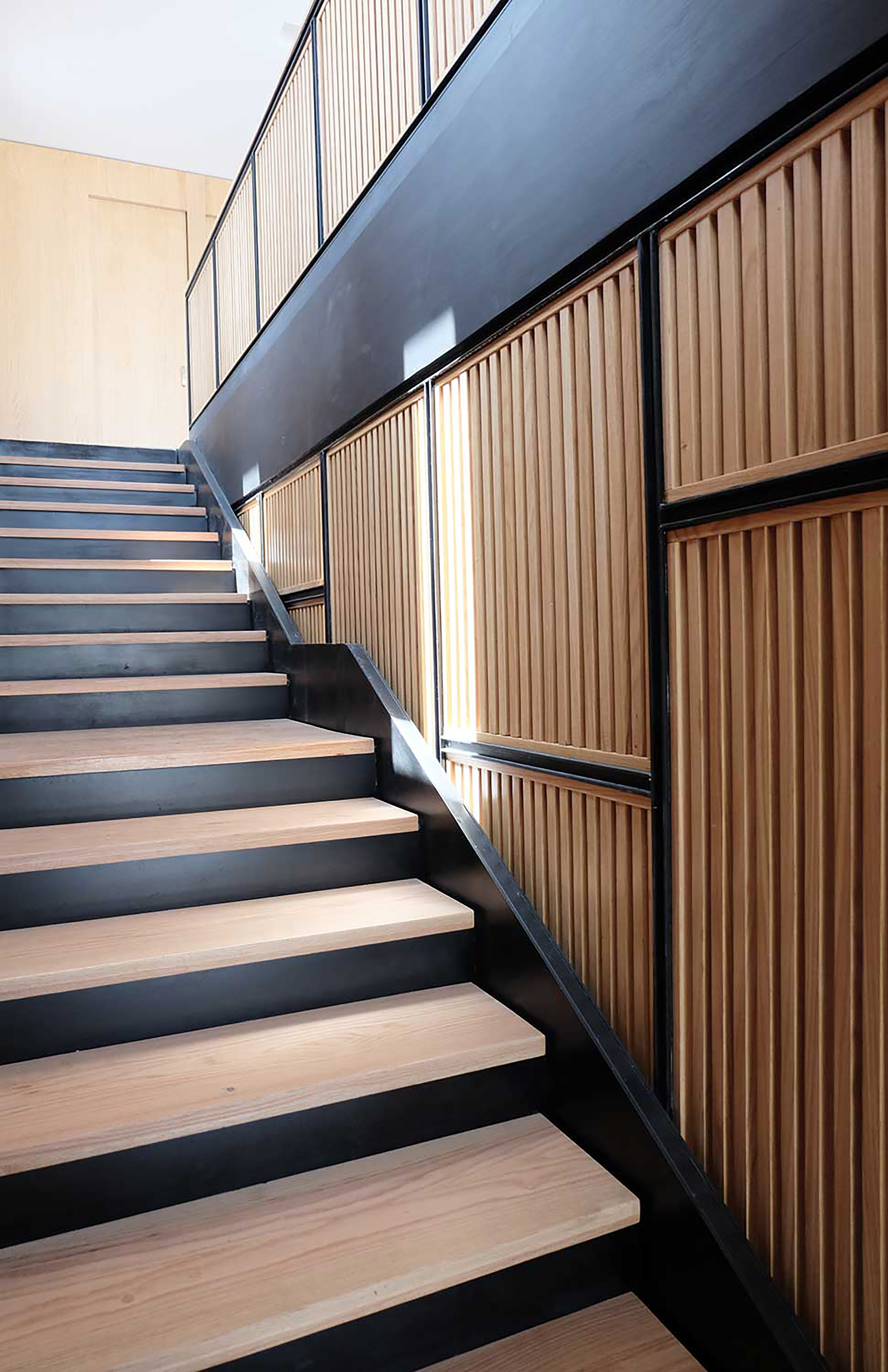

The staircase follows the same logic: pale timber treads on black steel stringers, set beside vertical wood slats. None of this is exotic, and that is the point. The details are legible and repeatable, and they are robust enough for a facility that will see daily use by children, gym members and party guests.

Plans and Drawings

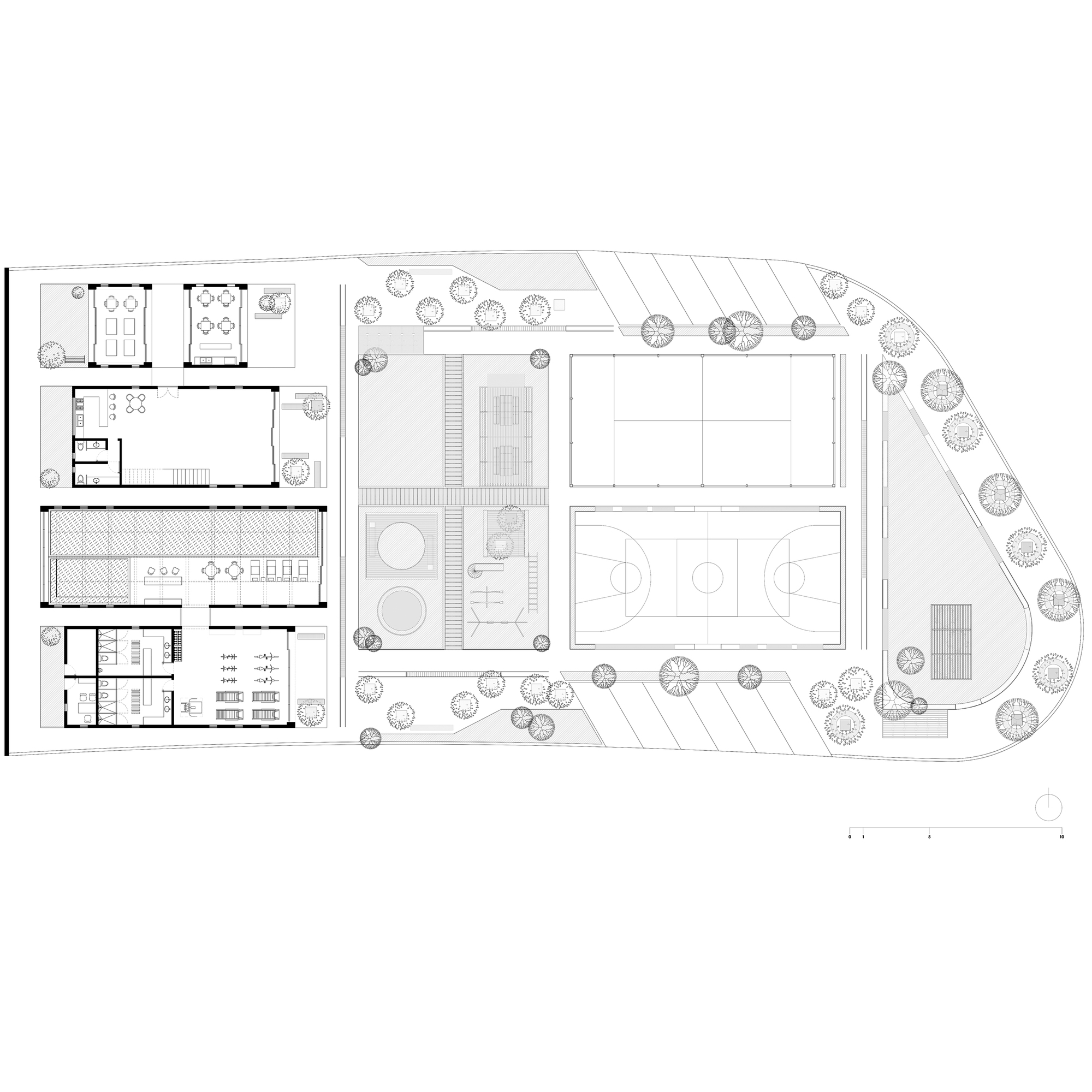

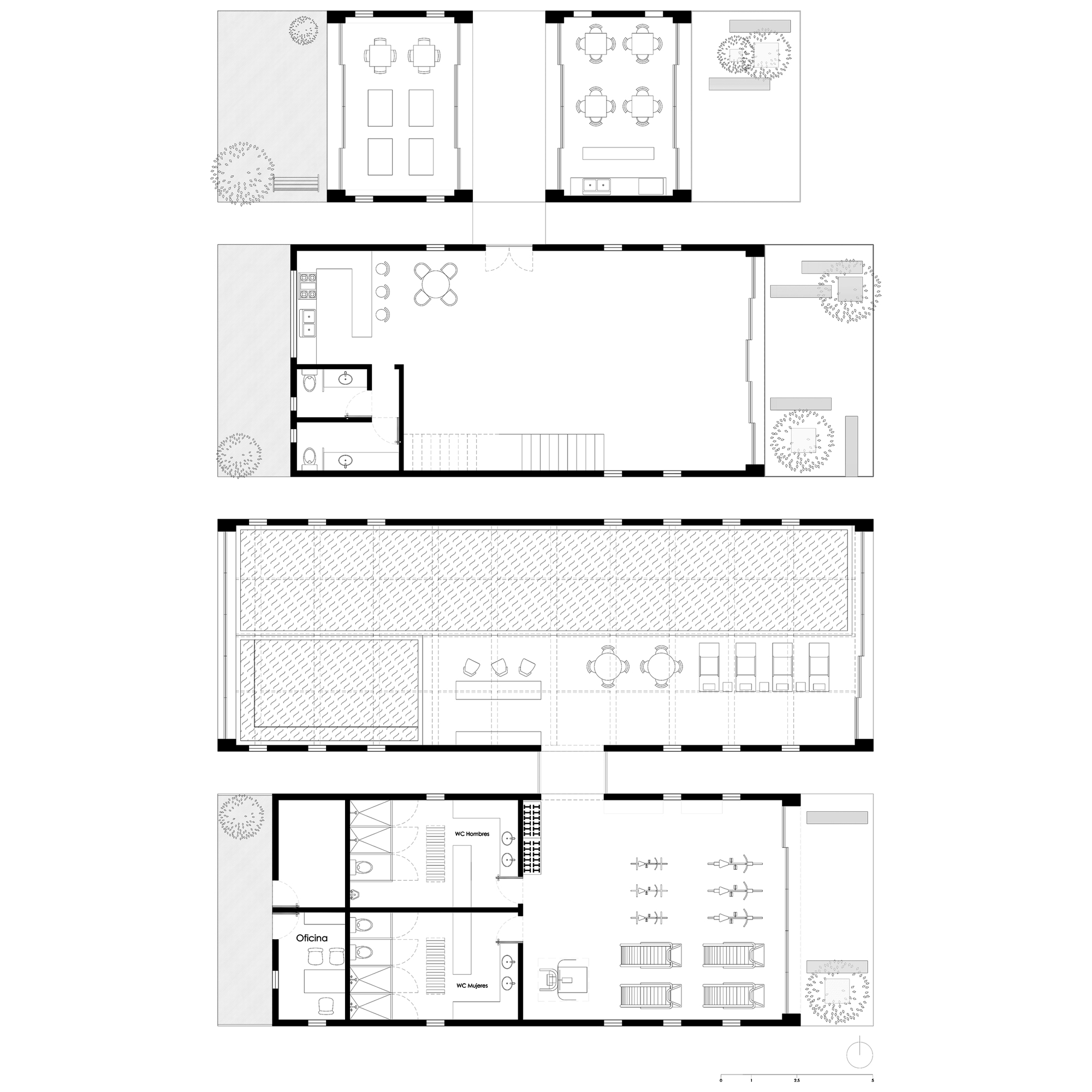

The site plan clarifies the strategy. Four narrow buildings line up beside a basketball court, with a second court, a plaza and tree-lined parking nearby, all held within a curved perimeter path. The floor plans show how thin these bars are. Restrooms, an office, gym equipment, a kitchen counter, dining tables and a staircase each occupy a slim rectangle, which keeps daylight and cross-views available across almost every room.

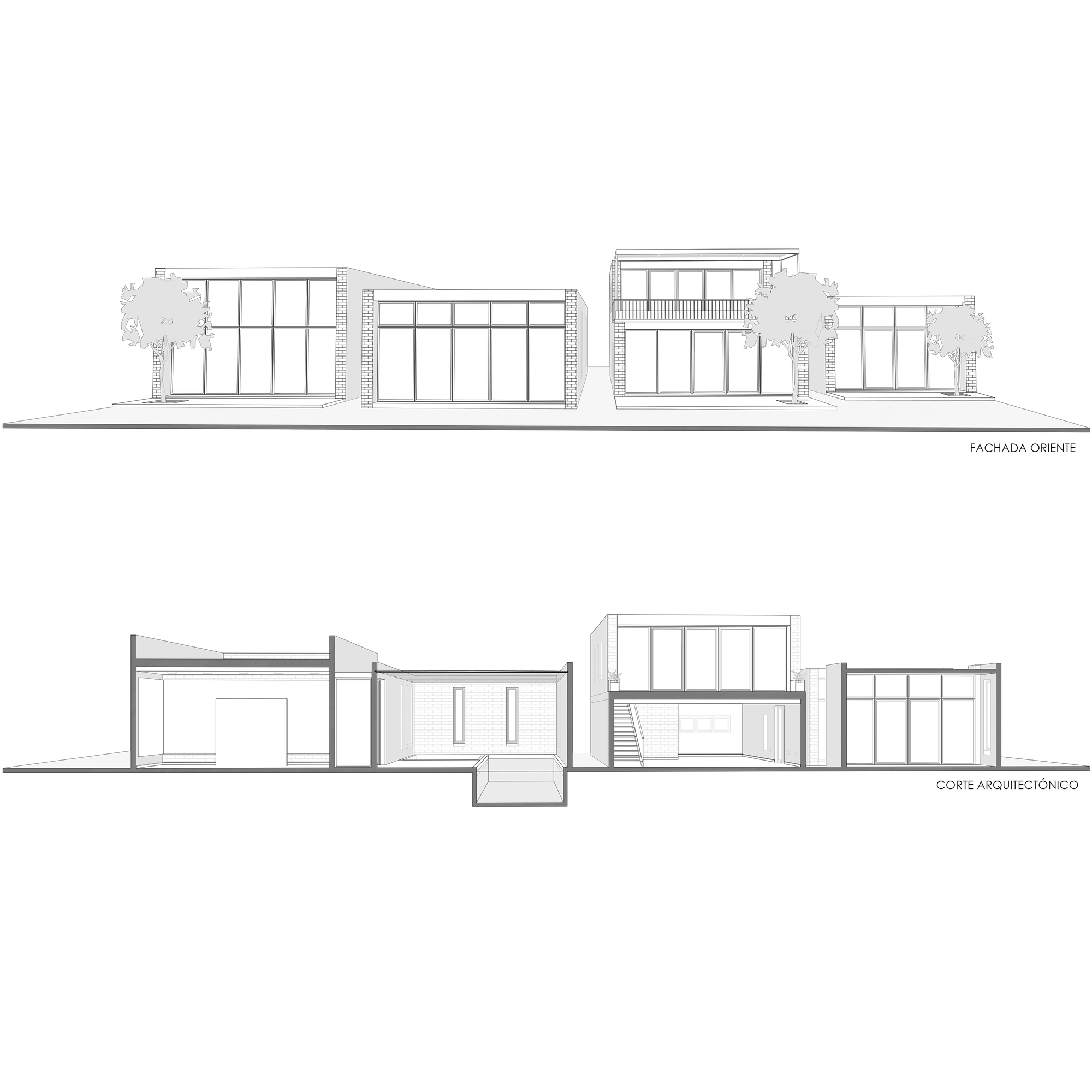

The elevation and section confirm the low, brick-edged profile with tall glazing, a balcony railing and an interior stair. The architecture stays below the tree line, deferring to the landscape it frames.

Why This Project Matters

Most Mexican gated developments compete on private square meters and leave the shared realm generic. Los Castaños shows that a modest common facility can do real civic work. It organizes movement, separates cars from people, and gives a planned suburb a social center with its own identity. The move is simple: solid toward traffic, open toward community. It is repeatable, and developers elsewhere would do well to copy it.

It also makes a case for restraint. MSA does not rely on a signature form. Brick, steel and timber, deployed with discipline, produce buildings that will age with their trees rather than against them. For a typology usually judged by renderings, that durability is the more ambitious goal.

Los Castaños Amenities by MSA, Metepec, State of Mexico, Mexico. Built area: 491 m². Completed: 2015. Photography by Onnis Luque.
