Paul Elliott Architects Unfolds a Three-Wing Timber Lodge on a Western Cape Organic Farm

Ninety square meters is not a lot of building. It is roughly the footprint of a generous two-bedroom apartment, and in most hospitality projects it would barely cover the lobby. At Natimby Lodge, Paul Elliott Architects proves that constraint, when paired with a genuinely inventive plan, can generate architecture that punches well above its weight. Sited on an organic fertilizer farm in the Western Cape, the lodge uses a three-wing star plan to squeeze out maximum orientation, privacy, and shelter from a compact envelope made of mass timber, hardwood cladding, and corrugated iron.

What makes the project worth studying is not its sustainability credentials, though those are real. It is the way the pinwheel geometry solves several problems at once: each wing can face a different slice of the surrounding mountains and farmland, the angles between wings create protected outdoor pockets, and the central junction becomes a secure patio with hot tub and braai. The result is a small building that feels expansive, private, and deeply connected to a working agricultural landscape.

A Star Plan That Earns Its Shape

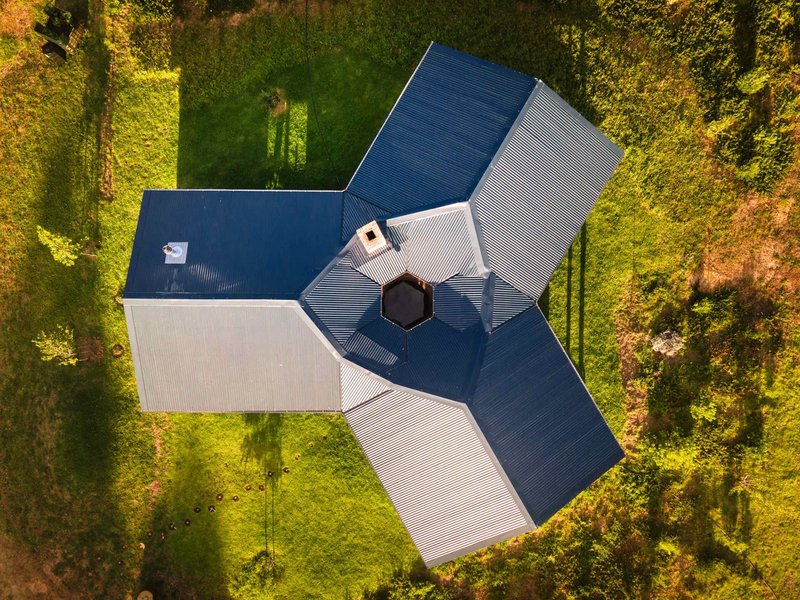

Seen from the air, the lodge reads as three gabled fingers radiating from a hexagonal core. The geometry is not decorative; it is functional. One wing aims north to pull in light and views for the living space, while the other two rotate to catch different panoramas and deflect the Western Cape's prevailing winds. The angles between the wings create sheltered verandas on every side, so guests can always find shade or sun depending on the season and time of day.

The hexagonal skylight at the junction of the three roofs ties the composition together and floods the central patio with overhead light. It is a small move that transforms what could have been a dark intersection into the social heart of the building. From a distance, the corrugated iron roofing blends with the agricultural structures around it, grounding the lodge in the vernacular of the Western Cape farmstead rather than reaching for a resort aesthetic.

Corrugated Iron and Deep Eaves

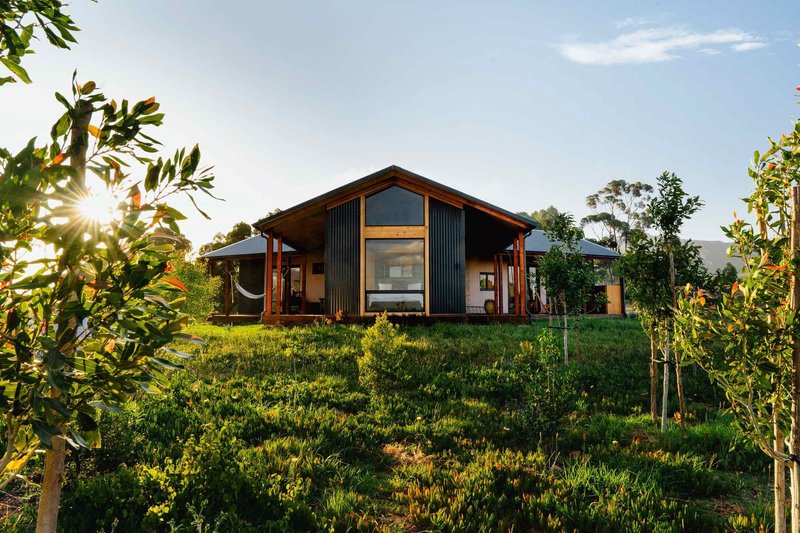

The exterior cladding strategy is honest and pragmatic. Corrugated iron sheeting wraps the gabled facades, catching the golden hour light in a way that makes the building glow against the autumn foliage. Deep eaves extend the roofline well beyond the wall plane, creating covered terraces that function as outdoor rooms. In a climate where summer sun can be relentless and winter rain arrives in sheets, these overhangs are not aesthetic trim: they are the primary passive comfort device.

The hardwood timber cladding that appears at lower levels and around openings provides warmth and texture against the metallic roof skin. The material palette is deliberately limited. Two cladding materials, mass timber structure, and glass. Nothing else is needed, and nothing else is added. That discipline keeps the budget tight and the building legible.

Living Space Turned Toward the Light

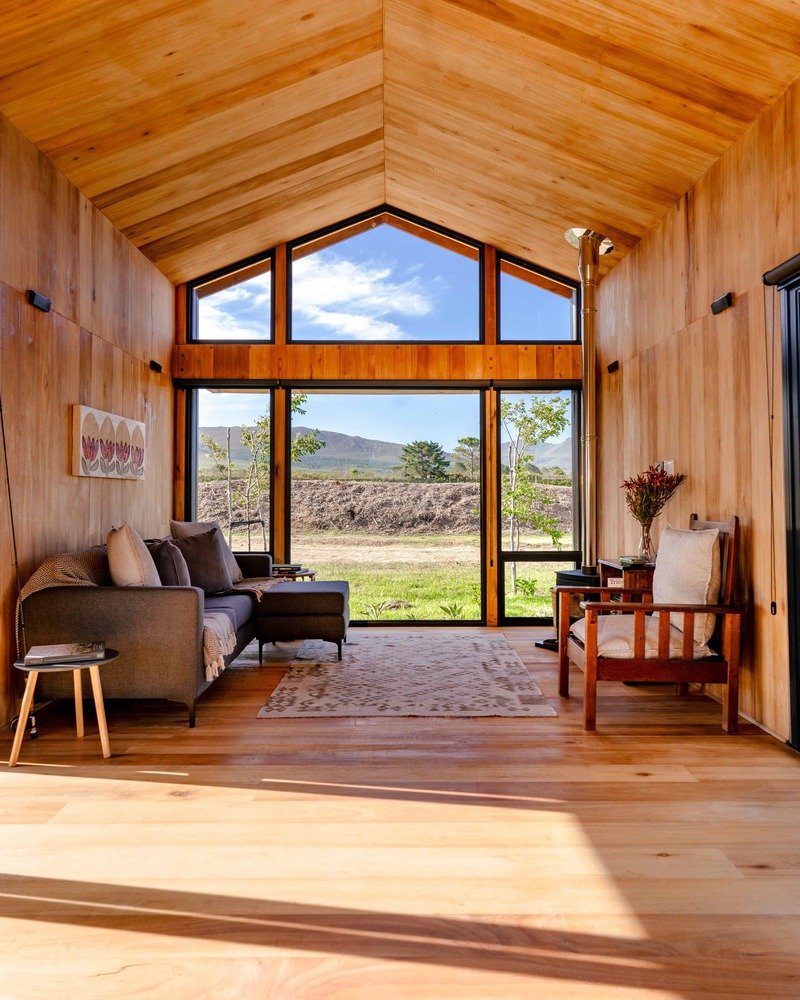

The north-facing wing houses the main living area, where the gabled roof structure is left fully exposed. The mass timber ceiling rises to a ridge line that terminates in a wall of glazing, framing the rolling hills beyond like a viewfinder locked on the horizon. The interior is warm without being rustic: clean timber surfaces, restrained furnishing, and enough glass to dissolve the boundary between indoors and landscape.

The remaining two wings serve as ensuite bedrooms or, in a clever nod to the realities of remote work, as dedicated spaces for digital nomads. That programmatic flexibility is smart hospitality thinking. A guest who books a week-long stay can configure the lodge as one bedroom and one workspace, collapsing the distinction between retreat and office. For a 90 square meter building, the plan delivers a surprising range of living modes.

Mass Timber as Low-Impact Structure

Mass timber construction is the structural backbone of Natimby Lodge, and it serves double duty as both framework and finish. By leaving the timber exposed internally, the architects eliminate the need for secondary ceiling and wall linings, reducing material quantities and construction waste. On an organic farm, where the ethos is to work with natural cycles rather than against them, the choice of a renewable, carbon-sequestering structural material is more than a talking point: it is a prerequisite.

The corrugated iron cladding shares that pragmatic logic. It is lightweight, readily available in South Africa, easy to install without specialist trades, and highly recyclable at end of life. Together, the two materials form an envelope that is low-carbon in production, simple to maintain, and visually honest about how the building is made.

Why This Project Matters

Natimby Lodge is a useful corrective to the idea that sustainable hospitality architecture requires large budgets, complex certifications, or photogenic gimmicks. Paul Elliott Architects keeps the footprint small, the material list short, and the plan geometry purposeful. Every design decision, from the star layout to the deep eaves to the flexible bedroom-office program, solves a real problem rather than performing an aesthetic gesture.

For architects and developers working in rural South African landscapes, the project offers a replicable model: use local construction culture (corrugated iron, timber, braai pit) as a design driver rather than an obstacle, and trust that a compact, well-oriented building can deliver the sense of generosity that hospitality demands. At 90 square meters, Natimby Lodge is proof that a small plan, properly rotated, can hold more life than a building twice its size.

Natimby Lodge by Paul Elliott Architects, Western Cape, South Africa. 90 m². Completed 2025. Photography by Dean Jorgesen.
