Office Canopy of Architecture Retrofits a Tiled Shaoxing Block into an Open-Source Community Commune

County-level cities in China have a problem that the megacities are only starting to admit: the building boom left behind more floor area than anyone knows what to do with. BANSHAN1994 Commune, completed in 2024 by Office Canopy of Architecture under lead architect Xu Tianxin, takes one of these underused assets in the old centre of Shangyu, Shaoxing, and turns it into 4,416 m² of civic life. The client is the Baiguan Subdistrict Office, and the program reads like a neighbourhood wish list: library, canteen, shops, meeting rooms, a tiered gathering hall and a few street kiosks.

The interesting part is not the program. It is the attitude. The architects frame the renovation as an "open-source system" and describe locality as something you keep making, not a relic you preserve. That gives them permission to leave the grey tiled block mostly as it is and concentrate their effort on thresholds, circulation and a handful of new insertions in orange, timber and perforated metal. The result is a building that looks ordinary from a passing car and becomes more surprising the further you walk in.

An Ordinary District, Deliberately Chosen

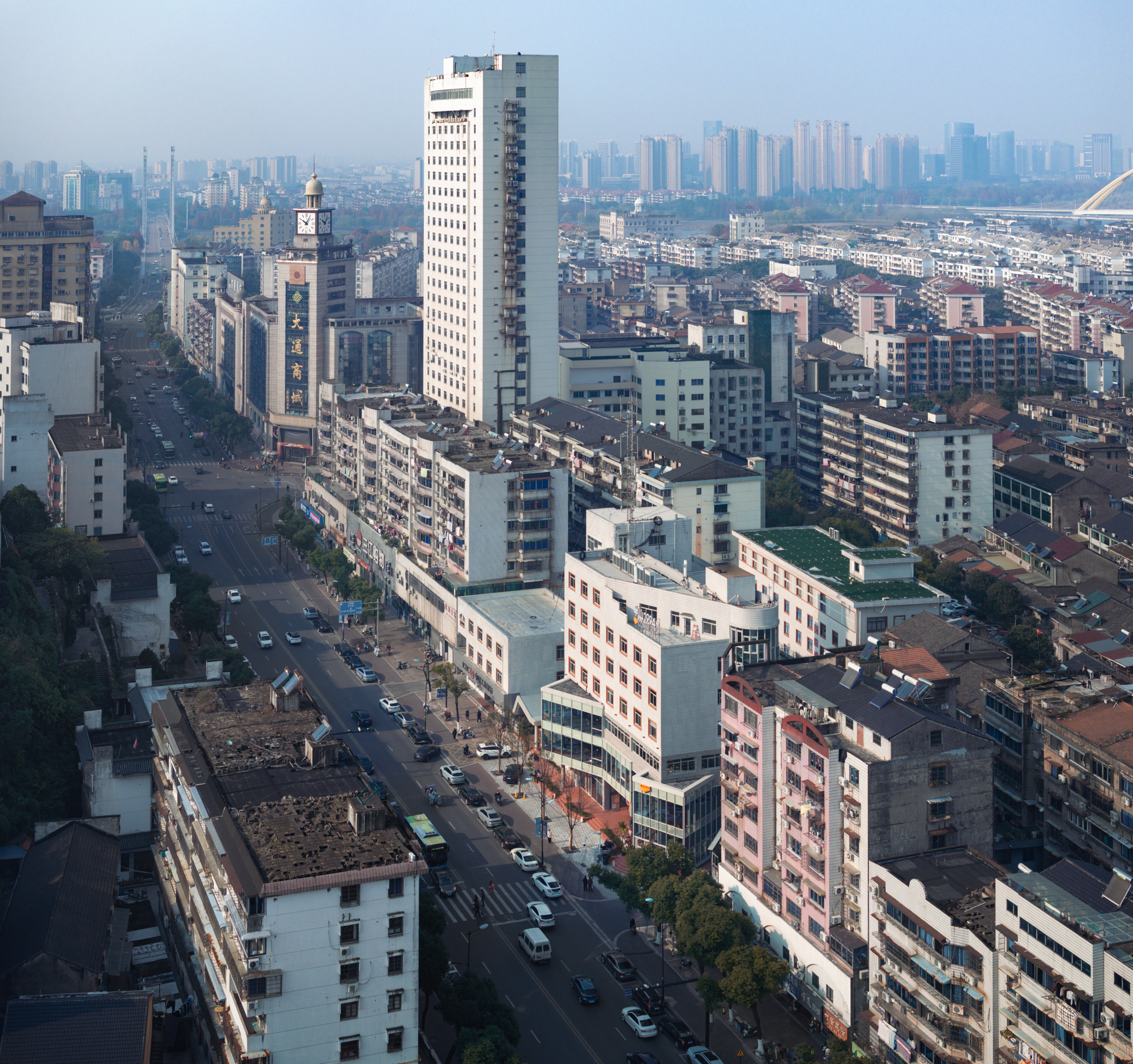

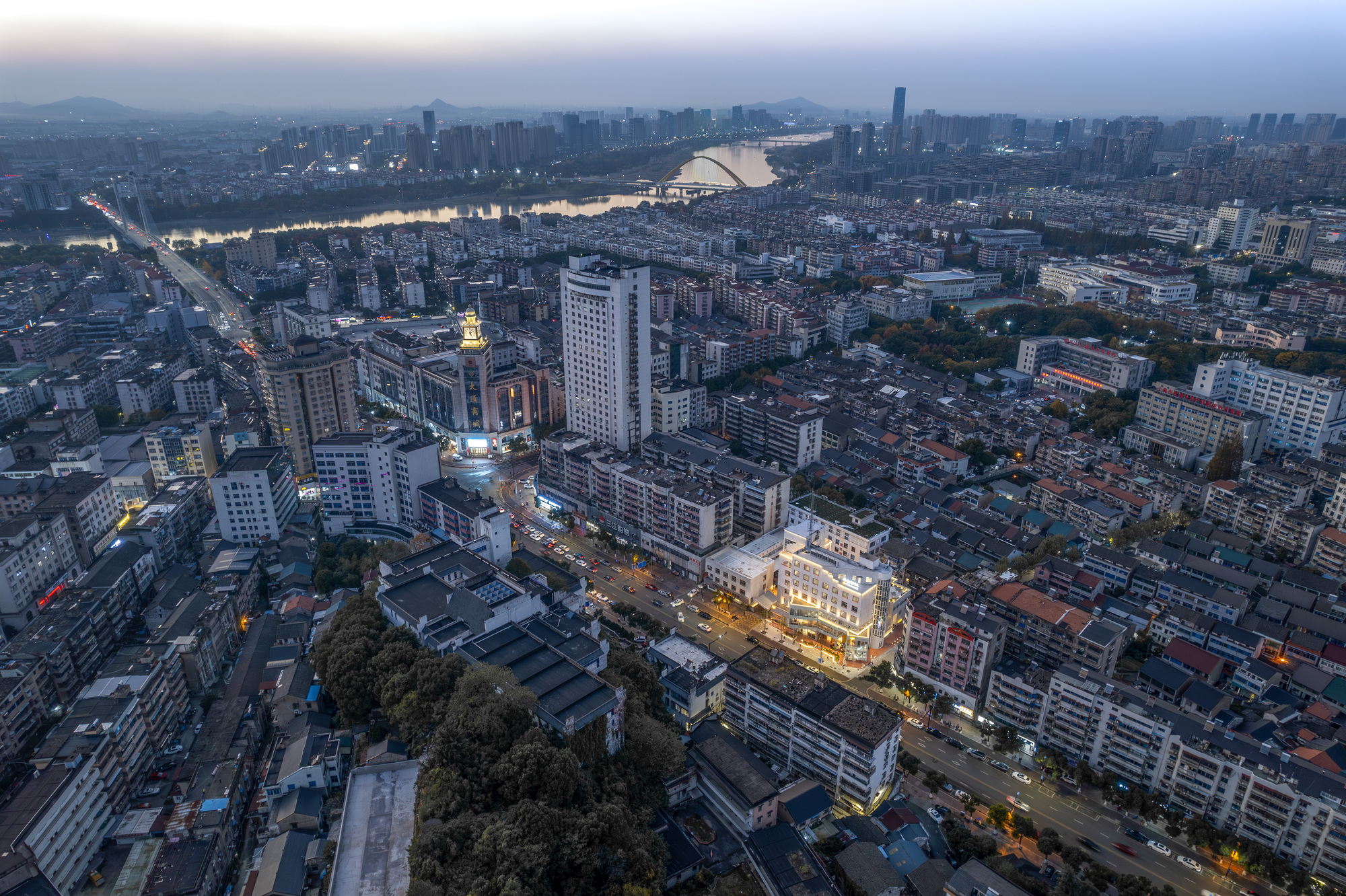

The aerials make the point better than any manifesto. This is a dense, mid-rise county town of apartment slabs, wide avenues and a river crossing, the kind of urban fabric that rarely gets design attention. The commune sits low among its neighbours and lights up at dusk, a small civic lantern instead of a landmark.

We think that restraint is the right call. Stock renewal in places like Shangyu will not succeed through spectacle; it will succeed when existing buildings start working harder for the people already living around them.

Keeping the Tiled Skin

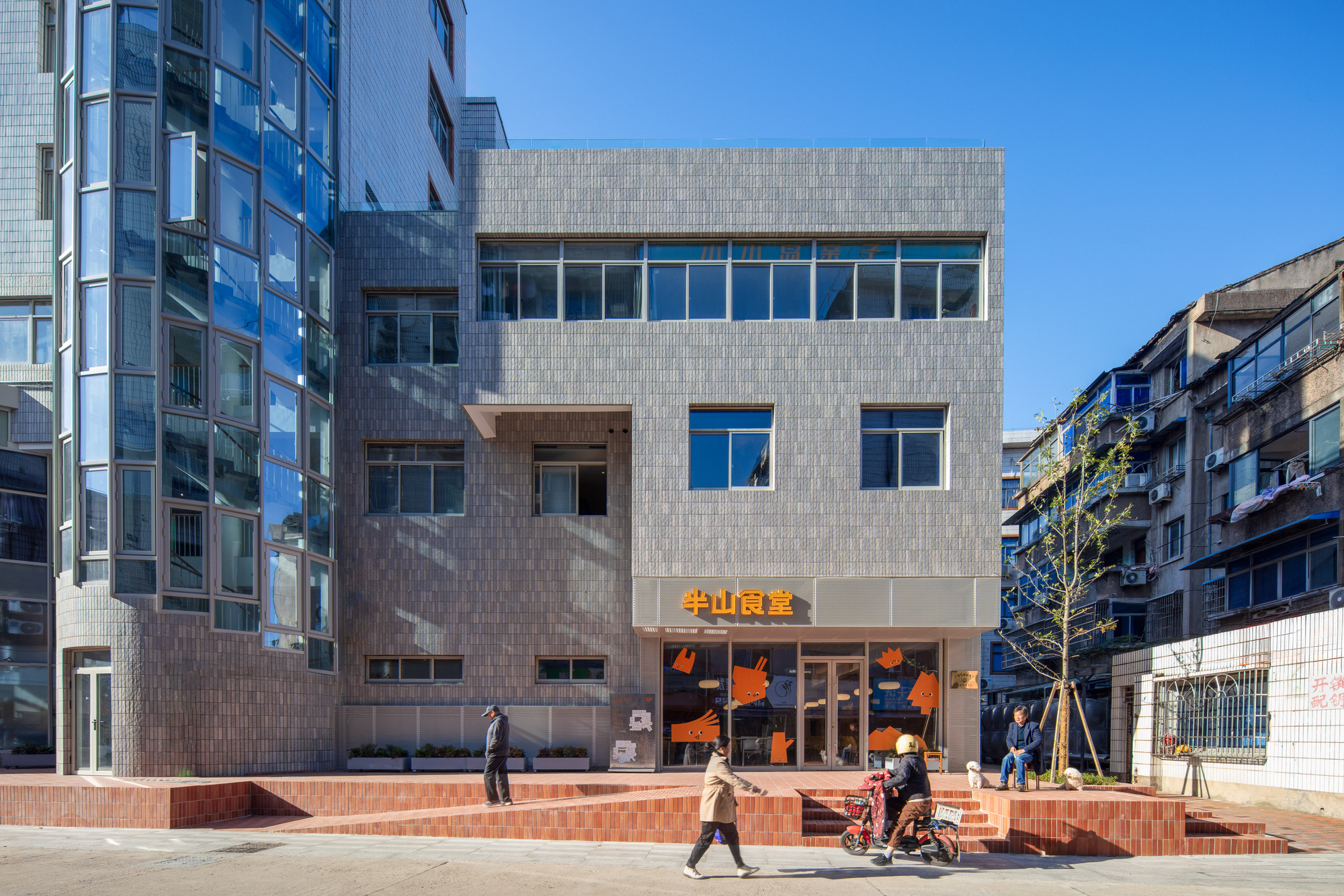

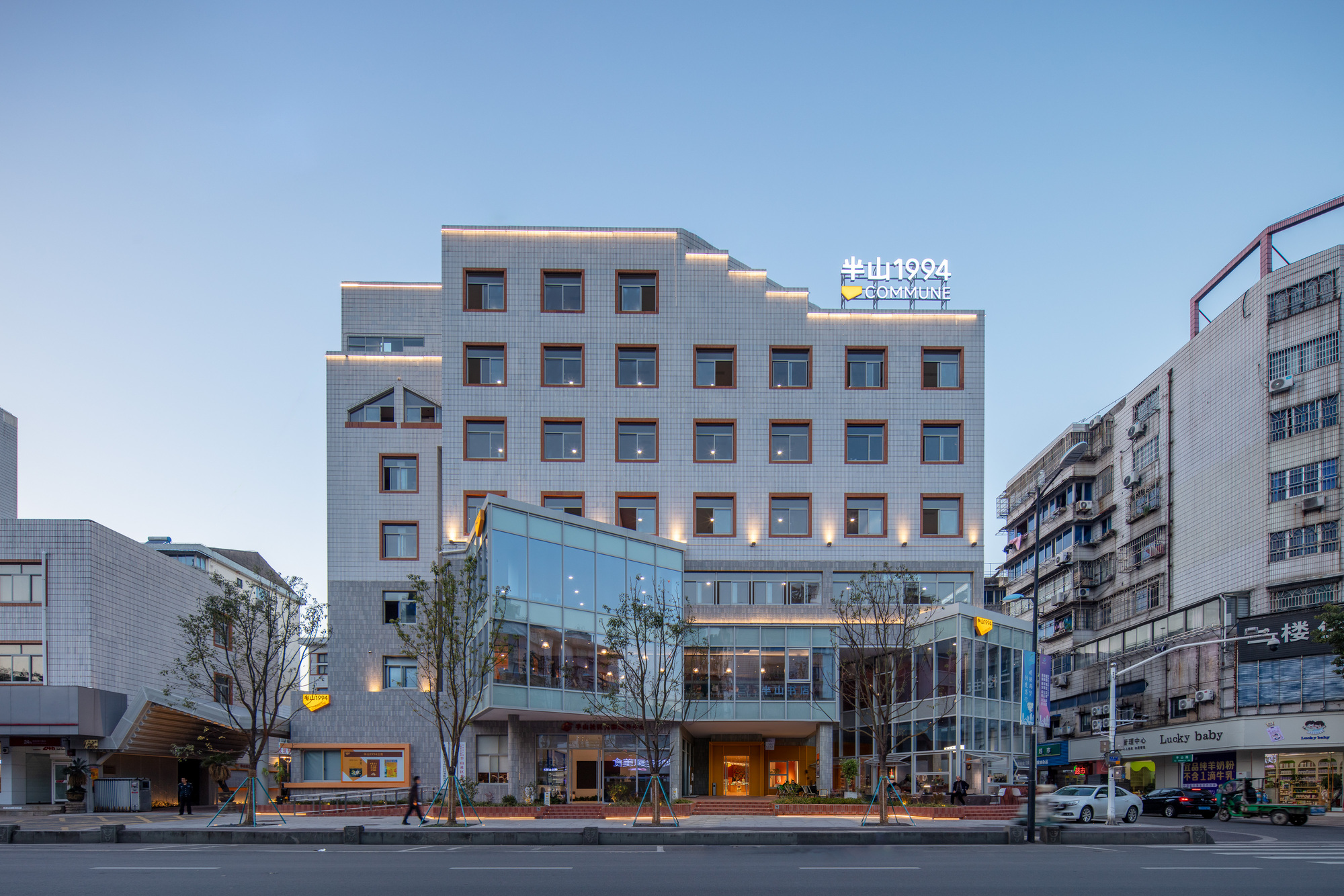

The grey tile facade stays. So does the grid of square windows, now picked out with red frames that read clearly at dusk. The architects spend their budget at street level instead: a glass base, orange lettering over the entrance and a stepped brick plinth that turns the building edge into somewhere you can sit.

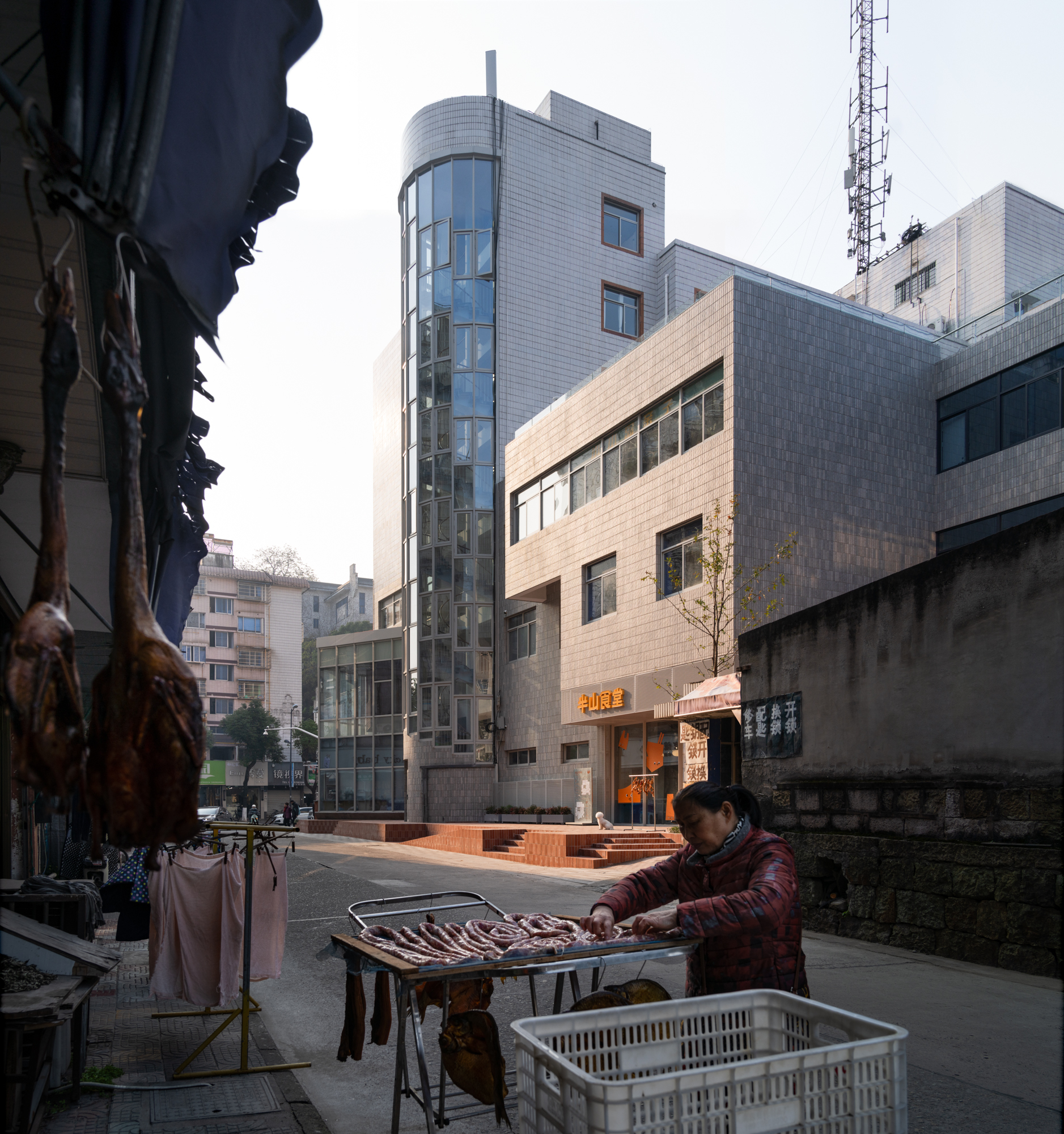

The vendor laying out cured meat in front of the curved glass tower is a telling image. The renovation does not clear the pavement of local life to stage its architecture. It lets the street keep doing what it already did.

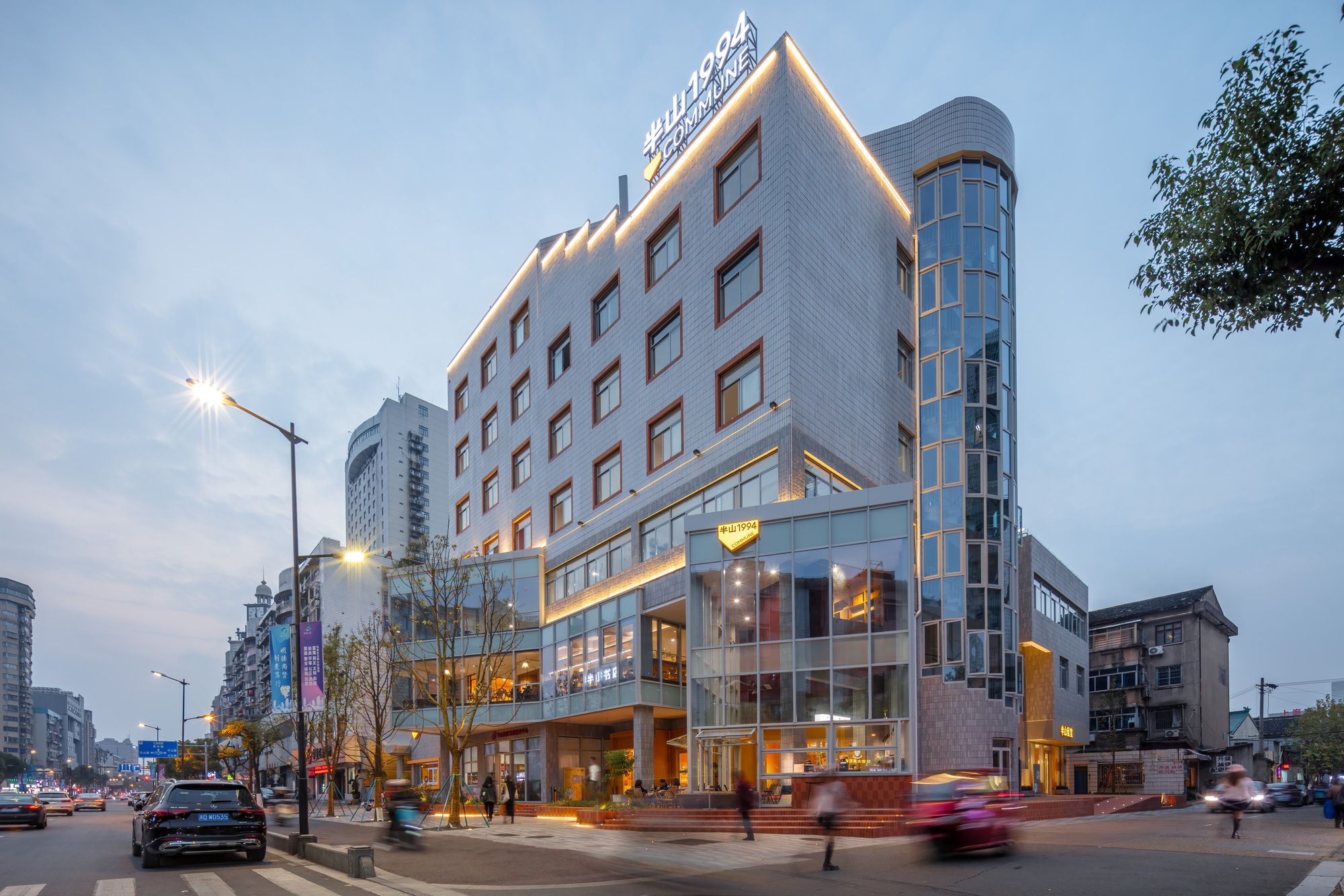

A Corner Tower That Works After Dark

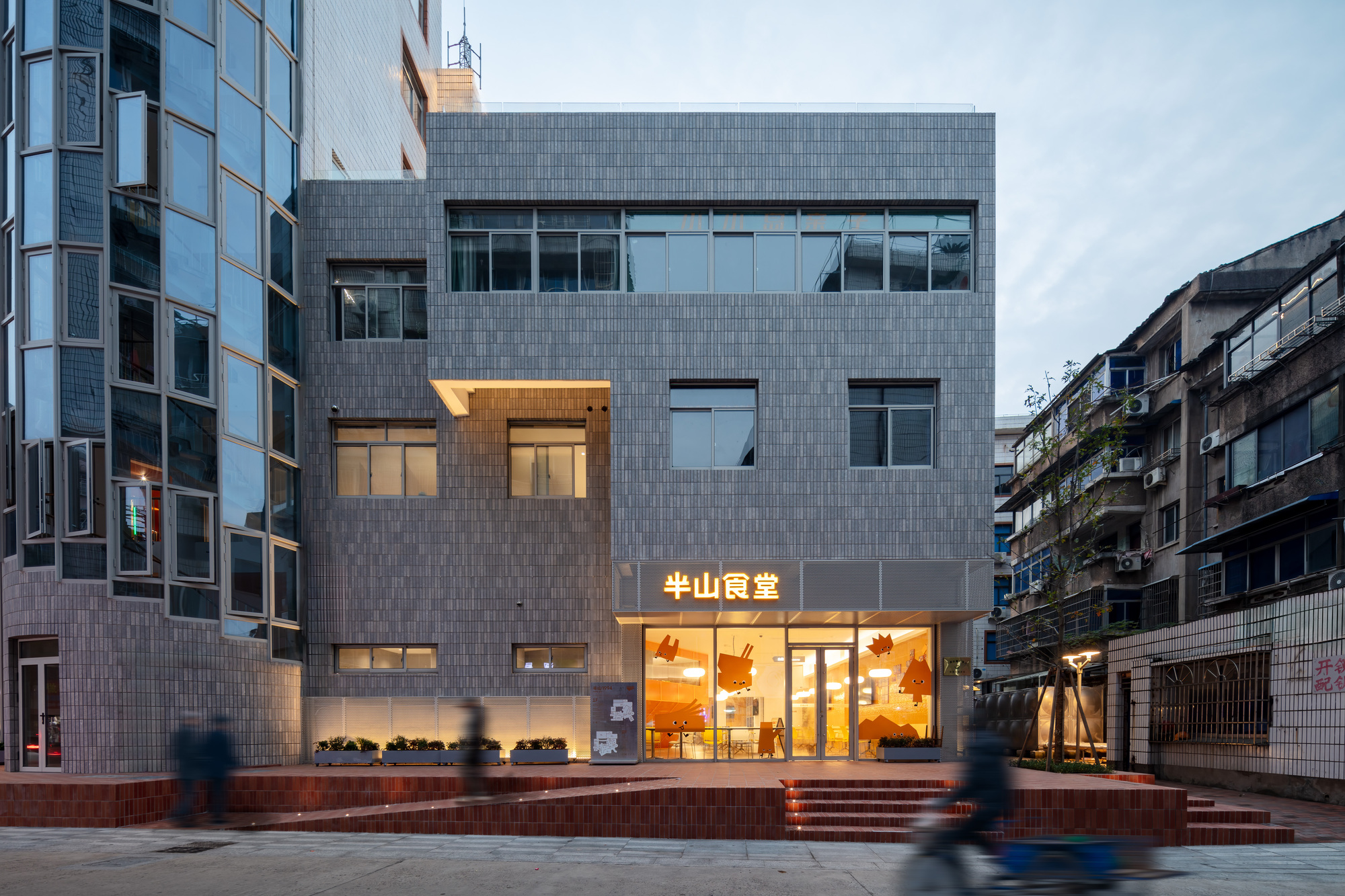

At night the strategy becomes legible. The glazed curved stair tower glows at the corner, the rooftop sign announces the building to traffic, and the orange storefront spills light onto the red terrace. A block that was once a closed tiled box now signals that it is open.

This matters for a community building in a car-heavy district. Visibility from the avenue is half the battle in getting people to step inside for the first time.

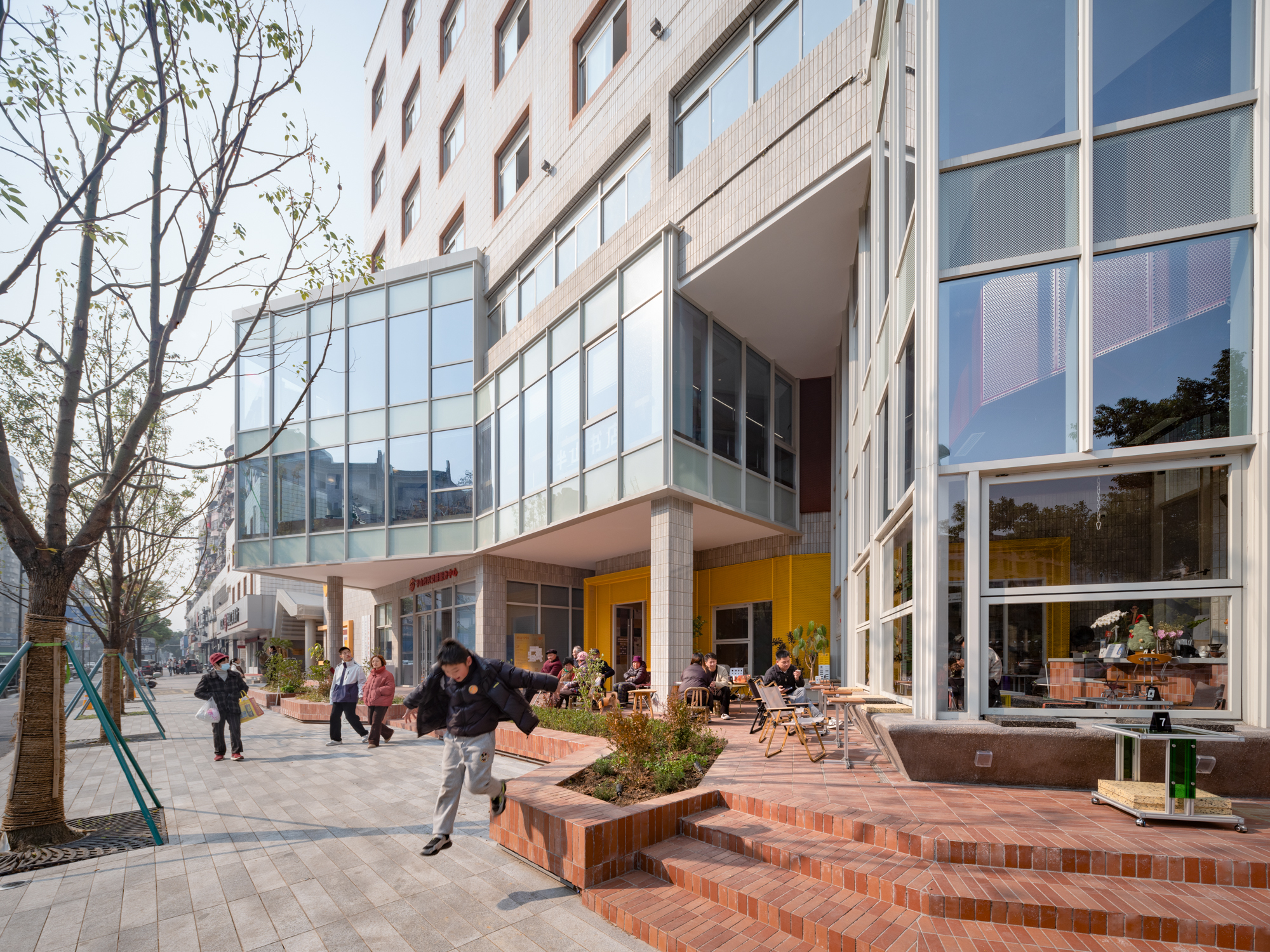

The Brick Terrace as Public Furniture

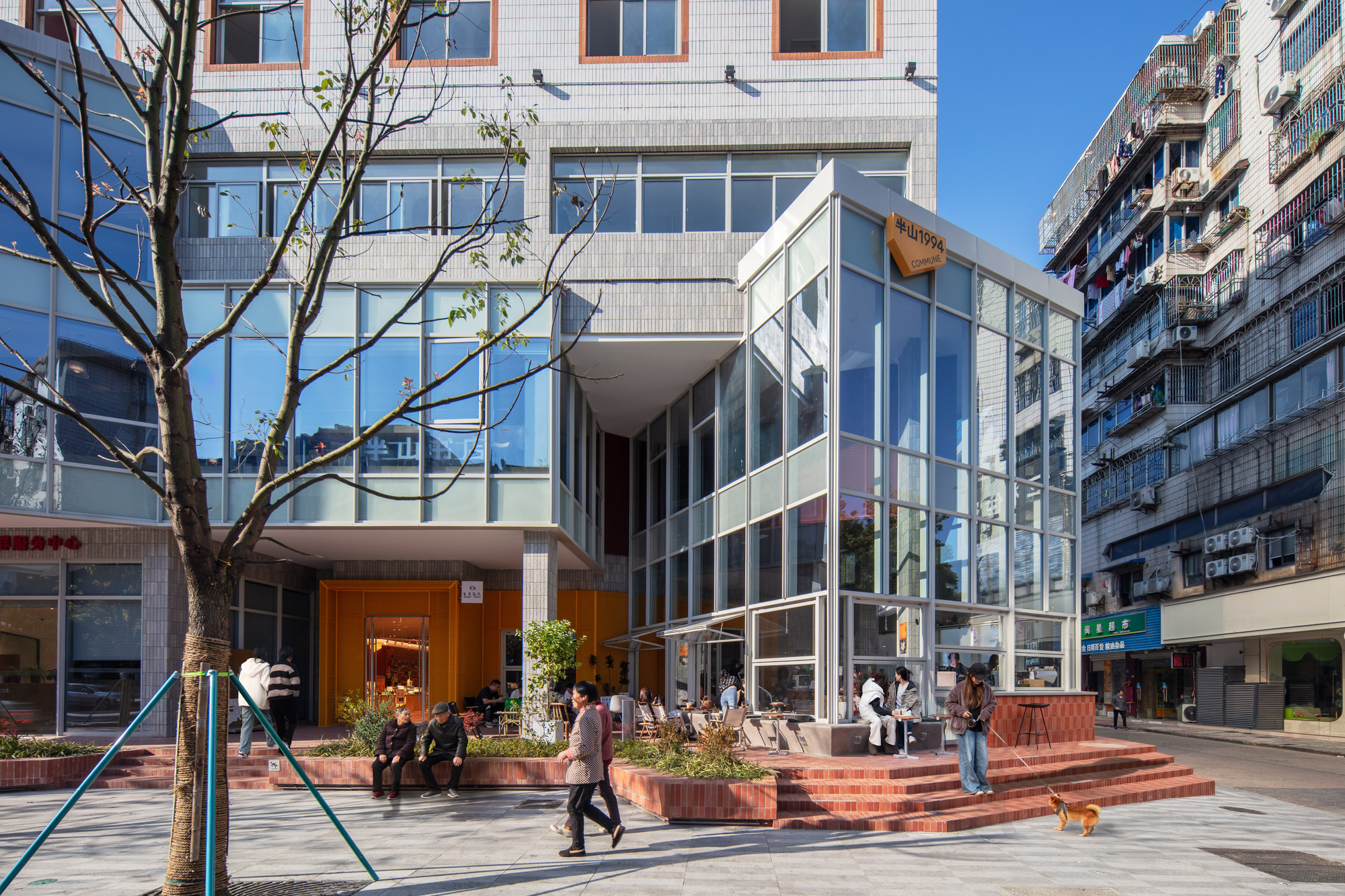

The glass corner pavilion and its stepped brick terrace are the most generous move on the outside. In winter sun the steps fill with people at tables, someone's dog wanders under the bare tree, and the boundary between building and pavement disappears.

Steps like these do two jobs at once: they resolve level changes and they give a neighbourhood free seating with no obligation to buy anything. It is cheap, durable and social, which is exactly what renewal projects at this scale need.

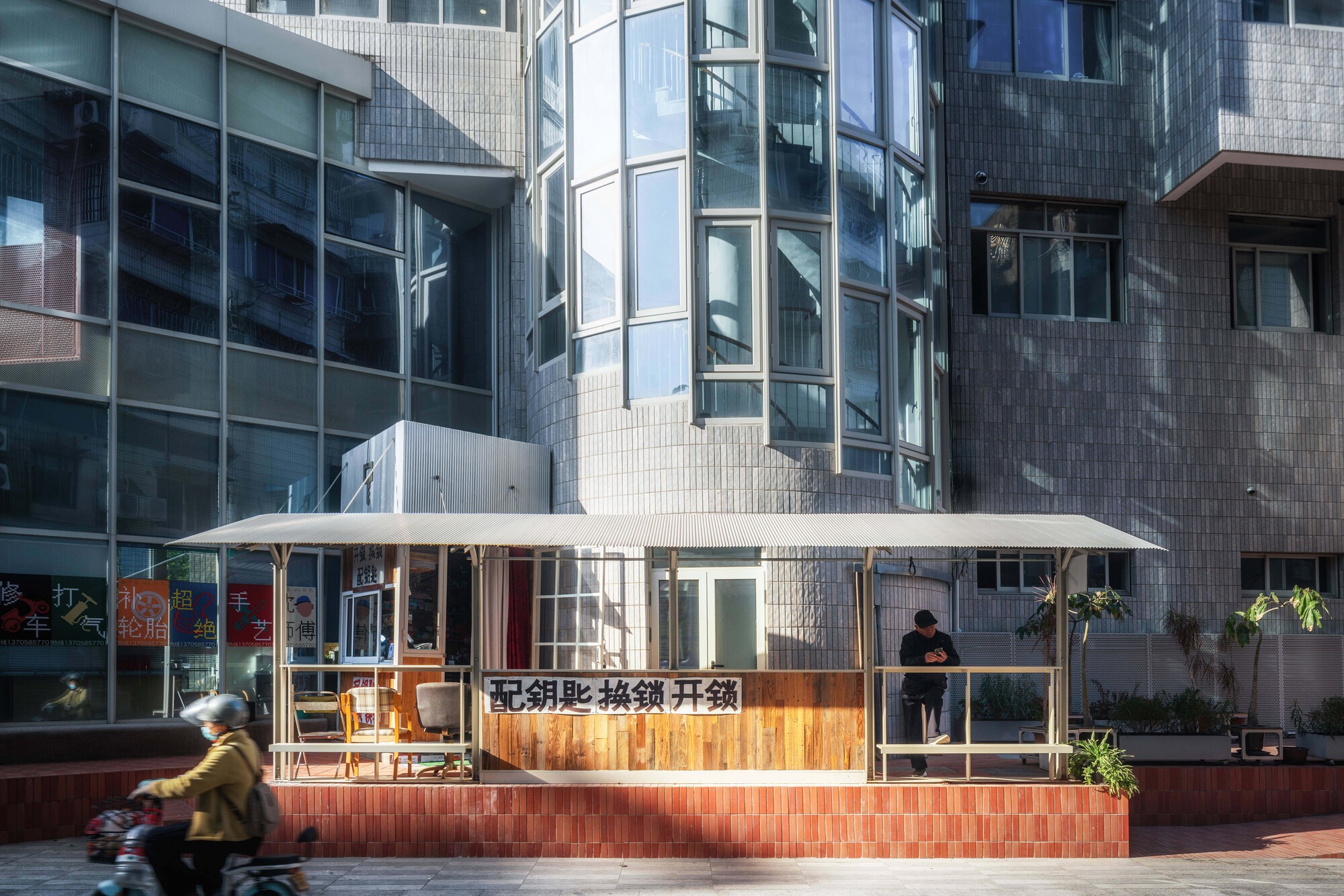

Kiosks for the Trades That Were Already There

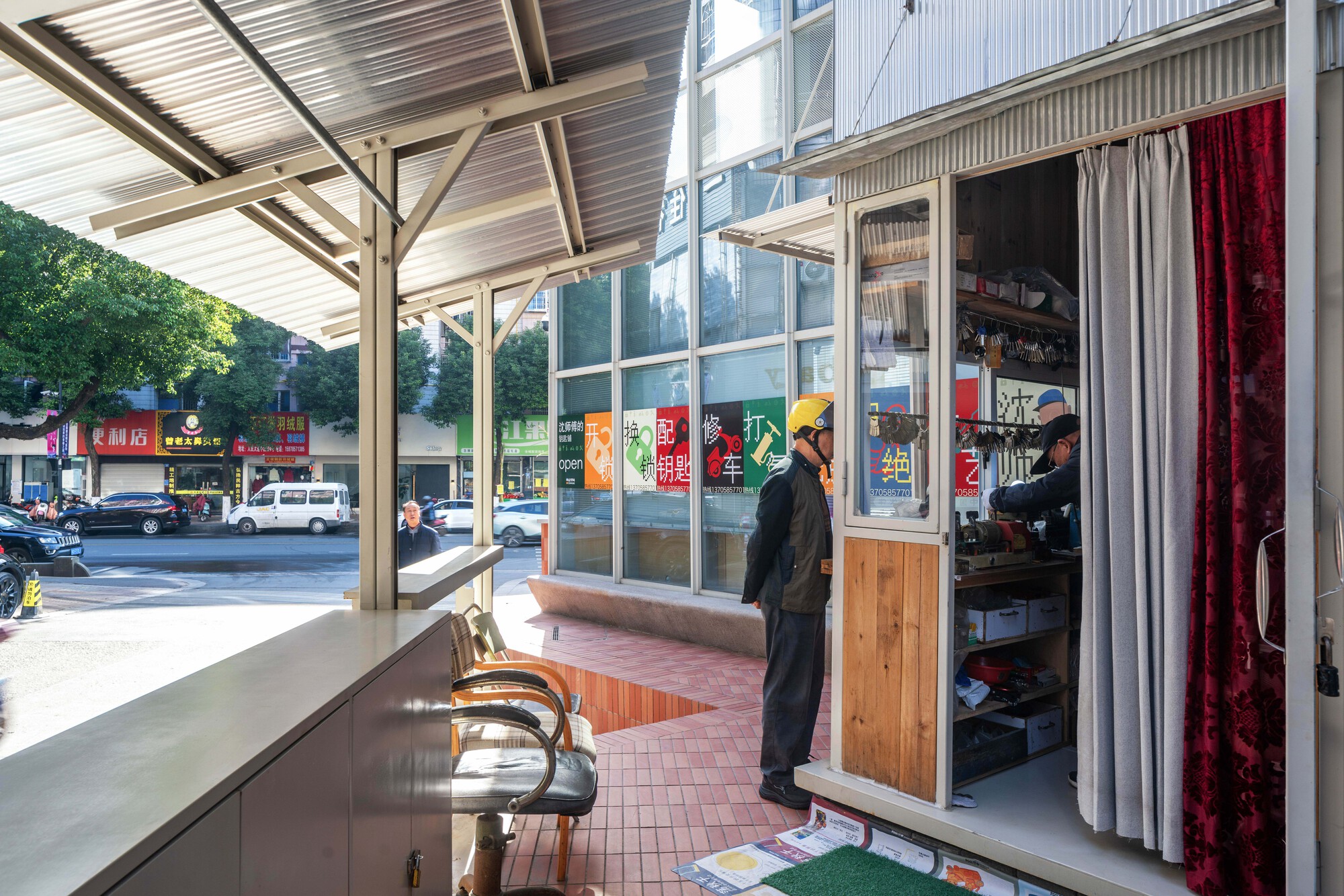

Two small corrugated-roof kiosks sit on the red brick base, one of them occupied by a key cutter behind a counter with a red velvet curtain. A timber sign, a simple canopy and a counter are all it takes.

We read these as the clearest expression of the open-source idea. Instead of displacing informal street trades, the design gives them an address. Locality here is not a material palette; it is the key cutter who keeps his spot.

Orange Curves on the Ground Floor

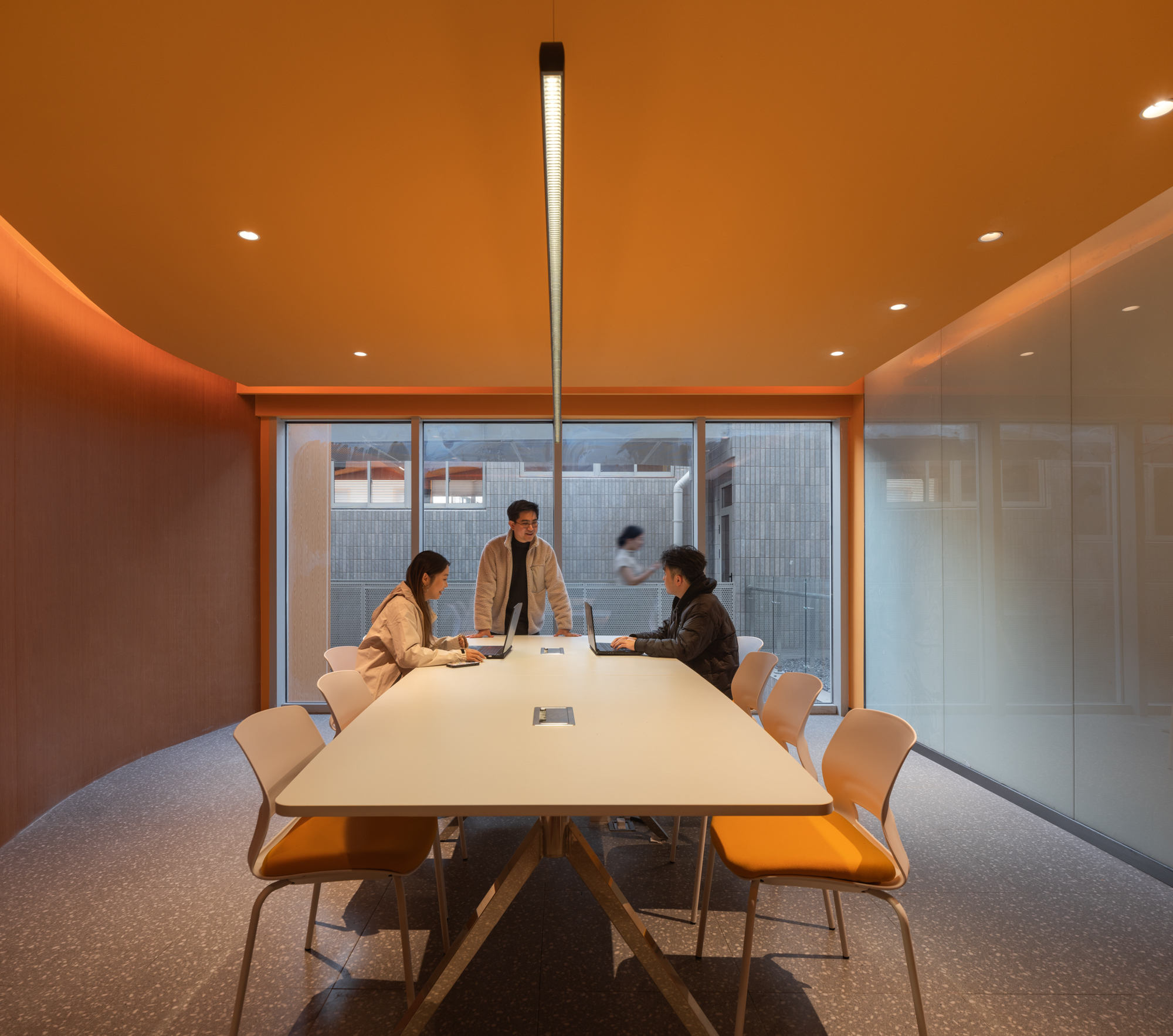

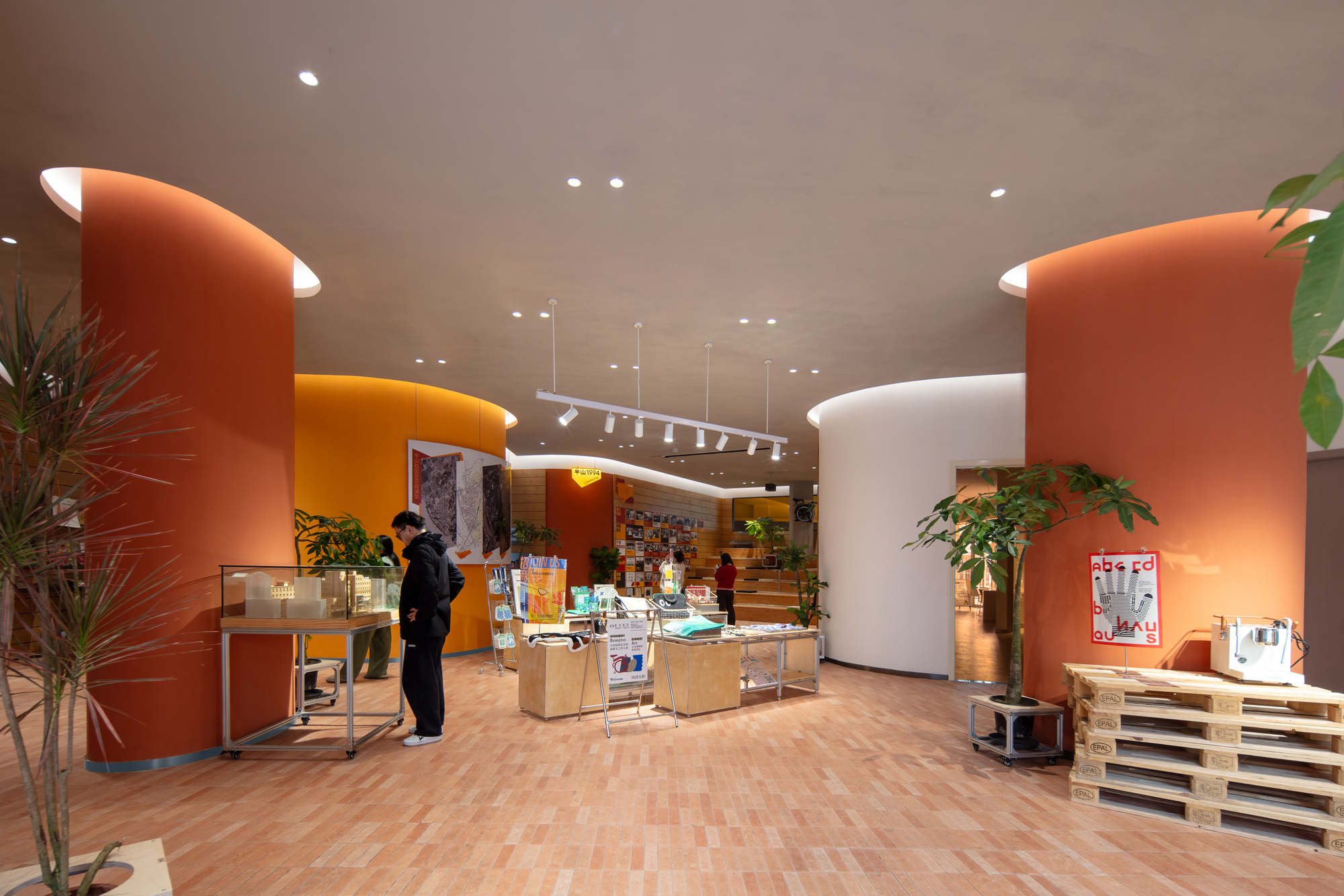

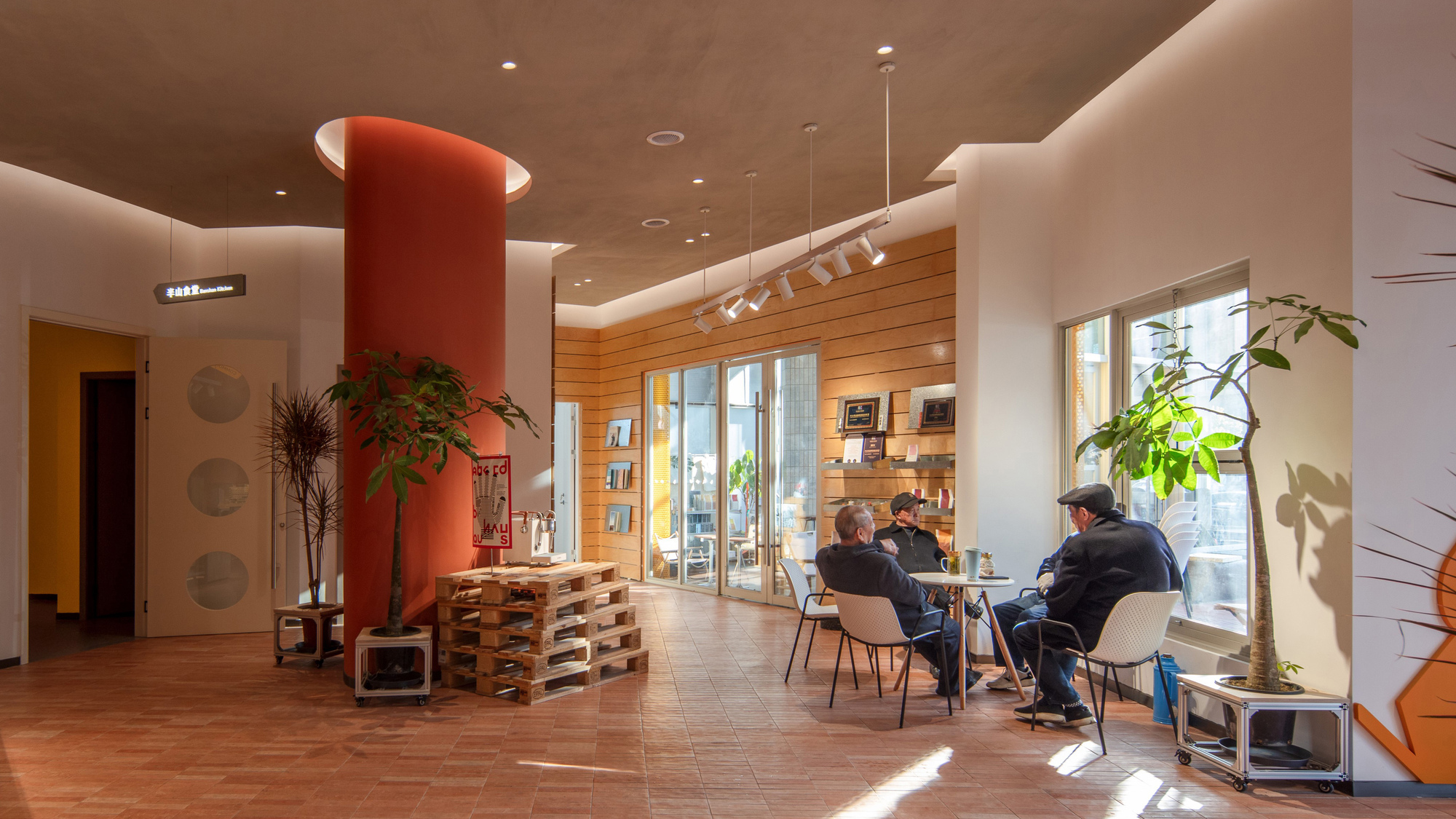

Inside, the existing column grid meets a set of curving walls and round columns finished in orange and white. The lounge, with its pallet table and men chatting in late afternoon light, feels closer to a neighbourhood teahouse than a government facility. The retail space and meeting room borrow the same soft geometry.

The colour is doing real wayfinding work. In a deep floor plate inherited from another use, orange marks where the new program lives, so you always know which parts of the building have been reclaimed for the public.

Perforated Metal Paths Through the Old Structure

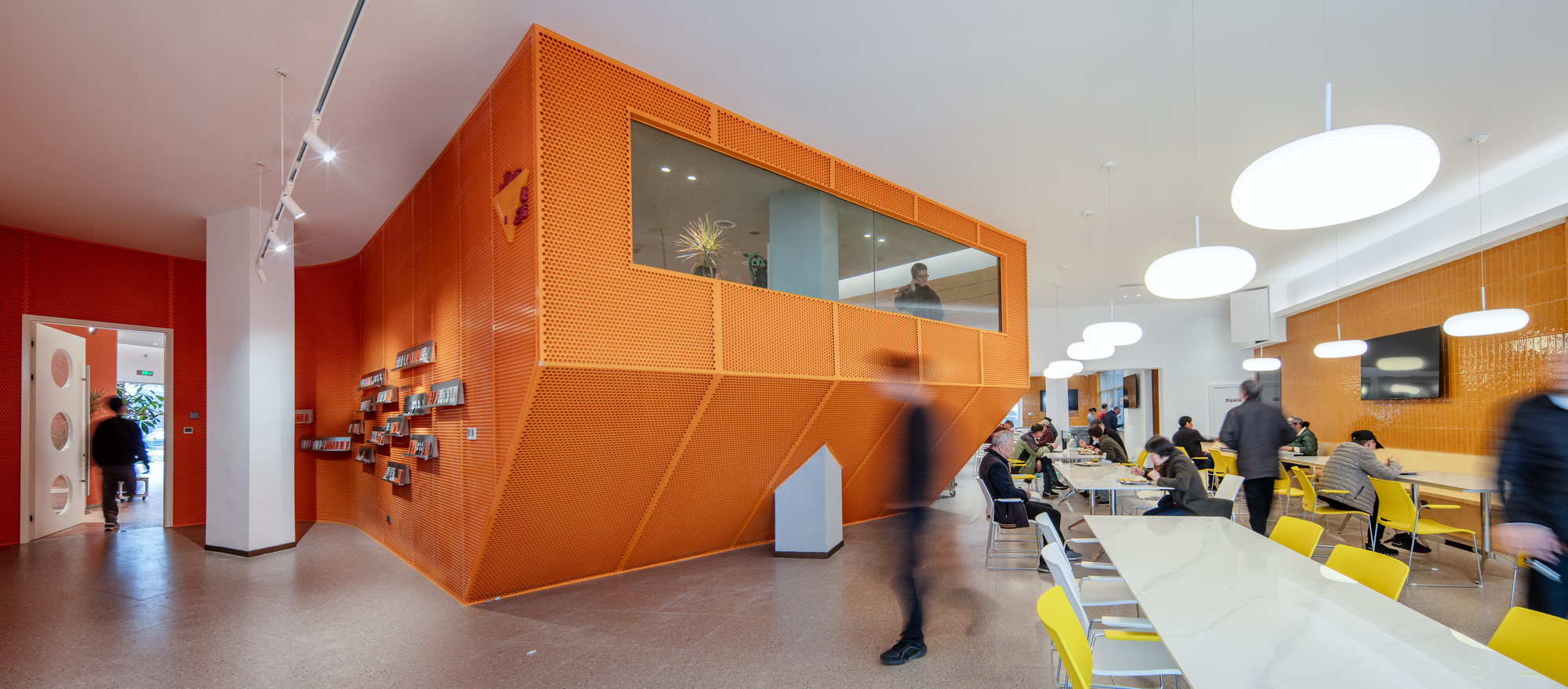

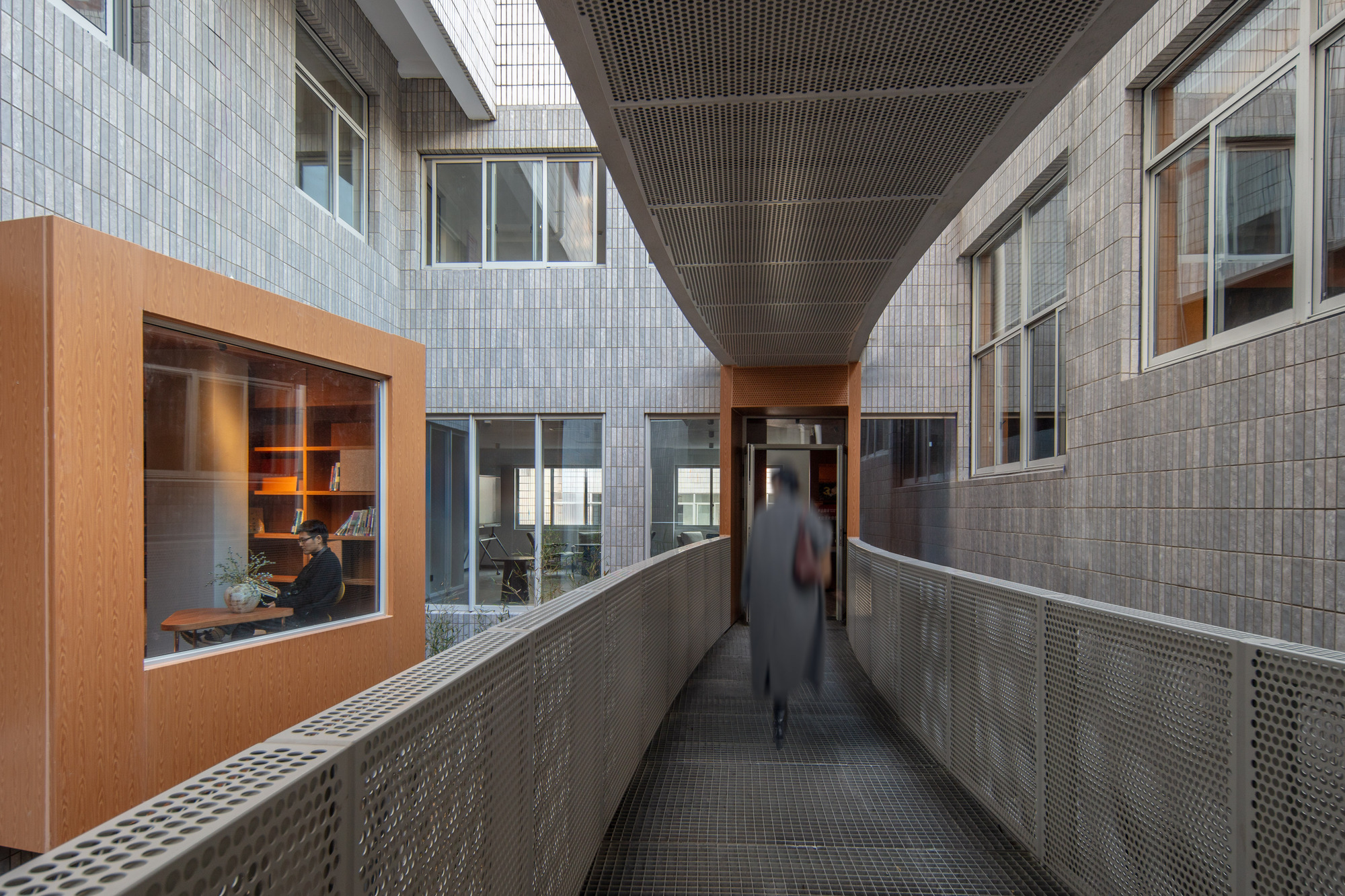

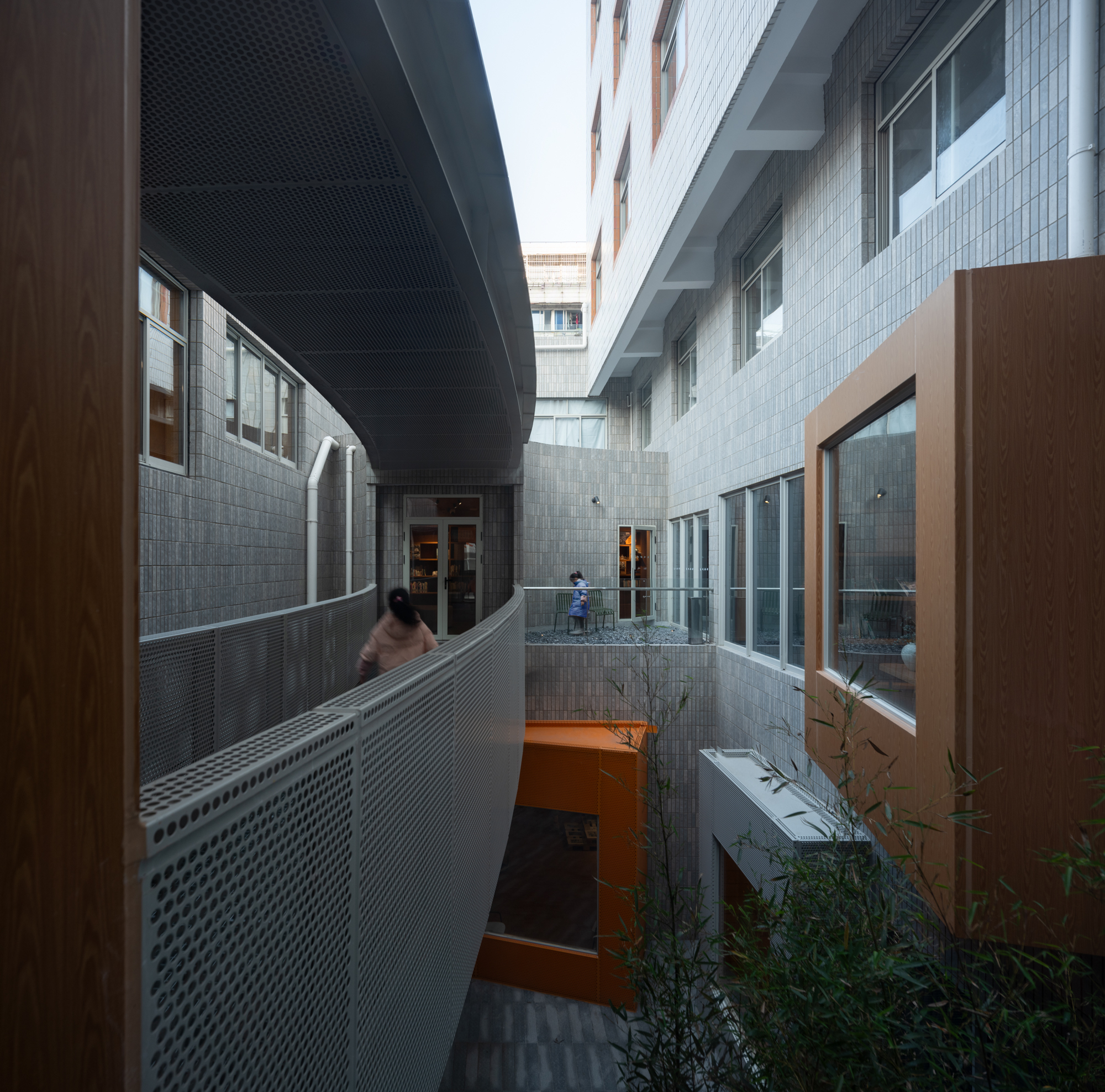

The most architectural moments come where perforated metal walkways thread between the tiled walls. They curve past bamboo, pass timber-clad window boxes where someone sits reading, and in the reading hall an orange perforated volume with angled panels hovers as an object in its own right.

These insertions are light enough to read as additions, not replacements. Galvanized steel, timber and glass sit against the original fabric without pretending to be part of it, which keeps the layers of time honest.

Reading Rooms and Tiered Gathering

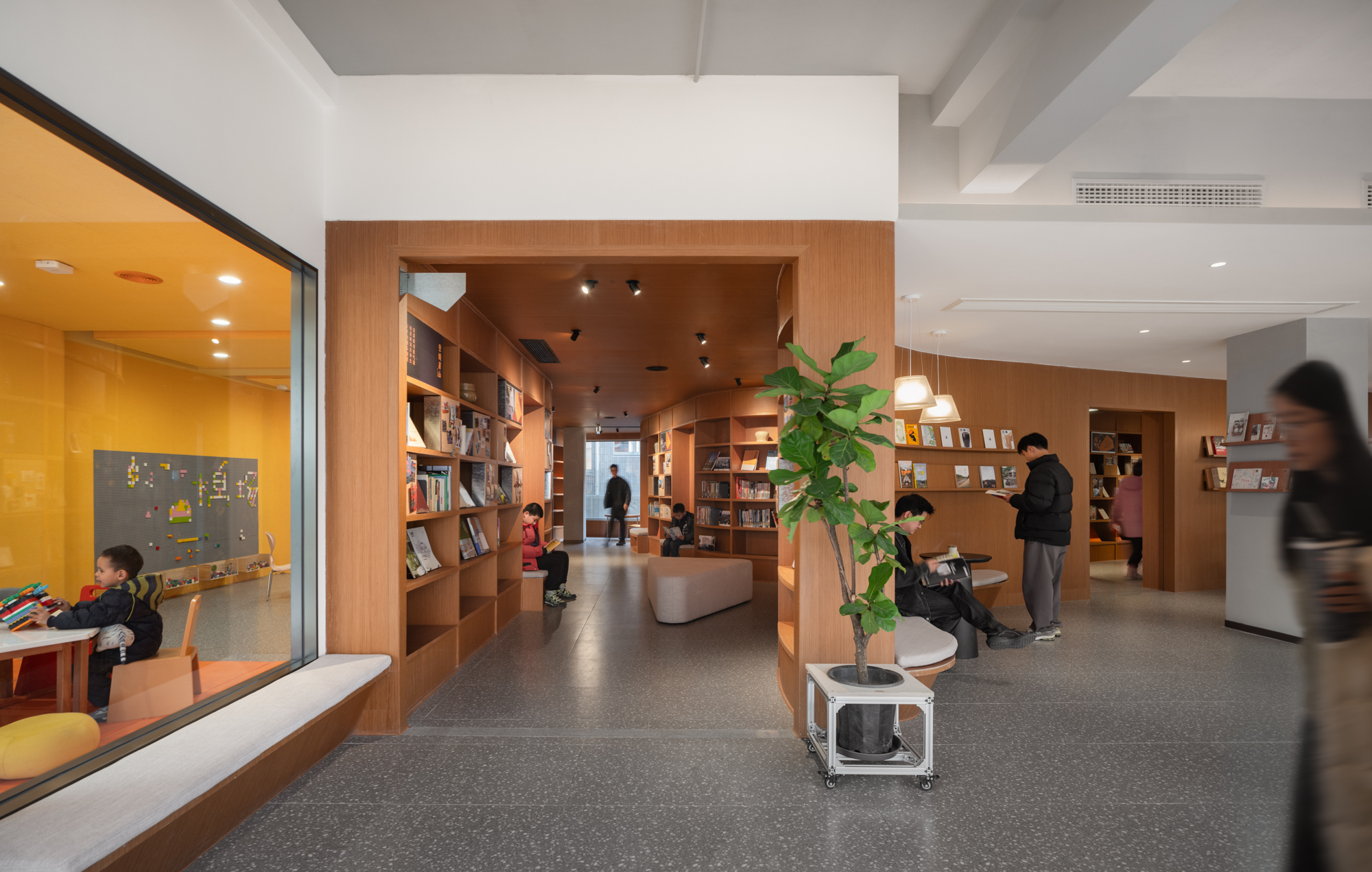

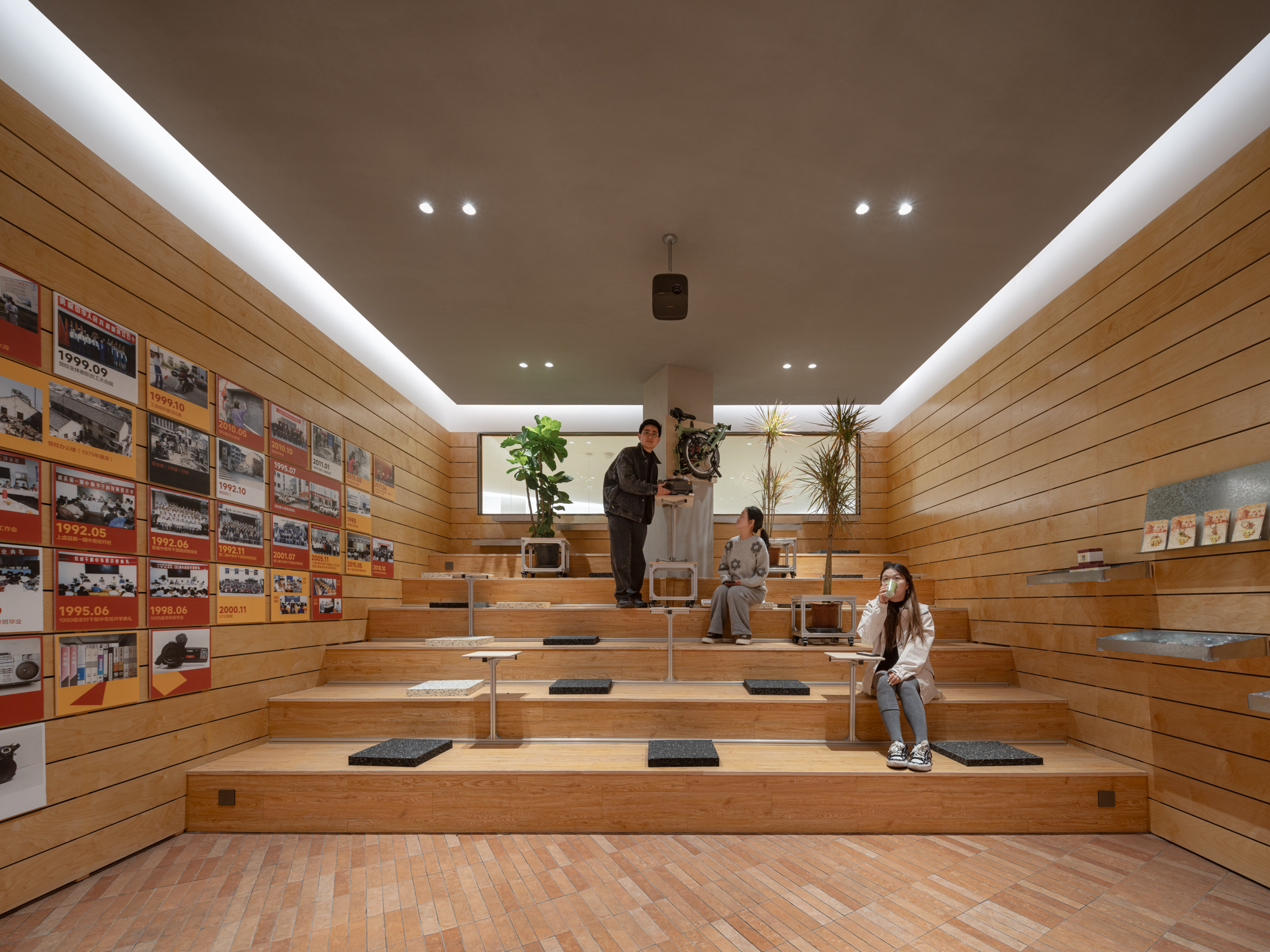

Upstairs, stepped timber tiers lined with framed photographs form a small auditorium under a cove-lit ceiling, while timber-framed bookshelf alcoves open off a terrazzo floor. A child tucked into a window seat says more about the library's success than any visitor count.

The photographs along the tiers, with exhibition design by Topica, give the room a memory function. A community building that shows the town its own history earns a different kind of loyalty than one that only lends books.

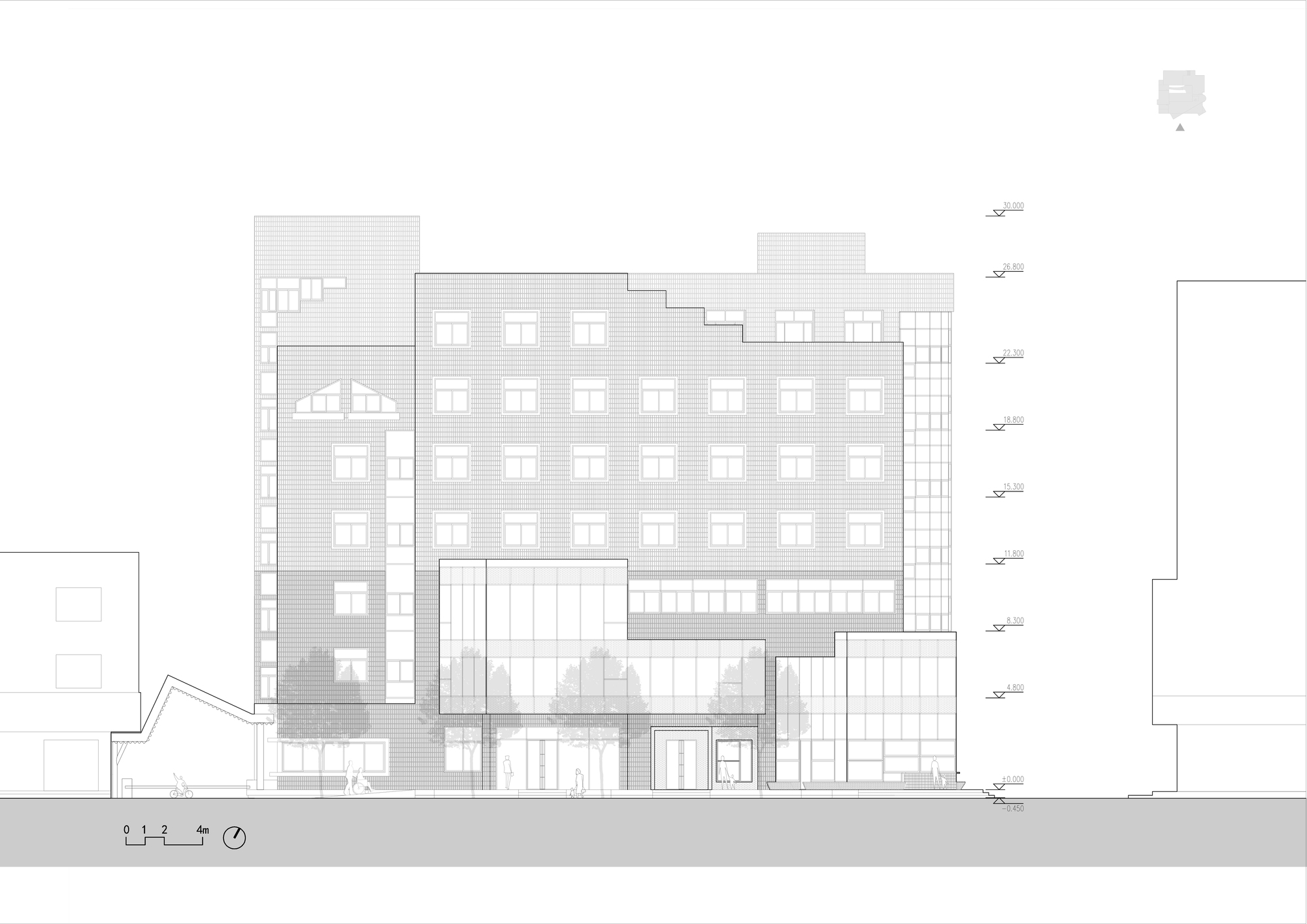

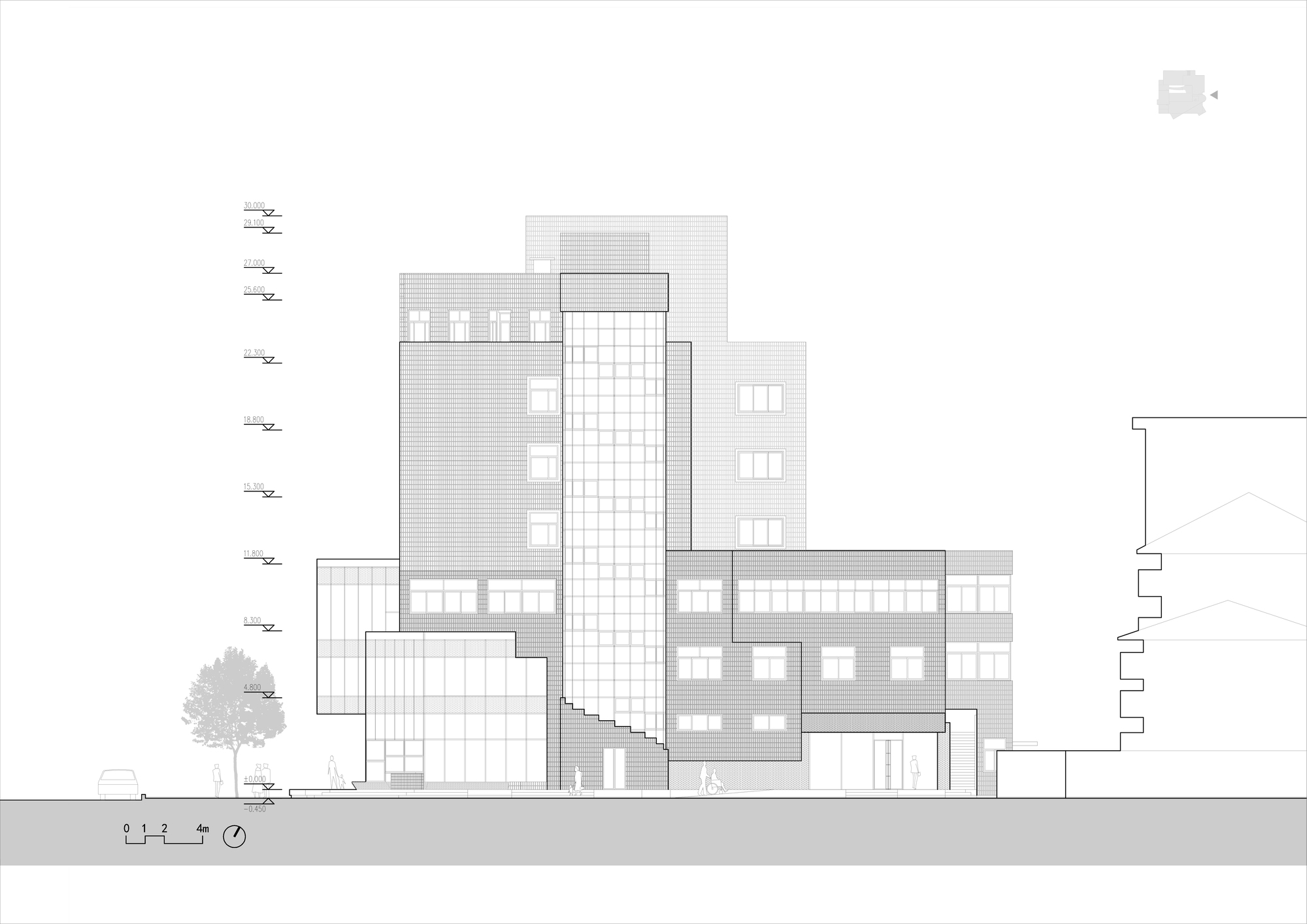

Plans and Drawings

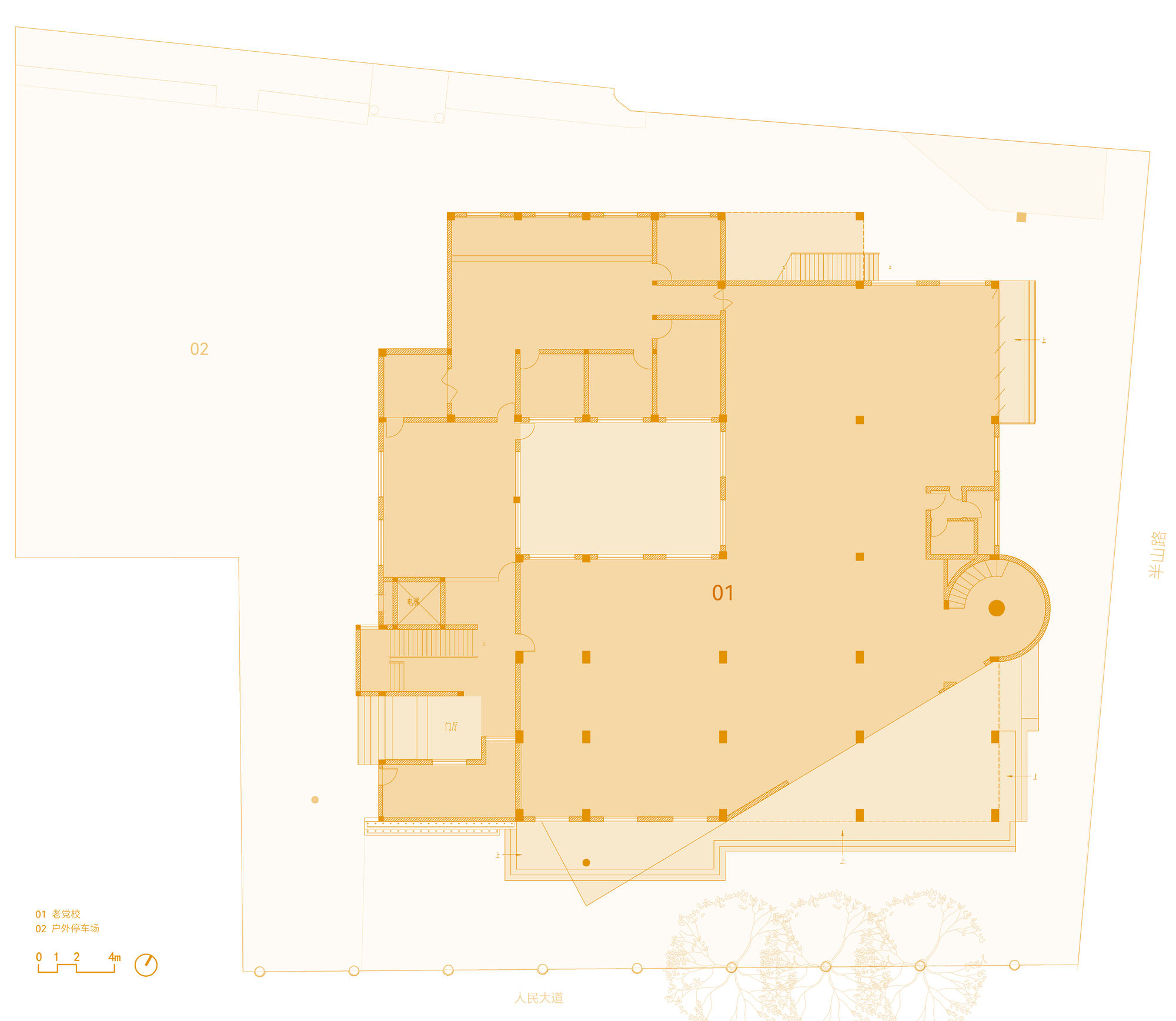

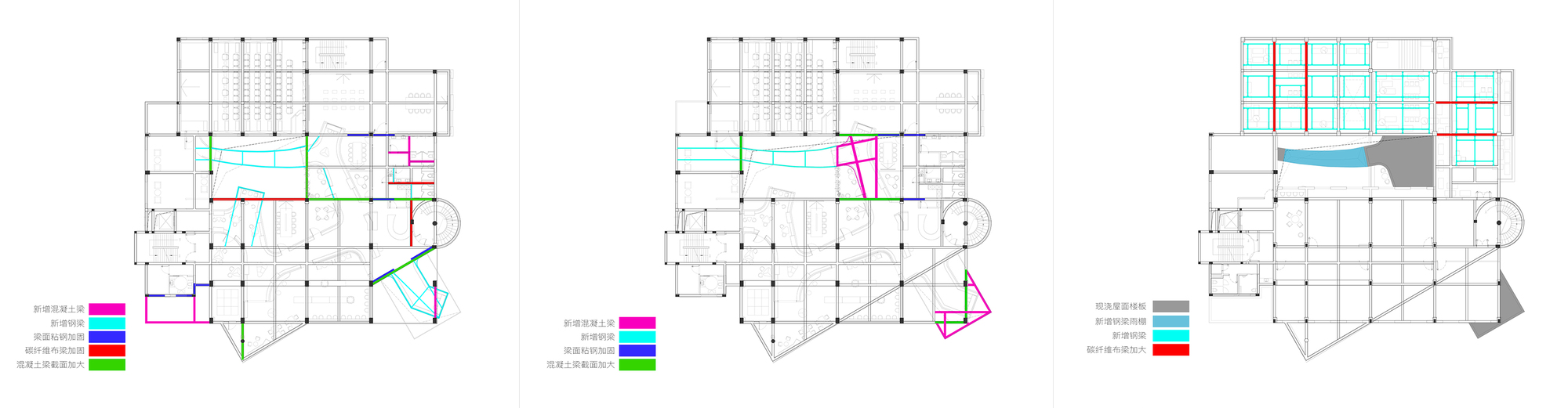

The drawing set is unusually candid about method. The existing plan shows an open column grid, a central courtyard and a round stair beside a parking lot; the diagram plans then mark new walls, structural changes and opened floor areas in colour. You can trace exactly where the architects intervened and where they left well enough alone.

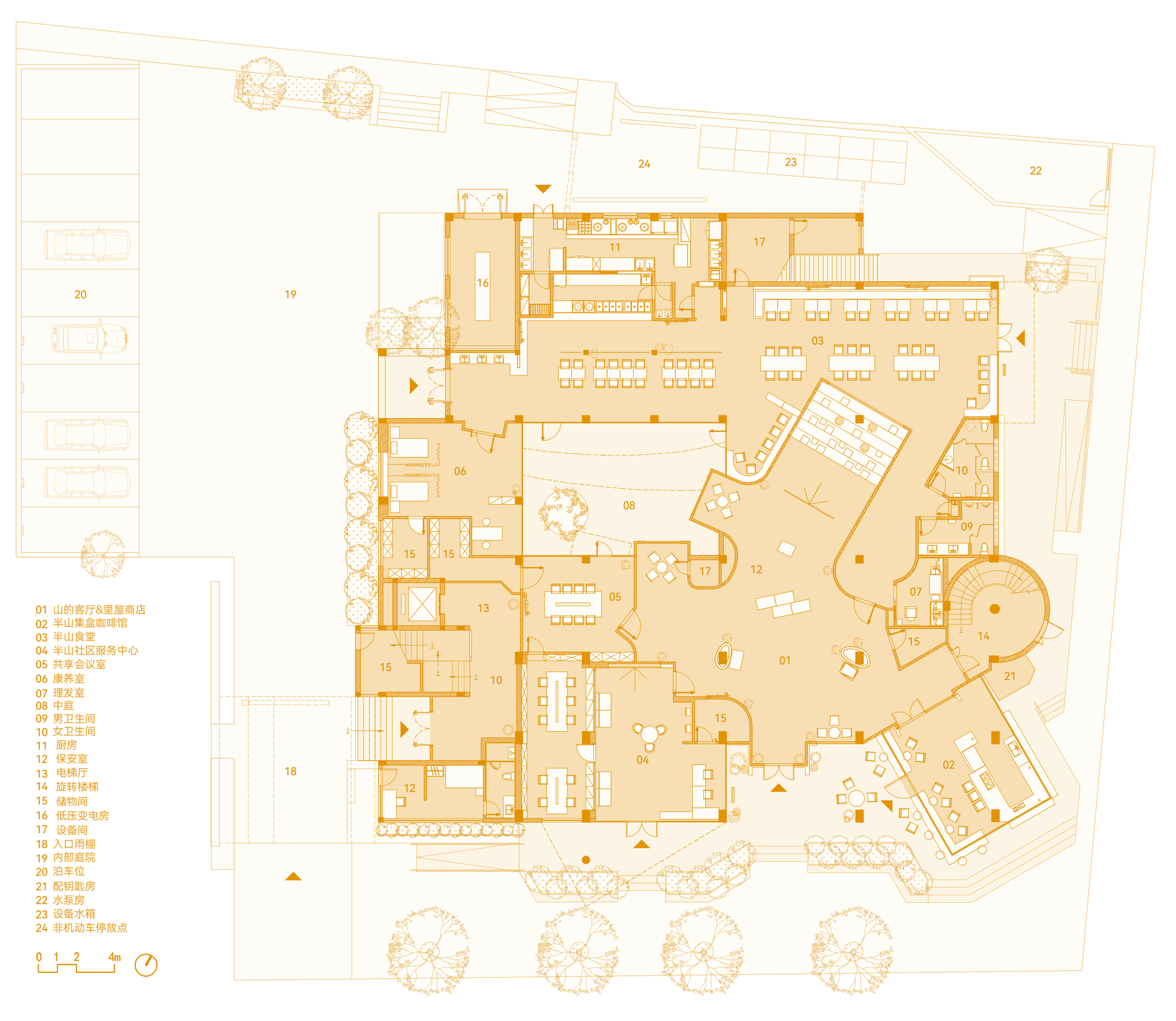

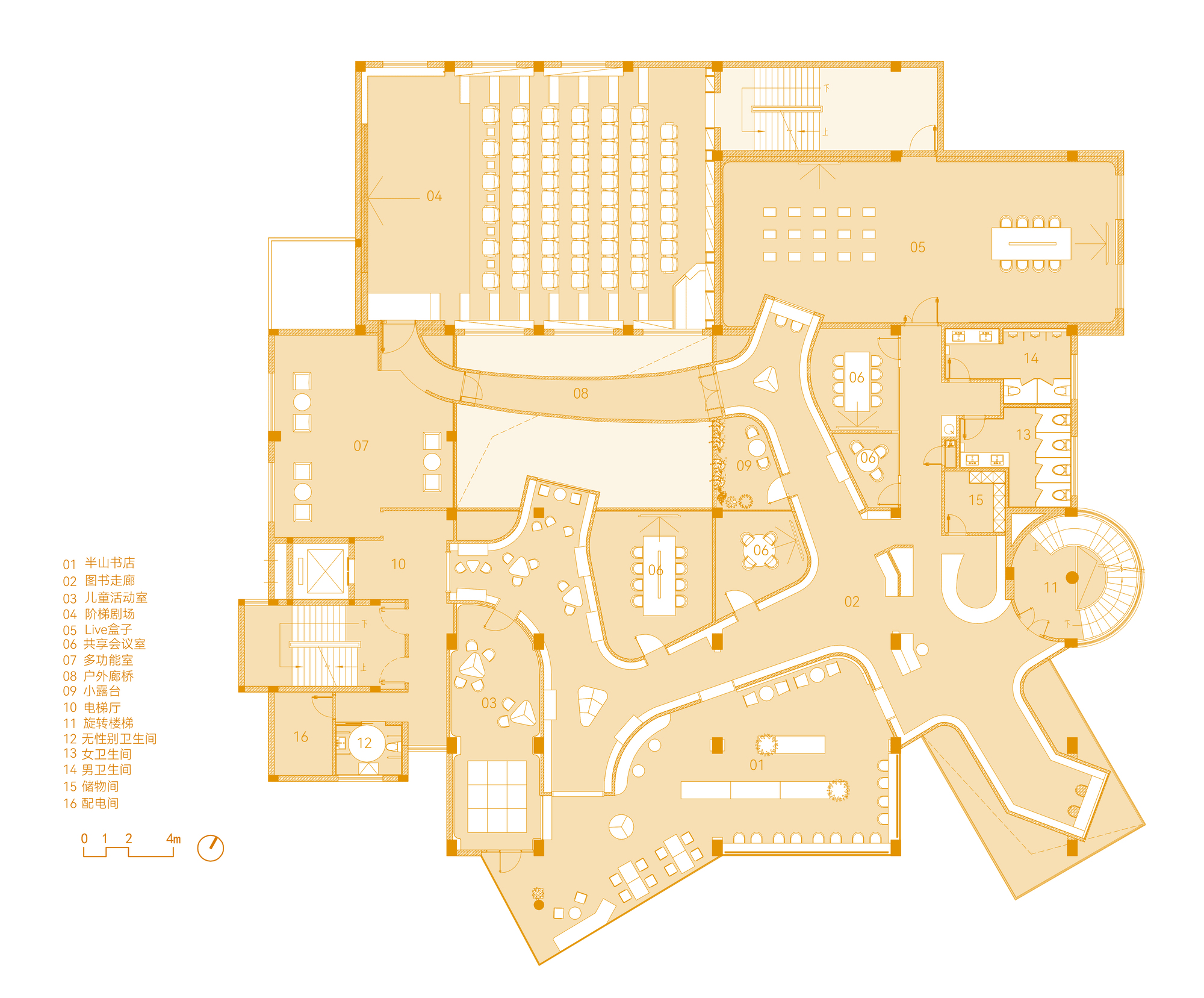

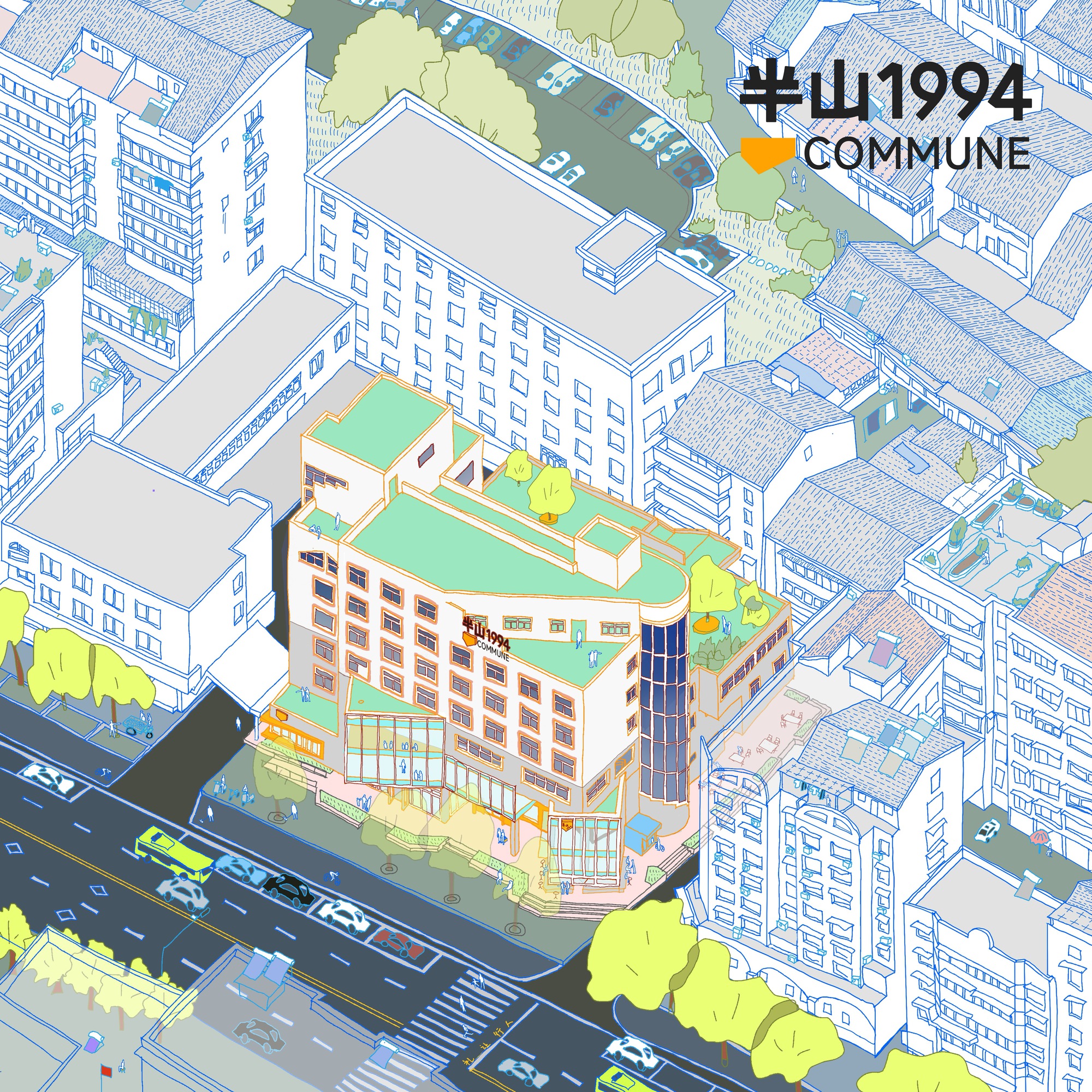

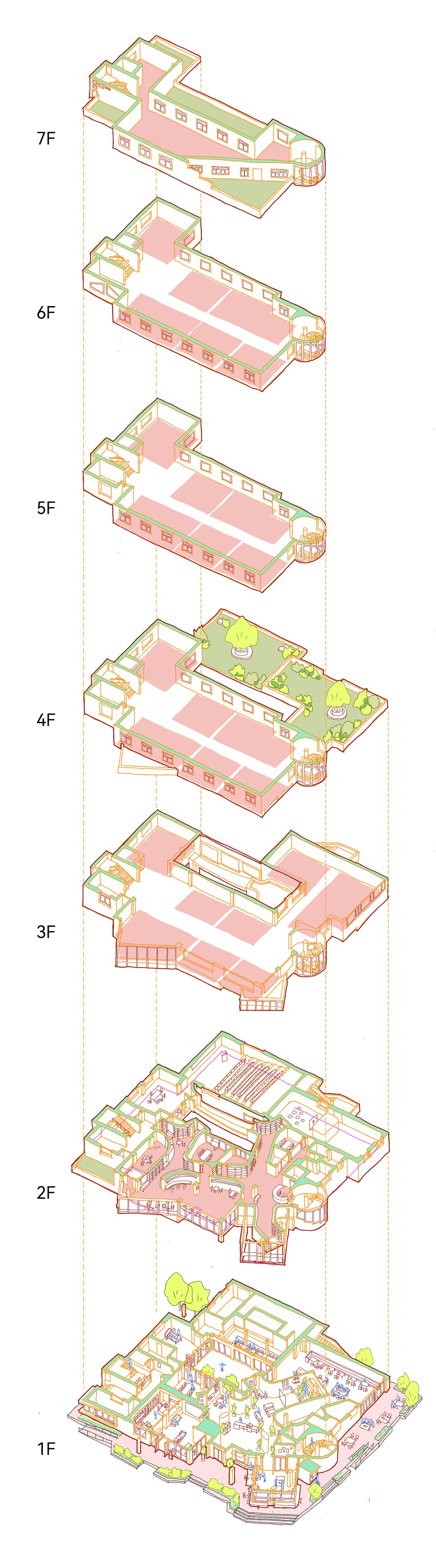

The ground and upper plans show how organic partitions wrap a tiered lecture hall, meeting rooms and a bookshop around the inherited grid. The exploded axonometric stacks seven floor plates up to the roof, with a planted terrace on the fourth floor, and the context axonometric shows green roof terraces set among older neighbours.

Why This Project Matters

China's urbanization has entered what the architects call its second half, and the bulk of that work will happen in towns like Shangyu, not in Shanghai. BANSHAN1994 Commune offers a credible template: keep the shell, open the ground floor, give informal trades a place, and concentrate new design in a few legible insertions. It is renewal that a subdistrict office can actually commission and maintain.

The open-source framing is more than branding. By treating locality as an ongoing process, Office Canopy of Architecture produces a building that can keep absorbing new uses without needing another overhaul. For architects working on the vast stock of unremarkable buildings across the country, that adaptability is the lesson worth copying.

BANSHAN1994 Commune by Office Canopy of Architecture (lead architect Xu Tianxin), Shaoxing, China. Area: 4,416 m². Completed 2024. Photography by Sai Zhao and Qingshan Wu.
