Magicline Studio Nestles a Chess Pavilion into a Sacred Grove Estate in Kerala

A retired educator, motivational speaker, and FIDE-rated chess player with a 2000 rating wants to build a pavilion on a 14-acre family estate in Kerala. The land already contains three kaavus (sacred groves), a wetland system, and dense native tree cover. The brief is not to build a monument but to create a space where young people sit down, play chess, and talk. That tension between ambition and restraint, between institutional program and domestic landscape, is what makes the Soil Stories Pavilion by Magicline Studio worth studying.

Led by Ashwin Vasudevan, Radhika Sukumar, and Vishnu Das K P, the studio delivered a 321 m² building that reads less like an inserted object and more like a geological event. Staggered across three levels and unified under a single sloping roof, the pavilion follows the contours of its 60-cent site near Kozhikode without removing a single mature tree from the equation. An adjacent paddy field was reactivated as a wetland. Plant species were catalogued on-site and reintroduced. The landscape work is deliberately non-decorative, which is another way of saying it takes ecology seriously rather than aesthetically.

A Roof That Holds the Whole Together

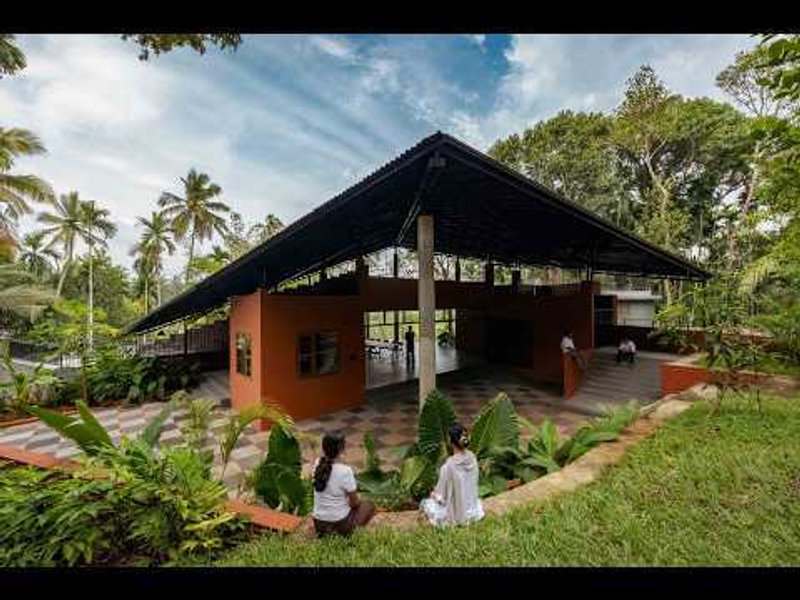

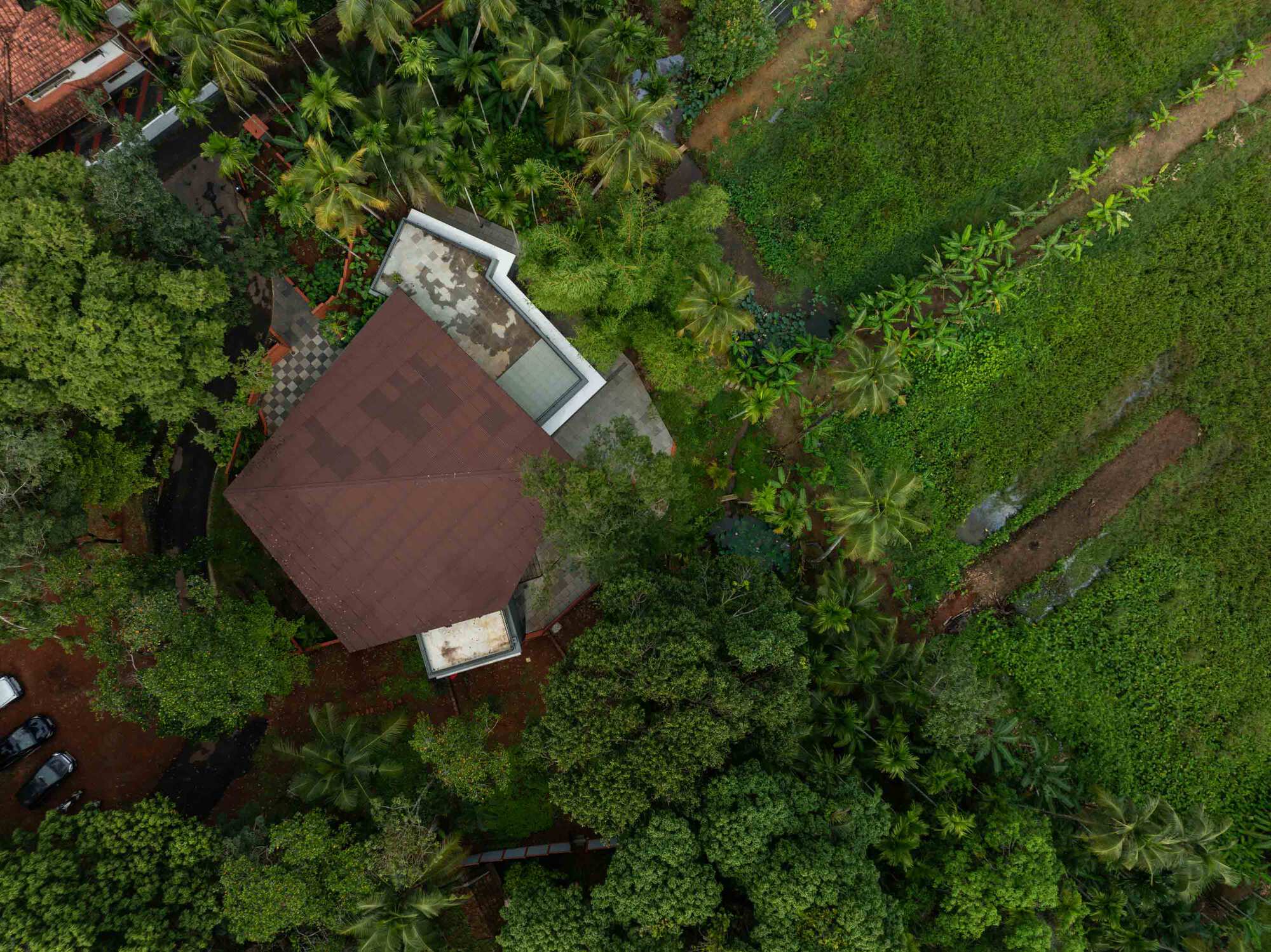

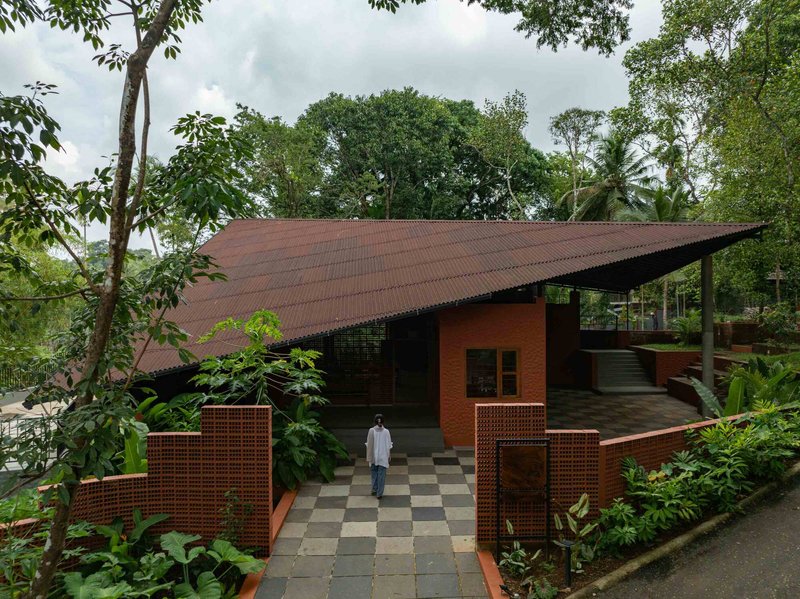

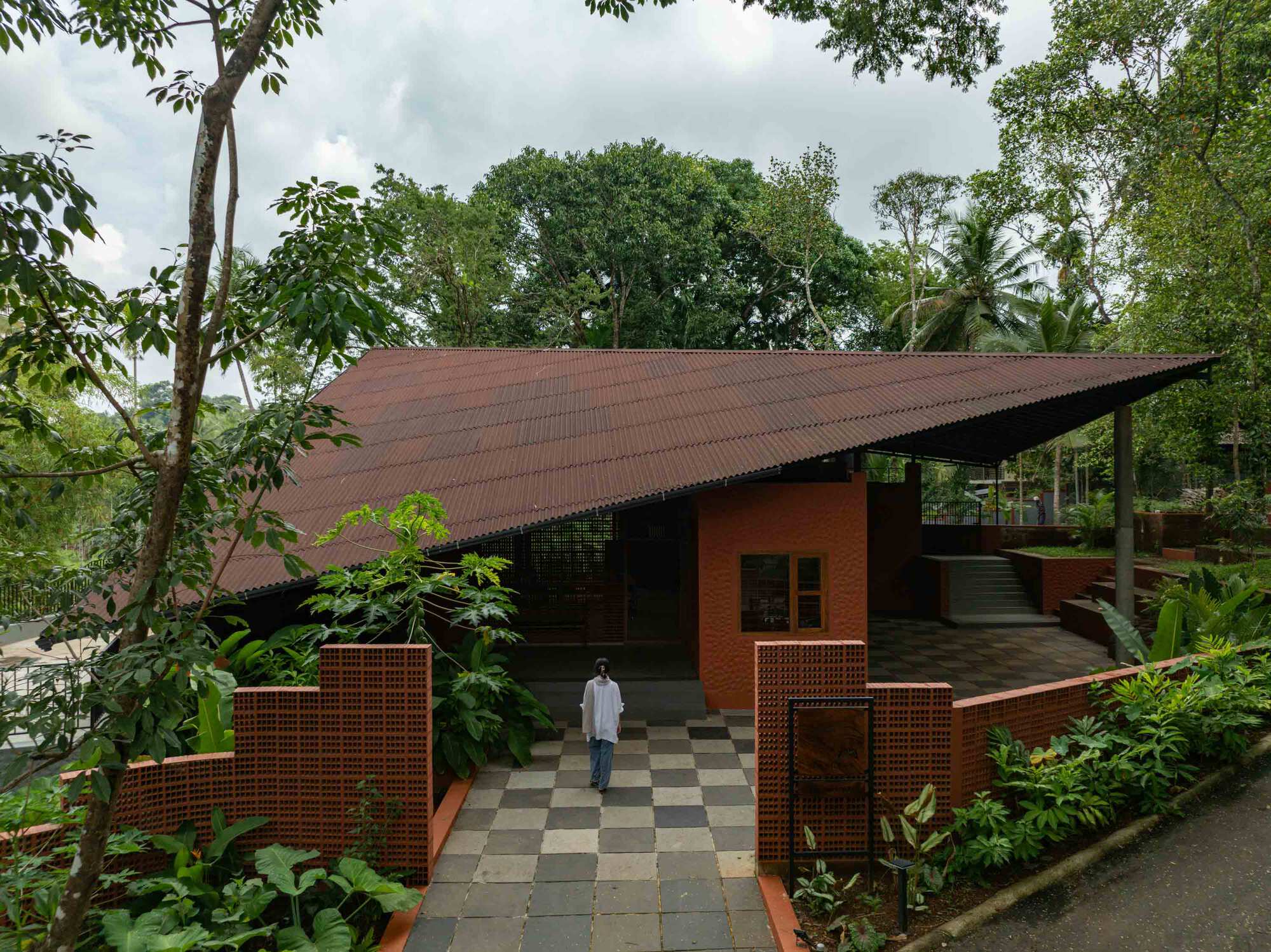

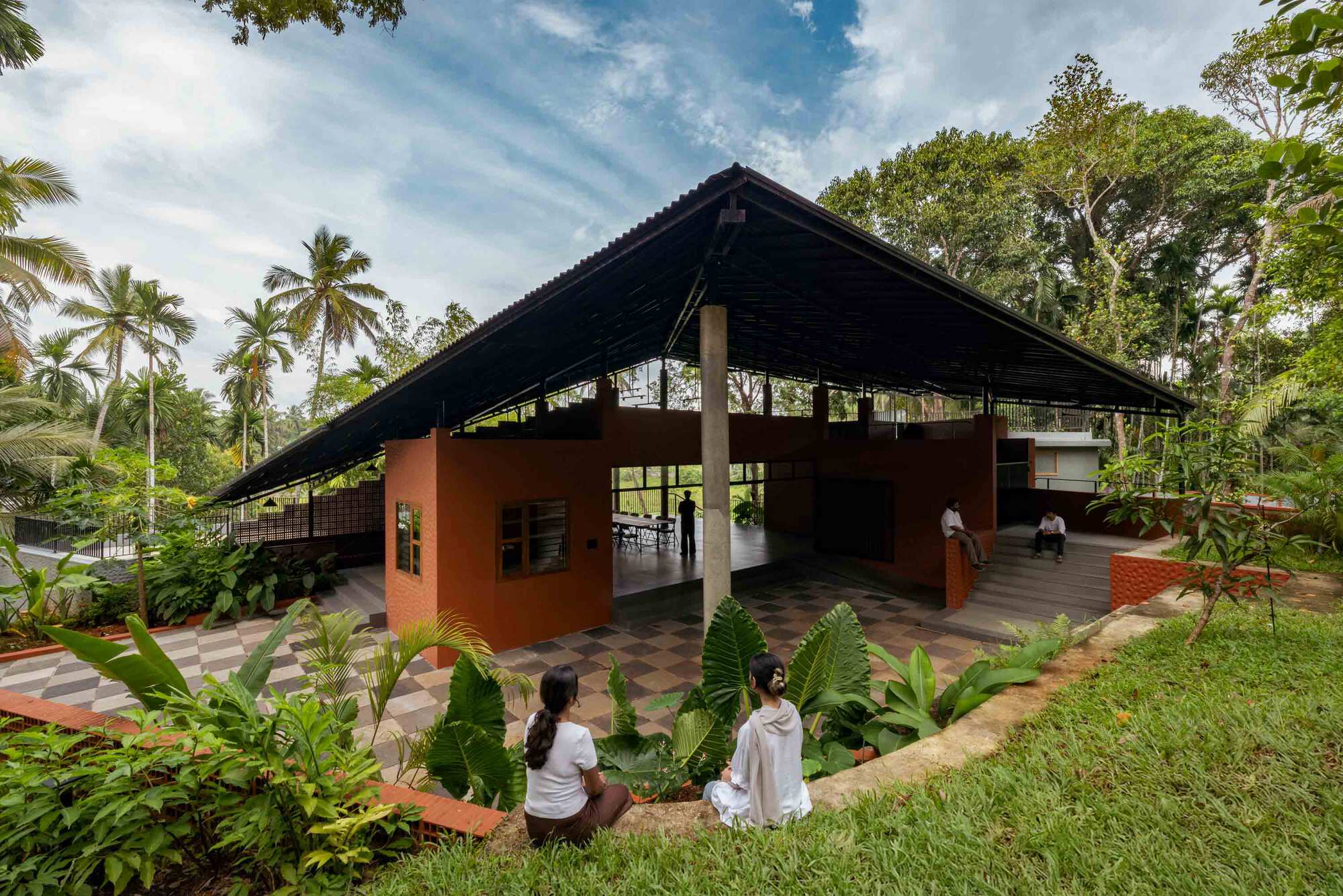

From the air, the roof is a dark pentagonal form floating among coconut palms. At ground level, it becomes a broad canopy that shelters everything beneath it while allowing the building's three staggered volumes to breathe independently. The corrugated metal cladding (Onduline sheet, per the specification) keeps things pragmatic. There is no pretense of a heroic span here. The pitch is low, the overhang is generous, and the whole thing sits into the terrain rather than asserting itself above it.

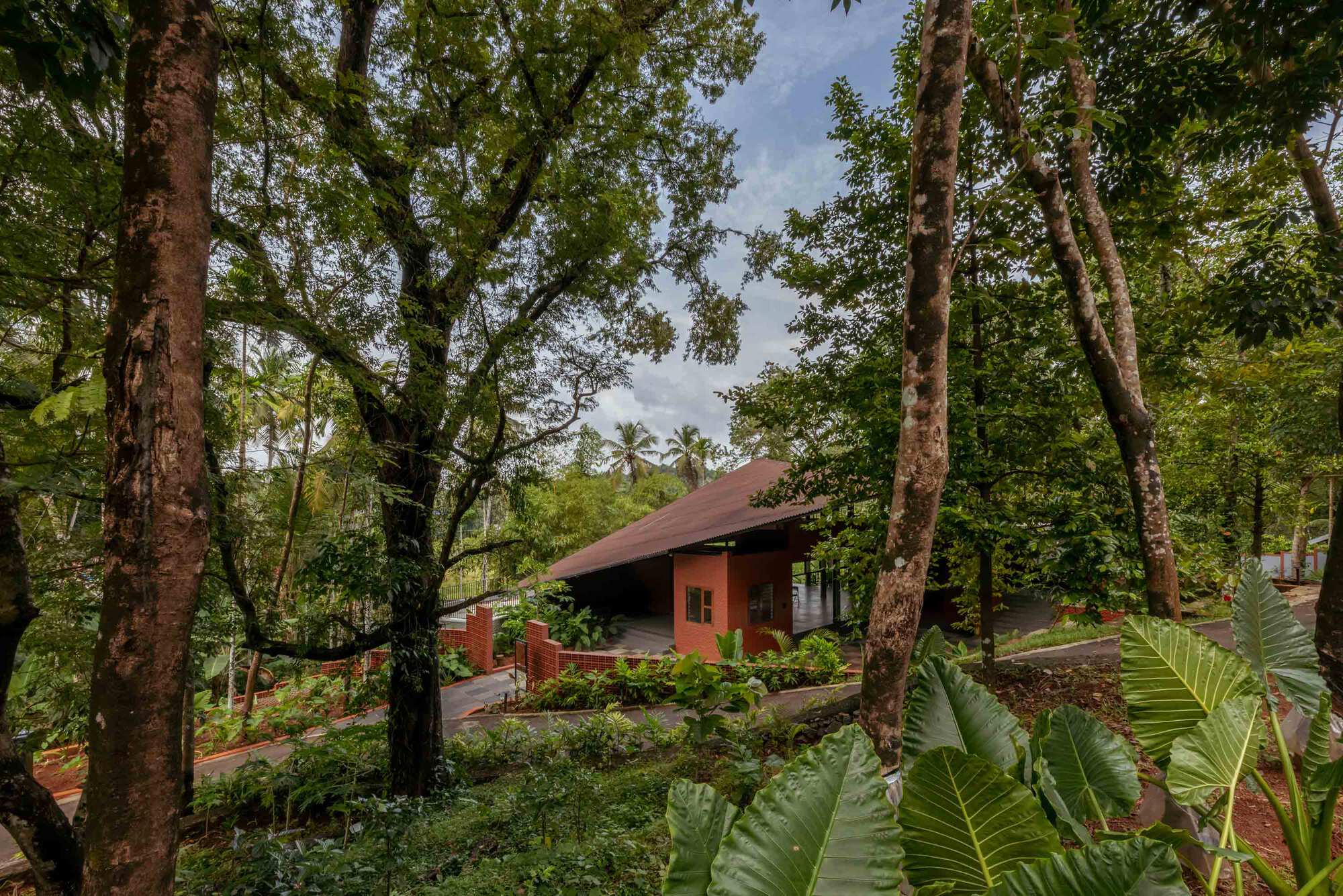

This strategy of using a single roof plane to unify disparate program zones is common enough in tropical pavilion architecture, but Magicline Studio executes it with a particular lightness. The roof never competes with the canopy of mature trees surrounding the building. Seen from across the reactivated wetland, it almost disappears.

Terracotta Screens and the Art of Filtering

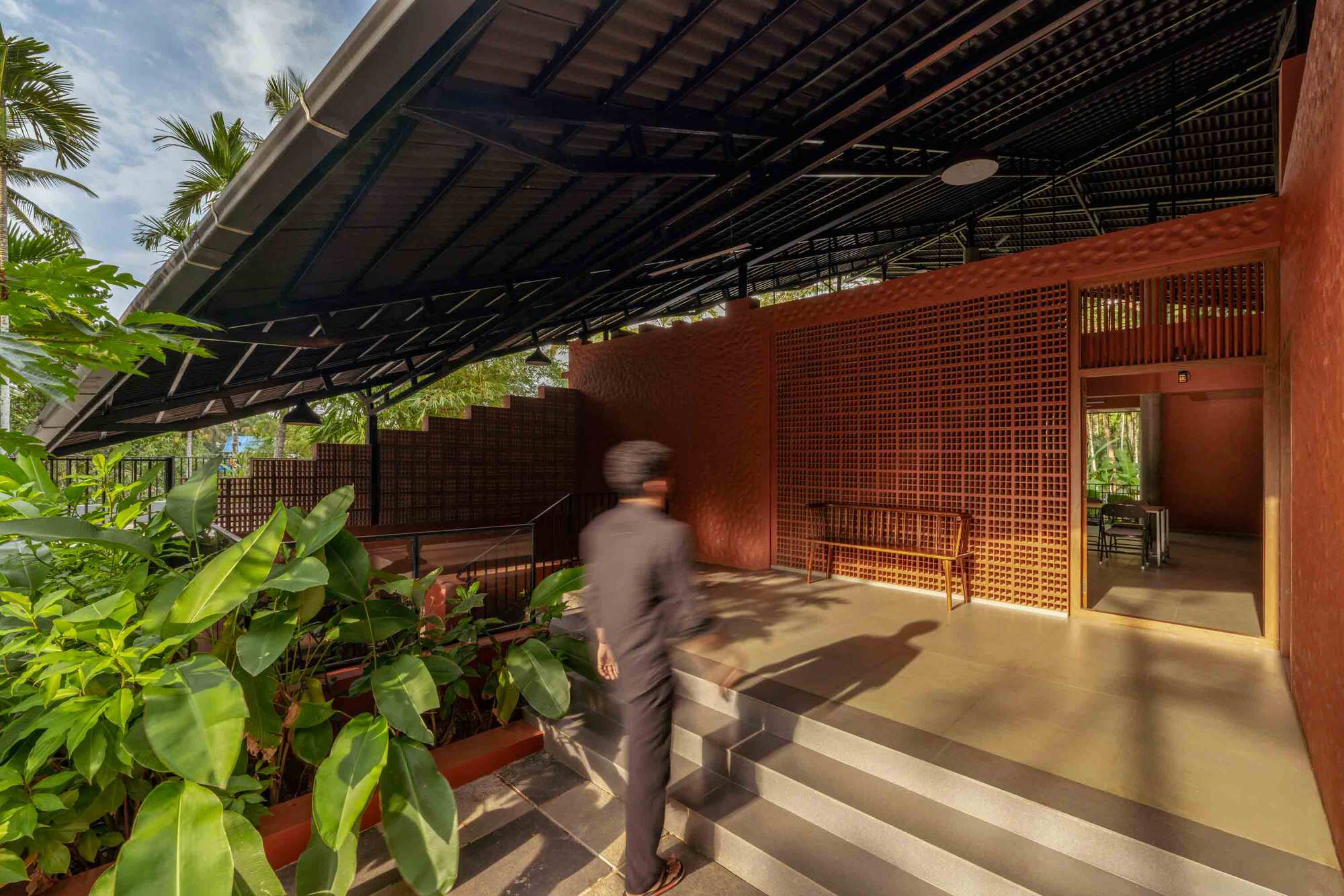

The perforated terracotta brick screens that wrap much of the pavilion are doing more than one job. They filter light, obviously. They ventilate the interior without relying on mechanical systems. But they also establish a visual rhythm that modulates the boundary between inside and outside. Walking along the covered pathway flanked by these screens, you are never fully enclosed and never fully exposed. The effect is cinematic: the forest appears and disappears in slices.

This is important for a building in Kerala's hot-humid climate. The screens generate cross-ventilation and shade while maintaining visual porosity to the surrounding grove. The choice of terracotta, a material with deep roots in the region's building tradition, also allows the pavilion to age gracefully. It will stain, moss over, and eventually merge with the laterite earth around it.

Staggered Levels, Staggered Encounters

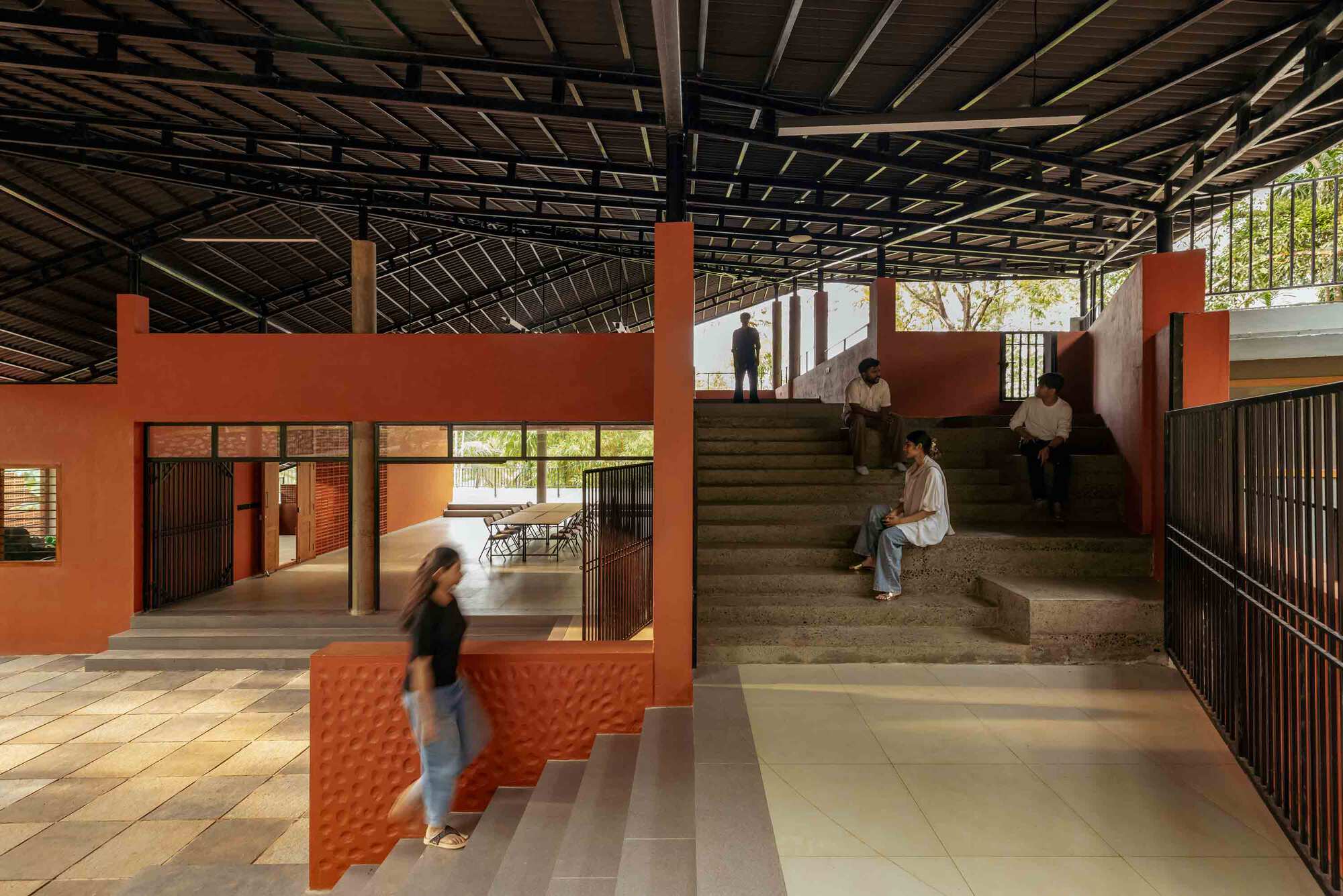

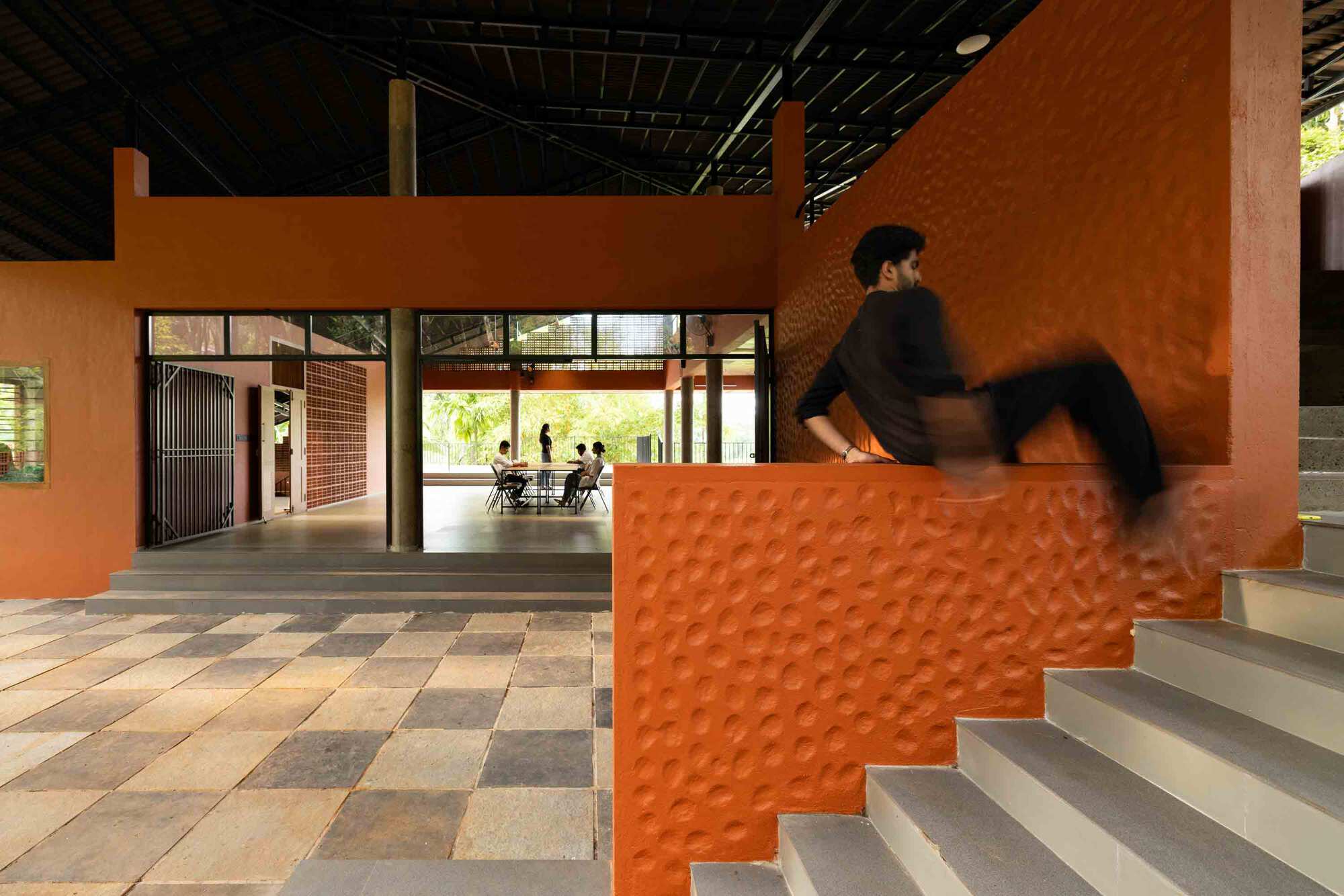

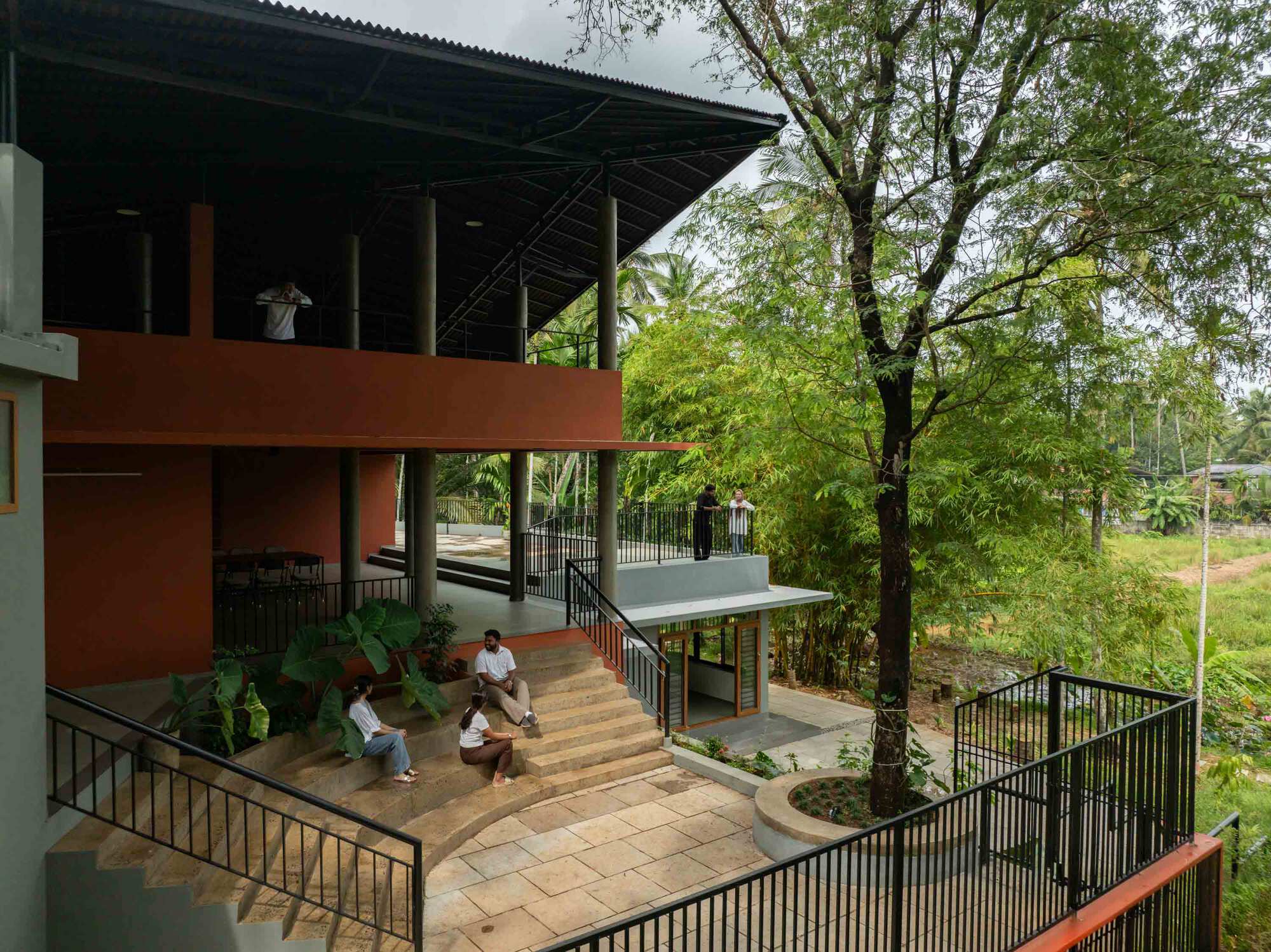

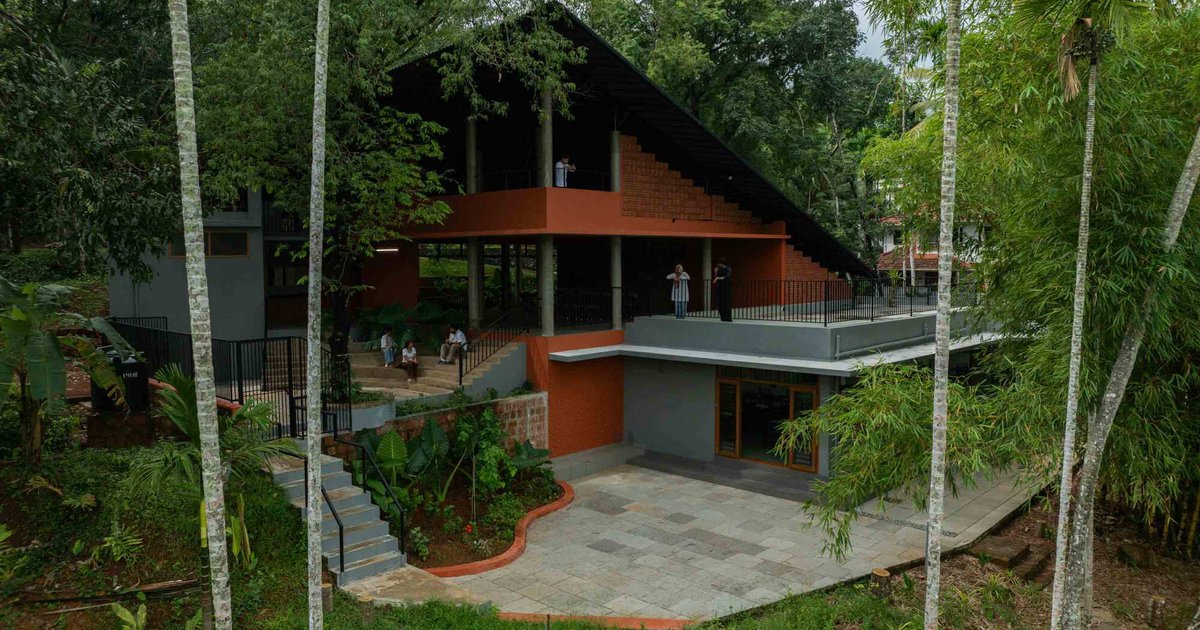

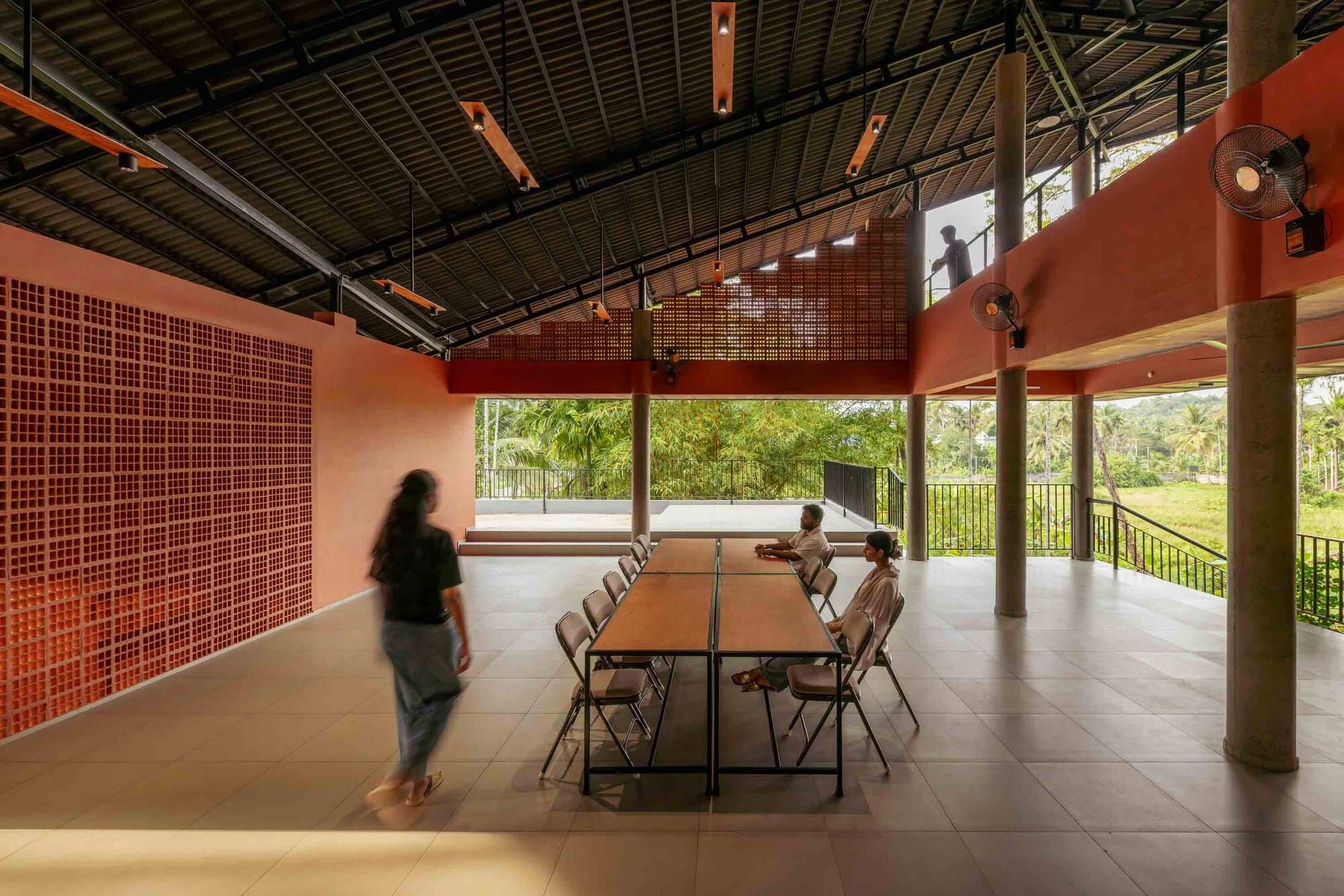

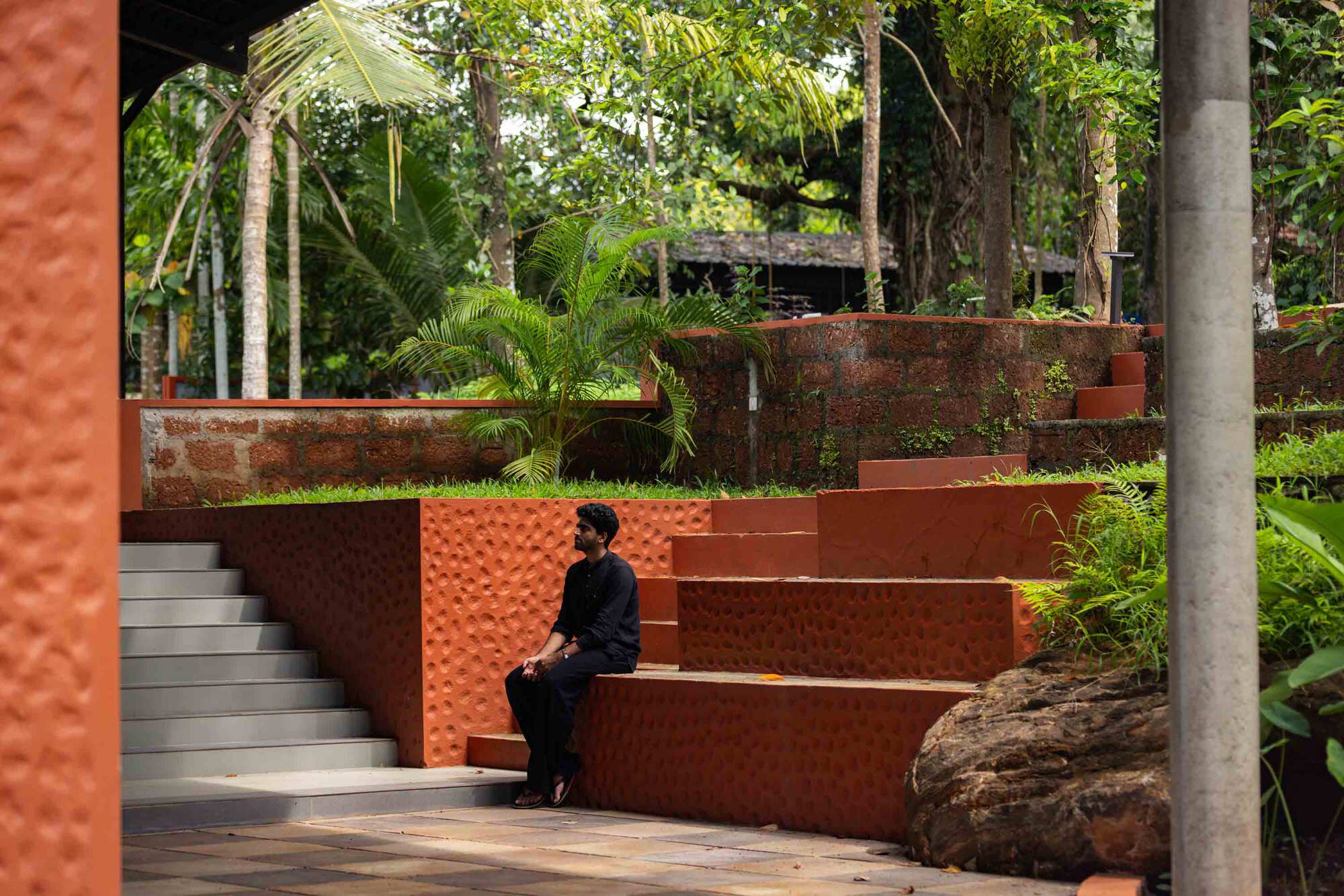

The three-level organization is what gives the pavilion its spatial richness. Arrival, learning, and gathering happen on distinct platforms connected by outdoor stairs and terraced transitions. The multilevel courtyard, with its broad steps doubling as seating, functions as an informal amphitheater where chess lessons can spill outdoors. A person descending the terracotta-clad staircase catches a framed view of the open pavilion beyond. Someone sitting on the laterite-walled terrace under the overhang looks out at a completely different slice of the landscape.

This sequencing is deliberate. The building does not reveal itself all at once. You move through it, and each level opens differently to the site. For a chess academy, where spatial concentration matters, this variety of conditions, from intimate to expansive, gives instructors and students options. A focused game needs a different atmosphere than a post-match conversation.

The Chess Room and Its Forest Wall

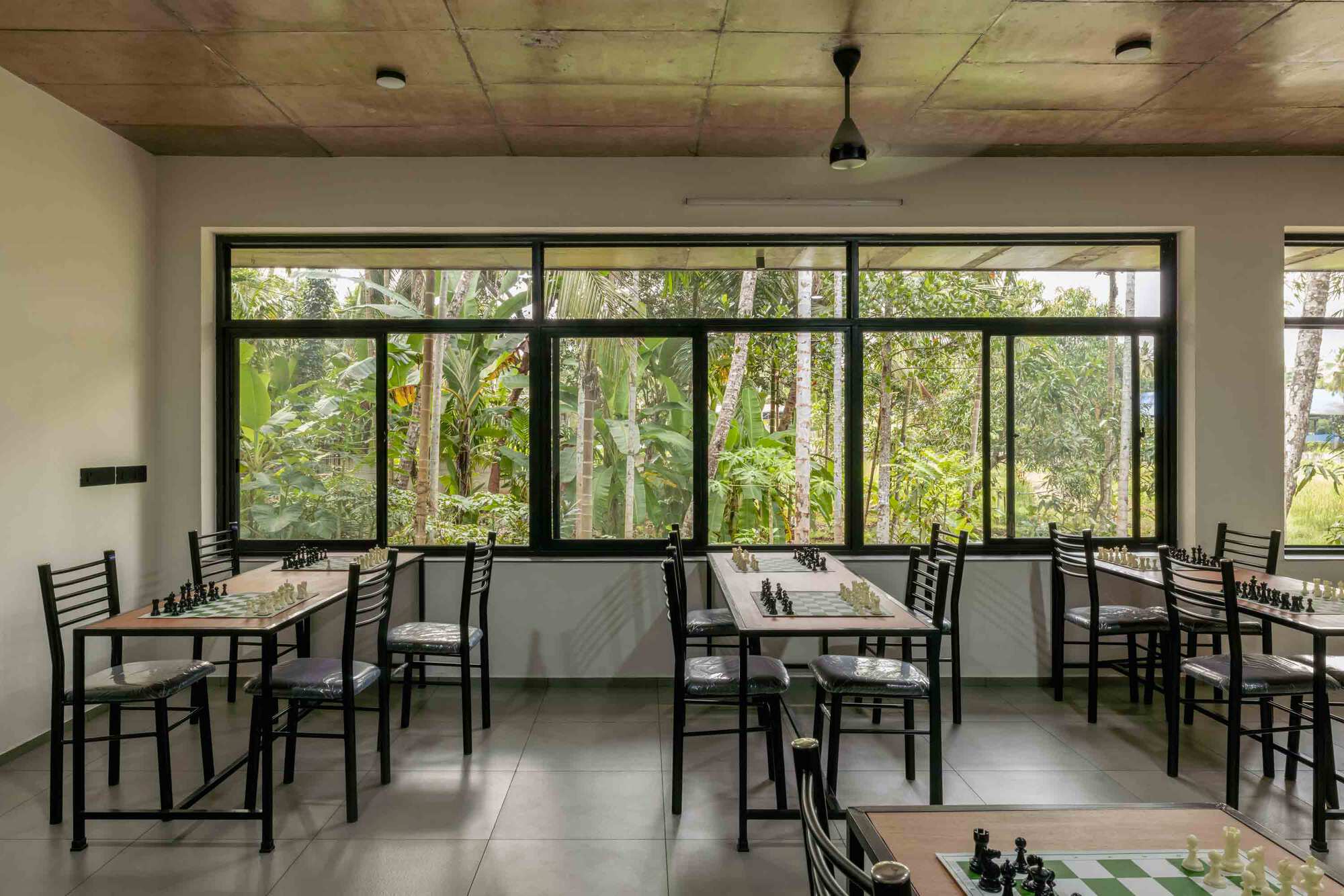

The interior chess classroom is one of the quieter spaces in the pavilion, and perhaps the most compelling. Black-framed windows run the length of the room, opening directly onto dense tropical vegetation. The tables are arranged for play. The ceiling is exposed concrete. There is nothing on the walls competing for attention because the forest outside is the wall.

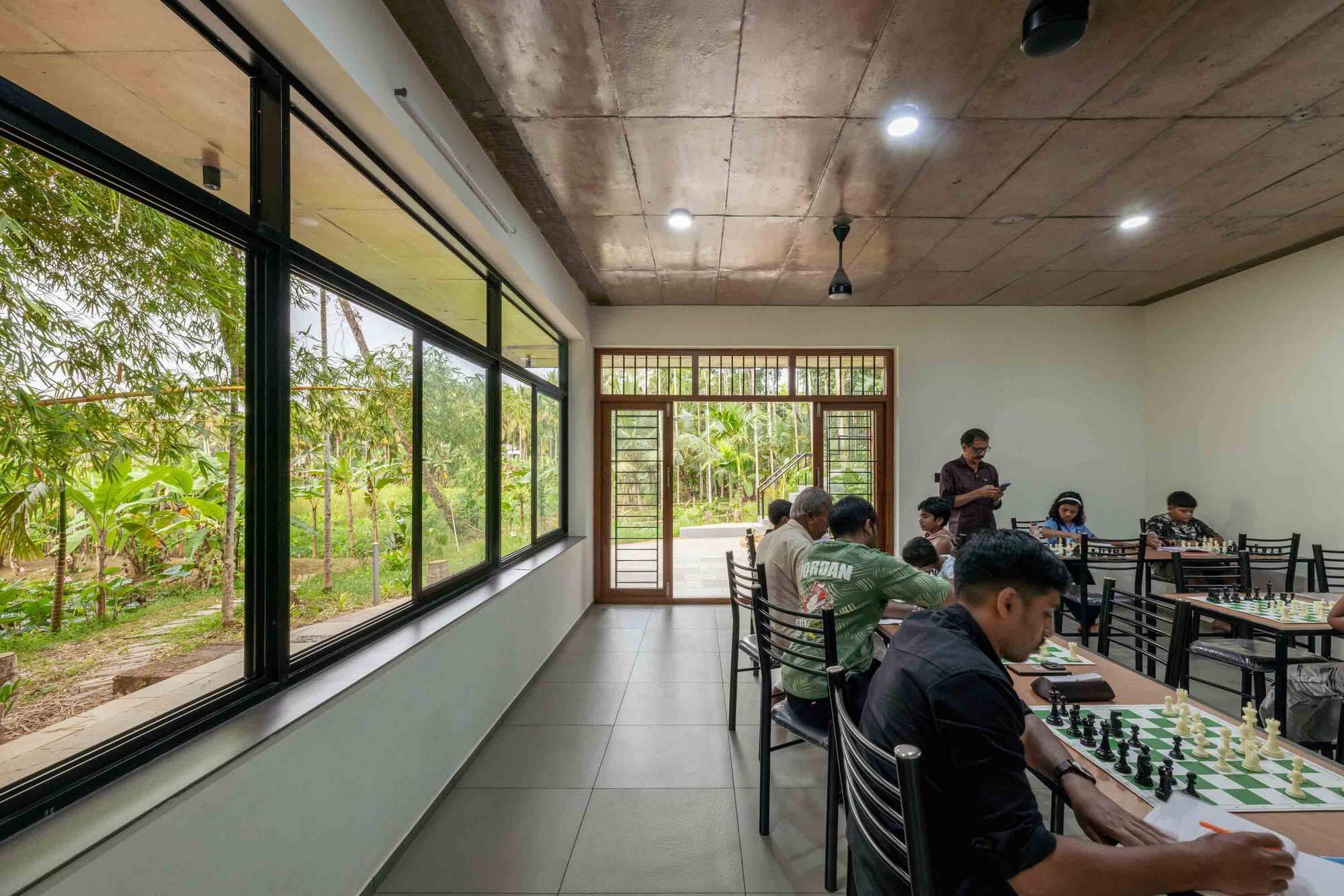

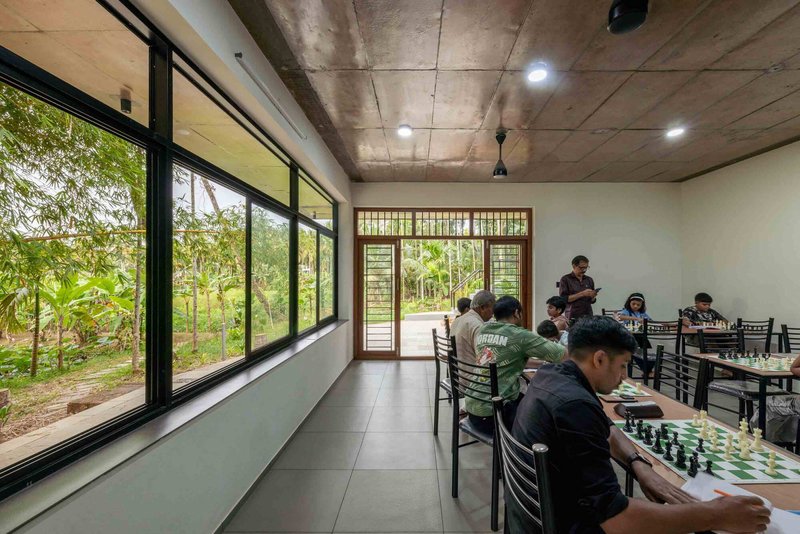

The adjacent long room with continuous glazing extends this logic further, creating a space where the boundary between learning environment and landscape dissolves entirely. For a program centered on concentration and intellectual exchange, the decision to make nature the primary visual datum rather than interior decoration is a smart one. The microclimate generated by the surrounding trees, the kaavus, and the reactivated wetland ensures that what you see through the glass is also what keeps you comfortable inside.

Thresholds and In-Between Spaces

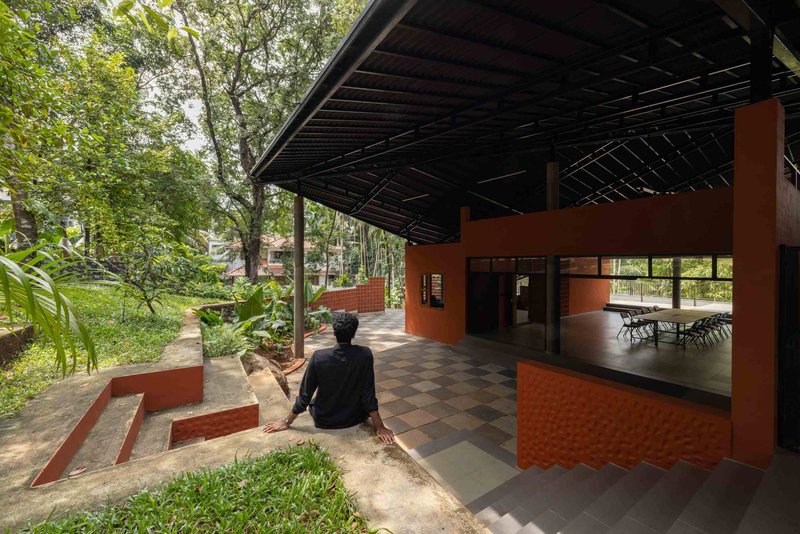

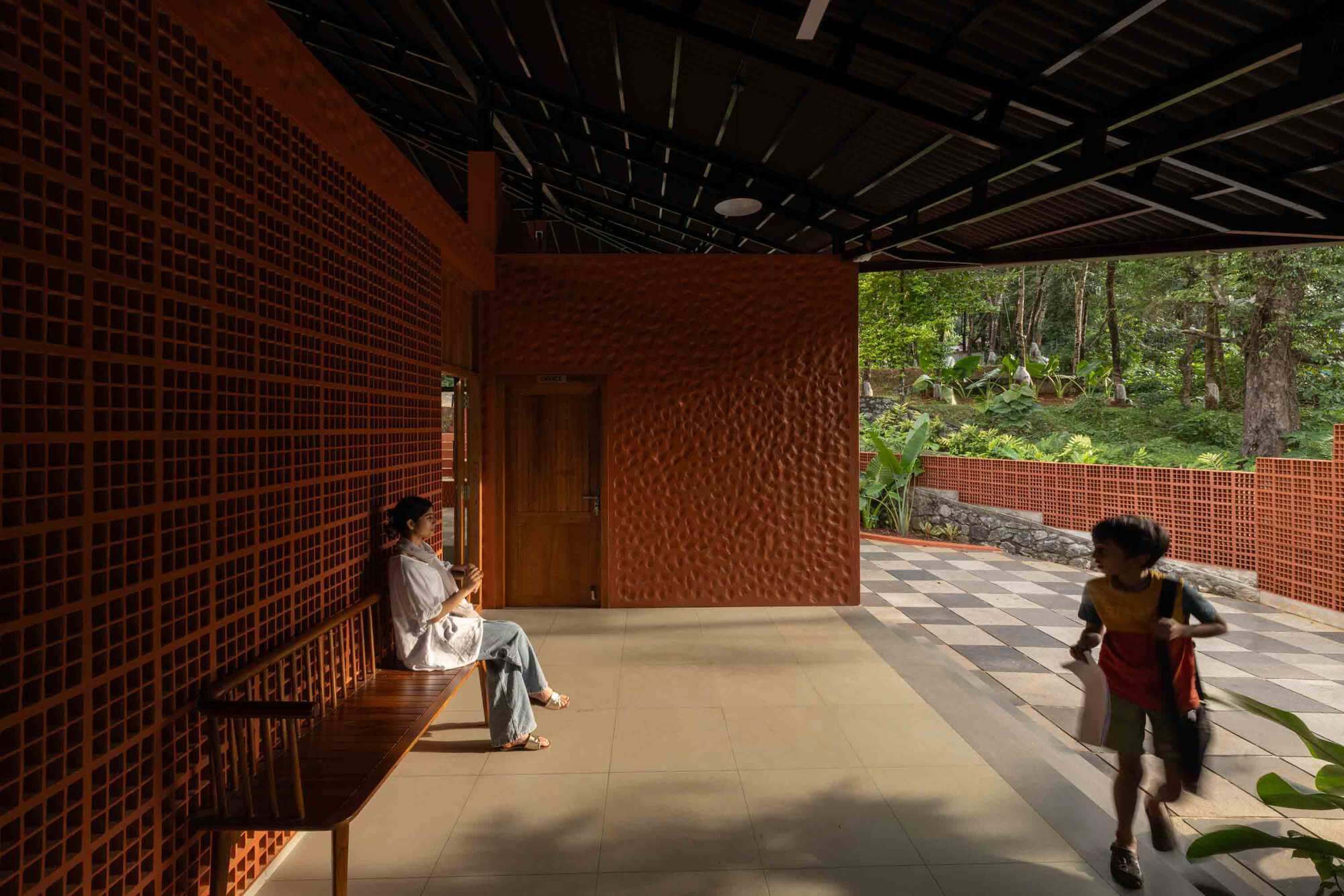

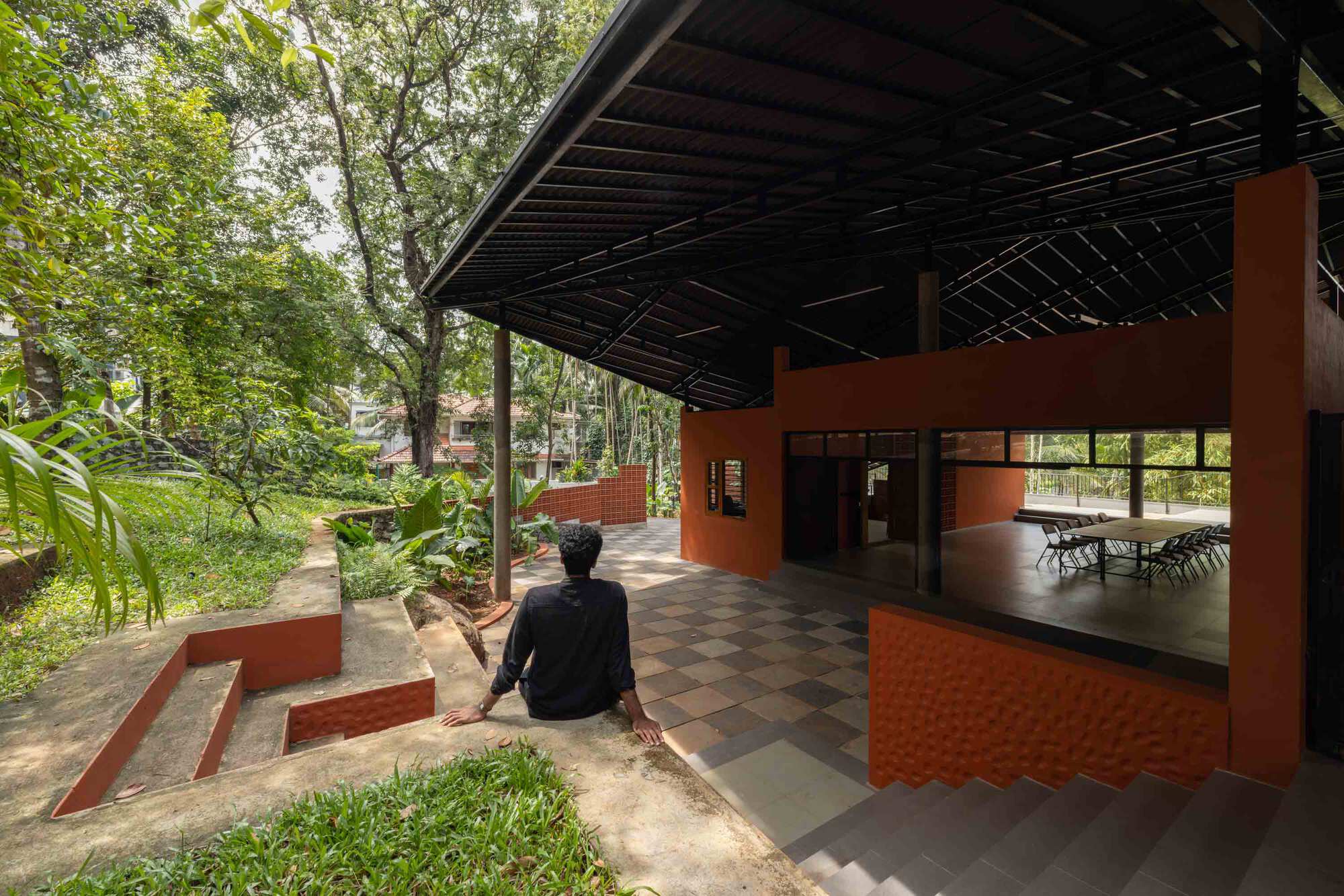

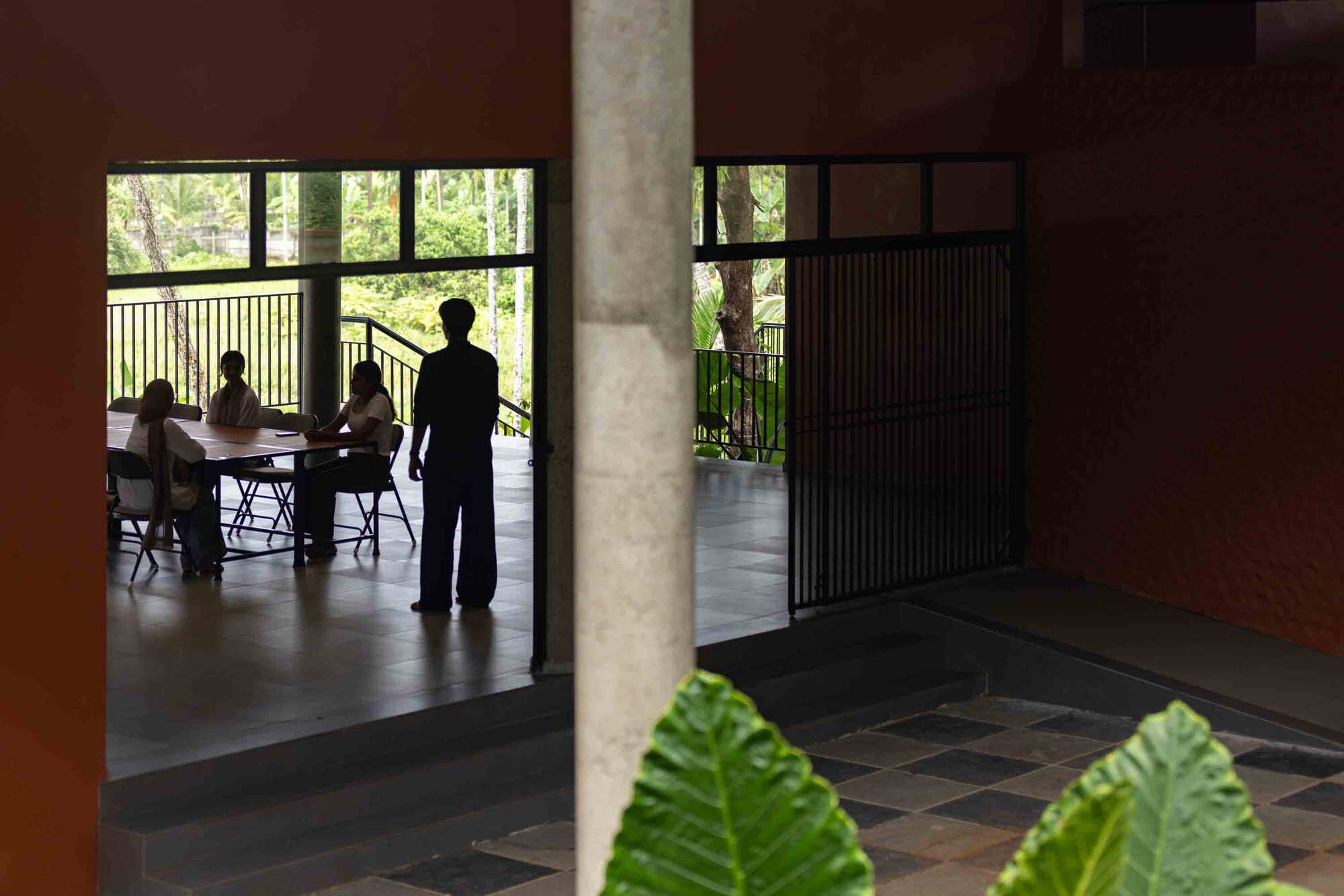

The pavilion's most generous spaces are arguably not the rooms but the thresholds. Covered terraces, corridors, planted beds tucked between screens, and wide doorways that frame views of gathering spaces beyond: these in-between zones account for a significant portion of the 321 m² footprint. A woman sits in a corridor as children play beside textured terracotta walls and gridded screening. Another person sits on a covered terrace beside a planted bed, looking toward the communal space and the forest beyond.

In Kerala's climate, where being outdoors under shade is often more comfortable than being indoors, these transitional spaces are not residual. They are the primary social infrastructure. Magicline Studio understands this, and the building is designed so that the most desirable places to sit are precisely these ambiguous zones where architecture and landscape overlap.

After Dark and Across the Water

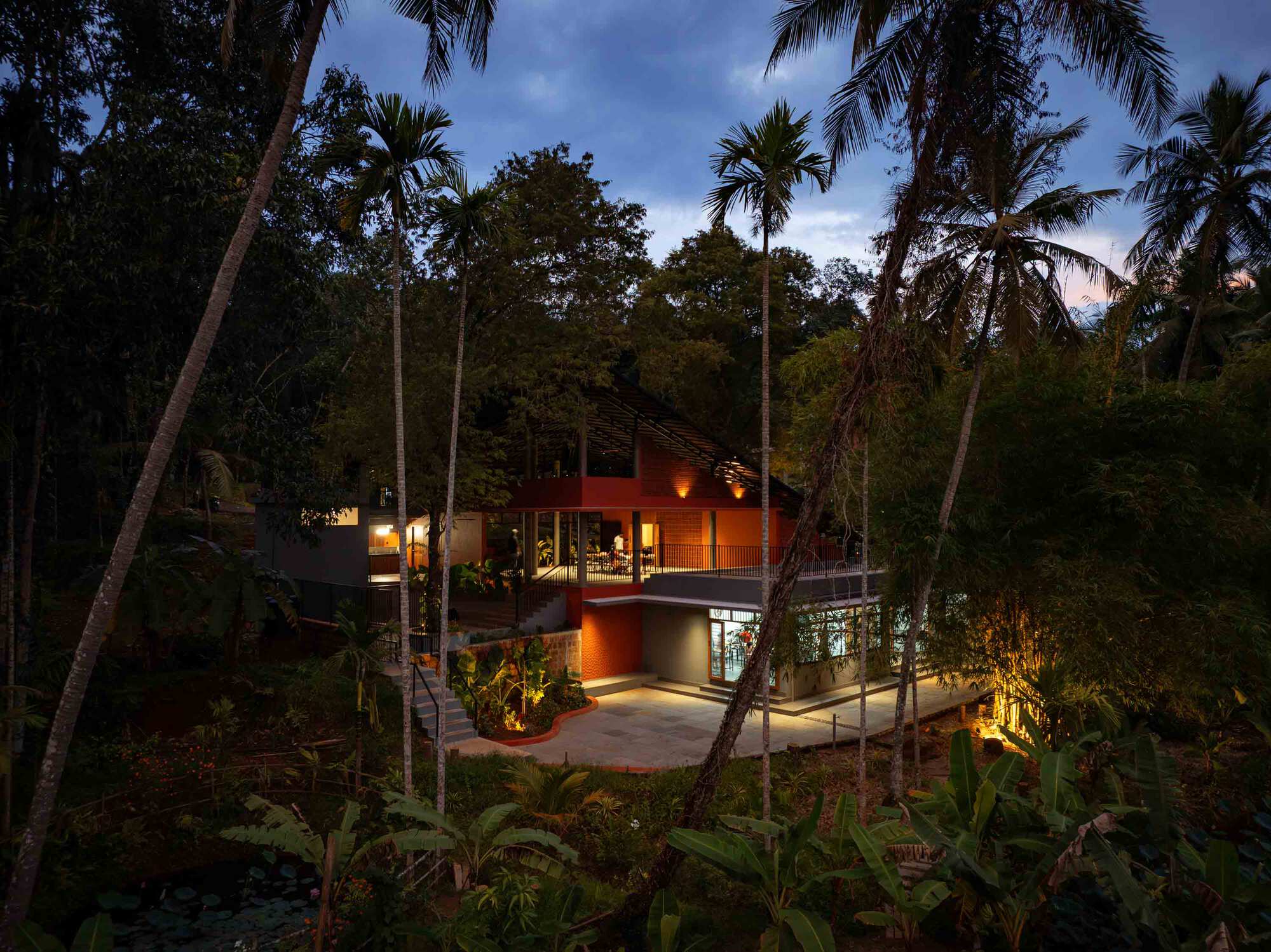

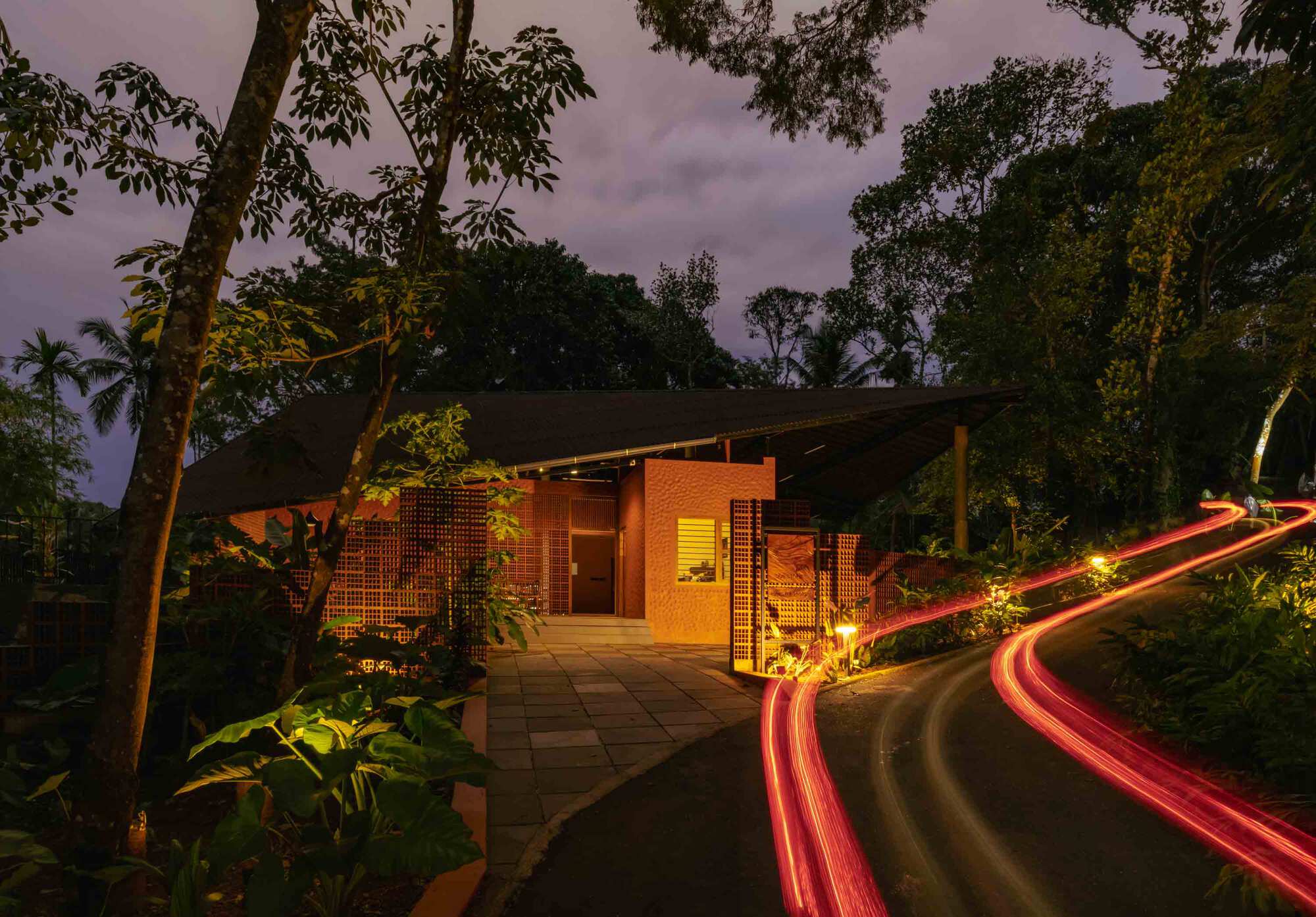

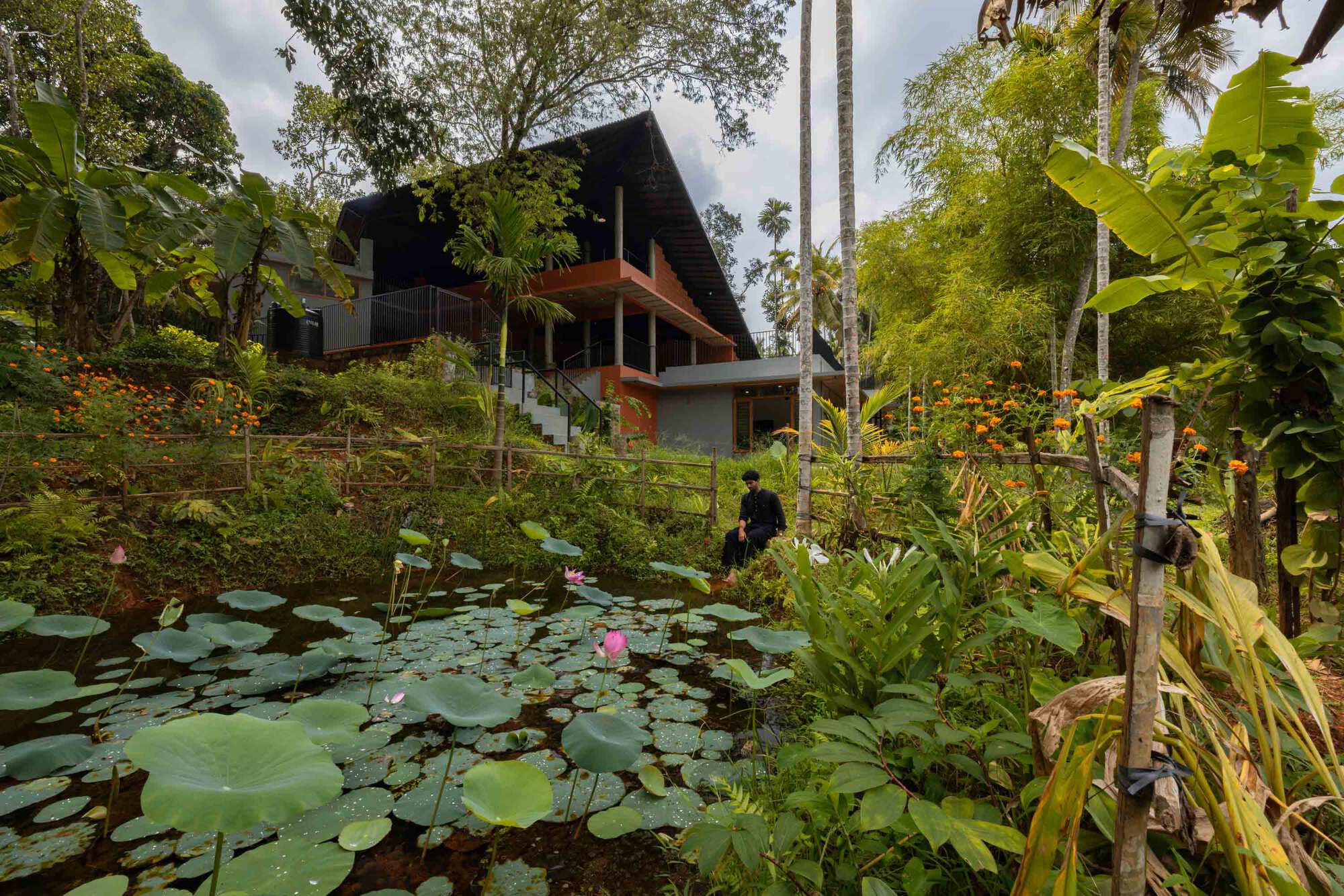

At dusk, the pavilion transforms. The perforated brick screens glow from within, casting patterned light onto the surrounding ground. Vehicle light trails along the entry drive give a sense of the building's relationship to the road, set back but accessible. From across the lily pond, the structure reads as a warm presence among palm trees and banana plants, less a building than a lantern embedded in the landscape.

These nighttime and water-reflected views reveal something the daytime photographs don't fully convey: the pavilion is designed to be experienced from the estate's broader landscape, not just from within. The 14-acre campus is the real project. The 321 m² building is its social catalyst.

Plans and Drawings

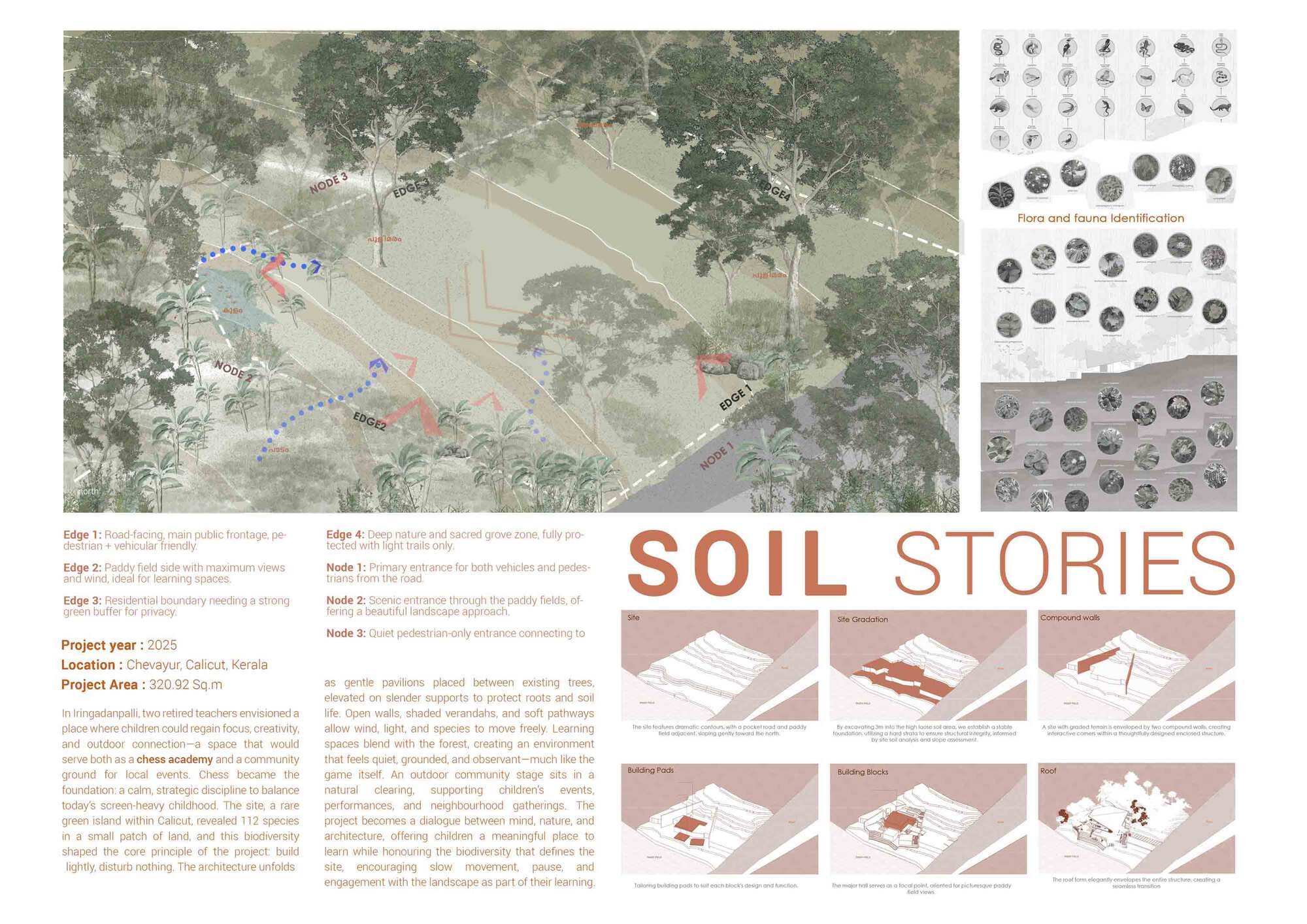

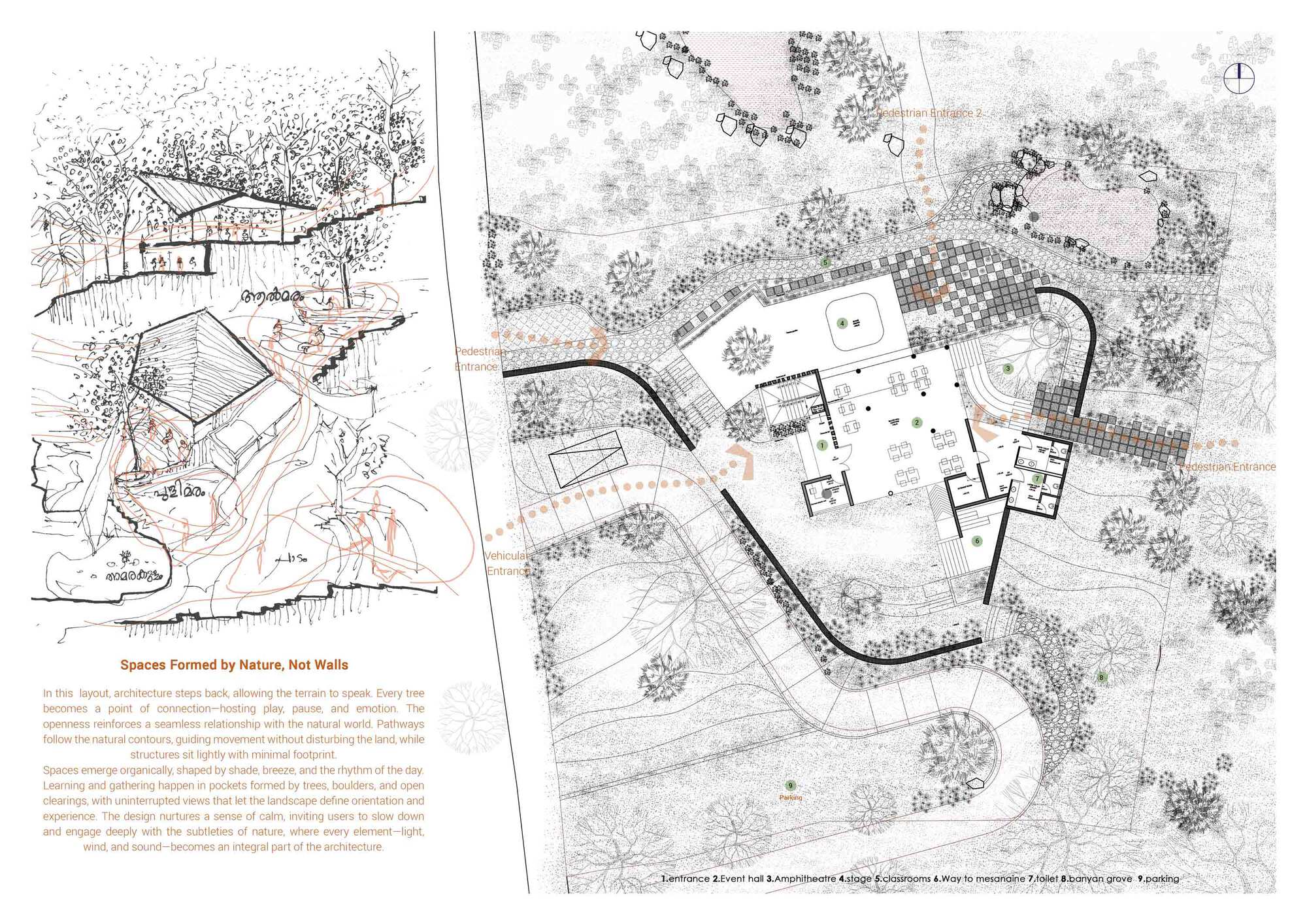

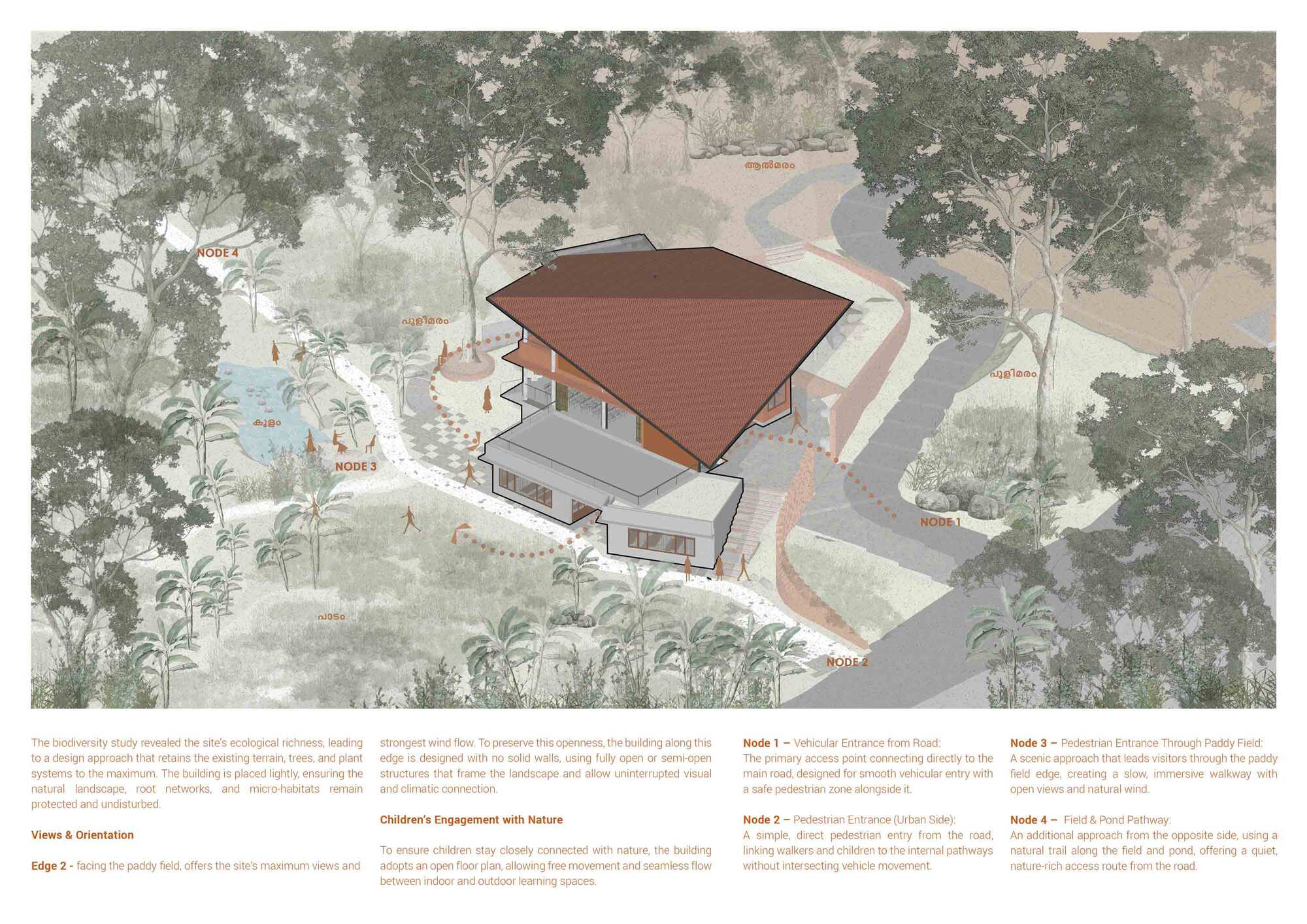

The site plan and landscape overlay drawings make the ecological strategy legible. Flora identification diagrams catalogue the species found on-site and mark them for reintroduction, a process that treats the landscape as an inventory rather than a blank canvas. The axonometric drawing reveals how the pentagonal roof volume sits among illustrated trees and pathways, confirming what the photographs suggest: the building was shaped around existing vegetation, not the other way around.

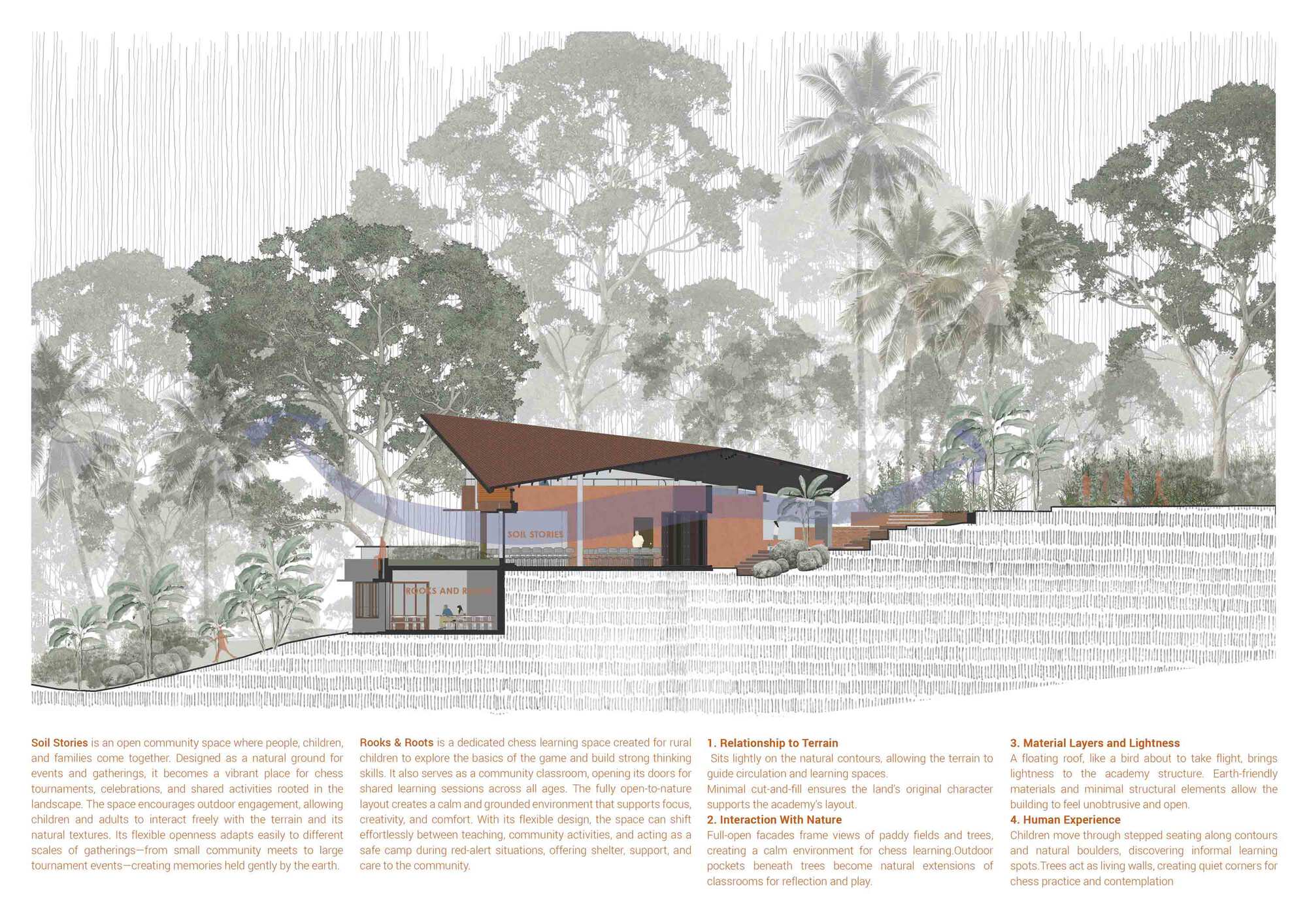

The section drawing is perhaps the most informative. It shows the low-pitched roof structure set into a terraced landscape, with palm trees and tropical vegetation towering above the roofline. The building never rises above the tree canopy. This is a fundamental design decision that subordinates architecture to ecology, and the section makes it explicit in a way that no photograph can.

Why This Project Matters

The Soil Stories Pavilion matters because it demonstrates that cultural and educational architecture does not need to announce itself. In a discipline increasingly drawn to spectacle, Magicline Studio has produced a building that earns its presence by disappearing into its context. The client's vision, a space for chess and conversation rooted in an ecological campus, demanded this restraint. The architects delivered it without sacrificing spatial complexity or material richness.

More broadly, the project offers a model for building within ecologically sensitive sites that goes beyond the usual platitudes about sustainability. Reactivating a wetland, cataloguing and reintroducing native species, embedding the structure into existing contours, and designing a microclimate rather than a mechanical system: these are specific, replicable strategies. The pavilion proves that a 321 m² building on a 14-acre estate can be both modest and significant, a place where young minds learn to think several moves ahead, surrounded by a landscape that has been doing the same for centuries.

Soil Stories Pavilion by Magicline Studio (Ashwin Vasudevan, Radhika Sukumar, Vishnu Das K P). Located in Kerala, India. 321 m². Completed in 2025. Photography by Ar.Prasanth Mohan, Running Studios.
