Manzana Morphosis: Stretching Barcelona's Grid into a Living Landscape for 2050

What happens when you take one of the most celebrated urban grids in history and refuse to treat it as finished? Manzana Morphosis starts with Ildefons Cerdà's 19th-century Eixample blocks and subjects them to vertical stretching, deep carving, and topographical transformation. The result is not a rejection of Barcelona's DNA but a mutation of it: courtyards climb skyward, roofs become inhabitable landscapes, and the familiar perimeter block dissolves into a three-dimensional network of housing, vegetation, energy systems, and public ground.

Designed by Ruben Andersen and recognized as an Editor's Choice entry of the Hyperblock competition, the proposal targets a future Barcelona where increased density becomes the mechanism for more nature, not less. Rather than layering sustainability onto conventional buildings as an afterthought, Andersen embeds environmental performance into the morphology of the city itself. Massing, solar access, ventilation, water management, and open space are treated as a single design problem.

A Gothic Vanishing Point: Reading the Grid as a Starting Condition

The opening aerial view places Cerdà's grid in warm evening light, its perspectival lines converging on the Gothic cathedral like a lesson in urban geometry. It is a reminder that Barcelona's power has always resided in the repetition and consistency of its blocks, a flat hierarchy that distributes civic life evenly across the city. Andersen preserves this organizational logic as a starting point. The grid is not dismantled; it is pressurized. The project asks what spatial possibilities emerge when you stop treating the manzana as a fixed perimeter building around an internal courtyard and begin to lift, cut, and reshape its volume.

Six Block Typologies, One Flexible Urban System

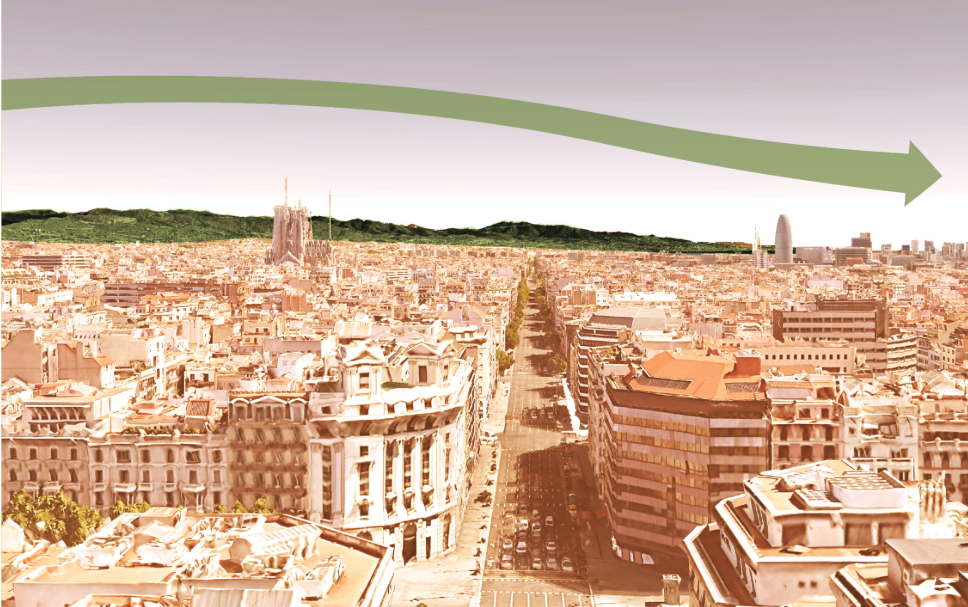

A curved green arrow sweeps across the rooftops and tree-lined boulevards in the cityscape diagram, tracing the directional flow of a transformed district where architecture and landscape merge. Below, at street level, the courtyard view between two terraced residential towers reveals what that transformation feels like on the ground: dappled sunlight filtering through planted trees, pedestrians moving through generous space between buildings. The scale is dense but breathable.

Behind these images lies a rigorous catalogue of morphological strategies. Andersen develops six block typologies: Wave Blocks with flowing profiles and carved roofscapes, Mountain Blocks that translate Barcelona's relationship with its surrounding hills into architectural peaks and valleys, Lifted Cross Blocks that raise density vertically to preserve open ground, Quarter Blocks with tall clusters separated by generous gaps, Cross Blocks featuring large central openings and interconnected elevated volumes, and Elevated Blocks organized around open ground planes. The project is less interested in producing a single iconic building than in generating a flexible system capable of varied spatial character across a district.

A 400 by 400 Metre Test Site: Nine Blocks, Infinite Variations

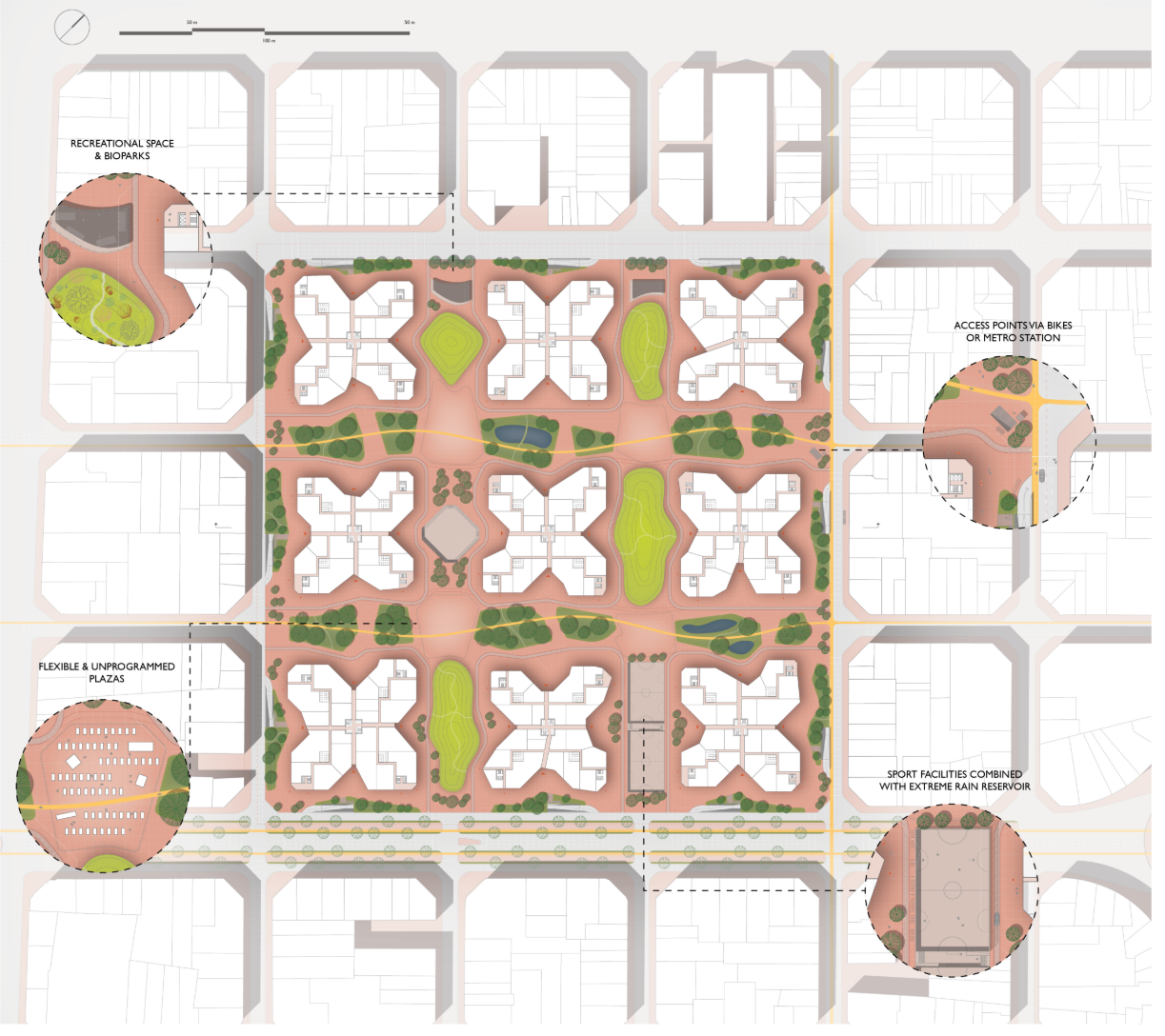

The site plan makes the ambition legible. Nine clover-shaped building footprints replace a group of conventional manzanas across an approximately 400 by 400 metre urban area. Central landscaped zones and annotated circulation callouts show how the new blocks distribute open space at multiple levels, not only at ground but through vertical cuts and elevated platforms. The significantly increased floor area ratio coexists with deliberately preserved public landscape, a counterintuitive pairing that the project argues is achievable precisely because density is concentrated and sculpted rather than spread thin.

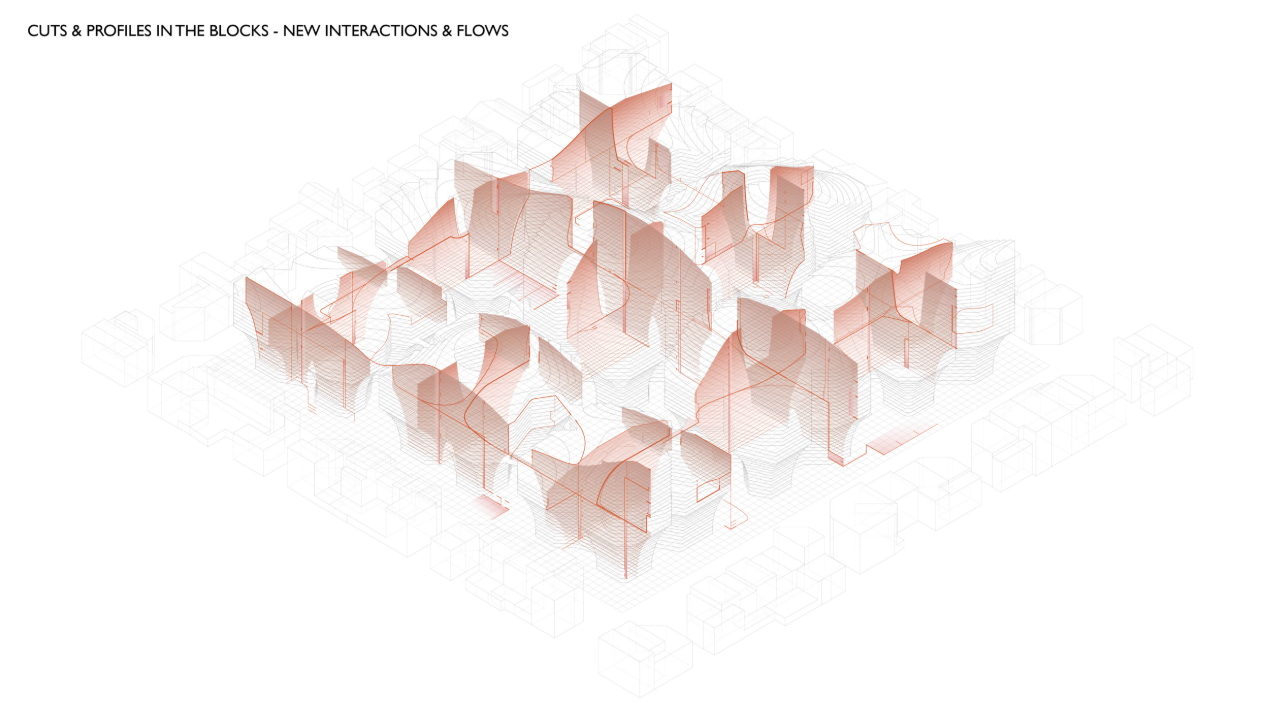

The isometric section drawing makes the internal logic visible. Vertical cuts penetrate multiple block volumes, rendered in transparent layering that exposes interconnected flows of circulation, daylight, and air. These are not decorative voids. They are the environmental infrastructure of the proposal: channels for natural ventilation, pathways for pedestrian movement between levels, and corridors that bring sunlight deep into the building mass. Sustainability here is structural, not cosmetic.

From Monolithic Carvings to Grid Pixelation: A Vocabulary of Form

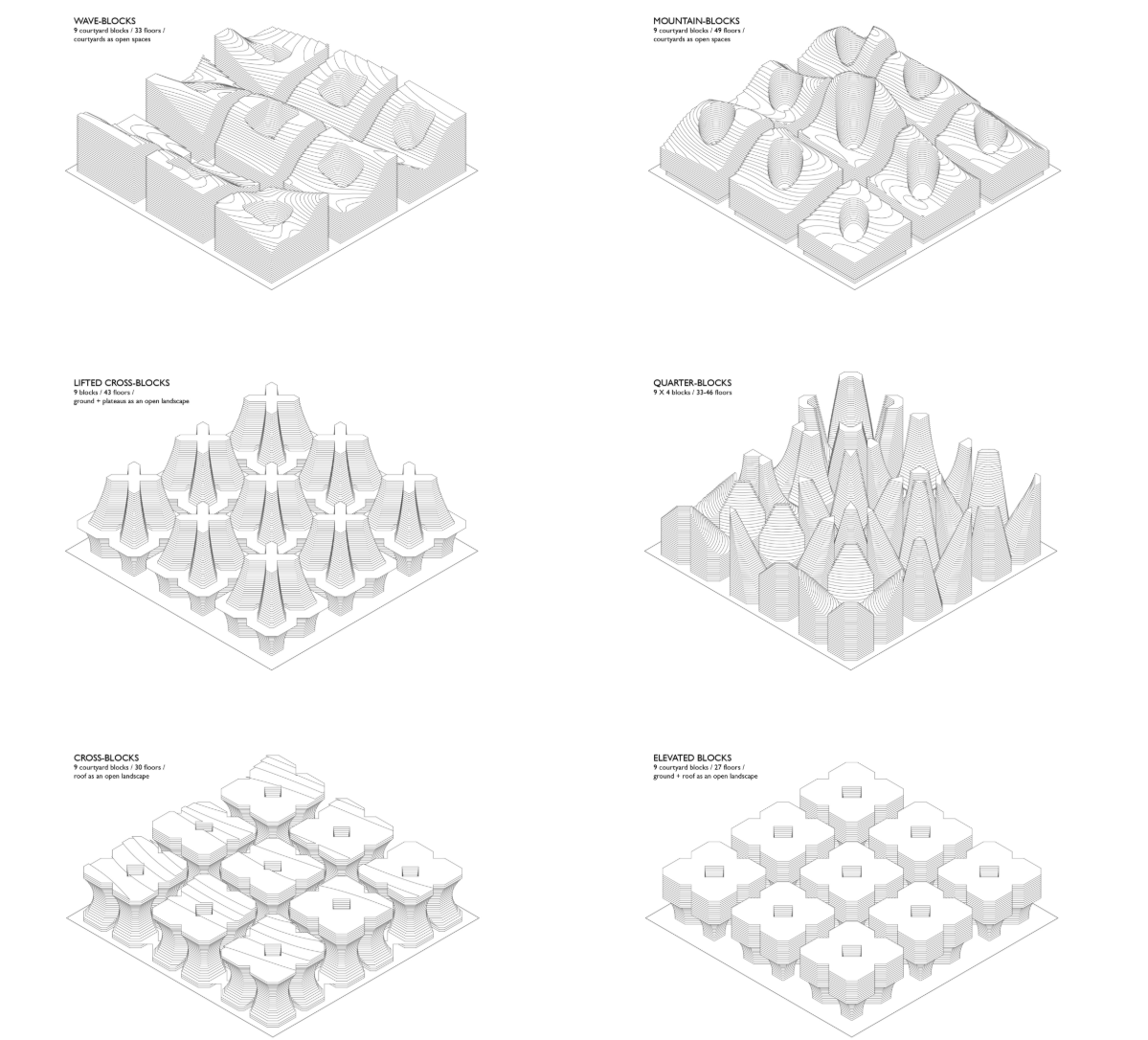

The axonometric comparison of six massing typologies lays out Andersen's design vocabulary with precision. Varying roof profiles and building densities sit side by side, each one a distinct proposition for how the manzana can be reshaped. The studies explore manipulated grids, orthogonal and diagonal cuts, hexagonal organizations, pyramidal formations, fabric-like geometries, and modular systems. Several major morphological strategies emerge, including monolithic carvings, individual units, block variations, and grid pixelation. The range is the point: the project demonstrates that a single geometric inheritance can yield radically different spatial outcomes depending on how it is sculpted.

What makes this catalogue productive rather than arbitrary is its connection to environmental performance. Each typology generates a different relationship between building mass, solar access, wind flow, and vegetation coverage. The design process treats form and climate as interdependent variables, not sequential decisions. Geometry is not resolved first and then checked against sustainability metrics; it is generated through them.

Why This Project Matters

Manzana Morphosis matters because it refuses the false choice between heritage and transformation. Many proposals for future cities either fetishize the existing grid or demolish it in favor of something unrecognizable. Andersen's approach is more disciplined: start with Cerdà's logic, acknowledge its enduring intelligence, and then push its spatial capacity far beyond what the 19th century could have imagined. The manzana survives, but it breathes, climbs, and opens in ways that respond to the climate pressures and density demands of 2050.

Equally significant is the project's insistence that sustainability is a morphological question, not a technological one. Solar panels and rainwater systems can be bolted onto any building. Rethinking the shape of the city so that density, daylight, ventilation, vegetation, and public space are resolved simultaneously requires a different kind of design intelligence. Andersen demonstrates that intelligence here, producing a proposal that is systematic without being rigid and visionary without losing its connection to the specific geometry of Barcelona.
