Neri&Hu Grafts a Lightweight Steel Shelter into a 140-Year-Old Shikumen for Blue Bottle Coffee

Zhang Yuan opened to the public in 1885 and quickly became one of modern China's earliest public leisure grounds, housing dance halls, an opera house, restaurants, and even a roller coaster. When the district reopened in 2022 after a comprehensive rehabilitation of its historic Shikumen buildings, Neri&Hu Design and Research Office was tasked with inserting a Blue Bottle Coffee outpost into a pair of merged 1860s-era townhouses. The result is 175 square meters of cafe space that refuses to choose between reverence and invention, instead layering the two with surgical precision.

What makes the project genuinely compelling is its method of differentiation. Neri&Hu did not sand down the existing fabric or hide it behind drywall. They left the original brick walls, timber doors, and atriums untouched, as required by preservation guidelines, then erected a freestanding shelter of brushed stainless steel and perforated metal right in the center of the room. The new structure reads as an almost parasitic addition: light where the host building is heavy, reflective where the brickwork is matte, provisional where the Shikumen is permanent. It is the kind of contrast that only works when both halves are allowed to be fully themselves.

The Shelter Within

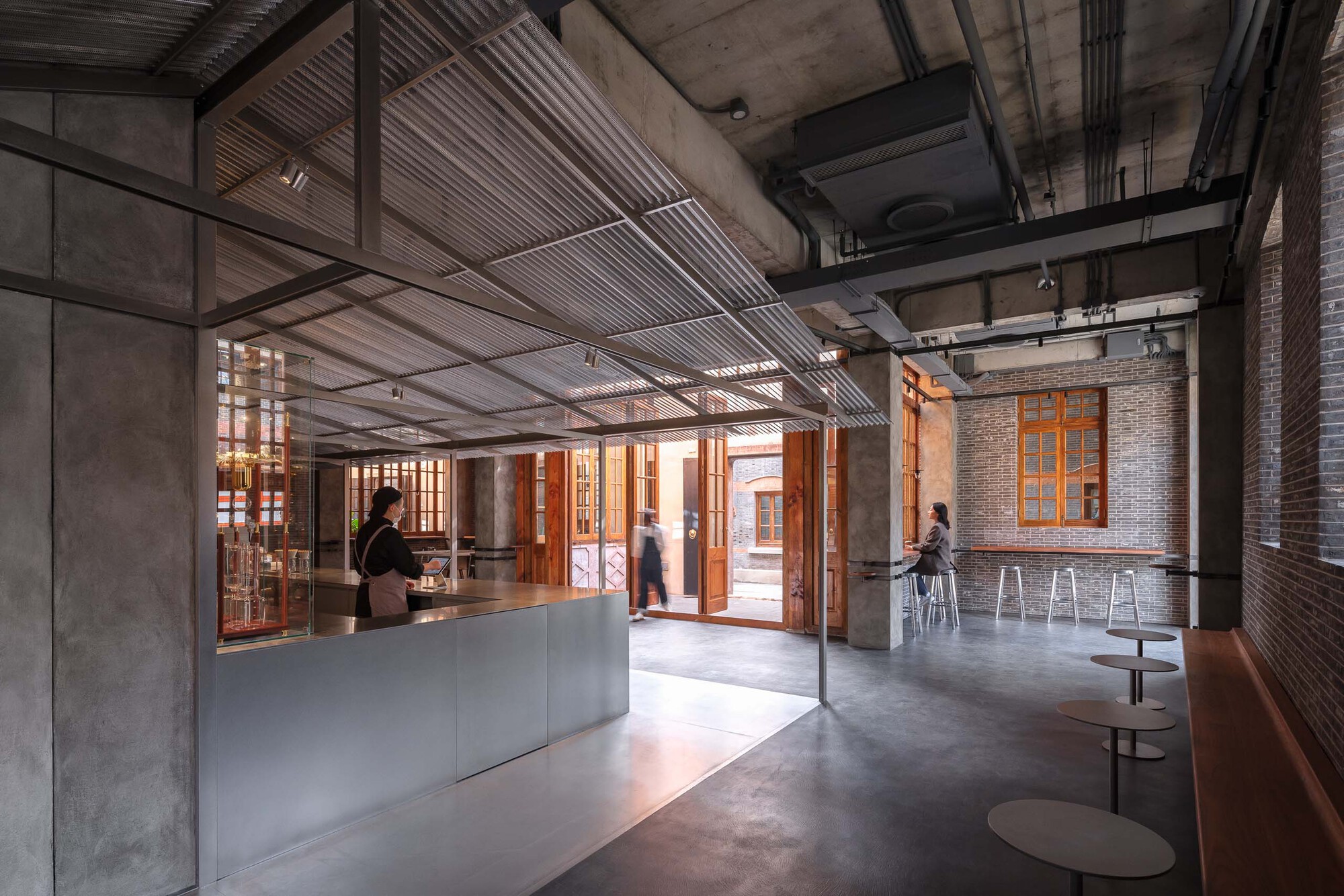

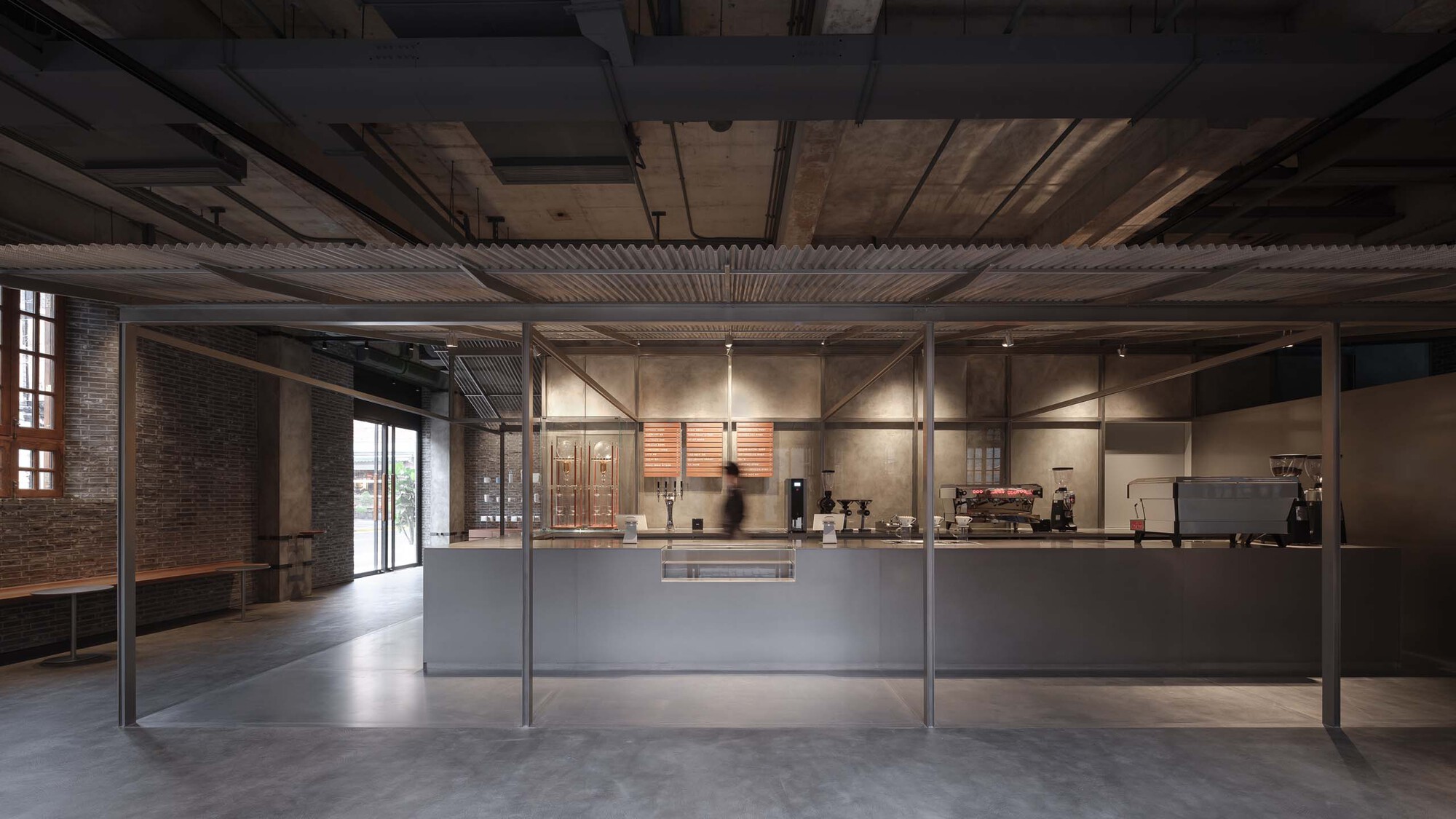

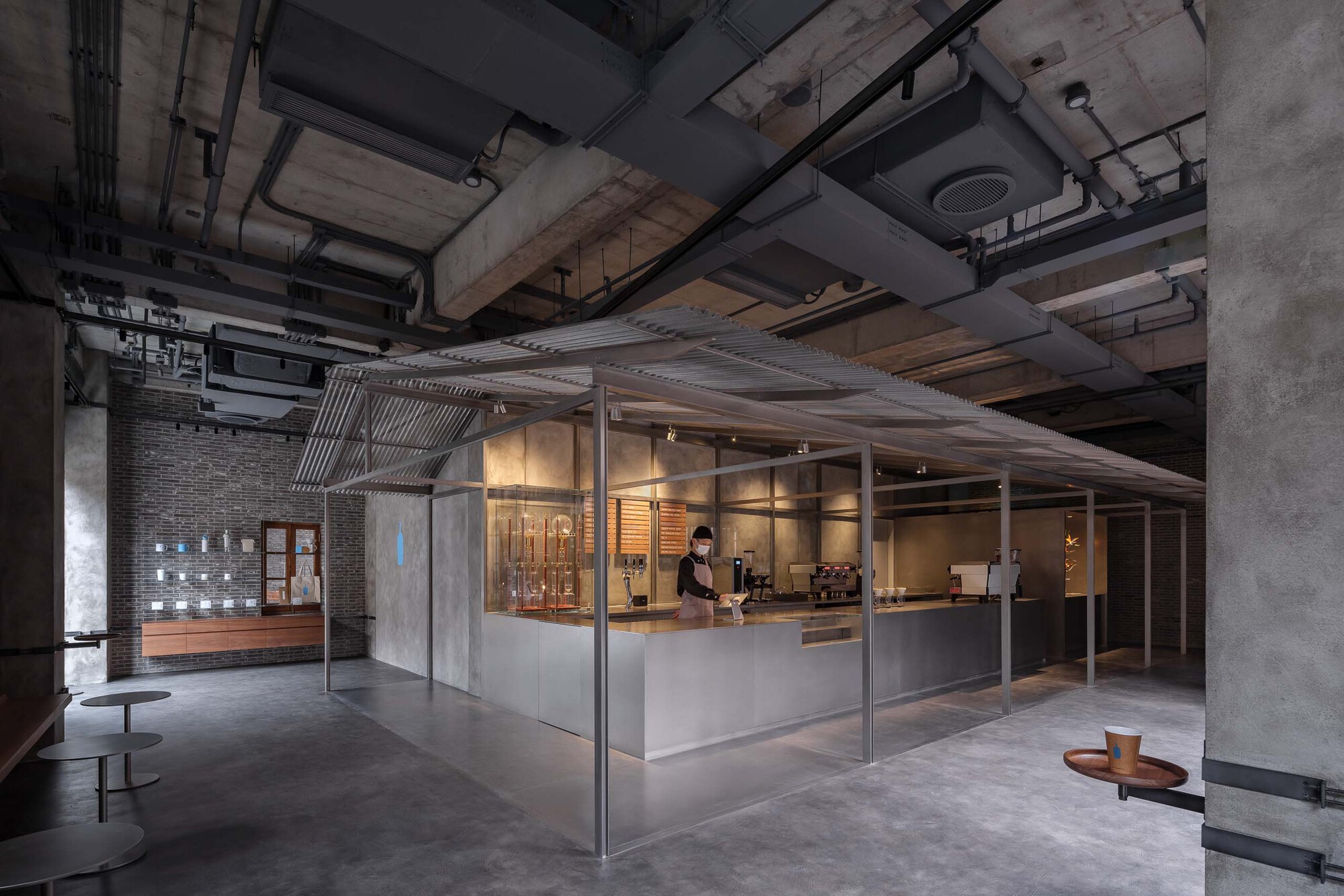

The centerpiece of the cafe is a primitive shelter, as Neri&Hu describe it, a glass-enclosed service pavilion crowned by a sloped canopy of corrugated and perforated metal. Coffee is prepared and served here, making it both the visual and circulatory focal point. The structure sits within the existing volume like a found object placed on a plinth, deliberately not touching the old walls. Its brushed stainless steel surfaces catch ambient light in a way that is, as the architects intended, subtle and fuzzy, reflecting the surrounding brickwork without mimicking it.

The roof itself was designed to be as light as possible, studied through tectonic joinery to contrast with the heavy palette of the existing architecture. Steel framing connects to the original concrete beams overhead but reads as structurally independent. This is not a renovation so much as a cohabitation: two construction logics sharing the same address.

Alley Logic and Shikumen Circulation

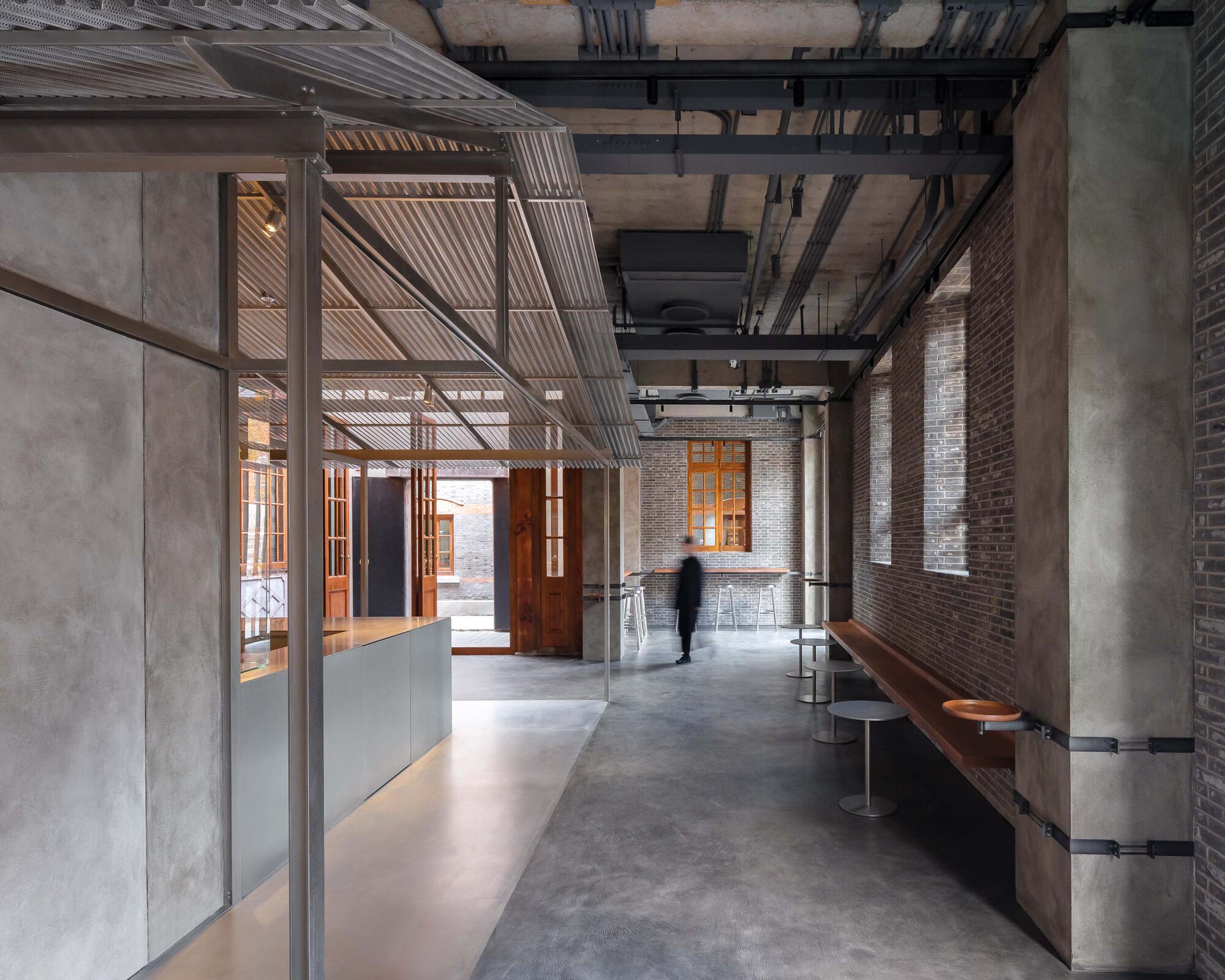

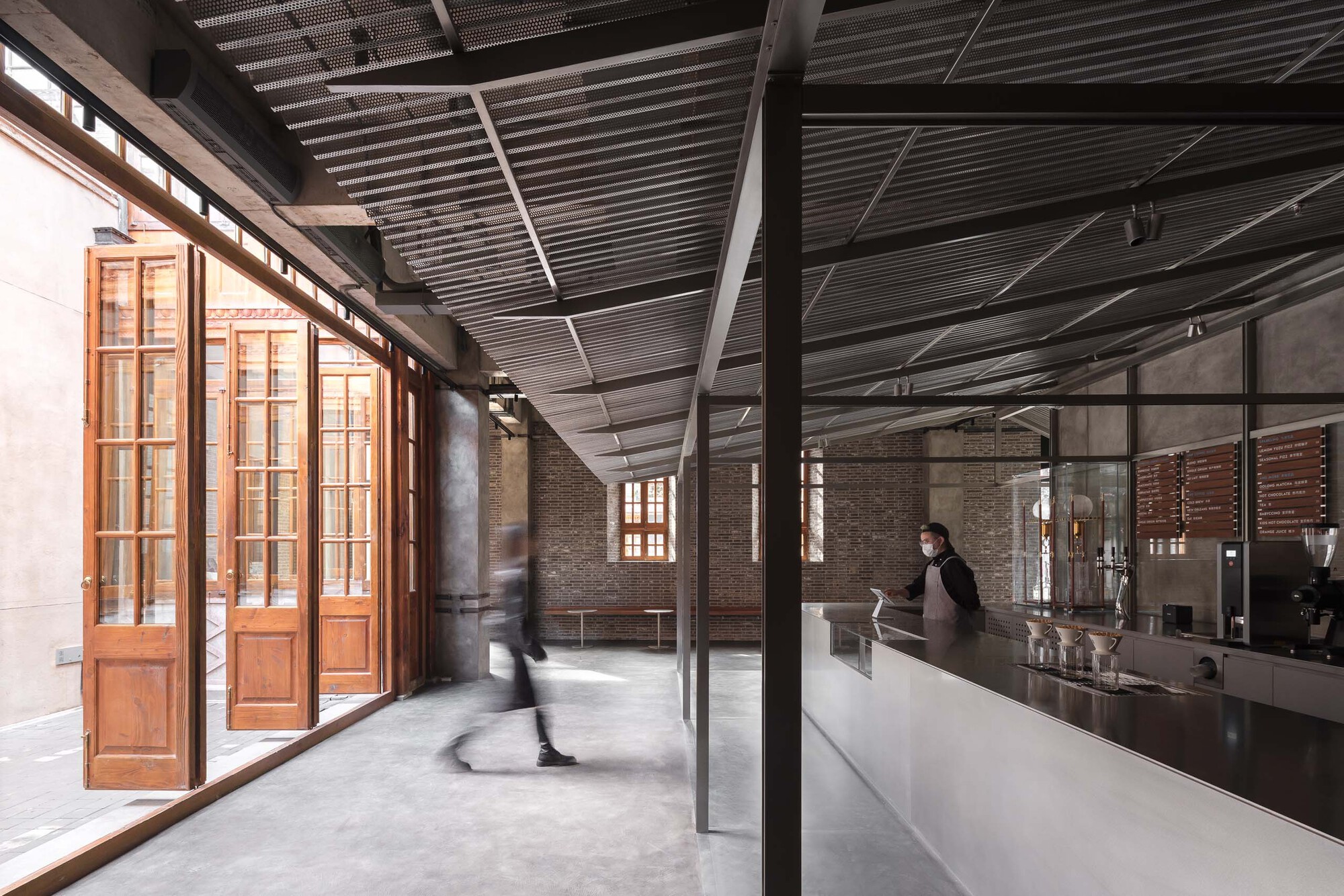

Neri&Hu drew inspiration from Shanghai's lilong culture, specifically the informal attachments residents historically bolted onto their homes to extend private life into the shared alley. The cafe's elongated corridor along the exterior wall mimics this alley condition. Benches and small tables line the windows and walls, replicating the casual, incidental seating you would find in a narrow lane. The space connects the main street entrance to the interior atriums, threading visitors through the building the way a Shikumen lane threads between houses.

The traditional Shikumen layout, with its sequence of entrance, courtyard, living room, second courtyard, and back gate, is still legible in the plan. Neri&Hu used this inherited sequence rather than fighting it. The front yards of the original townhouses now function as atriums that pull natural light deep into the cafe, maintaining the passive environmental logic of the Jiangnan building tradition.

Brick, Steel, and the Art of Contrast

The material strategy is blunt in the best sense. Existing blue brick walls, gray tiles, and timber doors speak to a regional building tradition rooted in Jiangnan architecture and its particular response to the rainy climate of the Yangtze Delta. Against this, Neri&Hu introduced brushed and perforated steel, polished concrete floors, and glass partitions. The two palettes never blend. They sit side by side, separated by decades of patina and entirely different construction philosophies.

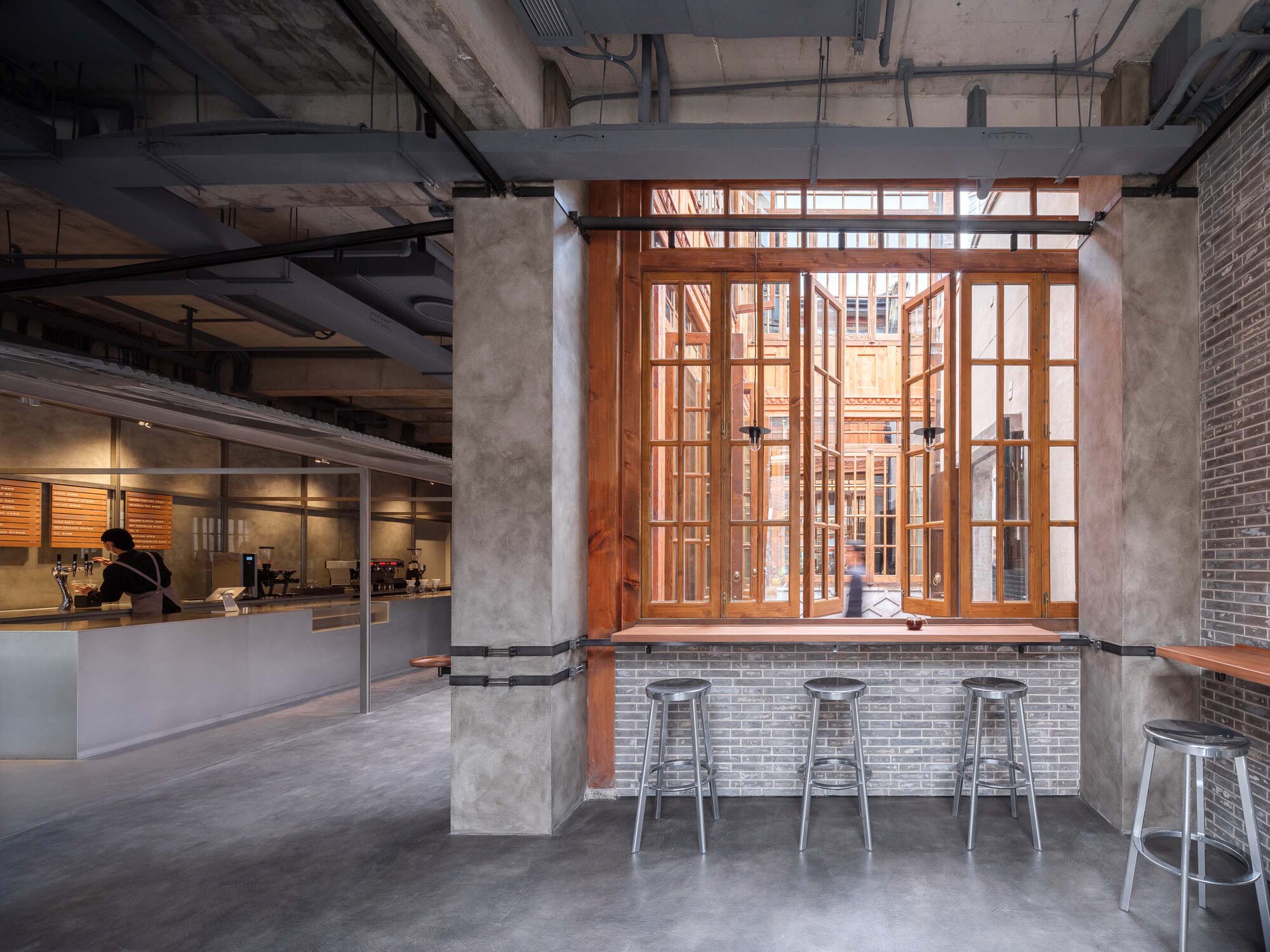

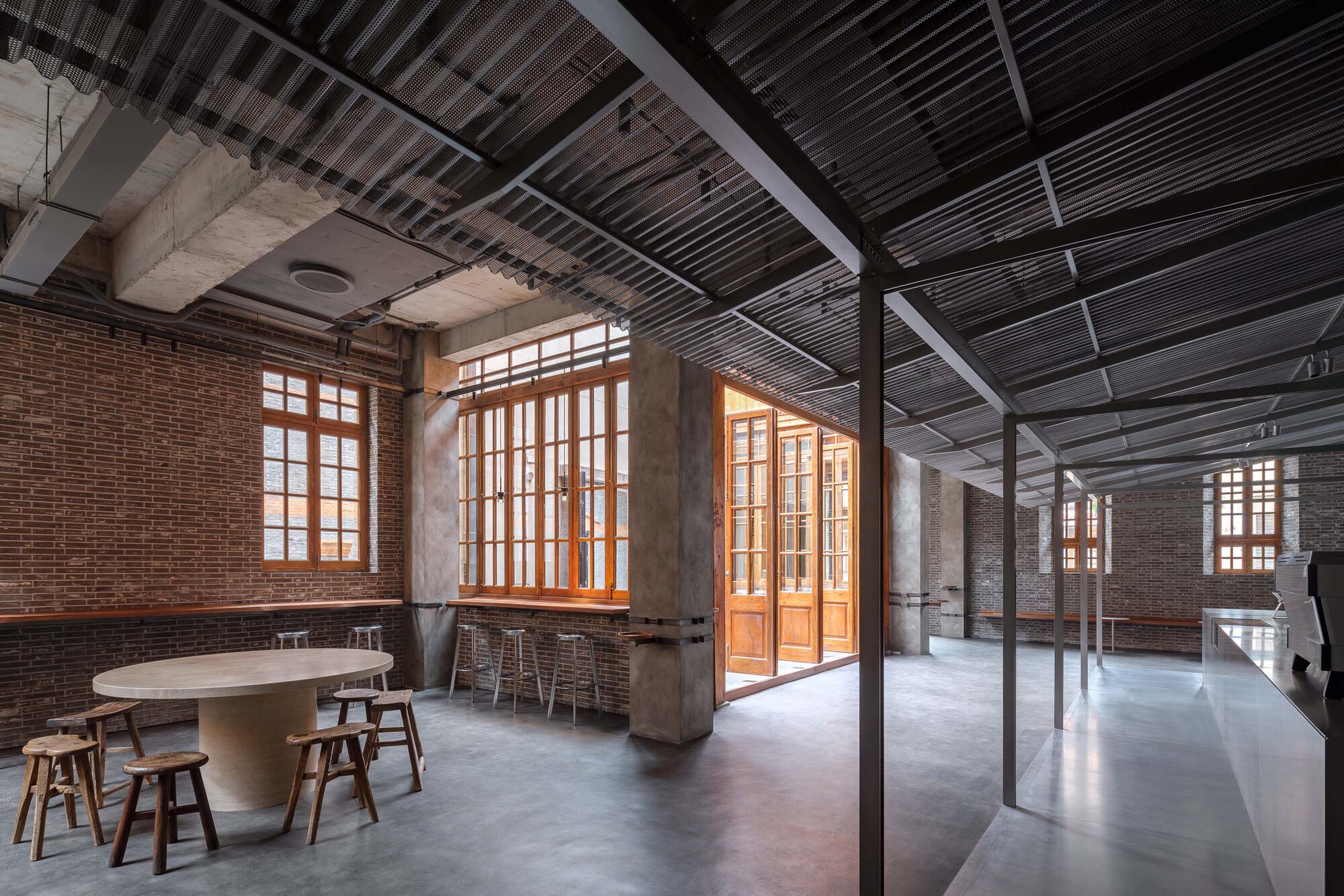

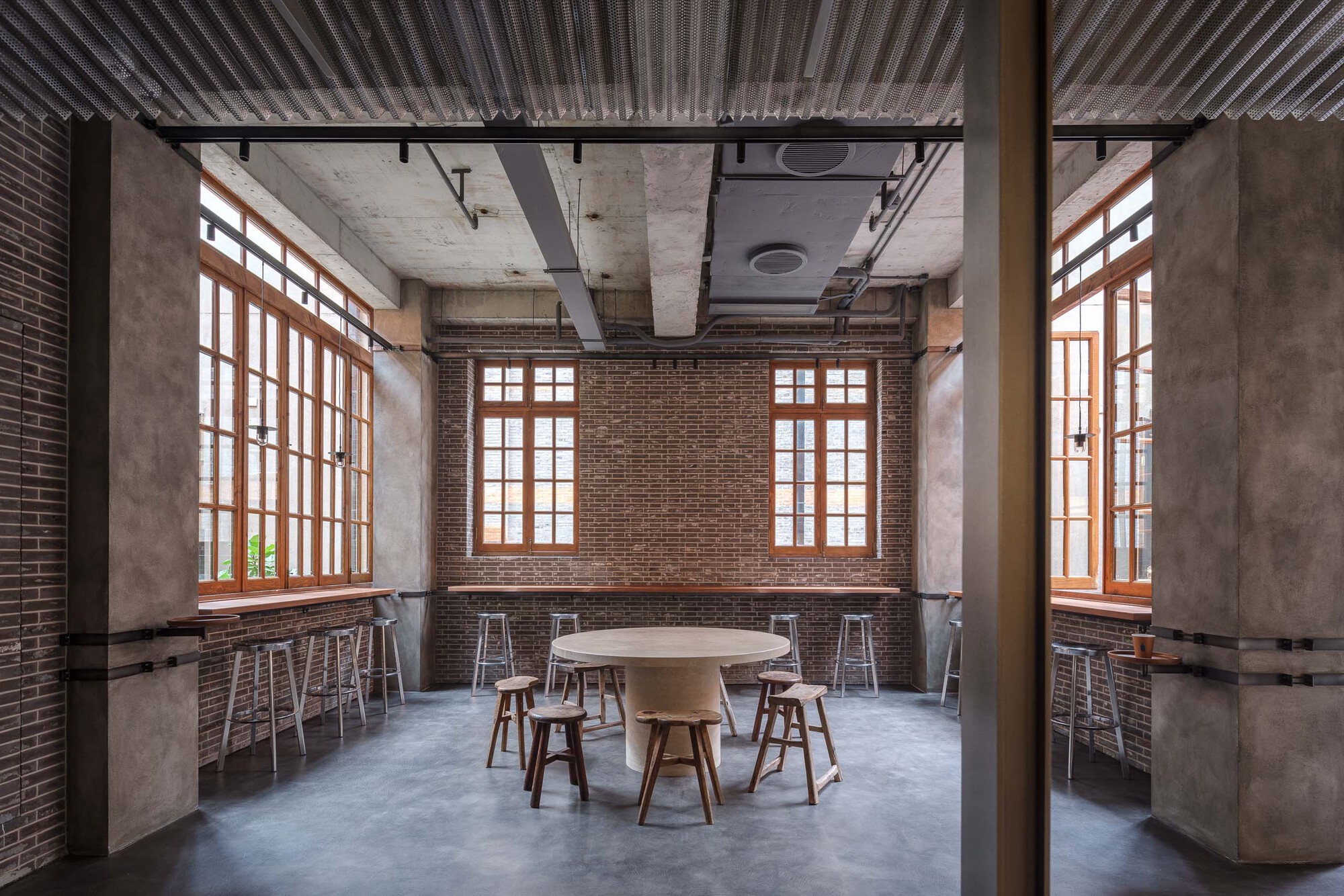

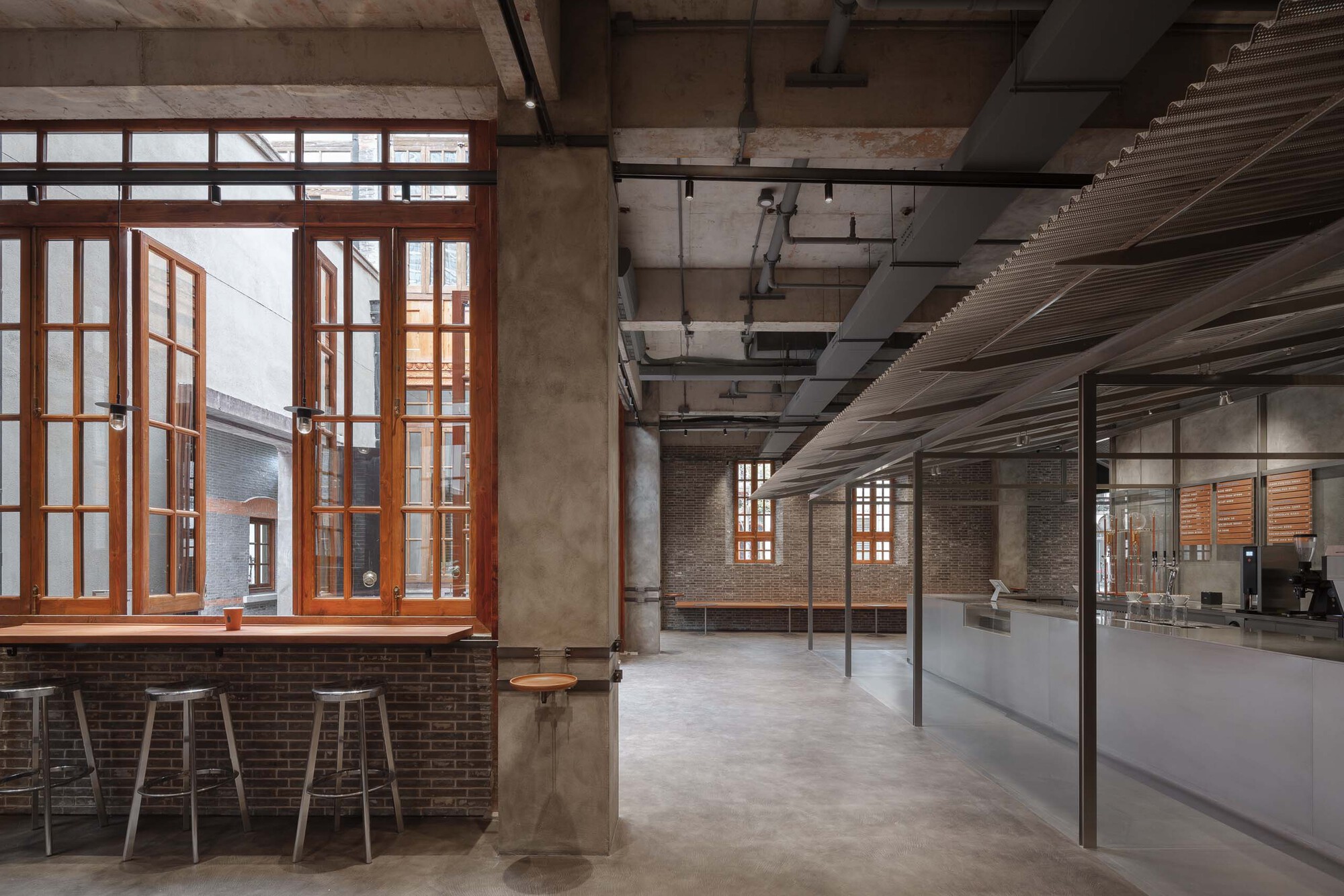

A brick bar counter beneath timber-framed windows feels lifted directly from the Shikumen vernacular, while the metal stools beside it are unmistakably contemporary. The corrugated ceiling panels overhead read as industrial roofing repurposed as interior finish. Neri&Hu calls this approach material contrast and formal assemblage, and it operates here with a clarity that makes the design logic immediately legible even to a first-time visitor.

Parasitic Detailing

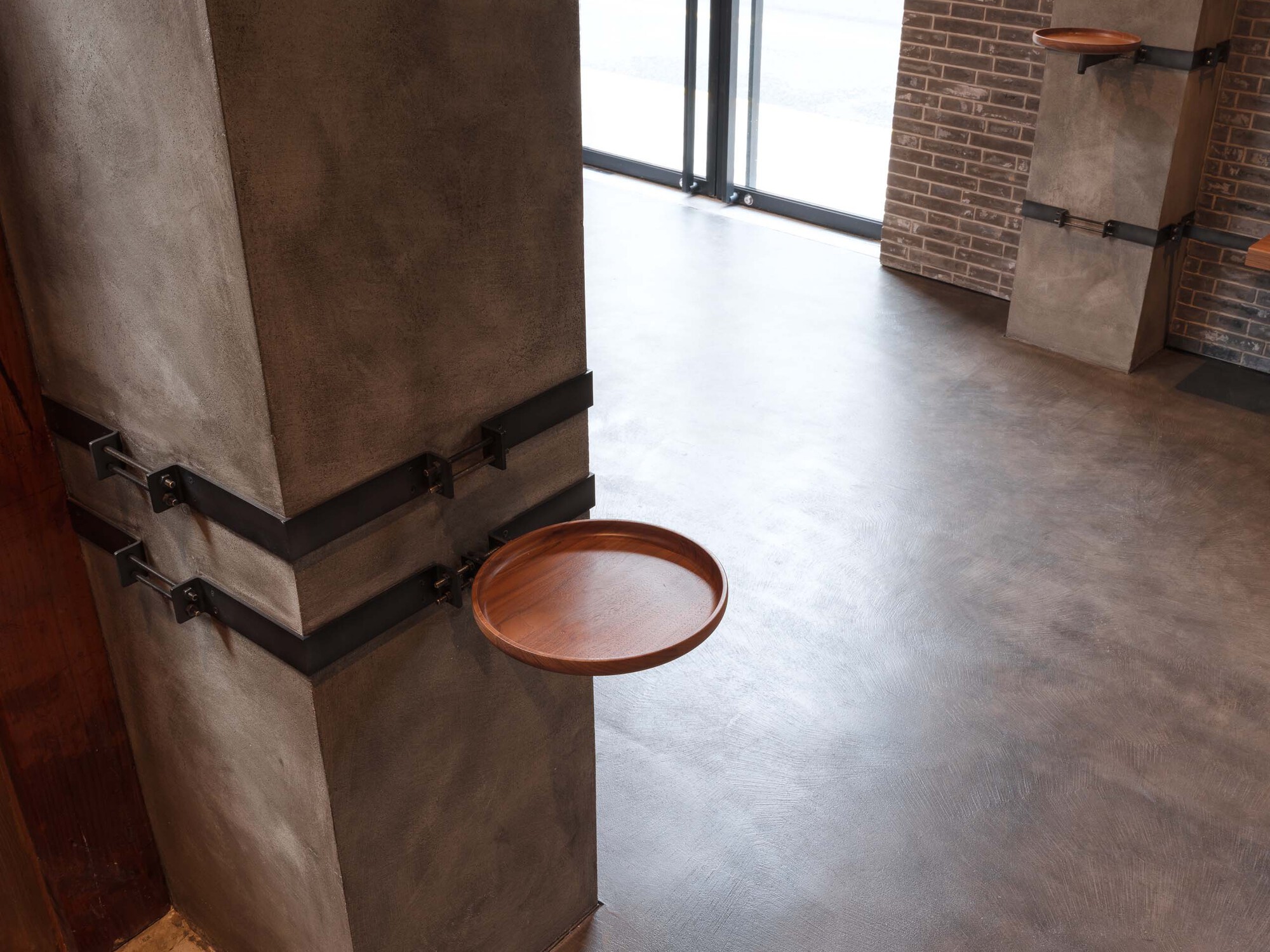

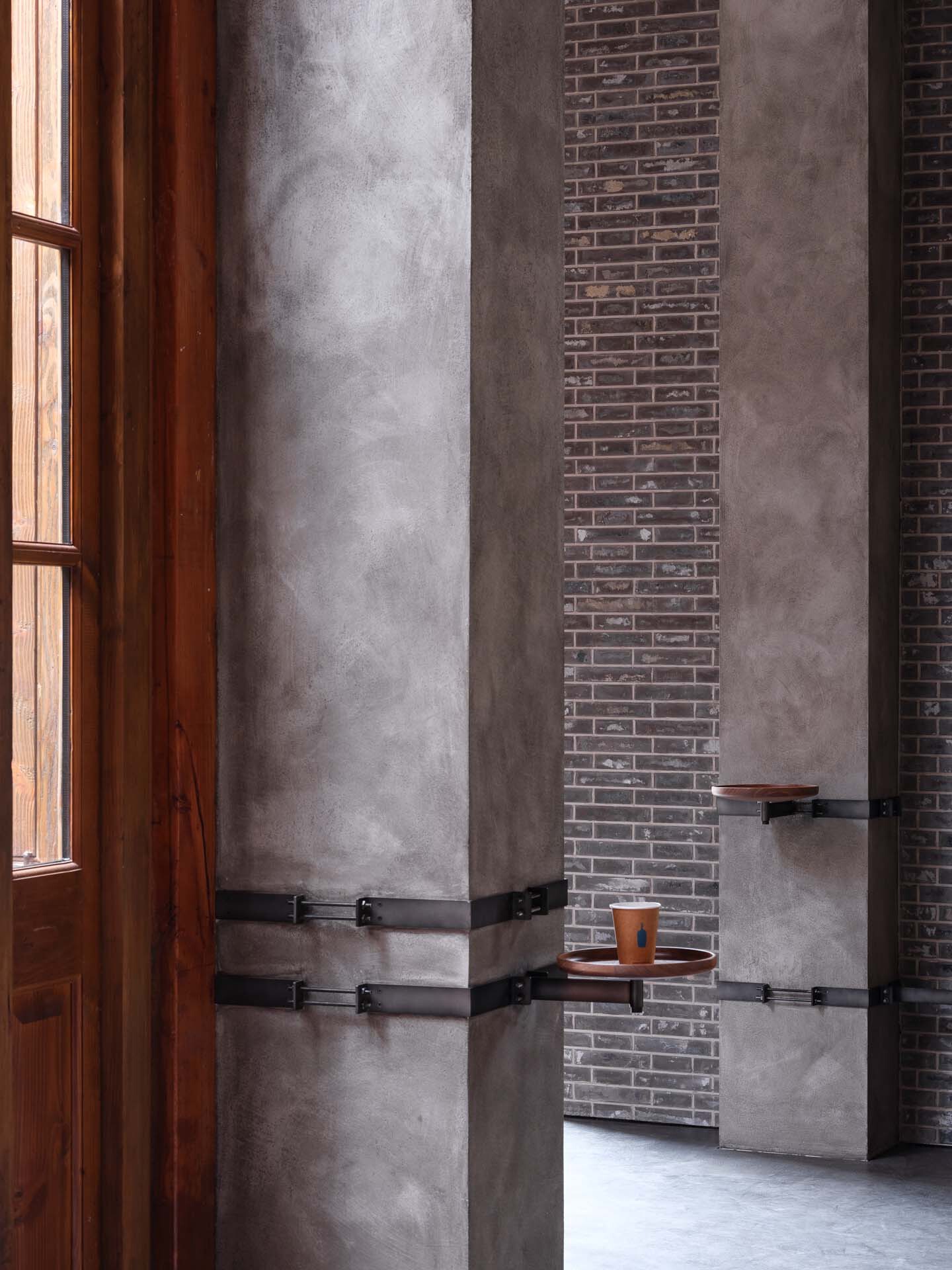

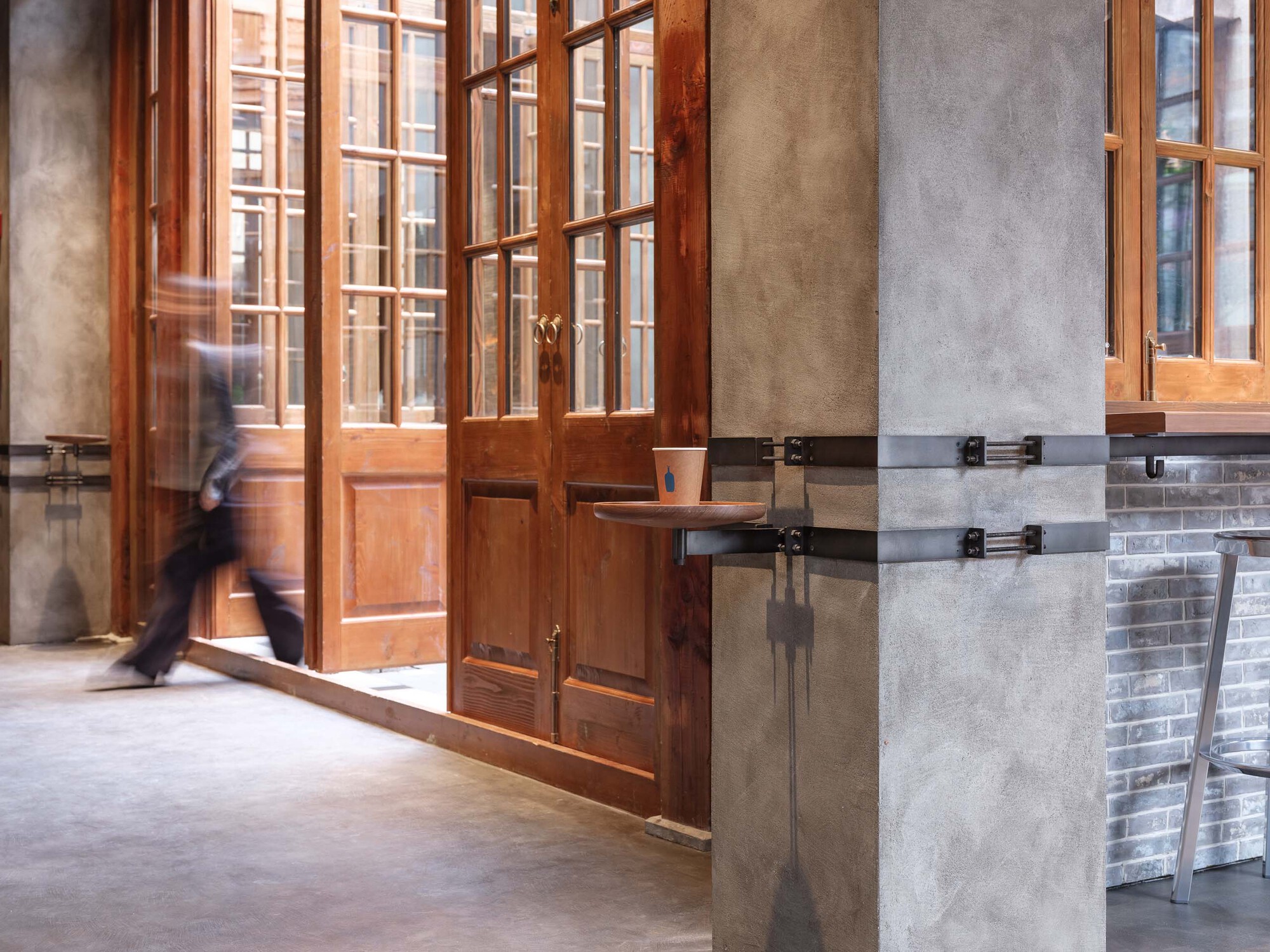

Some of the project's smartest moves happen at the scale of a column. Neri&Hu commandeered the existing concrete structural columns by wrapping them with black steel bands and attaching metal rods that serve as light rails, side tables, benches, and display platforms. The technique is additive rather than subtractive: nothing is carved away from the original structure, and the additions could, in theory, be unbolted and removed.

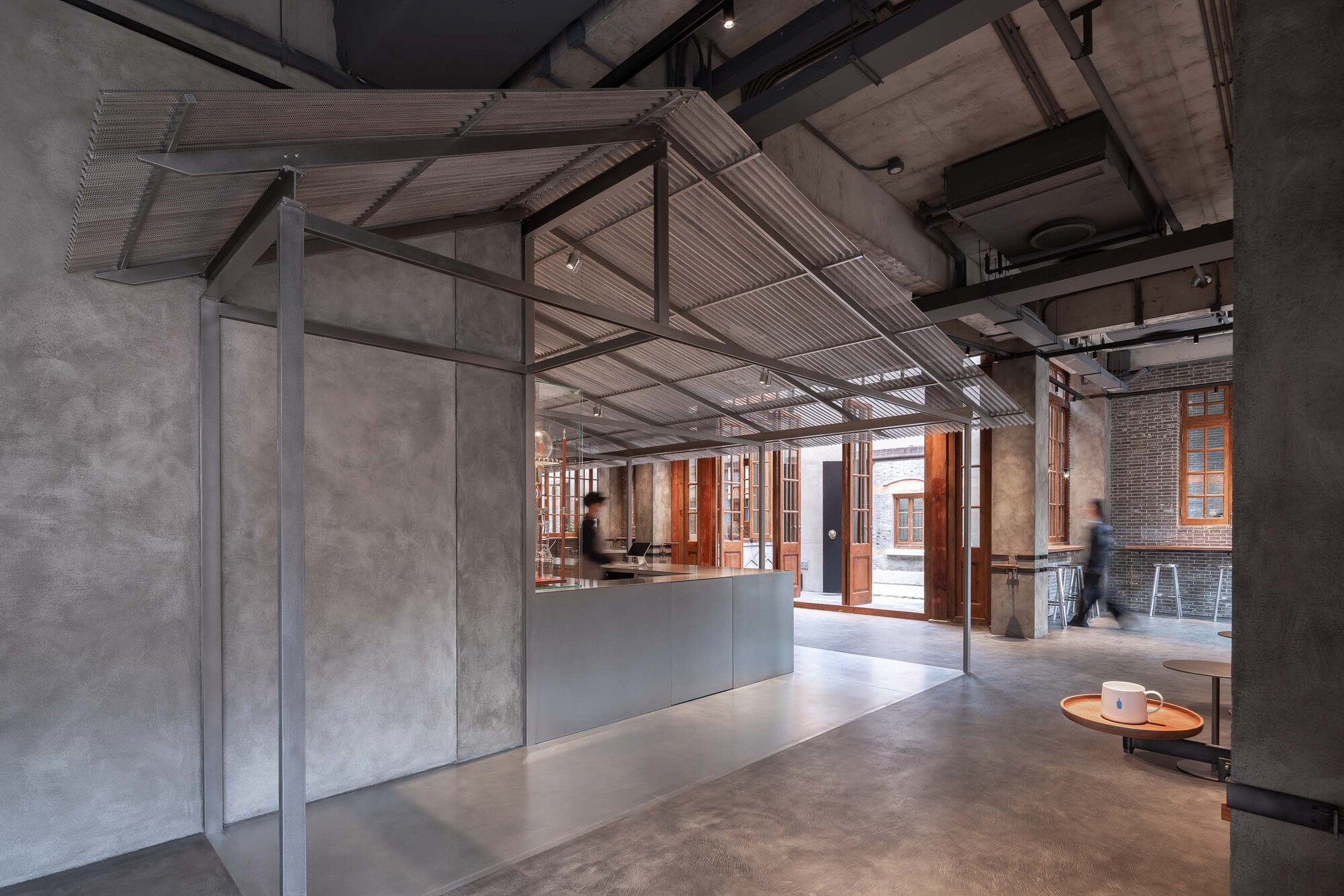

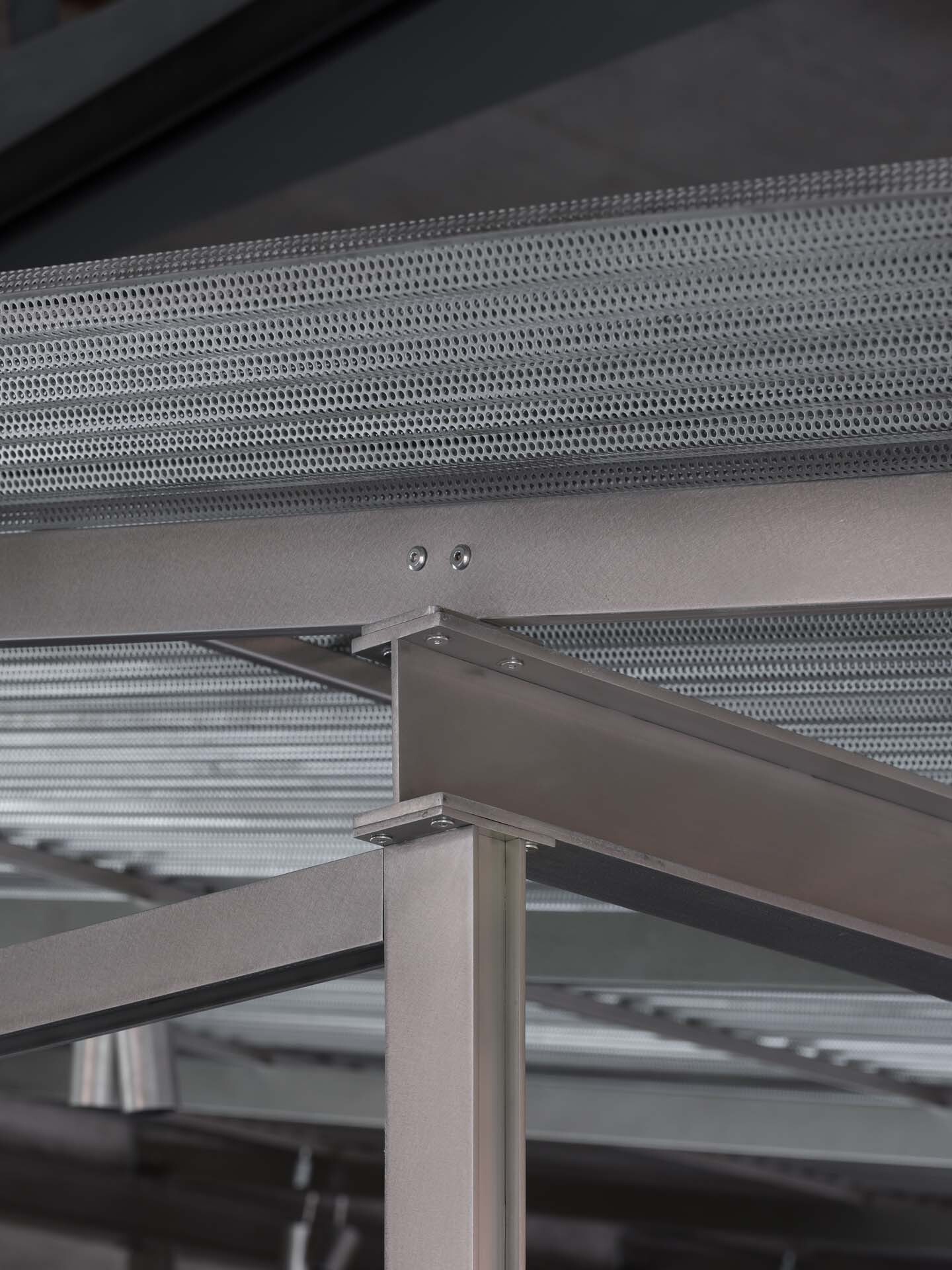

The perforated metal ceiling panels connect to the steel frame and concrete beams through carefully articulated junctions that expose every fastener and joint. There is no attempt to conceal the mechanics of the graft. The pendant light fixtures hang directly from the new metal canopy, reinforcing the idea that the shelter, not the heritage shell, is the host for all contemporary program elements.

Courtyards and Natural Light

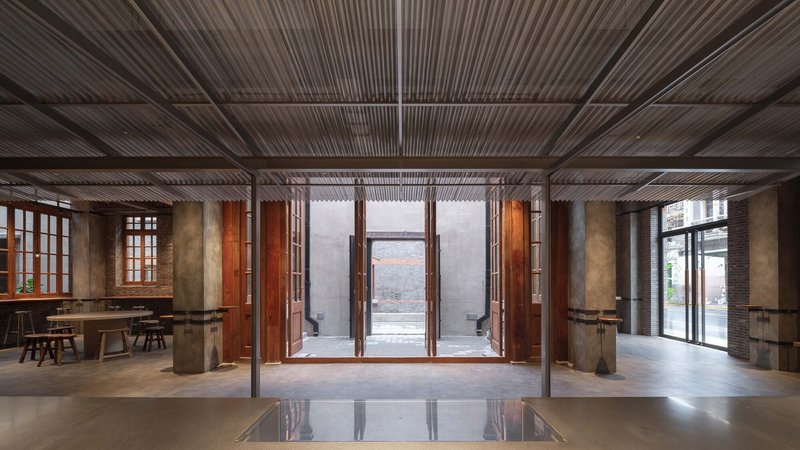

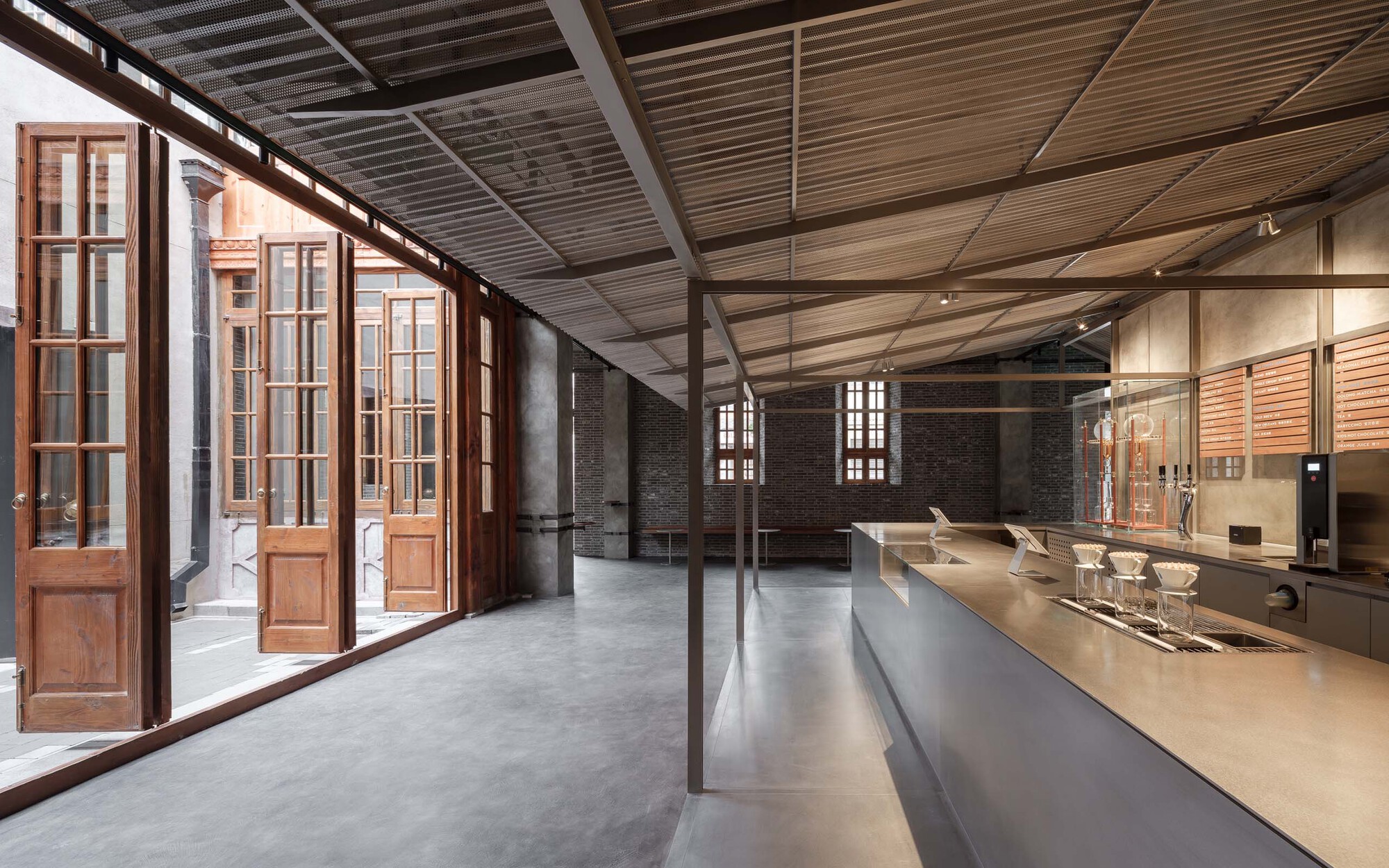

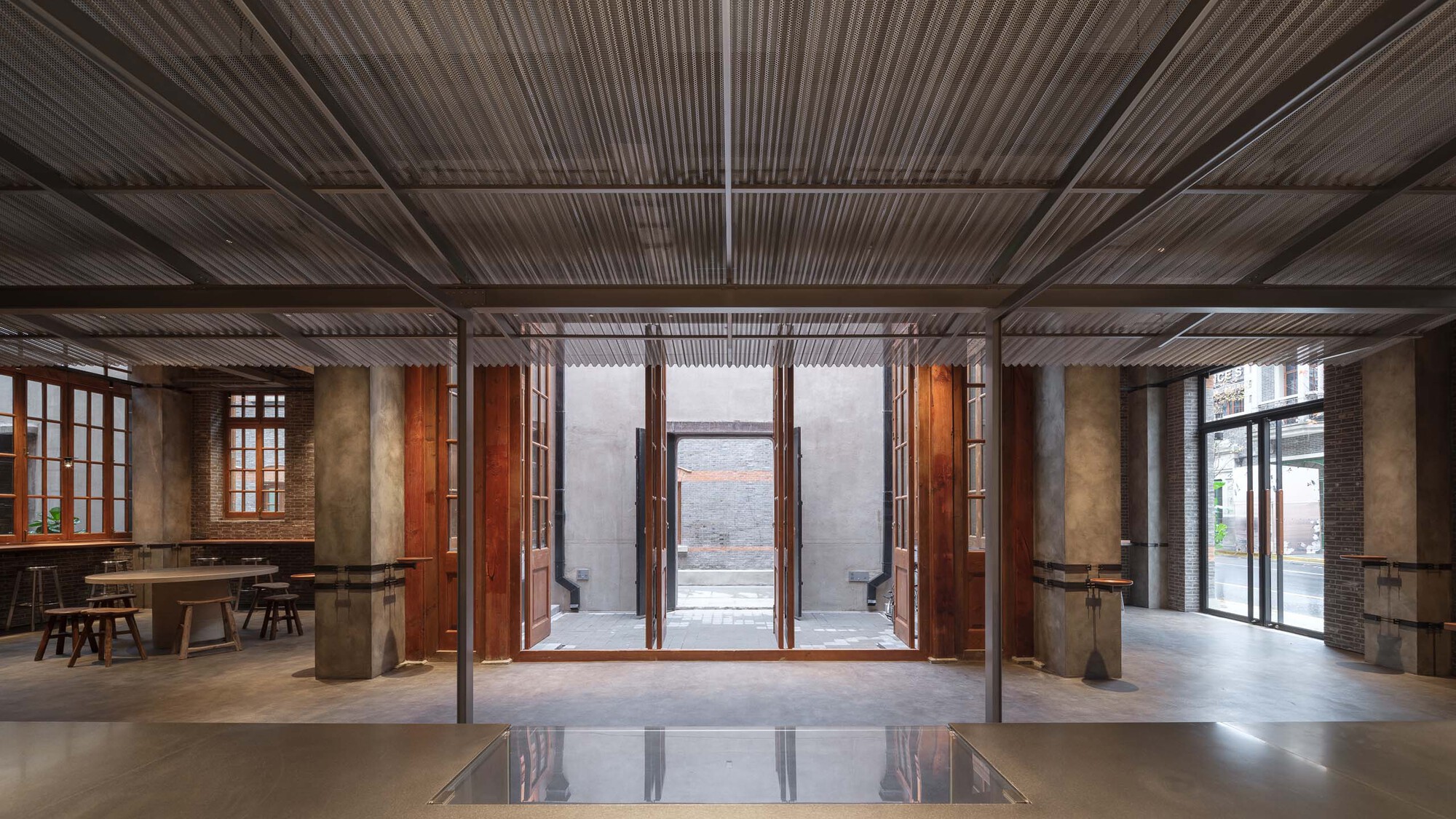

The Shikumen's courtyard typology was designed to bring sunlight and ventilation into dense urban fabric, and the cafe benefits from this inheritance. Large folding timber doors open onto the atriums, dissolving the boundary between interior and exterior when weather permits. Timber-louvered ceilings filter overhead light into a warm, directional glow. The south-facing facade, typical of the Shikumen arrangement, maximizes winter sun while limiting harsh summer exposure.

Neri&Hu's decision to leave these environmental systems intact, rather than sealing the space and relying on mechanical conditioning, is a quietly significant one. It means the cafe breathes with the rhythms of Shanghai's seasons, which is exactly how the original residents would have experienced the building.

Signage, Identity, and Restraint

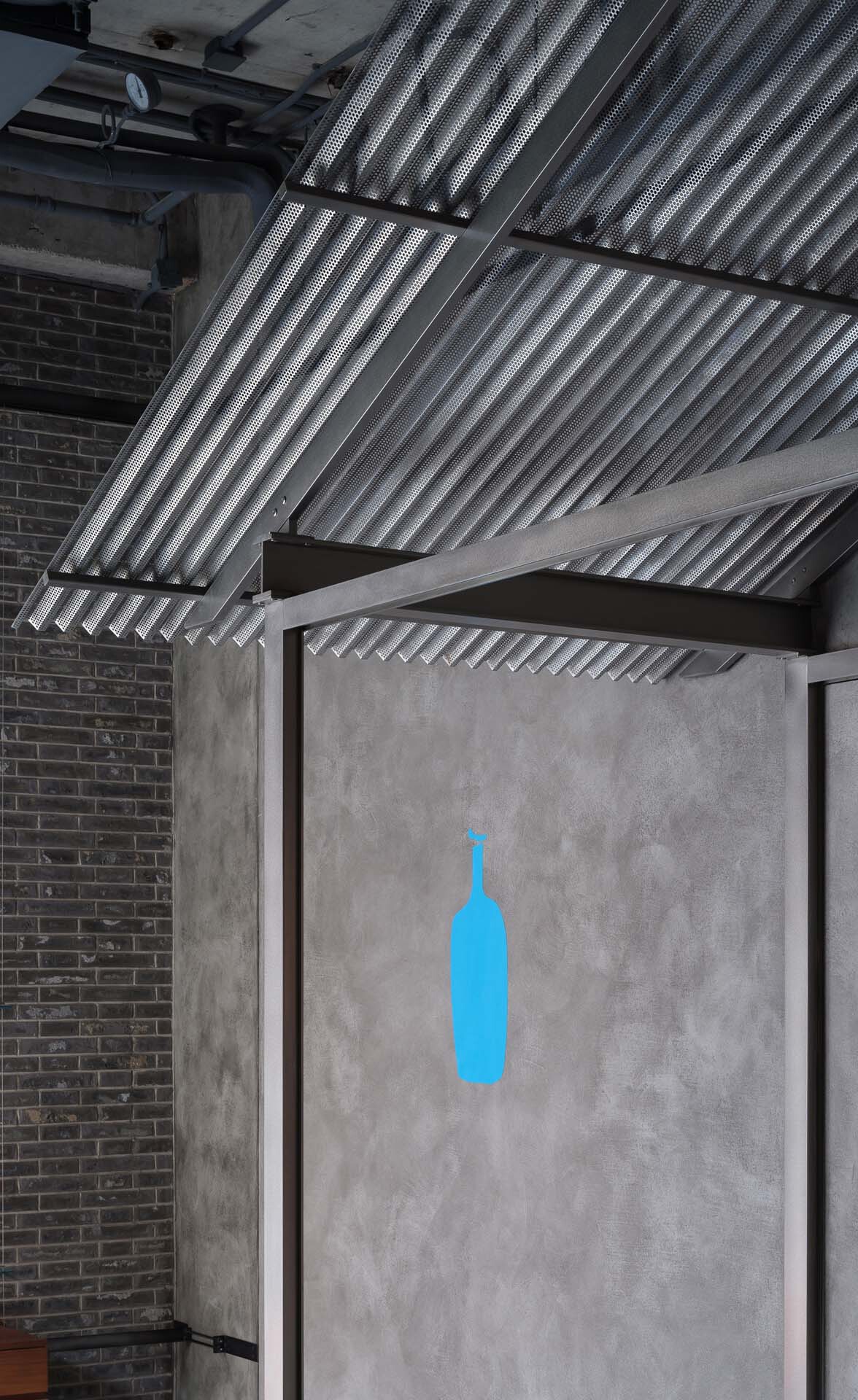

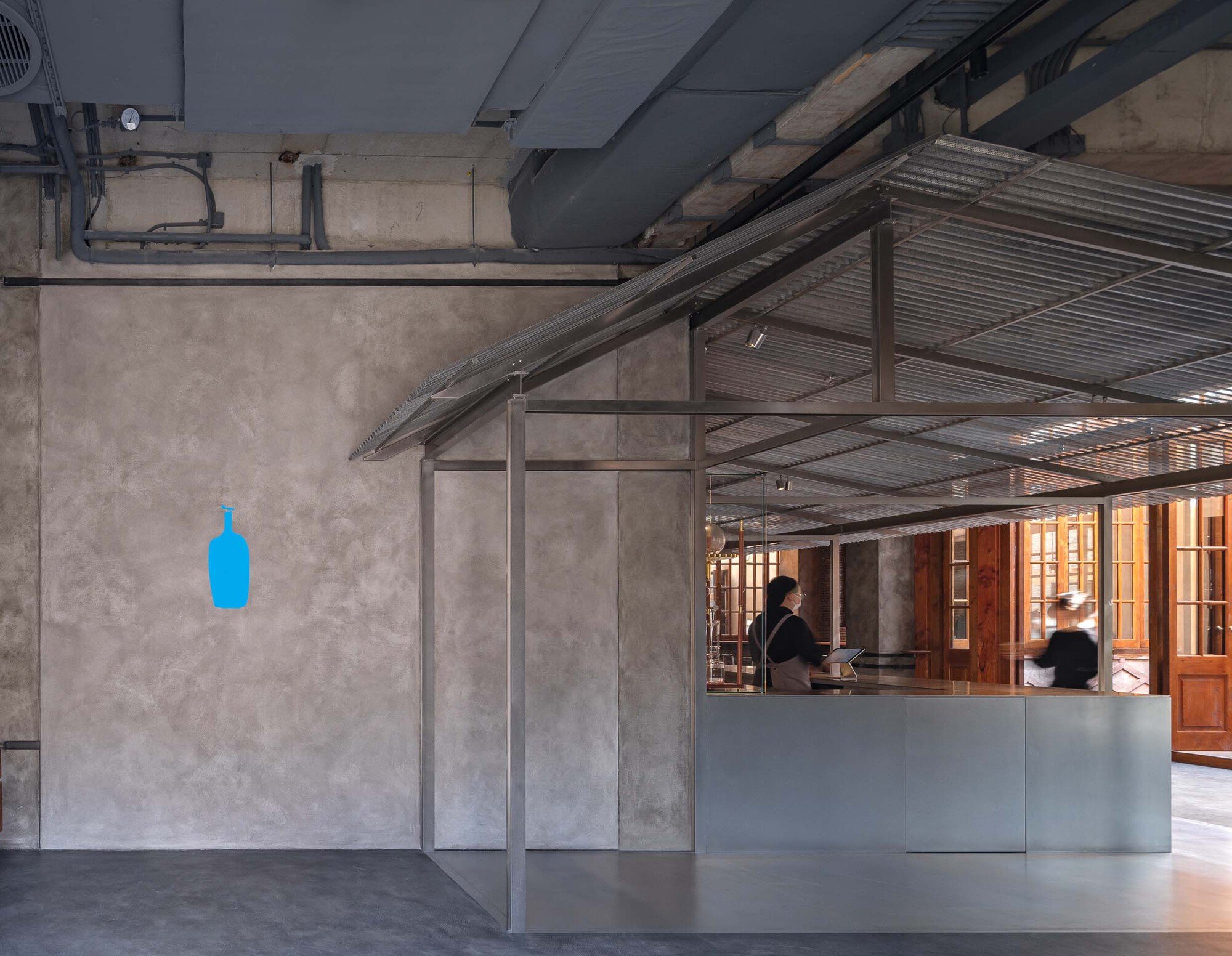

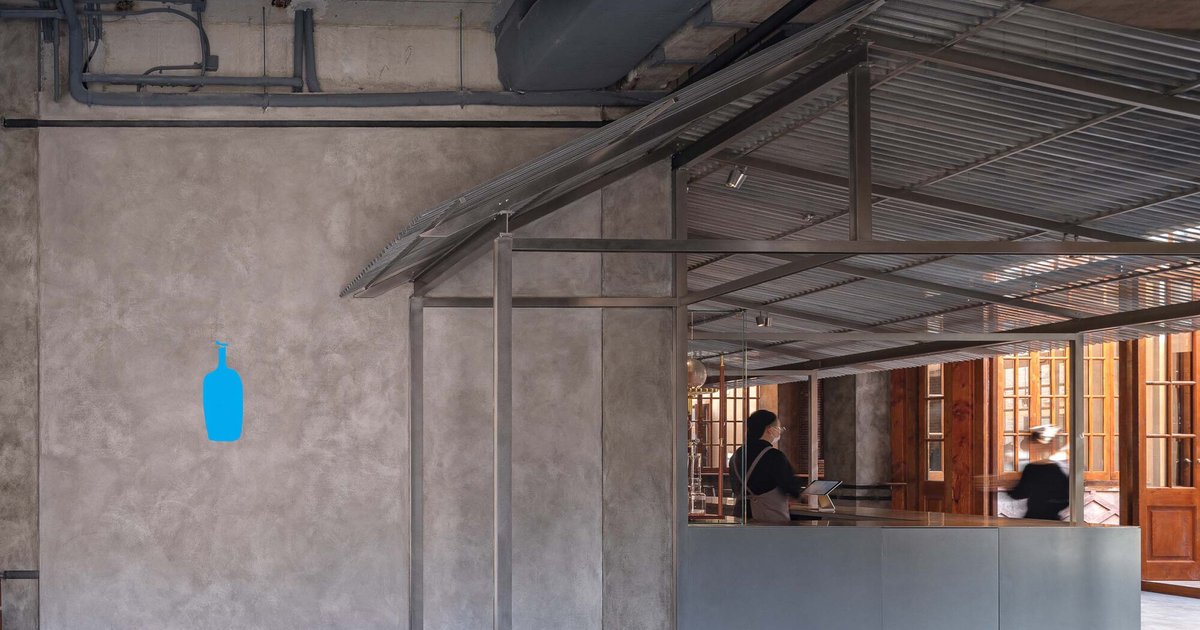

Blue Bottle Coffee's brand identity is famously minimal: a silhouette of a bottle on a monochrome surface. Neri&Hu used this restraint to their advantage, casting the logo onto a concrete panel that sits beneath the corrugated metal ceiling and beside an exposed brick wall. The signage is not applied or backlit. It is literally part of the construction material, treated with the same seriousness as a column detail or a ceiling connection.

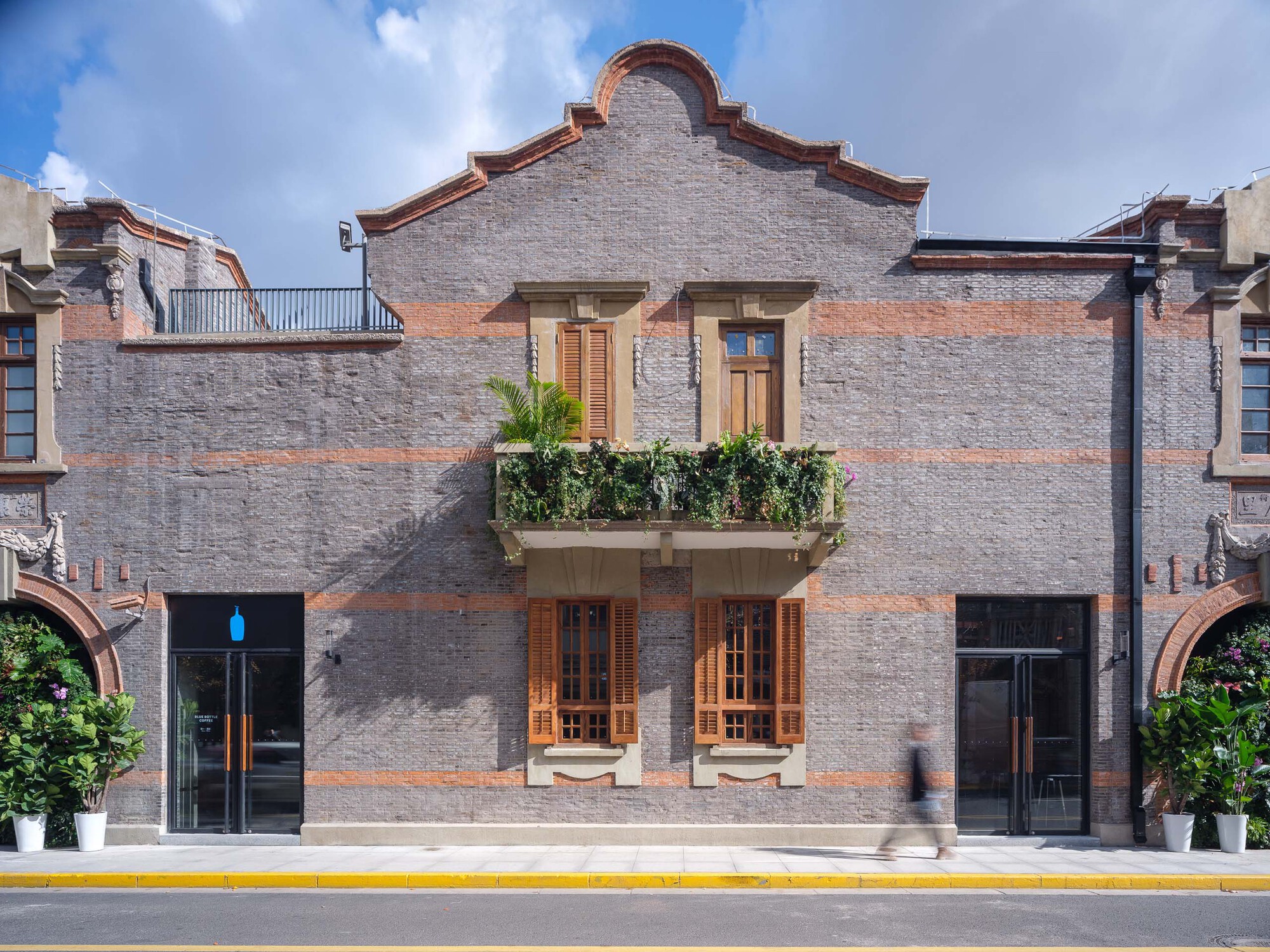

The street facade tells a different story entirely. The painted brick, curved parapet, timber doors, and balcony planters are all original Shikumen elements that give no hint of the contemporary intervention behind them. The entry experience is one of surprise: you walk through a 19th-century doorway and land in a space that is unmistakably 21st-century. That threshold moment is the project's most effective piece of storytelling.

Physical Models and Material Explorations

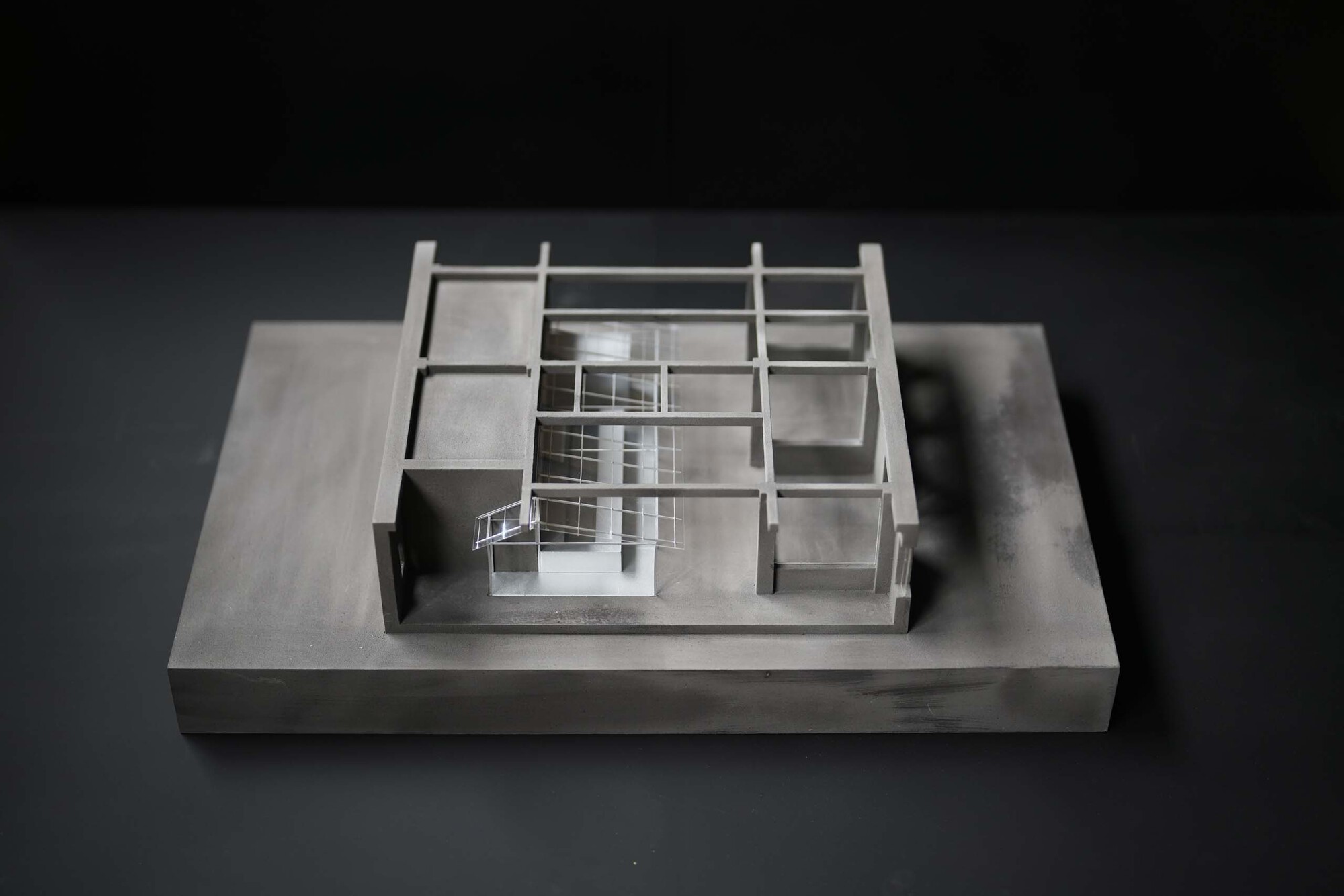

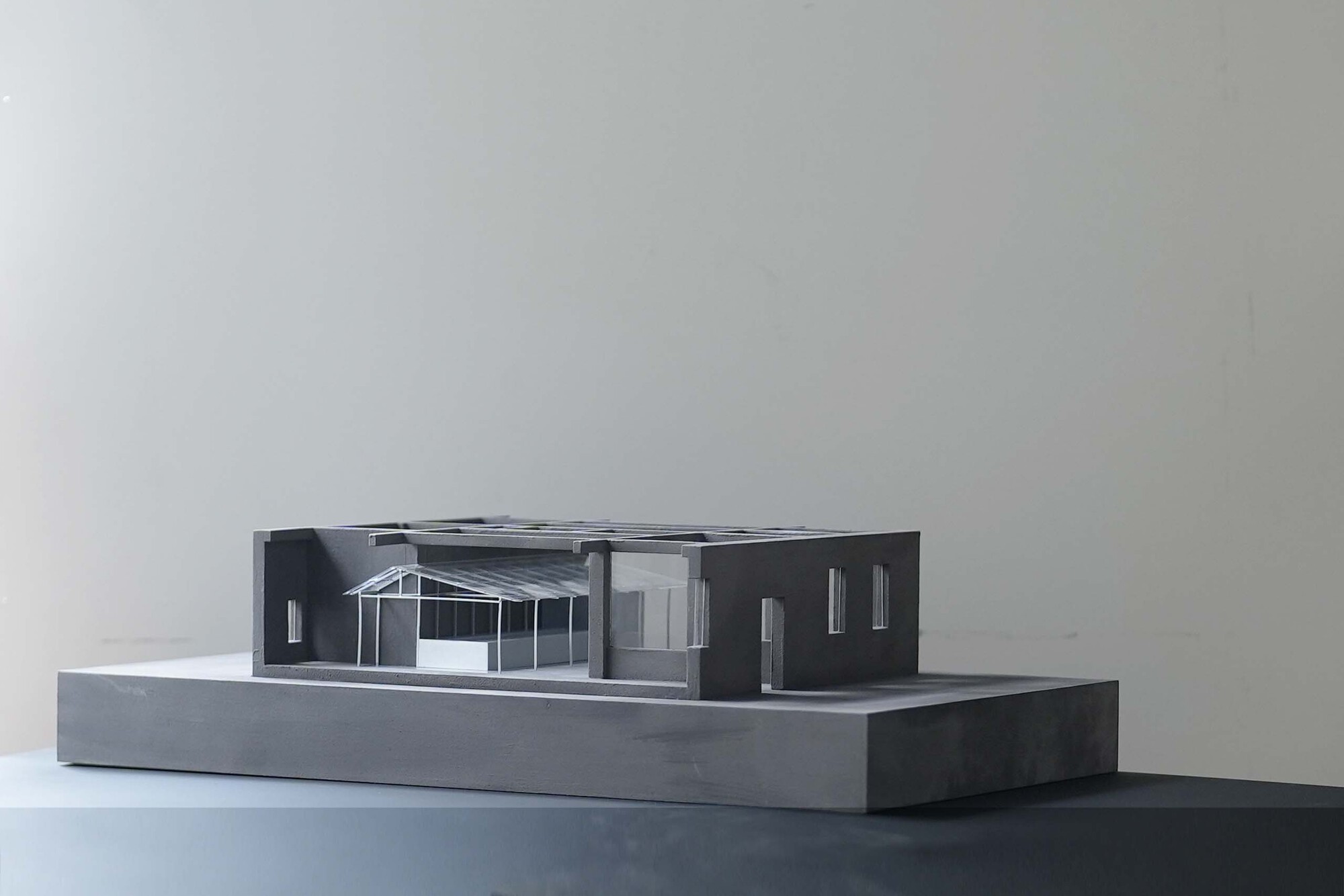

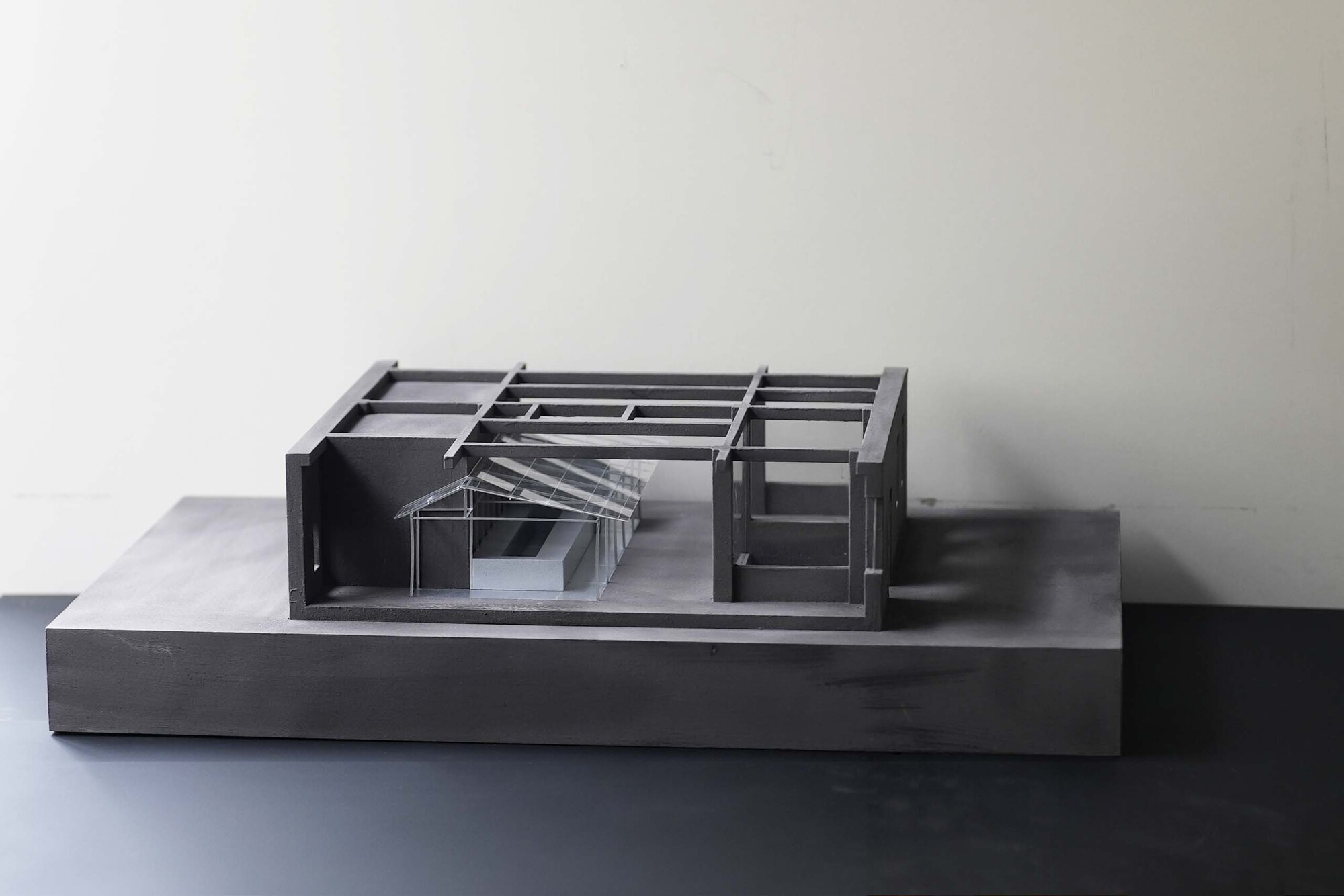

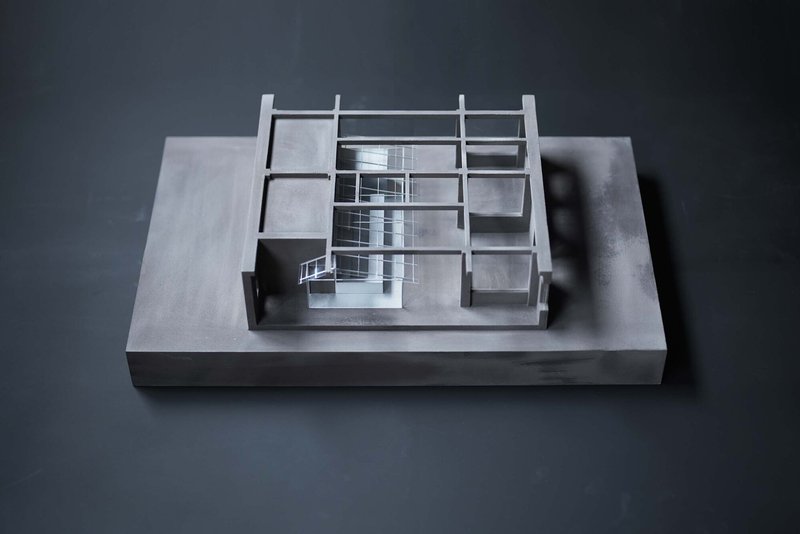

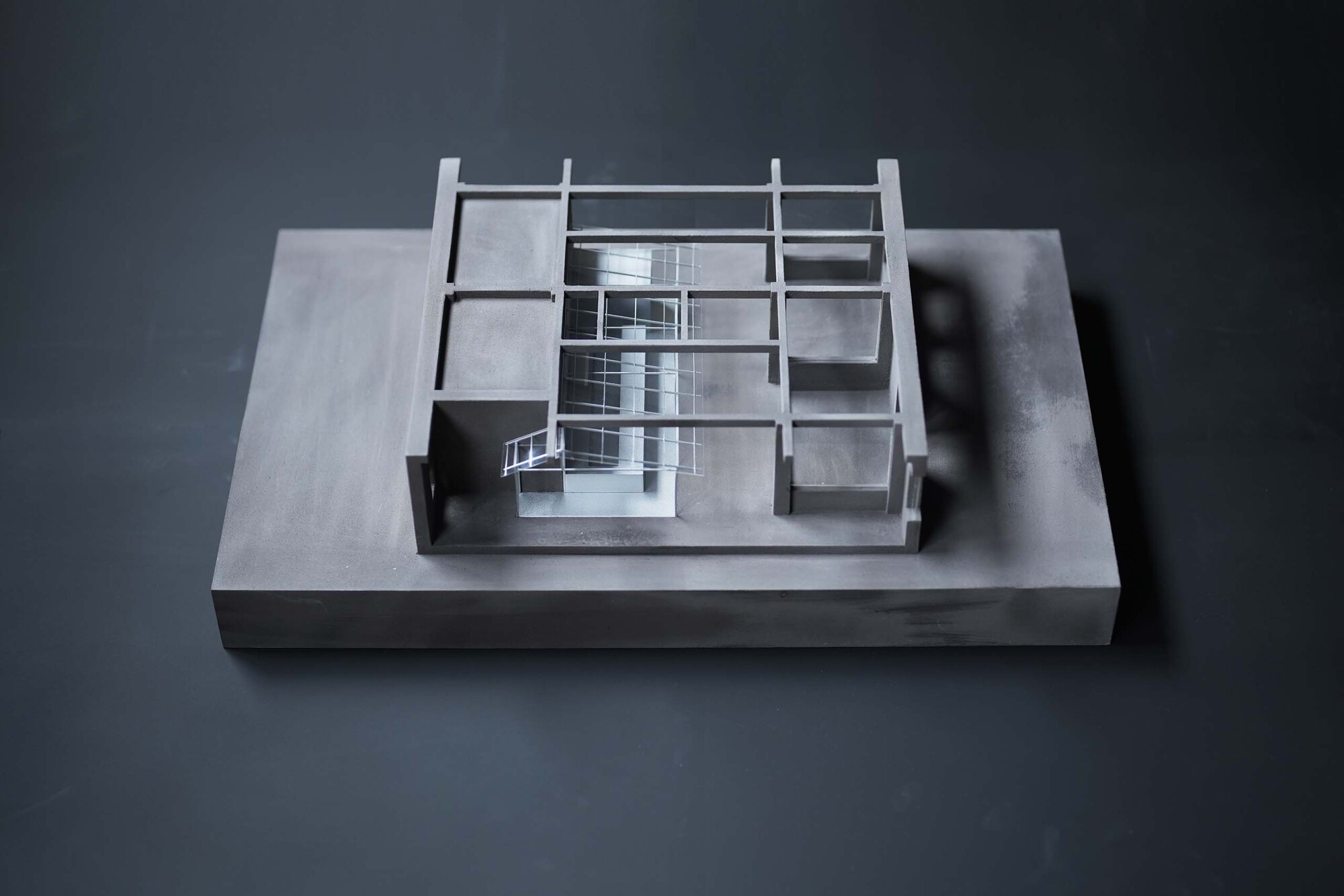

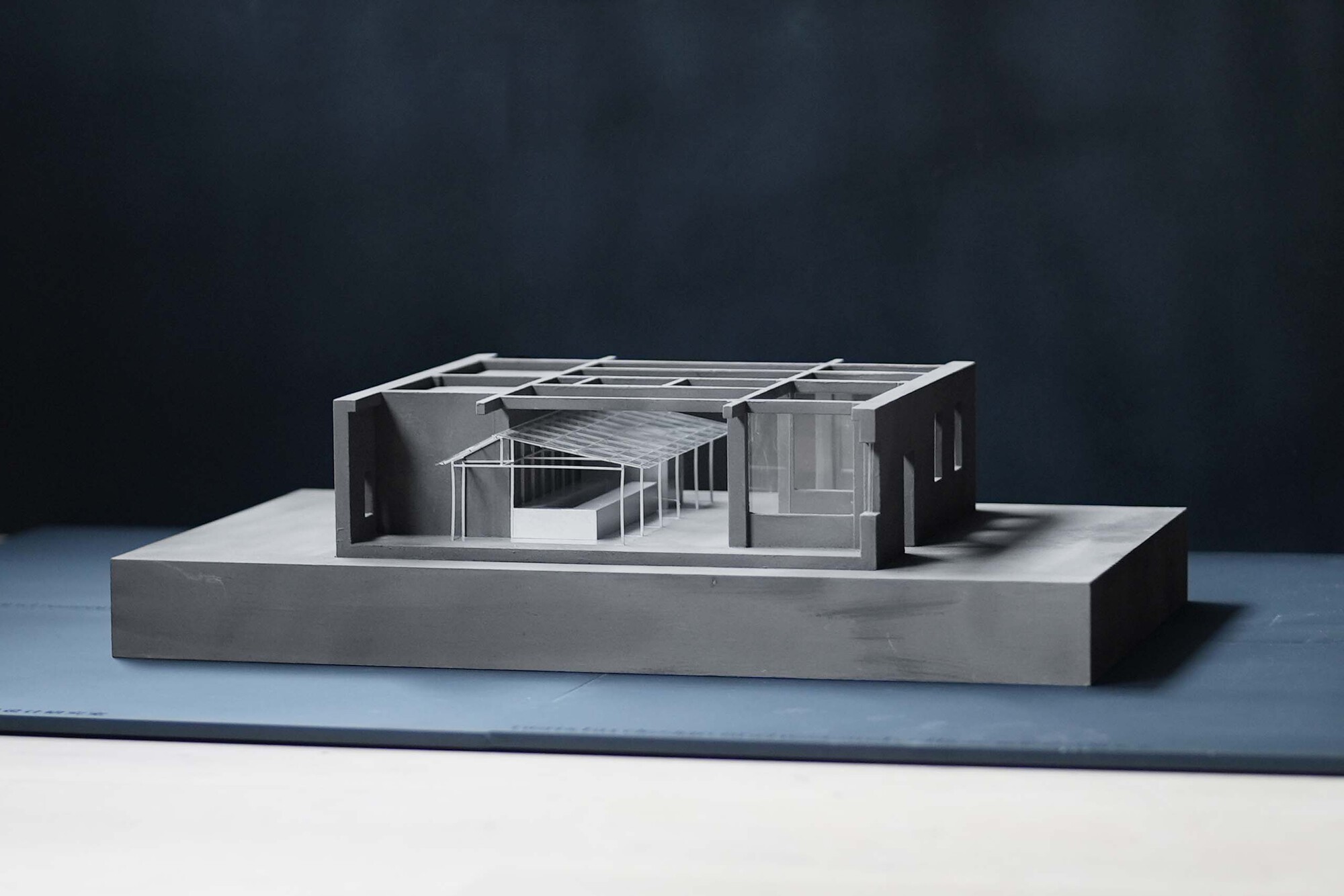

Neri&Hu's physical models reveal the sectional ambition of the project more clearly than the finished photographs. The gabled roof structure, the interior courtyard, the exposed timber framing, and the central staircase arrangement are all legible through transparent acrylic walls and cut-away volumes. These models show how the architects worked through the spatial divisions, testing the relationship between the new steel frame and the existing envelope before committing to steel.

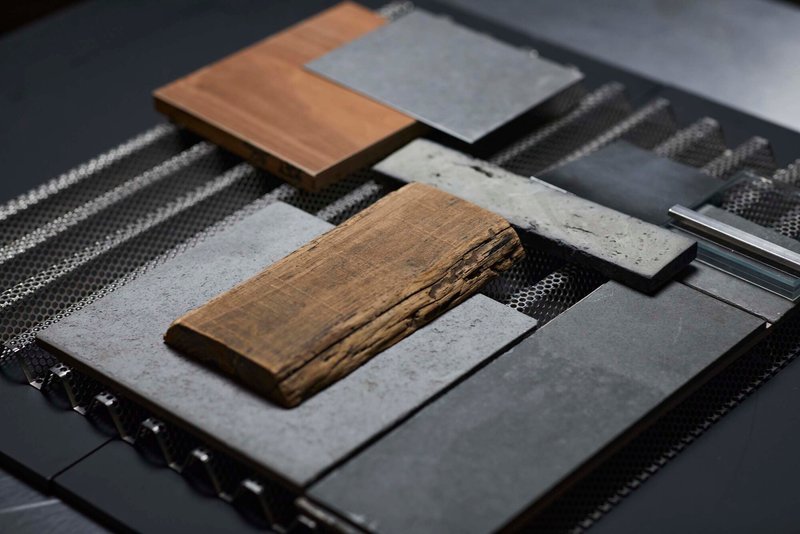

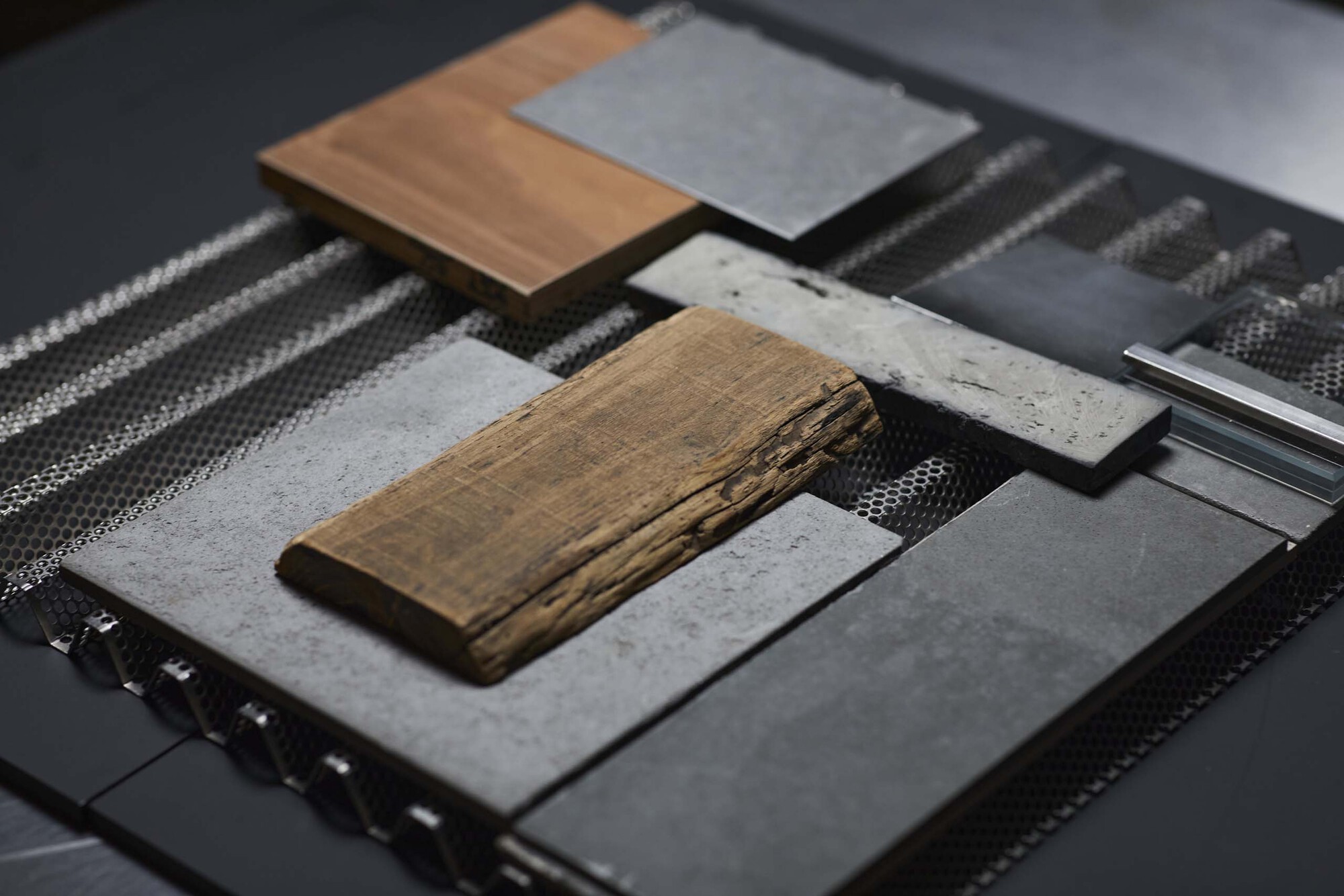

The material sample board, with its combination of timber, concrete, metal mesh, stone, and woven textile, reads like a miniature manifesto for the design. Every surface in the finished cafe can be traced back to one of these samples. The discipline of a constrained palette, rigorously tested at full scale through physical modeling, is what gives the project its coherence despite the collision of eras.

Plans and Drawings

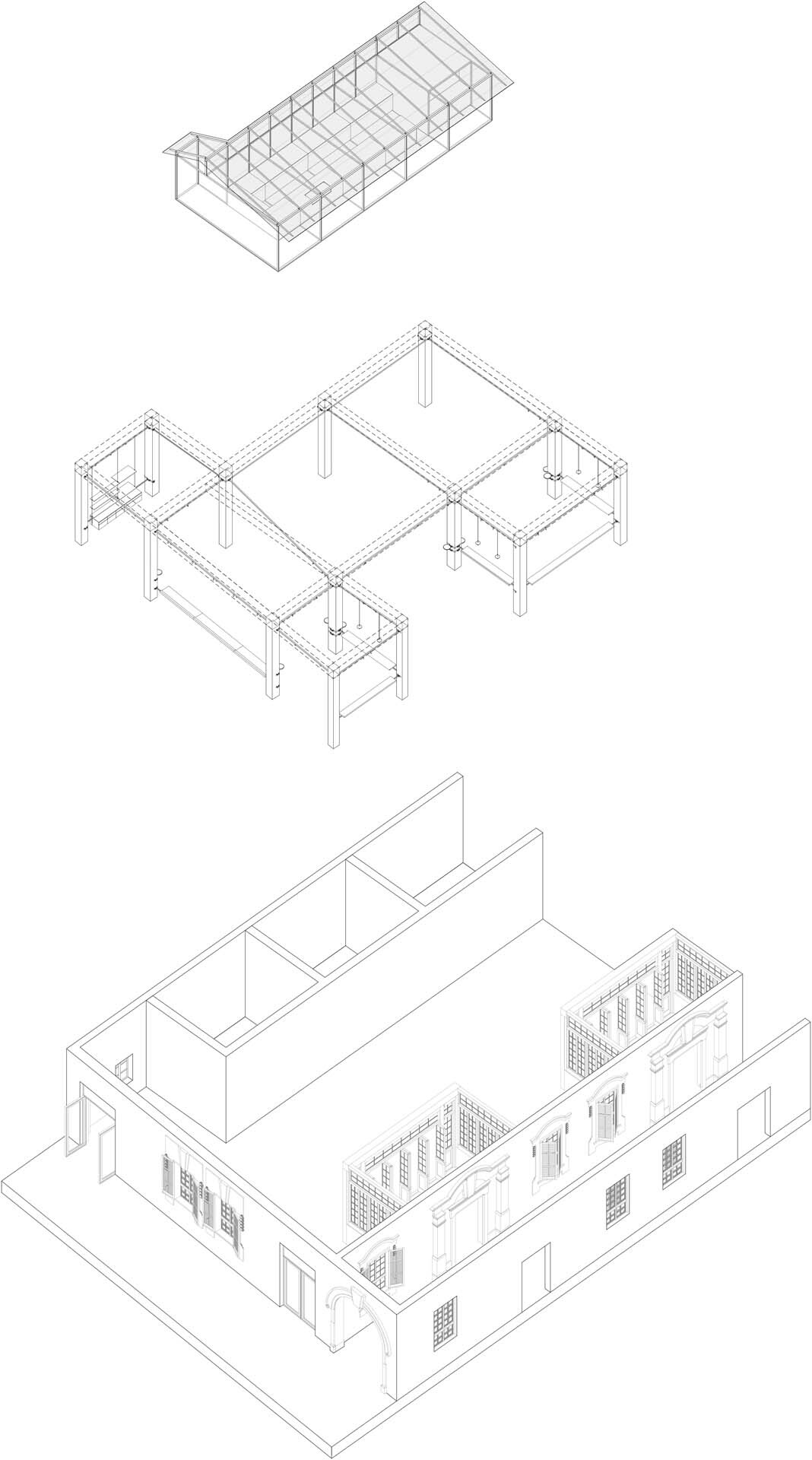

The axonometric sequence breaks the project into three layers: the roof structure, the floor plan organization, and the volumetric envelope with its openings. Read together, they make the strategy explicit. The new shelter sits inside the old shell, touching it only at the column connections and the ceiling junction. The floor plan places the central bar as a gravitational center, with adjacent lounge areas wrapping around it in an arrangement that follows the original room divisions.

The section drawing is particularly revealing. It shows the gabled volume of the Shikumen alongside a two-story tiled service block, clarifying how the single-story cafe occupies only part of the building's total volume. The height of the existing space is what allows the corrugated metal canopy to float beneath the concrete beams without feeling compressed. Without that generous section, the entire parasitic strategy would collapse.

Why This Project Matters

Heritage architecture in China is often caught between two extremes: frozen-in-amber preservation that empties buildings of life, or aggressive gut renovations that erase everything but the facade. Neri&Hu's Blue Bottle Zhang Yuan Cafe offers a credible third path. By treating the Shikumen as a host organism and the cafe as a carefully calibrated parasite, they allow both systems to remain legible, structurally independent, and functionally alive. The approach borrows from the very culture it inhabits: Shanghai's lilong alleys have always been about improvisation within inherited structure.

For architects working in historic contexts, the project demonstrates that material honesty and design ambition are not in conflict. The brushed steel canopy does not apologize for being new. The brick walls do not pretend to be older than they are. Neri&Hu's four-part strategy of material contrast, tectonic differentiation, formal assemblage, and surgical grafting is transferable far beyond Shanghai, and it sets a standard for how specialty retail can occupy heritage fabric without hollowing it out.

Blue Bottle Zhang Yuan Cafe by Neri&Hu Design and Research Office. Location: Shanghai, China. Area: 175 m². Year: 2022.
