XBTW OFFICE Tilts Four Corrugated Planes to Turn a Ten-Meter Moganshan Footbridge into a Device for Looking

Small bridges rarely get design attention. They are usually treated as infrastructure: span the gap, add a rail, move on. XBTW OFFICE, led by Teng Xing and Boxia Wang, took a ten-meter crossing over Fuxi Creek in Yucun, Moganshan, and treated it as the main design problem. The Easel Bridge is about two meters wide and covers 20 m². It sits in a waterfront commercial district near the Liaoyuan Theater, shops and restaurants, and the Deqing Culture & Tourism Group commissioned it as one node in the town's slow-mobility network.

The interesting part is where the architects started. They did not begin with a plan, a structural span or a signature silhouette. They began with the cross-section. That section is made of four inclined planes, and each one varies in length, angle and arrangement. The aim is to prompt particular postures: viewing, leaning, pausing and interacting. In effect, the railing becomes the program. It is a modest idea at a modest scale, and we think it is a sharper one than most bridges ten times this size manage.

A Light Crossing Between Stone Walls

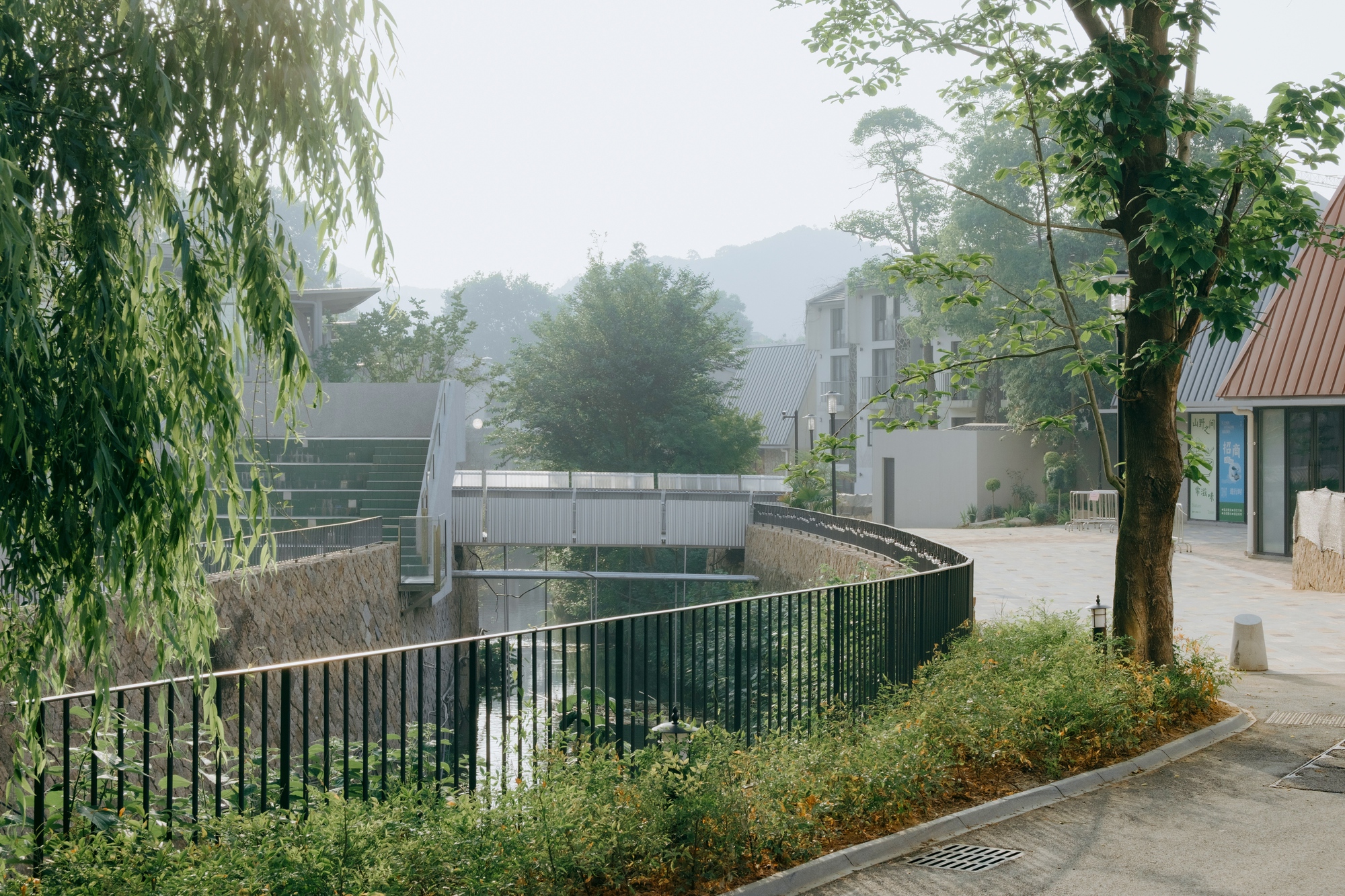

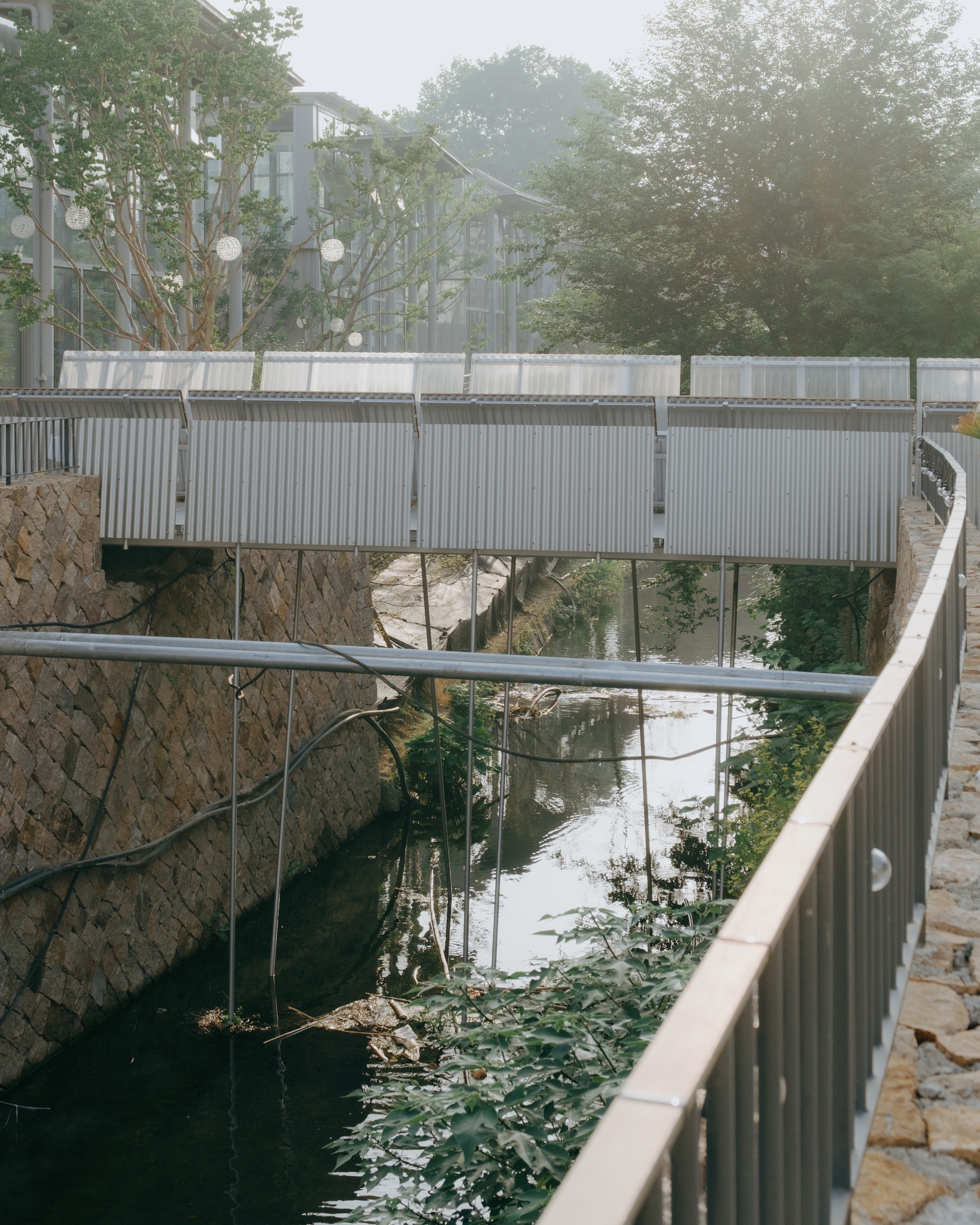

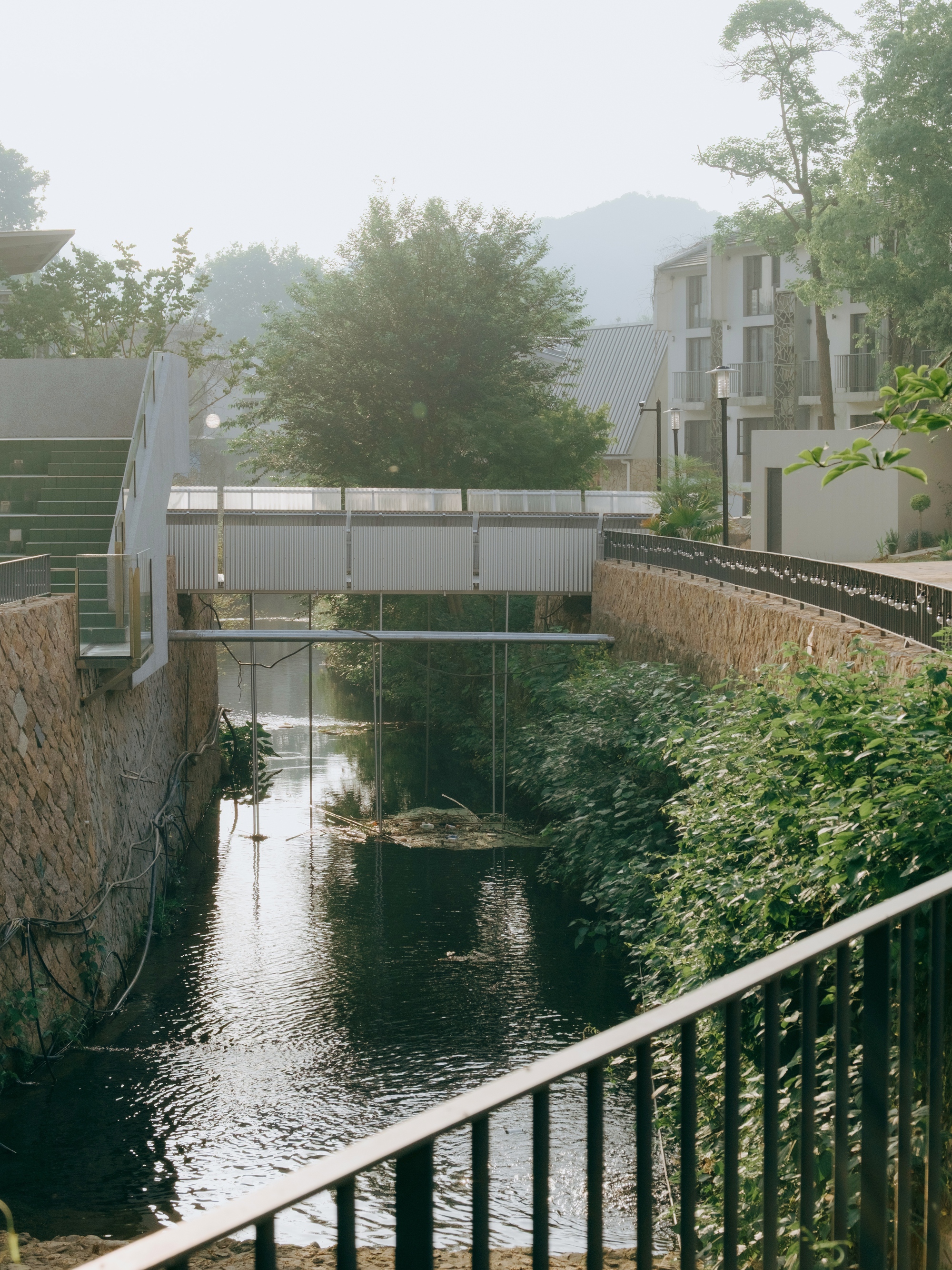

From the creek banks, the bridge reads as a thin ribbon of corrugated metal stretched between two heavy, stacked-stone retaining walls. The contrast does most of the work. The channel's edges are dense, irregular and old in character. The bridge is ruled, repetitive and clearly new, and it makes no attempt to imitate the masonry.

In morning haze the corrugation softens into a band of shadowed stripes. The structure seems to hover rather than land. This matters because the creek is narrow. A heavier crossing would have shut the waterway in, while this one leaves the stream and its willows visible beneath and around it.

Holding Its Own Against the Mountain

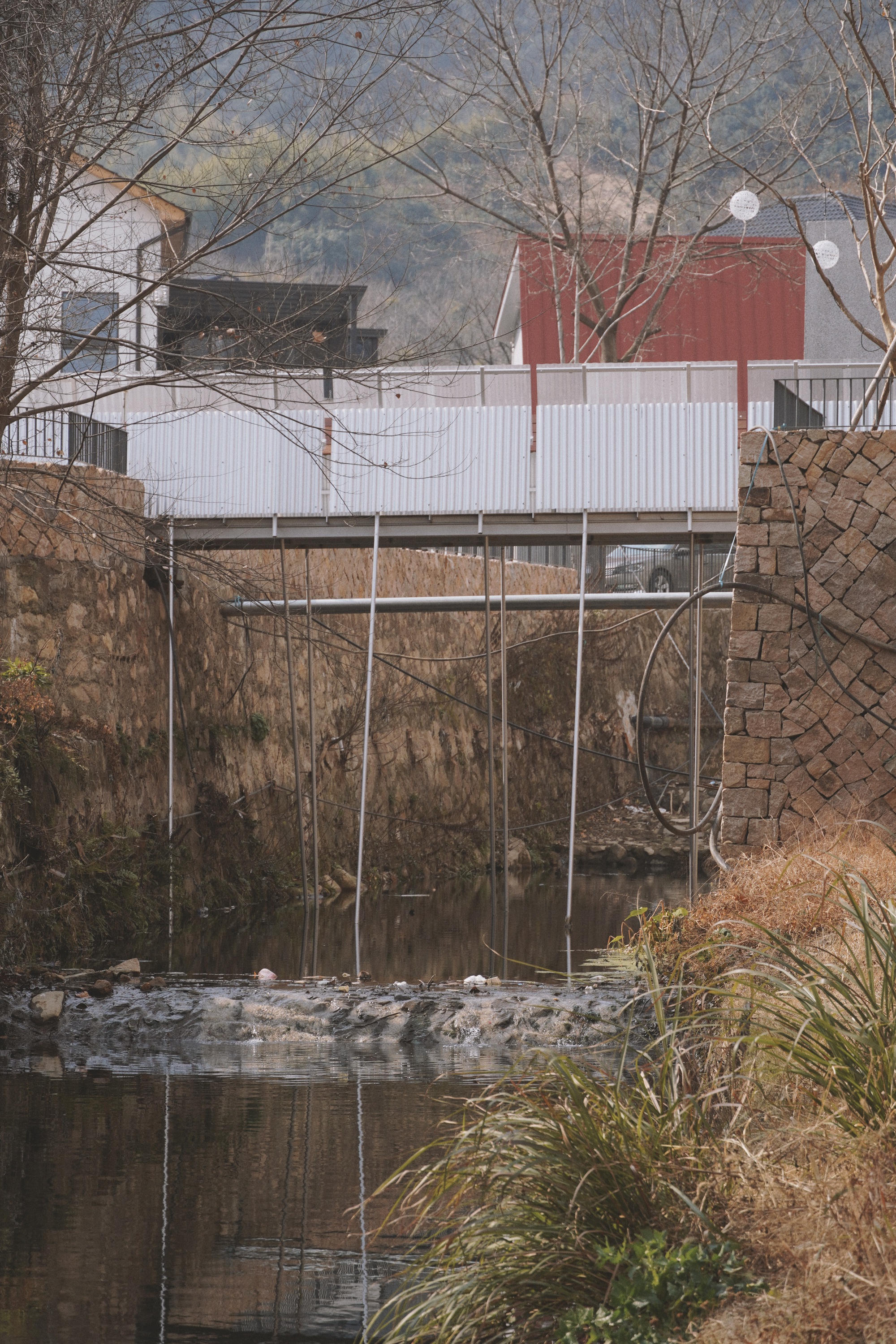

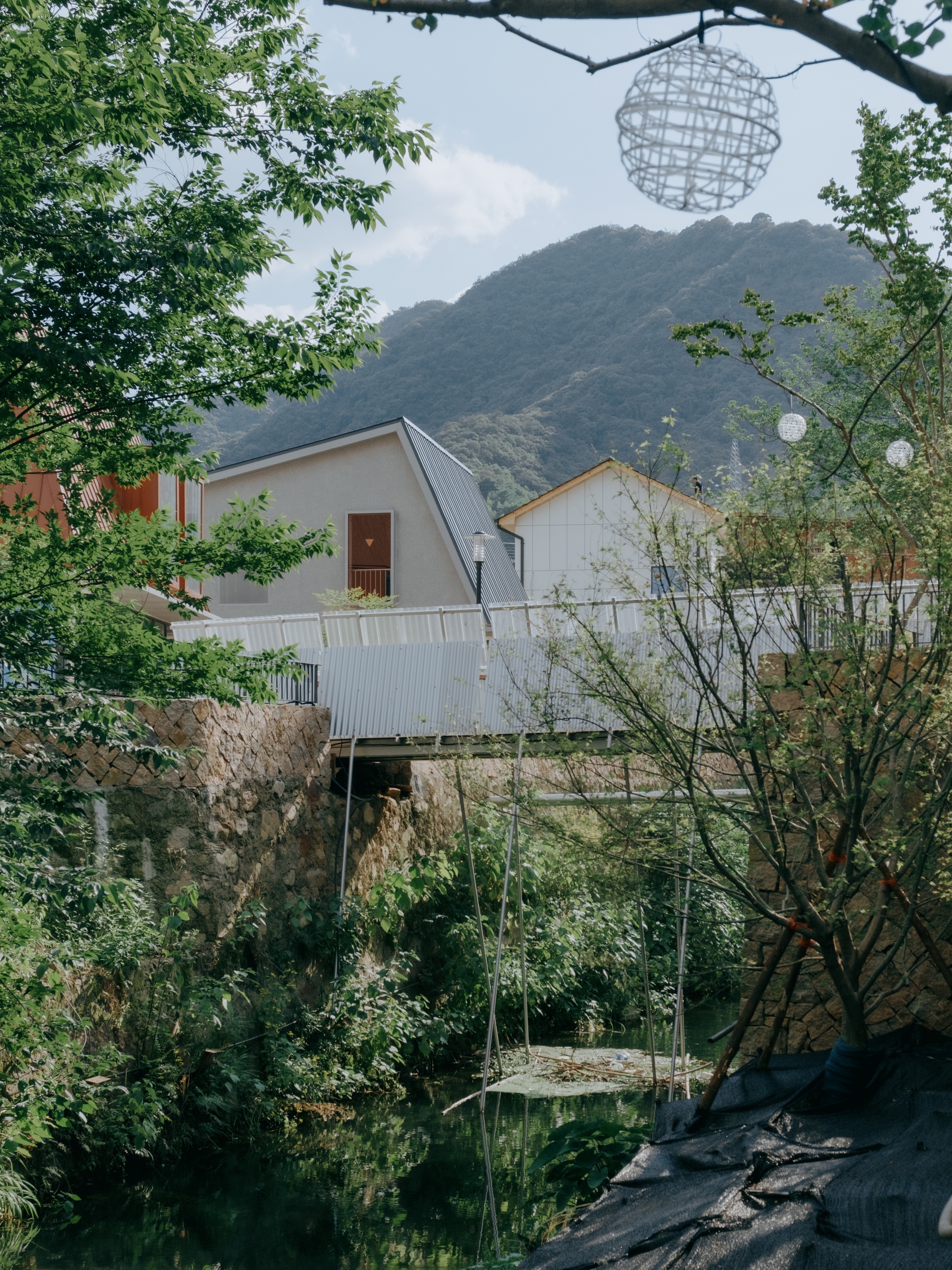

In summer light the bridge sits below gabled houses, with a green mountain behind it. In winter it is seen through bare branches, resting on rods thin enough to nearly disappear. The material palette does not try to blend with Moganshan's picturesque image, and we see that restraint as the right call. A visitor-economy town like this one is full of nostalgic set dressing. An honest, industrial object with careful proportions is more convincing than another faux-vernacular gesture.

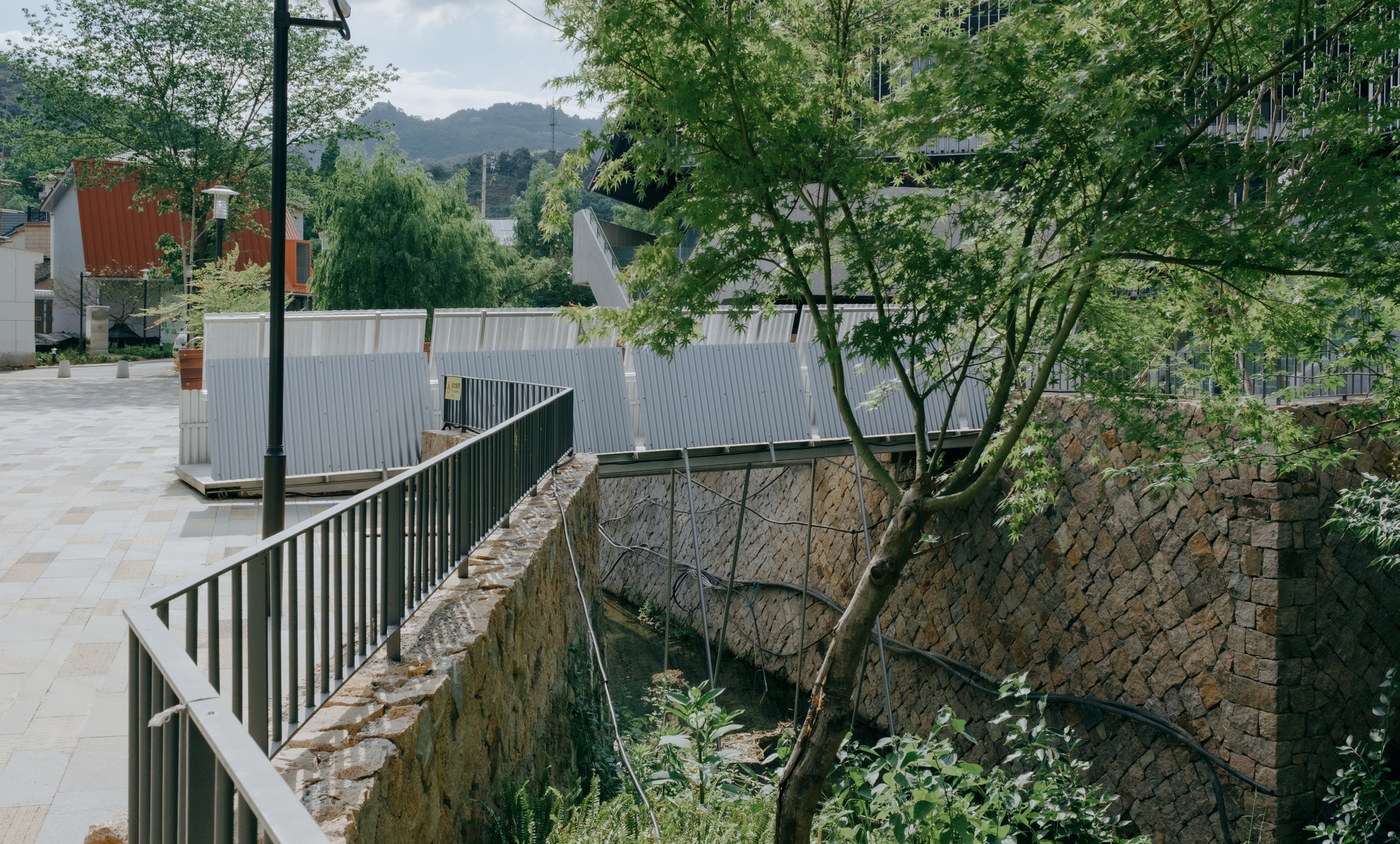

The photographs also show an existing metal railing curving along the channel, with a maple branch overhead. That fragment is a useful reminder of the standard condition. The usual waterfront edge is a barrier, and the Easel Bridge argues that an edge can do much more than that.

Four Planes, Four Postures

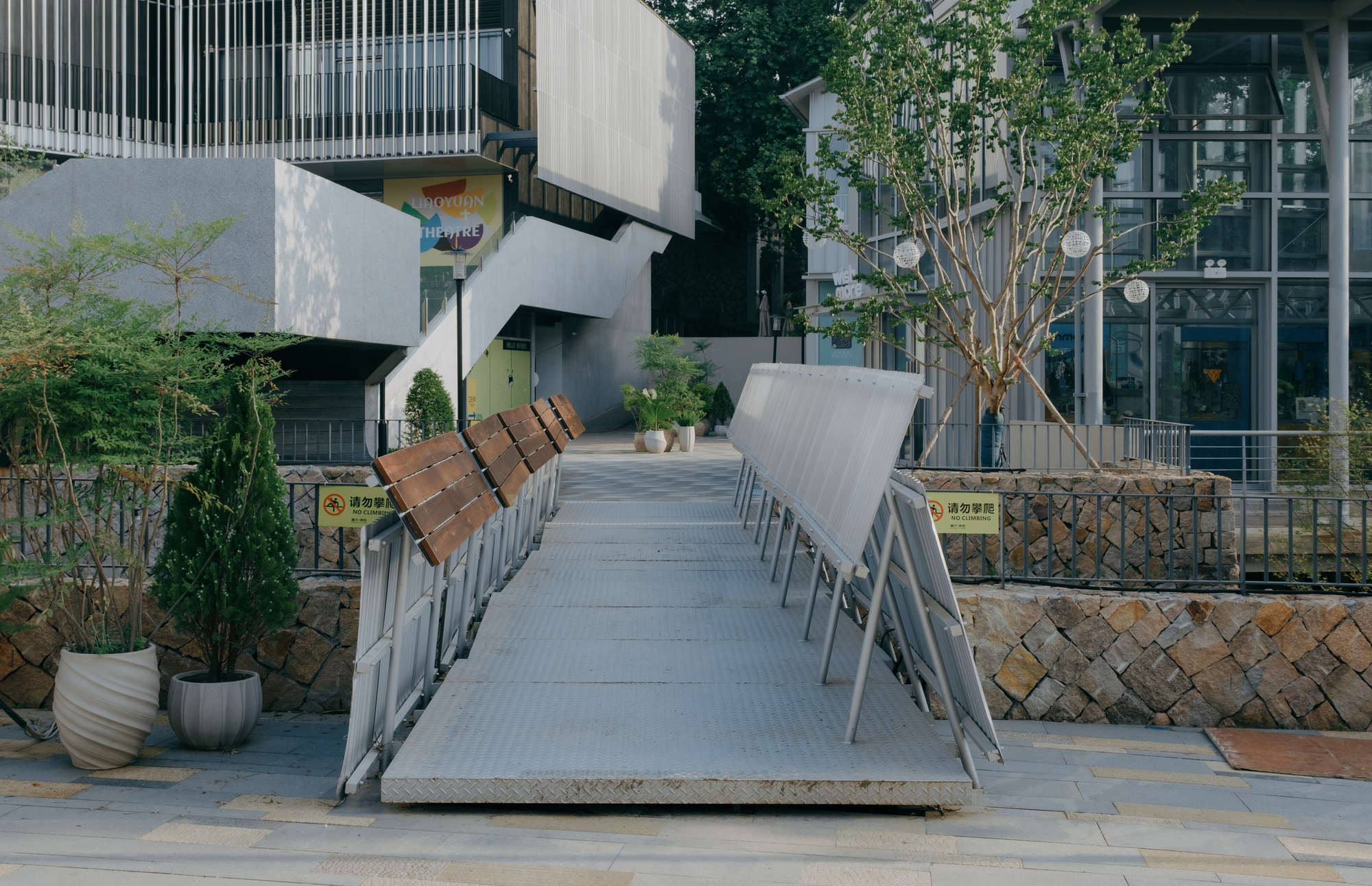

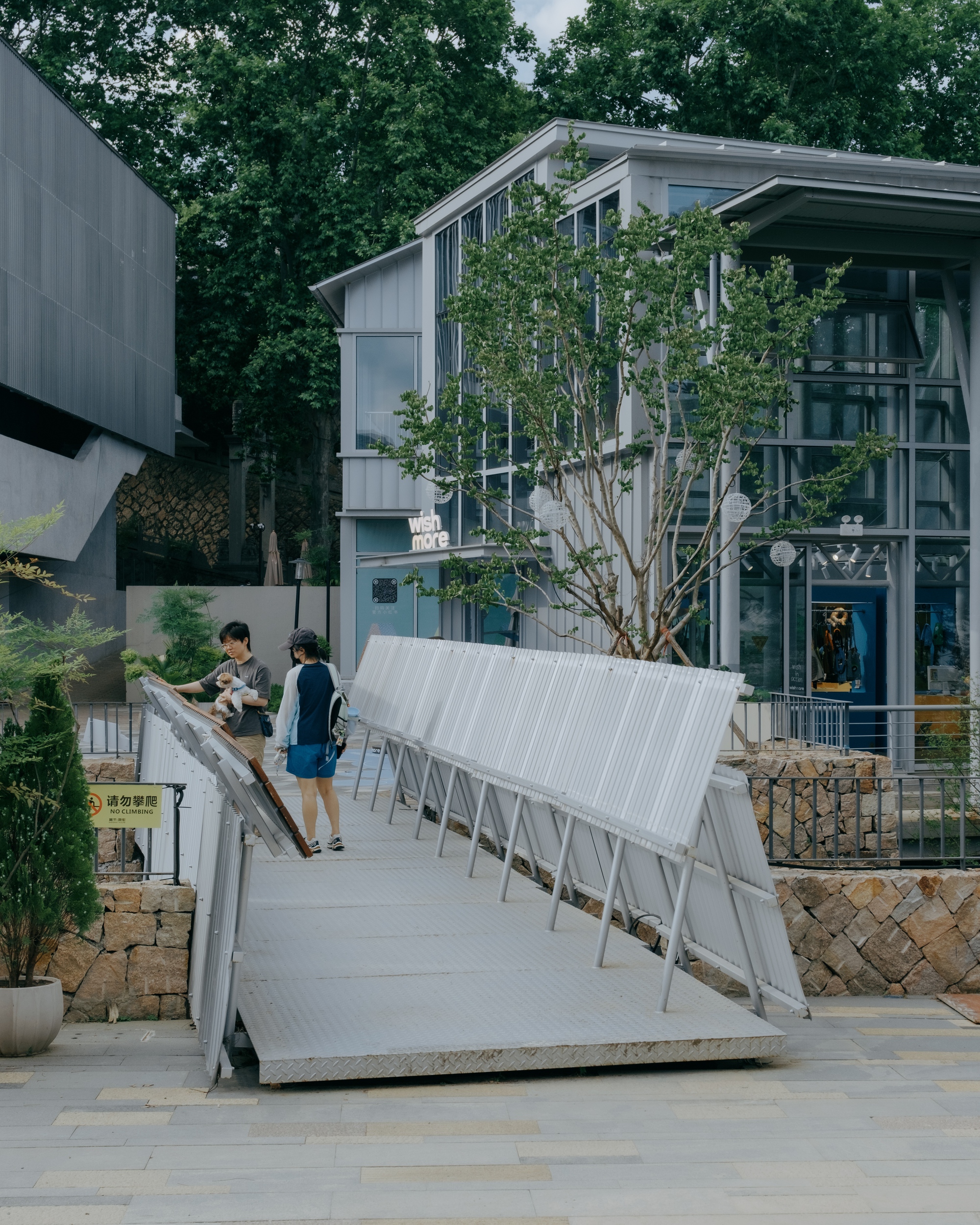

The photographs show the same tilted panel system lining metal ramps that lead toward a glass-fronted pavilion and a small gabled kiosk. Some panels lean outward, which opens the view and invites you to rest against them. Others tip inward or drop lower, where timber seat rails turn the edge into somewhere to perch. The section changes as you move, so the experience of walking the route changes too.

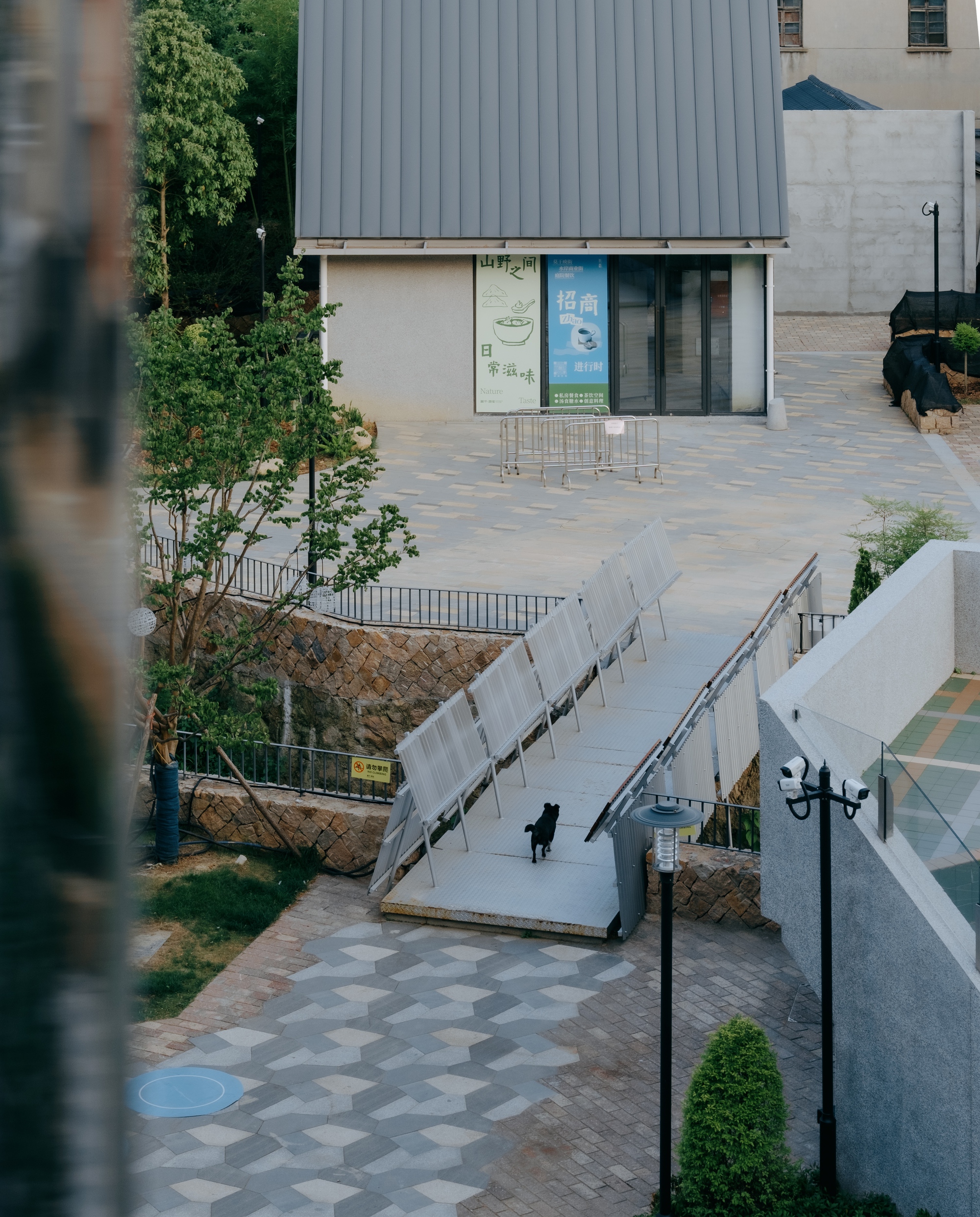

This is choreography by geometry rather than by signage. No sign tells you to stop and look. The angle of the plane suggests it, and your body follows. One image shows a dog trotting across the ramp, which captures the intent well: this is ambient public furniture, and it is meant to be used casually.

Corrugation as Filter

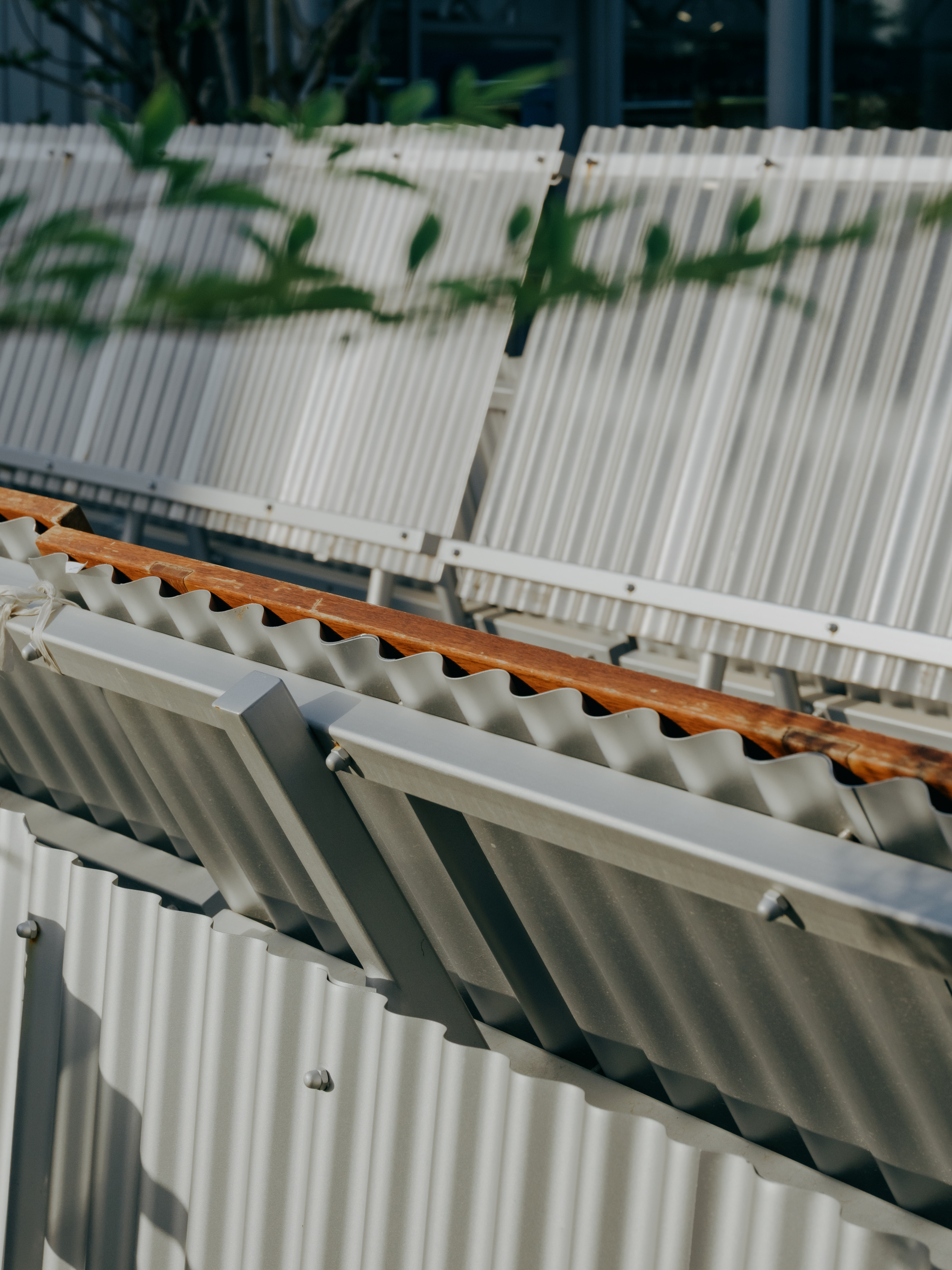

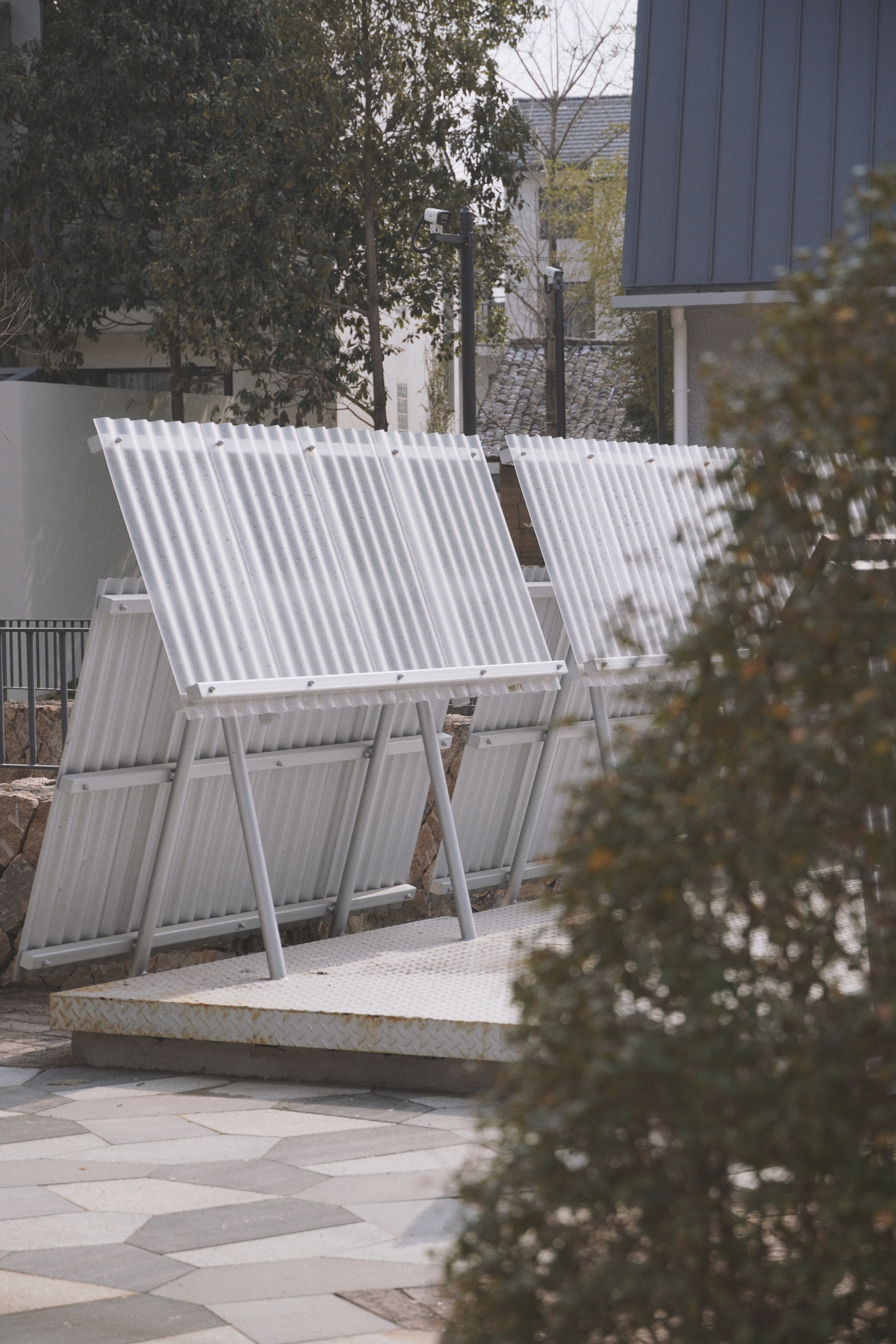

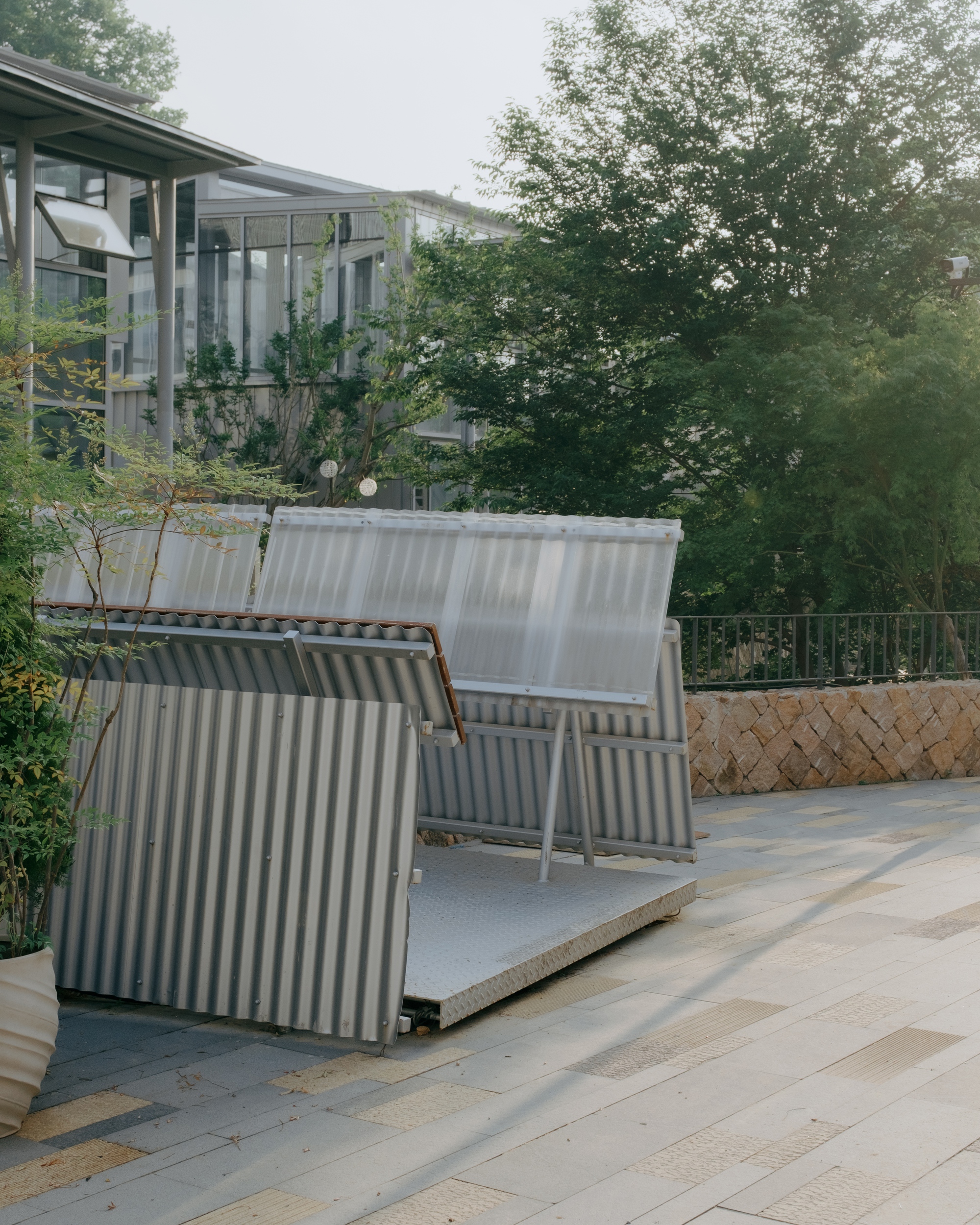

The panels come in two versions: opaque corrugated metal and translucent corrugated sheet. In low evening sun the translucent panels glow, while the metal ones pick up leaf shadows along their ridges. Corrugation is a cheap, ordinary material, the stuff of sheds and site hoardings. Here it is tilted and framed, and it begins to act like a lens. It catches light, breaks up views and records the movement of the trees overhead.

Mixing opaque and translucent sheets lets the designers tune how open each section feels without changing the system. We read this as the project's most transferable lesson. Variation comes from angle and material choice, while the components themselves stay standard.

Bolted, Framed, Legible

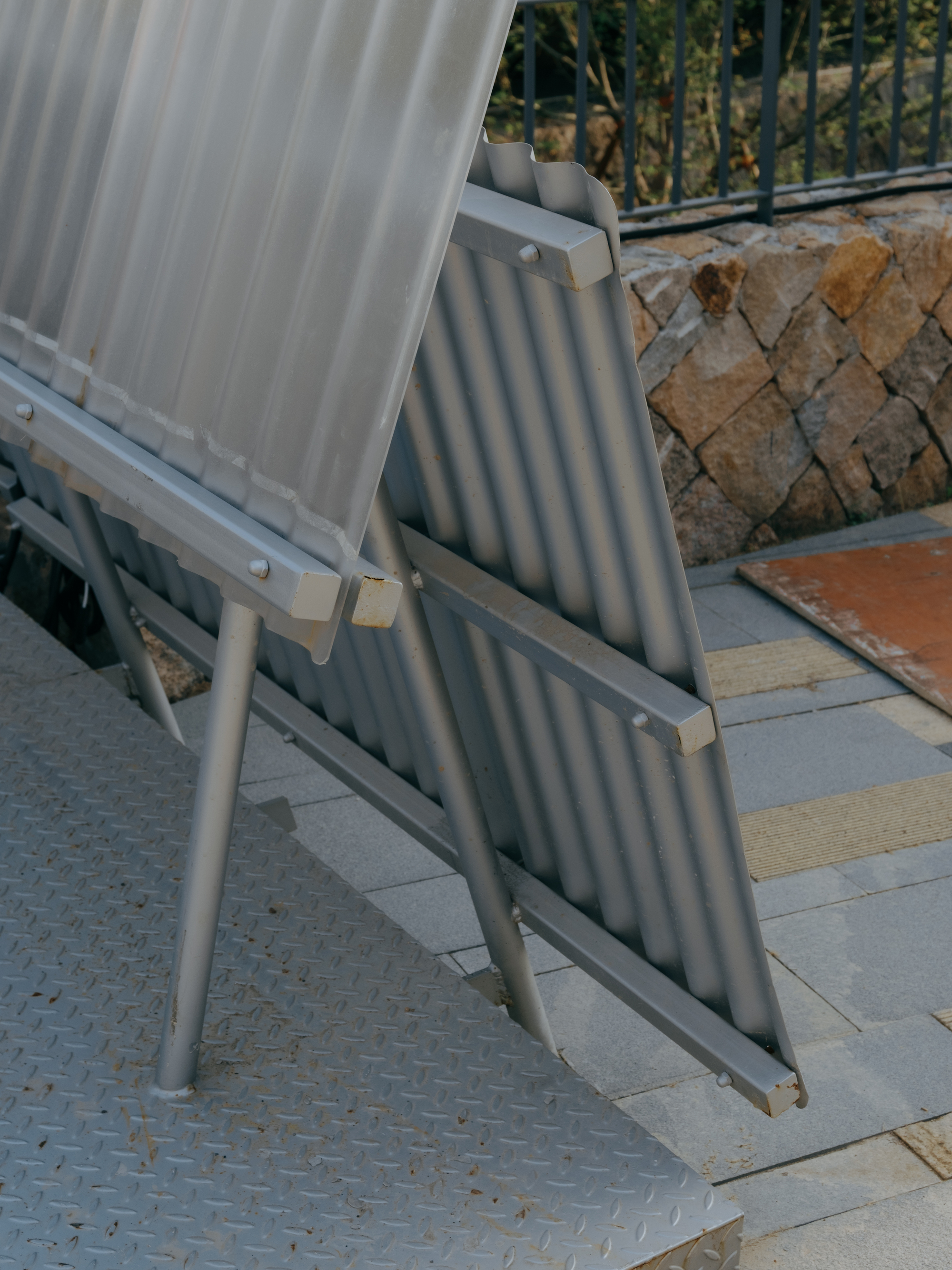

Up close, the construction is entirely visible. Bolted steel angle frames hold the panels, tubular legs carry them, and diamond-plate decking runs underneath. Nothing is hidden behind cladding. The detailing reads more like stage carpentry than conventional bridge engineering, which fits the fact that a props fabricator, Zhuoer Props, acted as general contractor.

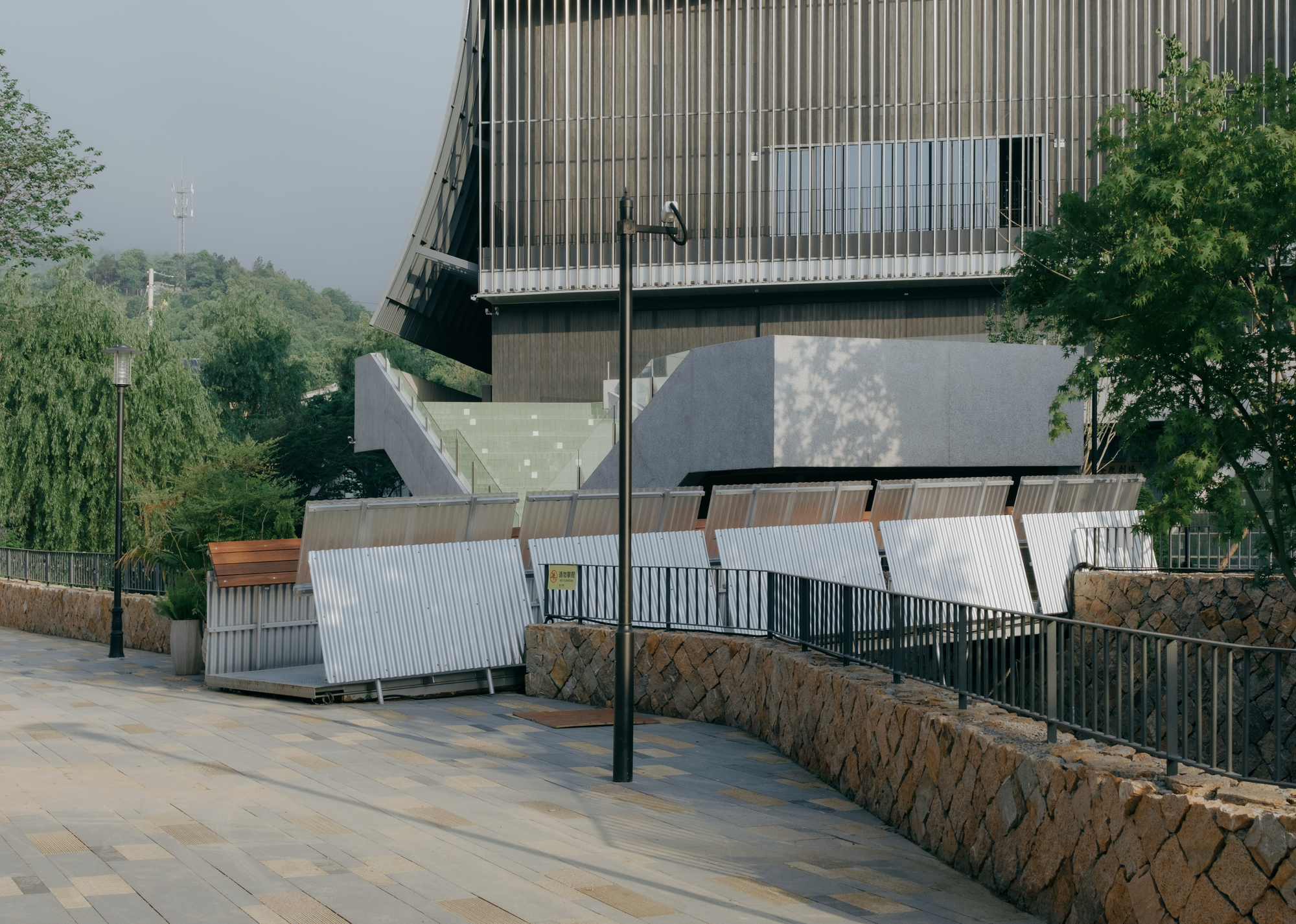

Against the curved stone wall of the plaza and the slatted facade above it, the panels look deliberately provisional. That lightness could be read as fragility. We read it as honesty about scale: this is a 20 m² piece of public equipment, and it does not pretend to be a monument.

Plans and Drawings

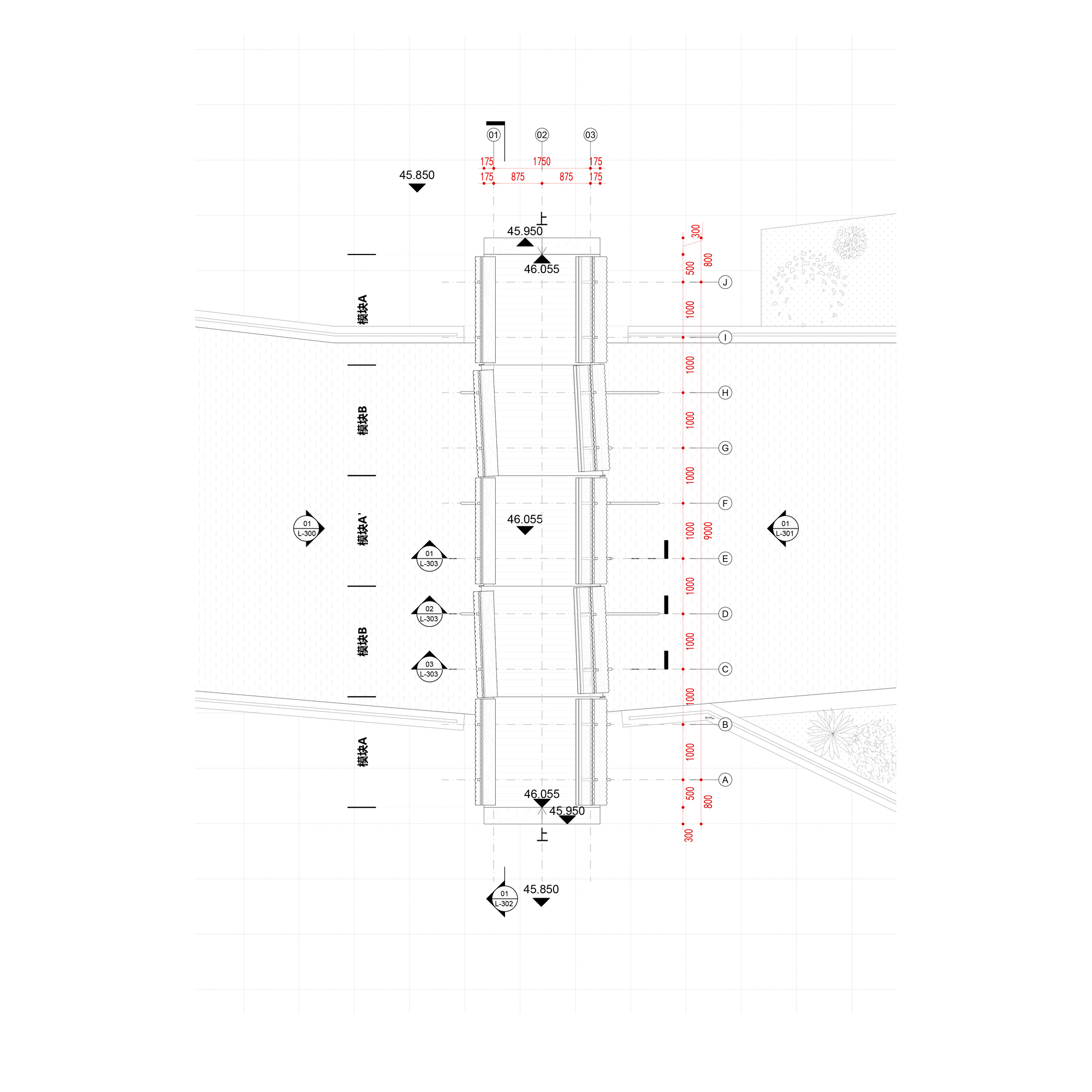

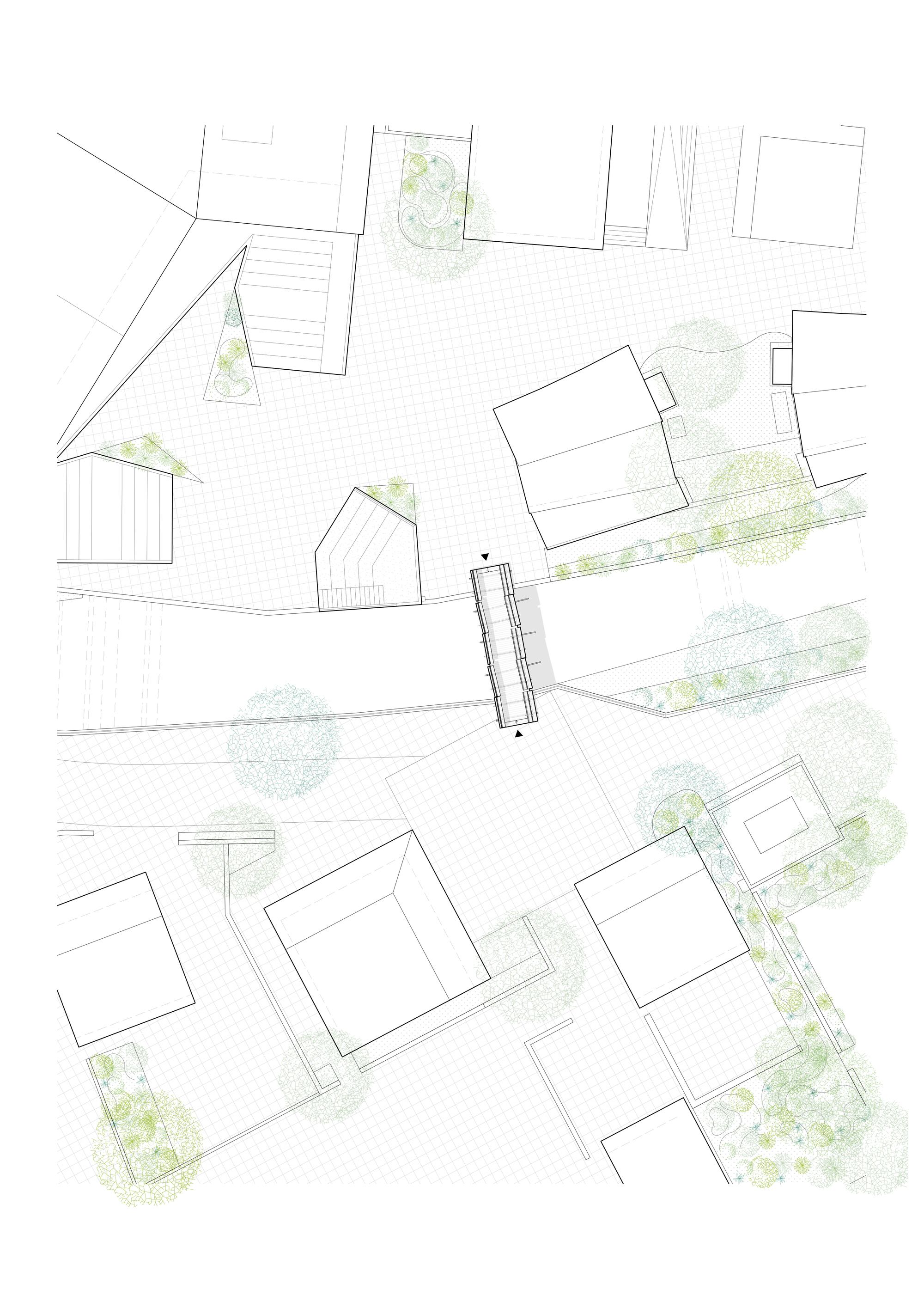

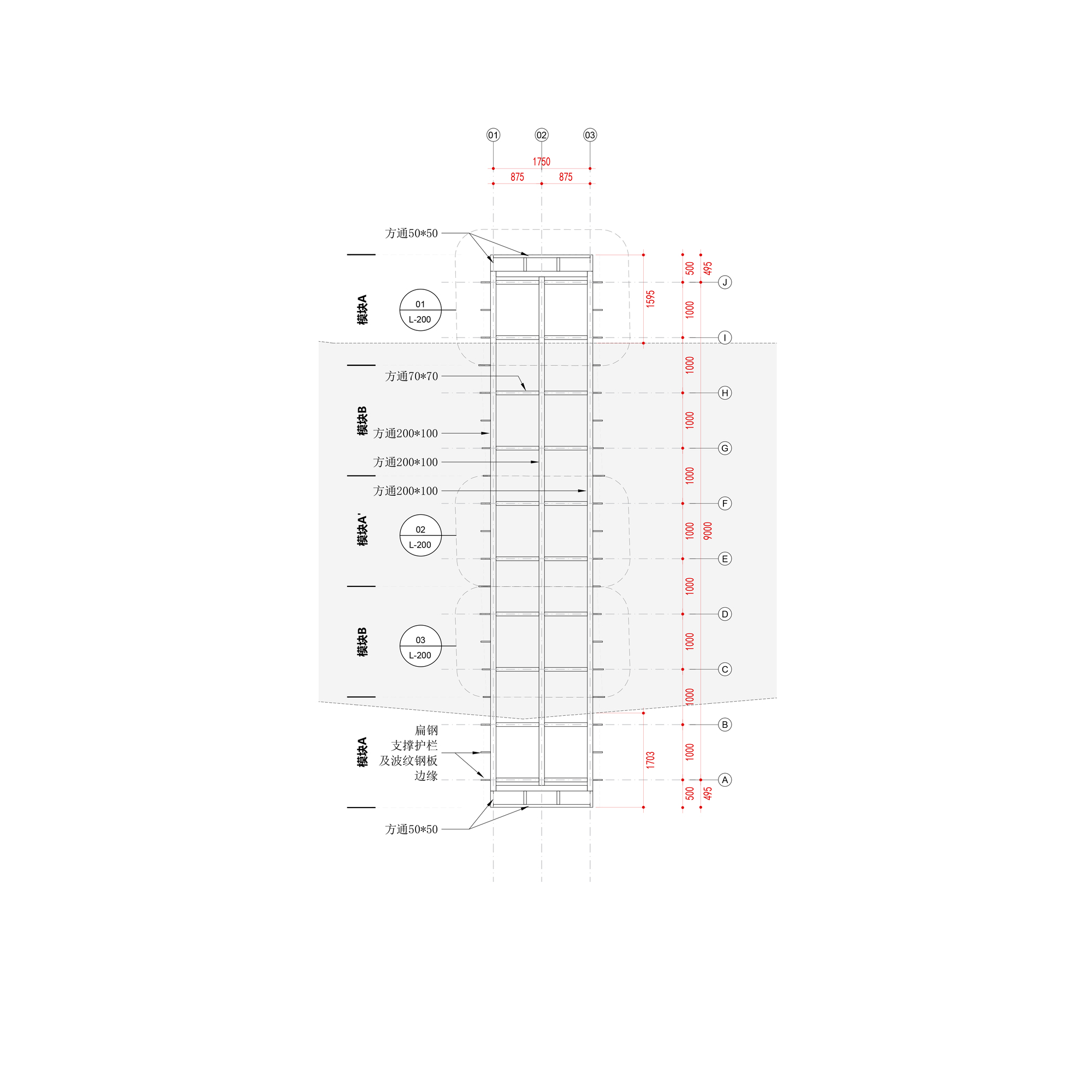

The site plan places the crossing among scattered gabled buildings, courtyards and planted beds. The deck plan divides the bridge into five modules, and the structural plan shows a framework of steel tube members and cross beams.

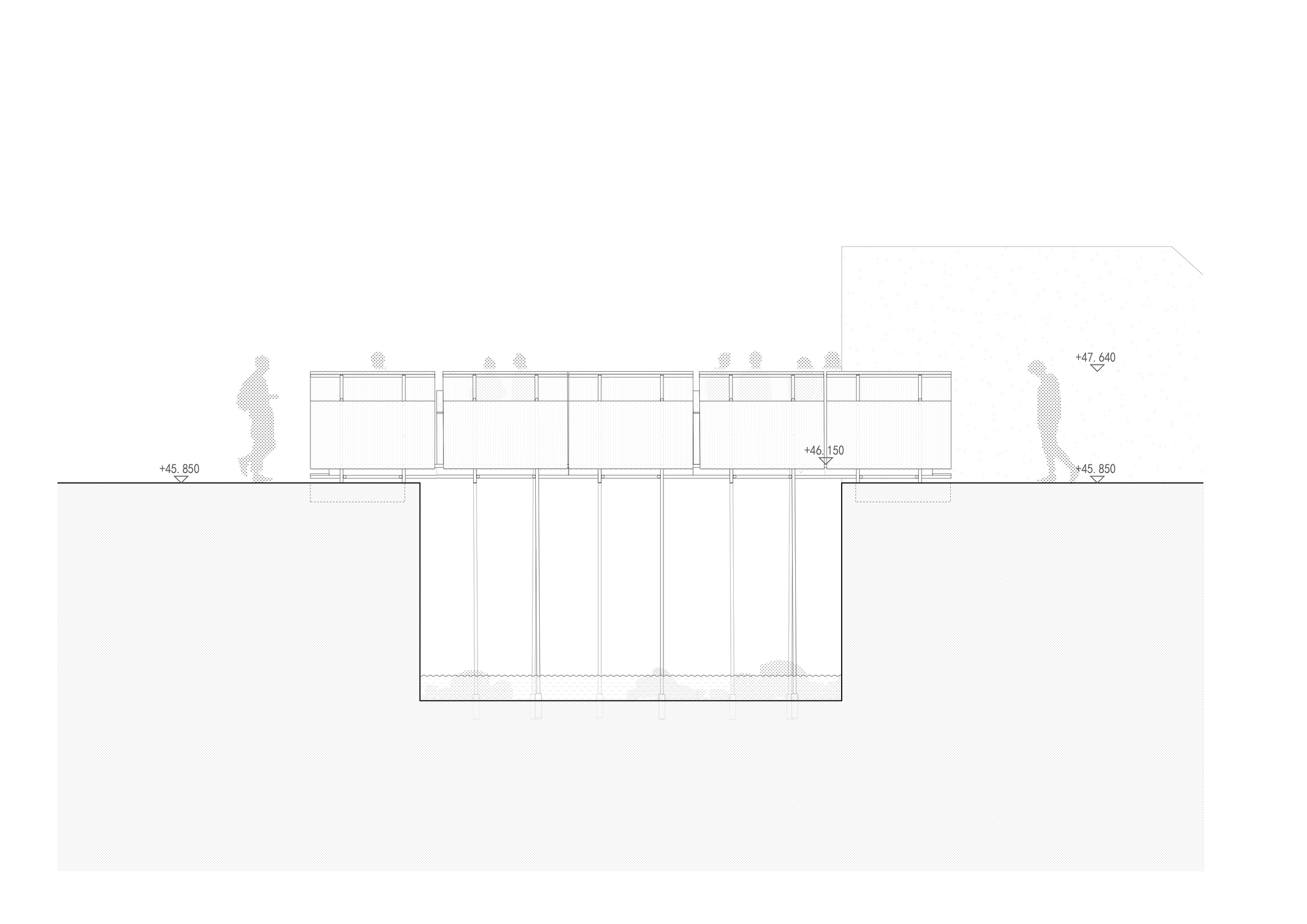

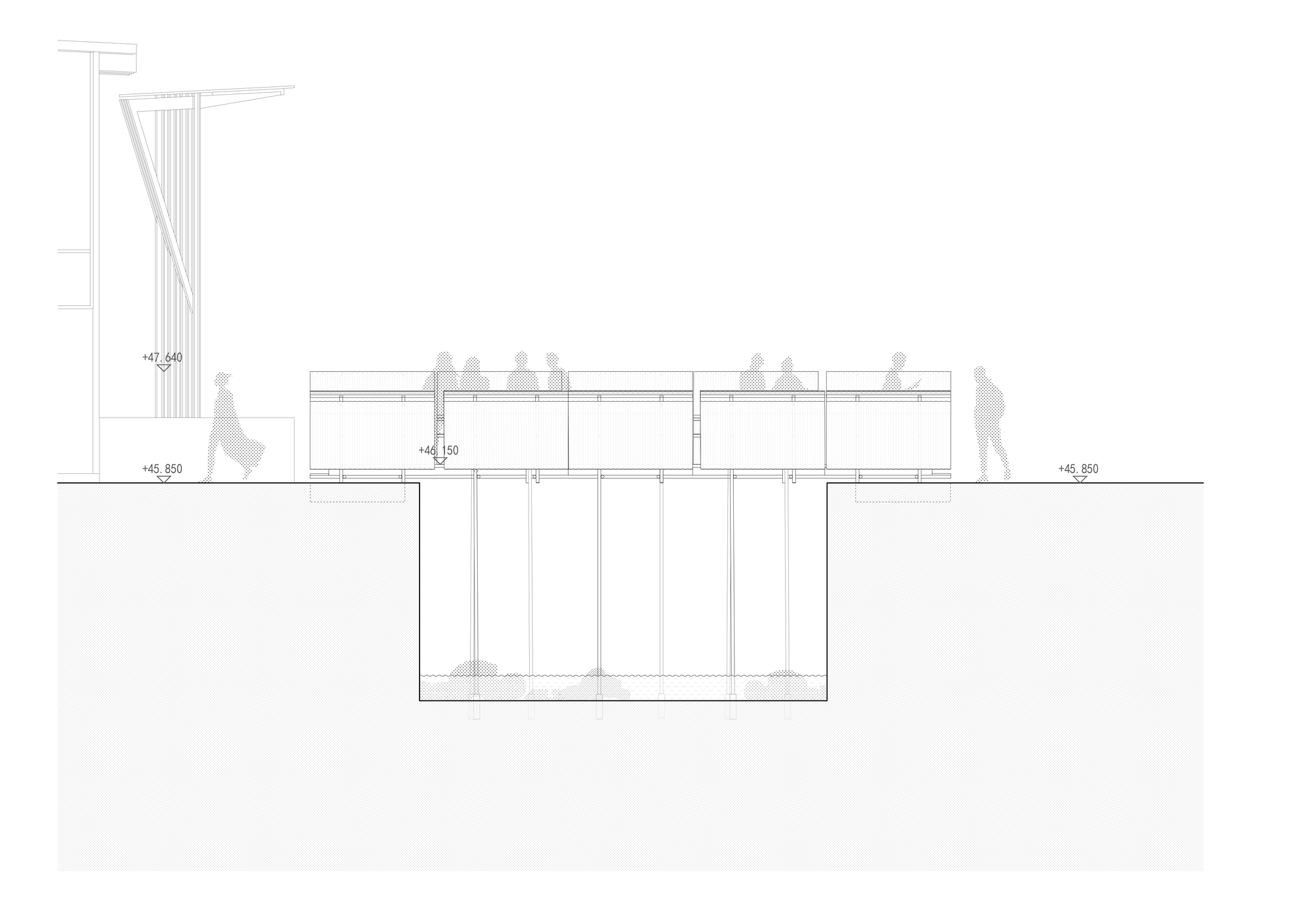

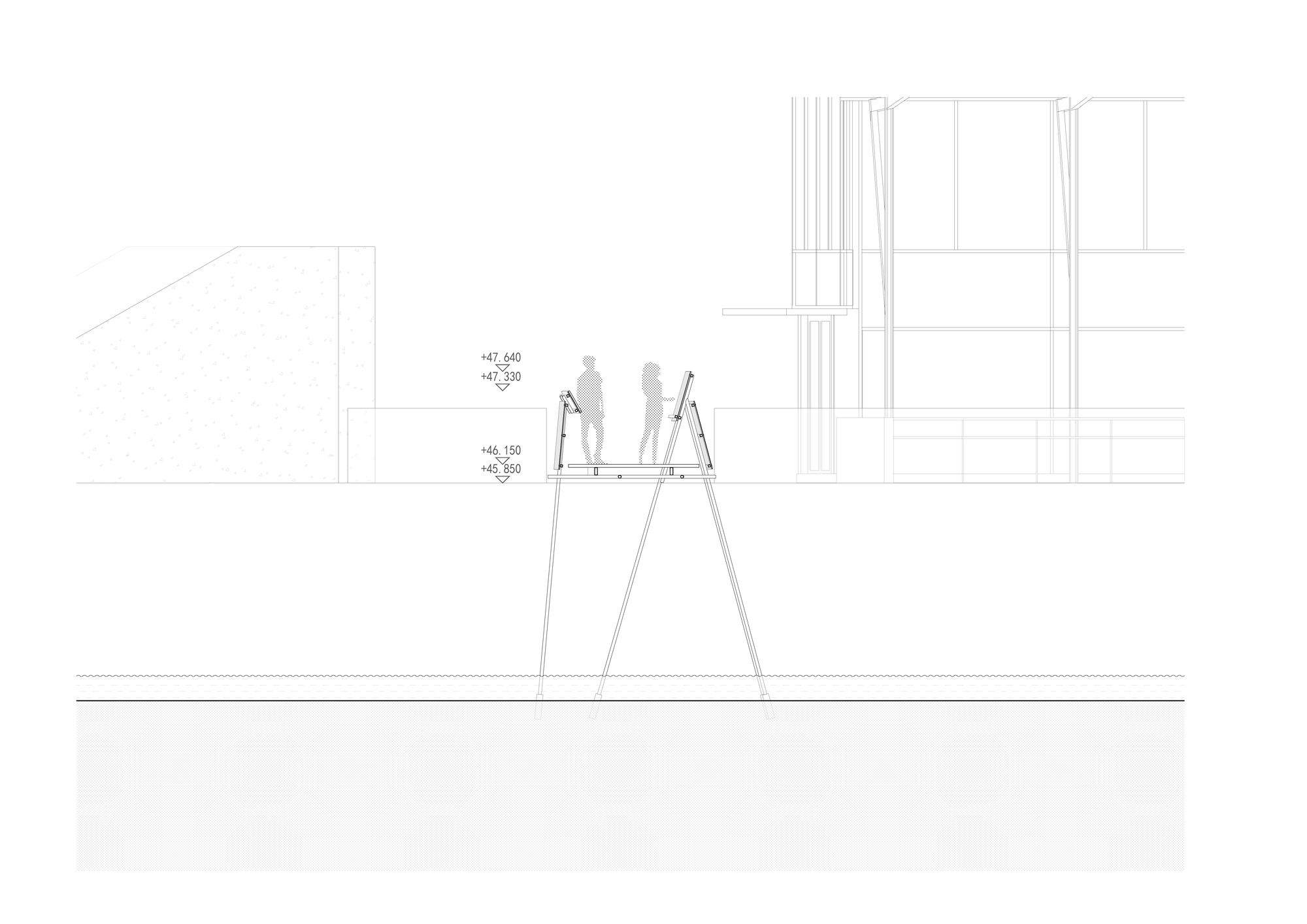

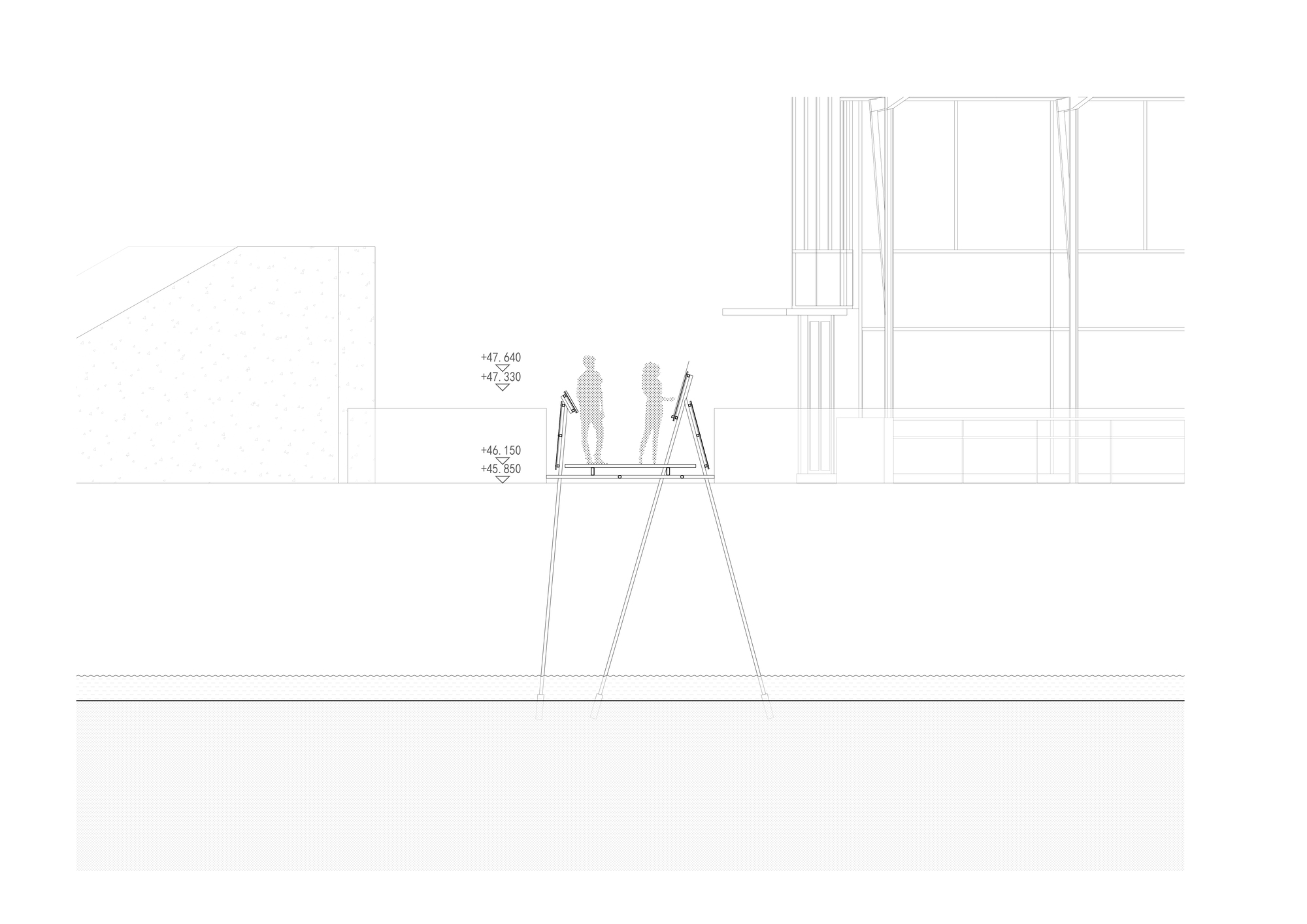

The cross-sections are the core of the project, and the drawings treat them that way. Human figures appear in nearly every section, standing on a deck carried by splayed or slender legs that rise from the water.

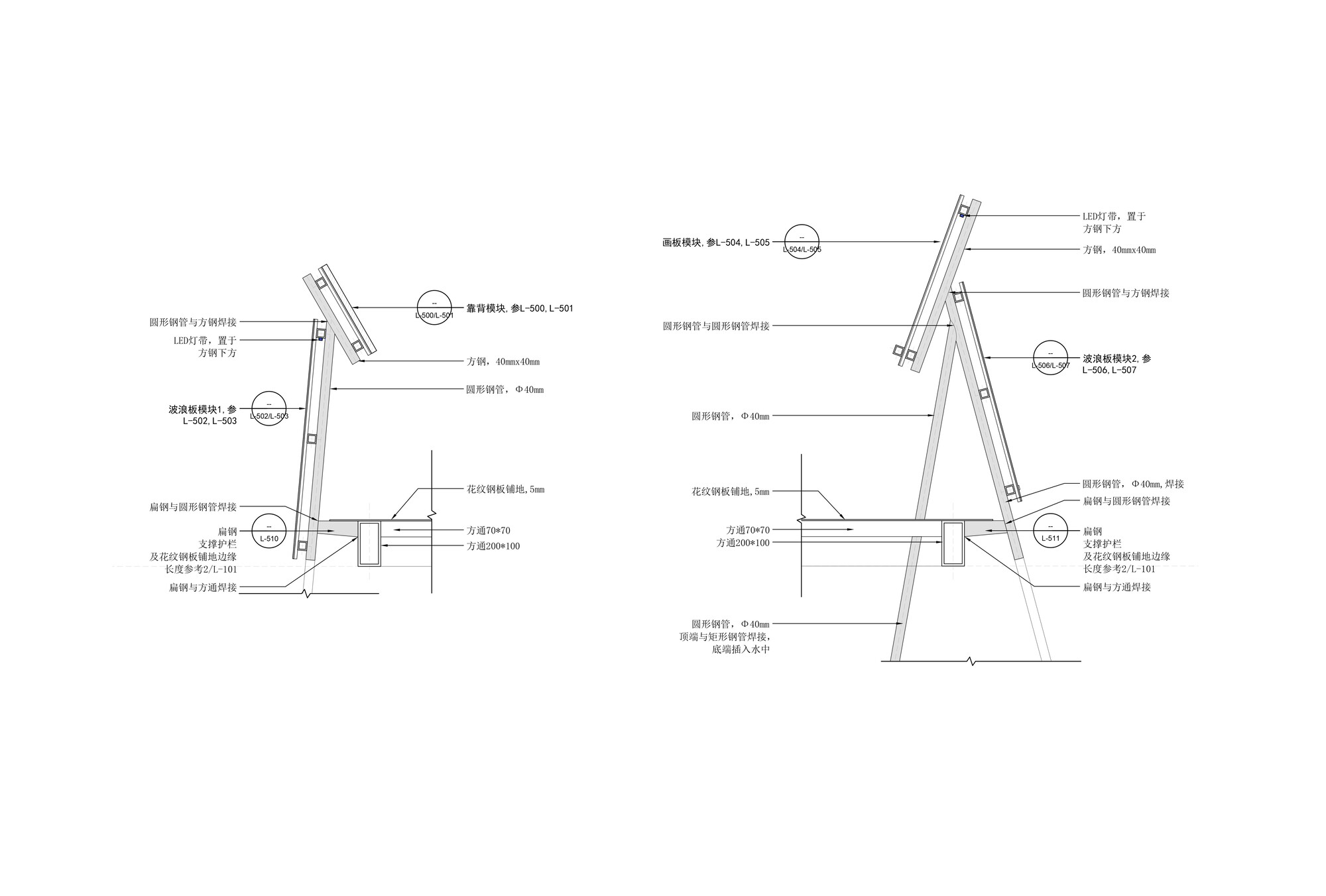

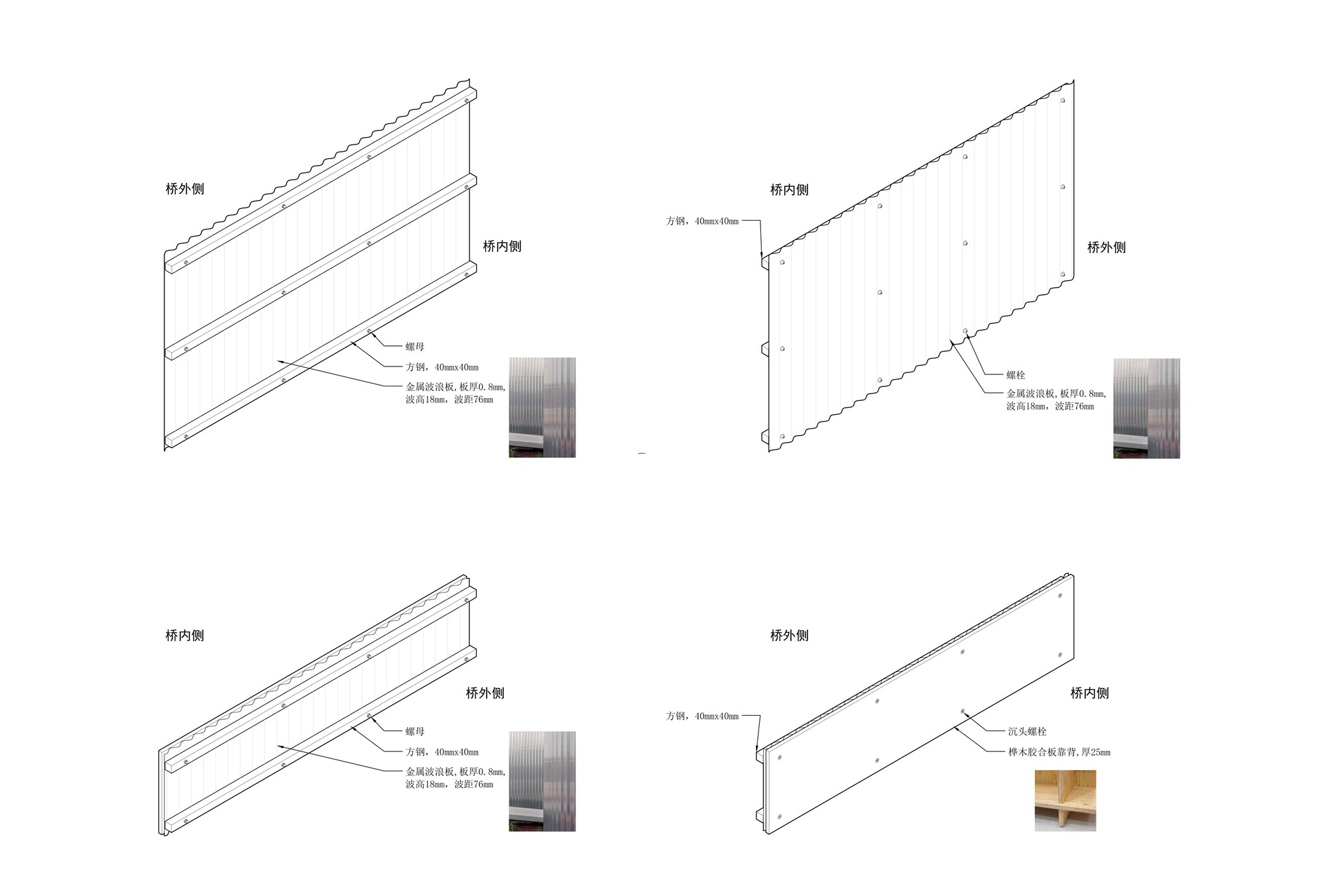

The detail section shows two tilted steel-tube railing profiles, with an integrated LED strip and the cladding connections annotated. The layered axonometric breaks a panel down into corrugated sheet, square steel frame and plywood backing board.

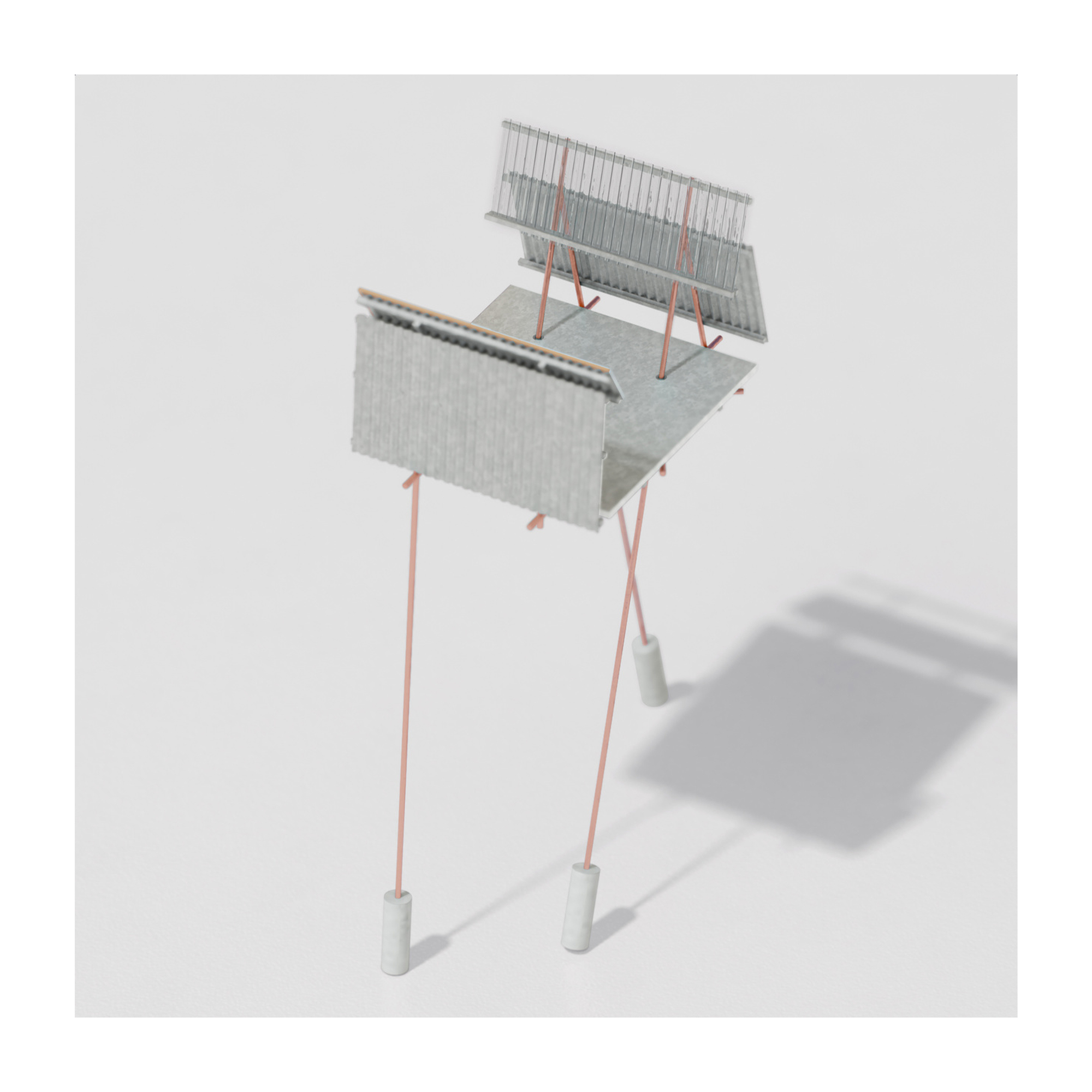

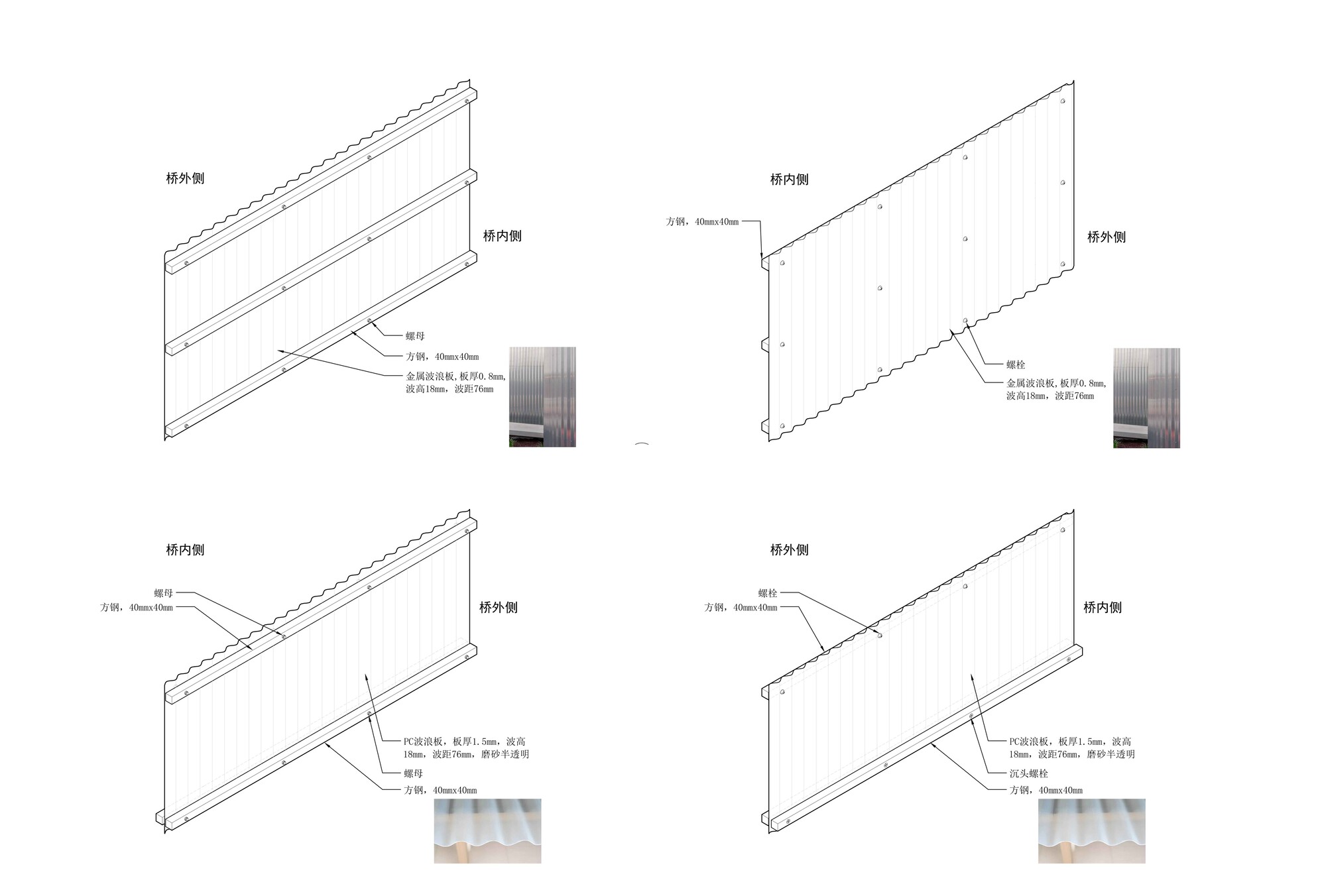

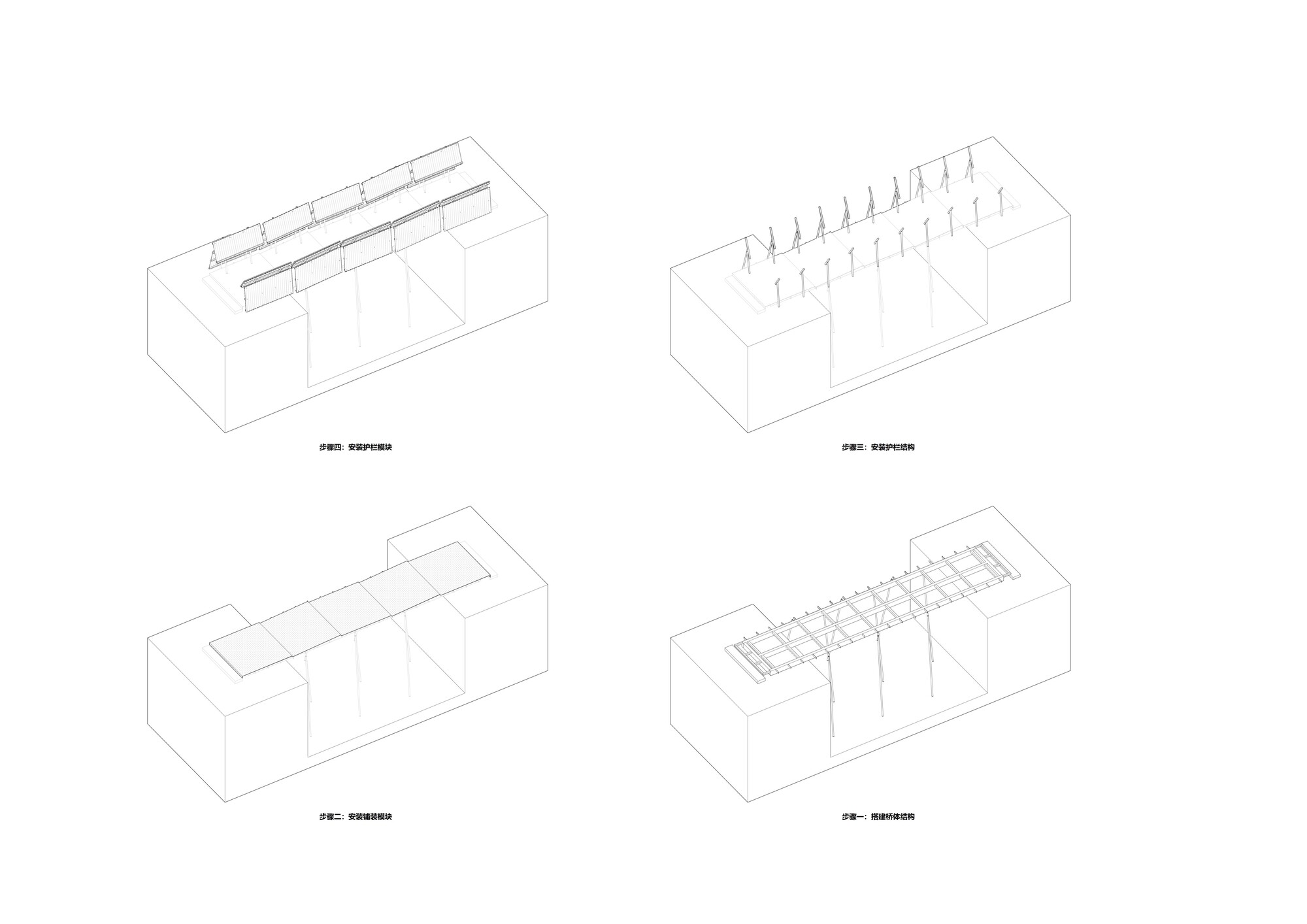

Further drawings compare the metal and polycarbonate panel variants and set out a four-step assembly sequence. A rendered model shows a suspended deck held by red tension rods anchored to concrete weights. Structural consultant Zhun Zhang's input shows in how lightly the whole assembly touches the ground.

Why This Project Matters

Rural China's tourism towns are adding small public structures at a fast pace, and most of them get either generic engineering or decorative pastiche. The Easel Bridge offers a third route: start with the human body, design the section around posture, and build it from humble, legible parts. The name is never explained, but we suspect it refers to the tilted, frame-like panels, each one propped at an angle like an easel holding a view.

The broader lesson is that a railing, the most neglected element of any bridge, can carry the entire design idea. XBTW OFFICE shows that close attention to a single cross-section can turn ten meters of circulation into a place people choose to stay. For architects working on tight budgets and small sites, that is a useful precedent to keep.

Easel Bridge by XBTW OFFICE (lead architects Teng Xing and Boxia Wang), Yucun, Moganshan, Huzhou, China. Area: 20 m². Completed: 2025. Photographs by Yumeng Zhu and Teng Xing.
