graciastudio Scatters Twenty Stilted Cabins Across a Boulder-Strewn Hillside in Baja's Guadalupe Valley

Most hotels in wine country follow the same plan: one main building, a terrace facing the vines, and rooms lined along a corridor. graciastudio, led by Jorge Gracia, took the opposite approach at Encuentro Guadalupe, also published as Endémico Resguardo Silvestre. On a rocky slope in Baja California's Valle de Guadalupe, the studio placed twenty detached rooms, each a box of roughly 20 square meters, across a property of about 94 hectares. Every cabin stands on steel stilts and faces the valley. Each has its own patio and its own fire.

The brief asked for a "deluxe camping house", and that phrase explains most of the design. The aim was never to build a sequence of luxury spaces. The aim was to provide a bed, a bath and a view, and then step back. What we find most interesting is that the project's main gesture is restraint toward the ground. The cabins touch the hillside only at their legs, so the boulders, scrub and soil keep running underneath. That choice predates the current wave of tread-lightly hospitality by nearly a decade, and it has held up better than most of what followed.

A Cluster Instead of a Block

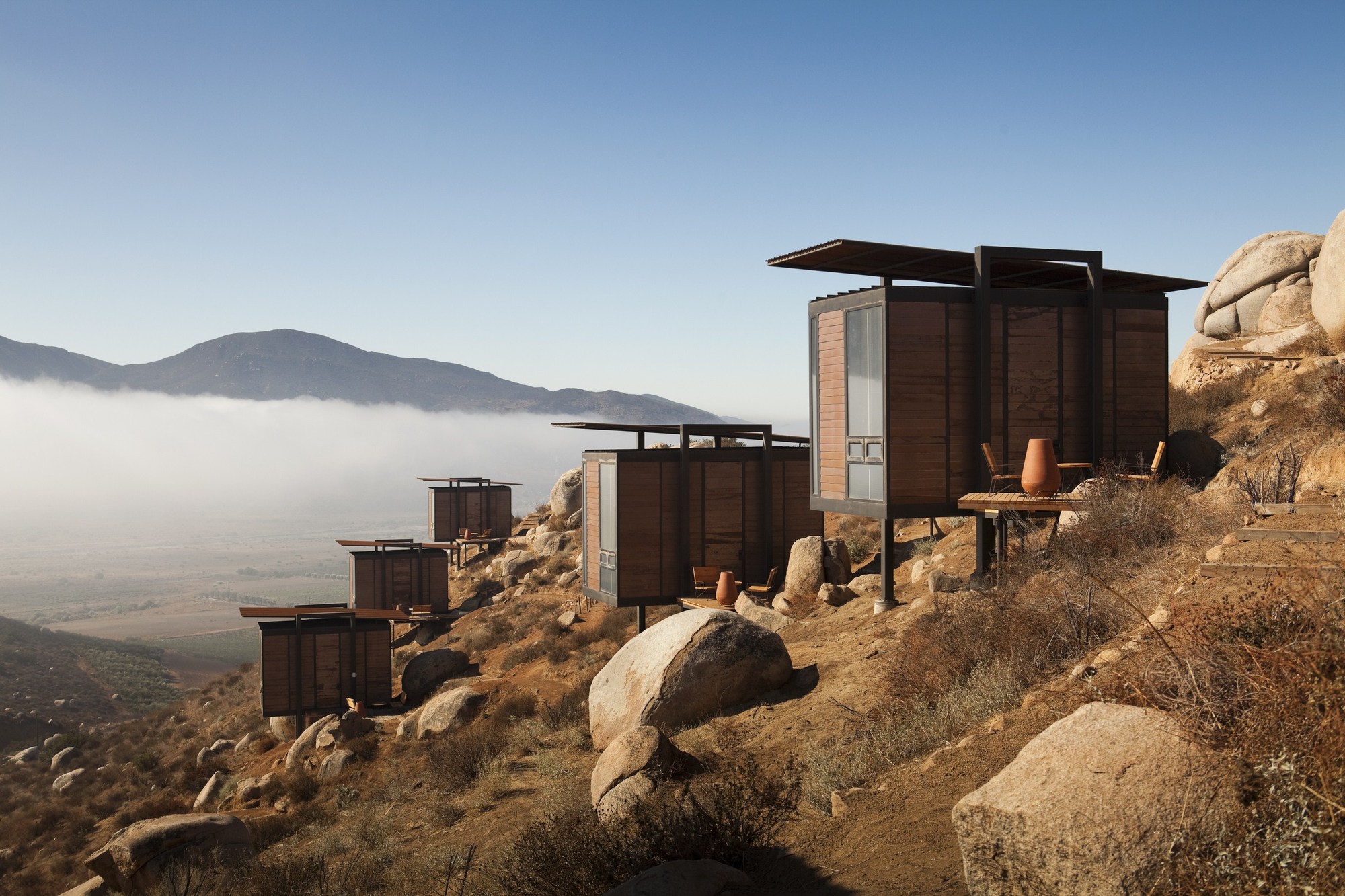

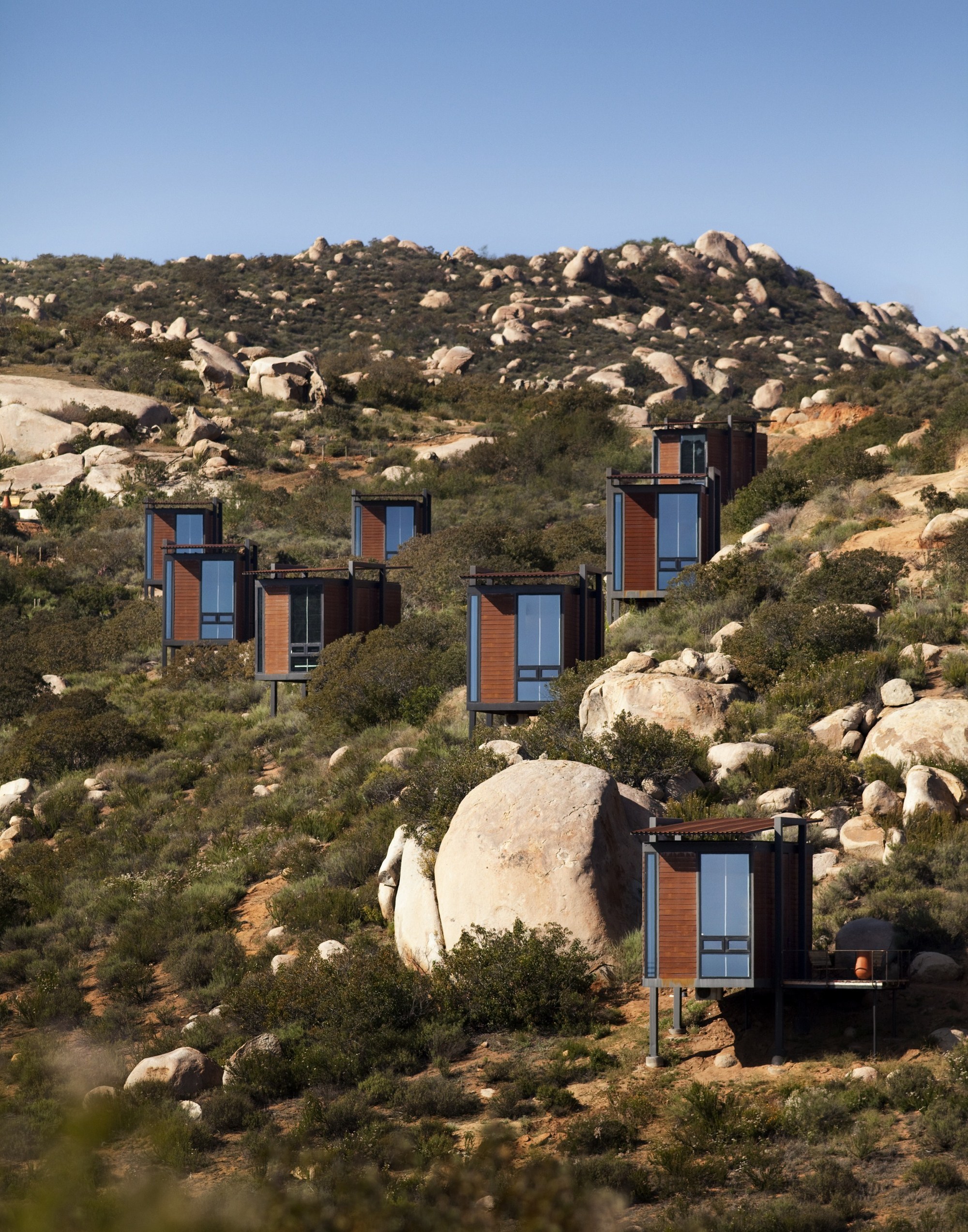

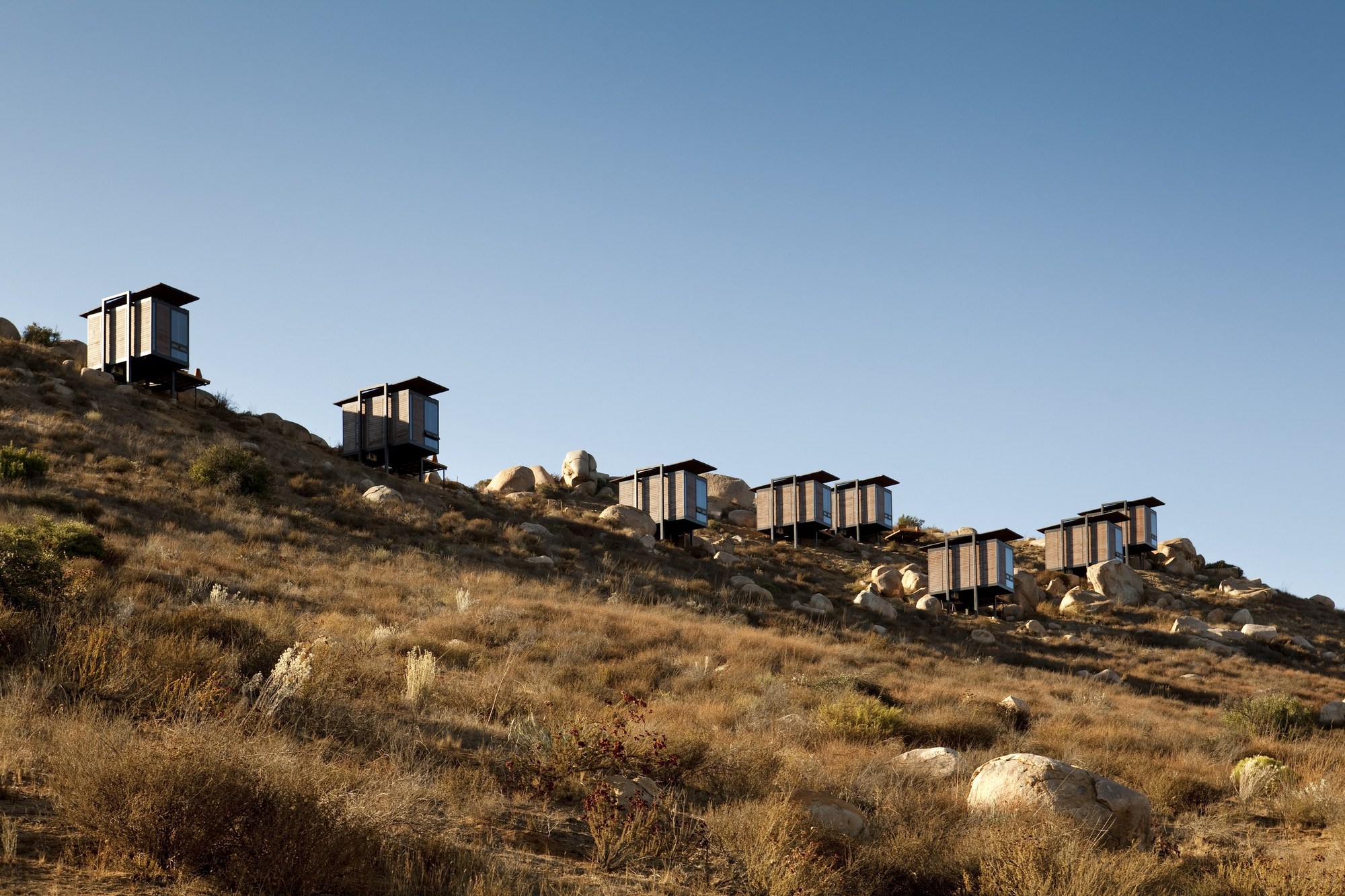

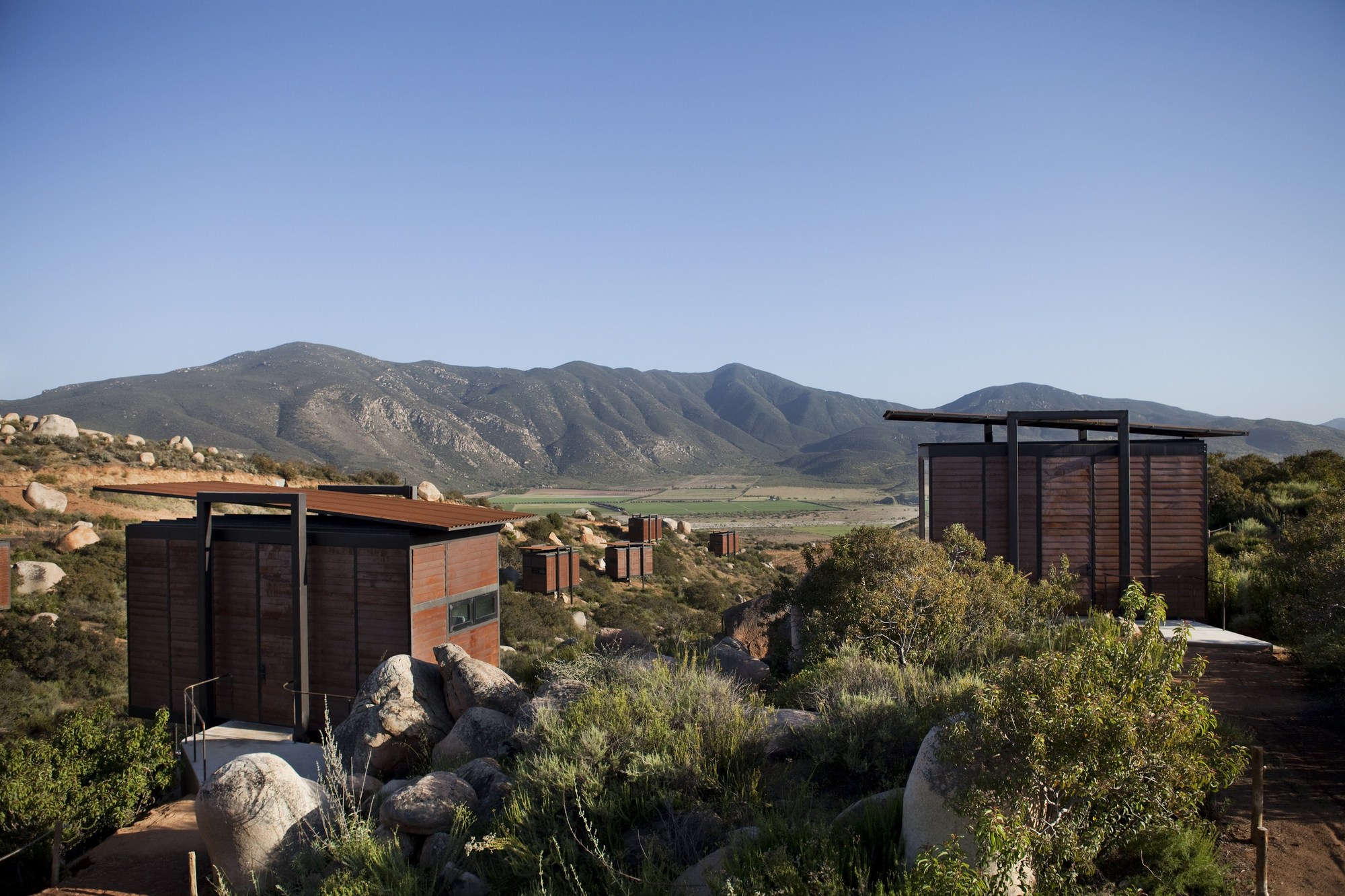

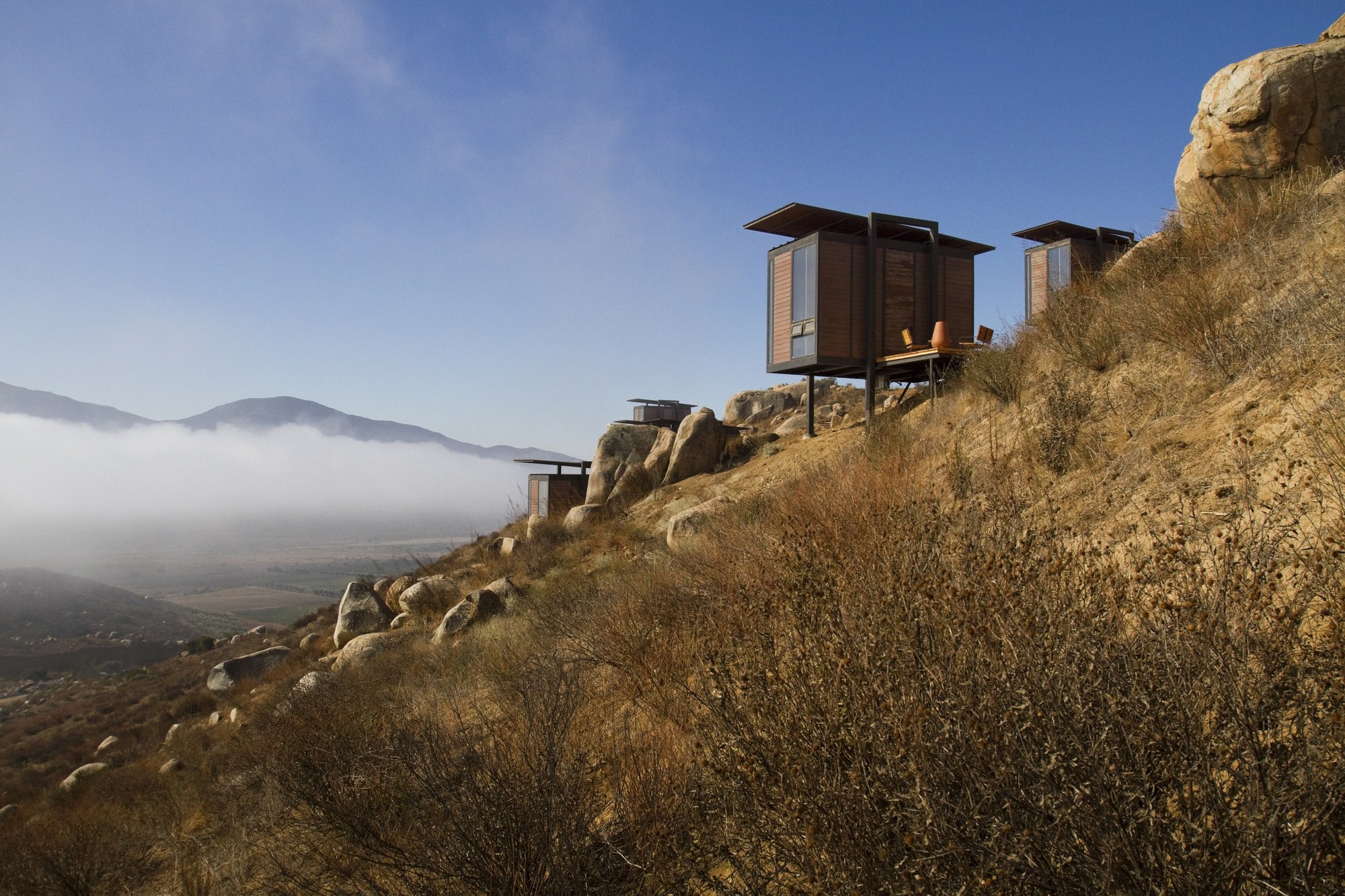

From a distance the hotel does not read as a building. It reads as a set of small marks along a ridge. The cabins step along the contours in a loose line, close enough to register as one settlement but far enough apart that no room looks into another. Morning fog fills the valley below and the units seem to sit just above it, which is the effect that sells the place.

This dispersed layout carries a real cost. Paths get longer, services run farther, and every unit needs its own envelope. graciastudio accepted those costs in exchange for privacy and silence, and also because spreading twenty small footprints across a slope disturbs far less soil than grading a platform for one large one.

Lifting Off the Ground

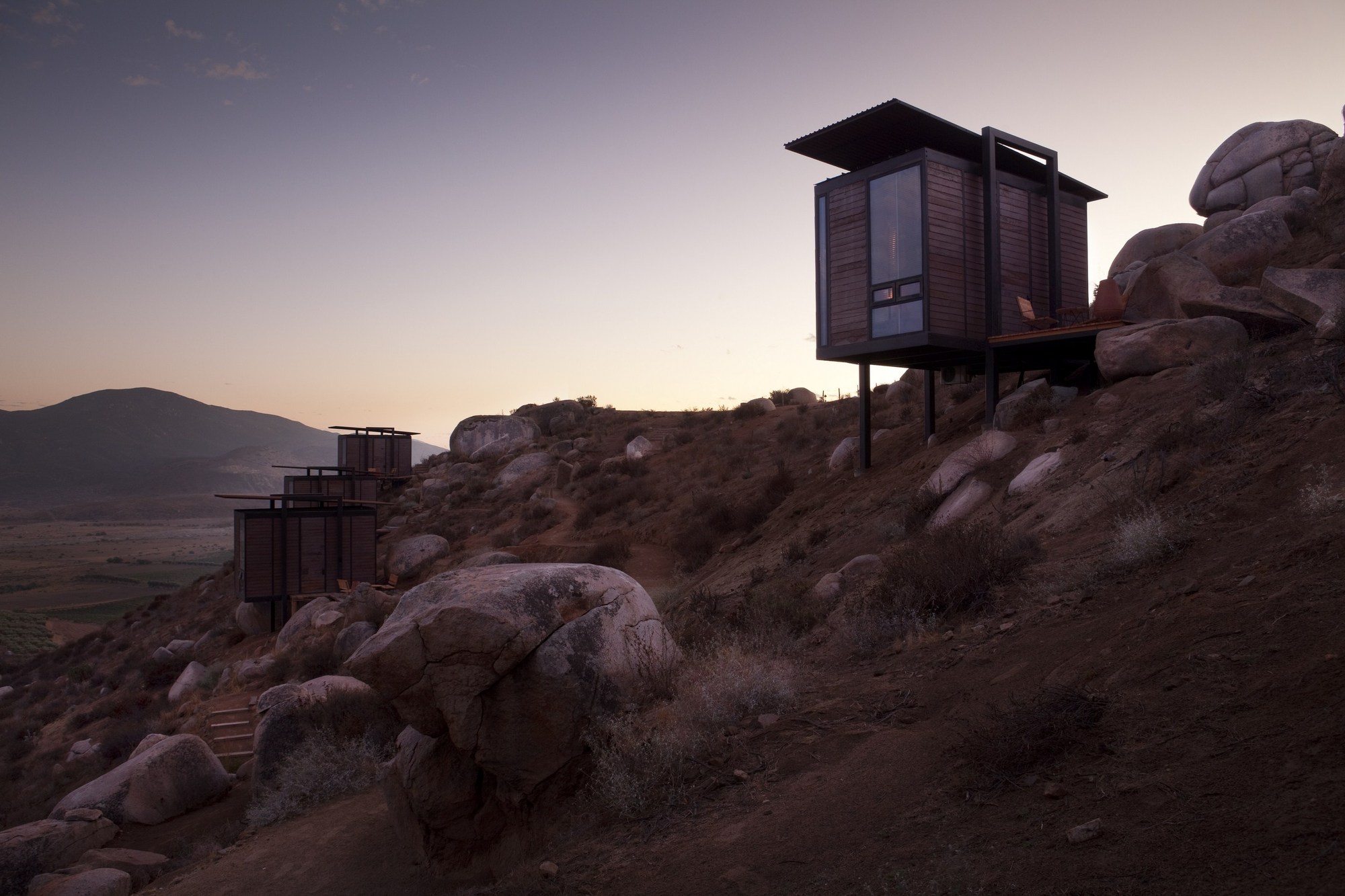

Each EcoLoft is a steel skeleton raised on slender posts, engineered by Grupo Metalco. The architects have said that steel came first partly for practical reasons: the client had a supply of it. That honesty is useful. The structural choice was not a manifesto; it was a matter of available material, and the design worked with it rather than around it.

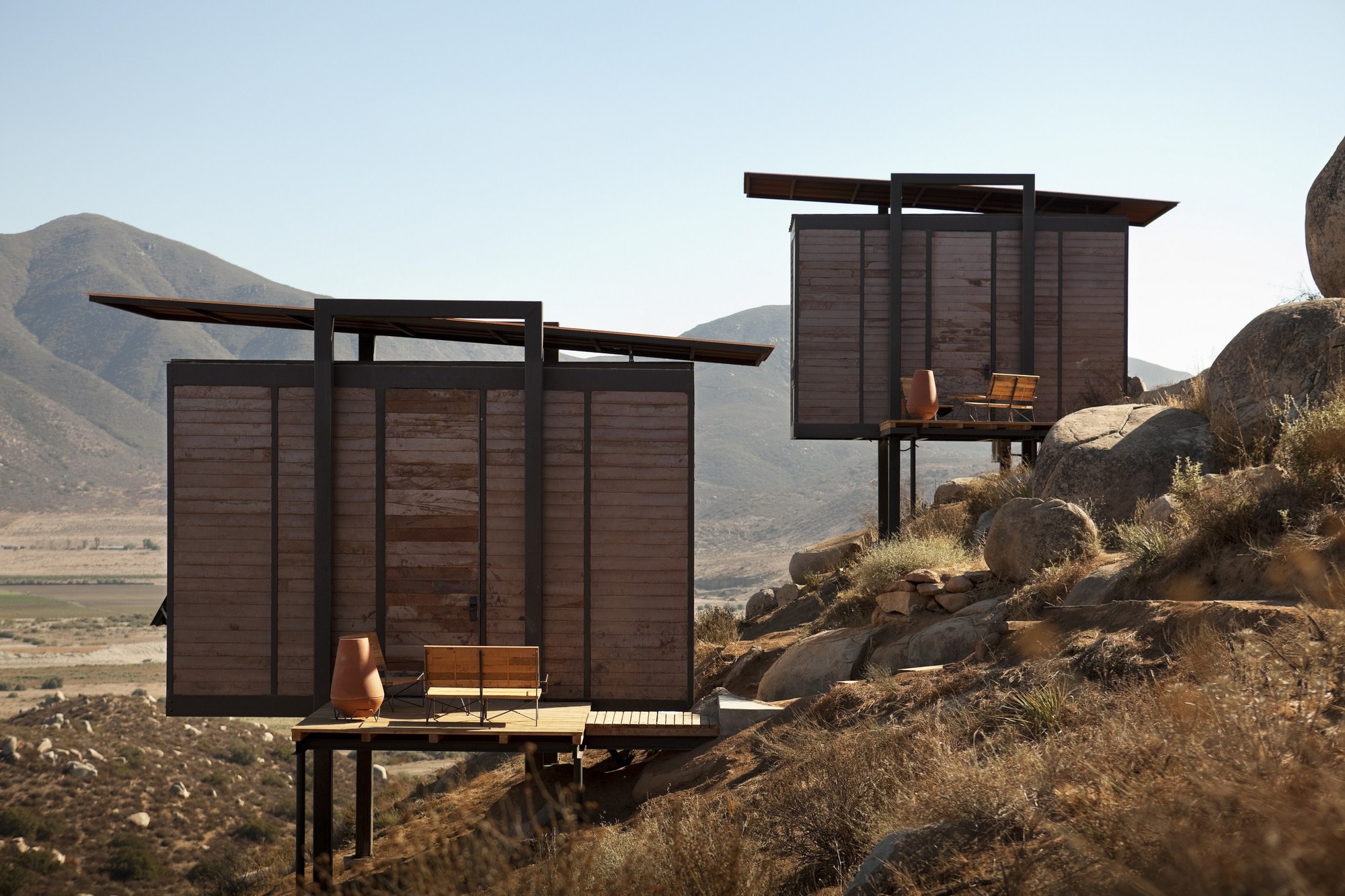

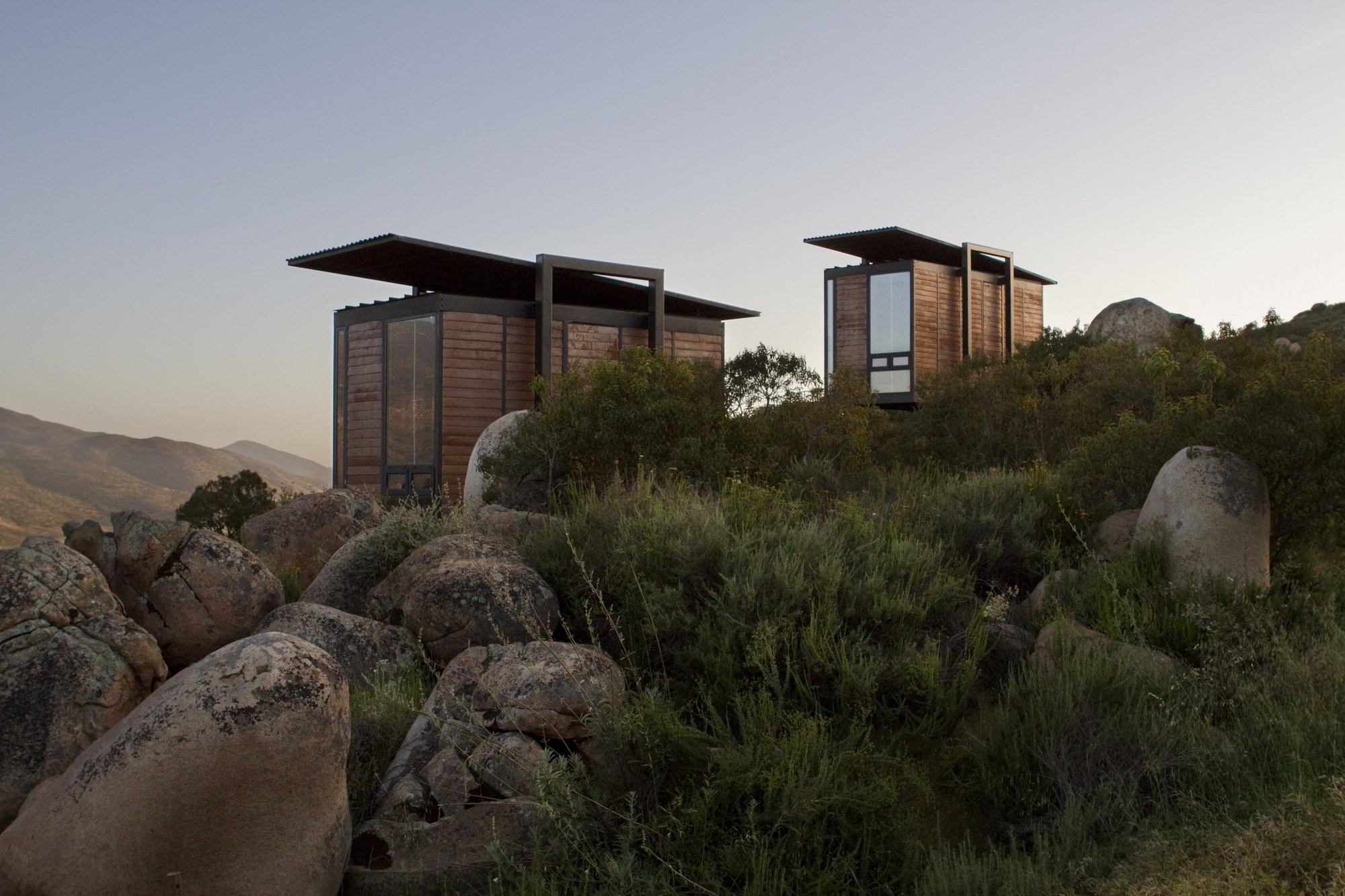

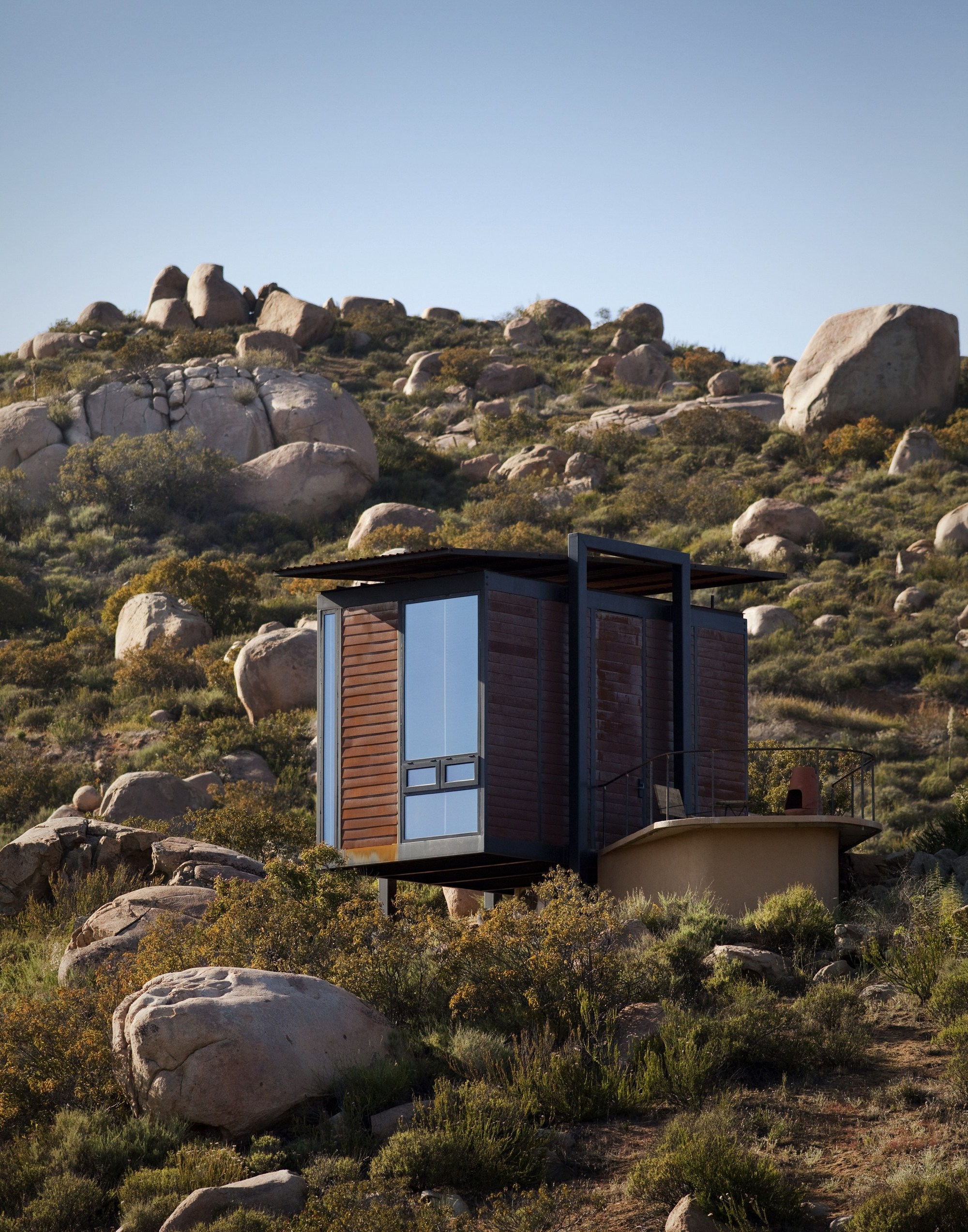

The stilts take care of the difficult part. On a slope this steep and rocky, a conventional foundation would mean cutting, retaining and filling. Posts can land wherever the ground permits, and the floor plate stays level above them. The skin is a slatted, louvered mix of wood and Corten weathering steel. The steel is meant to darken and redden over time until it matches the dry palette of the hillside. A thin cantilevered roof plane caps each box and casts a deep shadow over the glazed ends.

Boulders as Neighbors

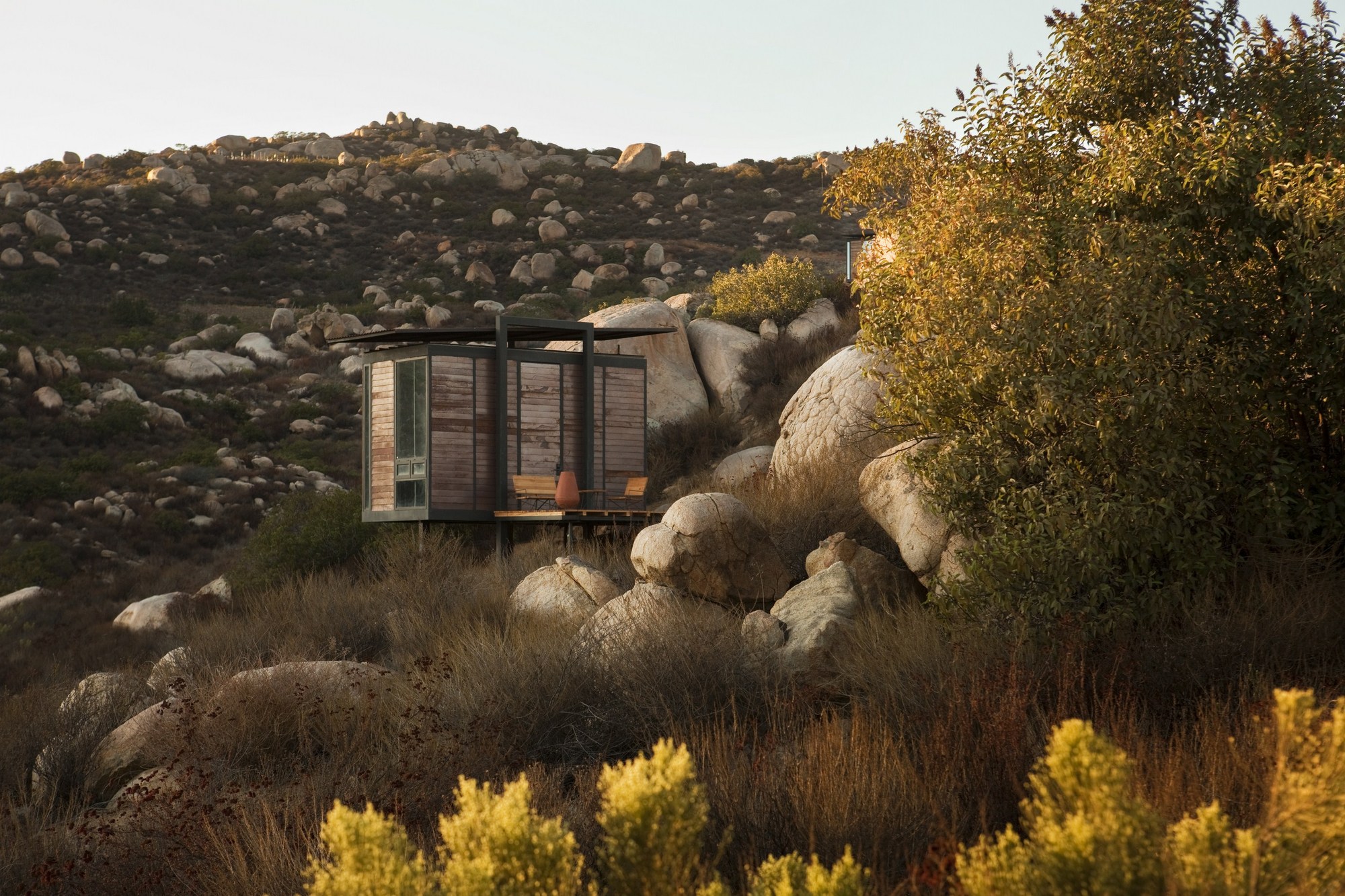

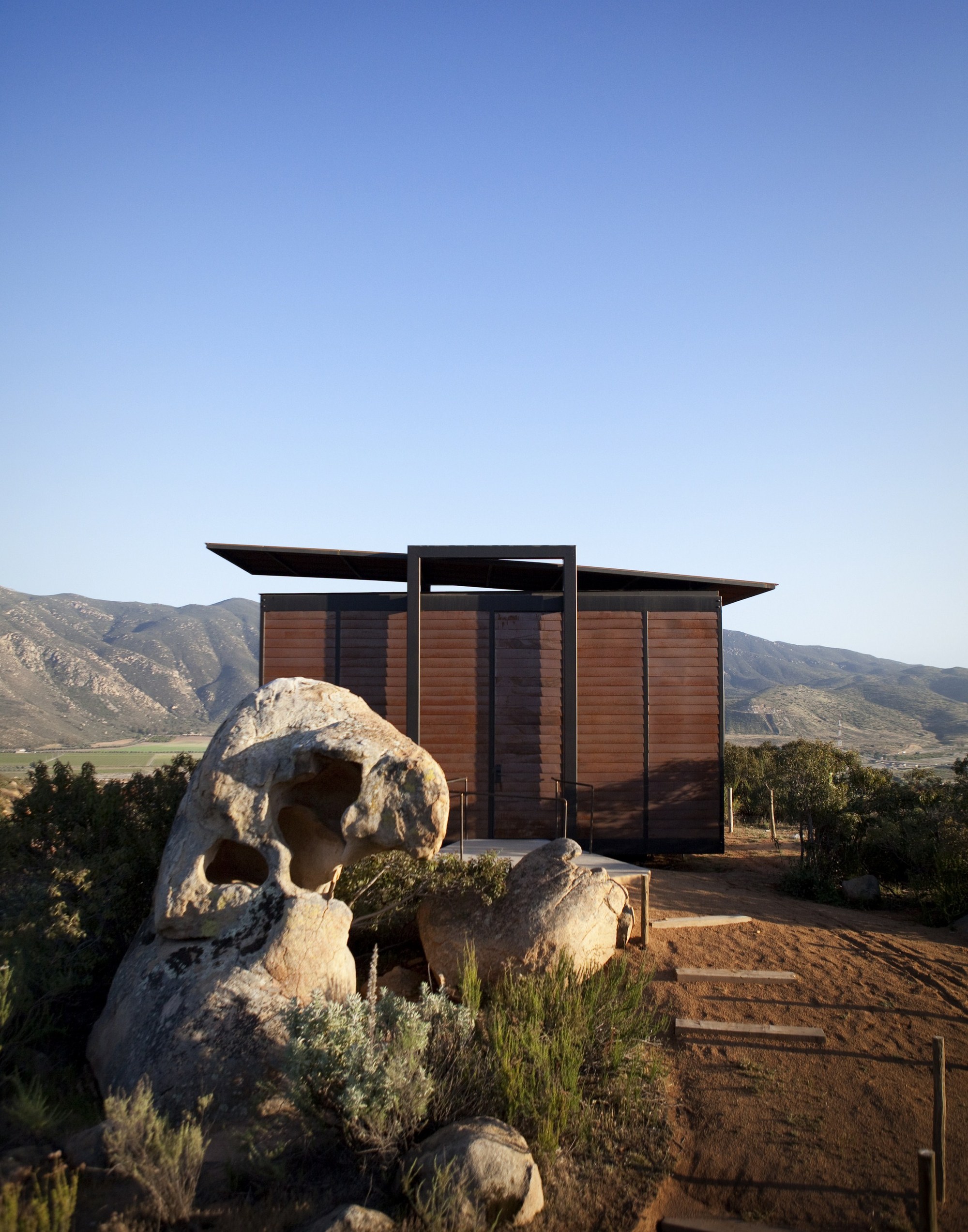

The granite boulders are what make this site distinctive, and the architects treat them as fixed points, not obstacles. Cabins sit next to them, behind them and occasionally almost under them, so the rocks become the foreground of nearly every view. A hollowed boulder frames one cabin like a found sculpture.

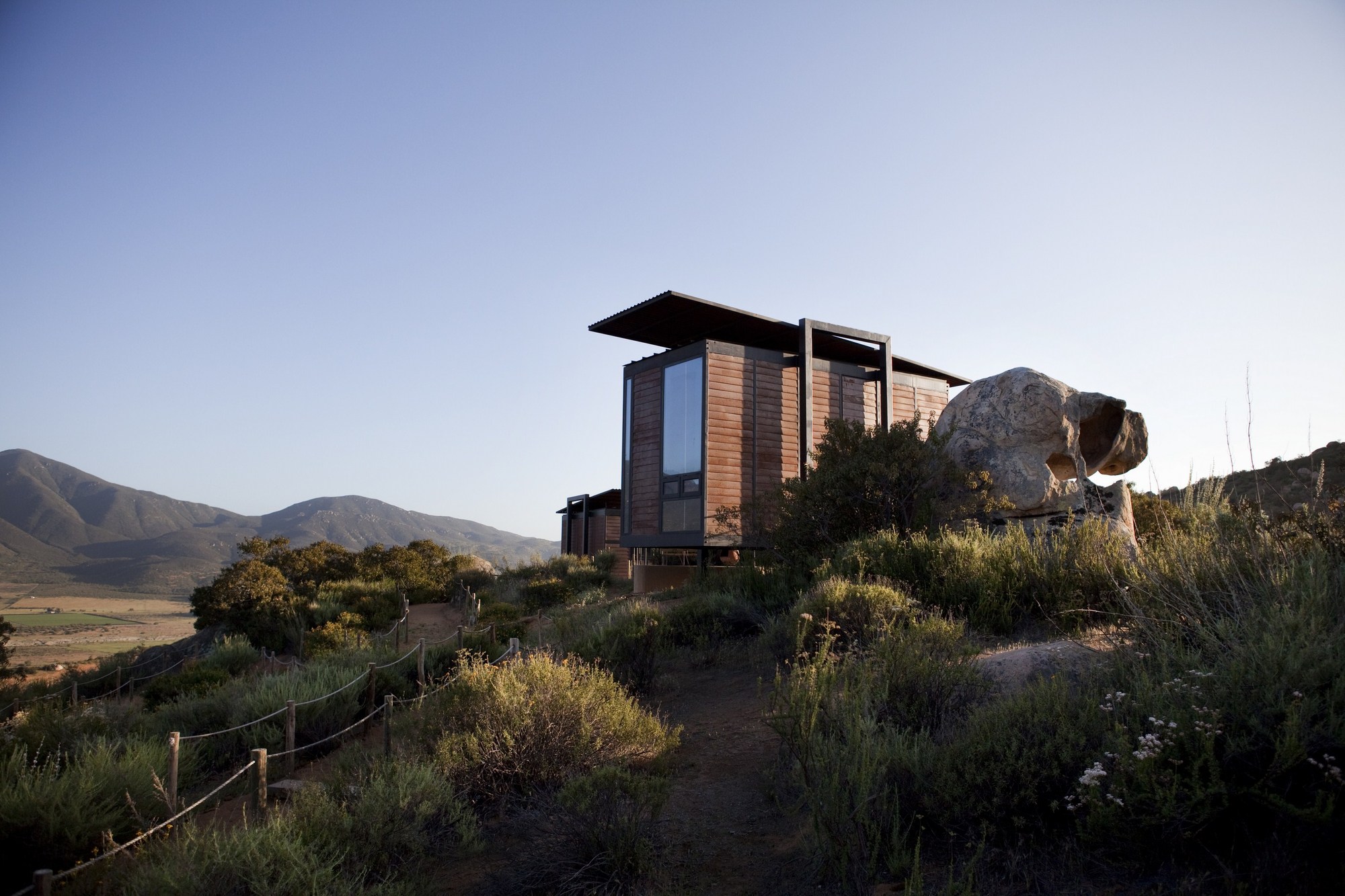

Circulation stays modest: rope-edged paths wind through the shrubs rather than paved walkways. The landscape design here is mostly a decision not to do much, and that takes more discipline than it sounds.

The Private Deck and the Fire

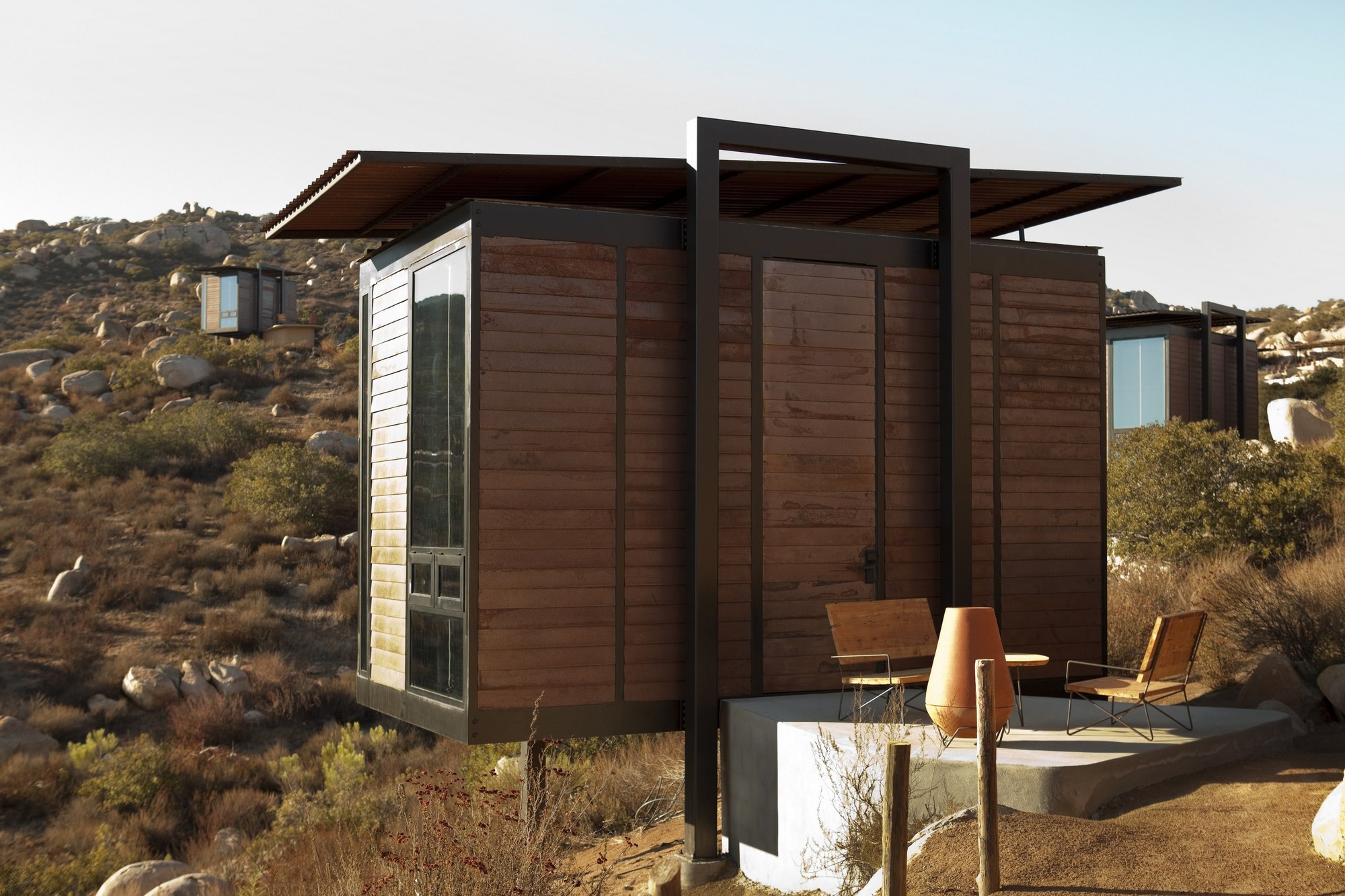

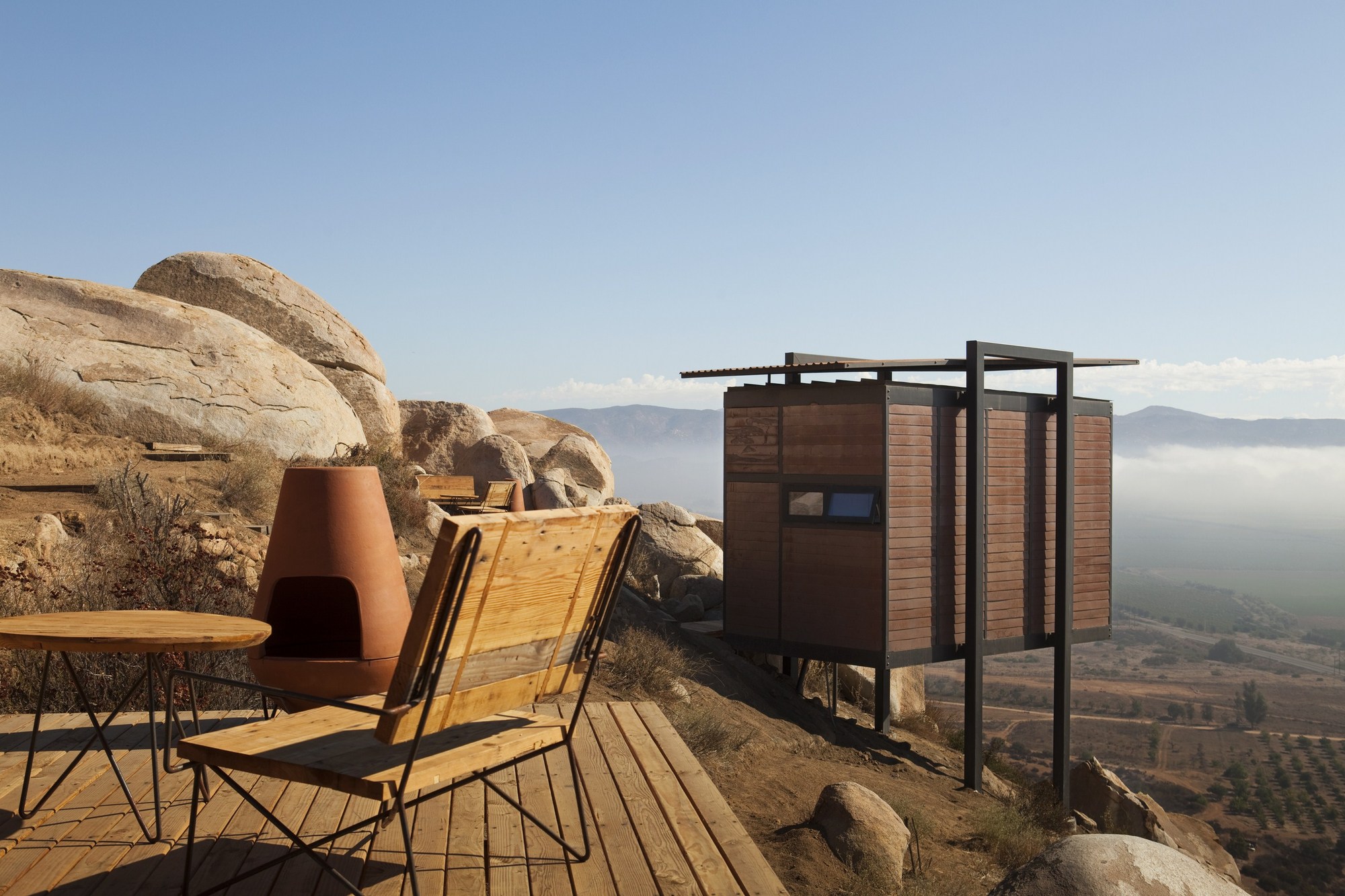

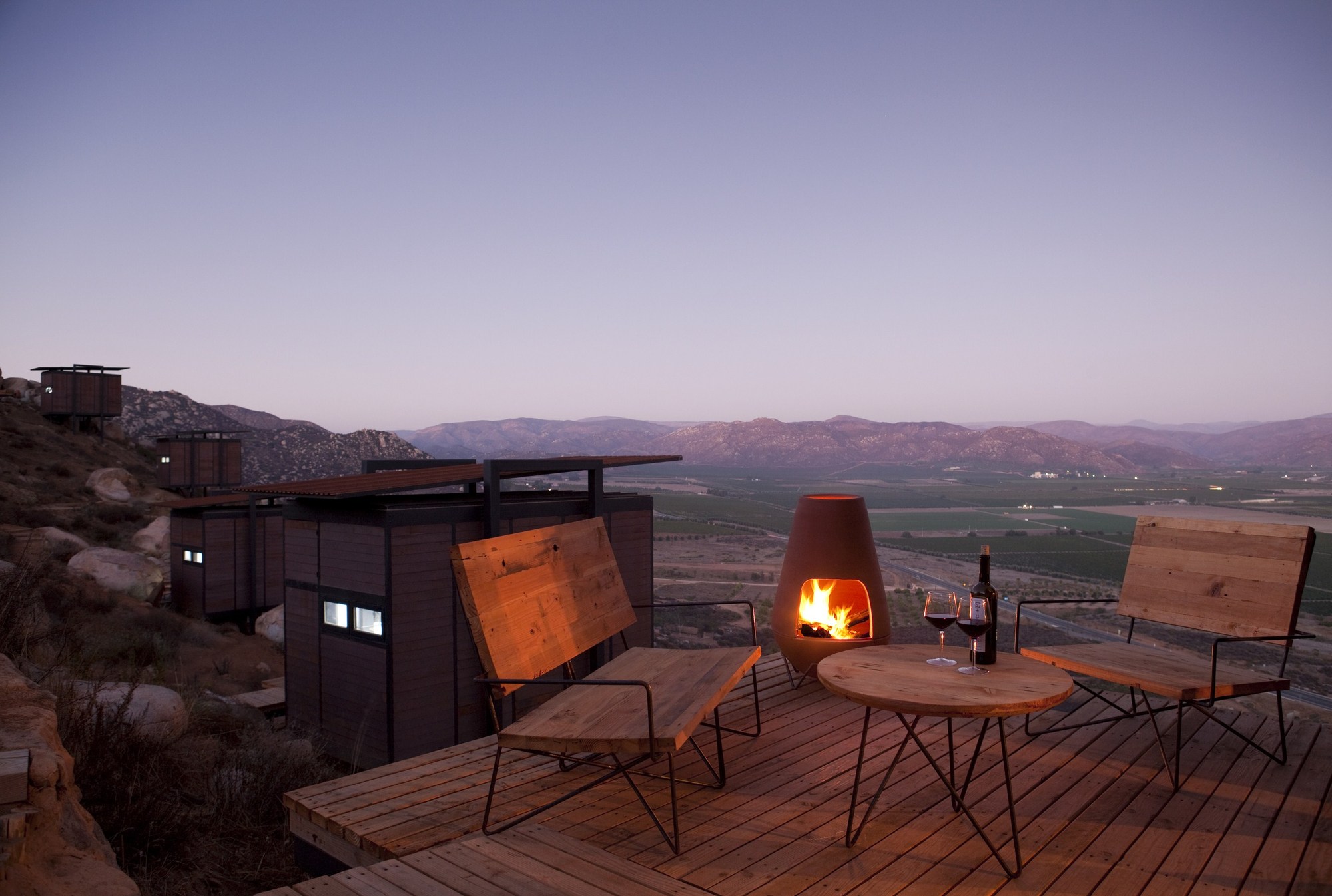

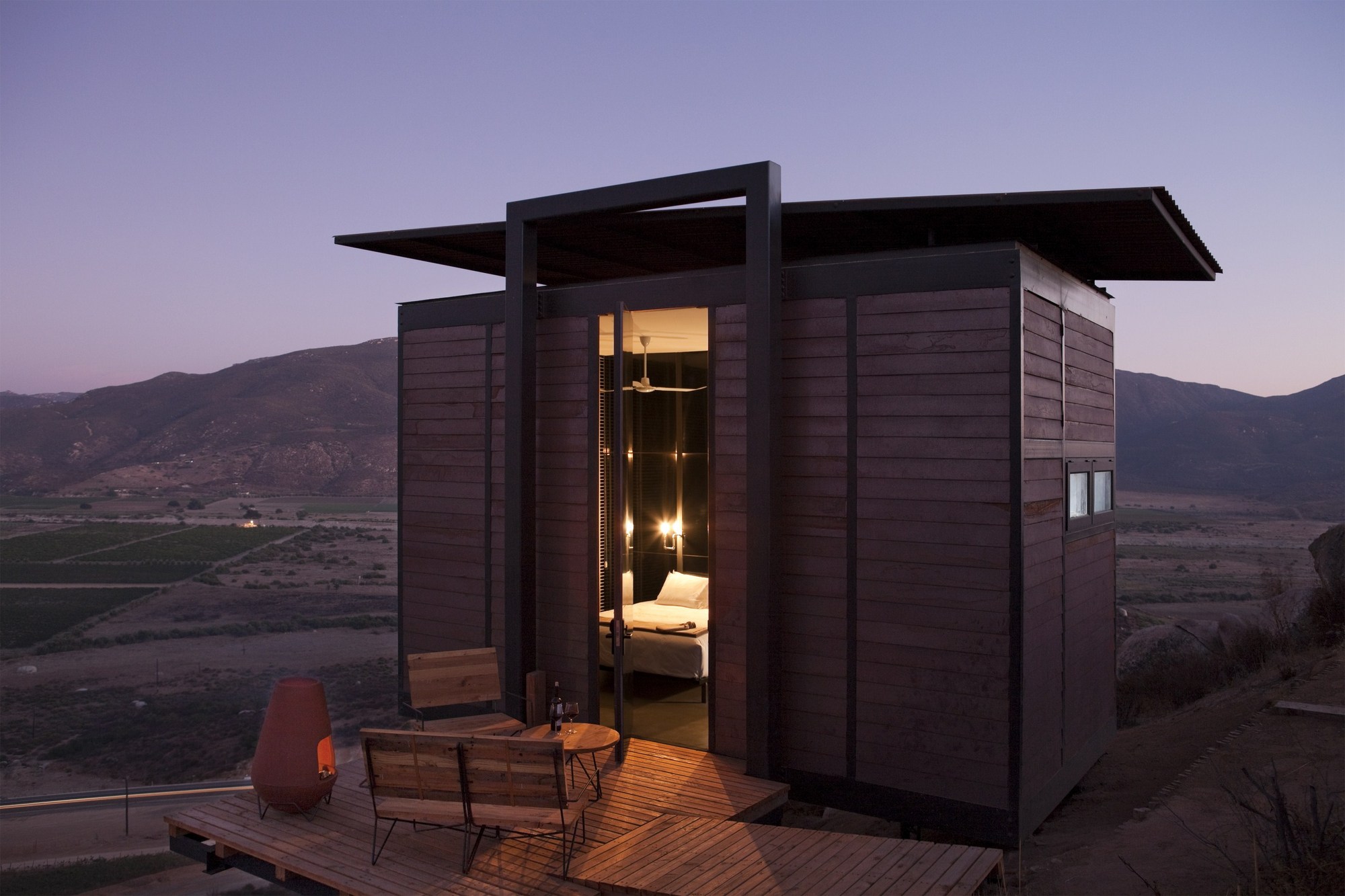

If the interior is where you sleep, the patio is where you actually stay. Every cabin has an outdoor deck or concrete pad with a terracotta fireplace facing the valley. That gives each room a second space larger than the first one. It also shifts the guest's evening outdoors, which fits a wine-country stay: a glass, a fire, and a view that drops away toward the vineyards.

The clay fireplaces are the warmest objects in the scheme, both literally and materially. Against the steel and the slats, they bring a handmade, regional note that the architecture otherwise keeps quiet.

Inside the Twenty-Square-Meter Box

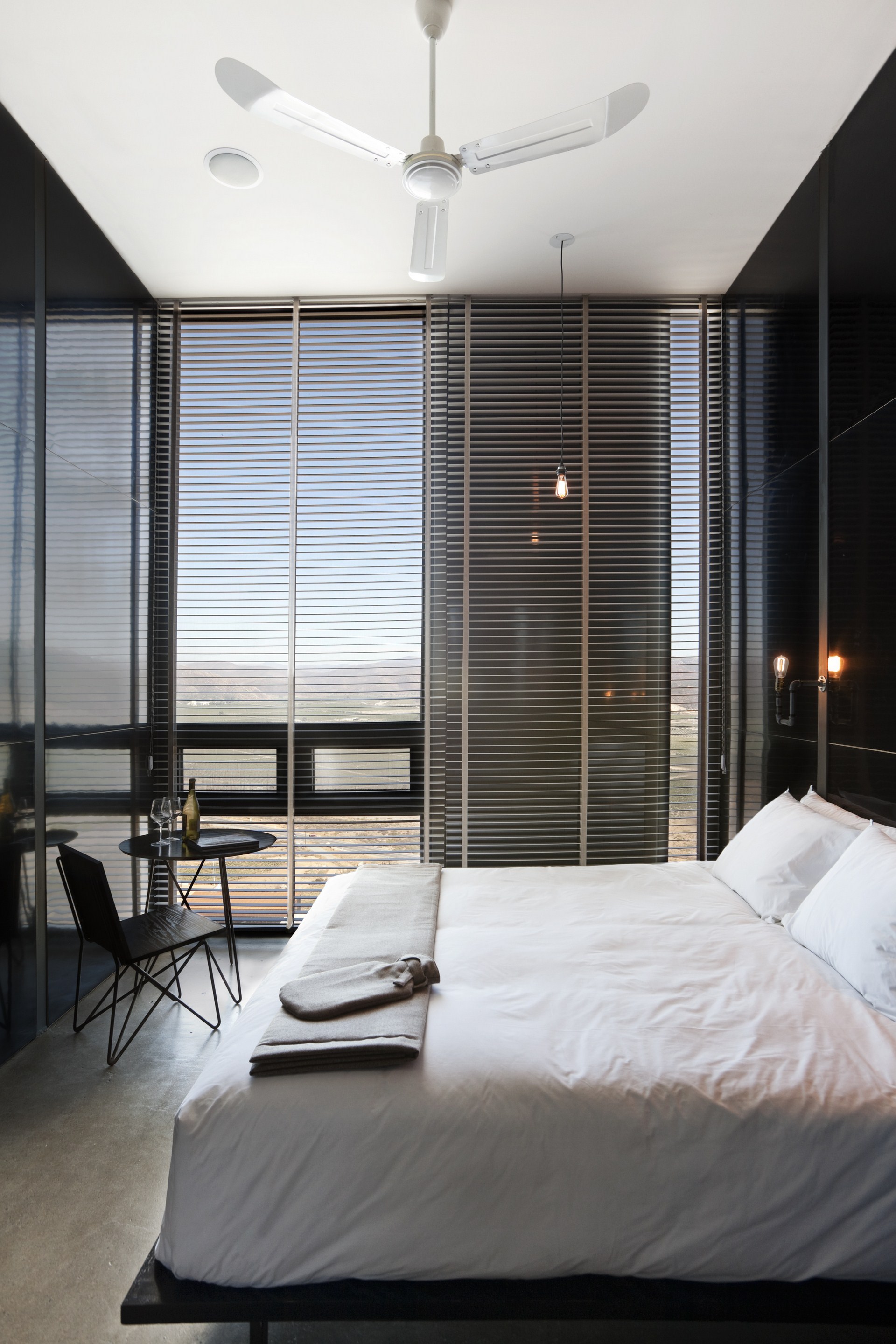

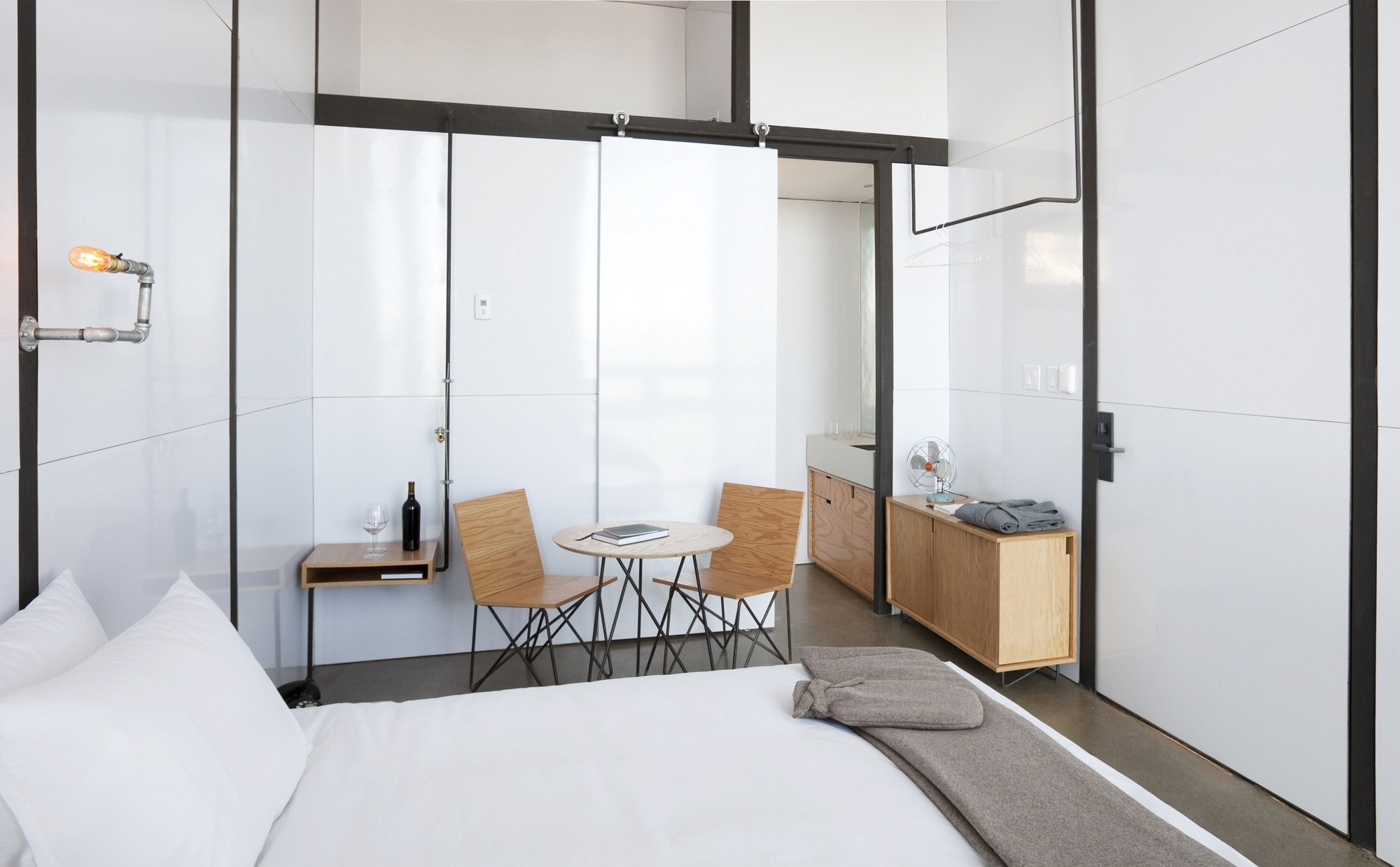

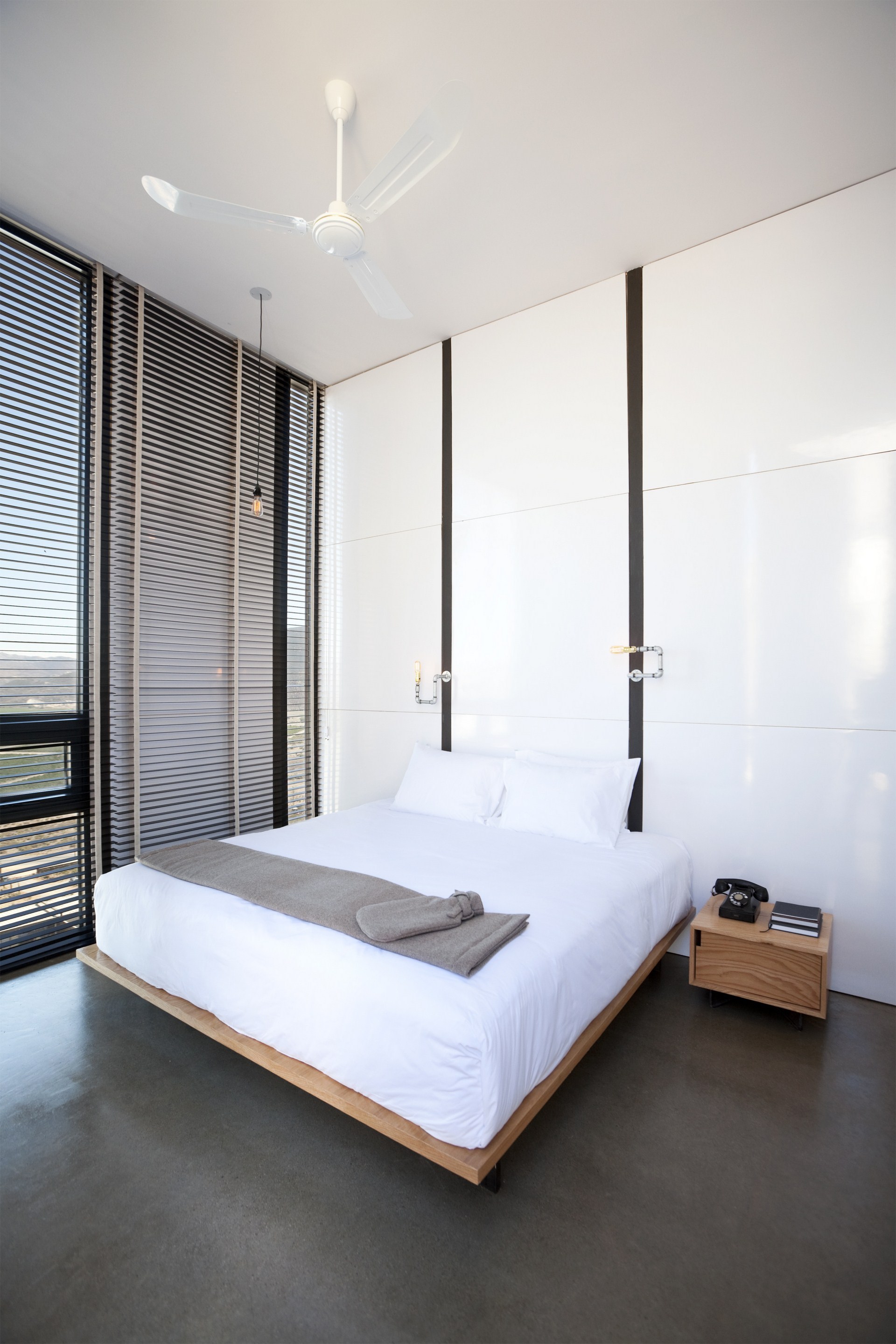

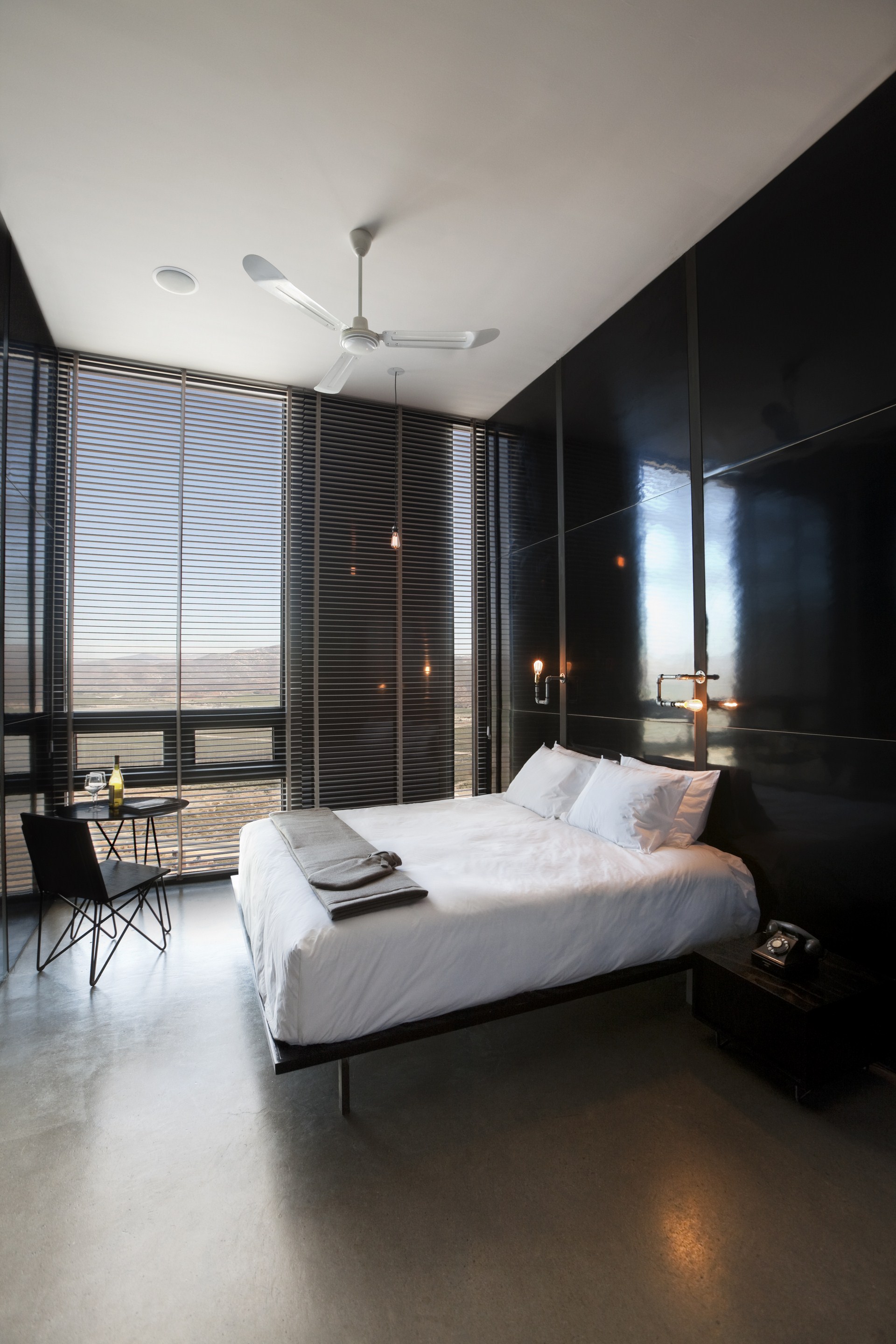

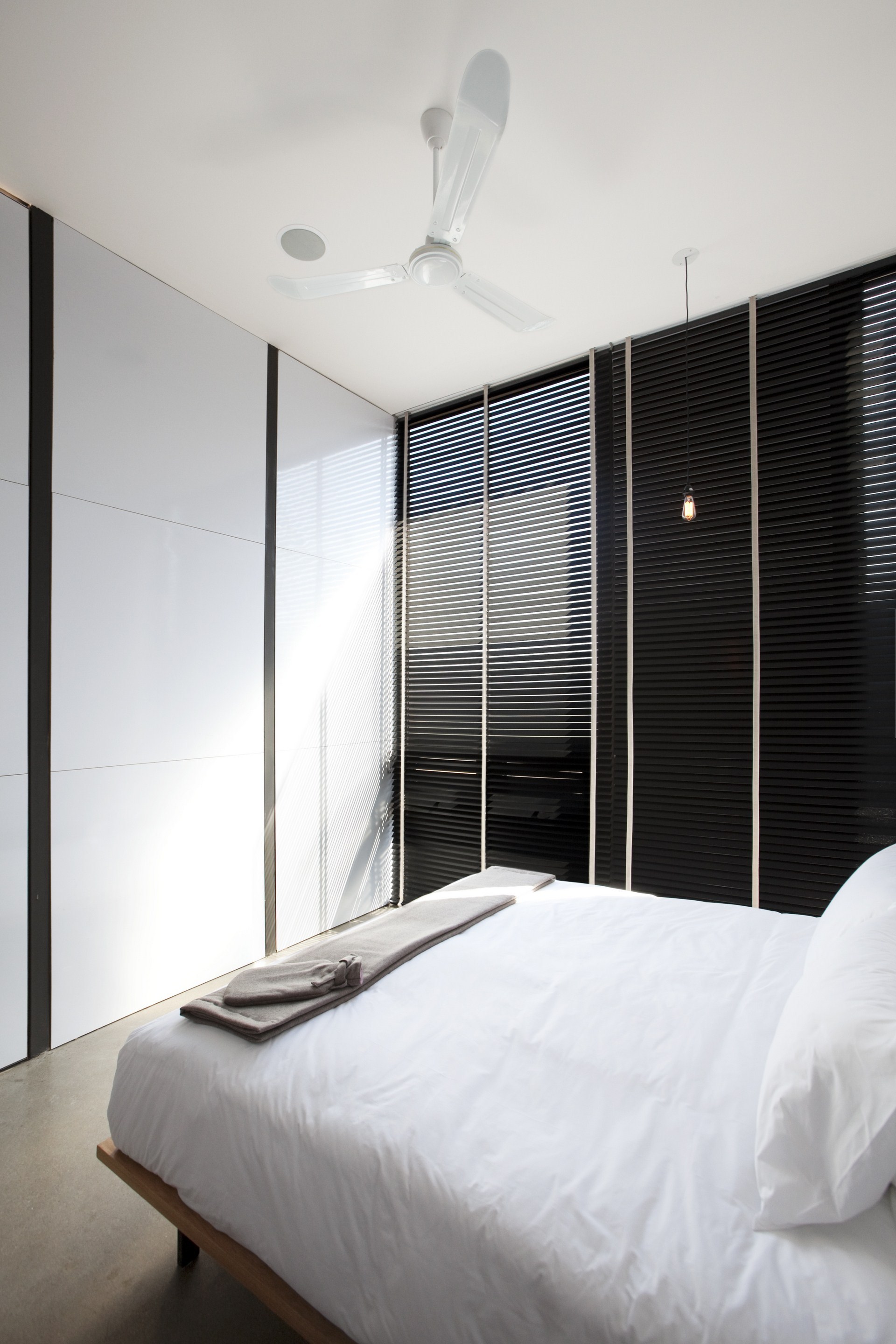

Twenty square meters is tight, and the interior does not pretend otherwise. A platform bed, a small table, a bathroom behind a sliding door, and a ceiling fan overhead make up the whole program. The surfaces are glossy panels, white in some places and black lacquer in others, which reflect light and make the box feel larger than it is.

Full-height slatted blinds line the window walls, so the guest decides how much desert to let in. Fully closed, the cabin becomes a dim, private cell. Fully open, it turns into a viewing platform. That adjustability matters more than any finish, because it lets one small room serve two very different moods.

Thresholds and Small Objects

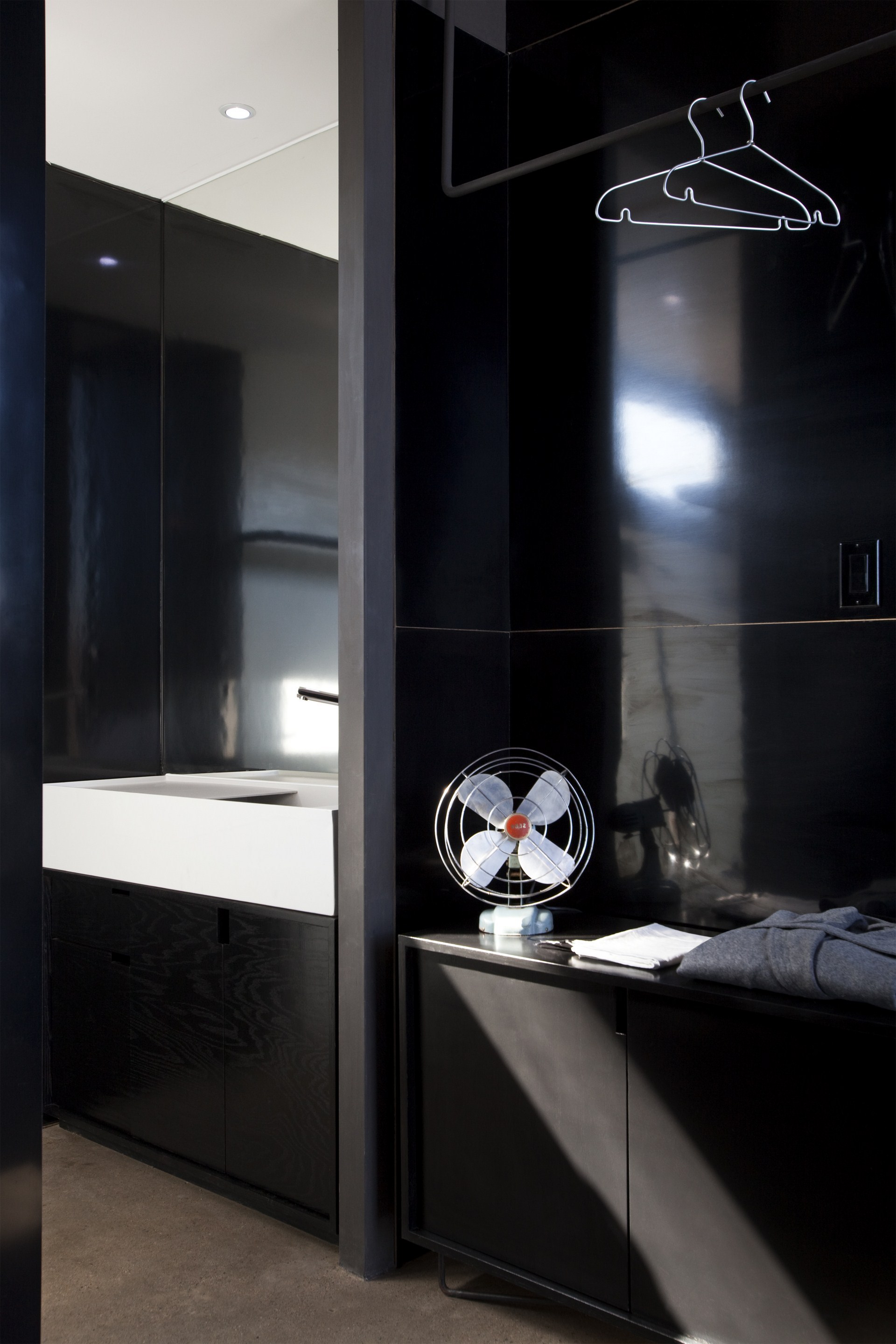

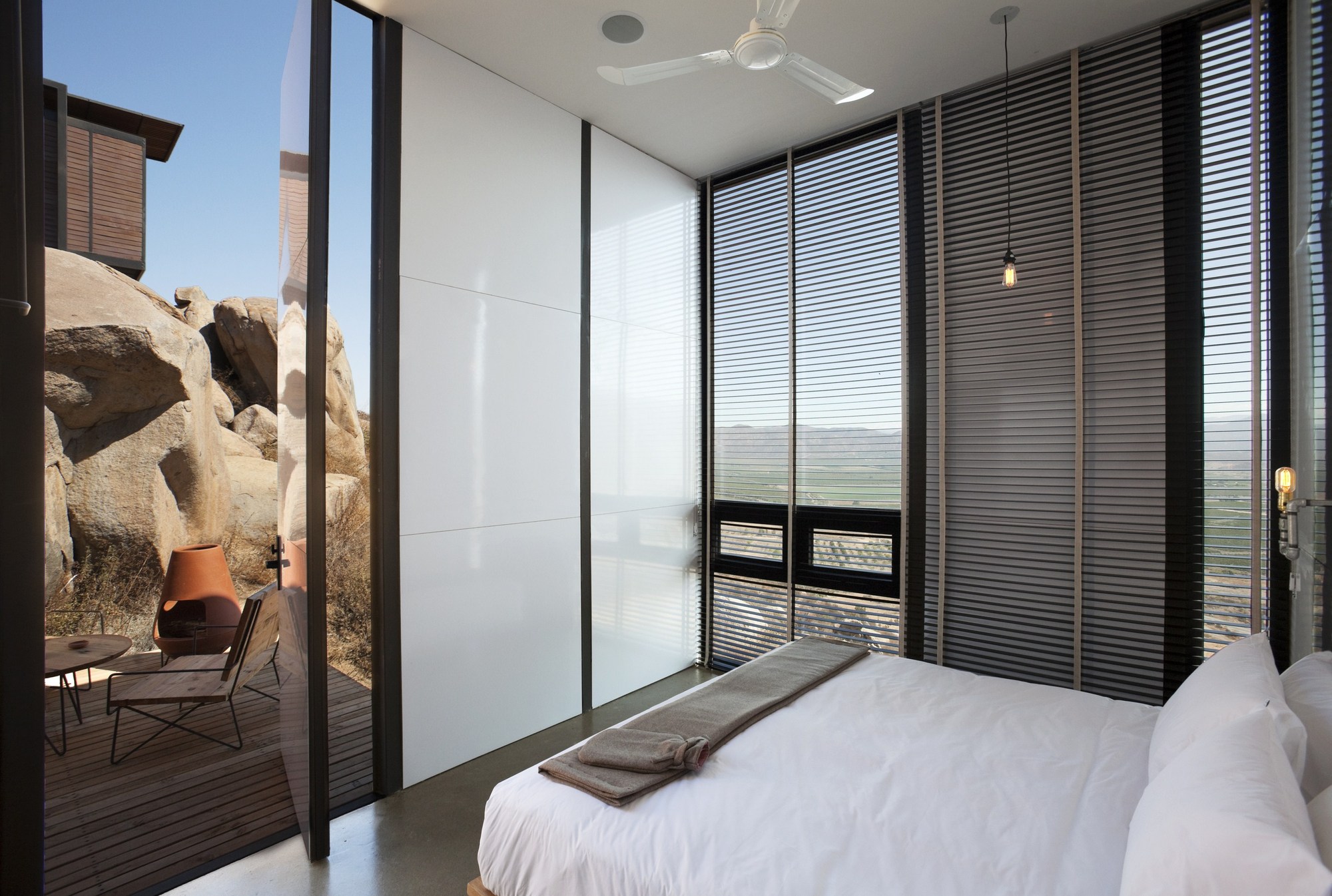

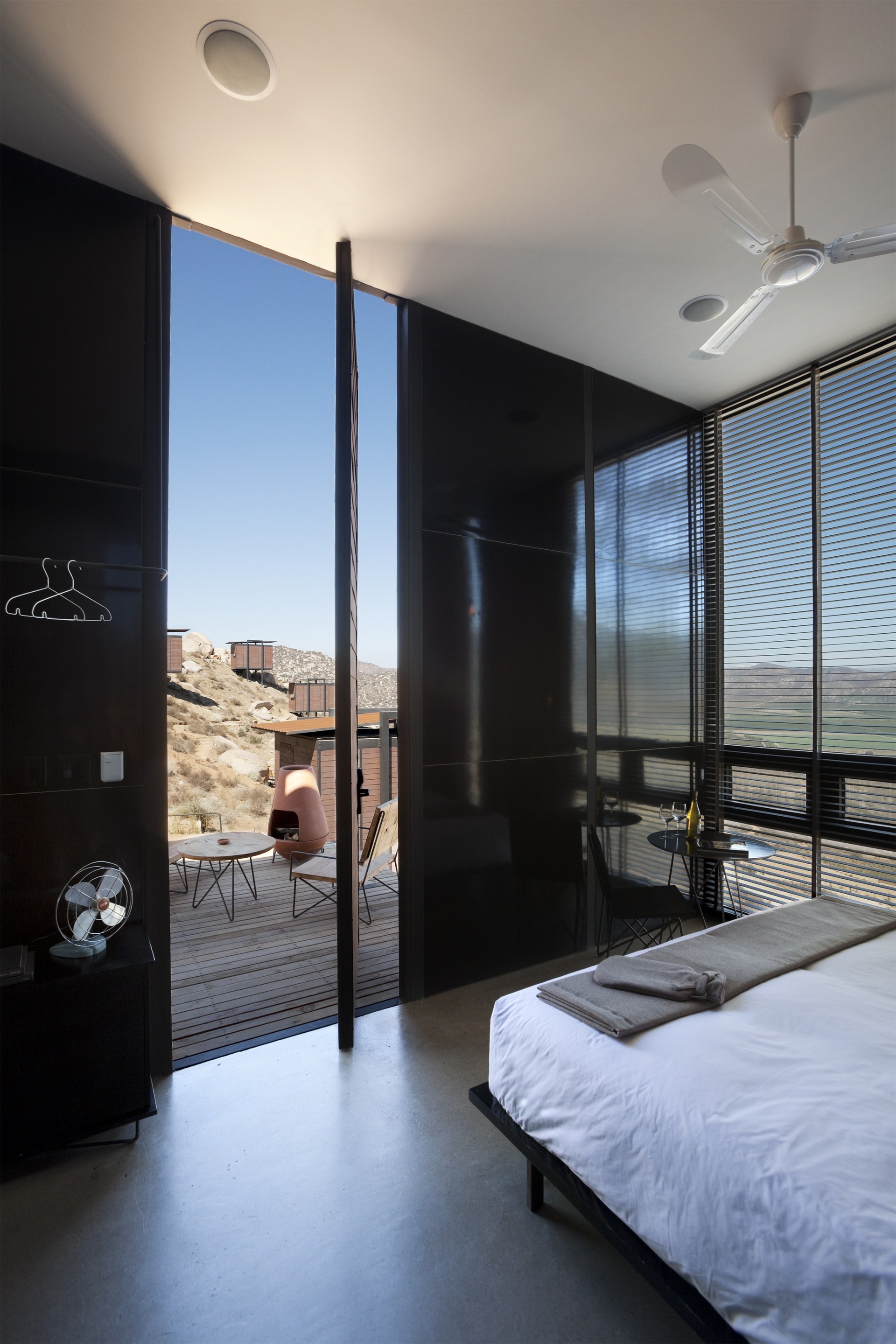

The pivoting glass door is the hinge of the whole experience. Swung open, it erases the line between bed and deck, and the boulders appear to sit right at the foot of the mattress. Inside, a few vintage objects, a rotary phone, a desk fan and wire hangers, set a slightly retro, unplugged tone. Some readers will find this styling a touch knowing. We think it works because it is limited to a handful of pieces and never competes with the view.

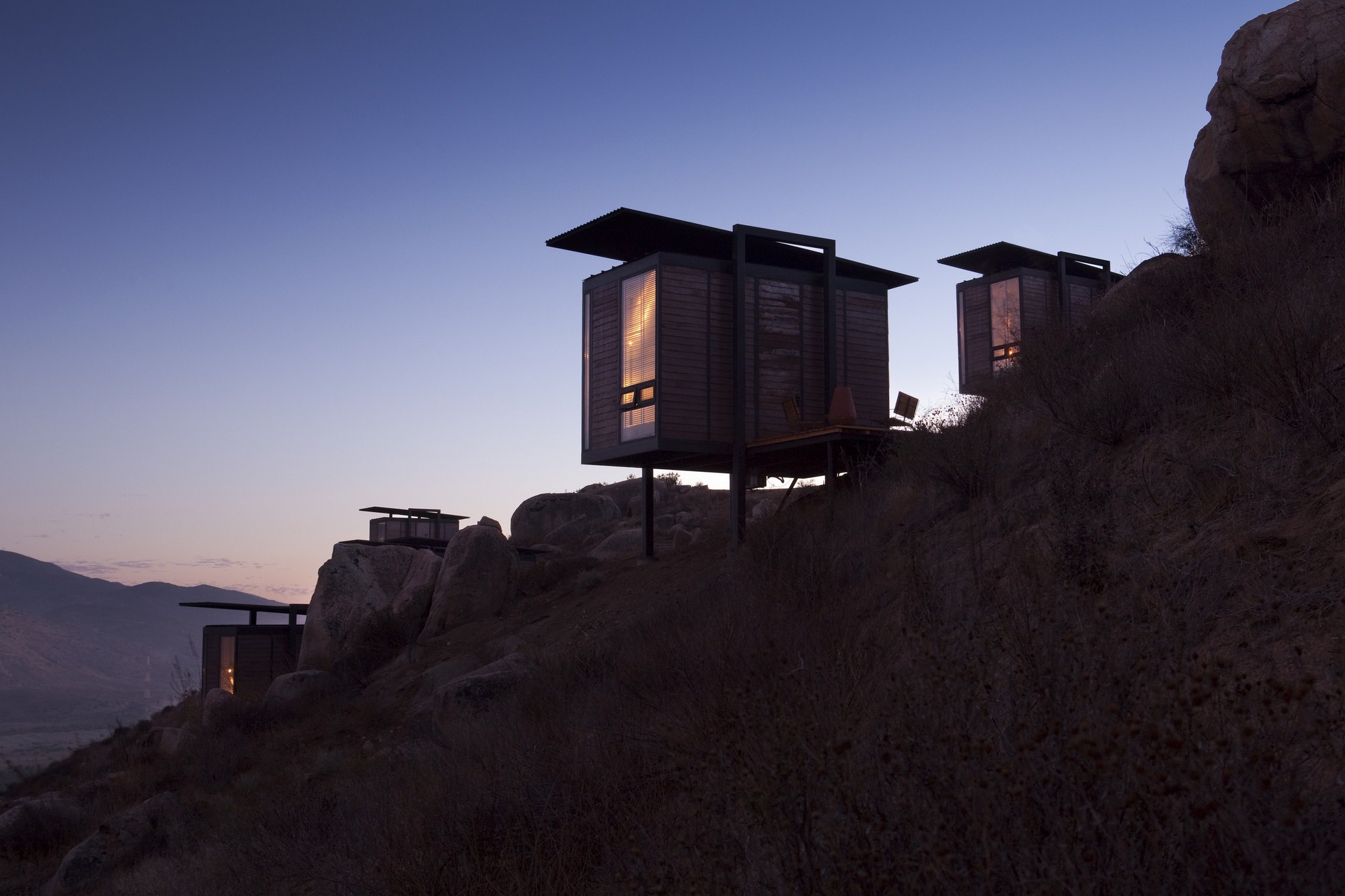

Night on the Hill

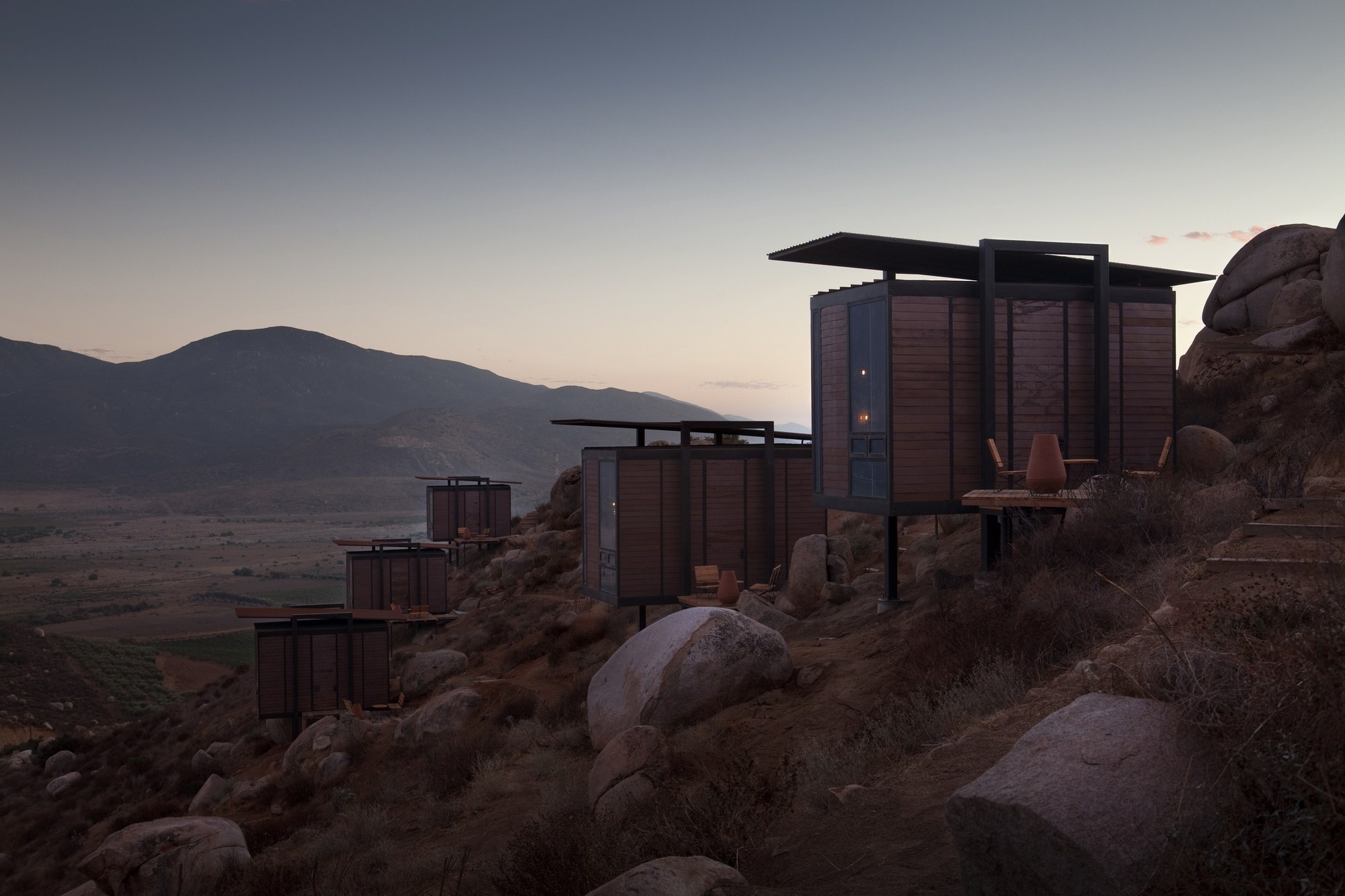

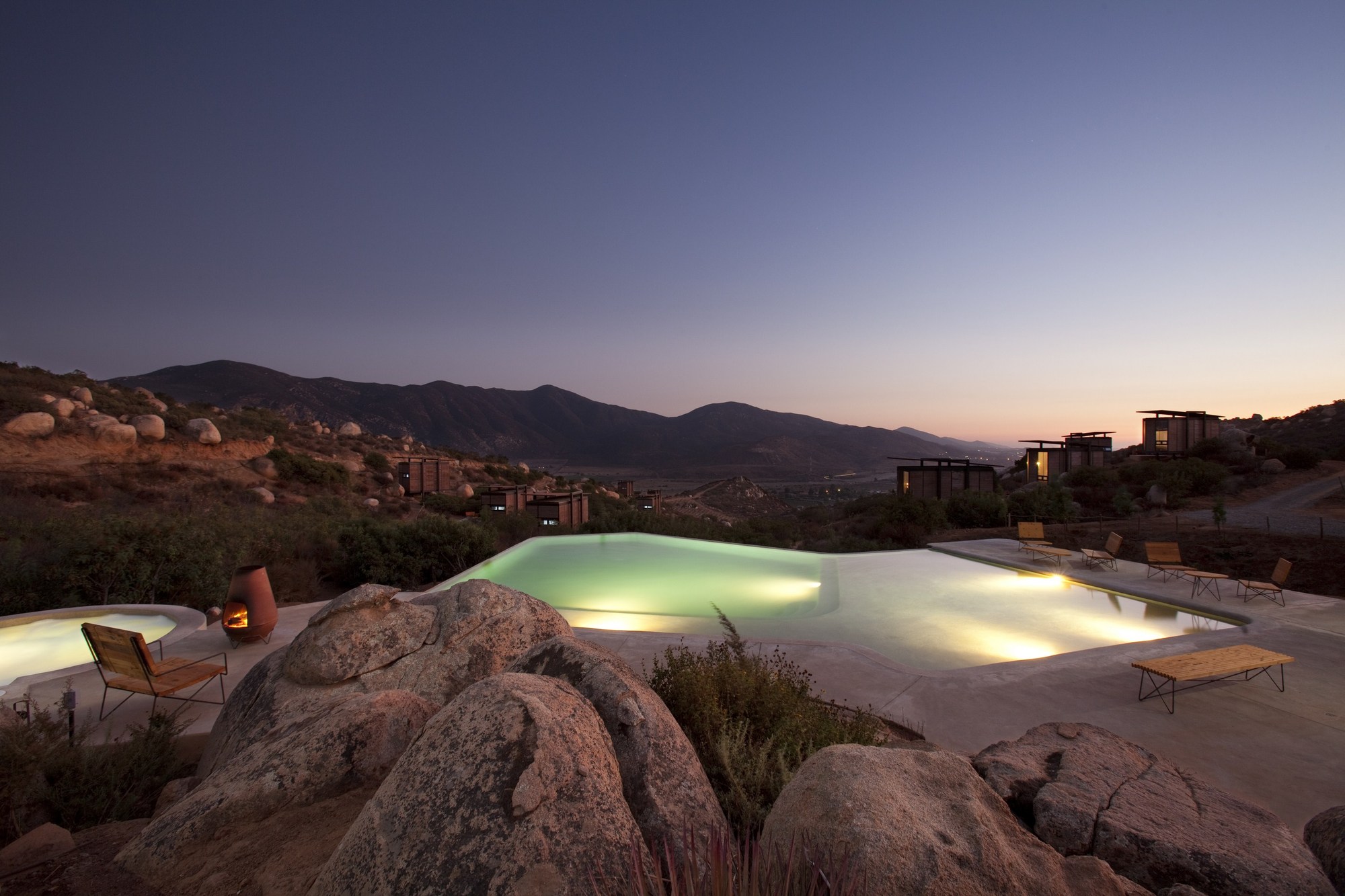

After dark, the scheme reverses. The cabins turn into small lanterns scattered across a black slope, and the shared infinity pool glows among the boulders below. Shared amenities stay minimal: one pool for the cluster, with the winery nearby. That keeps the social life of the hotel light and the solitude of each unit intact.

Plans and Drawings

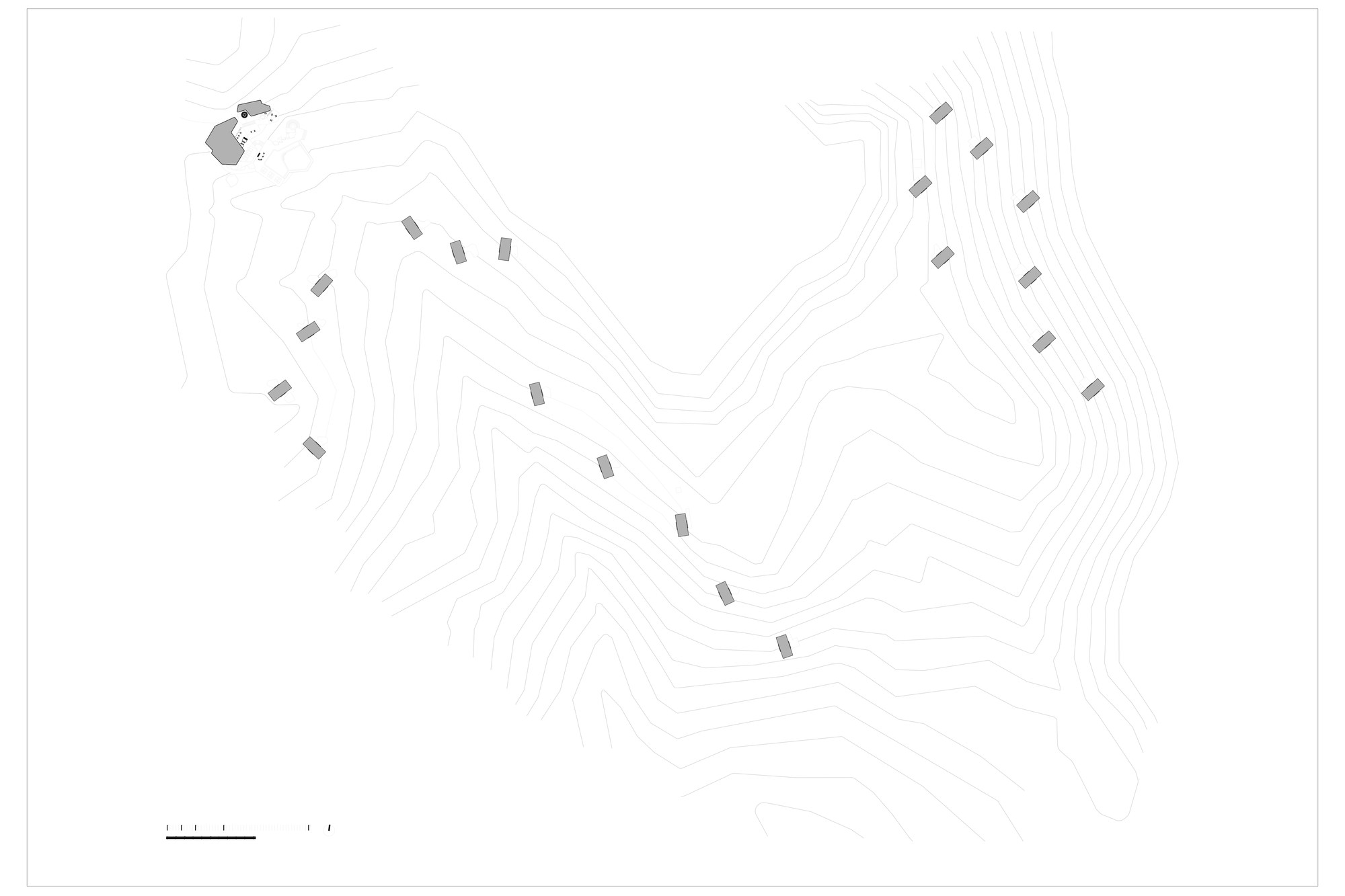

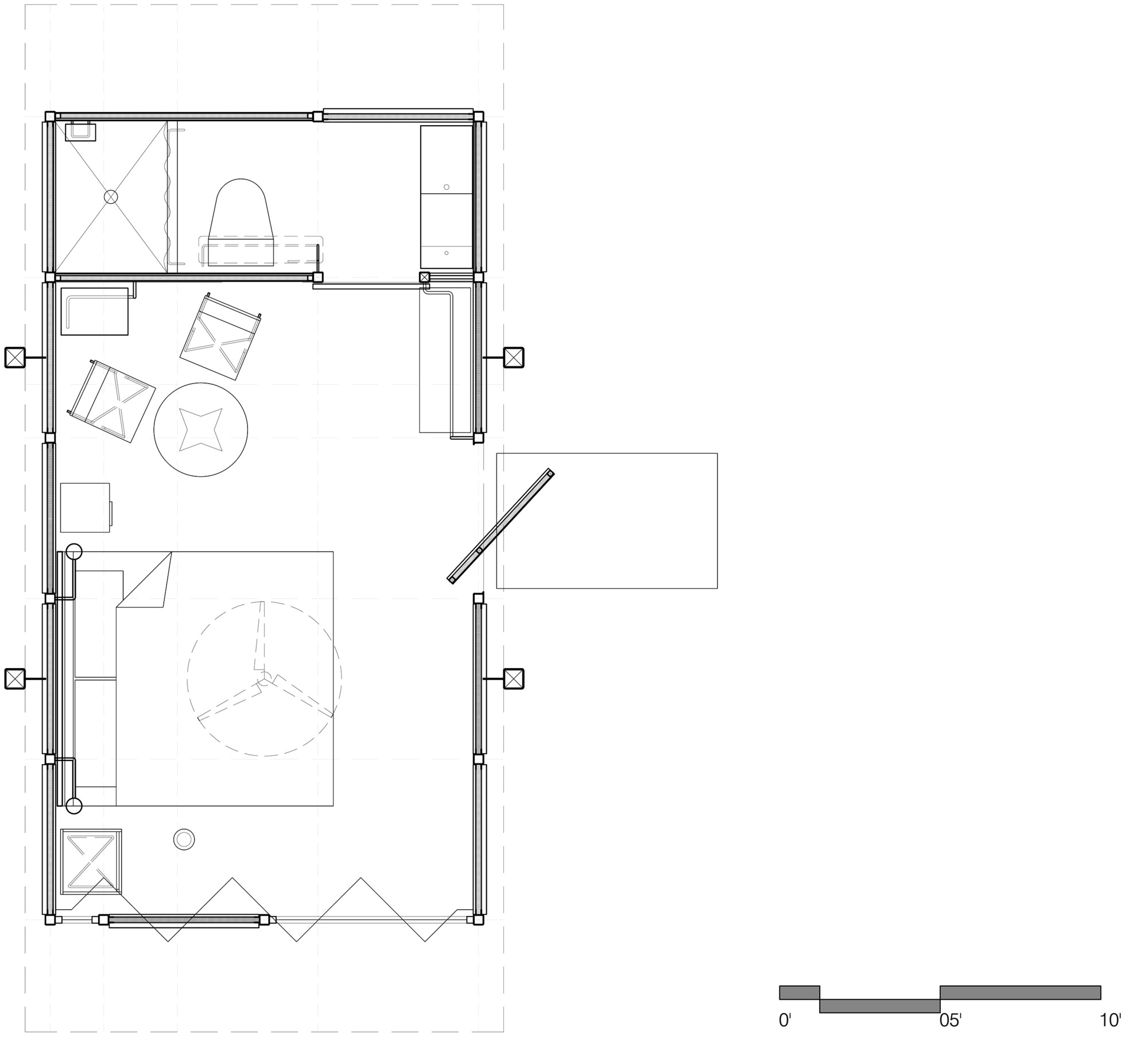

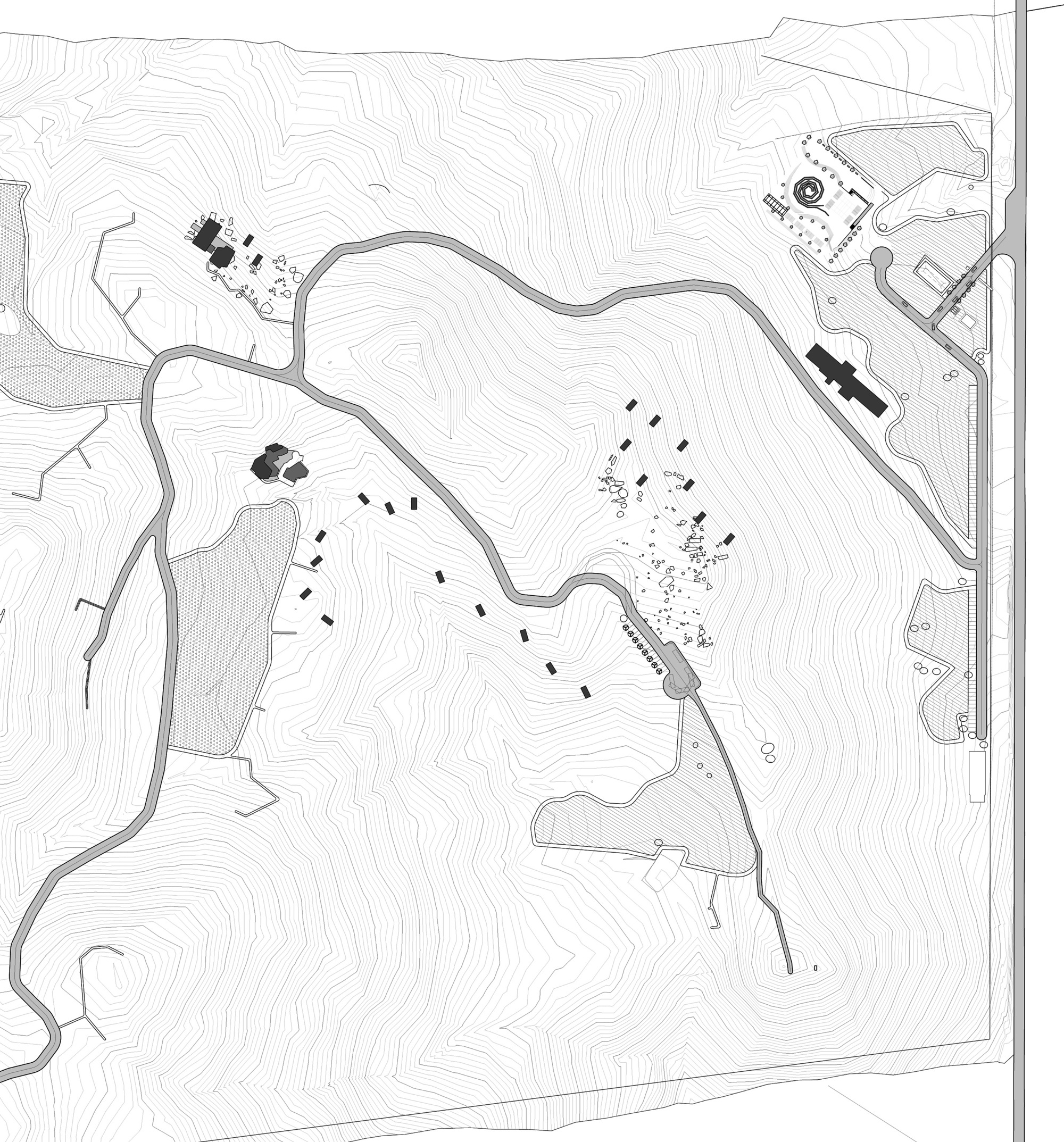

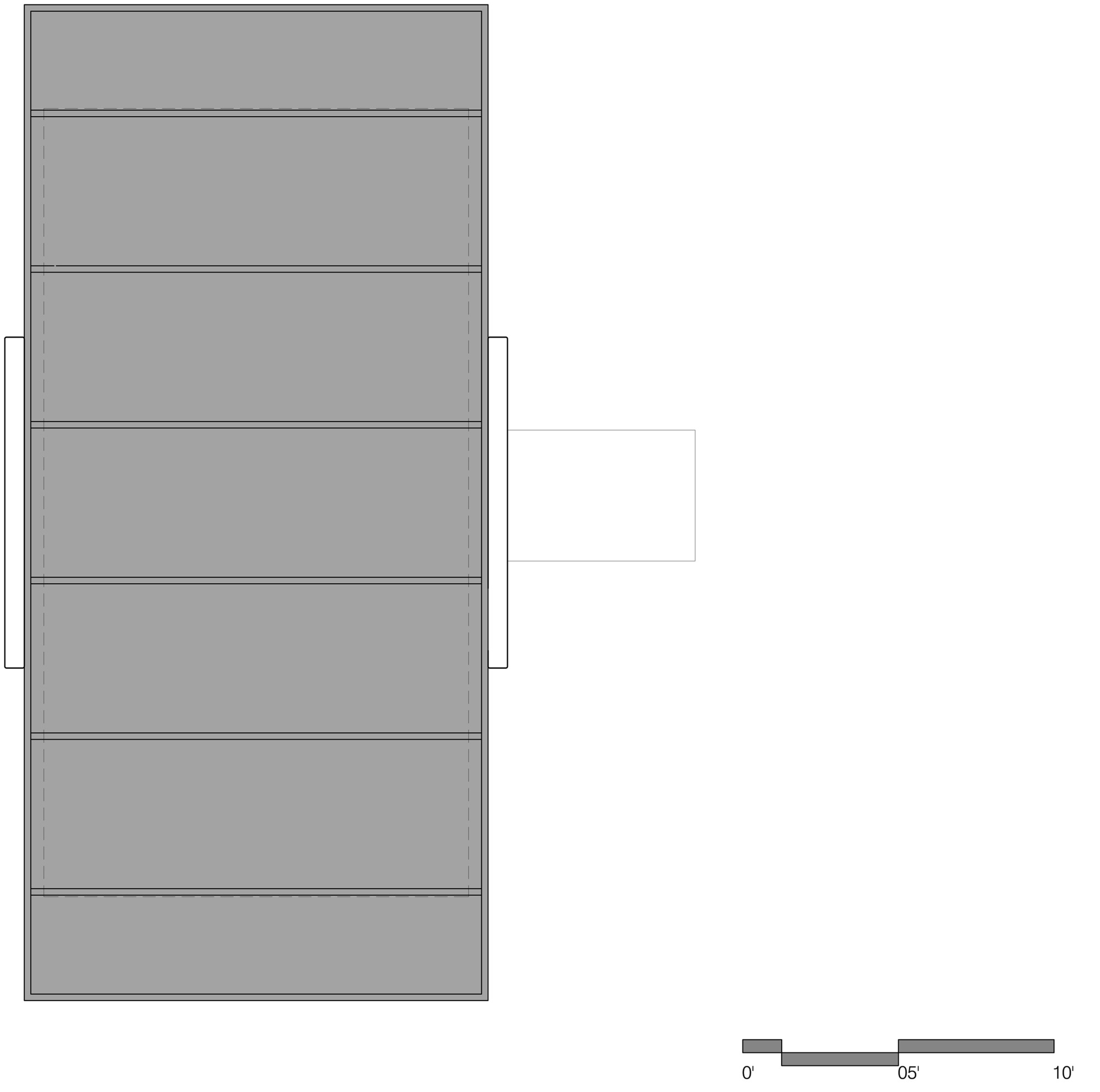

The site plans show the logic clearly: small footprints threaded along the contours in a V-shaped line, connected by winding access roads instead of a grid. The cabin plan is simple, with bathroom at one end, bed and seating in the middle, and folding glass doors and a swinging door opening to the outside.

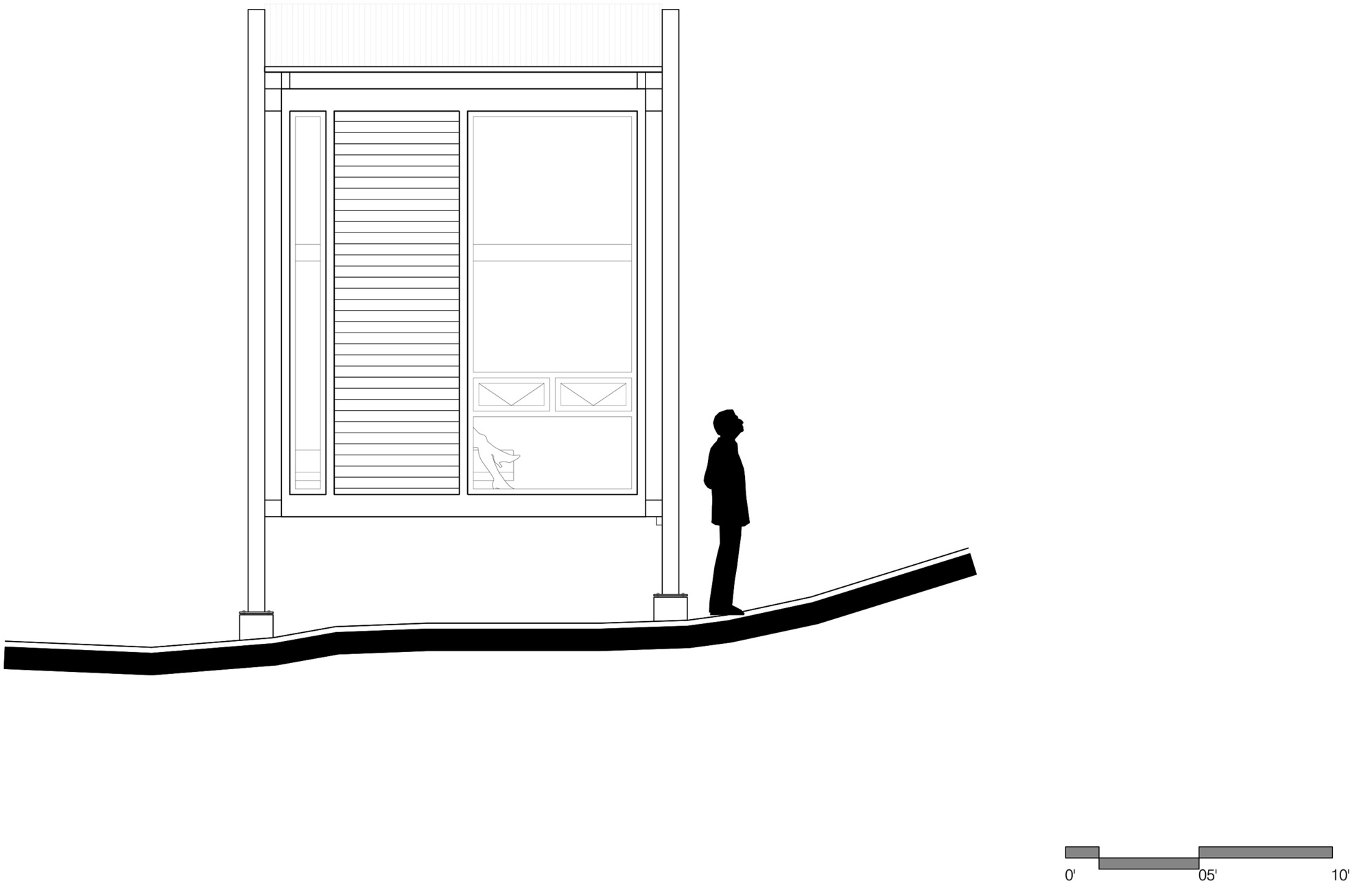

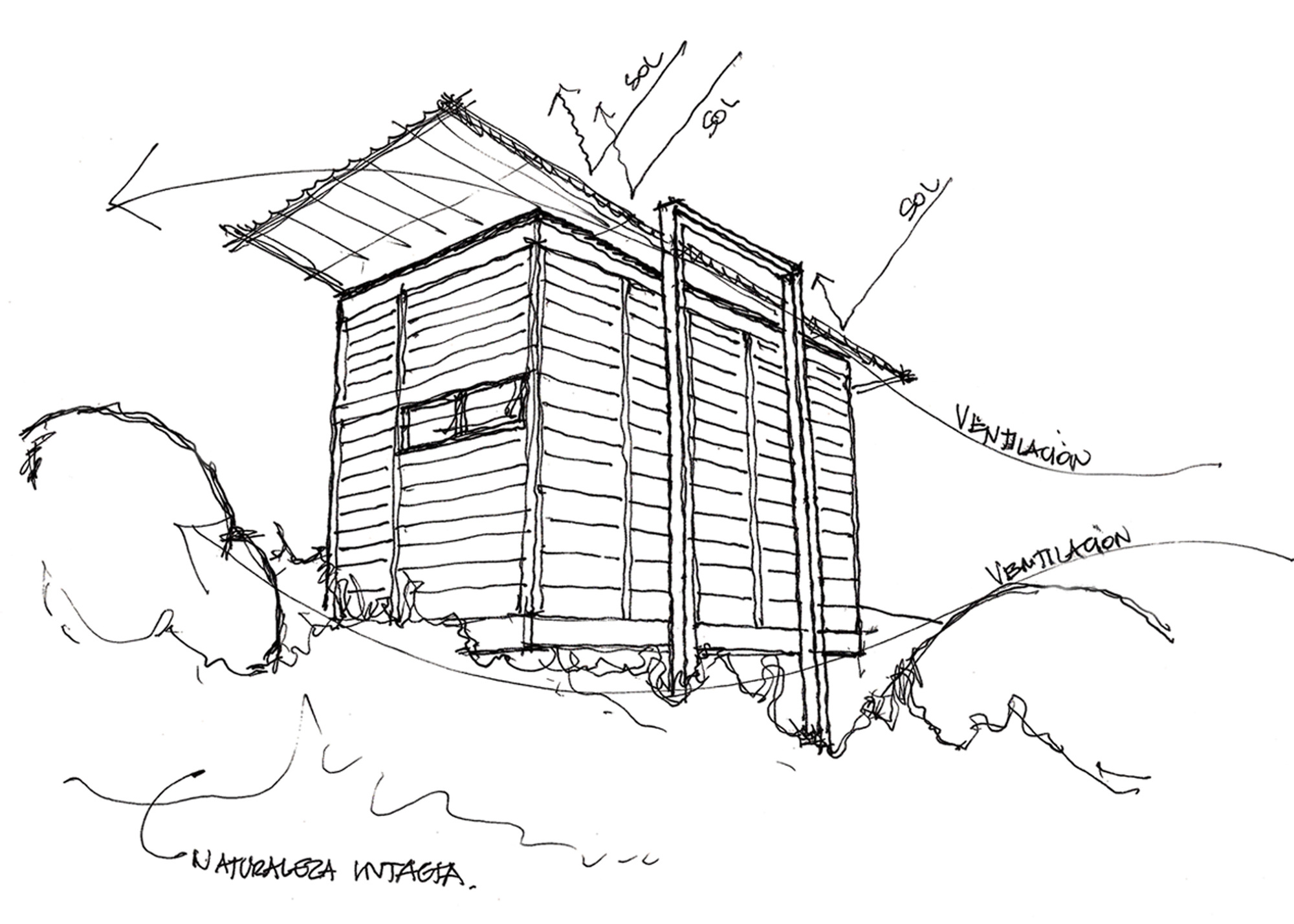

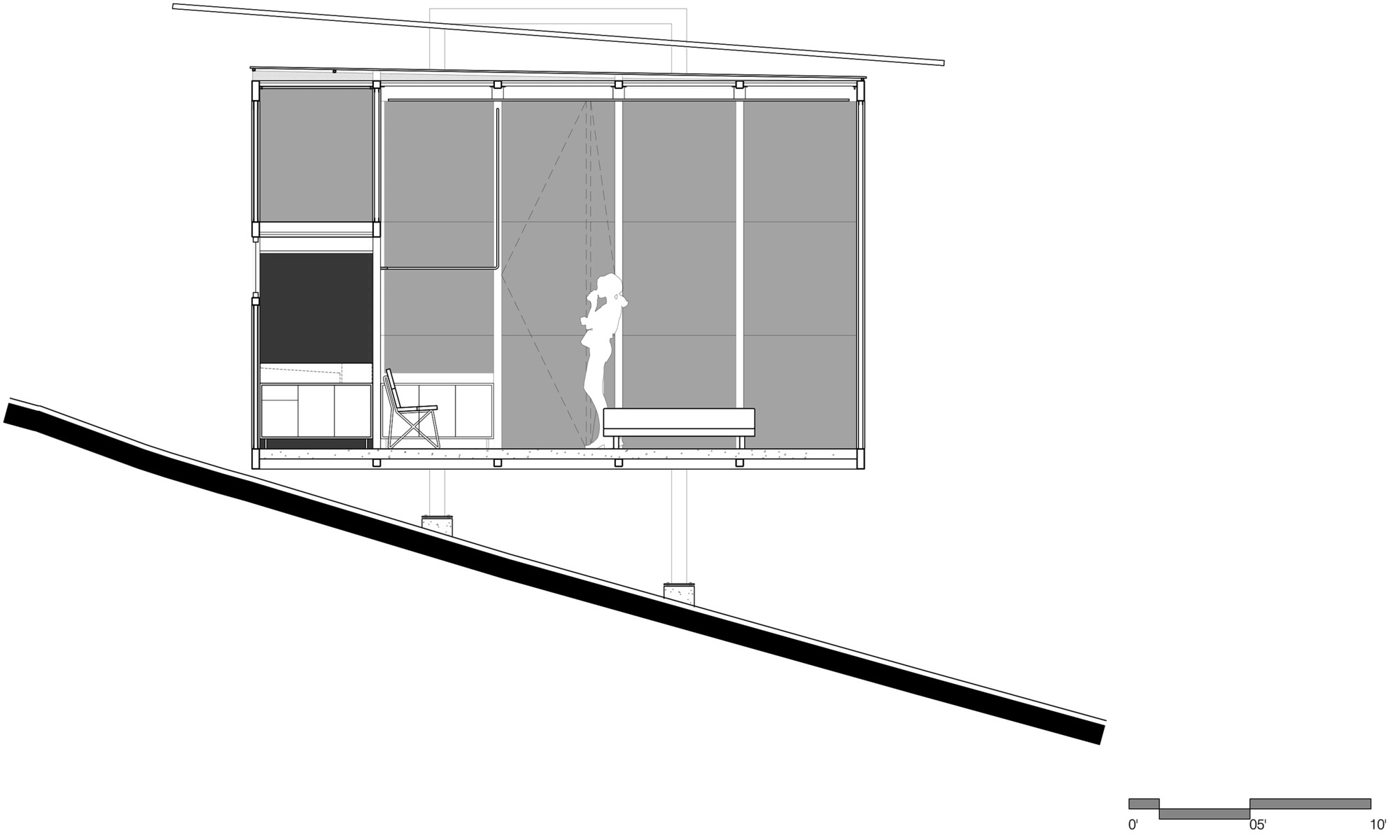

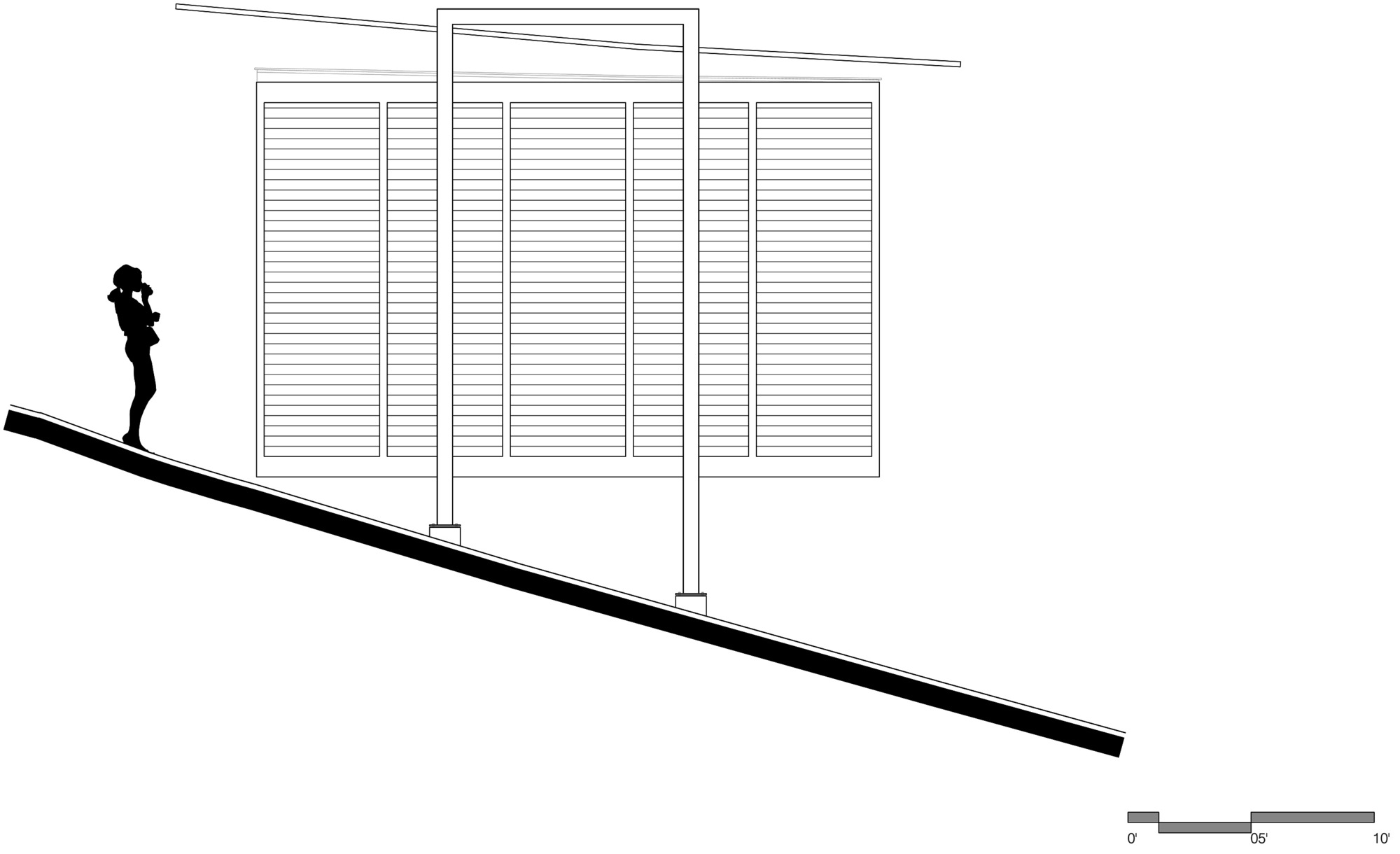

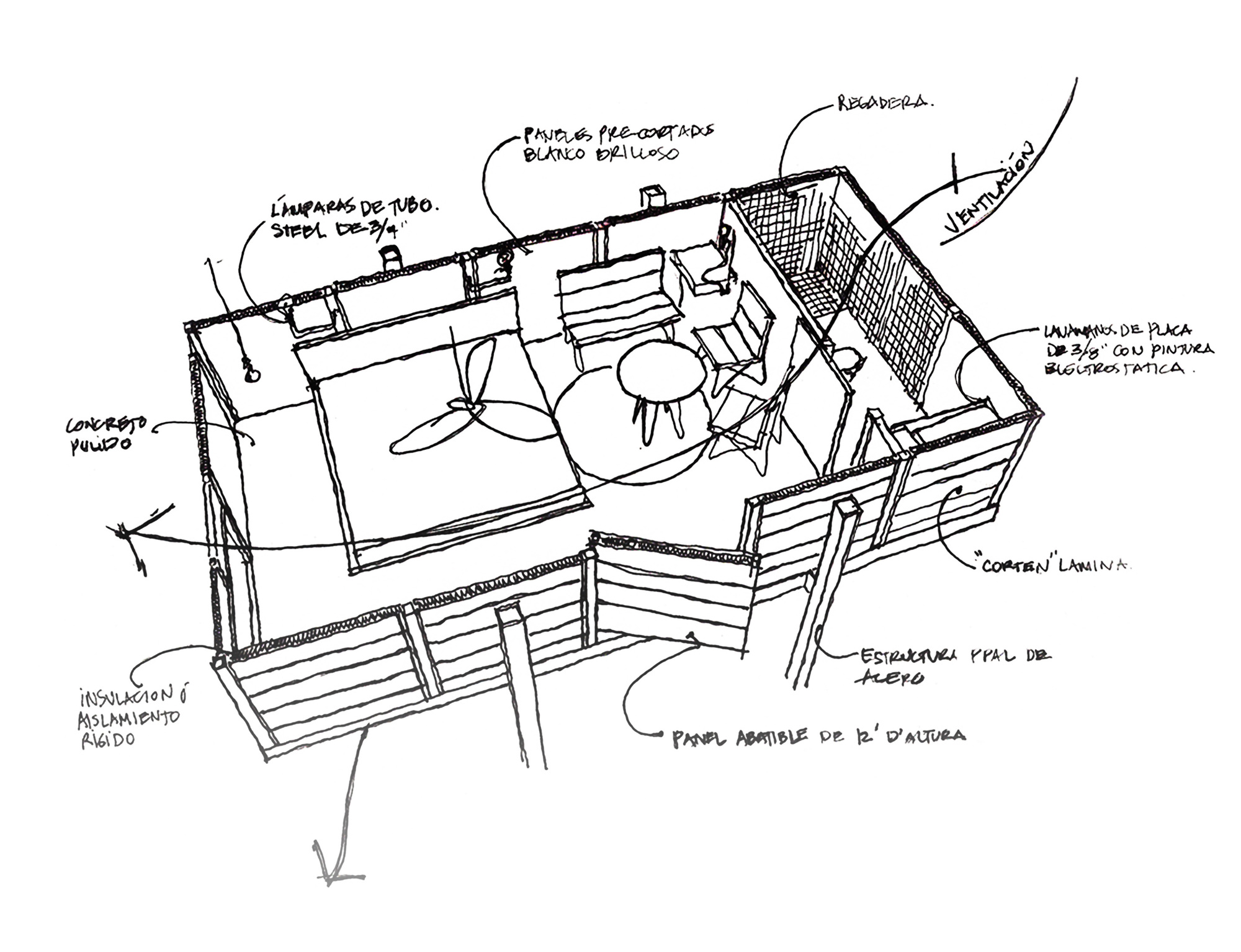

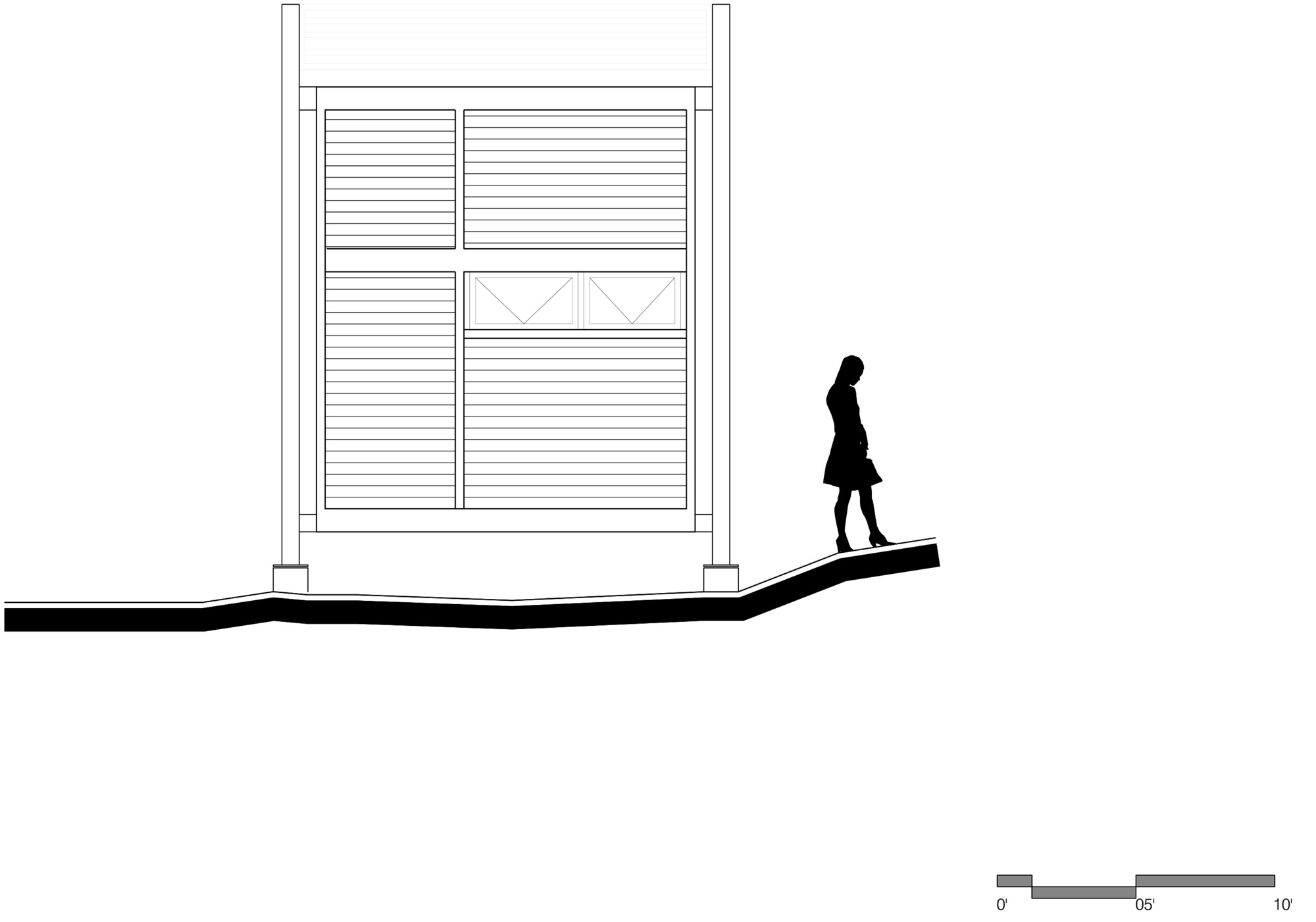

The sections and elevations are the most instructive drawings. They show a level box on posts of varying height over a steep grade, with a tilted roof plane above. The hand sketches matter as well. The early sketch tracks sun and airflow across the slope, and the axonometric labels steel, concrete and weathering-steel panels. Together they show that the material palette was settled from the start, not applied at the end.

Why This Project Matters

Encuentro Guadalupe shows that a hospitality project can be organized around what it leaves alone. The stilts, the dispersed plan and the weathering skin all serve one idea: the hillside should still be legible as a hillside once the hotel is built. Many later "eco-cabin" resorts copy the image, a dark box on legs in a dramatic landscape, without the commitment to minimal ground disturbance that justified it here.

The project also offers a lesson about small rooms. Twenty square meters is enough when the outdoor space is generous, the envelope adjusts, and the view does most of the work. For architects working on rural tourism, the takeaway is practical: spend the budget on siting, threshold and orientation, and keep the box simple. graciastudio also acted as its own builder, which likely helped it hold that discipline from drawing to site.

Encuentro Guadalupe Hotel (Endémico Resguardo Silvestre) by graciastudio, Ensenada, Baja California, Mexico. Site area: 940,000 m². Completed: 2011. Photography: Luis García.
