Santiago Calatrava Spans the Tracks in Mons with a 165-Meter Bridge-Station Nearly 20 Years in the Making

Some buildings earn their reputation before they open. Santiago Calatrava's Mons Train Station, commissioned after a 2006 design competition and finally inaugurated in January 2025, spent nearly two decades working through political friction, construction complexity, and the delicate problem of building a new station while the 1952 one it was replacing stayed operational until 2013. The result is a 37,850-square-meter intermodal hub that serves seven passenger tracks, 29 bus stops, roughly 850 parking spaces, and 350 bicycle berths. It sits along the international Paris-to-Brussels line, near the French border, in a city whose heritage fabric demanded something more than a shed with platforms.

What makes the project genuinely interesting, beyond Calatrava's signature sculptural gestures, is the urban premise. The station has no front and no back. It is conceived as a monumental bridge: a 165-meter-long, 15-meter-high gallery that links the historic city center to the south with a quieter residential district to the north. Identical canopies of steel and glass mark each entrance, flanked by generous pedestrian plazas. The building is, in the most literal sense, a piece of infrastructure that stitches a divided city together rather than walling it off behind a façade.

A Gallery Suspended Over the Rails

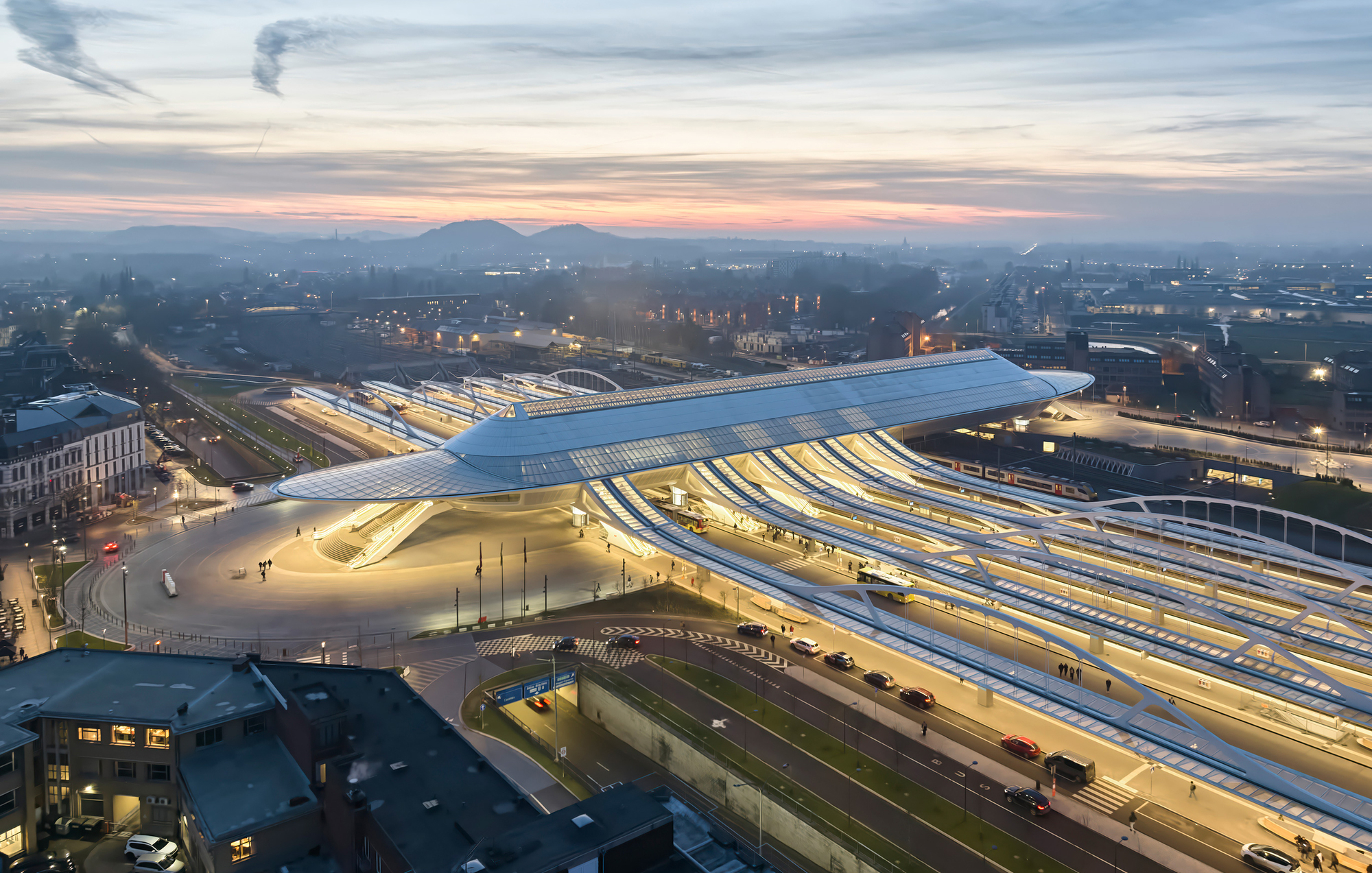

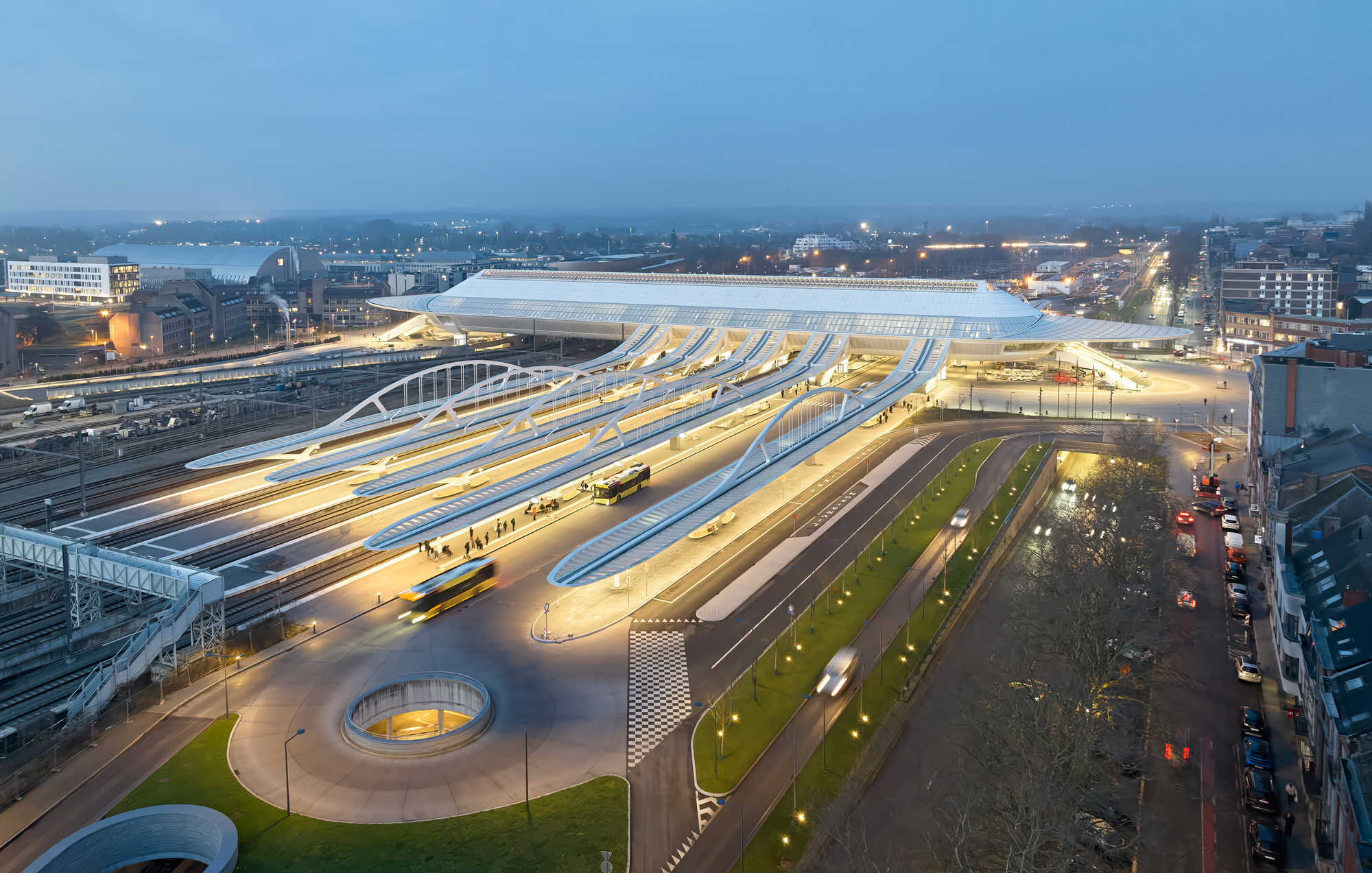

From the air, the station reads as a long, luminous spine flanked by the parallel lines of platform canopies. The central glazed volume is the gallery, and at dusk its ribbed roof glows from within, making the entire structure legible as a single civic gesture across the rail corridor. The 350-meter-long platforms extend well beyond the gallery's footprint, but the gallery itself is the organizing element: everything converges on it, and it is the space through which every passenger passes.

The decision to raise the concourse above the tracks rather than bury it beneath them is the project's most consequential move. It turns the station into a bridge that pedestrians and commuters can use even without boarding a train, establishing a public right-of-way that the old station never provided. The forecourt plazas visible at either end are scaled to complement the gallery's width, creating threshold spaces that mediate between city fabric and infrastructure.

White Ribs, Central Skylight, and the Logic of Repetition

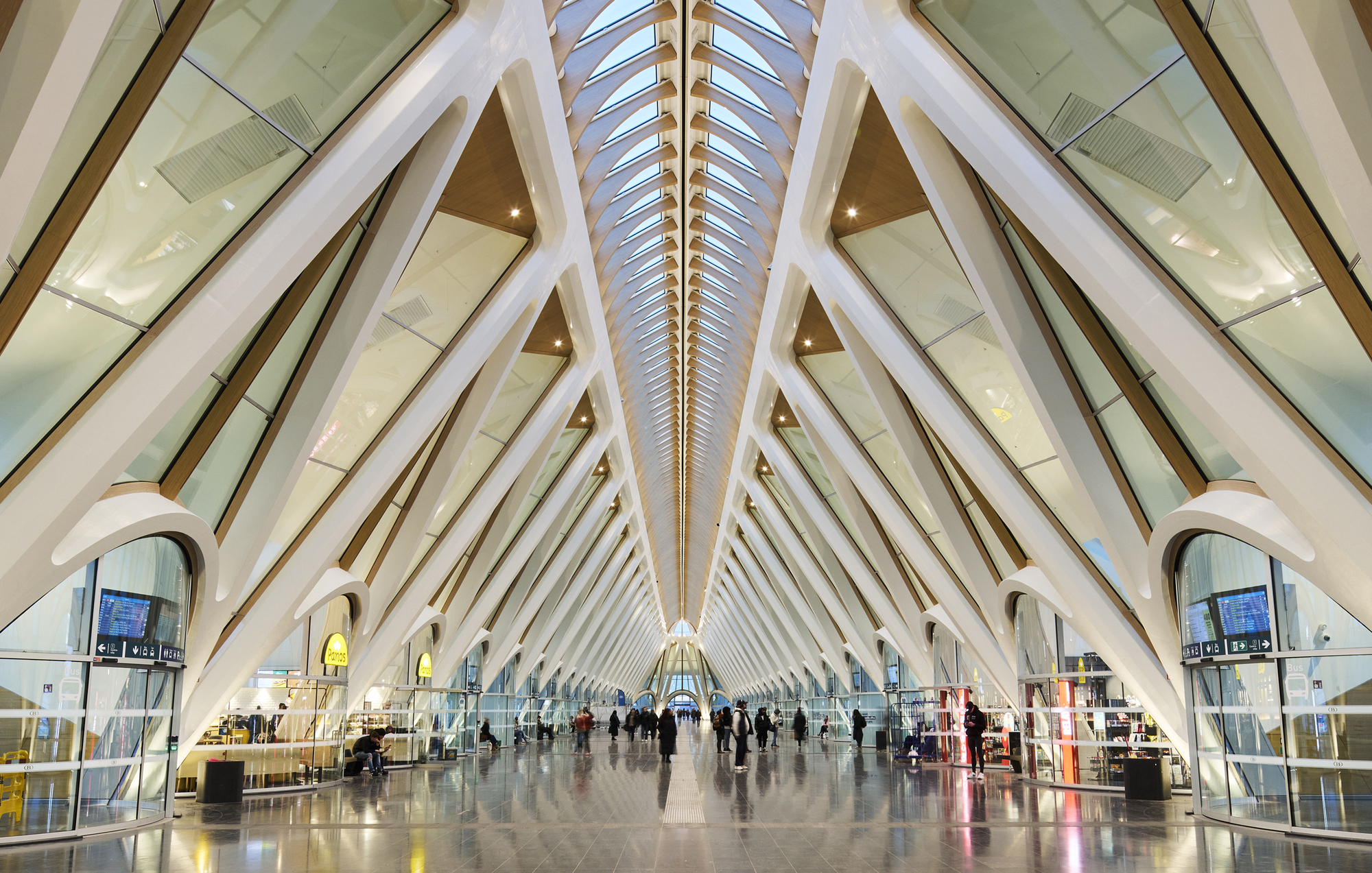

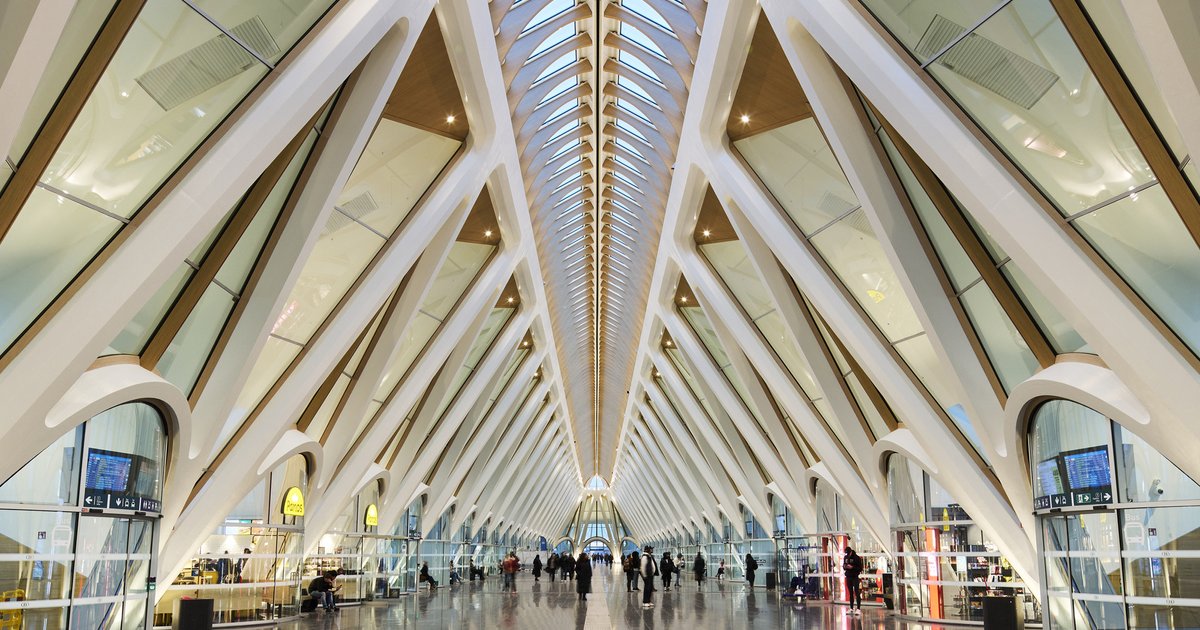

Step inside and the gallery reveals its structural logic: a regular rhythm of white steel ribs that arch upward and converge at a long central skylight running the length of the roof's spine. The skylight is operable, designed to draw natural ventilation through the concourse in warmer months and close to maintain a fully insulated, heated environment during Belgian winters. The combination of triple glazing and opaque panels, calculated for a 30-degree roof inclination, gives the envelope serious thermal performance rather than treating sustainability as an afterthought to sculptural ambition.

Calatrava has cited the glazed arcades of Brussels's Galeries Royales Saint-Hubert as an inspiration, and the comparison holds up. The gallery functions as a skylit passage, 14 retail and service units lining its length alongside offices, staff facilities, and even a childcare unit. The Galerie de la Reine, as it has been named, aspires to be the kind of urban room that 19th-century European stations once offered: a covered street that belongs to the city, not just to the railway.

The Glazed Dome and Structural Convergence

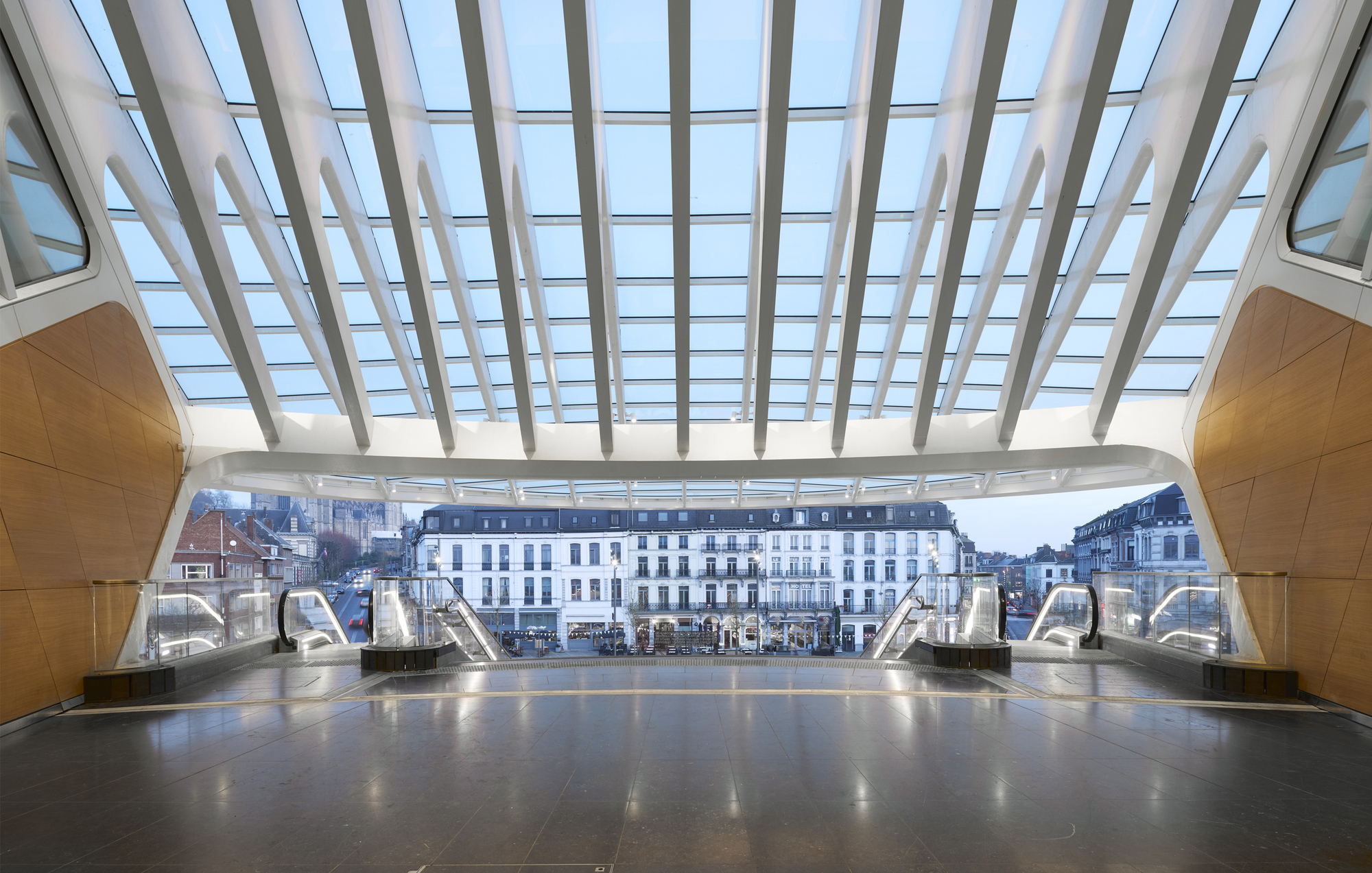

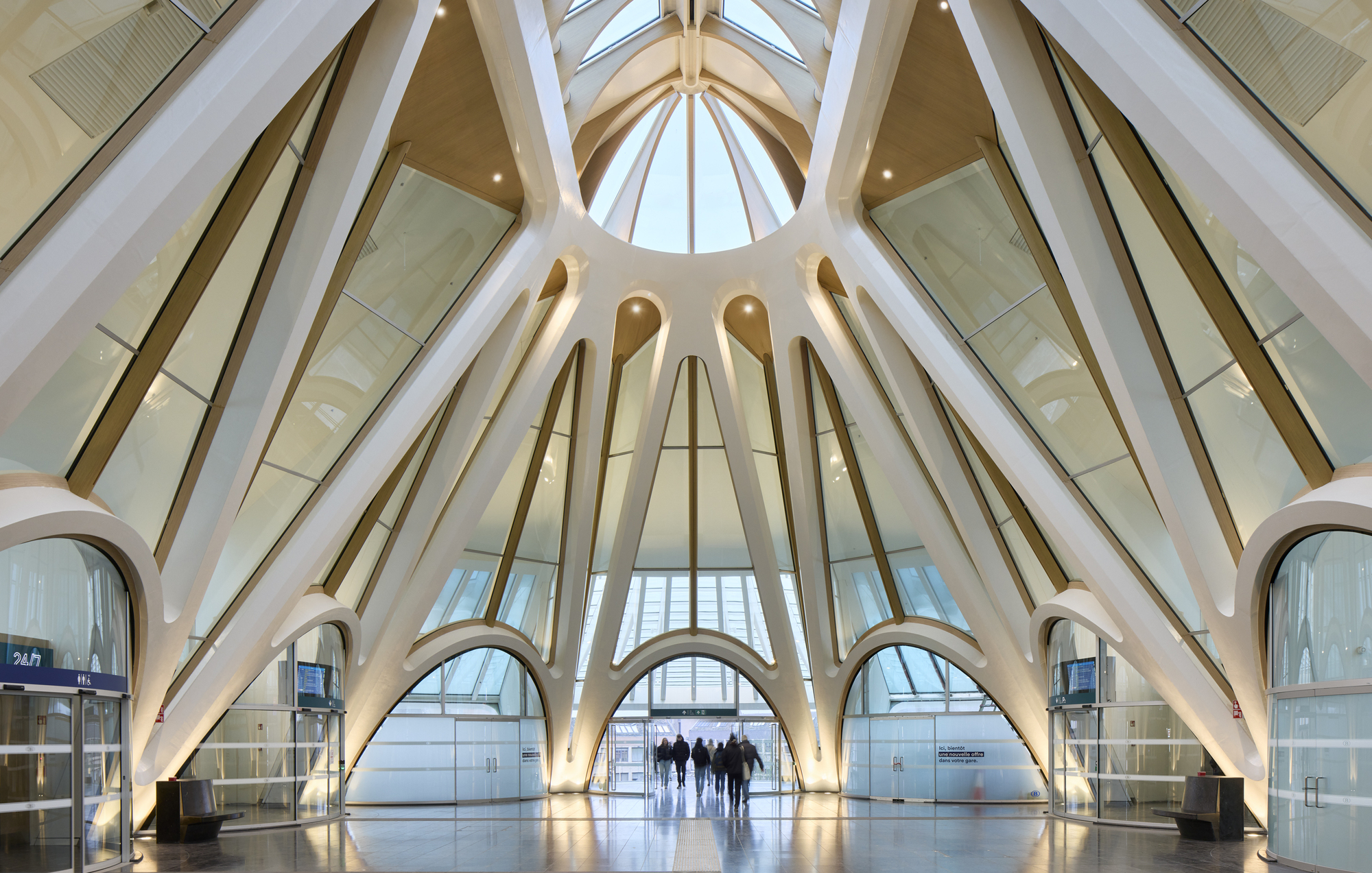

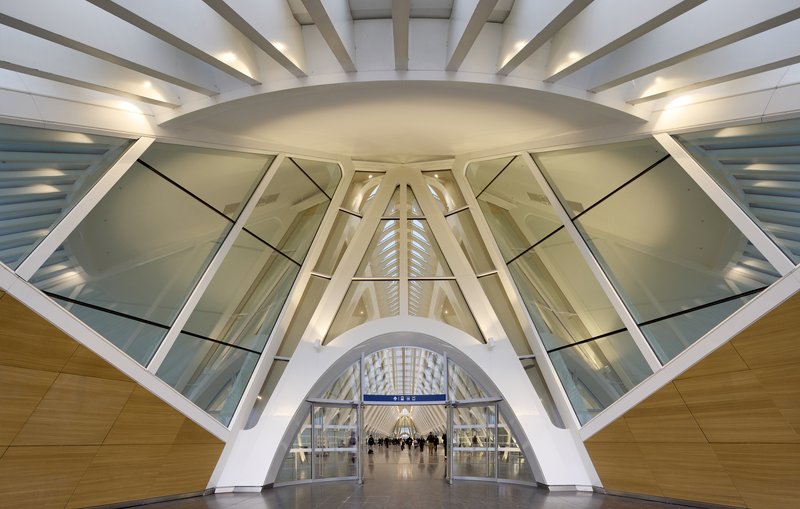

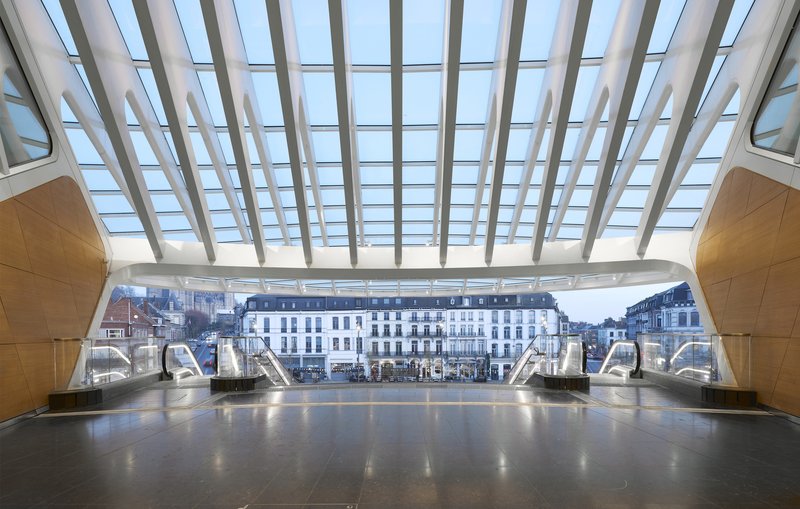

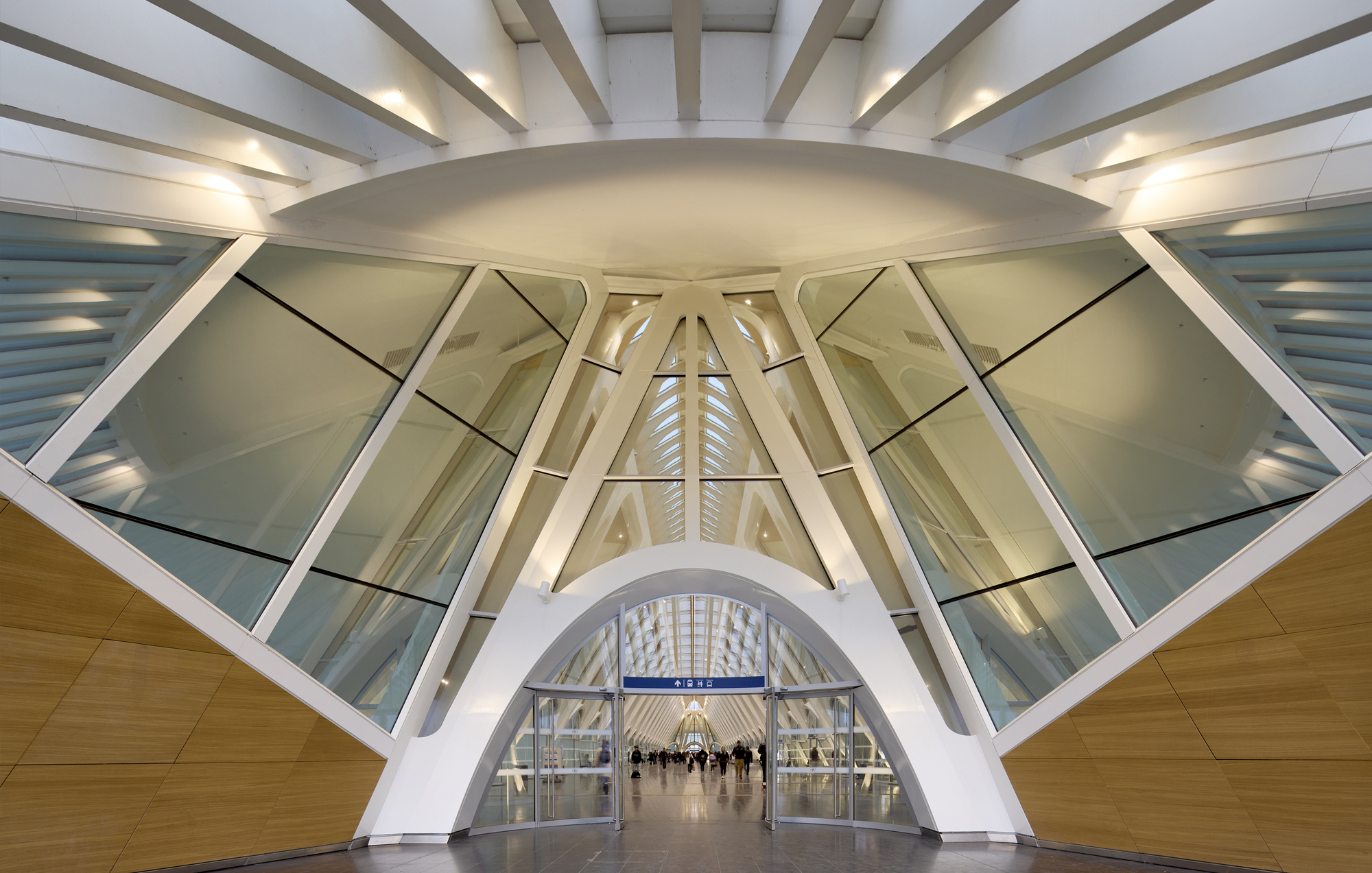

At key moments the ribbed canopy opens into a glazed dome where structural members converge toward a central oculus. These nodes punctuate the gallery's linear rhythm and serve as orientation points: you know where you are in the station by the quality of light overhead. Through the glazing at the gallery's ends, Mons's historic buildings remain visible, framed by the white steel and glass canopy. It is a deliberate choice to keep the city legible from within the station, reinforcing the idea that the building is a connector rather than a container.

Descending to the Platforms

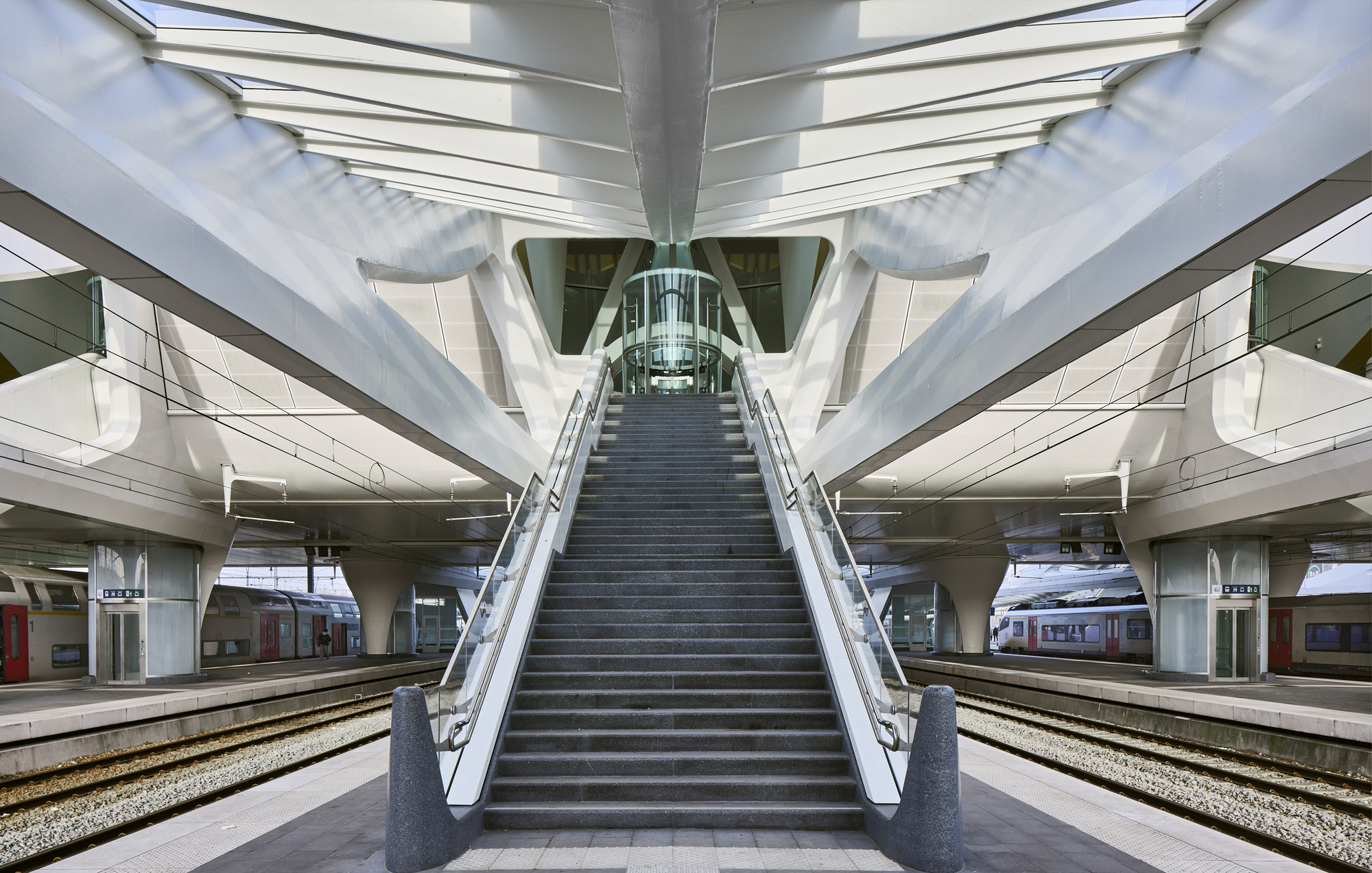

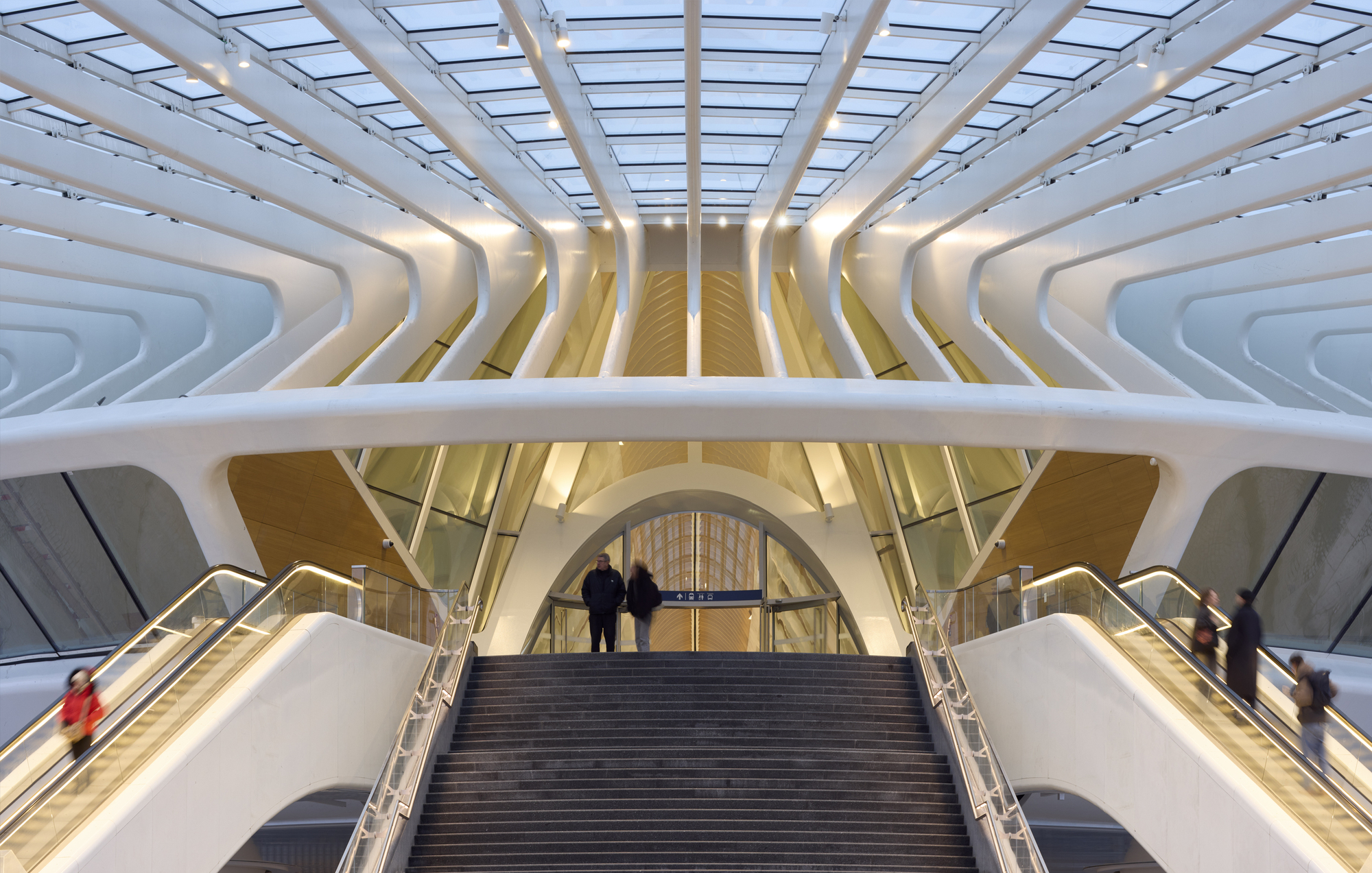

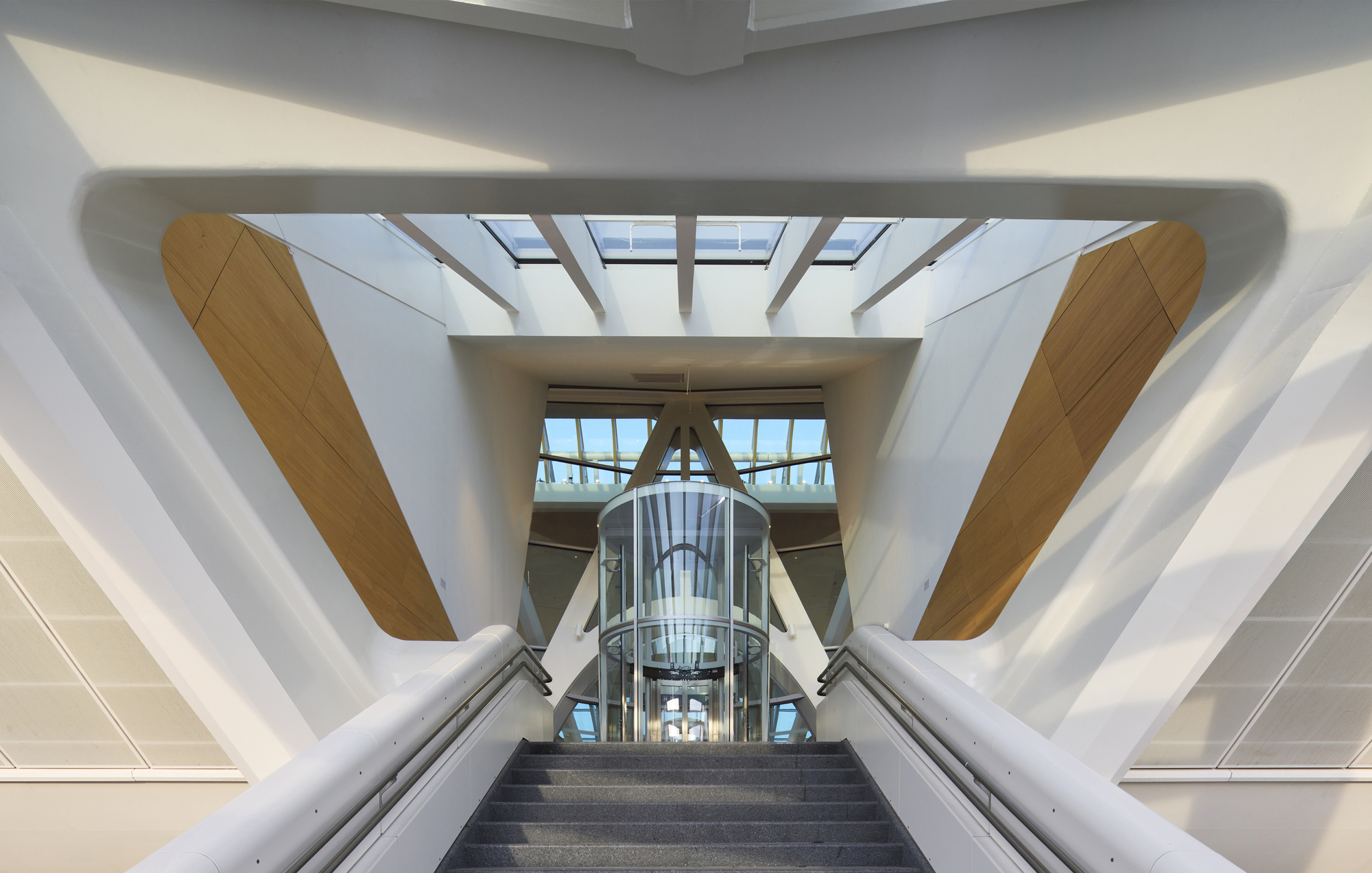

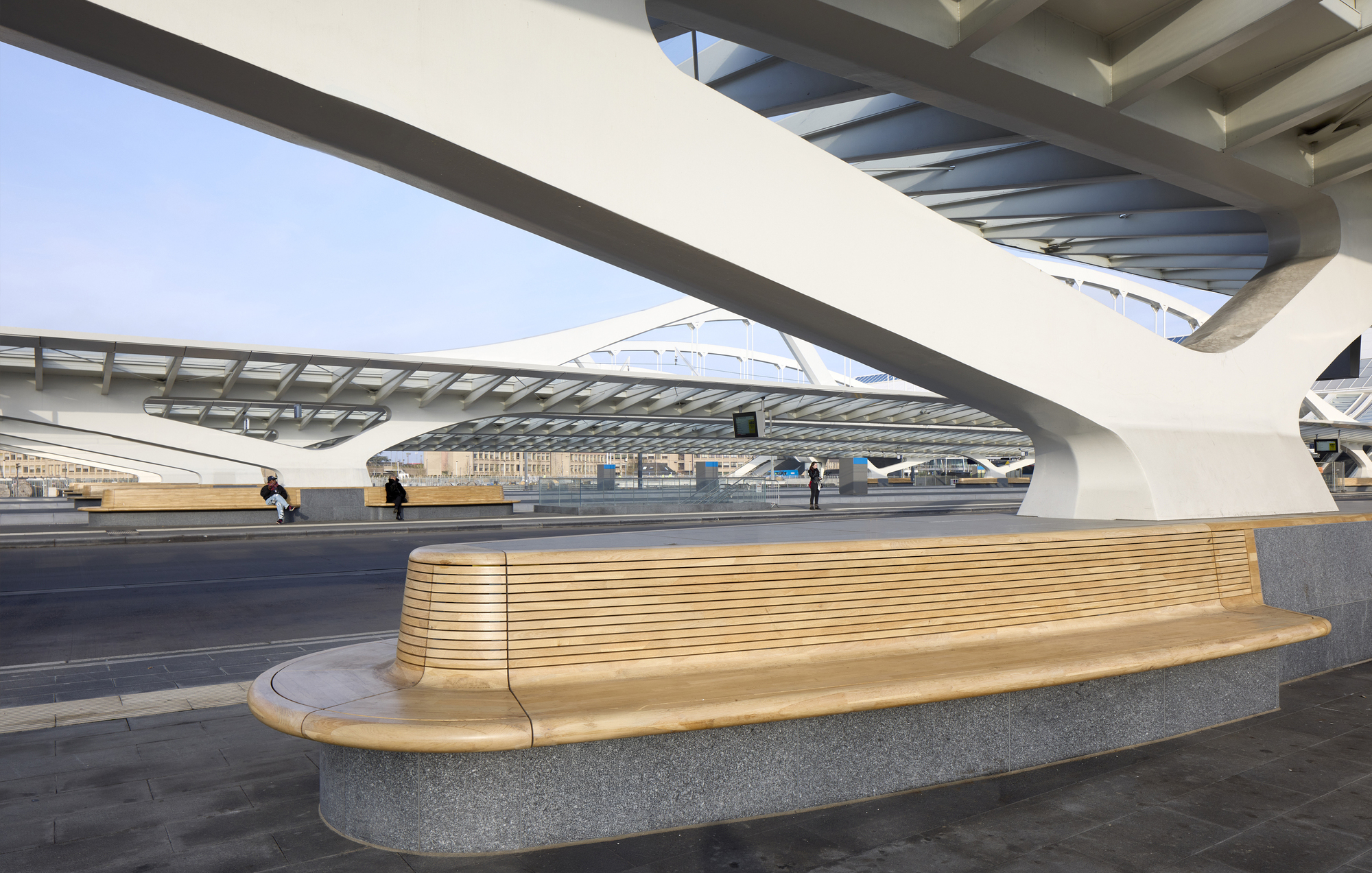

The transition from gallery to platform level is where the station's bridge concept becomes tactile. Staircases and escalators drop passengers down through layers of intersecting white beams and clerestory glazing, and the structural ribs shift from arched gallery members to angular, triangulated supports. Timber-clad columns and wooden accents soften the palette at closer scales, introducing warmth against the white steel. On the platforms themselves, curved timber benches on granite bases provide seating under the canopy ribs, a detail that suggests genuine attention to the experience of waiting.

The 28-foot-wide platforms are designed for barrier-free, independent travel. Heated walkways, noise barriers, and accessible entries are integrated without being segregated into separate routes. Calatrava's stations have sometimes been criticized for prioritizing spectacle over function; here, the accessibility strategy appears to have been embedded from the start rather than retrofitted.

Underground Passage and the Station's Hidden Half

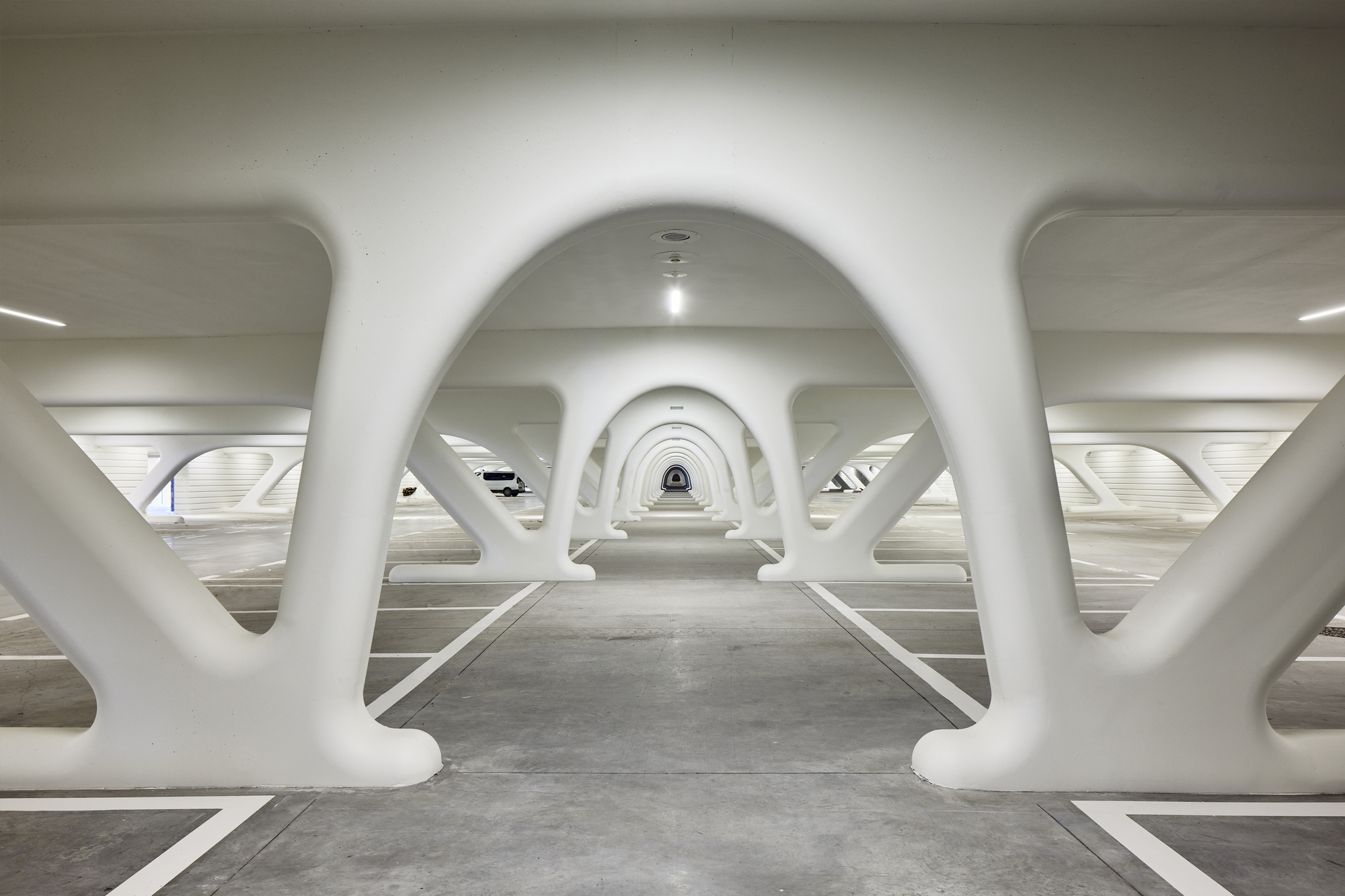

Beneath the elevated gallery lies a substantial underground program: roughly 500 parking spaces at the south entrance on Place Léopold, another 350 at Place de la Gare to the north, and technical rooms that service the station's mechanical systems. A pedestrian passage with repeating white arched frames creates a rhythmic perspective tunnel that mirrors the gallery above, maintaining the architectural language even in the most utilitarian zones. It is a reminder that nearly half the station's volume is buried, and that the elegant bridge overhead sits on a considerable logistical foundation.

Why This Project Matters

Mons Train Station arrives at a moment when European cities are rethinking their rail infrastructure not just as transit nodes but as instruments of urban repair. Calatrava's bridge concept takes that ambition literally, erasing the front-back hierarchy that defined the 1952 station and establishing a public passage that belongs to both halves of the city. The intermodal program, combining rail, bus, bicycle parking, and car parking with retail and civic amenities, reflects the complexity that contemporary stations must absorb. That it took nearly 20 years to build is both a cautionary tale about megaproject timelines and a testament to the difficulty of executing structural ambition at this scale.

Whether the station fulfills its urban promise will depend on how Mons grows around it. The plazas, the through-passage, the retail galleries: these are invitations, not guarantees. But as a piece of architecture, the station is among the more convincing arguments Calatrava has made in decades. The structural exhibitionism is present, of course, but it is disciplined by a clear spatial idea, a genuine climate strategy, and a commitment to accessibility that moves the work beyond spectacle. For a city of heritage near the French border, it is both a fitting gateway and a declaration that infrastructure can still be architecture's most generous public act.

Mons Train Station by Santiago Calatrava, Mons, Belgium. 37,850 m². Completed 2025. Photography by Oliver Schuh.
