Verdant Ridges: A Silk Factory Reborn as Theater

The Xinguang Silk Weaving Factory once occupied this patch of Suzhou, its concrete frame and brick infill walls typical of mid-century Chinese industrial construction. Building No. 5, a modest two-story structure, sat quietly among the compound's warehouses and workshops. Wutopia Lab has now turned it into something startlingly different: a 282-square-meter theater clad in ridged screens of green glass tile that shimmer against the raw bones of the original frame. The project is called Verdant Ridges, and the name is precise. The new skin undulates, folds, and catches light like a topographic surface grafted onto a skeleton that was never designed for spectacle.

What makes this project worth paying attention to is the way it refuses the two most common approaches to industrial renovation. It neither strips the old building back to some fetishized rawness nor buries it under polished new surfaces. Instead, the intervention is legible as a distinct layer, a green crystalline deposit that fills the voids of the concrete frame while leaving the frame itself fully exposed. The tension between the rough, weathered concrete and the precisely laid tile creates a dialogue that is genuinely architectural, not decorative. It is a building that wears its history and its ambition simultaneously.

A New Skin Within an Old Frame

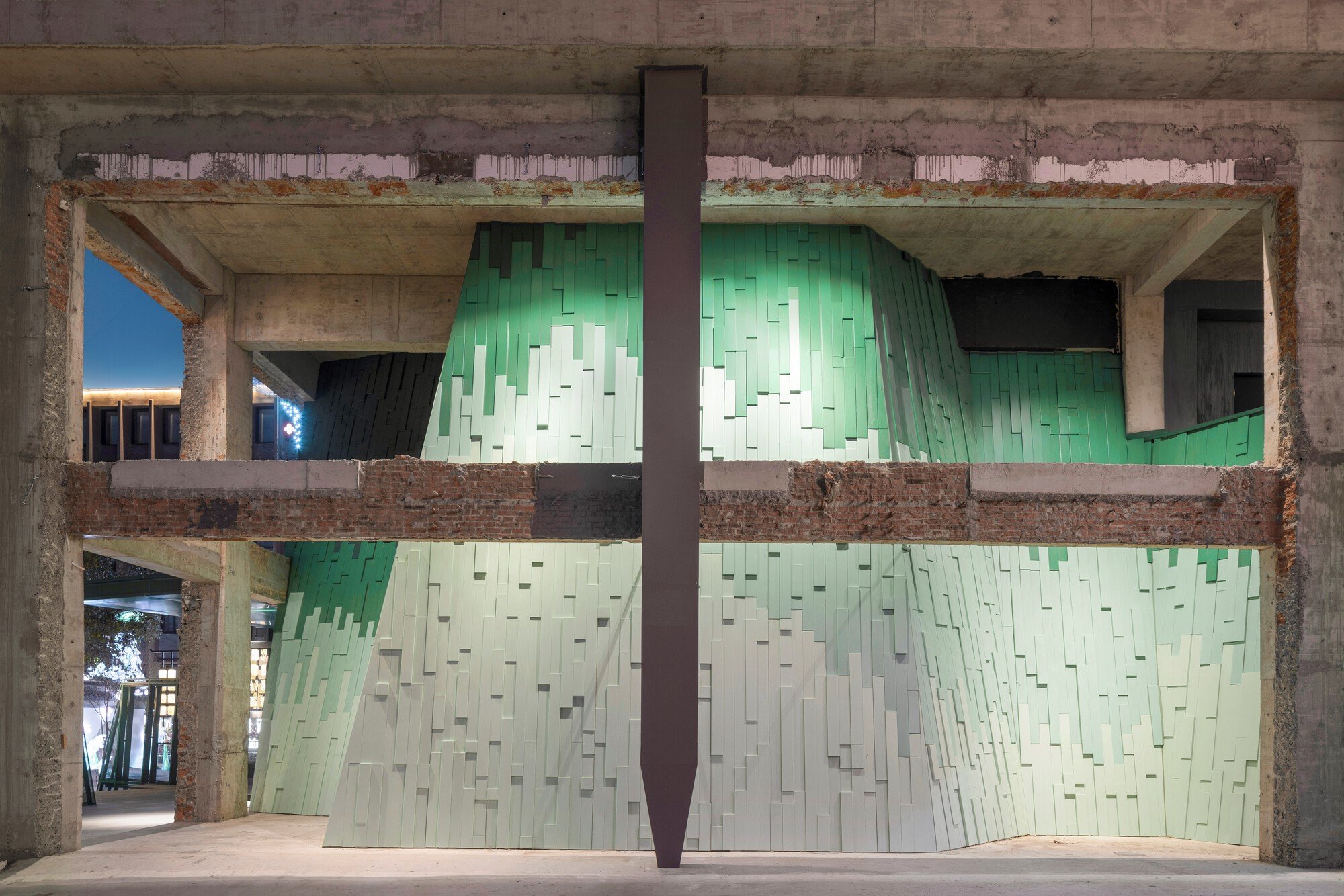

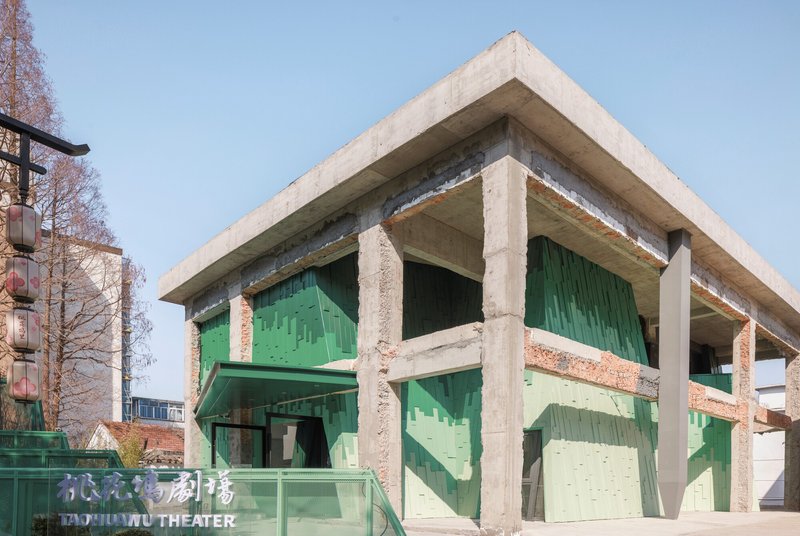

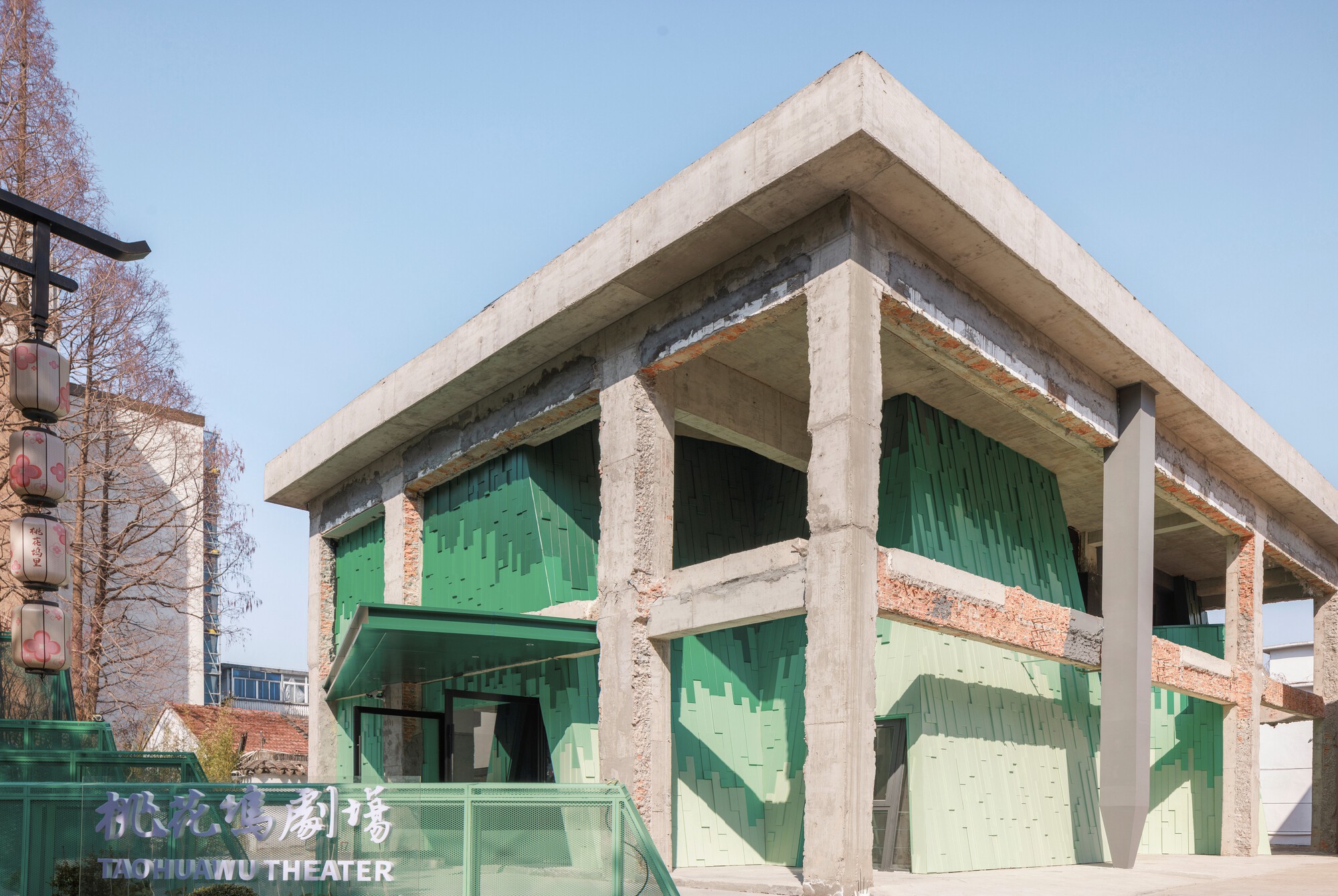

The original concrete frame of Building No. 5 stands as an exposed exoskeleton: columns, beams, and floor slabs that now serve as a display structure for the green tile volumes inserted within. Rather than concealing the frame, Wutopia Lab lets it read as a distinct system. The columns and beams are thick and blunt, their surfaces showing the patina of decades. Against them, the new green tile panels appear almost impossibly delicate, their pixelated surfaces catching and scattering daylight.

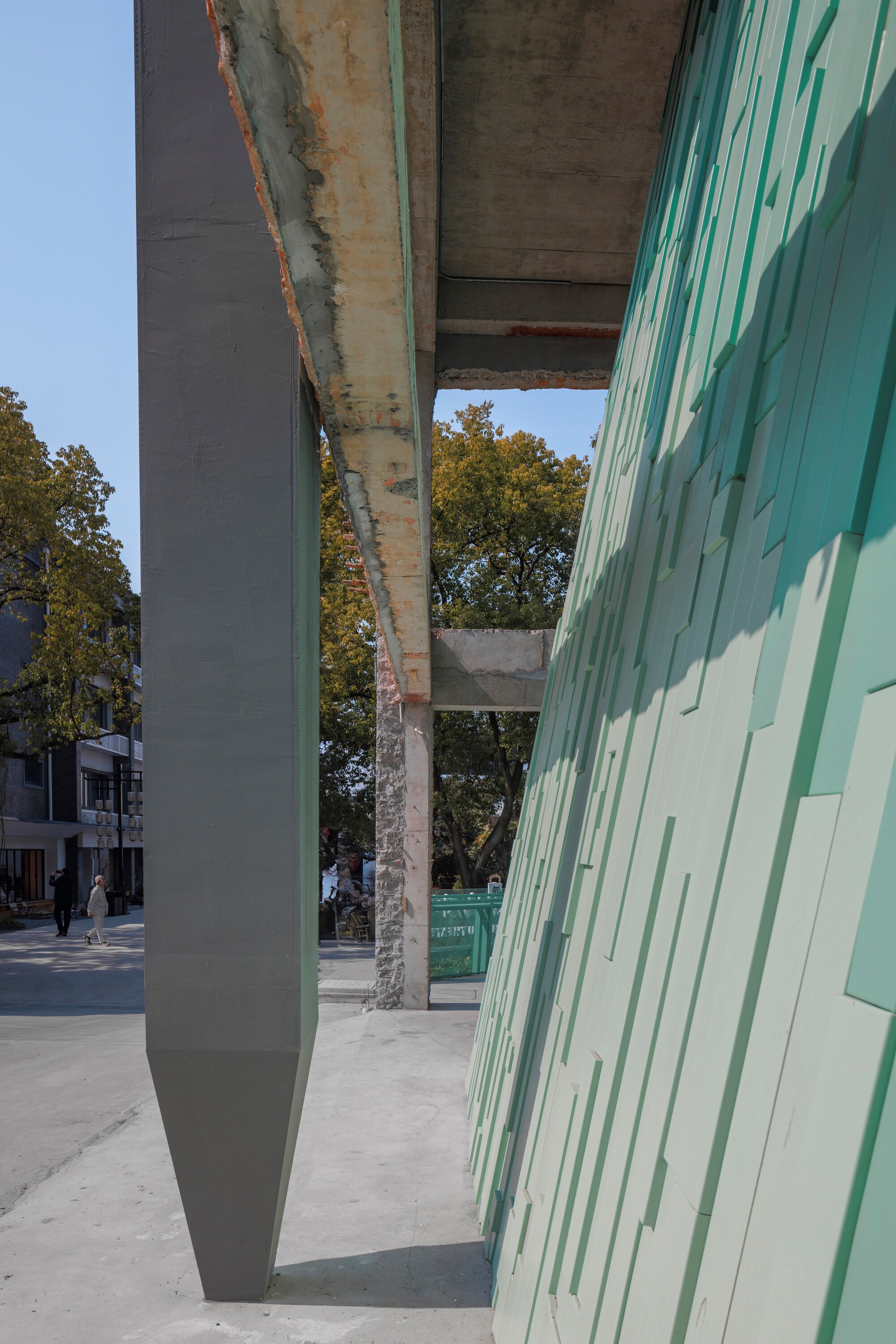

Tapered steel columns punctuate the transition between old and new. These slender elements bridge the gap between the concrete soffit and the tile screen, acting as both structural mediators and visual signals that something has changed. They are elegant without being precious, a detail that reveals the project's careful attention to the joints where past meets present.

The Green Glass Veil

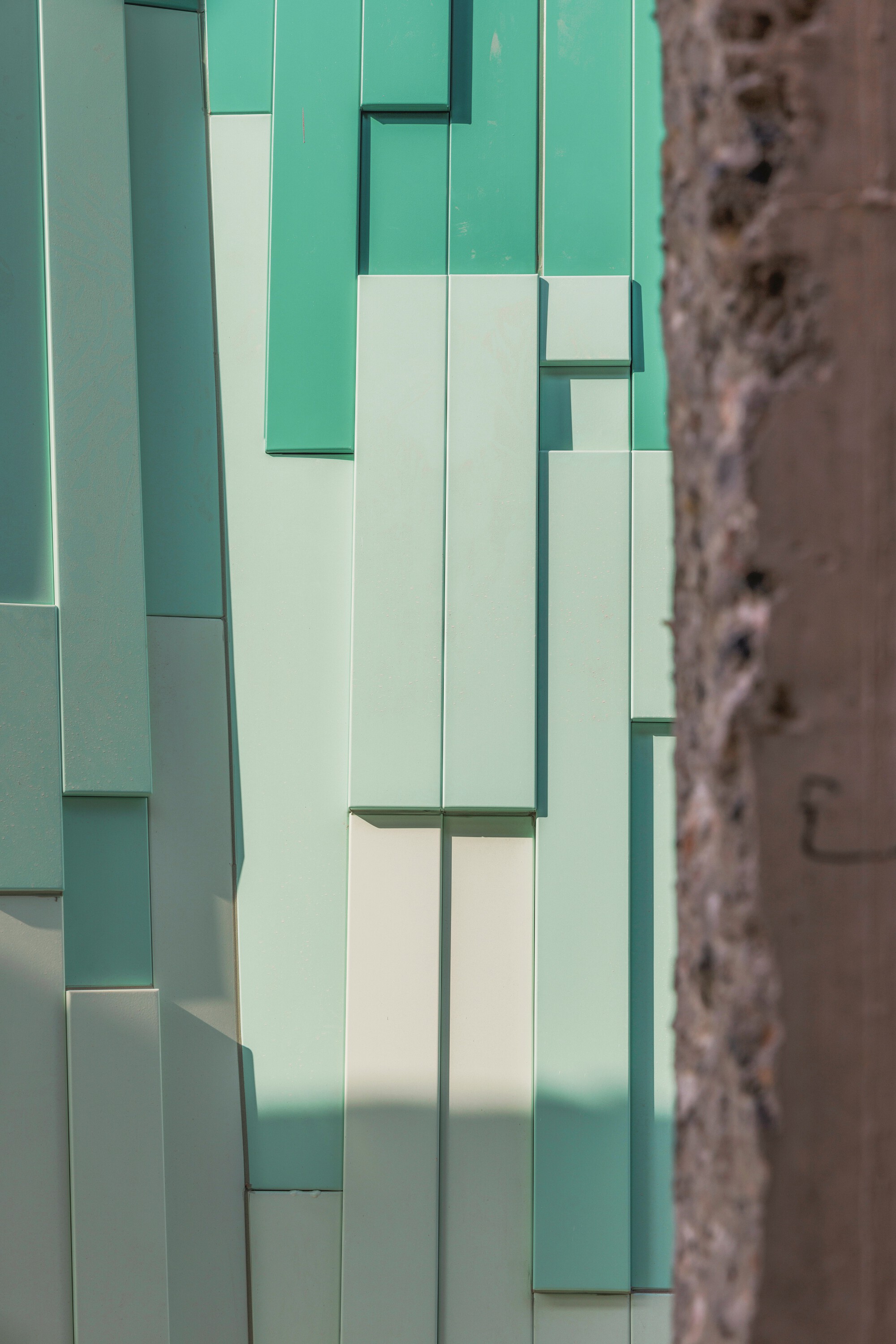

Up close, the facade resolves into individual glass tiles arranged in a gradient of greens and whites. The layering is not flat. Tiles project at different depths, creating a faceted surface that throws small shadows across itself as the sun moves. The effect is somewhere between a mosaic and a topographic model, and it gives the building its name: ridges that read as verdant, living texture against the dead grey of weathered brick and concrete.

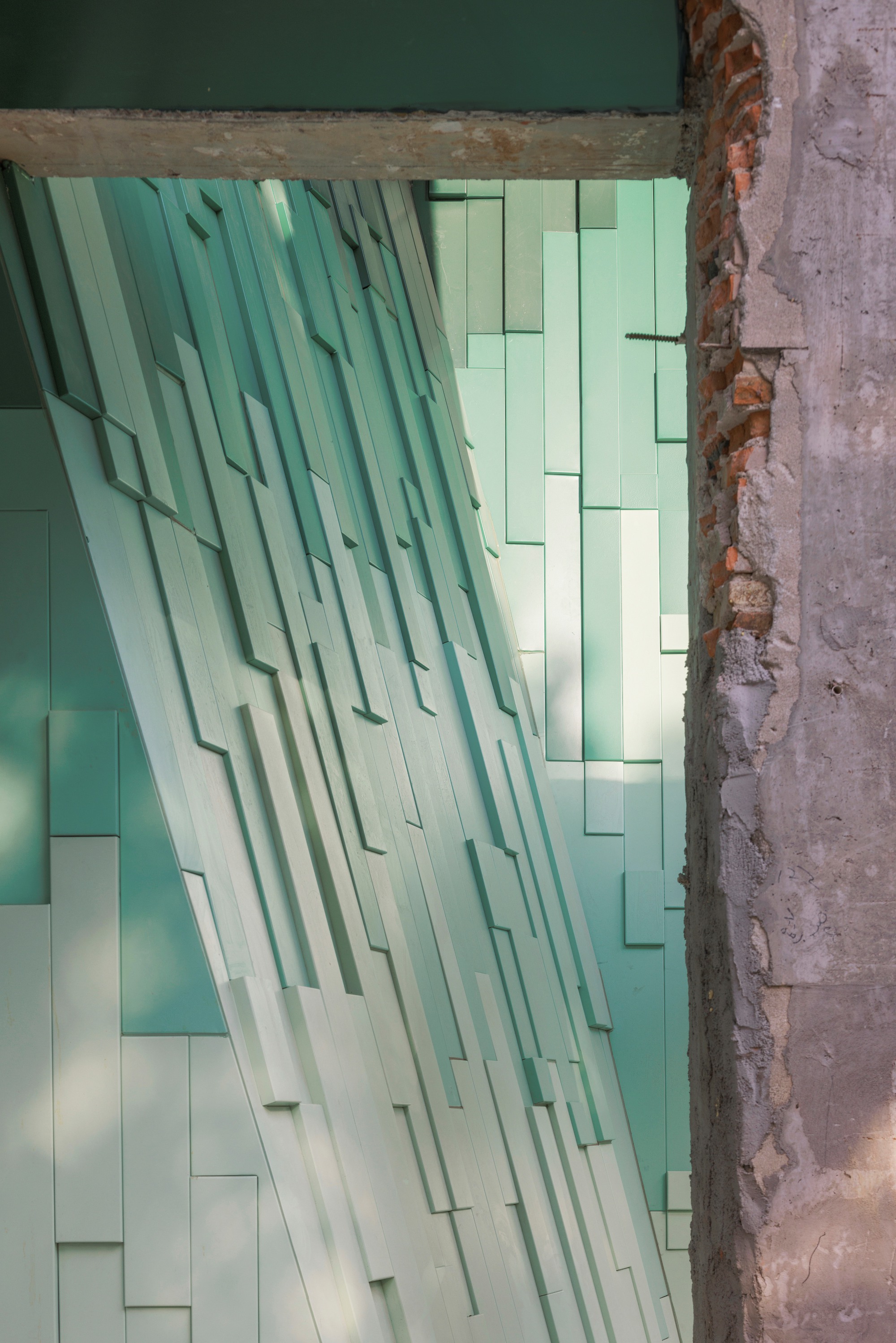

The choice of green is loaded in a city like Suzhou, where classical gardens have made the color synonymous with cultivated nature. But there is nothing nostalgic about this green. It is synthetic, repetitive, and proudly artificial. It signals renewal without mimicking landscape. Where the new tile meets the old masonry, the boundary is left jagged and unresolved, a deliberate refusal to fake seamlessness.

Threshold and Entry

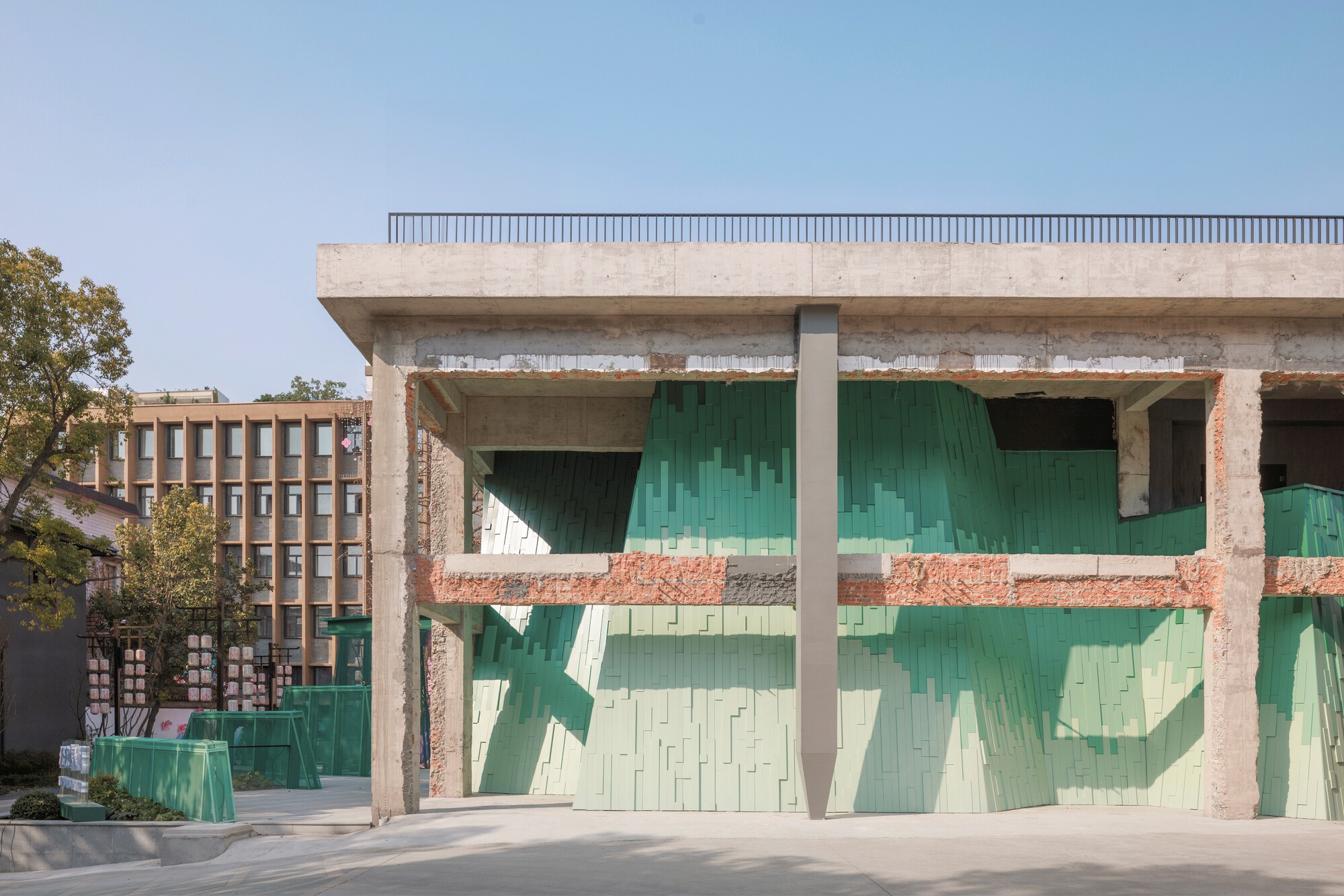

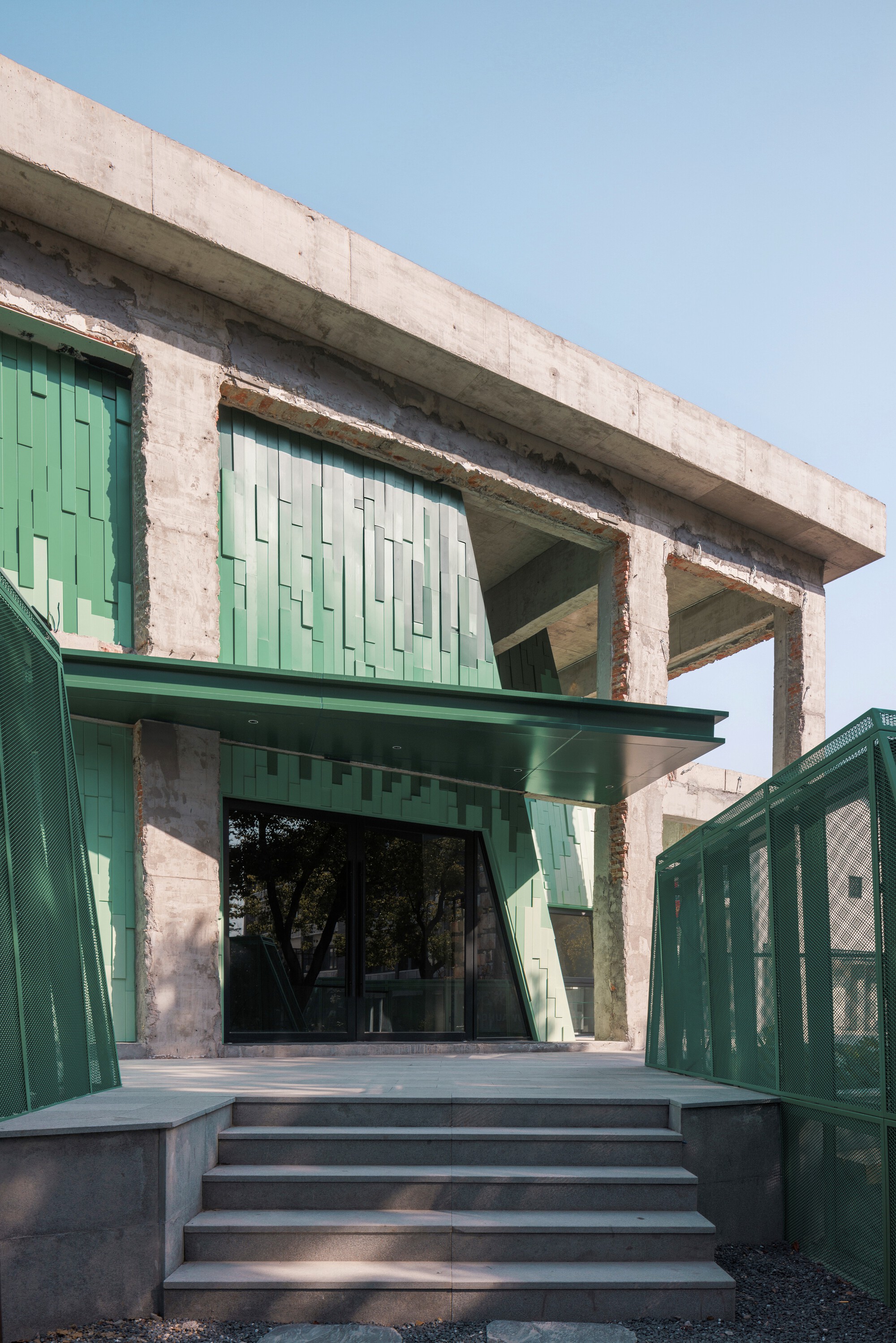

Approaching the building, you pass through a covered loggia where the gradient green tile panels are set within the exposed concrete bays like giant translucent paintings in heavy frames. Folding green metal screens mark the entrance, their industrial hinges and perforated surfaces signaling that this is a working building, not a gallery. The threshold sequence is compressed but richly layered: sidewalk, loggia, screen, glass doors, interior.

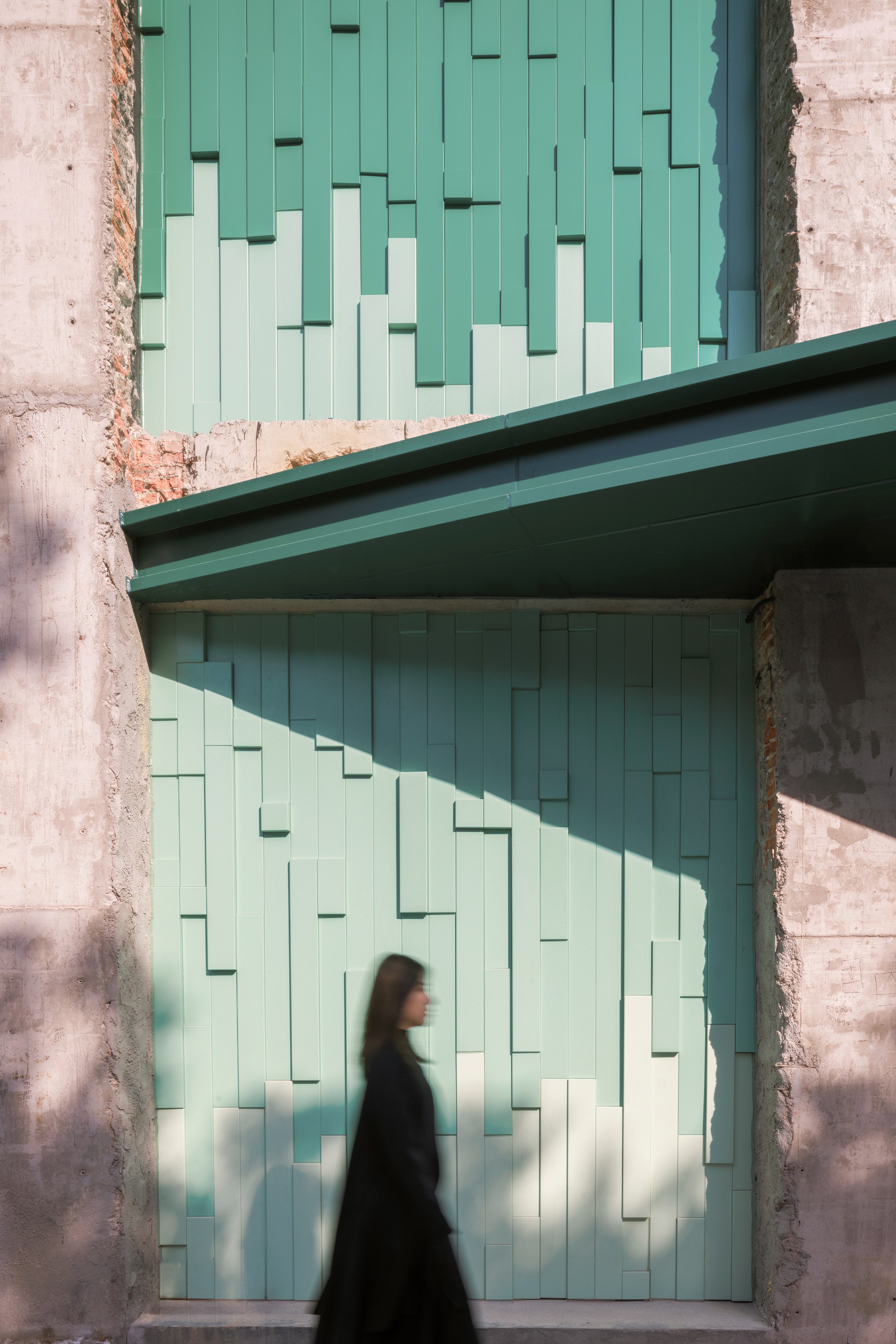

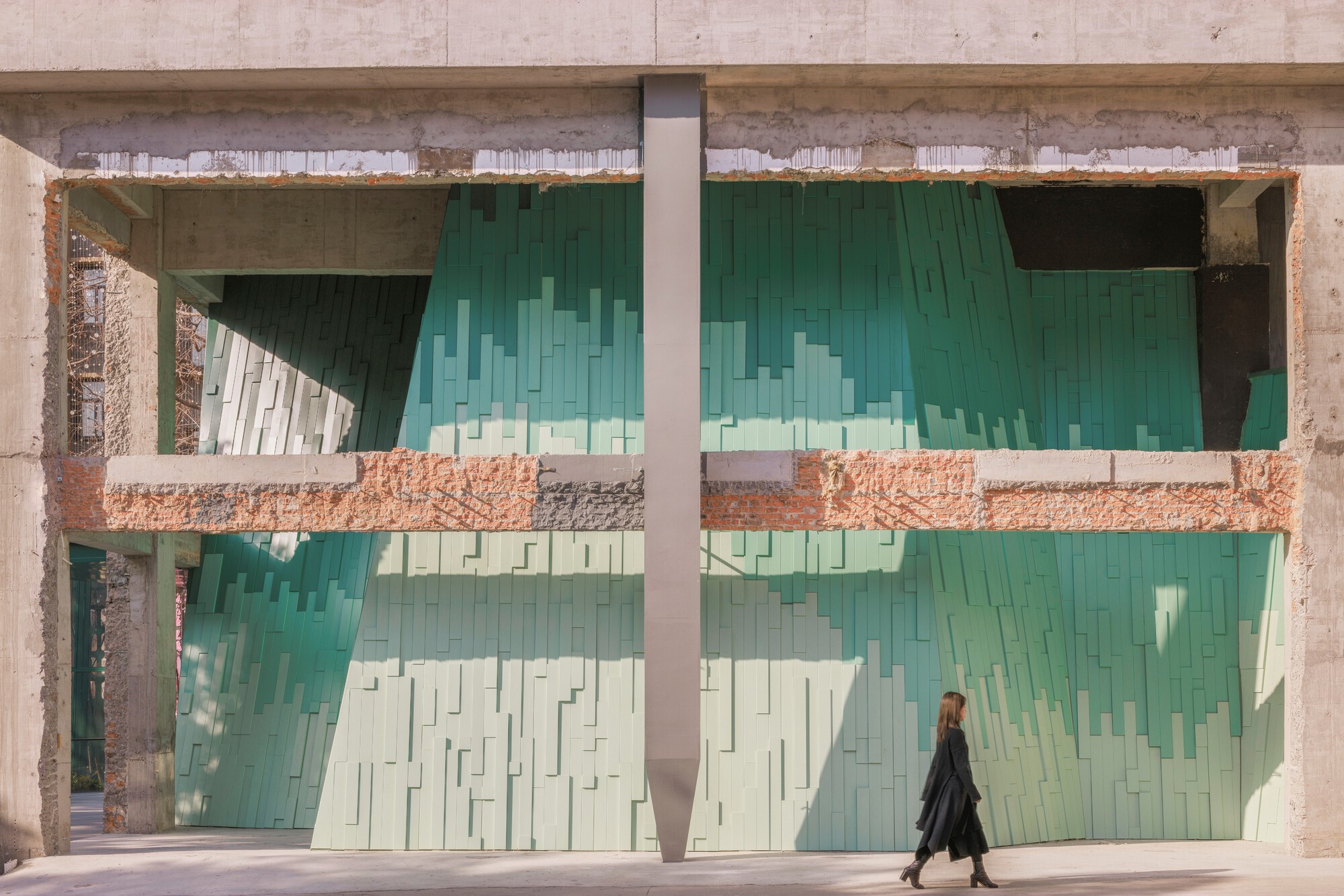

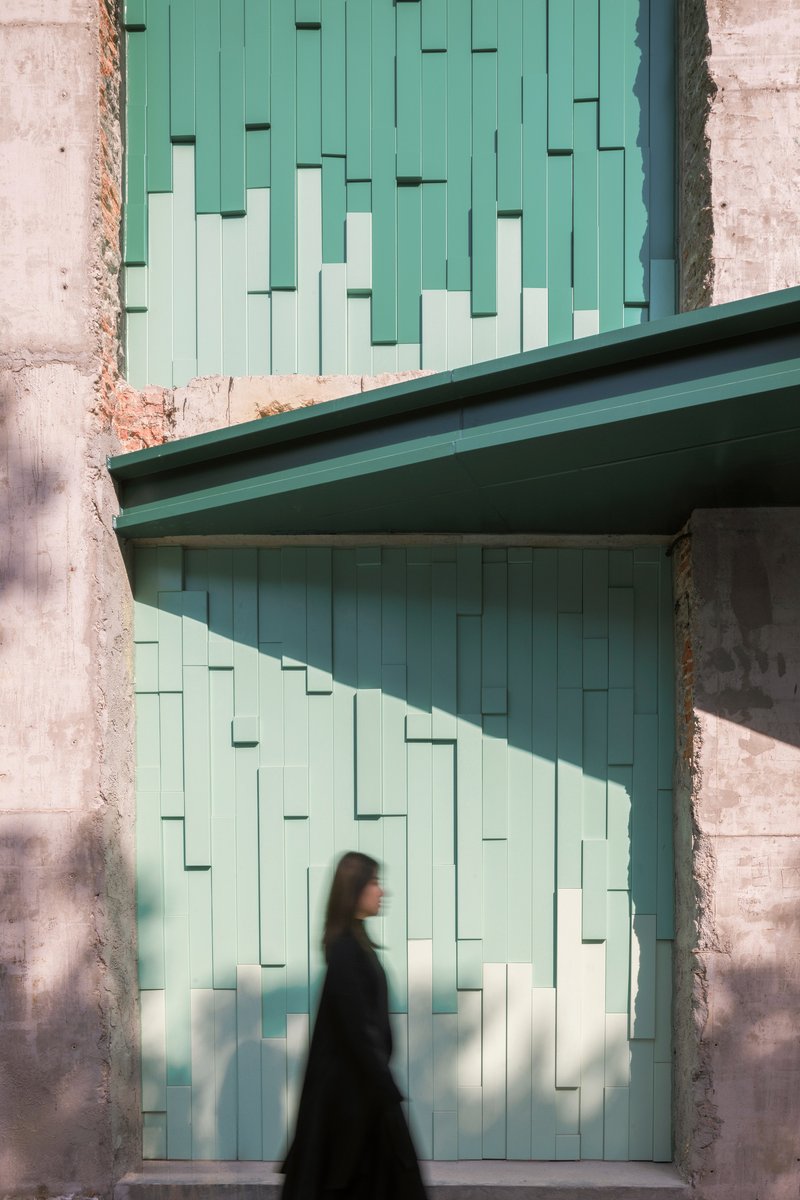

A blurred figure caught in one photograph, passing beneath a pixelated tile wall through a rough concrete opening, captures the spatial experience perfectly. The body is in motion; the building is still. You move through hard, mineral surfaces that somehow feel porous, light filtering through tile and screen in ways that soften what should be a brutal enclosure.

The Dark Interior

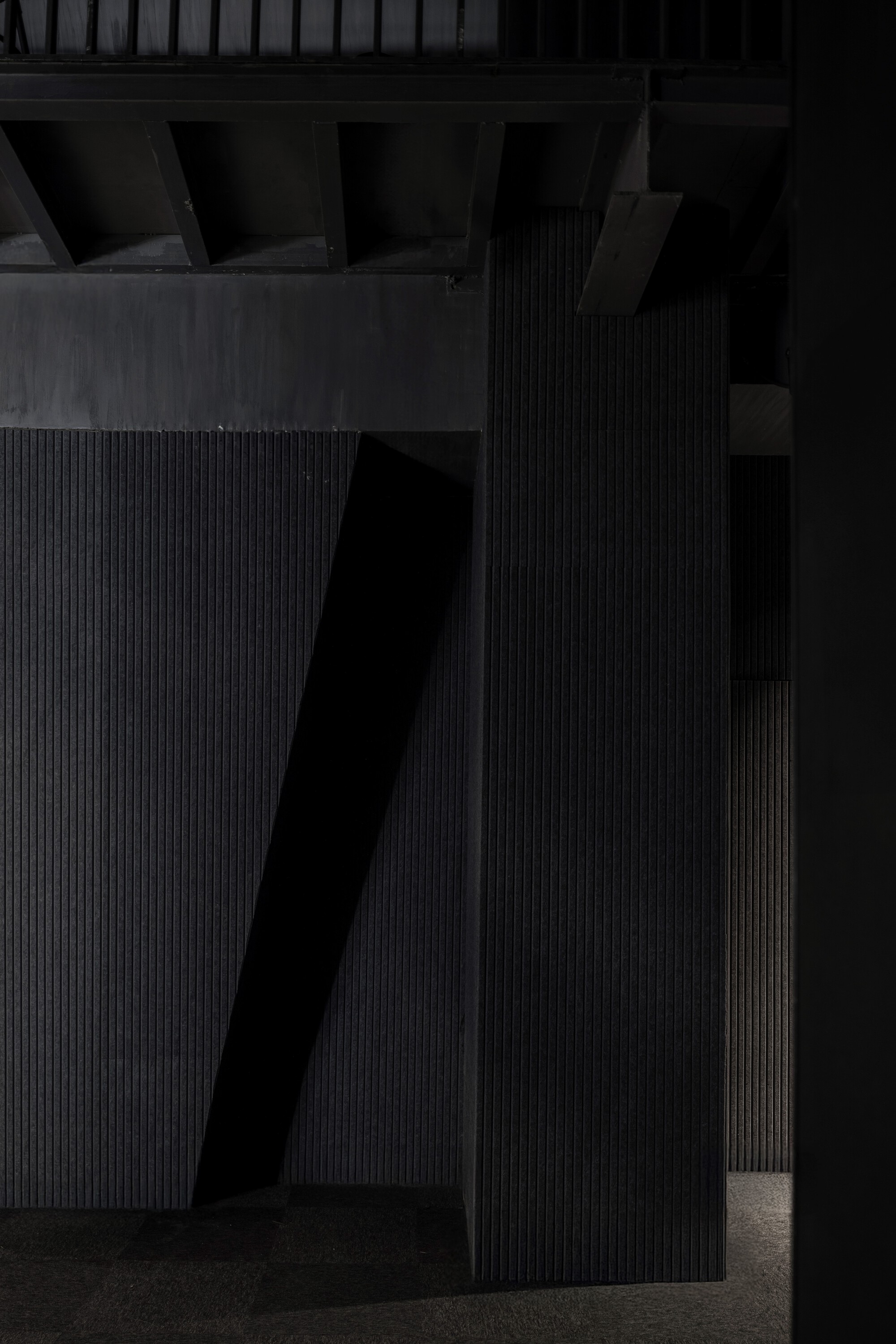

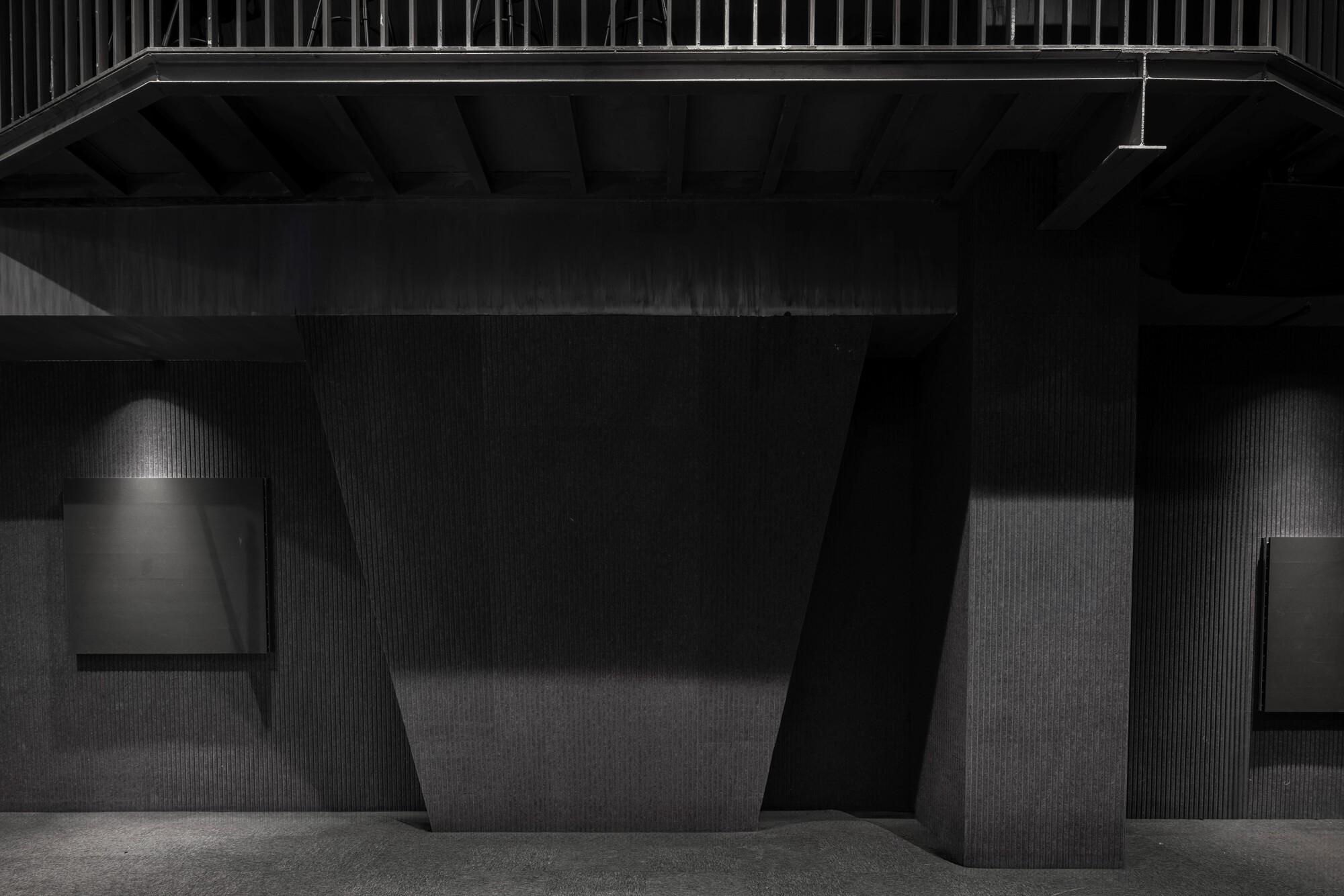

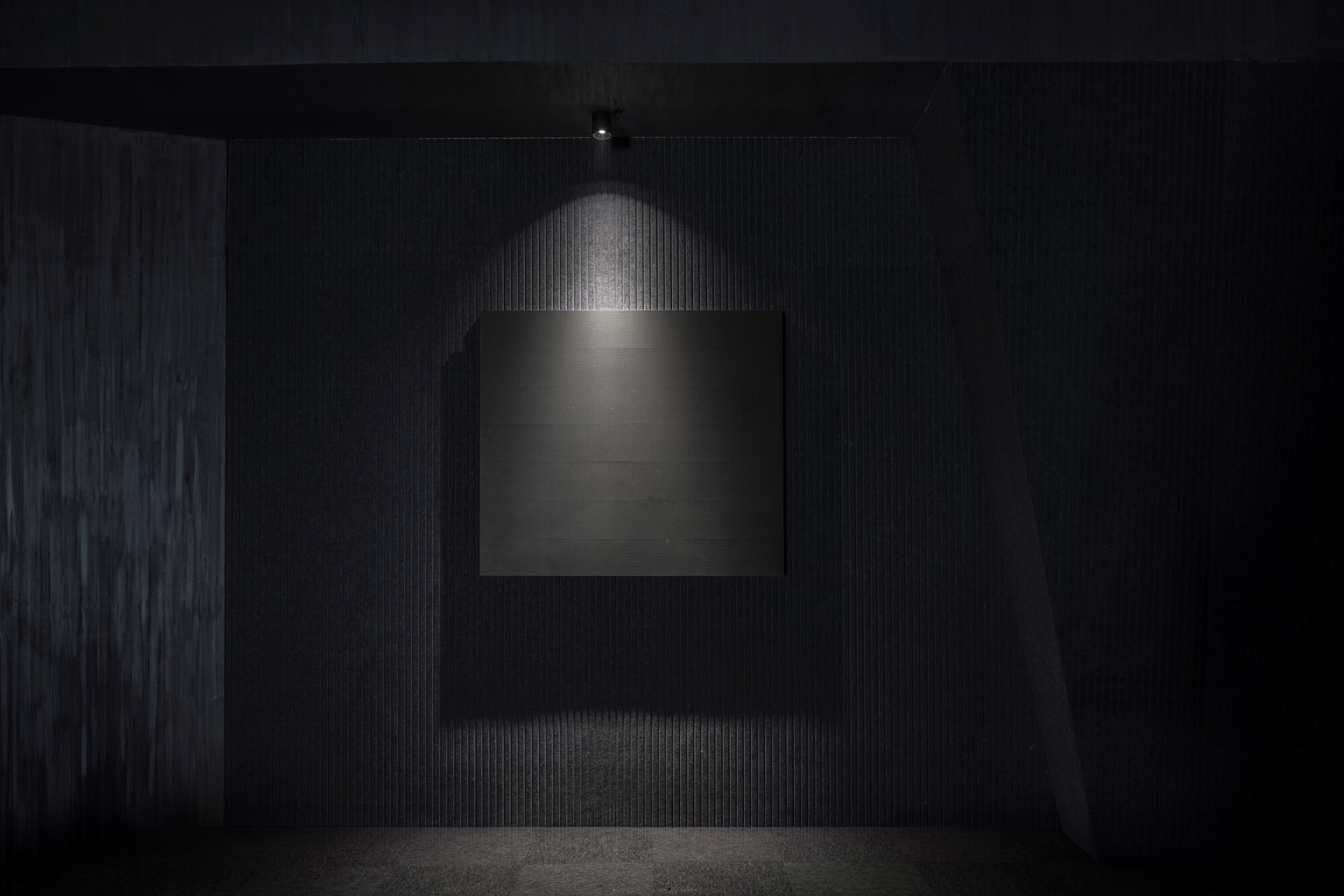

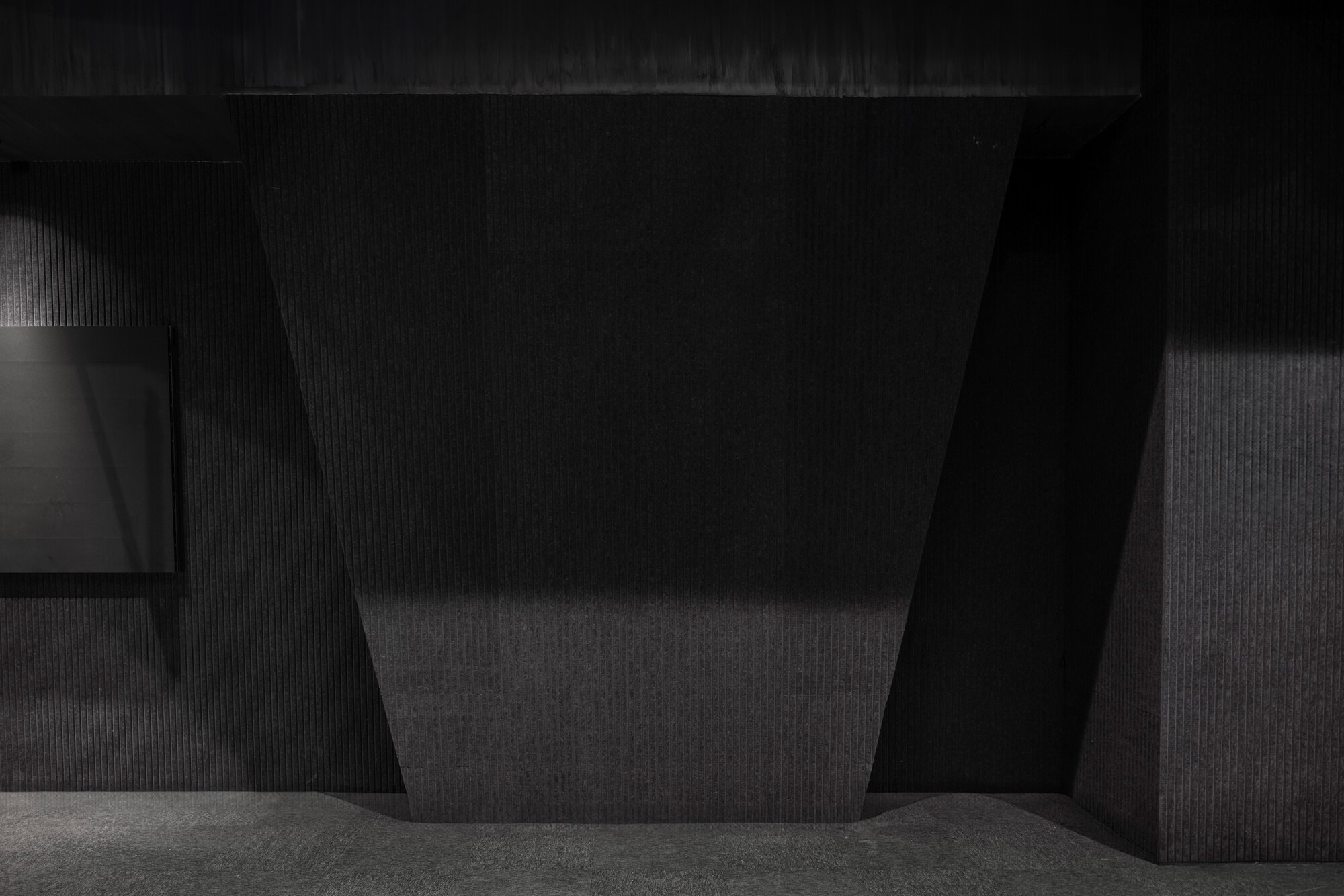

Step inside and the palette inverts. The theater interior is dark, clad in black ribbed wall panels that absorb light and compress the space inward. Where the exterior is about diffusion and shimmer, the interior is about focus and containment. Pendant lights drop from exposed beam ceilings, isolating moments: a display niche, a corridor, a structural intersection. The ribbed surfaces give the walls acoustic and visual texture without color, turning the interior into a neutral vessel for performance.

The contrast between the exuberant green exterior and the restrained black interior is the strongest move in the project. It establishes the building as two experiences in one enclosure: a public face that addresses the street and the city, and a private chamber that turns inward toward the stage. The transition between them is abrupt, which feels intentional. There is no gradient from green to black. You cross a threshold and you are somewhere else.

Corridors and Light

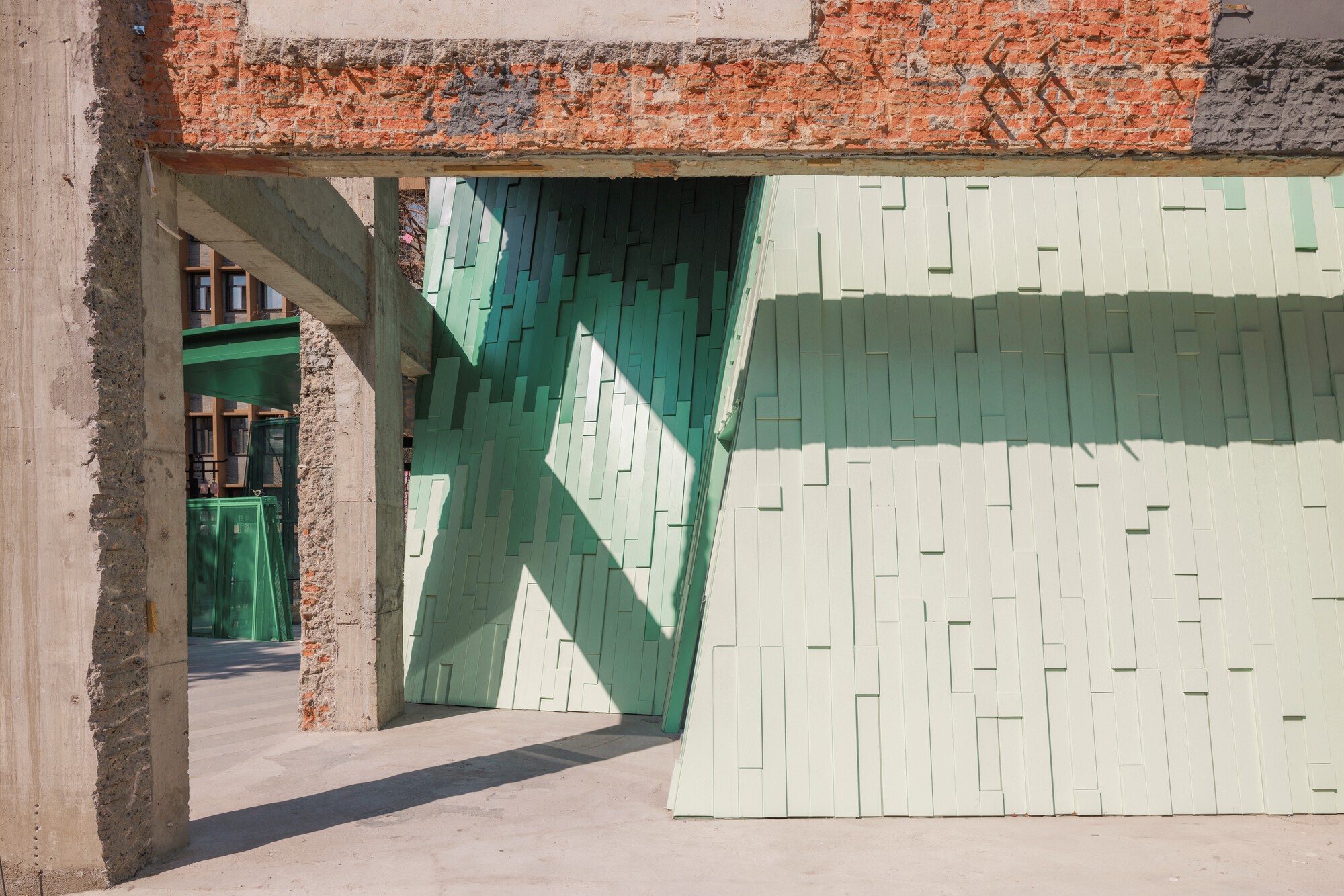

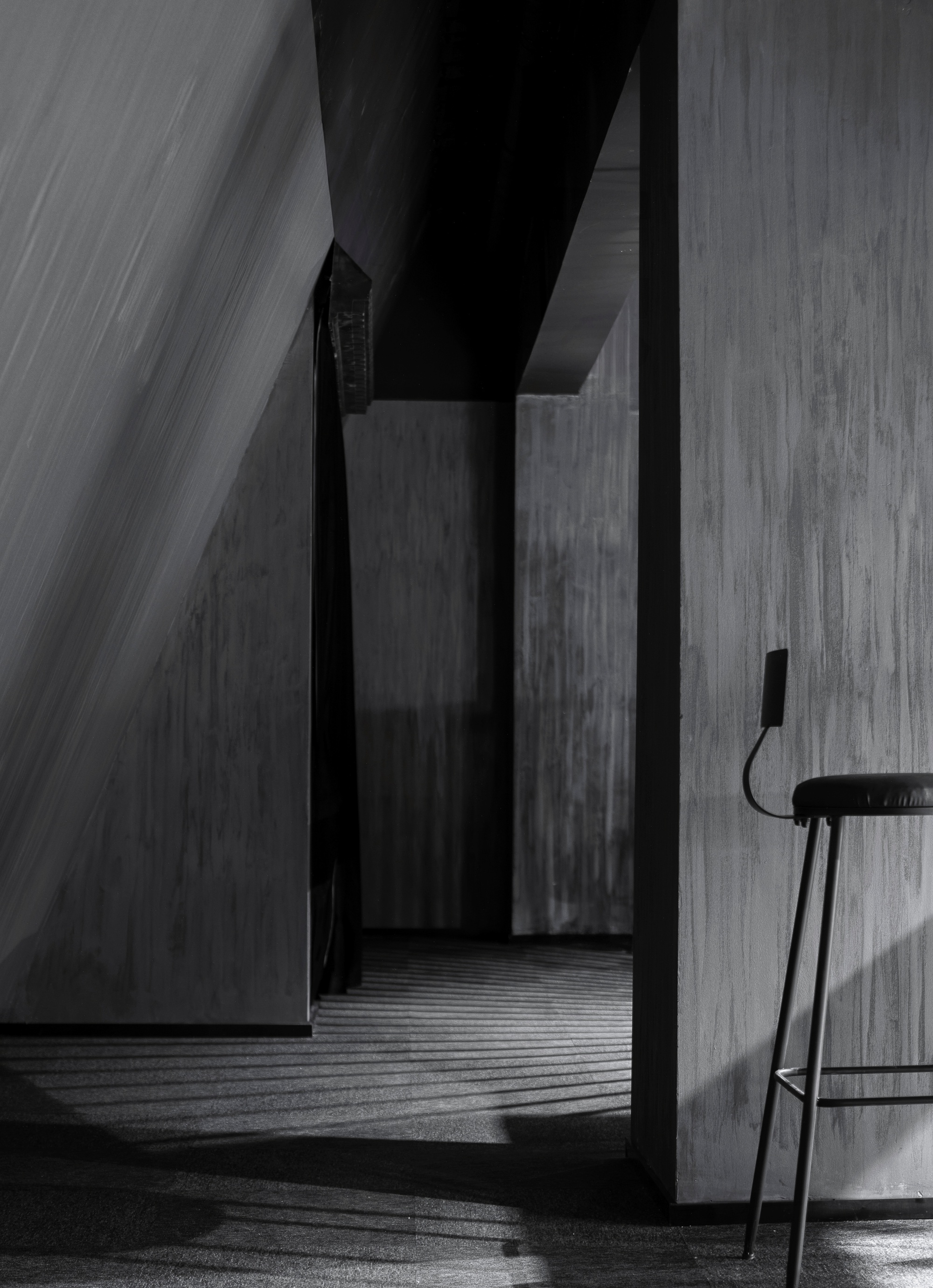

Circulation spaces reveal the building's hybrid character most clearly. A narrow concrete corridor with angled walls channels sharp daylight into striped shadows across the floor, a moment of raw architectural drama created by nothing more than geometry and sun. Elsewhere, an interior passage through exposed brick and concrete frames a view of the glass tiles beyond, layering old and new in a single sightline.

These in-between spaces are where the renovation feels most alive. They are not polished or curated. They show the seams, the imperfections, the places where the new intervention had to negotiate with the existing structure. That honesty gives the building credibility. It is not pretending to be seamless, and the result is more convincing for it.

Mint Panels and Context

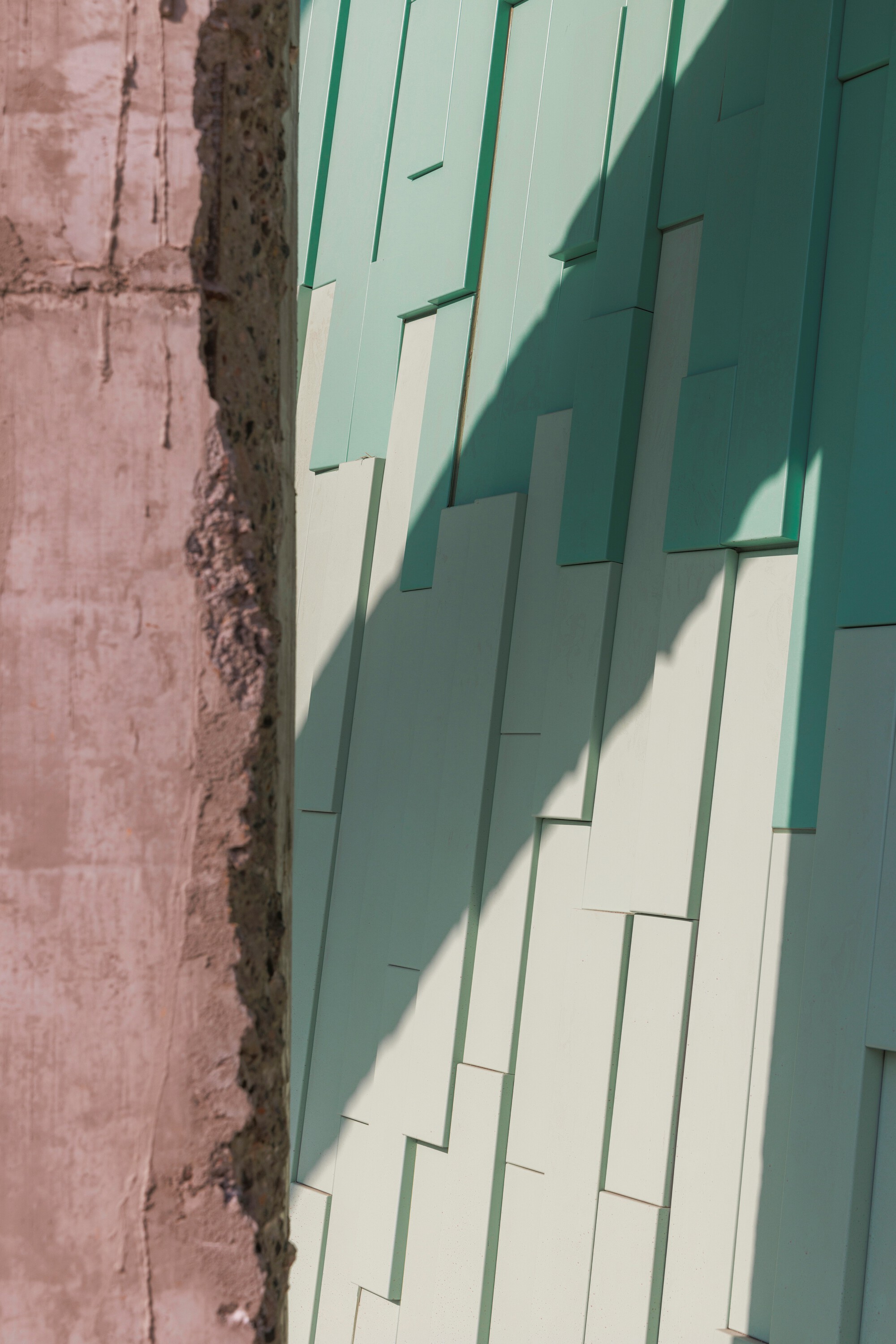

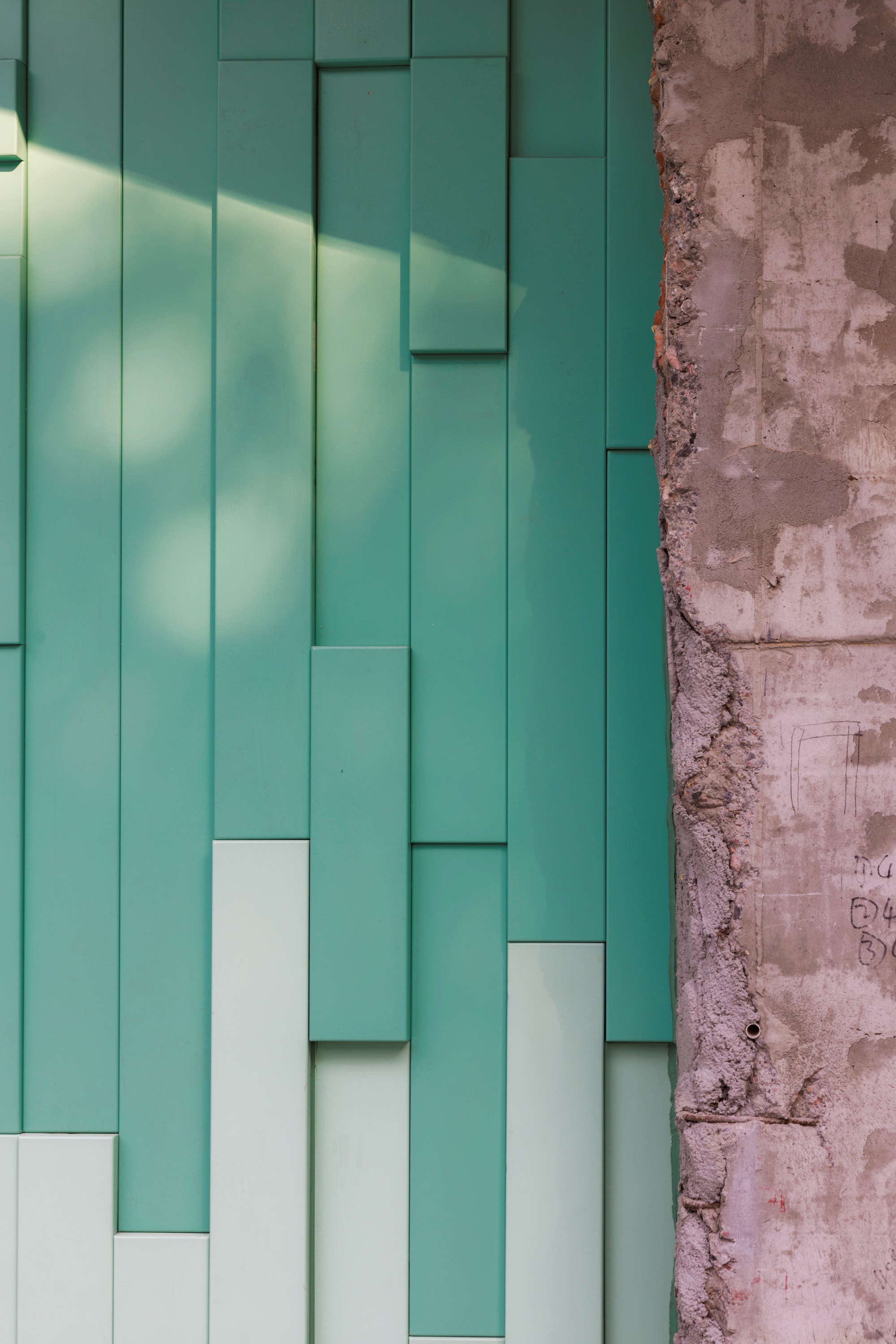

From certain angles, staggered mint green metal panels create a secondary facade that meets the weathered pink concrete of the original walls. The color pairing is unexpected and effective, the pastel mint reading as cool and contemporary against the warm, deteriorating pink. It suggests that the renovation is not confined to one material strategy but deploys several, each tuned to its specific location on the building.

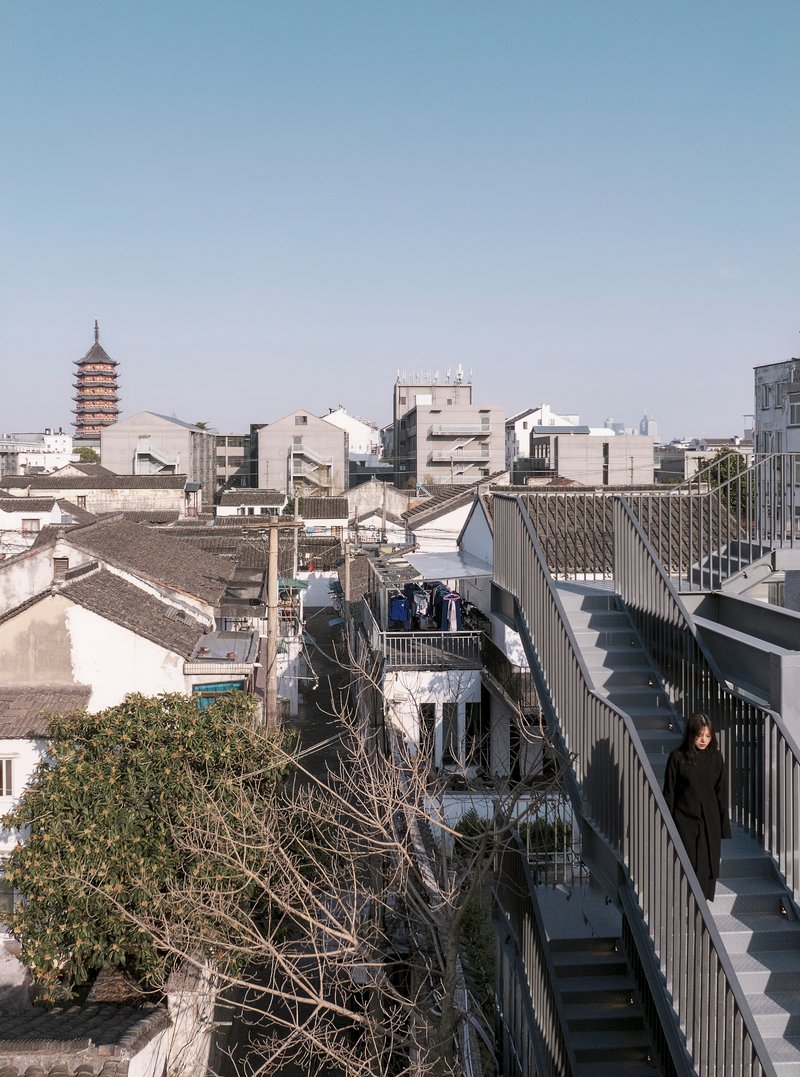

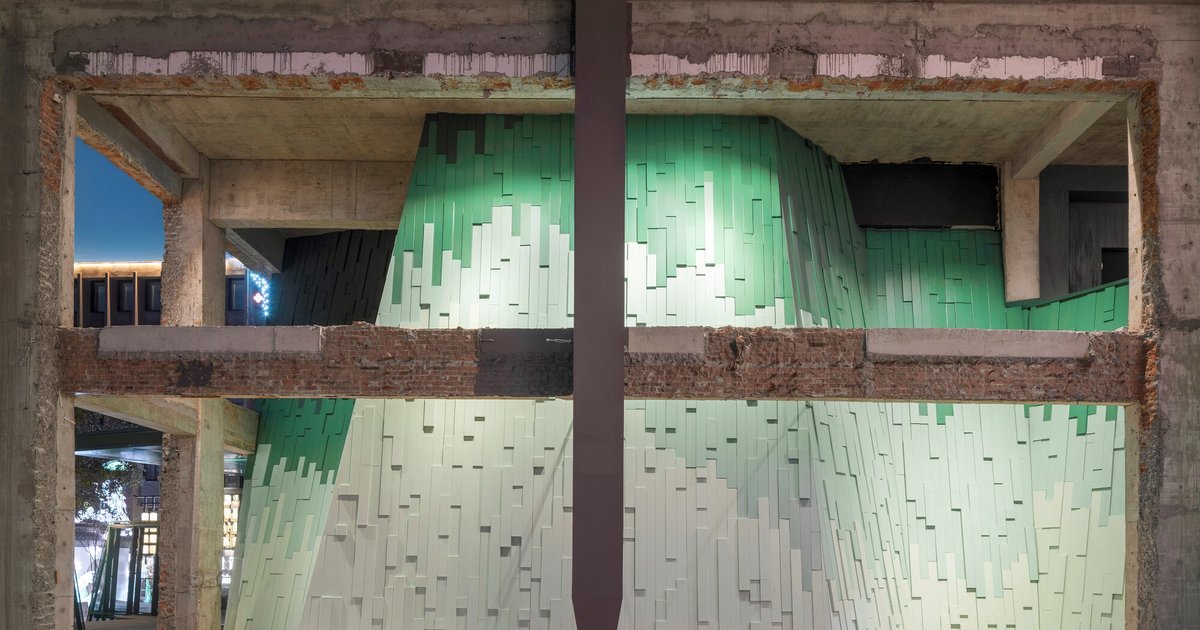

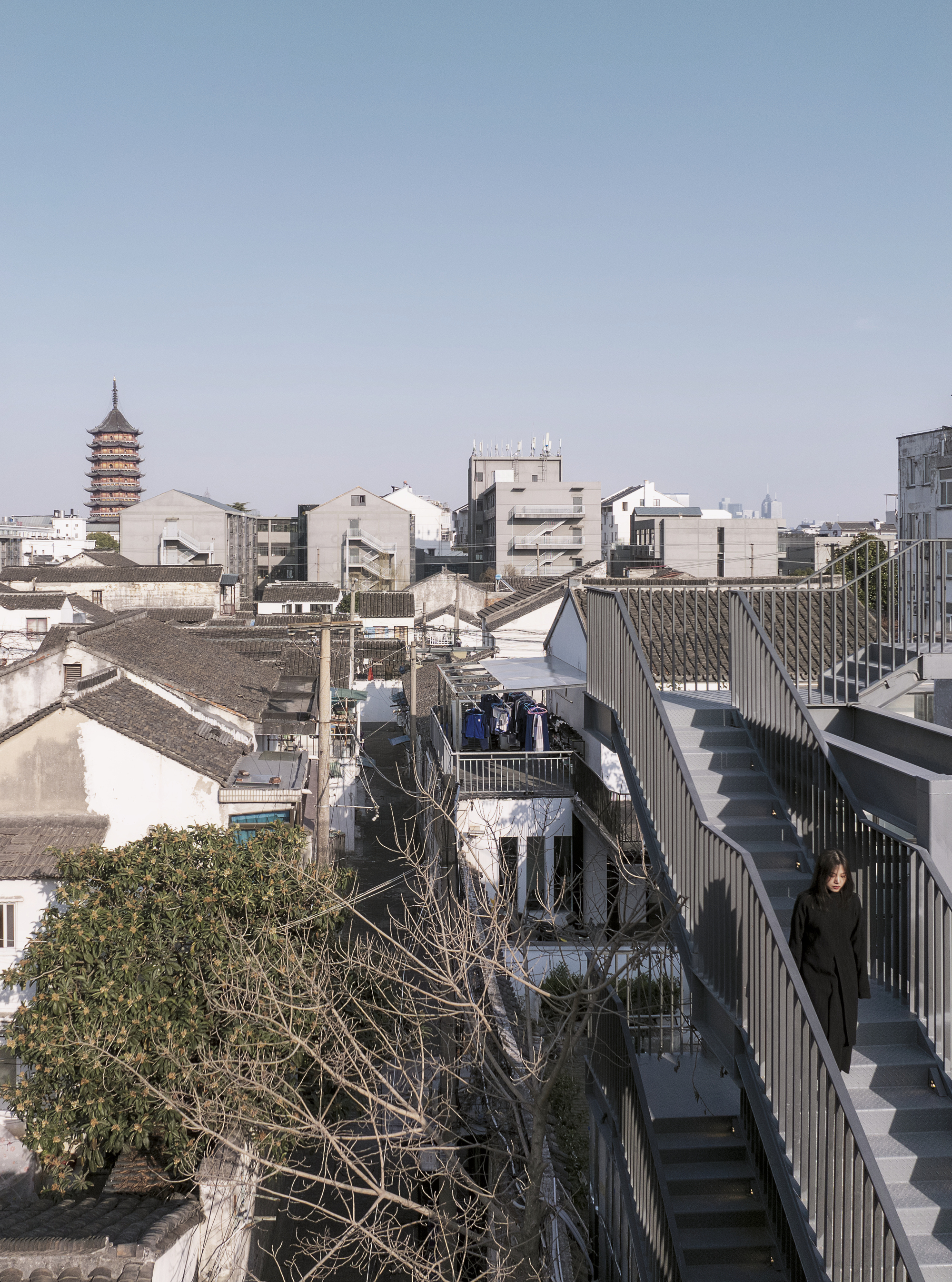

An elevated walkway with metal railings offers views over traditional Suzhou rooftops to a pagoda tower in the distance. The framing is deliberate. It places the renovated factory in dialogue with the city's deeper history, connecting the industrial past and the cultural present through a single panoramic view. At dusk, the two-story green glass facade glows within the concrete and brick skeleton, the building becoming a lantern in the streetscape.

Plans and Drawings

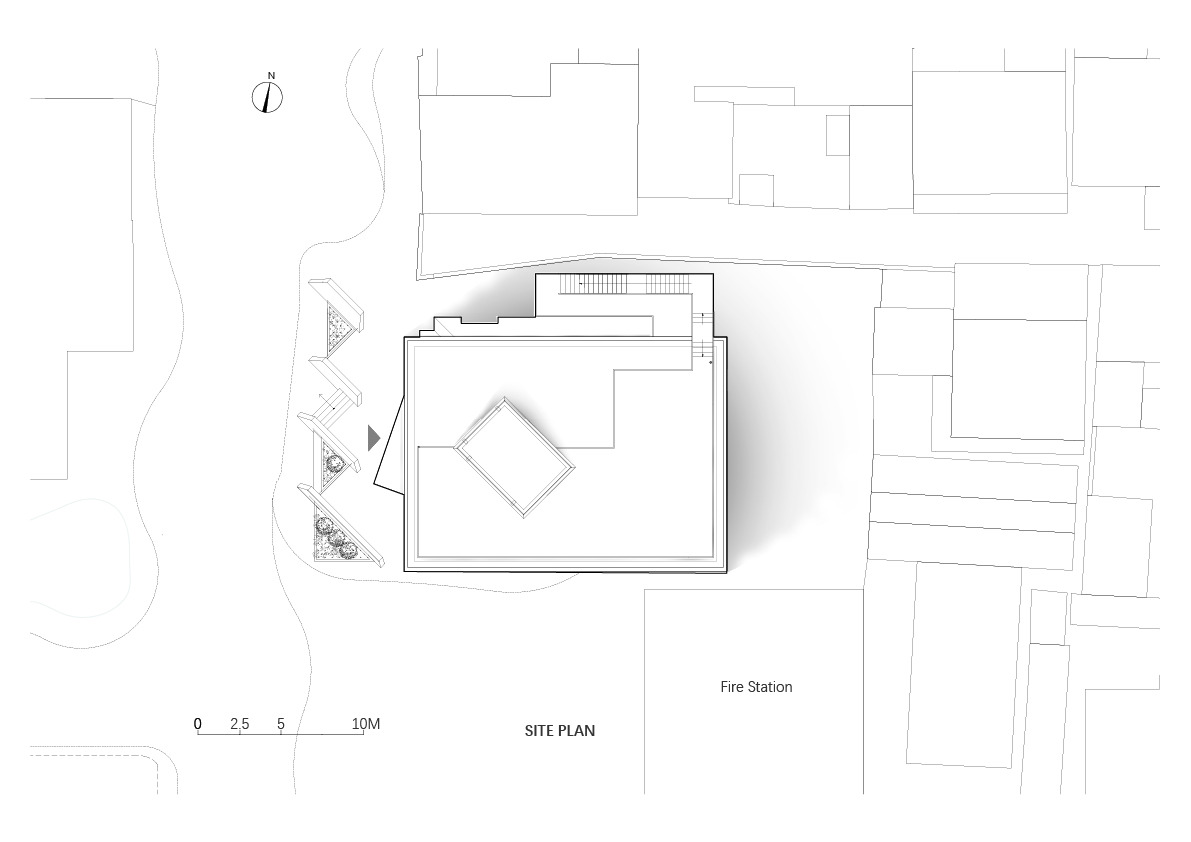

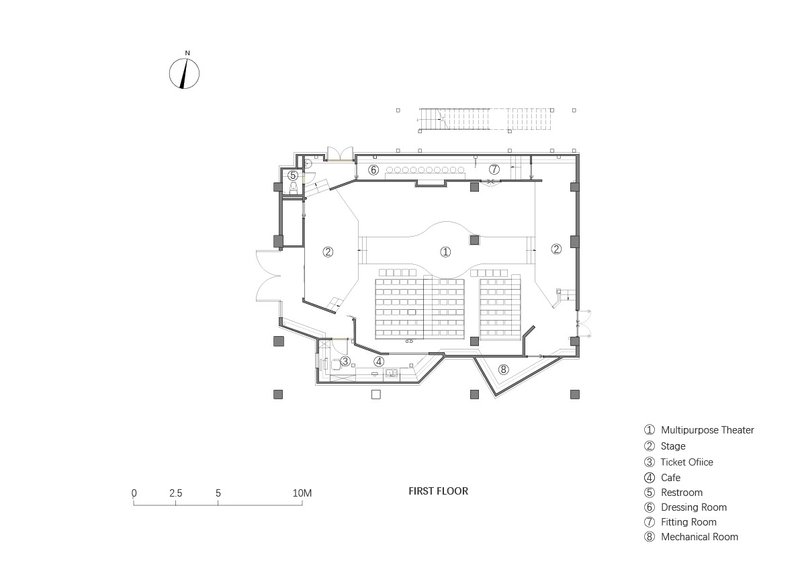

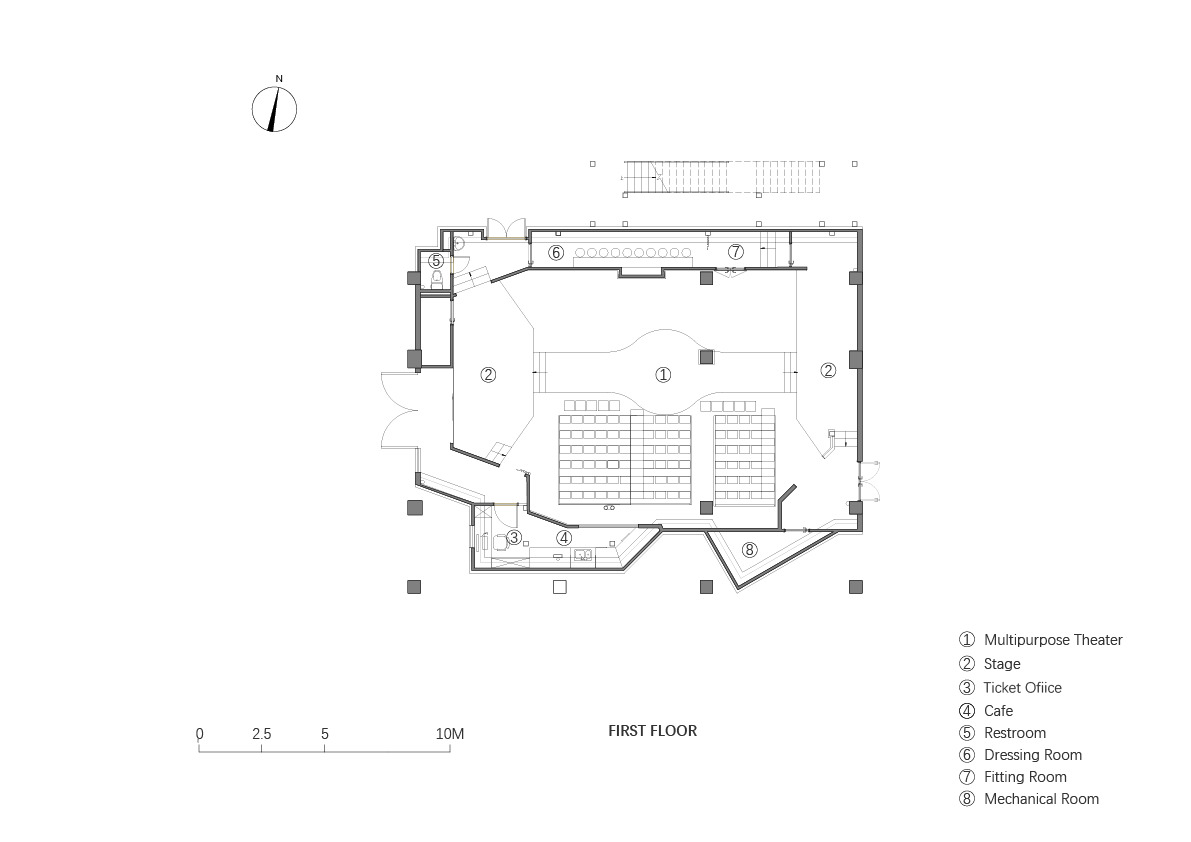

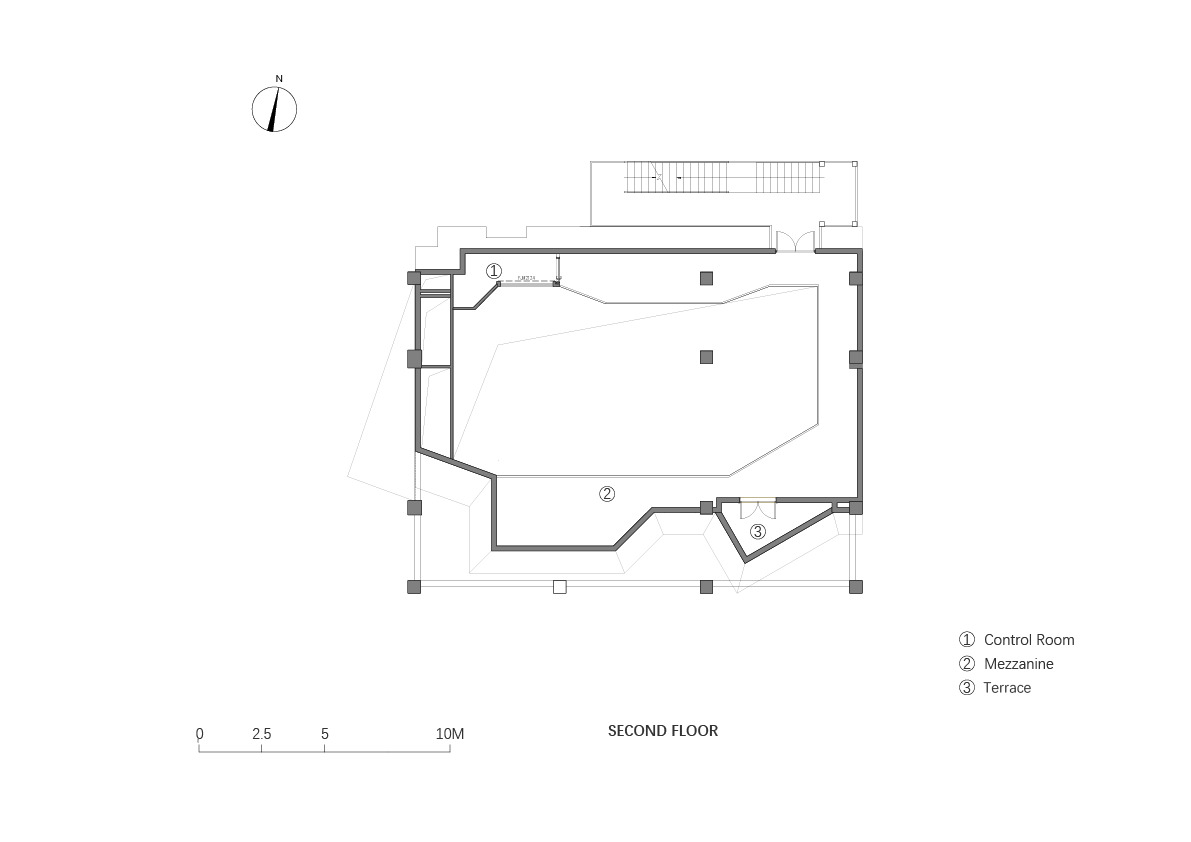

The first floor plan reveals the theater's core: a multipurpose performance space with raked seating rows facing a stage, compact but clearly legible. The second floor plan shows a mezzanine with a control room and terrace, the kind of functional backstage infrastructure that makes a versatile theater actually work. The site plan positions the building among its neighbors, with a diamond-shaped element that hints at a landscape or plaza intervention connecting the renovated structure to the surrounding urban fabric.

What the drawings make clear is how tightly the program fits within the existing footprint. There is no sprawling addition, no new wing. Everything happens inside the original envelope, which makes the experiential richness of the finished building all the more impressive. Wutopia Lab has extracted maximum spatial variety from minimal square meters.

Why This Project Matters

Verdant Ridges matters because it offers a genuinely compelling model for adaptive reuse that respects neither the cult of the ruin nor the cult of the new. It treats the existing structure as a collaborator, not a constraint, and layers onto it a material language that is bold enough to stand on its own terms. The green glass tile is not a restoration material; it is an assertion. And yet it works precisely because the old frame is left visible, providing the contrast that gives the new skin its charge.

For a city like Suzhou, where the tension between heritage preservation and rapid development is constant, this project proposes a third path. Industrial buildings are not monuments, but they are not disposable either. They can become theaters, gathering places, cultural infrastructure. They just need architects willing to see what is already there and brave enough to add something the original builders could never have imagined.

Verdant Ridges by Wutopia Lab, Suzhou, China. 282 m², completed 2024. Photography by Guowei Liu.
