Multipurpose Sport Facility

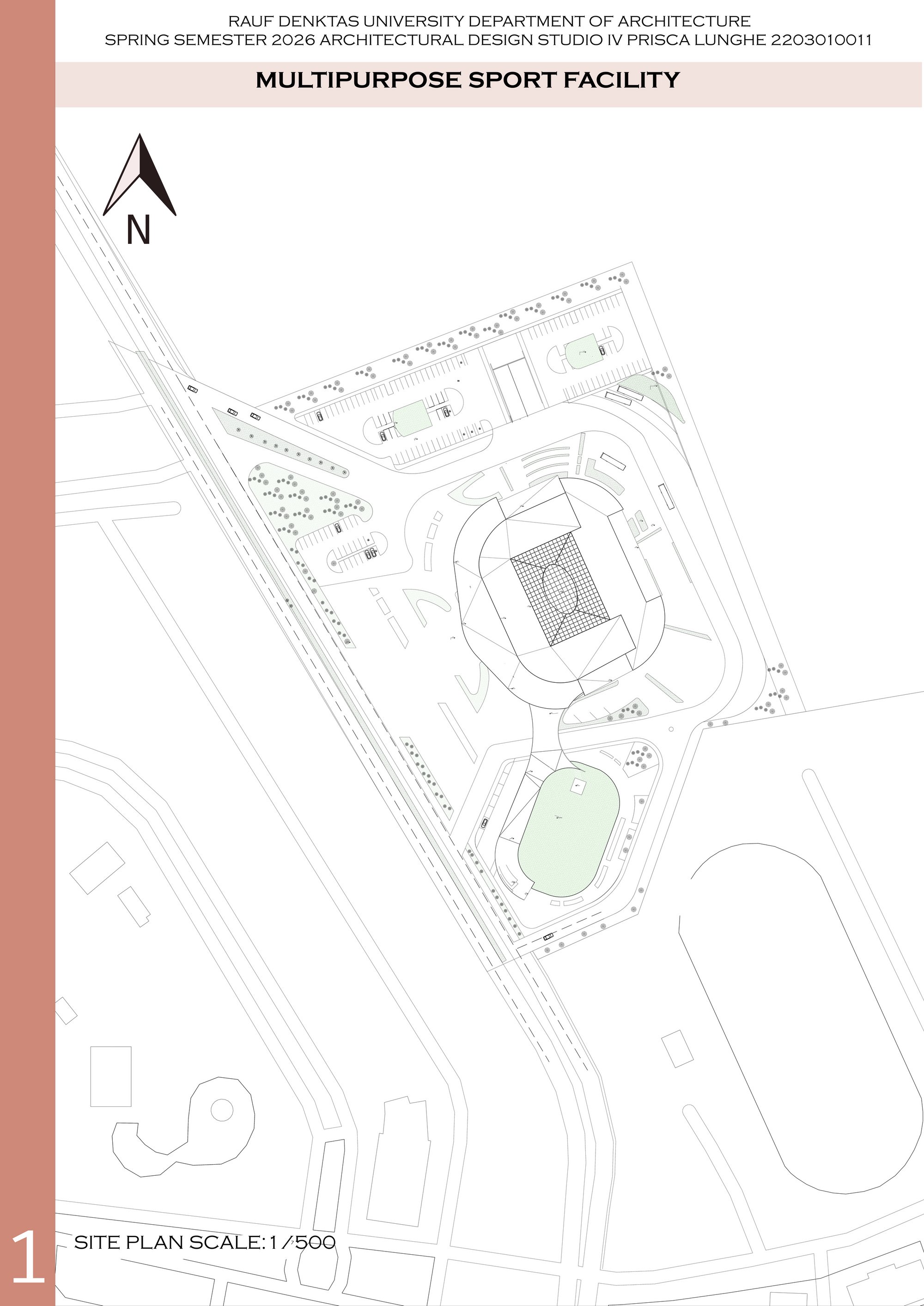

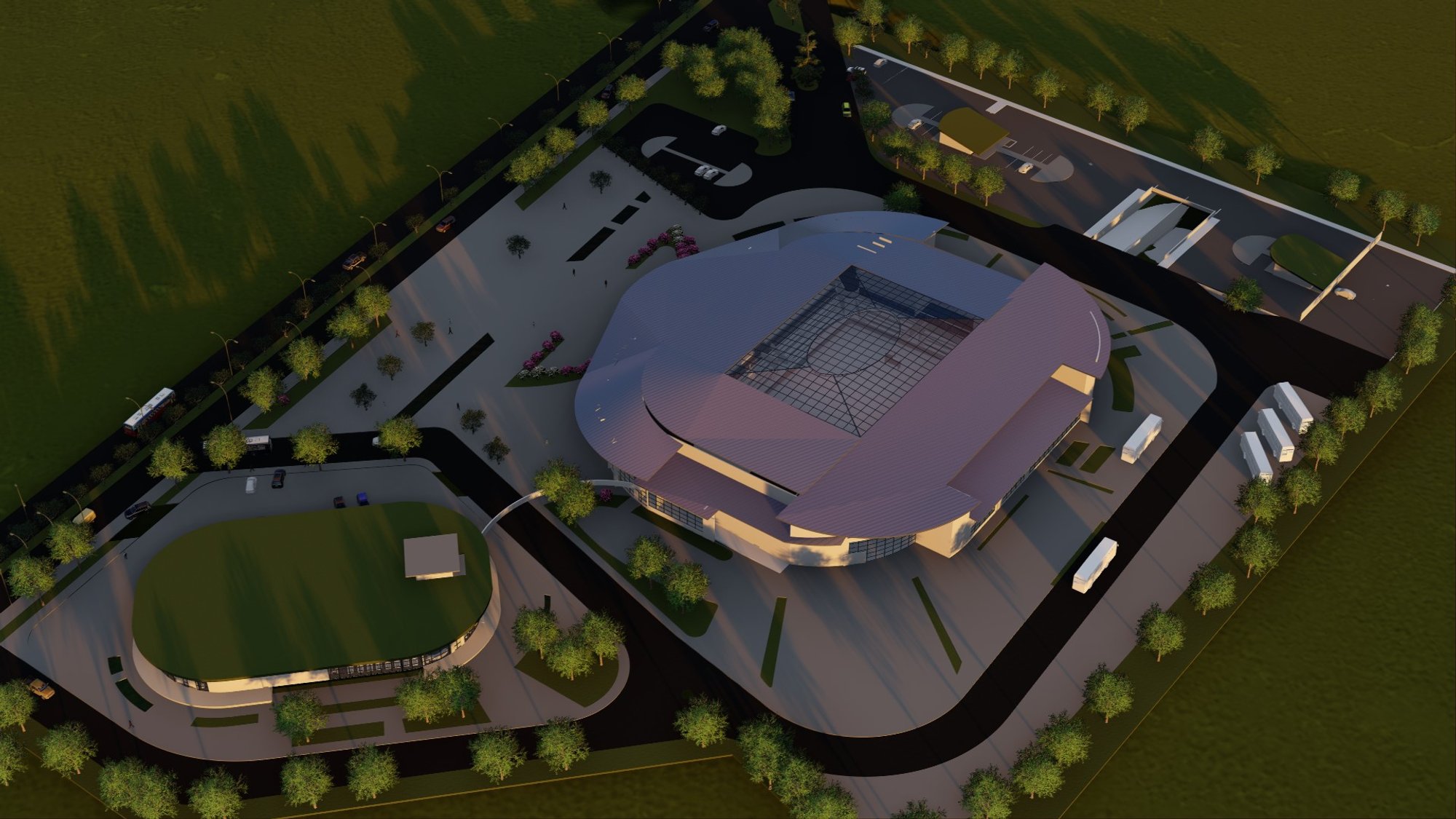

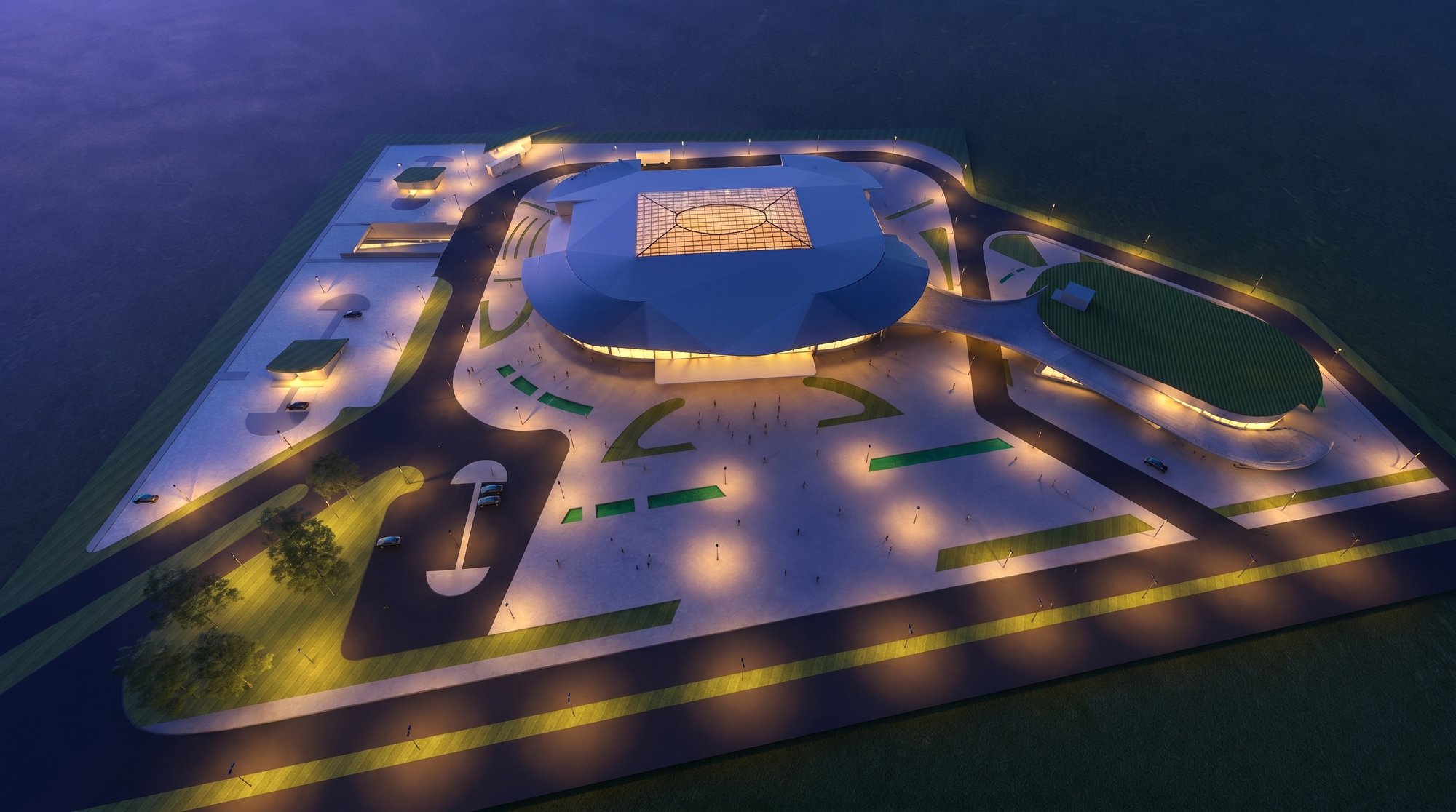

The site plan shows the multilevel roof of the main building, the green roof of the secondary building, and the underground parking. The west-facing entrance opens onto a large supporter plaza with water elements for cooling, while roof overhangs provide shading and reduce heat gain.

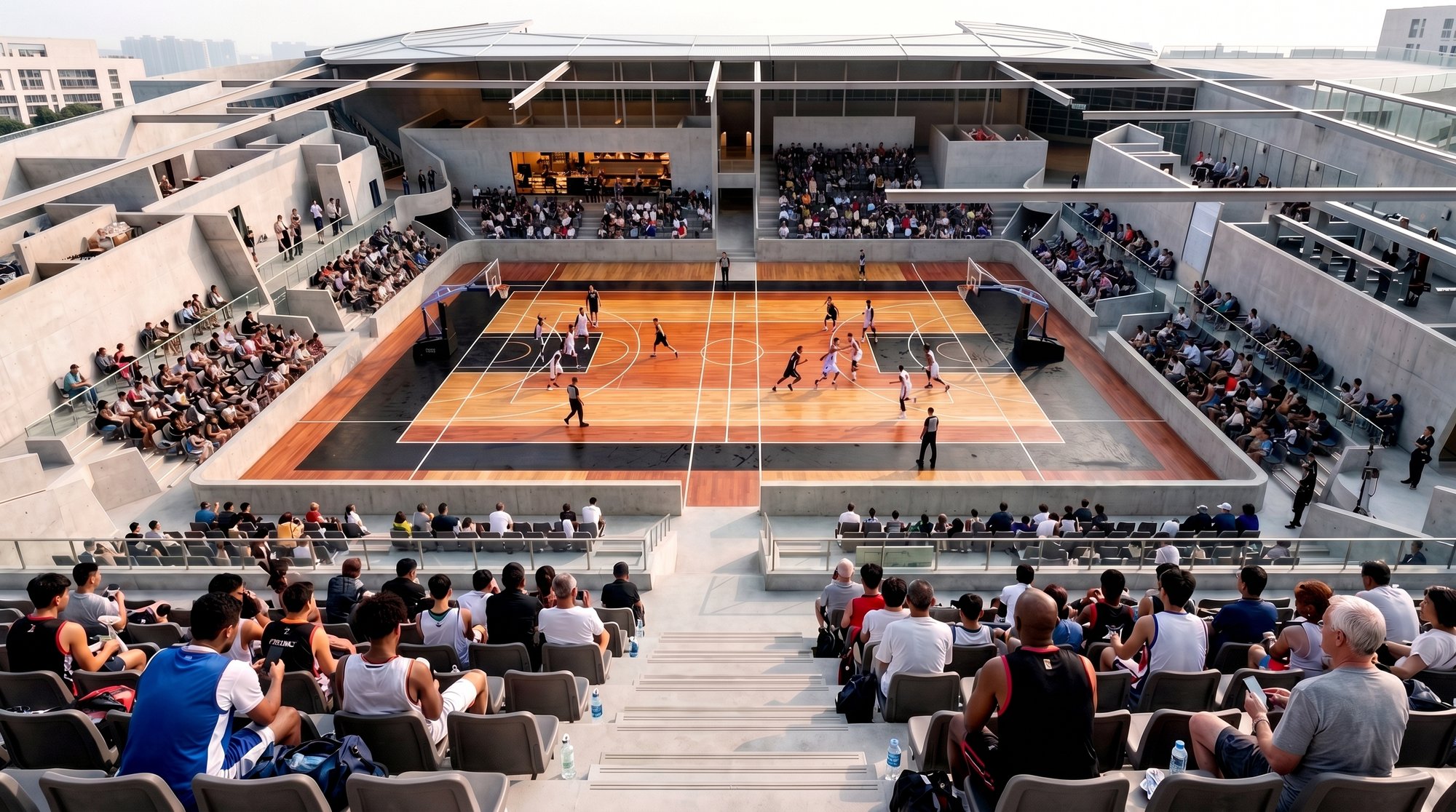

Tiered spectator seating with dedicated VIP and accessible seating areas, ensuring comfort, inclusivity, and clear visibility.

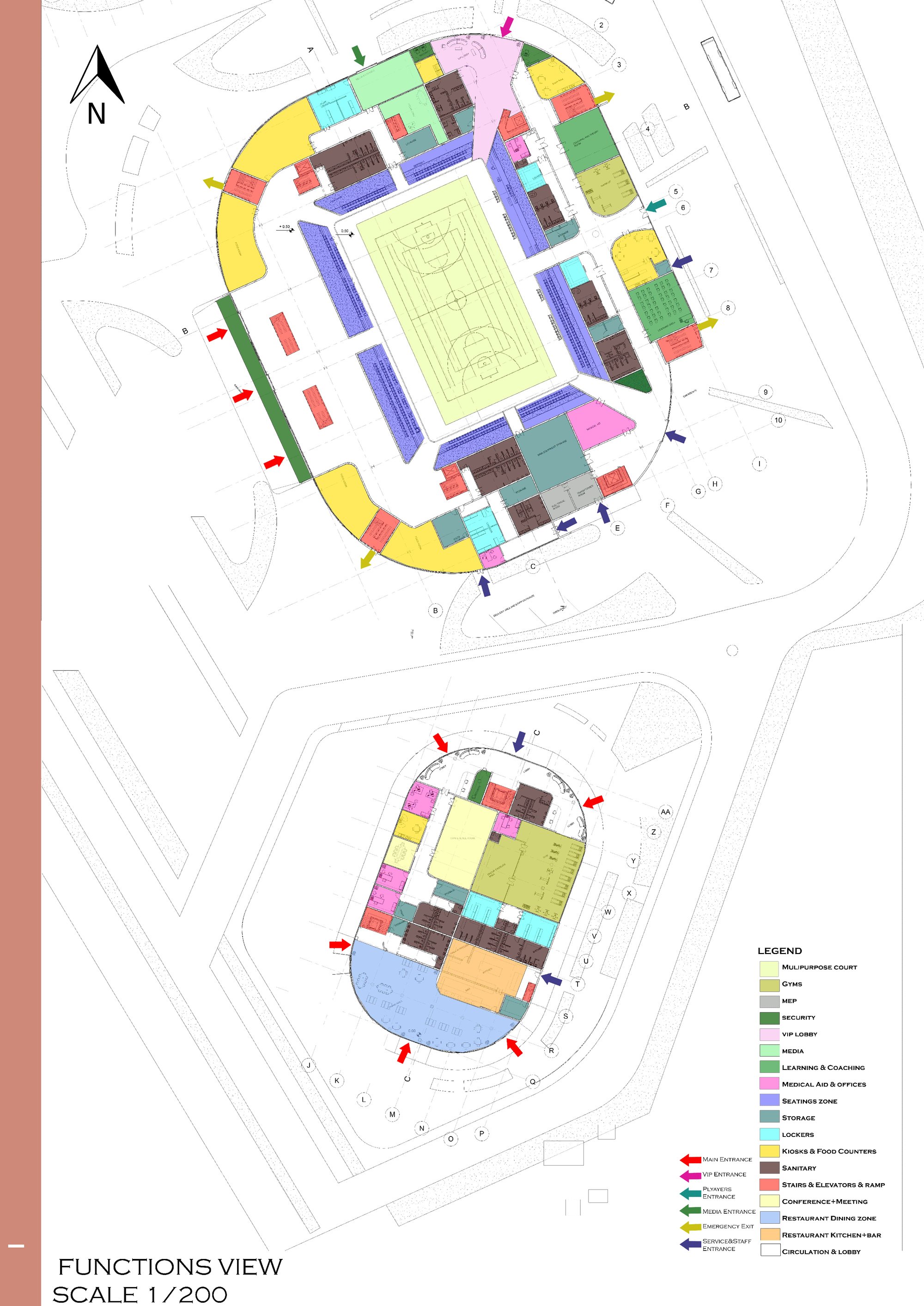

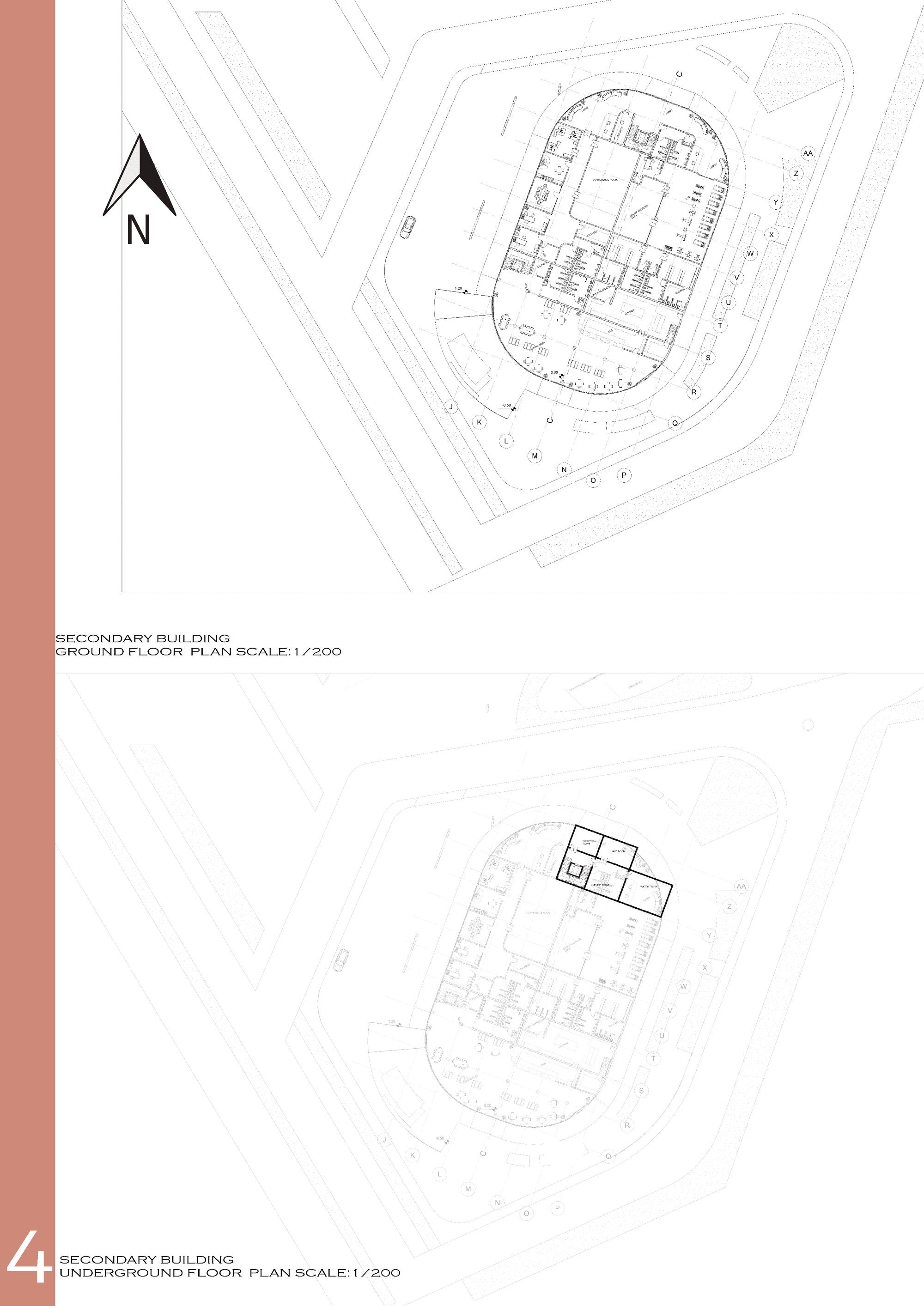

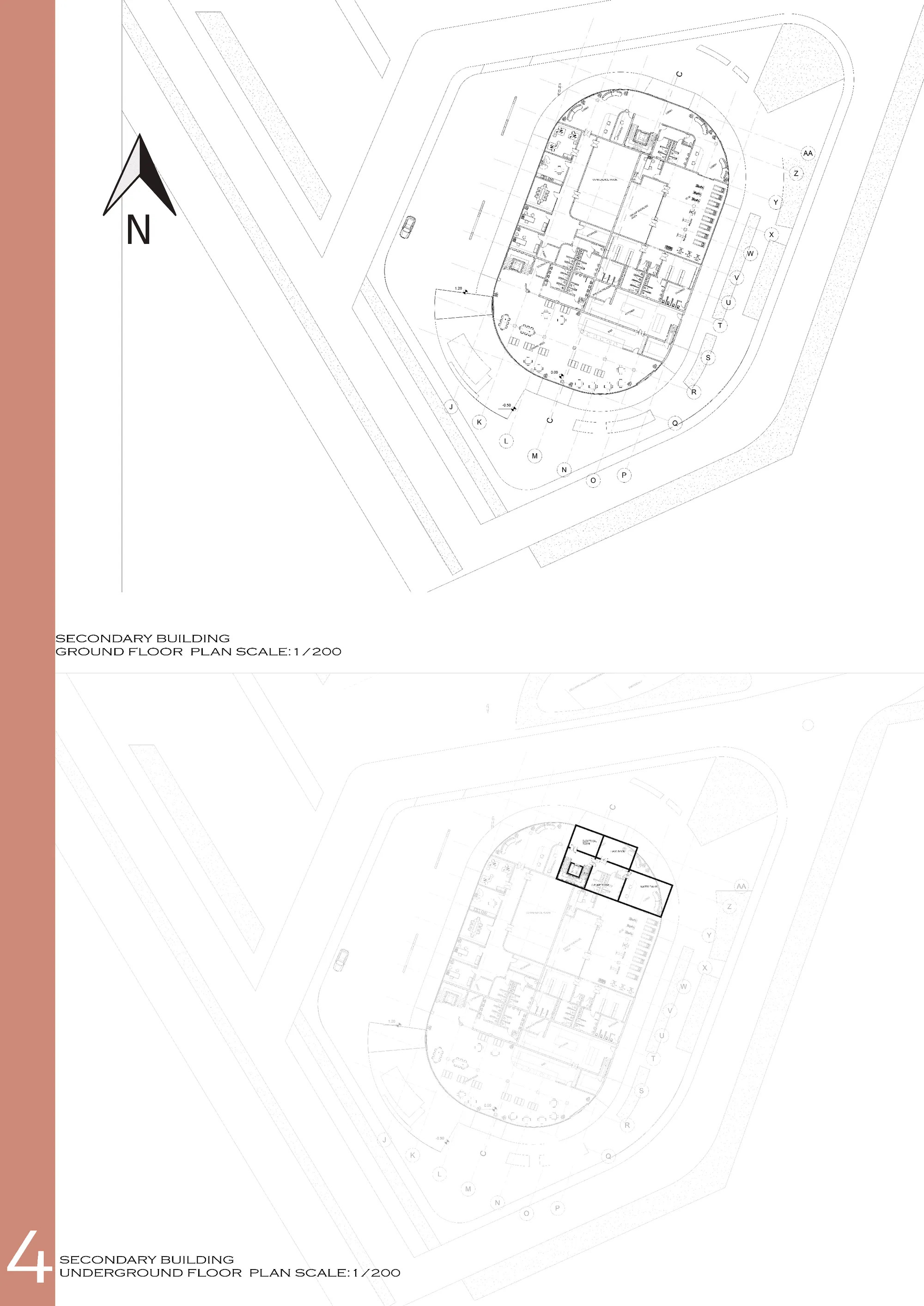

The secondary building integrates administration offices, a conference room, a public gym, and a restaurant.

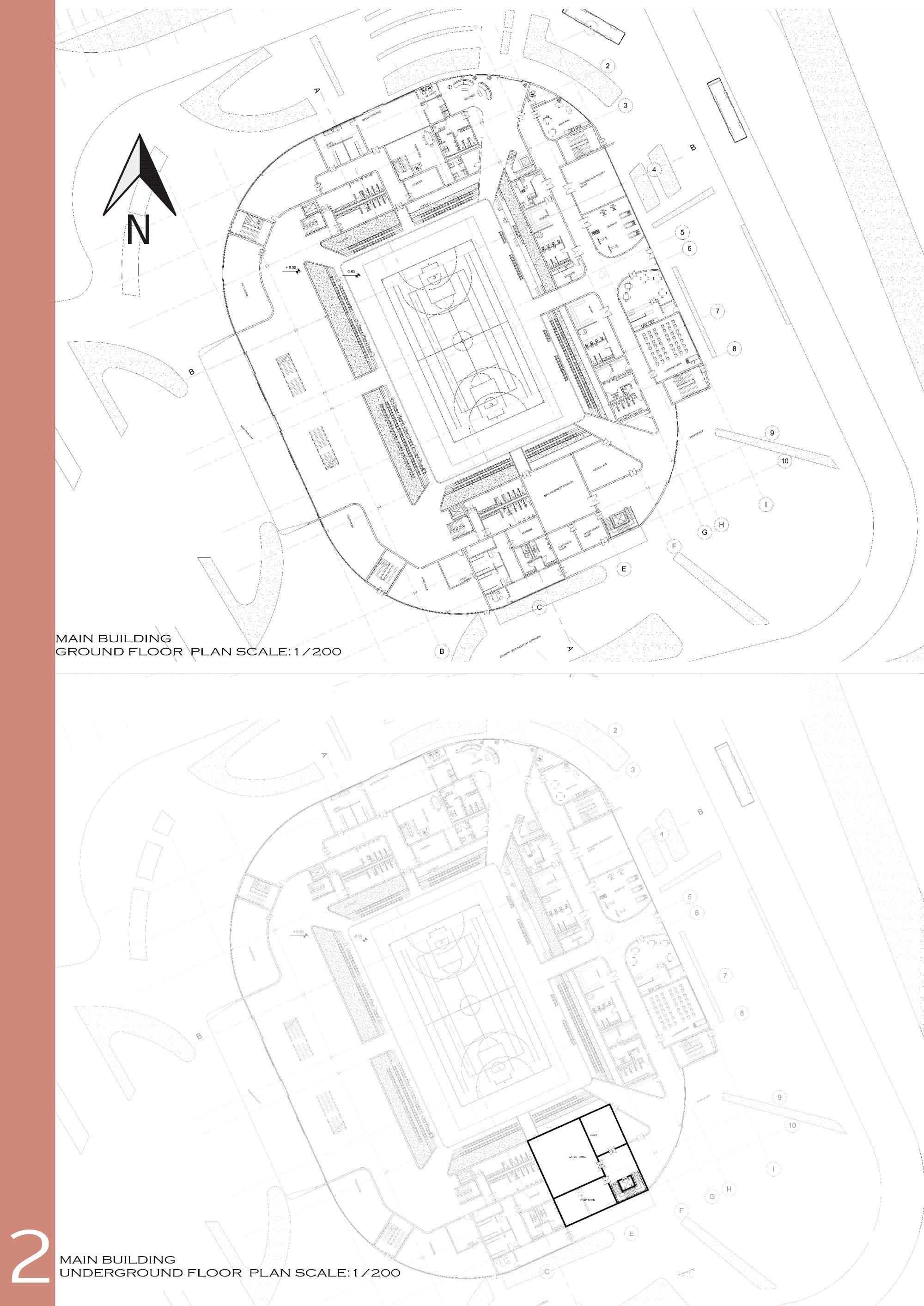

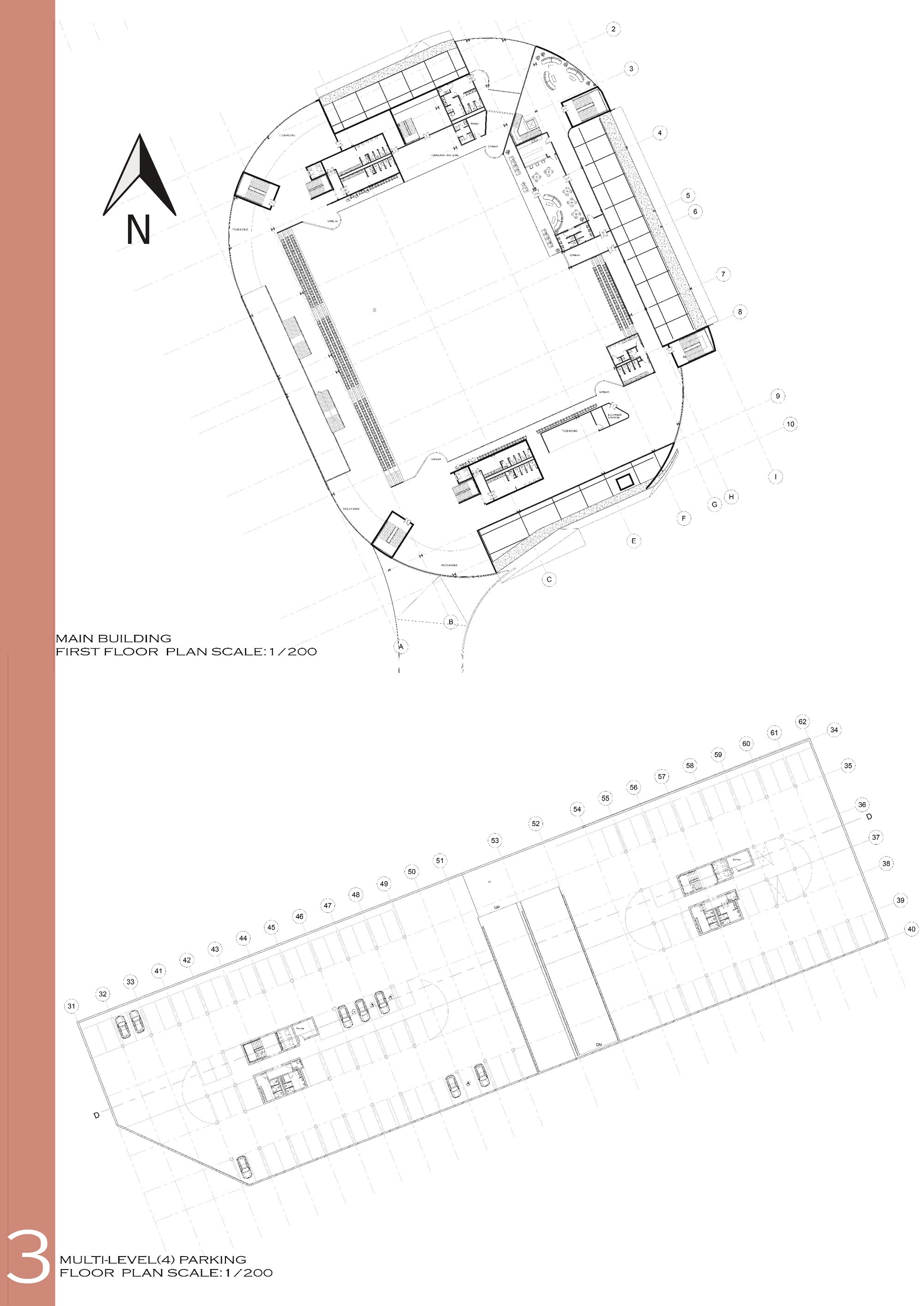

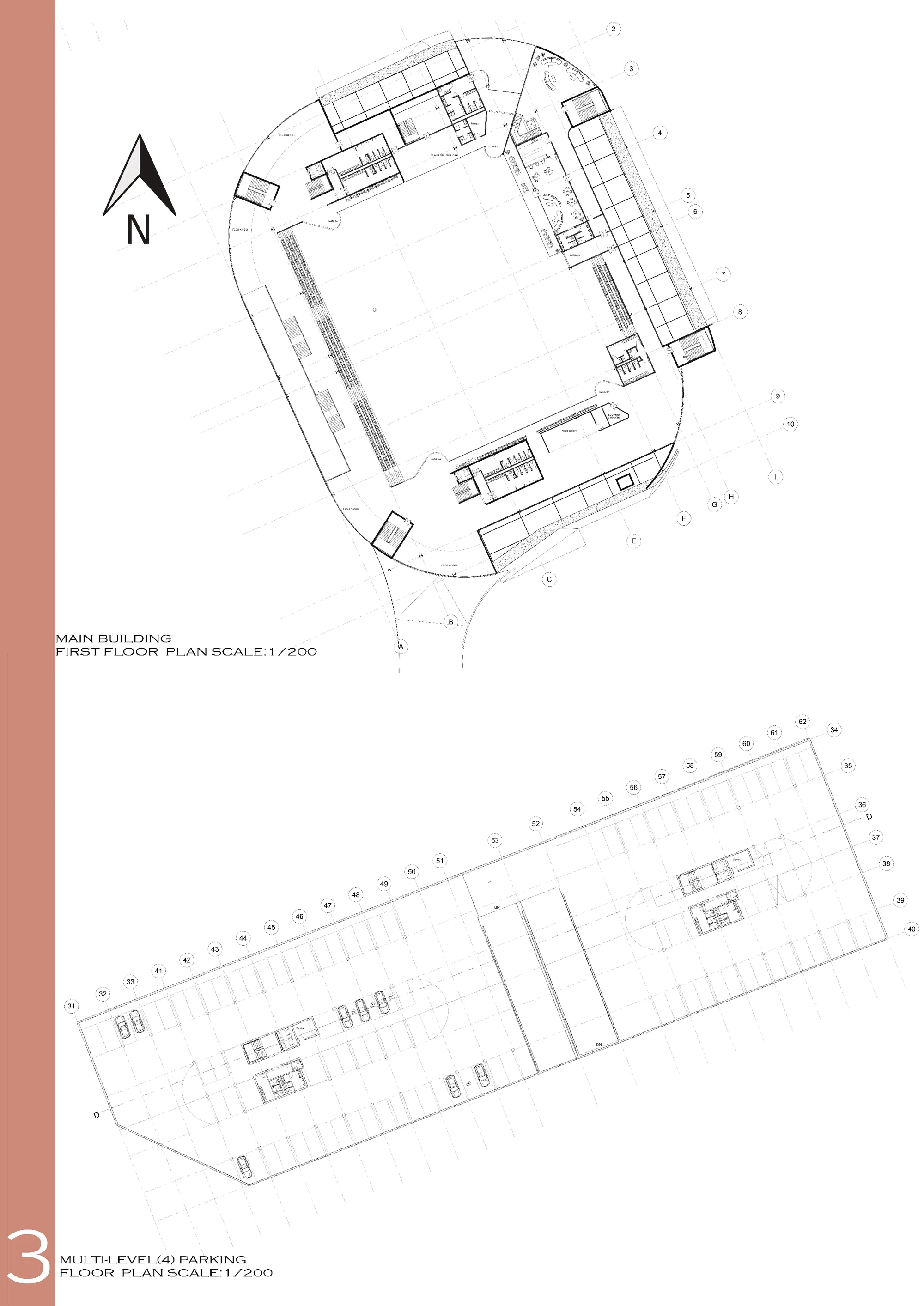

Clear circulation separates public, players, VIP, and service routes, ensuring efficient event operation.

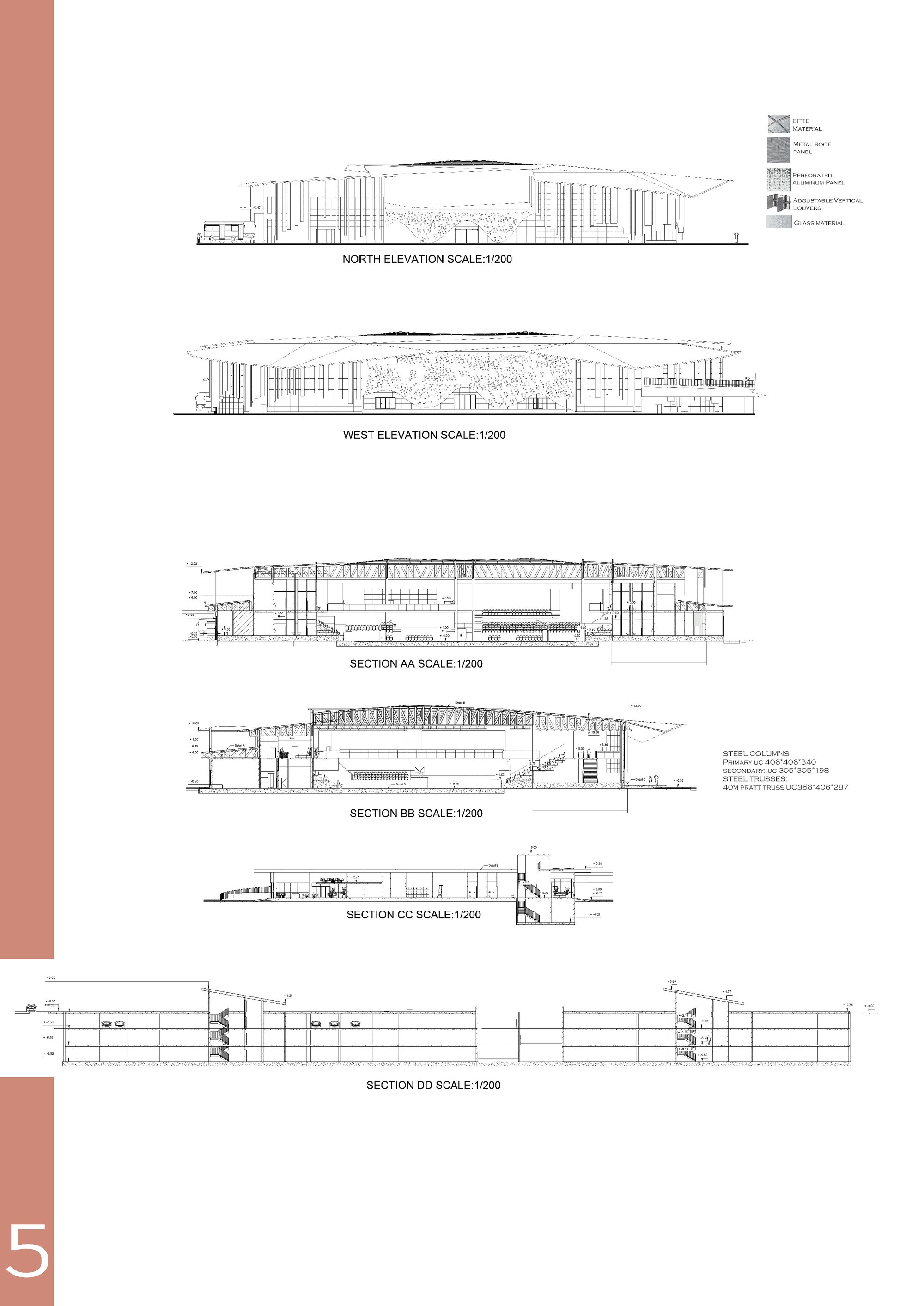

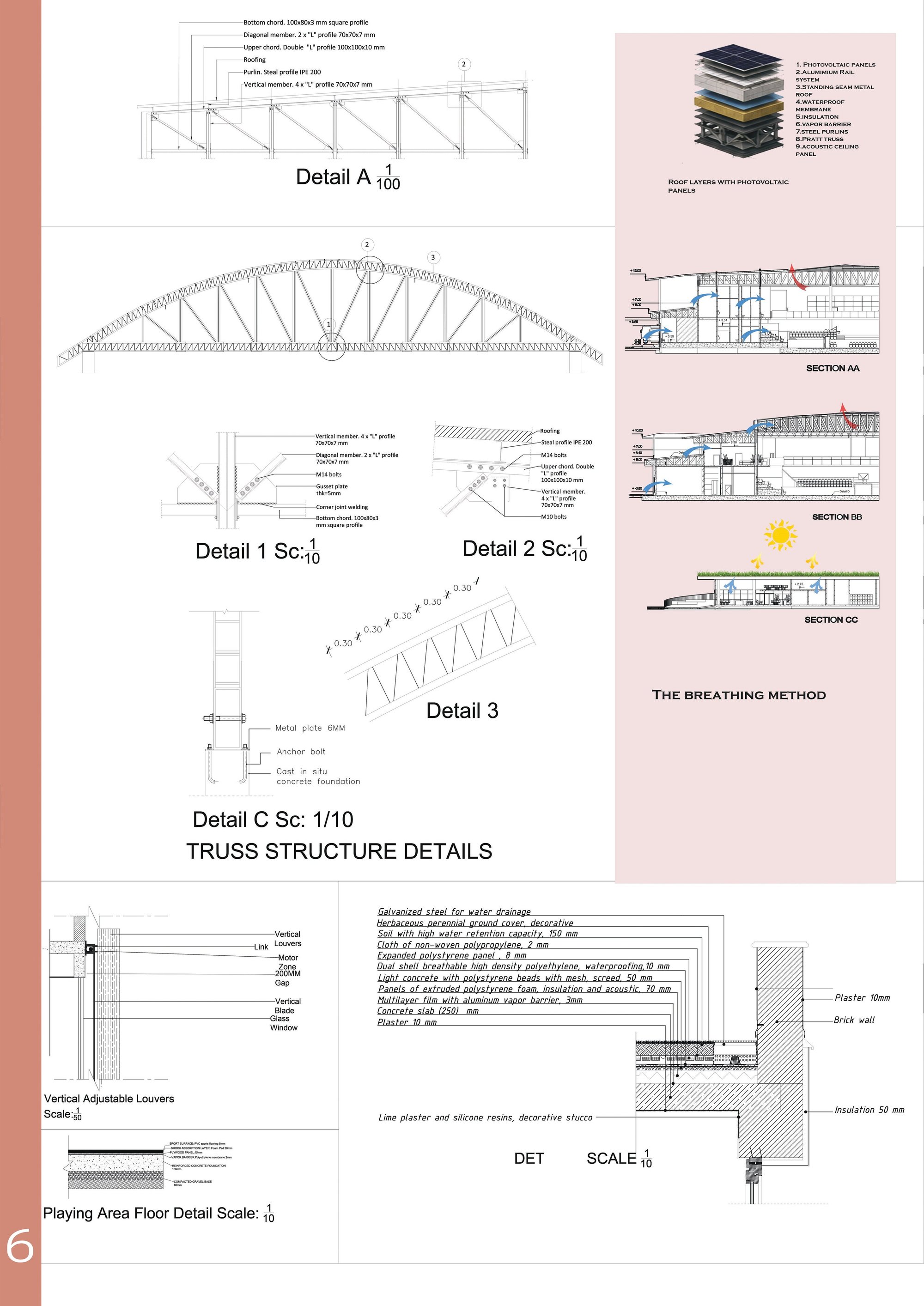

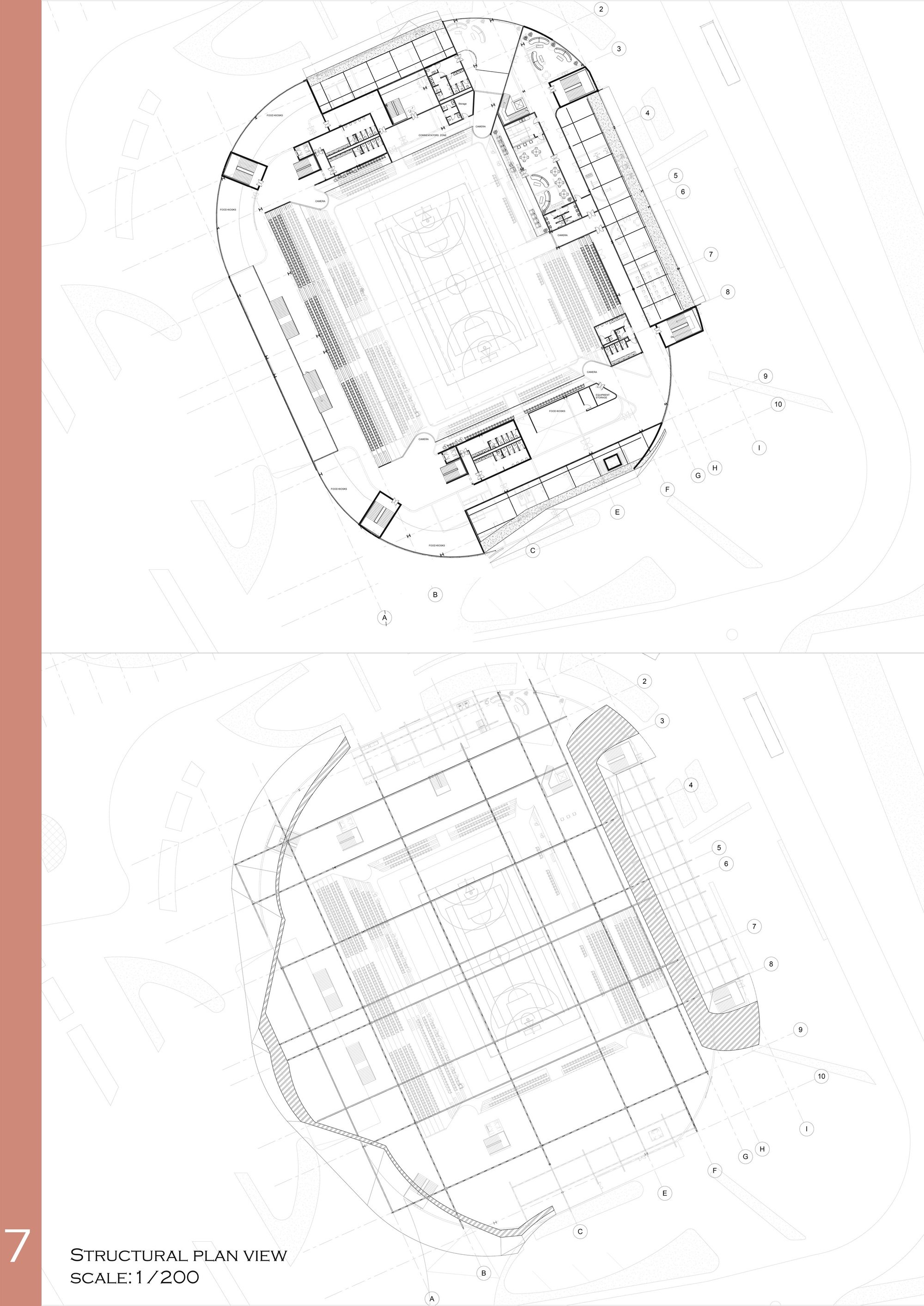

Long-span steel truss system creating a column-free, flexible arena.

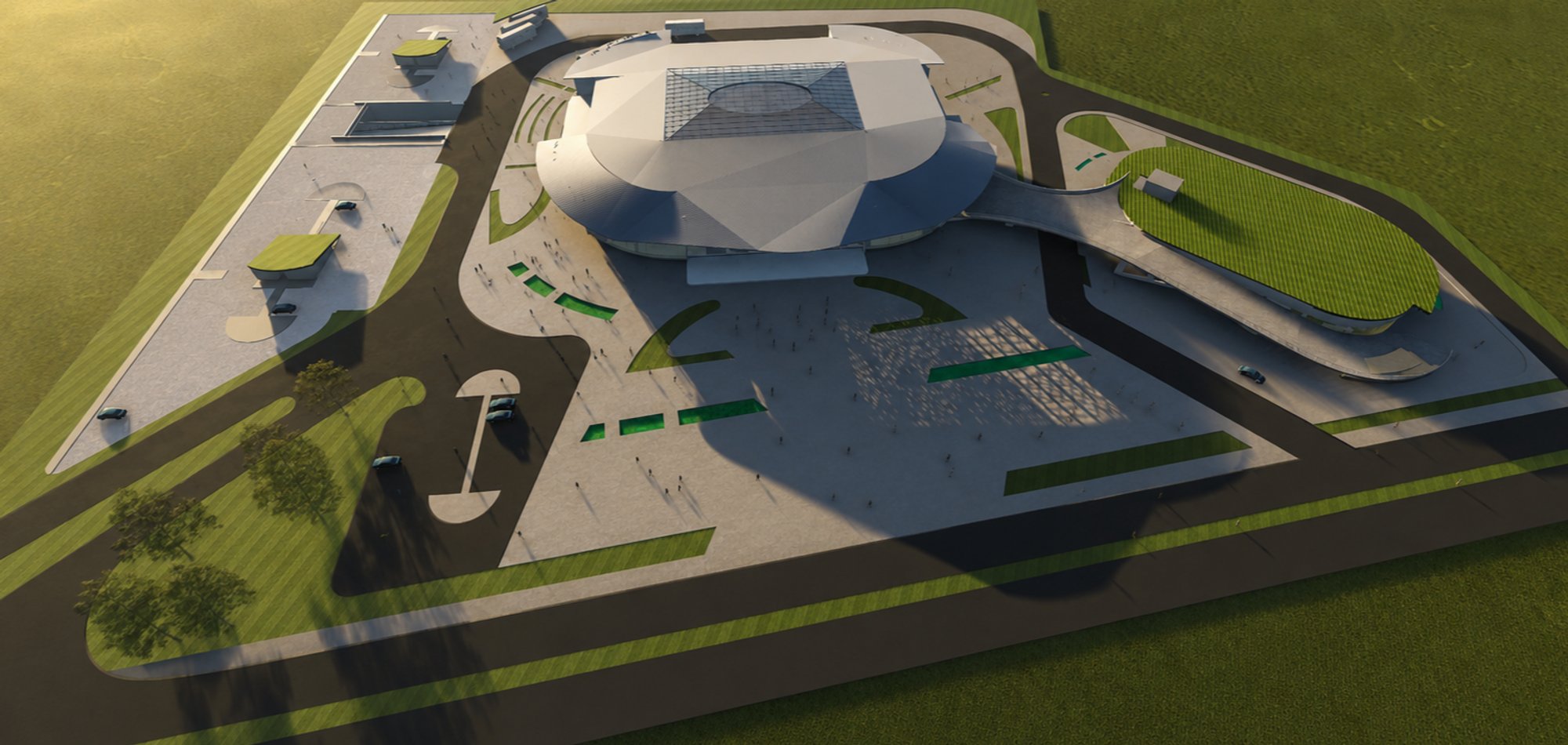

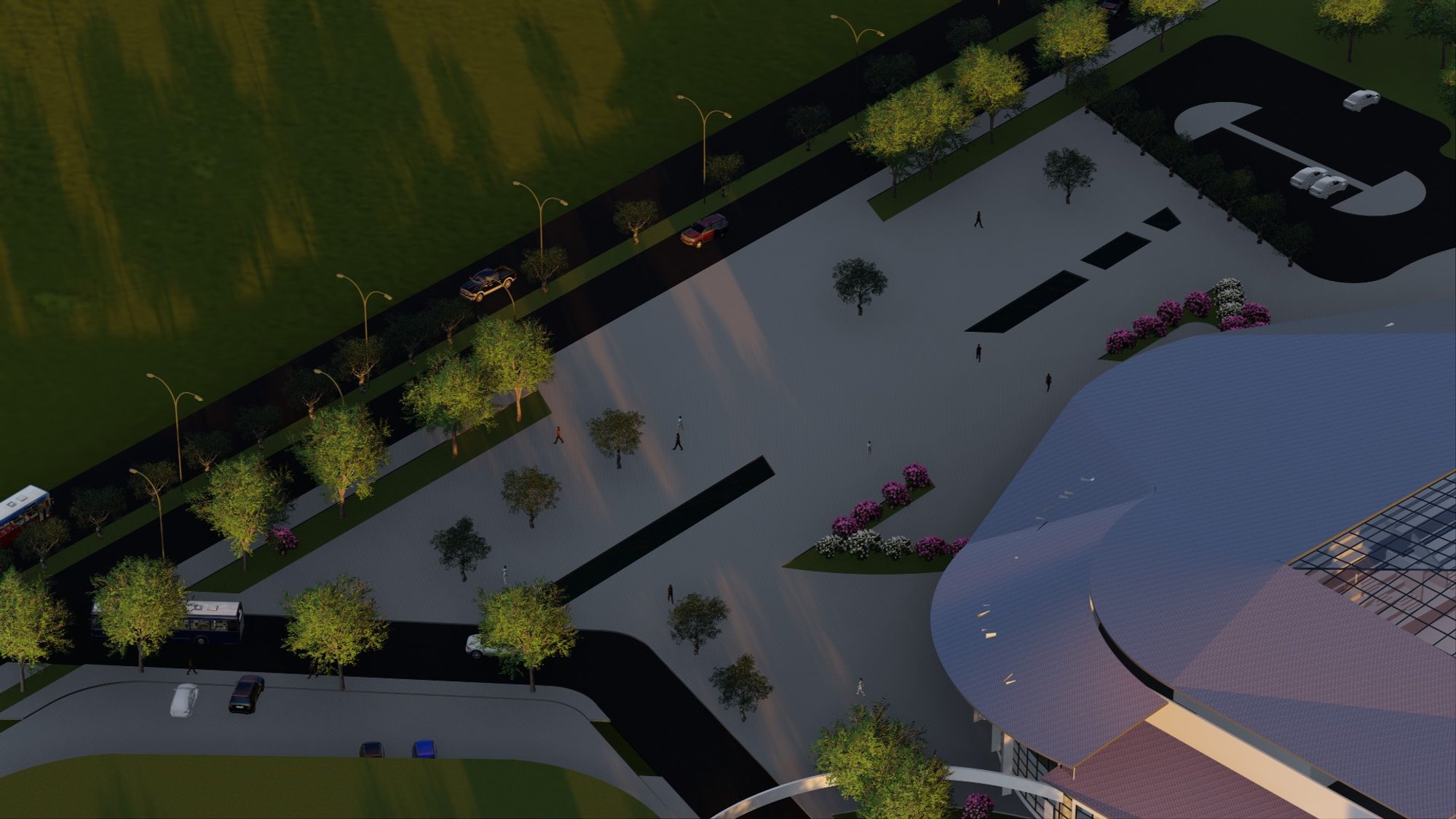

The view shows the multilevel roof of the main building, the green roof of the secondary building, and the underground parking. The west-facing entrance opens onto a large supporter plaza with water elements for cooling, while roof overhangs provide shading and reduce heat gain.

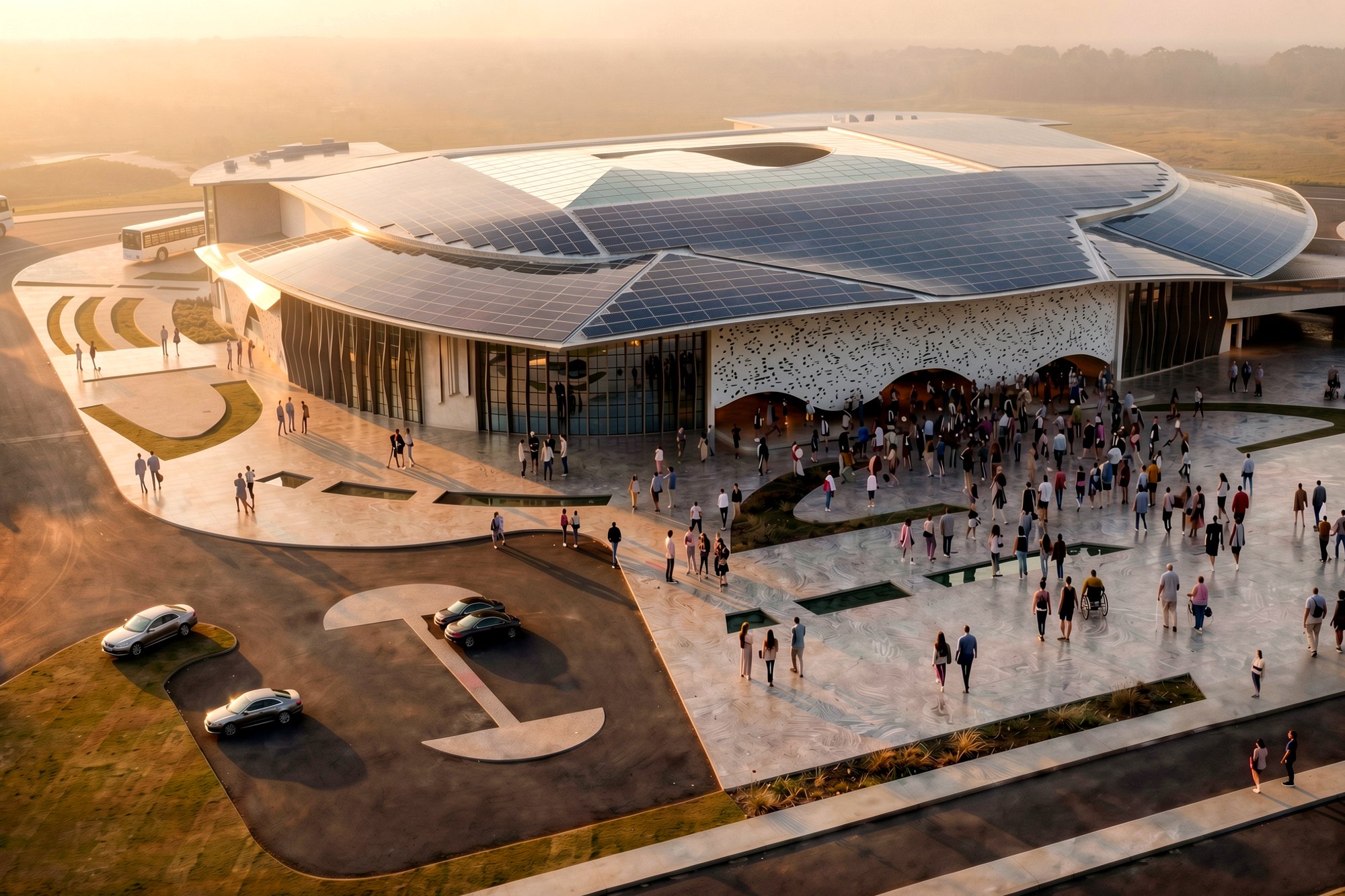

Photovoltaic panels and a central ETFE skylight maximize energy efficiency and daylight, while the breathing façade and deep roof overhang provide shading and passive cooling.

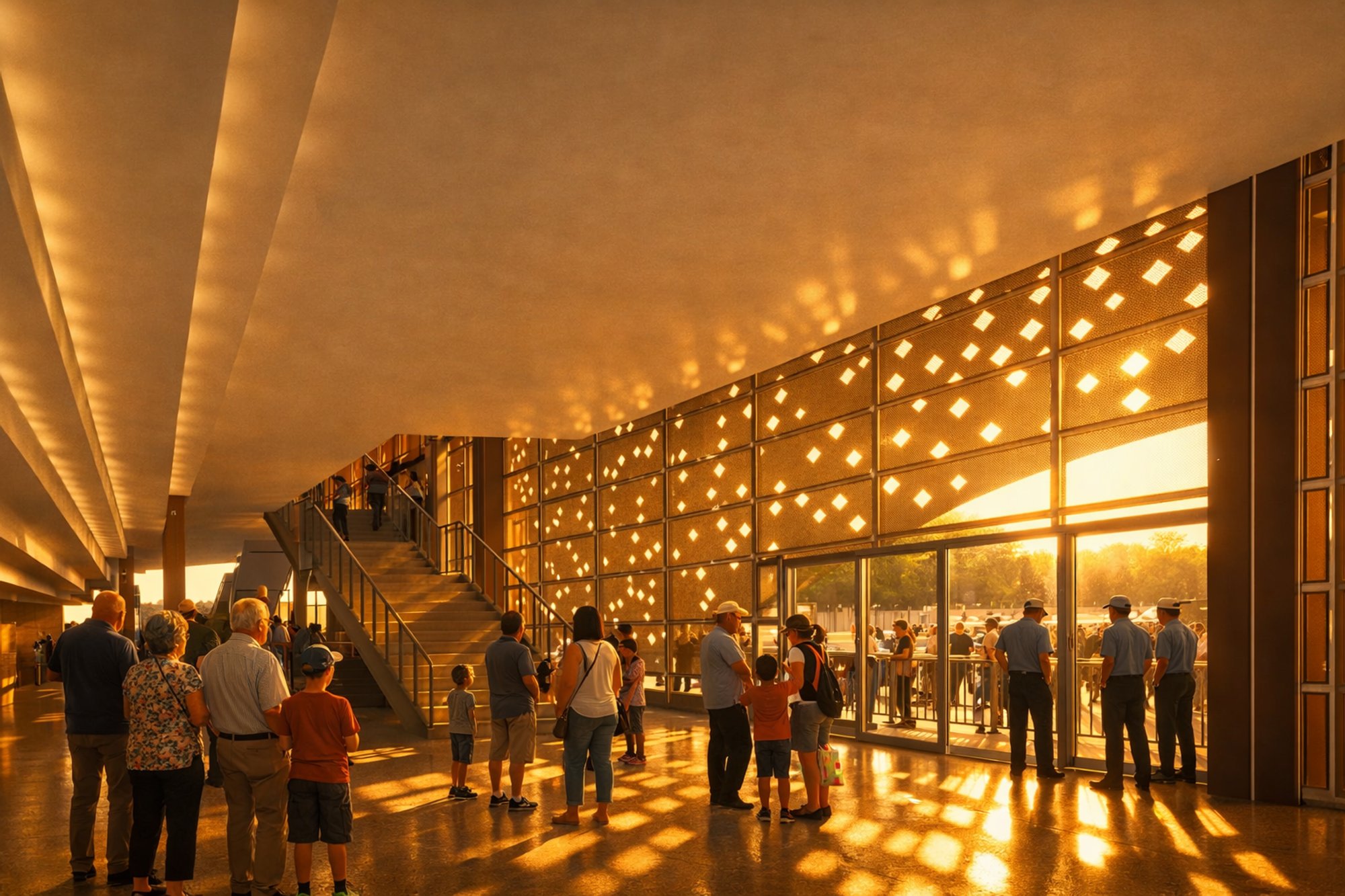

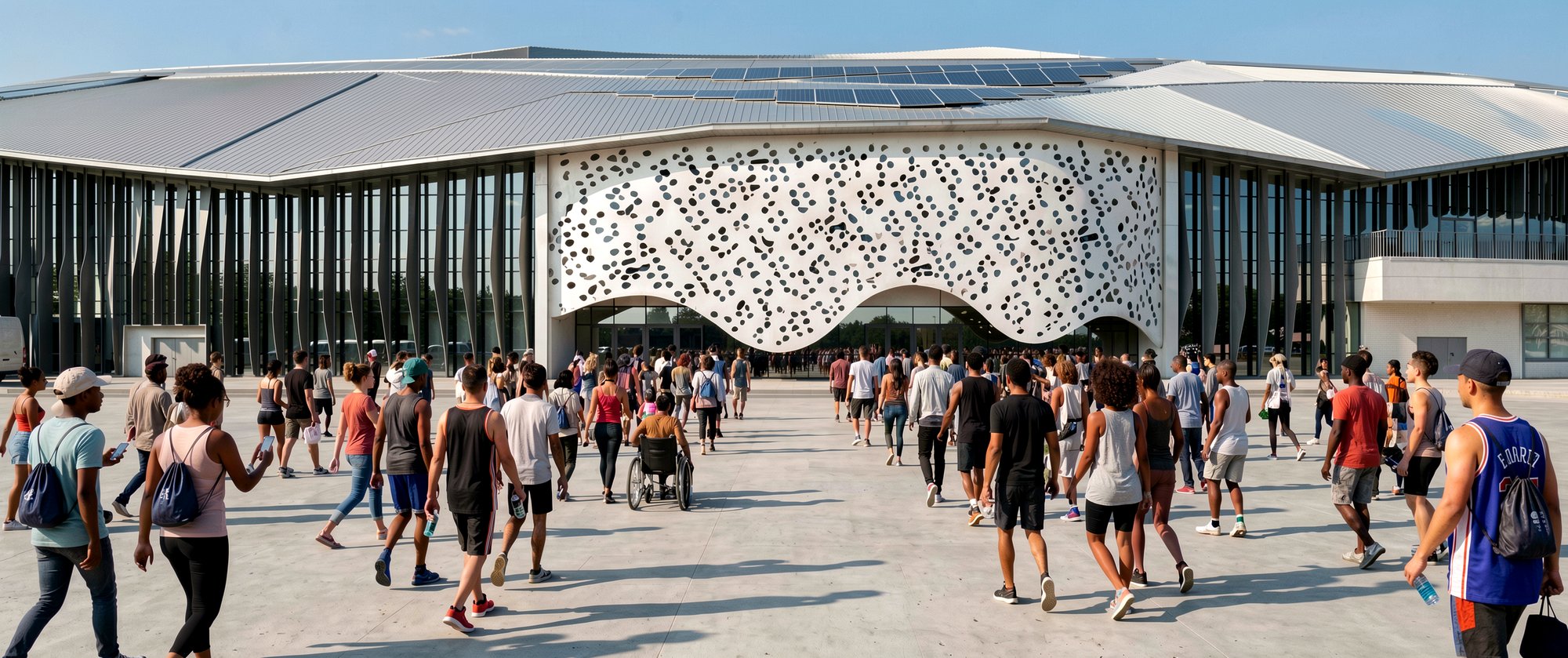

Perforated aluminum panels filter sunlight, creating a vibrant pattern of light and shadow while providing shading, thermal comfort, and a welcoming entrance experience.

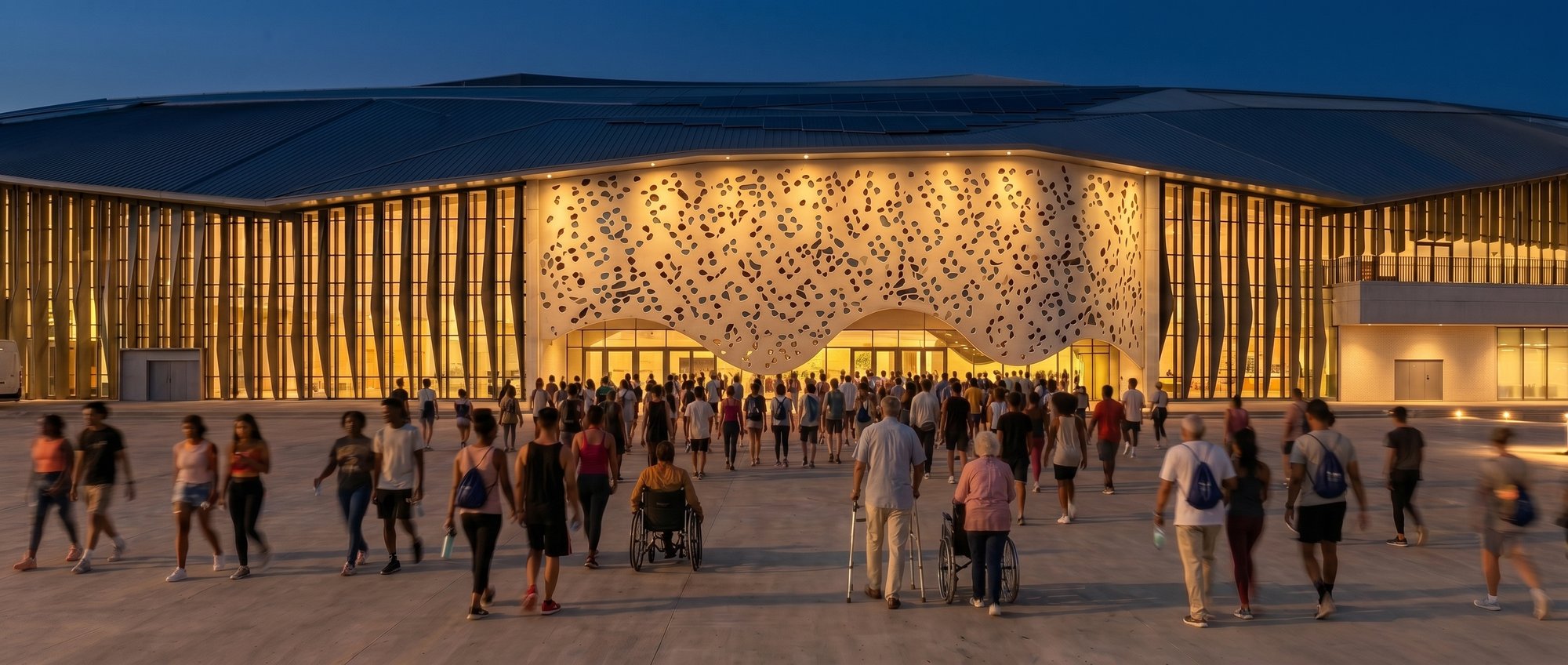

Perforated aluminum panels define the main entrances, while adjustable vertical aluminum louvers wrap the remaining façades, providing solar shading, controlled ventilation, and a dynamic architectural expression.
