CAUKIN Studio Builds a 100-Bed Maternity Centre from Unfired Earth Bricks in Eastern Uganda

Uganda has one of the highest maternal mortality rates on the planet. In the rural sub-county of Bukasakya, outside Mbale in the east of the country, the path from a Level 3 health outpost to a fully operational maternity hospital required not just more beds but a fundamentally different building. CAUKIN Studio, working with strategic planning support from HOK Architects and structural engineering by Silman, delivered that building in 2022: a 900 square metre, 100-bed facility designed to safely deliver more than 3,000 babies per year.

What makes the Bukasakya Maternity Centre worth studying is not its humanitarian brief, which is urgent but not unique. It is the way CAUKIN Studio resolved a genuinely difficult equation: how to build something ambitious, medically competent, and low-carbon on a tight budget using almost entirely local materials and labor. The answer is a clustered courtyard plan executed in unfired earth bricks, locally sourced timber trusses, and terracotta roof tiles, a set of materials that are vernacular to the region but deployed here with disciplined spatial logic.

Street Presence and Civic Identity

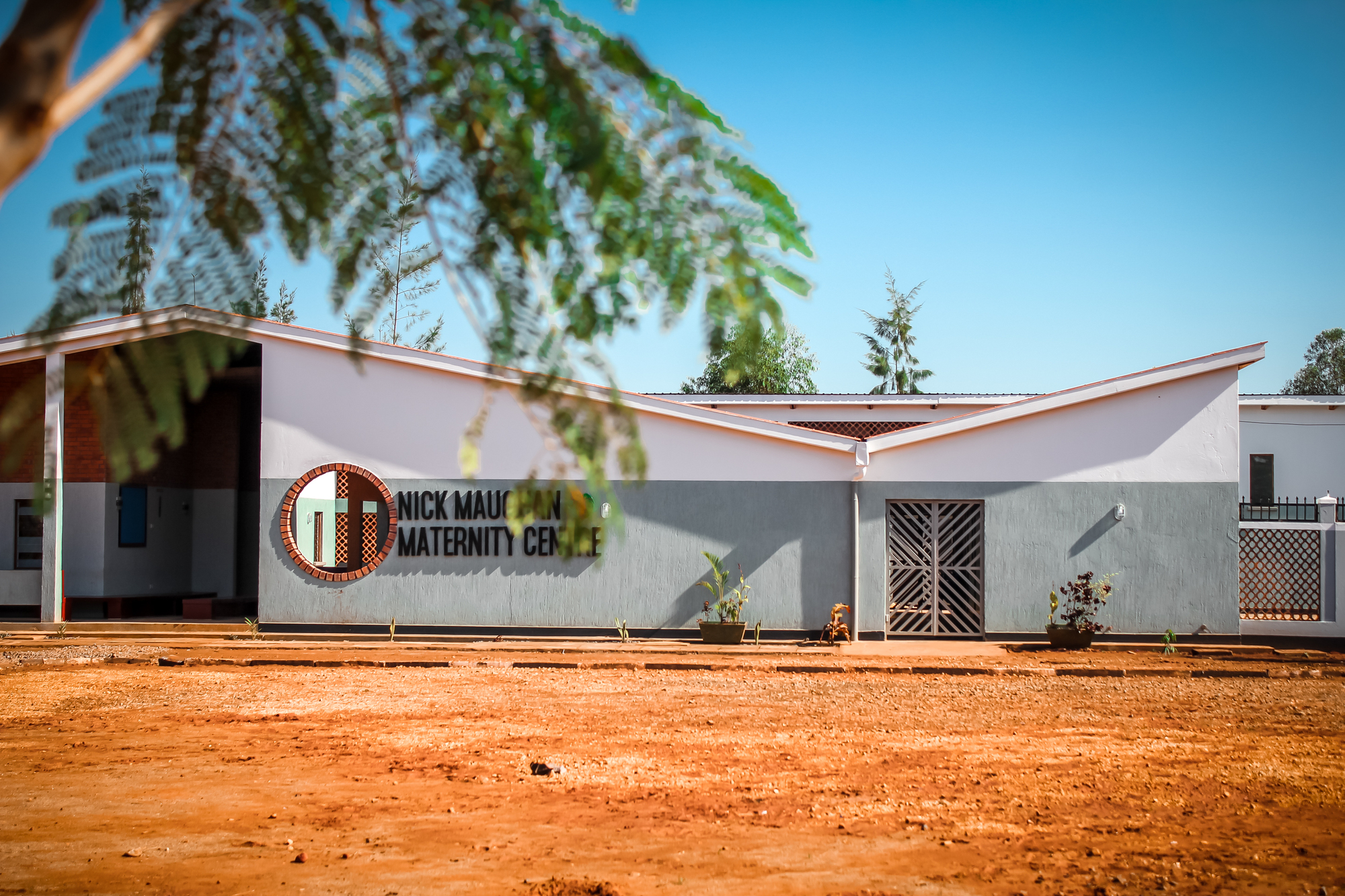

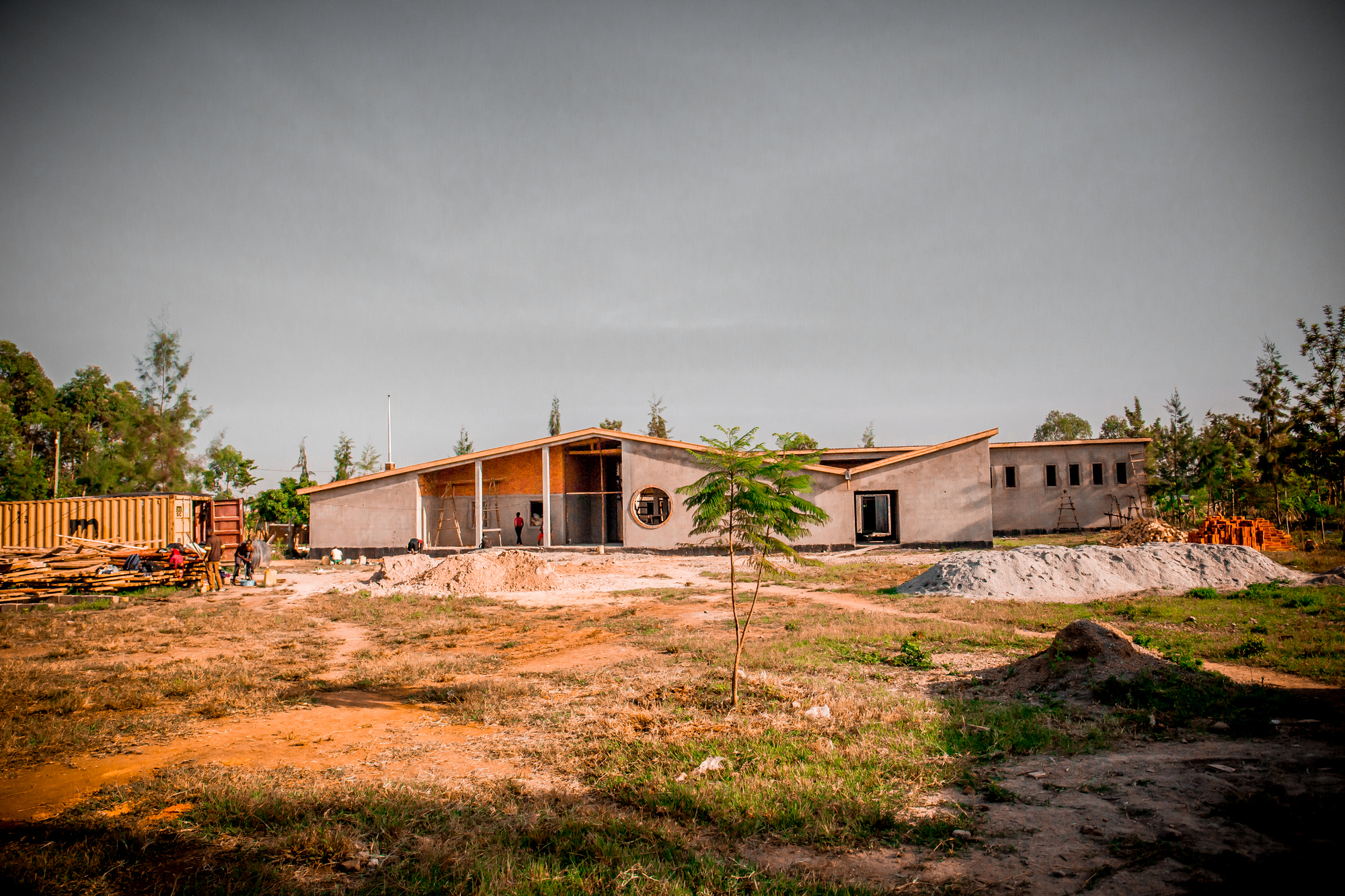

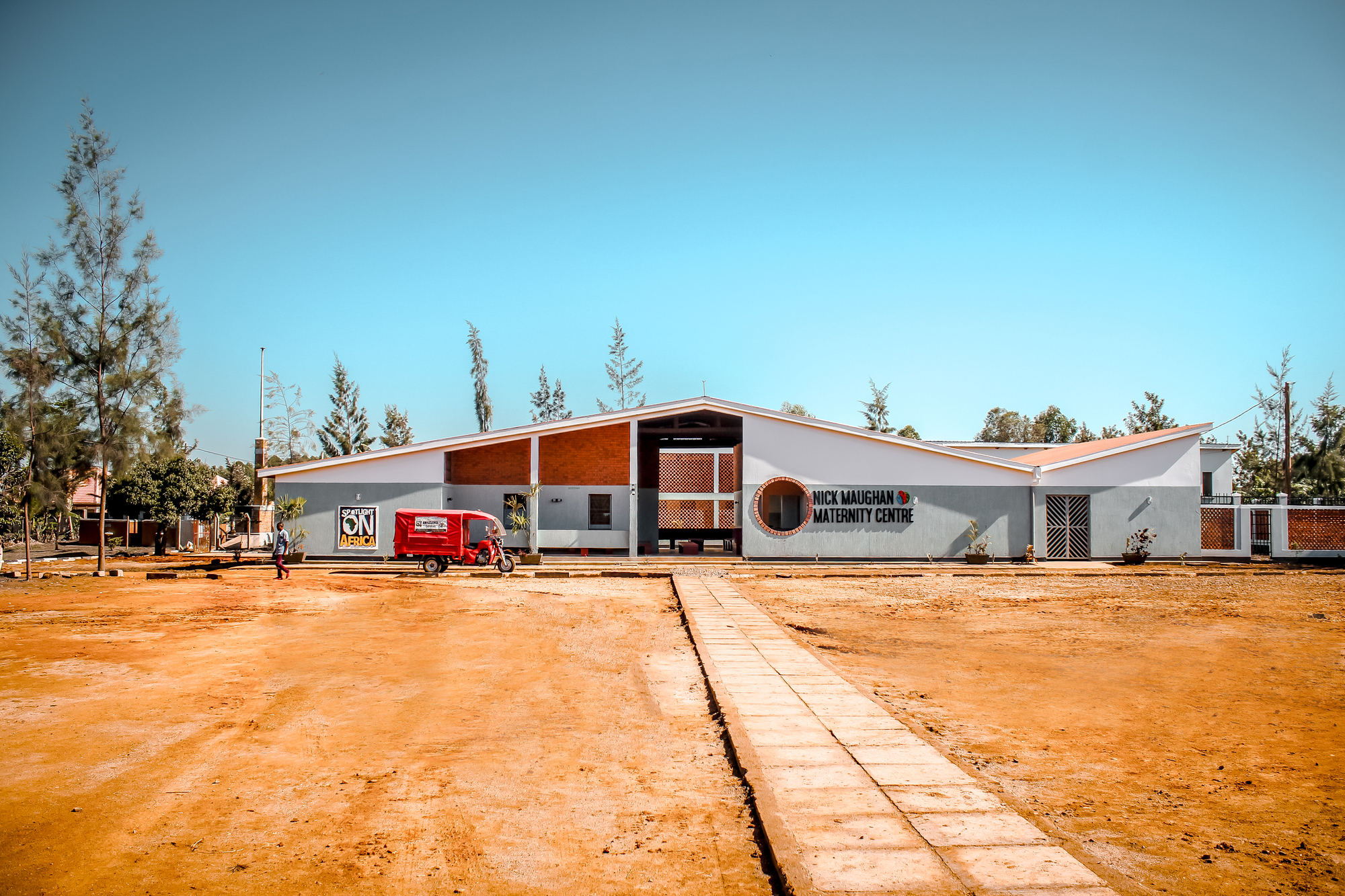

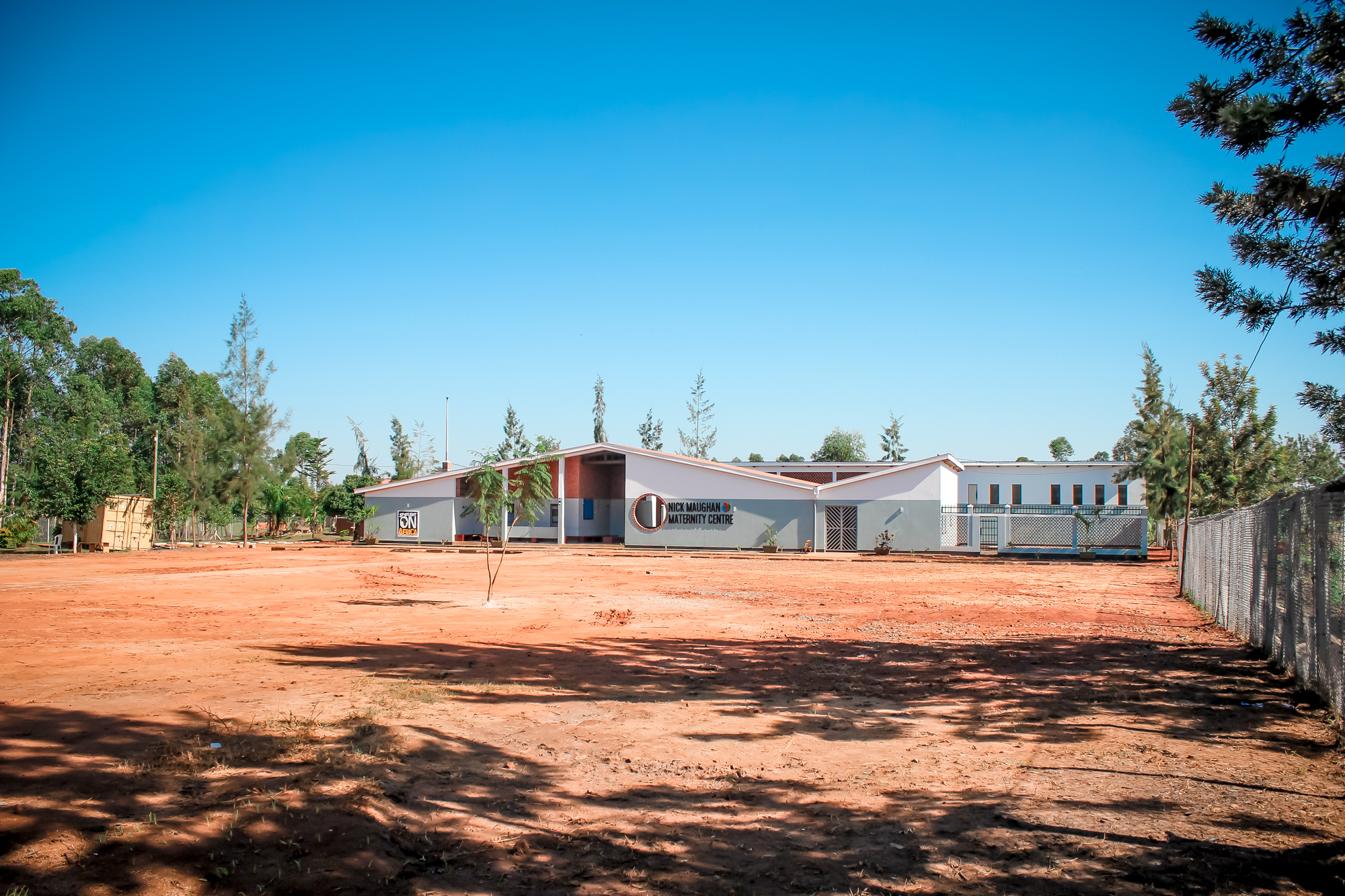

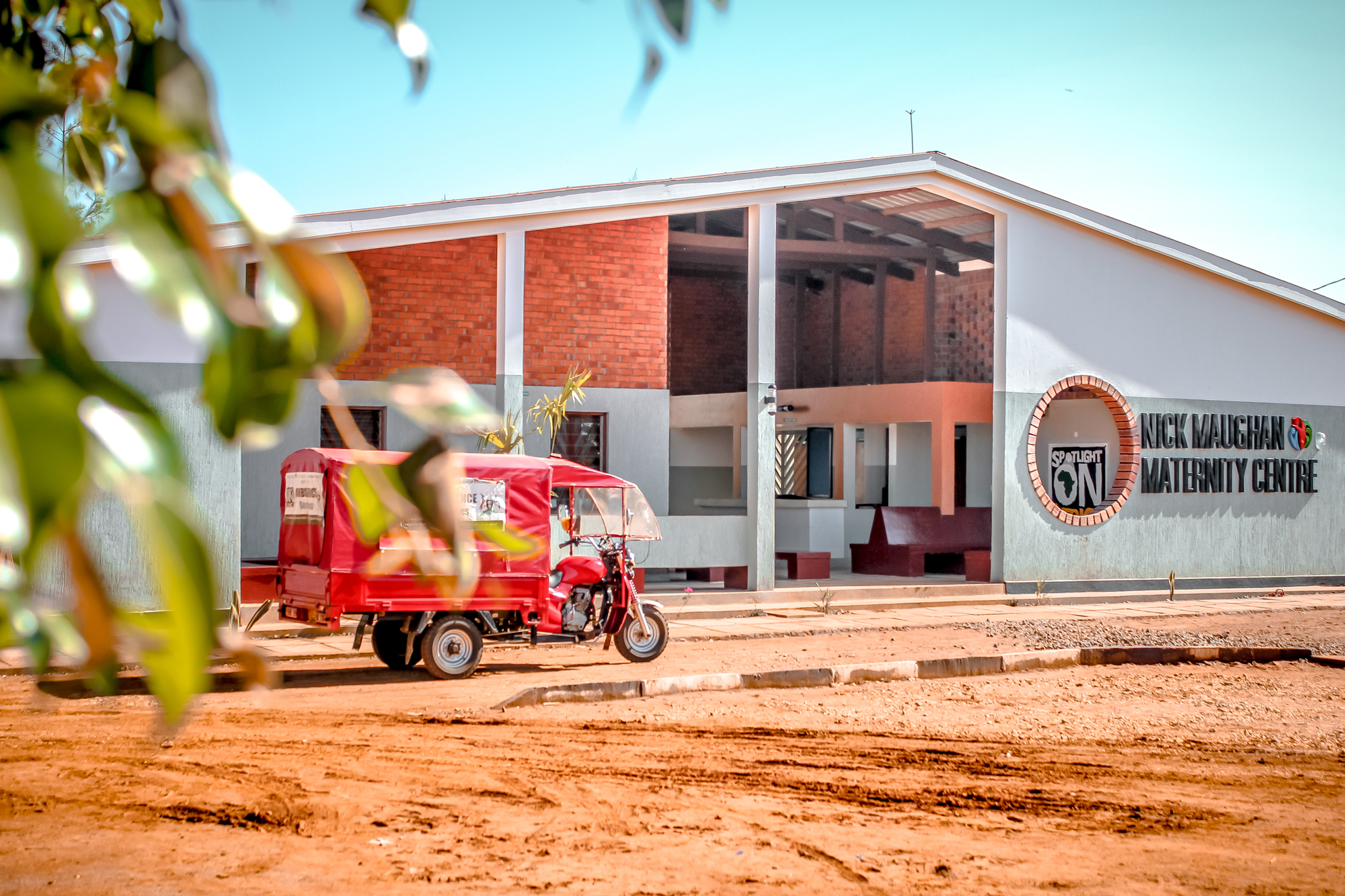

From the red dirt road, the centre reads as a collection of gabled volumes rendered in white with exposed brick panels that break up the facade. The forms are deliberately familiar, pitched roofs that echo domestic construction in the region, but the scale and repetition signal something institutional and dependable. A circular brick medallion on one wall and a butterfly roof at the entrance add moments of visual identity without resorting to imported signage materials.

CAUKIN Studio described the massing as "striking and ambitious while remaining cost-friendly, buildable and familiar within local context." That is a precise ambition, and it reads clearly from the street. The building does not look like an NGO container dropped from above. It looks like something that belongs here and intends to stay.

Courtyard Logic and Patient Flow

The plan groups spaces by patient experience. Outpatient services, including reception, are placed at the front of the compound to catch walk-in traffic, while in-patient wards, the theatre, laboratory, and diagnostic rooms are pulled deeper into the site. The goal is to minimize cross-over between populations, an infection control strategy embedded in the architecture rather than enforced by signage.

Key spaces are arranged around a central courtyard, which does double duty. It provides air circulation and natural light to interior rooms, and it gives in-patients visual access to greenery, a small but meaningful consideration for women who may spend days in the facility. The courtyard turns what could have been a monolithic block into a series of linked pavilions, each with its own roof pitch and cross-ventilation path.

Interior Atmosphere and Timber Structure

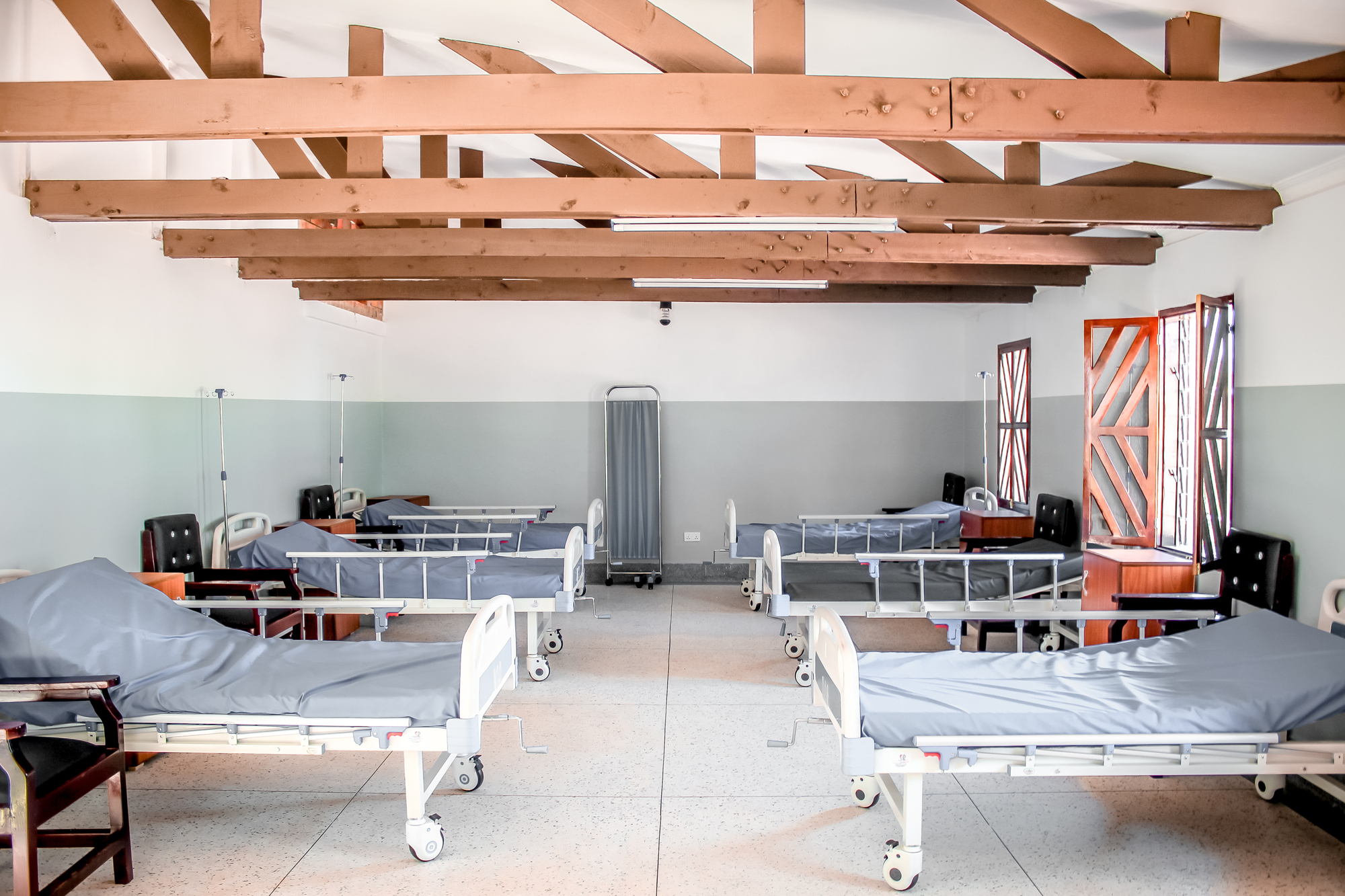

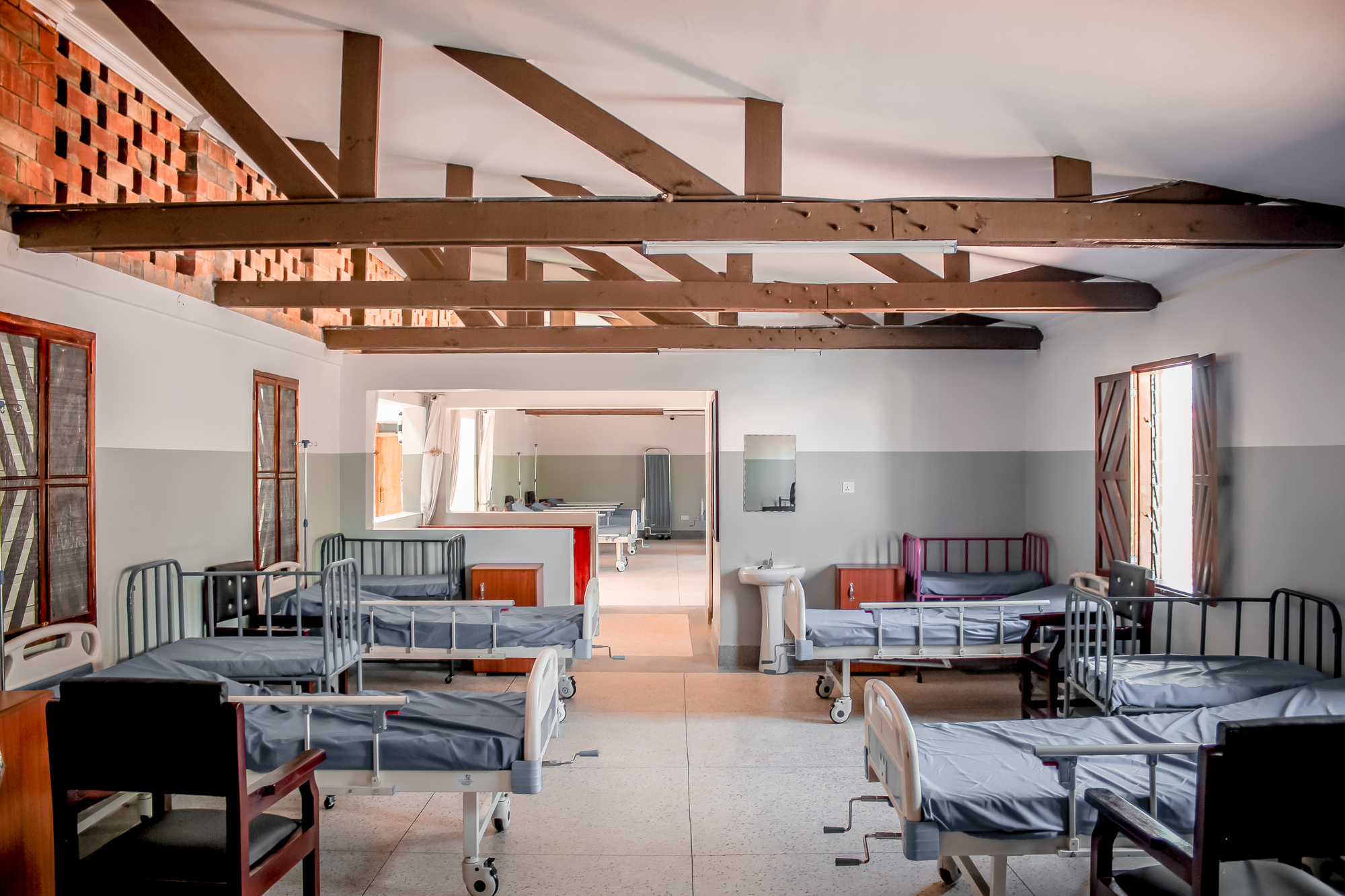

Inside the wards, exposed timber trusses span the full width of each room, creating a warm, textured ceiling that absorbs the clinical starkness of the metal hospital beds below. The timber is all locally sourced, and its grain and color vary from beam to beam, giving each space a handmade character that would be impossible to replicate with steel or prefabricated components.

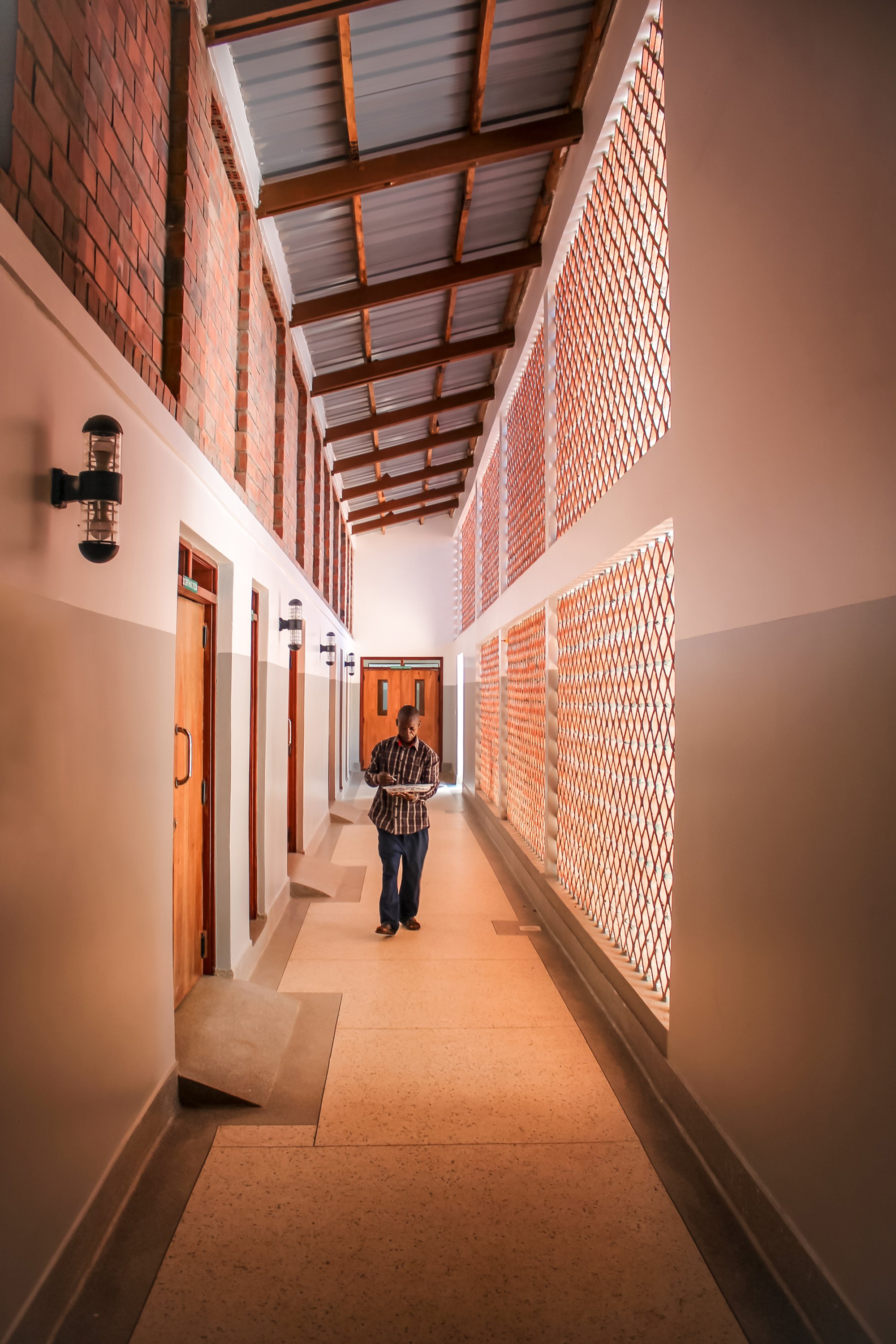

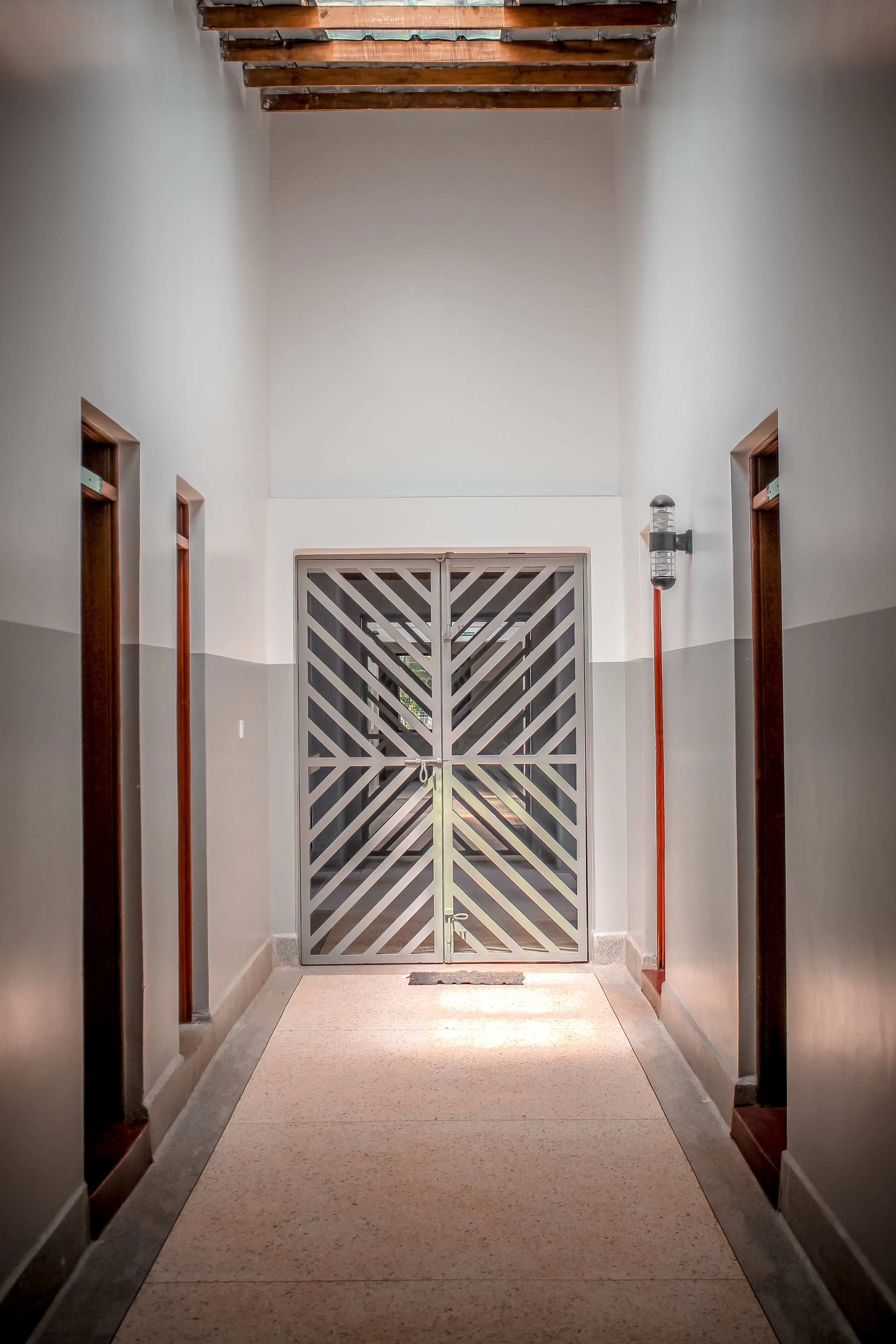

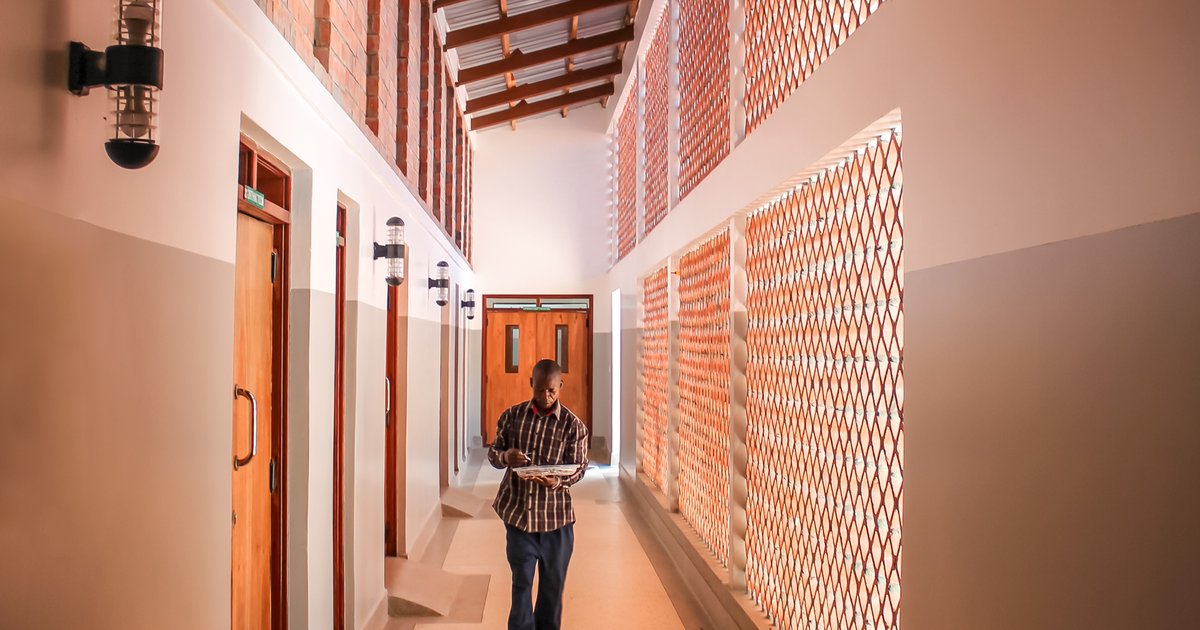

Corridors use perforated brick screens to filter daylight into shifting patterns across the floor. One corridor terminates at a pair of double doors fitted with diagonal timber slats, a detail that manages privacy and ventilation simultaneously. The tall ceiling at reception creates a bright atrium that orients patients on arrival and distinguishes the public zone from the quieter wards behind it.

Material Economy and Embodied Carbon

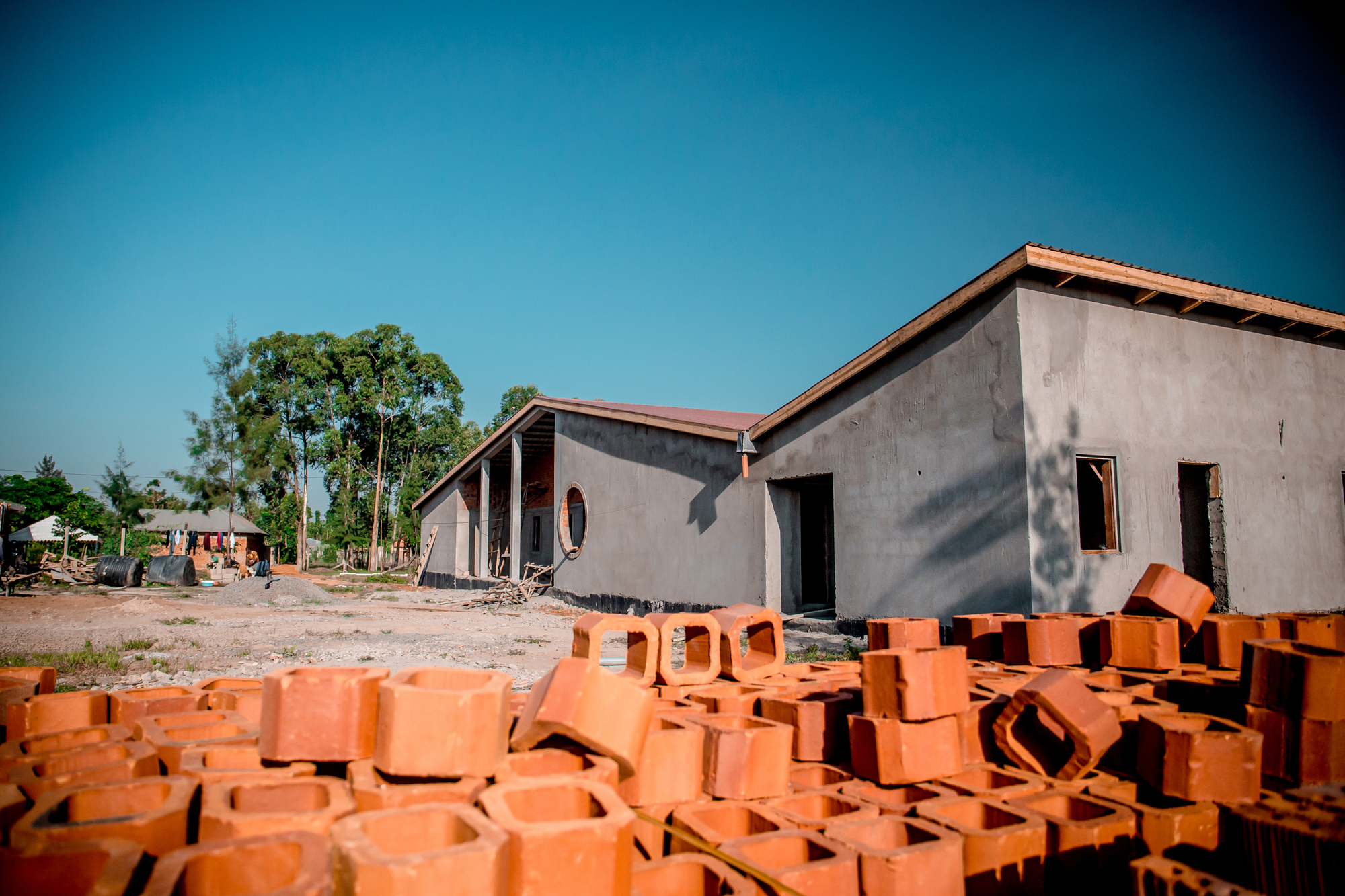

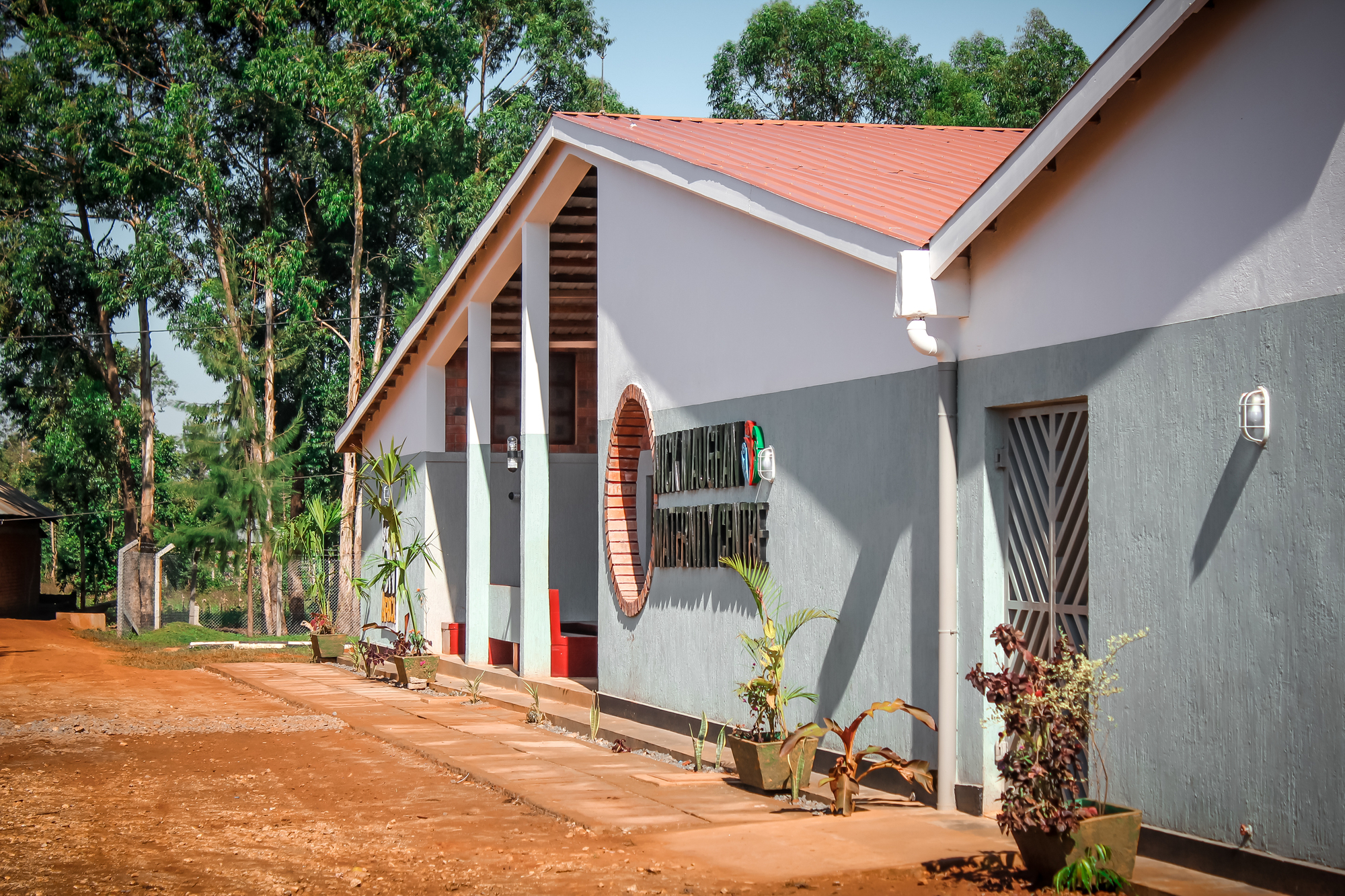

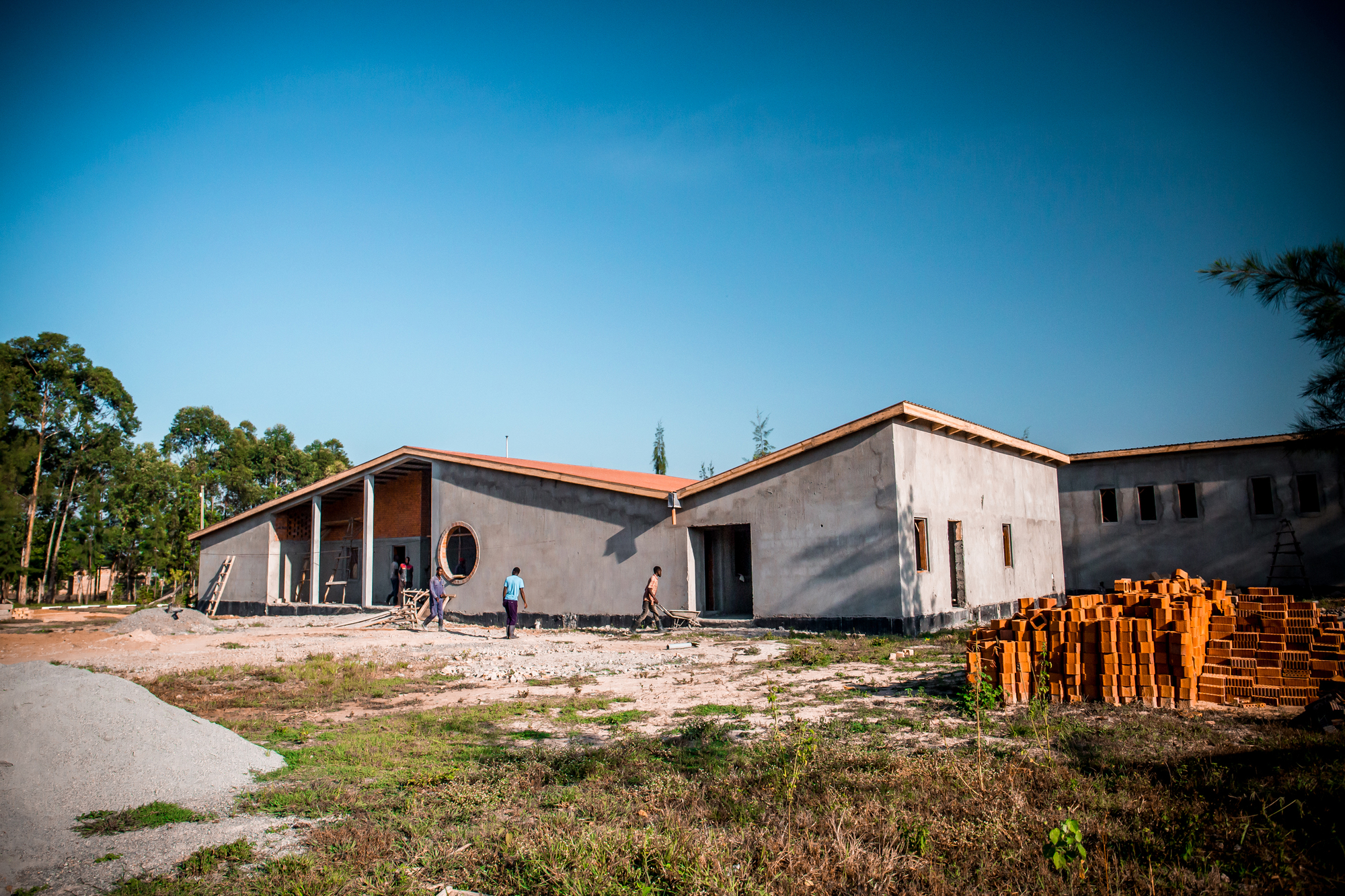

The primary wall system uses unfired earth bricks, which eliminate the energy cost of kiln firing and keep the material chain within the local economy. Rendered surfaces receive a two-tone treatment, white above and a darker tone at the base, that protects the lower wall from rain splash while giving the building a grounded, horizontal proportion. Stacks of orange bricks visible around the compound during construction confirm the scale of local material production the project demanded.

CAUKIN Studio frames the material strategy explicitly in terms of embodied carbon reduction. In a context where operational energy is minimal (no HVAC, no mechanical ventilation), the carbon story of a building is almost entirely about what it is made of. Using natural, unprocessed materials is not an aesthetic choice here. It is the most direct lever the architects had over the building's environmental impact.

Construction as Community Process

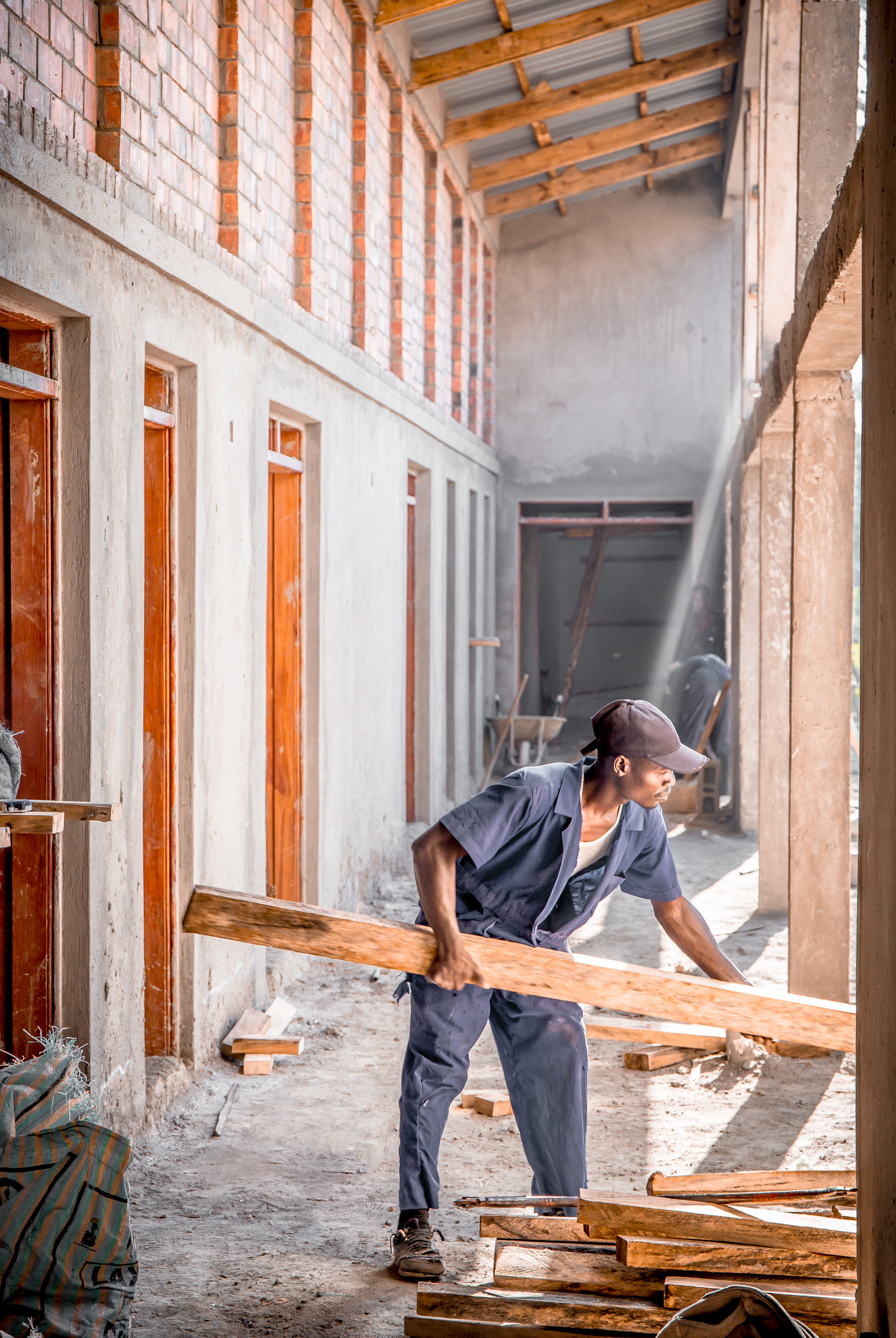

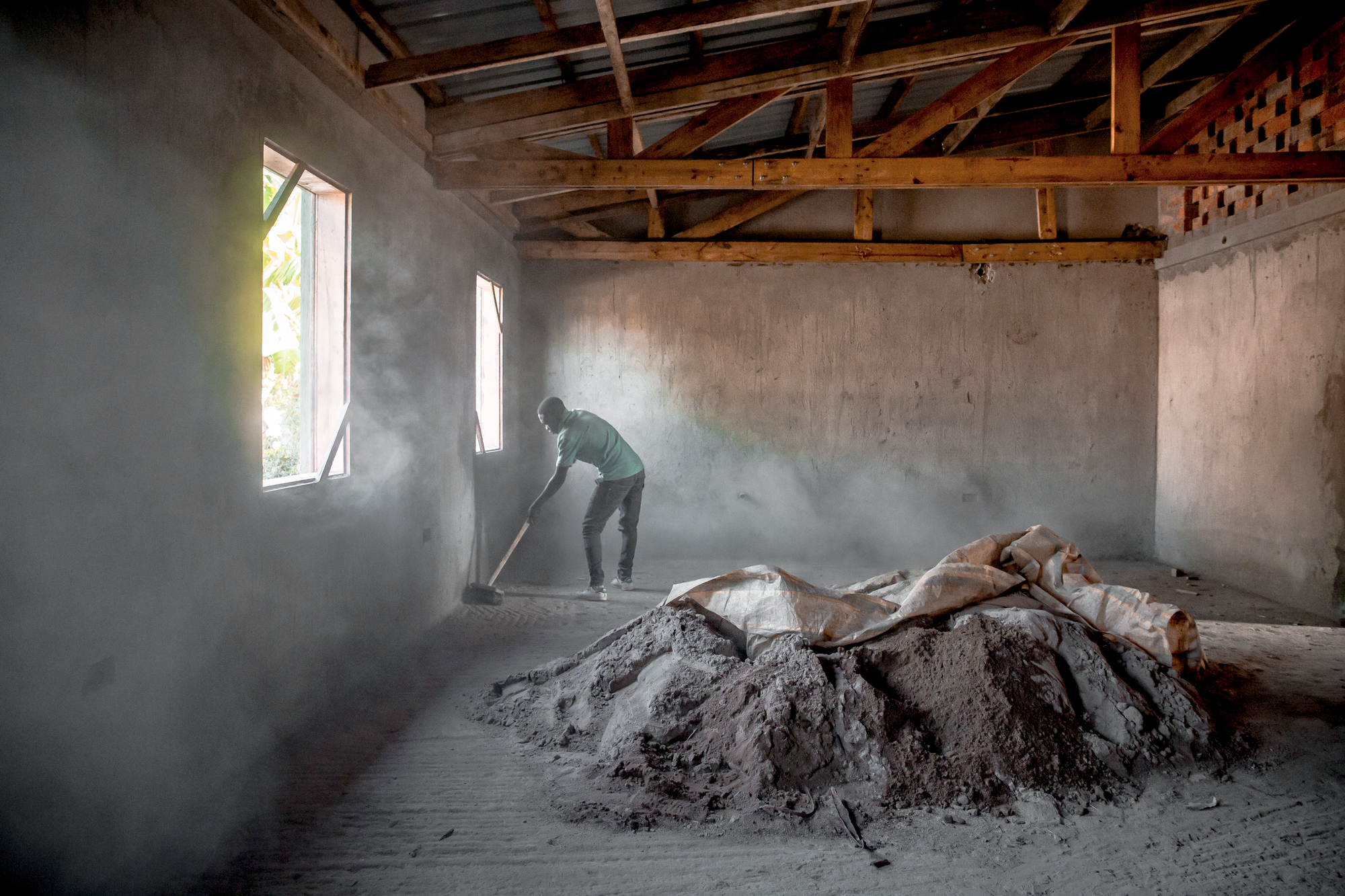

Two construction photographs capture a reality that finished architecture images tend to erase. A worker shovels cement beneath the exposed timber trusses of a ward still open to dust and sky. Another carries timber planks through a double-height courtyard framed by raw concrete walls and rough window openings. These images matter because they show the building being made by the people who will use it, with tools and labor that are available on site.

The decision to use locally sourced materials was not only environmental. It was logistical. In a rural Ugandan sub-county, imported steel and glass would have required transport infrastructure and specialized skills that do not exist in ready supply. By designing within the limits of what could be built here, CAUKIN Studio ensured the project could actually get finished, which, in humanitarian architecture, is not always a given.

Plans and Drawings

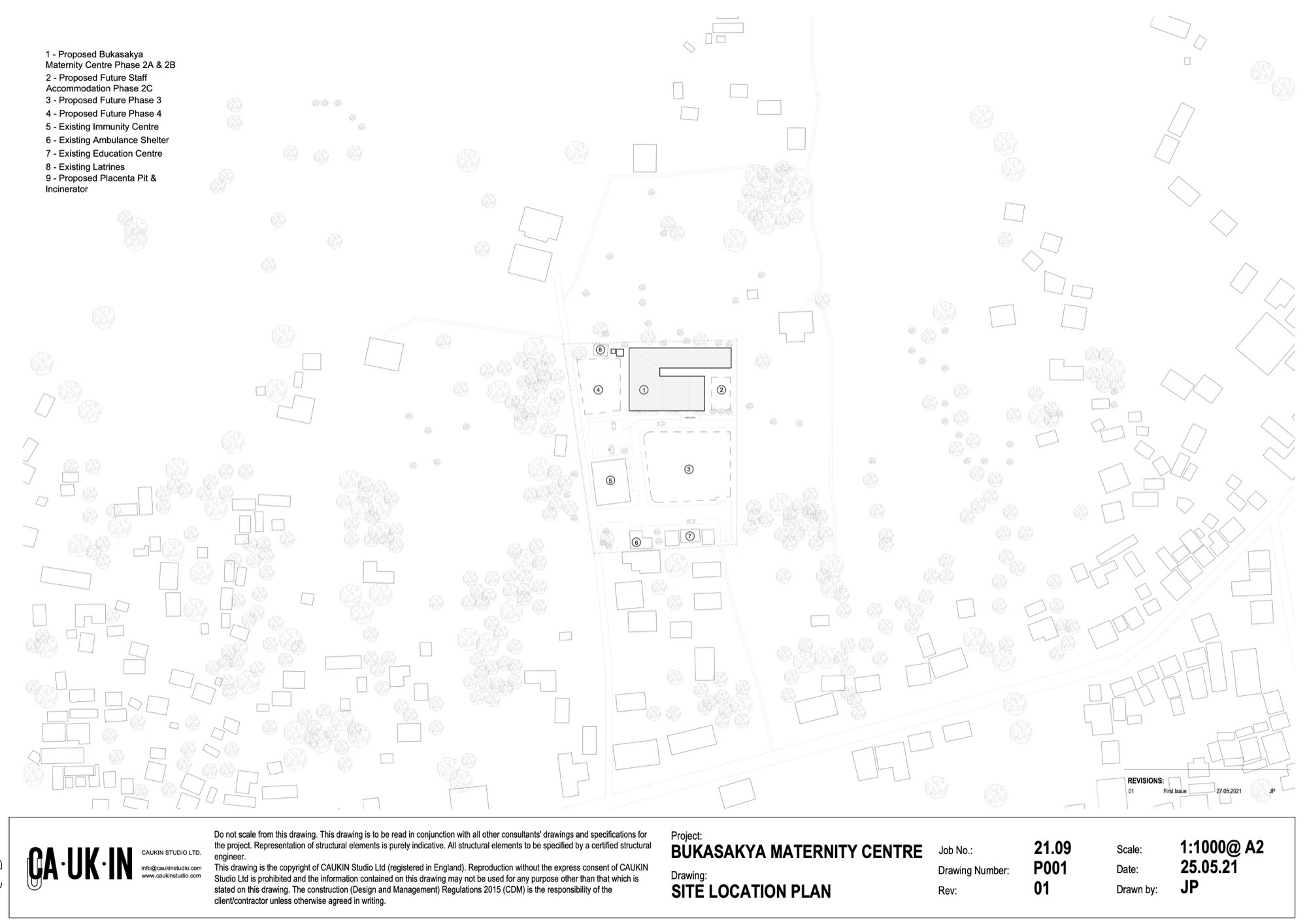

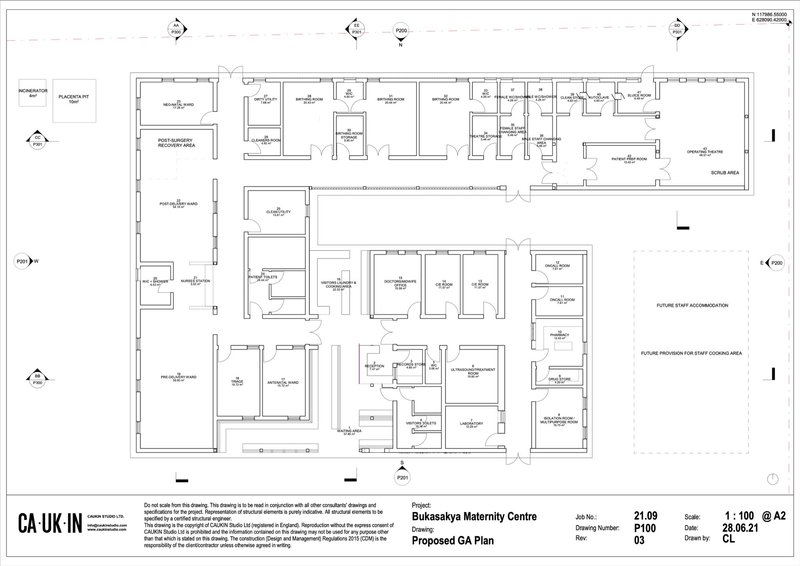

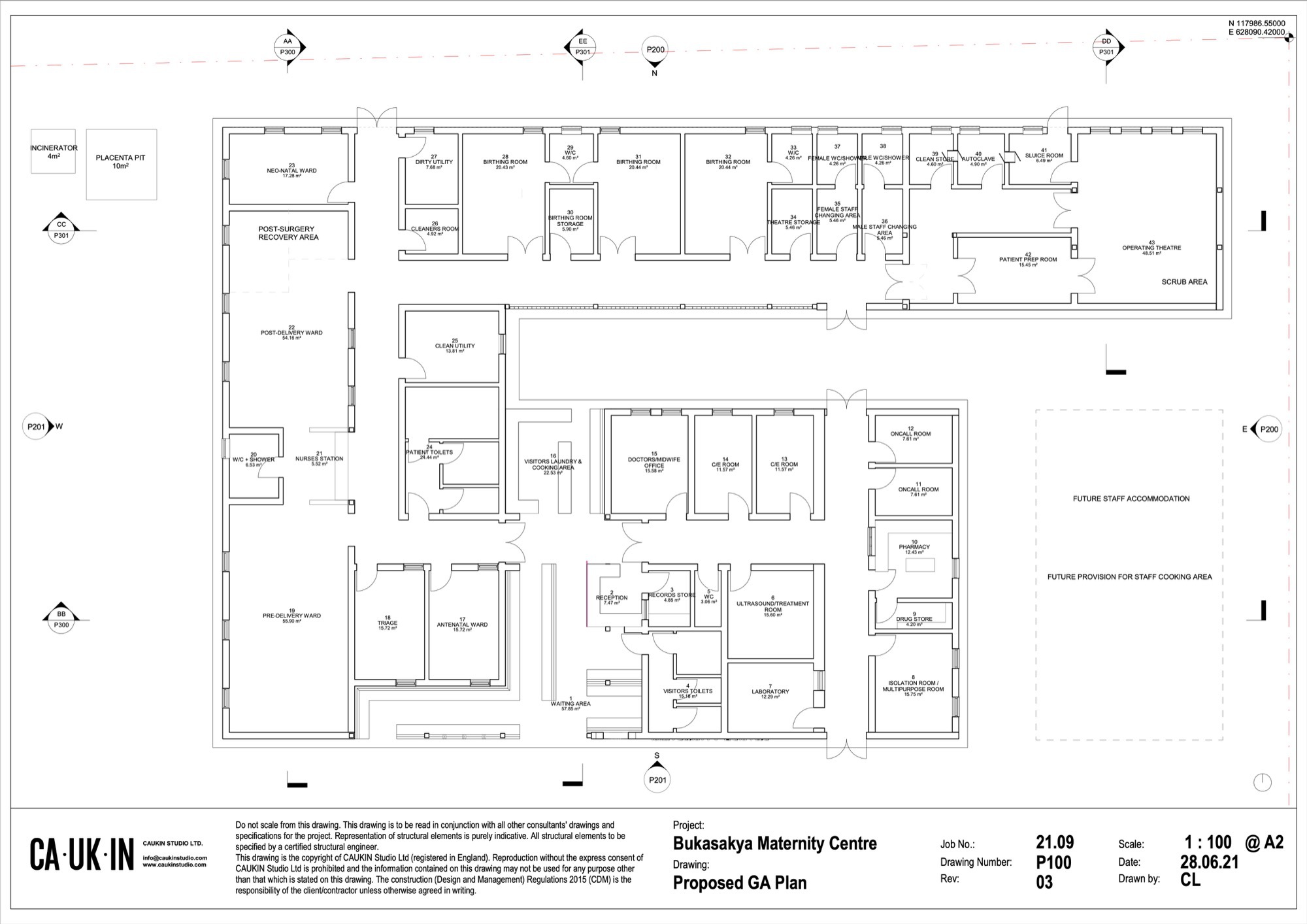

The site plan reveals the compound's relationship to the surrounding residential fabric: scattered houses and tree cover frame a cleared site where the maternity centre sits as the largest coordinated structure in the neighborhood. The floor plan confirms the front-to-back patient flow logic, with outpatient and support functions concentrated near the entrance and wards deeper in the plan.

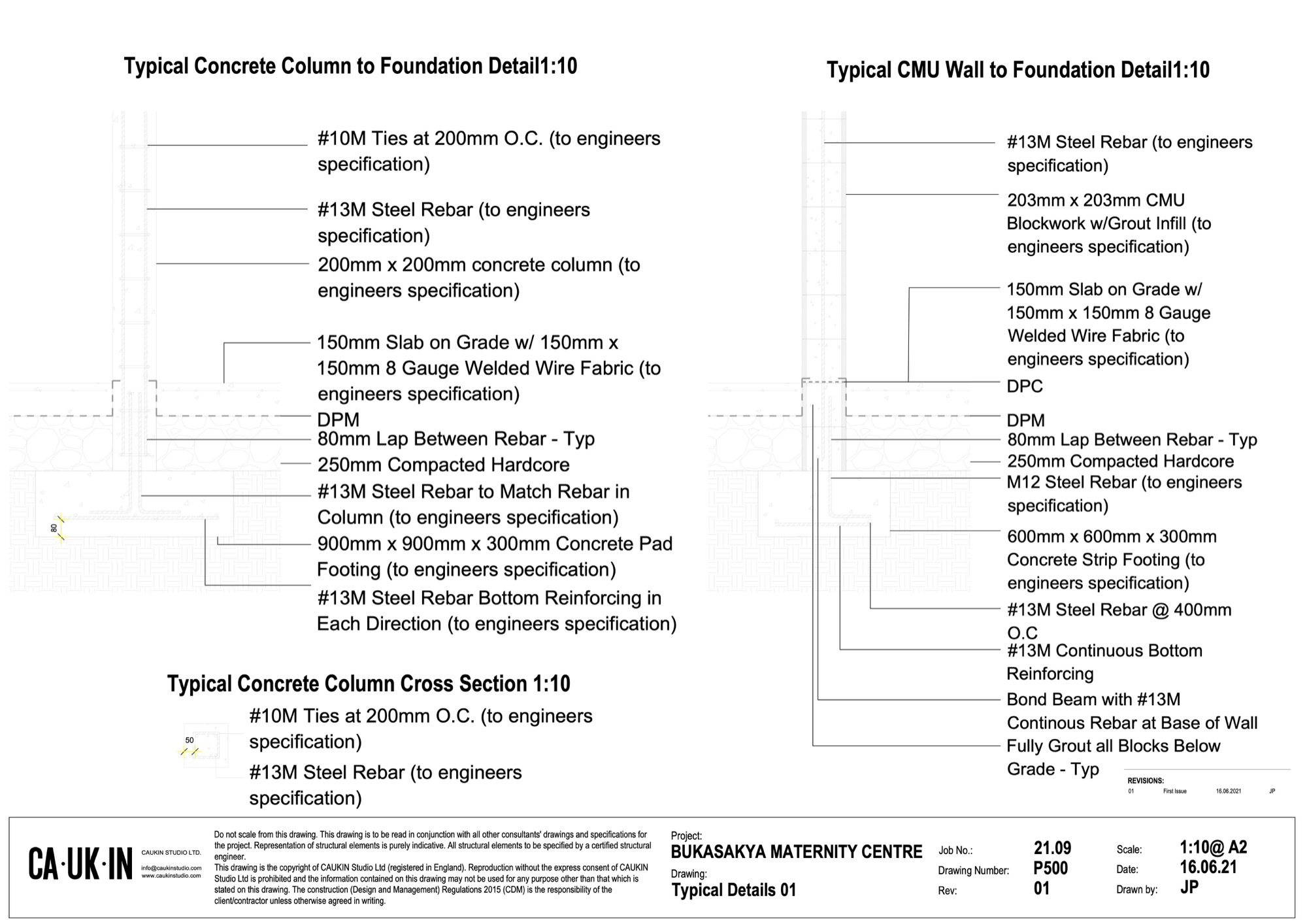

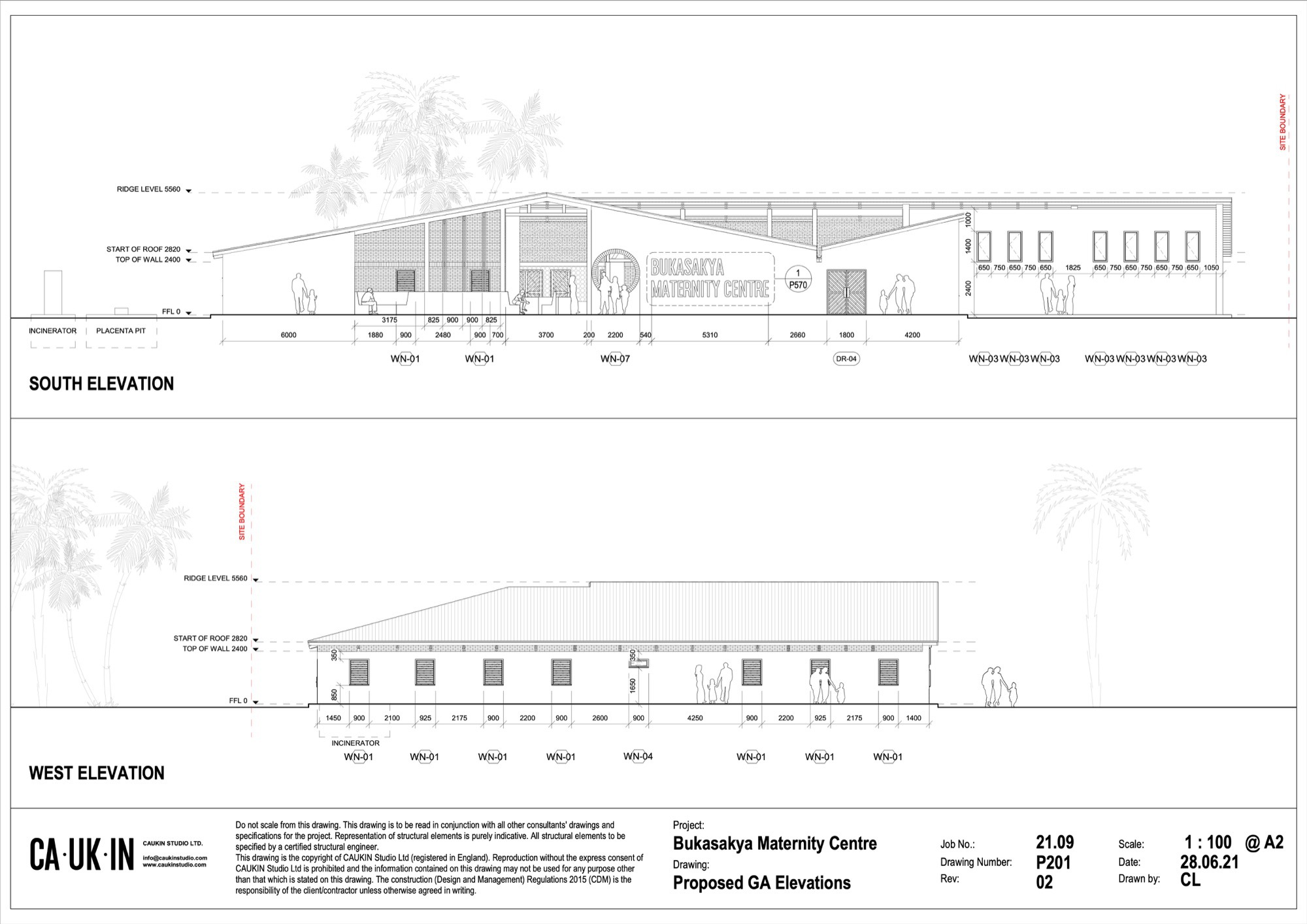

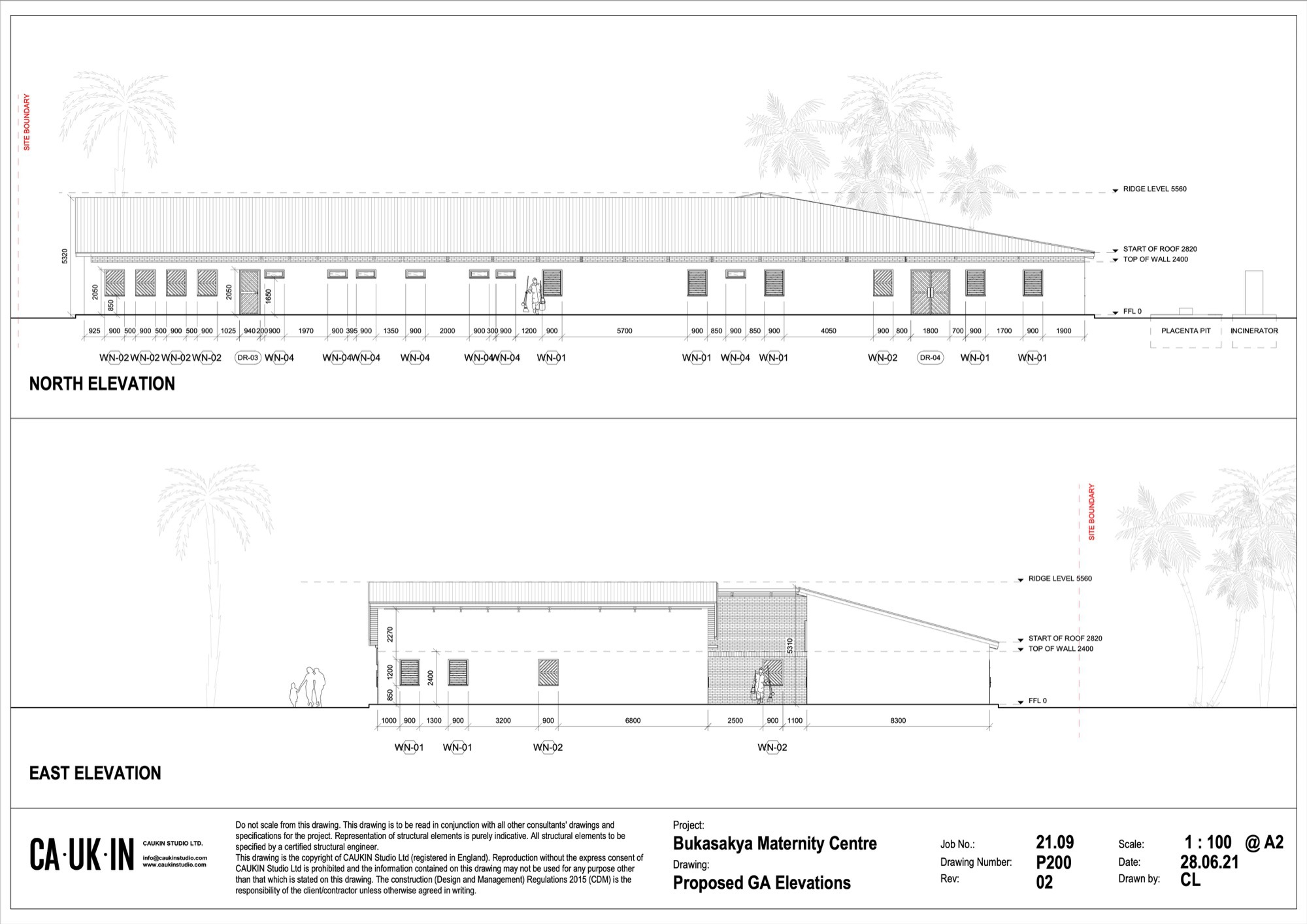

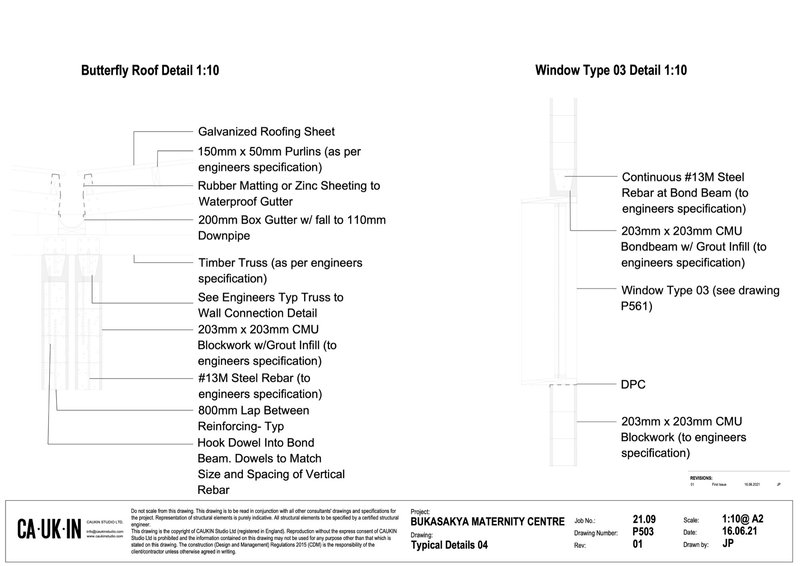

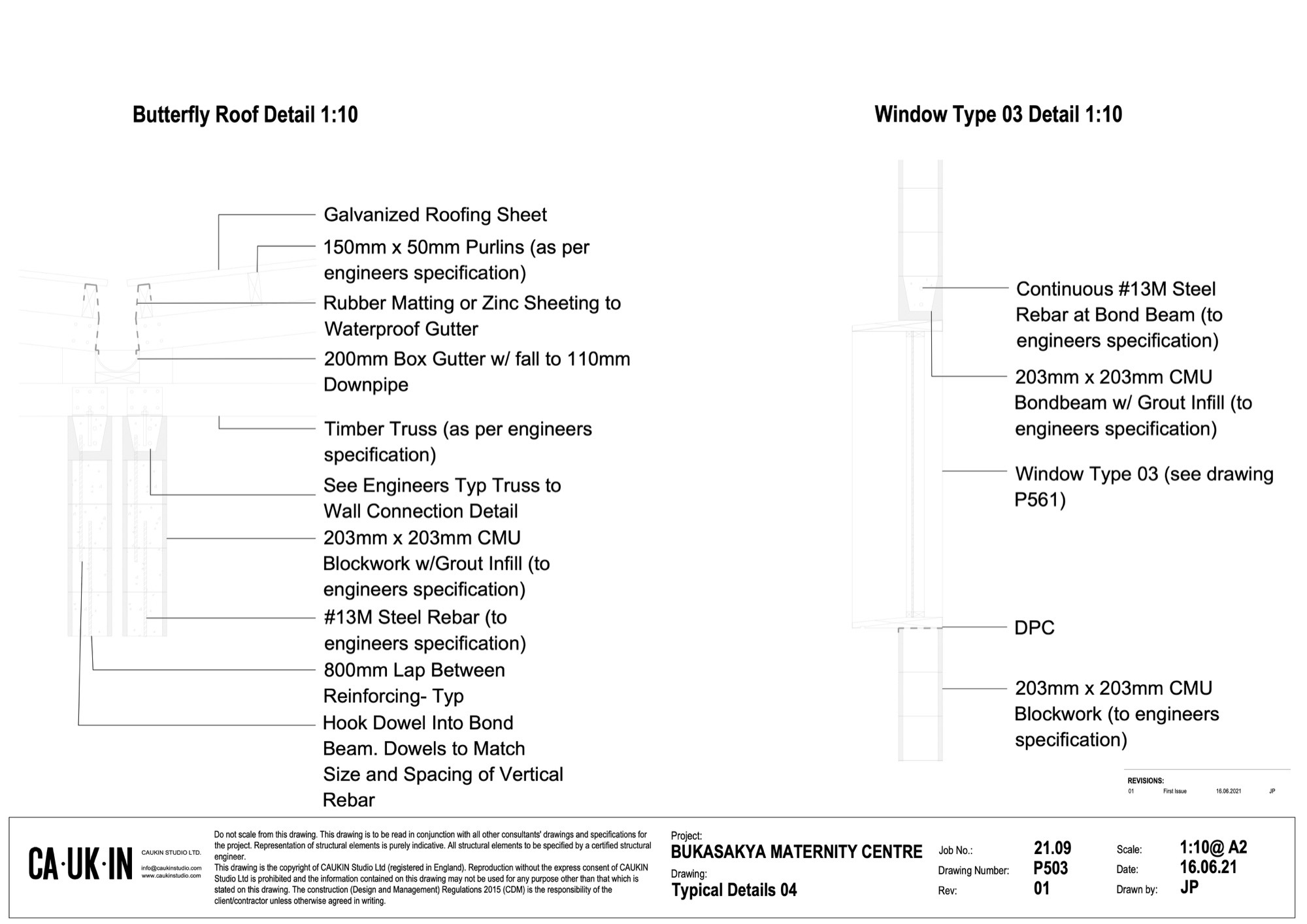

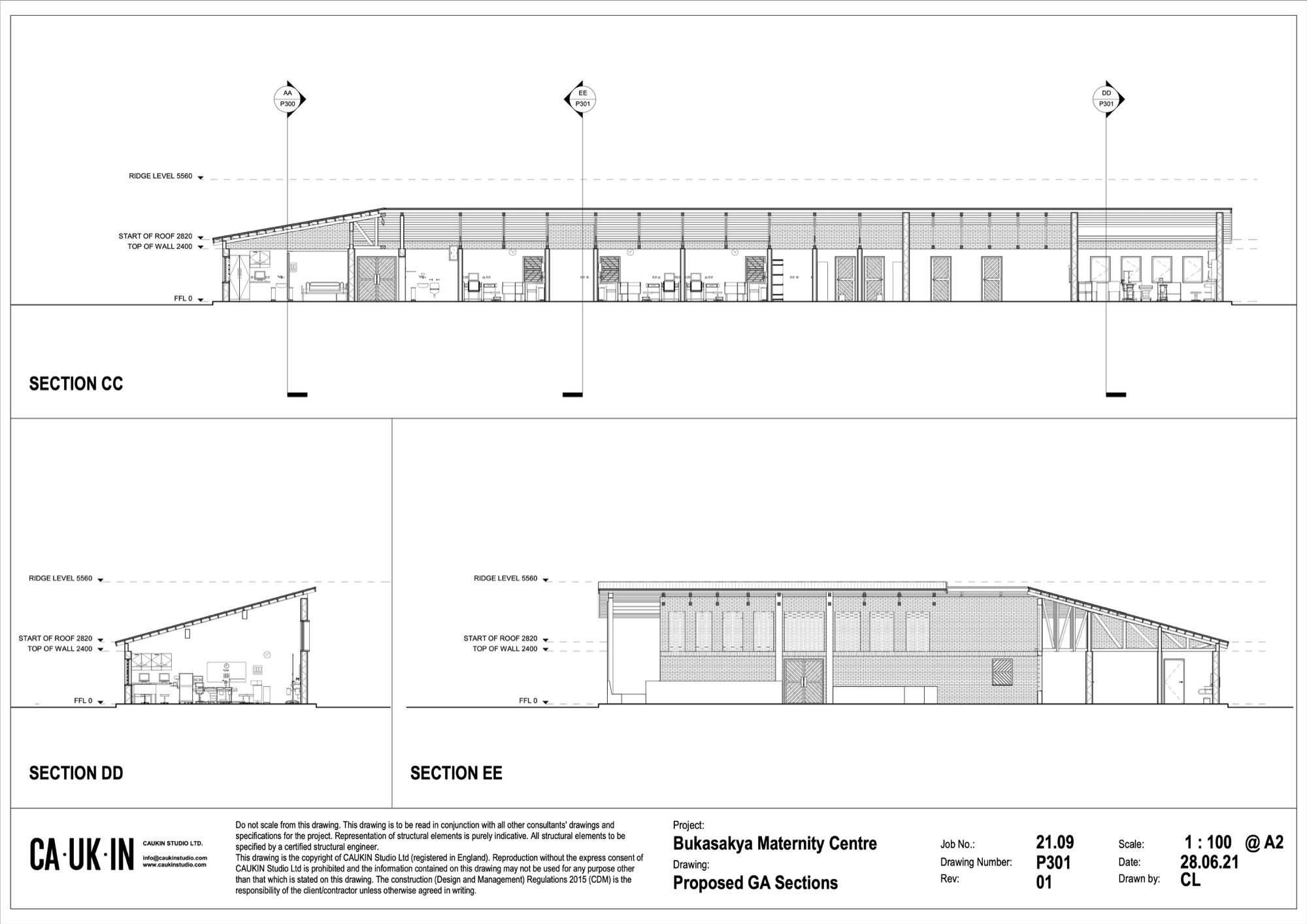

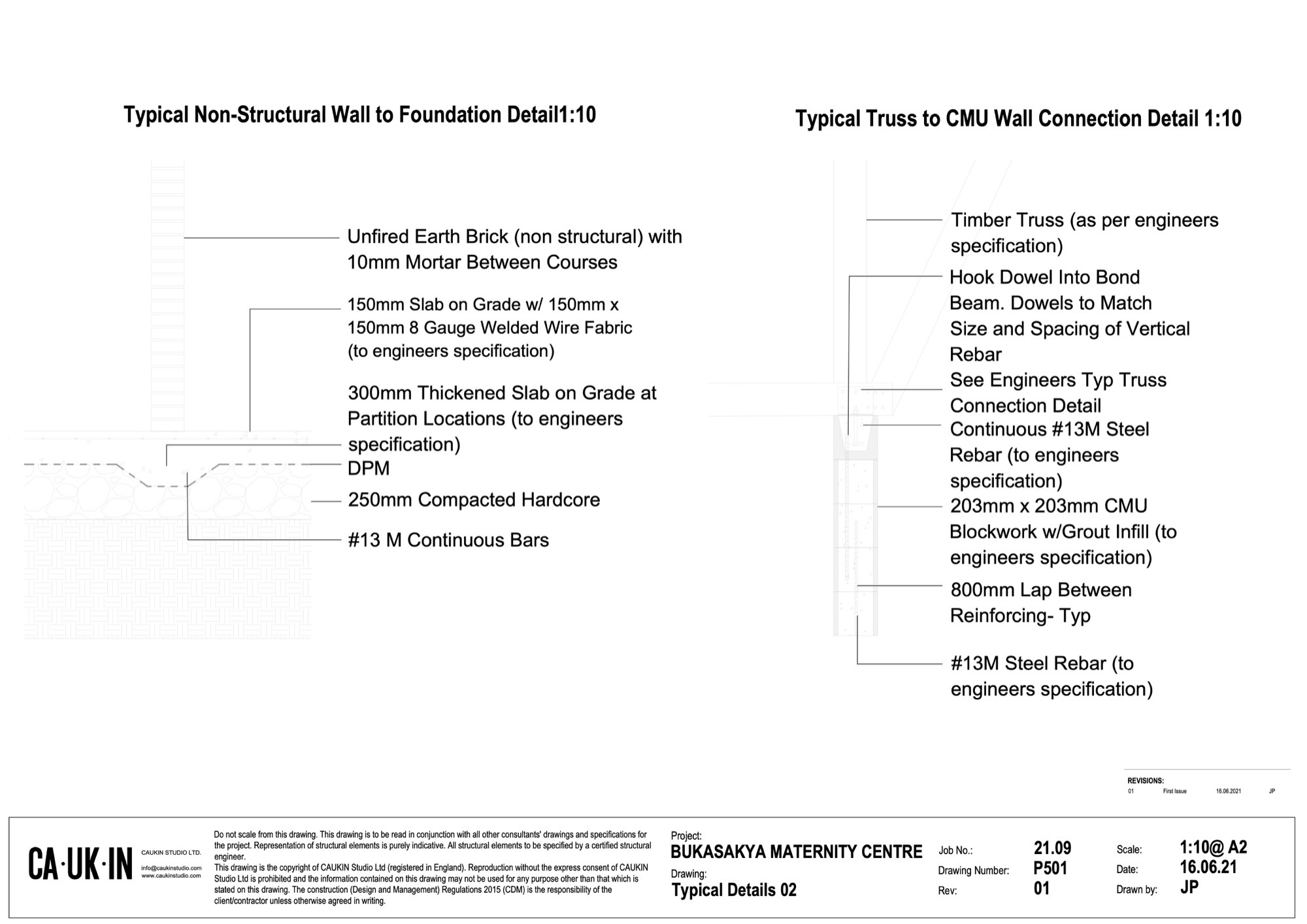

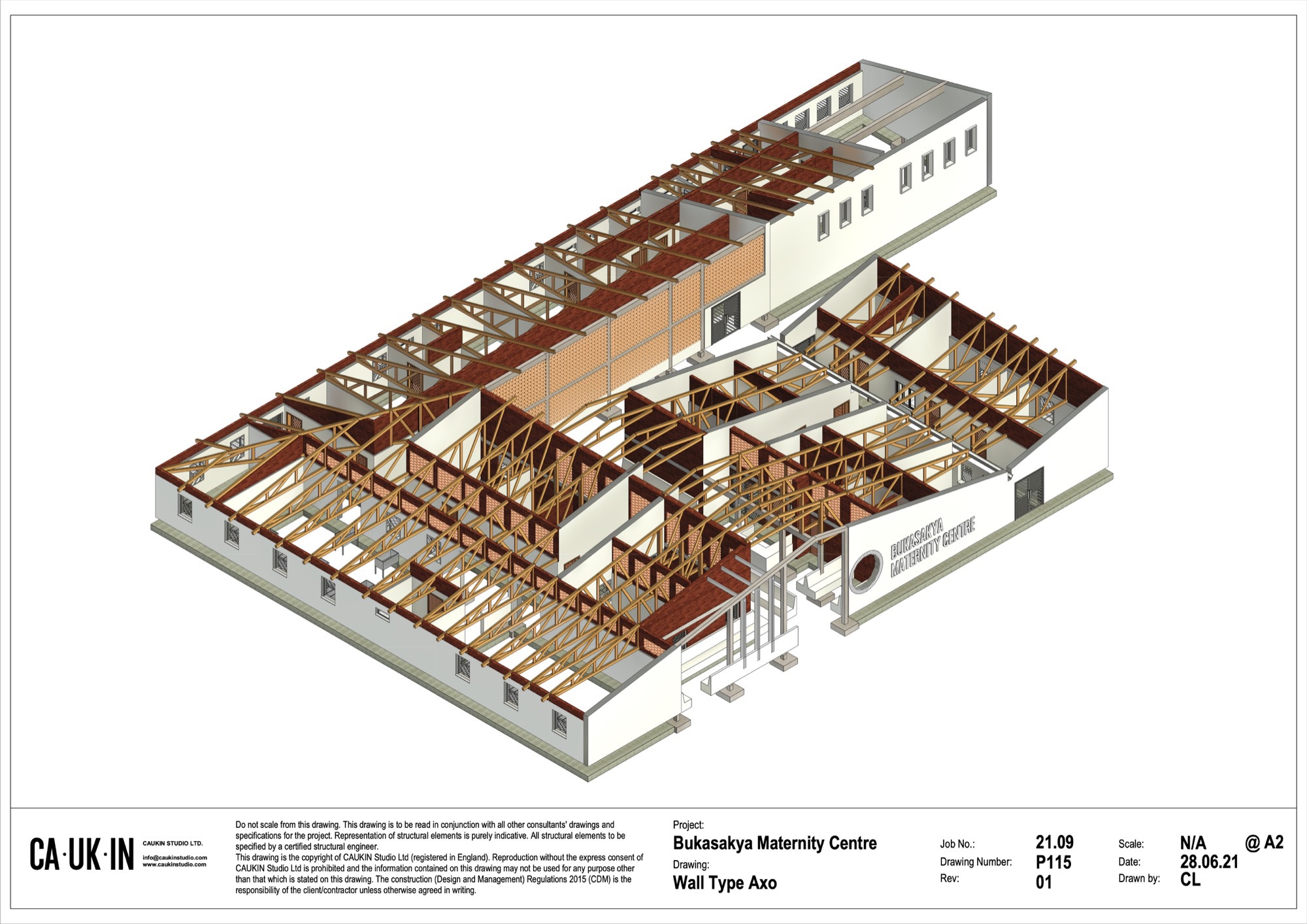

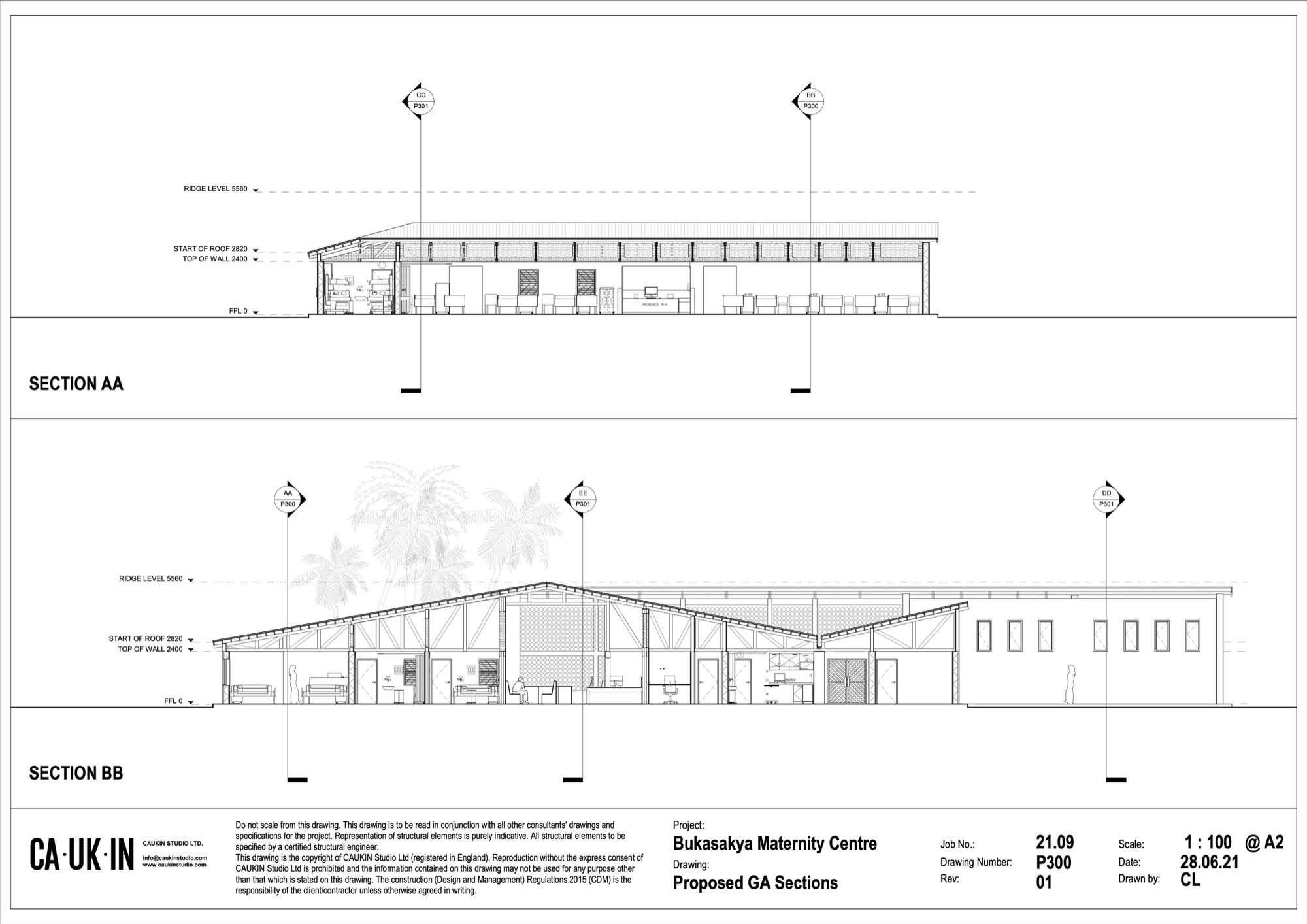

Sections show the variety of roof profiles, from simple gables to butterfly forms, that give each pavilion a distinct silhouette while maintaining a consistent eave height. The axonometric drawing of the timber truss system is particularly revealing: it shows how standardized truss modules span across the CMU and earth brick walls, creating a legible structural rhythm. Construction details document the column-to-foundation, truss-to-wall, and butterfly roof assembly connections with the kind of clarity that suggests these drawings were made as much for the site team as for the design record.

Why This Project Matters

The Bukasakya Maternity Centre is a corrective to two common failures in humanitarian architecture. The first is the tendency to treat low-resource contexts as an excuse for low-quality design, producing buildings that are functional but dispiriting. The second is the opposite impulse: importing dramatic forms and materials that impress in photographs but fail to integrate with local construction cultures. CAUKIN Studio avoids both traps. The building is spatially generous, materially honest, and architecturally specific to its place.

More practically, the facility addresses a concrete crisis. By upgrading Bukasakya from a Level 3 outpost to a Level 4 service, the project gives more than 3,000 mothers per year access to a theatre, laboratory, and diagnostic equipment within a facility designed around their experience. The courtyard, the natural light, the separation of patient flows: these are not luxuries. They are the spatial conditions that make a maternity centre function safely and with dignity. That CAUKIN Studio achieved this with unfired bricks and local timber, at 900 square metres, is the real story.

Bukasakya Maternity Centre by CAUKIN Studio, with strategic and medical planning by HOK Architects, structural engineering by Silman, MEP design by d:for, and site drainage engineering by Kieron Tarrant. Mbale, Uganda. 900 m². Completed 2022.
