IDIN Architects Splits a Bangkok Home in Two to Let Light, Air, and Art Take Center Stage

The urban house in Bangkok has a recurring problem: how to carve out openness on a tight plot without surrendering privacy to the street. IDIN Architects addresses this head-on with TN House, a 640-square-meter corner-lot residence completed in 2025 for a couple who collect art and entertain frequently. Rather than wrapping the program in a single box and punching windows into it, the firm splits the house into two distinct wings, one for sleeping, one for living and dining, and threads a central courtyard between them. The result is a home that reads as introverted from the street but opens generously inward, where a lap pool, planted beds, and mature trees set the backdrop for daily life.

What makes TN House worth studying is not its material palette alone, though the board-formed concrete and black steel double walls are handled with real care. The more interesting move is the deliberate collapsing of boundaries between inside and out. Ground-floor spaces flow seamlessly onto terraces and pool decks, while the lifted bedroom wing on the second floor gains both prospect and protection from a perforated metal screen that doubles as a shading device. Every major room faces the courtyard rather than the city, which means the house is oriented toward its own microclimate of northern light and cross ventilation rather than the noise and heat of Bangkok's streets.

A Guarded Street Face

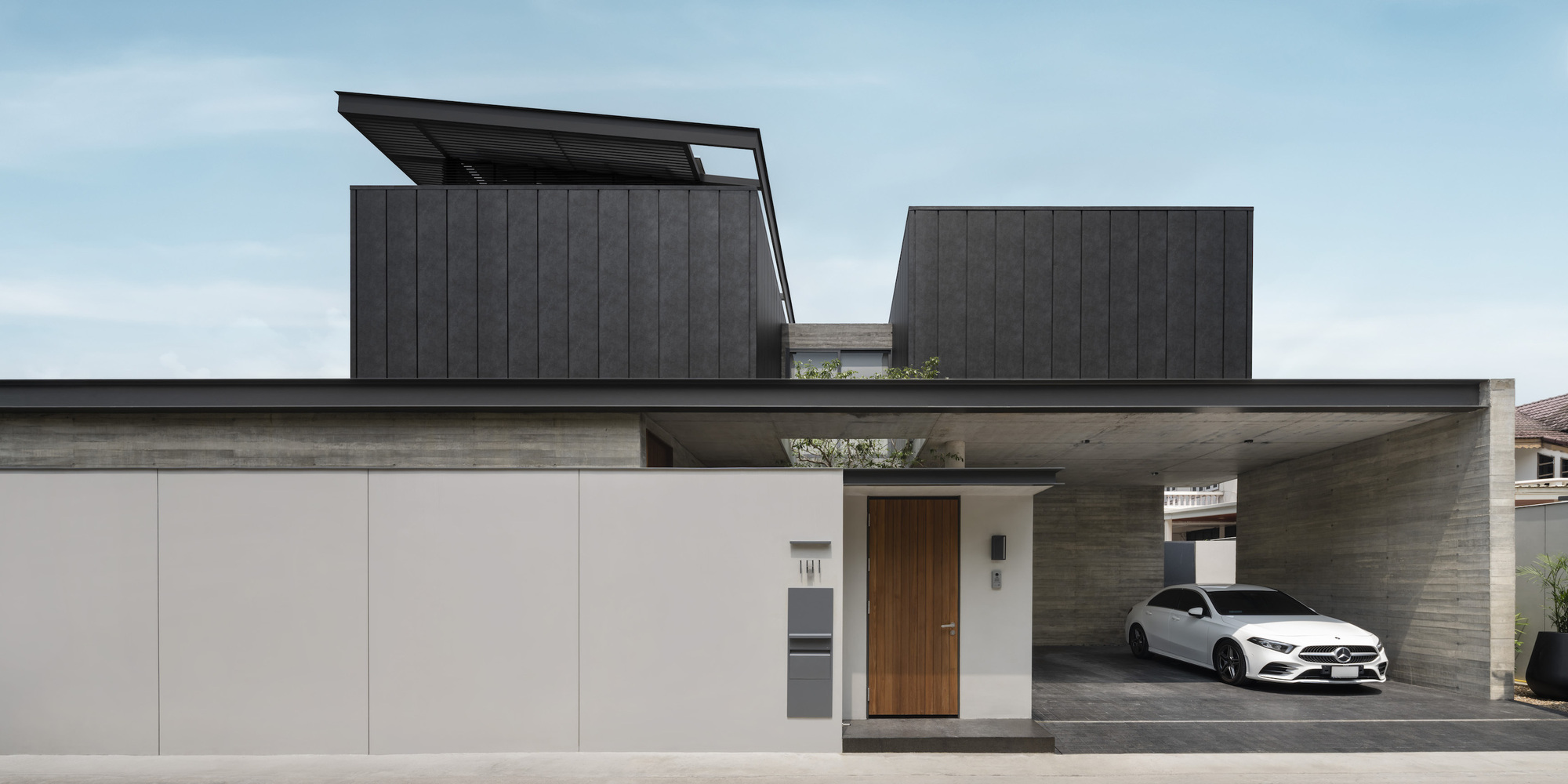

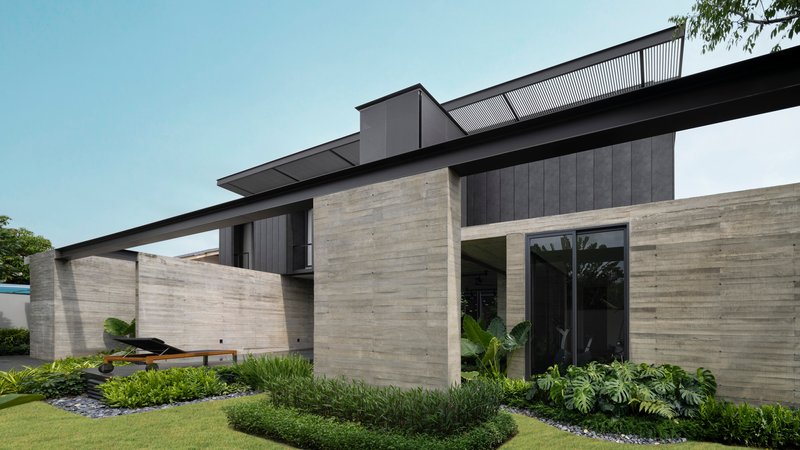

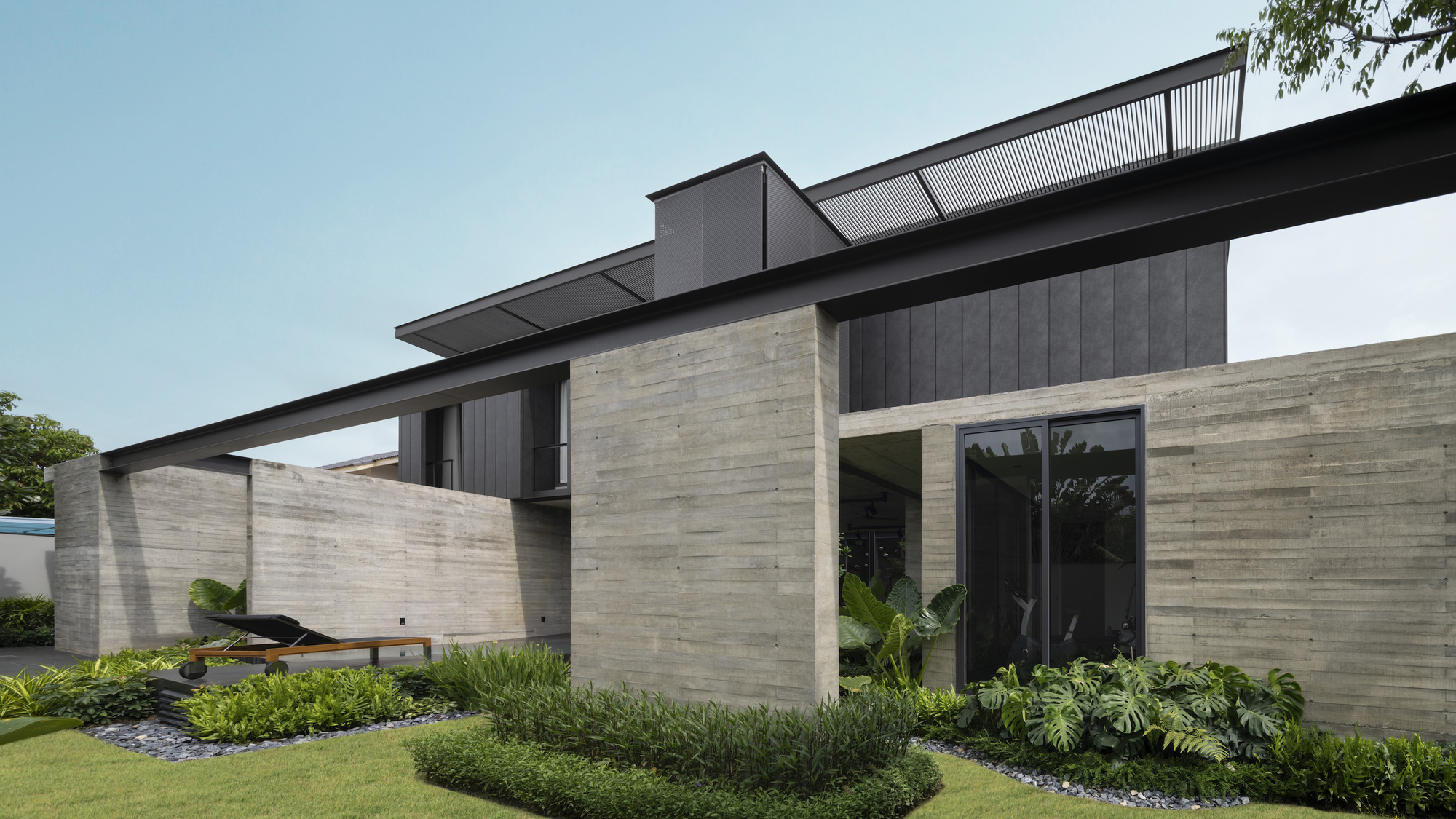

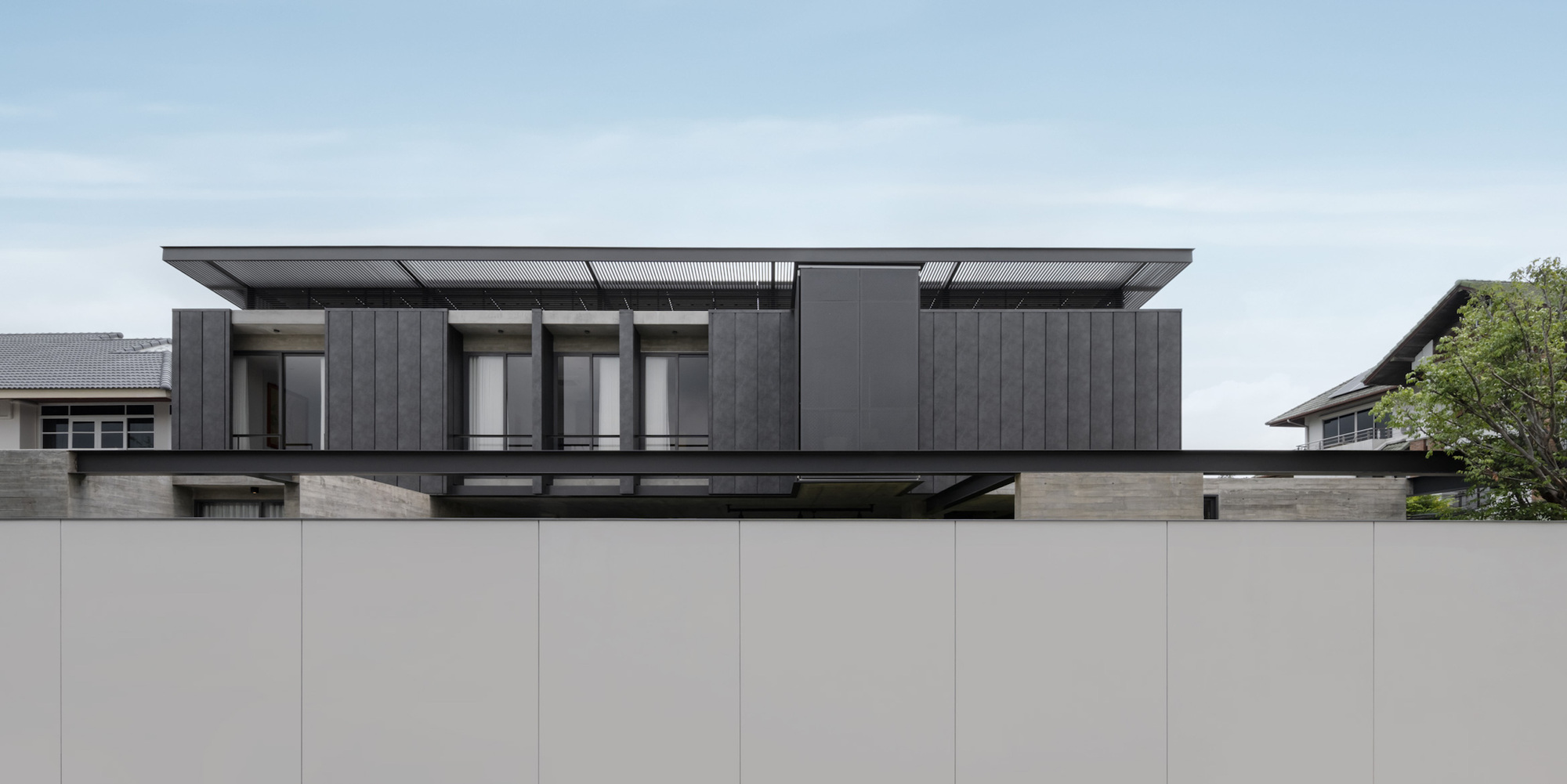

From the street, TN House presents a deliberately restrained front. Horizontally striated stone walls at ground level establish a solid, opaque base, while the dark timber-clad upper volume appears to float above the boundary wall. The garage doors are pale and recessed, and the entry is marked by a timber door tucked into a white rendered alcove beneath a louvered metal canopy. Nothing about the facade suggests the spatial generosity waiting behind it, and that contrast feels entirely intentional. IDIN Architects treats the street elevation as a boundary, not a billboard.

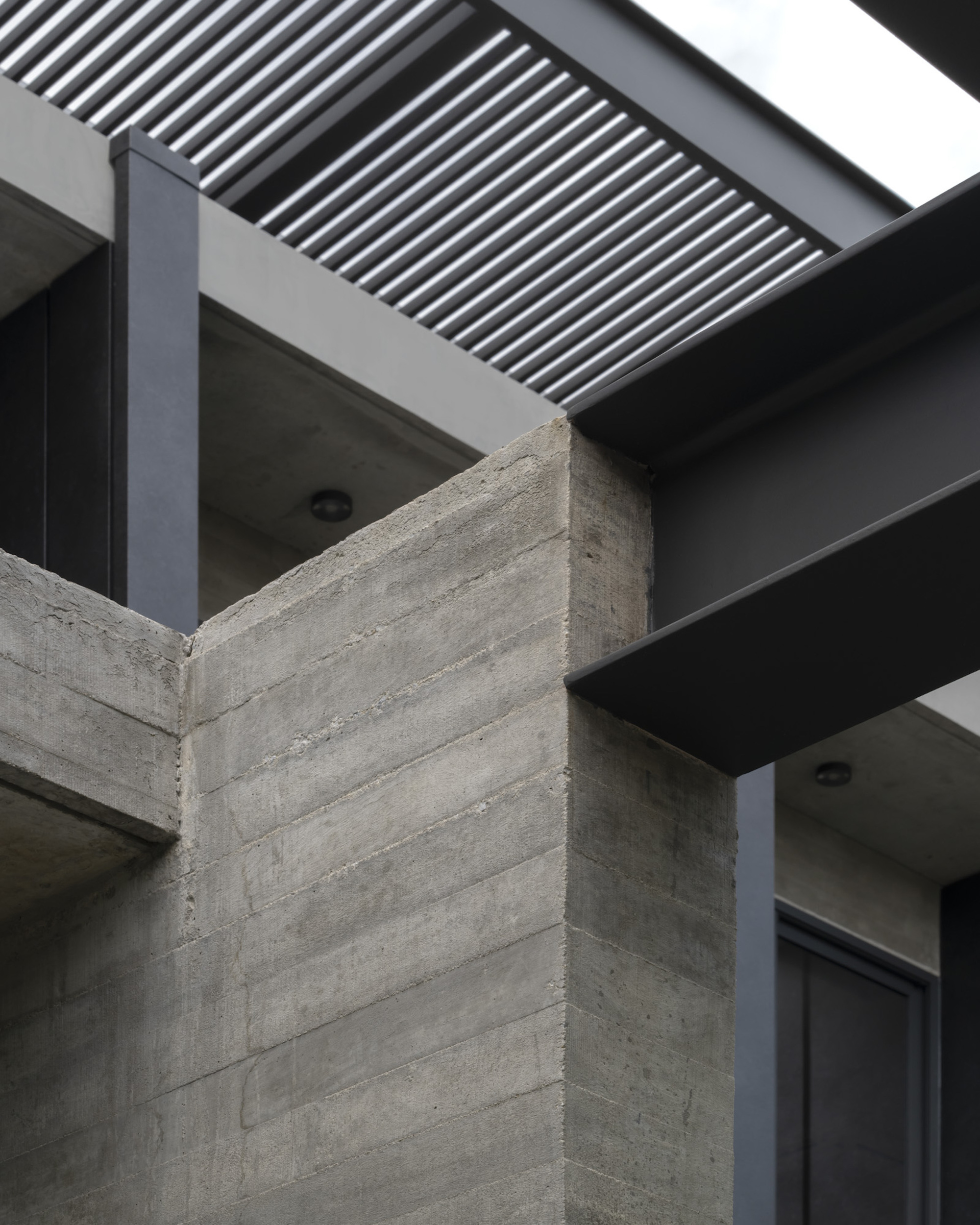

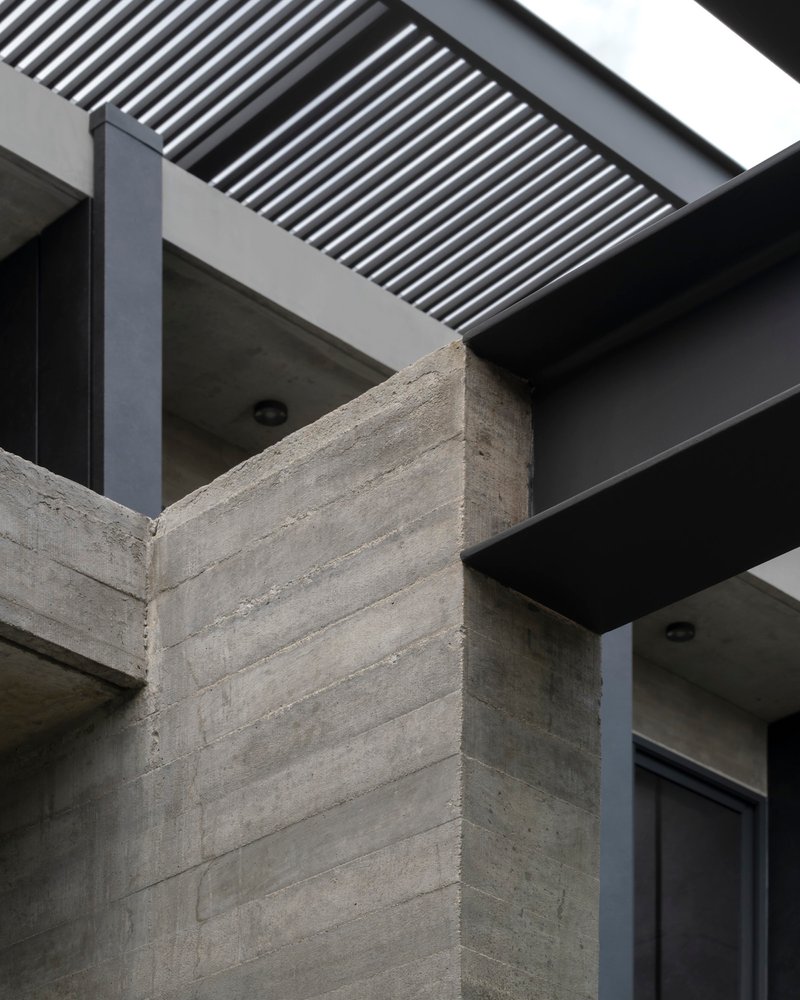

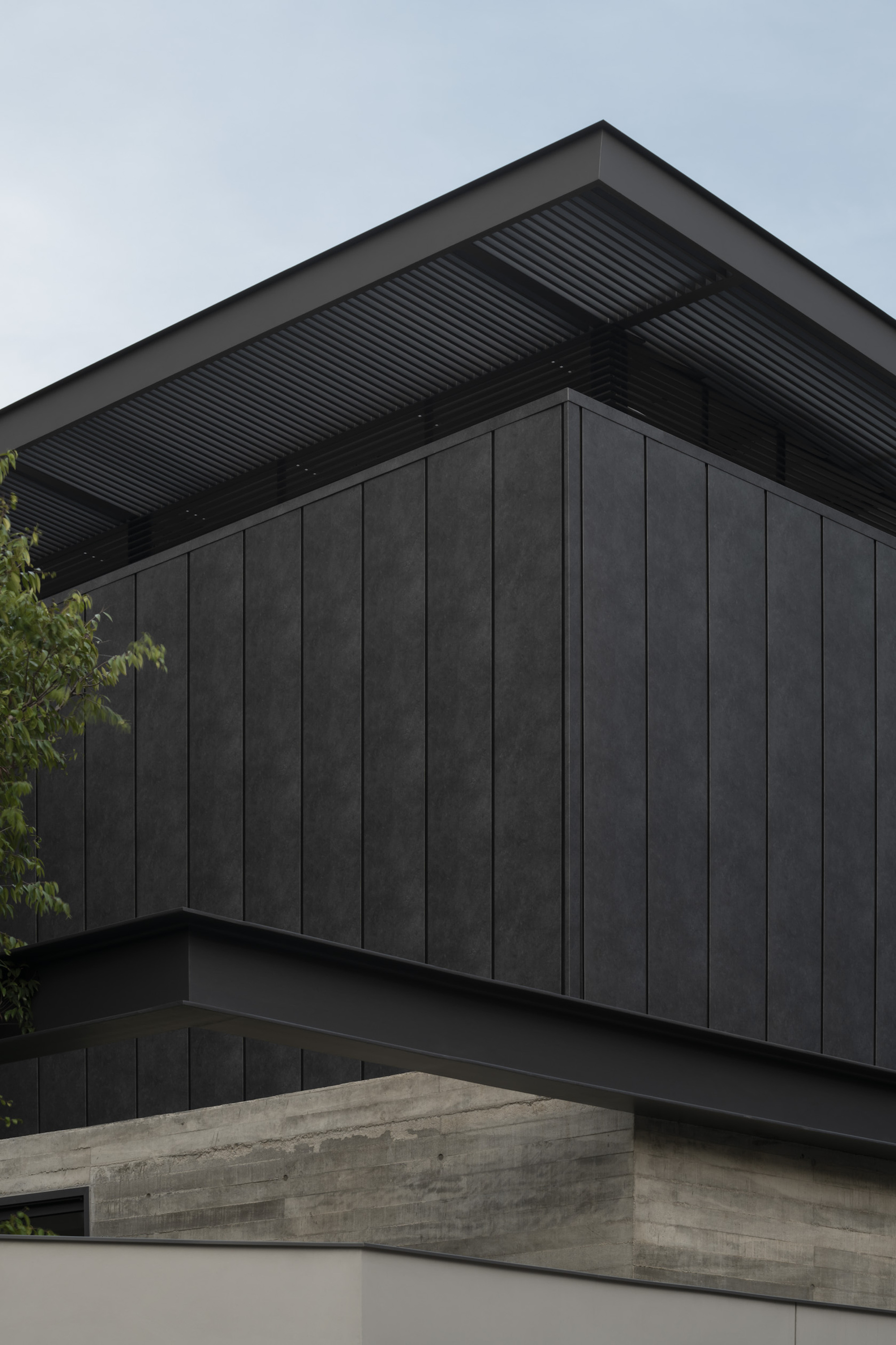

The corner condition is handled cleanly. A board-formed concrete column meets dark metal beams overhead, and the cladding wraps the upper volume without interruption. The effect is a house that sits confidently on its plot, acknowledging the urban context without inviting it inside.

The Courtyard as Engine

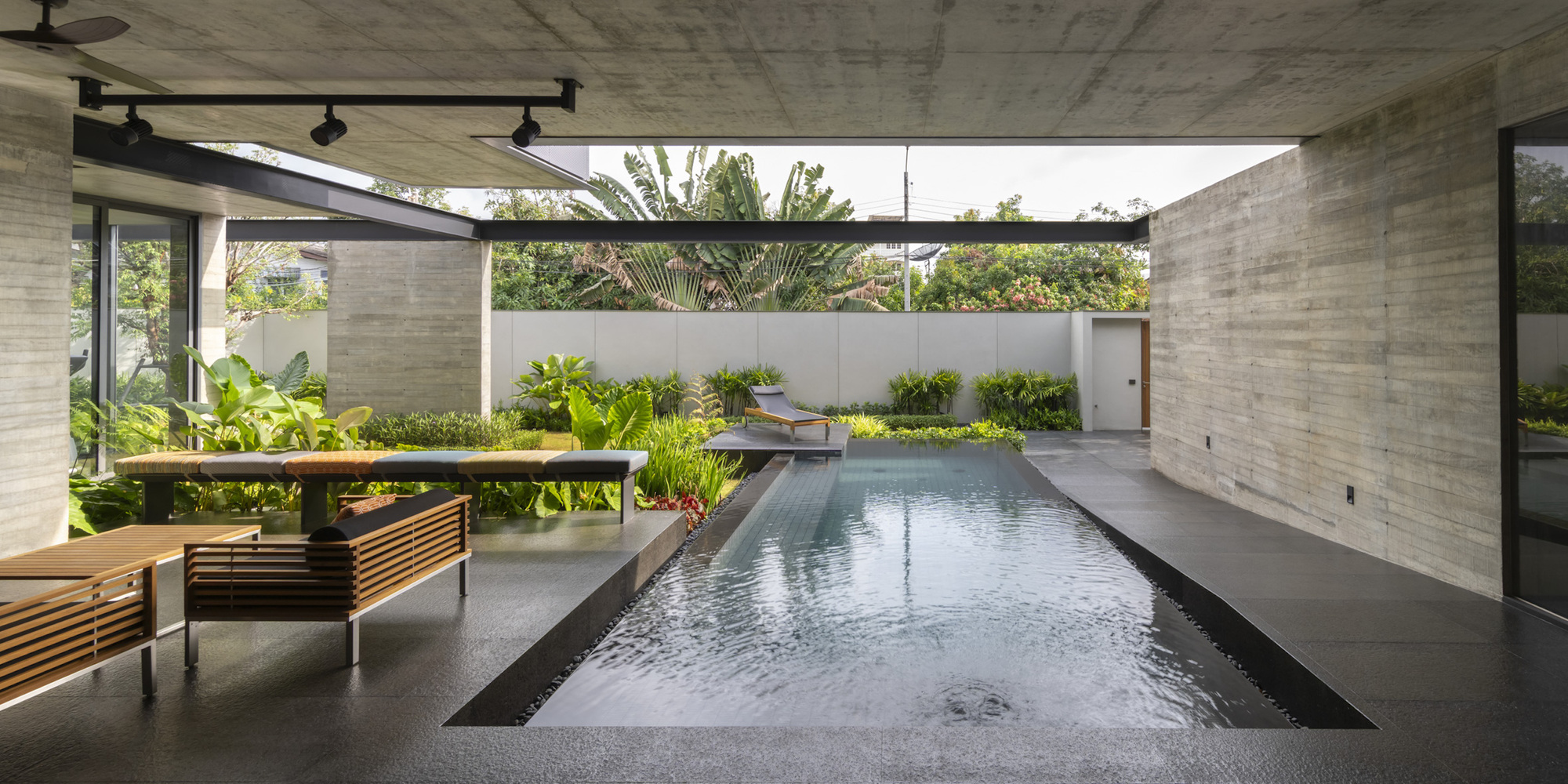

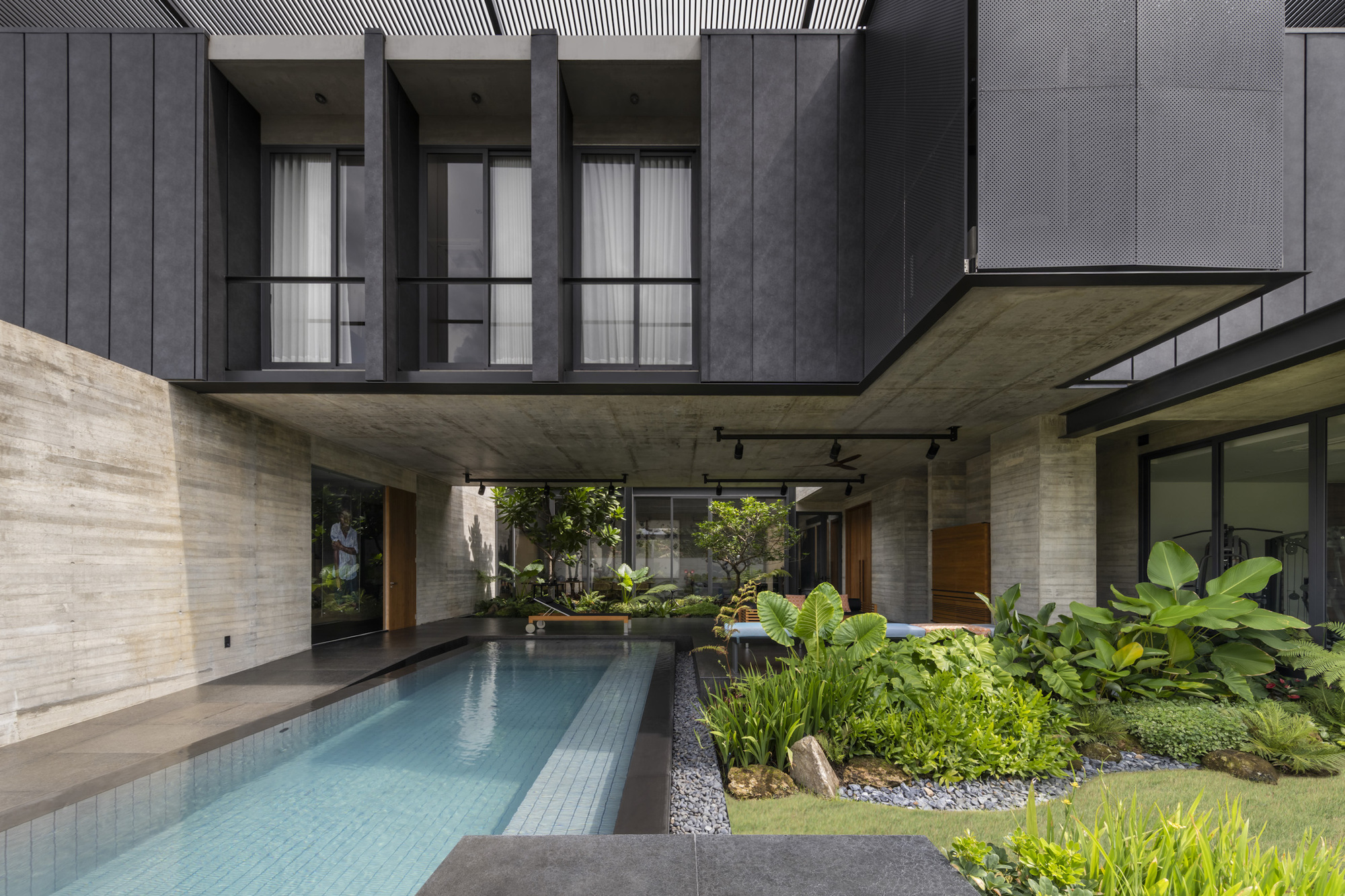

The central courtyard is the organizational and climatic heart of TN House. A rectangular lap pool runs its length, flanked by planted beds dense with tropical species and framed on all sides by board-formed concrete walls. The courtyard channels northern light deep into both wings of the house, and its proportions create a stack effect that draws hot air upward and pulls cooler air through sliding doors on the upper floor. In a city where mechanical cooling is the default, this is a meaningful passive strategy.

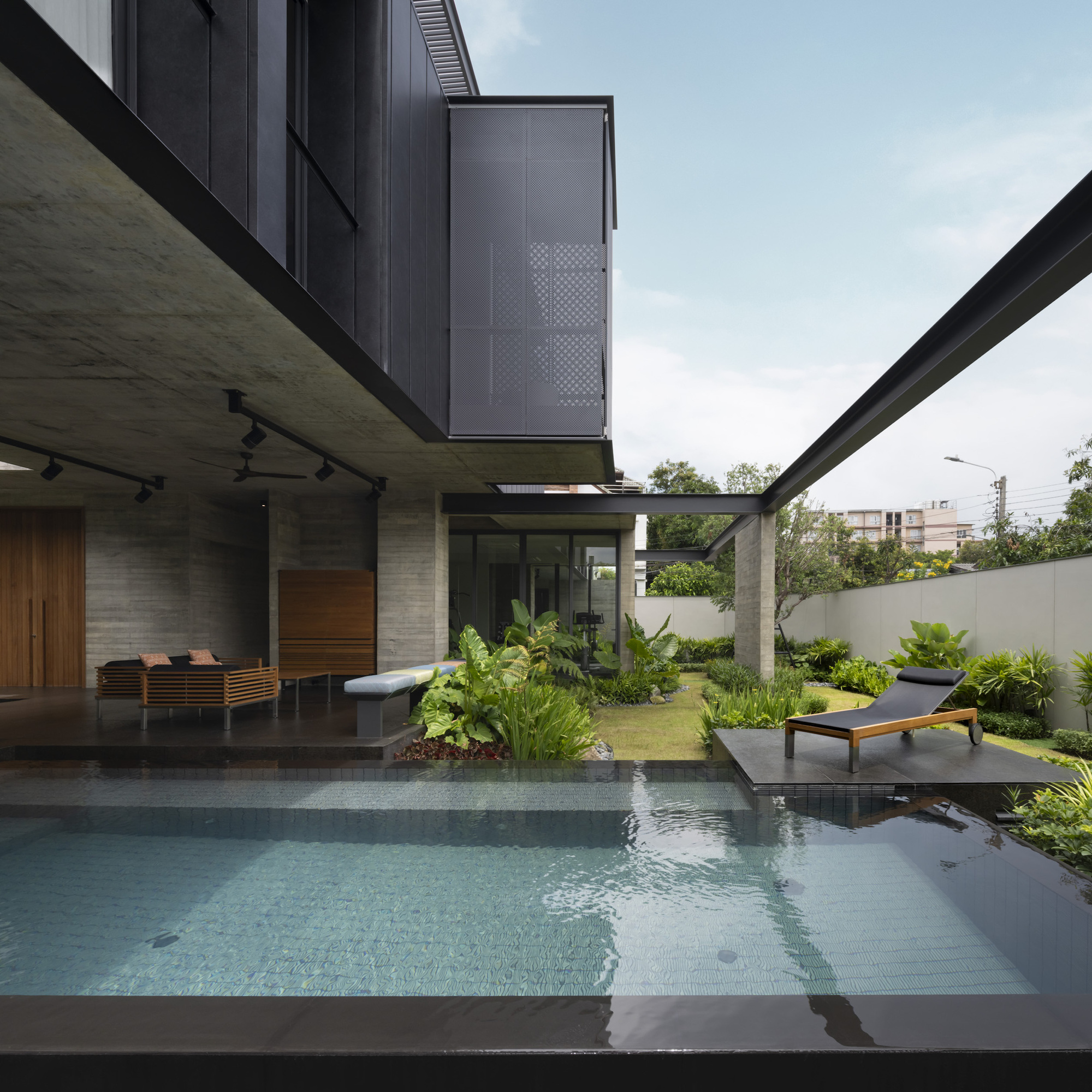

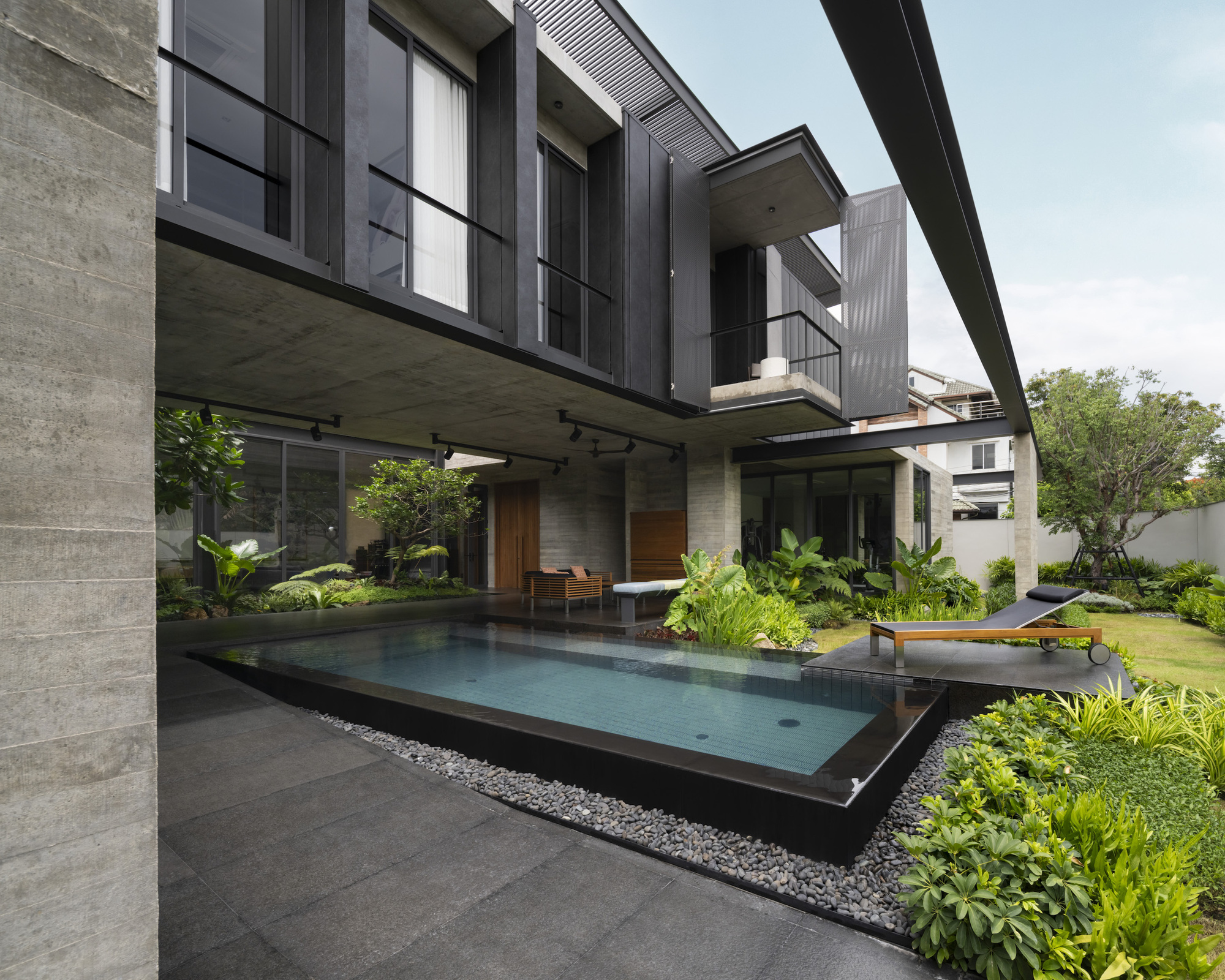

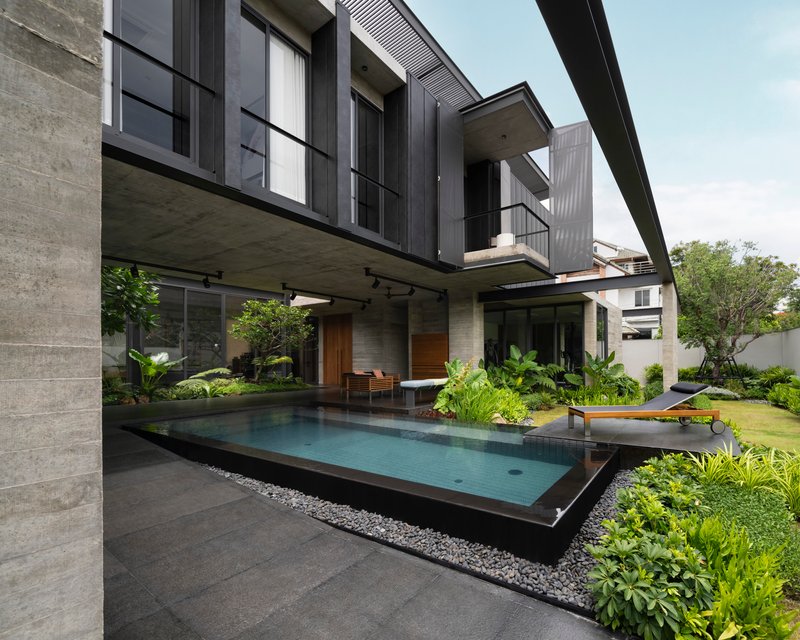

The cantilevered upper volume hovering over the pool creates a covered zone beneath it, sheltering a terrace and sunken seating area from both sun and rain. This layering of shaded, semi-outdoor space between the fully conditioned interior and the open sky is one of the project's smartest gestures. It extends the usable footprint of the house without adding enclosed area, giving the owners a place to host that feels generous without formality.

Living Spaces That Dissolve Into Garden

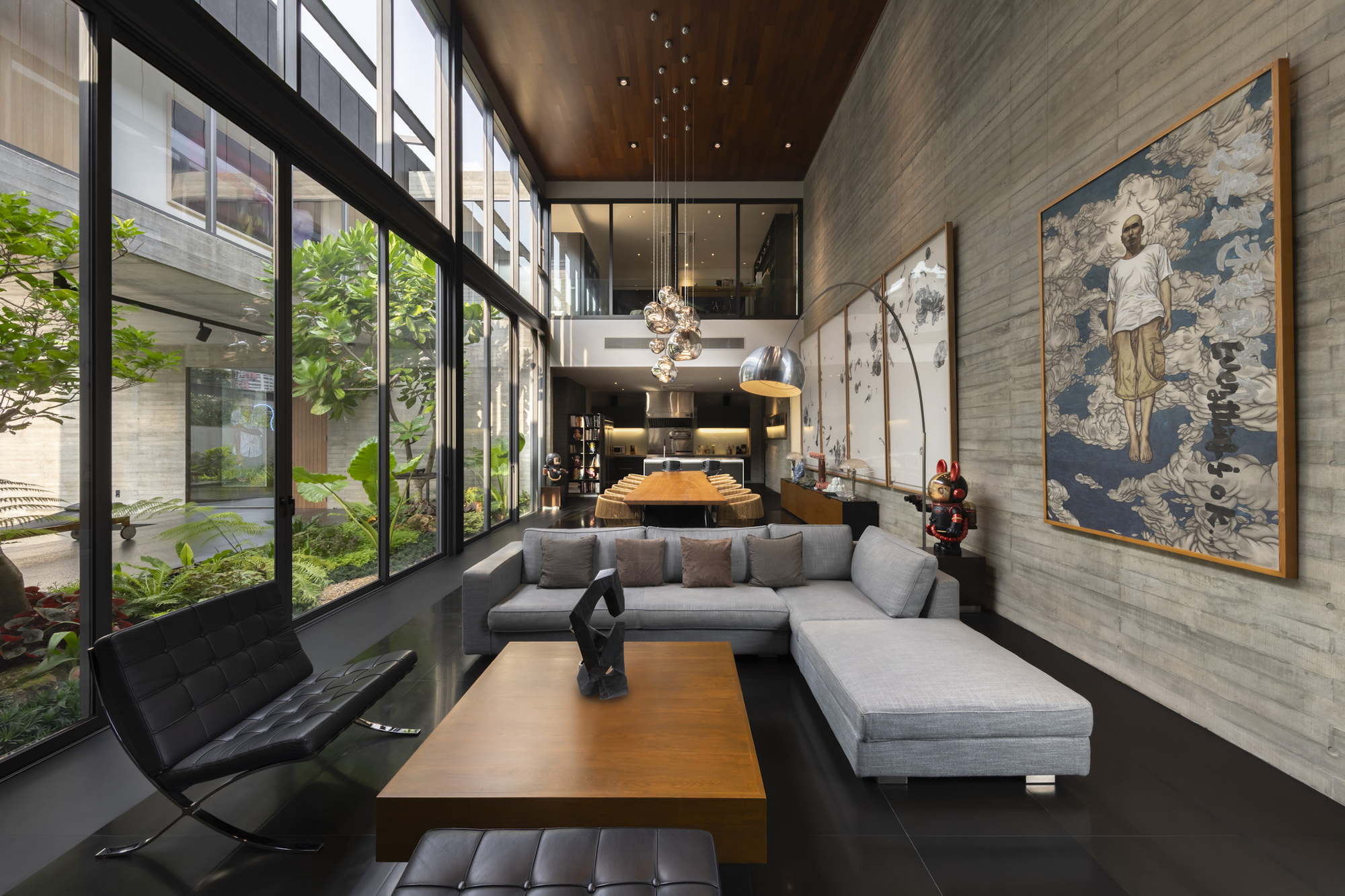

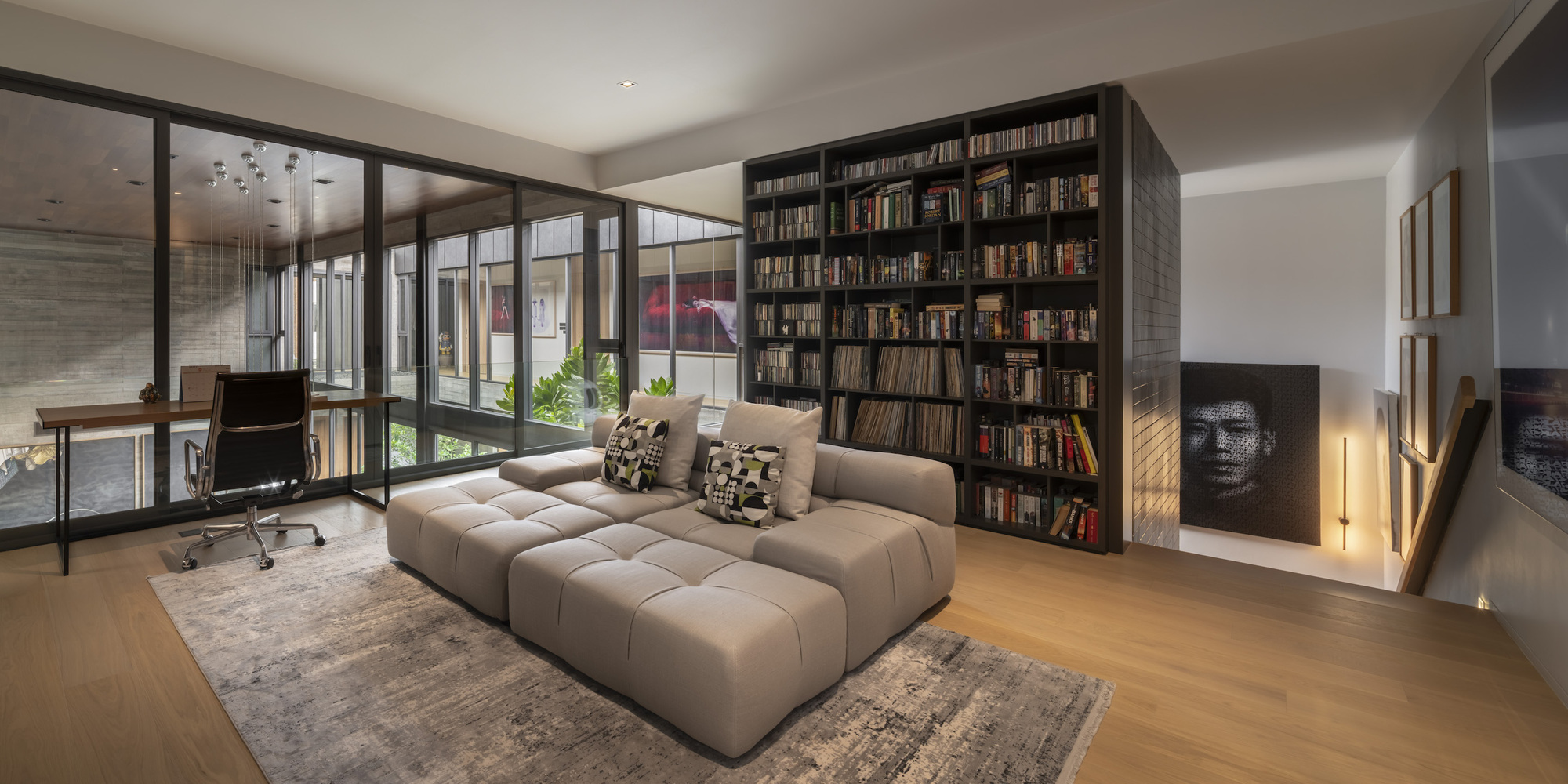

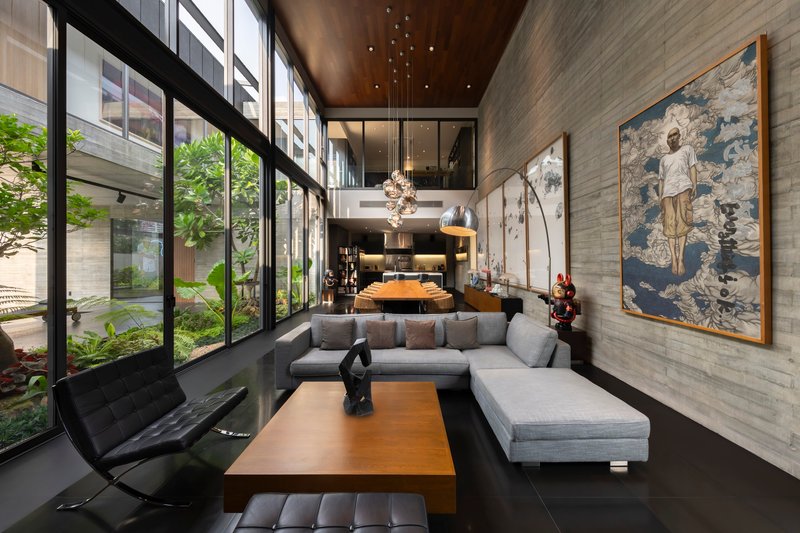

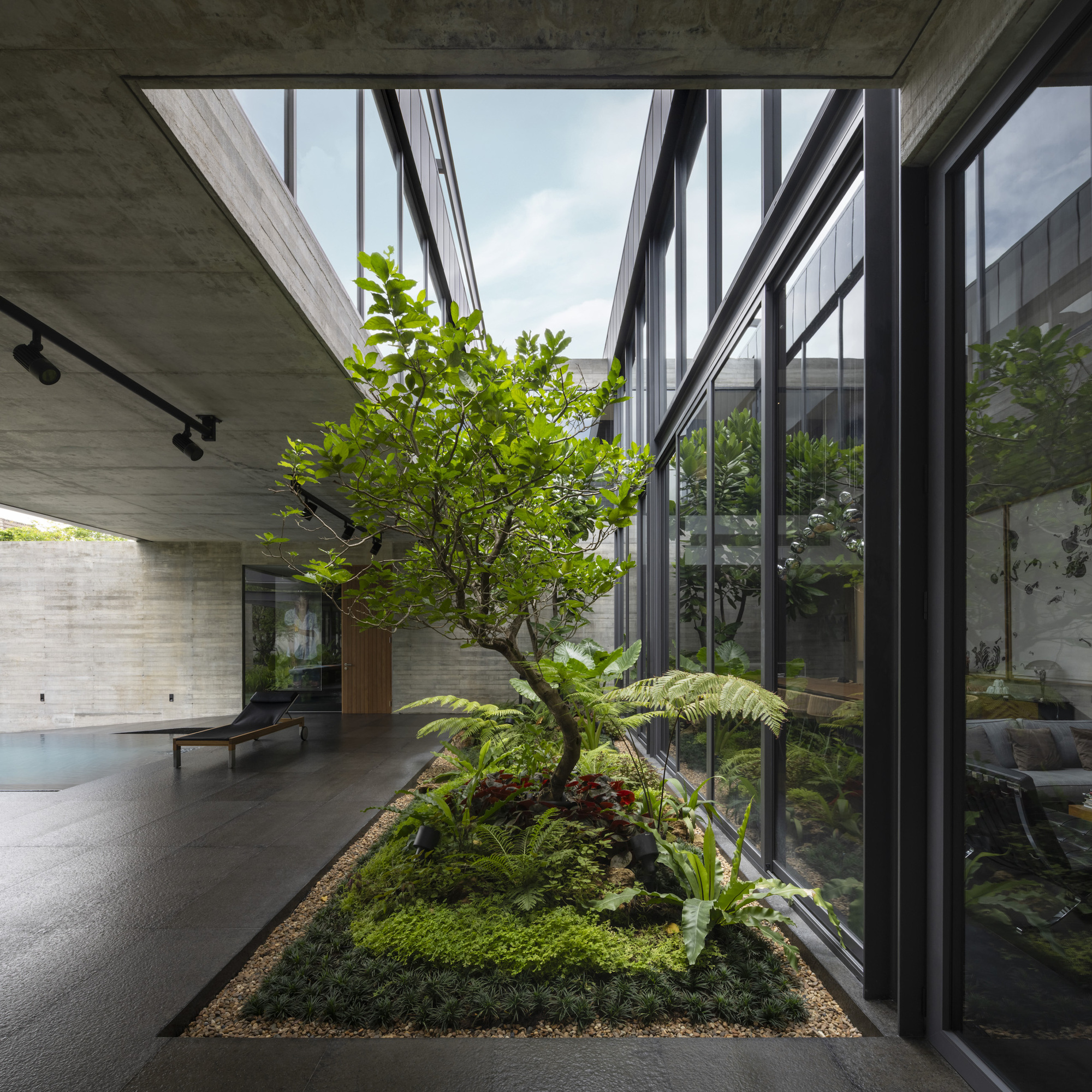

The ground-floor living room is a double-height volume with floor-to-ceiling glazing on two sides, one facing the courtyard, the other opening onto a smaller interior atrium garden with a specimen tree and ferns. The effect is immersive: you are always looking through the house to greenery. A full-height bookshelf anchors one wall, providing a textured, inhabited surface that balances the transparency of the glass.

IDIN Architects understands that a house for art collectors needs walls that work as backdrops, not spectacles. The board-formed concrete surfaces and timber panels provide warmth and grain without competing with the pieces hung on them. The natural textures absorb light rather than bouncing it, which keeps the interior calm even when flooded with daylight from the courtyard.

Dining, Kitchen, and the Art of Hosting

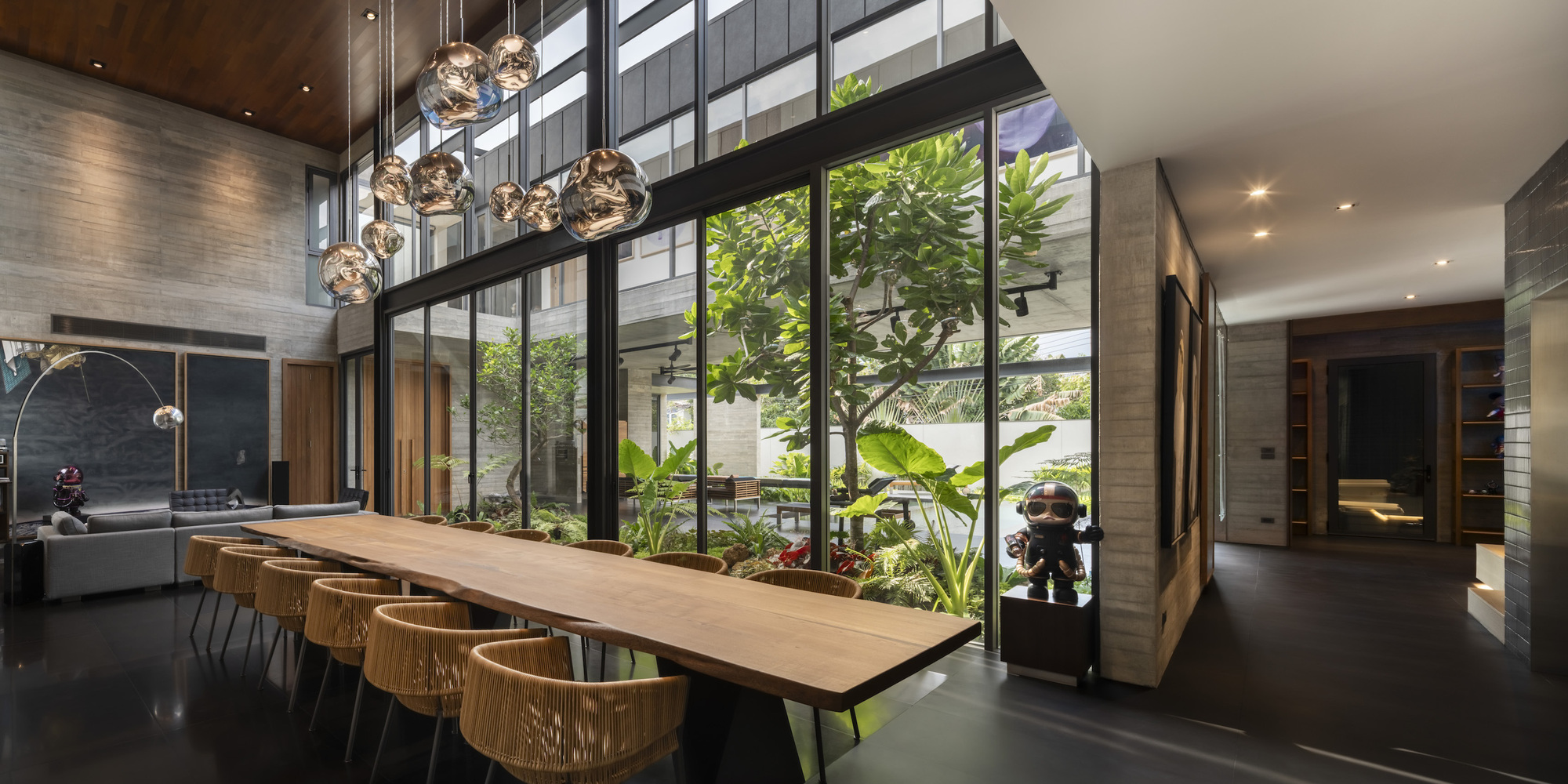

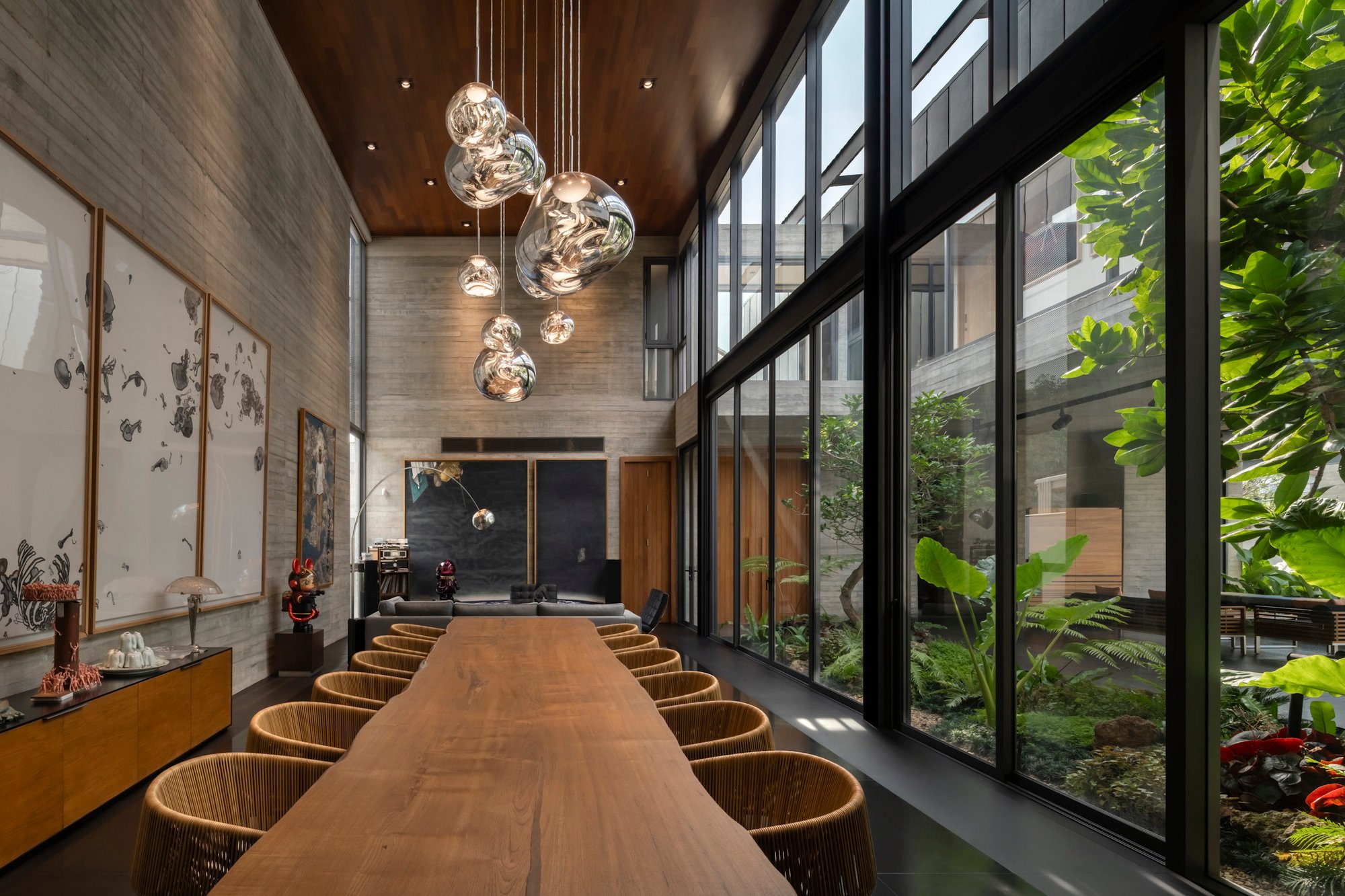

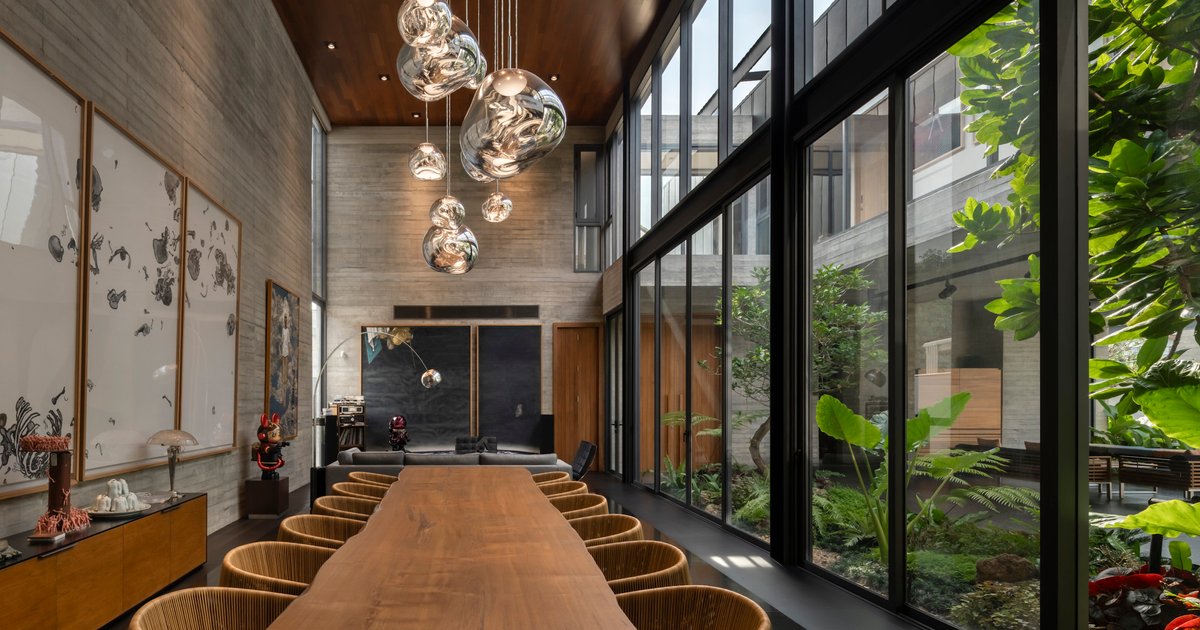

The dining space sits beneath a timber ceiling studded with clustered blown-glass pendant lights, adjacent to a planted atrium that supplies both daylight and a visual endpoint. A long timber table seats a crowd comfortably, and the adjacency to both the courtyard terrace and the kitchen means that entertaining flows without bottlenecks. The kitchen itself is restrained: a white stone island, dark wood cabinetry, recessed lighting. It does its job without drawing attention.

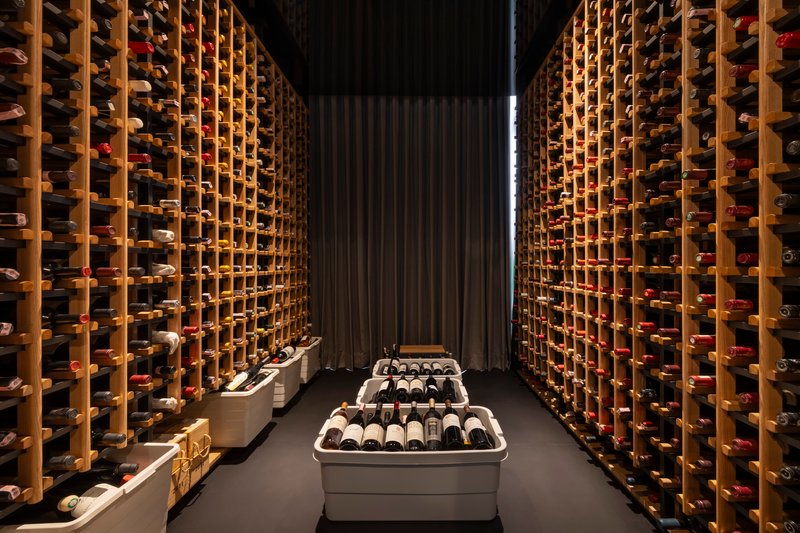

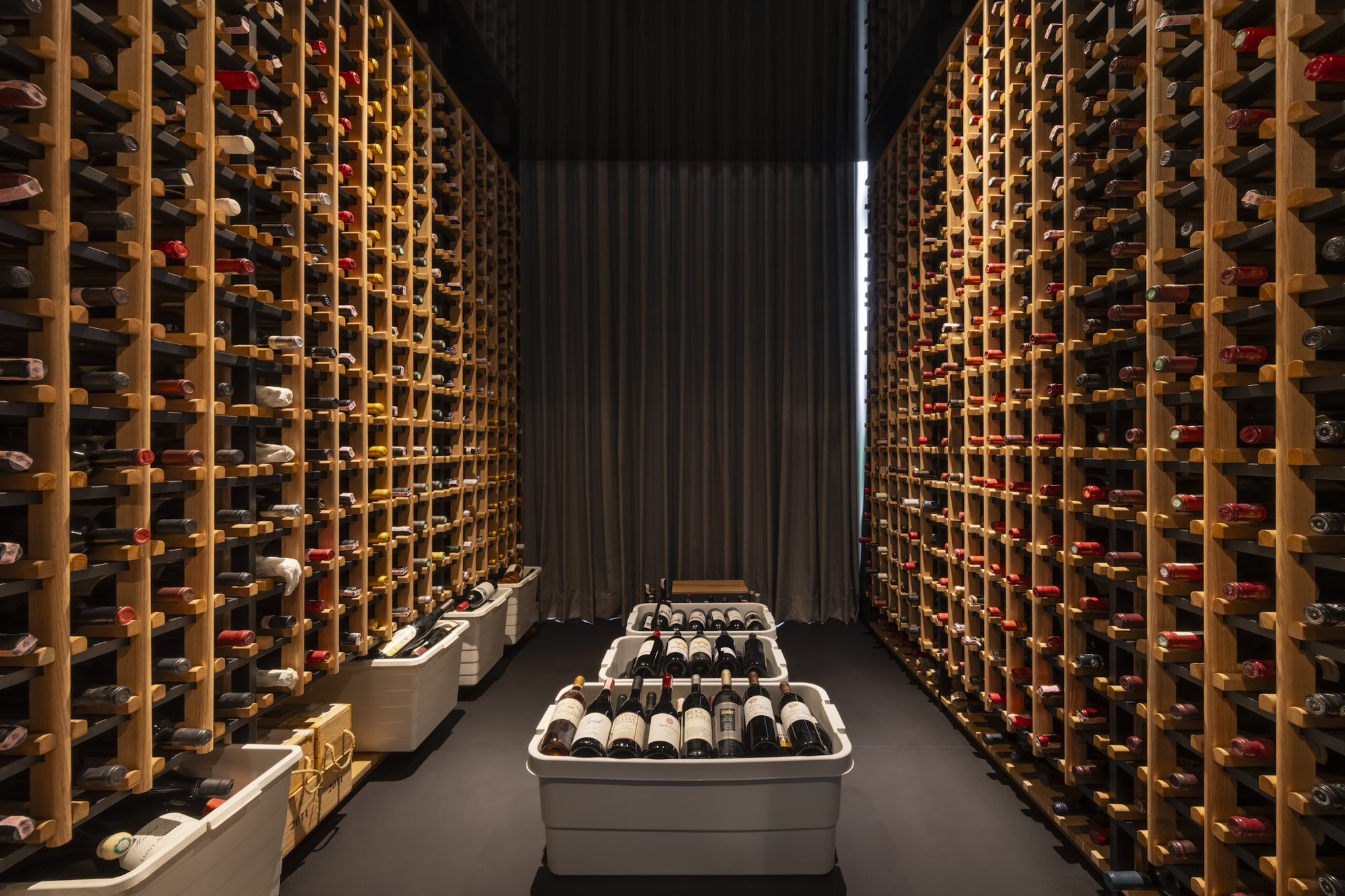

Tucked off the main circulation, a dedicated wine cellar with floor-to-ceiling timber racking and vertical strip lighting adds a layer of connoisseurship to the program. It is a small room, but it signals that the architects took the brief seriously. A house designed for hosting should accommodate the rituals of hospitality, and a proper cellar is one of them.

The Upper Wing: Privacy and Screening

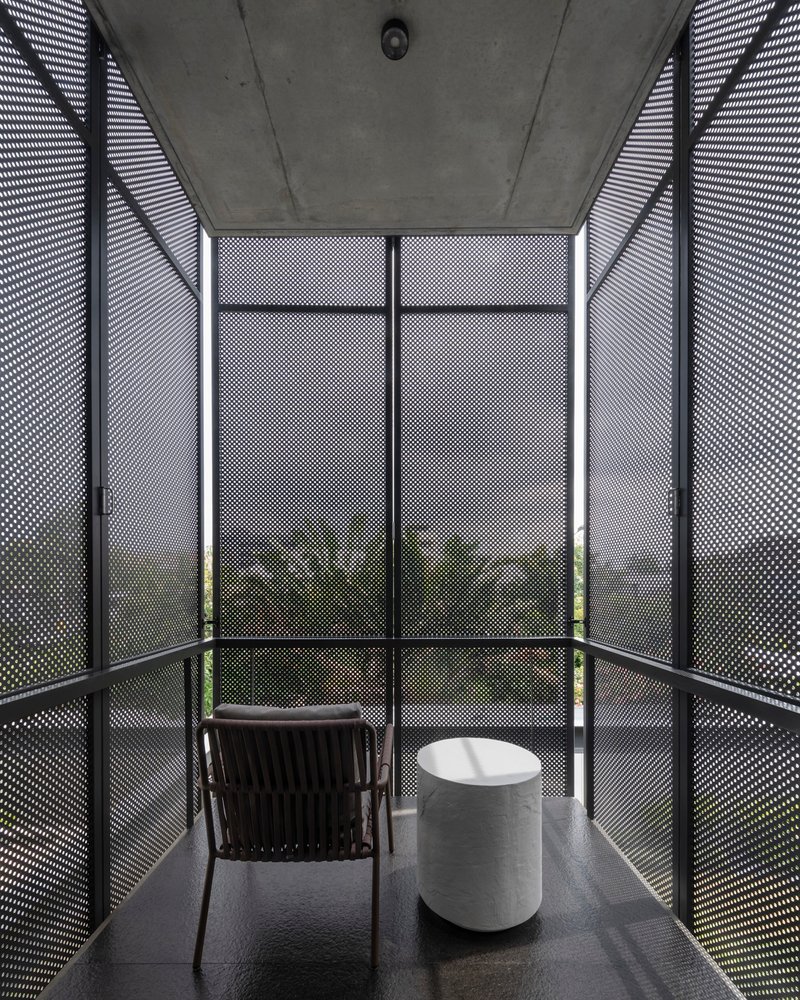

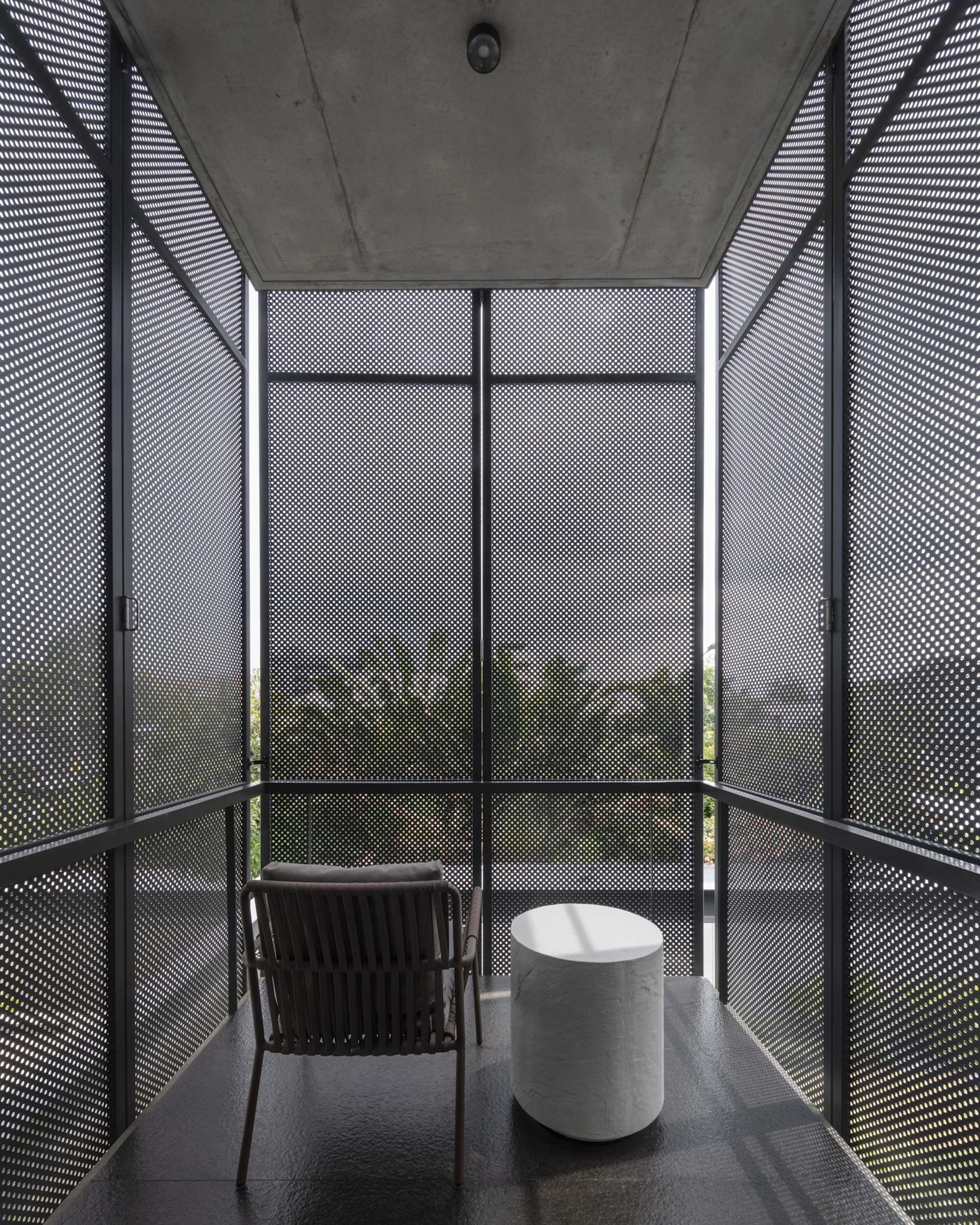

Lifting the sleeping quarters to the second floor accomplishes two things at once. It frees the ground plane for open, flexible social space, and it separates the private realm from the public one both vertically and psychologically. The bedrooms are shielded by a black steel double wall that acts as a thermal buffer, reducing solar gain on the facade and creating an enclosed balcony zone with perforated metal screens. At dusk, the screens filter ambient light into patterns across the exposed concrete ceiling, turning a functional element into an atmospheric one.

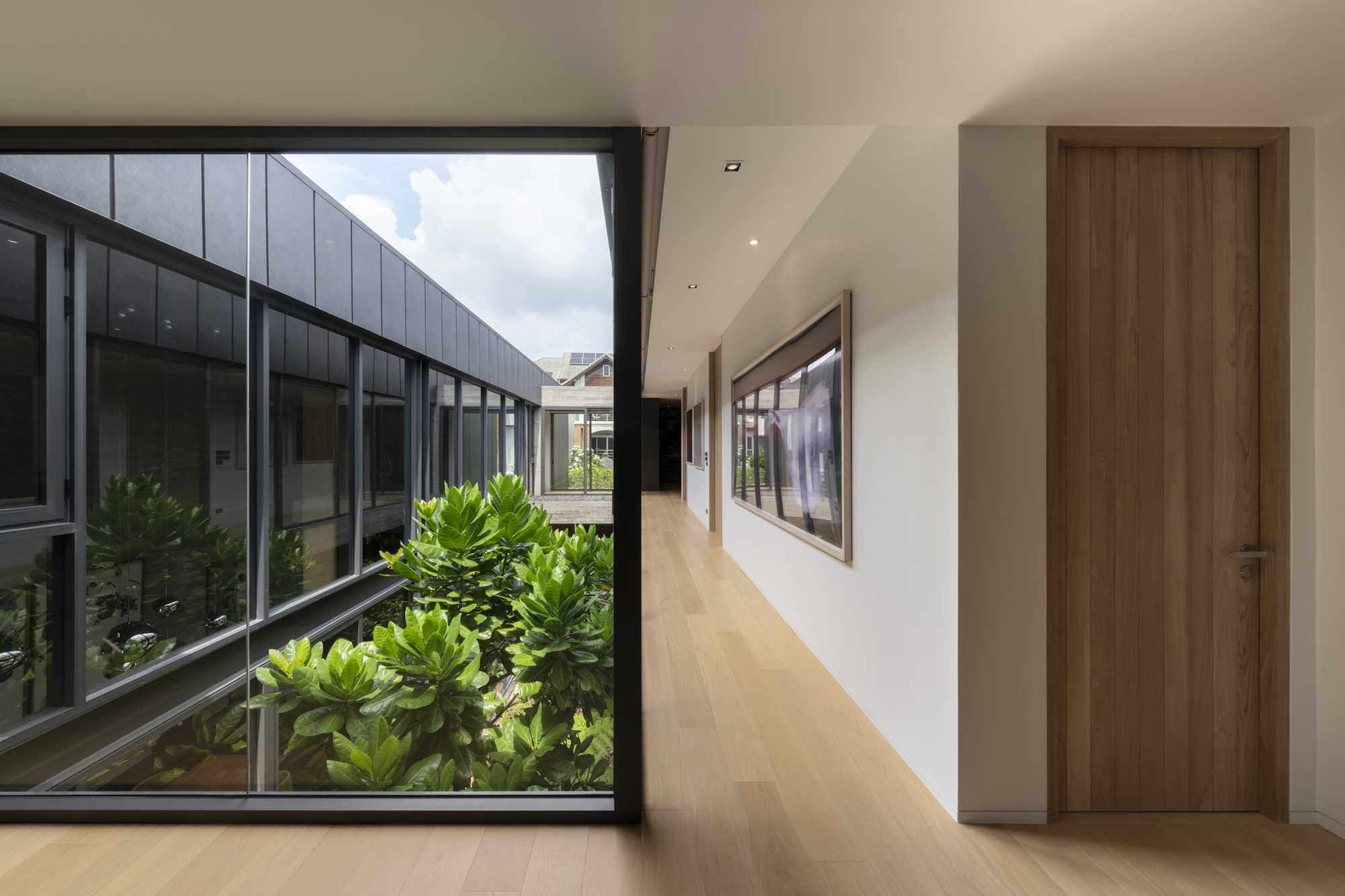

A corridor on the upper level runs along a glazed wall overlooking a planted courtyard filled with succulents, maintaining the visual connection to landscape even in circulation space. The small lounge near the bedrooms has sliding doors on two sides, enabling cross ventilation through the courtyard below. These are not heroic moves; they are careful, repeated applications of the same principle: every room faces green, every room breathes.

Material Logic: Concrete, Steel, Timber

The material palette is limited to three primary elements: board-formed concrete, black steel, and timber. The concrete does structural and spatial duty simultaneously, forming walls, columns, and soffits with a consistent grain that ties interior and exterior together. The dark metal cladding defines the upper volume and gives the house its street identity, while timber appears at thresholds, staircases, and floors, warming the harder surfaces around it.

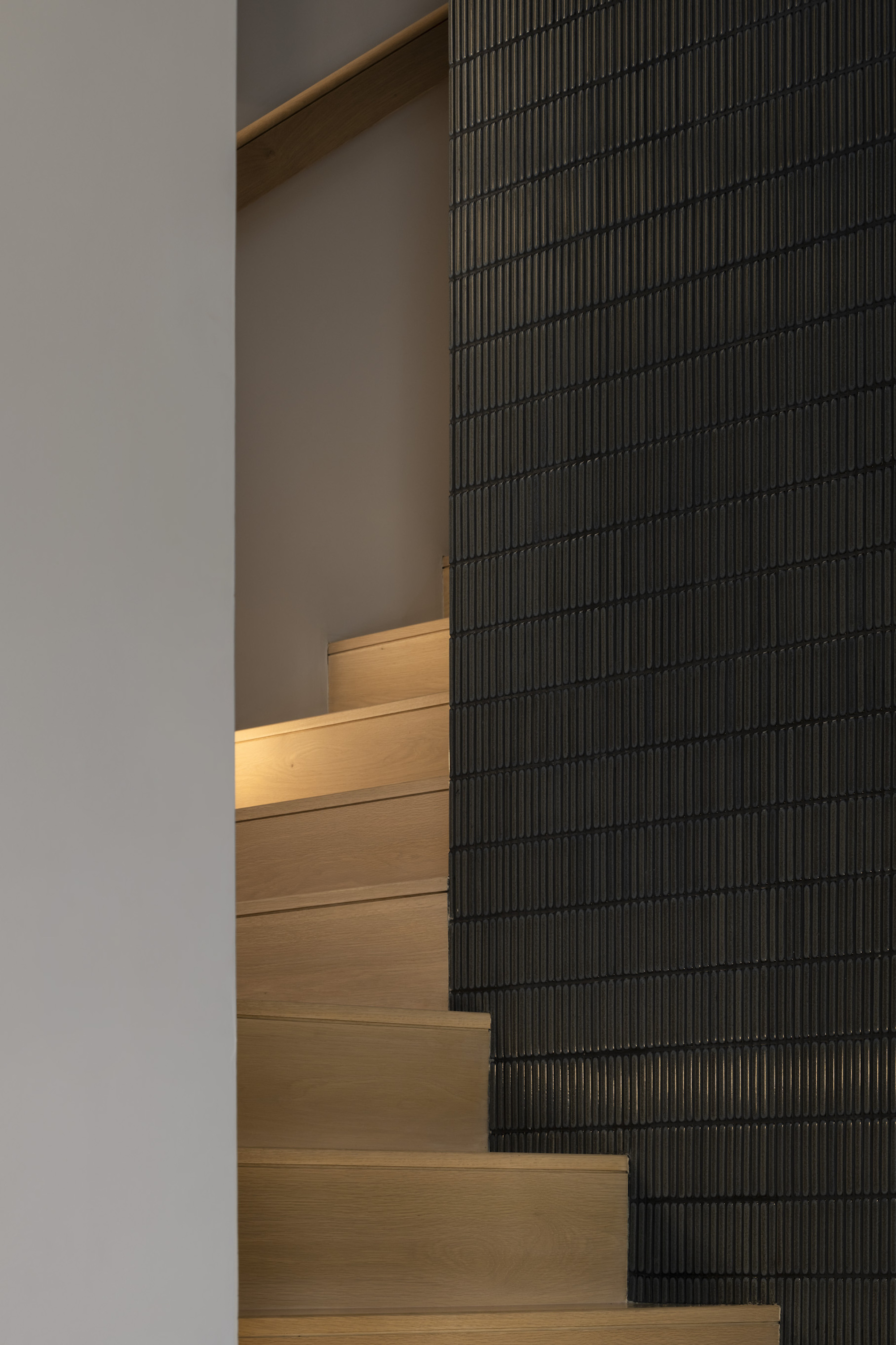

A detail worth noting: the staircase pairs timber treads with integrated strip lighting set against a wall of black ribbed tile. It is a small moment, but it demonstrates the care that interior collaborator SEIZEtheDAY Studio brought to the finishes. The material transitions throughout the house are clean and deliberate, never arbitrary.

Outdoor Rooms and Rooftop

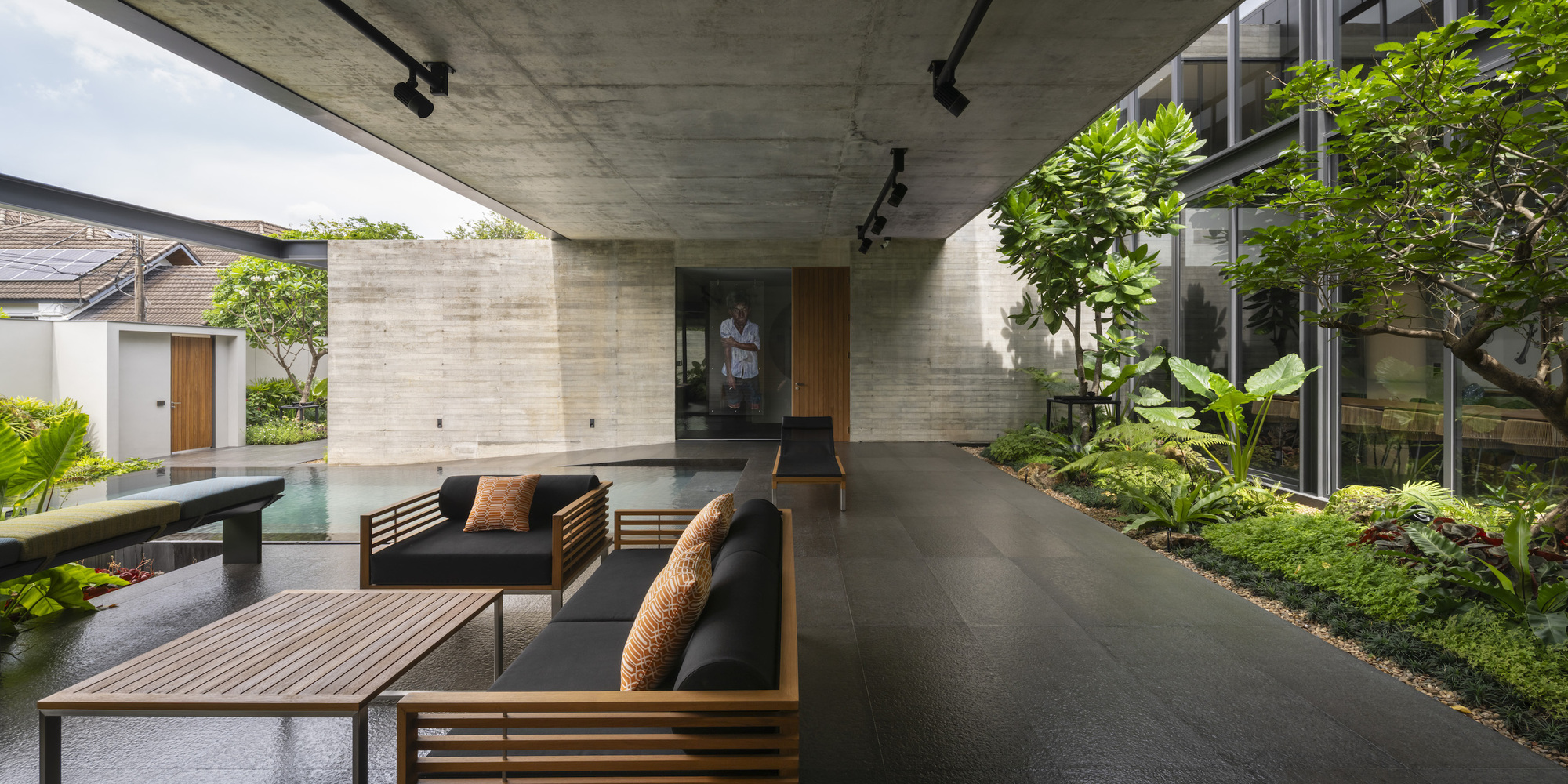

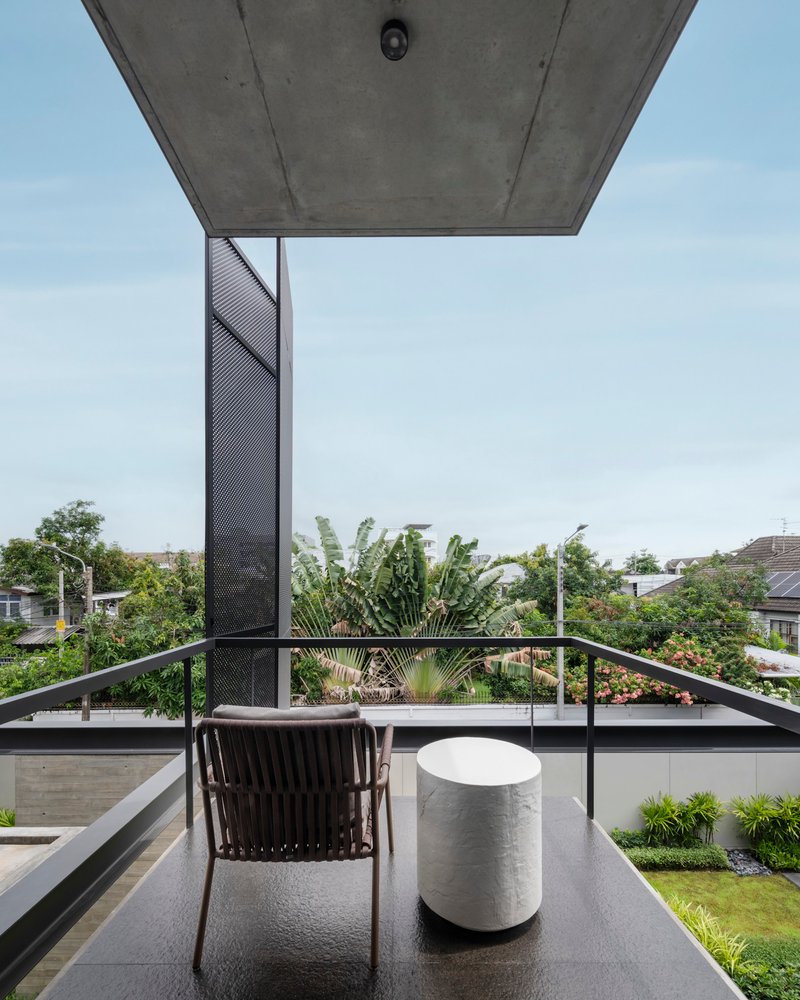

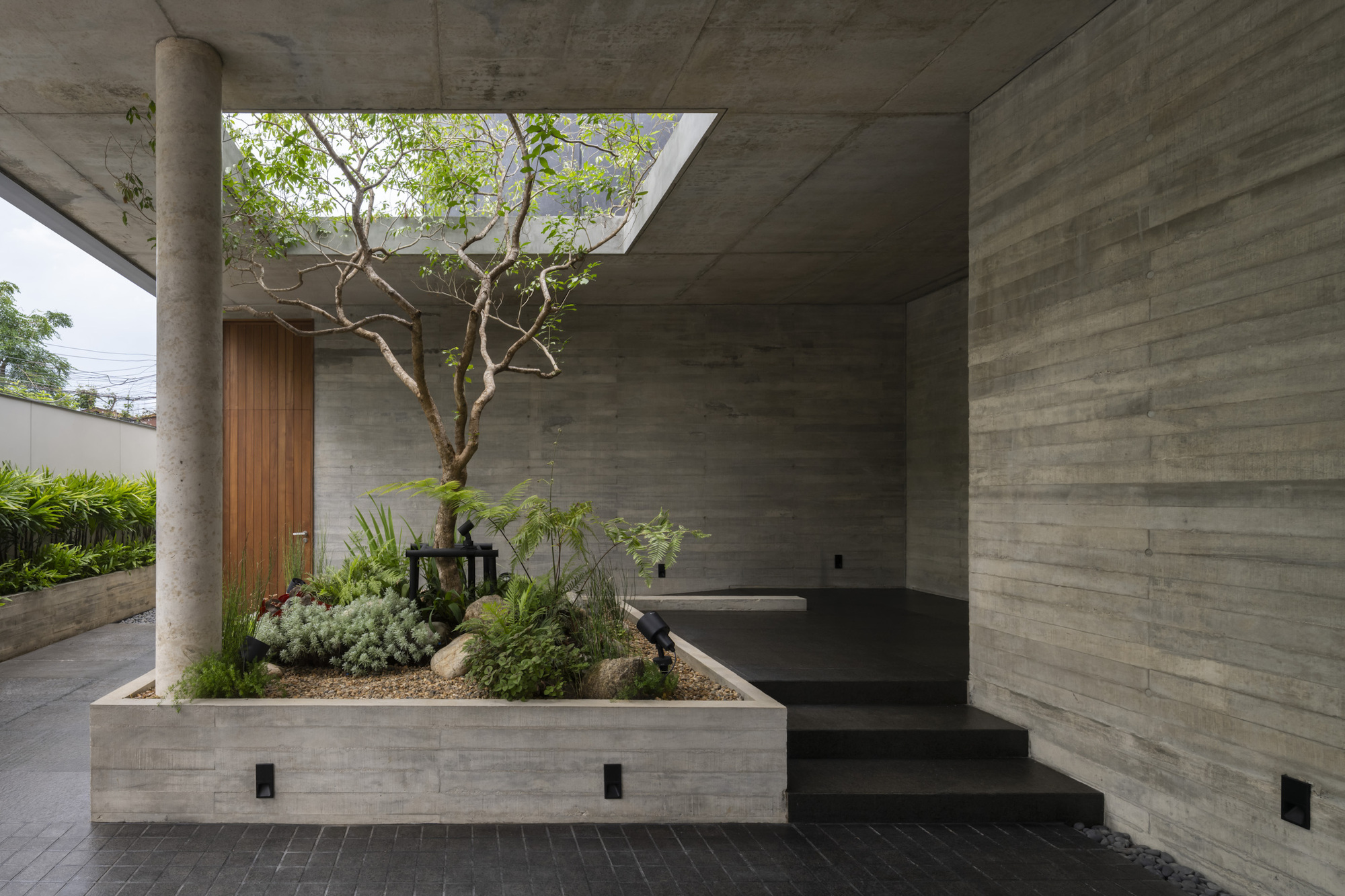

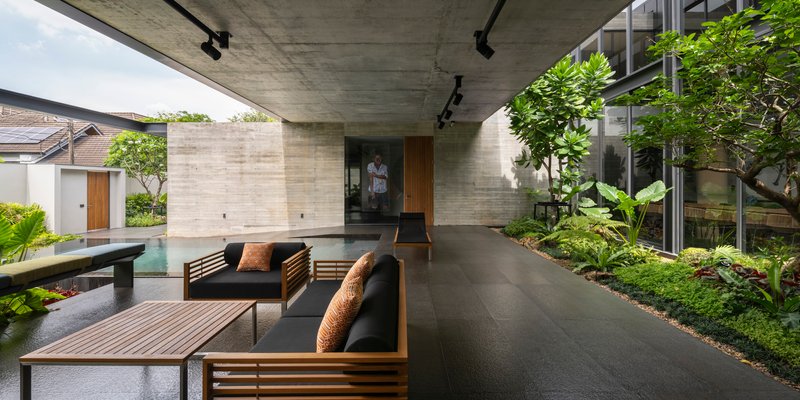

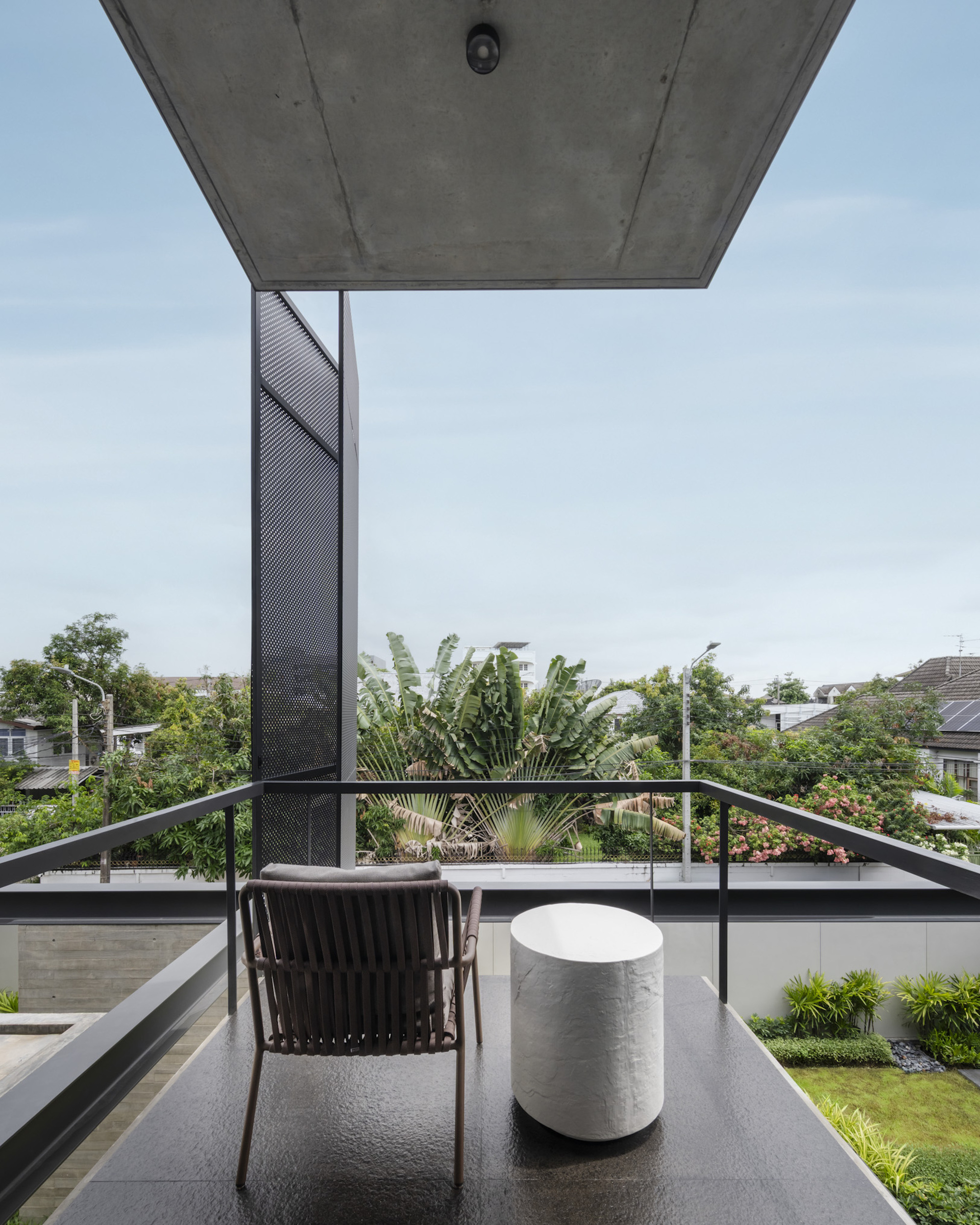

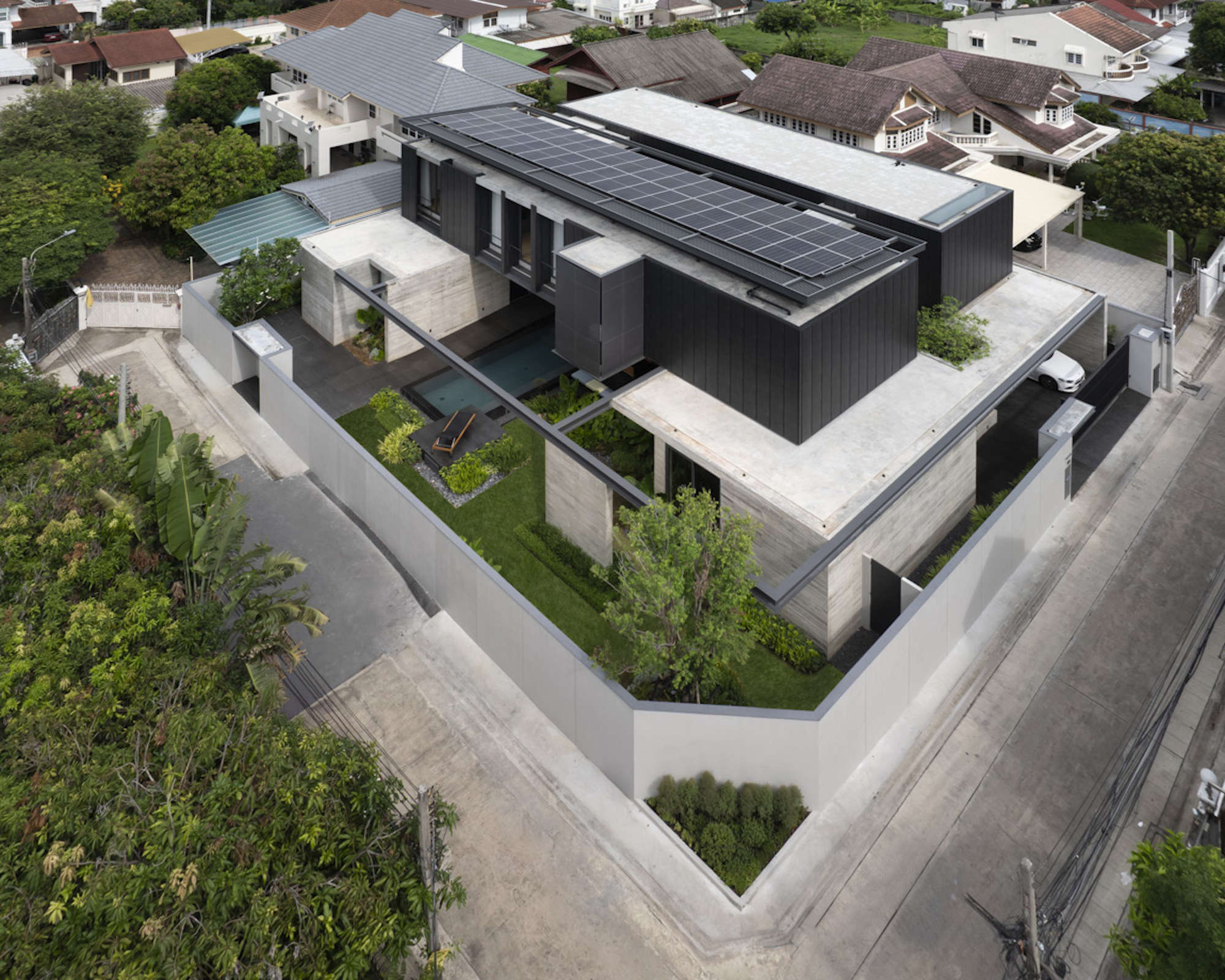

TN House is as much about its outdoor rooms as its indoor ones. The covered terrace beneath the exposed concrete soffit, furnished with timber seating and set beside the lap pool, functions as a living room open to the sky. A separate entry terrace features a specimen tree planted beneath a concrete skylight, creating a threshold moment that slows you down before you step inside. Even the rooftop, visible from the aerial view with its solar panels and metal railings, is treated as inhabitable space rather than leftover area.

Landscape design by Pergolar integrates tropical planting tightly with the architecture. Bamboo lines the bathroom, ferns fill the atrium, and raised concrete planters in the courtyard host mature trees that will only improve with time. The planting is not decorative; it is part of the climate strategy, providing shade, evaporative cooling, and visual screening.

Plans and Drawings

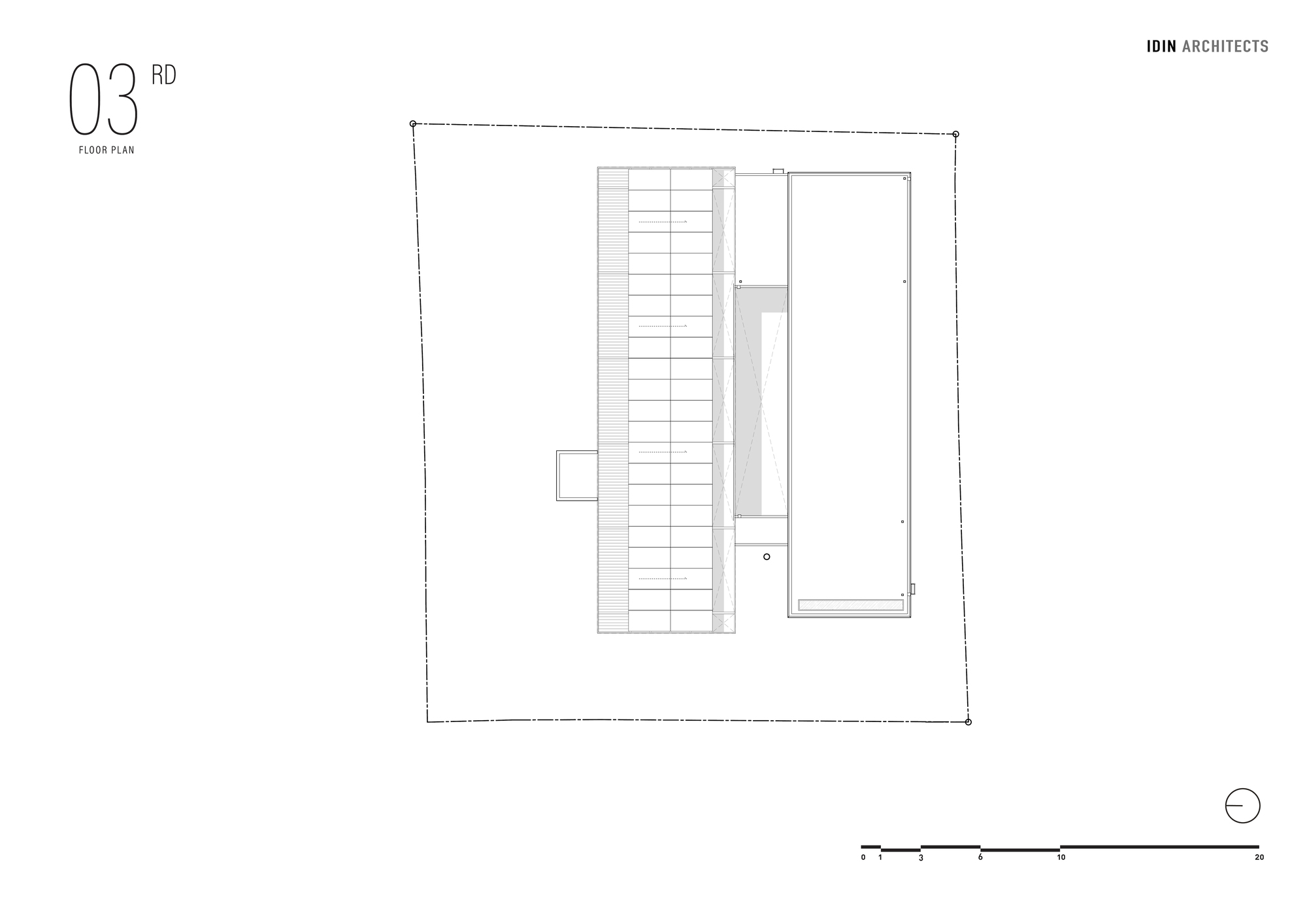

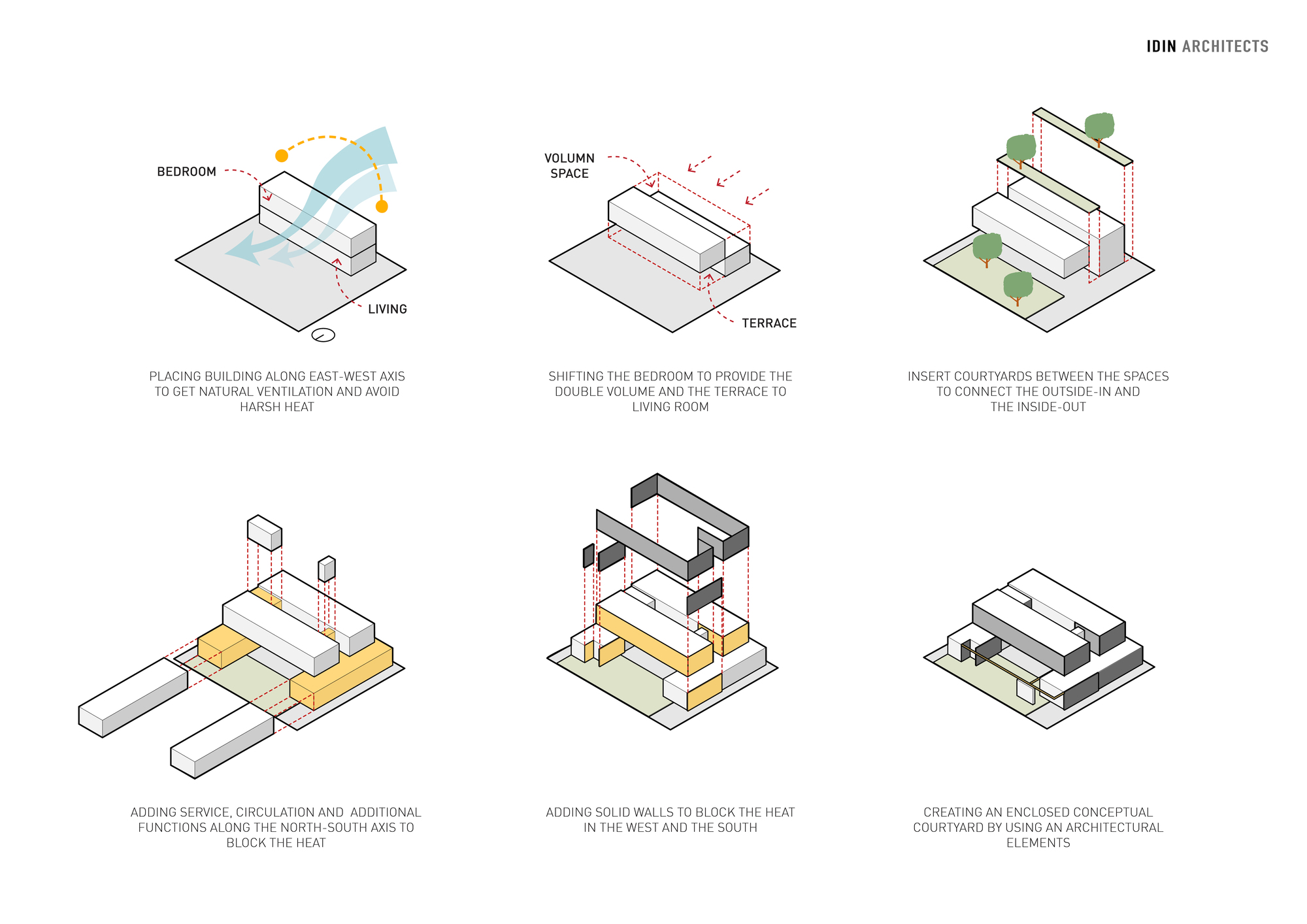

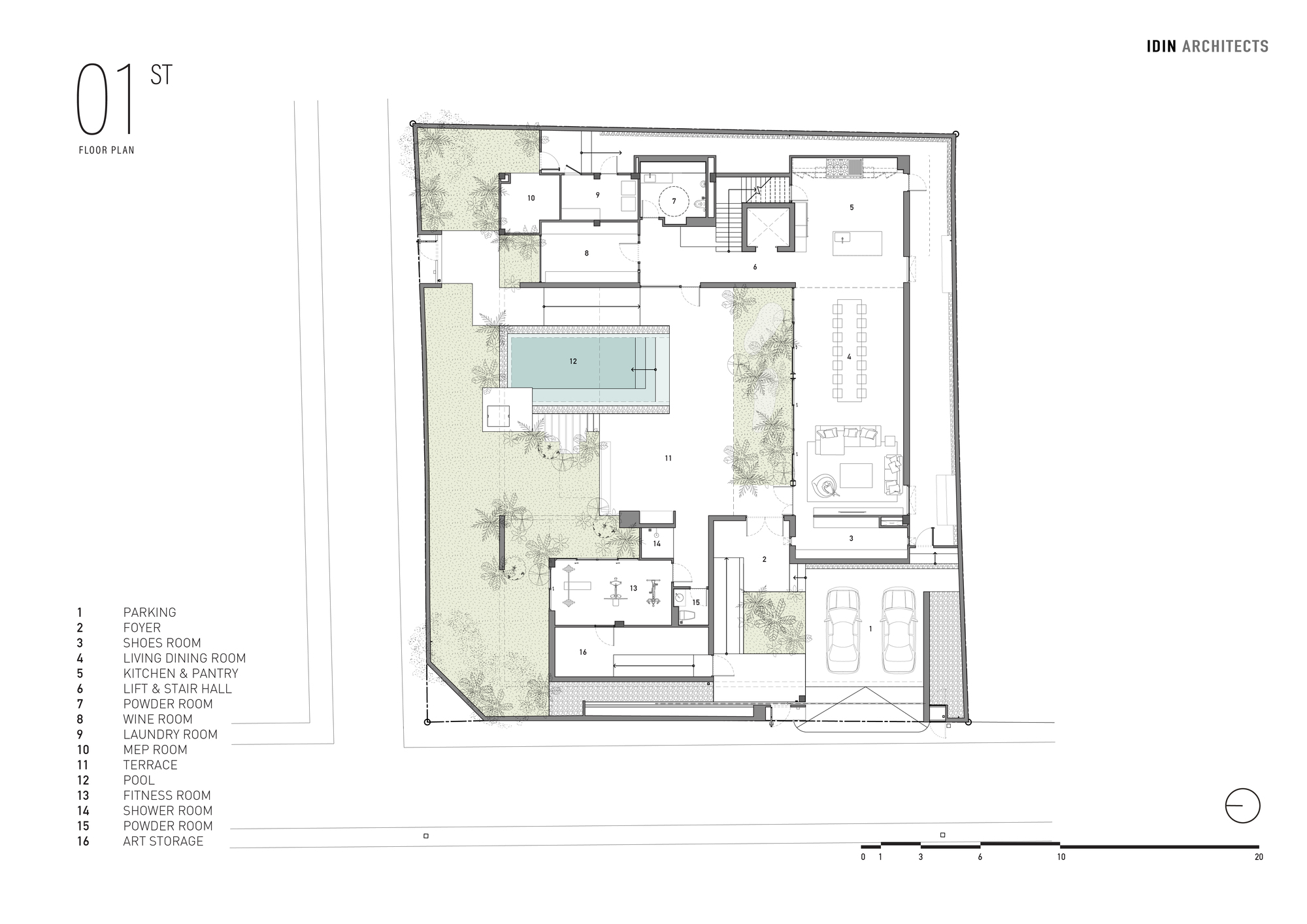

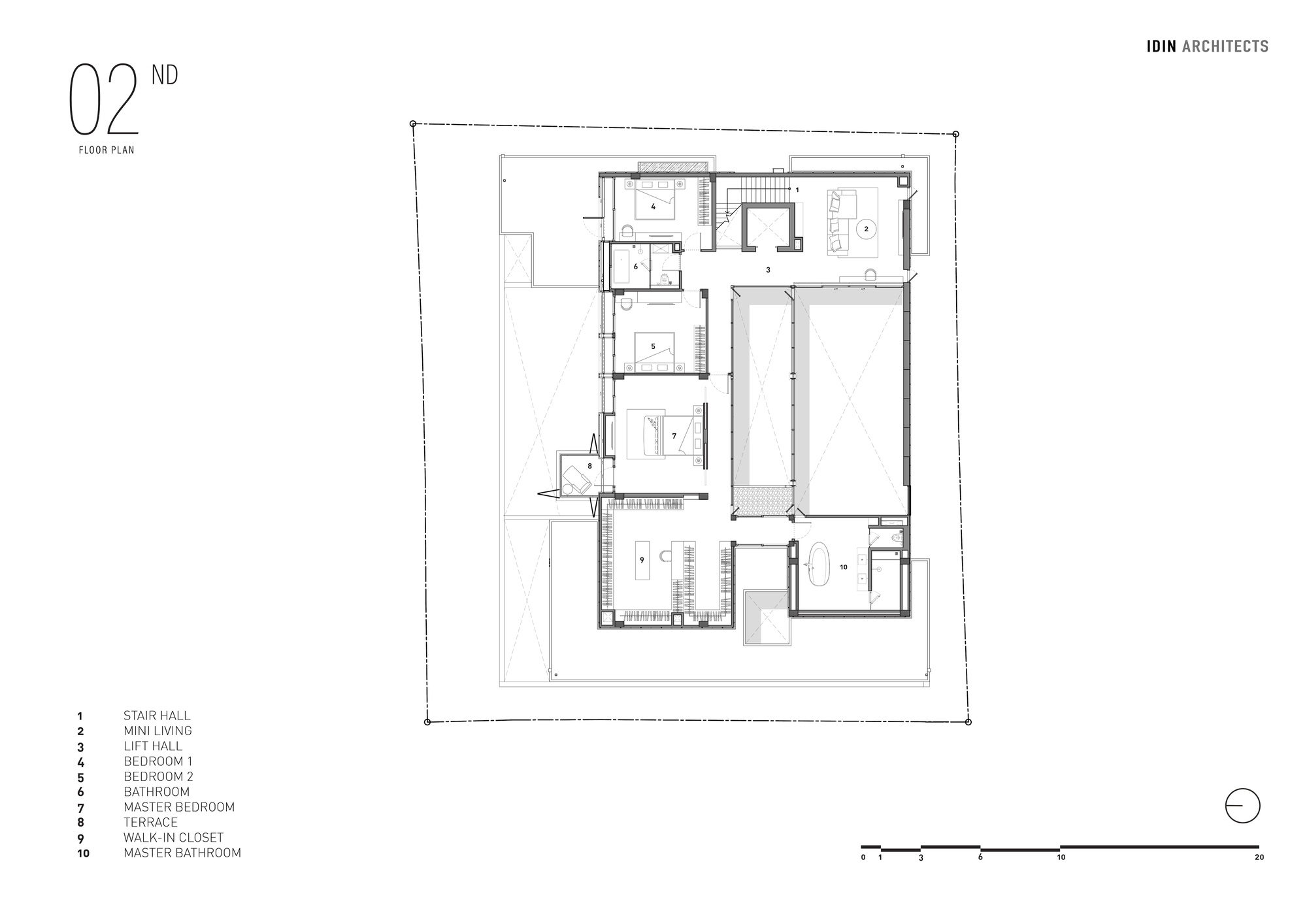

The isometric diagram series traces the design logic clearly: site orientation, volume shifting, courtyard insertion, and final massing. It reveals how the two wings were pulled apart and rotated to optimize the central void for light and ventilation. The floor plans confirm the split: ground level wraps social and utility spaces around the pool and courtyards, the second floor clusters bedrooms around a smaller courtyard, and the third level provides a roof terrace accessible from the main stair.

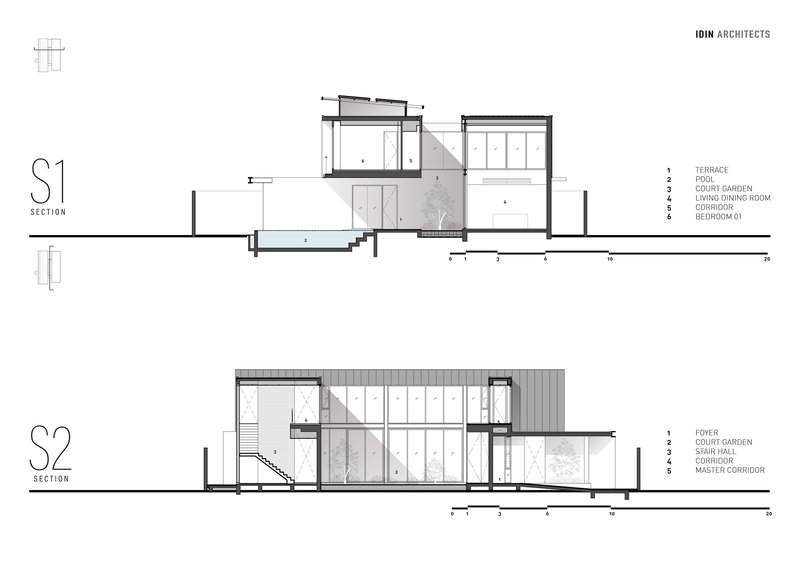

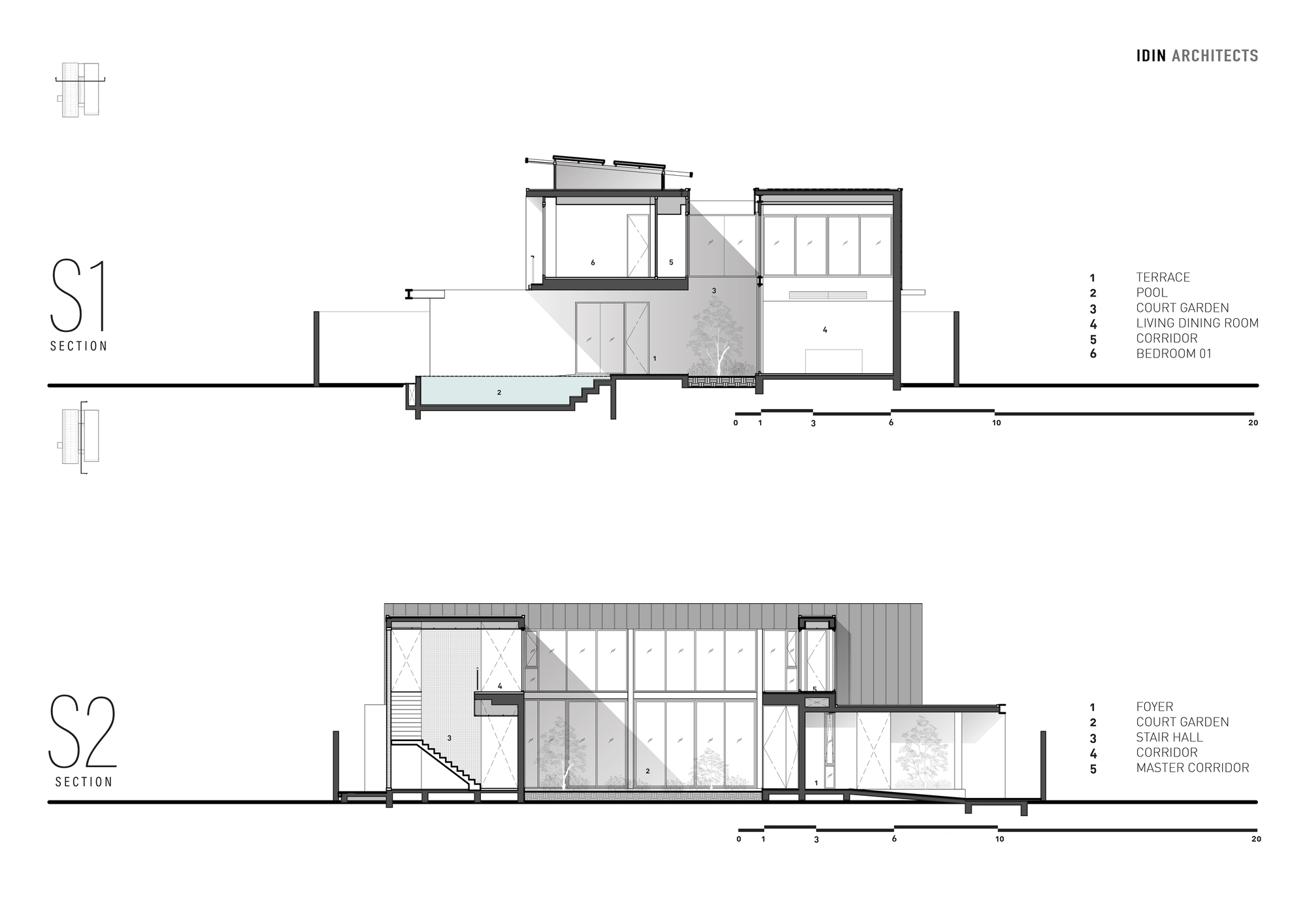

The section drawings are particularly telling. They show the split-level organization around the courtyard, with the double-height living space on one side and the stacked bedrooms on the other. The trees drawn in section make the argument visually: canopy height is calibrated to the courtyard width, ensuring that the planting provides shade without blocking the northern light that drives the passive ventilation strategy. The elevation drawings confirm the rhythm of vertical slatted cladding against full-height glazing, a composition that reads as both porous and controlled.

Why This Project Matters

TN House is a convincing demonstration that the courtyard house, one of architecture's oldest typologies, remains the most effective strategy for making livable space in a dense tropical city. IDIN Architects does not reinvent the wheel here. They refine it, applying a clear material discipline and a rigorous commitment to the idea that every room should have a relationship with landscape and air. In a market saturated with glass-box villas that depend entirely on air conditioning, this is a house that could actually reduce its energy load while gaining spatial richness.

The project also succeeds on the social brief. A house for art collectors who entertain needs flexibility, generous thresholds, and surfaces that recede behind the objects and people they contain. TN House delivers all three. The ground floor moves fluidly from kitchen to dining to terrace to pool without ever feeling like one long open plan, and the upper floor retreats convincingly into quiet. That balance between generosity and restraint, between openness and enclosure, is harder to achieve than it looks.

TN House by IDIN Architects, with interiors by SEIZEtheDAY Studio and landscape by Pergolar. Bangkok, Thailand. 640 m². Completed 2025. Photography by DOF Sky|Ground.
