Lyon Confluence Mixed-Use Quarter: A Sustainable Urban Vision by David Chipperfield Architects

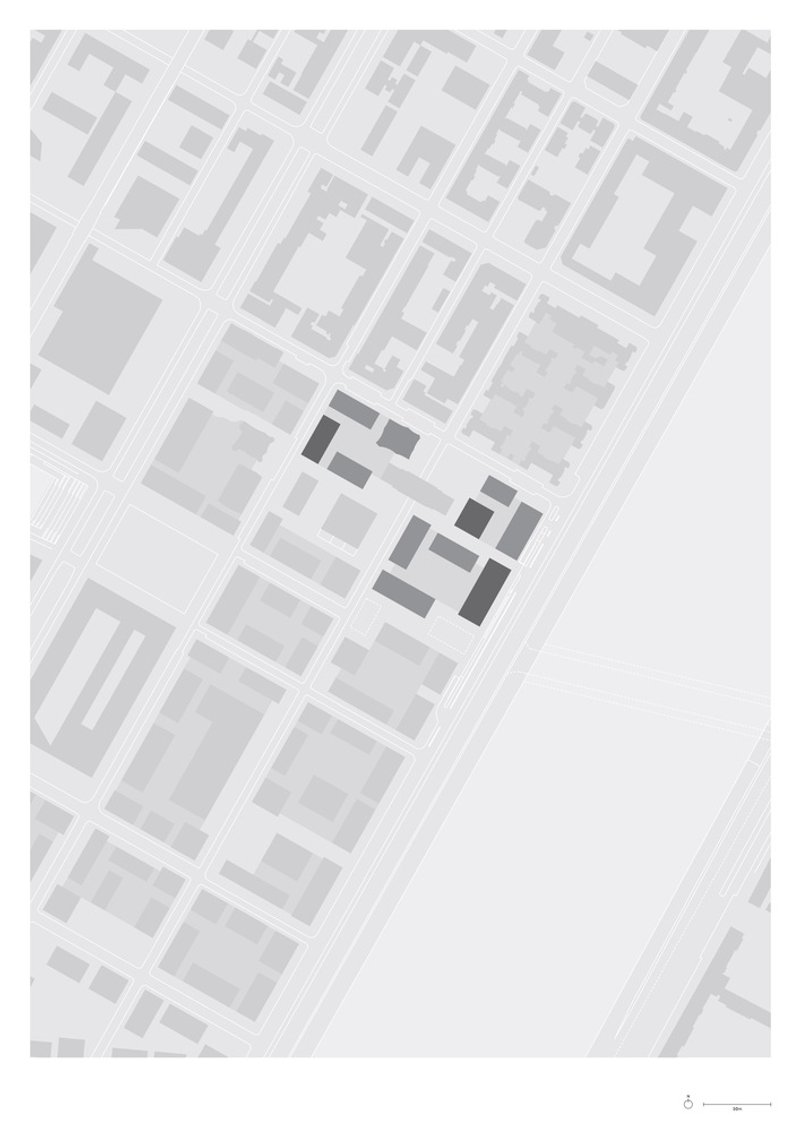

The Lyon Confluence Mixed-Use Quarter, designed by David Chipperfield Architects, represents an ambitious step forward in sustainable urban development. Situated at the southern tip of Lyon’s peninsula, where the Rhône and Saône rivers converge, this 30,000 m² project marks a pivotal phase in the city's transformation. With its completion in 2024, the quarter merges architectural innovation with environmental consciousness, embodying the principles of mixed-use urban design.

Context and Objectives of the Project

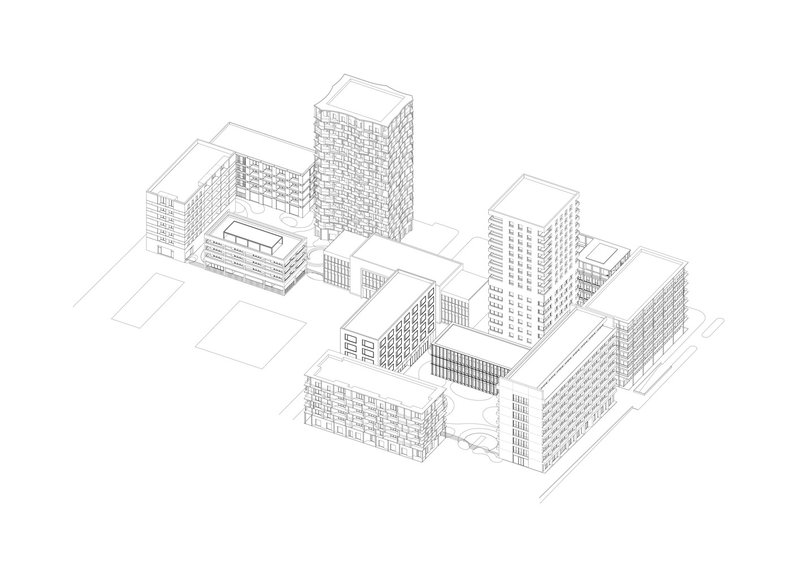

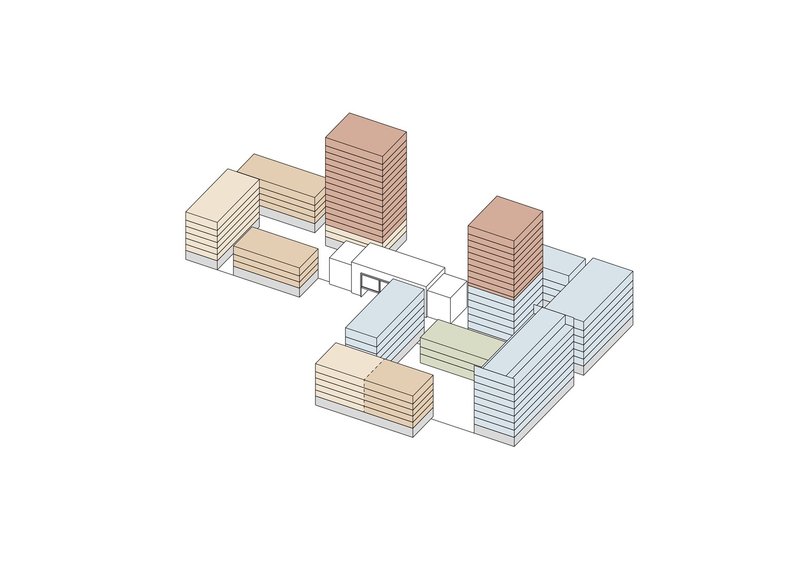

Lyon’s Confluence area, previously dominated by industrial use, has been undergoing redevelopment over the past decade. David Chipperfield Architects were entrusted with coordinating three blocks consisting of eleven buildings within a masterplan devised by Herzog & de Meuron. The primary goal was to create a vibrant, mixed-use urban quarter focused on social and environmental sustainability.

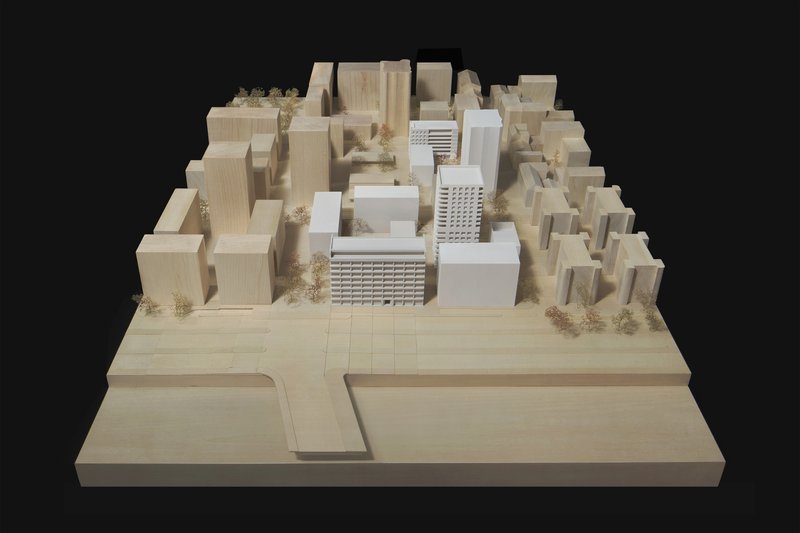

The firm played a pivotal role in adapting the masterplan to the specific site, ensuring coherence in landscape strategies, building massing, and façade design. The process involved close collaboration with the city authorities, clients, sustainability consultants, and other architects, emphasizing a unified approach to urban planning.

Architectural Features and Design Strategies

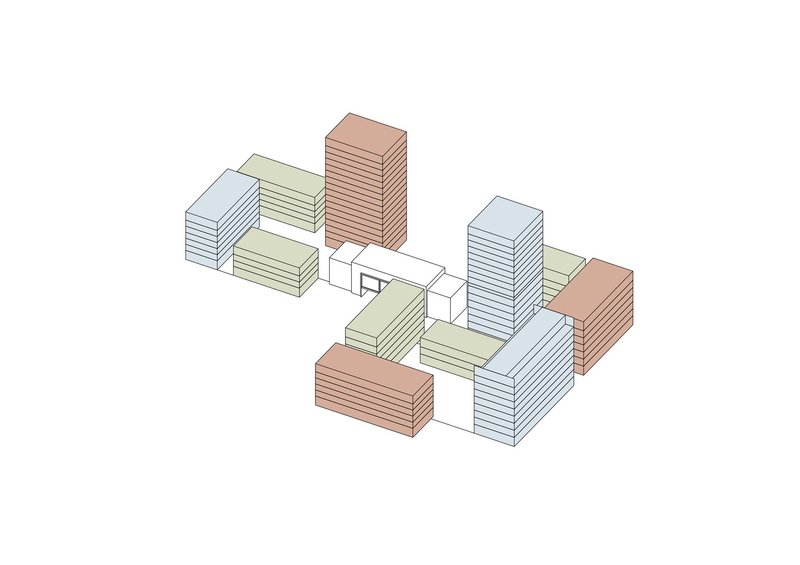

The Lyon Confluence Mixed-Use Quarter exemplifies a balance between unity and individuality. While the buildings share material coherence, each possesses distinct characteristics that respond to its context. The quarter integrates housing, offices, retail spaces, and a health center, all designed to foster community interaction and environmental harmony.

Social Housing Building

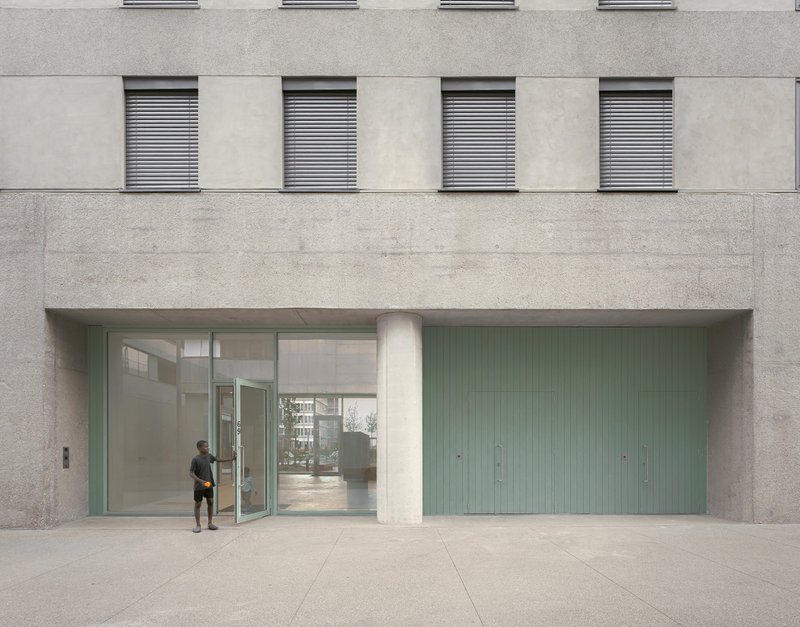

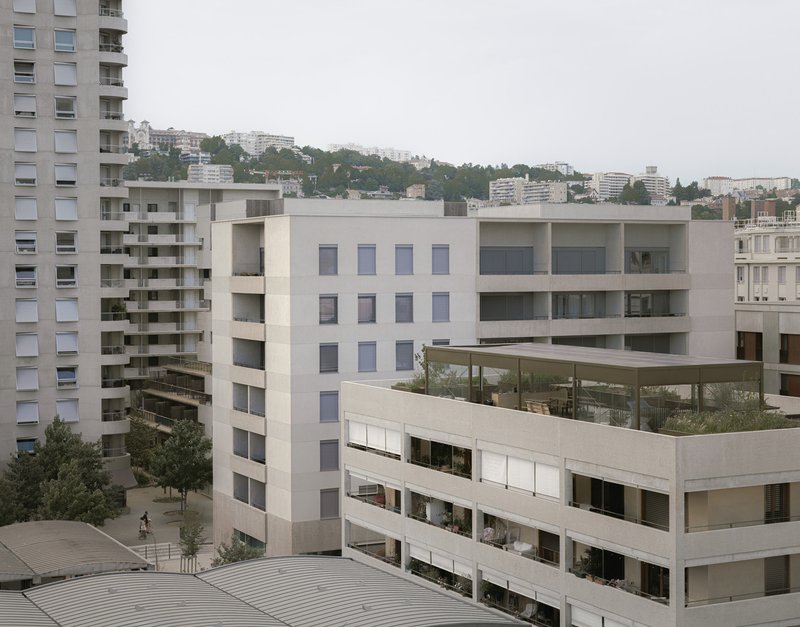

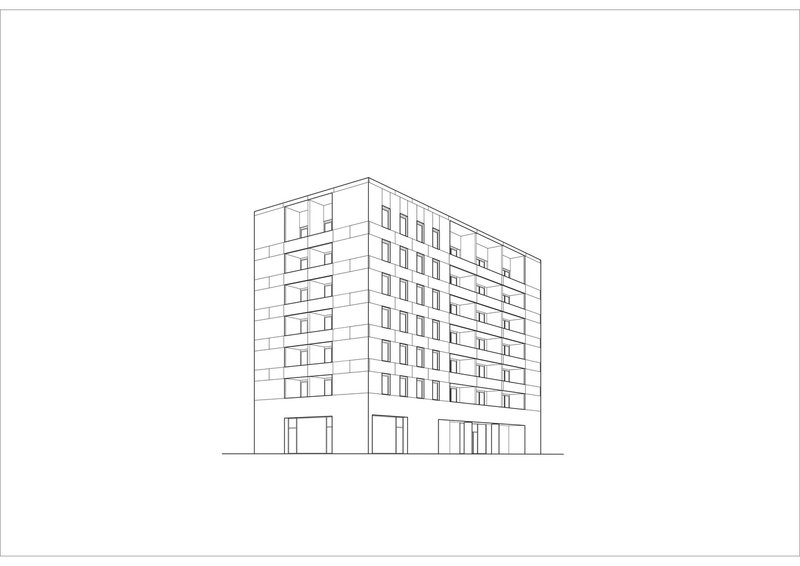

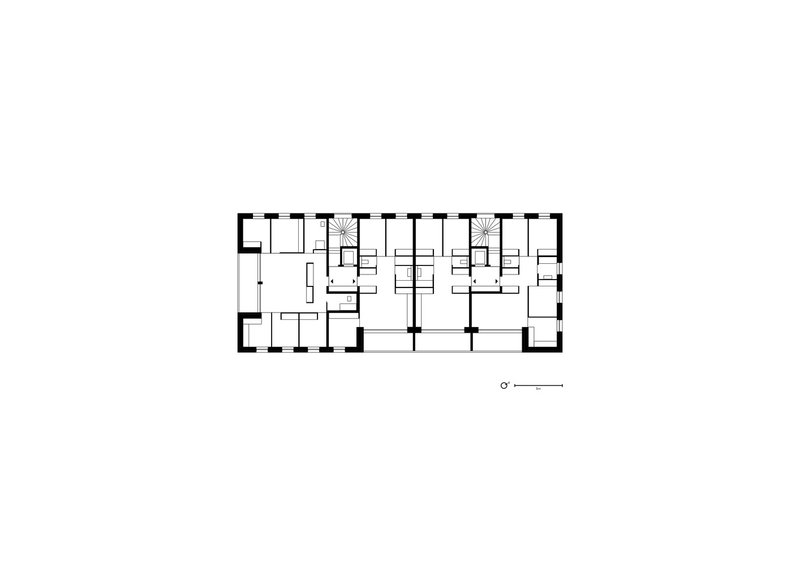

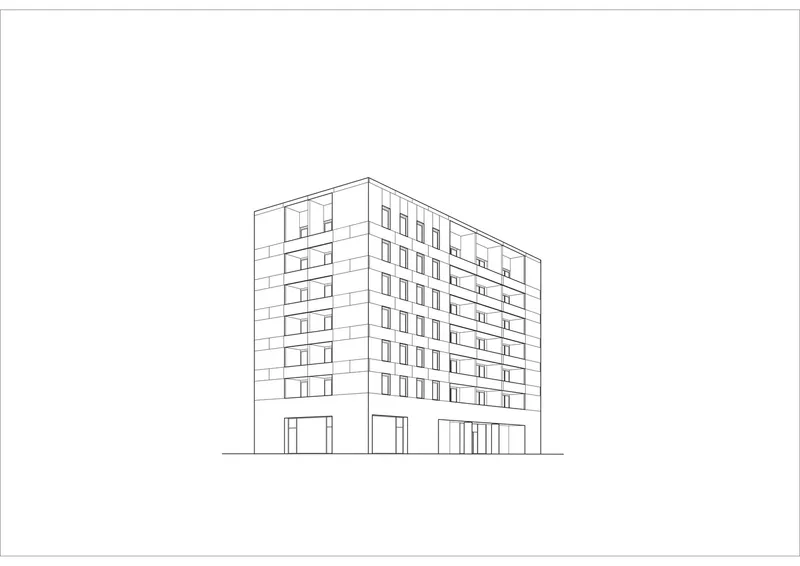

One of the standout structures in the quarter is the social housing building, constructed from cross-laminated timber and enveloped in a precast concrete façade. The façade alternates between profiled and smooth panels, creating visual depth. Loggias on the south and east façades provide outdoor spaces for residents while connecting the apartments to a public square and garden. The ground floor features a café, enhancing the sense of community and interaction.

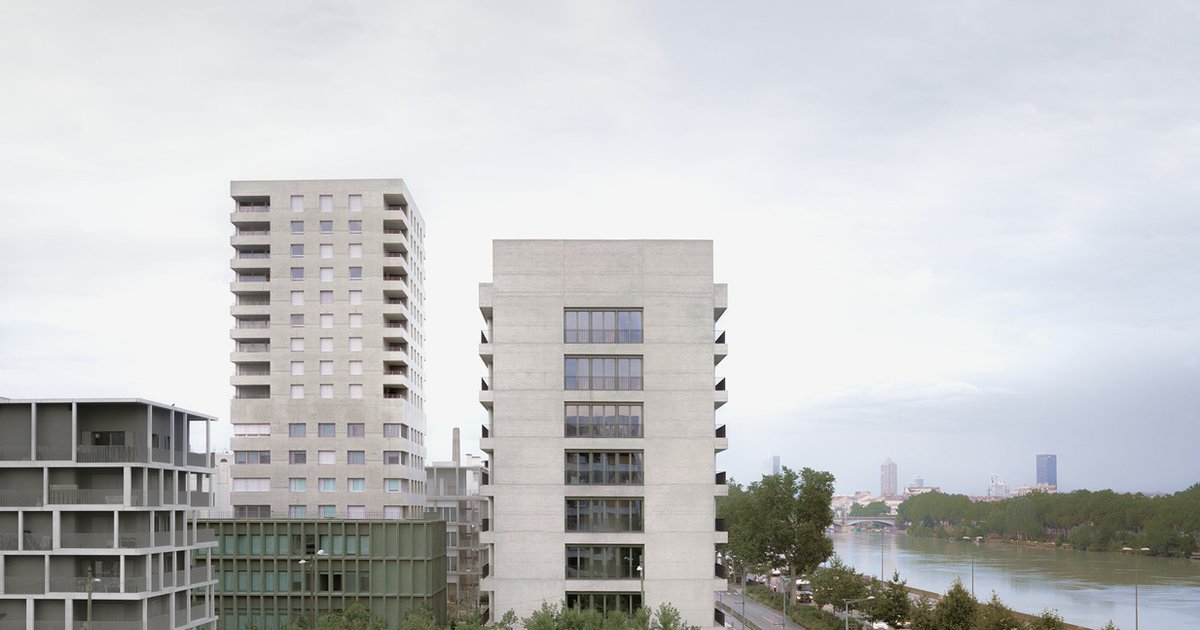

Mixed-Use Tower

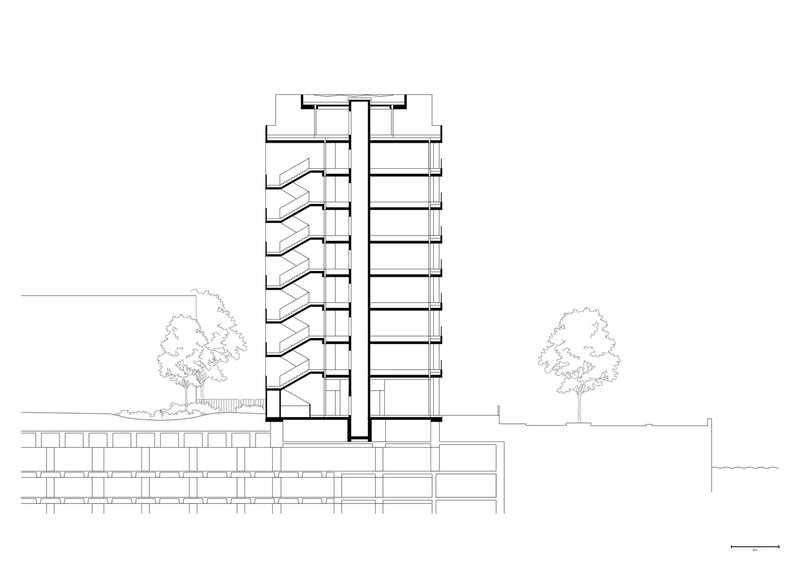

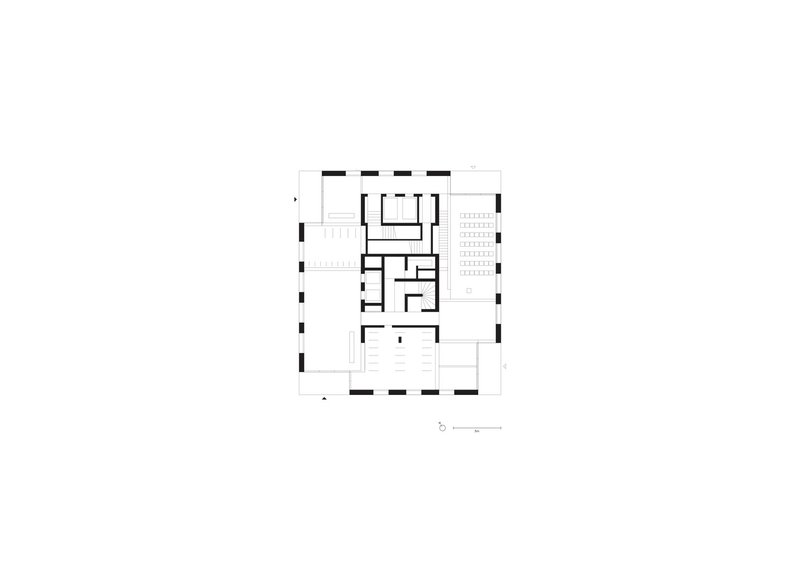

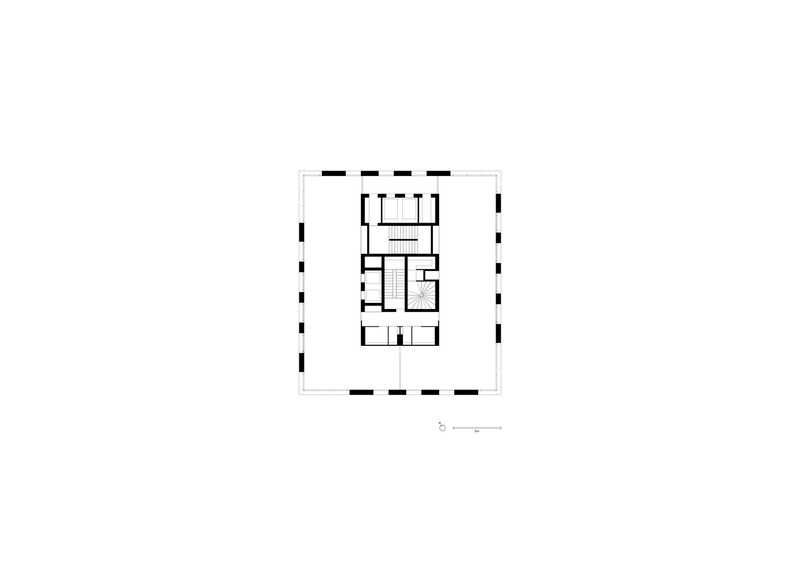

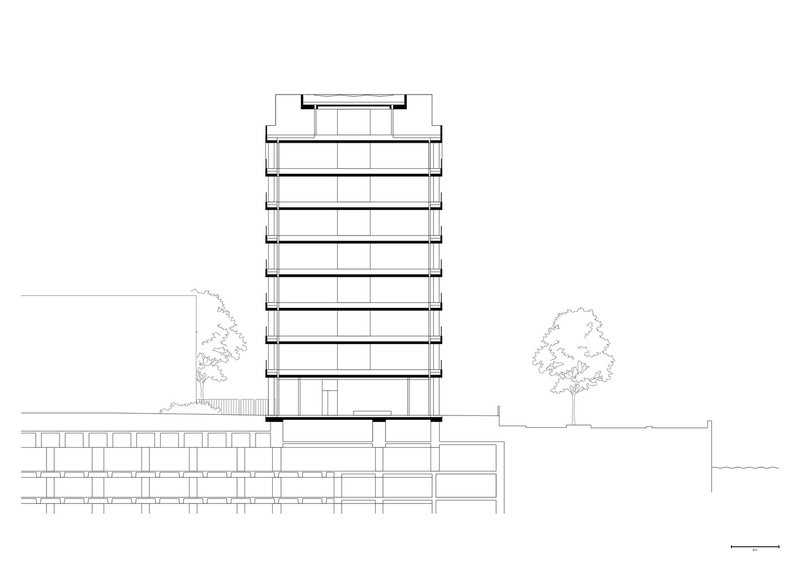

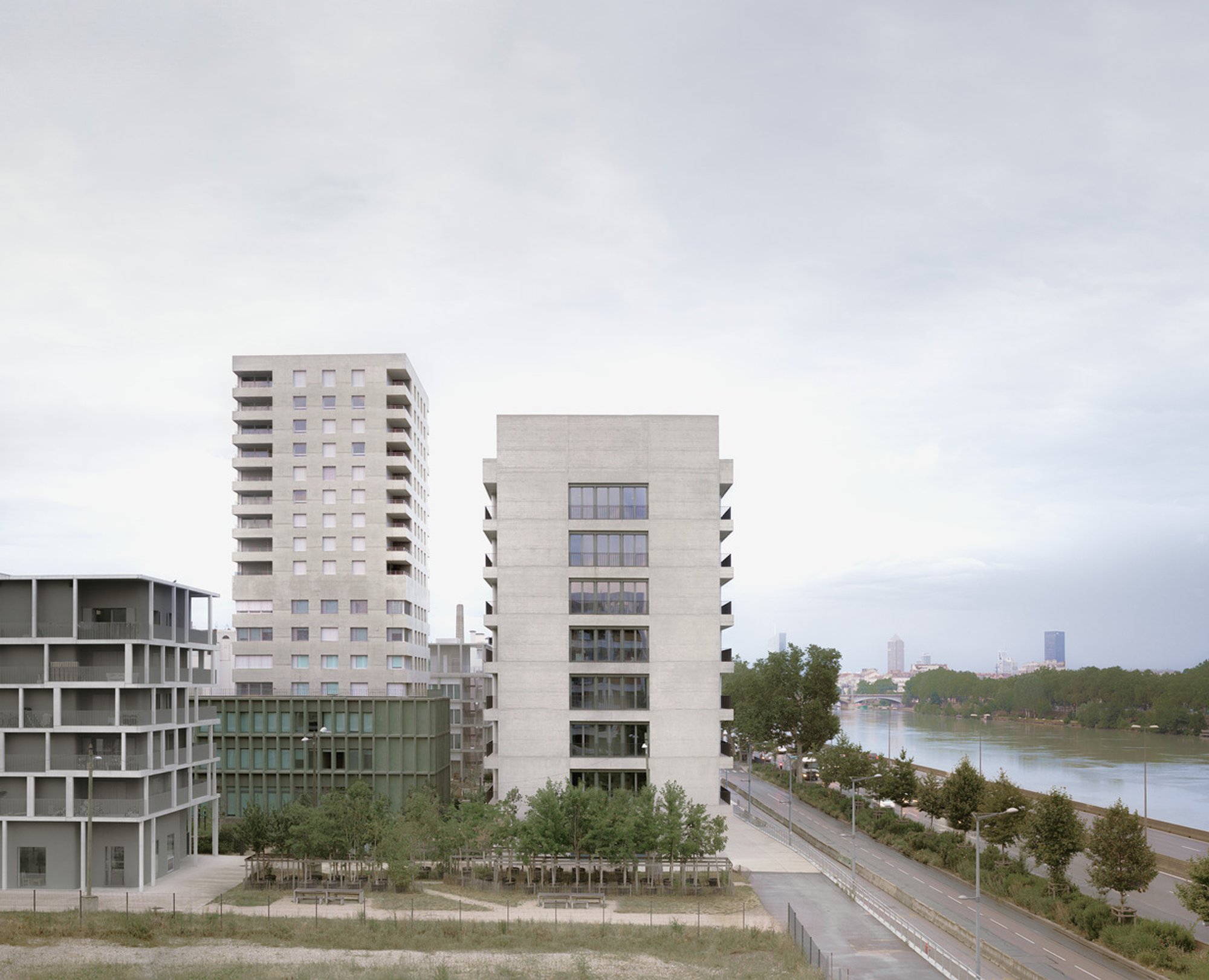

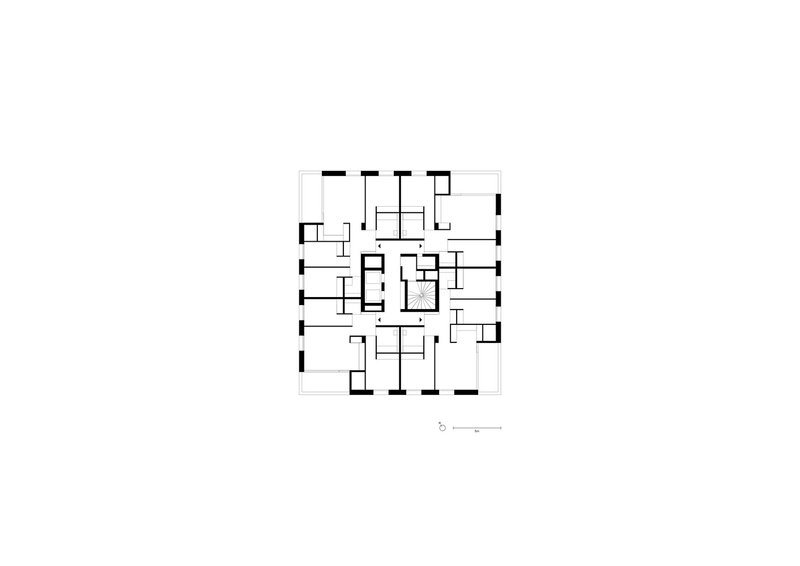

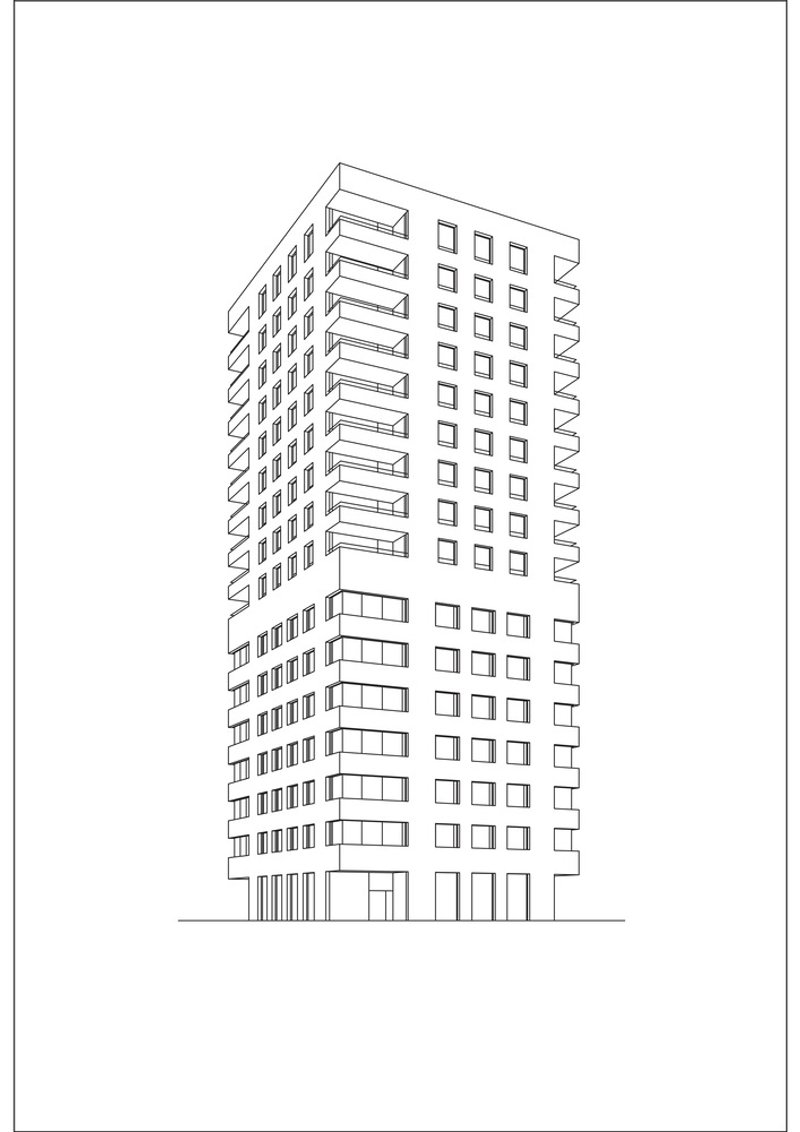

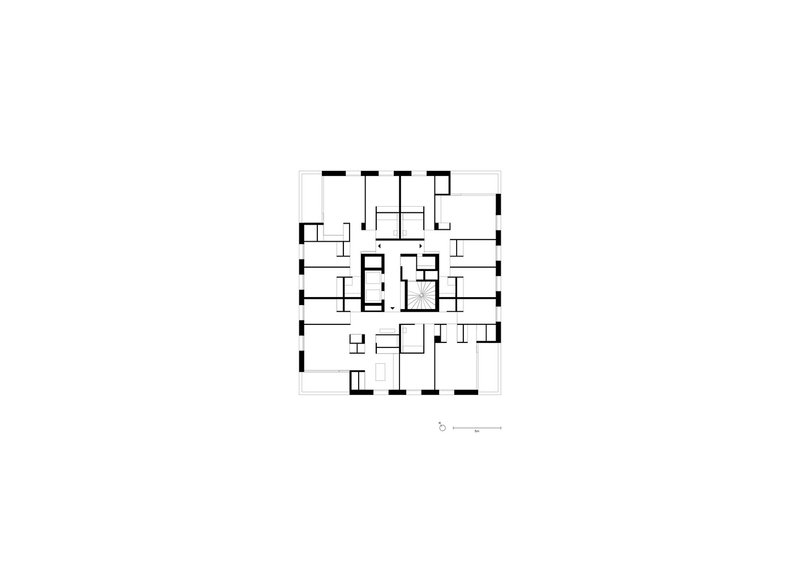

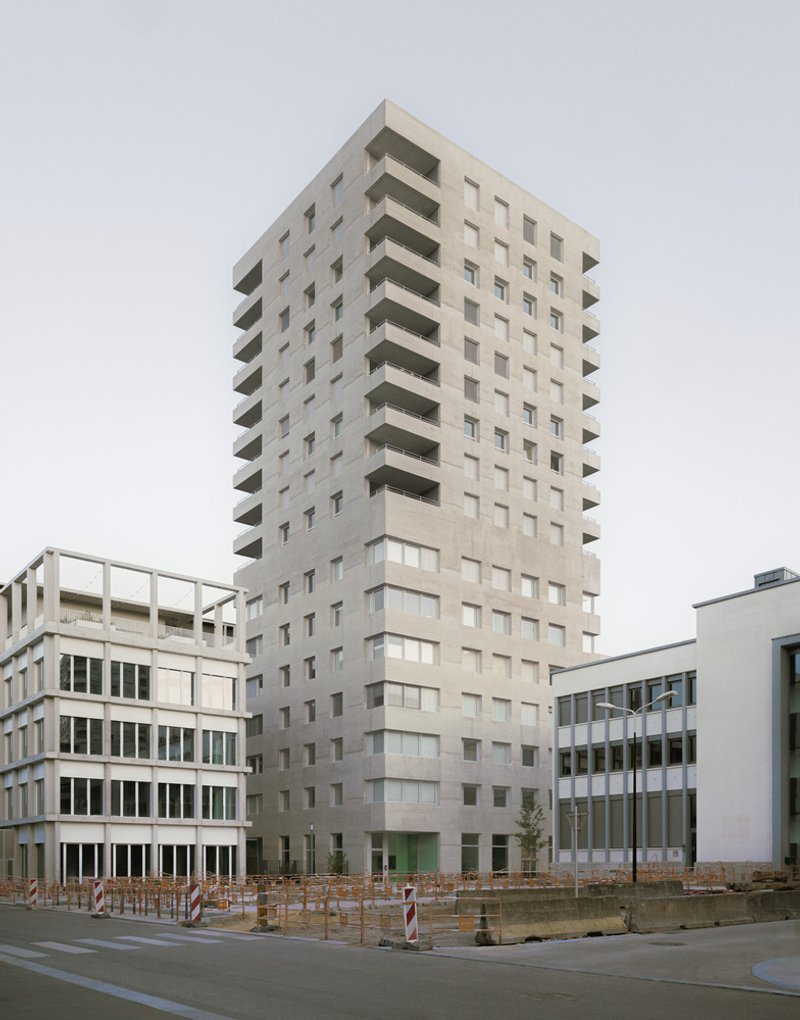

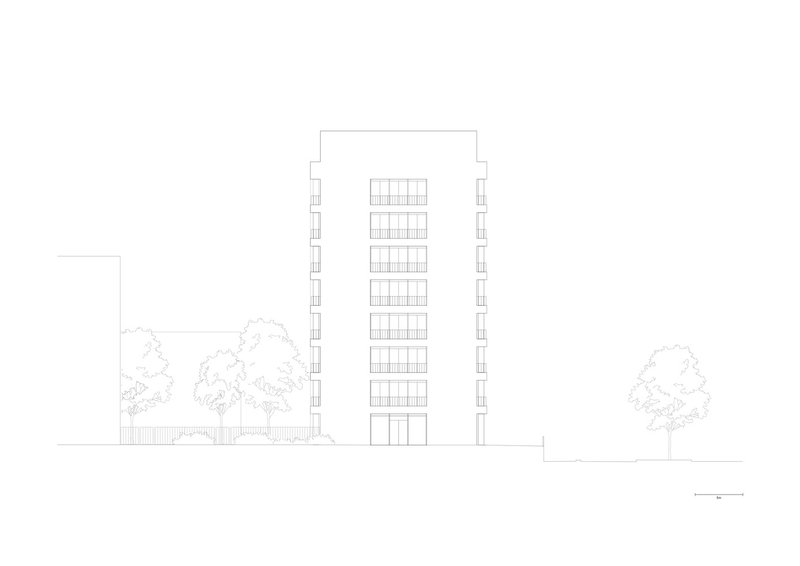

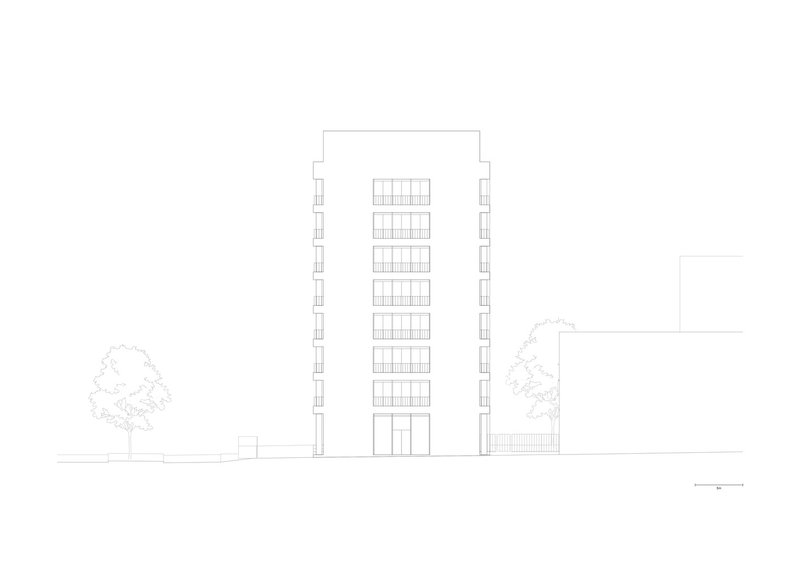

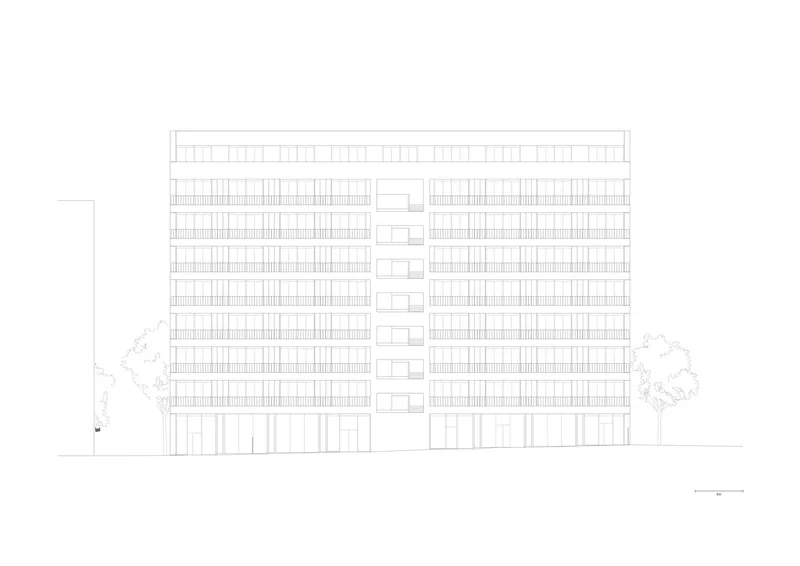

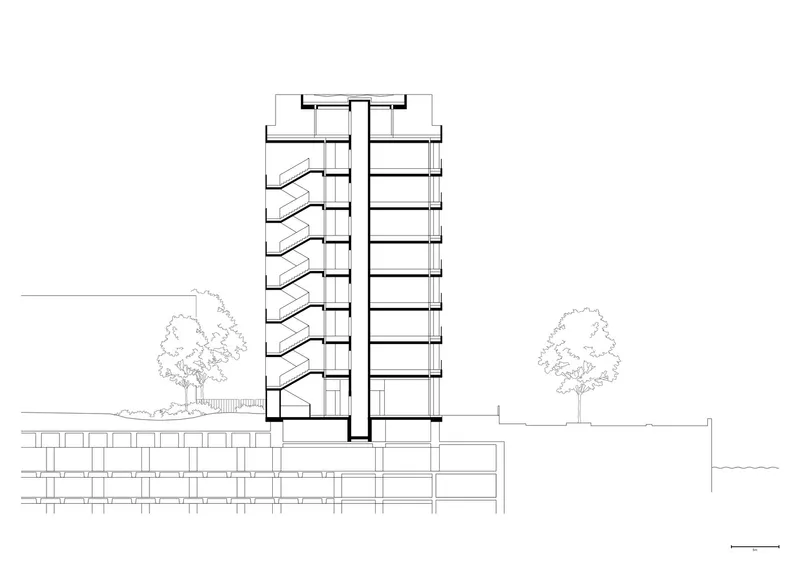

The mixed-use tower, another key element of the design, combines offices on its lower levels with apartments above. This tower, alongside a second tower by Aires Mateus, serves as a gateway to the new quarter. Large corner windows in the office levels and corresponding balconies in the apartments maximize views of the city and river. The façade, constructed from in-situ concrete with board-marked texture, emphasizes the sculptural quality of the building.

Office Building

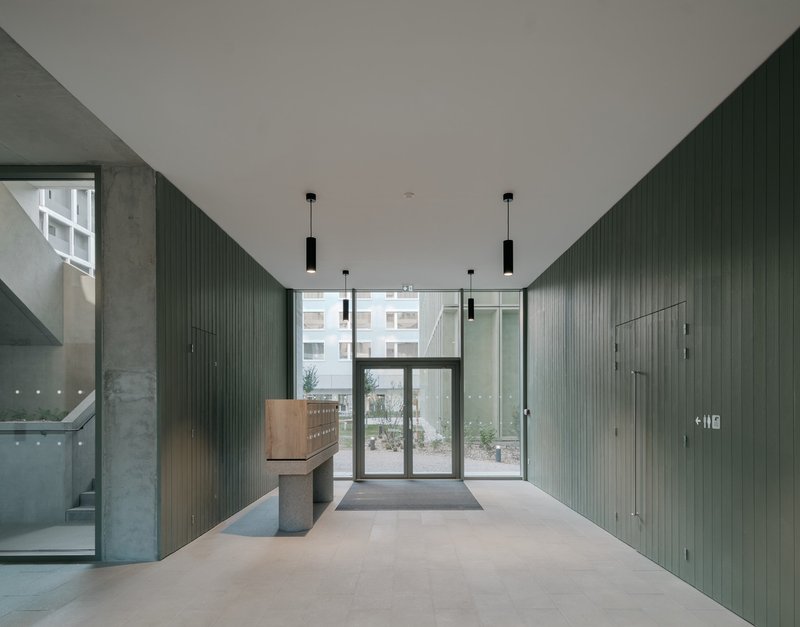

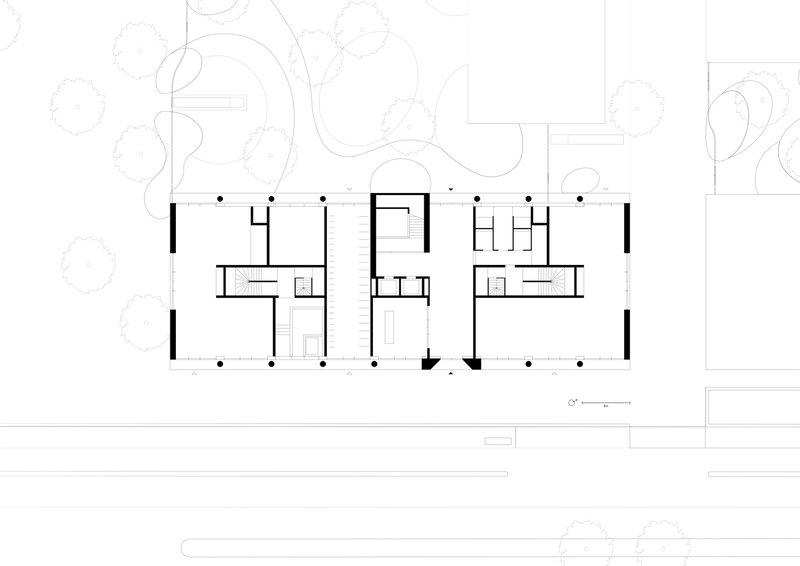

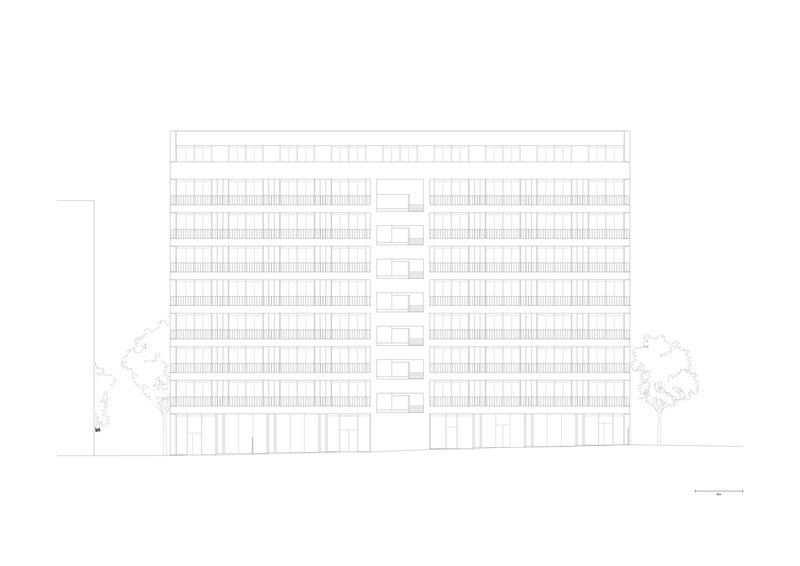

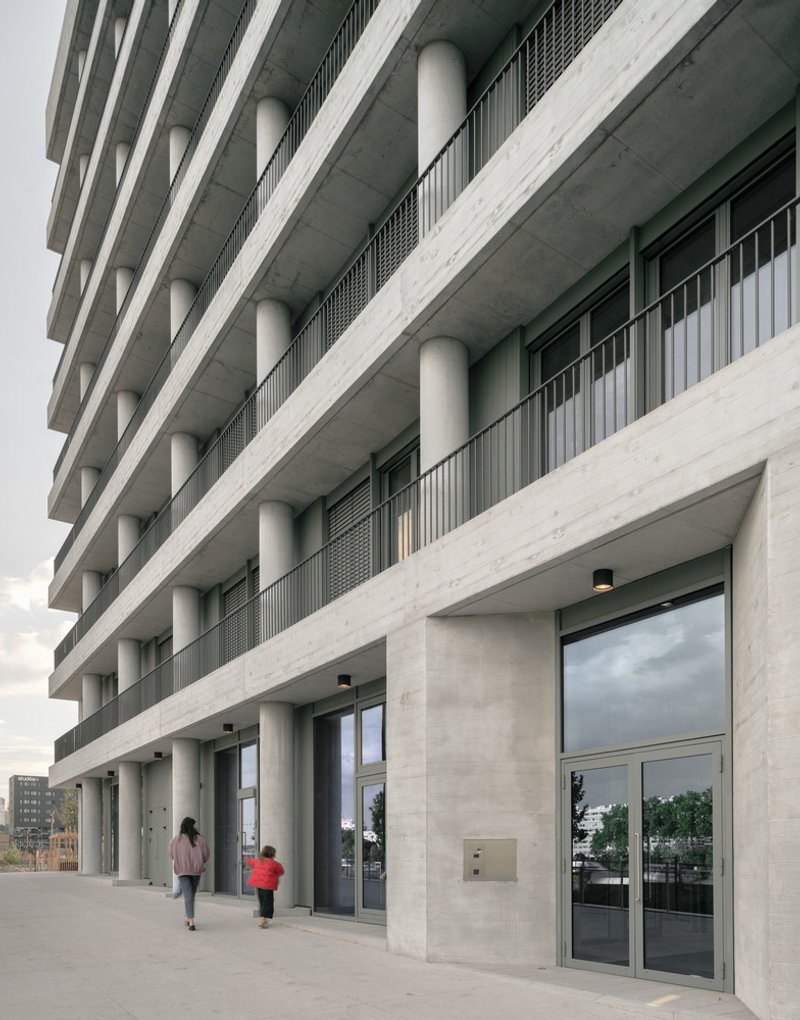

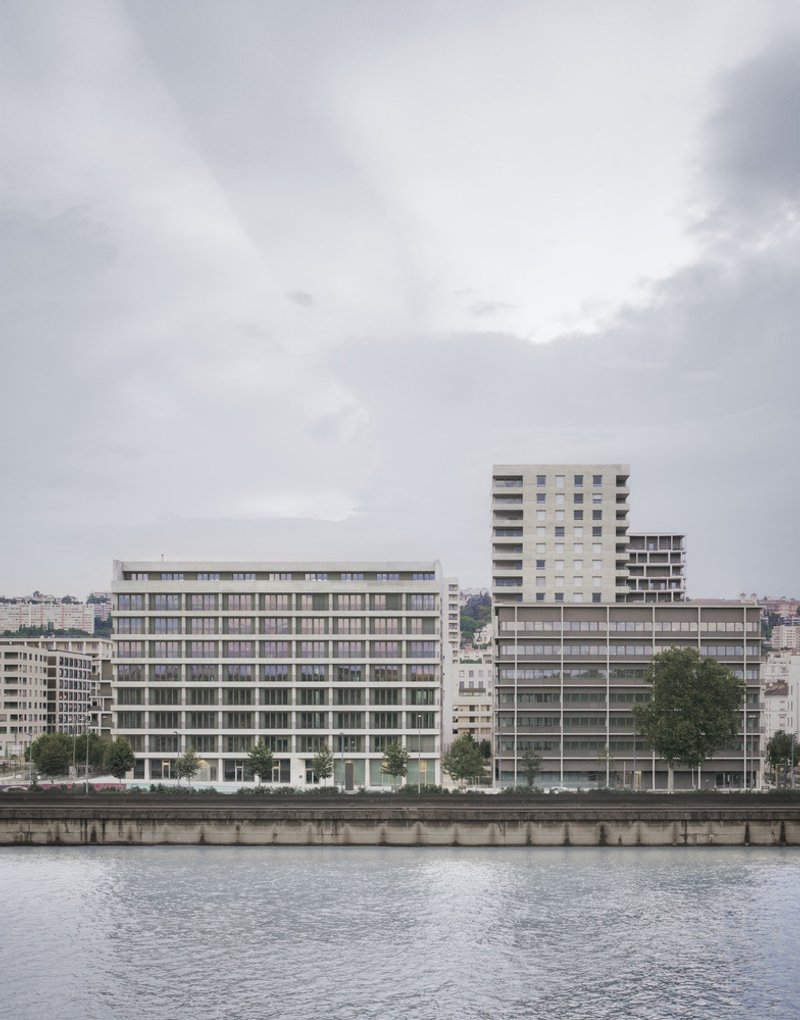

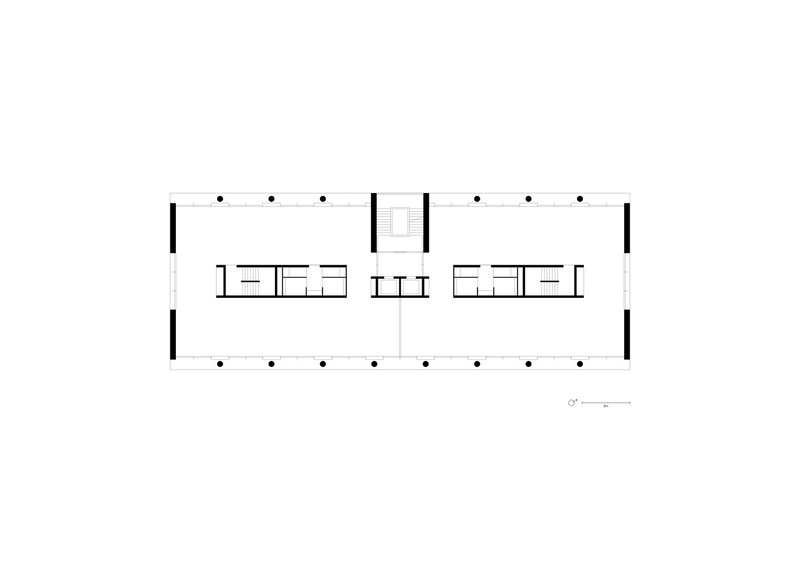

The office building occupies a prominent position along the riverfront. Designed with flexibility in mind, it can be converted into apartments in the future, ensuring long-term sustainability. Balconies on the river-facing and garden-facing façades are supported by in-situ concrete columns, while a recessed timber façade adds warmth and contrast. A central hall and open staircase connect the building to the garden, reinforcing accessibility and openness.

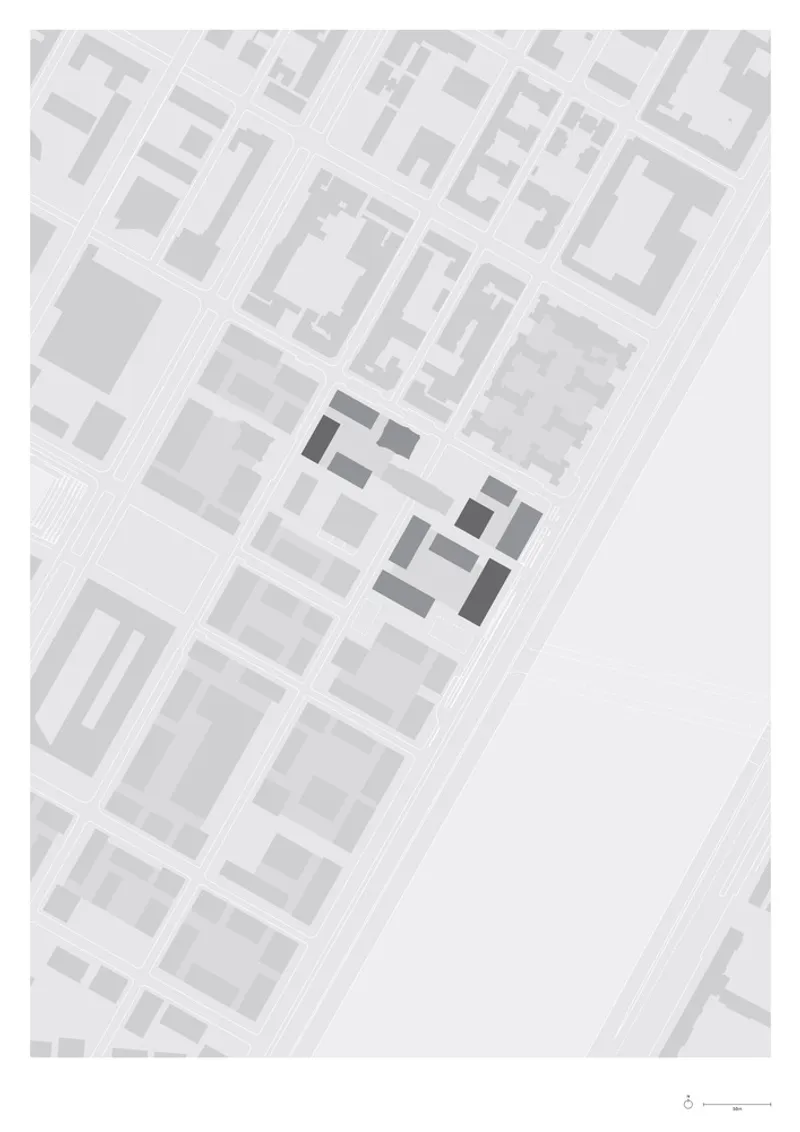

Landscape and Urban Integration

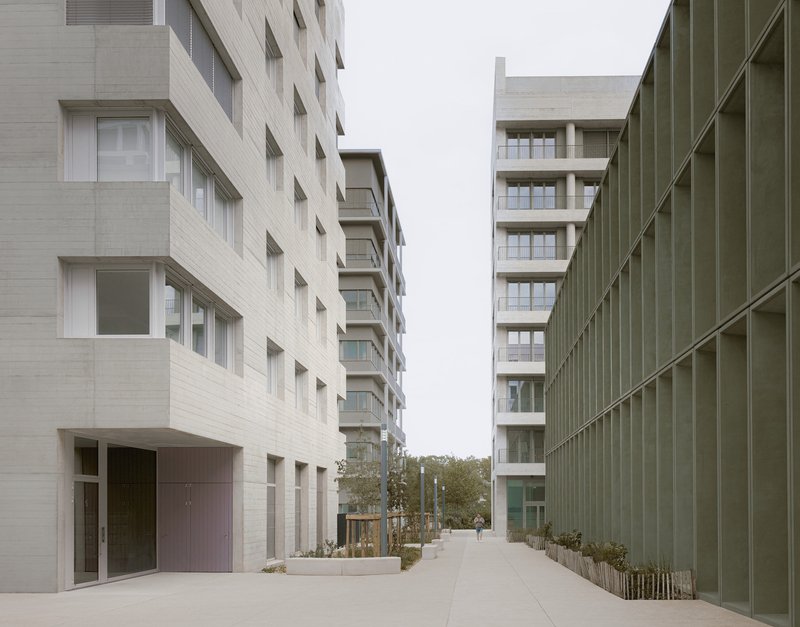

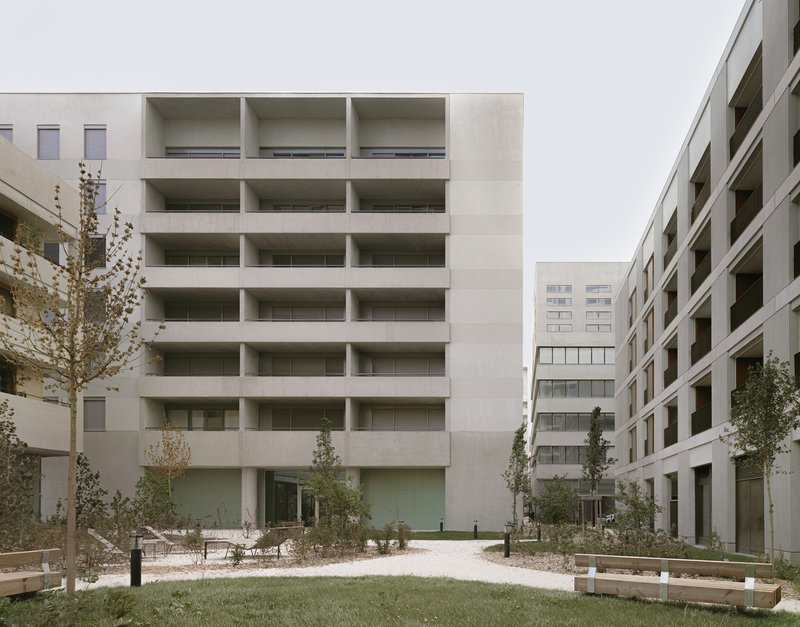

The Lyon Confluence Mixed-Use Quarter is defined by its integration with the surrounding urban fabric. Each block incorporates garden courtyards accessible through permeable ground floors, fostering interaction between indoor and outdoor spaces. The strategic placement of communal areas and retail units animates the public realm, creating a vibrant and inclusive neighborhood.

Sustainability and Future-Proofing

Environmental and social sustainability are at the core of the project. The use of sustainable materials like cross-laminated timber, coupled with adaptable building designs, reflects a commitment to long-term viability. The flexibility of spaces, such as the potential conversion of the office building into apartments, ensures the quarter can evolve with changing urban demands.

Conclusion

The Lyon Confluence Mixed-Use Quarter by David Chipperfield Architects is a testament to the transformative potential of thoughtful urban design. By combining architectural innovation, environmental responsibility, and community-focused planning, the project sets a benchmark for sustainable urban development. As Lyon continues to evolve, this mixed-use quarter will stand as a symbol of the city's forward-looking vision and commitment to harmonious urban living.

All Photographs are work of Simon Menges
