STUDIO PIPPA Nestles a Concrete and Timber Pavilion Beneath a Brazilian Tree Canopy

The simplest architectural gesture is often the hardest to pull off. A flat roof, a concrete frame, a set of timber screens: on paper it reads like a student exercise in tropical modernism. In practice, getting these elements to feel inevitable rather than derivative requires an exactness of proportion and material commitment that most pavilion projects never achieve. STUDIO PIPPA has managed it here, producing a garden pavilion that sits beneath a mature canopy of palms and tropical trees as though it had always been there, its board-formed concrete aging in real time alongside the bark and leaf litter around it.

What makes the project genuinely interesting is not its restraint but its adaptability. The pavilion is not a single room but a framework that can be reconfigured: sliding timber panels open and close to transform the interior from exhibition hall to lecture space to collaborative workspace. The architecture is, in effect, furniture at the scale of a building. That ambition, housed inside such an unassuming envelope, is what elevates the project beyond the tropical pavilion genre.

A Frame Among the Trees

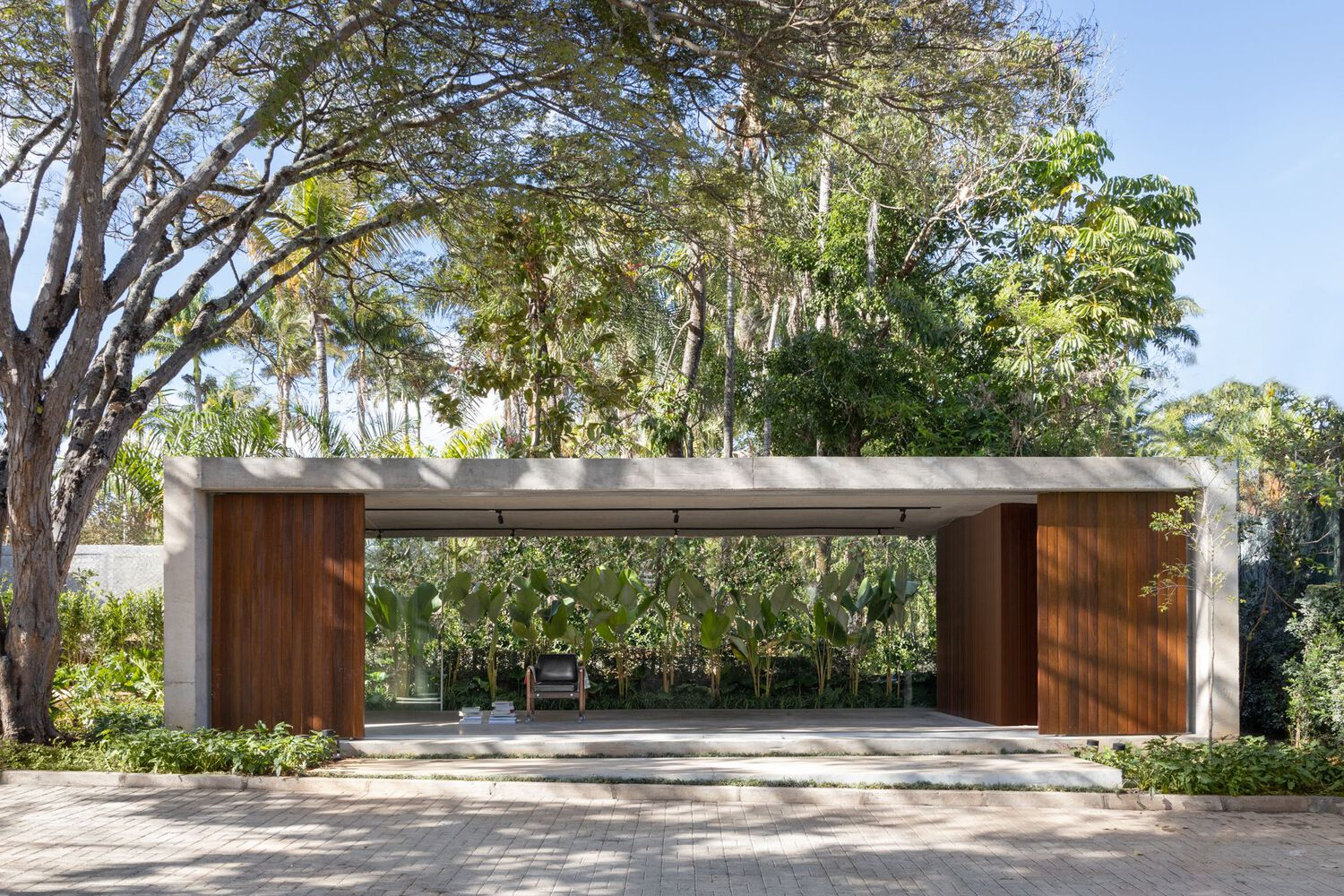

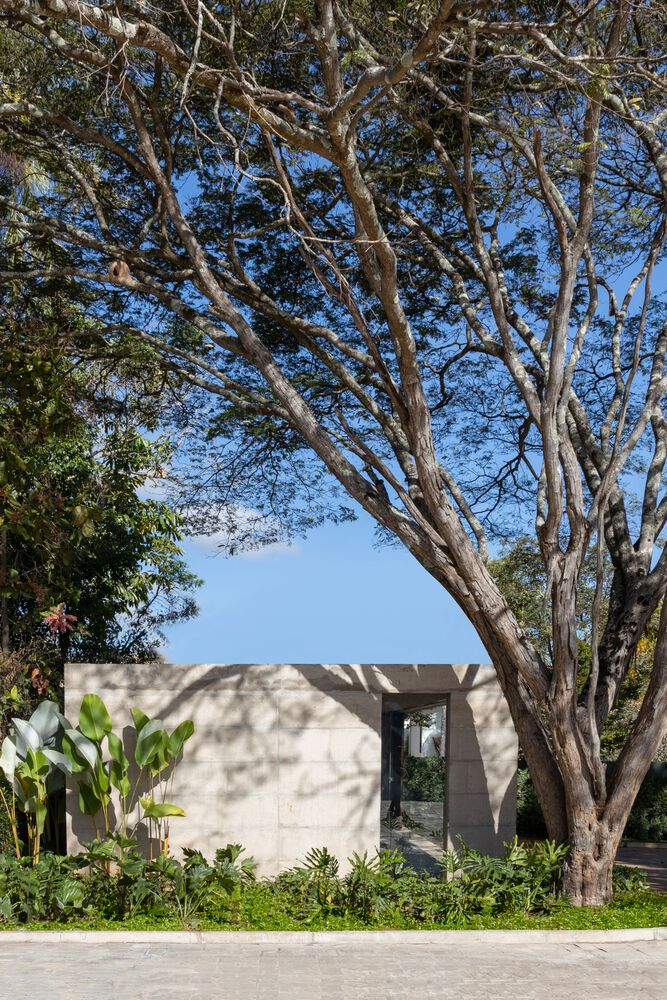

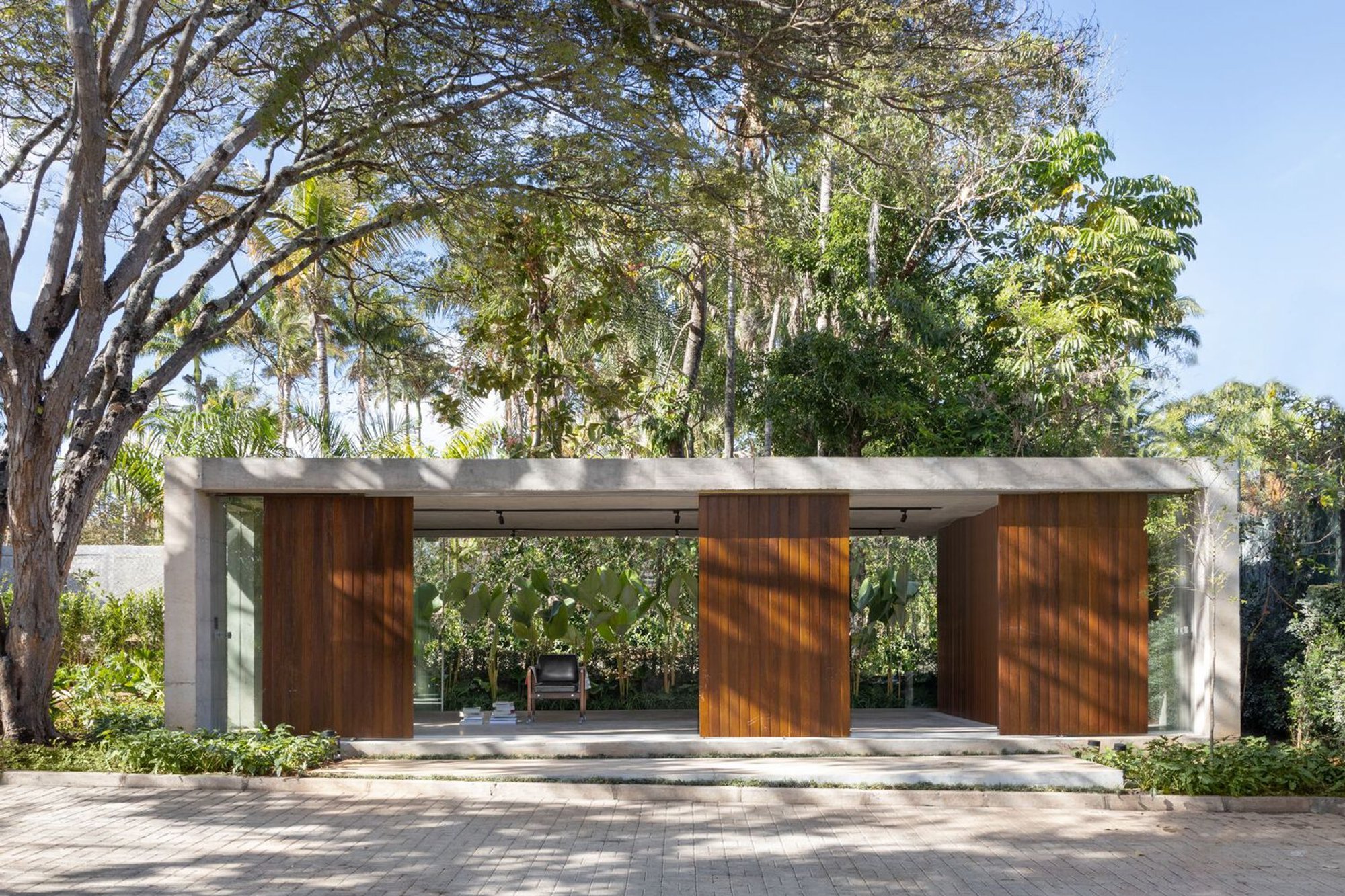

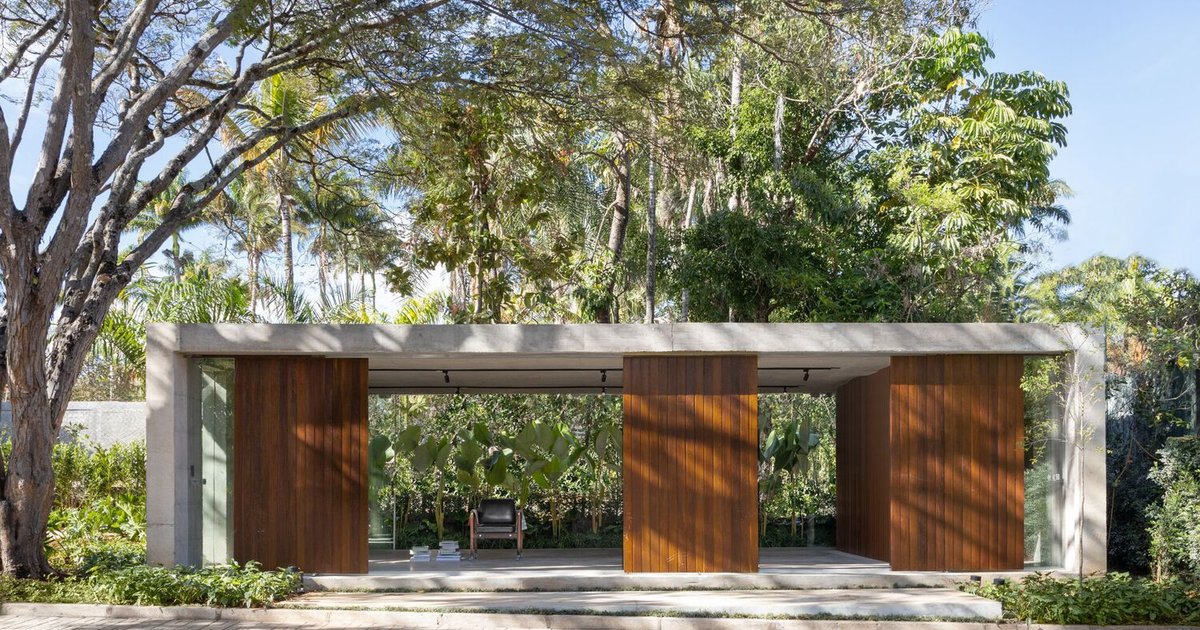

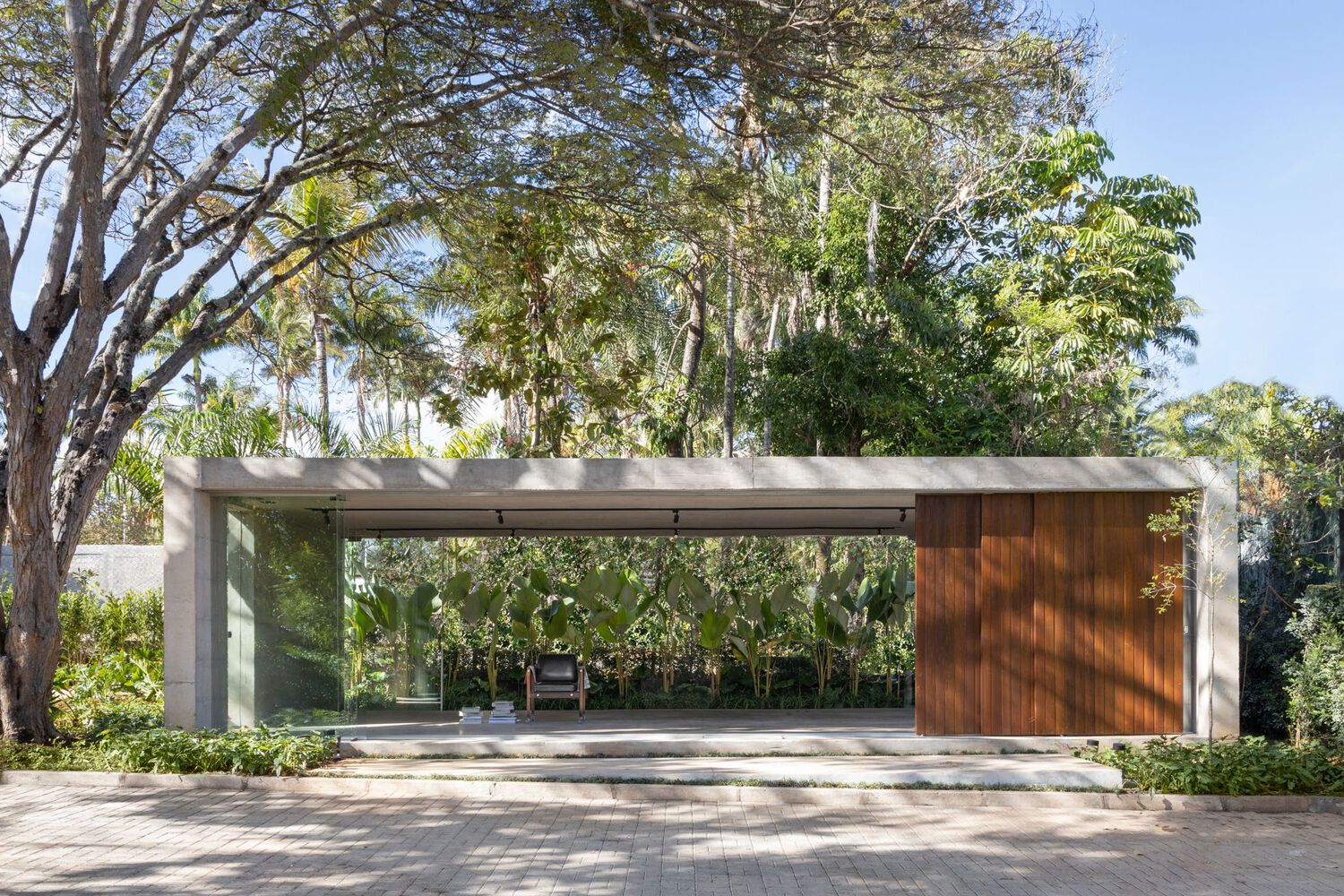

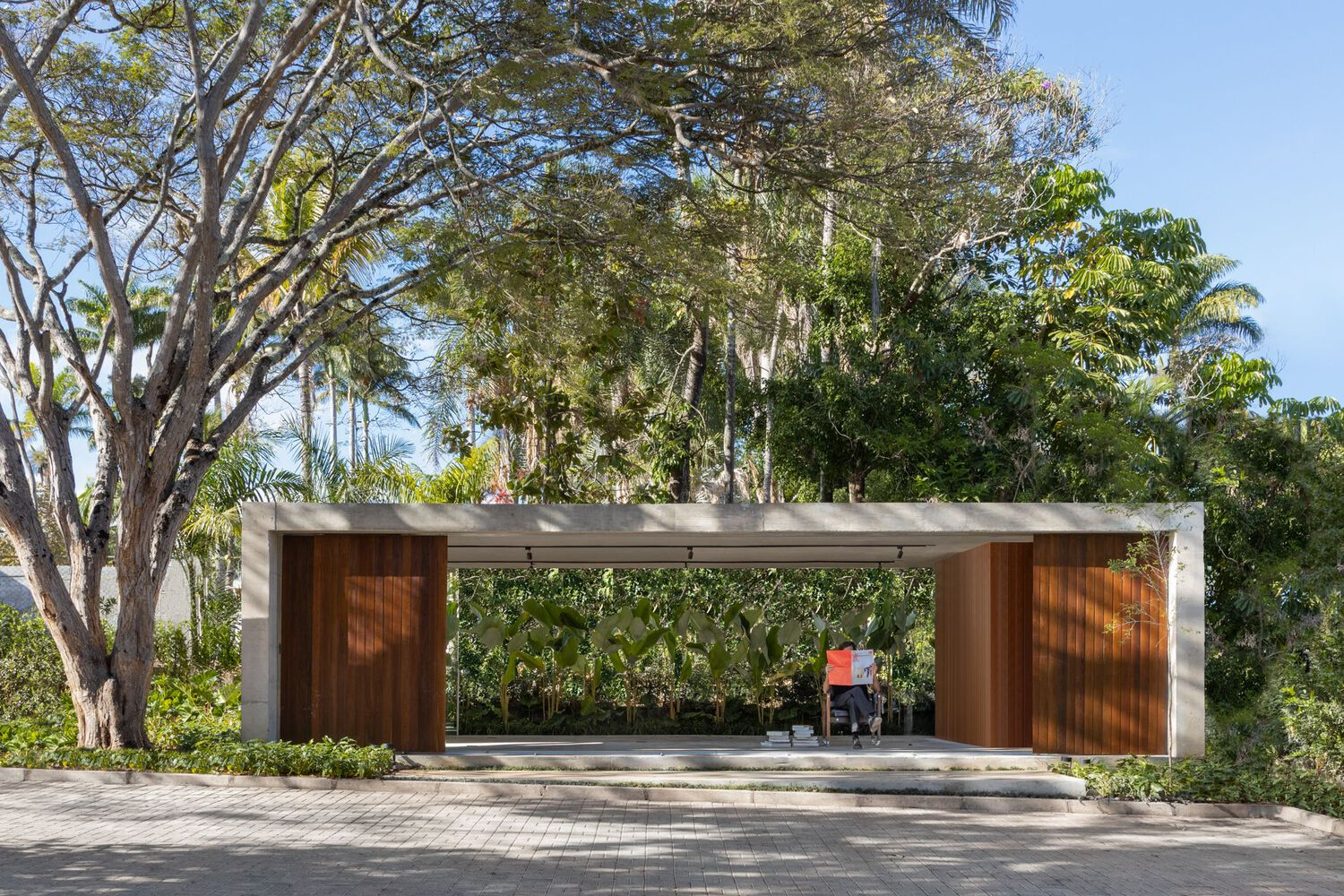

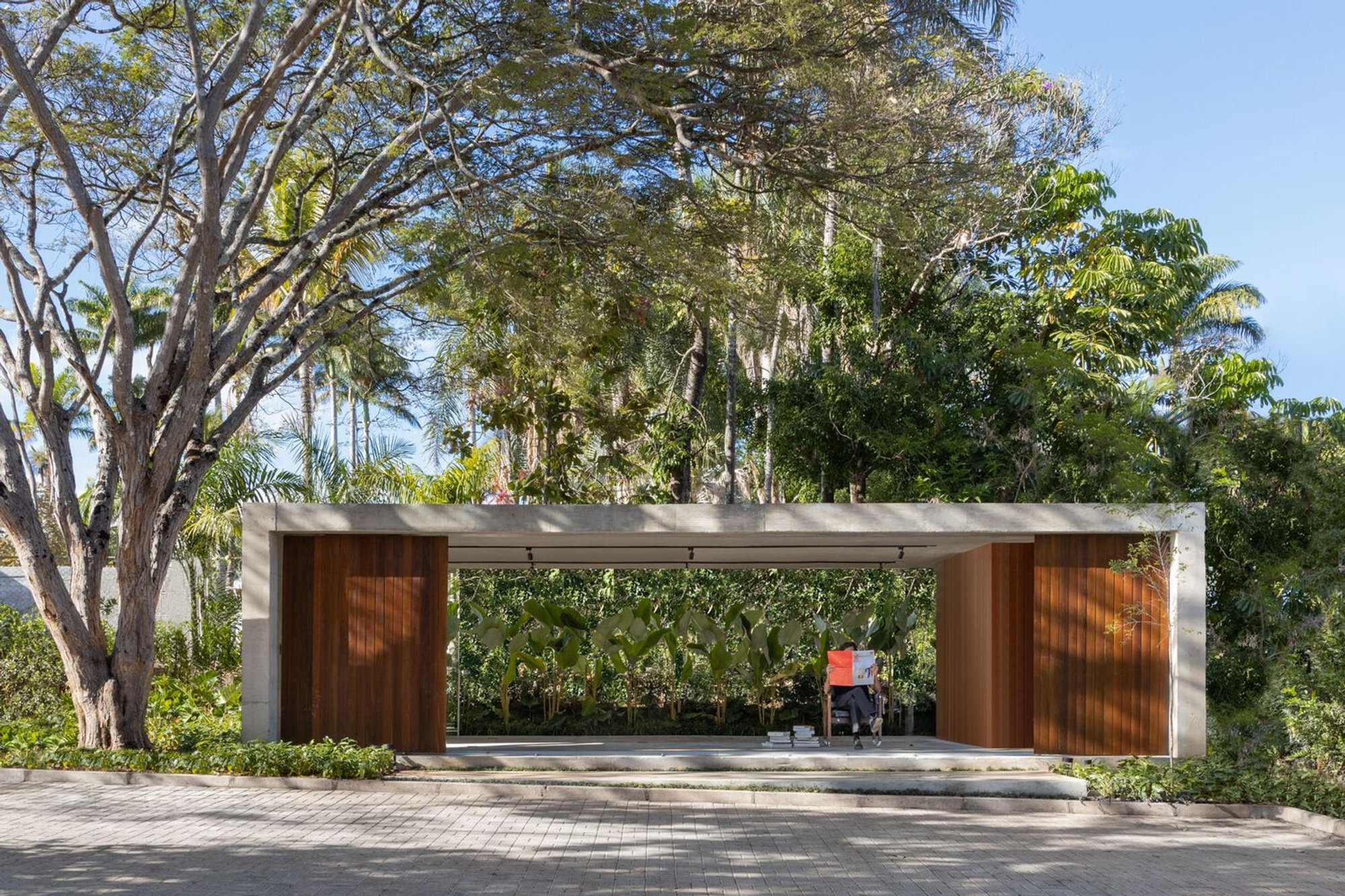

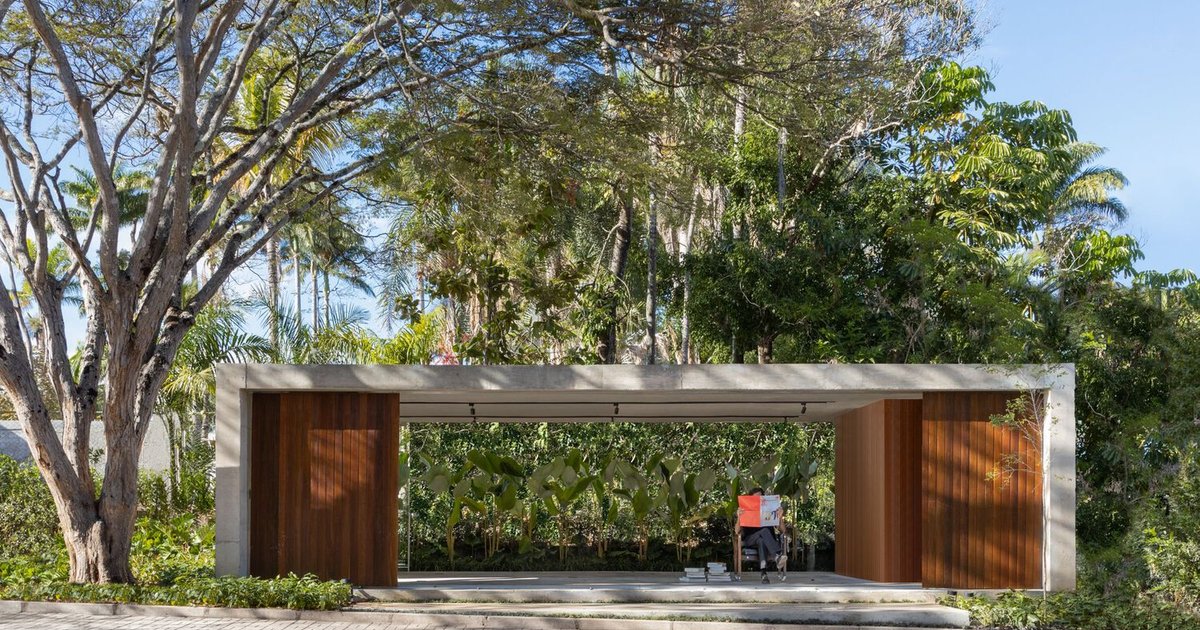

The pavilion reads first as a horizontal datum: a flat concrete roof held aloft by columns, its underside visible from nearly every angle. STUDIO PIPPA positioned the volume so that existing mature trees overhang and, in places, appear to pass through the composition. The effect is not one of architecture imposing itself on a site but of a built element registering in the same visual plane as trunk and canopy.

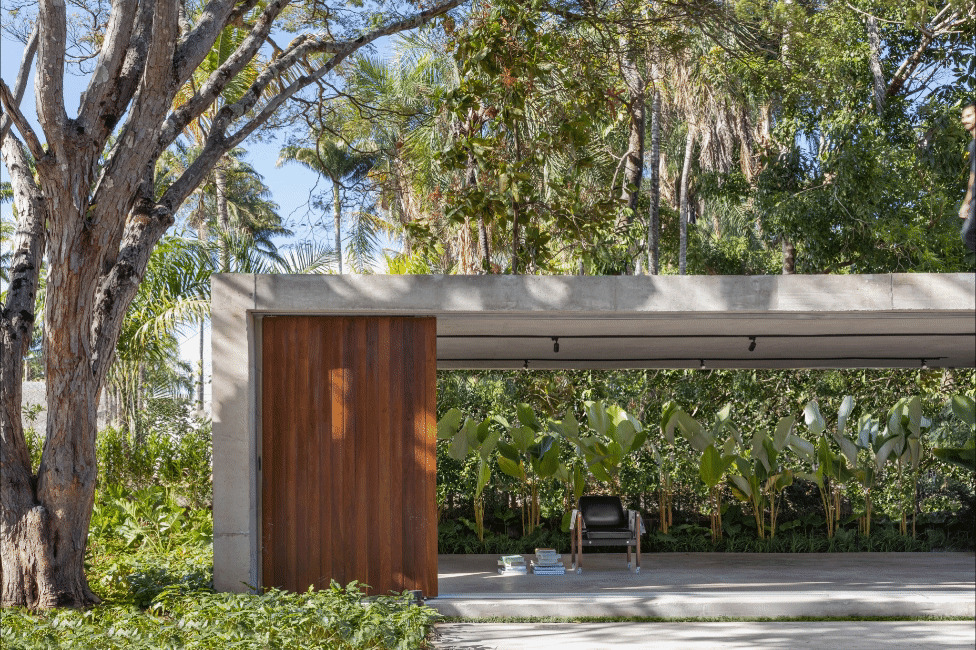

From the side, the single-story profile is almost absurdly low. The roof hovers just above head height, and the timber-clad volumes beneath it look compressed, as if the weight of the landscape above is pressing the building into the ground. That compression is deliberate. It keeps the pavilion subordinate to the garden, ensuring that the trees are always the primary spatial event.

Board-Formed Concrete as Texture

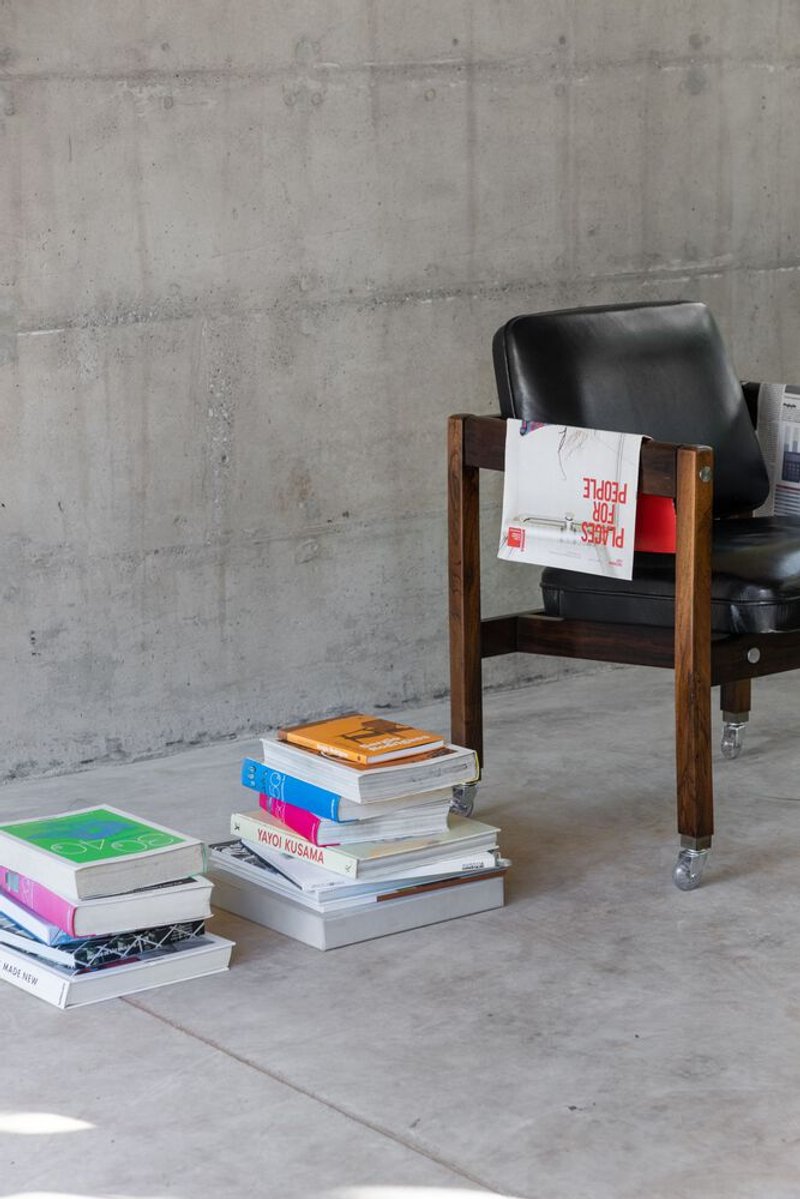

The concrete throughout the pavilion is board-formed, and the grain of the formwork timber is legible on every surface. Walls, floors, and the underside of the roof all carry the same directional texture, creating a continuity of material that makes the interior feel carved from a single block. A leather chair and a stack of books sit against one wall as if they have been there for decades, the warm patina of the leather picking up the grey warmth of the concrete.

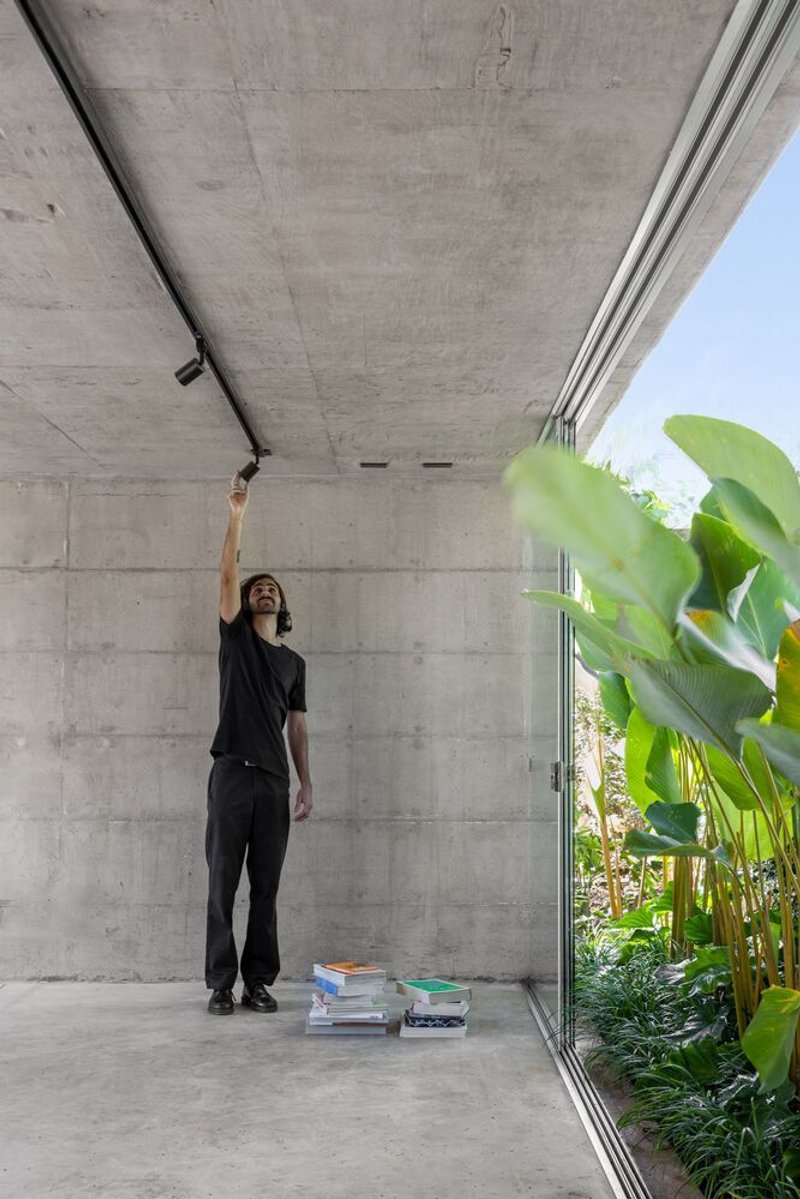

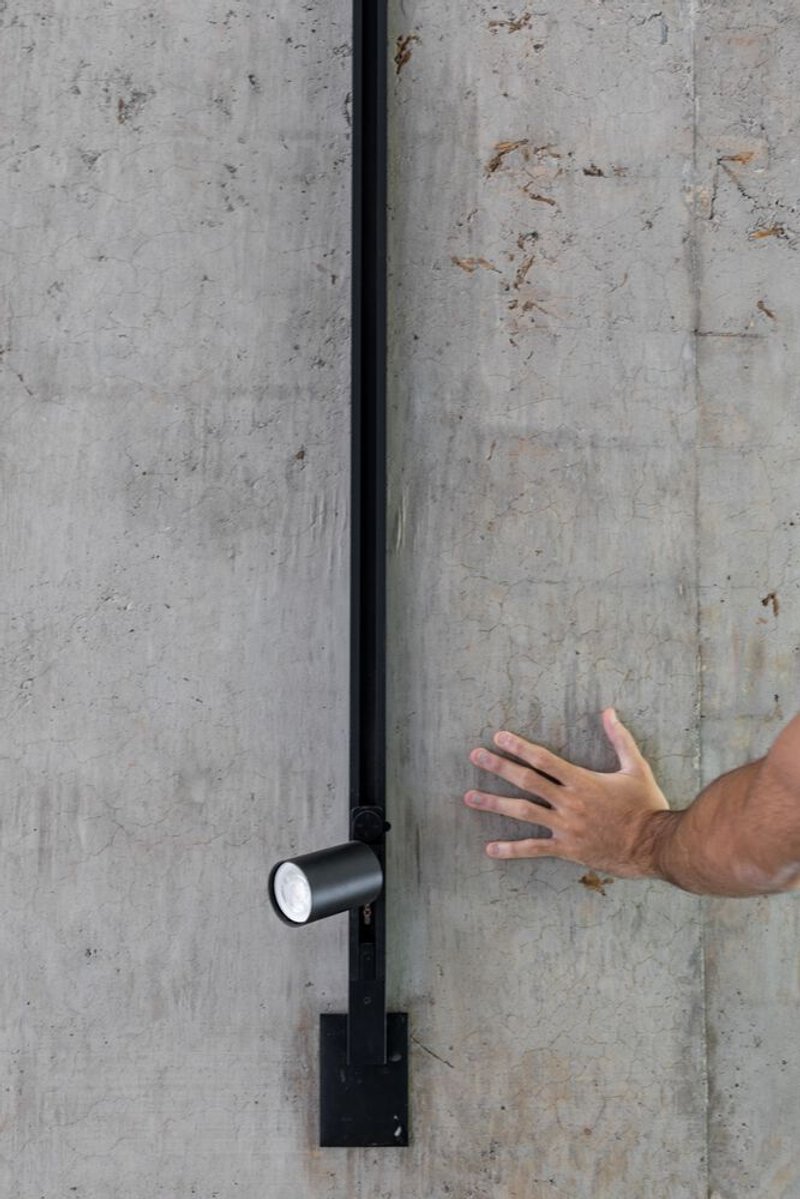

Exposed conduit and ceiling-mounted track lighting run along the soffit without apology. STUDIO PIPPA has refused to hide the mechanical systems, and the result is an honest interior that reads as workshop rather than gallery. A hand reaching toward a black cylindrical fixture, the shadow of a banana leaf falling across an open doorway: these are the moments the architecture is designed to frame, and the raw concrete gives them a surface worthy of the attention.

Sliding Timber Screens and Spatial Flexibility

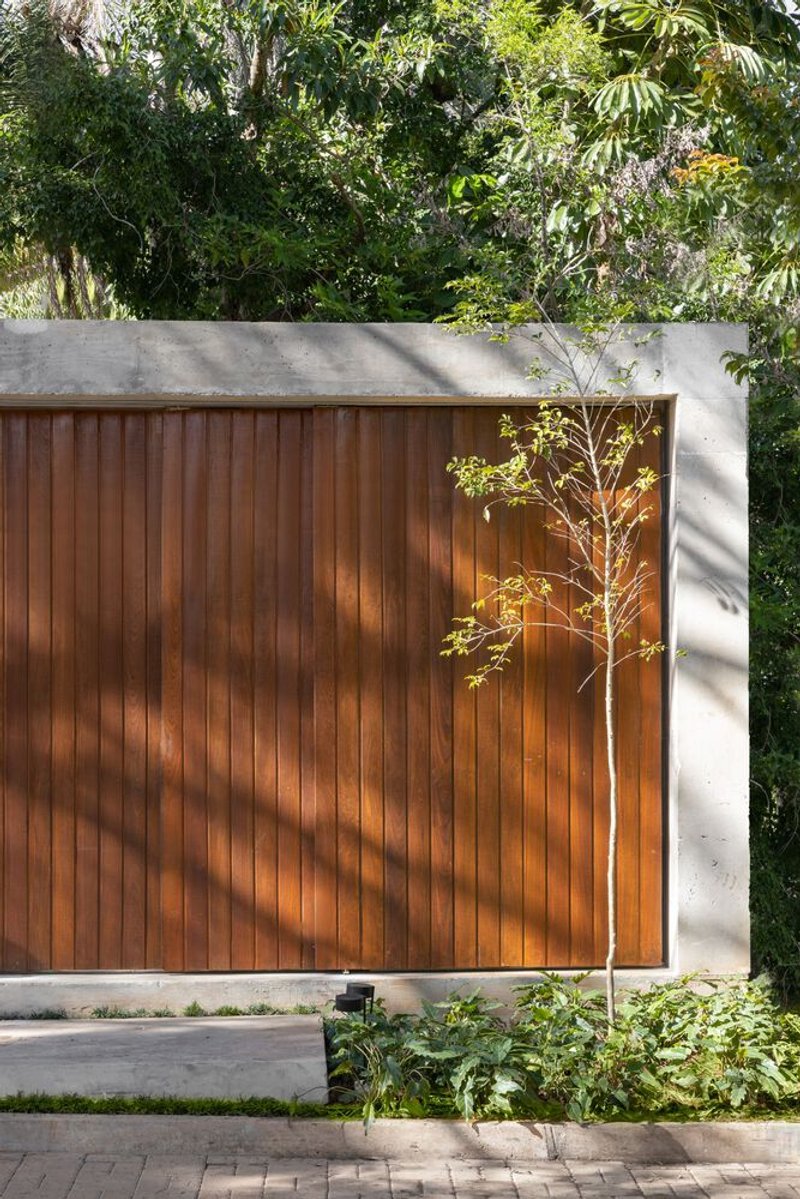

The vertical timber slat screens are the pavilion's most operative element. Mounted on tracks, they slide along the concrete frame to open or close entire wall planes. When pulled shut, the screens filter light into thin horizontal bands that stripe the concrete floor. When pushed aside, they disappear behind timber-clad service volumes, and the interior becomes an open-air room continuous with the garden.

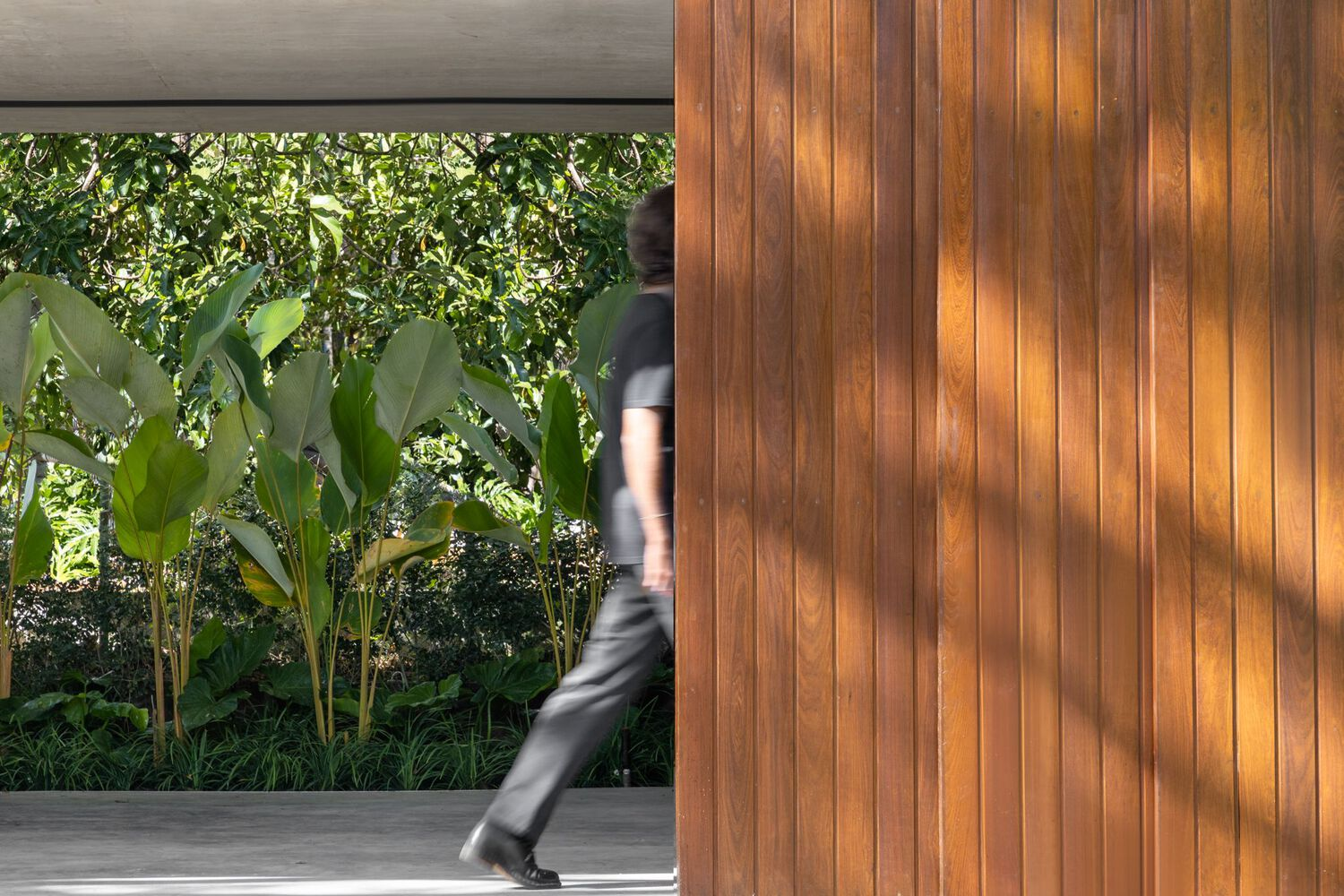

The rhythm of the slats is fine enough to register as texture from a distance but open enough to allow air movement and partial views at close range. A figure walking through a covered passage alongside the screens appears almost silhouetted, the timber reducing them to a shape in motion. The screens are not decorative; they are the building's primary mechanism for controlling enclosure, ventilation, and privacy.

Interior Light and Inhabitation

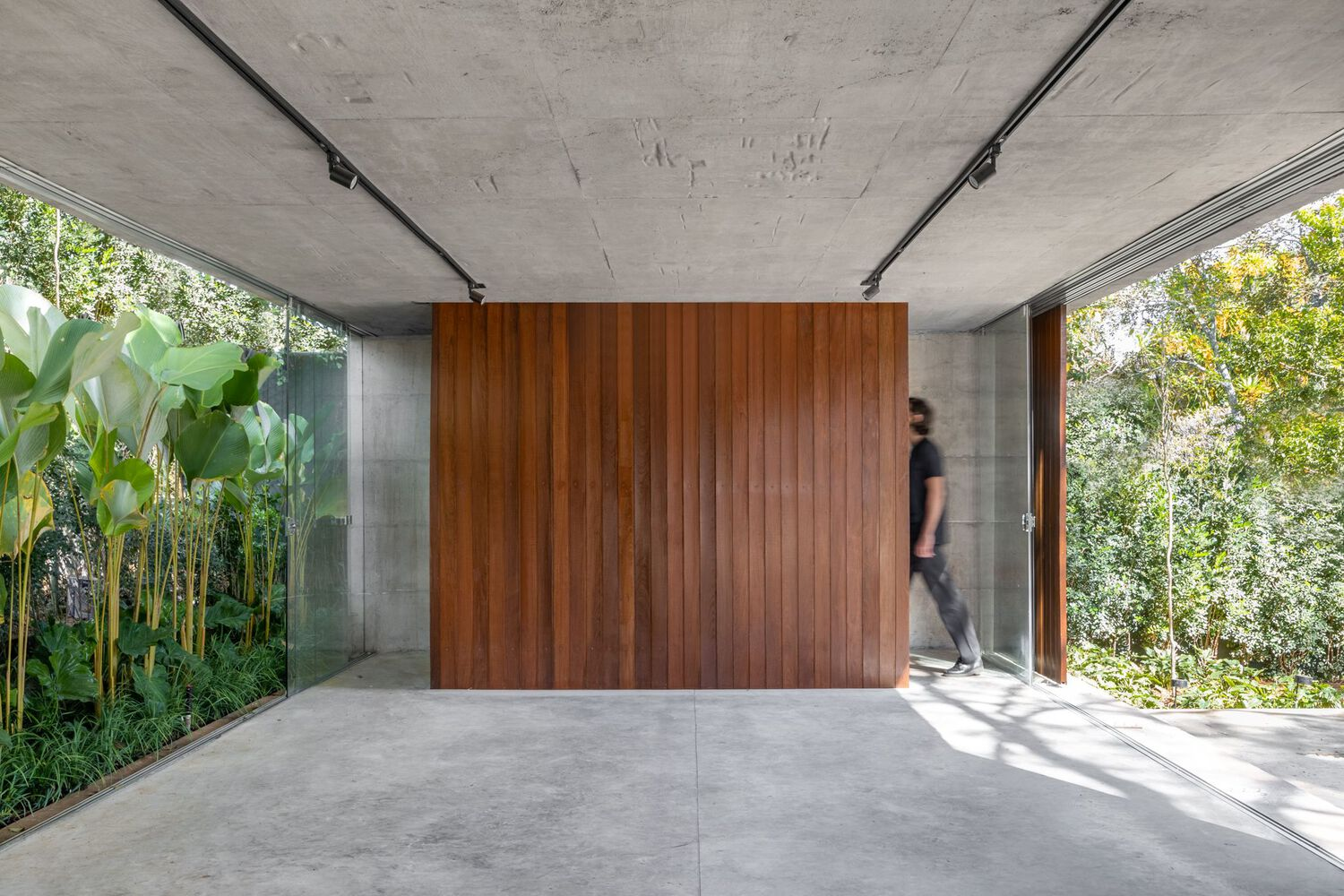

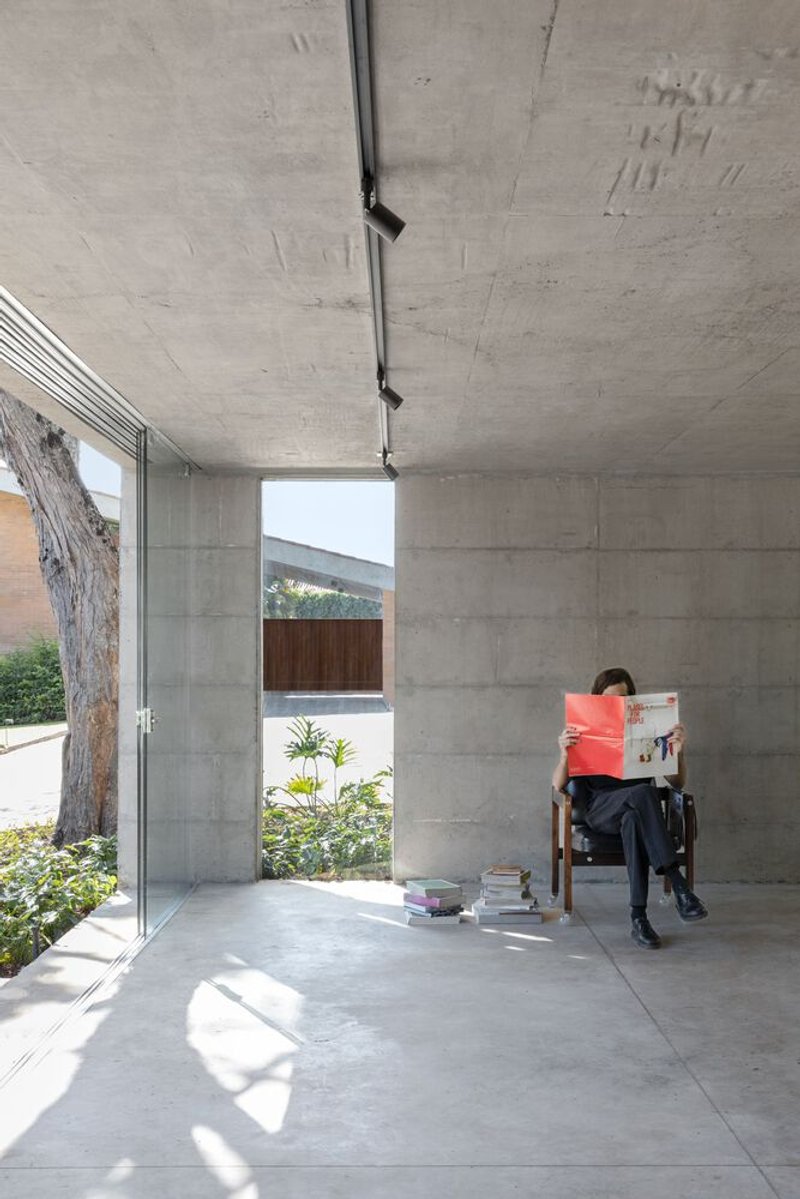

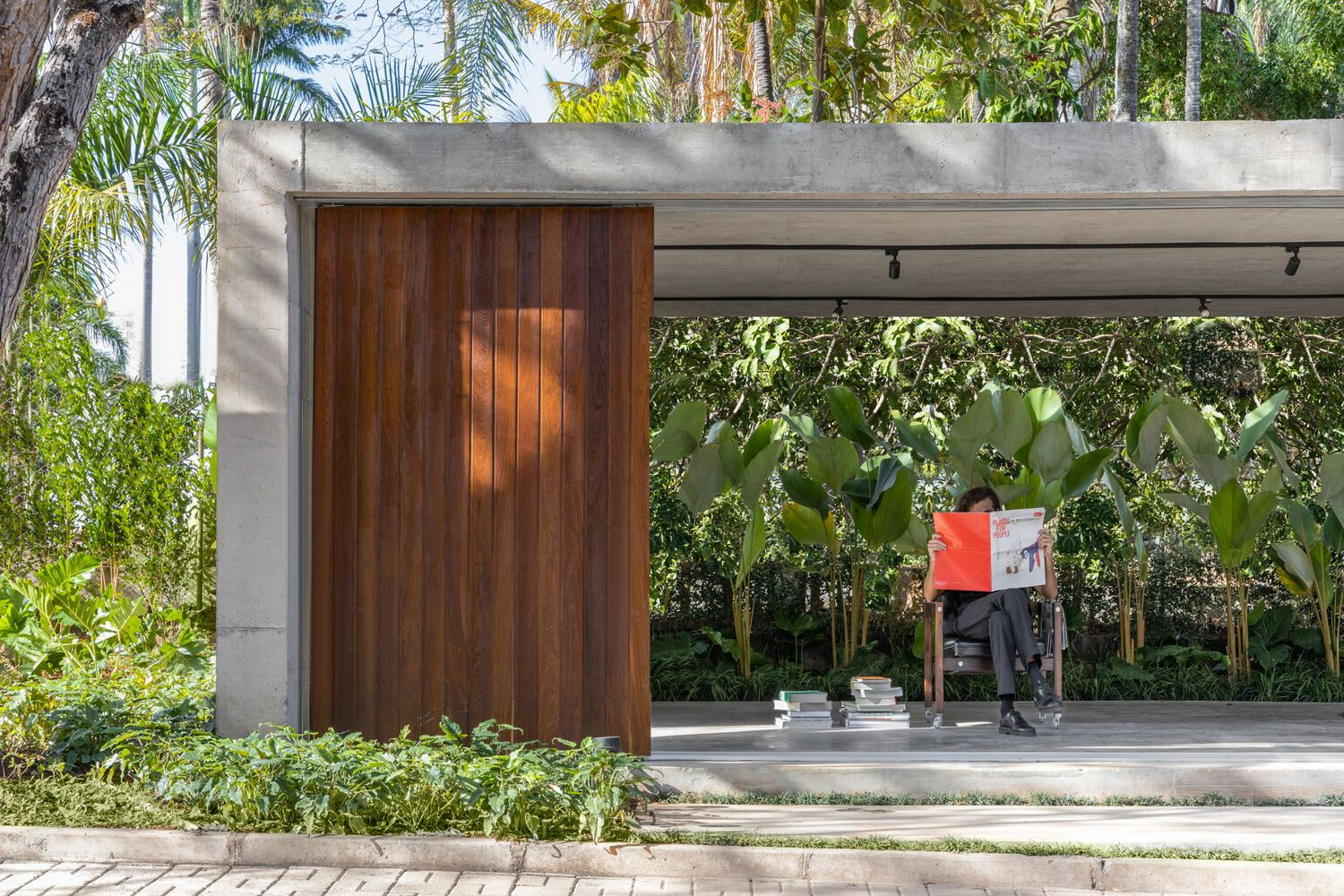

Afternoon sunlight enters the pavilion through gaps between the timber screens and through a glazed corner where a sliding glass panel meets a concrete column. The light is never direct for long; the overhead canopy and the screens conspire to keep it dappled and shifting. A person reading in one of the concrete volumes is bathed in warm indirect light, the kind of luminosity that makes a room feel inhabited rather than merely occupied.

The entry sequence is handled with equal care. A sliding glass panel between two concrete columns creates a threshold that is simultaneously open and defined. You step from garden into building without a change in floor level or a dramatic shift in light, and the transition feels almost accidental, as if the pavilion is simply a denser part of the landscape.

Landscape as Co-Author

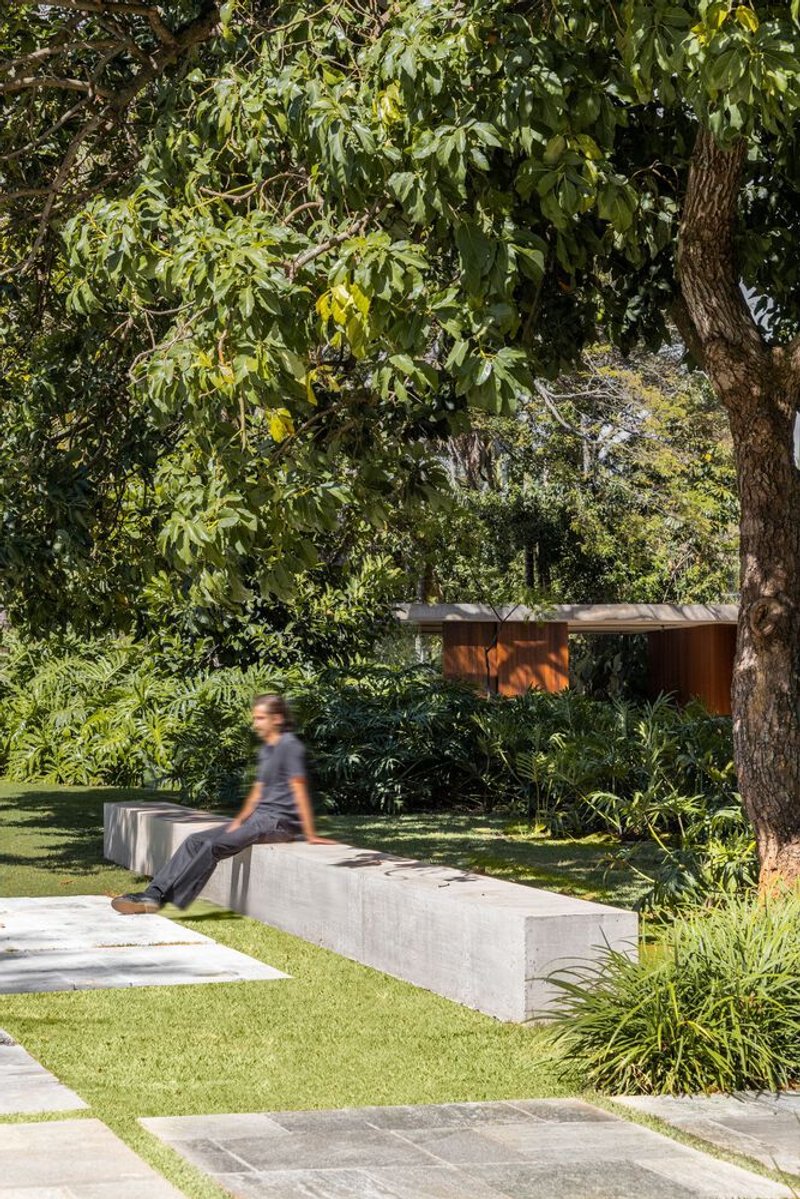

The garden is not a backdrop. A cast concrete bench sits among stepping stones beneath mature trees, functioning as an outdoor room that mirrors the interior volumes. A figure seated on top of a concrete beam, framed by tropical foliage against the sky, collapses the distinction between structure and landscape furniture. Planting beds push directly against the concrete walls, and banana leaves press into openings as if reclaiming the building.

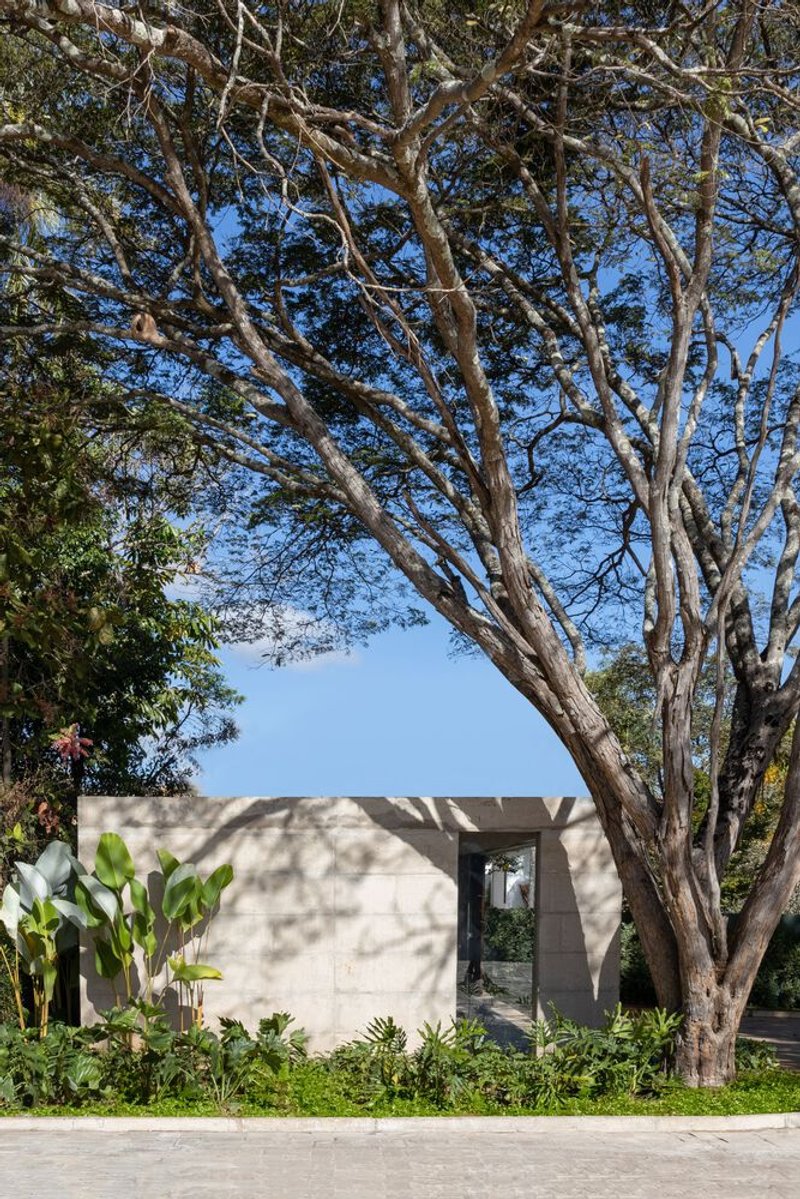

STUDIO PIPPA has treated the site's existing vegetation as a fixed constraint rather than a variable. The pavilion's footprint, orientation, and roof height all respond to the positions of existing trees, and the result is a building that could not be relocated without losing its spatial logic. That site specificity is the project's greatest strength and its most replicable lesson: design the trees first, and the architecture will follow.

A Perch at the Roofline

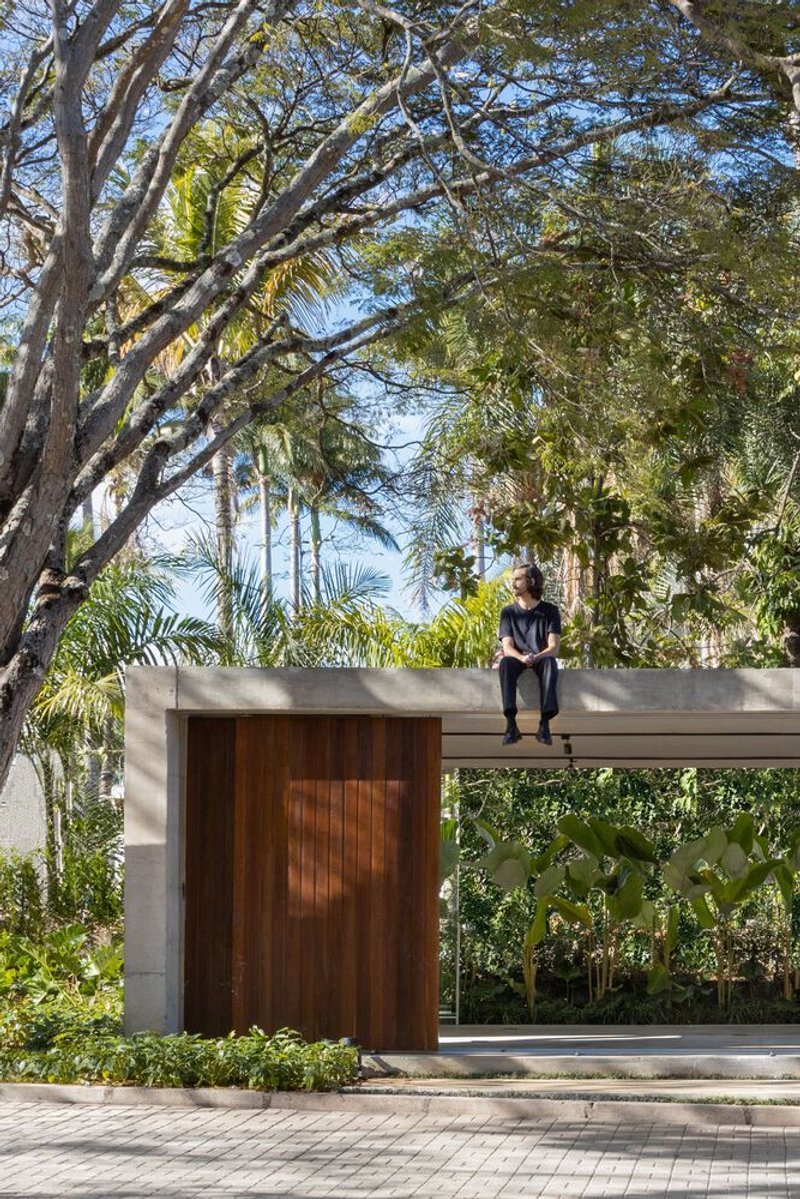

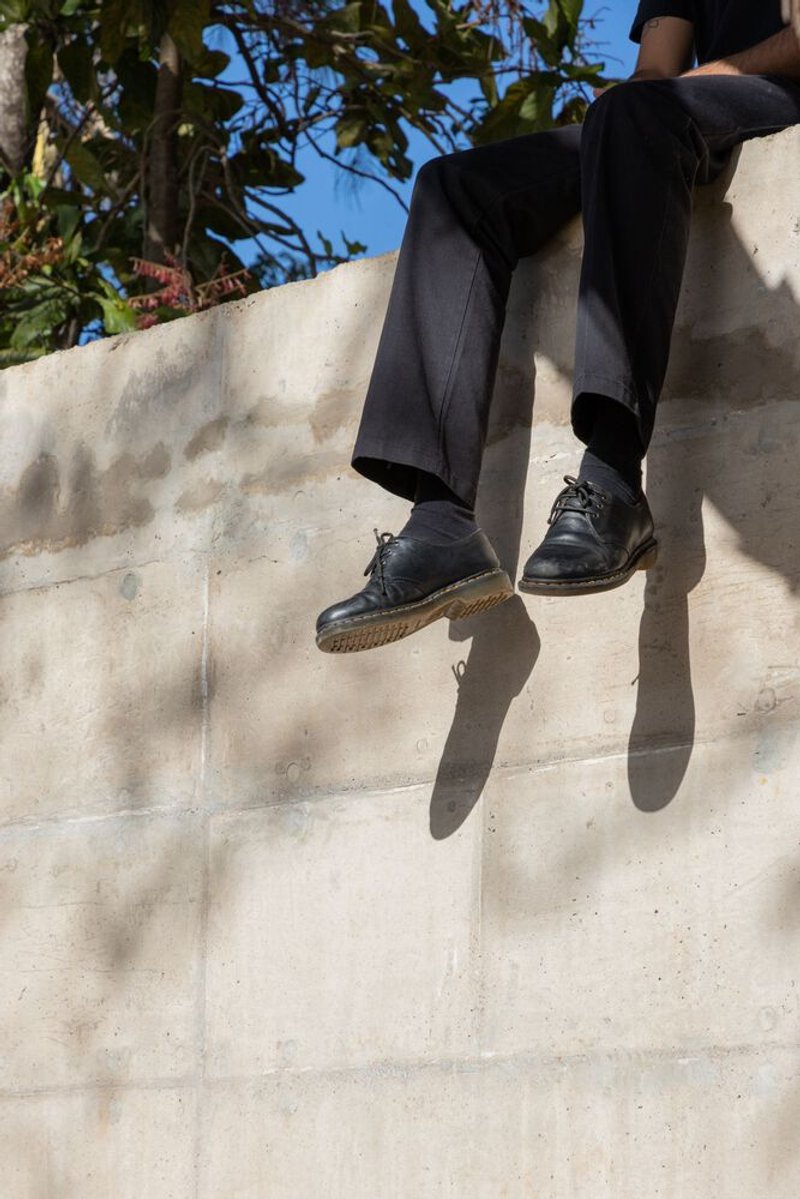

Two images show figures sitting on the concrete walls and beams at roof level, legs dangling beneath branches and blue sky. It is a playful detail in an otherwise disciplined project, and it suggests that the architects designed the structure's dimensions with the human body in mind at every elevation, not just floor level. The thickness of the concrete beams is scaled to serve as a seat, and the roof height is low enough that climbing up feels natural rather than precarious.

Plans and Drawings

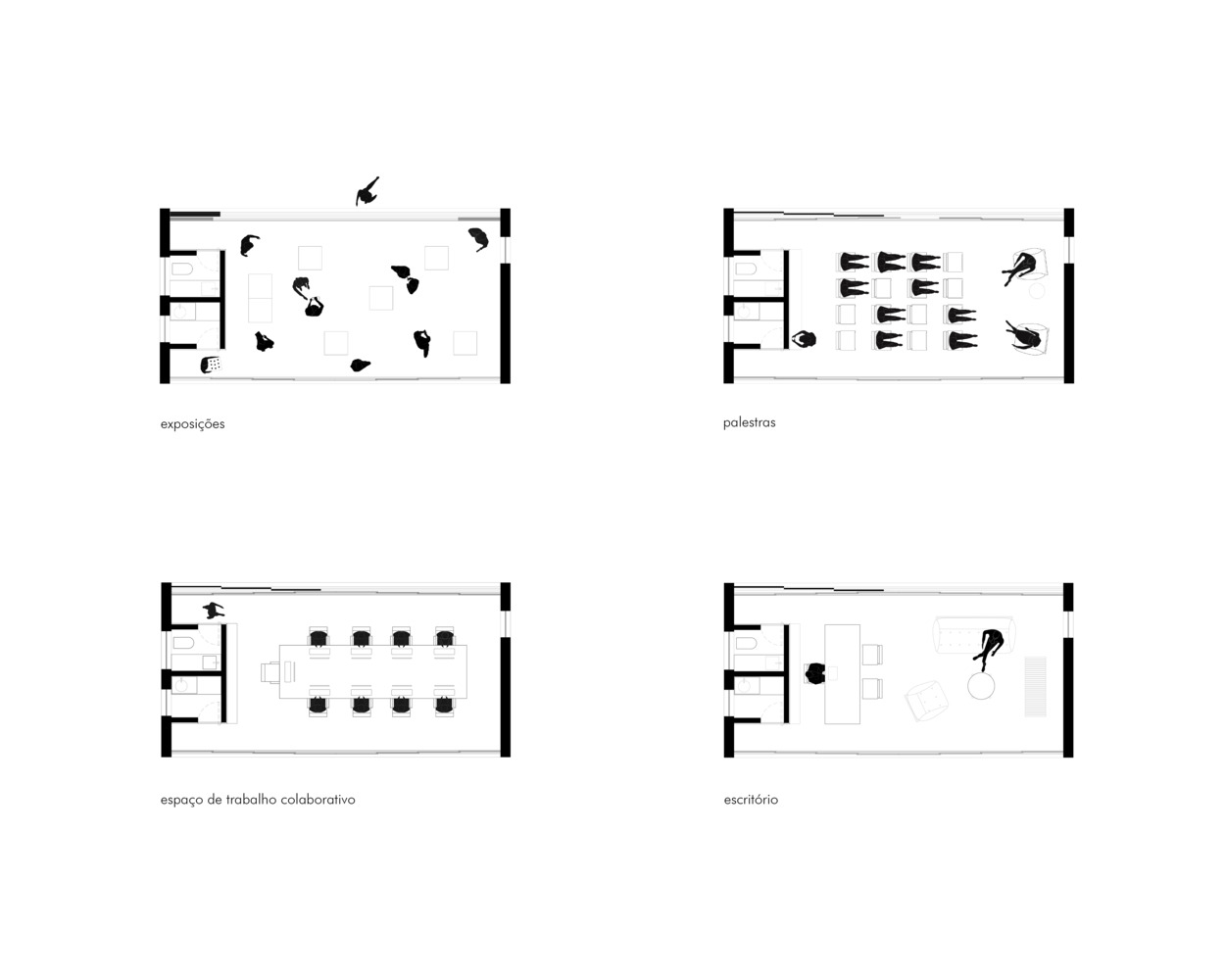

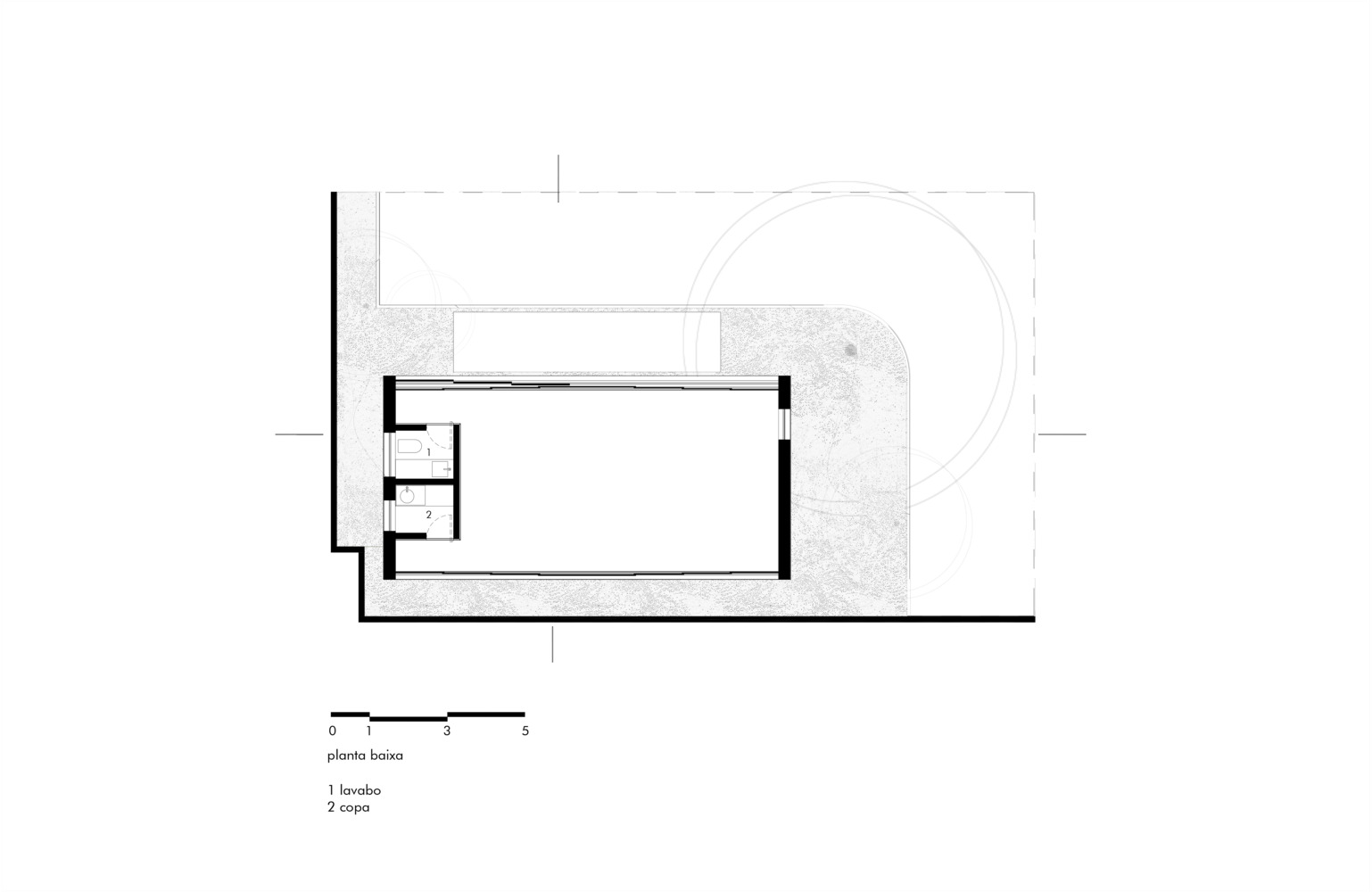

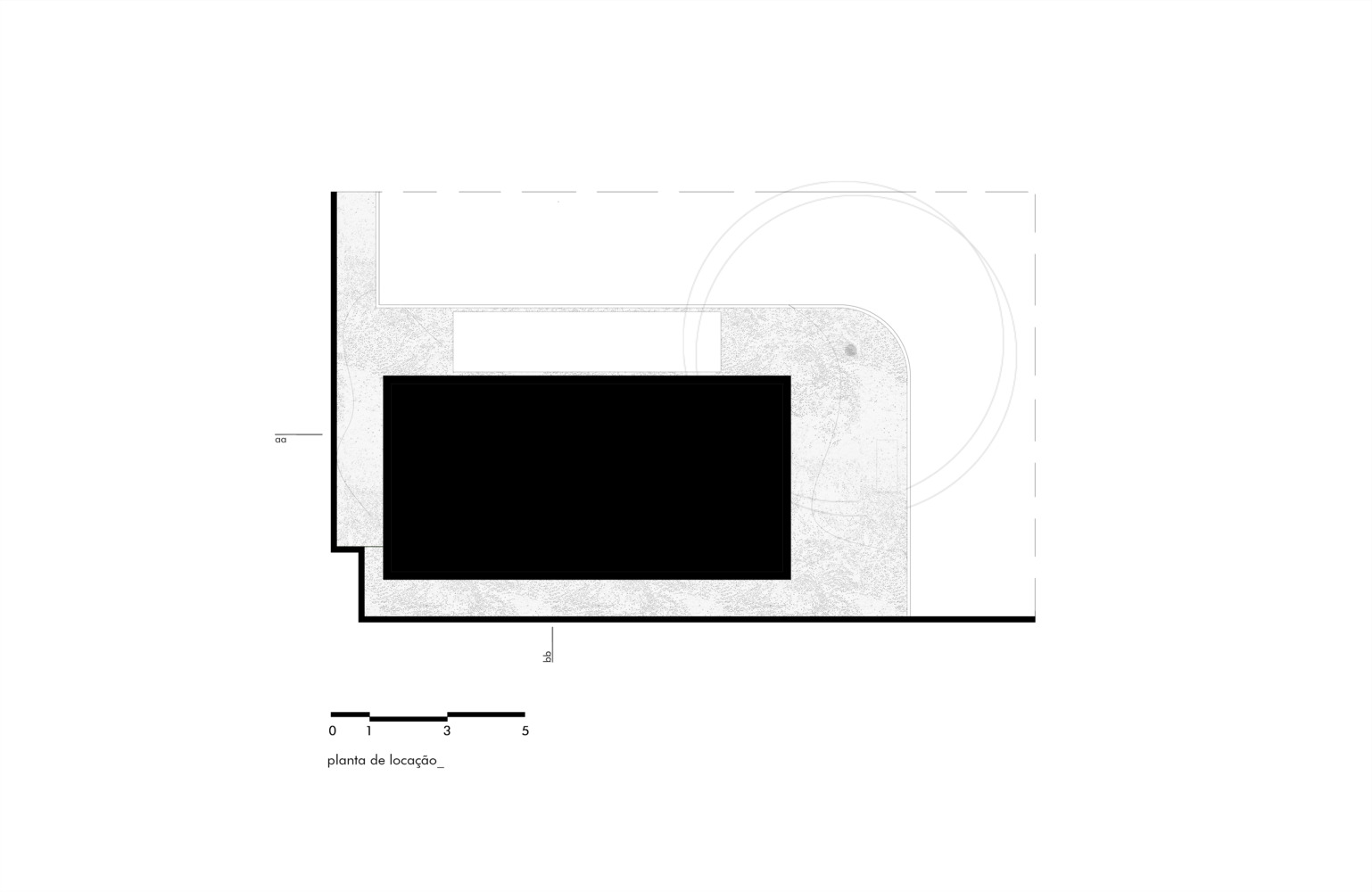

The site plan reveals a rectangular volume aligned with a curved driveway, with a pool arcing off one end. The floor plan confirms the straightforward organization: service rooms are concentrated in a compact timber-clad block, freeing the remainder of the concrete frame as open, reconfigurable space. Four plan diagrams show how the same footprint accommodates exhibition layouts, lecture seating, collaborative workstations, and private offices, proving the flexibility that the sliding screens make possible.

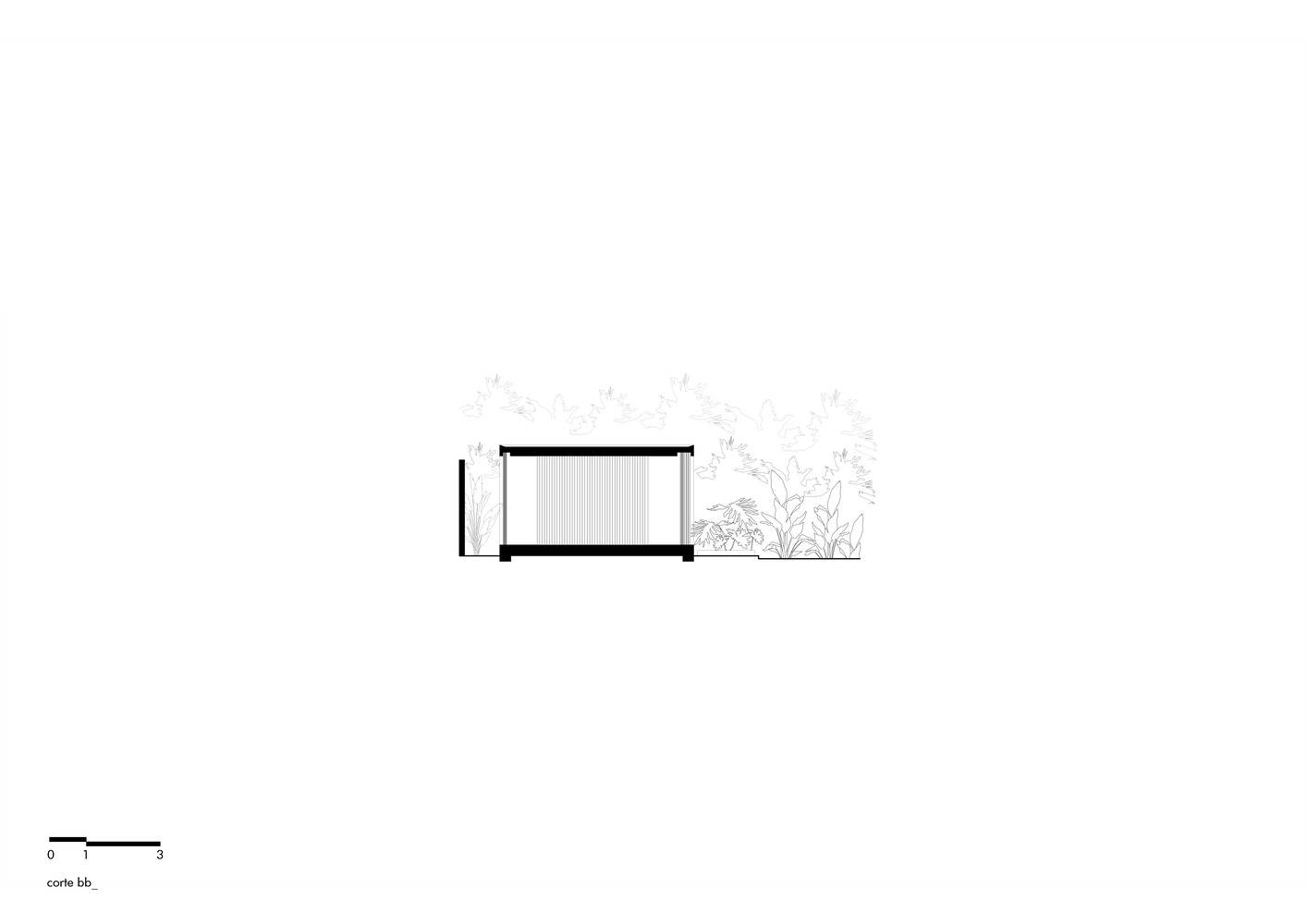

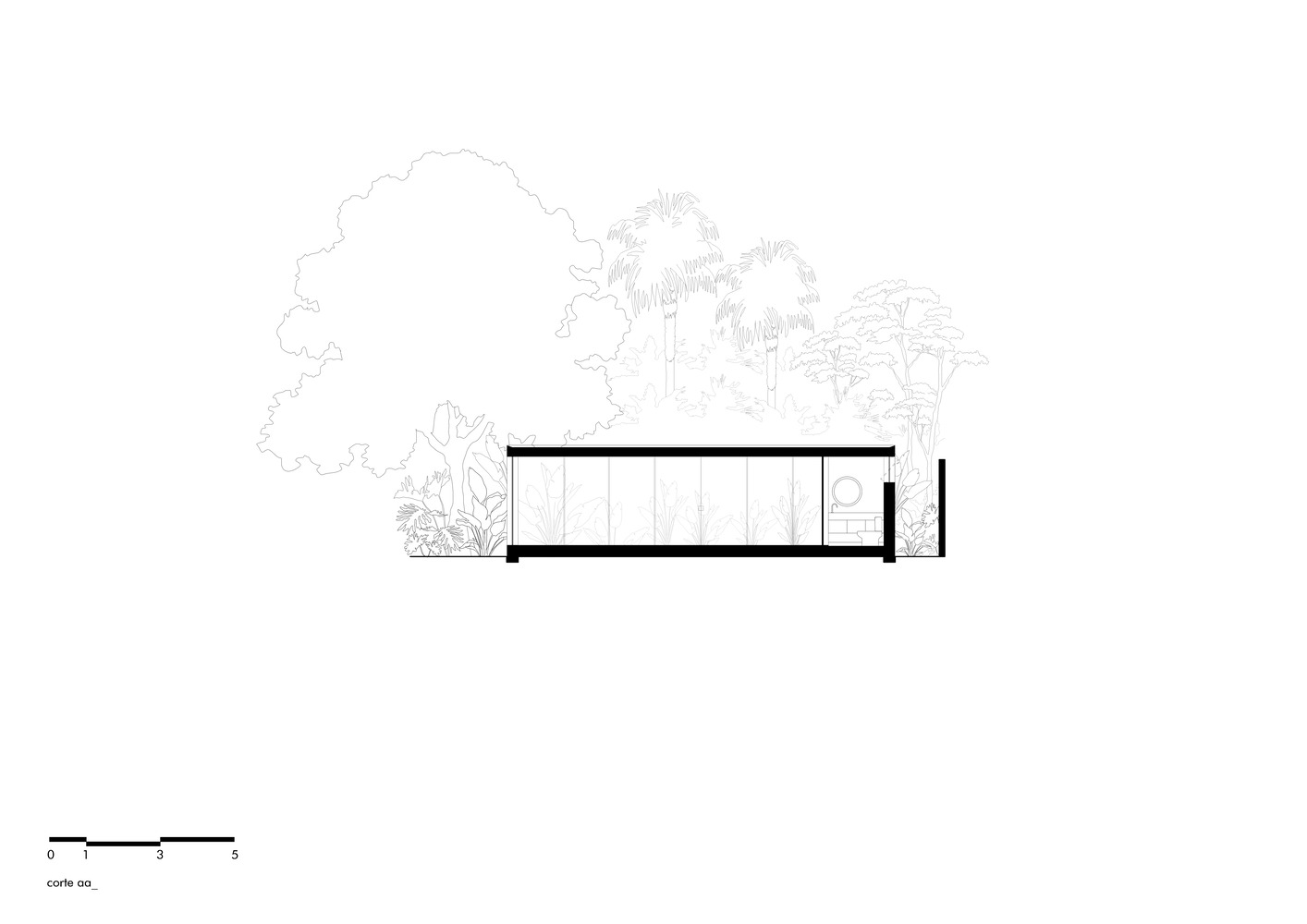

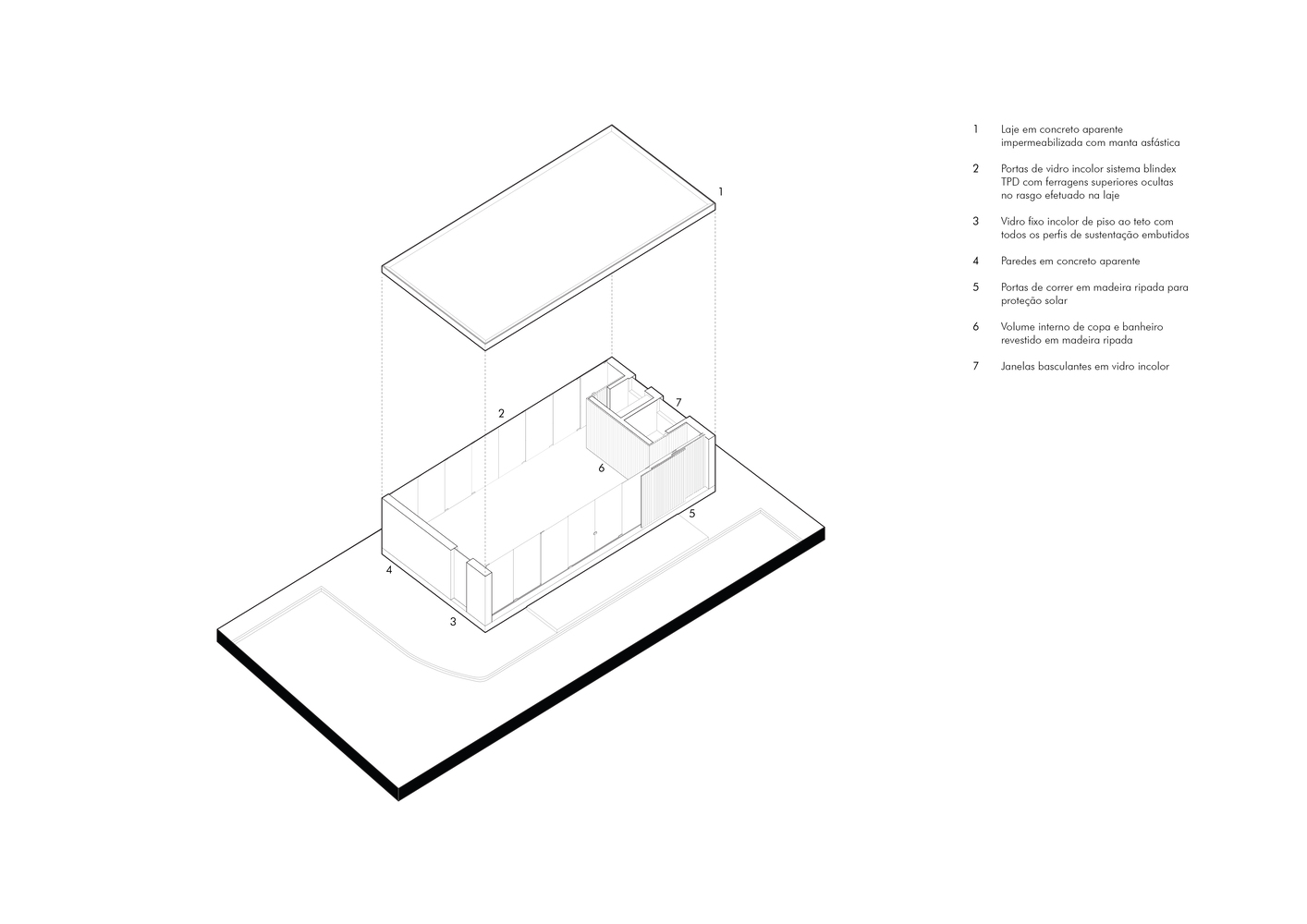

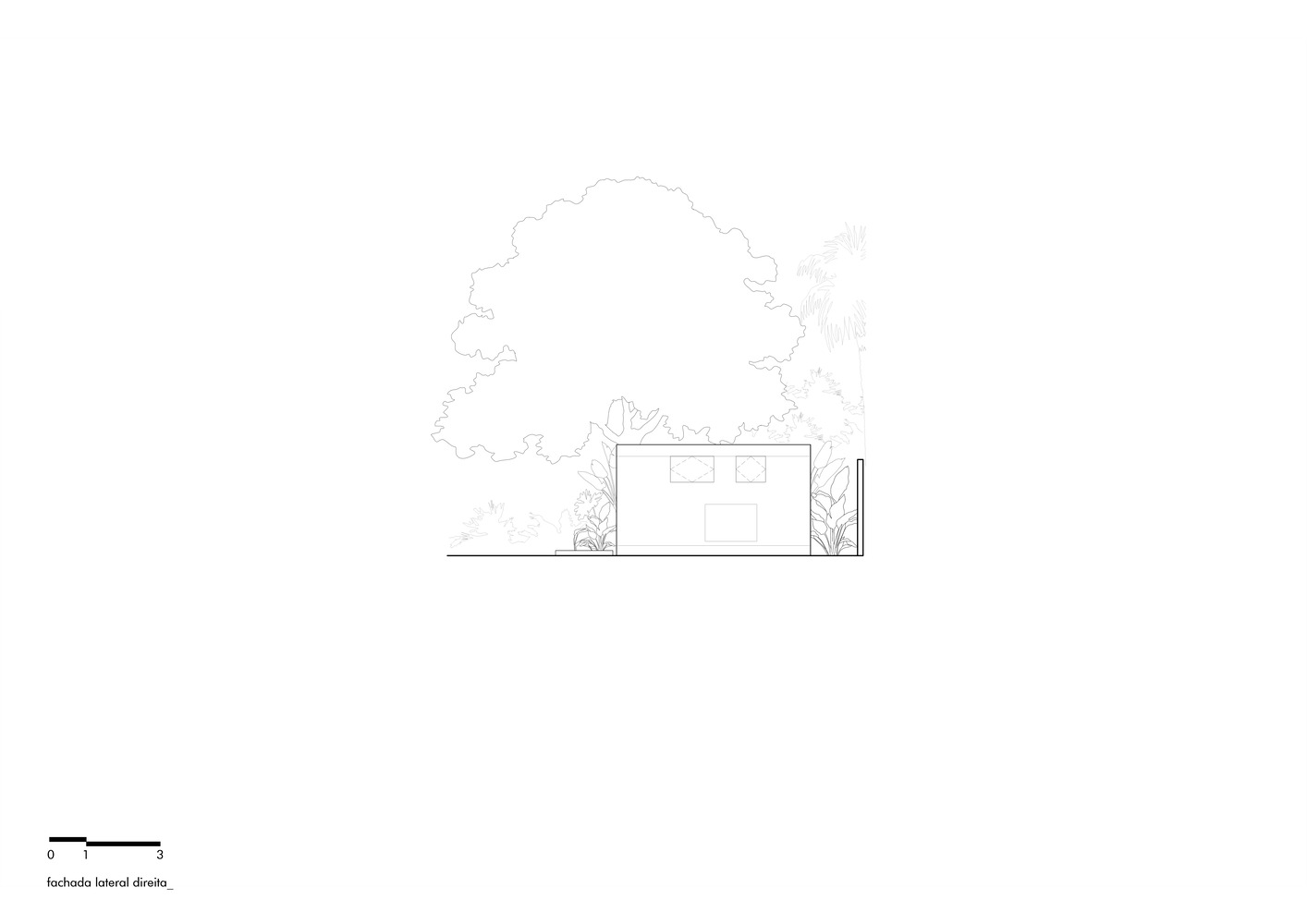

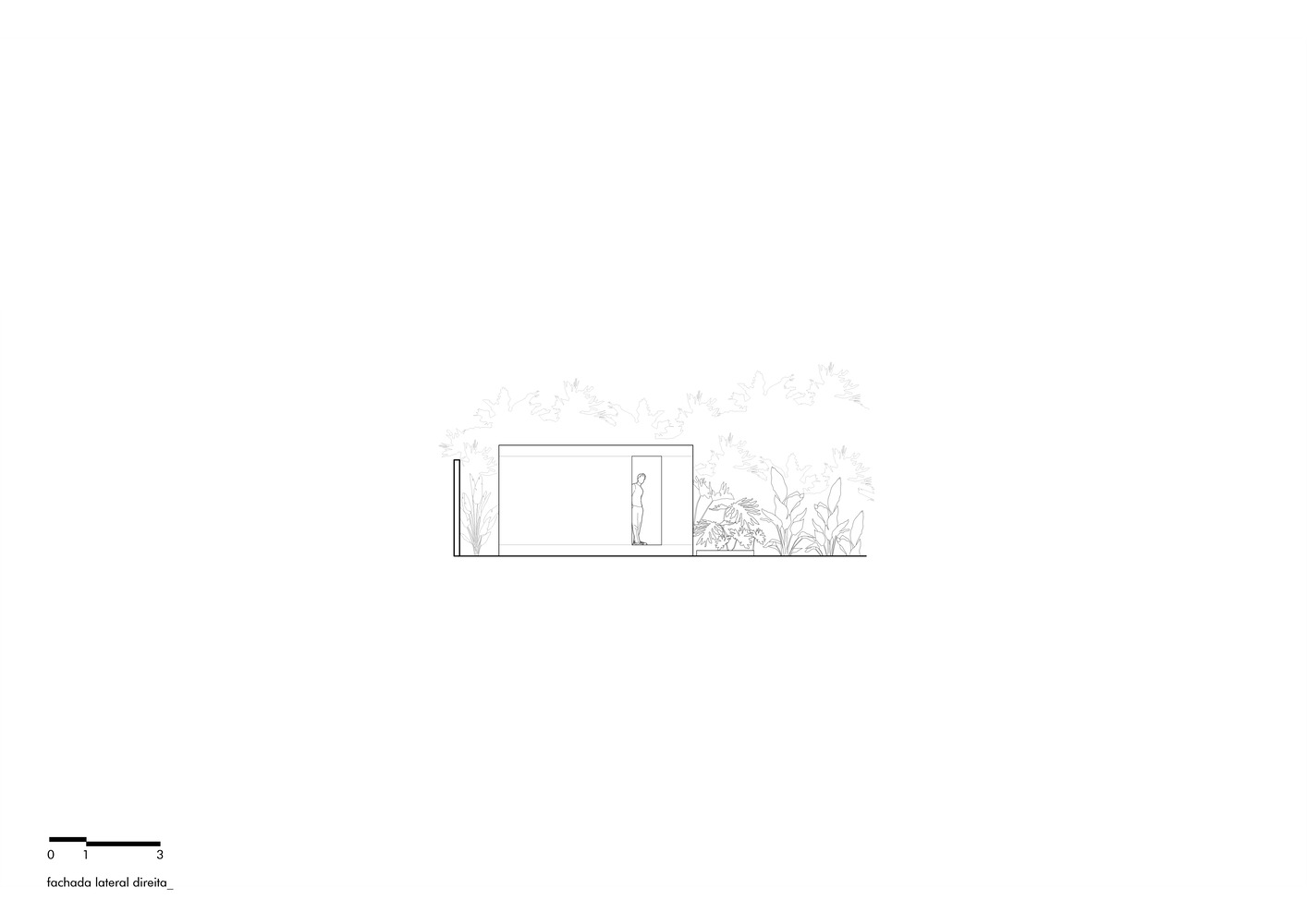

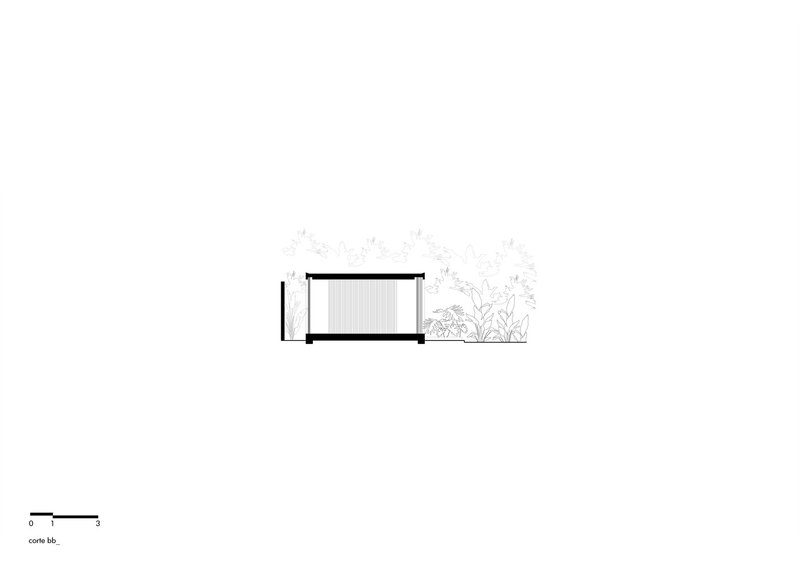

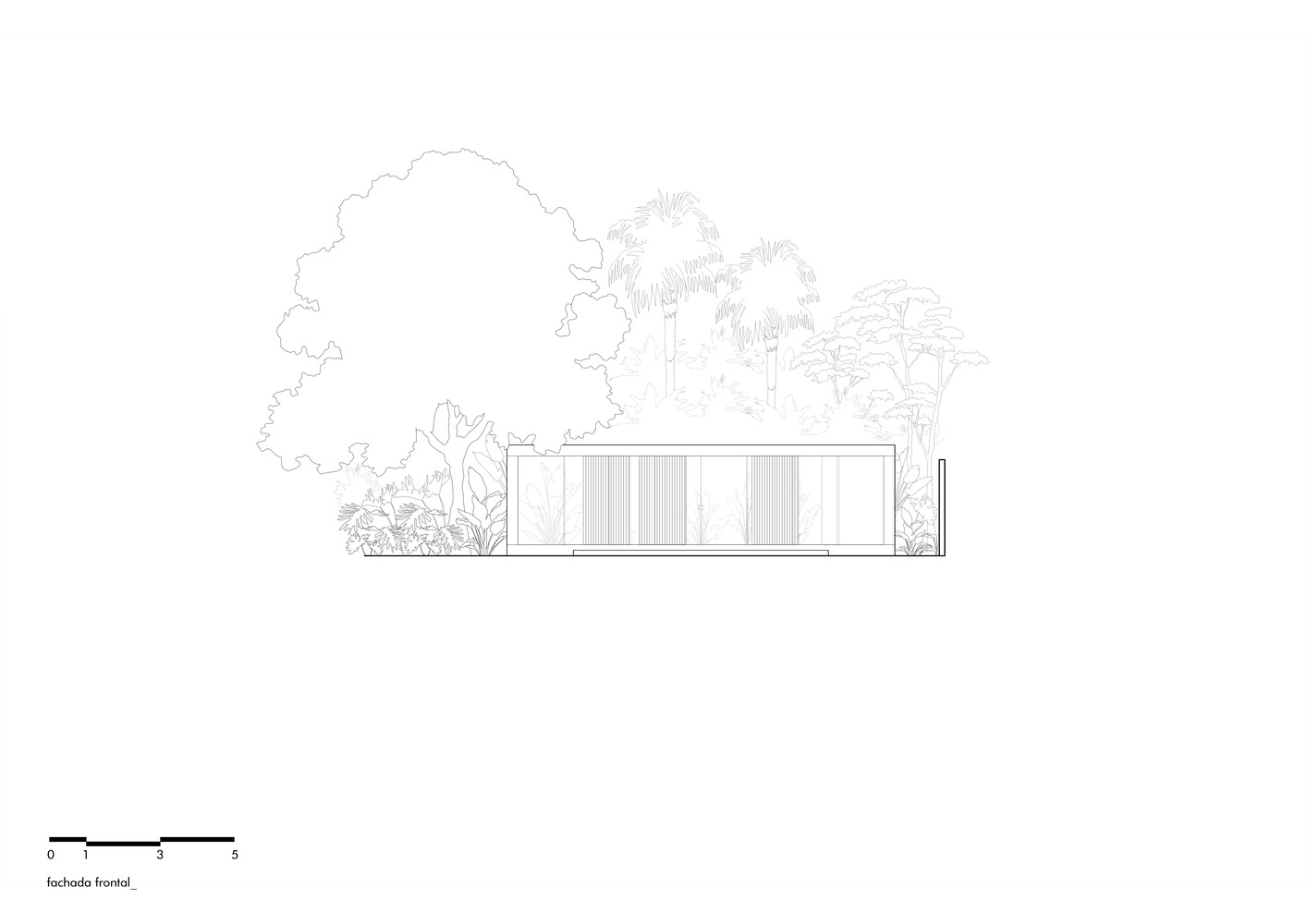

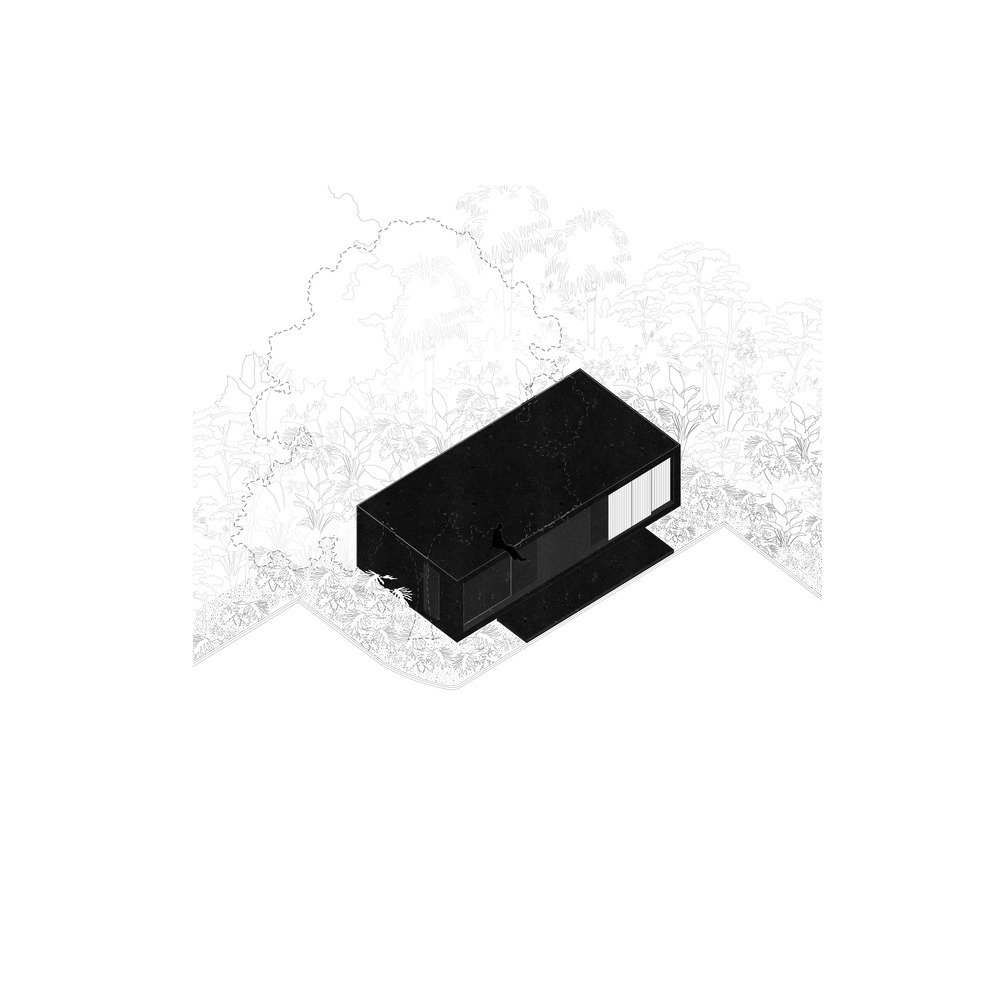

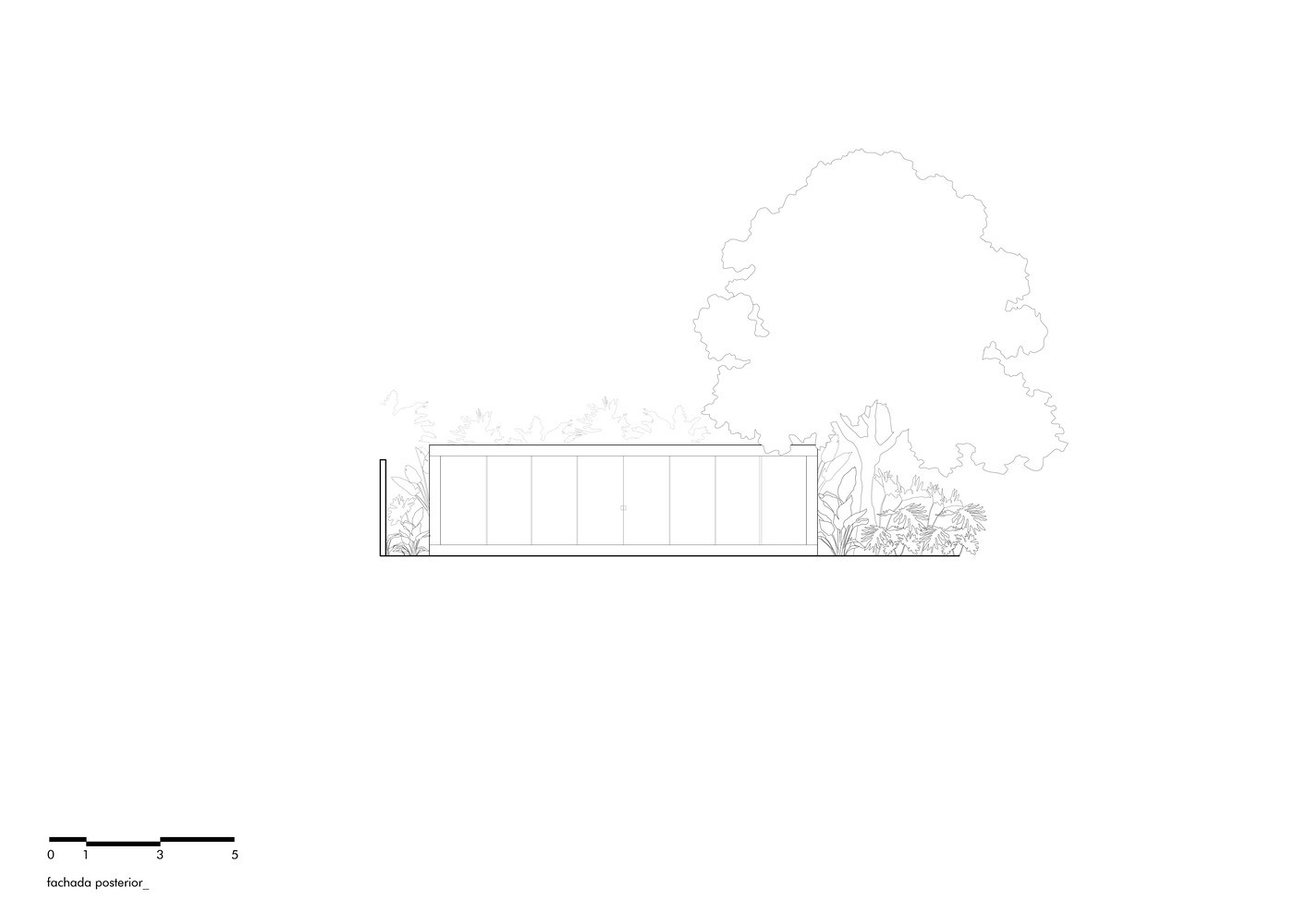

Sections and elevations reinforce the pavilion's horizontality. The slatted screens register as alternating bands across the facades, while the sections show how the flat roof sits just above the canopy line of the smaller plantings, deferring to the taller trees. The exploded axonometric drawing is especially revealing: it separates the roof slab, the timber wall panels, and the interior volumes into discrete layers resting on a foundation slab, making legible the kit-of-parts logic that underpins the whole design.

Why This Project Matters

The pavilion is small, and that is precisely the point. In a discipline increasingly obsessed with scale and spectacle, STUDIO PIPPA has produced a building whose ambitions are entirely proportional to its footprint. Every detail, from the board-formed concrete texture to the sliding screen tracks, serves a spatial purpose. There is nothing here that exists for the camera alone, and yet the photographs are compelling because the architecture rewards close looking.

The broader lesson is about adaptability. Too many small buildings are designed for a single program and become obsolete the moment that program changes. By treating the pavilion as a flexible framework rather than a fixed room, STUDIO PIPPA has ensured that the building can outlast any single use. The concrete will weather, the timber will silver, and the trees will grow. The architecture is designed to keep pace with all three.

Modern Garden Pavilion by STUDIO PIPPA. Photography by Júlia Tótoli.
