DOT Carves a Penthouse from Curved Concrete and Teak in Surat
A 650 square meter duplex penthouse on the 11th floor trades partition walls for sculptural RCC curves and warm timber planes.
Most luxury apartments in Indian cities default to marble, modular kitchens, and false ceilings. DOT, led by Krishna Mistry and Anand Jariwala, took a different route for a diamantaire's family in Surat: strip the 650 square meter duplex penthouse down to four reinforced concrete walls, cast every curve in situ, and let teak wood do the rest. The result is a home with almost no brick, no applied finishes pretending to be something else, and no room that feels sealed off from daylight.
What makes the Off-The-Grid Apartment genuinely interesting is the way its structure doubles as interior architecture. The curved RCC walls are not decorative gestures layered on top of a conventional frame. They are the frame. One wall absorbs the building's existing shear wall, another wraps the parent's bathroom, a third conceals kitchen storage. The architects recalibrated the structure itself to generate the spatial experience, which means the apartment reads as sculpted rather than fitted out.
Concrete Curves as Spatial Choreography

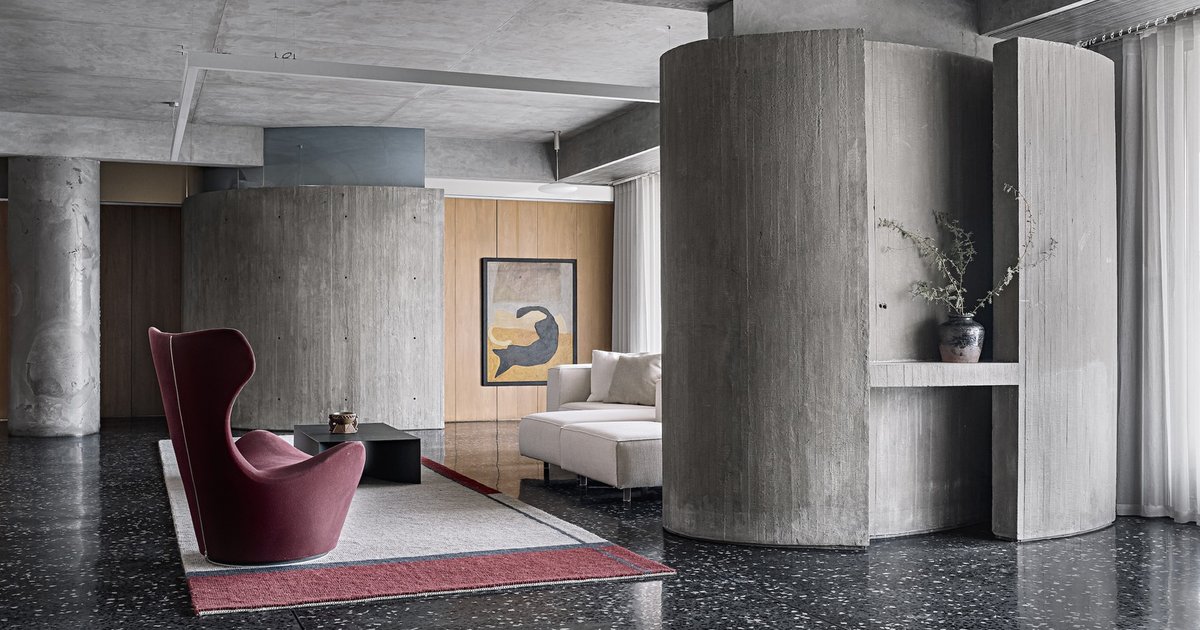

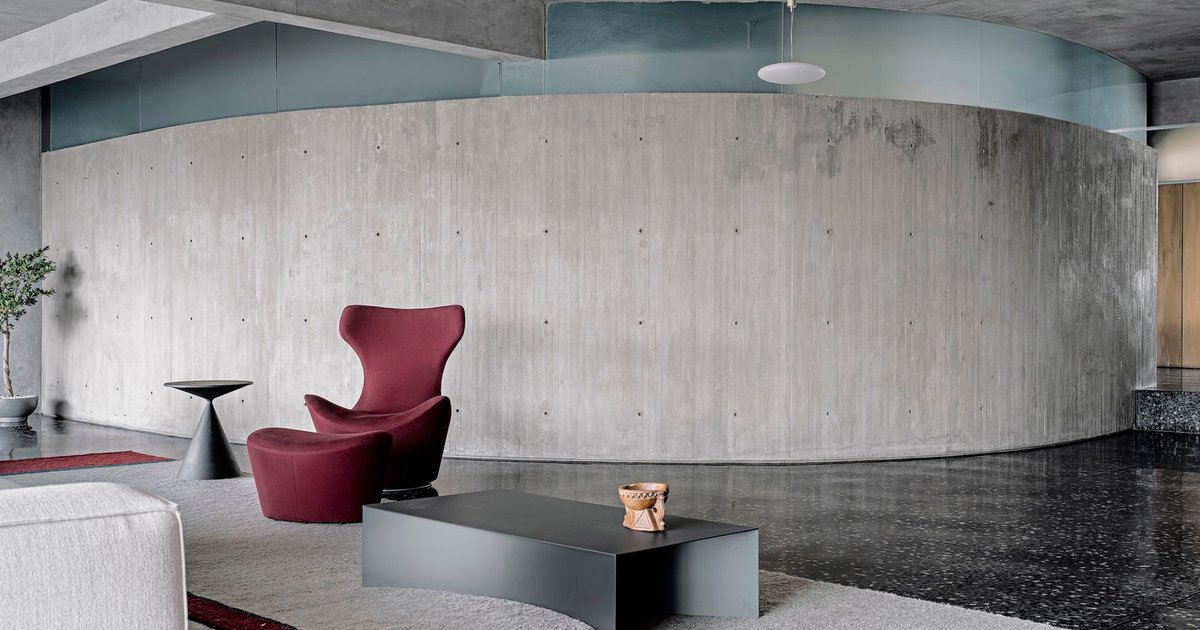

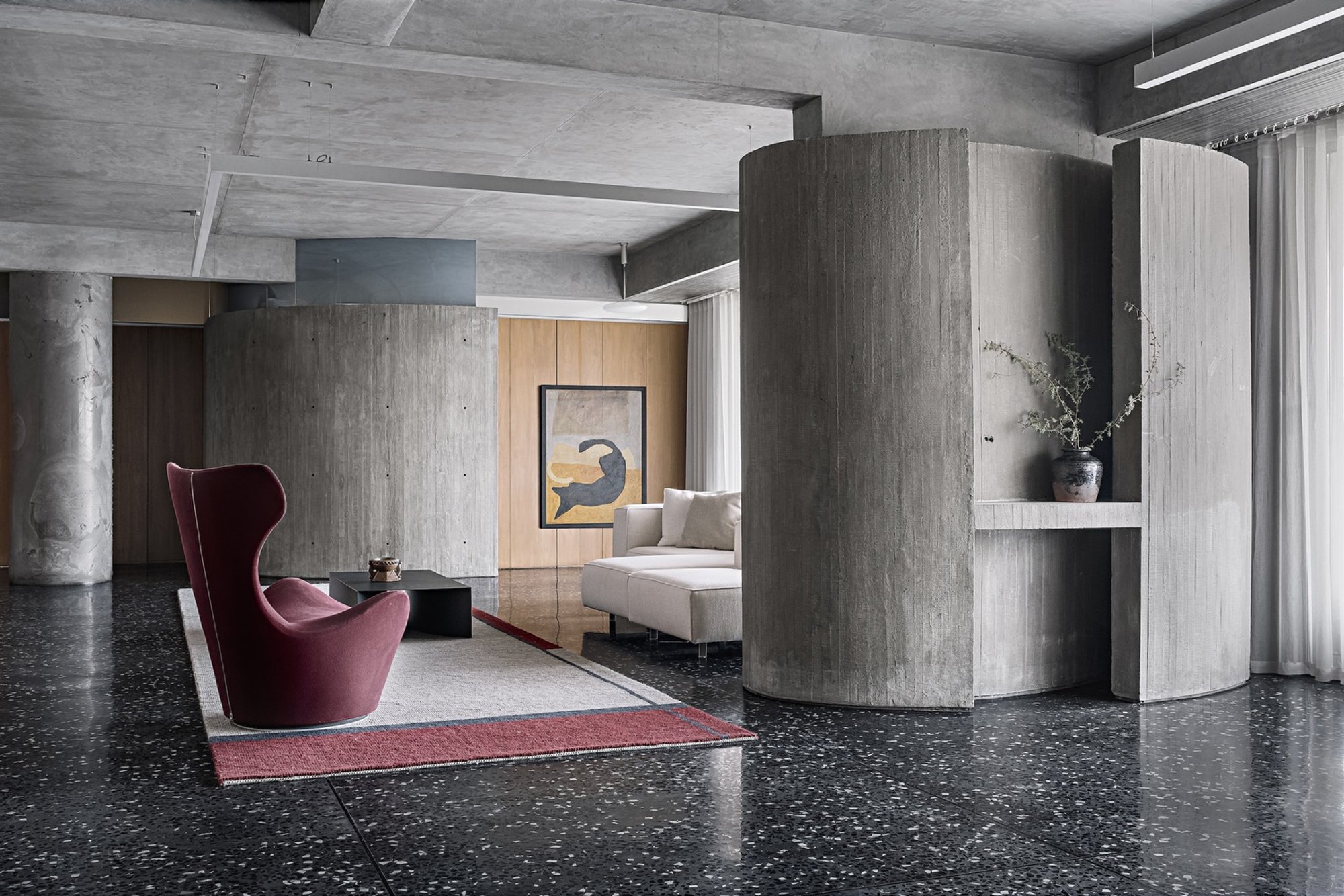

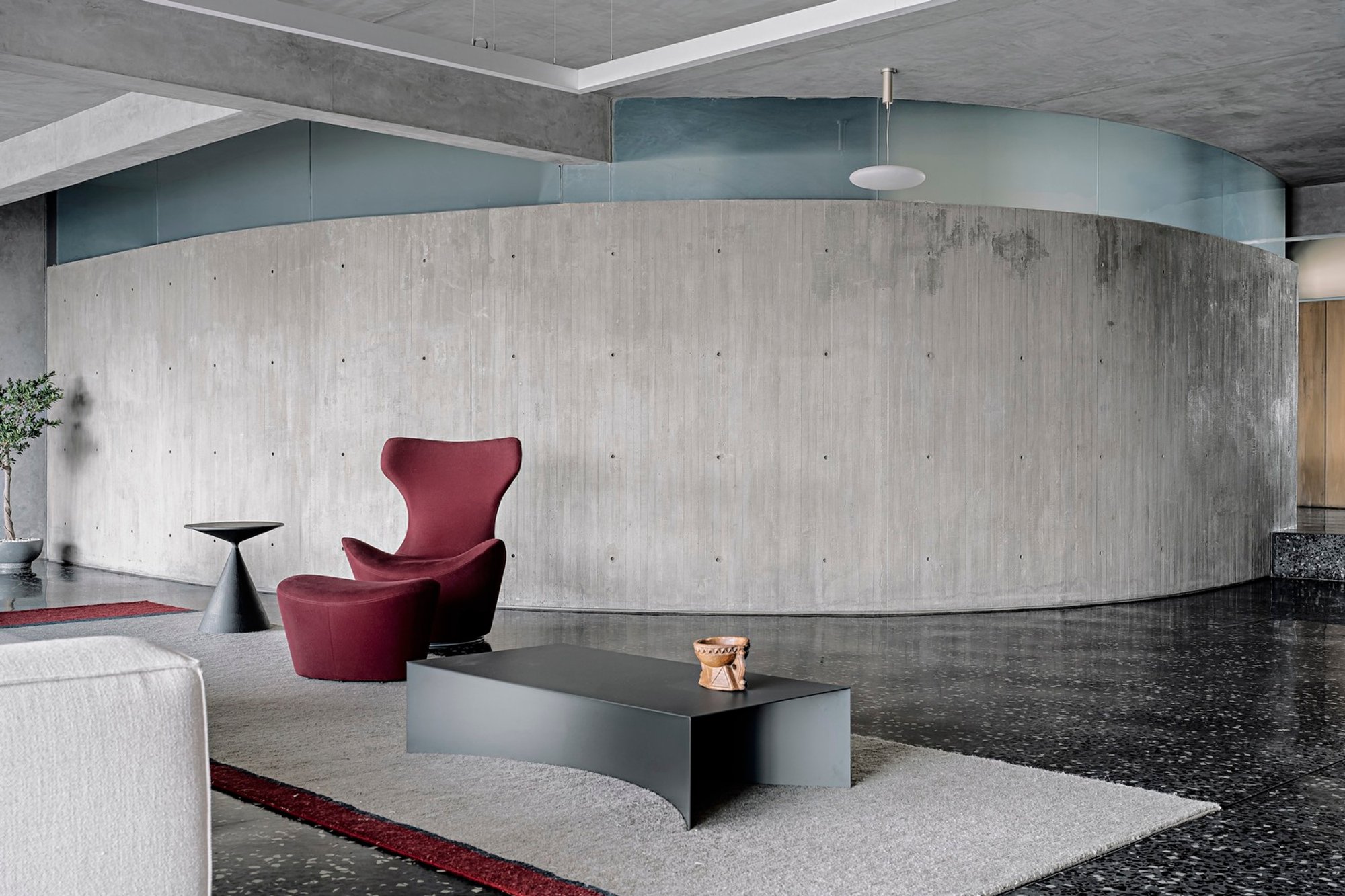

The living room sits between three curved concrete walls, and the effect is less about drama than about direction. Each wall bends sight lines, compresses or expands the volume, and quietly separates functions without doors or corridors. A burgundy armchair or a low sofa becomes the only furniture needed because the architecture already defines the room's character. The exposed beam grid overhead and terrazzo underfoot keep the material count honest: concrete, stone aggregate, glass, and not much else.
Peripheral walls were left unaltered to preserve the full run of fenestration on both east and west faces. Daylight enters from sheer-curtained openings and floods across the polished floors, bouncing off fair-finished concrete. The monochromatic palette of grey and off-white makes the handful of colored objects, a red desk here, a dark green plant there, register with real force.
Teak as Infrastructure

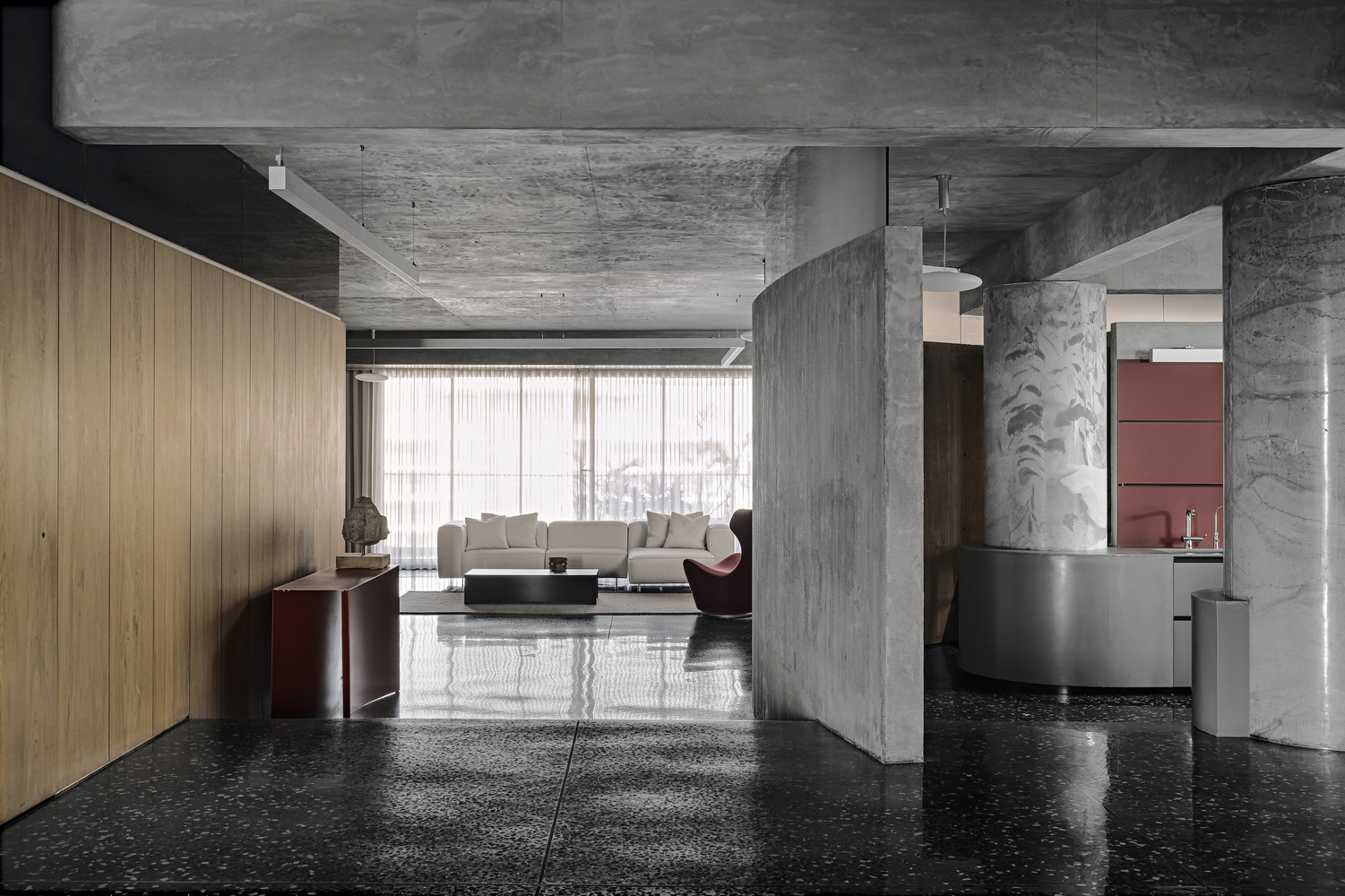

If the concrete walls guide movement, the teak volumes handle everything else. The entrance sequence sets the tone: an eight-foot-wide wooden door with a carved handle pivots open to reveal a straight timber-clad wall that channels the visitor toward the first curved plane. Behind that cladding is storage, services, and all the practical bulk a family home requires. Concrete curves and solid wooden walls form a binary system where one shapes space and the other absorbs program.

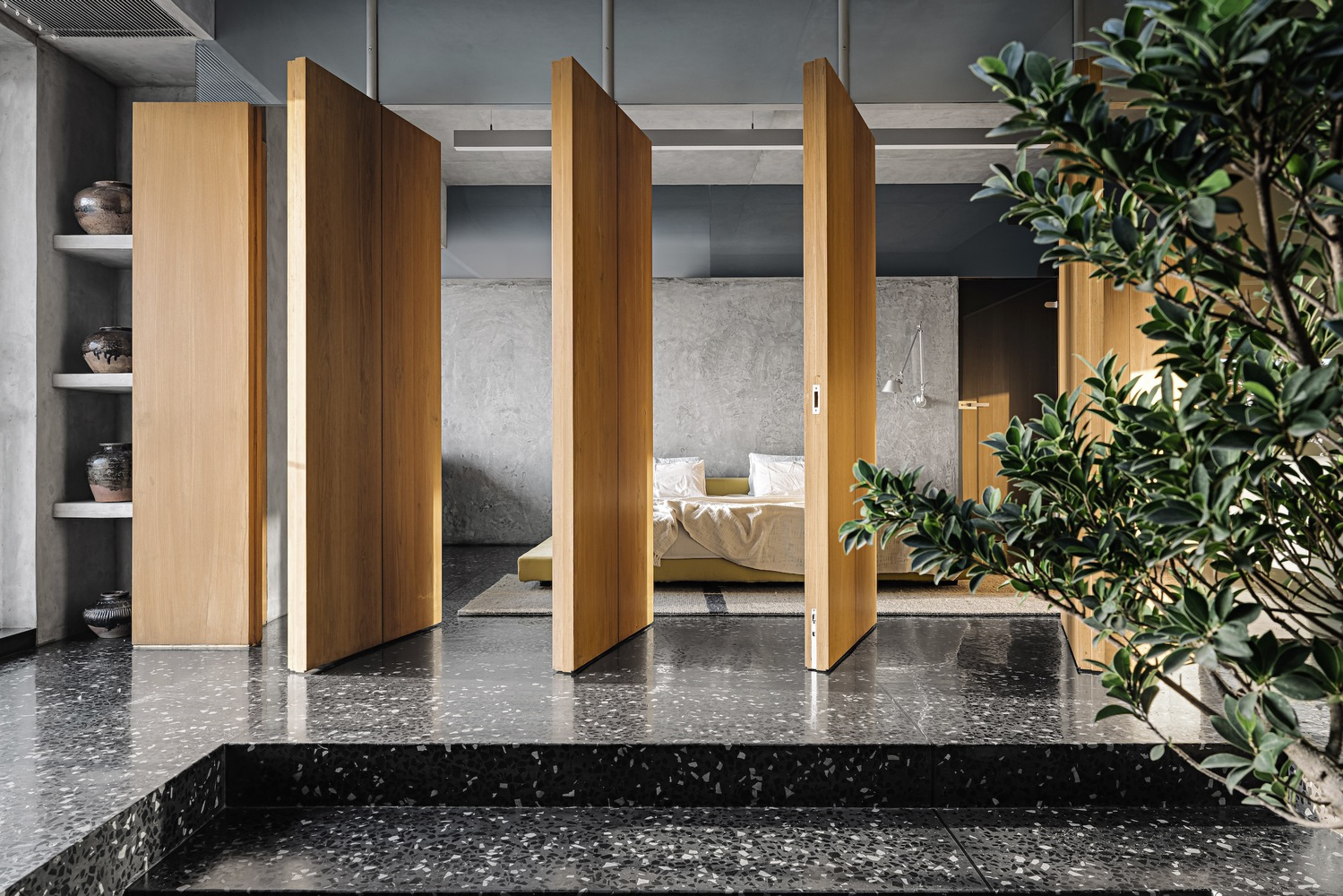

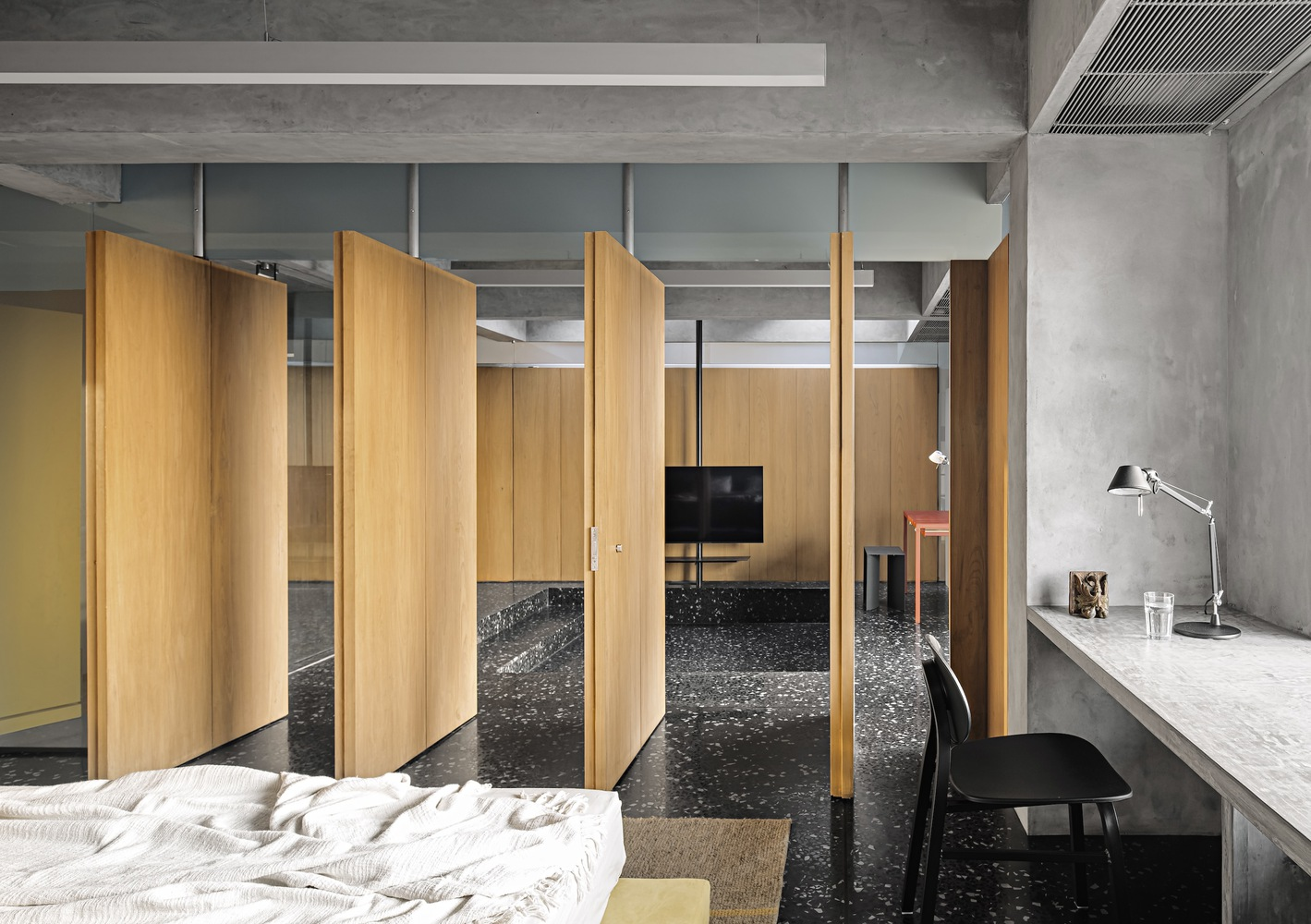

In the bedrooms, full-height pivoting teak panels hang from the exposed concrete ceiling, allowing rooms to open into one another or close for privacy. The panels are thick enough to feel structural, warm enough to soften the concrete context, and precise enough in their joinery to read as furniture rather than construction. It is a smart inversion: the permanent walls are sculptural, and the operable ones are utilitarian.
A Staircase Built for Stillness


The curved concrete staircase connecting the two floors is the apartment's most deliberate piece of design. Its underside shelters a reading nook, and its ascent leads to a small place of worship lit from above by circular skylights. The architects treat vertical circulation not as a leftover space but as the most contemplative room in the house. A glass partition separates the stair from a courtyard alcove, allowing borrowed light and a visual connection to a ceramic vessel placed on the reflective floor below.

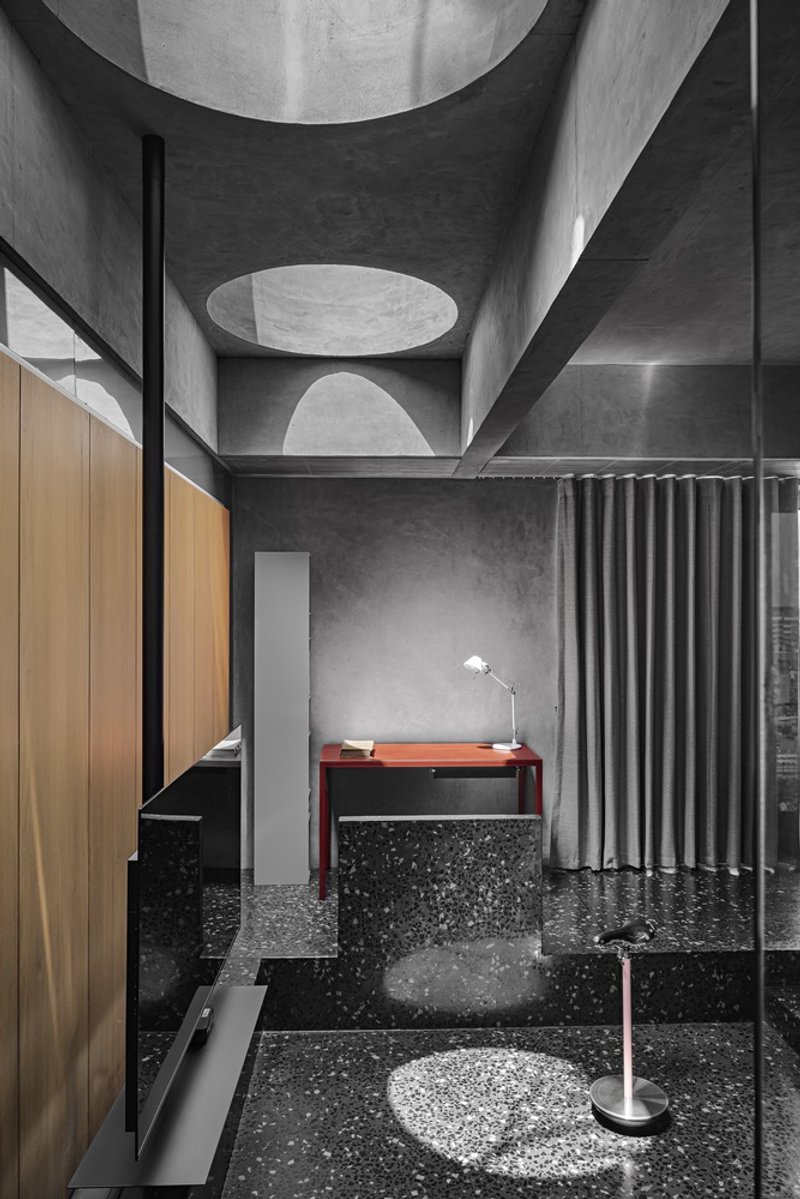

The study nook tucked beneath the sculptural ceiling overhead, with its red desk and punched oculi, shows how DOT calibrates intimacy. The room is small, the ceiling is low and shaped, and the light arrives in controlled circles. It is the kind of space that justifies building in concrete: you cannot get these forms with drywall.
Dining and the Southern Light Problem

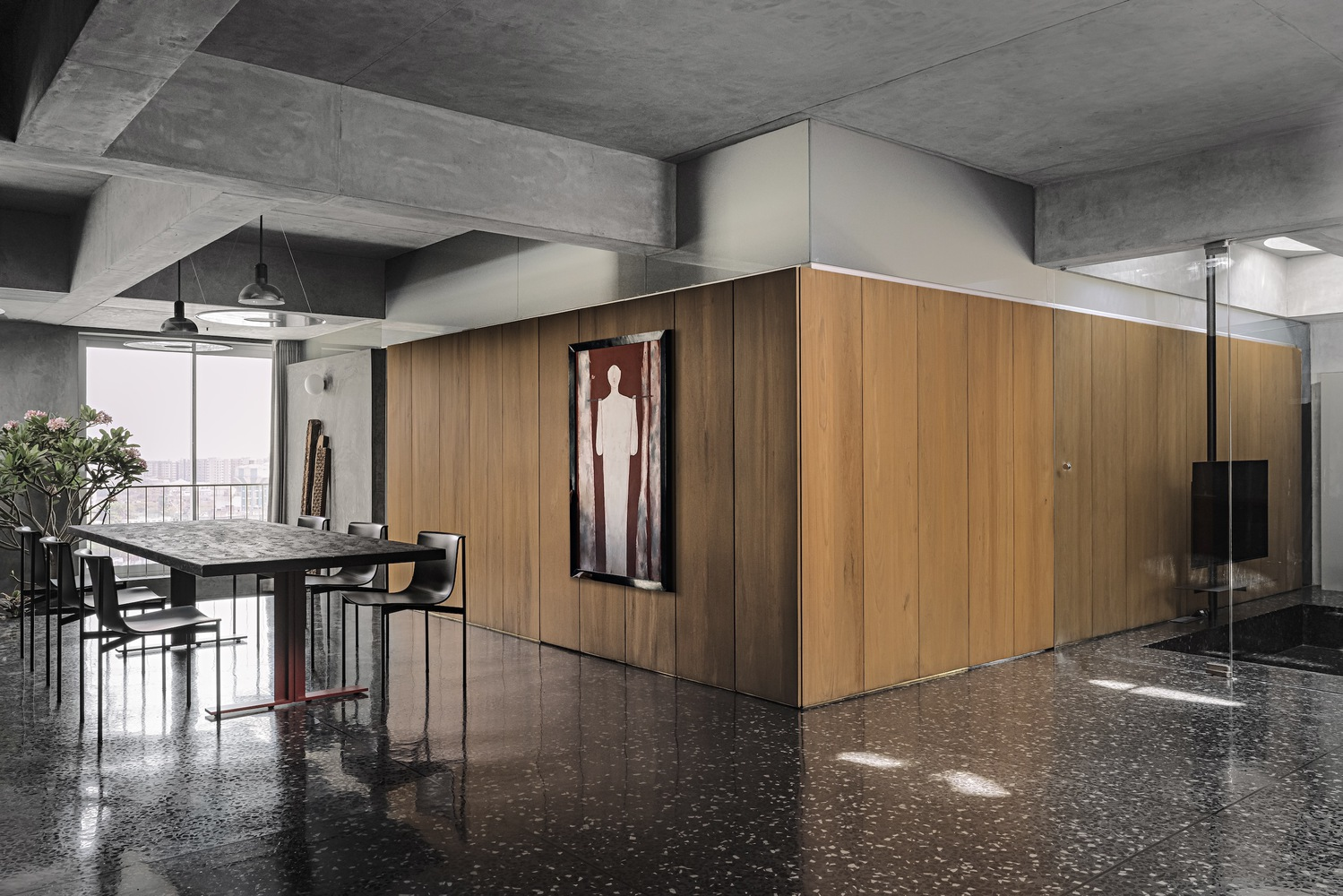

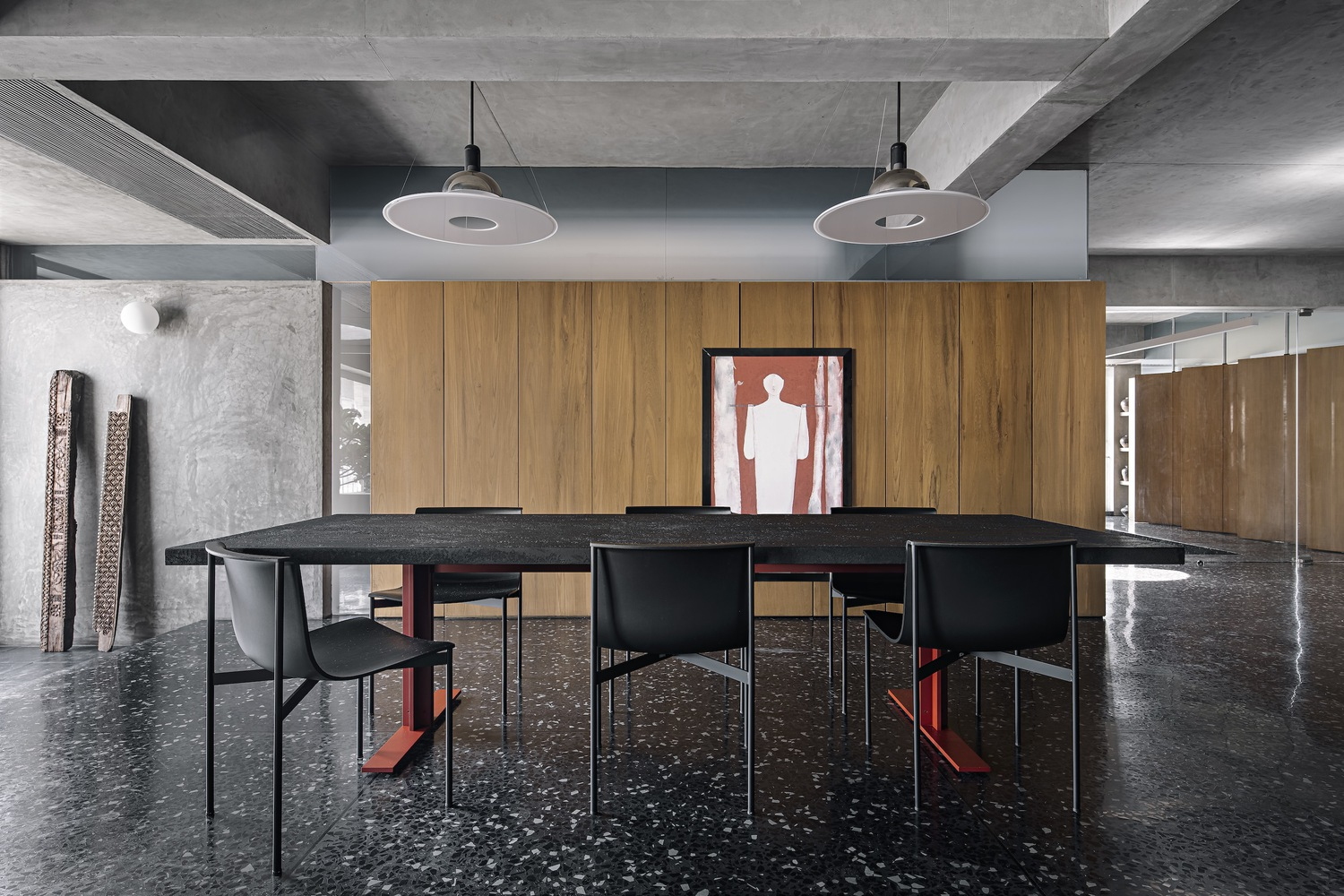

Surat sits at roughly 21 degrees north latitude, which means southern facades catch punishing sun for most of the year. DOT addressed this in the dining zone with a combination of skylights and a small green courtyard that filters and softens the light before it reaches the table. The black terrazzo floor in this area absorbs glare rather than reflecting it, a practical choice that also anchors the dining furniture visually against the raw concrete ceiling.
The floor level rises subtly as you move from living to dining, a shift of a few inches that separates social zones without walls. It is a detail borrowed from traditional stepped layouts, and it works because the terrazzo makes the level change legible. You feel the transition underfoot before you consciously register it.
The Terrace as Counterpoint

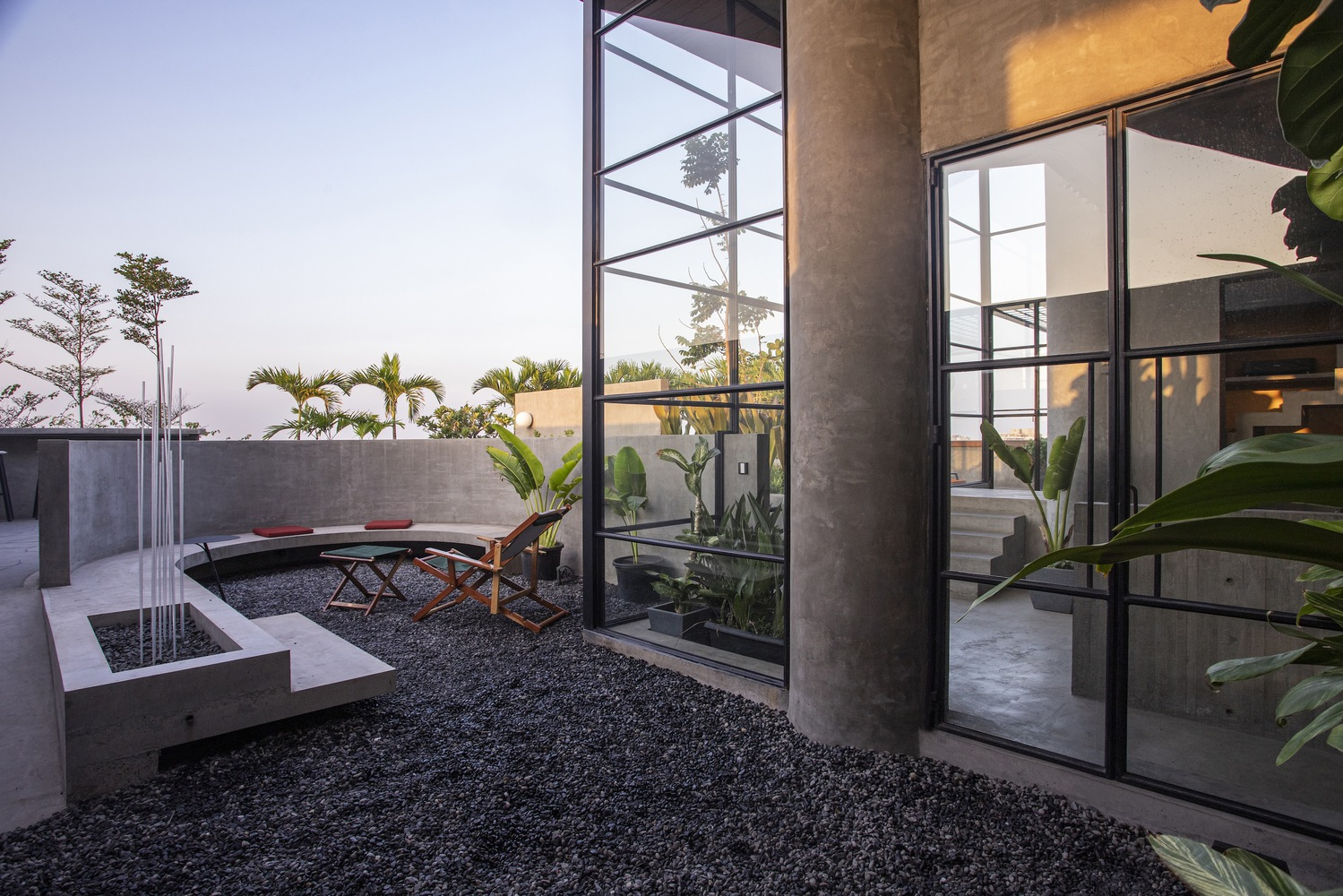

After so much controlled concrete and timber, the rooftop terrace provides necessary release. Black limestone underfoot, gravel ground cover, and concrete planters holding tropical plants and a Spathodea tree create a landscape that feels deliberately wild against the precision of the floors below. A glass gazebo anchors one end, while stepped seating and dense plantation along the south edge screen neighbors and frame views toward the Tapi River and the Surat skyline.
The terrace is zoned but not partitioned: dining to the west for sunset views, a green pocket to the east, seclusion to the south. It functions as the family's weekend retreat without leaving home, and its connection to the lower floor through the staircase and slab cut-outs means light and air move freely between levels. The name Off-The-Grid starts to make sense here: not as an energy claim, but as an attitude toward urban living that prioritizes openness over enclosure.
Why This Project Matters
Indian residential interiors, especially at this budget level, tend to default to applied luxury: stone veneers, false ceilings with cove lighting, and enough Italian marble to tile a palazzo. DOT's decision to work with cast-in-situ concrete, handmade IPS walls, and solid teak as the entire material vocabulary is a deliberate rejection of that formula. The apartment's quality comes from form and light, not from surface treatment, and that distinction matters in a market saturated with decorative excess.
More importantly, the project demonstrates that structural decisions and interior experience do not have to be separate conversations. By eliminating brick entirely and casting the apartment's four walls as curved RCC planes, DOT made the engineering serve the architecture directly. The result is a home where you never wonder what is behind the finish, because the finish is the structure. For a penthouse on the 11th floor of a building in Surat, that level of integration is rare and worth studying.
Off-The-Grid Apartment by DOT (Lead Architects: Krishna Mistry and Anand Jariwala), Surat, Gujarat, India. 650 m². Completed 2023. Photography by Ishita Sitwala and Nikhil Patel.
