Atelier L+ Buries a Theater Under the Lawn to Reclaim Shanghai's Industrial Waterfront

Shanghai's Yangpu Riverside is where China's industrialization began, a stretch of waterfront once defined by textile warehouses and heavy infrastructure. The Yangpu Bridge, a cable-stayed expressway icon of the 1990s, sliced through this fabric and left behind residual spaces that disconnected the district from the river it was named for. Atelier L+, working under TJAD, won an international competition to stitch those fragments back together, and Phase I of their Yangpu Bridge Public Space project is now the proof of concept: a 20,510 square meter built intervention paired with over 24,000 square meters of green space that treats landscape, architecture, and energy infrastructure as a single organism.

What makes this project genuinely interesting is its refusal to treat public space as decoration layered onto a building. Instead, the architecture literally disappears beneath the ground plane. A semi-underground theater, commercial facilities, and exhibition spaces are tucked under a continuous, planted topography that rolls from the street level down to the river. The roof becomes the park, the park becomes the building, and the bridge overhead, once a barrier, is recast as a monumental portal framing views of the Huangpu River and the downtown skyline. It is an unusually rigorous example of what "landscape urbanism" can look like when it is not just a rendering strategy but a construction method.

A Green Roof That Is the Park

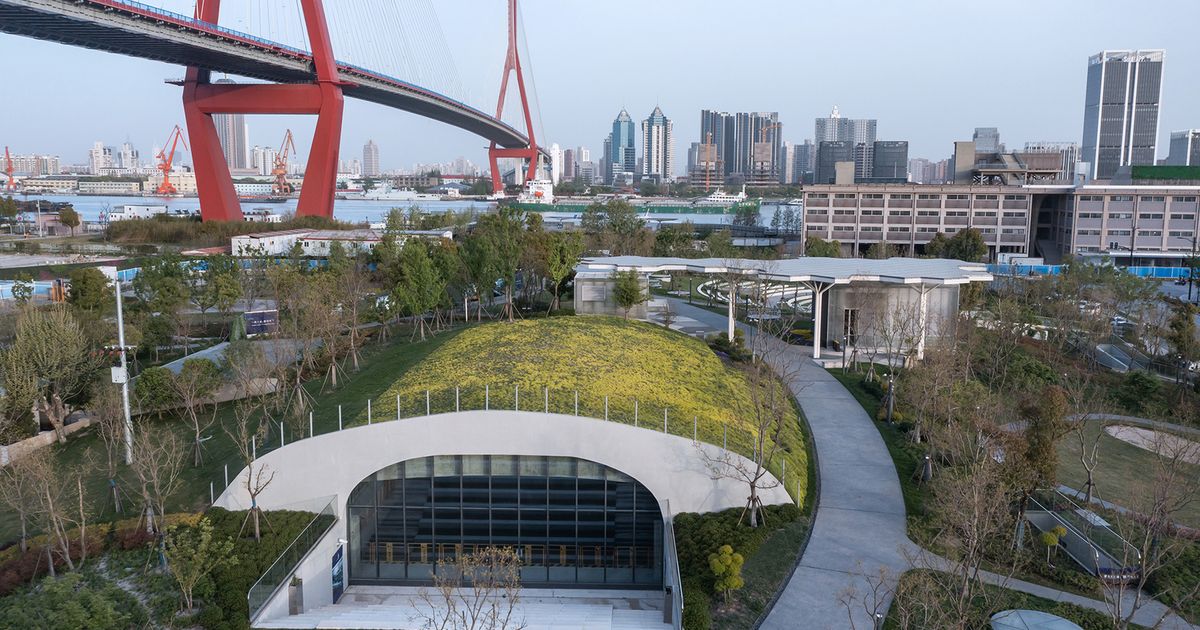

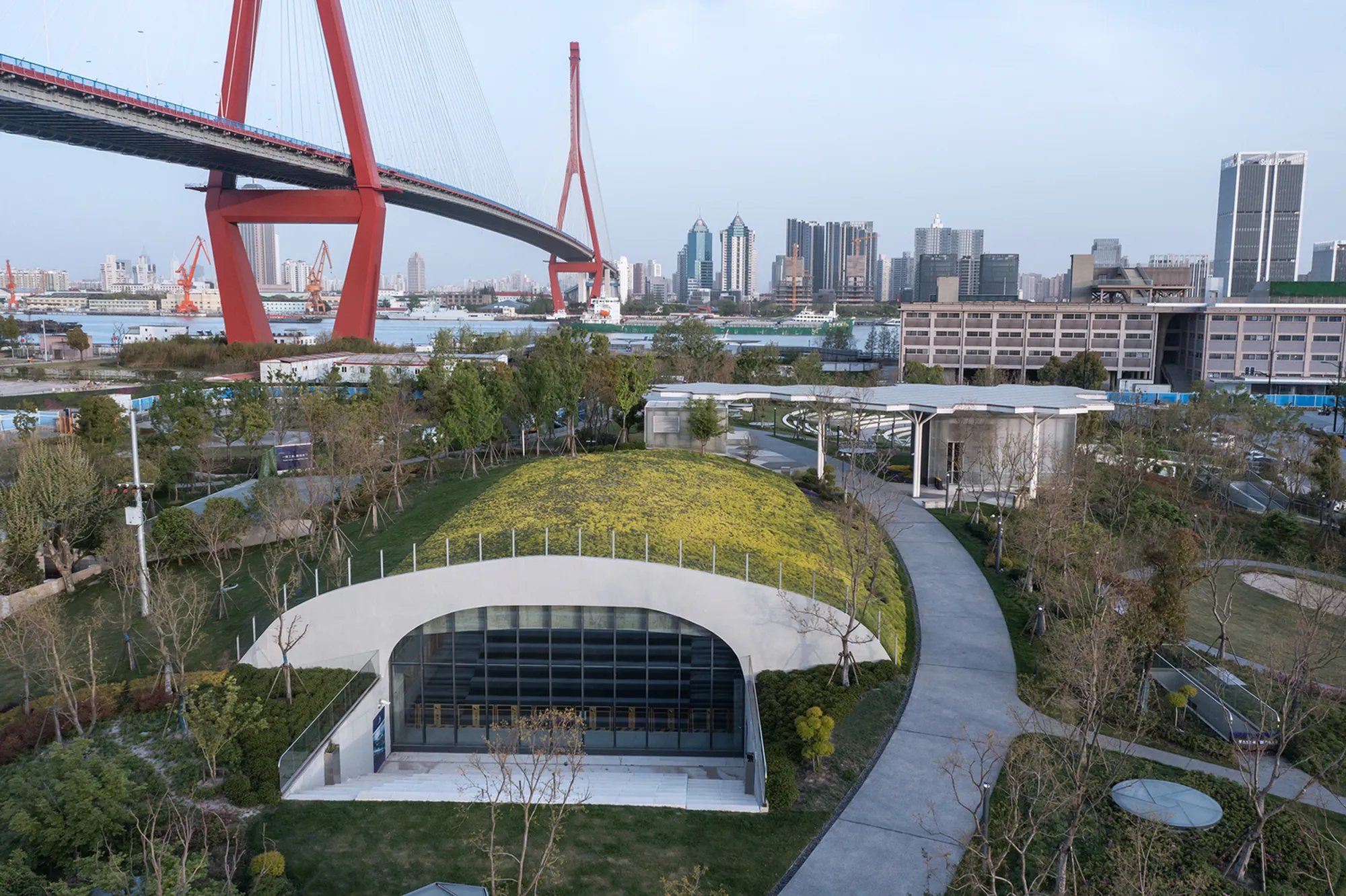

The defining image of the project is a long, grass-covered arc that rises from the ground and curves over a fully glazed facade. Behind the glass sits the program: theater, retail, exhibition. Above it, visitors walk on what reads as an open lawn. The move collapses the distinction between building and landscape so completely that from most angles you cannot tell where one ends and the other begins. Winter dormancy turns the roof golden rather than lush, but the form holds: the architecture is shaped by the topography it generates, not the other way around.

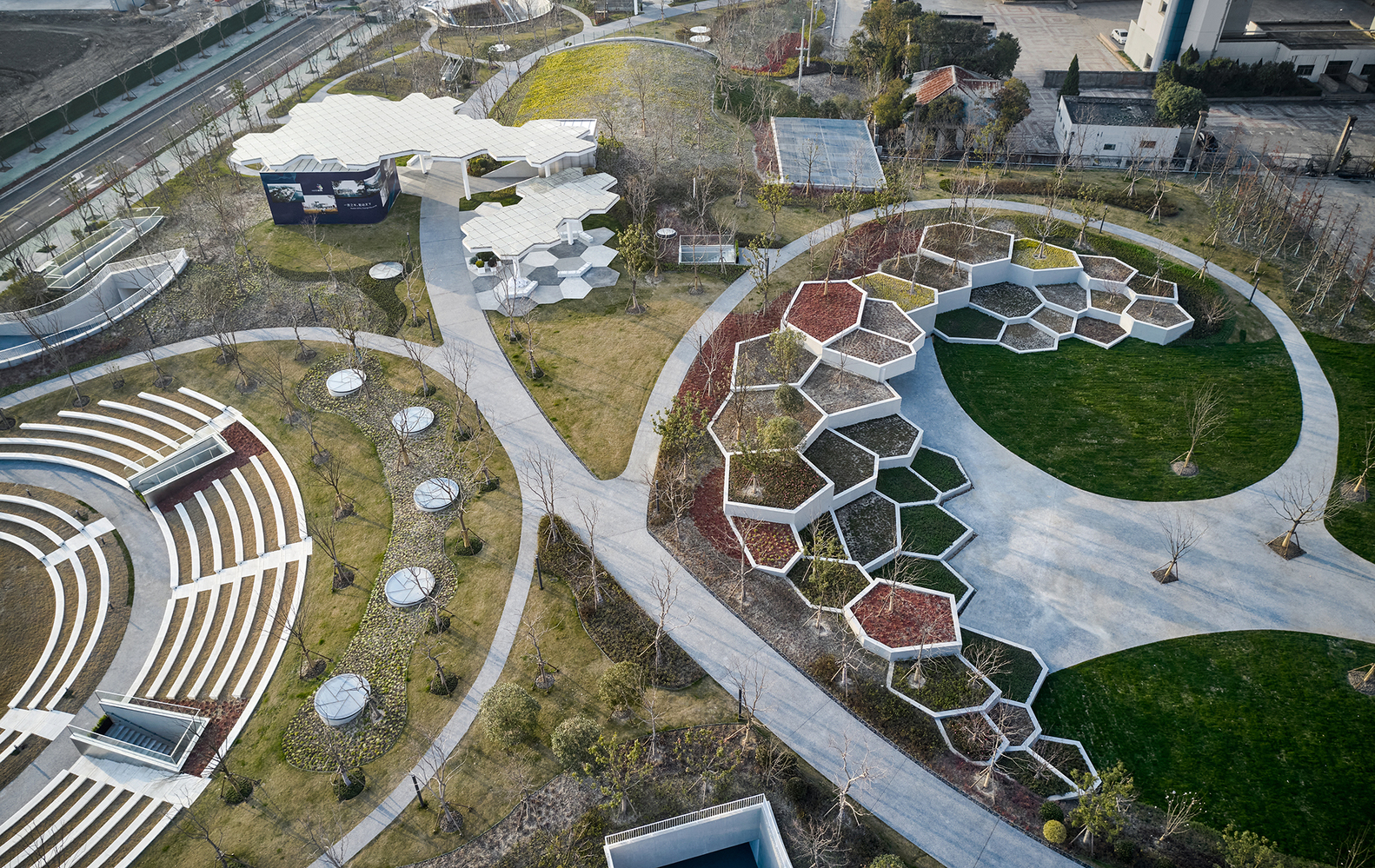

The honeycomb-patterned planters visible in the aerial view are not merely ornamental. They organize the green roof into manageable drainage cells, part of the project's broader sustainable water cycle strategy that prioritizes natural accumulation, penetration, and purification of rainwater. Each hexagonal unit acts as a micro-catchment, feeding a system designed to make this one of Shanghai's first large-scale self-sufficient urban sectors for stormwater management.

The Amphitheater as Public Attractor

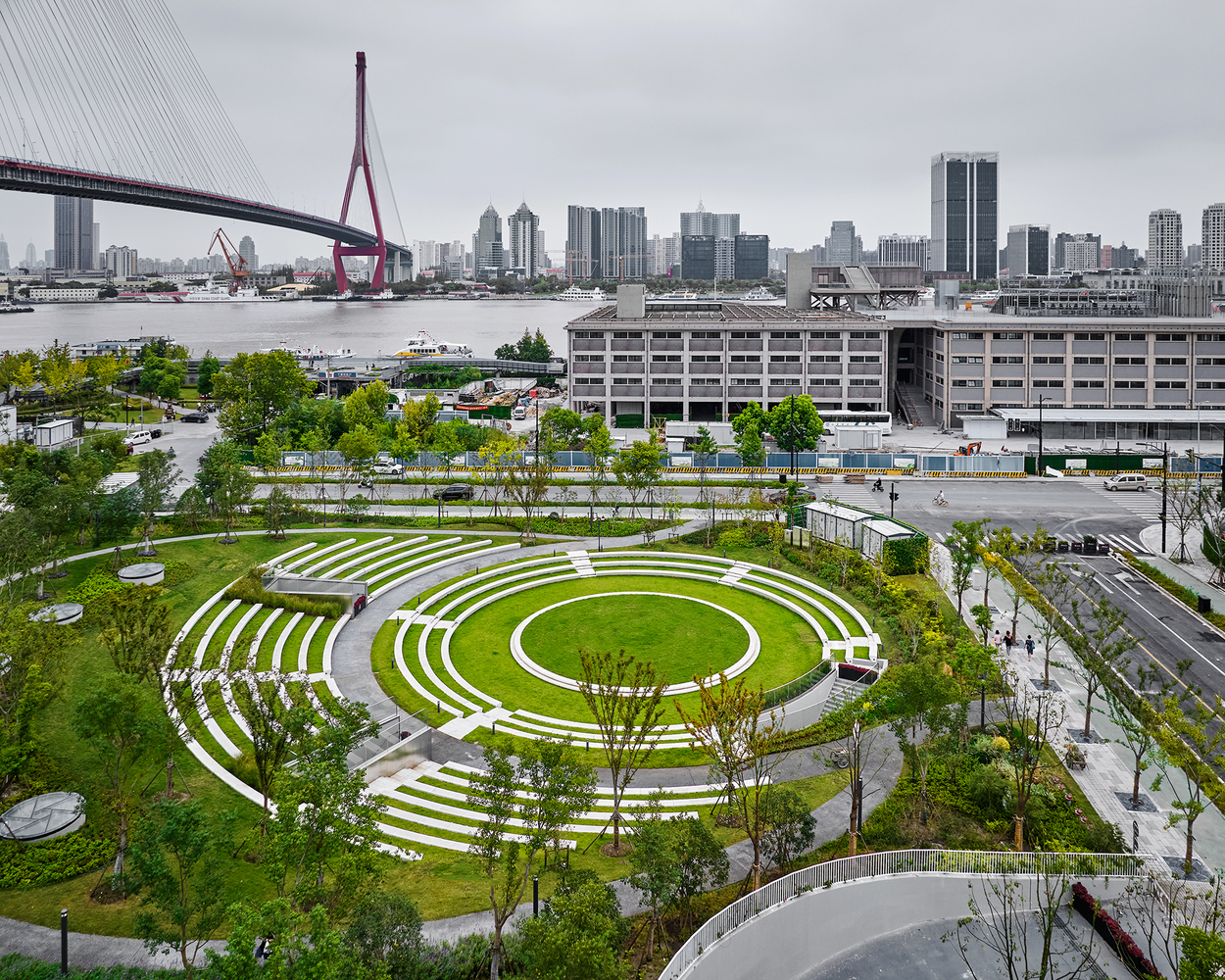

Sunk into the landscape like a crater, the concentric amphitheater bowl is Phase I's most visible public gesture. Its white-striped rings descend toward a central stage, backed by the Huangpu River and the red cables of Yangpu Bridge. The geometry is deliberate: the bowl captures the best solar orientation and the best views of the skyline in a single sweep. It functions as an outdoor theater, a gathering space, and a topographic event that draws people down from the elevated parkland toward the water.

The design team frames the amphitheater within a broader "theater scene" concept, where indoor performance spaces, outdoor stages, and commercial program are not separate destinations but episodes along a continuous public sequence. The surrounding tree planting reinforces this: mature canopies ring the bowl, offering shade and spatial enclosure without blocking the panoramic view that gives the space its magnetism.

The Pergola and the Bridge

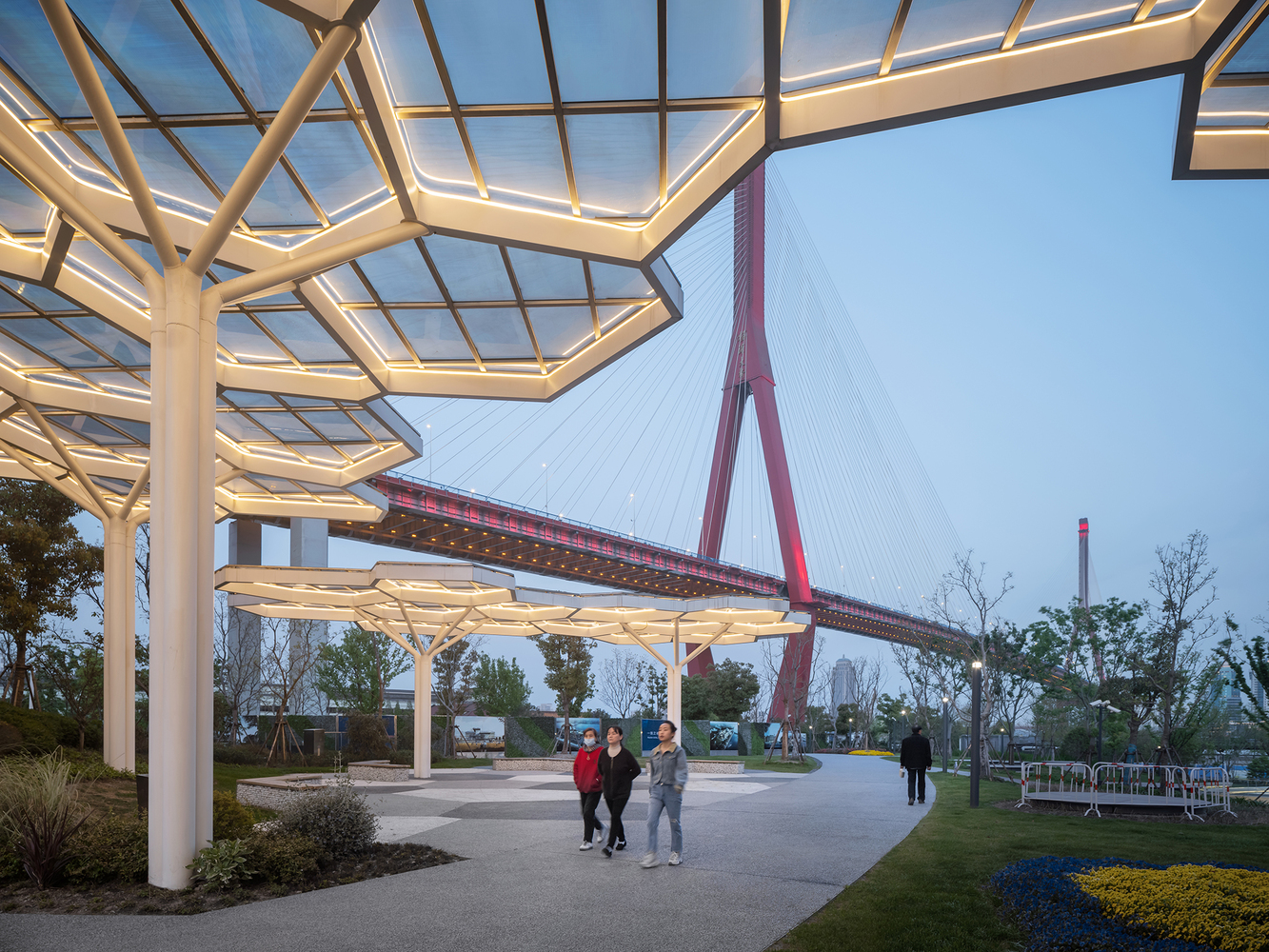

One of the project's smartest moves is the white steel pergola that reframes Yangpu Bridge itself as a visual asset rather than an infrastructural intrusion. The pergola's hexagonal skylights echo the honeycomb geometry found across the landscape, creating a family of forms that ties disparate scales together. At dusk, the structure becomes a luminous threshold: the red cables of the bridge glow behind it, the river darkens, and the pergola's own lighting turns it into a lantern for the waterfront promenade.

The relationship between the pergola and the bridge is worth pausing on. Yangpu Bridge was never designed to be looked at from below at pedestrian speed. It was engineered for cars at 80 kilometers per hour. The pergola domesticates that scale, offering a human-sized canopy from which you can appreciate the bridge's engineering as spectacle. It is a quiet act of reclamation: infrastructure reinterpreted as scenery.

Interior: Cave Logic

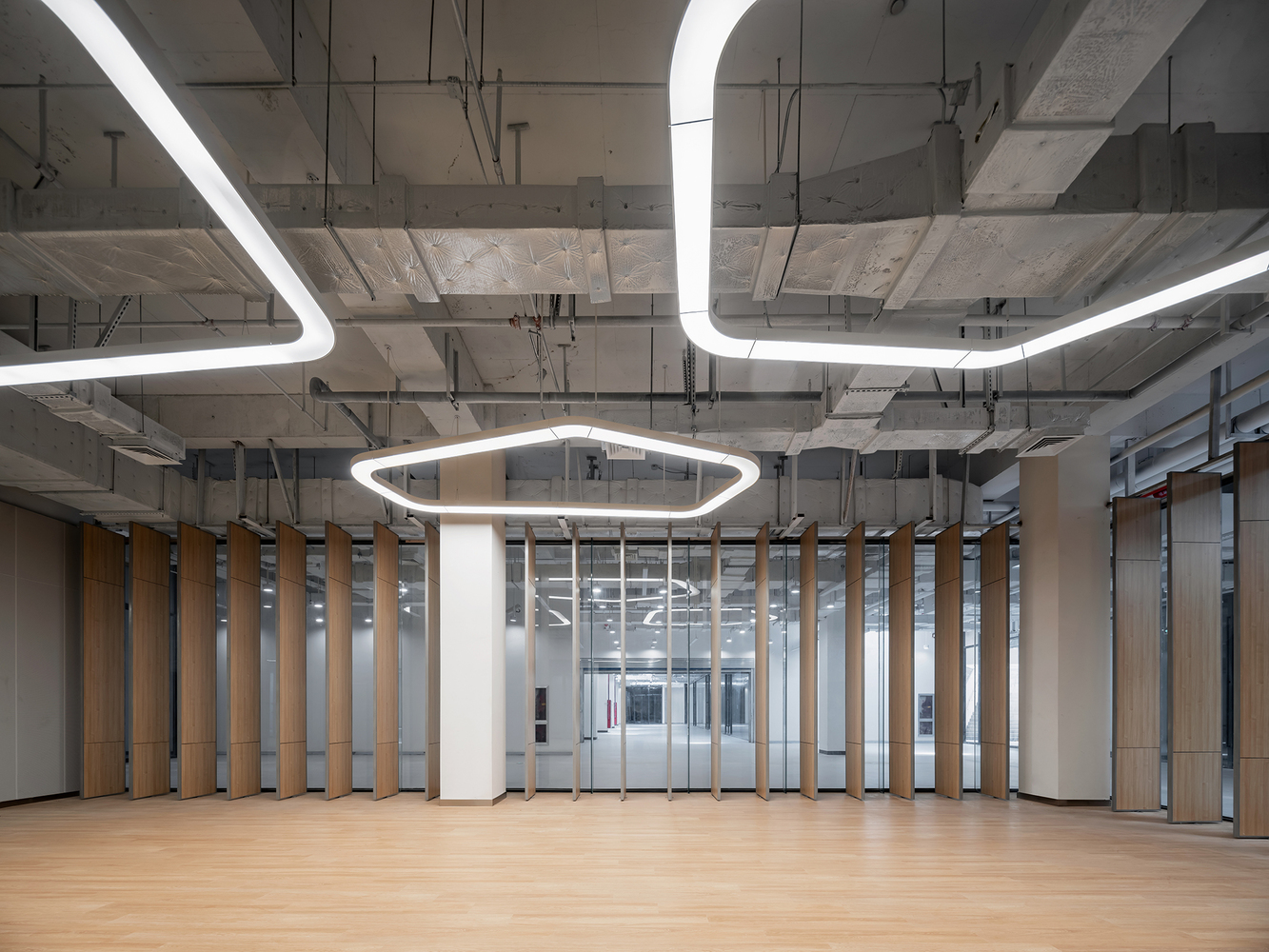

Inside the semi-underground volumes, the design language shifts to what Atelier L+ describes through two prototypes: the "cave" and the "shelter." The cave is evident in the interior hall, where an exposed concrete ceiling with deep coffers creates a deliberately geological atmosphere. Suspended hexagonal light fixtures carry the honeycomb motif indoors, while vertical timber screen partitions modulate the space without enclosing it. The effect is warm and subterranean without feeling oppressive, largely because the glazed facade on the park side floods the interior with diffused natural light.

The thermodynamic strategy is embedded in these spaces rather than bolted onto them. The semi-underground positioning provides thermal mass and earth-sheltering benefits. The glazed south facade captures passive solar gain in winter. Ventilation paths follow the natural behavior of wind and heat rather than relying solely on mechanical systems. It is not zero-energy architecture in the marketing sense, but it represents a serious integration of passive design principles at a public-infrastructure scale, which is more difficult and arguably more valuable.

Why This Project Matters

The Yangpu Bridge Public Space project matters because it demonstrates that infrastructure-scarred waterfront sites do not need to choose between park and building. By treating architecture as topography, Atelier L+ has produced a public realm where the green space is structural and the structure is inhabitable landscape. The five integrated subsystems (green, memory, water, knowledge, infrastructure) are not a diagram; they are built and functioning, managing stormwater, hosting performances, connecting ferry and metro, and preserving the industrial memory of a district that once powered Shanghai's economy.

Phase I is only the western side of the bridge. If subsequent phases deliver on the same ambition, Yangpu Riverside could become one of the most compelling examples of post-industrial waterfront urbanism in Asia, not because it erases the past, but because it folds the past into a new ground plane that is genuinely public, ecologically functional, and architecturally rigorous. That is a rare combination at any scale, let alone at the foot of a six-lane expressway bridge.

Yangpu Bridge Public Space and Integrated Environment Project (Phase I) by Atelier L+ (TJAD). Yangpu District, Shanghai, China. 20,510 m² built area, 24,353 m² green space. Completed 2022. Landscape design in collaboration with ABALOS ARQUITECTOS. Photographs by ZYstudio.
