Arupo House: Brick, Courtyard, and Volcano Views

Retirement is rarely treated as a design brief worth celebrating. Most architects encounter it as a downsizing problem: fewer rooms, fewer stairs, a vague expectation of comfort. Arupo House, designed by Cordada Arquitectura in Quito's Conocoto valley, takes retirement as an opportunity to build slowly and deliberately, producing a 230 m² brick dwelling that orbits a central courtyard and opens toward the Ilaló volcano. The name comes from the arupo tree, a native species whose pink blossoms mark the change of seasons in the Ecuadorian highlands. That sense of cyclical time, of watching things grow and change, saturates the architecture.

What makes the project compelling is how much it extracts from a limited material palette. Brick does nearly everything here: it forms bearing walls, perforated screens, courtyard paving, and decorative texture. Timber handles the rest, spanning between walls as exposed ceiling beams and lining cabinetry. The result is a house that feels monolithic from the street and porous from within, a single material argument sustained through thirty or so variations. It is the kind of work that rewards close looking, because the differences between one brick bond and the next carry real spatial consequences.

The Street Face

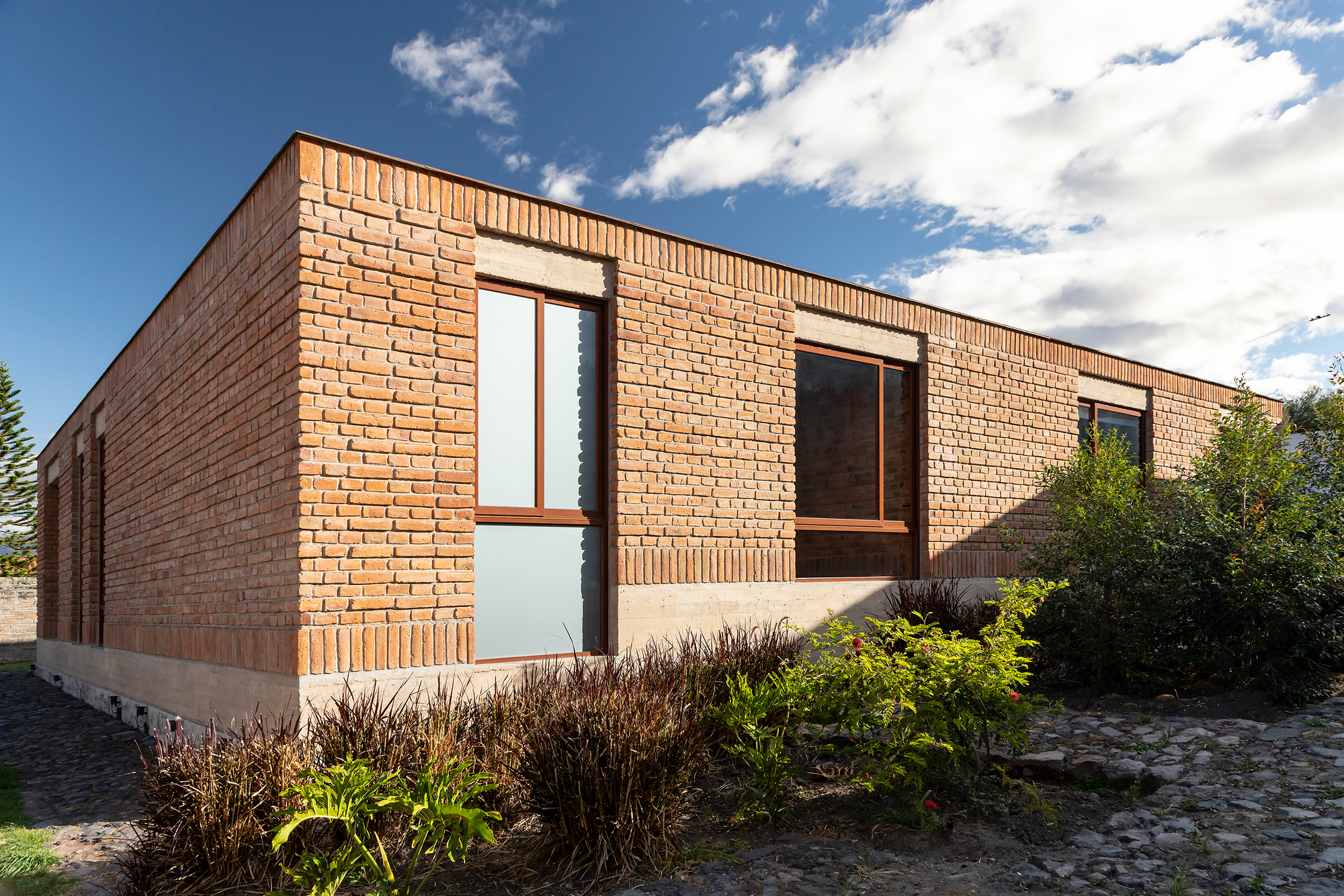

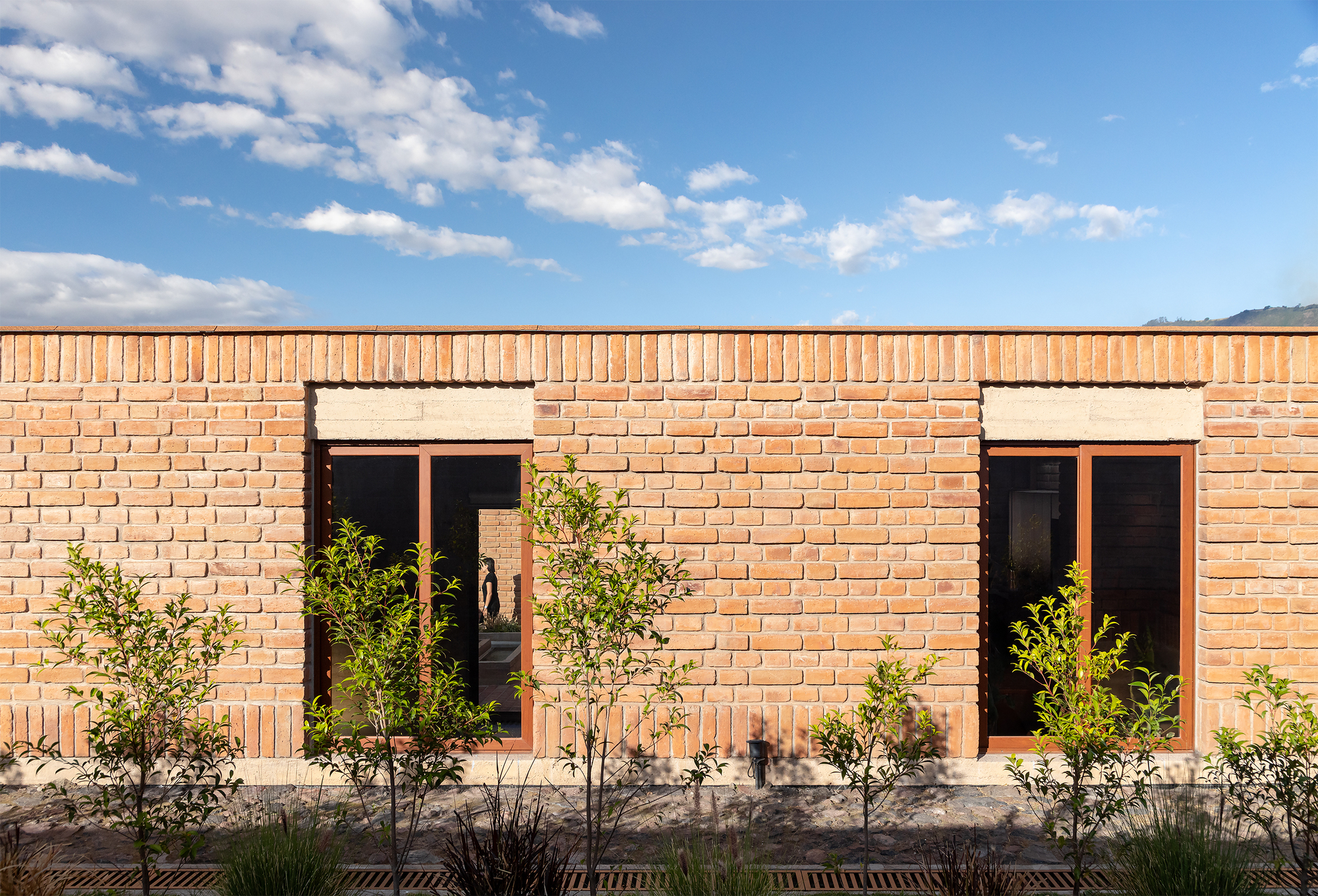

From the street, Arupo House presents itself as a low, horizontal mass of brick. The coursing patterns shift from wall to wall: stretcher bond, stack bond, perforated screens that filter light without revealing the interior. Window openings are deeply recessed, framed in timber, and placed with deliberate asymmetry that avoids the monotony of a repeated module. Young trees line the gravel base, already beginning to soften the boundary between the public sidewalk and the private wall.

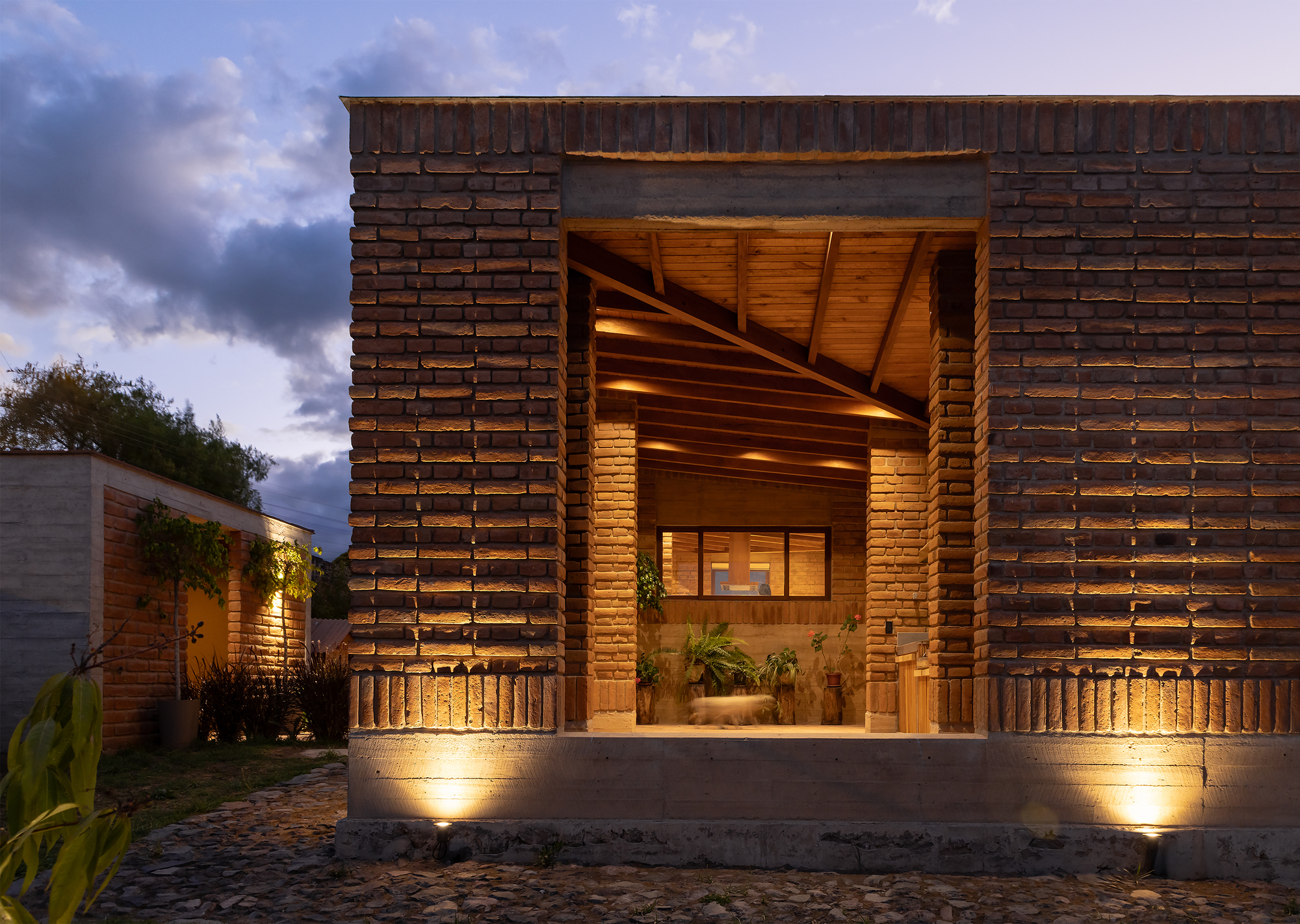

The entry is marked by a perforated brick screen that glows warmly at dusk. It is a generous threshold, not a pinched doorway, and it sets up the spatial sequence that follows: compression, release, view. The house signals hospitality without sacrificing privacy, a balance that many single-story residences in dense neighborhoods struggle to achieve.

Passages and Thresholds

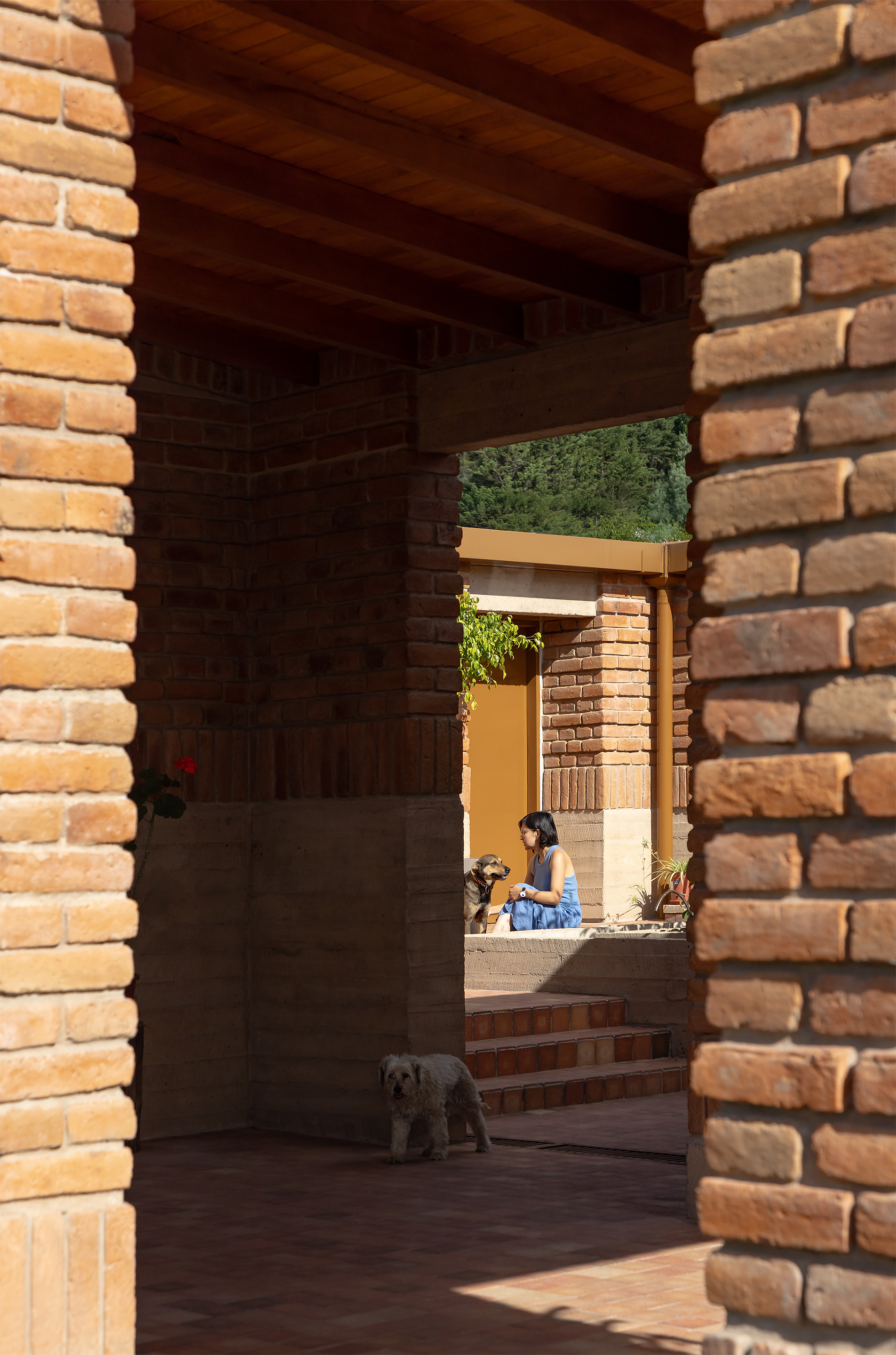

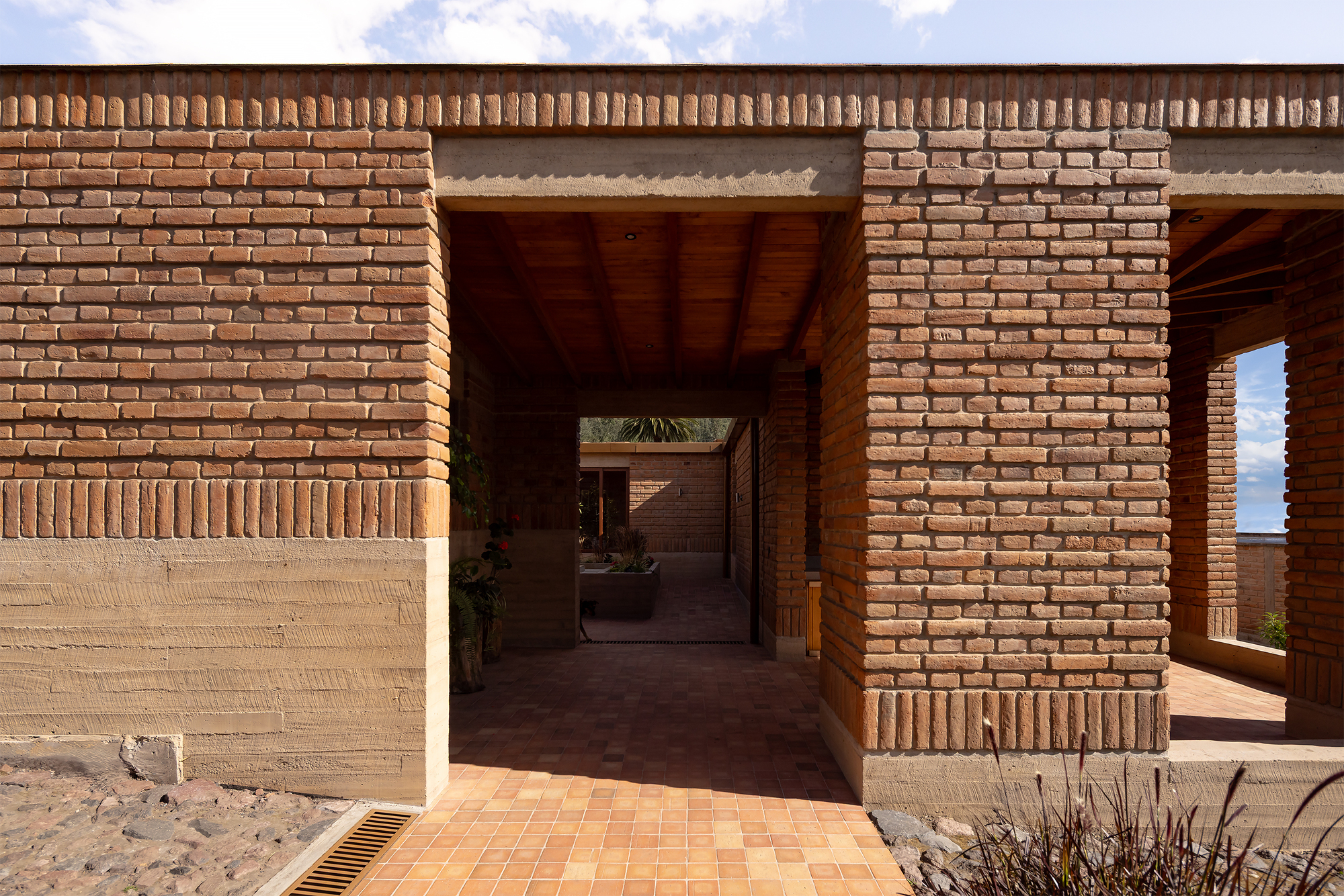

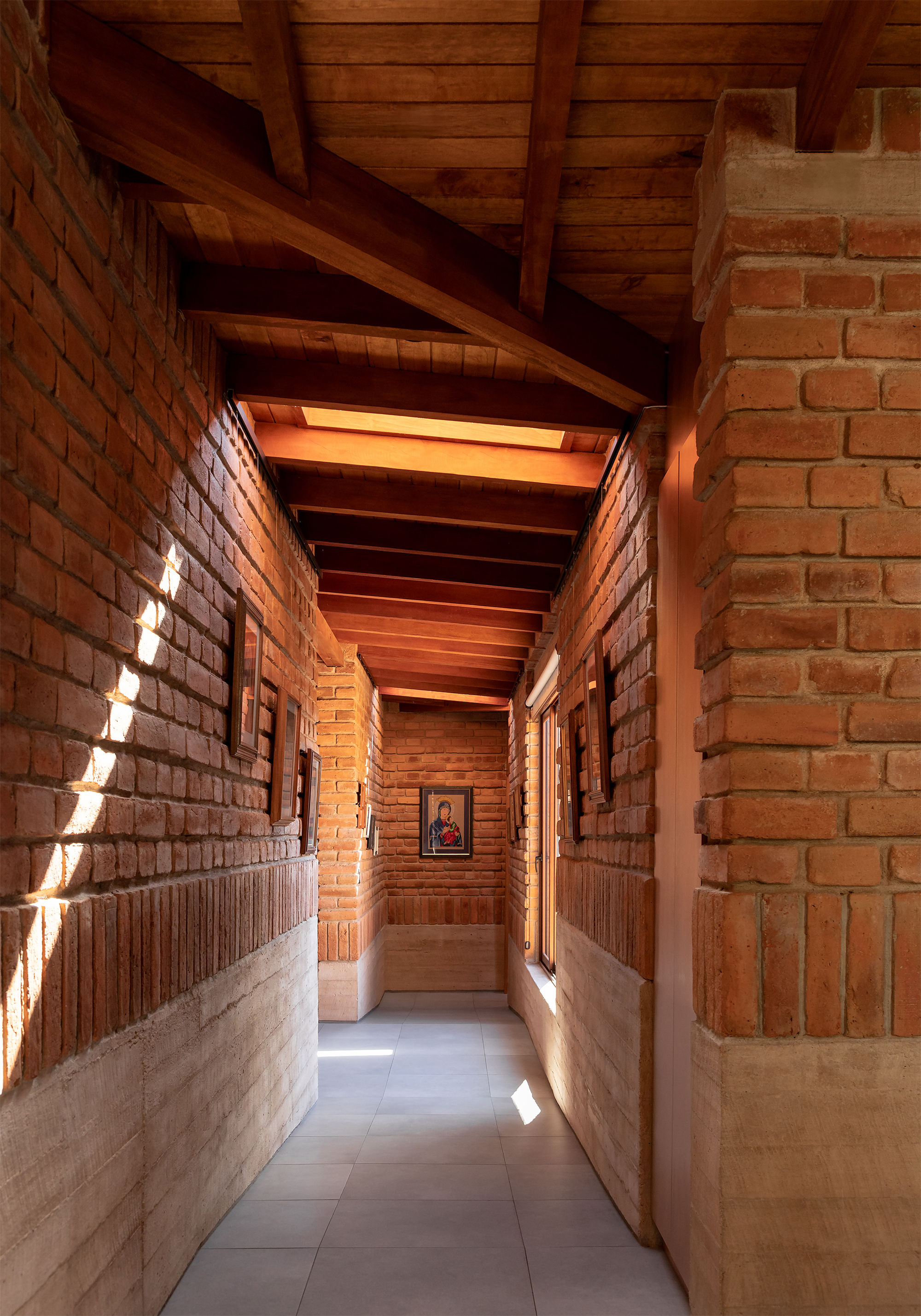

The corridors of Arupo House are not leftover circulation. They are rooms in their own right, shaped by brick walls that step in and out, lit by skylights that cast sharp diagonal shadows across terracotta tile floors. Walking through the house involves a sequence of compressions and expansions that give each room a distinct sense of arrival. A covered entry passage leads through planted beds. A narrow corridor frames a distant courtyard at dusk. Light falls differently in every one.

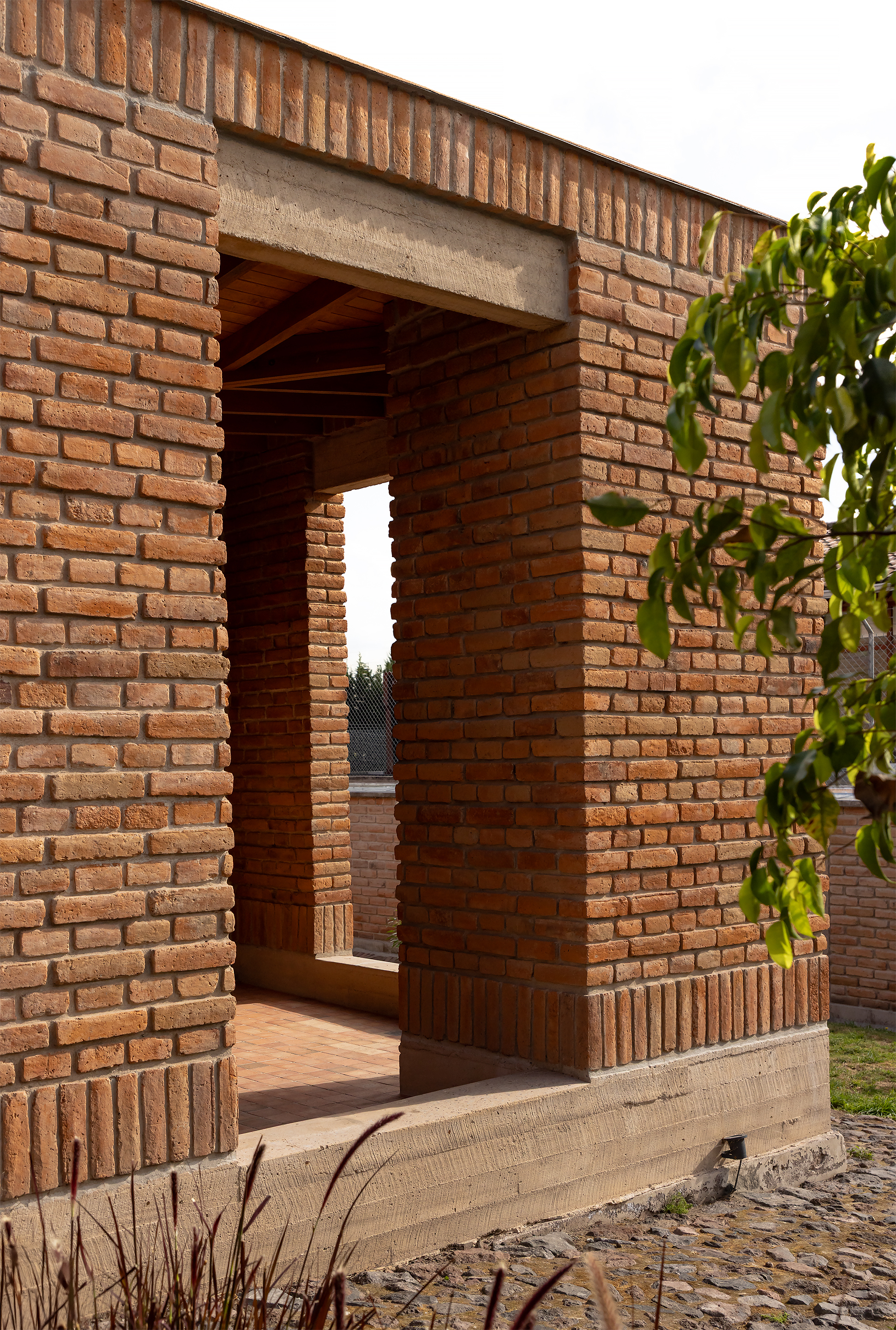

Concrete lintels span the openings cleanly, letting the brick walls above read as continuous surfaces. The material honesty is rigorous but never austere: the warmth of the clay and timber keeps the atmosphere domestic rather than institutional. These passages also serve as thermal buffers, channeling cross-ventilation between the courtyard and the perimeter walls.

The Courtyard as Heart

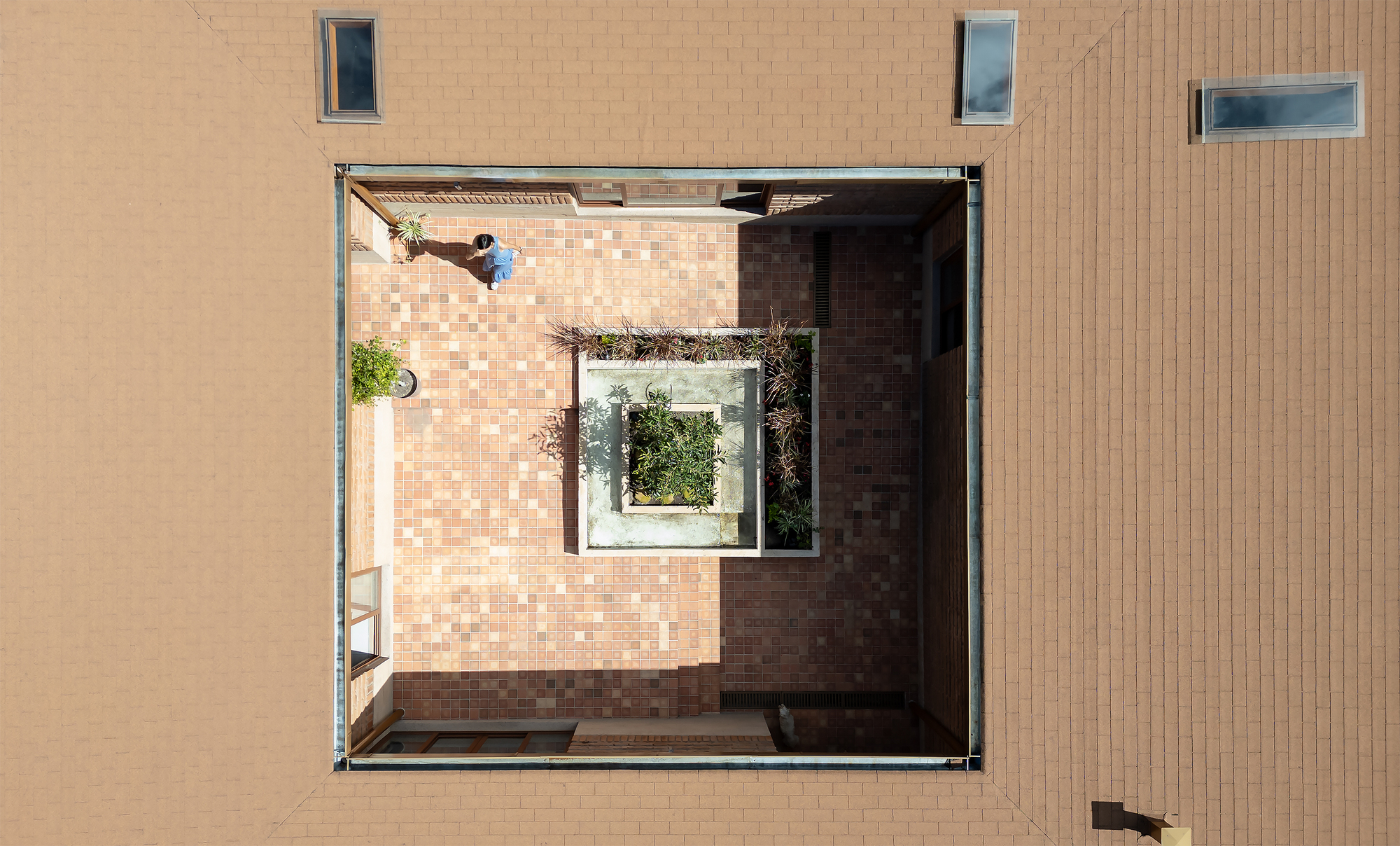

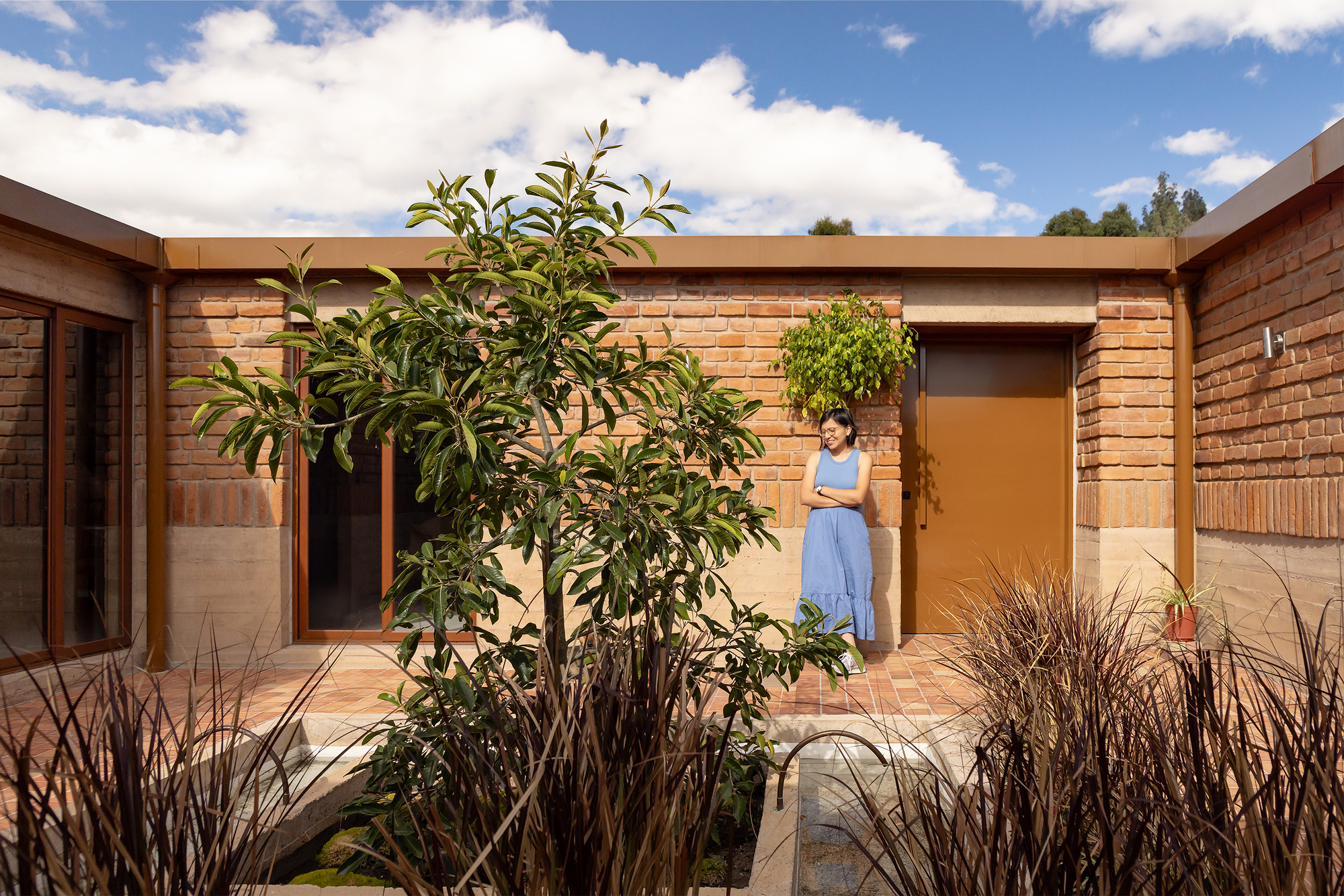

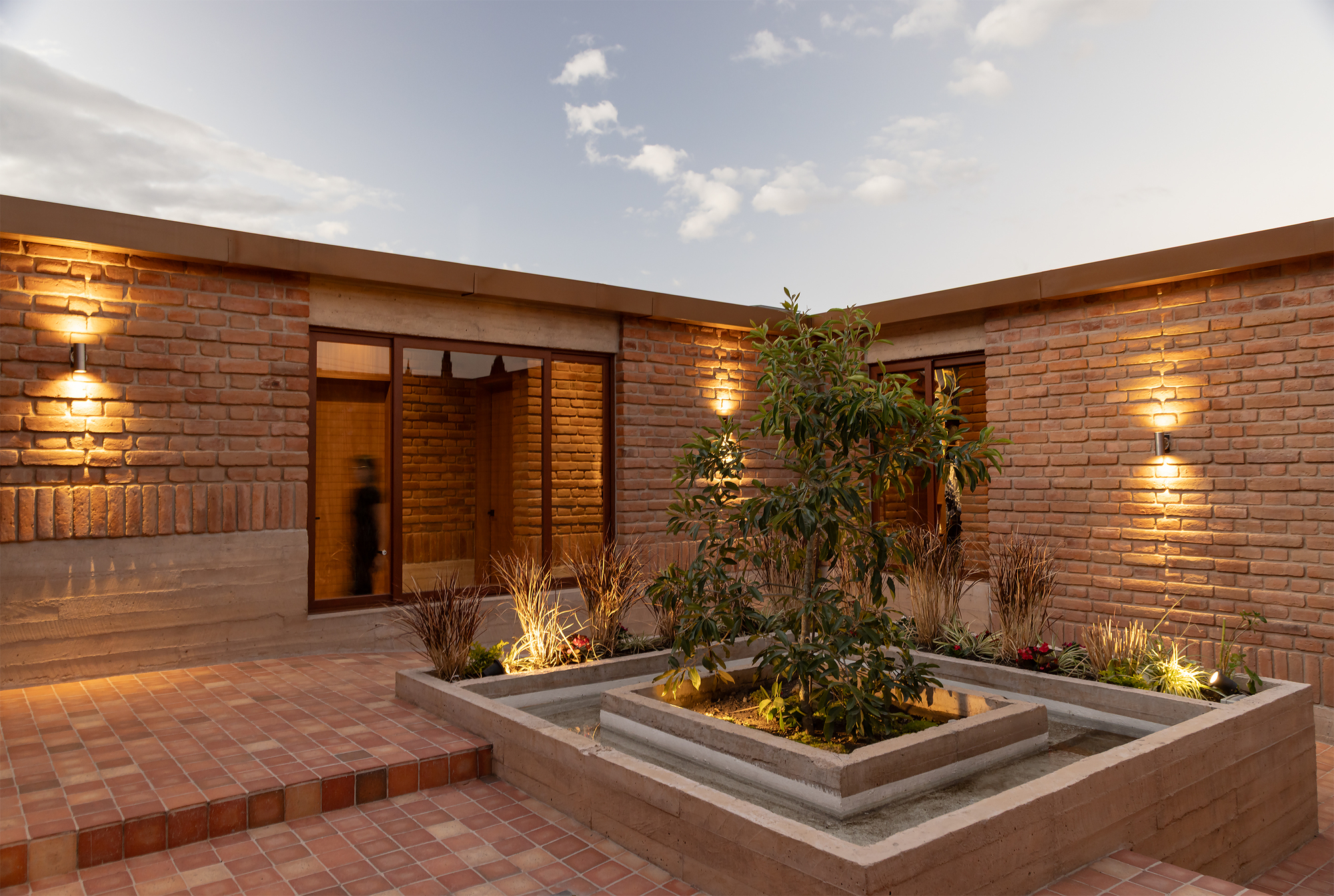

The courtyard is the organizational center of the plan and the emotional center of the house. A single tree grows from a planted bed surrounded by checkered brick paving, and timber beams extend overhead to create a partially shaded outdoor room. Rooms open directly onto this space through wide doorways, collapsing the distinction between inside and out in a way that suits the mild climate of Quito's inter-Andean valley.

At twilight, the courtyard becomes something else entirely. The brick walls absorb the fading light, the planted bed darkens to silhouette, and the overhead beams frame a rectangle of sky. It is a contemplative space designed for two people who have the time to sit and watch the light change. The courtyard typology is ancient in Latin American residential architecture, but Cordada deploys it here with a precision that avoids nostalgia.

Living Under Timber

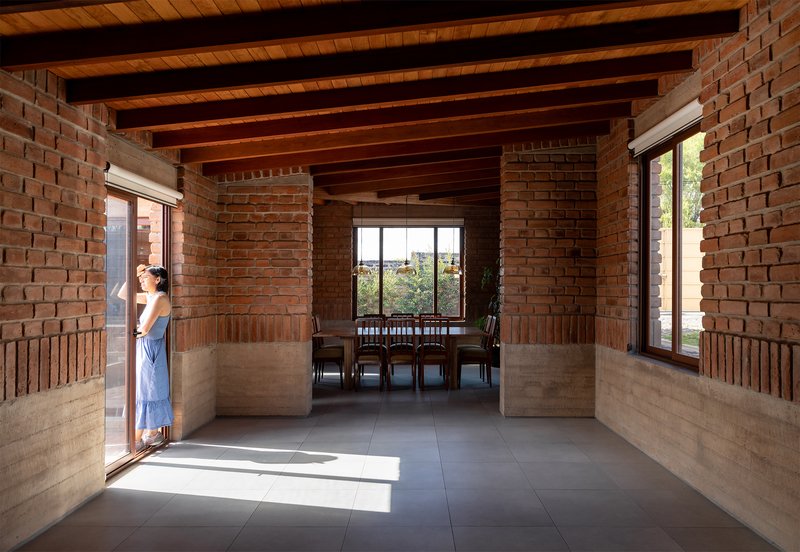

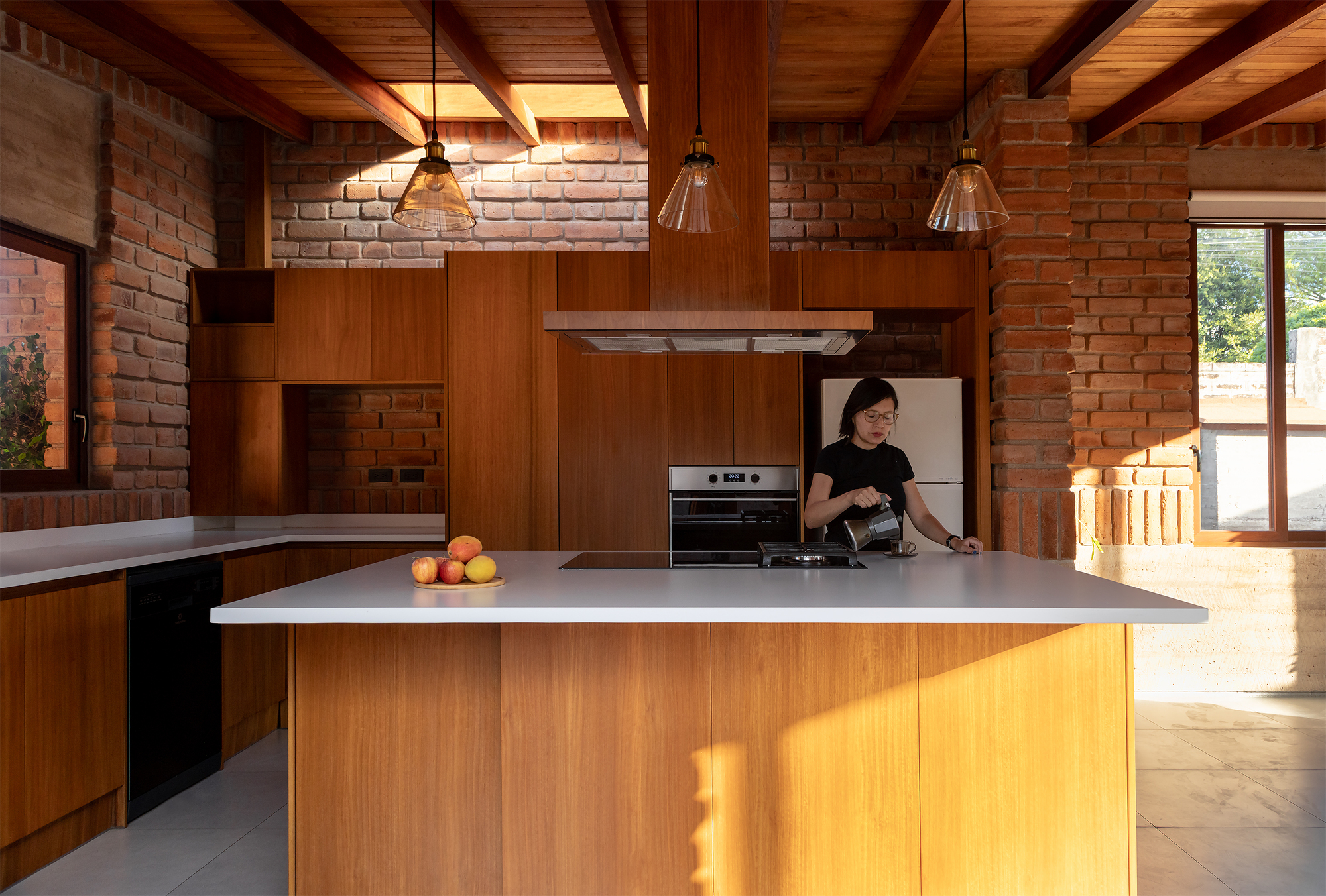

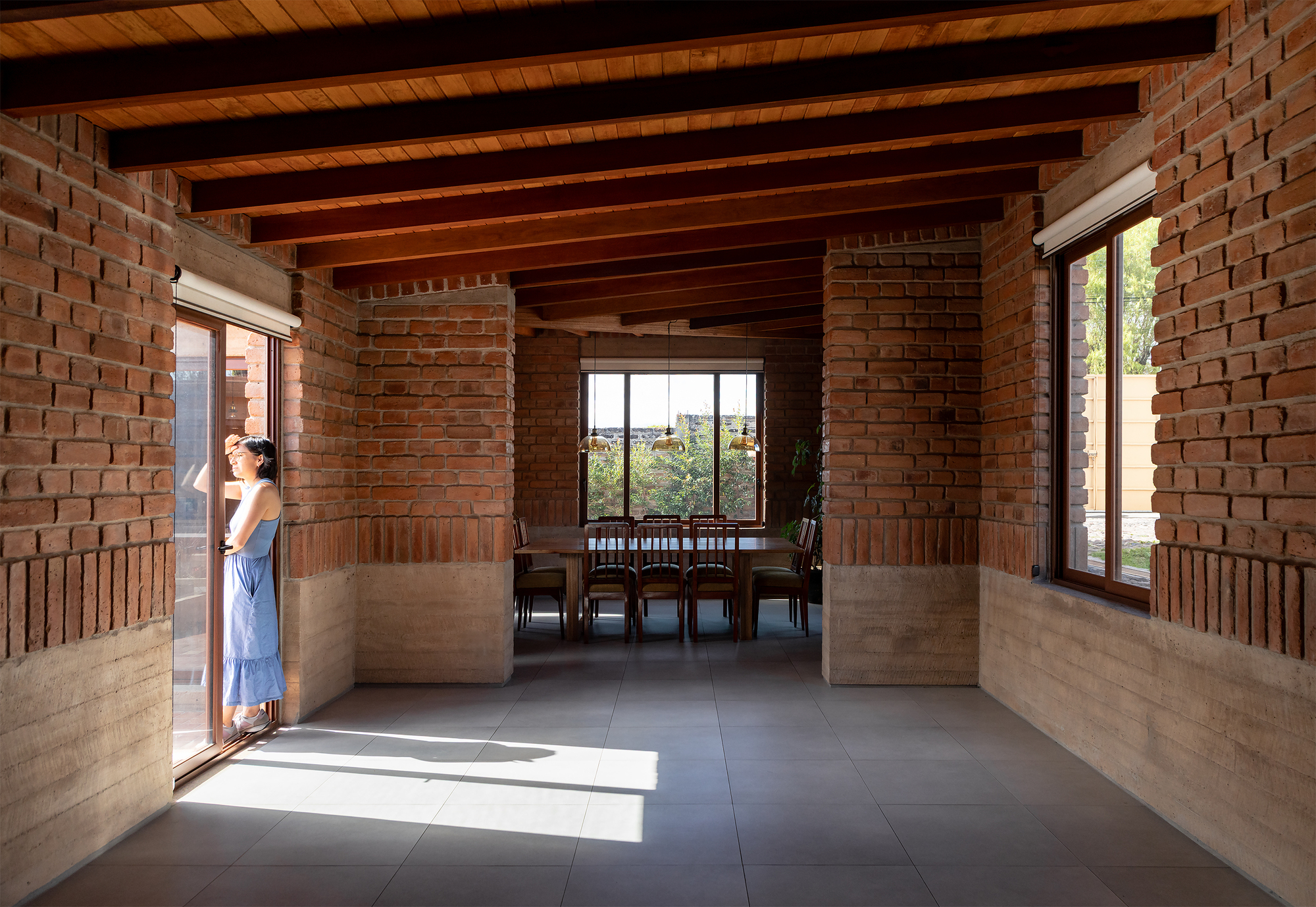

The interior rooms share a common ceiling language: exposed timber beams spanning between brick walls, with the underside of the roof left visible. In the living space, natural light enters from the courtyard side and from carefully placed openings in the perimeter walls, creating a warm, even illumination that avoids the harshness of large glazed surfaces. The kitchen features a timber island with pendant lights, the kind of quietly resolved domestic space that invites lingering.

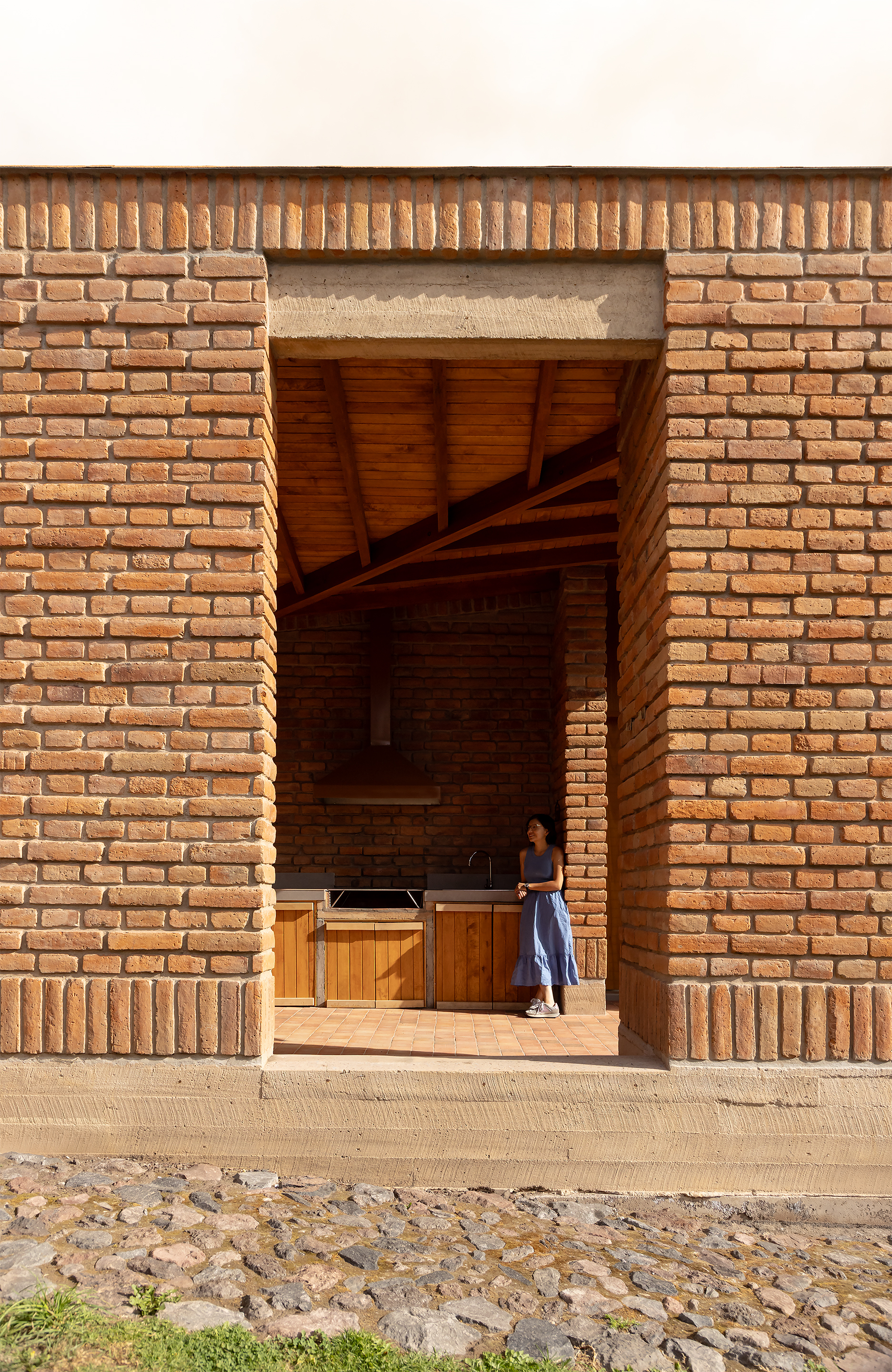

A wide brick portico connects the living areas to the courtyard, its exposed timber ceiling sheltering a zone that is neither fully inside nor fully outside. Cabinetry, also in timber, lines the wall. The material consistency across the house means that attention naturally shifts to the quality of light, the proportions of openings, and the views framed through them. There is no surface competing for attention.

Framing the Volcano

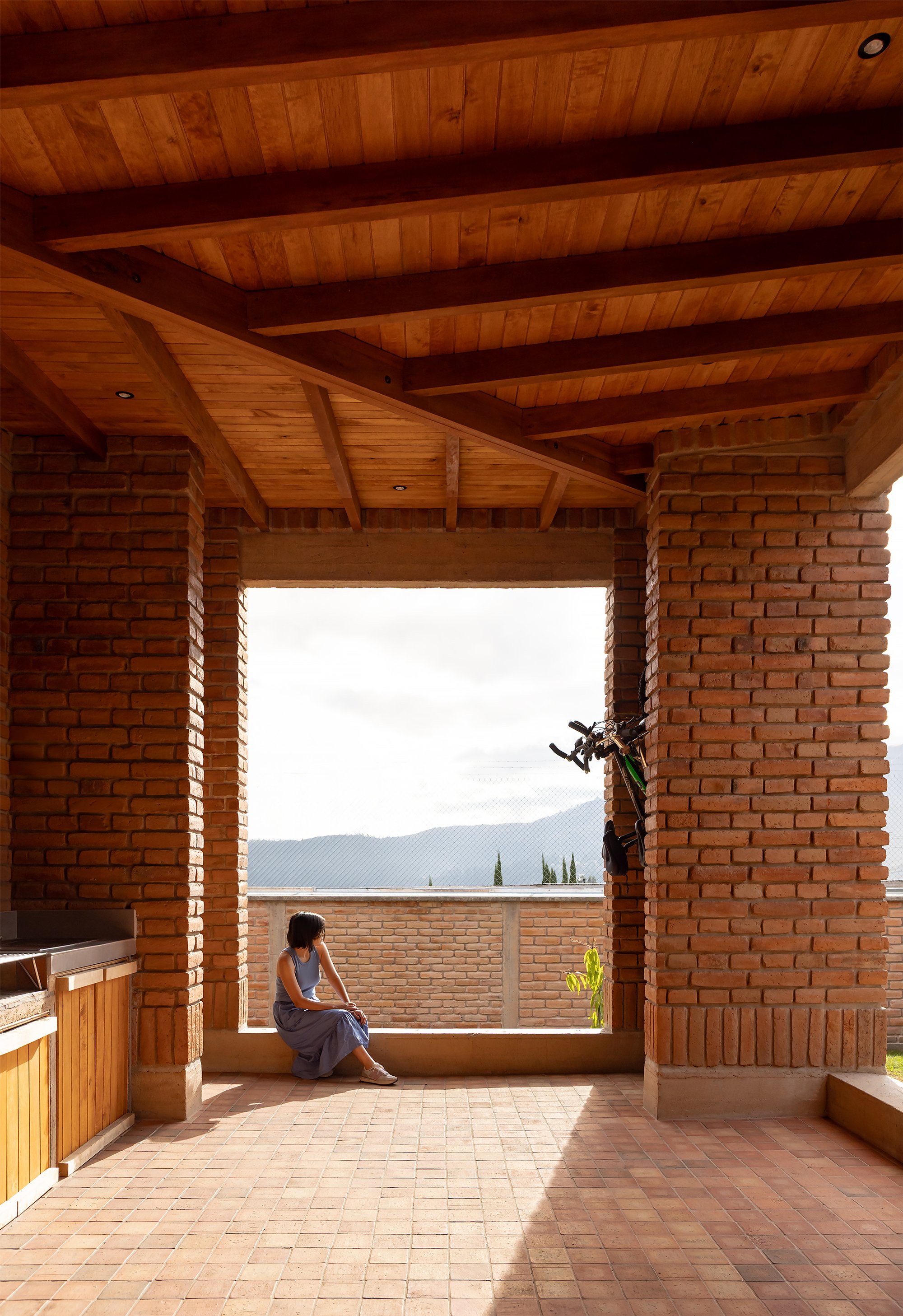

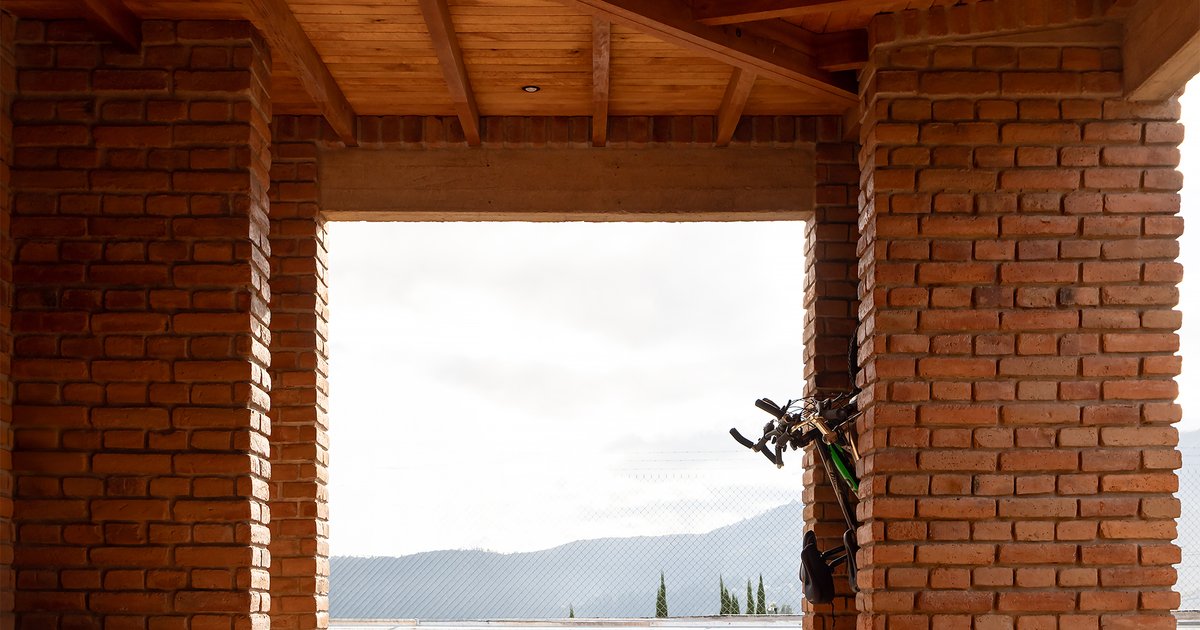

The window seat facing the Ilaló volcano is perhaps the most published moment in the house, and for good reason. Two brick piers frame a deep opening, the timber ceiling slopes toward the view, and a built-in seat invites you to sit at the precise vantage point where the mountain fills the frame. It is architecture as camera: the walls determine not just what you see, but how you see it.

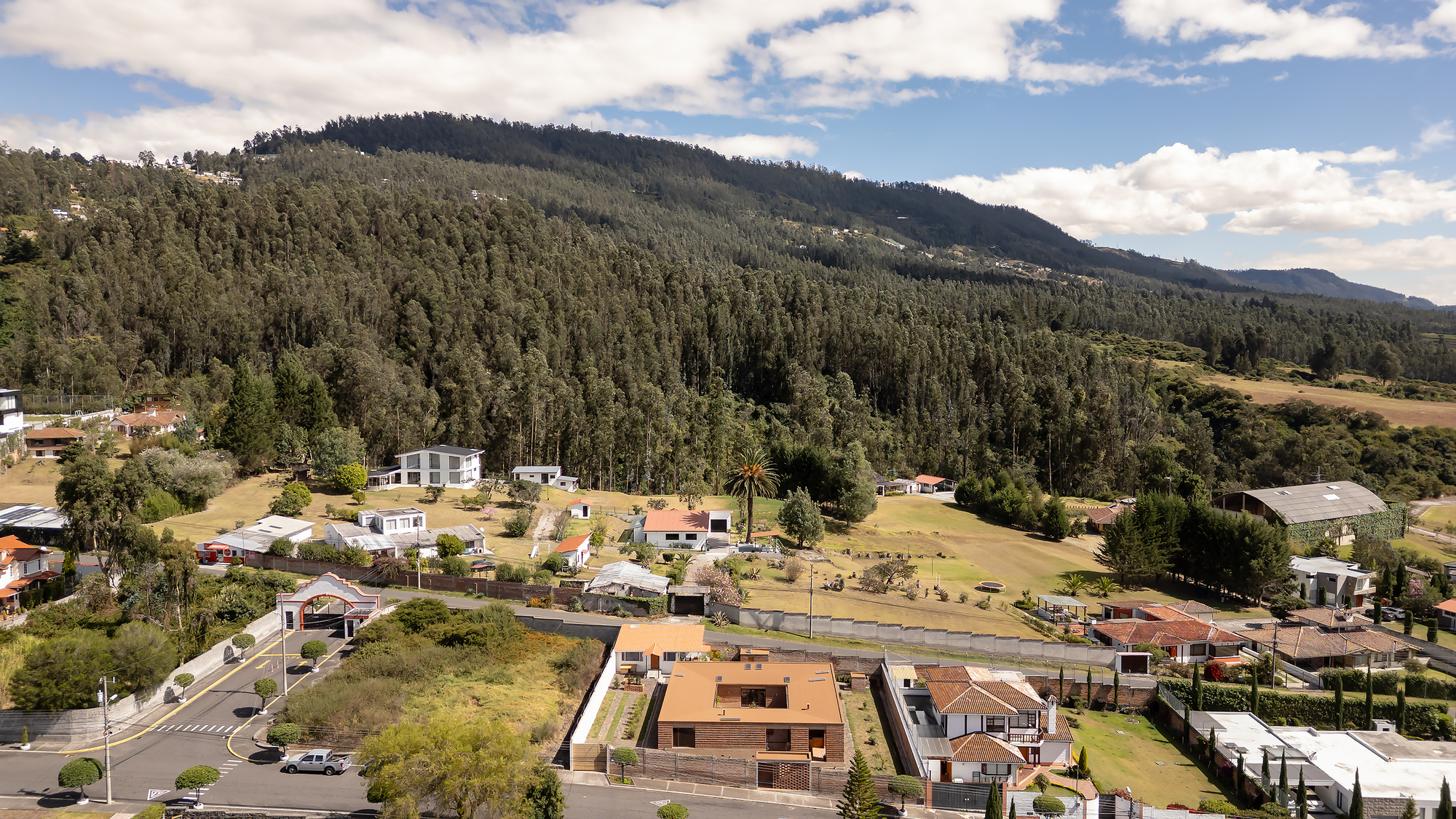

The aerial view confirms what the plan suggests: Arupo House sits within a valley neighborhood of modest scale, backed by forested mountains. The house does not tower above its context. Its single-story profile and brick materiality allow it to participate in the existing neighborhood texture while maintaining its own formal clarity. The relationship to the landscape is not about spectacle but about daily proximity, a mountain you live with rather than visit.

Brick as Detail

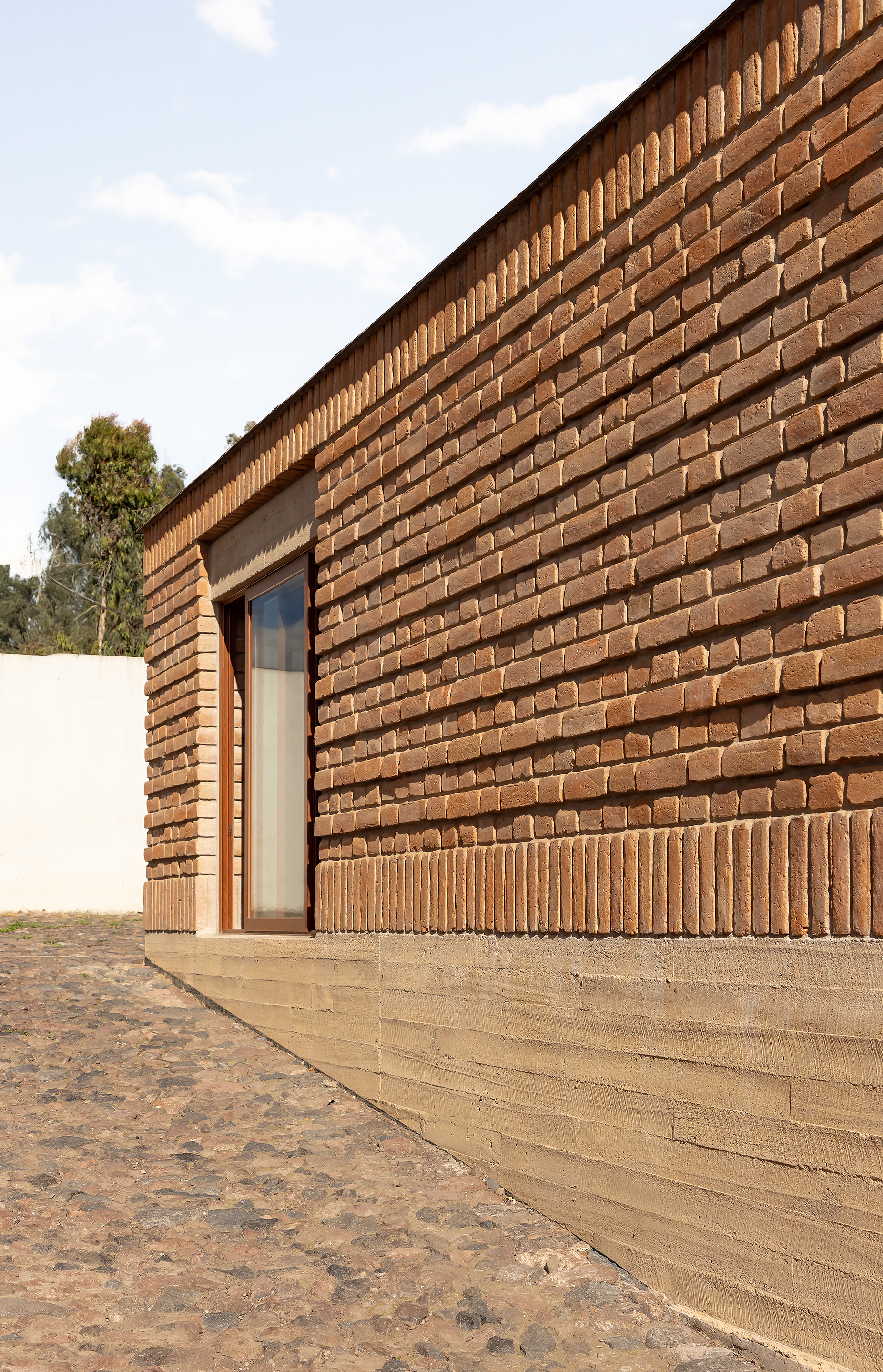

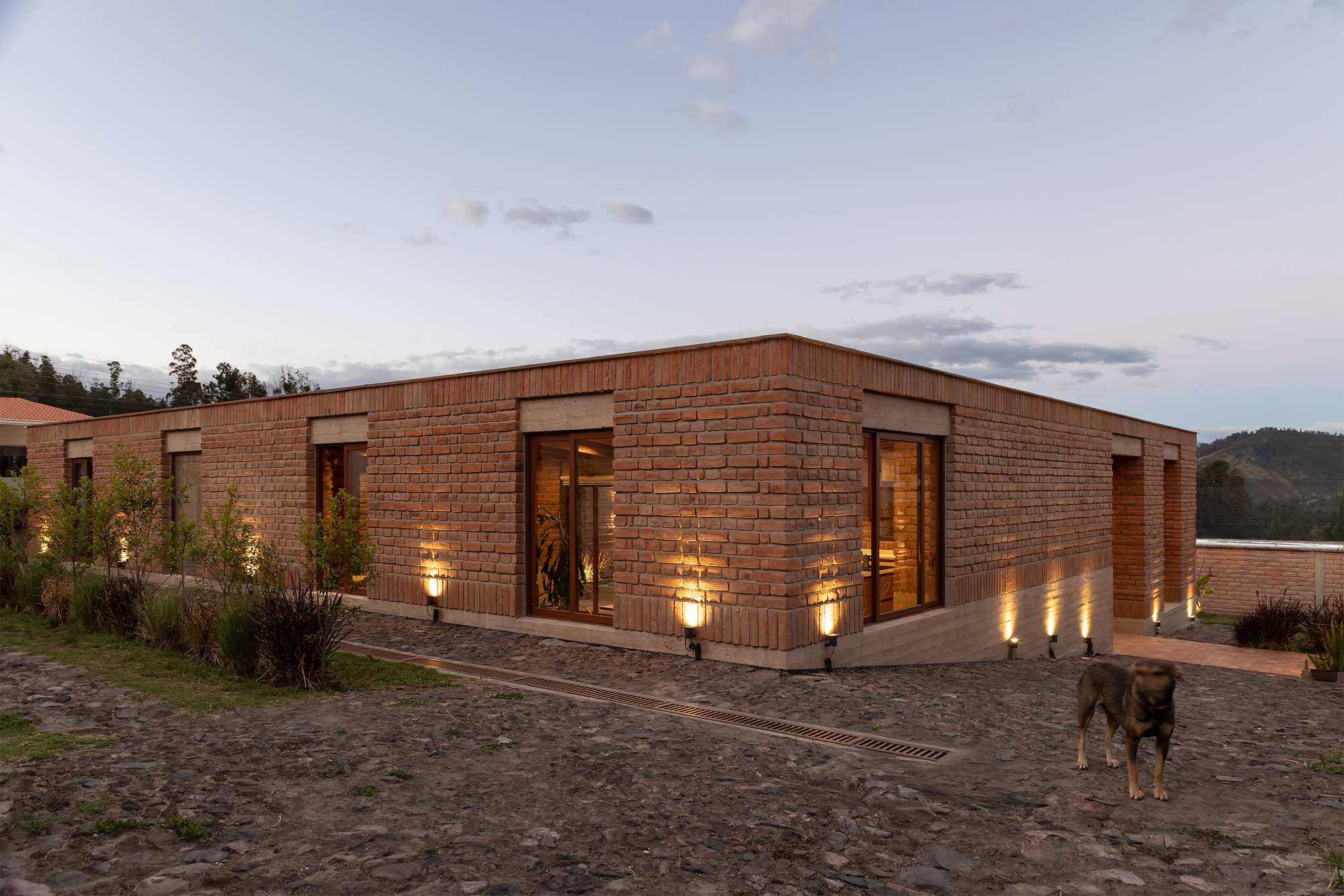

Corner details reveal the care taken at every junction. A recessed concrete base separates the brick wall from the ground, preventing moisture wicking while giving the mass a visual lift. Narrow windows are set into textured masonry, their proportions calibrated to admit light without weakening the wall's structural integrity. At night, uplighting transforms the brick surfaces into a play of shadow and relief, making the varied coursing patterns legible from the street.

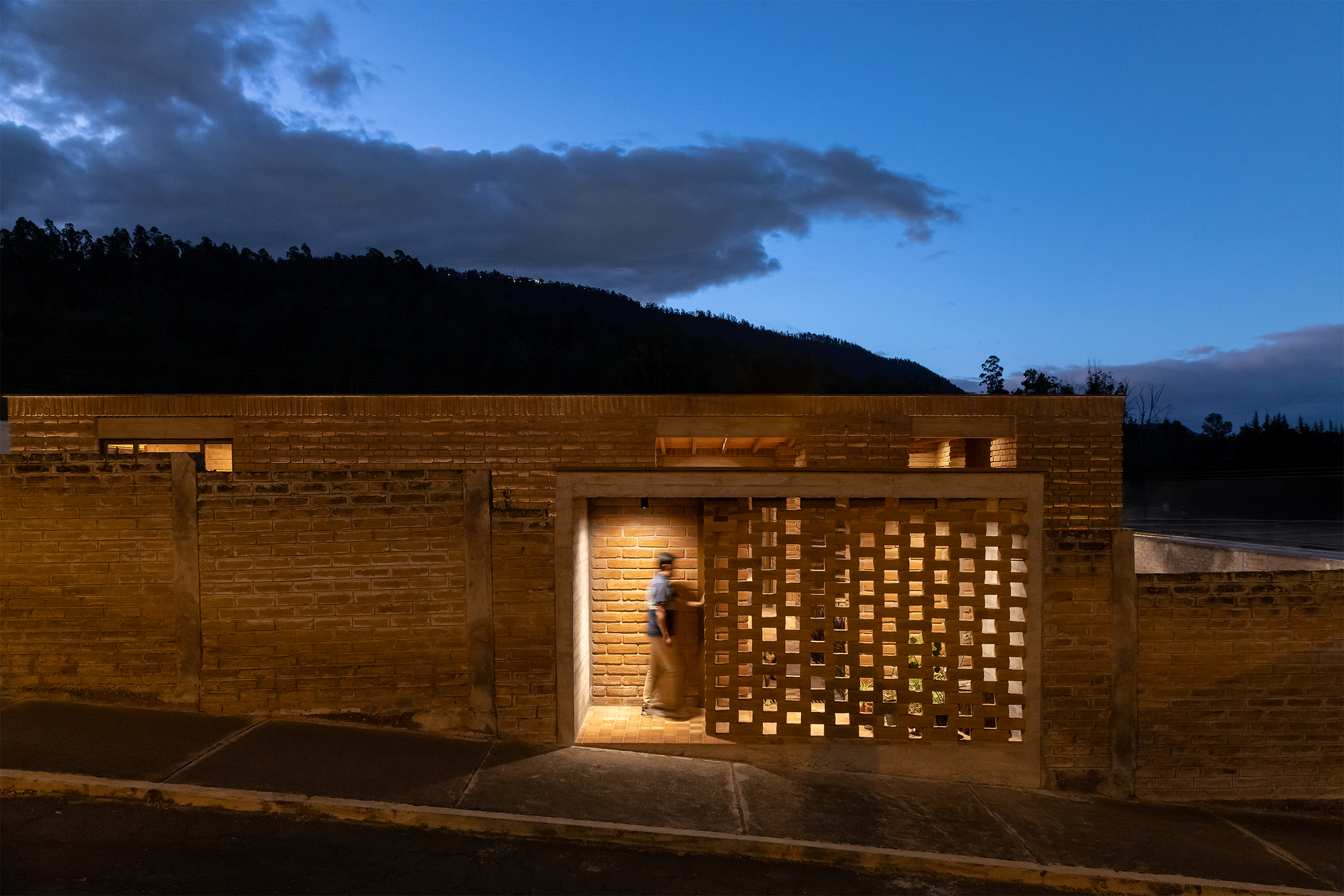

The perforated entry screen deserves particular attention. Its pattern is dense enough to obscure the interior but open enough to glow with interior warmth at dusk. A figure approaching the house sees light without seeing rooms, an effect that turns the facade into a lantern. It is a simple technique, but the execution here is confident and well-proportioned.

Private Spaces and Light

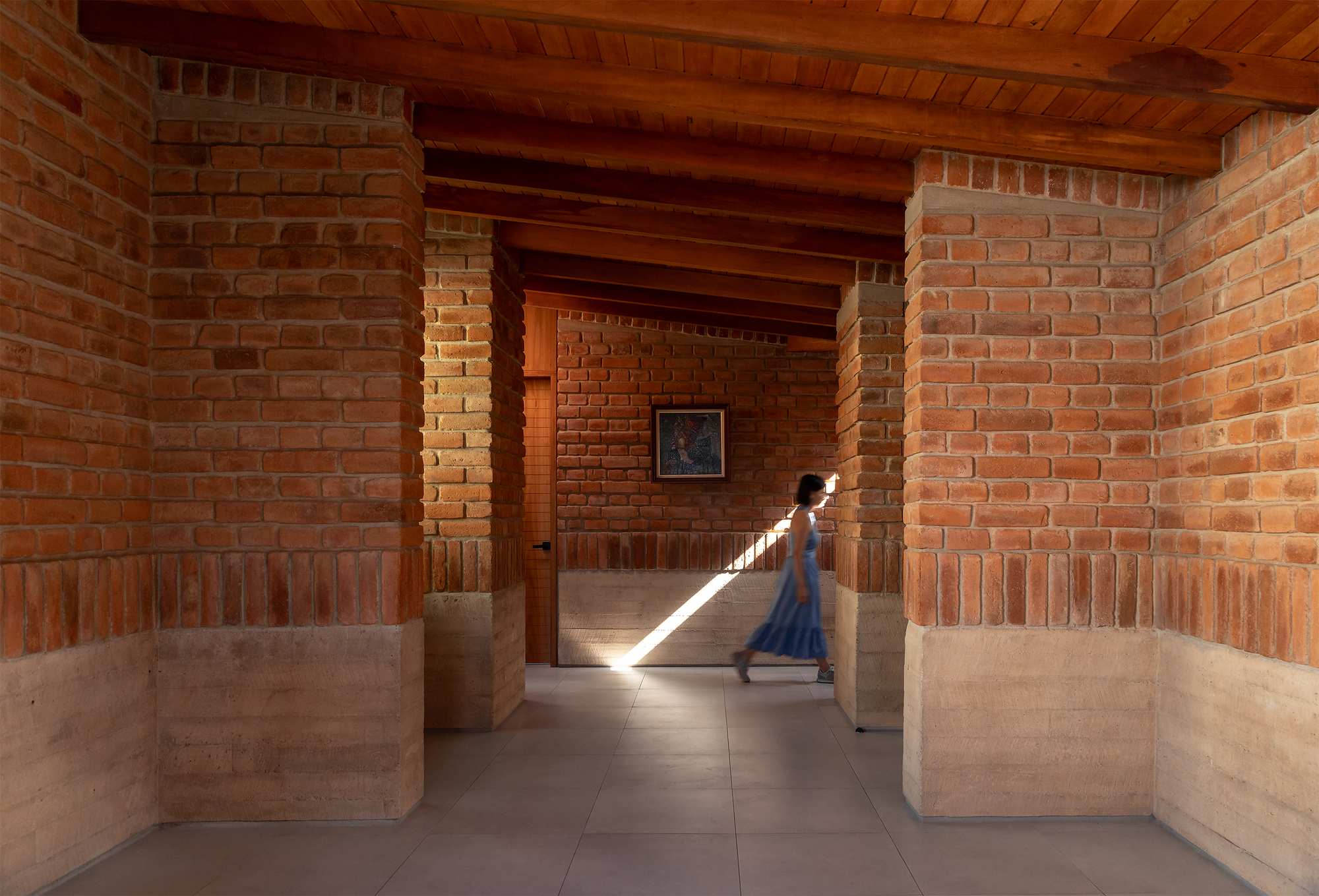

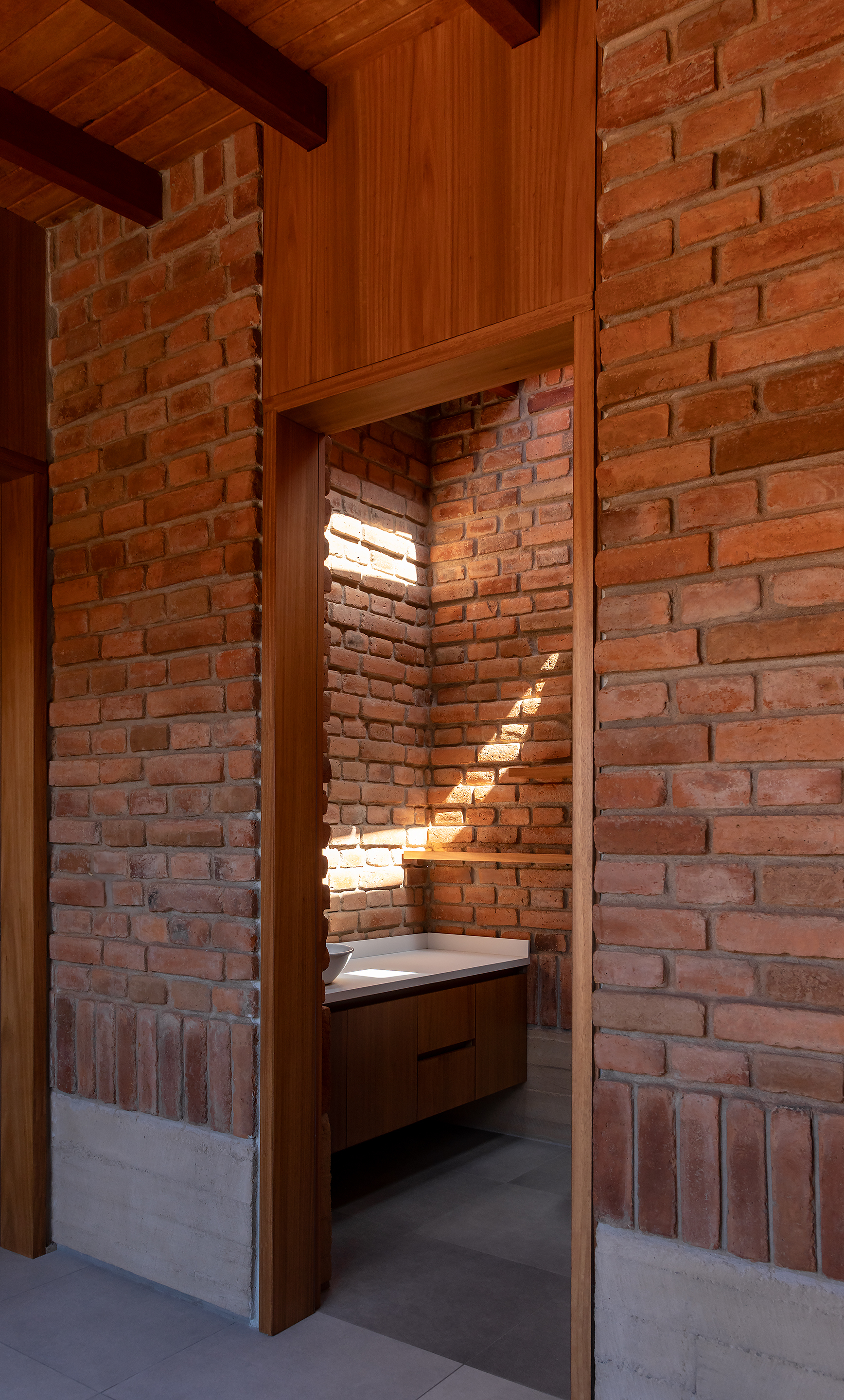

Even the most private rooms maintain the material discipline of the rest of the house. The bathroom alcove is lined in brick, with horizontal light slits that admit daylight without compromising privacy. The interior corridor catches sunlight through openings that shift throughout the day, animating the exposed brick surfaces. There is a meditative quality to these spaces that aligns with the program: a house for people with time to notice how light moves across a wall.

Plans and Drawings

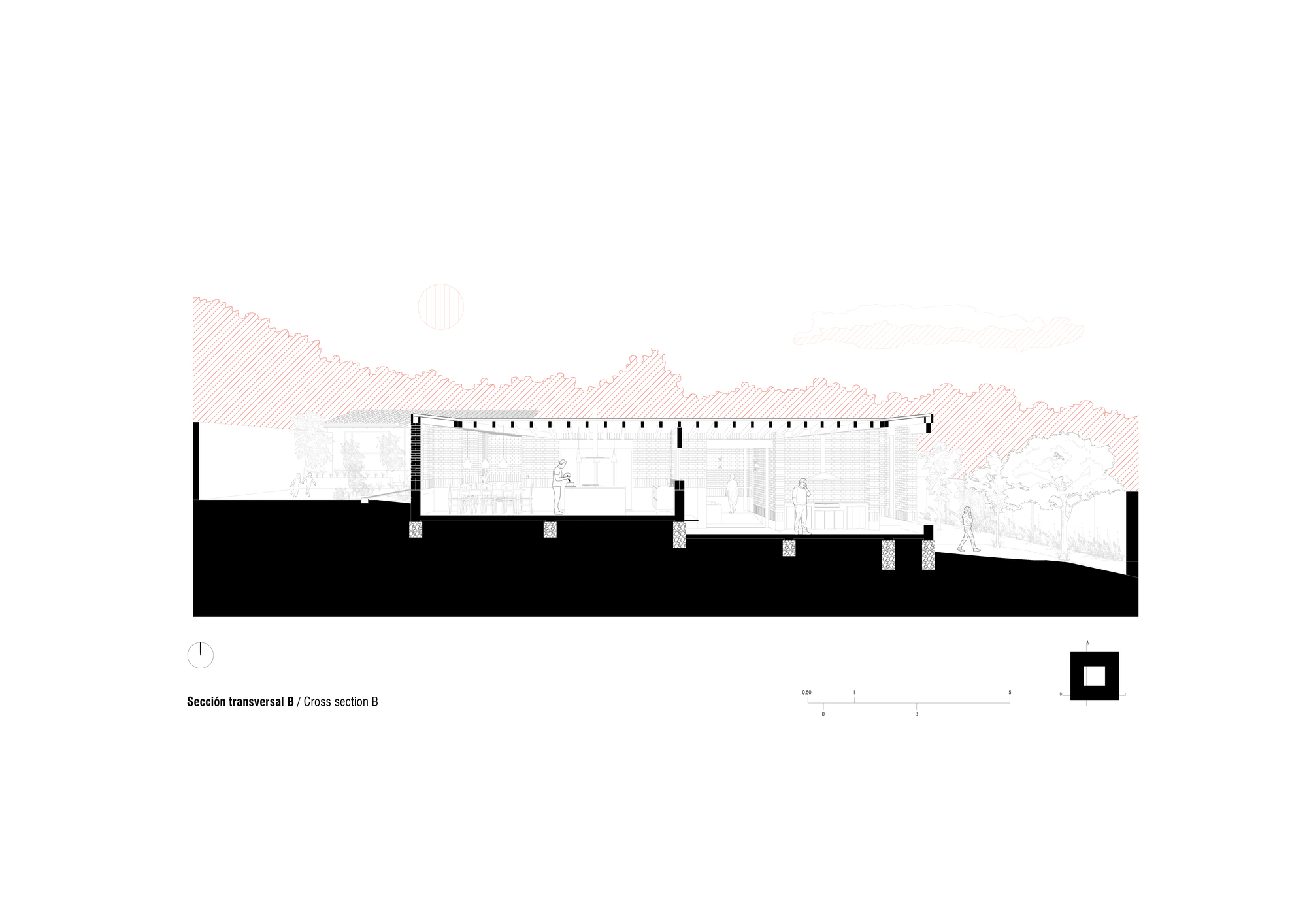

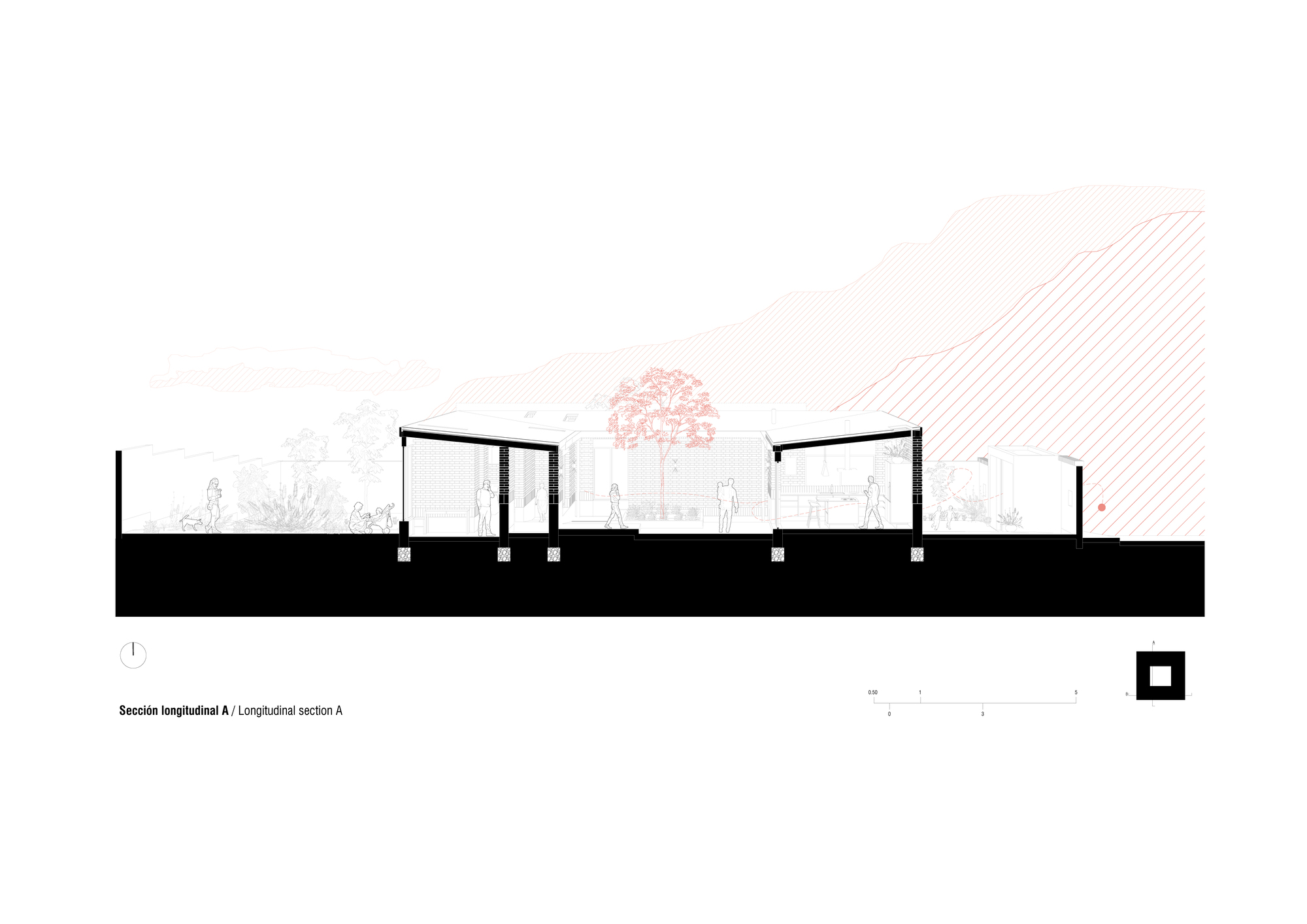

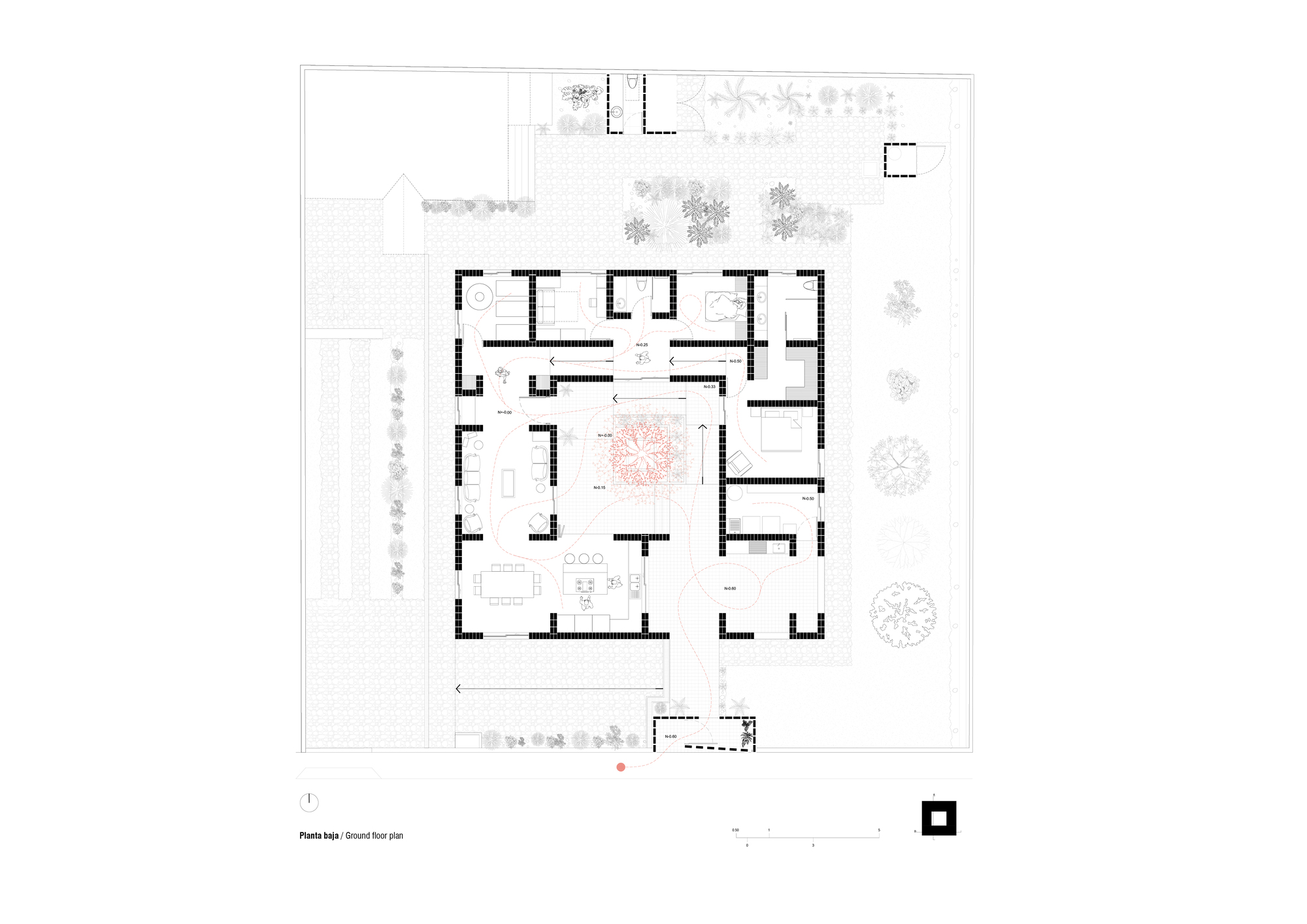

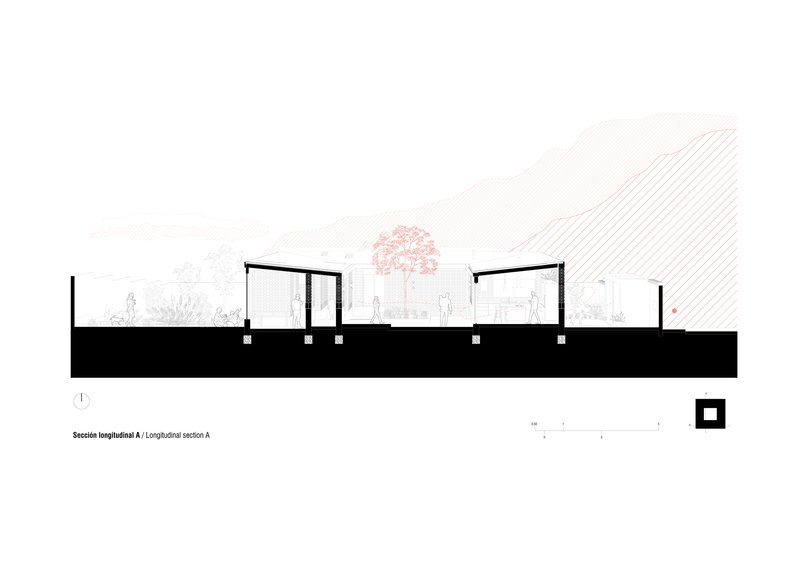

The floor plan confirms the courtyard as the organizing device: rooms wrap around a central planted space, with circulation paths that allow multiple routes through the house. The longitudinal section reveals a pitched roof with generous interior volume and a central tree that anchors the composition. Cross sections show how the rooms step down the site, responding to the natural topography rather than fighting it.

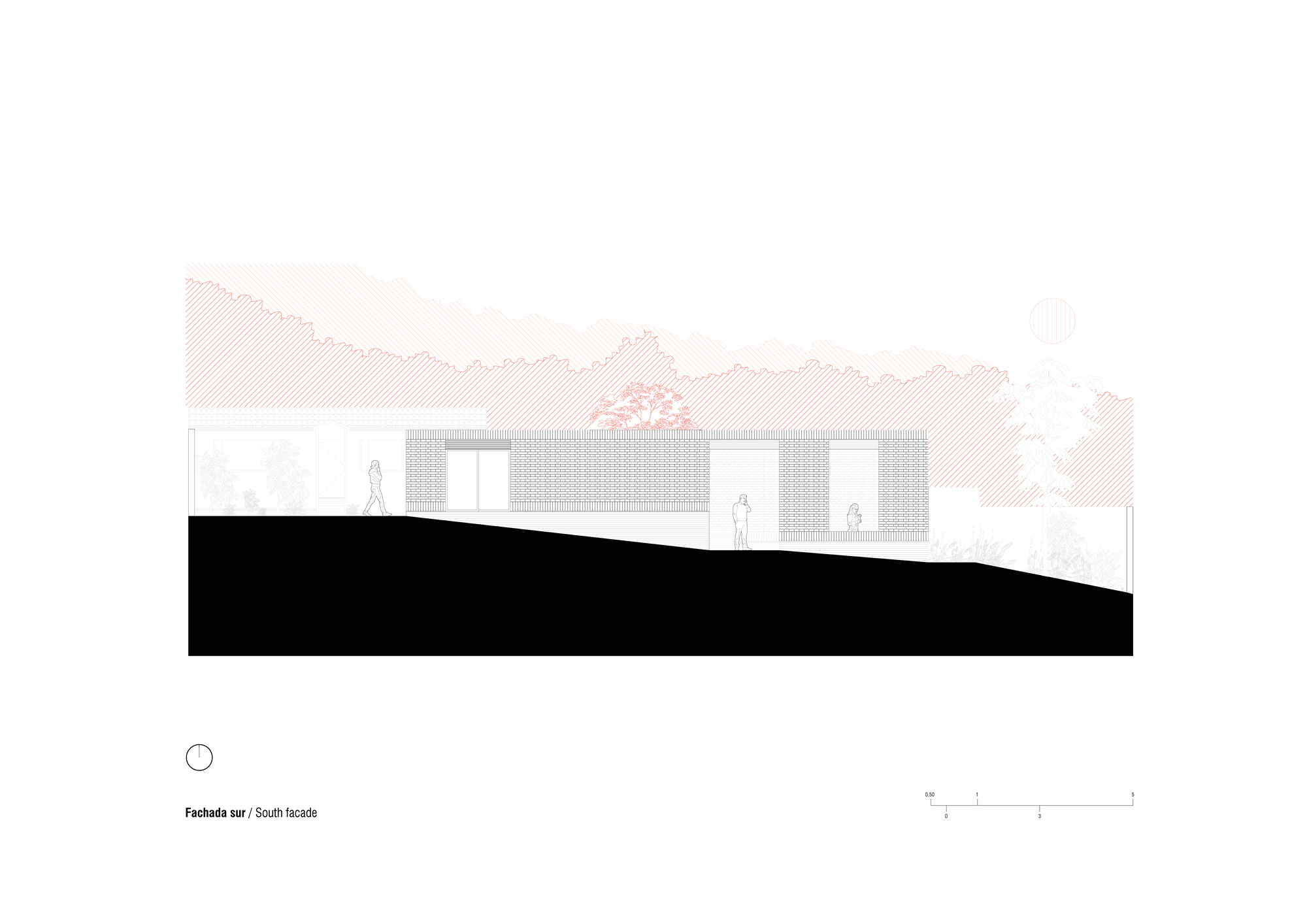

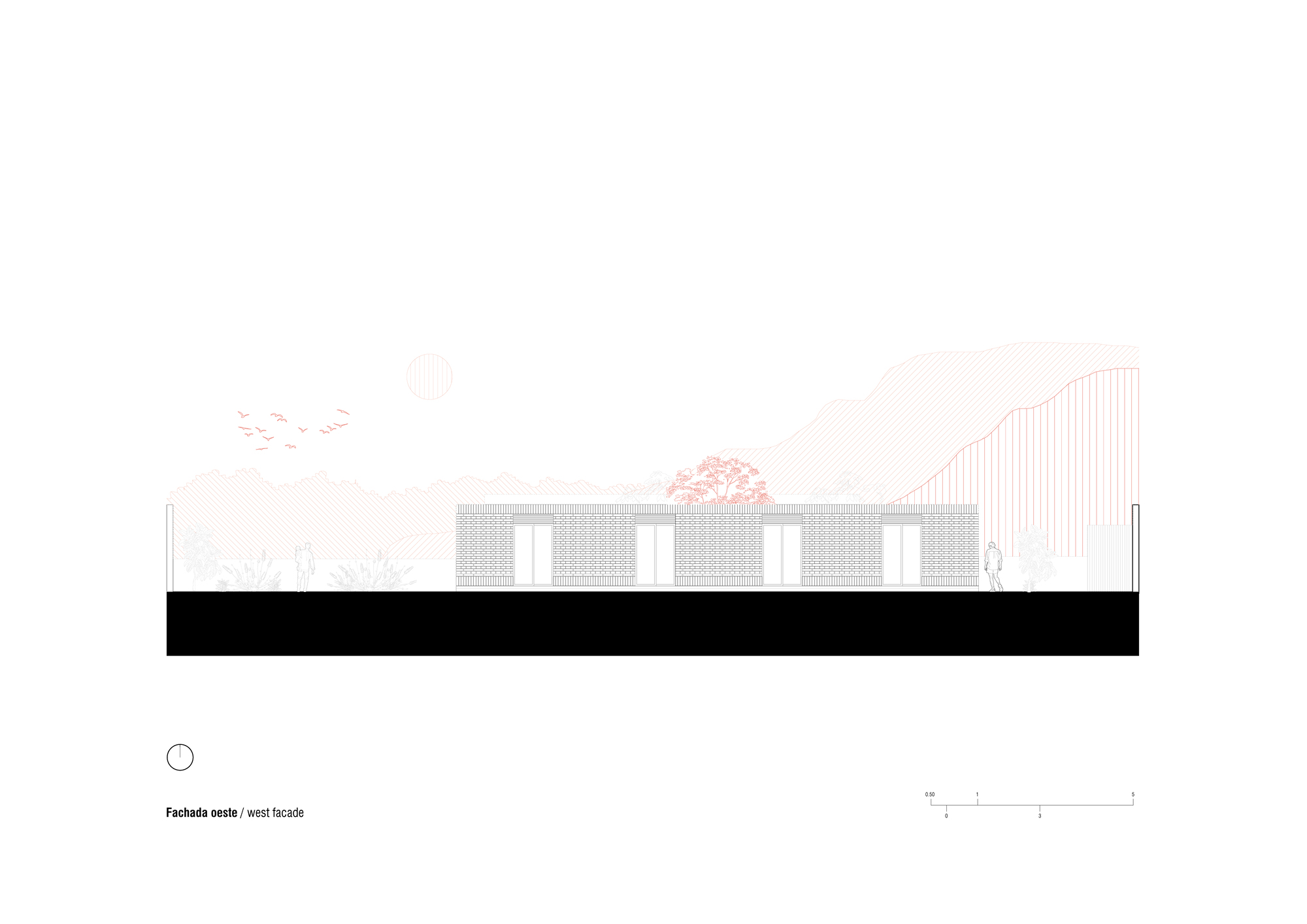

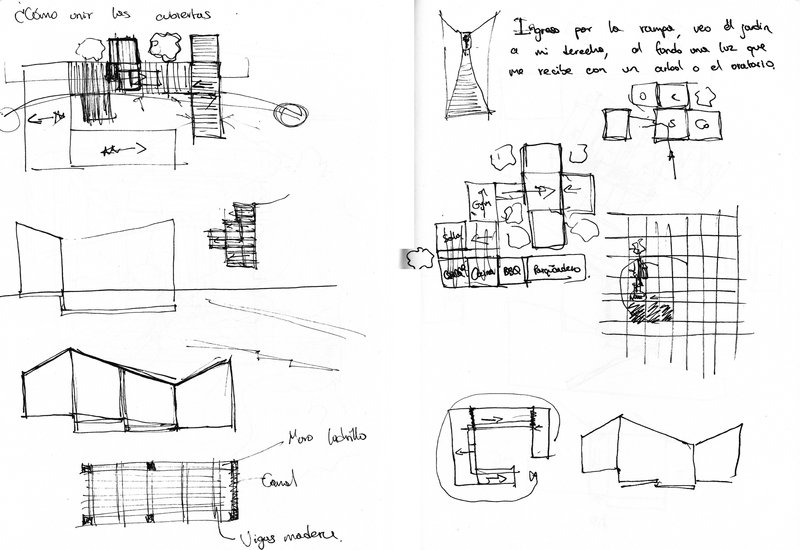

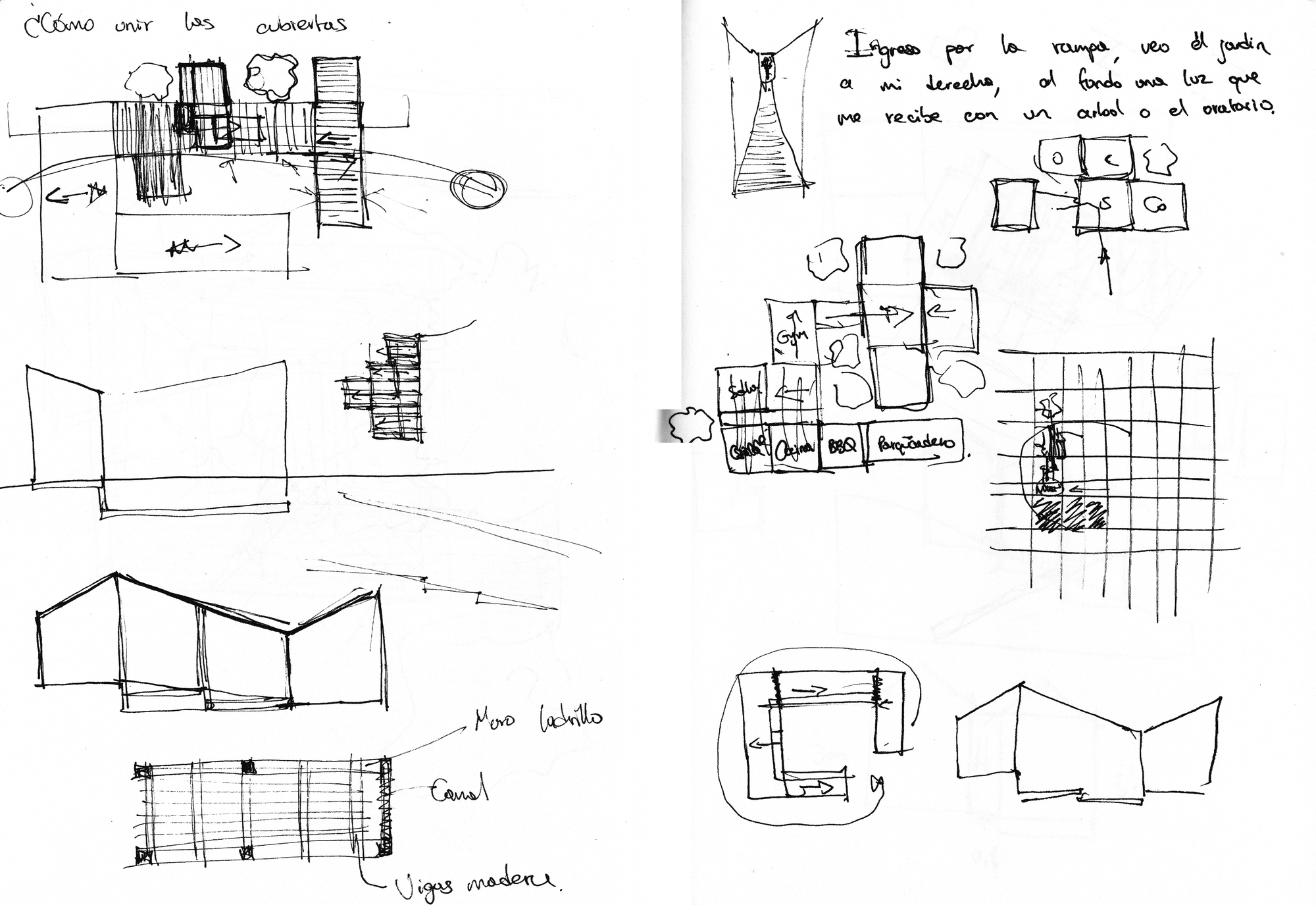

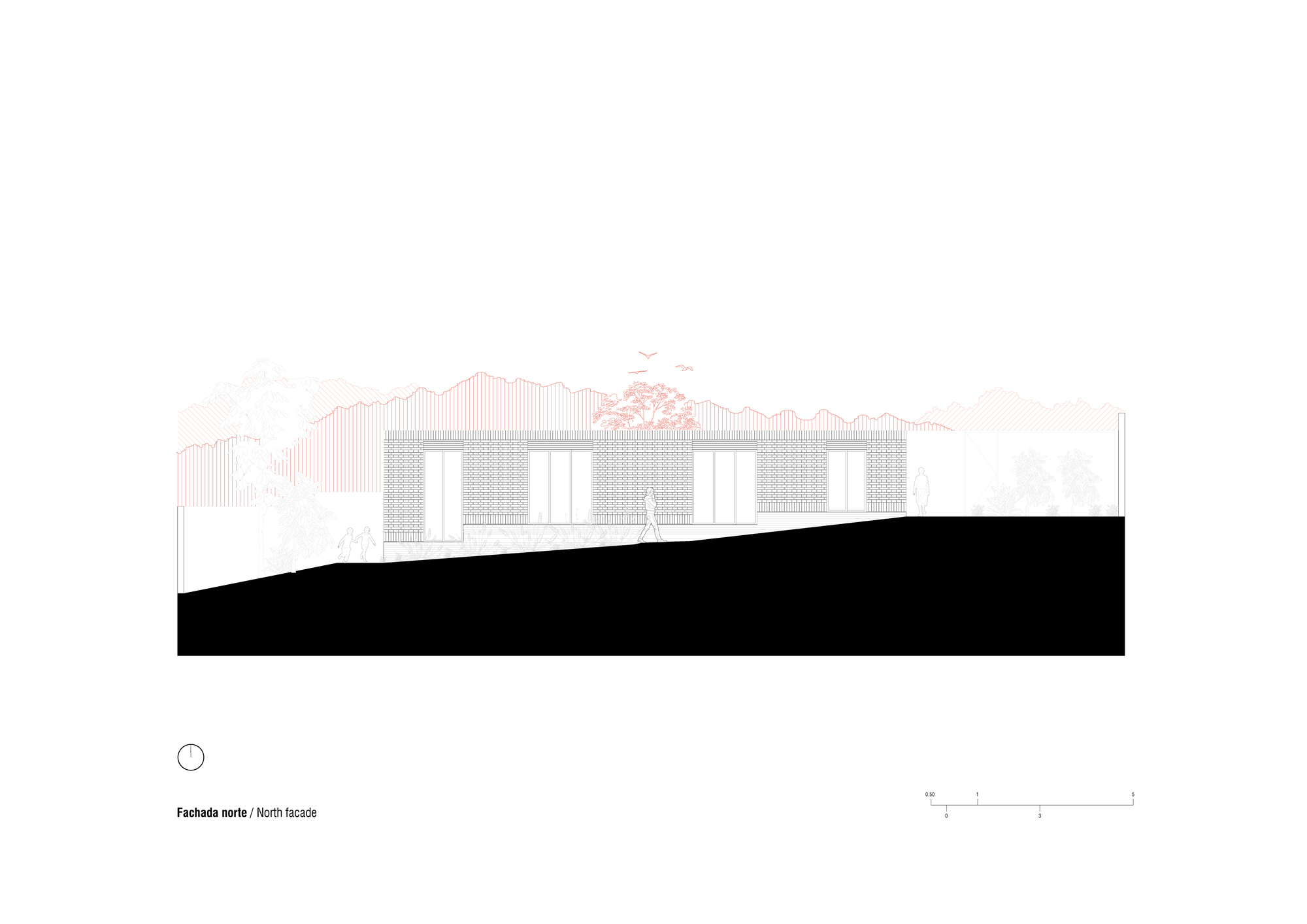

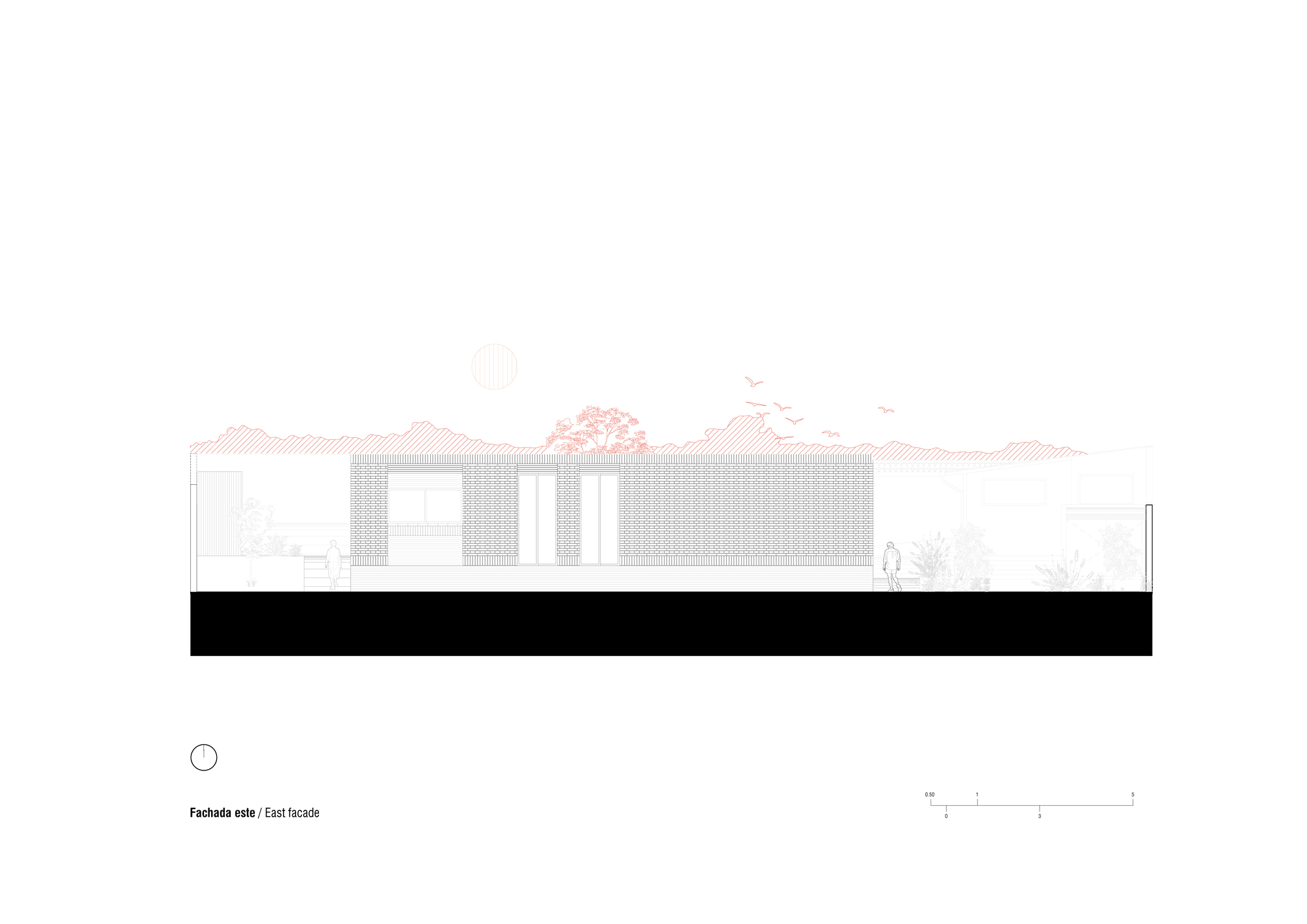

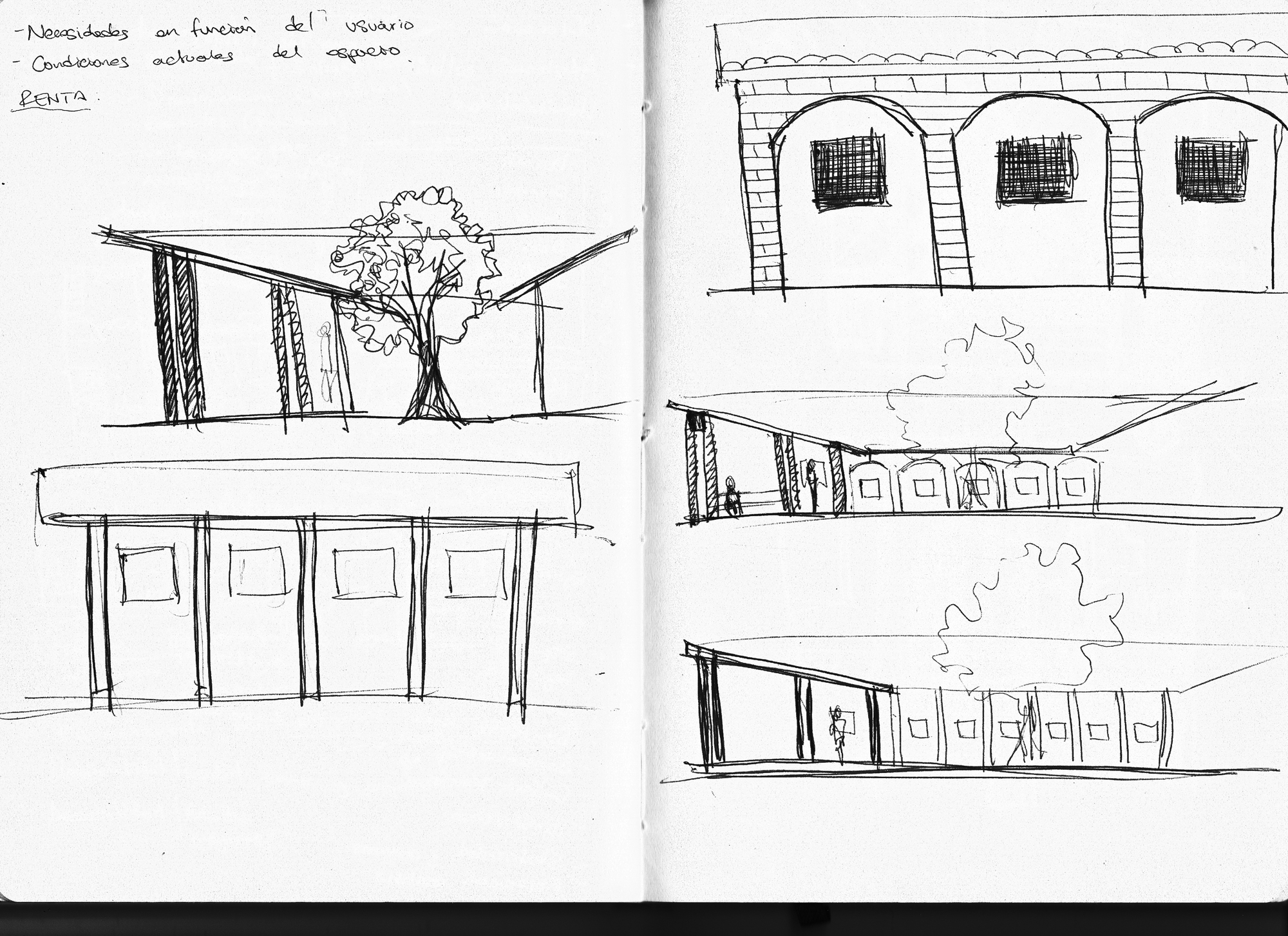

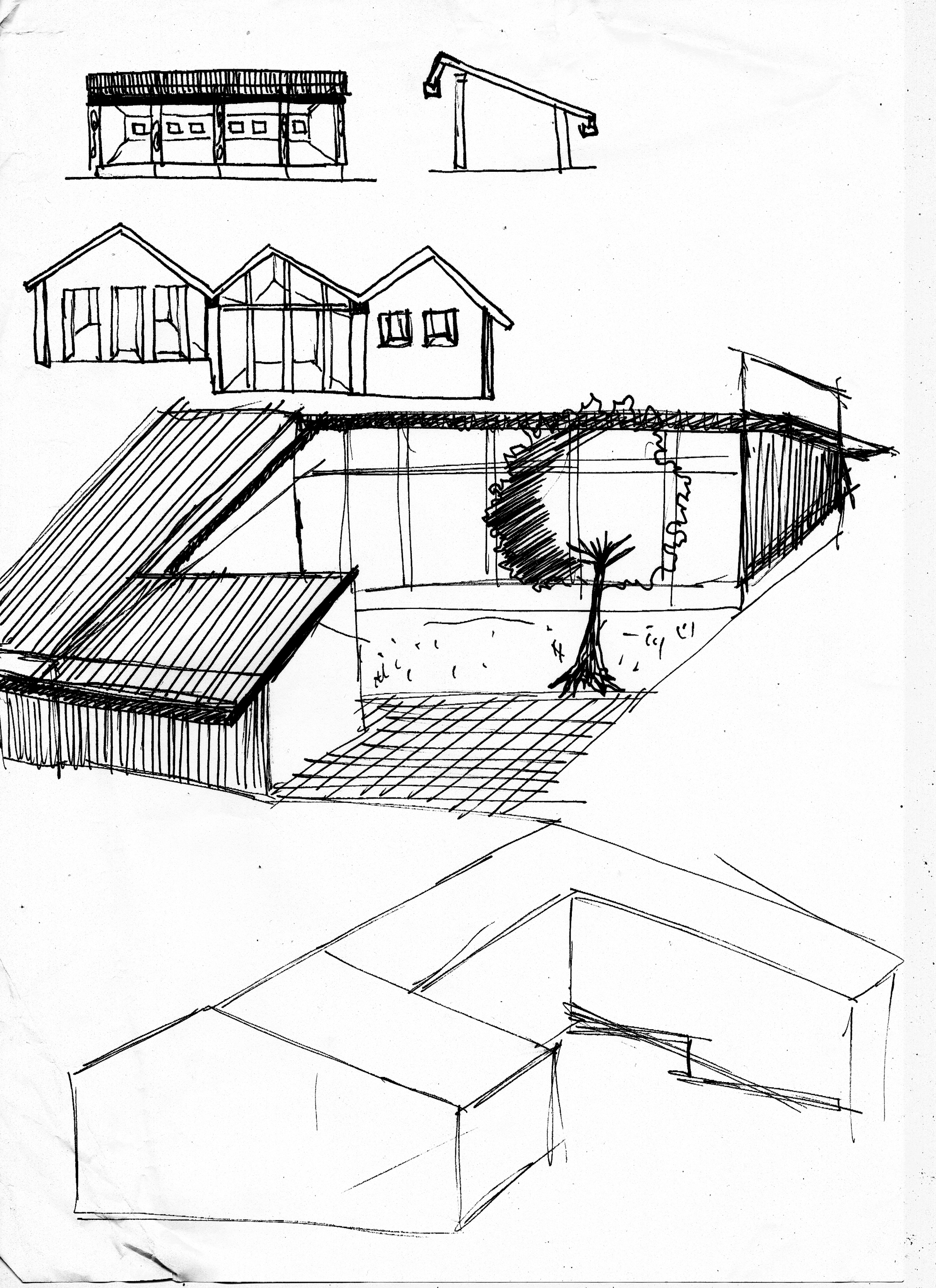

The elevation drawings present four distinct faces, each calibrated to its orientation. The west elevation features large openings and a curved roof element. The south shows a restrained single-story volume against the sloped landscape. The north elevation is the most opaque, with four vertical window openings punched into a horizontal masonry wall. The east elevation opens up with generous glazing. The hand-drawn sketches are particularly revealing: they show the architects exploring roof forms, volumetric configurations, and plan layouts in a process of iterative refinement that produced the clarity of the final design.

Why This Project Matters

Arupo House is a reminder that constraint breeds invention. With one primary material, a modest footprint, and a single story, Cordada Arquitectura has produced a house that is spatially rich, thermally responsive, and deeply connected to its site. The courtyard typology is not new, but the specificity of its deployment here, calibrated to the climate and views of Quito's inter-Andean valley, gives it fresh relevance. Every decision, from the varied brick bonds to the placement of a window seat facing the volcano, serves the lived experience of two people entering a new phase of life.

In a global context where residential architecture often defaults to white render and frameless glass, Arupo House makes a case for mass, texture, and enclosure. It argues that walls can be more interesting than windows, that a small courtyard can rival a panoramic terrace, and that retirement is a program worth designing for with ambition and rigor. It is the kind of house that improves with age, as the trees grow and the brick weathers, and that is precisely the point.

Arupo House by Cordada Arquitectura. Quito, Ecuador. 230 m². Completed 2025. Photography by JAG Studio.
