BodinChapa Architects Reinterprets the Lanna House Along the Mekong in Chiang Rai

Northern Thailand's Chiang Saen district is not a neutral backdrop. It sits on the banks of the Mekong, carries the weight of the Lanna Kingdom's ancient capital, and remains one of the few places where vernacular architecture still shapes the way buildings breathe, shade themselves, and face the river. BodinChapa Architects, led by Phitchapa Lothong and Bodin Mueanglue, chose to engage that context head-on with Baan SudSaenSuk, a 650-square-meter private residence that reinterprets the Ka Lae house typology through cast-in-place concrete, perforated brick, and sliding timber panels.

What makes the project worth studying is not the stylistic nod to tradition but the precision with which each traditional element has been re-engineered to perform. The Ka Lae house organized life around a gradient from open terrace to semi-enclosed hall to private room. Baan SudSaenSuk keeps that gradient intact but builds it from brick walls that store heat, bamboo-textured concrete that exposes its making, and fa lai panels that modulate light and airflow simultaneously. The building's axis is deliberately rotated off the site boundary to avoid fronting a public walkway, a subtle move that tells you the architects were thinking about lived experience, not just composition.

Brick as Both Boundary and Filter

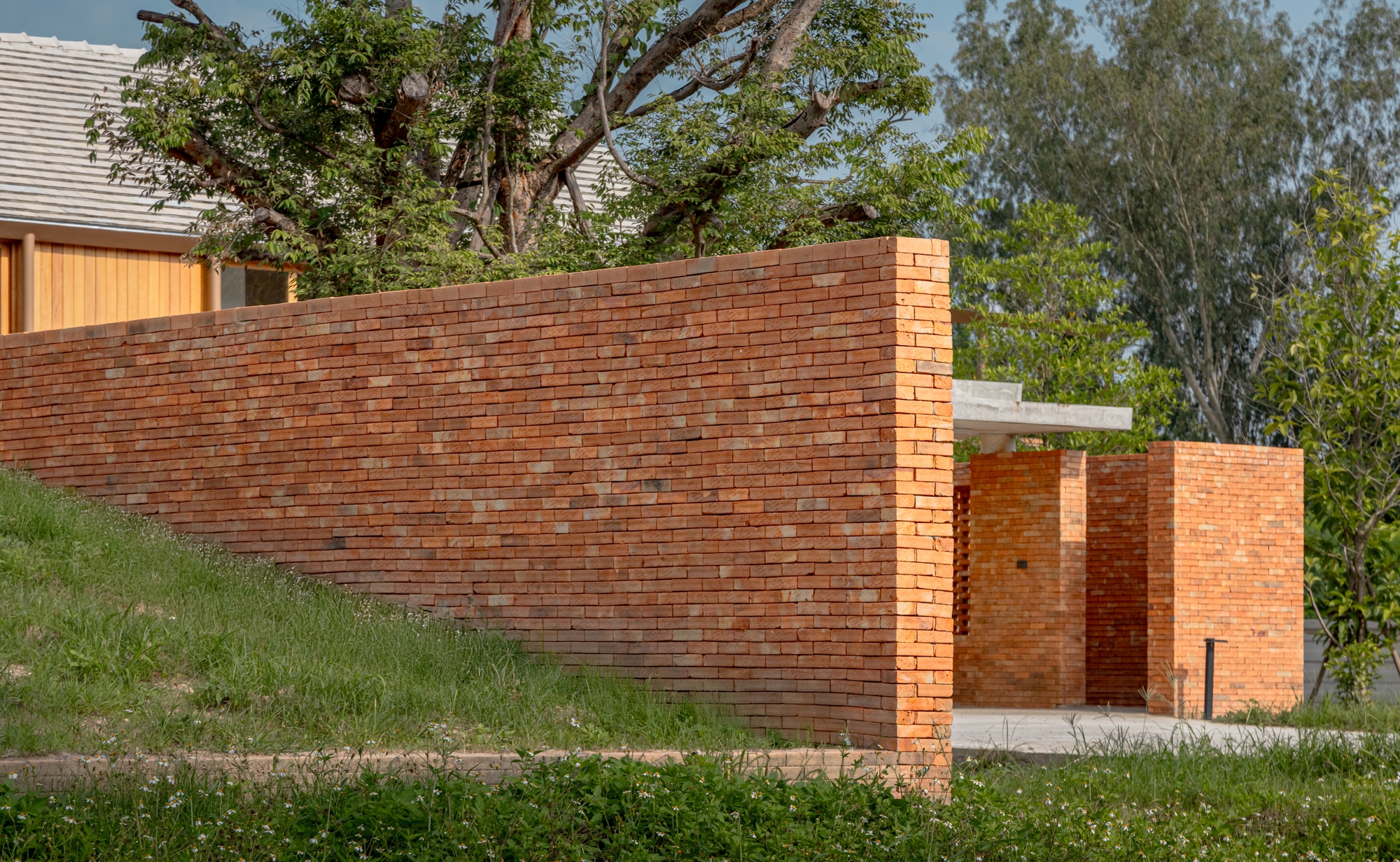

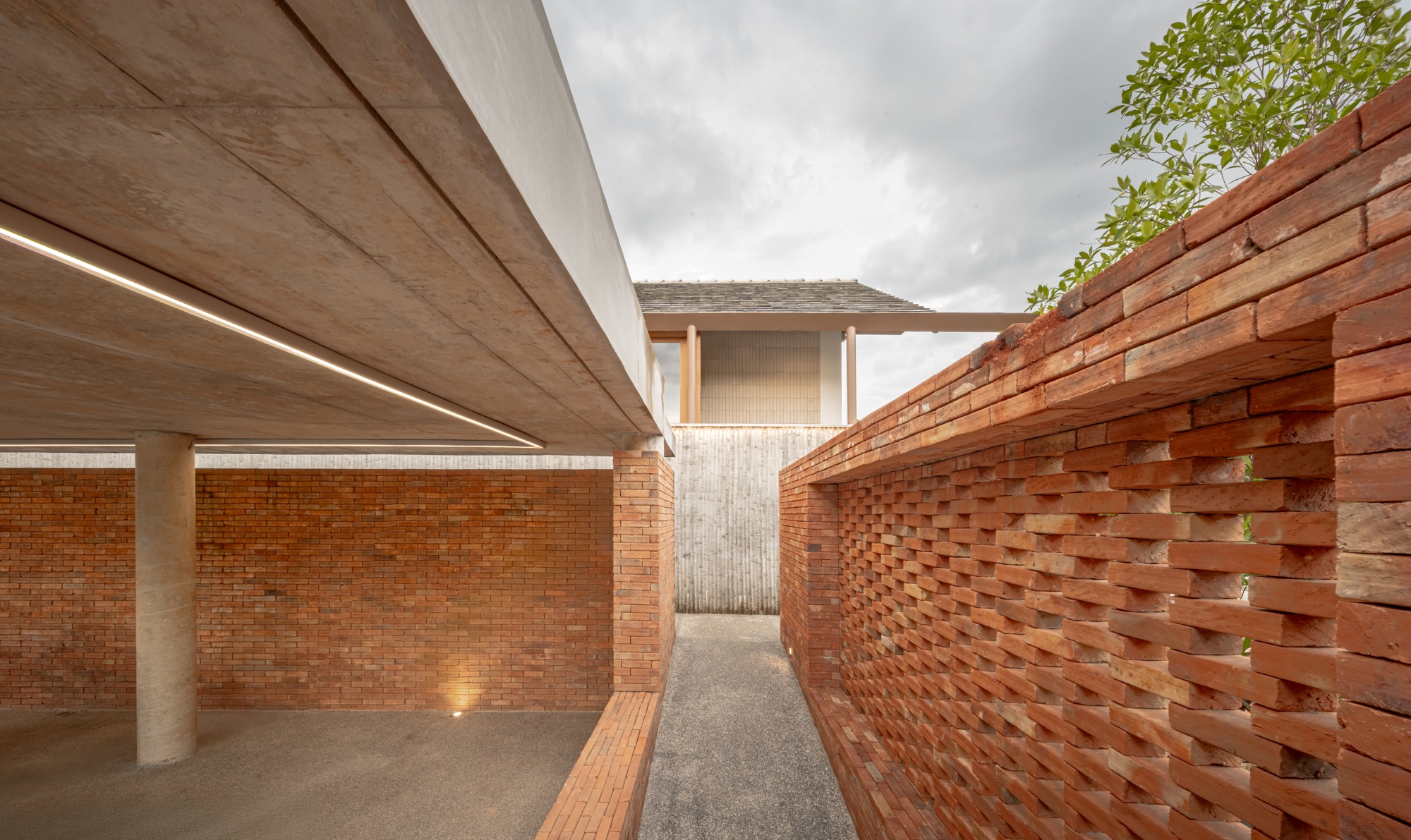

The perimeter brick walls do double duty. At the street edge they are solid and grounding, establishing a clear threshold between the public realm and the domestic interior. But as you move deeper into the plan, brick transitions from opaque barrier to perforated screen. Narrow courtyard passages are framed by these screens, pulling diffused light and moving air into zones that would otherwise become dead pockets. The recessed joint patterns on the angled walls hint at a careful dialogue between mason and architect.

The effect at night is particularly striking. Illuminated from within, the perforated brick facades glow like lanterns, turning the material from thermal mass into luminous surface without any applied cladding or ornament. It is an honest expression: the same wall that keeps the house cool during the day becomes its signature at dusk.

Gabled Volumes and the Ka Lae Lineage

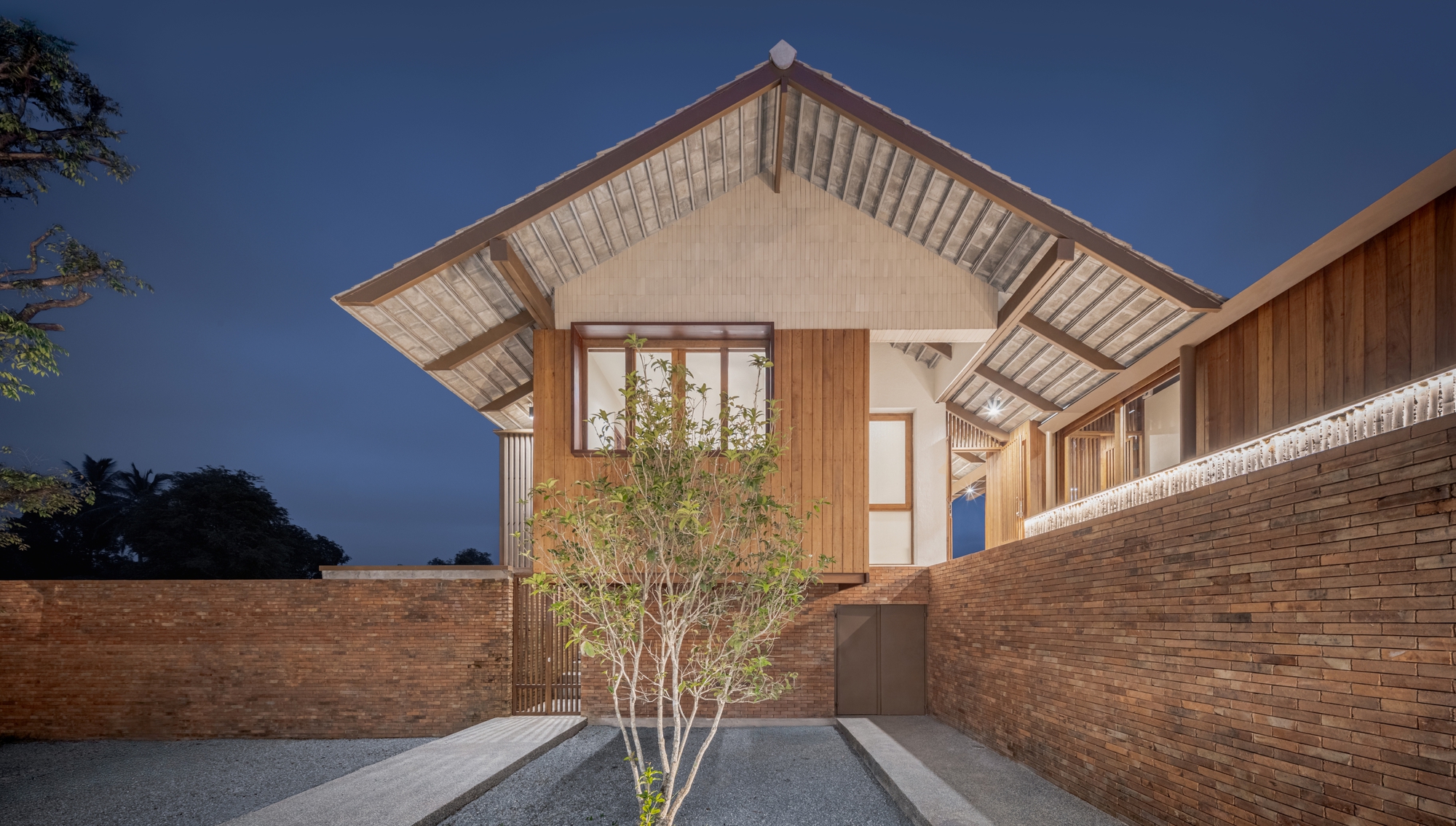

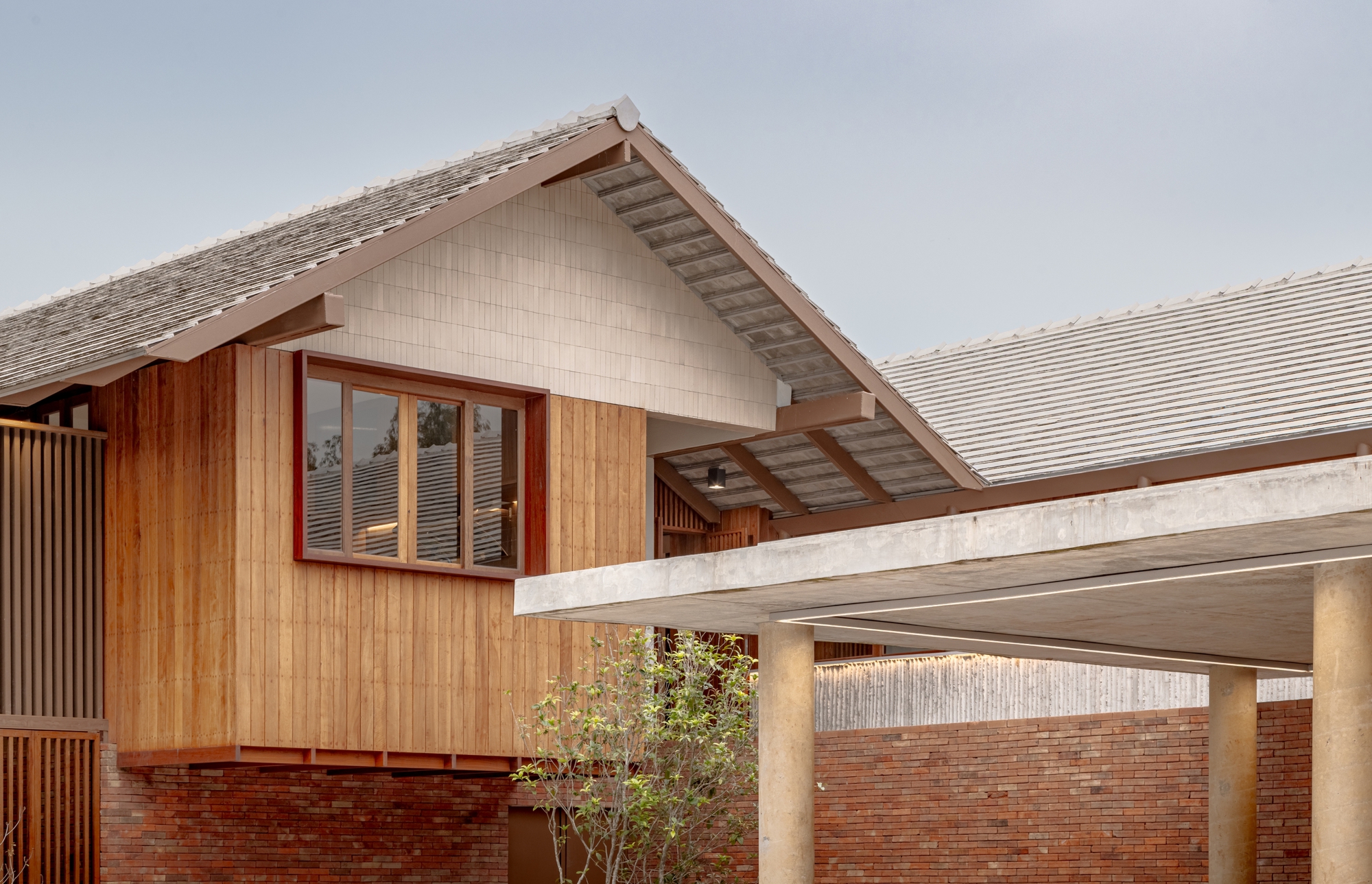

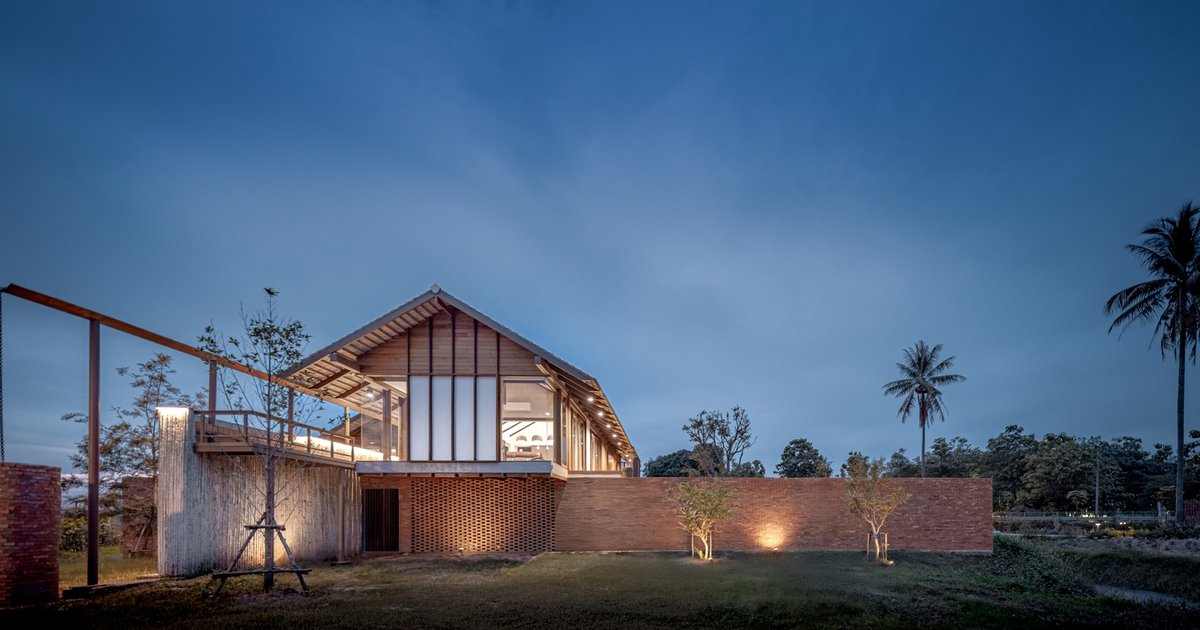

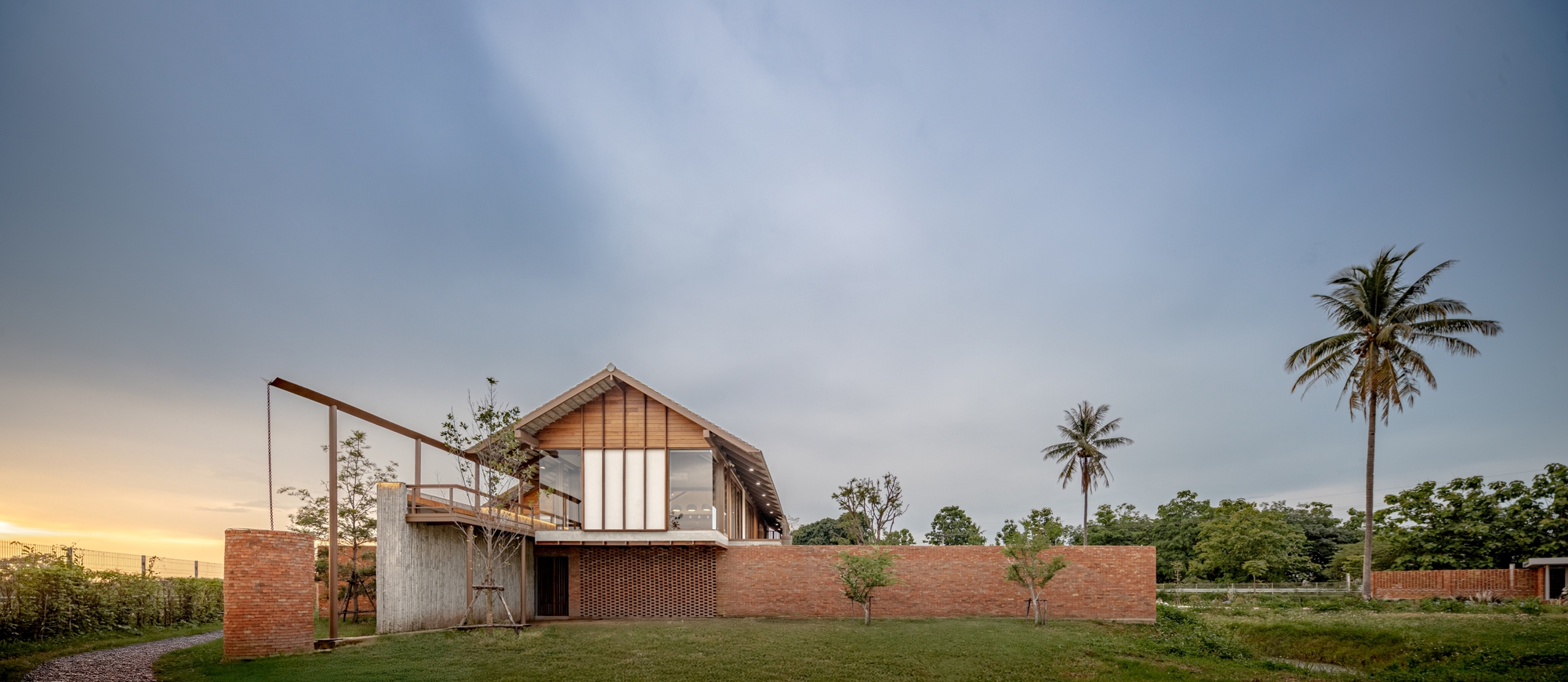

The building reads as a family of gabled volumes rather than a single monolithic form. Each volume is clad in timber, elevated on a concrete and brick base, and topped with a ribbed tile or metal roof that extends into generous overhanging eaves. The gable end faces south, oriented toward the river and mountains, allowing the house to capture views while controlling solar exposure on its longest facades. This is the Ka Lae logic made legible in section: tall, narrow, and ventilated.

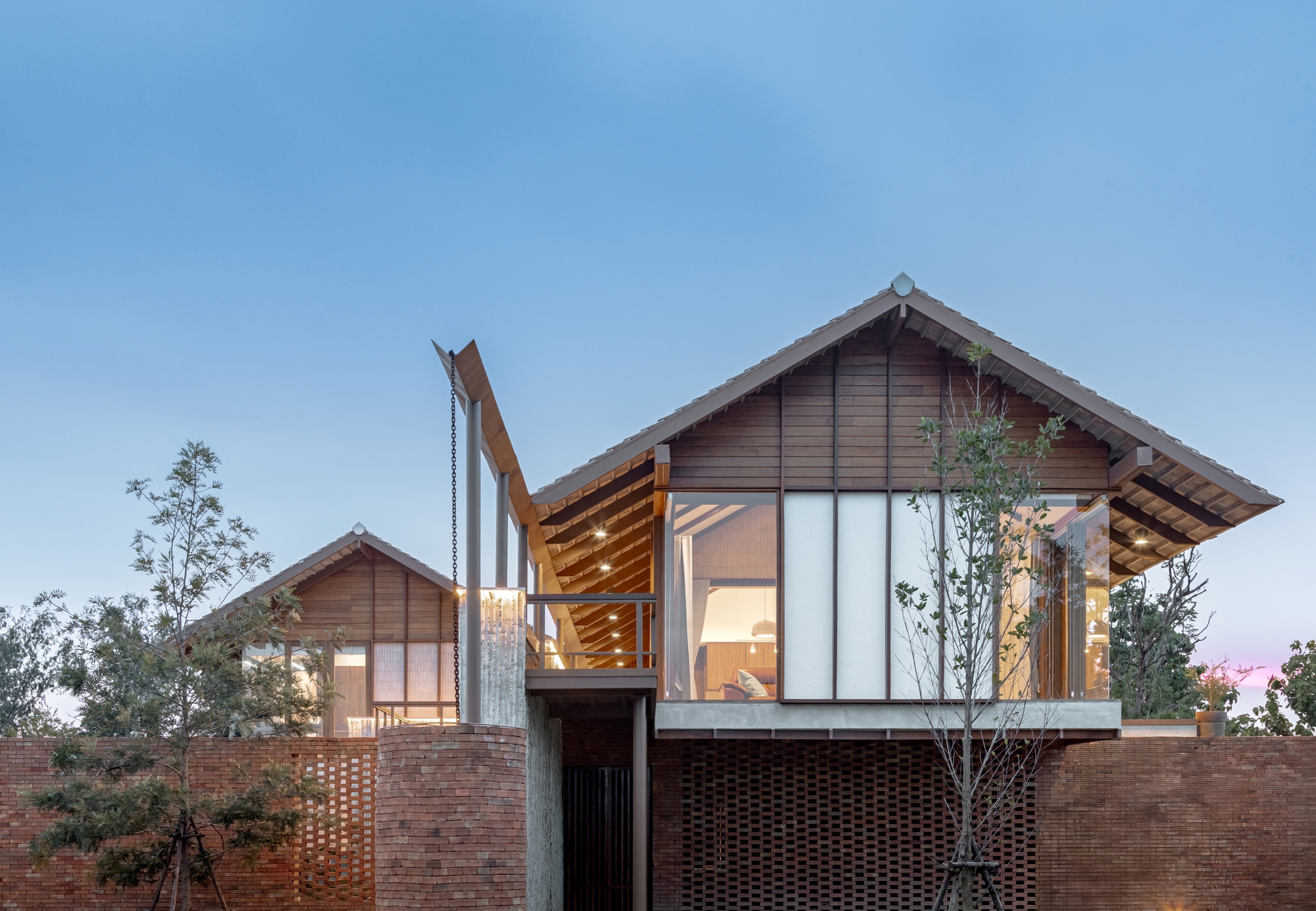

Seen from the courtyard at dusk, the twin gabled pavilions with their glazed facades and timber louvers communicate something between shrine and dwelling. The proportions are deliberately vertical, lifting the living spaces above the brick datum and into the canopy of palms and fruit trees that populate the perimeter.

Transitional Spaces as the Real Architecture

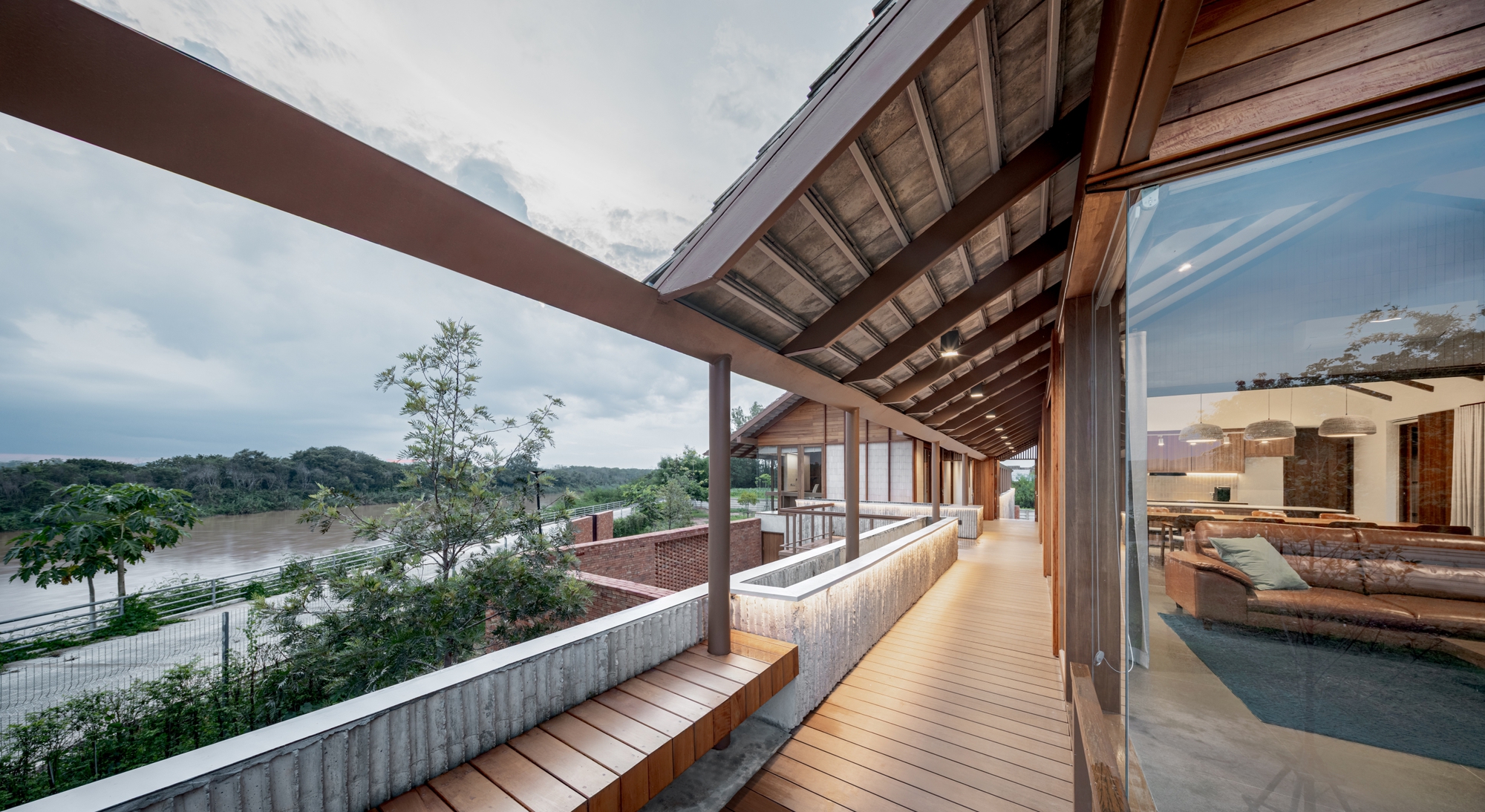

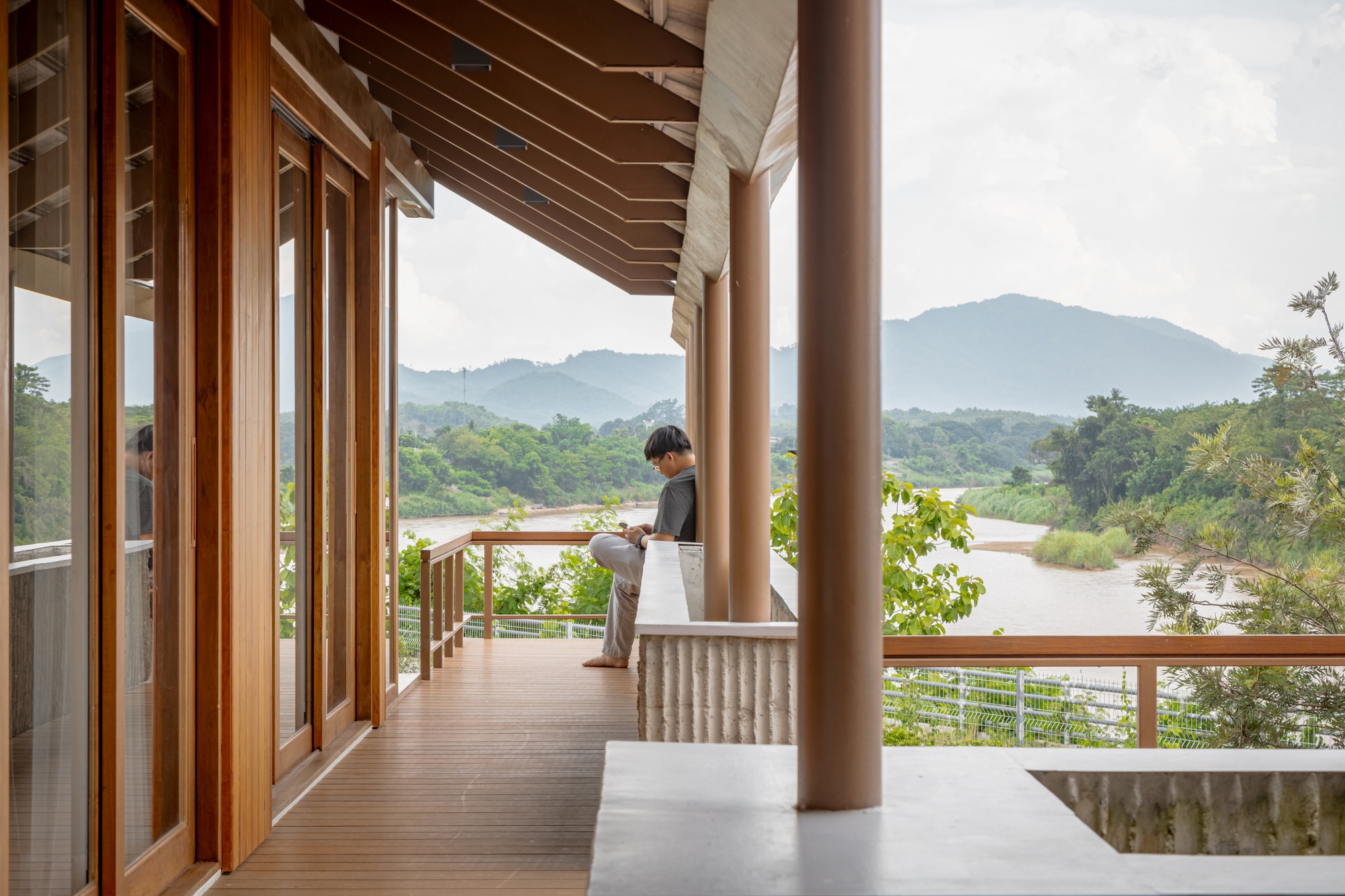

In a tropical climate, the most important rooms are the ones without walls. Baan SudSaenSuk dedicates a remarkable amount of its 650 square meters to covered timber decks, elevated walkways, and open terraces that face the Mekong. These spaces, the chan and tern of Lanna tradition, are where daily life actually happens: eating, reading, watching the river change color. The covered deck with its round columns and exposed rafters is not a porch appended to a house; it is the house's center of gravity.

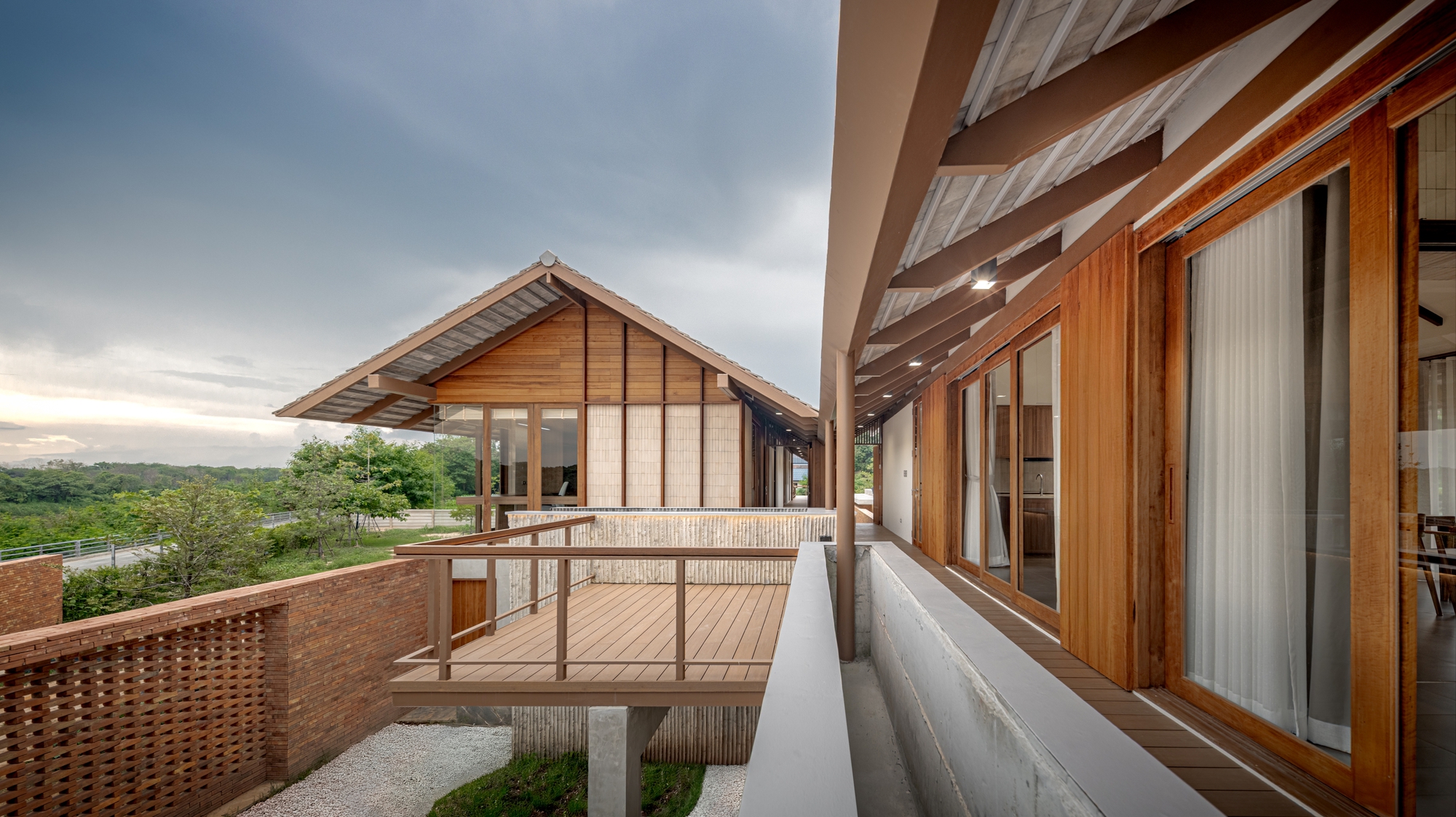

The elevated walkway that links the two principal gabled volumes deserves attention. It bridges above the landscape with corrugated metal railings and functions as both circulation and outlook, a place where moving through the house and observing the site become the same act. Cross-ventilation is a byproduct of this openness, not an afterthought.

Bamboo Formwork and the Texture of Making

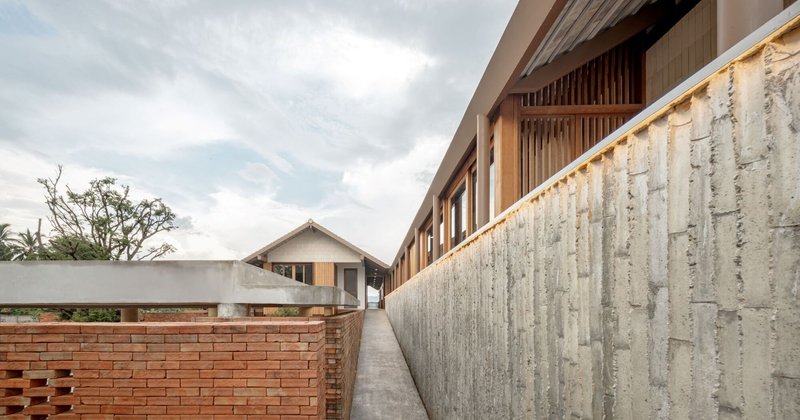

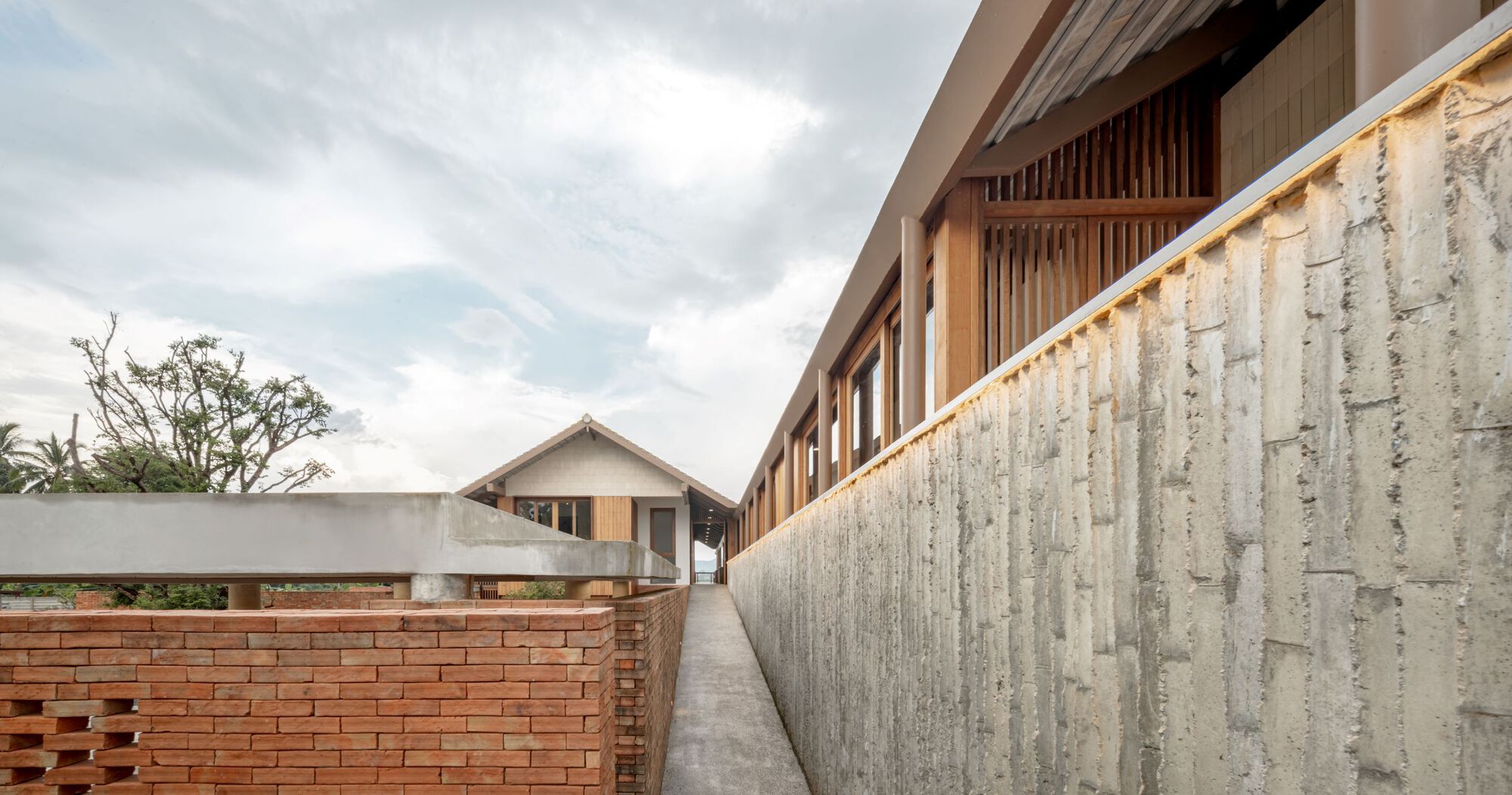

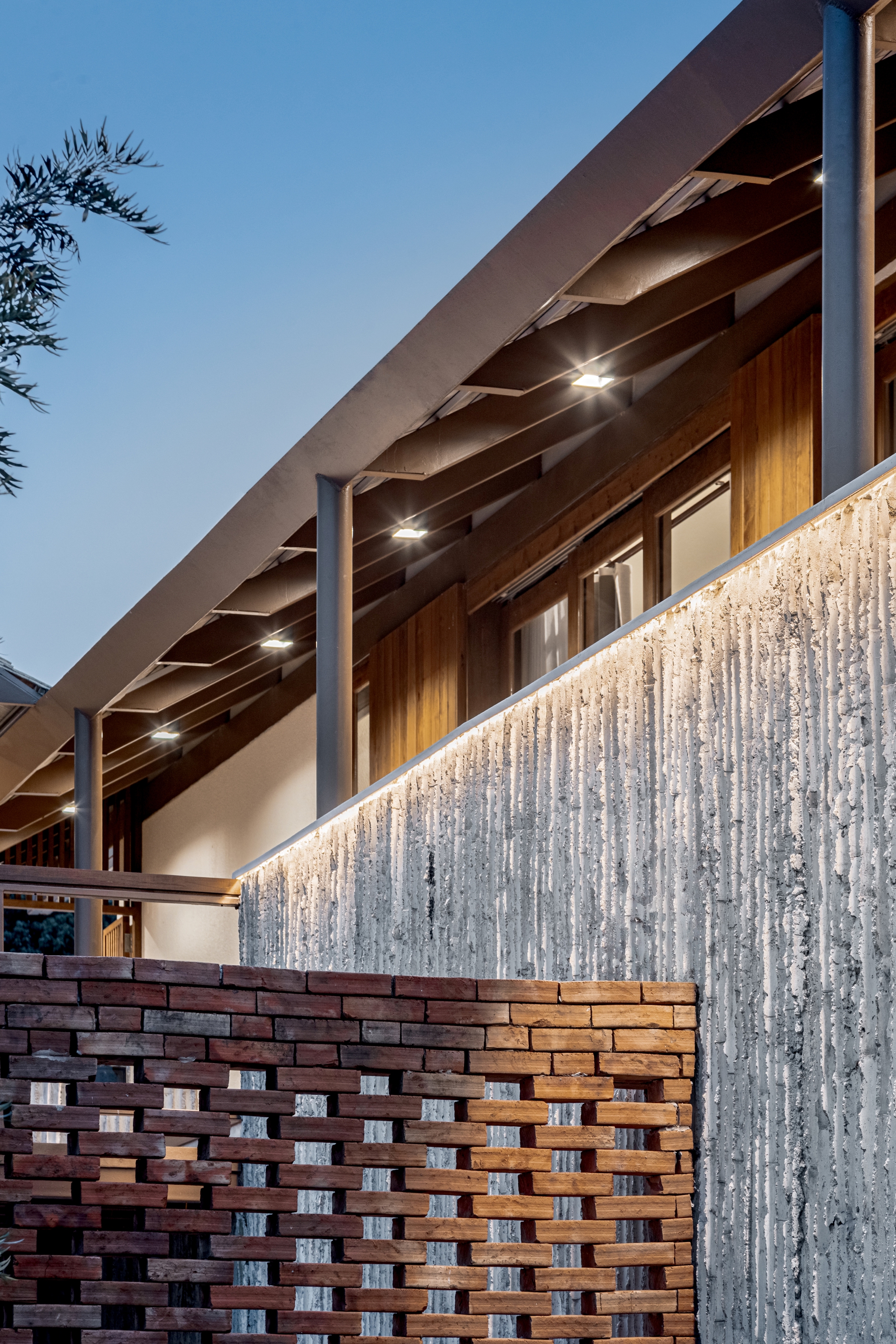

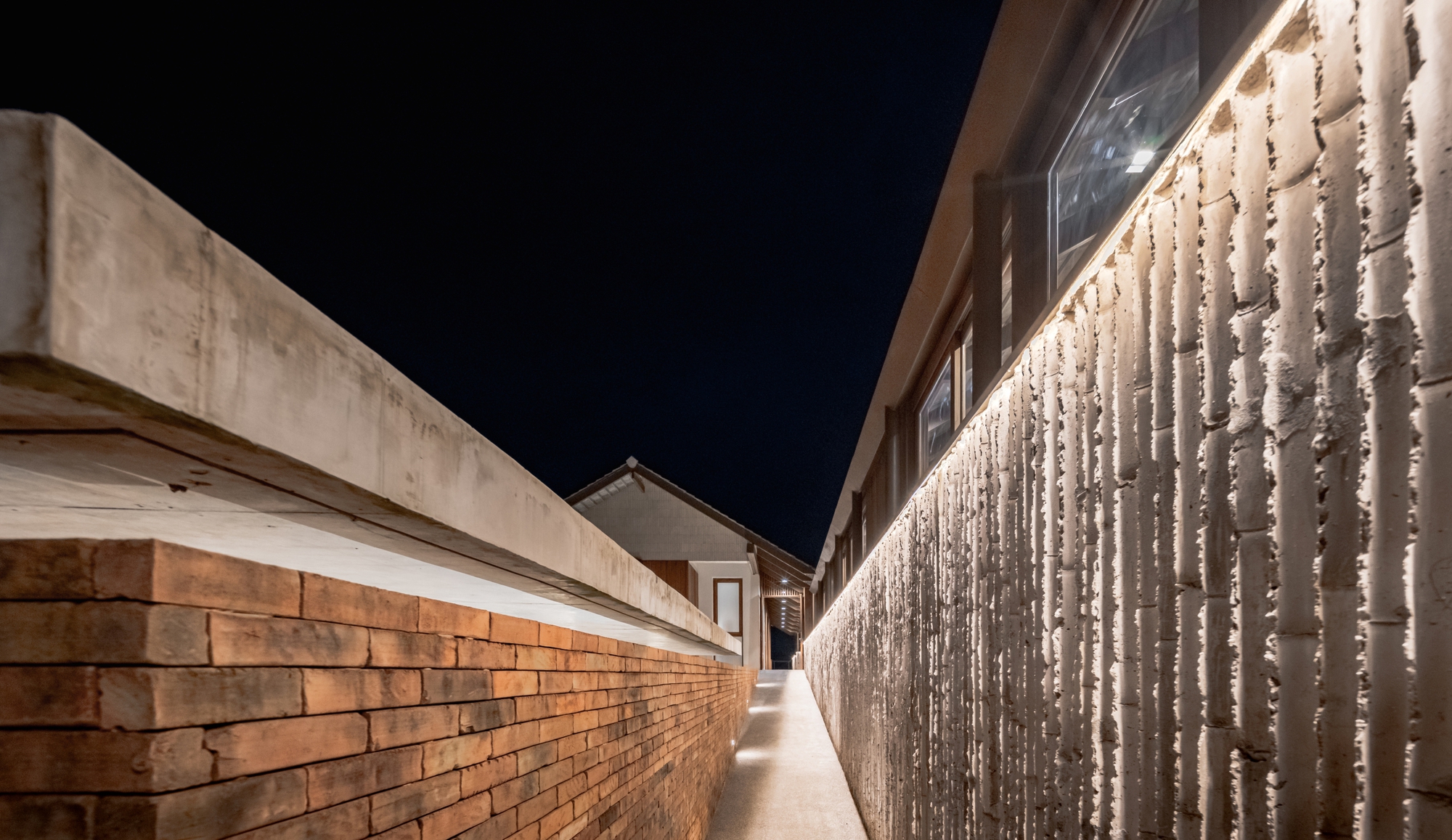

The cast-in-place concrete here is not smooth or abstracted. BodinChapa used bamboo formwork to leave a visible grain on every concrete surface, a technique that references local construction practices while giving the material a warmth it rarely possesses. The bamboo imprint is most legible along the narrow pathways flanking the brick screens, where the directional texture of the concrete contrasts with the modular rhythm of the brickwork.

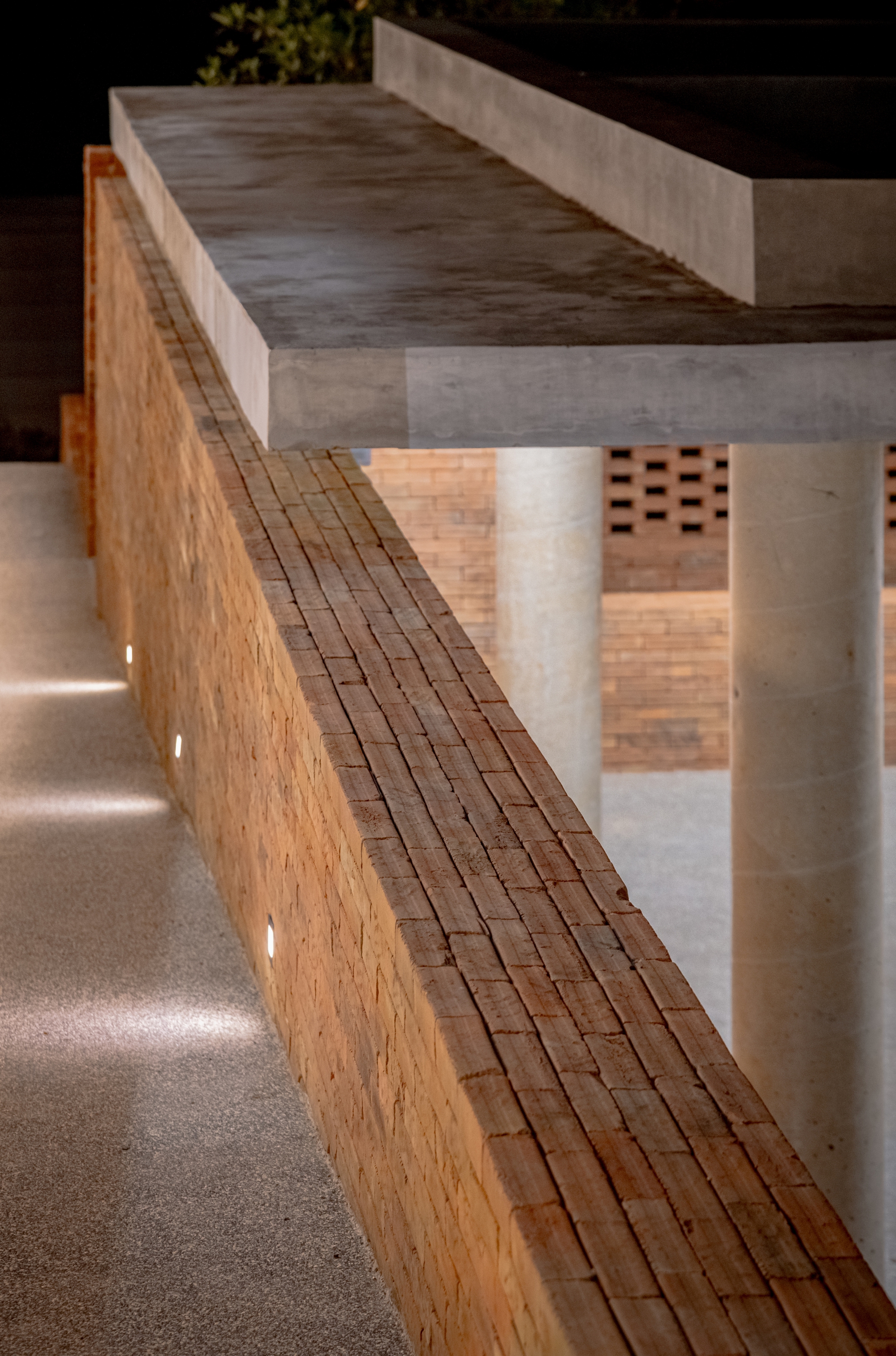

Detailing at the base of walls, benches, and planters reinforces this commitment to tactile honesty. A concrete bench with a brick base and recessed strip lighting, for instance, treats landscape furniture with the same rigor as the main structure. Nothing is tacked on; the palette of brick, board-formed concrete, and timber is consistent from threshold to terrace.

Interior Light and the River Horizon

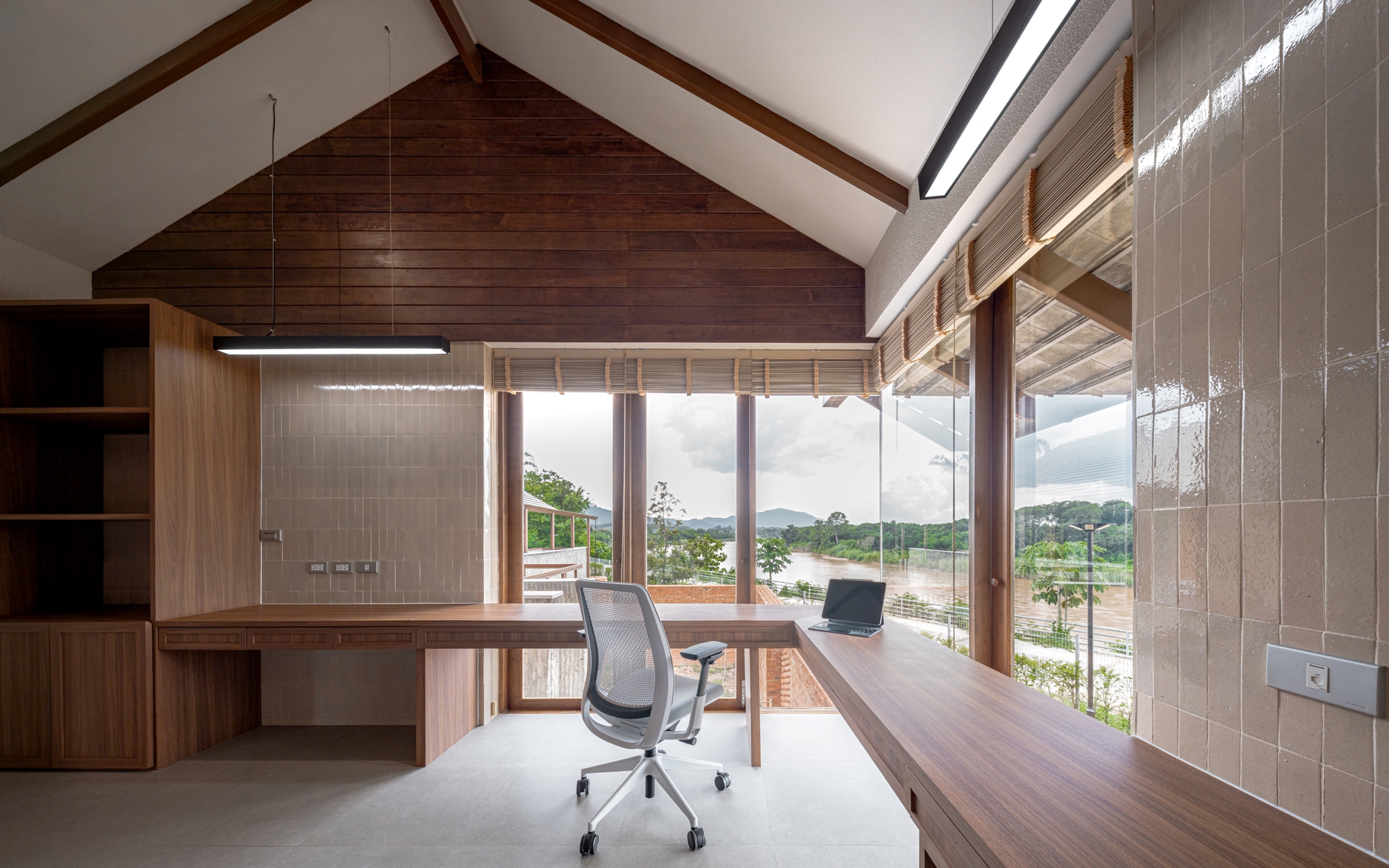

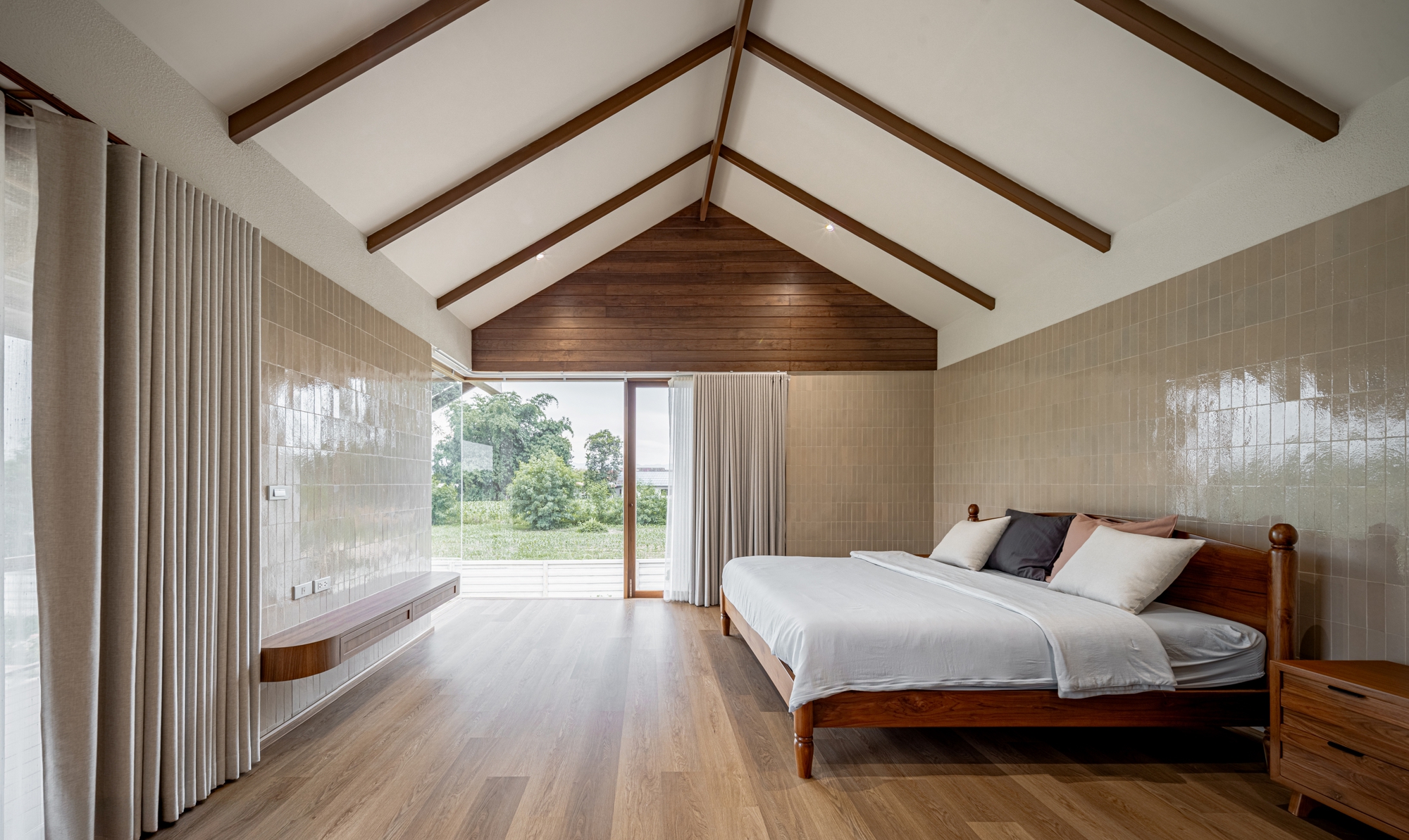

Interiors are deliberately restrained. The home office, tucked under a pitched timber ceiling, opens through floor-to-ceiling glass to the Mekong and the mountains beyond. The desk faces the view, and the room's low material intensity (exposed rafters, a single timber surface, sheer curtains) keeps attention where it belongs. Bedrooms follow the same logic, with timber structure overhead and filtered views through greenery.

The fa lai sliding wooden panels that appear on the exterior elevations serve as adjustable filters for privacy, light, and airflow. Rather than relying on fixed shading devices, the occupants can tune the facade to the hour and the season, an approach that aligns passive performance with everyday agency. It is climate strategy that doubles as domestic ritual.

Approaching the House

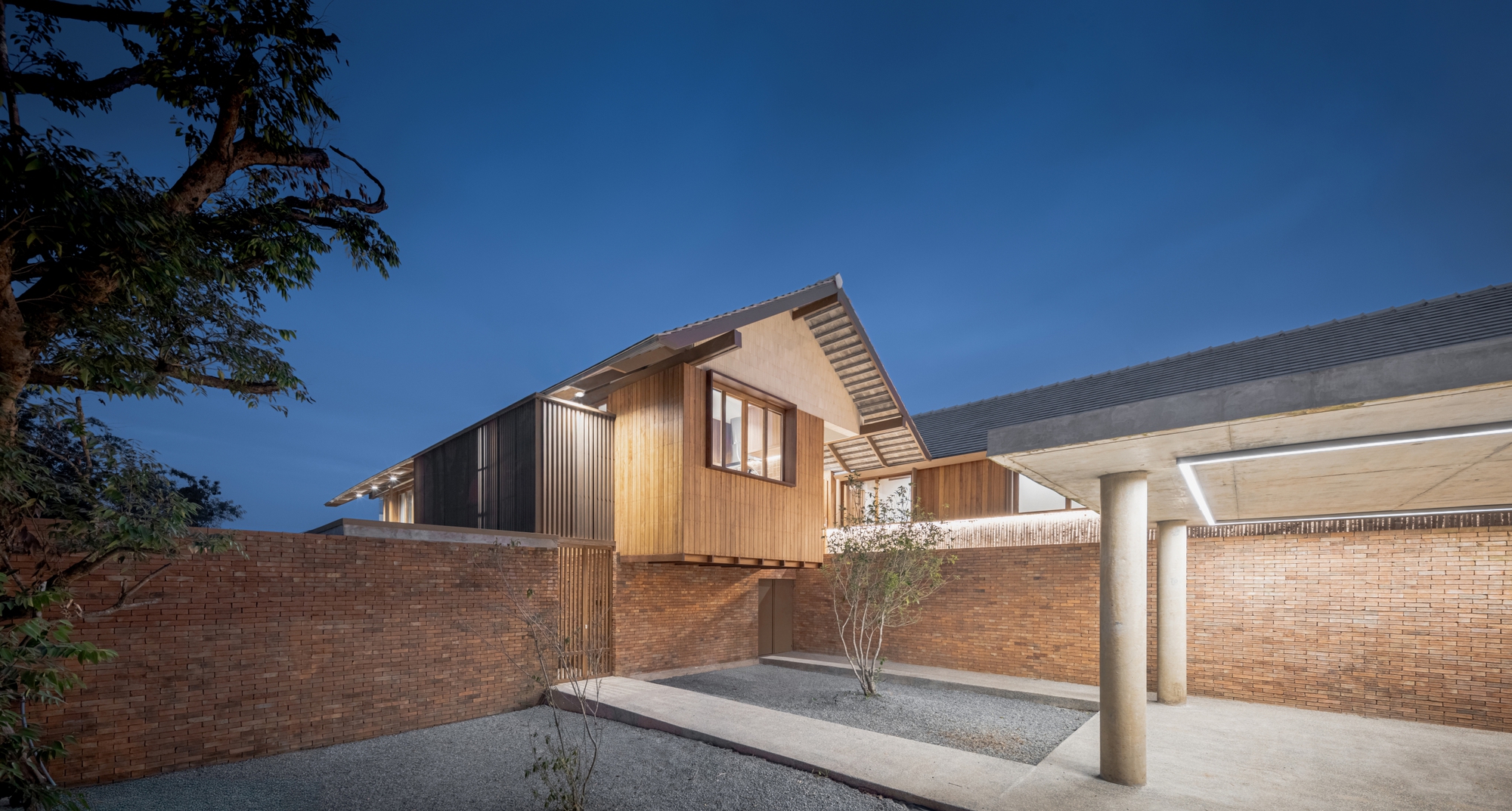

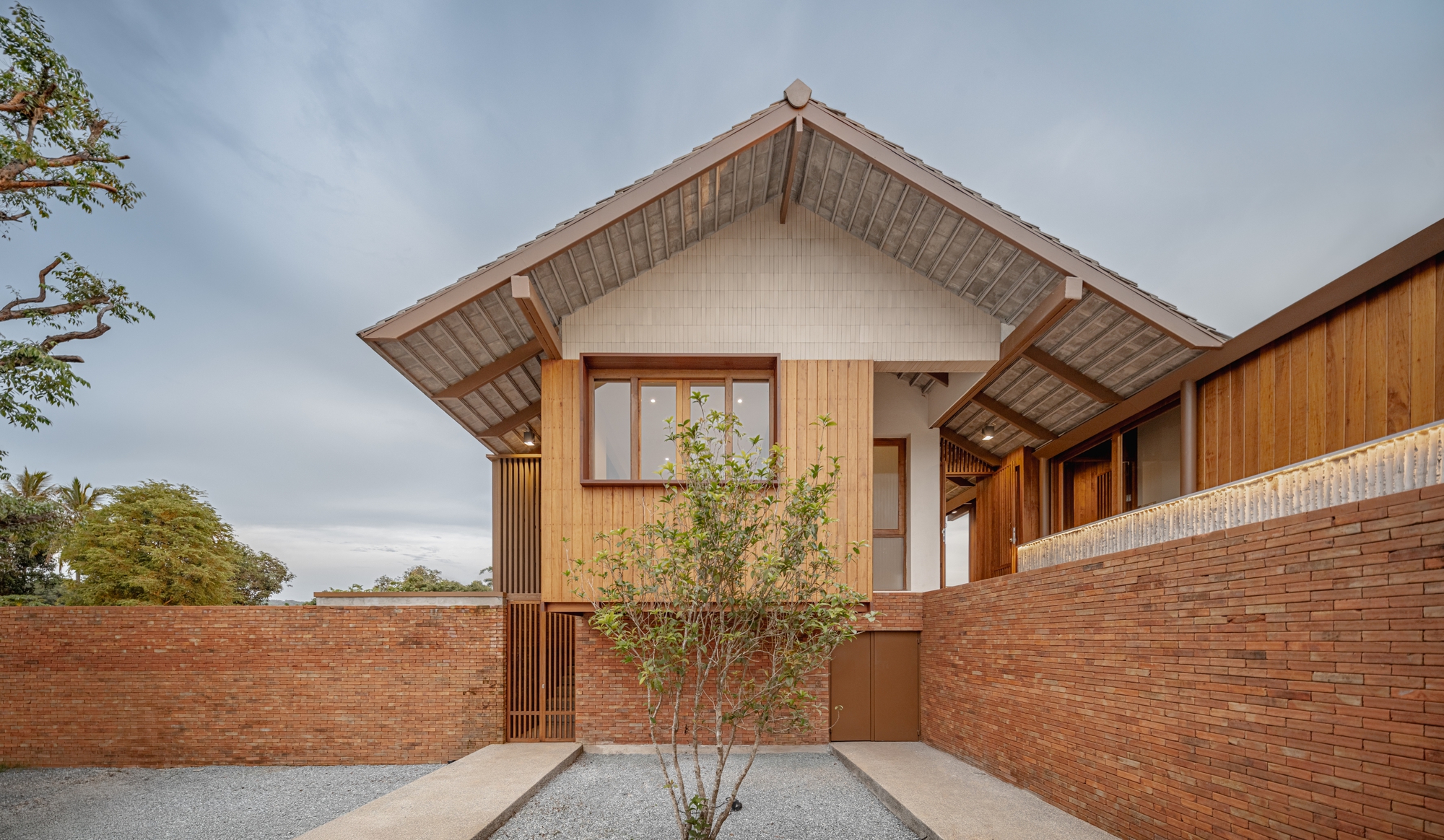

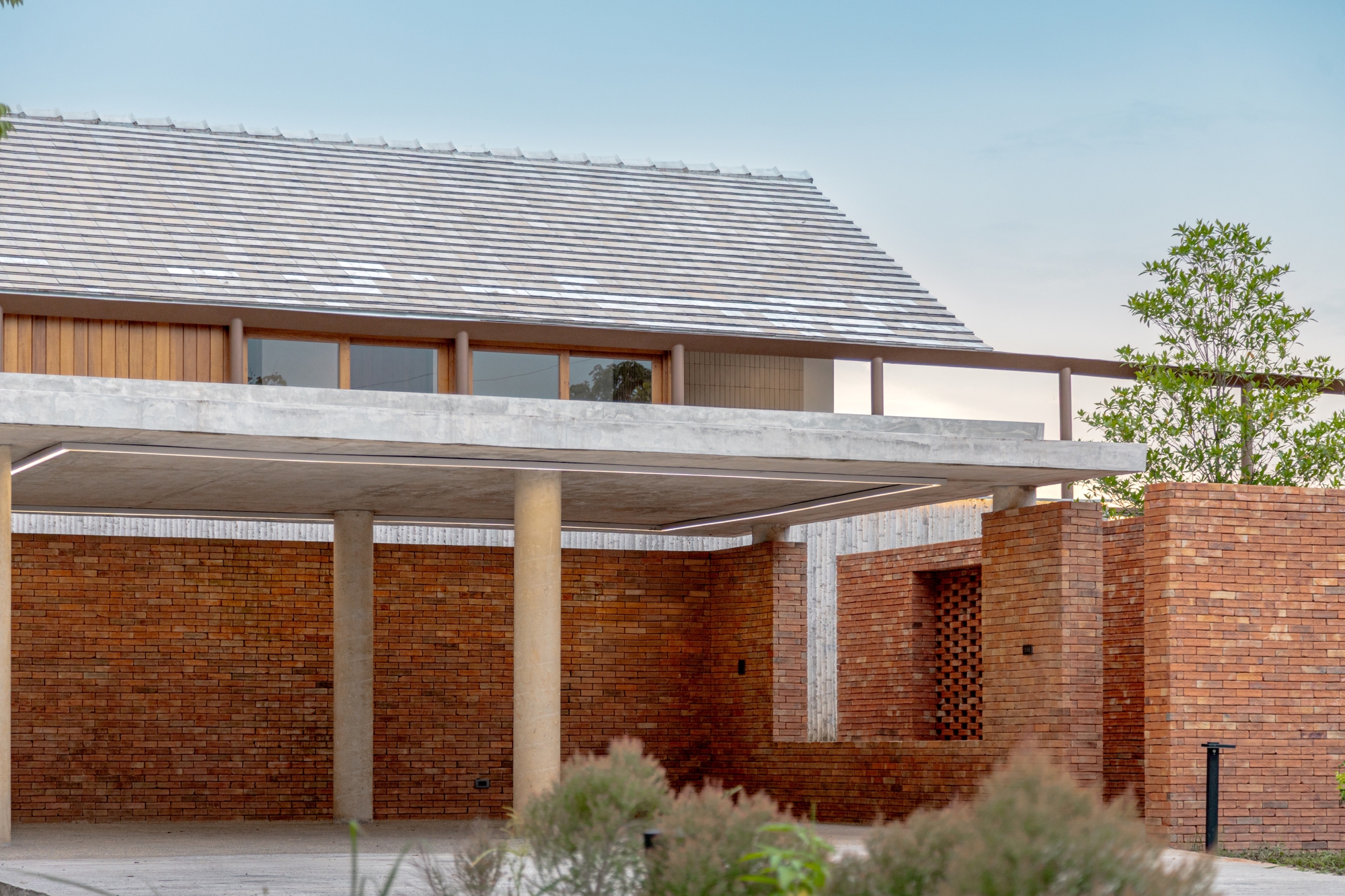

The entry sequence is choreographed through compression and release. You arrive at a covered carport defined by cylindrical concrete columns and a broad roof slab, then pass through a courtyard framed by brick walls and a single young tree. The courtyard is compact enough to feel enclosed but open enough to the sky that it registers as genuinely outdoor. This compressed arrival makes the subsequent opening toward the river all the more dramatic.

The rotation of the building axis away from the site boundary means the approach is slightly oblique, avoiding a head-on confrontation with the street. You enter on the diagonal, which forces a series of turns that slow you down and let the material sequence, from brick to concrete to timber, unfold at a pace that rewards attention.

Dusk and the Landscape Datum

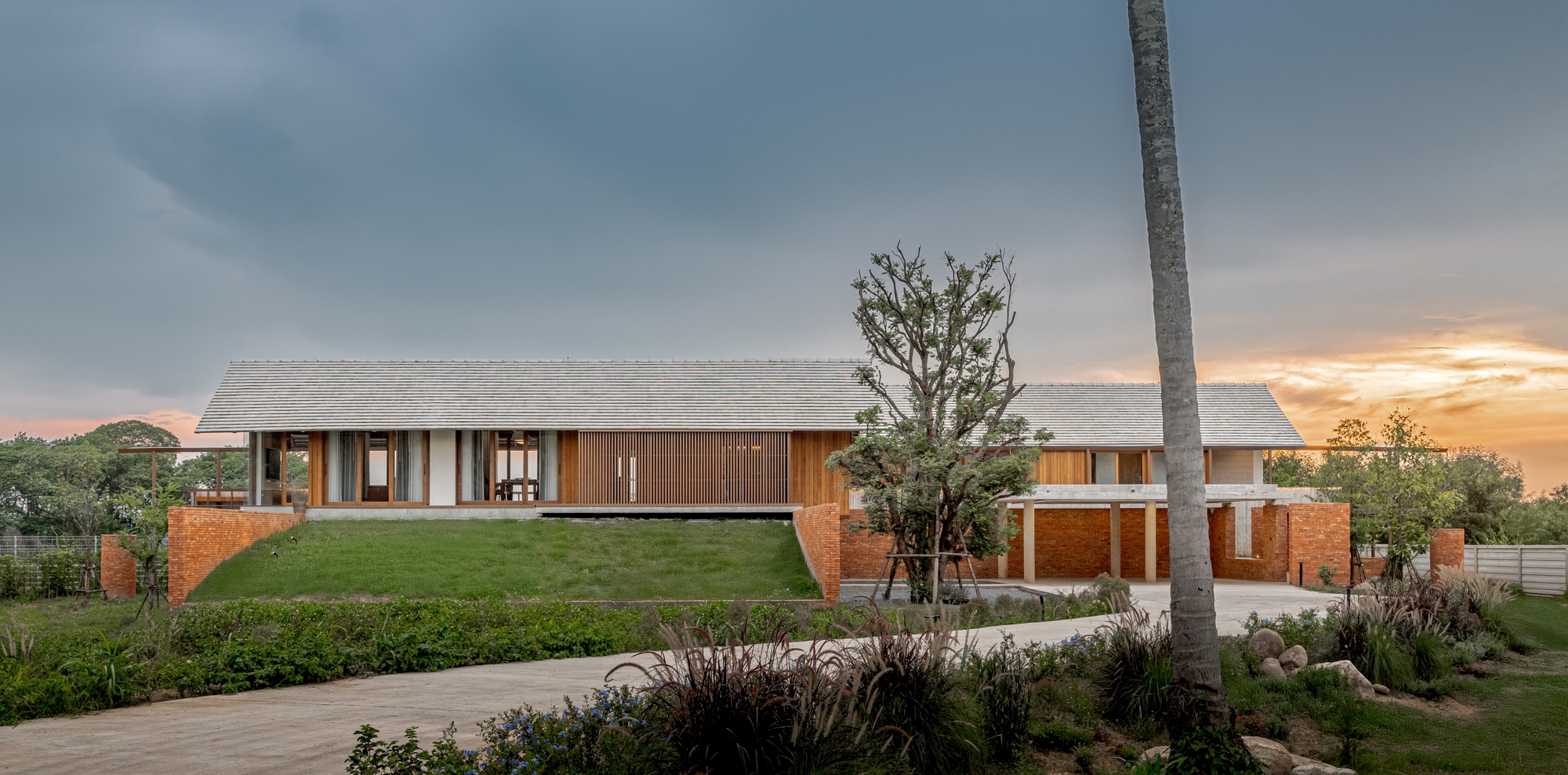

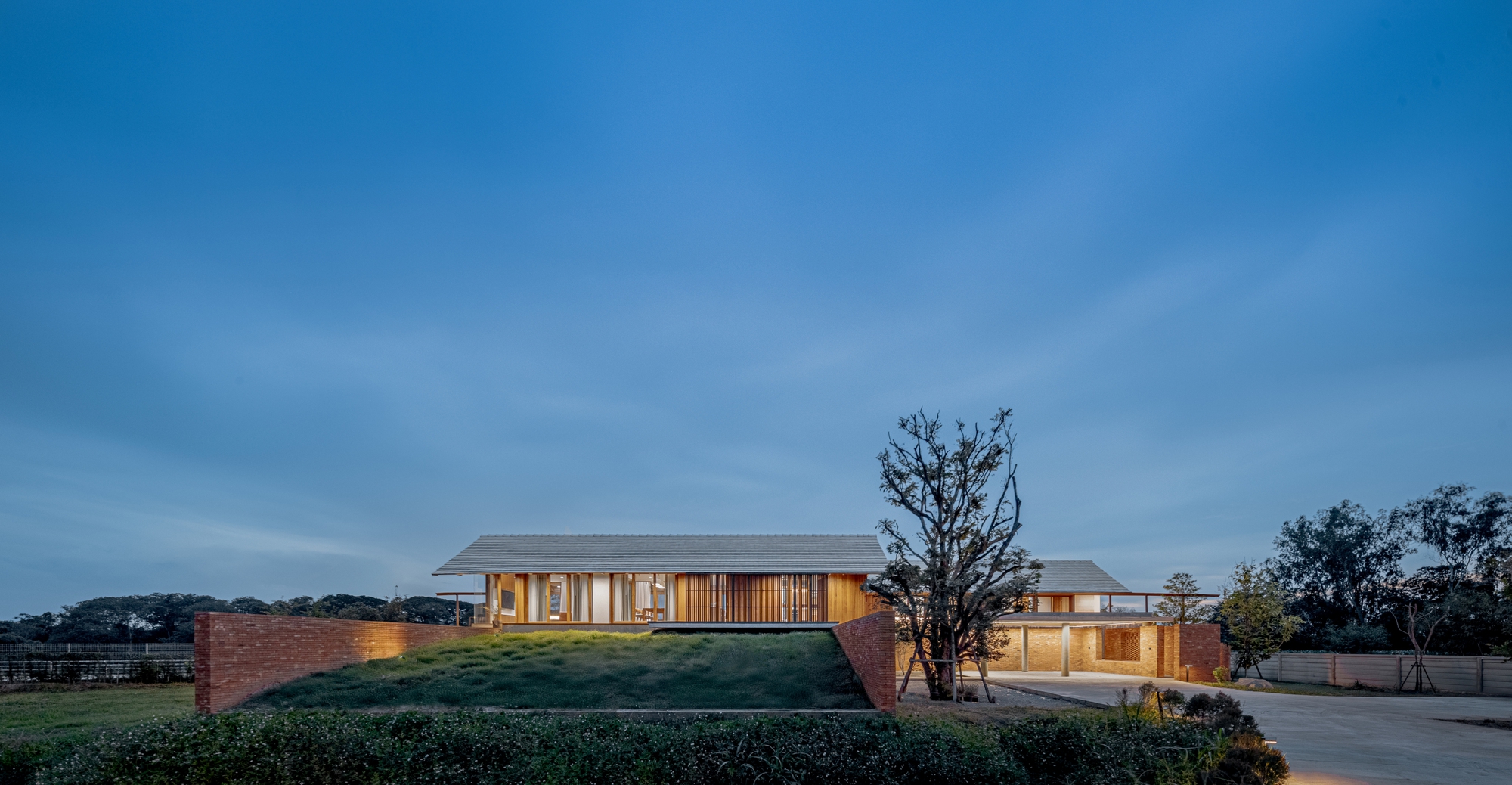

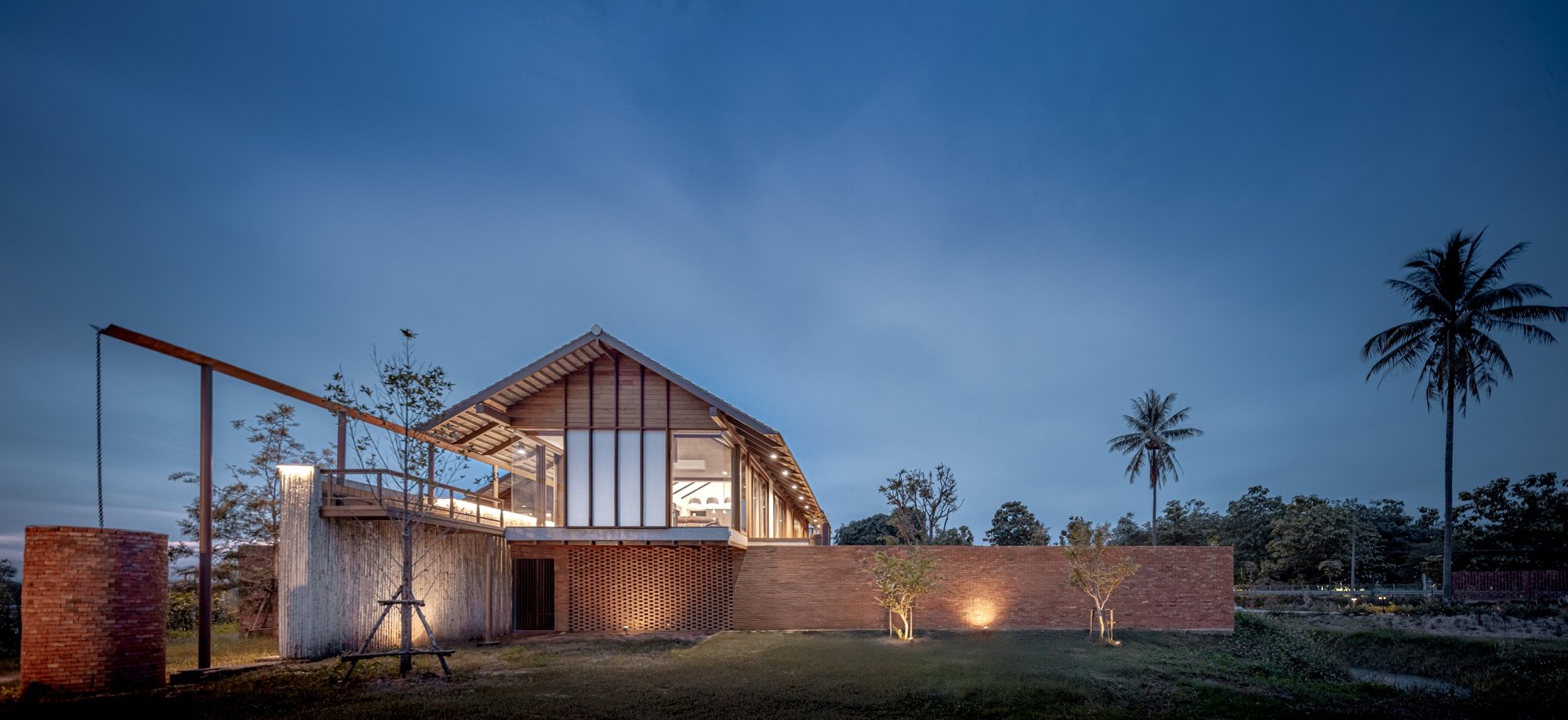

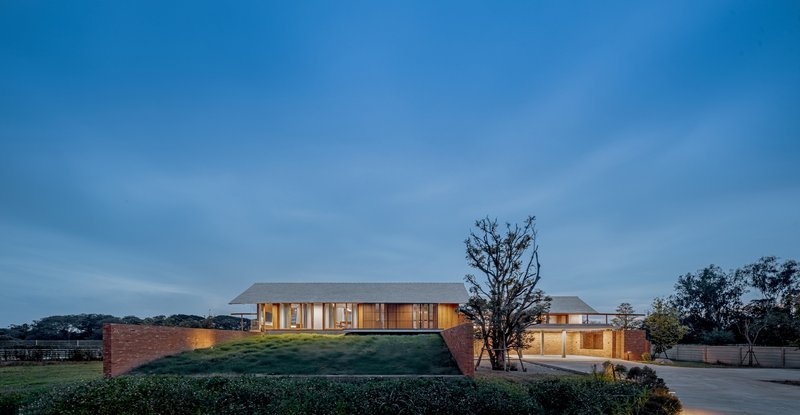

Several images capture the house at twilight, and they reveal something the daytime shots obscure: the building is set on a gently elevated grassy berm that establishes a continuous landscape datum. The low brick perimeter wall follows this datum, enclosing the glass pavilions like a garden wall around a compound rather than a fence around a house. The distinction matters. Baan SudSaenSuk reads as a cultivated precinct, not an isolated object.

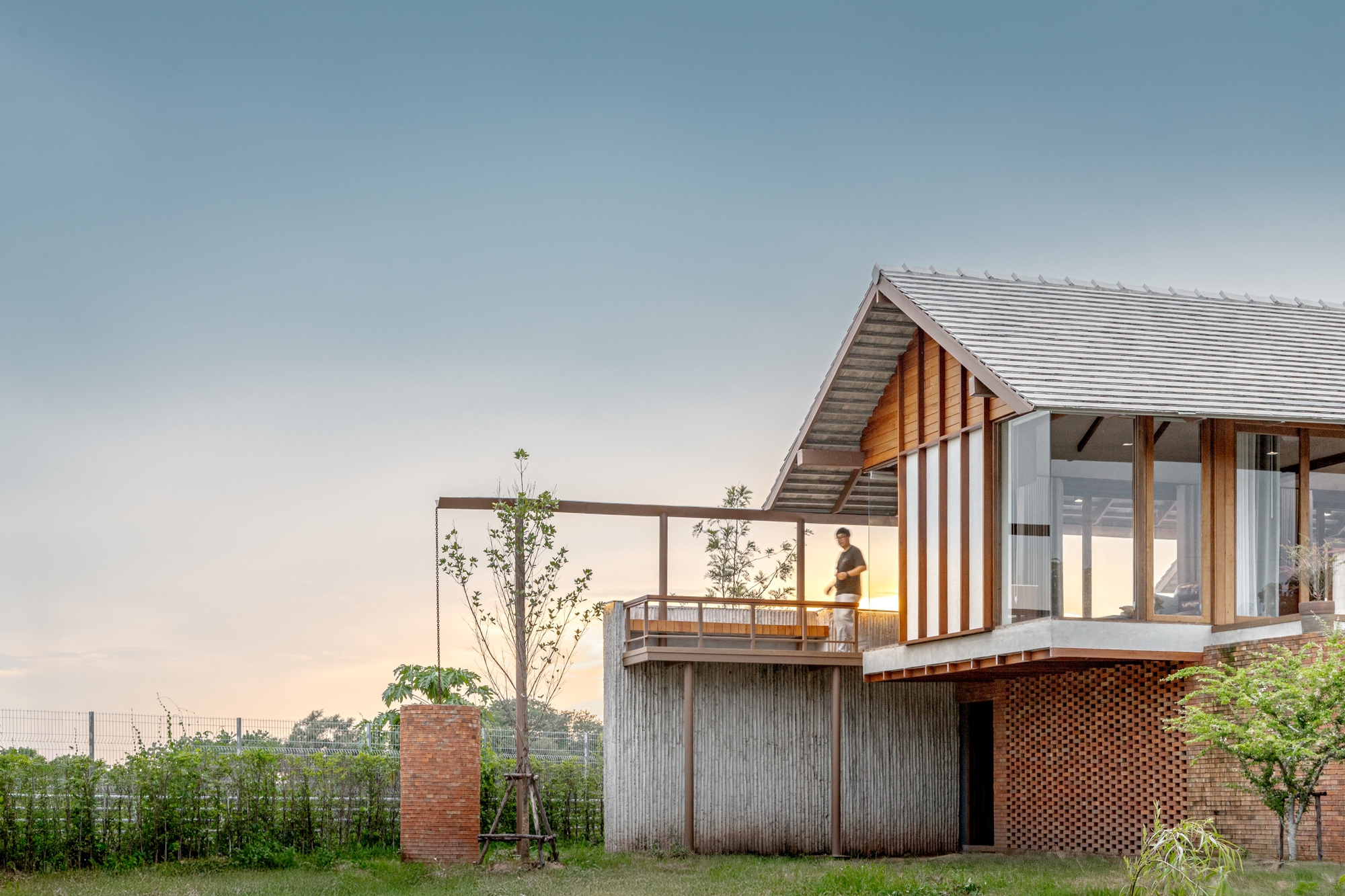

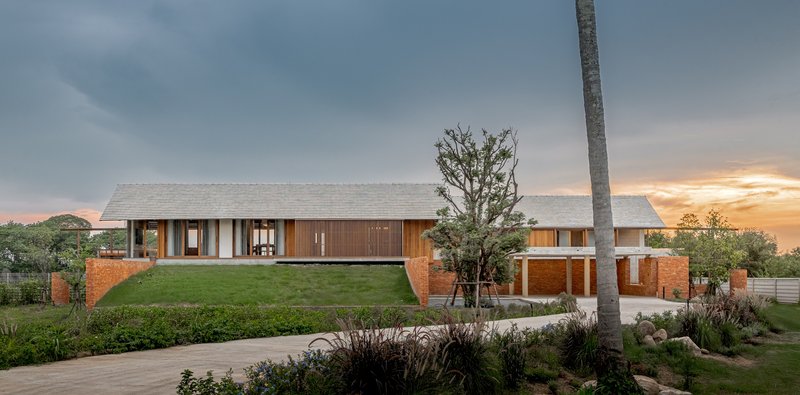

At dusk, the timber-clad upper volumes catch the last warm light while the brick base absorbs into shadow, reinforcing the impression of pavilions floating above an earthen plinth. Palm trees and the curved pool visible in the site plan soften the geometry without undermining it. The landscape is integral, not decorative.

Plans and Drawings

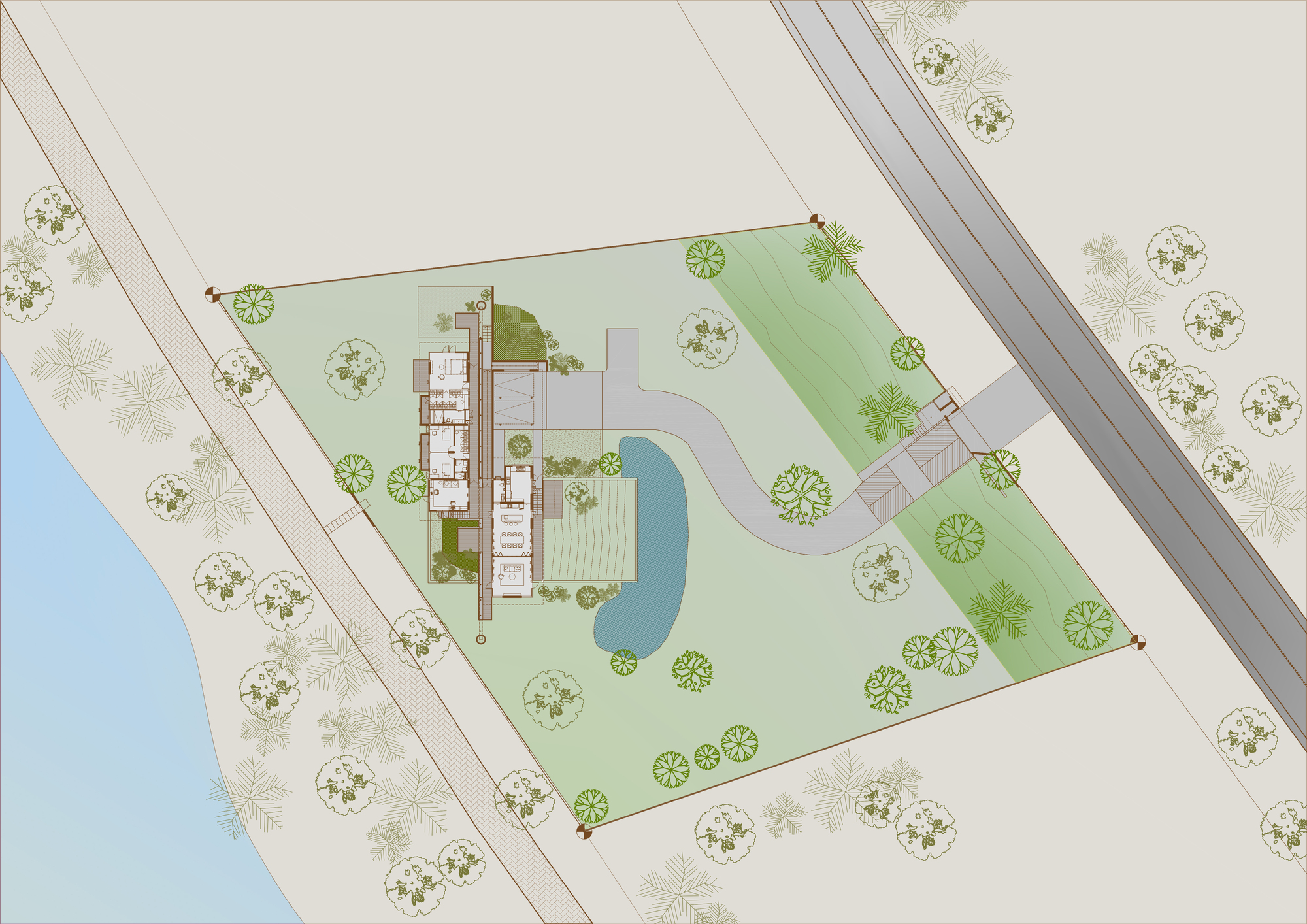

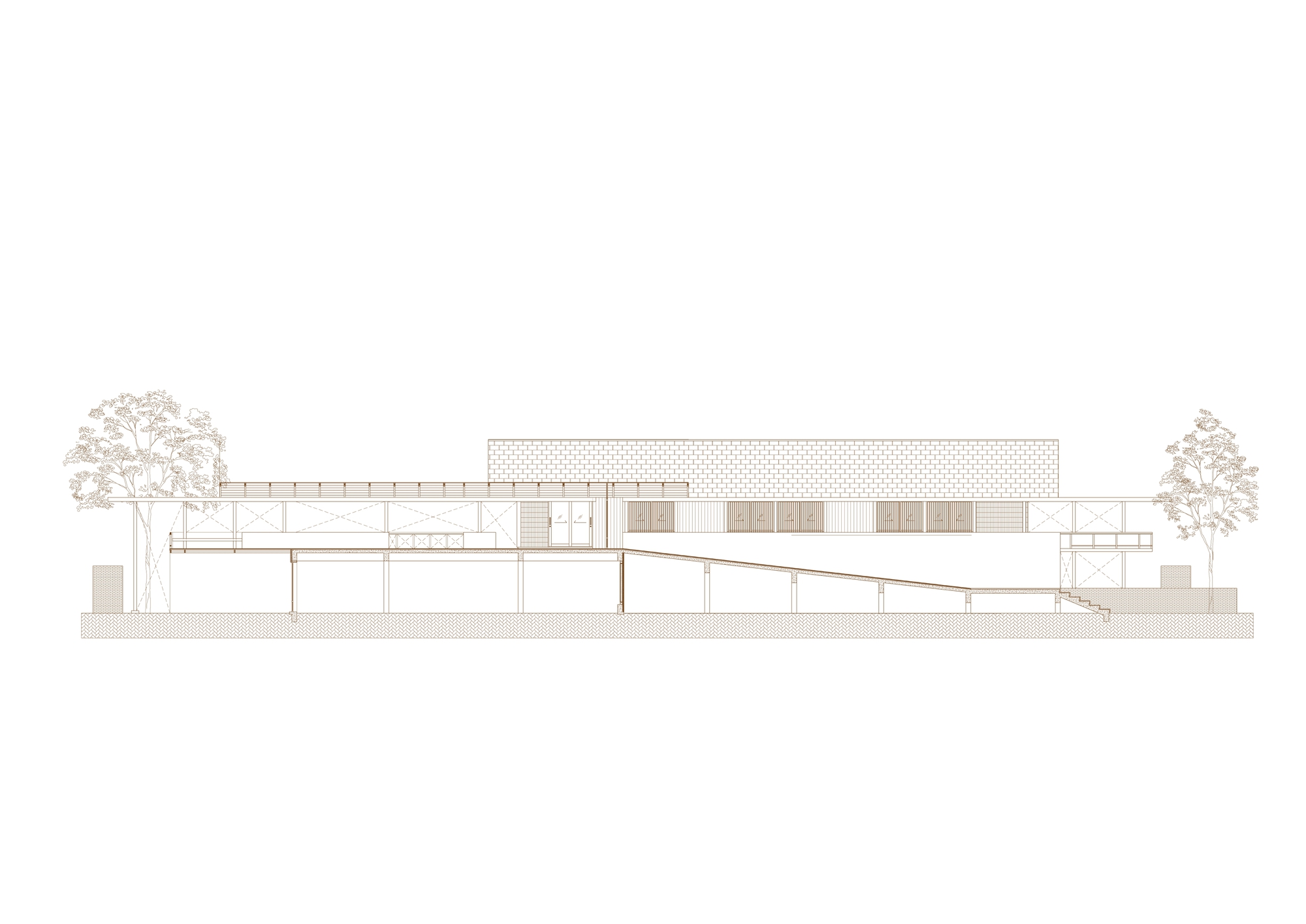

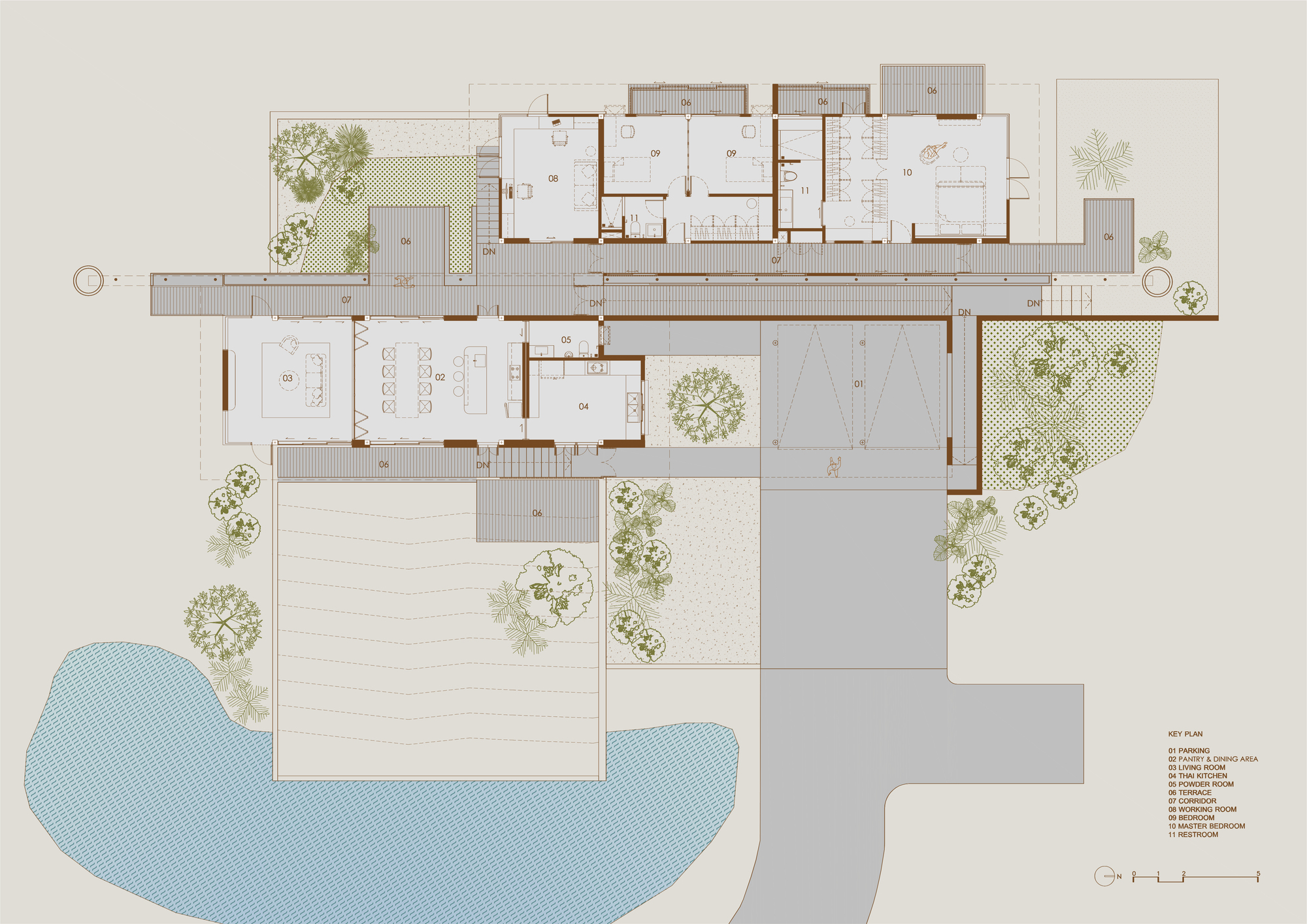

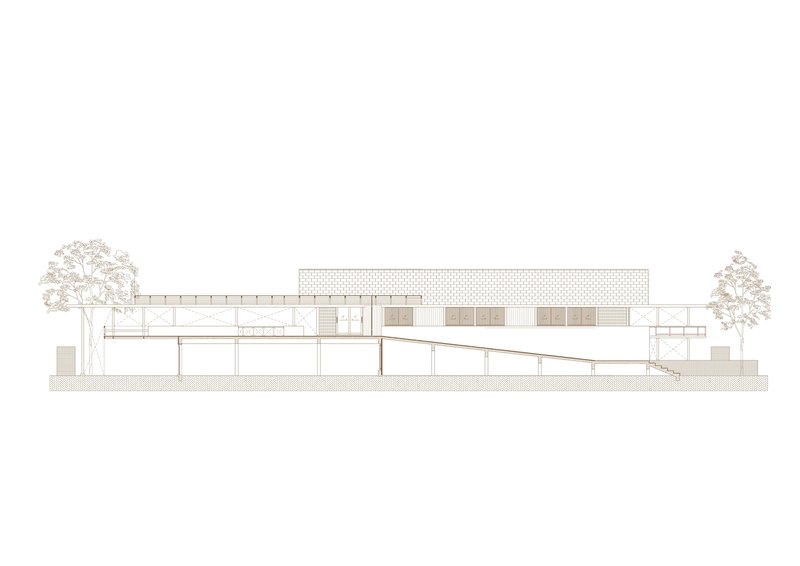

The site plan confirms what the photographs suggest: the building is organized as a linear sequence of rectangular volumes arranged beside a curved pool, with generous setbacks and perimeter planting on all sides. The floor plan reveals how courtyards and water features punctuate the domestic sequence, creating distinct zones linked by covered passages rather than corridors. The elevation drawing captures the horizontal massing and the layered play of perforated screen, solid brick, and timber cladding that gives each facade its rhythm.

Why This Project Matters

Baan SudSaenSuk is a persuasive argument that vernacular typologies are not museum pieces. The Ka Lae house, the fa lai panel, the chan terrace: these are not stylistic references applied to a modern shell. They are spatial and environmental strategies that BodinChapa has tested against contemporary construction (cast-in-place concrete, steel framing) and found fully operational. The result is a house that ventilates, shades, and orients itself through the same logic that governed Lanna houses for centuries, but with a level of craft and formal clarity that belongs entirely to this moment.

In a region where rapid development often flattens regional character into generic modernism, this project stakes a clear position: the most intelligent response to a tropical riverside site is the one that already existed, refined and made specific. Baan SudSaenSuk does not preserve tradition. It puts tradition back to work.

Baan SudSaenSuk, designed by BodinChapa Architects (Phitchapa Lothong and Bodin Mueanglue). Chiang Saen District, Chiang Rai, Thailand. 650 m². Completed 2025. Photography by Witsawarut Kekina.
