Cielo Apartment: Brick as Climate Machine in Nagpur

Nagpur sits at the geographic center of India, and its climate reflects that position with full intensity: summer temperatures regularly push past 45°C, monsoons arrive with force, and the dry season is relentless. Building a residential tower here is not just a structural exercise but a thermal one. Cielo Apartment, designed by Sanjay Puri Architects, treats the building envelope as the primary environmental control device. On a compact 900 sqm plot in a dense urban neighborhood, the studio has delivered 3600 sqm of livable area wrapped in a deeply modulated brick skin that is simultaneously facade, shading system, and identity.

What makes Cielo worth studying is the refusal to separate aesthetics from performance. The ribbed, stepped, and perforated brick screens are not ornamental cladding over a conventional box. They are the architecture. Every projection, recess, and vertical slot is calibrated to block direct solar gain while admitting diffused light and ventilation. The result is a tower that reads as a single sculptural mass from a distance yet reveals, on approach, a complex layering of inhabited spaces, deep shadows, and carefully framed views of the Nagpur skyline.

Urban Presence on a Tight Site

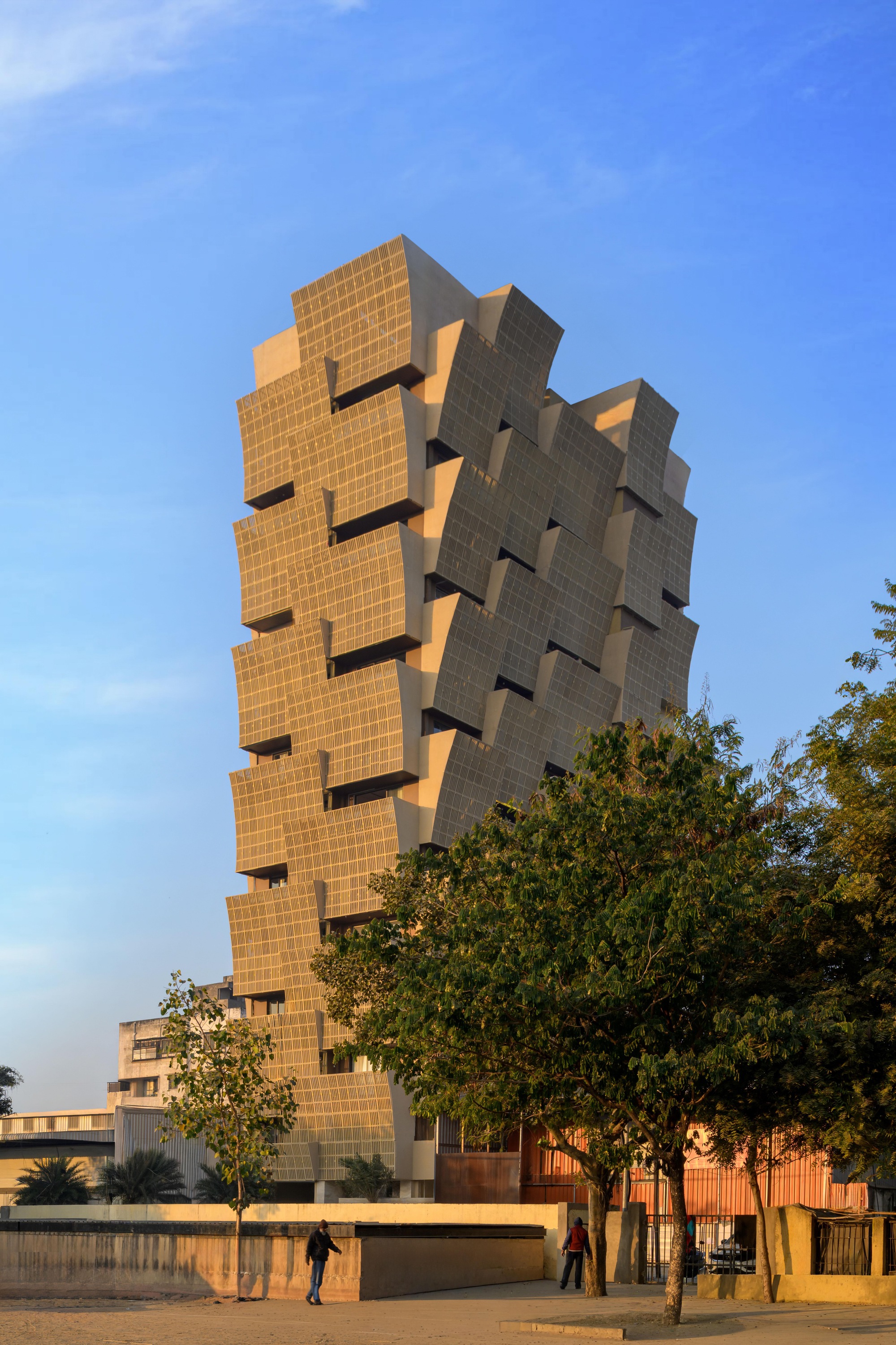

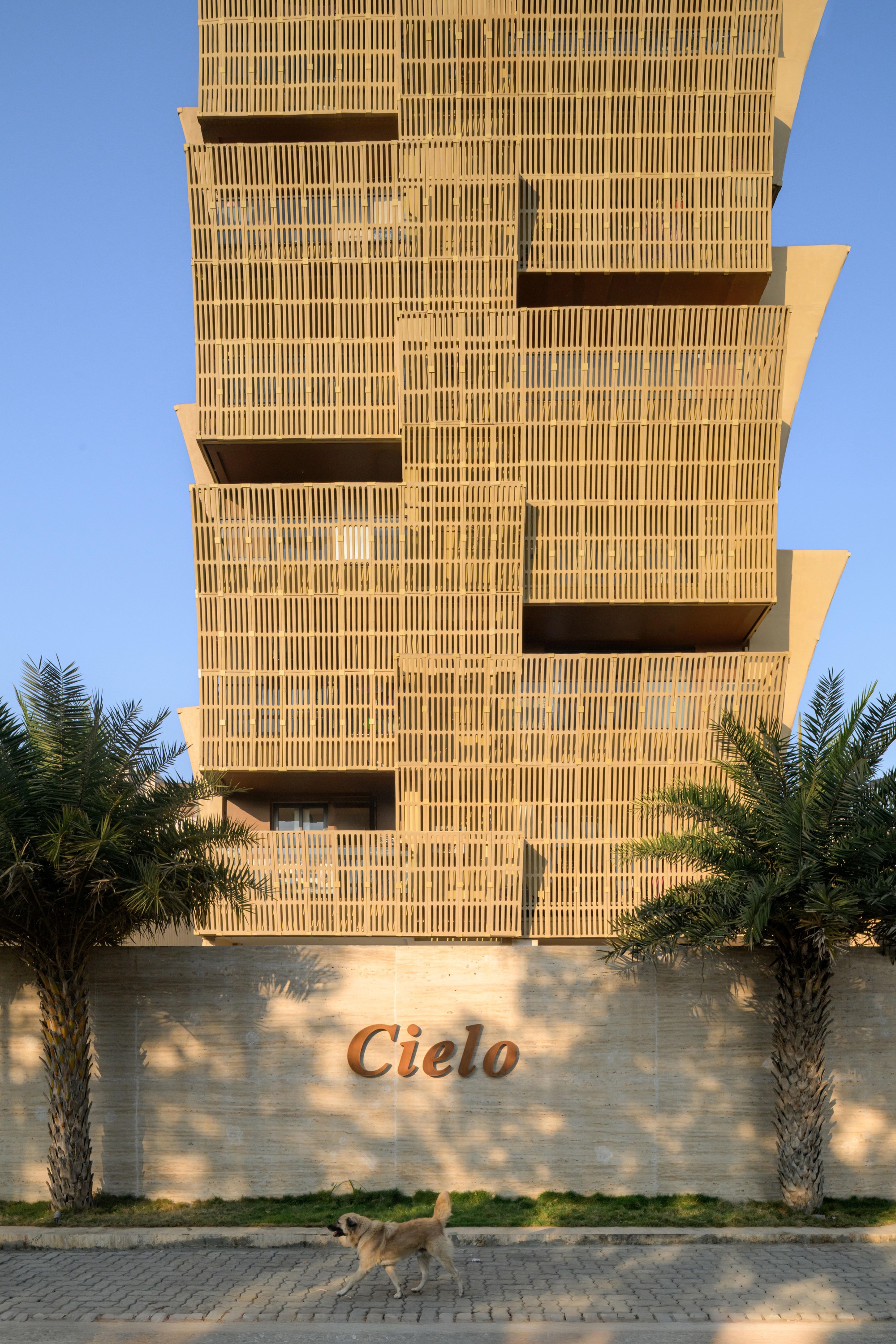

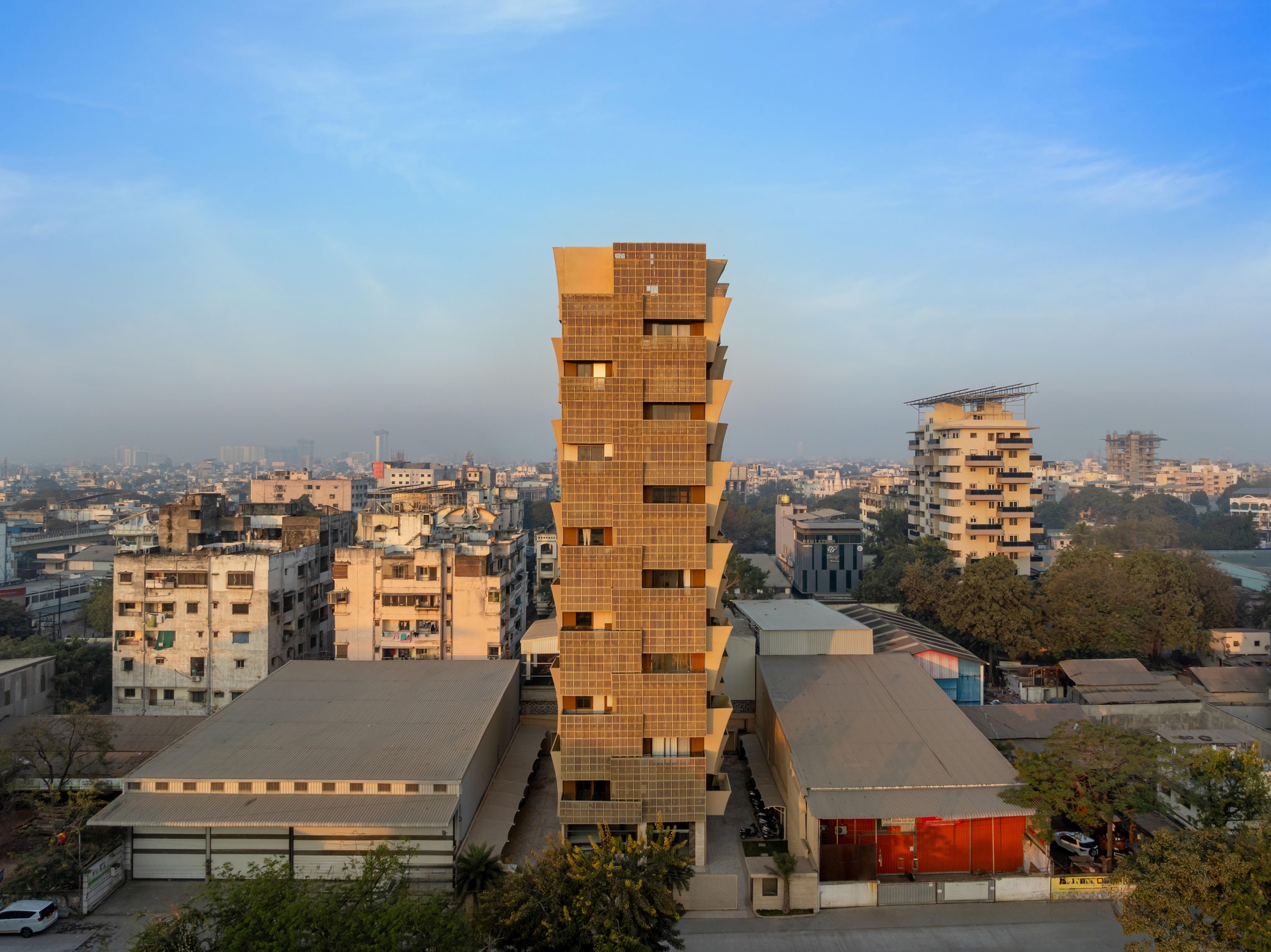

Rising from a dense residential neighborhood, Cielo announces itself through material rather than height. The tower is not especially tall, but its textured brick volume creates a visual weight that contrasts with the flat, rendered walls surrounding it. At street level, a low boundary wall and flanking palm trees establish a modest threshold. The vertical brick screen above the entrance introduces the building's formal language immediately: solidity broken by rhythm.

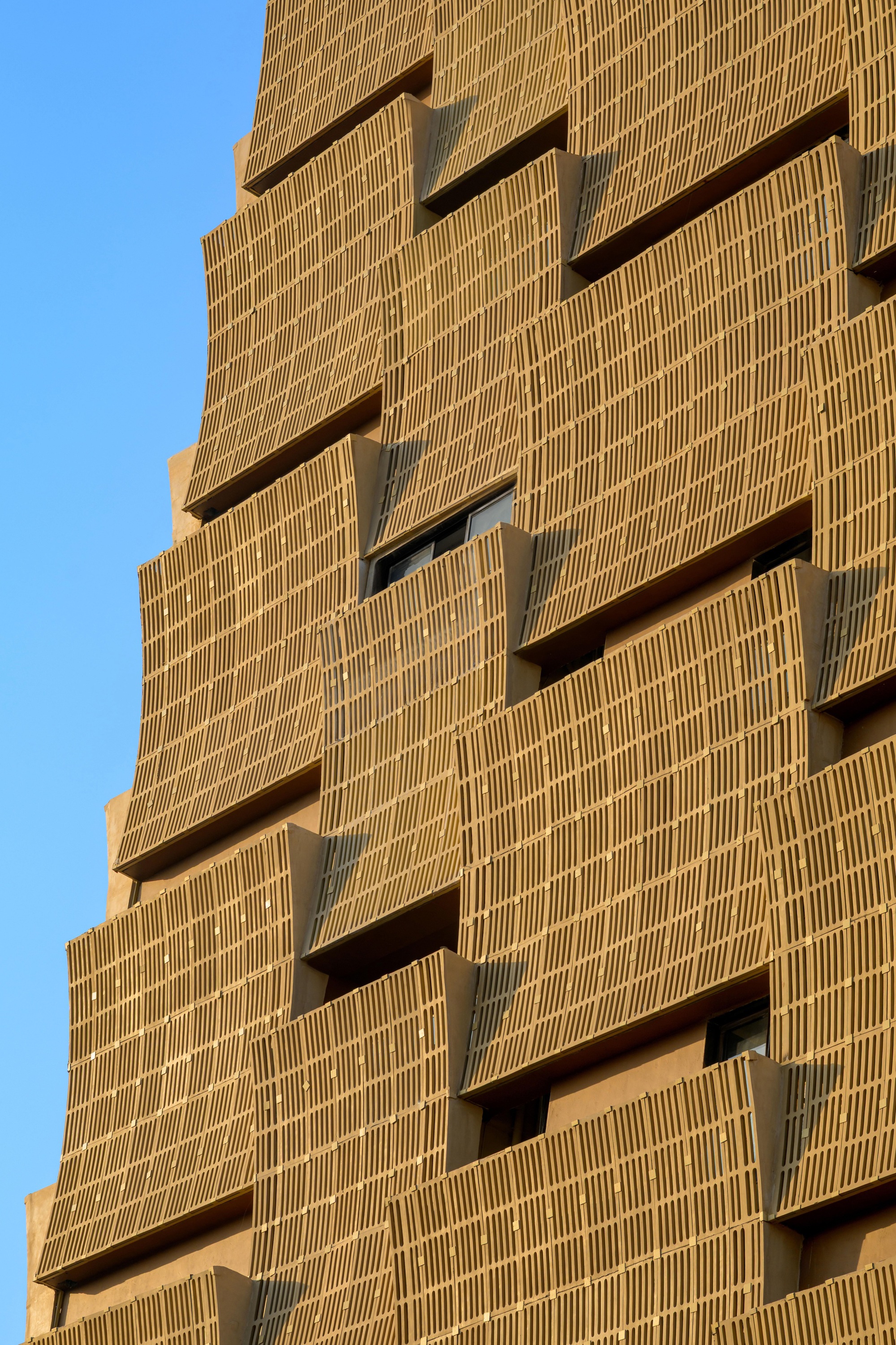

The 900 sqm footprint forced the architects to think vertically and to treat every square meter of facade as usable space. Balconies are not afterthoughts appended to floor plates; they are integral volumes that push and pull the building's profile. From the street, this gives Cielo a stepped, almost geological quality, as if the brick were eroding and reforming simultaneously.

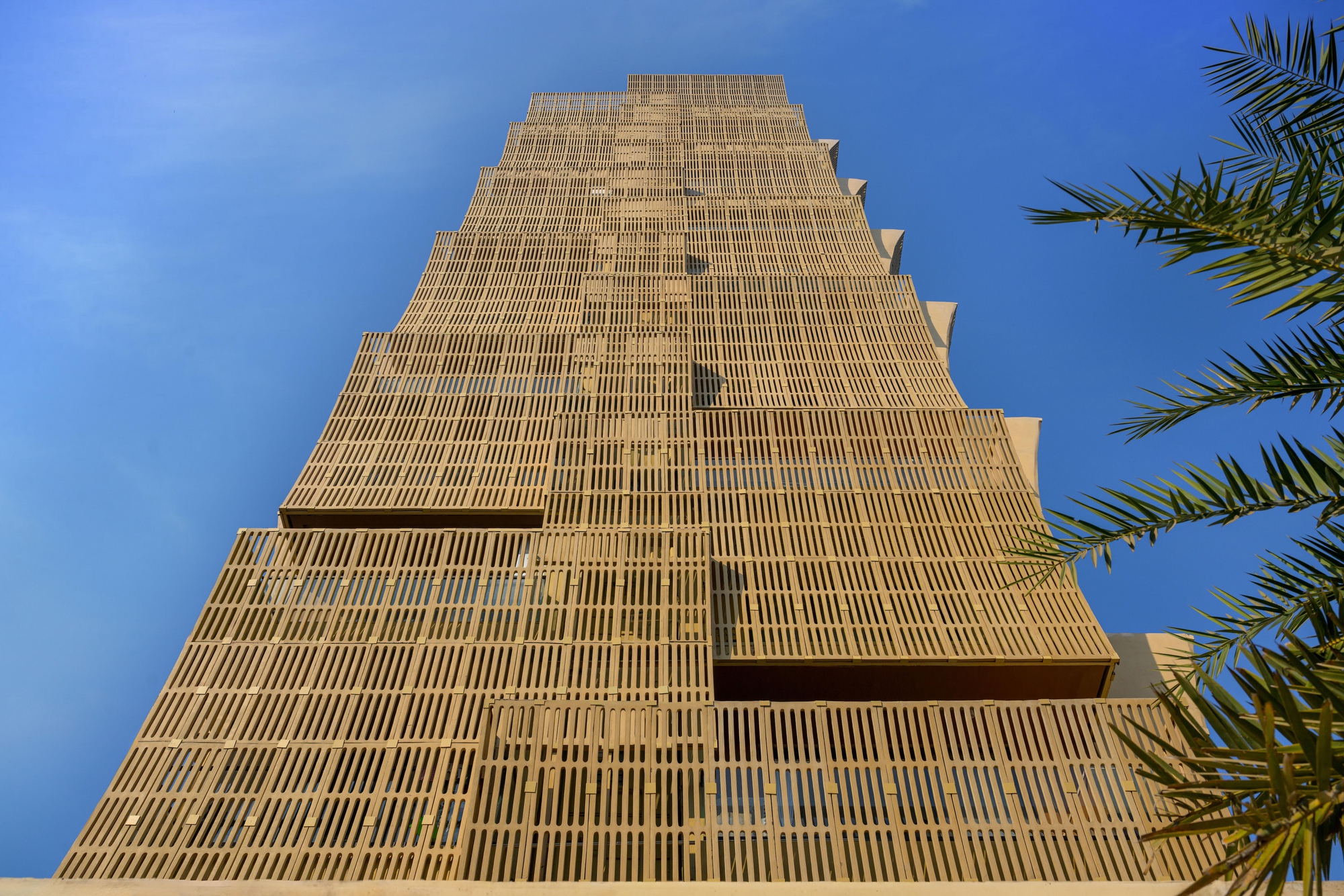

The Ribbed Brick Screen

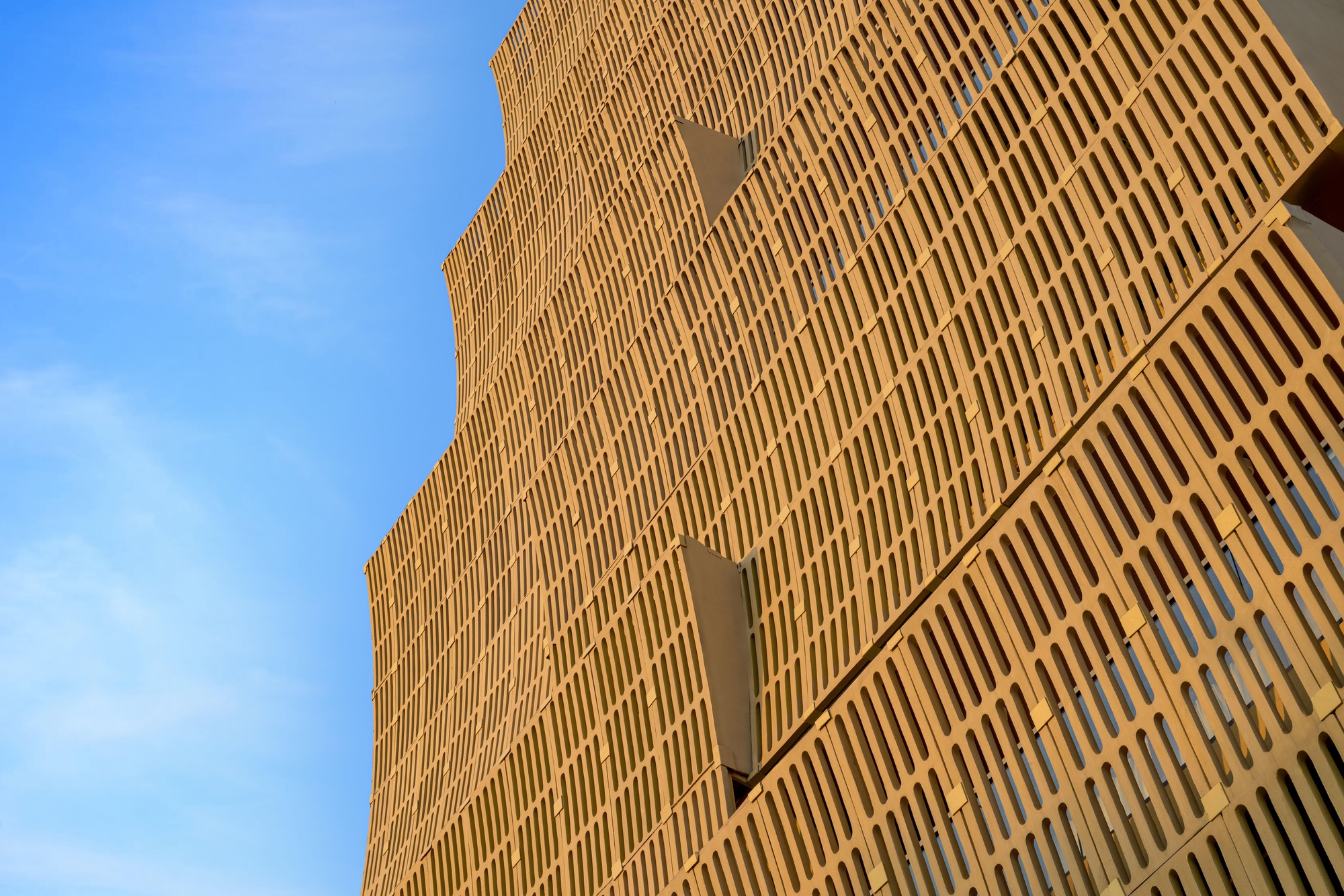

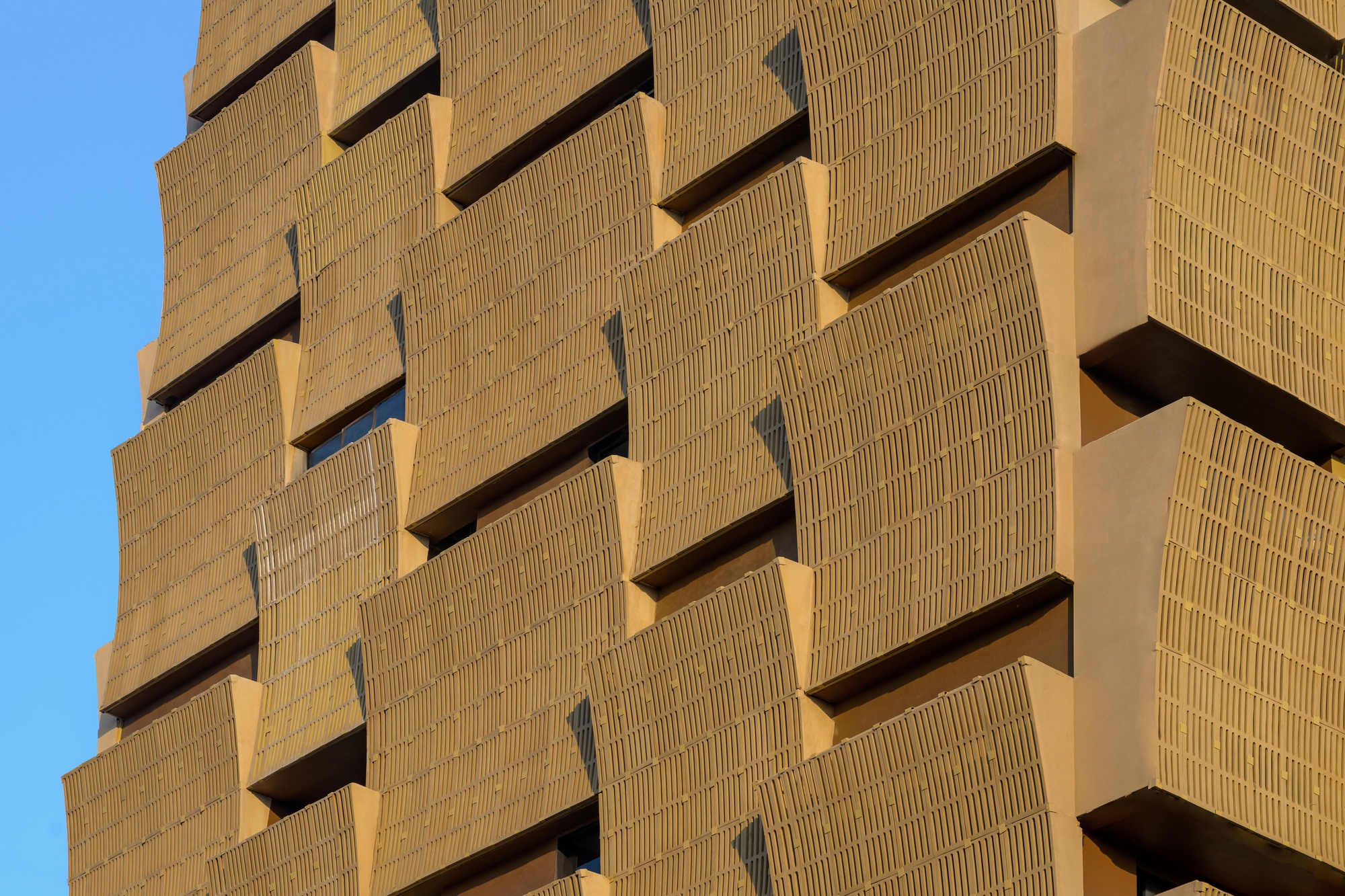

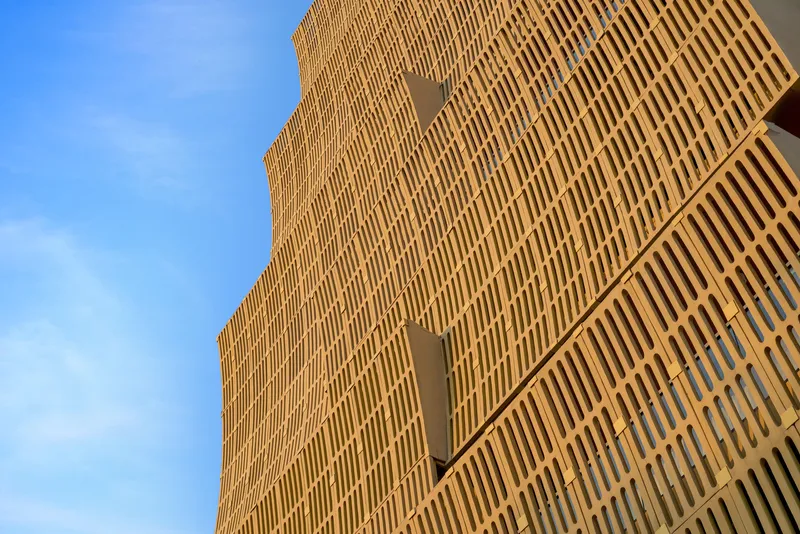

The defining move here is the ribbed brick facade. Vertical fins of brick project outward at regular intervals, creating a deeply corrugated surface that changes character throughout the day. In morning light, the ribs cast sharp horizontal shadows across the recessed balconies. By afternoon, the entire wall reads as a warm, continuous texture. At dusk, the slots between ribs glow with interior light, and the tower transforms into a lantern of thin vertical lines.

This is not decorative brickwork for its own sake. The ribs serve as permanent external shading, blocking direct sun from hitting the glass line behind them. Because Nagpur's solar angles are steep, the vertical orientation of the fins is particularly effective at cutting east and west exposure. The technique is simple, requires no moving parts, and will outlast any mechanical louvre system. It is, in the most literal sense, climate-responsive construction using the oldest material in the Indian builder's vocabulary.

Cantilevered Balconies and Stepped Volumes

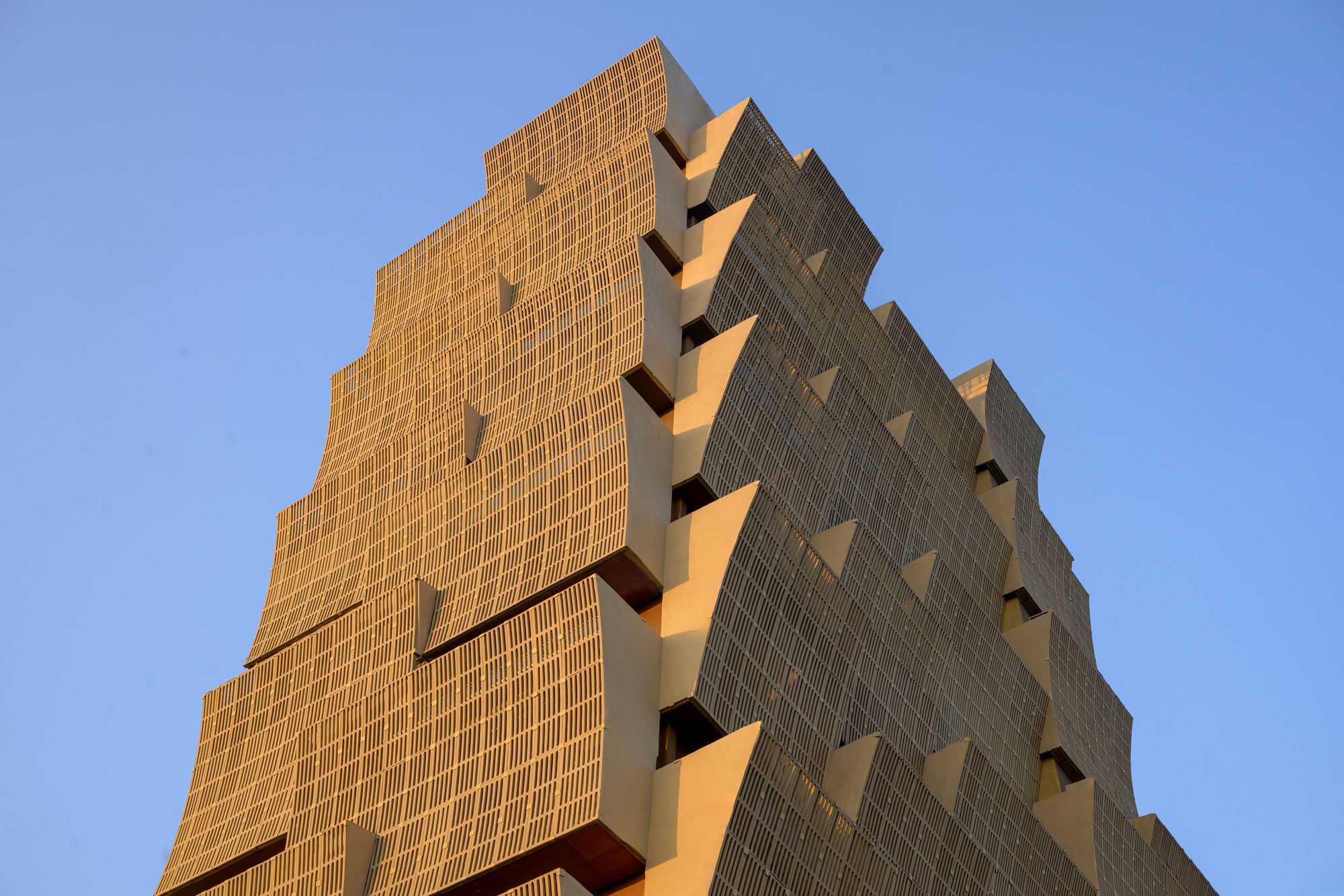

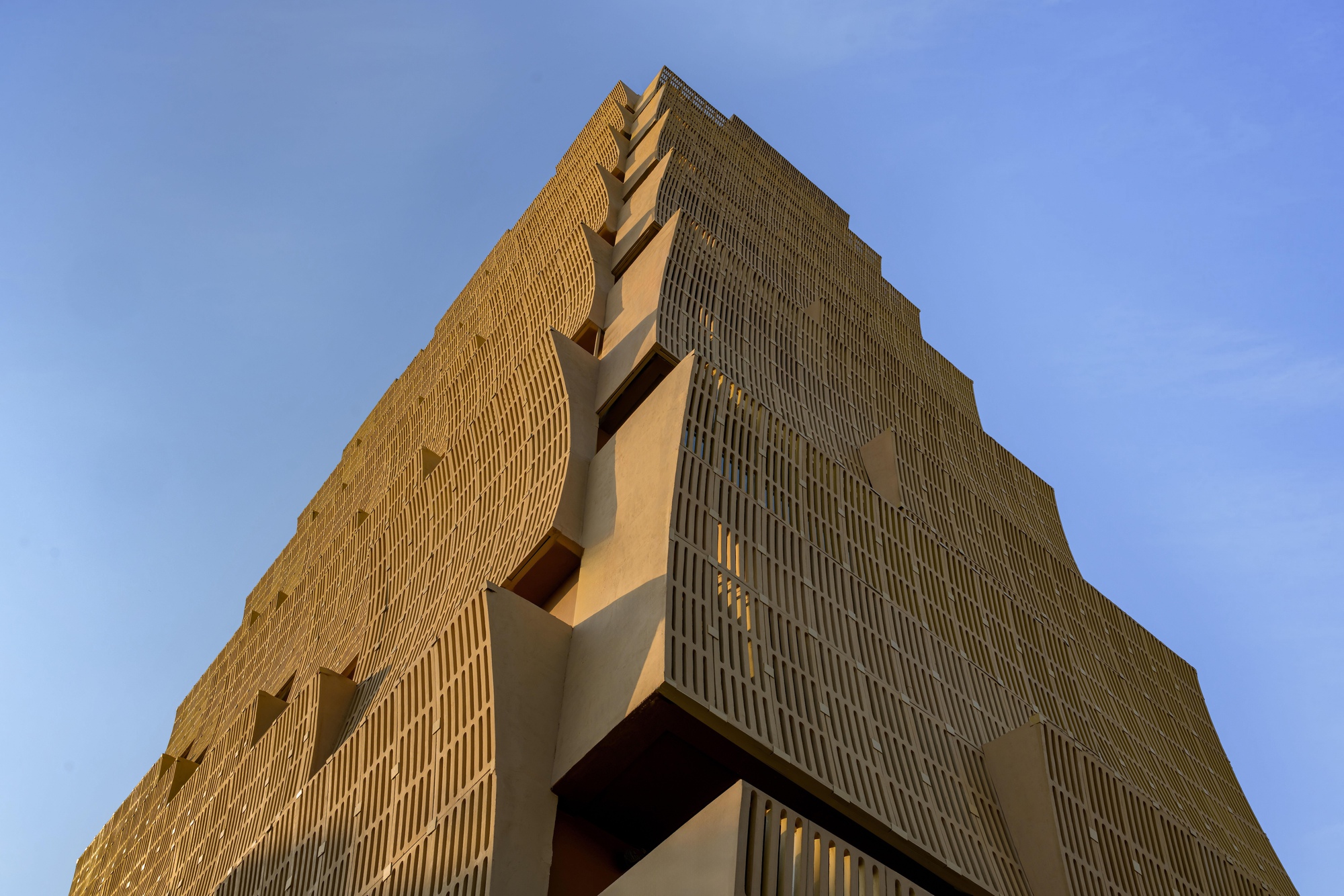

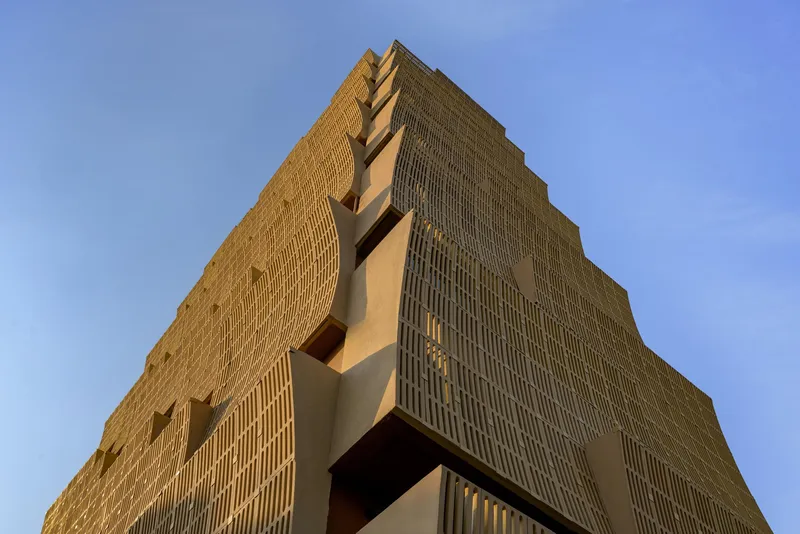

The tower's massing is not uniform. Volumes cantilever outward at various floors, creating triangular and trapezoidal balcony enclosures that project beyond the primary structural grid. These projections serve a double purpose: they extend the usable living area beyond the tight floor plate, and they break the facade into a composition of advancing and receding planes. The effect from below is dramatic, with deep overhangs casting the lower levels into shadow while the upper volumes catch the last light.

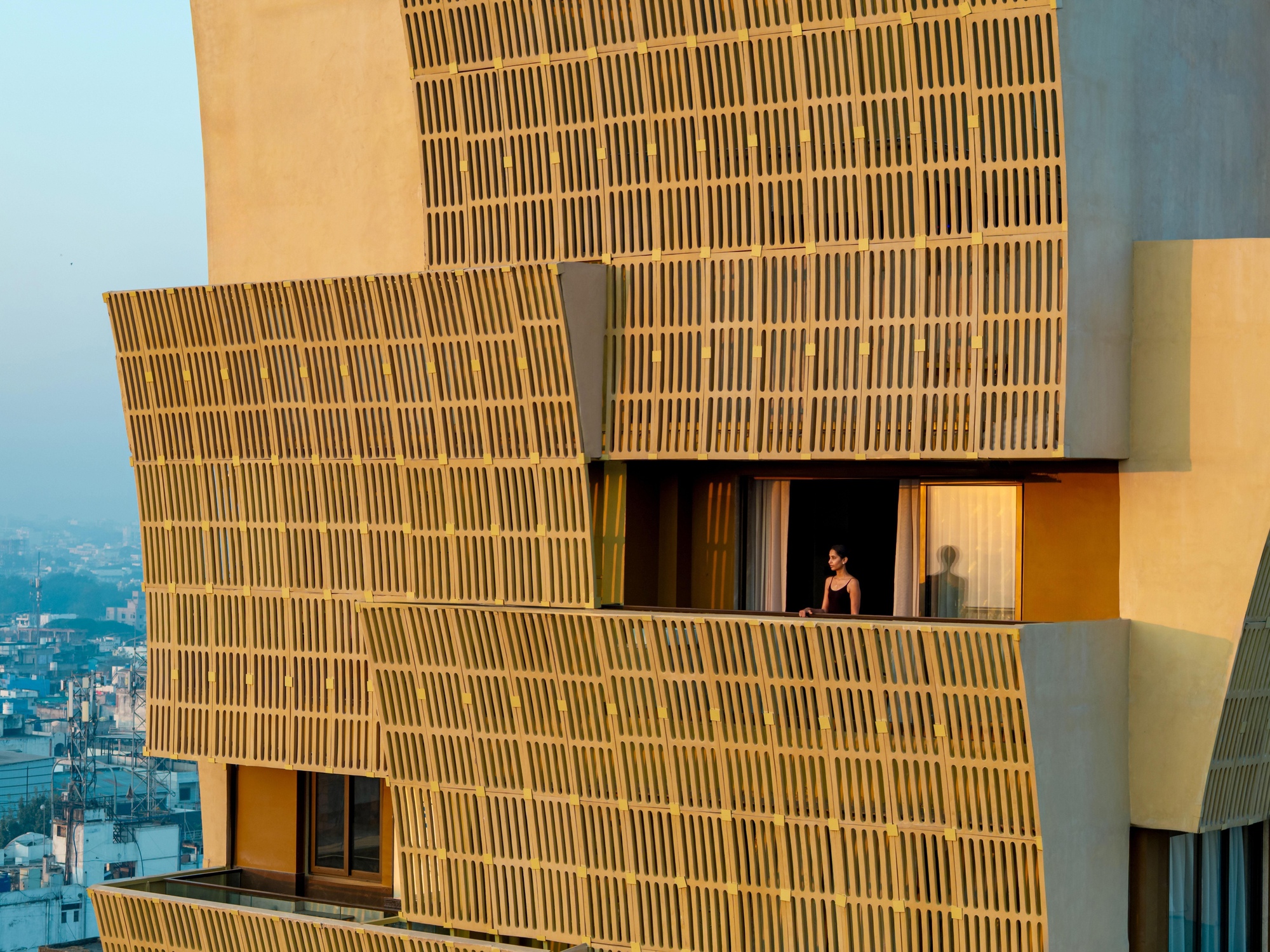

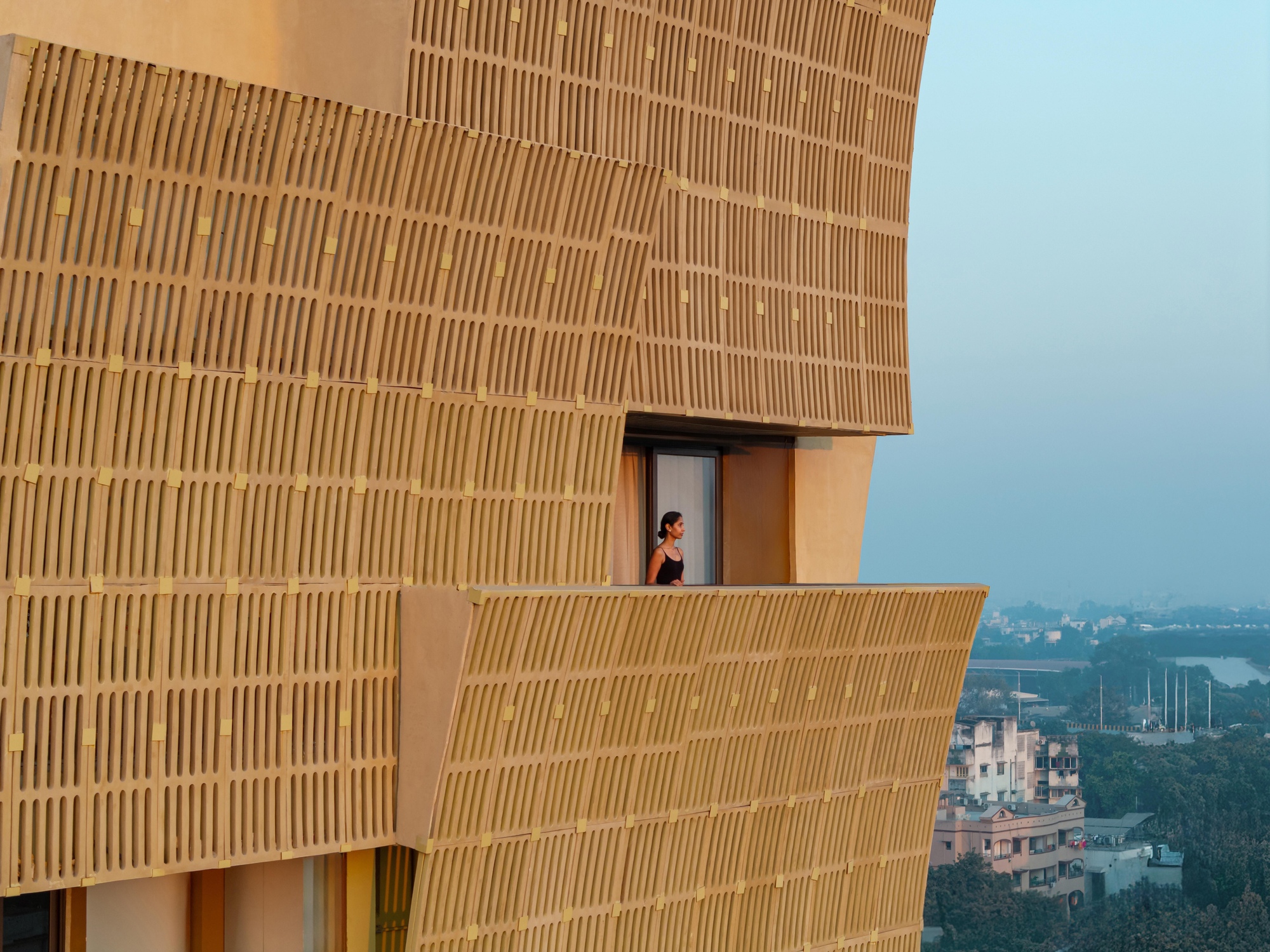

Standing on one of these cantilevered terraces at sunset, with the ribbed brick screen framing the view, the experience is closer to occupying a carved-out aperture than standing on a conventional balcony. The vertical screens provide privacy from neighbors while maintaining a connection to the distant cityscape. It is an effective compromise for high-density living: open to the sky and horizon, shielded from the immediate surroundings.

Perforated Patterns and Light Control

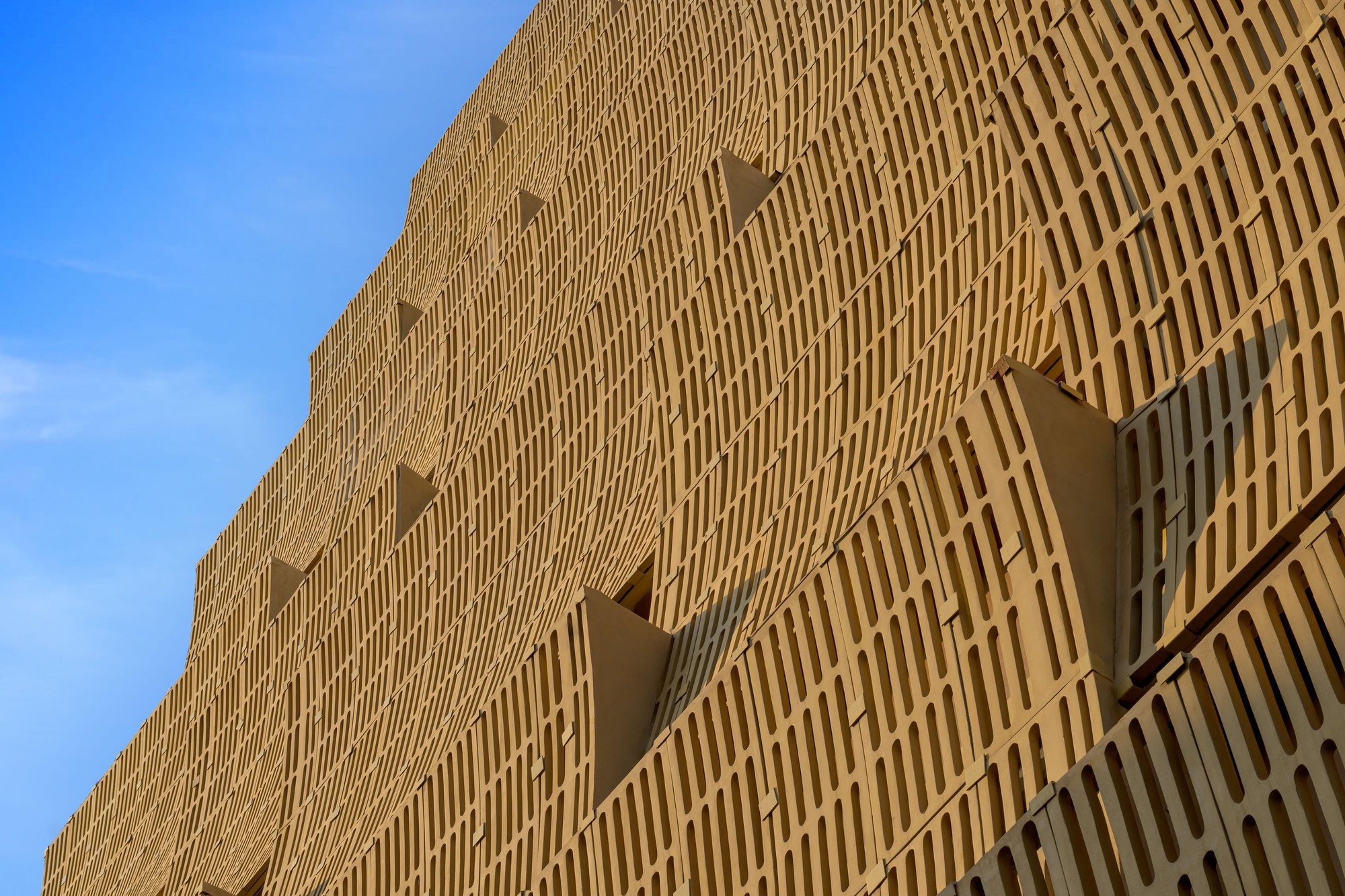

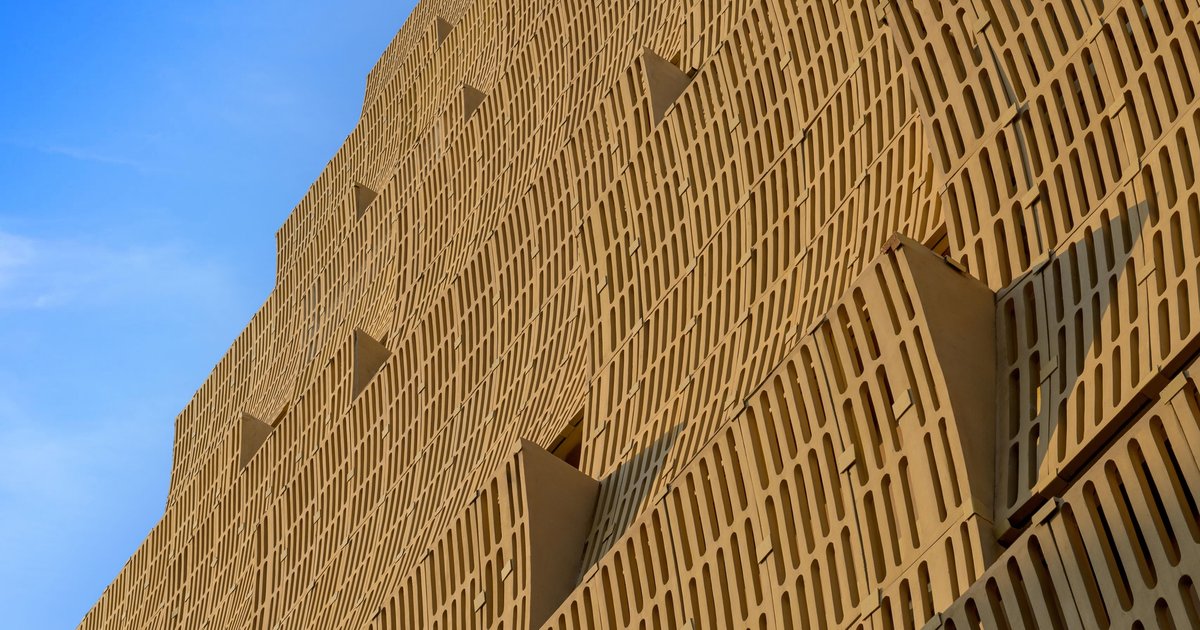

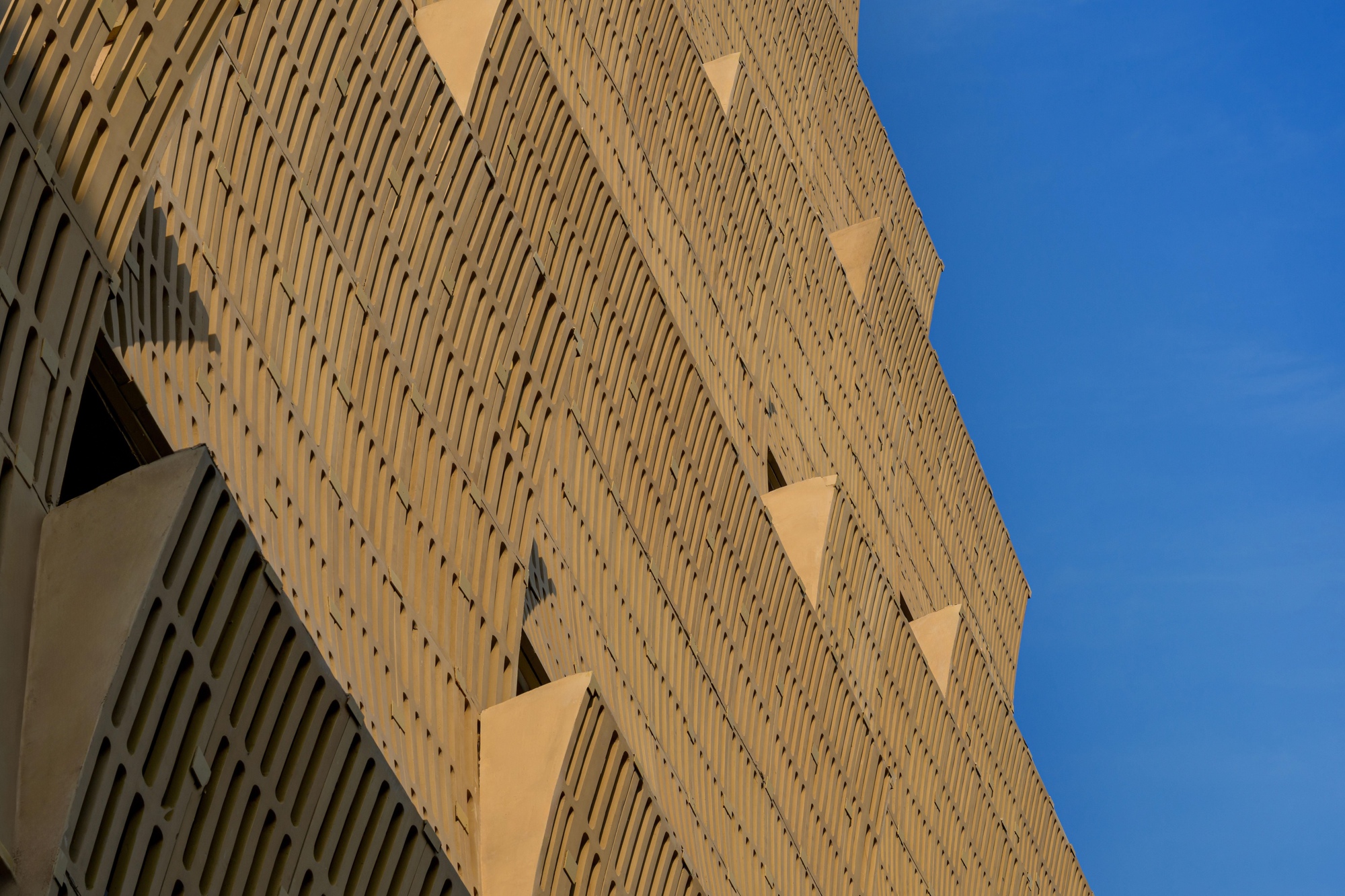

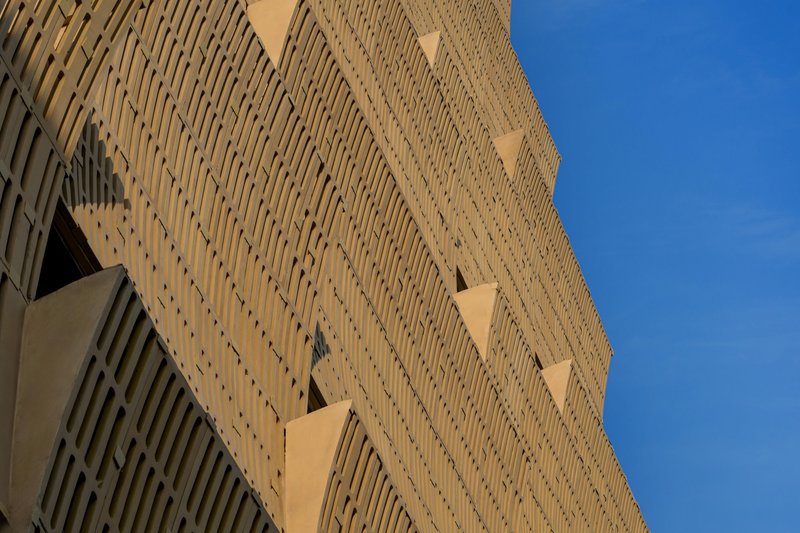

Not every face of Cielo uses the same screen strategy. Certain elevations employ a diagonal perforation pattern, with circular or diamond-shaped openings punched through the brick wall. Seen from below against a clear sky, the pattern recalls traditional Indian jali screens, those perforated stone panels that have regulated light and air in subcontinental architecture for centuries. The reference is deliberate but not nostalgic. Here the perforations are scaled to the residential program, controlling privacy and glare rather than filtering light into a palace courtyard.

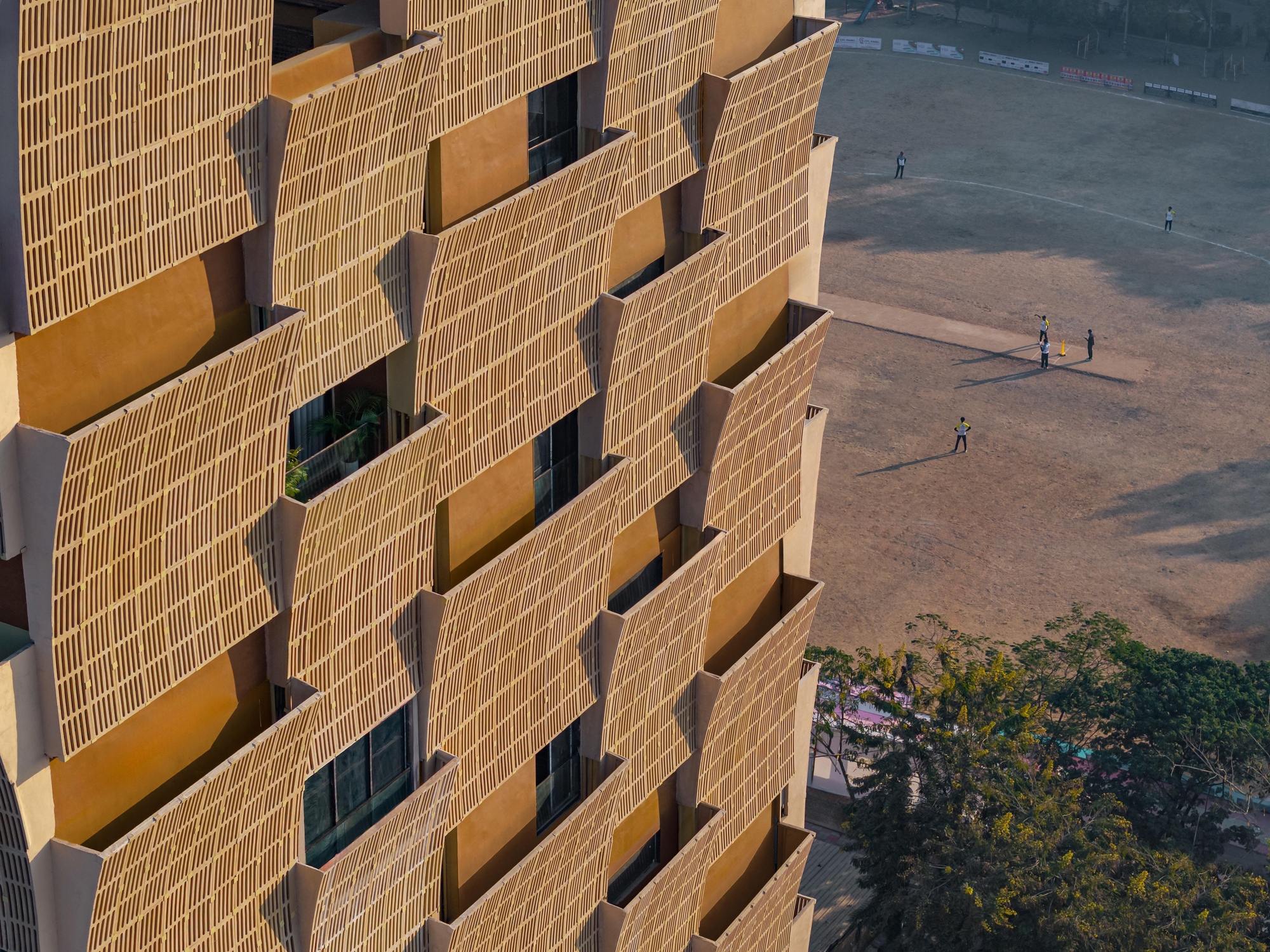

From the aerial perspective, the interplay between solid screens and open terraces becomes legible. Figures on the paved ground below give a sense of the scale of each projecting element. The building reads differently at every angle and distance, which is a quality that flat-skinned towers simply cannot deliver.

Interior Life Behind the Screen

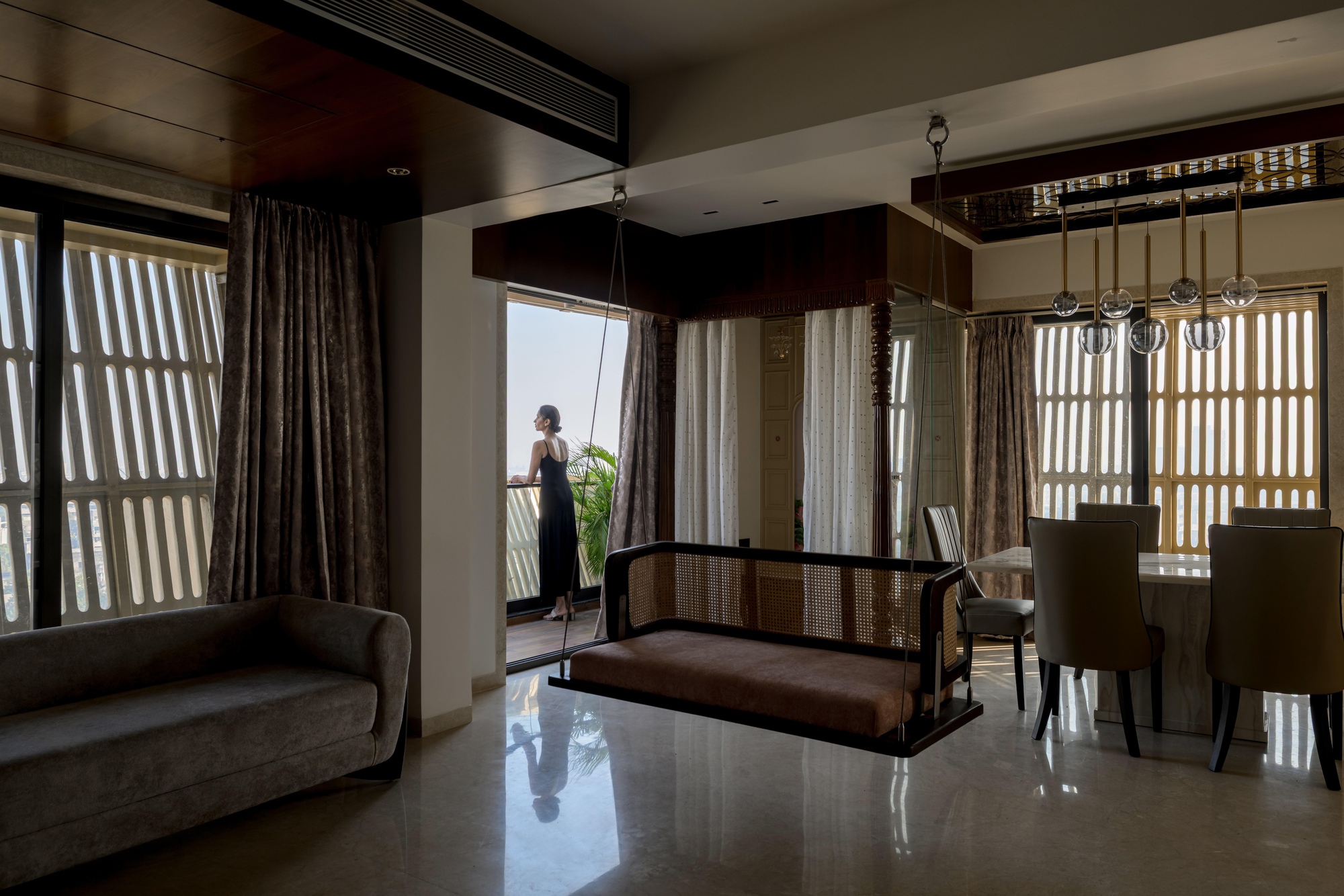

Inside the apartments, the effect of the external screens is immediate. Rooms are bathed in filtered light that shifts in intensity and direction throughout the day. Vertical timber louvers at the balcony edge supplement the brick ribs, adding a finer grain of light control and a material warmth to the interiors. Living spaces furnished with cane and natural materials reinforce the tropical sensibility.

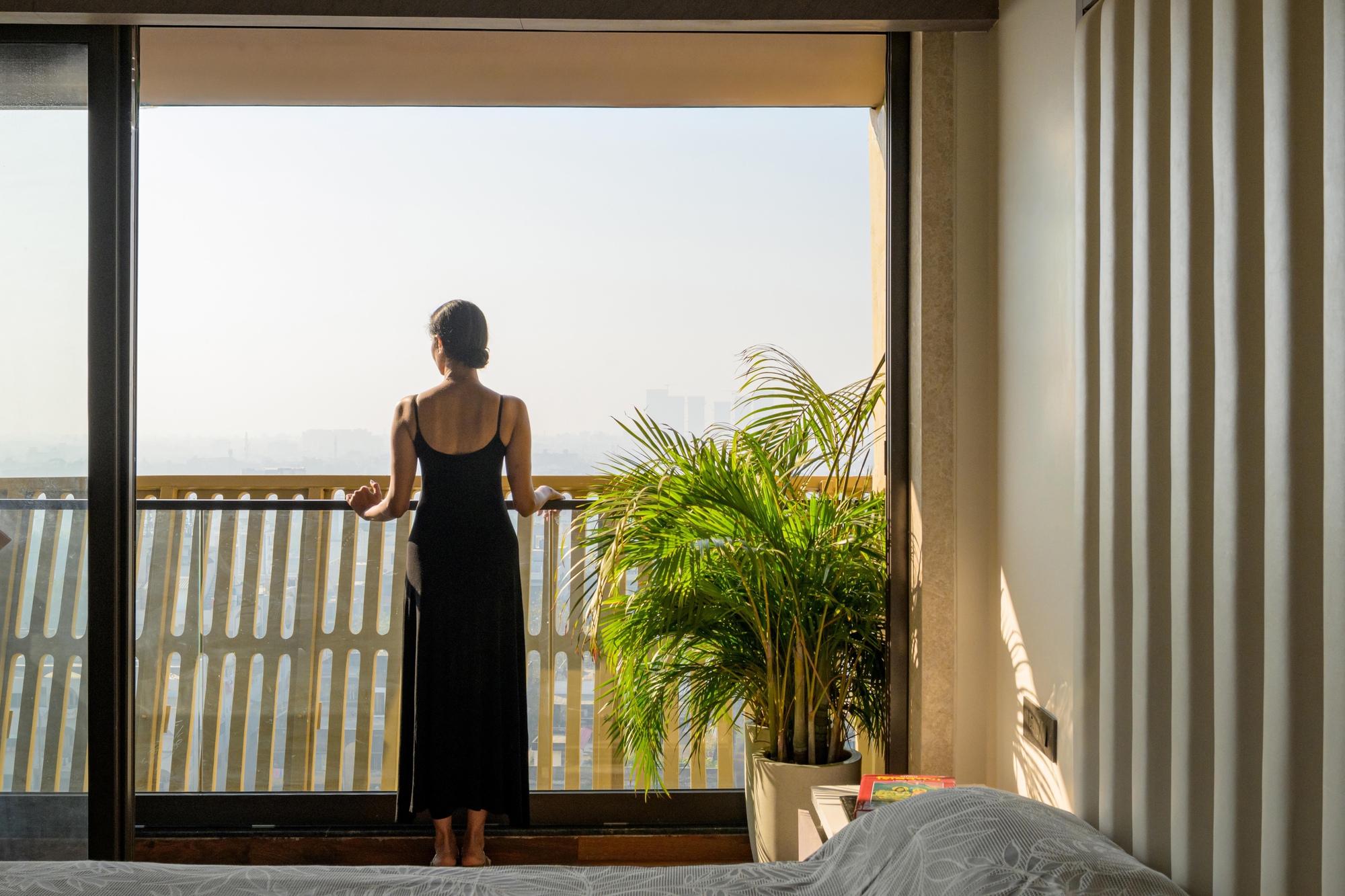

The bedrooms open onto deep balconies where the vertical louvers frame the hazy Nagpur landscape in cinematic strips. There is a genuine sense of inhabiting the facade rather than merely looking through it. The thickness of the wall assembly, from interior finish to outer brick rib, creates a graduated transition from private to public that is absent in buildings where a single pane of glass separates bed from city.

Plans and Drawings

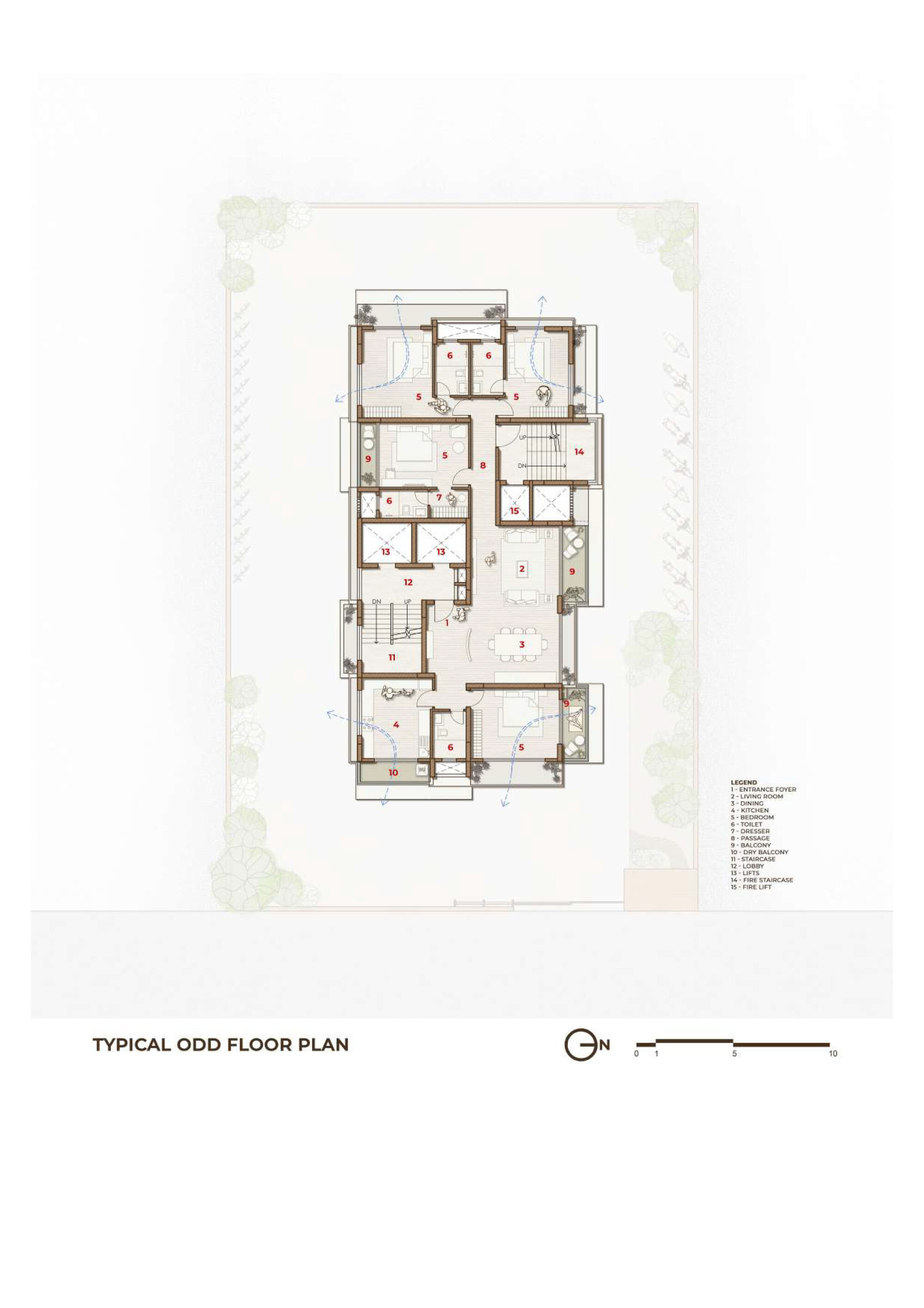

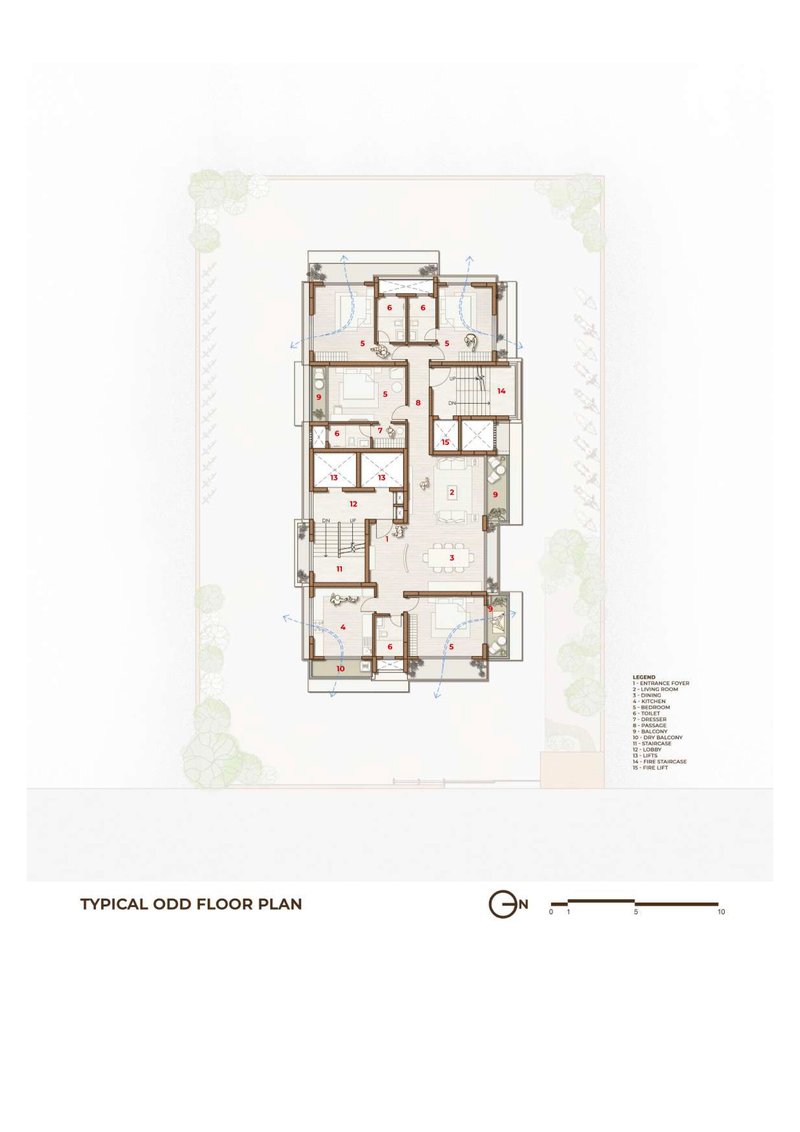

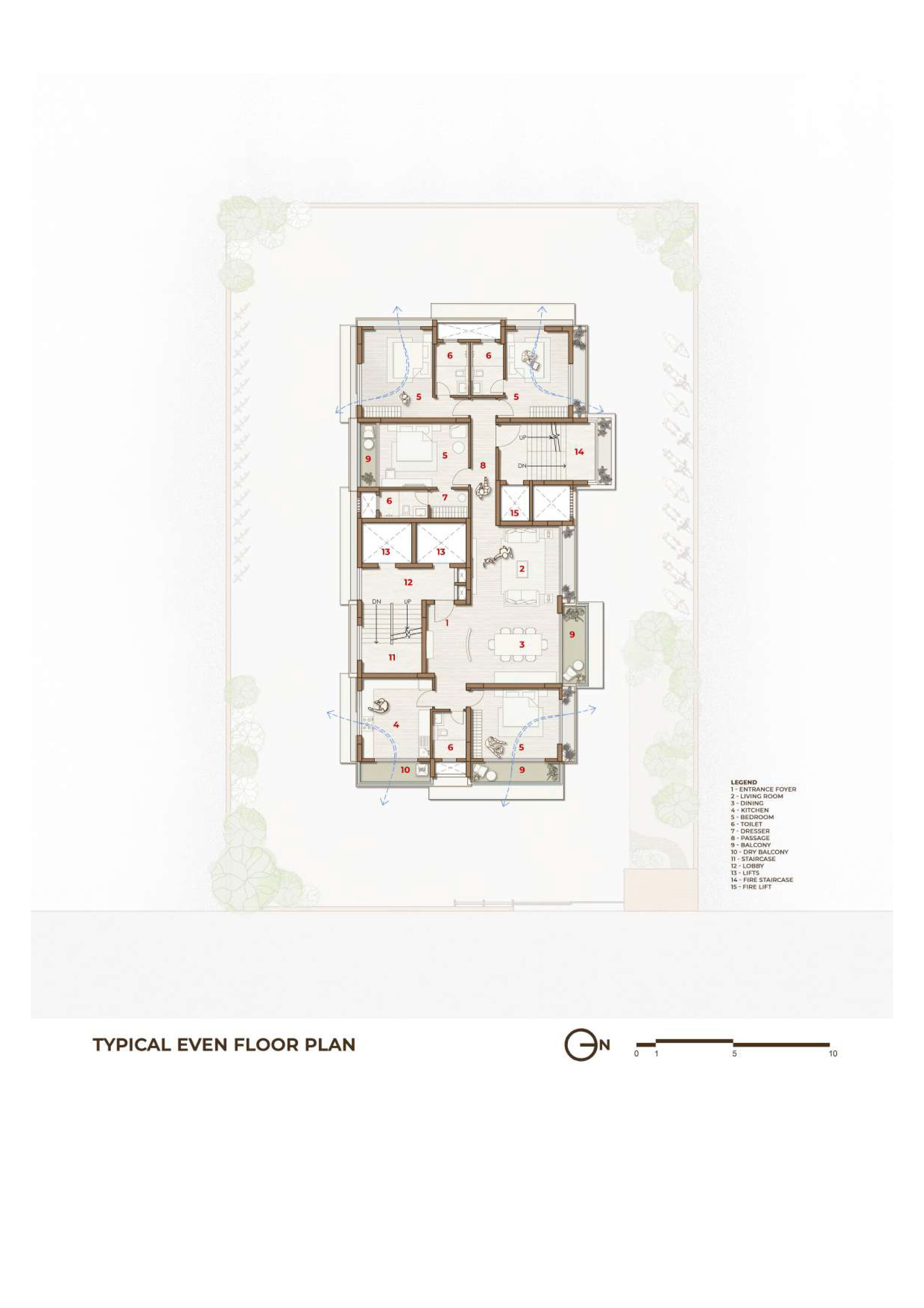

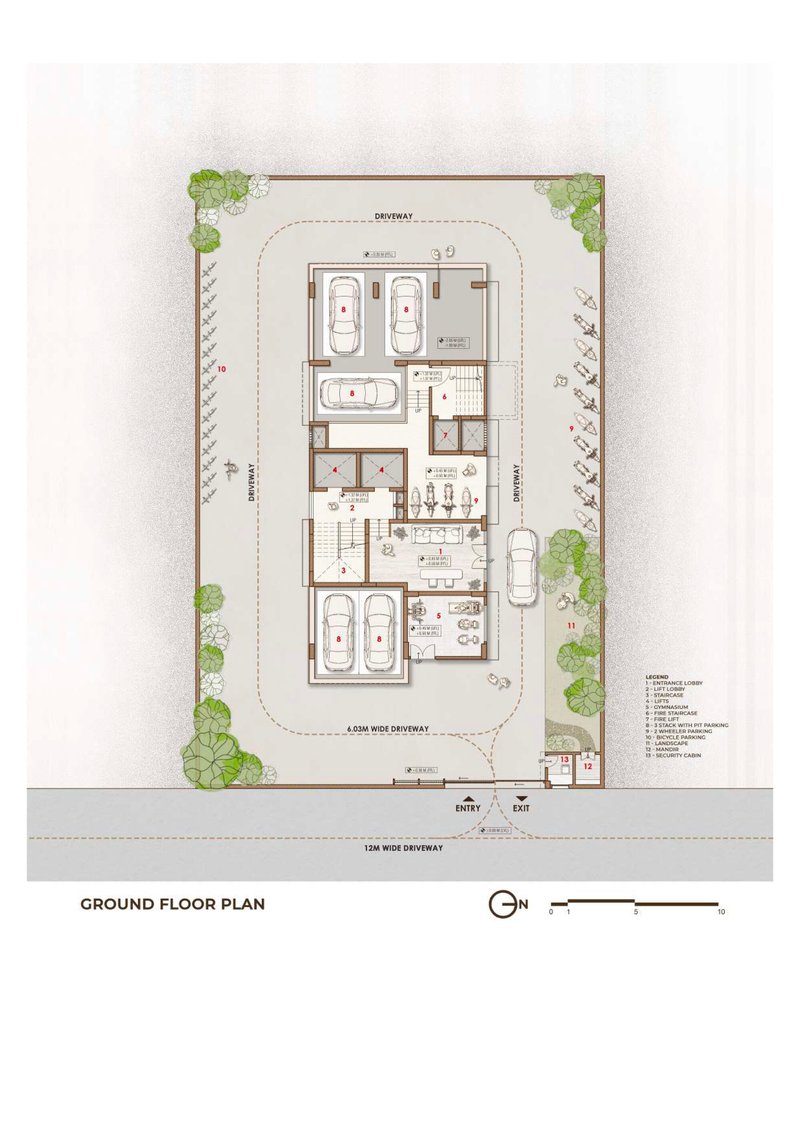

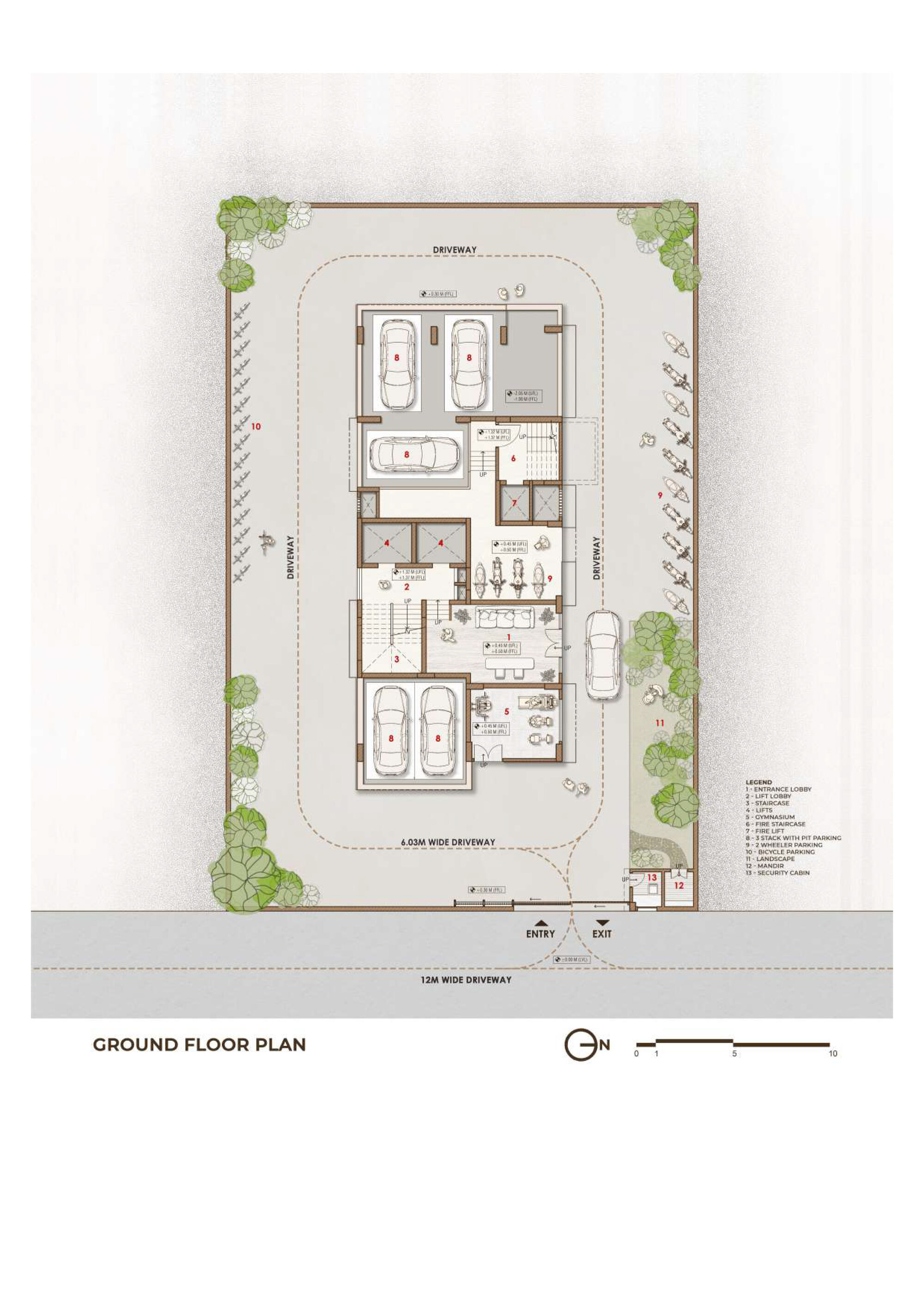

The ground floor plan reveals the constraints and opportunities of the site. Parking is compactly arranged to free the perimeter for landscaping and access. Upper floor plans show residential units organized around a central circulation core, with every apartment gaining access to at least two deep balcony zones. The layouts are efficient without being cramped, and the core-to-facade distance is short enough that natural ventilation can reach every room.

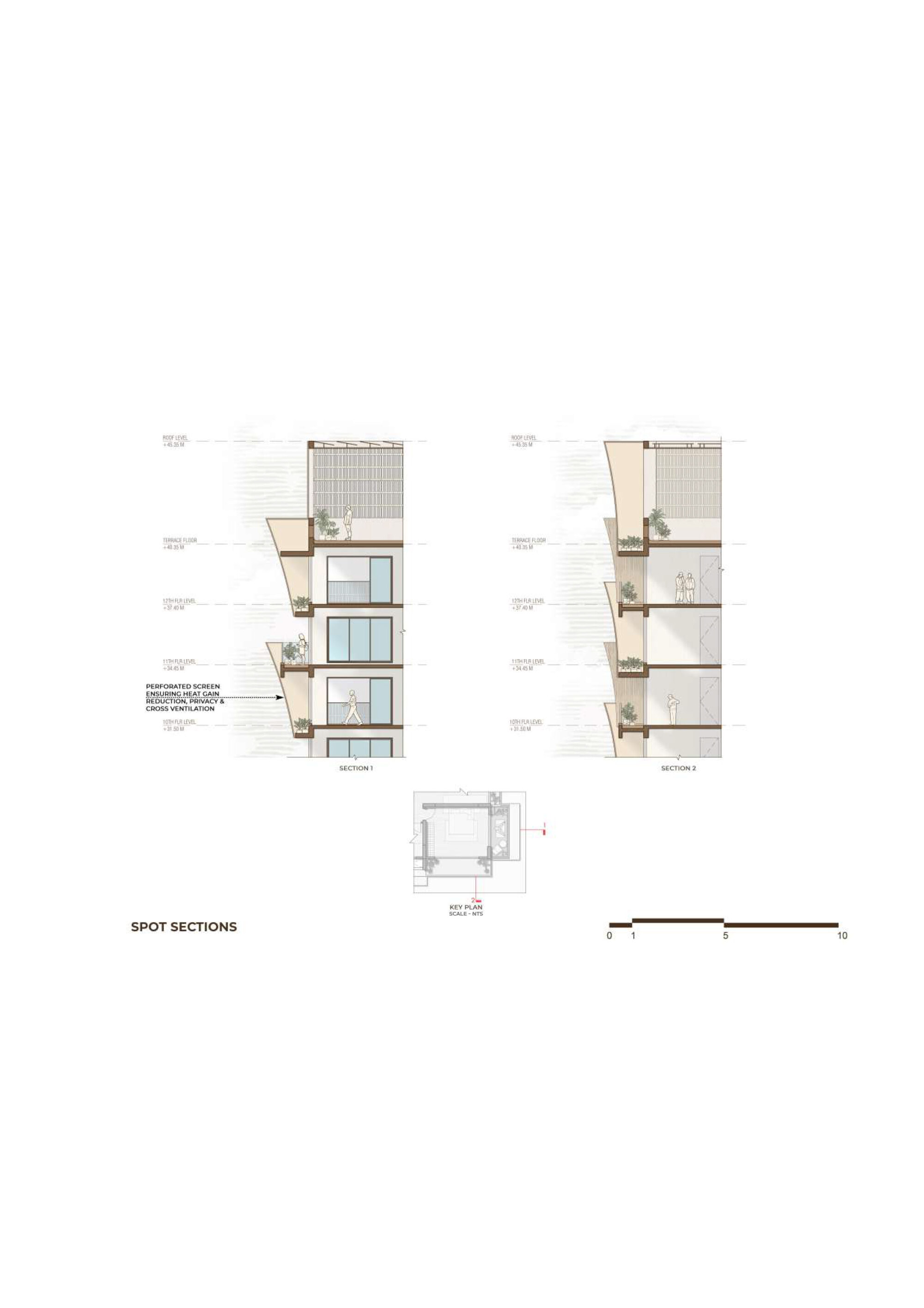

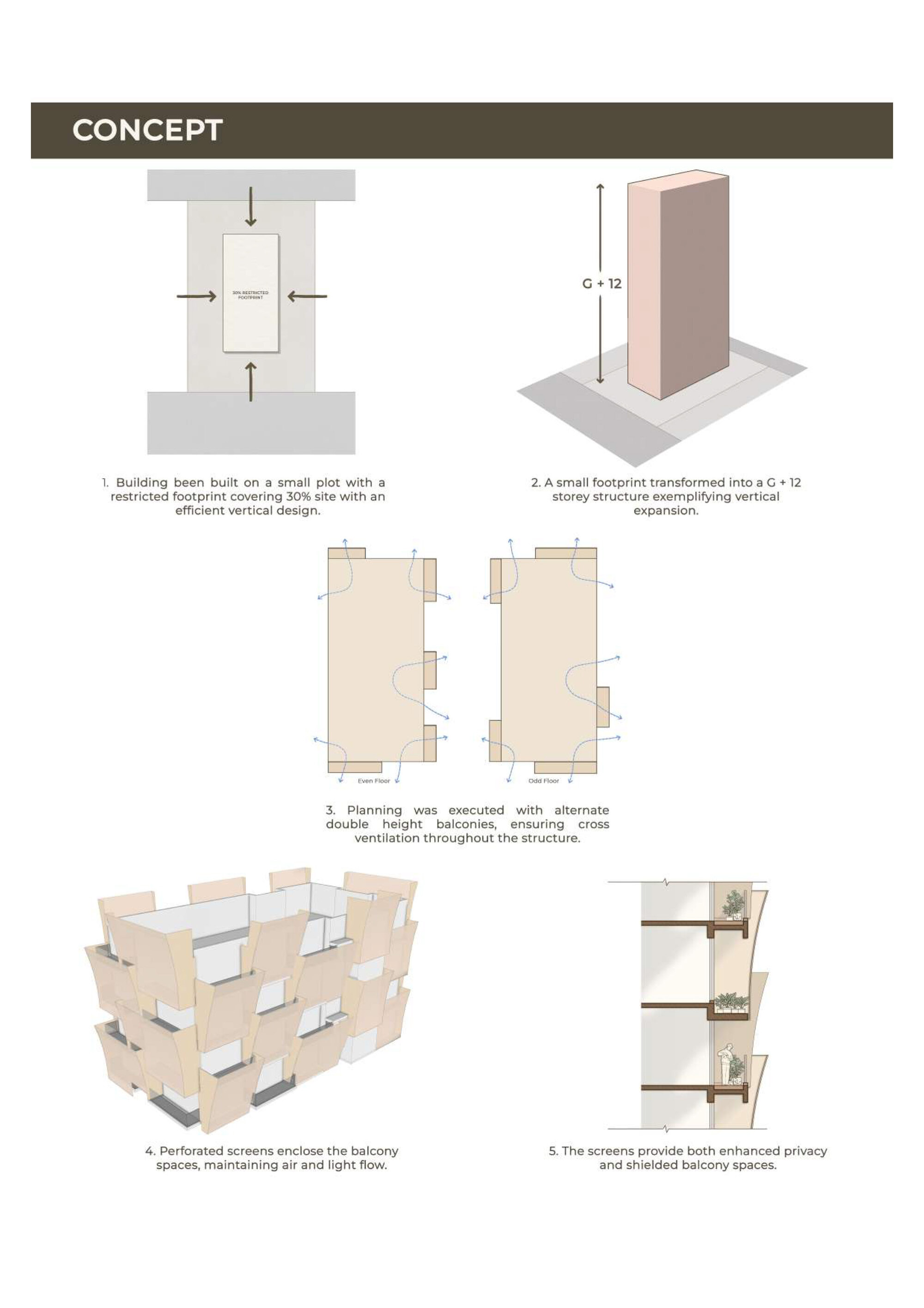

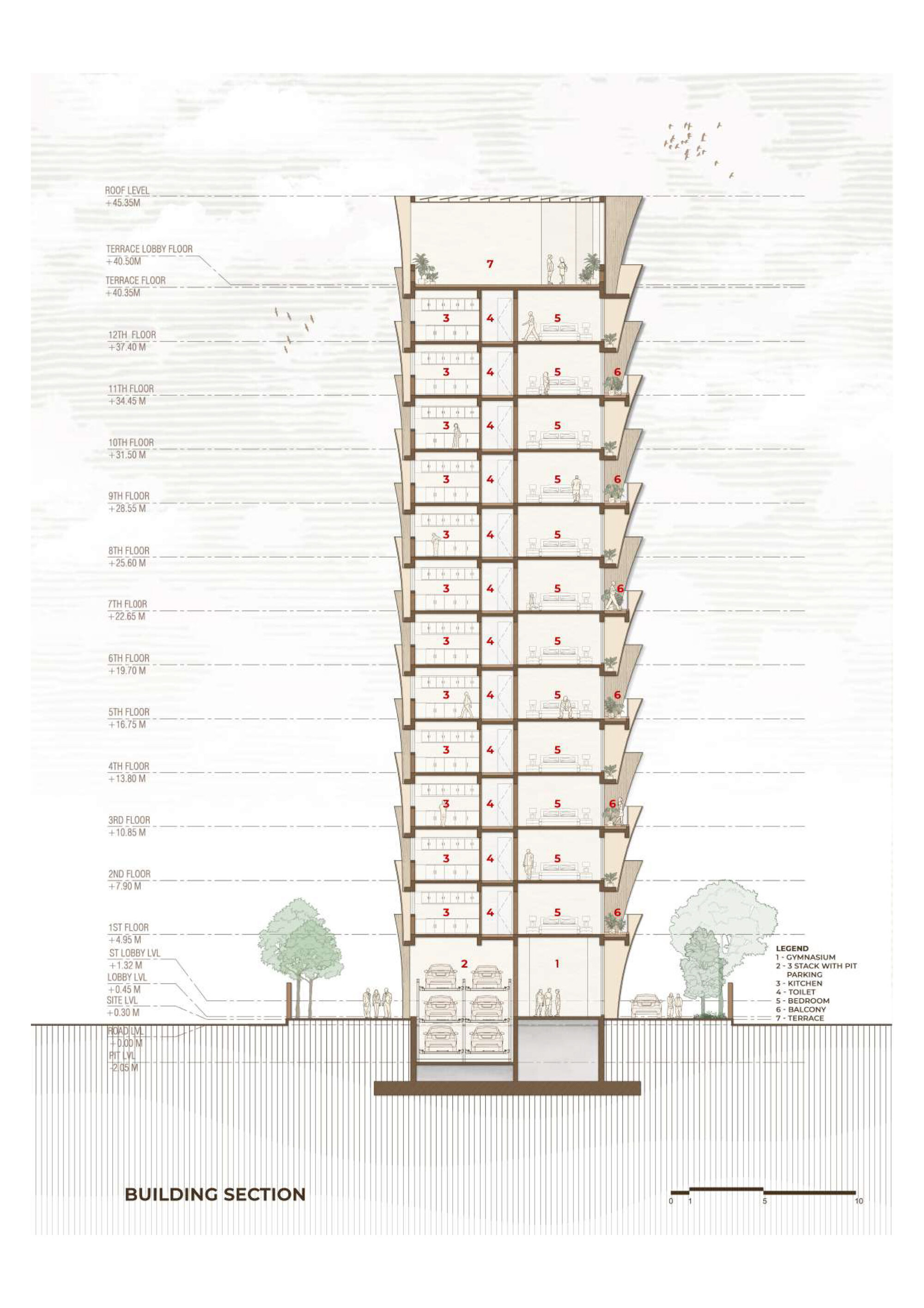

The building section confirms the slenderness of the tower and the scale of the cantilevered balconies. Spot section drawings detail the facade composition with precision: angled balcony slabs, the depth of the ribbed screen, and the relationship between glazing and the outer brick layer. The concept diagram makes the strategy explicit, illustrating how the perforated screen system wraps around the balcony volumes to create a unified thermal and visual envelope. These drawings reward close reading; they show a project where every centimeter of wall thickness has been thought through.

Why This Project Matters

Cielo Apartment is a corrective to two persistent tendencies in Indian residential development. The first is the glass-curtain-wall tower that ignores climate and relies entirely on air conditioning. The second is the nostalgic brickwork project that uses traditional materials as surface decoration without integrating them into environmental performance. Sanjay Puri Architects sidestep both traps by treating brick as an active system: structurally engaged, thermally effective, and formally expressive all at once.

On a broader level, the project is a proof of concept for compact urban sites in cities that are growing fast and heating faster. Nagpur, like dozens of Indian cities, needs dense housing that does not surrender comfort to economics. Cielo demonstrates that a disciplined approach to passive strategy, using screens, overhangs, ventilation paths, and the inherent thermal mass of brick, can produce apartments that are genuinely pleasant to live in without enormous energy expenditure. That is not a minor achievement. It is a model.

Cielo Apartment by Sanjay Puri Architects. Nagpur, India. 3,600 m². Completed 2026. Photography by Vinay Panjwani.
