HIR Studio Builds Hong Kong's First Kinetic Pavilion, Powered by Pedaling Visitors

Leonardo da Vinci sketched the ornithopter in the fifteenth century. In 1911, the first biplane crossed Hong Kong airspace. In 2022, HIR Studio planted a 43-square-meter flying machine in Tamar Park that will never leave the ground, and that is entirely the point. The Ornithopter is Hong Kong's first kinetic interactive art installation: a red steel and timber pavilion whose pair of double-stacked wings flap when visitors climb onto onsite bicycles and start pedaling. It is part sculpture, part shade canopy, part playground, and it collapses the centuries-long fantasy of human-powered flight into a single civic gesture.

What makes the project compelling is not the spectacle alone but how neatly it resolves the tension between temporary installation and genuine public amenity. The structure sits on a circular timber deck ringed in white gravel, light enough to relocate yet solid enough to shelter visitors under layered steel fins that cast flickering shadows across the seating below. It rewards participation (pedal and the wings move) without punishing passivity (sit on the bench and enjoy the shade). That dual legibility, as both object and space, earned it a finalist nod at the HKIA Annual Awards 2023 for Architectural Installation.

A Red Signal in a Green Field

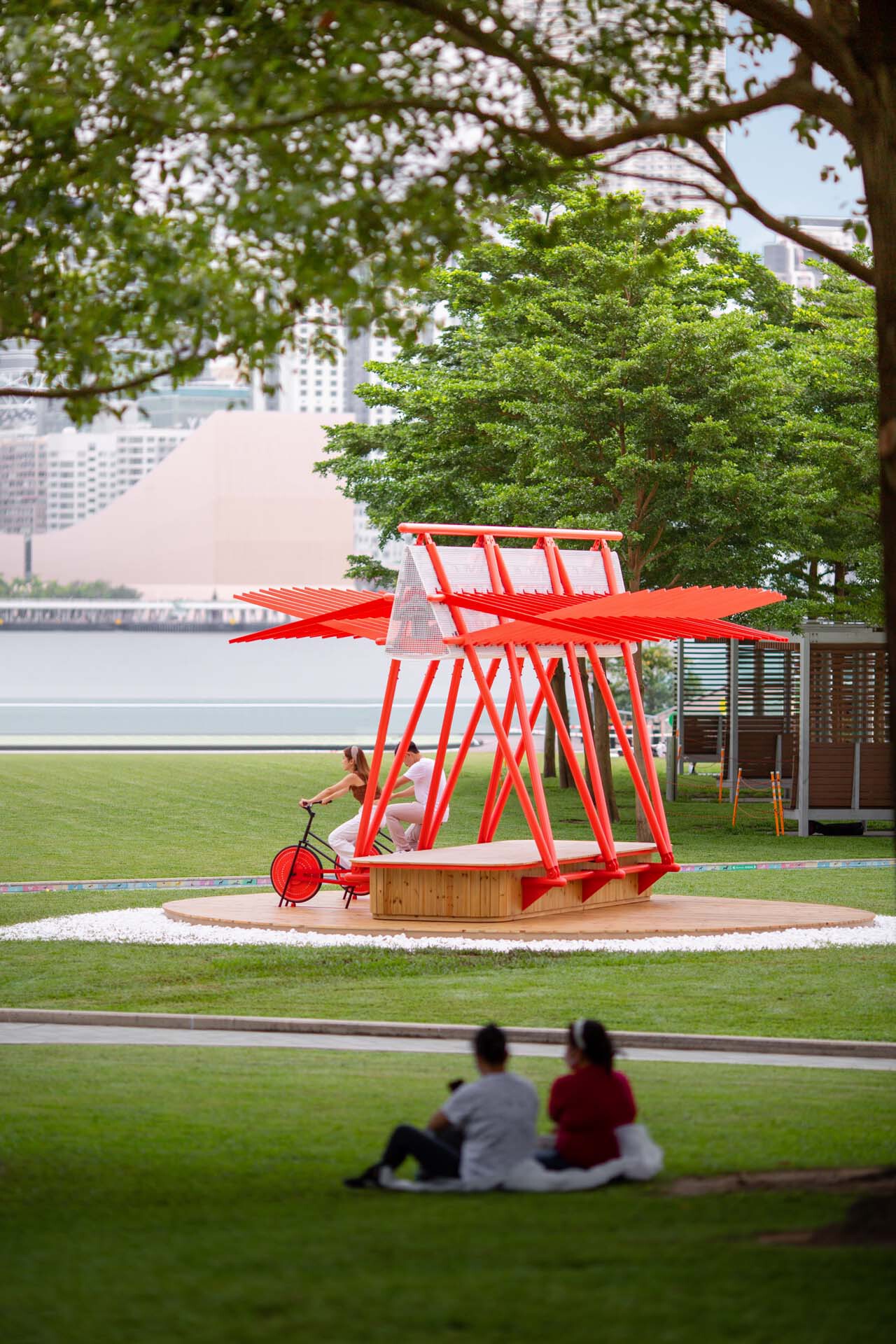

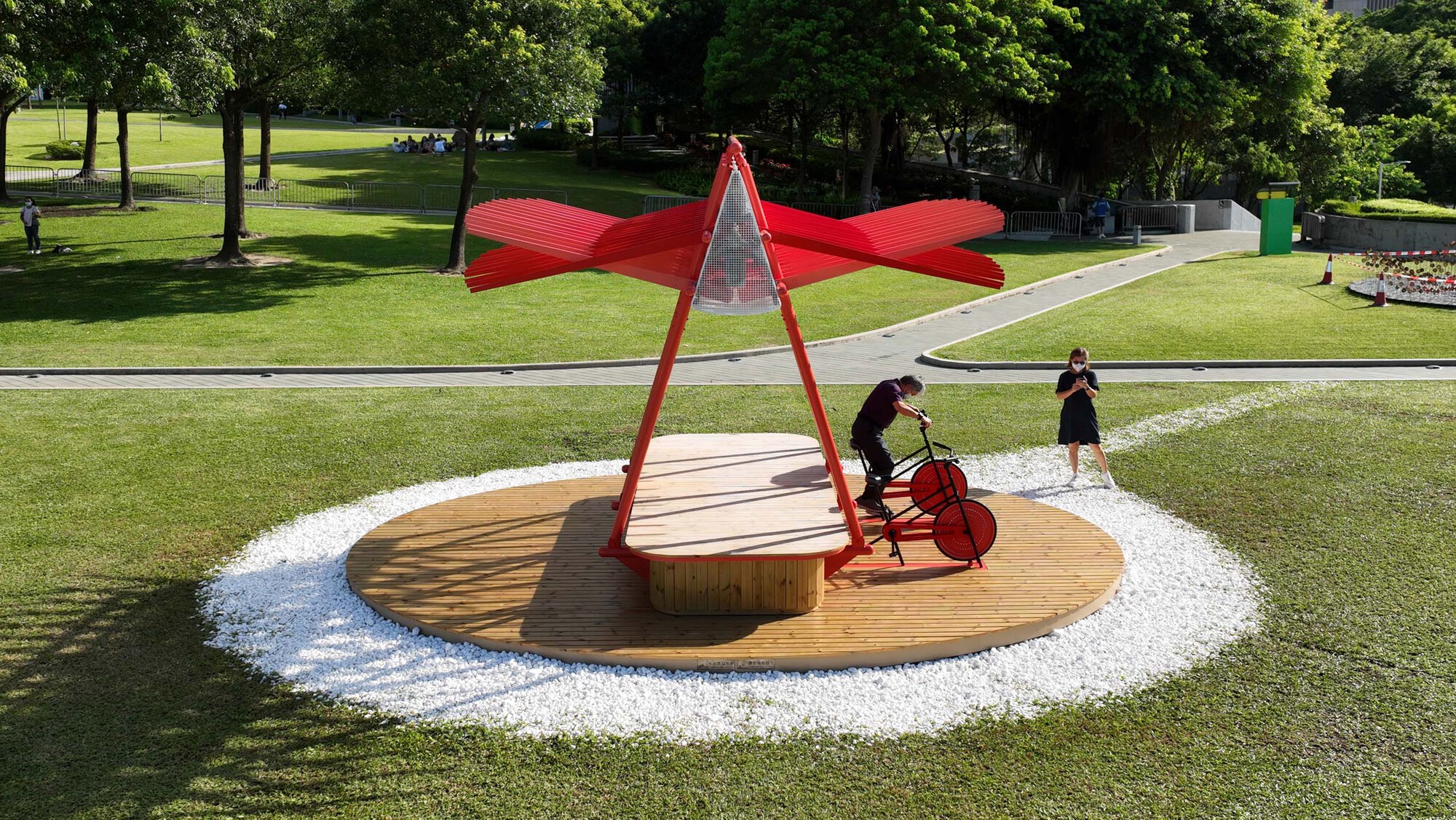

From a distance, The Ornithopter reads as a sharp red triangular form perched on a pale disc in the middle of a manicured lawn. The color is deliberate: against Tamar Park's green and the glass curtain walls of the surrounding commercial towers, the saturated red steel frame operates like a visual beacon. It draws people in before they understand what it does. The circular gravel border softens the transition from turf to deck, suggesting a clearing or a landing pad.

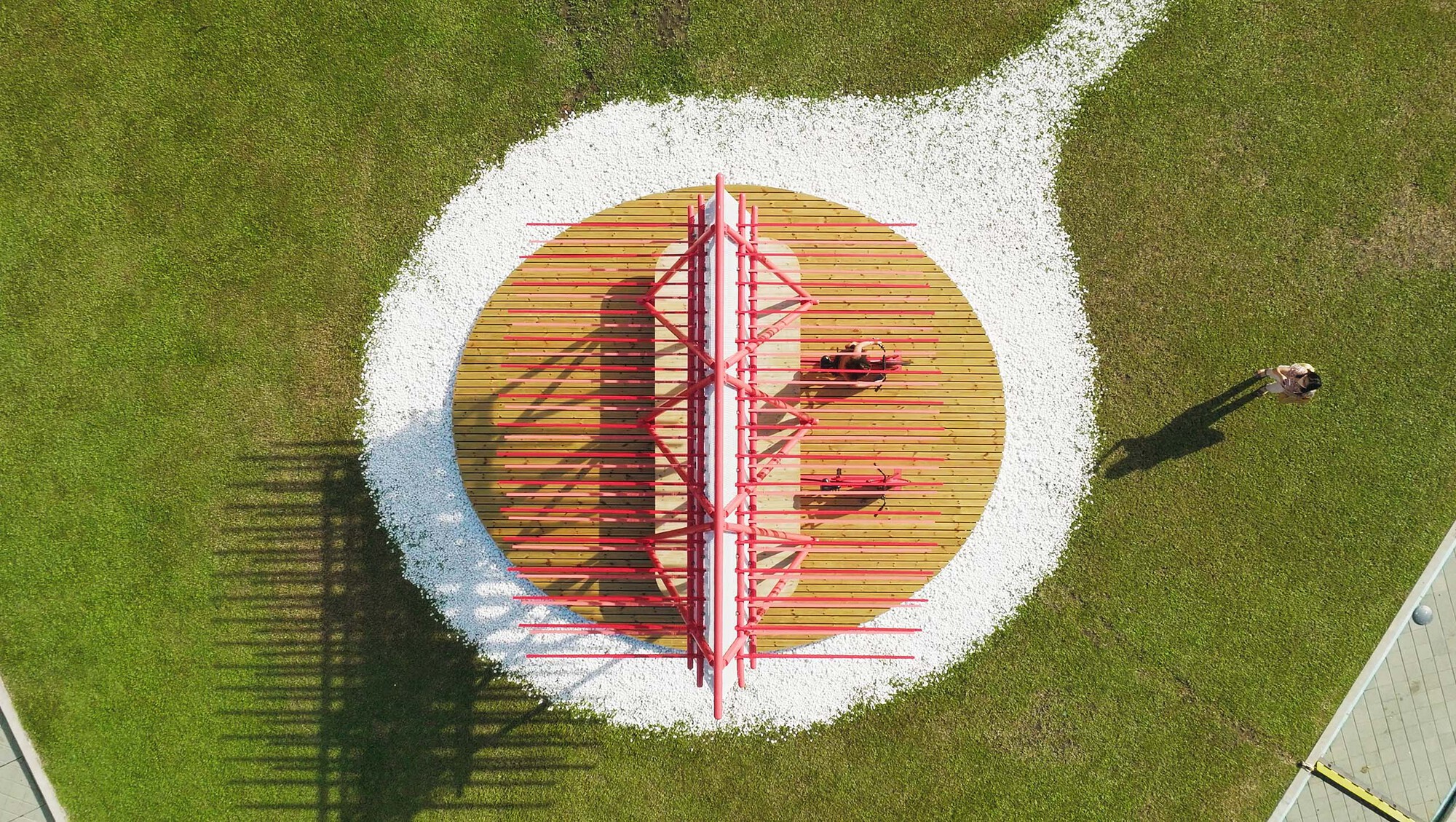

The aerial view reveals how modest the footprint truly is. At 43 square meters, the pavilion barely registers against the surrounding parkland, yet its geometry, a taut triangle supporting horizontal planes, gives it a formal authority that belies its scale. The decision to elevate the canopy on angled steel supports keeps the ground plane open and welcoming.

Mechanical Flight as Public Interaction

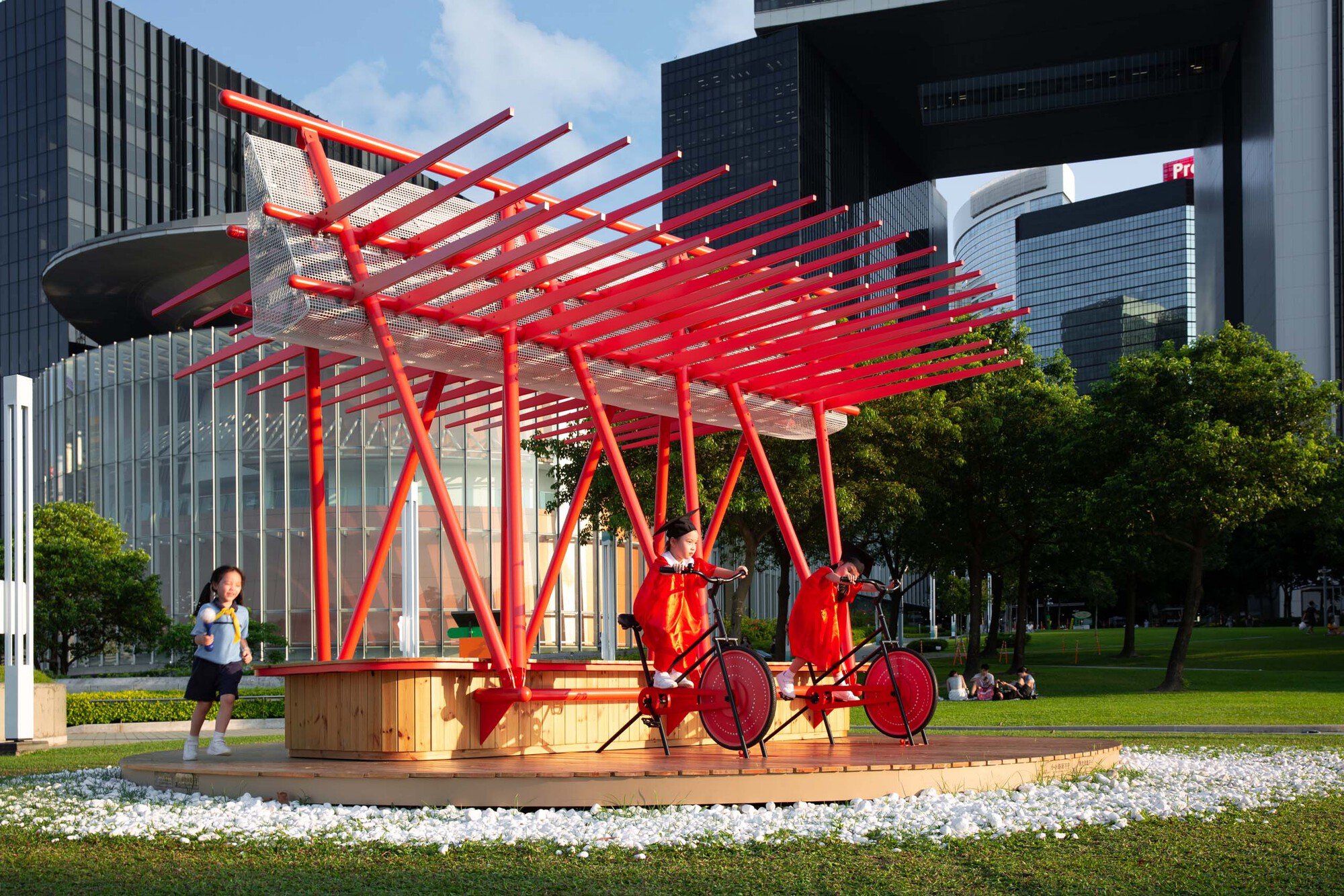

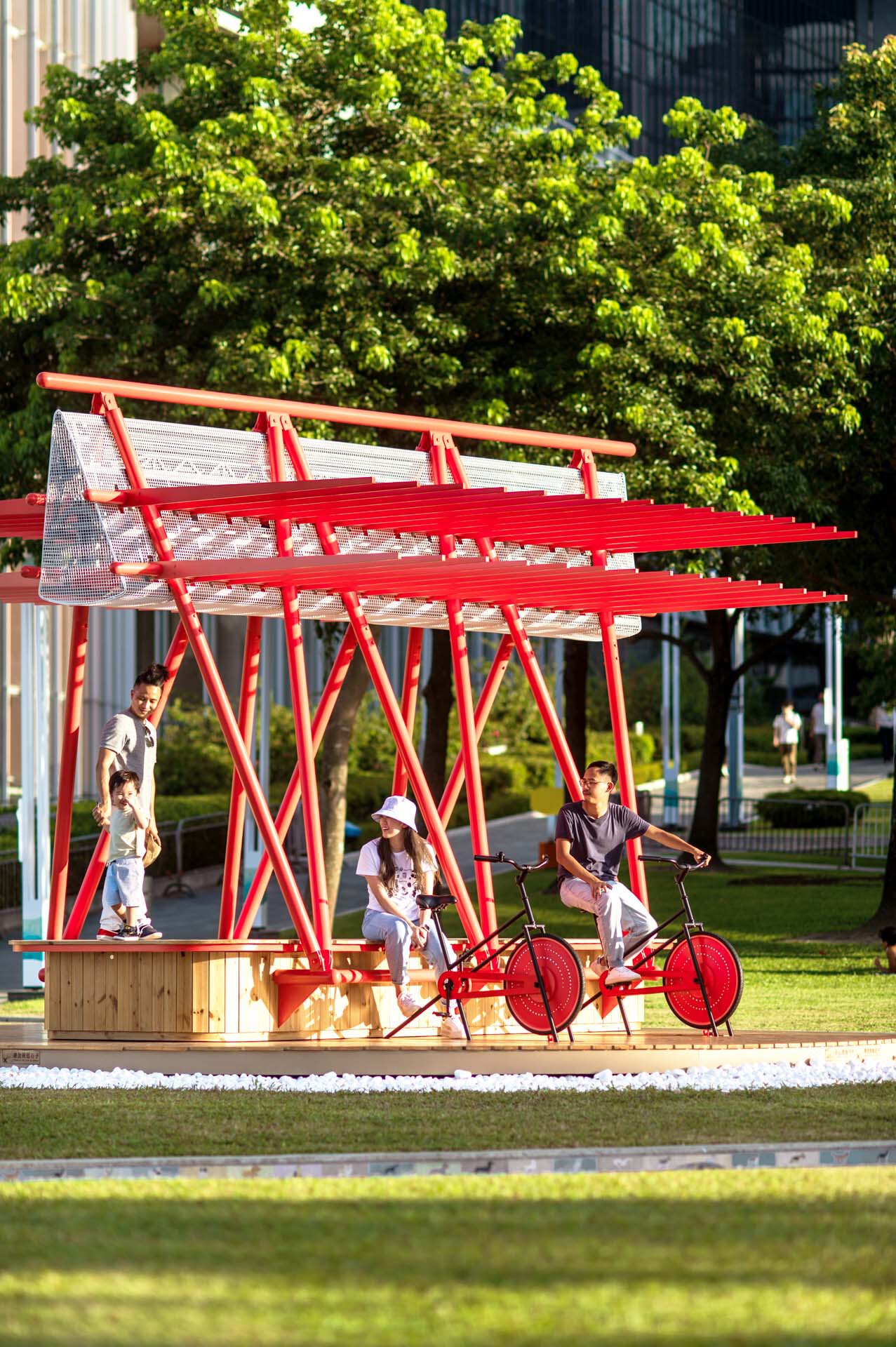

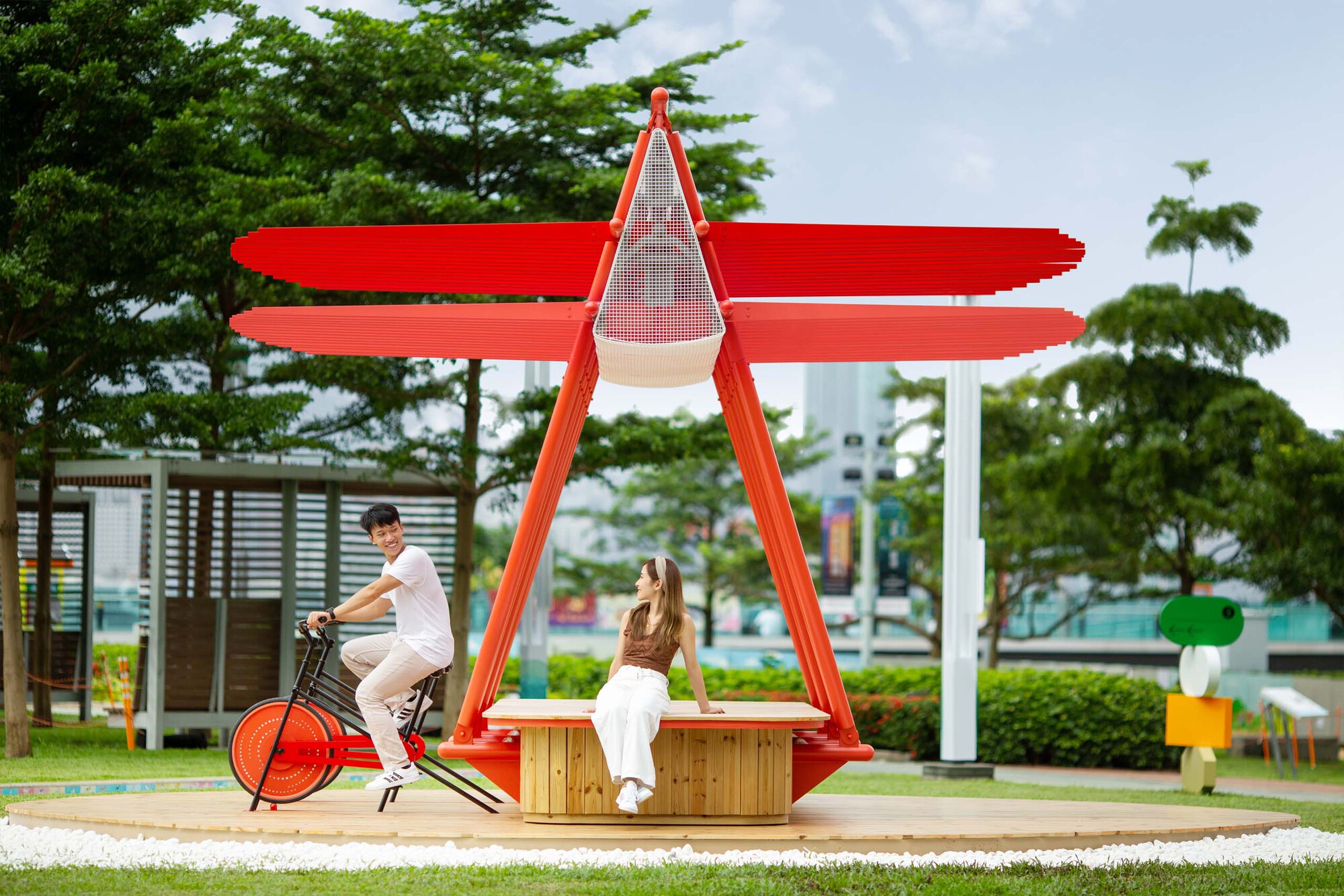

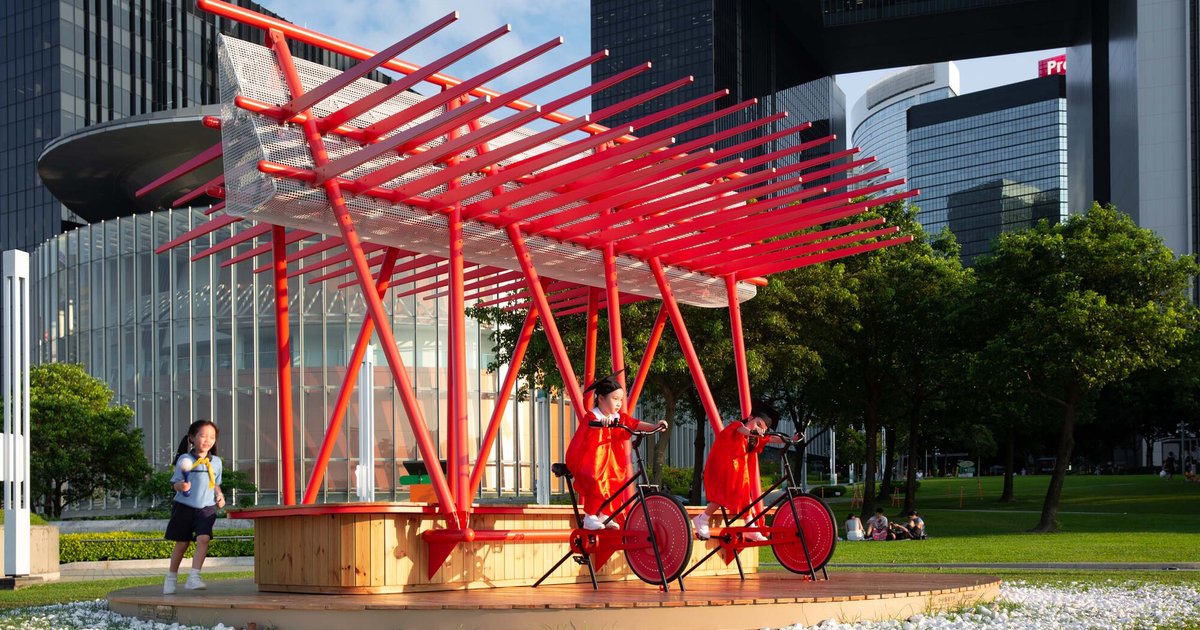

The core conceit is irresistibly simple. Bicycles are mounted beneath the canopy, connected through a mechanical chain system to the pavilion's pair of double-stacked wings. A visitor pedals; the wings flap. The action is legible, physical, and communal. Bystanders sitting on the timber benches can watch the mechanism respond in real time, which collapses the usual distance between art object and audience. You do not look at The Ornithopter. You operate it.

HIR Studio rooted the interaction in bicycle mechanics rather than motors or electronics, a decision that keeps the installation sustainable and comprehensible. There is no mystery box, no hidden servo. The cause and effect loop is fully exposed, which gives the piece a pedagogical dimension: visitors intuitively grasp leverage, gear ratios, and kinetic energy transfer simply by participating.

Canopy as Wing, Shade as Performance

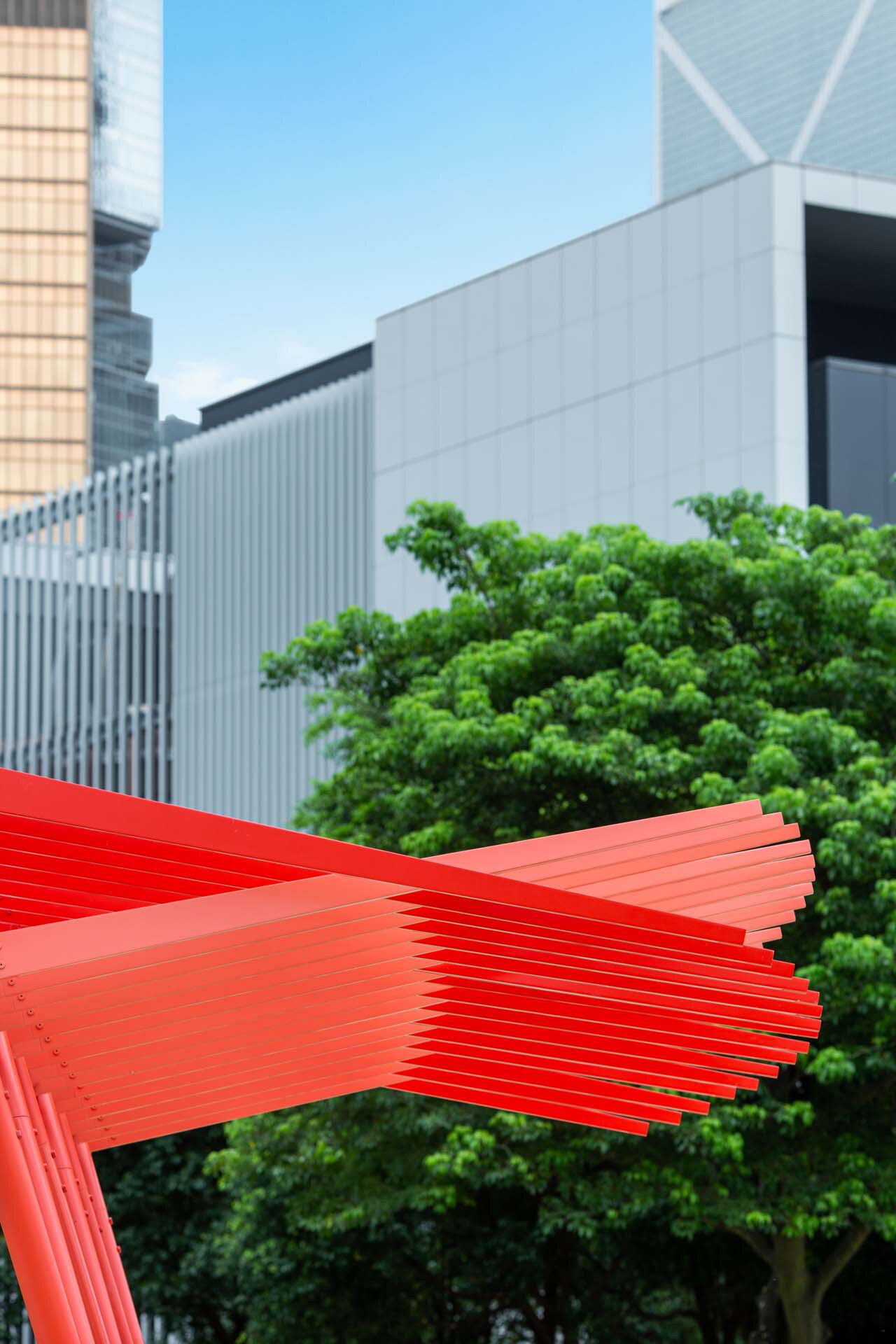

The layered horizontal steel fins that form the canopy do double duty. Structurally, they constitute the wing surfaces that move when activated. Environmentally, they filter sunlight into rhythmic bands of light and shadow that shift across the timber platform below. The effect is not unlike dappled tree shade, except that here the pattern can be disrupted by a cyclist, adding a temporal dimension to an otherwise static spatial condition.

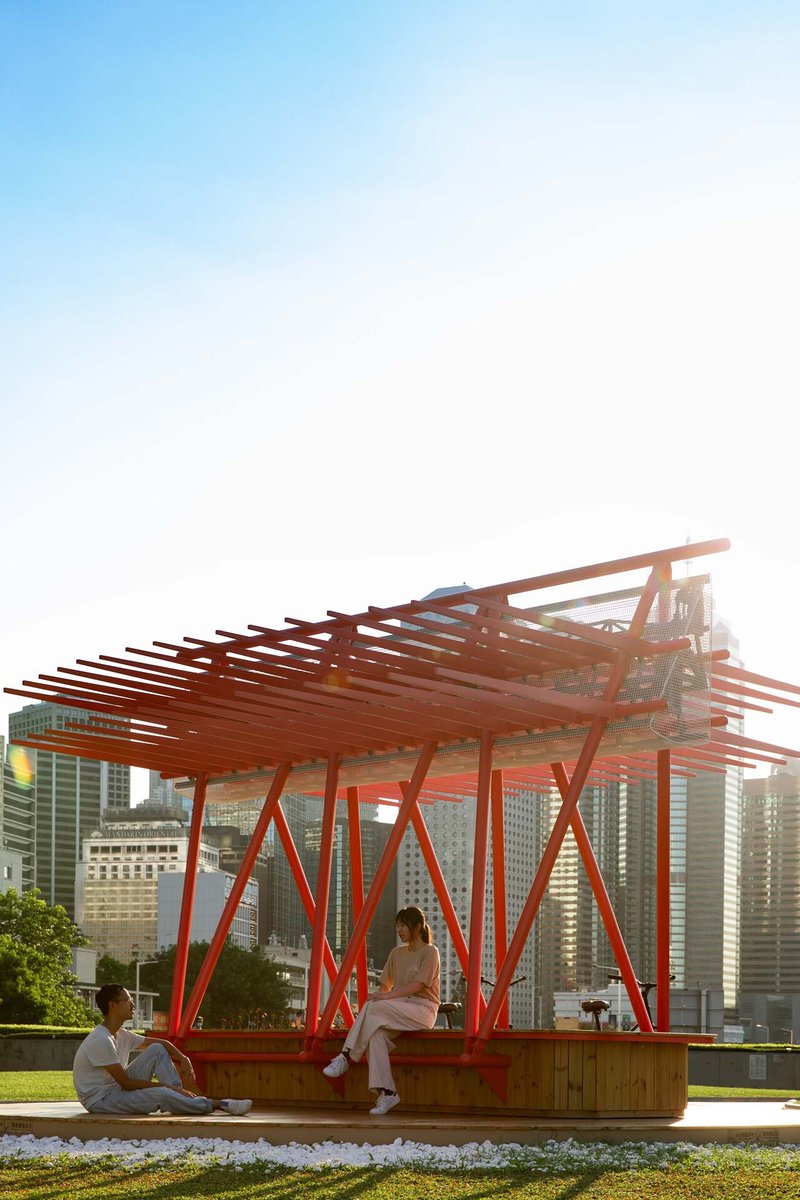

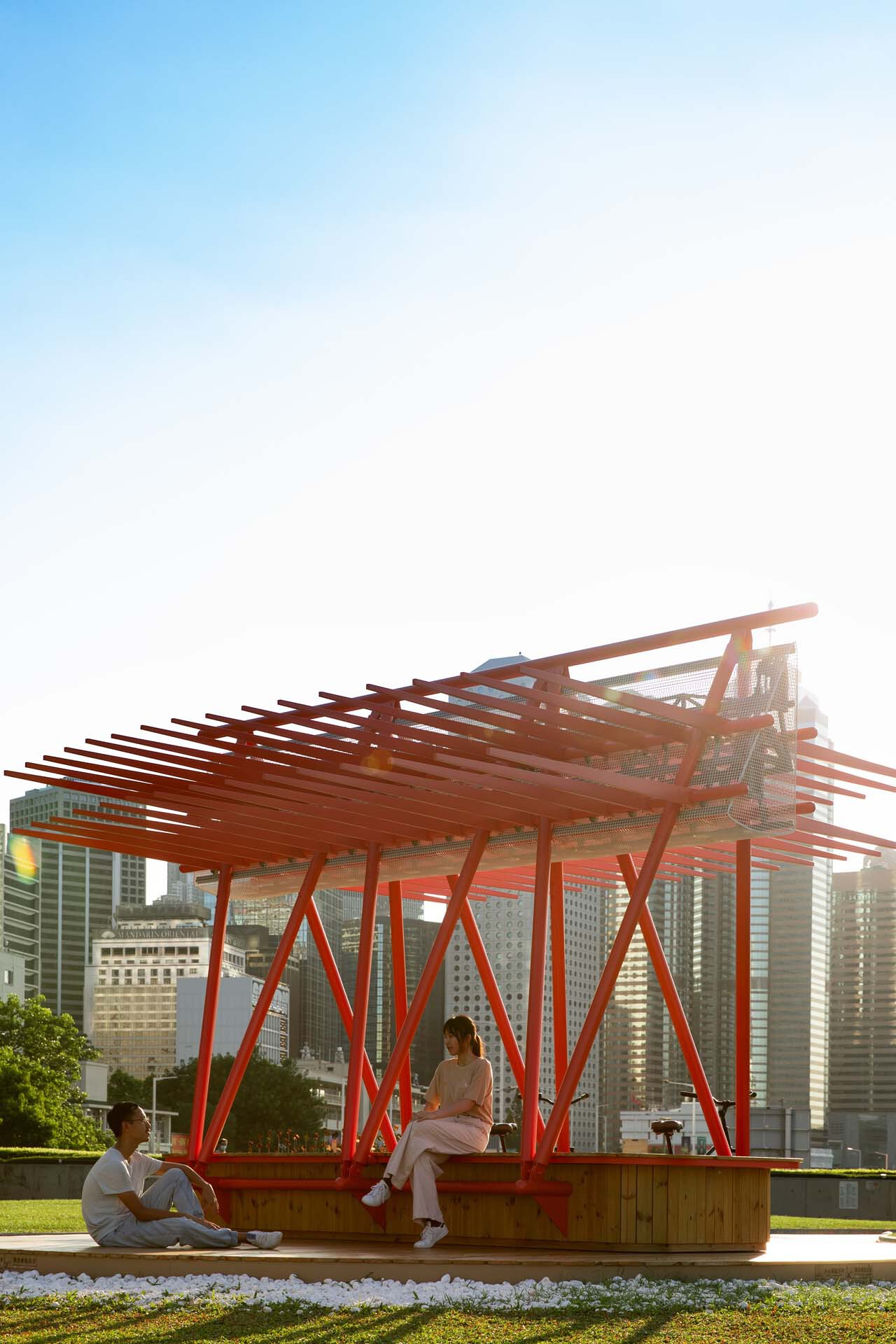

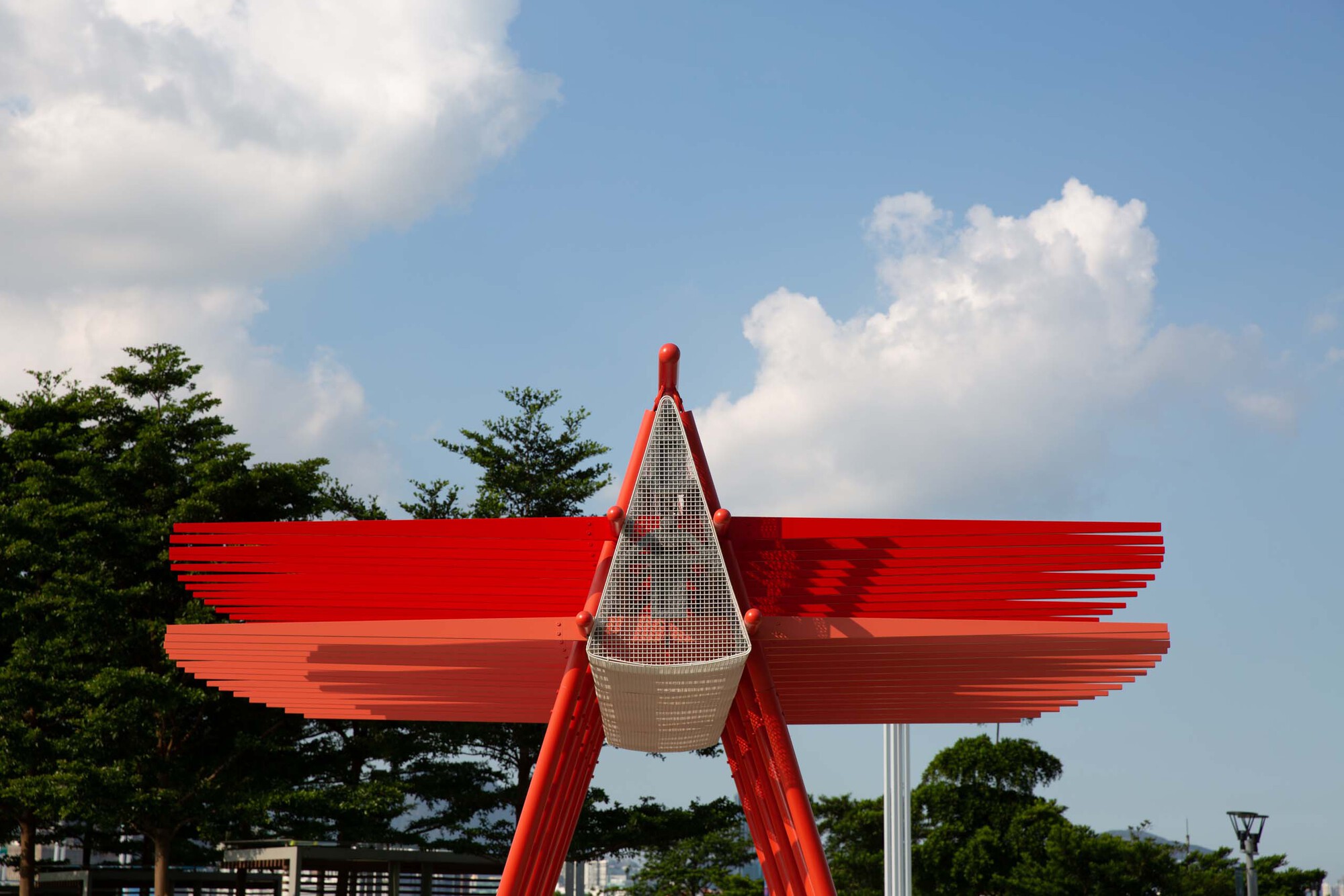

At dusk, the layered fins catch the last ambient light against the urban skyline, and the pavilion transforms from a bright park object into something more atmospheric, a lantern of horizontal lines hovering over the lawn. The close-up views reveal a mesh enclosure threaded through the steel frame, adding depth and texture without mass.

After Dark

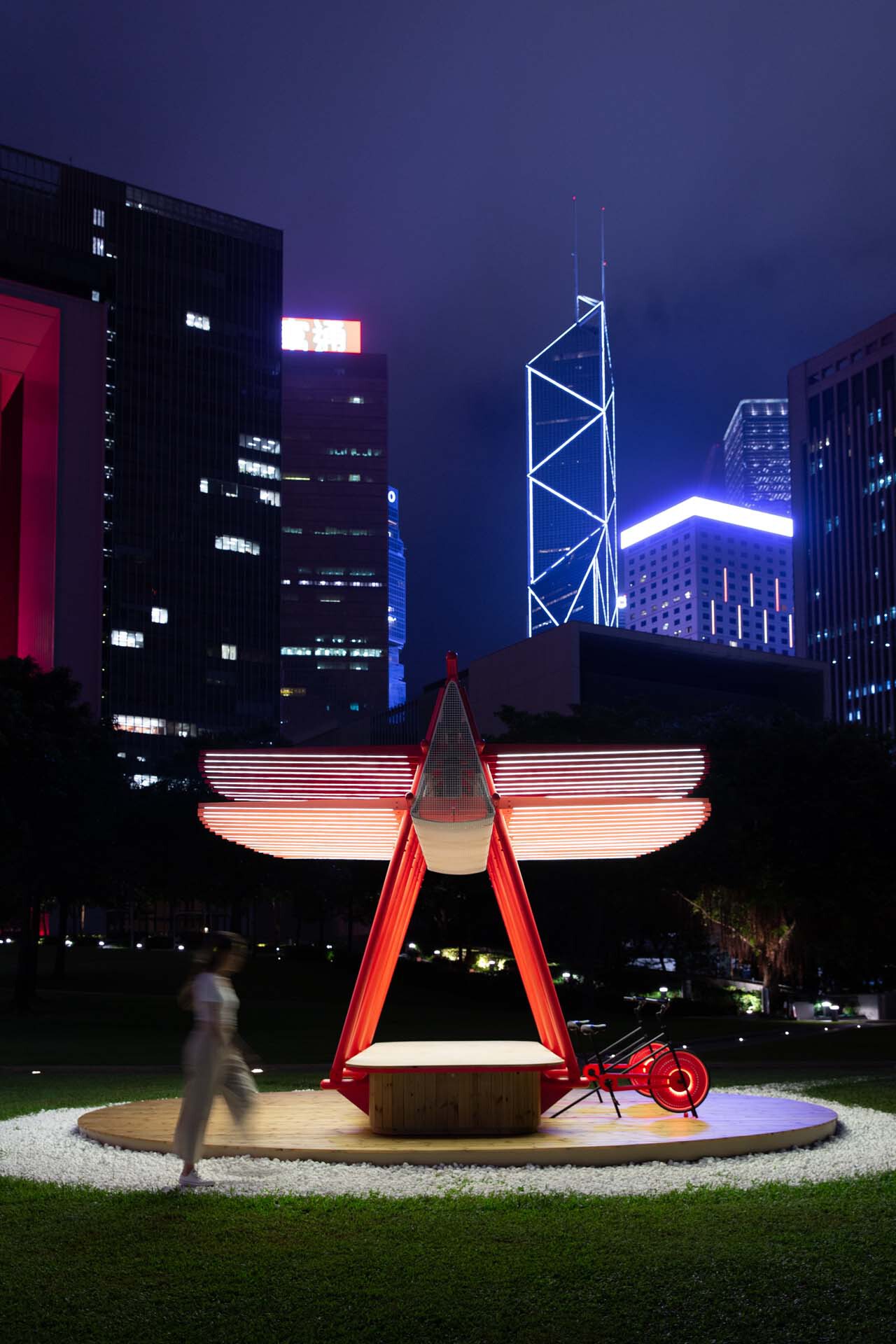

Temporary installations often go dead at night. The Ornithopter avoids that trap with integrated horizontal light strips that trace the canopy's layered profile after sunset. The illumination is restrained: enough to mark the pavilion's presence and render it safe, not enough to turn it into a billboard. A blurred figure passing through the night frame suggests that the installation continues to attract foot traffic well beyond daylight hours, which is a quiet testament to its spatial generosity.

Plans and Drawings

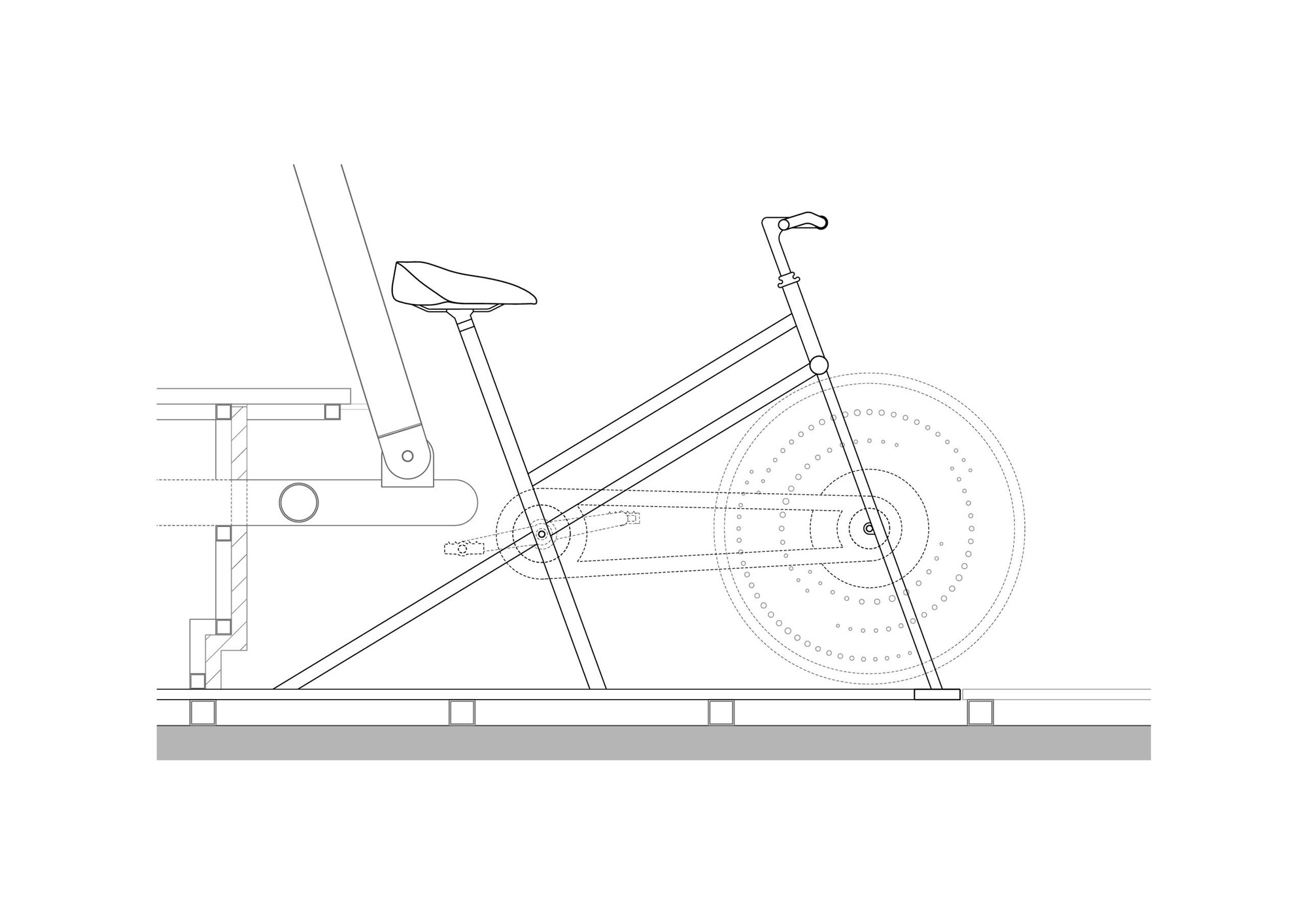

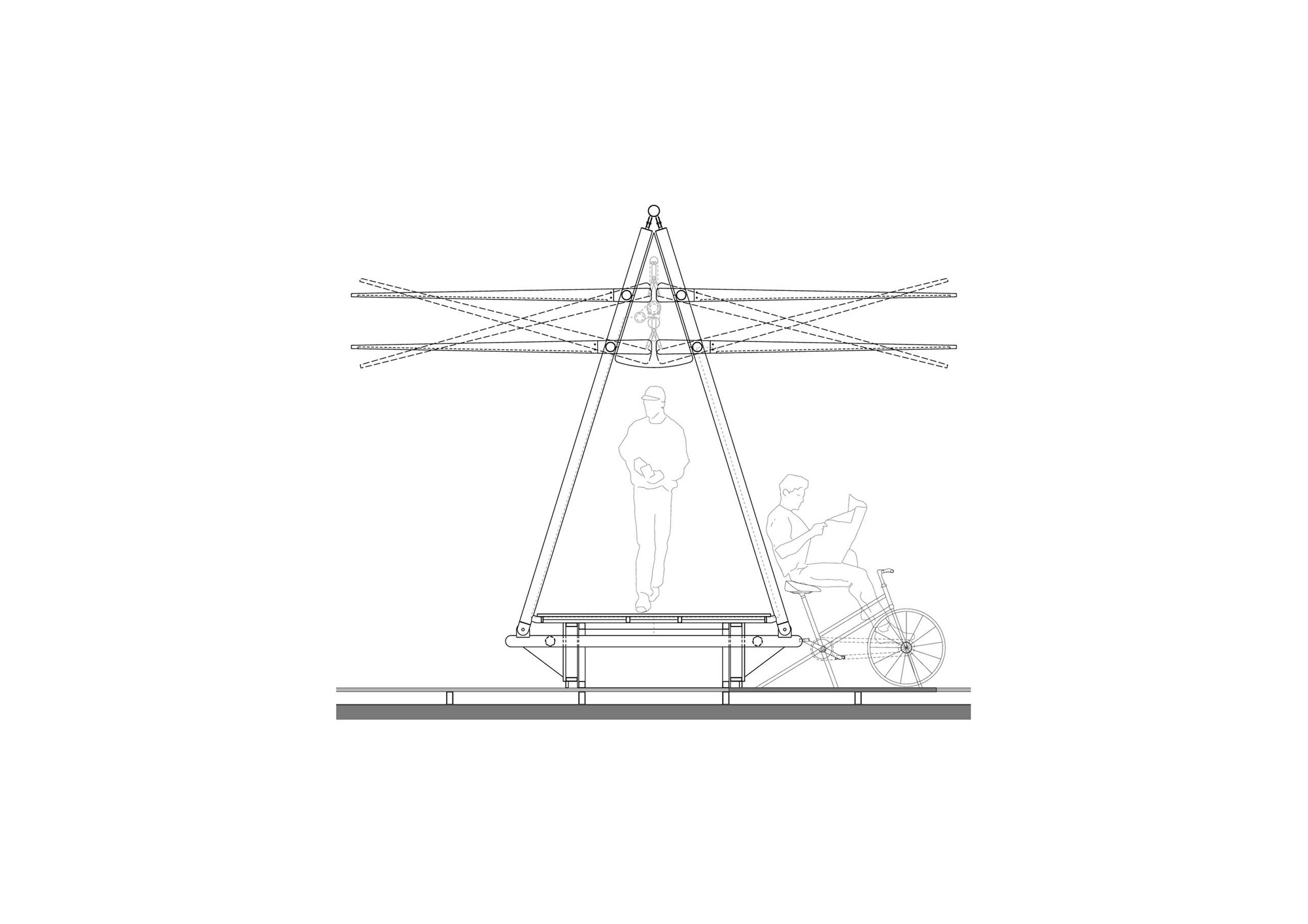

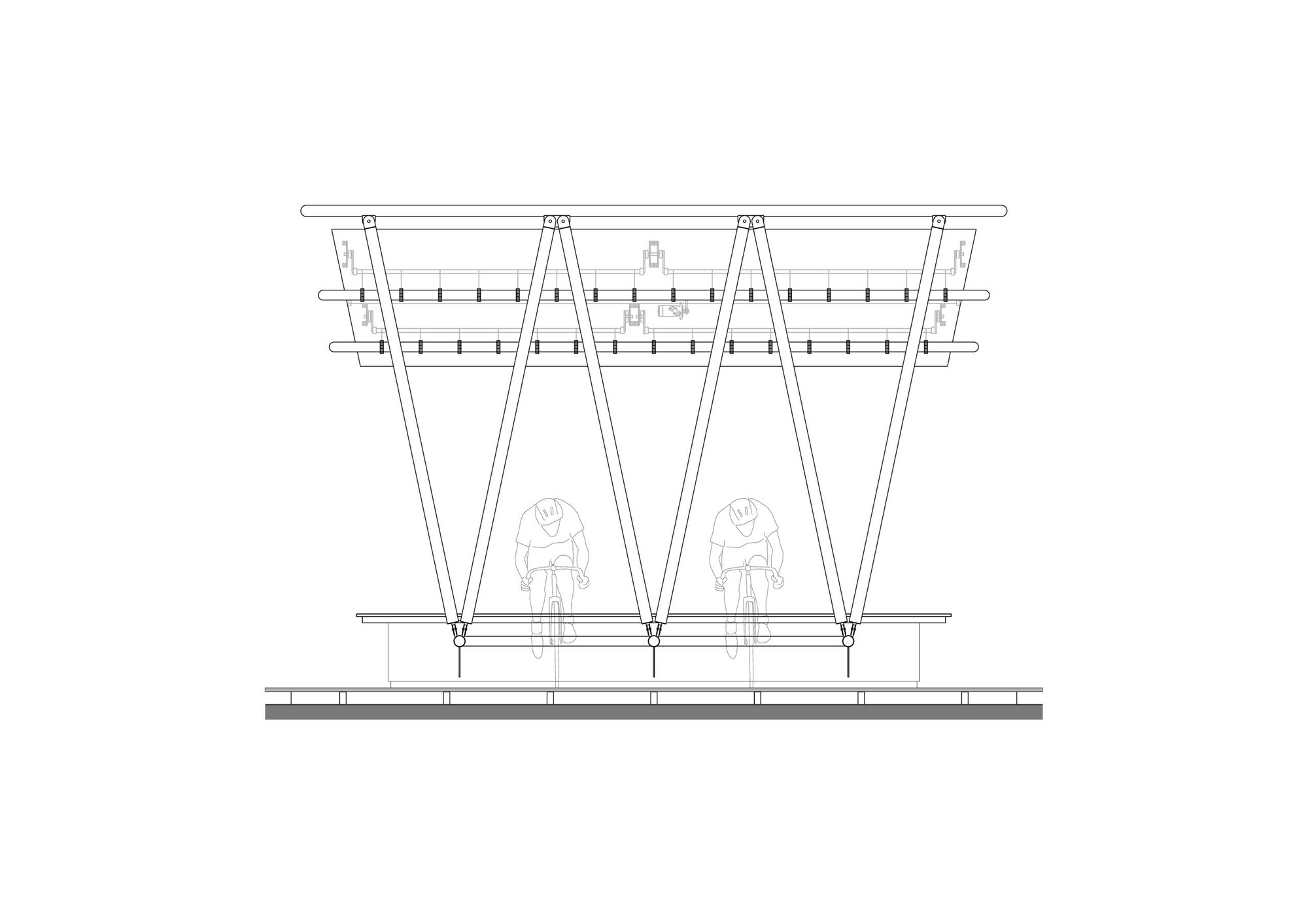

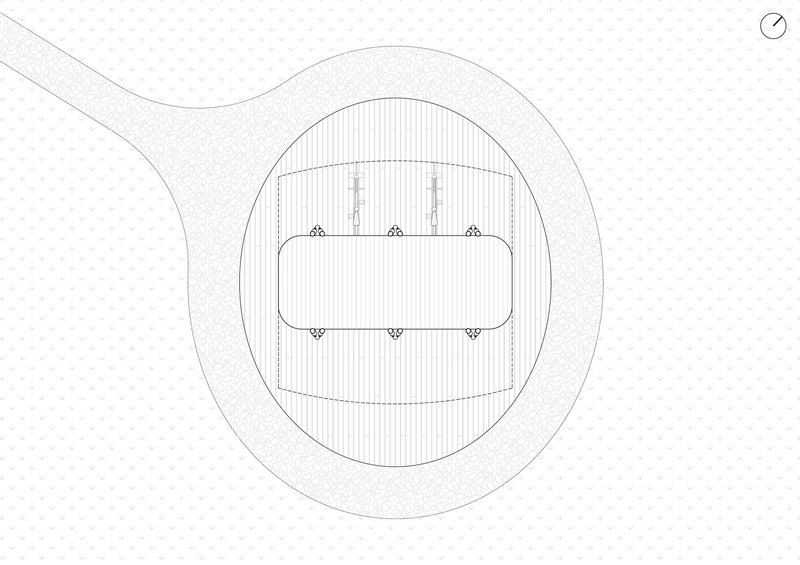

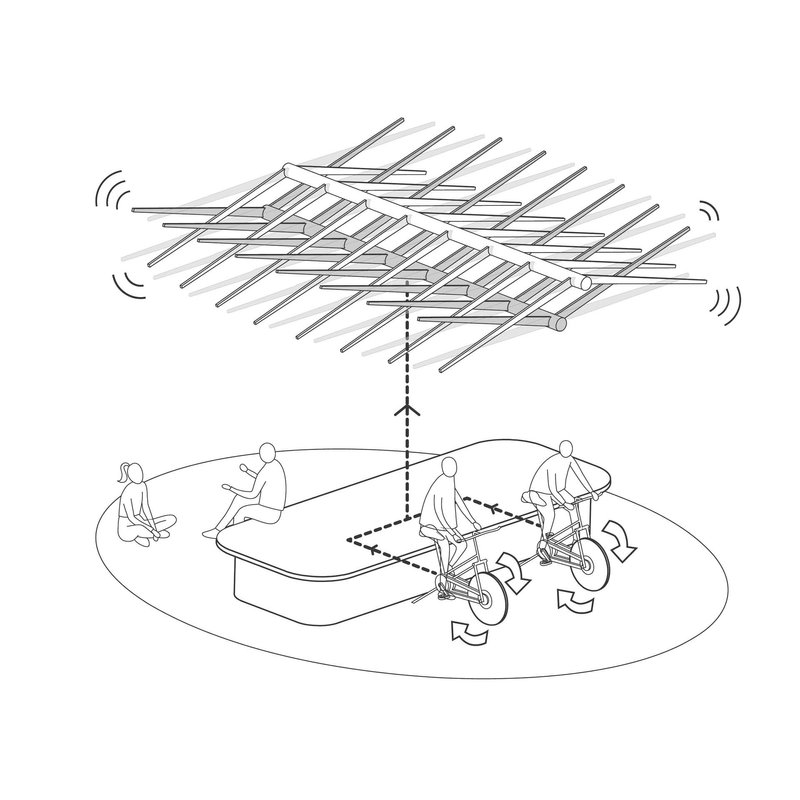

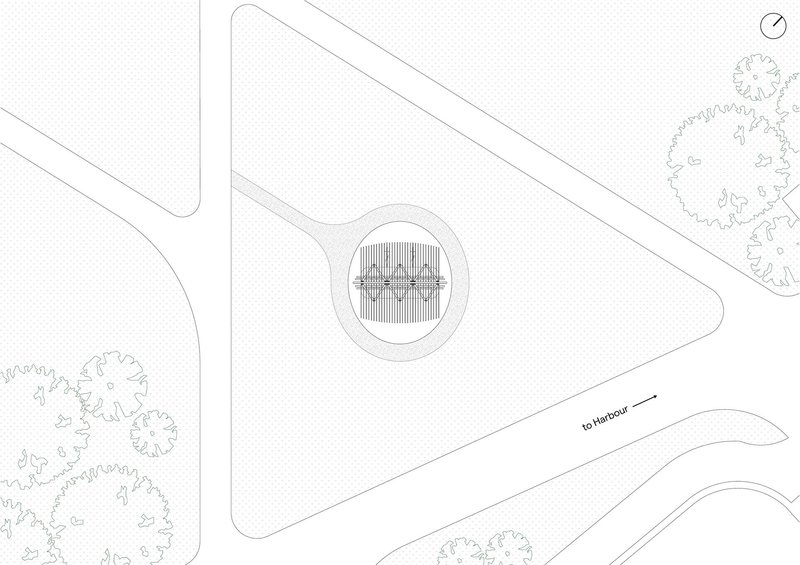

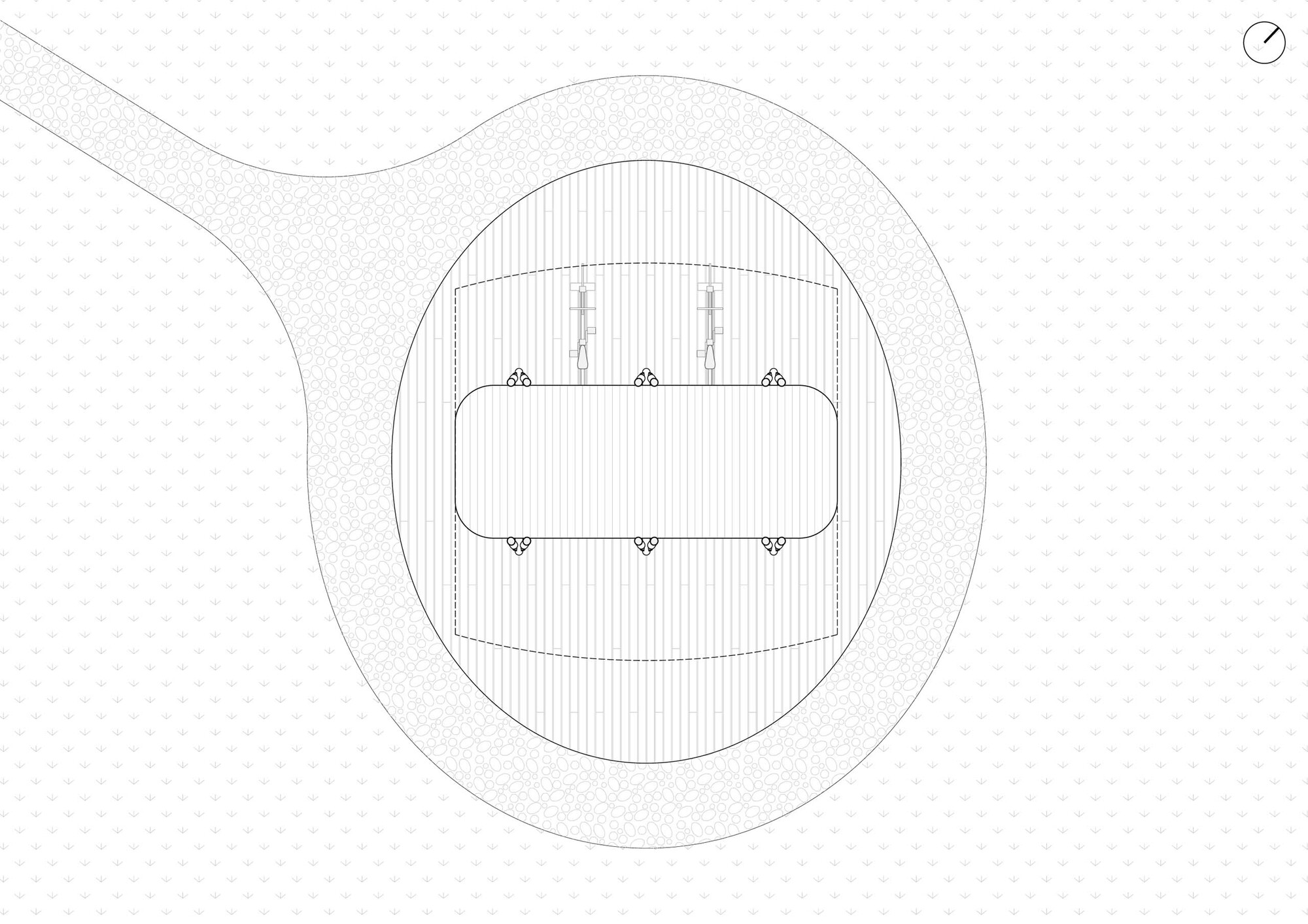

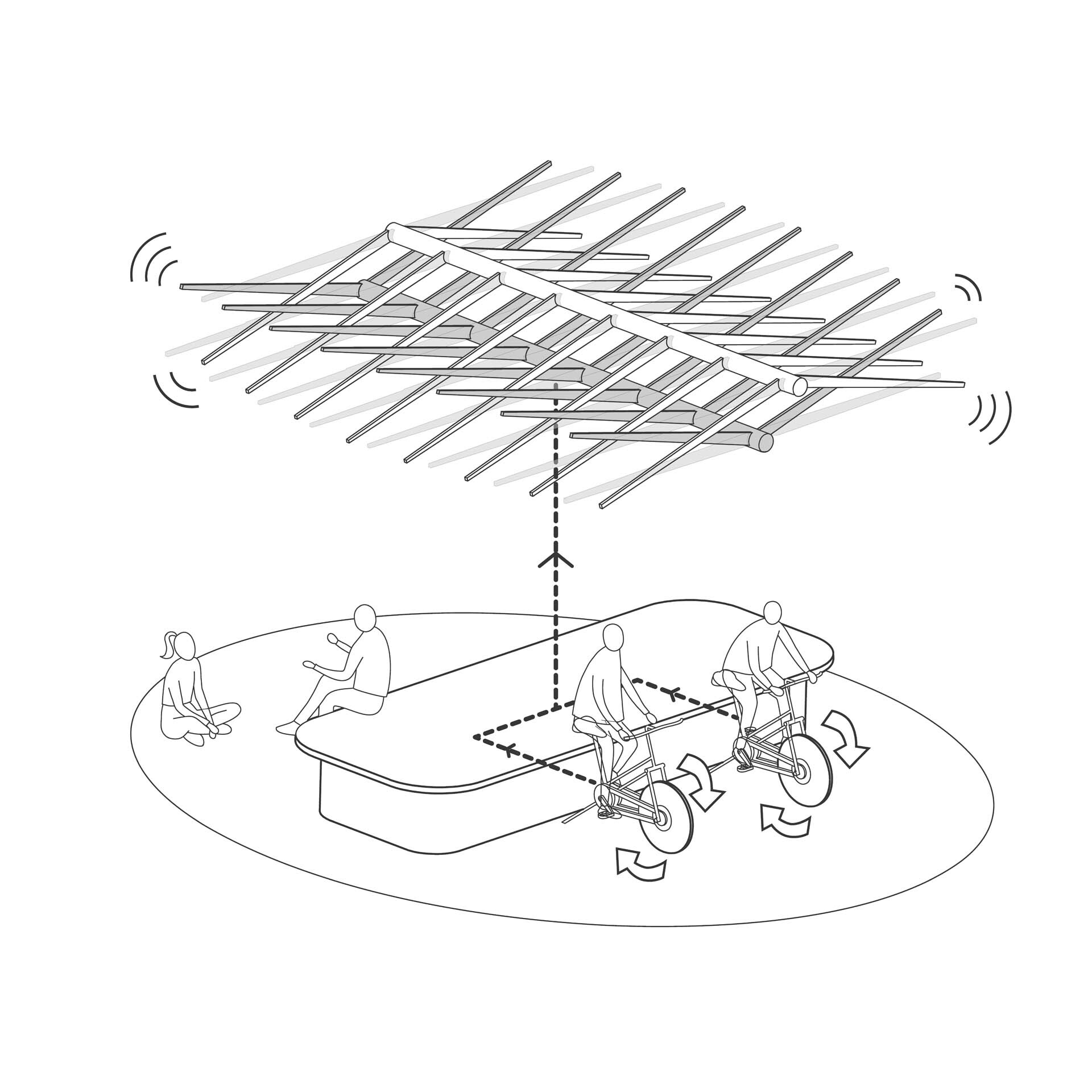

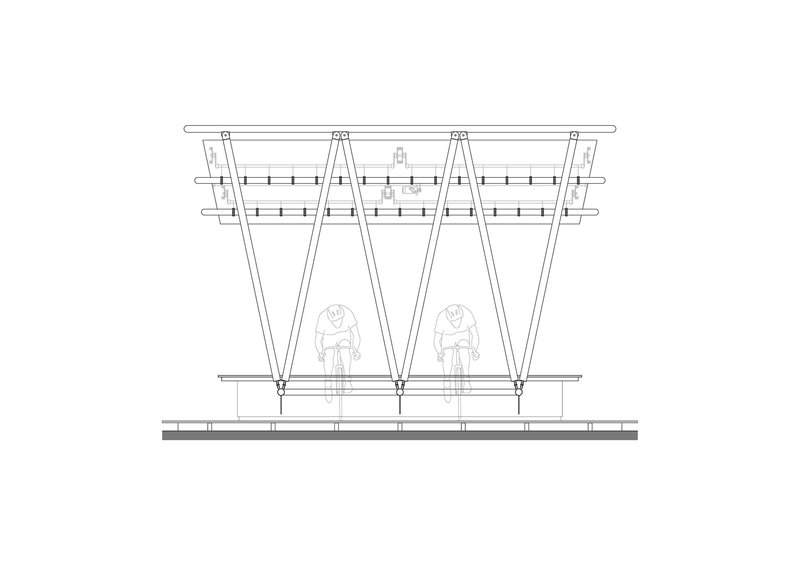

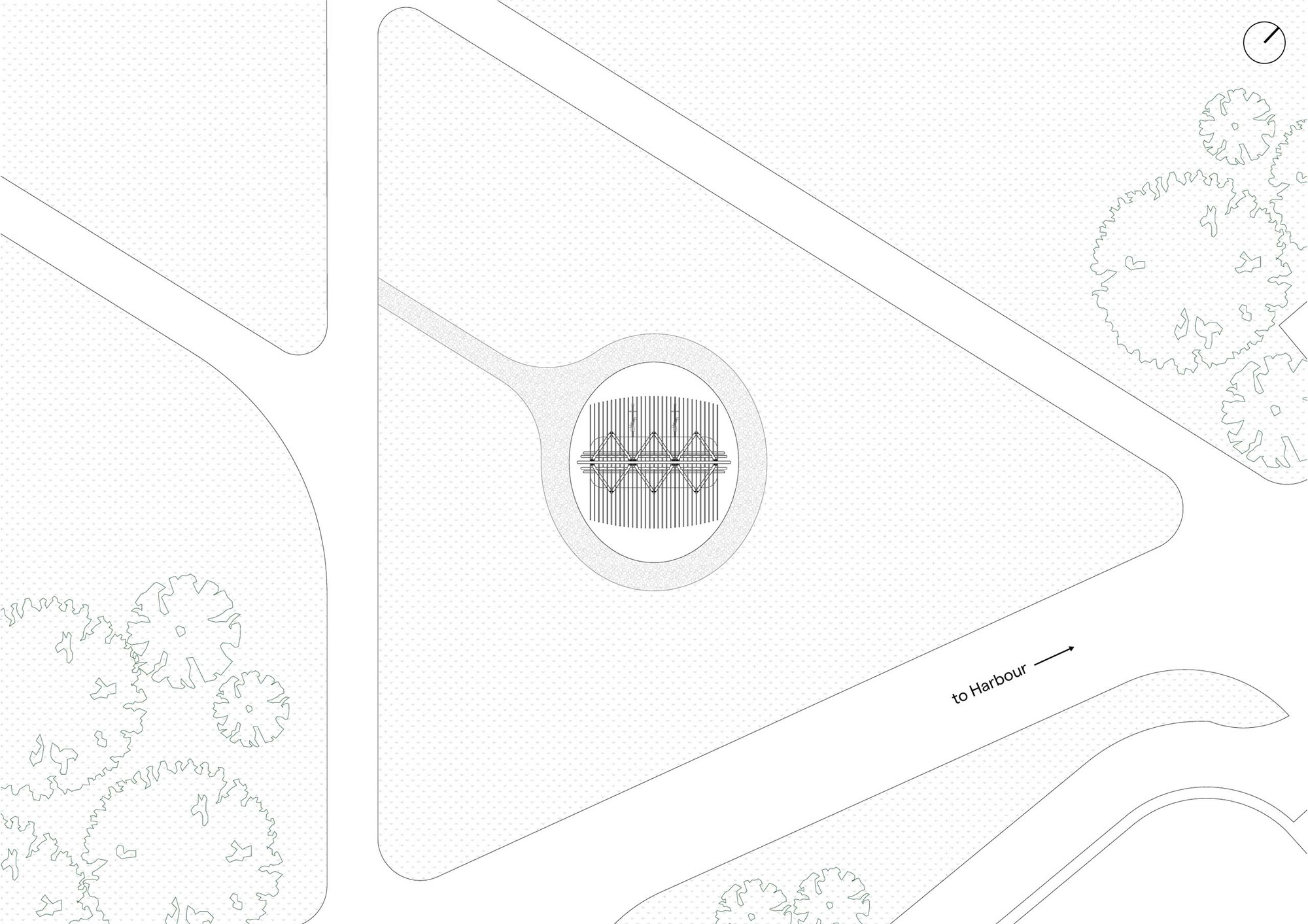

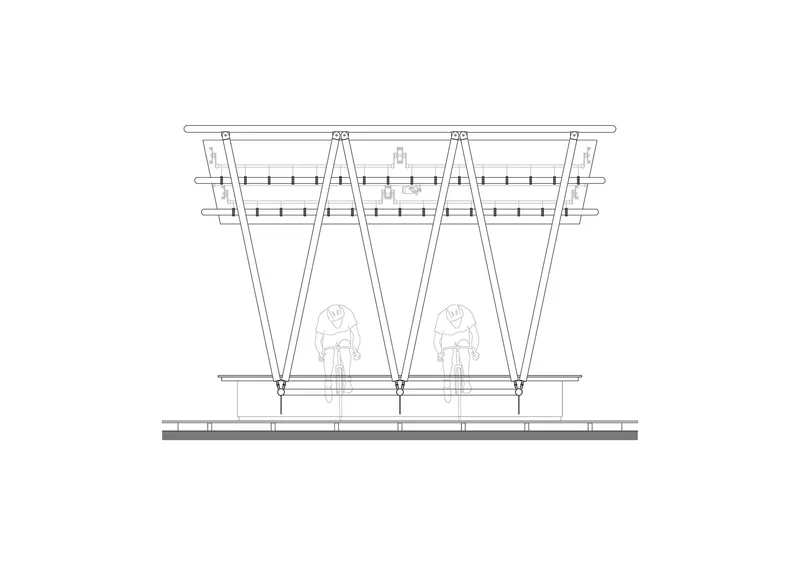

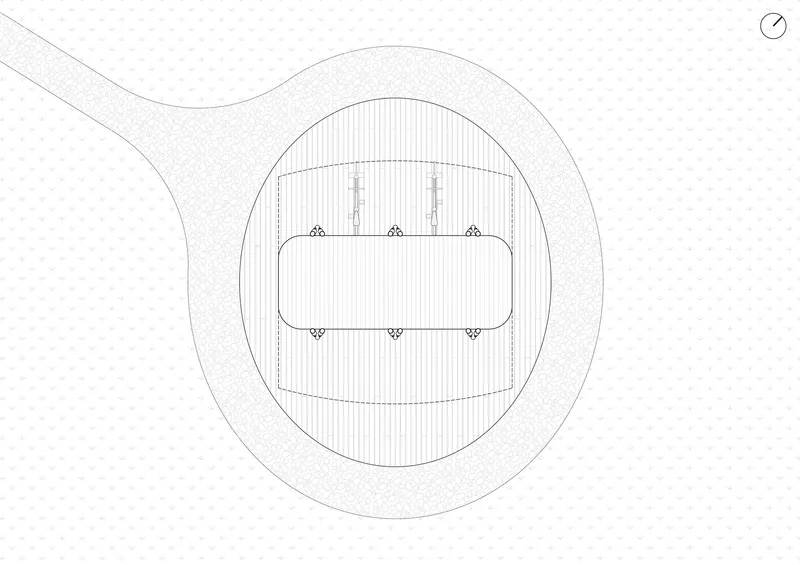

The drawing set reveals how carefully HIR Studio engineered an installation that looks casual. The axonometric explodes the canopy into its constituent layers and maps the bicycle and seating positions onto the circular platform. The site plan shows the pavilion centered on a triangular lawn fragment bounded by trees, leveraging an otherwise underused park zone. Sections detail the angled support frame, the cable-tensioned wing mechanism, and the stationary bicycle mounting with its resistance system.

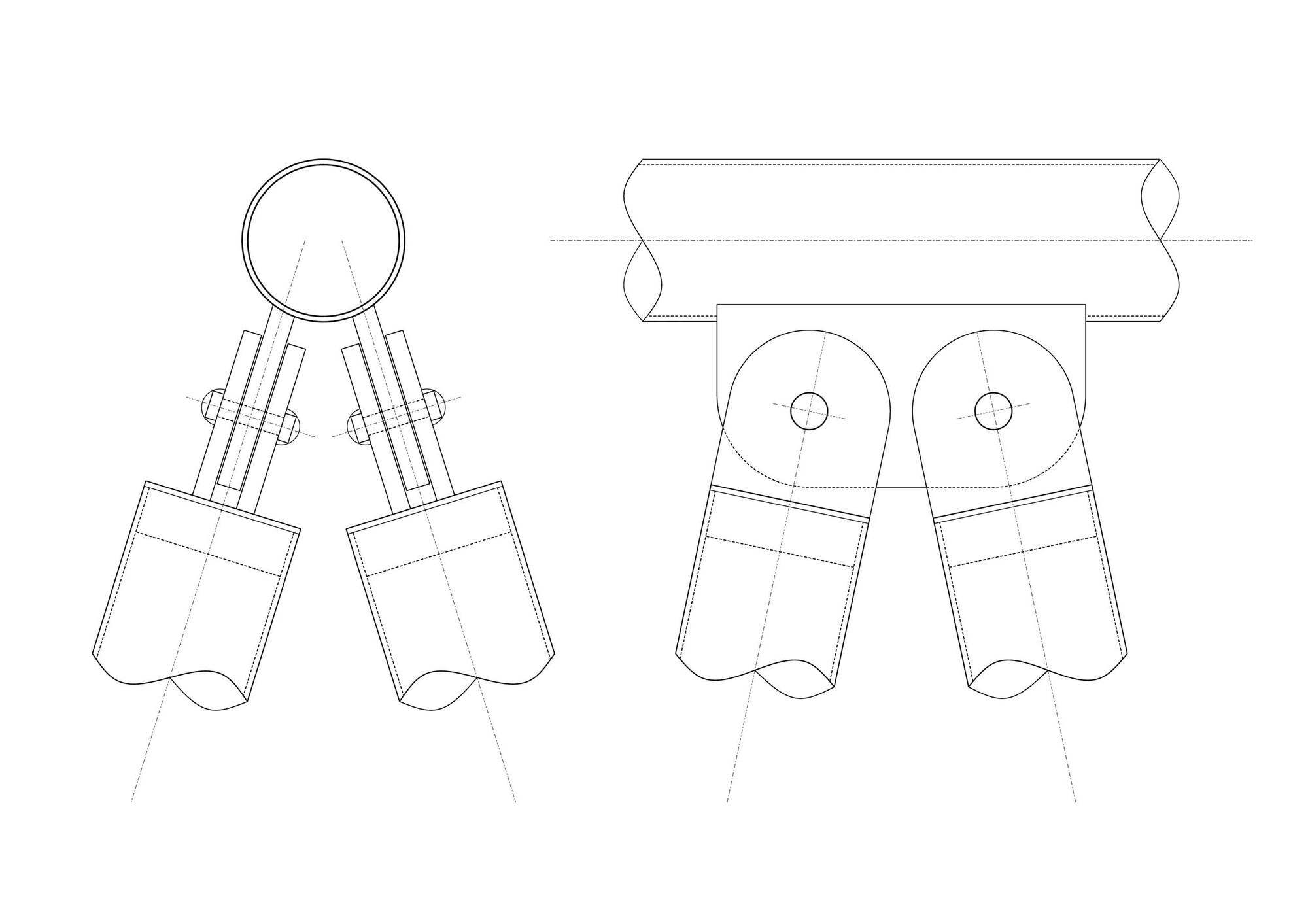

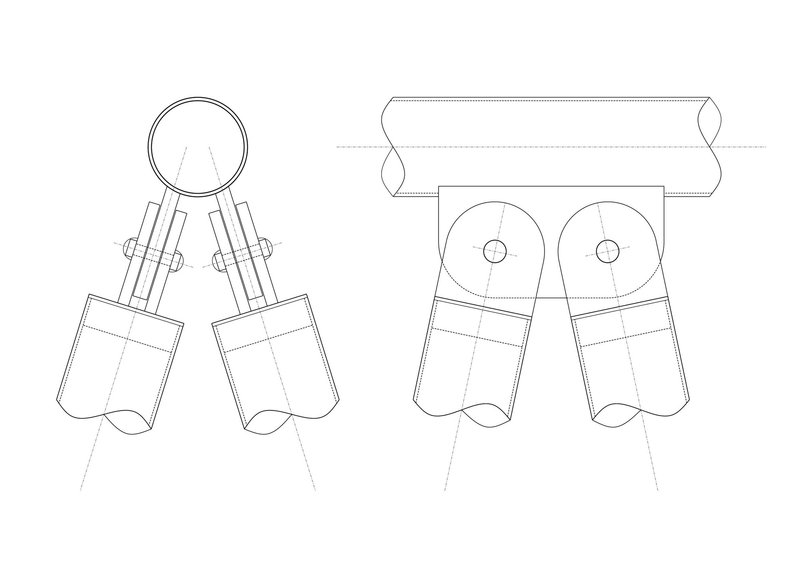

Two detail drawings stand out. One isolates the triangular apex joint where radiating cables converge on a circular pivot, the structural crux that allows wing movement without compromising canopy stability. The other presents variations of the cylindrical leg assemblies with roller connections, indicating that the design anticipated disassembly and relocation from the outset. Every joint was designed to be reversible, reinforcing the project's sustainable brief.

Why This Project Matters

Hong Kong has no shortage of public art, but it has very little public art you can ride. The Ornithopter occupies a productive gap between sculpture, architecture, and playground infrastructure, one where participation is not optional decoration but the literal engine of the work. By tying a civic amenity (shaded seating) to a kinetic spectacle (flapping wings) through the most democratic of machines (a bicycle), HIR Studio produced an installation that earns its presence in the park rather than merely occupying it.

The project also makes a convincing case that temporary does not have to mean disposable. The bolt-together steel and timber construction, the relocatable circular deck, and the fully mechanical drive system all point toward an architecture of reuse. In a city where land is measured in dollars per square foot, a 43-square-meter structure that can pack up and fly to another site carries its own quiet radicalism.

The Ornithopter by HIR Studio, Tamar Park, Hong Kong. 43 m², completed 2022. Photography by HDP Photography, Hong Photography Service, and Waitography.
