gmp Architects Wraps a Four-Tower Complex in Bronze Louvres for Shanghai's Springs District

Shanghai keeps growing upward, but the better question has always been what happens at the ground. gmp Architects confronts that question directly with The Springs, a mixed-use complex in which four towers of varying height share a sculpted podium and a series of open courtyards that stitch the project into its surrounding street grid. The result is a building that reads as a single entity from the skyline yet breaks apart at eye level into walkable, planted spaces that feel genuinely public.

What makes the project worth studying is its double commitment: to a rigorous, repeating facade language of horizontal bronze louvres and to the kind of messy, human-scaled ground plane that towers frequently sacrifice. The louvres unify the cluster visually while performing real environmental work, reducing solar gain on glass curtain walls that would otherwise turn the interiors into greenhouses. Below, a curving podium with rooftop terraces and sunken courts adds porosity to a site that sits right next to a major highway. It is urban design as environmental mitigation, carried out with enough formal discipline to hold your attention.

A Cluster, Not a Slab

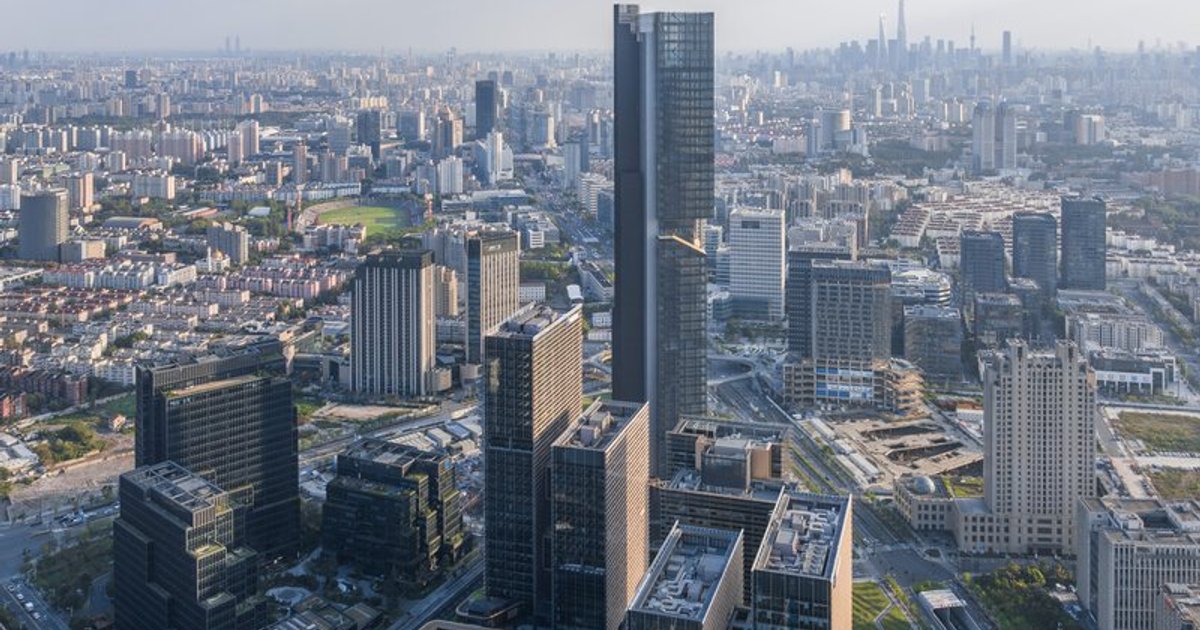

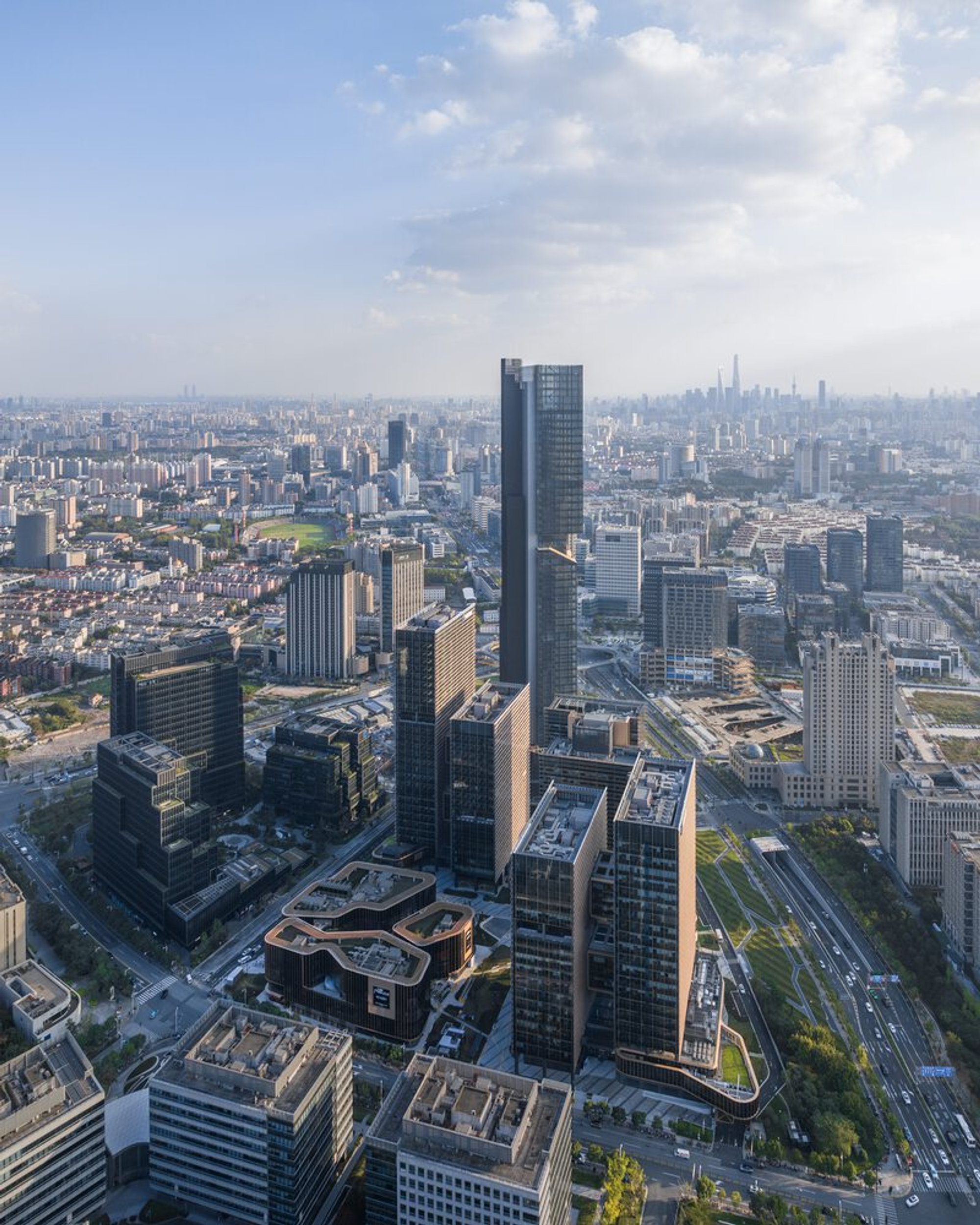

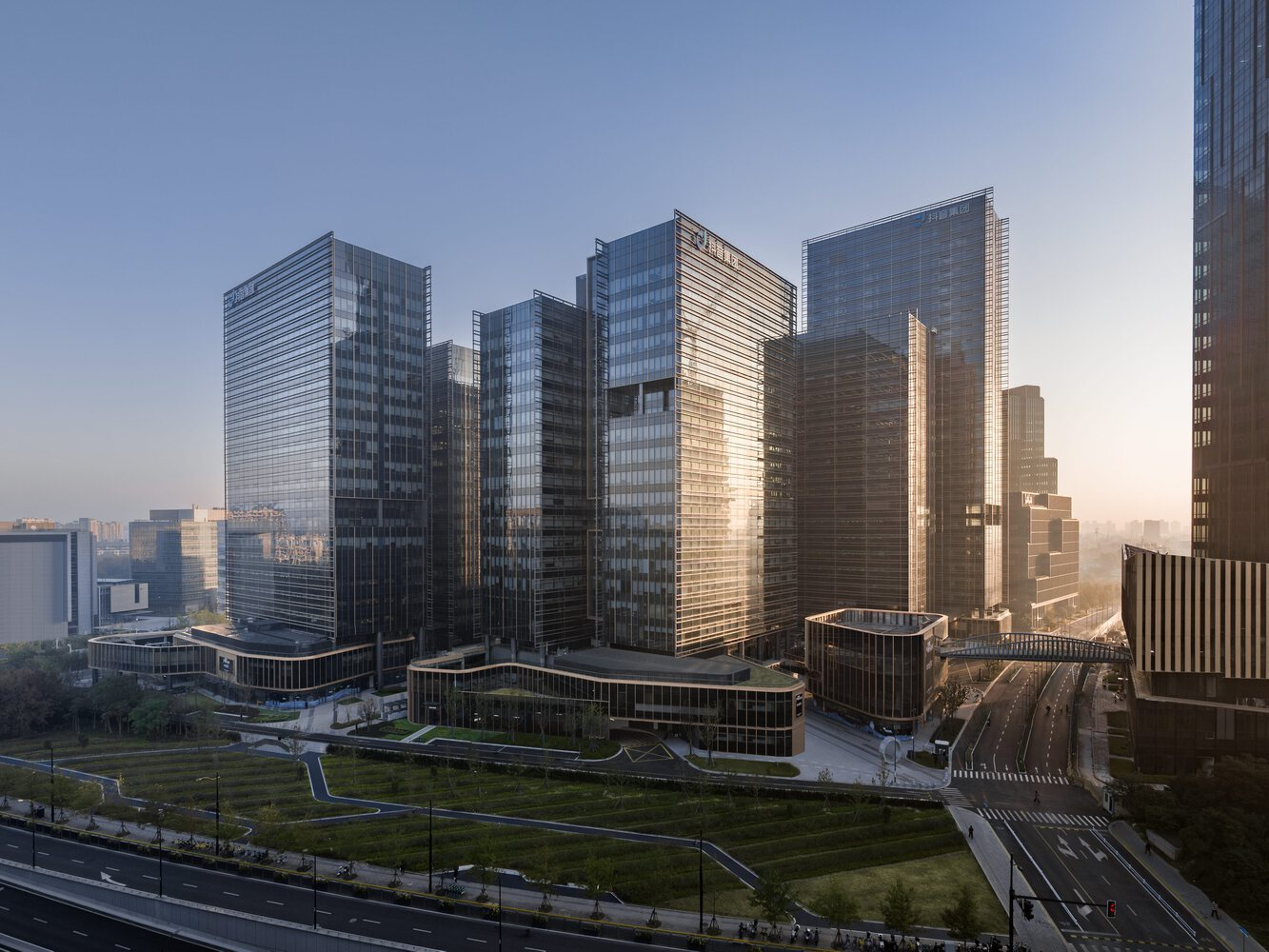

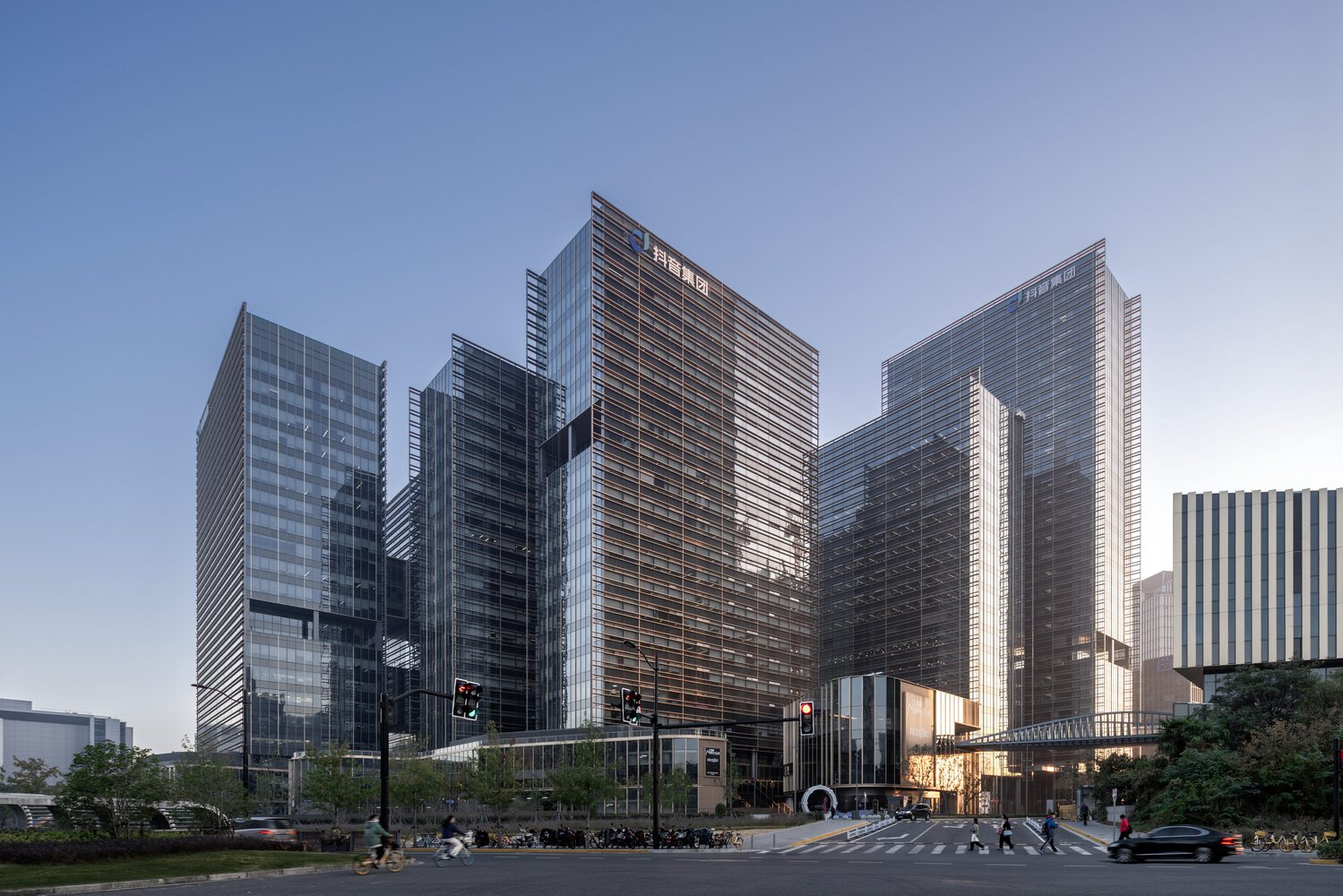

Rather than consolidating program into a single supertall or a pair of matching slabs, gmp distributes the mass across four towers with subtly different footprints and heights. Seen from the street in the evening light, the cluster creates an irregular silhouette that shifts as you move around the block. The morning haze view from elevation reveals how the curving low-rise podium knits the towers together, softening what could have been an aggressive wall of glass against the highway corridor.

The decision to cluster rather than consolidate has practical consequences. It opens sightlines through the site, allows daylight to reach the ground plane from multiple angles, and creates narrow canyons between buildings where wind acceleration can be managed. For pedestrians and cyclists passing on the adjacent lawn, the composition registers as a campus, not a fortress.

Bronze Louvres as Unifying Skin

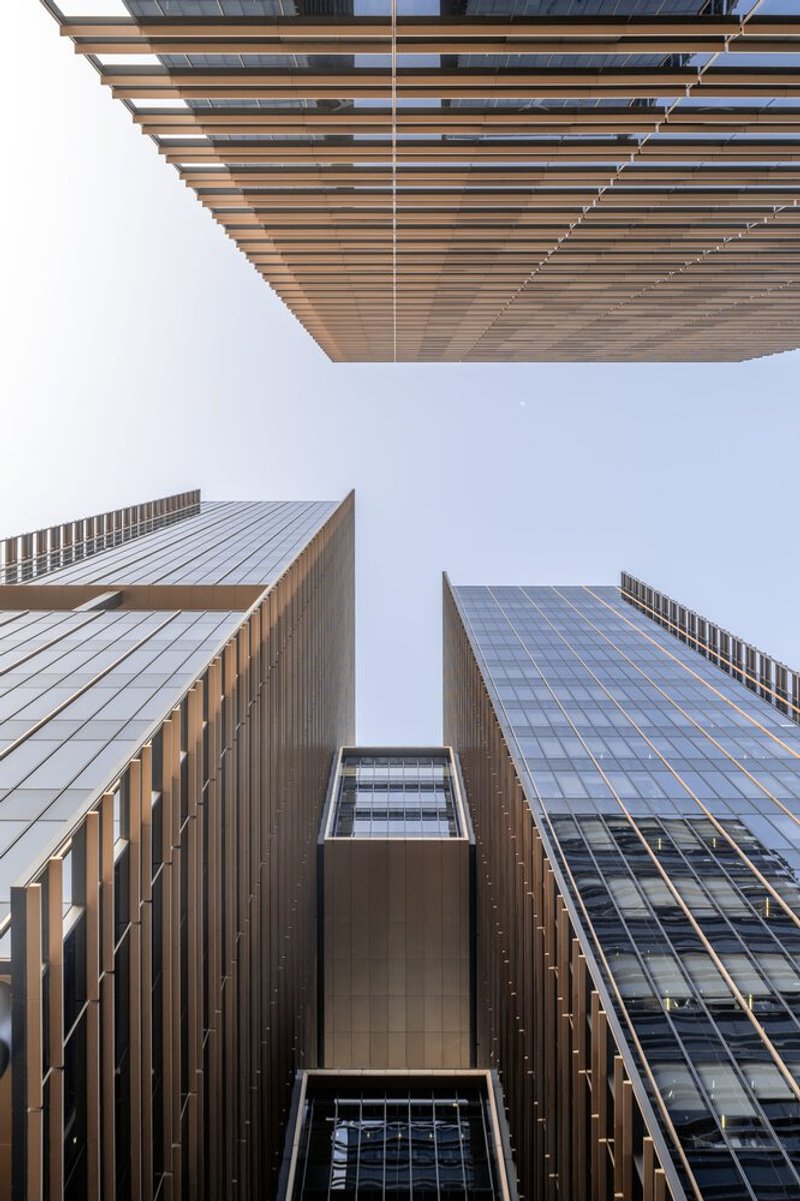

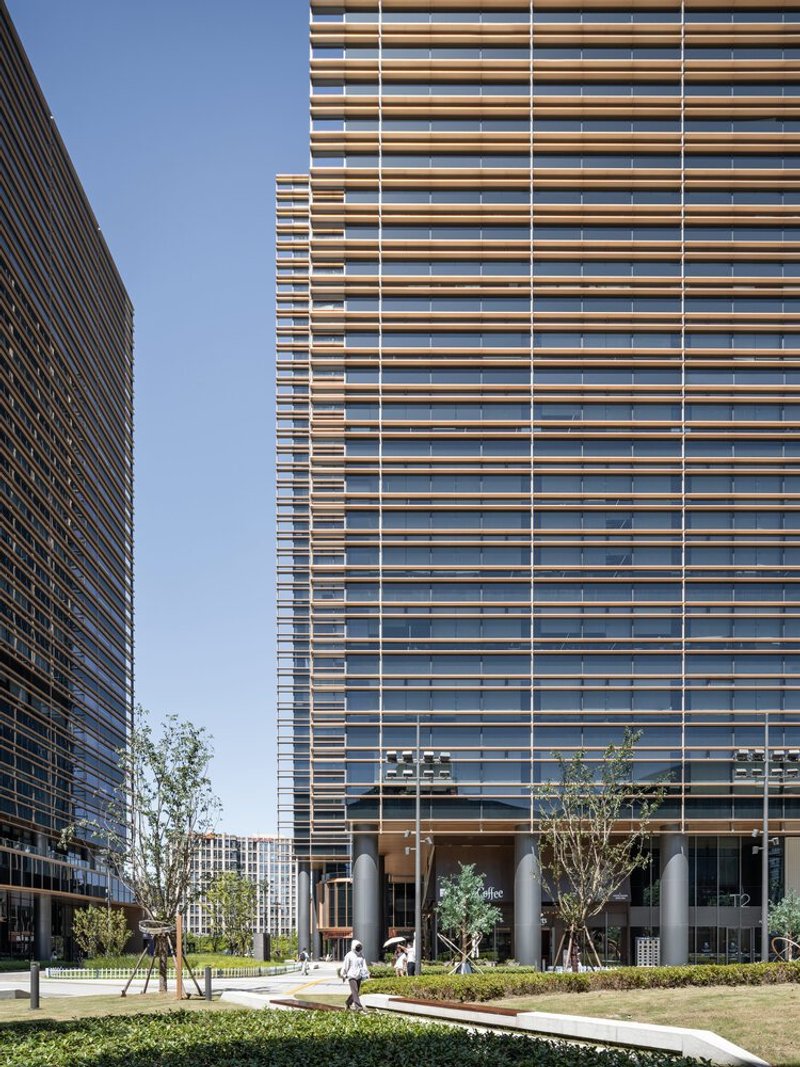

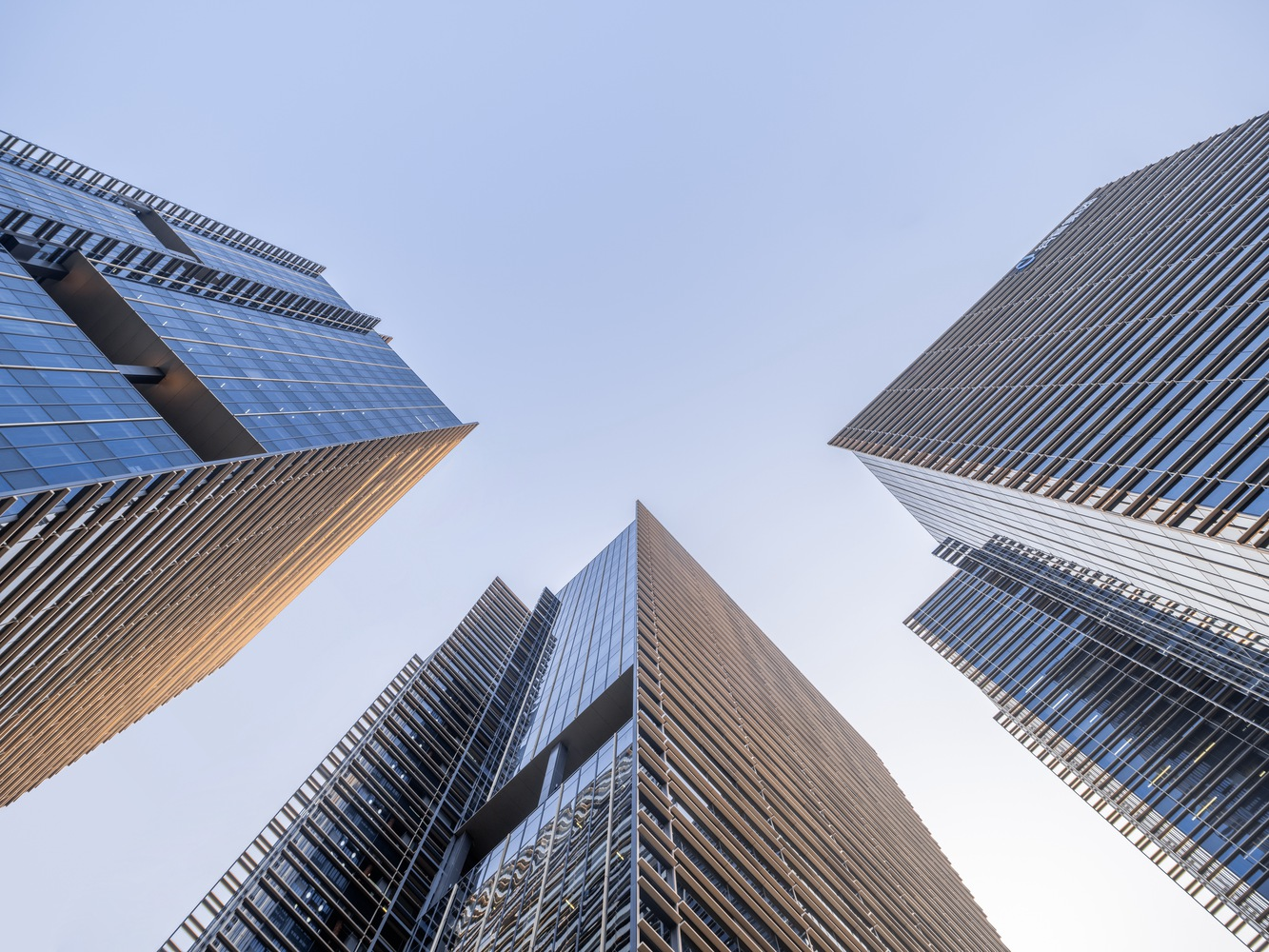

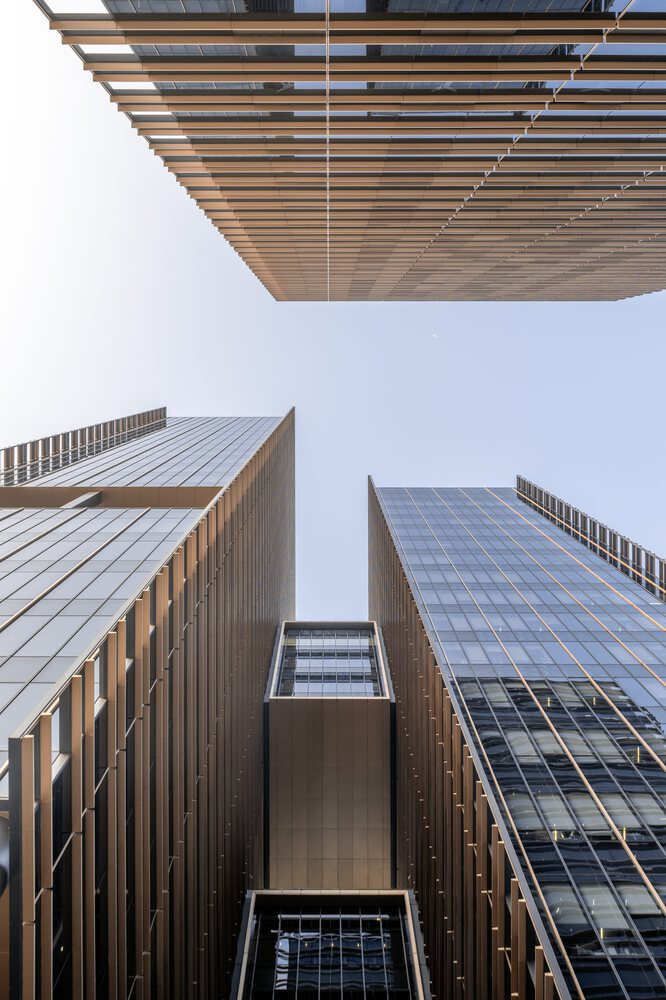

The horizontal bronze louvres are the project's most visible gesture, and they earn their prominence. Wrapping each tower in a consistent rhythm of metal fins, gmp turns four separate structures into one legible family. At the base, the louvres meet landscaped lawns and planted beds with a clean horizontal register that gives the ground floor a sense of shelter. Looking upward between the towers, the louvres overlap and layer, creating a moiré pattern that changes with the angle of view and the time of day.

Functionally, the fins serve as passive sun shading, intercepting direct radiation before it hits the glass curtain wall behind. The gap between louvre and glazing creates a ventilated cavity that helps manage heat buildup. When four towers stand this close together, reflected heat and glare from one facade onto its neighbor become real problems; the louvres mitigate both. It is the kind of solution that looks decorative at first glance and reveals its logic the longer you consider it.

Ground Plane and Sunken Courts

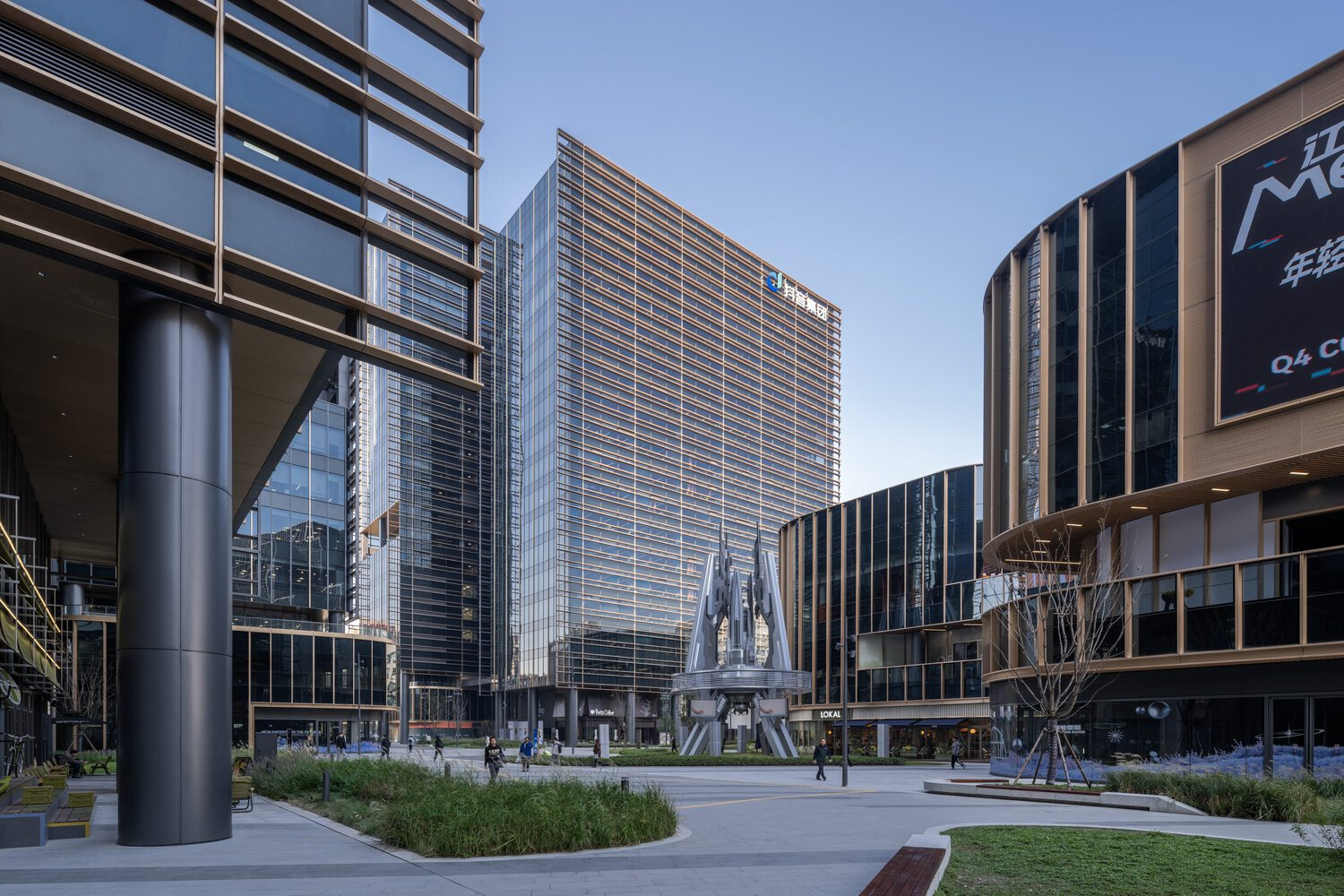

The central plaza operates as a true civic space, with pedestrians moving between curved planting beds and a large video screen mounted between the buildings. It is not a token leftover between tower footprints; it has been shaped with specific intentions about gathering, circulation, and pause. The planted beds introduce greenery at a scale that registers from the upper floors as well as from the walkway.

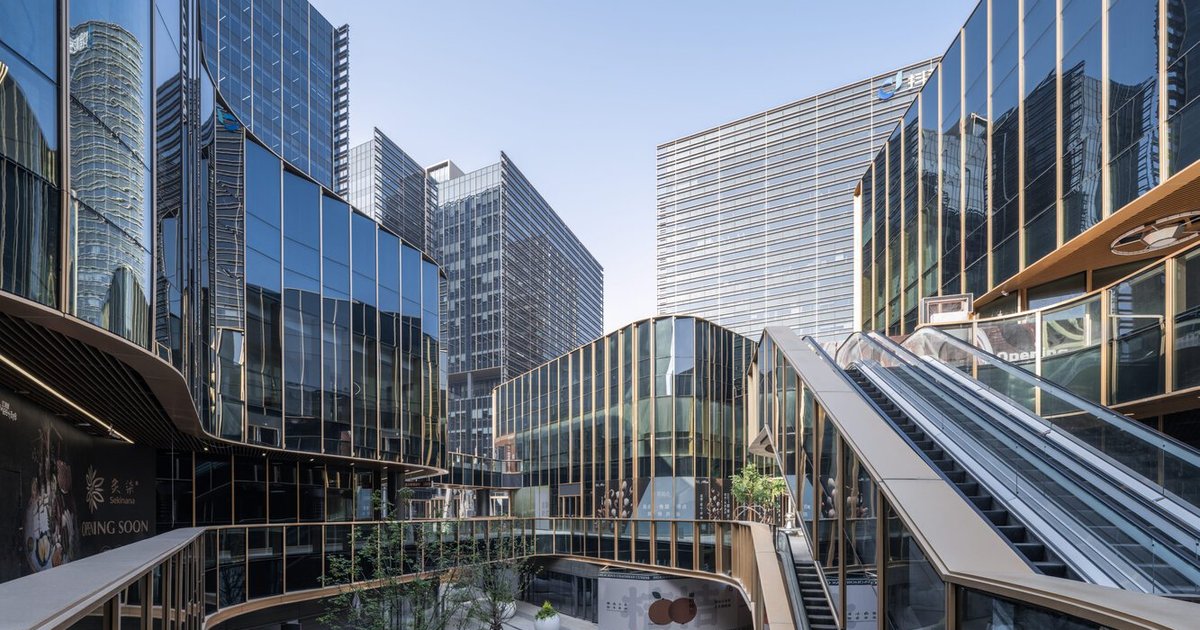

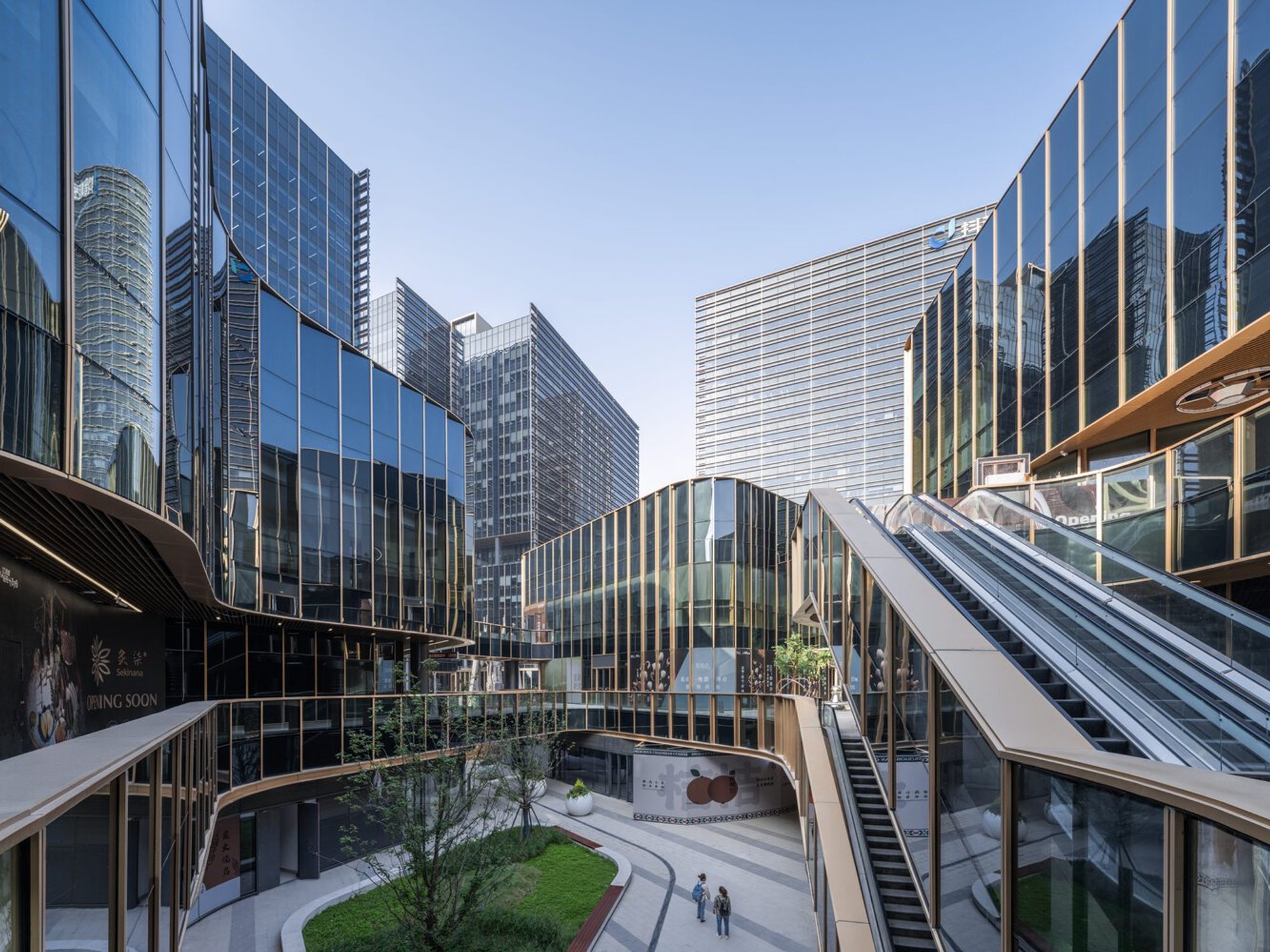

Drop a level and the project reveals a sunken courtyard lined with escalators, curved walkways, and glass facades that bring light deep below grade. Trees planted in this lower court give the space a garden quality that most basement retail levels never achieve. At dusk, the illuminated glass towers frame the courtyard pathways overhead, creating a lantern effect that draws people inward rather than pushing them past.

The Podium Roof as Landscape

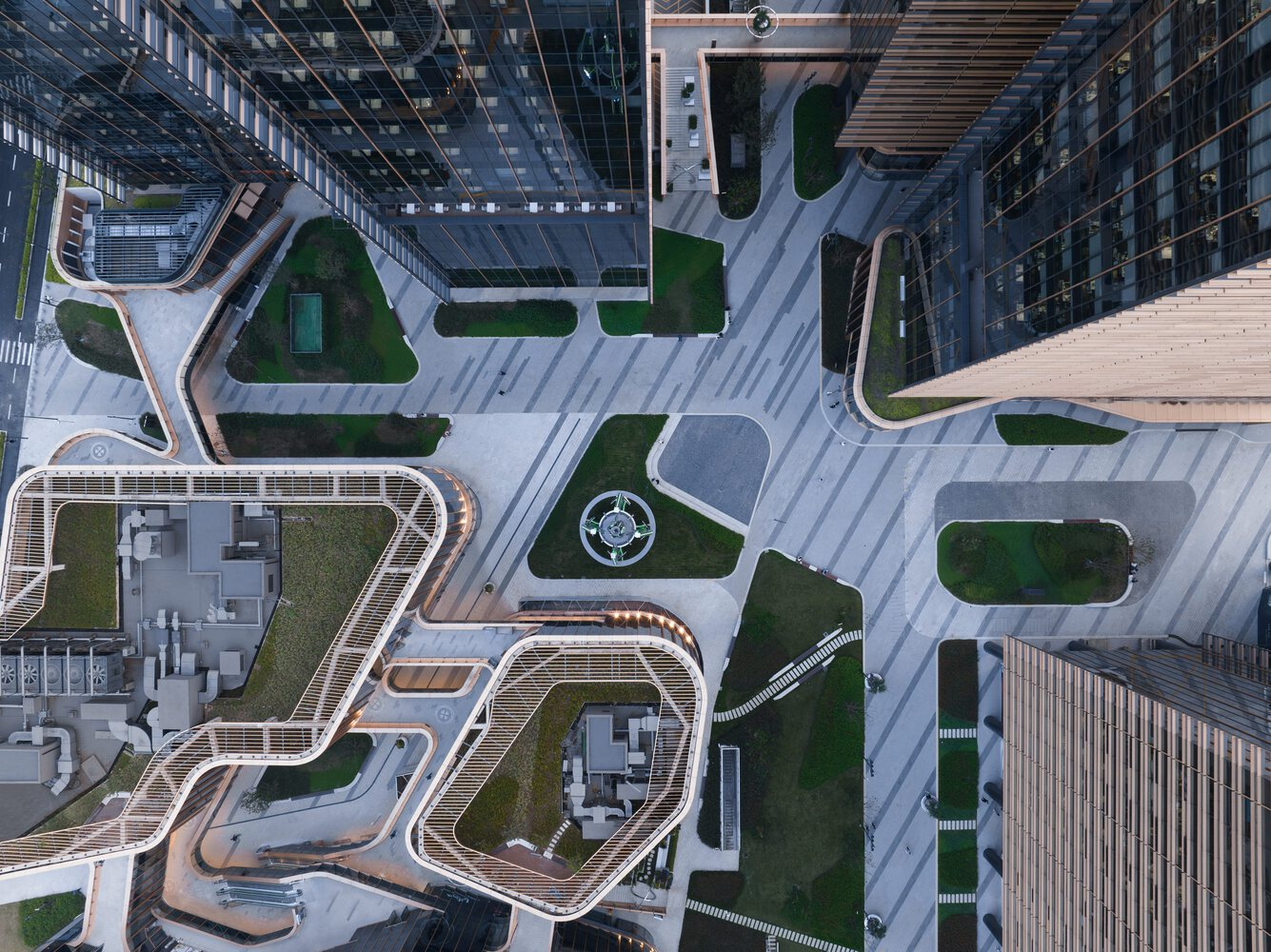

From above, the podium reads as a series of curving rooftop terraces punctuated by green islands. These planted zones soften the building's thermal footprint and offer usable outdoor space to occupants of the lower office floors. The curvature of the podium edge is not arbitrary; it follows the street geometry and sets up a dialogue with the rectilinear tower footprints above, preventing the composition from becoming too rigid.

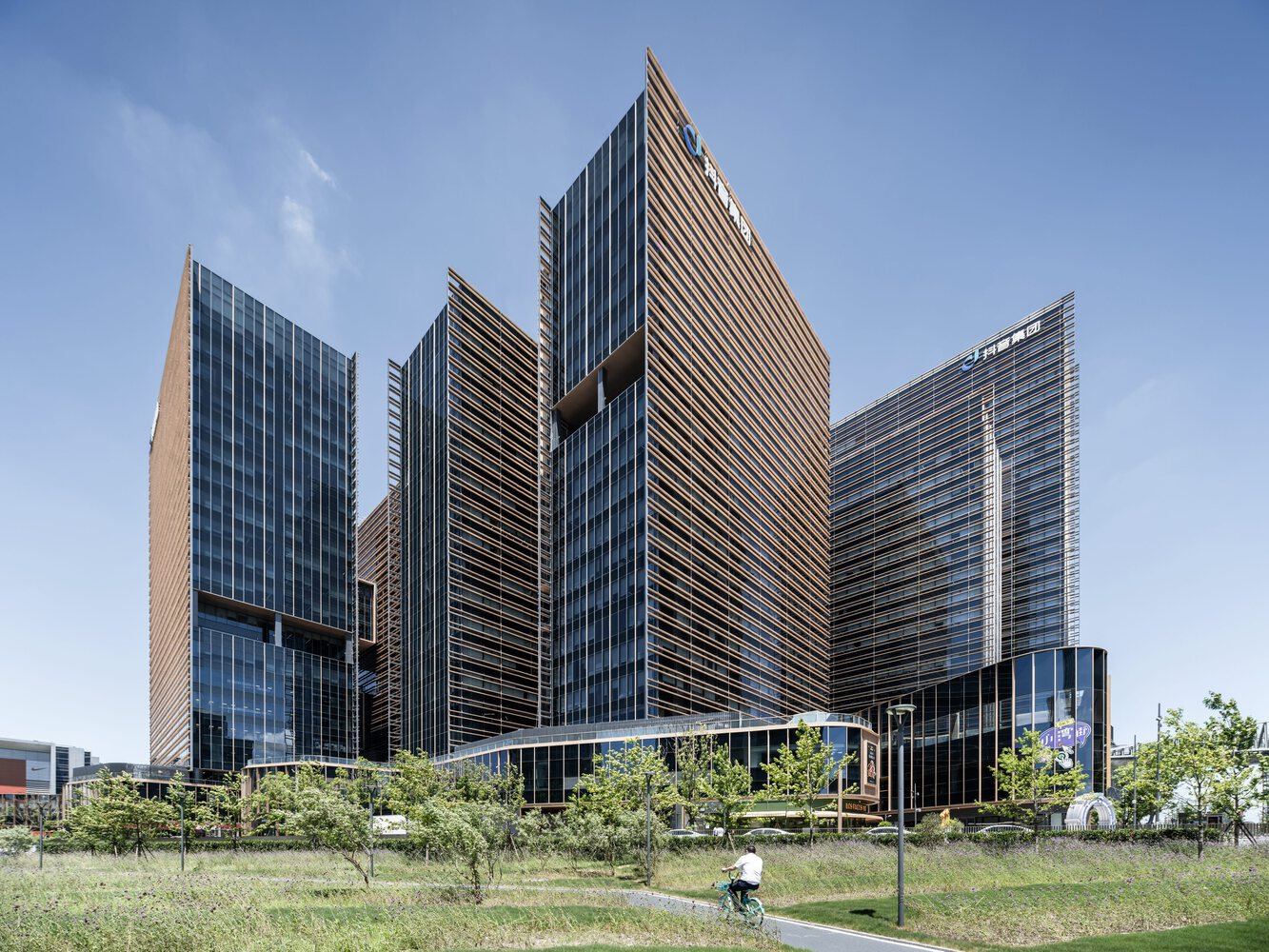

Viewed from the tree-lined plaza at street level, the podium's horizontal datum line anchors the towers. The bronze louvres continue down from the tower facades onto the podium volume, so the transition between high-rise and low-rise is seamless. A cyclist passing the site reads one continuous surface, not a tower sitting on a box.

Bridges and In-Between Spaces

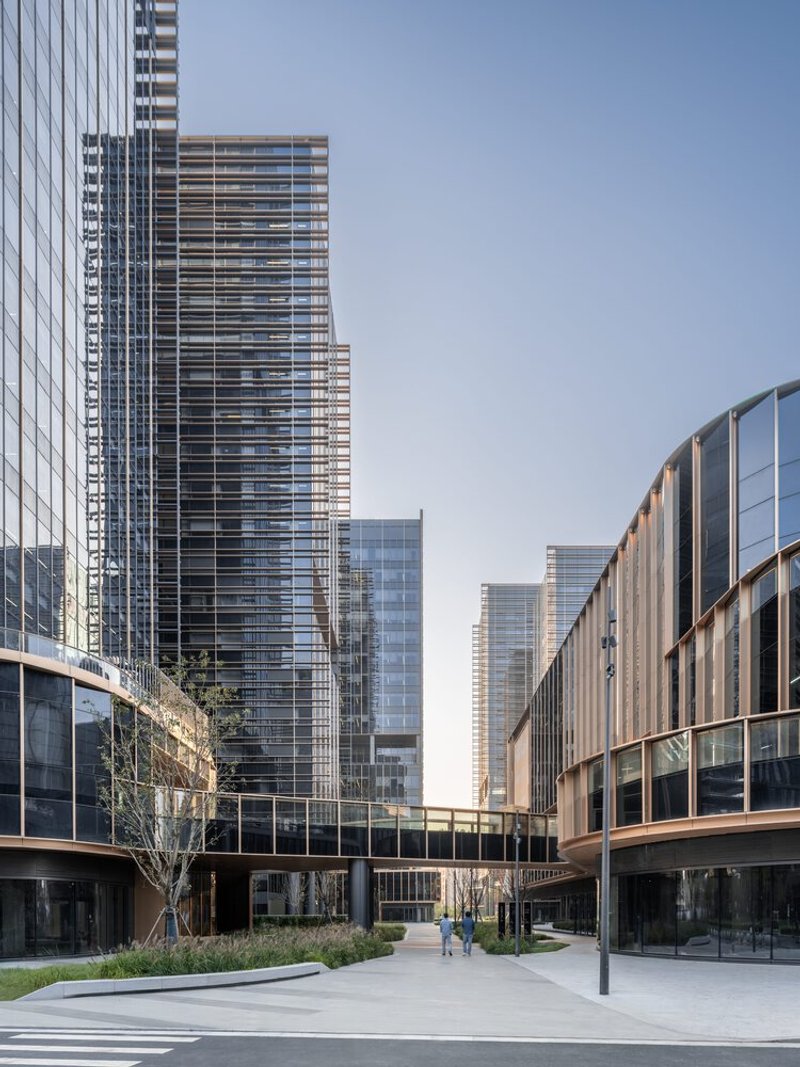

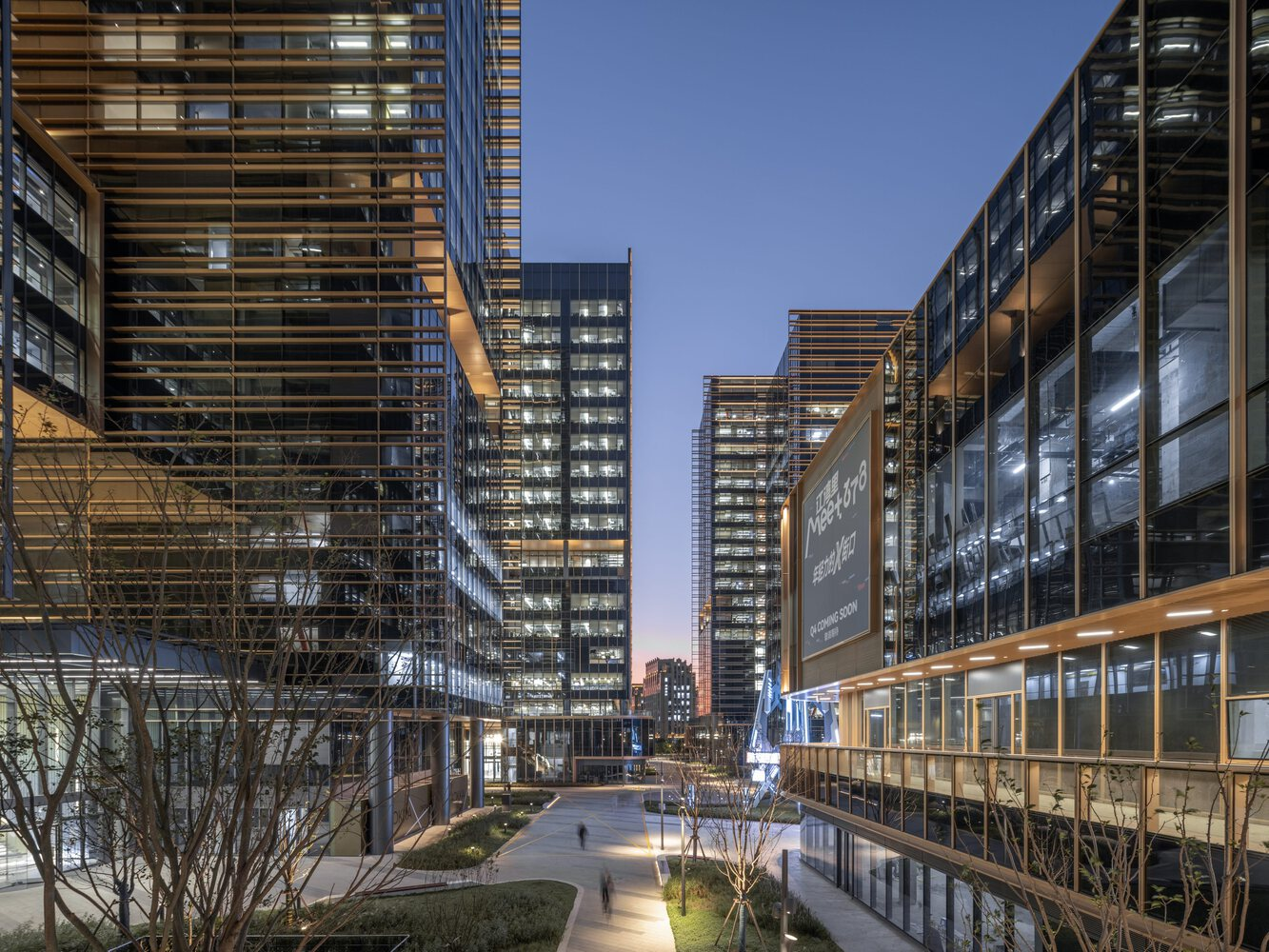

Elevated bridges span between the towers at upper levels, linking program zones and adding visual depth to the narrow gaps between facades. Walking along the pedestrian pathway below, you see louvred walls rising on both sides with a bridge crossing overhead, a spatial experience closer to a European arcade than a typical Shanghai office park. The horizontal sunshade canopy visible from below further compresses the scale, turning the canyon into something sheltered and intimate.

Plans and Drawings

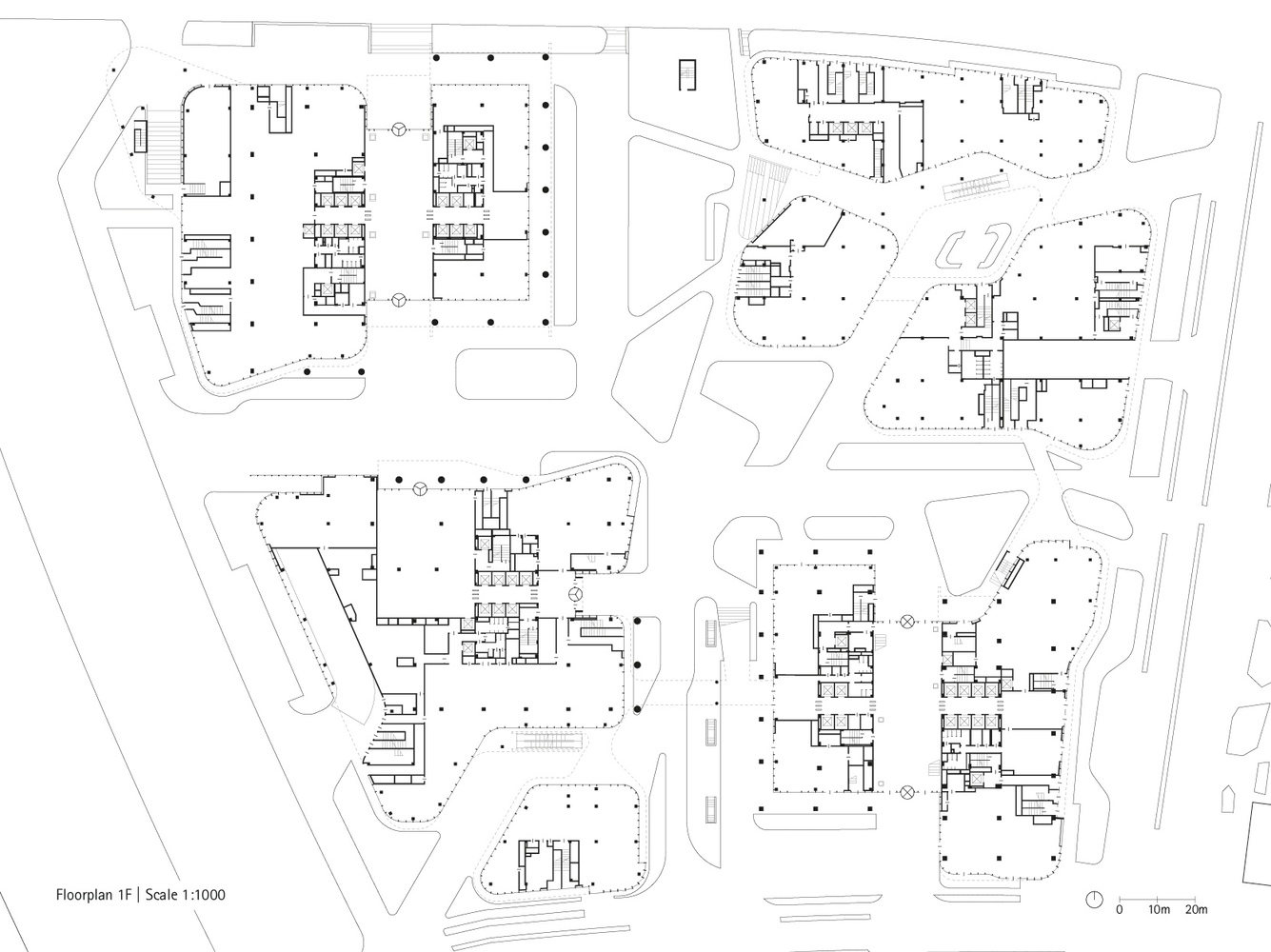

The site plan makes the urban strategy legible: four solid-black footprints sit within a single block, oriented to maximize gaps between them while maintaining a continuous street edge. The ground floor plan confirms that the towers have curved, irregular footprints rather than simple rectangles, which is what gives the courtyards their flowing geometry. Internal circulation cores are compact, pushing usable floor area to the perimeter where the louvres manage daylight.

The section drawing is the most revealing document. It shows two residential towers flanking a central atrium with planted terraces cascading down to the sunken court level. A glazed circulation shaft rises through the center, acting as a vertical street that connects basement retail, ground-level plaza, podium terraces, and office or residential floors above. The planted terraces visible in section explain the green islands seen in the aerial photographs; they are not superficial decoration but occupy real structural bays within the podium.

Why This Project Matters

Shanghai's recent tower projects often compete on height or on the complexity of their crowns. The Springs competes on something harder to achieve: a coherent relationship between tower and ground. By distributing program across four smaller volumes instead of one tall one, gmp creates urban space rather than consuming it. The bronze louvres, the sunken courts, the rooftop gardens, and the connecting bridges all serve the same argument, that density and livability are not opposites.

The project also demonstrates that passive environmental strategies can drive form rather than merely be applied to it. The louvres are not a decorative screen hung on a finished building; they are the building's identity, determining its proportions, its materiality, and the quality of light inside. When sustainability generates architecture rather than being bolted on afterward, you get buildings that age well because their logic is structural, not fashionable.

Sustainable Mixed-Use Urban Architecture: The Dynamic Center for "The Springs" by gmp Architects, Shanghai, China. Photography by CreatAR Images.
