The Ranch Mine Disguises a Flagstaff Retreat as Volcanic Peaks in the Arizona Highlands

About a thousand years ago, the San Francisco Volcanic Field north of Flagstaff erupted for the last time. The land it left behind is a flat, high-altitude plateau at 7,300 feet, scattered with cinder cones, muted grasses, and stands of aspen and conifers. It is also, surprisingly, a viable place to live. The Ranch Mine recognized the geological strangeness of the site and designed Noir Peaks to look like it belongs to the same story: three dark gabled volumes on a two-acre plot, shaped and colored to read as small volcanic peaks rising from the scrubland.

What makes the project interesting is the tension between that severe exterior and the warmth it conceals. The cement board cladding, painted to match local lava rock, sits on a two-foot concrete base that anchors the house to the ground with geological permanence. Battens are spaced at irregular intervals to mimic the rhythm of nearby aspen trunks. Yet inside, vaulted ceilings clad in clear vertical-grain hemlock, Texas Crème limestone fireplaces, and radiant-heated concrete floors produce something closer to a Danish cabin than an Arizona desert outpost. The Ranch Mine calls the interior ethos hygge, and for once the Scandinavian buzzword feels earned rather than borrowed.

Three Peaks on a Plateau

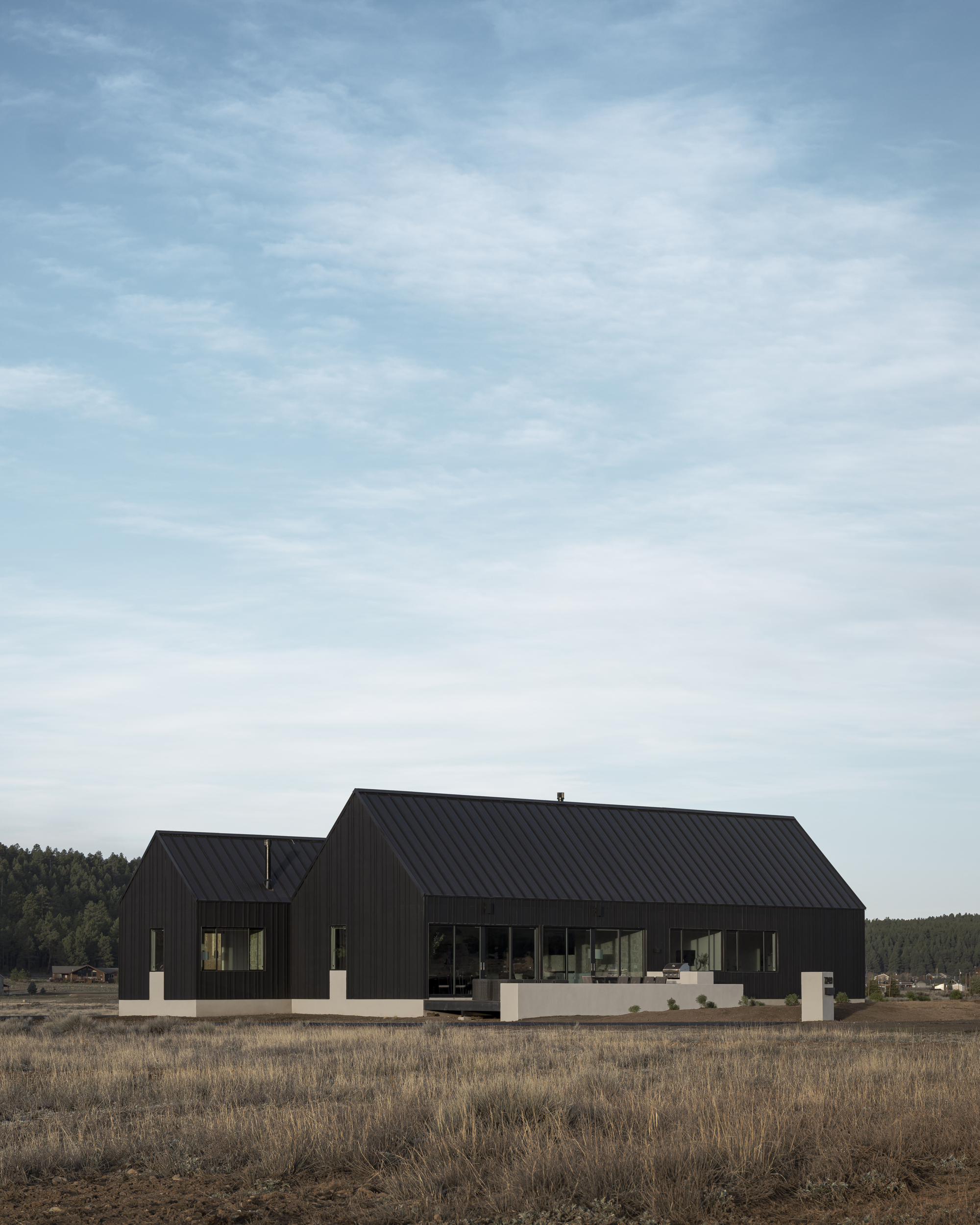

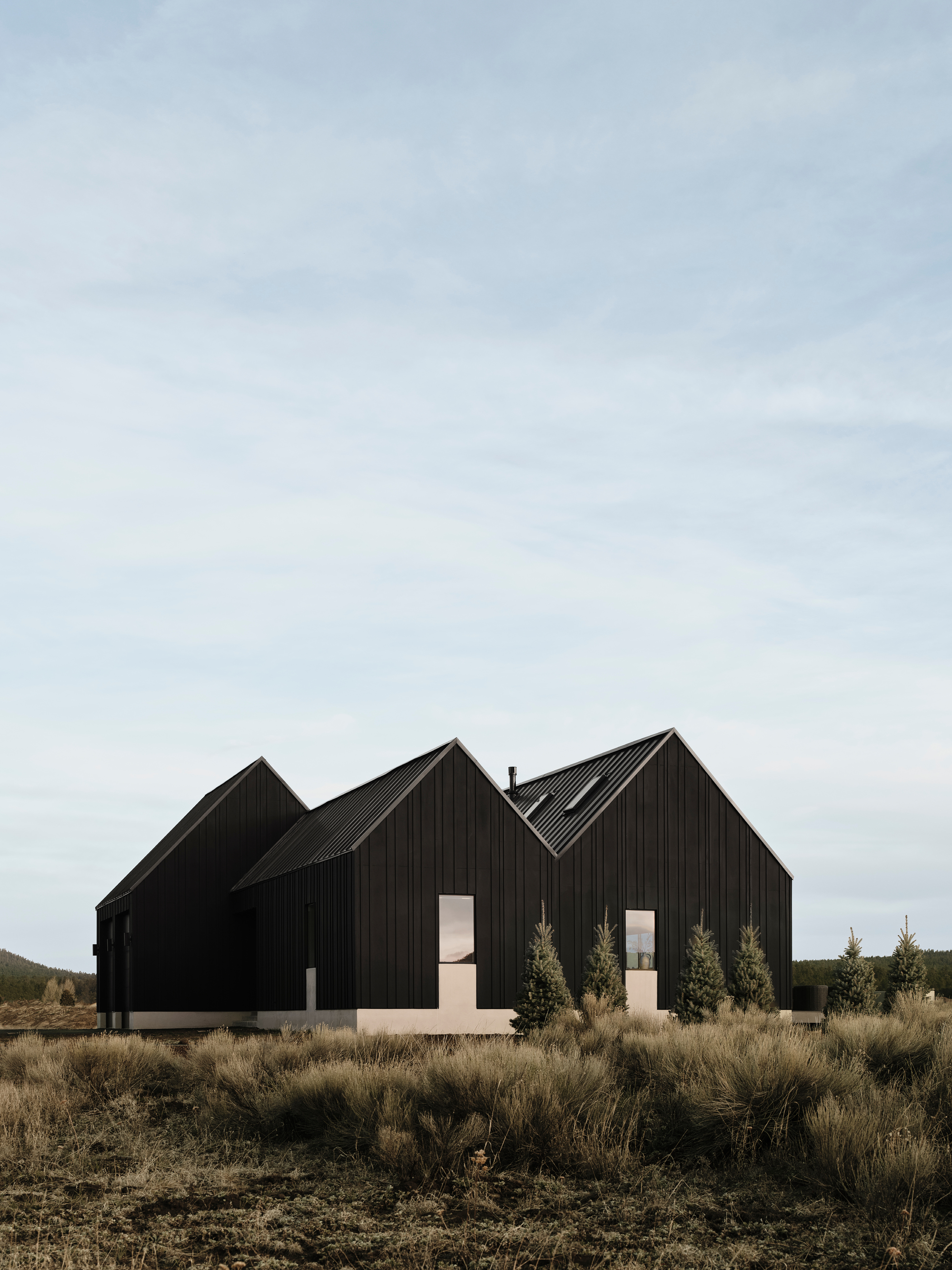

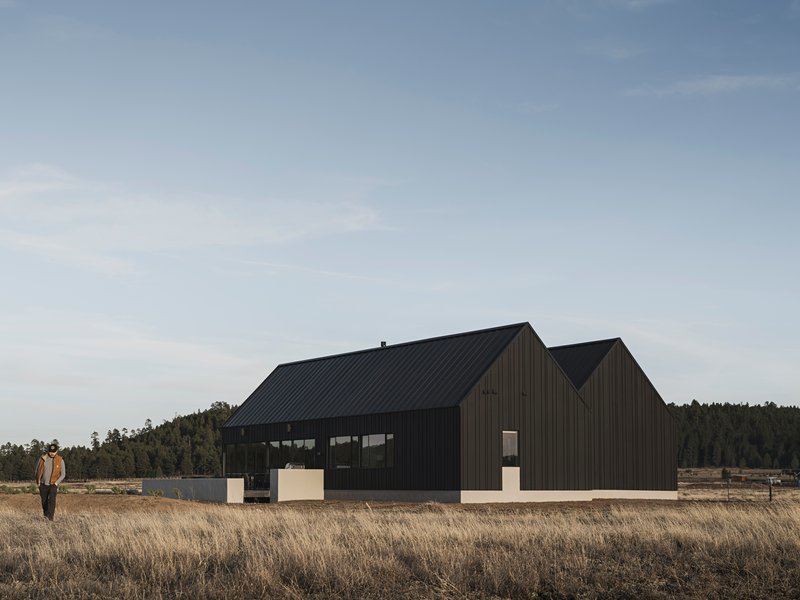

The composition of three gabled volumes is the project's primary architectural move, and the one most visible from a distance. Seen from the surrounding scrubland, the dark masses cluster together like a ridge of cinder cones. The profiles are simple and unadorned, no dormers, no overhangs fighting for attention. What you notice instead is the relationship between the shapes: slightly offset, slightly different in height, producing a silhouette that feels geological rather than domestic.

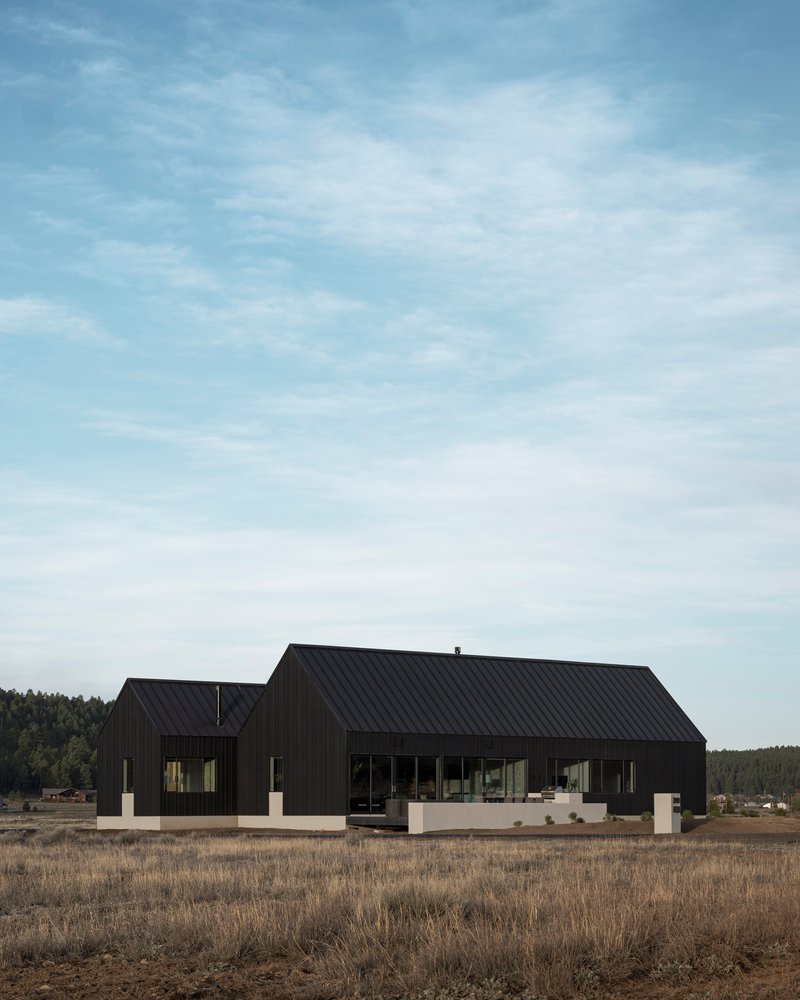

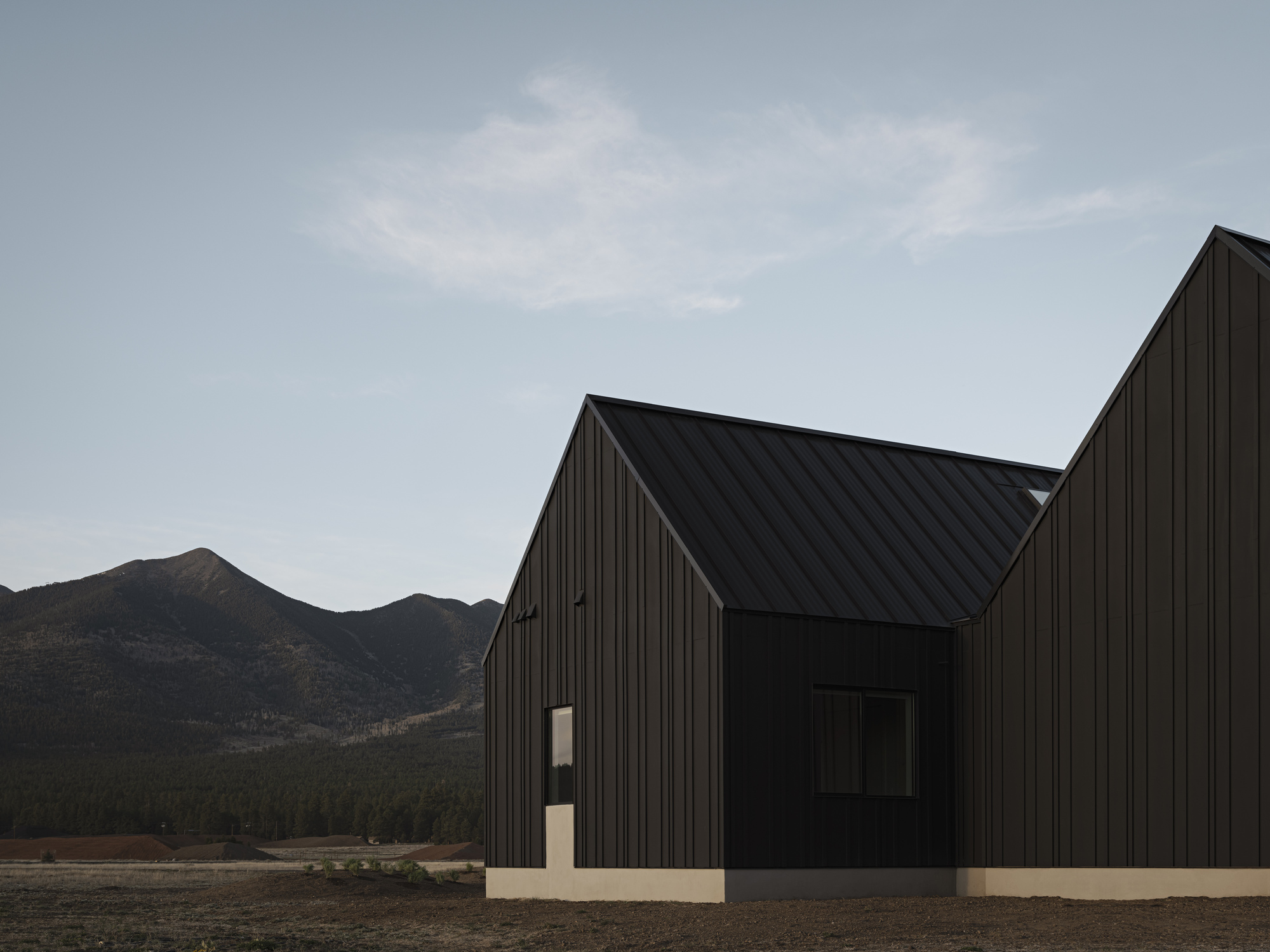

The concrete plinth that runs continuously beneath all three volumes unifies them while lifting the dark cladding just far enough off the ground to create a legible datum. At 2,405 square feet with four bedrooms and three bathrooms, the house is not small, but the tripartite massing breaks it down into parts that feel measured against the landscape rather than imposed on it.

Dark Skin, Deep Context

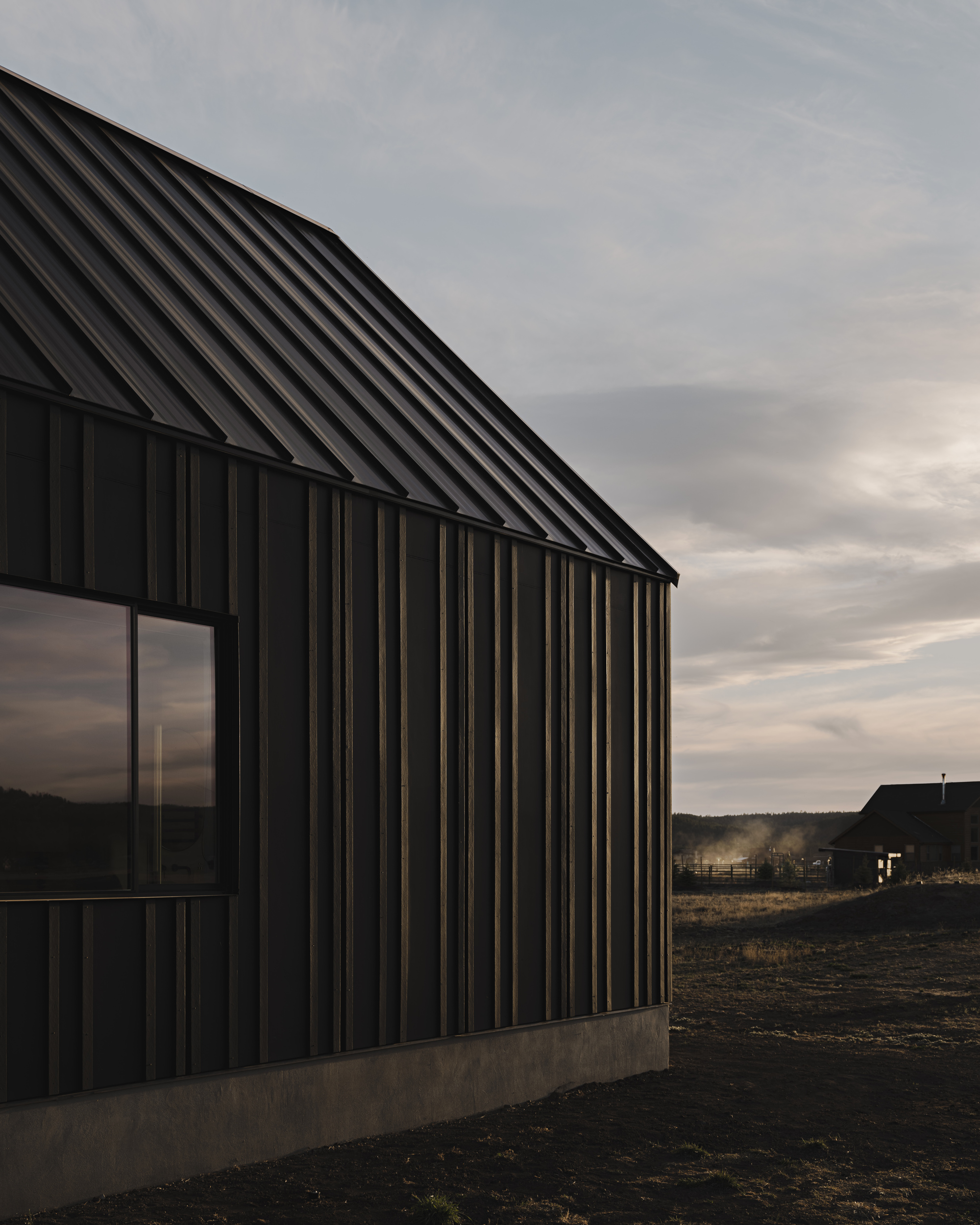

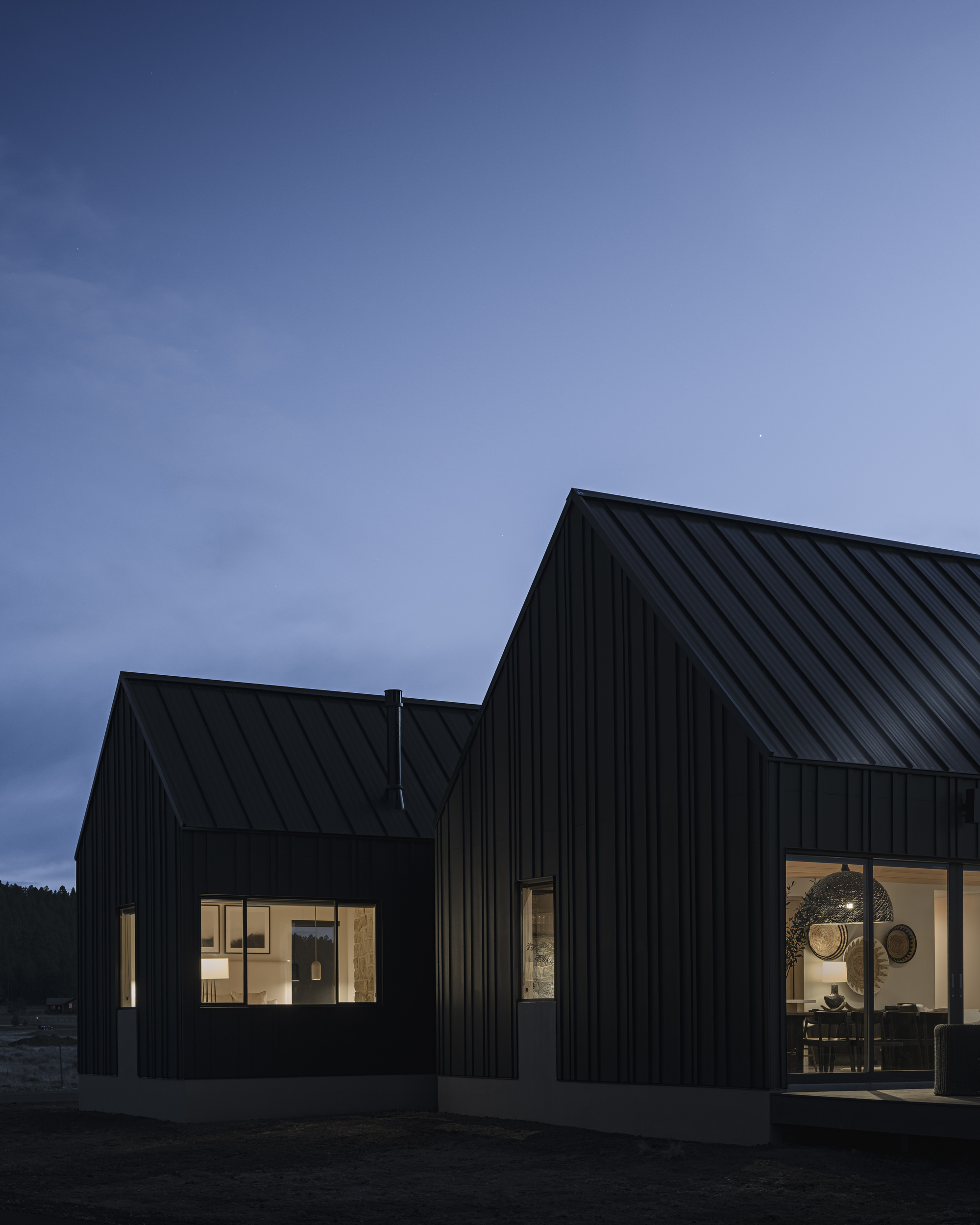

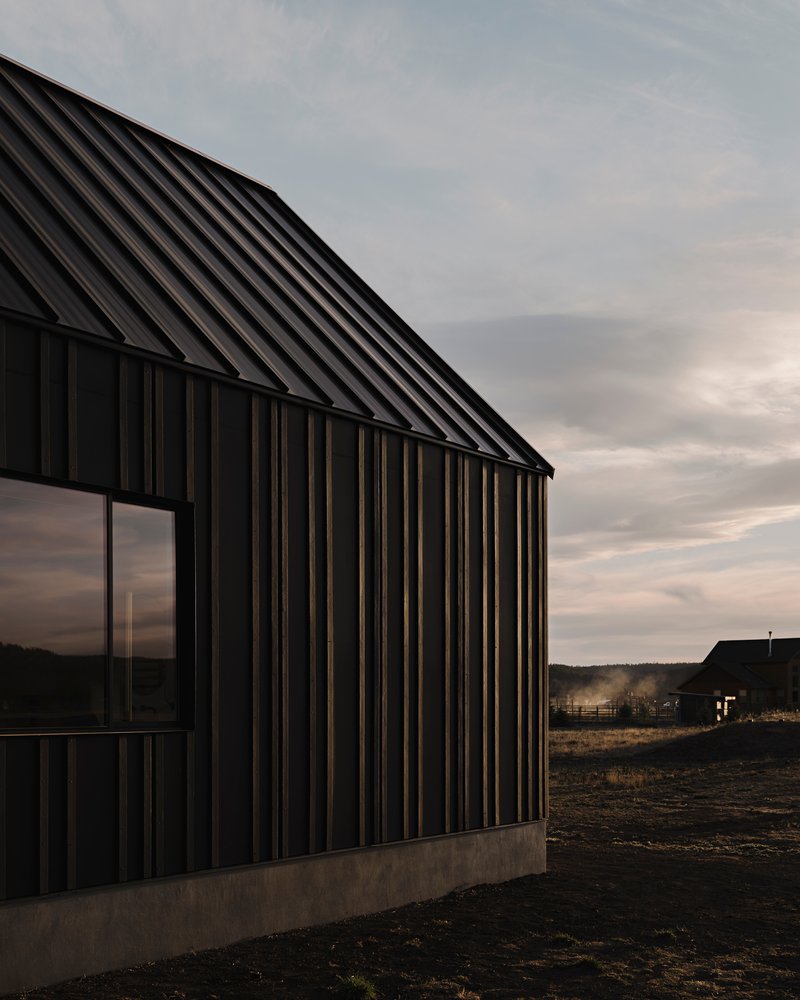

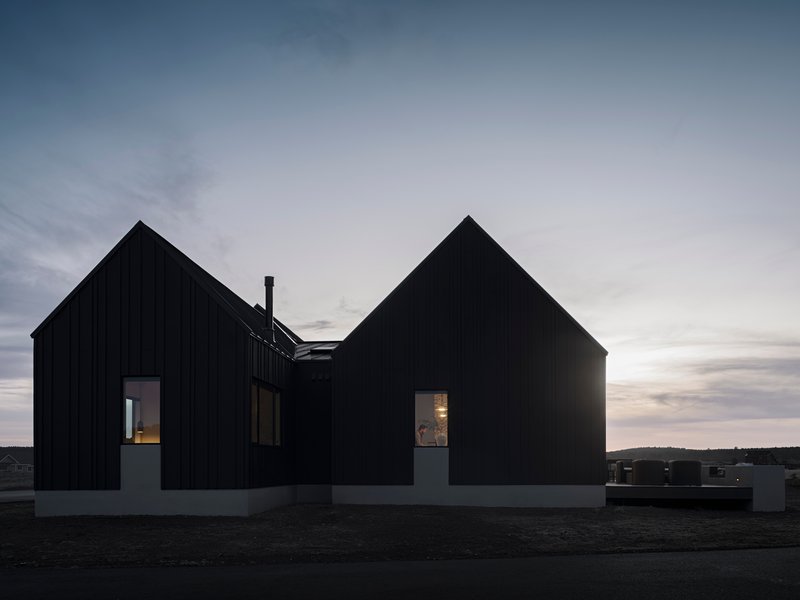

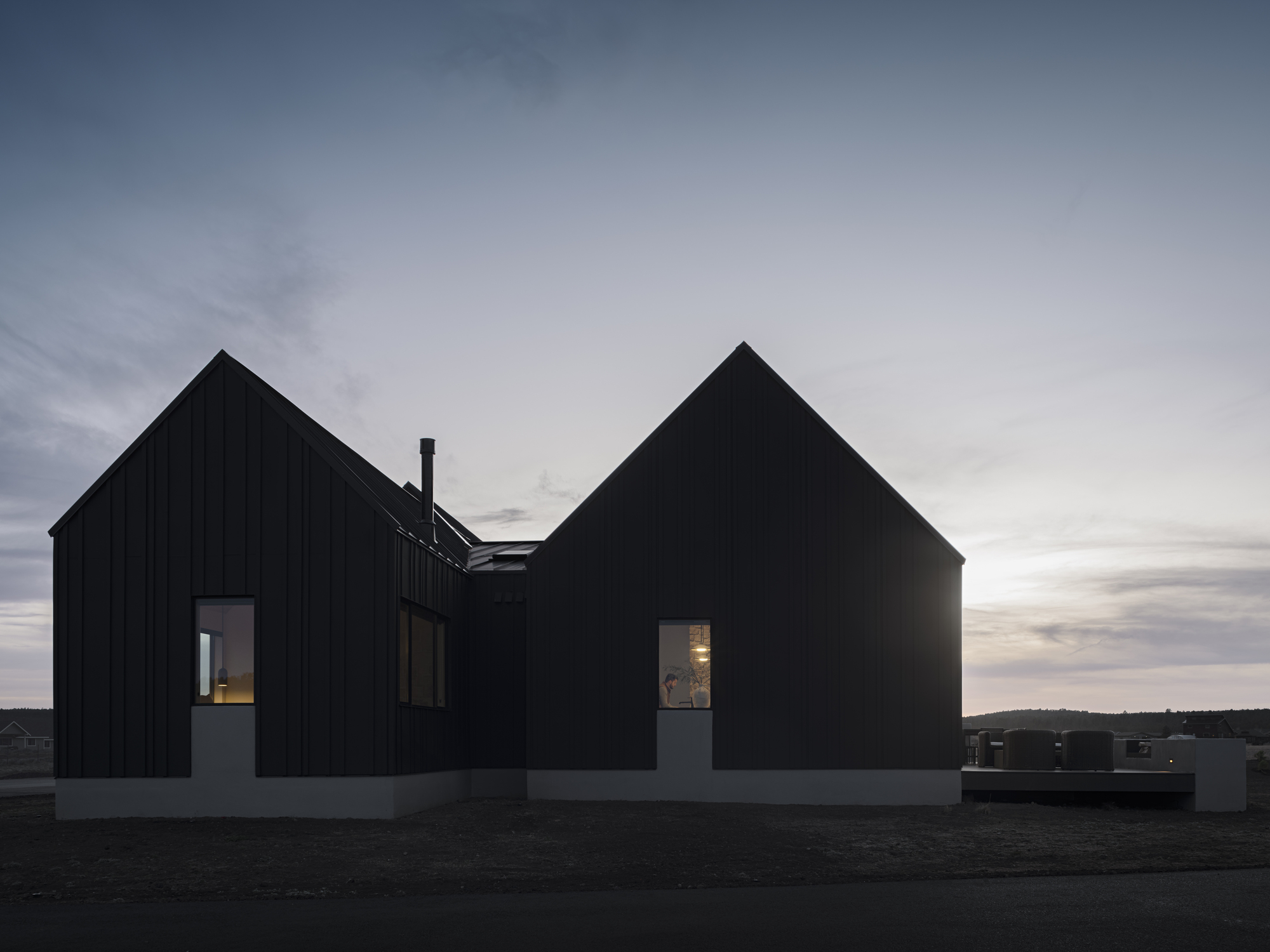

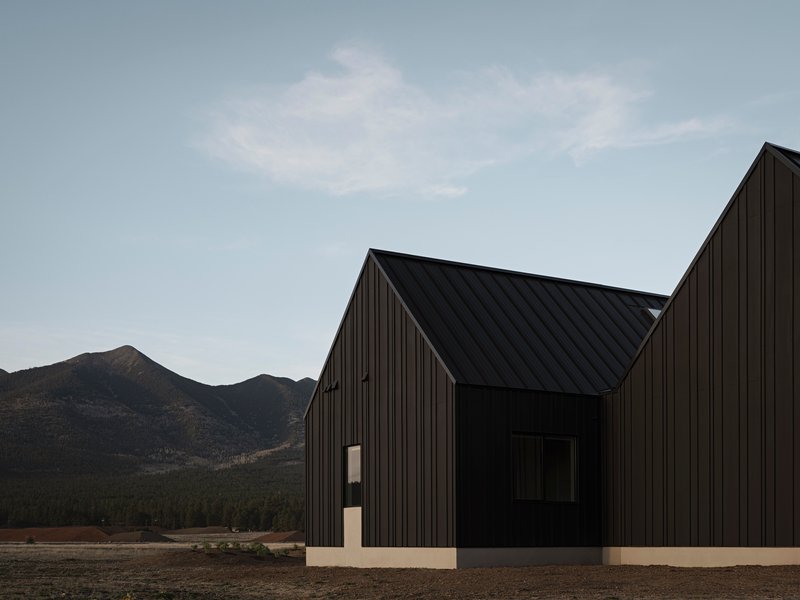

The exterior cladding is James Hardie cement board with metal roofing panels from the Master Craft Series 1500 Seam-loc line, all painted a near-black that matches the lava rock underfoot. Vertical battens break up the surface and introduce a subtle texture that reads differently depending on the light. At midday the facade is a blunt dark wall; at dusk it softens into a corrugated surface of thin shadows.

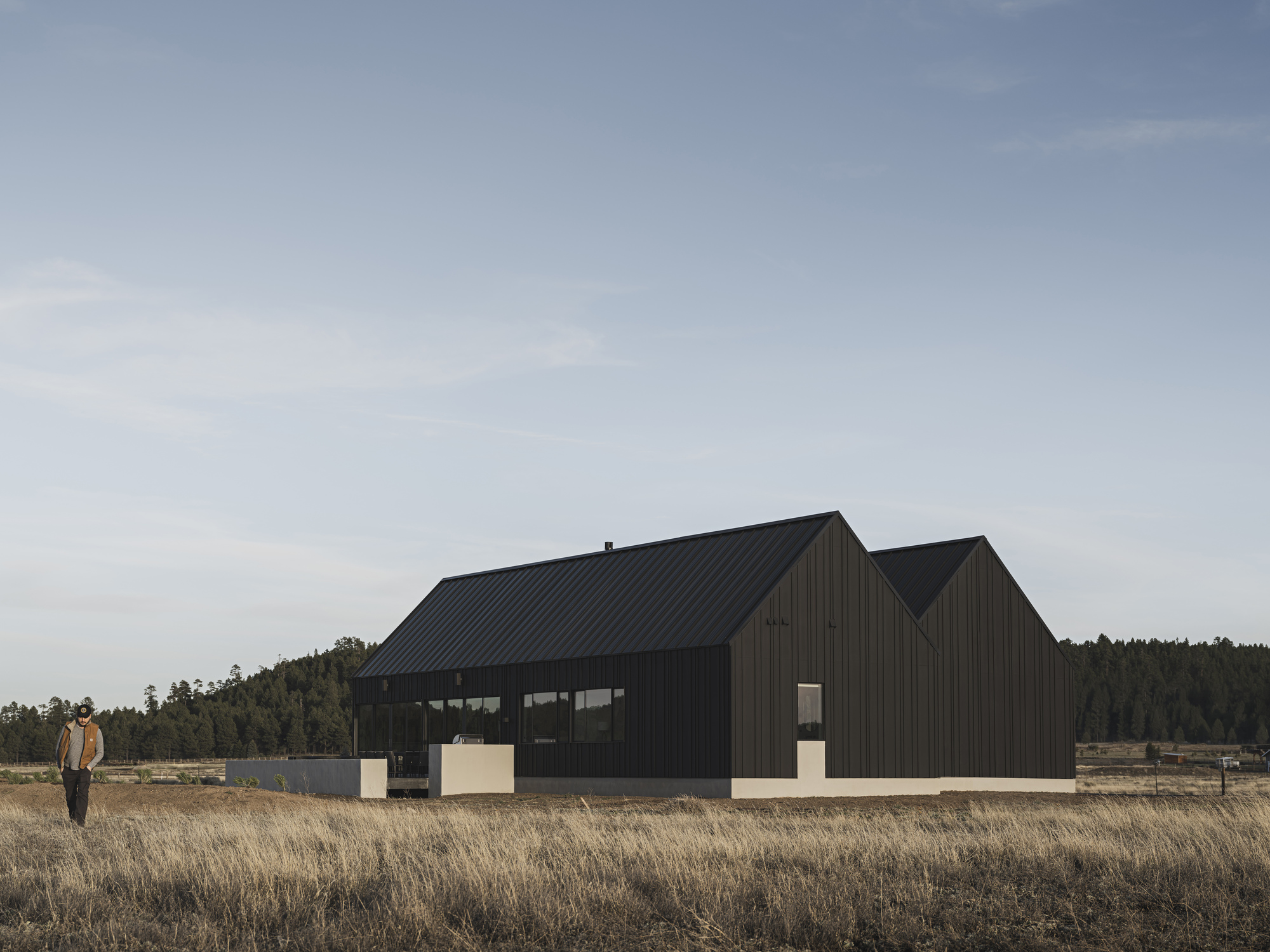

The irregular batten spacing is one of those details that sounds precious on paper but works in reality. Aspen trunks do not grow at equal intervals, and the battens quietly echo that organic rhythm. Paired with the thermally broken aluminum windows by Milgard, set as precise horizontal bands, the facade balances its naturalistic references with enough crispness to avoid pastiche.

Warmth Beneath the Vaults

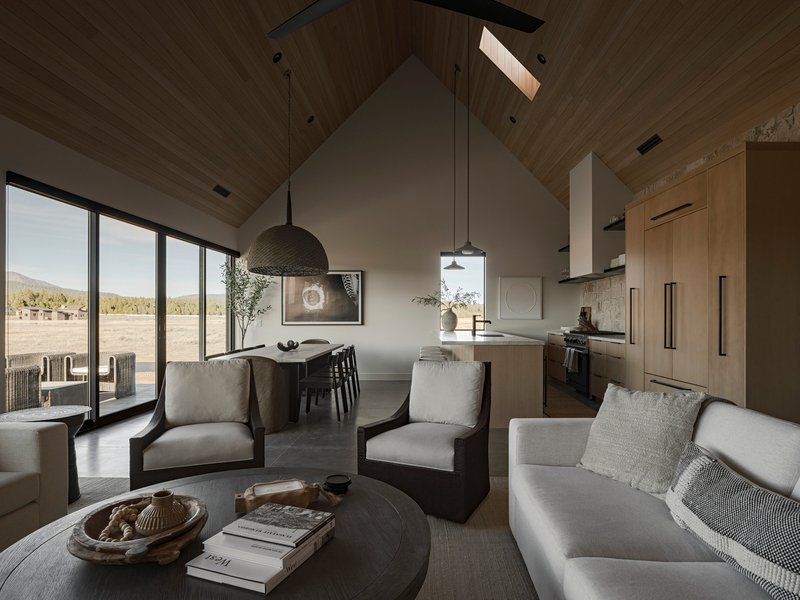

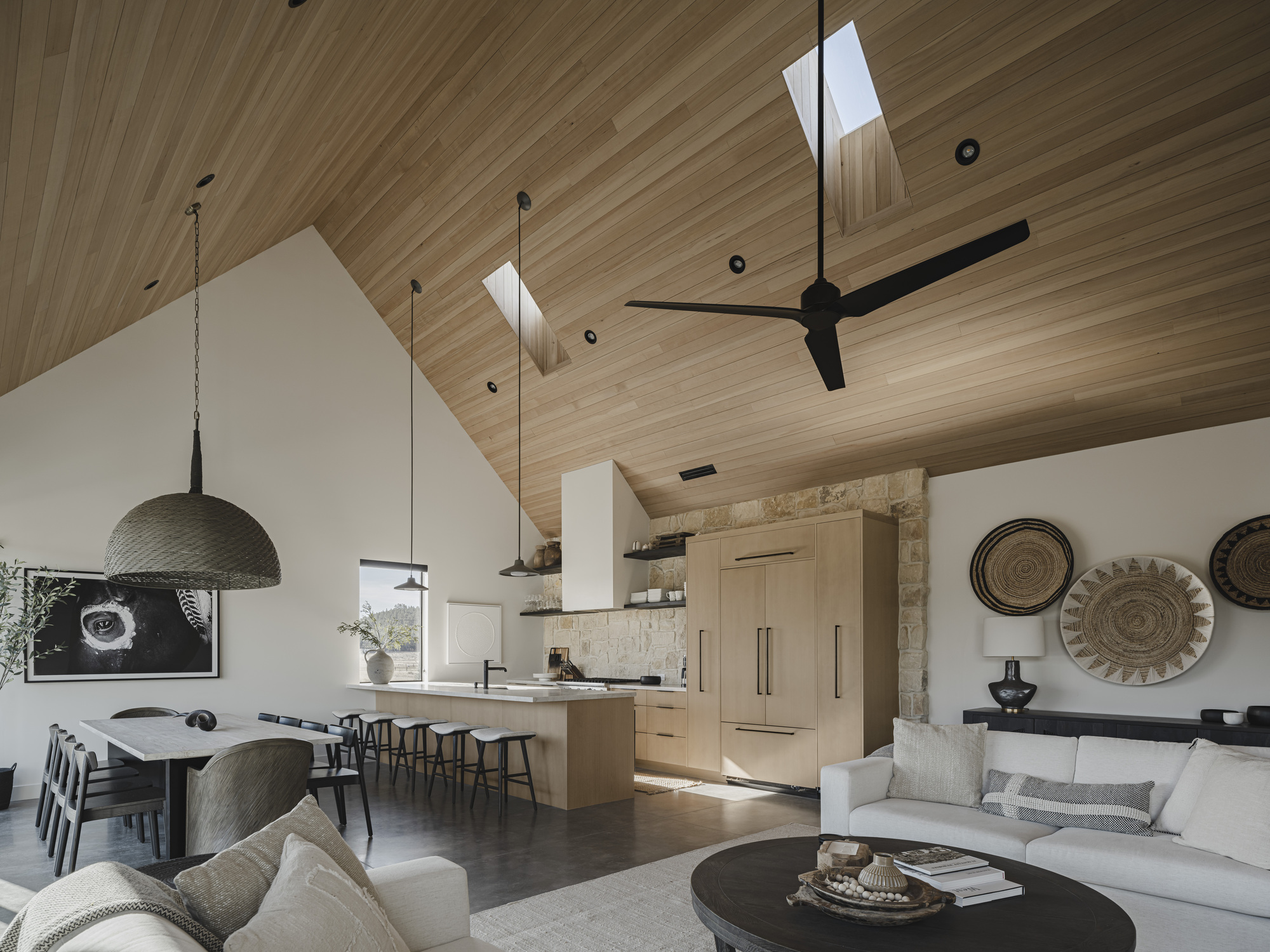

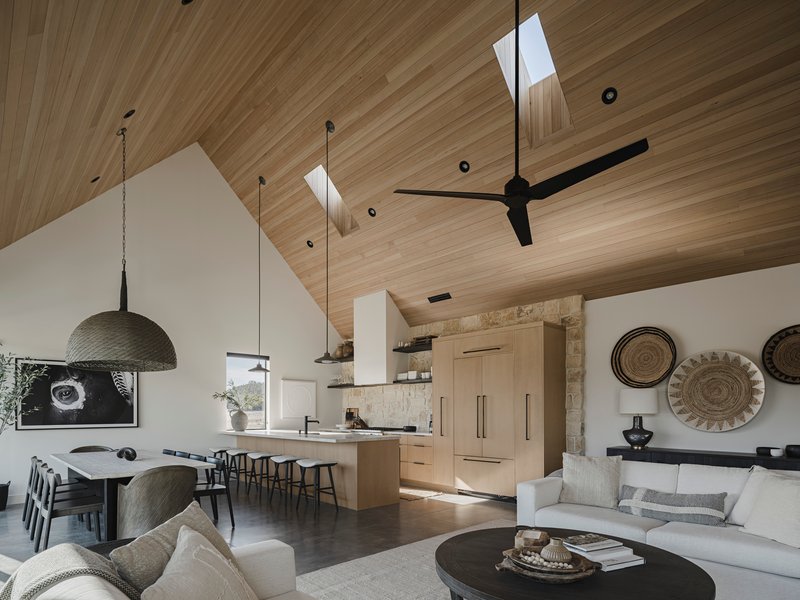

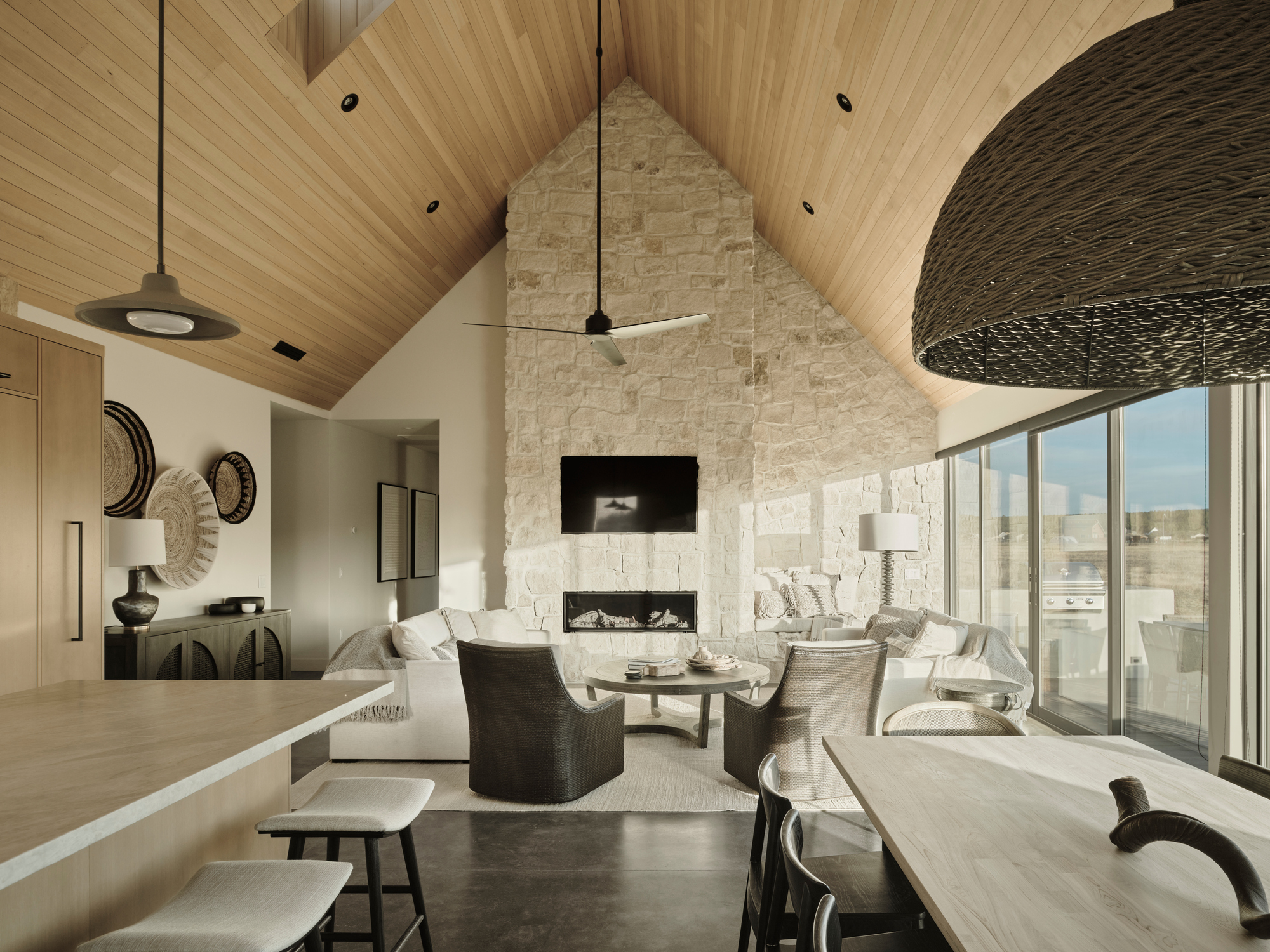

Step inside and the severity vanishes. The great room is defined by its vaulted ceiling in tongue-and-groove hemlock, which glows a soft amber under the pendant fixtures. Skylights cut into the roof plane wash the wood with natural light, preventing the warm palette from feeling heavy. The Texas Crème limestone fireplace wall anchors one end of the space with a mass that recalls the volcanic geology outside, translated into a paler, more refined register.

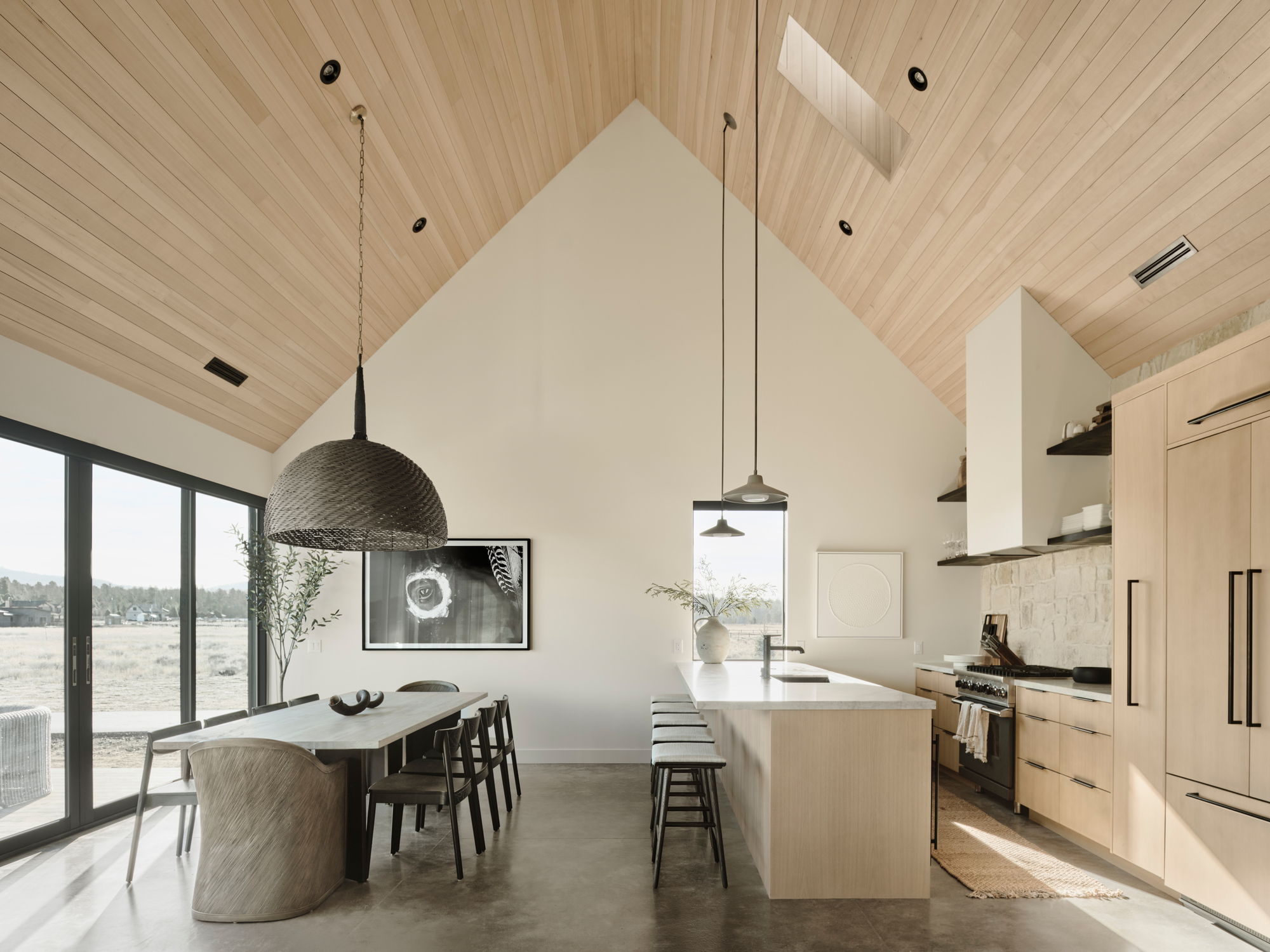

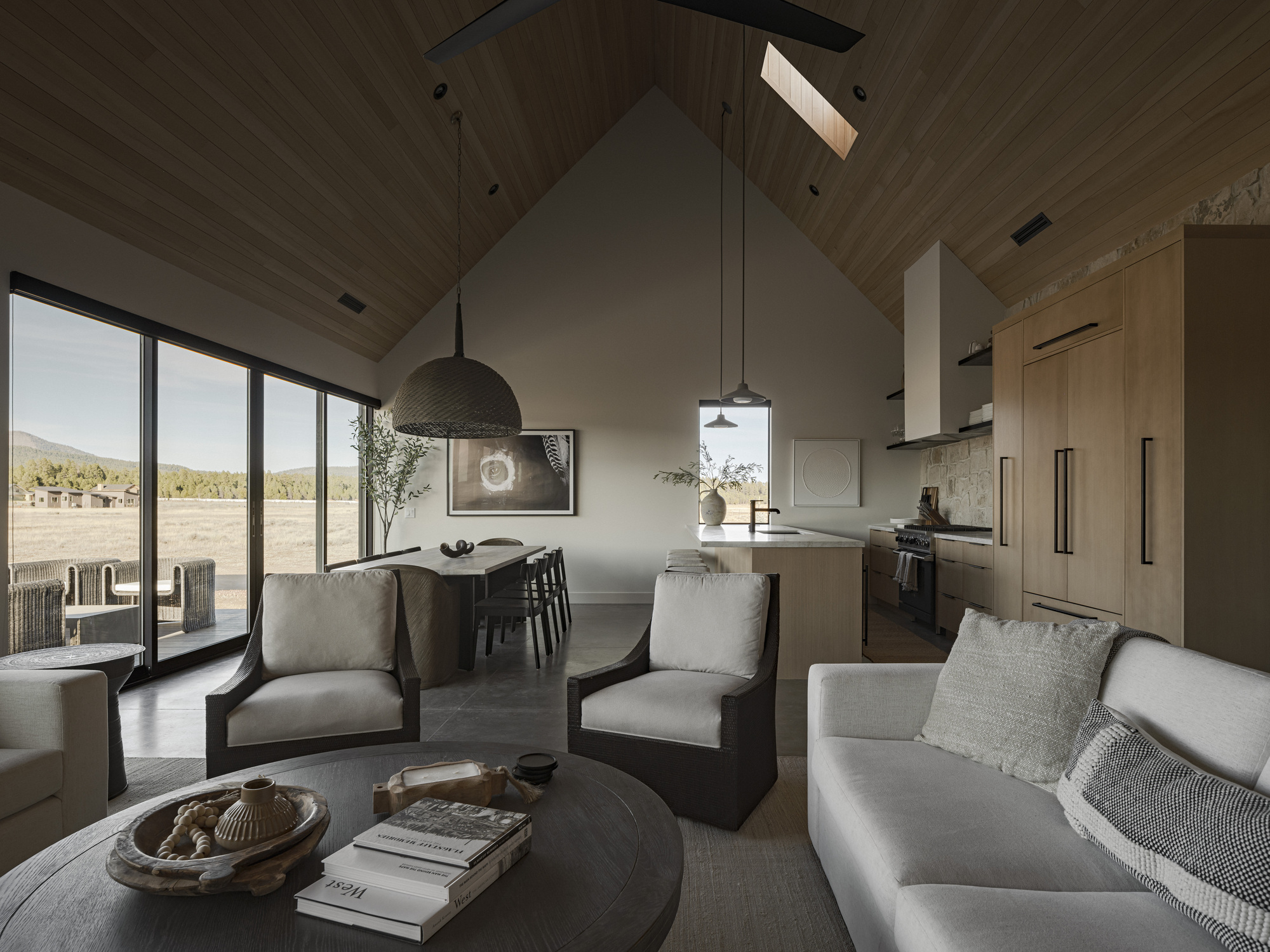

The kitchen and dining zone share this vaulted volume, with a pale wood island and concrete floors that absorb and radiate heat from the radiant system embedded below. At 7,300 feet, Flagstaff winters are genuine, and site-poured concrete acting as a thermal mass is practical engineering as much as aesthetic choice. Every surface here is doing two jobs.

Framing the San Francisco Peaks

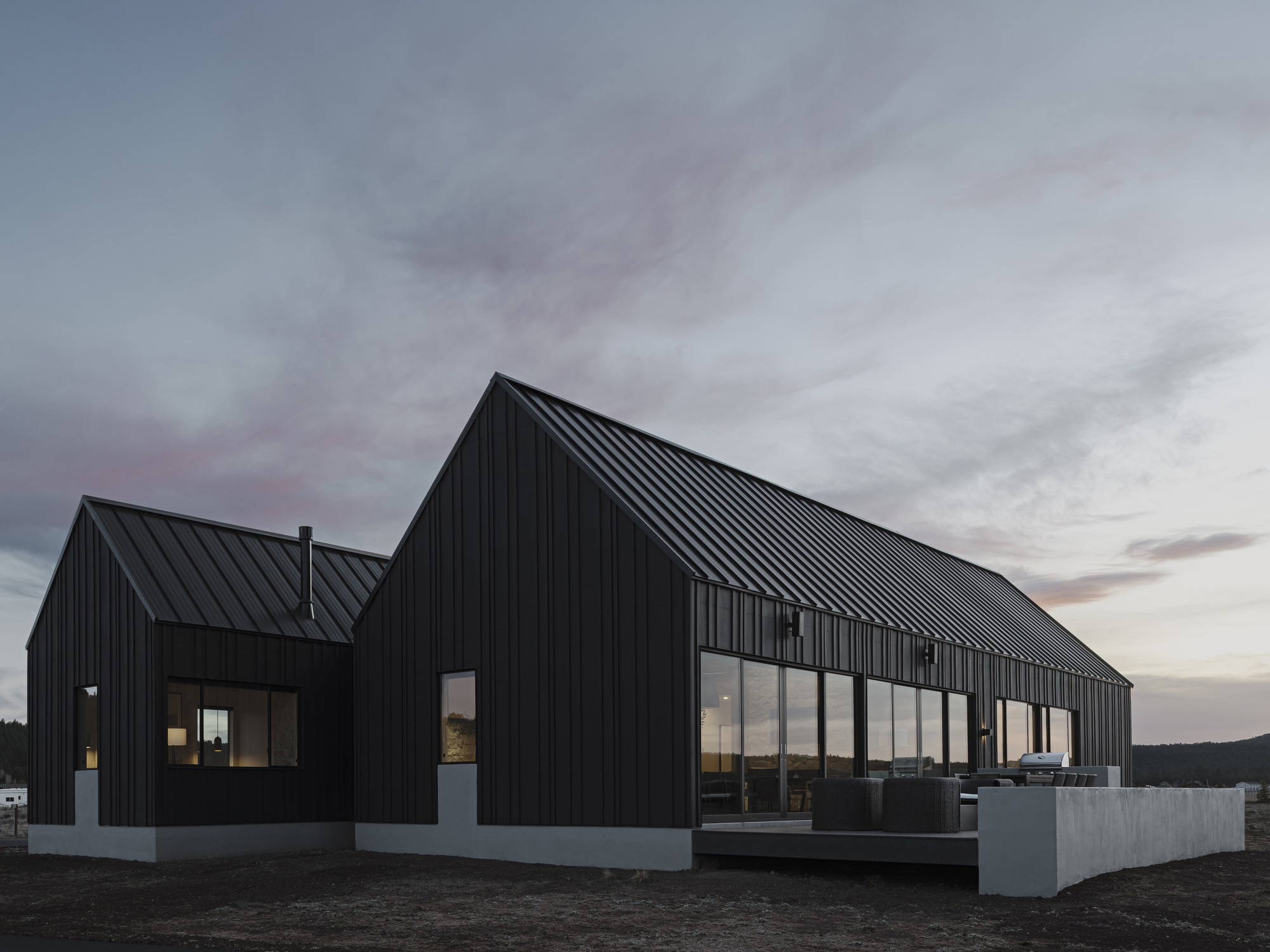

The floor plan is organized around a single obsession: views of the San Francisco Peaks. The great room and all three main bedrooms are oriented to frame the volcanic skyline, and the south-facing glazing opens the interior to the landscape with continuous ribbon windows. At dusk the glass walls become screens onto a gradient sky, and the boundary between the hemlock-lined interior and the darkening plateau dissolves.

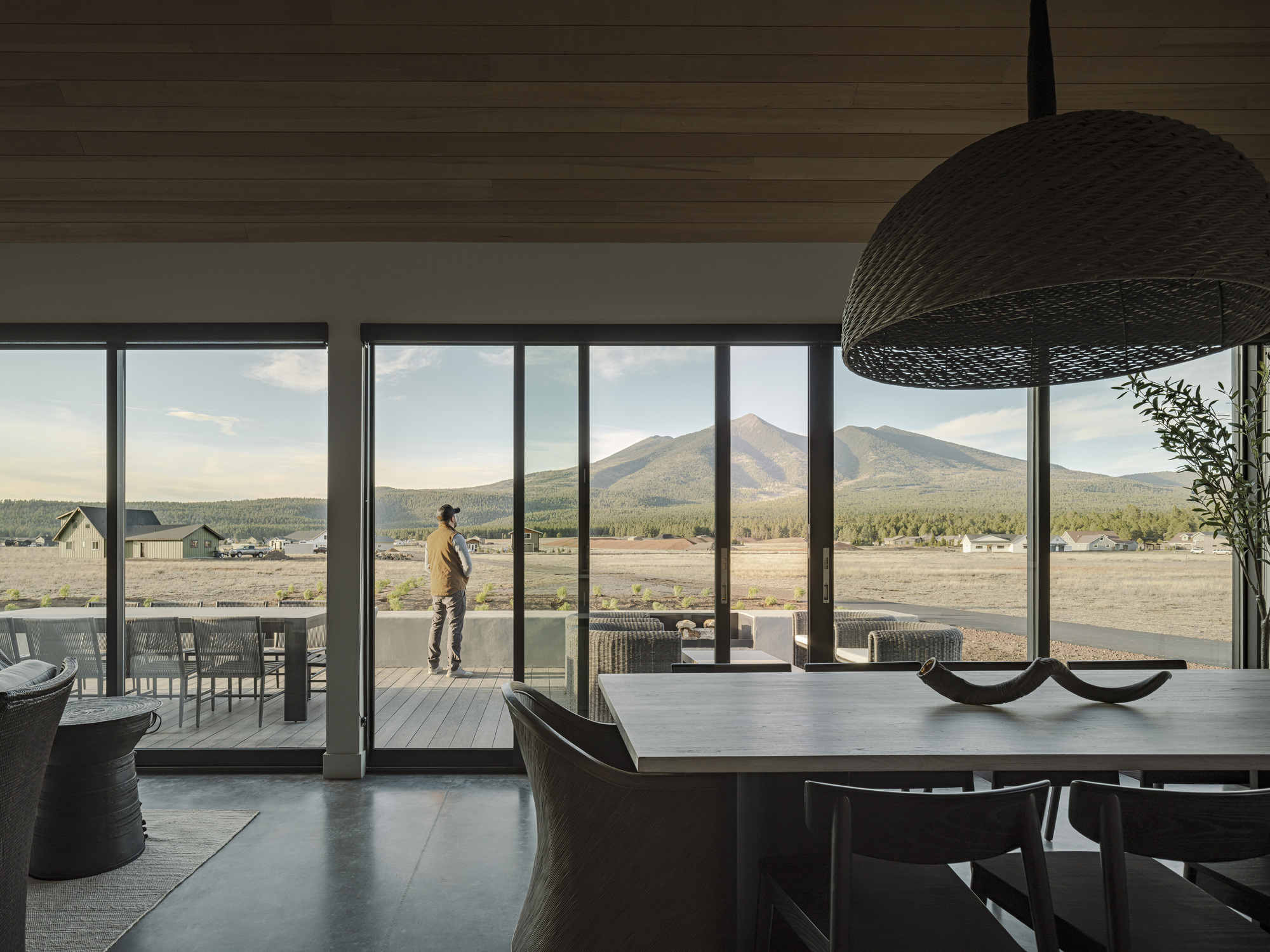

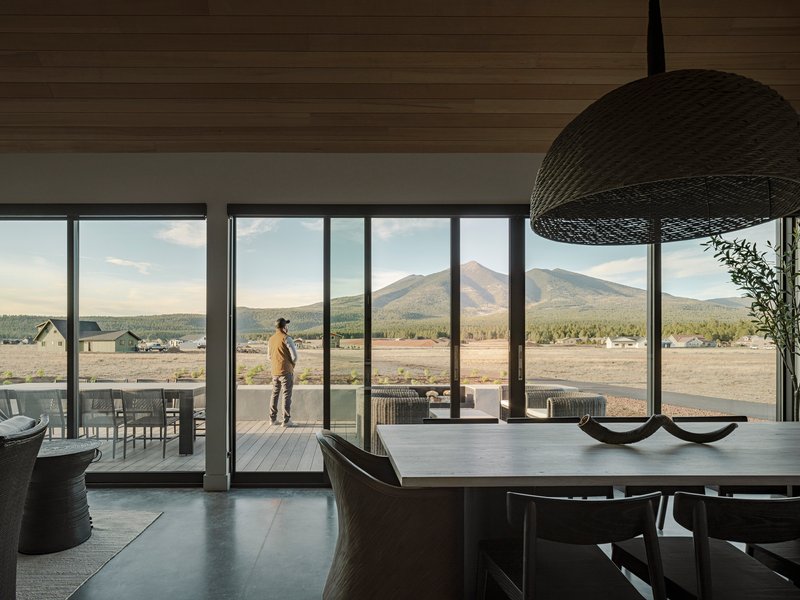

There is a real discipline in the way The Ranch Mine positions openings. Windows are either horizontal bands or carefully placed corner glazing, never casual punched openings. The dining area captures the peaks through a full-height wall of glass, establishing a foreground of terrace and a middle ground of sagebrush before the mountains take over.

Private Rooms, Public Landscape

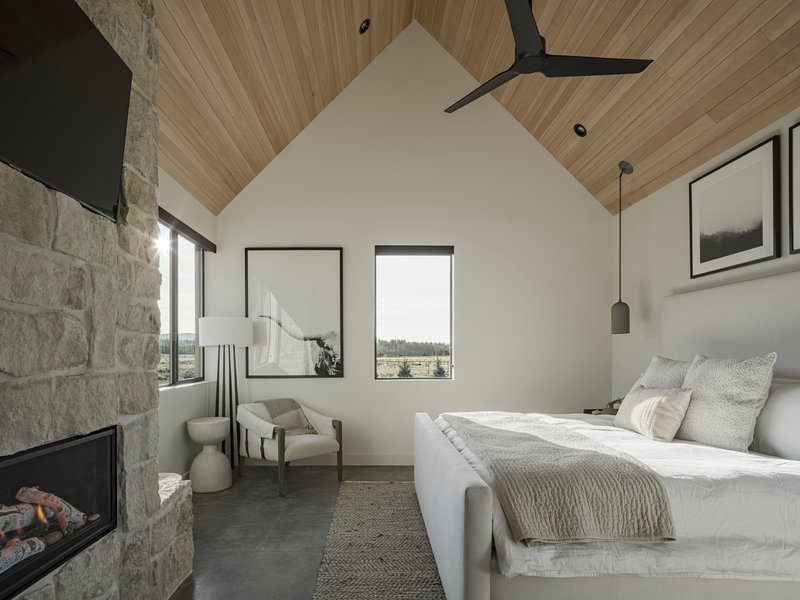

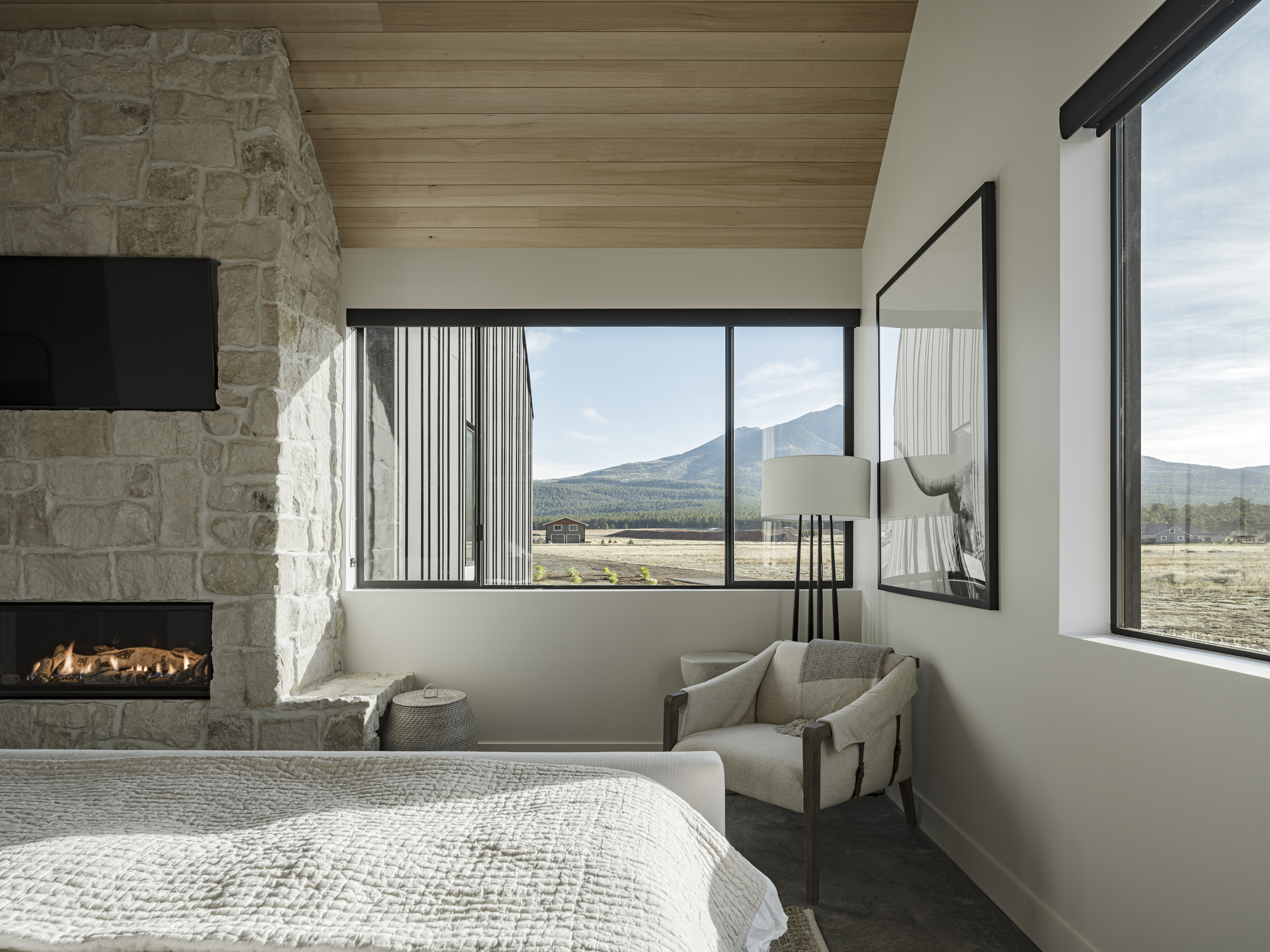

The bedrooms continue the material logic of the public spaces: vaulted hemlock ceilings, limestone fireplace surrounds, black-framed windows overlooking open terrain. The primary bedroom gets corner glazing that wraps two walls, pulling the landscape into the room without sacrificing the feeling of enclosure that the gabled form provides. It is a room that manages to feel sheltered and expansive at the same time.

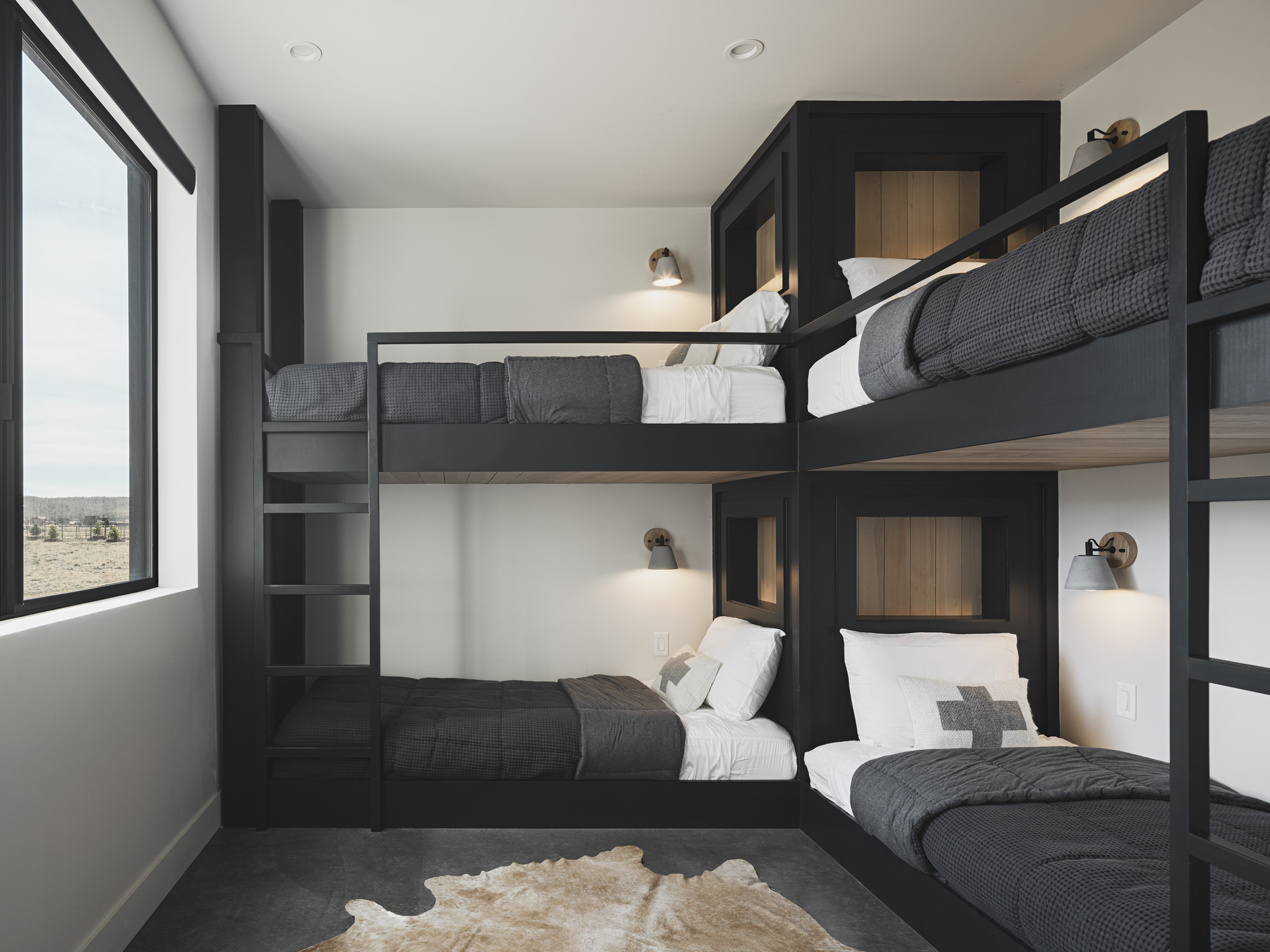

A bunk room with custom black steel frames and built-in ladders serves the project's function as the first phase of a rental development, accommodating guests without abandoning the design language. Even here, a large window connects the occupant to the terrain. The second phase will add a smaller cabin to the site, extending the cluster metaphor across the property.

Outdoor Living at Altitude

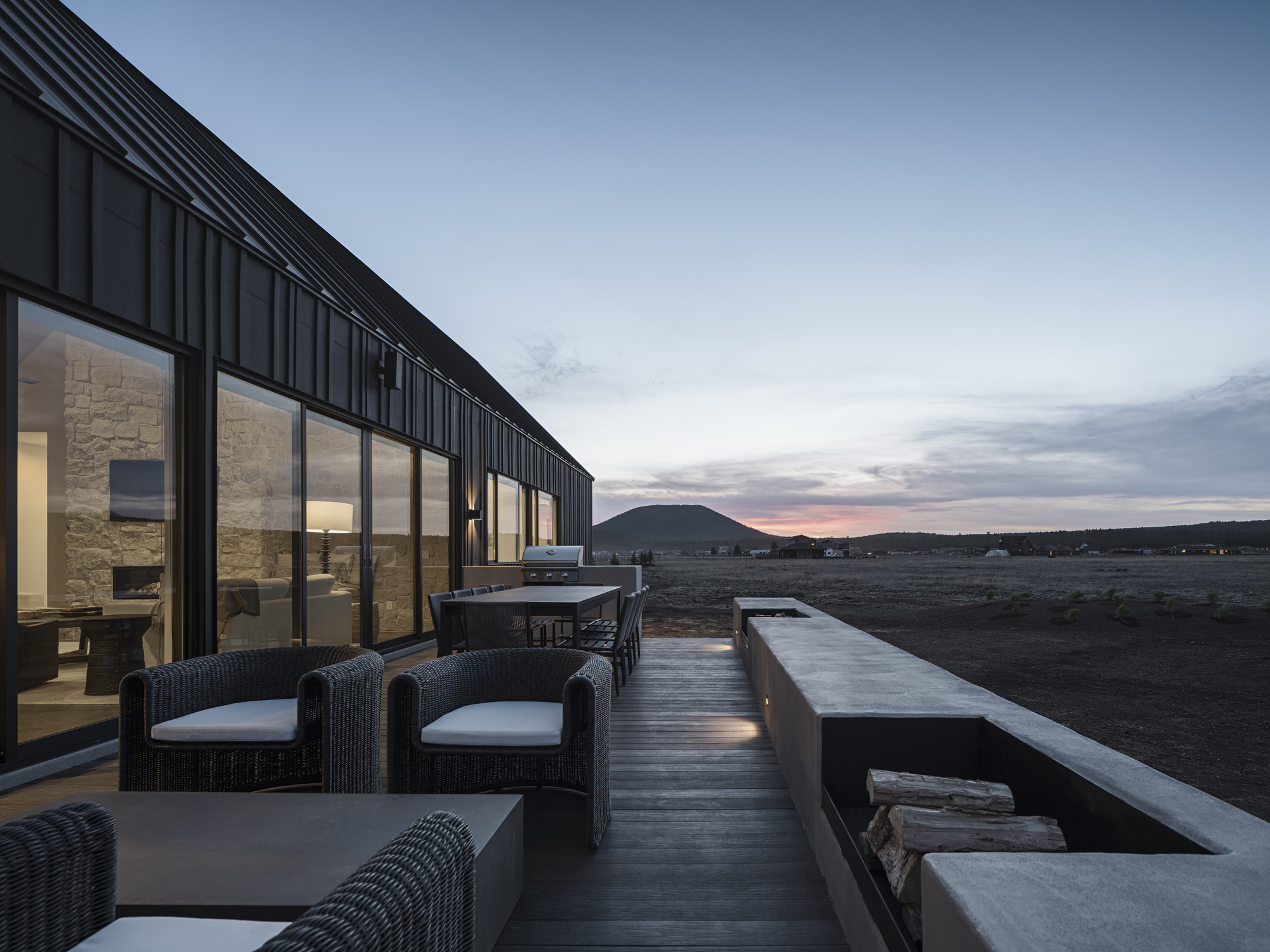

The timber deck terrace, outfitted with wicker seating and a fire pit, faces the distant hills and catches the last light of the day. At this elevation the air temperature drops fast after sunset, and the fire pit is not decorative. It is the gravitational center of the outdoor experience. The woven furniture and the rough scrubland beyond it set up a contrast between comfort and wildness that runs through the entire project.

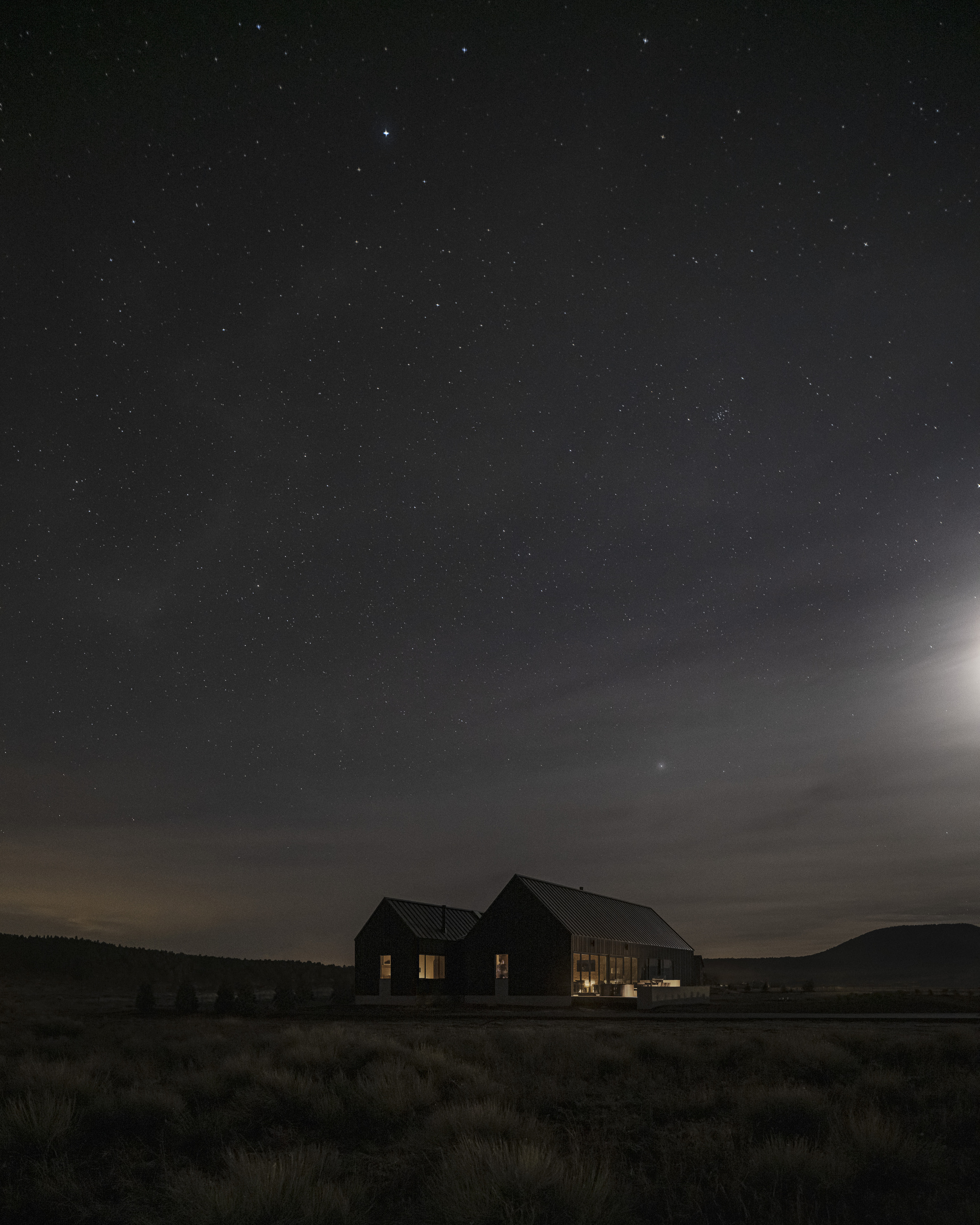

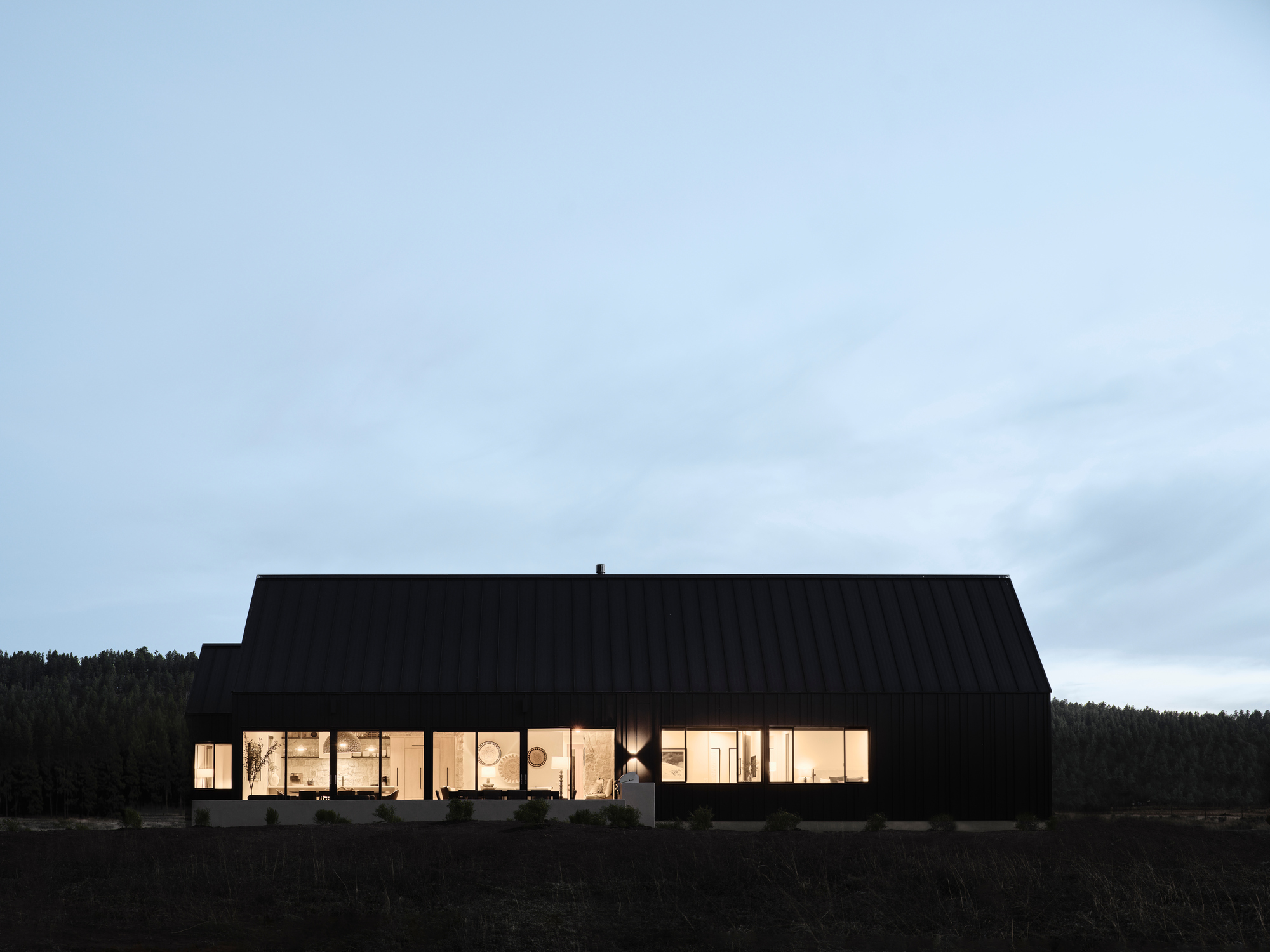

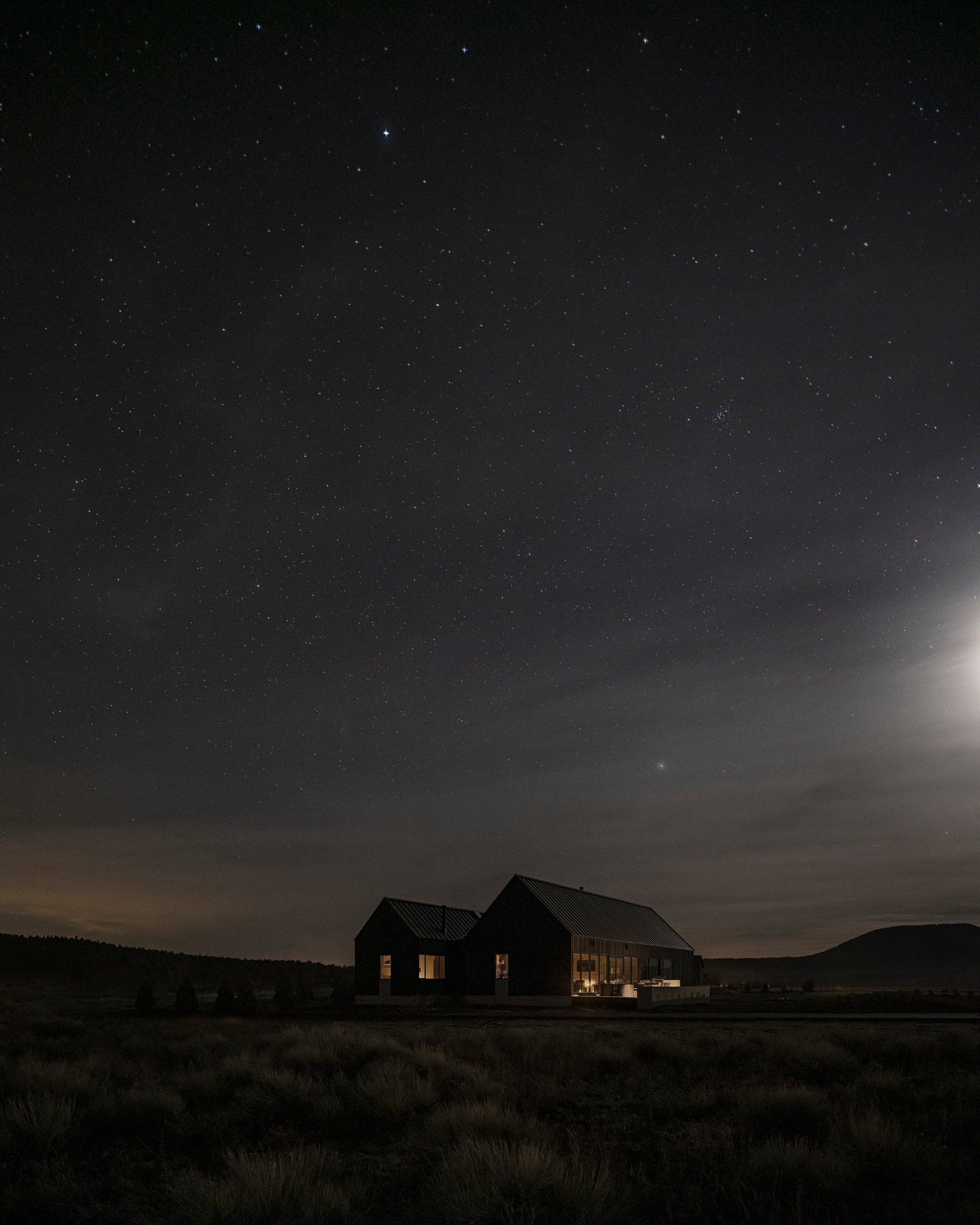

Night photographs reveal how the house transforms after dark. The illuminated hemlock interiors glow through the glass walls like lanterns set on the plateau, and the star-filled sky above confirms just how remote this site is. The dark cladding disappears entirely against the night, leaving only the lit volumes floating in the landscape.

Details and Finishes

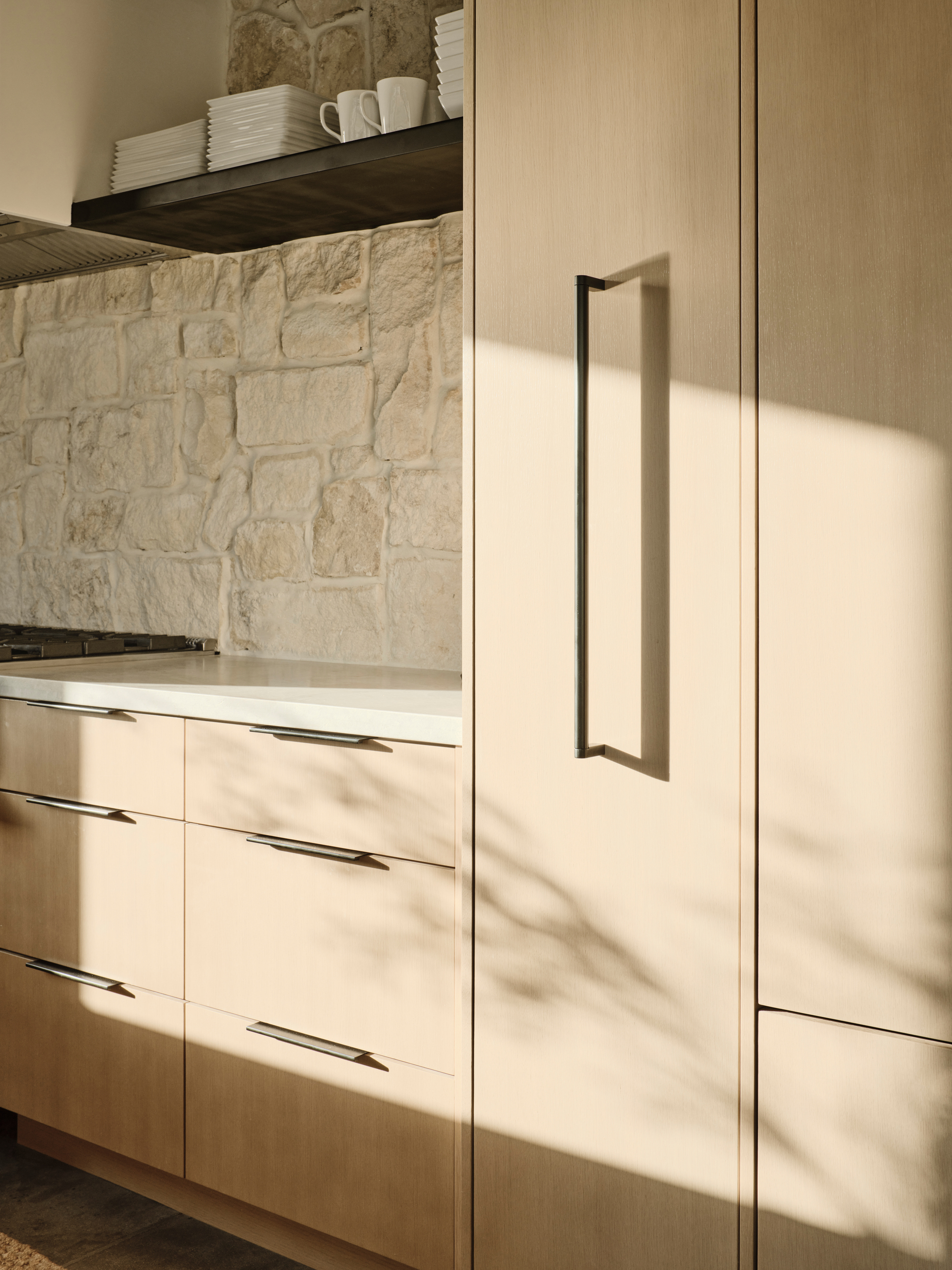

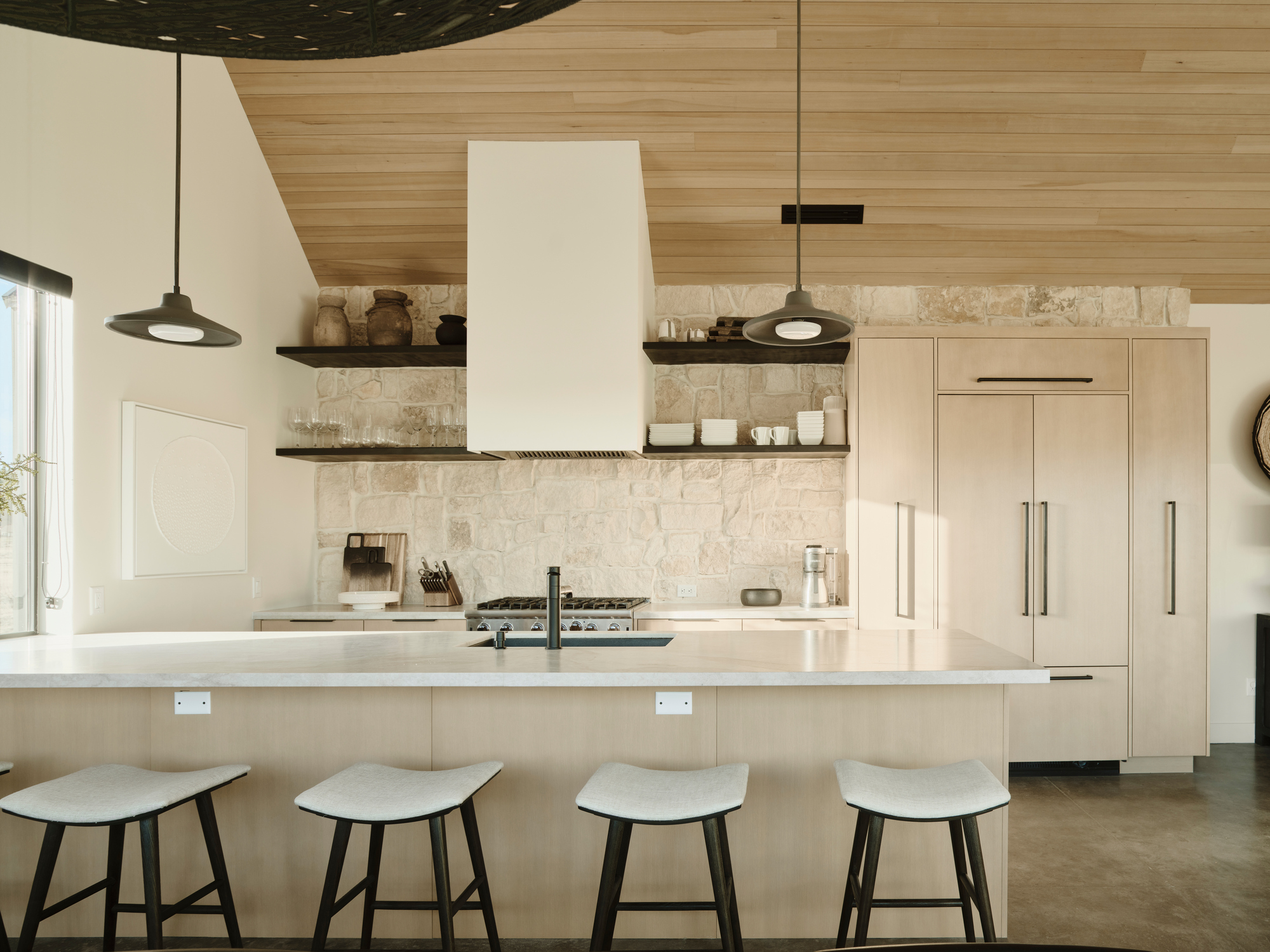

The kitchen island beneath the wood-clad ceiling and pendant lights is where the project's material restraint shows most clearly: light wood, concrete, hemlock, and metal hardware. No tile backsplash competing for attention, no open shelving performing domesticity. The cabinetry, finished with vertical bar pulls, maintains the same clean linearity that governs the exterior battens.

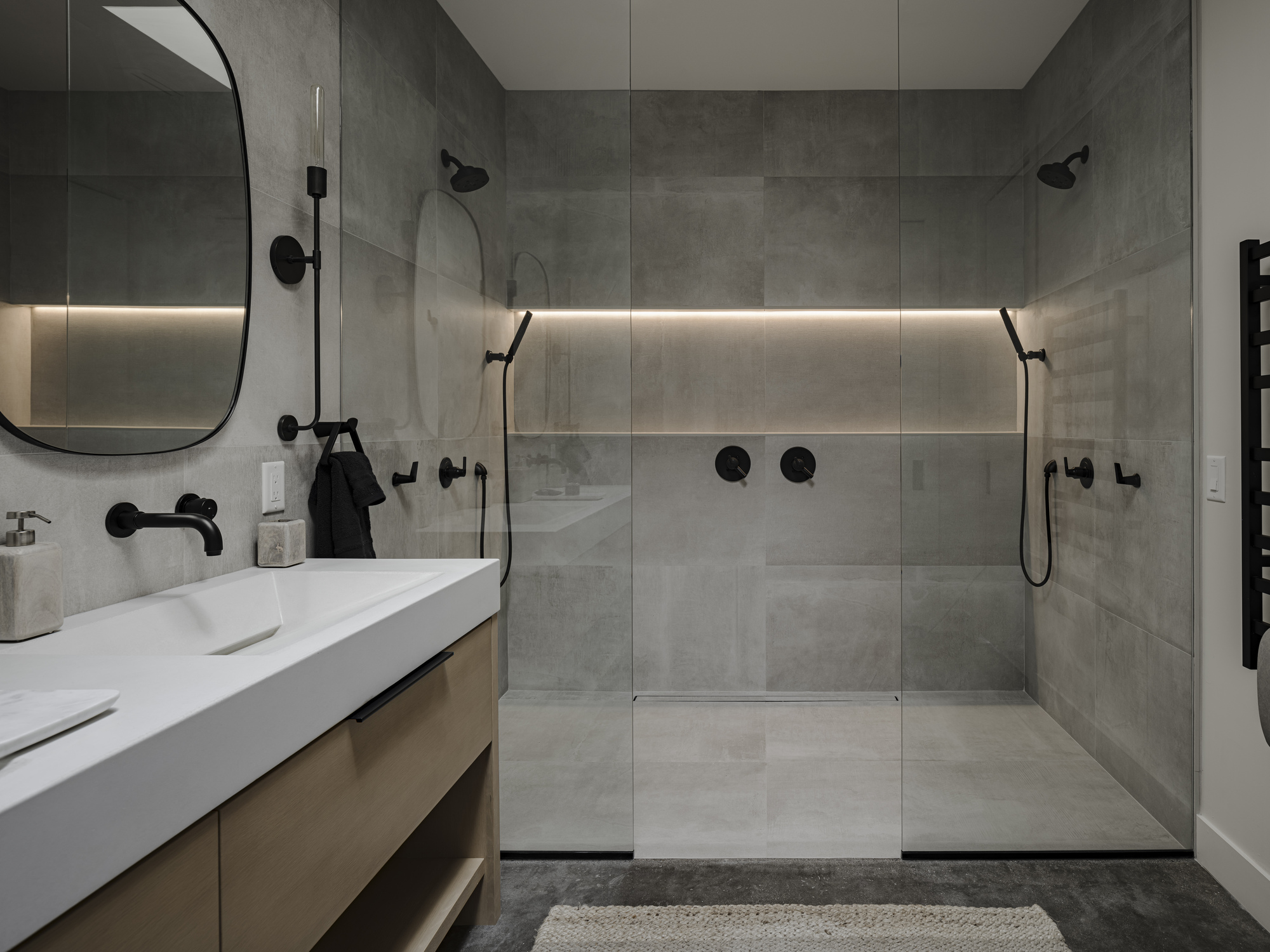

Even the bathroom keeps to the script. A double shower enclosure with grey tile and a horizontal strip of light is minimal without feeling clinical. Simpson doors in wood throughout the house provide the tactile warmth that aluminum and concrete cannot. Every material earns its place.

Plans and Drawings

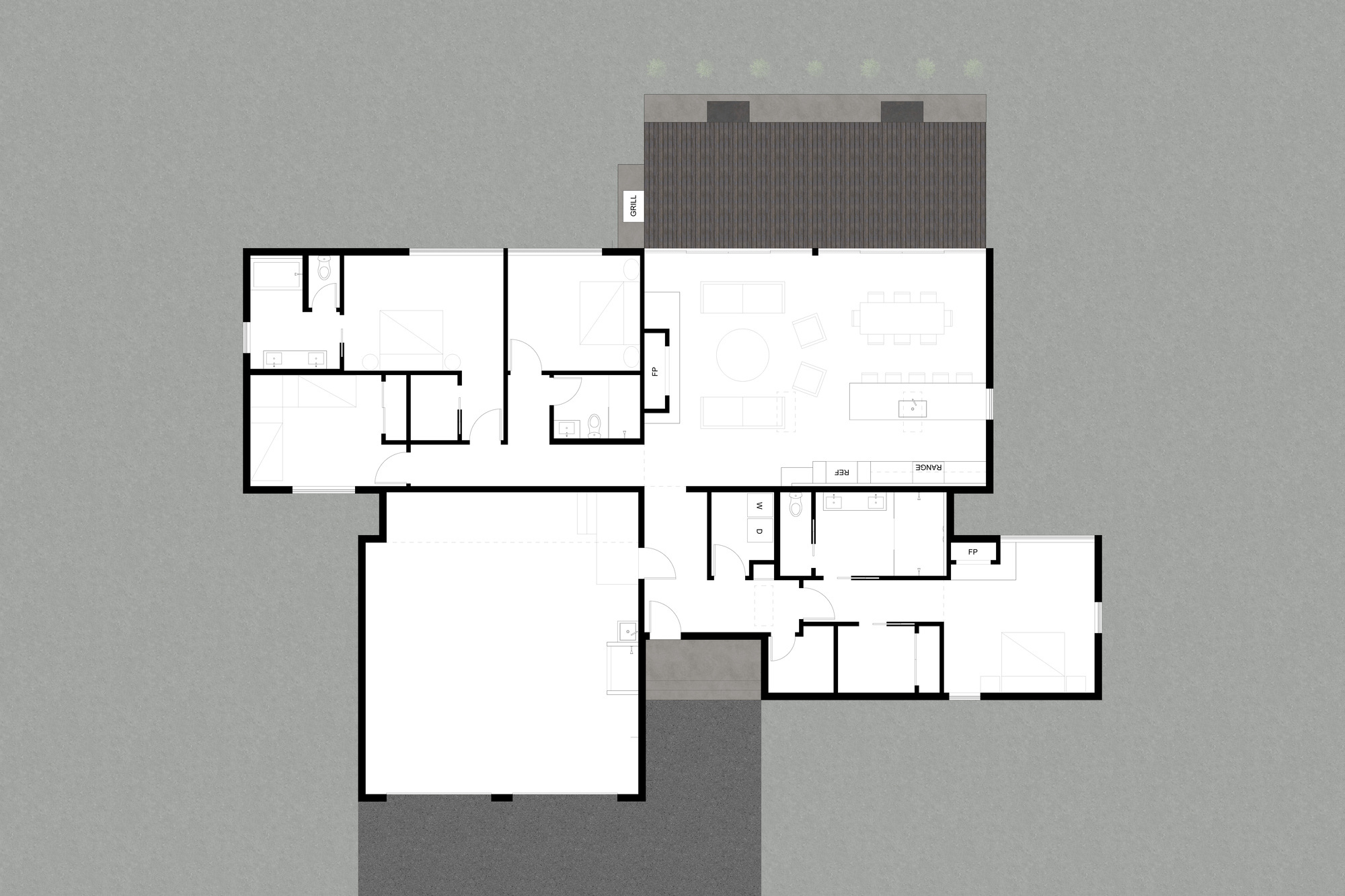

The floor plan reveals how the three gabled wings splay slightly apart, creating outdoor pockets between them and allowing each major room its own view corridor toward the peaks. The garage occupies one wing while living spaces fill the other two, establishing a clear public/private split without requiring a corridor-heavy plan. The offset geometry reads as informal, almost accidental, but the sight lines confirm that every angle was calculated.

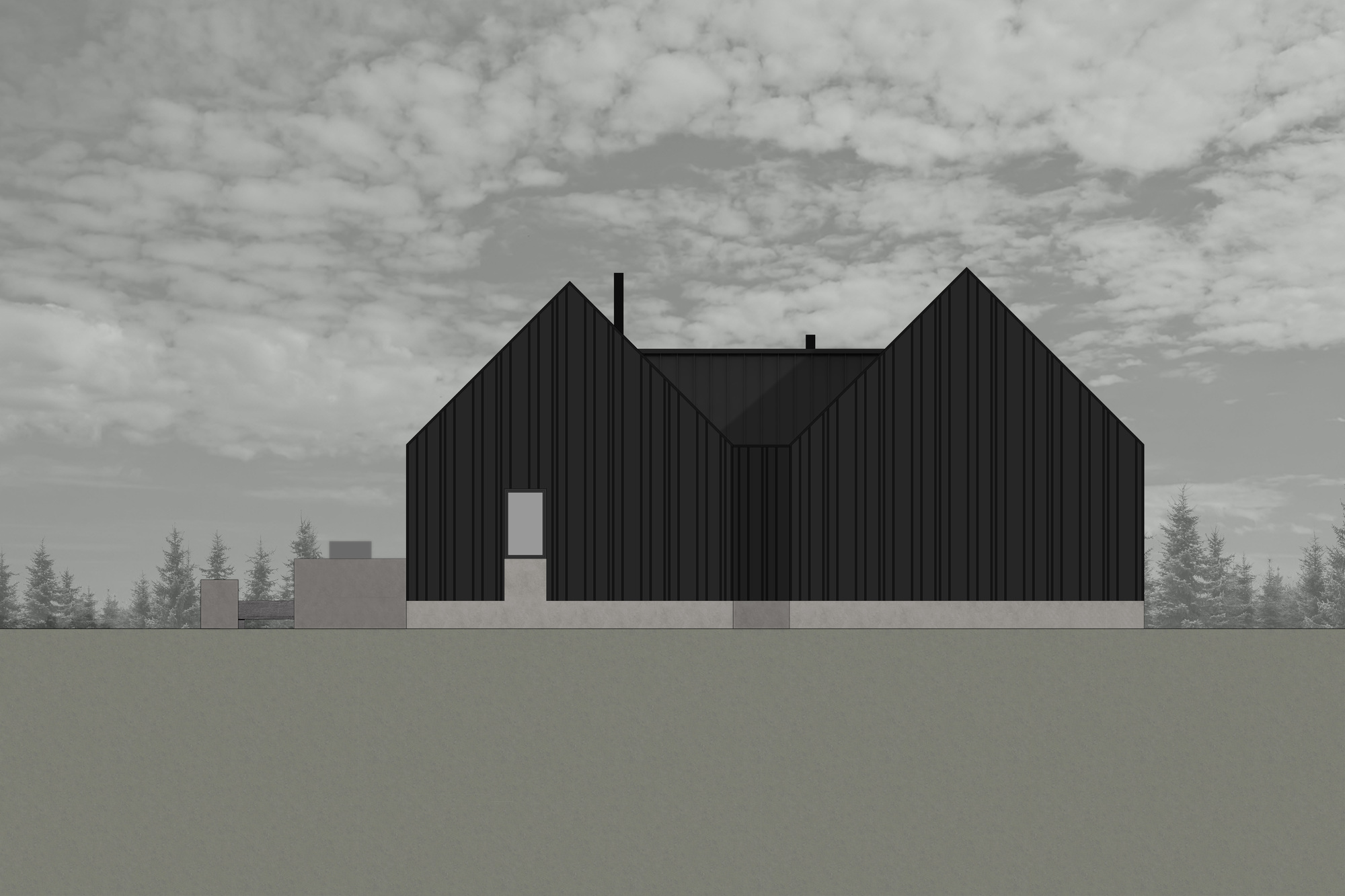

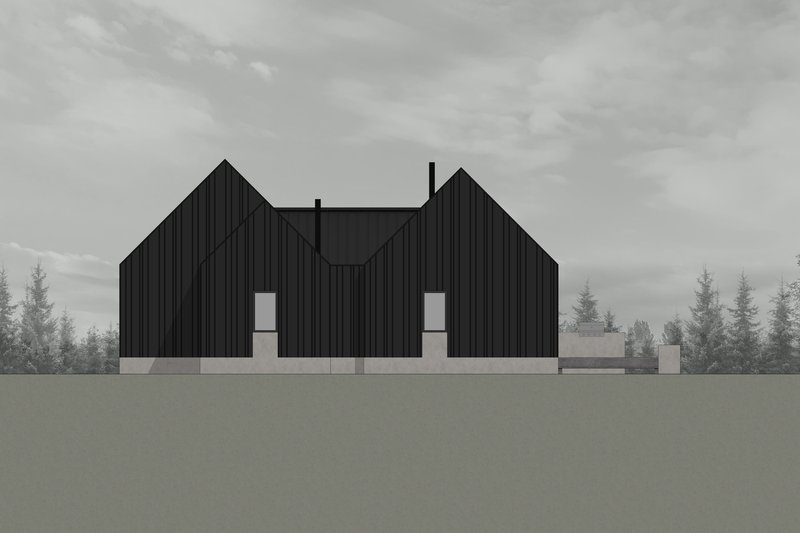

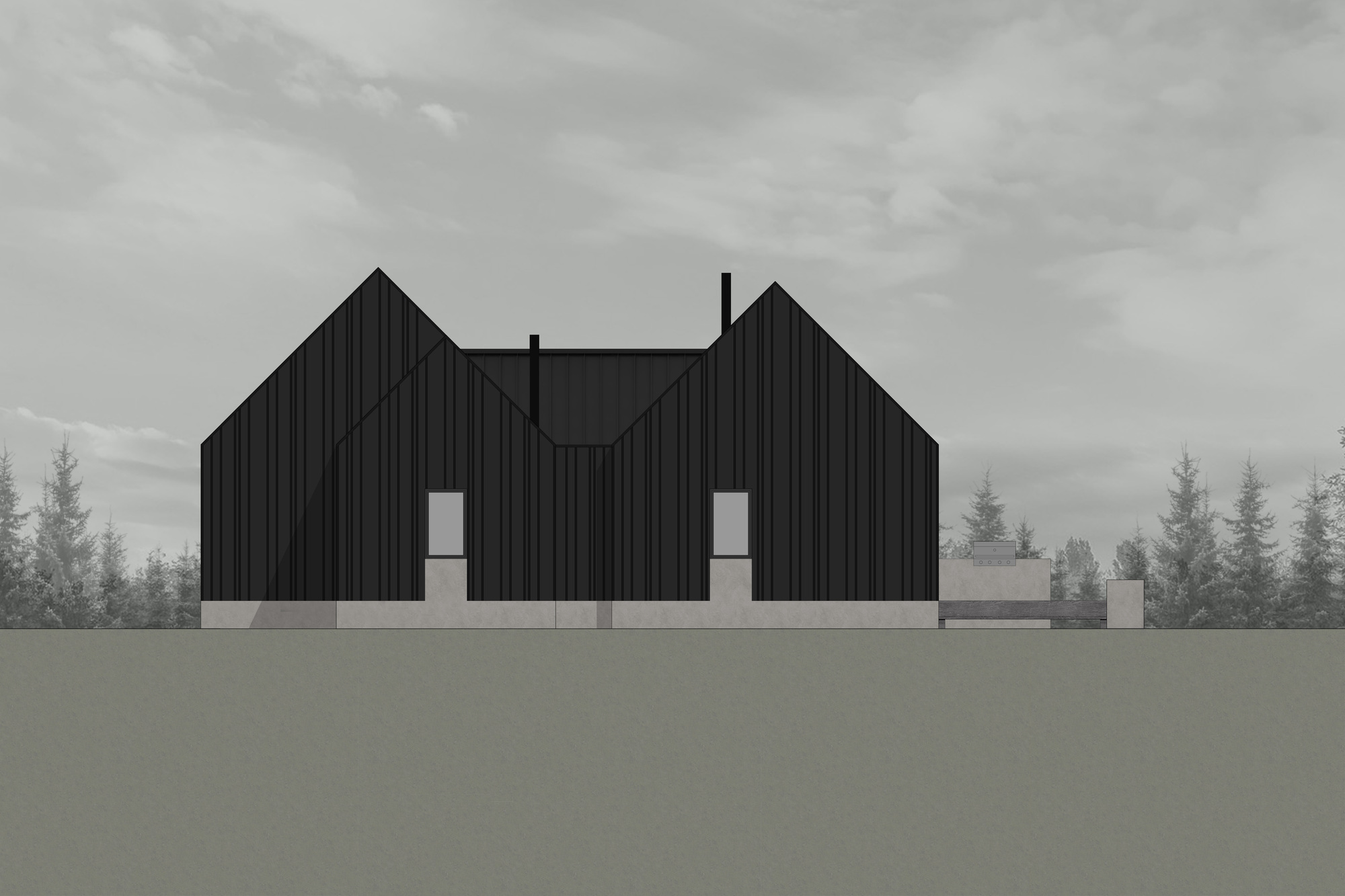

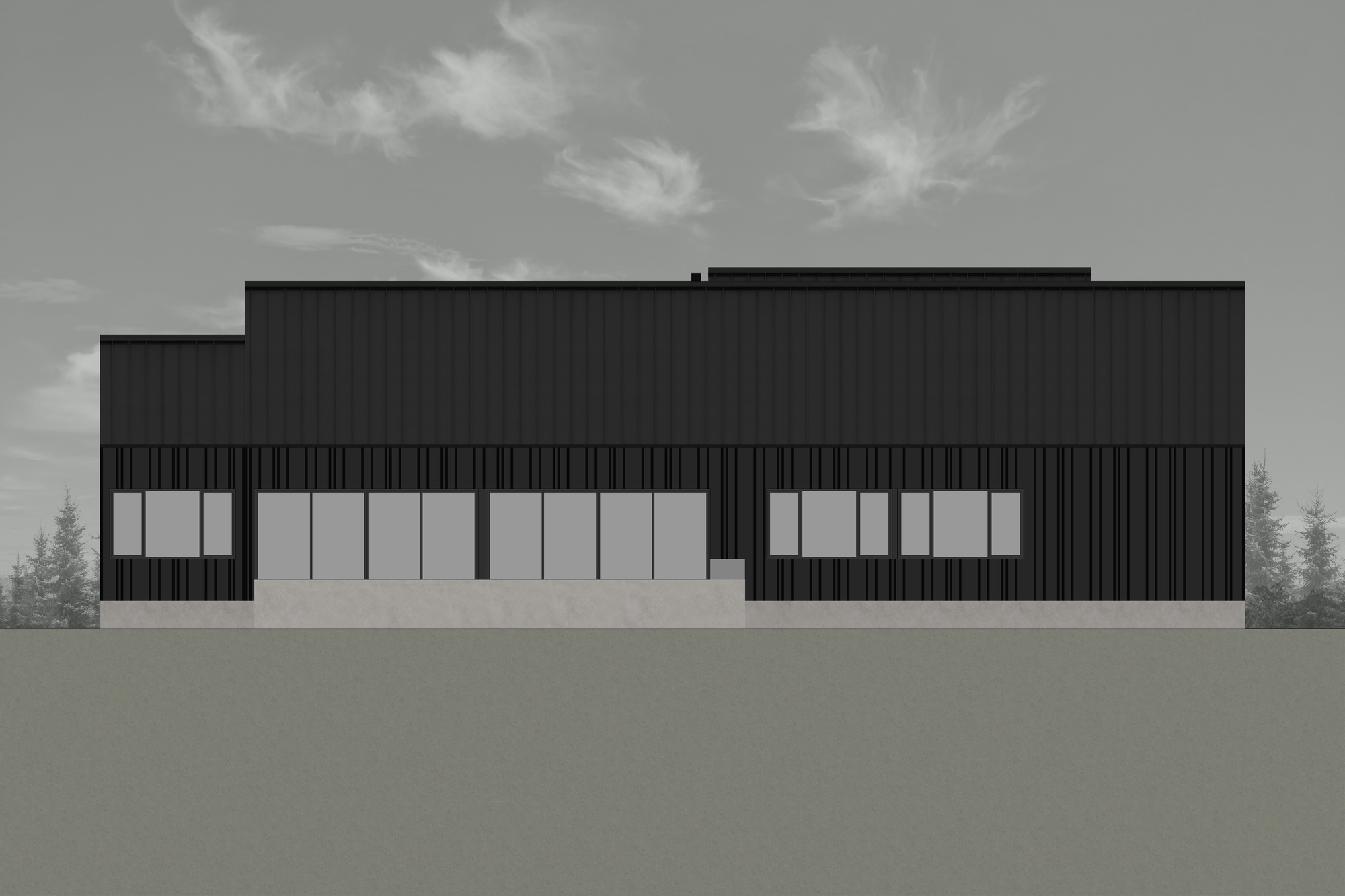

The elevations show the consistent dark cladding wrapping each gable from ground to ridge, interrupted only by the precise window bands. The concrete base is visible as a continuous horizontal line, stitching the composition together. The drawings make legible what the photographs suggest: that the massing is doing most of the architectural work, and the details are in service of that primary gesture.

Why This Project Matters

Noir Peaks demonstrates that contextual architecture does not have to mean regional nostalgia. The Ranch Mine took its cues from geology and botany rather than from local building traditions, and the result is a house that looks indigenous to its site without referencing any existing typology. The three dark peaks are an abstraction of the volcanic field, not a reproduction of it, and that distinction keeps the project on the right side of the line between responsiveness and mimicry.

The project also shows how to deliver genuine comfort at a harsh altitude without burying the site's character. Radiant floors, hemlock vaults, and limestone hearths make the interior warm and inhabitable, but the windows never let you forget where you are: on a plateau shaped by eruptions, under a sky full of stars, at the edge of a volcanic field that is dormant but not dead. That awareness of place, maintained through every material and spatial decision, is what elevates Noir Peaks from a well-designed cabin to a piece of landscape architecture.

Noir Peaks by The Ranch Mine, Flagstaff, Arizona, United States. 2,405 square feet. Completed 2022. Photography by Roehner + Ryan.
