Vastushilpa Sangath Weaves a 1,850-Student School Through 1,400 Trees in Chennai

There is a quiet radicalism in refusing to cut a single tree. When Vastushilpa Sangath, led by principal architect Rajeev Kathpalia, took on the Shiv Nadar School in Chennai, the design did not begin with a building footprint. It began with a survey of 1,400 mature trees, each catalogued for age, medicinal value, and ecological role. The looping path that threads between those trees became the organizational diagram for everything that followed: classrooms, courtyards, verandahs, and a defunct lake brought back to life as both learning resource and water reservoir.

What makes the project genuinely interesting is its refusal to treat sustainability as a layer applied after the plan is locked. The 40,453-square-meter campus, spread across 14 acres and built to accommodate 1,850 students, is structured so that every passive strategy, from hybrid ventilation to rainwater independence, is a direct consequence of its spatial logic. The metaphor the architects use is the Chettinad thali: a banana leaf carrying a composition of varied dishes, each distinct yet part of one meal. Fragmented into clusters of small modular buildings beneath a continuous undulating roof, the school reads less like an institution and more like a village that grew up around its landscape.

A Roof Modeled on the Banana Leaf

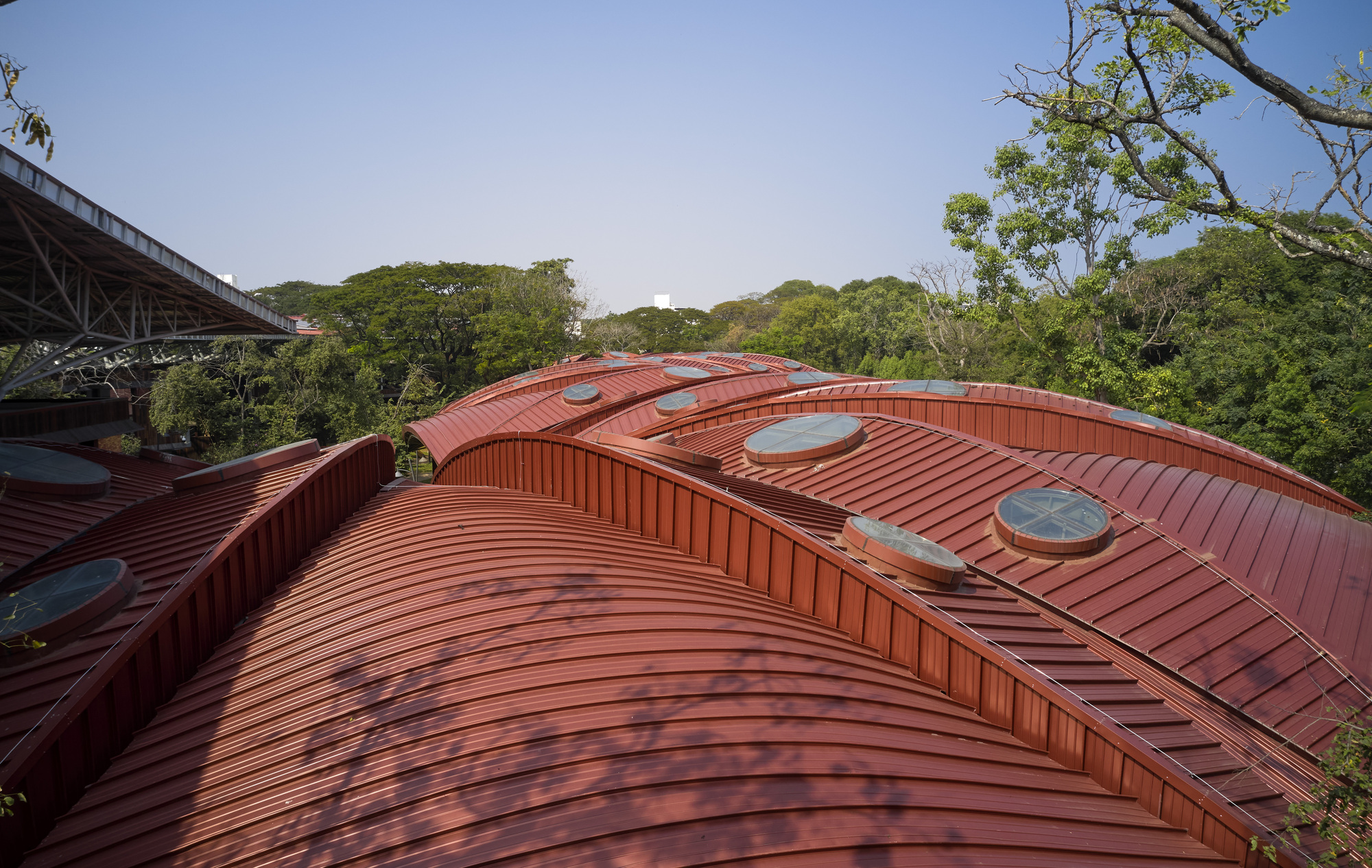

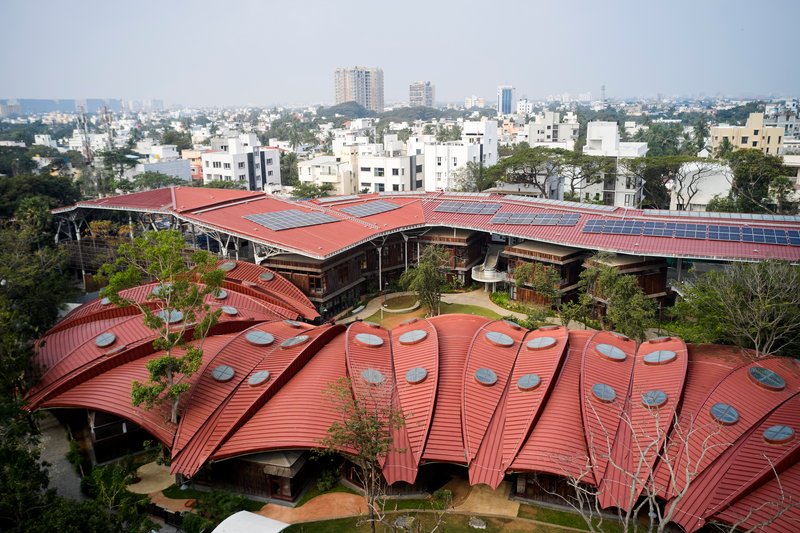

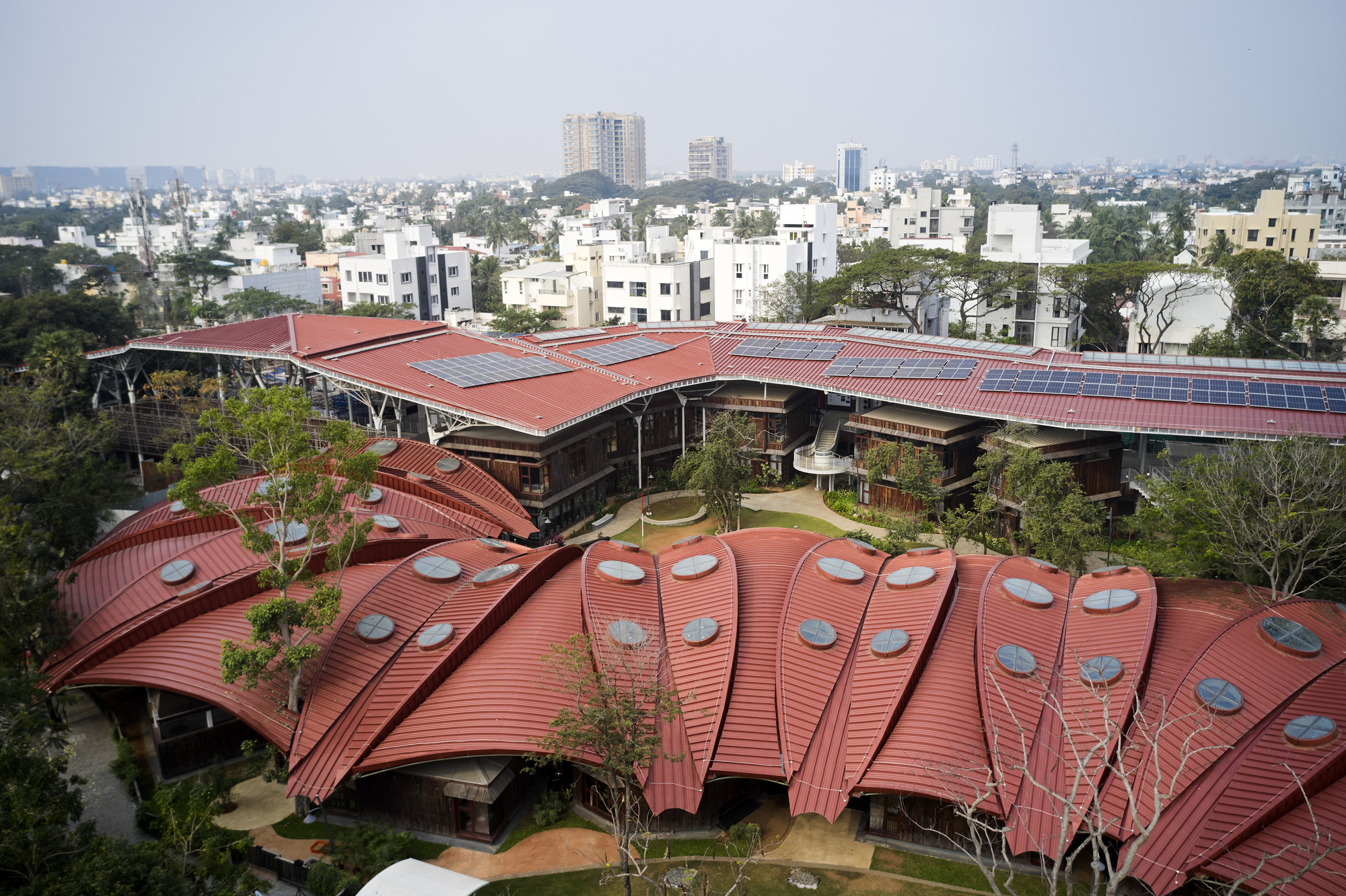

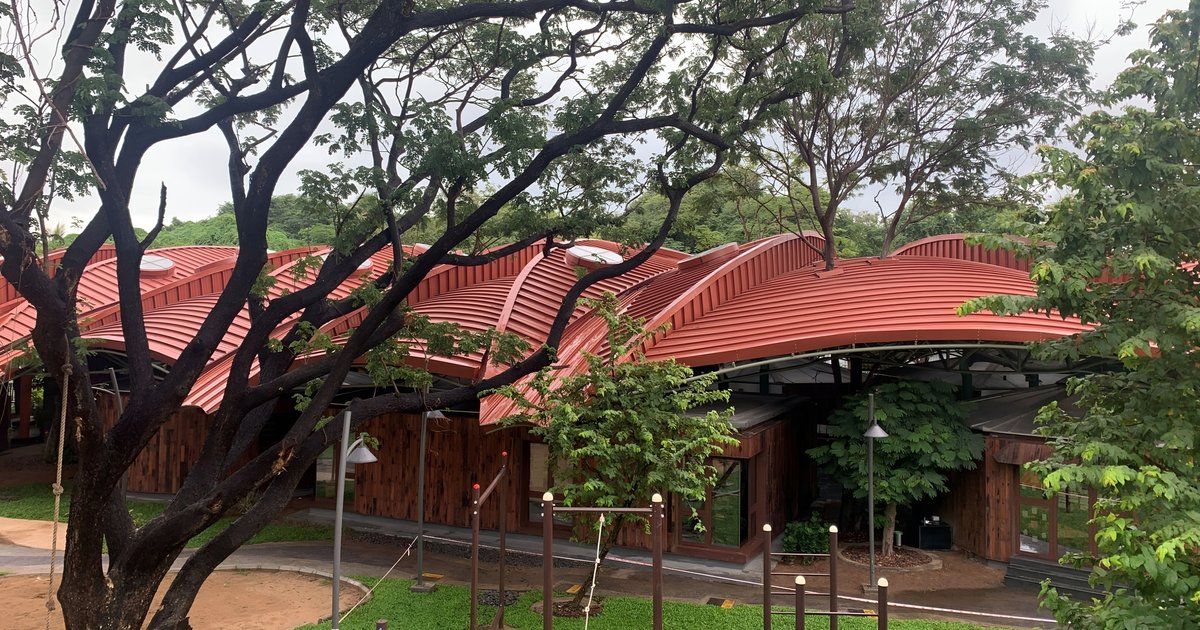

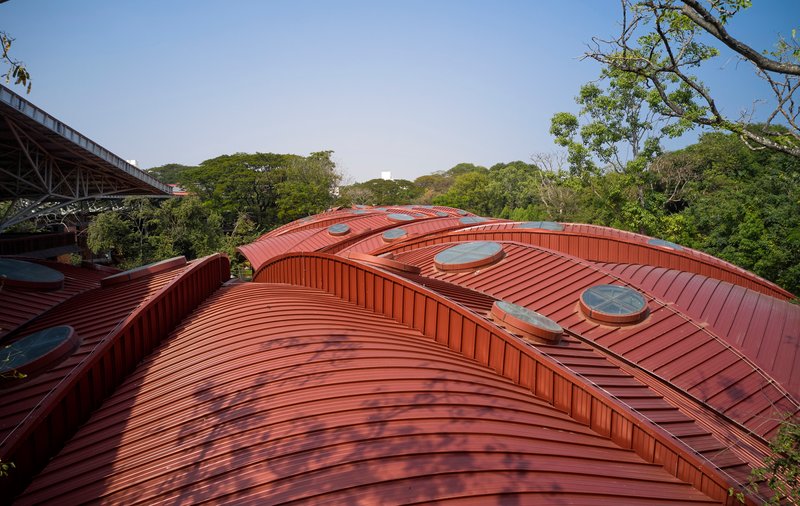

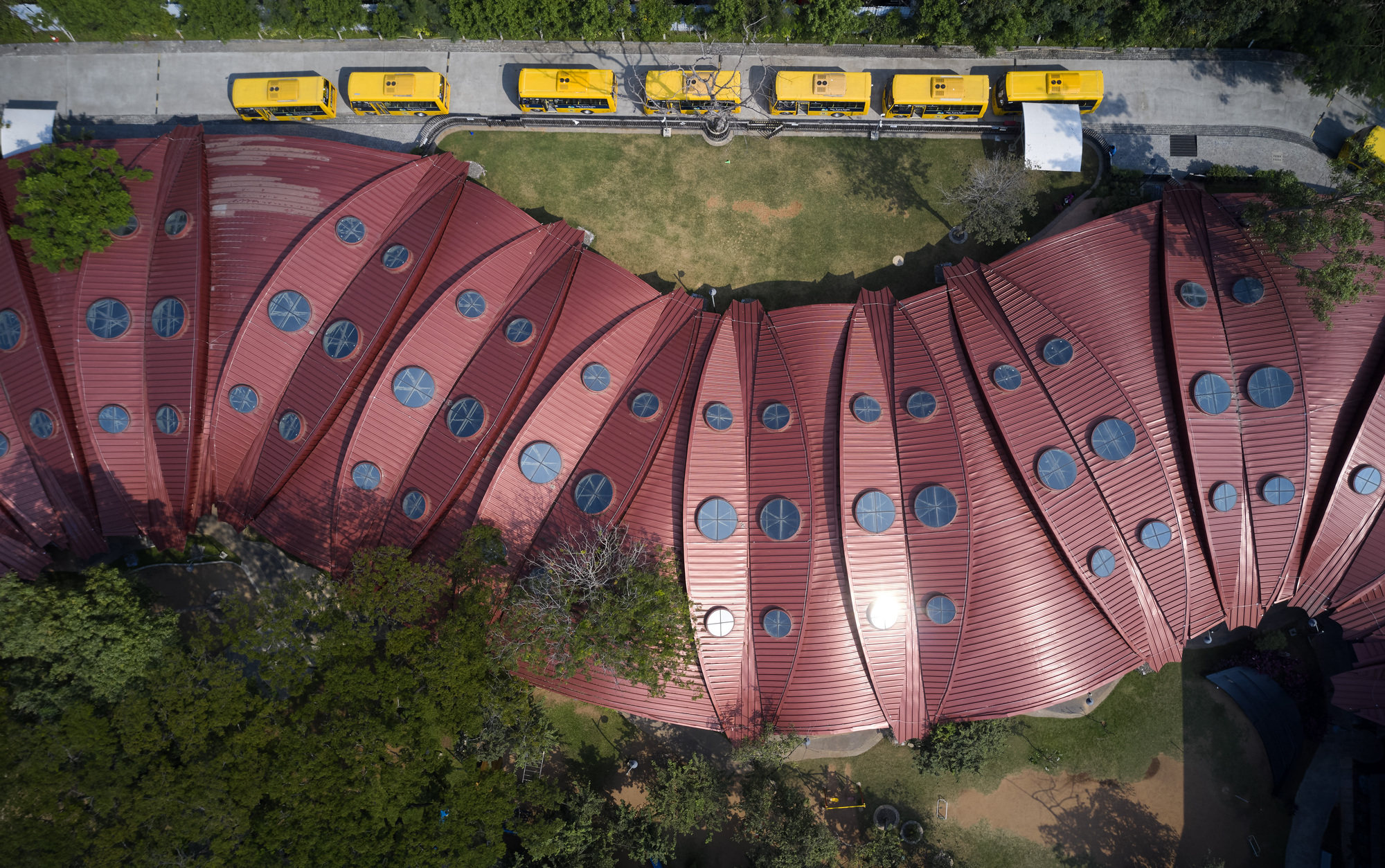

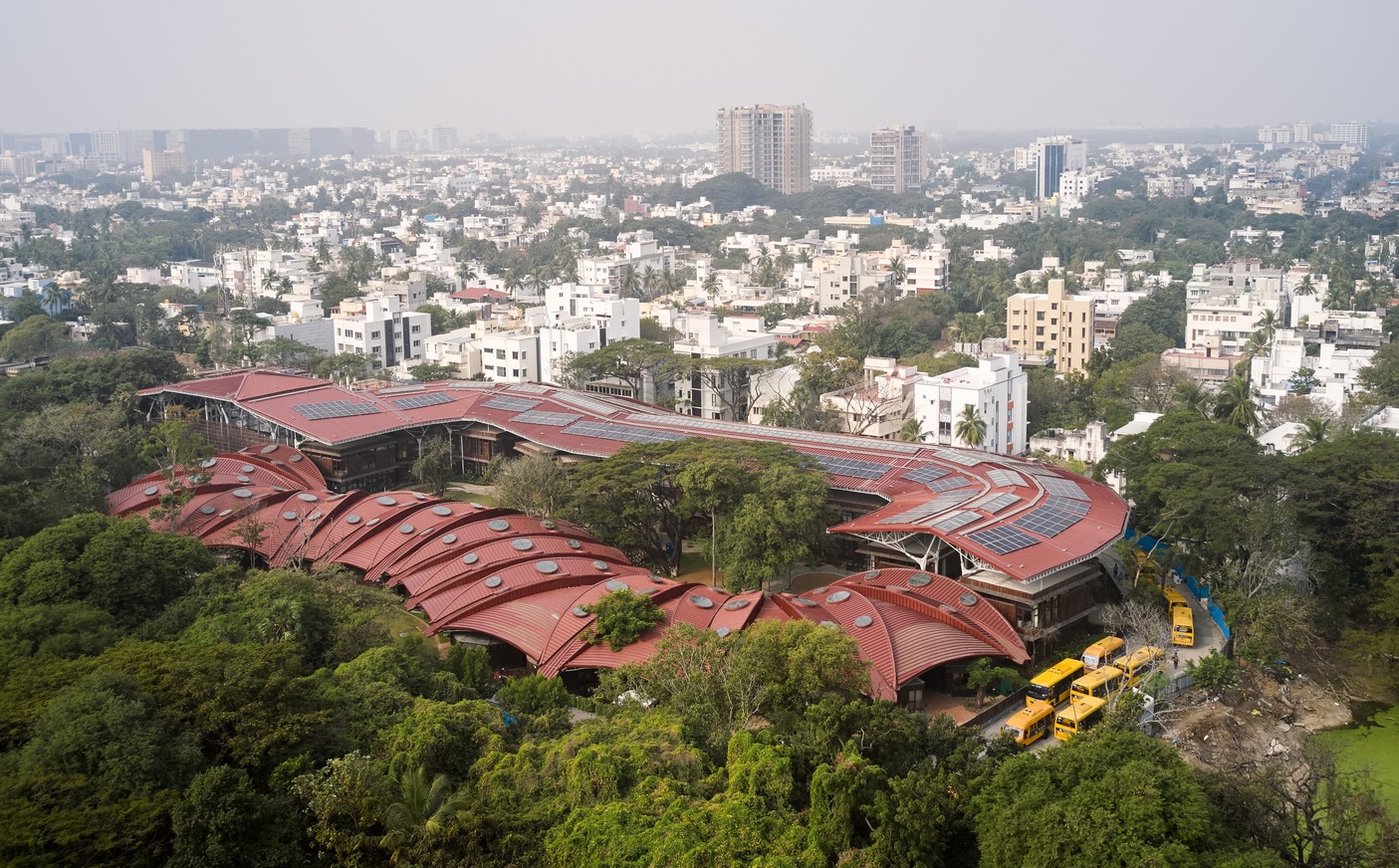

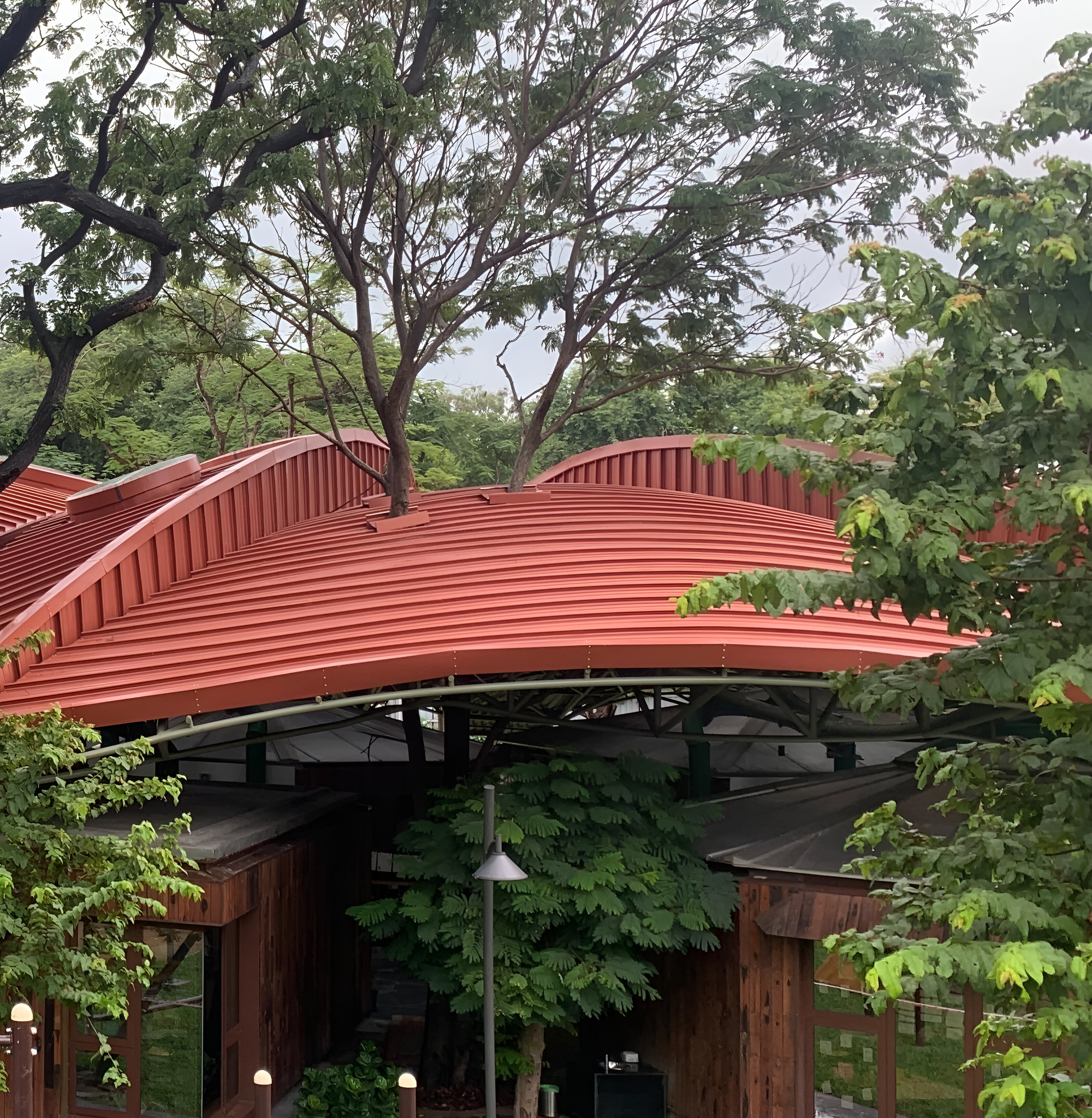

The most visually striking element is the roof: red aluminium modules shaped like banana leaves, ribbed with horizontal grooves and punctuated by circular skylights. Prefabricated offsite and assembled in place, these parasol-like canopies span wide enough to cast continuous shade while channeling Chennai's monsoon rains away from occupied spaces. From above, the campus reads as a topography of copper-red folds floating over a green canopy, with solar panels occupying the upper surfaces to generate roughly a third of the school's energy.

The decision to prefabricate was not just about construction speed. By assembling structural components on site rather than casting them in situ, the team minimized disturbance to root systems and soil ecology. Footings and service trenches were combined into a single system to reduce excavation. The roof, in other words, is not decorative. It is the primary environmental machine of the campus.

Timber Skin, Regional Memory

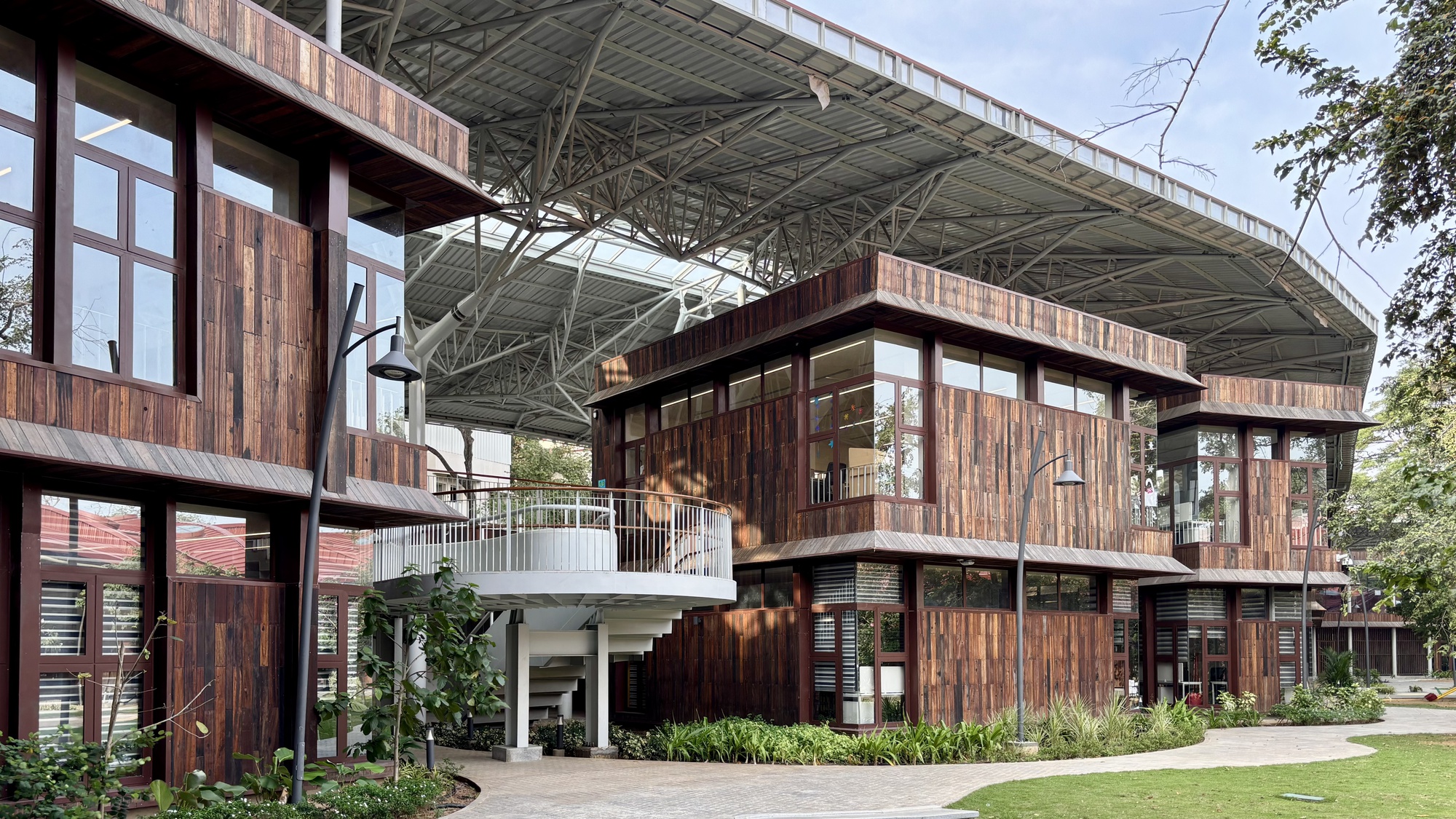

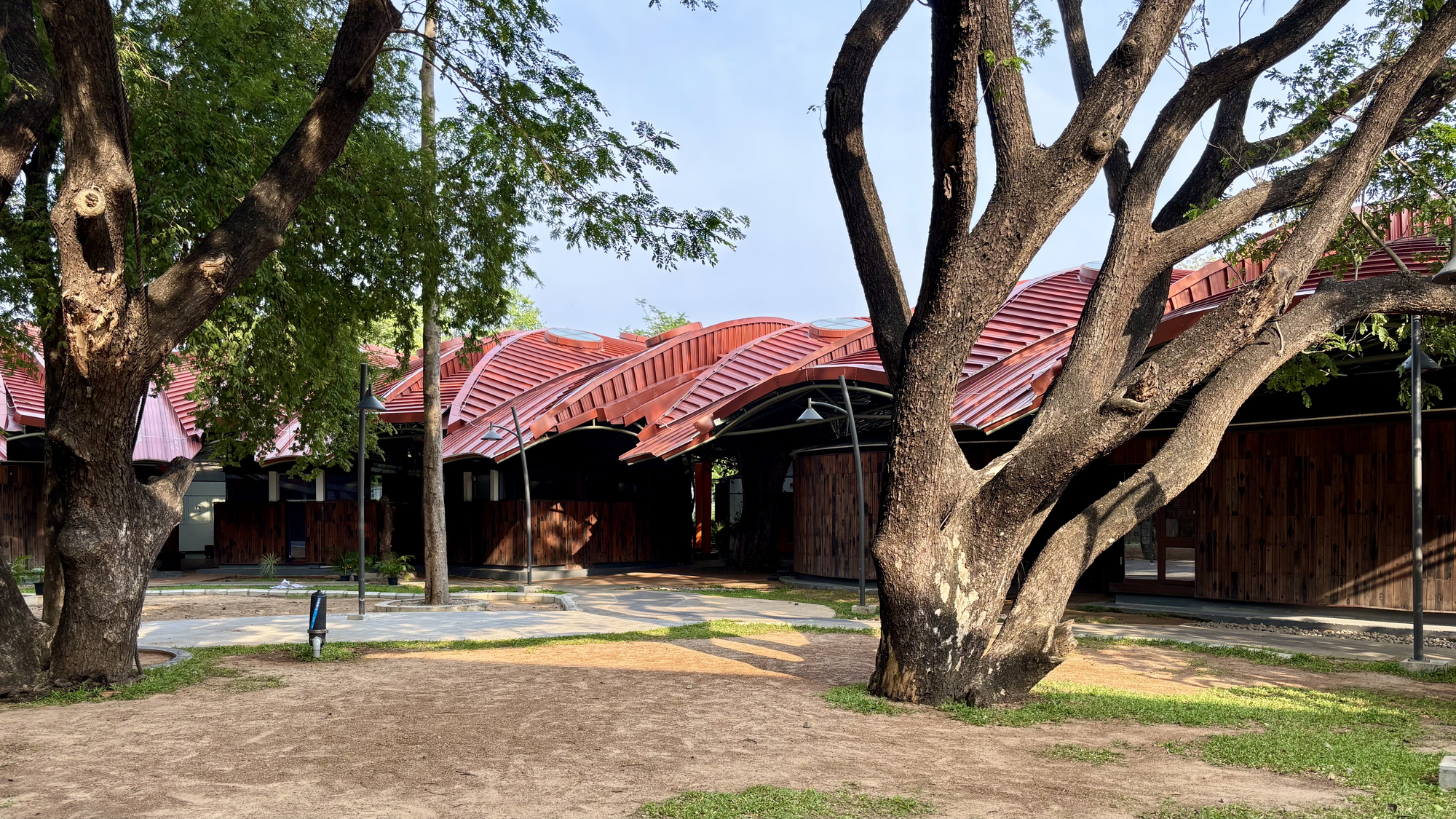

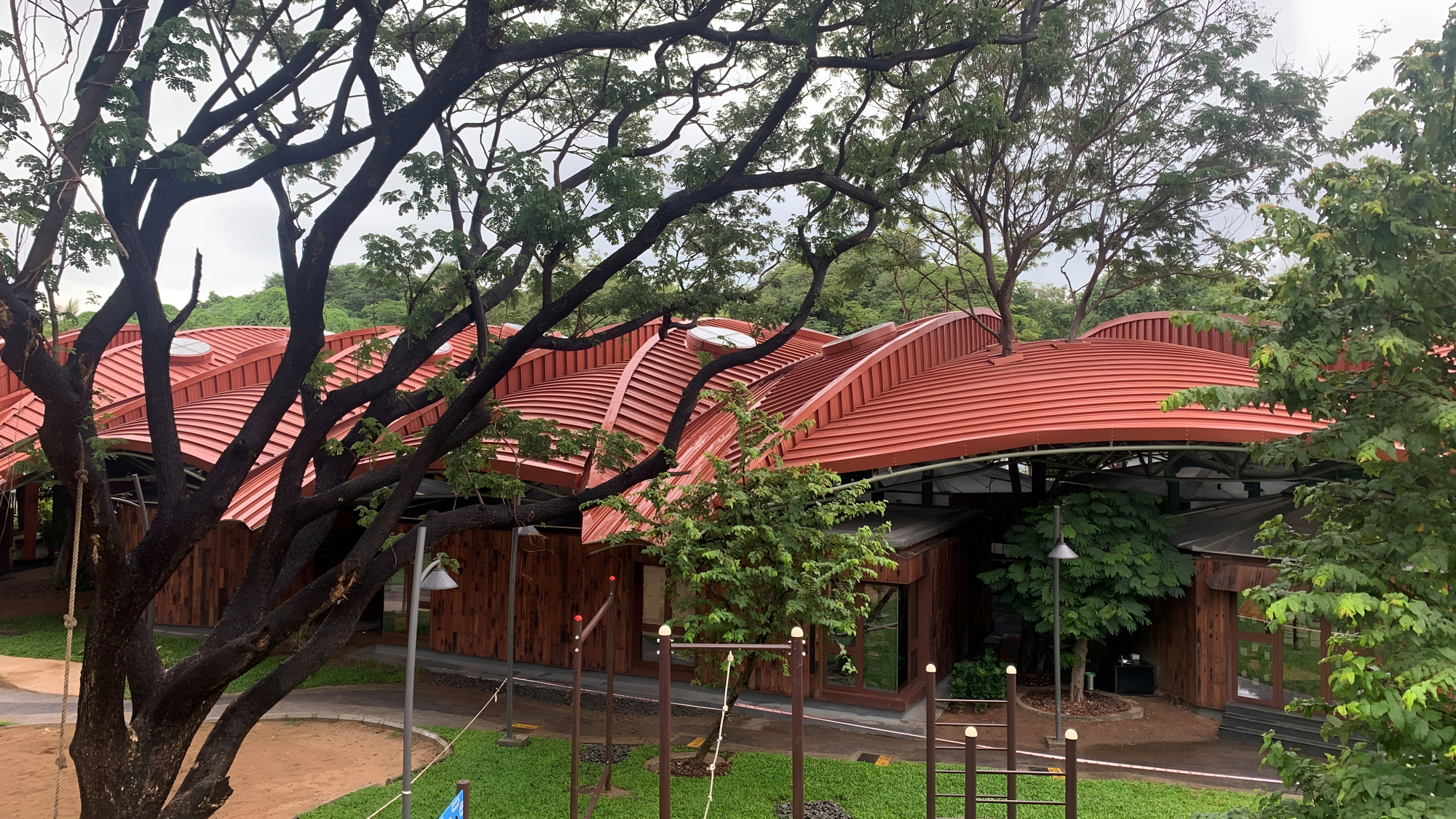

Beneath the aluminium canopy, the classroom volumes are wrapped in reclaimed ship timber, a secondary skin that gives the campus a textural warmth entirely different from the metallic geometry overhead. The contrast is deliberate. Where the roof is precise and industrial, the timber cladding carries the patina of reuse and regional craft. Grey granite flooring, sourced locally, supports the same logic: familiar materials handled with care rather than exotic imports handled with spectacle.

The timber pavilions sit behind deep verandahs and balconies, reimagining Chennai's long tradition of semi-covered learning spaces. These are not corridors to pass through quickly. They are rooms in their own right, shaded thresholds where the boundary between inside and outside dissolves. The pronounced overhangs recall the region's tiled roofs but in an entirely contemporary material language.

Courtyards as Classrooms

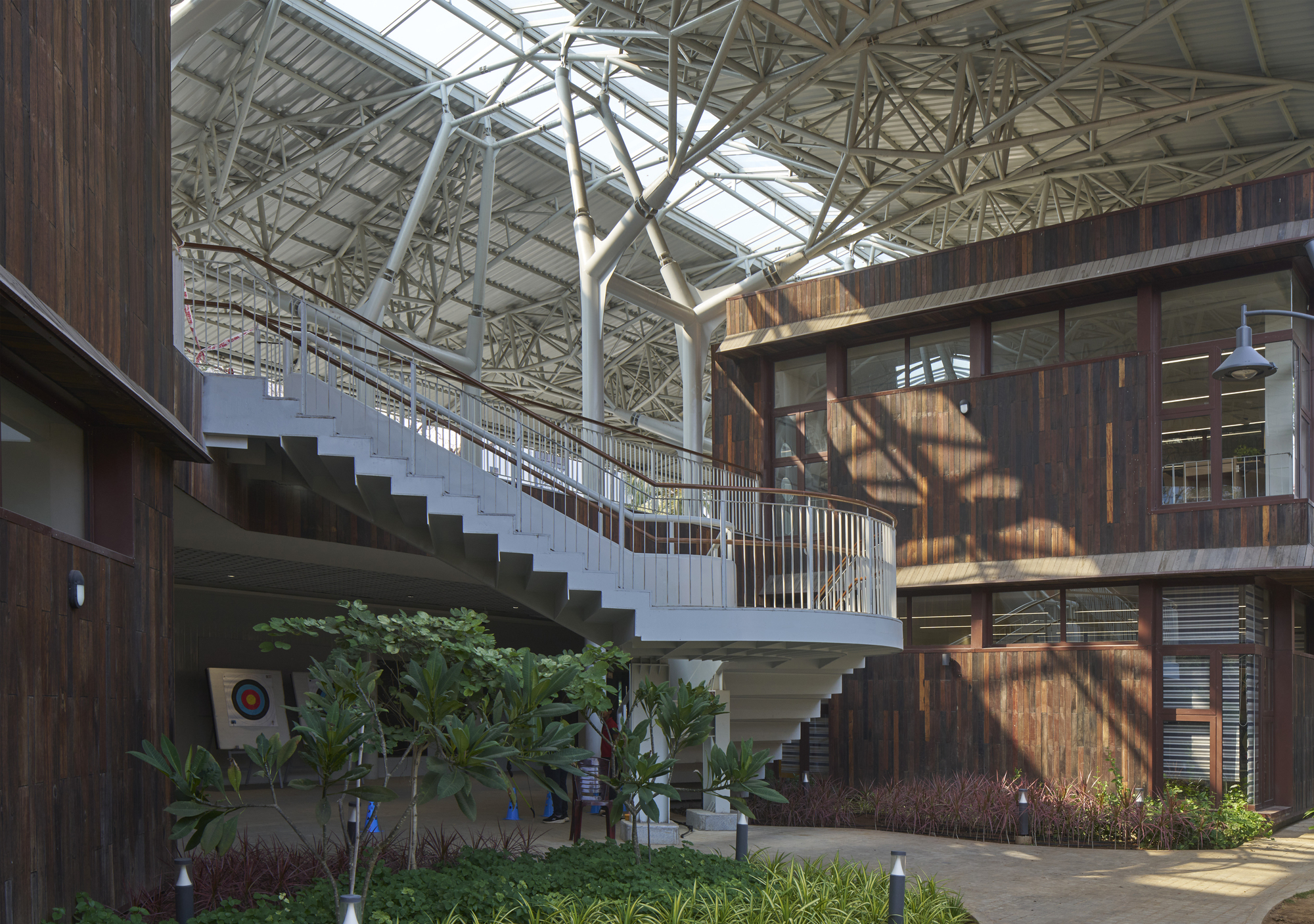

The school's plan fragments the building mass into clusters that share classrooms, communal learning areas, and gathering spaces around planted courtyards. Trees pass through the roofline. Dappled light falls through the space-frame structure onto curving staircases and seating ledges. The effect is that students are never far from the landscape, and the landscape is never decorative backdrop. It is the thing around which the architecture literally bends.

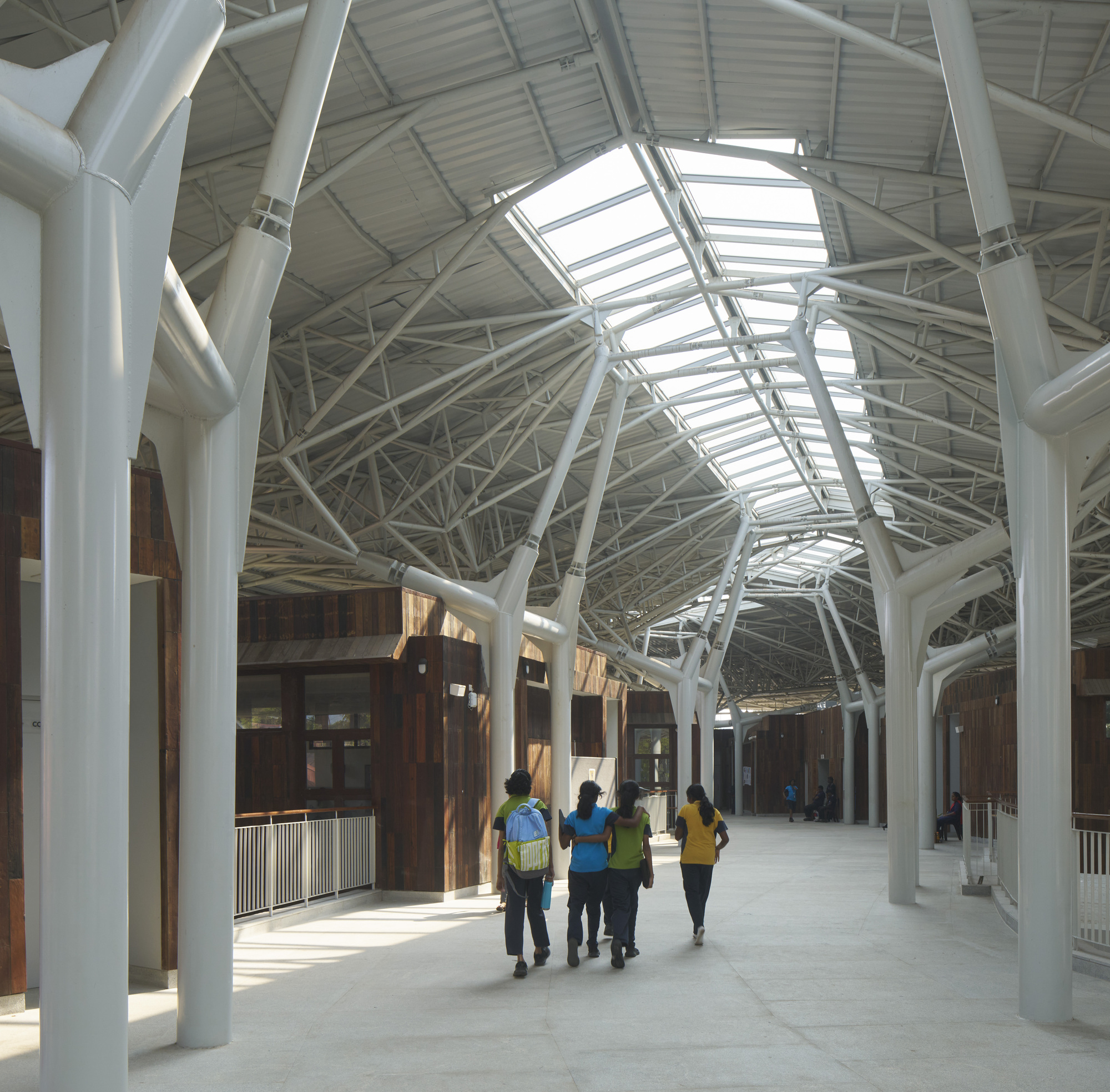

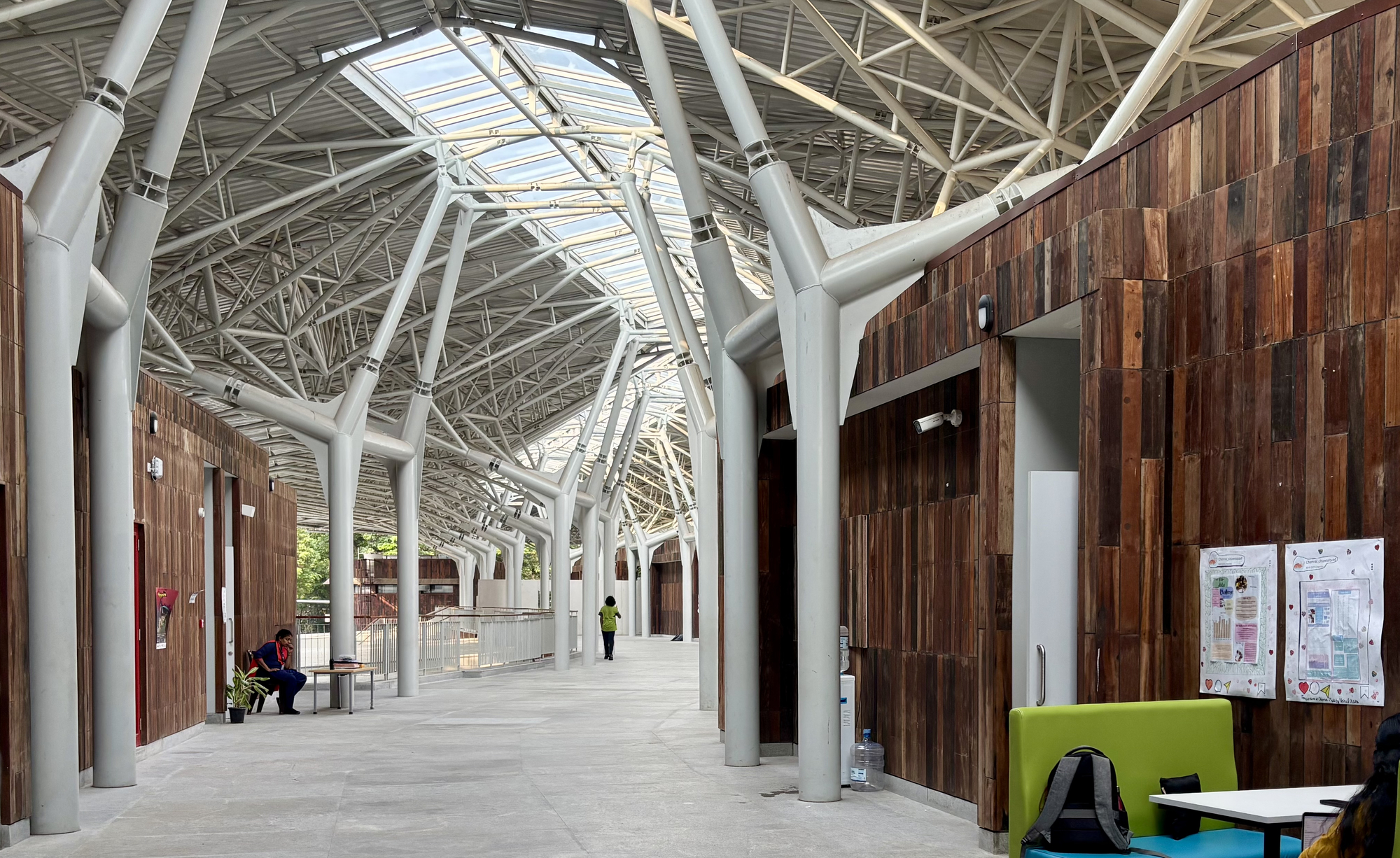

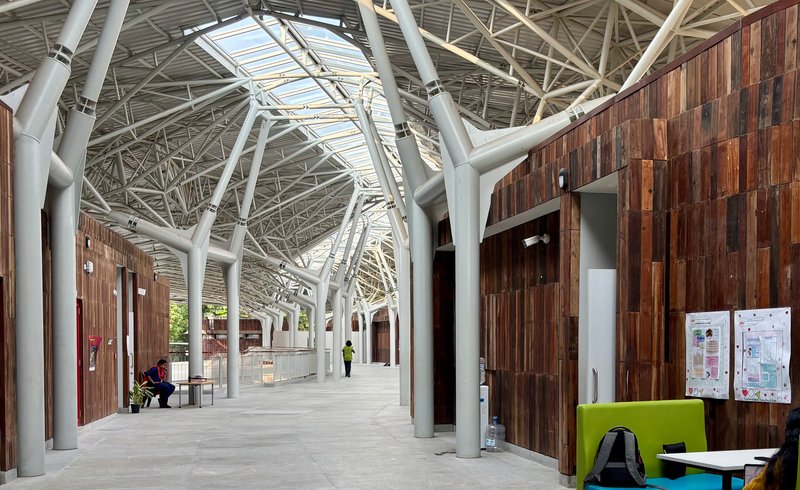

Circulation is handled through a looping system that connects these clusters without ever straightening into the institutional double-loaded corridor. White steel trusses and skylights overhead keep the paths bright during daytime while the hybrid ventilation system, merging natural airflow with mechanical cooling, ensures that these semi-outdoor spaces remain comfortable through Chennai's punishing summers. The architecture is porous by design, preserving uninterrupted movement not only for students but for birds, insects, and small wildlife.

Water Independence in a Water-Stressed City

Chennai is a city that experiences high rainfall yet lives under chronic water stress. The Shiv Nadar School addresses that paradox directly. Rainwater harvesting from both surface runoff and the expansive roof system meets all of the campus's domestic water needs, making it functionally water-independent. The revival of the site's existing defunct lake adds both a pedagogical resource and a significant reservoir, turning a liability into an asset.

Combined with radiant barrier insulation, deep overhangs that reduce heat gain, and the solar array on the roof, the campus operates with a level of resource autonomy that most Indian schools do not even attempt. The point is not self-sufficiency as ideology but as common sense in a climate where grid water and grid power are unreliable. Every strategy here is visible to the students who use the campus daily, which means the building itself becomes a teaching instrument.

Plans and Drawings

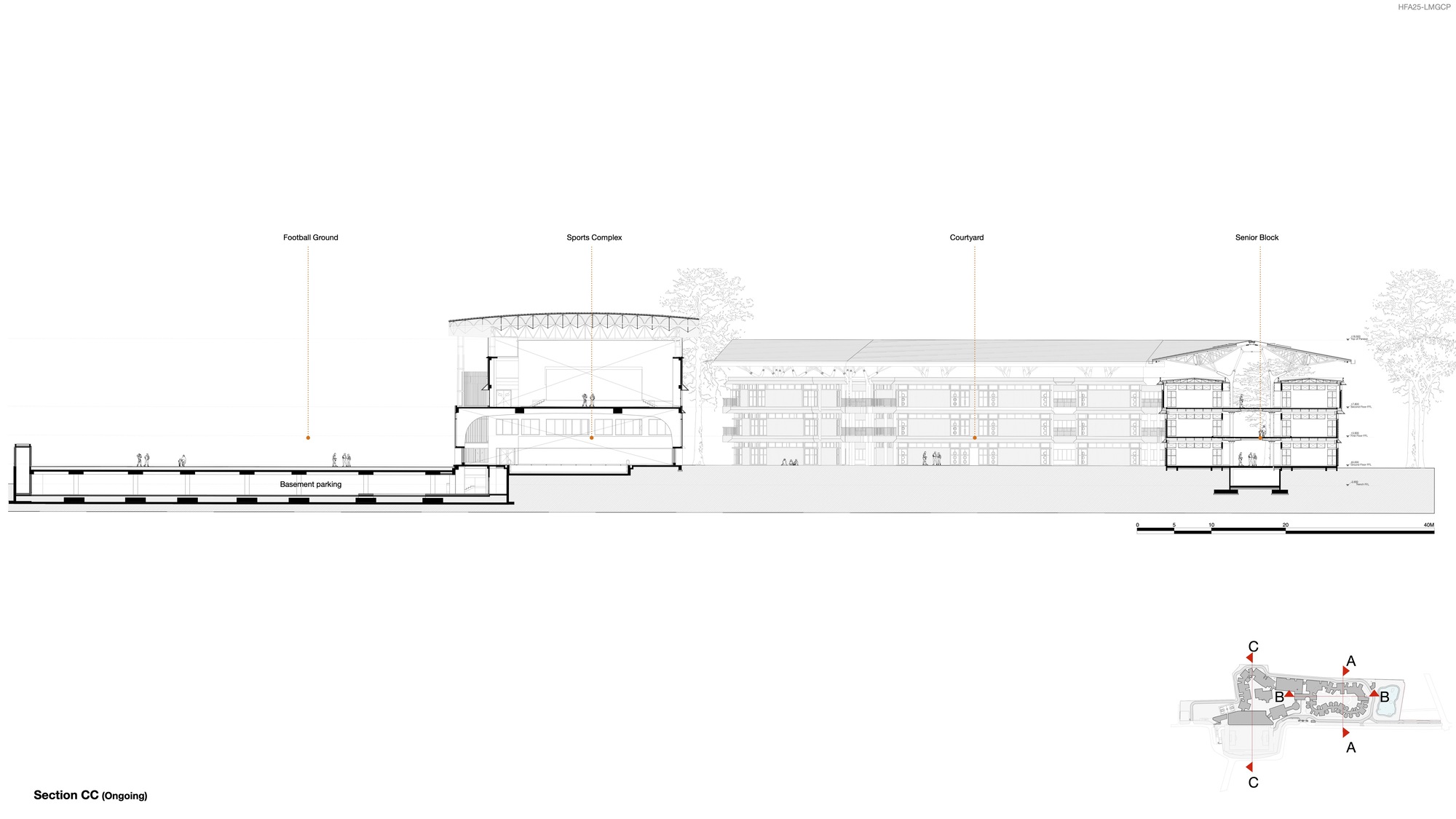

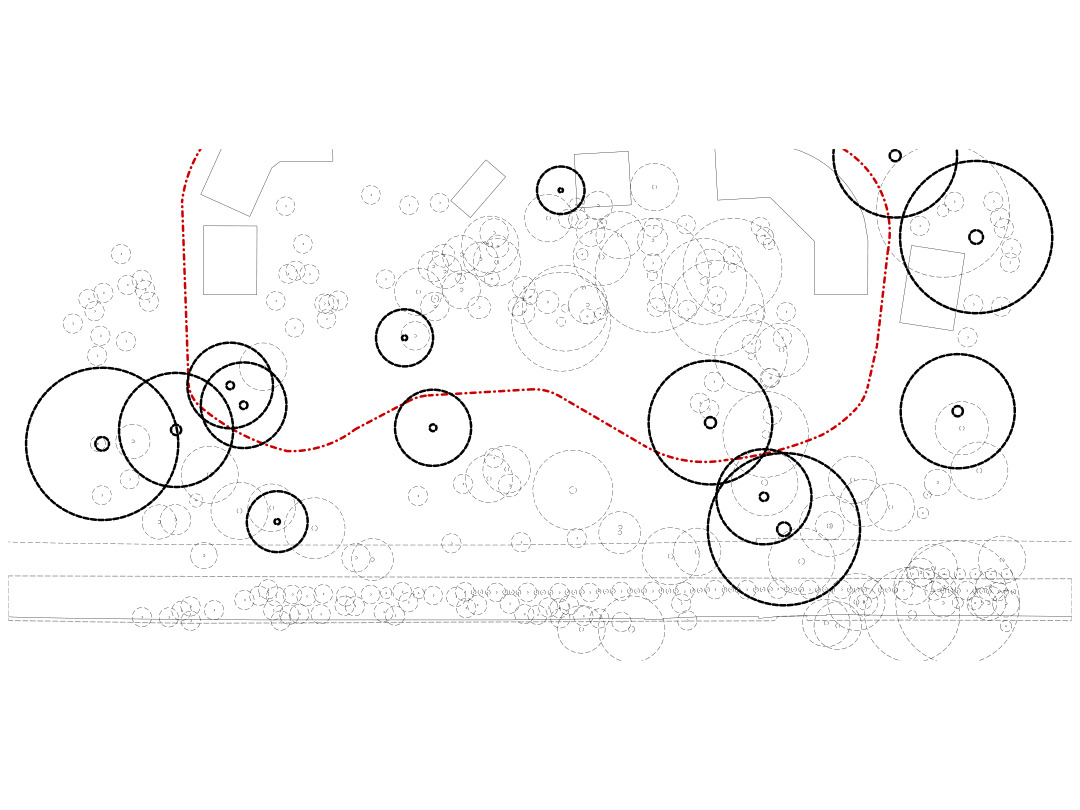

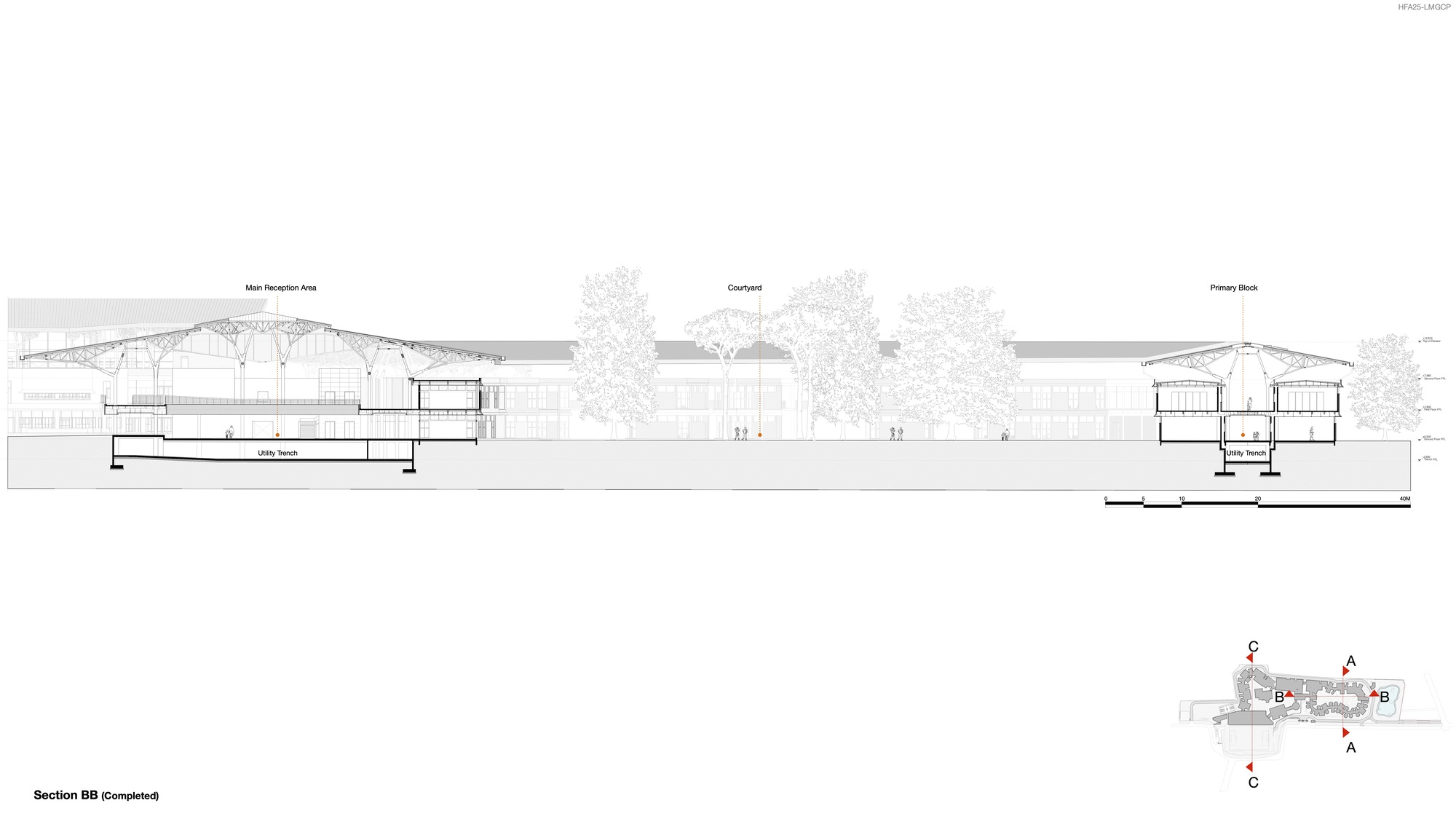

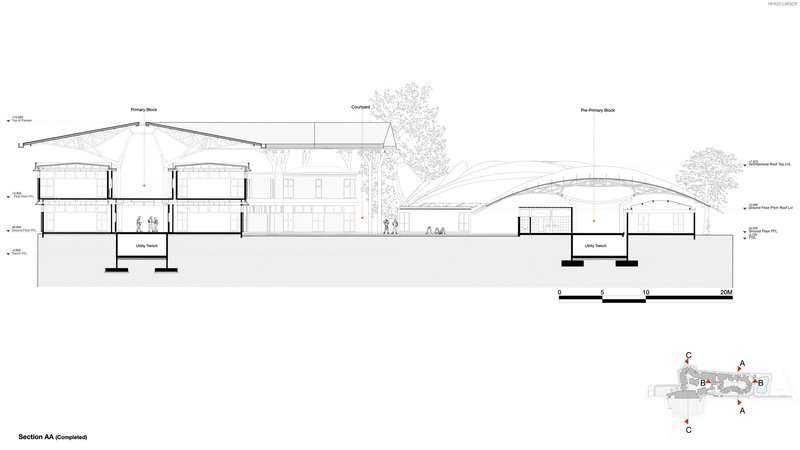

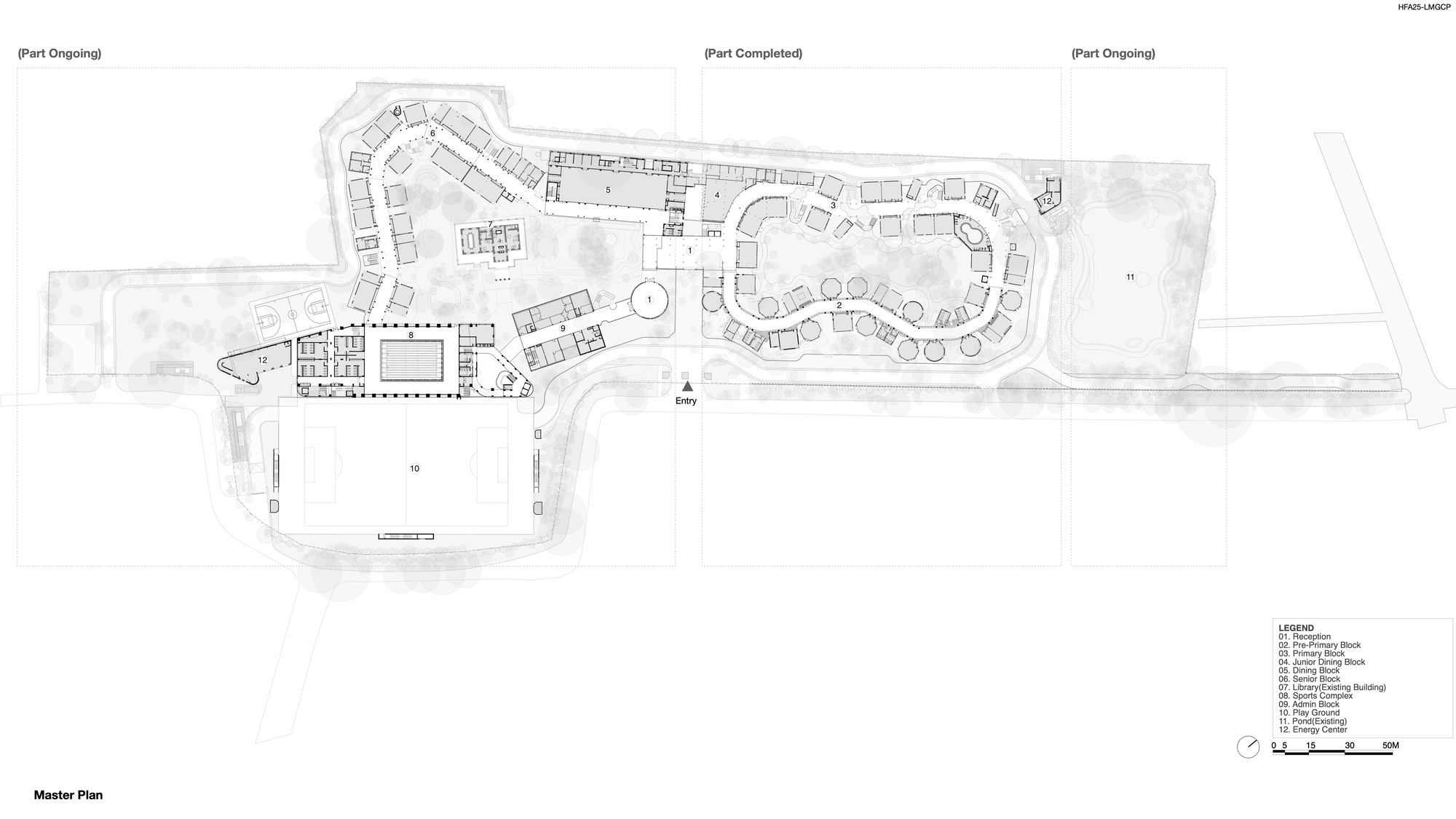

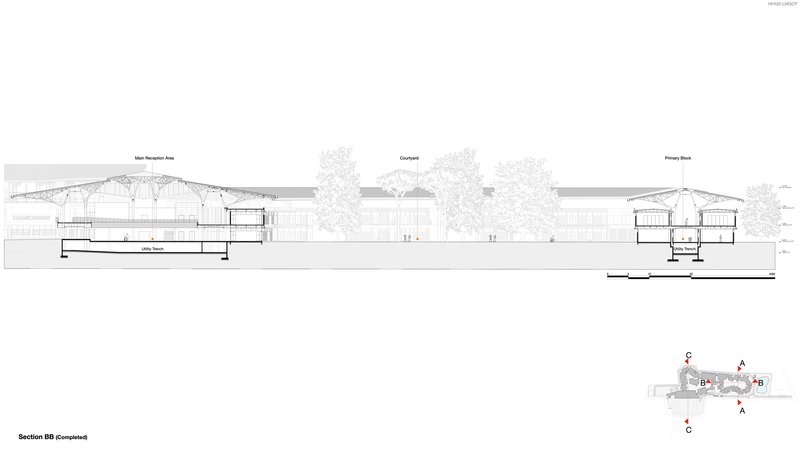

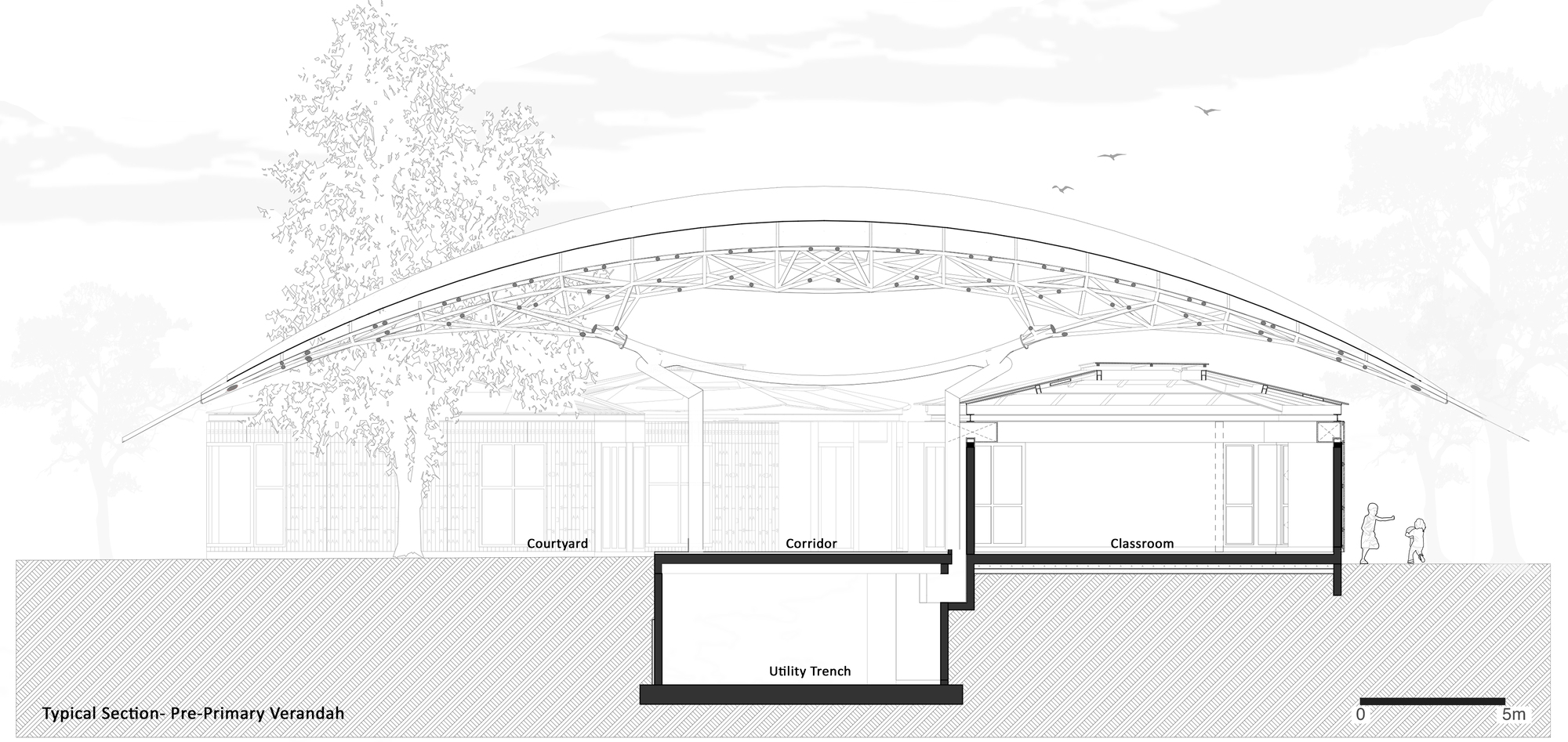

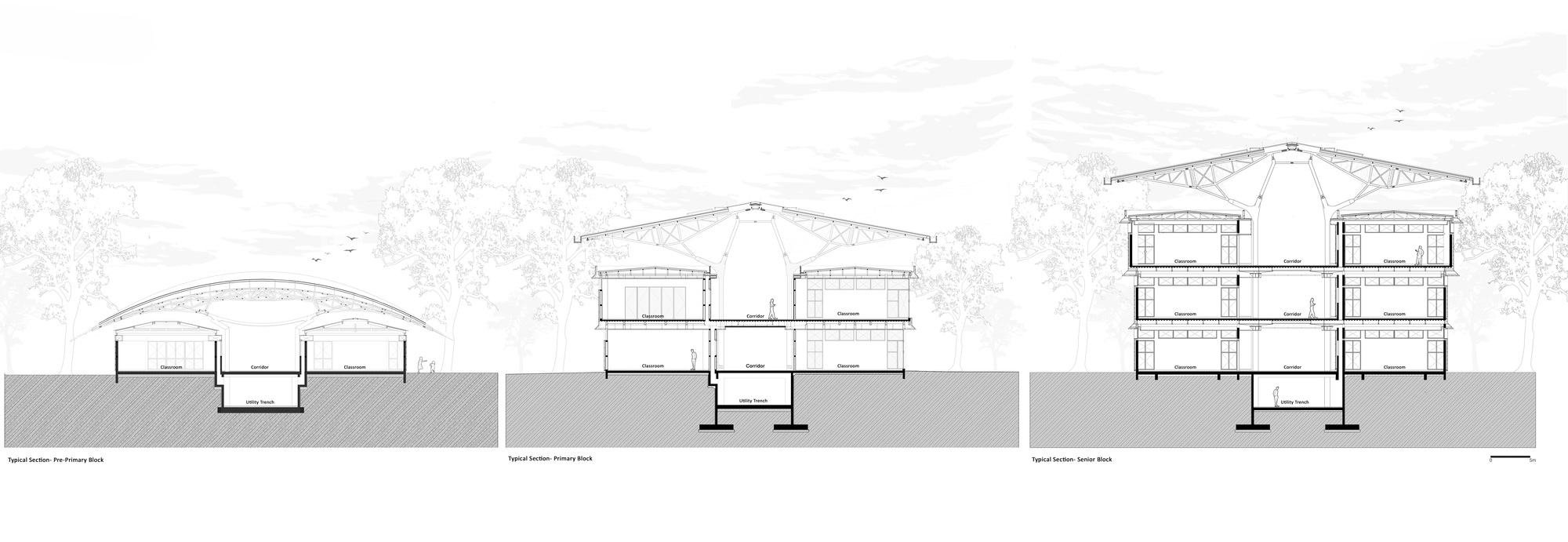

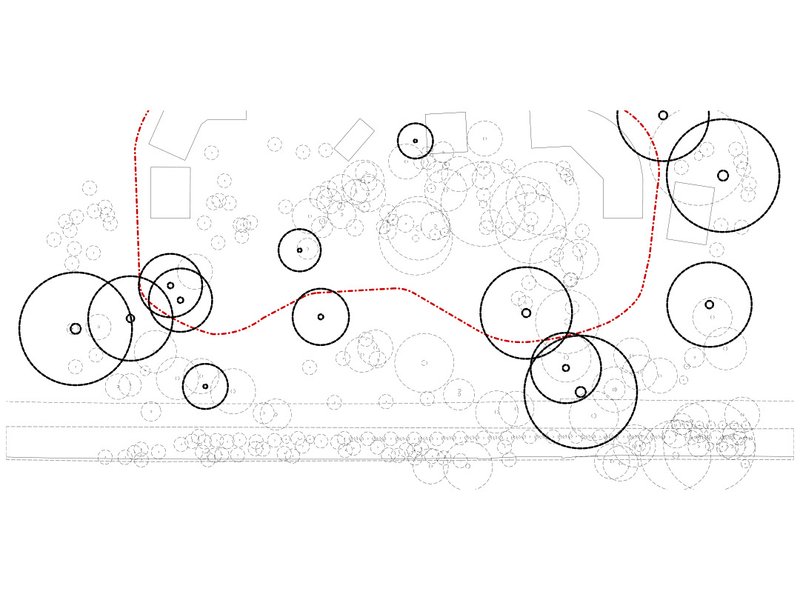

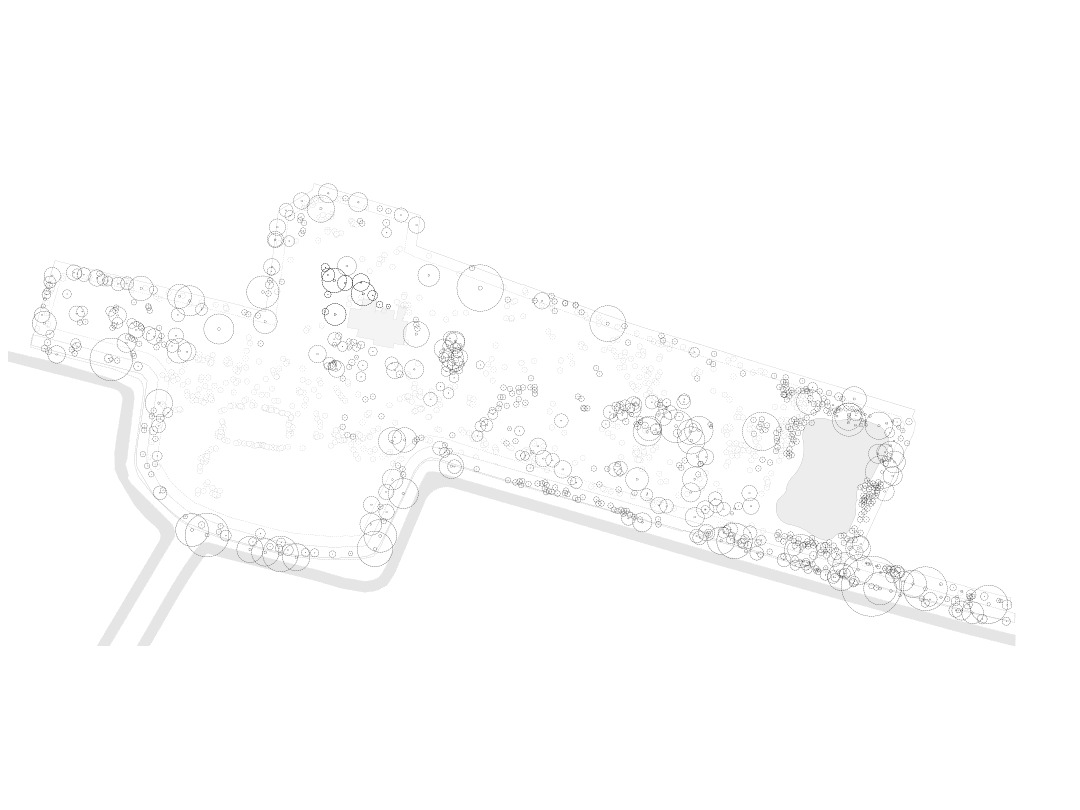

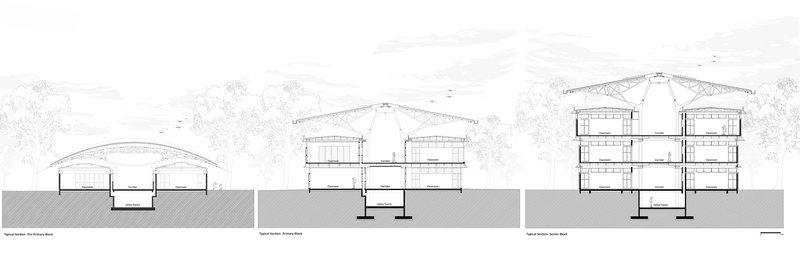

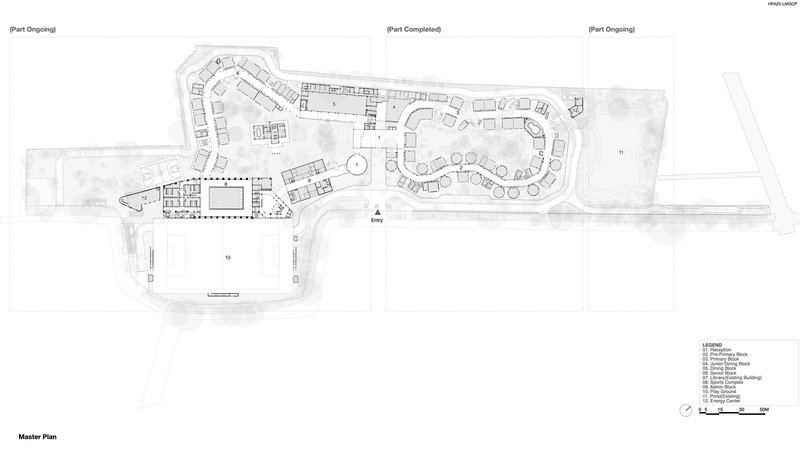

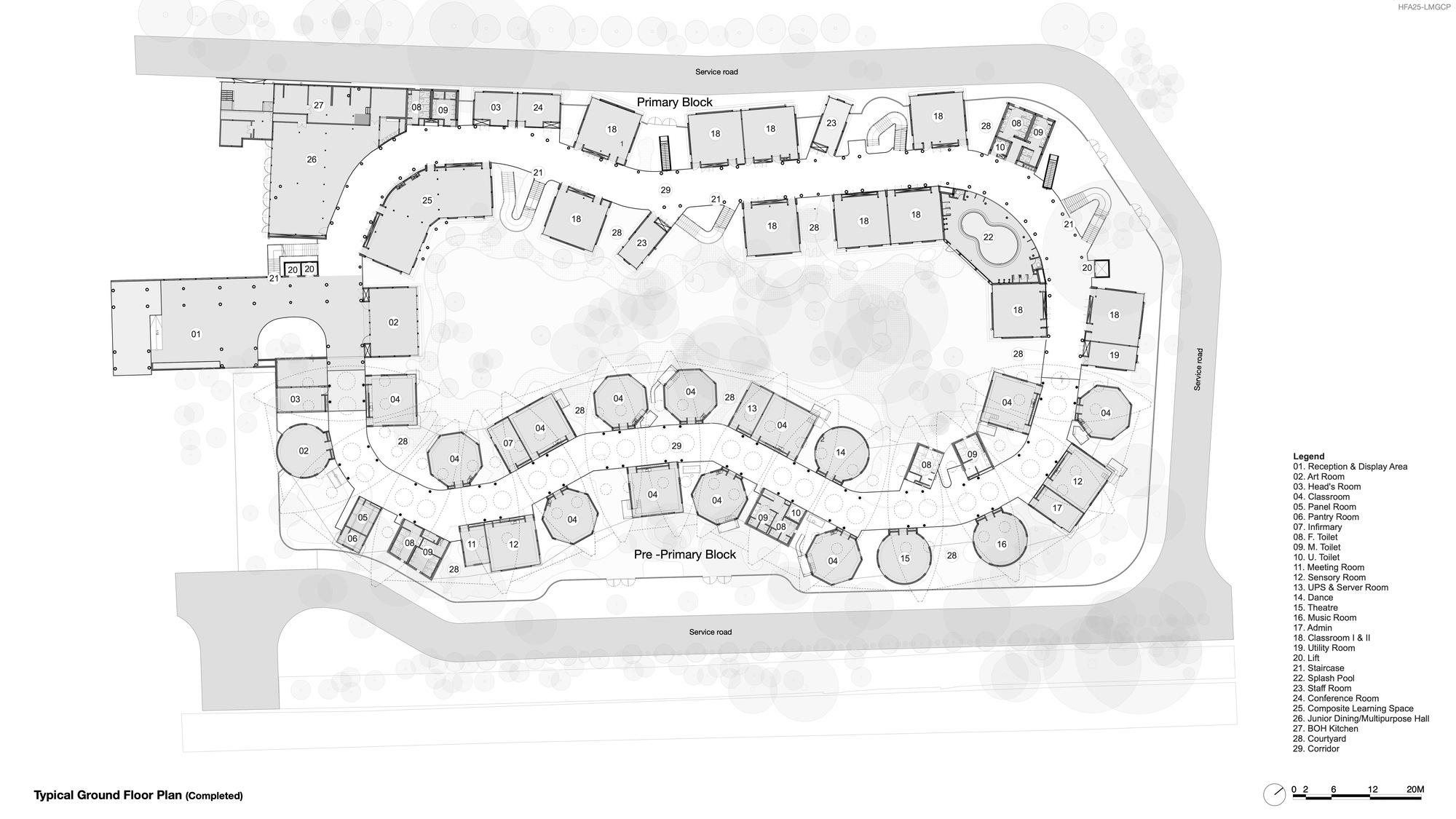

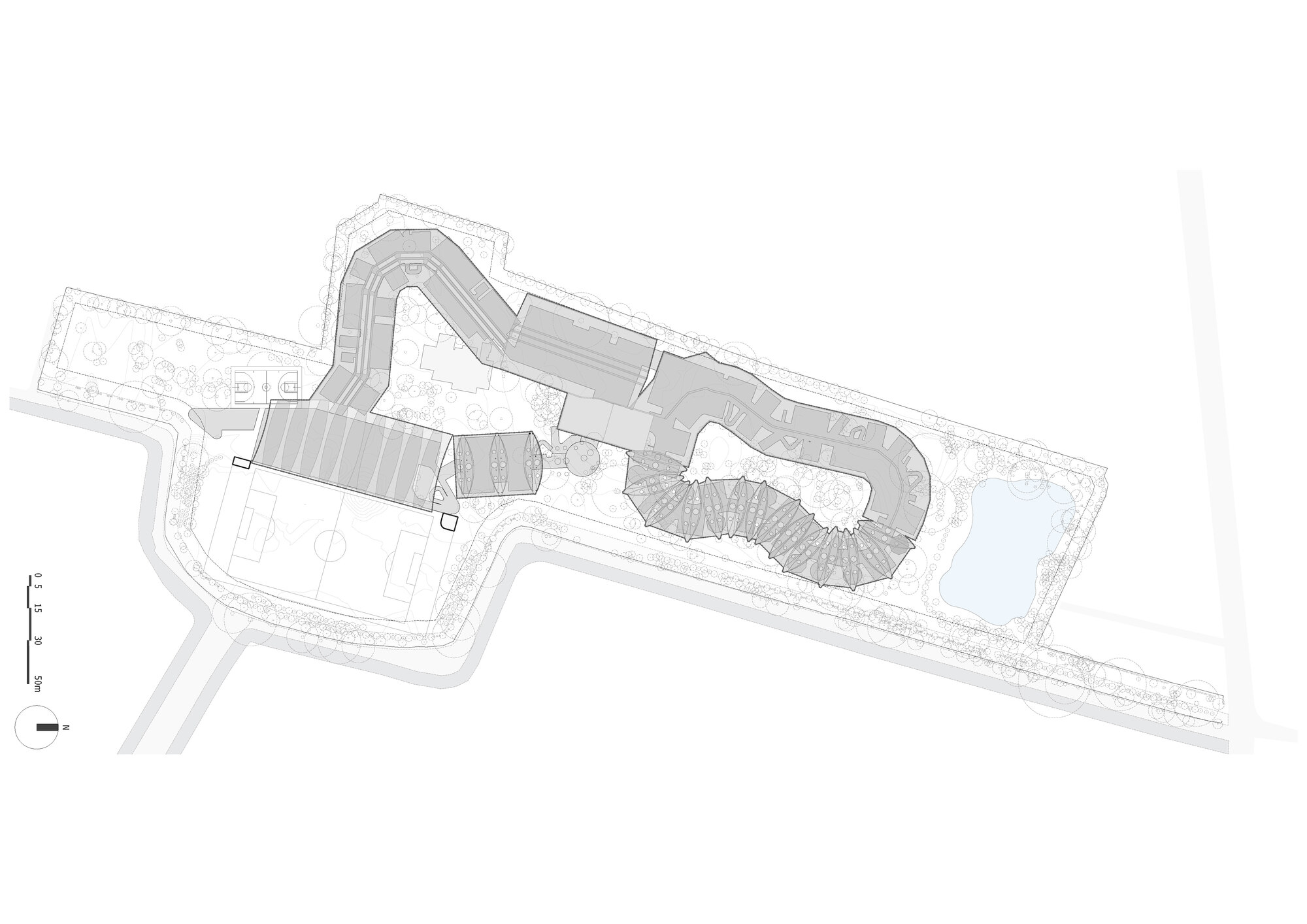

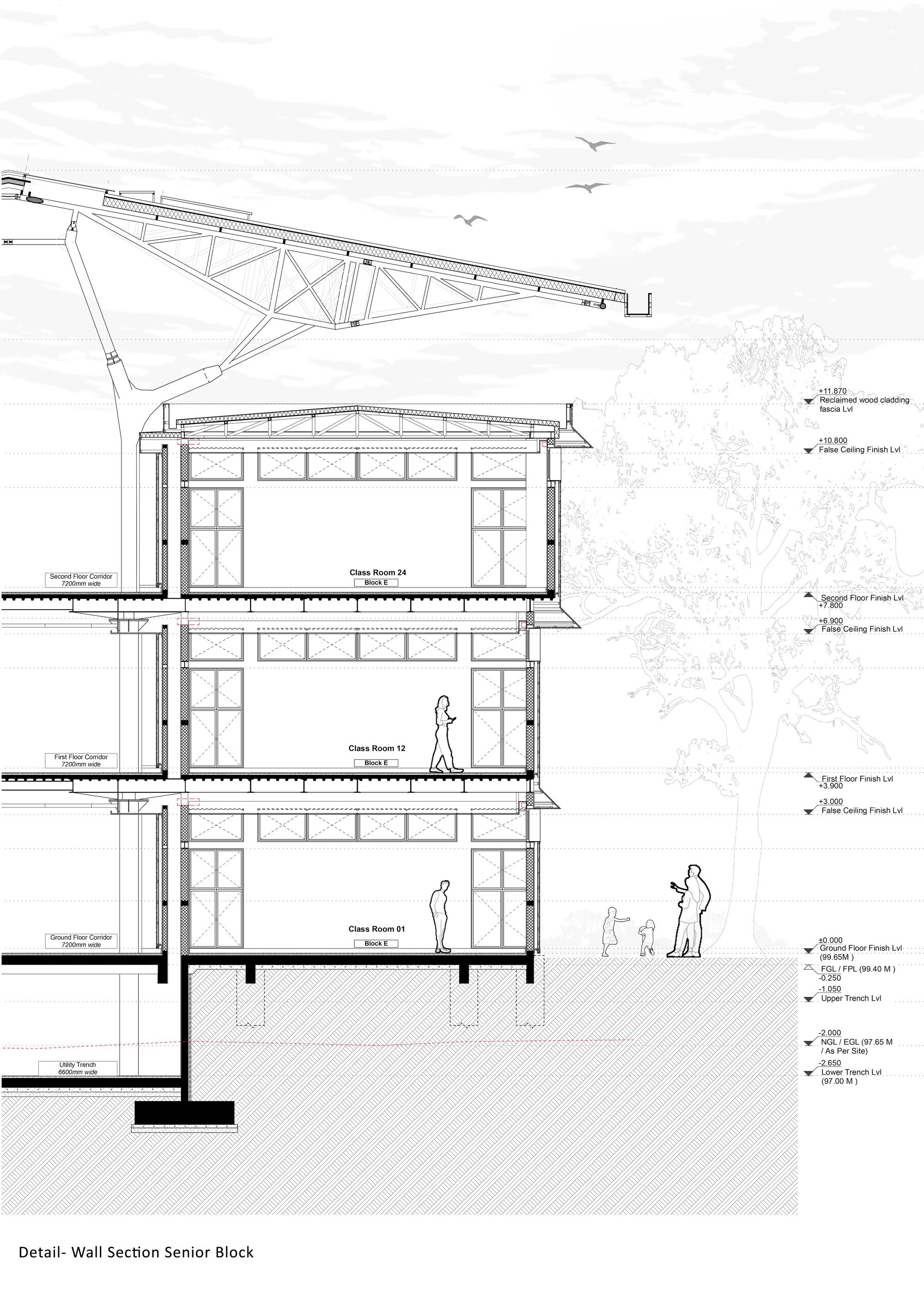

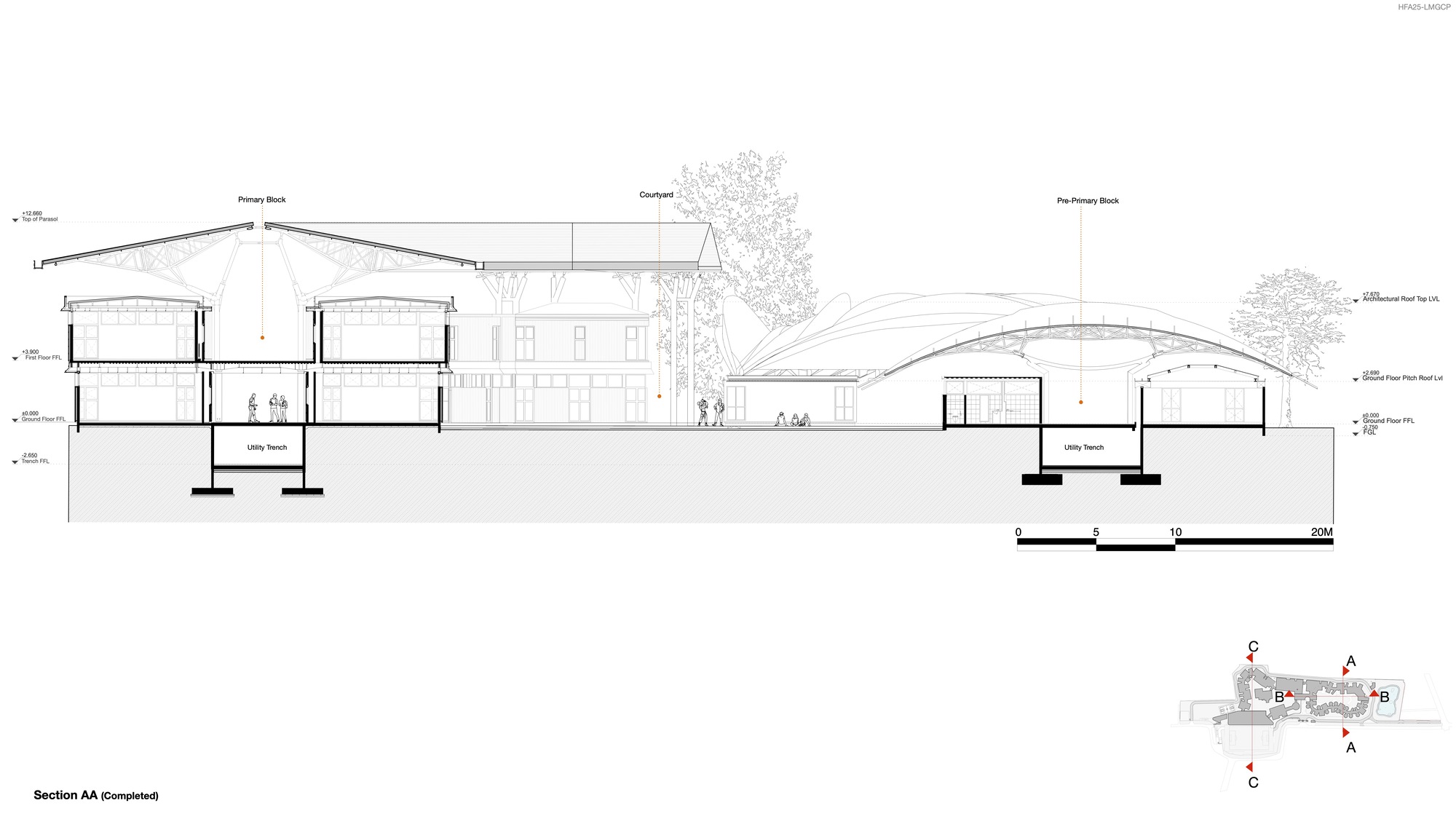

The drawings reveal the full logic of the campus more clearly than the photographs can. Site plans show the elongated, irregular plot threaded with meandering pathways and dense tree canopy circles. The ground floor plan makes visible the circular classroom pods arranged around central courtyards, a geometry that avoids the monotony of rectilinear school blocks while keeping each cluster legible at a child's scale. Sections expose the relationship between the vaulted roofs, the stacked classroom floors, the cantilevered canopies, and the utility trenches below grade that combine foundations with services to minimize root disturbance.

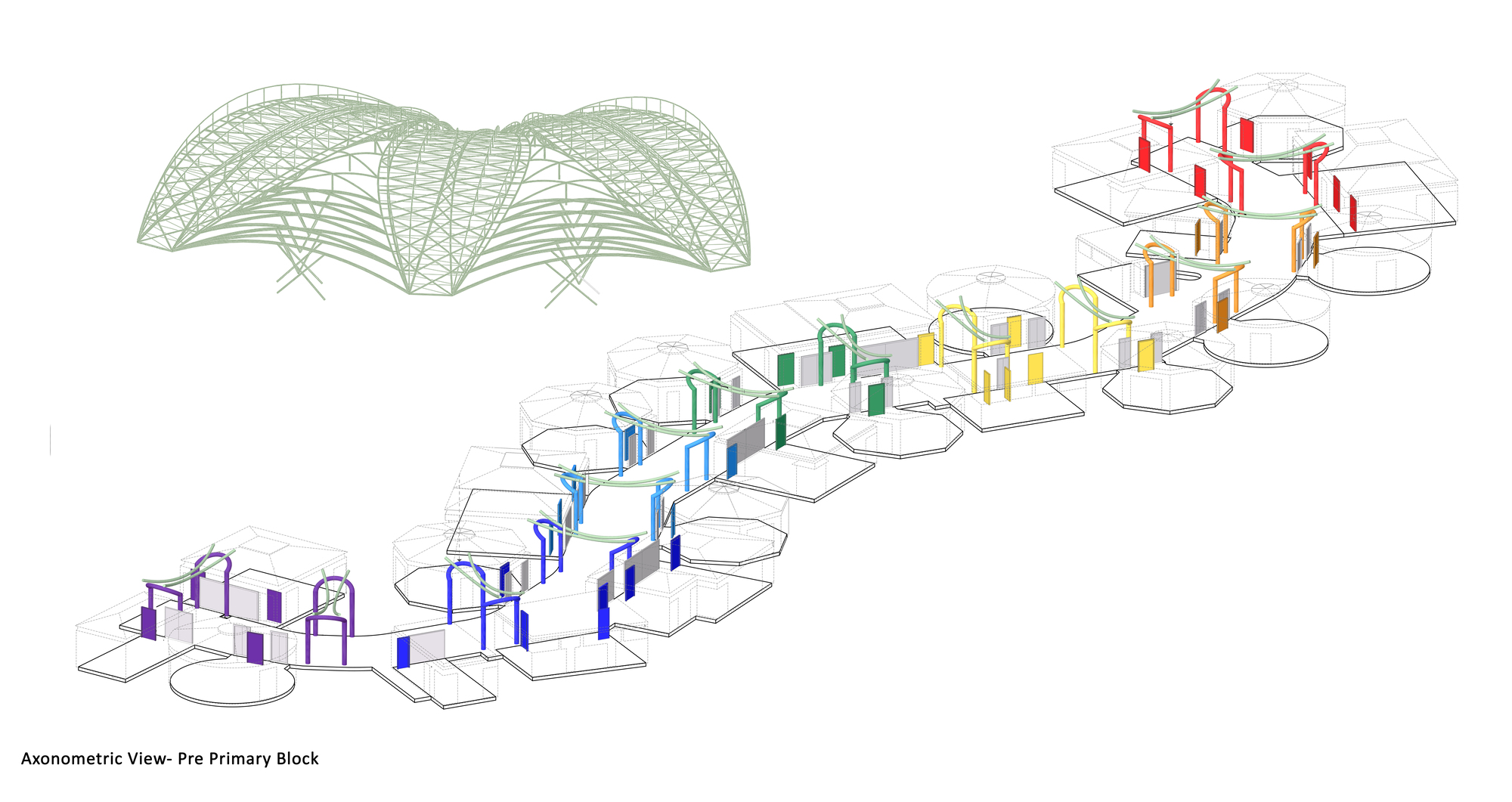

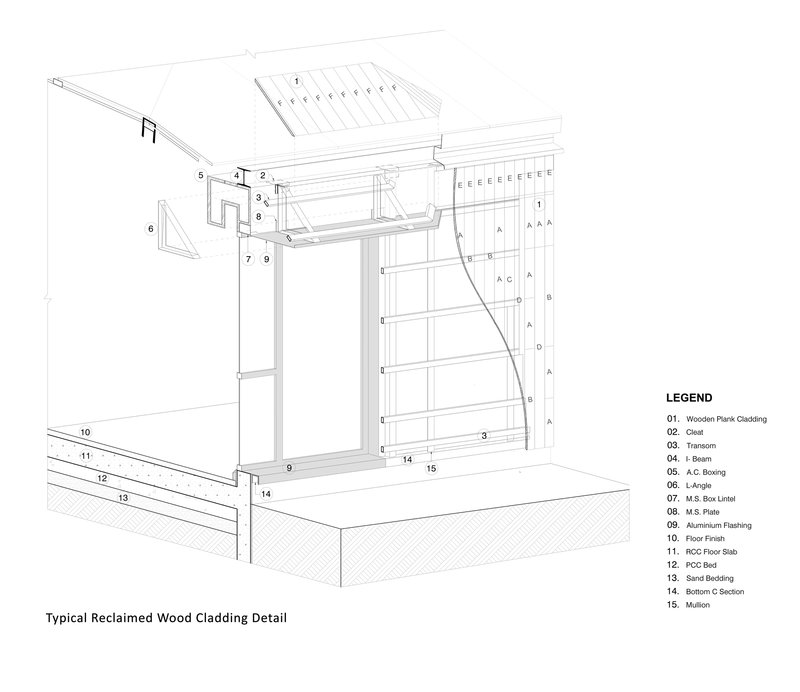

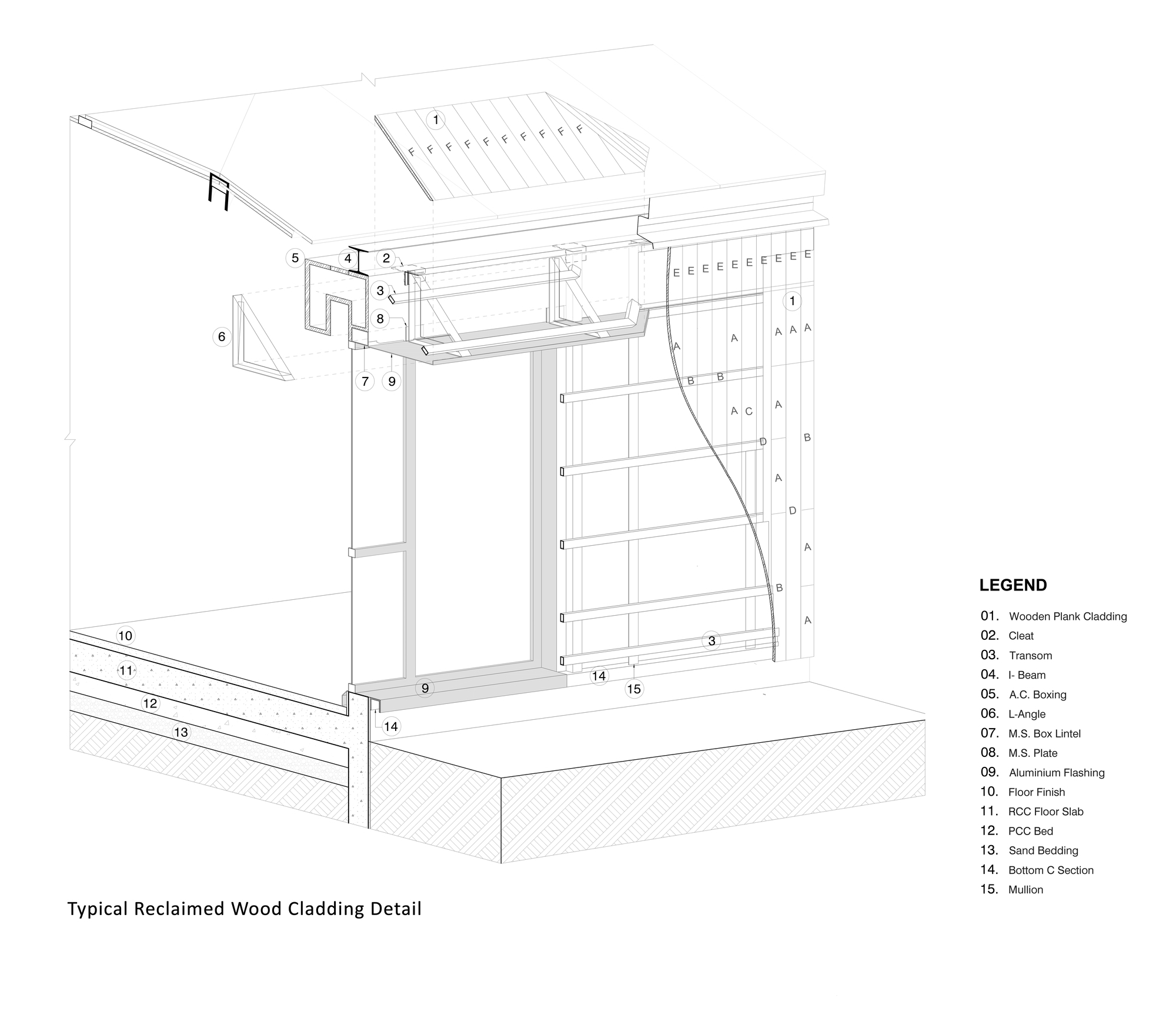

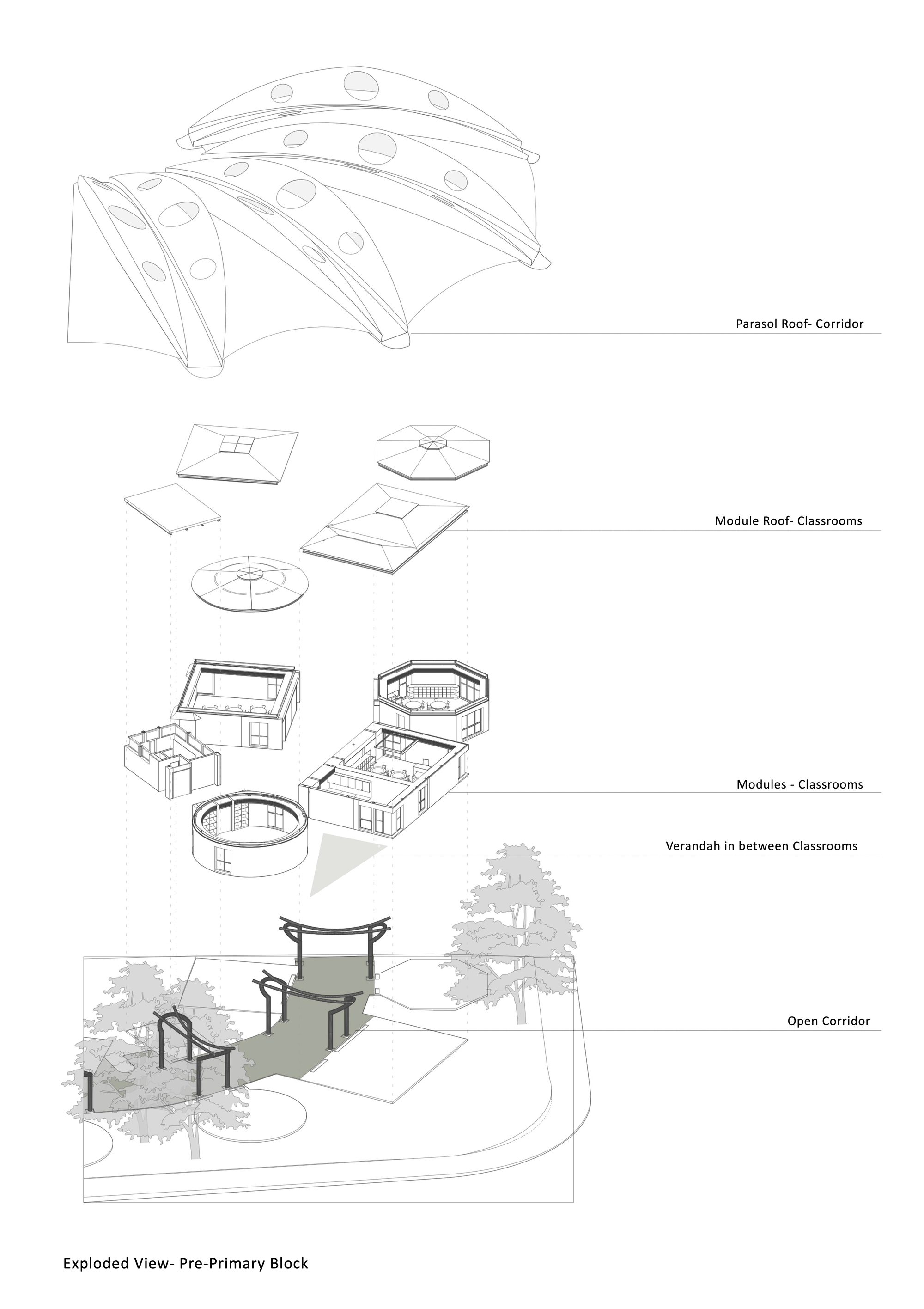

The exploded axonometric is especially revealing: roof assembly, classroom modules, verandah layer, and landscape with trees are shown as distinct but interlocking systems. The detail drawing of the reclaimed wood cladding assembly, with its labeled material components and transom connections, confirms that the craft of this project extends well beyond the dramatic roof. And the color-coded axonometric of classroom modules arranged in sequence beneath the undulating structure shows how the school can grow across its planned three phases without losing its spatial character.

Why This Project Matters

School design in India has been dominated for decades by two modes: the government prototype, with its minimal budget and minimal ambition, and the private campus, which often imports typologies from cooler climates and compensates with air conditioning. The Shiv Nadar School refuses both. It demonstrates that a large-scale educational facility in a hot, humid city can be low-rise, porous, water-independent, partially solar-powered, and deeply rooted in regional material culture without sacrificing spatial quality or programmatic complexity.

Vastushilpa Sangath's achievement is not just the preservation of 1,400 trees, though that fact alone is remarkable in a country where construction routinely clears sites to bare earth. The deeper contribution is the proof that ecological care and pedagogical ambition are the same project. When a child walks beneath a canopy that bends to let a tree through, or watches rainwater fill a revived lake, or sits in a verandah where the breeze is the ventilation system, the architecture is teaching. That is more than most schools manage, no matter how expensive their curricula.

Shiv Nadar School by Vastushilpa Sangath. Chennai, India. 40,453 m². Completed 2025. Photography by Edmund Sumner and Kshitij Wadhwa.
