SENSORY LANDMARK

PERSPECTIVE



We designed an elementary school for blind children.

Fear of the unknown environment leads to a lack of activity, directly linked to children's creativity.

The focus was on spending the most extended hours of the day and living without fear in the most stimulated schools.

What if they could perceive the school's environment with their own senses?

What if they had their maps in their heads?

We started designing out of these questions and constructed sensory landmarks that they could recognize throughout the school as solutions. This will play a significant role in drawing maps in children's minds.





SITE PLAN







The site for this concept school is located in Moscow, Russia.

Moscow is the capital city of Russia with a geographical influence. We hope to be a milestone in the construction of a design school for blind children.

The feature of the site is that it has excellent accessibility because two sides touch the road.

Using this accessibility, we put the main entrance on a relatively narrow driveway, which leads to a drop off zone.

This guarantees stability in children's attendance.

CONCEPT

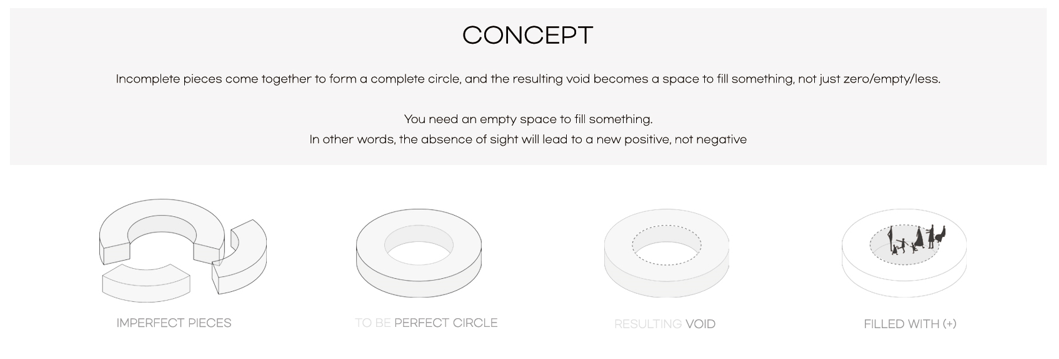

Incomplete pieces come together and become a complete circle that has an empty space. It means the absence of vision doesn't just work as a defect but a space for children to grow up and fill their own positive things. The building contains ideas of design throughout the actively designed process with the courtyard.

MASS PROCESS

Four senses work together and become tangible one thing. And then it consists of lines of circulation that minimize collisions. Lastly hierarchies of each spaces were established according to height, size, and importance.

SENSORY LANDMARK DIAGRAM

The building zoned to Landmark, Elementary School (age for 5-6), Kindergarten(age for 7-12), and Dormitory has a flow path that excludes danger by minimizing crossing or twisting, and  IN and OUT direction, which naturally occurs depending on the type of building, helps whether it is a direction. Space is constructed for each module so that a map of the head can be drawn, and each module has a landmark of the senses. There are Wind Landmark at the entrance that intuitively recognizes the transition of spaces. The sense of openness that depends on the size of the sound and the size of the space also helps to recognize the space.

01. MINIMIZE INTERSECTION

It excludes risk factors that are prone to collision, such as intersections, in advance and designs safe movement plans with curves that seem to flow naturally.

Even if you get lost, you can reach your destination by following the flow of movement.

02. IN ADD OUT DIRECTION

The opposite-shaped curves indicate direction.

The "Curve to out" walls and "Curve to in" walls construction complemented the existing flat walls that can't recognize the direction.

It makes one's position and direction easier to recognize by touch.

03. MENTAL MAP : route　& landmark

'Route' and 'Landmark' help organize mental map in your head. This mental map helps you reach your desired destination quickly and safely by yourself.

04. EACH MODULE

The building consists of modules installed for each module to help prevent twisting of the movement when it is bent while heading towards the entrance or straight line.

This module is used in schools to make up each classroom and special rooms and in dormitories to make up each room.

05. WIND LANDMARK

Mass is largely divided into landmark, elementary school, and dormitory.

There are Wind Landmark at the entrance that intuitively recognizes the transition of spaces.

06. ACOUSTIC LANDMARK

There are three main levels of openness divided into classrooms,  corridors, ramp's floor, and the landmark's floor.

As the sense of openness is divided depending on the floor height, the auditory nature of the space is different so that it can be intuitively recognized.

FIRST FLOOR PLAN

The entrance to the landmark is the main entrance where the drive-through is considered, and two sub entrances are accessed from the dormitory.

The zoning consists of Landmark, Elementary School (age for 5-6), Kindergarten(age for 7-12), and Dormitory. Each space has its own courtyard.

Along with the flow of the building, a spinning road is created to help children walk actively.

EXPLODED DIAGRAM

The circulation travels through landmarks to each building, helping to find a single corridor.

ACTIVITY DIAGRAM

PHYSICAL

Children are playing ball in the elementary school playground as a program to improve their physical ability.

ART FORMS

3rd-floor Elementary School gymnasium has an external workshop on the roof to help children engage in art activities regardless of size or size of space.

WORLD

The rain falls in the middle of the landmark and can be felt by the sound and smell.

EVOLUTION

For a society where cooperative activities are increasingly valued, children, achieve their goals through joint work

MENTAL

This is the dormitory lounge. Encourage active communication between children.

CREATIVITY

Playing in the courtyard of elementary school, expressing creativity and spreading various thoughts in various spaces.

COURTYARD

The courtyard acts as an important factor in this project. It enhances openness, establishes a hierarchy of space, and helps to ensure smooth space. Children perceive space through other senses.

CONCEPT SECTION
