Mark Frazerhurst Architect Carves an Angular Courtyard House into an Auckland Hillside

The name alone tells you something. Angle Grinder House, designed by Mark Frazerhurst Architect in Auckland, New Zealand, is not a house that arrived politely. It was cut into its site, wedged between a steep hillside and views of distant parkland, its plan shaped by the hard geometric logic of a plot that refused to cooperate. The result is a home built from corrugated metal, concrete block, and board-formed concrete that reads as a cluster of angular volumes rather than a single mass. Each piece tilts, cantilevers, or recedes in response to the terrain beneath it.

What makes the project genuinely interesting is how aggressively it uses topography as a design driver rather than a constraint to overcome. Instead of building a retaining wall and pretending the site is flat, Frazerhurst dug in: creating sunken courtyards, half-buried rooms, and cantilevered upper floors that hover over the landscape below. The house wraps around outdoor space as much as it encloses interior space, and the line between the two is deliberately thin. It is a project about section, about how you move vertically through a home, and about what you see at each level change.

A Facade of Parts

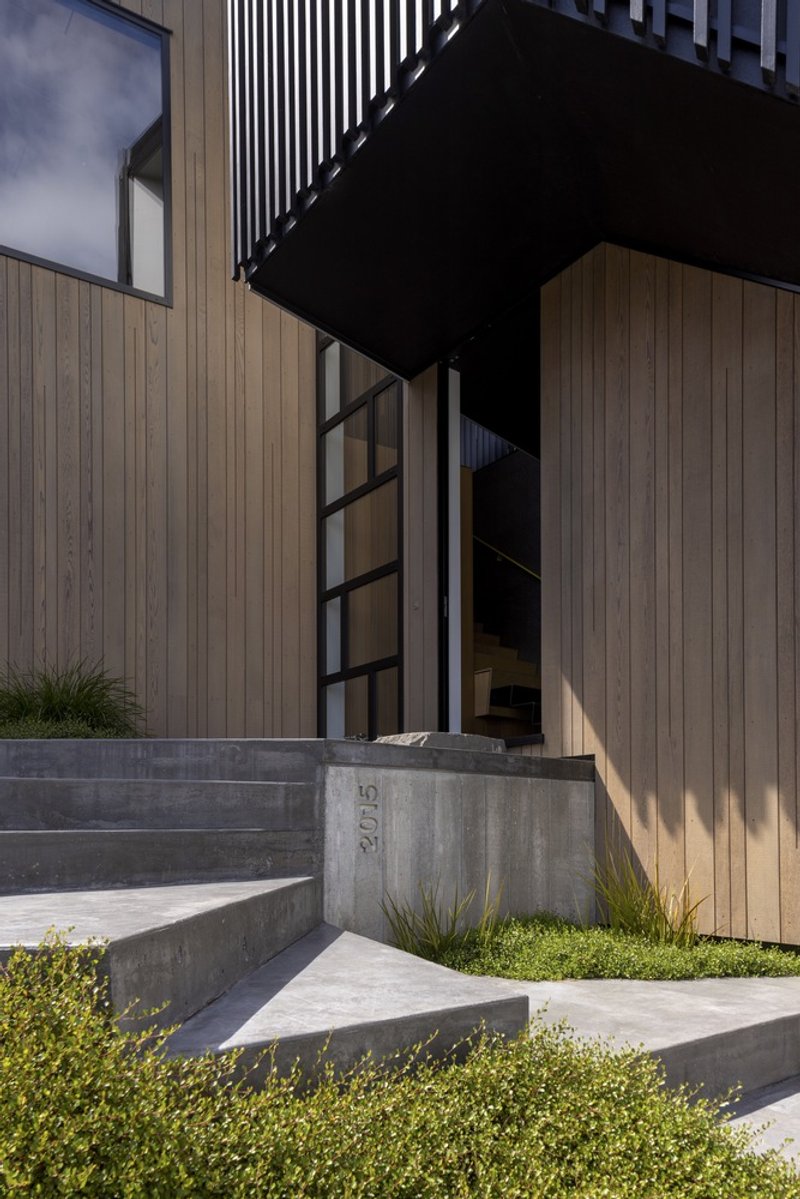

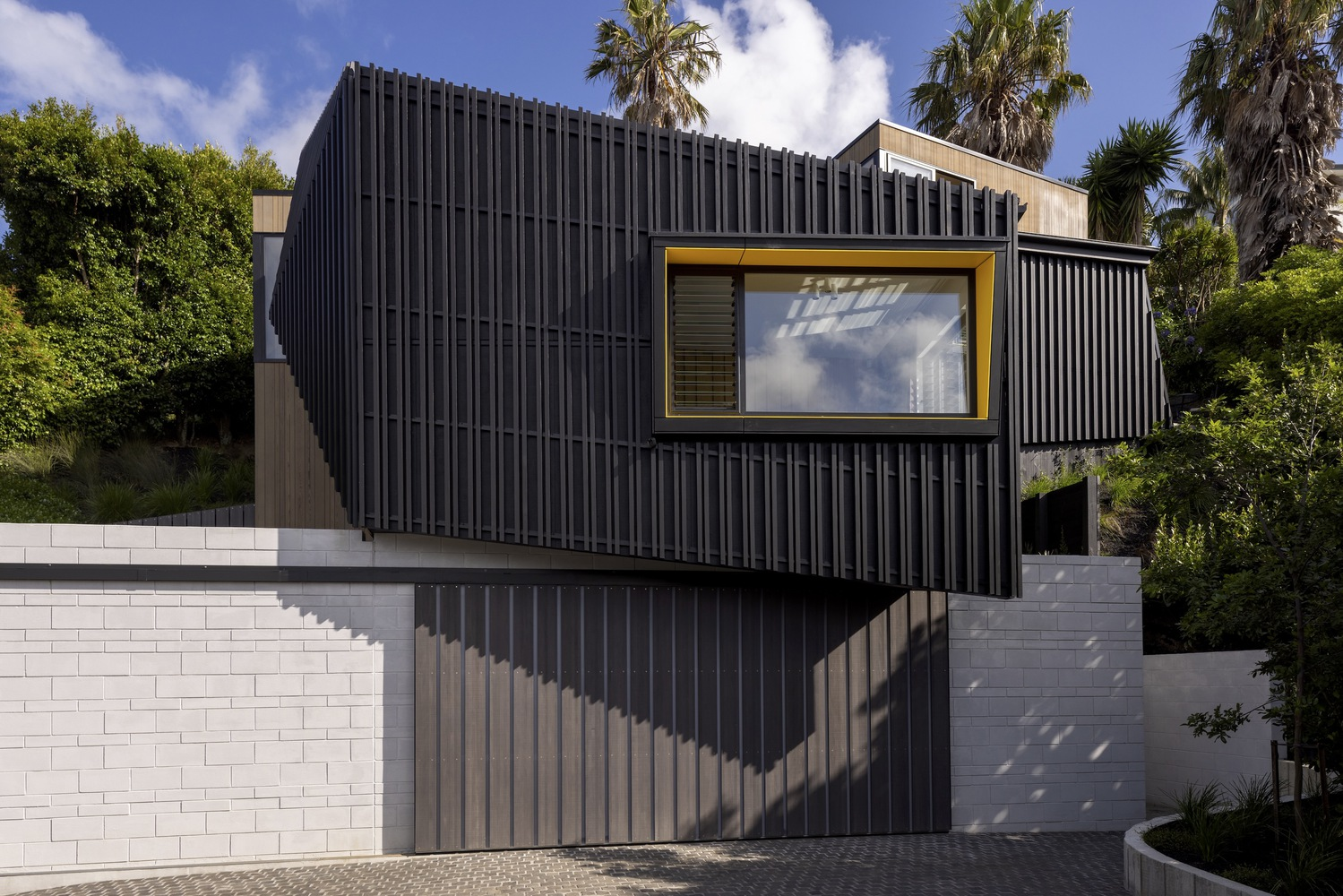

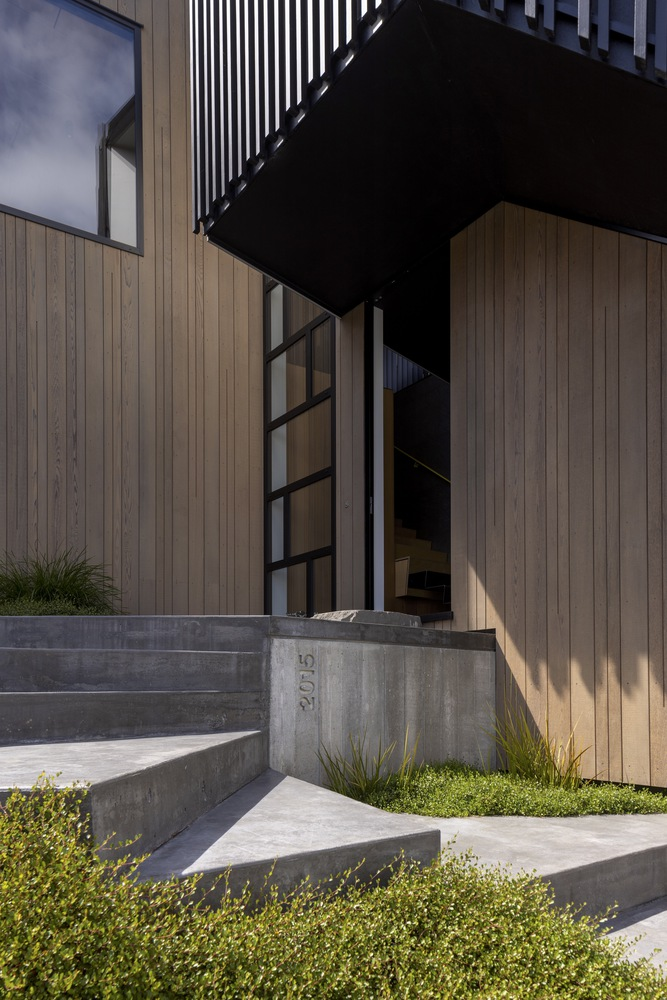

From the street, Angle Grinder House presents itself as a composition of materials rather than a unified elevation. Vertical corrugated metal cladding in dark tones wraps the upper volumes, while concrete block walls anchor the base. A single yellow-framed window punches through the metal skin with a precision that feels almost confrontational against the muted palette. The entry sequence channels visitors down concrete steps and through a steel-framed doorway tucked beneath the cantilevered upper floor, establishing from the first moment that this house is organized around compression and release.

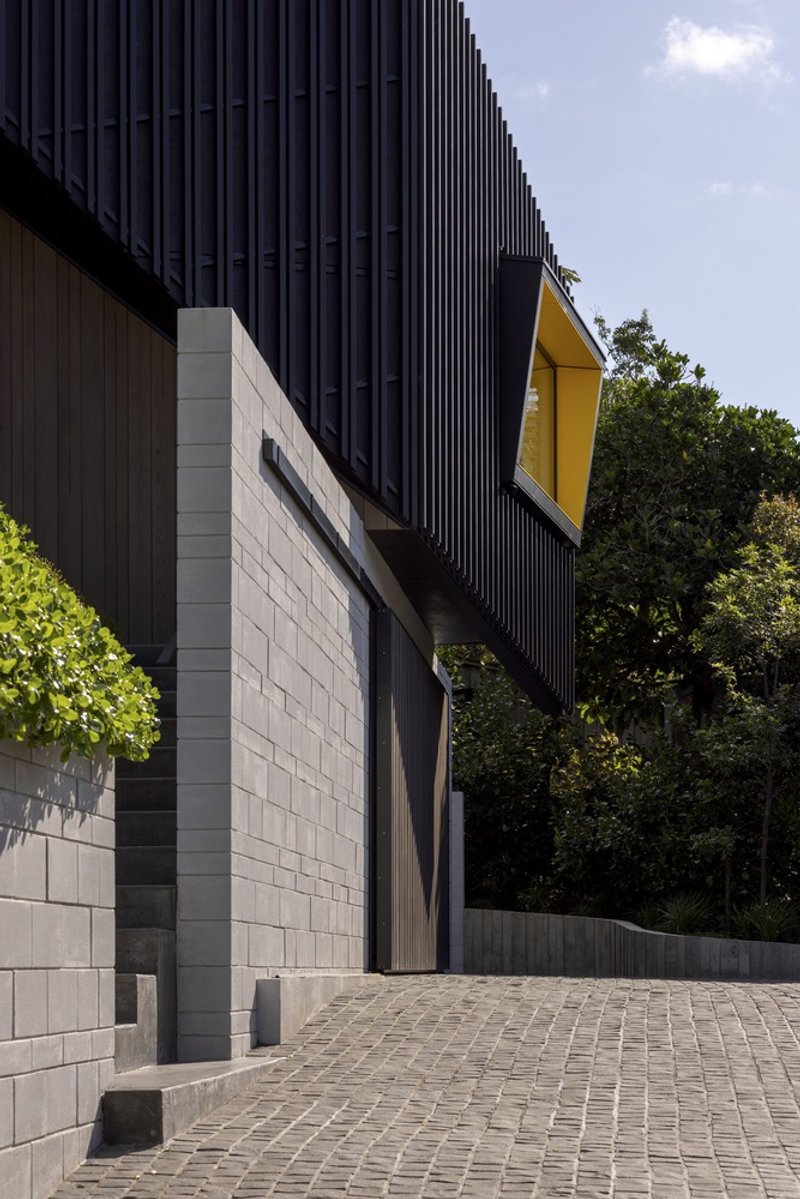

Cobbled paving in the entry courtyard softens the industrial language just enough. The meeting of corrugated metal, concrete block, and planting at ground level is handled with care: each material has its own zone, its own geometry. Nothing bleeds together. The house reads as an assembly of distinct pieces held in tension, which is appropriate for a building named after a power tool.

Cantilevers and Screens

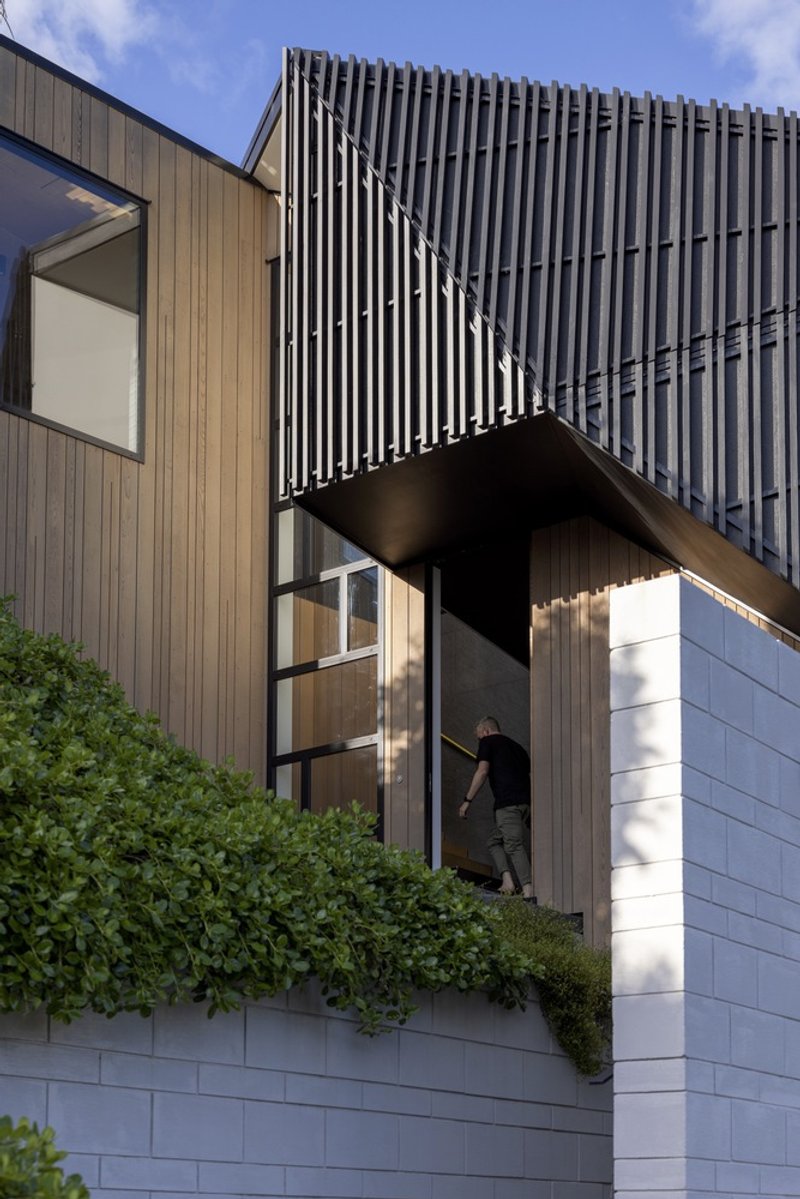

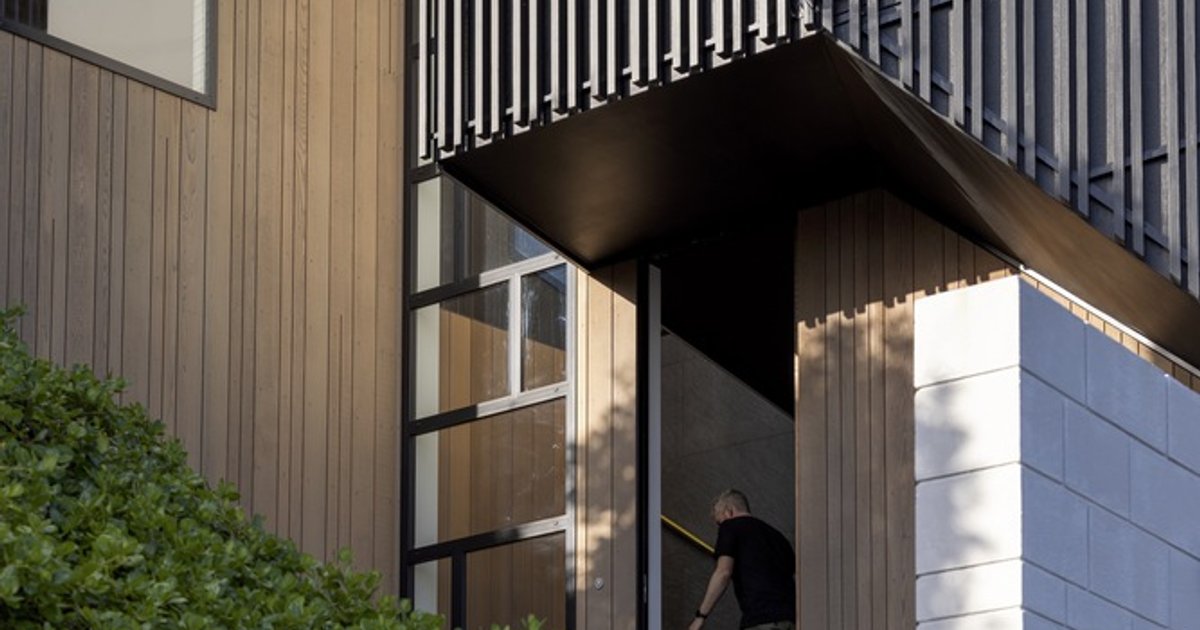

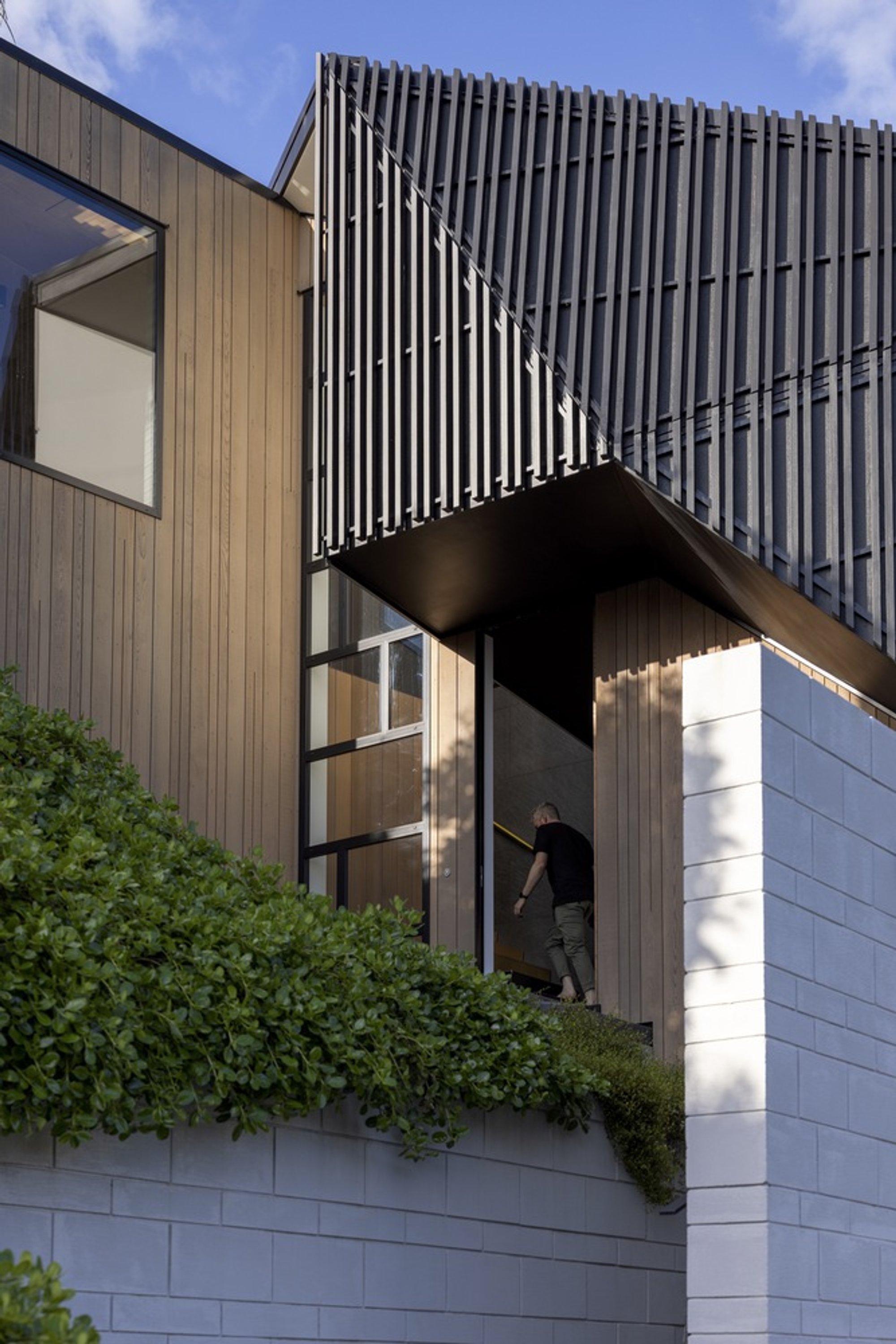

The most striking formal move is the cantilevered upper volume, clad in vertical metal screening, that pushes out over a timber-clad bridge and white tiled base below. It is a bold structural gesture that does real work: it creates sheltered outdoor space at the lower level while opening up views from the rooms above. The screening filters light and sightlines, turning the cantilever into something more nuanced than a simple overhang.

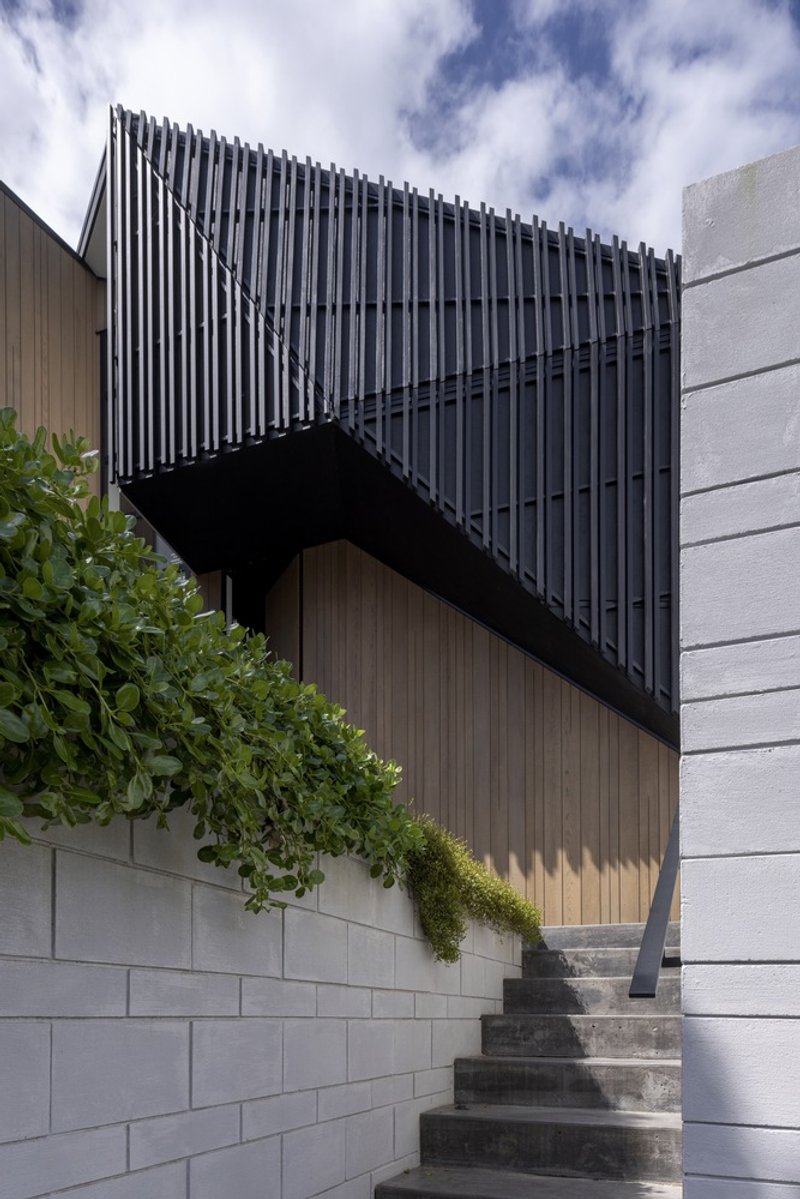

Seen from below, the same volume appears as a dark box floating above a planted concrete retaining wall. The greenery creeping up the wall provides the only organic counterpoint to an otherwise hard-edged composition. Frazerhurst clearly enjoys the drama of weight held in the air, and the house delivers on that promise at multiple points.

Sunken Ground

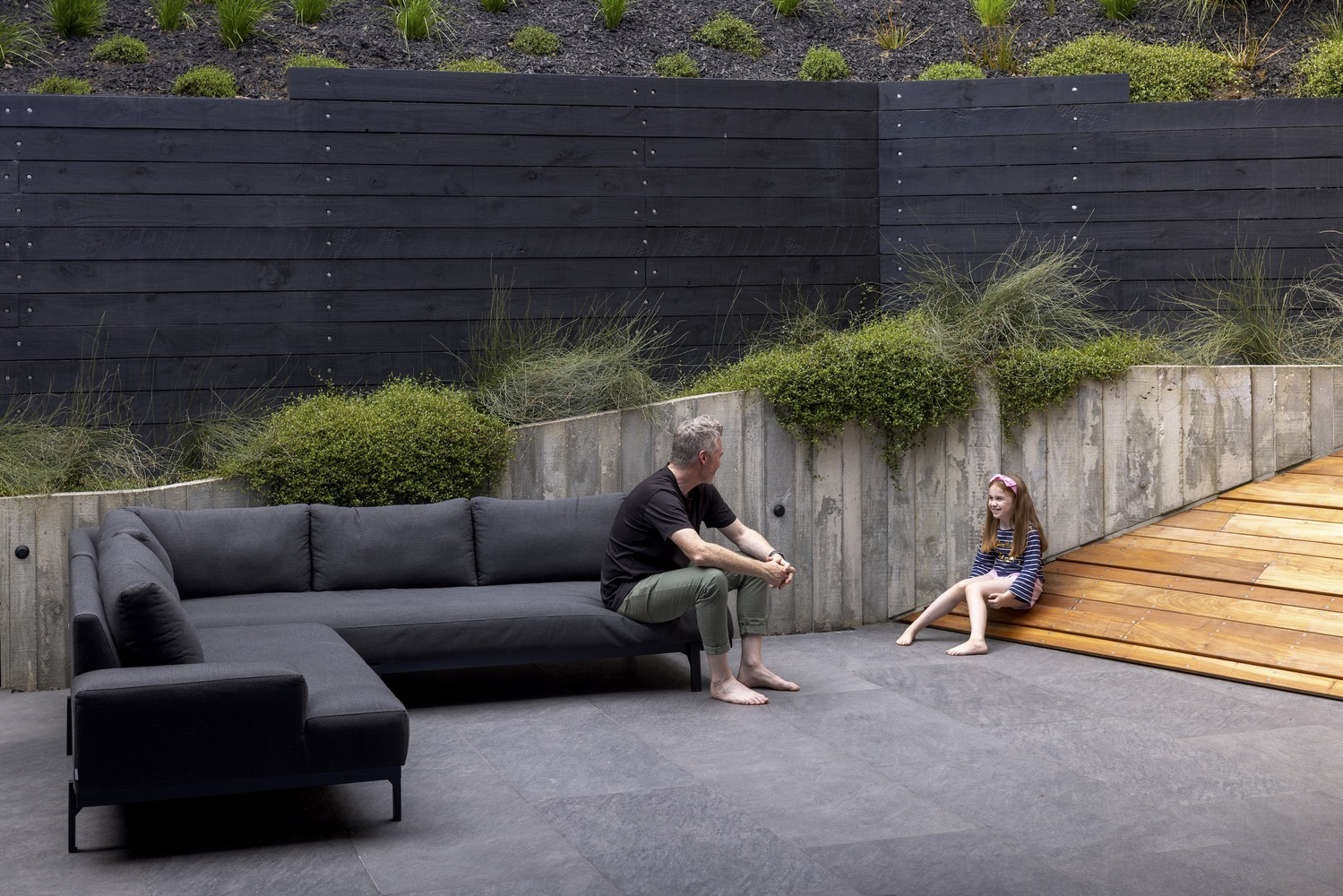

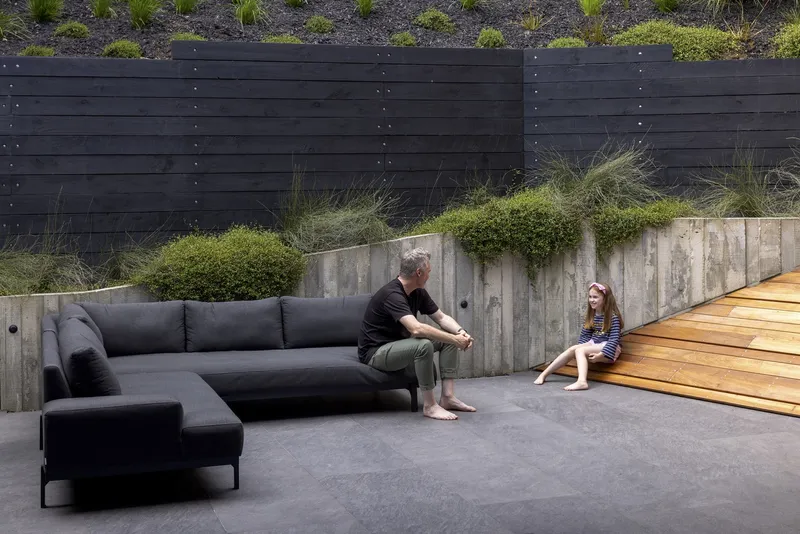

The sunken courtyard is the heart of the plan. Board-formed concrete retaining walls give the space a roughness that resists any reading of this as a conventional patio. Planted beds interrupt the hardscape, and the scale is intimate enough that two people seated here feel held by the architecture rather than exposed. The courtyard functions as a room without a ceiling, and the surrounding volumes of the house frame it on three sides.

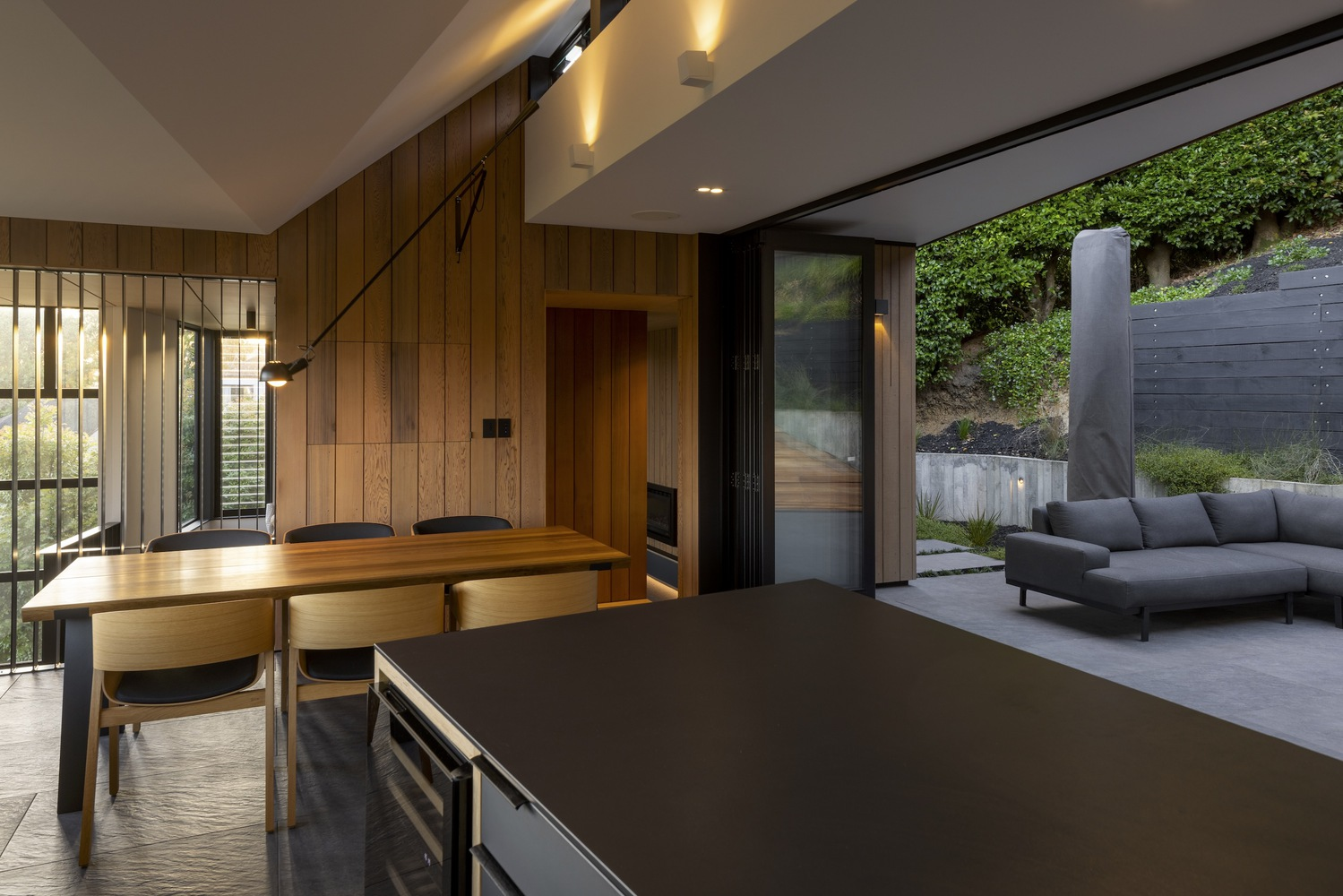

The kitchen and dining space open directly onto this courtyard through full-height glazing and a landscaped terrace. Timber-clad walls inside create continuity with the outdoor surfaces, blurring the threshold. The open plan is generous but not sprawling; it gains its sense of space from the courtyard connection rather than from sheer square footage.

Timber, Light, and the Interior Landscape

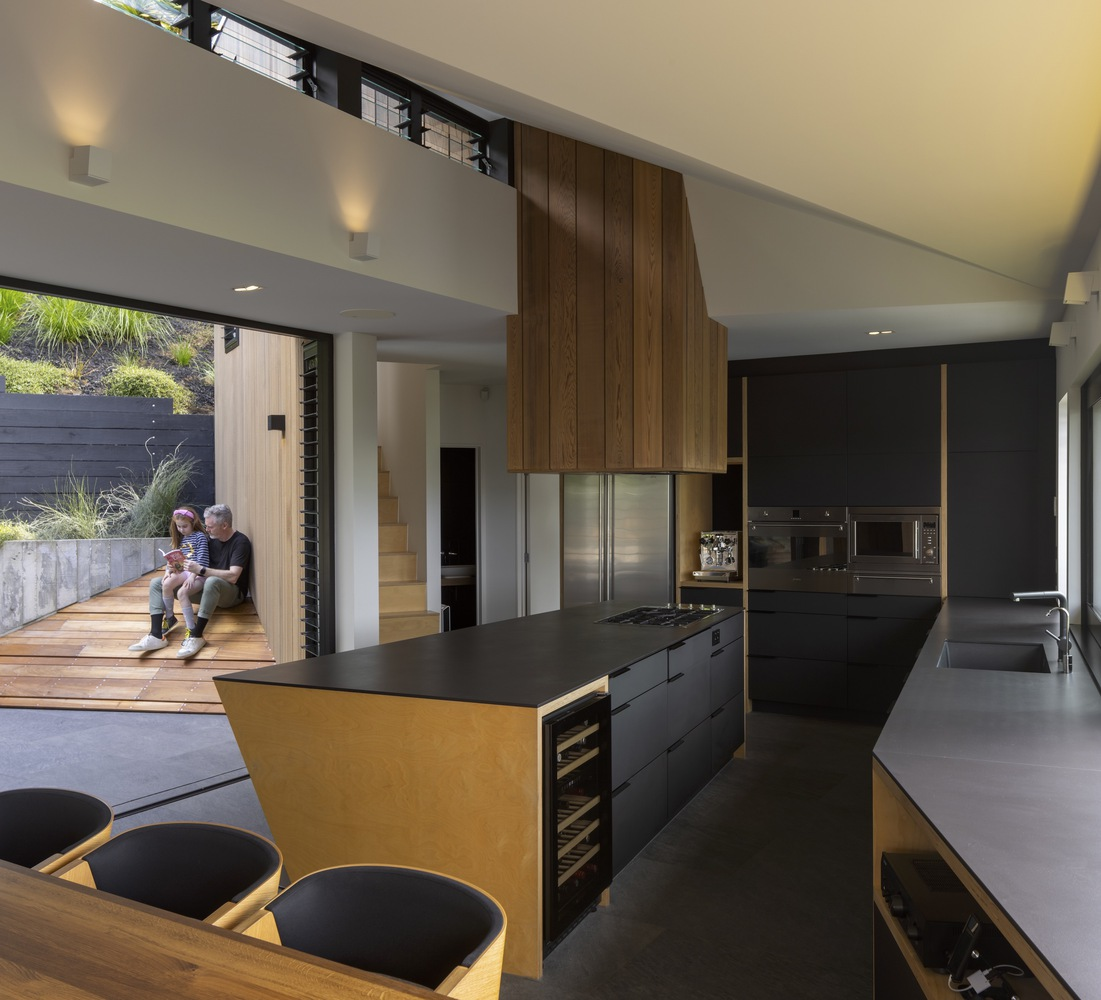

Inside, the palette shifts from industrial to warm. Timber cladding lines walls, kitchen islands, and rangehoods, creating a continuous surface that wraps from room to room. The kitchen looks through to an outdoor deck where figures sit in the sun, and the framing of that view through the interior is deliberate: every opening in this house is a picture composed by the architect.

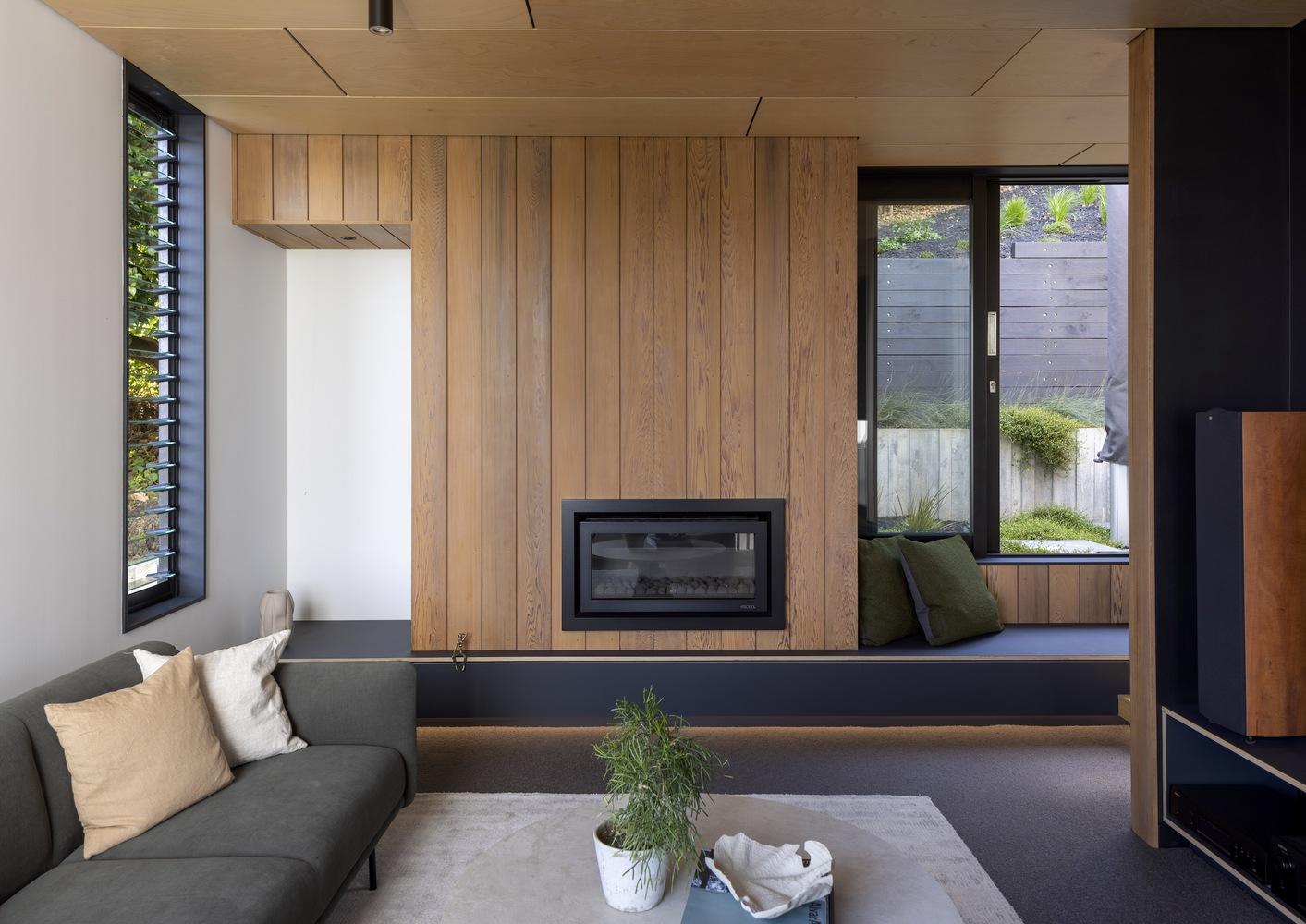

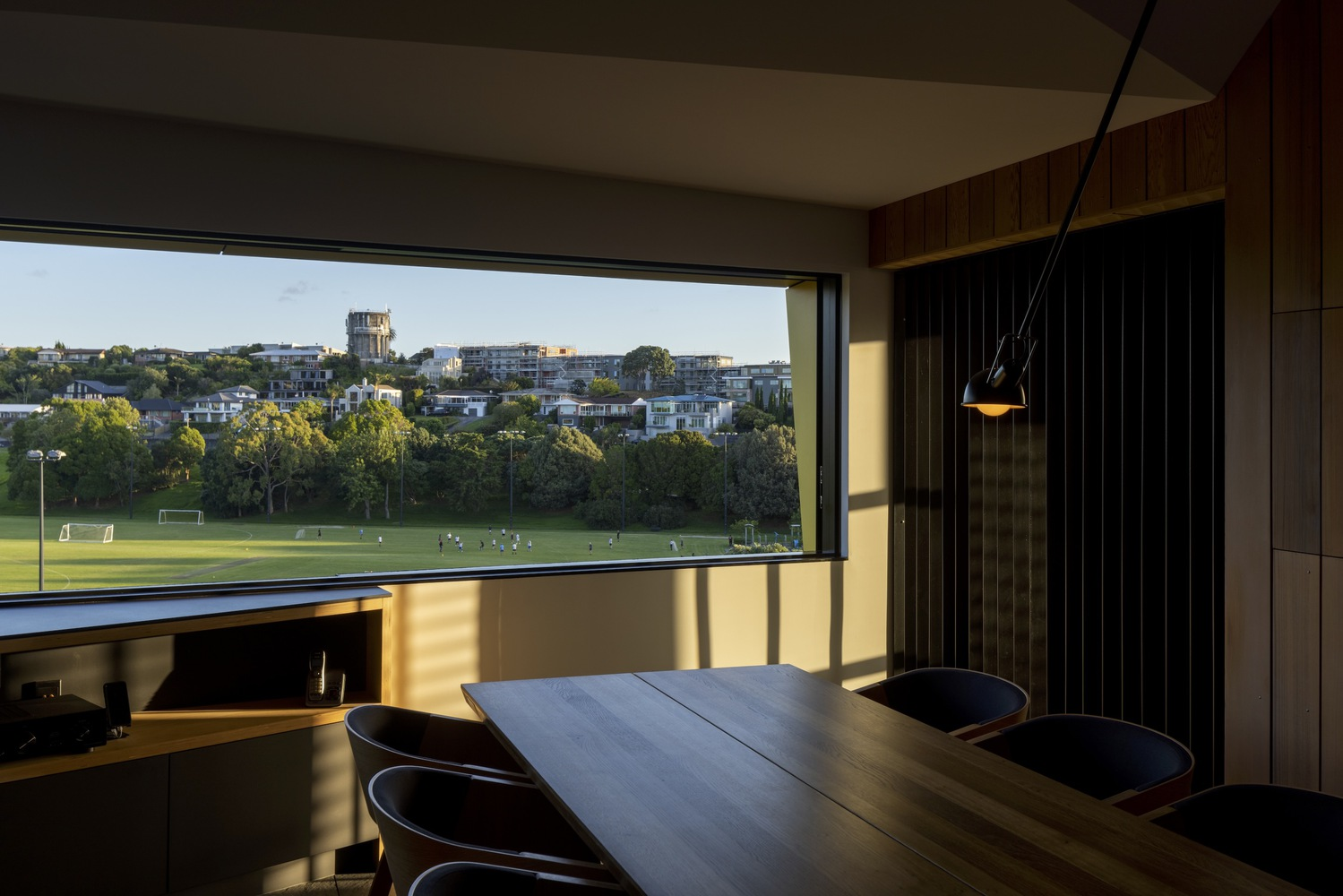

The living room conceals a fireplace within a timber wall, paired with a built-in window seat that overlooks the courtyard. It is a quiet, well-proportioned room that rewards sitting still. Nearby, the dining area captures a horizontal window that frames distant parkland in late afternoon light. The view is long and green, a counterweight to the tight, excavated spaces that define most of the plan.

Upper Rooms and Filtered Light

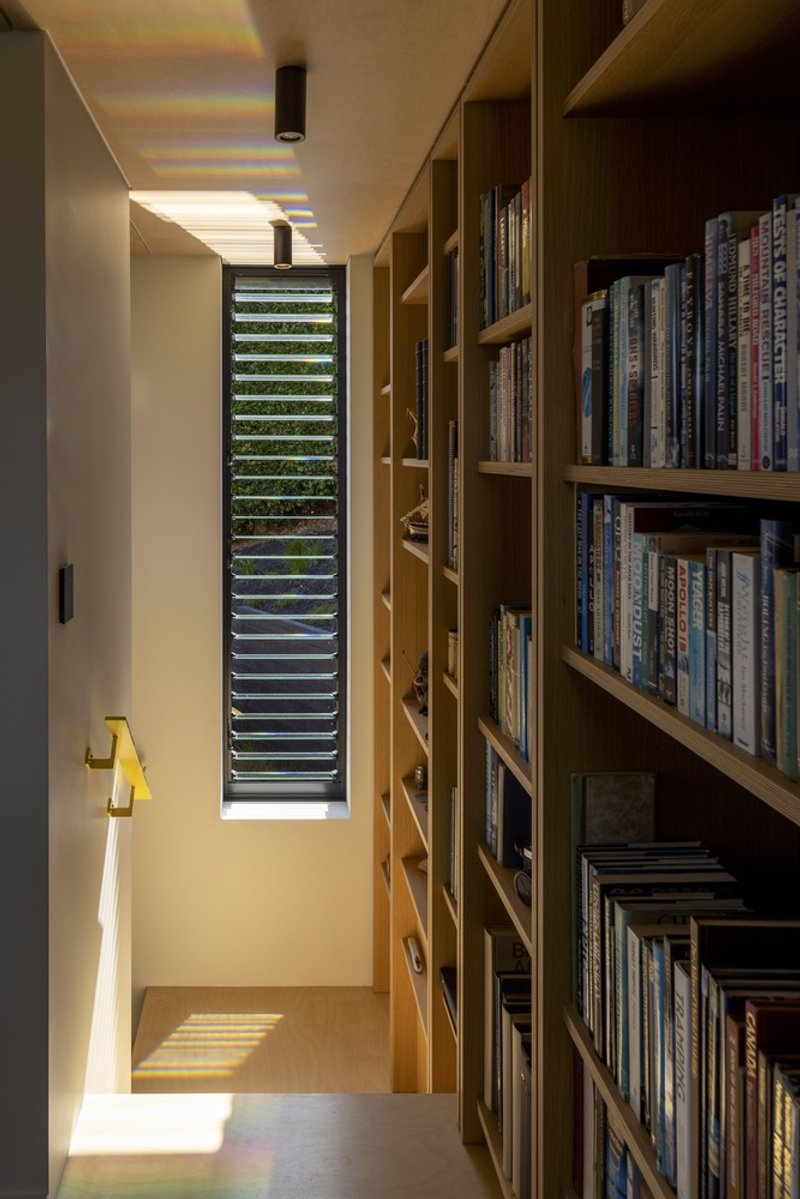

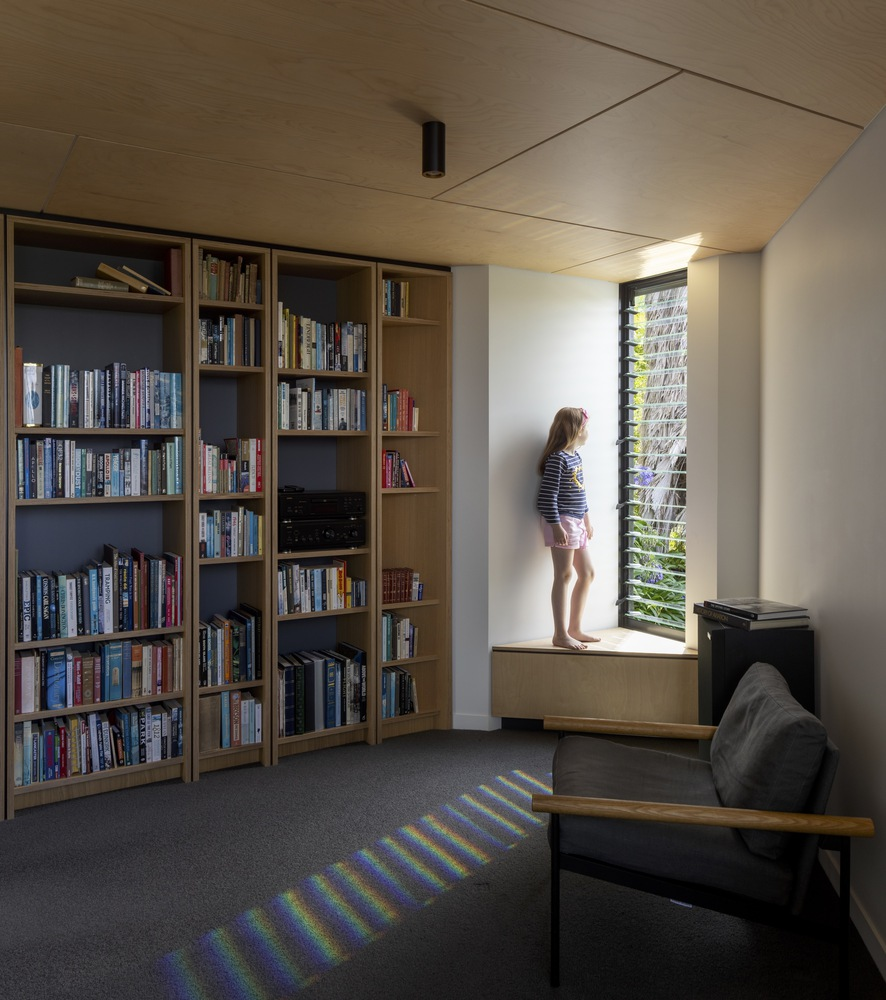

The upper level is where the house earns its most atmospheric moments. A library with floor-to-ceiling timber shelving wraps a window seat where louvered glass panels control light and privacy. A child silhouetted against the louvers could be a painting. Down a narrow corridor, vertical louvered windows cast striped sunlight across the floor and across the spines of books shelved along the wall. These are not grand architectural gestures. They are small, precise calibrations of light and enclosure that make the rooms feel alive at different hours of the day.

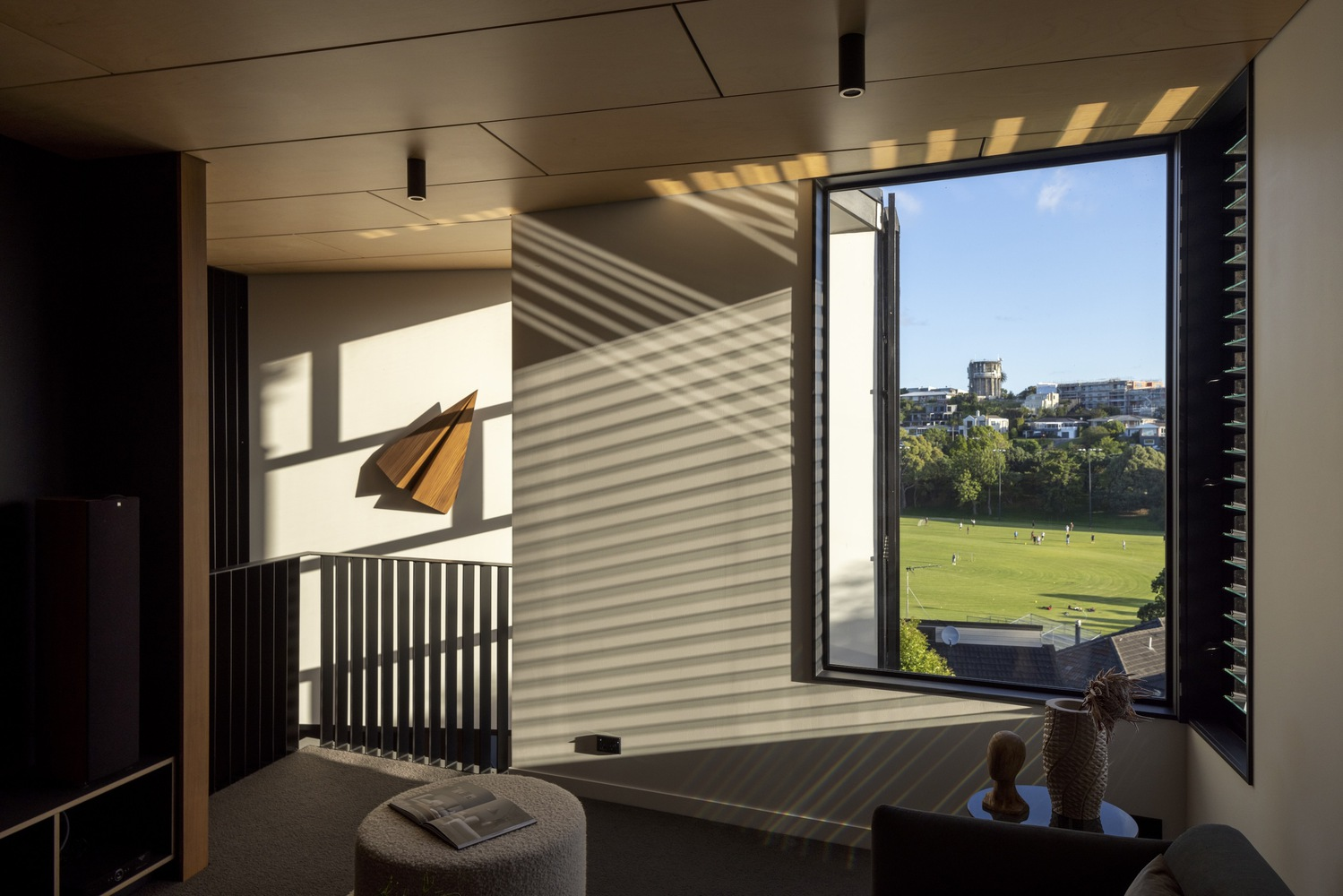

An upper sitting nook takes the same louvered language and applies it at a larger scale, with angled shadows playing across walls and tall glazing framing park views. The room is clearly designed for reading and contemplation, a retreat within the retreat. Frazerhurst understands that the best rooms in a house are often the smallest ones.

Plans and Drawings

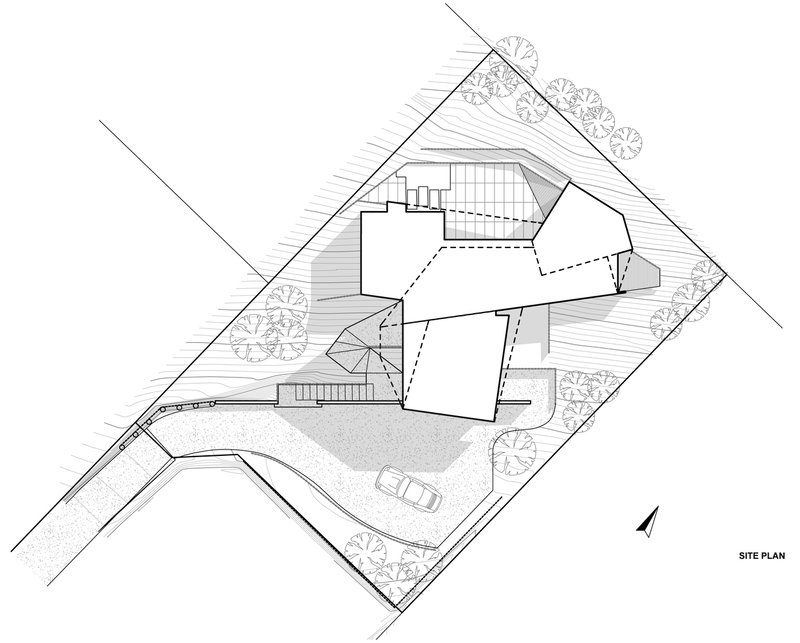

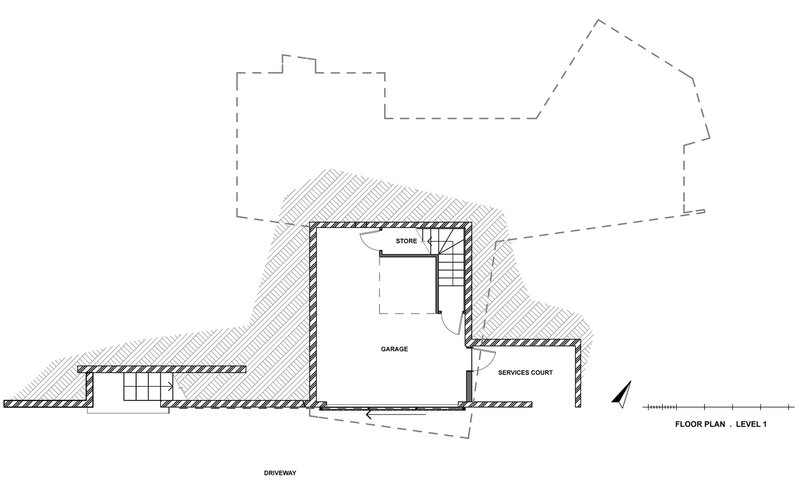

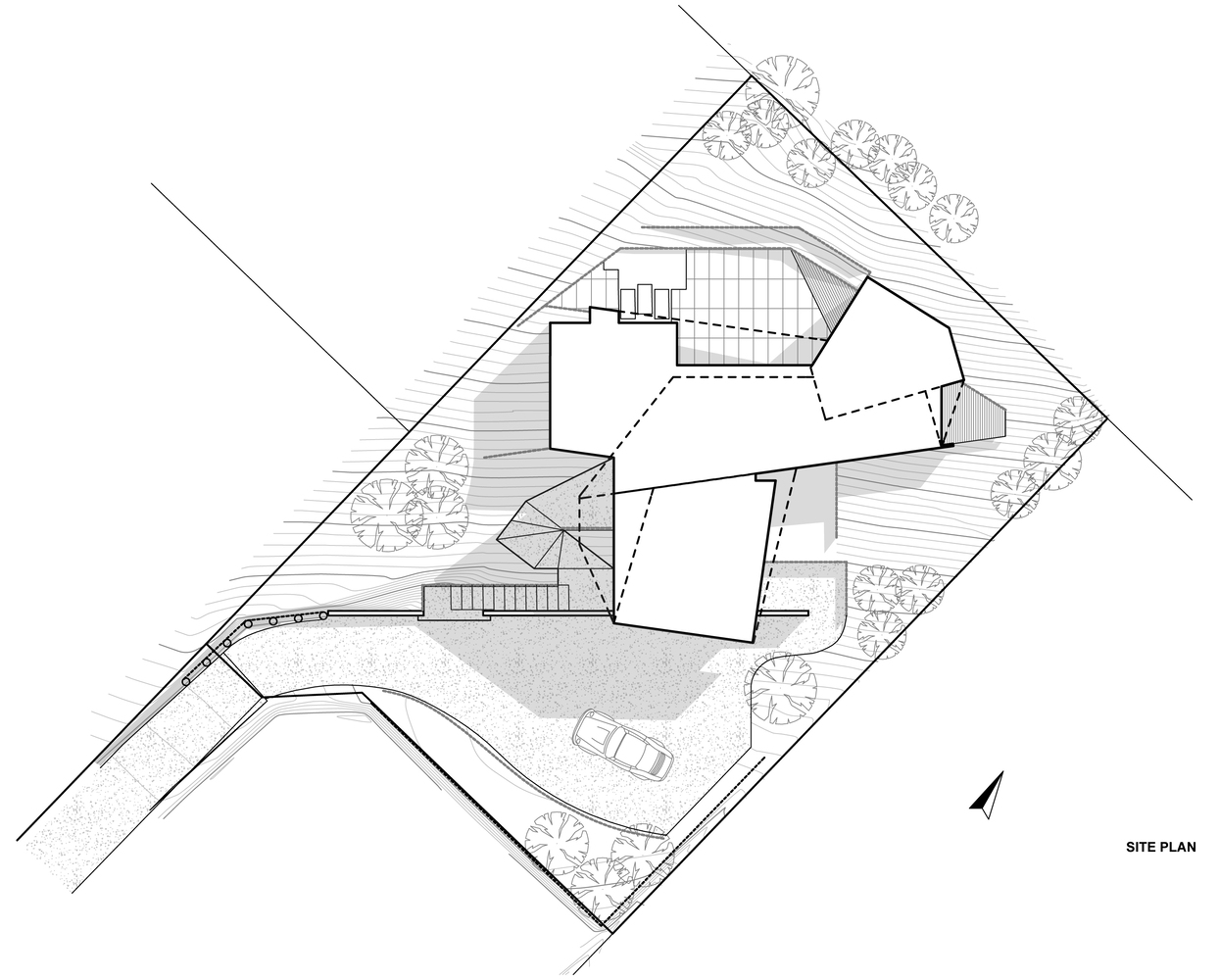

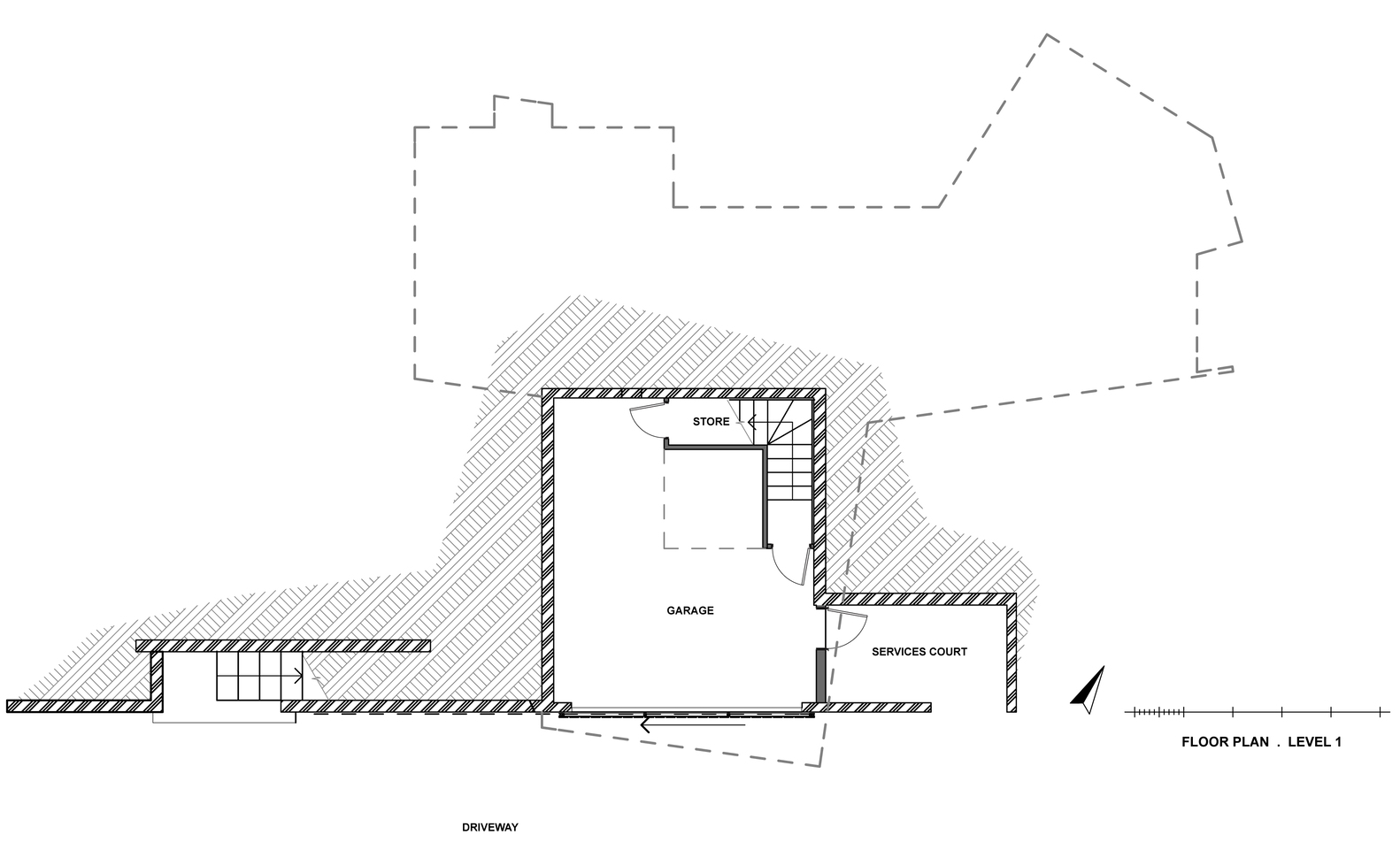

The site plan reveals the angular footprint that gives the house its name and its character. The building splays across the slope, wrapping outdoor spaces on multiple sides and connecting to a curved driveway that negotiates the topography. The level one floor plan shows how the lower portion of the house is given over to garage, storage, and services, a solid podium that supports the more expressive living spaces above. The angular geometry is not arbitrary: each wall responds to a boundary condition, a view line, or a level change. The plan is the argument for the entire project.

Why This Project Matters

Angle Grinder House is a reminder that residential architecture in New Zealand does not have to default to the lightweight pavilion model. Frazerhurst has built a house that takes its site seriously, using concrete and corrugated metal to create something that feels permanent and rooted. The combination of sunken courtyards, cantilevered volumes, and carefully filtered light produces a sequence of experiences that few flat-site houses could match. Topography is not the enemy here; it is the entire premise.

The project also demonstrates that material honesty and spatial warmth are not contradictions. Board-formed concrete, corrugated cladding, and raw steel could easily produce a cold, alienating interior. But the shift to timber inside, combined with louvered light and courtyard connections, gives each room a sense of comfort that the exterior deliberately withholds. That tension between a tough shell and a warm interior is the best thing about the house, and the reason it lingers in the mind long after you have looked away.

Angle Grinder House by Mark Frazerhurst Architect, Auckland, New Zealand. Photography by Simon Devitt.
